Users Manual
Important Safety Precautions
Important Safety Precautions
1
Read these instructions. Breaking the rules may be dangerous or
illegal. Further detailed information is given in this user guide.
WARNING! Violation of the instructions may cause serious injury or death.
1. Never use an unapproved battery since this could
damage the phone and/or battery and could cause
the battery to explode.
2. Never place your phone in a microwave oven as it will
cause the battery to explode.
3. Never store your phone in temperatures less than
-4°F or greater than 122°F.
4. Do not dispose of your battery by fire or with
hazardous or flammable materials.
5. When riding in a car, do not leave your phone or set
up the hands-free kit near to the air bag. If wireless
equipment is improperly installed and the air bag is
deployed, you may be seriously injured.
6. Do not use a hand-held phone while driving.
7. Do not use the phone in areas where its use is
prohibited. (For example: aircraft)
8. Do not use your device for long periods of time
while a part of your body is making direct contact
with it. The temperature of the product may increase
during normal operation and this may result in
harming or burning your skin.
Important Safety Precautions
2
Important Safety Precautions
1. Do not expose the battery charger or adapter to direct
sunlight or use it in places with high humidity, such as
a bathroom.
2. Do not use harsh chemicals (such as alcohol, benzene,
thinners, etc.) or detergents to clean your phone. This
could cause a fire.
3. Do not drop, strike, or shake your phone severely. It
may harm the internal circuit boards of the phone.
4. Do not use your phone in high explosive areas as the
phone may generate sparks.
5. Do not damage the power cord by bending, twisting,
pulling, or heating. Do not use the plug if it is loose as
it may cause a fire or electric shock.
6. Do not place any heavy items on the power cord. Do
not allow the power cord to be crimped as it may
cause electric shock or fire.
7. Do not handle the phone with wet hands while it is
being charged. It may cause an electric shock or
seriously damage your phone.
8. Do not disassemble the phone.
3
Important Safety Precautions
1. Do not place or answer calls while charging the phone as it may
short-circuit the phone and/or cause electric shock or fire.
2. Do not hold or let the antenna come in contact with your body
during a call.
3. Make sure that no sharp-edged items such as animal’s teeth or
nails, come into contact with the battery. This could cause a fire.
4. Store the battery out of reach of children.
5. Be careful that children do not swallow any parts (such as
rubber plugs, earphone, connection parts of the phone, etc.)
This could cause asphyxiation or suffocation resulting in serious
injury or death.
6. Unplug the power cord and charger during lightning storms to
avoid electric shock or fire.
7. Only use the batteries and chargers provided by LG. The
warranty will not be applied to products provided by other
suppliers.
8. Only authorized personnel should service the phone and its
accessories. Faulty installation or service may result in accidents
and consequently invalidate the warranty.
9. Your service provider programs one or more emergency phone
numbers, such as 911, that you can call under any
circumstances, even when your phone is locked. Your phone’s
preprogrammed emergency number(s) may not work in all
locations, and sometimes an emergency call cannot be placed
due to network, environmental, or interference issues.
Table of Contents
4
Table of Contents
Important Safety
Precautions 1
Table of Contents 4
Welcome 9
Technical Details 10
Important Information 10
FCC Part 15 Class B Compliance 10
Technical Details 10
FCC RF Exposure Information 12
Bodily Contact During Operation 12
Vehicle-Mounted External
Antenna 13
FCC Notice and Cautions 13
Caution 14
Part 15.19 statement 14
Part 15.21 statement 14
Part 15.105 statement 14
HAC 15
Phone Overview 16
Menus Overview 18
Menu Access 18
Getting Started with Your
Phone 21

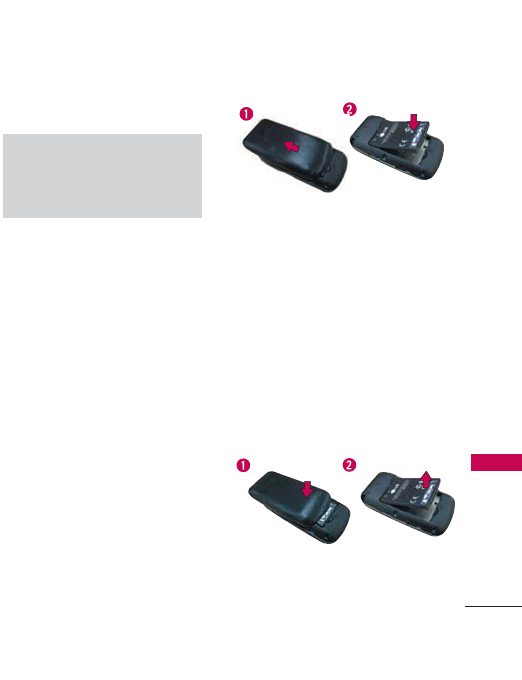

The Battery 21
Installing the Battery 21
Removing the Battery 21
Charging the Battery 22
Battery Charge Level 22
Turning the Phone On and Off 23
Turning the Phone On 23
Turning the Phone Off 23
Signal Strength 23
Screen Icons 24
Making Calls 24
Correcting Dialing Mistakes 25
Receiving Calls 25
Quick Access to Convenient
Features 26
Lock Mode 26
5
Table of Contents
Mute Function 26
Quick Volume Adjustments 26
Call Waiting 26
Caller ID 27
Speed Dialing 27
Entering and Editing
Information 28
Text Input 28
Key Functions 28
The Basics of Storing Contacts
Entries 29
Phone Numbers With Pauses 29
Adding a Pause or Wait to an
Existing Number 30
Searching Your Phone’s Memory 31
Scrolling Through Your Contacts 31
Contacts Options 31
Making a Call From Your Phone’s
Memory 32
Phone Menus 34
Contacts 34
1. New Contact 34
2. Contact List 34
3. Favorites 35
4. Groups 36
5. Speed Dials 36
6. My vCard 37
Messaging 37
1. New Text Message 37
2. New Picture Message 40
3. Inbox 41
4. Outbox 43
5. Drafts 44
6. Voicemail 44
7. Templates 45
8. Settings 45
9. Delete All 47
Call History 48
1. Missed Calls 48
2. Received Calls 48
3. Dialed Calls 48
Table of Contents
6
Table of Contents
4. All Calls 48
5. Call Timer 48
6. Data Counter 49
Multimedia 49
1. Take Photo 49
2. Record Voice 51
3. Images 51
4. Sounds 53
easyedge
SM
54
1. easyedgeSM Apps 55
My Schedule 55
1. Alarm Clock 55
2. Calendar 56
3. Notepad 57
Browser 58
1. Start Browser 58
Tools 60
1. Voice Command 60
1.1 Start Command 60
1.1.1 Call <Name> or <Number> 60
1.1.2 Voicemail 60
1.1.3 Missed Calls 61
1.1.4 Messages 61
1.1.5 Time & Date 61
1.1.6 Help 61
1.2 Command Mode 61
1.3 Announce Alert 62
1.4 Train Word 62
1.5 Best Match 62
2. Calculator 63
3. My Menu 63
4. Ez Tip Calculator 64
5. World Clock 64
6. Stopwatch 65
7. Unit Converter 65
Settings 66
1. Sound 66
1.1 Ringtones 66
1.2 Volume & Vibrate 66
1.3 Message Alerts 66
1.4 Alert Type 67
1.5 Service Alerts 67
7
Table of Contents
1.6 Power On/Off Tone 68
1.7 Flip Tone 68
2. Display 68
2.1 Wallpaper 68
2.2 Banner 68
2.3 Backlight 69
2.4 Menu Style 69
2.5 Languages (Idiomas) 69
2.6 Clocks & Calendar 69
2.7 Font Settings 70
2.8 Word Prediction 70
2.9 Name Match for Dialing 71
3. Security 71
3.1 Lock Phone 71
3.2 Restrictions 72
3.3 Emergency Numbers 72
3.4 Change Lock Code 73
3.5 Master Reset 73
4. Call Settings 74
4.1 Answer Options 74
4.2 Auto Retry 74
4.3 One Touch Dial 74
4.4 Voice Privacy 74
4.5 Airplane Mode 75
4.6 TTY Mode 75
5. Bluetooth 76
5.1 Paired Devices 76
5.2 Power 78
5.3 My Visibility 78
5.4 My Bluetooth Info 78
6. System 78
6.1 Network 78
6.2 Location 79
7. Web Access Prompt 80
8. Memory 80
9. Phone Info 80
Tone Room Deluxe 81
My Contacts Backup 81
PAC-MAN 81
Safety 82
TIA Safety Information 82
Exposure to Radio Frequency
Signal 82
Table of Contents
8
Table of Contents
Antenna Care 82
Phone Operation 83
Tips on Efficient Operation 83
Driving 83
Electronic Devices 83
Pacemakers 84
Persons with pacemakers: 84
Hearing Aids 84
Other Medical Devices 84
Health Care Facilities 85
Vehicles 85
Posted Facilities 85
Aircraft 85
Blasting Areas 85
Potentially Explosive
Atmosphere 85
Safety Information 86
For Vehicles Equipped with an
Air Bag 86
Charger and Adapter Safety 87
Battery Information and Care 88
Explosion, Shock, and Fire
Hazards 89
General Notice 89
Warning! Important safety
information 91
Avoiding hearing damage 91
Using your phone safely 91
FDA Consumer Update 92
10 Driver Safety Tips 102
Consumer Information on
SAR 105
FCC Hearing-Aid Compatibility
(HAC) Regulations for
Wireless Devices 109
Welcome
9
Welcome
Thank you for choosing the
UN160 cellular phone, designed
to operate with the latest digital
mobile communication
technology, Code Division
Multiple Access (CDMA). Along
with the many advanced features
of the CDMA system, this
compact phone offers:
G
Significantly enhanced voice
clarity.
G
Slim and sleek design with
internal antenna.
G
Large, easy-to-read, backlit LCD
with status icons.
G
Messaging, voicemail, and caller
ID capabilities.
G
23-key keypad.
G
Speakerphone feature.
G
Menu-driven interface with
prompts for easy operation and
configuration.
G
Any key answer, auto answer,
auto retry, one-touch and speed
dialing with 99 memory
locations.
G
Bilingual (English and Spanish)
capabilities.
G
Bluetooth®wireless technology.
Note
The Bluetooth®word mark and
logos are owned by the Bluetooth
SIG, Inc. and any use of such marks
by LG Electronics is under license.
Other trademarks and trade names
are those of their respective owners.
Technical Details
10
Technical Details
Important Information
This user’s guide provides
important information on the use
and operation of your phone.
Please read all the information
carefully prior to using the
phone for the best performance
and to prevent any damage to or
misuse of the phone. Any
unapproved changes or
modifications will void your
warranty.
FCC Part 15 Class B
Compliance
This device and its accessories
comply with part 15 of FCC
rules. Operation is subject to the
following two conditions: (1)
This device and its accessories
may not cause harmful
interference, and (2) this device
and its accessories must accept
any interference received,
including interference that
causes undesired operation.
Technical Details
The UN160 is a trimode phone
that operates on among (Code
Division Multiple Access CDMA)
frequencies: cellular services at
800 MHz, (Personal
Communication Services PCS) at
1.9 GHz.
CDMA technology uses a feature
called DSSS (Direct Sequence
Spread Spectrum) that enables
the phone to keep
communication from being
crossed and to use one
frequency channel by multiple
users in the same specific area.
This results in a 10-fold capacity
increase when compared with
analog mode. In addition,
features such as soft / softer
handoff, hard handoff, and
11
Technical Details
dynamic RF power control
technologies combine to reduce
call interruptions.
The Cellular and PCS CDMA
networks consist of MSO (Mobile
Switching Office), BSC (Base
CDMA Standard
Basic Air
Interface
TIA/EIA-95A
TSB-74
ANSI J-STD-008
TIA/EIA-IS2000
ANSI TIA/EIA 553A
CDMA Dual Mode Air Interface
14.4kbps radio link protocol and inter-
band operations
IS-95 adapted for PCS frequency band
cdma2000 1xRTT AirInterface
MAS-BS
PCSC-RS
Intersystem operations
Non-signaling data comm.
Cellular base station
Cellular mobile station
PCS personal station
PCS base station
Speech CODEC
TIA/EIA/IS-634
TIA/EIA/IS/651
TIA/EIA/IS-41-C
TIA/EIA/IS-124
TIA/EIA/IS-97
TIA/EIA/IS-98
ANSI J-STD-018
ANSI J-STD-019
TIA/EIA/IS-125
TIA/EIA/IS-96-B
TIA/EIA/IS-637
TIA/EIA/IS-657
IS-801
TIA/EIA/IS-707-A
Speech CODEC
Short message service
Packet Data
Position Determination
Service (gpsOne)
High Speed Packet Data
Network
Service
Performance
Designator Description
Technical Details
12
Technical Details
Station Controller), BTS (Base
Station Transmission System), ,
MS (Mobile Station).
* TSB-74: Protocol between an
IS-95A system and ANSI J-
STD-008
1xRTT system receives twice as
many subscribers in the wireless
section as IS-95. Its battery life
is twice as long as IS-95. High-
speed data transmission is also
possible.
The table on the previous page
lists some major CDMA
standards.
FCC RF Exposure Information
WARNING! Read this
information before operating
the phone.
In August 1996, the Federal
Communications Commission
(FCC) of the United States, with
its action in Report and Order
FCC 96-326, adopted an
updated safety standard for
human exposure to Radio
Frequency (RF) electromagnetic
energy emitted by FCC regulated
transmitters. Those guidelines are
consistent with the safety
standard previously set by both
U.S. and international standards
bodies. The design of this phone
complies with the FCC guidelines
and these international
standards.
Bodily Contact During
Operation
This device was tested for typical
use with the back of the phone
kept 0.79 inches (2.0 cm) from
the body. To comply with FCC
RF exposure requirements, a
minimum separation distance of
0.79 inches (2.0 cm) must be
maintained between the user’s
body and the back of the phone,
0.59 inches (1.5 cm)
0.59 inches (1.5 cm)
13
Technical Details
including the antenna, whether
extended or retracted. Third-
party belt-clips, holsters, and
similar accessories containing
metallic components should not
be used. Avoid the use of
accessories that cannot maintain
0.79 inches (2.0 cm) distance
between the user’s body and the
back of the phone and have not
been tested for compliance with
FCC RF exposure limits.
Vehicle-Mounted External
Antenna
(Optional, if available.)
To satisfy FCC RF exposure
requirements, keep 8 inches (20
cm) between the user /
bystander and vehicle-mounted
external antenna. For more
information about RF exposure,
visit the FCC website at
www.fcc.gov.
FCC Notice and Cautions
This device and its accessories
comply with part 15 of FCC
rules. Operation is subject to the
following two conditions: (1)
This device and its accessories
may not cause harmful
interference, and (2) this device
and its accessories must accept
any interference received,
including interference that
causes undesired operation.
Any changes or modifications
not expressly approved in this
user guide could void your
warranty for this equipment. Use
only the supplied antenna. Use
of unauthorized antennas (or
modifications to the antenna)
could impair call quality, damage
the phone, void your warranty
and/or violate FCC regulations.
0.59 inches (1.5 cm)
Technical Details
14
Technical Details
Don't use the phone with a
damaged antenna. A damaged
antenna could cause a minor skin
burn. Contact your local dealer
for a replacement antenna.
Caution
Use only the supplied and
approved antenna. Use of
unauthorized antennas or
modifications could impair call
quality, damage the phone, void
your warranty and/or result in
violation of FCC regulations. Do
not use the phone with a
damaged antenna. If a damaged
antenna comes into contact with
the skin a minor burn may result.
Contact your local dealer for a
replacement antenna.
Part 15.19 statement
This device and its accessories
comply with part15 of FCC rules.
Operation is subject to the
following two conditions:
(1) This device & its accessories
may not cause harmful
interference.
(2) This device & its accessories
must accept any interference
received, including
interference that may cause
undesired operation.
Part 15.21 statement
Change or Modifications that are
not expressly approved by the
manufacturer could void the user's
authority to operate the equipment.
Part 15.105 statement
This equipment has been tested
and found to comply with the
limits for a class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection
against harmful interference in a
residential installation. This
equipment generates uses and can
radiate radio frequency energy and,
(1) This device may not cause
harmful interference.
.
.
.
(2) This device must accept any
interference received, including
interference that may cause
undesired operation.
Part 15.19 statement
.
This device complies with
part 15 of FCC rules.
Operation is subject to the
following two conditions:
15
Technical Details
if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications. However,
there is no guarantee that
interference will not occur in a
particular installation. if this
equipment does cause harmful
interference or television reception,
which can be determined by
turning the equipment off and on,
the user is encouraged to try to
correct the interference by one or
more of the following measures:
- Reorient or relocate the
receiving antenna.
- Increase the separation between
the equipment and receiver.
- Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
- Consult the dealer or an
experienced radio/TV
technician for help.
HAC
This phone has been tested and
rated for use with hearing aids for
some of the wireless technologies
that it uses.
However, there may be some
newer wireless technologies used
in this phone hat have not been
tested yet for use with hearing
aids.
It is important to try the different
features of this phone thoroughly
and in different locations, using
your hearing aid or cochlear
implant, to determine if you hear
any interfering noise.
Consult your service provider or
the manufacturer of this phone
for information on hearing aid
compatibility.
If you have questions about
return or exchange policies,
consult your service provider or
phone retailer.
Phone Overview
16
Phone Overview
1. Earpiece Lets you hear the caller.
2. LCD Screen Displays messages and status icons.
When the phone is turned on, Power Save mode
automatically dims the screen and then darkens it if
no keys are pressed.
3. Left Soft Key Use to access the Messaging menu
from the home screen, or the function immediately
above it.
4. Speakerphone Key Use to turn Speaker On or Off.
5. SEND Key Use to place or answer calls.
6. Alphanumeric Keypad Use to enter numbers and
characters and select menu items.
7.
Vibrate Mode Key
Use to set the vibration mode
from the home screen (press and hold for about 2
seconds).
8. Navigation Key Use to navigate through menus and
options. When on the home screen, use for quick
access to Favorites ,easyedge,Calendar and My Menu.
9. Right Soft Key Use to access the Contact List from
the home screen, or the function immediately above
it.
10 .
Menu/OK
Key Lets you access the phone's main
Menu and also selects the highlighted choice when
navigating through a menu or function.
11. CLR/ Voice Command Key Deletes single spaces
or characters with a quick press, but press and hold
to delete the text entered in a text field. Will also
back you out of menus, one level at a time. Also
you are allowed to access Voice Command by
pressing CLR Key from the home screen.
12 . PWR/END Key Use to turn the power on/off and
to end a call. Also, use to exit from any function
and return to the home screen.
13 .
Lock Mode Key
Use to lock the phone from
standby mode, press and hold for about 2 seconds.
17
Phone Overview
1. Earphone Jack Allows the use of a headset to hear
caller's voice.
2. Volume Keys Use to adjust the ringer volume from
the home screen and the earpiece volume during
a call.
3. Charger/Accessory Port Connects the phone to
the battery charger or other available accessories.
4. Camera Key Use for quick access to Camera
function.
5. Camera Lens Lets you take pictures.
Charging with PC USB
You can use your computer to charge your
phone. Connect one end of a USB cable to
the charger/ accessory port on your phone
and the other end to a high-power USB port
on your PC (commonly located on the front
panel of the computer).
Menus Overview
18
Menus Overview
Contacts
1. New Contact
2. Contact List
3. Favorites
4. Groups
5. Speed Dials
6. My vCard
Messaging
1. New Text Message
2. New Picture
Message
3. Inbox
4. Outbox
5. Drafts
6. Voicemail
7. Templates
8. Settings
1. All Messages
2. Text Message
3. Picture Message
4. Edit Voicemail
Number
9. Delete All
1. Delete Inbox
2. Delete Outbox
3. Delete Drafts
4. Delete All
Messages
Call History
1. Missed Calls
2. Received Calls
3. Dialed Calls
4. All Calls
5. Call Timer
6. Data Counter
Multimedia
1. Take Photo
2. Record Voice
3. Images
1. My Images
2. Default
4. Sounds
1. My Sounds
2. Default
Menu Access
While in the home screen, press Menu to access the phone's main
menu. There are two methods of accessing menus and submenus:
G
Use the navigation key to highlight a menu/option and press to
select it.
G
Press the number key on the keypad that to activate the corresponding
menu/option.
19
Menus Overview
easy
edge
1. easydge Apps
My Schedule
1. Alarm Clock
2. Calendar
3. Notepad
Browser
1. Start Browser
Tools
1. Voice Command
1. Start Command
2. Command
Mode
3. Announce Alert
4. Train Word
5. Best Match
2. Calculator
3. My Menu
4. Ez Tip Calculator
5. World Clock
6. Stopwatch
7. Unit Converter
1. Currency
2. Area
3. Length
4. Mass
5. Temperature
6. Volume
7. Velocity
Settings
1. Sound
1. Ringtones
1. All Calls
2. Caller ID
3. No Caller ID
4. Restricted
Calls
2. Volume &
Vibrate
1. Master
Volume
2. Keypad
3. Earpiece
4. Speaker
5. Vibrate Level
3. Message Alerts
1. Text Message
2. Picture
Message
3. Voicemail
4. All Messages
5. Message
Reminder
4. Alert Type
5. Service Alerts
1. Minute Beep
2. Call Connect
3. Back to Top
4. Low Battery
6. Power On/Off
Tone
7. Flip Tone
2. Display
1. Wallpaper
2. Banner
3. Backlight
1. Display Timer
2. Keypad Timer
3. Brightness
4. Menu Style
5. Languages
(Idiomas )
6. Clocks &
Calendar
7. Font Settings
1. Font Type
2. Dial Font
Style
3. Dial Font Size
8. Word Prediction
9. Name Match for
Dialing
3. Security
1. Lock Phone
2. Restrictions
3. Emergency
Numbers
4. Change Lock
Code
5. Master Reset
4. Call Settings
1. Answer Options
2. Auto Retry
3. One Touch Dial
4. Voice Privacy
5. Airplane Mode
6. TTY Mode
5. Bluetooth
1. Paired Devices
2. Power
3. My Visibility
4. My Bluetooth
Info
6. System
1. Network
1. System
Select
2. Set NAM
3. Auto NAM
4. Serving
System
2. Location
7. Web Access
Prompt
8. Memory
1. Reserved
Memory
2. Multimedia
9. Phone Info
1. My Number
2. Current Battery
Level
3. ESN/MEID
4. Icon Glossary
5. Version
6. Software Update
Tone Room
Deluxe
My Contacts
Backup
PAC-MAN
Menus Overview
20
Menus Overview
The Battery
The phone comes with a
rechargeable battery. The battery
charge level is shown at the top
right corner of the LCD screen.
Installing the Battery
1. Remove the battery cover by
pressing down above the LG
logo and sliding the cover up.
2. Align the battery contacts with
the terminals near the top of
the battery compartment, then
press down on the battery
until it clicks into place.
3. Align the battery cover over
the battery compartment and
slide it downward until it clicks
into place.
Removing the Battery
1. Turn the phone off and
remove the battery cover by
pressing down above the LG
logo and sliding the cover up.
2. Use the fingertip opening
near the bottom of the
battery compartment to lift
the battery out.
Note
It is important to fully charge the
battery before initial use of the
phone.
Getting Started with Your Phone
21
Getting Started with Your Phone
Charging the Battery
Use the charger provided with
your phone:
Warning! Use only the charger
provided with the phone. Using
any charger other than the one
included with the UN160 may
damage your phone or battery.
1. Plug one end of the charging
adapter into the phone’s
charger/accessory port and
the other end into an
electrical outlet.
The charge time varies
depending upon the battery
level.
Battery Charge Level
The battery charge level is shown
at the top right corner of the
LCD screen. When the battery
charge level becomes low, the
low battery sensor alerts you in
up to three ways: sounding an
audible tone, blinking the battery
icon, and displaying a warning
message. If the battery charge
level becomes exceedingly low,
the phone automatically switches
off and any function in progress
is not saved.
Getting Started with Your Phone
22
Getting Started with Your Phone
Notice
Please make sure that the 'B' side
faces up before inserting a
charger or USB cable into the
charger/accessory port of your
phone.
23
Getting Started with Your Phone
Turning the Phone On and
Off
Turning the Phone On
1. Install a charged battery or
connect the phone to an
external power source if the
battery level is low.
2. Press for about 2
seconds until the LCD screen
lights up.
Turning the Phone Off
1. Press and hold until the
LCD screen turns off.
Signal Strength
Call quality depends on the
signal strength in your area. The
signal strength is indicated on
the screen as the number of bars
next to the signal strength icon
-- the more bars, the better
the signal strength. If the signal
quality is poor, move to an open
area. If you are in a building, the
reception may be better near a
window.
Note
The call quality may also be affected
by the places where you are and
weather/ambient conditions.
Screen Icons
To see the icon glossary, go to
Menu
->
Settings
->
Phone Info
->
Icon Glossary
on your phone.
Making Calls
1. With the phone turned on,
open the flip.
2. Enter the phone number
(include the area code if
needed).
3. Press .
4. Press to end the call.
Getting Started with Your Phone
24
Getting Started with Your Phone
Note
If outgoing calls are restricted, you
can only dial phone numbers saved
in the Emergency Numbers To
change your Emergency Numbers,
do the following:
Menu -> Settings ->
Security -> Lock Code ->
Restrictions -> Calls ->
Outgoing -> Emergency
Numbers.
Choose a number and
edit it.
Correcting Dialing Mistakes
If you make a mistake while
dialing a number, press
once to erase the last digit
entered, or hold down for
at least 2 seconds to erase all
the digits you've entered and
return to your home screen.
Redialing Calls
1. Press twice to redial the
last number you dialed. The
last 150 calls (50 missed, 50
received and 50 dialed) are
stored in the call history list
and you can also select any of
these to redial.
Receiving Calls
1. When the phone rings and/or
vibrates, press to answer,
or open the flip (depending
on your Answer Options).
2. Press to end the call.
25
Getting Started with Your Phone
Note
If you press or (the volume
keys), while the phone is ringing,
the ringing and/or vibration is
muted for that call.
Tip
To change your answer options:
Menu -> Settings -> Call
Settings -> Answer Options.
Choose from the following options:
Flip Open/ SEND Key Only/ Any
Key/ Auto with Handsfree
Quick Access to Convenient Features
26
Quick Access to Convenient Features
Lock Mode
Sets your phone to require a 4-
digit lock code in order to use
the phone.
To quickly lock your phone press
for three seconds and enter
your lock code. To unlock, press
the Right Soft Key
Unlock
and enter your lock code.
Mute Function
The Mute Function is used during a
phone call. To quickly activate Mute,
press the Left Soft Key Mute.
To cancel, press the Left Soft Key
Unmute.
Quick Volume Adjustments
Use the volume keys to adjust the
ringer volume while in the home
screen and the earpiece volume
during a phone call. The upper
volume key increases the volume
and the lower volume key
decreases the volume.
Call Waiting
Your cellular service may offer call
waiting. While a call is in progress,
a beep indicates another incoming
call. When call waiting is enabled,
you may put the active call on
hold while you answer the other
Note
Until you change it, the default
lock code is the last 4 digits of
your phone number.
Note
Keypad Volume is adjusted
through the Volume & Vibrate
submenu of the Sound menu:
Menu -> Settings ->
Sound -> Volume & Vibrate
-> Keypad -> Use to
adjust volume and press .
27
Quick Access to Convenient Features
incoming call. Check with your
cellular service provider for
information about this function.
1. Press to answer a waiting
call.
2. Press again to switch
between calls.
Caller ID
Caller ID displays the phone
number or name of the incoming
call. If the caller’s identity is stored
in Contacts, the name will appear
along with the phone number.
Check with your service provider to
ensure they offer this feature.
Speed Dialing
Speed dialing is a convenient
feature that allows you to make
phone calls quickly. A number
key can be assigned to a specific
phone number. By pressing and
holding down a number key, your
phone will recall the associated
phone number from the Contact
List and dial it for you. Speed
Dial Number 1 is set to
Voicemail by default and is
unchangeable.
Dialing Single Digit Speed Dials
(from 2 to 9)
Press and hold the Speed Dial
number.
OR
Enter the Speed Dial number
and press .
Dialing Double Digit Speed
Dials (from 10 to 99)
Press the first digit and then
press and hold the key of the
second digit.
OR
Enter the first and second
digits and press .
Entering and Editing Information
28
Entering and Editing Information
Text Input
You can customize and enter text
in many of the functions in your
phone, including, but not limited
to: the Banner, Calendar,
Contacts and more. While
entering text, the following are
your options:
Key Functions
Left Soft Key:
Press to select one of the
following text input
modes:
T9Word: T9WORD/
T9Word/ T9word
Abc: ABC/ Abc/ abc
123
Symbols
Shift Key: Press to change
capitalization
T9 text : T9Word ->
T9WORD -> T9word
Abc : Abc -> ABC -> abc
Next: In T9 mode, press
to display other
matching words.
Space: Press to complete
a word (in T9 mode) and
insert a space.
Clear: Press to delete a
single space or
character. Hold to delete
the whole message.
Punctuation: When
entering text or numbers,
press to enter
punctuation marks or
some of the available
special characters.
Contacts in Your Phone’s
29
Contacts in Your Phone’s Memory
The Basics of Storing
Contacts Entries
1. From the home screen, enter
the phone number you want
to save (up to 48 digits).
2. Press
Save
to save the
number.
3. Select either Add New
Contact or Update Existing.
4. Use to highlight a Label
and press .
Mobile 1/ Home 1/ Office
1/ Mobile 2/ Home 2/
Office 2/ Fax
5. Enter a name for the phone
number (up to 32 characters)
and press
Save
.A
confirmation message is
displayed briefly.
Phone Numbers With
Pauses
When you call automated
systems, such as voice mail or
credit billing numbers, you often
have to enter a series of numbers
to navigate through the system.
Instead of entering these
numbers by hand, you can store
the numbers in your Contacts
separated by special pause
characters (W, P). There are two
different types of pauses you can
use when storing a number:
Wait (W)
The phone stops dialing until
you press the Left Soft Key
Release
to advance to the next
string of digits.
Note
Use
Update Existing
to add
another phone number to a
contact already stored in memory.
Contacts in Your Phone’s Memory
30
Contacts in Your Phone’s Memory
Pause (P)
The phone waits 2 seconds
before sending the next string of
digits.
Storing a Number with Pause
or Wait
1. Press
Menu
.
2. Press
Contacts
.
3. Press
New Contact
.
4. Enter a name (up to 32
characters) and enter a
number.
5. While entering a number,
press the Right Soft Key
Options.
6. Press
Wait
or
Pause
.
7. Enter the additional
number(s) and press
Save
.
Adding a Pause or Wait to an
Existing Number
1. From the home screen, press
the Right Soft Key
Contacts
to display your
Contacts alphabetically.
2. Use to highlight the
Contact entry to edit, then
press
View
.
3. Press the Left Soft Key
Edit
.
4. Use to highlight the
number.
5. Press the Right Soft Key
Options
.
6. Press
Wait
or
Pause
.
7. Enter the additional
number(s) and press
Save
.
31
Contacts in Your Phone’s Memory
Searching Your Phone’s
Memory
The UN160 phone is able to
perform a dynamic search of the
contents in your phone’s
Contact List. A dynamic search
compares entered letters or
numbers on the keypad against
the entries in your Contacts. A
matching list is displayed in
descending order. You can then
select a number from the list to
call or view it.
Searching by Letter
1. Press the Right Soft Key
Contacts
to display your
Contacts alphabetically.
2. Start entering the Contact
name. The matching entries
will be automatically
highlighted.
Scrolling Through Your
Contacts
1. Press the Right Soft Key
Contacts
to display your
Contacts alphabetically.
2. Use to scroll through the
list.
Contacts Options
1. Press the Right Soft Key
Contacts
.
2. Highlight a contact and press the
Right Soft Key
Options
.
3. Select an option (use and
then press or
press the corresponding
number on the keypad):
Send Message
: Send a text
message or picture
message to the selected
contact.
Contacts in Your Phone’s Memory
32
Contacts in Your Phone’s Memory
Delete
: Delete the selected
entry in your Contacts.
Edit
: Edit the selected
contact information.
Delete Multiple
: Choose
from
Selective
/
All
to
delete multiple entries at
one time.
Send via Bluetooth
: Send
a contact(vCard) via
Bluetooth
®
. In case
Bluetooth
®
power is not
on, you will be prompted
to turn Bluetooth
®
on.
Set Speed Dial/ Remove
Speed Dial
: Set as speed
dial or remove as speed
dial.
Set as/ Unassign Favorite
:
Set the contacts as
Favorite or unassign a
Favorite contact.
Making a Call From Your
Phone’s Memory
Once you have stored phone
numbers in your Contacts, you
can place calls to those numbers
quickly and easily.
G
By pressing the Right Soft Key
Contacts
, highlighting a
number and pressing .
G
By using Speed Dialing.
From Contacts
1. Press the Rights Soft Key
Contacts
to display your
Contacts.
2. Use to highlight the
Contact entry, then press .
3. Use to highlight the
phone number.
4. Press to place the call.
33
Contacts in Your Phone’s Memory
From Call History
1. Press
Menu
.
2. Press
Call History
.
3. Use to highlight the type
of recent call, then press .
Missed Calls/Received
Calls/Dialed Calls/All Calls
4. Use to highlight the
phone number.
5. Press to place the call.
Speed Dialing
For a single-digit Speed Dial,
press and hold the digit or press
the digit, then press . For a
double-digit Speed Dial, press
the first digit and hold the
second digit or press the first and
second digits, then press .
Phone Menus
34
Contacts
Contacts
The Contacts menu allows you
to store names, phone numbers
and other information in your
phone’s memory.
1. New Contact
Allows you to add a new contact
to your Contact List.
1. Press , , .
2. Enter the name, then use
to highlight the field you wish
to store the contact
information in.
3. Enter any contact information
you wish.
4. When you are finished
entering the desired contact
information, press
Save
to
save the entry into your
Contact List.
2. Contact List
Allows you to view your Contact
List.
1. Press , , .
2. Choose from the following
options:
G
Use to scroll through
your Contacts alphabetically.
Note
Using this sub-menu, the number is
saved as a new Contact. To save the
number into an existing Contact,
edit the Contact entry
Note
When you access your Contacts, the
number in parentheses represents
the number of entries you have
stored (up to 1000).
35
Contacts
G
Press the Right Soft Key
Options
to select
from the following options:
Send Message/ Delete/
Edit/ Delete Multiple/
Send via Bluetooth/
Set Speed Dial/ Set as
Favorite
G
Press
View
to view the
highlighted contact's
information.
G
Press the Left Soft Key
New
to create a new
Contact.
3. Favorites
Allows you to create and view
your Favorites contact list.
1. Press , , .
2. Press
Assign
to add a
favorite.
3. Select whether you want to
add a favorite from your
Contacts/ Groups.
4. Use to scroll through
your Contacts or Groups
alphabetically and press
Select
.
5. Press the Left Soft Key
Done
to add the contact(s)
to your Favorites.
Once you have added
Contacts to the Favorites list,
the following options will
become available in the
Favorites menu:
G
Left Soft Key : [Message]
G
Right Soft Key : [
Options
]
View/ Remove/ Remove
Multiple/ Move Position
G
OK Key : [Chat]
Contacts
36
Contacts
4. Groups
Allows you to view your grouped
Contacts, add a new group,
change the name of a group, or
delete a whole group.
1. Press , , .
2. Choose from the following
options:
G
Use to highlight a
group, then press
View
to view the contacts in the
selected group.
G
Press the Left Soft Key
New
to add a new group.
G
Use to highlight a
group, then press the Right
Soft Key
Options
to
choose from the following
options:
Delete/Send Message/
Rename Group/Group
Ringtone/Delete All/ Set
as Favorite
5. Speed Dials
Allows you to view your Speed
Dials list, designate new Speed
Dials, or remove Speed Dial
designations entered in your
Contacts.
1. Press , , .
2. Use to highlight the
desired Speed Dial location
(or press the Speed Dial digit
on the keypad) and press
Assign
.
3. Use to highlight the
Contact.
4. Use to choose a number,
then press .
A confirmation message is
displayed.
Messaging
37
Messaging
6. My vCard
Allows you to edit your vCard,
which you can then send to
others via Bluetooth.
1. Press , , .
2. Use to highlight the field
you wish to edit and press the
Left Soft Key
Edit
.
3. Edit the information as
desired and press
Save
.
Messaging
The phone can store up to 835
messages, including a maximum
of 500 SMS, 100 MMS, and 100
MMS notification messages in
the Inbox; 50 SMS and 50 MMS
in the Outbox; and 15 SMS and
20 MMS in the Drafts folder. The
information stored in the
message is determined by phone
model and service capability.
Other limits, such as available
characters per message, may
exist. Please check with your
service provider for system
features and capabilities.
1. New Text Message
Allows you to send text messages
and e-mail messages.
Note
You cannot edit the Mobile 1 field
but you can add additional contact
info.
Messaging
38
Messaging
The Basics of Sending a Text
Message
1. Press , , .
2. Enter the recipient's address
in the To field.
3. Press to access the text
field.
4. Use the keypad to enter your
message.
5. Press
Send
.
A confirmation message is
displayed.
Select Recipient(s) Using
Options
1. Press , , .
2. With the
To
field highlighted,
press the Right Soft Key
Options
.
3. Use to highlight an
option and press .
Contacts
To select a recipient
from your Contact List.
Call History
To select a
recipient from your Call History.
Recent Messages
Choose
Inbox/ Outbox
to select a
recipient from your Recent
Messages.
Groups
Select a recipient from
your Groups.
Cancel
Cancels editing your
message.
4. Complete your message and
send or save it.
Customize Your Text Message
Using Options
While you are composing the
text of a message, you have
various options to customize the
text.
39
Messaging
1. Press , , .
2. Enter the recipient's address.
3. Use or press to
access the text field.
4. Press the Right Soft Key
Options
.
5. Use to highlight an
option and press .
Insert Templates
/
Signature/
Name & Number
Save As Drafts/Templates
Priority Level High/ Normal
Callback Number On
/
Off
Cancel
Cancels editing your
message.
6. Complete your message and
send or save it.
Message Icon Reference
Inbox
New/Unread Text/Picture Message
Opened/Read Text/Picture Message
New/Unread Notification Message
Opened/Read Notification Message
High Priority Message
Outbox
Failed Text/Picture Message
Failed Multiple Text/Picture
Messages
Sent Text/Picture Message
Multiple Sent Text/ Picture Messages
Drafts
Draft Text Message
Draft Picture Message
Messaging
40
Messaging
2. New Picture Message
Allows you send messages with
text, image and audio
attachments.
1. Press , , .
2. Enter the recipient's address,
or press Right Soft Key
Options
to search recent
contacts and press to
select the desired contact.
3. Use to access the
Subject and Text fields.
4. Enter your subject and
message.
5. Highlight the
field,
press the Left Soft Key
Add
, and press to select:
Image/ Take Photo
6. If
is chosen, use to
highlight a file, then press the
Left Soft Key
Set.
OR
If
Ta ke P h o to
is chosen, take a
picture of the subject and
press
Set
.
7. Highlight the
Audio
field and
press the Left Soft Key
Add
to enter
My Sounds
.
G
Press the Left Soft Key
Voice
to record new audio.
G
Press
Play
to play the
highlighted file.
G
Press the Right Soft Key
Set
to attach the highlighted file.
8. When editing a field, the
following options are available
by pressing the Right Soft Key
Options
.
* Editing the To: field
Contacts/ Call History/
Recent Messages/ Groups/
Online Album/ Cancel
41
Messaging
* Editing the Subject/Text field
Preview/ Add/ Go to/ Save
As/ Priority Level/ Remove/
Cancel
* Editing the Image/Audio field
Preview
/
Add Slide/ Go to
/
Save As Draft/ Priority Level/
Remove/ Cancel
9. Press
Send
.
3. Inbox
The phone can alert you in
several ways when you receive a
new message, including:
G
Displaying a notification
message on the screen.
G
Displaying the message icon
/ on the status bar (It
blinks when the message is
urgent).
G
Ringing and/or vibrating
(depending on the Volume
settings).
Received messages are displayed
from newest to oldest.
Viewing Your Inbox
Up to 700 (500 SMS, 100 MMS
and 100 MMS Notifications)
messages can be stored in the
Inbox.
1. Press , , .
Messaging
42
Messaging
2. Use to highlight an inbox
message.
3. Press the Left Soft Key
Reply/ D-load
to reply to the
message or download the
attachment, the Right Soft
Key
Options
, or
View/ Chat
to view the
message.
The following options are
available in the Options menu:
For text messages:
View/
Change View Type/ Delete/
Forward/ Save Contact/
Lock/ Message Info/ Delete
Multiple
For picture messages:
Delete/ Forward/ Save
Contact/ Lock/ Message
Info/ Delete Multiple
4. Once you select the
View
option for the message, press
the Left Soft Key
Reply
to reply or the Right Soft Key
Options
to view the
following additional options.
Delete
Deletes the selected message.
Forward
Forwards a received message
to other destination address(es).
Save Contact
Stores the callback
number, e-mail address, and numbers in
the received message into your Contacts.
Sav e To Tem pl ates
Stores the
message as a template for future
messages.
Call Back
Calls the number in the
received message.
Go To URL
Connects you to the URL
included in the message (if available).
Lock/Unlock
Locks or unlocks the
selected message.
Message Info
Shows information
about the message, such as type,
priority, and status.
43
Messaging
4. Outbox
Up to 100 sent messages (50
SMS and 50 MMS) can be
stored in the Outbox folder. View
the contents of sent messages
and verify whether the
transmission was successful (if
verification is supported by
network).
1. Press , , .
2. Use to highlight a sent
message.
3. While viewing the selected sent
message, press the Left Soft
Key
Resend
to resend the
message to the recipient, or the
Right Soft Key
Options
to
access the additional options:
Delete
Deletes the selected
message.
Forward
Forwards the message
to other destination address(es).
Save Contact
Stores the callback
number, e-mail address, and
numbers in the sent message
into your Contacts.
Save To Templates
Stores the
message as a template for future
messages.
Lock/Unlock
Locks the selected
so that it cannot be deleted.
Message Info
Shows information
about the message, such as type,
priority, and status.
Note
For picture messages:
Play Again/ Delete/ Reply as Picture
Message*/ Forward/ Save Contact/
Save Media/ Lock/ Go To URL/
Extract Address/ Message Info
* If the Reply Setting (Menu >
Messaging > Settings > All Messages >
Reply Settings) is set to Text Message
Only.
Messaging
44
Messaging
5. Drafts
Displays saved draft messages.
1. Press , , .
2. Use to highlight a Draft
message. Options available
are:
G
Press
Edit
to continue
editing the message.
G
Press the Right Soft Key
Options
for the following
options:
Delete
Deletes the selected
message from the Drafts
folder.
Save Contact Add New
Contact
/
Update Existing
Lock
Locks a message so that
it cannot be deleted.
Delete Multiple Selective
/
All
6. Voicemail
Allows you to access new voice
messages recorded in your
voicemail. Your phone will notify
you when you receive a new
voice message.
Checking Your Voicemail
1. Press , , .
2. Choose from the following
options:
G
Press the Left Soft Key
Clear to clear the voicemail
counter.
G
Press to listen to the
message(s).
G
Press the Right Soft Key
Exit
to return to the Messaging
menu.
Note
For picture messages:
Play Again/ Delete/ Forward/
Save Contact/ Save Media/ Lock/
Extract Address/ Message Info
45
Messaging
7. Te m p l a t e s
Allows you to display, edit, and
add text phrases. These text
strings allow you to reduce
manual text input into messages.
1. Press , , .
2. Press the Left Soft Key
New
to create a new template.
3. Enter text and press
Save
to save the template.
4. Use to highlight a
template and press the Right
Soft Key
Options
, then
highlight an option and press
to select:
Edit/ Delete
8. Settings
Allows you to configure Messaging
settings.
1. Press , , .
2. Use to highlight
All
Messages/ Text Message/
Picture Message/ Edit
Voicemail Number
then press
.
3. Use to highlight one of
the submenus and press
to select it.
Messaging
46
Messaging
Message Settings Sub-Menu
Descriptions
All Message
1. Reply Setting (Text Message
Only/ Selection)
With Text Message Only on,
replies to messages will
automatically start as text
messages. With Selection on,
you will have the choice to
reply with a Text or Picture
Message.
2. Auto Save (Auto Save/
Prompt/ Do Not Save)
You can choose to
automatically save messages in
the Outbox, get prompted if
you want to save the messages,
or not save the messages at all.
3. Auto Delete (On/ Off)
With this feature on, read
messages are automatically
deleted when you exceed the
storage limit.
4. Entry Mode (T9Word/ Abc/
123 )
Allows you to select the
default input method.
5. Signature (On/ Off/ Edit)
Allows you to make/edit a
signature to automatically
send with your messages.
Text Message
1. Auto View (On/ Off)
When set to On, new
messages will automatically
display on your screen when
they are received.
2. Callback Number (On/ Off/
Edit)
With this feature on, you can
input the callback number
that will be automatically
included when you send a
message.
47
Messaging
Picture Message
1. Auto Receive (On/ Off)
With this set to On,
Multimedia content will be
automatically downloaded
when a new picture message is
received.
Edit Voicemail Number
Allows you to manually enter the
access number for your Voicemail
Service. This feature should only
be used when a VMS (Voicemail
Service) access number is not
provided from the network.
9. Delete All
Allows you to erase the messages
stored in your Inbox, Sent, or
Drafts message folders. You can
also erase all messages at the
same time.
1. Press , , .
2. Use to highlight an
option:
Delete Inbox/ Delete
Outbox/ Delete Drafts/
Delete All Messages,
then
press .
3. Use to highlight
Yes/ No
and press .
Call History
48
Call History
Call History
The Call History menu has lists
of phone numbers and/or
Contacts entries for calls you
placed, accepted, or missed. It is
continually updated as new
numbers are added to the
beginning of the list and the
oldest entries are removed from
the bottom of the list.
1. Missed Calls
Allows you to view the list of
missed calls, up to 50 entries.
1. Press , , .
2. Use to highlight an entry.
2. Received Calls
Allows you to view the list of
incoming calls, up to 50 entries.
1. Press , , .
2. Use to highlight an entry.
3. Dialed Calls
Allows you to view the list of
outgoing calls, up to 50 entries.
1. Press , , .
2. Use to highlight an
entry.
4. All Calls
Allows you to view the list of
missed, received and dialed of
calls, up to 150 entries.
1. Press , , .
2. Use to highlight an entry.
5. Call Timer
Allows you to view the duration
of selected calls.
Note
To quickly view a list of all your
recent calls, press the
SEND Key
from the home screen.
Multimedia
49
Multimedia
1. Press , , .
2. Use to highlight a call
type.
Last Call/ Home Calls/ Roam
Calls/ All Calls
3. Press the Left Soft Key
Reset
to reset the call timer
for the highlighted call type.
6. Data Counter
Allows you to view the amount of
Received and Sent data.
1. Press , , .
2. Use to highlight a data
type.
Received Data/ Sent Data/
All Data
3. Press the Left Soft Key
Reset
to reset the data
counter for the highlighted
data type.
Multimedia
View, take, and trade your digital
pictures right from your wireless
phone.
1. Take Photo
1. Press , , .
2. Press to access the
following camera options
(if necessary):
G
Brightness
Allows you to
adjust the brightness level.
G
Resolution
480X640/
240X320/ 144X176/
120X160
Note
You cannot use the zoom
function at the maximum
resolution level (480X640).
Multimedia
50
Multimedia
G
Capture
Allows you to take a
picture.
G
Zoom
Allows you to adjust
the Zoom level (not available
at the highest resolution).
G
Multishot
Off/ 3 shots/
6 shots
3. Press the Left Soft Key
Gallery
to access
My Images
or press the Right Soft Key
Options
for the following
options:
G
Options Tab
Color Effects Color/Sepia/
Mono/ Negative
White Balance Auto/ Sunny/
Cloudy/ Tungsten/ Fluorescent
Night Mode On/Off
Self Timer Off/ 3 Seconds/
5 Seconds/ 10 Seconds
Frame On/ Off
G
Settings Tab
Quality Fine/ Normal/
Economy
Shutter Sound None/ Sound 1/
Sound 2/ Sound 3/ Sound 4
Auto Save On/Off
Send Reminder On/ Off
Reset Yes/ No
4. Take a picture by pressing
Capture
.
5. Select
Send
,
Send to Online
Album
, or
View
after the
picture is taken.
Send
will
open a new Picture Message.
Send to Online Album
will
send the picture to your
online album for storage. View
will offer the following options:
G
Save Allows you to save the
photo to your phone.
G
Gallery Saves the photo
and opens your My Images
gallery.
51
Multimedia
G
Send
Allows you to send by
Picture Message, via
Bluetooth, or to your
Online Album.
G
Set As
Allows you to set as
the Wallpaper or as a
Picture ID.
G
Delete
Deletes the photo
and returns to the Camera
so you can take another
picture.
2. Record Voice
Allows you to add, listen to, and
erase short verbal reminders.
1. Press , , .
2. Press
Record
to record a
new voice memo.
3. Talk into the microphone, then
press
Stop
.
4. Once you've stopped the
recording, press the Right Soft
Key
Options
to access
the following:
Set As/ Rename/ Delete
OR
Press the Left Soft Key Save
to save the file. The default
memo title is the date and time
of recording.
OR
Press Send to send the file
in a Picture Message or via
Bluetooth.
3. Images
Allows you to view the saved
images on your phone. You can
also select images to customize
your phone's Main Screen or
Picture ID.
1. Press , , .
Multimedia
52
Multimedia
2. Use to highlight My
Images/Default and press
.
3. Use to highlight an
image. Once you have an
image highlighted, you can:
G
Press the Right Soft Key
Options
to access the
following options (If you
select
Edit
, please see the
Edit Options
section for
available Edit options.):
Set As/ Slide Show/ Edit/
Image Effects/ Take Photo/
Delete/ Rename/
Lock/Unlock/ List View/
File Info/ Sort By
G
Press
View
to view the
selected image.
G
Press the Left Soft Key
Send
to send the selected
image to somebody else.
Edit Options
Zoom Allows you to zoom in/out
of the image. Please note, it does
not save the resulting image.
Rotate Rotates an image in steps
of 90 degrees.
Flip Flips an image horizontally or
vertically.
Enhancement Automatically
enhances an image by enhancing
white balance, contrast and local
boost.
Brightening Brightens the image.
White Balancing Performs an
automatic white balance
adjustment for the image.
Local Intensity Boost This effect
enhances images taken in poor
light environments. The effect is
especially useful when taking
photos in direct light or for
enhancing details in dark images.
Multimedia
53
Multimedia
4. Sounds
Allows you to access saved audio
clips or create new ones on your
phone.
1. Press , , .
2. Press the Left Soft Key
Voice
to record an audio clip.
3. Press
Record
to begin
recording.
4. While recording, press the Left
Soft Key
Pause
to pause,
or
Stop
to stop recording.
5. When you are finished
recording, press the Left Soft
Key Save to save the
audio clip, Send to send
the audio clip to somebody
else, or press the Right Soft
Key Options to access
additional options:
Set As
(Ringtone/ Contact
ID/ Alert Sounds)
/Rename/
Delete.
Or
1. Use to highlight
My
Sounds/ Default
and press
.
2. Use to highlight the
audio clip. The following
options are available:
G
Press the Left Soft Key
Send
to send the selected
audio clip to somebody
else. Please note that this
option is not available for
files in the Default folder.
G
Press
Play
to play the
selected audio clip.
G
Press the Right Soft Key
Options
to access the
following options:
easyedgeSM
54
easyedgeSM
For
My Sounds
files:
Set As/
Record Voice/ Delete/
Rename/ Lock/Unlock / File
Info/ Sort By
For
Default
files:
Set As
(Ringtone/ Contact ID/ Alert
Sounds)
easyedgeSM
easyedge
SM
allows you to do
more than just talk on your
phone. easyedge
SM
is a
technology and service that
allows you to download and use
applications on your phone. With
easyedge
SM
, it is quick and easy
to personalize your phone to suit
your lifestyle and tastes. Just
download the applications that
appeal to you. From ringtones
and wallpapers to games and
productivity tools, you can be
assured you will find something
useful, practical, or downright
entertaining. There are new
applications constantly available
for your use.
Downloading Applications
You can download applications
and use easyedge
SM
where
service is available.
My Schedule
55
My Schedule
Incoming Calls
When using applications, an
incoming call will automatically
pause the application and allow
you to answer the call. When you
complete your call, you can
resume using the application.
1. easyedgeSM Apps
1. Press , .
My Schedule
1. Alarm Clock
Allows you to set up to five
alarms. At the alarm time, any set
alarm can sound (depending on
your Master Volume settings) the
tone of your choice, and an
alarm message will be displayed
on the LCD screen.
1. Press , , .
2. Use to highlight the alarm
you wish to set, then press
to select it.
3. Highlight
Set Time
and press
the Left Soft Key
Set
to
set an alarm time. Once you
set the desired time, press
.
4. Use to highlight
Repeat
(recurrence setting).
Shortcut
From the Home screen, press
to start easyedge
SM
.
My Schedule
56
My Schedule
5. Press the Left Soft Key
Set
to select one of the
following.
Once/Daily/Mon -Fri/
Weekends
6. Use to highlight
Ringtone, press the Left Soft
Key Set and browse for a
ringtone.
7. Use to highlight
Snooze
and press the Left Soft Key
Set
to select from the
following options.
None/ After 5 minutes/
After 10 minutes/ After 30
minutes/ After 1 hour
8. Press
Save
.
2. Calendar
Allows you to store and access
your agenda(s). Simply enter
your appointments in the
Calendar, and your phone can
(depending on your settings)
alert you with a reminder.
1. Press , , .
2. Use to highlight a day.
Moves to the previous day.
Moves to the next day.
Moves to the previous week.
Moves to the next week.
3. Press the Left Soft Key
New
.
4. Use to highlight the field
you wish to edit, then press
the Left Soft Key
Set
to
edit the following schedule
information:
57
My Schedule
G
Subject
G
Start Time
G
End Time
G
Reminder
G
Repeat
G
Until
G
Ringtone
5. Press
Save
.
3. Notepad
Allows you to add, read, edit,
and erase notes to yourself.
1. Press , , .
2. Press the Left Soft Key
New to write a new note.
3. Type the note, then press
Save.
A confirmation message
displays briefly and your list of
saved notes is displayed.
Viewing a Notepad Entry
1. Access Notepad and highlight
the entry.
2. Press the Right Soft Key
Options
to access the
following available options:
G
Delete
G
Edit
G
Delete All
OR
To edit a note, highlight the
entry, then press
View
and
press the Left Soft Key
Edit
. You can also press the
Right Soft Key
Delete
to
delete the note.
Browser
58
Browser
Browser
The Browser feature allows you
to view Internet content.
Accessibility and selections
within this feature are dependent
upon your service provider. For
specific information on the Web,
contact your service provider.
1. Start Browser
Allows you to initiate a Web
session.
1. Press , .
2. Your default home page will
load.
Ending an Web Session
End a Web session by pressing
.
Browser Menu
The Browser Menu provides the
following toolbar options:
G
Home
Returns you to the
Homepage.
G
Back
To go back to the
previous page.
G
Forward
If available, takes
you back to the next page.
G
Bookmarks
Takes you to
the Bookmarks menu where
you can add, edit, and delete
your bookmarks.
G
Go to URL
Allows you
to enter a Web address to
visit.
G
Refresh
Allows you to
reload the current Web page.
G
History
Displays a list of
visited web pages.
G
Clear Memory
Allows
you to clear the memory.
59
Browser
G
Search
Directs you to
the Google search engine.
G
Send Link
Allows you to
send the link of the current
page via a text message.
G
Show URL
Shows you
the current URL.
G
Save Items
Allows you to
save items from the web page.
G
Settings
Allows you to
configure the following
Browser settings:
Homepage
Allows you to set
your Homepage.
Downloads
Allows you to
configure whether you want to
enable or disable image,
background, and object
downloads.
Restart Browser
Allows you
to restart the Browser.
Scroll Mode
Allows you to
customize the scrolling
settings.
Send Referrer
Allows you to
turn the HTTP Send Referrer
Header on or off.
Key Press Timeout
Set the
key press timeout.
Connection Timeout
Set the
connection timeout.
G
Advanced
Shows you the
information of the Browser,
including the version and
license information.
G
Exit
Allows you to exit
the Browser.
Tools
60
Tools
Tools
Your phone’s tools include: Voice
Command, Calculator, My Menu,
Ez Tip Calculator, World Clock,
Stopwatch, and Unit Converter.
1. Voice Command
Allows you to use voice
commands to use your phone,
including to make phone calls
quickly and easily by voice. This
feature is useful for those who are
driving or blind. It also announces
time information by voice and
allows you to check missed calls,
messages and voicemails.
1.1 Start Command
1.
Press
,,,.
OR
From the Home screen, press
the CLR/ Voice Command Key
.
1.1.1 Call <Name> or <Number>
1. Press
,,,,
.
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Call”.
2. Say the Contact name (and
phone type, if necessary) or
number.
1.1.2 Voicemail
1. Press , , , , .
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Voicemail”.
2. Press to call Voicemail or
say
Yes
or
No
when prompted.
61
Tools
1.1.3 Missed Calls
1. Press
,,,,
.
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Missed Calls”.
2. The phone will prompt you to
dial each number. Say Yes or
No to proceed.
1.1.4 Messages
1. Press
,,,,
.
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Messages”.
2. The phone will prompt you to
dial each number from your
messages. Say Yes or No to
proceed.
1.1.5 Time & Date
1. Press
,,,,
.
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Time & Date”.
1.1.6 Help
1. Press , , , ,
.
OR
From the Home screen, press
the CLR/ Voice Command Key
and say “Help”.
1.2 Command Mode
Allows you to set Command
Mode to Normal or Speed (The
Speed setting allows you to
access and use the Voice
Command functions more quickly
with a faster non-verbal prompt).
Tools
62
Tools
1. Press , , , .
2. Select an option.
Normal/ Speed
1.3 Announce Alert
Allows you to customize
Announce Alert. Announce Alert
lets your hear more information
about an incoming call or
message instead of, or along
with, your ringtone.
1.Press,,,.
2. Select an option.
Disable/ Announce/
Announce + Ring
1.4 Train Word
Allows you to train words for
improved Voice Command
responses.
1. Press , , , .
2. Select an option.
Voice Command/ Answer/
Digit Dial
1.5 Best Match
Allows you to choose whether
the phone displays 1 or up to
the 4 closest matches when
using the “Call <Name> or
<Number>” function.
1. Press , , , .
2. Select an option.
1Match/ 4 Matches
63
Tools
2. Calculator
Allows you to perform simple
mathematical calculations.
1. Press , , .
2. Enter data.
G
Use the keypad to enter
numbers.
G
Use to enter decimals.
G
Use to insert parentheses.
G
Press the Left Soft Key
Reset
to erase the entry.
G
Press the Right Soft Key
Options
for additional
calculating options.
G
Use the Navigation Keys to
enter functions.
3. Press to complete
equation.
3. My Menu
Allows you quick access to your
favorite menus. A maximum of 12
items can be stored in My Menu.
1. Press , , .
2. Highlight the location of your
choice by using , then
press
Set
.
3. Browse to the menu you wish
to add to My Menu by using
, then press
Set
.
4. After you have set all your
shortcuts, you can press the
Right Soft Key
Options
for the following options.
Change Menu/ Move menu
to/ Delete Menu/ Delete All
Tools
64
Tools
4. Ez Tip Calculator
Allows you to quickly and easily
estimate the tip and total
amount of a bill by inputting the
bill amount before tip, the tip
percentage, and dividing it by
the number of people paying.
1. Press , , .
2. Highlight the
Bill
field and
enter the amount using the
keypad.
3. Highlight the
Tip (%)
field
and use to increase or
decrease the amount.
4. Highlight the
Split
field and
use to increase or
decrease the amount.
5. The corresponding calculation
fields (Tip ($) and Total) are
automatically calculated.
6. Press the Left Soft Key
Reset
to begin another
calculation.
5. World Clock
Allows you to determine the
current time in another time
zone or country.
1. Press , , .
2. Press the Left Soft Key
New
to open the map and
press to zoom in.
3. Press the Left Soft Key
City
to see the cities located
in the highlighted area.
OR
Press the Right Soft Key
Search
to search through all
available cities.
4. Press to select the
highlighted city.
65
Tools
5. After you have set all your
cities, you can press the Right
Soft Key
Options
and
select
Daylight Saving Time
.
6. Stopwatch
Allows you to use your phone as
a stopwatch.
1. Press , , .
2. Press Start to start the
Stopwatch and press Stop
to stop it.
G
You can use the Lap
function by pressing the
Left Soft Key
Lap
to
record up to 99 laps and
lap times.
3. After stopping the Stopwatch,
press the Right Soft Key
Reset to reset.
7. Unit Converter
Allows you to convert units of
Currency, Area, Length, Mass,
Temperature, Volume and
Velocity.
1. Press , , .
2. Select a unit type.
3. Use to select the known
unit type then enter the unit
amount. The conversions will
be calculated automatically.
Settings
66
Settings
Settings
1. Sound
Allows you to customize your
phone's sounds.
1.1 Ringtones
Allows you to assign ringtones
for incoming calls.
1. Press , , , .
2. Select
All Calls
/
Caller ID
/
No Caller ID
/
Restricted
Calls
.
3. Select
My Sounds
or
Default
.
4. Use to highlight the
ringtone.
5. Press
Play
to preview the
ringtone or the Left Soft Key
Set
to set the ringtone to
your phone.
1.2 Volume & Vibrate
Allows you to set various volume
settings.
1. Press , , , .
2. Select
Master Volume
/
Keypad
/
Earpiece
/
Speaker/
Vibrate Level
.
3. Use to adjust the volume
of the ringer, then press to
save the setting.
1.3 Message Alerts
Allows you to select the alert tone
for new message notifications and
set the frequency of the Message
Reminder.
1. Press , , , .
2. Select
Text Message
/
Message
/
Voicemail
/
All
Messages
/
Message
Reminder.
67
Settings
3. Select
My Sounds
or
Default
.
4. Use to highlight the
ringtone.
5. Press
Play
to preview the
alert tone or the Left Soft Key
Set
to set the alert tone
to your phone.
For Message Reminder, choose
from
Once/ Every 2 Minutes/
Every 15 Minutes/ Off
and
press .
1.4 Alert Type
Allows you to select the alert
types.
1. Press , , , .
2. Use to highlight the alert
you wish to edit.
Call Alert/ Message Alert/
Schedule Alert/ Alarm Alert/
E911 Alert
3. Use to scroll through the
following alert types:
Ring Only/ Vibrate Only/
Ring & Vibrate
4. Press to save.
1.5 Service Alerts
Allows you to set any of the Service
Alert preferences.
1. Press , , , .
2. Select an alert type.
1.5.1 Minute Beep
Alerts you 10 seconds before the
end of every minute during a call.
1.5.2 Call Connect
Alerts you when the call is
connected.
1.5.3 Back to Top
Alerts you when you scroll
through the end of a menu list.
Settings
68
Settings
1.5.4 Low Battery
Alerts you when the battery
charge level is low.
3.
Use to highlight On/ Off,
then press . For Low Battery
option, choose from
Announce
/
Ton e
.
1.6 Power On/Off Tone
Allows you to set the phone to
sound a tone when the phone is
powered on and off.
1. Press , , , .
2. Use to highlight
On
/
Off
,
then press .
1.7 Flip Tone
Allows you to turn Flip Tone On
or Off.
1. Press , , , .
2. Use to highlight
On/Off
,
then press .
2. Display
Allows you to customize your
phone's display screen.
2.1 Wallpaper
Allows you to choose the kind of
background to be displayed on
the phone.
1. Press , , , .
2. Select
My Images
or
Default
.
3. Press
View
to preview the
wallpaper or the Left Soft Key
Set
to set the wallpaper
to your phone.
2.2 Banner
Allows you to enter a string of
characters which display on the
LCD screen.
1.Press,,,.
2. Use to scroll between
On
/
Off
.
69
Settings
3. Use to highlight the Text
field.
4. Press the Left Soft Key
Abc
to change the text entry
options , input the desired
text and press
Save
to
save the banner or press the
Right Soft Key
Cancel
to
cancel editing your banner.
2.3 Backlight
Allows you to set the duration
for illuminating the backlight.
1. Press , , , .
2. Highlight
Display Timer/
Keypad Timer/ Brightness
,
then press .
3. Use to highlight a setting,
then press .
2.4 Menu Style
Allows you to view the Menu in
either Icon or List view.
1. Press , , , .
2.
Highlight Icon or List and
press .
2.5 Languages (Idiomas)
Allows you to use the bilingual
feature according to your
preference. Choose between
English and Spanish.
1. Press , , , .
2. Use to highlight
English
or
Español
, then press .
2.6 Clocks & Calendar
Allows you to select the type of
clocks displayed on the main
LCD screen and Front Screen.
1. Press , , , .
Settings
70
Settings
2. Use to highlight
Main
Screen/ Front Screen
and
press .
3. Use to scroll through
Normal Clock/Analog
Clock/Digital 12
Clock/Digital 24 Clock/
Dual Clock/Calendar/ Off
Options for Front Screen:
Digtal Clock/Minimize.
2.7 Font Settings
Allows you to select the type of
font displayed on the LCD
screen.
1. Press , , , .
2. Highlight
Font Type/ Dial
Font Style/ Dial Font Size
and press .
3. Use to highlight an
option, then press .
Options for Font Type
LG Gothic/ LG Greentea/ LG
Mint/ LG Round/ LG Secret
Options for Dial Font Style
Digital/ Blackboard/
Sketchbook/ Sky/ Basic
Options for Dial Font Size
Normal
/
Large
2.8 Word Prediction
Allows you to activate word
prediction, a function that uses
your past text entries to predict
what your next word will be.
1. Press , , , .
2. Use to highlight
On
/
Off
,
then press .
71
Settings
2.9 Name Match for Dialing
1. Press , , , .
2. Use to highlight
On/ Off
,
then press .
3. Security
The Security menu allows you to
secure the phone electronically.
3.1 Lock Phone
Keeps your phone from
unauthorized use. Once the
phone is locked, it is in restricted
mode until the Lock Code is
entered. You can still receive
phone calls and make emergency
calls. You can modify the Lock
Code in the Change Lock Code
sub-menu of the Security menu.
1. Press , , .
2. Enter the four-digit Lock
Code.
The default Lock Code is
usually the last 4 digits of
your phone number.
3. Press
Lock Phone
.
4. Use to highlight an
option, then press .
Unlock
The phone remains
unlocked by default, until it is
locked manually.
Lock Locks the phone. When
locked, you can receive
incoming calls and make calls
only to Emergency Numbers
(Menu >Settings >
Security > Enter the
four-digit Lock Code >
Emergency Numbers).
On Power Up
The phone is
locked when it is turned on.
Settings
72
Settings
3.2 Restrictions
Allows you to set restrictions for
Calls, SMS Messages, MMS
Messages, IP Connection.
1. Press , , .
2. Enter the four-digit Lock
Code.
3. Press
Restrictions.
4. Use to highlight
Calls/
SMS Messages/ MMS
Messages/ IP Connections,
then
press .
5. Choose a submenu and the
type of restriction and press
to set.
6. Enter the four-digit Service
Lock Code.
3.3 Emergency Numbers
Allows you to enter 3 emergency
numbers. You can call these
emergency numbers and 911,
even when the phone is locked
or restricted.
1. Press , , .
2. Enter the four-digit Lock
Code.
3. Press
Emergency
Numbers
.
4. Highlight one of the 3
options, then press to edit
the emergency numbers.
5. When you are finished editing
the number, press
Save
to
save the emergency number
or the Right Soft Key
Cancel
to cancel editing.
Note
You can receive the incoming calls
from saved contacts on your phone
when Contacts Only is on.
73
Settings
3.4 Change Lock Code
Allows you to enter a new four-
digit Lock Code.
1. Press , , .
2. Enter the four-digit Lock
Code.
3. Press
Change Lock
Code
.
4. Use to highlight an
option, then press .
Phone Only Allows you to
change the Lock Code used to
lock/unlock the phone.
Call & Applications Allows
you to change the Service
Lock Code that is used to
access the Restrictions menu.
5. Enter the four-digit Lock
Code.
6. Enter a new 4-digit Lock
Code.
7. For confirmation, the phone
will ask you to enter the new
Lock Code again.
3.5 Master Reset
Allows you to reset your phone
settings to the factory default
settings.
1. Press , , .
2. Enter the four-digit Lock
Code.
3. Press
Master Reset
.
4. A message will pop up warning
you that your settings will be
set to factory defaults.
Press to proceed.
5. Use to highlight
Revert/
Cancel
and press .
Settings
74
Settings
6. If you choose
Revert
, enter
your four-digit Lock Code to
confirm your selection.
4. Call Settings
The Call Settings menu allows
you to designate how the phone
handles both incoming and
outgoing calls.
4.1 Answer Options
Allows you to determine how to
answer an incoming call.
1. Press , , , .
2. Use to highlight
Flip
Open/SEND Key Only/Any
Key/Auto with Handsfree
,
then press .
4.2 Auto Retry
Allows you to set the length of
time the phone waits before
automatically redialing a number
when the attempted call fails.
1. Press , , , .
2. Use to highlight
Off/
Every 10 Seconds/ Every 30
Seconds/ Every 60 Seconds
,
then press .
4.3 One Touch Dial
Allows you to initiate a Speed Dial
call by pressing and holding the
Speed Dial digit. If set to Off,
Speed Dial numbers designated in
your Contacts will not function.
1. Press , , , .
2. Use to highlight
On/ Off
,
then press .
4.4 Voice Privacy
Allows you to set the voice
privacy feature for CDMA calls as
Enhanced or Standard. CDMA
75
Settings
offers inherent voice privacy.
Check with your service provider
for availability.
1. Press , , , .
2. Use to highlight
Enhanced/ Standard
, then
press .
4.5 Airplane Mode
Only allows you to use features
on your phone that do not
require wireless communications.
1. Press , , , .
2. Read the displayed message
and press to continue.
3. Use to highlight
On/ Off
,
then press .
4.6 TTY Mode
Allows you to attach a TTY
(Teletype writer) device, enabling
you to communicate with parties
also using a TTY device. A phone
with TTY support is able to
translate typed characters to
voice. Voice can also be
translated into characters and
then displayed on the TTY
device.
1. Press , , , .
2. Read the displayed message
and press to continue.
3. Use to highlight
TTY Full/
TTY + Talk/ TTY + Hear/
TTY Off
, then press .
Settings
76
Settings
5. Bluetooth
The UN160 is compatible with
devices that support the
Bluetooth®Headset, HandsFree,
Dial Up Networking, Serial Port,
Phonebook Access, Basic Printing,
Object Push, File Transfer, and
Human Interface profiles. You may
create and store 20 pairings
within the UN160 and connect to
one device at a time. The
approximate communication range
for Bluetooth®wireless technology
is up to 30 feet (10 meters).
5.1 Paired Devices
Pairing is the process that allows
the handset to locate, establish
and register 1-to-1 connection
with the target device.
Note
Read the user guide of each Bluetooth®
accessory that you are trying to pair
with your phone because the
instructions may be different.
The Bluetooth®features available on
this handset may not be compatible
with all Bluetooth®enabled devices.
Your service provider or phone
manufacturer cannot be held
responsible for compatibility issues
with devices not sold by the service
provider or phone manufacturer.
77
Settings
For pairing new Bluetooth®
device
1. Press
,,,.
2. Follow the Bluetooth
®
accessory instructions to set
the device to pairing mode.
3. Press the Left Soft Key
Search.
4. If Bluetooth
®
power is set to
off, you will be prompted to
turn the function on. Highlight
Yes and press .
5. Select
New Search/Last
Search
. The device will appear
in the
Device Found
menu
once it has been located.
Highlight the device and press
Pair
.
6. Depending on the type of
device:
- The phone will Auto-pair.
- You will need to confirm
matching codes.
- You will need to enter a passkey.
Consult the Bluetooth
®
accessory instructions for the
correct passkey (typically
“0000” - 4 zeroes). Enter the
passkey and press .
7. The handset will prompt you for
your connection preferences.
Highlight
Always Ask
or
Always
Connect
and press .
8.
Once connected, you will see
the device listed in the Paired
Devices menu.
Settings
78
Settings
5.2 Power
Allows you to set the Bluetooth
®
power to On/Off.
1. Press
,,,.
2. Use to highlight
On/ Off
,
then press .
5.3 My Visibility
Allows you to set the visibility of
your Bluetooth
®
function.
1. Press
,,,
.
2. Use to highlight
On/ Off,
then press .
5.4 My Bluetooth Info
Allows you to view information
regarding the Bluetooth
®
function.
1. Press
,,,
.
2. To rename your device, press
the Left Soft Key
Rename.
3. Press and hold to delete
the current name, then enter
your desired device name.
4. Press Save.
6. System
The System menu allows you to
designate specific system
network settings.
6.1 Network
6.1.1 System Select
Allows you to set up the phone
producer’s management
environment. Leave this setting
as the default unless you want to
alter system selection as
instructed by your service
provider.
Note
By default, your device’s Bluetooth®
functionality is turned off.
79
Settings
1. Press
,,,,
.
2. Use to highlight
Home
Only/ Automatic
, then press
.
6.1.2 Set NAM
Allows you to select the phone’s
NAM (Number Assignment
Module) if the phone is registered
with multiple service providers.
1. Press
,,,,
.
2. Use to highlight
NAM1
or
NAM2
, then press .
6.1.3 Auto NAM
Allows the phone to
automatically switch between
programmed telephone numbers
corresponding to the service
provider area.
1. Press
,,,,
.
2. Use to highlight
On
or
Off
, then press .
6.1.4 Serving System
Identifies the serving system
Channel Number and SID
Number. This information should
only be used for technical support.
1. Press
,,,,
.
6.2 Location
Allows you to turn On or Off the
Location function on your
phone. If set to On, location-
based services are able to access
your GPS (Global Positioning
System) satellite-assisted
location information.
Settings
80
Settings
1. Press , , , .
2. Read the disclaimer and press
the Right Soft Key Next
to go to the next screen or
Left Soft Key Prev to go
to the previous screen. Press
the Right Soft Key
OK
on the last screen.
3. Use to highlight
On/ Off
,
then press .
7. Web Access Prompt
Allows you to turn the Web
Access Prompt on or off.
1. Press
,,
.
2. Use to highlight
On
or
Off
, then press .
8. Memory
Allows you to check out the
memory status of your phone.
1. Press
,,
.
2. Use to highlight
Reserved Memory/
Multimedia
and press .
9. Phone Info
The Phone Info menu provides
you with specific information
about your phone.
1. Press
,,
.
2. Use to highlight
My
Number/ Current Battery
Level/ ESN/MEID/ Icon
Glossary/ Version
/
Software
Update
and press .
Note
GPS satellite signals are not always
transmitted, especially under bad
atmospheric and environmental
conditions, indoors etc.
81
Tone Room Deluxe/ My Contacts Backup/
PAC-MAN
Tone Room Deluxe/ My Contacts Backup/ PAC-MAN
Tone Room Deluxe
The Tone Room Deluxe
application allows you to browse
and download ringtones.
1. Press
,
.
My Contacts Backup
My Contacts Backup safeguards
your mobile phone’s address
book and automatically saves a
copy of the names, phone
numbers, and email addresses
stored in your phone. You can
also view, print, add, delete, and
edit your contacts online.
1. Press
,
.
PAC-MAN
Allows you to use the preloaded
PAC-MAN application. User
charges may apply.
1. Press
,
.
TIA Safety Information
The following is the complete
TIA Safety Information for
wireless handheld phones.
Exposure to Radio Frequency
Signal
Your wireless handheld portable
phone is a low power radio
transmitter and receiver. When
ON, it receives and sends out
Radio Frequency (RF) signals.
In August, 1996, the Federal
Communications Commissions
(FCC) adopted RF exposure
guidelines with safety levels for
handheld wireless phones. Those
guidelines are consistent with
the safety standards previously
set by both U.S. and
international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
ICNIRP (1996)
* American National Standards
Institute; National Council on
Radiation Protection and
Measurements; International
Commission on Non-Ionizing
Radiation Protection.
Those standards were based on
comprehensive and periodic
evaluations of the relevant
scientific literature. For example,
over 120 scientists, engineers,
and physicians from universities,
government health agencies, and
industry reviewed the available
body of research to develop the
ANSI Standard (C95.1).
The design of your phone
complies with the FCC guidelines
(and those standards).
Antenna Care
Use only the supplied or an
approved replacement antenna.
Unauthorized antennas,
modifications, or attachments
Safety
82
Safety
83
Safety
could damage the phone and
may violate FCC regulations.
Phone Operation
NORMAL POSITION: Hold the
phone as you would any other
telephone with the antenna
pointed up and over your
shoulder.
Tips on Efficient Operation
For your phone to operate
most efficiently:
Don’t touch the antenna
unnecessarily when the phone is
in use. Contact with the antenna
affects call quality and may cause
the phone to operate at a higher
power level than otherwise
needed.
Driving
Check the laws and regulations
on the use of wireless phones in
the areas where you drive and
always obey them. Also, if using
your phone while driving, please
observe the following:
G
Give full attention to driving.
Driving safely is your first
responsibility.
G
Use hands-free operation, if
available;
G
Pull off the road and park
before making or answering a
call if driving conditions or the
law require it.
Electronic Devices
Most modern electronic
equipment is shielded from RF
signals. However, certain
electronic equipment may not be
shielded against the RF signals
from your wireless phone.
Pacemakers
The Health Industry
Manufacturers Association
recommends that a minimum
separation of six (6) inches be
maintained between a handheld
wireless phone and a pacemaker
to avoid potential interference
with the pacemaker. These
recommendations are consistent
with the independent research
by and recommendations of
Wireless Technology Research.
Persons with pacemakers:
G
Should ALWAYS keep the
phone more than six (6)
inches from their pacemaker
when the phone is turned ON;
G
Should not carry the phone in
a breast pocket;
G
Should use the ear opposite
the pacemaker to
minimize the potential for
interference;
G
Should turn the phone OFF
immediately if there is any
reason to suspect that
interference is taking place.
Hearing Aids
Some digital wireless phones may
interfere with some hearing aids.
In the event of such interference,
you may want to consult your
service provider (or call the
customer service line to discuss
alternatives).
Other Medical Devices
If you use any other personal
medical device, consult the
manufacturer of your device to
determine if it is adequately
shielded from external RF energy.
Your physician may be able to
assist you in obtaining this
information.
Safety
84
Safety
85
Safety
Health Care Facilities
Turn your phone OFF in health
care facilities when any
regulations posted in these areas
instruct you to do so. Hospitals
or health care facilities may use
equipment that could be
sensitive to external RF energy.
Vehicles
RF signals may affect improperly
installed or inadequately
shielded electronic systems in
motor vehicles. Check with the
manufacturer or its
representative regarding your
vehicle. You should also consult
the manufacturer of any
equipment that has been added
to your vehicle.
Posted Facilities
Turn your phone OFF in any
facility where posted notices so
require.
Aircraft
FCC regulations prohibit using
your phone while in the air.
Switch OFF your phone before
boarding an aircraft.
Blasting Areas
To avoid interfering with blasting
operations, turn your phone OFF
when in a “blasting area” or in
areas posted: “Turn off two-way
radio”. Obey all signs and
instructions.
Potentially Explosive
Atmosphere
Turn your phone OFF when in
any area with a potentially
explosive atmosphere and obey
all signs and instructions. Sparks
in such areas could cause an
explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive
atmosphere are often, but not
always marked clearly. Potential
areas may include: fueling areas
(such as gasoline stations);
below deck on boats; fuel or
chemical transfer or storage
facilities; vehicles using liquefied
petroleum gas (such as propane
or butane); areas where the air
contains chemicals or particles
(such as grain, dust, or metal
powders); and any other area
where you would normally be
advised to turn off your vehicle
engine.
For Vehicles Equipped with an
Air Bag
An air bag inflates with great
force. DO NOT place objects,
including either installed or
portable wireless equipment, in
the area over the air bag or in
the air bag deployment area. If
in-vehicle wireless equipment is
improperly installed and the air
bag inflates, serious injury could
result.
Safety Information
Please read and observe the
following information for safe
and proper use of your phone
and to prevent damage. Also,
keep the user guide in an
accessible place at all times after
reading it.
C
C
a
a
t
t
i
i
o
o
n
n
!
!
Violation of the
instructions may cause minor
or serious damage to the
product.
G
Do not disassemble or open
crush, bend or deform,
puncture or shred.
G
Do not modify or
remanufacture, attempt to
insert foreign objects into the
battery, immerse or expose to
water or other liquids, expose
Safety
86
Safety
87
Safety
to fire, explosion or other
hazard.
G
Only use the battery for the
system for which it is
specified.
G
Only use the battery with a
charging system that has been
qualified with the system per
IEEE-Std-1725-2006. Use of
an unqualified battery or
charger may present a risk of
fire, explosion, leakage, or
other hazard.
G
Do not short circuit a battery
or allow metallic conductive
objects to contact battery
terminals.
G
Replace the battery only with
another battery that has been
qualified with the system per
this standard, IEEE-Std-1725-
2006. Use of an unqualified
battery may present a risk of
fire, explosion, leakage or
other hazard.
G
Promptly dispose of used
batteries in accordance with
local regulations.
G
Battery usage by children
should be supervised.
G
Avoid dropping the phone or
battery. If the phone or
battery is dropped, especially
on a hard surface, and the
user suspects damage, take it
to a service center for
inspection.
G
Improper battery use may
result in a fire, explosion or
other hazard.
G
The phone shall only be
connected to USB products
that bear the USB-IF logo or
have completed the USB-IF
compliance program.
Charger and Adapter Safety
G
The charger and adapter are
intended for indoor use only.
G
Insert the battery pack
charger vertically into the wall
power socket.
G
Use the correct adapter for
your phone when using the
battery pack charger abroad.
G
Only use the approved battery
charger. Otherwise, you may
cause serious damage to your
phone.
Battery Information and Care
G
Please dispose of your battery
properly or take it to your
local wireless carrier for
recycling.
G
The battery doesn't need to
be empty before recharging.
G
Use only LG-approved
chargers specific to your
phone model since they are
designed to maximize battery
life.
G
Do not disassemble or short-
circuit the battery.
G
Keep the battery’s metal
contacts clean.
G
Replace the battery when it no
longer provides acceptable
performance. The battery can
be recharged several hundred
times before replacement.
G
Recharge the battery after
long periods of non-use to
maximize battery life.
G
Battery life will vary due to
usage patterns and
environmental conditions.
G
Use of extended backlighting,
Browser, and data connectivity
kits affect battery life and
talk/standby times.
G
The self-protection function of
the battery cuts the power of
the phone when its operation
is in an abnormal state. In this
case, remove the battery from
the phone, reinstall it, and turn
the phone on.
Safety
88
Safety
89
Safety
Explosion, Shock, and Fire
Hazards
G
Do not put your phone in a
place subject to excessive dust
and keep the minimum required
distance between the power
cord and heat sources.
G
Unplug the power cord prior
to cleaning your phone, and
clean the power plug pin when
it’s dirty.
G
When using the power plug,
ensure that it’s firmly
connected. If not, it may cause
excessive heat or fire.
G
If you put your phone in a
pocket or bag without
covering the receptacle of the
phone (power plug pin),
metallic articles (such as a
coin, paperclip or pen) may
short-circuit the phone.
Always cover the receptacle
when not in use.
G
Don’t short-circuit the battery.
Metallic articles such as a
coin, paperclip or pen in your
pocket or bag may short-
circuit the + and – terminals
of the battery (metal strips on
the battery) upon moving.
Short-circuit of the terminal
may damage the battery and
cause an explosion.
G
Do not disassemble or crush
the battery. It may cause a fire.
General Notice
G
Using a damaged battery or
placing a battery in your
mouth may cause serious
injury.
G
Do not place items containing
magnetic components such as
a credit card, phone card,
bank book, or subway ticket
near your phone. The
magnetism of the phone may
damage the data stored in the
magnetic strip.
G
Talking on your phone for a
long period of time may
reduce call quality due to heat
generated during use.
G
When the phone is not used
for a long period time, store it
in a safe place with the power
cord unplugged.
G
Using the phone in proximity
to receiving equipment (i.e.,
TV or radio) may cause
interference to the phone.
G
Do not use the phone if the
antenna is damaged. If a
damaged antenna contacts
skin, it may cause a slight
burn. Please contact an LG
Authorized Service Center to
replace the damaged antenna.
G
Do not immerse your phone
in water. If this happens, turn
it off immediately and remove
the battery. If the phone does
not work, take it to an LG
Authorized Service Center.
G
Do not paint your phone.
G
The data saved in your phone
might be deleted due to
careless use, repair of the
phone, or upgrade of the
software. Please backup your
important phone numbers.
(Ring tones, text messages,
voice messages, pictures could
also be deleted.)
The manufacturer is not liable
for damage due to the loss of
data.
G
When you use the phone in
public places, set the ringtone
to vibration so you don't
disturb others.
G
Do not turn your phone on or
off when putting it to your ear.
G
Use accessories, such as
earphones and headsets, with
caution. Ensure that cables are
tucked away safely and do not
touch the antenna
unnecessarily.
Safety
90
Safety
91
Safety
Warning! Impor tant
safety information
Avoiding hearing damage
Permanent hearing loss may
occur if you use your phone
and/or headset at a high volume.
Set the volume to a safe level.
You can adapt over time to a
higher volume of sound that may
sound normal but can be
damaging to your hearing. If you
experience ringing in your ears or
muffled speech, stop listening
and have your hearing checked.
The louder the volume, the less
time is required before your
hearing could be affected.
Hearing experts suggest that to
protect your hearing:
G
Limit the amount of time you
use your phone and/or
headset at high volume.
G
Avoid turning up the volume
to block out noisy
surroundings.
G
Turn the volume down if you
can’t hear people speaking
near you.
For information about how to set
a maximum volume limit on your
phone, see the features guide for
your phone.
Using your phone safely
Use of your phone while
operating a vehicle is not
recommended and is illegal in
some areas. Be careful and
attentive while driving. Stop
using your phone if you find it
disruptive or distracting while
operating any type of vehicle or
performing any other activity
that requires your full attention.
FDA Consumer
Update
The U.S. Food and Drug
Administration’s Center for
Devices and Radiological Health
Consumer Update on Mobile
Phones:
1. Do wireless phones pose a
health hazard?
The available scientific evidence
does not show that any health
problems are associated with
using wireless phones. There is
no proof, however, that wireless
phones are absolutely safe.
Wireless phones emit low levels
of Radio Frequency (RF) energy
in the microwave range while
being used. They also emit very
low levels of RF when in standby
mode. Whereas high levels of RF
can produce health effects (by
heating tissue), exposure to low
level RF that does not produce
heating effects causes no known
adverse health effects. Many
studies of low level RF exposures
have not found any biological
effects. Some studies have
suggested that some biological
effects may occur, but such
findings have not been confirmed
by additional research. In some
cases, other researchers have had
difficulty in reproducing those
studies, or in determining the
reasons for inconsistent results.
2. What is the FDA's role
concerning the safety of
wireless phones?
Under the law, the FDA does not
review the safety of radiation-
emitting consumer products such
as wireless phones before they
can be sold, as it does with new
drugs or medical devices.
However, the agency has
authority to take action if
wireless phones are shown to
Safety
92
Safety
93
Safety
emit Radio Frequency (RF)
energy at a level that is
hazardous to the user. In such a
case, the FDA could require the
manufacturers of wireless phones
to notify users of the health
hazard and to repair, replace, or
recall the phones so that the
hazard no longer exists.
Although the existing scientific
data do not justify FDA
regulatory actions, the FDA has
urged the wireless phone
industry to take a number of
steps, including the following:
G
Support needed research into
possible biological effects of
RF of the type emitted by
wireless phones;
G
Design wireless phones in a
way that minimizes any RF
exposure to the user that is
not necessary for device
function; and
G
Cooperate in providing users
of wireless phones with the
best possible information on
possible effects of wireless
phone use on human health.
The FDA belongs to an
interagency working group of the
federal agencies that have
responsibility for different
aspects of RF safety to ensure
coordinated efforts at the federal
level. The following agencies
belong to this working group:
G
National Institute for
Occupational Safety and
Health
G
Environmental Protection
Agency
G
Occupational Safety and
Health Administration
G
National Telecommunications
and Information
Administration
The National Institutes of Health
participates in some interagency
working group activities, as well.
The FDA shares regulatory
responsibilities for wireless
phones with the Federal
Communications Commission
(FCC). All phones that are sold
in the United States must comply
with FCC safety guidelines that
limit RF exposure. The FCC relies
on the FDA and other health
agencies for safety questions
about wireless phones.
The FCC also regulates the base
stations that the wireless phone
networks rely upon. While these
base stations operate at higher
power than do the wireless
phones themselves, the RF
exposures that people get from
these base stations are typically
thousands of times lower than
those they can get from wireless
phones. Base stations are thus
not the subject of the safety
questions discussed in this
document.
3. What kinds of phones are
the subject of this update?
The term “wireless phone” refers
here to handheld wireless phones
with built-in antennas, often
called “cell”, “mobile”, or “PCS”
phones. These types of wireless
phones can expose the user to
measurable Radio Frequency
(RF) energy because of the short
distance between the phone and
the user’s head.
These RF exposures are limited
by FCC safety guidelines that
were developed with the advice
of the FDA and other federal
health and safety agencies. When
the phone is located at greater
distances from the user, the
exposure to RF is drastically
lower because a person's RF
exposure decreases rapidly with
Safety
94
Safety
95
Safety
increasing distance from the
source. The so-called “cordless
phones,” which have a base unit
connected to the telephone
wiring in a house, typically
operate at far lower power levels,
and thus produce RF exposures
far below the FCC safety limits.
4. What are the results of the
research done already?
The research done thus far has
produced conflicting results, and
many studies have suffered from
flaws in their research methods.
Animal experiments investigating
the effects of Radio Frequency
(RF) energy exposures
characteristic of wireless phones
have yielded conflicting results
that often cannot be repeated in
other laboratories. A few animal
studies, however, have suggested
that low levels of RF could
accelerate the development of
cancer in laboratory animals.
However, many of the studies
that showed increased tumor
development used animals that
had been genetically engineered
or treated with cancer-causing
chemicals so as to be pre-
disposed to develop cancer in
the absence of RF exposure.
Other studies exposed the
animals to RF for up to 22 hours
per day. These conditions are
not similar to the conditions
under which people use wireless
phones, so we do not know with
certainty what the results of such
studies mean for human health.
Three large epidemiology studies
have been published since
December 2000. Between them,
the studies investigated any
possible association between the
use of wireless phones and
primary brain cancer, glioma,
meningioma, or acoustic
neuroma, tumors of the brain or
salivary gland, leukemia, or other
cancers. None of the studies
demonstrated the existence of
any harmful health effects from
wireless phone RF exposures.
However, none of the studies can
answer questions about long-
term exposures, since the
average period of phone use in
these studies was around three
years.
5. What research is needed to
decide whether RF exposure
from wireless phones poses a
health risk?
A combination of laboratory
studies and epidemiological
studies of people actually using
wireless phones would provide
some of the data that are
needed. Lifetime animal exposure
studies could be completed in a
few years. However, very large
numbers of animals would be
needed to provide reliable proof
of a cancer promoting effect if
one exists. Epidemiological
studies can provide data that is
directly applicable to human
populations, but ten or more
years follow-up may be needed
to provide answers about some
health effects, such as cancer.
This is because the interval
between the time of exposure to
a cancer-causing agent and the
time tumors develop — if they
do — may be many, many years.
The interpretation of
epidemiological studies is
hampered by difficulties in
measuring actual RF exposure
during day-to-day use of wireless
phones. Many factors affect this
measurement, such as the angle
at which the phone is held, or
which model of phone is used.
6. What is the FDA doing to
find out more about the
possible health effects of
wireless phone RF?
Safety
96
Safety
97
Safety
The FDA is working with the U.S.
National Toxicology Program and
with groups of investigators
around the world to ensure that
high priority animal studies are
conducted to address important
questions about the effects of
exposure to Radio Frequency
(RF) energy.
The FDA has been a leading
participant in the World Health
Organization International
Electro Magnetic Fields (EMF)
Project since its inception in
1996. An influential result of this
work has been the development
of a detailed agenda of research
needs that has driven the
establishment of new research
programs around the world. The
project has also helped develop
a series of public information
documents on EMF issues.
The FDA and the Cellular
Telecommunications & Internet
Association (CTIA) have a formal
Cooperative Research And
Development Agreement
(CRADA) to do research on
wireless phone safety. The FDA
provides the scientific oversight,
obtaining input from experts in
government, industry, and
academic organizations. CTIA-
funded research is conducted
through contracts with
independent investigators. The
initial research will include both
laboratory studies and studies of
wireless phone users. The
CRADA will also include a broad
assessment of additional
research needs in the context of
the latest research developments
around the world.
7. How can I find out how much
Radio Frequency energy
exposure I can get by using my
wireless phone?
All phones sold in the United
States must comply with Federal
Communications Commission
(FCC) guidelines that limit Radio
Frequency (RF) energy exposures.
The FCC established these
guidelines in consultation with
the FDA and the other federal
health and safety agencies. The
FCC limit for RF exposure from
wireless phones is set at a
Specific Absorption Rate (SAR)
of 1.6 watts per kilogram (1.6
W/kg). The FCC limit is
consistent with the safety
standards developed by the
Institute of Electrical and
Electronic Engineering (IEEE) and
the National Council on
Radiation Protection and
Measurement. The exposure limit
takes into consideration the
body’s ability to remove heat
from the tissues that absorb
energy from the wireless phone
and is set well below levels known
to have effects. Manufacturers of
wireless phones must report the
RF exposure level for each model
of phone to the FCC. The FCC
website
(http://www.fcc.gov/oet/rfsafety)
gives directions for locating the
FCC identification number on
your phone so you can find your
phone’s RF exposure level in the
online listing.
8. What has the FDA done to
measure the Radio Frequency
energy coming from wireless
phones?
The Institute of Electrical and
Electronic Engineers (IEEE) is
developing a technical standard
for measuring the Radio
Frequency (RF) energy exposure
from wireless phones and other
wireless handsets with the
participation and leadership of
FDA scientists and engineers.
The standard, “Recommended
Practice for Determining the
Safety
98
Safety
99
Safety
Spatial-Peak Specific Absorption
Rate (SAR) in the Human Body
Due to Wireless Communications
Devices: Experimental
Techniques”, sets forth the first
consistent test methodology for
measuring the rate at which RF is
deposited in the heads of
wireless phone users. The test
method uses a tissue-simulating
model of the human head.
Standardized SAR test
methodology is expected to
greatly improve the consistency
of measurements made at
different laboratories on the
same phone. SAR is the
measurement of the amount of
energy absorbed in tissue, either
by the whole body or a small
part of the body. It is measured
in watts/kg (or milliwatts/g) of
matter. This measurement is used
to determine whether a wireless
phone complies with safety
guidelines.
9. What steps can I take to
reduce my exposure to Radio
Frequency energy from my
wireless phone?
If there is a risk from these
products — and at this point we
do not know that there is — it is
probably very small. But if you
are concerned about avoiding
even potential risks, you can take
a few simple steps to minimize
your exposure to Radio
Frequency (RF) energy. Since
time is a key factor in how much
exposure a person receives,
reducing the amount of time
spent using a wireless phone will
reduce RF exposure. If you must
conduct extended conversations
by wireless phone every day, you
could place more distance
between your body and the
source of the RF, since the
exposure level drops off
dramatically with distance. For
example, you could use a
headset and carry the wireless
phone away from your body or
use a wireless phone connected
to a remote antenna. Again, the
scientific data do not
demonstrate that wireless
phones are harmful. But if you
are concerned about the RF
exposure from these products,
you can use measures like those
described above to reduce your
RF exposure from wireless phone
use.
10. What about children using
wireless phones?
The scientific evidence does not
show a danger to users of
wireless phones, including
children and teenagers. If you
want to take steps to lower
exposure to Radio Frequency
(RF) energy, the measures
described above would apply to
children and teenagers using
wireless phones. Reducing the
time of wireless phone use and
increasing the distance between
the user and the RF source will
reduce RF exposure.
Some groups sponsored by
other national governments have
advised that children be
discouraged from using wireless
phones at all. For example, the
government in the United
Kingdom distributed leaflets
containing such a
recommendation in December
2000. They noted that no
evidence exists that using a
wireless phone causes brain
tumors or other ill effects. Their
recommendation to limit wireless
phone use by children was
strictly precautionary; it was not
based on scientific evidence that
any health hazard exists.
Safety
100
Safety
101
Safety
11. What about wireless phone
interference with medical
equipment?
Radio Frequency (RF) energy
from wireless phones can interact
with some electronic devices. For
this reason, the FDA helped
develop a detailed test method
to measure Electro Magnetic
Interference (EMI) of implanted
cardiac pacemakers and
defibrillators from wireless
telephones. This test method is
now part of a standard
sponsored by the Association for
the Advancement of Medical
Instrumentation (AAMI). The
final draft, a joint effort by the
FDA, medical device
manufacturers, and many other
groups, was completed in late
2000. This standard will allow
manufacturers to ensure that
cardiac pacemakers and
defibrillators are safe from
wireless phone EMI.
The FDA has tested hearing aids
for interference from handheld
wireless phones and helped
develop a voluntary standard
sponsored by the Institute of
Electrical and Electronic
Engineers (IEEE). This standard
specifies test methods and
performance requirements for
hearing aids and wireless phones
so that no interference occurs
when a person uses a
“compatible” phone and a
“compatible” hearing aid at the
same time. This standard was
approved by the IEEE in 2000.
The FDA continues to monitor
the use of wireless phones for
possible interactions with other
medical devices. Should harmful
interference be found to occur,
the FDA will conduct testing to
assess the interference and work
to resolve the problem.
12. Where can I find additional
information?
For additional information, please
refer to the following resources:
FDA web page on wireless
phones
(http://www.fda.gov/. Click on 'C'
in the index and select Cell
Phones.)
Federal Communications
Commission (FCC) RF Safety
Program
(http://www.fcc.gov/oet/rfsafety)
International Commission on
Non-lonizing Radiation
Protection
(http://www.icnirp.de)
World Health Organization
(WHO) International EMF
Project
(http://www.who.int/emf)
National Radiological Protection
Board (UK)
(http://www.hpa.org.uk/radiation/)
10 Driver Safety Tips
Your wireless phone gives you
the powerful ability to
communicate by voice almost
anywhere, anytime. An important
responsibility accompanies the
benefits of wireless phones, one
that every user must uphold.
When operating a car, driving is
your first responsibility. When
using your wireless phone behind
the wheel of a car, practice good
common sense and remember
the following tips:
1. Get to know your wireless
phone and its features such as
speed dial and redial. Carefully
read your instruction manual
and learn to take advantage of
valuable features most phones
offer, including automatic
redial and memory. Also, work
to memorize the phone
keypad so you can use the
Safety
102
Safety
103
Safety
speed dial function without
taking your attention off the
road.
2. When available, use a hands-
free device. A number of
hands-free wireless phone
accessories are readily
available today. Whether you
choose an installed mounted
device for your wireless phone
or a speaker phone accessory,
take advantage of these
devices if available to you.
3. Make sure you place your
wireless phone within easy
reach and where you can
reach it without removing
your eyes from the road. If
you get an incoming call at an
inconvenient time, if possible,
let your voicemail answer it for
you.
4. Suspend conversations during
hazardous driving conditions
or situations. Let the person
you are speaking with know
you are driving; if necessary,
suspend the call in heavy
traffic or hazardous weather
conditions. Rain, sleet, snow,
and ice can be hazardous, but
so is heavy traffic. As a driver,
your first responsibility is to
pay attention to the road.
5. Don’t take notes or look up
phone numbers while driving.
If you are reading an address
book or business card, or
writing a “to-do” list while
driving a car, you are not
watching where you are going.
It is common sense. Do not
get caught in a dangerous
situation because you are
reading or writing and not
paying attention to the road
or nearby vehicles.
6. Dial sensibly and assess the
traffic; if possible, place calls
when you are not moving or
before pulling into traffic. Try
to plan your calls before you
begin your trip or attempt to
coincide your calls with times
you may be stopped at a stop
sign, red light, or otherwise
stationary. But if you need to
dial while driving, follow this
simple tip -- dial only a few
numbers, check the road and
your mirrors, then continue.
7. Do not engage in stressful or
emotional conversations that
may be distracting. Stressful
or emotional conversations
and driving do not mix; they
are distracting and even
dangerous when you are
behind the wheel of a car.
Make people you are talking
with aware you are driving and
if necessary, suspend
conversations which have the
potential to divert your
attention from the road.
8. Use your wireless phone to call
for help. Your wireless phone is
one of the greatest tools you
can own to protect yourself
and your family in dangerous
situations -- with your phone
at your side, help is only three
numbers away. Dial 911 or
other local emergency number
in the case of fire, traffic
accident, road hazard, or
medical emergency. Remember,
it’s a free call on your wireless
phone!
9. Use your wireless phone to
help others in emergencies.
Your wireless phone provides
you a perfect opportunity to
be a “Good Samaritan” in
your community. If you see an
Safety
104
Safety
105
Safety
auto accident, crime in
progress or other serious
emergency where lives are in
danger, call 911 or other local
emergency number, as you
would want others to do for
you.
10. Call roadside assistance or a
special wireless non-
emergency assistance
number when necessary.
Certain situations you
encounter while driving may
require attention, but are not
urgent enough to merit a call
for emergency services. But
you can still use your
wireless phone to lend a
hand. If you see a broken-
down vehicle posing no
serious hazard, a broken
traffic signal, a minor traffic
accident where no one
appears injured or a vehicle
you know to be stolen, call
roadside assistance or other
special non-emergency
wireless number.
The above tips are meant as
general guidelines. Before
deciding to use your mobile
device while operating a vehicle,
it is recommended that you
consult your applicable
jurisdiction’s local laws or other
regulations regarding such use.
Such laws or other regulations
may prohibit or otherwise
restrict the manner in which a
driver may use his or her phone
while operating a vehicle.
Consumer Information
on SAR
(Specific Absorption Rate)
This Model Phone Meets the
Government’s Requirements for
Exposure to Radio Waves.
Your
wireless phone is a radio
transmitter and receiver. It is
designed and manufactured not
to exceed the emission limits for
exposure to radiofrequency (RF)
energy set by the Federal
Communications Commission
(FCC) of the U.S. Government.
These FCC exposure limits are
derived from the
recommendations of two expert
organizations, the National
Counsel on Radiation Protection
and Measurement (NCRP) and
the Institute of Electrical and
Electronics Engineers (IEEE). In
both cases, the
recommendations were
developed by scientific and
engineering experts drawn from
industry, government, and
academia after extensive reviews
of the scientific literature related
to the biological effects of RF
energy.
The exposure Limit for wireless
mobile phones employs a unit of
measurement known as the
Specific Absorption Rate, or SAR.
The SAR is a measure of the rate
of absorption of RF energy by
the human body expressed in
units of watts per kilogram
(W/kg). The FCC requires
wireless phones to comply with a
safety limit of 1.6 watts per
kilogram (1.6 W/kg). The FCC
exposure limit incorporates a
substantial margin of safety to
give additional protection to the
public and to account for any
variations in measurements.
Tests for SAR are conducted
using standard operating
positions specified by the FCC
with the phone transmitting at its
highest certified power level in all
tested frequency bands.
Although SAR is determined at
the highest certified power level,
the actual SAR level of the phone
Safety
106
Safety
107
Safety
while operating can be well below
the maximum value. Because the
phone is designed to operate at
multiple power levels to use only
the power required to reach the
network, in general, the closer
you are to a wireless base station
antenna, the lower the power
output.
Before a phone model is available
for sale to the public, it must be
tested and certified to the FCC
that it does not exceed the limit
established by the government-
adopted requirement for safe
exposure. The tests are
performed in positions and
locations (e.g., at the ear and
worn on the body) as required
by the FCC for each model.
This device was tested for typical
body-worn operations with the
back of the phone kept 0.79
inches (2.0 cm) between the
user’s body and the back of the
phone. To comply with FCC RF
exposure requirements, a
minimum separation distance of
0.79 inches (2.0 cm) must be
maintained between the user s
body and the back of the phone.
Third-party belt-clips, holsters,
and similar accessories
containing metallic components
should not be used. Body-worn
accessories that cannot maintain
0.79 inches (2.0 cm) separation
distance between the user's
body and the back of the phone,
and have not been tested for
typical body-worn operations
may not comply with FCC RF
exposure limits and should be
avoided.
The FCC has granted an
Equipment Authorization for this
model phone with all reported
SAR levels evaluated as in
compliance with the FCC RF
emission guidelines.
The highest SAR value for this
model phone when tested for
use at the ear is 1.09 W/kg and
when worn on the body, as
described in this user’s manual, is
0.63 W/kg. While there may be
differences between SAR levels of
various phones and at various
positions, they all meet the
government requirement for safe
exposure.
SAR information on this model
phone is on file with the FCC
and can be found under the
Display Grant section of
http://www.fcc.gov/oet/fccid
after searching on FCC ID
BEJUN160.
To find information that pertains
to a particular model phone, this
site uses the phone FCC ID
number which is usually printed
somewhere on the case of the
phone. Sometimes it may be
necessary to remove the battery
pack to find the number. Once
you have the FCC ID number for
a particular phone, follow the
instructions on the website and
it should provide values for
typical or maximum SAR for a
particular phone.
Additional information on
Specific Absorption Rates (SAR)
can be found on the Cellular
Telecommunications Industry
Association (CTIA) website at
http://www.ctia.org/
*In the United States and
Canada, the SAR limit for mobile
phones used by the public is 1.6
watts/kg (W/kg) averaged over
one gram of tissue. The standard
incorporates a substantial margin
of safety to give additional
protection for the public and to
account for any variations in
measurements.
Safety
108
Safety
109
Safety
FCC Hearing-Aid
Compatibility (HAC)
Regulations for Wireless
Devices
On July 10, 2003, the U.S.
Federal Communications
Commission (FCC) Report and
Order in WT Docket 01-309
modified the exception of
wireless phones under the
Hearing Aid Compatibility Act of
1988 (HAC Act) to require
digital wireless phones be
compatible with hearing-aids.
The intent of the HAC Act is to
ensure reasonable access to
telecommunications services for
persons with hearing disabilities.
While some wireless phones are
used near some hearing devices
(hearing aids and cochlear
implants), users may detect a
buzzing, humming, or whining
noise. Some hearing devices are
more immune than others to this
interference noise, and phones
also vary in the amount of
interference they generate.
The wireless telephone industry
has developed a rating system
for wireless phones, to assist
hearing device users find phones
that may be compatible with
their hearing devices. Not all
phones have been rated.
Phones that are rated have the
rating on their box or a label
located on the box.
The ratings are not guarantees.
Results will vary depending on
the user’s hearing device and
hearing loss. If your hearing
device happens to be vulnerable
to interference, you may not be
able to use a rated phone
successfully. Trying out the
phone with your hearing device
is the best way to evaluate it for
your personal needs.
M-Ratings: Phones rated M3 or
M4 meet FCC requirements and
are likely to generate less
interference to hearing devices
than phones that are not
labeled. M4 is the better/higher
of the two ratings.
T-Ratings: Phones rated T3 or
T4 meet FCC requirements and
are likely to generate less
interference to hearing devices
than phones that are not
labeled. T4 is the better/higher
of the two ratings.
Hearing devices may also be
rated. Your hearing device
manufacturer or hearing health
professional may help you find
this rating. Higher ratings mean
that the hearing device is
relatively immune to interference
noise. The hearing aid and
wireless phone rating values are
then added together. A sum of 5
is considered acceptable for
normal use. A sum of 6 is
considered for best use.
In the above example, if a hearing
aid meets the M2 level rating
and the wireless phone meets
the M3 level rating, the sum of
the two values equal M5. This is
synonymous for T ratings. This
should provide the hearing aid
user with “normal usage” while
using their hearing aid with the
particular wireless phone.
Safety
110
Safety
111
Safety
“Normal usage” in this context is
defined as a signal quality that is
acceptable for normal operation.
The M mark is intended to be
synonymous with the U mark. The
T mark is intended to be
synonymous with the UT mark.
The M and T marks are
recommended by the Alliance for
Telecommunications Industries
Solutions (ATIS). The U and UT
marks are referenced in Section
20.19 of the FCC Rules. The HAC
rating and measurement
procedure are described in the
American National Standards
Institute (ANSI) C63.19 standard.
To enter that the Hearing Aid
Compatibility rating for your
phone is maintained, secondary
transmitters such as Bluetooth
components must be disabled
during a call. See Page 78 for
instructions to disable these
components.
Safety
112
Safety
For information about hearing aids and digital wireless
phones
FCC Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/dro/hearing.html
Gallaudet University, RERC
http://tap.Gallaudet.edu/DigWireless.KS/DigWireless.htm
Hearing Loss Association of America [HLAA]
http://www.hearingloss.org/learn/cellphonetech.asp
The Hearing Aid Compatibility FCC Order
http://hraunfoss.fcc.gov/edocs_public/attachmatch/FCC-03-
168A1.pdf
