1 Module Diagram
1.1 Summary
- This chapter shows the structure of the UWB002 module separately.
1.2 UWB002 Module
- The UWB002 module can be represented by four blocks: MCU, Antenna, UWB Transceiver,
and Power.
MCU
- The MCU IC consists of RF(UWB) IC, debugging block, power supply block and Cortex M0,
which acts as a system core.
UWB Transceiver
- The role of UWB RF Block and Modem is handled by UWB Transceiver. The communication
signals are transmitted and received through one antenna
Antenna
- The antenna is implemented as a pattern on main PCB. The antenna resonance is designed
according to 3.1 ~ 4.8GHz band.
Power
- A 3.3V Step-Down DC/DC converter is applied to the module to convert the 15V to 3.3V
which is a system power. In addition, a 1.8V step-down DC/DC converter is used to increase
the efficiency of consumed current in RF operation.
LGE Internal Use Only
Page 2-3 / 4
2 Module Specification
2.1 Summary
- Specifications of the UWB002 module are defined.
2.2 UWB002 Module Hardware Specification
- The UWB module consists of MCU and UWB transceiver as remote distance measuring
sensor.
- The system power is suppied from the main board
- Programming interface
- The firmware download is done by connecting SWDIO, SWDCLK port and J-LINK, and the
module debugging is performed by UART connection
2.2.1 Dimension
- The PCB Dimension is 30mm x 33mm and it is equipped with RF IC, MCU and DC/DC
Converter.
- PCB specification is 1.2mm 4 layer rigid PCB and through via

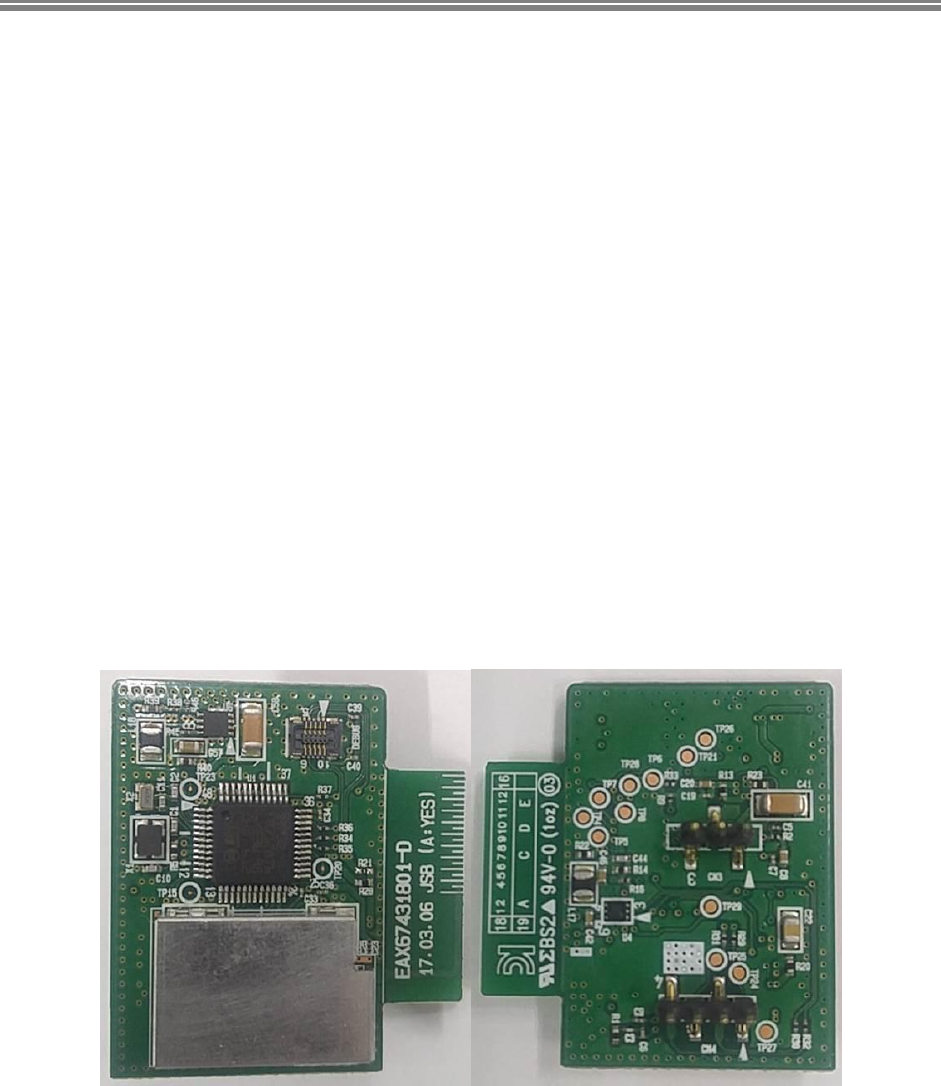

Picture. Module actual photo (Left: TOP, Right:BOTTOM)
