Users Manual
User Guide
LG-V909
P/N : (1.0)
Part 15.21 statement
" Change or Modifications that are not expressly approved by the manufacturer could void
the user's authority to operate the equipment. “
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Part 15 Class B Compliance
This device and its accessories comply with part15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device & its accessories may not cause harmful interference.
(2) This device & its accessories must accept any interference received,
including interference that may cause undesired operation.
Body-worn Operation
This device has been tested for typical body-worn operations
with the distance of 0inches (0cm) from the user’s body.
20 LG-V909 | User Guide
Understanding Your Phone
To turn on the phone, press and hold the Power/
Lock Key for 3 seconds. To turn off the phone, press
the Power/Lock Key for 3 seconds and touch Power
off. Then touch OK to confirm.
Front View
2 Phone icon
1 Proximity
Sensor
4 Home Key
3 Menu Key
10 Back Key
9 Search Key
8 Application
Launcher icon
7 Touchscreen
6 Earpiece
5 Power/Lock
Key
Proximity Sensor1. senses proximity towards
other objects (such as your head) so that touch
commands are not accidentally activated during
a call.
21
WARNING: Placing a heavy object on the
phone or sitting on it can damage its LCD and
touch screen functionalities. Do not cover on the
LCD’s proximity sensor with a protective film. This
can cause the sensor to malfunction.
Phone icon2. accesses Dialer, Call log, Contacts,
and Favorites.
Menu Key 3. opens a context menu with options
that affect the current screen of an application.
TIP: Press Menu Key whenever you touch an
application to check what options are available.
Home Key4. returns to the Home screen. If
you’re already viewing one of the Home screen
extension panes, it navigates you to the central

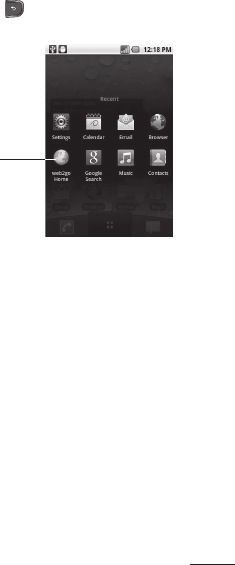

Home screen pane. Press and hold to view the
most recently used applications.
Power/Lock Key5. locks the screen. Press and
hold to open the phone options menu (for the
following options): Silent mode, Airplane mode,
and Power off.
Earpiece6. lets you hear callers and automated
prompts.
Touchscreen7. displays all the information needed
to operate your phone, such as applications,
call status, date, time, signal status, and battery
strength.
Understanding Your Phone
22 LG-V909 | User Guide

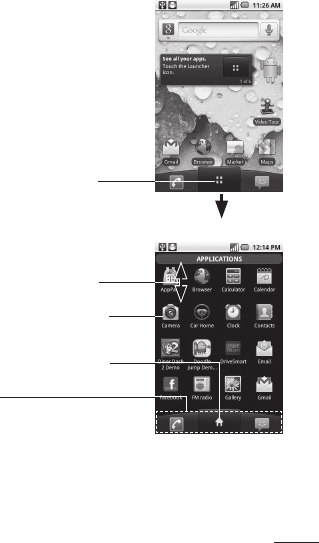

Application Launcher icon8. opens the Launch
menu to view installed applications.
Search Key9. opens Quick Search Box
TM
, from the
Home screen to search the phone and the web.
In many applications, you may touch this key to
search within the application itself. Touch and
hold to open Google
TM
search by voice.
Back Key10. returns to the previous screen. Also
closes pop-up display items such as menus and
dialog boxes.
23
Rear View
6 Accessory/
Charger Port
4 Back Cover
1 3.5mm
Headset Jack
2 Camera Lens
5 Microphone
3 Volume
Keys
3.5mm Headset Jack1. allows you to plug in an
optional headset for convenient, hands-free
conversations. The 3.5mm jack also allows you to
plug in headphones to listen to music.
Camera Lens2. use for taking pictures and
recording videos. Keep clean for optimal
performance.
Volume Keys3. allow you to adjust the ringer, media
volumes and the in-call volume during a call.
Understanding Your Phone
24 LG-V909 | User Guide
Back Cover4. encloses the battery compartment.
Microphone5. transmits your voice to the other
caller and to Voice-activated functions.
Accessory/Charger Port6. allows you to connect the
phone charger, USB cable, or other compatible
accessories.
Tip! The LG-V909 does not support Video call.
Tip! If the LG-V909 has errors when you use it or
you cannot turn it on, remove the battery, install it
again and turn it on after 5 seconds.
Installing the SIM card and battery
Before you can start exploring your new phone, you’ll
need to set it up. To insert the SIM card and battery:
Hold the phone with both hands and use the 1.
fingernail cutout at the top of the phone to pull
open the battery cover (as shown below).
25
Slide the SIM card into the SIM card slot. Make 2.
sure the gold contact area on the card is facing
downwards.
Understanding Your Phone
26 LG-V909 | User Guide
Align the battery contacts with the terminals near 3.
the bottom of the phone, then press the battery
into place.
Replace the battery cover over the back of the 4.
phone (as demonstrated below). Apply a steady
downward pressure until the battery cover clicks
into place.
27
Charging your Phone
Your LG-V909 comes with a wall adapter and a USB
cable which connect together to charge your phone.
To charge your phone:
NOTICE: Please use only an approved
charging accessory to charge your LG phone.
Improper handling of the charger port, as well as
the use of an incompatible charger, may cause
damage to your phone and void the warranty.

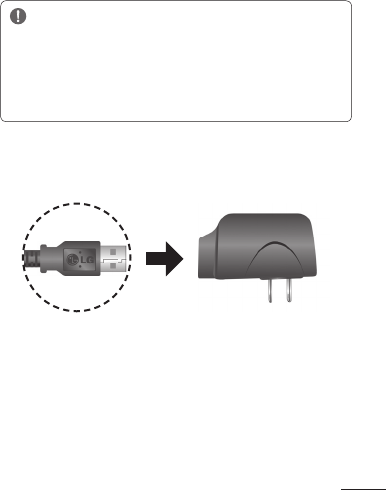

Connect the wall adapter and USB cable as 1.
shown. The LG logo on the USB cable should
face toward you.
Understanding Your Phone
28 LG-V909 | User Guide
Gently uncover the Accessory/Charger port, then 2.
plug one end of the USB cable into the phone’s
charger port and the other end into an electrical
outlet. The charge time varies depending upon
the battery level.
Battery temperature protection
Though extremely rare, if the battery becomes
overheated, the phone will automatically turn off.
Battery charge level
You can find the battery charge level at the top right
of the screen. When the battery level becomes low,
the phone will notify you. Once the battery level
becomes exceedingly low, the phone will shut off
without notice. As a result, unsaved items may be
lost.
29
NOTE: The battery must be fully charged initially
to improve battery lifetime. The LG-V909 has
an internal antenna. Be careful not to scratch or
damage this rear area, as that will cause loss of
performance.
Charging with USB
You can use your computer to charge your phone.
To be able to charge with the USB cable, you need
to have the necessary USB drivers installed on your
PC first. Connect one end of the USB cable to the
charger port on your phone and connect the other
end to a USB port on your PC. It is best to use the
rear USB port when connecting to a desktop PC.
The USB hub should be powered by an external
power source.
NOTES:
Low-power USB ports are not supported, •
such as the USB port on your keyboard or
bus-powered USB hub.
The LG USB Driver is downloadable •
from the following site: http://www.
lgmobilephones.com J Click Mobile
Support J Select the Carrier(T-Mobile) J
Select the Model J Click USB Cable Driver
to download.
Understanding Your Phone
30 LG-V909 | User Guide
Turning the Phone On and Off
Turning the phone on
Press and hold the Power/Lock Key for a
couple of seconds.
Turning the phone off
Press and hold the 1. Power/Lock Key
until
the pop-up menu appears.
Touch 2. Power Off in the pop-up menu.
Touch 3. OK to confirm that you want to turn off the
phone.
Installing the memory card
To store multimedia files, such as captured images and
videos, you must insert a memory card into your phone.
NOTE: The LG-V909 supports up to a 32 GB
memory card.
31
To insert a memory card:
Turn the phone off before inserting or removing 1.
the memory card. Remove the back cover.
Slide the slot protection upwards to unlock it and 2.
flip it up to open it. Then insert the memory card
into the slot, making sure the gold contact area
is facing downwards. Then flip the slot protection
down to close it.
Understanding Your Phone
32 LG-V909 | User Guide
Slide the slot protection downwards to lock it and 3.
replace the battery cover.
WARNING: Do not insert or remove the
memory card when the phone is on. Otherwise,
it may damage the memory card as well as your
phone, and the data stored on the memory card
may be corrupted.
Formatting the memory card
Your memory card may already be formatted. If it
isn’t, you must format it before you can use it.
NOTE: All files on the memory card are deleted
when you format it.
From the Home screen, touch the1. Application
Launcher icon to open the applications menu.
Touch 2. Settings.
Touch 3. SD card & phone storage.
33
Touch 4. Unmount SD Card and OK to confirm.
Touch 5. Format SD card, then confirm your choice.
If you set the pattern lock, enter the pattern lock 6.
and select Erase Everything. The card will then be
formatted and ready to use.
NOTE: If there is content on your memory
card, the folder structure may be different after
formatting since all the files will be deleted.
TIP: If your memory card is already unmounted,
you can use the following step to format it. Touch
the Application Launcher icon J Settings J SD
card & phone storage J Format SD Card.
Understanding Your Phone
34 LG-V909 | User Guide

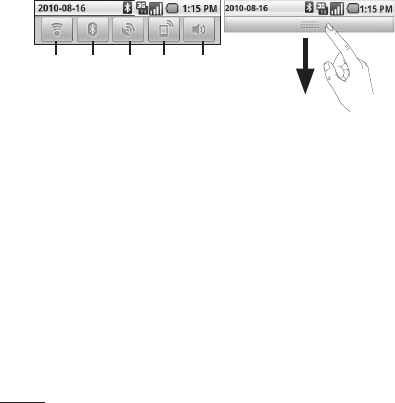

Notifications panel
The Notifications panel runs across the top of your
screen.
Touch and slide the Notifications panel down with
your finger or from the Home screen, press the
Menu Key and select Notifications. Here, you can
check and manage Wi-Fi, Bluetooth, GPS status as
well as other notifications.
Ring
3G
connection
GPS
Bluetooth
Wi-Fi
Viewing the Status bar
The Status bar uses different icons to display
phone information, such as signal strength, new
messages, battery life, and active Bluetooth and
data connections.
Below is a table explaining the meaning of icons
you’re likely to see in the Status bar.
35
[Status bar]
Icon Description
No SIM card installed
No signal
Connected to a Wi-Fi network
Wired headset connected
Call forwarded
Call on hold
Speakerphone is on
Phone microphone is muted
Missed call
Understanding Your Phone
36 LG-V909 | User Guide
Icon Description
Bluetooth is on
Connected to a Bluetooth device
System warning
Alarm is set
New voicemail
Flight mode is set
Silent mode is set
Vibrate mode is set
No microSD card installed
Battery is fully charged
Battery is charging
Data in
Data out
Data in and out
Phone is connected via USB cable
Downloading data
Uploading data
GPS is on
Receiving location data from GPS
37
Your Home screen
Getting to Know the Home Screen
The Home screen is your starting point to access all
the features on your phone. It displays application
shortcuts, icons, widgets, and other features.
Quick Icons
Provide easy, one-touch access to
the functions you use the most.
Status Bar
Shows device status information
including the time, signal strength,
battery status, and notification icons.
Application Icon
Touch an icon (application, folder,
etc.) to open and use it.
Applications Launcher Icon
Touch to open the Launch screen to
view installed applications.
Your Home screen
38 LG-V909 | User Guide

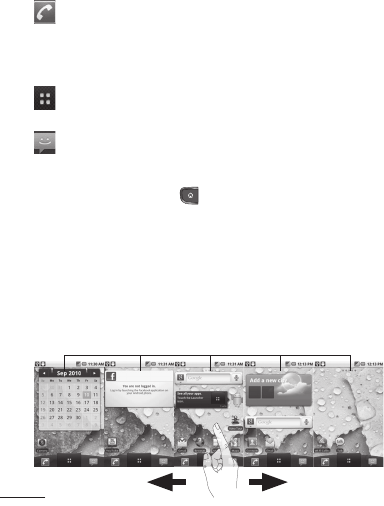

Quick Icons
On the home screen, the Quick Icons are located
on a bar along the bottom of the Home screen and
the Launch screen.
: opens the Phone application which displays
the dialpad so you can dial an unsaved number.
Includes additional tabs across the top of the screen
to access Call log, Contacts and Favorites.
: opens the Launch screen which displays phone
options and applications.
: opens the Messaging application.
To return to the Home screen
Press the Home Key at any time, from any
application.
To view other Home screen panels
Slide your finger left or right across the Home
screen. The Home screen spans five panels, allowing
more space for icons, widgets, shortcuts, etc.
Location Indicator
The dots indicate which Home screen pane you are viewing.
39
Touch screen tips
Here are some tips on how to navigate around your
phone.
Touch - To choose a menu/option or open an
application, touch it.
Touch and hold - To open an options menu or grab
an object you want to move, touch and hold it.
Drag - To scroll through a list or move slowly, drag
across the touch screen.
Flick - To scroll through a list or move quickly, flick
across the touch screen (drag quickly and release).
Swiping - Swiping means to quickly drag your finger
vertically or horizontally on the screen to move the
area of focus or to scroll through a list. For example:
slide your finger left or right on the Home screen to
scroll among the five panels.
Rotating the screen - The screen can be rotated
to change the orientation from portrait (default)
to landscape. For example: rotate the phone
horizontally to change to landscape orientation when
entering text to provide a larger keyboard or when
viewing web content to minimize scrolling.
Your Home screen
40 LG-V909 | User Guide
Notes:
To select an item, touch the icon.•
Do not to press too hard; the touch screen •
is sensitive enough to pick up a light, firm
touch.
Use the tip of your finger to touch the •
option you want. Be careful not to touch any
other keys.
Lock your phone
When you are not using your LG-V909, press the
Power/Lock Key to lock your phone. This helps
prevent accidental presses and saves battery power.
Also, if you do not use the phone for a while, the
Home screen or current screen you are viewing, is
replaced with the lock screen to conserve battery
life.
If there are any applications running when •
you lock the phone, they may be still running
in lock mode. It is recommended to exit all
programs before entering lock mode to avoid
unnecessary charges. (e.g., phone call, web
access and data communications)
41
Setting an unlock pattern: You can draw your own
unlock pattern by connecting four or more dots.
When the phone’s screen locks and you have set an
unlock pattern, press the Power/Lock Key and draw
the pattern to unlock it.
Caution: To set an unlock pattern, you must first
create a Gmail account.

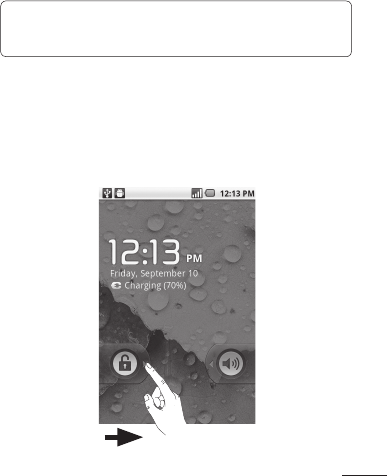

Unlock screen
Whenever your LG-V909 is not in use, it will return
to the lock screen. Drag the unlock icon from left to
right to unlock the screen.
Your Home screen
42 LG-V909 | User Guide
Silent Mode
From the Notifications panel, touch the icon
to set Silent Mode (the icon is displayed if the
Vibrate menu is set to Never or Only when not in
Silent mode; otherwise, the icon is displayed).
If you don't have an unlock pattern set, simply drag
to the left.
To wake up your phone, press the Menu, Home,
Back, Search or Power/Lock Keys. The lock screen
will appear. Touch the unlock icon and drag your
finger to the left to unlock your Home screen. The
last screen you were working on opens.
43
Home screen
Simply swipe your finger to the left or right to view
your Home screen panels.
You can also customize each panel with widgets and
shortcuts to your favorite applications, folders and
wallpapers.
NOTE: Some screen images may be different
depending on your phone provider.
In your LG Home screen, you can view quick
keys at the bottom of the screen. The quick keys
provide easy, one-touch access to the functions
you use the most.
Touch the Application Launcher icon at the
bottom of the screen to view all your installed
applications.
Applications: How to View, Open and Switch
All of the applications on your phone, including
any applications that you downloaded and installed
from Android MarketTM or other sources, are
grouped together on one Launch screen that you
access from your Home screen. If you have more
applications than can fit on the Launch screen, you
can slide the screen up or down to view more.
Your Home screen
44 LG-V909 | User Guide
Getting back to a recently used applications
Press and hold the 1. Home Key. The screen will
show you a pop-up with icons of applications that
you've used recently.
Touch an icon to open the desired application 2.
or press the Back Key to return to the current
application or screen.
45
Overview
Touch to open the Launch screen
Slide the screen up or down to
bring more icons into view
Home screen
Launch screen
Touch an application icon to open
the application
Touch to close the Launch screen
Quick Icons
Your Home screen
46 LG-V909 | User Guide
Opening and Closing the Launch screen
Opening the Launch screen
With your LG-V909, it’s easy to access the Launch
screen no matter what feature you’re currently using.
Simply press the Home key , then touch the
Application Launcher icon .
Closing the Launch screen
To manually close the Launch screen, press the
Home Key .
NOTE: The Launch screen closes automatically
when you touch an icon to open its application.
Dragging an icon onto your Home screen also
closes the Launch screen automatically.
Customizing the Launch Screen
The items on the Launch screen are listed
alphabetically. You can customize the Launch screen
by moving the position of applications so that you
don’t have to scroll the screen up to access the
applications you use most often. You can also add
additional categories to the screen to organize your
files.
47
Moving application positions
From the Home screen, touch the 1. Application
Launcher icon
.
Press the 2. Menu Key and touch Move item.
Drag the application icon to the position you want, 3.
then lift your finger. Application icons to the right
of the position shift accordingly.
Adding a category
From the Home screen, touch the 1. Application
Launcher icon .
Press the 2. Menu Key and touch Add
category.
Enter the category name, then touch 3. OK.
Opening and Switching Applications
Multi-tasking is easy with AndroidTM because
open applications keep running even when you
open another application. There’s no need to quit
an application before opening another. You can
use and switch among several open applications.
Android manages each application, stopping
and starting them as needed, to ensure that idle
applications don’t consume resources unnecessarily.
Your Home screen
48 LG-V909 | User Guide
Opening an application
Open an application simply by touching its icon on
the screen.
TIP: You can customize your Home screen
with the application icons you use most often.
Applications are located on the Launch screen,
but you can copy any application icon to your
Home screen for faster access. No matter where
the icon is, on the Launch screen or your Home
screen, just touch it to open and use it.
Opening multiple applications
Touch an application icon to open it.1.
Press the 2. Home Key
.
NOTE: If the application icon you want is on your
Home screen, simply touch the icon to open and
use it.
Touch the 3. Application Launcher icon
.
Touch the icon for the other application you want 4.
to open.
Switching between multiple applications
Press and hold the 1. Home Key . A window
opens with icons of applications that you’ve used
recently.
49
Touch the application icon you want to open. 2. Or
touch the Back Key
to return to the current
application.
Touch an icon to open an
application you’ve used recently.
Adding application icons to the Home screen
Customize your Home screen with the applications
you use most often.
Open the Launch screen.1.
Touch and hold the application icon you want to 2.
add to your Home screen. Your Launch screen will
be minimized so that you can place the icon on a
Home screen.
Lift your finger to place it, or drag the icon to 3.
where you want it on the screen, then lift your
finger.
Your Home screen
50 LG-V909 | User Guide
Working with Menus
There are two kinds of Android menus: Options
menus and Context menus.
Options menus
Options menus contain tools that apply to the
activities of the current screen or application, not
to any specific item on the screen. To open the
available Options menu, press the Menu Key
.
Not all applications have Options menus; if you
press the Menu Key on a screen that has no
Options menu, nothing will happen.

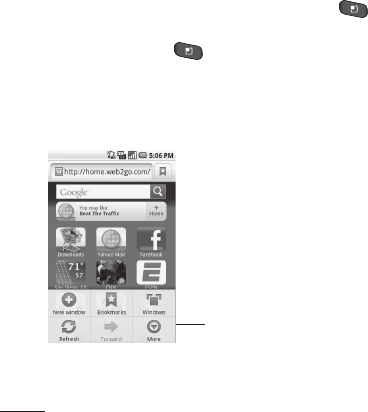

Some applications have more Options menu items
than can fit in the options menu; touch More to
open the additional items.
Touch to open more menu items.
Options menus contain items that
apply to the current screen or to
the application as a whole.
51
Context menus
Context menus contain options that apply to a
specific item on the screen. To open a Context
menu, touch and hold an item on the screen. Not
all items have Context menus. If you touch and
hold an item that has no Context menu, nothing will
happen.
When you
touch and hold
certain items
on a screen, a
Context menu
opens.
Managing Notifications
Notification icons report the arrival of new
messages, calendar events, alarms, as well as
ongoing events, such as when you are in a call.
When you receive a notification, text appears briefly
and the notification icon will be displayed in the
Status bar.
Your Home screen
52 LG-V909 | User Guide
You can open the Notifications panel to view a list of
all recent notifications. Depending on your settings,
you may hear a notification sound and/or the phone
may vibrate.
Applications whose activities produce notifications,
such as GmailTM and Google Talk, have their own
settings, which you can use to configure whether,
and how, they send notifications.
To open the Notifi cations panel
Touch and drag the Status bar to the bottom •
of the screen.
OR
From the Home screen, press the • Menu Key
and touch Notifications.
The Notifications panel displays your wireless
provider and a list of your current notifications,
organized into ongoing and event-based
notifications.
To respond to a notifi cation
Open the Notifications panel. Your current 1.
notifications are listed in the panel, each with a
brief description.
Touch a notification to view it.2.
The Notification panel will close and the
application that corresponds to your response will
open. For example, new voicemail notifications
53
dial your voicemail box, and network disconnect
notifications open the list of configured networks
so you can reconnect.
To clear all notifi cations
Open the Notifications panel.1.
Touch 2. Clear at the top right of the panel.
All event-based notifications will be cleared;
ongoing notifications will remain in the list.
To close the notifi cations panel
Touch and drag the tab at the bottom of the
Notifications panel to the top of the screen or just
touch the Back Key . The panel will also close
when you touch a notification.
Searching Your Phone and the Web
You can search for information on your phone
and on the web by using the Quick Search Box or
Google search. Some applications, such as Gmail,
Contacts, and Browser have the ability to search
contents within those specific applications.
Along with being able to search by typing in search
terms, you are also able to search by voice.
Your Home screen
54 LG-V909 | User Guide
Phone and Web search using text entry
Press the 1. Search Key.
When you press the Search Key
on the
Home screen or in other applications that
support this function, the Quick Search Box will
open automatically.
In some applications, such as Gmail, Contacts,
and Browser, the application’s own search box
opens when you press the Search Key . This is
indicated by the application’s icon on the left side of
the search box.
Press the 2. Menu Key
and touch Search .
Enter the text you’re searching for in the Quick
Search Box.
You can use the Search preferences to configure
some aspects of Google web search (for example,
whether it makes suggestions below the Quick
Search Box as you type), and what phone features
you want to include in searches.
Touch the 3. Search icon to search for the entered
terms.
OR
If what you want to search for what appears in the
suggestions list, touch that item to conduct the
search.
55
Locking the Screen
You can lock your screen so that only you can
unlock it to make calls, access your data, buy
applications, etc.
Setting a Lock Pattern for the First Time
Press the 1. Home Key
, then touch the
Application Launcher icon
.
Touch 2. Settings J Location & security.
Touch 3. Set up screen lock (under the Screen
unlock section).
Touch 4. Pattern.
Read the instruction screen, touch 5. Next to see
tutorial instructions on how to create an unlock
pattern, then touch Next when you’re ready to
create your unlock pattern.
Draw the pattern you wish to use and touch 6.
Continue.
Redraw the pattern and touch 7. Confirm.
Your Home screen
56 LG-V909 | User Guide
Touch Continue to draw your
pattern again to confirm it.
Draw your unlock pattern.
From then on, any time you wish to turn the phone
on or unlock the screen, you will need to draw your
unlock pattern to unlock the screen.
Changing Your Lock Pattern
Press the 1. Home Key , then touch the
Application Launcher icon .
Touch 2. Settings J Location & security.
Touch 3. Change screen lock (under the Screen
unlock section).
Draw your current lock pattern.4.
Touch 5. Pattern to change it (or touch None to
remove it).
Draw the pattern you wish to use and touch 6.
Continue.
Redraw the pattern and touch 7. Confirm.
57
Using a PIN or Password to Lock the Screen
Press the 1. Home Key , then touch the
Application Launcher icon .
Touch 2. Settings J Location & security.
Touch 3. Change screen lock (under the Screen
unlock section).
Enter your current lock pattern and touch 4. PIN to
lock the screen with a number sequence or touch
Password for an alphanumeric lock sequence.
Enter the PIN or Password you wish to use and 5.
touch Continue.
Enter the PIN or Password again and touch 6. OK.
From then on, you will need to enter the
sequence and touch OK to unlock the screen.
Your Home screen
58 LG-V909 | User Guide
NOTES:
• You have 5 opportunities to enter your unlock
Pattern, PIN or Password. If you used all the
5 opportunities, you can attempt it after 30
seconds.
• When you can’t recall your unlock Pattern, PIN,
or Password:
- If you’ve created a Google account on the
phone, touch Forgot pattern? Then, you are
required to sign in with your Google account
to unlock your phone.
- If you haven’t created a Google account on
the phone, you need to perform a factory
reset.
(Caution: If you perform a factory reset, all
user applications and user data will be deleted.
Please remember to back up any important
data before performing a factory reset.)
Turn the power off.1.
Press and hold the following keys for 5 2.
seconds: Down Volume Key + Home Key +
Power/Lock Key.
When the power turns on, release these keys.3.
59
Customizing the Home Screen
You can personalize your Home screen by adding
application icons, shortcuts, widgets, and other
items to any Home screen. You can also change the
wallpaper.
To add an item to the Home screen
Go to the Home screen pane where you want to 1.
add the item.
Press the 2. Menu Key and touch Add.
Or, just touch and hold an empty spot on the
Home screen.
NOTE: If there is no available space on a
particular Home screen pane, Add will not be
available; you must delete or remove an item
before you can add another item. In this case,
you have the option of switching to another
Home screen pane.
In the menu that opens, touch the type of item 3.
to add.
Your Home screen
60 LG-V909 | User Guide
You can add the following types of items to the
Home screen:
Shortcuts: Add shortcuts to applications, a
bookmarked webpage, a favorite contact, a
destination in Google Maps, a Gmail label, a music
playlist, and more. The shortcuts available depend
on the applications you have installed.
Widgets: Add any of a variety of widget applications
to your Home screen, including a clock, a music
player, a picture frame, a power manager, a calendar
of upcoming appointments, a News and Weather
widget, and more. Note that more widgets can also
be found on Android MarketTM.
Folders: Add a folder where you can organize other
Home screen shortcuts and icons, or folders that
contain all your contacts, contacts with phone
numbers, or starred contacts. Your folders’ contents
are kept up-to-date automatically.
To move an item on the Home screen
Touch and hold the item.1.
Drag the item to a new location on the screen. 2.
Pause at the left or right edge of the screen
to drag the item onto the next available Home
screen pane.
When the item is where you want it, lift your 3.
finger.
61
To remove an item from the Home screen
Touch and hold the item, note that the Launch 1.
icon changes to an icon of a trash can.
Drag the item to the Trash Can icon.2.
When the icon turns red, lift your finger.3.
To change the Home screen wallpaper
Press the 1. Home Key, then press the Menu Key
and touch Wallpaper.
You can also touch and hold an empty spot on
the Home screen, then touch Wallpapers in the
menu that opens.
Touch 2. Gallery, Live wallpapers, or Wallpapers.
Touch Gallery to use a picture on your phone
as a wallpaper. You can crop the picture before
setting it as a wallpaper.
Touch Live wallpapers to open a list of animated
wallpapers installed on your phone. Live
wallpapers can change according to the time of
day, respond to touching the screen, tell the time,
or offer other information. Touch Wallpapers to
open a screen of wallpaper images that come
with the phone. Slide the thumbnail images left
and right to view the available images.
Touch 3. Set wallpaper or Save.
Your Home screen
62 LG-V909 | User Guide
To rename a folder
Touch the folder icon to open it.1.
Touch and hold the folder window’s title bar.2.
Edit the current folder name.3.
Touch 4. OK.
Applications
The Application menu provides quick access to the
most frequently used applications.
The following pages contains a description of each
application. If the application is already described
in another section of this user manual, then a cross
reference to that particular section is provided.
TIP: You cannot delete the preloaded
applications. (Only their icons can be deleted
from the screen.)
The following applications are available:
Browser
Open the browser to start surfing the web. The
browser is fully optimized and comes with advanced
functionality to enhance the Internet browsing
feature on your phone.
63
Calculator
This feature allows you to use the phone as a
calculator. The calculator provides the basic
arithmetic functions: addition, subtraction,
multiplication, and division. You also have access to
an advanced panel, which includes more advanced
functions.
Calendar
With the Calendar feature, you can:
Consult the calendar by month, week, or day.•
Set schedules and note anniversaries.•
Create an event list.•
Write memos to keep track of your schedule.•
Set an alarm to act as a reminder, if necessary.•
Check your event memory status.•

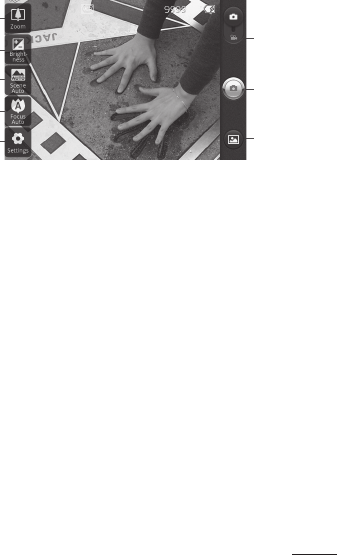

Camera
Use your 3.2 megapixel camera feature to produce
photos in JPEG format.
NOTE: A microSD card must be inserted before
the Camera will take and store photos.
Your Home screen
64 LG-V909 | User Guide
Contacts
Use the Contacts application to add, view, and
communicate with your friends, family, and
acquaintances.
Gallery
Gallery allows you to view photos and play videos.
For photos, you can also perform basic editing tasks,
view a slideshow, set photos as wallpaper or contact
icon, and share as a picture message or other
available means.
Gmail
Google Mail (Gmail) is a web-based email service.
Depending on your synchronization settings, Gmail
can automatically synchronize with your Gmail
account on the web.
Maps
Google Maps allow you to track your current
location, view real-time traffic issues, and view
detailed destination directions. There is also a
search tool included to help you locate places of
interest or a specific address. You can view locations
on a vector, aerial map, or at the street level.
65
Market
Android Market provides access to downloadable
applications and games to install on your phone.
Android Market also allows you to provide feedback
and comments about an application, or flag an
application that might be incompatible with your
phone.
Messaging
This application allows you to use the Short
Message Service (SMS) to send and receive text
messages to and from other mobile phones.
You can also use the Multimedia Message Service
(MMS) to create multimedia messages to send and
receive from other mobile phones.
Music
Music allows you to play music files that you have
stored on your microSD card. You can also create
playlists.
My Account
This option provides you with account specific
information, such as your current status, current
activity, Bill Summary, Plan Services, Voicemail
Settings, Find a Retail Store, and FAQ’s Info.
Your Home screen
66 LG-V909 | User Guide
My Device
Use the My Device application to configure device
settings, view Tips & Tricks, personalize your
CallerTunes, Ringtones, or Wallpapers, or view
battery storage information.
Settings
This menu includes settings for your display,
security, memory, and any extra settings associated
with your phone.
Swype Tips
Using the SwypeTips application you can watch a
video or start a tutorial that teaches you how to use
the Swype function most efficiently.
Talk
Google Talk allows you to communicate with other
people who are also connected with Google Talk on
the phone or on the web via instant messaging.
TeleNav GPS Navigator
TeleNav GPS Navigator is a driving aid that
uses both audible and visual directions for GPS
navigation.
67
ThinkFree Office
ThinkFree Office Mobile for Android provides a
central place for managing your documents online
or offline.
Video Player
The Video Player application plays video files stored
on your microSD card.
Visual Voicemail
Visual Voicemail enables users to view a list of
people who left a voicemail message, and listen
to any message they want without being limited to
chronological order.
Voice Dialer
Voice Dialer is a voice recognition software used to
activate a wide variety of functions on your phone.
Voice Recorder
The Voice Recorder allows you to record an audio
file up to one minute long and then immediately
send it as a message.
Your Home screen
68 LG-V909 | User Guide
Voice Search
The Voice Search feature is a voice-activated
application that allows you to search for items via
the Google search engine.
YouTube
YouTube is a video sharing website on which users
can view, upload and share videos.
Onscreen Keyboard
You can enter text using the onscreen keyboard.
The onscreen keyboard displays automatically on
the screen when you need to enter text. To manually
display the keyboard, simply touch a text field where
you want to enter text.
Text Input Methods
Swype• (default): Swype™ is a text input
method that allows you to enter a word by
sliding your finger from letter to letter, lifting
your finger between words.
Android keyboard:• The Android keyboard can
also be used to enter text. To switch to the
Android keyboard, touch and hold a text field,
then touch Input method J Android keyboard.
69

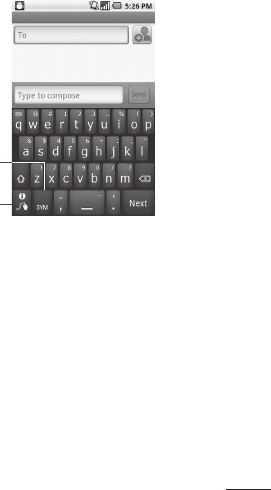

Using the Swype Keyboard
The default keyboard uses Swype™. Swype uses
error correcting algorithms. Swype also includes a
touch predictive text system.
Allows you to
view Swype Tips
and Help.
Toggles from
123/ABC Mode
to SYM Mode
Swype Text Entry Tips
You can access the Swype Tips application and
watch a video or tutorial on using Swype. You can
also use the following Swype text entry tips.
Create a squiggle (like an S shape) to create a •
double letter (such as pp in apple).
Your Home screen
70 LG-V909 | User Guide
Touch and hold a key to enter the alternate •
letter or symbol located at the top right corner
of the key.
Move your finger over the apostrophe to enter •
contractions.
Double-touch on the word you want to change •
or correct a misspelled word.
Touch the delete key to erase one character. •
Touch and hold the delete key to erase an
entire word.
Swype Settings
To confi gure Swype settings:
From the Home screen, press the 1. Menu Key J
Settings J Language & keyboard J Swype.
Touch one of the following Swype settings to 2.
configure the setting:
Preferences settings
Preferences settings provide access to Swype
operation preferences.
Language:• Allows you to select the current text
input language. Default language is set to US
English.
• Word prediction: Uses a built-in word database
to predict words while entering text in Swype.
71
Audio feedback:• Turns sounds generated by
the Swype application on and off.
Vibrate on keypress:• Activates a vibration
sensation as you enter text using the keypad.
Enable tip indicator:• Turns on an on-screen
flashing indicator that provides helpful user
information.
Swype Advanced Settings
Swype Advanced settings provides access to Swype
Advanced Operation settings.
• Auto-spacing: Automatically inserts a space
between words. When you finish a word, just lift
your finger and start the next word.
• Auto-capitalization: Automatically capitalizes
the first letter of a sentence.
• Show complete trace: Sets the length of time
the word trace line remains on-screen as you
swipe across the screen.
• Word choice window: Sets the amount of times
the word choice selection window displays
on screen. Move the slider between Never or
Always and touch OK.
• Speed vs. accuracy: Sets how quickly Swype
responds to on-screen input. Move the slider
between Fast Response (speed) or Error
Tolerance (accuracy) and touch OK.
Your Home screen
72 LG-V909 | User Guide
Help
This menu provides help and a tutorial to guide you
through the process.
Swype help:• Displays the Swype User Manual.
Tutorial:• Provides an on-screen tutorial.
About
The about menu provides the current software
version for the Swype application.
73
Google Account Set-up
The first time you open a Google application on
your phone, you will be required to sign in with
your existing Google account. If you do not have a
Google account, you’re prompted to create one.
Creating your Google account
From the Home screen, touch the Application
Launcher icon to open the applications menu.
Touch1. Gmail and then Next J Create to start the
Google Mail™ set up wizard.
Touch a text field to open the touch keyboard, 2.
and enter your name and username for your
Google account. When entering text, you can
move to the next text field by touching Next on
the keyboard.
When you’re finished inputting your username, 3.
touch Next. Your phone then communicates with
Google servers to verify username availability.
Then follow the instructions and enter the 4.
required and optional information about the
account.
Google Account Set-up
74 LG-V909 | User Guide
Signing in your Google account
Enter your e-mail address and password, then 1.
touch Sign in.
After sign in, you can use Google Mail™ and take 2.
advantages of Google services on your phone.
Once you have set up your Google account on 3.
your phone, your phone will be automatically
synchronized with your Google account on
the web. (It depends on your synchronization
settings.)
After sign in, you can use Google Mail™, Google
Calendar, Android Market™ and Google Maps™;
Download applications from Android Market™;
back up your settings to Google servers; and take
advantage of other Google services on your phone.
IMPORTANT
Some applications, such as Calendar, work •
only with the first Google Account you add.
If you plan to use more than one Google
Account with your phone, be sure to sign
into the one you want to use with such
applications first. When you sign in, your
contacts, Gmail messages, Calendar events,
and other information from these applications
and services on the web are synchronized with
your phone. You will be prompted to sign in or
75
to create a Google Account the first time you
start an application that requires one, such as
Gmail or Android Market™.
If you want to use the backup feature to restore •
your settings to this phone from another phone
that was running Android release 2.0 or later,
you must enable that option during set up.
If you have an enterprise account through •
your company or other organization, your IT
department may have special instructions on
how to sign into that account.
76 LG-V909 | User Guide
Call
Making a call
From the Home screen, touch 1. to open the
dialpad.
Enter the number on the dialpad. To delete a 2.
digit, touch the Clear icon .
Touch the 3. Call icon to make a call.
To end a call, touch the 4. End icon .
TIP: To enter “+” to make international calls,
touch and hold down .
Calling your contacts
From the Home screen, touch 1. to open your
contact list.
Scroll through the contact list or touch 2. Search
and enter the first letter(s) of the contact you
want to call.
In the contact list, touch the contact you want to 3.
call.
When the Contact’s details are displayed, touch the
phone number you want to dial.
77
Answering and rejecting a call
When the screen is locked
When your phone rings, drag the Answer icon
to the right.
Drag the Decline icon to the left to reject an
incoming call. Drag the Excuse msg bar upwards
from the bottom if you want to send a message to
the caller. If the caller is unknown, the Excuse msg
bar is not available.
When the screen is unlocked
When your phone rings, touch the Answer icon .
Touch the Decline icon to reject an incoming call.
Touch the Send SMS button if you want to send a
message to the caller. If the caller is unknown, the
Send SMS button is not available.
Adjusting call volume
To adjust the In-call volume during a call, press the
volume keys on the right side of the phone.
Call
78 LG-V909 | User Guide
Making a second call
During your initial call, touch 1. .
Dial the number, or search your contacts to select 2.
the number you want to call.
Touch the 3. Call icon to connect the call.
Both calls will be displayed on the call sc4.
reen. Your initial call will be put on hold.5.
Touch 6. to swap between calls or touch to
make a conference call.
To end active calls, touch 7. End.
NOTE: You will be charged for each call you
make.
Viewing your Call logs
From the Home screen, touch and choose the
Call log tab.
From the Call log, you can view a complete list of all
dialed, received, and missed calls.
TIP: Touch any single call log entry to view the
date, time, and duration of the call.
TIP: Press the Menu Key, then touch Clear call
log to delete all the recorded items.
79
Call settings
You can configure phone call settings, such as call
forwarding, and other special features offered by
your carrier.
From the Home screen, press the 1. Menu Key
and touch Settings.
Touch 2. Call settings.
80 LG-V909 | User Guide
Contacts
You can add contacts on your phone and
synchronize them with the contacts in your Google
Account or other accounts that support syncing
contacts.
Searching for a contact
From the Home screen, touch1.
to open
your contact list.
Touch 2. Search and enter the contact name using
the keypad.
Adding a new contact
From the Home screen, touch 1. and enter the
new contact’s number, then press the Menu Key,
touch Add to contacts and then Create new
contact.
If you want to add a picture to the new contact, 2.
touch . Choose from Take a picture or Pick
from gallery.
Select the contact type by touching 3. .
Touch a category of contact information and 4.
enter the details about your contact.
Touch 5. Save.
81
Favorite contacts
You can classify frequently called contacts as
favorites.
To add a contact to your favorites
From the Home screen, touch 1. to open your
contact list.
Touch a contact to view its details.2.
Touch the star to the right of the contact’s name. 3.
The star turns gold and is added to your favorites.
To remove a contact from your favorites list
From the Home screen, touch 1. to open your
contact list.
Touch the 2. Favorites tab and choose a contact to
view its details.
Touch the gold star to the right of the contact’s 3.
name. The star turns grey and the contact is
removed from your favorites.
82 LG-V909 | User Guide
Messaging/E-mail
Messaging
Your LG-V909 combines SMS and MMS into one
intuitive, easy-to-use menu.
Sending a message
Touch the 1. Messaging icon on the Home
screen, and touch New message to open a blank
message.
Enter a contact name or number in the 2. To
field. As you enter the contact name, matching
contacts appear. You can touch a suggested
recipient. You can also add multiple recipients.
NOTE: You will be charged for a text message for
every recipient you send the message to.
Touch the text field to start composing a 3.
message.
Press the 4. Menu Key to open the options menu.
Choose from Call, Add subject, Attach, Send,
Insert Smiley, Discard, Templates, All threads and
Add to Contacts.
Touch 5. Send to send your message.
The message screen opens, where you can
view your sent message. Responses appear on
the screen. As you view and send additional
messages, a message thread is created.
83
WARNING: The 160-character limit
may vary from country to country depending on
how the SMS is coded and language.
WARNING: If an image, video, or
audio file is added to an SMS message, it will be
automatically converted into an MMS message,
and you will be charged accordingly.
NOTE: When you get an SMS message
during a call, you will hear a ring notification.
Threaded box
Messages (SMS, MMS) exchanged with another
party can be displayed in chronological order so
that you can conveniently see an overview of your
conversation.
Using smilies
Liven up your messages using smilies.
When writing a new message, press the Menu Key,
then choose Insert Smiley.
Messaging/E-mail
84 LG-V909 | User Guide
Changing your message settings
Your LG-V909 message settings are predefined,
so you can send messages immediately. You can
change the settings based on your preferences.
Opening Email and the Accounts Screen
You can use the Email application to read email
from services other than Gmail. The Email
application supports the following account types:
POP3, IMAP and Exchange.
To open the Email application
From the Home screen, touch • Email.
The first time you open the Email application,
a setup wizard opens to help you add an email
account.
After the initial setup, Email displays the contents
of your Inbox (if you have only one account) or the
Accounts screen (if you have multiple accounts).
85
The Accounts screen
The Accounts screen lists your Combined Inbox and
each of your email accounts.
Open the Email application. If you’re not on the 1.
Account screen, press the Menu Key and touch
Accounts.
- Touch to open your Combined Inbox, with
messages sent to all of your accounts.
- Touch to open a list of your starred messages.
- Touch the folder icon to open the account’s
folders.
Select the Email service provider.2.
You can touch an account to view its Inbox. The
account from which you send email by default is
indicated with a checkmark.
To open your Combined Inbox
If you have configured Email to send and receive
email from more than one account, you can view all
messages sent to all accounts in your Combined
Inbox.
From the Home screen, touch 1. Email.
Touch 2. Combined Inbox (in the Accounts screen).
Messages in the Combined Inbox are color coded
along their left sides, by account, using the same
colors that are used for your accounts in the
Accounts screen.
Messaging/E-mail
86 LG-V909 | User Guide
Only your account’s most recent emails are
downloaded to your phone. To download older
email messages, touch Load more messages at the
bottom of the emails list.
Reading Your Messages
Touch the message you want to read. The message
opens in a screen that includes information about
who sent it, the date it was sent, and other related
information.
You can touch that status indicator to open Quick
Contact.
Responding to a Message
You can reply to, forward, or delete messages.
To mark a message as unread
You can set a message to appear as though it has
not been read – for example, to remind yourself to
read it again later.
While reading a message, press the • Menu Key
and touch Mark as unread.
87
To delete a message
While reading a message, touch • Delete.
-OR-
While reading a message, press the • Menu Key
and touch Delete.
For many types of accounts, deleted messages are
moved to a Trash folder, so you can retrieve them in
case they were deleted by mistake.
Starring Messages
You can add stars to important messages to make it
easy to keep track of them.
To star a message
While reading a message, touch the star • in
its header.
-OR-
From a list of messages in a folder, touch a •
message’s star . The star turns gold.
To unstar a message
Touch the star again.•
To view your starred messages
Touch the • Starred folder in the Accounts
screen. A folder opens with your starred
messages.
Messaging/E-mail
88 LG-V909 | User Guide
Composing and Sending Email
To compose and send a message
While in the 1. Email application, press the Menu
Key and touch Compose.
Enter an address for the message’s intended 2.
recipient. As you enter text, matching addresses
are offered from your Contacts. Separate multiple
addresses with commas.
Press the 3. Menu Key and touch Add Cc/Bcc
to copy other contacts/email addresses to the
message.
Compose your message. 4.
Press the 5. Menu Key and touch Add attachment
to send a photo J pictures, videos, audio and
other files.
Touch 6. Send.
If you’re not ready to send the message, touch
Save as draft to save it in a Drafts folder. Touch
a draft message in a Drafts folder to resume
working on it. Your message will also be saved
as a draft if you touch the Back Key before
sending it. Touch Discard to abandon and delete
a message, including any saved drafts. If you
aren’t connected to a network, for example, if
you’re working in airplane mode, the messages
that you send are stored in your Drafts folder
89
until. If it contains any pending messages, the
Drafts is displayed on the Accounts screen.
Please note that messages sent using an Exchange
account will not be located on the phone; they will,
however, be located on the Exchange server itself.
If you want to see your sent messages in the Sent
folder (or with the Sent label), you will often need to
open the Sent folder/label and select Refresh from
the options menu.
Working with Account Folders
Each account has Inbox, Outbox, Sent, and Drafts
folders. Depending on the features supported
by your account’s service provider, you may have
additional folders.
Adding and Editing Email Accounts
To add an email account
Press the 1. Menu Key and touch Add account.
Touch the type of account you would like to add.2.
Then enter your email address and password and 3.
touch Next.
Enter a name for the account, confirm how you 4.
want your name to appear in outgoing mail, then
touch Done.
Messaging/E-mail
90 LG-V909 | User Guide
To change an account’s settings
Open the Accounts screen. 1.
Touch and hold the account whose settings you 2.
want to change.
In the menu that opens, touch 3. Account settings.
To delete an email account
Open the Accounts screen. 1.
Touch and hold the account you want to delete.2.
Touch 3. Remove account in the menu that opens.
Touch 4. OK in the dialog box to confirm that you
want to delete the account.
Social Networking
With your phone, you can enjoy social networking
and manage your micro-blog in on-line
communities. You can update your current status,
upload photos and view your friends’ status updates
in real-time.
You can add your Facebook and Twitter accounts to
your phone. If you don’t have an account, you can
visit their sites to set it up.
NOTE: An additional costs may be incurred when
connecting and using online services. Check your
data charges with your network provider.
91
Adding your account to your phone
From the Home screen, choose any social 1.
networking application you want to use.
Enter your e-mail address and password that you 2.
set up on your community, then touch Log in.
TIP: If you add a social networking widget on
your Home screen, the widget will show your
status when your phone updates from the
network.
You can also access the social network directly by
touching the widget.
Viewing and updating your status
Choose a social networking application you want 1.
to access.
Update your status with comments or upload 2.
photos.
NOTE: This is dependent on network services.
TIP: You can use information about friends only
in social network applications or sync all data to
Contacts.
Messaging/E-mail
92 LG-V909 | User Guide
Removing accounts on your phone
From the Home screen, press the Menu Key and
touch Settings J Accounts & sync J touch the
account you want to delete J Remove account.
93
Camera
Getting to know the viewfinder
1
2
3
4
5
6
7
8
Zoom1. Zoom in or zoom out. Alternatively, you can
use the side volume keys.
Brightness2. This defines and controls the
amount of sunlight entering the image. Slide the
brightness indicator along the bar, towards “-”
for a lower brightness image, or towards “+” for a
higher brightness image.
Scene mode 3. Choose from Auto, Portrait,
Landscape, Sports, Night, and Sunset.
Focus4. Touch this icon to select the image size.
Choose from VGA, QVGA or QCIF.
Settings5. Touch this icon to open the settings
menu. See Using the advanced settings on page
96.
Video mode6. Slide this icon down to switch to
video mode.
Take a photo 7. Touch this icon to capture an
image.
Camera
94 LG-V909 | User Guide
Gallery8. This enables you to access your saved
photos from within the camera mode. Simply
touch, and your gallery will appear on the screen.
NOTE: You need to insert a memory card first to
take a picture. Without inserting a memory card,
you will not be able to take a picture.
TIP: You can close all the shortcut options to give
a clearer viewfinder screen. Just touch the center
of the viewfinder once. To recall the options,
touch the screen again.
Using the focus mode
You can choose from the following focus modes:
Auto Focus – Set the camera to focus automatically.
Macro – Macro mode allows you to take extreme
close-ups. If you are trying to take a close-up shot
but the focus box remains red, try turning the
macro mode on.
Face tracking –Allows your camera detects and
focuses on human faces automatically.
Manual – Set the camera to focus manually.
95
Taking a quick photo
Open the Camera application.1.
Holding the phone horizontally, point the lens 2.
towards the subject you want to photograph.
Touch and hold the capture button lightly, and 3.
a focus box will appear in the center of the
viewfinder screen.
Position the phone so you can see the subject in 4.
the focus box.
When the focus box turns green, the camera has 5.
focused on your subject.
Take your finger off the capture button.6.
Once you’ve taken the photo
Your captured photo will appear on the screen.
Share Touch to share your photo as Bluetooth,
Email, Facebook, Gmail, Messaging, Picasa
or Twitter.
NOTE: Additional charges may apply when MMS
messages are downloaded while roaming.
Set as Touch to use the image as Contact icon or
Wallpaper.
Rename Touch to edit the name of the selected
picture.
Camera
96 LG-V909 | User Guide
Touch to delete the image.
Touch to take another photo immediately. Your
current photo will be saved.
Touch to view the photo in the Gallery.
Using the advanced settings
In the viewfinder, touch to open the advanced
options.
You can change the camera setting. After selecting
the option, touch the Back Key.
Image size – Touch to set the size (in pixels) of
the picture you take. Select a pixel value from
the numerical options: 3M (2048x1536), 2M
(1600x1200), 1M (1280x960), VGA (640x480),
QVGA (320x240).
ISO – The ISO rating determines the sensitivity of
the camera’s light sensor. The higher the ISO, the
more sensitive the camera will be. This is useful
under darker conditions. Select from ISO values of
Auto, 400,200 and 100.
White balance – Choose from Auto, Incandescent,
Sunny, Fluorescent, and Cloudy.
Color effect – Choose a color effect for your new
photo.
97
Once you’ve made your selections, use the Back
Key to close the menu. You are then ready to take
a picture.
NOTE: You can change a color picture to black
and white or sepia, but you cannot change a
black-and-white or sepia picture to color.
Timer – The self-timer allows you to set a delay
after the shutter is pressed. Select Off, 3 secs.,
5 secs., or 10 secs. This is ideal if you want to be
included in a photo.
Shot mode – Choose from Normal, Continuous
shot, Beauty shot, Art shot, Face effect and
Cartoon.
Image quality – Choose from Super Fine, Fine, and
Normal. The finer the quality, the sharper the photo.
However, the file size will increase as a result, which
means you’ll be able to store fewer photos in the
memory.
Auto review – If you set Auto review on, the camera
will automatically display the picture immediately
after taking it.
Shutter sound – Select one of the four shutter
sounds.
Camera
98 LG-V909 | User Guide
Tag location – Activate to use your phone’s
location-based services. Take pictures wherever you
are and tag them with the location. If you upload
tagged pictures to a blog that supports geotagging,
you can see the pictures displayed on a map.
NOTE: This function is only available when GPS
is active.
Reset – Restore all camera settings to default.
– Touch whenever you want to know how this
function operates. This provides you with a quick
guide.
TIP: When you exit the camera, all settings will
return to their defaults, except image size and
image quality. Any nondefault settings must be
reset, such as Color effect and ISO. Check these
before you take your next photo.
TIP: The settings menu is superimposed over the
viewfinder, so when you change elements of the
image color or quality, you will see a preview of
the image change behind the settings menu.
99
Viewing your saved photos
You can access your saved photos from within 1.
the camera mode. Just touch and you will be
directed to the Gallery.
TIP: Flick left or right to view other photos or
videos.
- Touch to see a slideshow.
- Touch to share the contents or delete
Touch More for the following options below.
Details - Check information of contents.
Set as - Set as contact icon or wallpaper.
Crop -Crop your photo. Move your finger across
the screen to select the area.
To My Album Online - Send the photo to your
online album
Rotate - Rotate left or right.
100 LG-V909 | User Guide
Video camera
Getting to know the viewfinder
1
2
3
4
5
6
7
8
Zoom1. Zoom in or zoom out. Alternatively, you
can use the side volume keys. Make sure to set
the zoom function before recording because you
cannot control it while recording.
Brightness2. This defines and controls the
amount of sunlight entering the Video. Slide the
brightness indicator along the bar, towards “-”
for a lower brightness Video, or towards “+” for a
higher brightness Video.
Video size3. Touch to set the size (in pixels) of the
video you record. Choose your video image size
from VGA (640x480), QVGA (320x240) or
QCIF (176x144).
Scene mode 4. Set the camera to adjust to the
environment. Choose from Auto, Portrait,
Landscape, Sports, Night and Sunset.
101
Settings5. Touch this icon to open the settings
menu. See Using the advanced settings on page
102.
Camera mode6. Slide this icon up to switch to
camera mode.
Start recording7. Touch this icon to begin
recording.
Gallery8. This enables you to access your saved
photos & Videos from within the video camera
mode. Simply touch, and your gallery will appear
on the screen.
Shooting a quick video
Slide the camera mode button down. The icon 1.
will change to .
The video camera’s viewfinder will appear on the 2.
screen.
Holding the phone horizontally, point the lens 3.
towards the subject of the video.
Press the capture button once to start recording.4.
REC will appear at the bottom of the 5.
viewfinder with a timer showing the length of
the video.
Touch6.
on the screen to stop recording.
Video camera
102 LG-V909 | User Guide
After shooting a video
A still image representing your video will appear on
the screen.
Play Touch to play the video.
Share Touch to share your video as Bluetooth,
Email, Gmail, Messaging or YouTube.
NOTE: Additional charges may apply when MMS
messages are downloaded while roaming.
Rename Touch to edit the name of the selected
video.
Touch to delete the video you just recorded
and confirm by touching Yes. The viewfinder will
reappear.
Touch to shoot another video right away. Your
current video will be saved.
Touch to access the Gallery and view your
recorded video.
Using the advanced settings
Using the viewfinder, touch to open the
advanced options.
After selecting the option, touch the Back Key.
103
White balance – The white balance ensures any the
white areas in your video are realistic. To enable your
camera to adjust the white balance correctly, you
may need to determine the light conditions. Choose
from Auto, Incandescent, Sunny, Fluorescent, and
Cloudy.
Color effect – Choose a color tone to use for
your new view. Choose from Off, Mono, Negative,
Solarize, Sepia, Negative Sepia, or Blue.
Duration – Set a duration limit for your video.
Choose between Normal and MMS to limit the
maximum size to send as an MMS message. If you
set as MMS , you can record 300k video. Also you
can choose QVGA and QCIF only in this mode.
Video quality – Choose from Super fine, and
Normal.
Audio recording – Choose Mute to record a video
without sound.
Auto review – If you set Auto review on, the
video camera will automatically display the video
immediately after recording it.
Reset – Reset all the video camera settings.
– Touch whenever you want to know how this
function operates. This provides you with a quick
guide.
Video camera
104 LG-V909 | User Guide
TIP: You can change a video shot in color to
black and white or sepia, but you cannot change
a black-and-white or sepia video to color.
Watching your saved videos
In the viewfinder, touch 1. .
Your gallery will appear on the screen.2.
Touch a video once to start playing it 3.
automatically.
Adjusting the volume when viewing a video
To adjust the volume of a video while it is playing,
use the volume keys on the right side of the phone.
105
Setting a photo as wallpaper
Touch the photo you want to set as wallpaper to 1.
open it.
Touch the screen to open the options menu, then 2.
touch Menu.
Touch 3. More J Set as J Wallpaper.
Your photos and videos
106 LG-V909 | User Guide
You can store multimedia files to a memory card
to have easy access to all your image and video
files.
Touch
the
Applicat
ion Launcher icon,
then select
Gallery. A list of all your albums is displayed.
NOTE:
Make sure you install a memory card into the
phone to save photos and access all your pictures.
Without a memory card, the phone will not display any
photos or videos (excluding Picasa images, which are in
your Picasa album).
View mode
When you open the Gallery application, your albums
will be displayed in Folder view mode. Touching an
album displays your images in Grid view mode. If
you touch an image, it will be displayed in Full view
mode.
Timeline view
The LG-V909 Gallery also provides a timeline view
of your photos and videos. From Grid view mode,
drag to the right to display your photos by
date and location.
Multimedia
107
My Images options menu
Select a photo, then press the Menu
Key
twice to
see the available options.
Sending a photo
To send a photo, touch and hold the photo you 1.
want.
Select Share. Choose from Email, Bluetooth, Picasa,
Facebook, Messaging, Twitter or Gmail.
When you choose 1. Email, Gmail or Messaging, your
photo will be attached to a message. Then you can
write and send the message normally.
TIP: If you have an social networking account
and set it up on your phone, you can share your
photo to the social networking community.
Sending a video
To send a video, touch and hold the video you 1.
want.
Select 2. Share. Choose from Email, Bluetooth,
YouTube, Messaging, or Gmail.
When you choose 3. Email, Gmail or Messaging, your
video will be attached to a message. Then you can
write and send the message normally.
Multimedia
108 LG-V909 | User Guide
Using an image
Choose images to use as wallpaper or identify
callers.
Touch and hold a photo, then touch 1. More J
Set as.
Choose from2. Contact icon or Wallpaper.
Creating a slideshow
From Full view mode, you can watch a slideshow so
you don’t have to open and close each image.
Touch 1. Slideshow.
Checking your photo
You can view a photo’s detailed information, such as
Name, Date, Time, Size and Type.
Touch and hold a photo, then touch1. More J
Details.
109
Transferring files using USB mass storage
devices
To transfer fi les using USB devices:
Connect the LG-V909 to a PC using a USB 1.
cable.
If you didn't install the LG Android Platform 2.
Driver on your PC, you need to change settings
manually. Press the Home Key J Menu Key J
touch Settings J SD Card & Phone Storage J
Mass storage only.
Drag the Notifications panel down and touch 3. USB
connected. Then touch Turn on USB storage.
Once you are connected to your PC via mass 4.
storage, you can view the contents on your PC
and transfer the files.
NOTE: You need to install an SD card first.
Without an SD card, you cannot use USB mass
storage.
NOTE: If you installed the LG Android Platform
Driver, you will see pop up with 'Turn on USB
storage' immediately.
Multimedia
110 LG-V909 | User Guide
Music
Your LG-V909 has a built-in music player that lets
you play all your favorite tracks.
Playing a song
From the Home screen, touch the1. Application
Launcher icon and select Music.
Touch 2. Songs.
Select the song you want to play.3.
Touch 4. to pause the song.
Touch 5. to skip to the next song.
Touch 6. to go back to the beginning of the
song. Touch two times to go back to the
previous song.
To change the volume while listening to music, press
the up and down volume keys on the right side of
the phone.
Touch and hold any song in the list. It will display
Play, Add To Playlist, Use As phone ringtone, Delete
and Search as options.
111
NOTE: Music file copyrights may be protected by
international treaties and national copyright laws.
Therefore, it may be necessary to obtain
permission or a licence to reproduce or copy
music.
In some countries, national laws prohibit
private copying of copyrighted material. Before
downloading or copying the file, please check the
national laws of the relevant country concerning
the use of such material.
Using the radio
Your LG-V909 has a built-in FM radio so you can
tune in to your favorite stations and listen on the go.
NOTE: You must attach your headphones
to listen to the radio. Insert them into the
headphone jack.
Searching for stations
You can tune in to radio stations by searching for
them manually or automatically. They will then be
saved to specific channel numbers, so you don’t
have to keep re-tuning in.
Multimedia
112 LG-V909 | User Guide
To tune in automatically
From the Home screen, touch the1. Application
Launcher icon and select FM radio.
Press the 2. Menu Key and touch Auto scan.
If there are pre-set channels, you will see a pop-3.
up with 'Reset all channels and start Auto scan?'.
If you choose OK, all the pre-set channels will be
deleted and Auto scan will start.
During Auto scanning, touch 4. Stop if you want to
stop scanning. Only the channels scanned before
stopping will be saved.
NOTE: You can also manually tune in to a station
using the displayed wheel.
Resetting channels
Press the 1. Menu Key and choose Reset Channel
to reset the current channel, or choose Reset all
channels to reset all the channels.
Listening to the radio
Touch 1. Listen Via and you can choose to listen via
Speaker or Wired headset.
WARNING: If you connect a
headset not specifically made for radio reception,
radio reception may be poor.
113
First, set up a Google account. Enter your user 1.
name and password.
After signing in, your contacts, email, and 2.
calendar in your Google account will automatically
synchronize with your LG-V909.
Google Maps™
Check your current location and traffic and receive
directions to your destination. The LG-V909 must
be connected to Wi-Fi or 3G/GPRS.
NOTE: Google Maps™ does not cover all cities
and countries.
Using options
Press the Menu Key to use the following options:
Search – Enter the place you are looking for.
Directions – This will let you get directions to
the place you are looking for. Touch to input the
data. Choose from Contacts or Point on Map or My
current location.
Layers – You can switch view from Traffic to
Satellite or Terrain. Touch Latitude and you will
see the location of your contacts from your Google
Account. Touch Buzz to post messages to your Buzz
account from Maps.
Google applications
Google applications
114 LG-V909 | User Guide
My Location – Point to your current location on
the map.
Join Latitude – Share your location with friends.
More – Clear the map or find Starred items and
more.
NOTE: While viewing Street View for a location,
press the Menu Key and touch Compass Mode to
turn Compass Mode on.
Market™
Android Market™ lets you download useful
applications and games. If you install applications
and games from Android Market™, they appear in
the applications menu. You can check downloaded
application by pressing the Menu Key and touching
the Downloads tab.
You can also check other's comment regarding an
application or you can post your comments.
Select a category from 1. Apps and Games to
browse its contents. You can choose from Top
paid, Top free and Just in.
Choose an application to install.2.
115
NOTE: When you want to finish the game, use the
Home or Back Key. You will return to the Home
screen. You can also use the Menu Key of the game.
WARNING: To protect your phone and
personal data, download applications only from
trusted sources, such as Android Market™. If
some applications are not properly installed on
your phone, your phone may not work normally
or a serious error can occur. You will need to
uninstall those applications and all of its data and
settings from the phone.
Google Mail™
Google Mail™ is configured when you first first
access a Google application and sign into your
Google Account.
Depending on your synchronization settings, Google
Mail™ on your phone is automatically synchronized
with your Google Mail™ account on the web.
Press the Menu Key, then touch Refresh to send
or receive new emails and to synchronize your
emails with your Google Mail™ account on the web.
Pressing the Menu Key, you can compose an email,
view your Accounts, Go to labels, Search and More.
Google applications
116 LG-V909 | User Guide
Google Talk™
Google Talk™ is Google’s instant messaging
program. It lets you communicate with other people
who also use Google Talk™.
Press the Menu Key for the following available
options:
All friends – Displays all friends on your friend’s
list.
Add friend – Send invitation to chat.
Search – Allows you to search for a contact or a
chat saved to your Gmail account.
Sign out – Signs you out from chat. When you
touch the Talk icon from the Home screen, you will
be Signed in automatically if you set Automatically
sign in active.
Settings – Allows you to adjust various Google
Talk settings.
More – Allows you to close all chats, check
Invites and view your Blocked list.
117
Setting your alarm
From the Home screen, touch the1. Application
Launcher icon and select Clock.
If you want to add a new alarm, touch 2. .
Touch 3. Add alarm and set the time. Then touch
to turn on the alarm. After you set the time,
the LG-V909 will let you know how much time is
left before the alarm sounds.
Set 4. Repeat, Ringtone or Vibrate and add Label to
name the alarm. Touch Done to save the alarm.
Press the 5. Menu Key to add an alarm or adjust
alarm settings.
Using your calculator
From the Home screen, touch the1. Application
Launcher icon and select Calculator.
Touch the number keys to enter numbers.2.
For simple calculations, touch the function you 3.
want (+, –, x, or ÷), followed by =.
For more complex calculations, press the 4. Menu
Key, touch Advanced panel, then choose any of
the available functions.
Utilities
Utilities
118 LG-V909 | User Guide
Adding an event to your calendar
From the H1. ome screen, touch the Application
Launcher icon and select Calendar.
You must have or create Google account to use
Calendar.
To check the event, touch the date. To add a new 2.
event, touch and hold the date, then touch New
event.
Enter the event name in the 3. What field. Check
the date and enter the time you want your event
to begin and finish.
Enter the location of the event in the 4. Where field.
If you would like to add a note to your event, touch 5.
the Description field and enter the details.
If you want to repeat the alarm, set 6. Repetition,
and set Reminders, if necessary.
Touch 7. Done to save the event in the calendar. A
colored square in the calendar will mark all days
that have saved events. An alarm will sound at
the event start time to help you stay organized.
119
Changing your calendar view
From the Home screen, touch the 1. Application
Launcher icon and select Calendar. Press the
Menu Key.
Select one of the following Calendar views: 2. Day,
Week, Month, or Agenda.
ThinkFree Office
ThinkFree Office allows you to read documents and
provides limited edit functions for Microsoft Word,
Excel and PowerPoint. You cannot edit PDF files.
Touch and hold a file. Depending on the file type, 1.
the following options are available: Open, Upload,
Rename, Move, Copy, Delete, Send and Properties.
Using options
Press the Menu Key to use the following options:
New – Add a new Document, Spreadsheet,
Presentation or Folder.
Refresh – Refresh data.
Sort – Sort by Name, Date or Size.
Preferences – Adjust ThinkFree Office settings.
Update – Allows you to adjust various ThinkFree
Office settings.
About – View more information about ThinkFree
Office.
Utilities
120 LG-V909 | User Guide
Voice Recorder
Use the Voice Recorder to record voice memos or
other audio files.
Recording a sound or voice
From the Home screen, touch the 1. Application
Launcher icon and select Voice Recorder.
Touch 2. to begin recording.
Touch 3. to end recording.
Press the 4. Menu Key and select Use as ringtone
to set as the phone ringtone.
NOTE: Touch Go to list to access your album.
You can listen to the saved recording.
Sending the voice recording
Once you have finished recording, you can send 1.
the audio clip by pressing the Menu Key and
touching Share.
Choose from 2. Bluetooth, Email, Gmail and
Messaging. When you select Email, Gmail and
Messaging, the voice recording will be attached
to a message. Then you can write and send it
normally.
121
Browser
Browser gives you a fast, full-color world of games,
music, news, sports, entertainment, and much more,
right on your mobile phone, wherever you are and
whatever you’re into.
NOTE: Additional charges apply when connecting
to these services and downloading content.
Check data charges with your network provider.
Using options
Press the Menu Key to view the following options:
New window – Open a new window.
Bookmark – Add/Display Bookmarks and
display the Most Visited Site and History.
Window – Show all your open windows.
Refresh – Touch to refresh the web page.
Forward – Forwards you to the page you had
connected to prior to going back to the current
page. This is opposite action with Back Key,
which goes to the previous page.
More
Add bookmark • – Add the current web page as
a bookmark.
The Web
The Web
122 LG-V909 | User Guide
Find on page • – Allows you to search for letters
or words on the current web page.
Select Text• – Touch and select the lines you
want to copy. Long touch any input box to
paste the copied text.
Page info• – Displays the web page information.
Share page• – Share the web page to others
with Applications like Email, Bluetooth,
Messaging, Facebook and more.
Downloads • – Displays your history of
downloads.
Settings • – Set the browser settings.
TIP: To return the previous web page, press the
Back Key.
Adding and accessing bookmarks
Press the 1. Menu Key, then touch Bookmarks.
Touch 2. Add and enter a name followed by its URL.
To access the bookmark, simply touch the 3.
bookmark image. You will be connected to the
bookmarked page.
Changing Web browser settings
Press the Menu Key, then touch More J Settings.
123
Settings
Wireless & networks
Allows you to manage Wi-Fi and Bluetooth
connections. You can also set Mobile networks and
Airplane mode.
Airplane mode – When Airplane mode is activated,
all wireless communications are disabled.
Sound
Allows you to adjust sound and notification settings.
You can also manage vibrate mode, audible, and
haptic feedback.
Display
Brightness – Adjust the brightness of the screen.
Auto-rotate screen – Set to switch orientation
automatically when you rotate the phone.
Animation – Set to allows animations to be
displayed.
Screen timeout – Set the delay time before the
screen automatically turns off.
Location & Security
Use wireless networks – If you check Use wireless
networks, your phone will be determine your
approximate location by using Wi-Fi and mobile
Settings
124 LG-V909 | User Guide
networks. When you check this option, you’re asked
whether you consent to allowing Google to use your
location when providing these services.
Use GPS Satellites – If you check Enable GPS
satellites, your phone will be determine your location
to street-level accuracy.
Set up screen lock – Set unlock pattern to secure
your phone. When setting this option, a set of
screens open and guide you through drawing a
screen unlock pattern. You can also set a PIN or
Password instead of a Pattern or leave it as None.
When you turn on your phone or wake up the
screen, you're prompted to draw your unlock pattern
to unlock the screen.
Set up Sim card lock – Set up a PIN to be required
for phone use or change the SIM PIN.
Visible passwords – Select to show passwords as
you type them or deselect to hide passwords.
Select device administrators – Add device
administrators.
Use secure credentials – Allows you to access
secure certificates.
Install from SD card – Choose to install encrypted
certificates from your SD card.
Set password – Set or change the credential
storage password.
125
Clear storage - Clear credential storage of all
contents and reset its password
Applications
You can manage applications.
Unknown Sources – Enable this setting to install
non-Market applications.
Manage Applications – Manage and remove
installed applications.
Running services - Check currently running services
Development – Set options for application
development.
Accounts & sync
Allows you to activate Background data
synchronization or Auto-sync. You can also verify
or add accounts and change their data and
synchronization settings.
Privacy
You can also perform a Factory data reset, which will
erase all of your data. Make sure you backup any
important data before performing this function.
Settings
126 LG-V909 | User Guide
SD card & phone storage
Check total available SD card space. Touch
Unmount SD card to safely remove the SD card.
Touch Format the SD card if you want to delete all
data from the SD card.
Search
Touch Google search to adjust Google search
settings.
Touch Searchable items to adjust the settings in
order to get necessary information effectively.
Choose from Web, Apps, Contacts, Messaging
Search, Music or Twitter.
Language & keyboard
Set local language and region, text input, and
autocorrect options.
Voice input & output
Allows you to set various settings for the Voice
recognizer and Text-to-speech.
127
Accessibility
You use the Accessibility settings to configure any
accessibility plug-ins you have installed on your
phone.
NOTE: Requires additional plug-ins to become
selectable.
Date and time
Set date, time, time zone, and time and date
formats.
About phone
View legal information and check phone status and
software version.
128 LG-V909 | User Guide
Wi-Fi
With Wi-Fi, you can use high-speed Internet access
within the coverage of the wireless access point
(AP).
You can enjoy wireless Internet with Wi-Fi without
extra charges.
Turn on Wi-Fi
From the Home Screen , open the Notifications
panel and touch on.
From the applications screen, touch Settings J
Wireless & networks J Wi-Fi .
To connect to Wi-Fi
Choose the Wi-Fi network you want to connect
to. If you see , you need to enter a password to
connect.
TIP: If you are out of a Wi-Fi area and choose 3G
connection, additional charges may be applied.
TIP: If your phone turns into sleep mode
even when it is connected to Wi-Fi, the Wi-Fi
connection will be disabled automatically.In this
case, if your phone has access to 3G data, it may
be connected to the 3G network automatically,
and additional charges may be applied.
129
NOTE: The LG-V909 supports WEP, WPA/
WPA2-PSK and 802.1x EAP. security. If your
Wi-Fi service provider or network administrator
sets encryption for network security, fill in the key
in the pop-up window. If encryption is not set,
this pop-up window will not be shown. You can
obtain the key from your Wi-Fi service provider or
network administrator.
Sharing your phone’s mobile data
connection
You can share your phone’s mobile data connection
with a single computer via a USB cable: USB
tethering. You can also share your phone’s data
connection with up to five devices at once, by
turning your phone into a portable Wi-Fi hotspot.
When your phone is sharing its data connection, an
icon appears in the status bar and as an ongoing
notification in the notifications drawer.
USB tethering is active
Portable Wi-Fi hotspot is active
Both USB tethering and Portable Wi-Fi
hotspot are active
Wi-Fi
130 LG-V909 | User Guide
For the latest information about tethering and
portable hotspots, including supported operating
systems and other details, visit http://www.android.
com/tether.
NOTE: An additional costs may be incurred when
connecting and using online services. Check your
data charges with your network provider.
USB tethering & portable Wi-Fi hotspot
settings
From the Home screen, touch the 1. Application
Launcher icon and select Settings.
Touch 2. Wireless & networks J Tethering &
portable hotspot.
Choose the options that you want to configure.3.
USB tethering – Allows you to share your phone’s
mobile network data connection with your
computer, via a USB connection.
Tip: To use USB tethering, you need to
install “LG USB Driver” on to your PC first.
LG USB Driver is downloadable from the
following site: http://www.lgmobilephones.com
J Click Mobile Support J Select the Carrier(T-
Mobile) J Select the Model (LG-V909) J
Click USB Cable Driver to download.
131
Portable Wi-Fi hotspot – Allows you to share your
phone’s mobile network data connection as a
portable Wi-Fi hotspot.
Help – Opens a menu with information about
USB tethering and portable Wi-Fi hotspots as
well as information about where to learn more.
To share your phone’s data connection via
USB
For the most current information about which
operating systems support USB tethering and how
to configure them, visit http://www.android.com/
tether.
And please note that some features may vary by
area, phone model, carrier, plan, and version of
phone software.
USB tethering and data sharing
You can’t share your phone’s data connection
and SD card via USB at the same time. If you are
using your USB connection to make your SD card
available to your computer, you must disconnect it
first.
Wi-Fi
132 LG-V909 | User Guide
Before you start!
To use USB tethering, you need to install “LG
USB Driver” on to your PC first.
LG USB Driver is downloadable from the
following site: http://www.lgmobilephones.com
J Click Mobile Support J Select the Carrier(T-
Mobile) J Select the Model (LG-V909) J Click
USB Cable Driver to download.
Use the USB cable that came with your phone to 1.
connect your phone to your computer.
On the Home screen, touch the 2. Application
Launcher icon and select Settings.
Touch 3. Wireless & networks J Tethering &
portable hotspot.
Touch 4. USB tethering to place a checkmark, which
means the function is activated.
• The phone starts sharing its mobile network
data connection with your computer, via USB
connection. An ongoing notification
is
added to the Status bar and Notifications panel.
Touch 5. USB tethering again to uncheck the box
and stop sharing your data connection. Or just
disconnect the USB cable.
133
NOTE: When using the USB tethering, your
phone can be connected to 3G network only.
Under the status of the USB tethering, Wi-Fi
network connection will be disabled.
To share your phone’s data connection as a
portable Wi-Fi hotspot
You can’t share your phone’s data connection
and SD card via USB at the same time. If you are
using your USB connection to make your SD card
available to your computer, you must disconnect it
first.
On the Home screen, touch the 1. Application
Launcher icon and select Settings.
Touch 2. Wireless & networks J Tethering &
portable hotspot.
Touch 3. Portable Wi-Fi hotspot to place a
checkmark, which means the function is activated.
After a moment, the phone starts broadcasting •
its Wi- Fi network name (SSID), so you can
connect to it with up to five computers or other
devices. An ongoing notification
is added
to the Status bar and Notifications panel.
When • Portable Wi-Fi hotspot is checked, you
can change its network name or secure it.
Wi-Fi
134 LG-V909 | User Guide
Touch 4. Portable Wi-Fi hotspot again to uncheck
the box and stop sharing your data connection
via Wi-Fi.
To rename or secure your portable Wi-Fi
hotspot
You can change the name of your phone’s Wi-Fi
network name (SSID) and secure its Wi-Fi network.
From the Home screen, touch the 1. Application
Launcher icon and select Settings.
Touch 2. Wireless & networks J Tethering
&portable hotspot.
Ensure 3. Portable Wi-Fi hotspot is checked.
Touch 4. Portable Wi-Fi hotspot settings.
Touch 5. Configure Wi-Fi hotspot.
The • Configure Wi-Fi hotspot menu opens.
You can change the network SSID (name) that •
other computers see when scanning for Wi-Fi
networks.
You can also touch the • Security menu to
configure the network with Wi-Fi Protected
Access 2 (WPA2) security, with a preshared
key (PSK).
135
If you touch the • WPA2 PSK security option, a
password field is added to the Configure Wi-Fi
hotspot menu. If you enter a password, you will
need to enter that password when you connect
to the phone’s portable Wi-Fi hotspot with a
computer or other device. Or touch Open in
the Security menu to remove security from
your Wi-Fi network.
ATTENTION!
If you set the security option as Open, you can
not prevent unauthorized online use by other
people and additional charges can be incurred.
To avoid unauthorized use, it woud be best to set
a security option.
Touch 6. Save.
136 LG-V909 | User Guide
DivX Mobile
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official DivX
Certified® device that plays DivX video. Visit www.
divx.com for more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to 320 x
240.
DivX®, DivX Certified® and associated logos are
trademarks of DivX, Inc. and are used under license.
137
Technical data
Ambient Temperatures
Max: +55°C (discharging), +45°C (charging)
Min: -10°C
