Users Manual
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
User’s Guide
W2043S
W2243S
W2343S
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential electrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place the
display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release of
heat generated during operation. If these openings are blocked, built-up heat can
cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Main power breaker is the power cord and this breaking device must be located at
a location where it is easy to operate.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
Important Precautions
NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
NOTE
This epuipment has been tested and found to comply with the limits for a class
B digital device,pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates,uses and can radiate radio frequency
cause harmful interference to radio communications.However,there is no
guarantee that interference will not occur in a particular installation.If this
which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
energy and,if not installed and used in accordance with the instructions,may
equipment does cause harmful interference to radio or television reception,
TO OPERATE THE EQUIPMENT.
-Consult the dealer or an experienced radio/TV technician for help.
A3
Important Precautions
NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
NOTE
This epuipment has been tested and found to comply with the limits for a class
B digital device,pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates,uses and can radiate radio frequency
cause harmful interference to radio communications.However,there is no
guarantee that interference will not occur in a particular installation.If this
which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
energy and,if not installed and used in accordance with the instructions,may
equipment does cause harmful interference to radio or television reception,
TO OPERATE THE EQUIPMENT.
-Consult the dealer or an experienced radio/TV technician for help.
A3
A3
Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

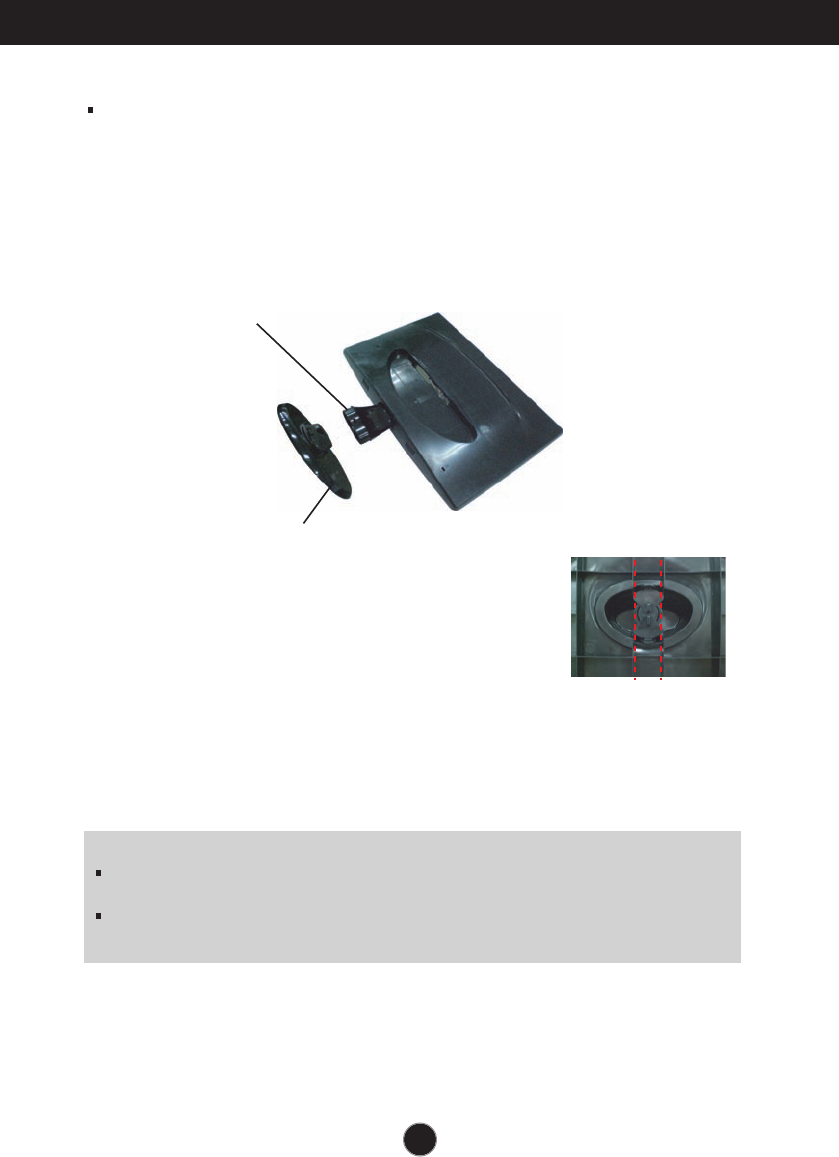

Connecting the stand
1.Place the monitor with its front facing downward on a soft cloth.
2.Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.
3.Tie down the base lock to perpendicularity direction.
4.Once assembled take the monitor up carefully and face
the front side
Stand Body
Stand Base
A4
Connecting the Display

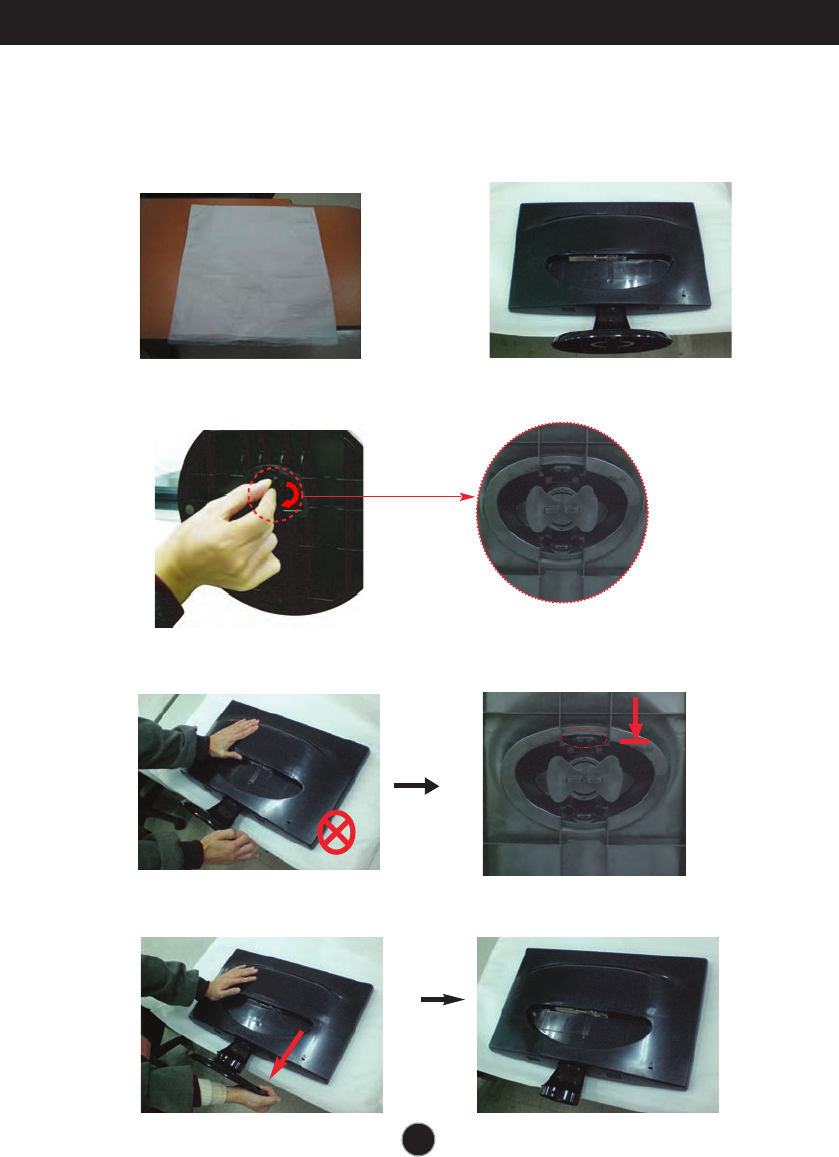

Disassembling the stand
1. Put a cushion or soft cloth on a flat
surface.
3. Change your lock on the product as it follows and turn it in the arrow direction.
2. Place the monitor face down on
the cushion or soft cloth.
If you can't release the stand base even the locking rib is at a release position,
Please push the indicated rib down and retry it.
4.
Pull out the stand to remove.
A5
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

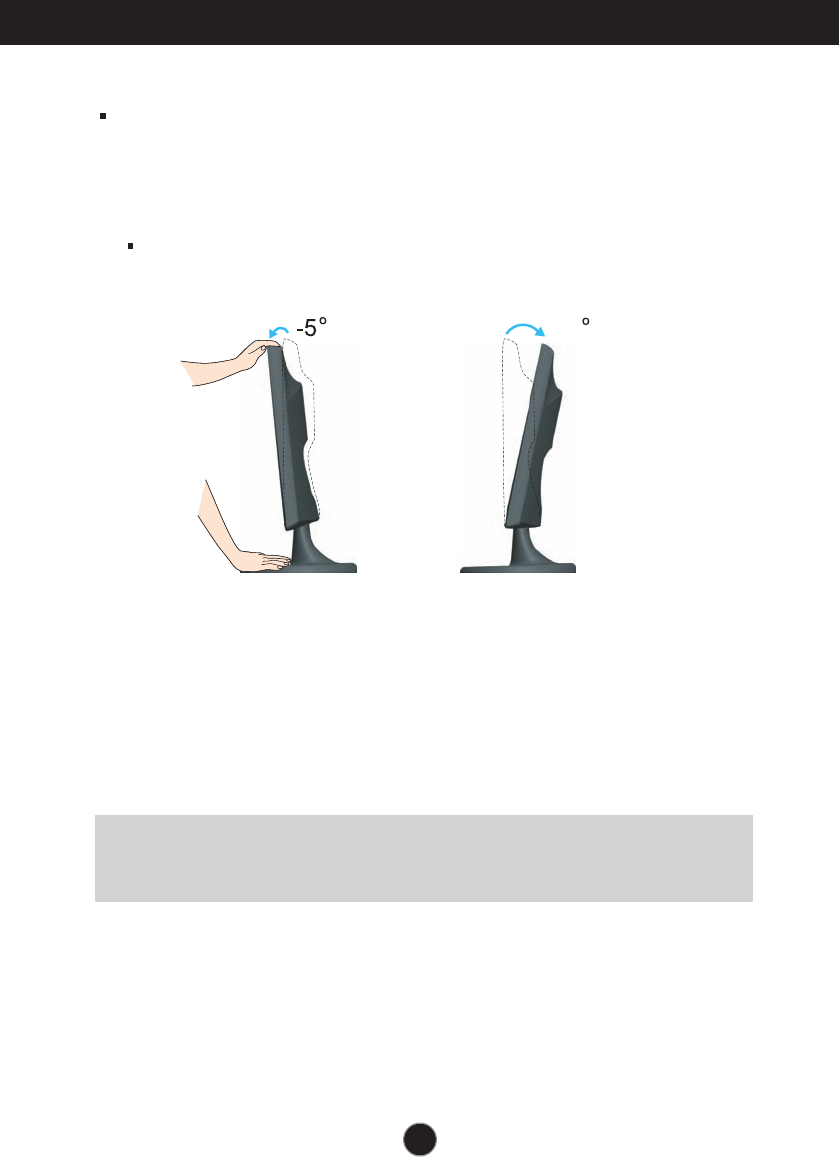

Positioning your display
1.Adjust the position of the panel in various ways for maximum comfort.
Tilt Range: -5˚~15˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
15
A6

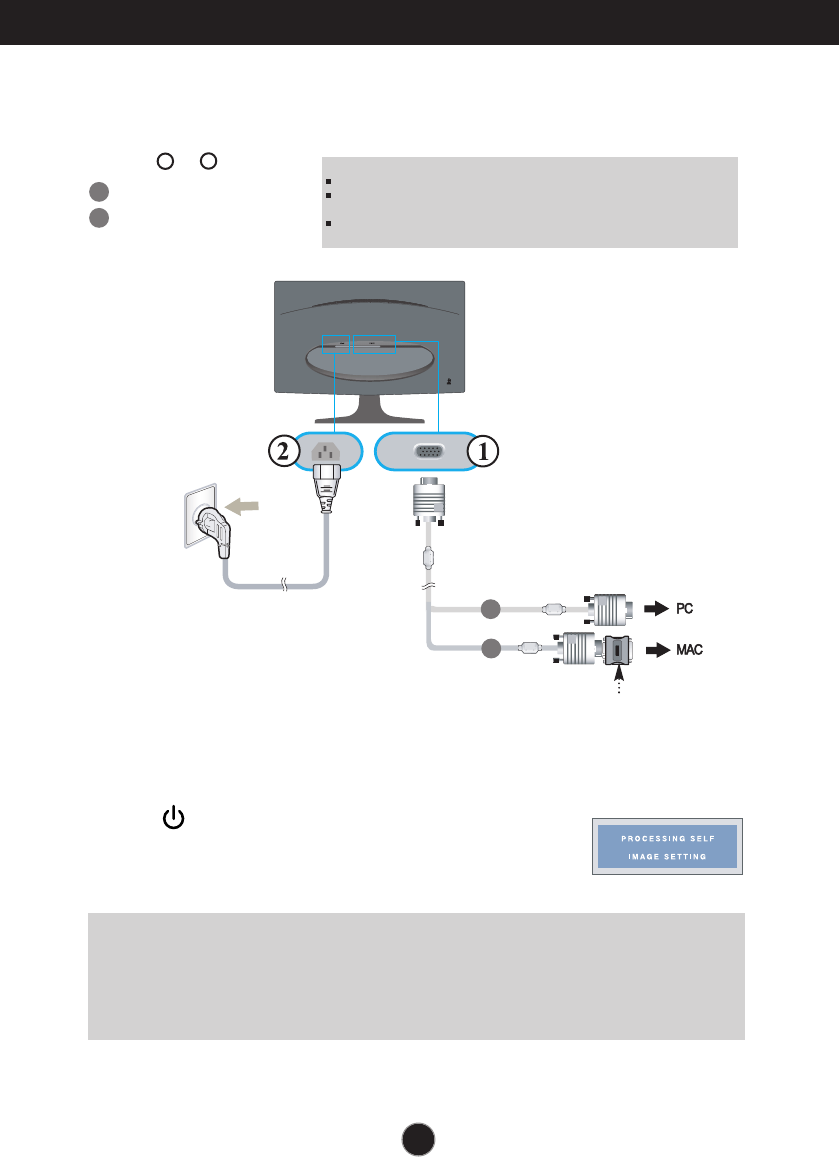

Using the Computer
1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
2. Press button on the front switch panel to turn the
power on. When monitor power is turned on, the
'Self Image Setting Function' is executed automatically.
2
Connecting the Display
A
B
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user
connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual
input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted
screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve
resolution.
Mac adapter
Varies according to model.
Signal Cable
For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high
density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type
Power Cord
A
B
Connect D-sub Cable (PC)
Connect D-sub Cable (Mac)
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as
shown.
User must use shielded signal interface cables (D-sub 15 pin cable) with
ferrite cores to maintain standard compliance for the product.

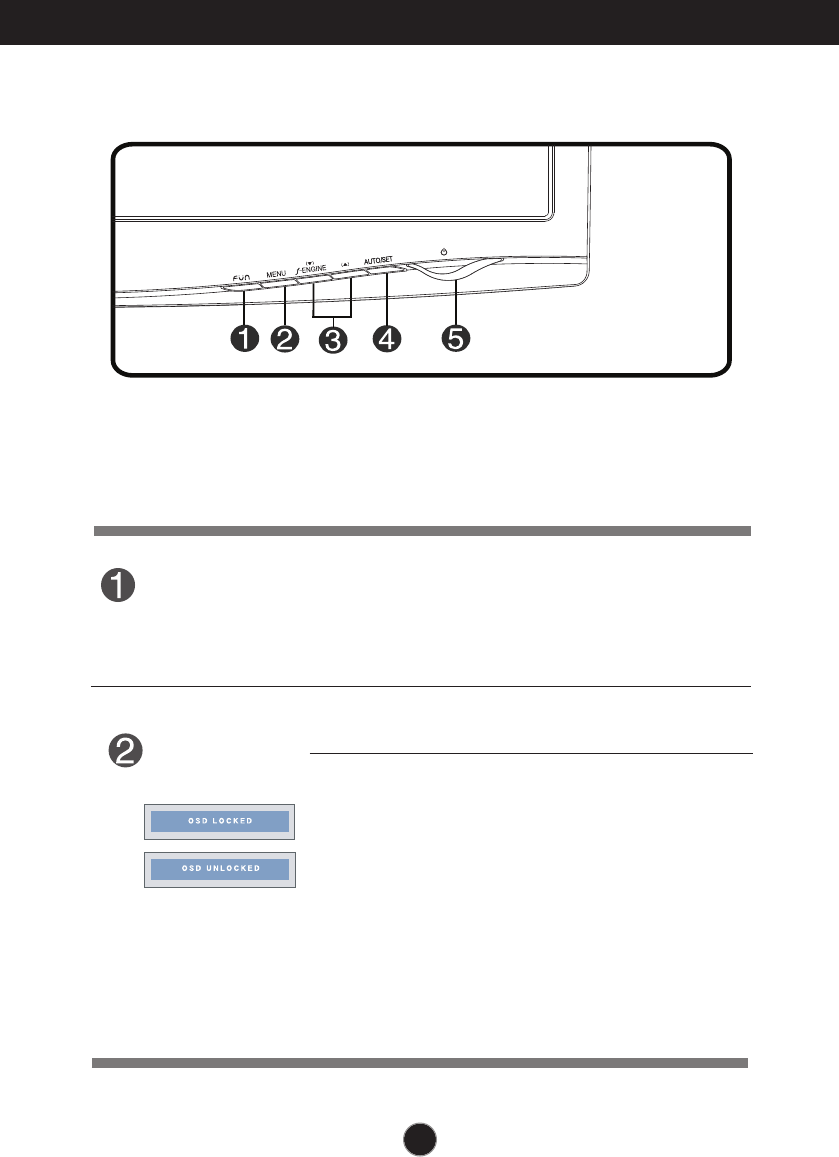

Control Panel Functions
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
Front Panel Controls

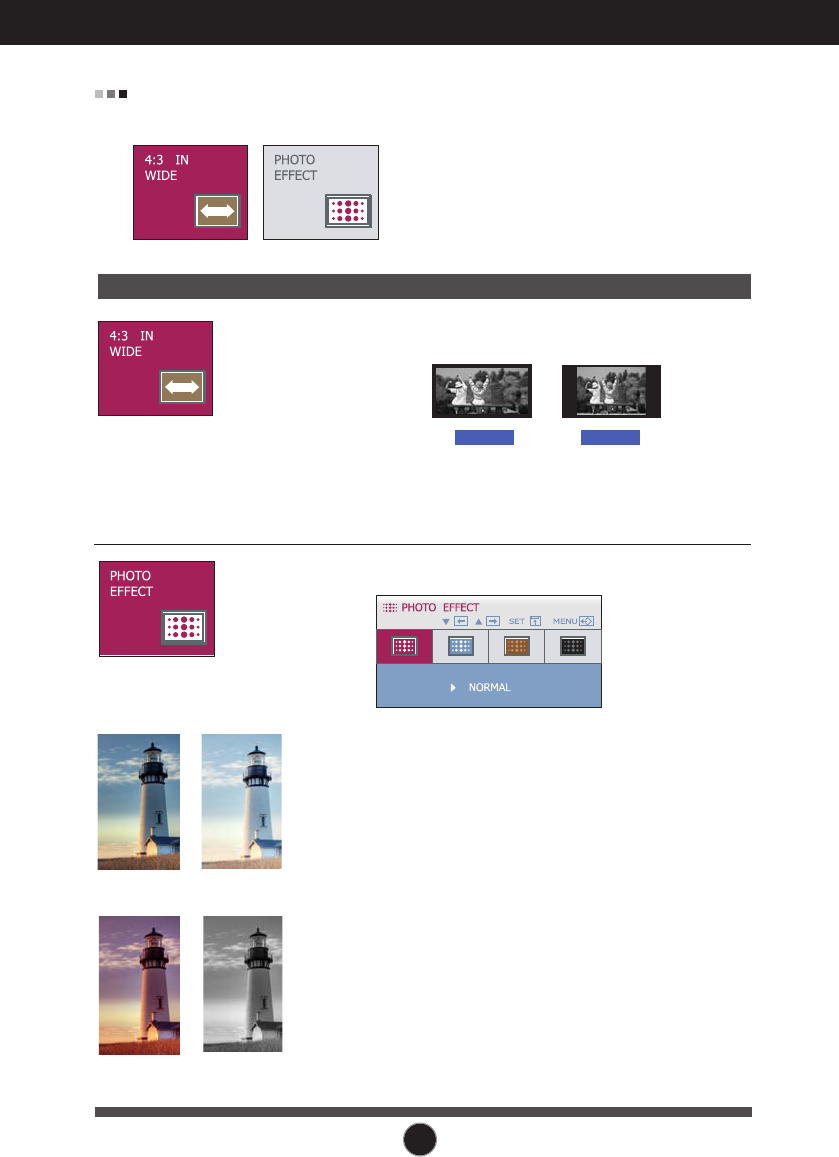

FUN Button
Use this button to enter 4:3 IN WIDE,PHOTO EFFECT
items, for more information, refer to page A16.
A8

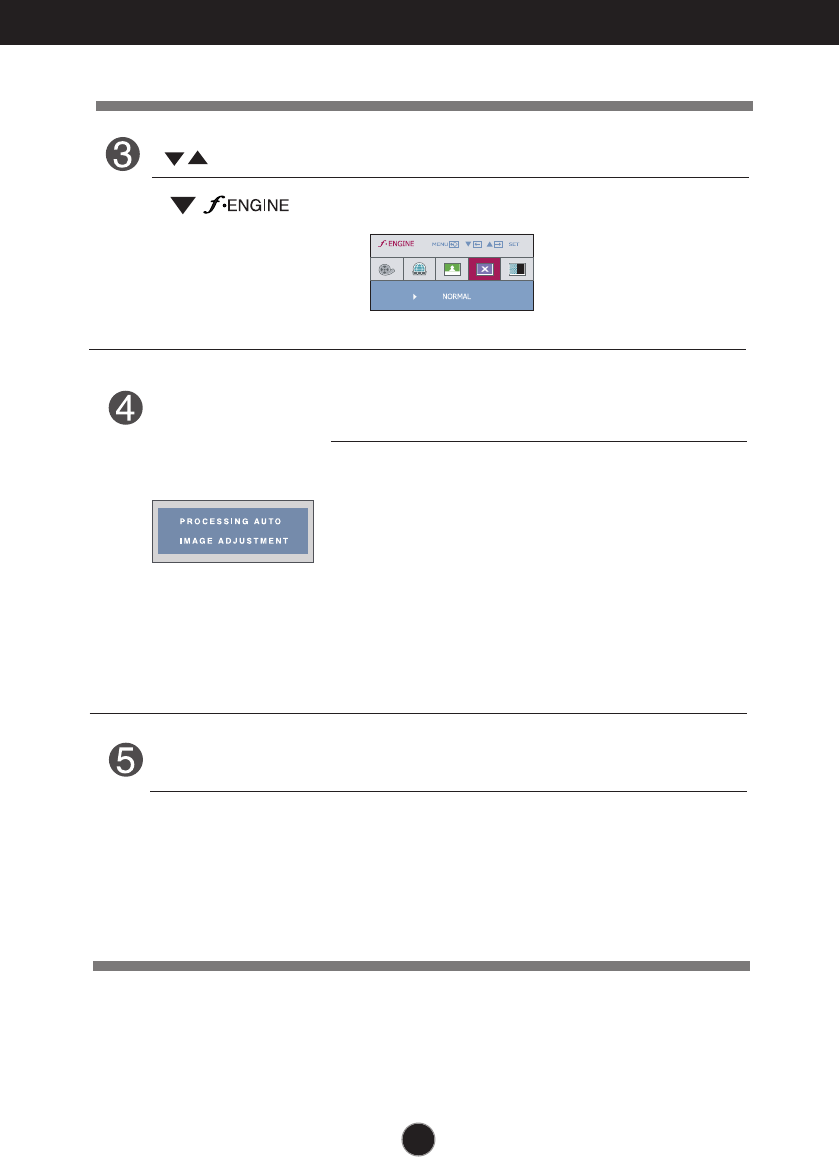

Control Panel Functions
Use this button to turn the display on or off.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SET
Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
Buttons
Use these buttons to select or adjust functions in the
On Screen Display.
For more information, refer to page A15.
-
W2043S: 1600 x 900
-W2243S/
W2343S: 1920 x 1080
This Indicator lights up as red when the display is
operating normally(On Mode). If the display is in
Sleep Mode (Energy Saving), this indicator color
changes to flicker.
A9

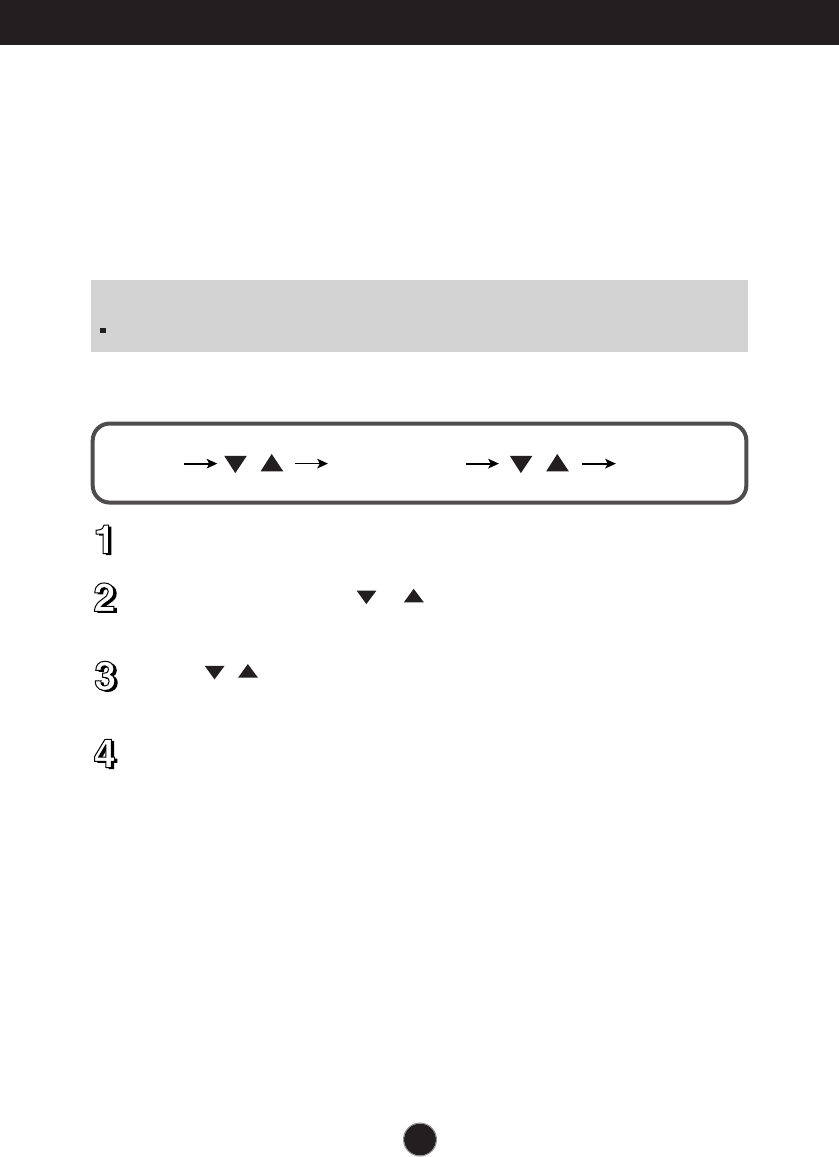

On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the / Buttonsto adjust the image to the desired level. Use the
AUTO/SET Button to select other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
AUTO/SET
MENU MENU
A10
NOTE
The order of icons may differ depending on the model (A11~A17).

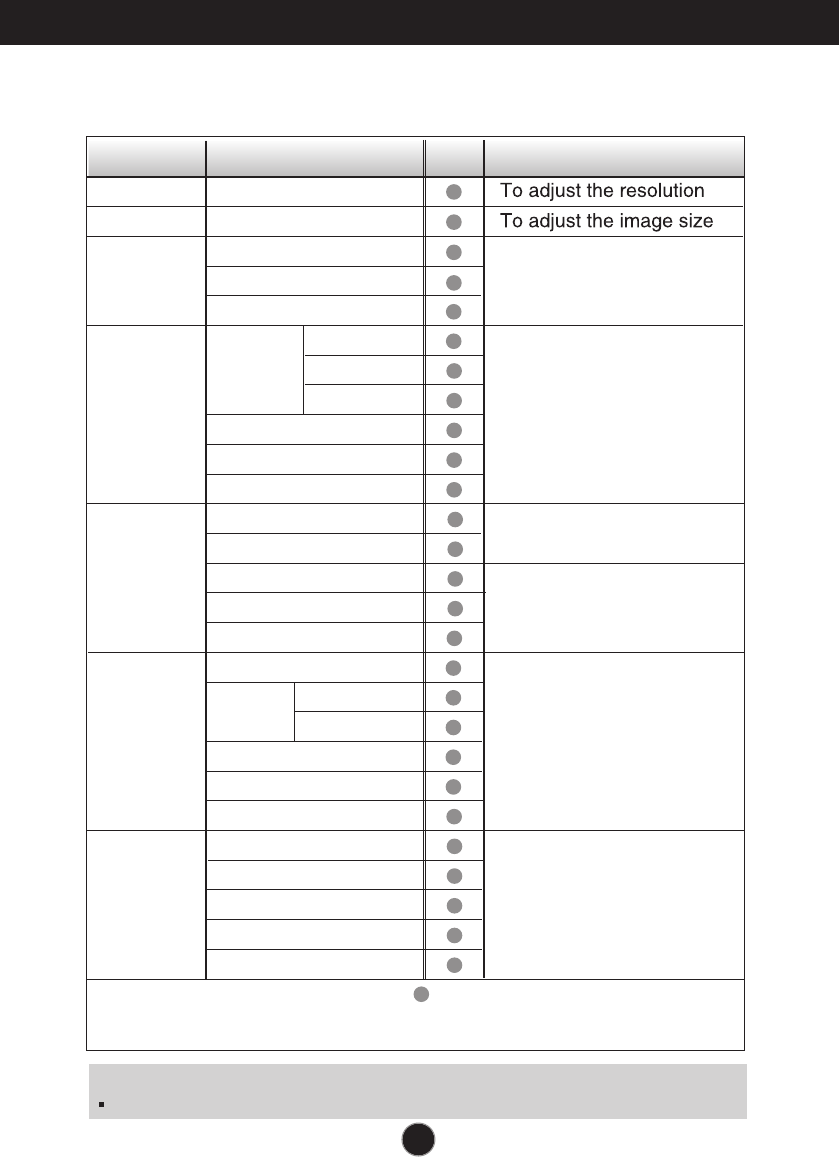

On Screen Display(OSD) Selection and Adjustment
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
A11
To adjust the brightness,
contrast and gamma of the
screen
PHOTO EFFECT
4:3 IN WIDE
COLOR
TRACKING
SETUP
Main menu Sub-menu A Reference
PRESET
RED
GREEN
BLUE
To adjust the position of the
screen
To customize the color of
the screen
To customize the screen
status for a user's operating
environment
To improve the clarity and
stability of the screen
BRIGHTNESS
CONTRAST
GAMMA
HORIZONTAL
VERTICAL
CLOCK
PHASE
SHARPNESS
WHITE BALANCE
POWER INDICATOR
FACTORY RESET
LANGUAGE
OSD
HORIZONTAL
POSITION VERTICAL
sRGB
6500K
9300K
: Adjustable
A : Analog Input
To select or customize
desired image settings
FLATRON
F-ENGINE
MOVIE
INTERNET
USER
NORMAL
DEMO

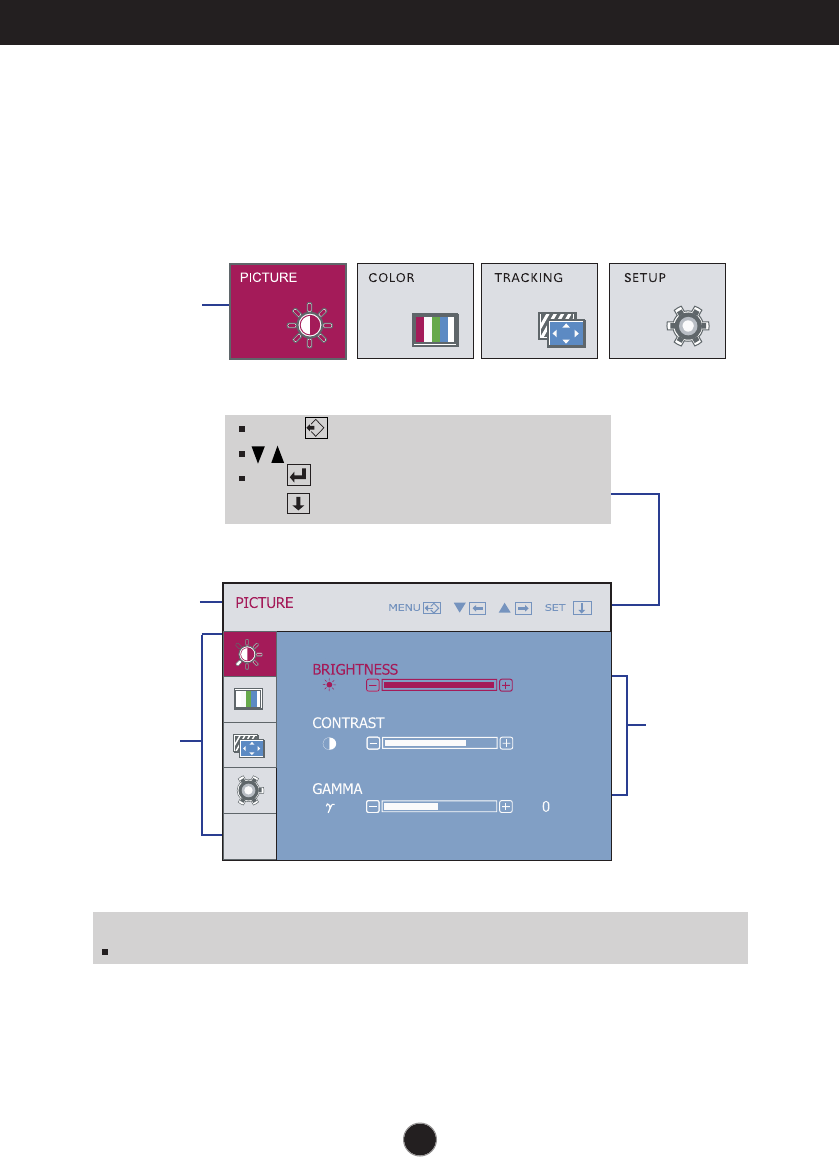

On Screen Display(OSD) Selection and Adjustment
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Press the MENU Button, then the main menu of the OSD appears.
Sub-menus
Menu Name
Icons
Main Menu
Button Tip
MENU : Exit
: Adjust (Decrease/Increase)
SET : Enter
: Select another sub-menu
100
70
A12

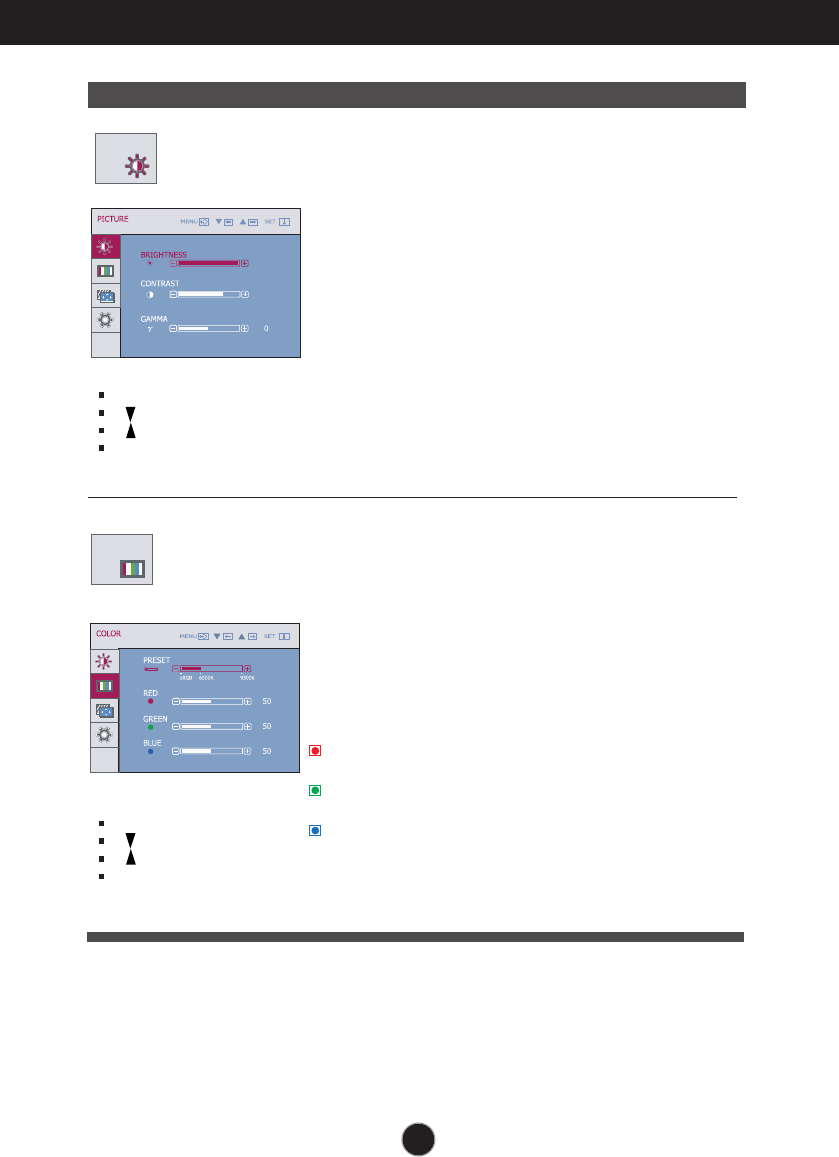

On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
BRIGHTNESS
CONTRAST
GAMMA
To adjust the brightness of the screen.
To adjust the contrast of the screen.
Set your own gamma value. : -50/0/50
On the monitor, high gamma values
display whitish images and low gamma
values display high contrast images.
PRESET
RED
GREEN
BLUE
Select the screen color.
• sRGB: Set the screen color to fit the
SRGB standard color
specification.
• 6500K: Slightly reddish white.
• 9300K: Slightly bluish white.
Set your own red color levels.
Set your own green color levels.
Set your own blue color levels.
COLOR
COLOR
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
100
70
A13
MENU : Exit
: Decrease
: Increase
SET : Select another
sub-menu
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
CLOCK
PHASE
SHARPNESS
To minimize any vertical bars or stripes
visible on the screen background.
The horizontal screen size will also
change.
To adjust the focus of the display.
This item allows you to remove any
horizontal noise and clear or sharpen
the image of characters.
To adjust the clearness of the screen.
HORIZONTAL
VERTICAL
To move image left and right.
To move image up and down.
TRACKING
TRACKING
90
6
A14
On Screen Display(OSD) Selection and Adjustment
SETUP
SETUP
MENU : Exit
: Adjust
: Adjust
SET : Select another
sub-menu
If this does not improve the screen image, restore the factory default settings.
If necessary, perform the white balance function again. This function will be enabled only
when the input signal is an analog signal.
To choose the language in which the
control names are displayed.
To adjust position of the OSD window
on the screen.
LANGUAGE
OSD
POSITION
WHITE
BALANCE
FACTORY
RESET
If the output of the video card is different
the required specifications, the color level
may deteriorate due to video signal
distortion. Using this function, the signal
level is adjusted to fit into the standard
output level of the video card in order to
provide the optimal image.
Activate this function when white and
black colors are present in the screen.
POWER
INDICATOR
Restore all factory default settings except
"LANGUAGE."
Press the button to reset immediately.
Use this function to set the power
indicator on the front side of the monitor
to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power
indicator will automatically be turned on.
Main menu Sub menu Description
A15
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
The OSD screen will appear when you touch the FUN button on the left bottom of the
monitor.
4:3 IN WIDE To select the image size of the screen.
WIDE 4:3
• WIDE : Switch to full screen mode according to input
image signal.
• 4 : 3 : Change the image signal ratio into 4:3.
EFFECT
•NORMAL :
The PhotoEffect function is disabled.
•GAUSSIAN BLUR :
This option is to add the effect to the screen that
the dark and sharp image becomes brighter and
more blurred.
•SEPIA :
This option changes the screen to be Sepia tone.
The Sepia tone is brown color tone.
•MONOCHROME :
This option changed the screen to be Gray tone.
The screen image is displayed with just white,
black, gray colors.
To select the color of the screen.
NORMAL
GAUSSIAN BLUR
SEPIA
MONOCHROME
A16

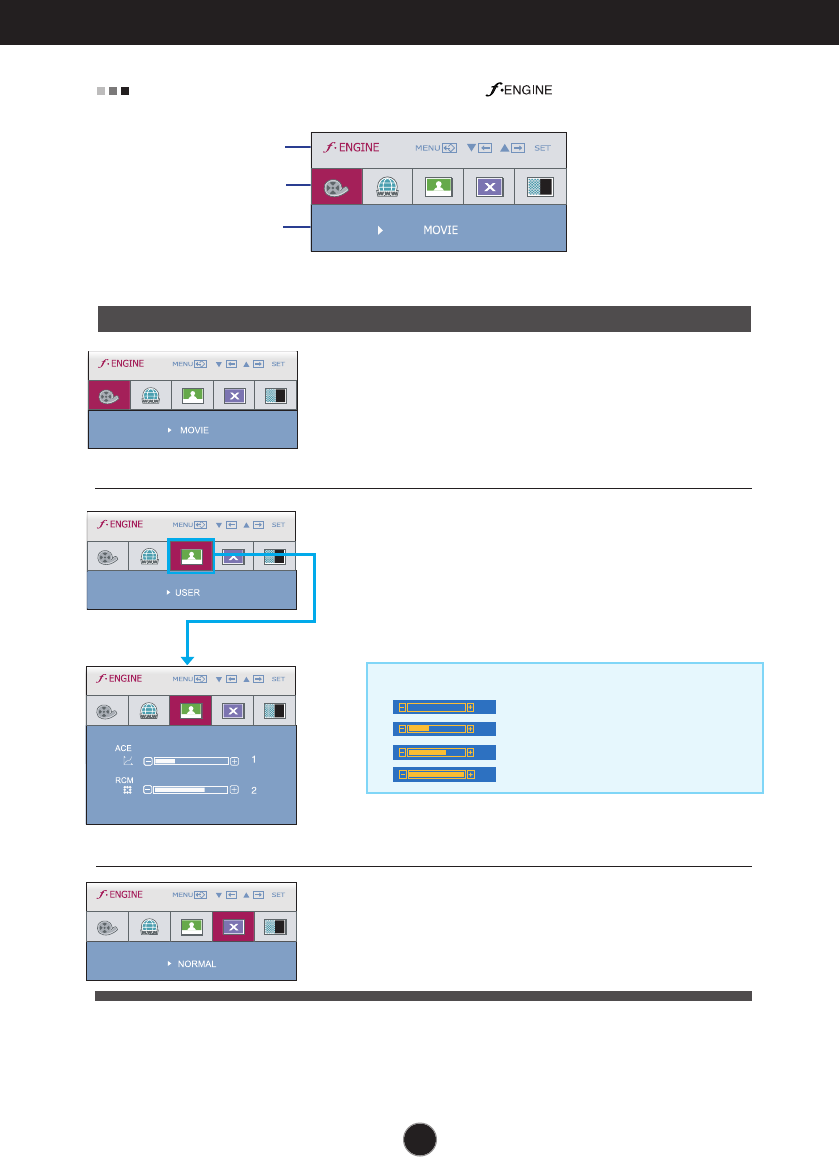

On Screen Display(OSD) Selection and Adjustment
Icons
Menu Name
Sub-menu Name
Main menu Sub menu Description
MOVIE
INTERNET
NORMAL
DEMO
USER
The OSD screen will appear when you touch the button on the left side
of the monitor.
INTERNET
: For text images (Word processing etc.)
MOVIE
: For animation images in videos or movies
This is under normal operating conditions.
This is just for advertising to customer in the
shops. It’s setting is same with Movie mode and
screen is divided by half.
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
User
You can manually adjust brightness, ACE or RCM.
You can save or restore the adjusted value even
when using a different environment.
...
ACE
(Adaptive Clarity Enhancer)
: Selects the clarity mode.
...
RCM(Real Color Management): Selects the color mode.
Not applied
Green enhance
Flesh tone
Color Enhance
0
1
2
3
A17
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Do you see a "OSD LOCKED" message on the screen?
●Is the power cord of the
display connected?
●
●Is the power indicator
amber?
●Do you see an "OUT OF
RANGE" message on
the screen?
●Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
•
Check and see if the power cord is connected
properly to the power outlet.
•
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC
.
•
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
•
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED”will appear.
●
Do you see “OSD
LOCKED” when you
push MENU button?
Is the power indicator
light on? •
Press the Power button.
A18
Troubleshooting
Display image is incorrect
●Display Position is
incorrect.
●On the screen
background, vertical
bars or stripes are
visible.
●Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.
•
Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
Important
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may
be blurred and the screen may be dimmed, truncated or biased. Make sure to
select the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
A19
Troubleshooting
Have you installed the display driver?
●
Have you installed the
display driver?
●
Do you see an
"Unrecognized monitor,
Plug&Play (VESA DDC)
monitor found"
message?
•
Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lge.com.
•
Make sure to check if the video card supports
Plug&Play function.
Display image is incorrect
●The screen color is
mono or abnormal.
●The screen blinks.
•
Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
•
Make sure the video card is properly inserted in
the slot.
•
Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.
•
Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
A20
Specifications W2043S
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
20.0 inches (50.8 cm) Flat Panel Active matrix-TFT LCD
Anti-
Glare coating
Visible diagonal size: 50.8 cm
0.2766*0.2766 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
SOG (Sync On Green)
Video Input
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max VESA 1600 x 900 @60 Hz
Recommend VESA 1600 x 900 @60 Hz
Plug&Play
DDC 2B
Power
On Mode : 40 W(Typ.)
Consumption
Sleep Mode ≤1 W
Off Mode ≤1 W
Dimensions
With Stand Without Stand
& Weight
Width 48.36 cm / 19.04 inches 48.36 cm / 19.04 inches
Height 37.68 cm / 14.83 inches 31.40 cm / 12.36 inches
Depth 18.30 cm / 7.20 inches 6.30 cm / 2.48 inches
Net 3.2 kg (7.11 lbs)
Tilt Range
Tilt -5˚~ 15˚
Power Input
AC 100-240V~ 50/60Hz 1.0A
Environmental
Operating Conditions
Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Stand Base
Attached ( ), Detached ( O )
Power cord
Wall-outlet type or PC-outlet type
A21
Specifications W2243S
A22A22
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
21.5 inches (54.6 cm) Flat Panel Active matrix-TFT LCD
Anti-
Glare coating
Visible diagonal size: 54.6 cm
0.248*0.248 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
SOG (Sync On Green)
Video Input
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max VESA 1920 x 1080 @60 Hz
Recommend VESA 1920 x 1080 @60 Hz
Plug&Play
DDC 2B
Power
On Mode : 40 W(Typ.)
Consumption
Sleep Mode ≤1 W
Off Mode ≤1 W
Dimensions
With Stand Without Stand
& Weight
Width 51.64 cm / 20.33 inches 51.64 cm / 20.33 inches
Height 39.60 cm / 15.59 inches 33.27 cm / 13.10 inches
Depth 19.80 cm / 7.80 inches 6.20 cm / 2.44 inches
Net 3.82 kg (8.49 lbs)
Tilt Range
Tilt -5˚~ 15˚
Power Input
AC 100-240V~ 50/60Hz 1.0A
Environmental
Operating Conditions
Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Stand Base
Attached ( ), Detached ( O )
Power cord
Wall-outlet type or PC-outlet type
Specifications W2343S
A23A23
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
23 inches (58.4 cm) Flat Panel Active matrix-TFT LCD
Anti-
Glare coating
Visible diagonal size: 58.4 cm
0.266*0.266 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
SOG (Sync On Green)
Video Input
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max VESA 1920 x 1080 @60 Hz
Recommend VESA 1920 x 1080 @60 Hz
Plug&Play
DDC 2B
Power
On Mode : 45 W(Typ.)
Consumption
Sleep Mode ≤1 W
Off Mode ≤1 W
Dimensions
With Stand Without Stand
& Weight
Width 55.52 cm / 21.86 inches 55.52 cm / 21.86 inches
Height 41.85 cm / 16.48 inches 35.77 cm / 14.08 inches
Depth 19.80 cm / 7.80 inches 6.30 cm / 2.48 inches
Net 4.42 kg (9.82 lbs)
Tilt Range
Tilt -5˚~ 15˚
Power Input
AC 100-240V~ 50/60Hz 1.0A
Environmental
Operating Conditions
Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Stand Base
Attached ( ), Detached ( O )
Power cord
Wall-outlet type or PC-outlet type
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
6
7
8
9
10
*11
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1600 x 900
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
60.000
70
60
75
60
75
60
75
75
60
75
60
*Recommend Mode
W2043S
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1720 x 400 31.468 70
2640 x 480 31.469 60
3640 x 480 37.500 75
4800 x 600 37.879 60
5800 x 600 46.875 75
61024 x 768 48.363 60
71024 x 768 60.123 75
81152 x 864 67.500 75
91280 x 1024 63.981 60
10 1280 x 1024 79.976 75
11 1680 x 1050 65.290 60
*12 1920 x 1080 67.500 60
* Recommend Mode
W2243S/W2343S
Indicator
On Mode
Sleep Mode
Off Mode
Red
Flicker
Off
LED Color
MODE
A24
Digitally yours
