PRODUCT NAME : ZigBee Module
MODEL NAME : WZB1NP6(TWZM-V302D)
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
1 / 7
Table of Contents
No. Description Page
1 Features 2
2 Module Photo 2
3 Block Diagram 3
4 Storage Conditions 4
5 Operating Conditions 4
6 Interface Specification 5
7 Pin Description 6
8 Outline Drawing 7
9 Packing Information 8
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
2 / 7

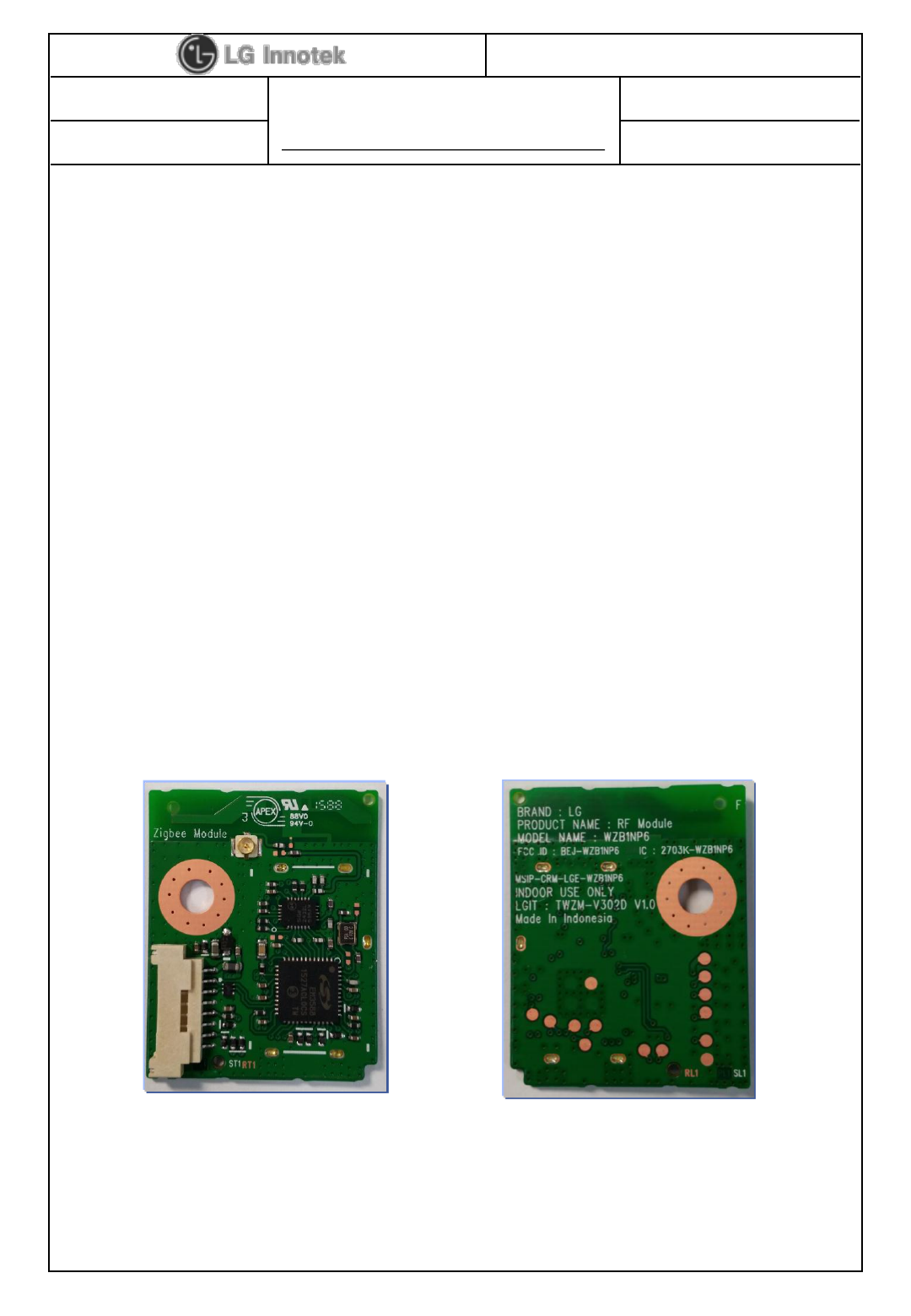

2. Module Photo
1. Features
< TOP View > < Bottom View >
TWZM-V302D is the small size and low power module for ZigBee.
TWZM-V302D is based on Silicon Labs EM3588.
2.4GHz IEEE802.15.4 compliant RF Transceiver
Excellent Receiver Sensitivity and Robustness to interference
Size : 34mm x 27mm x 3.7 mm
High performance and Low power 32-bit RISC CPU
512-KB Flash Memory and 64_KB SRAM Memory
USB 2.0 Full speed Support
Support Standard Protocol
Application : Gateway, STB
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
3 / 7

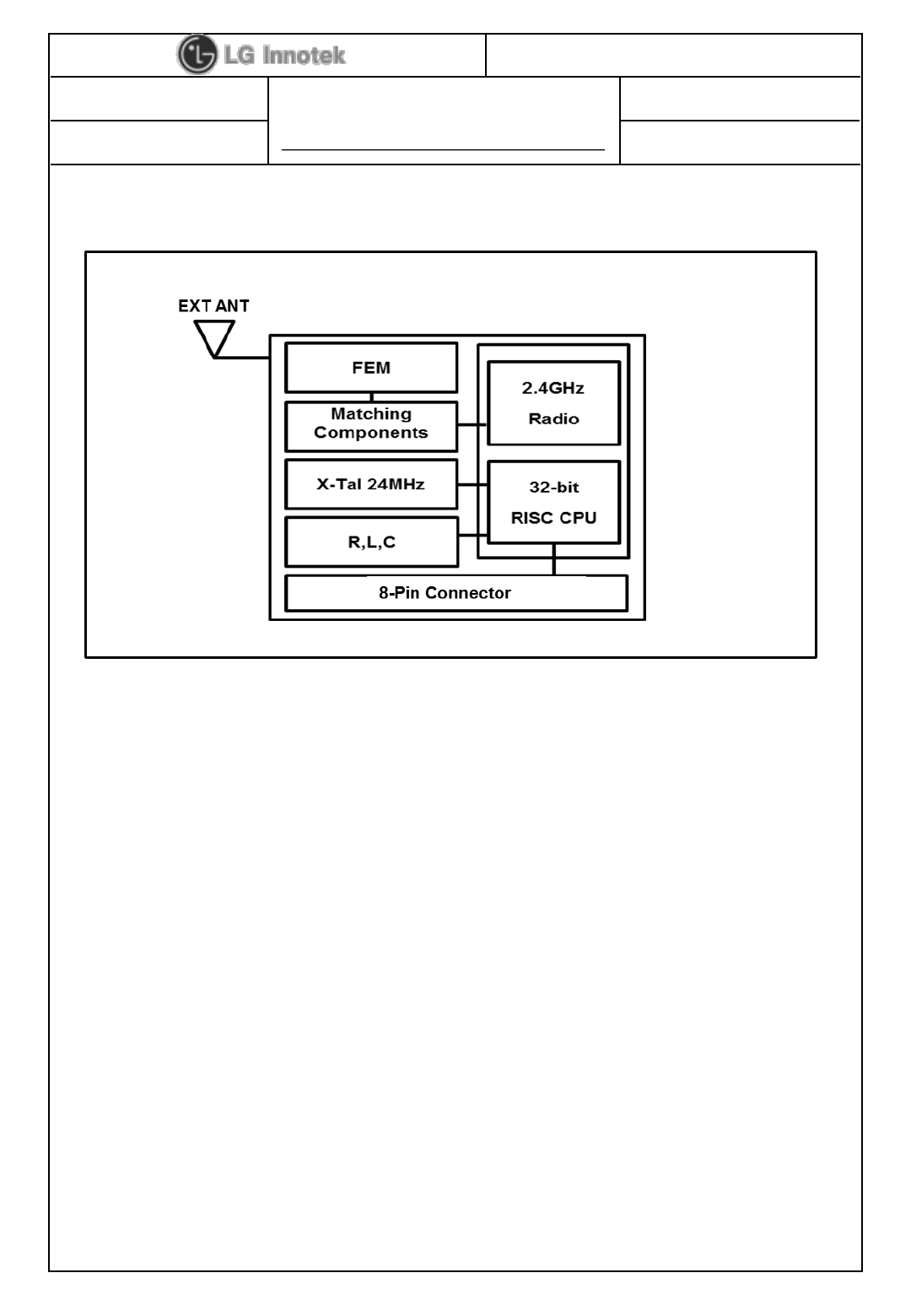

3. Block Diagram
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
4 / 7
4. Storage Conditions
5. Operating Conditions
Parameter Min Max Unit
Storage Temperature -10 +80 ℃
Storage Humidity (@ 40℃) - 90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
• Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature and relative humidity
do not exceed 5 to 40℃ and 20 to 60%.
Parameter Min Typ Max Unit
Ambient Temperature 0 - +60 ℃
Operating Humidity (40℃) - - 85 %
Supply Voltage 3.15 3.3 3.45 Vdc
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
5 / 7

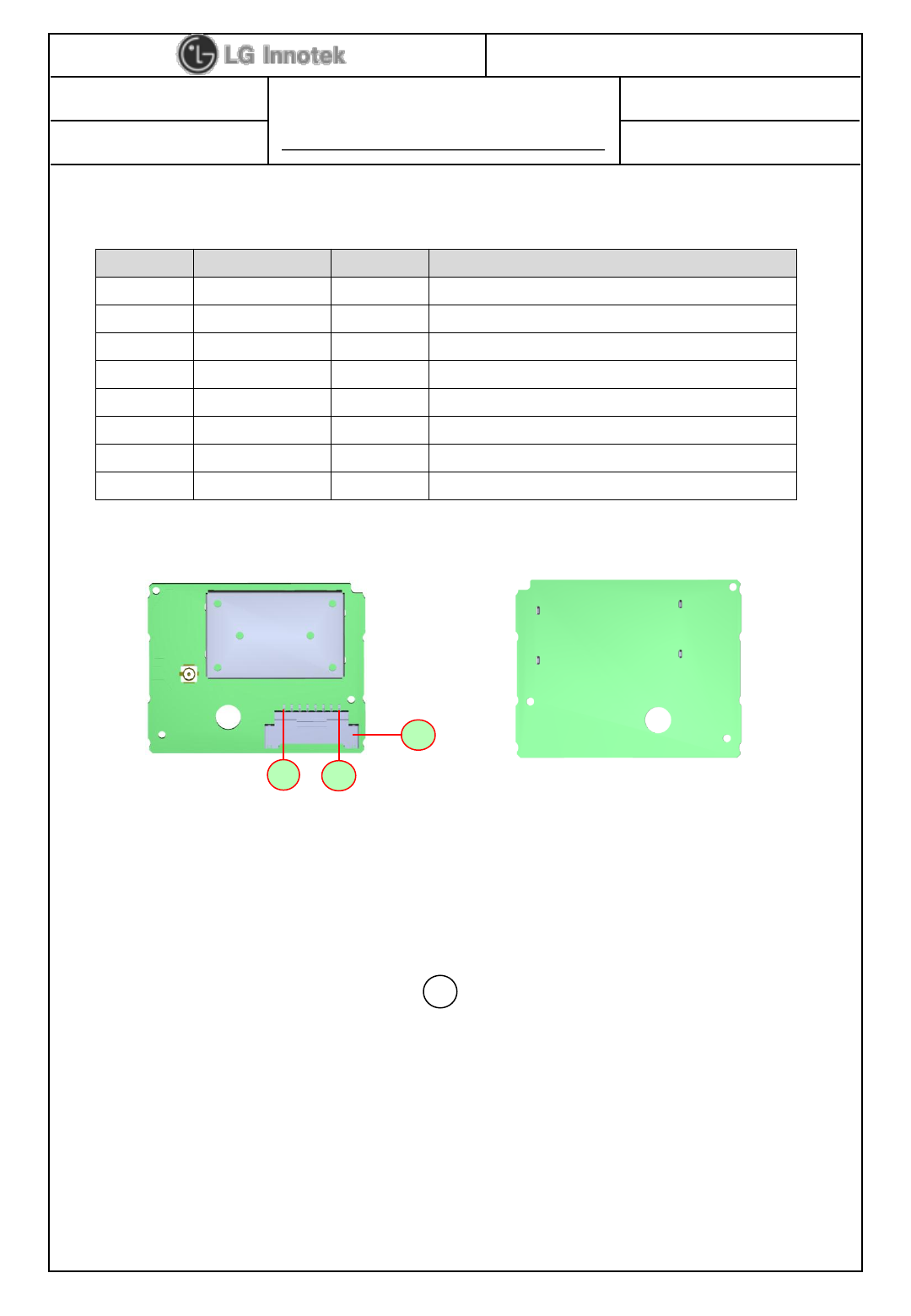

6. Pin Description
A
< TOP View > < Bottom View >
1
8
A
Pin No.
Pin Name I/O Pin Description
1 GND GND
GROUND
2 UPDATE I/O
Digital I/O,
F/W UPDATE
3 GND GND
GROUND
4 RESET I
Active
Low chip reset
5 GND GND
GROUND
6 USB_DP I/O
USB
Positvie
7 USB_DN I/O
USB
Negative
8 VCC(+3.3V) I
Power
supply(+3.3V)
Note.
1) Recommend a Module install sequence for prevent UART device failure
- Supply 3.3V power
- Connect to data signal (USB_DP, USB_DN)
2) Connector : 8Pin SMD Connec
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
6 / 7

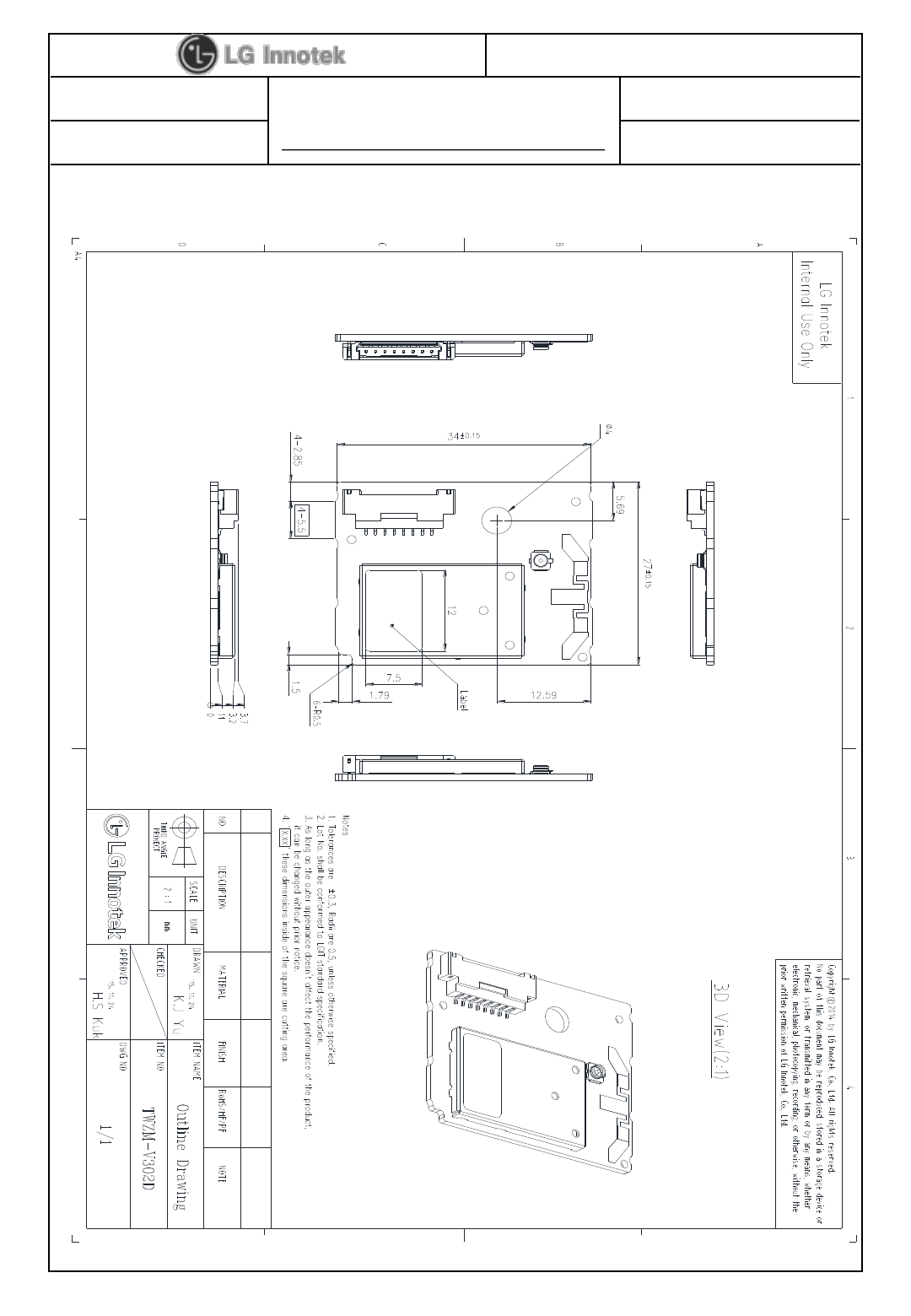

7. Outline Drawing
User Manual
PAGE :
REG. DATE : 2015.11.27
MODEL: WZB1NP6(TWZM-V302D)
REV. DATE : 2015.11.27
REV.NO : 1.0
© 2015 LGIT. All rights reserved.
7 / 7

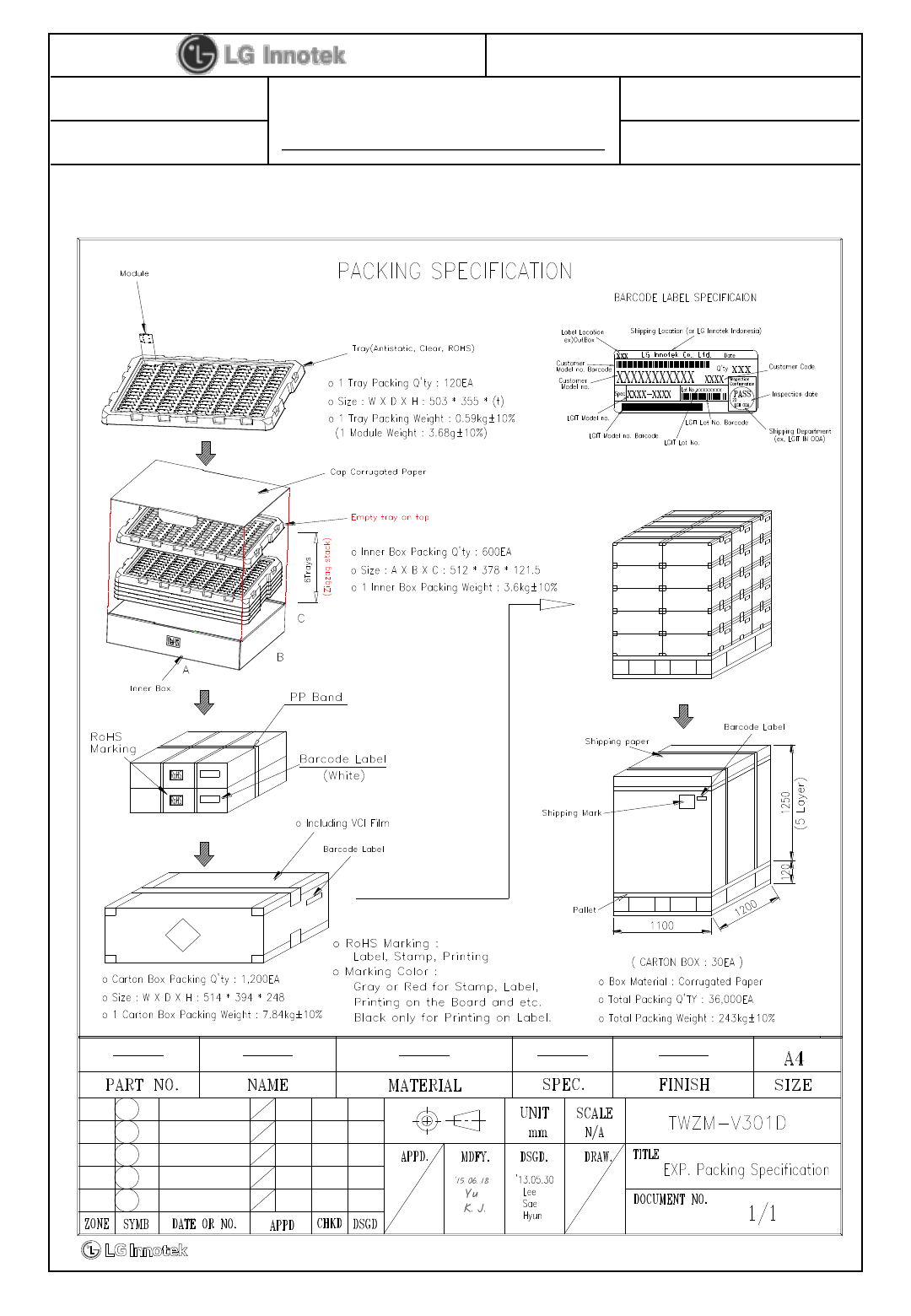

8. Packing Information
