Users Manual

Advantium™120 Oven

3828W5A3717 164D3370P330 49-40401-1 08-03 JR

SCA1000

SCA1001

Owner’s Manual

www.GEAppliances.com

www.geadvantium.com

Advantium

Advantium Quick Start . . .10, 11

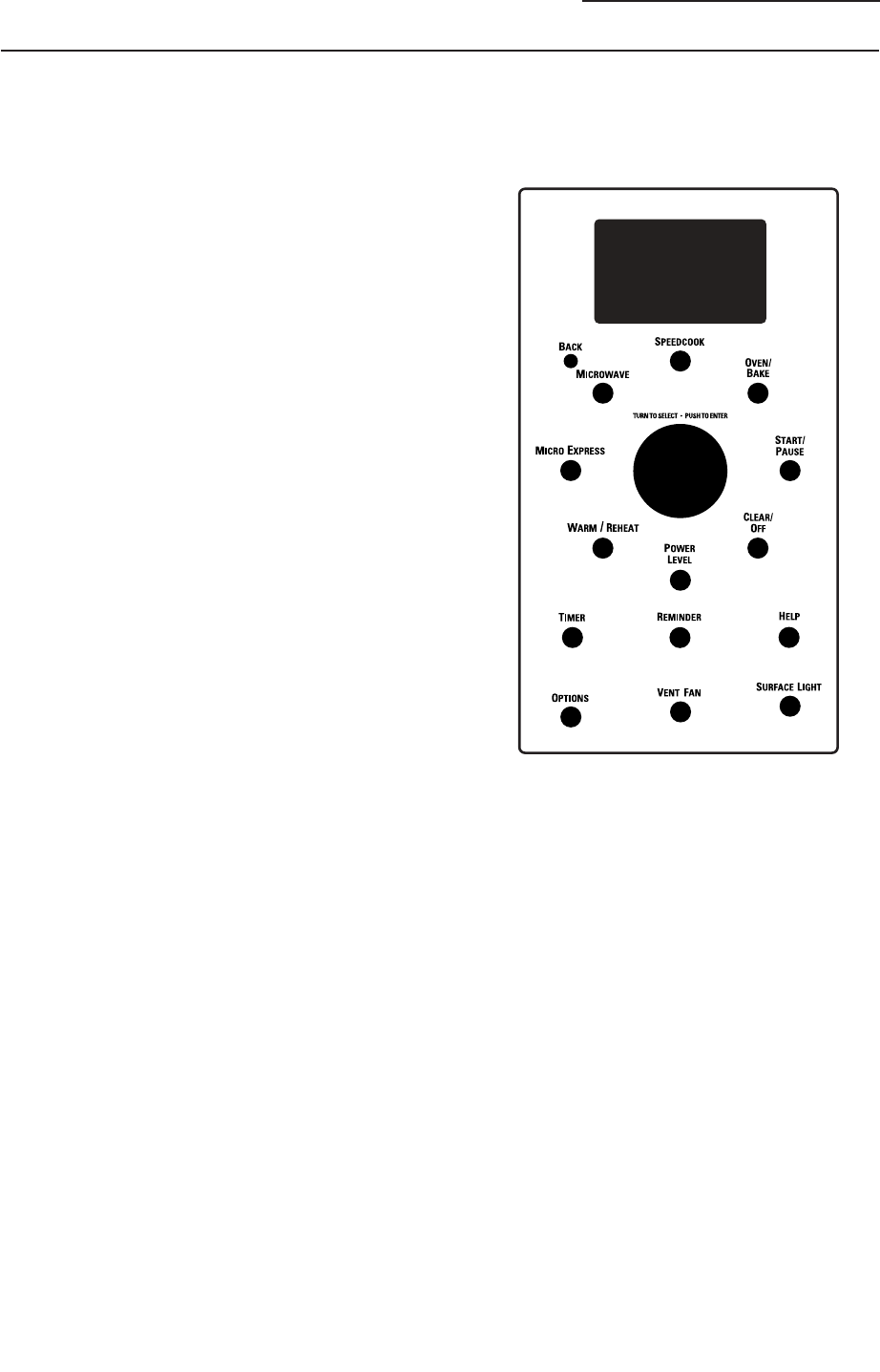

Cooking controls . . . . . . . . . . .14

Customer information . . . . . . . .8

Oven features . . . . . . . . . .13, 14

Safety . . . . . . . . . . . . . . . . . .2–7

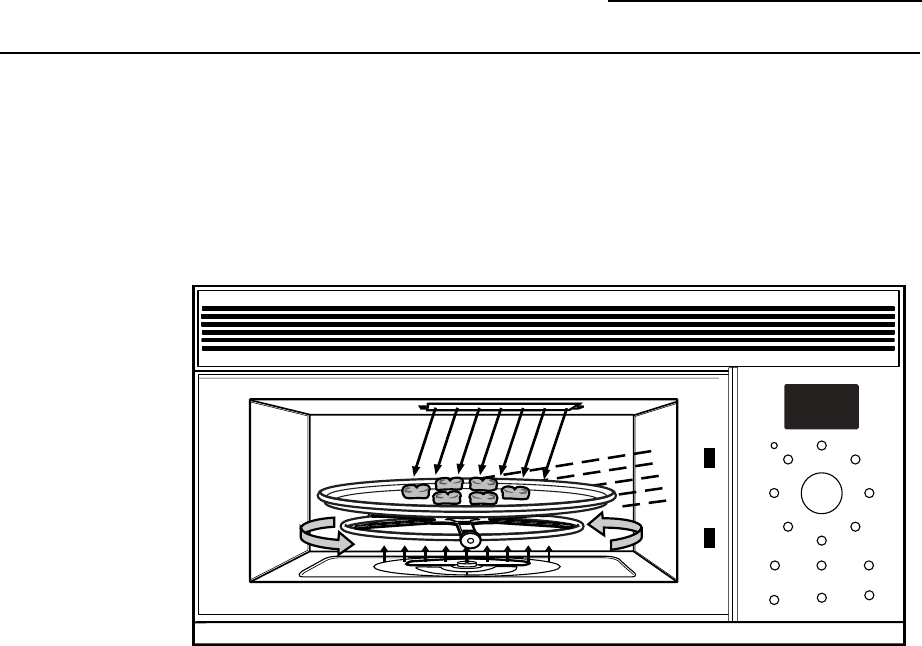

What is Advantium? . . . . . . . . .9

Speedcooking

Cooking tips . . . . . . . . . . . . . .16

Custom speedcook recipes . . .19, 20

Custom speedcook recipe log . . . .21

Manual speedcook . . . . . . . . . .18

Power level . . . . . . . . . . . . . . .17

Repeat last . . . . . . . . . . . . . . .16

Resume feature . . . . . . . . . . . .16

Speedcook cookware . . . . . . . . .18

Speedcook menu guide . . . . . . .12

Speedcook-safe cookware . . . . . . .5

Things that are normal . . . . . .22

Using a pre-set speedcook menu . . .15

Microwaving

Baking . . . . . . . . . . . . . . . . . .23

Cooking tips . . . . . . . . . . . . . .27

Custom microwave recipes . . .27, 28

Custom microwave recipe log . . .28

Defrost-Auto . . . . . . . . . . . . . .29

Defrost-Time . . . . . . . . . . . . . .29

Defrosting tips . . . . . . . . . . . . .30

Micro Express . . . . . . . . . . . . .26

Microwave power levels . . . . . . .27

Microwave-safe cookware . . . . . .6

Precautions to avoid

possible exposure to

excessive microwave energy . . . . .2

Sensor cooking . . . . . . . . . .31, 32

Things that are normal . . . . . .33

Time cook . . . . . . . . . . . . . . . .26

Using pre-set

microwave selections . . . . . . . . .26

Warming and reheating . . .24, 25

Other Features

Auto night light . . . . . . . . . . .34

Automatic fan . . . . . . . . . . . .37

Beeper volume . . . . . . . . . . . . .34

Child lockout . . . . . . . . . . . . .36

Clock . . . . . . . . . . . . . . . .10, 34

Display ON/OFF . . . . . . . . . . .34

Help . . . . . . . . . . . . . . . . . . .35

Reminder . . . . . . . . . . . . . . . .37

Review . . . . . . . . . . . . . . . . . .34

Scroll speed . . . . . . . . . . . . . . .34

Surface light . . . . . . . . . . . . . .36

Timer . . . . . . . . . . . . . . . . . .36

Vent fan . . . . . . . . . . . . . . . . .36

Care and Cleaning

Cleaning the inside . . . . . .38, 39

Cleaning the outside . . . . . . . .40

Filters . . . . . . . . . . . . . . .41, 42

Optional kits . . . . . . . . . . . . . .42

Replacing lights . . . . . . . . . . .41

Troubleshooting

Problem Solver . . . . . . . . . .43, 44

Consumer Support

Consumer Support . . . .Back Cover

Customer Information . . . . . . . .8

Product Registration . . . . . .45, 46

Warranty . . . . . . . . . . . . . . . .47

www.geadvantium.com

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do Not Attempt to operate this oven with the

door open since open-door operation can

result in harmful exposure to microwave

energy. It is important not to defeat or

tamper with the safety interlocks.

(b) Do Not Place any object between the oven

front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

particularly important that the oven door close

properly and that there is no damage to the:

(1) door (bent),

(2) hinges and latches (broken or loosened),

(3) door seals and sealing surfaces.

(d) The Oven Should Not be adjusted or repaired

by anyone except properly qualified service

personnel.

IMPORTANT SAFETY INSTRUCTIONS

■Read all instructions before using

this appliance. When using electrical

appliances, basic safety precautions

should be followed, including the

following:

■Read and follow the specific precautions in

the PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY section on page 2.

■Be sure your appliance is properly

installed and grounded by a qualified

technician in accordance with the

provided installation instructions.

■Install or locate this appliance only

in accordance with the provided

installation instructions.

■Some products such as whole eggs and

sealed containers—for example, closed

jars—are able to explode and should not

be heated in this oven. Such use of the

oven could result in injury.

■Do not mount this appliance over

a sink.

■This oven is not approved or tested for

marine use.

■This oven is UL listed for installation

over electric and gas ranges.

■This oven was designed for use over

ranges no wider than 36 inches. It may

be installed over both gas and electric

cooking equipment.

■Do not operate this appliance if it has

a damaged power cord or plug, if it is

not working properly, or if it has been

damaged or dropped. If the power cord is

damaged, it must be replaced by General

Electric Service or an authorized service

agent using a power cord available from

General Electric.

■As with any appliance, close supervision is

necessary when used by children.

■Use this appliance only for its intended

use as described in this manual.

■Do not use corrosive chemicals or vapors

in this appliance.

■This oven is specifically designed to heat,

dry or cook food, and is not intended for

laboratory or industrial use.

■This appliance should be serviced only

by qualified service personnel. Contact

nearest authorized service facility for

examination, repair or adjustment.

■Do not cover or block any openings on

the appliance.

■Do not store this appliance outdoors.

Do not use this product near water—

for example, in a wet basement, near

a swimming pool, near a sink or in

similar locations.

■Keep power cord away from heated

surfaces.

■Do not immerse power cord or plug

in water.

■See door surface cleaning instructions in

the Care and Cleaning of the Oven

section of this manual.

■To reduce the risk of fire in the oven

cavity:

– Do not overcook food. Carefully attend

appliance when paper, plastic or other

combustible materials are placed inside

the oven while cooking.

– Remove wire twist-ties and metal handles

from paper or plastic containers before

placing them in the oven.

– Do not use the oven for storage

purposes. Do not leave paper products,

cooking utensils or food in the oven

when not in use.

– If materials inside the oven ignite, keep

the oven door closed, turn the oven off

and disconnect the power cord, or shut

off power at the fuse or circuit breaker

panel. If the door is opened, the fire

may spread.

– Do not use the Sensor Features twice in

succession on the same food portion.

If food is undercooked after the first

countdown, use TIME COOK for

additional cooking time.

WARNING!

IMPORTANT SAFETY INSTRUCTIONS

www.geadvantium.com

SAFETY PRECAUTIONS

To reduce the risk of burns, electric shock, fire, injury to persons,

or exposure to excessive microwave energy:

WARNING!

■Do not operate the oven without the

oven rack (turntable) in place. The oven

rack (turntable) must be unrestricted so

it can turn.

■During and after use, do not touch, or

let clothing or other flammable materials

contact any interior area of the oven;

allow sufficient time for cooling first.

■Do not store anything directly on top

of the oven surface when the oven is

in operation.

■Cook meat and poultry thoroughly—

meat to at least an INTERNAL

temperature of 160°F, and poultry to at

least an INTERNAL temperature of 180°F.

Cooking to these temperatures usually

protects against foodborne illness.

■Keep the oven free from grease buildup.

■Potentially hot surfaces include the

oven door, floor, walls and oven rack

(turntable).

■The fan will operate automatically under

certain conditions (see the Automatic Fan

section). Take care to prevent the starting

and spreading of accidental cooking fires

while the vent fan is in use.

■Clean the underside of the oven often.

Do not allow grease to build up on the

oven or the fan filters.

■ In the event of a grease fire on the

surface units below the oven, smother

a flaming pan on the surface unit by

covering the pan completely with a lid,

a cookie sheet or a flat tray.

■ Use care when cleaning the vent fan

filters. Corrosive cleaning agents, such

as lye-based oven cleaners, may damage

the filters.

■ When preparing flaming foods under the

oven, turn the vent fan on.

■ Never leave surface units beneath your

oven unattended at high heat settings.

Boilovers cause smoking and greasy

spillovers that may ignite and spread if

the oven vent fan is operating. To

minimize automatic fan operation, use

adequate sized cookware and use high

heat on surface units only when

necessary.

IMPORTANT SAFETY INSTRUCTIONS

www.geadvantium.com

SAFETY PRECAUTIONS

Arcing is the microwave term for sparks in

the oven. Arcing is caused by:

■Metal or foil touching the side of the

oven.

■Foil not molded to food (upturned edges

act like antennas).

■Metal cookware used during either

speedcook or microwave cooking (except

for the pans provided with the oven).

■Metal, such as twist-ties, poultry pins,

or gold-rimmed dishes, in the oven.

■Recycled paper towels containing small

metal pieces being used in the oven.

■Use foil only as recommended in

this guide.

ARCING

Arcing can occur during both speedcooking and microwave cooking. If you see arcing, press the

CLEAR/OFF pad and correct the problem.

THE

VENT

FAN

WARNING!

■When microwaving, place all foods

and containers on the glass microwave

tray.

■Do not pop popcorn in your oven

unless in a special microwave popcorn

accessory or unless you use popcorn

labeled for use in microwave ovens.

■Do not boil eggs in this oven. Pressure

will build up inside egg yolk and will

cause it to burst, possibly resulting

in injury.

■Do not operate the oven without food

inside. This may cause damage to the

oven. It increases the heat around the

magnetron and can shorten the life of

the oven.

■Foods with unbroken outer “skin”

such as potatoes, hot dogs, sausages,

tomatoes, apples, chicken livers and

other giblets, and egg yolks should

be pierced to allow steam to escape

during cooking.

■SUPERHEATED WATER

Liquids, such as water, coffee or tea are able to

be overheated beyond the boiling point without

appearing to be boiling. Visible bubbling or

boiling when the container is removed from the

microwave oven is not always present. THIS

COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN THE

CONTAINER IS DISTURBED OR A

SPOON OR OTHER UTENSIL IS

INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

— Do not overheat the liquid.

— Stir the liquid both before and halfway

through heating it.

— Do not use straight-sided containers with

narrow necks.

— After heating, allow the container to

stand in the microwave oven for a short

time before removing the container.

— Use extreme care when inserting a

spoon or other utensil into the

container.

■The oven and door will get very hot

when speedcooking or using the

oven/bake feature.

■Cookware will become hot . Oven

mitts will be needed to handle the

cookware.

■Do not use coverings, containers

or cooking/roasting bags made

of foil, plastic, wax or paper when

speedcooking.

■Do not cover the oven rack

(turntable), trays or any part

of the oven with metal foil.

This will cause arcing in the oven.

■Use the black metal flat tray in the

same way you would use a shallow

baking pan or baking tray.

■Place food or oven-safe cookware

directly on the trays when cooking.

■Any oven-safe dish can be used in

your oven. Recipes in the Advantium

Cookbook were tested in Pyrex®and

Anchor Hocking®glass cookware and

Corningware®ceramic casseroles.

Cooktimes and results may vary

when using other types of oven-safe

dishes. Place them directly on the

black metal tray.

■Do not use the oven to dry newspapers.

■Use of the glass microwave tray with

the speedcook or oven/bake features

will result in inferior cooking

performance.

FOODS

Oven-safe

cookware for

Speedcook,

Oven/Bake

& Warming

features

The oven rack (turntable)

must always be in place

when using the oven.

Put food or non-metal,

oven-save cookware

directly on the

black metal tray

for speedcooking, baking

or warming.

IMPORTANT SAFETY INSTRUCTIONS

www.geadvantium.com

IMPORTANT SAFETY INSTRUCTIONS

www.geadvantium.com

WARNING!

■Place food or microwavable container

directly on the glass microwave tray to

cook your food.

■Use of the black metal tray during

microwave cooking will result in

inferior cooking performance.

■If you are not sure if a dish is

microwave-safe, use this test: Place in

the oven both the dish you are testing

and a glass measuring cup filled with

1 cup of water—set the measuring

cup either in or next to the dish.

Microwave 30–45 seconds at high.

If the dish heats, it should not be

used for microwaving.

■If the dish remains cool and only the

water in the cup heats, then the dish

is microwave-safe.

■Cookware may become hot because

of heat transferred from the heated

food. Oven mitts may be needed to

handle the cookware.

■Do not use recycled paper products.

Recycled paper towels, napkins and

waxed paper can contain metal flecks

which may cause arcing or ignite.

Paper products containing nylon or

nylon filaments should be avoided,

as they may also ignite.

■Use foil only as directed in this guide.

TV dinners may be microwaved in foil

trays less than 3/4″high; remove the

top foil cover and return the tray to

the box. When using foil in the oven,

keep the foil at least 1 inch away from

the sides of the oven.

■Do not use the oven to dry

newspapers.

■If you use a meat thermometer while

cooking, make sure it is safe for use in

microwave ovens.

■Some styrofoam trays (like those that

meat is packaged on) have a thin strip

of metal embedded in the bottom.

When microwaved, the metal can

burn the floor of the oven or ignite

a paper towel.

■Paper towels, waxed paper and plastic

wrap can be used to cover dishes in

order to retain moisture and prevent

spattering. Be sure to vent plastic

wrap so steam can escape.

■Not all plastic wrap is suitable for use in

microwave ovens. Check the package

for proper use.

■“Boilable” cooking pouches and

tightly closed plastic bags should be

slit, pierced or vented as directed by

package. If they are not, plastic could

burst during or immediately after

cooking, possibly resulting in injury.

Also, plastic storage containers should

be at least partially uncovered because

they form a tight seal. When cooking

with containers tightly covered with

plastic wrap, remove covering carefully

and direct steam away from hands

and face.

■Plastic cookware—Plastic cookware

designed for microwave cooking is

very useful, but should be used

carefully. Even microwave-safe plastic

may not be as tolerant of overcooking

conditions as are glass or ceramic

materials and may soften or char if

subjected to short periods of

overcooking. In longer exposures

to overcooking, the food and

cookware could ignite.

Follow these guidelines:

1. Use microwave-safe plastics only

and use them in strict compliance

with the cookware manufacturer’s

recommendations.

2. Do not microwave empty containers.

3. Do not permit children to use

plastic cookware without complete

supervision.

Microwave-

safe

cookware

The oven rack (turntable)

must always be in place

when using the oven.

The glass microwave tray

should always be in place

when microwaving.

Make sure to use suitable cookware during microwave cooking. Most glass casseroles,

cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does

not have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled

“suitable for microwaving.”

IMPORTANT SAFETY INSTRUCTIONS

www.geadvantium.com

WARNING!

■Don’t defrost frozen beverages in

narrow-necked bottles (especially

carbonated beverages). Even if the

container is open, pressure can build

up. This can cause the container to

burst, possibly resulting in injury.

■Foods cooked in liquids (such as

pasta) may tend to boil more rapidly

than foods containing less moisture.

Should this occur, refer to the Care

and Cleaning of the oven section for

instructions on how to clean the

inside of the oven.

■Hot foods and steam can cause

burns. Be careful when opening any

containers of hot food, including

popcorn bags, cooking pouches

and boxes. To prevent possible injury,

direct steam away from hands

and face.

■Do not overcook potatoes. They could

dehydrate and catch fire, causing

damage to your oven.

■Avoid heating baby food in glass jars,

even with the lid off. Make sure all

infant food is thoroughly cooked. Stir

food to distribute the heat evenly. Be

careful to prevent scalding when

warming formula. The container may

feel cooler than the formula really is.

Always test the formula before feeding

the baby.

■Do not attempt to deep fry in the

oven.

SAFETY PRECAUTIONS

SAVE THESE INSTRUCTIONS

Product

registration

Fill out the Consumer Product Registration Card.

Two Easy Ways To Register Your Appliance!

■Through the internet at www.GEAppliances.com.

■Complete and mail the enclosed Product Registration Card.

Write

down the

model &

serial

numbers

You can find them on a label, behind the

open oven door, on the front face.

These numbers are also on the Consumer

Product Ownership Registration Card

packed separately with your oven.

Proof of the original purchase date is

needed to obtain service under the

warranty.

For future reference, please write these

numbers here:

Model Number

Serial Number

Read this

manual

Inside you will find many helpful hints

on how to use and maintain your oven

properly. Just a little preventive care on

your part can save you a great deal of time

and money over the life of your oven.

If you need

service

You’ll find many answers to common

problems in the Before You Call For Service

section. If you review our chart of

Troubleshooting Tips first, you may not

need to call for service at all. Or, visit

the GE Appliances website at

www.GEAppliances.com.

If you do need service, you can relax

knowing help is only a phone call away.

A list of toll-free customer service numbers

is included in the back section.

Customer Information

www.geadvantium.com

Congratulations! You are now part of the cooking revolution!

As part of the vision to help consumers live better, easier lives, GE Appliances introduces

the revolutionary GE Advantium oven with Speedcook technology. This new oven roasts,

grills, bakes, browns and broils, just like your conventional oven—only faster—and with

delicious results. You also save time because Advantium requires no preheating.

The information on the following pages will help you operate and maintain your new

Advantium oven. We appreciate your purchase, and hope you will continue to rely on us

whenever you need quality appliances for your home. We thank you for buying GE.

Introduction

What is Advantium?

www.geadvantium.com

The new Advantium oven uses

breakthrough Speedcook technology

to harness the power of light. The

Advantium oven cooks the outside

of foods much like conventional

radiant heat, while also penetrating

the surface so the inside cooks

simultaneously. While radiant heat

is the primary source of power, a

“microwave boost” is added with

certain foods. Foods cook evenly and

fast, retaining their natural moisture.

Turntable

■The oven rack (turntable) rotates to ensure even cooking.

Controls

■The oven control contains preset recipes.

■Turn and press dial makes menu selection easy.

Speedcooking

■A 500 watt halogen bulb and a 600 watt ceramic heater cook

food from above.

■One 375 watt ceramic heater cooks food from below.

■The convection fan ensures even heating.

Oven/Bake and Warming

■One 1100 watt heater cooks food from above.

■One 375 watt ceramic heater cooks food from below.

■The convection fan ensures even heating.

Microwave

■A microwave “boost” is automatically added with certain foods.

■The oven can also be used as a 900 watt microwave oven.

Getting to know

Advantium

Advantium Quick Start

www.geadvantium.com

Set the

clock

When you first plug in the oven or after

a power outage:

1. Turn the selector dial to set

the hour. Press the dial to enter.

2. Turn the dial to set the minute.

Press the dial to enter.

3. Turn the dial to select AM or PM.

Press the dial to enter.

To change the time:

1. Press the OPTIONS button.

2. Turn the dial to CLOCK. Press the

dial to enter and follow the display

directions to set.

Begin

speedcooking

Step 1:

Press the SPEEDCOOK button.

Step 2:

Turn the dial until the display shows

FOOD MENU. Press the dial to enter.

Step 3:

Turn the dial to select the type of food

you want. Press the dial to enter it.

Step 4:

Turn the dial to select the specific food.

Press the dial to enter it.

Step 5:

Turn the dial to select the amount, size,

and/or doneness (if required, the oven

will prompt you). Press the dial after

each selection.

Step 6:

After the last selection is made, the time

and power levels will be displayed. This is

followed a short time later by a

cookware message and START?.

Step 7:

Once the display shows START?, place the

food in the oven and press the dial or

start button to start cooking.

Speedcooking does not require

preheating.

■Press CLEAR/OFF at any time to

stop cooking.

Microwaving

with Micro

Express

Press MICRO EXPRESS for 30 second

increments of microwave cooking time.

The oven starts immediately. You may

add or subtract time by turning the dial.

You may also add time in 30 second

increments by pressing MICRO EXPRESS.

The oven rack (turntable)

must always be in place

when using the oven.

Put food or non-metal,

oven-safe cookware directly

on the black metal tray

to speedcook.

The oven rack (turntable)

must always be in place

when using the oven.

The glass microwave tray

should always be in place

when microwaving.

Advantium Quick Start

www.geadvantium.com

Using the

Oven/Bake

feature

With Preheating

Step 1:

Press the OVEN/BAKE button.

Step 2:

Turn the dial to set the oven

temperature and press dial to start

preheating. Do not place the food in the

oven.(You will be prompted to enter the

cook time after the oven is preheated.)

Step 3:

Press the START/PAUSE button to start

preheating.

Step 4:

When the oven is finished preheating,

it will signal. If you do not open the

door within 1 hour, the oven will turn

off automatically. Open the oven door

and, using caution, place the food

in the oven.

Step 5:

Close the oven door. Turn the dial

to set the cook time and press

START/PAUSE to start cooking.

When cooking is complete, the oven

will signal and turn off.

Cook times are shown in minutes and can

be a maximum of 179 minutes. Time can be

changed during cooking by turning the dial.

Without Preheating

Step 1:

If your recipe does not require

preheating, press the OVEN/BAKE

button.

Step 2:

Turn the dial to set the oven

temperature and press to enter.

Step 3:

To bypass preheating, press the dial again.

Step 4:

Turn the dial to set the cook time and

press to enter.

Step 5:

Place the food in the oven, and press

the START/PAUSE button to start the

oven.

Cook times are shown in minutes and can

be a maximum of 179 minutes. Time can be

changed during cooking by turning the dial.

The oven rack (turntable)

must always be in place

when using the oven.

Put food or oven-safe

cookware directly on the

black metal tray to bake.

Step 1:

Press the WARM/REHEAT button.

Step 2:

Turn the dial to select WARMING.

Press the dial to enter.

Step 3:

Turn the dial to select the oven

temperature.

LOW............140–160°F

MEDIUM ....160–195°F

HIGH ..........195–230°F

Step 4:

Turn the dial to select the level of

moisture you want. Press the dial

to enter.

Using the

Warming

feature

Speedcook Menu Guide

www.geadvantium.com

Display

prompts

1. Turn the dial until

FOOD MENU appears.

Press the dial to enter.

2. Turn the dial until

CHICKEN appears.

Press the dial to enter.

3. Turn the dial until

BONELESS BRST

(boneless breast) appears.

Press the dial to enter.

4. Turn the dial to

Select SIZE:

Sm (3–4 oz)

Lg (5+ oz)

Press the dial to enter.

5. Turn the dial to

Select amount:

1–2 pieces

3–4 pieces

Press the dial to enter.

6. Use METAL TRAY is

displayed.

NOTE: When speedcooking, always use the black tray.

After pressing the SPEEDCOOK

button, the oven will prompt you to

make several selections, such as in

the example below.

Pre-set

speedcook

selections

■After a cooking cycle has been

completed, use the Resume feature

to cook for additional time.

■To review settings during cooking,

press the selector dial.

■See the Cooking Guide packed with

the oven for a complete list of pre-set

speedcook menu selections.

Oven Features

www.geadvantium.com

Oven

features

Throughout this manual, features and appearance may vary from your model.

Oven Rack (Turntable)

The oven rack (turntable) must

always be in place, on the oven

floor, for all cooking. Be sure the

oven rack (turntable) is seated

securely over the hub in the center

of the oven.

Black Metal Tray/Baking Sheet

Put food or appropriate cookware

directly on the black metal tray and

place on the oven rack(turntable)

when using the speedcook,

oven/bake or warming features.

Glass Microwave Tray

Center the tray on the oven rack

(turntable) when using the microwave

features. The tray will not lock

onto the center hub. Place food or

microwave-safe cookware directly on

the tray.

Upper Heaters

Operate when using the speedcook,

oven/bake or warming features.

Window

Allows food to be viewed while

keeping microwaves confined in

the oven.

Door Handle

Pull to open the door. The door

must be securely latched for the

oven to operate.

Door Latches

Vent Fan

Press the VENT FAN button to

remove steam and other vapors

from surface cooking.

Lower Ceramic Heater

Operates when using the speedcook,

oven/bake or warming features.

Cooktop Light

Press the SURFACE LIGHT button to

turn the cooktop light on and off.

Control Panel

The buttons used to operate the oven

are located on the control panel.

Hub

The hub turns the oven rack. Make

sure the hub is always firmly in place

in the bottom of the oven.

www.geadvantium.com

Cooking

controls

Oven Features

With your Advantium oven, you can cook with high-intensity halogen lights, ceramic heaters

and/or conventional microwave energy.

SPEEDCOOK

Press this button to access the speedcook

menu or to set your own speedcook

program. Press and hold for 3 seconds to

repeat the last cooking selection.

SELECTOR DIAL–Turn to select, Push to enter

First turn then press the dial to make

selections. Also use the dial to increase

(turn clockwise) or decrease (turn

counterclockwise) cooking times or

temperatures.

START/PAUSE

Press this button to start or pause any

cooking function.

CLEAR/OFF

Press this button to cancel ALL oven

programs except the clock, auto night light,

timer and reminder.

POWER LEVEL

Press this button and turn/press the

selector dial to change the speedcook or

microwave power levels, or the oven/bake

temperature before and during cooking.

TIMER

Press this button to set the minute timer.

MICROWAVE

Press this button to access the microwave

menu or to set your own microwave

program.

MICRO EXPRESS

Press for 30 seconds of microwave cooking

time. Each time the button is pressed adds

an additional 30 seconds to the remaining

cooking time. The oven starts immediately.

BACK

On certain features, press this button to

return to the previous step.

OVEN/BAKE

Press this button to bake foods using

conventional oven cooking.

WARM/REHEAT

Press this button to operate the warming

and reheating features. Keep hot, cooked

foods at serving temperature, or reheat

servings of previously cooked foods.

VENT FAN

Press this button to remove steam and

other vapors from surface cooking.

REMINDER

Can be used like an alarm clock and can be

used at any time, even when the oven is

operating. It can be set to beep at a certain

time, up to 24 hours later.

OPTIONS

Press this button to set the Clock and access

the Beeper Volume, Clock Display ON/OFF,

Display Scroll Speed, Delayed Start and Night

Light features.

HELP

Press this button to find out more about

your oven’s features.

SURFACE LIGHT

Press this button to turn the cooktop light

on and off.

www.geadvantium.com

Speedcooking

Advantium is already pre-set to cook over

100 popular dishes.

1. Press the speedcook button.

If no selection is made within

15 seconds, the display will revert

back to the time of day.

2. Turn the selector dial to FOOD

MENU. Press the dial to enter.

3. Turn the selector dial to select the

type of food category you want.

Press the dial to enter.

4. Turn the selector dial to select the

specific food (menu selection).

Press the dial to enter.

5. Turn the selector dial to select

amount, size and/or doneness

(if required, the oven will prompt

you.) Press the dial after each

selection.

6. Once the display shows:

START? either press start or the

selector dial to start cooking.

For certain foods, turn the food over when

the oven signals TURN FOOD OVER.

Press START to resume cooking.

For certain foods, the oven will signal

CHECK for DONENESS,. Check to see if

the food is done to your liking. The oven

will continue to cook for several minutes.

Take the food out when it is done to your

liking.

To review settings during cooking,

press the selector dial.

If you enter an undesired selection at any

time, simply press the BACK button to

return to the previous step, or press the

CLEAR/OFF button and re-enter the

desired selections.

Using

speedcook

features

CAUTION: When using speedcook programs, remember that the oven, door and

dishes will be very hot!

Prior to the first use of your oven, the clock must be set. See the Advantium Quick

Start section.

Before you begin, make sure the oven rack (turntable) is in place.

Use the black metal tray (baking sheet), at all times when speedcooking.

The oven rack (turntable) must always

be in place when using the oven. Put food or non-metal, oven-safe

cookware directly on the black metal

tray to speedcook.

To use a

pre-set

speedcook

■Early in a speedcook program, you will

see OPTIMIZING COOK TIME in the

display. The oven automatically senses

the electrical voltage level in your home

and adjusts the cooking time up or

down for proper cooking.

■If the door is opened during cooking,

the oven will stop and PAUSE will

appear in the display. Close the door

and press the START/PAUSE button

to resume cooking.

■At anytime during cooking you can

turn the selector dial to change the

cooking time. You can change power

levels by pressing POWER LEVEL.

■To assure consistent cooking results,

the oven may reduce power levels if the

oven is hot at the beginning of a

program.

■At the end of cooking, the automatic

fan may continue to run for a short

time to cool internal components.

■To cook for additional time after a

cooking cycle has been completed,

use the resume feature.

Speedcooking

www.geadvantium.com

Cooking tips

for great

tasting results

To ensure consistent and even browning

when cooking foods directly on the black

metal tray, arrange food as shown below.

Foods can touch but should not overlap.

Spoke pattern

(Example: crescent rolls, breadsticks)

Single layer

(Example: appetizers)

Circular pattern

(Example: biscuits, cookies, meats)

Repeat last

1. Press and hold the SPEEDCOOK

button for about 3 seconds.

2. The last pre-set food will

be displayed.

3. Press the START/PAUSE button or

the selector dial to start cooking.

Use this time saving feature for cooking

repetitive items like cookies or appetizers. NOTE: The last program used is stored

for two hours.

Resume

feature

1. If your food needs to cook a bit

longer, you can restart the oven

by pressing the START button

or selector dial.

2. RESUME COOKING will be

displayed and the oven will

restart immediately at 10%

of the original time.

The program stays in memory for

3 minutes. After that you will need

to begin the program again. See

To use a pre-set speedcook menu.

Fresh meat, chicken, fish or seafood that has been frozen should be thawed before

cooking (the microwave defrost feature can be used). For other frozen prepackaged

foods, follow package directions.

Speedcooking

www.geadvantium.com

Speedcook

power level

Advantium uses power from a

high intensity halogen light, ceramic

heaters, and microwaves to cook

food from the top, bottom, and

interior simultaneously to seal in

moisture and flavor.

When using the pre-set speedcook

recipes on the food menu, the power

levels are already selected for you.

However, these power levels can be

adjusted before or during cooking.

Also, the manual cook feature allows

you to speedcook items not on the

pre-set food menu by selecting your

own cook time and power level

settings.

Each power level gives you heater

power and microwave energy for a

certain percentage of the time.

UPPER POWER (U) controls both the

upper heater and microwave power.

A higher UPPER POWER setting will

utilize more upper heater power,

browning food faster on top. A lower

UPPER POWER setting utilizes more

microwave power, causing food to

cook more evenly throughout. Select

a higher setting for foods such as

pizza and baked goods. Select a

lower setting for foods such as

casseroles, meat and fish.

LOWER POWER (L) controls the

lower heater. Select a higher setting

to brown foods more on the bottom.

Select a lower setting for less

browning on the bottom.

1. Press the SPEEDCOOK button

and turn the dial to select FOOD

MENU or MANUAL COOK. Press

the dial to enter.

2. Follow instructions from To use

a pre-set speedcook menu or Manual

Cook.

3. To change the power level when

prompted by the display, turn the

dial clockwise to increase or

counterclockwise to decrease the

upper power level. Press the dial

to enter.

4. Turn the dial to change the lower

power level. Press the dial to

enter.

Press the START/PAUSE button

or the selector dial to start

cooking.

If you do not want to change one of the

settings, just press the dial to move to the

next selection.

NOTE: Be careful when adjusting power

levels so that you do not over- or

undercook food.

Speedcooking

www.geadvantium.com

Manual

speedcook

Advantium gives you the flexibility to

cook your favorite dishes.

If you want to cook a food item that

is not among the pre-set selections,

use manual speedcook.

1. Press the SPEEDCOOK button.

If no entries are made within 15 seconds,

the display will revert back to the time

of day.

2. Turn the selector dial to

MANUAL COOK.

3. Turn the selector dial to select the

cooking time. Press the dial to

enter.

The display will prompt you to select

UPPER POWER and LOWER

POWER.

4. Turn the dial clockwise to increase

or counterclockwise to decrease

the upper power level. Press the

dial to enter.

5. Turn the dial to change the lower

power level. Press the dial to enter.

6. Press the START/PAUSE

button or press the selector

dial to start cooking.

For power level and cooking time

suggestions, use your cooking guide

or cook book.

Speedcook

cookware

■Follow cookware suggestions on the

oven display or in the Cookbook or

Cooking Guide.

■Cookware will become hot. Oven mitts

will be needed to handle the cookware.

■Place food or oven-safe cookware

directly on the black tray when

cooking.

■Use the black metal tray in the same

way you would use a shallow baking

pan or baking tray.

■In addition to the cookware provided,

you can use non-metal casserole

dishes, pie plates and other heat-safe

cookware. Place them directly on the

black metal tray.

■Be sure to select a size that will

rotate easily.

■Place the black metal tray directly on

the oven rack (turntable).

■Do not use cookware or coverings

made of paper, plastic or foil when

cooking during a speedcook cycle.

■The black metal tray must be in place

during the speedcook operations.

Speedcooking

www.geadvantium.com

Speedcook

recipe—to

enter and

save

Create up to 30 of your own

Speedcook recipes, or customize

an existing custom recipe to suit

your tastes. Once it’s done, your

food cooks just the way you want it

every time!

1. Press the SPEEDCOOK button.

2. Turn the dial until MY RECIPES

appears. Press the dial to enter.

3. Turn the dial until <empty>

appears. Press the dial to enter.

4. SELECT COOK TIME appears.

Turn the dial to select the

cooking time. Press the dial to

enter.

The display will prompt you to select

UPPER POWER and LOWER POWER.

5. Turn the dial clockwise to

increase or counterclockwise to

decrease the upper power level.

Press the dial to enter.

6. Turn the dial to change the lower

power level. Press the dial to enter.

7. Spell out the food name by

turning the selector dial to

advance through the available

characters. Press the dial to enter

a character. When you have

entered the entire name, press

START/PAUSE. You may change

previously entered characters by

pressing the BACK button.

8. RECIPE ADDED appears. To begin

cooking, press the START/

PAUSE button. To store the

recipe without cooking, press

the CLEAR/OFF button.

For power level and cooking time

suggestions, use your cooking guide

or cook book.

To find and use stored custom

speedcook recipes:

1. Press the SPEEDCOOK button.

2. Turn dial to MY RECIPES and

press to enter.

3. FOOD NAME and the recipe

names you have previously

entered will appear.

4. Turn dial until the recipe you

want is displayed and press the

dial to enter.

5. Press the START/PAUSE button

or press the selector dial to start

cooking.

Speedcook

recipe—to

find and use

Speedcooking

www.geadvantium.com

Speedcook

recipe—to

adjust or

change

To adjust or change stored custom

speedcook recipes:

1. Press the SPEEDCOOK button.

2. Turn the dial until MY RECIPES

appears. Press the dial to enter.

3. Turn the dial to the recipe you

want to change. Press the dial

to enter.

4. Press the OPTIONS button.

5. Turn the dial to select CHANGE

RECIPE. Press the dial to enter.

6. The display will prompt you to

SELECT COOK TIME, then

select UPPER POWER, LOWER

POWER and FOOD NAME. Turn

the dial and press to enter the

appropriate settings.

(For more detailed instructions,

follow steps 4 through 7 in the

section Speedcook recipe—to enter

and save.)

7. RECIPE ADDED appears. To begin

cooking press the START/PAUSE

button. To store the recipe

without cooking, press the

CLEAR/OFF button.

For power level and cooking time

suggestions, use your cooking guide

or cook book.

To delete stored custom speedcook

recipes:

1. Press the SPEEDCOOK button.

2. Turn the dial until MY RECIPES

appears and press the dial

to enter.

3. Turn dial to the recipe you

want to delete and press the

dial to enter.

4. Press the OPTIONS button.

5. Turn the dial to select DELETE

RECIPE, and press the dial to

enter. This deletes the recipe.

You may now enter and save a

new recipe or press CLEAR/OFF

to return to the clock display.

Speedcook

recipe—to

delete

Custom

speedcook

recipes

Speedcooking

www.geadvantium.com

Custom Recipe Cook Power Level Comments

Name Time U L

Speedcooking

www.geadvantium.com

Things that

are normal

during

speedcooking

Cooking Times

■When speedcooking preprogrammed

foods, you may see OPTIMIZING COOK

TIME in the display several seconds after

you press START. The oven automatically

senses the electrical voltage level in your

home and adjusts the cooking time up or

down for proper cooking.

Fan/Vent

■The fan will come on during cooking.

At the end of cooking, the automatic fan

will continue to run for a short time, and

the display will read Oven is Cooling. The

fan will automatically shut off when the

internal parts of the oven have cooled.

■The exhaust fan may come on

automatically if the cooktop is in use.

■The oven vent will emit warm air while

the oven is on.

Lights

■When the oven is on, light may be visible

around the door or outer case.

■The heaters will dim and cycle on and off

during a speedcook cycle, sometimes even

at full power levels. This is normal. The

oven senses the heat level and adjusts

automatically.

Heaters

■No preheating is required. The oven

begins cooking immediately.

■The door and inside of the oven will be

very hot. Use caution when opening the

door and removing food.

■Do not use cookware or coverings made

of paper, plastic or foil when cooking

during a speedcook cycle.

■When cooking for an extended period

of time, the oven may automatically

reduce the power levels to maintain

the appropriate level of oven heat.

Sounds

■Clicks and a fan blowing are normal

sounds during cooking. The relay board

is turning components on and off.

Baking

www.geadvantium.com

1. Press the oven/bake button.

2. When using the OVEN/BAKE

mode to cook baked goods such

as cakes, brownies, cookies, pies,

rolls, etc., reduce the oven

temperature 25°F–40°F from the

recipe to prevent overbrowning

of baked goods.

Turn the dial to set the oven

temperature and press dial to start

preheating. Do not place the food in

the oven. (You will be prompted to

enter the cook time, after the oven is

preheated.)

3. Press the start/pause button to start

preheating.

4. When the oven is finished

preheating, it will signal. If you do

not open the door within

1 hour, the oven will turn off

automatically. Open the oven door

and, using caution, place the food in

the oven.

5. Close the oven door. Turn the dial to

set the cook time and press

START/PAUSE to start cooking.

When cooking is complete, the oven

will signal and turn off.

You may change the oven temperature during

preheating by pressing the power level button

and turning the dial to select the new

temperature.

If the oven door is opened during cooking,

PAUSE will appear in the display. Close the

door and press start/pause.

Cook times are shown in minutes and can be

a maximum of 179 minutes. Time can be

changed during cooking by turning the dial.

. If your recipe does not require

preheating, press the oven/bake

button.

2. When using the OVEN/BAKE

mode to cook baked goods such

as cakes, brownies, cookies, pies,

rolls, etc., reduce the oven

temperature 25°F–40°F from the

recipe to prevent overbrowning

of baked goods.

Turn the dial to set the oven

temperature and press to enter.

3. To bypass preheating, press the

dial again.

4. Turn the dial to set the cook time

and press to enter.

5. Place the food in the oven, and press

the Start/pause button to start the

oven.

If the oven door is opened during cooking,

PAUSE will appear in the display. Close the

door and press START/PAUSE.

Cook times are shown in minutes and can be

a maximum of 179 minutes. Time can be

changed during cooking by turning the dial.

Bake with

preheat

Bake

without

preheat

Baking

Baking allows you to cook foods the same

way as a conventional oven, using a heating

element to raise the temperature of the air

inside the oven. Any oven temperature from

250°F to 450°F may be set. A fan gently

circulates this heated air throughout the

oven, over and around the food, producing

golden brown exteriors and rich, moist

interiors.

Because the heated air is kept constantly

moving, not permitting a layer of cooler air

to develop around the food, some foods

cook slightly faster than in regular oven

cooking.

Before you begin, make sure the oven rack

(turntable) is in place. Use the black metal

tray at all times when baking.

Caution: When baking, remember that the oven,

door and dishes will be very hot!

The oven rack (turntable)

must always be in place

when using the oven.

Put food or oven-safe

cookware directly on the

black metal tray to bake.

Warming and Reheating

www.geadvantium.com

Tips for Crisp Foods:

■Leave food uncovered.

■Do not use plastic containers or

plastic wrap.

■Preheat prior to use according to

recommended times.

Tips for Moist Foods:

■Cover food with lid or aluminum

foil.

■

Do not put water in the warming

pan.

■Do not use plastic containers or

plastic wrap.

■Preheat prior to use according to

recommended times.

Food Type Control Setting Moisture Setting

Bread, hard rolls MEDIUM CRISP

Bread, soft rolls MEDIUM MOIST

Casseroles MEDIUM MOIST

Fried foods HIGH CRISP

Meats* and fish MEDIUM CRISP

Pancakes, waffles HIGH CRISP

Pizza HIGH CRISP

Potatoes, baked HIGH CRISP

Potatoes, mashed MEDIUM MOIST

Poultry HIGH MOIST

Tortilla Chips LOW CRISP

Vegetables MEDIUM MOIST

To Crisp Stale Items

■Place food or dishes directly on

the black metal tray.

■Preheat on LOW setting and

select CRISP.

■Check crispness after 45 minutes.

Add time as needed.

* USDA/FSIS recommends an internal temperature of 145°F as the minimum doneness for beef. Use a portable

meat thermometer to check internal temperatures.

Temperature and Moisture Selection Chart

Warming

The warming feature will keep hot, cooked

foods at serving temperature. Always start

with hot food. Use cookware and utensils that

can withstand temperatures up to 230˚F.

1. Press the WARM/REHEAT

button.

2. Turn the dial to select WARMING.

Press the dial to enter.

3. Turn the dial to select the oven

temperature.

LOW..............................140–160°F

MEDIUM ......................160–195°F

HIGH ............................195–230°F

4. Turn the dial to select the level of

moisture you want. Press the dial

to enter.

If the oven door is opened during warming,

PAUSE will appear in the display. Close the

door and press START/PAUSE.

Microwaving

www.geadvantium.com

The Timed Reheat feature reheats

servings of previously cooked foods

or a plate of leftovers.

Timed Reheat uses a combination

of heaters and microwave power.

A microwave-only reheat feature is

also available in the MICROWAVE

selections.

1. Press the WARM/REHEAT

button.

2. Turn the dial to select REHEAT.

Press the dial to enter.

3. Turn the dial to set the reheat

time and press to enter.

4. Press the START/PAUSE button

to start the oven.

If the oven door is opened during cooking,

PAUSE will appear in the display. Close

the door and press START/PAUSE.

After removing food from the oven, stir, if

possible, to even out the temperature. If

the food is not hot enough, reheat for more

time. Reheated foods may have wide

variations in temperature. Some areas of

food may be extremely hot.

Place the food in a non-metallic container

on the black metal tray. The cookware

will get hot.

Use cookware and utensils that can

withstand temperatures up to 275° F.

Timed

Reheat

Using the

microwave

features

Make sure the oven rack (turntable) and glass microwave tray are in place.

Place food or microwavable container directly on the glass microwave tray

to cook your food.

Center the tray on the oven rack (turntable). The tray will not lock onto the

center hub.

■Bacon

■Beverage

■ Defrost (Auto and

Time)

■ My Recipes

■Popcorn

■Reheat (one serving)

■ Soup

■ Time cook

■ Vegetables ( fresh,

frozen, canned)

MICROWAVE PRE-SET FOOD SELECTIONS:

The oven rack (turntable) must always be in

place when using the oven. The glass microwave tray should always

be in place when microwaving.

Cookware

■Make sure that cookware is suitable

for microwaving.

■Place food or microwavable container

directly on the glass microwave tray to

cook your food.

Microwaving

www.geadvantium.com

Time Cook

Use Time Cook to microwave food that is

not in the recipe section.

■The power level is automatically

set at high, but you can change it

for more flexibility.

1. Press the MICROWAVE button.

2. Turn the dial to TIME COOK

and press the dial to enter.

3. Turn the dial to set the time

and press the dial to enter.

4. To change the power level if you

don’t want full power, press the

POWER LEVEL button. Turn

the dial to select. Press the dial

to enter.

5. Press the dial or the START/

PAUSE button to start cooking.

You may open the door during TIME

COOK to check the food. Close the door

and press START to resume cooking.

Press MICRO EXPRESS for

30 second increments of microwave

cooking time. Oven starts

immediately.

You may add or subtract time by

turning the dial. You may also add

time in 30 second increments by

pressing MICRO EXPRESS again.

Micro

Express

How to use

pre-set

microwave

selections

1. Press the MICROWAVE button.

If no selection is made within 15 seconds,

the display will revert back to the time of

day.

2. Turn the dial to find the food

you want to cook. Press the dial

to enter.

3. If required, the oven will prompt

you to select amount, weight or

size. Turn the dial and press after

each selection.

4. Press the dial or the START/

PAUSE button to start cooking.

To review settings during cooking, press

the selector dial.

If the door is opened during cooking, the

oven will stop and PAUSE will appear

in the display. Close the door and press

START/ PAUSE to resume cooking.

If you enter an undesired selection at any

time, simply press the BACK button to

return to the previous step, or press the

CLEAR/OFF button and re-enter the

desired selections.

Microwaving

www.geadvantium.com

Microwave

recipe—to

enter and

save

Create and store up to 10 of your

own microwave recipes.

1. Press the MICROWAVE button.

2. Turn dial until MY RECIPES

appears. Press the dial to enter.

3. Turn dial until <empty> appears.

Press the dial to enter.

4. SELECT COOK TIME appears.

Turn the dial to select the

cooking time you want. Press

the dial to enter.

5. Turn the dial to change the power

level and press to enter.

6. Spell out the food name by

turning the selector dial to

advance through the available

characters. Press the dial to enter

a character. When you have

entered the entire name, press

START/PAUSE. You may change

previously entered characters by

pressing the BACK button.

7. RECIPE ADDED appears. To begin

cooking, press the START/PAUSE

button or press the CLEAR/OFF

button to store the recipe without

cooking.

Microwave

recipe—to

find and use

To find and use stored custom

microwave recipes:

1. Press the MICROWAVE button.

2. Turn dial to MY RECIPES and

press the dial to enter.

3. FOOD NAME and the recipe

names you entered will appear.

4. Turn dial to your recipe and press

the dial to enter.

5. Press the START/PAUSE button or

the selector dial to start cooking.

Microwave

power level

1. First, follow directions for TIME

COOK, TIME DEFROST or

MICRO EXPRESS.

2. Press the POWER LEVEL button.

3. Turn the dial clockwise to increase

and counterclockwise to decrease

the power level. Press the dial

to enter.

4. Press the dial or the

START/PAUSE button to start

cooking.

■You can change the power level before

or during a cooking program.

Here are some examples of uses for

various power levels:

High 10: Fish, bacon, vegetables,

boiling liquids.

Med-High 7: Gentle cooking of meat

and poultry; baking casseroles and

reheating.

Medium 5: Slow cooking and

tenderizing for stews and less

tender cuts of meat.

Low 2 or 3: Defrosting; simmering;

delicate sauces.

Warm 1: Keeping food warm;

softening butter.

■When cooking bacon, layer strips

on a plate. Cover each layer with a

paper towel.

■When cooking vegetables,

use a microwave-safe casserole

or bowl. Cover with a lid or

vented plastic wrap.

■For frozen vegetables, follow

the package instructions for

adding water.

■For fresh vegetables, add

two tablespoons of water for

each serving.

Cooking tips

Microwaving

www.geadvantium.com

Microwave

recipe—to

adjust or

change

To adjust or change stored custom

microwave recipes:

1. Press the MICROWAVE button.

2. Turn dial to MY RECIPES and

press the dial to enter.

3. Turn the dial to the recipe you

want to change. Press the dial

to enter.

4. Press the OPTIONS button.

5. Turn the dial to select CHANGE

RECIPE. Press the dial to enter.

6. Turn the dial to select the cook

time and press the dial to enter.

7. Turn the dial to select the POWER

LEVEL and press the dial to enter.

8. RECIPE ADDED appears. To begin

cooking, press the START/PAUSE

button or press the CLEAR/OFF

button to store the recipe

without cooking.

Microwave

recipe—to

delete

To delete stored custom microwave

recipes:

1. Press the MICROWAVE button.

2. Turn dial to MY RECIPES and

press the dial to enter.

3. Turn the dial to the recipe you

want to delete. Press the dial

to enter.

4. Press the OPTIONS button.

5. Turn the dial to select DELETE

RECIPE, and press the dial to

enter. This deletes the recipe.

You may now enter and save a

new recipe or press CLEAR/OFF

to return to the clock display.

Custom

microwave

recipes

Custom Recipe Cook

Power Level

Comments

Name Time

Microwave

Microwaving

www.geadvantium.com

Auto defrost

Auto Defrost automatically sets the

defrosting times and power levels to

give even defrosting results for meats,

poultry and fish weighing up to six

pounds.

1. Remove food from the package

and place it on a microwave-safe

dish.

2. Press the MICROWAVE button.

3. Turn the dial to DEFROST-AUTO.

Press the dial to enter.

4. Turn the dial to the food weight,

using the Conversion Guide

at right. For example, dial 1.2 for

1.2 pounds (1 pound, 3 oz.)

Press the dial to enter.

5. Press the dial or START/PAUSE

button to start defrosting.

6. Turn the food over when the oven

signals TURN FOOD OVER.

■Remove defrosted meat or shield warm

areas with small pieces of foil for even

defrosting.

■After defrosting, most meats need to

stand 5 minutes to complete defrosting.

Large roasts should stand for about

30 minutes.

Conversion Guide

If the weight of food is stated in pounds

and ounces, the ounces must be converted

to tenths (.1) of a pound.

Weight of Food Enter Food Weight

in Ounces (tenths of a pound)

1–2 .1

3.2

4–5 .3

6–7 .4

8.5

9–10 .6

11 .7

12–13 .8

14–15 .9

Use Time Defrost to defrost for a selected

length of time.

1. Press the MICROWAVE button.

2. Turn the selector dial to

DEFROST-TIME. Press

the dial to enter.

3. Turn the dial to select the time you

want. Press the dial to enter.

4. Press the dial or START/PAUSE

button to start defrosting.

5. Turn the food over when the oven

signals TURN FOOD OVER.

Power level is automatically set at 3,

but can be changed. To change the power

levels, see the Microwave Power Level

section. You can defrost small items

quickly by raising the power level after

entering the time. Power level 7 cuts the

total defrosting time in about half; power

level 10 cuts the total time to about 1/3.

When defrosting at high power levels,

food will need more frequent attention

than usual.

Time defrost

Microwaving

www.geadvantium.com

Defrosting

tips

Use DEFROST-AUTO for meat, poultry

and fish.

Use DEFROST-TIME for most

other frozen foods.

■Foods frozen in paper or plastic

can be time defrosted in the

package, but foods should be

taken out of the package when

using

DEFROST-AUTO

.Closed

packages should be slit, pierced or

vented after food has partially

defrosted. Plastic storage

containers should be partially

uncovered.

■Family-size, prepackaged frozen

dinners can be defrosted and

microwaved. If the food is in

a foil container, transfer it to

a microwave-safe dish.

■Foods that spoil easily should not

be allowed to sit out for more

than one hour after defrosting.

Room temperature promotes the

growth of harmful bacteria.

■For more even defrosting of

larger foods, such as roasts, use

DEFROST-AUTO.Be sure large

meats are completely defrosted

before cooking.

■When defrosted, food should be

cool but softened in all areas.

If still slightly icy, return to the

microwave very briefly, or let

it stand a few minutes.

The sensor feature detects the increasing

humidity released during cooking. The

oven automatically adjusts the cooking

time to various types and amounts of food.

Do not use the Sensor Features

twice in succession on the same food

portion—it may result in severely

overcooked or burnt food. If food

is undercooked after the first

countdown, use TIME COOK for

additional cooking time.

The proper containers and covers are

essential for best sensor cooking.

■Always use microwave-safe

containers and cover them with

lids or vented plastic wrap.

Never use tight sealing plastic

containers—they can prevent

steam from escaping and cause

food to overcook.

■Be sure the outside of the cooking

containers and the inside of the

oven are dry before placing food

in the oven. Beads of moisture

turning into steam can mislead

the sensor.

■Beverages are best heated

uncovered.

Microwaving

www.geadvantium.com

Microwave

sensor

cooking

Covered

Vented

Dry off dishes so they don’t

mislead the sensor.

MICROWAVE SENSOR PROGRAMS:

■Beverage

■ Popcorn – Prepackaged microwave popcorn, 1.5 oz. to 3.5 oz.

■ Reheat – Single servings (4 to 6 oz.) of leftovers.

■ Soup

Microwaving

www.geadvantium.com

To use all

sensor

programs

Advantium’s microwave mode features

sensor cooking. The oven automatically

senses when food is done and shuts itself

off—eliminating the need to program

cooktimes and power levels.

1. Press the MICROWAVE button.

2. Turn the dial to select the food

you want. Press the dial to enter.

3. Press the dial or press the START/

PAUSE button to start cooking.

Do not open the oven door until

time is counting down in the display.

If the door is opened, close it and

press START/PAUSE immediately.

If the food is not done enough, use

TIME COOK in the microwave

selector to cook for more time.

NOTE: Do not use the Sensor

Features twice in succession on the

same food portion—it may result in

severely overcooked or burnt food.

■If you have been speedcooking or

baking and the oven is already

hot, it may indicate that it is too

hot for sensor cooking. Of course,

you can always continue with the

non-sensor functions.

■To shorten or lengthen the

cook time, wait until the time

countdown shows in the display.

Then turn the dial to add or

subtract time.

■Drinks heated with the BEVERAGE

feature may be very hot. Remove

the container with care.

■If you open the door while sensor

cooking, SENSOR ERROR will

appear. Close the door, press

START to begin again.

Notes about the Reheat program:

Reheated foods may have wide

variations in temperature. Some

areas may be extremely hot.

For improved reheating quality

on crisper foods, use the TIMED

REHEAT feature found by pressing

WARM/REHEAT.

It is best to use TIME COOK and not

REHEAT for these foods:

■Bread products

■Food that must be reheated

uncovered.

■Foods that need to be stirred

or turned.

■Foods calling for a dry look or

crisp surface after reheating.

Microwaving

www.geadvantium.com

Things that

are normal

Interference

■TV/radio interference might be

noticed while using the microwave.

Similar to the interference caused by

other small appliances, it does not indicate

a problem with the microwave. Move

the radio or TV as far away from the

microwave as possible, or check the

position of the TV/radio antenna.

Oven Heat

■Cookware may become hot because of

heat transferred from the heated food.

Oven mitts may be needed to handle

the cookware.

■Steam or vapor may escape from around

the door.

Sounds

■You may hear a dull thumping sound while

the oven is operating.

Other Advantium Features

www.geadvantium.com

“FOOD IS

READY”

To remind you that you have food

in the oven, the oven will display

FOOD IS READY and beep once a

minute until you either open the

oven door or press the CLEAR/OFF

button.

Features

under the

OPTIONS

button

Clock:

The clock must be set before you can use

your oven for the first time (see Quick

Start for instructions).

1. To change the clock time, press

the OPTIONS pad and turn the

dial to CLOCK. Press the dial

to enter.

2. Turn the dial to set hours.

Press the dial to enter.

3. Turn the dial to set minutes.

Press the dial to enter.

4. Turn the dial to select AM or PM.

Press the dial to enter.

Clock Display ON/OFF:

Use this feature to turn your

clock display on or off. Press the

OPTIONS button, turn the dial to

select CLOCK DISPLAY. Turn the

dial to select ON or OFF. Press the

dial to enter.

Auto Night Light:

Use this feature to program the on-

off time for an automatic night light.

Press the OPTIONS button, turn

the dial to select NIGHT LIGHT,

press the dial to enter and follow

the display directions.

Beeper Volume:

Use this feature to adjust the volume

of the beeper. You can even turn it

off. Press the OPTIONS button, turn

the dial to select BEEPER VOLUME,

press the dial to enter and follow the

display directions.

Scroll Speed:

Is the message scroll too slow or

too fast? Change it! Press the

OPTIONS button, turn the dial to

select DISPLAY SPEED, press the

dial to enter, and follow the display

directions.

Delayed Start:

Delayed Start allows you to set

the oven to delay cooking up to

24 hours. Press the OPTIONS

button, turn the dial to select

DELAYED START and press the

dial to enter. Follow the display

directions to set the Delayed Start

time and feature you wish to delay.

Use this feature to review the current

cooking selections you have set.

Press the selector dial at any time

during cooking.

Review

Other Advantium Features

www.geadvantium.com

Help

Use this feature to find out more about

your oven and its features.

1. Press the HELP button.

2. Turn the dial to select the feature

name. Press the dial to enter.

The display will show a description

for the program you have chosen.

Adjust

Back

Bacon

Beeper Volume

Beverage

Child Lockout

Clear/Off

Clock

Clock Display On/Off

Defrost (Auto)

Defrost (Time)

Delayed Start

Display Speed

Food Menu

Heat/Pwr/Temp

Help

Manual Cook

Microwave

Micro Express

Micro Power

My Recipes

Night Light

Options

Oven/Bake

Popcorn

Power Level

Reheat–1 Serving

Reminder

Repeat Last

Resume

Review

Soup

Speedcook

Start/Pause

Surface Light

Time Cook

Timer On/Off

Vegetables (Canned)

Vegetables (Fresh)

Vegetables (Frozen)

Vent Fan

Features found in the HELP function.

Other Advantium Features

www.geadvantium.com

Use this feature anytime you need a

general purpose timer. It can even be

used while cooking in the oven.

1. Press the TIMER button.

2. Turn the dial to select the

minutes. Press the dial to enter.

3. Turn the dial to select the seconds.

Press the dial to enter.

To pause, press TIMER. To restart, press

TIMER again.

To cancel, press and hold the TIMER

button down for about 3 seconds.

Timer

The vent fan removes steam and other

vapors from surface cooking.

Press the VENT FAN button to select

the fan speed.

Continue pressing to change from

high to low to off.

Vent fan

You may lock the control panel to prevent

the oven from being accidentally started

or used by children.

Press and hold CLEAR/OFF for

about 3 seconds to lock and unlock.

When the control panel is locked,

Control Panel LOCKED will be

displayed briefly anytime a button

or dial is pressed.

Child

lockout

Surface

light

Use to light your cooktop.

Press the SURFACE LIGHT button

to select the proper setting.

Continue pressing to change from

bright to nightlight to off.

Other Advantium Features

www.geadvantium.com

Use this feature like an alarm clock

to help you keep up with things

to do.

1. Press the REMINDER button and

select reminder time. Follow the

directions in the display:

A. Turn the dial to set hours.

Press the dial to enter.

B. Turn the dial to set minutes.

Press the dial to enter.

C. Turn the dial to select AM or

PM. Press the dial to enter.

To briefly display the reminder time,

press the REMINDER button.

To cancel, press and hold the

REMINDER button for about

3 seconds.

Reminder

An automatic fan feature protects

the oven from too much heat rising

from the cooktop below it and from

too much heat inside the oven cavity.

It automatically turns on at low speed

if it senses too much heat.

If you have turned the fan on you

may find that you cannot turn it off.

The fan will automatically turn off

when the internal parts are cool. It

may stay on for 30 minutes or more

after the cooktop and oven controls

are turned off.

Automatic

fan

The area underneath the oven rack

(turntable) should be cleaned

frequently to avoid odors and

smoking during a cooking cycle.

The oven rack (turntable) can be

broken if dropped. Wash carefully

in warm, sudsy water.

Dry completely and replace.

To replace the oven rack (turntable),

place its center over the hub in the

center of the oven and turn it until it

seats into place.

Care and Cleaning

www.geadvantium.com

Helpful

hints

Some spatters can be removed with

a paper towel, others may require

a damp soapy cloth. Remove greasy

spatters with a damp sudsy cloth,

then rinse with a damp cloth.

Do not spray or splash liquids

directly into the heater areas.

Do not use abrasive cleaners or

sharp utensils on oven walls.

Never use a commercial oven

cleaner on any part of your oven.

Do not clean the inside of the oven

with metal scouring pads. Pieces can

break off the pad, causing electrical

shock.

Some food or liquids may fall into

the heater areas. The heaters will

cook most of the food away. Any

remaining residue will not affect

cooking.

An occasional thorough wiping with

a solution of baking soda and water

keeps the inside fresh.

Be certain the oven control is turned

off before cleaning any part of

this oven.

Walls, Floor, Inside Window, Metal

and Plastic Parts on the Door

Do not use the oven without the

oven rack (turntable) in place.

How to

clean the

inside

Removable

oven rack

(turntable)

Oven Rack (Turntable)

Care and Cleaning

www.geadvantium.com

Glass microwave tray Black metal tray

Baking sheets

(cooking trays)

To prevent breakage, allow the trays

to cool completely before cleaning.

Wash carefully in warm, sudsy water

or in the dishwasher.

A soap-filled scouring pad can also be

used to clean the black metal tray.

Do not use abrasives, as they may

damage the finish.

The vent

fan

Care and Cleaning

www.geadvantium.com

How to clean

the outside

We recommend against using cleaners

with ammonia or alcohol, as they can

damage the appearance of the

microwave oven. If you choose to use a

common household cleaner, first apply

the cleaner directly to a clean cloth, then

wipe the soiled area.

Case

Clean the outside with a sudsy cloth.

Rinse and then dry. Wipe the window

clean with a damp cloth.

Glass Door (on some models)

Wipe with a clean damp sponge.

Dry thoroughly. Do not use cleaning

sprays, large amounts of soap and

water, abrasives or sharp objects on

the panel—they can damage it.

Stainless Steel Control Panel and Door

(on some models)

Do not use a steel wool pad; it will scratch

the surface.

To clean the stainless steel surface,

use a hot, damp cloth with a mild

detergent suitable for stainless steel

surfaces. Use a clean, hot, damp cloth

to remove soap. Dry with a dry, clean

cloth.

If food soil remains, try a general

kitchen cleaner, such as Fantastik®

Simple Green®or Formula 409®

For hard-to-clean soil, use a standard

stainless steel cleaner, such as

Bon-Ami®or Cameo®

Apply cleaner with a damp sponge.

Use a clean, hot, damp cloth to

remove cleaner. Dry with a dry, clean

cloth. Always scrub lightly in the

direction of the grain.

After cleaning, use a stainless steel

polish, such as Stainless Steel Magic®

Revere Copper and Stainless Steel

Cleaner®or Wenol All Purpose

Metal Polish®

. Follow the product

instructions for cleaning the stainless

steel surface.

Bottom

Clean off the grease and dust on the

bottom often. Use a solution of warm

water and detergent.

Vent Grill

Use warm soapy water and a dishcloth

to wipe off the grill. If desired, use

cotton swabs to get in between the

grill louvers.

Door Frame

It’s important to keep the area clean

where the door seals against the

oven. Use only mild, non-abrasive

detergents applied with a clean

sponge or soft cloth. Rinse well.

The vent fan has 2 metal reusable

vent filters.

Ovens configured to recirculate air

back into the room should also use

a charcoal filter.

Charcoal Filter (on some models)

Reusable Vent Filters (on all models)

Care and Cleaning

www.geadvantium.com

1. To replace the cooktop light/

night light, first disconnect the

power at the main fuse or circuit

breaker panel.

2. Remove the screw from the

side of the light compartment

cover and lower the cover until

it stops.

3. Be sure the bulb to be replaced is

cool before removing. Gently pull

the bulb from the receptacle.

Replace with 120 volt, 20 watt (max.)

halogen bulb. Order WB36X10213 from

your GE supplier. High-intensity 20 watt

bulbs, available in supermarkets and

hardware stores, may also be used for

replacements.

4. Raise the light cover and replace

the screw. Connect electrical

power to the oven.

Remove screw

Cooktop light/

night light

The metal filters trap grease released

by foods on the cooktop. They also

prevent flames from foods on the

cooktop from damaging the inside

of the oven.

For this reason, the filters must

always be in place when the hood

is used. The vent filters should be

cleaned once a month, or as needed.

To remove, slide them to the rear

using the tabs. Pull down and out.

To clean the vent filters, soak them

and then swish around in hot water

and detergent. Don’t use ammonia

or ammonia products because

they will darken the metal. Light

brushing can be used to remove

embedded dirt.

Rinse, shake and let dry before

replacing.

To replace, slide the filters into the

frame slots on the back of each

opening. Press up and to the front

to lock into place.

Reusable vent

filters

Removing and

cleaning the

filters

Care and Cleaning

www.geadvantium.com

To remove the

charcoal filter

To remove the charcoal filter, first

disconnect power at the main fuse.

Remove the top grille by removing

the 2 screws that hold it in place.

You may need to open the cabinet doors to

remove the screws.

Slide the filter towards the front of

the oven and remove it. Remove 2 grille screws to

remove the grille.

To install a new filter, remove plastic

and other outer wrapping from the

new filter.

Insert the filter into the top opening

of the oven as shown maneuvering it

behind the plastic grille until it fits

squarely into place.

It will rest at an angle behind the

plastic grille on two side support tabs

and in front of the right rear tab.

Replace the grille and 2 screws.

Reconnect power at the main fuse.

The charcoal filter cannot be cleaned.

It must be replaced. Order Part No.

WB2X9883 from your GE supplier.

If the model is not vented to the

outside, the air will be recirculated

through a disposable charcoal filter

that helps remove smoke and odors.

The charcoal filter should be

replaced when it is noticeably dirty

or discolored (usually after 6 to

12 months, depending on usage).

Charcoal filter

(JX81A)

To install the

charcoal filter

Filler Panel Kits

■ JX40CT—Bisque

■ JX40WH—White

■JX41—Black

When replacing a 36″range hood,

filler panel kits fill in the additional

width to provide a custom built-in

appearance.

For installation between cabinets

only; not for end-of-cabinet

installation. Each kit contains

two 3″wide filler panels.

Filter Kits

■ JX81A—Recirculating Charcoal Filter

Kit

Filter kits are used when the oven

cannot be vented to the outside.

Available at extra cost from your GE supplier.

Optional kits

Troubleshooting

www.geadvantium.com

Questions? Use this problem solver or visit the GE website at www.GEAppliances.com

Problem Possible Causes What To Do/Explanation

LIGHTS

Light during a This is normal. •This is normal. The oven senses the

speedcook cycle Power level has been heat level and adjusts automatically.

dims and cycles on automatically reduced

and off, even at full because the oven is hot.

power levels

Light visible around This is normal. •When the oven is on, light may

the door and outer be visible around the door and

case while outer case.

speedcooking

FAN

Fan continues to run The oven is cooling. •The fan will automatically shut off

after cooking stops when the internal parts of the oven

have cooled.

Oven vent emits warm This is normal.

air while oven is on

Fan comes on This is normal. •If the cooktop gets too hot, the vent

automatically when fan comes on.

oven not in use

Fan comes on This is normal. •If the microwave is used after

automatically when speedcook and the oven senses

using the microwave that it is too hot, the vent fan comes

on to cool the oven.

COOKING

The oven makes Clicks and fans blowing •These sounds are normal.

unusual sounds are normal. The relay

while cooking board is turning the

components on and off.

Smoke comes out Food is high in fat •Smoke is normal when cooking high-

of the oven when content. Aerosol spray fat foods. Use vegetable oil or olive

I open the door used on the pans. oil on the meat itself instead of

coating the entire pan.

Food is not fully Programmed times •Increase or decrease time for

cooked or browned may not match the size doneness or adjust the upper or

at the end of a or amount of food you lower lamps for browning.

cooking program are cooking.

Questions?

Use this

problem

solver

www.geadvantium.com

Problem Possible Causes What To Do/Explanation

DISPLAY

The display is blank The clock display has •Check the OPTIONS menu for clock

been turned off. display settings. Turn the display on.

“Control Panel The control has •Press and hold CLEAR/OFF for about

LOCKED” appears been locked. 3 seconds to unlock the control.

in display

Control display is Clock is not set. •Set the clock.

lighted yet oven Door not securely closed. •Open the door and close securely.

will not start

START/PAUSE button •Press START/PAUSE.

not pressed after entering

cooking selection.

Another selection already •Press CLEAR/OFF.

entered in oven and

CLEAR/OFF button not

pressed to cancel it.

Size, quantity, or cooking •Make sure you have entered cooking

time not entered after time after selecting.

selecting VEGETABLES

(FRESH, FROZEN, CANNED),

BACON, DEFROST-TIME

or TIME COOK.

CLEAR/OFF was pressed •Reset cooking program and press

accidentally. START/PAUSE.

Food weight not entered •Make sure you have entered food

after selecting weight after selecting DEFROST-

DEFROST-AUTO. AUTO.

LG Electronics USA X147XGA Microwave Oven User Manual

LG Electronics USA Microwave Oven Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
