LG Electronics USA ZB110 Zigbee coordinator of home network Appliances User Manual
LG Electronics USA Zigbee coordinator of home network Appliances
Users Manual
LG Electronics, Inc.
LG Electronics, Inc.
1. Introduction
LG-ZB110 is USB connected type ZigBee Adaptor manufactured by LG Electronics Inc. for
Smart Grid test bed. It is compatible with ZigBee Alliance Smart Energy Profile 1.1 or
under. LG-ZB110 is ZigBee coordinator in home area network. LG-ZB110 is driven by LG
NAS(Network Attached Storage) and LG Home Energy Management System software. It is
also inter-operated with LG home appliances and Smart TV. You can monitor and control
home appliances’ electricity usage by Smart TV application.
2. Specification
(1) RF Specification
Characteristics
Specifications
Note
Frequency Range 2400~2483.5MHz 0 ~ 15 CH
Frequency Tolerance ±50ppm
Output power Max +20dBm @EM357_Pout-
setting=0dBm
Occupied bandwidth Max 5.0MHz
Out of
band LOW Max -60dBm
Emission HI Max -60dBm
Spurious Full
Bandwidth Max -60dBm 30MHz ~ 12.75GHz
Emission
harmonic 2nd Max -60dBm RBW,VBW : 100KHz
3rd Max -60dBm RBW,VBW : 100KHz
Adjacent
channel +5MHz 36dBc Compared to CW output
(RBW: 100KHz
rejection -5MHz 36dBc
LG Electronics, Inc.
+10MHz 48dBc
-10MHz 48dBc
Leakage Power Max -60dBm @Rx Mode
Rx sensitivity Min -90dBm PER Test
Device Type FFD Full Function Device
(2) Software Specification
i. ZigBee Smart Energy Profile v1.1
ii.Ember ZigBeePro Stack
3. Operation
The wireless ZigBee adapter (compatible with ZigBee Alliance SEP1.1 standards) can be
directly connected to the USB port on the side of your LG NAS(Network Attached Storage)
and will allow the NAS to communicate with LG smart home appliances(Figure 1).

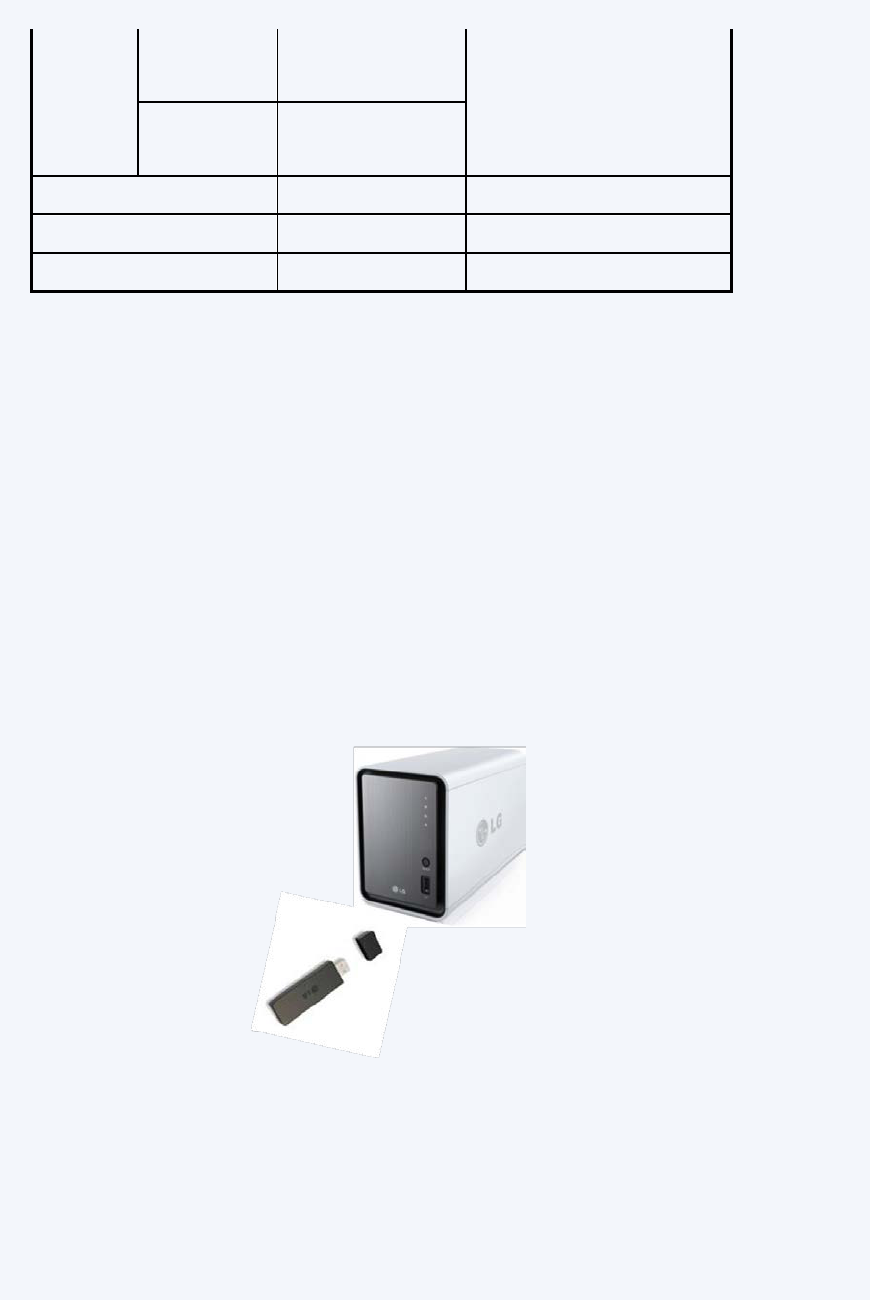

Figure 1. System connection LG-ZB110 with LG NAS
Once the adapter has been connected to the NAS, you can monitor and control smart
home appliances through ZigBee.
LG Electronics, Inc.
If you want to monitor and control LG’s smart home appliances in home, you should buy
LG NAS that is shipped with LG Home Energy Management System software. Once you
connect ZB110 to the LG NAS, the NAS will start LG Home Energy Management System.
LG Home Energy Management System provides easy user interface with users graphically.
LG Home Energy Management System has web- based user interface. So You need an
additional display device like TV. LG Smart TV is the most suitable display device. The LG
Smart TV supports convenient application market including LG Home Energy Management
System application. LG Home Energy Management System has multi-functional home
network protocol middleware. You can manage your home electricity energy usage by
demand response technology. You can also save your energy cost. Demand response
signal can be generated by LG Home Energy Management itself, or received from
electricity utility company by using Advanced Metering Infrastructure(AMI) system. AMI is
a central device in the field of Smart Grid. If you buy additional LG ZigBee adaptor(LG-
ZB110R), you can receive utility company’s demand response information. You can also
use smart plug(compatible with ZigBee Alliance SEP1.x standards) for control and monitor
home’s electricity usage(Figure 2).

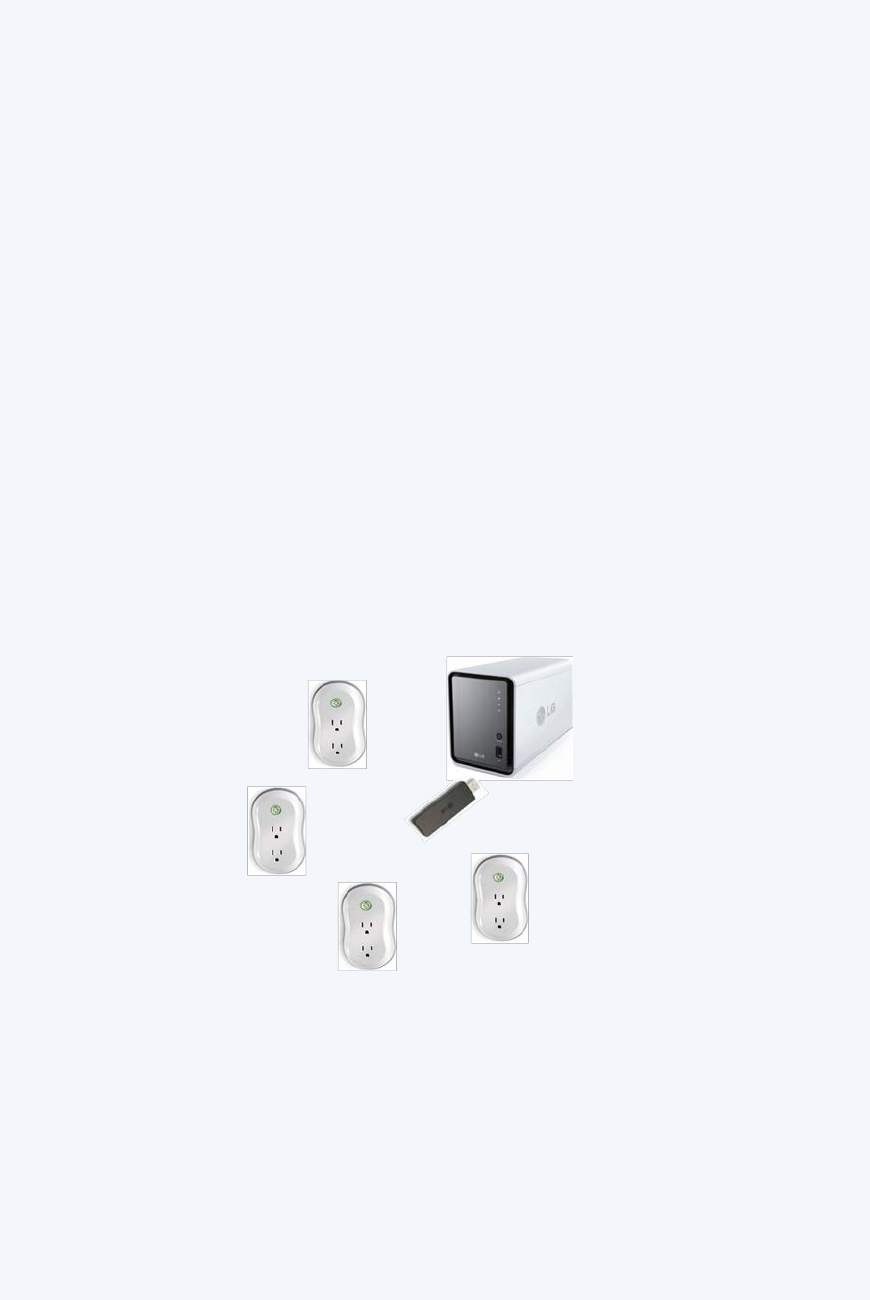

Figure 2. LG Home Energy Management System can control smart plug using by ZigBee protocol
Smart Plug can be registered by easy User Interface of LG Home Energy Management
System(Figure 3). You can input your plug’s installation code into the registration form
easily and turn on or off your electricity device like light, hair dryer by TV’s remote
controller.
LG Electronics, Inc.

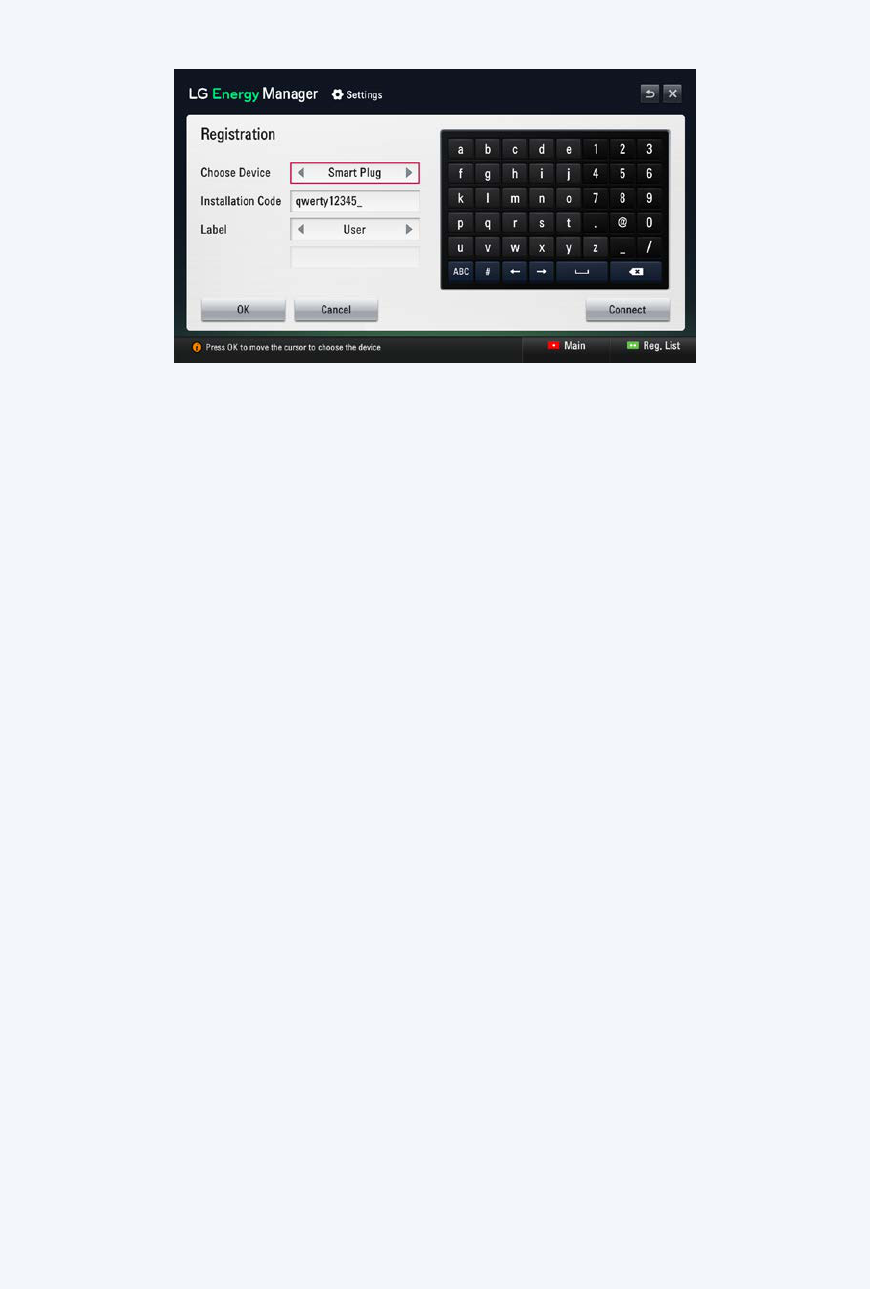

Figure 3. Smart Plug registration screen in LG Home Energy Management System
NOTE: T his e quipment h as b een tested a nd f ound to c omply w ith t he l imits f or a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no g uarantee
that interference will not occur
in a p articular in stallation. I f t his e quipment d oes cause h armful in terference t o r adio or
television reception, which can be
determined by turning the equipment off and on, the u ser is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
caution t he u ser that c hanges o r m odifications n ot e xpressly a pproved by t he pa rty
responsible for compliance could void the user’s authority to operate the equipment.
LG Electronics, Inc.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
20 cmbetween the radiator and your body.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with minimum 20 cm
between the radiator and your body.
