LG Innotek RBHAC213B Bluetooth/WLAN Combo Module for Automotive User Manual
LG Innotek Co., Ltd. Bluetooth/WLAN Combo Module for Automotive
User Manual
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(1/5)
J
S
Seo
I
P
Park
K
S
Kim
Description
- Model : RBHA-C213x
- Bluetooth: v4.0+EDR
- WLAN : 802.11 b/g/n
- Frequency Range : 2400MHz ~ 2483.5MHz
Features
- Dimension : 24.0mm x 18.5mm x 2.7mm
- Temperature Range : -40℃ ~ +85℃
- Supply Voltage : VREGIN – 3.1V to 3.6V
- Output Power
BT: Typ. +1.5dBm(Class 2)
WLAN : 12.5dBm(b), 10dBm(g), 10dBm(n),
- Interface
SDIO(WLAN), UART(BT),PCM/I2S
Application
- Automotive

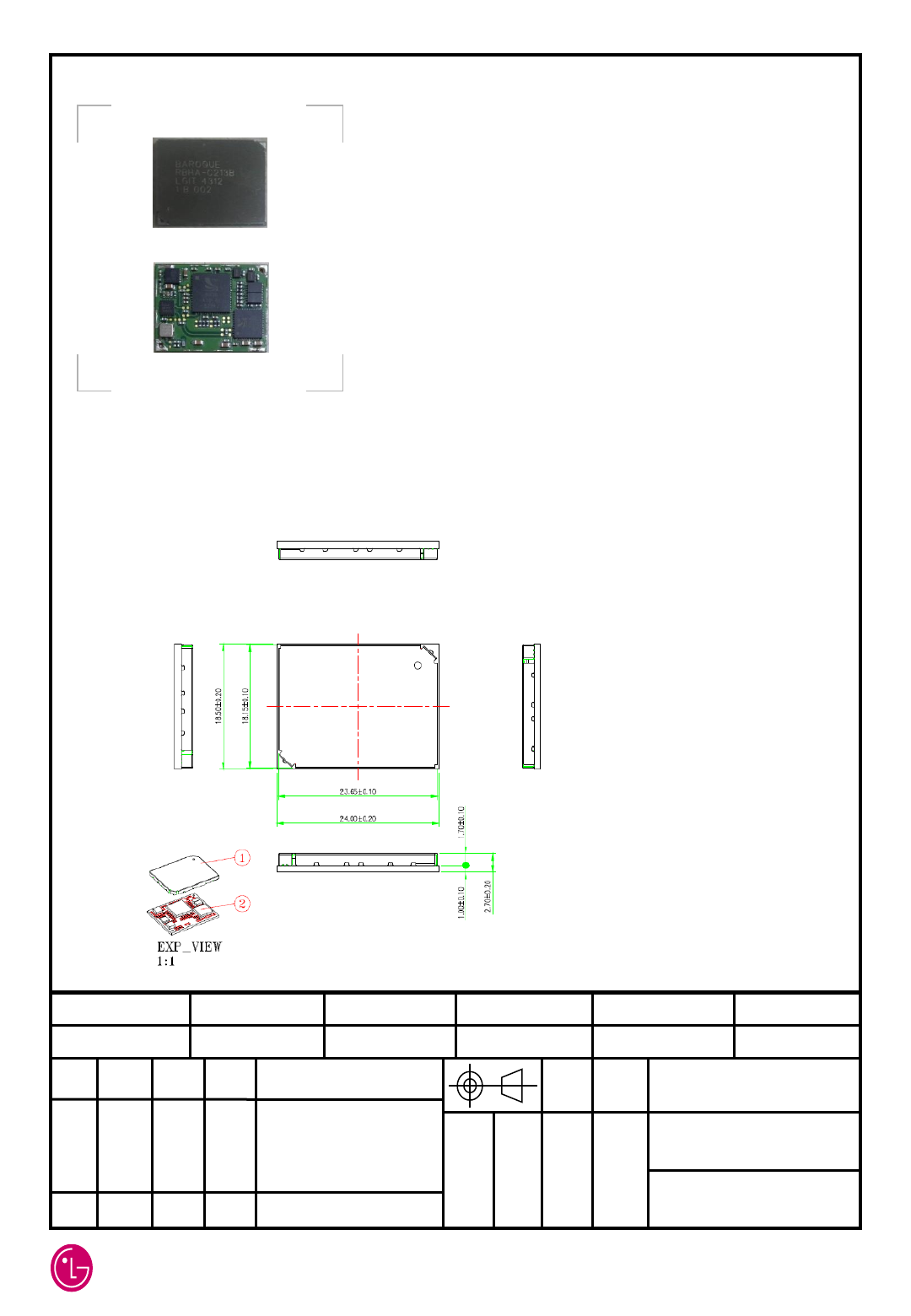

Dimensions
• User Manual
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(2/5)
J
S
Seo
I
P
Park
K
S
Kim
* Power Supply Specification
The power of DC3.1V ~ 3.6V is should be supplied to the Bluetooth module power(VDD). The
module supplies the power to the each block depending on the function. Module input power in
excess of the rated input power may cause damage to the internal components. And the influx of
Surge and ESD also may lead to the damage of the modem in the vehicle. For the prevention of this,
the module is necessary to design block the infloux of Sugre and EDS.
Pin NO. Signal Name Function
(Module case) MIN TYP MAX
5,45,46 VDD3V3 In 3.1V 3.3V 3.6V

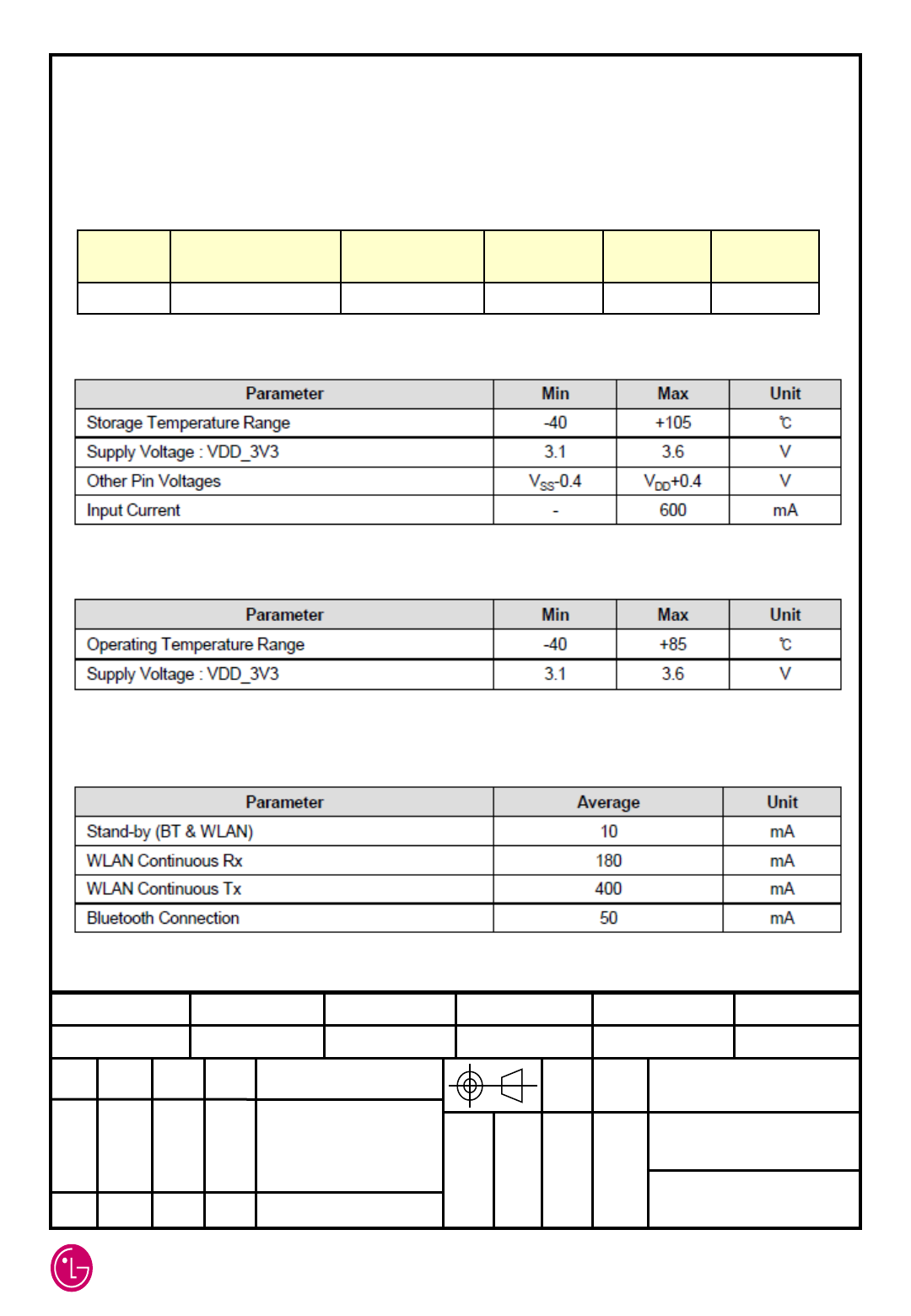

*Absolute maximum ratings
*Recommended operation conditions
*Current consumption
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(3/5)
J
S
Seo
I
P
Park
K
S
Kim

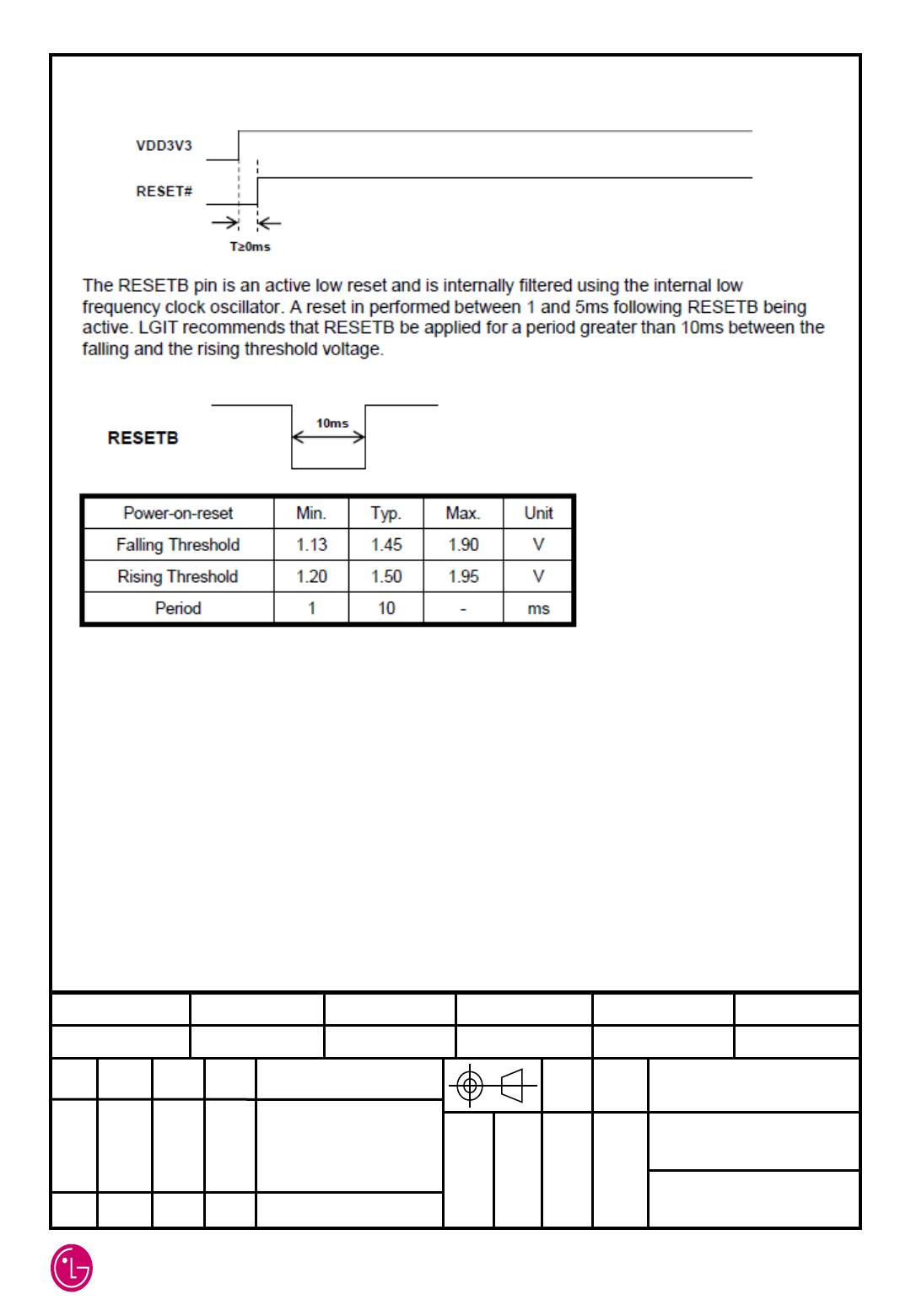

*Boot sequence
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(4/5)
J
S
Seo
I
P
Park
K
S
Kim
General Features
1)Bluetooth Features
• Bluetooth Power Class 2
• Embedded Fully Bluetooth v2.0/v2.1 + EDR System Compliant
• Piconet and scatternet support
• Support UART to 4Mbps
• Integrated CSR AuriStream® low-power codec for wide-band voice quality
• Bluetooth v3.0 specification compliant
• Full qualified Bluetooth v4.0 system
• Dual-mode Bluetooth low energy radio
• Support for Bluetooth basic rate/EDR and low energy connections
2) WLAN Features
• Support for IEEE 802.11b/g
• Support for IEEE 802.11n(20MHz) single partial stream 2.4GHz
• IEEE 802.11n support, including MPDU and MSDU aggregation, immediate block
acknowledgement, PSMP and STBC.
• Full support for IEEE 802.11 and WFA WPA / WPA2 security.
• SDIO(SD1-bit / SD4-bit) up to maximum burst rate 200Mbit/s(In SD4-bit mode).
• Encryption support for WEP40/64, WEP104/128, TKIP, CCMP (AES), BIP and CKIP
provides functionality for WPA, WPA2, IEEE 802.11i™, IEEE 802.11w™ and CCX
advanced security mechanisms. CSR6030 QFN Automotive adds SMS4 encryption
hardware for WAPI security in China.
• Support Access Point tethering functionality(Soft AP)
• Design for Wi-Fi Direct
RBHA-C213x satisfies the following standards
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(5/5)
J
S
Seo
I
P
Park
K
S
Kim

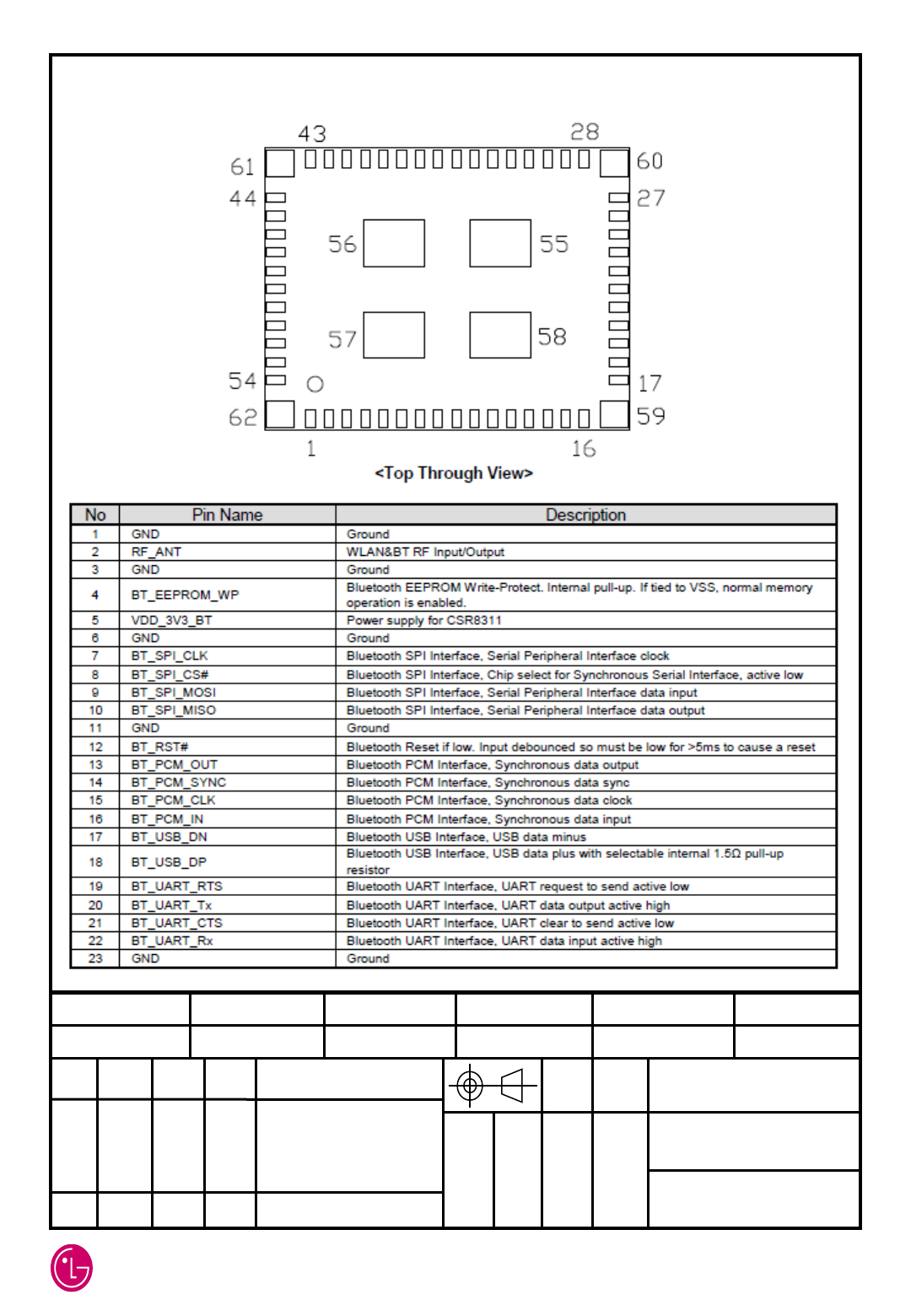

PIN Description
LG Innotek Co, Ltd
PART NO. NAME MATERIAL SPEC FINISH SIZE
UNIT SCALE
DRAW DSGD CHKD APPD TITLE
DOCUMENT NO.
NO. Changes
0.1 `15.08.21
Released
RBHA-C213x
User Manual(6/5)
J
S
Seo
I
P
Park
K
S
Kim

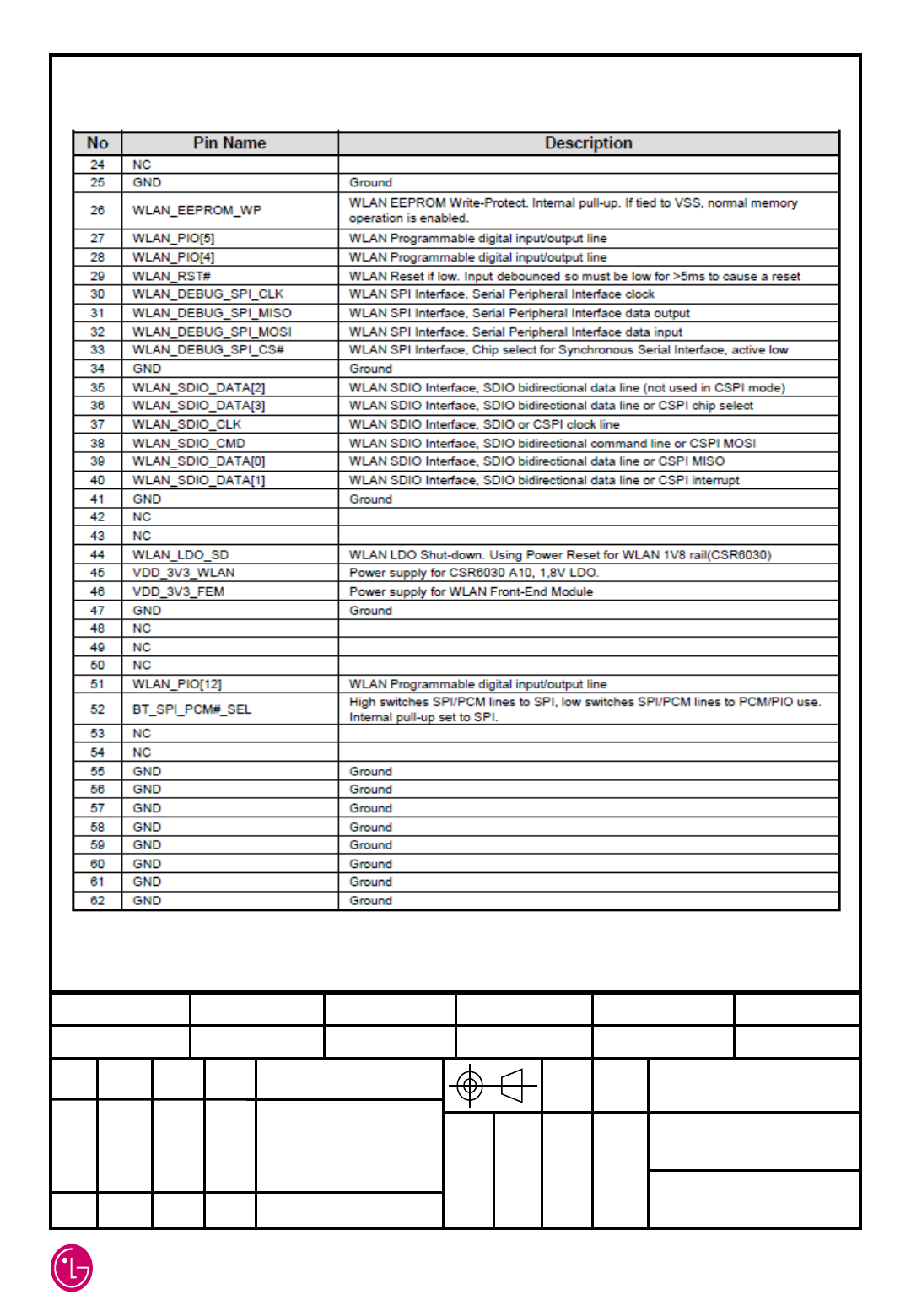

PIN Description
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s), Son utilisation est
soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d’interférences et (2) cet
appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement du dispositif.
Information for OEM Integrator
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
End product labelling
The label for end product must include “Contains FCC ID: YZP-RBHAC213B, IC ID: 7414A-RBHAC213B”.
“CAUTION : Exposure to Radio Frequency Radiation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment must be installed and operated with minimum distance of 20cm between the radiator and your
body. This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users.”
- For external antenna :
Dipole Antenna and Antenna Max Peak Gain(2.41 dBi)
