LG Innotek RBHP-B216C BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module User Manual
LG Innotek Co., Ltd. BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module
User Manual
Copyrightⓒ. 2017. All Rights Reserved. 0 / 6
Internal Use Only
Description
- Model : RBHP-B216C
- Bluetooth: v4.2+EDR
- WLAN : 802.11 a/b/g/n/ac
- Frequency Range : 2400MHz ~ 5835MHz
Features
- Dimension : 22.5mm x 20.0mm x 2.7mm
- Temperature Range : -40℃ ~ +85℃
- Supply Voltage : VBAT 3.0V to 3.6V
- Output Power
BT: Typ. +1.5dBm(Class 2)
WLAN : 16.0dBm(b), 13dBm(g), 12dBm(n), 13dBm(a), 10dBm(ac)
- Interface
PCIe(WLAN), UART(BT), I2S
Application
-Automotive

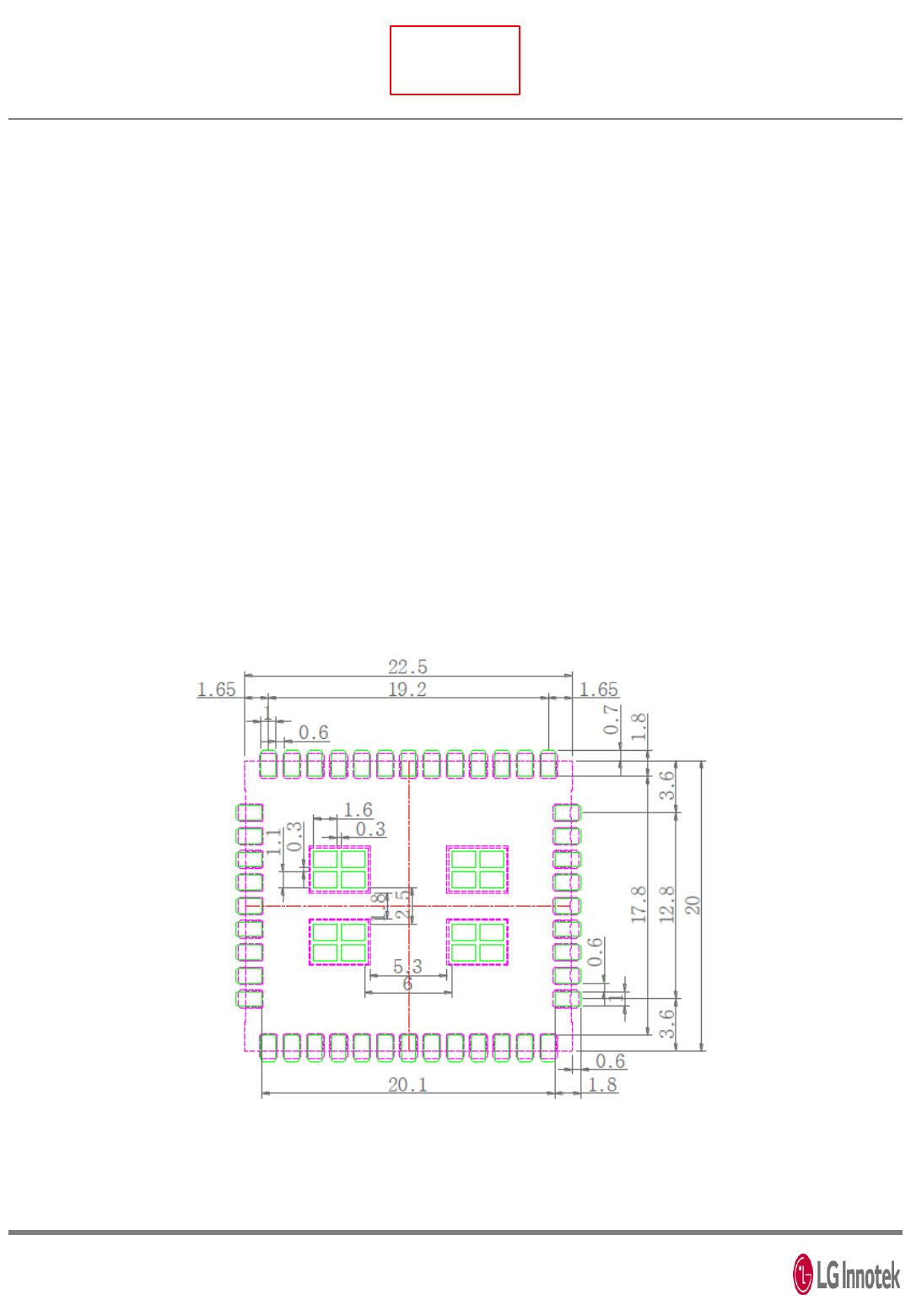

Dimensions
Copyrightⓒ. 2017. All Rights Reserved. 1 / 6
Internal Use Only
•Power Supply Specification
One Buck regulator, multiple LDO regulators, and a power management unit(PMU) are
integrated into the BCM88359. All regulators are programmable via the PMU. These blocks
simplify power supply design for Bluetooth and WLAN functions in embedded designs.
A single VBAT(3.0V to 3.6V DC max) and VIO supply (1.8V to 3.3V) can be used, with all
additional voltages being provided by the regulators in the BCM88359.
Three control signals, BT_REG_ON, WL_REG_ON, and WPT_REG_ON(that is, WPT_1P8),
are used to power-up the regulators and
take the respective section out of reset. The CBUCK CLDO and LNLDO power up available.
All regulators are powered down only when both BT_REG_ON an WL_REG_ON are
deasserted.
The CLDO and LNLDO may be turned off/on based on the dynamic demands of the digital
baseband.
The BCM88359 allows for an extremely low power-consumption mode by completely
shutting down the CBUCK, CLDO, and LNLDO regulators. When in this state, MEMLPLDO
and LPLDO(which is a low-power linear regulator supplied by the system VIO supply)
provide the BCM88359 with all the voltage it requires, further reducing leakage currents.
Copyrightⓒ. 2017. All Rights Reserved. 2 / 6
Internal Use Only
*Boot sequence
Copyrightⓒ. 2017. All Rights Reserved. 3 / 6
Internal Use Only
General Features
1)Bluetooth Features
Bluetooth Power Class 2.
Provisioned for low energy angle-of –arrival applications.
Complies with Bluetooth Core Specification Version 4.2 with provisions for
supporting future specifications.
Supports extended synchronous connections(eSCO), for enhanced voice quality by
allowing for retransmission of dropped packets.
Adaptive frequency hopping(AFH) for reducing radio frequency interference.
Interface support, host controller interface(HCI) using a USB or high-speed UART
interface and PCM for audio data
Supports multiple simultaneous Advanced Audio Distribution Profiles(A2DP) for
stereo sound.
2) WLAN Features
Support for IEEE 802.11a/b/g/n/ac
Dual-stream spatial multiplexing up to 867Mbps data rate.
Tx and Rx low-density parity check(LDPC) support for improved range and power
efficiency.
Supports IEEE 802.11ac/n beamforming.
Supports real simultaneous dual-band(RSDB).
On-chip power amplifiers and low-noise amplifiers for both bands.
PCIe mode complies with PCI Express base specification revision 3.0 for x1 lane and
power management running at Gen1 speeds
Security
- WPA, WAPI STA, and WPA2(Personal) support for powerful encryption and
authentication.
- AES and TKIP in hardware for faster data encryption and IEEE 802.11i compatibility
- Reference WLAN subsystem provides Cisco Compatible Extensions (CCX, CCX2.0,
CCX3.0, CCX4.0)
- Reference WLAN subsystem provides Wi-Fi Protected Setup(WPS)
RBHP-B216C satisfies the following standards
Copyrightⓒ. 2017. All Rights Reserved. 4 / 6
Internal Use Only
PIN Description
Copyrightⓒ. 2017. All Rights Reserved. 5 / 6
Internal Use Only
PIN Description
Copyrightⓒ. 2017. All Rights Reserved. 6 / 6
Internal Use Only
PIN Description
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal
operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the
FCC radio frequency exposure limit.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s), Son utilisation est
soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d’interférences et (2) cet
appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement du dispositif.
This device is going to be operated in 5 150 MHz ~ 5 250 MHz frequency range, it is restricted in
indoor environment only.
Information for OEM Integrator
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
End product labelling
The label for end product must include
“Contains FCC ID: YZP-RBHP-B216C, Contains IC: 7414C-RBHPB216C”.
“ CAUTION: Exposure to Radio Frequency Radiation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20cm between the radiator and your
body. This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users.”
