LG Innotek REAXXOXXA ESL Tag Controller User Manual Manual
LG Innotek Co., Ltd. ESL Tag Controller Manual
Manual
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek
ESL Tag Controller
User manual
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek
1. Overview
Tag Controller description
Display Area
Tag controller device provides customer with several functions as below
Waking Tag up from sleep mode
Updating new purchase image on Tag
Deleting purchase image on Tag
Returning a Tag to be factory settings
Tag Controller Symbol Mode Fucntion
Registration Match the Tag to
Merchandise’s Info.
Delete Delete the Tag from
matched Info.
Next Change the
stored Image
Function User Defined
(ex. Stock Info.)
LED On while HF Signal transmitting / Buzzer beeps for 0.2s
IF the voltage level is lower than 2.2V, it will warn to user by LED blinking
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek

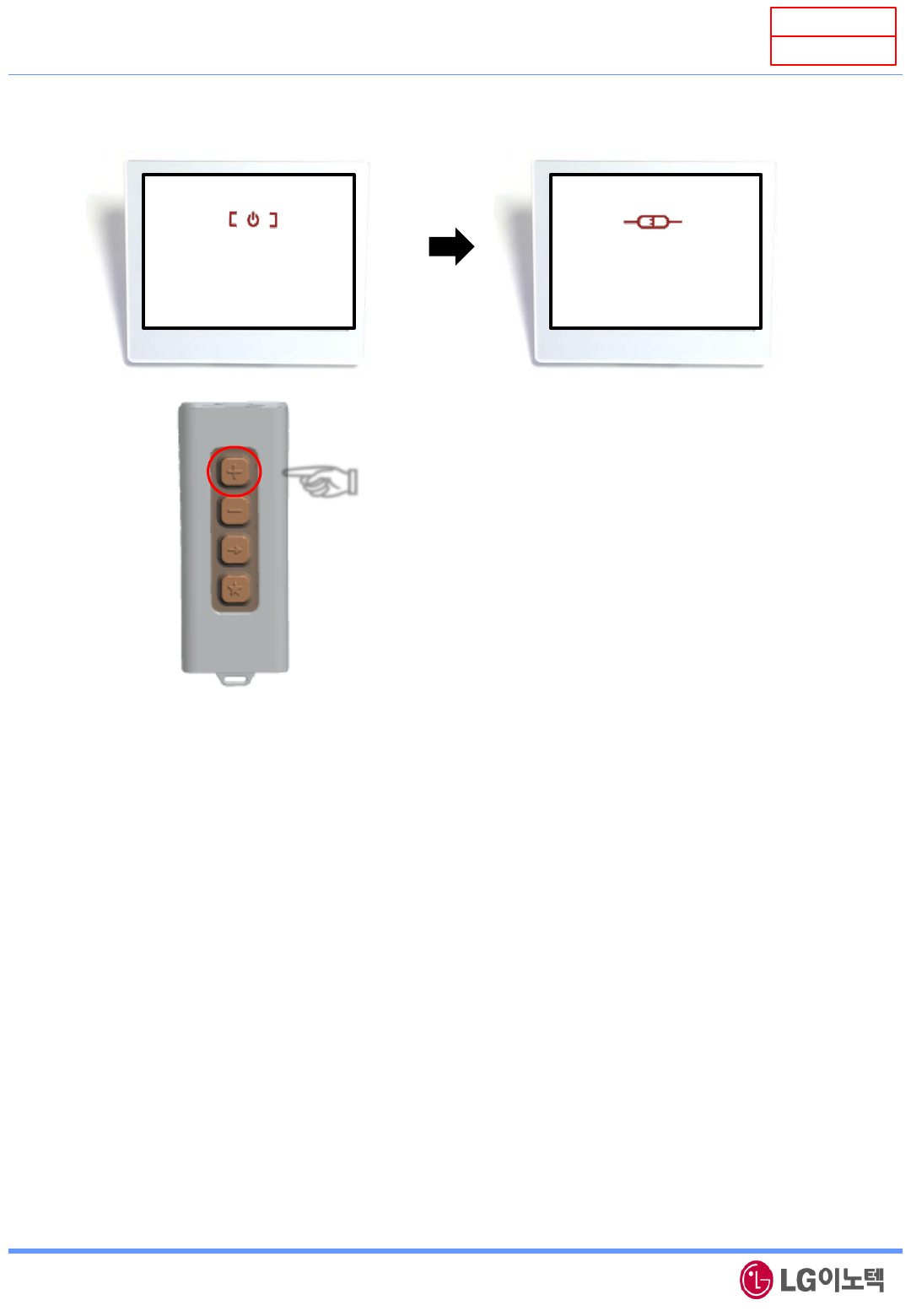

To change purchase information on Tag, perform the following steps :
1. Put Tag controller
near center of Tag’s display
2. Press and hold ‘Registration’ button on Tag controller until red LED off
(about 0.5 seconds)
3. When Tag is successfully received ‘Registration’ data from Tag controller, Tag’s display
will be changed to “Connected” for a few minutes. That means Tag hides purchase
image to read Tag’s IEEE MAC address through the Barcode scanner.
4. In NMS Client, download new purchase image to the Tag in registration status
5. When image downloading is finished successfully, Tag’s display will be changed to new
purchase image
Case1) If image downloading is failed, Tag’s display will be changed to “Busy”.
After “Alive Time”, this Tag will be download new purchase image again
2. Updating new purchase image on Tag
☜
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek

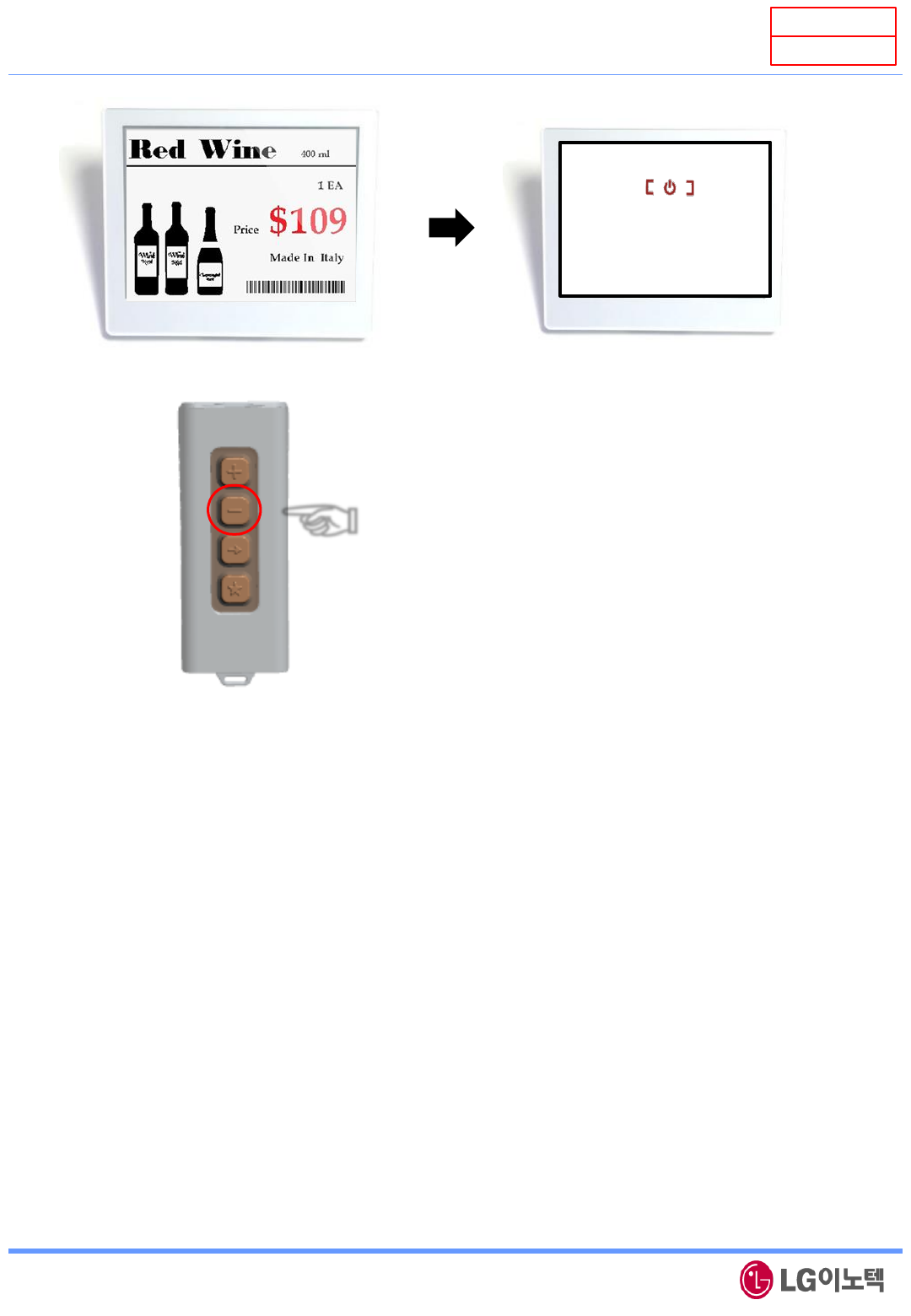

To release(delete) purchase information on Tag, perform the following steps :
1. Put Tag controller near center of Tag display
2. Press and hold ‘Release’ button until red LED off (about 0.5 seconds)
3. If Tag was received ‘Reset’ command from Tag controller, Tag will delete purchase
information and Tag’s display will be changed to “Ready”
4. After step.3, Tag goes to deep sleep mode and doesn’t communicate with gateway
until receiving ‘Keep Alive’ or ‘Registration’ data from Tag controller
3. Deleting purchase information on Tag
☜
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek
To change the another saved image of Tag from former image, perform the following steps :
1. Put Tag controller
near center of Tag display
2. Press and hold ‘Next’ button until red LED off (about 0.5 seconds)
3. If Tag was received ‘Next’ command from Tag controller, Tag’s display will be changed to
new image
4. Change Next Image
☜
Sale
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek

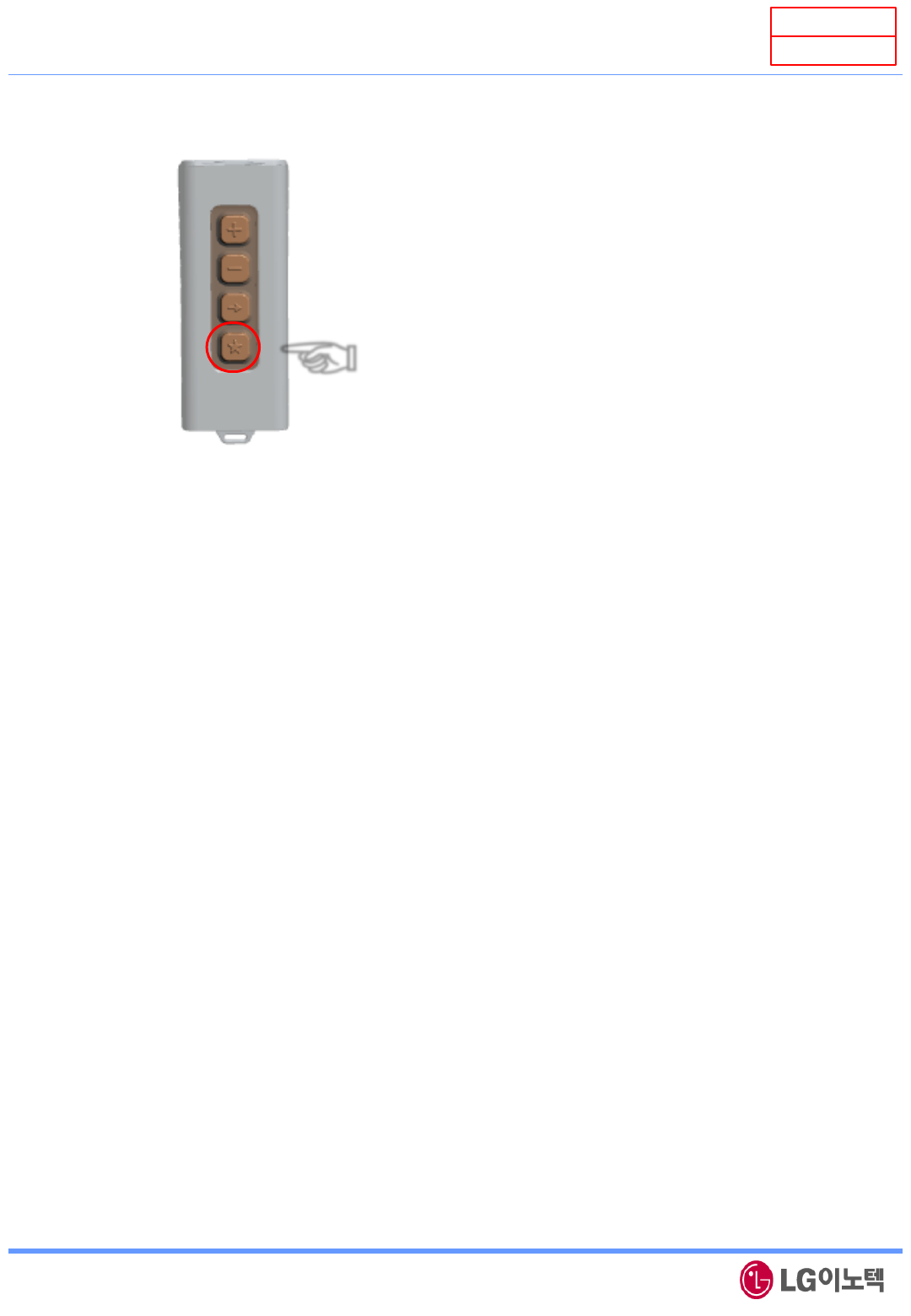

This button is spare function.
Customer will assign this button for their needs. For example stock function, etc.
5. Spare Button
☜
Copyrightⓒ. 2015. All Rights Reserved.
Confidential
LG Innotek
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including
interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try correct the interference by one or more of the following
measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which
receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
