LG Innotek TWCMK007D Wi-Fi/BT Combo module User Manual Microsoft PowerPoint Manual Compatibility Mode

LG Innotek Co., Ltd. Wi-Fi/BT Combo module Microsoft PowerPoint Manual Compatibility Mode

User Manual

USER MANUAL
PRODUCT NAME : 802.11a/b/g/n/ac + Bluetooth 4.1 Combo Module
MODEL NAME : TWCM-K007D
Designed Checked Approved
LG Innotek Co., Ltd.
T.G. JANG D.S. OH S.D. CHOI
DOCUMENT No.
2015.12.04 2015.12.04 2015.12.04 PAGE 9
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
1/ 9
Table of Contents
No Description Page
1 Features 2
2 Ordering Information 2
3 Label Marking 2
4 Absolute Maximum Ratings 3
5 Operating Conditions 4
6 Standard Test Conditions 4
7 Mechanical Characteristics 5
8 Software Programming 6
9 Pin Description 8
10 Outline Drawing 9
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
2/ 9
2. Ordering Information
1. Features
TWCM-K007D is the module for IEEE 802.11a/b/g/n/ac wireless LAN & Bluetooth4.1.
TWCM-K007D is based on MeidaTek MT7662U solution.
IEEE 802.11 a/b/g/n/ac Dual Band WLAN infrastructure
Bluetooth 4.1 + HS
Size : 40mm x 46.5mm x 8.25mm
2.4GHz and 5GHz, internal PA and LNA
Dual-band 2T2R mode with date rate up to 300Mbps
Wake on WLAN and Bluetooth
Two Metal Press antenna for WLAN and One External antenna for Bluetooth
Host interface : USB 2.0 (WLAN & Bluetooth)
Security : WAPI, WEP, WPRA, WPA2, WMM, AES, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
3. Label Marking
①Product Information
②Regulatory ID(FCC, IC, IFETEL)
③MAC Address BAR Code
④MAC Address No
⑤LGIT Model No
⑥Customer Model No
Model Description
TWCM-K007D 802.11 a/b/g/n/ac + Bluetooth Combo, Dual Band 2T2R MIMO
⑦Product Lot No. : 1512A0401
- 15 : Year - 04 : Date
- 12: Month - 01 : Manufactured Process
- A : Revision No
⑧Production Factory
①
②
③
FCC ID :
IC ID :
IFETEL ID :
1512A0401
001EB2B00339
⑤
⑦
TWCM-K007DLGIT WLAN Module
④⑧
Made in Indonesia
⑥
PK29A00060I
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
3/ 9
4. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -10 +80 Ԩ
Storage Humidity (40Ԩ)- 90%
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40Ԩand 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
4/ 9
Parameter Min Typ Max Unit
Ambient Temperature 0 - +60 Ԩ
Ambient Humidity (40Ԩ)--85%
Supply Voltage 4.75 5.0 5.25 Vdc
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
5. Operating Conditions
Temperature 25 ±5Ԩ
Humidity 65 ±5%
Input power Supply Voltage
+5.0V +5.0V ±0.25V(5%)
6. Standard Test Conditions
6-1. Ambient condition
6-2. Power supply voltages
Current Consumption Min Typ Max Unit
TX Mode (11ac, HT80) - - 930
mA RX Mode(11ac, HT80) - - 400
Bluetooth TX Mode - - 70
6-3. Current consumption
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
5/ 9
7. Mechanical Characteristics
7-1. Outline view
7-2. Appearance structure
Item Test Conditions
Assembly No defects of wiring, soldering and assembling
Appearance No dirt, rust, corrosion or foreign material
Item Test Conditions
Dimension As assembly drawing
Mounting As assembly drawing
Weight 9.5 ±0.5g (with BT Ext. Antenna)
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
6/ 9
1) Windows Utility
Execute the released windows utility installer.
(1) Run RaUI.exe
(2) RaUI can co-exist with WZC. When coexisting with WZC,
RaUI only provides monitoring functions, such as surveying
the link status, network status, static counters,
advanced features status, WMM status and WPS status.
(3) When starting RaUI, the system will connect to the AP with best
signal strength without setting a profile or matching
a profile setting. It will issue a scan command to a wireless NIC.
After two seconds, the AP list will be updated with the results
of a BSS list scan.
< Fig A.1 RaUI icon>
< Fig A.2 Select WZC and RaUI>
< Fig A.3 RaUI section introduction>
8. Software Programming
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
7/ 9

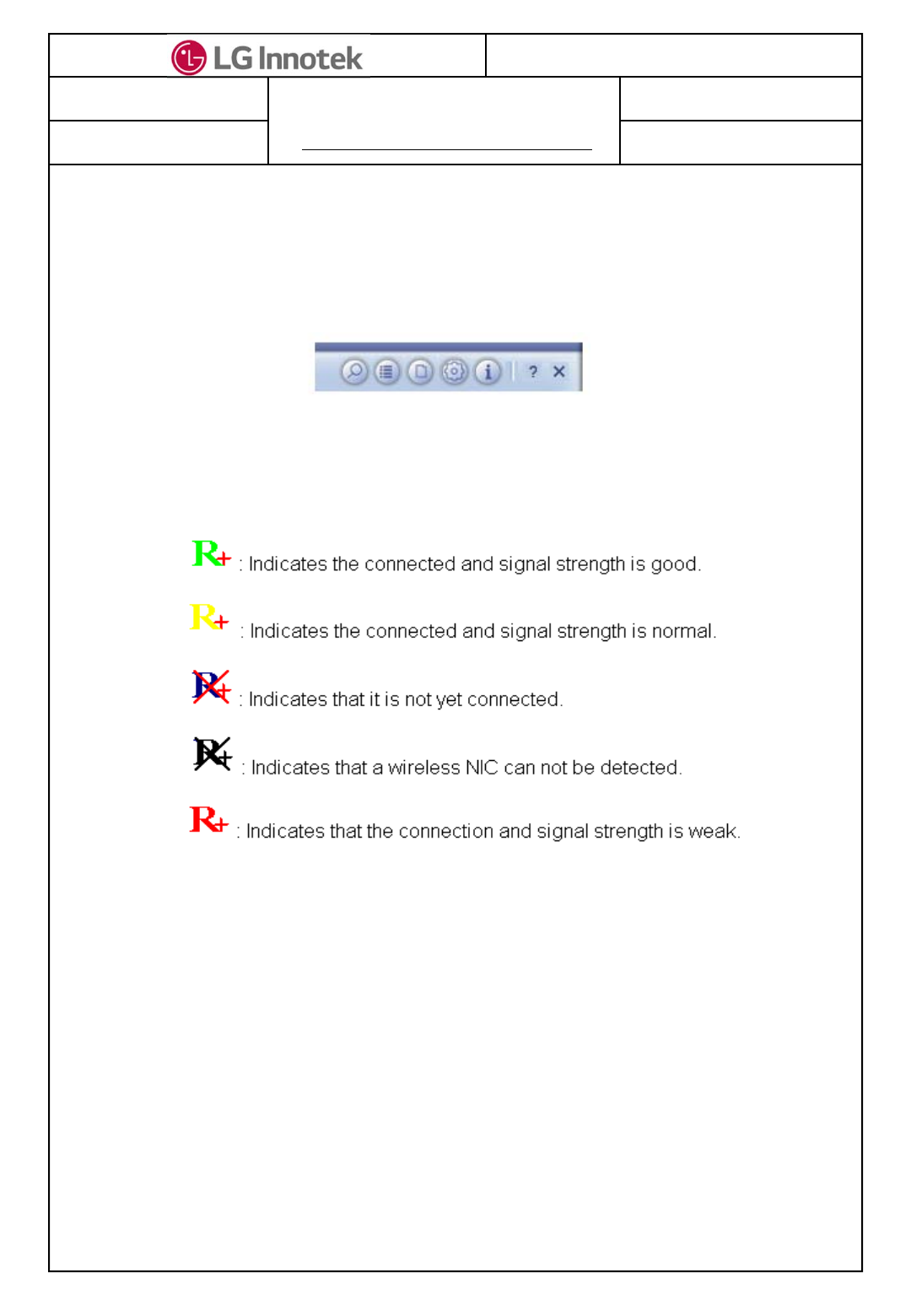

(4) Button section.
- Site survey, Link information, Profile, Advanced, Information,
About page.
- Help page.
(5) When starting RaUI, a small Ralink icon appears in
the notifications area of the taskbar, as shown in <Fig A.5>.
* Please refer to the help page in detail usage manual.
2) Linux Device Driver
Before compiling the driver, you should change make file or
makefile.inc to meet your target platform.
* Please refer to the release note in detail.
< Fig A.4 Button section>
< Fig A.5 Ralink icon in system tray>
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
8/ 9
9. Pin Description
No. Name I/O Description
1 VDD I VDD 5.0V
2 USB_DN I/O USB Communication signal USB_DN
3 USB_DP I/O USB Communication signal USB_DP
4 GND - GND
5 WoWLAN O Wake on Wireless LAN
6 GND - GND
7 BT_WAKE_HOST O Bluetooth wake-up signal
8 Reset I Reset controlled by main SOC
< Top View >
< Bottom View >
Note.
1) Recommend a Module install sequence for prevent USB device failure
- Supply 5.0V power
- Connect to data signal (USB_DP, USB_DN)
2) Connector : Connector 12532WR-H08C
A
A
1
8
USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
9/ 9
10. Outline Drawing

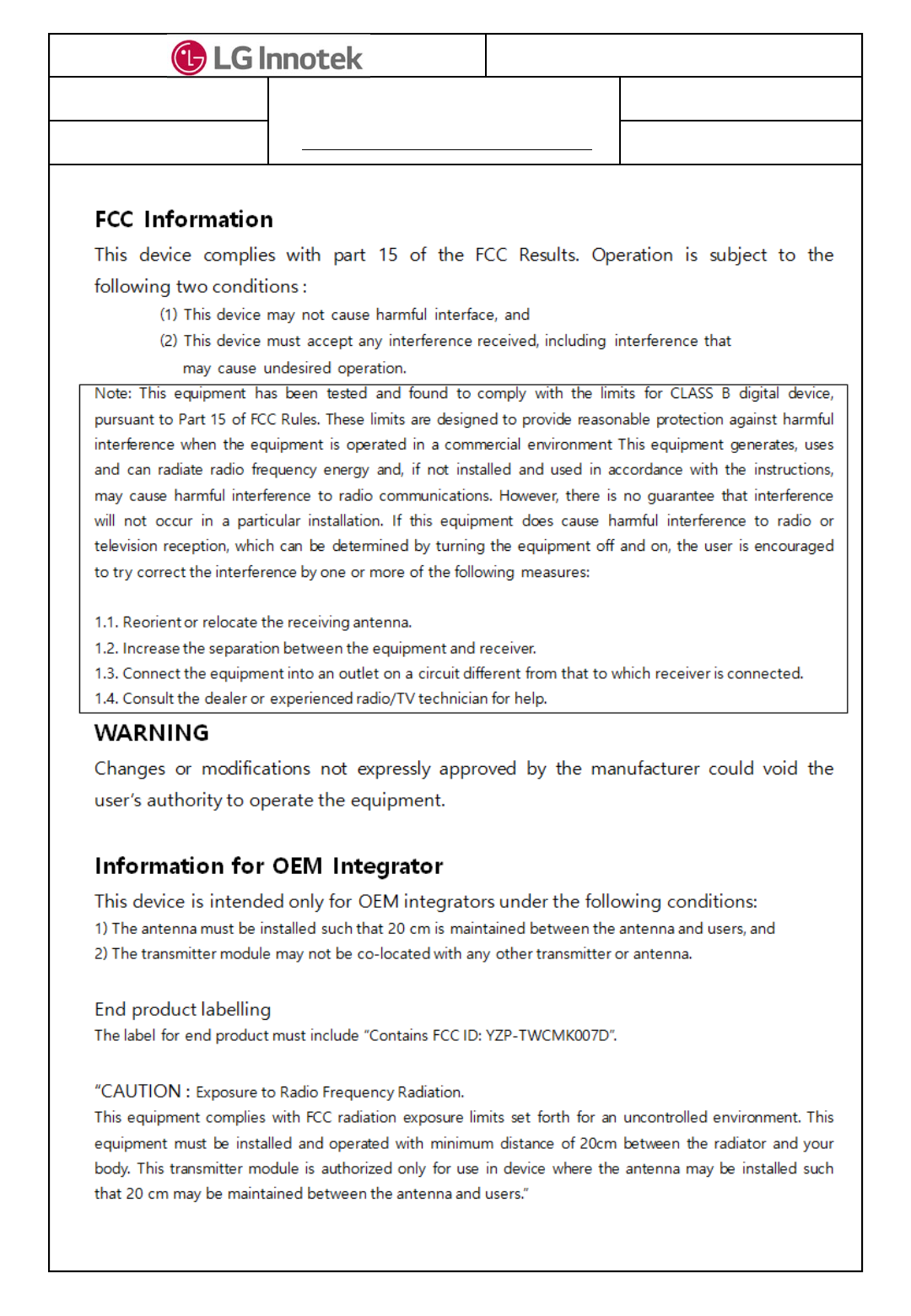

USER MANUAL
PAGE :
DOCUMENT No :
REG. DATE : 2015.12.04
MODEL NAME : TWCM-K007D
REV. DATE : 2015.12.04
REV.NO :
©2015 LGIT. All rights reserved.
10 / 9
