User Manual
User Manual
PRODUCT NAME : Dual Band 2T2R MIMO Wi-Fi Module
MODEL NAME : TWFM-K001D
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
1 / 9
Table of Contents
No Description Page
1 Features 2
2 Module Photo 2
3 Block Diagram 3
4 Storage Test Conditions 4
5 Operating Test Conditions 4
6 Pin Description 5
7 Outline Drawing 6
8 Packing Information 7
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
2 / 9

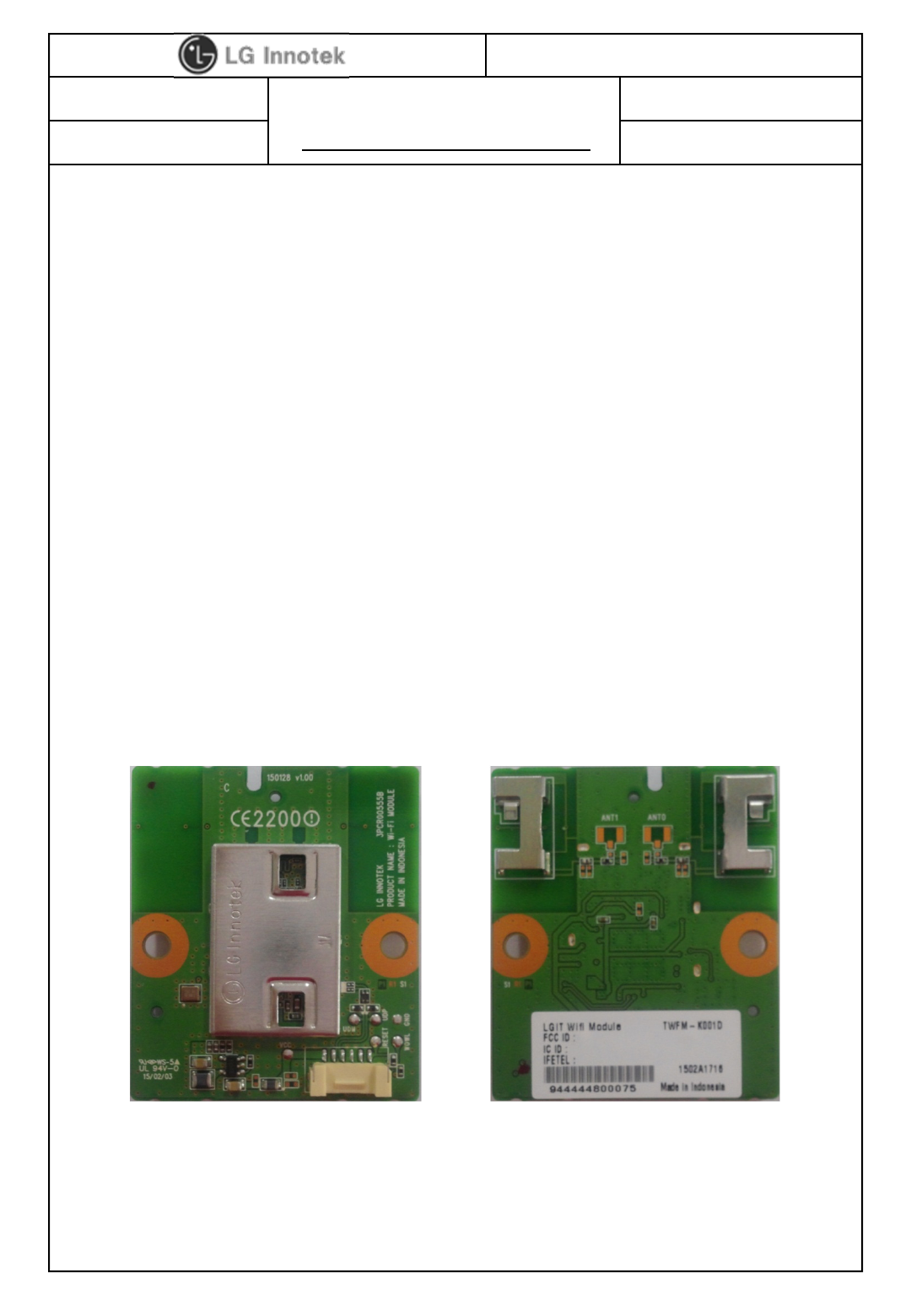

2. Module Photo
1. Features
TWFM-K001D is the module for IEEE 802.11a/b/g/n wireless LAN. TWFM-K001D is
based on MTK MT7600 solution.
IEEE 802.11 a/b/g/n dual band WLAN infrastructure
Size : 40mm x 46.5mm x 8.25mm
2.4GHz and 5GHz, internal PA and LNA
Two stream spatial multiplexing up to 300Mbps
Metal pressed antenna
Use on-chip OTP (One-Time Programmable)
Interface : USB 2.0
Supports drivers for Linux and Windows
Security : WPA, WPA2, AES(TKIP), IEEE 802.1X
• Application : DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
< Top view > < Bottom view >
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
3 / 9

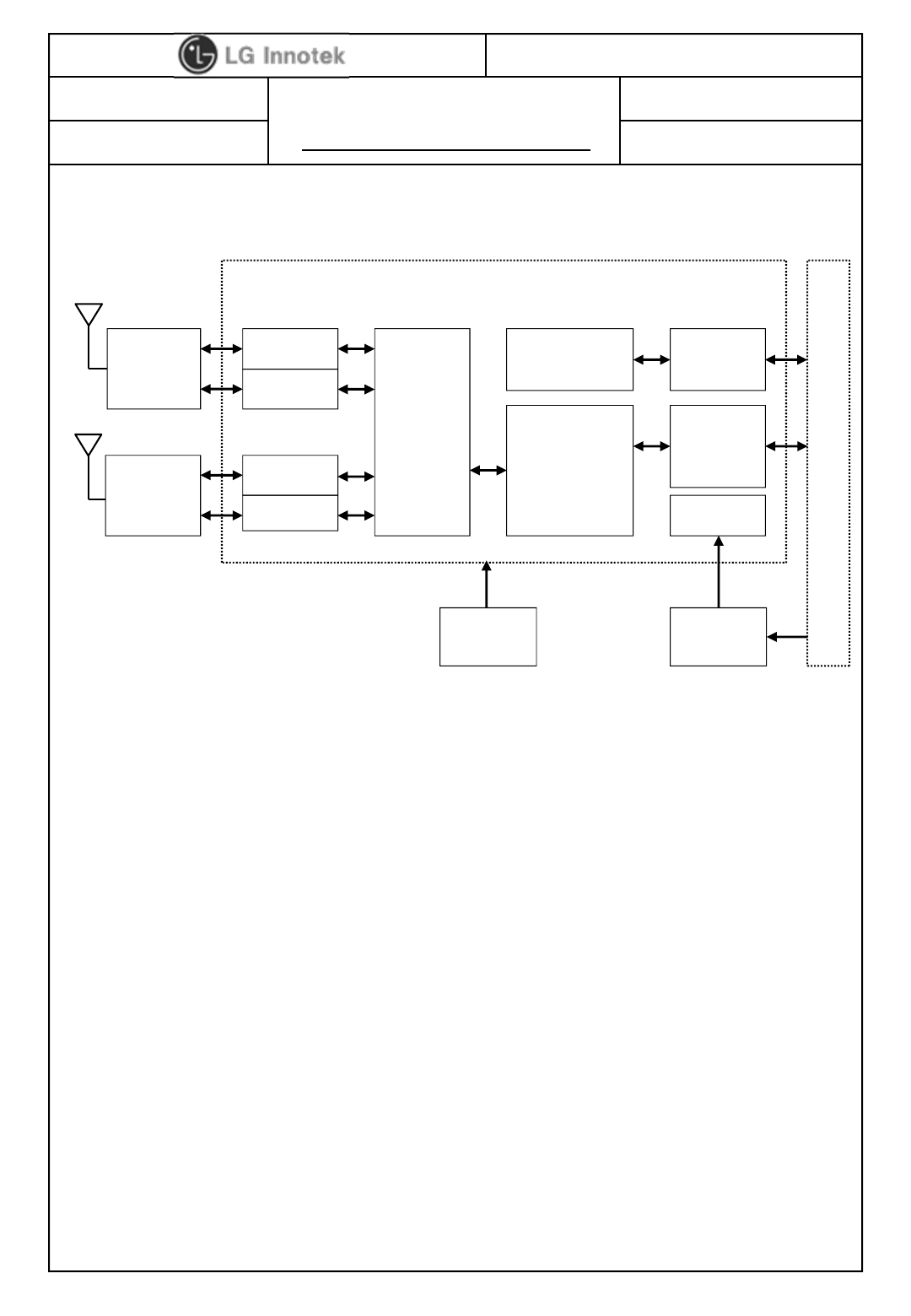

3. Block Diagram
MT7600
2.4GHz RF
5GHz RF
2.4GHz RF
5GHz RF
WLAN
Baseband
32bit RISC
CPU
MAC /
Packet buffer /
Security engine
System
Control
PMU
USB2.0
Interface
USB I/F 6PIN CONNECTOR
DC-DC
1.5MHZ)
3.3V
5V
Main
Clock
40MHz
Patterned
Diplexer
Patterned
Diplexer
ANT0
ANT1
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
4 / 9
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (@ 40℃) - 90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
• Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃ and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
4. Storage Test Conditions
Parameter Min Typ Max Unit
Operating Temperature 0 - +60 ℃
Operating Humidity (40℃) - - 85 %
Supply Voltage 4.5 5.0 5.5 Vdc
5. Operating Test Conditions
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
5 / 9

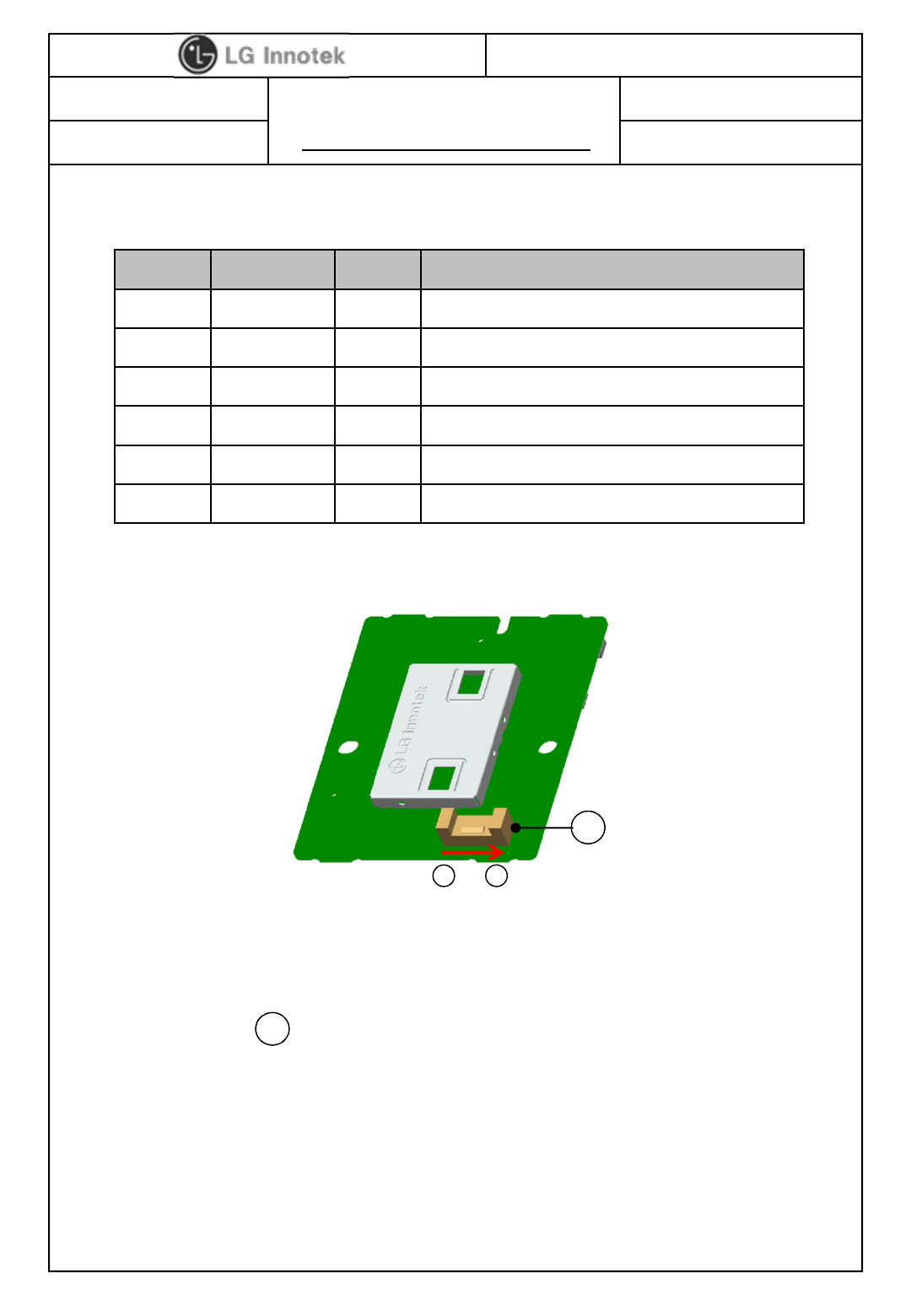

6. Pin Description
< Top View >
Note.
1) Recommend a Module install sequence for prevent USB device failure
- Supply 5.0V power
- Connect to data signal (USB_DP, USB_DN)
2) Connector : Connector, 6-Pin, 1.25-pitch
A
A
1 6
Pin No. Pin Name I/O Pin Description
1 VDD I VDD 5.0V
2 USB_DN I/O USB Communication signal USB_DN
3 USB_DP I/O USB Communication signal USB_DP
4 GND - GND
5 WoWLAN O Wake on Wireless LAN
6 Reset I Reset controlled by TV main SOC
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
6 / 9

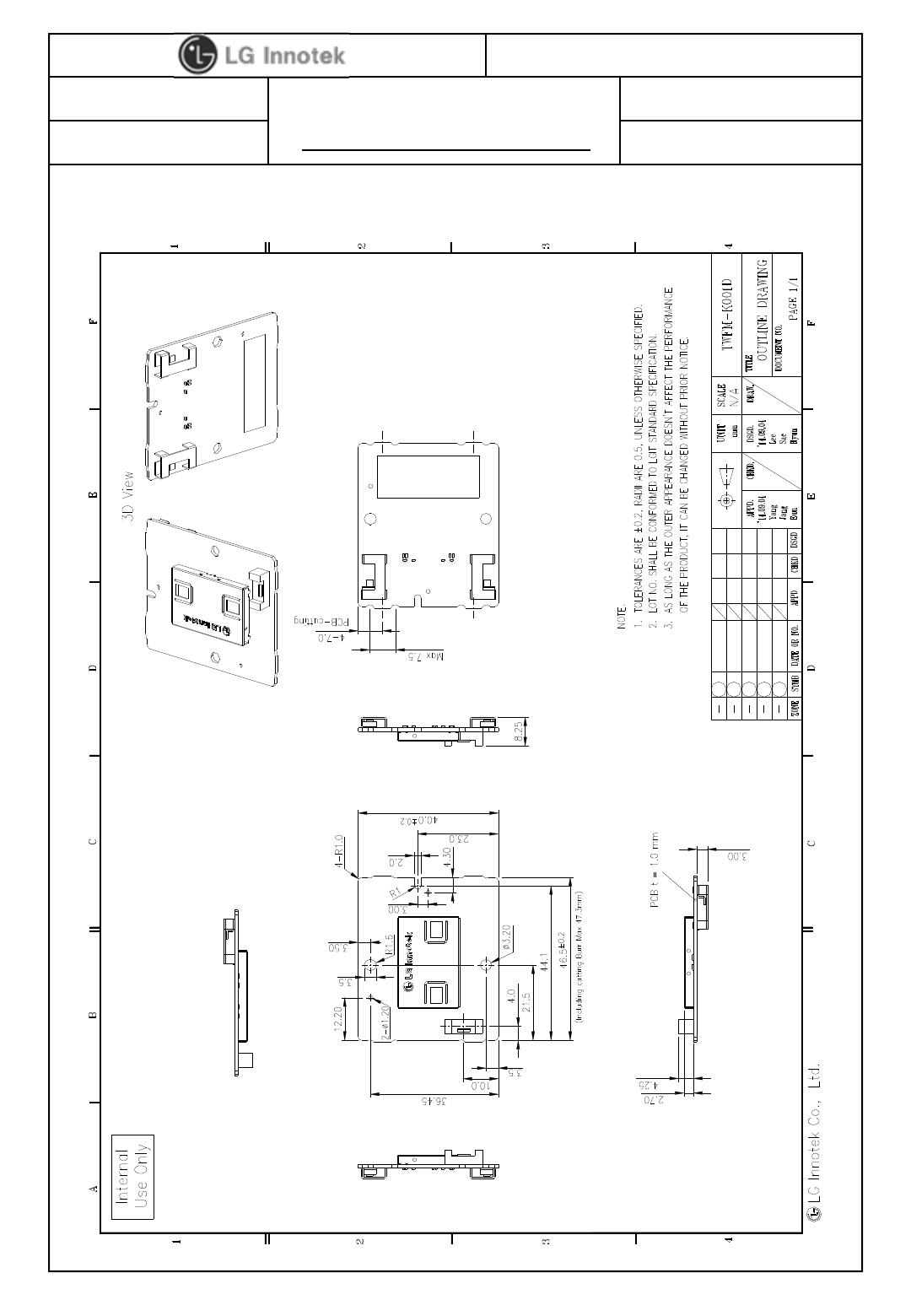

7. Outline Drawing
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
7 / 9
8. Packing Information

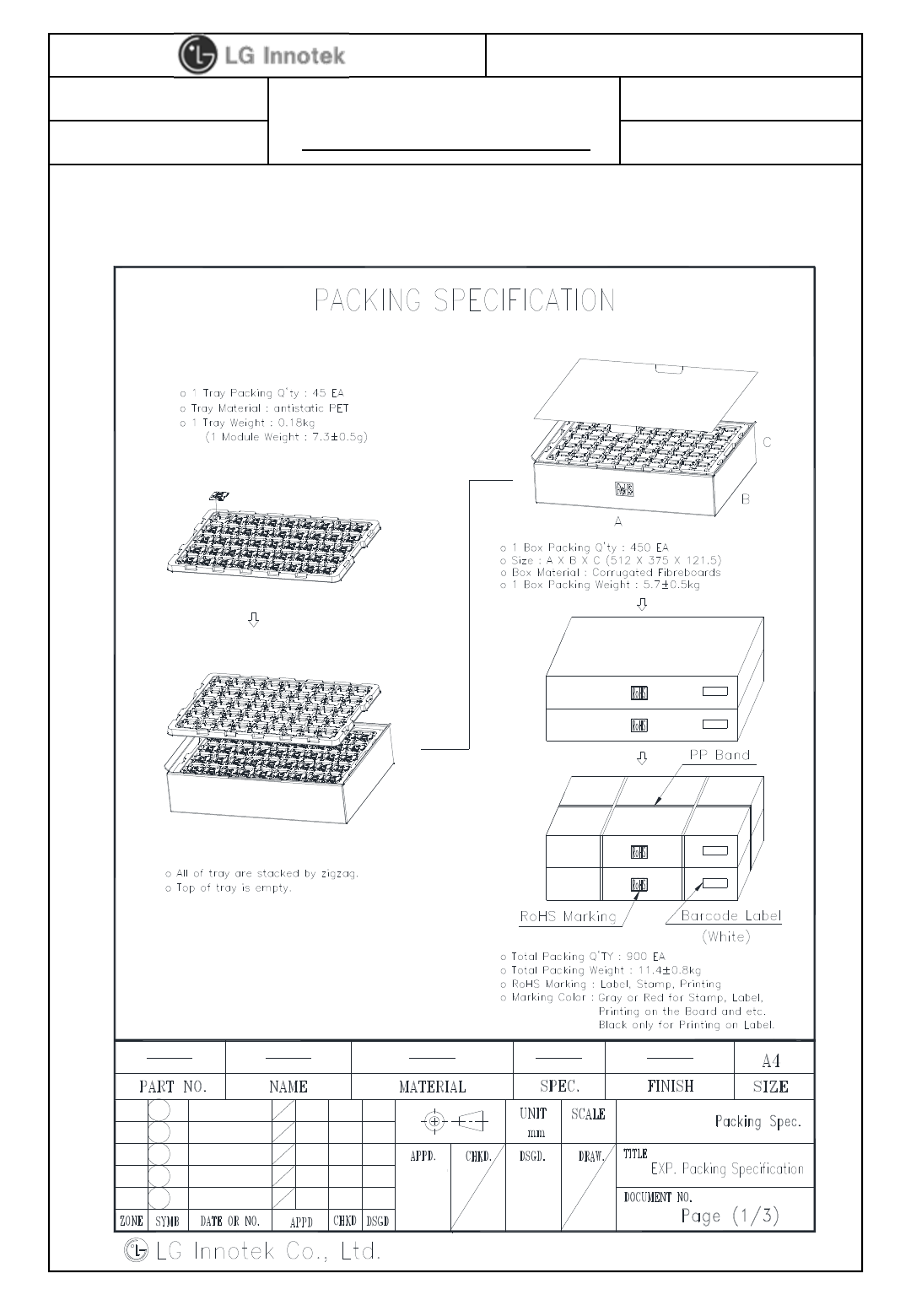

8-1. Inner Box Packing
‘
‘
TWFM-K001D
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
8 / 9

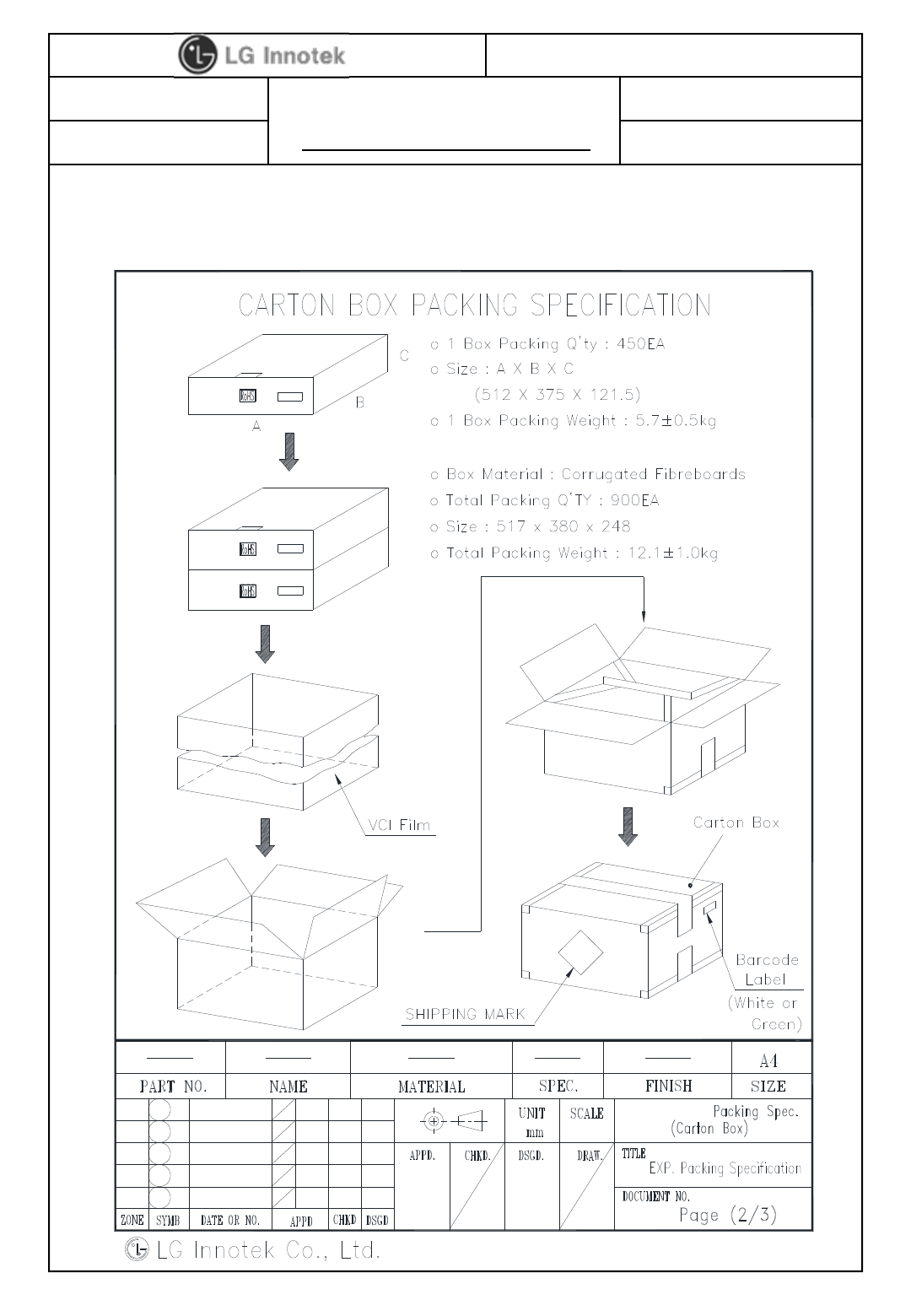

8-2. Carton Box Packing
TWFM-K001D
‘
‘
User Manual
PAGE :
REG. DATE : 2015.03.03
MODEL NAME : TWFM-K001D
REV. DATE : 2015.03.03
REV.NO : 1.0
©2015 LGIT. All rights reserved.
9 / 9

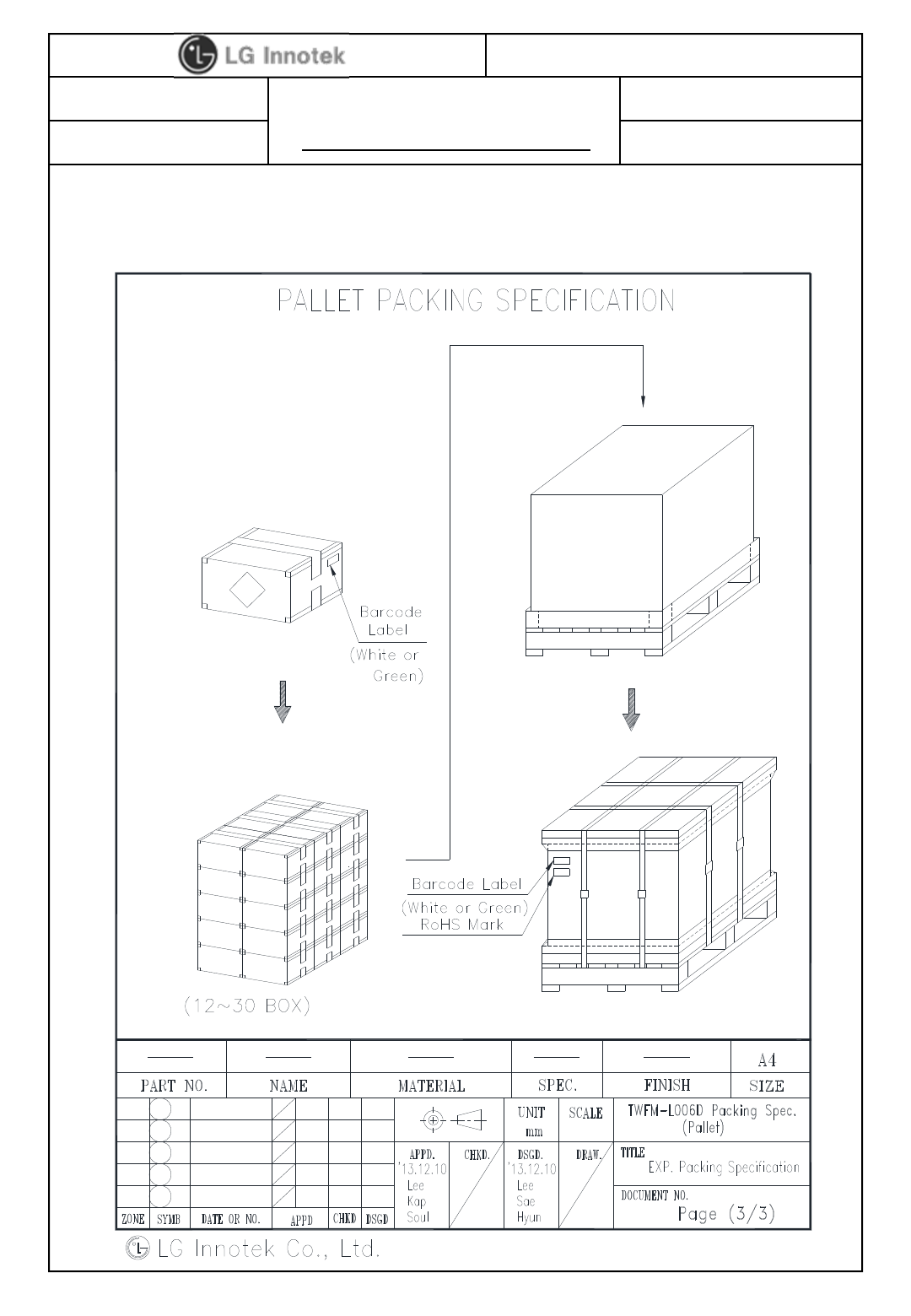

8-3. Pallet Packing
