LG Innotek TWFMK303D WI-FI Module User Manual
LG Innotek Co., Ltd. WI-FI Module
User manual
User Manual
PRODUCT NAME : 1T1R Wi-Fi Module
MODEL NAME : TWFM-K303D
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
1/ 11
Table of Contents
No. Description Page
1 Features 2
2 Module Photo 2
3 Block Diagram 3
4 Storage Conditions 4
4 Operating Conditions 4
5 Software Programming 5
6 Pin Description 7
7 Outline Drawing 8
8 Packing Information 9
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
2/ 11
2. Module Photo
1. Features
TWFM-K303D is the small size and low power module for IEEE 802.11b/g/n wireless
LAN. TWFM-K303D is based on Meatek MT7601U solution.
IEEE 802.11 b/g/n Single Band WLAN infrastructure
Size : 41mm x 23mm x 13mm
Auto-calibration
1T1R mode with 150Mbps PHY rate
Internal ANT : EPA(Embedded and Press Antenna)
USB 2.0
Supports drivers for for Windows 7, Vista, XP, 2000 and Linux
Security : WFA, WPA, WPA2, WPS2.0, WAPI
Application : DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
Confidential
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
3/ 11
3. Block Diagram
Confidential
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
4/ 11
4. Storage Conditions
5. Operating Conditions
Parameter Min Max Unit
Storage Temperature -10 +80 ℃
Storage Humidity (@ 40℃)-90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
•Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
Parameter Min Typ Max Unit
Operating Temperature 0 - +50 ℃
Operating Humidity (40℃)- - 85 %
Supply Voltage 4.75 5.0 5.25 Vdc
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
5/ 11

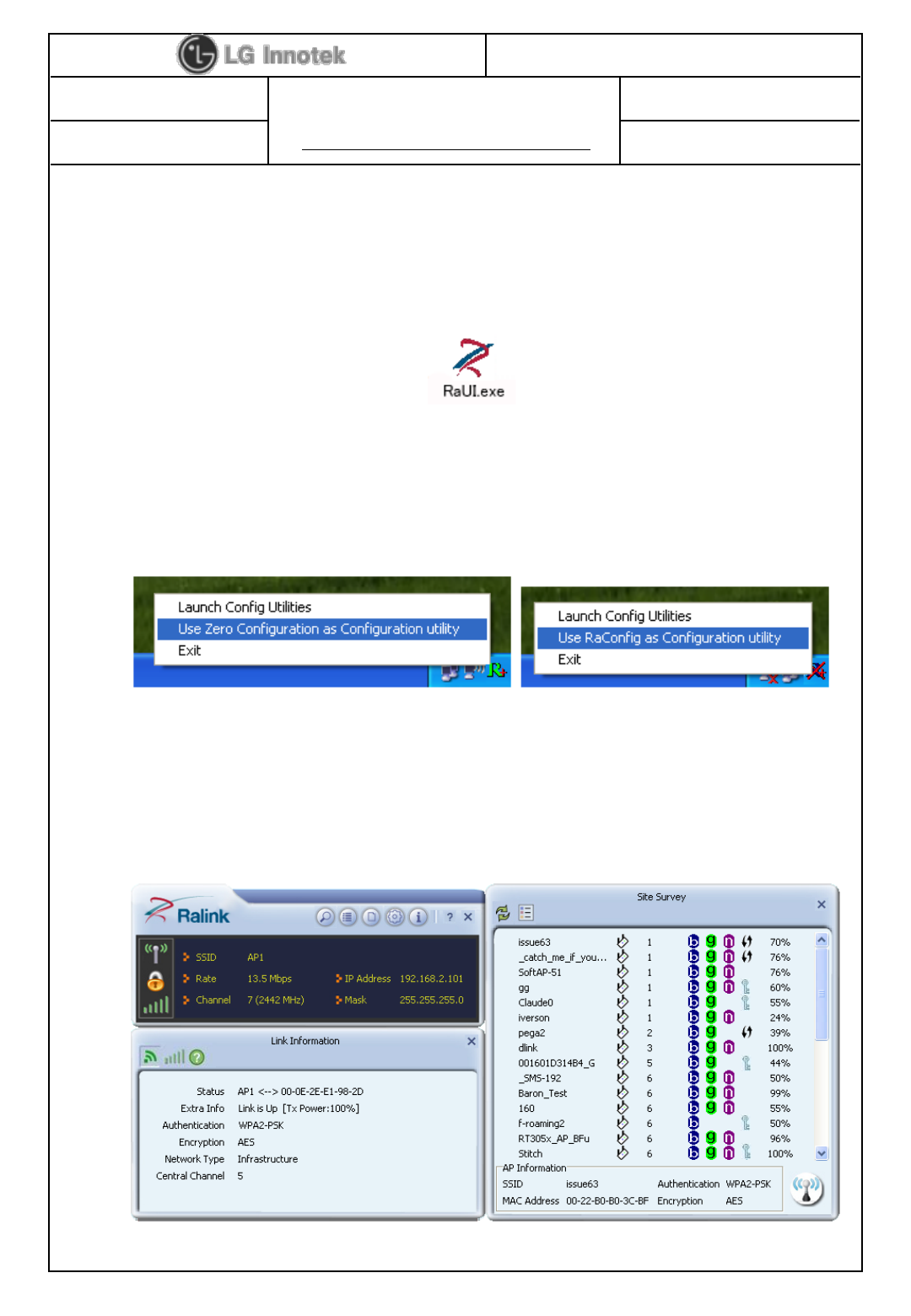

6. Software Programming
1) Windows Utility
Execute the released windows utility installer.
(1) Run RaUI.exe
(2) RaUI can co-exist with WZC. When coexisting with WZC,
RaUI only provides monitoring functions, such as surveying
the link status, network status, static counters,
advanced features status, WMM status and WPS status.
(3) When starting RaUI, the system will connect to the AP with best
signal strength without setting a profile or matching
a profile setting. It will issue a scan command to a wireless NIC.
After two seconds, the AP list will be updated with the results
of a BSS list scan.
< Fig A.1 RaUI icon>
< Fig A.2 Select WZC and RaUI>
< Fig A.3 RaUI section introduction>
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
6/ 11

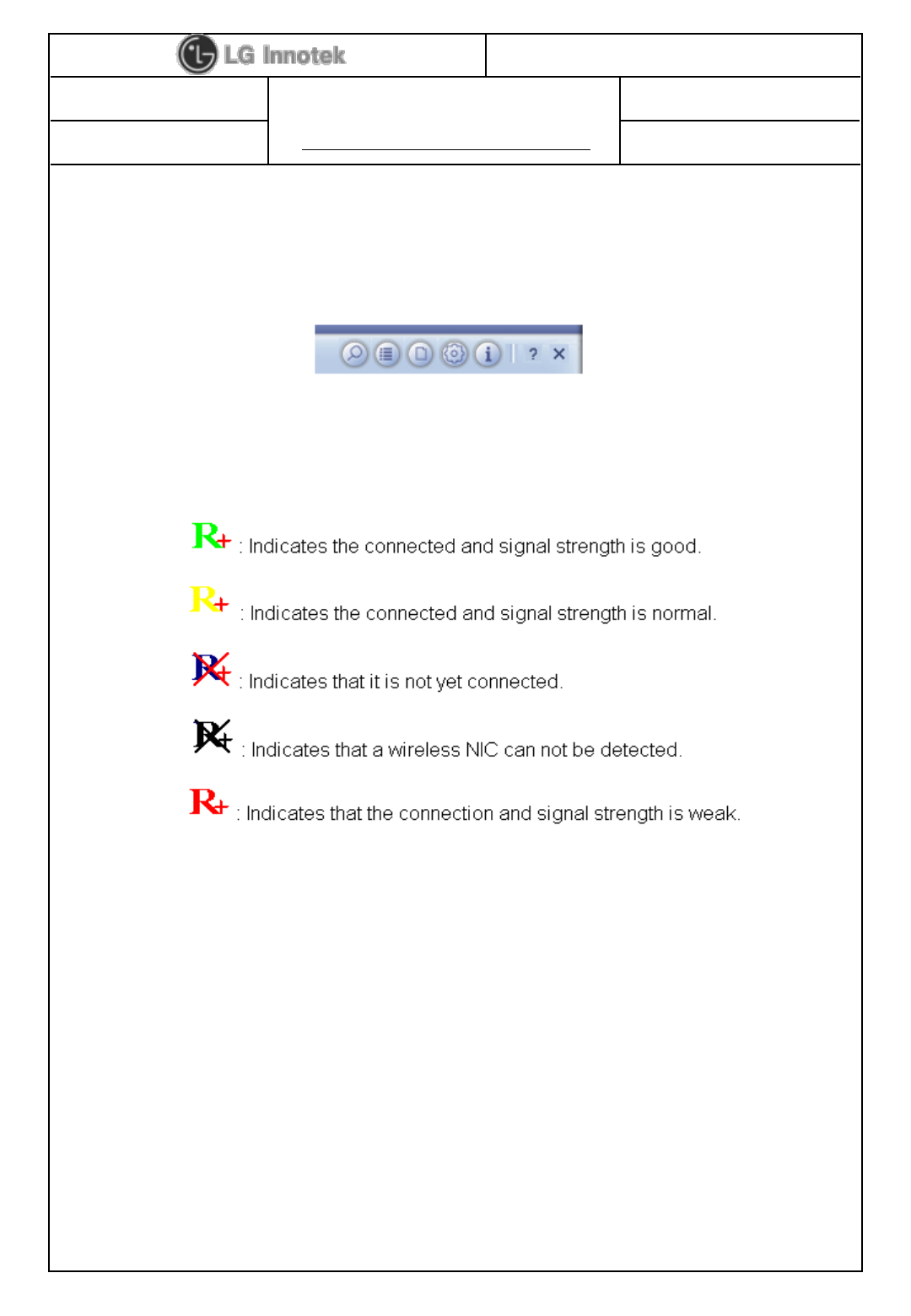

(4) Button section.
- Site survey, Link information, Profile, Advanced, Information,
About page.
- Help page.
(5) When starting RaUI, a small Ralink icon appears in
the notifications area of the taskbar, as shown in <Fig A.5>.
* Please refer to the help page in detail usage manual.
2) Linux Device Driver
Before compiling the driver, you should change make file or makefile.inc
to meet your target platform.
* Please refer to the release note in detail.
< Fig A.4 Button section>
< Fig A.5 Ralink icon in system tray>
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
7/ 11

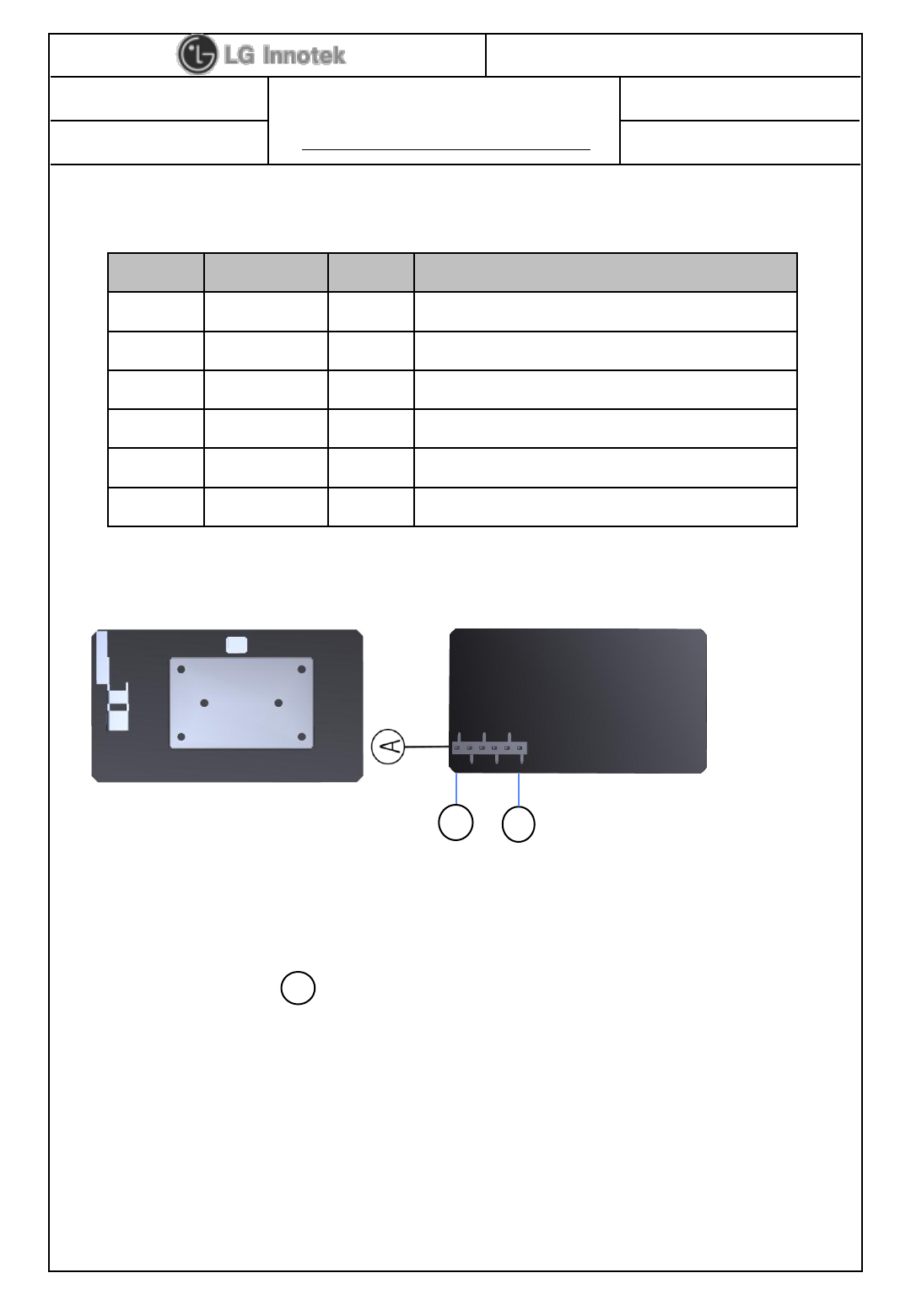

7. Pin Description
< TOP View > < Bottom View >
Pin No. Pin Name I/O Pin Description
1 GPIO O Wi-Fi IC reset controlled by TV main chip
2 VDD I VDD 5.0V
3 USB_DN I/O USB Communication signal USB_DN
4 USB_DP I/O USB Communication signal USB_DP
5 GND - GND
6 WOWL O Wake up Wireless
16
Note.
1) Recommend a Module install sequence for prevent USB device failure
- Supply 5.0V power
- Connect to data signal (USB_DP, USB_DN)
2) Connector :
A
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
8/ 11

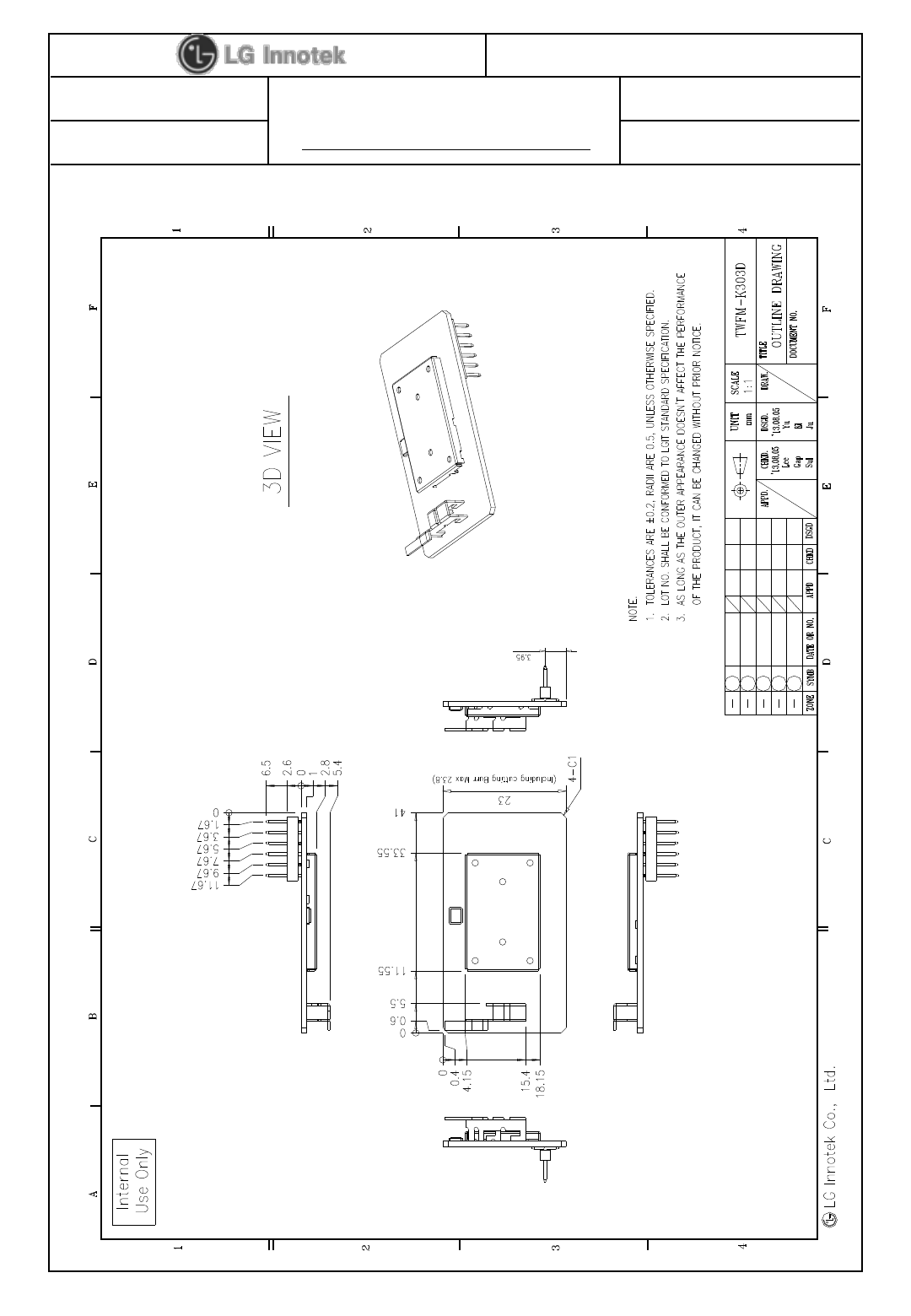

8. Outline Drawing
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
9/ 11

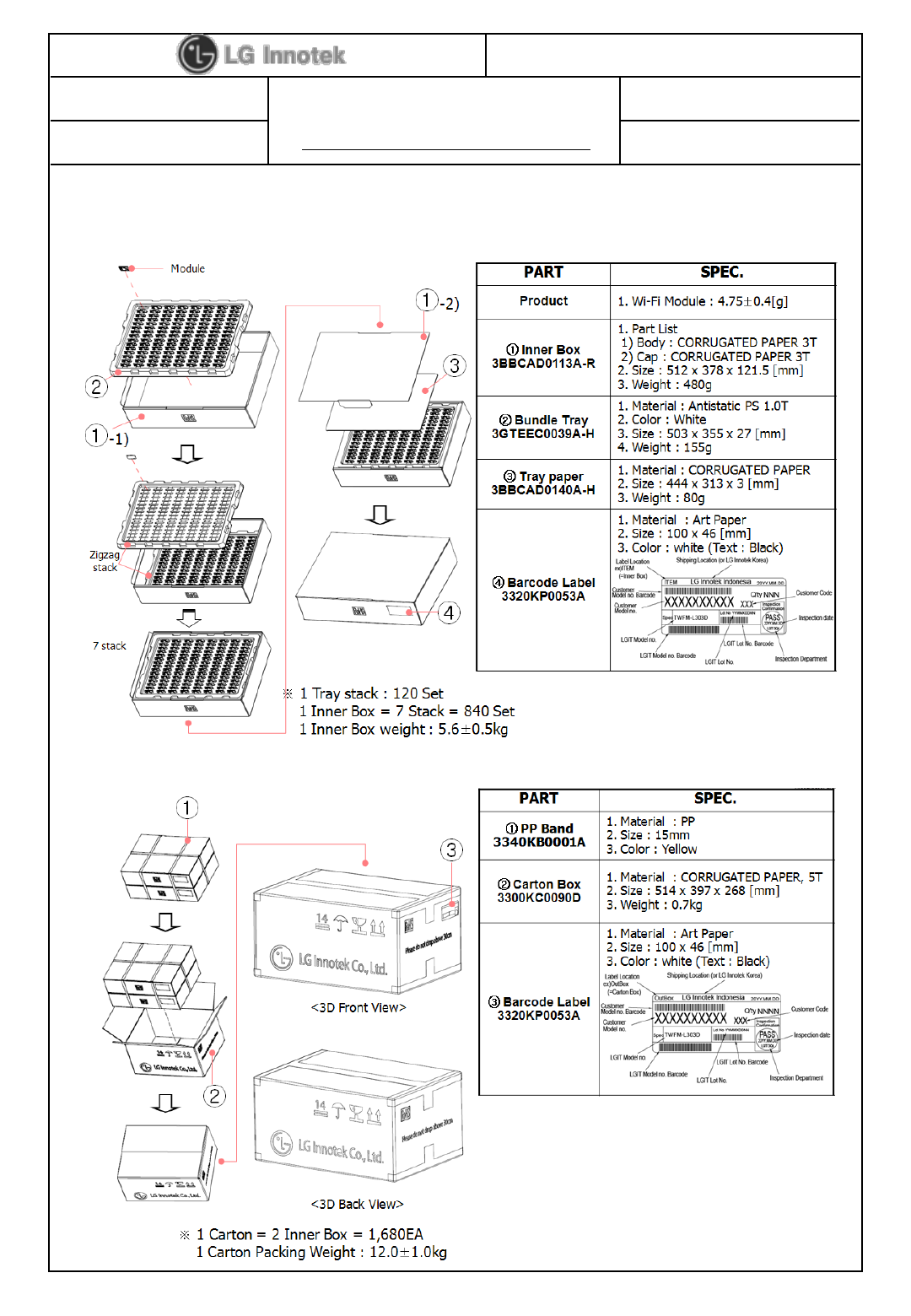

9. Packing Information
1) Inner Box Packing
2) Carton Box Packing
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
10 / 11

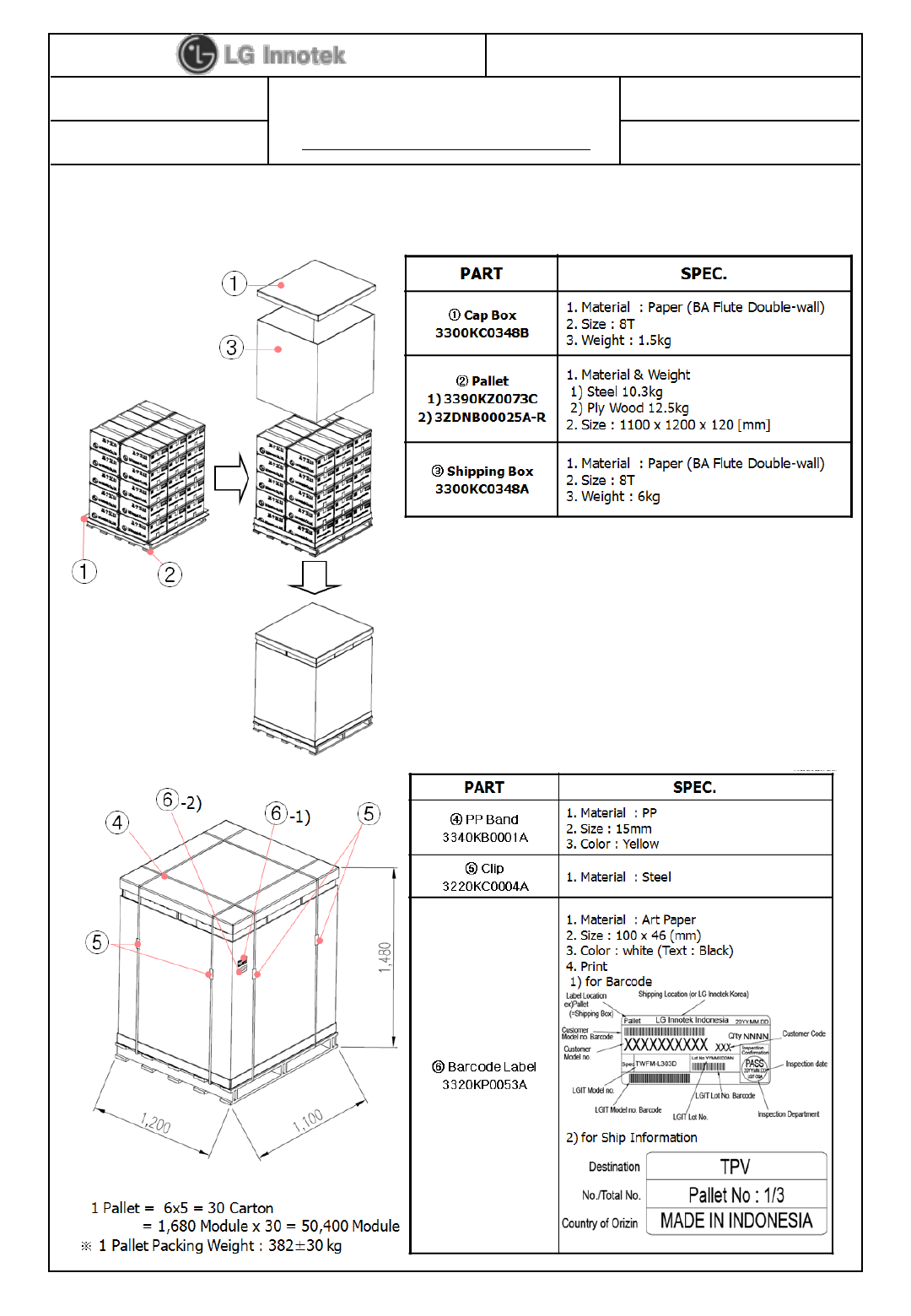

3) Pallet Packing
User Manual
PAGE :
REG. DATE : 2013.11.04
MODEL NAME : TWFM-K303D
REV. DATE : 2013.11.04
REV.NO : 1.0
© 2013 LGIT. All rights reserved.
11 / 11
User Information
The satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product.
Contains Transmitter module FCC ID: YZP-TWFMK303D
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device
should be installed and operated with minimum distance 20cm between the radiating element of this device and the
user. This device must not be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators and following statements shall be included to host user manual
1) The antenna must be installed such that 20cm is maintained between the antenna and users.
2) This module may not be co-located with any other transmitters or antennas.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is
still responsible for testing their end-product for any
additional compliance requirements with this module installed. In the event that these conditions cannot be met, then
the FCC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product including this module and
obtaining separate FCC authorizations.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technical for help.
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technical for help.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable operation.
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is made
