OWNER'S MANUAL

LG CLOUD V SERIES MONITOR

(LED MONITOR)

19CNV42K

Please read the safety information carefully before using the product.

LG Cloud V Series Monitor (LED Monitor) Model

English

ENG

English

Table of Contents

TABLE OF CONTENTS

3 ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

5 Lifting and moving the Monitor

5 Setting Up the Monitor set

5 - Attaching the Stand Base

6 - Mounting on a table

6 - Adjusting the angle

7 - Adjusting the stand height

7 - Using the Kensington locking device

8 - Detaching the stand base

8 - Detaching the stand body

9 - Swivel stand

9 - Using the Pivot function

10 - Installing the wall mount plate

10 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting Input Signal Cable

12 - D-SUB IN connection - PC

13 - DVI connection

14 Connecting LAN/Peripherals

14 - LAN connection

15 - Peripheral device connection

16 - Self Image Adjustment

17 CUSTOMIZING SETTINGS

18 Customizing Settings

18 - Menu Settings

19 - PICTURE

20 - COLOR

21 - DISPLAY

22 - OTHERS

23 - VOLUME

24 TROUBLESHOOTING

26 PRODUCT SPECIFICATION

27 Preset Mode

27 Power Indicator

28 PROPER POSTURE

28 Proper posture for using the monitor

29 USING CLOUD SOLUTION

ENG

English

ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yOnly use an approved LG power adapter.

yDamage caused by other power adapters is not covered by warranty.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

Power CordUser Manual/Card

Stand Base

Adaptor

CAUTION

NOTE

15-pin D-SUB Signal Cable

(This cable is not included in all

counties)

ENG

English

ASSEMBLING AND PREPARING

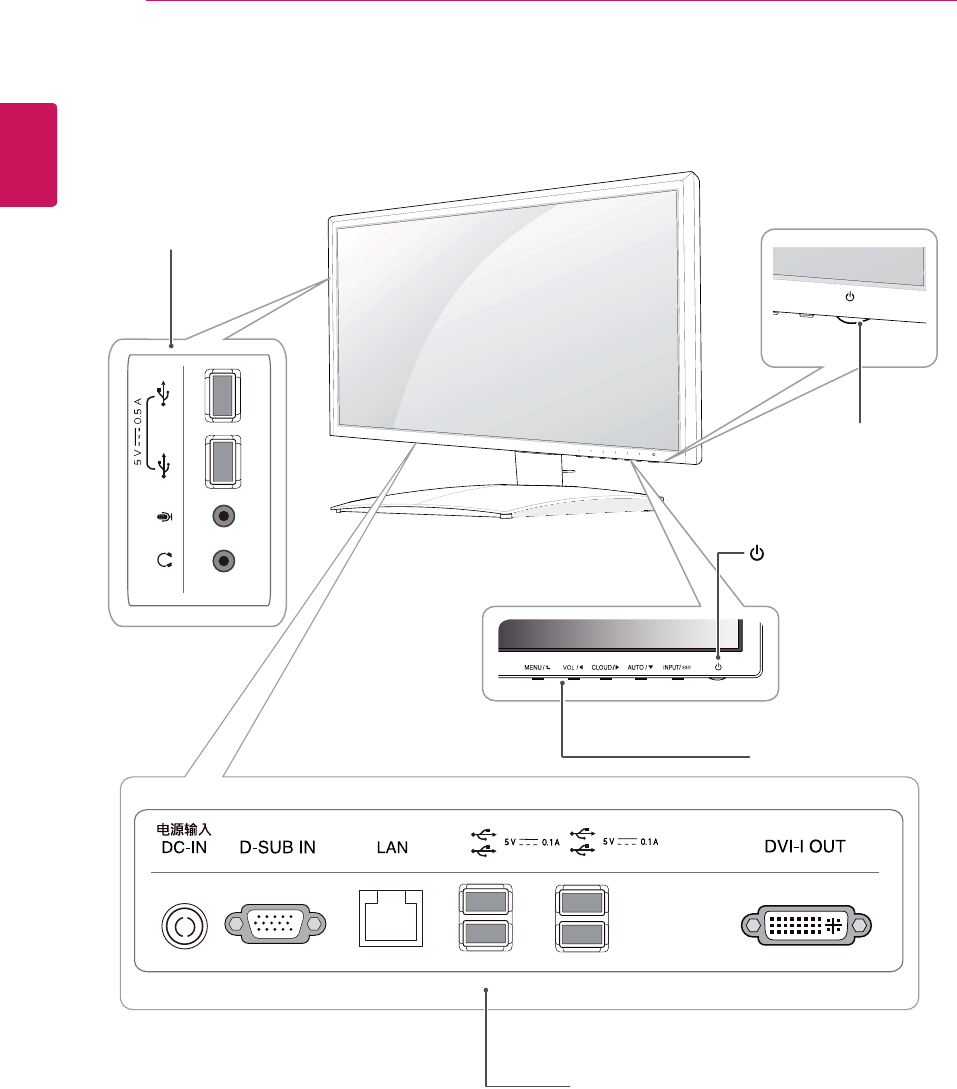

Parts and buttons

Power Indicator

y LED On : Power is on

y LED Off: Power is off

Front Side Buttons

Input Connectors (See p.12 to 15)

(Power Button)

Input Connectors

(See p.15 )

ENG

English

ASSEMBLING AND PREPARING

Setting Up the Monitor set

Attaching the Stand Base

1 Place the monitor's screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3 Using a coin, turn the screw clockwise to se-

cure the stand base.

2 Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Body

Stand Base

Lifting and moving the

Monitor

Please heed the following information when

moving the monitor.

yAvoid touching the screen at all times, as this

may result in damage to the screen or pixels .

CAUTION

yIt is recommended to move the Monitor in

the box or packing material that the Monitor

originally came in.

yBefore moving or lifting the Monitor,

disconnect the power cord and all cables.

yHold the top and bottom of the Monitor frame

firmly. Make sure not to hold the transparent

part area.

yWhen holding the Monitor, the screen should

face away from you to prevent the screen

from scratches.

yWhen transporting the Monitor, do not

expose the Monitor to jolts or excessive

vibration.

yWhen transporting the Monitor, keep the

Monitor upright, never turn the Monitor on its

side, or tilt towards the left or right.

ENG

English

ASSEMBLING AND PREPARING

Adjusting the angle

1 Place the monitor mounted on the stand base

in an upright position.

2 Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 15° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1 Lift the monitor and place it on the table in an

upright position.

Install at least 10 cm away from the wall to

ensure sufficient ventilation.

2 Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

3 Press the (Power) button on the front of the

monitor to turn on the monitor.

10 cm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

ENG

English

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1 Place the monitor mounted on the stand base

in an upright position.

2 Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

3 The height can be adjusted up to 130 mm.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

Tape

Locking Pin

Stand Body

CAUTION

WARNING

130.0mm

ENG

English

ASSEMBLING AND PREPARING

Detaching the stand body

1 Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2 Using a screwdriver, remove the four screws

and detach the stand from the monitor.

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1 Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2 Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

Stand Body

Stand Base

ENG

English

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1 Swivel 90 degrees and adjust the angle of the

Monitor set to suit your view.

1 Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2 Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3 Be careful with the cables when rotating the

screen.

ENG

English

ASSEMBLING AND PREPARING

10 cm

10 cm 10 cm

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1 Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2 If you use screw longer than standard, the

monitor might be damaged internally.

3 If you use improper screw, the product might be

damaged and drop from mounted position. In

this case, LG Electronics is not responsible for

it.

4 VESA compatible.

5 Please use VESA standard as below.

y784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

y787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

Mounting on a wall

Install the monitor at least 10 cm away from the

wall and leave about 10 cm of space at each side

of the monitor to ensure sufficient ventilation. De-

tailed installation instructions can be obtained from

your local retail store. Please refer to the manual

to install and set up a tilting wall mounting bracket.

Installing the wall mount plate

This monitor has a VESA compatible mount on the

back. Most mounts will require an LG mounting

plate.

1 Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2 Place the wall mount plate on the monitor and

align it with the screw holes on the monitor.

3 Using a screwdriver, tighten the four screws to

fix the plate onto the monitor.

yThe wall mount plate is sold separately.

yFor more information on the installation, refer

to the wall mount plate's installation guide.

NOTE

Wall Mount Plate

ENG

English

ASSEMBLING AND PREPARING

yUnplug the power cord before moving or in-

stalling the monitor to avoid electric shocks.

yInstalling the monitor on the ceiling or on a

slanted wall may result in the monitor falling

off, which could lead to injury. Please use

a LG wall mounting bracket when using a

VESA mount. For more information, contact

your local retail store or a qualified installer.

y Applying excessive force when fastening

screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

yUse the wall mounting bracket and screws

that conform to the VESA standard. Dam-

age caused by the use or misuse of inap-

propriate components will not be covered

by the product warranty.

yUse the screws specified in the VESA stan-

dard.

yThe wall mount kit includes the installation

guide and necessary parts.

yThe wall mounting bracket is optional. The

accessories can be purchased at your local

retail store.

yThe length of the screw may differ for each

wall mounting bracket. Ensure the correct

length of the screw is used.

yFor more information, please refer to the user

manual for the wall mounting bracket.

Model 19CNV42K

VESA (A x B) 100 x 100

Stand Screw M4

Required Screw 4

Wall Mount Plate

(Optional)

RW120

CAUTION

NOTE

ENG

English

USING THE MONITOR SET

Connecting Input Signal Cable

yThis monitor supports the *Plug and Play

feature.

*Plug and Play: A feature that allows you to

add a device to your computer, without having

to reconfigure anything or install any manual

drivers.

D-SUB IN connection - PC

D-SUB IN transfers analog video signals from the

PC to the monitor.

Connect the monitor to the PC using the provided

15-pin D-SUB signal cable as illustrated below.

NOTE

RGB IN

MONITOR

yApple Adapter

An adapter may be needed for Apple

computers. This adapter can be purchased

from Apple.

ENG

English

USING THE MONITOR SET

DVI connection

Transfers digital video signals from the Cloud Mon-

itor to an extended monitor.

Connect the Cloud Monitor to an extended monitor

using a DVI cable.

yTo connect the monitor to a computer, use

the appropriate signal cable (LAN and D-

SUB).

yA converter can be used to convert the DVI-I

input signal to D-SUB input signal.

yWhen connecting the power cord to the out-

let, use a grounded (3-hole) multi-socket or a

grounded wall outlet.

yThe monitor may flicker when turned on in an

area of low temperature. This is normal.

ySometimes red, green or blue spots may ap-

pear on the screen. This is normal.

yConnect the input signal

cable and tighten in the

direction of the arrow. To

prevent disconnection

secure the cable tightly.

yDo not press on the screen for a prolonged

time. This may cause image distortion.

yDo not display a still image on the screen

for a prolonged time. This may cause image

retention. If possible, use the screen saver.

CAUTION

NOTE

ENG

English

USING THE MONITOR SET

Connecting LAN/Peripherals

LAN connection

Connect the router or switch to the monitor using a

LAN cable as illustrated below.

yThe LAN cable is sold separately.

yThe following LAN cable type can be used:

Standard: IEEE 802.3 ETHERNET

yIf a device is connected into the earphone

out port via a LAN cable, you can adjust the

volume with the volume icon on PC taskbar.

yConnect the LAN cable and the peripheral

devices prior to booting up the PC.

NOTE

ENG

English

USING THE MONITOR SET

yPeripheral devices are sold separately.

yThe USB ports on the left and bottom of the

monitor can be used to connect the key-

board, mouse, and other USB devices.

yCables with angled plugs may have clear-

ance issues, use straight plugs when pos-

sible.

Angle Type Straight Type

Peripheral device connection

Connect peripheral devices to the monitor using

USB, microphone and headphone ports.

NOTE

yHeadphones, speakers or microphone may

not work normally, depending on the server

PC settings.

yVirtual solutions may affect the functions or

speed of the specific USB storage device.

Left

Bottom

ENG

English

USING THE MONITOR SET

yWhat is "Self Image Adjustment"? This func-

tion runs when the monitor is connected for

the first time and performs automatic image

adjustment for each signal (only available for

analog [D-SUB input] signals) to provide an

optimal screen display.

Self Image Adjustment

Press the power button on the front to turn on

the monitor. When powered on, the "Self Image

Adjustment" function will run automatically (only

available for analog [D-SUB input] signals).

NOTE

ENG

English

CUSTOMIZING SETTINGS

1 Press the desired button on the bottom of the Monitor set.

2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

3 Select EXIT to leave the OSD menu.

Monitor set Buttons

Button Description

MENU Activates the main menu.

OSD Lock/Unlock

Functions

Locks/unlocks the OSD screen.

yTo lock the OSD screen, press and hold the MENU button

for several seconds. The "OSD LOCKED" message will be

displayed and the screen will be locked.

yTo unlock the OSD screen, press and hold the MENU

button again for several seconds. The "OSD UNLOCKED"

message will be displayed and the screen will be unlocked.

VOL

Adjust the volume of the monitor.(only works in Cloud mode)/the left arrow key.

CLOUD

Disconnects the connection when the key is pressed for a few seconds while in Cloud

mode;the right arrow key.

AUTO To adjust the monitor settings, press the AUTO button on the MONITOR SETUP OSD

menu (only supported for analog signal).

For optimal screen display, use the following resolution.

Optimal Resolution 1440 x 900

INPUT Allows selection of the input signal.

yIf you connect the monitor to a computer using a D-SUB cable, select either the

CLOUD or D-SUB input signal.

yThe initial input signal is D-SUB.

EXIT Exits the OSD menu.

(Power Button)

yD-SUB Input: Power On/Off

yCLOUD Input

Monitor Off: Press the power button once then the monitor will be turned off after 5

seconds.

CLOUD Off: Press the power button twice then the monitor and CLOUD connection

will be disabled.

CLOUD On: Press the power button.

Power Indicator When the monitor is in operating mode, the power indicator

will turn Red (on mode).

When the monitor is in power saving mode, the power indica-

tor will blink Red.

ENG

English

CUSTOMIZING SETTINGS

Customizing Settings

Menu Settings

1 Press MENU button on the bottom of the Monitor set

to display the MENU OSD.

2 Set the options by pressing the ◄ or ► or ▼

buttons.

3 Select the "NEXT MENU" button to enter the more

option settings.

4 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items,

use the up arrow ( ) button.

Each option is explained below.

MENU > NEXT MENU D-SUB CLOUD Description

PICTURE SHARPNESS ● ● To adjust the clearness of the screen .

COLOR GAMMA ● ● To customize the color of the screen

COLOR TEMP

DISPLAY HORIZONTAL ●To adjust the position of the screen

VERTICAL

CLOCK ●To improve the clarity and stability of the screen

PHASE

OTHERS LANGUAGE

● ● To customize the screen status for a user's operating

environment

CLOUD

POWER INDICATOR

yCLOUD: Using PC via a network.

MENU D-SUB CLOUD Description

BRIGHTNESS ● ● To adjust the brightness, contrast of the screen

CONTRAST ● ●

WIDE/ORIGINAL

● ●

WIDE

Switch to full screen mode according to input image signal.

ORIGINAL

Change the input image signal ratio to original.

* This function works only if input resolution is lower than Monitor set ratio (16:9).

RESET ● ● Restore all factory default settings. Press the◄ , ► buttons to reset

immediately.

DUAL

WEB

DUAL

WEB

ENG

English

CUSTOMIZING SETTINGS


1 Press MENU button on the bottom of the Monitor set

to display the MENU OSD.

2 Select the "NEXT MENU" button to enter the more

option settings.

3 Enter to PICTURE by pressing the ▼ button.

4 Set the options by pressing the ◄ or ► or ▼

buttons.

5 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items,

use the up arrow ( ) button.

Each option is explained below.

MENU > NEXT MENU > PICTURE Description

SHARPNESS To adjust the clearness of the screen.

DUAL

WEB

ENG

English

CUSTOMIZING SETTINGS

COLOR

1 Press MENU button on the bottom of the Monitor set

to display the MENU OSD.

2 Select the "NEXT MENU" button to enter the more

option settings.

3 Select COLOR by pressing the ► button.

4 Enter to COLOR by pressing the ▼ button.

5 Set the options by pressing the ◄ or ► or ▼

buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items,

use the up arrow ( ) button.

Each option is explained below.

MENU > NEXT MENU > COLOR Description

GAMMA Set your own gamma value. : GAMMA 0, GAMMA 1, GAMMA 2 on the monitor,

high gamma values display whitish images and low gamma values display

blackish images.

COLOR TEMP CUSTOM

• RED:Set your own red color levels.

• GREEN: Set your own green color levels.

• BLUE:Set your own blue color levels.

Select the screen color.

WARM: Set the screen to warm color temperature (more red).

MEDIUM: Set the screen to medium color temperature.

COOL: Set the screen to cool color temperature (more blue).

DUAL

WEB

ENG

English

CUSTOMIZING SETTINGS

DISPLAY

1 Press MENU button on the bottom of the Monitor set

to display the MENU OSD.

2 Select the "NEXT MENU" button to enter the more

option settings.

3 Select DISPLAY by pressing the ► button.

4 Enter to DISPLAY by pressing the ▼ button.

5 Set the options by pressing the ◄ or ► or ▼

buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items,

use the up arrow ( ) button.

Each option is explained below.

MENU > NEXT MENU > DISPLAY Description

HORIZONTAL To move image left and right.

VERTICAL To move image up and down.

CLOCK To minimize any vertical bars or stripes visible on the screen background.The

horizontal screen size will also change.

PHASE To adjust the focus of the display. This item allows you to remove any horizontal

noise and clear or sharpen the image of characters.

DUAL

WEB

yOnly available in D-SUB input mode.

ENG

English

CUSTOMIZING SETTINGS

OTHERS

1 Press MENU button on the bottom of the Monitor set

to display the MENU OSD.

2 Select the "NEXT MENU" button to enter the more

option settings.

3 Select OTHERS by pressing the ► button.

4 Enter to OTHERS by pressing the ▼ button.

5 Set the options by pressing the ◄ or ► or ▼

buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items,

use the up arrow ( ) button.

Each option is explained below.

MENU > NEXT MENU > OTHERS Description

LANGUAGE To choose the language in which the control names are displayed.

CLOUD Off CLOUD is disabled in D-SUB input mode.

On CLOUD is enabled in D-SUB input mode.

POWER

INDICATOR

Use this function to set the power indicator on the bottom side of the monitor to

ON or OFF.If you set OFF, it will go off.

If you set ON at any time, the power indicator will automatically be turned on.

DUAL

WEB

ENG

English

CUSTOMIZING SETTINGS

VOLUME

1 Press the VOL button at the bottom of the monitor to

display the VOL OSD menu.

2 Press the ◄ or ► button to adjust the volume.

3 Press the button to enable or disable Mute.

4 Select EXIT to leave the OSD menu.

Each option is explained below.

MENU > NEXT MENU > VOLUME Description

VOLUME Adjusts the volume (only available in CLOUD input mode).

DUAL

WEB

ENG

English

Troubleshooting

TROUBLESHOOTING

Nothing is displayed on the screen

Is the monitor's power cord plugged in?

yCheck if the power cord is correctly plugged in to the outlet.

Is the power indicator on?

yCheck the power indicator.

Is the power indicator displaying as

red?

yAdjust the brightness and the contrast.

Is the power indicator blinking?

yIf the monitor is in power saving mode, move the mouse or press any

key on the keyboard to switch the display on.

yCheck if the computer is turned on.

Is the "OUT OF RANGE" message

displayed?

yThis occurs when signals transferred from the PC (video card) are out

of the horizontal or vertical frequency range of the monitor. Please see

the "Product Specification" section of this manual to set the appropri-

ate frequency.

Is the "CHECK SIGNAL CABLE"

message is displayed?

yThis is displayed when the signal cable between the PC and the moni-

tor is missing or disconnected. Check the cable and reconnect.

The "OSD LOCKED" message is displayed.

Is the "OSD LOCKED" message

displayed when the MENU button is

pressed?

yThe OSD lock feature is enabled to prevent undesired modification

of the OSD settings. Press and hold the MENU button for a couple of

seconds to unlock the OSD. (The "OSD UNLOCKED" message will be

displayed.)

The screen retains an image.

Does image sticking occur even

when the monitor is turned off?

yDisplaying a still image for a prolonged time may cause damage to the

screen, resulting in the retention of the image.

yUse a screen saver to protect the screen when using the monitor for a

prolonged period of time.

yVertical Frequency: In order to display an image, the screen must be refreshed dozens of times per

second like a fluorescent lamp. The number of times the screen is refreshed per second is called

vertical frequency or refresh rate and is represented by Hz.

yHorizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.

The number of horizontal lines displayed in one second

can be calculated by dividing one by the horizontal cycle. This is called horizontal frequency and is

represented by kHz.

NOTE

ENG

English

Troubleshooting

The image is displayed abnormally.

Does the display area appear un-

centered?

Pressing the AUTO button will automatically optimize the screen to the current

display mode.

Does the screen exhibit vertical

lines?

Pressing the AUTO button will automatically optimize the screen to the current

display mode.

Does the screen display horizontal

frequencies, or does the text appear

blurred?

Pressing the AUTO button will automatically optimize the screen to the current

display mode.

yCheck if the video card's resolution or frequency is within the range allowed by the monitor and set to

the recommended (optimal) resolution in Control Panel > Display > Settings.

yFailing to set the video card to the recommended (optimal) resolution may result in blurred text, a

dimmed screen, a truncated display area or misalignment of the display.

yThe configuration procedure may differ depending on your computer and/or operating system. Also,

some video cards may not support certain resolutions. If this is the case, contact the computer or

video card manufacturer for assistance.

yThe AUTO option is only available for D-SUB (analog) signals.

The display color is abnormal.

Does the display color appear dis-

colored (16 color)?

ySet the color to 24 bit (true color) or higher. In Windows, go to Control

Panel > Display > Settings > Color Quality.

Does the display color appear un-

stable or in monochrome?

yCheck if the signal cable is connected properly. Re-connect the cable

or re-insert the PC's video card.

Are there spots on the screen?

yWhen using the monitor, pixilated spots (red, green, blue, white or

black) may appear on the screen. This is normal for the LCD screen.

It is not an error nor is it related to the monitor's performance.

NOTE

ENG

English

Product Specication

PRODUCT SPECIFICATION

LCD Screen Type 48.1 cm (19 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Screen

Diagonal length of the screen: 48.1 cm

Pixel Pitch 0.2835 mm x 0.2835 mm

Resolution Maximum Resolution 1440 x 900 @ 60 Hz

Recommended Resolution 1440 x 900 @ 60 Hz

DVI-I output 1920 x 1200 @ 60 Hz

Video Signal Horizontal Frequency 30 kHz to 66 kHz

Vertical Frequency 57 Hz to 63 Hz

Synchronization Separate Sync

Input Connector 15-pin D-SUB (Analog)

Power 19 V 2.3 A

Power Consumption:

CLOUD/D-SUB

On Mode: 17 W(D-sub)/22 W(CLOUD)

Power Saving Mode ≤ 0.5 W(CLOUD mode:7 W)

Off Mode ≤ 0.5 W

AC/DC Adapter Type PA-1650-68, manufactured by LITE-ON TECHNOLOGY CORPORATION.

OUTPUT: 19 V 3.42 A

Dimension/

Weight

Monitor Size (Width x Height x Depth)

With Stand 440.2 mm x 370 mm x 225 mm

Without Stand 440.2 mm x 303.2 mm x 47 mm

Weight (Without

Packaging)

4.64 kg

Stand Angle

Adjustment

Forwards/Backwards: -5° to 15° (Monitor)

Environment

Condition

Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%

Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%

The specifications are subject to change without notice.

ENG

English

Product Specication

Preset Mode

Display Modes

(Resolution)

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz) Polarity (H/V) Remark

720 x 400 31.468 70.08 -/+

640 x 480 31.469 59.94 -/-

800 x 600 37.879 60.317 +/+

1024 x 768 48.363 60 -/-

1440 x 900 55.935 59.888 -/+ Recommended Mode

Power Indicator

Mode LED Color

On Mode Red

Power Saving Blinking Red

Off Mode Off

ENG

English

Proper Posture

PROPER POSTURE

Proper posture for using the monitor

Adjust the angle so that the screen is slightly lower than your eyes.

yUsing the monitor for a prolonged period of time can cause eye fatigue. Take a 10-minute break every

hour.

yThe stand is designed to best support the monitor when the optimal conditions are selected.

Adjust the angle of the monitor from -5° to 15° to obtain the best view of the screen.

You should be

looking

slightly down at

the screen.

Place your hands gently

on the keyboard,

keeping your arms bent at

the elbows

and extended horizontally

in front of you.

Adjust the angle

from -5° to 15°

so that there is no re-

flection

or glare from the

screen.

ENG

English

Using CLOUD Solution

USING CLOUD SOLUTION

If the network is connected and IP is being ac-

quired, the message "Network connection detect-

ed. Acquiring IP address …" is displayed on the

Connection screen. Figure 2-3 shows the message

displayed when the network is ready and the IP is

being acquired.

The below is the Connection screen displayed

when network is completely ready.

If the network is not properly connected (e.g., dur-

ing portal boot up), or connection is being created,

the "Network connection lost. Waiting for connec-

tion …" message is displayed on the Connection

screen.

Figure 2-2 shows the message displayed when the

network is not ready.

<Figure 2-3 Acquiring the IP after Network Con-

nected>

Connect Screen

The Connect screen is shown during start-up,

except when the portal has been configured for a

managed start-up or auto-reconnect. The logo dis-

played above the Connect button can be changed

by uploading a replacement image via the admin

interface.

NOTE

yMenus and functions in CLOUD mode may

be slightly different depending on the firm-

ware version.You can download the user

manual for each version from the Teradici

homepage: http://www.teradici.com

yTo check the firmware version, see page

<47>.

ENG

English

Using CLOUD Solution

OSD Options Menu

Selecting the Options menu will produce a list of

selections. The OSD Options menu contains:

y Configuration

y Diagnostics

y Information

y User Settings

Selecting one of the options will produce a settings

window.

ySome PCoIP devices have their password

protection disabled and can be logged into

the management web page or access the

OSD parameters without a password. The

tion can be enabled in the PCoIP manage-

ment console.

NOTE

If you select the Connect button, the connection

session is started. When the connection is pend-

ing, the "Discovering hosts, please wait…" mes-

sage is displayed on the OSD local GUI.When the

connection is established, the OSD local GUI will

disappear and be replaced by the session image.

Configuration Window

In the Configuration window, the administrator can

access the window tabs that contain the settings to

configure and manage the portal environment.

The Configuration window has the following tabs:

yNetwork

yLabel

yConnection Management

yDiscovery

ySession

yRDP

yLanguage

yOSD

yReset

yDisplay

yVMware View

Each tab contains OK, Cancel and Apply buttons

to allow the administrator to apply or cancel the

modified settings as well as the Advanced button

for advanced settings.

ENG

English

Using CLOUD Solution

yIn order to utilize the FQDN feature, a DNS

server, configured properly with DHCP option

81, must be used.

yGateway

The Gateway field contains the gateway IP ad-

dress of the device. If DHCP is disabled, this field

is required. If DHCP is enabled, this field cannot be

edited.

yPrimary DNS Server

The Primary DNS Server field contains the primary

DNS IP address of the device. This field is option-

al. If DHCP is enabled, this field cannot be edited.

ySecondary DNS Server

The Secondary DNS Server field contains the sec-

ondary DNS IP address of the device. This field is

optional. If the DHCP is enabled, this field cannot

be edited.

yDomain Name

The Domain Name field contains the domain name

used, e.g. "domain local". This field is optional. It speci-

fies on which domain the host or portal operates.

yFQDN

The FQDN field represents the Fully Qualified Do-

main Name of the host or portal. The default value is

PCoIP-host-MAC or PCoIP-portal-MAC, where MAC

is the MAC address of the host or portal. If there is

a domain name, it will be added to the FQDN in the

format of PCoIP-host-MAC.domain.local

yEthernet Mode

The Ethernet Mode field specifies the portal's Eth-

ernet mode.

The available options are as follows.

yAuto

y100 Mbps Full-Duplex

y10 Mbps Full-Duplex

If another network device (for example, a switch) is

configured to operate under 10 Mbps Full-Duplex,

100Mbps Full-Duplex or 1GbpsFull-Duplex, the

administrator should always set the Ethernet Mode

field to Auto; and if the device is to operate under

only one speed out of multiple settings, select ei-

ther 10 Mbps Full-Duplex or 100 Mbps Full-Duplex.

NOTE

yThe network parameters can also be con-

figured using the Webpage Administration

Interface.

NOTE

Network Tab

The Network tab allows the administrator to config-

ure the portal network parameters.

Figure 2-7. Network Configuration

yEnable DHCP

If the Enable DHCP option is selected, a device will

be connected to the DHCP server. that allocates

the IP address, subnet mask, gateway IP address,

and DNS server. If this option is disabled, the

above parameters must be configured manually.

yIP Address

The IP Address field contains the IP address of the

device. If DHCP is disabled, this field is required.

If DHCP is enabled, this field cannot be edited.

This field must contain the correct IP address. If an

incorrect IP address is provided, an OSD message

is displayed prompting the administrator to provide

the correct the IP address.

ySubnet Mask

The Subnet Mask field contains the subnet mask

of the device. If DHCP is disabled, this field is

required. If DHCP is enabled, this field cannot be

edited. This field must have the correct subnet

mask. If an incorrect subnet mask is provided, an

OSD message is displayed prompting the adminis-

trator to provide the correct the subnet mask.

ENG

English

Using CLOUD Solution

<IPv6> Tab

The IPv6 tab is used when the portal is connected

to the network configured with the IP v6.

yEnable IPv6

If you select Enable IPv6, the portal in use can be

connected to the network configured with the IPv6.

yLink Local Address

The Link Local Address field is automatically filled

with the IP address of a device.

yGateway

The Gateway field contains the gateway IP ad-

dress of the device. Enter the gateway address to

be used by a device.

yEnable DHCPv6

To assign the Dynamic Host Configuration Protocol

version 6 (DHCPv6) of a device select the Enable

DHCPv6 field.

yDHCPv6 Addresses

When DHCPv6 is enabled and the device restarts,

the server enters the device addresses automati-

cally.

yPrimary DNS Server

The Primary DNS Server field contains the pri-

mary DNS IP address of the device. This field is

optional. If DHCPv6 is enabled, this field cannot be

edited.

ySecondary DNS Server

The Secondary DNS Server field contains the sec-

ondary DNS IP address of the device. This field is

optional. If DHCPv6 is enabled, this field cannot

beedited.

yDomain Name

The Domain Name field contains the domain name

used, e.g. "domain local". This field is optional. It

specifies on which domain the host or portal oper-

ates.

yFQDN

The FQDN field represents the Fully Qualified Do-

main Name of the host or portal. The default value

is PCoIP-host-MAC or PCoIP-portal-MAC, where

MAC is the MAC address of the host or portal. If

there is a domain name, it will be added to the

FQDN in the format of PCoIP-host-MAC.domain.

local.

yEnable SLAAC

Select the Enable SLAAC field to use the stateless

auto-configuration of the device.

yEnable Manual Address

Select the Enable Manual Address field to enter

the device address manually.

yManual Address

In the Manual Address field, enter the IP address

manually.

ENG

English

Using CLOUD Solution

Label Tab

The Label tab allows the administrator or host to

add customized information to the portal.

yThe portal label parameters can also be con-

figured using the Webpage Administration

Interface.

yPCoIP Device Name

In the PCoIP Device Name field, the administrator

can specify a logical name to the host or portal.

The default value is PCoIP-host-MAC or PCoIP-

portal-MAC, where MAC is the MAC address of the

host or portal.

yPCoIP Device Description

In the PCoIP Device Description field, the administra-

tor can add specific information, such as the endpoint

location, or add a description to the host or portal.

This field cannot be used in the PCoIP firmware and

accessibility is strictly limited to the administrator.

yGeneric Tag

In the Generic Tag field, the administrator can add a

generic tag to the host or portal.

This field cannot be used in the PCoIP firmware and

accessibility is strictly limited to the administrator.

NOTE

yEnable Discovery

If the Enable Discovery option is selected, a device

will use SLP Discovery to dynamically locate the

peer device without requiring any information about

the location of the device in the network. This

means that the configuration and maintenance

work in a complicated system can be significantly

reduced.

As SLP Discovery requires a multicast-enabled

router, the recommended search structure is DNS-

SRV Discovery.

Discovery Tab

The Discovery tab allows the administrator to eas-

ily find a portal in the PCoIP system.

yThe Discovery parameters can also be con-

figured using the Webpage Administration

Interface.

NOTE

ENG

English

Using CLOUD Solution

yDirect to Host

You can view the screen of the host PC by estab-

lishing 1:1 connection between the PCI host card

connected to the host PC through the entered IP

address of the host PC and the portal.

yDNS Name or IP Address

Enter the DNS name or IP address of the host PC.

Session Tab

The Session tab allows the administrator to set the

method to connect the device to a peer device.

yThe Session parameters can also be con-

figured using the Webpage Administration

Interface.

NOTE

yConnection Type

The Connection Type field allows the user to select

the device to be connected with the portal.

The Connection Type field has following options:

yDirect to Host

yDirect to Host + SLP Host Discovery

yView Connection Server

yView Connection Server + Auto-Logon

y View Connection Server + Kiosk

y View Connection Server + Imprivata OneSign

y Connection Management Interface

See below for information how to set for each op-

tion.

ENG

English

Using CLOUD Solution

yEnable Auto-Reconnect

If this option is selected, reconnection is attempted

automatically when a session is disconnected or

the user is logged off.

<Figure 2-13: Advanced Settings for Direct to

Host>

<Figure 2-14: Direct to Host + SLP Host Discovery Set-

tings>

yThis setting is provided only for the client.

NOTE

yEnable Peer Loss Overlay

The "Connection Lost" message is displayed.The

display is the same as in the VDI environ-ment.

The default is Disable.

y This setting is provided only for the client.

NOTE

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-top"

message is displayed on the screen when the user

is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

yDirect to Host + SLP Host Discovery

You can view the screen of the host PC by discov-

ering the host PC within the network and estab-

lishing 1:1 connection between the PCI host card

connected to the host PC and the portal.

ENG

English

Using CLOUD Solution

<Figure 2-15: Advanced Settings for Direct to Host

+ SLP Host Discovery>

yEnable Auto-Reconnect

If this option is selected, reconnection is attempted

automatically when a session is disconnected or

the user is logged off.

yThis setting is provided only for the client.

NOTE

yEnable Peer Loss Overlay

The "Connection Lost" message is displayed.The

display is the same as in the VDI environ-ment.

The default is Disable.

y This setting is provided only for the client.

NOTE

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-top"

message is displayed on the screen when the user

is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

y View Connection Server

In the Session tab, you can select to enable the

user client to access the VMware View Connec-

tionServer. To do this, select View Connection

Server for Connection Type.

yDNS Name or IP Address

Enter the DNS name or IP address of the VM-

ware View Connection Server.

ENG

English

Using CLOUD Solution

yDesktop Name to Select

Enter the name of the pool/desktop which the

user client uses upon starting a session.

yPort

For the default setting, leave the port field empty.

When the VMware View Connection Server uses

the SSL authentication, enter 443 in the Port field.If

the server where a user tries to access uses a port

other than a general port, enter the port.

y Auto Connect

If this option is enabled, the selected VMware View

Connection Server is automatically connected

when the user client is powered on.

If the Auto Connect option is enabled, you should

turn the user client off and turn it on again at least

once.

y Remember Username

If this option is selected, the username which is

previously used to access the VMware View

Connection Server is automatically entered in the

username field.

y Auto Launch if Only One Desktop

If this option is selected, connection is established

to the desktop when there is only one virtual desk-

top that a user wants to access.

y Use OSD logo for View banner

If this option is enabled, you can change the OSD

logo of PCoIP during the login.

<Figure 2-17: Advanced Settings for View Connec-

tion Server>

y Prefer GSC-IS

If this option is selected, the GCS-IS interface

is used when a smart card supports more than

one interface. If the smart card supports only one

interface, it is not used.

yThe OSD logo can be uploaded using the

Webpage Administration Interface.

NOTE

yThis setting is provided only when a smart

card is used.

NOTE

y Enable Peer Loss Overlay

If this option is selected, the "Network Connection

Lost" message is displayed on the screen when it

is confirmed that the network is disconnected.

The display is the same as in the VDI environ-

ment. The default is Disable.

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-

top" message is displayed on the screen when the

user is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

y This setting is provided only for the client.

NOTE

ENG

English

Using CLOUD Solution

yDesktop Name to Select

Enter the name of the pool/desktop which the

user client uses upon starting a session.

yPort

For the default setting, leave the port field empty.

When the VMware View Connection Server uses

the SSL authentication, enter 443 in the Port field.If

the server where a user tries to access uses a port

other than a general port, enter the port.

y Auto Connect

If this option is enabled, the selected VMware View

Connection Server is automatically connected

when the user client is powered on.

If the Auto Connect option is enabled, you should

turn the user client off and turn it on again at least

once.

y Remember Username

If this option is selected, the username which is

previously used to access the VMware View

Connection Server is automatically entered in the

username field.

y Auto Launch if Only One Desktop

If this option is selected, connection is established

to the desktop when there is only one virtual desk-

top that a user wants to access.

y Use OSD logo for View banner

If this option is enabled, you can change the OSD

logo of PCoIP during the login.

<Figure 2-19: Advanced Settings for View Connec-

tion Server with Auto-Logon>

yView Connection Server with Auto-Logon

In the Session tab, you can select to enable the

user client to automatically access the VMware

View Connection Server.To do this, select View

Connection Server with Auto-Logon for Connection

Type.

<Figure 2-18: View Connection Server with Auto-

Logon Setting>

yDNS Name or IP Address

Enter the DNS name or IP address of the VM-

ware View Connection Server.

yUsername

Enter the username for the user client.

yPassword

Enter the password for the user client.

yDomain

Enter the domain name.

y The OSD logo can be uploaded using the

Webpage Administration Interface.

NOTE

ENG

English

Using CLOUD Solution

y Prefer GSC-IS

If this option is selected, the GSC-IS interface

is used when a smart card supports more than

one interface. If the smart card supports only one

interface, it is not used.

yThis setting is provided only when a smart

card is used.

NOTE

y Enable Peer Loss Overlay

If this option is selected, the "Network Connection

Lost" message is displayed on the screen when it

is confirmed that the network is disconnected.

The display is the same as in the VDI environ-

ment. The default is Disable.

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-

top" message is displayed on the screen when the

user is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

y This setting is provided only for the client.

NOTE

<Figure 2-20: View Connection Server + Kiosk

Setting>

yView Connection Server + Kiosk

Select View Connection Server + Kiosk to use

the kiosk mode. You can configure the View Con-

nection Server + Kiosk mode using the Webpage

Administration Interface.

yYou cannot use the kiosk mode by connect-

ing to the host PC.

NOTE

y DNS Name or IP Address

Enter the DNS name or IP address of the VM-

ware View Connection Server.

y Username

Select the type of username that matches the de-

vice name used in the VMware View Con-

nection Server.

y Password

Enter the password for the user client.

ENG

English

Using CLOUD Solution

<Figure 2-21: Advanced Setting for View Connec-

tion Server + Kiosk>

<Figure 2-22: View Connection Server + Imprivata One-

Sign Connection Setting>

yPort

For the default setting, leave the port field empty.

When the VMware View Connection Server uses

the SSL authentication, enter 443 in the Port field.

If the server where a user tries to access uses a

port other than a general port, enter the port.

yUse OSD logo for View banner

If this option is enabled, you can change the OSD

logo of PCoIP during the login.

yThe OSD logo can be uploaded using the

Webpage Administration Interface.

NOTE

y Enable Peer Loss Overlay

If this option is selected, the "Network Connection

Lost" message is displayed on the screen when it

is confirmed that the network is disconnected.

The display is the same as in the VDI environ-

ment. The default is Disable.

y This setting is provided only for the client.

NOTE

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-

top" message is displayed on the screen when the

user is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

y View Connection Server + Imprivata OneSign

Connection

Select View Connection Server + Imprivata One-

sign Connection to use the Imprivata One-

sign Connection for the client authentication.

y Bootstrap URL

Enter the IP address or FQDN information of the

server which performs the OneSign au-

thentication.

ENG

English

Using CLOUD Solution

<Figure 2-23: Advanced Settings for View Connec-

tion Server + Imprivata OneSign Connection>

y Remember Username

If this option is selected, the username which is

previously used to access the VMware View

Connection Server is automatically entered in the

username field.

y Use OSD logo for View banner

If this option is enabled, you can change the OSD

logo of PCoIP during the login.

yThe OSD logo can be uploaded using the

Webpage Administration Interface.

NOTE

y Prefer GSC-IS

If this option is selected, the GCS-IS interface

is used when a smart card supports more than

one interface. If the smart card supports only one

interface, it is not used.

yThis setting is provided only when a smart

card is used.

NOTE

y Enable Peer Loss Overlay

If this option is selected, the "Network Connection

Lost" message is displayed on the screen when it

is confirmed that the network is disconnected.

The display is the same as in the VDI environ-

ment. The default is Disable.

y This setting is provided only for the client.

NOTE

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-

top" message is displayed on the screen when the

user is logged in.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

y Connection Management Interface

In the Connection Management Interface setting,

you can manage the connection by entering the IP

address for connection management instead of us-

ing the IP address of the VMware View Connection

Server and can select to enable or disabled the

management interface.

<Figure 2-24: Connection Management Interface

Setting>

y DNS Name or IP Address

Enter the DNS name or IP address of the VMware

View Connection Server.

ENG

English

Using CLOUD Solution

yLanguage

The Language field is used to set the display

language of the OSD and the user level event log

messages.

yKeyboard Layout

The Keyboard Layout field allows the administrator

to modify the keyboard layout.

Language Tab

The Language tab allows the administrator to set

the OSD language.

yThe Language parameters can also be con-

figured using the Webpage Administration

Interface.

NOTE

<Figure 2-25: Advanced Settings for Connection

Management Interface>

y Enable Peer Loss Overlay

If this option is selected, the "Network Connection

Lost" message is displayed on the screen when it

is confirmed that the network is disconnected.

The display is the same as in the VDI environ-

ment. The default is Disable.

y This setting is provided only for the client.

NOTE

y Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-

top" message is displayed on the screen when the

user is logged in.

y Enable Event Log Notification

With this option, you can select whether to allow

the host and client device to send their event log

information to the Connection Management Server.

y Disconnect Message Filter

This option determines the type of message to

display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the

error and warning messages only.

- Show Error Only: Shows the error messages

only.

- Show None: Shows nothing.

ENG

English

Using CLOUD Solution

yScreen-Saver Timeout

The Screen-Saver Timeout field allows the ad-

ministrator to set a time limit for the screen saver.

The time limit is defined in seconds. The maximum

time is 9999 seconds. If it is set to 0 seconds, the

screen saver will be turned off.

OSD Tab

The OSD tab allows the administrator to modify the

On Screen Display (OSD) parameters.

yThe OSD parameters can also be configured

using the Webpage Administration Interface.

NOTE

Display Tab

The Display tab allows the user to configure the

EDID function of the monitor.

yThe Enable display override function can be

used when the EDID function of the monitor

is not running.

NOTE

ENG

English

Using CLOUD Solution

yReset Parameters

Pressing the Reset Parameters button will reset all

settings and options to the factory default settings.

When this button is pressed, an OSD message is

displayed. This is to prompt the administrator and

prevent accidental reset.

Reset Tab

The Reset tab allows the administrator to reset all

configurable parameters stored in Flash.

yThe Reset function can also be accessed

through the Webpage Administration Inter-

face.

NOTE

yEvent Log

ySession Statistics

yPCoIP Processor

yPing

Each tab has the Close button to close the window.

Diagnostics Window

In the Diagnostics window, the administrator can

access the window tab to diagnose the portal. The

Diagnostics window has the following tabs:

yView Event Log Message

The View Event Log Message field displays the log

messages accompanied by the timestamp informa-

tion. The following two buttons are available:

yRefresh

The Refresh button refreshes the displayed event

log messages.

yClear

The Clear button clears all event log messages.

Event Log Tab

The Event Log tab allows the administrator to view

and delete the event log messages from the portal.

yThe event log (regardless of the quantity)

can also be reset using the Webpage Admin-

istration Interface.

NOTE

ENG

English

Using CLOUD Solution

yPCoIP Packets Statistics

yPCoIP Packets Sent

The PCoIP Packets Sent field shows the total

number of PCoIP packets sent from the portal

to the host in the last active session.

yPCoIP Packets Received

The PCoIP Packets Received field shows the

total number of PCoIP packets received from

the host to the portal in the last active session.

yPCoIP Packets Lost

The PCoIP Packets Lost field shows the total

number of PCoIP packets lost in the last ac-

tive session.

Session Statistics Tab

The Session Statistics tab allows the administrator

to view the PCoIP specific statistics of the last ac-

tive PCoIP session from the portal.

yBytes Statistics

yBytes Sent

The Bytes Sent field shows the total number

of bytes sent in the last active session.

yBytes Received

The Bytes Received field shows the total

number of bytes received in the last active

session.

yRound Trip Latency

The Round Trip Latency field shows the total

round-trip PCoIP system (e.g. from the portal to

the host, then back to the portal) and the network

latency in milliseconds (+/- 1 ms).

yThe session statistics (regardless of the

quantity) can also be viewed using the Web-

page Administration Interface.

NOTE

PCoIP Processor Tab

The PCoIP Processor tab allows the administrator

to view the portal PCoIP processor's uptime since

its last booting.

yThe PCoIP Processor Uptime can also be

viewed using the Webpage Administration

Interface.

NOTE

ENG

English

Using CLOUD Solution

yPing Settings

yDestination

The IP address or FQDN to perform the ping

test.

yInterval

The interval between the ping packets.

yPacket Size

The size of the ping packet.

yPackets

ySent

The number of ping packets sent.

yReceived

The number of ping packets received.

Ping Tab

The Ping tab allows the administrator to perform a

ping test to the device and check if it can reach the

overall IP network. This is useful to check whether

the device can reach the host.

yThe Ping tab has no corresponding menu in

to the Webpage Administration Interface of

Section 1.

NOTE

yVPD Information

The Vital Product Data (VPD) is information that

uniquely identifies each portal or host.

yMAC Address

The portal MAC address

yUnique Identifier

The portal ID

ySerial Number

The portal serial number

yFirmware Part Number

The part number of the PCoIP firmware

yHardware Version

The portal hardware version

yFirmware Information

The Firmware Information shows the details of the

current PCoIP firmware.

yFirmware Version

The current PCoIP firmware version

yFirmware Build ID

The current PCoIP firmware revision code

yFirmware Build Date

The current PCoIP firmware build date

Information Window

In the Information window, the administrator can

access the Version tab that contains the device

related information.

yThe version information can also be viewed

using the Webpage Administration Interface.

NOTE

yBoot Loader Information

The Boot Loader Information shows the details of

the current PCoIP boot loader.

yBoot Loader Version

The current PCoIP boot loader version

yBoot Loader Build ID

The current PCoIP boot loader revision code

yBoot Loader Build Date

The current PCoIP boot loader build date

PCoIP Processor Revision

This shows the PCoIP processor's revision code.

TERA1x00 Revision A silicone is denoted by 0.0

and TERA1x00 Revision B silicone is denoted by

1.0.

ENG

English

Using CLOUD Solution

User Settings Window

In the User Settings window, the administrator can

access the tab to select the mouse and keyboard

and define the PCoIP image quality.

The User Settings window has the following tabs:

yVMware View

yMouse

yKeyboard

yImage

yDisplay Topology

yTouch Screen

yMouse Speed

The Mouse Speed field allows the user to set the

portal's mouse cursor speed.

Mouse Tab

The Mouse tab allows the user to modify the OSD

and RDP session's mouse cursor speed setting.

yThe OSD mouse cursor speed setting does

not affect the mouse cursor settings when

a PColP session is active unless the Local

Keyboard Host Driver function is being used

(see PColP Host Software User Guide for

more information).

yThe Mouse tab has no corresponding menu

in the Webpage Administration Interface of

Section 1.

yThe Mouse Speed can also be configured via

the PCoIP Host Software. For more informa-

tion on using the PCoIP Host Software, refer

to the PCoIP Host Software User Guide.

NOTE

y VMware View Tab

The VMware View tab allows user to specify the

client behavior for when a user cannot check the

secure connection to a server.

yReject the unverifiable connection (Secure)

Connection can be established only when the cer-

tificate is verified and otherwise it cannot.

y Warn if the connection may be insecure (De-

fault)

The authentication status is checked and a warn-

ing message is displayed, if required. However,

there is no connection limit.

y Allow the unverifiable connection (Not Se-

cure)

No authentication is required and no connec-tion

limit exists.

ENG

English

Using CLOUD Solution

yKeyboard Repeat Delay

The Keyboard Repeat Delay field allows the user

to set the portal's keyboard repeat delay.

yKeyboard Repeat Rate

The Keyboard Repeat Rate field allows the user to

set the portal's keyboard repeat rate.

yRepeat Settings Test Box

The Repeat Settings Test Box allows the user to

test the selected keyboard settings.

Keyboard Tab

The Keyboard tab allows the user to modify the

OSD and RDP session's keyboard repeat setting.

yThe OSD keyboard setting does not affect

the keyboard settings when a PColP session

is active unless the Local Keyboard Host

Driver function is being used (see PColP

Host Software User Guide for more informa-

tion).

yThe Keyboard tab has no corresponding

menu in the Webpage Administration Inter-

face of Section 1.

NOTE

yMinimum Image Quality

The Minimum Image Quality slider allows the ad-

ministrator to make compromises between image

quality and frame rate when network bandwidth

is limited. Sometimes, lower-quality images at a

higher frame rate may be required, while at other

times, higher-quality images at a lower frame rate

may be preferred.

In environments where the network bandwidth is

limited, moving the slider towards Reduced en-

sures higher frame rates;

moving the slider towards Perception-Free ensures

higher image quality. When network bandwidth is

not limited, the PCoIP system will maintain percep-

tion-free quality regardless of the Minimum Image

Quality setting.


The Image tab allows a user to change the image

settings on the PCoIP system.

yThe Image parameters can also be con-

figured using the Webpage Administration

Interface.

NOTE

ENG

English

Using CLOUD Solution

yDisplay Topology Tab

The Display Topology tab allows the user to specify

the position and alignment of a connected second-

ary monitor.

y It is applicable when the VMware View Con-

nection Server version is 4.5 or later.

NOTE

yEnable Configuration

When this option is selected, you can set the

display position and alignment. You can save the

settings by clicking the Apply or OK button, and

the settings will be reset if you initialize the monitor

set.

yDisplay Layout

This option allows the user to specify the direction

of monitor connection: vertical or horizontal.

yAlignment

This option allows the user to specify the align-

ment position of the monitor to be connected when

there is a resolution difference between the two

monitors.

yPrimary

This option allows the user to change the primary/

secondary settings of the connected monitor.

yTouch Screen Tab

The Touch Screen tab allows the user to specify

the touch sensitivity and alignment when the moni-

tor supports the touch screen function.

yEnable right click on hold

If this option is selected, clicking and holding the

touch screen for several seconds works the same

as the mouse right click.

yRight Click Delay

This option allows the user to make moving the

pointer position work the same as the mouse right

click. You can also specify the distance to move

(from Long to Short).

yTouch screen calibration

The alignment of a touch screen is started when

clicking the Start button.

MODEL

SERIAL

Make sure to read the Safety Precautions before

using the product.

Keep the Owner’s Manual (CD) in an accessible

place for future reference.

The model and serial number of the SET is

located on the back and one side of the SET.

Record it below should you ever need service. As an ENERGY STAR Partner LGE

U. S. A.,Inc. has determined that this

product meets the ENERGY STAR

guidelines for energy efﬁciency.

ENERGY STAR is a set of power-saving

guidelines issued by the U.S.Environmental

Protection Agency(EPA).

To obtain the source code under GPL, LGPL,

MPL and other open source licenses, that is

contained in this product, please visit http://

opensource.lge.com .

In addition to the source code, all referred

license terms, warranty disclaimers and

LG Electronics will also provide open source

code to you on CD-ROM for a charge covering

the cost of performing such distribution (such

as the cost of media, shipping and handling)

upon email request to opensource@lge.com.

This offer is valid for three (3) years from the

date on which you purchased the product.

*above information is only for USA FCC Regulatory

Declaration of Conformity

Trade Name: LG

Model : 19CNV42KL

Responsible Party: LG Electronics Inc.

Address : 1000 Sylvan Ave. Englewood Cliffs

NJ 07632 U.S.A

TEL: 201-266-2534

LG 19CNV42K B User Manual Owner's ENG OWM

19CNV42K-B Owner's Manual File?fileId=KROWM000436660 Most comprehensive of product setup and usage. (English)

Navigation menu

Versions of this User Manual:

Views

Navigation
