LG 24LV760M User Manual Owner's 24LV560M UA 32LV760M UC 7302 5602;

User Manual: LG 24LV760M Owner's Manual Most comprehensive of product setup and usage. (English)

Open the PDF directly: View PDF .
Page Count: 31

P/No: MFL70187302 (1708-REV00)

Printed in Korea

www.lg.com

LED TV

ENGLISH

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

ESPAÑOL

Guía Rápida de Configuración

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

FRANÇAIS

Guide de configuration rapide

Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y

reporter ultérieurement.

24LV760M

28LV760M

32LV760M

: Depending upon model / Según el modelo / Selon le modèle

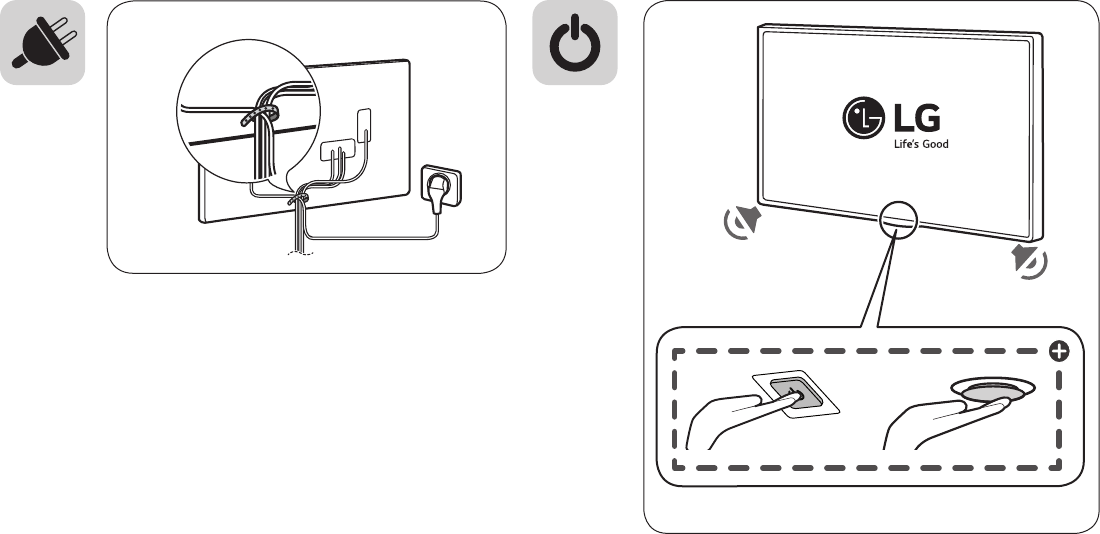

ENGLISH Read Safety & Reference.

ESPAÑOL Leer Seguridad y Consultas.

FRANÇAIS Lisez Sécurité et références.

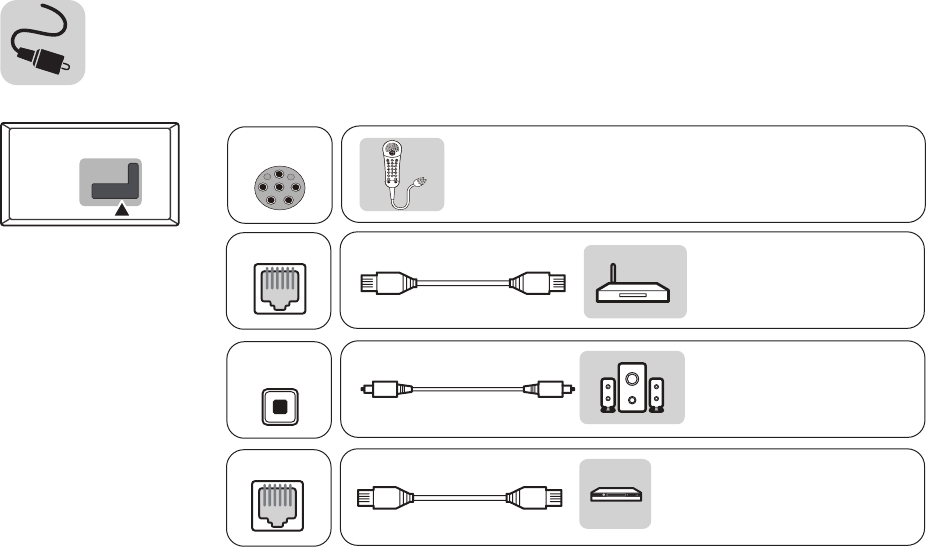

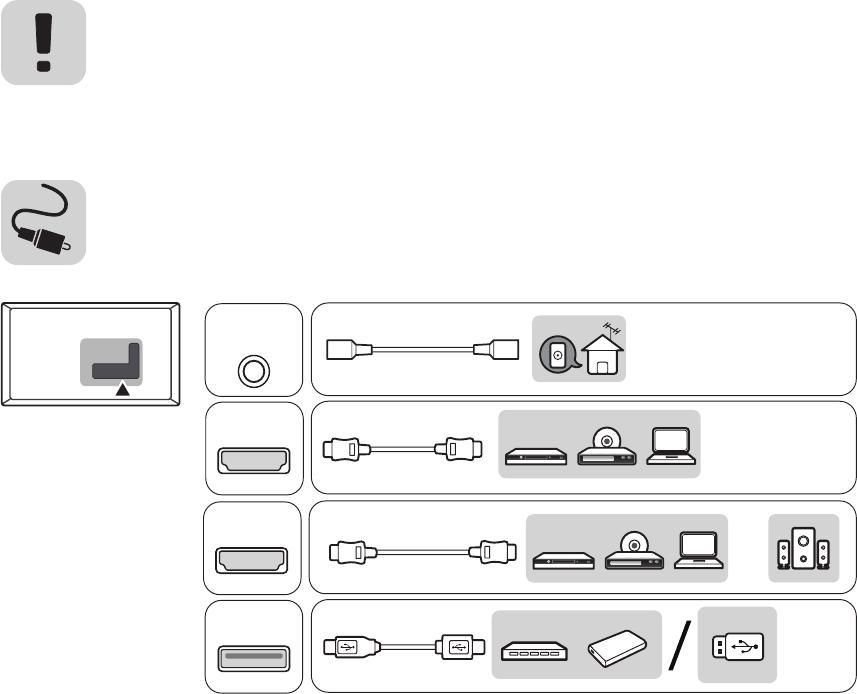

HDMI IN

USB IN

ANTENNA/

CABLE IN

PILLOW

SPEAKER

LAN

M.P.I.

OPTICAL DIGITAL

AUDIO OUT

HDMI IN/ARC

/

ENGLISH Image shown may differ from your TV.

ESPAÑOL La imagen puede ser diferente a la de su televisor.

FRANÇAIS Cette illustration peut ne pas correspondre à votre téléviseur.

HDMI IN

USB IN

ANTENNA/

CABLE IN

PILLOW

SPEAKER

LAN

M.P.I.

OPTICAL DIGITAL

AUDIO OUT

HDMI IN/ARC

/

12

0

, , :

:

24LV760M-UA 556

(21.8)

556

(21,8)

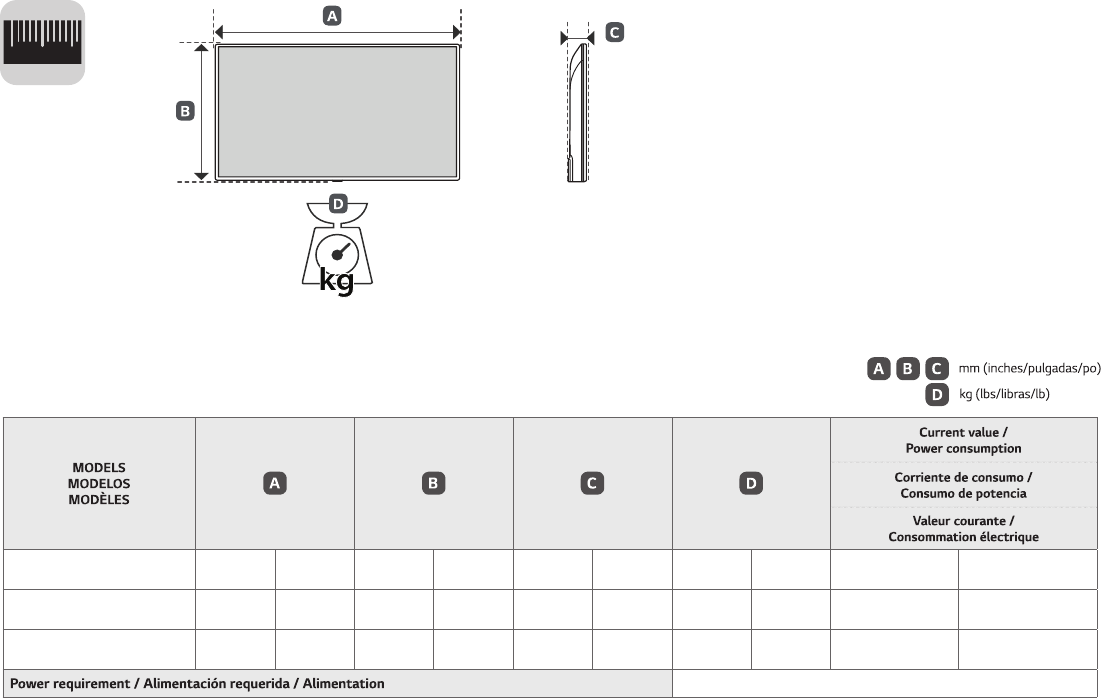

343.1

(13.5)

343,1

(13,5)

53.1

(2.0)

53,1

(2,0)

3.5

(7.7)

3,5

(7,7) 0.6 A / 40 W 0,6 A / 40 W

28LV760M-UA 641.5

(25.2)

641,5

(25,2)

395.8

(15.5)

395,8

(15,5)

57.6

(2.2)

57,6

(2,2)

4.7

(10.3)

4,7

(10,3) 0.6 A / 40 W 0,6 A / 40 W

32LV760M-UC 739

(29.0)

739

(29,0)

441

(17.3)

441

(17,3)

84

(3.3)

84

(3,3)

4.85

(10.6)

4,85

(10,6) 0.8 A / 50 W 0,8 A / 50 W

AC 120 V ~ 50 / 60 Hz

*MFL70187302*

(For USA and Canada only)

(Para Estados Unidos y Canadá)

(Except for 24LV760M)

This product qualies for ENERGY

STAR® in the factory default (Home

conguration)

setting. Changing the

factory default settings or enabling

other features may increase power consumption

that could exceed the limits necessary to quality

for ENERGY STAR®. Refer to ENERGYSTAR.gov

for more information on the ENERGY STAR®

program.

(Pour les États-Unis et le Canada)

(Sauf pour 24LV760M)

Ce produit est conforme aux normes

ENERGY STAR® lorsque le réglage

d’usine par défaut (Résidentiel) est

sélectionné. Modier les réglages

d’usine par défaut ou activer d’autres fonction-

nalités augmente la consommation d’énergie qui

pourrait alors dépasser les limites de la qualica-

tion ENERGY STAR®. Consultez le site ENERGYS-

TAR.gov pour en savoir plus au sujet du programme

ENERGY STAR®.

www.lg.com

Please read this manual carefully before operating

your TV and retain it for future reference.

Safety and Reference

LED TV*

* LG LED TVs are LCD TVs with LED backlighting.

OWNER’S MANUAL

24LV760M 28LV760M 32LV760M

Copyright © 2017 LG Electronics Inc. All Rights Reserved.

Printed in Korea

P/NO : MFL70265602 (1708-REV00)

*MFL70265602*

2

ENGLISH

Warning! Important Safety

instructions

Read these instructions. Keep these instructions.

Heed all warnings. Follow all instructions.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

TO QUALIFIED SERVICE PERSONNEL.

The symbol is intended to alert the user

to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The symbol is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions in

the literature accompanying the device.

WARNING : TO REDUCE THE RISK OF FIRE

AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

•Do not use this apparatus near water.

•Clean only with dry cloth.

•Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

•Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

•Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

•Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

•Only use attachments/accessories specified by

the manufacturer.

•Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•Unplug this apparatus during lightning storms

or when unused for long periods of time.

•Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

•Do not press strongly upon the panel with a

hand or a sharp object such as a nail, pencil, or

pen, or make a scratch on it.

•Do not stick metal objects or any other

conductive material into the power cord. Do

not touch the end of the power cord while it is

plugged in.

•Keep the packing anti-moisture material or

vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the

nearest hospital. Additionally, vinyl packing can

cause suffocation. Keep it out of the reach of

children.

3

ENGLISH

•Concerning the Power Cord (Can differ by

country): Check the specification page of this

owner’s manual to be certain concerning

current requirements. Do not connect too

many devices to the same AC power outlet as

this could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords,

frayed power cords, or damaged or cracked

wire insulation are dangerous. Any of these

conditions could result in electric shock or fire.

Periodically examine the cord of your device,

and if its appearance indicates damage or

deterioration, unplug it, discontinue use of

the device, and have the cord replaced with

an exact replacement part by an authorized

servicer. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the device. Do not

move the TV with the power cord plugged in. Do

not use a damaged or loose power cord. Be sure

do grasp the plug when unplugging the power

cord. Do not pull on the power cord to unplug

the TV.

•To reduce the risk of fire or electrical shock,

do not expose this product to rain, moisture

or other liquids. Do not touch the TV with

wet hands. Do not install this product near

flammable objects such as gasoline or candles,

or expose the TV to direct air conditioning.

•Do not use high voltage electrical equipment

near the TV (e.g., a bug zapper). This may result

in product malfunction.

•Do not expose to dripping or splashing and

do not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.,

on shelves above the unit).

•Grounding (Except for devices which are not

grounded.) Ensure that you connect the earth

ground wire to prevent possible electric shock

(i.e., a TV with a three-prong grounded AC plug

must be connected to a three-prong grounded

AC outlet). If grounding methods are not

possible, have a qualified electrician install a

separate circuit breaker. Do not try to ground

the unit by connecting it to telephone wires,

lightning rods, or gas pipes.

•As long as this unit is connected to the AC wall

outlet, it is not disconnected from the AC power

source even if the unit is turned off.

•Do not attempt to modify this product in any

way without written authorization from LG

Electronics. Unauthorized modification could

void the user’s authority to operate this product.

•Outdoor Antenna Grounding (Can differ by

country): If an outdoor antenna is installed,

follow the precautions below. An outdoor

antenna system should not be located in the

vicinity of overhead power lines or other electric

light or power circuits, or where it can come in

contact with such power lines or circuits as death

or serious injury can occur. Be sure the antenna

system is grounded to provide some protection

against voltage surges and built-up static

charges. Section 810 of the National Electrical

Code (NEC) in the U.S.A. provides information

with respect to proper grounding of the mast

and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size

of grounding conductors, location of antenna

discharge unit, connection to grounding

electrodes and requirements for the grounding

electrode. Antenna grounding according to the

National Electrical Code, ANSI/NFPA 70

•Moving Make sure the product is turned off,

unplugged, and all cables have been removed.

It may take 2 or more people to carry larger TVs.

Do not press or put stress on the front panel of

the TV.

•Ventilation Install your TV where there is proper

ventilation. Do not install in a confined space

such as a bookcase. Do not cover the product

with cloth or other materials while plugged. Do

not install in excessively dusty places.

•Take care not to touch the ventilation openings.

When watching the TV for a long period, the

ventilation openings may become hot. This does

not affect the performance of the product or

cause defects in the product.

•If you smell smoke or other odors coming from

the TV, unplug the power cord and contact an

authorized service center.

•If water or another substance enters the

product (like an AC adapter, power cord, or TV),

disconnect the power cord and contact the

service center immediately. Otherwise, this may

result in fire or electric shock.

•Do not install this product on a wall if it could be

exposed to oil or oil mist. This may damage the

product and cause it to fall.

•Use only an authorized AC adapter and power

cord approved by LG Electronics. Otherwise, this

may result in fire, electric shock, malfunction, or

product deformation.

•Never disassemble the AC adapter or power

cord. This may result in fire or electric shock.

•Handle the adapter carefully to avoid dropping

or striking it. An impact could damage the

adapter.

•Keep the product away from direct sunlight.

•Never touch this apparatus or antenna during a

lightning storm.

4

ENGLISH

•When mounting a TV on the wall, make sure not

to install the TV by hanging the power and signal

cables on the back of the TV.

•Do not allow an impact shock, any objects to fall

into the product, and do not drop anything onto

the screen.

•DISCONNECTING THE DEVICE FROM THE MAIN

POWER The power plug is the disconnecting

device. In case of an emergency, the power plug

must remain readily accessible.

•Make sure the power cord is connected securely

to the power plug on the TV.

•Batteries Store the accessories (battery, etc.) in a

safe location out of the reach of children.

•This apparatus uses batteries. In your community

there might be regulations that require you

to dispose of these batteries properly due to

environmental considerations. Please contact

your local authorities for disposal or recycling

information.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble, or allow the

batteries to overheat.

•Cleaning When cleaning, unplug the power

cord and wipe gently with a soft cloth to prevent

scratching. Do not spray water or other liquids

directly on the TV as electric shock may occur. Do

not clean your TV with chemicals including glass

cleaner, any type of air freshener, insecticide,

lubricants, wax (car, industrial), abrasive, thinner,

benzene, alcohol etc., which can damage the

product and/ or its panel.

Preparing

•When the TV is turned on for the first time after

being shipped from the factory, initialization of

the TV may take approximately one minute.

•Image shown may differ from your TV.

•Your TV’s OSD (On Screen Display) may differ

slightly from that shown in this manual.

•The available menus and options may differ from

the input source or product model that you are

using.

•New features may be added to this TV in the

future.

•The items supplied with your product may vary

depending upon the model.

•Product specifications or contents of this manual

may be changed without prior notice due to

upgrade of product functions.

•For an optimal connection, HDMI cables and

USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

•Use an extension cable that supports USB 2.0 if

the USB cable or USB flash drive does not fit into

your TV’s USB port.

•Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

•Recommended HDMI cable types (3 m or less)

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

B

AA

B

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

•Do not use any unapproved items to ensure the

safety and lifespan of the product.

•Any damages or injuries by using unapproved

items are not covered by the warranty.

•Some models appear to have a thin film on the

screen. It is actually part of the screen; do not

remove it.

•When attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

(Depending upon model)

•Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV

may tilt forward after being installed.)

•Do not fasten the screws with excessive force

otherwise they may be worn out and become

loose.

•Make sure to wring any excess water or cleaner

from the cloth.

•Do not spray water or cleaner directly onto the

TV screen.

•Make sure to spray just enough of water or

cleaner onto a dry cloth to wipe the screen.

Optional Extras

(Depending upon model)

Optional extras can be changed or modified for

quality improvement without any notification.

Contact your dealer for buying these items. These

devices work only with certain models. The model

name or design may be changed due to the

manufacturer’s circumstances or policies.

AN-MR650H

Magic Remote

5

ENGLISH

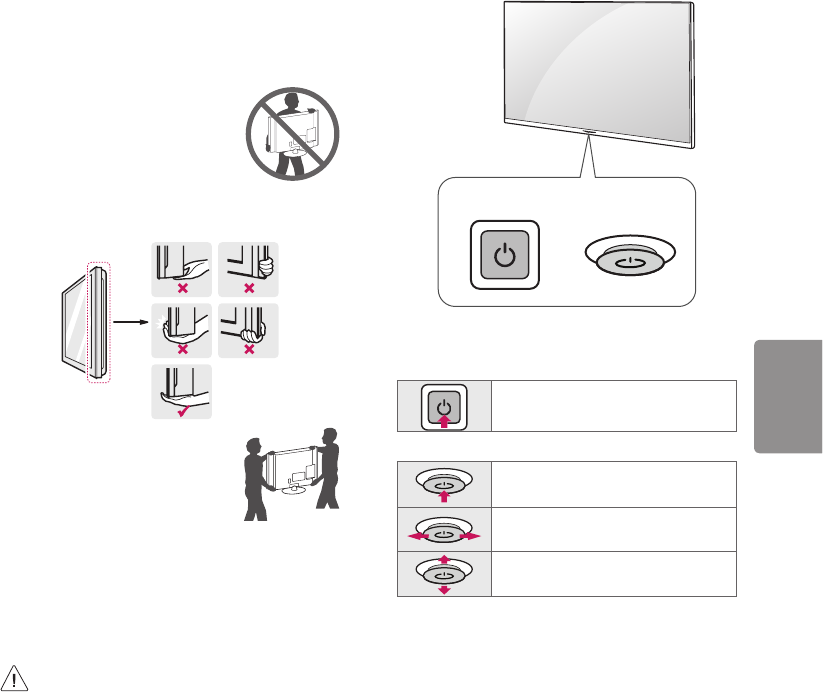

Lifting and Moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for safe transportation regardless of

its type and size.

•It is recommended to move the TV in the box or

packing material that the TV originally came in.

•Before moving or lifting the TV, disconnect the

power cord and all cables.

•When holding the TV, the screen

should face away from you to

avoid damage.

•Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grille area.

•Use at least two people to move

a large TV.

•When transporting the TV by

hand, hold the TV as shown in the

following illustration.

•When transporting the TV, do not expose the TV

to jolts or excessive vibration.

•When transporting the TV, keep the TV upright;

never turn the TV on its side or tilt towards the

left or right.

•When handling the TV, be careful not to damage

the protruding buttons.

•Avoid touching the screen at all times, as

this may result in damage to the screen.

•Do not place the product on the floor with

its front facing down without padding.

Failure to do so may result in damage to the

screen.

•Do not move the TV by holding the cable

holders, as the cable holders may break,

and injuries and damage to the TV may

occur. (Depending upon model)

Using the Button

(Depending upon model)

You can operate the TV functions, using the

button.

or

<Type A> <Type B>

Basic Functions

<Type A>

Power On / Off (Press)

<Type B>

Power On (Press)

Power Off (Press and Hold)

Volume Control

Channels Control

6

ENGLISH

Adjusting the Menu

When the TV is turned on, press the button one

time. You can adjust the Menu items using the

buttons. (Depending upon model)

Turns the power off.

Accesses the setting menu.

Clears on-screen displays and returns to TV

viewing.

Changes the input source.

Scrolls through the saved channels.

Adjusts the volume level.

Using the kensington security

system (optional)

The Kensington security system connector is

located at the rear of the TV. For more information

of installation and using, refer to the manual

provided with the Kensington security system

or visit http://www.kensington.com. Connect the

Kensington security system cable between the TV

and a table.

•The Kensington security system is optional. You

can obtain additional accessories from your local

dealer.

Securing the TV to a Wall (optional)

(Depending upon model)

1 Insert and tighten the eye-bolts or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and

the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope or cable. Make sure to keep

the rope parallel to the flat surface.

•Make sure that children do not climb on or

hang on the TV.

•Use a platform or cabinet that is strong and

large enough to support the TV securely.

•Brackets, bolts, and ropes are optional. You

can obtain additional accessories from your

local dealer.

7

ENGLISH

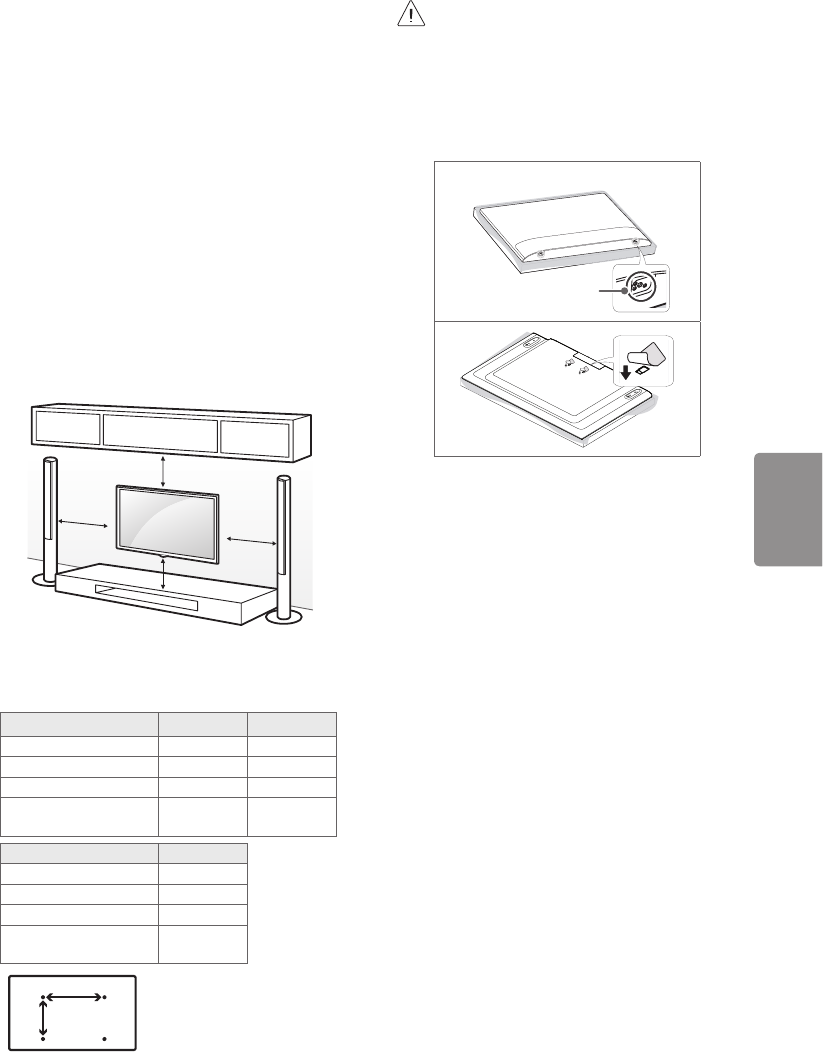

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for

a wall mount that supports the VESA standard

used by your TV model. Carefully attach the wall

mount bracket at the rear of the TV. Install the wall

mount bracket on a solid wall perpendicular to the

floor. If you are attaching the TV to other building

materials, please contact qualified personnel to

install the wall mount. Detailed instructions will

be included with the wall mount. We recommend

that you use an LG brand wall mount. The LG wall

mount is easy to adjust or to connect the cables.

When you do not use LG’s wall mount bracket,

use a wall mount bracket where the device is

adequately secured to the wall with enough space

to allow connectivity to external devices. If you are

using a non-adjustable mount, attach the mount

to the wall. Attach the cables to the TV first, then

attach the TV to the mount.

10 cm

10 cm

10 cm

10 cm

(4 inches)

Make sure to use screws and wall mounts that

meet the VESA standard. Standard dimensions for

the wall mount kits are described in the following

table.

Model 24LV760M 28LV760M

VESA (A x B) 75 x 75 100 x 100

Standard screw M4 M4

Number of screws 4 4

Wall mount bracket

(optional) LSW140B LSW140B

Model 32LV760M

VESA (A x B) 200 x 200

Standard screw M6

Number of screws 4

Wall mount bracket

(optional)

LSW240B

MSW240

A

B

•Remove the stand before installing the TV

on a wall mount by performing the stand

attachment in reverse.

•When using the wall mount, it is recommended

that you apply a piece of tape over the Stand

holes to prevent dust and bugs from entering

the holes. (Depending upon model)

Stand Hole

8

ENGLISH

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD

players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices. For

more information on external device’s connection,

refer to the manual provided with each device.

•If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input

cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to

the manual provided with the connected device.

•The external device connections shown may

differ slightly from illustrations in a manual.

•Connect external devices to the TV regardless

about the order of the TV port.

•If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

•Refer to the external equipment’s manual for

operating instructions.

•In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast

or brightness. If noise is present, change the PC

output to another resolution, change the refresh

rate to another rate or adjust the brightness and

contrast on the Picture menu until the picture is

clear. Depending upon the graphics card, some

resolution settings may not allow the image to

be positioned on the screen properly.

•Some USB Hubs may not work. If a USB device

connected through a USB Hub is not detected,

connect it directly to the USB port on the TV.

•When connecting via a wired LAN, it is

recommended to use a CAT 7 cable.

Connecting to an Antenna or Cable

Connect an antenna, cable, or cable box to watch

TV while referring to the following. The illustrations

may differ from the actual items and an RF cable is

optional.

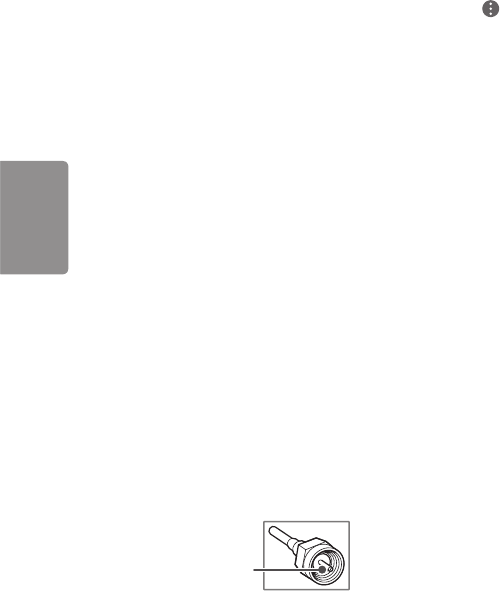

•Make sure not to bend the copper wire of the RF

cable.

Copper wire

•Complete all connections between devices, and

then connect the power cord to the power outlet

to prevent damage to your TV.

•Use a signal splitter to use 2 TVs or more.

•DTV Audio Supported Codec: MPEG, Dolby

Digital

Other Connections

Connect your TV to external devices. For the best

picture and audio quality, connect the external

device and the TV with the HDMI cable.

•HDMI Audio Supported Format: DTS (44.1 kHz /

48 kHz), Dolby Digital / Dolby Digital Plus (32 kHz

/ 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48

kHz / 96 kHz / 192 kHz) (Depending upon model)

•Use only with the 3 pole 3.5 mm stereo jack.

Settings

To select Picture Mode

• Picture • Picture Mode Settings • Picture

Mode

Select the picture mode optimized for the viewing

environment or the program.

•Vivid Heightens contrast, brightness, and

sharpness to display vivid images.

•Standard Displays images in standard levels of

contrast, brightness and sharpness.

•APS APS (Auto power saving) mode reduces

power consumption by dimming control.

•Cinema / Game Displays the optimum picture

for movie or game.

•Sports Optimised picture mode for football

matches. The pitch and kits are presented in

vibrant colours, with crystal-clear images even

for fast movements.

•Expert Menu for adjusting picture quality that

allows experts and amateurs to enjoy the best TV

viewing. This menu for adjustment is provided

for ISF-certified picture tuning professionals.

(ISF logo can be used only on ISF-certified TVs.)

ISFccc: Imaging Science Foundation Certified

Calibration Control

•Depending upon the input signal, the available

range of picture modes may differ.

•Expert mode is for picture tuning professionals

to control and fine-tune using a specific image.

For normal images, the effects may not be

drastic.

•Picture Mode change may modify Energy

Saving and Motion Eye Care settings and it can

affect energy consumption.

9

ENGLISH

To set additional picture options

• Picture • Picture Mode Settings • Picture

Options

Adjusts detailed setting for images.

•Noise Reduction Eliminates noise in the picture.

•MPEG Noise Reduction Eliminates noise

generated while creating digital picture signals.

•Black Level Adjusts the brightness and contrast

of the screen to suit the black level.

•Real Cinema Optimizes the screen for movie

viewing.

•Motion Eye Care Automatically adjusts

brightness and reduces image blur based on

image data to reduce eyestrain.

•TruMotion Corrects images to display smoother

motion sequences. Auto means juddering and

blurring range that depend on input video status

is controlled by TruMotion mode.

•Depending upon input signal or other picture

settings, the range of detailed items for

adjustment may differ.

To use energy saving feature

(Depending upon model)

• Picture • Energy Saving

Reduces power consumption by adjusting peak

screen brightness.

•Auto The TV sensor detects the ambient lighting

and automatically adjusts the screen brightness.

(For 32LV760M)

•Off Turns off the Energy Saving.

•Minimum / Medium / Maximum Applies the

pre-set Energy Saving.

•Screen Off Screen is turned off and only sound is

played. Press any button on the remote control

to turn the screen back on.

•Depending on the Energy Saving (Auto /

Maximum), you may not be able to adjust the

Backlight. In this case, navigate to • Picture

• Energy Saving and set to Off or Minimum.

Licenses

Supported licenses may differ by model. For more

information about licenses, visit www.lg.com.

Manufactured under license from Dolby

Laboratories. Dolby, Dolby Vision, Dolby Audio,

and the double-D symbol are trademarks of

Dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing

Limited.

DTS, DTS-HD, the Symbol, & DTS or DTS-HD and

the Symbol together are registered trademarks of

DTS, Inc. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

10

ENGLISH

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained in

this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the cost

of performing such distribution (such as the cost of

media, shipping, and handling) upon email request

to opensource@lge.com. This offer is valid for three

(3) years from the date on which you purchased

the product.

Troubleshooting

The software may be updated for improvement

in performance. The customer is responsible to

ensure the compatibility of their equipment with

any LG Electronics software. If needed, please

consult with LG Electronics and update new

software versions according to the guidance

provided by LG Electronics.

•Cannot control the TV with the remote control.

- Check if anything such as tape has been placed

over the receiver.

- Check if there is any obstacle between the

product and the remote control.

- Replace the batteries with new fresh ones.

•No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall

outlet.

- Check if there is a problem in the wall outlet by

connecting other products.

•The TV turns off suddenly.

- Check the power control settings. The power

supply may be interrupted.

- Check if the Timer Power Off / Sleep Timer

feature is activated in the Timers settings.

- If there is no signal while the TV is on, the TV

will turn off automatically after 15 minutes of

inactivity.

•Abnormal Display

- If the TV feels cold to the touch, there may

be a small flicker when it is turned on. This is

normal; there is nothing wrong with TV. Some

minute dot defects may be visible on the

screen, appearing as tiny red, green, or blue

spots. However, they have no adverse effect on

the TV’s performance. Avoid touching the LCD

screen or holding your finger(s) against it for

long periods of time. Doing so may produce

some temporary distortion effects on the

screen.

- This panel is an advanced product that contains

millions of pixels. In a very few cases, you could

see fine dots on the screen while you’re viewing

the TV. Those dots are deactivated pixels and

do not affect the performance and reliability

of the TV.

- Displaying a still image for a prolonged period

of time may cause an image sticking. Avoid

displaying a fixed image on the TV screen for a

extended length of time.

•Generated Sound

- Cracking noise A cracking noise that occurs

when watching or turning off the TV is

generated by plastic thermal contraction

due to temperature and humidity. This noise

is common for products where thermal

deformation is required.

- Electrical circuit humming/panel buzzing

A low level noise is generated from a high-

speed switching circuit, which supplies a

large amount of current to operate a product.

It varies depending upon the product.

This generated sound does not affect the

performance and reliability of the product.

11

ENGLISH

Specifications

Product specifications may be changed without

prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on

the FTC label is measured in accordance with the

Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the

usage environment (The content watched, TV

settings, etc.).

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,

CADTV 1-135

External Antenna Impedance

75 Ω

Environment condition

•Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

•Operating Humidity

Less than 80 %

•Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

•Storage Humidity

Less than 85 %

Wireless Module (LGSBWAC72)

Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz

15 dBm

14.5 dBm

14.5 dBm

Bluetooth

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz 8.5 dBm

•As band channels can vary per country, the

user cannot change or adjust the operating

frequency. This product is configured for the

regional frequency table.

•For consideration of the user, this device should

be installed and operated with a minimum

distance of 20 cm (7.8 inches) between the

device and the body.

•FCC ID: BEJLGSBWAC72 / IC: 2703H-LGSBWAC72

HDMI (PC) supported mode

Resolution Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

640 x 350 31.46 70.09

720 x 400 31.46 70.08

640 x 480 31.46 59.94

800 x 600 37.87 60.31

1024 x 768 48.36 60.00

1360 x 768 47.71 60.01

1152 x 864 54.34 60.05

1280 x 1024 1 63.98 60.02

1920 x 1080 1 67.50 60.00

1 For 32LV760M

HDMI (DTV) supported mode

Resolution Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

640 x 480p 31.46 59.94

31.50 60.00

720 x 480p 31.47 59.94

31.50 60.00

720 x 576p 31.25 50.00

1280 x 720p

44.96 59.94

45.00 60.00

37.50 50.00

1920 x 1080i

28.12 50.00

33.72 59.94

33.75 60.00

1920 x 1080p

26.97 23.97

27.00 24.00

33.71 29.97

33.75 30.00

56.25 50.00

67.43 59.94

67.50 60.00

112.50 100.00

134.86 119.88

135.00 120.00

12

ENGLISH

Supported Photo Formats

File Format Format Resolution

.jpeg, .jpg,

.jpe JPEG

Minimum: 64 x 64,

Maximum: Normal Type:

15,360 (W) x 8,640 (H),

Progressive Type:

1,920 (W) x 1,440 (H)

.png PNG

Minimum: 64 x 64,

Maximum:

5,760 (W) x 5,760 (H)

.bmp BMP

Minimum: 64 x 64,

Maximum:

1,920 (W) x 1,080 (H)

Supported Audio Formats

File Format Info

.mp3

[Bit rate] 32 Kbps ~ 320 Kbps

[Sample freq.] 16 kHz ~ 48 kHz

[Support] MPEG1, MPEG2

[Channels] mono, stereo

.wav

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 96 kHz

[Support] PCM

[Channels] mono, stereo

.ogg

[Bit rate] 64 Kbps ~ 320 Kbps

[Sample freq.] 8 kHz ~ 48 kHz

[Support] Vorbis

[Channels] mono, stereo

.wma

[Bit rate] 128 Kbps ~ 320 Kbps

[Sample freq.] 8 kHz ~ 48 kHz

[Support] WMA

[Channels] up to 6 ch

.flac

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 96 kHz

[Support] FLAC

[Channels] mono, stereo

Supported Video Formats

Extension Codec

.asf, .wmv

Video

VC-1 Advanced Profile

(except for WMVA), VC-1

Simple and Main Profiles

Audio WMA Standard (except for

WMA v1/ WMA Speech)

.avi

Video

Xvid (except for 3 warp-point

GMC), H.264/AVC, Motion

Jpeg, MPEG-4

Audio

MPEG-1 Layer I, II, MPEG-1

Layer III (MP3), Dolby Digital,

LPCM, ADPCM, DTS

.mp4,

.m4v,

.mov

Video H.264/AVC, MPEG-4, HEVC

Audio

Dolby Digital, Dolby Digital

Plus, AAC, MPEG-1 Layer III

(MP3)

.3gp, .3g2 Video H.264/AVC, MPEG-4

Audio AAC, AMR-NB, AMR-WB

.mkv

Video MPEG-2, MPEG-4, H.264/AVC,

VP8, VP9, HEVC

Audio

Dolby Digital, Dolby Digital

Plus, AAC, PCM, DTS, MPEG-1

Layer I, II, MPEG-1 Layer III

(MP3)

.ts, .trp,

.tp, .mts

Video H.264/AVC, MPEG-2, HEVC

Audio

MPEG-1 Layer I, II, MPEG-1

Layer III (MP3), Dolby Digital,

Dolby Digital Plus, AAC, PCM

.mpg,

.mpeg,

.dat

Video MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1

Layer III (MP3)

.vob

Video MPEG-1, MPEG-2

Audio Dolby Digital, MPEG-1 Layer I,

II, DVD-LPCM

13

ENGLISH

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the

equipment and the receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference and (2) this device must accept any

interference received, including interference that

may cause undesired operation of the device. Any

changes or modifications in construction of this

device which are not expressly approved by the

party responsible for compliance could void the

user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users

of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with

and/or damage this device. This device cannot be

co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This transmitter must not be

colocated or operating in conjunction with any

other antenna or transmitter. This equipment

should be installed and operated with minimum

distance 20 cm (7.8 inches) between the radiator

and your body. Users must follow the specific

operating instructions for satisfying RF exposure

compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s

applicable licence-exempt RSSs. Operation is

subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

14

ENGLISH

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm (7.8

inches) between the antenna & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

•The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the

potential for harmful interference to co-channel

mobile satellite systems;

•For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the bands 5250-5350 MHz and 5470-5725 MHz

shall be such that the equipment still complies

with the e.i.r.p. limit;

•For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the band 5725-5850 MHz shall be such that the

equipment still complies with the e.i.r.p. limits

specified for point-to-point and non-point-to-

point operation as appropriate; and

•The worst-case tilt angle(s) necessary to remain

compliant with the e.i.r.p. elevation mask

requirement set forth in Section 6.2.2(3) shall be

clearly indicated.(devices operating in the band

5250-5350 MHz with a maximum e.i.r.p. greater

than 200 mW)

•High-power radars are allocated as primary users

(i.e. priority users) of the bands 5250–5350 MHz

and 5650–5850 MHz and that these radars could

cause interference and/or damage to LE-LAN

devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected

to the grounding system of the building, as close

to the point of the cable entry as practical.

WARNING!

Never place a television set in an unstable

location. A television set may fall, causing serious

personal injury or death. Many injuries, particularly

to children, can be avoided by taking simple

precautions such as:

•Using cabinets or stands recommended by the

manufacturer of the television set.

•Only using furniture that can safely support the

television set.

•Ensuring the television set is not overhanging

the edge of the supporting furniture.

•Not placing the television set on tall furniture

(for example, cupboards or bookcases) without

anchoring both the furniture and the television

set to a suitable support.

•Not placing the television set on cloth or other

materials that may be located between the

television set and supporting furniture.

•Educating children about the dangers of

climbing on furniture to reach the television set

or its controls.

If your existing television set is being retained

and relocated, the same considerations as above

should be applied.

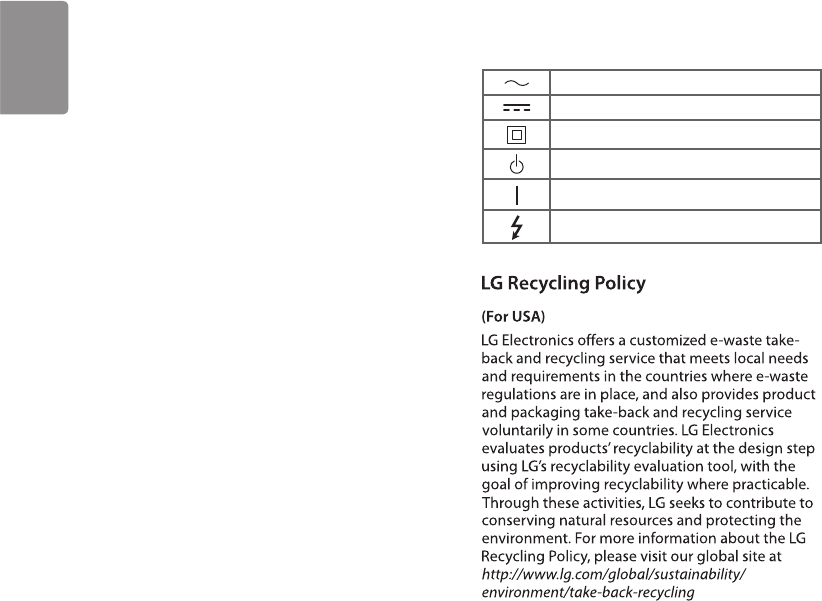

Symbols

Refers to alternating current(AC).

Refers to direct current(DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

15

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

(Image shown may differ from your TV.)

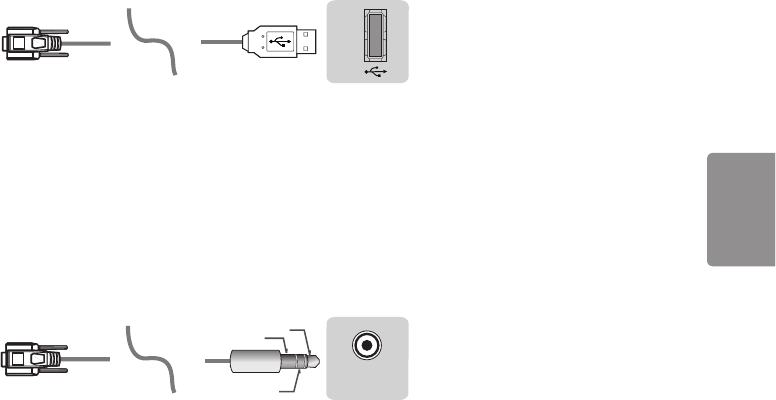

•Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or

an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

•Please be advised that not all models support this type of connectivity.

•Cable is not provided.

USB to Serial converter with USB Cable

USB Type

USB IN

(TV)

(PC)

(PC

)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

•LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is

not made nor provided by LG.

•It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C with RS-232C Cable

Phone jack Type

•You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the

TV, which is specified in the manual.

•For other models, connect to the USB port.

•The connection interface may differ from your TV.

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC

)

SERVICE ONLY

CONTROL & SERVICE

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

16

ENGLISH

Set ID

For Set ID number, see “Real Data Mapping”.

1 Press to access the main menus.

2 Press the Navigation buttons to scroll to General Set ID and press .

3 Press the Navigation buttons to scroll to SET ID and press .

4 Scroll left or right to select a set ID number and select , , . The adjustment range is 1-99.

5 When you are finished, press .

* (Depending upon model)

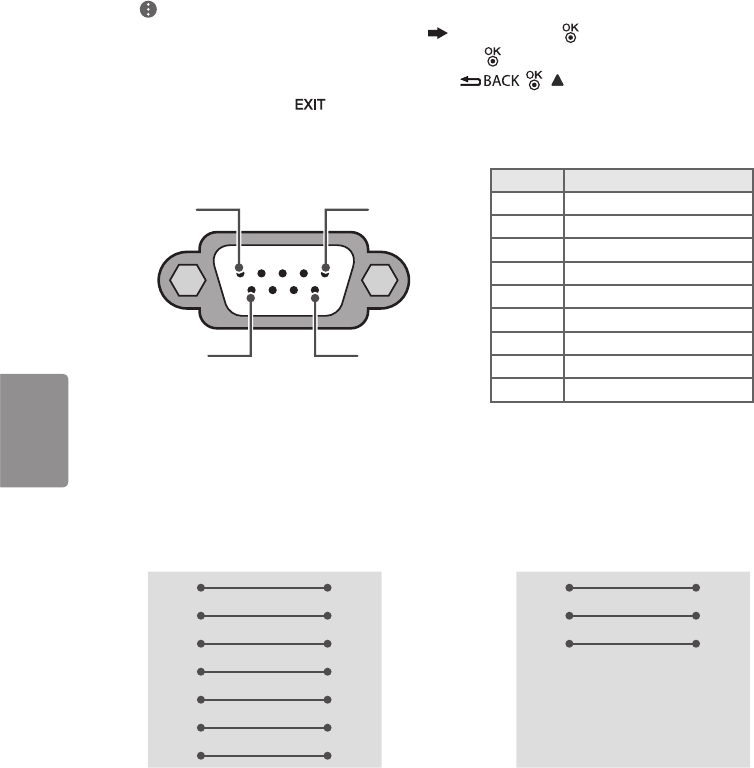

Customer Computer No. Pin name

13.5 V

2 RXD (Receive data)

3 TXD (Transmit data)

4 IR OUT from TV

5 GND

6 No connection

7 No connection

8 No connection

9 No connection

1

6

5

9

RS-232C

(Serial port)

RS-232C Configurations

7-Wire Configurations

(Standard RS-232C cable)

3-Wire Configurations

(Not standard)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR

DSR 6 4 DSR

RTS 7 8 RTS

CTS 8 7 CTS

D-Sub 9 D-Sub 9

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR

DSR 6 4 DSR

RTS 7 8 RTS

CTS 8 7 CTS

D-Sub 9 D-Sub 9

17

ENGLISH

Communication Parameters

Baud rate : 9600 bps (UART)

Data length : 8 bits

Parity : None

Stop bit : 1 bit

Communication code : ASCII code

Use a crossed (reverse) cable.

Command reference list

(Depending upon model)

COMMAND1 COMMAND2 DATA

(Hexadecimal) COMMAND1 COMMAND2 DATA

(Hexadecimal)

01. Power* k a 00 to 01 11. OSD

Select k l 00 to 01

02. Aspect

Ratio k c (page 19)

12. Remote

Control Lock

Mode

k m 00 to 01

03. Screen

Mute k d (page 19) 13. Balance k t 00 to 64

04. Volume

Mute k e 00 to 01

14. Color

(Colour)

Temperature

x u 00 to 64

05. Volume

Control k f 00 to 64 15. Equalizer j v (page 21)

06. Contrast k g 00 to 64

16.

Control

Backlight,

Control Panel

Light

m g 00 to 64

07. Brightness k h 00 to 64 17. Input

select (Main)

x b (page 21)

08. Color/

Colour k i 00 to 64 18. 3D (Only

3D models)

x t (page 22)

09. Tint k j 00 to 64

19. Extended

3D (Only 3D

models)

x v (page 22)

10. Sharpness k k 00 to 32

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not executed

and treated as NG. With RS-232C cable, TV can communicate “ka command” in power-on or power-off

status. But with USB-to-Serial converter cable, the command works only if TV is on.

18

ENGLISH

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected

set can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0 x 00 to

0 x 63) on transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of

command.

[Cr] : Carriage Return - ASCII code ‘0 x 0D’

[ ] : Space – ASCII code ‘0 x 20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the

PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-

viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal : Decimal)

•When you enter the [data] in hexadecimal, refer to following conversion table.

•Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254

01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998

10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

19

ENGLISH

•Commands may work differently depending

upon model and signal.

01. Power (Command: k a)

•To control Power *On or Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

•To Show TV is Power On or *Off

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement

feedback presents status about each function.

02. Aspect Ratio (Command: k c) (Main Picture

Size)

•To adjust the screen format. (Main picture

format) You can also adjust the screen format

using the Aspect Ratio in the Picture menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen (4:3)

02 : Wide screen(16:9)

04 : Zoom

05 : Zoom 2 (Latin America except

Colombia Only)

06 : Set by Program/Original

07 : 14:9 (Europe, Colombia, Mid-East,

Asia except South Korea and Japan)

09 : * Just Scan

0B : Full Wide (Europe, Colombia, Mid-

East, Asia except South Korea and Japan)

10 to 1F : Cinema Zoom 1 to 16

0C : 21:9 (Depending upon model)

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

•Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

•In DTV/HDMI/Component mode (high-

definition), Just Scan is available.

•Full wide mode may work differently based on

model and is supported for DTV fully, and ATV,

AV partially.

03. Screen Mute (Command: k d)

•To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) Video

mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute

on, TV will not display OSD.

04. Volume Mute (Command: k e)

•To control volume mute on/off. You can also

adjust mute using the Mute button on remote

control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

•To adjust volume. You can also adjust volume

with the volume buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

20

ENGLISH

06. Contrast (Command: k g)

•To adjust screen contrast. You can also adjust

contrast in the Picture menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

•To adjust screen brightness. You can also adjust

brightness in the Picture menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

•To adjust the screen Color(Colour). You can also

adjust colour in the Picture menu.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

•To adjust the screen tint. You can also adjust tint

in the Picture menu.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

•To adjust the screen sharpness. You can also

adjust sharpness in the Picture menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

•To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack

[l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

•To lock the front panel controls on the monitor

and remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack

[m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode. When main power is off & on (plug-off and

plug-in, after 20 - 30 seconds), external control

lock is released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not

turn on by power on key of IR & Local Key.

13. Balance (Command: k t)

•To adjust balance. You can also adjust balance in

the Sound menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

14. Color (Colour) Temperature (Command: x u)

•To adjust colour temperature. You can also adjust

Color (Colour) Temperature in the Picture menu.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

21

ENGLISH

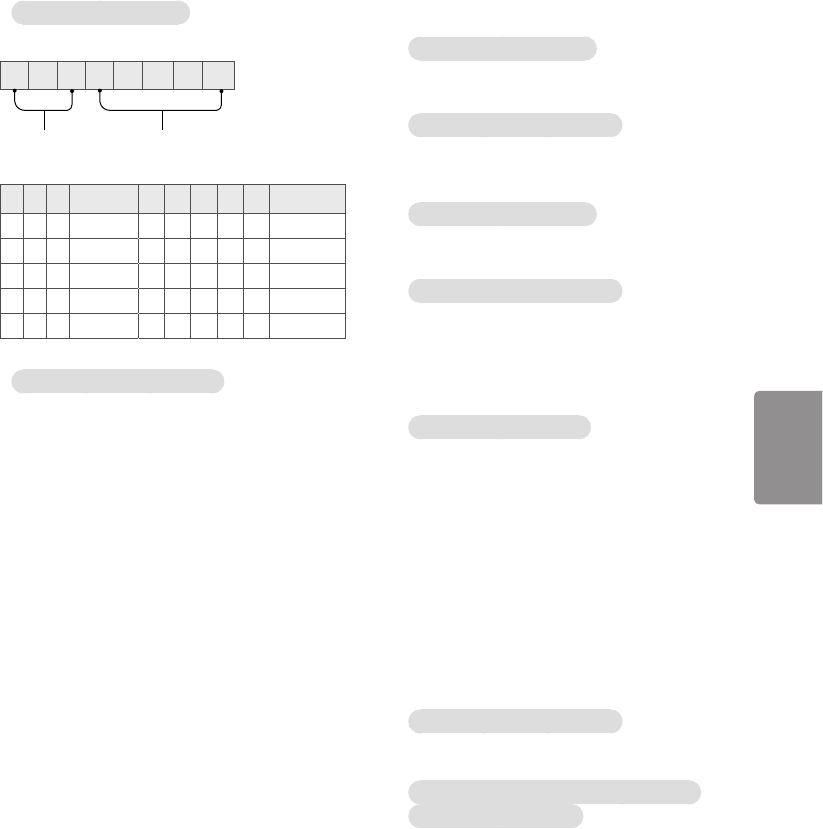

15. Equalizer (Command : j v)

•Adjust EQ of the set.

Transmission

[j][v][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0 0

MSB

Frequency Data

LSB

7 6 5 Frequency 4 3 2 1 0 Step

0 0 0 1st Band 0 0 0 0 0 0(decimal)

0 0 1 2nd Band 0 0 0 0 1 1(decimal)

0 1 0 3rd Band ... ... ... ... ... ...

0 1 1 4th Band 1 0 0 1 1 19(decimal)

1 0 0 5th Band 1 0 1 0 0 20(decimal)

Ack

[v][ ][Set ID][ ][OK/NG][Data][x]

* It depends upon model, and can adjust when

sound mode is EQ adjustable value.

16. Control Backlight, Control Panel Light

(Command: m g)

* For LCD TV / LED TV

•To control the backlight.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

* For Plasma TV

•To control the panel light.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

17. Input select (Command: x b) (Main Picture

Input)

•To select input source for main picture.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 00 : DTV 10 : ATV

01 : CADTV 11 : CATV

02 : Satellite DTV ISDB-BS (Japan)

03 : ISDB-CS1 (Japan)

04 : ISDB-CS2 (Japan)

20 : AV or AV1 40 : Component1

21 : AV2 41 : Component2

60 : RGB

90 : HDMI1 91 : HDMI2

92 : HDMI3 93 : HDMI4

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

Ack

[v][ ][Set ID][ ][OK][Data00][Data01][x] [v][ ]

[Set ID][ ][NG][Data00][x]

22

ENGLISH

18. 3D (Command: x t) (only 3D models)

(Depending upon model)

•To change 3D mode for TV.

Transmission

[x][t][ ][Set ID][ ][Data 00][ ]

[Data 01] [ ][Data 02][ ][Data 03][Cr]

* (Depending upon model)

Data Structure

[Data 00] 00: 3D On

01: 3D Off

02: 3D to 2D

03: 2D to 3D

[Data 01] 00: Top and Bottom

01: Side by Side

02: Check Board

03: Frame Sequential

04: Column interleaving

05: Row interleaving

[Data 02] 00: Right to Left

01: Left to Right

[Data 03] 3D Effect(3D Depth): Min: 00 - Max:

14 (*transmit by Hexadecimal code)

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off ) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and [Data

02] have no meaning.

* If [Data 00] is 00 (3D On) or03 (2D to 3D), [Data

03]works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X: don’t care

Ack

[t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x] [t][ ][Set ID][ ][NG][Data00][x]

19. Extended 3D(Command: x v) (only 3D models)

(Depending upon model)

•To change 3D option for TV.

Transmission

[x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00: 3D Picture Correction

01: 3D Depth (3D Mode is Manual

Only)

02: 3D Viewpoint

06: 3D Color Correction

07: 3D Sound Zooming

08: Normal Image View

09: 3D Mode (Genre)

[Data 01] It has own range for each 3D

option determined by [Data 00].

1) When [Data 00] is 00

00: Right to Left

01: Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by

Hexadecimal code)

Data value range(0 - 20) converts Viewpoint

range (-10 - +10) automatically (Depending

upon model)

* This option works when 3D Mode (Genre) is

manual only.

3) When [Data 00] is 06, 07

00: Off

01: On

4) When [Data 00] is 08

00: Revert to 3D video from 3D-to-

2D converted 2D video

01: Change 3D video to 2D video,

except 2D-to-3D video

* If conversion condition doesn’t meet, command

is treated as NG.

5) When [Data 00] is 09

00: Standard

02: Cinema

04: Manual

01: Sport

03: Extreme

05: Auto

Ack

[v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

23

ENGLISH

IR OUT Using Guide

(Depending upon model)

Suitable / Not Recommend remote-controller data format

Item Data format code Note

Suitable Data Format

NEC, Toshiba Full Repeat Code Format Single : Enable

Repeat : Enable

Philips RC5, RC6 Code Format

Zenith Code Format

Not Recommend Data Format

Matsushita, RCA Code Format Single : Enable

Repeat : Disable

Sony 12/15/20 bit, Mitsubishi Code Format

Sharp, JVC, R-step, Philips RCMM, RECS-80,

XMP Code Format

Single : Disable

Repeat : Disable

IR Receiver specifications

Carrier frequency 37.9 KHz

Peak Wavelength 940 nm

Minimum burst length Min. 300 us

Minimum gap time is required of Min. 350 us

Data word length Max. 100 ms

Minimum gap time in the data stream is needed of Min. 50 ms

Parameter Symbol Conditions Min Typ Max Unit

High Level Out Pulse Width Twh Burst Wave = 600

Period = 1.2

400 - 800

Low Level Out Pulse Width Twl 400 - 800

If not use the remote-controller with data formats recommended, IR output signals will be suppressed

automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of

this matter, here are two methods as below.

- Use the remote-controller with suitable data formats.

- Use the IR dongle receiver of the set-top box.

27

ENGLISH

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to

making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on

proper stands or installed according to the manufacturer’s recommendations. Televisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,

may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAY S read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television

is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers.

• ALWAY S install the television where it cannot be pushed, pulled over or knocked down.

• ALWAY S route cords and cables connected to the television so that they cannot be tripped

over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAY S contact your retailer about professional installation if you have any doubts about your

ability to safely mount your television.

• ALWAY S use a mount that has been recommended by the television manufacturer and has a

safety certication by an independent laboratory (such as UL, CSA, ETL).

• ALWAY S follow all instructions supplied by the television and mount manufacturers.

• ALWAY S make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount

installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the

purchase of a at-panel television. Special care should be made in the placement of older CRT

televisions.

• ALWAY S place your older CRT television on furniture that is sturdy and appropriate for its size

and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the

drawers to climb.

• ALWAY S make sure your older CRT television does not hang over the edge of your furniture.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

CE.org/safety

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-888-865-3026 USA, Commercial User

1-855-286-2456 CANADA

The model and serial numbers of the TV are located

on the back and on one side of the TV. Record them

below should you ever need service.

MODEL

SERIAL

Declaration of Conformity

Trade Name LG

Model 24LV760M-UA,

28LV760M-UA

32LV760M-UC

Responsible

Party

LG Electronics Inc.

Address 1000 Sylvan Ave. Englewood

Cliffs NJ 07632 U.S.A

TEL 201-266-2534
