IPS LED(LED LCD) MONITOR MODEL

Please read this manual carefully before operating

your set and retain it for future reference.

19M38A

19M38D

20M38A

20M38D

20M38H

22M38A

22M38D

22M38H

24M38A

24M38D

24M38H

27MP38VQ

27MP38HQ

*LG LED Monitors are LCD Monitors with LED Backlighting.

Owner's Manual

IPS LED MONITOR

LED LCD MONITOR

(LED MONITOR*)

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3 LICENSE

4 ASSEMBLINGANDPREPAR-

ING

4 Unpacking

6 Partsandbuttons

7 MovingandLiftingtheMonitor

8 SettinguptheMonitorset

8 - AttachingtheStandBase

9 - DetachingtheStandBase

10 - Mountingonatable

10 - Usingthecableholder

12 - Mountingonawall

13 USINGTHEMONITORSET

13 ConnectingtoaPC

13 - D-SUBconnection

13 - DVI-Dconnection

14 - HDMIconnection

14 ConnectingtoAVDevices

14 - HDMIconnection

15 ConnectingtoExternalDevices

15 - Peripheraldeviceconnection

16 CUSTOMIZINGSETTINGS

17 CustomizingSettings

17 - MenuSettings

19 -Picture

20 -Color

21 -Display

21 -Audio

22 -Others

23 READERSetting

24 FUNC.Setting

24 -SMARTENERGYSAVING

25 -PictureMode

26 -ColorWeakness

27 TROUBLESHOOTING

29 SPECIFICATIONS

39 PresetModes(Resolution)

40 Indicator

41 PROPERPOSTURE

41 ProperpostureforusingtheMonitorset.

ENG

ENGLISH

LICENSE

Eachmodelhasdifferentlicenses.Visitwww.lg.comformoreinformationonthelicense.

ThetermsHDMIandHDMIHigh-DefinitionMultimediaInterface,andthe

HDMIlogoaretrademarksorregisteredtrademarksofHDMILicensingLLC

intheUnitedStatesandothercountries.

ThefollowingcontentisonlyappliedtothemonitorwhichissoldinEuropemarketandwhichneedsto

meettheErPDirective:

*Thismonitorissettobeturnedoffautomaticallyin4hoursafteryouturnedondisplayifthereisnoadjust-

menttodisplay.

*Tomakethissettingbedisabled,changetheoptionto‘Off’inOSDmenuof“AutomaticStandby”.

20M38H 22M38H 24M38H 27MP38VQ 27MP38HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

ASSEMBLINGANDPREPARING

Unpacking

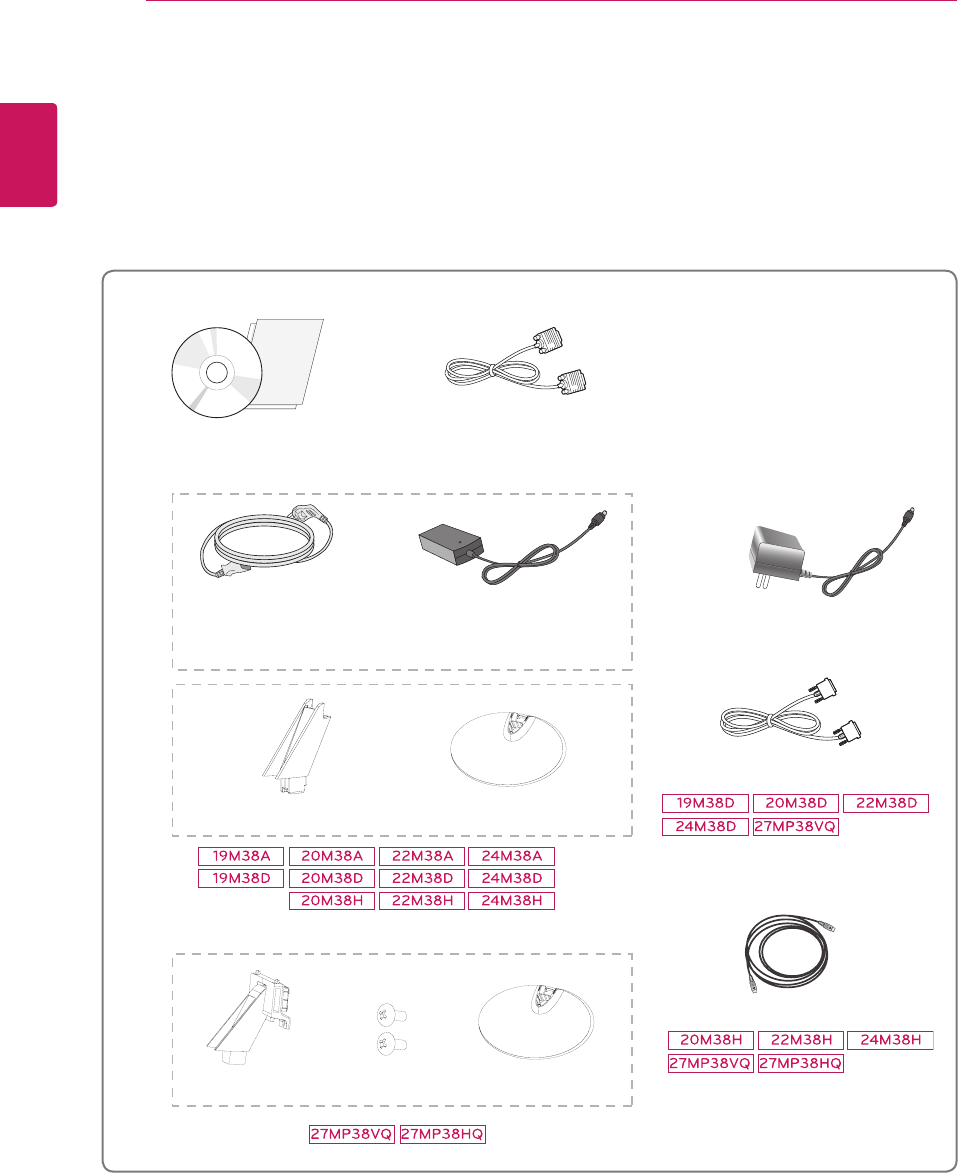

Checkyourproductboxforthefollowingitems.Ifthereareanymissingaccessories,contactthelocal

dealerwhereyoupurchasedyourproduct.Theillustrationsinthismanualmaydifferfromtheactualproduct

andaccessories.

CD(Owner'sManual)/

Card

(Dependingonthecountry) (Dependingonthecountry)

PowerCord AC-DCAdapter AC-DCAdapter

or

D-SUBCable

(Thiscableisnotincludedinall

countries.)

HDMICable

StandBody StandBase

StandBase

DVI-DCable

(Thiscableisnotincludedinall

countries.)

(Thiscableisnotincludedinall

countries.)

StandBody TwoScrews

ENG

ENGLISH

ASSEMBLING AND PREPARING

 Donotuseanyunapprovedaccessoriestoensurethesafetyandproductlifespan.

 Anydamagesorinjuriesbyusingunapprovedaccessoriesarenotcoveredbythewarranty.

 Theaccessoriessuppliedwithyourproductmayvarydependingonthemodel.

 Productspecificationsorcontentsinthismanualmaybechangedwithoutpriornoticeduetoupgrade

ofproductfunctions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

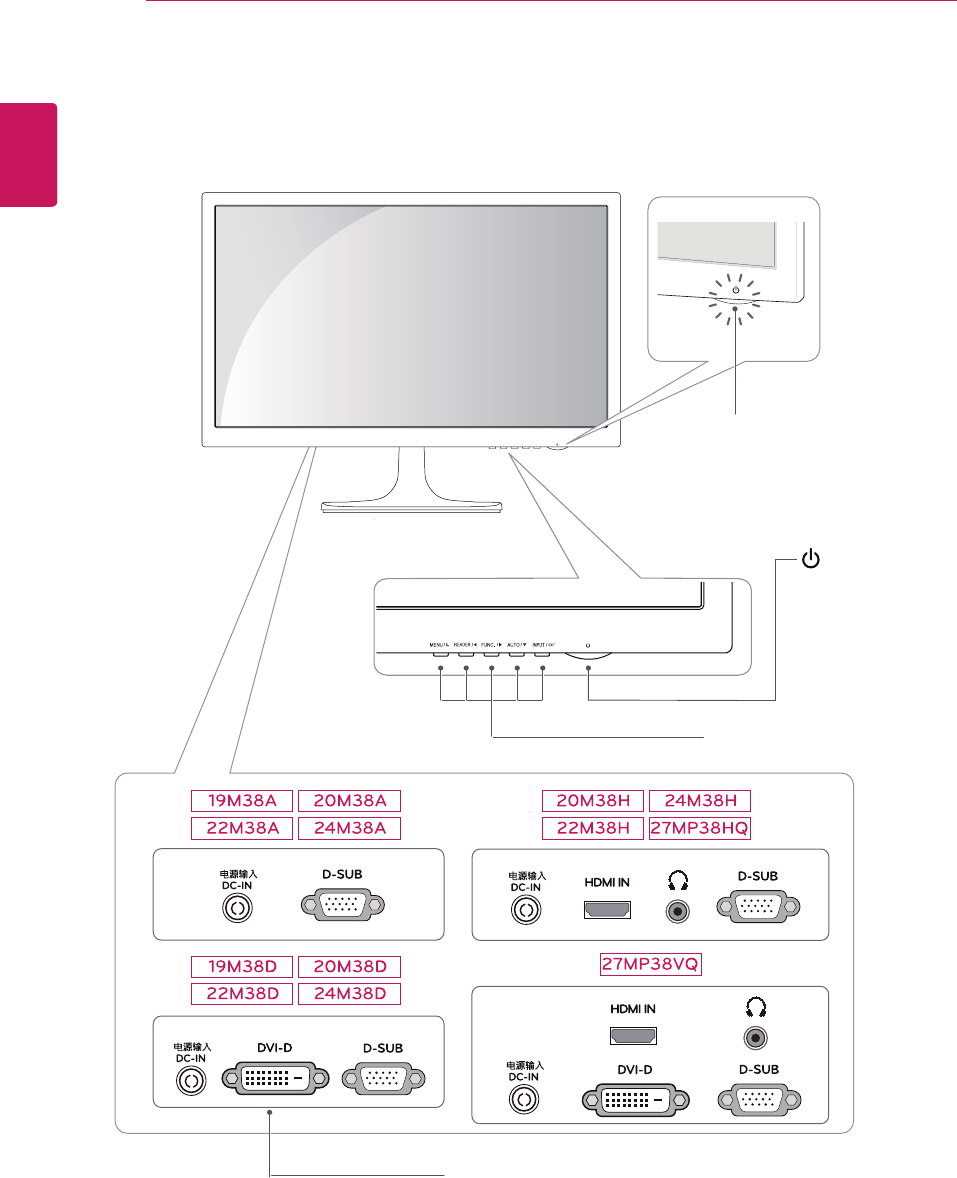

Partsandbuttons

PowerIndicator

 LightingOn:Turnedon

 LightingOff:Turnedoff

Connectionpanel(Seep.13~15)

Button(Seep.16)

(PowerButton)

ENG

ENGLISH

ASSEMBLING AND PREPARING

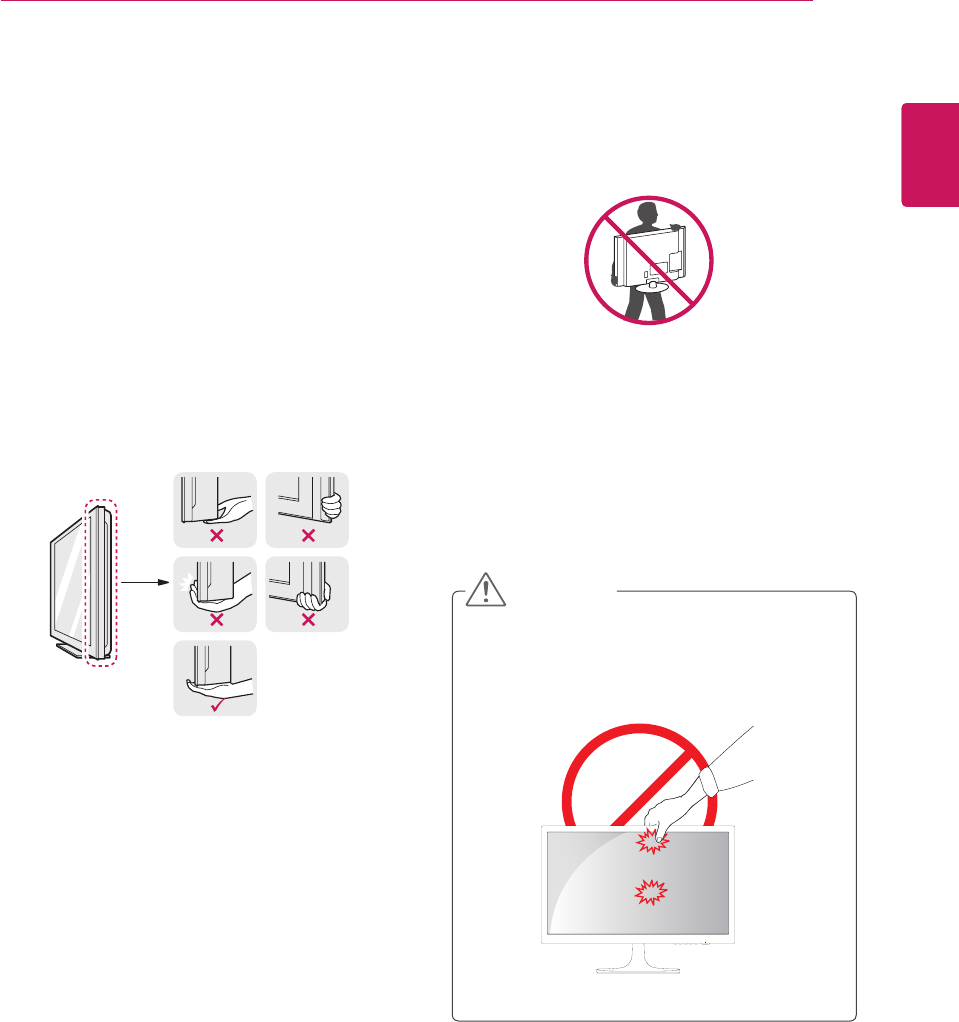

MovingandLiftingtheMonitor

Whenmovingorliftingthemonitor,followthese

instructionstopreventthemonitorfrombeing

scratchedordamagedandtoensuresafetrans-

portationregardlessofitsshapeorsize.

 Asfaraspossible,avoidtouchingthemoni-

torscreen.Thismayresultindamagetothe

screenorsomeofthepixelsusedtocreate

images.

 Itisadvisabletoplacethemonitorinthe

originalboxorpackingmaterialbeforeat-

temptingtomoveit.

 Beforemovingorliftingthemonitor,discon-

nectthepowercordandallcables.

 Holdthetopandbottomofthemonitorframe

firmly.Donotholdthepanelitself.

 Whenholdingthemonitor,thescreenshould

faceawayfromyoutopreventitbeing

scratched.



 Whenmovingthemonitor,avoidanystrong

shockorvibrationstotheproduct.

 Whenmovingthemonitor,keepitupright,

neverturnthemonitoronitssideortiltit

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

SettinguptheMonitorset

AttachingtheStandBase

1 PlacetheMonitorsetwiththescreenside

downonaflatandcushionedsurface.

Layafoammatorsoftprotectivecloth

onthesurfacetoprotectthescreenfrom

damage.

CAUTION

2

StandBase

StandBody

StandBase

19M38A 20M38A 22M38A 24M38A

19M38D 20M38D 22M38D 24M38D

20M38H 22M38H 24M38H

27MP38VQ 27MP38HQ

AttachtheStandBodytothemonitorset.

AttachtheStandBase.

Tightenthescrewtotherightwithacoin.

AttachtheStandBodytothemonitorset.

UsetwoscrewstofixtheStandBodyand

monitorset.

AttachtheStandBase.

Tightenthescrewtotherightwithacoin.

StandBody

ENG

ENGLISH

ASSEMBLING AND PREPARING

DetachingtheStandBase

1 PlacetheMonitorsetwiththescreenside

downonaflatandcushionedsurface.

StandBase

StandBody

 Thisillustrationdepictsthegeneralmodelof

connection.Yourmonitormaydifferfromthe

itemsshowninthepicture.

 Donotcarrytheproductupsidedownholding

onlythestandbase.Theproductmayfall

andgetdamagedorinjureyourfoot.

CAUTION

StandBody

StandBase

219M38A 20M38A 22M38A 24M38A

19M38D 20M38D 22M38D 24M38D

20M38H 22M38H 24M38H

27MP38VQ 27MP38HQ

PullouttheStandBodyandStandBase

fromthemonitorset.

Turnthescrewtotheleftwithacoin.

PullouttheStandBase.

Turnthescrewtotheleftwithacoin.

PullouttheStandBasefromtheStandBody.

RemovetwoscrewsandpullouttheStand

Bodyfromthemonitorset.

ENG

ENGLISH

ASSEMBLING AND PREPARING

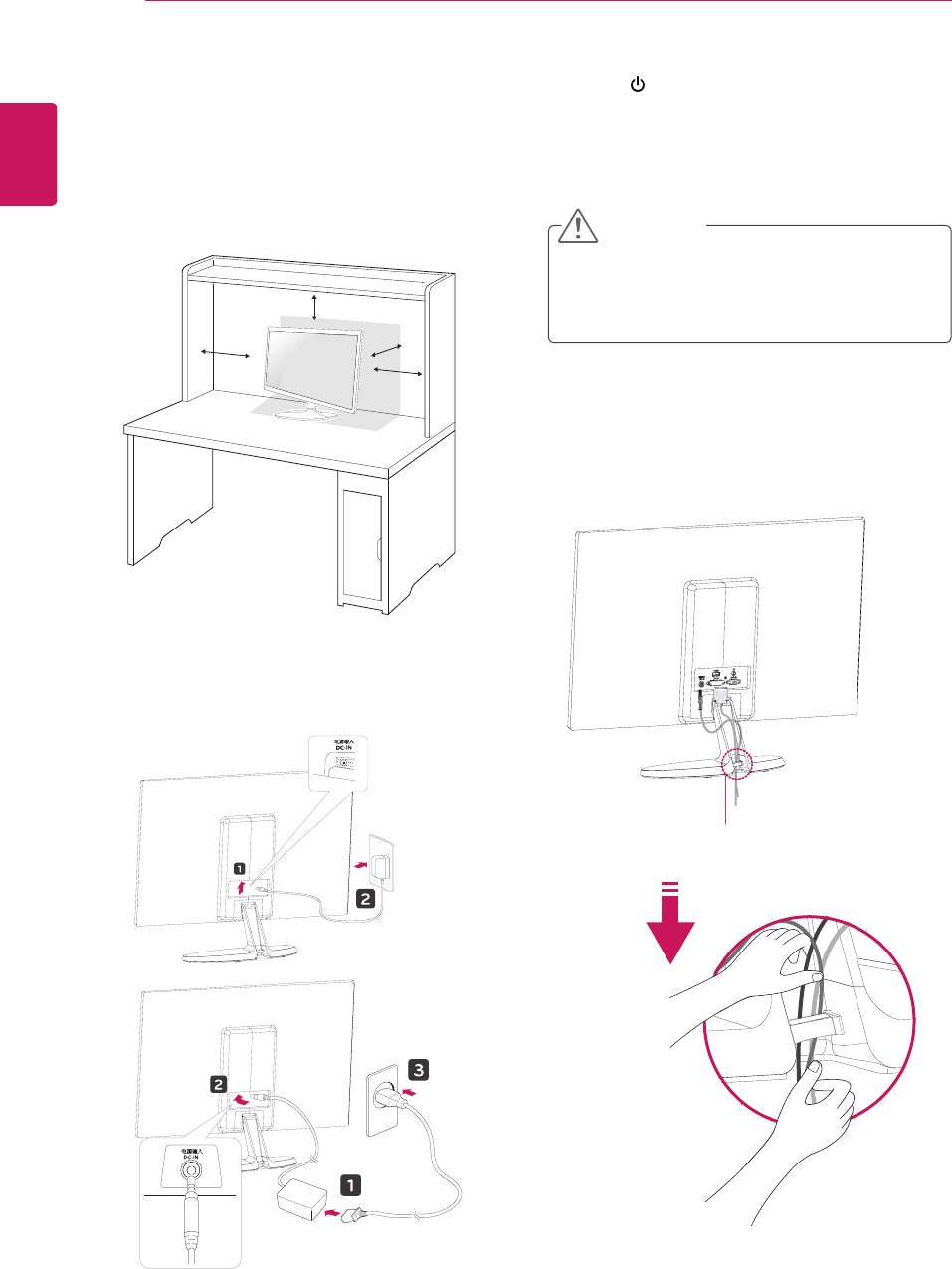

Mountingonatable

1 LiftandtilttheMonitorsetintoitsupright

positiononatable.

Leavea10cm(minimum)spacefromthewall

forproperventilation.

Usingthecableholder

2 ConnecttheAC-DCAdapterandPowerCord

toawalloutlet.

3 Press (Power)buttononthebottomswitch

paneltoturnthepoweron.

10 cm

Unplugthepowercordbeforemovingthe

Monitortoanotherlocation.Otherwiseelectric

shockmayoccur.

CAUTION

Cableholder

or

ENG

ENGLISH

ASSEMBLING AND PREPARING

UsingtheKensingtonsecuritysystem

TheKensingtonsecuritysystemconnectoris

locatedatthebackoftheMonitorset.Formore

informationofinstallationandusing,refertothe

manualsuppliedwiththeKensingtonsecurity

systemorvisit

http://www.kensington.com

ConnecttheKensingtonsecuritysystemcable

betweentheMonitorsetandatable.

TheKensingtonsecuritysystemisoptional.

Youcanobtainitfrommostelectronicsstores.

NOTE

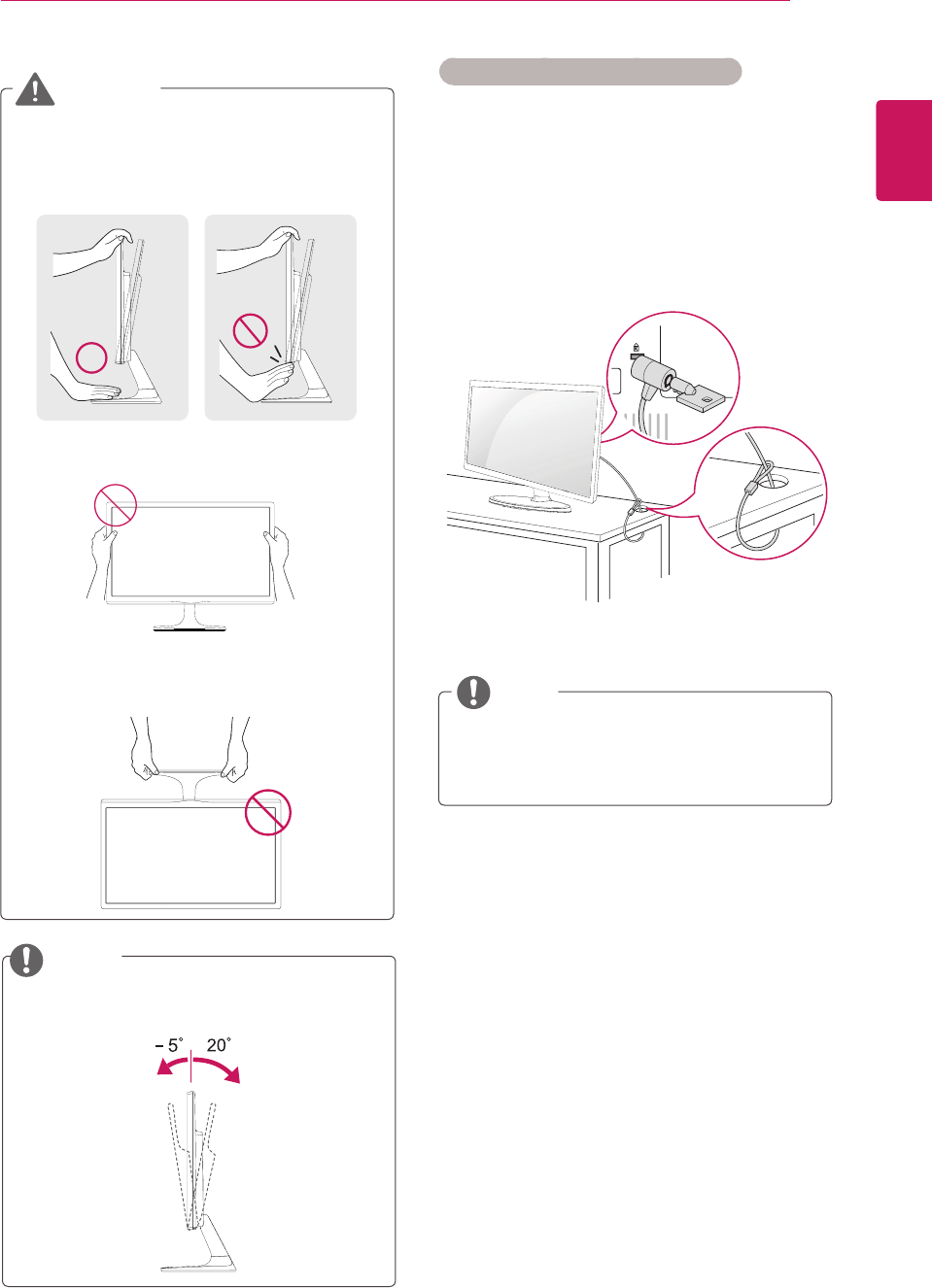

Whenyouadjusttheangle,donotholdthe

bottomoftheMonitorsetframeasshownon

thefollowingillustration,asmayinjureyour

fingers.

Donottouchorpressthescreenwhen

adjustingtheangleofthemonitor.

Donotholdthissetlikebelowpicture.Monitor

screencandetachfromstandbaseandinjure

yourbody.

WARNING

Tiltfrom+20to-5degreesupordowntoadjust

theangleoftheMonitorsettosuityourview.

NOTE

Front Rear

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mountingonawall

Forproperventilation,allowaclearanceof10cm

oneachsideandfromthewall.Detailed

instructionsareavailablefromyourdealer,seethe

optionalTiltWallMountingBracketInstallationand

SetupGuide.

IfyouintendtomounttheMonitorsettoawall,

attachWallmountinginterface(optionalparts)to

thebackoftheset.

WhenyouinstalltheMonitorsetusingawall

mountinginterface(optionalparts),attachit

carefullysoitwillnotdrop.

1Ifyouusescrewlongerthanstandard,themoni-

tormightbedamagedinternally.

2Ifyouuseimproperscrew,theproductmightbe

damagedanddropfrommountedposition.

Inthiscase,LGElectronicsisnotresponsible

forit.

10 cm

 Disconnectthepowercordfirst,andthen

moveorinstalltheMonitorset.Otherwise

electricshockmayoccur.

 IfyouinstalltheMonitorsetonaceilingor

slantedwall,itmayfallandresultinsevere

injury.

 UseonlyanauthorizedLGwallmount

andcontactthelocaldealerorqualified

personnel.

 Donotovertightenthescrewsasthismay

causedamagetotheMonitorsetandvoid

yourwarranty.

 Useonlyscrewsandwallmountsthat

meettheVESAstandard.Anydamages

orinjuriesbymisuseorusinganimproper

accessoryarenotcoveredbythewarranty.

 Screwlengthfromoutersurfaceofback

covershouldbeunder8mm.

 UsethescrewsthatarelistedontheVESA

standardscrewspecifications.

 Thewallmountkitwillincludeaninstallation

manualandnecessaryparts.

 Thewallmountbracketisoptional.Youcan

obtainadditionalaccessoriesfromyourlocal

dealer.

 Thelengthofscrewsmaydifferdepending

onthewallmount.Besuretousetheproper

length.

 Formoreinformation,refertothe

instructionssuppliedwiththewallmount.

CAUTION

NOTE

BackCover

WallmountPad

BackCover

Standardscrew

Max.8mm

Model



19M38A

19M38D

20M38A

20M38D

20M38H

22M38A

22M38D

22M38H

WallMount(AxB) 75x75

Standardscrew M4

Numberofscrews 4

Model



24M38A

24M38D

27MP38VQ

27MP38HQ

24M38H

WallMount(AxB) 100x100

Standardscrew M4

Numberofscrews 4

 WallMount(AxB)

ENG

ENGLISH

USING THE MONITOR SET

USINGTHEMONITORSET

ConnectingtoaPC

 YourMonitorsetsupportsPlug&Play*.

*Plug&Play:APCrecognizesaconnected

devicethatusersconnecttoaPCandturn

on,withoutdeviceconfigurationoruser

intervention.

D-SUBconnection

TransmitsanalogvideofromyourPCtothe

Monitorset.ConnectthePCandtheMonitorset

withthesuppliedD-sub15pinsignalcableas

showninthefollowingillustrations.

 Macadapter

ForAppleMacintoshuse,aseparateplug

adapterisneededtochangethe15pin

highdensity(3row)D-SUBVGAconnector

onthesuppliedcabletoa15pin2row

connector.

 WhenusingaD-Subsignalinputcable

connectorforMacintosh

NOTE

DVI-Dconnection

TransmitsadigitalvideosignalfromyourPCto

theMonitorset.ConnectthePCandtheMonitor

setwithaDVIcableasshowninthefollowing

illustrations.

D-SUB

RGB OUT

 Connectthesignalinputcable

andtightenitbyturningthe

screwsclockwise.

 Donotpressthescreenwith

yourfingerforalongtimeasthismay

resultintemporarydistortiononthescreen.

 Avoiddisplayingafixedimageonthe

screenforalongperiodoftimetoprevent

imageburn.Useascreensaverifpossible.

CAUTION

ENG

ENGLISH

USING THE MONITOR SET

 WhenyouwanttousetwoPCinourMonitor,

pleaseconnectthesignalcable(D-SUB/

DVI-D/HDMI)respectivelyinMonitorset.

 IfyouturntheMonitorsetonwhileitiscold,

thescreenmayflicker.Thisisnormal.

 Somered,green,orbluespotsmayappear

onthescreen.Thisisnormal.

NOTE

HDMIconnection

Transmitsthedigitalvideoandaudiosignalsfrom

yourPCtotheMonitorset.ConnectthePCand

theMonitorsetwiththeHDMIcableasshownin

thefollowingillustrations.

NOTE

 IfyouuseHDMIPC,itcancausecompatibility

problem.

 UseacertifiedcablewiththeHDMIlogo

attached.IfyoudonotuseacertifiedHDMI

cable,thescreenmaynotdisplayora

connectionerrormayoccur.

 RecommendedHDMIcabletypes

-High-SpeedHDMI®/TMCable

-High-SpeedHDMI®/TMCablewithEthernet

 IfyouuseHDMIPC,itcancausecompatibility

problem.

 UseacertifiedcablewiththeHDMIlogo

attached.IfyoudonotuseacertifiedHDMI

cable,thescreenmaynotdisplayora

connectionerrormayoccur.

 RecommendedHDMIcabletypes

-High-SpeedHDMI®/TMCable

-High-SpeedHDMI®/TMCablewithEthernet

ConnectingtoAVDevices

HDMIconnection

Transmitsthedigitalvideoandaudiosignalsfrom

yourAVdevicestothemonitor.ConnectyourAV

devicetothemonitorwiththeHDMIcableasil-

lustratedbelow.

ENG

ENGLISH

USING THE MONITOR SET

ConnectingtoExternalDevices

Peripheraldeviceconnection

Connectperipheraldevicestothemonitorusing

headphoneports.

 Peripheraldevicesaresoldseparately.

 Cableswithangledplugsmayhaveclear-

anceissues,usestraightplugswhenpos-

sible.

AngleType StraightType

NOTE

 Headphonesorspeakersmaynotworknor-

mally,dependingontheserverPCsettings.

 "SelfImageSetting"Function.

Thisfunctionprovidestheuserwithoptimal

displaysettings.Whentheuserconnects

themonitorforthefirsttime,thisfunction

automaticallyadjuststhedisplaytooptimal

settingsforindividualinputsignals.(Only

supportedinAnalogMode)

 ‘AUTO’Function.

Whenyouencounterproblemssuchas

blurryscreen,blurredletters,screenflicker

ortiltedscreenwhileusingthedeviceor

afterchangingscreenresolution,pressthe

AUTOfunctionbuttontoimproveresolution.

(OnlysupportedinAnalogMode)

NOTE

SelfImageSettingFunction

Pressthepowerbuttononthebottompanelto

turnthepoweron.Whenmonitorpoweristurned

on,the"SelfImageSetting"Functionisexecuted

automatically.(OnlysupportedinAnalogMode)

ENG

ENGLISH

CUSTOMIZING SETTINGS

CUSTOMIZINGSETTINGS

1 PressthedesiredbuttononthebottomoftheMonitorset.

2 ChangethevalueofthemenuitembypressingthebuttonsonthebottomoftheMonitorset.

Toreturntotheuppermenuorsetothermenuitems,usetheuparrow( )button.

3 SelectEXITtoleavetheOSDmenu.

MonitorsetButtons

Button Description

Accessesthemainmenus.(Seep.17)

OSDLocked/OSD

Unlocked

Thisfunctionallowyoutolockthecurrentcontrolsettings,sothat

theycannotbeinadvertentlychanged.

PressandholdtheMENUbuttonforseveralseconds.ThenOSD

of“OSDLock”willappear.Afterthat,usercanselectlockorunlock

bypressingleft/rightbutton.

Ifuserselectsthe“Lock”iconbypressingthe“OK”button,the

message“OSDLocked”willappear.Otherwise,“OSDUnlocked”

willappear.Afterselectingthe“Lock”,Ifyouwanttochangeto

Unlock,youcanpushthe“MENU”buttonforseveralseconds.The

message“OSDUnlocked”willappear.

UsethisbuttontoenterReaderModemenu.Itsfunctionworkstodisplayscreenas

paper-likepictureforEyecomfort.Ifyouwanttomoreinformation(Seep.23).

UsethisbuttontoenterSMARTENERGYSAVING,PictureMode,ColorWeakness

menus.(Seep.24~26)

Whenadjustingyourdisplaysettings,alwayspresstheAUTObuttonontheMONITOR

SETUPOSD.(OnlysupportedinAnalogMode)

Thebestdisplay

mode

19M38A/19M38D:1366x768

20M38A/20M38D/20M38H:1600x900

22M38A/22M38D/22M38H/24M38A/24M38D/24M38H/27MP38HQ/

27MP38VQ:1920x1080

Youcanchoosetheinputsignal.

• Whentwoinputsignalsareconnected,youcanselecttheinputsignal(D-SUB/DVI-D/

HDMI)youwant.

• Whenonlyonesignalisconnected,itisautomaticallydetected.Thedefaultsettingis

D-SUB.

EXIT

EXITtheOSD(OnScreenDisplay).

(PowerButton) Turnsthepoweronoroff.

PowerIndicator Thepowerindicatorstayswhiteifthedisplayisrunningproperly(On

Mode).IfthedisplayisinSleepMode,thepowerindicatorblinks

white.

FUNC.

AUTO

INPUT EXIT

READER

ENG

ENGLISH

CUSTOMIZING SETTINGS

CustomizingSettings

MenuSettings

1 PressMENUbuttononthebottomoftheMonitorset

todisplaytheMenuOSD.

2 Settheoptionsbypressingthe◄or►or▼

buttons.

3 Selectthe"NextMenu"buttontoenterthemore

optionsettings.

4 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,

usetheuparrow( )button.

Eachoptionisexplainedbelow.

Menu Analog Digital HDMI Description

Brightness ● ● ● Toadjustthebrightness,contrastofthescreen.

Contrast ● ● ●

ResponseTime

27MP38VQ 27MP38HQ ● ●

Youcansetaresponsetimefordisplayedpicturesbasedonthe

speedofthescreen.Foranormalenvironment,itisrecommended

thatyouuse'Off'.Forafast-movingpicture,itisrecommendedthat

youuse'High'.

Wide/Original

● ● ●

Wide

Switchtofullscreenmodeaccordingtoinputimagesignal.

Original

Changetheinputimagesignalratiotooriginal.

*ThisfunctionworksonlyifinputresolutionislowerthanMonitor

setratio(16:9).

Reset ● ● ● Restoreallfactorydefaultsettings.Pressthe◄,►buttonstoreset

immediately.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Menu>NextMenu Analog Digital HDMI Description

Picture Sharpness ● ● ● Toadjusttheclearnessofthescreen

BlackLevel

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

●Tosetoffsetlevel

OverScan

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

●Toimprovetheclarityandstabilityofthe

screen

Color Gamma

● ● ● Tocustomizethecolorofthescreen

ColorTemp

SixColor

27MP38VQ 27MP38HQ

ColorReset

27MP38VQ 27MP38HQ

Display Horizontal ●Toadjustthepositionofthescreen

Vertical

Clock ●Toimprovetheclarityandstabilityofthe

screen

Phase

Audio

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

Volume ● Toadjustthevolume

Others Language ● ● ●

Tocustomizethescreenstatusforauser's

operatingenvironment

PowerIndicator

AutomaticStandby

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ ● ● ●

Resolution ●

 Analog:D-SUB(Analogsignal)input.

 Digital:DVI-D(Digitalsignal)input.

 HDMI:HDMI(Digitalsignal)input.

ENG

ENGLISH

CUSTOMIZING SETTINGS


1 PressMENUbuttononthebottomoftheMonitorset

todisplaytheMenuOSD.

2 Selectthe"NextMenu"buttontoenterthemore

optionsettings.

3 EntertoPicturebypressingthe▼button.

4 Settheoptionsbypressingthe◄or►or▼

buttons.

5 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,

usetheuparrow( )button.

Eachoptionisexplainedbelow.

Menu>NextMenu>Picture Description

Sharpness Toadjusttheclearnessofthescreen.

BlackLevel

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

Youcansettheoffsetlevel.Ifyouselect'High',thescreenwillbebrightandif

youselect‘Low’,thescreenwillbedark.(onlyforHDMIinput)

*Offset?Asthecriteriaforvideosignal,itisthedarkestscreenthemonitorcan

show.

OverScan

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

ToselecttherangeofoutputimageforDTVtiminginHDMIinput.(onlyforHDMI

input)RecommendoverscanfunctiontoturnonwhenconnectAVequipment.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Color

1 PressMENUbuttononthebottomoftheMonitorset

todisplaytheMenuOSD.

2 Selectthe"NextMenu"buttontoenterthemore

optionsettings.

3 SelectColorbypressingthe►button.

4 EntertoColorbypressingthe▼button.

5 Settheoptionsbypressingthe◄or►or▼

buttons.

6 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,

usetheuparrow( )button.

Eachoptionisexplainedbelow.

Menu>NextMenu>Color Description

Gamma Setyourowngammavalue.:Gamma0,Gamma1,Gamma2,Offon

themonitor,highgammavaluesdisplaywhitishimagesandlowgamma

valuesdisplayblackishimages.

Ifuserdon'twantadjustedgamma,usercanselectGammaoff.

ColorTemp Custom

•Red:Setyourownredcolorlevels.

•Green:Setyourowngreencolorlevels.

•Blue:Setyourownbluecolorlevels.

Selectthescreencolor.

Warm:Setthescreentowarmcolortemperature(morered).

Medium:Setthescreentomediumcolortemperature.

Cool:Setthescreentocoolcolortemperature(moreblue).

SixColor

27MP38VQ 27MP38HQ

Setsandstoresthehueandsaturationforsixcolors(Red/Green/Blue/Cyan/

Magenta/Yellow)tosatisfythecolorrequirementsofauser.

Hue Adjuststhescreenhue.

Saturation Adjuststhecolorsharpnessonthescreen.Lowervaluesmake

thecolorsharpnessweakerandcolorslighterwhilehigher

valuesmakethecolorsharpnessstrongerandcolorsdark.

ColorReset

27MP38VQ 27MP38HQ

Resetsthecolorsettingstothefactorydefaultsettingsforthecurrentinput

device.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Display

1 PressMENUbuttononthebottomoftheMonitorset

todisplaytheMenuOSD.

2 Selectthe"NextMenu"buttontoenterthemore

optionsettings.

3 SelectDisplaybypressingthe►button.

4 EntertoDisplaybypressingthe▼button.

5 Settheoptionsbypressingthe◄or►or▼

buttons.

6 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,

usetheuparrow( )button.

Eachoptionisexplainedbelow.

Audio

1 PressMENUbuttononthebottomoftheMonitorsettodisplay

theMenuOSD.

2 Selectthe"NextMenu"buttontoenterthemoreoption

settings.

3 SelectAudiobypressingthe►button.

4 EntertoVolumebypressingthe▼button.

5 Settheoptionsbypressingthe◄or►buttons.

6 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,usethe

uparrow( )button.

Eachoptionisexplainedbelow.

Menu>NextMenu>Display Description

Horizontal Tomoveimageleftandright.

Vertical Tomoveimageupanddown.

Clock Tominimizeanyverticalbarsorstripesvisibleonthescreenbackground.The

horizontalscreensizewillalsochange.

Phase Toadjustthefocusofthedisplay.Thisitemallowsyoutoremoveanyhorizontal

noiseandclearorsharpentheimageofcharacters.

Menu>NextMenu>Audio Description

Volume Toadjustthevolumeofheadphone/earphone.(OnlyforHDMIinput)

20M38H 22M38H 24M38H

27MP38VQ 27MP38HQ

ENG

ENGLISH

CUSTOMIZING SETTINGS

Others

1 PressMENUbuttononthebottomoftheMonitorset

todisplaytheMenuOSD.

2 Selectthe"NextMenu"buttontoenterthemore

optionsettings.

3 SelectOthersbypressingthe►button.

4 EntertoOthersbypressingthe▼button.

5 Settheoptionsbypressingthe◄or►or▼

buttons.

6 SelectEXITtoleavetheOSDmenu.

Toreturntotheuppermenuorsetothermenuitems,

usetheuparrow( )button.

Eachoptionisexplainedbelow.

Menu>NextMenu>Others Description

Language Tochoosethelanguageinwhichthecontrolnamesaredisplayed.

PowerIndicator UsethisfunctiontosetthepowerindicatoronthebottomsideofthemonitortoOnor

Off.IfyousetOff,itwillgooff.

IfyousetOnatanytime,thepowerindicatorwillautomaticallybeturnedon.

AutomaticStandby

20M38H

24M38H

22M38H

27MP38VQ 27MP38HQ

Themonitorwillautomaticallyswitchtostandbymodeafteracertainperiod.

Resolution Usercansetthedesiredresolution.Thefunctionisenabledonlywhenthescreen

resolutiononyourcomputerissettothefollowing,exceptthatthePCoutputwrong

resolution.

19M38A 19M38D Off,1024x768,1280x768,1360x768,

1366x768

20M38A 22M38A

20M38D

20M38H

22M38D

22M38H

24M38A 27MP38VQ

24M38D

24M38H

27MP38HQ

Off,1024x768,1280x768,1360x768,

1366x768

Off,1280x960,1600x900

Off,1440x900,1600x900

ENG

ENGLISH

CUSTOMIZING SETTINGS

READERSetting

1 PressREADERbuttononthebottomoftheMonitor

settodisplaytheReaderModeOSD.

2 Settheoptionsbypressingthe◄or►buttons.

3 SelectEXITtoleavetheOSDmenu.

ReaderMode Description

Reader1 Itisamodethatthescreenisadjustedtothebestforthenewspaper.Ifyou

wantscreenmorebright,youcancontrolbrightnessinMenuOSD.

Reader2 Itisamodethatthescreenisadjustedtothebestforthecartoon.Ifyouwant

screenmorebright,youcancontrolbrightnessinMenuOSD.

ReaderOff Itisamodethatreadermodeisoff.

Eachoptionisexplainedbelow.

NOTE

IfoptionofReaderModeisReader1orReader2,PictureModewillautomaticallybeCustomand

SMARTENERGYSAVINGandColorWeaknesswillautomaticallybeOff.

ENG

ENGLISH

CUSTOMIZING SETTINGS

SMART ENERGY SAVING

1 Press FUNC. button on the bottom of the Monitor set to

display the FUNC. OSD.

2 Enter to SMART ENERGY SAVING by pressing the ▼

button.

3 Set the options by pressing the ◄ or ► buttons.

4 Select EXIT to leave the OSD menu.To return to the

upper menu or set other menu items, use the up arrow

( ) button.

Each option is explained below.

SMART ENERGY SAVING Description

High

Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.

Low

Enables SMART ENERGY SAVING you can save energy with this energy- low efficient

function.

Off Disables SMART ENERGY SAVING .

ySaving Data depends on the Panel. So,those values should be different from each panel and panel

vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or

lower depend on source.

y If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom and

Reader Mode and Color Weakness will automatically be Off.

NOTE

FUNC. Setting

* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

ENG

ENGLISH

CUSTOMIZING SETTINGS

PictureMode

1 PressFUNC.buttonon thebottomoftheMonitorset

todisplaytheFUNC.OSD.

2 SelectPictureModebypressingthe►button.

3 EntertoPictureModebypressingthe▼button.

4 Settheoptionsbypressingthe◄or►buttons.

5SelectEXITtoleavetheOSDmenu.Toreturntothe

uppermenuorsetothermenuitems,usetheup

arrow( )button.

PictureMode Description

Custom Itisamodethattheusercanadjusteachelement.ItcanadjustthecolormodeoftheMainMenu.

Text Itisamodethatthescreenisadjustedtothebestforthetextworks.

Photo Itisamodethatthescreenisadjustedtothebesttoviewpictures.

Cinema Itisamodethatthescreenisadjustedtothebesttoviewthevideos.

Game Itisamodethatthescreenisadjustedtothebesttoplayagame.

Eachoptionisexplainedbelow.

PictureMode Description

Custom Itisamodethattheusercanadjusteachelement.ItcanadjustthecolormodeoftheMainMenu.

Vivid1 Adjuststhevideoimagefortheretailenvironmentbyenhancingthecontrast,brightness,Colour,

andsharpness.

Vivid2

Standard Adjuststheimageforthenormalenvironment.

Cinema Itisamodethatthescreenisadjustedtothebesttoviewthevideos.

NOTE

IfoptionofPictureModeisnon-Custom,ReaderMode,SMARTENERGYSAVINGandColor

WeaknesswillautomaticallybeOff.

20M38H 22M38H 24M38H

27MP38VQ 27MP38HQ

ENG

ENGLISH

CUSTOMIZING SETTINGS

1PressFUNC.buttononthebottomoftheMonitorset

todisplaytheFUNC.OSD.

2 SelectColorWeaknessbypressingthe►button.

3 EntertoColorWeaknessbypressingthe▼button.

4 Settheoptionsbypressingthe◄or►buttons.

5 SelectEXITtoleavetheOSDmenu.Toreturntothe

uppermenuorsetothermenuitems,usetheup

arrow( )button.

Eachoptionisexplainedbelow.

ColorWeakness Description

On Thismodeisforuserswhocannotdistinguishbetweenredandgreen.Itenables

userswithcolorweaknesstoeasilydistinguishbetweenthetwocolors.

Off

ItisamodethatColorWeaknessmodeisoff.

ColorWeakness

NOTE

 Thisissubsidiaryforcolorweaknessuser.Thereforeifyoufeeluncomfortablewiththescreen,please

turnoffthisfunction.

 Thisfunctioncan’tdistinguishsomecolorsinsomeimages.

 IfoptionofColorWeaknessisnotOff,ReaderModeandSMARTENERGYSAVINGwillbeOffand

PictureModewillautomaticallybeCustom.

ENG

ENGLISH

TROUBLESHOOTING

Checkthefollowingbeforecallingforservice.

Noimageappears

Isthepowercordofthedisplay

connected?



Checkandseeifthepowercordisconnectedproperlytothepower

outlet.

Isthepowerindicatorlighton? 

PressthePowerbutton.

Isthepowerindicatorflickering? 

Ifthedisplayisinpowersavingmode,trymovingthemouseor

pressinganykeyonthekeyboardtobringupthescreen.



TrytoturnonthePC.

Doyouseean"OUTOFRANGE"

messageonthescreen?



ThismessageappearswhenthesignalfromthePC(videocard)is

outofhorizontalorverticalfrequencyrangeofthedisplay.Seethe

'Specifications'sectionofthismanualandconfigureyourdisplay

again.

Doyouseea"NOSIGNAL"

messageonthescreen?



Whenthemonitorison"No-Signal"in5minutes,themonitorgoesto

DPMmode.

Doyouseea"OSDLOCKED"messageonthescreen?

Doyousee“OSDLOCKED”when

youpushMENUbutton?



Youcansecurethecurrentcontrolsettings,sothattheycannotbe

inadvertentlychanged.YoucanunlocktheOSDcontrolsatanytime

bypushingtheMENUbuttonforseveralseconds:themessage“OSD

UNLOCKED”willappear.

Displayimageisincorrect

DisplayPositionisincorrect. 

PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto

theidealsetting.

Onthescreenbackground,vertical

barsorstripesarevisible.



PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto

theidealsetting.

Anyhorizontalnoiseappearingin

anyimageorcharactersarenot

clearlyportrayed.



PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto

theidealsetting.



CheckControlPanel►Display►Settingsandadjustthedisplay

totherecommendedresolutionoradjustthedisplayimagetotheideal

setting.Setthecolorsettinghigherthan24bits(truecolor).

ENG

ENGLISH

TROUBLESHOOTING

Displayimageisincorrect

Thescreencolorismonoor

abnormal.



Checkifthesignalcableisproperlyconnectedanduseascrewdriver

tofastenifnecessary.



Makesurethevideocardisproperlyinsertedintheslot.



Setthecolorsettinghigherthan24bits(truecolor)atControlPanel

►Settings.

Thescreenblinks. 

Checkifthescreenissettointerlacemodeandifyes,changeittothe

recommendresolution.

Doyouseean"Unrecognizedmonitor,Plug&Play(VESADDC)monitorfound"message?

Haveyouinstalledthedisplay

driver?



BesuretoinstallthedisplaydriverfromthedisplaydriverCD(or

diskette)thatcomeswithyourdisplay.Or,youcanalsodownloadthe

driverfromourwebsite:http://www.lg.com.



MakesuretocheckifthevideocardsupportsPlug&Playfunction.

 CheckControlPanel►Display►Settingsandseeifthefrequencyortheresolutionwere

changed.Ifyes,readjustthevideocardtotherecommendresolution.

 Iftherecommendedresolution(optimalresolution)isnotselected,lettersmaybeblurredandthe

screenmaybedimmed,truncatedorbiased.Makesuretoselecttherecommendresolution.

 ThesettingmethodcandifferbycomputerandO/S(OperationSystem),andresolutionmentioned

abovemaynotbesupportedbythevideocardperformance.Inthiscase,pleaseasktothecomputer

orthevideocardmanufacturer.

CAUTION

ENG

ENGLISH

SPECIFICATIONS

SPECIFICATIONS

Display ScreenType FlatPanelActivematrix-TFTLCD

Anti-Glarecoating

PixelPitch 0.3mmx0.3mm(PixelPitch)

Resolution Max 1366x768@60Hz

Recommend VESA1366x768@60Hz

Powerconsump-

tion(Typ.)

OnMode:13W(ENERGYSTAR®standard)*

SleepMode≤0.3W

OffMode≤0.3W

PowerInput 19V 0.8A

AC-DCAdapter TypeADS-18SG-19-319016G,manufacturedbySHENZHENHONORELECTRONIC

orTypeADS-18FSG-1919016GPG,manufacturedbySHENZHENHONORELECTRONIC

orTypeADS-18FSG-1919016GPI,manufacturedbySHENZHENHONORELECTRONIC

orTypeADS-18FSG-1919016GPCU,manufacturedbySHENZHENHONORELECTRONIC

orTypeADS-18FSG-1919016GPB,manufacturedbySHENZHENHONORELECTRONIC

orTypeADS-18FSG-1919016EPCU-L,manufacturedbySHENZHENHONORELECTRONIC

orTypeLCAP42,manufacturedbyLIENCHANGELECTRONICENTERPRISE

orTypeLCAP36-A,manufacturedbyLIENCHANGELECTRONICENTERPRISE

orTypeLCAP36-E,manufacturedbyLIENCHANGELECTRONICENTERPRISE

orTypeLCAP36-I,manufacturedbyLIENCHANGELECTRONICENTERPRISE

orTypeLCAP36-U,manufacturedbyLIENCHANGELECTRONICENTERPRISE

orTypeLCAP60-A,manufacturedbyLIENCHANGELECTRONICENTERPRISE

OUTPUT:19V 0.84A

Dimensions

(WidthxHeightx

Depth)

WithStand 441.3mmx350.2mmx167.8mm

WithoutStand 441.3mmx278.1mmx57.3mm

Weight 1.9kg

TiltRange -5°to20°

Environmental

conditions

OperatingTemperature

OperatingHumidity

0°Cto40°C

≤80%

StorageTemperature

StorageHumidity

-20°Cto60°C

≤85%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

*Thepowerconsumptionlevelcanbedifferentbyoperatingconditionandmonitorsetting.

*TheOnmodepowerconsumptionismeasuredwithENERGYSTAR®teststandard.

*ENERGYSTAR®isaUSregisteredmarkoftheUnitedStatesEnvironmentalProtectionAgency.

19M38A 19M38D

ENG

ENGLISH

SPECIFICATIONS

19M38A 19M38D

Video Signal Horizontal

Frequency

30 kHz to 83 kHz (Automatic)

30 kHz to 61 kHz (Automatic) ● ●

Vertical

Frequency

56 Hz to 75 Hz (D-SUB) ● ●

56 Hz to 75 Hz (DVI-D) ●

56 Hz to 75 Hz (HDMI)

Synchronization Separate Sync. ● ●

Digital ●

Input Connector 15 pin D-SUB Connector ● ●

DVI-D Connector (Digital) ●

HDMI Connector

ENG

ENGLISH

SPECIFICATIONS

SPECIFICATIONS

Display ScreenType FlatPanelActivematrix-TFTLCD

Anti-Glarecoating

PixelPitch 0.271mmx0.262mm(PixelPitch)

Resolution Max 1600x900@60Hz

Recommend VESA1600x900@60Hz

Powerconsump-

tion(Typ.)

OnMode:16W(ENERGYSTAR®standard)*
