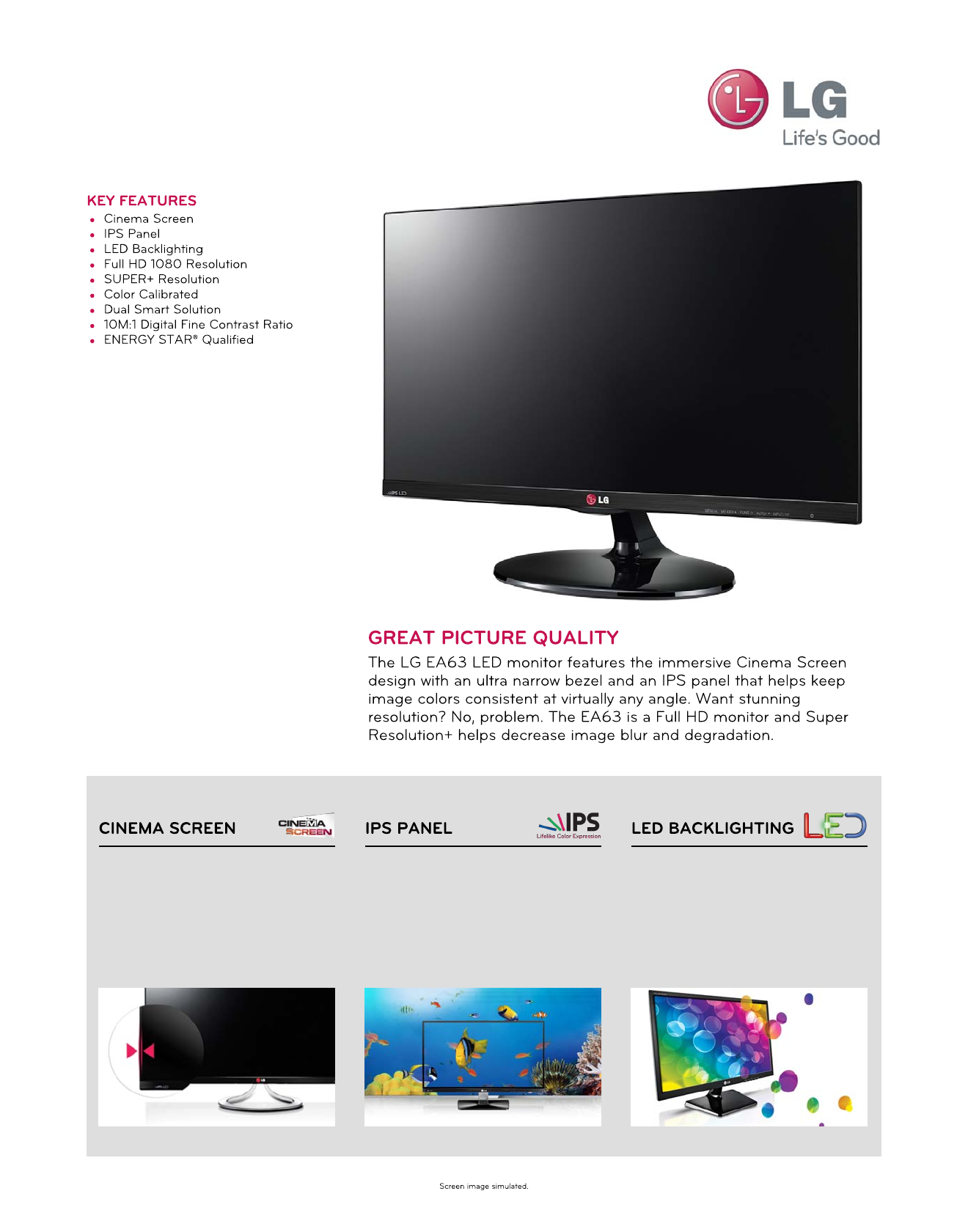

MONITOR
27" Class Slim IPS LED Monitor
27EA63V-P
Designed with pure inspiration and cutting-edge
technology, CINEMA SCREEN design delivers an
incredibly immersive viewing experience
Super In Plane Switching or Super IPS controls the
liquid crystal display to help keep distortion at a
minimum and allows users to view images on the
screen at virtually any angle.
Want deeper blacks and richer colors? LG’s LED
technology provides even greater control of
brightness and delivers better contrast, amazing
clarity and color detail, as well as greater energy
efficiency compared to conventional LCD Monitors.
MONITOR
27" Class Slim IPS LED Monitor
27EA63V-P
PANEL
INPUT / OUTPUT
POWER
SPECIAL FEATURES
STAND
DIMENSIONS & WEIGHTS
STANDARD
INCLUDED ACCESSORIES
WARRANTY/UPC
Screen Size Class (diagonal) 27" Class (27.0" diagonal)
Panel Type IPS
Aspect Ratio 16:9
Resolution 1920 x 1080
Brightness (cd/m2) 250
Digital Fine Contrast Ratio 10M:1
Response Time (GTG: On) 5ms
Viewing Angle (CR>10) 178º/178º
Panel Surface Anti-Glare, 3H
D-Sub In 1
DVI-D In 1
HDMI In 1
Headphone Out 1
Type Adapter
Input 100~240V
Consumption (On) 34W (typical)
Consumption (DC Off) >0.3W (max)
Picture Mode Yes
ez-Zooming Yes
PC Yes
Video Yes
SUPER+ Resolution Yes
Super Energy Saving Yes
Dual Package Yes
Factory Calibration Yes
DDC/CI Yes
HDCP Yes
Intelligent Auto (Auto Resolution) Yes
Plug & Play Yes
Dual Smart Solution Yes
Detachable Base Yes
Tilt (angle) -5º (front) ~ 20º (rear)
Set with Stand (W x H x D) 24.5" x 17.7" x 7.6"
Set without Stand (W x H x D) 24.5" x 14.7" x 2.0"
Shipping Dimensions (W x H x D) 27.8" x 17.9" x 5.6"
Wall Mount Pattern 100mm x 100mm
Set with Stand Weight 10.1 lbs
Set without Stand Weight 9.5 lbs
Shipping Weight 14.9 lbs
UL (cUL) Yes
TUV-GS TUV-Type
FCC-B, CE Yes
EPA Yes
Microsoft Logo Win 8
Power Cable 1
D-Sub Cable 1
Limited Warranty 1 Year Parts and Labor
UPC 719192191525
