www.lg.com

IPS LED MONITOR MODEL

22MP58A

22MP58D

22MP58VQ

22MP58HQ

24MP58VQ

24MP58HQ

24MP58D

27MP58HQ

27MP58VQ

Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

ENGLISH

TABLE OF CONTENTS

CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

6 - How to Use the Joystick Button

7 - Input Connector

8 Moving and Lifting the Monitor

9 Setting up the Monitor set

9 - Attaching the Stand Base

10 - Detaching the Stand Base

11 - Mounting on a table

12 - Using the cable holder

14 USING THE MONITOR SET

14 Connecting to a PC

14 - D-SUB connection

14 - DVI-D connection

14 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

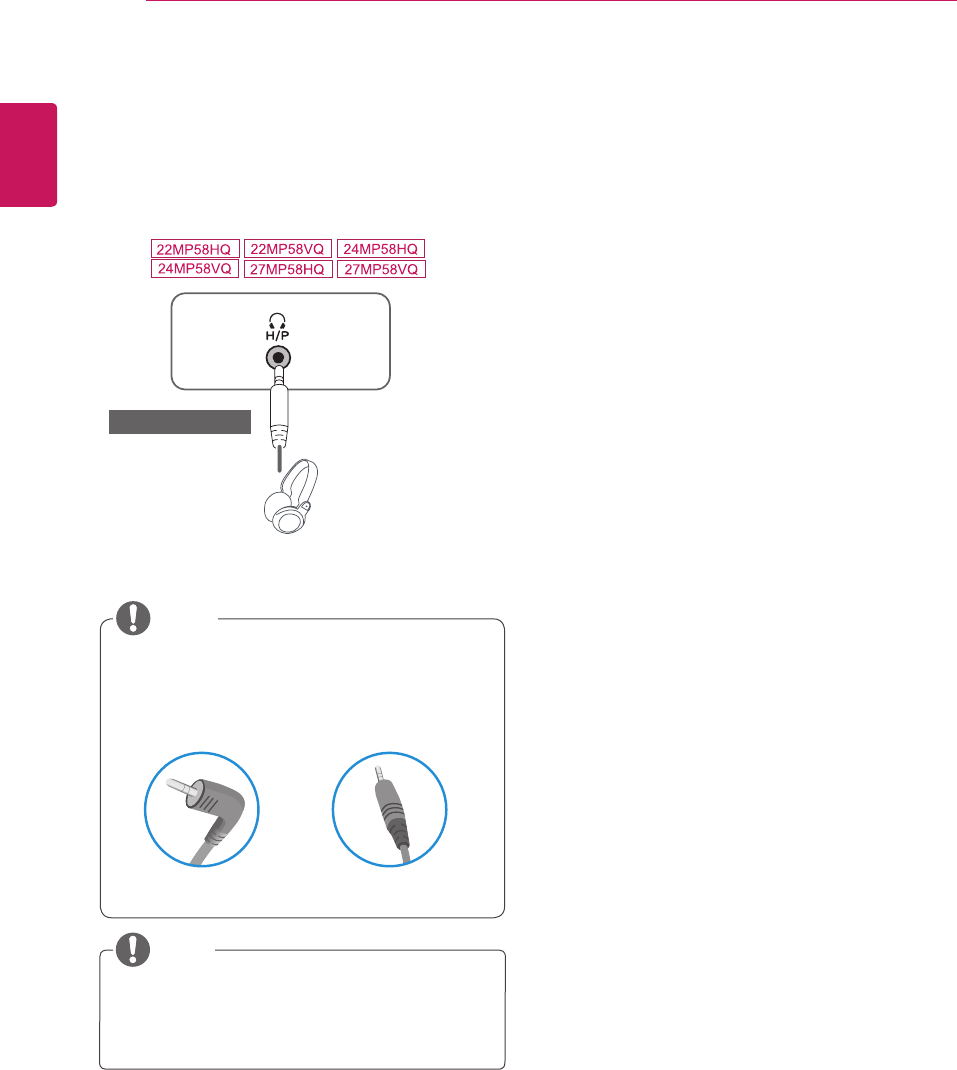

16 Connecting to External Devices

16 - Peripheral device connection

17 CUSTOMIZING SETTINGS

18 Customizing settings

18 - Menu Settings

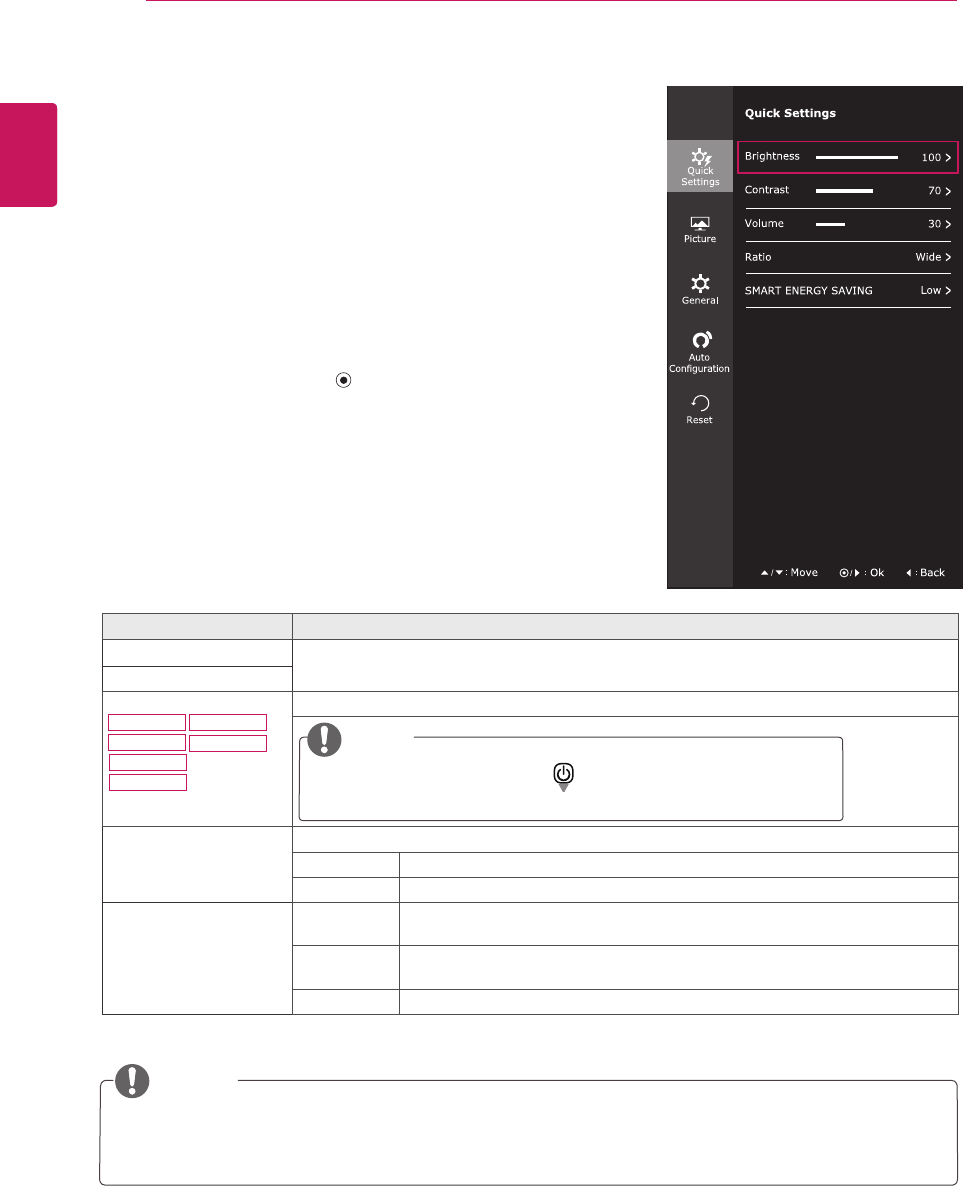

18 - -Quick Settings

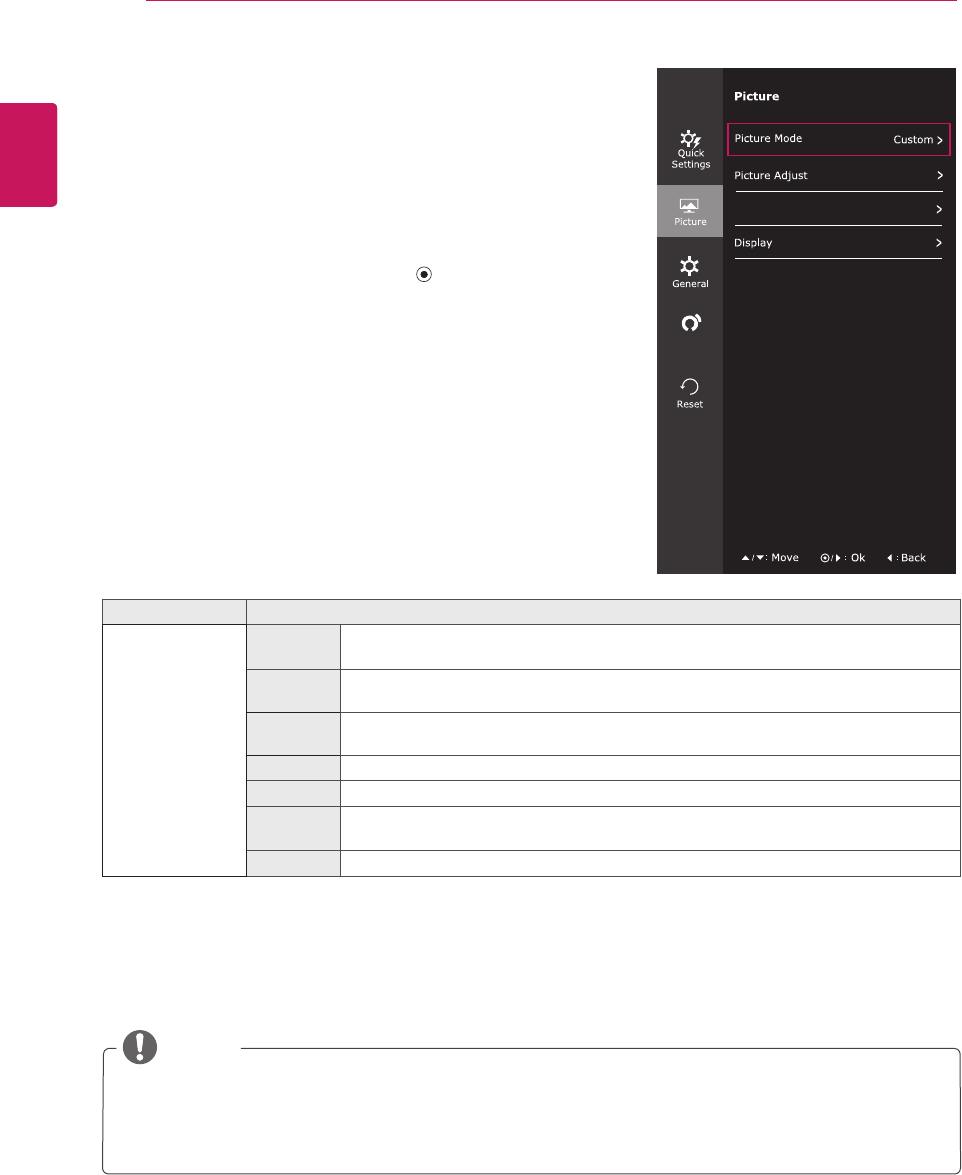

20 - -Picture

23 - -General

24 - -Auto Configuration

25 - -Reset

26 - -Picture mode

27 TROUBLESHOOTING

29 SPECIFICATIONS

35 Preset Modes (Resolution)

35 Indicator

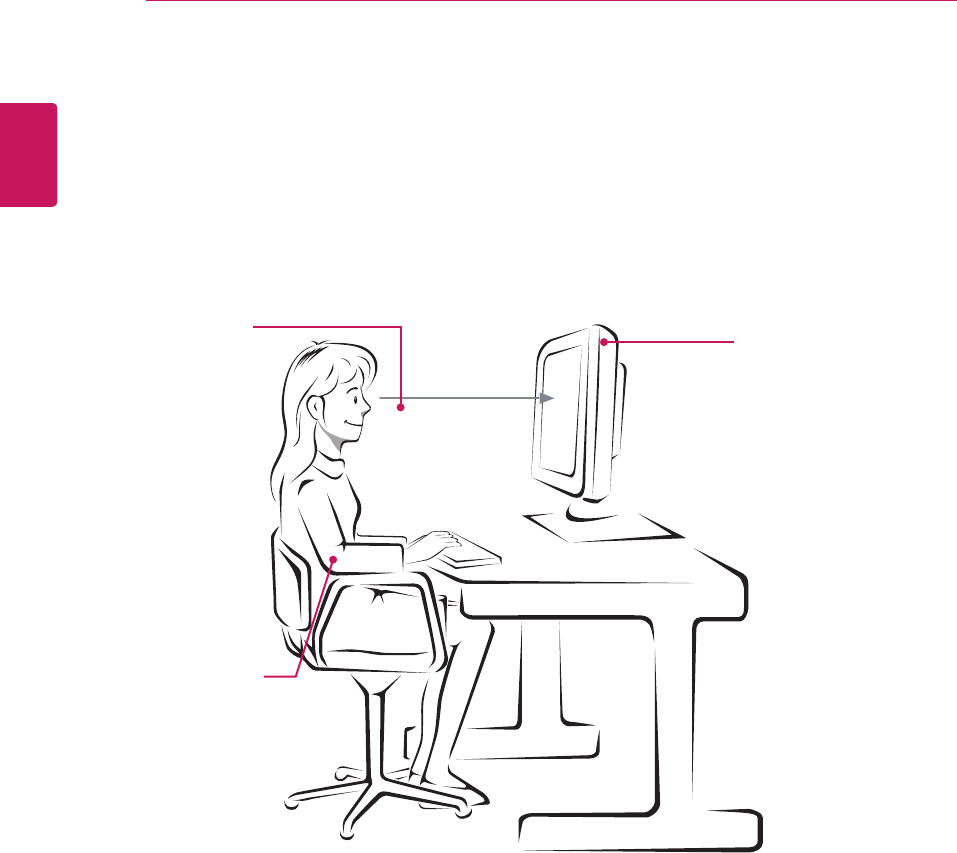

36 PROPER POSTURE

36 Proper posture for using the Monitor set.

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

22MP58VQ 22MP58HQ 24MP58HQ 27MP58VQ24MP58VQ 27MP58HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

ASSEMBLING AND PREPARING

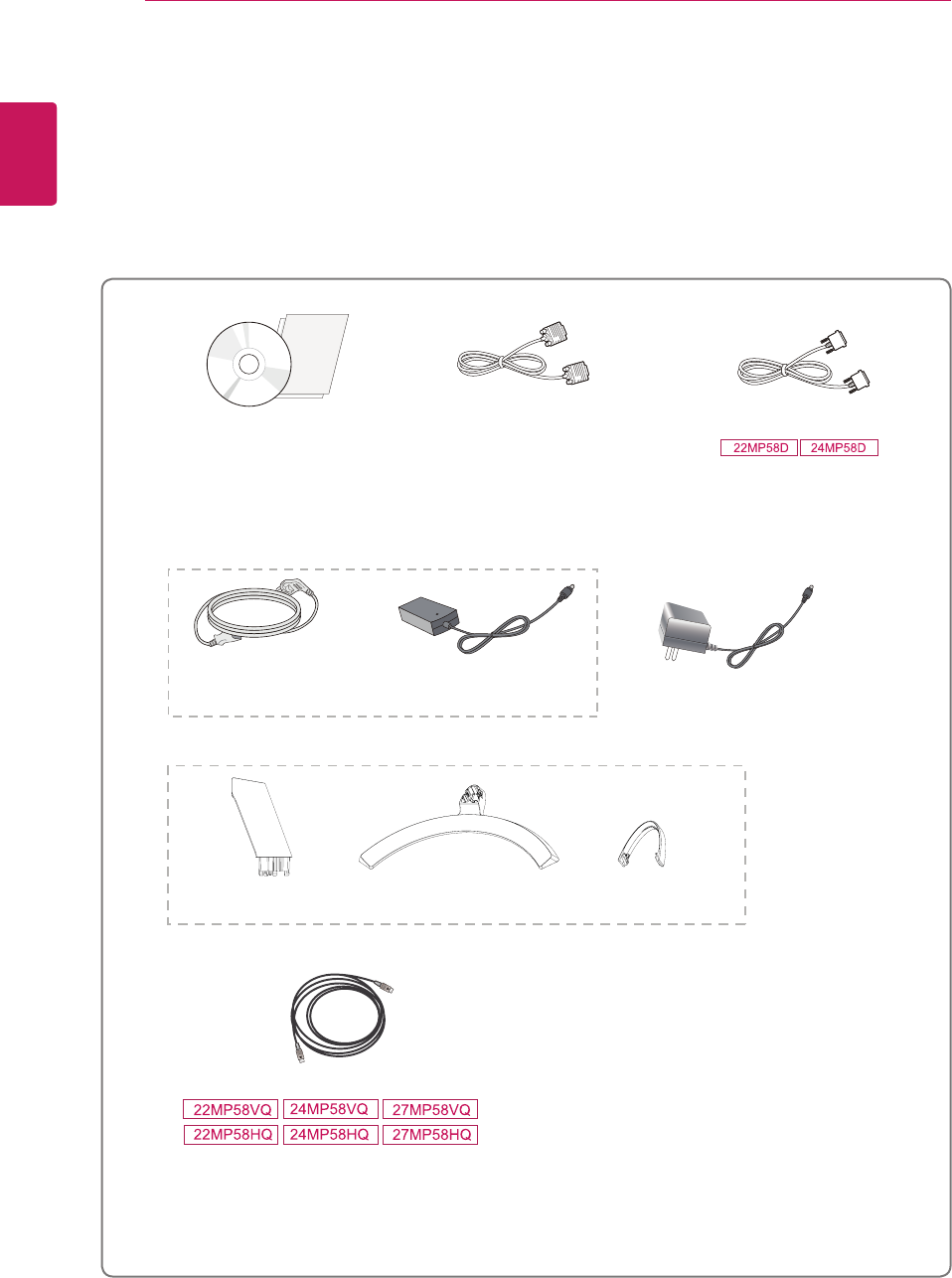

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

Stand Body Stand Base

HDMI Cable

( This cable is not included in all

countries. )

Cable Holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

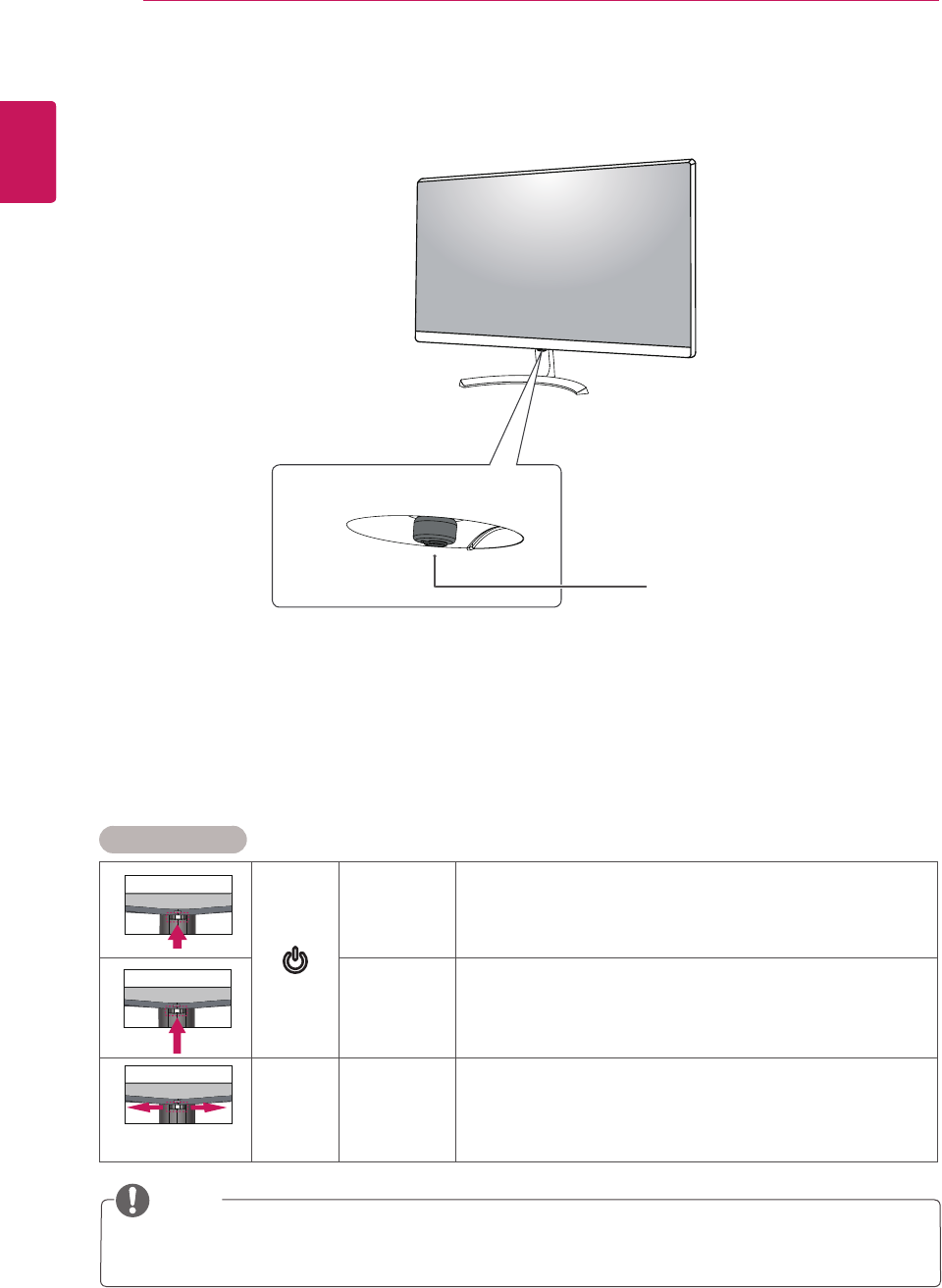

Parts and buttons

Joystick Button/

Power Indicator

y On: power is on

y Off: power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

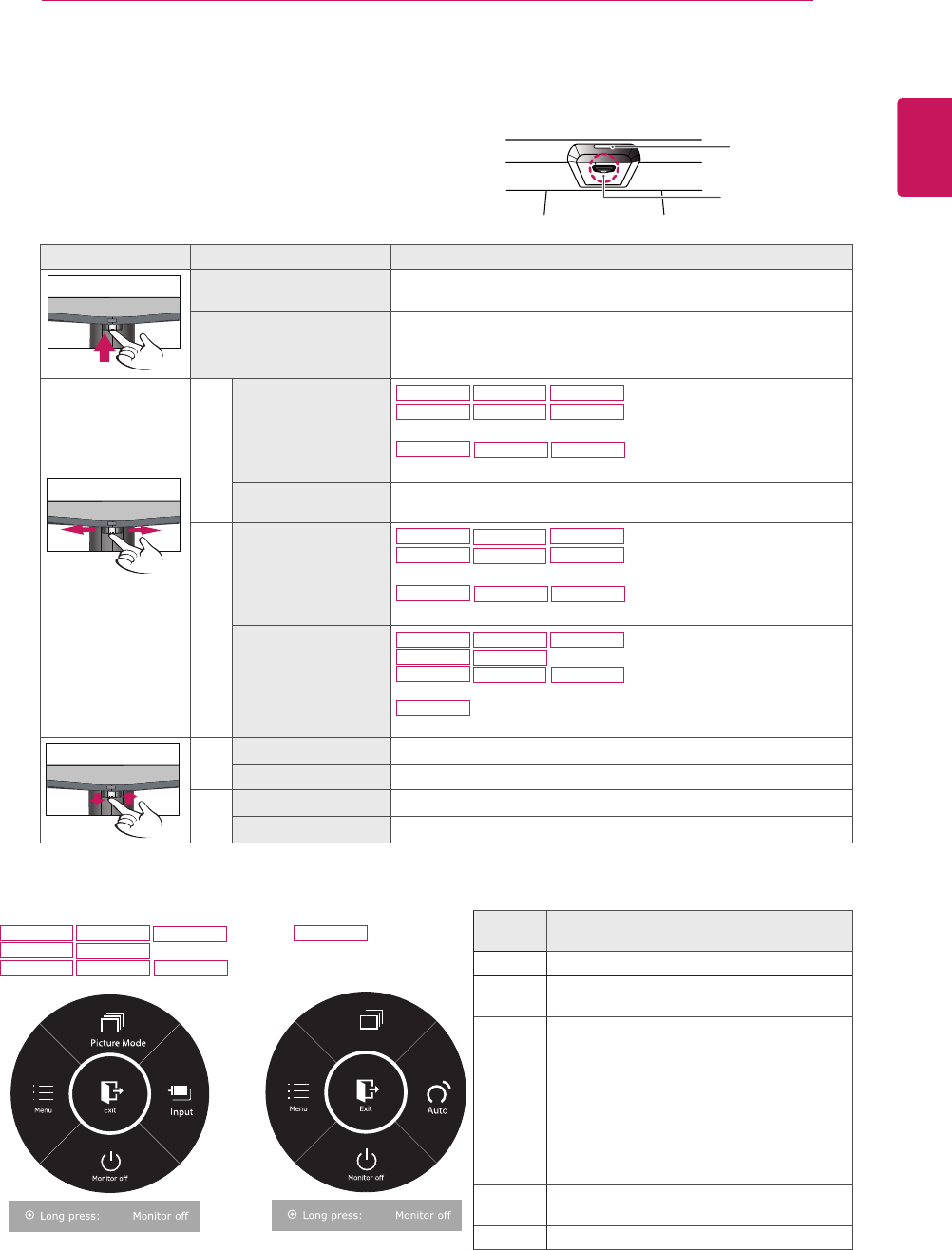

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

ASSEMBLING AND PREPARING

22MP58A

22MP58D

22MP58HQ

24MP58HQ 27MP58HQ

24MP58D

22MP58VQ

24MP58VQ 27MP58VQ

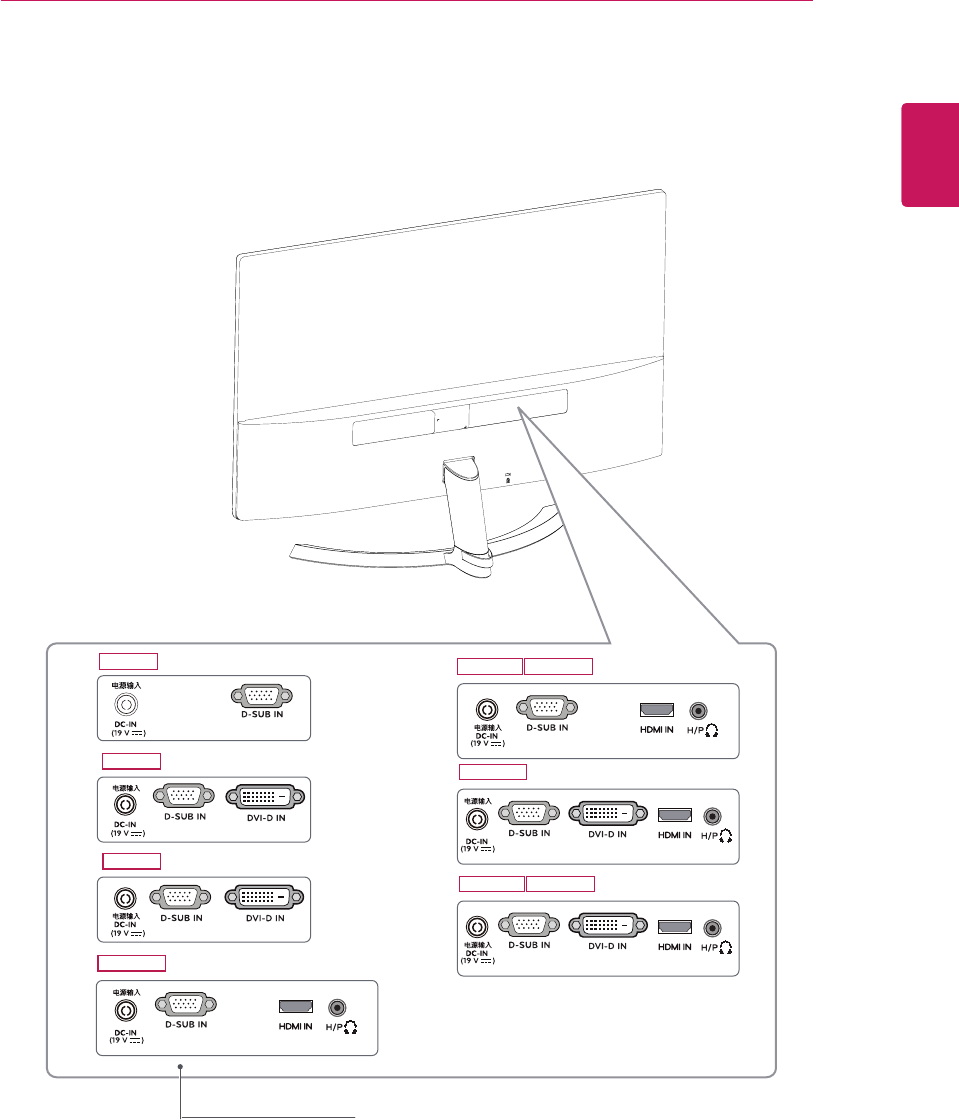

Connection panel (See p.14~16)

Parts and buttons

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

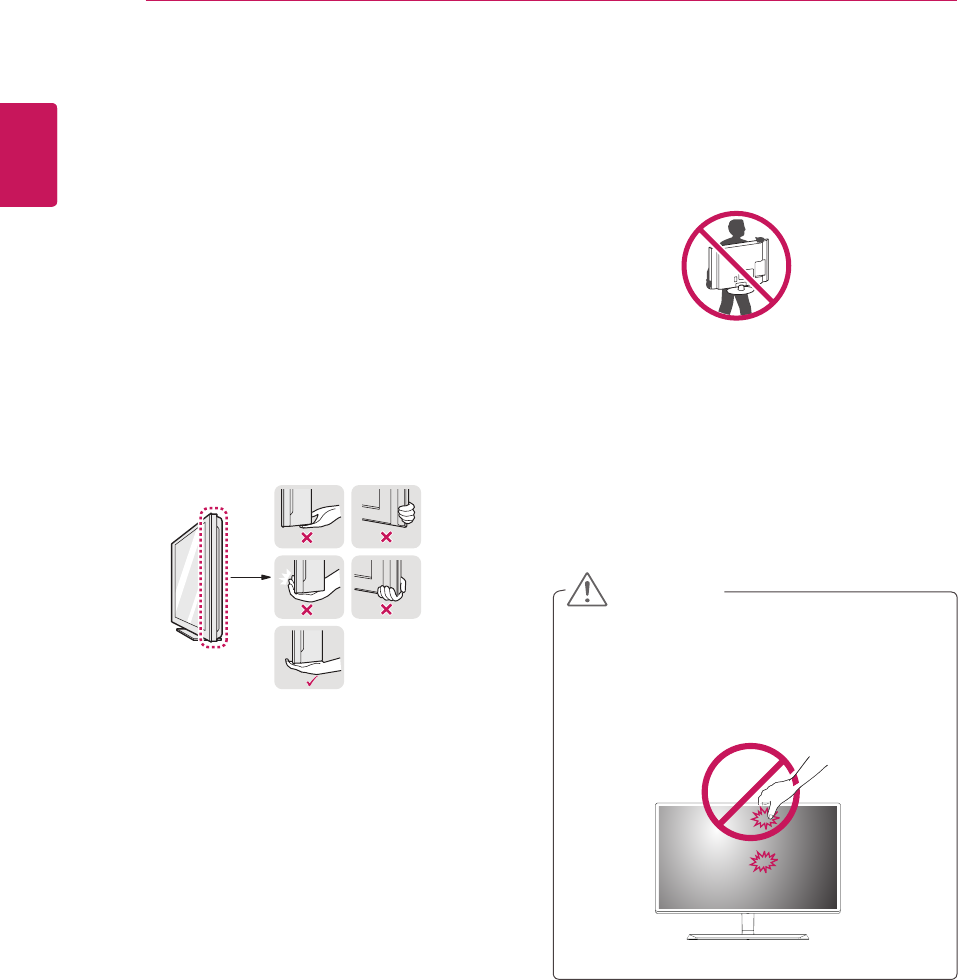

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

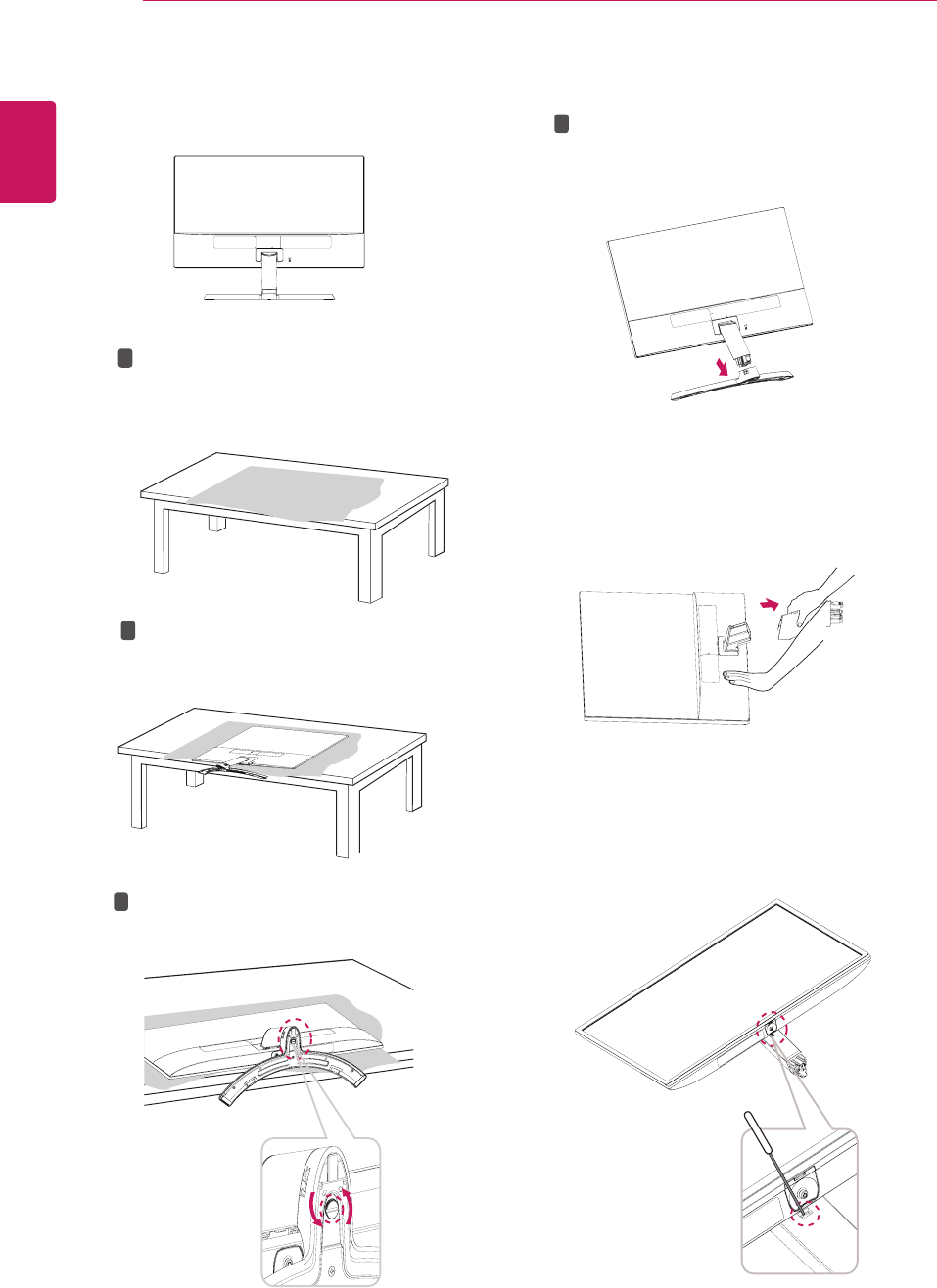

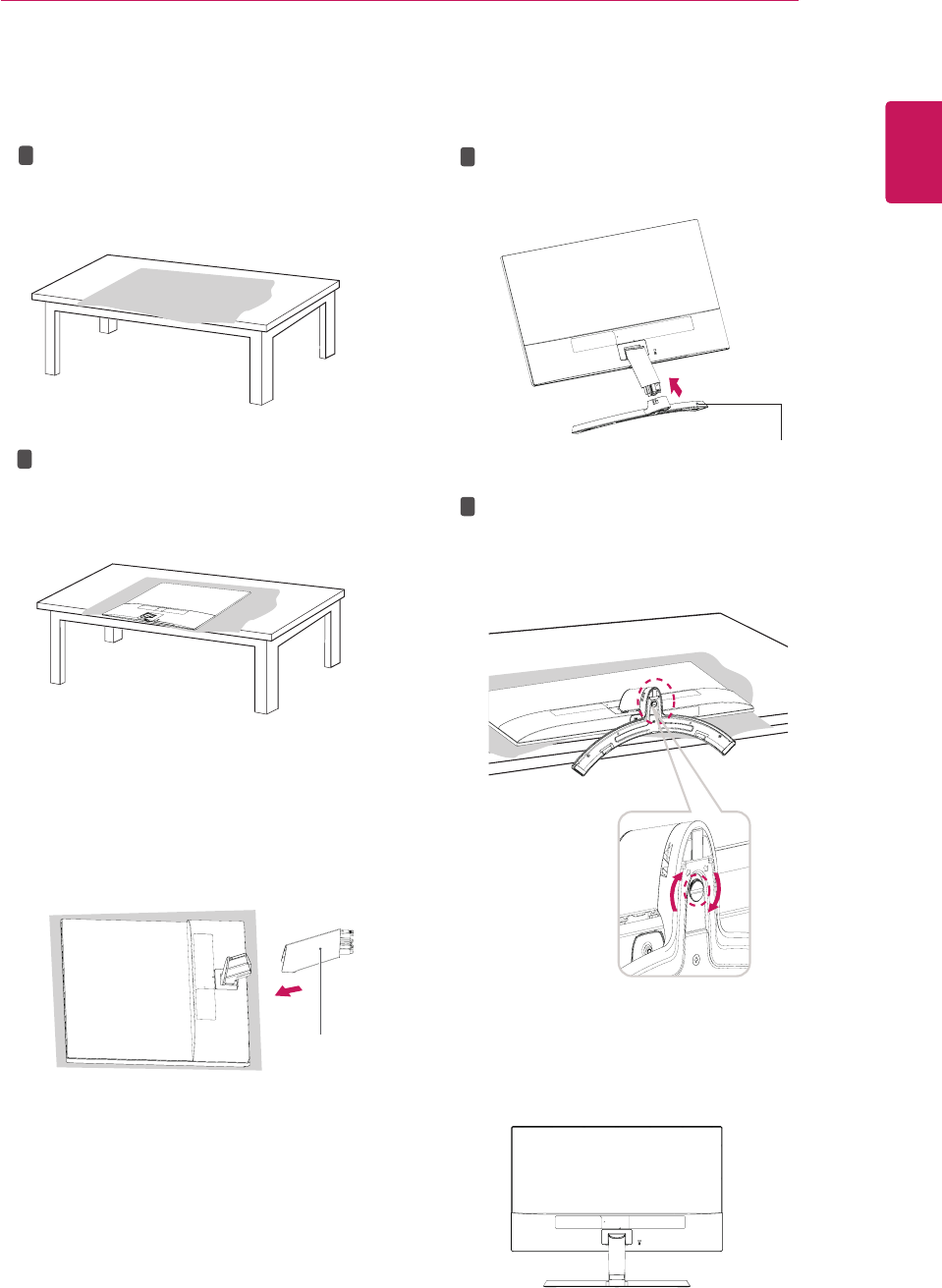

Attaching the Stand Base

1 Please put a soft cloth on a low table or box

to protect the screen of the monitor.

Please put the monitor on the soft cloth with

the screen facing down.

2 Please grab the Stand body in one hand, and

push it in the direction of the arrow to hinge

body.After assembling, you must check if the

Stand body latched in or not.

3 Please push the Stand Base in the direction

of the arrow as shown below and assemble

together.

Please use a driver(-) or coin to insert thumb

screw and turn right arrow direction lock.

* It is necessary to thoroughly tighten it with

Thumb Screw, or the monitor will shake.

4 Please set the Monitor upright, and install the

necessary cable.

* Must use one type input cable. Don't use

more than two types cable together.

Stand body

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

1 Please remove the cable installed to the monitor.

2 Please put a soft cloth on a low table or box to

protect the screen of the monitor.

Please put the monitor on the soft cloth with

the screen facing down.

3 Please use the driver(-) or coin insert thumb

screw and turn left arrow direction unlock.

Please pull the Stand Base in the direction of

the arrow as shown below and disassemble

as shown below.

4 After fixing the monitor in one hand, remove the

Stand body by pulling it strongly in the direction

of the arrow as shown below.

* If it is difficult to remove, you can push the

Latch with a small flat-head screw driver or a

flat-headed tool and disassemble as shown

below.

Detaching the Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

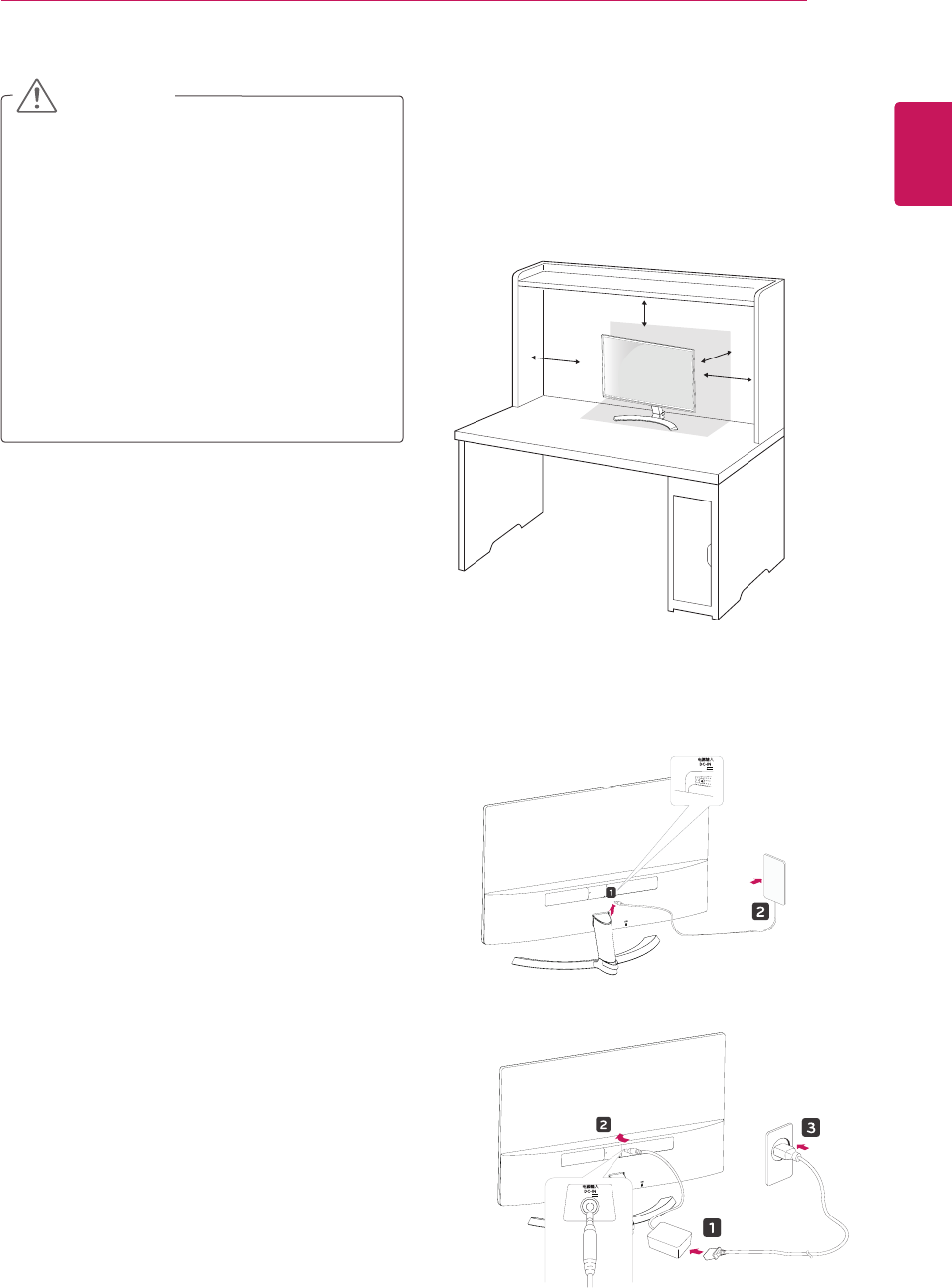

Mounting on a table

1 Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2 Connect the AC-DC Adapter and Power Cord

to a wall outlet.

10 cm

yIllustrations in this document represent typical pro-

cedures, so they may look different from the actual

product.

yDo not carry the monitor upside down by just hold-

ing the stand base. This may cause the monitor to

fall off the stand and could result in personal injury.

yWhen lifting or moving the monitor, do not touch

the monitor screen. The force applied to the moni-

tor screen may cause damage to it.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-tor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

CAUTION

(19 V )

ENG

ENGLISH

ASSEMBLING AND PREPARING

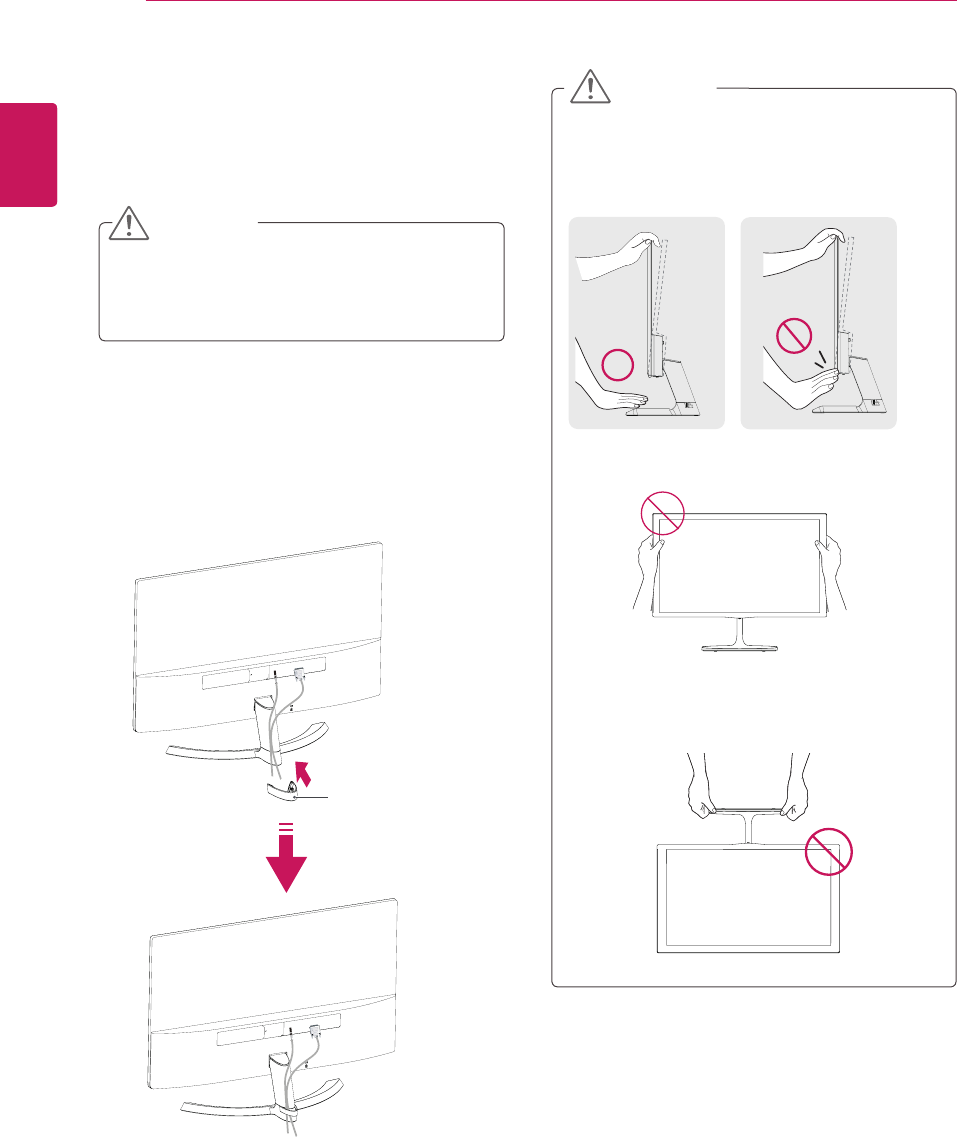

Using the cable holder

3 Press the joystick button on the bottom of the

monitor to turn on the monitor.

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Cable holder

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING

ENG

ENGLISH

ASSEMBLING AND PREPARING

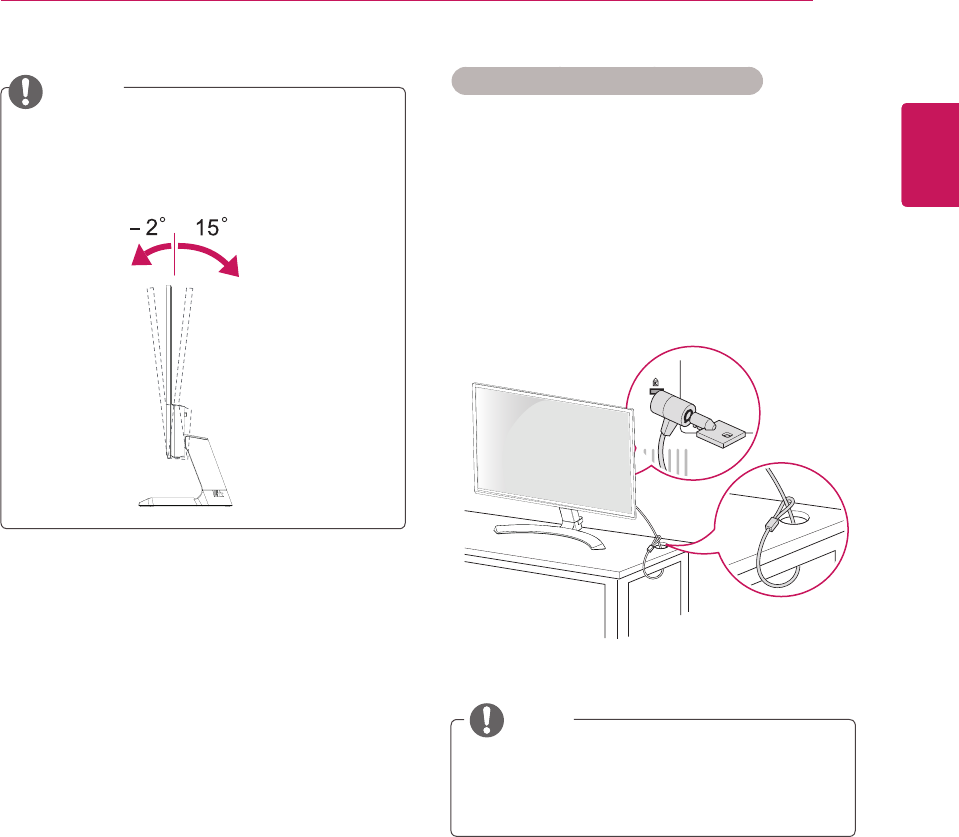

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

Tilt from +15 to -2 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front Rear

ENGLISH

USING THE MONITOR SET

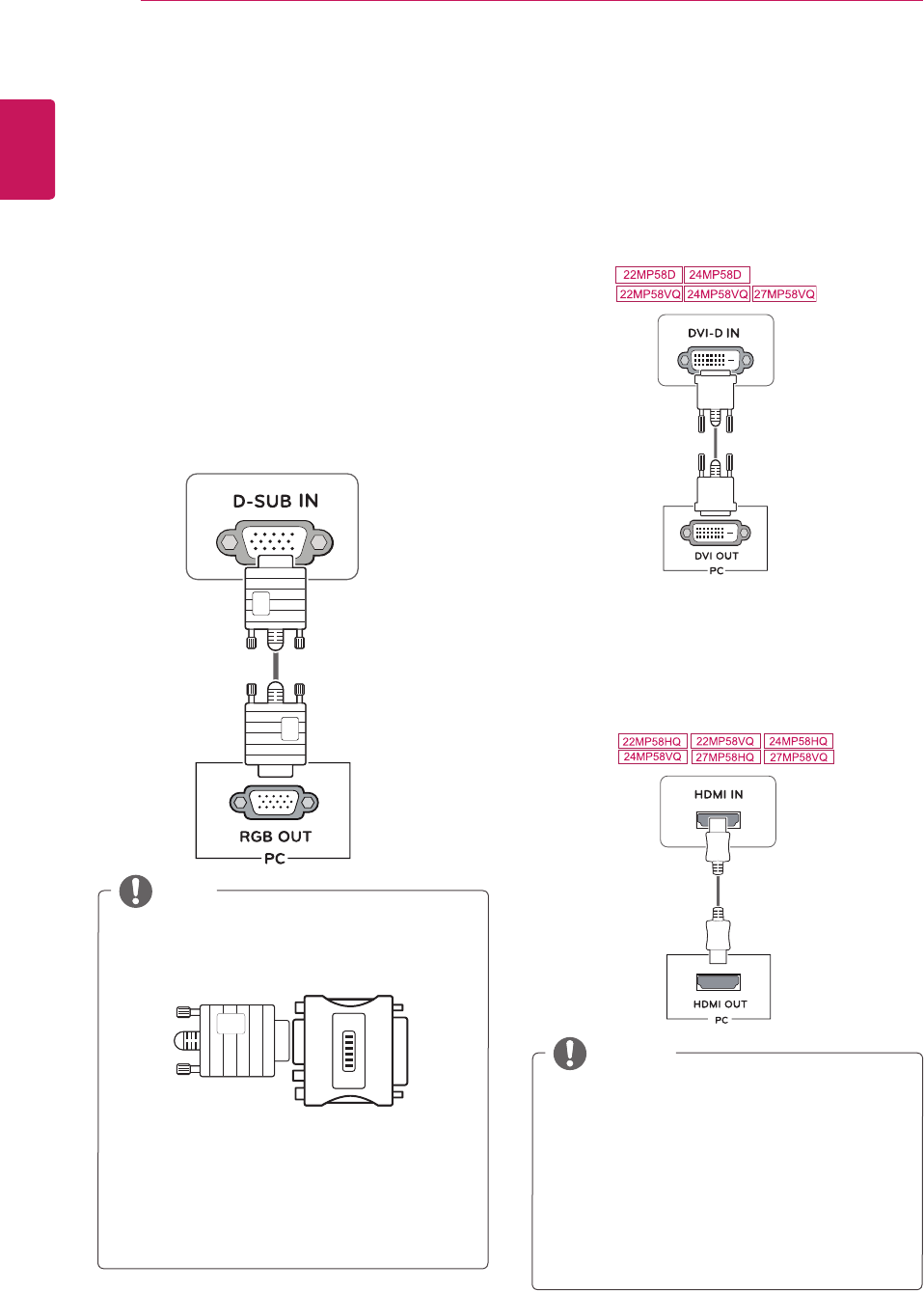

Connecting to a PC

yYour Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

NOTE

HDMI connection

Transmits the digital video and audio signals from

your PC to the Monitor set. Connect the PC and

the Monitor set with the HDMI cable as shown in

the following illustrations.

DVI-D connection

Transmits a digital video signal from your PC to the

Monitor set. Connect the PC and the Monitor set with

a DVI cable as shown in the following illustrations.

yIf you use HDMI PC, it can cause compatibility

problem.

yUse a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

yRecommended HDMI cable types

- High-Speed HDMI®/TM Cable

- High-Speed HDMI®/TM Cable with Ethernet

NOTE

ENG

ENGLISH

USING THE MONITOR SET

yConnect the signal input cable

and tighten it by turning the

screws clockwise.

yDo not press the screen with

your finger for a long time as this may

result in temporary distortion on the screen.

yAvoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION

yWhen you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/

DVI-D/HDMI) respectively in Monitor set.

yIf you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

ySome red, green, or blue spots may appear

on the screen. This is normal.

NOTE

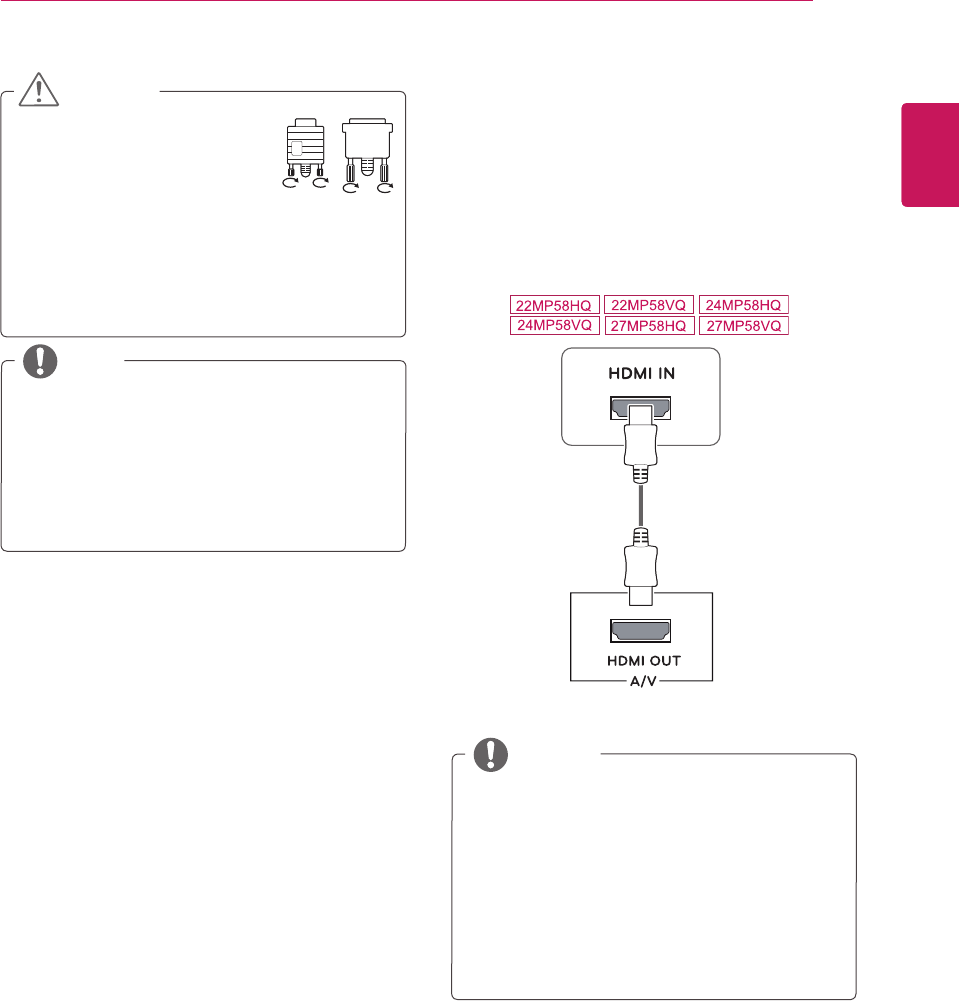

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from

your AV devices to the monitor. Connect your AV

device to the monitor with the HDMI cable as il-

lustrated below.

yIf you use HDMI PC, it can cause compatibility

problem.

yUse a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

yRecommended HDMI cable types

- High-Speed HDMI®/TM Cable

- High-Speed HDMI®/TM Cable with Ethernet

NOTE

ENGLISH

USING THE MONITOR SET

Connecting to External Devices

Peripheral device connection

Connect peripheral devices to the monitor using

headphone ports.

yPeripheral devices are sold separately.

yCables with angled plugs may have clear-

ance issues, use straight plugs when pos-

sible.

Angle Type Straight Type

NOTE

yHeadphones or speakers may not work nor-

mally, depending on the server PC settings.

(sold separately)

ENG

ENGLISH

CUSTOMIZING SETTINGS

Picture Mode

Joystick Button

Power Indicator

Picture Mode

Activating the Main Menu

Button Menu Status Description

Main menu disabled Enables the main menu.

Main menu enabled

Exits the main menu.

(Holding down the button to turn off the monitor: You can turn off

the monitor this way at any time, including when the OSD is on.)

◄

Main menu disabled

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ 27MP58VQ

27MP58HQ

Adjusts the monitor volume level.

22MP58A 22MP58D 24MP58D

Enables the main menu.

Main menu enabled Enters the menu features.

►

Main menu disabled

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ 27MP58VQ

27MP58HQ

Adjusts the monitor volume level.

22MP58A 22MP58D 24MP58D

Enables the main menu.

Main menu enabled

22MP58D 22MP58HQ

22MP58VQ

24MP58D

24MP58HQ 27MP58HQ

27MP58VQ24MP58VQ

Operates the Input change.

22MP58A

Operates the Auto function.

▲Main menu disabled Enables the main menu.

Main menu enabled Enters the picture mode feature.

▼Main menu disabled Enables the main menu.

Main menu enabled Turns off the monitor.

Main Menu Features

Main

Menu Description

Menu Configures the screen settings.


Mode

Select picture mode to achieve the best

display effect.

Input

You can operate the change of input sig nals.

• When two input signals over are con nected

and select the input menu, input signal(D-SUB/

DVI-D/HDMI) will be changed sequentially.

• When only one signal is connected, it is auto-

matically detected. The default setting is D-SUB.

Auto

Press the Auto button to automatically ad-

just your display image to the ideal setting.

(Only supported in Analog Mode)

Monitor

off Turns off the monitor.

Exit Exits the main menu.

1 Press the joystick button on the bottom of the monitor.

2 Move the joystick up/down (▲/▼) and left/right(◄/►) to

set the options.

3 Press the joystick button once more to exit the main

menu.

Picture Mode

22MP58A

22MP58D 22MP58HQ

22MP58VQ

24MP58D

24MP58HQ 27MP58HQ

27MP58VQ24MP58VQ

ENG

ENGLISH

CUSTOMIZING SETTINGS

Each option is described below.

Customizing settings

Menu Settings

-Quick Settings

1 To view the OSD menu, press the joystick button at the

bottom of the monitor and then enter the Menu.

2 Go to Quick Settings > Brightness by moving the joystick.

3 Configure the options following the instructions that appear in the

bottom right corner.

4 To return to the upper menu or set other menu items, move the

joystick to ◄ or pressing ( / OK) it.

5 If you want to exit the OSD menu, move the joystick to ◄ until you

exit.

Menu > Quick Settings Description

Brightness Adjusts the color contrast and brightness of the screen.

Contrast

Volume

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ

27MP58VQ

27MP58HQ

Adjusts the volume.

NOTE

yJog joystick button down (

) in the Volume menu will

enable/disable the Mute function.

Ratio Adjusts the screen ratio.

Wide Displays the video in wide-screen, regardless of the video signal input.

Original Displays a video according to the input video signal aspect ratio.

SMART ENERGY

SAVING

High

Enables SMART ENERGY SAVING you can save energy with this energy- high efficient

function.

Low

Enables SMART ENERGY SAVING you can save energy with this energy- low

efficient function.

Off Disables SMART ENERGY SAVING .

NOTE

yThe display may look the same for Wide, Original options at the recommended resolution (1920 x

1080).

yThe ratio is disabled in the interlaced signal.

Color Adjust

Auto

Configuration

* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.

ENG

ENGLISH

CUSTOMIZING SETTINGS

ySaving Data depends on the Panel. So,those values should be different from each panel and panel

vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or

lower depend on source.

NOTE

ENG

ENGLISH

CUSTOMIZING SETTINGS

Each option is described below.

-Picture

1 To view the OSD menu, press the joystick button at

the bottom of the monitor and then enter the Menu.

2 Go to Picture by moving the joystick.

3 Configure the options following the instructions that

appear in the bottom right corner.

4 To return to the upper menu or set other menu items,

move the joystick to ◄ or pressing ( / OK) it.

5 If you want to exit the OSD menu, move the joystick

to ◄ until you exit.

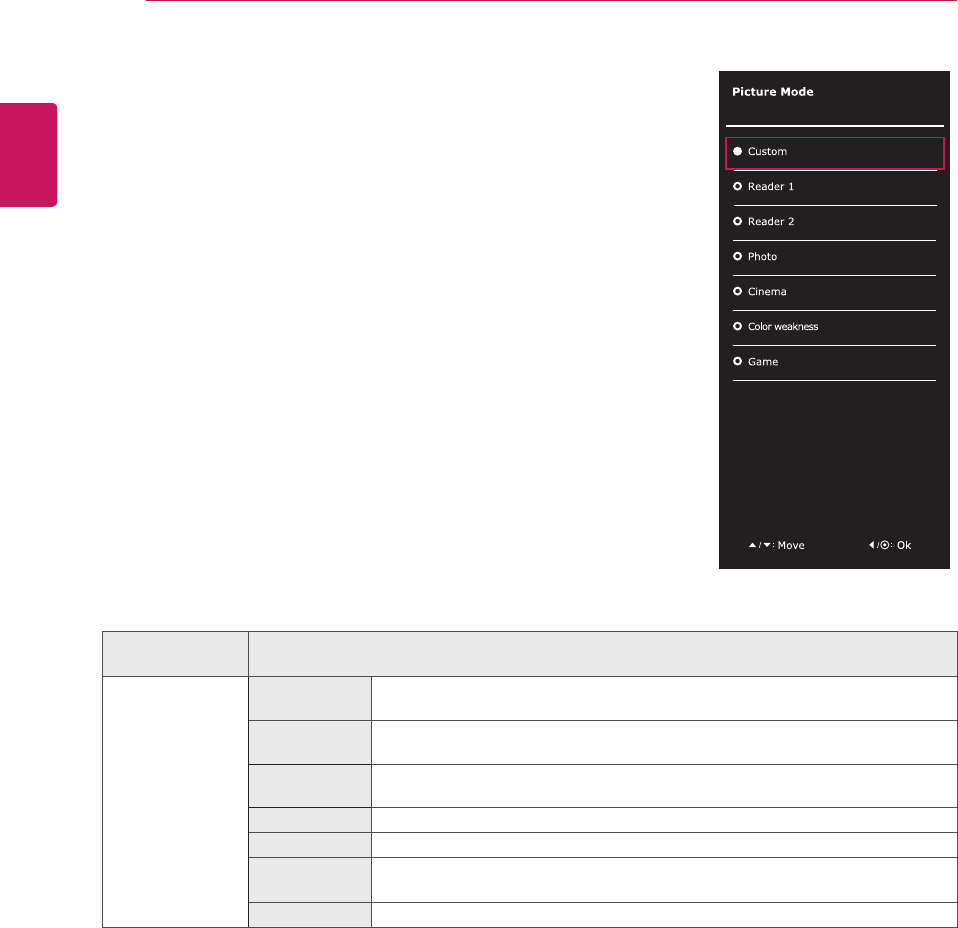

Menu > Picture Description

Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-

justed.

Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want

screen more bright, you can control brightness in Menu OSD.

Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen

more bright, you can control brightness in Menu OSD.

Photo Optimizes the screen to view photos.

Cinema Optimizes the screen to improve the visual effects of a video.

Color

weakness

This mode is for users who cannot distinguish between red and green.It enables users

with color weakness to easily distinguish between the two colors.

Game Optimizes the screen for gameplay.

Color Adjust

Auto

Configuration

NOTE

yThis is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen,

please turn off this function.

yThis function can’t distinguish some colors in some images.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Picture Adjust SUPER RESOLU-

TION+

22MP58D

22MP58HQ

22MP58VQ

24MP58D

24MP58HQ

27MP58HQ

27MP58VQ

24MP58VQ

High Optimized picture quality is displayed when a user

wants crystal clear images. It is effective forhigh quality

video or game.

Middle The optimized picture quality is displayed when a

user wants images between low and highmodes for

comfortable viewing. It is effective for UCC or SD

video.

Low The optimized picture quality is displayed when a user

wants smooth and natural images. It iseffective for

slow-moving pictures or still images.

Off Select this option for everyday viewing. SUPER

RESOLUTION+ is turned off in this mode.

Sharpness Adjusts the sharpness of the screen.

Black Level

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ

27MP58VQ

27MP58HQ

Sets the offset level (for HDMI only).

yOffset: as a reference for a video signal, this is the darkest color

the monitor can display.

High The picture of the screen gets brighter.

Low The picture of the screen gets darker.

Response Time

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ

27MP58VQ

27MP58HQ

Sets a response time for displayed pictures based on the speed of

the screen. For a normal environment, it is recommended that you

use Normal. For a fast-moving picture, it is recommended that you

use High.

Setting to High may cause image sticking.

High Sets the response time to High.

Middle Sets the response time to Middle.

Low Sets the response time to Low.

Off Sets the response time to Off.

Over Scan

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ

27MP58VQ

27MP58HQ

To select the range of output image for DTV timing in HDMI input.

(only for HDMI input)Recommend overscan function to turn on when

connect AV equipment.

DFC Adjusts the brightness automatically according to the screen.

Black Stabilizer Black Stabilizer

: You can control the black contrast to have better visibility in dark

scenes.

Increasing the Black Stabilizer value brightens the low gray level

area on the screen. (You can easily distinguish objects on dark

game screens.)

Reducing the Black Stabilizer value darkens the low gray level area

and increases the dynamic contrast on the screen.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Color Adjust Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2, Off

the monitor, high gamma values display whitish images and low

gamma

values display blackish images.

If user don't want adjusted gamma, user can select Gamma off.

Color Temp Selects the factory default picture color.

Warm: Sets the screen color to a reddish tone.

Medium: Sets the screen color between a red and blue tone.

Cool: Sets the screen color to a bluish tone.

Custom

Red

Green

Blue

You can customize the picture color using Red,

Green, and Blue colors.

Six Color Meets the user requirements for colors through adjusting the color

and saturation of the six colors(Red_Hue, Red_Saturation, Green_

Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,

Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_

Hue, Yellow_Saturation) and saving the settings.

*Hue: Adjusts tone of the screen.

*Saturation: Adjusts the saturation of the screen colors. The lower

the value, less saturated and bright the colors become. The higher

the value, the more saturated and dark the colors become.

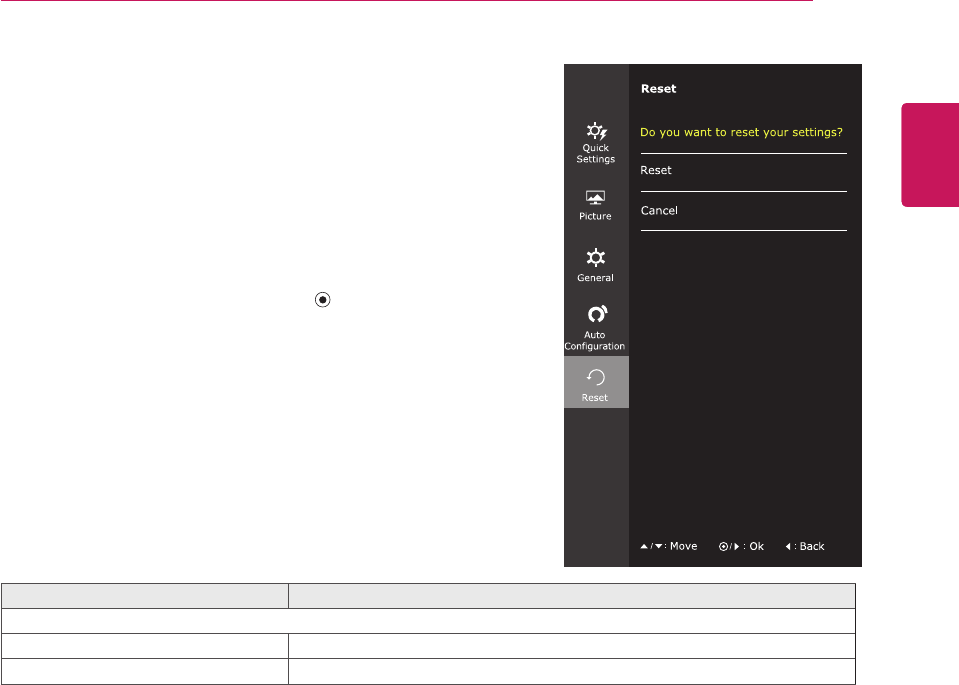

Reset Returns the color settings to the default settings.

Display Horizontal To move image left and right.

Vertical To move image up and down.

Clock To minimize any vertical bars or stripes visible on the screen

background.The horizontal screen size will also change.

Phase To adjust the focus of the display. This item allows you to remove

any horizontal noise and clear or sharpen the image of characters.

ENG

ENGLISH

CUSTOMIZING SETTINGS

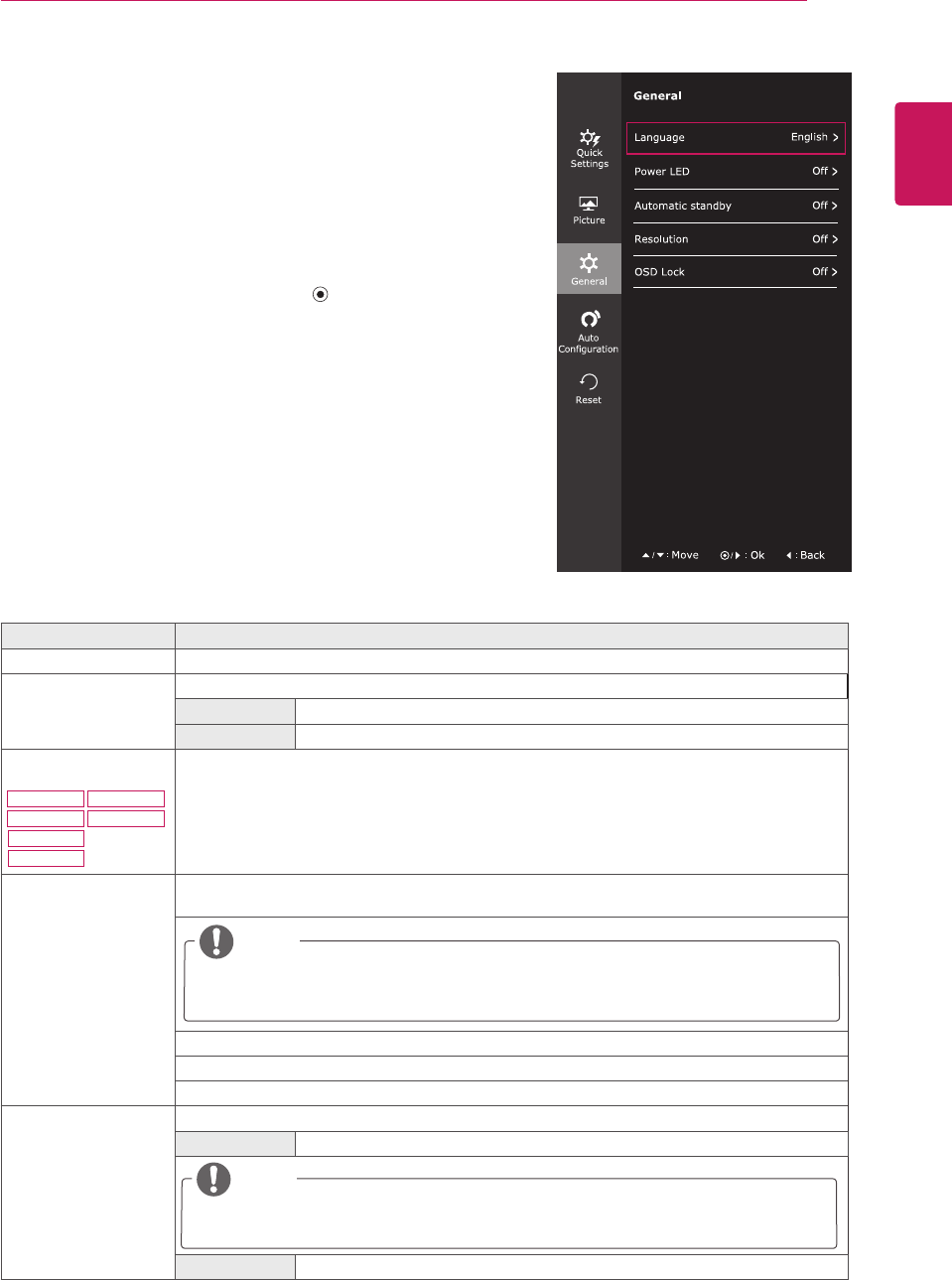

Menu > General Description

Language To choose the language in which the control names are displayed.

Power LED Turns the power indicator on the front side of the monitor on/off.

On The power indicator is automatically turned on.

Off The power indicator is turned off.

Automatic Standby

22MP58HQ

22MP58VQ

24MP58HQ

24MP58VQ

27MP58VQ

27MP58HQ

The monitor will automatically switch to standby mode after a certain period.

Resolution User can set the desired resolution.This option is enabled only when the screen resolution on

your computer is set to the following(D-SUB only).

1024x768, 1280x768, 1360x768, 1366x768,Off

1280x960, 1600x900,Off

1440x900, 1600x900,Off

OSD Lock Prevents incorrect key input.

On Key input is disabled.

NOTE

All functions except for the OSD Lock mode and the Exit button for Brightness, Con-

trast, Volume, Input, and General are disabled.

Off Key input is enabled.

NOTE

The function is enabled only when the screen resolution on your computer is set to the

following, except that the PC output wrong resolution.

-General

1 To view the OSD menu, press the joystick but-

ton at the bottom of the monitor and then enter the

Menu.

2 Go to General by moving the joystick.

3 Configure the options following the instructions that

appear in the bottom right corner.

4 To return to the upper menu or set other menu items,

move the joystick to ◄ or pressing ( / OK) it.

5 If you want to exit the OSD menu, move the joystick

to ◄ until you exit.

Color Adjust

Auto

Configuration

Each option is described below.

ENG

ENGLISH

CUSTOMIZING SETTINGS

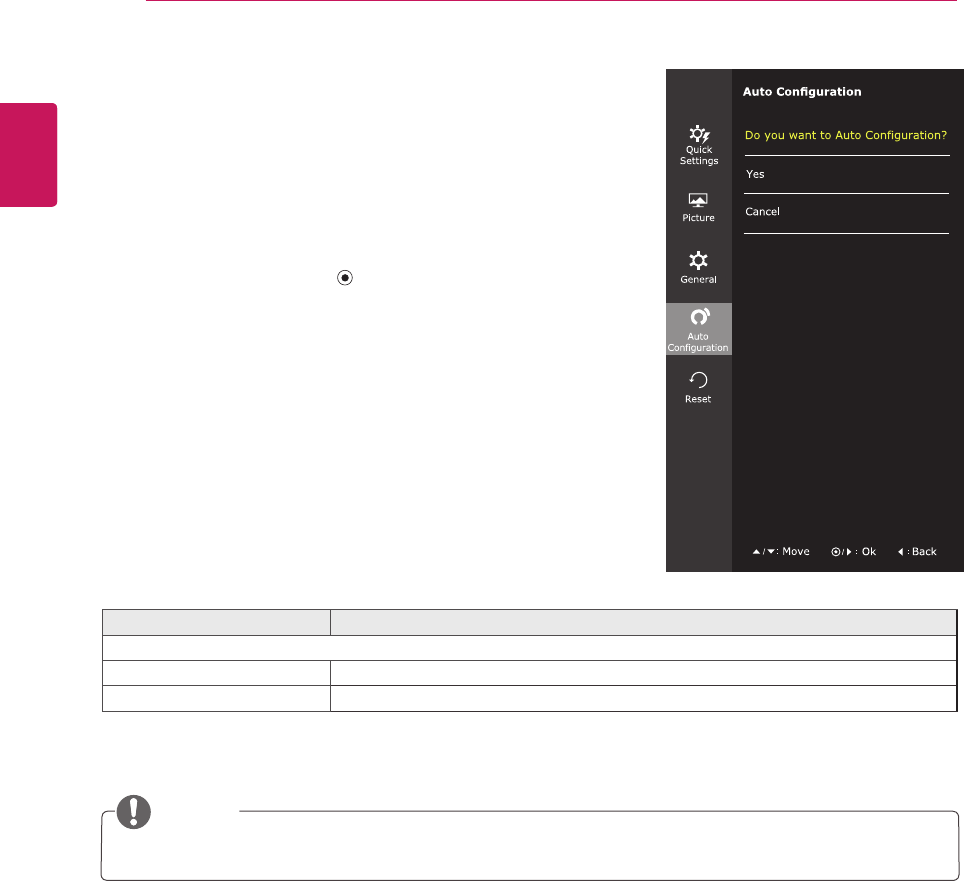

-Auto Configuration

1 To view the OSD menu, press the joystick button at the

bottom of the monitor and then enter the Menu.

2 Go to Auto Configuration by moving the joystick.

3 Configure the options following the instructions that appear in the

bottom right corner.

4 To return to the upper menu or set other menu items, move the

joystick to ◄ or pressing ( / OK) it.

5 If you want to exit the OSD menu, move the joystick to ◄ until

you exit.

Each option is described below.

Menu > Auto Configuration Description

Do you want to Auto confuguration?

Yes Operate the Auto configuration for optimal display in D-SUB.

Cancel Cancel the select.

Color Adjust

Auto

Configuration

NOTE

yThis function will be enable only in analog input.

ENG

ENGLISH

CUSTOMIZING SETTINGS

-Reset

1 To view the OSD menu, press the joystick but-

ton at the bottom of the monitor and then enter the

Menu.

2 Go to Reset by moving the joystick.

3 Configure the options following the instructions that

appear in the bottom right corner.

4 To return to the upper menu or set other menu items,

move the joystick to ◄ or pressing ( / OK) it.

5 If you want to exit the OSD menu, move the joystick

to ◄ until you exit.

Each option is described below.

Menu > Reset Description

Do you want to reset your settings?

Reset Returns to the default settings.

Cancel Cancel the select.

Color Adjust

Auto

Configuration

ENG

ENGLISH

CUSTOMIZING SETTINGS

-Picture mode

1 Press the joystick button on the bottom of the monitor.

2 Go to Picture mode by moving the joystick button to ▲.

3 Configure the options following the instructions that appear in the

bottom.

Joystick Button >

Picture Mode

Description

Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be

adjusted.

Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want

screen more bright, you can control brightness in Menu OSD.

Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want

screen more bright, you can control brightness in Menu OSD.

Photo Optimizes the screen to view photos.

Cinema Optimizes the screen to improve the visual effects of a video.

Color weak-

ness

This mode is for users who cannot distinguish between red and green.It enables

users with color weakness to easily distinguish between the two colors.

Game Optimizes the screen for gameplay.

Each option is described below.

Color Adjust

Auto

Configuration

ENG

ENGLISH

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display

connected?

yCheck and see if the power cord is connected properly to the power

outlet.

Is the power indicator light on?

yPress the Power button.

Is the power indicator flickering?

yIf the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

yTry to turn on the PC.

Do you see an "OUT OF RANGE"

message on the screen?

yThis message appears when the signal from the PC (video card) is

out of horizontal or vertical frequency range of the display. See the

'Specifications' section of this manual and configure your display

again.

Do you see a "NO SIGNAL"

message on the screen?

yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to

DPM mode.

Can 't you control some functions in OSD?

Can't you select some menu in

OSD?

yYou can unlock the OSD controls at any time by entering the OSD

lock menu and changing items to off.

Display image is incorrect

Display Position is incorrect.

yEnter the Auto Configuration function and select the "Yes" item to

automatically adjust your display image to the ideal setting.

On the screen background, vertical

bars or stripes are visible.

yEnter the Auto Configuration function and select the "Yes" item to

automatically adjust your display image to the ideal setting.

Any horizontal noise appearing in

any image or characters are not

clearly portrayed.

yEnter the Auto Configuration function and select the "Yes" item to

automatically adjust your display image to the ideal setting.

yCheck Control Panel ► Display ► Settings and adjust the display to

the recommended resolution or adjust the display image to the ideal

setting. Set the color setting higher than 24 bits (true color).

ENG

ENGLISH

TROUBLESHOOTING

yCheck Control Panel ► Display ► Settings and see if the frequency or the resolution were

changed. If yes, readjust the video card to the recommend resolution.

yIf the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

yThe setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer

or the video card manufacturer.

CAUTION

The screen is flickering.

Did you select the recommended

resolution?

yIf the selected resolution is HDMI 1080i 60/50 Hz, the screen may

be flickering. Change the resolution to the recommended resolution

1080P.

Display image is incorrect

The screen color is mono or

abnormal.

yCheck if the signal cable is properly connected and use a screwdriver

to fasten if necessary.

yMake sure the video card is properly inserted in the slot.

ySet the color setting higher than 24 bits (true color) at Control Panel

► Settings.

The screen blinks.

yCheck if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display

driver?

yBe sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the

driver from our web site: http://www.lg.com.

yMake sure to check if the video card supports Plug&Play function.

22MP58HQ

22MP58VQ

24MP58HQ 27MP58HQ

27MP58VQ24MP58VQ

ENG

ENGLISH

SPECIFICATIONS

Display Screen Type Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Pixel Pitch 0.248 mm x 0.248 mm (Pixel Pitch)

Resolution Max 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Power

Consumption

On Mode : 20 W (ENERGY STAR® standard)*

Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

Power Input 19 V 1.3 A

AC-DC Adapter Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC

or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type PA-1021-23, manufactured by Lite-On Technology Corporation

OUTPUT: 19 V 1.3 A

Dimensions

(Width x Height x

Depth)

With Stand 510.1 mm x 395.3 mm x 186.8 mm

Without Stand 510.1 mm x 308.4 mm x 86.8 mm

Weight 2.9 kg

Tilt Range -2° to 15°

Environmental

conditions

Operating Temperature

Operating Humidity

0 °C to 40 °C

≤ 80 %

Storage Temperature

Storage Humidity

-20 °C to 60 °C

≤ 85 %

Stand Base Attached ( ), Detached (O)

Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product

functions.

* The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with ENERGY STAR® test standard.

* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.

22MP58A 22MP58D 22MP58HQ 22MP58VQ

ENG

ENGLISH

SPECIFICATIONS

22MP58A 22MP58D 22MP58HQ 22MP58VQ

Sync Input Horizontal

Frequency

30 kHz to 83 kHz

(Automatic)

● ● ● ●

30 kHz to 61 kHz

(Automatic)

Vertical

Frequency

56 Hz to 75 Hz (D-SUB) ● ● ● ●

56 Hz to 75 Hz (DVI-D) ● ●

56 Hz to 75 Hz (HDMI) ● ●

Input Form Separate Sync. ● ● ● ●

Digital ● ● ●

Video Input Signal Input 15 pin D-SUB

Connector

● ● ● ●

DVI-D Connector

(Digital)

● ●

HDMI Connector ● ●

Input Form RGB Analog (0.7 Vp-p/

75 ohm)

● ● ● ●

Digital ● ● ●

Plug & Play DDC 2B(Analog) ● ● ● ●

DDC 2B(Digital) ● ●

DDC 2B(HDMI) ● ●

ENG

ENGLISH

SPECIFICATIONS

Display Screen Type Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Pixel Pitch 0.2745 mm x 0.2745 mm (Pixel Pitch)

Resolution Max 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Power

Consumption

On Mode : 23 W (ENERGY STAR® standard)*
