LG 32LN520B User Manual LED TELEVISION Manuals And Guides 1302204L

User Manual: LG 32LN520B 32LN520B LG LED TELEVISION - Manuals and Guides View the owners manual for your LG LED TELEVISION #32LN520B. Home:Electronics Parts:LG Parts:LG LED TELEVISION Manual

Open the PDF directly: View PDF PDF.
Page Count: 32

Life's Good
__ iiiii_
i i
LED
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
32LN520B
42LN5200
32LN530B
32LN5300
39LN5300
42LN5300
42LN5400
47LN5400
50LN5400
55LN5400
P/NO: MFL67651192 (1301-REVO0) www.lg.com
2 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
,_The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
-TO REDUCE THE RiSK OF FiRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
CAUTION
If you ignore the caution message, you may be
stightly injured or the product may be damaged.
NOTE
The note helps you understand and use the product
safely. Please read the note carefully before using
the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type ptug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided ptug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil or pen, or make
a scratch on it.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
IMPORTANT SAFETY INSTRUCTIONS 3
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed upon a
dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner's manual to be certain. Do
not connect too many appliances to the same AC
power outlet as this could result in fire or electric
shock. Do not overload wall outlets. Overloaded
wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part
by an authorized service. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to ptugs, wall outlets,
and the point where the cord exits the appliance. Do
not move the TV with the power cord plugged in.
Do not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power cord.
Do not pull on the power cord to unplug the TV.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
Do not stick metat objects or any other conductive
materiat into the power cord. Do not touch the end
of the power cord while it is ptugged in.
Keep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
Do not expose to dripping or splashing and do not
place objects filled with liquids, such as vases, cups,
etc. on or over the apparatus (e.g. on shelves above
the unit).
4IMPORTANT SAFETY INSTRUCTIONS
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
As long as this unit is connected to the AC walt
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user's
authority to operate this product.
Outdoor Antenna Grounding (Can differ by country):
If an outdoor antenna is installed, foliow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Section 810 of the
National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.
Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press or put
stress on the front panel of the TV.
Ventilation
Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty ptaces.
If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
Keep the product away from direct sunlight.
Never touch this apparatus or antenna during a
thunder or lightning storm.
When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
Do not allow an impact shock or any objects to fall
into the product, and do not drop anything onto the
screen.
• Disconnecting the Main Power
The power outlet used with this device must remain
easily accessible.
• Store the accessories (battery, etc.) in a safe
location out of the reach of children.
• This apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact your
local authorities for disposal or recycling information.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble or allow the
batteries to overheat.
Ground Clamp -- Antenna Discharge Unit
Electric Service (NED Section 810-20)
Equipment L Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
NEC: National Electrical Code Electrode System
(NED Art 280 r Part H)
IMPORTANT SAFETY INSTRUCTIONS .5

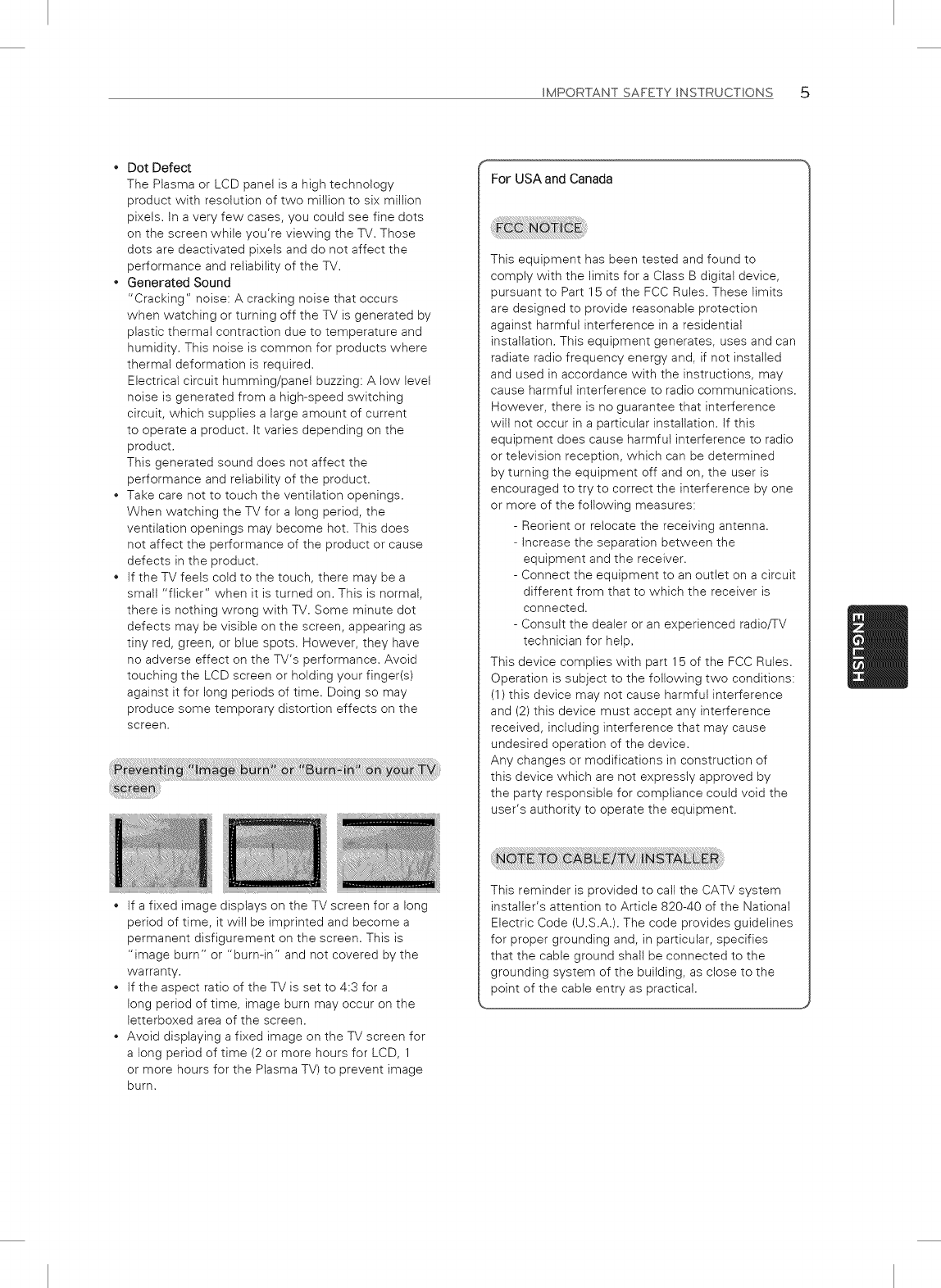

Dot Defect
The Plasma or LCD panel is a high technology
product with resolution of two million to six million
pixels. In a very few cases, you could see fine dots
on the screen while you're viewing the TV. Those
dots are deactivated pixets and do not affect the
performance and reliability of the TV.
Generated Sound
"Cracking" noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to temperature and
humidity. This noise is common for products where
thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level
noise is generated from a high-speed switching
circuit, which supplies a large amount of current
to operate a product. It varies depending on the
prod uct.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
If the TV feels cold to the touch, there may be a
small "flicker" when it is turned on. This is normal,
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV's performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary distortion effects on the
screen.
If a fixed image displays on the TV screen for a long
period of time, it will be imprinted and become a
permanent disfigurement on the screen. This is
"image burn" or "burn-in" and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for
a long period of time (2 or more hours for LCD, 1
or more hours for the Plasma TV) to prevent image
burn.
For USA and Canada
This equipment has been tested and found to
comply with the limits for a Class B digital device,
)ursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
insta%tion. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radioFV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(I) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
This reminder is provided to call the CATV system
instatler's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.

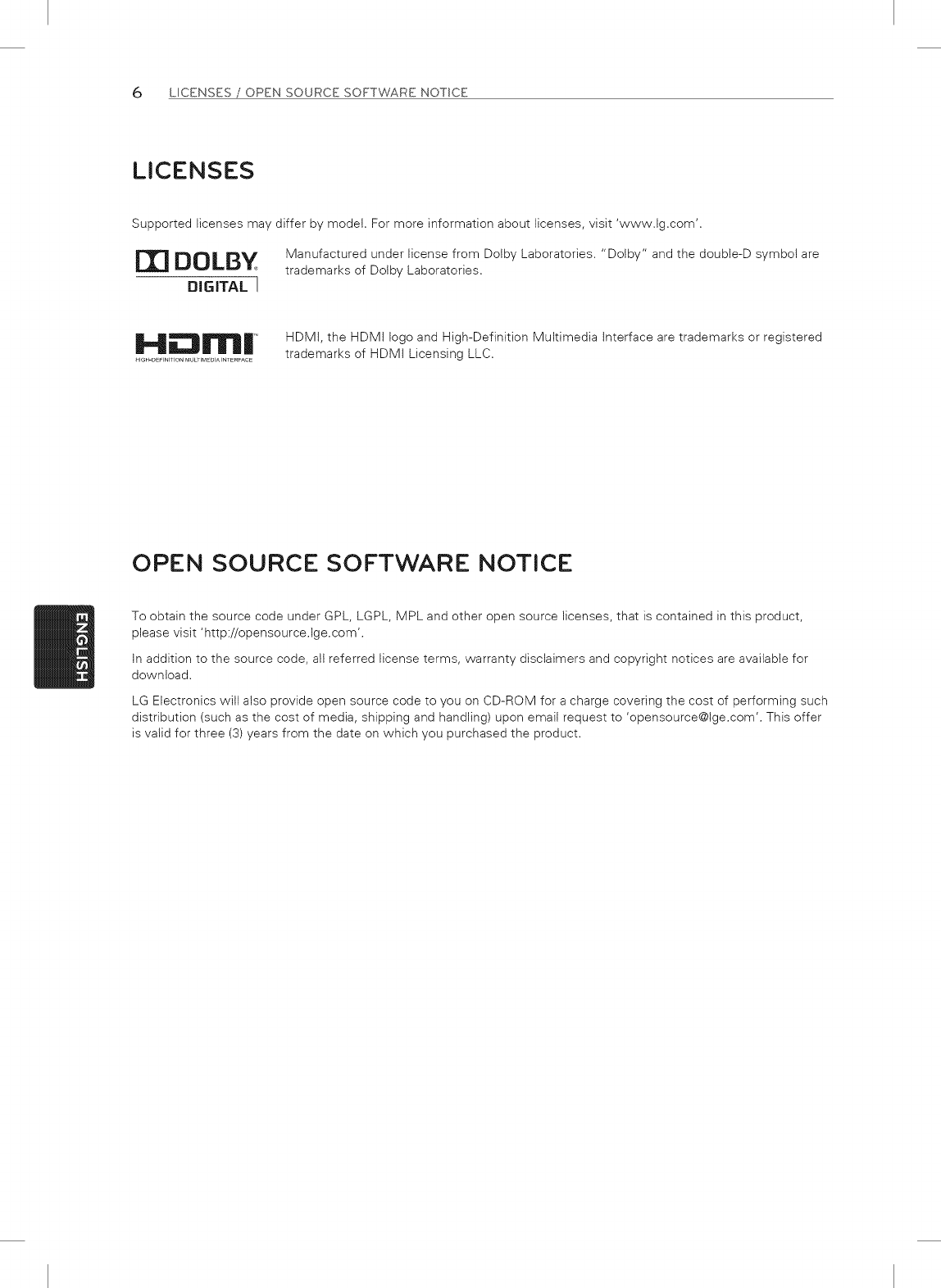

6 LICENSES /OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit 'www.lg.com'.
[lqDOLBY
DIGITAL I
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
H lrFilll
HIGI4-DEFINITION MULTIMEDIA INTERFACE
HDMi, the HDMi logo and High-Definition Multimedia interface are trademarks or registered
trademarks of HDMI Licensing LLC.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit 'http://opensource.lge.com'.
in addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to 'opensource@lge.com'. This offer
is valid for three (3) years from the date on which you purchased the product.
TABLE OF CONTENTS "7
TABLE OF CONTENTS
2IMPORTANT SAFETY INSTRUCTIONS 24 REMOTE CONTROL
6 LICENSES
6 OPEN SOURCE SOFTWARE NOTICE
7 TABLE OF CONTENTS
8 INSTALLATION PROCEDURE
8 ASSEMBLING AND PREPARING
8
10
11
11
12
12
13
14
15
Unpacking
Parts and Buttons
Additional information of the manual
Lifting and moving the TV
Setting up the TV
-Attaching the stand
-Mounting on a table
-Tidying cables
-Mounting on a wall
MAKING CONNECTIONS16
16 Connecting to an antenna or cable
17 Connecting to a HD receiver, DVD Player or VCR
17 - HDMI Connection
18 -Connecting to a mobile phone
19 - Component Connection
20 -Composite Connection
21 Connecting a PC
21 -HDMI Connection
22 Connecting to an Audio System
22 -Digital Optical Audio Connection
23 Connecting a USB Device
26 WATCHING TV
26 Turning the TV on for the first time
27 SPECIFICATIONS
29 TROUBLESHOOTING
30 EXTERNAL CONTROL DEVICE SETUP
r-@ NOTE
• image shown may differ from your TV.
Your TV's OSD (On Screen Display) may differ
slightly from that shown in this manual.
The available menus and options may differ from
the input source or product model that you are
using.
New features may be added to this TV in the
future.
8 INSTALLATION PROCEDURE /ASSEMBLING AND PREPARING

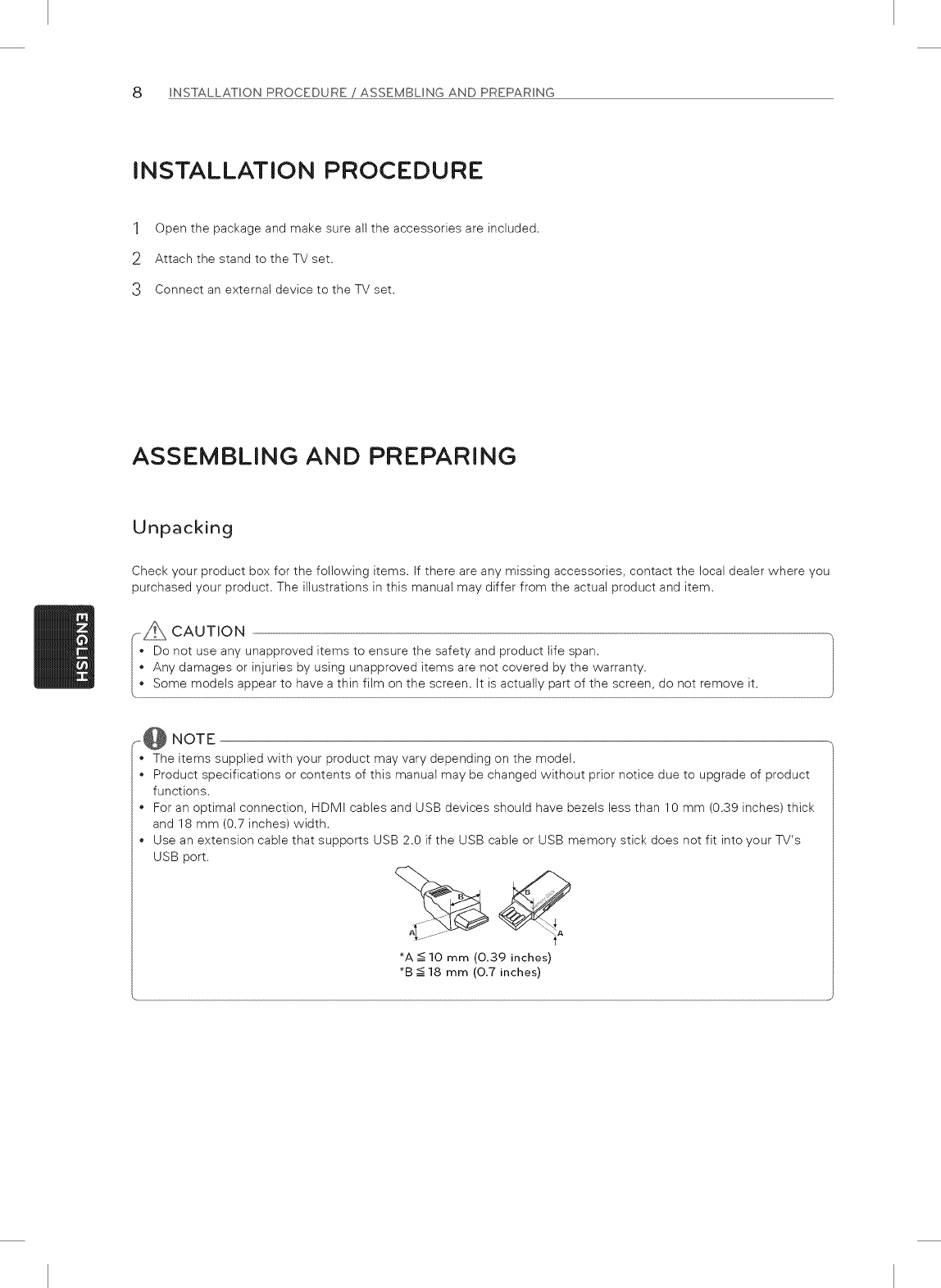

INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
_ CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the warranty.
Some models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.
_-@ NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick
and 18 mm (0.7 inches) width.
Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's
USB port.
*A < 10 mm (0.39 inches)
*B < 18 rnrn (0.7 inches)
ASSEMBLING AND PREPARING c)
Remote Control, Batteries (AAA)
(See p. 24)
Stand Body, Stand Base
(See p. 12)
Owner's Manual,
CD manual
Stand Screws
3 EA, P5 x 25
4 EA, M4 x 14
(See p. 12)
Power Cord
(For 32LNB20B, 42LN5200,
32LNB30B, 32/39/42LN5300,
42/47/50LN5400)
Desk-Mount Screw
(See p. 13)
Cable Holder
(See p. 14)
10 ASSEMBLgNG AND PREPARING

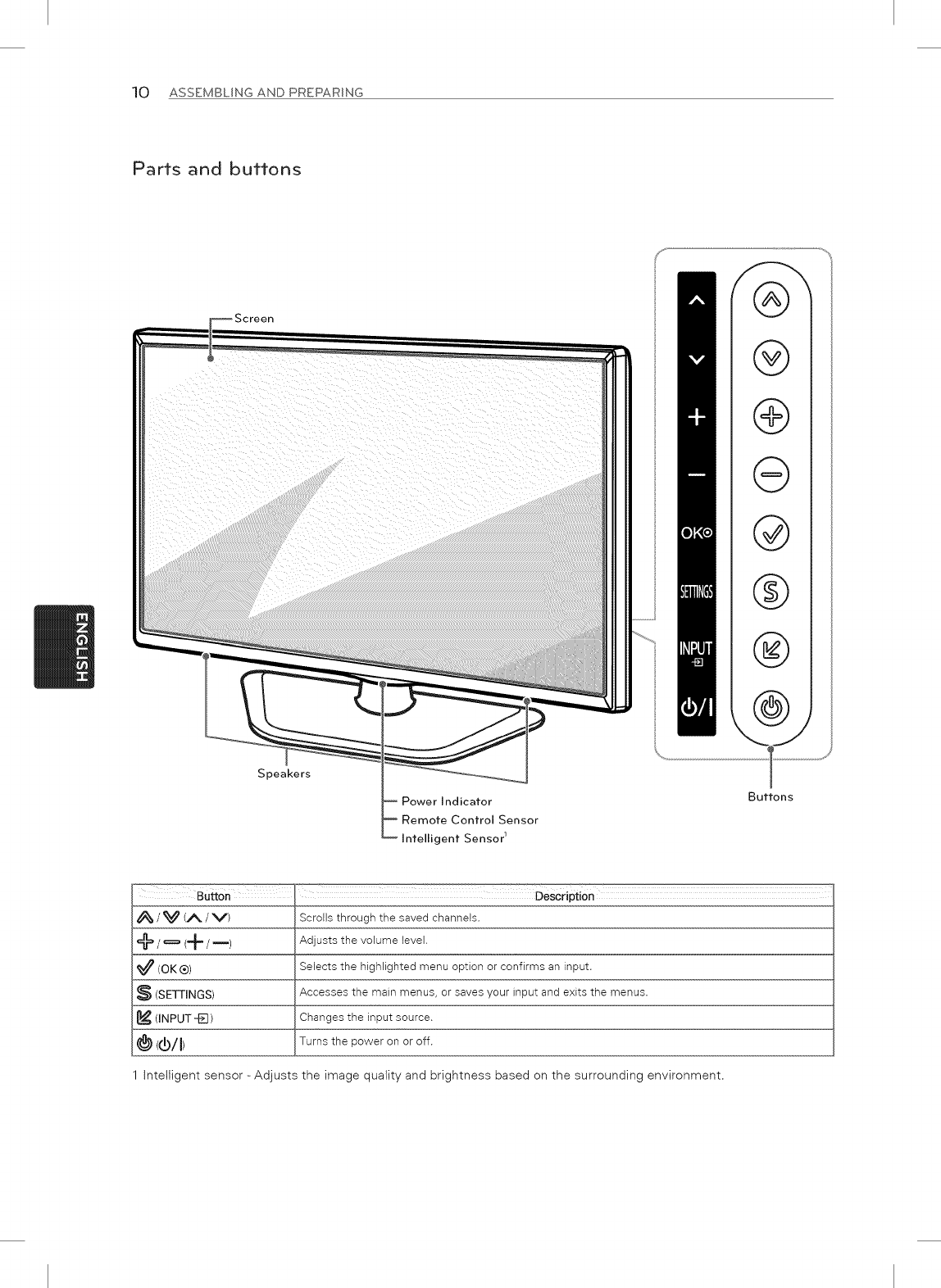

Parts and buttons
Speakers
Indicator
Control Sensor
Intelligent Sensor 1
®
_b
_b
@
®
®
\
Buttons
_/V/^/v/
+/_/+/--/
(OK®)
(SETTINGS)
(INPUT-E])
<<blI>
DeSCription
Scrolls through the saved channeEs.
Adjusts the volume Level.
Selects the highlighted menu option or confirms an input.
Accesses the mahq menus, or saves your hqput and exits the menus.
Changes the input source.
Turns the power on or off.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment,
ASSEMBLING AND PREPARING 11
Additional information of the
manual
The owner's manual in PDF file format is supplied on the
enclosed CD. Install the Adobe Acrobat Reader to view
the owner's manual on your PC.
1Insert the supplied CD.
The web page appears automatically.
2Click Owner's Manual on the web page.
3View the owner's manual.
@.oTE
If the web page does not appear automatically,
access My computer and then click LG and index.
html to view the owner's manual.
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
X
When transporting a large TV, there should be at
least 2 people.
When transporting the TV by hand, hold the TV as
shown in the following illustration.
Lifting and moving theTV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
..._ CAUTION
Avoid touchingthe screen atalltimes,as thismay
resultindamage tothe screen.
It is recommended to move the TV in the box or
packing material that the TV originally came in.
Before moving or lifting the TV, disconnect the
power cord and all cables.
When holding the TV, the screen should face away
from you to avoid damage.
When transporting the TV, do not expose the TV to
jolts or excessive vibration.
When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.
12 ASSEMBLING AND PREPARING
Setting up the TV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other
furniture.
Affaching fhe sfand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
ii CAUTmON
When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to
protect the screen from scratches.
Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward
after being installed.)
not tighten the screws with too much force; otherwise they may be damaged and come loose later.
h@ NOTE
[,_emove thestand before the TV wallmount the stand attachment in
installing on a by performing reverse.
Stand Base
I
Body
4 EA
M4 x 14
i
I I
I I I I
II
I
I
I
ASSEMBLING AND PREPARING 13
Mounting on a table
1Lift and titt the TV into its upright position on a table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
]O cm (4 inches)
The Kensington security system connector is located at
the rear of the TV.
For more information of installation and using, refer
to the manual provided with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable between
the TV and a table.
2Connect the power cord to a wall outlet.
-_ CAUTION
Do not placetheTV near oron sourcesofheat,as
this may result in fire or other damage.
(For 32LNB20B, 42LN5200, 32LNB30B, 32/39/42LN5300,
42/47/50LN5400)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and tighten the
supplied screw on the rear of the stand.
r@ NOTE -,
I,The Kensington security system is optional. You
can obtain additional accessories from your local
_ WARNING
To prevent TV from failing over, the TV should be
securely attached to the floor/wall per installation
instructions, Tipping, shaking, or rocking the TV
may cause injury,
14 ASSEMBLING AND PREPARING
(Depending on model)
to o_
Tidying cables
1Gather and bind the cables with the cableholder.
1Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position,
remove the bolts first.
2Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
Connect the eye-bolts and wall brackets tightly with
a sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
r--_ CAUTION --,
o Make sure that children do not climb on or hang on /
@N°TE
Use a platform or cabinet that is strong and large
enough to support the TV securely.
Brackets, bolts and ropes are optional. You can
obtain additional accessories from your local dealer
_Cable
Holder
.._ CAUTION
Do not move the TV by holding the cable holder,
as the cable holders may break, and injuries and
damage to the TV may occur.
ASSEMBLING AND PREPARING 15
Mounting on a wall
An optional wall mount can be used with your LG
Television, Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model, Carefully attach the wall mount bracket at the
rear of the TV, Install the wall mount bracket on a solid
wall perpendicular to the floor, If you are attaching the
TV to other building materials, please contact qualified
personnel to install the walt mount, Detailed instructions
will be included with the walt mount, We recommend
that you use an LG brand wall mount,
50LN5400
55LN5400
VESA (A x B) 400 x 400
M6
4
LSW430B
Standard screw
Number of screws
Wall mount bracket
(optional)
Make sure to use screws and wall mounts that meet the
VESA standard. Standard dimensions for the wall mount
kits are described in the following table.
S2EN52os
32LN530B 42LN5200
S2LN5300 42EN5300
42LN5400
VESA (A x B) 200 x 100 200 x 200
Standard screw M4 M6
Number of screws 4 4
Wall mount bracket LSW130B LSW230B
(optional)
_J,..z!!_, CAUTION
Disconnect the power before moving or installing
the TV, Otherwise electric shock may occur,
If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury,
Use an authorized LG wall mount and contact the
local dealer or qualified personnel,
Do not over tighten the screws as this may cause
damage to the TV and void your warranty,
Use the screws and wall mounts that meet the
VESA standard, Any damages or injuries by misuse
or using an improper accessory are not covered by
the warranty,
L__
,_@ NOTE
Use the screws that are listed in the VESA
standard screw specifications,
The wall mount kit includes an installation manual
and necessary parts,
The wall mount bracket is optional, You can obtain
additional accessories from your local dealer,
The length of screws may differ depending on the
wall mount, Make sure to use the proper length,
For more information, refer to the manual supplied
with the wall mount,
]6 MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs,
audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external
device's connection, refer to the manual provided with each device.
,.-@ NOTE
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the
TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the
connected device.
The external device connections shown may differ slightly from illustrations in this manual.
Connect external devices to the TV regardless of the order of the TV port.
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
Refer to the external equipment's manual for operating instructions.

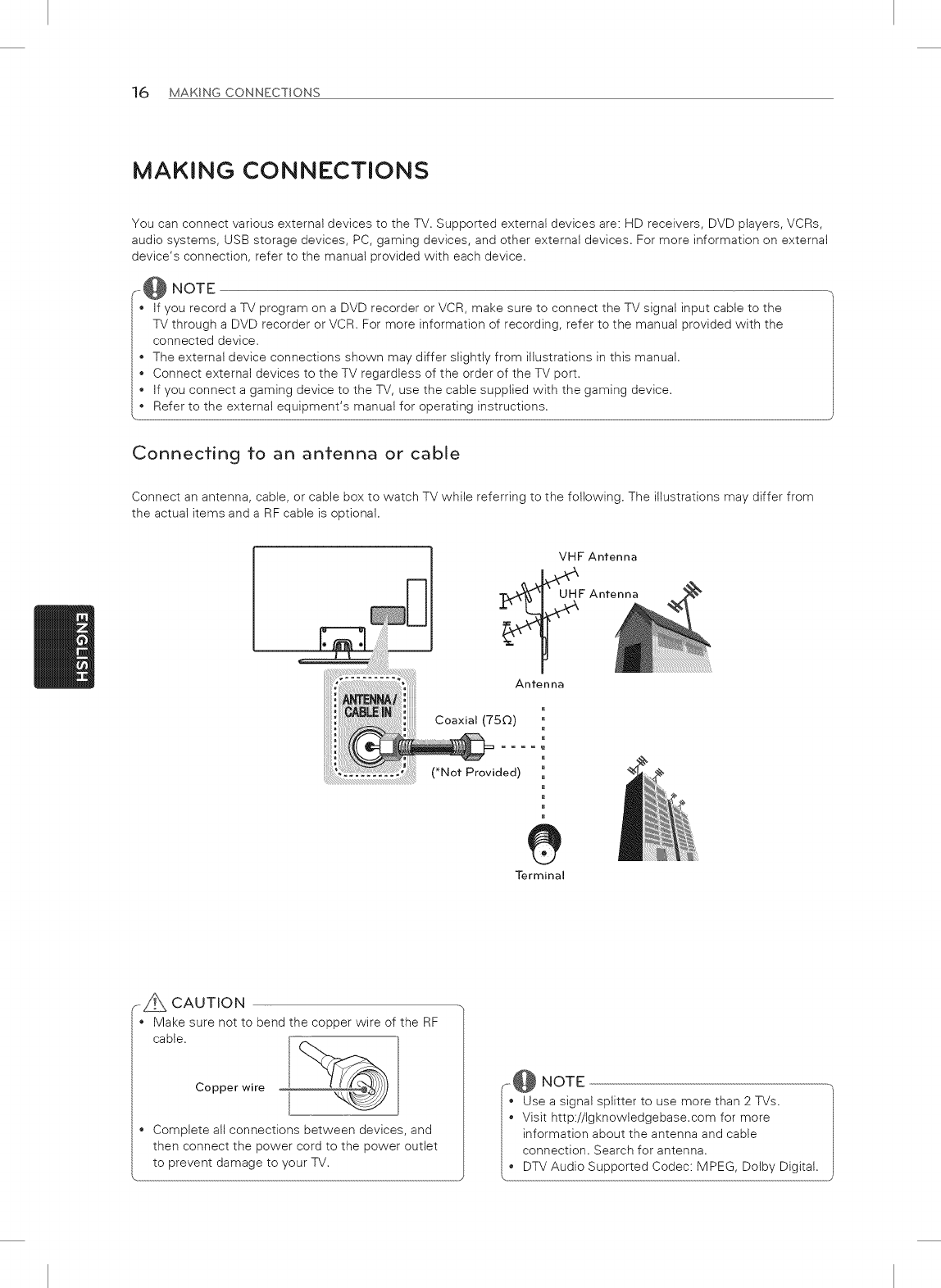

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from
the actual items and a RF cable is optional.
Terminal
FA CAUTION
Make sure not to bend the copper wire of the RF
cable. In (_._
Copper wire L
Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
i@ NOTE
Use a signal splitter to use more than 2 TVs.
Visit http://tgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
DTV Audio Supported Codec: MPEG, Dolby Digital.
MAKING CONNECTIONS 17
Connecting to a HD receiver, DVD Player or VCR
Connect a HD receiver, DVD Player or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device,
Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with
the HDMi cabte as shown in the following illustration.
._..@ NOTE TU
* Use the latest High Speed HDMI Cable that supports CEC (Customer Electronics Control) function.
o High Speed HDMI TM Cabtes are tested to carry an HD signal up to 1080p and higher.
o HDMI Audio Supported Format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1 k/48k/96k/192k)
-> DTS is not supported.
Choose any HDMI input port to connect,
It does not matter which port you use,
(_Not Provided)
HDMI
DVD /Blu-Ray /HD Cable Box /HD STB
18 MAKING CONNECTIONS

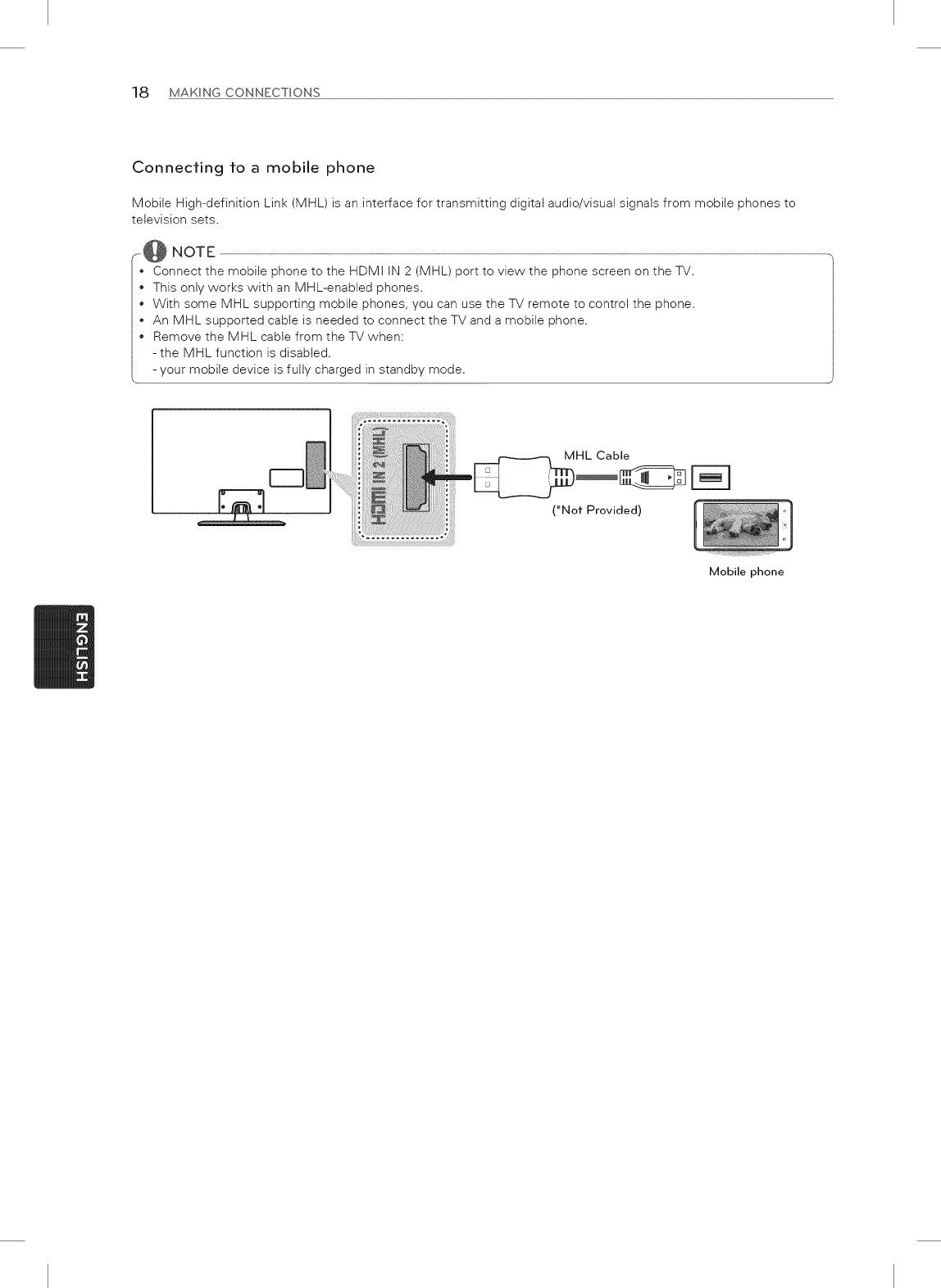

Connecting to a mobile phone
Mobile High-definition Link (MHL) is an interface for transmitting digital audio/visual signals from mobile phones to
television sets.
,..@ NOTE
*Connect the mobile phone to the HDMI IN 2 (MHL) port to view the phone screen on the TV.
*This only works with an MHL-enabled phones.
With some MHL supporting mobile phones, you can use the TV remote to control the phone.
An MHL supported cable is needed to connect the TV and a mobile phone.
Remove the MHL cable from the TV when:
- the MHL function is disabled.
- your mobile device is fully charged in standby mode.
\
\MHL Cable
(*Not Provided)
Mobile phone
MAKINGCONNECTIONS19
Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
a component cable as shown in the following illustration.
[@NomE
• If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
• Check to ensure the cables are matched with the corresponding color connection,
(_Not Provided) (_Not Provided)
Y PB PR
L---- VlDEO-----I
L R
®
LAUDIOJ
:::g
m
VCR /DVD /Blu-Ray /HD Cable Box
20 MAKINGCONNECTIONS

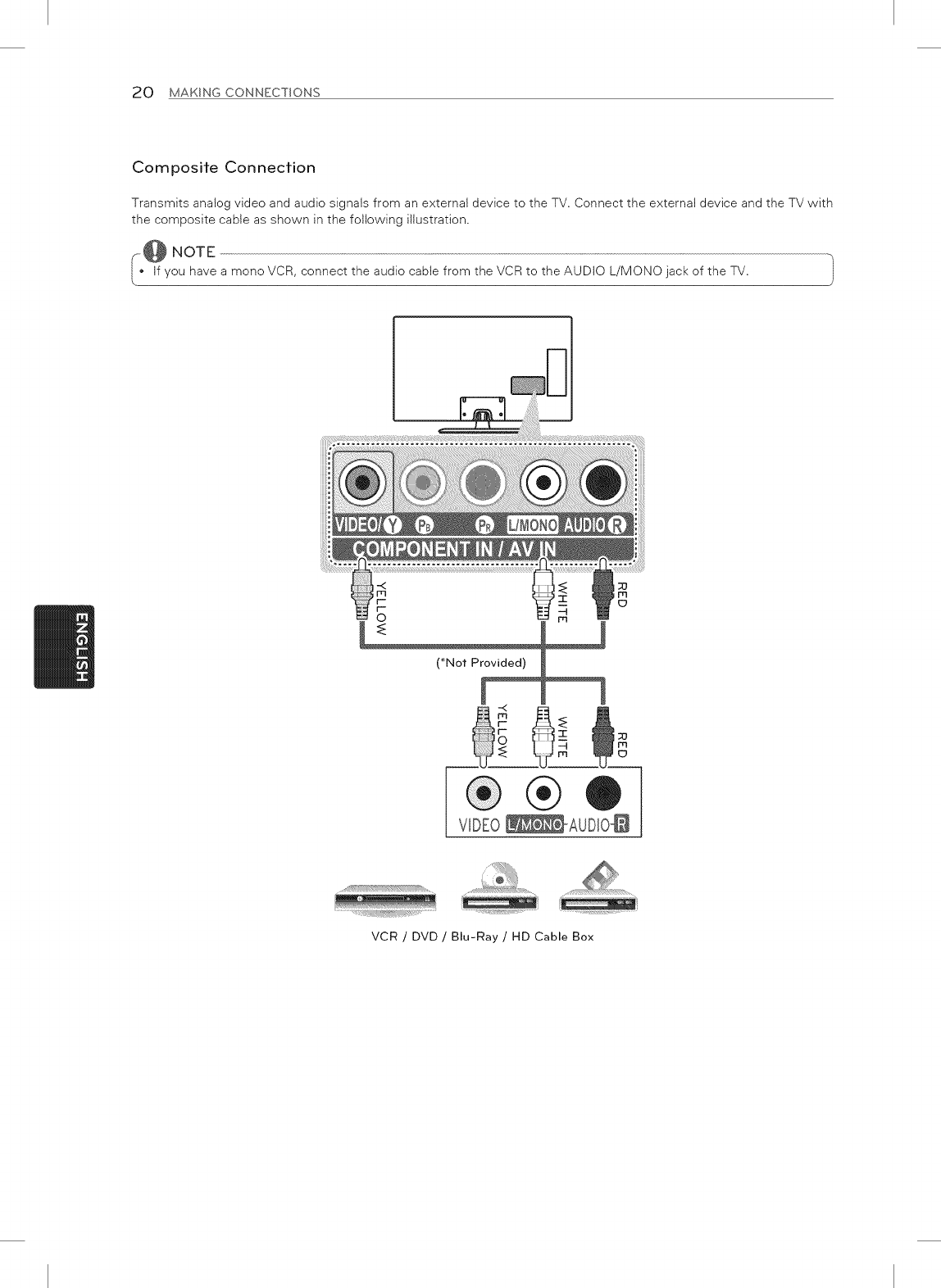

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
(*Not Provided)
VCR /DVD /Blu-Ray /HD Cable Box
MAKING CONNECTIONS 2]

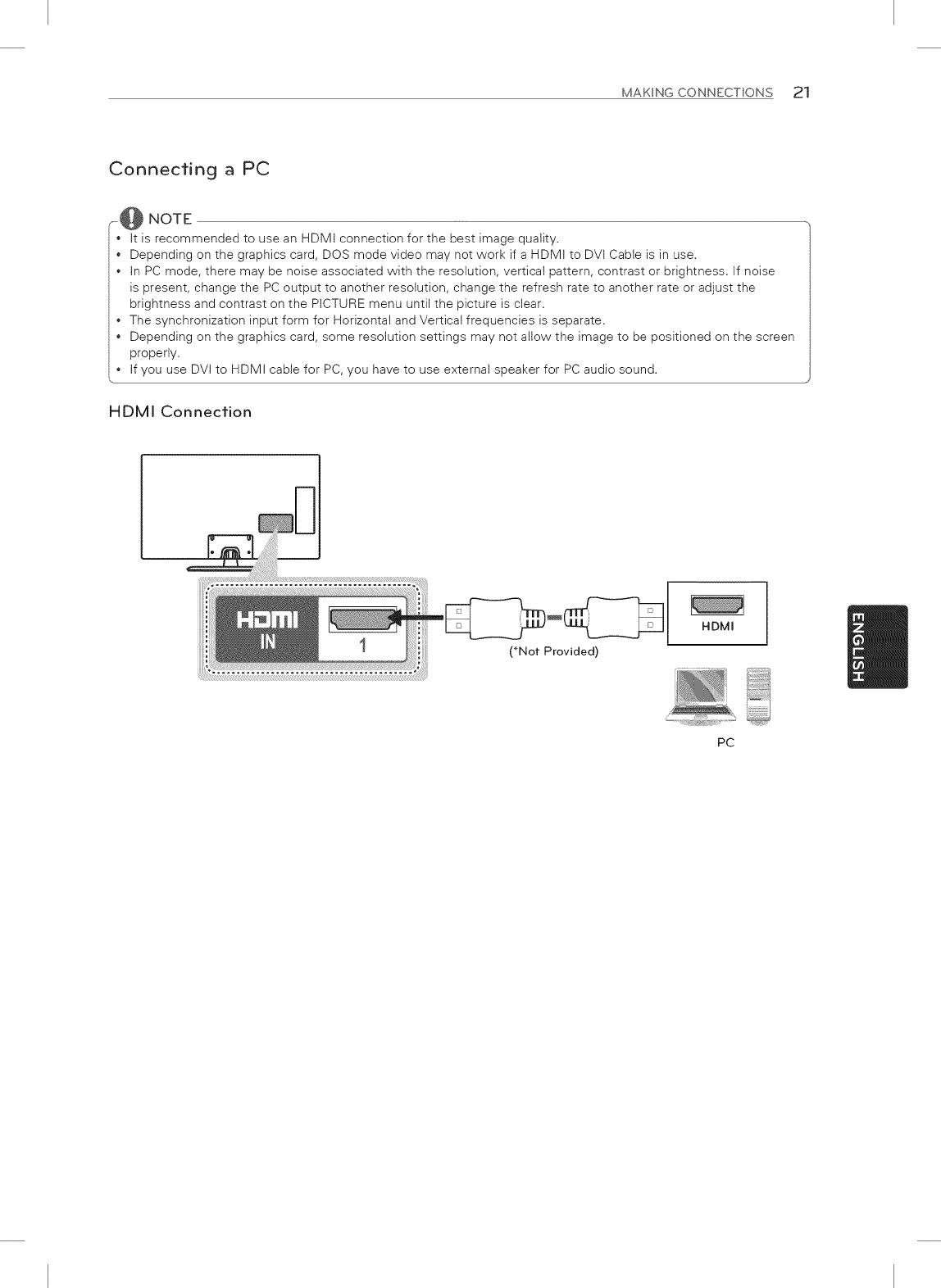

Connecting a PC
r@ NOTE
*it is recommended to use an HDMi connection for the best image quality.
Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.
in PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness, if noise
is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE menu until the picture is clear.
o The synchronization input form for Horizontal and Vertical frequencies is separate.
o Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen
properly.
if you use DVt to HDMi cable for PC, you have to use external speaker for PC audio sound.
HDMI Connection
(*Not Provided)
HDMm
.......: i[_ j
PC
22 MAKING CONNECTIONS
Connecting to an Audio System
You can use an optional external audio system instead of the built-in speaker.
Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the
optical audio cabte as shown in the following illustration.
-@NOTE
• Do not look into the optical output port. Looking at the laser beam may damage your vision.
• Audio with ACP (Audio Copy Protection) function may block digital audio output.
.......
OPTiCAl_ AUDIO iN
Digital Audio System
MAKINGCONNECTIONS23
Connecting a USB Device
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the
TV.
EE3 i '_']
I
I!,mm /
(_Not Provided)
USB

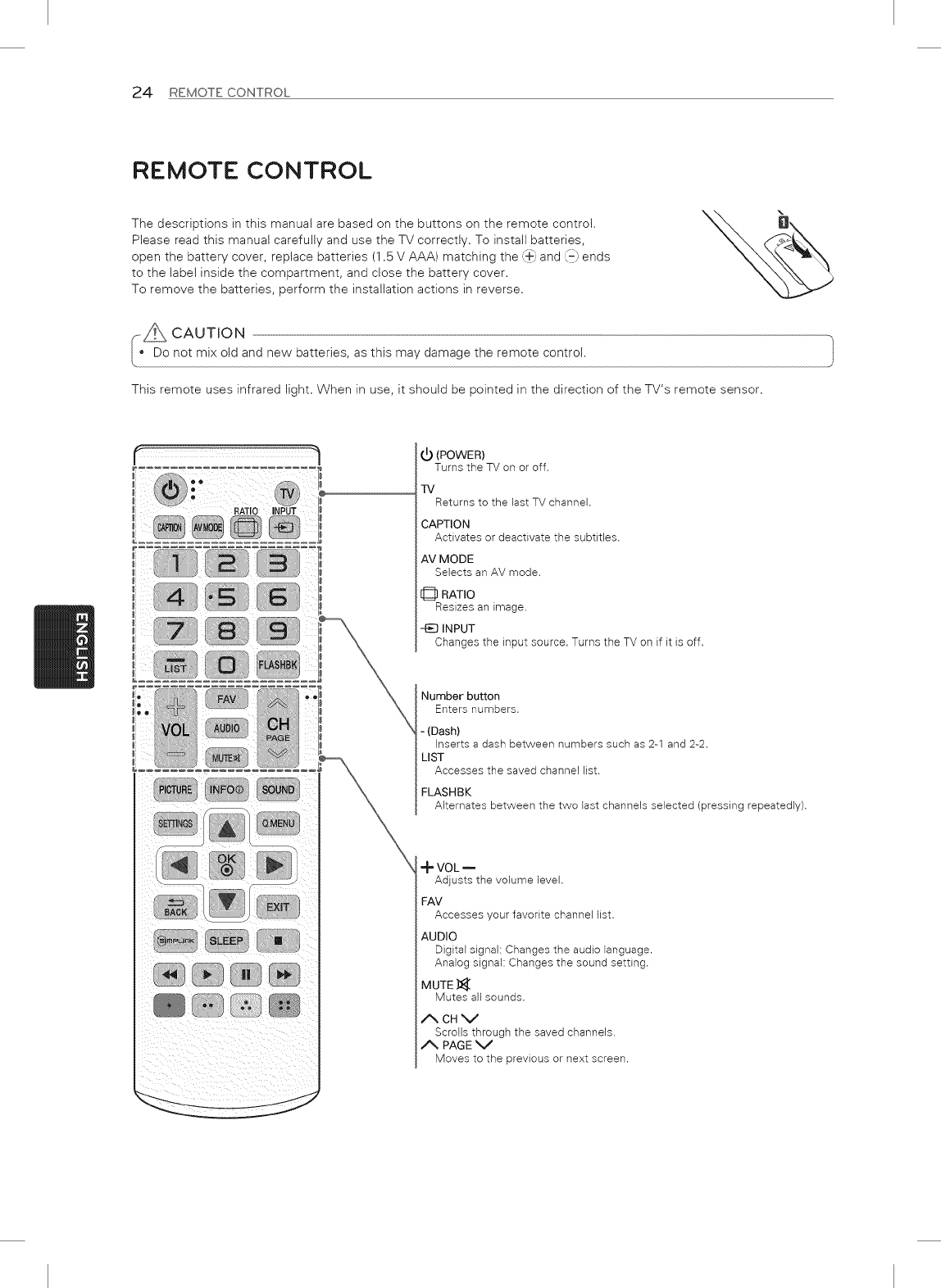

24 REMOTECONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To instalt batteries,
open the battery cover, replace batteries (1.5 V AAA) matching the :_, and _-}',ends
to the labet inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
-.;_\ CAUTION
Do not mix old and new batteries, as this may damage the remote control.
This remote uses infrared light. When in use, it should be pointed in the direction of the TV's remote sensor.
t_ (POWER)
Turns the TV on or off.
TV
Returns to the last TV channel.
CAPTION
Activates or deactivate the subtitles.
AV MODE
Selects an AV mode.
1_ RATIO
Resizes an image.
-I_ INPUT
Changes the input source. Turns the TV on if it is off,
Number button
Enters numbers.
- (Dash)
Inserts a dash between numbers such as 2-1 and 2-2.
LIST
Accesses the saved channel list.
FLASHBK
Alternates between the two last channels selected (pressing repeatedly).
•"_ VOLm
Adjusts the volume level.
FAV
Accesses your favorite channel list.
AUDIO
Digital signal: Changes the audio language.
Analog signal: Changes the sound setting.
MUTE 11_
Mutes all sounds.
A CHV
Scrolls through the saved channels.
A PAGE V
Moves to the previous or next screen.
REMOTECONTROL25
Changestheimagemode.
INFOd)
Showsinformationonthecurrentprogram.
SOUND
Changesthesoundmode.
SETTINGS
Accessesthemainmenu.
Q.MENU
Accessesthequickmenu.
Navigationbuttons(up/down/left/right)
Scrollsthroughmenusoroptions.
OK®
Selectsmenusoroptionsandconfirmsyourinput.
BACK
Returnstothepreviousscreen.
EXIT
Clearsallon-screendisplaysandreturnstoTVviewing.
B_lrnr_LInK
AccessestheAVdevicesconnectedtotheTV.
OpenstheSIMPLINKmenu.
SLEEP
SetsthelengthoftimeuntiltheTVtoturnsoff.
Controlbuttons(Ii,1_,I!,_1!,)bD_-)
Controls SIMPLINK compatible devices (USB,SIMPLINK).
Color buttons
These access special functions in some menus.
(_: Red, _: Green, : Yellow, _: Blue)
26 WATCHINGTV
WATC H ING TV
Turning the TV on for the first time
When you turn the TV on for the first time, the initial
setting screen appears. Select a language and customize
the basic settings.
1Connect the power cord to a power outlet.
2in Standby mode, press the power button on the
remote control to turn the TV on.
The Initial setting screen appears when you turn the
TV on for the first time.
h@NOTE i.....
' You can also access Initial Setting by accessing
3Follow the on-screen instructions to customize your
TV settings according to your preferences.
Language ] Selects a language to display.
O
I Mode Setting 1 Selects Home Use for the home
Lenvironment.
0
[ Time Setting I Sebcts the time zone and dayiight
Osaving.
[ Auto Tuning I Scansand savesavailable channels
automatically.
NOTE
To display images in the best quality for your home
environment, select Home Use.
Store Demo is suitable for the retail environment.
if you select Store Demo, any customized settings
will switch back to the default settings of Store
4When the basic settings are complete,
press the OK.
NOTE
• if you do not complete the Initial setting, it will
appear whenever the TV turns on.
• Disconnect the power cord from the power outlet
when you do not use the TV for a long period of
time.
5 To turn the TV off, press the power button on the
remote control.
SPECIFICATIONS 2"7
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
AC 100- 240 V - 50/60 Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 Q
0 - 40 °C
Less than 80 %
-20 - 60 °C
Less than 85 %
Dimensions
(W x H x D)
With stand
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
738 x 497 x 207 (mm)
29.0 x 19.5 x 8.1 (inch)
738 x 449 x 79 (mm)
29.0 x 17.6 x 3.1 (inch)
7.0 kg (15.4 Ibs)
6.4 kg (14.1 Ibs)
1.3A/80W
968 x 629 x 236 (mm)
38.1 x 24.7 x 9.2 (inch)
968 x 579 x 79 (mm)
38.1 x 22.7 x 3.1 (inch)
10.7 kg (23.5 Ibs)
9.6 kg (21.1 Ibs)
1.6A/l10W
(39LN5300.UB)
I (32LN53001UB) I
With stand
Dimensions
(W x H x D)
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
738 x 497 x 207 (mm)
29.0 x 19.5 x 8.1 (inch)
738 x 449 x 79 (mm)
29.0 x 17.6 x 3.1 (inch)
7.0 kg (15.4 Ibs)
6.4 kg (14.1 Ibs)
1.3A/80W
894 x 587 x 236 (mm)
35.1 x 23.1 x 9.2 (inch)
894 x 537 x 79.0 (mm)
35.1 x21.1 x3.1 (inch)
9.7 kg (21.3 Ibs)
8.6 kg (18.9 Ibs)
1.5A/100W
I_ ...................... 42LN5300
MODELS I (42LN5300-UB)
968 x 629 x 236 (mm)
With stand
Dimensions 38.1 x 24.7 x 9.2 (inch)
(W x H x D) 968 x 579 x 79 (mm)
Without stand
38.1 x 22.7 x 3.1 (inch)
With stand 10.7 kg (23.5 Ibs)
Weight Without stand 9.6 kg (21.1 Ibs)
Current Value /Power consumption 1.6 A /110 W
28 SPECIFICATIONS
Dimensions
(WxHxD)
With stand
Without stand
j Weight With stand
i Without stand
Current Value /Power consumption
968 x 629 x 236 (mm)
38,1 x 24.7 x 9,2 (inch)
968 x 579 x 79 (me)
38,1 x 22.7 x 3,1 (inch)
10.7 kg (23.5 Ibs)
9.6 kg (21.1 Ibs)
1.1A/110W
1,080 x 694 x 264 (me)
42.5 x 27,3 x 10.3 (inch)
1,080 x 642 x 80.5 (me)
42.5 x 25,2 x 3.1 (inch)
14.5 kg (31,9 Ibs)
13,1 kg (28,8 Ibs)
1.3A/130W
Dimensions
j(WxHxD)
With stand
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
1,136 x 727 x 264 (mm)
44,7 x 28.6 x 10.3 (inch)
1,136 x 673 x 82,1 (mm)
44,7 x 26.4 x 3,2 (inch)
15.6 kg (34.3 Ibs)
14.2 kg (31.3 Ibs)
1.4A/140W
1,250 x 790 x 297 (me)
49.2 x 31,1 x 11.6 (inch)
1,250 x 737 x 79.1 (me)
49.2 x 29,0 x 3.1 (inch)
21,2 kg (46.7 Ibs)
19,1 kg (42,1 Ibs)
1.6A/160W
?
Resolution
720 x 48op
1280 x 72op
1920 x 1o80i
1920 x lO80p
Horizontal
Frequency (kHz)
31.47
31.50
44.96
45.00
33.72
33.75
26.97
27.00
33.71
33.75
67.432
67.50
Vertical Frequency I
(Hz)
59,94
60.00
59.94
60.00
59.94
60.00
23,976
24.00
29.97
30.00
59.94
60.00
Video output ports
on DVD player
Resolution
720 x 48oi
720 x 48op
280 x 72op
920 x 1o80i
920 x lO80p
Horizontal
Frequency (kHZ)
5.73
5.73
31.47
31.50
44.96
45.00
33.72
33.75
26.97
27.00
33.71
33.75
67.432
67.50
vertical Frequency
(Hz)
59,94
60.00
59.94
60.00
59,94
60.00
59.94
60.00
23.94
24.00
29.97
30.00
59.94
60.00

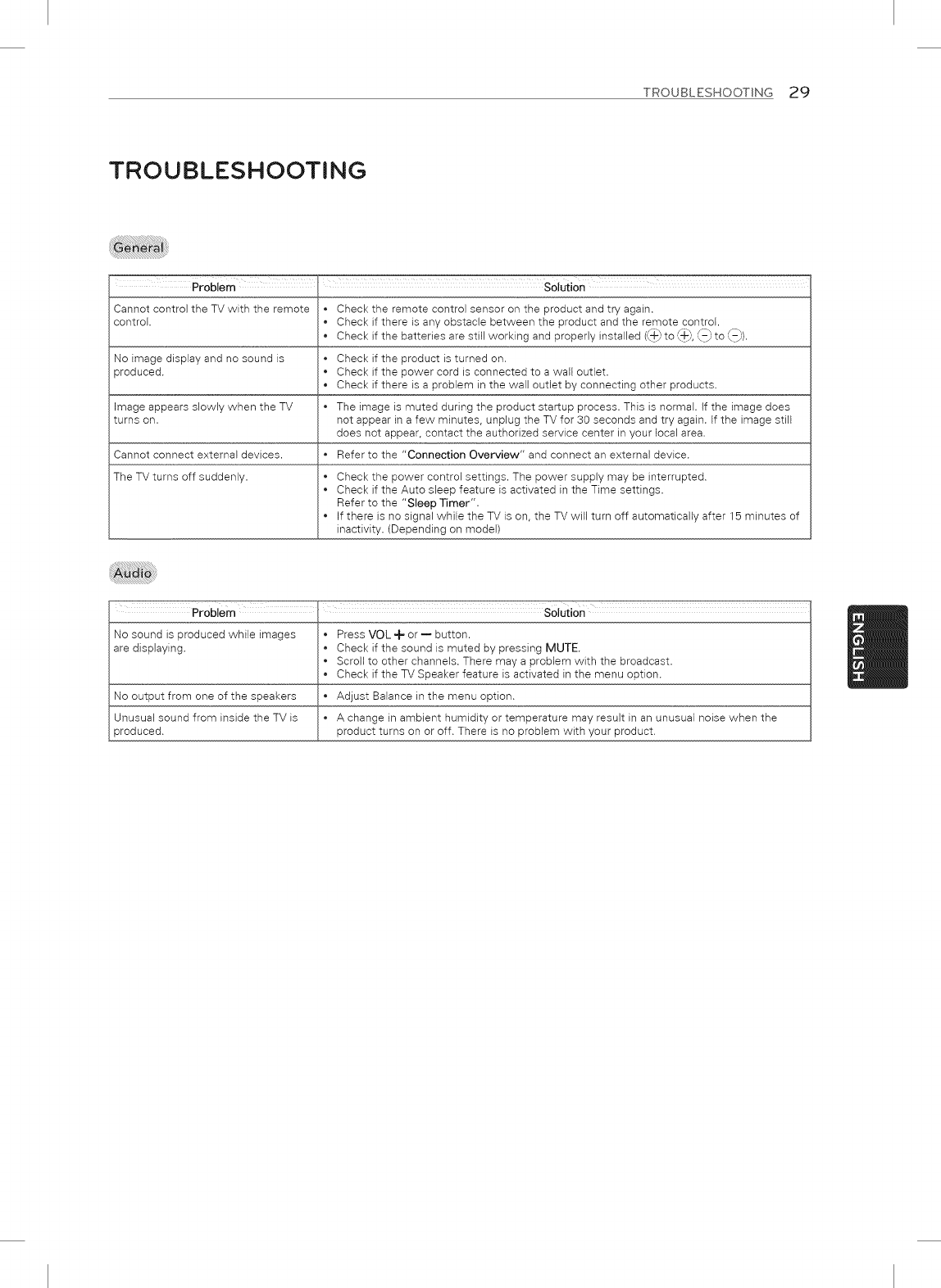

TROUBLESHOOTING29
TROUBLESHOOTING
Problem i Solution
Cannot control the TV with the remote
control. Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed (_4T_to ,_+_,\-j to \-j).
No image display and no sound is Check if the product is turned on.
)roduced. Check if the power cord is connected to a wail outlet.
Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV
turns on. The image is muted during the product startup process. This is normal. If the image does
not appear in a few minutes, unplug the TV for 30 seconds and try again. If the image still
does not appear, contact the authorized service center in your local area.
Cannot connect external devices.
The TV turns off suddenly.
* Refer to the "Connection Overview" and connect an external device.
Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
Refer to the "Sleep Timer".
If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of
inactivity. (Depending on mode])
Problem I solution .............
No sound is produced while images
are displaying.
No output from one of the speakers
Unusual sound from inside the TV is
produced.
Press VOL + or -- button.
Check if the sound is muted by pressing MUTE.
Scroll to other channels. There may a problem with the broadcast.
Check if the TV Speaker feature is activated in the menu option.
* Adjust Balance in the menu option.
A change in ambient humidity or temperature may result in an unusual noise when the
product turns on or off. There is no problem with your product.
30 TROUBLESHOOTING/EXTERNAL CONTROL DEVICE SETUP
Problem , Solution
An image displays in black and white or Adjust the color setting in the menu option.
the color quality is poor. Keep a sufficient distance between this product and other electronic products.
Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears or Check if there are local interferences such as an electrical appliance or power tool.
images blur
Lines or streaks appear on images Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when the Pixels may have been damaged from a fixed image displayed for a long time (image burn).
product turns off Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen appears Adjust the brightness and contrast in the menu option.
extremely dark.
"No Signal" appears on the screen. Check if the signal cable is connected between the TV and products properly.
Check the selected input source by pressing INPUT.
Black spots appear on the screen. Several pixels in red, green, white, or black may appear on the screen that can attribute to
the characteristics of the panel.
This is normal.
The display offset is wrong. Adjust the position setting in the Picture menu.
Check if the video card resolution and frequency are supported by the product, if the
frequency is out of range, set to the recommended resolution using the display settings on
the external device.
Thin lines appear in the background of Check the video cable connections.
the screen.
The reception on some channels is Scroll to other channels. There may a problem with the broadcast.
)oor The station signal may be weak. Aim the antenna to the proper direction.
Check if there is local interferences such as an electrical appliance or power tool.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit 'www.lg.com'.

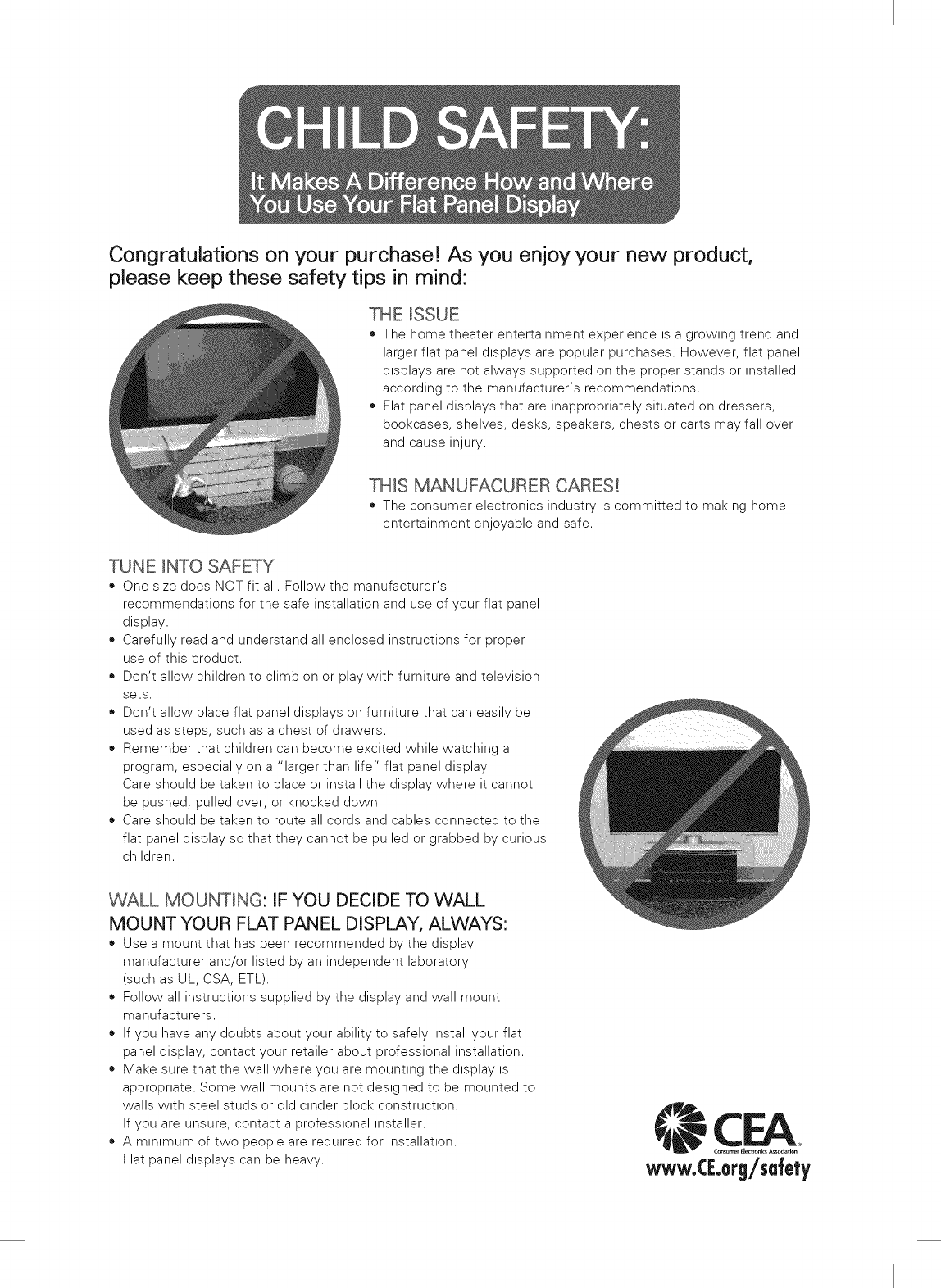

Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
, The home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer's recommendations.
, Flat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over
and cause injury.
THIS MANUFACURER CARES!
, The consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
, One size does NOT fit all. Follow the manufacturer's
recommendations for the safe installation and use of your flat panel
display.
, Carefully read and understand all enclosed instructions for proper
use of this product.
, Don't allow children to climb on or play with furniture and television
sets.
, Don't allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
, Remember that children can become excited while watching a
program, especially on a "larger than life" flat panel display.
Care should be taken to place or install the display where it cannot
be pushed, pulled over, or knocked down.
, Care should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL
MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
, Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
, Follow all instructions supplied by the display and wall mount
manufacturers.
, If you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
, Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted to
walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
, A minimum of two people are required for installation.
Flat panel displays can be heavy.

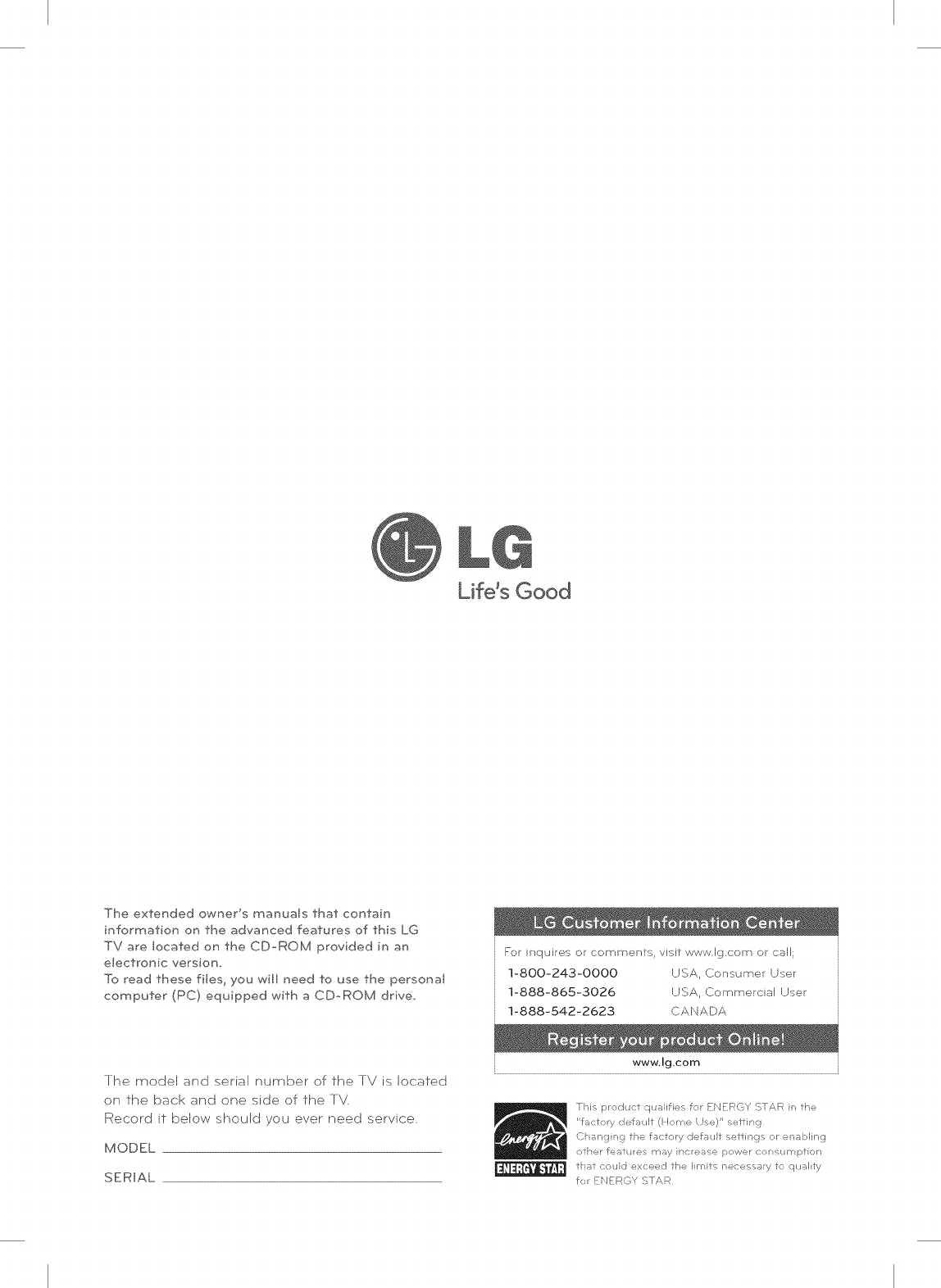

Life's Good
The extended owner's manuals that conta n
informat on on the advanced features of this LG
TVare ocated on the CD-ROM provided in an
eectroncverson.
To read these flies, you w need to use the personal
computer (PC) equ pped wfh a CD--ROM drive.
For inqqires orcor_-_rrenls, visilwwwlgcorr ol call;
1-800-243-0000 USA, Cot surfer User
1-888-865-3026 USA, Comrr ercia[ User
1-888-542-2623 CANADA
The model and serial number of the TV is located
on the back and one sde of the TV.
B!ecord it below should you ever need service
MODEL
SERIAL
www.lg.com
Ths product, qu_iifios for ENERG Y STAR in 1,he
"fac1,ory default, (io°_e (;se)" set,1, no/
C /al_gi'/(_} rite fac1`ory defaui1, set1, Itgs or e abil_g
oti_er feat ir_,s l_ay Inc[_,ase [sower cog/s/ [_'_Dtio[
1,_a1,cos[dexceed1,he[rrfi1,s ecessayl-oquali1,y
for ENERGY STAR

Navigation menu
