LG 42LB5600 User Manual LED TV Manuals And Guides 1406224L

User Manual: LG 42LB5600 42LB5600 LG LED TV - Manuals and Guides View the owners manual for your LG LED TV #42LB5600. Home:Electronics Parts:LG Parts:LG LED TV Manual

Open the PDF directly: View PDF PDF.
Page Count: 28

Life's Good
i
i i I
.... b MAN JF'= _,L

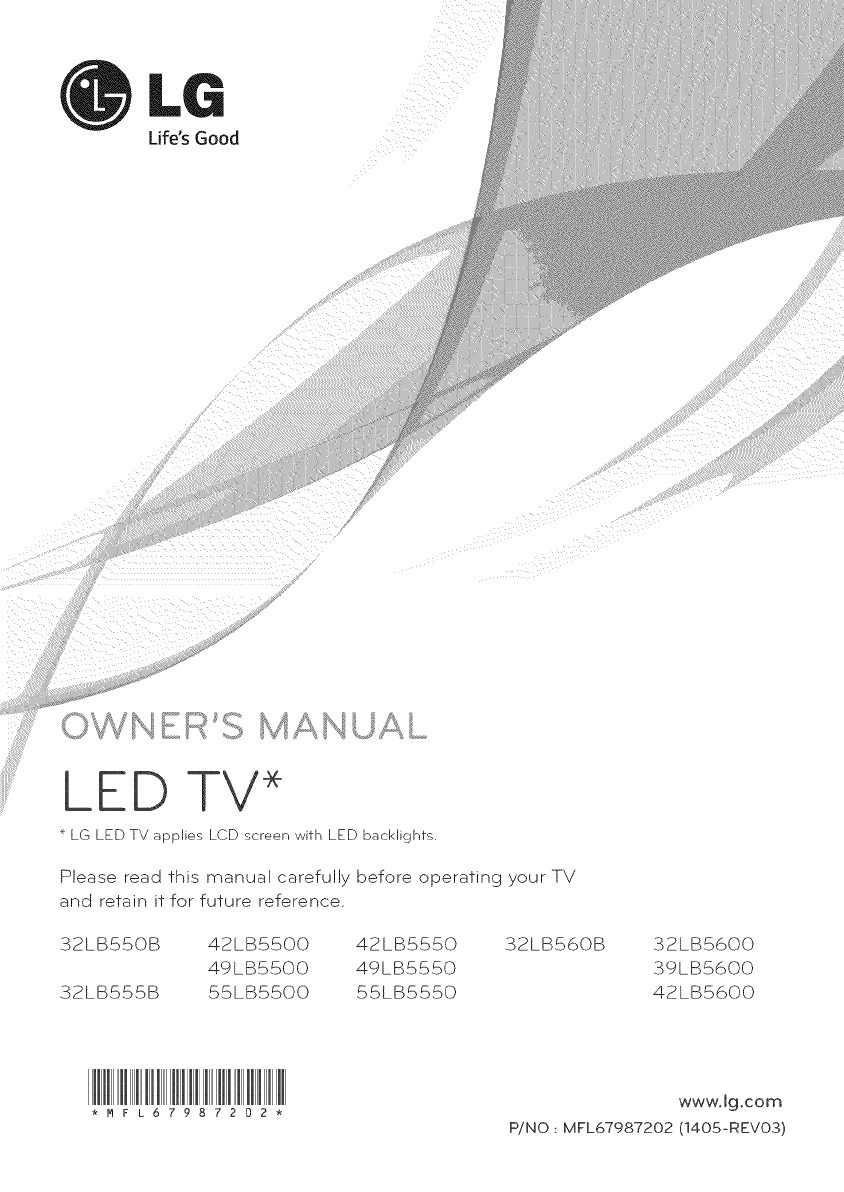

LED TV -x-
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV
and retain it for future reference.
32LB55OB 42LB5500 42LB5550 32LB56OB
49LB5500 49LB5550
32LB555B 55LB5500 55LB5550
*MFL67987202*
32LB5600
39LB5600
42LB5600
www.lg.com
P/NO : MFL6798T202 (1405-REV03)

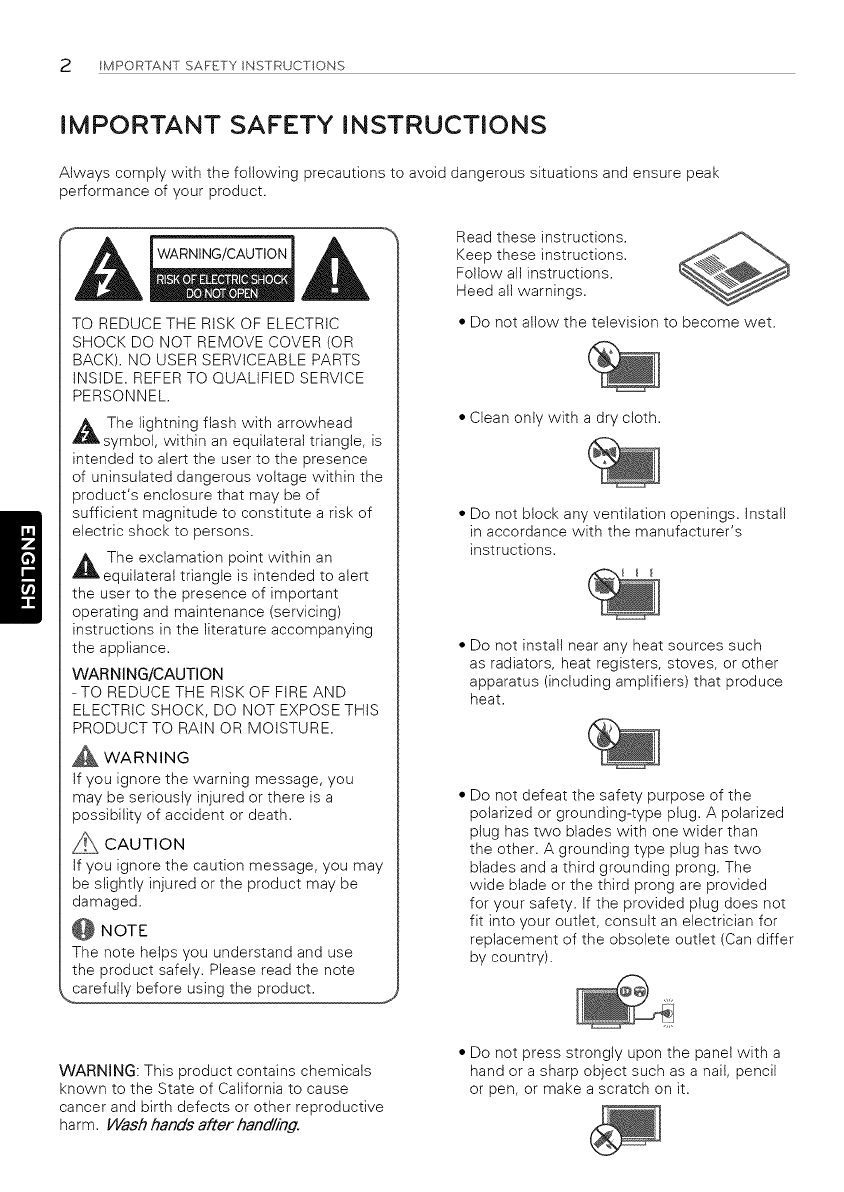

2 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
D_The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated dangerous voltage within the
product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
_IL he exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
A WARNING
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
A CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
O NOTE
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
WARNING: This product contains chemicals
known to the State of California to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
Read these instructions.
Keep these instructions.
Follow all instructions.
Heed all warnings.
• Do not allow the television to become wet.
• Clean only with a dry cloth,
• Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ
by country).
• Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
•Protectthepowercordfrombeingwalkedon
orpinchedparticularlyatplugs,convenience
receptacles,andthepointwheretheyexit
fromtheapparatus.
•Onlyuseattachments/accessoriesspecified
bythemanufacturer.
•Useonlywithacart,stand,tripod,bracket,
ortablespecifiedbythemanufacturer,or
soldwiththeapparatus.Whenacartisused,
usecautionwhenmovingthecart/apparatus
combinationtoavoidinjuryfromtip-over.
,,®
• Unplug this apparatus during lightning storms
or when unused for long periods of time.
• Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
• Do not stick metat objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
• Keep the packing anti-moisture material
or vinyl packing out of the reach of
children. Anti-moisture material is harmful
if swallowed. If swallowed by mistake,
induce vomiting and go to the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.

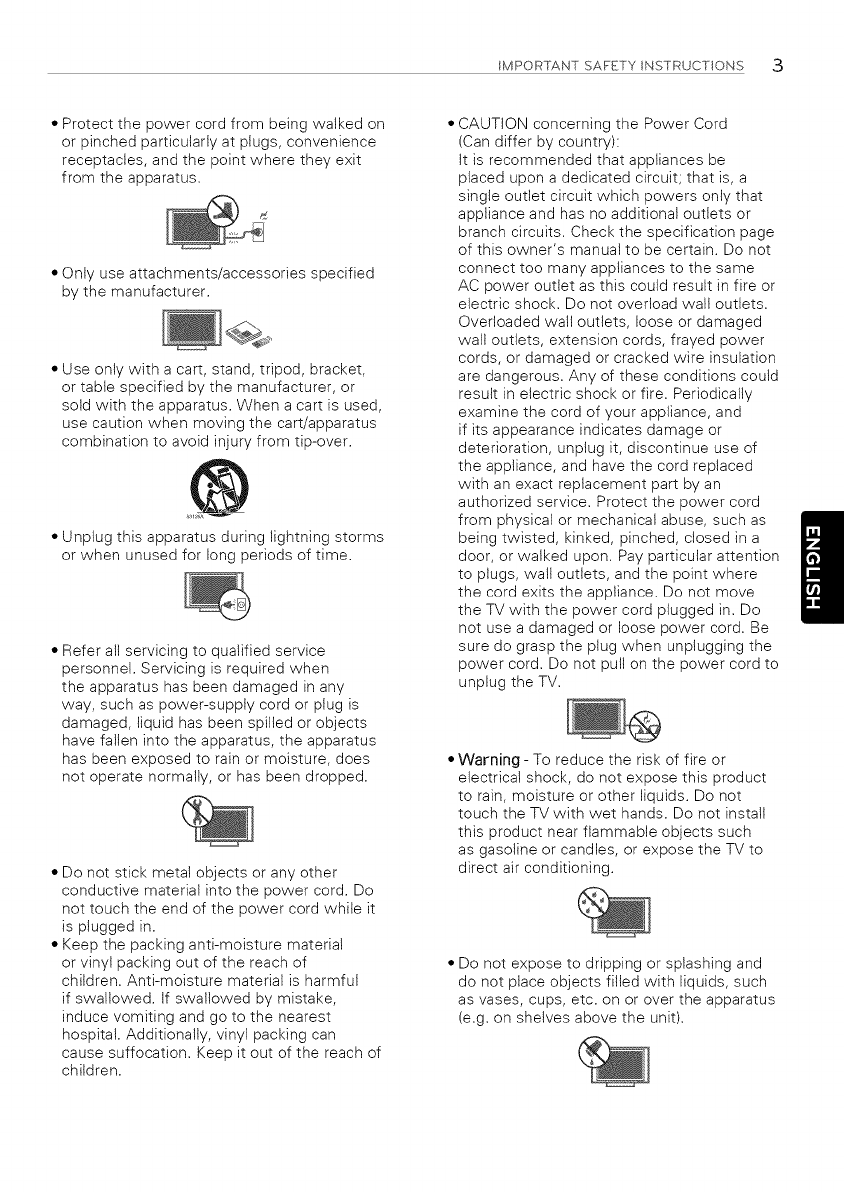

IMPORTANT SAFETY INSTRUCTIONS 3
• CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, walt outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
• Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
• Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).

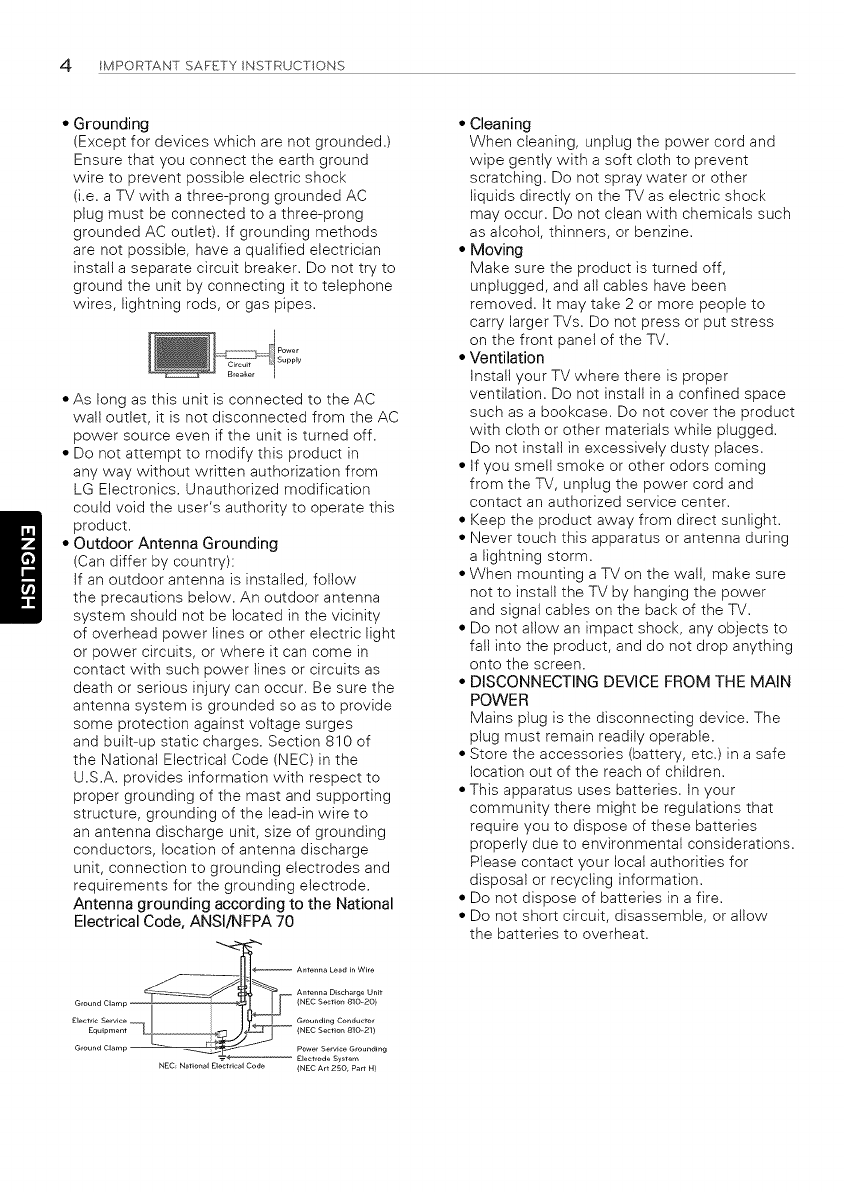

4IMPORTANT SAFETY INSTRUCT+ONS
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightning rods, or gas pipes.
• As long as this unit is connected to the AC
wall outlet, it is not disconnected from the AC
power source even if the unit is turned off.
• Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user's authority to operate this
product.
• Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
T_, I _ A nten+_a Lead In Wire
Antenna Discharge Unit
Ground Clamp • (NEe Section 810-20)
Etectd¢ Service || Grounding Conductor
Equipment (NEC Section 810- 21)
Ground Clamp Power Service Grounding
= E_ectrode System
NEC: National Electrical Code (NEC Art 250, Part H)
• Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals such
as alcohol, thinners, or benzine.
• Moving
Make sure the product is turned off,
unplugged, and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
• Ventilation
Instalt your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not instalt in excessively dusty places.
• If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during
a lightning storm.
• When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
• Do not allow an impact shock, any objects to
fan into the product, and do not drop anything
onto the screen.
• DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
• Store the accessories (battery, etc.) in a safe
location out of the reach of children.
• This apparatus uses batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble, or allow
the batteries to overheat.
•DotDefect
Thepanelisahightechnologyproductwith
resolutionoftwomilliontosixmillionpixets.
Inaveryfewcases,youcouldseefinedots
onthescreenwhileyou'reviewingtheTV.
Thosedotsaredeactivatedpixetsanddonot
affecttheperformanceandreliabilityofthe
TV.
•GeneratedSound
CrackingnoiseAcrackingnoisethatoccurs
whenwatchingorturningofftheTVis
generatedbyplasticthermalcontraction
duetotemperatureandhumidity.Thisnoise
iscommonforproductswherethermal
deformationisrequired.
Electricalcircuithumming/panelbuzzing
Alowlevelnoiseisgeneratedfroma
high-speedswitchingcircuit,whichsuppliesa
largeamountofcurrenttooperateaproduct,
Itvariesdependingupontheproduct.
Thisgeneratedsounddoesnotaffectthe
performanceandreliabilityoftheproduct.
•Takecarenottotouchtheventilation
openings.WhenwatchingtheTVforalong
period,theventilationopeningsmaybecome
hot.Thisdoesnotaffecttheperformanceof
theproductorcausedefectsintheproduct.
•Donotinstallthisproductonawallifit
couldbeexposedtooitoroilmist.Thismay
damagetheproductandcauseittofall.
•IftheTVfeelscoldtothetouch,theremay
beasmallflickerwhenitisturnedon.This
isnormal;thereisnothingwrongwithTV.
Someminutedotdefectsmaybevisibleon
thescreen,appearingastinyred,green,or
bluespots.However,theyhavenoadverse
effectontheTV'sperformance.Avoid
touchingtheLCDscreenorholdingyour
finger(s)againstitforlongperiodsoftime.
Doingsomayproducesometemporary
distortioneffectsonthescreen.
IMPORTANT SAFETY INSTRUCTIONS 5
• If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.

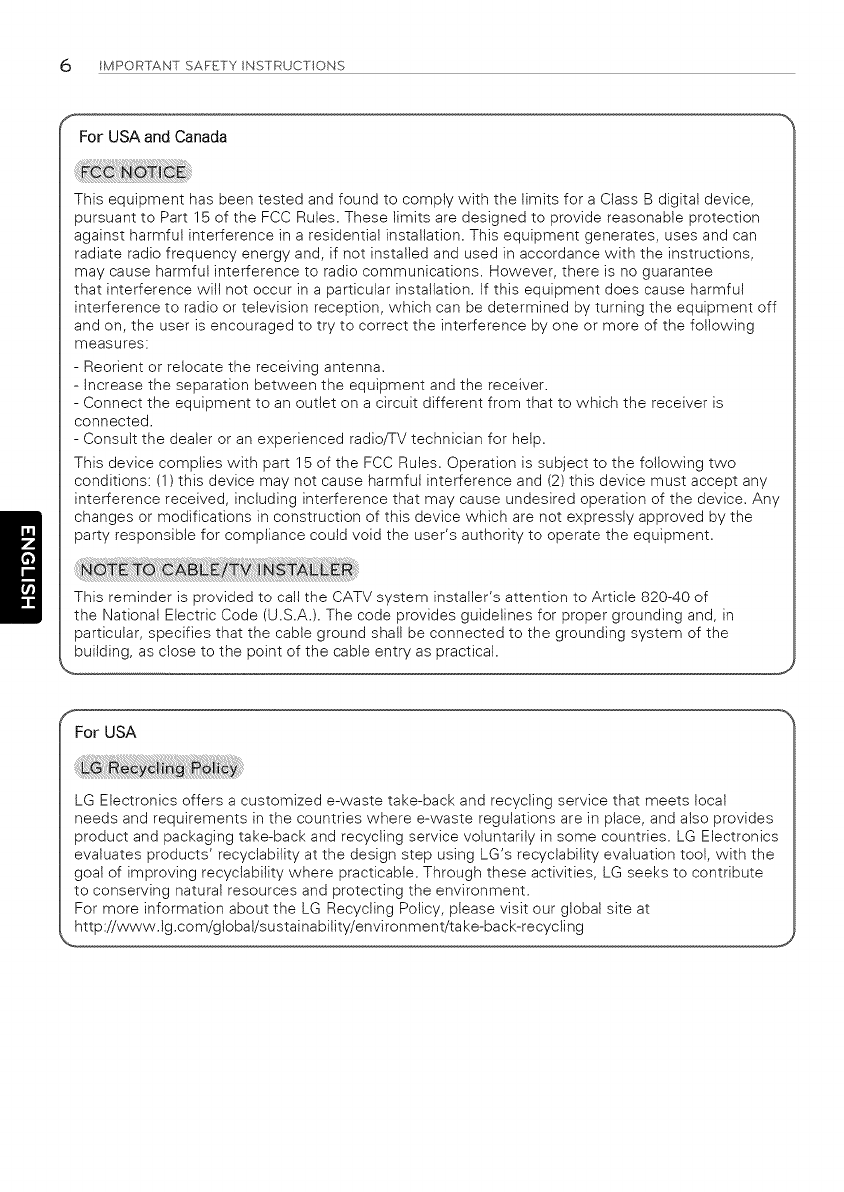

6 IMPORTANT SAFETY INSTRUCTIONS
f
For USA and Canada
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radioFV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device. Any
changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
6 iN
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
f
For USA
LG Electronics offers a customized e-waste take-back and recycling service that meets local
needs and requirements in the countries where e-waste regulations are in place, and also provides
product and packaging take-back and recycling service voluntarily in some countries. LG Electronics
evaluates products' recyclabitity at the design step using LG's recyclability evaluation tool, with the
goat of improving recyclabitity where practicable. Through these activities, LG seeks to contribute
to conserving natural resources and protecting the environment.
For more information about the LG Recycling Policy, please visit our global site at
http://www.lg.com/gtobal/sustainability/environment/take-back-recycling
LICENSES /OPEN SOURCE SOFTWARE NOTICE 7

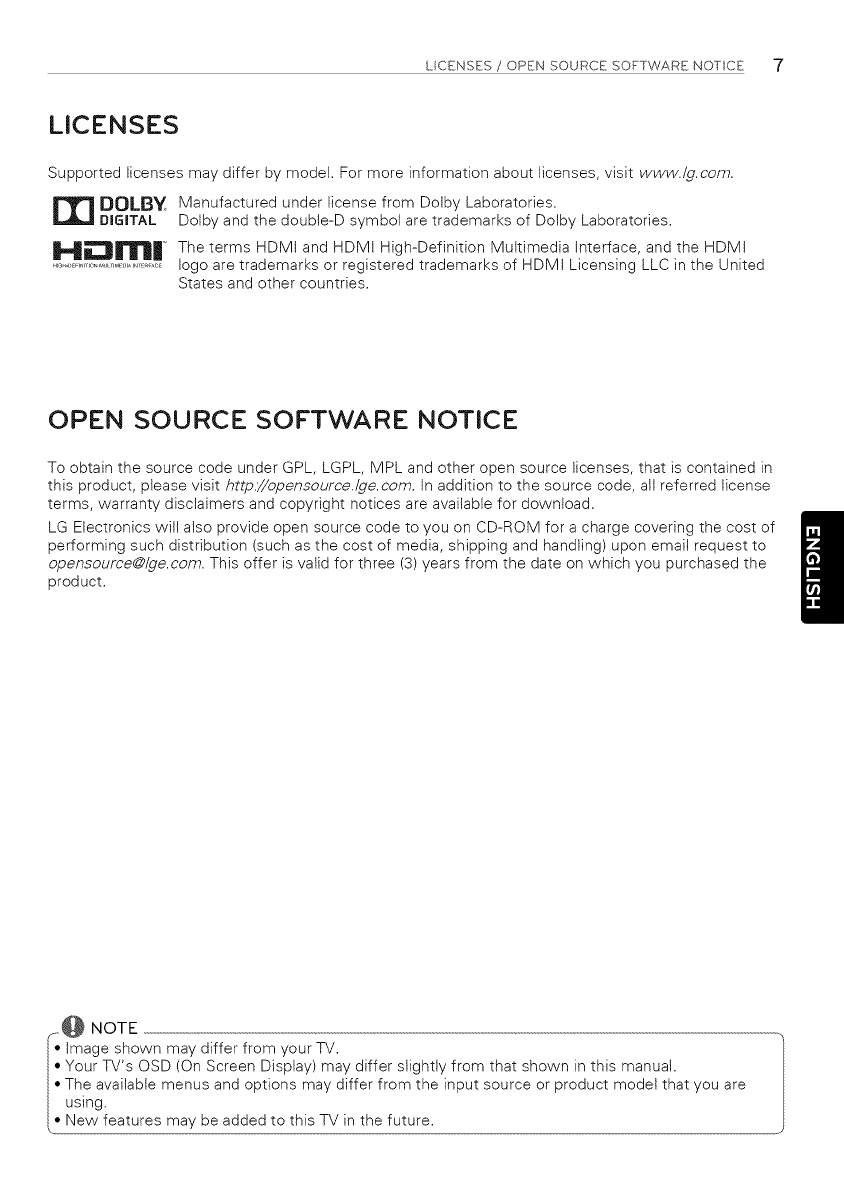

LICENSES
Supported licenses may differ by model. For more information about licenses, visit www./g.com.
_ DO[.BY Manufactured under license from Dolby Laboratories.
OIGITAL Dolby and the double-D symbol are trademarks of Dolby Laboratories.
H__" The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI
............................ logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in
this product, please visit http.//opensource./ge.com. In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon emait request to
opensource@/ge.com. This offer is valid for three (3) years from the date on which you purchased the
product.
_ NOTE
image shown may differ from your TV.
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
uslng.
New features may be added to this TV in the future.
8 ASSEMBLING AND PREPAR NG
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
Remote Control, Batteries Owner's Manual
(AAA)
Stand Base
Cable Holder
(For 32LB550B, 32LB555B,
32LB560B, 32LB5600)
Stand Screws
4EA, M4xL20
Stand Holder
2 EA
Power Cord
(For 42/49/55LB5500,
42/49/55LB5550,
39/42LB5600)
Stand Screws
4 EA, M4 x L14
(For42LB5500,42LB5550,
42LB5600)
Wall Mount Inner Spacers
2 EA
ASSEMBLING AND PREPARING 9

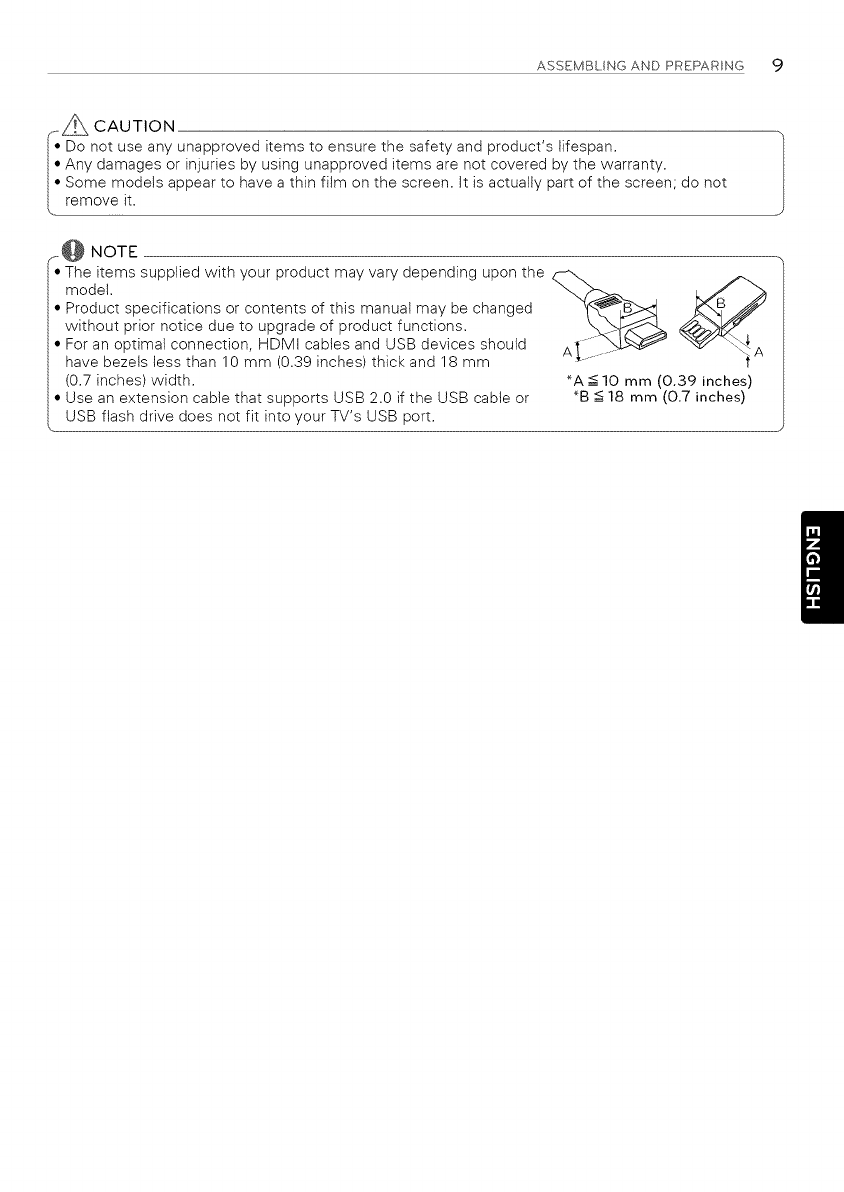

_CAUTION
Do not use any unapproved items to ensure the safety and product's lifespan,
Any damages or injuriesby using unapproved items are not covered by the warranty,
Some m.odels appear to have a thin film on the screen. Itisactuallypart of the screen: do not
remove it.
,_.@ NOTE
• The items supplied with your product may vary depending upon the 4--...
model.
• Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
• For an optimat connection, HDMt cables and use devices should
have bezets less than 10 mm (0.39 inches) thick and 18 mm ..... ----
(0,7 inches) width. _A _ 10 mm (0.39 inches)
• Use an extension cable that supports use 2,0 if the use cable or _B -_<18 mm (0_7 inches)
use flash drive does not fit into your TV's use port.
/
10 ASSEMBLING AND PREPAR NG

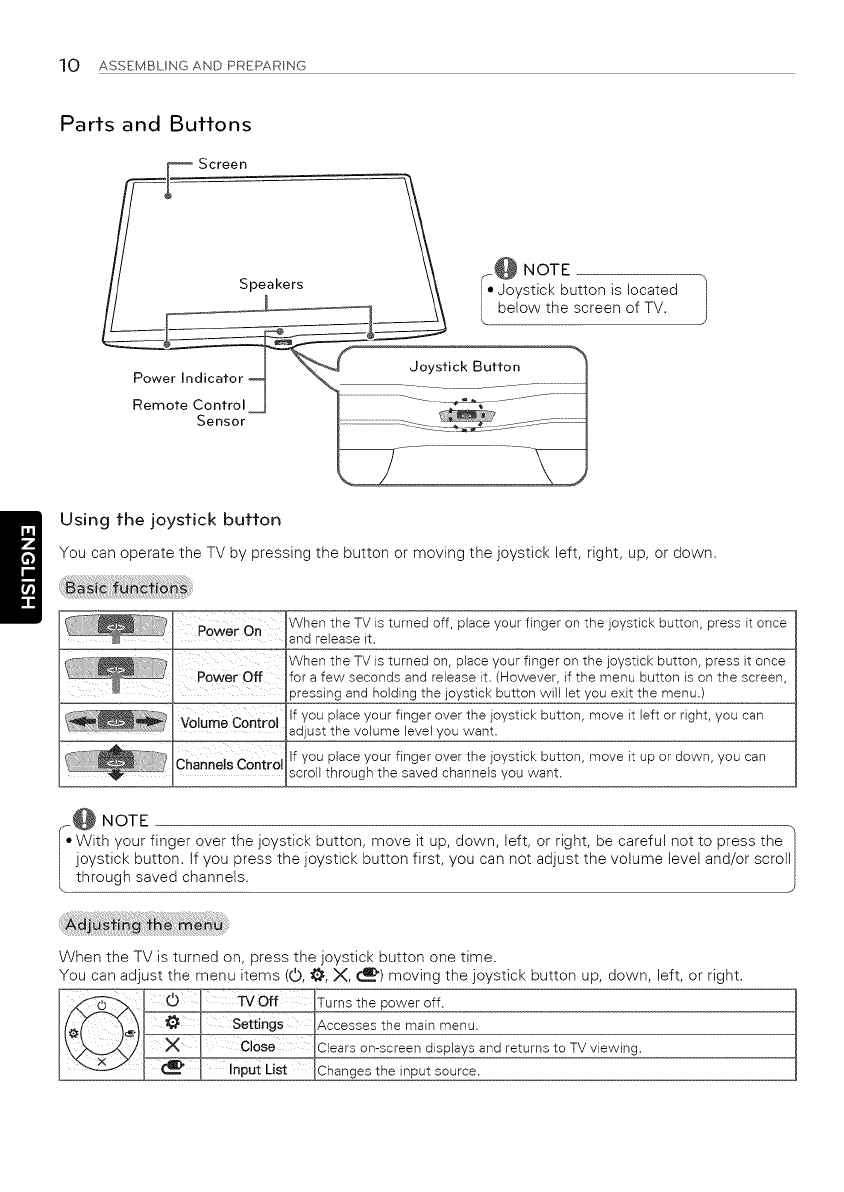

Parts and Buttons
_Screen
@NOTE
SPeakers \\ I_ Joystick button is located
below the screen of TV.
_r Indicator Joystick Button
Re
Using the joystick button
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
,_,wD"*'=rOn When the TV is turned off, place your finger on the joystick button, press it once
and release it.
When the TV is turned on, place your finger on the joystick button, press it once
for a few seconds and release it. (However, if the menu button is on the screen,
pressing and holding the joystick button will let you exit the menu.)
Volume control if you place your finger over the joystick button, move it left or right, you carl
adjust the volume level you want.
Channels control if you place your finger over the joystick button, move it up or down, you carl
......................................scroll through the saved channels you want.
,_.@ NOTE
, With your finger over the joystick button, move it up, down, left, or right, be careful not to press the
/ joystick button. If you press the joystick button first, you can not adjust the volume tevel and/or scroll
/ through saved channels.
When the TV is turned on, press the joystick button one time.
You can adjust the menu items (©, _, X, _) moving the joystick button up, down, left, or right.
power off.
the main menu.
een displays and returns to TV viewing.
input source.
ASSEMBLING AND PREPAR+NG 11

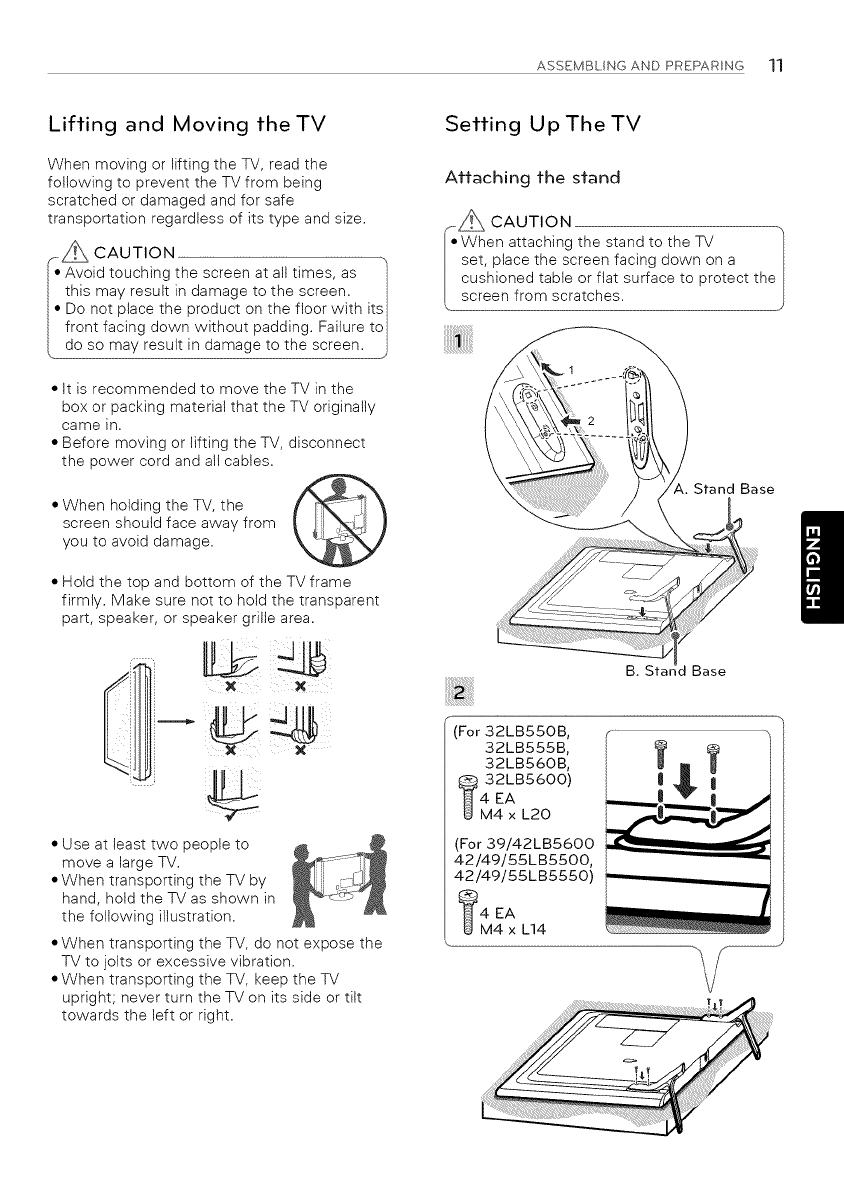

Lifting and Moving theTV
When moving or lifting the TV, read the
following to prevent the TV from being
scratched or damaged and for safe
transportation regardless of its type and size.
,_ CAUTION
f
/" Avoid touching the screen at all times, as
/ this may result in damage to the screen.
/o Do not place the product on the floor with its I
front facing down without padding. Failure to I
do so may result in damage to the screen.
• It is recommended to move the TV in the
box or packing material that the TV originally
came in.
• Before moving or lifting the TV, disconnect
the power cord and all cables.
• When holding the TV, the _'_
screen should face away from
you to avoid damage.
• Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grille area.
• Use at least two people to
move a large TV.
• When transporting the TV by
hand, hold the TV as shown in
the following illustration.
• When transporting the TV, do not expose the
TV to jolts or excessive vibration.
• When transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right.
Setting Up The TV
Attaching the stand
//_.",,CAUTION
_.When attaching the stand to the TV
| set, place the screen facing down on a
| cushioned table or flat surface to protect the I
\+ Stand Base
B+ Star Base
_(-ro,3ZLBSSOB,
32LB555B,
32LB560B,
I32LB5600)
4 EA
M4 x L20
(For 39/42LB5600
42/49/55LB5500,
42/49/55LB5550)
t4 EA
M4 x [-14
/
12 ASSEMBLING AND PREPAR NG

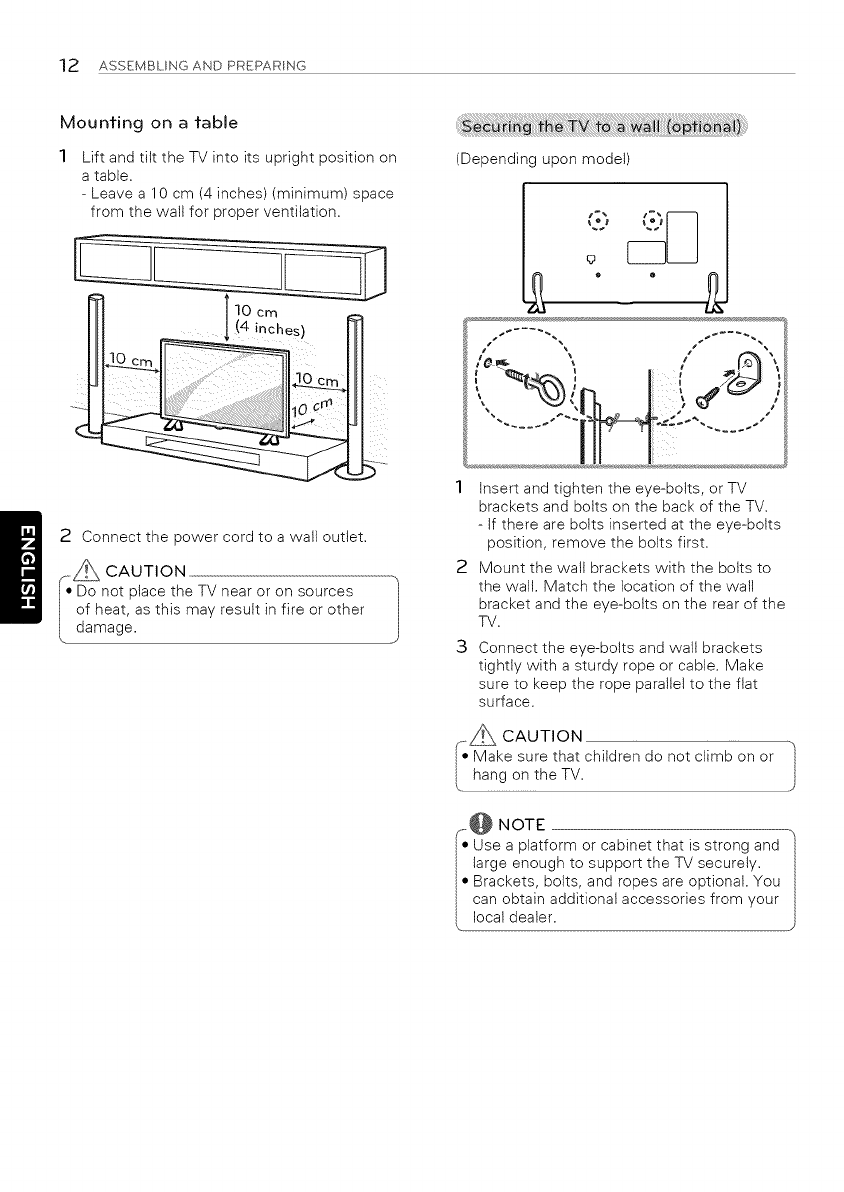

Mounting on a table
Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
lO cm
(4 inches)
2 Connect the power cord to a wall outlet.
__ CAUTION
.Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
(Depending upon model)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to
the wall. Match the location of the wall
bracket and the eye-bolts on the rear of the
TV.
3 Connect the eye-bolts and watl brackets
tightly with a sturdy rope or cable. Make
sure to keep the rope parallel to the flat
surface.
__::_ CAUTION
I Make sure that children do not climb on or "]
,.@ NOTE
/_. Use a platform or cabinet that is strong and
large enough to support the TV securely.
• Brackets, bolts, and ropes are optional. You
can obtain additional accessories from your

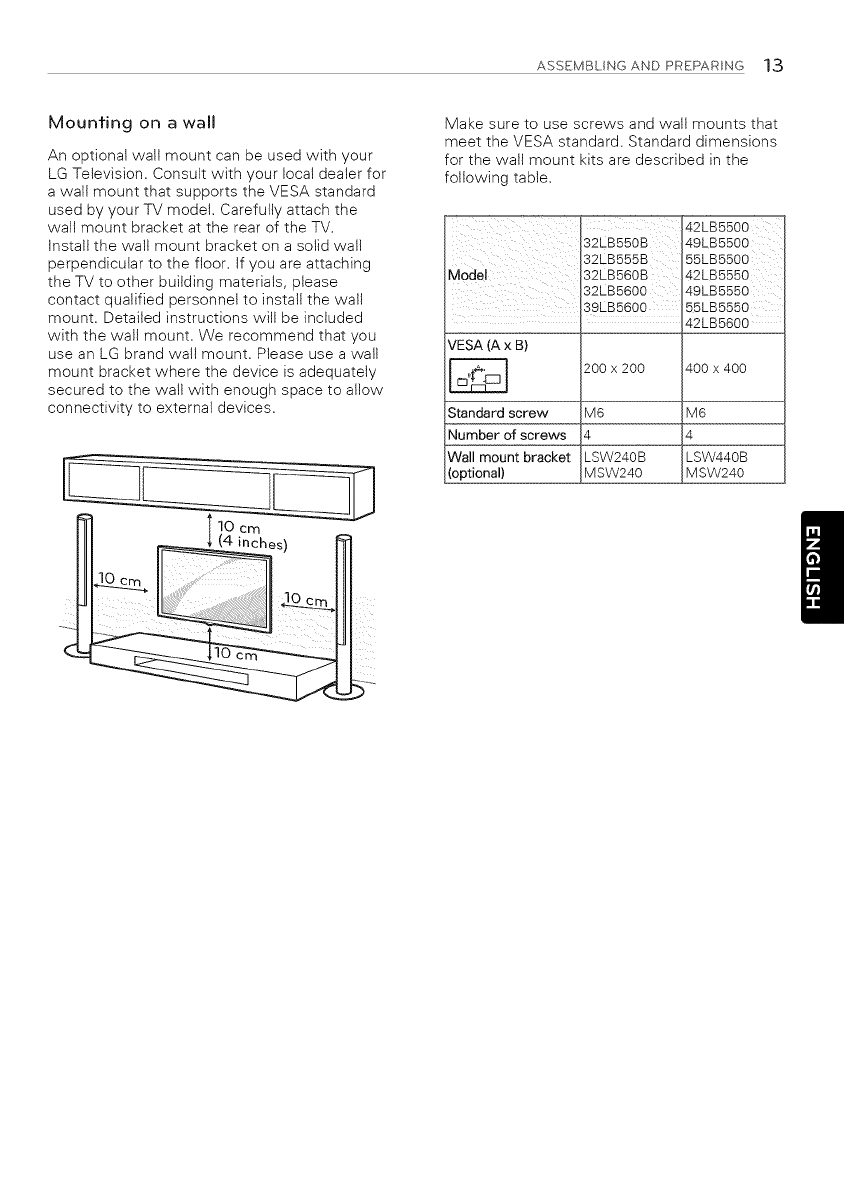

Mountingonawall
Anoptionalwallmountcanbeusedwithyour
LGTelevision.Consultwithyourlocaldealerfor
awallmountthatsupportstheVESAstandard
usedbyyourTVmodel.Carefullyattachthe
wallmountbracketattherearoftheTV.
Installthewallmountbracketonasolidwan
perpendiculartothefloor.Ifyouareattaching
theTVtootherbuildingmaterials,please
contactqualifiedpersonneltoinstallthewall
mount.Detailedinstructionswillbeincluded
withthewallmount.Werecommendthatyou
useanLGbrandwatlmount.Pleaseuseawall
mountbracketwherethedeviceisadequately
securedtothewallwithenoughspacetoallow
connectivitytoexternaldevices.
ASSEMBLING AND PREPARING 13
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
2LB5500
32LB550B 9LB5500
32LB555B 55LB5500
Model 32LB560B 42LB5550
32LB560049LB5 039LB 600
42LB5600
VESA (A x B)
200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4
Wall mount bracket LSW240B LSW440B
(optional) MSW240 MSW240 /
14 ASSEMBLING AND PREPAR NG

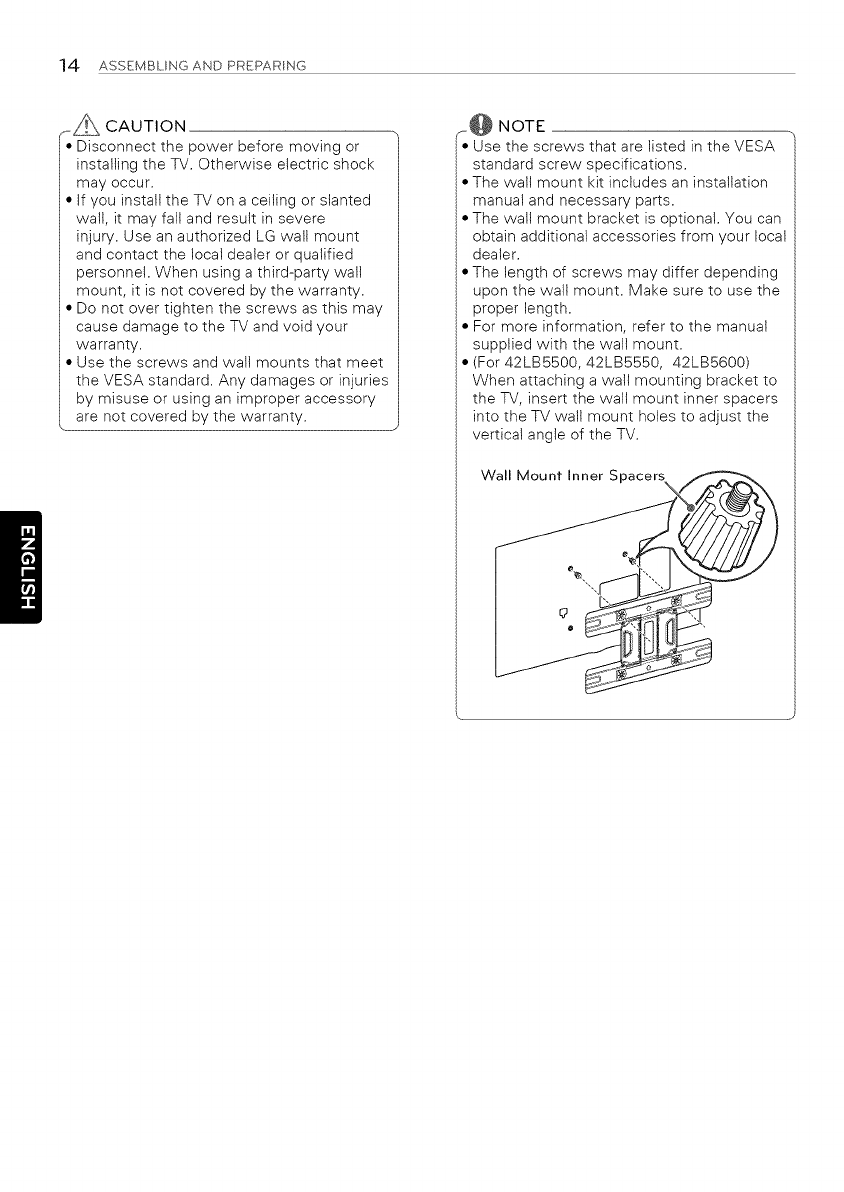

.._..._X CAUTION
• Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
• If you install the TV on a ceiling or slanted
wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel. When using a third-party wall
mount, it is not covered by the warranty.
• Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
• Use the screws and wail mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
_@ NOTE
• Use the screws that are listed in theVESA
standard screw specifications.
• The wall mount kit includes an installation
manual and necessary parts.
• The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
• The length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
• For more information, refer to the manual
supplied with the wall mount.
• (For 42LB5500, 42LB5550, 42LB5600)
When attaching a wall mounting bracket to
the TV, insert the wall mount inner spacers
into the TV walt mount holes to adjust the
vertical angle of the TV.
Wall Mount Inner S

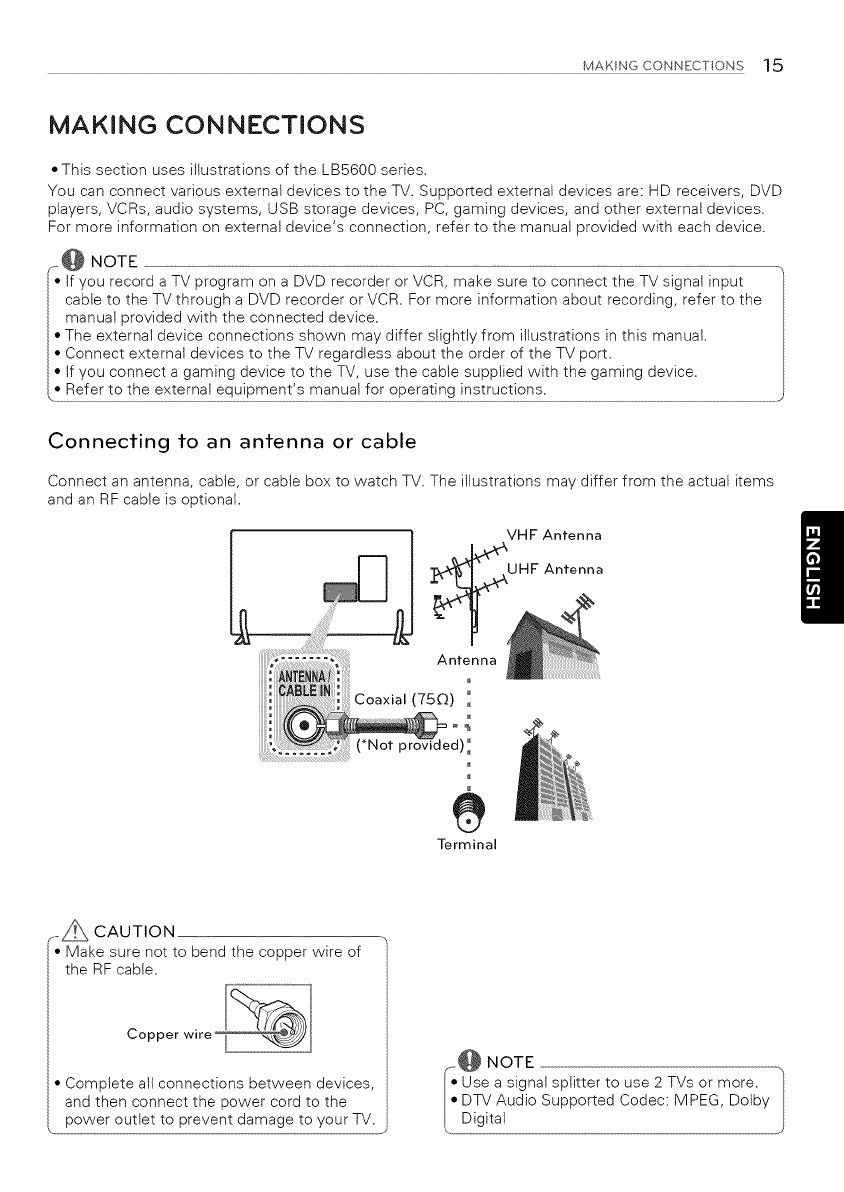

MAKING CONNECTIONS 15
MAKING CONNECTIONS
• This section uses illustrations of the LB5600 series.
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device's connection, refer to the manual provided with each device.
;@ NOTE
'If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
J cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
J manual provided with the connected device.
J• The external device connections shown may differslightlyfrom illustrationsin thismanual.
J• Connect external devices to the TV regardless about the order of the TV port.
J• Ifyou connect a gaming device to the TV, use the cable supplied with the gaming device.
[• Refer to the external equipment's manual for operating instructions.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items
and an RF cable is optional.
VHF Antenna /
e
Terminal
.__ CAUTION
• Make sure not to bend the copper wire of
the RF cable.
• Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
,_..@ NOTE
[• Use a signal sptitter to use 2 TVs or more. -'/
p UTyAudioSupportedCodec:MPEG, Uolby
16 MAKING CONNECTIONS

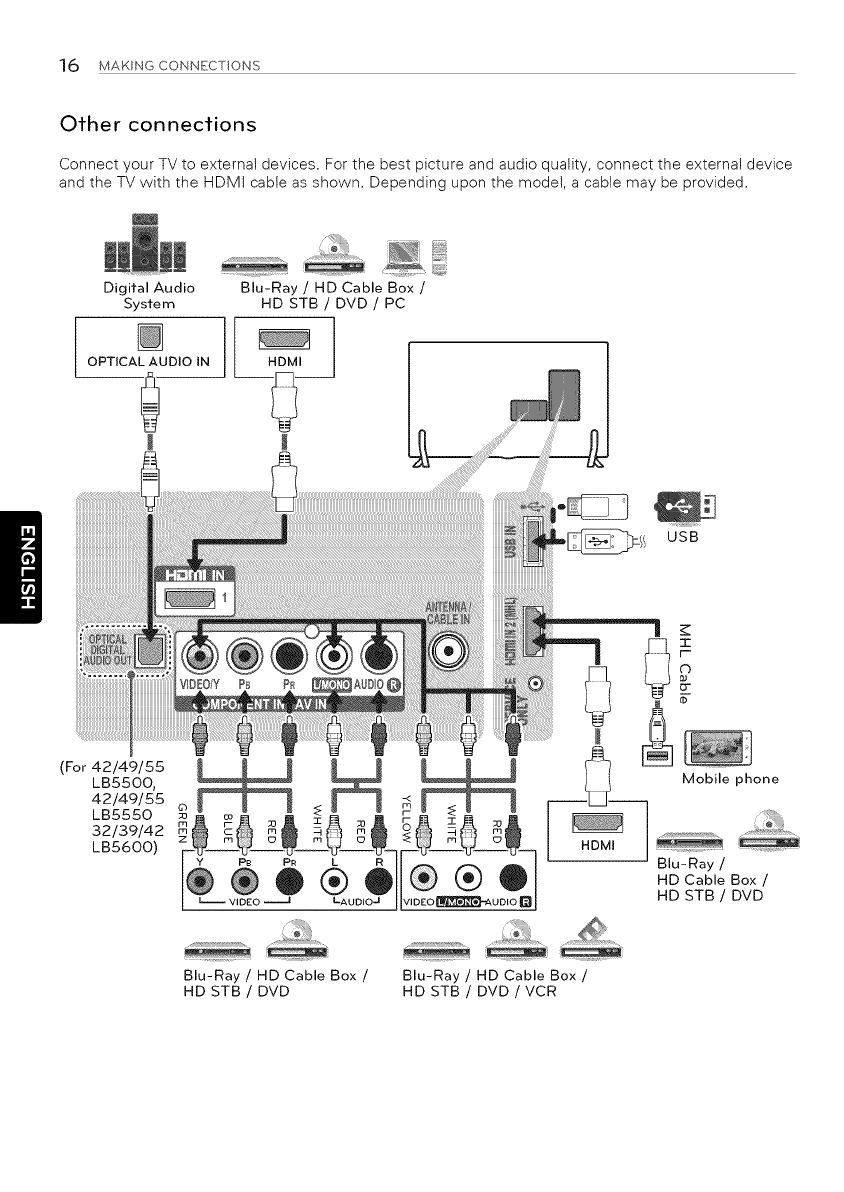

Other connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Depending upon the model, a cable may be provided.
Digital Audio
System
OPTICAL AUDIO IN
Blu-Ray /HD Cable Box /
HD STB /DVD /PC
HDMI ]
Blu-Ray /HD Cable Box /
HD STB /DVD Blu-Ray /HD Cable Box /
HD STB /DVD /VCR
REMOTE CONTROL 17
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To install batteries, open
the battery cover, replace batteries (1.5 V AAA) matching the @} and {-}' ends to the label
inside the compartment, and close the battery cover. Failure to match the correct polarities
of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient
pollution. To remove the batteries, perform the installation actions in reverse.
_ CAUTION
Do not mix old and new batteries, as this may damage the remote controL
This remote uses infrared light. When in use, it should be pointed in the direction of the TV's remote
sensor.
F
RATIO INPUT
I
if, _
(POWER) Turns the TV on or off.
TV Returns to the last TV channel.
CAPTION Activates or deactivates the subtitles.
AV MODE Selects an AV mode.
RATIO Resizes an image.
INPUT Changes the input source. Turns the TV on if it is off.
Number button Enters numbers.
-(Dash) inserts a dash between numbers such as 2-1 and 2-2.
LIST Accesses the saved channel list.
FLASHBK Alternates between the two last channels selected (pressing
repeatedly).
VOL _ Adjusts the volume level.
FAV Accesses your favorite channel list.
AUDIO Digital signal: Changes the audio language.
Analog signal: Changes the MTS sound.
MUTE J_" Mutes all sounds.
A CH V Scrolls through the saved channels.
A PAGE V Moves to the previous or next screen.
PICTURE Changes the image mode.
INFO (_) Shows information on the current program.
SOUND Changes the sound mode.
SETTINGS Accesses the main menu.
Q.MENU Accesses the quick menu.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK(_) Selects menus or options and confirms your input.
2::3 BACK Returns to the previous screen.
EXiT Clears all on-screen displays and returns to TV viewing.
Not functional.
SLEEP Sets the length of time until the TV to turns off.
Control buttons ( m, _, ||, _, ll_) Controls the compatible devices (USB).
_;-')_ (1;*_}[-*_-_These access special functions in some menus.

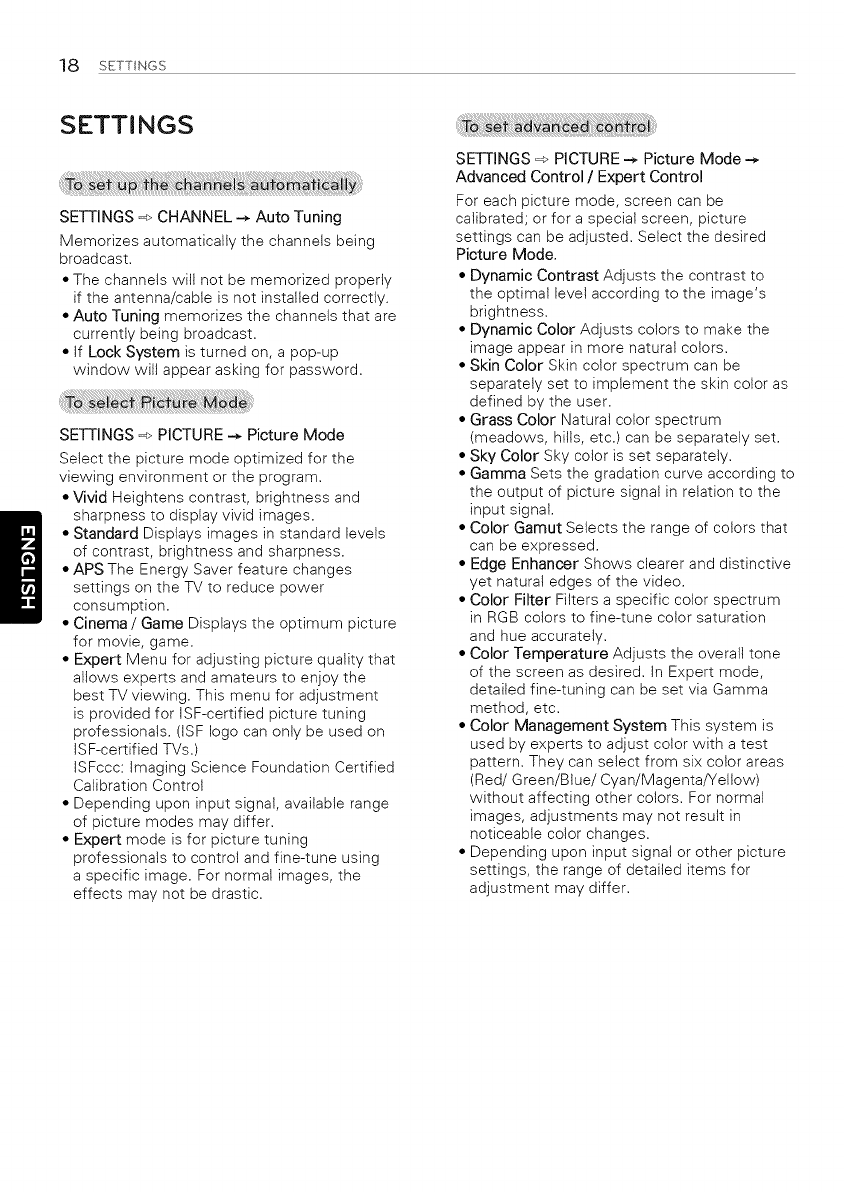

18 SETT NGS
SETTINGS
SETTINGS =>CHANNEL -_ Auto Tuning
Memorizes automatically the channels being
broadcast.
• The channels will not be memorized properly
if the antenna/cable is not installed correctly.
• Auto Tuning memorizes the channels that are
currently being broadcast.
• if Lock System is turned on, a pop-up
window will appear asking for password.
SETTINGS => PICTURE -_ Picture Mode
Select the picture mode optimized for the
viewing environment or the program.
• Vivid Heightens contrast, brightness and
sharpness to display vivid images.
• Standard Displays images in standard levets
of contrast, brightness and sharpness.
• APS The Energy Saver feature changes
settings on the TV to reduce power
consumption.
• Cinema /Game Displays the optimum picture
for movie, game.
• Expert Menu for adjusting picture quality that
allows experts and amateurs to enjoy the
best TV viewing. This menu for adjustment
is provided for iSF-certified picture tuning
professionals. (iSF logo can only be used on
iSF-certified TVs.)
iSFccc: imaging Science Foundation Certified
Calibration Control
• Depending upon input signal, available range
of picture modes may differ.
• Expert mode is for picture tuning
professionals to control and fine-tune using
a specific image. For normal images, the
effects may not be drastic.
SETTINGS => PICTURE _ Picture Mode
Advanced Control /Expert Control
For each picture mode, screen can be
calibrated; or for a special screen, picture
settings can be adjusted. Setect the desired
Picture Mode,
• Dynamic Contrast Adjusts the contrast to
the optimal levet according to the image's
brightness.
• Dynamic Color Adjusts colors to make the
image appear in more natural colors.
• Skin Color Skin color spectrum can be
separately set to implement the skin color as
defined by the user.
• Grass Color Natural color spectrum
(meadows, hills, etc.) can be separately set.
• Sky Color Sky color is set separately.
• Gamma Sets the gradation curve according to
the output of picture signal in relation to the
input signal.
• Color Gamut Selects the range of colors that
can be expressed.
• Edge Enhancer Shows clearer and distinctive
yet natural edges of the video.
• Color Filter Filters a specific color spectrum
in RGB colors to fine-tune color saturation
and hue accurately.
• Color Temperature Adjusts the overall tone
of the screen as desired. In Expert mode,
detailed fine-tuning can be set via Gamma
method, etc.
• Color Management System This system is
used by experts to adjust color with a test
pattern. They can select from six color areas
(Red/Green/Blue/Cyan/Magenta/Yellow)
without affecting other colors. For normal
images, adjustments may not result in
noticeable color changes.
• Depending upon input signal or other picture
settings, the range of detailed items for
adjustment may differ.

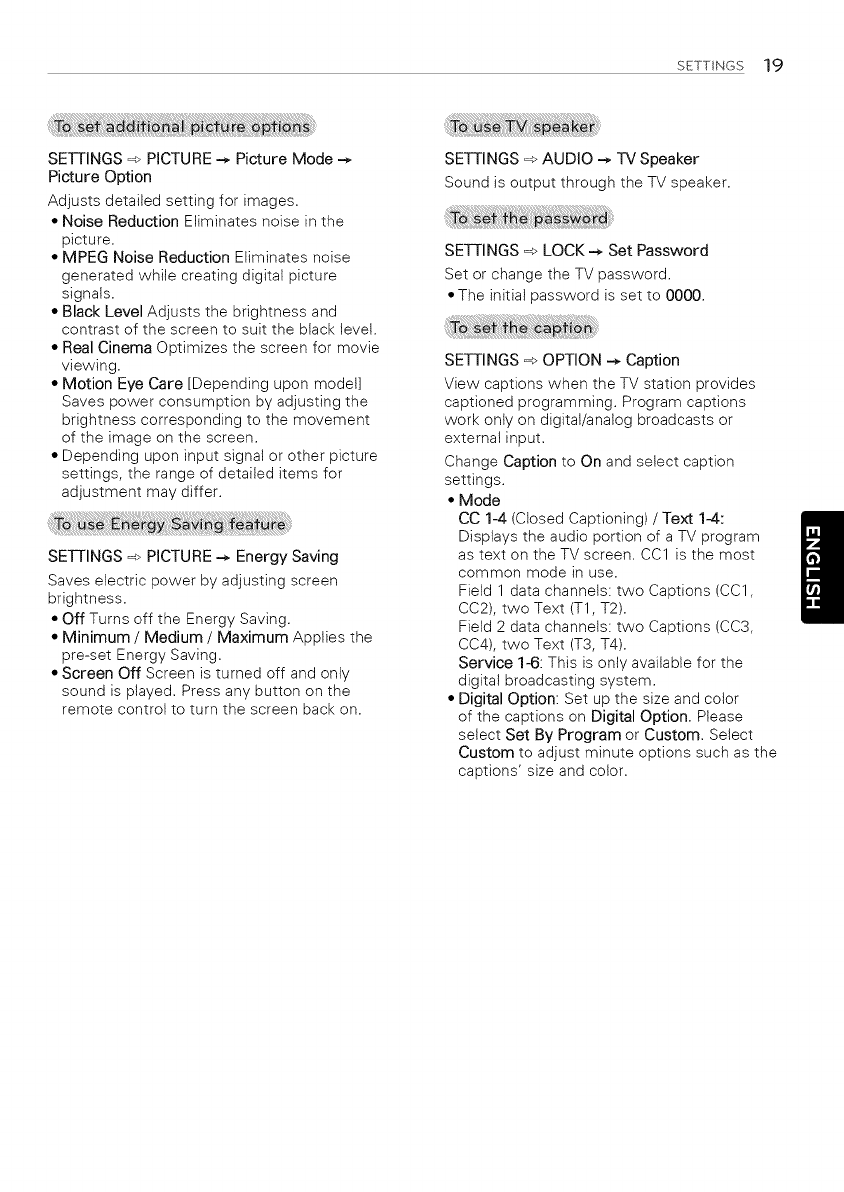

SETTINGS 19
SE-I-FINGS => PICTURE _ Picture Mode
Picture Option
Adjusts detailed setting for images.
• Noise Reduction Eliminates noise in the
picture.
• MPEG Noise Reduction Eliminates noise
generated while creating digital picture
signals.
• Black Level Adjusts the brightness and
contrast of the screen to suit the black level.
• Real Cinema Optimizes the screen for movie
viewing.
• Motion Eye Care ]Depending upon model]
Saves power consumption by adjusting the
brightness corresponding to the movement
of the image on the screen.
• Depending upon input signal or other picture
settings, the range of detailed items for
adjustment may differ.
SETTINGS => PICTURE _ Energy Saving
Saves electric power by adjusting screen
brightness.
• Off Turns off the Energy Saving.
• Minimum /Medium /Maximum Applies the
pre-set Energy Saving.
• Screen Off Screen is turned off and only
sound is played. Press any button on the
remote control to turn the screen back on.
SEFFINGS =>AUDIO _ TV Speaker
Sound is output through the TV speaker.
SEFFINGS =>LOCK _ Set Password
Set or change the TV password.
• The initial password is set to 0000.
SETTINGS =>OPTION _ Caption
View captions when the TV station provides
captioned programming. Program captions
work oniy on digital/analog broadcasts or
external input.
Change Caption to On and select caption
settings.
• Mode
CC 1-4 (Closed Captioning) /Text 14:
Displays the audio portion of a TV program
as text on the TV screen. CC1 is the most
common mode in use.
Field 1 data channels: two Captions (CC1,
CC2), two Text (T1, T2).
Field 2 data channels: two Captions (CC3,
CC4), two Text (T3, T4).
Service 1-6: This is only available for the
digital broadcasting system.
• Digital Option: Set up the size and color
of the captions on Digital Option. Please
select Set By Program or Custom. Select
Custom to adjust minute options such as the
captions' size and color.
/
20 SETT NGS
SETTINGS _ OPTION _ Initial Setting
Returns to initial default mode by deleting all
optional setup. Once initialization is completed,
the TV will turn off and on by itself.
• When Lock System is in place, a pop-up
window appears and asks for password.
• Do not turn off the power during initialization.

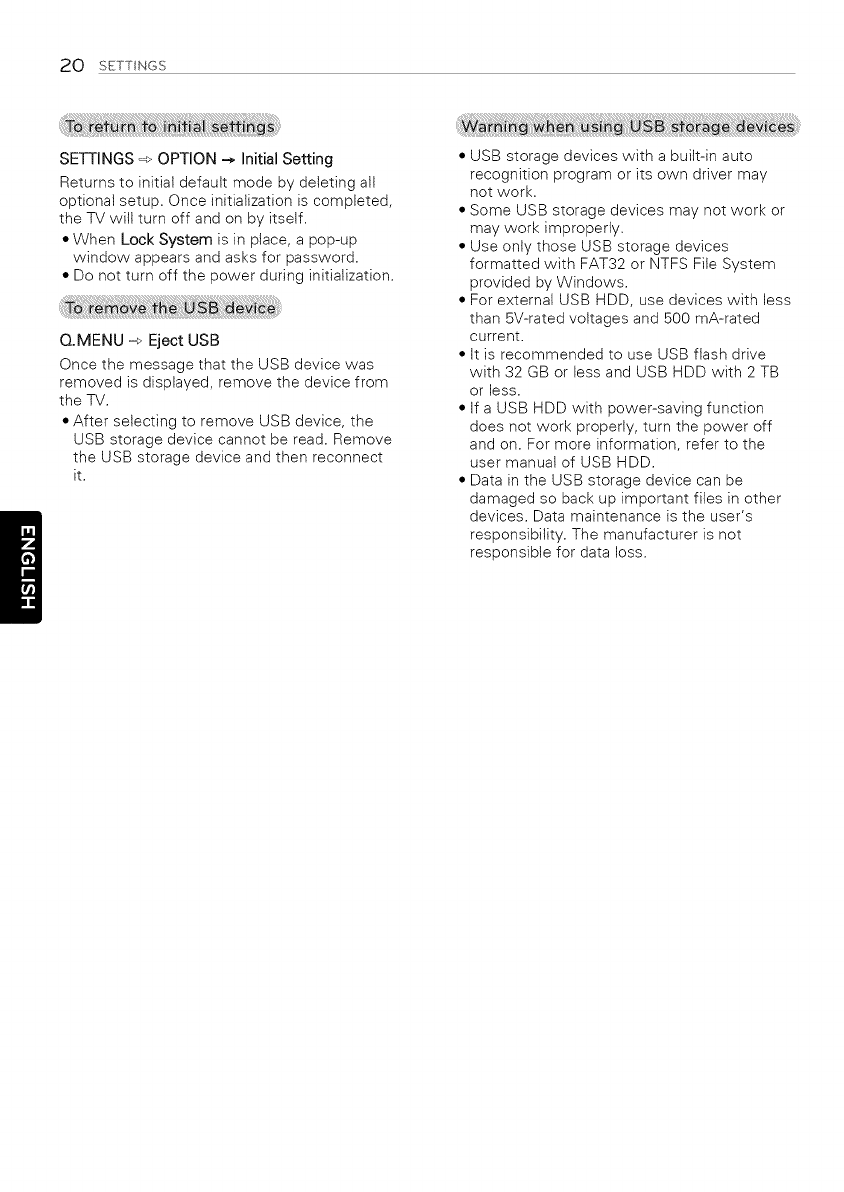

Q.MENU => Eject USB
Once the message that the USB device was
removed is displayed, remove the device from
the TV.
• After selecting to remove USB device, the
USB storage device cannot be read. Remove
the USB storage device and then reconnect
it.
• USB storage devices with a built-in auto
recognition program or its own driver may
not work.
• Some USB storage devices may not work or
may work improperly.
• Use only those USB storage devices
formatted with FAT32 or NTFS File System
provided by Windows.
• For external USB HDD, use devices with less
than 5V-rated voltages and 500 mA-rated
current.
• It is recommended to use USB flash drive
with 32 GB or less and USB HDD with 2 TB
or less.
• If a USB HDD with power-saving function
does not work properly, turn the power off
and on. For more information, refer to the
user manual of USB HDD.
• Data in the USB storage device can be
damaged so back up important files in other
devices. Data maintenance is the user's
responsibility. The manufacturer is not
responsible for data loss.

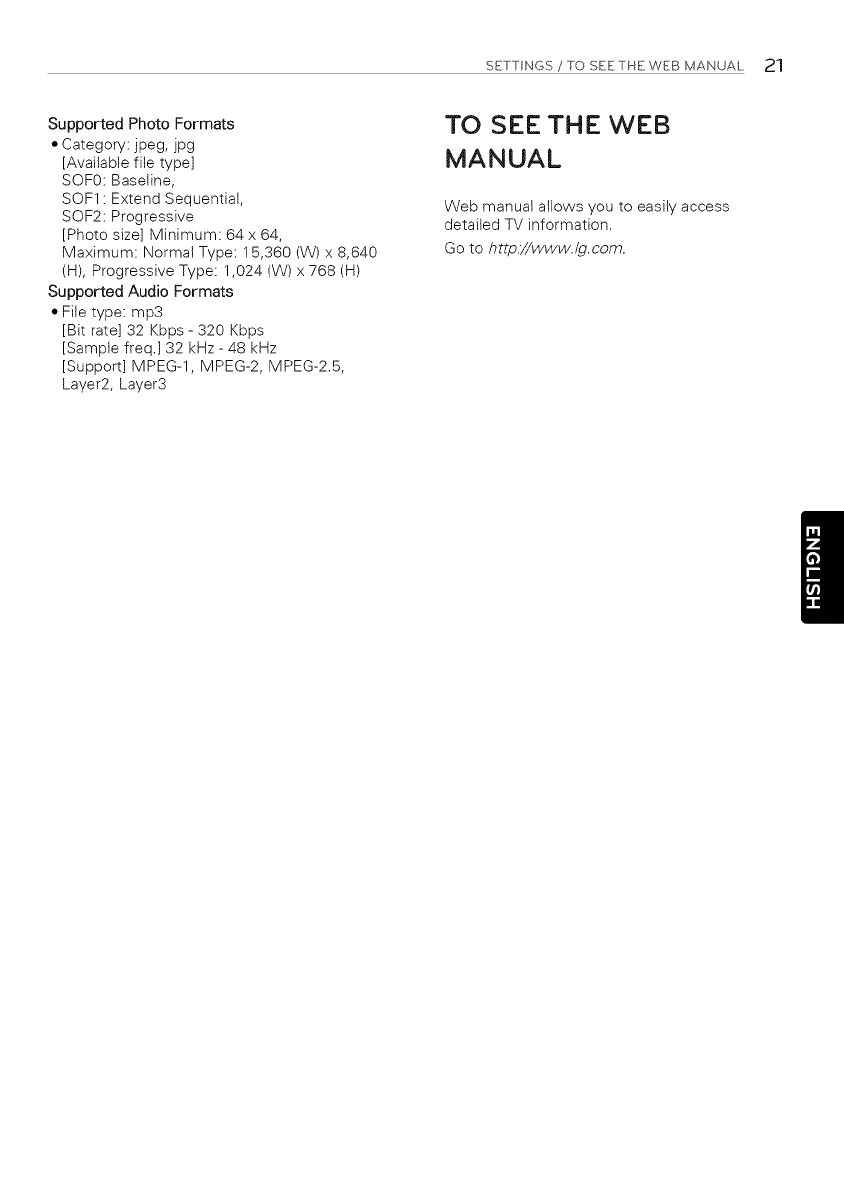

SETTINGS /TO SEE THE WEB MANUAL 21
Supported Photo Formats
• Category: jpeg, jpg
[Available file type]
SOF0: Baseline,
SOF1 : Extend Sequential,
SOF2: Progressive
[Photo size] Minimum: 64 x 64,
Maximum: Normal Type: 15,360 (W) x 8,640
(H), Progressive Type: 1,024 (W) x 768 (H)
Supported Audio Formats
• File type: mp3
[Bit rate] 32 Kbps - 320 Kbps
[Sample freq.] 32 kHz- 48 kHz
[Support] MPEG-1, MPEG-2, MPEG-2.5,
Layer2, Layer3
TO SEE THE WEB
MANUAL
Web manual allows you to easily access
detailed TV information.
Go to http.//www./g.com.

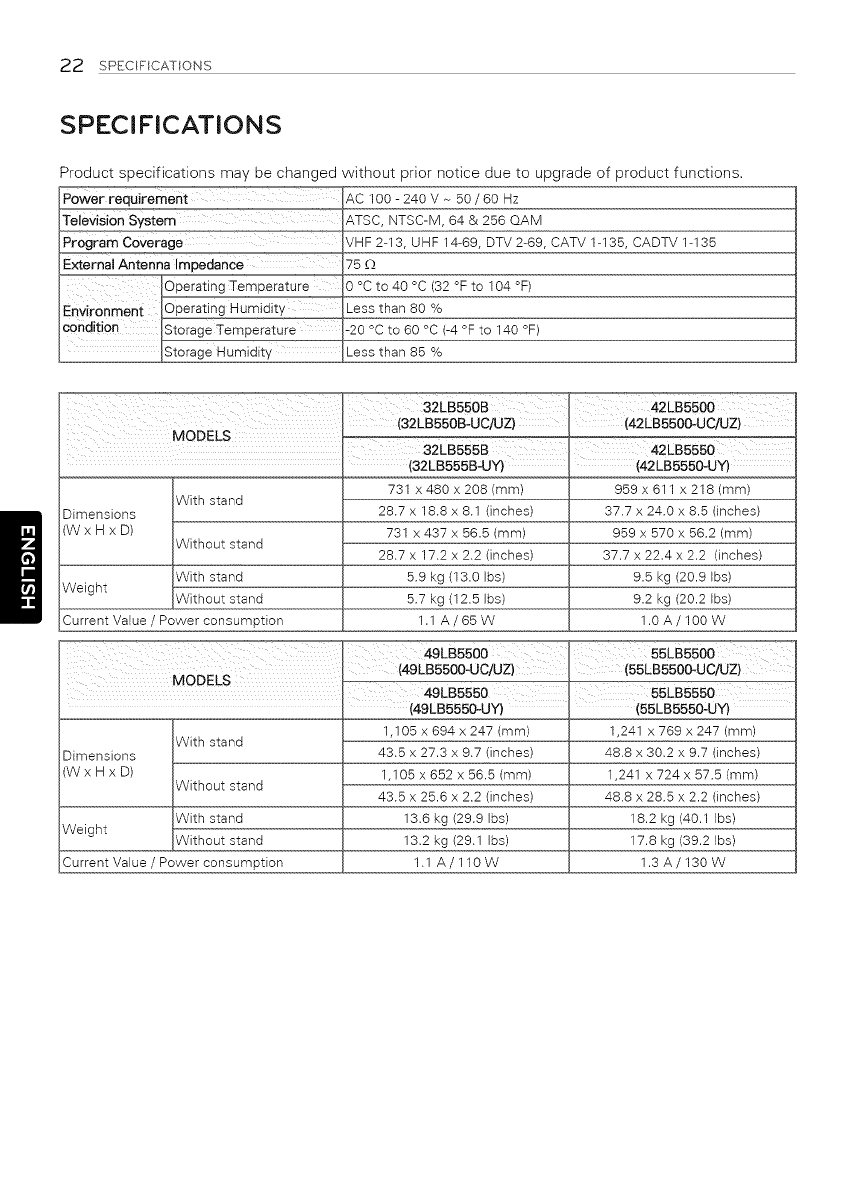

22 SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement AC 100-240 V ~ 50/60 Hz
Televisi0n System _ ATSC, NTSC-M, 64 & 256 QAM
Pr_ram Coverage VHF 2-13, UHF14-69, DTV 2-69, CATV1-135, CADTV l-135
External Antenna Impedance ......... 75_)
Operating Temperature °C to 40 °C (32 °F to 104 °F)
Environment Operating Humidity Less than 80 %
condition -20 °c to 60 °c (-4 °F to 140 °F)
Storage Humidity Less than 85 %
k 32_ ¸
(32LB550B-UCiUZ)
MODELS
(32LB555B:UY)
Dimensions
(W x H x D)
With stand
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
731 x 480 x 208 (mm)
28.7 x 18.8 x 8.1 (inches)
731 x 437 x 56.5 (mm)
28.7 x 17.2 x 2.2 (inches)
5.9 kg (1%0 Ibs)
5.7 kg (12.5 Ibs)
1.1 A/65W
2LB5500
(42 LB5500-UC/UZ)
42LB5550 _
(42LB5550-UY)
959 x 611 x 218 (mm)
37.7 x 24.0 x 8.5 (inches)
959 x 570 x 56.2 (mm)
37.7 x 22.4 x 2.2 (inches)
9.5 kg (20.9 Ibs)
9.2 kg (20.2 Ibs)
1.0A/100W
4 LBS O0
(49LB5500-UC/UZ)
MODELS 49LB5550
(49LB5550-UY)
Dimensions
(WxHxD)
With stand
Without stand
With stand
Weight Without stand
Current Value /Power consumption
1,105 x 694 x 247 (mm)
43.5 x 27.3 x 9.7 (inches)
1,105 x 652 x56.5 (mm)
43.5 x 25.6 x 2.2 (inches)
13.6 kg (29.9 Ibs)
13.2 kg (29.1 Ibs)
1.1A/110W
55LB5500
(55LB5500--UC,aJZ)
55LB5550
(55LB5550-UY)
1,241 x 769 x 247 (mm)
48.8 x 30.2 x 9.7 (inches)
1,241 x 724 x 57.5 (mm)
48.8 x 28.5 x 2.2 (inches)
18.2 kg (40.1 Ibs)
17.8 kg (39.2 Ibs)
1.3A/130W

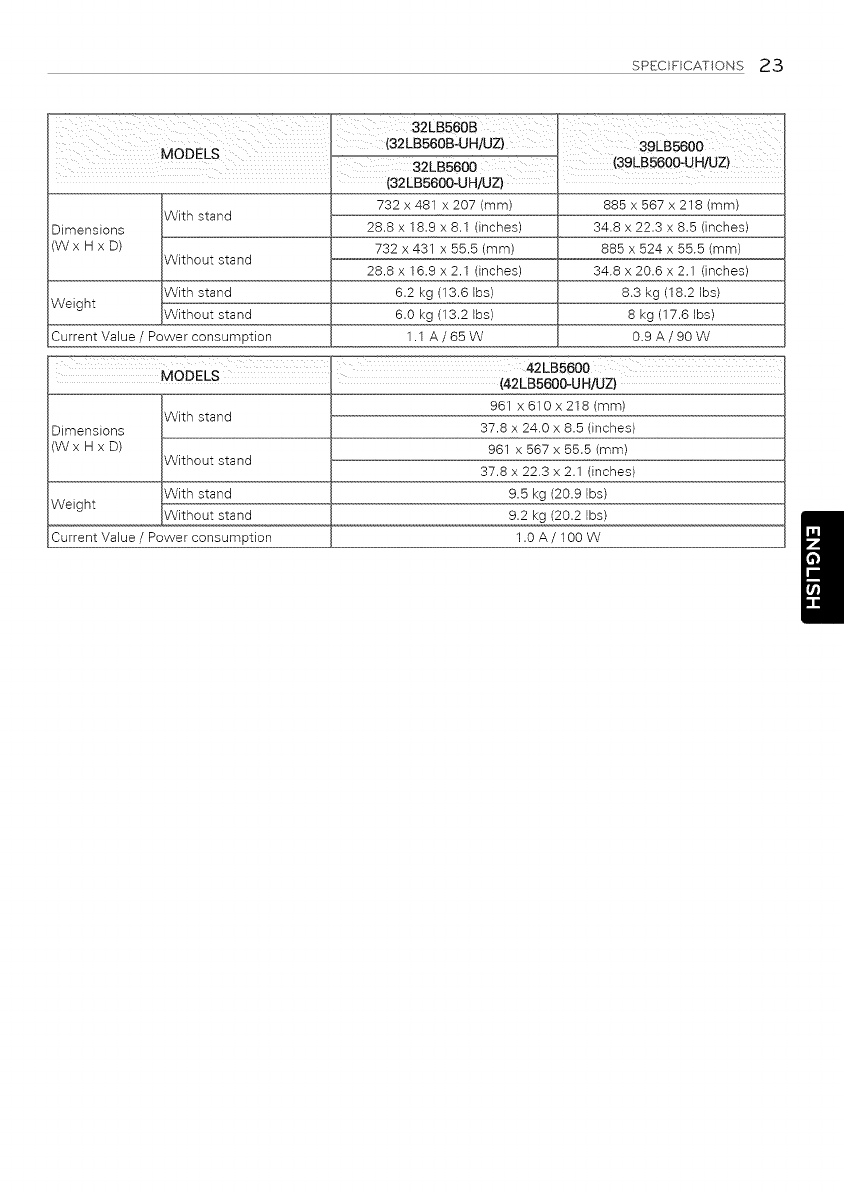

SPECIFICATIONS 23
32LB560B
M0 Es 32LB5600
(32LB5600-UHiUZ)
Dimensions
(W x H x D)
With stand
Without stand
With stand
Without stand
732 x 481 x 207 (ram)
28.8 x 18.9 x 8.1 (inches)
732 x 431 x 55.5 (ram)
28.8 x 16.9 x 2.1 (inches)
6.2 kg (13.6 Ibs)
6.0 kg (13.2 Ibs)
1.1A/65W
39LB_600
(39LB56OO-UH/UZ)
885 x 567 x 218 (mm)
34.8 x 22.3 x 8.5 (inches)
885 x 524 x 55.5 (mm)
34.8 x 20.6 x 2.1 (inches)
8.3 kg (18.2 Ibs)
8 kg (17.6 Ibs)
0.gA/90W
Weight
Current Value /Power consumption
42LB5600
MODELS , (42LB5600_U H_ajZ)
Dimensions
(W x H x D)
With stand
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
961 x610x218(mm)
37.8 x 24.0 x 8.5 (inches)
961 x 567 x 55.5 (mm)
37.8 x 22.3 x 2.1 (inches)
9.5 kg (20.9 Ibs)
9.2 kg (20.2 Ibs)
1.0A/100W

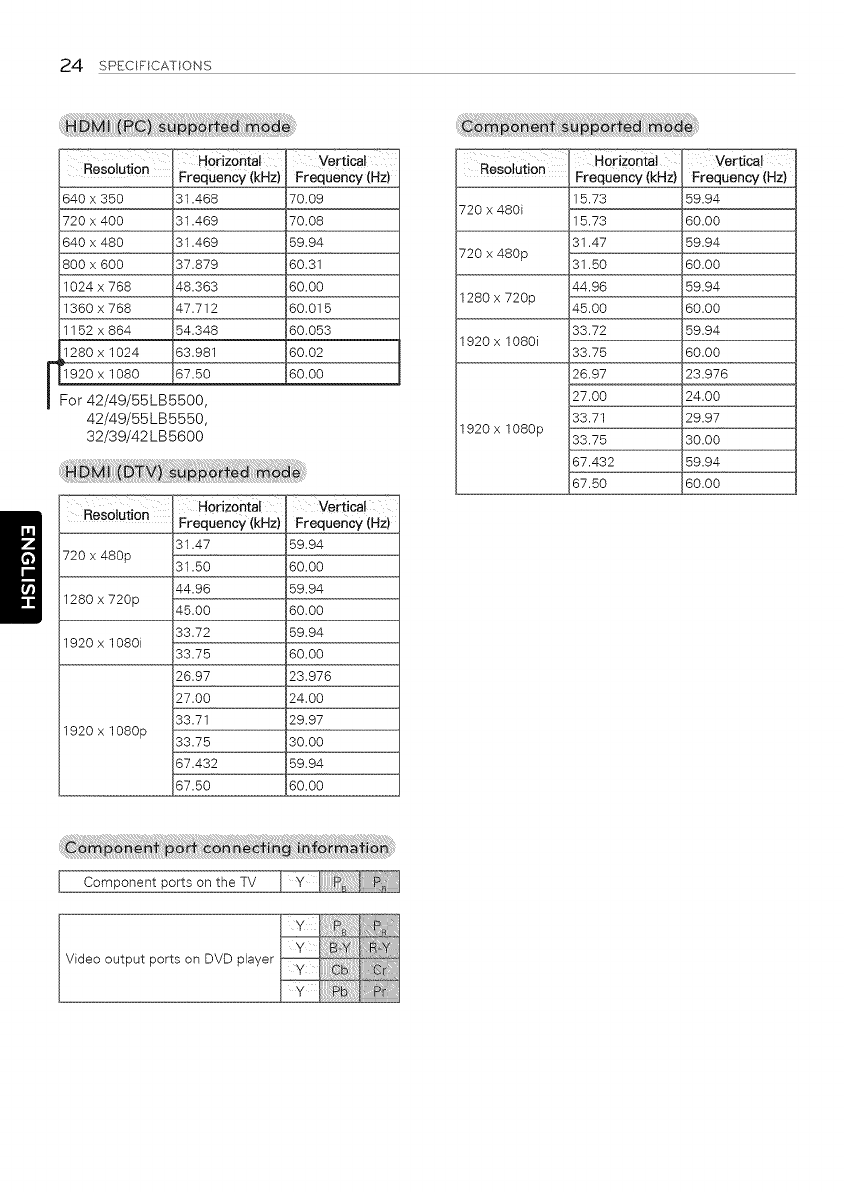

24 SPEC{FICATIONS
_ontal
Resolution Frequency (kHz)
640 x 350
720 x 400
640 x 480
800 x 600
1024 x 768
1360 x 768
1152 x 864
1280 x 1024
1920 x 1080
Z.468
'_ .469
.469
37.879
48.363
47.712
54.348
63.981
67.50
i
For 42/49/55LB5500,
42/49/55LB5550,
32/39/42 LB5600
Frequency (Hz)
70.09
70.08
59.94
60.31
60.00
60.015
60.053
60.02
60.00
ResOlution Frequency (kHz)
_ .47
720 x 480p ,_ .50
44.96
1280 x 720p 45.00
33.72
1920 x 1080i 33.75
26.97
27.00
33.71
1920 x 1080p 33.75
67.432
67.50
Vertica!
Frequency (Hz)
59.94
60.00
59.94
60.00
59.94
60.00
23.976
24.00
29.97
30.00
59.94
60.00
Resolution
720 x 480i
720 x 480p
1280 x 720p
1920x 1080i
1920x1080p
Frequency (kHz)
15.73
15.73
31.47
31.50
44.96
45.00
33.72
33.75
26.97
27.00
33.71
33.75
67.432
67.50
ilVertica!
Frequency(Hz)
59.94
60.00
59.94
60.00
59.94
60.00
59.94
60.00
23.976
24.00
29.97
30.00
59.94
60.00
Component ports on the TV
Video output ports on DVD player

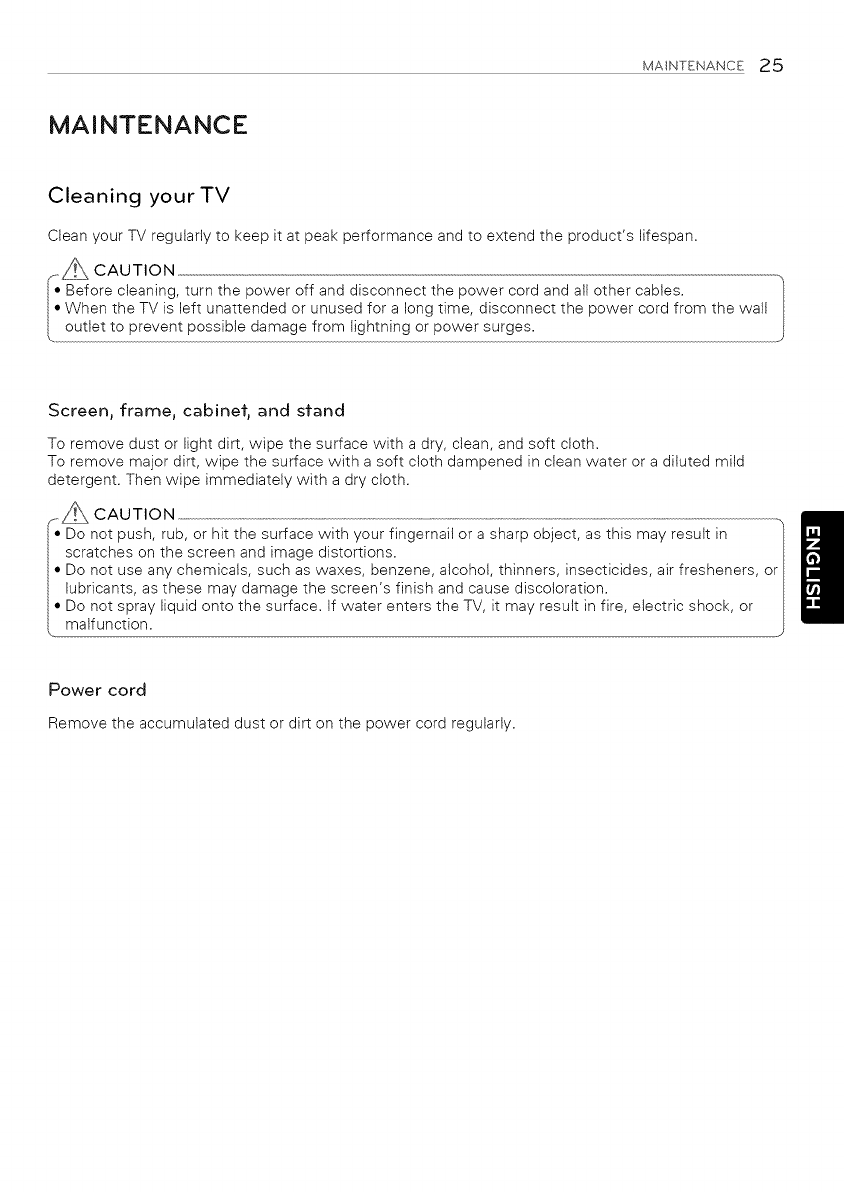

MAINTENANCE
MA NTENANCE 25
Cleaning your TV
Clean your TV regularly to keep it at peak performance and to extend the product's lifespan.
ACAUTION
Beforecleaning,turnthe power offand disconnectthe power cord and allothercables,
When theTV isleftunattendedor unused fora longtime,disconnectthe power cord from the wall
outlettopreventpossibledamage from lightningor power surges,
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
A CAUTION
[_.Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
I • Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or I
lubricants, as these may damage the screen's finish and cause discoloration.
I • Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
/

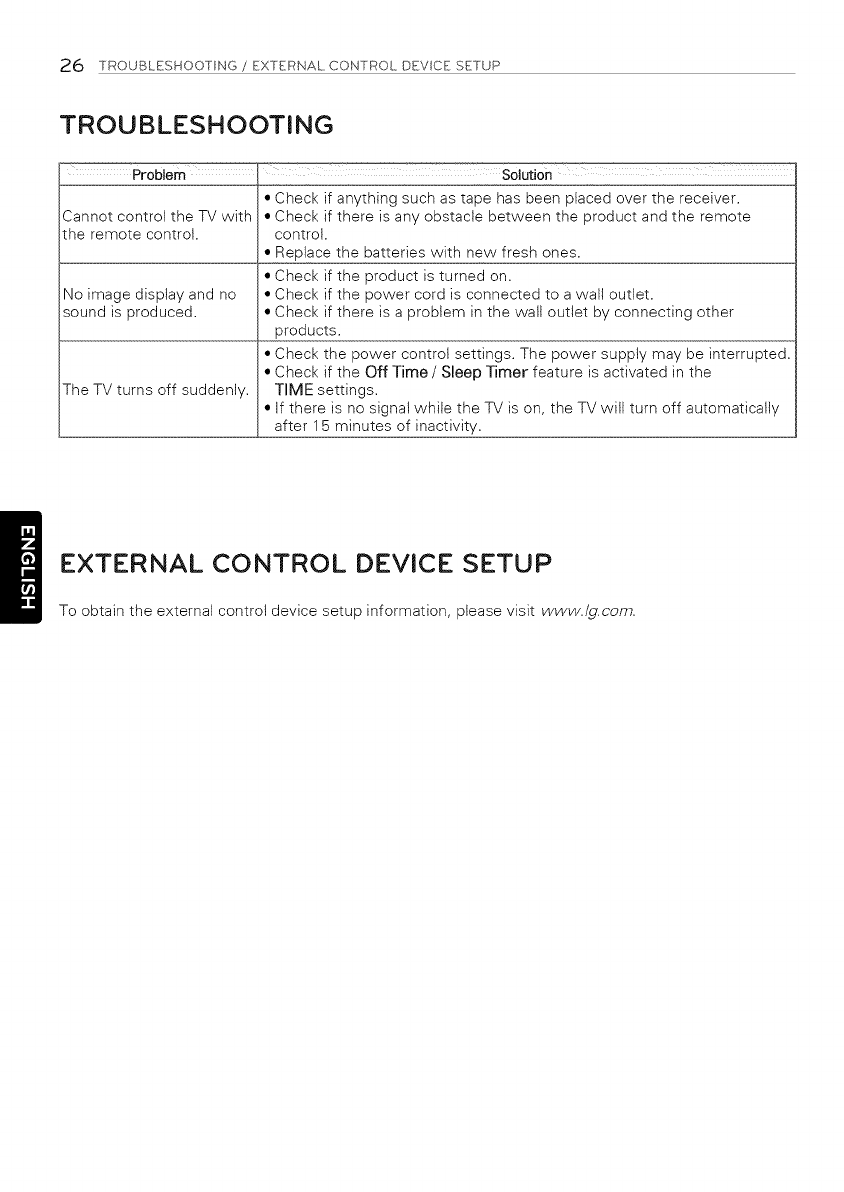

26 TROUBLESHOOTING /EXTERNAL CONTROL DEVCE SETUP
TROUBLESHOOTING
:Probiem ]
Cannot control the TV with
the remote control.
No image display and no
sound is produced.
The TV turns off suddenly.
Solution
• Check if anything such as tape has been placed over the receiver.
• Check if there is any obstacle between the product and the remote
control.
• Replace the batteries with new fresh ones.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wan outlet by connecting other
products.
• Check the power control settings. The power supply may be interrupted.
• Check if the Off Time /Sleep Timer feature is activated in the
TIME settings.
• If there is no signal while the TV is on, the TV will turn off automatically
after 1 5 minutes of inactivity.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www./Gcom.
C[]
[]

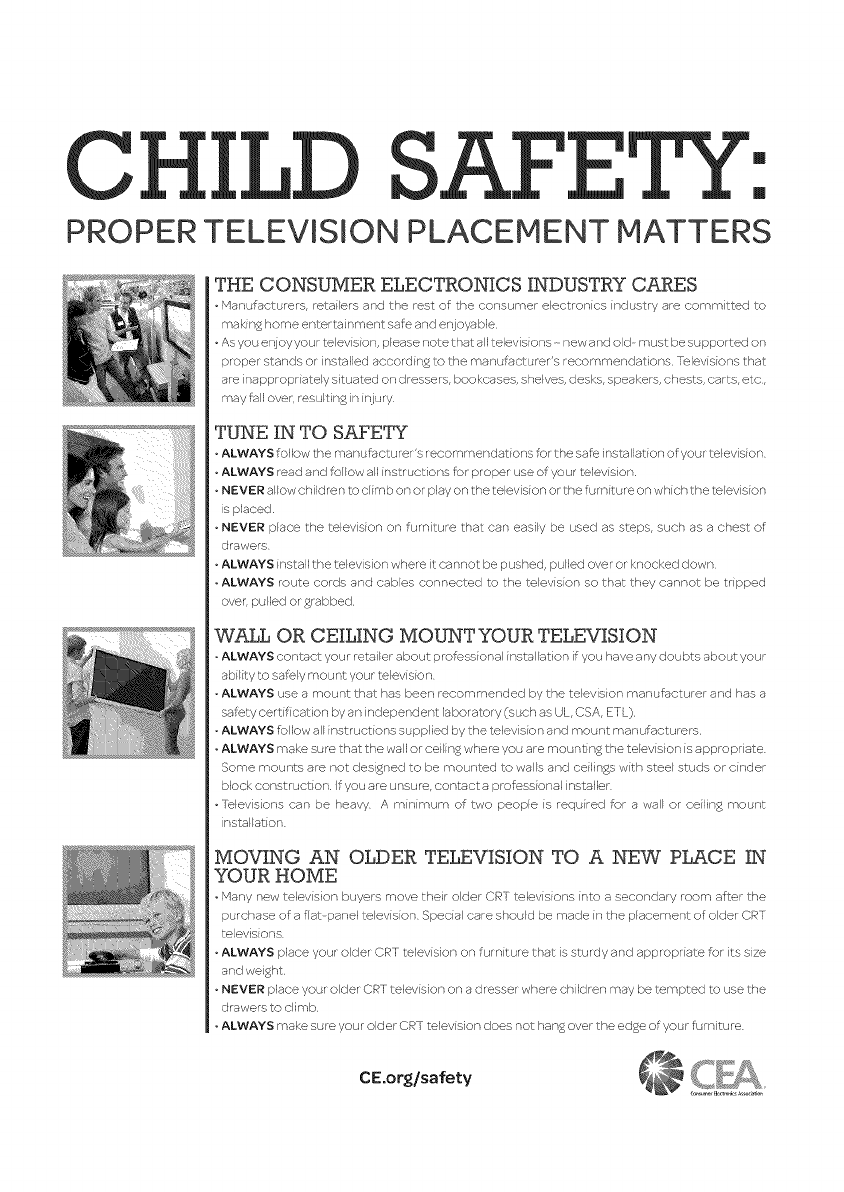

PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
.Manufacturers, retailers and tl_e rest of the consumer elec ronics industry are committed o
rTlakin_ home entertainment safe and enjoyable
* As you enjoy your television, please note that alFtelevisions new and old must be supported on
proper stands or installed accordin_ Lo the manufacturer's recorTlmendations IVelevisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, cars, etc,
may fall over, resultin_ in iniury
TUNE IN TO SAFETY
.ALWAYS follow the manufacturer's recommendations for the safe installation of your television
.ALWAYS read and follow all instructions for proper use of your television
* NEVER allow children to climb on or play on the television or he furniture on which he elevision
is placed
.NEVER place he television on furniture that can easily be used as steps, such as a chesl of
drawers
* ALWAYS install the television where it cannot be pushed, pulled over or knocked down
*ALWAYS route cords and cables connec ed o he elevision so hat hey canno be ripped
over, pulled or £rabbed
WALL OR CEILING MOUNT YOUR TELEVISION
°ALWAYS contact your retailer about professional installation if you l_ave any doubts about your
ability to safely mount your television
.ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by an independent laboratory (such as UL, CSA, ElL)
* ALWAYS follow all instructions supplied by the television and mount manufacturers
.ALWAYS make sure that the wall or ceilin_ where you are mountin_ the terevision is appropriate
Some mounts are not designed to be mounted to walls and ceitin_s with steel studs or cinder
block construction If you are unsure, contact a professional installer
.lelevisions can be heavy A minir]]urn of two people is required for a wall or ceilin_ mount
installation
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
°Many new television buyers m,ove tl_eir older CI._I televisions into a secondary room after the
purchase of a fiat-panel television Special care should be made in he placernent of older CR[
elevisions
* ALWAYS place your older CA elevision on furniture hat is sturdy and appropriate for its size
and wei£ht
* NEVER place your older CRI television on a dresser where children may be ernpted to use he
drawers to climb
* ALWAYS make sure your older CA elevision does no han£ over he ed£e of your furniture
CE.org/safety
Life'sGood

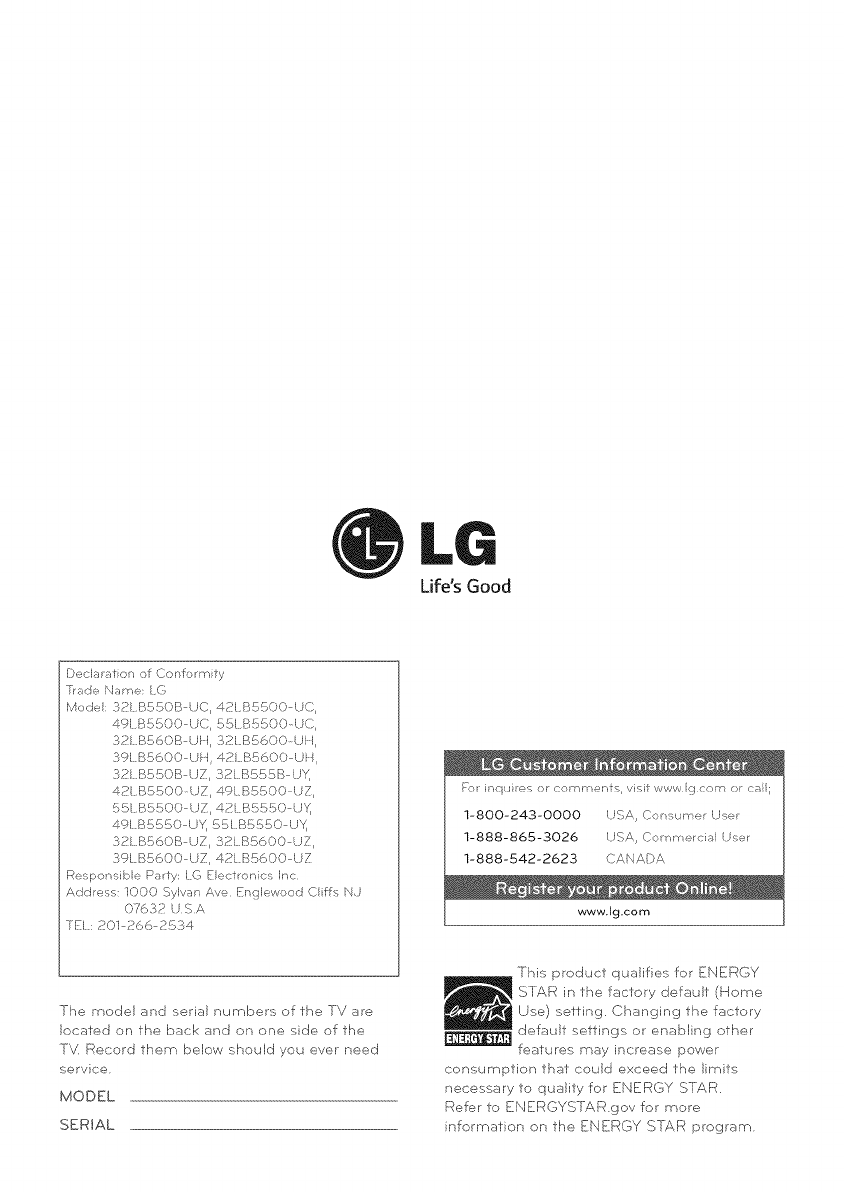

Declaratio ] of ConforfT/ity
Dade Name:tG
ModN: 32t BBSOB UC, 421 B55OO UC_
4%B5500 UC, 55l.B5500 UC_
321 B56OB UH, 321 B56OO Ut I_
3gl.B5600 UH, 42LB56OO Utl,
32l B55OB UZ, 32L B555B U_
421 B5500-UZ, 49 _B5500 /_Z,
551 B5500 UZ, 42l B5550 L/Y,
4% B5550 LJ_ 55l B5550 UY,
32t B56OB UZ, 32LB5600 UZ,
39LB5600 UZ, 42L B5600 UZ
Respo°_sibb , Part)': l G Elect ChiCS Inc
Addmss:lO00 Sylvan Ave Engl_,wood Cfffs NJ
(}7632 USA
TEl : 201 266 2534
The model and serial numbers of the TV are
located on lhe back and on one side of lhe
T/£ Record lhers below skould you ever reed
service
MODEL
SERIAL
For ItqtJl eS or COlT_me°/ % Visit wwwl#_ (OlT_ or Cail i
1-800-243-0000 USA, Co°_s _mer User
1-888-865-3026 USA, Corn ne < ial Use
1-888-542-2623 CANADA
www.lg.com
This product qualifies for ENERGY
STAR in the factory default (Horse
Use) setting Changing the factory
default settings or enabling other
features may increase power
consumption that could exceed the limits
r ecessary to quality for ENERGY STAR
Refer 1o ENERGYSTAR gov for more
informatior or the ENERGY S-FAR program

Navigation menu
