Life's Good

Click! User Guide

Please read this manual carefully before operating your set and retain it

for future reference.

42LB6300 47LB6350 42LB6500

47LB6300 55LB6350 47LB6500

55LB6300 50LB6500

60LB6300 55LB6500

65LB6300 60LB6500

60LB7100

65LB7100

70LB7100

55LB7200

*MFL68027902*

P/NO : MFL68027902 (1402-REV01) www.lg.com

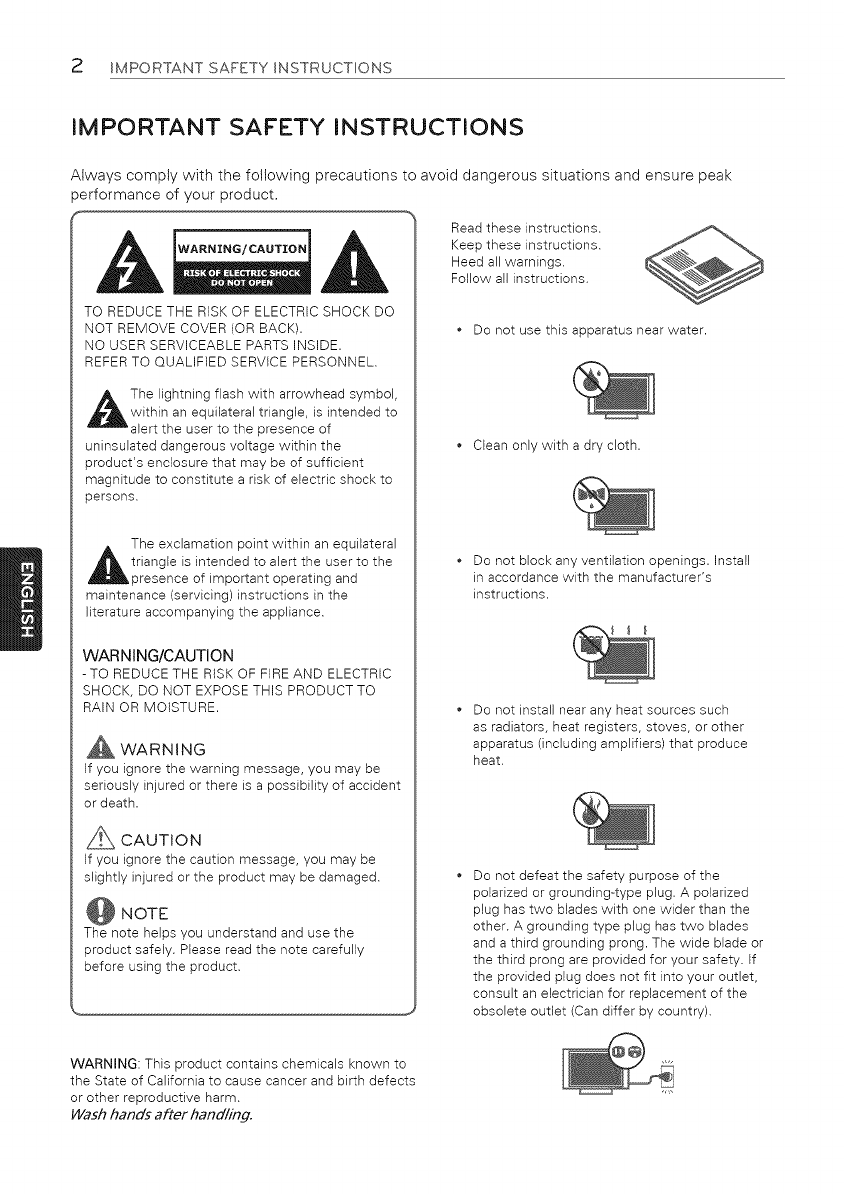

2 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak

performance of your product.

TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of

uninsulated dangerous voltage within the

product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING/CAUTION

-TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

A WARNING

If you ignore the warning message, you may be

seriously injured or there is a possibility of accident

or death,

A CAUTION

If you ignore the caution message, you may be

slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the

product safely. Please read the note carefully

before using the product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with a dry cloth.

Do not block any ventilation openings. Install

in accordance with the manufacturer's

instructions.

Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet (Can differ by country).

WARNING: This product contains chemicals known to

the State of California to cause cancer and birth defects

or other reproductive harm.

Wash hands after hand/ing.

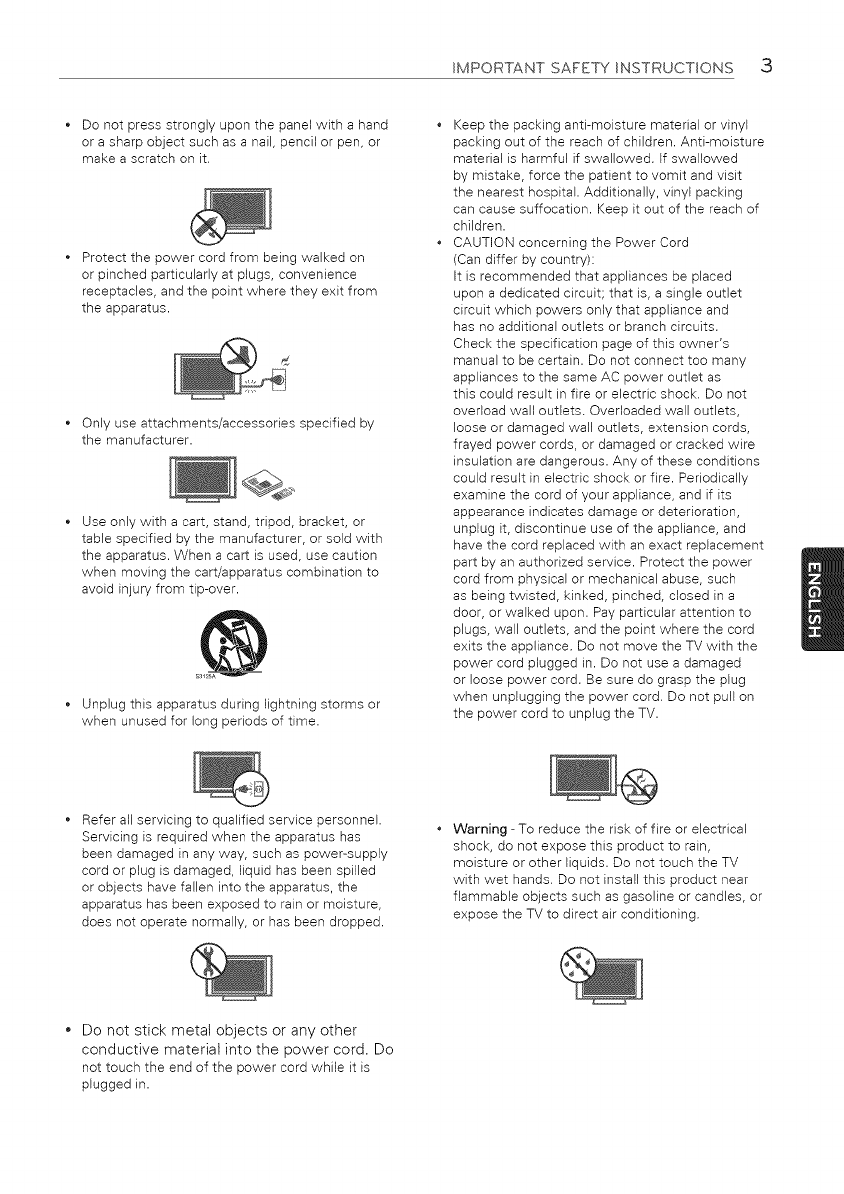

IMPORTANTSAFETYINSTRUCTIONS3

•Do not press strongly upon the panel with a hand

or a sharp object such as a nail, pencil or pen, or

make a scratch on it.

•Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

•Only use attachments/accessories specified by

the manufacturer.

•Use only with a cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•Unplug this apparatus during lightning storms or

when unused for long periods of time.

Keep the packing anti-moisture material or vinyl

packing out of the reach of children. Anti-moisture

material is harmful if swallowed. If swallowed

by mistake, force the patient to vomit and visit

the nearest hospital. Additionally, vinyl packing

can cause suffocation. Keep it out of the reach of

children.

CAUTION concerning the Power Cord

(Can differ by country):

It is recommended that appliances be placed

upon a dedicated circuit; that is, a single outlet

circuit which powers only that appliance and

has no additional outlets or branch circuits.

Check the specification page of this owner's

manual to be certain. Do not connect too many

appliances to the same AC power outlet as

this could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords,

frayed power cords, or damaged or cracked wire

insulation are dangerous. Any of these conditions

could result in electric shock or fire. Periodically

examine the cord of your appliance, and if its

appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and

have the cord replaced with an exact replacement

part by an authorized service. Protect the power

cord from physical or mechanical abuse, such

as being twisted, kinked, pinched, closed in a

door, or walked upon. Pay particular attention to

plugs, wall outlets, and the point where the cord

exits the appliance. Do not move the TV with the

power cord plugged in. Do not use a damaged

or loose power cord. Be sure do grasp the plug

when unplugging the power cord. Do not pull on

the power cord to unplug the TV.

•Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

Warning - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product near

flammable objects such as gasoline or candles, or

expose the TV to direct air conditioning.

Do not stick metat objects or any other

conductive material into the power cord. Do

not touch the end of the power cord while it is

plugged in.

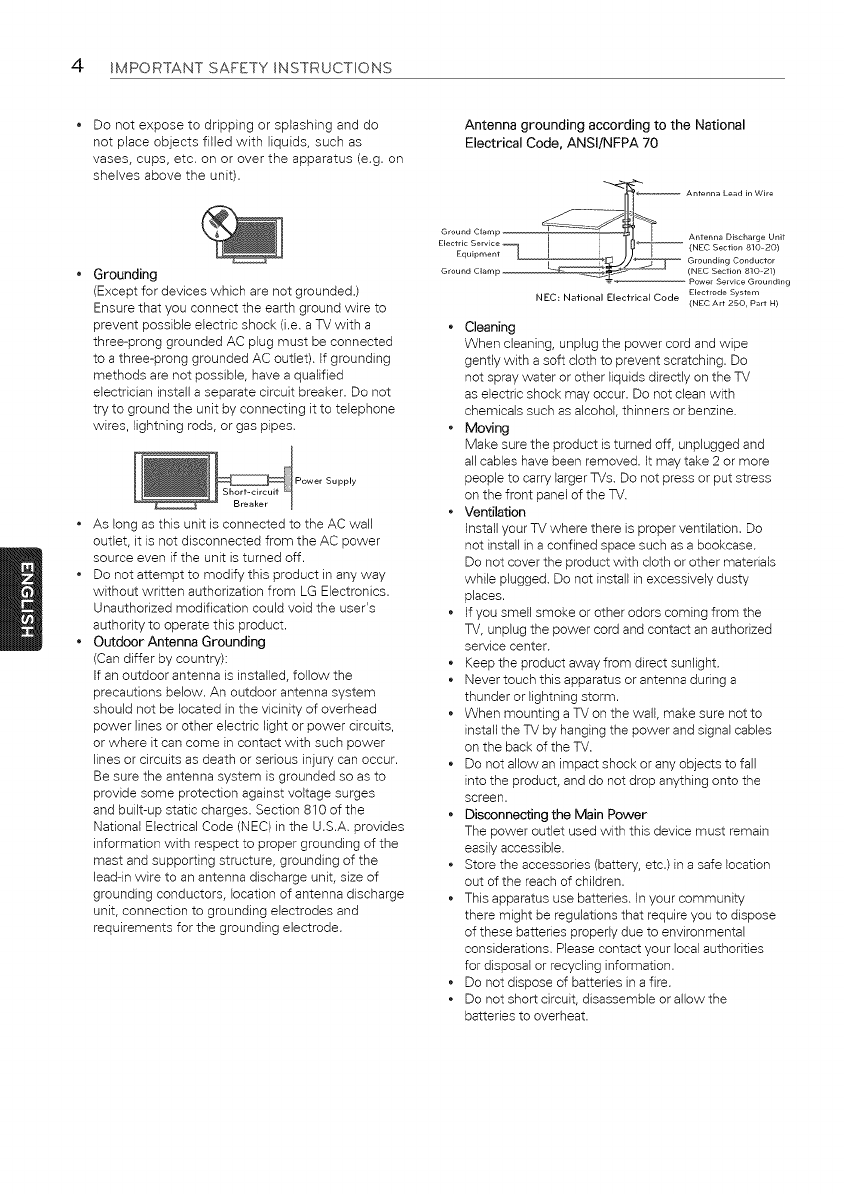

4IMPORTANT SAFETY INSTRUCTIONS

Do not expose to dripping or splashing and do

not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g. on

shelves above the unit).

Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to

prevent possible electric shock (i.e. a W with a

three-prong grounded AC plug must be connected

to a three-prong grounded AC outlet). If grounding

methods are not possible, have a qualified

electrician install a separate circuit breaker. Do not

try to ground the unit by connecting it to telephone

wires, lightning rods, or gas pipes.

Power Supply

As long as this unit is connected to the AC wall

outlet, it is not disconnected from the AC power

source even if the unit is turned off.

Do not attempt to modify this product in any way

without written authorization from LG Electronics.

Unauthorized modification could void the user's

authority to operate this product.

Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power circuits,

or where it can come in contact with such power

lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded so as to

provide some protection against voltage surges

and built-up static charges. Section 810 of the

National Electrical Code (NEC)in the U.S.A. provides

information with respect to proper grounding of the

mast and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size of

grounding conductors, location of antenna discharge

unit, connection to grounding electrodes and

requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Electdc Service

Equipment

Ground Clamp --

Antenna Lead in Wire

Antenna Discharge Unit

'Grounding Conductor

(NEC Section 810 21)

Power Service Grounding

Electrode System

NEC: National Electrical Code (NEC Art 250, ParX N)

• Cleaning

When cleaning, unplug the power cord and wipe

gently with a soft cloth to prevent scratching, Do

not spray water or other liquids directly on the TV

as electric shock may occur, Do not clean with

chemicals such as alcohol, thinners or benzine,

• Moving

Make sure the product is turned off, unplugged and

all cables have been removed. It may take 2 or more

people to carry larger TVs. Do not press or put stress

on the front panel of the TV.

• Ventilation

Install your TV where there is proper ventilation. Do

not install in a confined space such as a bookcase.

Do not cover the product with cloth or other materials

while plugged. Do not install in excessively dusty

places.

• If you smell smoke or other odors coming from the

TV, unplug the power cord and contact an authorized

service center.

• Keep the product away from direct sunlight.

• Never touch this apparatus or antenna during a

thunder or lightning storm.

• When mounting a TV on the wall, make sure not to

install the TV by hanging the power and signal cables

on the back of the TV.

• Do not allow an impact shock or any objects to fall

into the product, and do not drop anything onto the

screen.

• Disconnecting the Main Power

The power outlet used with this device must remain

easiJy accessibJe.

• Store the accessories (battery, etc.) in a safe location

out of the reach of children.

• This apparatus use batteries. In your community

there might be regulations that require you to dispose

of these batteries properly due to environmental

considerations. Please contact your local authorities

for disposal or recycling information.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble or allow the

batteries to overheat.

IMPORTANTSAFETYINSTRUCTIONS5

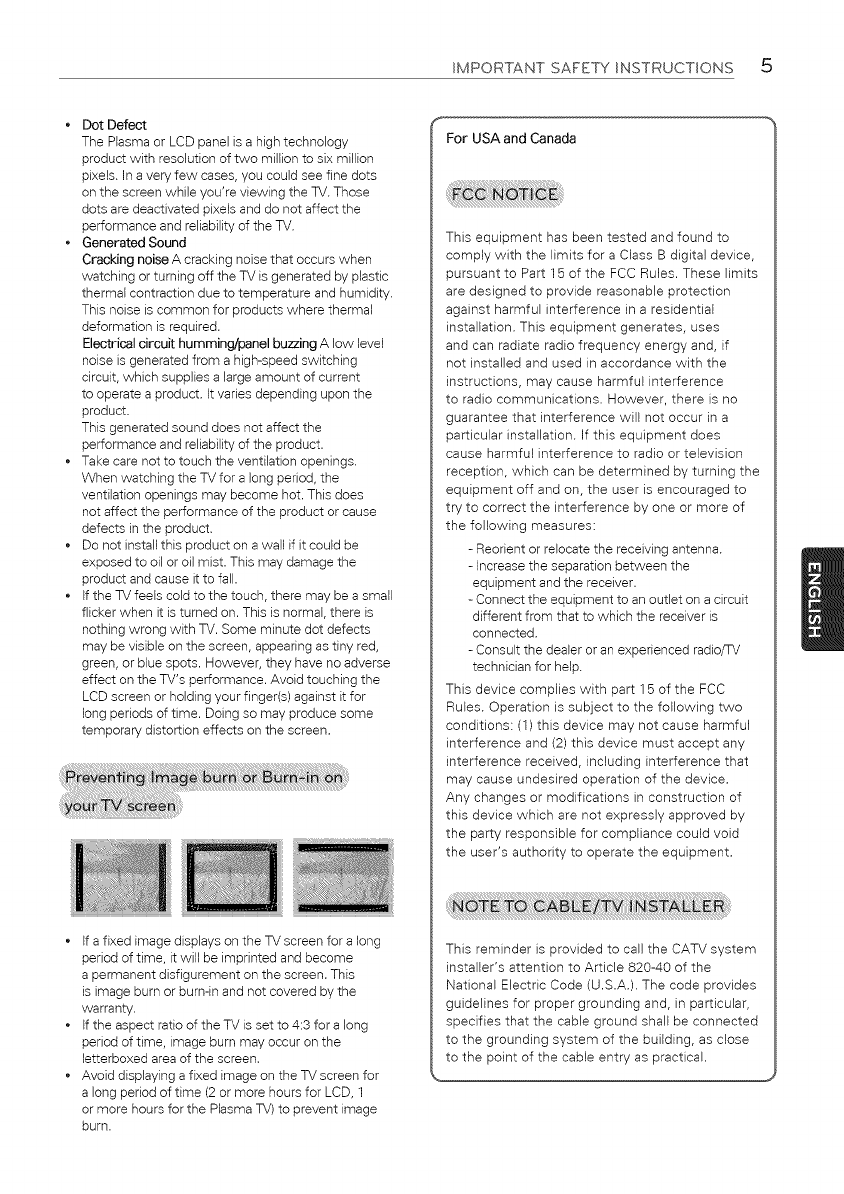

DotDefect

ThePlasmaorLCDpanelisahightechnology

productwithresolutionoftwomilliontosixmillion

pixels.Inaveryfewcases,youcouldseefinedots

onthescreenwhileyou'reviewingtheW.Those

dotsaredeactivatedpixelsanddonotaffectthe

performanceandreliabilityoftheW.

GeneratedSound

CrackingnoiseAcrackingnoisethatoccurswhen

watchingorturningofftheTVisgeneratedbyplastic

thermalcontractionduetotemperatureandhumidity.

Thisnoiseiscommonforproductswherethermal

deformationisrequired.

Electricalcircuithumming/panelbuzzingAlowlevel

noiseisgeneratedfromahigh-speedswitching

circuit,whichsuppliesalargeamountofcurrent

tooperateaproduct.Itvariesdependinguponthe

product.

Thisgeneratedsounddoesnotaffectthe

performanceandreliabilityoftheproduct.

Takecarenottotouchtheventilationopenings.

WhenwatchingtheWforalongperiod,the

ventilationopeningsmaybecomehot.Thisdoes

notaffecttheperformanceoftheproductorcause

defectsintheproduct.

Donotinstallthisproductonawallifitcouldbe

exposedtooiloroilmist.Thismaydamagethe

productandcauseittofall.

IftheTVfeelscoldtothetouch,theremaybeasmall

flickerwhenitisturnedon.Thisisnormal,thereis

nothingwrongwithTV.Someminutedotdefects

maybevisibleonthescreen,appearingastinyred,

green,orbluespots.However,theyhavenoadverse

effectontheW'sperformance.Avoidtouchingthe

LCDscreenorholdingyourfinger(s)againstitfor

longperiodsoftime.Doingsomayproducesome

temporarydistortioneffectsonthescreen.

IfafixedimagedisplaysontheTVscreenforalong

periodoftime,itwillbeimprintedandbecome

apermanentdisfigurementonthescreen.This

isimageburnorburn-inandnotcoveredbythe

warranty.

• IftheaspectratiooftheTVissetto4:3foralong

periodoftime,imageburnmayoccuronthe

letterboxedareaofthescreen.

• AvoiddisplayingafixedimageontheTVscreenfor

alongperiodoftime(2ormorehoursforLCD,1

ormorehoursforthePlasmaTV)topreventimage

burn.

ForUSAandCanada

Thisequipmenthasbeentestedandfoundto

complywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimits

aredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,uses

andcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterference

toradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedto

trytocorrecttheinterferencebyoneormoreof

thefollowingmeasures:

-Reorientorrelocatethereceivingantenna.

-Increasetheseparationbetweenthe

equipmentandthereceiver.

-Connecttheequipmenttoanoutletonacircuit

differentfromthattowhichthereceiveris

connected.

-Consultthedealeroranexperiencedradio/TV

technicianforhelp.

Thisdevicecomplieswithpart15oftheFCC

Rules.Operationissubjecttothefollowingtwo

conditions:(1)thisdevicemaynotcauseharmful

interferenceand(2)thisdevicemustacceptany

interferencereceived,includinginterferencethat

maycauseundesiredoperationofthedevice.

Anychangesormodificationsinconstructionof

thisdevicewhicharenotexpresslyapprovedby

thepartyresponsibleforcompliancecouldvoid

theuser'sauthoritytooperatetheequipment.

ThisreminderisprovidedtocalltheCATVsystem

installer'sattentiontoArticle820-40ofthe

NationalElectricCode(U.S.A.).Thecodeprovides

guidelinesforpropergroundingand,inparticular,

specifiesthatthecablegroundshallbeconnected

tothegroundingsystemofthebuilding,asclose

tothepointofthecableentryaspractical.

6 IMPORTANTSAFETYINSTRUCTIONS

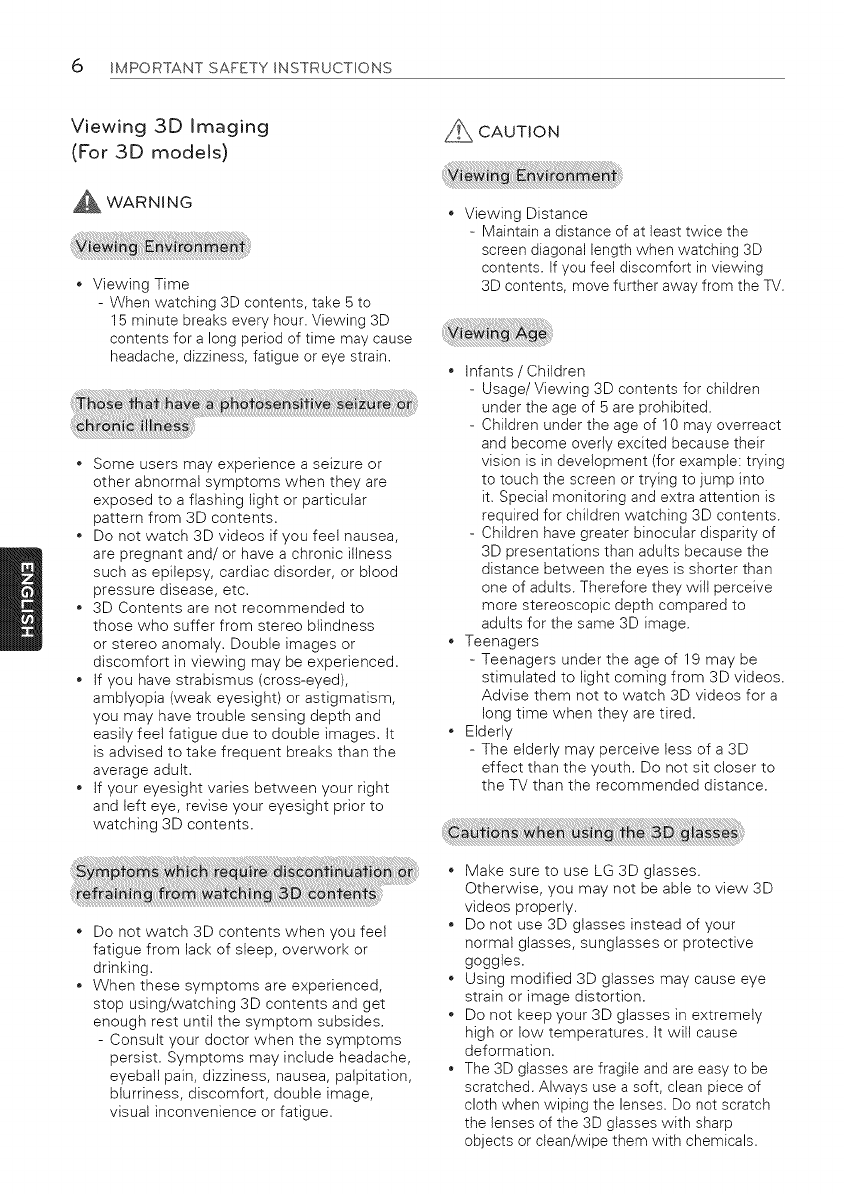

Viewing 3D Imaging

(For 3D models)

A WARNING

Viewing Time

- When watching 3D contents, take 5 to

15 minute breaks every hour. Viewing 3D

contents for a long period of time may cause

headache, dizziness, fatigue or eye strain.

Some users may experience a seizure or

other abnormal symptoms when they are

exposed to a flashing light or particular

pattern from 3D contents.

Do not watch 3D videos if you feet nausea,

are pregnant and/or have a chronic illness

such as epilepsy, cardiac disorder, or blood

pressure disease, etc.

3D Contents are not recommended to

those who suffer from stereo blindness

or stereo anomaly. Double images or

discomfort in viewing may be experienced.

If you have strabismus (cross-eyed),

ambtyopia (weak eyesight) or astigmatism,

you may have trouble sensing depth and

easily feel fatigue due to double images. It

is advised to take frequent breaks than the

average adult.

If your eyesight varies between your right

and left eye, revise your eyesight prior to

watching 3D contents.

Do not watch 3D contents when you feet

fatigue from lack of sleep, overwork or

drinking.

When these symptoms are experienced,

stop using/watching 3D contents and get

enough rest until the symptom subsides.

- Consult your doctor when the symptoms

persist. Symptoms may include headache,

eyeball pain, dizziness, nausea, palpitation,

blurriness, discomfort, double image,

visual inconvenience or fatigue.

//_ CAUTION

Viewing Distance

- Maintain a distance of at least twice the

screen diagonal length when watching 3D

contents. If you feel discomfort in viewing

3D contents, move further away from the TV.

Infants /Children

- Usage/Viewing 3D contents for children

under the age of 5 are prohibited.

- Children under the age of 10 may overreact

and become overly excited because their

vision is in development (for example: trying

to touch the screen or trying to jump into

it. Special monitoring and extra attention is

required for children watching 3D contents.

- Children have greater binocular disparity of

3D presentations than adults because the

distance between the eyes is shorter than

one of adults. Therefore they will perceive

more stereoscopic depth compared to

adults for the same 3D image.

Teenagers

- Teenagers under the age of 19 may be

stimulated to light coming from 3D videos.

Advise them not to watch 3D videos for a

long time when they are tired.

Elderly

- The elderly may perceive less of a 3D

effect than the youth. Do not sit closer to

the TV than the recommended distance.

Make sure to use LG 3D glasses.

Otherwise, you may not be able to view 3D

videos properly.

Do not use 3D glasses instead of your

normal glasses, sunglasses or protective

goggles.

Using modified 3D glasses may cause eye

strain or image distortion.

Do not keep your 3D glasses in extremely

high or low temperatures. It will cause

deformation.

•The 3D glasses are fragile and are easy to be

scratched. Always use a soft, clean piece of

cloth when wiping the lenses. Do not scratch

the lenses of the 3D glasses with sharp

objects or clean/wipe them with chemicals,

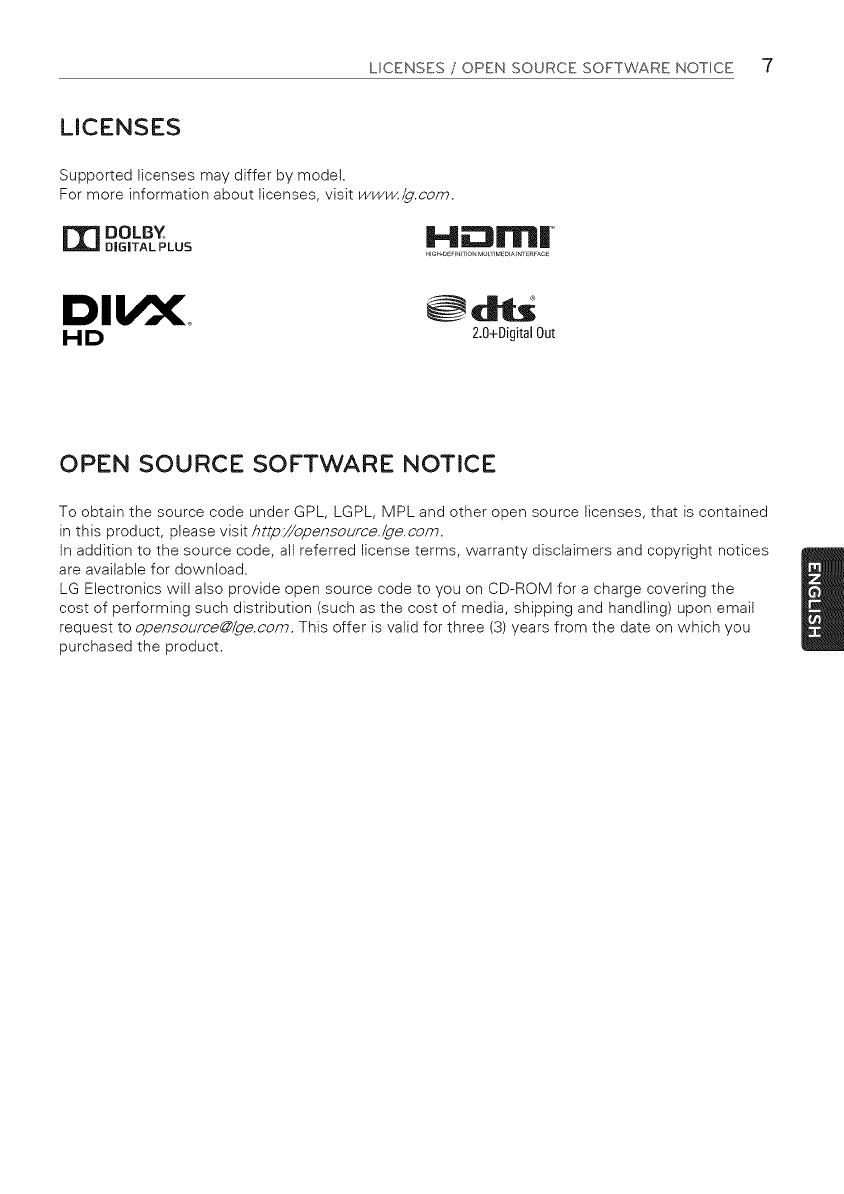

LICENSES /OPEN SOURCE SOFTWARE NOTICE "7

LICENSES

Supported licenses may differ by modeI.

For more information about licenses, visit wwHz/g.com.

DiGiTAL PLUS

HD2.0+DigitalOut

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained

in this product, please visit http.//opensoume./ge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the

cost of performing such distribution (such as the cost of media, shipping and handling) upon email

request to opensoume@/de.com. This offer is valid for three (3) years from the date on which you

purchased the product.

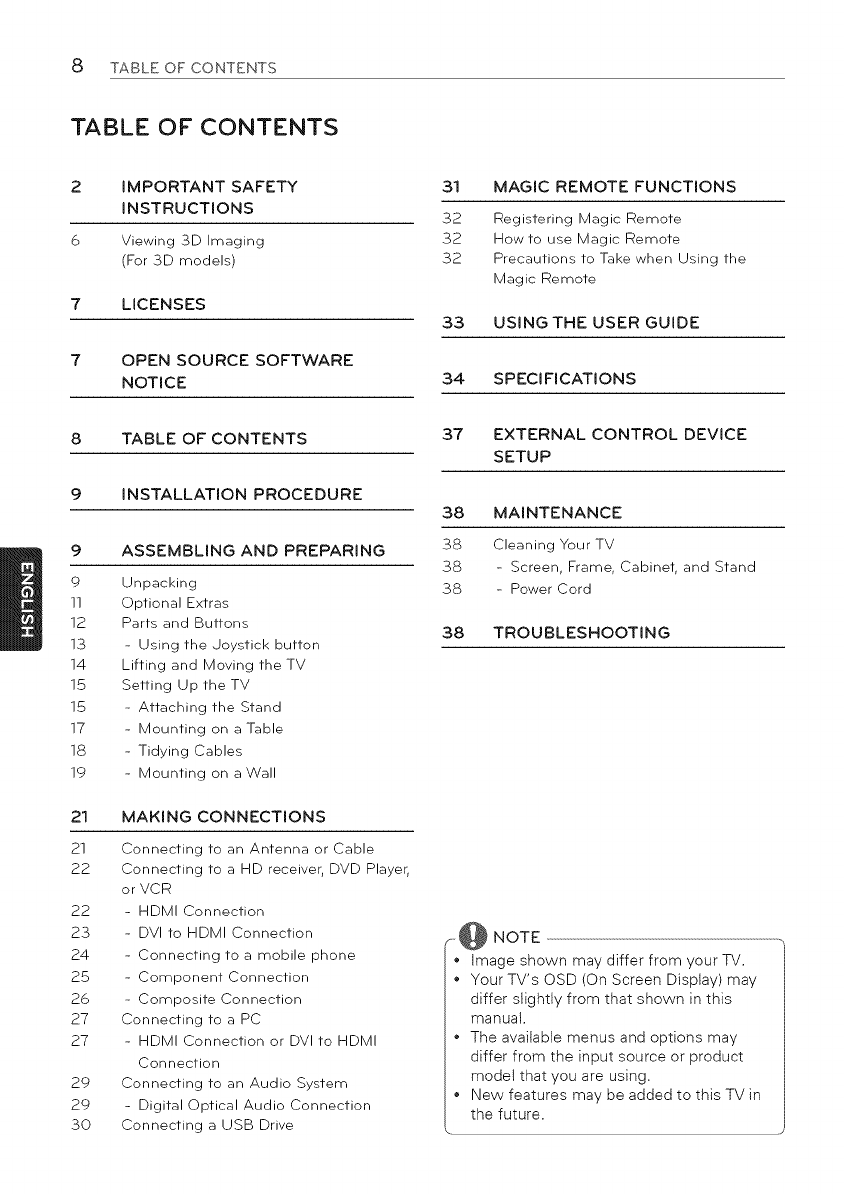

8 TABLE OF CONTENTS

TABLE OF CONTENTS

2 IMPORTANT SAFETY

INSTRUCTIONS

6 Viewing 3D Imaging

(For 3D models)

7 LICENSES

7 OPEN SOURCE SOFTWARE

NOTICE

8 TABLE OF CONTENTS

9 INSTALLATION PROCEDURE

9 ASSEMBLING AND PREPARING

31 MAGIC REMOTE FUNCTOONS

32 Registering Magic Remote

32 How to use Magic Remote

32 Precautions to Take when Using the

Magic Remote

33 USING THE USER GUIDE

34 SPECIFICATIONS

3"7 EXTERNAL CONTROL DEVICE

SETUP

38 MAINTENANCE

38 Cleaning Your TV

38 - Screen, Frame, Cabinet, and Stand

38 - Power Cord

9 Unpacking

11 Optional Extras

12 Parts and Buttons

13 - Using the Joystick button

14 Lifting and Moving the TV

15 Setting Up the TV

15 - Attaching the Stand

17 - Mounting on a Table

18 - Tidying Cables

19 - Mounting on a Wall

21

21

22

MAKING CONNECTIONS

Connecting to an Antenna or Cable

Connecting to a HD receiver, DVD Player,

or VCR

22 - HDMI Connection

23 - DVI to HDMI Connection

24 - Connecting to a mobile phone

25 - Component Connection

26 - Composite Connection

27 Connecting to a PC

27 - HDMI Connection or DVI to HDMI

Connection

29 Connecting to an Audio System

29 - Digital Optical Audio Connection

30 Connecting a USB Drive

38 TROUBLESHOOTING

F@ NOTE

• Image shown may differ from your TV.

• Your TV's OSD (On Screen Display) may

differ slightly from that shown in this

manual.

• The available menus and options may

differ from the input source or product

model that you are using.

• New features may be added to this TV in

the future.

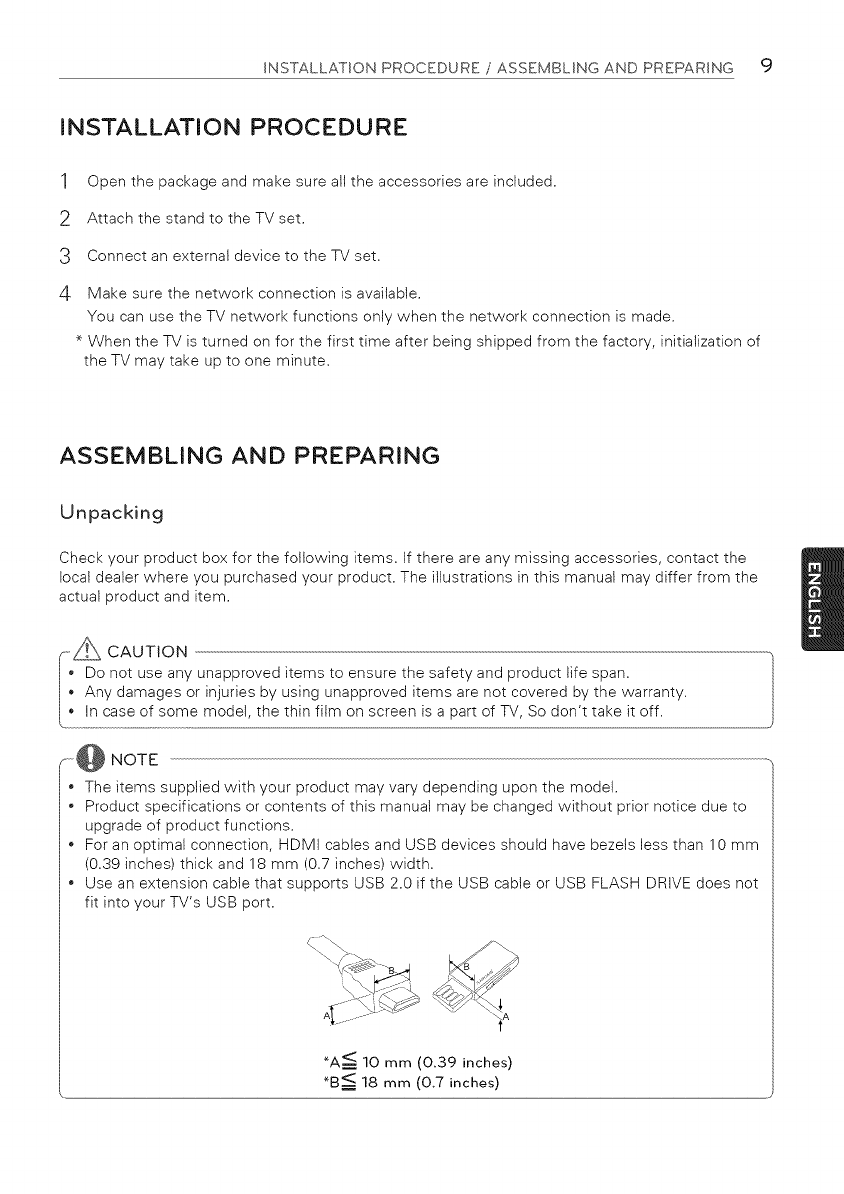

INSTALLATION PROCEDURE /ASSEMBLING AND PREPARING c)

iNSTALLATiON PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV set.

3 Connect an external device to the TV set.

4Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

* When the TV is turned on for the first time after being shipped from the factory, initialization of

the TV may take up to one minute.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the

local dealer where you purchased your product. The illustrations in this manual may differ from the

actual product and item.

--_ CAUTION

Do not use any unapproved items to ensure the safety and product life span.

Any damages or injuries by using unapproved items are not covered by the warranty.

tn case of some model, the thin film on screen is a part of TV, So don't take it off.

_@ NOTE

The items supplied with your product may vary depending upon the model.

Product specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

Use an extension cable that supports USB 2.0 if the USB cable or USB FLASH DRIVE does not

fit into your TV's USB port.

\

A: 10 mm (0.39 inches)

_B_<=_18 mm (0.7 inches)

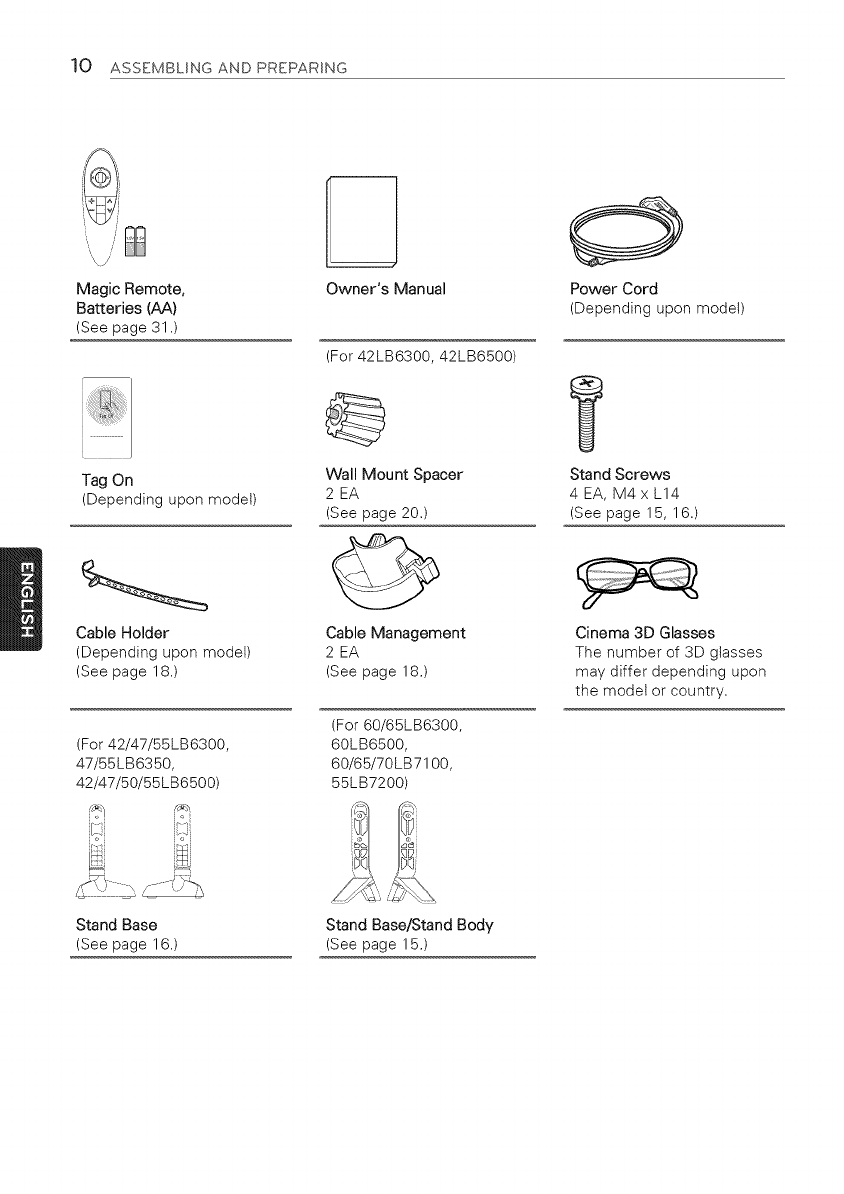

10 ASSEMBLING AND PREPARING

Magic Remote,

Batteries (AA)

(See page 31 .)

Tag On

(Depending upon model)

Cable Holder

(Depending upon model)

(See page 18.)

(For 42/47/55LB6300,

47/55LB6350,

42/47/50/55LB6500)

C

Owner's Manual

(For 42LB6300, 42LB6500)

Wall Mount Spacer

2 EA

(See page 20.)

Cable Management

2 EA

(See page 18.)

(For60_5LB6300,

60LB6500,

60_5/70LB7100,

55LB7200)

Power Cord

(Depending upon model)

Stand Screws

4EA, M4xL14

(See page 15, 16.)

Cinema 3D Glasses

The number of 3D glasses

may differ depending upon

the model or country.

Stand Base Stand Base/Stand Body

(See page 16.) (See page 15.)

ASSEMBLING AND PREPARING 11

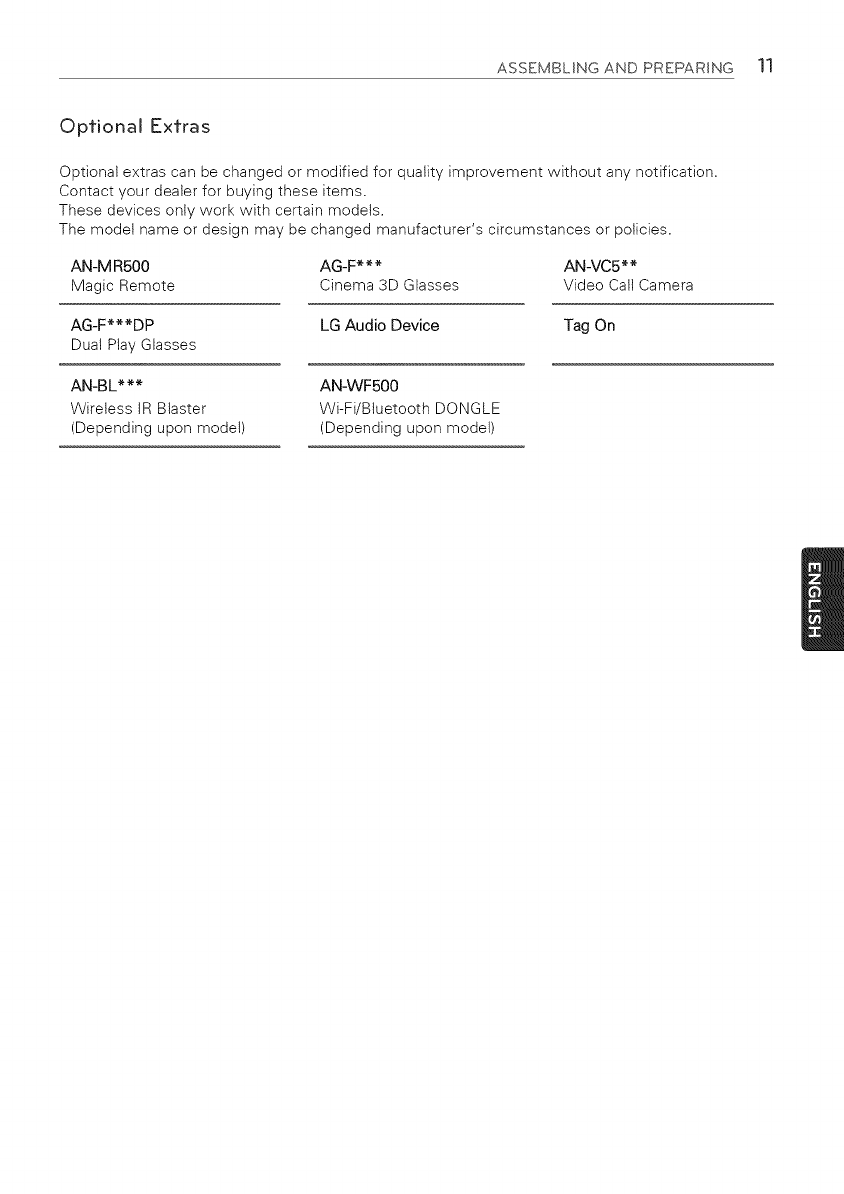

Optional Extras

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

These devices only work with certain models.

The model name or design may be changed manufacturer's circumstances or policies.

AN-MR500 AG-F*** AN-VC5**

Magic Remote Cinema 3D Glasses Video CaN Camera

AG-F***DP LG Audio Device Tag On

Dual Play Glasses

AN-BL***

Wireless IR Blaster

(Depending upon modet)

AN-WFS00

Wi-Fi/Bluetooth DONGLE

(Depending upon model)

12 ASSEMBLING AND PREPARING

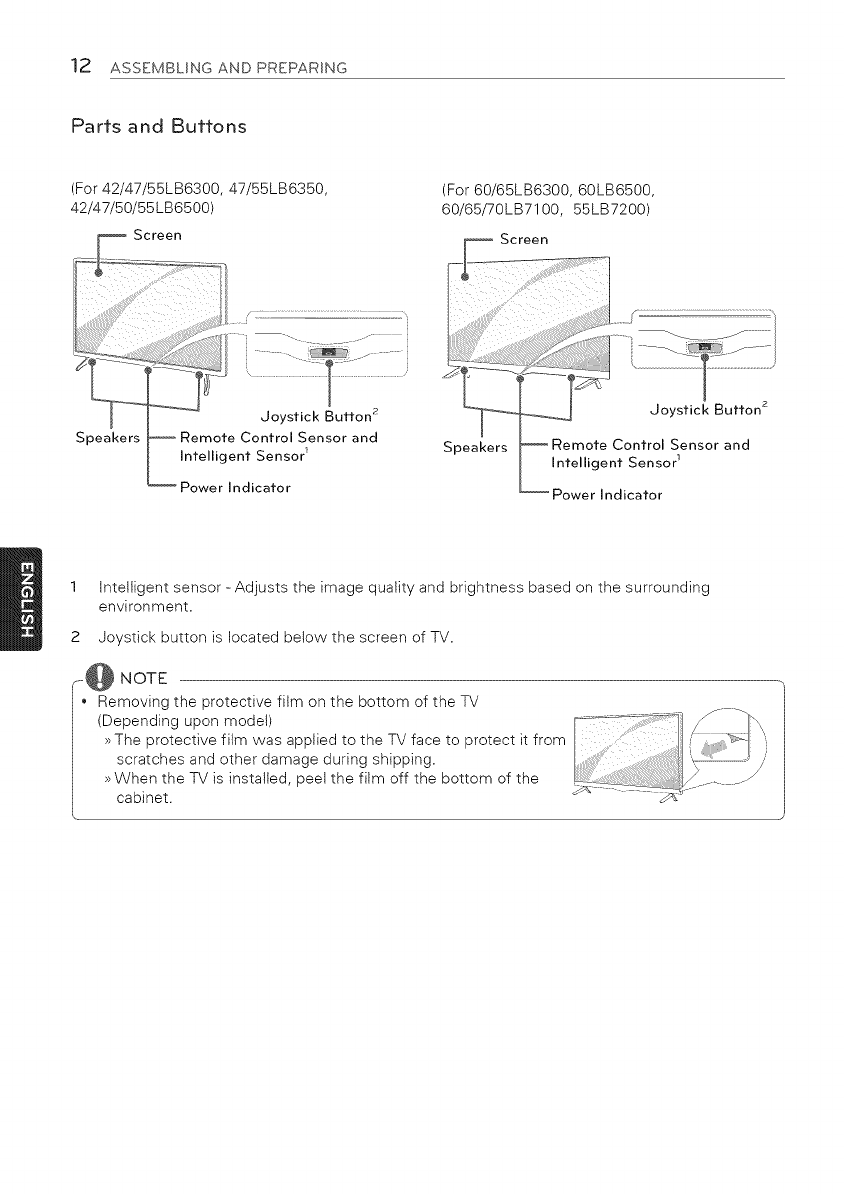

Parts and Buttons

(For 42/47/55LB6300, 47/55LB6350,

42/47/50/55LB6500)

Screen

(For 60/65LB6300, 60LB6500,

60/65/70LB7100, 55LB7200)

Speakers

Joystick Button 2

Remote Control Sensor and

Intelligent Sensor 1

Power Indicator

Speakers

Joystick Button 2

Remote Control Sensor and

Intelligent Sensor 1

-- Power Indicator

1 intelligent sensor - Adjusts the image quality and brightness based on the surrounding

environment.

2 Joystick button is located below the screen of TV.

:@.oTE

Removing the protective film on the bottom of the TV

(Depending upon model)

>>The protective film was applied to the TV face to protect it from

scratches and other damage during shipping.

>>When the TV is installed, peet the film off the bottom of the

cabinet.

ASSEMBLING AND PREPARING 13

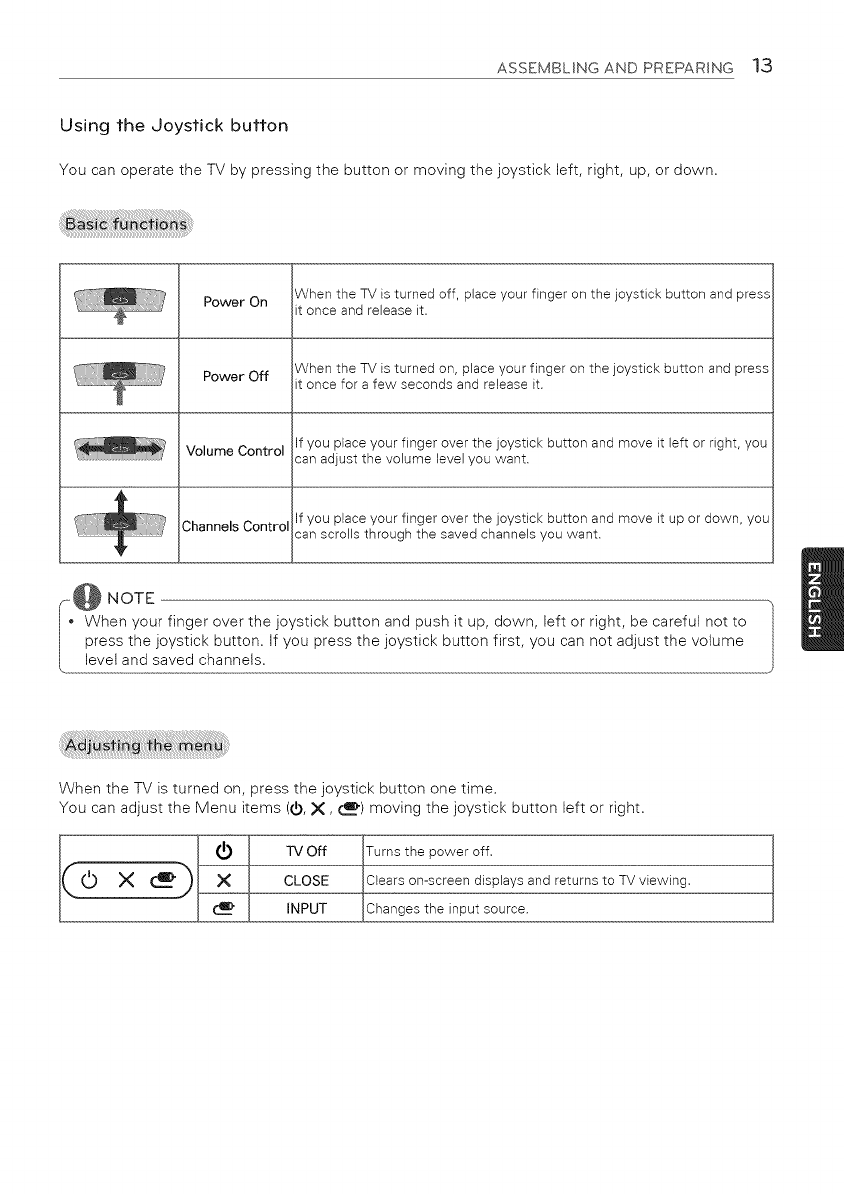

Using the Joystick button

You can operate the TV by pressing the button or moving the joystick left, right, up, or down.

¢Vhen the TV is turned off, place your finger on the joystick button and press

Power On it once and release it.

@

When the TV is turned on, place your finger on the joystick button and press

Power Off it once for a few seconds and release it.

Volume Control If you place your finger over the joystick button and move it left or right, you

can adjust the volume level you want.

If you place your finger over the joystick button and move it up or down, you

Channels Control ican scrolls through the saved channels you want.

@.oTE

When your finger over the joystick button and push it up, down, left or right, be careful not to

press the joystick button. If you press the joystick button first, you can not adjust the volume

level and saved channels.

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items ((_, X, r,_.) moving the joystick button left or right.

O X c_._ CLOSE

INPUT

the p°wer 0ff"

.displays and returns to TV viewing.

t source.

14 ASSEMBLING AND PREPARING

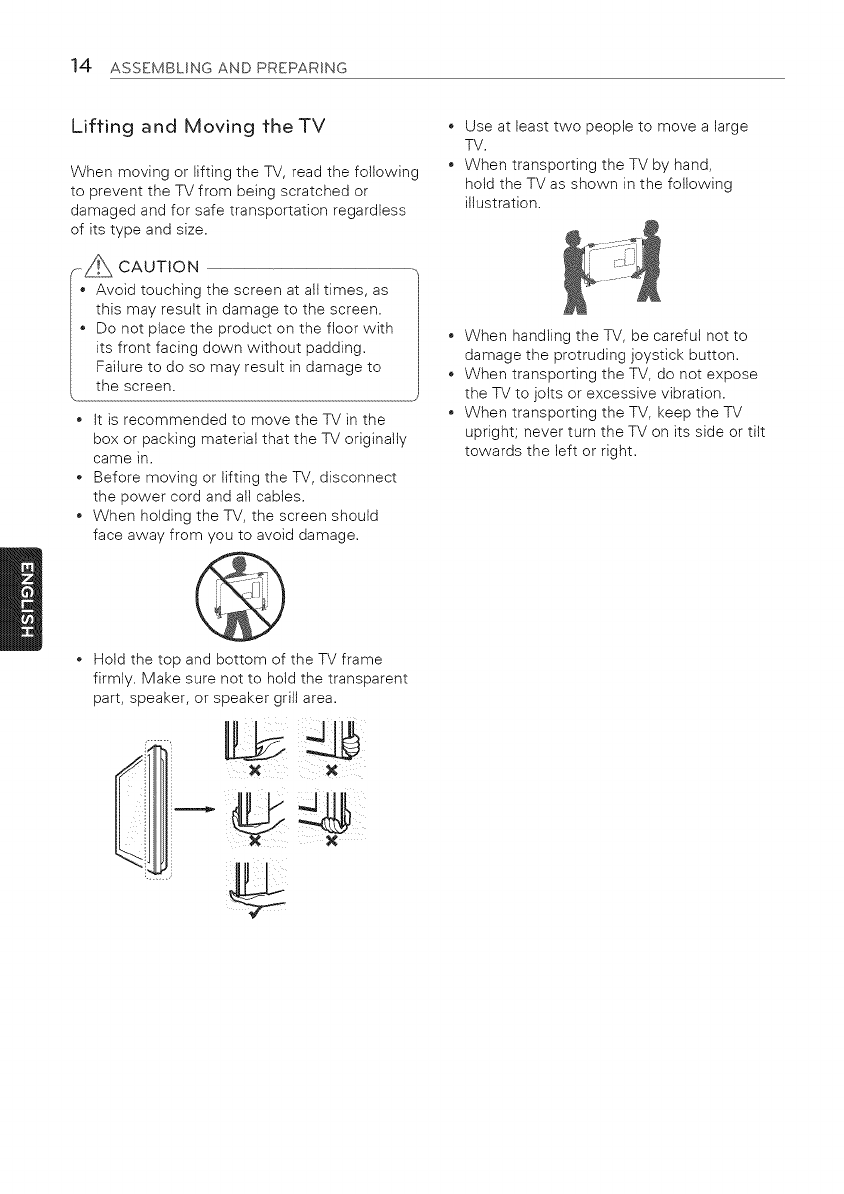

Liffing and Moving fhe TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for safe transportation regardless

of its type and size.

ii _ CAUTION

Avoid touching the screen at atl times, as

this may result in damage to the screen.

Do not place the product on the floor with

its front facing down without padding.

Failure to do so may result in damage to

the screen.

it is recommended to move the TV in the

box or packing material that the TV originally

came in.

Before moving or lifting the TV, disconnect

the power cord and alt cables.

When holding the TV, the screen should

face away from you to avoid damage.

Hold the top and bottom of the TV frame

firmty. Make sure not to hold the transparent

part, speaker, or speaker grill area.

X

X

Use at least two people to move a large

TV.

When transporting the TV by hand,

hold the TV as shown in the following

illustration.

When handling the TV, be careful not to

damage the protruding joystick button.

When transporting the TV, do not expose

the TV to jolts or excessive vibration.

When transporting the TV, keep the TV

upright; never turn the TV on its side or tilt

towards the left or right.

ASSEMBLING AND PREPARING 1S

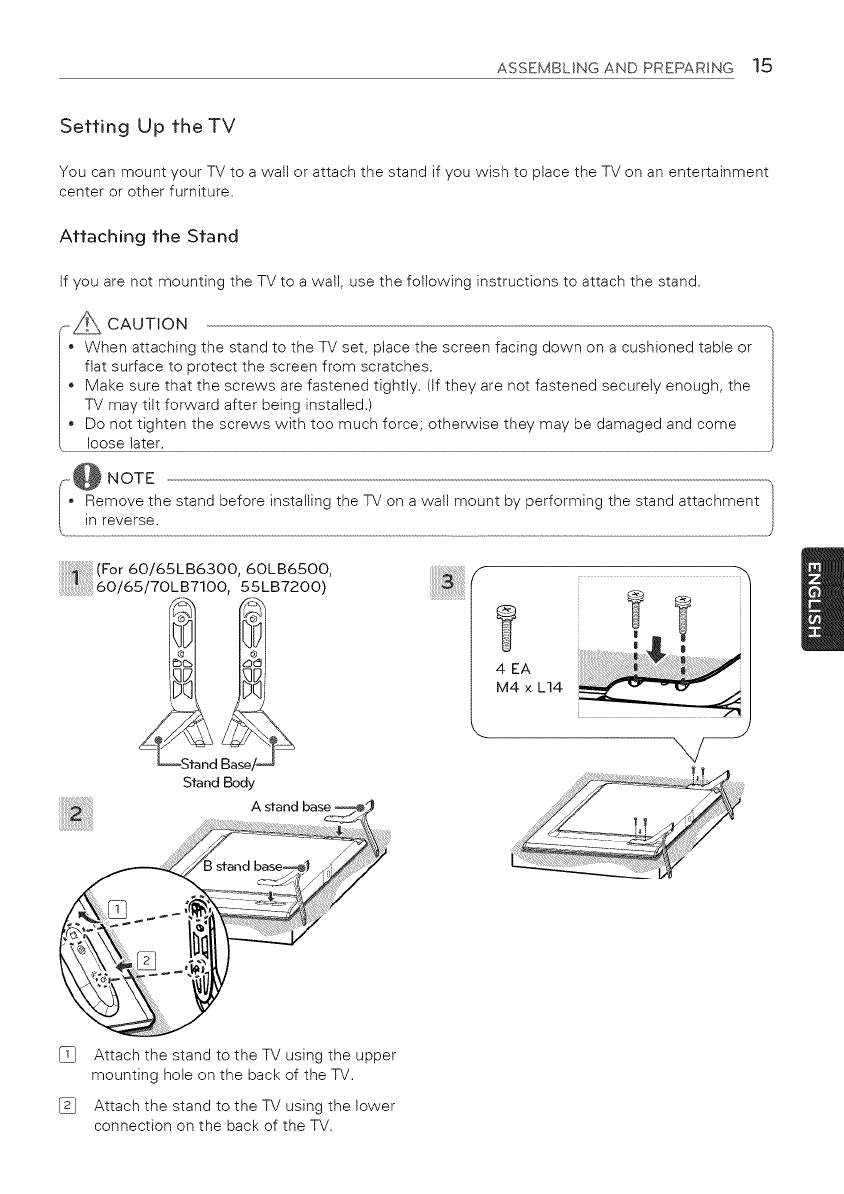

Setting Up the TV

You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment

center or other furniture.

Attaching the Stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

-i_ CAUTION

When attaching the stand to the TV set,place the screen facing down on a cushioned table or

flatsurface to protect the screen from scratches,

Make sure that the screws are fastened tightly,(Ifthey are not fastened securely enough, the

TV may tilt forward after being installed.)

Do not tighten the screws with too much force; otherwise they may be damaged and come

loose later.

--:@NOTE

Remove the stand before installing the TV on a wall mount by performing the stand attachment /

in reverse. J

(For 60/65LB6300, 60LB6500,

60/65/70LB7100, 55LB7200)

Stand Body

A stand base

f

4 EA

M4 x L14

B stand

Attach the stand to the TV using the upper

mounting hole on the back of the TV.

Attach the stand to the TV using the lower

connection on the back of the TV.

16 ASSEMBLINGANDPREPARING

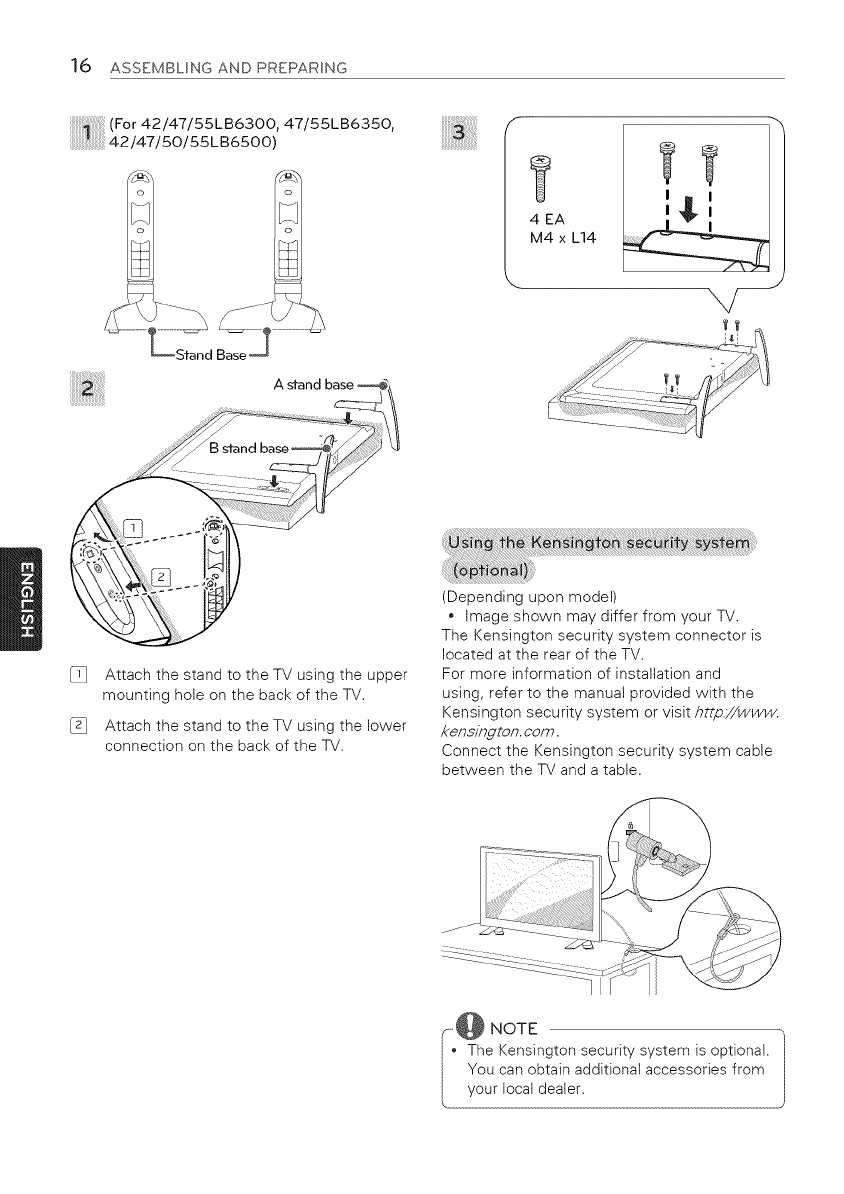

(For42/47/55LB6300,47/55LB6350,

42/47/50/55LB6500) f

4 EA

M4 x L14

A stand base

Attach the stand to the TV using the upper

mounting hole on the back of the TV,

Attach the stand to the TV using the lower

connection on the back of the TV.

(Depending upon model)

Image shown may differ from your TV.

The Kensington security system connector is

located at the rear of the TV.

For more information of installation and

using, refer to the manual provided with the

Kensington security system or visit http.//www.

ken$indton, com.

Connect the Kensington security system cable

between the TV and a table.

@ NOTE

The Kensington security system is optional.

You can obtain additional accessories from

your Focaldealer.

ASSEMBLING AND PREPARING 17

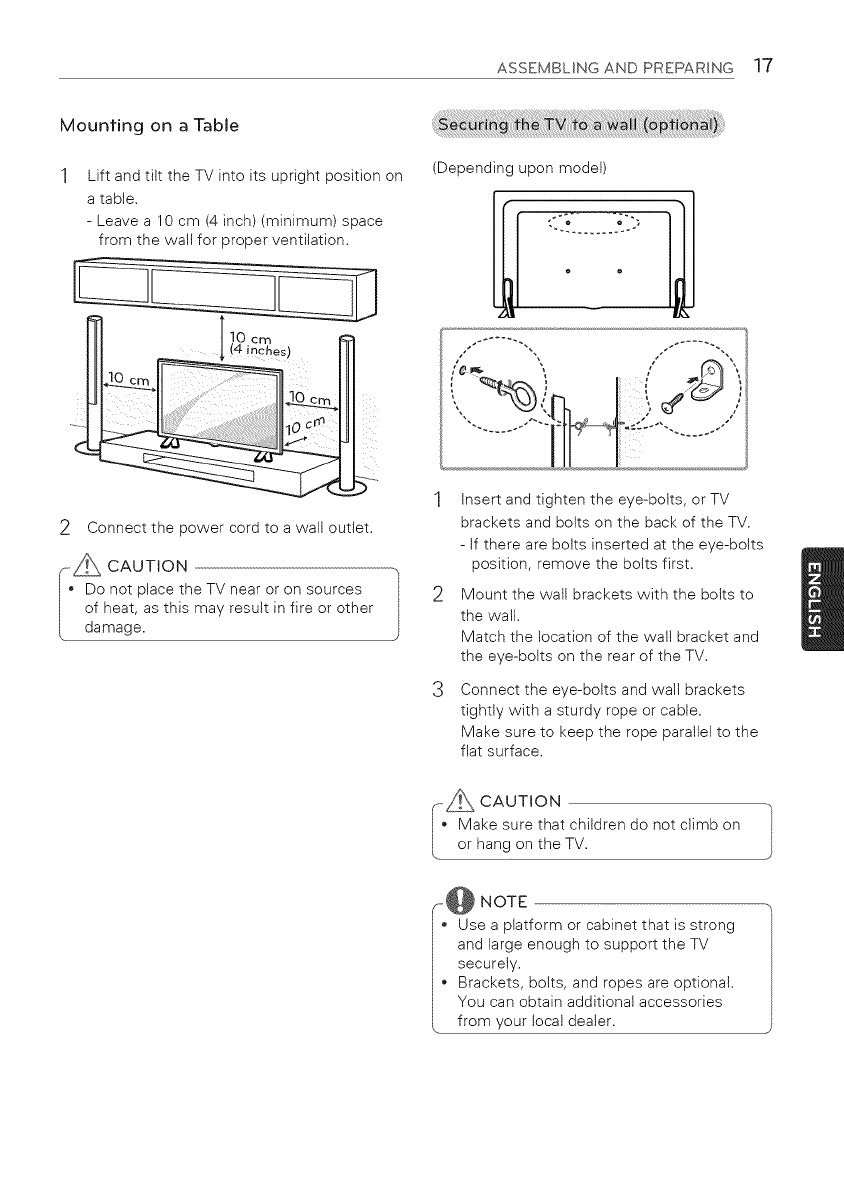

Mounting on a Table

Lift and tilt the TV into its upright position on

a table.

- Leave a 10 cm (4 inch) (minimum) space

from the wall for proper ventilation.

(Depending upon model)

2Connect the power cord to a wall outlet.

CAUTION

Do not place the TV near or on sources

of heat, as this may result in fire or other

damage.

1Insert and tighten the eye-bolts, or TV

brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2Mount the wall brackets with the bolts to

the walt.

Match the location of the walt bracket and

the eye-bolts on the rear of the TV.

3Connect the eye-bolts and watl brackets

tightly with a sturdy rope or cable.

Make sure to keep the rope parallel to the

flat surface.

[_ CAUTION h

• Make sure that children do not climb on

or hang on the TV. J

i NOTE

Use a platform or cabinet that is strong

and large enough to support the TV

securely.

Brackets, bolts, and ropes are optional.

You can obtain additional accessories

from your local dealer.

18 ASSEMBLING AND PREPARING

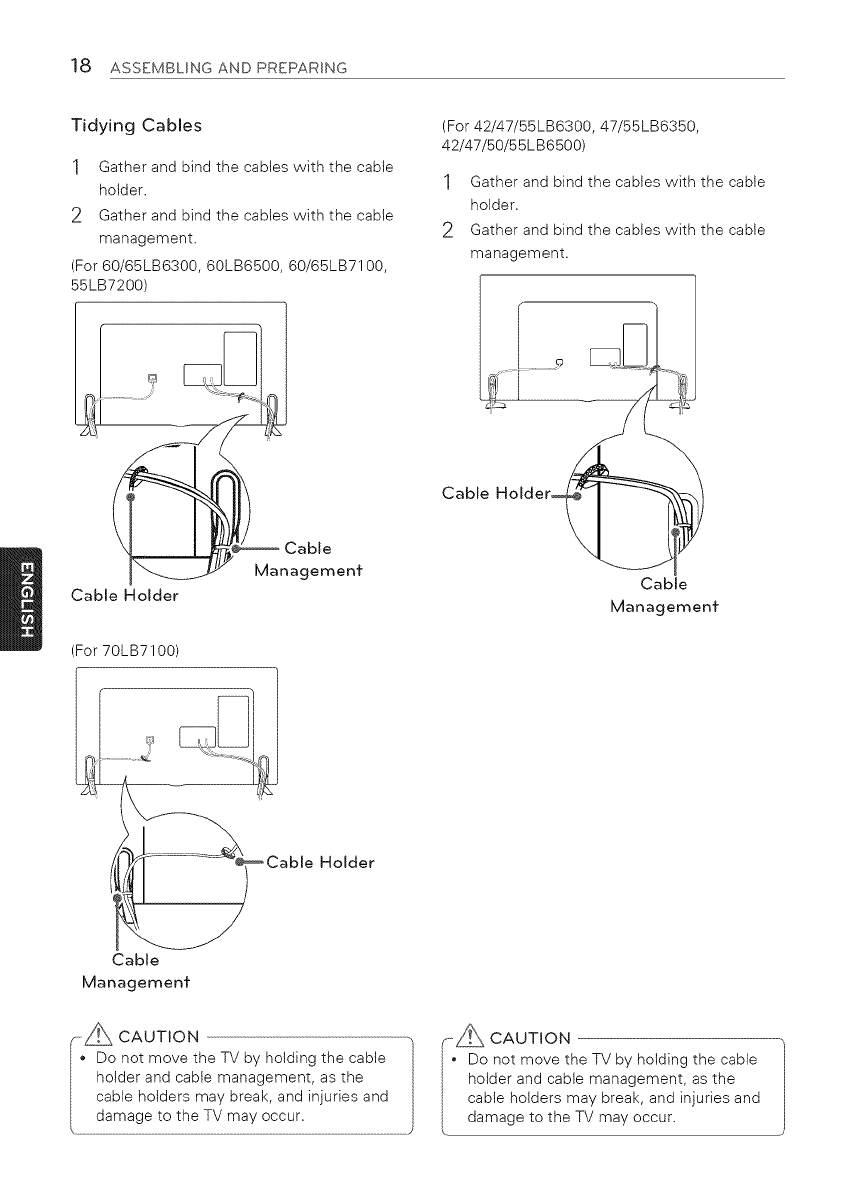

Tidying Cables

1Gather and bind the cables with the cable

holder.

2Gather and bind the cables with the cable

management.

(For 60/65LB6300, 60LB6500, 60/65LB7100,

55LB7200)

Cable Holder

(For 70LB7100)

(For 42/47/55LB6300, 47/55LB6350,

42/47/50/55LB6500)

1Gather and bind the cables with the cable

holder.

2Gather and bind the cables with the cable

management.

Cable Holder@ 1

Cable

Managemenf

Holder

Cable

Managemenf

"_z_\ CAUTION

Do not move the TV by holding the cable

holder and cable management, as the

cable holders may break, and injuries and

damage to the TV may occur.

._-_ CAUTION

Do not move the TV by holding the cable

holder and cable management, as the

cable holders may break, and injuries and

damage to the TV may occur.

ASSEMBLING AND PREPARING 19

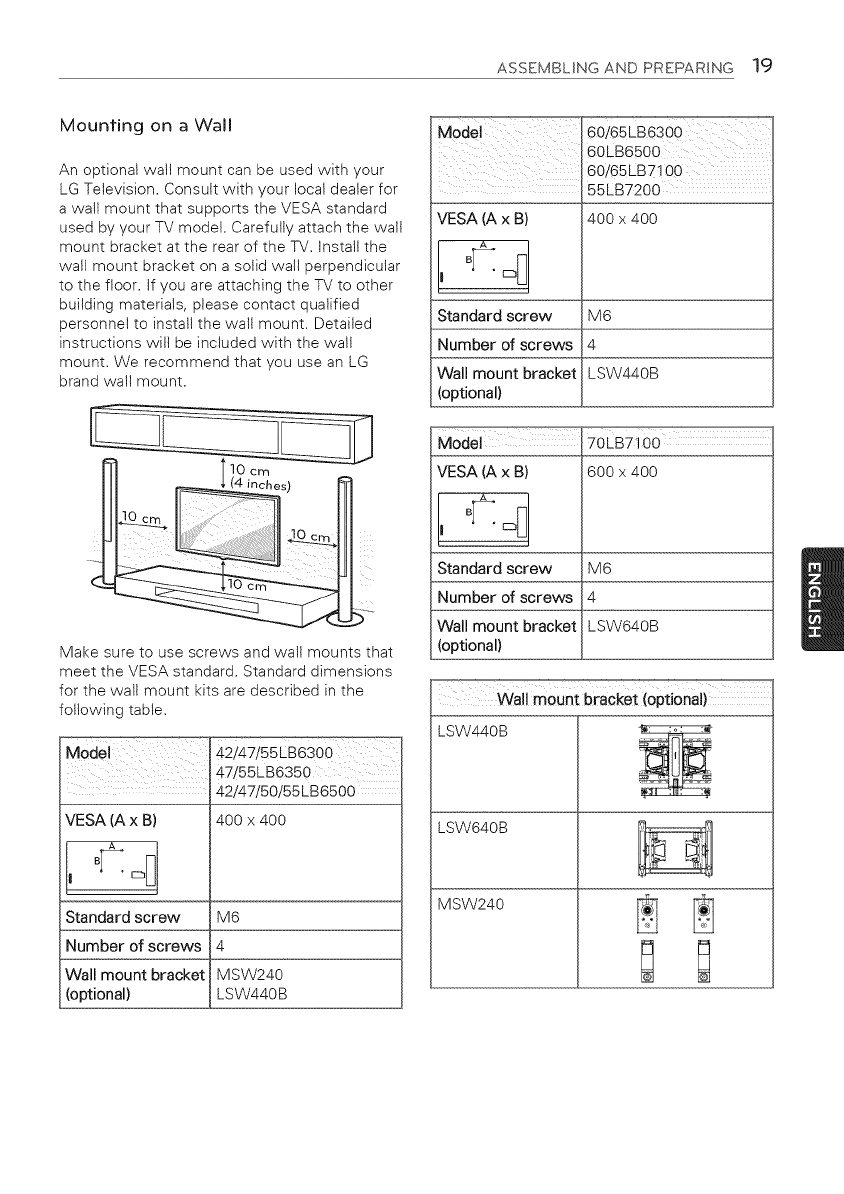

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for

a walt mount that supports the VESA standard

used by your TV model. Carefully attach the wall

mount bracket at the rear of the TV. Install the

wall mount bracket on a solid wall perpendicular

to the floor. If you are attaching the TV to other

building materials, please contact qualified

personnel to install the wall mount. Detailed

instructions will be included with the wall

mount. We recommend that you use an LG

brand wall mount.

Ocm

Make sure to use screws and wall mounts that

meet the VESA standard. Standard dimensions

for the wall mount kits are described in the

following table.

Model

VESA (A x B)

°N°BI

Standard screw

Number of screws

Wall mount bracket

(optional)

$2/47/55EB6300

47/55LB6350

42/47/50/55LB6500

400 x 400

M6

4

MSW240

LSW440B

Model 60/65LB6300

60LB6500

60/65LB7! 00

55LB7200

VESA (A x B) 400 x 400

Standard screw M6

Number of screws 4

Wall mount bracket LSW440B

(optional)

Model 70LB7100

VESA (A x B) 600 x 400

, °N°fl

Standard screw M6

Number of screws 4

Wall mount bracket LSW640B

(optional)

LSW440B

LSW640B

MSW240

20 ASSEMBLING AND PREPARING

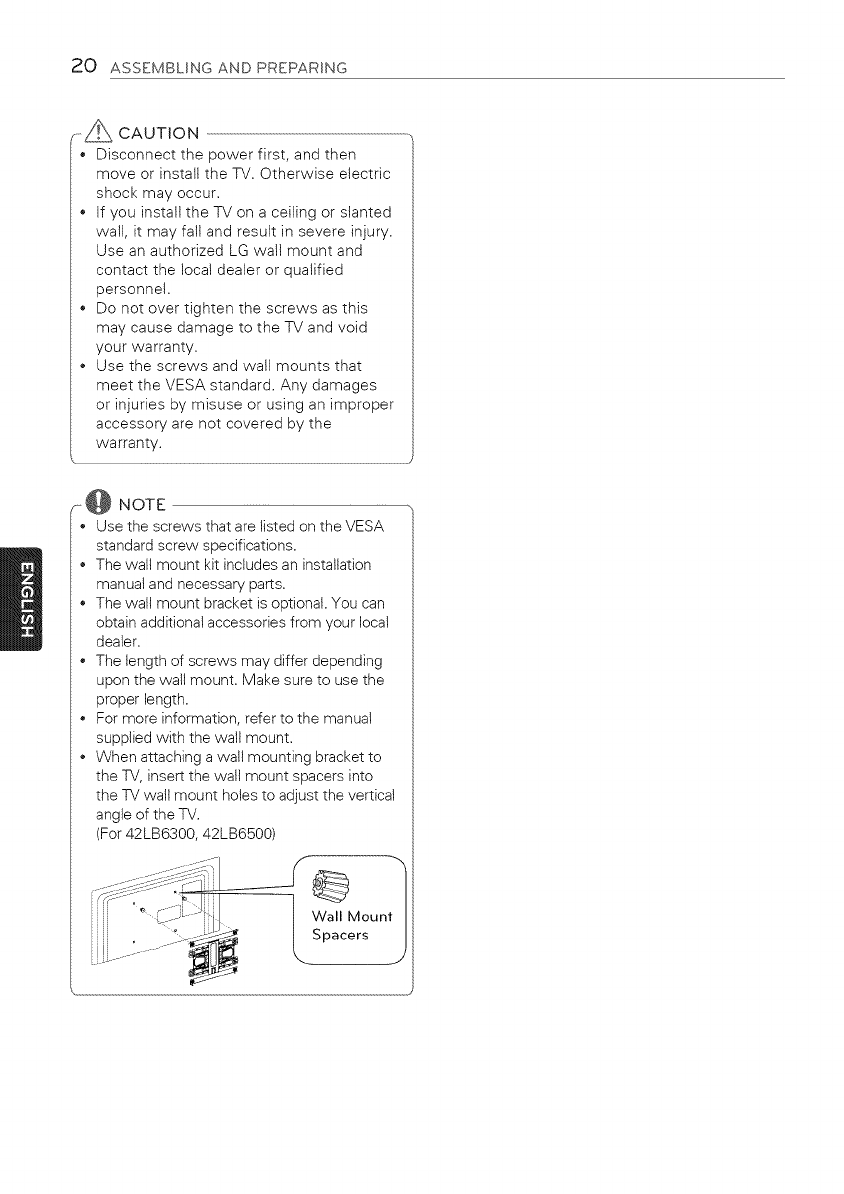

_--_\ CAUTION

Disconnectthe power first,and then

move orinstalltheTV, Otherwise electric

shock may occur.

Ifyou installthe TV on a ceilingor slanted

wall, it may fall and result in severe injury.

Use an authorized LG wall mount and

contact the local dealer or qualified

personnel.

Do not over tighten the screws as this

may cause damage to the TV and void

your warranty.

• Use the screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the

warranty.

..... NOTE

Use the screws that are listed on the VESA

standard screw specifications.

• The watt mount kit includes an installation

manuat and necessary parts.

The wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

The length of screws may differ depending

upon the wail mount. Make sure to use the

proper length.

For more information, refer to the manual

supplied with the watl mount.

• When attaching a wail mounting bracket to

the TV, insert the watl mount spacers into

the TV watl mount holes to adjust the verticat

angle of the TV.

(For 42LB6300, 42LB6500)

MAKING CONNECTIONS 21

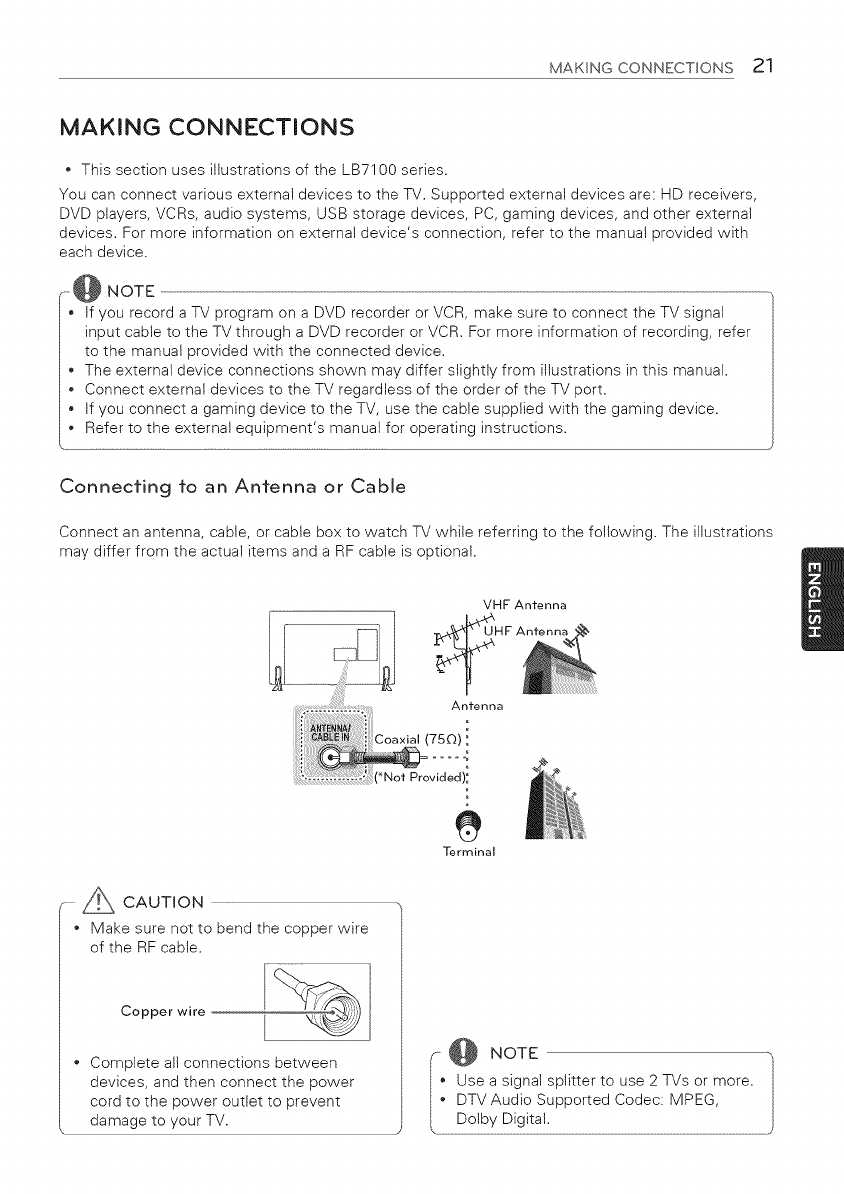

MAKING CONNECTIONS

This section uses illustrations of the LB7100 series.

You can connect various external devices to the TV. Supported external devices are: HD receivers,

DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external

devices. For more information on external device's connection, refer to the manual provided with

each device.

_---@ NOTE

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal

input cable to the TV through a DVD recorder or VCR. For more information of recording, refer

to the manual provided with the connected device.

The external device connections shown may differ stightly from illustrations in this manual.

Connect external devices to the TV regardless of the order of the TV port.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• Refer to the external equipment's manual for operating instructions.

Connecfing to an Anfenna or Cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations

may differ from the actual items and a RF cable is optional.

VHF Antenna

a

e

Terminal

_ CAUTION

Make sure not to bend the copper wire

of the RF cable.

Copper wire

• Complete all connections between

devices, and then connect the power

cord to the power outlet to prevent

damage to your TV.

_@ NOTE

Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG,

Dolby Digital.

22 MAKING CONNECTIONS

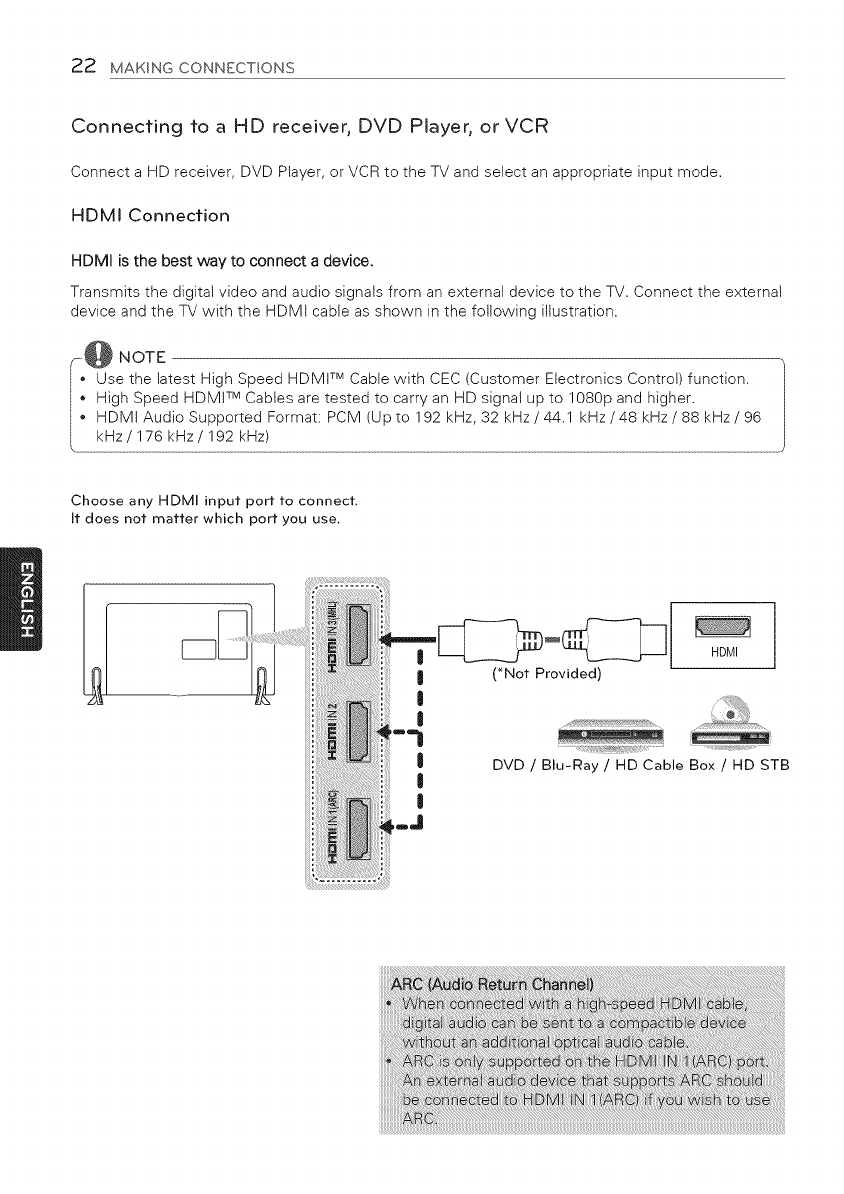

Connecting to a HD receiver, DVD Player, or VCR

Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode.

HDMI Connection

HDMI is the best way to connect a device,

Transmits the digital video and audio signals from an external device to the TV. Connect the external

device and the TV with the HDMI cable as shown in the following illustration.

i.@NoTE To

Use the latest High Speed HDMt Cable with CEC (Customer Electronics Control) function.

High Speed HDMI TMCables are tested to carry an HD signal up to 1080p and higher.

I' HDMI Audio Supported Format: PCM (Upto 192 kHz, 32 kHz/44.1 kHz/48 kHz/88 kHz/96

L kHz/176kHz/192kHz)

Choose any HDMI input port to connect.

It does not matter which port you use.

....... .0.

_1 | ( Not Provided)

I

J

MAKING CONNECTIONS 23

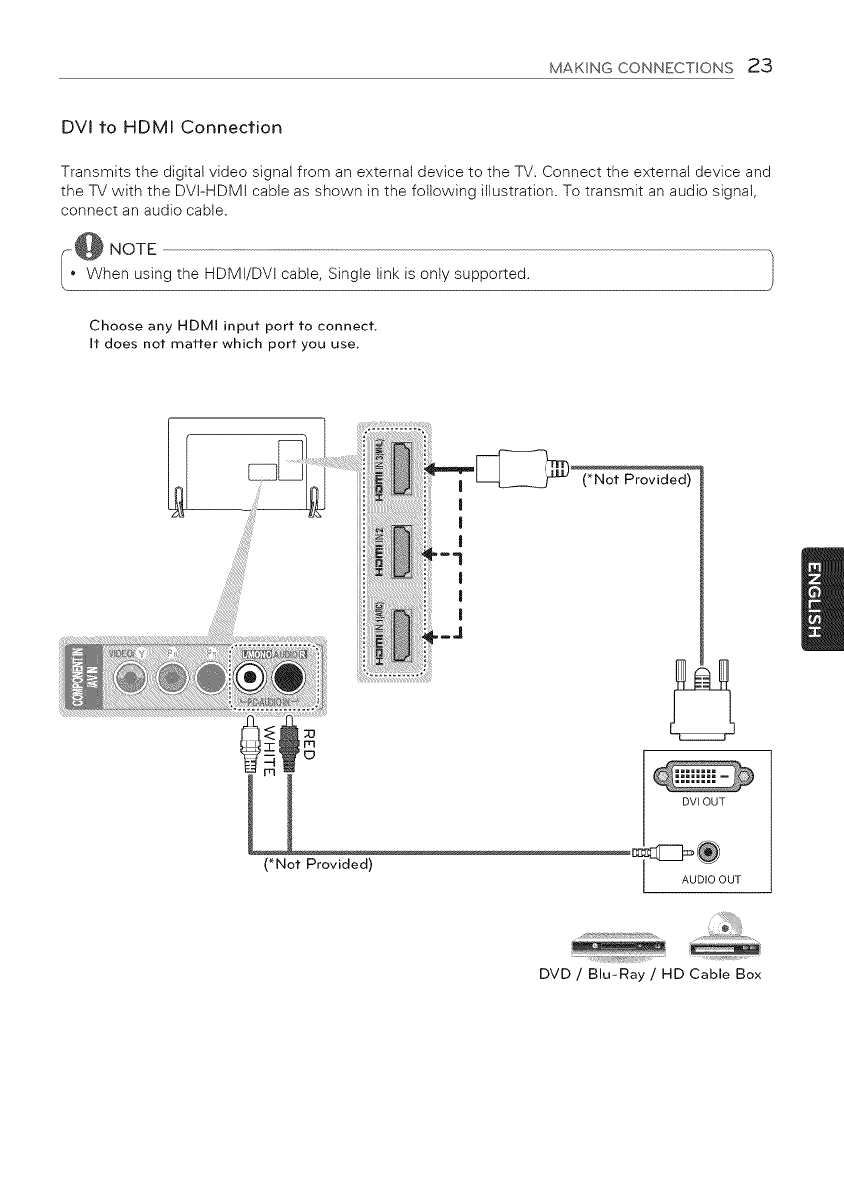

DVI to HDMI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and

the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal,

connect an audio cable.

-@ NOTE

• When using the HDMt/DVt cable, Single link is only supported.

Choose any HDMI input port to connect,

It does not matter which port you use,

!

,_ii!ii!ii!ii!ii!ii!ii!i!_ "_"1

|

,ii!i!i!i!i!i!i!i!i!i!!!_!ii_

_i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!i_

::[3

m

[D

(*Not Provided)

(*Not Provided)

DVI OUT

AUDIO OUT

DVD /Blu-Ray /HD Cable Box

24 MAKING CONNECTIONS

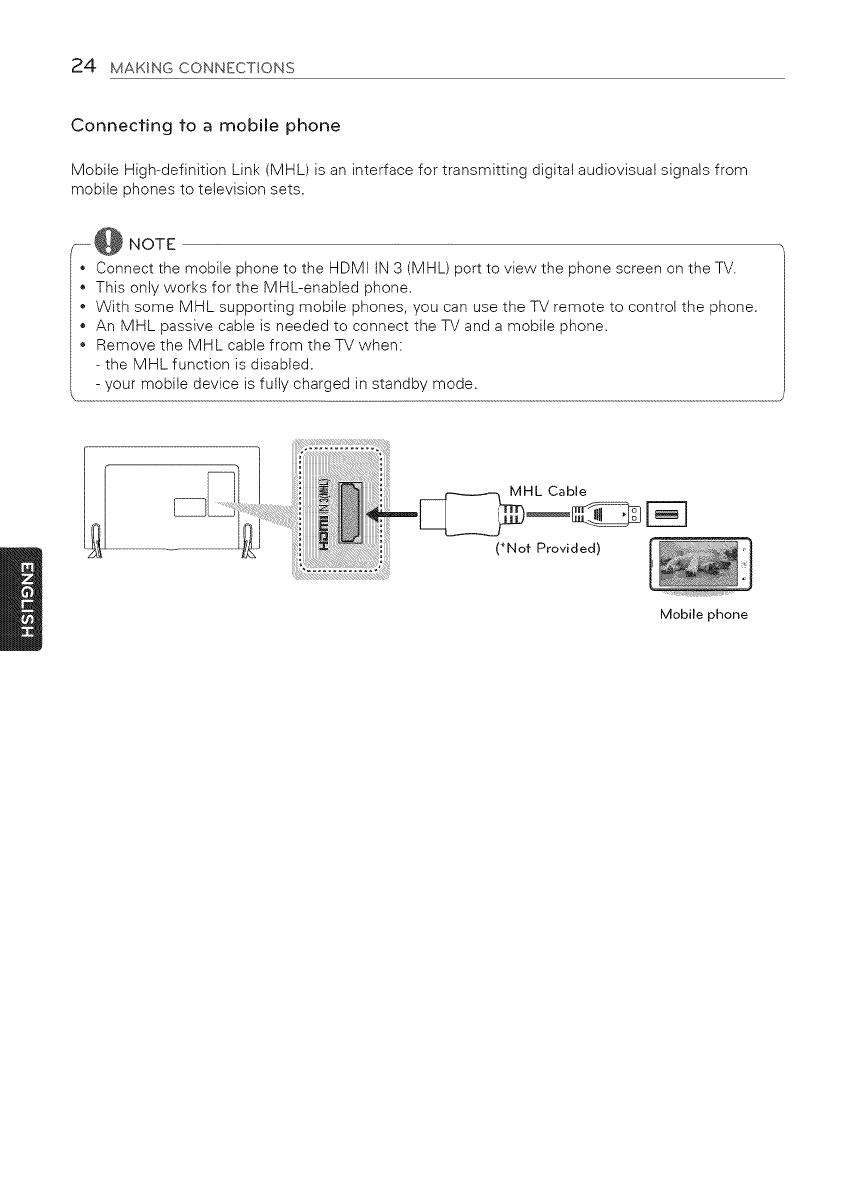

Connecting to a mobile phone

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from

mobile phones to television sets.

_--@ NOTE

Connect the mobile phone to the HDMt IN 3 (MHL) port to view the phone screen on the TV.

This only works for the MHL-enabted phone.

With some MHL supporting mobile phones, you can use the TV remote to control the phone.

An MHL passive cable is needed to connect the TV and a mobile phone.

• Remove the MHL cable from theTV when:

-the MHL function is disabled.

- your mobile device is fully charged in standby mode.

Mobile phone

MAKING CONNECTIONS 25

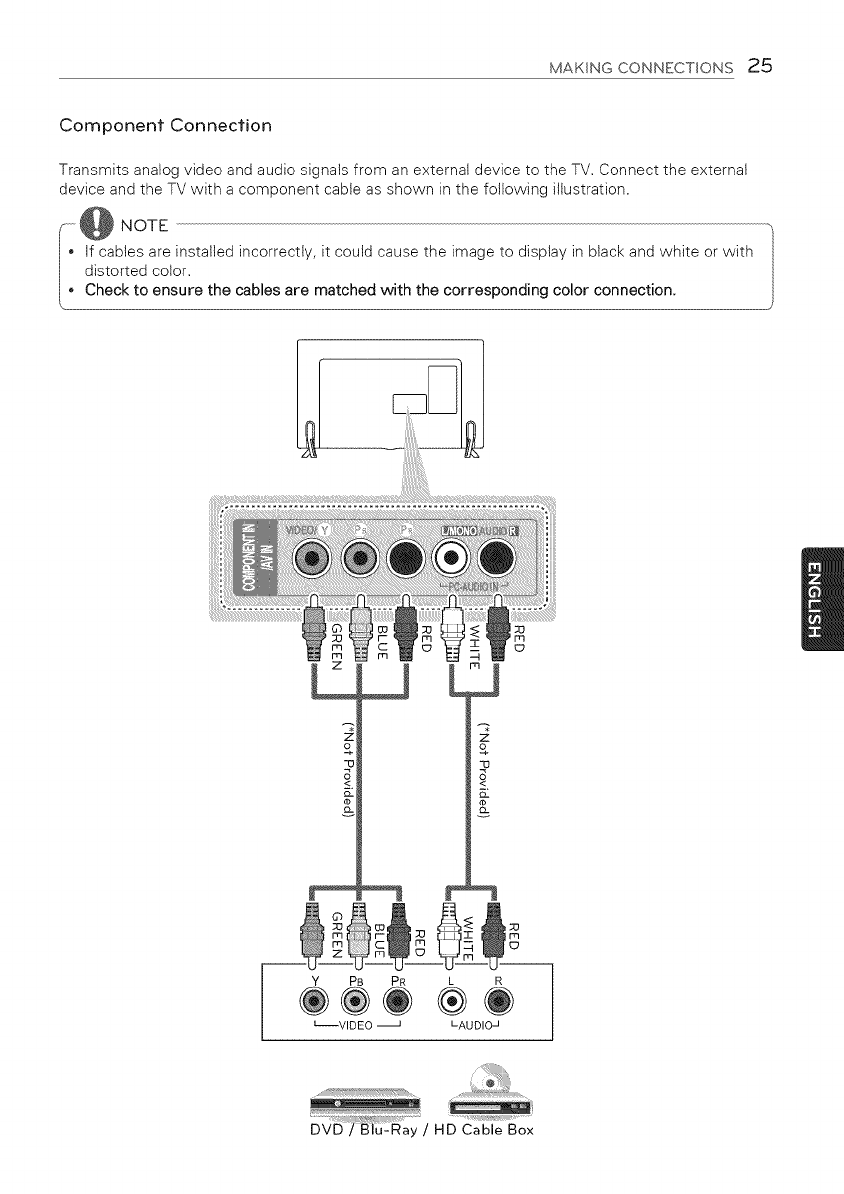

Component Connection

Transmits analog video and audio signals from an external device to the TV. Connect the external

device and the TV with a component cable as shown in the following illustration.

NOTE

if cables are installed incorrectly, it could cause the image to display in black and white or with

distorted color.

Check to ensure the cables are matched with the corresponding color connection.

LAUDIOJ

.......... i!+,iiil:>_++iyili ................ r,i!,+,,K,+! .......

DIE) 7 t iiRay /HI Cable Box

26 MAKING CONNECTIONS

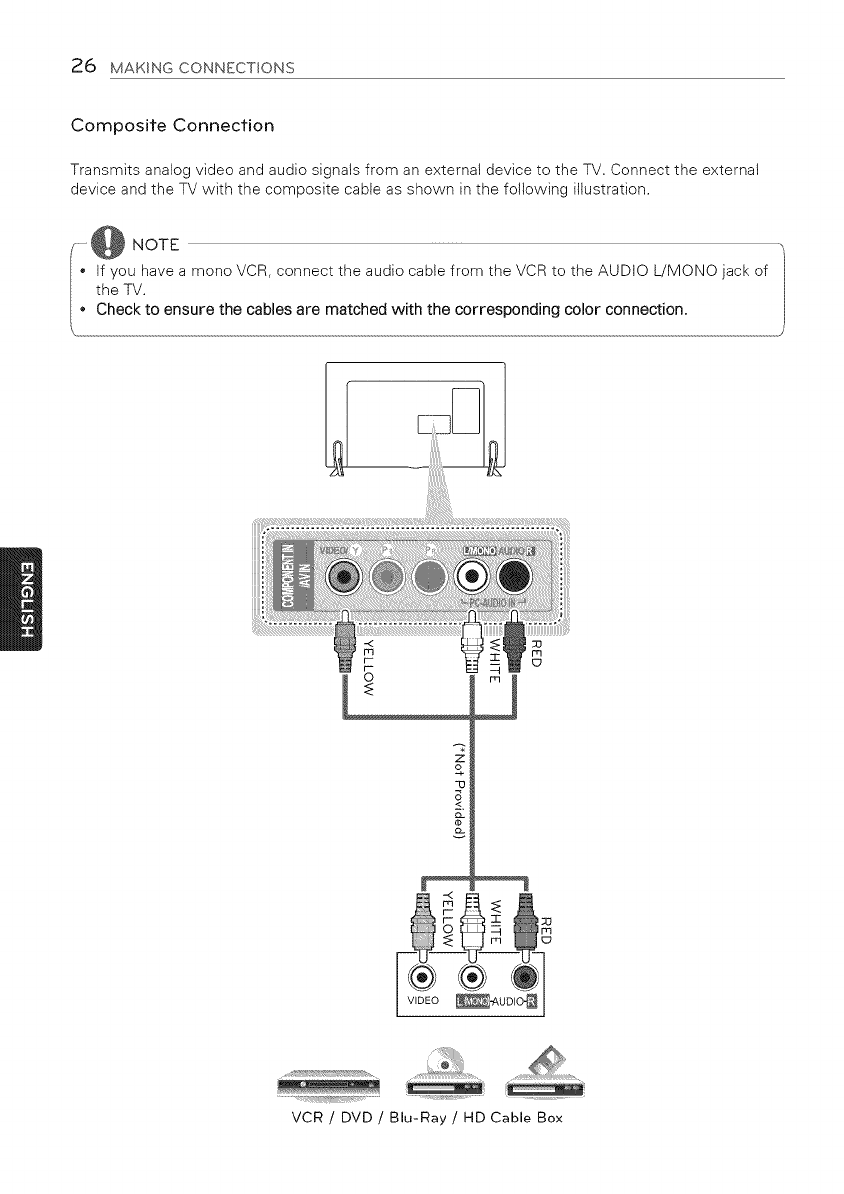

Composite Connection

Transmits analog video and audio signals from an external device to the TV. Connect the external

device and the TV with the composite cable as shown in the following illustration.

_-@ NOTE

•If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of

the TV. J

•Check to ensure the cables are matched with the corresponding color connection.

"0

!.

CL

VCR /DVD /Blu-Ray /HD Cable Box

MAKING CONNECTIONS 2"7

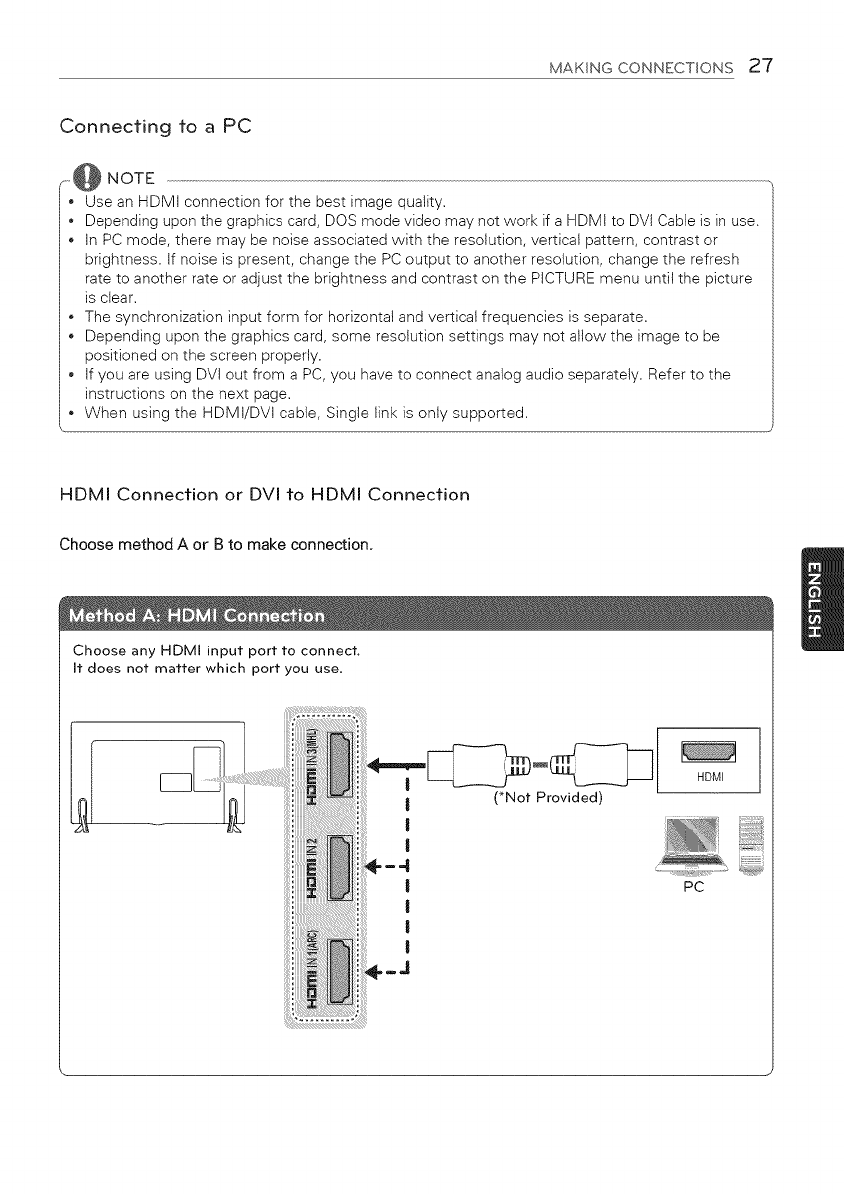

Connecting to a PC

_.@ NOTE

*Use an HDMi connection for the best image quality.

Depending upon the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.

*in PC mode, there may be noise associated with the resolution, vertical pattern, contrast or

brightness, if noise is present, change the PC output to another resolution, change the refresh

rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture

is clear.

*The synchronization input form for horizontal and vertical frequencies is separate.

*Depending upon the graphics card, some resolution settings may not allow the image to be

positioned on the screen properly.

if you are using DVi out from a PC, you have to connect analog audio separately. Refer to the

instructions on the next page.

o When using the HDMi/DVi cable, Single link is onty supported.

HDMI Connection or DVI to HDMI Connection

Choose method A or B to make connection.

Choose any HDMI input port to connect,

it does not matter which port you use,

HDMI

PC

28 MAKING CONNECTIONS

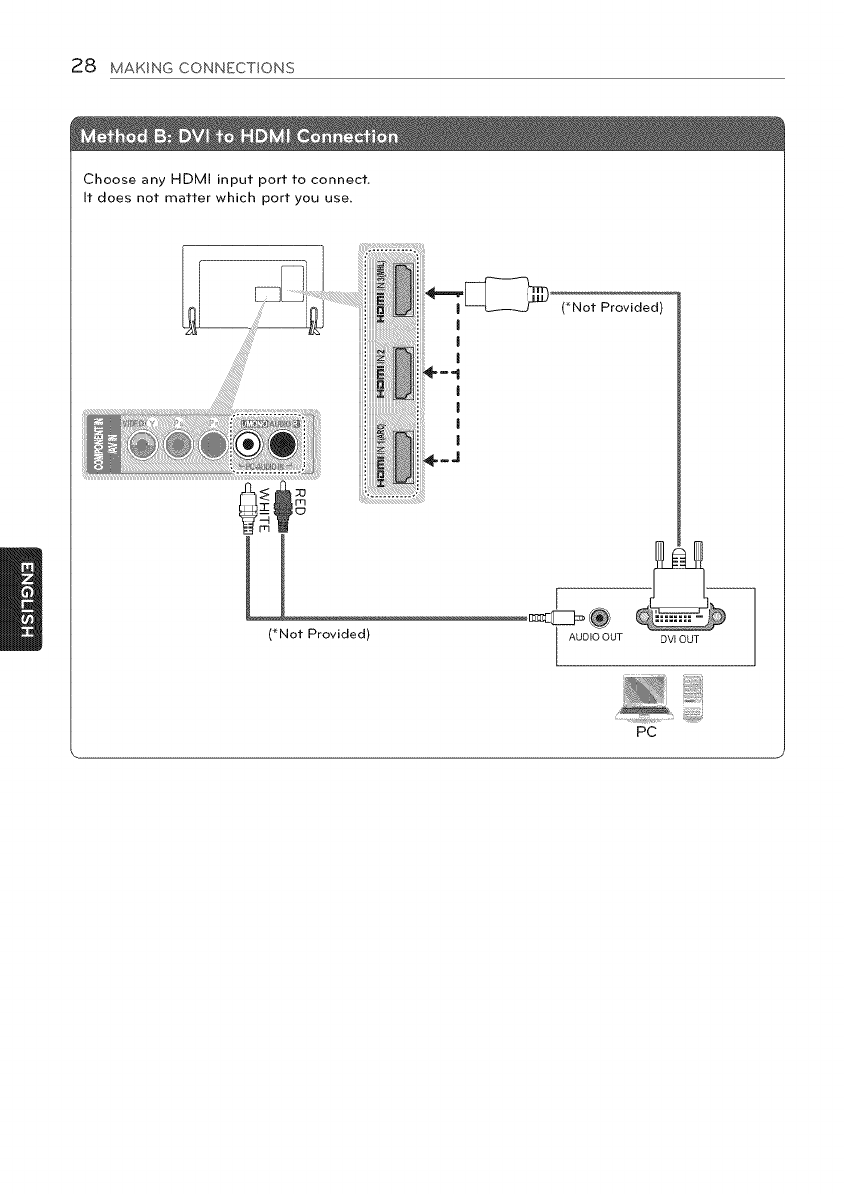

Choose any HDMI input port to connect.

Otdoes not matter which port you use.

(*Not Provided)

U

(*Not Provided) DVI OUT

PC

MAKING CONNECTIONS 29

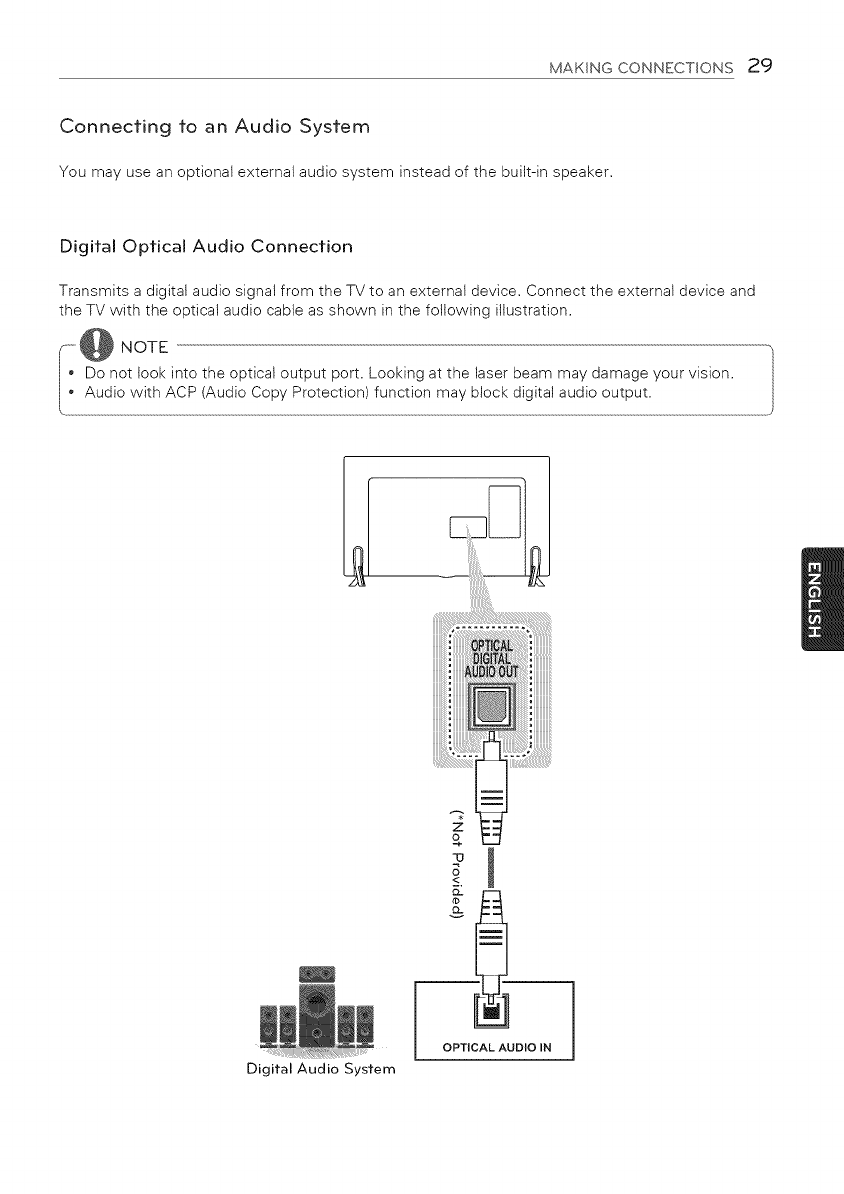

Connecting fo an Audio System

You may use an optional external audio system instead of the built-in speaker.

Digital Optical Audio Connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and

the TV with the optical audio cable as shown in the following illustration.

* Do not look into the optical output port. Looking at the laser beam may damage your vision.

Audio with ACP (Audio Copy Protection) function may block digital audio output.

Digital Audio System

iiiiiiiiii!ii_

!i!!

iiiiiii

iiiiiiiiiii_

iiiiiiiiiiii:iiiiiiiiiiiii

,::!iiiii_ _!:i!i!i!i!i!i!i!i!i!i!ili

OPTICAL AUDIO IN

30 MAKING CONNECTIONS

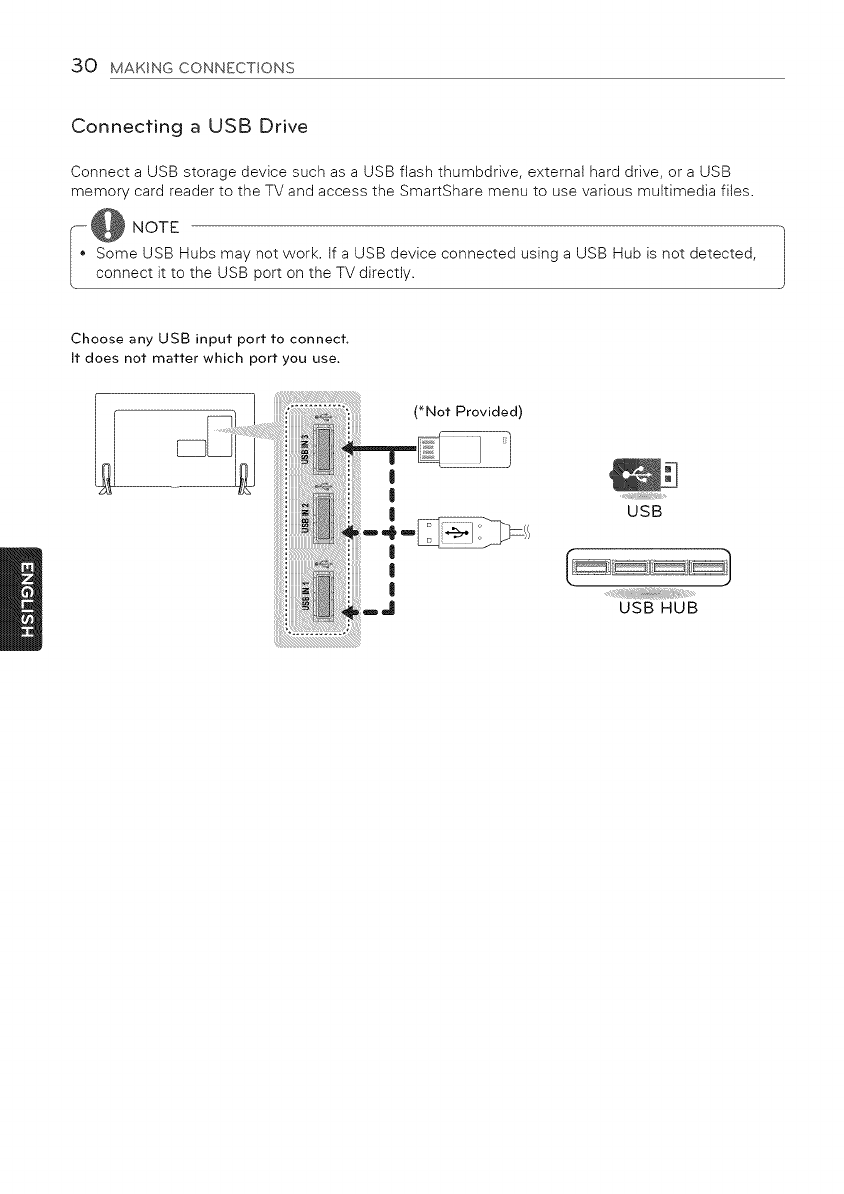

Connecting a USB Drive

Connect a USB storage device such as a USB flash thumbdrive, external hard drive, or a USB

memory card reader to the TV and access the SmartShare menu to use various multimedia files.

--@ NOTE

•Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected,

connect it to the USB port on the TV directly.

Choose any USB input port to connect.

It does not matter which port you use,

USB

USB HUB

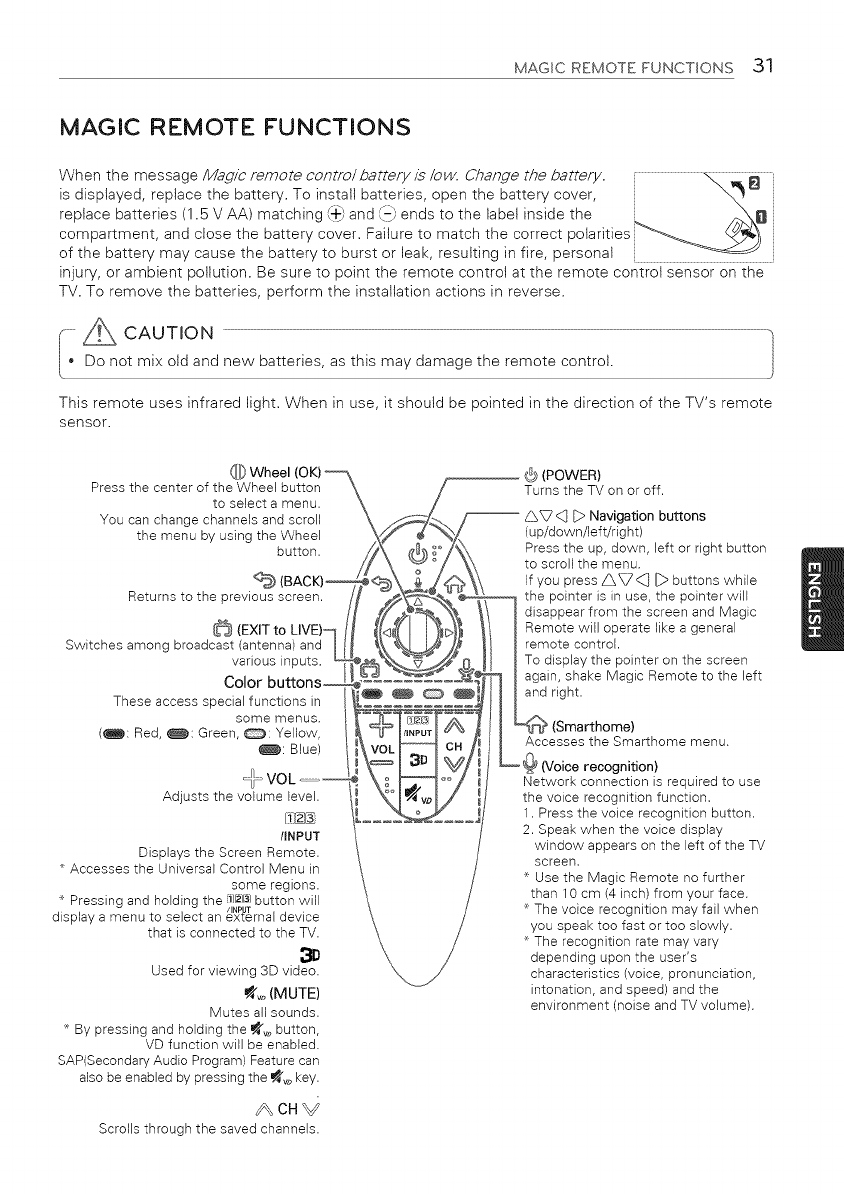

MAGIC REMOTE FUNCTIONS 31

MAGIC REMOTE FUNCTIONS

When the message Mag/b remote contro/ battery /s /ow. Change the battery. __x _ _O

is displayed, replace the battery. To install batteries, open the battery cover, [

replace batteries (1.5 V AA) matching _+j and k-J ends to the label inside the

compartment, and close the battery cover. Failure to match the correct polarities

of the battery may cause the battery to burst or leak, resulting in fire, personal

injury, or ambient pollution. Be sure to point the remote control at the remote control sensor on the

TV. To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

This remote uses infrared light. When in use, it should be pointed in the direction of the TV's remote

sensor.

(_]_Wheel (OK)

Press the center of the Wheel button '\

to select a menu. _\

You can change channels and scroll

the menu by using the Wheel

Returns to the previ_iiiiii_

Switchesam°ngbroad__!!i=L i _

These access special functions in

some menus.

(_: Red, _: Green, _: Yellow,

_: Blue)

Adjusts the volume level.

/INPUT

Displays the Screen Remote.

Accesses the Universal Control Menu in

some regions.

Pressing and holding the _}ld}13}button will

/INP T

display a menu to select an ex:_rnal device

that is connected to the TV.

Used for viewing 3D video.

_vo (MUTE)

Mutes all sounds.

By pressing and holding the _'vo button,

VD function will be enabled.

SAP(Secondary Audio Program) Feature can

also be enabled by pressing the _/_vokey.

_CH@

Scrolls through the saved channels.

_ (POWER)

Turns the TV on or off.

Navigation buttons

(up/down/left/right)

Press the up, down, left or right button

to scroll the menu.

If you press _<:_ [D buttons while

the pointer is in use, the pointer will

disappear from the screen and Magic

Remote will operate like a general

remote control.

To display the pointer on the screen

again, shake Magic Remote to the left

right.

(Smarthome)

Accesses the Smarthome menu.

9 (Voice recognition)

Network connection is required to use

the voice recognition function.

1. Press the voice recognition button.

2. Speak when the voice display

window appears on the left of the TV

screen.

Use the Magic Remote no further

than 10 cm (4 inch) from your face.

The voice recognition may fail when

you speak too fast or too slowly.

The recognition rate may vary

depending upon the user's

characteristics (voice, pronunciation,

intonation, and speed) and the

environment (noise and TV volume).

32 MAGIC REMOTE FUNCTIONS

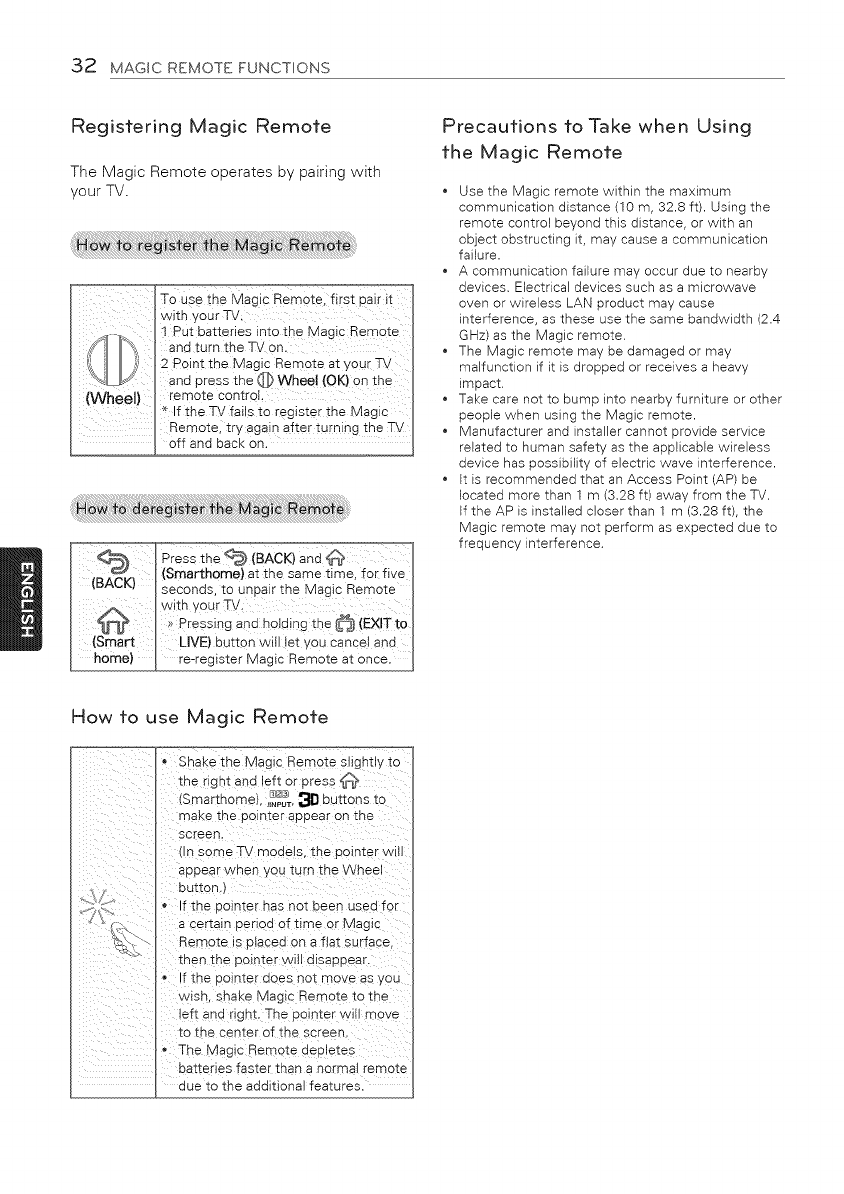

Registering Magic Remote

The Magic Remote operates by pairing with

your TV.

To Use ihe Magic Remote, firs t pair it

with your W;

I PUt batteries into the Magic Remote

/_!! !!l_ andturntheTVOn.

.......... 2 Point the Magic Remote at Your TV

'k_.J[ _ and press the @ Wheel (OF0 on the

(Wheel) remote controI.

If the TV fails to register the Magic

Remote, try again after turning the TV

off and back on.

_ess the _ (BACK} and _>

im_r,v_ I (Smarthome} at _he Same time, for five/

'_"'_'w Seconds, to Unpair the Magic Remote

I with Y0ur 7V,

_ >>Pressing and holdi0g the _ (EXIT to [

(Smart UVE) button will !et You cance! and

home) [ re-register Magic Remote at Once.

Precautions to Take when Using

the Magic Remote

* Use the Magic remote within the maximum

communication distance (10 m, 32.8 ft). Using the

remote control beyond this distance, or with an

object obstructing it, may cause a communication

failure.

* A communication failure may occur due to nearby

devices. Electrical devices such as a microwave

oven or wireless LAN product may cause

interference, as these use the same bandwidth (2.4

GHz) as the Magic remote.

* The Magic remote may be damaged or may

malfunction if it is dropped or receives a heavy

impact.

* Take care not to bump into nearby furniture or other

people when using the Magic remote.

* Manufacturer and installer cannot provide service

related to human safety as the applicable wireless

device has possibility of electric wave interference.

* It is recommended that an Access Point (AP) be

located more than 1 m (3.28 ft) away from the TV.

If the AP is installed closer than 1 m (3.28 ft), the

Magic remote may not perform as expected due to

frequency interference.

How to use Magic Remote

• Shake the Magic Remote sligntly _o

the right and left or press _

/Smarthome), _T, _EI buttons to

maKe Ine oolnte- appear on ire

screen.

n some TV models, the pointer w_I

appear when ,'ou _urn the VVhee

euIIon,l

f the ootnter nas not eeen used for

a certain oeriod of time or Magic

Remote is etaced on a fiat surface,

then the pointer wm olsaooear.

• If the pointer ones no_ move as you

wish, shake Magic Remote to the

eft and right. The pointer wit move

to the center of the screen

•The Magic Remote oeoletes

batteries faster th_ q a normal remote

due to the additional features.

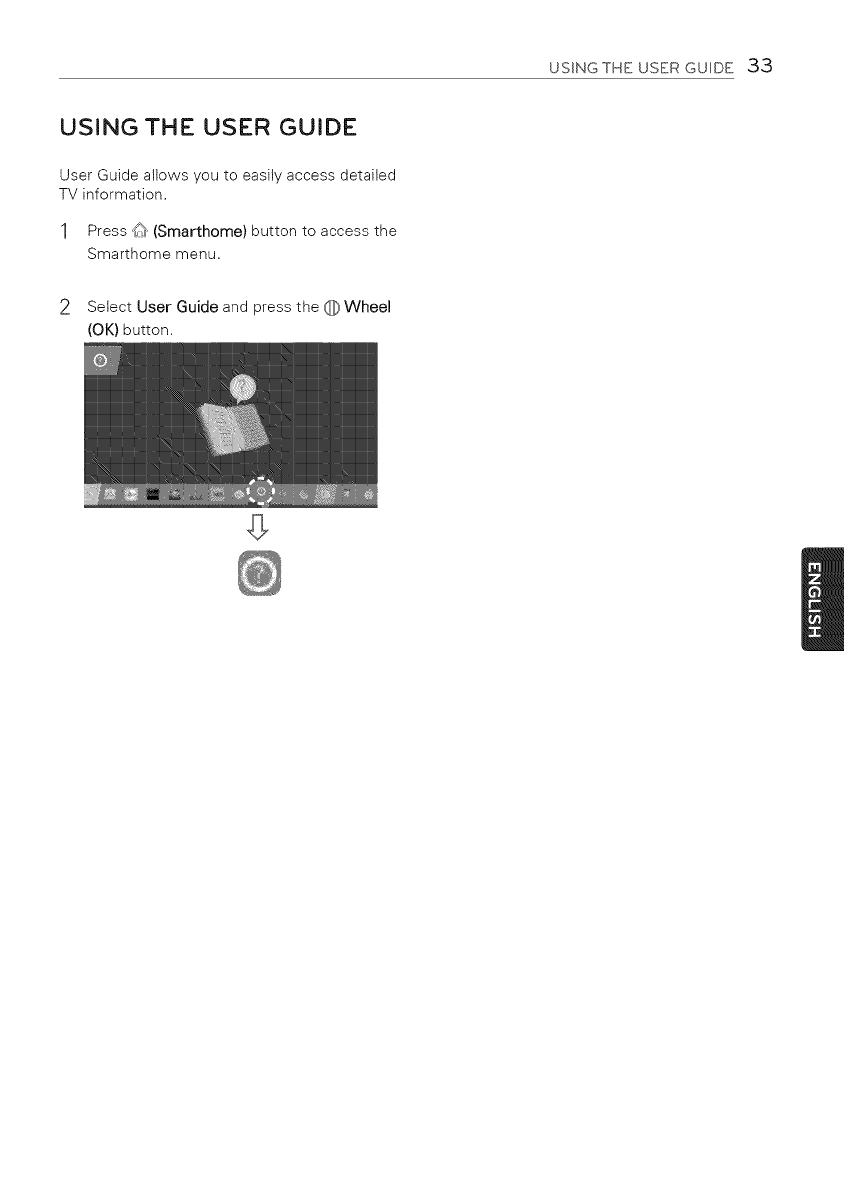

USING THE USER GUIDE

User Guide allows you to easily access detailed

TV information.

1Press _ (Smarthome) button to access the

Smarthome menu.

2

USINGTHE USER GUIDE 33

Select User Guide and press the @ Wheel

(OK) button,

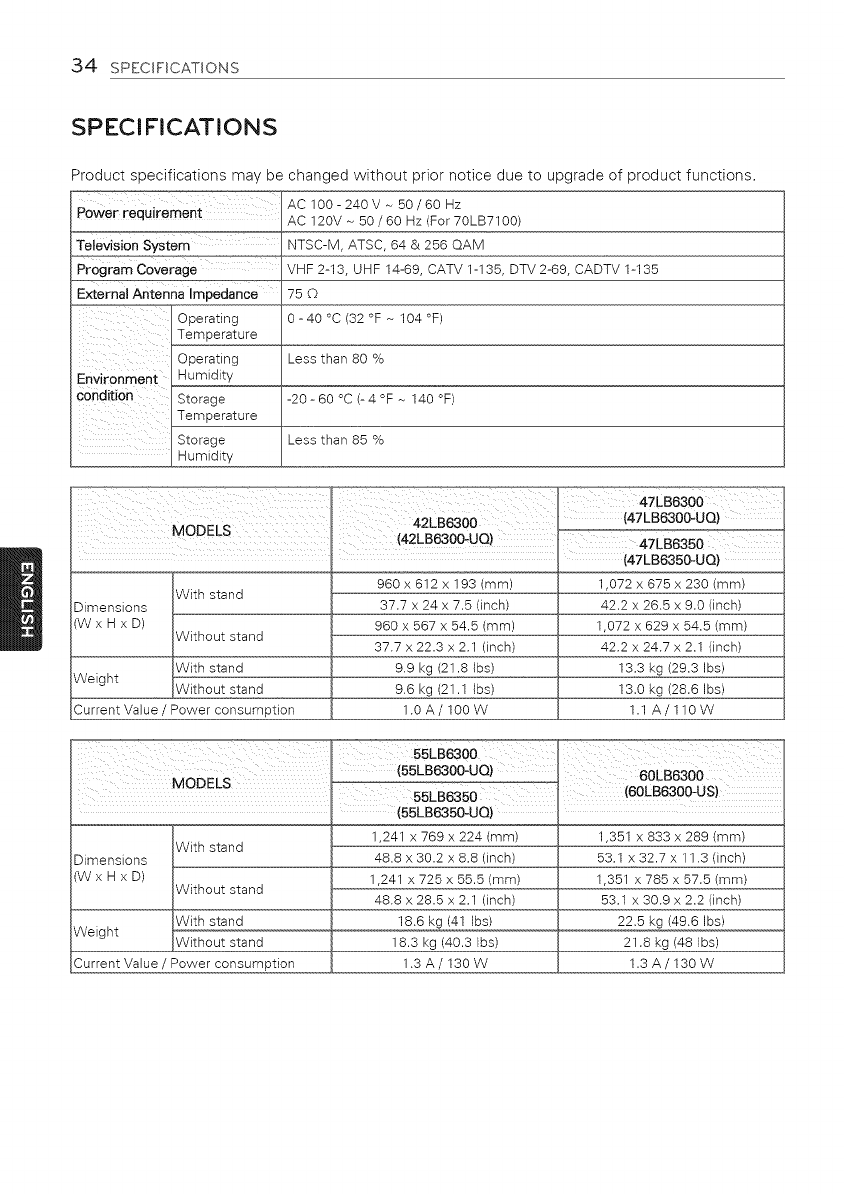

34 SPECIFICATIONS

SPECl FICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

( vv_ ,_uu, ._._De'-'sr "'--";re"*---'÷ AC 100- 240 V - 50/60 mz

AC 120V - 50 /60 Hz (For 70LB7100)

TeleVision System NTSC-M, ATSC, 64 & 256 QAM

r_ram coverage

External Antenna Impedance

Operating

Temperature

Operating

_nvir0nment Humidity

i0ndition Storage

Temperature

Storage

Humidity

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 {'_

0- 40 °C (32 °F - 104 °F)

Less than 80 %

-20-60 °C (-4 °F ~ 140 °F)

Less than 85 %

47LB6300

MODEI.. ,,=LB 30O .....

(42LB6300-UQ) 47LB6350

" (47LB6350-UQ)

lW!! h 960 x 612 x 193 (ram) 1,072 x 675 x 230 (mm)

stand

Dimensions __ 37.7 x 24 x 7.5 (inch) 42.2 x 26.5 x 9.0 (inch)

(W x H x D) 960 x 567 x 54.5 (ram) 1,072 x 629 x 54.5 (mm)

_'v_:'_'_'_ 37.7 x 22.3 x 2.1 (inch) 42.2 x 24.7 x 2.1 (inch)

__ 9.9 kg (21.8 Ibs) 13.3 kg (29.3 Ibs)

Weight p

9.6 kg (21.1 Ibs) 13.0 kg (28.6 Ibs)

Current Value /Power consumption 1.0 A/100 W 1.1 A/110 W

Weight

Current VaJue /Power consumption

Y

55LB63oo _

(55LB6300-UQ) 60LB6300

MODELS 55LB6350 (60LB6300:US)

(55LB6350-UQ) '

I_!l! 1,241 x 769 x 224 (mm) 1,351 x 833 x 289 (mm)

stand

Dimensions __ 48.8 x 30.2 x 8.8 (inch) 53.1 x 32.7 x 11.3 (inch)

(W x H x D) 1,241 x 725 x 55.5 (mm) 1,351 x 785 x 57.5 (mm)

_W!th°ut stand 48.8 x 28.5 x 2.1 (inch)

iwith stand ....... 18.6 kg (41 Ibs)

18.3 kg (40.3 Ibs)

1.3A/130W

53.1 x 30.9 x 2.2 (inch)

22.5 kg (49.6 Ibs)

21.8 kg (48 Ibs)

1.3A/130W

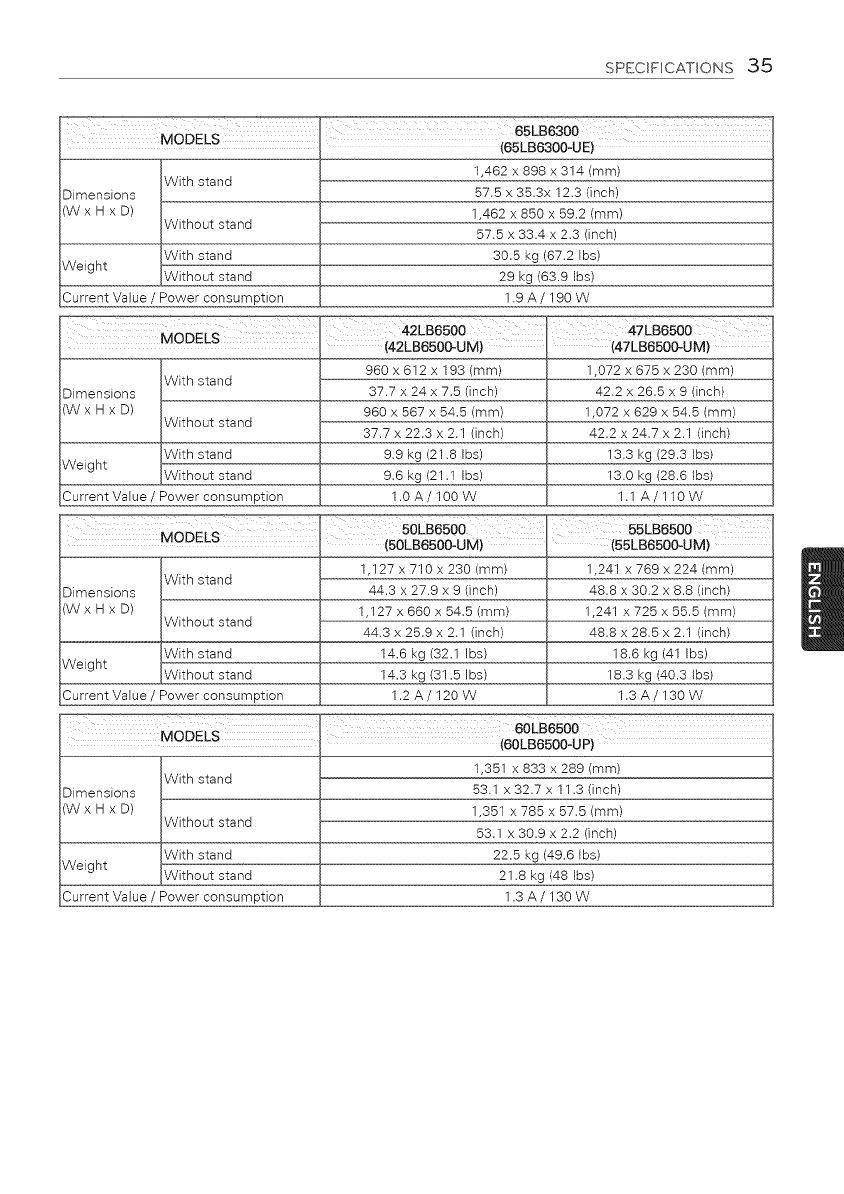

SPECIFICATIONS35

T

MODELS _ (65LB6300-UE)

With stand

Dimensions

(W x H x D) Without stand

With stand

Weight iWithout stand

Current Value /Power consumption

!

MODELS (42LB6500-UM)

960 x 612 x 193 (ram)

Dimensions 37.7 x 24 x 7.5 (inch)

(W x H x D) 960 x 567 x 54.5 (ram)

37.7 x 22.3 x 2.1 (inch)

9.9 kg (21.8 Ibs)

Weight 9.6 kg (21.1 Ibs)

Current Value /Power consumption 1.0 A /100 W

With stand

Without stand

With stand

iWithout stand

1,462 x 898 x 314 (mm)

57.5 x 35.3x 12,3 (inch)

1,462 x 850 x 59.2 (mm)

57,5 x 33.4 x 2,3 (inch)

30.5 kg (67.2 Ibs)

29 kg (63.9 Ibs)

1.gA/190W

47LB8500

(47LB6500-UM}

1,072 x 675 x 230 (ram)

42.2 x 26.5 x 9 (inch)

1,072 x 629 x 54.5 (ram)

42.2 x 24.7 x 2.1 (inch)

13.3 kg (29.3 Ibs)

13.0 kg (28.6 Ibs)

1.1A/110W

50LB6500 _5LB6500

MODELS (50LB6500-UM) (55LB6500-UM}

1,127 x 710 x 230 (ram) 1,241 x 769 x 224 (ram)

With stand

Dimensions 44.3 x 27.9 x 9 (inch) 48.8 x 30.2 x 8.8 (inch)

(W x H x D) 1,127 x 660 x 54.5 (mm) 1,241 x 725 x 55.5 (ram)

Without stand 44,3 x 25.9 x 2,1 (inch) 48.8 x 28,5 x 2.1 (inch)

With stand 14.6 kg (32.1 Ibs) 18.6 kg (41 Ibs)

Weight Without start 14.3 kg (31.5 Ibs) 18.3 kg (40.3 Ibs)

Current Value /Power consumption 1.2 A /120 W 1.3 A/130 W

MODELS e_B_

{60LB6500-UP)

With stand 1,351 x 833 x 289 (ram)

Dimensions 53.1 x 32.7 x 11.3 (inch)

(W x H x D) 1,351 x 785 x 57.5 (ram)

Without stand 53.1 x 30.9 x 2.2 (inch)

With stand 22.5 kg (49.6 Ibs)

Weight Without stand 21,8 kg (48 Ibs)

Current Value /Power consumption 1.3 A /130 W

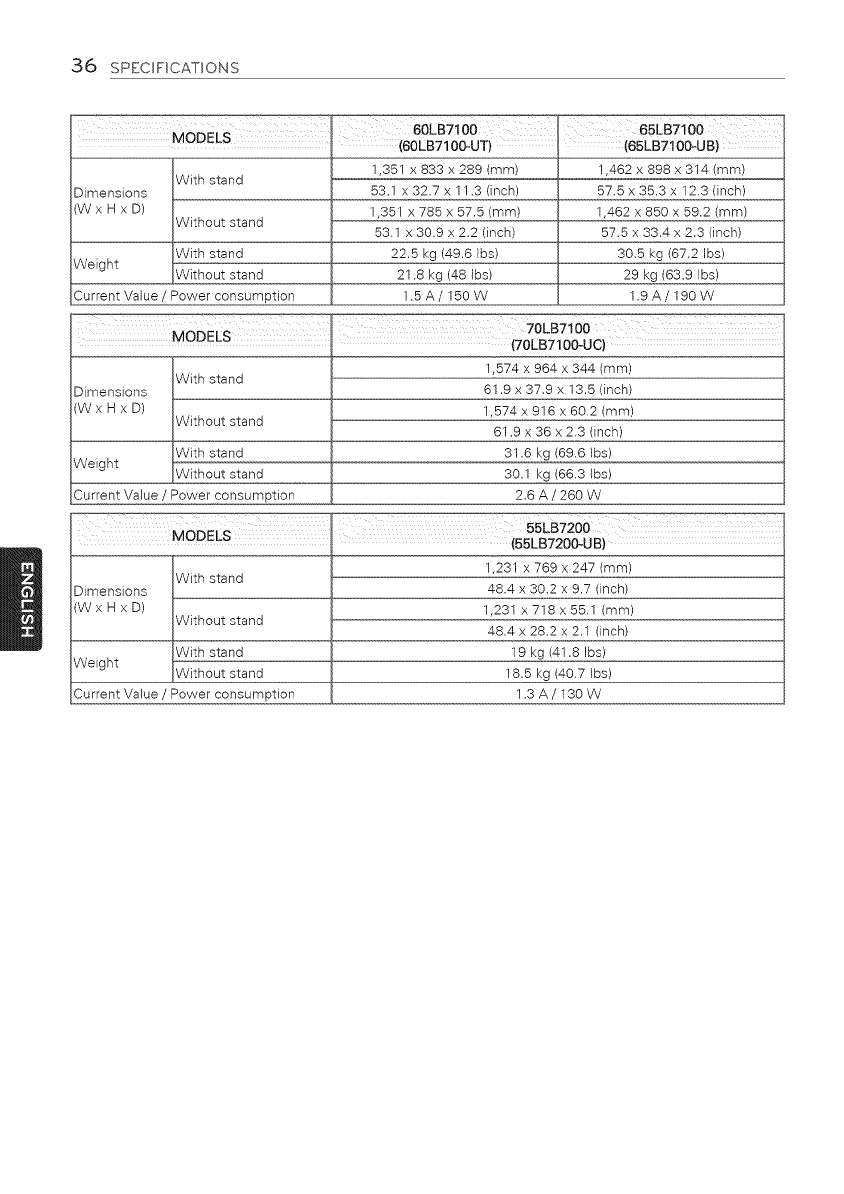

36 SPECIFICATIONS

MODELS OLB O0 ....

(60LB7100-UT)

Dimensions

(W x H x D)

Weight

Current Value /Power consumption

stand

1,351 x 833 x 289 (ram)

53.1 x 32.7 x 11.3 (inch)

1,351 x 785 x 57.5 (mm)

65LB7100

(65LB7100-UB)

1,462 x 898 x 314 (ram)

57.5 x 35.3 x 12.3 (inch)

1,462 x 850 x 59.2 (ram)

53.1 x 30.9 x 2.2 (inch)

22.5 kg (49.6 Ibs)

21.8 kg (48 fbs)

1.5A/150W

57.5 x 33.4 x 2.3 (inch)

30.5 kg (67.2 Ibs)

29 kg (63.9 Ibs)

1.gA/190W

Dimensions

(W x H x D) _ stand

_W!t!0ut s!a_d

Weight IWith stand .......

Current Value /Power consumption

1,574 x 964 x 344 (ram)

61.9 x 37.9 x 13.5 (inch)

1,574 x 916 x 60.2 (ram)

61.9 x 36 x 2.3 (inch)

31.6 kg (69.6 Ibs)

30.1 kg (66.3 Ibs)

2.6 A /260 W

Dimensions

(W x H x D) Wil! stand

Weight _S_

CurrentValue /Power consumption

1,231 x 769 x 247 (ram)

48.4 x 30.2 x 9.7 (inch)

1,231x 718 x 55.1 (ram)

48.4 x 28.2 x 2.1 (inch)

19 kg (41.8 Ibs)

18.5 kg (40.7 Ibs)

1.3A/130W

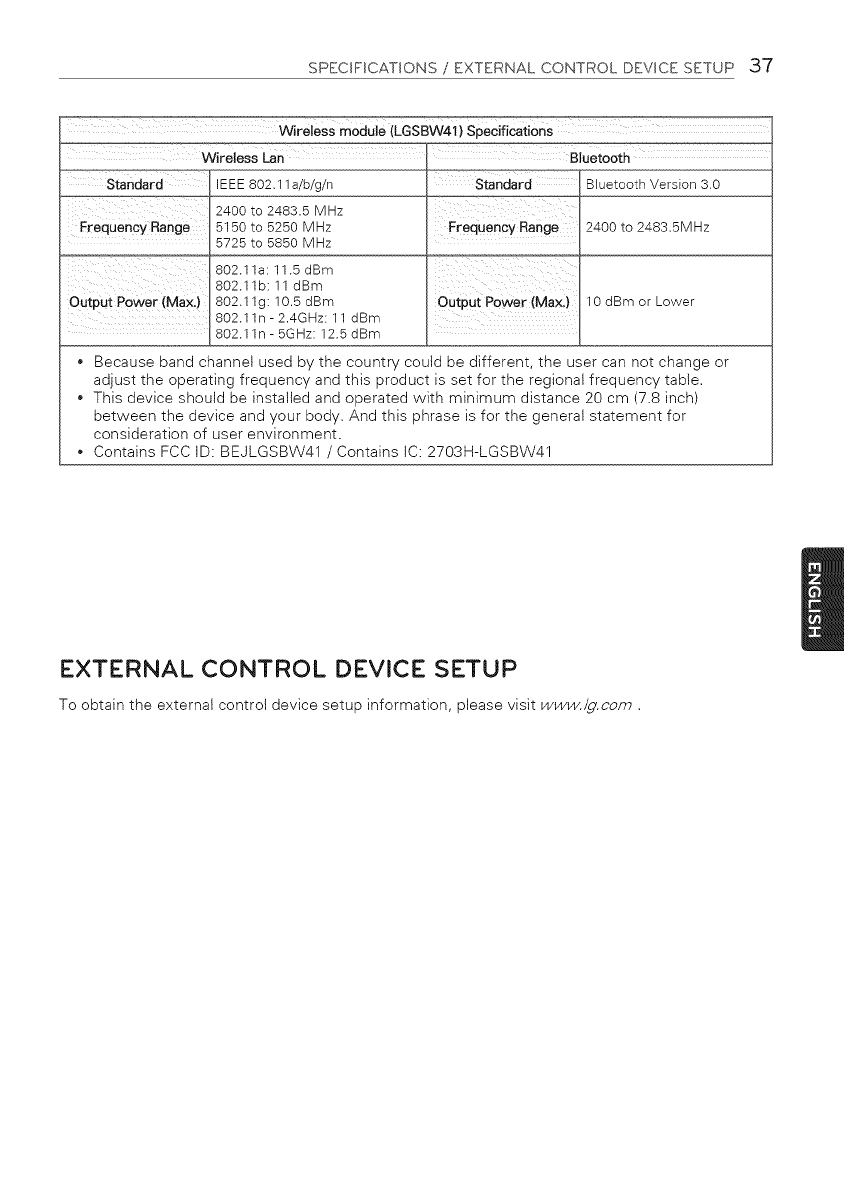

SPECIFICATIONS/EXTERNAL CONTROL DEVICE SETUP 37

-- -Wireless module (LGSBW41) Spedfications

Wireless Lan

IEEE802.11a/b/g/n

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz

802.11a: 11.5 dBm

802.11b: 11 dBm

Output 802.1lg: 10.5 dBm

802.11n-2.4GHz: 11 dBm

802.11n - 5GHz: 12.5dBm

Bluetooth

Standard Bluetooth version 3.0

Frequency Range 2400 to 2483.5MHz

Output Power (Max.) 10 dBm or Lower

• Because band channel used by the country could be different, the user can not change or

adjust the operating frequency and this product is set for the regional frequency table.

• This device should be installed and operated with minimum distance 20 cm (7.8 inch)

between the device and your body. And this phrase is for the general statement for

consideration of user environment.

• Contains FCC ID: BEJLGSBW41 /Contains IC: 2703H-LGSBW41

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www./g.com.

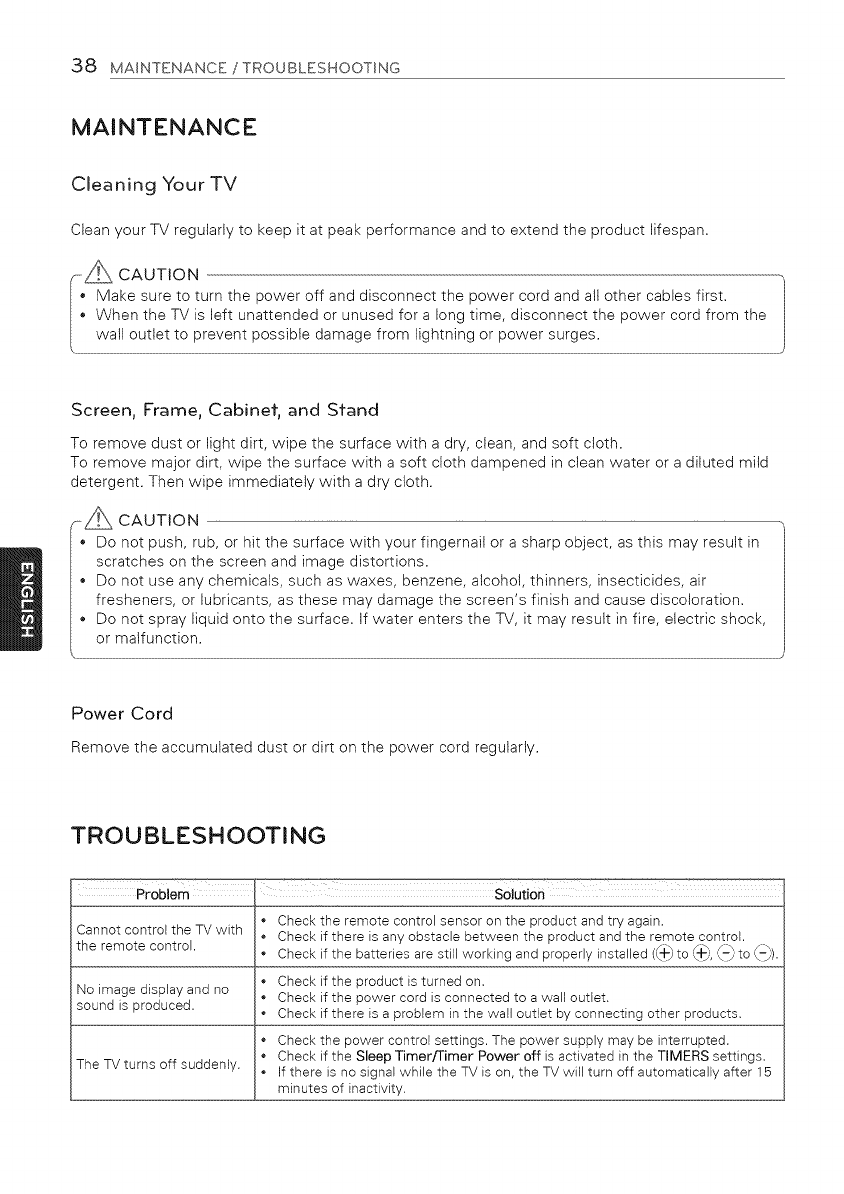

38 MAINTENANCE/TROUBLESHOOTING

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep it at peak performance and to extend the product lifespan.

I A CAUTION

Make sure to turn the power off and disconnect the power cord and alt other cables first.

When the TV is left unattended or unused for a long time, disconnect the power cord from the

wan outlet to prevent possibte damage from lightning or power surges.

Screen, Frame, Cabinet, and Stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild

detergent. Then wipe immediately with a dry cloth.

_ CAUTION

Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in

scratches on the screen and image distortions.

Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air

fresheners, or lubricants, as these may damage the screen's finish and cause discoloration.

Do not spray liquid onto the surface, if water enters the TV, it may result in fire, electric shock,

or malfunction.

Power Cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution

Check the remote control sensor on the product and try again.

Cannot control the TVwith Check if there is any obstacle between the product and the remote controL.

the remote control. Check if the batteries arestill working and properly installed ((4-)to '_+_:',L-Jto \-j).

No image display and no Check if the product isturned on.

Check if the power cord is connected to a wall outlet.

sound is produced. Check if there is aproblem in the wall outlet by connecting other products.

Check the power control settings. The power supply may be interrupted.

Check if the Sleep Timer/Timer Power off is activated in the TIMERS settings.

TheTV turns off suddenly. Ifthere is no signalwhile the TV is on, the TVwill turn off automatically after 15

minutes of inactivity.

Cm

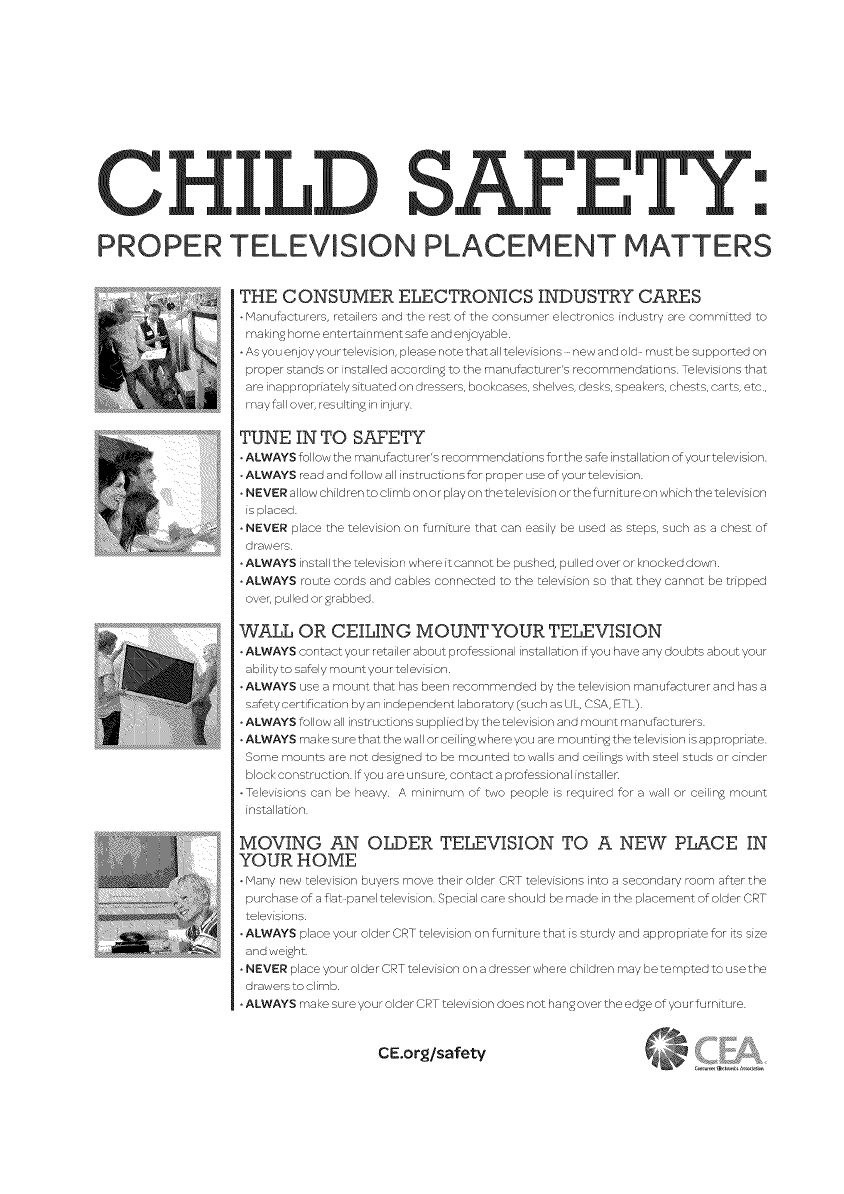

m

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

Manufacturers, retailers and the rest of the consun°_er electronics industry are cor/°_r/°_it_ed to

makin_ home entertainment safe and enjoyable

As you enjoy your television, please note that all televisions new and old_ must be supported on

proper stands or installed accordin£ to the manufacturer's recor/°'r/°_endations Iblevisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc,

may fall over, resultin£ in injury

TUNE IN TO SAFETY

ALWAYS follow the n°_anufacturer's recor/°_r/°!erldations for the safe installation of your television

,ALWAYS read and follow all instructions for proper use of your television

NEVER allow children to climb on or play on the television orthe furniture on which the television

is placed

NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers

ALWAYS install the television where it cannot be pushed, pulled over or knocked down

ALWAYS route cords and cables connected to the television so that they cannot be tripped

over, pulled or £rabbed

WALL OR CEILING MOUNT YOUR TELEVISION

ALWAYS contact your retailer about professional installation if you t/ave any doubts about your

ability to safely mount your television

ALWAYS use a mount that has been recor/°!r/°_ended by the television manufacturer and has a

safc, ty certification by an independent laboratory (such as UL, CSA, ETL)

ALWAYS follow all instructions supplied by the television and mount manufacturers

ALWAYS make sure that the wall or ceilin_ where you are mountin_ the television is appropriate

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction If you are unsure, contact a professional installen

televisions can be heavy A r_inir_un_ of two people is required for a wall or ceilin_ mount

installation

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

Marly new television buyers move their older CR[ televisions into a secondary room after the

purchase of a fiat panel television Special care should be made in the placement of older CRT

televisions

ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size

and wei£ht

NEVER place your older CRT television on a dresser where children may be tempted to use the

drawers to clin°!b

ALWAYS make sure your older CRT television does not han£ over the ed£e of your furniture

Life's Good

Trade Name

Model

Declaration of Conformity

LG

42LB6300-UQ, 47LB6300-UQ,

55LB6300-UQ, 60LB6300-US,

65LB6300-UE

47LB6350-UQ, 55LB6350-UQ

42LB6500-UM, 47LB6500-UM

50LB6500-UM, 55LB6500-UM

60LB6500-UP,

60LB7100-UT, 65LB7100-UB,

70LB7100-UC, 55LB7200-UB

Responsible LG Electronics Inc.

Party

Address 1000 Sylvan Ave.

Englewood Cliffs NJ 07632

U.S.A

TEL 201-266-2534

H)r nqul es or comme _t% vist wwwlg.com o cai i

1-8OO-243-OOOO liSA, Consu°_e User

1-888-865-3026 liSA, Corn° _e cai User

1-888-542-2623 CANAi)A

www.lg.com

The rr odel and serial number of the TV are Iocaled

on the back and ore side of the T_4

Record therr below should you ever need service

MODEL

SERIAL

Ths p'od ;ct q;a fes fo" ENERGY qTAR in

t_e f;_ctory defauit (Hon/e _se) ettng

Clqanqing the factory defauit ettng or

_r_ enabl nu ot_e featu_'es may nc_ease powe_

consumption that couk_ exceed /e

necessary o qqality for ENERGY STAR
