LED TV
32LF510B
43LF5100
49LF5100
X 4
(M4 x L14)
Depending upon model / Según el modelo / Selon le modèle
ENGLISH Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL Guía Rápida de Conguración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS Guide de conguration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y
reporter ultérieurement.

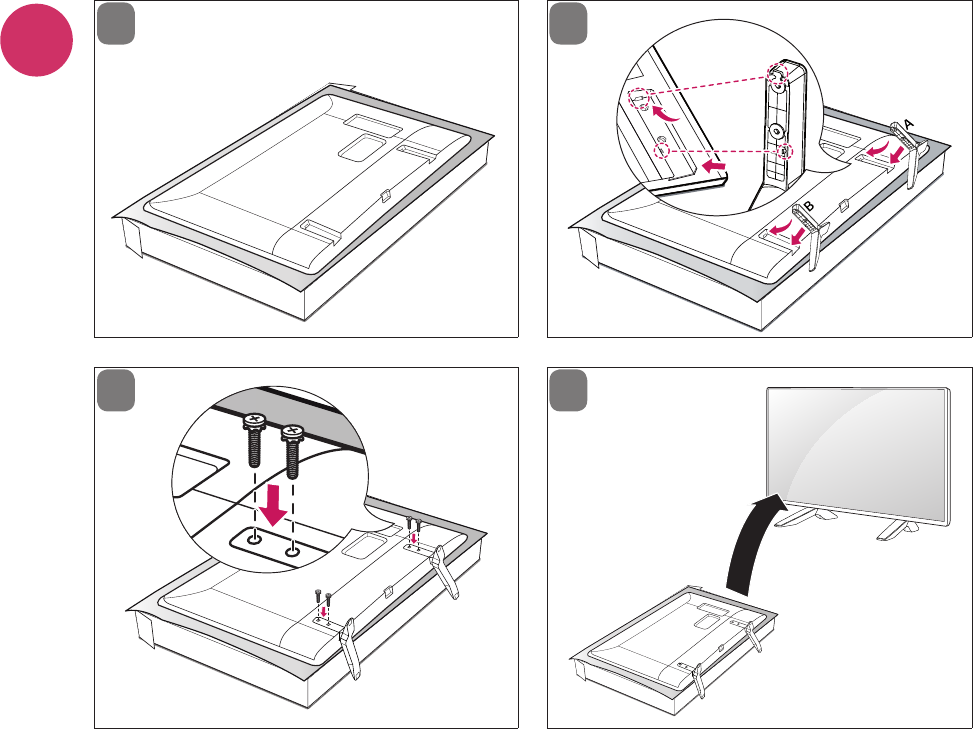

11
2
1
2
3
4
2A
ENGLISH
FRANÇAIS
ESPAÑOL
Image shown may differ from your TV.
Cette illustration peut ne pas correspondre à votre téléviseur.
La imagen puede ser diferente a la de su televisor.
A

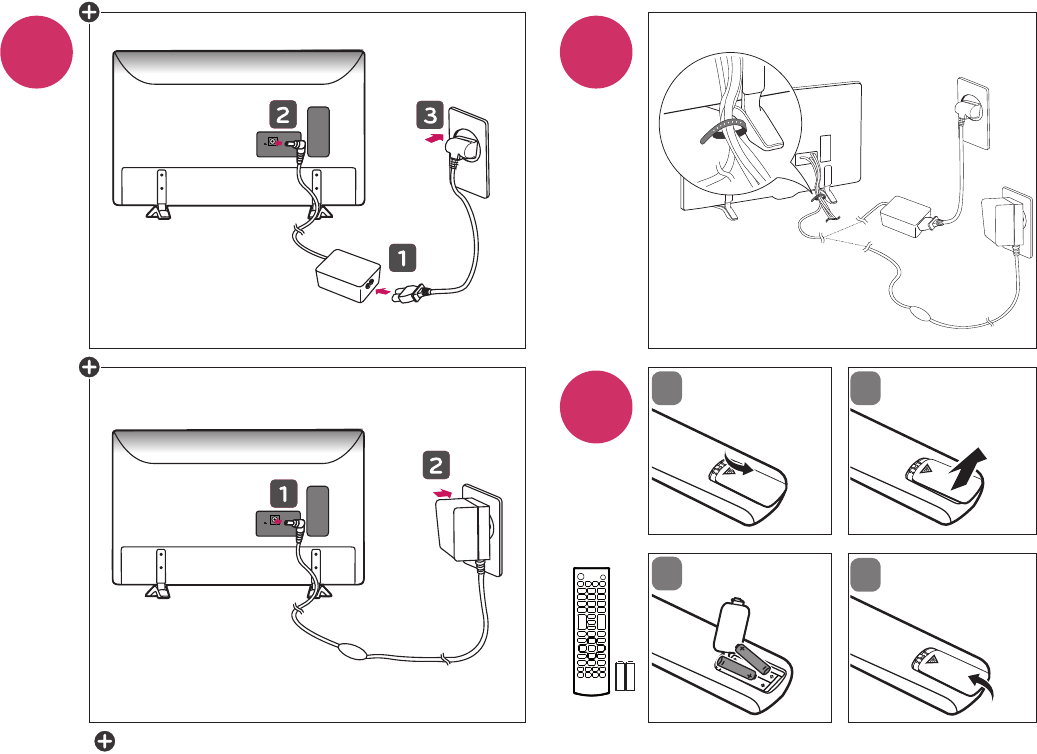

3
DC-IN
(19V )
DC-IN
(19V )
4
DC-IN
(19V )
DC-IN
(19V )
51
2
34
Depending upon model / Según el modelo / Selon le modèle
6
ENGLISH MODELS 32LF510B
(32LF510B-UC)
43LF5100
(43LF5100-UA)
49LF5100
(49LF5100-UA)
Dimensions (W x H x D)
With stand 734 x 474 x 172 (mm)
28.8 x 18.6 x 6.7 (inches)
976 x 621 x 208.7 (mm)
38.4 x 24.4 x 8.2 (inches)
1,108 x 696 x 208.7 (mm)
43.6 x 27.4 x 8.2 (inches)
Without stand 734 x 438 x 71 (mm)
28.8 x 17.2 x 2.7 (inches)
976 x 583 x 81.5 (mm)
38.4 x 22.9 x 3.2 (inches)
1,108 x 657 x 81.5 (mm)
43.6 x 25.8 x 3.2 (inches)
Weight With stand 4.7 kg (10.3 lbs) 8.5 kg (18.7 lbs) 10.9 kg (24.0 lbs)
Without stand 4.5 kg (9.9 lbs) 8.2 kg (18.0 lbs) 10.6 kg (23.3 lbs)
Power Requirement 19 V 1.6 A 19 V 2.5 A 19 V 3.2 A
Power Consumption 35 W 50 W 65 W
AC/DC Adapter
Manufacturer : Lien Chang
Model : LCAP16B-A
Manufacturer : Honor
Model : ADS-45FSN-19
19040GPCU
Manufacturer : Lien Chang
Model : LCAP40
Manufacturer : APD
Model : DA-65F19
In : AC 100 - 240 V ~ 50 / 60 Hz
Out : 19 V 2.1 A Out : 19 V 3.42 A
ESPAÑOL
FRANÇAIS
MODELOS 32LF510B
(32LF510B-UC)
43LF5100
(43LF5100-UA)
49LF5100
(49LF5100-UA)
MODÈLES
Dimensiones (Ancho
x altura x profundidad)
Con base 734 x 474 x 172 (mm)
28,8 x 18,6 x 6,7 (pulgadas / po)
976 x 621 x 208,7 (mm)
38,4 x 24,4 x 8,2 (pulgadas / po)
1 108 x 696 x 208,7 (mm)
43,6 x 27,4 x 8,2 (pulgadas / po)
Avec support
Dimensions (L x H x P)
Sin base 734 x 438 x 71 (mm)
28,8 x 17,2 x 2,7 (pulgadas / po)
976 x 583 x 81,5 (mm)
38,4 x 22,9 x 3,2 (pulgadas / po)
1 108 x 657 x 81,5 (mm)
43,6 x 25,8 x 3,2 (pulgadas / po)
Sans support
Peso Con base 4,7 kg (10,3 libras / lb) 8,5 kg (18,7 libras / lb) 10,9 kg (24,0 libras / lb)
Avec support
Poids Sin base 4,5 kg (9,9 libras / lb) 8,2 kg (18,0 libras / lb) 10,6 kg (23,3 libras / lb)
Sans support
Potencia requerida 19 V 1,6 A 19 V 2,5 A 19 V 3,2 A
Alimentation
Consumo de la potencia 35 W 50 W 65 W
Consommation électrique
Adaptador de ca/cc
Fabricante / Fabricant : Lien Chang
Modelo / Modèle : LCAP16B-A
Fabricante / Fabricant : Honor
Modelo / Modèle : ADS-45FSN-19
19040GPCU
Fabricante / Fabricant : Lien Chang
Modelo / Modèle : LCAP40
Fabricante / Fabricant : APD
Modelo / Modèle : DA-65F19
Adaptateur c.a./c.c. Entrada / Entrée : AC 100 - 240 V ~ 50 / 60 Hz
Salida / Sortie : 19 V 2,1 A Salida / Sortie : 19 V 3,42 A
*MFL68587842*
(Pour les États-Unis et le Canada)
Ce produit est conforme aux normes
ENERGY STAR® lorsque le « réglage
d’usine par défaut (Résidentiel) » est
sélectionné. Modier les réglages
d’usine par défaut ou activer d’autres
fonctionnalités augmente la consommation
d’énergie qui pourrait alors dépasser les limites de
la qualication ENERGY STAR®. Consultez le site
ENERGYSTAR.gov pour en savoir plus au sujet du
programme ENERGY STAR®.
(For USA and Canada only)
(Para Estados Unidos y Canadá)
This product qualies for ENERGY
STAR® in the factory default (Home
conguration) setting. Changing the
factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality
for ENERGY STAR®. Refer to ENERGYSTAR.gov for
more information on the ENERGY STAR® program.
P/NO : MFL68663702 (1507-REV05)
www.lg.com
*MFL68663702*
Please read this manual carefully before operating
your TV and retain it for future reference.
32LF510B
43LF5100
49LF5100
43LF5400
49LF5400
32LF550B
42LF5500
49LF5500
55LF5500
32LF5600
42LF5600
50LF6000
55LF6000
60LF6000
Safety and Reference
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
OWNER’S MANUAL
2
ENGLISH
Important Safety Instructions
Always comply with the following precautions
to avoid dangerous situations and ensure peak
performance of your product.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important operating
and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands
after handling.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
•Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
•Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
3
ENGLISH
•Only use attachments/accessories specified by
the manufacturer.
•Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
•Unplug this apparatus during lightning storms
or when unused for long periods of time.
•Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
•Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil, or
pen, or make a scratch on it.
•Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it is
plugged in.
•Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed.
If swallowed, induce vomiting and go to the
nearest hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
•CAUTION concerning the Power Cord
(Can differ by country):
Check the specification page of this owner’s
manual to be certain. Do not connect too many
appliances to the same AC power outlet as this
could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked
wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with
an exact replacement part by an authorized
servicer. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. Do
not move the TV with the power cord plugged
in. Do not use a damaged or loose power cord.
Be sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
•Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain,
moisture or other liquids. Do not touch the TV
with wet hands. Do not install this product near
flammable objects such as gasoline or candles,
or expose the TV to direct air conditioning.
•Do not expose to dripping or splashing and
do not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.,
on shelves above the unit).
4
ENGLISH
•Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire
to prevent possible electric shock (i.e., a TV
with a three-prong grounded AC plug must
be connected to a three-prong grounded AC
outlet). If grounding methods are not possible,
have a qualified electrician install a separate
circuit breaker. Do not try to ground the unit by
connecting it to telephone wires, lightning rods,
or gas pipes.
Circuit
Breaker
Power
Supply
•As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
•Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
•Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system is
grounded to provide some protection against
voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC)
in the U.S.A. provides information with respect
to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
•Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the
TV as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners, or benzene.
•Moving
Make sure the product is turned off, unplugged,
and all cables have been removed. It may take 2
or more people to carry larger TVs. Do not press
or put stress on the front panel of the TV.
•Ventilation
Install your TV where there is proper ventilation.
Do not install in a confined space such as a
bookcase. Do not cover the product with cloth or
other materials while plugged. Do not install in
excessively dusty places.
•If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
•If water or another substance enters the
product (like an AC adapter, power cord, or TV),
disconnect the power cord and contact the
service center immediately. Otherwise, this may
result in fire or electric shock.
•Use only an authorized AC adapter and power
cord approved by LG Electronics.
Otherwise, this may result in fire, electric shock,
malfunction, or product deformation.
•Never disassemble the AC adapter or power
cord. This may result in fire or electric shock.
5
ENGLISH
•Handle the adapter carefully to avoid dropping
or striking it. An impact could damage the
adapter.
•Keep the product away from direct sunlight.
•Never touch this apparatus or antenna during a
lightning storm.
•When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
•Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto
the screen.
•DISCONNECTING THE DEVICE FROM THE
MAIN POWER
The power plug is the disconnecting device.
In case of an emergency, the power plug must
remain readily accessible.
•Batteries
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
•This apparatus uses batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
•Do not dispose of batteries in a fire.
•Do not short circuit, disassemble, or allow the
batteries to overheat.
•Do not use high voltage electrical equipment
near the TV, (e.g., a bug zapper.)
This may result in product malfunction.
•Dot Defect
The panel is a high technology product with
resolution of two million to six million pixels.
In a very few cases, you could see fine dots on
the screen while you’re viewing the TV. Those
dots are deactivated pixels and do not affect the
performance and reliability of the TV.
•Generated Sound
Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction due to
temperature and humidity. This noise is common
for products where thermal deformation is
required.
Electrical circuit humming/panel buzzing
A low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
•Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or
cause defects in the product.
•Do not install this product on a wall if it could be
exposed to oil or oil mist. This may damage the
product and cause it to fall.
•If the TV feels cold to the touch, there may
be a small flicker when it is turned on. This is
normal; there is nothing wrong with TV. Some
minute dot defects may be visible on the screen,
appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the TV’s
performance. Avoid touching the LCD screen or
holding your finger(s) against it for long periods
of time. Doing so may produce some temporary
distortion effects on the screen.
Preventing Image Burn or Burn-in on Your
TV Screen
•If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
•If the aspect ratio of the TV is set to 4:3 for a long
period of time, image burn may occur on the
letterboxed area of the screen.
•Avoid displaying a fixed image on the TV screen
for a long period of time (2 or more hours for
LCD, 1 or more hours for the plasma TV) to
prevent image burn.
6
ENGLISH
FCC NOTICE
(For USA)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation of the device. Any
changes or modifications in construction of this
device which are not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Radio Frequency Interference
Requirements (for UNII devices)
High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with
and/or damage this device. This device cannot be
co-located with any other transmitter.
FCC RF Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
colocated or operating in conjunction with any
other antenna or transmitter. This equipment
should be installed and operated with minimum
distance 20 cm (7.8 inches) between the radiator
and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device complies with RSS-210 of the Industry
Canada Rules. Operation is subject to the following
two conditions:
1. this device may not cause interference and
2. this device must accept any interference,
including interference that may cause undesired
operation of the device.
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20 cm (7.8
inches) between the radiator & your body.
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
7
ENGLISH
WARNING
(For Canada)
[For product having the wireless function using 5
GHz frequency bands]
•The device for operation in the band 5150–5250
MHz is only for indoor use to reduce the
potential for harmful interference to co-channel
mobile satellite systems;
•The maximum antenna gain permitted for
devices in the bands 5250–5350 MHz and
5470–5725 MHz shall comply with the EIRP limit;
and
•The maximum antenna gain permitted for
devices in the band 5725–5825 MHz shall
comply with the EIRP limits specified for point-
to-point and non point-to-point operation as
appropriate.
•High-power radars are allocated as primary users
(i.e. priority users) of the bands 5250–5350 MHz
and 5650–5850 MHz and that these radars could
cause interference and/or damage to LE-LAN
devices.
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
LG Recycling Policy
(For USA)
LG Electronics offers a customized e-waste take-
back and recycling service that meets local needs
and requirements in the countries where e-waste
regulations are in place, and also provides product
and packaging take-back and recycling service
voluntarily in some countries. LG Electronics
evaluates products’ recyclability at the design step
using LG’s recyclability evaluation tool, with the
goal of improving recyclability where practicable.
Through these activities, LG seeks to contribute to
conserving natural resources and protecting the
environment.
For more information about the LG Recycling
Policy, please visit our global site at
http://www.lg.com/global/sustainability/
environment/take-back-recycling
Preparing
NOTE
•Image shown may differ from your TV.
•Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
•The available menus and options may differ from
the input source or product model that you are
using.
•New features may be added to this TV in the
future.
•The items supplied with your product may vary
depending upon the model.
•Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
•For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
•Use an extension cable that supports USB 2.0 if
the USB cable or USB flash drive does not fit into
your TV’s USB port.
•Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
•Recommended HDMI cable types
-High-Speed HDMI®/™ cable
-High-Speed HDMI®/™ cable with Ethernet
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
•How to use the ferrite core
(Depending upon model)
-Use the ferrite core to reduce the
electromagnetic interference in the component
Y, Pb, Pr, L, R and AV Video, L, R.
[Cross Section of Ferrite Core]
[to an External device] [to the TV]
20 mm (+ / - 5 mm)
8
ENGLISH
CAUTION
•Do not use any unapproved items to ensure the
safety and lifespan of the product.
•Any damages or injuries by using unapproved
items are not covered by the warranty.
•Some models appear to have a thin film on the
screen. It is actually part of the screen; do not
remove it.
•When attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
•Make sure that the screws are fastened tightly.
(If they are not fastened securely enough, the TV
may tilt forward after being installed.)
•Do not fasten the screws with excessive force
otherwise they may be worn out and become
loose.
Maintenance
Cleaning your TV
Clean your TV regularly to keep it at peak
performance and to extend the product’s lifespan.
CAUTION
•Before cleaning, turn the power off and
disconnect the power cord and all other cables.
•When the TV is left unattended or unused for a
long time, disconnect the power cord from the
wall outlet to prevent possible damage from
lightning or power surges.
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with
a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft
cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
•Do not push, rub, or hit the surface with your
fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
•Do not use any chemicals, such as waxes,
benzene, alcohol, thinners, insecticides, air
fresheners, or lubricants, as these may damage
the screen’s finish and cause discoloration.
•Do not spray liquid onto the surface. If water
enters the TV, it may result in fire, electric shock,
or malfunction.
Power cord
Remove the accumulated dust or dirt on the power
cord regularly.
Lifting and Moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
•It is recommended to move the TV in the box or
packing material that the TV originally came in.
•Before moving or lifting the TV, disconnect the
power cord and all cables.
•When holding the TV, the screen
should face away from you to
avoid damage.
•Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grille area.
•Use at least two people to move
a large TV.
•When transporting the TV by
hand, hold the TV as shown in the
following illustration.
•When transporting the TV, do not expose the TV
to jolts or excessive vibration.
•When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the
left or right.
CAUTION
•Avoid touching the screen at all times, as this
may result in damage to the screen.
•Do not place the product on the floor with its
front facing down without padding. Failure to do
so may result in damage to the screen.
•Do not move the TV by holding the cable
holders, as the cable holders may break, and
injuries and damage to the TV may occur.
(Depending upon model)
9
ENGLISH
Using the Joystick Button
(Depending upon model)
You can operate the TV by pressing the button or
moving the joystick left, right, up, or down.
NOTE
•LF51 series does not have a Joystick button but it
only has a power on/off button.
Joystick Button
Basic Functions
When the TV is turned off, place your
finger on the joystick button, press it
once, and release it.
Power On
When the TV is turned on, place your
finger on the joystick button, press it
once for a few seconds, and release it.
(However, if the menu button is on the
screen, pressing and holding the joystick
button will let you exit the menu.)
Power Off
If you place your finger over the joystick
button and move it left or right, you can
adjust the volume level.
Volume
Control
If you place your finger over the joystick
button and move it up or down, you can
scroll through the saved channels.
Channels
Control
NOTE
•With your finger over the joystick button and
move it up, down, left, or right. Be careful not to
press the joystick button. If you press the joystick
button first, you may not be able to adjust
the volume level and/or scroll through saved
channels.
Adjusting the Menu
When the TV is turned on, press the joystick button
one time. You can adjust the menu items moving
the joystick button up, down, left, or right.
Turns the power off.
Accesses the main menu.
Clears on-screen displays and returns to TV viewing
Changes the input source.
Mounting on a Table
(Image shown may differ from your TV)
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inches)
2 Connect the power cord to a wall outlet.
CAUTION
•Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
10
ENGLISH
Securing the TV to a Wall
(optional)
(Depending upon model)
1 Insert and tighten the eye-bolts or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope or cable. Make sure to keep
the rope parallel to the flat surface.
CAUTION
•Make sure that children do not climb on or hang
on the TV.
NOTE
•Use a platform or cabinet that is strong and large
enough to support the TV securely.
•Brackets, bolts, and ropes are optional. You can
obtain additional accessories from your local
dealer.
Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall
mount bracket on a solid wall perpendicular to the
floor. If you are attaching the TV to other building
materials, please contact qualified personnel to
install the wall mount. Detailed instructions will
be included with the wall mount. We recommend
that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables.
When you do not use LG’s wall mount bracket,
use a wall mount bracket where the device is
adequately secured to the wall with enough space
to allow connectivity to external devices. If you are
using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
10 cm
10 cm
10 cm
(4 inches)
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model
32LF510B
43LF5100
43LF5400
32LF550B
32LF5600
49LF5100
49LF5400
VESA (A x B) 200 x 200 300 x 300
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket
(optional)
LSW240B
MSW240
LSW350B
MSW240
11
ENGLISH
Model 60LF6000
42LF5500
49LF5500
55LF5500
42LF5600
50LF6000
55LF6000
VESA (A x B) 400 x 400 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket
(optional) LSW440B LSW440B
MSW240
A
B
CAUTION
•Disconnect the power before moving or
installing the TV. Otherwise electric shock may
occur.
•Remove the stand before installing the TV on a
wall mount by performing the stand attachment
in reverse.
•If you install the TV on a ceiling or slanted wall,
it may fall and result in severe injury. Use an
authorized LG wall mount and contact the local
dealer or qualified personnel. When using a
third-party wall mount, it is not covered by the
warranty.
•Do not overtighten the screws as this may cause
damage to the TV and void your warranty.
•Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the warranty.
NOTE
•Use the screws that are listed in the VESA
standard screw specifications.
•The wall mount kit includes an installation
manual and necessary parts.
•The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
•The length of screws may differ depending upon
the wall mount. Make sure to use the proper
length.
•For more information, refer to the manual
supplied with the wall mount.
•When using the wall mounting bracket, apply
the adhesive protective label to cover the
unused stand openings. This will prevent the
accumulation of dust and dirt. (Use only when
provided with your particular model.)
Provided Item
Adhesive
protective label
•When attaching a wall mounting bracket to the
TV, insert the wall mount inner spacers into the
TV wall mount holes to adjust the vertical angle
of the TV. (Use only when provided with your
particular model.)
Provided Item
Wall Mount Spacer
Connections (Notifications)
You can connect various external devices to the TV.
Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices. For
more information on external device’s connection,
refer to the manual provided with each device.
NOTE
•If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information about recording, refer to
the manual provided with the connected device.
•The external device connections shown may
differ slightly from illustrations in a manual.
•Connect external devices to the TV regardless
about the order of the TV port.
•If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
•Refer to the external equipment’s manual for
operating instructions.
12
ENGLISH
Connecting to an Antenna or
Cable
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is
optional.
CAUTION
•Make sure not to bend the copper wire of the RF
cable.
Copper wire
•Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
NOTE
•Use a signal splitter to use 2 TVs or more.
•DTV Audio Supported Codec: MPEG, Dolby
Digital.
Other Connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external
device and the TV with the HDMI cable.
Remote Control
(Image shown may differ from your TV.)
The descriptions in this manual are based on
the buttons on the remote control. Please read
this manual carefully and use the TV correctly. To
install batteries, open the battery cover, replace
batteries (1.5 V AAA) matching the and ends
to the label inside the compartment, and close
the battery cover. Failure to match the correct
polarities of the battery may cause the battery
to burst or leak, resulting in fire, personal injury,
or ambient pollution. To remove the batteries,
perform the installation actions in reverse. This
remote uses infrared light. When in use, it should
be pointed in the direction of the TV’s remote
sensor.
CAUTION
•Do not mix old and new batteries, as this may
damage the remote control.
FLASHBK
AUDIO
SAP/
A
B
A
(POWER) Turns the TV on or off.
Returns to the last TV channel.
Activates or deactivates the subtitles.
Selects an AV mode.
Resizes an image.
Changes the input source.
Turns the TV on if it is off.
B
Number button Enters numbers.
(DASH) Inserts a dash between numbers such as 2-1
and 2-2.
Accesses the saved channel list.
Alternates between the two last channels
selected (pressing repeatedly).
Adjusts the volume level.
Accesses your favorite channel list.
Digital signal: Changes the audio language.
Analog signal: Changes the MTS sound.
Mutes all sounds.
Scrolls through the saved channels.
Moves to the previous or next screen.
13
ENGLISH
FLASHBK
AUDIO
SAP/
C
D
C
Changes the picture mode.
Shows information on the current program.
Changes the sound mode.
Accesses the main menu.
Accesses the quick menu.
Navigation button (up / down / left / right)
Scrolls through menus or options.
Selects menus or options and confirms your input.
Returns to the previous screen.
Clears all on-screen displays and returns to TV
viewing.
D
/ Select Broadcast Audio Options.
Sets the length of time until the TV to turns off.
Control buttons ( , , , , ) Controls the SIMPLINK
compatible devices (USB, SIMPLINK).
These access special functions in some
menus.
Settings
To set up the channels automatically
SETTINGS ➾ CHANNEL ➙ Auto Tuning
Memorizes automatically the channels being
broadcast.
•The channels will not be memorized properly if
the antenna/cable is not installed correctly.
•Auto Tuning memorizes the channels that are
currently being broadcast.
•If Lock System is turned on, a pop-up window
will appear asking for password.
To select Picture Mode
SETTINGS ➾ PICTURE ➙ Picture Mode
Select the picture mode optimized for the viewing
environment or the program.
•Vivid Heightens contrast, brightness, and
sharpness to display vivid images.
•Standard Displays images in standard levels of
contrast, brightness and sharpness.
•APS APS (Auto power saving) mode reduces
power consumption by dimming control.
•Cinema / Game Displays the optimum picture
for movie or game.
•Sport (For LF6000)
Optimised picture mode for football matches.
The pitch and kits are presented in vibrant
colours, with crystal-clear images even for fast
movements.
•Expert Menu for adjusting picture quality that
allows experts and amateurs to enjoy the best TV
viewing. This menu for adjustment is provided
for ISF-certified picture tuning professionals. (ISF
logo can be used only on ISF-certified TVs.)
ISFccc: Imaging Science Foundation Certified
Calibration Control
•Depending upon the input signal, the available
range of picture modes may differ.
•Expert mode is for picture tuning professionals
to control and fine-tune using a specific image.
For normal images, the effects may not be
drastic.
14
ENGLISH
To set advanced control
SETTINGS ➾ PICTURE ➙ Picture Mode ➙
Advanced Control / Expert Control
For each picture mode, the screen can be
calibrated; or for a special screen, picture settings
can be adjusted. Select the desired Picture Mode.
•Dynamic Contrast Adjusts the contrast to
the optimal level according to the image’s
brightness.
•Dynamic Color Adjusts colors to make the
image appear in more natural colors.
•Skin Color Skin color spectrum can be
separately set to implement the skin color as
defined by the user.
•Sky Color Sky color is set separately.
•Grass Color Natural color spectrum (meadows,
hills, etc.) can be set separately.
•Gamma Sets the gradation curve according to
the output of picture signal in relation to the
input signal.
•Color Gamut Selects the range of colors that can
be expressed.
•Edge Enhancer Shows clearer and distinctive
yet natural edges of the video.
•Expert Pattern (For LF6000)
Patterns used for expert adjustment.
•Color Filter Filters a specific color spectrum in
RGB colors to fine-tune color saturation and hue
accurately.
•Color Temperature Adjusts the overall tone of
the screen as desired. In Expert mode, detailed
fine-tuning can be set via Gamma method, etc.
•Color Management System This system is used
by experts to adjust color with a test pattern.
They can select from six color areas (Red/ Green/
Blue/ Cyan/Magenta/Yellow) without affecting
other colors. For normal images, adjustments
may not result in noticeable color changes.
•Depending upon input signal or other picture
settings, the range of detailed items for
adjustment may differ.
To set additional picture options
SETTINGS ➾ PICTURE ➙ Picture Mode ➙ Picture
Option
Adjusts detailed setting for images.
•Noise Reduction Eliminates noise in the picture.
•MPEG Noise Reduction Eliminates noise
generated while creating digital picture signals.
•Black Level Adjusts the brightness and contrast
of the screen to suit the black level.
•Real Cinema Optimizes the screen for movie
viewing.
•Motion Eye Care [Depending upon model]
Automatically adjusts brightness and reduces
image blur based on image data to reduce
eyestrain.
•TruMotion [Depending upon model]
Corrects images to display smoother motion
sequences. Auto means juddering and blurring
range that depend on input video status is
controlled by TruMotion mode.
-Off Turns off the TruMotion.
-Smooth Softens fast-moving pictures.
-Clear Makes fast-moving pictures clearer.
-User Sets De-Judder/De-Blur manually.
De-Judder Adjusts juddering on the screen.
De-Blur [Depending upon model]
Reduces the blurring effects of motion.
•Depending upon input signal or other picture
settings, the range of detailed items for
adjustment may differ.
To use Energy Saving feature
SETTINGS ➾ PICTURE ➙ Energy Saving
Reduces power consumption by adjusting peak
screen brightness.
•Off Turns off the Energy Saving.
•Minimum / Medium / Maximum Applies the
pre-set Energy Saving.
•Screen Off Screen is turned off and only sound
is played. Press any button on the remote control
to turn the screen back on.
15
ENGLISH
To use TV speaker
SETTINGS ➾ AUDIO ➙ TV Speaker
SETTINGS ➾ AUDIO ➙ Sound Out ➙
TV Speaker (For LF6000)
Sound is output through the TV speaker.
To use External Speaker
(For LF6000)
SETTINGS ➾ AUDIO ➙ Sound Out ➙
External Speaker (Optical)
[Only available for models with an optical port]
Sound is output through the speaker connected to
the optical port.
•SIMPLINK is supported.
To use Digital Audio Out
(For LF5500, LF5600)
[Only available for models with an optical port]
SETTINGS ➾ AUDIO ➙ Digital Audio Out
(For LF6000)
SETTINGS ➾ AUDIO ➙ Sound Out ➙
External Speaker (Optical) ➙ Digital Sound Out
[Depending upon model]
Sets up Digital Sound Out.
Item Audio Input Digital Audio output
Auto
MPEG
Dolby Digital
Dolby Digital Plus
HE-AAC
PCM
Dolby Digital
Dolby Digital
Dolby Digital
PCM All PCM
To connect and use LG audio device
(For LF6000)
SETTINGS ➾ AUDIO ➙ Sound Out ➙
LG Sound Sync (Optical)
[Only available for models with an optical port]
Connect LG audio device with the logo to the
optical digital audio output port. LG audio device
allows you to enjoy rich powerful sound easily.
To set AV Sync. Adjust
(For LF6000)
SETTINGS ➾ AUDIO ➙ AV Sync. Adjust
Synchronizes unmatched video and audio. Select
AV Sync. Adjust to On to synchronize audio
output (TV speaker or SPDIF) with the video.
To use SIMPLINK
(For LF6000)
SIMPLINK controls and manages multimedia
devices conveniently with the TV remote control
through the SIMPLINK menu.
1 Connect the HDMI IN terminal and SIMPLINK
device’s HDMI output terminal using an HDMI
cable.
- [Depending upon model] For home theater
units with SIMPLINK function, connect HDMI
terminals as above, and use an optical cable
to connect Optical Digital Audio Out from the
TV to Optical Digital Audio In of the SIMPLINK
device.
2 Select INPUT ➾ SIMPLINK.
SIMPLINK menu window appears.
3 In SIMPLINK Setting window, set SIMPLINK
function to ON.
4 In SIMPLINK menu window, select the device to
control.
•This function is only compatible with devices
having the SIMPLINK logo.
•To use SIMPLINK function,use high-speed HDMI®
cable (with CEC - Consumer Electronics Control)
feature added). High-speed HDMI® cable has
pin No. 13 connected for information exchange
between devices.
•When changing to another input, the SIMPLINK
device stops.
•If a third-party device with HDMI-CEC support
is added, the SIMPLINK device may not work
normally.
•[Depending upon model] When selecting or
playing the media of the device with home
theater function, HT Speaker is automatically
connected. Be sure to connect with Optical cable
(sold separately) to use HT Speaker function.
16
ENGLISH
SIMPLINK function description
•Direct Play Plays the multimedia device on the
TV instantly.
•Select multimedia device Selects the desired
device through SIMPLINK menu and control the
device from the TV screen instantly.
•Disc playback Manages the multimedia device
with the TV remote control.
•Power off all devices When you power off the
TV, all connected devices are turned off.
•Sync Power on When the equipment with
SIMPLINK function connected HDMI terminal
starts to play, the TV will automatically turn on.
•Speaker [Depending upon model] Selects either
home theater unit or TV speaker.
To set the password
SETTINGS ➾ LOCK ➙ Set Password
Set or change the TV password.
•The initial password is set to 0000.
To set the caption
SETTINGS ➾ OPTION ➙ Caption
View captions when the TV station provides
captioned programming. Program captions work
only on digital/analog broadcasts or external input.
Change Caption to On and select caption settings.
•Mode
CC 1-4 (Closed Captioning) / Text 1-4: Displays
the audio portion of a TV program as text on the
TV screen. CC1 is the most common mode in use.
Field 1 data channels: two Captions (CC1, CC2),
two Text (T1, T2).
Field 2 data channels: two Captions (CC3, CC4),
two Text (T3, T4).
Service 1-6: This is only available for the digital
broadcasting system.
•Digital Option: Set up the size and color of the
captions on Digital Option. Please select Set By
Program or Custom. Select Custom to adjust
minute options such as the captions’ size and
color.
To return to initial settings
SETTINGS ➾ OPTION ➙ Initial Setting
Returns to initial default mode by deleting all
optional setup. Once initialization is completed,
the TV will turn off and on by itself.
•When Lock System is in place, a pop-up window
appears and asks for password.
•Do not turn off the power during initialization.
To remove the USB device
Q.MENU ➾ Eject USB
Q.MENU ➾ USB Device ➙ Eject (For LF6000)
Once the message that the USB device was
removed is displayed, remove the device from the
TV.
•After selecting to remove USB device, the USB
storage device cannot be read. Remove the USB
storage device and then reconnect it.
Warning when using USB storage devices
•USB storage devices with a built-in auto
recognition program or its own driver may not
work.
•Some USB storage devices may not work or may
work improperly.
•Use only those USB storage devices formatted
with FAT32 or NTFS File System provided by
Windows.
•For external USB HDD, use devices with less than
5V-rated voltages and 500 mA-rated current.
•It is recommended to use USB flash drive with 32
GB or less and USB HDD with 2 TB or less.
•If a USB HDD with power-saving function does
not work properly, turn the power off and on.
For more information, refer to the user manual
of USB HDD.
•Data in the USB storage device can be damaged
so back up important files in other devices. Data
maintenance is the user’s responsibility. The
manufacturer is not responsible for data loss.
17
ENGLISH
Supported Photo Formats
•Category: jpeg, jpg
[Available file type]
SOF0: Baseline,
SOF1: Extend Sequential,
SOF2: Progressive
[Photo size] Minimum: 64 x 64,
Maximum: Normal Type: 15,360 (W) x 8,640 (H),
Progressive Type: 1,024 (W) x 768 (H)
Supported Audio Formats
•File type: mp3
[Bit rate] 32 Kbps - 320 Kbps
[Sample freq.] 32 kHz - 48 kHz
[Support] MPEG-1, MPEG-2, MPEG-2.5, Layer2,
Layer3
My Media Supported Files (For LF6000)
•Maximum data transfer rate: 20 Mbps (Mega bit
per second)
•External supported subtitle formats:
*.srt (SubRip), *.smi (SAMI), *.sub (SubViewer,
MicroDVD, DVDsubtitleSystem, SubIdx
(Vobsub)), *.ass/*.ssa (SubStation Alpha), *.txt
(TMplayer), *.psb (PowerDivX)
•Internal supported subtitle formats:
*.dat/*.mpg/*.mpeg/*.vob (DVD Subtitle),
*.ts/*.tp/*.m2ts (DVB Subtitle), *.mp4 (DVD
Subtitle, UTF-8 Plain Text), *.mkv (ASS, SSA,
UTF-8 Plain Text, Universal Subtitle Format,
VobSub, DVD Subtitle), *.divx/*.avi (XSUB1,
XSUB+)
XSUB1 Supports internal subtitles generated
from DivX6
Supported Video Formats
•Maximum: 1,920 x 1,080 @ 30p (only Motion
JPEG 640 x 480 @ 30p)
•.asf, .wmv
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,
DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3,
WVC1), MP43
[Audio] WMA Standard, WMA9(Pro), MP3, AAC,
AC3, 3D WMV Single Stream
•.divx, .avi
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,
DivX5, DivX6, XViD, H.264/AVC
[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer1,
MPEG-1 Layer2, Dolby Digital, MPEG-1 Layer3
(MP3)
•.ts, .trp, .tp, .mts, .m2ts
[Video] H.264/AVC, MPEG-2, AVS, VC1
[Audio] MPEG-1 Layer1, MPEG-1 Layer2, MPEG-1
Layer3 (MP3), Dolby Digital, Dolby Digital Plus,
AAC, HE-AAC
•.vob
[Video] MPEG-1, MPEG-2
[Audio] Dolby Digital, MPEG-1 Layer1, MPEG-1
Layer2, DVD-LPCM
•.mp4, .m4v, .mov
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,
DivX5, DivX6, XVID, H.264/AVC
[Audio] AAC, MPEG-1 Layer3 (MP3)
•.mkv
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,
DivX5, DivX6, XVID, H.264/AVC
[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer3
(MP3), LPCM
•motion JPEG
[Video] MJPEG
[Audio] LPCM, ADPCM
•.mpg, .mpeg, .mpe
[Video] MPEG-1, MPEG-2
[Audio] MPEG-1 Layer1, MPEG-1 Layer2, Dolby
Digital, LPCM
•.dat
[Video] MPEG-1, MPEG-2
[Audio] MP2
•.flv
[Video] Sorenson H.263, H.264/AVC
[Audio] MP3, AAC, HE-AAC
•.3gp, .3gp2
[Video] H.264/AVC, MPEG-4 Part2
[Audio] AAC, AMR(NB/WB)
Supported Audio Formats
•File type: mp3
[Bit rate] 32 Kbps - 320 Kbps
[Sample freq.] 16 kHz - 48 kHz
[Support] MPEG-1, MPEG-2, Layer2, Layer3
•File type: AAC
[Bit rate] Free Format
[Sample freq.] 8 kHz ~ 48 kHz
[Support] ADIF, ADTS
•File type: M4A
[Bit rate] Free Format
[Sample freq.] 8 kHz ~ 48 kHz
[Support] MPEG-4
•File type: WMA
[Bit rate] 128 Kbps ~ 320 Kbps
[Sample freq.] 8 kHz ~ 48 kHz
[Support] WMA7, WMA8, WMA9 Standard
18
ENGLISH
•File type: WMA 10 Pro
[Bit rate] ~ 768 Kbps
[Channel / Sample freq.]
M0: up to 2 Channel @ 48 kHz
(Except LBR mode),
M1: up to 5.1 Channel @ 48 kHz,
M2: up to 5.1 Channel @ 96 kHz
[Support] WMA 10 Pro
•File type: OGG
[Bit rate] Free Format
[Sample freq.] 8 kHz ~ 48 kHz
[Support] OGG Vorvis
Supported Photo Formats
•Category: 2D (jpeg, jpg, jpe)
[Available File type]
SOF0: Baseline,
SOF1: Extend Sequential,
SOF2: Progressive
[Photo size] Minimum: 64 x 64,
Maximum: Normal Type: 15,360 (W) x 8,640 (H),
Progressive Type: 1,920 (W) x 1,440 (H)
•Category: BMP
[Photo size] Minimum: 64 x 64, Maximum: 9,600
x 6,400
•Category: PNG
[Available file type] Interlace, Non-Interlace
[Photo size] Minimum: 64 x 64,
Maximum: Interlace: 1,200 x 800,
Non-Interlace: 9,600 x 6,400
•BMP and PNG format files may be slower to
display than JPEG.
To See the Web Manual
Web manual allows you to easily access detailed TV
information.
Go to
http://www.lg.com
.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product,
please visit
http://opensource.lge.com
.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to
opensource@lge.com.
This offer is valid for three
(3) years from the date on which you purchased
the product.
Troubleshooting
•Cannot control the TV with the remote control.
-Check if anything such as tape has been placed
over the receiver.
-Check if there is any obstacle between the
product and the remote control.
-Replace the batteries with new fresh ones.
•No image display and no sound is produced.
-Check if the product is turned on.
-Check if the power cord is connected to a wall
outlet.
-Check if there is a problem in the wall outlet by
connecting other products.
•The TV turns off suddenly.
-Check the power control settings.
The power supply may be interrupted.
-Check if the Off Time / Sleep Timer feature is
activated in the TIME settings.
-If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
External Control Device Setup
(Except for LF51 series)
To obtain the external control device setup
information, please visit
www.lg.com
.
19
ENGLISH
Licenses
Supported licenses may differ by model.
For more information about licenses,
visit
www.lg.com
.
(For LF6000 Series)
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
(For LF6000 Series)
This DivX Certified® device has passed rigorous
testing to ensure it plays DivX® video. To play
purchased DivX movies, first register your device
at vod.divx.com. Find your registration code in
the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD
1080p, including premium content.
DivX®, DivX Certified® and associated logos are
trademarks of DivX, LLC and are used under
license.
Covered by one or more of the following U.S.
patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274.
Specifications
Product specifications may be changed without
prior notice due to upgrade of product functions.
Television System
ATSC, NTSC-M, 64 & 256 QAM
Program Coverage
VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,
CADTV 1-135
External Antenna Impedance
75 Ω
Environment condition
•Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
•Operating Humidity
Less than 80 %
•Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
•Storage Humidity
Less than 85 %
HDMI (PC) supported mode
(Use HDMI IN 1 for PC mode)
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 350 31.46 70.09
720 x 400 31.46 70.08
640 x 480 31.46 59.94
800 x 600 37.87 60.31
1024 x 768 48.36 60.00
1360 x 768 47.71 60.01
1152 x 864 54.34 60.05
1280 x 1024 63.98 60.02
1920 x 1080 67.50 60.00
Except for 32LF510B, 32LF550B
20
ENGLISH
HDMI (DTV) supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 480p 31.46 59.94
31.50 60.00
720 x 480p 31.47 59.94
31.50 60.00
1280 x 720p 44.96 59.94
45.00 60.00
1920 x 1080i 33.72 59.94
33.75 60.00
1920 x 1080p
26.97 23.97
27.00 24.00
33.71 29.97
33.75 30.00
67.43 59.94
67.50 60.00
Component port connecting information
Component ports on the TV Y PBPR
Video output ports on DVD player
Y PBPR
YB-Y R-Y
Y Cb Cr
YPb Pr
Component supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480i 15.730 59.940
15.730 60.000
720 x 480p 31.470 59.940
31.500 60.000
1280 x 720p 44.960 59.940
45.000 60.000
1920 x 1080i 33.720 59.940
33.750 60.000
1920 x 1080p
26.970 23.976
27.000 24.000
33.710 29.970
33.750 30.000
67.432 59.940
67.500 60.000
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certication by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a at-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
CE.org/safety
The model and serial numbers of the TV are located
on the back and on one side of the TV. Record them
below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
Declaration of Conformity
Trade Name: LG
Model: 32LF510B-UC, 43LF5100-UA, 49LF5100-UA,
43LF5400-UB, 49LF5400-UB,
32LF550B-UA, 42LF5500-UA, 49LF5500-UA,
55LF5500-UA, 32LF5600-UB, 42LF5600-UB,
50LF6000-UB, 55LF6000-UB, 60LF6000-UB
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave. Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
