Open the PDF directly: View PDF .
Page Count: 23

P/No: MFL69289414 (1602-REV01)

AAA

X 4

(M4 x L14)

www.lg.com

ENGLISH

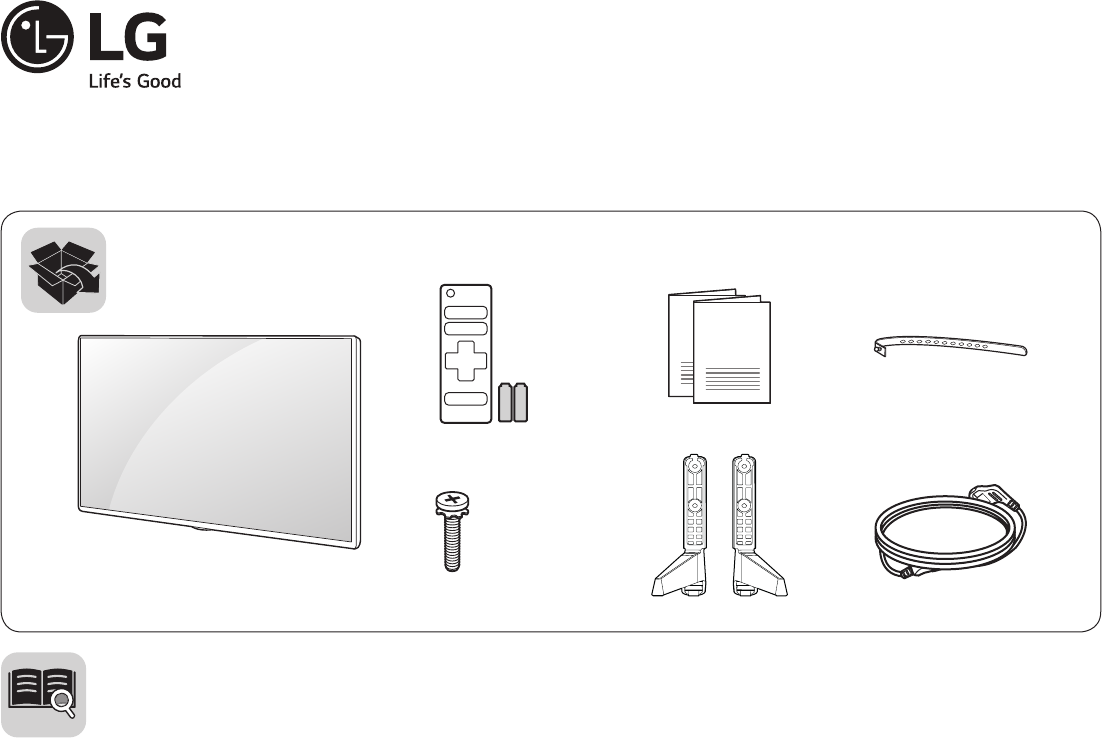

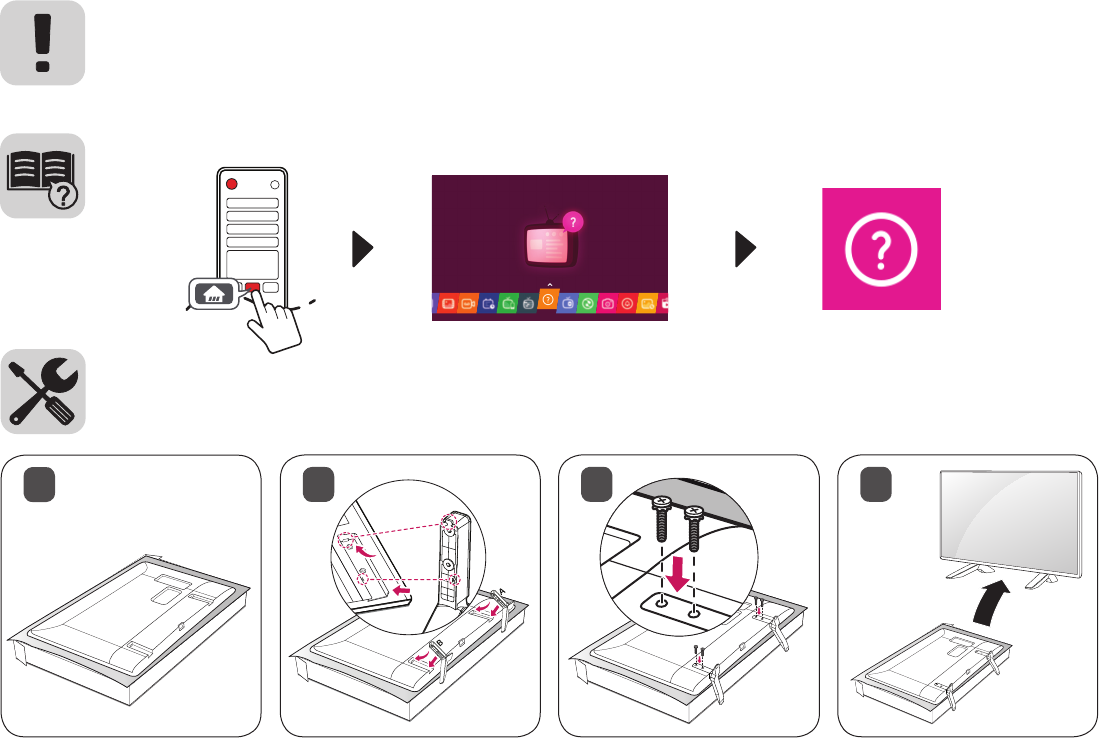

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

ESPAÑOL

Guía Rápida de Configuración

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

FRANÇAIS

Guide de configuration rapide

Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter

ultérieurement.

LED TV

43LH570A

43LH5700

49LH570A

49LH5700

ENGLISH Read Safety & Reference.

ESPAÑOL Leer Seguridad y Consultas.

FRANÇAIS Lisez Sécurité et références.

13

2

1

2

4

: Depending upon model

Según el modelo

Selon le modèle

1 2

34

ENGLISH

MODELS

43LH570A

(43LH570A-UE)

49LH570A

(49LH570A-UE)

43LH5700

(43LH5700-UD)

49LH5700

(49LH5700-UD)

Dimensions (W x H x D)

With stand 976 x 633 x 217.9 (mm)

38.4 x 24.9 x 8.5 (inches)

1,108 x 707 x 217.9 (mm)

43.6 x 27.8 x 8.5 (inches)

Without stand 976 x 583 x 81.5 (mm)

38.4 x 22.9 x 3.2 (inches)

1,108 x 657 x 81.5 (mm)

43.6 x 25.8 x 3.2 (inches)

Weight With stand 8.4 kg (18.5 lbs) 10.9 kg (24.0 lbs)

Without stand 8.1 kg (17.8 lbs) 10.6 kg (23.3 lbs)

Power requirement AC 100 - 240 V ~ 50 / 60 Hz

Current Value / Power consumption 1.0 A / 60 W 1.15 A / 70 W

ESPAÑOL / FRANÇAIS

MODELOS 43LH570A

(43LH570A-UE)

49LH570A

(49LH570A-UE)

MODÈLES 43LH5700

(43LH5700-UD)

49LH5700

(49LH5700-UD)

Dimensiones

(Ancho x altura x profundidad)

Con base 976 x 633 x 217,9 (mm)

38,4 x 24,9 x 8,5 (pulgadas / po)

1 108 x 707 x 217,9 (mm)

43,6 x 27,8 x 8,5 (pulgadas / po)

Avec support

Dimensions (L x H x P) Sin base 976 x 583 x 81,5 (mm)

38,4 x 22,9 x 3,2 (pulgadas / po)

1 108 x 657 x 81,5 (mm)

43,6 x 25,8 x 3,2 (pulgadas / po)

Sans support

Peso Con base 8,4 kg (18,5 libras / lb) 10,9 kg (24,0 libras / lb)

Avec support

Poids Sin base 8,1 kg (17,8 libras / lb) 10,6 kg (23,3 libras / lb)

Sans support

Alimentación requerida Alimentation AC 100 - 240 V ~ 50 / 60 Hz

Corriente de consumo / Consumo de potencia 1,0 A / 60 W 1,15 A / 70 W

Valeur courante / Consommation électrique

12

0

*MFL69289414*

(For USA and Canada only)

(Para Estados Unidos y Canadá)

This product qualies for ENERGY

STAR® in the factory default (Home

conguration) setting. Changing the

factory default settings or enabling

other features may increase power consumption

that could exceed the limits necessary to quality

for ENERGY STAR®. Refer to ENERGYSTAR.gov

for more information on the ENERGY STAR®

program.

(Pour les États-Unis et le Canada)

Ce produit est conforme aux normes

ENERGY STAR® lorsque le « réglage

d’usine par défaut (Résidentiel) » est

sélectionné. Modier les réglages

d’usine par défaut ou activer d’autres

fonctionnalités augmente la consommation

d’énergie qui pourrait alors dépasser les limites

de la qualication ENERGY STAR®. Consultez le

site ENERGYSTAR.gov pour en savoir plus au

sujet du programme ENERGY STAR®.

www.lg.com

Please read this manual carefully before operating

your TV and retain it for future reference.

Safety and Reference

LED TV*

* LG LED TVs are LCD TVs with LED backlighting.

OWNER’S MANUAL

32LH570B 43LH570A

43LH5700

49LH570A

49LH5700

55LH575A

55LH5750

P/NO : MFL69272417 (1602-REV01)

*MFL69272417*

2

ENGLISH

Important Safety Instructions

Always comply with the following precautions

to avoid dangerous situations and ensure peak

performance of your product.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead

symbol within an equilateral triangle is

intended to alert the user to the presence of

uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an

equilateral triangle is intended to alert the

user to the presence of important operating

and maintenance (servicing) instructions in

the literature accompanying the device.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may

be seriously injured or there is a possibility of

accident or death.

CAUTION

If you ignore the caution message, you may

be slightly injured or the product may be

damaged.

NOTE

The note helps you understand and use the

product safely. Please read the note carefully

before using the product.

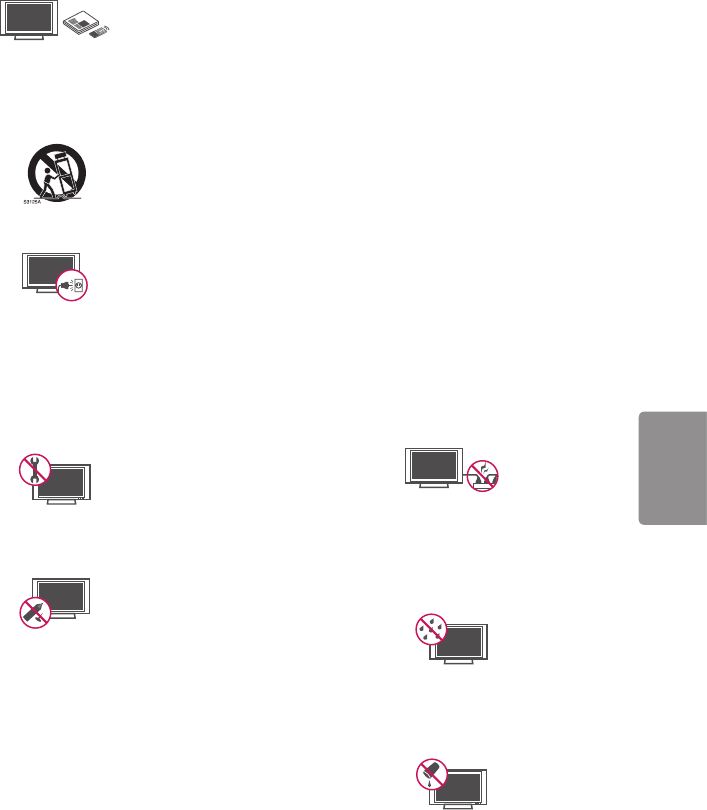

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

•Do not use this apparatus near water.

•Clean only with dry cloth.

•Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

•Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

•Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

•Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

3

ENGLISH

•Only use attachments/accessories specified by

the manufacturer.

•Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•Unplug this apparatus during lightning storms

or when unused for long periods of time.

•Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

•Do not press strongly upon the panel with a

hand or a sharp object such as a nail, pencil, or

pen, or make a scratch on it.

•Do not stick metal objects or any other

conductive material into the power cord. Do

not touch the end of the power cord while it is

plugged in.

•Keep the packing anti-moisture material or

vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the

nearest hospital. Additionally, vinyl packing can

cause suffocation. Keep it out of the reach of

children.

•CAUTION concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s

manual to be certain concerning current

requirements. Do not connect too many

devices to the same AC power outlet as this

could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords,

frayed power cords, or damaged or cracked

wire insulation are dangerous. Any of these

conditions could result in electric shock or fire.

Periodically examine the cord of your device,

and if its appearance indicates damage or

deterioration, unplug it, discontinue use of

the device, and have the cord replaced with

an exact replacement part by an authorized

servicer. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the device. Do not

move the TV with the power cord plugged in. Do

not use a damaged or loose power cord. Be sure

do grasp the plug when unplugging the power

cord. Do not pull on the power cord to unplug

the TV.

•Warning - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product near

flammable objects such as gasoline or candles,

or expose the TV to direct air conditioning.

•Do not expose to dripping or splashing and

do not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.,

on shelves above the unit).

4

ENGLISH

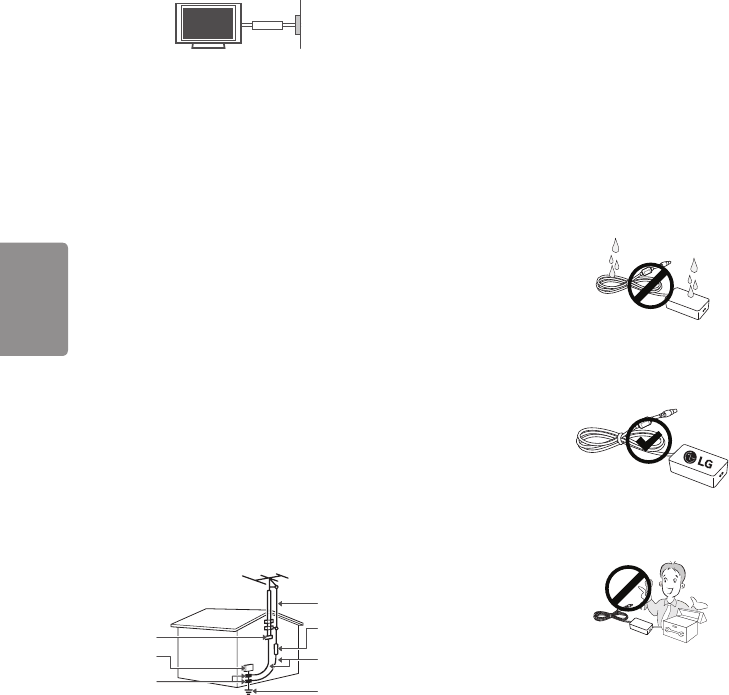

•Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire

to prevent possible electric shock (i.e., a TV

with a three-prong grounded AC plug must

be connected to a three-prong grounded AC

outlet). If grounding methods are not possible,

have a qualified electrician install a separate

circuit breaker. Do not try to ground the unit by

connecting it to telephone wires, lightning rods,

or gas pipes.

Circuit

Breaker

Power

Supply

•As long as this unit is connected to the AC wall

outlet, it is not disconnected from the AC power

source even if the unit is turned off.

•Do not attempt to modify this product in any

way without written authorization from LG

Electronics. Unauthorized modification could

void the user’s authority to operate this product.

•Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can come in contact with

such power lines or circuits as death or serious

injury can occur. Be sure the antenna system is

grounded to provide some protection against

voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC)

in the U.S.A. provides information with respect

to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding

conductors, location of antenna discharge

unit, connection to grounding electrodes and

requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Grounding Conductor

(NEC Section 810-21)

Antenna Lead in Wire

Electric Service

Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Ground Clamp Power Service Grounding

Electrode System

(NEC Art 250, Part H)

NEC: National Electrical Code

•Cleaning

When cleaning, unplug the power cord and wipe

gently with a soft cloth to prevent scratching. Do

not spray water or other liquids directly on the

TV as electric shock may occur. Do not clean with

chemicals such as alcohol, thinners, or benzene.

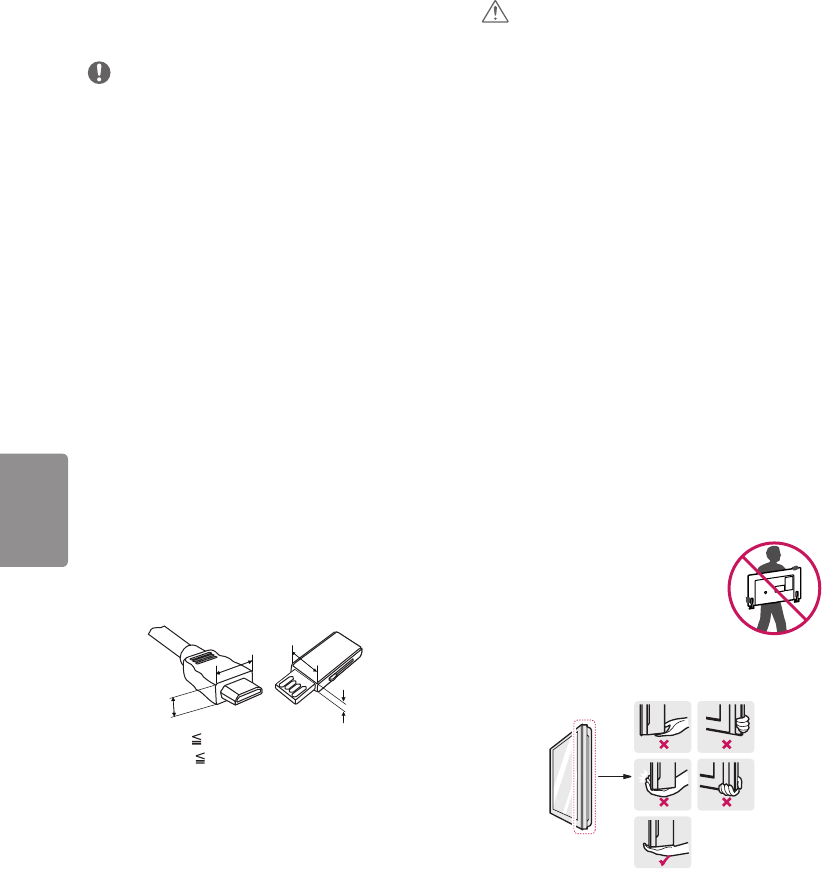

•Moving

Make sure the product is turned off, unplugged,

and all cables have been removed. It may take 2

or more people to carry larger TVs. Do not press

or put stress on the front panel of the TV.

•Ventilation

Install your TV where there is proper ventilation.

Do not install in a confined space such as a

bookcase. Do not cover the product with cloth or

other materials while plugged. Do not install in

excessively dusty places.

•If you smell smoke or other odors coming from

the TV, unplug the power cord and contact an

authorized service center.

•If water or another substance enters the

product (like an AC adapter, power cord, or TV),

disconnect the power cord and contact the

service center immediately. Otherwise, this may

result in fire or electric shock.

•Use only an authorized AC adapter and power

cord approved by LG Electronics.

Otherwise, this may result in fire, electric shock,

malfunction, or product deformation.

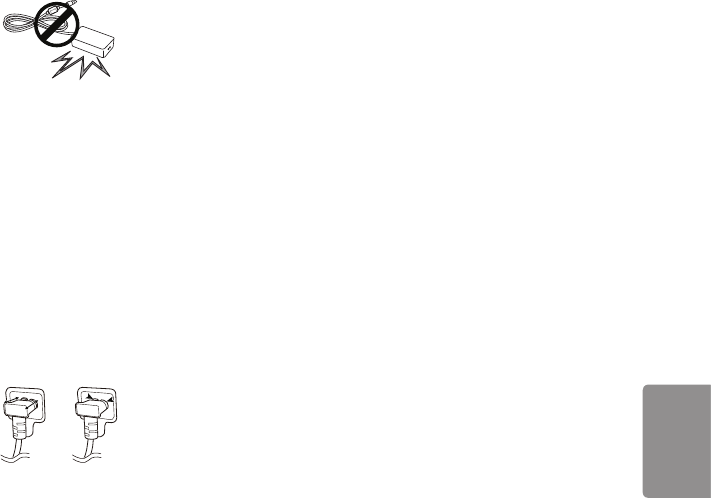

•Never disassemble the AC adapter or power

cord. This may result in fire or electric shock.

5

ENGLISH

•Handle the adapter carefully to avoid dropping

or striking it. An impact could damage the

adapter.

•Keep the product away from direct sunlight.

•Never touch this apparatus or antenna during a

lightning storm.

•When mounting a TV on the wall, make sure not

to install the TV by hanging the power and signal

cables on the back of the TV.

•Do not allow an impact shock, any objects to fall

into the product, and do not drop anything onto

the screen.

•DISCONNECTING THE DEVICE FROM THE MAIN

POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must

remain readily accessible.

•Make sure the power cord is connected securely

to the power plug on the TV.

•Batteries

Store the accessories (battery, etc.) in a safe

location out of the reach of children.

•This apparatus uses batteries. In your community

there might be regulations that require you

to dispose of these batteries properly due to

environmental considerations. Please contact

your local authorities for disposal or recycling

information.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble, or allow the

batteries to overheat.

•Do not use high voltage electrical equipment

near the TV, (e.g., a bug zapper.)

This may result in product malfunction.

•Dot Defect

This panel is an advanced product that contains

millions of pixels. In a very few cases, you could

see fine dots on the screen while you’re viewing

the TV. Those dots are deactivated pixels and

do not affect the performance and reliability of

the TV.

•Generated Sound

Cracking noise A cracking noise that occurs

when watching or turning off the TV is

generated by plastic thermal contraction due to

temperature and humidity. This noise is common

for products where thermal deformation is

required.

Electrical circuit humming/panel buzzing

A low level noise is generated from a high-

speed switching circuit, which supplies a large

amount of current to operate a product. It varies

depending upon the product. This generated

sound does not affect the performance and

reliability of the product.

•Take care not to touch the ventilation openings.

When watching the TV for a long period, the

ventilation openings may become hot. This does

not affect the performance of the product or

cause defects in the product.

•Do not install this product on a wall if it could be

exposed to oil or oil mist. This may damage the

product and cause it to fall.

•If the TV feels cold to the touch, there may

be a small flicker when it is turned on. This is

normal; there is nothing wrong with TV. Some

minute dot defects may be visible on the screen,

appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the TV’s

performance. Avoid touching the LCD screen or

holding your finger(s) against it for long periods

of time. Doing so may produce some temporary

distortion effects on the screen.

•Displaying a still image for a prolonged period

of time may cause an image sticking. Avoid

displaying a fixed image on the TV screen for a

extended length of time.

6

ENGLISH

Preparing

NOTE

•When the TV is turned on for the first time after

being shipped from the factory, initialization of

the TV may take approximately one minute.

•Image shown may differ from your TV.

•Your TV’s OSD (On Screen Display) may differ

slightly from that shown in this manual.

•The available menus and options may differ from

the input source or product model that you are

using.

•New features may be added to this TV in the

future.

•The items supplied with your product may vary

depending upon the model.

•Product specifications or contents of this manual

may be changed without prior notice due to

upgrade of product functions.

•For an optimal connection, HDMI cables and

USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

•Use an extension cable that supports USB 2.0 if

the USB cable or USB flash drive does not fit into

your TV’s USB port.

•Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

•Recommended HDMI cable types (3m or less)

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

B

AA

B

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

•This Smart TV is for VOD (Video On Demand)

service, some smart functions may not be

supported including web browser.

CAUTION

•Do not use any unapproved items to ensure the

safety and lifespan of the product.

•Any damages or injuries by using unapproved

items are not covered by the warranty.

•Some models appear to have a thin film on the

screen. It is actually part of the screen; do not

remove it.

•When attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

•Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV

may tilt forward after being installed.)

•Do not fasten the screws with excessive force

otherwise they may be worn out and become

loose.

Lifting and Moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for safe transportation regardless of

its type and size.

•It is recommended to move the TV in the box or

packing material that the TV originally came in.

•Before moving or lifting the TV, disconnect the

power cord and all cables.

•When holding the TV, the screen

should face away from you to

avoid damage.

•Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grille area.

7

ENGLISH

•Use at least two people to move

a large TV.

•When transporting the TV by

hand, hold the TV as shown in the

following illustration.

•When transporting the TV, do not expose the TV

to jolts or excessive vibration.

•When transporting the TV, keep the TV upright;

never turn the TV on its side or tilt towards the

left or right.

•When handling the TV, be careful not to damage

the protruding buttons.

CAUTION

•Avoid touching the screen at all times, as this

may result in damage to the screen.

•Do not place the product on the floor with its

front facing down without padding. Failure to do

so may result in damage to the screen.

•Do not move the TV by holding the cable

holders, as the cable holders may break, and

injuries and damage to the TV may occur.

(Depending upon model)

Using the buttons

(Depending upon model)

You can simply operate the TV functions, pressing

or moving the buttons.

NOTE

•32/43/49LH57 series does not have a Joystick

button but has only a power On/Off button.

•55LH57 series has a joystick button, but only the

power On/Off function is applicable.

Button

Basic Functions

Power On / Off (Press)

Mounting on a Table

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (4 inches) (minimum) space from

the wall for proper ventilation.

10 cm

10 cm

10 cm

10 cm

(4 inches)

2 Connect the power cord to a wall outlet.

CAUTION

•Do not place the TV near or on sources of heat,

as this may result in fire or other damage.

Securing the TV to a Wall (optional)

(Depending upon model)

1 Insert and tighten the eye-bolts or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and

the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope or cable. Make sure to keep

the rope parallel to the flat surface.

8

ENGLISH

CAUTION

•Make sure that children do not climb on or hang

on the TV.

NOTE

•Use a platform or cabinet that is strong and large

enough to support the TV securely.

•Brackets, bolts, and ropes are optional. You can

obtain additional accessories from your local

dealer.

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for

a wall mount that supports the VESA standard

used by your TV model. Carefully attach the wall

mount bracket at the rear of the TV. Install the wall

mount bracket on a solid wall perpendicular to the

floor. If you are attaching the TV to other building

materials, please contact qualified personnel to

install the wall mount. Detailed instructions will

be included with the wall mount. We recommend

that you use an LG brand wall mount. The LG wall

mount is easy to adjust or to connect the cables.

When you do not use LG’s wall mount bracket,

use a wall mount bracket where the device is

adequately secured to the wall with enough space

to allow connectivity to external devices. If you are

using a non-adjustable mount, attach the mount

to the wall. Attach the cables to the TV first, then

attach the TV to the mount.

10 cm

10 cm

10 cm

10 cm

(4 inches)

Make sure to use screws and wall mounts that

meet the VESA standard. Standard dimensions for

the wall mount kits are described in the following

table.

Model

32LH570B

43LH570A

43LH5700

49LH570A

49LH5700

VESA (A x B) 200 x 200 300 x 300

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

(optional)

LSW240B

MSW240

LSW350B

MSW240

Model 55LH575A

55LH5750

VESA (A x B) 400 x 400

Standard screw M6

Number of screws 4

Wall mount bracket

(optional)

LSW440B

MSW240

A

B

CAUTION

•Remove the stand before installing the TV on a

wall mount by performing the stand attachment

in reverse.

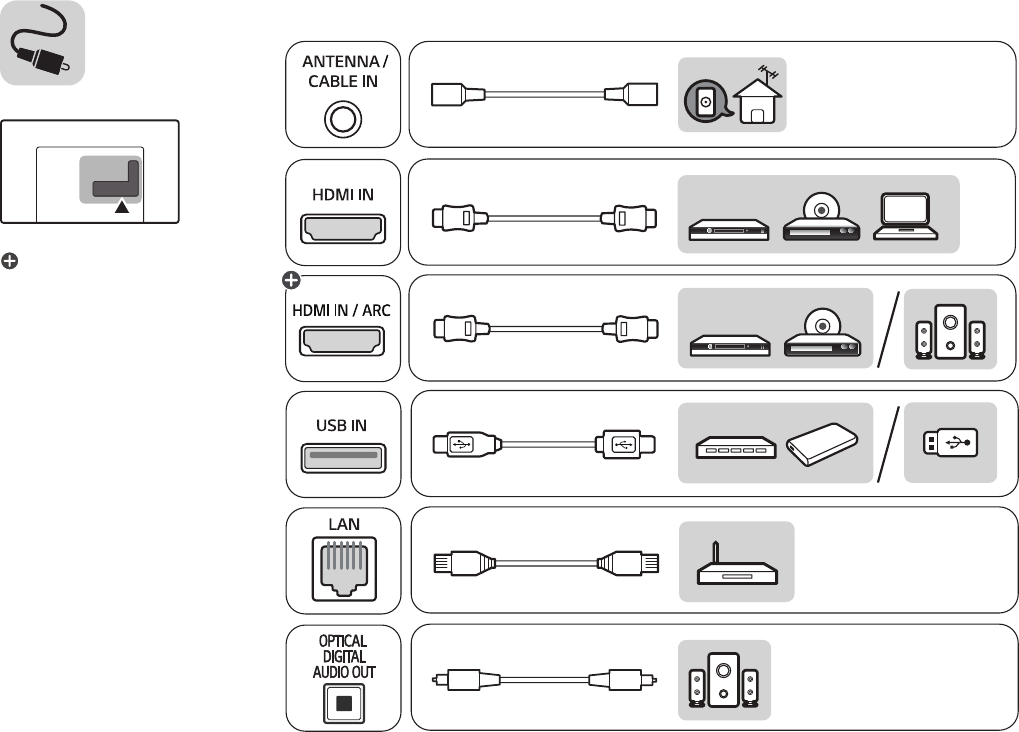

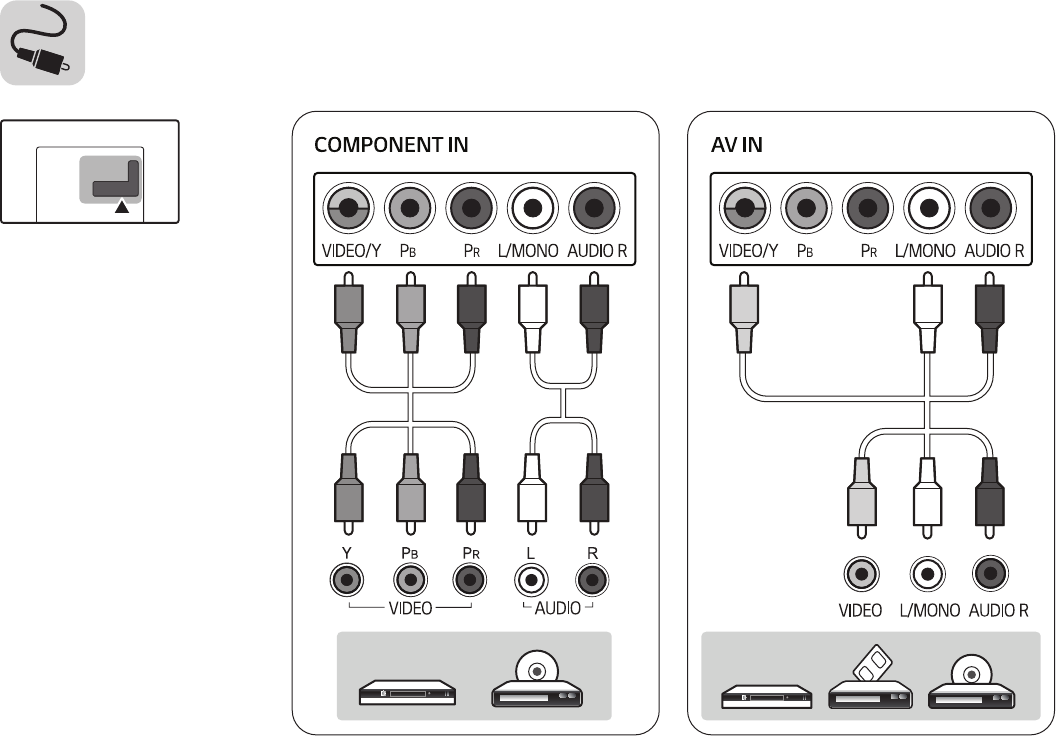

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD

players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices. For

more information on external device’s connection,

refer to the manual provided with each device.

NOTE

•If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input

cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to

the manual provided with the connected device.

•The external device connections shown may

differ slightly from illustrations in a manual.

•Connect external devices to the TV regardless

about the order of the TV port.

9

ENGLISH

•If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

•Refer to the external equipment’s manual for

operating instructions.

•In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast

or brightness. If noise is present, change the PC

output to another resolution, change the refresh

rate to another rate or adjust the brightness and

contrast on the PICTURE menu until the picture

is clear.

•The TV may be capable of operating without a

set-top from a multichannel video programming

distributor (MVPD).

Connecting to an Antenna or

Cable

Connect an antenna, cable, or cable box to watch

TV while referring to the following. The illustrations

may differ from the actual items and an RF cable is

optional.

CAUTION

•Make sure not to bend the copper wire of the RF

cable.

Copper wire

•Complete all connections between devices, and

then connect the power cord to the power outlet

to prevent damage to your TV.

NOTE

•Use a signal splitter to use 2 TVs or more.

•DTV Audio Supported Codec: MPEG, Dolby

Digital.

Other Connections

Connect your TV to external devices. For the best

picture and audio quality, connect the external

device and the TV with the HDMI cable.

NOTE

•HDMI Audio Supported Format:

DTS (44.1 kHz / 48 kHz),

AC3 (32 kHz / 44.1 kHz / 48 kHz),

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192

kHz) (Depending upon model)

Remote Control

(Depending upon model)

The descriptions in this manual are based on

the buttons on the remote control. Please read

this manual carefully and use the TV correctly. To

install batteries, open the battery cover, replace

batteries (1.5 V AAA) matching the and ends

to the label inside the compartment, and close

the battery cover. Failure to match the correct

polarities of the battery may cause the battery

to burst or leak, resulting in fire, personal injury,

or ambient pollution. To remove the batteries,

perform the installation actions in reverse. This

remote uses infrared light. When in use, it should

be pointed in the direction of the TV’s remote

sensor.

A

10

ENGLISH

A

(Power) Turns the TV on or off.

Returns to the last TV channel.

Activates or deactivates the subtitles.

Shows information on the current

program.

Resizes an image.

(Input) Changes the input source.

Number button Enters numbers.

(Dash) Inserts a dash between numbers such as

2-1 and 2-2.

Accesses the saved channel list.

Alternates between the two last

channels selected (pressing repeatedly).

Adjusts the volume level.

Accesses your favorite channel list.

Displays the program event according to

time scheduler.

(Mute) Mutes all sounds.

Scrolls through the saved channels.

Moves to the previous or next screen.

B

B

Changes the picture mode.

(Home) Accesses the Home menu.

Changes the sound mode.

(Q.Settings) Accesses the quick settings.

Accesses the quick menu.

Navigation button (up / down / left / right)

Scrolls through menus or options.

Selects menus or options and confirms your

input.

Returns to the previous screen.

Clears all on-screen displays and returns to TV

viewing.

Enables SAP (Secondary Audio Program)

feature.

Sets the length of time until the TV to turns

off.

, , , , Control buttons for media contents

Color buttons ( Red, Green, Yellow,

Blue) These access special functions in some

menus.

Licenses

Supported licenses may differ by model.

For more information about licenses,

visit www.lg.com.

External Control Device Setup

To obtain the external control device setup

information, please visit www.lg.com.

11

ENGLISH

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained in

this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the cost

of performing such distribution (such as the cost of

media, shipping, and handling) upon email request

to opensource@lge.com. This offer is valid for three

(3) years from the date on which you purchased

the product.

Troubleshooting

•Cannot control the TV with the remote control.

- Check if anything such as tape has been placed

over the receiver.

- Check if there is any obstacle between the

product and the remote control.

- Replace the batteries with new fresh ones.

•No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall

outlet.

- Check if there is a problem in the wall outlet by

connecting other products.

•The TV turns off suddenly.

- Check the power control settings.

The power supply may be interrupted.

- Check if the Sleep Timer / Timer Power Off

feature is activated in the Timers settings.

- If there is no signal while the TV is on, the TV

will turn off automatically after 15 minutes of

inactivity.

Specifications

Product specifications may be changed without

prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on

the FTC label is measured in accordance with the

Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the

usage environment (The content watched, TV

settings, etc.).

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,

CADTV 1-135

External Antenna Impedance

75 Ω

Environment condition

•Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

•Operating Humidity

Less than 80 %

•Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

•Storage Humidity

Less than 85 %

12

ENGLISH

Wireless LAN module

(WN8122E1) Specifications

Standard IEEE 802.11a/b/g/n

Frequency

Range

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz

Output Power

(Max.)

802.11a: 16.5 dBm

802.11b: 16 dBm

802.11g: 15.5 dBm

802.11n - 2.4 GHz: 15.5 dBm

802.11n - 5 GHz: 16.5 dBm

•As band channels can vary per country, the

user cannot change or adjust the operating

frequency. This product is configured for the

regional frequency table.

•For consideration of the user, this device

should be installed and operated with a

minimum distance of 20 cm (7.8 inches)

between the device and the body.

•Contains FCC ID: BEJWN8122E1 /

Contains IC: 2703H-WN8122E1

13

ENGLISH

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the

equipment and the receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference and (2) this device must accept any

interference received, including interference that

may cause undesired operation of the device. Any

changes or modifications in construction of this

device which are not expressly approved by the

party responsible for compliance could void the

user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users

of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with

and/or damage this device. This device cannot be

co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This transmitter must not be

colocated or operating in conjunction with any

other antenna or transmitter. This equipment

should be installed and operated with minimum

distance 20 cm (7.8 inches) between the radiator

and your body. Users must follow the specific

operating instructions for satisfying RF exposure

compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s

licence-exempt RSSs. Operation is subject to the

following two conditions:

1. This device may not cause interference; and

2. This device must accept any interference,

including interference that may cause undesired

operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm (7.8

inches) between the antenna & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

14

ENGLISH

WARNING

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

•The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the

potential for harmful interference to co-channel

mobile satellite systems;

•For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the bands 5250-5350 MHz and 5470-5725 MHz

shall be such that the equipment still complies

with the e.i.r.p. limit;

•For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the band 5725-5850 MHz shall be such that the

equipment still complies with the e.i.r.p. limits

specified for point-to-point and non-point-to-

point operation as appropriate; and

•The worst-case tilt angle(s) necessary to remain

compliant with the e.i.r.p. elevation mask

requirement set forth in Section 6.2.2(3) shall be

clearly indicated.(devices operating in the band

5250-5350 MHz with a maximum e.i.r.p. greater

than 200 mW)

•High-power radars are allocated as primary users

(i.e. priority users) of the bands 5250–5350 MHz

and 5650–5850 MHz and that these radars could

cause interference and/or damage to LE-LAN

devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected

to the grounding system of the building, as close

to the point of the cable entry as practical.

WARNING!

Never place a television set in an unstable

location. A television set may fall, causing serious

personal injury or death. Many injuries, particularly

to children, can be avoided by taking simple

precautions such as:

•Using cabinets or stands recommended by the

manufacturer of the television set.

•Only using furniture that can safely support the

television set.

•Ensuring the television set is not overhanging

the edge of the supporting furniture.

•Not placing the television set on tall furniture

(for example, cupboards or bookcases) without

anchoring both the furniture and the television

set to a suitable support.

•Not placing the television set on cloth or other

materials that may be located between the

television set and supporting furniture.

•Educating children about the dangers of

climbing on furniture to reach the television set

or its controls.

If your existing television set is being retained

and relocated, the same considerations as above

should be applied.

Symbols

Refers to alternating current(AC).

Refers to direct current(DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to

making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on

proper stands or installed according to the manufacturer’s recommendations. Televisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,

may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television

is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped

over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your

ability to safely mount your television.

• ALWAYS use a mount that has been recommended by the television manufacturer and has a

safety certication by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the television and mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount

installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the

purchase of a at-panel television. Special care should be made in the placement of older CRT

televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size

and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the

drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

CE.org/safety

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

Register your product Online!

www.lg.com

Declaration of Conformity

Trade Name: LG

Model: 32LH570B-UC, 43LH570A-UE

43LH5700-UD, 49LH570A-UE,

49LH5700-UD, 55LH575A-UE

55LH5750-UB

Responsible Party: LG Electronics Inc.

Address: 1000 Sylvan Ave. Englewood Cliffs NJ

07632 U.S.A

TEL: 201-266-2534

The model and serial numbers of the TV are located

on the back and on one side of the TV. Record them

below should you ever need service.

MODEL

SERIAL
