0Lif:e s G®ed
Click! User Guide
Please read this manual carefully before operating your TV
and retain it for future reference.
49UB8500 65UB9300 55UB9500
55UB8500 65UB9500
6QUBS5QQ
*MFL67987282*
65UC9700
wwwJg.com
P/NO : MFL67987282 (1406-REV02)

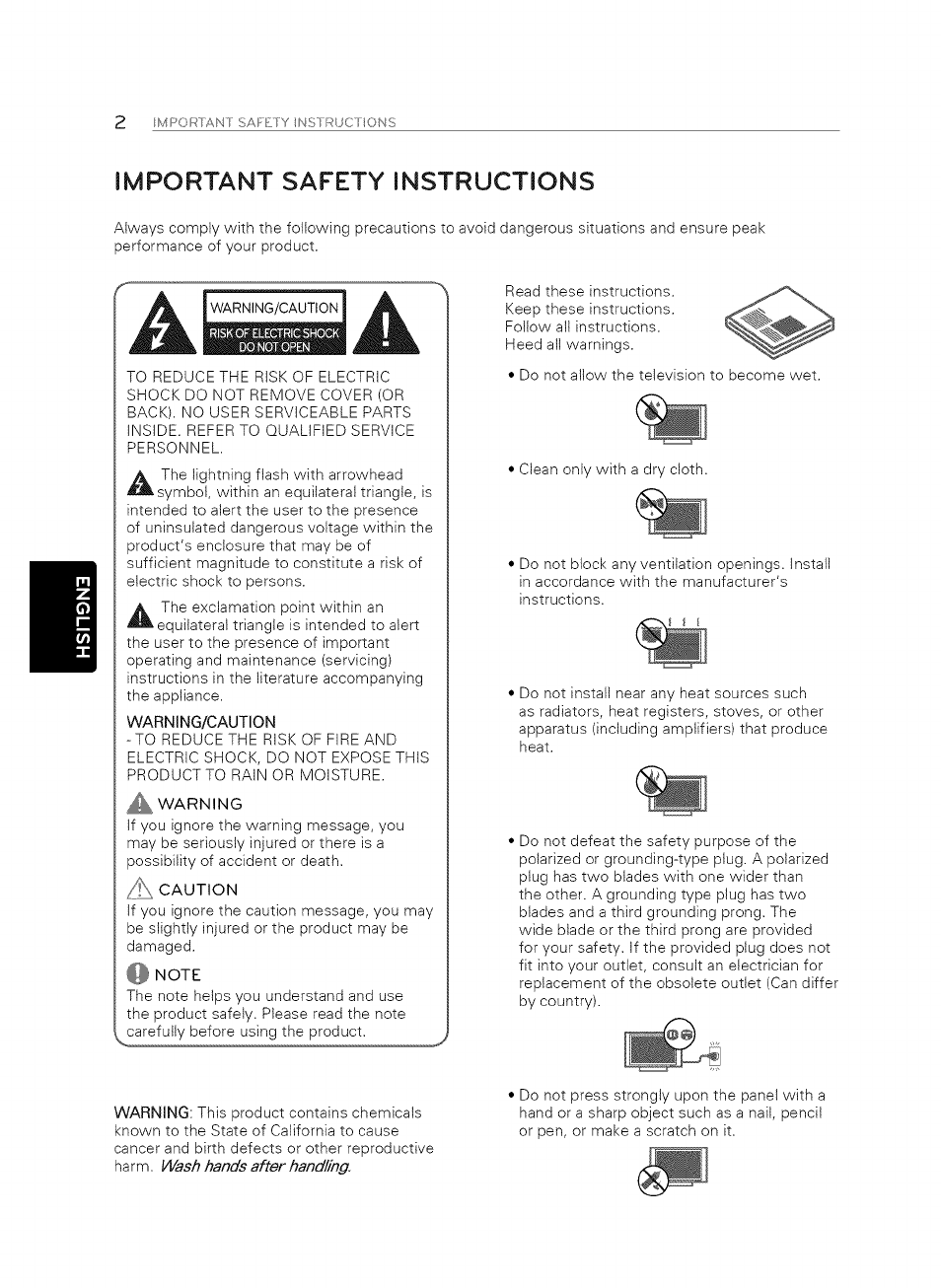

2 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
_1 The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated dangerous voltage within the
product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
_t_ The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
S\ CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
@ NOTE
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
Read these instructions.
Keep these instructions.
Follow all instructions.
Heed all warnings.
• Do not allow the television to become wet.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ
by country).
WARNING: This product contains chemicals
known to the State of California to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
• Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
IMPORTANT SAFETY INSTRUCTIONS 3
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
• Only use attachments/accessories specified
by the manufacturer.
• Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
.@
• Unplug this apparatus during lightning storms
or when unused for long periods of time.
• Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
CAUTION concerning the Power Cord
(Can differ by country):
Check the specification page of this owner's
manual to be certain. Do not connect too
many appliances to the same AC power
outlet as this could result in fire or electric
shock. Do not overload wall outlets.
Overloaded watl outlets, loose or damaged
walt outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, walt outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
• Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
I
• Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
• Keep the packing anti-moisture material
or vinyl packing out of the reach of
children. Anti-moisture material is harmful
if swallowed. If swallowed by mistake,
induce vomiting and go to the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
• Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
4IMPORTANT SAFETY INSTRUCTIONS
• Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightning rods, or gas pipes.
• As long as this unit is connected to the AC
wall outlet, it is not disconnected from the AC
power source even if the unit is turned off.
• Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user's authority to operate this
product.
• Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC)in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
....................
(NEe Sedlon 810-20)
Grounding Co_ductot
(NEe Sedlon 810-21)
Groun C Power Service Grounding
Electrode System
NEC: National Dect Flcal Code (NEe Art 250, Part H)
• Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals such
as alcohol, thinners, or benzine.
• Moving
Make sure the product is turned off,
unplugged, and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
• Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not install in excessively dusty places.
• If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during
a lightning storm.
• When mounting a TV on the walt, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
• Do not allow an impact shock, any objects to
fall into the product, and do not drop anything
onto the screen.
• DISCONNECTING TIlE DEVICE FROM TIlE
MAIN POWER
The Power Plug is the disconnecting device.
In case of an emergency, the Power Plug
must remain readily accessible.
• Batteries
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
• This apparatus uses batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble, or allow
the batteries to overheat.

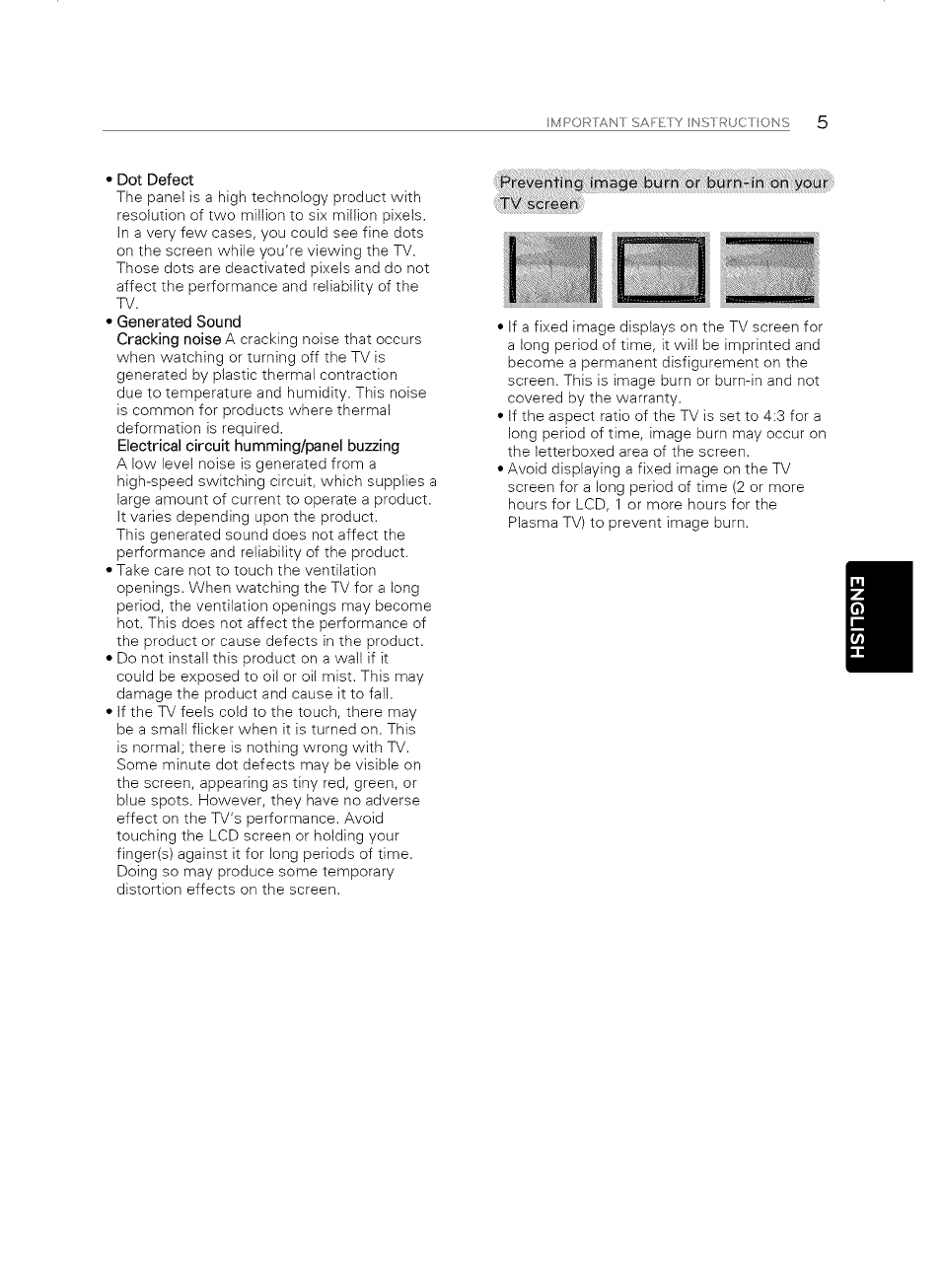

•Dot Defect
The panel is a high technology product with
resolution of two miliion to six million pixets.
In a very few cases, you could see fine dots
on the screen while you're viewing the TV.
Those dots are deactivated pixets and do not
affect the performance and reliability of the
TV.
• Generated Sound
Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing
A low level noise is generated from a
high-speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending upon the product.
This generated sound does not affect the
performance and reliability of the product.
• Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
• Do not install this product on a wall if it
could be exposed to oil or oil mist. This may
damage the product and cause it to fall.
• If the TV feels cotd to the touch, there may
be a small flicker when it is turned on. This
is normal; there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV's performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
IMPORTANT SAFETY INSTRUCTIONS 5
• If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.
6 IMPORTANT SAFETY INSTRUCTIONS
I
f
For USA and Canada
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device. Any
changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
IMPORTANT SAFETY INSTRUCTIONS 7
Viewing 3D imaging (For 3D models)
WARNING
•Viewing Time
- When watching 3D content, take 5 to 1 5 minute breaks every hour. Viewing 3D content for a long
period of time may cause headache, dizziness, fatigue or eye strain.
• Some users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D content.
• Do not watch 3D videos if you feet nauseous, are pregnant and /or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Content is not recommended for those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight), or astigmatism, you may have
trouble sensing depth and easily feet fatigue due to double images. It is advised to take more
frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
content.
• Do not watch 3D content when you feet fatigue from lack of sleep, overwork, or intoxication.
• When these symptoms are experienced, stop using/watching 3D content and get enough rest until
the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, define visual inconvenience, or
fatigue.
8 IMPORTANT SAFETY INSTRUCTIONS
S_II_:_CAUTION
•Viewing Distance
- Maintain a distance of at least twice the screen's diagonal length when watching 3D content. If you
feel discomfort in viewing 3D content, move further away from the TV.
• Infants /Children
- Usage/Viewing 3D content for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring
and extra attention is required for children watching 3D content.
- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
• Teenagers
- Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not
to watch 3D videos for a long time when they are tired.
• Elderly
- The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the
recommended distance.
• Only use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses, or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easily scratched. Use a soft, clean piece of cloth when wiping
the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with
chemicals.
LC NSES/OP N _O ;RC SOF-_WARE 4OTIC
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www./g.com.
HB2.0+DigitalOut
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in
this product, please visit httpJ/opensource./ge.com. In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon emait request to
opensource@/ge.com. This offer is valid for three (3) years from the date on which you purchased the
product. /
_@ NOTE
I' Image shown may differ from your TV.
I" Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
I" The available menus and options may differ from the input source or product model that you are
uslng.
l" New features may be added to thisTV in the future.
10 TABLE OF CONTENTS
TABLE OF CONTENTS
IMPORTANT SAFETY
INSTRUCTIONS
2
7 Viewing 3D imaging (For 3D models)
9 LICENSES
9 OPEN SOURCE SOFTWARE
NOTICE
10 TABLE OF CONTENTS
11 INSTALLATION PROCEDURE
11 ASSEMBLING AND PREPARING
11
13
14
15
16
17
17
19
20
21
Unpacking
Optional Extras
Parts and Buttons
- Using the Joystick Button
Lifting and Moving the TV
Setting Up the TV
- Attaching the Stand
- Mounting on a Table
- Mounting on a Wall
- Tidying Cables
22
22
23
MAKING CONNECTIONS
Connecting to an Antenna or Cable
Connecting to an HD receiver, DVD
player, or VCR
23 - HDMI Connection
24 - DVI to HDMI Connection
25 - Connecting to a Mobile Phone
26 - Component Connection
27 - Composite Connection
28 Connecting to a PC
28 - HDMI Connection or DVI to HDMI
Connection
30 Connecting to an Audio System
30 - Digital Optical Audio Connection
31 Connecting Headphones
32 Connecting a USB device
33
34
34
34
MAGIC REMOTE FUNCTIONS
Registering Magic Remote
How to use Magic Remote
Precautions to Take when Using the
Magic Remote
35 USING THE USER GUIDE
35 EXTERNAL CONTROL DEVICE
SETUP
36 SPECIFICATIONS
38 MAINTENANCE
38 Cleaning your TV
38 - Screen, Frame, Cabinet, and Stand
38 - Power Cord
38 TROUBLESHOOTING
NSTALLA-CN PROCEDUFE!ASSEMBLNGANDPREPAF NG 11
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
* When the TV is turned on for the first time after being shipped from the factory, initialization of
the TV may take up to one minute.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
.....S_'_CAUTION ................................................................................................................................................................................................................................................................................................................................................................................................................................
Do not use any unapproved itemsto ensurethe safetyand product'slifespan.
• Any damages orinjuriesby usingunapproved items are notcovered by thewarranty,
• Some models appear to have a thinfilmon the screen,Itisactuallypartofthe screen;do not
remove it.
.....@ NOTE
•The items suppliedwith your productmay varydepending upon the _ i...
model.
• Productspecificationsorcontentsof thismanual may be changed
withoutpriornoticedue to upgrade ofproductfunctions.
• Foran optimalconnection,HDMI cablesand USB devicesshould
have bezelslessthan 10 mm (0,39inches)thickand 18 mm -.......
(0.7 inches) width. _A _-<10 mm (0.39 inches)
• Use an extension cable that supports USB 2.0 if the USB cable or _B _-<18 mm (0.7 inches)
USB flash drive does not fit into your TV's USB port.
/
12 ASSEMBLNG AND PRE_ARNG
BD
Magic Remote,
Batteries (AA)
(Depending upon model.)
(See page 33.)
(For 49/55/60UB8500,
65UB9300, 55/65UB9500)
L
Stand Base, Stand Body
(See page 17.)
(For 49/55/60UB8500)
Ferrite core
(See page 13,)
Cable Holder
(See page 21.)
Tag On
(Depending upon model.)
Owner's Manual
(For 49/55/60UB8500,
65UB9300, 55/65UB9500)
Stand Screws
SEA, M4xL20
(See pages 17 and 18.)
Component Video Cable
(See page 26.)
Cable Management
2 EA
(Depending upon model.)
(See page 21.)
Cinema 3D Glasses
The number of 3D glasses
may differ depending upon
the modet or country.
(Depending upon model.)
Power Cord
(Depending upon model.)
HDMI cable
(Depending upon model.)
(See pages 23 and 28.)
Composite Video Cable
(See pages 26 and 27.)
® ©o ® I
Video call camera
(Depending upon model.)
Dual play glasses
(Depending upon model.)
ASSEMBLNGANDPREPAF NG 13
-_@ NOTE
For 49/55/60UB8500)
• How to use the ferrite core (Depending upon model,)
• Use the ferrite core to reduce the electromagnetic interference in the LAN cable.
Wind the LAN cable once on the ferrite core. Place the ferrite core close to the TV,
to the TV L_-_ to an External
device
Ferrite core [Cross Section of
Ferrite Core]
\
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
The model name or design may be changed due to the manufacturer's circumstances or policies.
AG-F*** AG-F***DP AN-MR500
Cinema 3D Glasses Dual Play Glasses Magic Remote
Tag On LG Audio Device AN-VC5**
Video Call Camera
(Depending upon model.)
, 65UC9700 -
I I
AG-F*** Cinema 3D Glasses . • .
, I
AG-F***DP Dual PlayGlasses , O ,
I I
Tag On _ ® O
(Dependingupon model.) '
14 ASSEMB NG AND PREPAR NG
Parrs and Buttons
(For 49/55/60U B8500)
Speakers [ ..........."._. ...................................
Intelligent Sensorl_ [" Joystick Button 2
Remote Control Sensor_ ._..
Power ,ndicator_ _*@'L._ '
(For 65UB9300, 55/65UB9500, 65UC9700)
3
RemOte t
1. Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2. Joystick button is located behind the screen of TV.
3. Joystick button is located below the screen of TV.
"®NOTE
• You can set the power indicator light to on or off by selecting GENERAL in the main menus.
upon
(Depending model)
ASSEMBLNGANDPREPAF NG 15
Using the Joystick Button
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
V
.... :TCT'_7"-'_When the TV is turned off, place your finger on the joystick button, press it once
Power On and release it.
--._o_=:e=.T_._.oo._._o.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Power Off When the TV is turned on, place your finger on the joystick button, press it once
for a few seconds and release it.
Volume control if you place your finger over the joystick button, move it left or right, you can
adjust the volume level you want.
@ NOTE
l. With your finger over the joystick button, move it up, down, left, or right, be careful not to press the ]
joystick button. If you press the joystick button first, you can not adjust the volume level and/or scroll
through saved channels.
When the TV is turned on, press the joystick button one time.
You can adjust the menu items (@,X, r.__)moving the joystick button left or right.
16 ASSEMB NGAND PREPARNG
Lifting and Moving theTV
When moving or lifting the TV, read the
following to prevent the TV from being
scratched or damaged and for safe
transportation regardless of its type and size.
F_ CAUTION
• Avoid touching the screen at alt times, as "
this may result in damage to the screen.
• Do not place the product on the floor with its
I front facing down without padding. Failure to
L do so may result in damage to the screen.
• it is recommended to move the TV in the
box or packing material that the TV originally
came in.
• Before moving or lifting the TV, disconnect
the power cord and all cables.
• When holding the TV, the _'_
screen should face away from
you to avoid damage.
• Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
• Use at least two people to
move a large TV.
• When transporting the TV by
hand, hold the TV as shown in
the following illustration.
• When transporting the TV, do not expose the
TV to jolts or excessive vibration.
• When transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right.
ASSEMBLNGANDPREPAF NG 17
Setting Up the TV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment
center or other furniture.
Attaching the Stand
If you are not mounting the TV to a walt, use the following instructions to attach the stand.
......._ CAUTION
oWhen attaching the stand to the TV set, place the screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
•Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not fasten the screws with excessive force otherwise they may be worn out and become loose.
(For 49/55/60UB8500, 65UB9300, SS/6SUBgSO0)
StandBody
Body (R)
Stand Base
M4 x L20
4 EA
[_ Attach the stand to the TV using the upper
mounting hole on the back of the TV.
[_ Attach the stand to the TV using the lower
connection on the back of the TV.
18 ASSEMB NGANL PREPARNG
M4 x L20
4 EA
ASSEMBLNGANDPREF>/_RNG 19
Mounting on a Table
Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (4 inches) (minimum) space
from the walt for proper ventilation.
lO crn
(4 inches)
(Depending upon model.)
L...................°v°
2 Connect the power cord to a wall outlet.
._& CAUTION
* Do not place the TV near or on sources
of heat, as this may result in fire or other
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to
the wall. Match the location of the wall
bracket and the eye-bolts on the rear of the
TV.
3 Connect the eye-bolts and walt brackets
tightly with a sturdy rope or cable. Make
sure to keep the rope paraliet to the fiat
surface.
/
_@ NOTE
l. Use a platform or cabinet that is strong and
large enough to support the TV securely.
• Brackets, bolts, and ropes are optional. You
can obtain additional accessories from your
/ local dealer ,,/
20 ASSEMB NGAND PREPARNG
Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the
wall mount bracket at the rear of the TV.
Install the walt mount bracket on a solid wall
perpendicular to the floor. If you are attaching
the TV to other building materials, please
contact qualified personnel to install the wall
mount. Detailed instructions will be included
with the wall mount. We recommend that you
use an LG brand walt mount. When you do not
use LG's walt mount bracket, please use a watl
mount bracket where the device is adequately
secured to the wall with enough space to allow
connectivity to external devices.
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
60UB8500
.. 49i55uBssoo65uBgsoo
Moae! 55UB9500 i65UB9500
65UC9700
VESA (Ax B)
400 x 400 400 x 400
Standard screw M6 M6
Number of screws
Wall mount bracket LSW440B
(optional) MSW240
Wall mount_brac_ke_optional):_i
LSW440B
MSW240
., _]_, CAUTION
• Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
• If you install the TV on a ceiling or slanted
wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel. When using a third-party walt
mount, it is not covered by the warranty.
• Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
• Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
,@ NOTE .......................................................................................................................................................
• Use the screws that are listed in the VESA
standard screw specifications.
• The wall mount kit includes an installation
manual and necessary parts.
• The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
• The length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
• For more information, refer to the manual
supplied with the wall mount.
ASSEMBLNGANDPREPAF NG 21
Tidying Cables
1 Gather and bind the cables with the Cable
Holder and Cable Management.
v
Cable Holder_
Cable Management
_//_'\ CAUTION
•Do not move the TV by holding the cable
holder and cable management, as the cable
holders may break, and injuries and damage
to the TV may occur.
22 MAKNG CONNFCTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device's connection, refer to the manual provided with each device.
;@ NOTE
I Ifyou record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
I cable to the TV through a DVD recorder or VCR, For more information about recording, refer to the
I manual provided with the connected device,
I" The external device connections shown may differslightlyfrom illustrationsin thismanual,
I" Connect external devices to the TV regardless about the order of the TV port,
I" Ifyou connect a gaming device to the TV, use the cable supplied with the gaming device,
[,,Refer to the ex!ema!equ!pmentls manuaL!or opera t!ng !nst[uct#0ns
Connecting to an Antenna or Cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is optional.
VHF Antenna
UHF Antenna
Antenna
Coaxial (75C_)
(*Not provided)
e
Terminal
,. _"_, CAUTION
• Make sure not to bend the copper wire of
the RF cable.
• Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
F@ NOTE
• Use a signal splitter to use 2 TVs or more.
• DTV Audio Supported Codec: MPEG,
Dolby digital.
MAKNG CONNFCTIONS 23
Connecting to an HD receiver, DVD player, or VCR
Connect a HD receiver, DVD player, or VCR to the TV and select an appropriate input mode,
HDMI Connection
HDMI is the best way to connect a device,
Transmits digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMi cable as shown in the following illustration.
i@ ....................................................................................................................................................................................................................................................................................................................................................................................................................
NOTE
Use the latest High Speed HDMt Cable that supports CEC (Customer Electronics Control) function.
High Speed HDMI TM Cables are tested to carry an HD signal up to 1080p and higher.
HDMI Audio Supported Format: PCM (32 kHz /44.1 kHz /48 kHz /96 kHz /192 kHz)
When you use an HDMI cable (HDMt port3), it is recommended that you use the cable provided. If
_Y.?UIS I a__Igul a! HDy.!_? ab!l, use ah h-sp ab!l._!3m Irt I Dlpendi g up?n mldll! ......
Choose any HDMI input port to connect,
It does not matter which port you use,
Blu-Ray /HD Cable Box /HD STB /DVD
|
|
|HDMI Cable
HDMI I /
|
|
|
ARC (Audio Return Channel)
• When connected with a hlgh-speea
HDMI cable, digitat audio can oe sent to a
compactible device without an additional
oottcat audio cable.
• ARC is only supportea on tne HDMJ IN 2
(ARC) port. An external audio device that
supports ARC shouta De connectea to HDMI
IN 2 [ARC) if _ou wish to use ARC.
._@ NOTE
• HDMI specifications may be different for
each input port, so make sure to check the
device specifications before connecting.
• Contact customer service for more
information on the HDMI specifications of
each nput port.
24 MAKNG CONNFCTIONS
DVl to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and
the TV with the DVI-HDMI cabte as shown in the following illustration. To transmit an audio signal,
connect an audio cable.
NOTE
[o When using the HDMI/DVI cable, Single link is only supported.
Choose any HDMI input port to connect,
It does not matter which port you use.
|
|
|
|
|
|
|
|
|
|
|
(*Not provided)
DVI OUT
AUDIO OUT
(_Not provided) Blu-Ray /HD Cable Box /DVD
MAKNGCONNFCTIONS 25
Connecting to a Mobile Phone
Mobile High-definition Link (MHL) is an interface for transmitting digital audio/visual signals from mobile
phones to television sets.
,@ NOTE
•Connect the mobile phone tothe HDMII4K@6OHz)/DVI IN4 (MHL) porttoview the phone screenon
the TV.
•Thisonlyworks with an MHL-enabled phone.
•With some MHL supportingmobilephones,you can use the TV remote tocontrolthe phone.
•An MHL passivecableisneeded toconnect the TV and a mobile phone.
• Remove the MHL cablefrom the TVwhen:
-the MHL functionisdisabled
-your mobiledeviceisfullycharged instandbymode
@
MHL Cable
(_Not provided)
Mobile phone /
26 MAKNG CONNFCTIONS
Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with a component cable as shown in the following illustration.
,0 NOTE
*If cables are installed incorrectly, it could cause the image to disptay in black and white or with
/ distorted color.
/°Check to ensure the cables are matched with the corresponding color connection.
YELLOW
(Use the composite video cable provided.)
GREEN
(Use the component video cable provided.)
(_Not provided) __
T
...... 1, 1{ ........ .....
Blu-Ray /HD Cable Box /DVD
MAKNG CONNFCTIONS 27
Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
_@ NOTE
I' Ifyou have a mono VCR, connectthe audiocablefrom the VCR tothe AUDIO L/MONO jack
of the TV,
/ • Check to ensure the cables are matched with the corresponding color connection.
iiiiiiiiiiiii!_*
iiiiiii:_
iiiiiiiiiiiiii:i /
YELLOW
(Use the composite video cable provided.)
(_Not provided)
Blu-Ray /HD Cable Box /DVD
28 M>_KNG CONNFCTIONS
Connecting to a PC
.@ NOTE
• Use an HDMI connection for the best image quality.
• Depending upon the graphics card, DOS mode video may not work if a HDMI to DVI Cabie is in use.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC output to another resolution, change the refresh rate
to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• The synchronization input form for Horizontal and Vertical frequencies is separate.
• Depending upon the graphics card, some resolution settings may not allow the image to be
positioned on the screen properly.
• If you are using DVI out from a PC, you have to connect analog audio separately. Refer to the
instructions on the next page.
• When using the HDMI/DVI cabte, only singte link is supported.
• If Ultra HD content is piayed on your PC, video or audio may become disrupted intermittently
depending upon your PC's performance.
HDMI connection or DVl to HDMI connection
I Choose method A or B to make connection.
Choose any HDMI input port to connect.
It does not matter which port you use.
a
|
i
|
,4
I
i
I
i
i
HDMI Cable
HDMI
PC
MAKNG CONNFCTIONS 29
Choose any HDMI input port to connect,
It does not matter which port you use,
(_Not provided)
DVI OUT
@
l AUDIO OUT
PC
.30 M/_KNG CONNI-CTIONS
Connecting fo an Audio System
You can use an optional external audio system instead of the built-in speaker.
Digital Optical Audio Connection
Transmits a digital audio signat from the TV to an external device. Connect the external device and the
TV with the optical audio cabte as shown in the following illustration.
O NOTE
/* Do not look into the optical output port. Looking at the laser beam may damage your vision.
|* Audio with ACP (Audio Copy Protection) function may btock digital audio output.
\
iii!_iiiii
OPTICAL AUDIO IN
m
i
Digital Audio
System
MAKNG CONNFCTIONS 3_
Connecting Headphones
Listening to sound with headphones.
.......O NOTE
• Do not use headsets (earphones) at high volume or for a long time. It may cause damage to your
hearing.
• AUDIO menu options are disabled when headphones are connected.
• When changing AV MODE with a headphone connected, the change is applied to video but not to
audio.
• Optical Digital Audio Out is not available when connecting a headphone.
• Headphone impedance: 16 _
• Max audio output: 0.627 mW to 1.334 mW
• Headphone jack size: 3.5 mm
\ .....................................................
Headphone I
32 MAKNG CONNFCTIONS
Connecting a USB device
Connect a USB storage device such as USB flash memory, external hard drive, or a USB memory card
reader to the TV.
;_ NOTE
' Some USB Hubs may not work. Ifa USB device connected through a USB Hub isnot detected,
I connect itdirectlyto the USB port on the TV.
I" Connecting guide for USB 3.0 :
I Some USB device may not work ifitdoes not meet USB 3.0 standard.
Choose any USB port to connect.
It does not matter which port you use.
(_Not provided)
(*Not provided)
USB
: :)
USB Hub
MAGI(}REMOT_FUNCTIONS33
MAGIC REMOTE FUNCTIONS
When the message Magic remote battery is/ow. Change the battery, is displayed,
replace the battery. To install batteries, open the battery cover, replace batteries
(1.5 V AA) matching _ and (-_ ends to the label inside the compartment, and close the
battery cover. Be sure to point the remote control at the remote control sensor on the TV. To remove
the batteries, perform the installation actions in reverse.
._:_ CAUTION
Do not mix old and batteries, this the remote control.
new as may damage
This remote uses infrared light. When in use, it should be pointed
sensor.
(POWER)
Turns the TV on or off.
Returns to the previous screen.
@ Wheel
Press the center of the Wheel
button to select a menu. You can
change channels and scroll the
menu by using the Wheel button.
(EXIT to LIVE)
Switches among broadcast
(antenna) and various inputs.
Color
These access special functions in
some menus.
(O: Red, _: Green,
_: Yellow, _: Blue) I
+ VOL--_
Adjusts the volume level, w_
m_[] I\
/INPUT _' ..............
Displays the Screen Remote.
• Accesses the Universal Control
Menu in some regions.
• Pressing and holding the ,_u_l_l_/_/
button will display a menu to
select an external device that is
connected to the TV.
3D
Used for viewing 3D video.
_o (MUTE)
Mutes all sounds.
• By pressing and holding the
_o button, VD function will be
enabled.
• SAP (Secondary Audio Program)
Feature can also be enabled by
pressing the _1"_okey.
4%CH_4
Scrolls through the saved
channels.
in the direction of the TV's remote
'_ (Home)
Accesses the Home menu.
_7 <3 D (up/down/left/right)
Press the up, down, left or right
button to scroll the menu. If you
press & _2 <3D buttons while the
pointer is in use, the pointer will
disappear from the screen and
Magic Remote will operate like a
general remote control. To display
the pointer on the screen again,
shake Magic Remote to the left
and right.
_, (Voice recognition)
Network connection is required
to use the voice recognition
function.
1. Press the voice recognition
button.
2. Speak when the voice display
window appears on the left of
the TV screen.
• Use the Magic Remote no
further than 10 cm (4 inch)
from your face.
• The voice recognition may fail
when you speak too fast or too
slowly.
• The recognition rate may
vary depending upon the
user's characteristics (voice,
pronunciation, intonation, and
speed) and the environment
(noise and TV volume).
34 MAGCR_MOT_F_NCTONS
Registering Magic Remote
The Magic Remote operates by pairing with
our TV.
with your TV.
1Put batteries into the Magic
Remote and turn theTV On.
2 POint the Magic Remote at your TV
and press the (D Wheel {OK)on
{Wee) the remote control.
' if the TV fails tO regis£er the Magic
Remotel try again after turning the
TV off and back on.
and
<_ _ (Home)buttons at the Same time}
fo r five sec0nds, to unpair the Magic
{BACK) Remote With Y0urT V,
• Puressing and holding the
(H_me) _ (EXIT to LIVE) huron wil! let
You Cancel and reiregister Magic
Remote at once.
How to use Magic Remote
to _he right and left 0r press
{Home), _, 3B buttons to
make the pointer appear On the
Screen. (in some TV models, the
pointer Will appear When You turn
the Wheel button.)
i!f the pointer has not Been Used for
a certain period of time or Magic
Remote is placed on a flat Surface:
then the pointer will disappear,
• !f the pointer does not move as
YoU wish, shake Magic Remote to
the left and right. The pointer will
move to the Center of the screen.
• The Magic Rem0te depletes
batteries faster than a normal
remote duet0 the additional
features.
Precautions to Take when Using
the Magic Remote
• Use the Magic remote within the maximum
communication distance (10 m, 32.8 ft).
Using the remote control beyond this
distance, or with an object obstructing it, may
cause a communication failure.
• A communication failure may occur due to
nearby devices. Electrical devices such as
a microwave oven or wireless LAN product
may cause interference, as these use the
same bandwidth (2.4 GHz) as the Magic
remote.
• The Magic remote may be damaged or may
malfunction if it is dropped or receives a
heavy impact.
• Take care not to bump into nearby furniture
or other people when using the Magic
remote.
• Manufacturer and installer cannot provide
service related to human safety as the
applicable wireless device has possibility of
electric wave interference.
• It is recommended that an Access Point (AP)
be located more than 1 m (3.28 ft) away from
the TV. If the AP is installed closer than 1 m
(3.28 ft), the Magic remote may not perform
as expected due to frequency interference.
JSNG JSERGJDE:/ EX-ER,_A CONTRO LE:VICE oE3 JR 35
USING THE USER GUIDE
User Guide allows you to easily access detailed
TV information.
1 Press _:_ (Home) button to access the
Home menu.
2 Select User Guide and press the
_} Wheel (OK) button.
EXTERNAL CONTROL
DEVICE SETUP
To obtain the external control device setup
information, please visit www./g.com.
3_ 8PEC F CAT (} NS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Te/evision=Systoem ATSC, NTSC-M, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135
External Antenna ImpedanCe 75 _
i0 °C to 40 °C (32 °F to 104 °F)
Less than 80 %
-20 °C to 60 °C (-4 °F to 140 °F)
Less than 85 %
Dimensions
(W x H x D)
Weight
Current Value /Power consumption
Power requirement AC 100 - 240 V - 50 /60 Hz
Dimensions
(W x H x D)
Weight
Power requirement
1,093 x 689 x 242 (ram)
43.0 x 27.1 x 9.5 (inch)
1,093 x 646 x 38.2 (ram)
43.0 x 25.4 x 1.5 (inch)
18.2 kg (40.1 Ibs)
17.5 kg (38.5 Ibs)
1.8A/180W
(55UB8500-UA)
1,233 x 766 x 260 (mm)
48.5 x 30.1 x 10.2 (inch)
1,233 x 727 x 37.8 (mm)
48.5 x 28.6 x 1.4 (inch)
21.2 kg (46.7 Ibs)
20.5 kg (45.1 Ibs)
1.gA/190W
1,351 x 833 x 289 (ram)
53.1 x 32.7 x 11.3 (inch)
22.5 kg (49.6 Ibs)
21.8 kg (48.0 Ibs)
AC100-240V~50/60Hz
Dimensions
(W x H x D)
With stand
Without stand
With stand
Without stand
Weight
Current Value /Power consumption
Power requirement
(65UB9300-UA)
1,452 x 914 x 300 (ram)
57.1 x 35.9 x 11.8 (inch)
1,452 x 858 x 37 (ram)
57.1 x 33.7 x 1.4 (inch)
34.8 kg (76.7 Ibs)
33.7 kg (74.2 Ibs)
2.3 A/230W
AC120V-50/60Hz
SP C F CATIONS 37
i' '! iC'_'M_0DELS-_ 55UB9500
(55UB9500-UA)
Dimensions
(W x H x D)
Weight
With stand
Without stand
With stand
Without stand
Current Value /Power consumption
Power requirement
1,232 x 782 x 260 (mm)
48.5 x 30.7 x 10.2 (inch)
1,232 x 734 x 37 (mm)
48.5 x 28.8 x 1.4 (inch)
23.8 kg (52.4 Ibs)
23.1 kg (50.9 Ibs)
2.1A/210W
AC100-240V-50/60Hz
65UB9500
(65UB9500-UA)
1,452 x 914 x 300 (ram)
57.1 x 35.9 x 11.8 (inch)
1,452 x 858 x 37 (ram)
57.1 x 33.7 x 1.4 (inch)
34.8 kg (76.7 Ibs)
33.7 kg (74.2 Ibs)
2.3 A/230W
AC120V-50/60Hz
MODELS 65UC9700
'(65UC9700_UA)
With stand 1,391 x 881 x 340 (mm)
Dimensions 54.7 x 34.6 x 13.3 (inch)
(W x H x D) 1,391 x 824 x 56.0 (mm)
Without stand
54.7 x 32.4 x 2.2 (inch)
Weight With stand 35.7 kg (78.7 Ibs)
Without stand 33.0 kg (72.7 Ibs) /
Power requirement AC 120 V_ 50 /60 Hz
Wireless module (LGSBW41) Specifications 'CJ
-==-=== ° °=Standard '=_° ..............IEEE 802.11 a/b/g/n =_°°_-=--standard............. --- ------ - _Bluetooth Version--3.O--
2400 to 2483.5 MHz "===_= °°=--=_°=-
Frequency range 5150 to 5250 MHz FrequenCy [ange 2400 to 2463.5 MHz
5725 to 5850 MHz
.................................................................602.11o 11.5dBm °=°....................
802.11b: 11 dBm
Output power(Max.) 802.11g: 10.5 dBm output p0wer(aaxr] 0 dBm or Lower
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
• Because band channel used by the country could be different, the user can not change or adjust the operating
frequency and this product is set for the regiona{ frequency tame.
• This device should be installed and operated with minimum distance 20 cm (7.8 inch) between the device and your
body. And this phrase is for the general statement for consideration of user environment.
• Contains FCC ID: BEJLGSBW41 /Contains IC: 2703H-LGSBW41
38 MANTENANCE !W:>_OJBLESFOOTNG
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep it at peak performance and to extend the product's lifespan,
._/_'\,, CAUTION
Before cleaning, turn the power off and disconnect the power cord and all other cables.
When the TV is left unattended or unused for a long time, disconnect the power cord from the walt
utiei 0 tni 0 damage!:omt!ghtn2gorpowerSu!ges:
Screen, Frame, Cabinet, and Stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
_'_, CAUTION
/_-Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
| scratches on the screen and image distortions,
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or
| lubricants, as these may damage the screen's finish and cause discoloration,
• Do not spray liquid onto the surface, If water enters the TV, it may result in fire, etectric shock, or
malfunction. J
Power Cord
Remove the accumulated dust or dirt on the power cord regularly,
TROUBLESHOOTING
Problem
Cannot control the TV with
the remote control,
No image display and no
sound is produced.
The TV turns off suddenly.
Solution
• Check if anything such as tape has been placed over the receiver.
• Check if there is any obstacle between the product and the remote
control.
• Replace the batteries with new fresh ones.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other
products.
• Check the power control settings. The power supply may be interrupted.
• Check if the Sleep Timer /Timer Power Off feature is activated in the
TIMERS settings.
• If there is no signal while the TV is on, the TV will turn off automatically
after 15 minutes of inactivity.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
.Manufacturers, retailers and Lhe rest of the consumer elec ror_ics irdustry are committed Lo
rnakin£ home enterLainment safe and epjoyable
.As you eqoy your television, please note that all televisions new and old must be supported on
proper stands or installed according to the manufacturer's recommendations lelevisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, cars, etc,
rnay fall over, resultin£ in injury
TUNE INTO SAFETY
.ALWAYS follow the rnar_ufacturer's recornrner_datiors for the safe instalbtion o{ your elevisior_
.ALWAYS read and follow all instructions for proper use o{ your elevision
. NEVER allow children o climb on or play on the television or he furniture on which he television
is placed
. NEVER pbce the television on {urniture hat can easily be used as steps, such as a chesl of
drawers.
. ALWAYS install the television where it cannot be pushed, pulled over or knocked down
.ALWAYS route cords and cables connec ed o he elevision so hat hey canno be ripped
over, pulled or _rabbed
WALL OR CEILING MOUNT YOUR TELEVISION
. ALWAYS contact your retailer about professior_al installatior_ i!you have ar_y doubts about your
ability to safely mount your television
.ALWAYS use a mount that has been recommended by the television rnanufac urer and has a
safety certi!ication by an independent laboratory (such as UL, CSA, EFL)
. ALWAYS follow all instructions supplied by the television and mount manufacturers
. ALWAYS make sure that the wall or ceilin{! where you are mountin_ the television is appropriate
Some mounts are not desi£ned to be mounted to walls and ceilings with steel studs or cinder
block construction I{ you are unsure, contact a pro!essional installer
. lelevisions can be heavy A minimum o{ two people is required for a wall or ceilin_ rnoun
installation
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
. Many r,ew television buyers move their older CRI televisior, s into a secondary room after the
purchase of a flabpar:el televisior: Special care should be made ir: he placemer¢ of older CRI
elevisions
.ALWAYS place your older CRI elevision on furniture hat is sturdy and appropriate for its size
and weig_ht
. NEVER place your older CRI television on a dresser where children may be ernpted to use he
drawers to climb
. ALWAYS make sure your older CRI elevision does no han_ over he edge of your furniture
OLife's Good
Declaration of Confomaity
Trade Name: I G
Model 49/55/60UB8500 UA, 65UB9300 UA,
55/65UB9500 I.JA, 65UC9700 UA
Responsible Party: { G Electronics Inc
Address ]QO0 Sylvan Ave Englewood Clffs NJ
07632 USA
TEl : 201 266 2534
[c> Inqu res or ( o'_/ ne'/ts, visit wwwl9 ( o'n or call;
1-800-243-0000 USA, Cot/st Iner Use
1-888-865-3026 USA, Cornmer< ial Use
1-888-542-2623 CANADA
www.lg.com
The model and serial numbers of the TV are
located on lhe back and on one side of lhe
TV Record lhem below skould you ever reed
service
MODEL
SERIAL
