Please read this manual carefully before operating your set
and retain it for future reference.
P/NO : MFL67468106 (1206-REV02)
OWNER’S MANUAL
LED LCD TV
47LM9600
55LM9600
ENGLISH
2IMPORTANT SAFETY INSTRUCTIONS
yDo not use this apparatus near water.
Short-circuit
Breaker
Power Supply
yClean only with a dry cloth.
Short-circuit
Breaker
Power Supply
yDo not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
Short-circuit
Breaker
Power Supply
yDo not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Short-circuit
Breaker
Power Supply
yDo not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).
Short-circuit
Breaker
Power Supply
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Short-circuit
Breaker
Power Supply

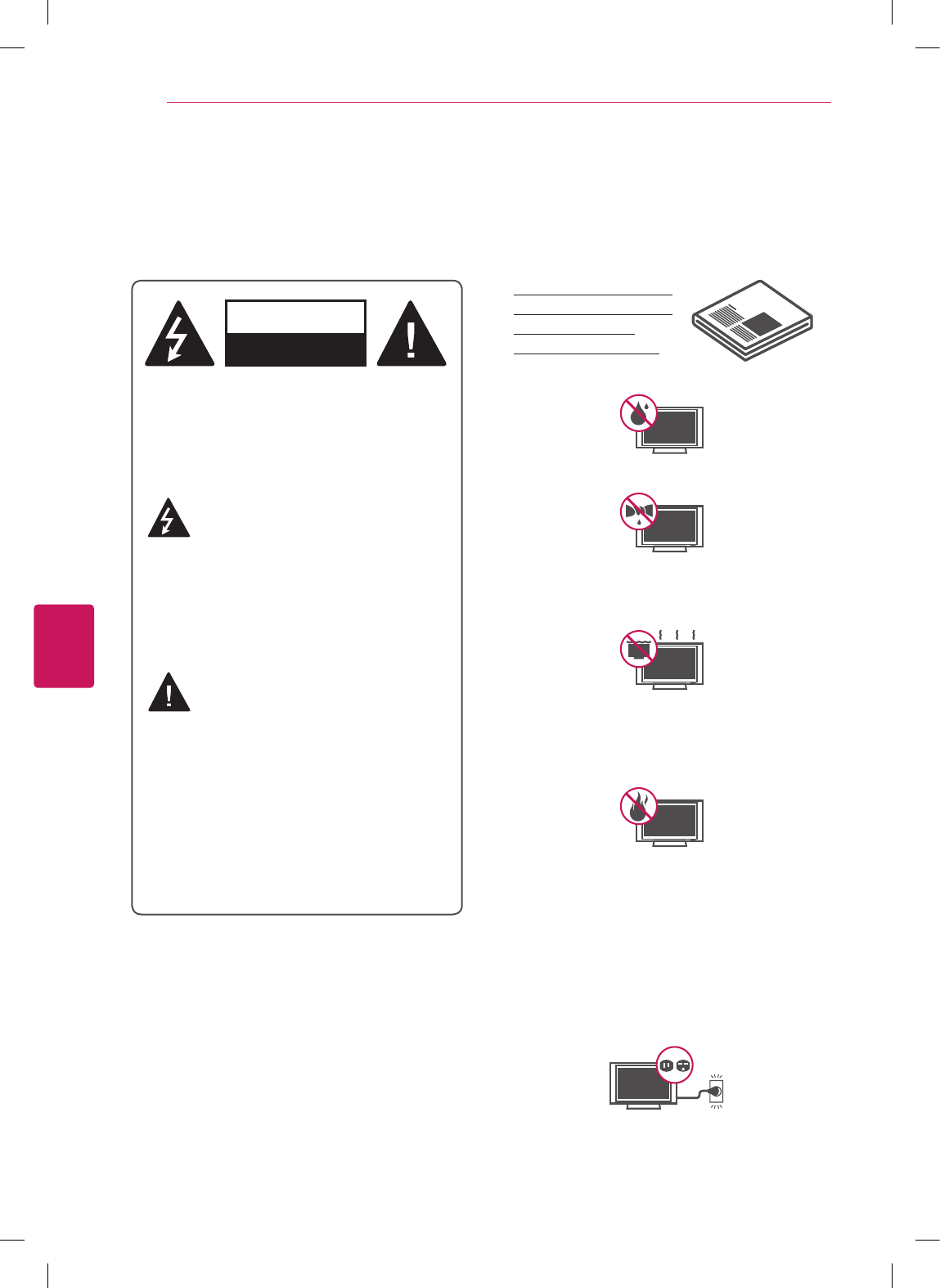

WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
ENGLISH
3
IMPORTANT SAFETY INSTRUCTIONS

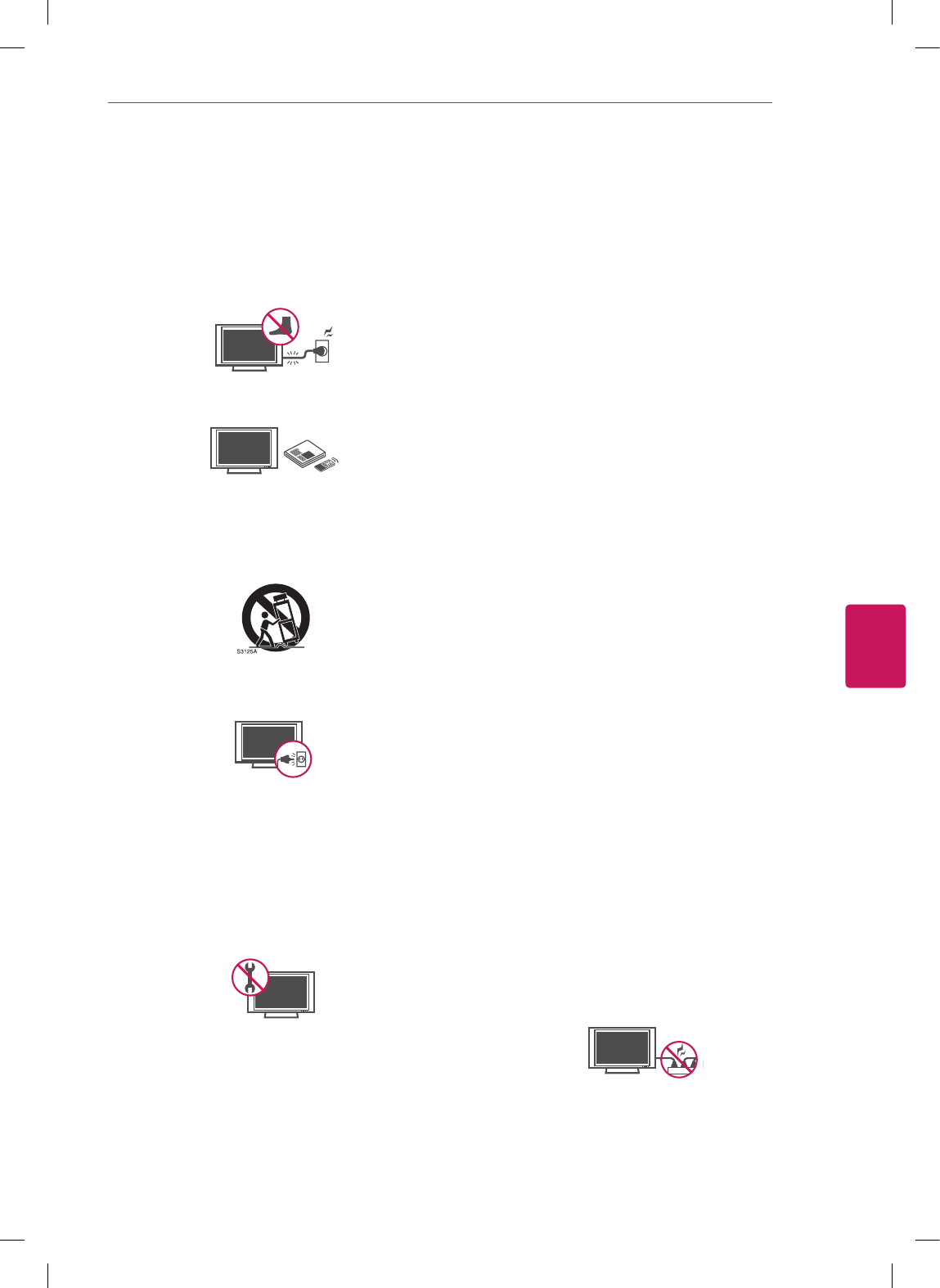

yProtect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Short-circuit
Breaker
Power Supply
yOnly use attachments/accessories specified
by the manufacturer.
Short-circuit
Breaker
Power Supply
yUse only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Short-circuit
Breaker
Power Supply
yUnplug this apparatus during lightning
storms or when unused for long periods of
time.
Short-circuit
Breaker
Power Supply
yRefer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Short-circuit
Breaker
Power Supply
yDo not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
yKeep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
yCAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.
Short-circuit
Breaker
Power Supply
ENGLISH
4IMPORTANT SAFETY INSTRUCTIONS
yWarning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
Short-circuit
Breaker
Power Supply
yDo not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Short-circuit
Breaker
Power Supply
yGrounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
yDISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
yAs long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
yDo not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this
product.
yANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Short-circuit
Breaker
Power Supply
NEC: National Electrical Code
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Electric Service
Equipment
Ground Clamp
ENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
yCleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
yMoving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
yVentilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
yIf you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
yDo not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
yKeep the product away from direct sunlight.
Short-circuit
Breaker
Power Supply
yNever touch this apparatus or antenna during
a thunder or lightning storm.
yWhen mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
yDo not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
yDot Defect
The Plasma or LCD panel is a high
technology product with resolution of two
million to six million pixels. In a very few
cases, you could see fine dots on the screen
while you’re viewing the TV. Those dots
are deactivated pixels and do not affect the
performance and reliability of the TV.
yGenerated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
yTake care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
yIf the TV feels cold to the touch, there may
be a small “flicker” when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse

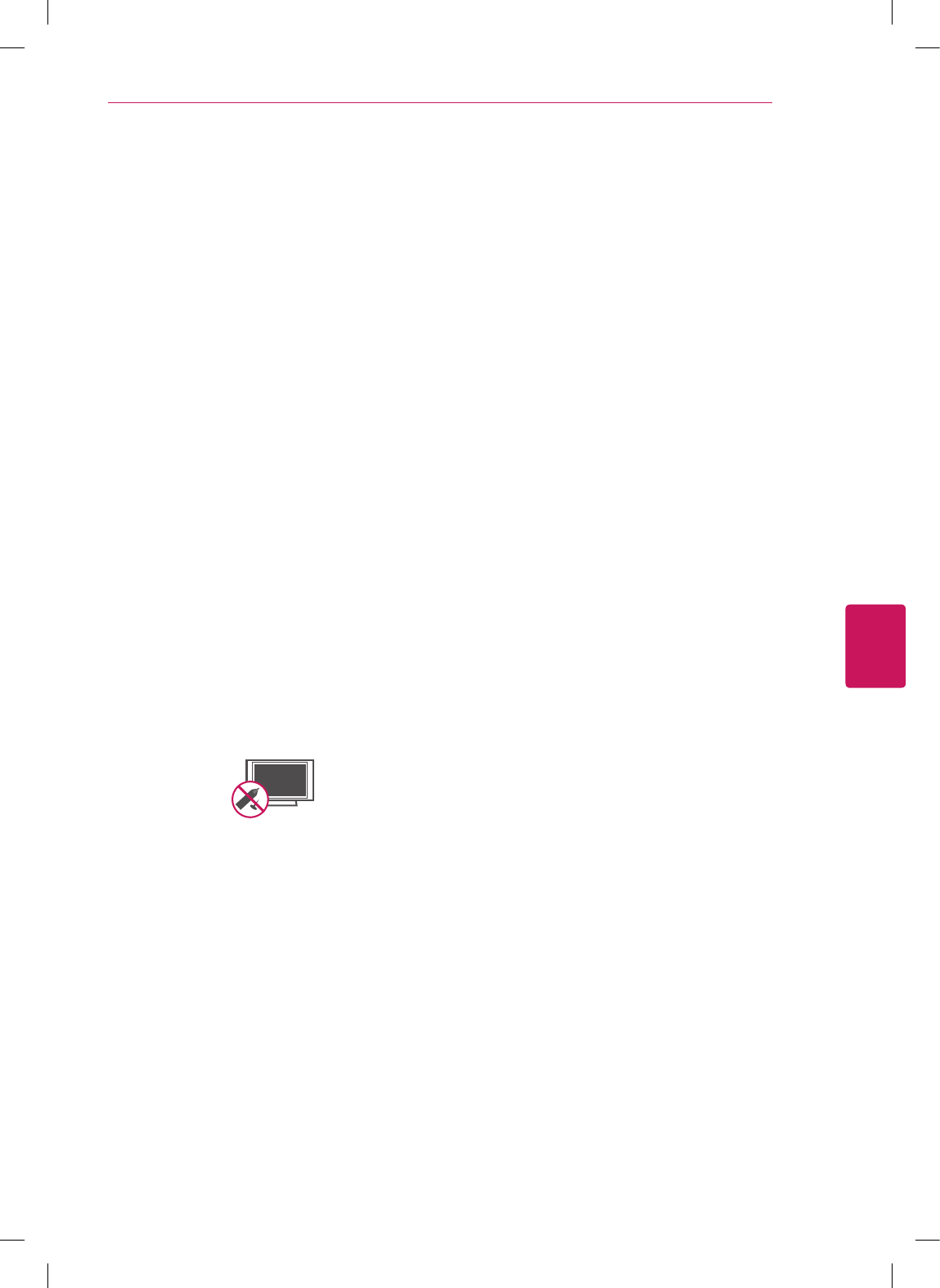

effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
ENGLISH
6IMPORTANT SAFETY INSTRUCTIONS
DISPOSAL (Hg lamp only used in LCD TVs)
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
Preventing “Image burn” or “Burn-in” on your TV screen
yIf a fixed image displays on the TV screen
for a long period of time, it will be imprinted
and become a permanent disfigurement on
the screen. This is “image burn” or “burn-in”
and not covered by the warranty.
yIf the aspect ratio of the TV is set to 4:3 for
a long period of time, image burn may occur
on the letterboxed area of the screen.
yAvoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.
For USA and Canada
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
ENGLISH
7
IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
yViewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long
period of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
ySome users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D contents.
yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease, etc.
y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than
the average adult.
yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or refraining from watching 3D contents
yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until
the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
ENGLISH
8IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Viewing Environment
yViewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you
feel discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
yInfants / Children
- Usage/ Viewing 3D contents for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring and
extra attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth
compared to adults for the same 3D image.
yTeenagers
- Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not to
watch 3D videos for a long time when they are tired.
yElderly
- The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the
recommended distance.
Cautions when using the 3D glasses
yMake sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
yDo not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
yUsing modified 3D glasses may cause eye strain or image distortion.
yDo not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
yThe 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them
with chemicals.
ENGLISH
9
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol
& DTS and the Symbol together are registered trademarks & DTS 2.0+Digital
Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights
Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the
product.
ENGLISH
10 TABLE OF CONTENTS
TABLE OF CONTENTS
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may
differ slightly from that shown in this
manual.
yThe available menus and options may differ
from the input source or product model that
you are using.
yNew features may be added to this TV in
the future.
NOTE
2 IMPORTANT SAFETY INSTRUCTIONS
7 Viewing 3D Imaging
9 LICENSES
9 OPEN SOURCE SOFTWARE NOTICE
10 TABLE OF CONTENTS
11 INSTALLATION PROCEDURE
11 ASSEMBLING AND PREPARING
11 Unpacking
13 Optional Extras
14 Parts and buttons
15 Lifting and moving the TV
16 Setting up the TV

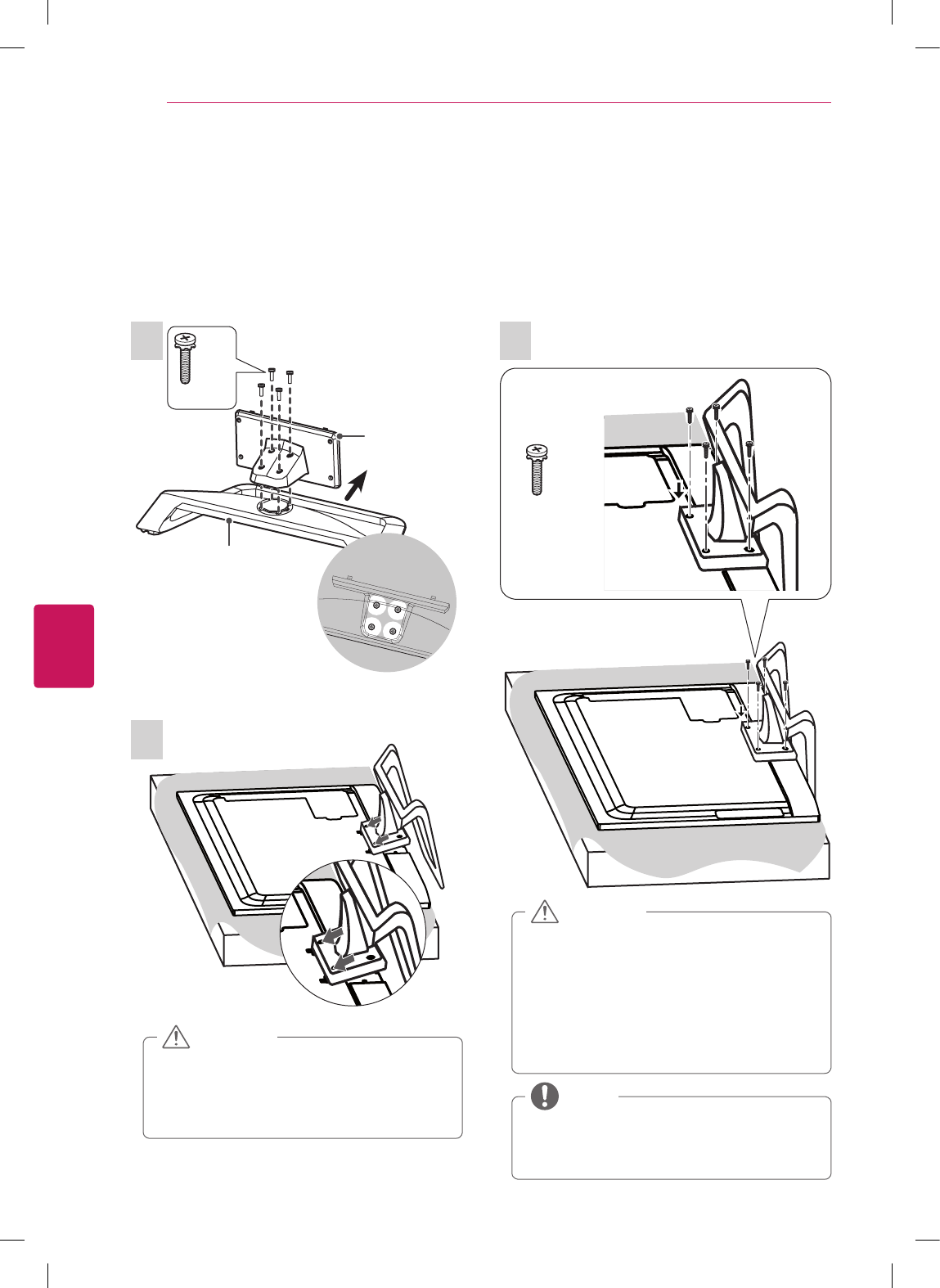

16 - Attaching the stand
17 - Mounting on a table
18 - Tidying cables
19 - Mounting on a wall
20 MAKING CONNECTIONS
20 Connecting to an antenna or cable
21 Connecting to a HD receiver, DVD, or VCR
player
21 - HDMI Connection

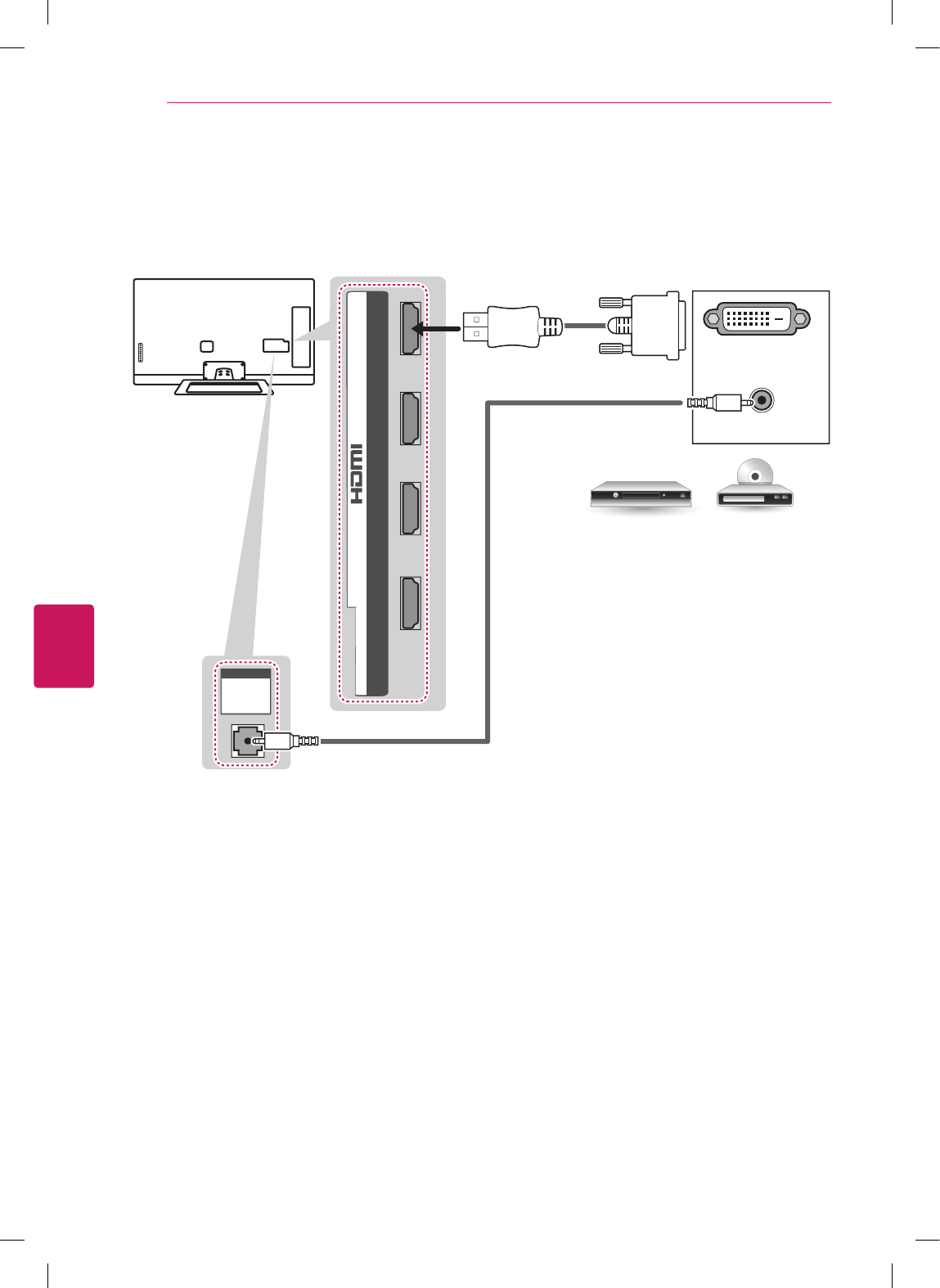

22 - DVI to HDMI Connection
23 - Connecting to a mobile phone
24 - Component Connection
25 - Composite Connection
26 Connecting to a PC
26 - HDMI Connection, DVI to HDMI
Connection or RGB Connection
28 Connecting to an Audio System
28 - Digital Optical Audio Connection
29 Connecting to a USB
30 REMOTE CONTROL
30 Magic Remote Control Functions
31 - Registering Magic Remote Control
31 - How to use Magic Remote Control
31 - Precautions to Take when Using the
Magic Remote Control
32 WATCHING TV
32 Turning the TV on for the first time
33 USING THE USER GUIDE
34 SPECIFICATIONS
38 MAINTENANCE
38 Cleaning Your TV
38 - Screen, frame, cabinet and stand
38 - Power cord
38 TROUBLESHOOTING
ENGLISH
11
ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the warranty.
yIn case of some model, the thin film on screen is a part of TV, So don’t take it off.
CAUTION
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
yUse an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE
ENGLISH
12 ASSEMBLING AND PREPARING
Magic remote control,
Batteries (AA)
(See p.30)
Owner’s manual Cinema 3D glasses
The number of 3D glasses
may differ depending on the
model or country.
Stand body
(See p.16)
Stand base
(See p.16)
Stand screws
8 EA, M4 x 20
(See p.16)
Component video cable
(See p.24)
Composite video cable
(See p.24, 25)
Polishing cloth
(Depending on model)
Use this to remove dust
from the cabinet.
ENGLISH
13
ASSEMBLING AND PREPARING

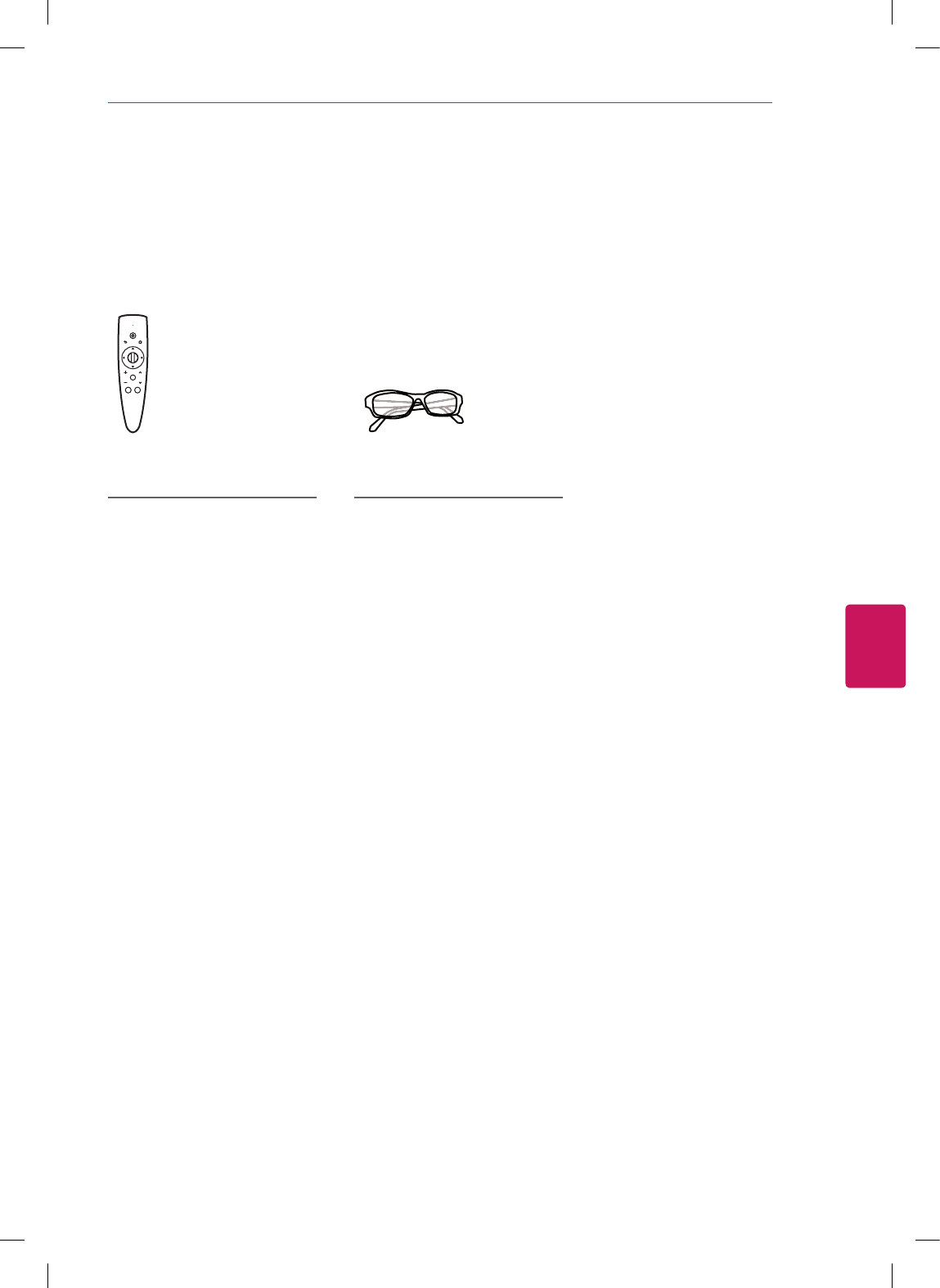

Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
AN-MR300
Magic remote control
AG-F2**, AG-F3**
Cinema 3D glasses
The model name or design may be changed manufacturer’s circumstances or policies.
ENGLISH
14 ASSEMBLING AND PREPARING
Parts and buttons
Button Description
/ (^ / v) Scrolls through the saved channels.
/ (+ / -) Adjusts the volume level.
(OK ⊙)Selects the highlighted menu option or confirms an input.
(SETTINGS) Accesses the main menus, or saves your input and exits the menus.
(INPUT) Changes the input source.
(ꔰ / I) Turns the power on or off.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
Speakers
Screen
Buttons
Power indicator
Remote control and
intelligent1 sensors
ENGLISH
15
ASSEMBLING AND PREPARING

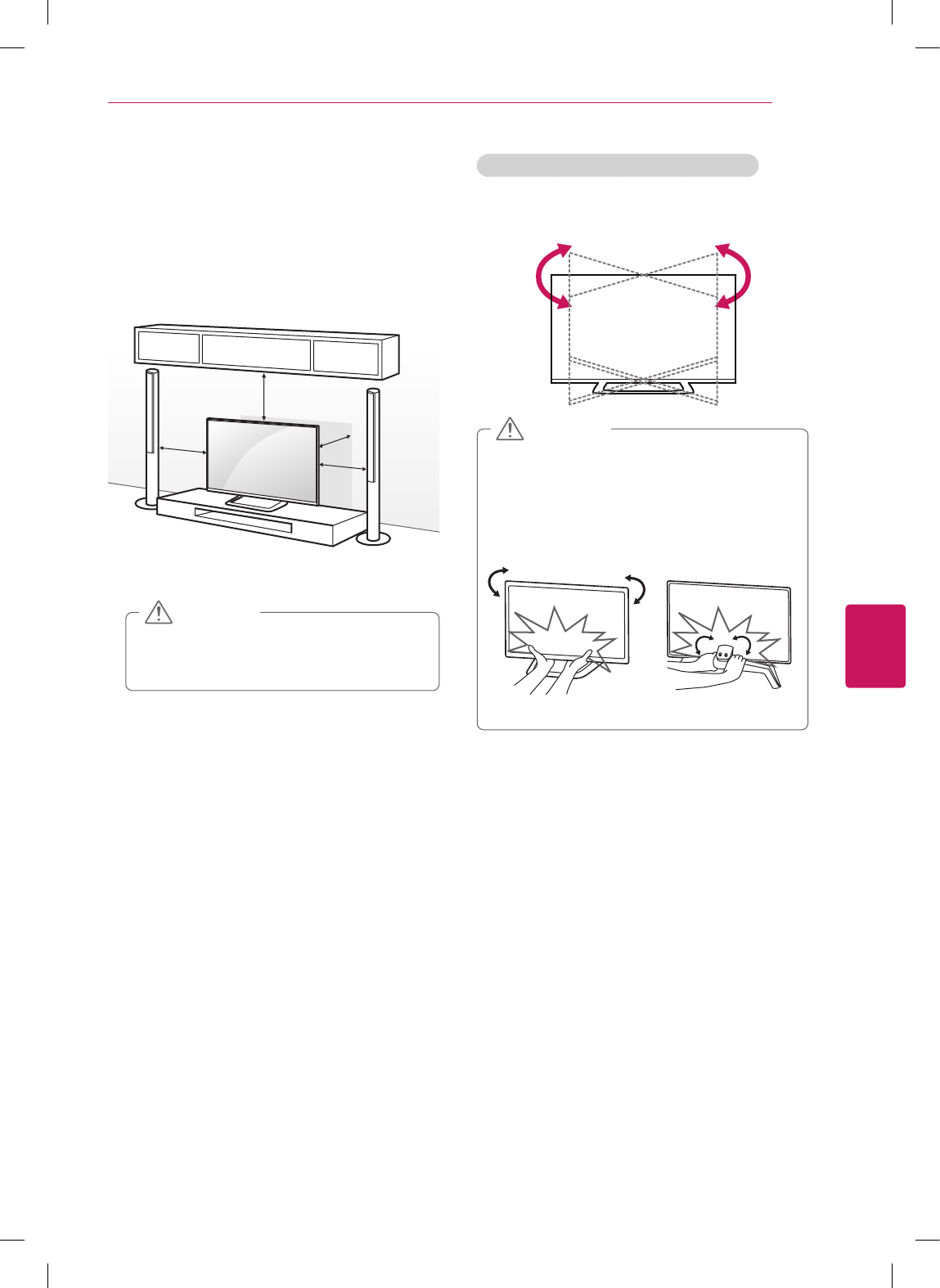

Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
yAvoid touching the screen at all times, as
this may result in damage to the screen.
CAUTION
yIt is recommended to move the TV in the
box or packing material that the TV originally
came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yWhen holding the TV, the screen should face
away from you to avoid damage.
yHold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
yWhen transporting a large TV, there should
be at least 2 people.
yWhen transporting the TV by hand, hold the
TV as shown in the following illustration.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
ENGLISH
16 ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
NOTE
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
2
yMake sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
yDo not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
CAUTION
1
Front
Top View
Stand Body
Stand Base
M4 x 20
4 EA
3
M4 x 20
4 EA
ENGLISH
17
ASSEMBLING AND PREPARING
Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
yDo not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
Adjusting the angle of the TV to suit view
Swivel 10 degrees to the left or right and adjust
the angle of the TV to suit your view.
10˚10˚
yWhen adjusting the angle of the TV, watch
out for your fingers.
- Personal injury may occur if hands or
fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
Rear
Front
CAUTION
ENGLISH
18 ASSEMBLING AND PREPARING
Securing the TV to a wall (optional)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
yMake sure that children do not climb on or
hang on the TV.
CAUTION
yUse a platform or cabinet that is strong and
large enough to support the TV securely.
yBrackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
NOTE
Tidying cables
1 Gather and bind the cables with the cable
management clip.
Cable management clip
2 Gather and bind the cables with the cable
holder on the back of the TV.
Cable holder
yDo not move the TV by holding the cable
holder and cable management clip, as the
cable holders may break, and injuries and
damage to the TV may occur.
CAUTION
ENGLISH
19
ASSEMBLING AND PREPARING
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
We recommend that you use an LG brand wall
mount when mounting the TV to a wall.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model 47LM9600
55LM9600
VESA (A x B)
A
B
400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket
(optional)
LSW400BX LSW420BX
yDisconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your
warranty.
yUse the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
CAUTION
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
yFor more information, refer to the manual
supplied with the wall mount.
NOTE
ENGLISH
20 MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information of external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
yIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
yThe external device connection may differ from the model.
yConnect external devices to the TV regardless of the order of the TV port.
NOTE
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may
differ from the actual items and a RF cable is optional.
ANTENNA / CABLE
VHF Antenna
UHF Antenna
Antenna
Terminal
Coaxial (75Ω)
yMake sure not to bend the copper wire of
the RF cable.
Copper wire
yComplete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
CAUTION
yUse a signal splitter to use more than 2 TVs.
yVisit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
NOTE
ENGLISH
21
MAKING CONNECTIONS
Connecting to a HD receiver, DVD, or VCR player
Connect a HD receiver, DVD, or VCR player to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown in the following illustration.
yUse the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
yHigh Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
NOTE
Choose any HDMI input port to connect. It does not matter which port you use.
HDMI
2 3 1
(ARC)
4
(MHL)
/ DVI IN
DVD/ Blu-Ray / HD Cable Box / HD STB
(*Not Provided)
ARC (Audio Return Channel)
yWhen connected with a high-speed
HDMI cable, digital audio can be sent
to a compactible device without an
additional optical audio cable.
yARC is only supported on the HDMI input
1 (ARC) port. An external audio device
that supports ARC should be connected
to HDMI 1 if you wish to use ARC
yDTV Audio Supported Codec: MPEG, Dolby
Digital
yHDMI Audio Supporeted Format: Dolby
Digital, PCM (Up to 192 KHz, 32k/44.1k/48k
/88k/96k/176k/192k) -> Not supported DTS.
NOTE
ENGLISH
22 MAKING CONNECTIONS
DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the
TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an
audio cable.
(RGB/HDMI-PC)
AUDIO
(RGB/DVI)
AUDIO
2 3 1
(ARC)
4
(MHL)
/ DVI IN
AUDIO OUT
DVI OUT
(*Not Provided)
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box
ENGLISH
23
MAKING CONNECTIONS
Connecting to a mobile phone
Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile
phones to television sets.
yConnect the mobile phone to the HDMI/DVI IN 4 (MHL) port to view the phone screen on the TV.
yThis only works for the MHL-enabled phone.
ySome applications can be operated by the remote control.
yFor some mobile phones supporting MHL, you can control with the Magic Remote Control.
yThe MHL passive cable is needed to connect the TV and a mobile phone.
NOTE
2 3 1
(ARC)
4
(MHL)
/ DVI IN
(*Not Provided)
MHL Cable
Mobile phone
ENGLISH
24 MAKING CONNECTIONS
Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
yIf cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
yCheck to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
AUDIO
L R
DVD/ Blu-Ray / HD Cable Box
(Use the component video cable provided.)(Use the composite video cable provided.)
(*Not Provided)
(*Not Provided)
GREEN
RED
BLUE
YELLOW
GREENYELLOW
WHITE
RED
GREEN
RED
BLUE
GREEN
RED
BLUE
WHITE
RED
WHITE
RED
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
ENGLISH
25
MAKING CONNECTIONS
Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the composite cable as shown in the following illustration.
yIf you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the
TV.
yCheck to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
MONO
( )
AUDIOL R
VCR / DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
YELLOW
YELLOW
WHITE
RED
(Use the composite video cable provided.)
ENGLISH
26 MAKING CONNECTIONS
Connecting to a PC
yIt is recommended to use the HDMI connection for the best image quality.
yDepending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.
yIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC output to another resolution, change the refresh rate
to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
yThe synchronization input form for Horizontal and Vertical frequencies is separate.
yDepending on the graphics card, some resolution settings may not allow the image to be positioned
on the screen properly.
NOTE
HDMI Connection, DVI to HDMI Connection or RGB Connection
Choose method A, B, or C to make connection.
Method A: HDMI Connection
HDMI
2 3 1
(ARC)
4
(MHL)
/ DVI IN
Choose any HDMI input port to connect.
It does not matter which port you use.
(*Not Provided)
PC
ENGLISH
27
MAKING CONNECTIONS
Method B: DVI to HDMI Connection
(RGB/HDMI-PC)
AUDIO
(RGB/DVI)
AUDIO
2 3 1
(ARC)
4
(MHL)
/ DVI IN
AUDIO OUT
DVI OUT
(*Not Provided)
(*Not Provided)
PC
Method C: RGB Connection
RGB OUT (PC)
AUDIO OUT
(PC)
RGB
(RGB/HDMI-PC)
AUDIO
(PC)
RGB
(RGB/DVI)
AUDIO
(*Not Provided)
(*Not Provided)
PC
ENGLISH
28 MAKING CONNECTIONS
Connecting to an Audio System
You may use an optional external audio system instead of the built-in speaker.
yIf you use an optional external audio device instead of the built-in speaker, set the TV speaker
feature to off.
NOTE
Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV
with the optical audio cable as shown in the following illustration.
yDo not look into the optical output port. Looking at the laser beam may damage your vision.
yAudio with ACP (Audio Copy Protection) function may block digital audio output.
NOTE
OPTICAL
AUDIO IN
OPTICAL
DIGITAL
AUDIO
OUT
Digital Audio System
(*Not Provided)
ENGLISH
29
MAKING CONNECTIONS
Connecting to a USB
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card
reader to the TV and access the Smart Share menu to use various multimedia files.
yTo use a HDD device, make sure that it is connected to the USB IN 1 HDD IN port.
yTo store apps on a USB storage device, make sure that it is connected to the USB IN 3 USB Apps
port.
ySome USB Hubs may not work. If a USB device connected using a USB Hub is not detected,
connect it to the USB port on the TV directly.
NOTE
USBHDD IN USB Apps
123
USB IN
USB
HDD
USB Hub
(*Not Provided)
(*Not Provided)
(*Not Provided)
Choose any USB input port to connect.
It does not matter which port you use.
ENGLISH
30 REMOTE CONTROL
REMOTE CONTROL
Magic Remote Control Functions
When the message “Magic remote control battery is low. Change the battery.” is
displayed, replace the battery. To replace batteries, open the battery cover, replace
batteries (1.5 V AA) matching and ends to the label inside the compartment,
and close the battery cover. Be sure to point the remote control at the remote control
sensor on the TV. To remove the batteries, perform the installation actions in reverse.
yDo not mix old and new batteries, as this may damage the remote control.
CAUTION
Make sure to point the remote control at the remote control sensor on the TV.
(POWER)
Turns the TV on or off.
HOME
Accesses the Home menu.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
Pointer (RF transmitter)
BACK
Returns to the previous level.
VOL
Adjusts the volume level.
CH
Scrolls through the saved channels.
(MUTE)
Mutes all sounds.
MY APPS
Shows the list of Apps.
Q.MENU
Accesses the quick menu.
Used for viewing 3D video.
Wheel (OK)
Selects menus or options and confirms
your input.
Scrolls through the saved channels.
If you press the navigation button while
moving the pointer on the screen, the
pointer disappears, and the Magic remote
control works as a regular remote control.
To display the pointer again, shake the
Magic remote control from side to side.
Voice Search (Depending on country)
Select the Voice Search icon on the screen.
Speak slowly and precisely. When a voice
is recognized, the processing message
appears on the screen. Use the magic
remote control no further than 15 cm from
your face. (This is a beta version and only
available in selected functions for supported
models.)
ENGLISH
31
REMOTE CONTROL
Registering Magic Remote Control
The Magic Remote Control operates by pairing
with your TV.
Once you purchased the TV, please register the
Magic remote control as follows;
How to register the Magic Remote Control
(Wheel)
To register automatically, turn the TV
on and press the Wheel (OK). When
registration is completed, the completion
message appears on the screen.
If registration fails, turn the TV off and
back on, then press the Wheel (OK) to
complete registration.
How to Re-register the Magic Remote Control
BACK
HOME
1 Press and hold the BACK and
HOME buttons together for 5 seconds
to reset, then register it by following
“How to register the Magic remote
control” above.
2 To re-register the Magic remote control,
press and hold the BACK button for 5
seconds toward the TV.
How to use Magic Remote Control
1 You can move the pointer by aiming the
Pointer Receiver of the remote control
at your TV then move it left, right, up or
down.
»If the pointer does not work properly
leave the remote control for 10 seconds
then use it again.
2 If the pointer disappears, move the
remote control slightly to left or right.
Then, it will automatically appear on the
screen.
»If the pointer has not been used for a
certain period of time, it will disappear.
i
1
3
2
1
If you press Wheel (OK) on the Magic
remote control, the screen appears.
Shows information about the current program
and screen.
2Pressing this button will display number
keypad which you can select channel number.
3You can select My Apps Menu.
Precautions to Take when Using
the Magic Remote Control
yUse the Magic remote control within the
maximum communication distance (10 m,
32.8ft). Using the remote control beyond
this distance, or with an object obstructing it,
may cause a communication failure.
yA communication failure may occur due to
nearby devices. Electrical devices such as
a microwave oven or wireless LAN product
may cause interference, as these use the
same bandwidth (2.4 GHz) as the Magic
remote control.
yThe Magic remote control may be damaged
or may malfunction if it is dropped or
receives a heavy impact.
yTake care not to bump into nearby furniture
or other people when using the Magic
remote control.
yManufacturer and installer cannot provide
service related to human safety as the
applicable wireless device has possibility of
electric wave interference.
yIt is recommended that an Access Point (AP)
be located more than 1 m (3.28 ft) away
from the TV. If the AP is installed closer than
1 m (3.28 ft), the Magic remote control may
not perform as expected due to frequency
interference.
ENGLISH
32 WATCHING TV
WATCHING TV
Turning the TV on for the first
time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on
the remote control to turn the TV on.
The Initial setting screen appears if you turn
the TV on for the first time.
yYou can also access Initial Setting by
accessing OPTION in the main menu.
NOTE
3 Follow the on-screen instructions to customize
your TV settings according to your preferences.
Language Selection Selects a language to
display.
Using the Magic
remote control
Sets the Magic remote
contol.
Environment Selection Select Home* for the
home environment.
Time Zone Setting Selects the time zone and
daylight saving.
Network Connection Sets your network to
enable network-related
features on the TV.
Auto Tuning Scans and saves available
channels automatically.
Setting is complete. Confirms the setting
options.
ySelect Home when prompted. Store
mode puts the TV in demo mode.
yIf you select Store, the any customized
settings will switch back to the default
settings of Store in 5 minutes.
NOTE
4 When the basic settings are complete,
press (Wheel).
yIf you do not complete the Initial setting,
it will appear whenever the TV turns on.
yDisconnect the power cord from the
power outlet when you do not use the TV
for a long period of time.
NOTE
5 To turn the TV off, press the power button on
the remote control.
ENGLISH
33
USING THE USER GUIDE
User Guide allows you to more easily access the
detailed TV information.
1 Press HOME button to access the HOME
menu.
2 Select User Guide and press the Wheel (OK).
User Guide
User Guide
CHANNEL Setting
PICTURE, SOUND Setting
OPTION
LG SMART Function
Advabced Function
Information
To use input device
To use Energy Saving feature
To set time options
To set TV lock options
To set language
Disabled Assistance
To set Magic Remote Control
1
2 3
4
1Shows the current channel.
2Allows to select the category you want.
3Allows to select the item you want.
You can use / button to move between
pages.
4Allows to browse the description of the
function you want from the index.
USING THE USER GUIDE
Try Now Zoom In Close
User Guide
OPTION > To set language
HOME Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu
Language Selects a screen menu language.
Audio
Language
[In Digital Mode Only]
Selects the desired language when watching digital
broadcasting containing several audio languages.
Voice Search
Language
Select the language to make voice search.
✎ Only the voice search adopted model can support this
setting.
CHANNEL Setting
PICTURE, SOUND Setting
OPTION
LG SMART Function
Advabced Function
Information
1
2 3
Try Now Zoom Out Close
HOME Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu
Language Selects a screen menu language.
Audio
Language
[In Digital Mode Only]
Selects the desired language when watching digital
broadcasting containing several audio languages.
Voice Search
Language
Select the language to make voice search.
✎ Only the voice search adopted model can support this
setting.
3
1Shows the description of the selected menu.
You can use / to move between pages.
2Moves to the selected menu directly from the
User Guide.
3Zooms in or out the screen.
ENGLISH
34 SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 - 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C
Storage Humidity Less than 85 %
MODELS 47LM9600
(47LM9600-UC)
55LM9600
(55LM9600-UC)
Dimensions
(W x H x D)
With stand 1053.0 x 687.0 x 264.0 mm
(41.4 x 27.0 x 10.3 inch)
1223.0 x 784.0 x 331.0 mm
(48.1 x 30.8 x 13.0 inch)
Without stand 1053.0 x 612.0 x 37.9 mm
(41.4 x 24.0 x 1.4 inch)
1223.0 x 708.0 x 38.4 mm
(48.1 x 27.8 x 1.5 inch)
Weight With stand 17.6 kg (38.8 lbs) 24.2 kg (53.3 lbs)
Without stand 15.3 kg (33.7 lbs) 20.6 kg (45.4 lbs)
Current Value / Power consumption 1.8 A / 180 W 2.1 A / 210 W
ENGLISH
35
SPECIFICATIONS
3D supported formats
yVideo, which is input as below media contents is switched into the 3D screen automatically.
3D supported formats automatically
Input Signal
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI
640 x 480
31.469 59.94 Top & Bottom, Side by Side Half, Side by Side Full
31.5 60
62.938 59.94 Frame Packing, Line Alternative
63 60
480p
31.469 59.94 Top & Bottom, Side by Side Half, Side by Side Full
31.5 60
62.938 59.94 Frame Packing, Line Alternative
63 60
720p
44.96 59.94 Top & Bottom, Side by Side Half, Side by Side Full
45.00 60
89.91 59.94 Frame Packing, Line Alternative
90.00 60
1080i
33.72 59.94 Top & Bottom, Side by Side Half, Side by Side Full
33.75 60
67.50 59.94 Frame Packing, Field Alternative
60
1080p
26.97 23.97
Top & Bottom, Side by Side Half, Side by Side Full
27.00 24
33.72 29.976
33.75 30
43.94 23.97
Frame Packing, Line Alternative
54 24
67.432 29.976
67.50 30
67.43 59.94 Top & Bottom, Side by Side Half
67.50 60
USB 1080p 33.75 30 Side by Side Half, Top & Bottom, Checker Board,
MPO (Photo)
DLNA 1080p 33.75 30
ENGLISH
36 SPECIFICATIONS
yFor models supporting WiDi, you can set the 3D mode in the same way as in RGB (PC) mode.
3D supported formats manually
Input Signal
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI - DTV
720p 45.00 60 2D to 3D, Side by Side Half, Top & Bottom,
Single Frame Sequential
1080i 33.75 60 2D to 3D, Side by Side Half, Top & Bottom
1080p
27.00 24 2D to 3D, Side by Side Half, Top & Bottom,
Checker Board
33.75 30
67.50 60
2D to 3D, Side by Side Half, Top & Bottom,
Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving
Others - - 2D to 3D
HDMI - PC
1024 x 768 48.36
60
2D to 3D, Side by Side Half, Top & Bottom
1360 x 768 47.71
1920 x 1080 67.50
2D to 3D, Side by Side Half, Top & Bottom,
Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving
Others - - 2D to 3D
RGB - PC
1024 x 768 48.36
60 2Dto3D, Side by Side Half, Top & Bottom1360 x 768 47.71
1920 x 1080 67.50
Others - - 2D to 3D
Component
720p 45.00 60
2D to 3D, Side by Side Half, Top & Bottom
1080i 33.75 60
1080p
27.00 24
33.75 30
67.50 60
Others - - 2D to 3D
USB 1080p 33.75 30 2D to 3D, Side by Side Half, Top & Bottom,
Checker Board, Row Interleaving,
Column Interleaving, Single Frame Sequential
(Photo: Side by Side Half, Top & Bottom)
DLNA 1080p 33.75 30
Input Signal Playable 3D video format
DTV HD 2D to 3D, Side by Side Half, Top & Bottom
SD 2D to 3D
ENGLISH
37
SPECIFICATIONS
HDMI (DTV) supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480p 31.47 59.94
31.50 60.00
1280 x 720p 44.96 59.94
45.00 60.00
1920 x 1080i 33.72 59.94
33.75 60.00
1920 x 1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
Component supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480i 15.73 59.94
15.73 60.00
720 x 480p 31.47 59.94
31.50 60.00
1280 x 720p 44.96 59.94
45.00 60.00
1920 x 1080i 33.72 59.94
33.75 60.00
1920 x 1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.500 60.00
Component port connecting information
Component ports on the
TV Y PBPR
Video output ports
on DVD player
Y PBPR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Wireless LAN module(TWFM-B003D)
specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz
Modulation CCK / OFDM / MIMO
Output Power (Typical)
802.11a: 15 dBm
802.11b: 14 dBm
802.11g: 17 dBm
802.11n - 2.4GHz: 17 dBm
802.11n - 5GHz: 15 dBm
Data rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 300 Mbps
Antenna Gain (Typical)
2400 to 2483.5 MHz: -2.5 dBi
5150 to 5250 MHz: -2.2 dBi
5725 to 5850 MHz: -2.9 dBi
Occupied bandwidth 802.11a/b/g: HT20
802.11n: HT20/40
Because band channel used by the country could
be different, the user can not change or adjust the
operating frequency and this product is set for the
regional frequency table.
yFCC ID of Wi-Fi module inside TV
FCC ID: BEJTWFM-B003D
Bluetooth module (BM-LDS302) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
Data rate (Max.) 3 Mbps
Communication
Distance
Line of Open Sight
approx. 10 m
yFCC ID of Bluetooth module inside TV
FCC ID: BEJLDS302
ENGLISH
38 MAINTENANCE & TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
yMake sure to turn the power off and disconnect the power cord and all other cables first.
yWhen the TV is left unattended or unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
yDo not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
yDo not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discoloration.
yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the
remote control.
yCheck the remote control sensor on the product and try again.
yCheck if there is any obstacle between the product and the remote control.
yCheck if the batteries are still working and properly installed ( to , to ).
No image display and no sound is
produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly. yCheck the power control settings. The power supply may be interrupted.
yCheck if the Auto sleep feature is activated in the Time settings.
yIf there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
yThe home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
yFlat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
yThe consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
yOne size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your flat panel
display.
yCarefully read and understand all enclosed instructions for proper use
of this product.
yDon’t allow children to climb on or play with furniture and television
sets.
yDon’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
yRemember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
yCare should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
yUse a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
yFollow all instructions supplied by the display and wall mount
manufacturers.
yIf you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
yMake sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
yA minimum of two people are required for installation.
Flat panel displays can be heavy
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
The model and serial number of the TV is located
on the back and one side of the TV.
Record it below should you ever need service.
MODEL
SERIAL
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality
for ENERGY STAR.
