Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL
LED TV*
*LG LED TV applies LCD screen with LED backlights.
www.lg.com
32LB5800
39LB5800
42LB5800
47LB5800
50LB5800
55LB5800
47LB6100
50LB6100
55LB6100
60LB6100
65LB6190
32LB580B
*MFL68027912* P/NO : MFL68027912 (1403-REV01)
ENG
ENGLISH
2IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
WARNING: This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
yDo not use this apparatus near water.
Short-circuit
Breaker
Power Supply
yClean only with a dry cloth.
Short-circuit
Breaker
Power Supply
yDo not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Short-circuit
Breaker
Power Supply
yDo not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Short-circuit
Breaker
Power Supply
yDo not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
Short-circuit
Breaker
Power Supply
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.

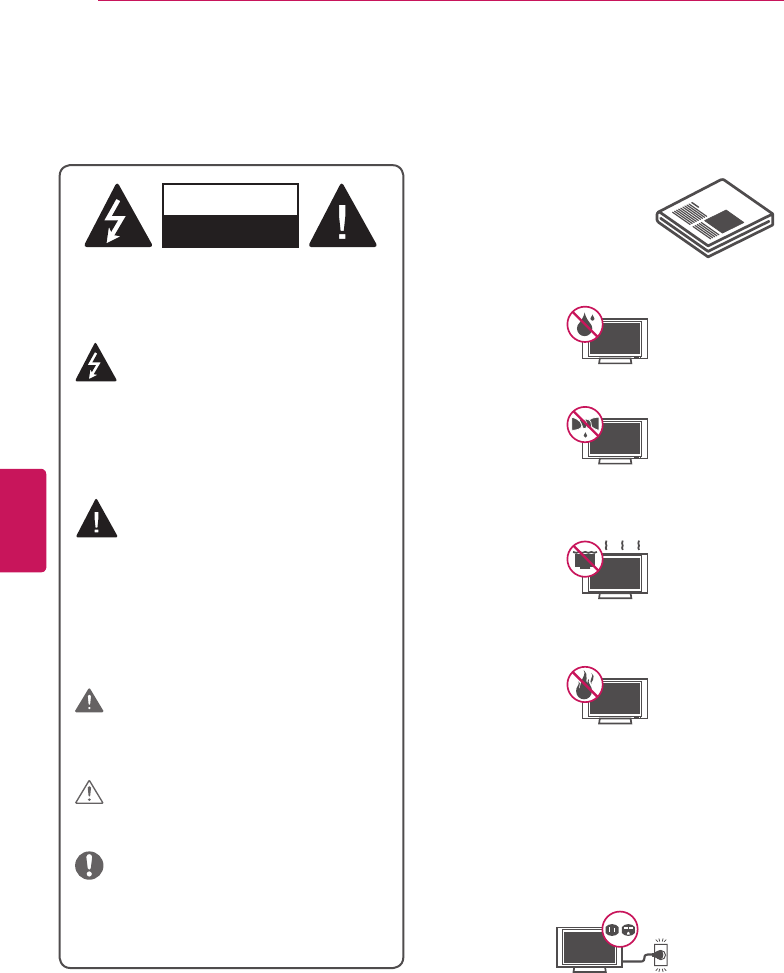

WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
CAUTION
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
Short-circuit
Breaker
Power Supply
ENGENGLISH
3
IMPORTANT SAFETY INSTRUCTIONS

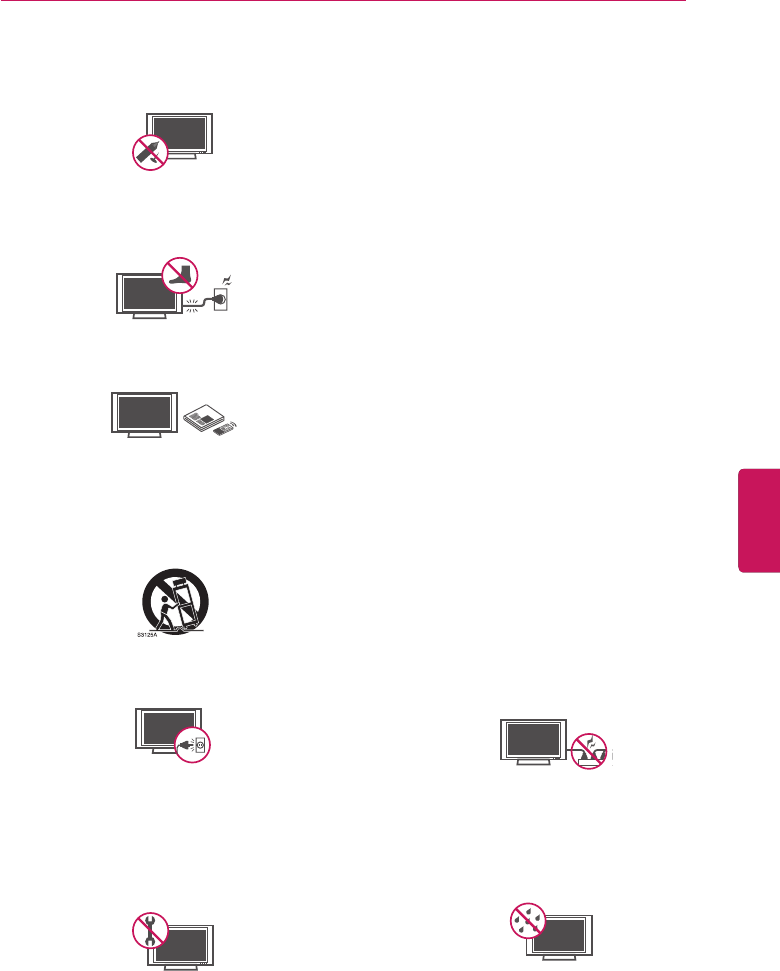

yDo not press strongly upon the panel with a hand
or a sharp object such as a nail, pencil or pen, or
make a scratch on it.
Short-circuit
Breaker
Power Supply
yProtect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Short-circuit
Breaker
Power Supply
yOnly use attachments/accessories specified by
the manufacturer.
Short-circuit
Breaker
Power Supply
yUse only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Short-circuit
Breaker
Power Supply
yUnplug this apparatus during lightning storms or
when unused for long periods of time.
Short-circuit
Breaker
Power Supply
yRefer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Short-circuit
Breaker
Power Supply
yDo not stick metal objects or any other conductive
material into the power cord. Do not touch the
end of the power cord while it is plugged in.
yKeep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
yCAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner’s
manual to be certain. Do not connect too many
appliances to the same AC power outlet as
this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement
part by an authorized service. Protect the power
cord from physical or mechanical abuse, such
as being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord
exits the appliance. Do not move the TV with the
power cord plugged in. Do not use a damaged
or loose power cord. Be sure do grasp the plug
when unplugging the power cord. Do not pull on
the power cord to unplug the TV.
yWarning - To reduce the risk of fire or electrical
shock, do not expose this product to rain,
moisture or other liquids. Do not touch the TV
with wet hands. Do not install this product near
flammable objects such as gasoline or candles, or
expose the TV to direct air conditioning.
Short-circuit
Breaker
Power Supply
ENG
ENGLISH
4IMPORTANT SAFETY INSTRUCTIONS
yDo not expose to dripping or splashing and do
not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g. on
shelves above the unit).
Short-circuit
Breaker
Power Supply
yGrounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do
not try to ground the unit by connecting it to
telephone wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
yAs long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
yDo not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product.
yOutdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system
is grounded to provide some protection against
voltage surges and built-up static charges. Section
810 of the National Electrical Code (NEC) in the
U.S.A. provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to
grounding electrodes and requirements for the
grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Short-circuit
Breaker
Power Supply
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
yCleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners, or benzine.

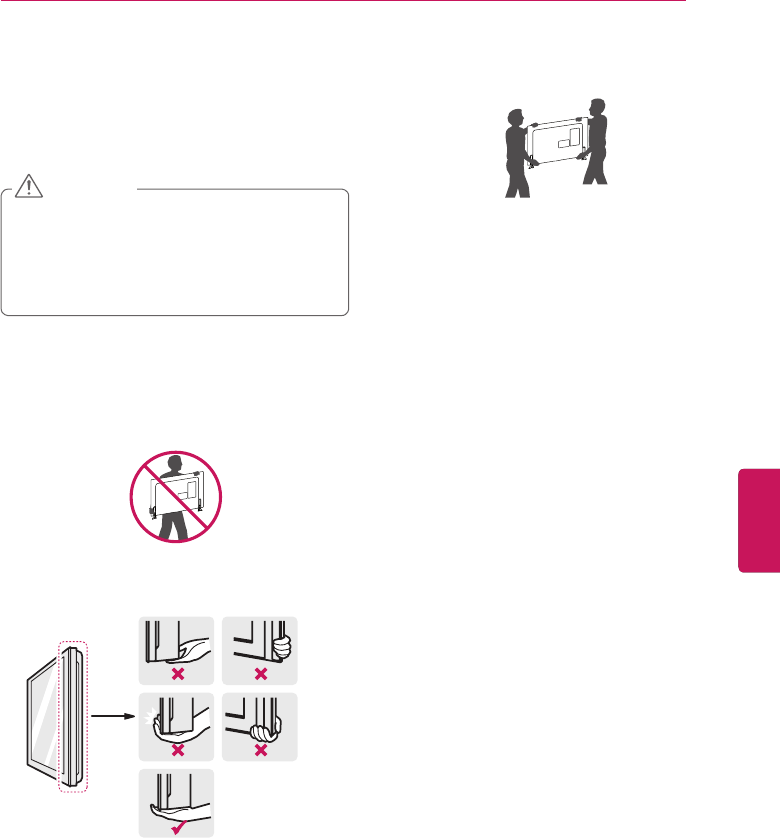

yMoving
Make sure the product is turned off, unplugged,
and all cables have been removed. It may take 2
or more people to carry larger TVs. Do not press
or put stress on the front panel of the TV.
yVentilation
Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty places.
yIf you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
yKeep the product away from direct sunlight.
yNever touch this apparatus or antenna during a
thunder or lightning storm.
yWhen mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
yDo not allow an impact shock or any objects to fall
into the product, and do not drop anything onto
the screen.
yDisconnecting the Main Power
The power outlet used with this device must
remain easily accessible.
yStore the accessories (battery, etc.) in a safe
location out of the reach of children.
yThis apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
yDo not dispose of batteries in a fire.
yDo not short circuit, disassemble, or allow the
batteries to overheat.
ENGENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
yDot Defect
The Plasma or LCD panel is a high technology product
with resolution of two million to six million pixels. In a
very few cases, you could see fine dots on the screen
while you’re viewing the TV. Those dots are deactivated
pixels and do not affect the performance and reliability
of the TV.
yGenerated Sound
Cracking noise A cracking noise that occurs when
watching or turning off the TV is generated by plastic
thermal contraction due to temperature and humidity.
This noise is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing A low level
noise is generated from a high-speed switching circuit,
which supplies a large amount of current to operate a
product. It varies depending upon the product.
This generated sound does not affect the performance
and reliability of the product.
yTake care not to touch the ventilation openings. When
watching the TV for a long period, the ventilation
openings may become hot. This does not affect the
performance of the product or cause defects in the
product.
yDo not install this product on a wall if it could be
exposed to oil or oil mist. This may damage the product
and cause it to fall.
yIf the TV feels cold to the touch, there may be a small
flicker when it is turned on. This is normal, there is
nothing wrong with TV. Some minute dot defects may
be visible on the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse effect on
the TV’s performance. Avoid touching the LCD screen
or holding your finger(s) against it for long periods of
time. Doing so may produce some temporary distortion
effects on the screen.

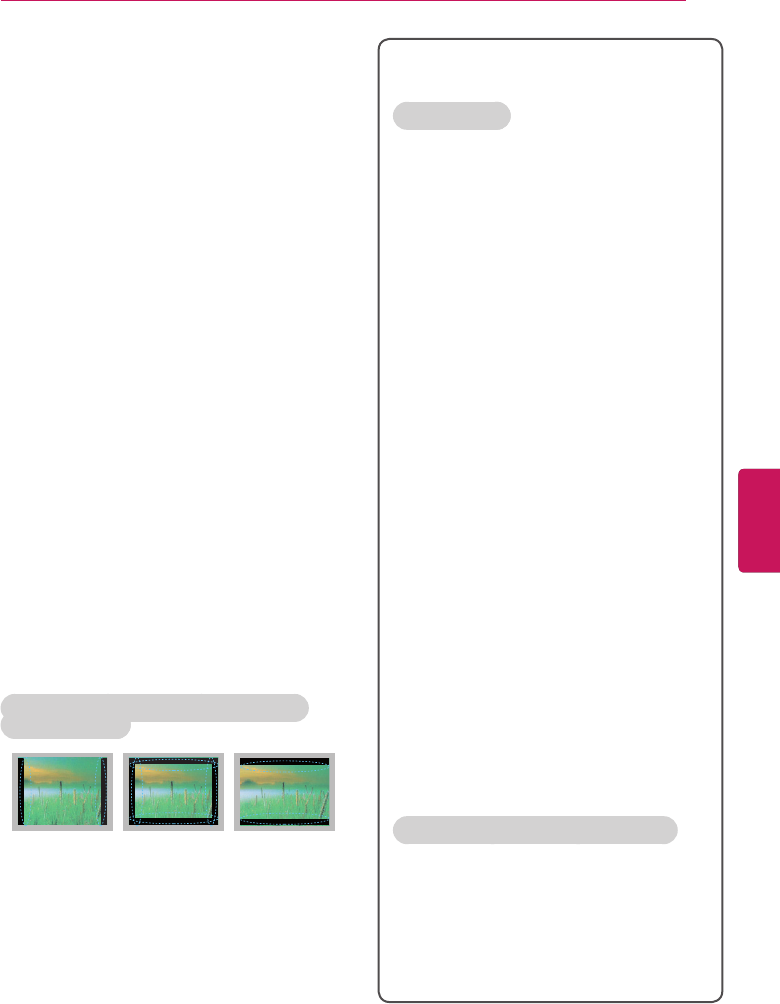

Preventing Image burn or Burn-in on
your TV screen
yIf a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
yIf the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
yAvoid displaying a fixed image on the TV screen
for a long period of time (2 or more hours for LCD,
1 or more hours for the Plasma TV) to prevent
image burn.
For USA and Canada
FCC NOTICE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
ENG
ENGLISH
6LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model.
For more information about licenses, visit
www.lg.com
.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in
this product, please visit
http://opensource.lge.com
.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping and handling) upon email request
to
opensource@lge.com
. This offer is valid for three (3) years from the date on which you purchased
the product.
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are
using.
yNew features may be added to this TV in the future.
NOTE
ENGENGLISH
7
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

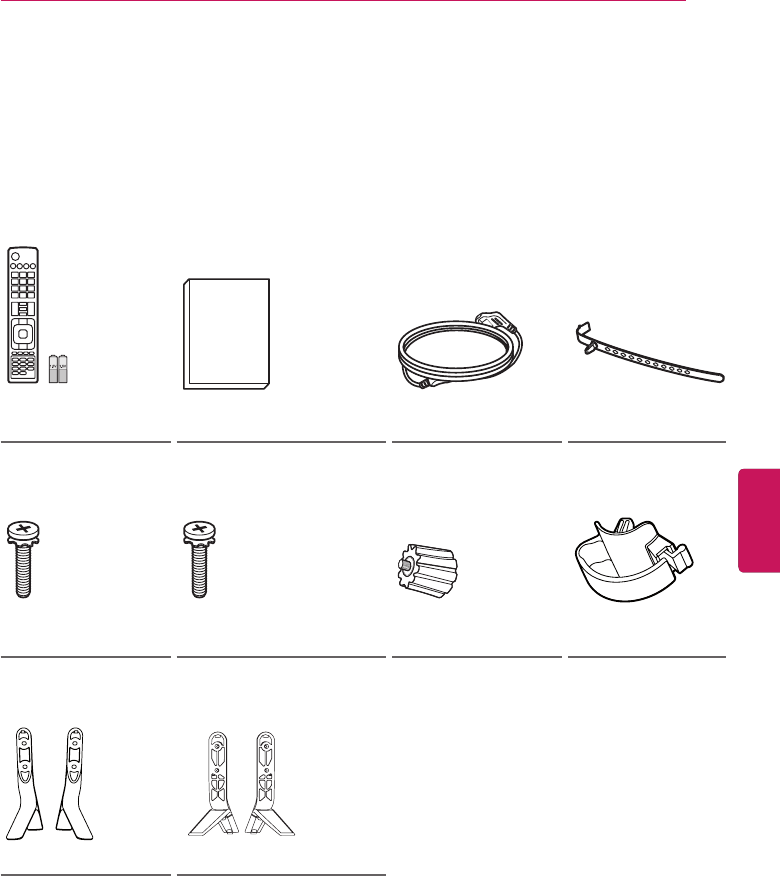

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
Remote Control,
Batteries (AAA)
Owner’s Manual Power Cord Cable Holder
(For 32LB580B,
32LB5800)
(For 39/42/47/50/55LB5800,
47/50/55/60LB6100,
65LB6190) (For 42LB5800)
Stand Screws
4 EA, M4 x L20
Stand Screws
4 EA, M4 x L14
Wall Mount Spacer
2 EA
Stand Holder
2 EA
(For 32LB580B,
LB5800 series,
47/50/55/60LB6100) (For 65LB6190)
Stand Base Stand Base/Stand Body
ENG
ENGLISH
8ASSEMBLING AND PREPARING
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items. These devices only work with certain models.
The model name or design may be changed manufacturer’s circumstances or policies.
AN-MR500
Magic Remote
AN-VC5**
Video Call Camera
LG Audio Device
Tag On AN-WF500
Wi-Fi/Bluetooth DONGLE
yThe items supplied with your product may vary depending upon the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

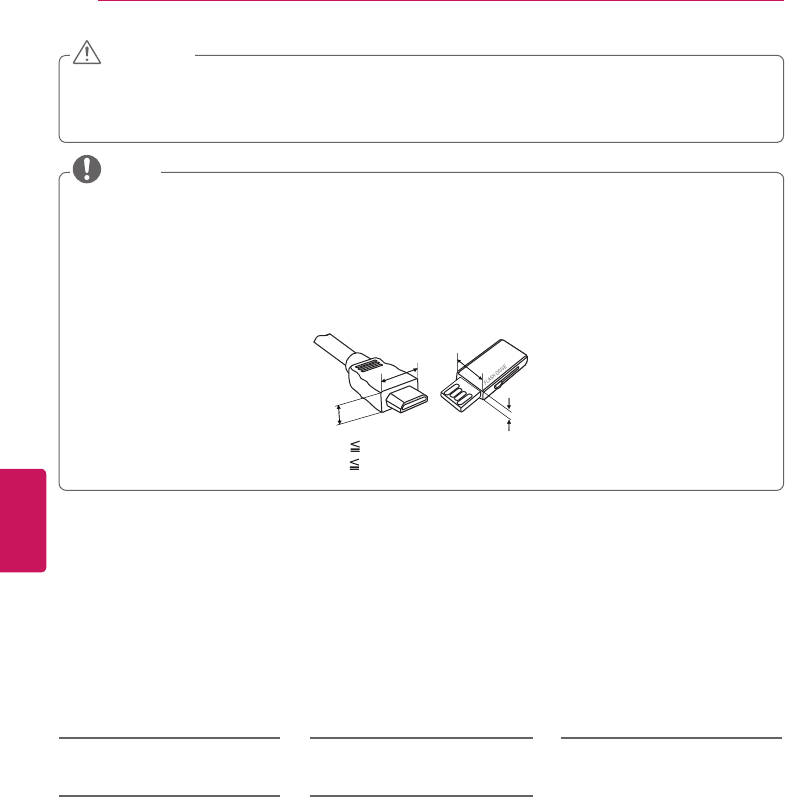

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
(0.39 inches) thick and 18 mm (0.7 inches) width.
yUse an extension cable that supports USB 2.0 if the USB cable or USB FLASH DRIVE does not
fit into your TV’s USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the warranty.
ySome models appear to have a thin film on the screen. It is actually part of the screen; do not
remove it.
CAUTION
ENGENGLISH
9
ASSEMBLING AND PREPARING

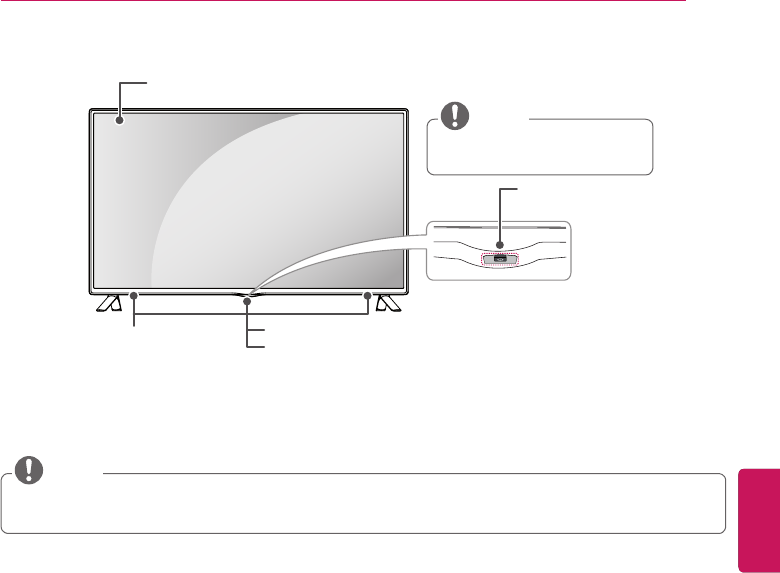

Parts and buttons
Screen
Speakers Power Indicator
Remote control Sensor and
Intelligent Sensor1
Joystick Button
yJoystick button is located
below the screen of TV.
NOTE
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding
environment.
yYou can set the Power indicator Light to on or off by selecting OPTION in the main menus.
(Depending upon model)
NOTE
ENG
ENGLISH
10 ASSEMBLING AND PREPARING

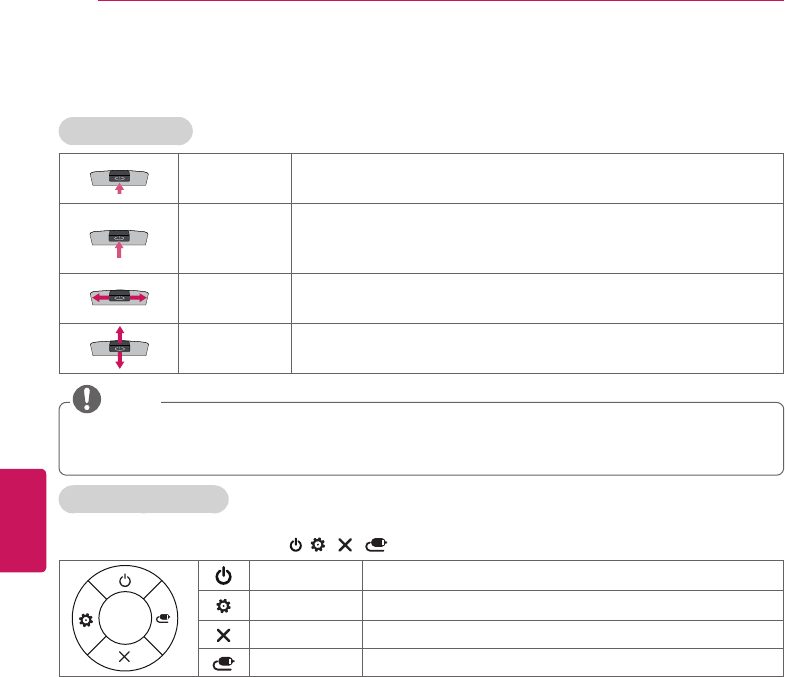

Using the joystick button
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
Basic functions
Power On When the TV is turned off, place your finger on the joystick button and
press it once and release it.
Power Off
When the TV is turned on, place your finger on the joystick button and
press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and holding the
joystick button will let you exit the Menu.)
Volume Control If you place your finger over the joystick button and move it left or right,
you can adjust the volume level you want.
Channels Control If you place your finger over the joystick button and move it up or down,
you can scrolls through the saved channels you want.
yWhen your finger over the joystick button and push it to the up, down, left, or right, be careful
not to press the joystick button. If you press the joystick button first, you can not adjust the
volume level and saved chennels.
NOTE
Adjusting the menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items ( , , , ) moving the joystick button up, down, left or right.
TV Off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.
ENGENGLISH
11
ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless
of its type and size.
yAvoid touching the screen at all times, as
this may result in damage to the screen.
yDo not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to
the screen.
CAUTION
yIt is recommended to move the TV in the
box or packing material that the TV originally
came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yWhen holding the TV, the screen should
face away from you to avoid damage.
yHold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
yUse at least two people to move a large TV.
yWhen transporting the TV by hand, hold the
TV as shown in the following illustration.
yWhen handling the TV, be careful not to
damage the protruding joystick button.
yWhen transporting the TV, do not expose
the TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right.
ENG
ENGLISH
12 ASSEMBLING AND PREPARING
1
2
Setting up the TV
You can mount your TV to a wall or attach
the stand if you wish to place the TV on an
entertainment center or other furniture.
Attaching the stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (4 inch) (minimum) space
from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
yDo not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
(4 inches)
(For 32LB580B,
32LB5800)
4 EA
M4 x L20
4 EA
M4 x L14
(For
39/42/47/50/55LB5800,
47/50/55/60LB6100,
65LB6190)
B stand base
A stand base
1
2
(For 32LB580B,
LB5800 series,
47/50/55/60LB6100)
(For 65LB6190)
Stand Base
Stand Base/
Stand Body
ENGENGLISH
13
ASSEMBLING AND PREPARING
Securing the TV to a wall (optional)
(Depending upon model)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope or cable.
Make sure to keep the rope parallel to the
flat surface.
yMake sure that children do not climb on
or hang on the TV.
CAUTION
yUse a platform or cabinet that is strong
and large enough to support the TV
securely.
yBrackets, bolts and ropes are optional.
You can obtain additional accessories
from your local dealer.
NOTE
Mounting on a wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the
wall mount bracket on a solid wall perpendicular
to the floor. If you are attaching the TV to other
building materials, please contact qualified
personnel to install the wall mount. Detailed
instructions will be included with the wall mount.
We recommend that you use an LG brand wall
mount. When you do not use LG’s wall mount
bracket, please use a wall mount bracket where
the device is adequately secured to the wall with
enough space to allow connectivity to external
devices.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
Model 32LB580B
32LB5800
39LB5800
42LB5800
47LB5800
50LB5800
55LB5800
47LB6100
50LB6100
55LB6100
VESA (A x B)
A
B
200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket (optional)
LSW240B
MSW240
LSW440B
MSW240
(4 inches)
ENG
ENGLISH
14 ASSEMBLING AND PREPARING
yDisconnect the power first, and then
move or install the TV. Otherwise electric
shock may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this
may cause damage to the TV and void
your warranty.
yUse the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the
warranty.
CAUTION
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
yFor more information, refer to the manual
supplied with the wall mount.
yWhen attaching a wall mounting bracket to
the TV, insert the wall mount inner spacers
into the TV wall mount holes to adjust the
vertical angle of the TV.
(For 42LB5800)
NOTE
Wall Mount
Spacers
Model 60LB6100, 65LB6190
VESA (A x B)
A
B
400 x 400
Standard screw M6
Number of screws 4
Wall mount
bracket (optional)
LSW440B
ENGENGLISH
15
MAKING CONNECTIONS
ANTENNA/
CABLE IN
VHF Antenna
UHF Antenna
Antenna
Coaxial (75Ω)
Terminal
(*Not Provided)
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external
devices. For more information on external device’s connection, refer to the manual provided with
each device.
yIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal
input cable to the TV through a DVD recorder or VCR. For more information of recording, refer
to the manual provided with the connected device.
yThe external device connections shown may differ slightly from illustrations in this manual.
yConnect external devices to the TV regardless of the order of the TV port.
yIf you connect a gaming device to the TV, use the cable supplied with the gaming device.
yRefer to the external equipment’s manual for operating instructions.
NOTE

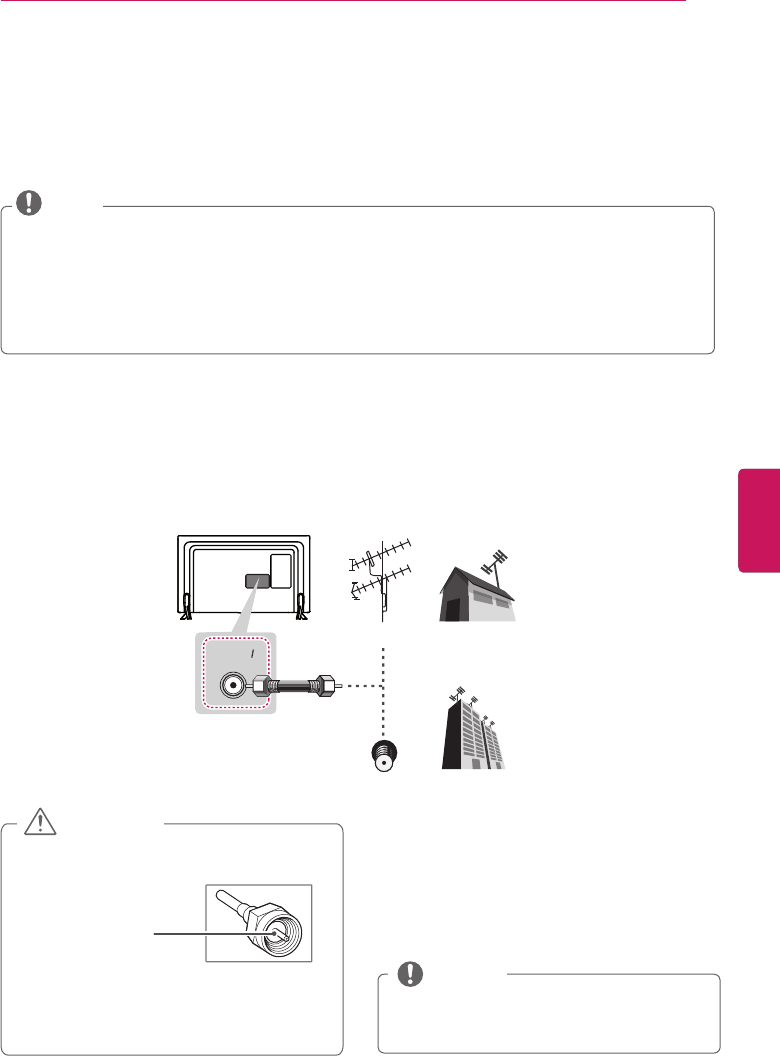

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items. And a RF cable is optional.
yMake sure not to bend the copper wire of
the RF cable.
yComplete all connections between
devices, and then connect the power cord
to the power outlet to prevent damage to
your TV.
CAUTION
Copper wire
yUse a signal splitter to use 2 TVs or more.
yDTV Audio Supported Codec: MPEG,
Dolby Digital.
NOTE
ENG
ENGLISH
16 MAKING CONNECTIONS
ANTENNA/
CABLE IN
PBPRY RL
VIDEO AUDIO
OPTICAL AUDIO IN
H/P OUT
VIDEO
MONO
( )
AUDIOL R
LAN SERVICE
ONLY
P
B
P
R
VIDE
O
/Y
PC-AUDIO IN
L/MONO AUDIO R
COMPONENT IN
/AV IN

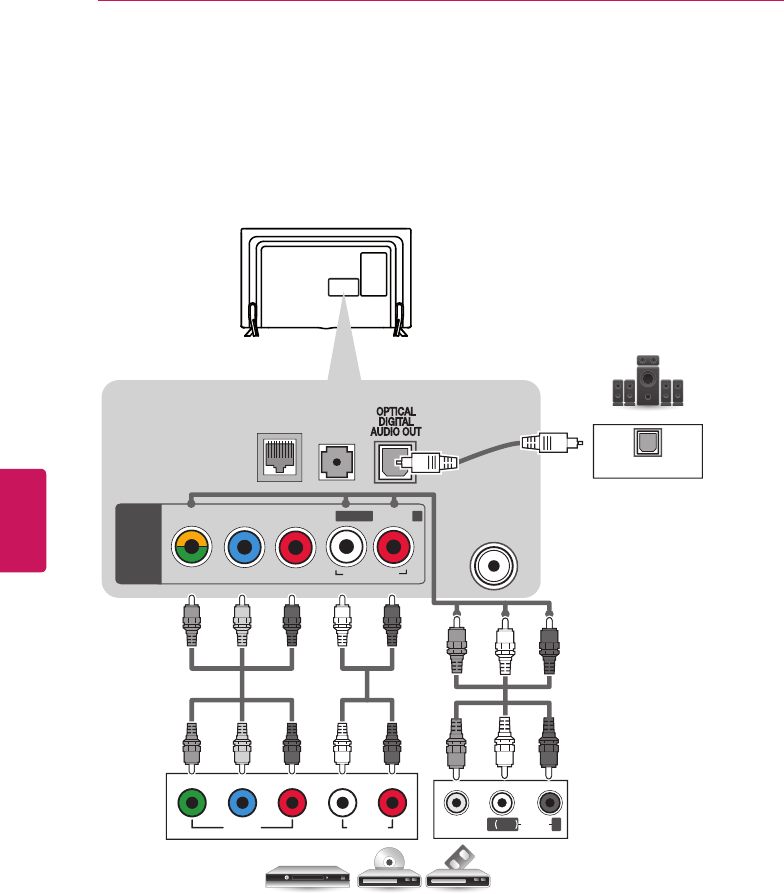

Other connections
yImage shown may differ from your TV.
Connect your TV to external devices. For the best picture and audio quality, connect the external
device and the TV with the HDMI cable as shown. Depending upon the model, a cable may not be
provided.
Digital Audio
System
GREEN GREEN
BLUE BLUE
RED RED
YELLOW YELLOW
WHITE WHITE
WHITE WHITE
RED RED
RED RED
VCR / DVD / Blu-Ray / HD Cable Box
ENGENGLISH
17

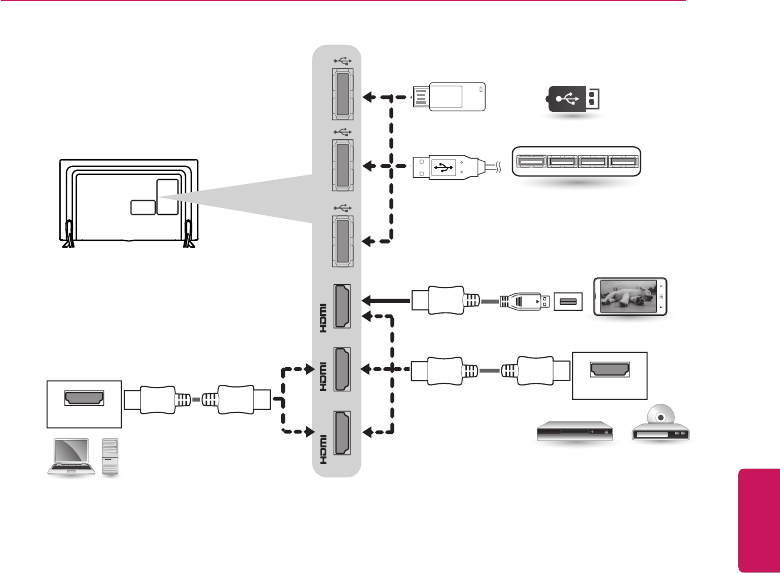

MAKING CONNECTIONS
USB IN 1 USB IN 2 USB IN 3
IN
1
(ARC)
IN
3
(MHL)
IN
2
HDMI
HDMI
HDMI
HDMI
HD Cable Box / DVD /
Blu-Ray / HD STB
MHL Cable
Mobile phone
USB
USB HUB
PC
ENG
ENGLISH

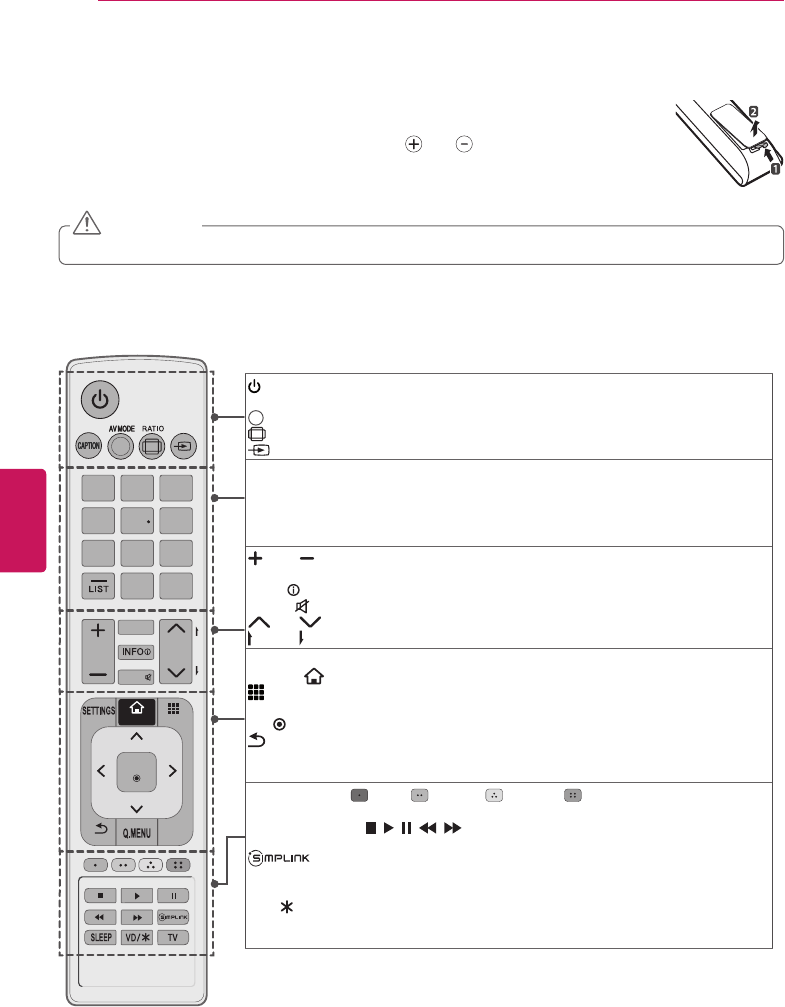

18 REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please
read this manual carefully and use the TV correctly. To install batteries, open the battery
cover, replace batteries (1.5 V AAA) matching the and ends to the label inside
the compartment, and close the battery cover. Failure to match the correct polarities of
the battery may cause the battery to burst or leak, resulting in fire, personal injury, or
ambient pollution.To remove the batteries, perform the installation actions in reverse.
yDo not mix old and new batteries, as this may damage the remote control.
CAUTION
This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote
sensor.
1 2 3
4 5 6
7 8
0
9
MY APPS
SMART
CH
VOL
P
A
G
E
INPUT
FAV
MUTE
FLASHBK
EXIT
BACK
OK
(POWER) Turns the TV on or off.
CAPTION Activates or deactivates the subtitles.
AV MODE Selects an AV mode.
RATIO Resizes an image.
INPUT Changes the input source. Turns the TV on if it is off.
Number button Enters numbers.
- (Dash) Inserts a dash between numbers such as 2-1 and 2-2.
LIST Accesses the saved channel list.
FLASHBK Alternates between the two last channels selected (pressing
repeatedly).
VOL Adjusts the volume level.
FAV Accesses your favorite channel list.
INFO Shows information on the current program.
MUTE Mutes all sounds.
CH Scrolls through the saved channels.
PAGE Moves to the previous or next screen.
SETTINGS Accesses the main menu.
SMART Accesses the Smart Home menu.
MY APPS Shows the list of Apps.
Navigation buttons Scrolls through menus or options. (up/down/left/right)
OK Selects menus or options and confirms your input.
BACK Returns to the previous screen.
Q.MENU Accesses the quick menu.
EXIT Clears all on-screen displays and returns to TV viewing.
Color buttons (: Red, : Green, : Yellow, : Blue)
These access special functions in some menus.
Control buttons ( , , , , ) Controls the SIMPLINK compatible devices
(USB,SIMPLINK).
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
SLEEP Sets the length of time until the TV to turns off.
VD / Enables VD function. SAP(Secondary Audio Program) Feature can also
be enabled by pressing the VD key.
TV Returns to the last TV channel.
ENGENGLISH
19

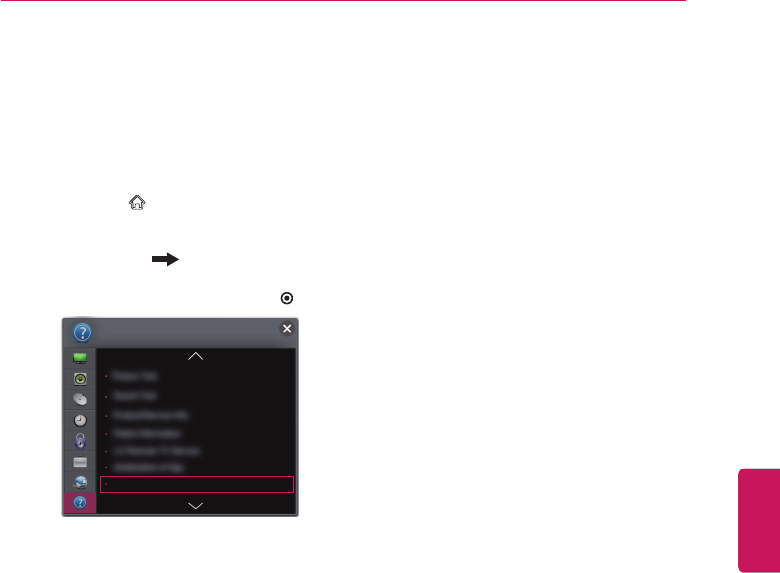

USING THE USER GUIDE
USING THE USER
GUIDE
User Guide allows you to easily access detailed
TV information.
1 Press SMART button to access the Smart
Home menu.
2 Select SETTINGS SUPPORT.
3 Select User Guide and press the OK button.
SUPPORT
User Guide
ENG
ENGLISH
20 SPECIFICATIONS
MODELS
32LB580B
(32LB580B-UG) 39LB5800
(39LB5800-UG)
32LB5800
(32LB5800-UG)
Dimensions
(W x H x D)
With stand 732 x 481 x 207 (mm) 885 x 567 x 218 (mm)
28.8 x 18.9 x 8.1 (inch) 34.8 x 22.3 x 8.5 (inch)
Without stand 732 x 431 x 55.5 (mm) 885 x 524 x 55.5 (mm)
28.8 x 16.9 x 2.1 (inch) 34.8 x 20.6 x 2.1 (inch)
Weight With stand 6.2 kg (13.6 Ibs) 8.3 kg (18.2 Ibs)
Without stand 6.0 kg (13.2 Ibs) 8 kg (17.6 Ibs)
Current Value / Power consumption 1.25 A / 75 W 1.0 A / 100 W
MODELS 42LB5800
(42LB5800-UG)
47LB5800
(47LB5800-UG)
47LB6100
(47LB6100-UG)
Dimensions
(W x H x D)
With stand 961 x 610 x 218 (mm) 1,073 x 676 x 255 (mm)
37.8 x 24 x 8.5 (inch) 42.2 x 26.6 x 10 (inch)
Without stand 961 x 567 x 55.5 (mm) 1,073 x 629 x 55.8 (mm)
37.8 x 22.3 x 2.1 (inch) 42.2 x 24.7 x 2.1 (inch)
Weight With stand 9.5 kg (20.9 Ibs) 12.7 kg (27.9 Ibs)
Without stand 9.2 kg (20.2 Ibs) 12.3 kg (27.1 Ibs)
Current Value / Power consumption 1.1 A / 110 W 1.2 A / 120 W
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement AC 100 - 240 V ~ 50 / 60 Hz
Television System ATSC / NTSC-M, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 - 40 °C (32 °F ~ 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C (- 4 °F ~ 140 °F)
Storage Humidity Less than 85 %
ENGENGLISH
21
SPECIFICATIONS / EXTERNAL CONTROL DEVICE SETUP
MODELS
50LB5800
(50LB5800-UG)
55LB5800
(55LB5800-UG)
50LB6100
(50LB6100-UG)
55LB6100
(55LB6100-UG)
Dimensions
(W x H x D)
With stand 1,128 x 708 x 255 (mm) 1,243 x 772 x 255 (mm)
44.4 x 27.8 x 10 (inch) 48.9 x 30.3 x 10 (inch)
Without stand 1,128 x 660 x 55.8 (mm) 1,243 x 725 x 56.8 (mm)
44.4 x 25.9 x 2.1 (inch) 48.9 x 28.5 x 2.2 (inch)
Weight With stand 14.2 kg (31.3 Ibs) 18.4 kg (40.5 Ibs)
Without stand 13.8 kg (30.4 Ibs) 18 kg (39.6 Ibs)
Current Value / Power consumption 1.3 A / 130 W 1.4 A / 140 W
MODELS 60LB6100
(60LB6100-UG)
65LB6190
(65LB6190-UD)
Dimensions
(W x H x D)
With stand 1,373 x 848 x 280 (mm) 1,462 x 898 x 314 (mm)
54 x 33.3 x 11 (inch) 57.5 x 35.3 x 12.3 (inch)
Without stand 1,373 x 801 x 58.8 (mm) 1,462 x 850 x 59.2 (mm)
54 x 31.5 x 2.3 (inch) 57.5 x 33.4 x 2.3 (inch)
Weight With stand 23.5 kg (51.8 Ibs) 30.5 kg (67.2 Ibs)
Without stand 23.0 kg (50.7 Ibs) 29 kg (63.9 Ibs)
Current Value / Power consumption 1.5 A / 150 W 1.9 A / 190 W
Wireless LAN module (WN8122E1) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz
Output Power (Max.)
802.11a : 16.5 dBm
802.11b : 16 dBm
802.11g : 15.5 dBm
802.11n - 2.4GHz : 15.5 dBm
802.11n - 5GHz: 16.5 dBm
yBecause band channel used by the country could be different, the user can not change or
adjust the operating frequency and this product is set for the regional frequency table.
yThis device should be installed and operated with minimum distance 20 cm (7.8 inch) between
the device and your body. And this phrase is for the general statement for consideration of
user environment.
yContains FCC ID: BEJWN8122E1 / Contains IC: 2703H-WN8122E1
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit
www.lg.com
.
ENG
ENGLISH
22 MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep it at peak performance and to extend the product lifespan.
yMake sure to turn the power off and disconnect the power cord and all other cables first.
yWhen the TV is left unattended or unused for a long time, disconnect the power cord from the
wall outlet to prevent possible damage from lightning or power surges.
CAUTION
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
yDo not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
yDo not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air
fresheners, lubricants, as these may damage the screen’s finish and cause discoloration.
yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock,
or malfunction.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV
with the remote control.
yCheck the remote control sensor on the product and try again.
yCheck if there is any obstacle between the product and the remote control.
yCheck if the batteries are still working and properly installed ( to , to ).
No image display and no
sound is produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
yCheck the power control settings. The power supply may be interrupted.
yCheck if the Sleep Timer/Off Time is activated in the TIME settings.
yIf there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
•
As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER
allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certication by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a at-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
CE.org/safety
The model and serial number of the TV are located
on the back and one side of the TV.
Record them below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
This product qualifies for ENERGY STAR in
the “factory default (Home Use)” setting.
Changing the factory default settings or
enabling other features may increase power
consumption that could exceed the limits
necessary to quality for ENERGY STAR.
Refer to ENERGY STAR.gov for more
information on the ENERGY STAR program.
