![](asset-1.png)
www.lg.com
P/NO : SAC34134232 (1109-REV01)
OWNER’S MANUAL
PLASMA TV
Please read this manual carefully before operating the
set and retain it for future reference.
50PV490
60PV490
50PT490
50PT490U
50PT490R
50PZ850
60PZ850
![](asset-2.png)
2
ENG
ENGLISH
LICENSES
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is
an official DivX Certified® device that plays DivX video. Visit www.divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium
content.”
“DivX®, DivX Certified® and associated logos are registered trademarks of DivX,
Inc. and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
NOTE
Image shown may differ from your TV.
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
![](asset-3.png)

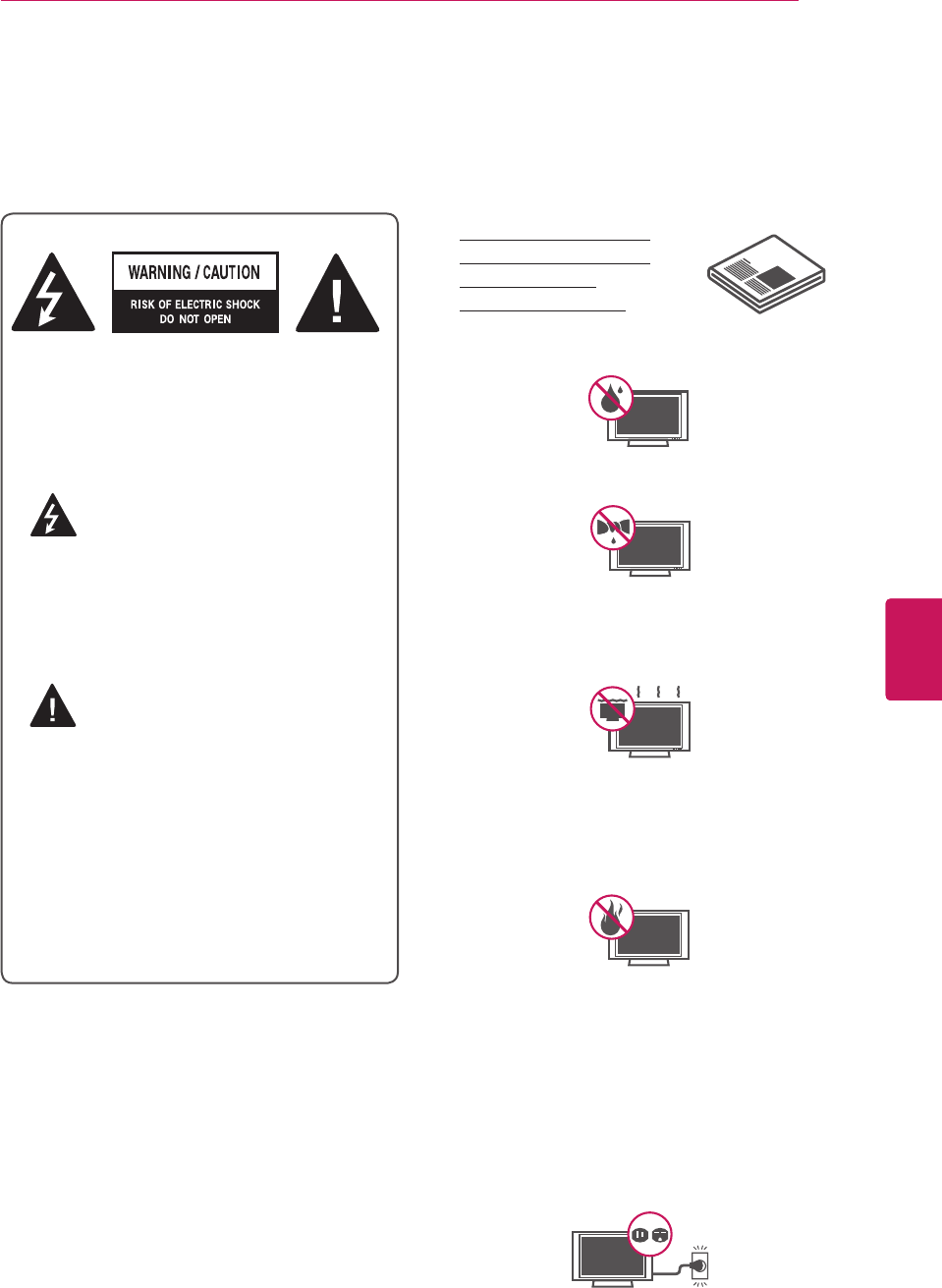

3
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING/CAUTION
Read these instructions.
Keep these instructions.
Heed all warning.
Follow all instruction.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet. (Can differ by country)
![](asset-4.png)
4
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Never touch this apparatus or antenna during
a thunder or lightning storm.
When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
CAUTION concerning the Power Cord:
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.
Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
![](asset-5.png)
5
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Grounding
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
Short-circuit Breaker
DISCONNECTING DEVICE FROM THE MAIN
POWER
The power outlet must remain readily
accessed in the event the device needs to
be unplugged.
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this
product.
ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
NEC: National Electrical Code
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Electric Service
Equipment
Ground Clamp
Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
If you smell smoke or other odors coming
from the TV, unplug the power cord contact
an authorized service center.
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
Keep the product away from direct sunlight.
![](asset-6.png)
6
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Dot Defect
The Plasma panel is a high technology
product with resolution of two million to six
million pixels. In a very few cases, you could
see fine dots on the screen while you’re
viewing the TV. Those dots are deactivated
pixels and do not affect the performance and
reliability of the TV.
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
Viewing 3D Imaging (For 3D TV)
- When viewing 3D imaging, watch the TV
from an effective viewing angle and within
the appropriate distance. If you exceed this
viewing angle or distance, you may not be
able to view the 3D imaging. Furthermore,
the 3D imaging may not display if it is viewed
while you are lying down.
- If you watch the 3D imaging too closely or
for a long period of time, it may harm your
eyesight.
- Watching the TV or playing video games
that incorporate 3D imaging with the 3D
glasses for a long period of time can cause
drowsiness, headaches or fatigue to you
and/or your eyes. If you have a headache,
or otherwise feel fatigued or drowsy, stop
watching the TV and take a rest.
- Pregnant woman, seniors, persons with
heart problems or persons who experience
frequent drowsiness should refrain from
watching 3D TV.
- Some 3D imaging may cause you to duck
or dodge the image displayed in the video.
Therefore, it is best if you do not watch 3D
TV near fragile objects or near any objects
that can be knocked over easily.
- Please prevent children under the age of
5 from watching 3D TV. It may affect their
vision development.
- Warning for photosensitization seizure: Some
viewers may experience a seizure or epilepsy
when exposed to certain factors, including
flashing lights or images in TV or video
games. If you or anybody from your family
has a history of epilepsy or seizure, please
consult with your doctor before watching 3D
TV.
Also certain symptoms can occur in
unspecified conditions without any previous
history. If you experience any of the following
symptoms, immediately stop watching the
3D imaging and consult a doctor: dizziness or
lightheadedness, visual transition or altered
vision, visual or facial instability, such as eye
or muscle twitching, unconscious action,
convulsion, loss of conscience, confusion
or disorientation, loss of directional sense,
cramps, or nausea. Parents should monitor
their children, including teenagers, for these
symptoms as they may be more sensitive to
the effects of watching 3D TV.
Risk of photosensitization seizure can be
reduced with the following actions.
- Take frequent breaks from watching 3D TV.
- For those who have vision that is different
in each eye, they should watch the TV after
taking vision correction measures.
- Watch the TV so that your eyes are on the
same level as the 3D screen and refrain from
sitting too closely to the TV.
- Do not watch the 3D imaging when tired or
sick, and avoid watching the 3D imaging for a
long period of time.
- Do not wear the 3D glasses for any other
purpose than viewing 3D imaging on a 3D TV.
- Some viewers may feel disoriented after
watching 3D TV. Therefore, after you watch
3D TV, take a moment to regain awareness
of your situation before moving.
![](asset-7.png)
7
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
For USA and Canada
FCC NOTICE
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference and (2) this device must
accept any interference received, including
interference that may cause undesired
operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved
by the party responsible for compliance
could void the user’s authority to operate the
equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV
system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and,
in particular, specifies that the cable ground
shall be connected to the grounding system of
the building, as close to the point of the cable
entry as practical.
![](asset-8.png)
8
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 LICENSES
3 IMPORTANT SAFETY IN-
STRUCTIONS
8 TABLE OF CONTENTS
10 ASSEMBLING AND PREPARING
10 Unpacking
11 Additional accessories
13 Optional Extras
14 Parts and buttons
15 Lifting and moving the TV
15 Setting up the TV
15 - Attaching the stand
17 - Mounting on a table
18 - Mounting on a wall
19 - Tidying cables
19 - Attaching Pen Holder Bracket
20 REMOTE CONTROL
23 WATCHING TV

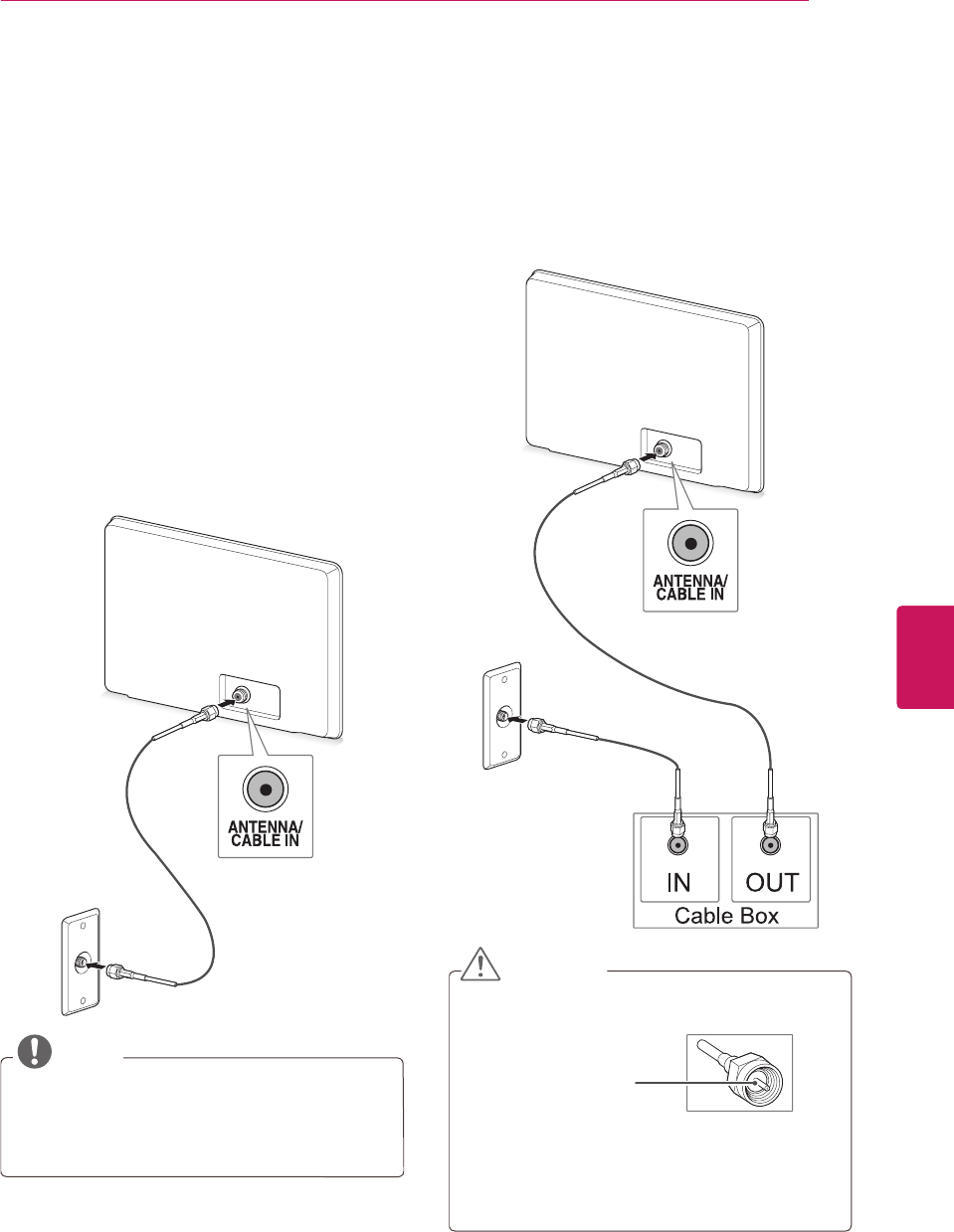

23 Connecting to an antenna or cable
23 - Connecting an antenna or basic cable
23 - Connecting a cable box
24 Turning the TV on for the first time
25 Watching TV
25 Managing channels
25 - Setting up channels
26 - Using favorite channels
27 - Checking current program info
29 Using additional options
29 - Adjusting aspect ratio
30 - Changing AV modes
30 - Using the input list
31 - Locking the buttons on the TV (Child
Lock)
31 Using the quick menu
32 Using the customer support
32 - Testing the Picture / Sound
32 - Using the product or service informa-
tion
33 3D IMAGING (FOR 3D TV)
33 3D Technology
33 - When watching 3D imaging
33 - When using 3D Glasses
33 - 3D Imaging Viewing Range
34 Viewing 3D Imaging
36 PENTOUCH
36 Using Pentouch
37 - Step of Using the Pentouch Program
37 - System Requirements
37 - Installing the Pentouch Program
37 - Installing the USB Dongle Driver
38 - Removing the Pentouch Program and
Driver
38 - Pairing between Touch Pen and Dongle
40 - Using the Pentouch Function
40 - Display Resolution Settings for Pen-
touch
42 Checking the Pentouch Functions
43 - Using Toolbar
44 - Using Sketchbook
46 - Using Photo Editor
48 - Using Family Diary
48 - Using Gallery
49 - Using Internet
50 - Using My Office
![](asset-9.png)
9
ENG
ENGLISH
TABLE OF CONTENTS
51 ENTERTAINMENT
51 - Connecting USB storage devices
52 - Browsing files
54 - Viewing Videos
57 - DivX registration code
58 - Viewing Photos
60 - Listening to music
62 CUSTOMIZING TV SETTINGS
62 The Main Menus
63 Customizing Settings
63 - CHANNEL Settings
64 - PICTURE Settings
68 - AUDIO Settings
69 - TIME Settings
70 - LOCK Settings
72 - OPTION Settings
74 MAKING CONNECTIONS
75 Connection Overview
76 Connecting to a HD receiver, DVD or VCR
player
76 - HDMI Connection
76 - DVI to HDMI Connection
76 - Component Connection
76 - Composite Connection
77 Connecting to a PC
77 - HDMI Connection
77 - DVI to HDMI Connection
77 - RGB Connection
78 Connecting to an Audio System
78 - Digital optical audio connection
78 Connecting to a USB
79 SIMPLINK Connection
79 - Activating and Using the SIMPLINK
menus
80 MAINTENANCE
80 Cleaning Your TV
80 - Screen and frame
80 - Cabinet and stand
80 - Power cord
80 Preventing “Image burn” or “Burn-in” on
your TV screen
81 TROUBLESHOOTING
84 SPECIFICATIONS
88 IR CODES
90 EXTERNAL CONTROL DEVICE
SETUP
98 OPEN SOURCE LICENSE
![](asset-a.png)
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

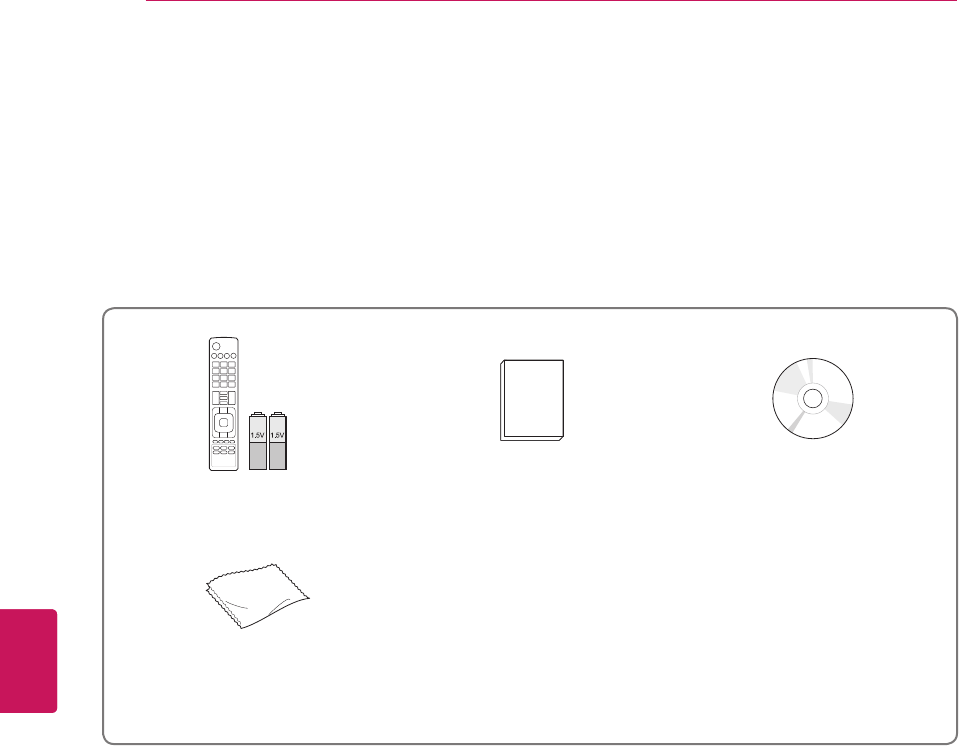

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
Remote control and batteries (AAA) Owner’s manual CD manual
(Included Pentouch Software)
Polishing cloth1
(Depending on model)
FREEZE
RATIO
L/R SELECT
ENTER
BACK EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
1 Gently wipe the spots on the cabinet with the polishing cloth.
![](asset-b.png)
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

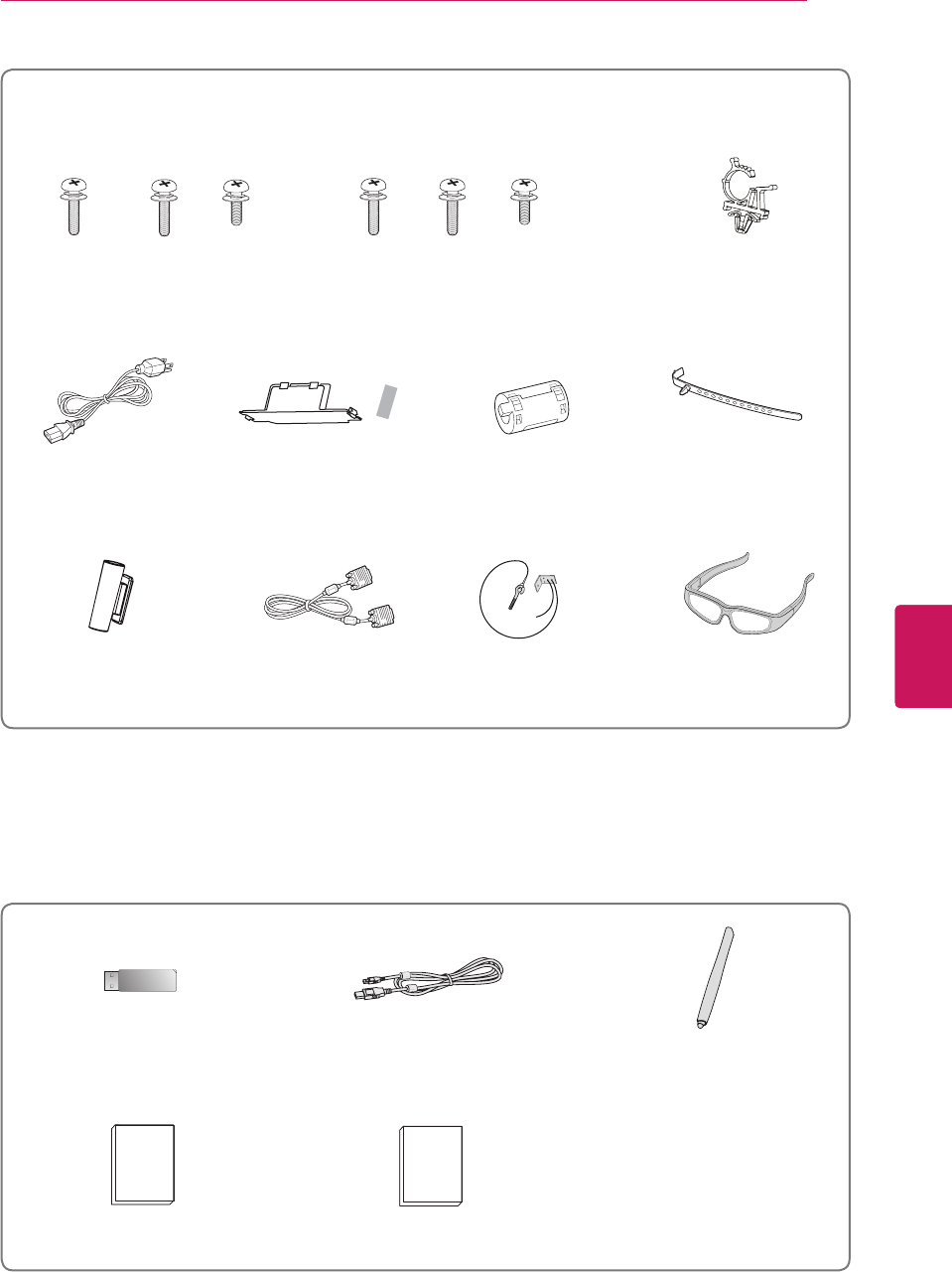

PV490, PT490, PT490U, PT490R, PZ850 series
Screw for assembly Power Cord holder
Power Cord Protection cover, Tape Ferrite core
(Depending on model)
Cable holder
Pen Holder Bracket1D-sub 15 pin signal cable Eye-bolt & Wall bracket 3D Glasses2
(Depending on model)
M6 x 28 M4 x 22 M8 x 35 M5 x 18
(For 60PV490, 60PZ850)
(For 50PV490, 50PT490,
50PT490U, 50PT490R, 50PZ850)
x 2 x 4 x 2 x 4
1 You can attach the pen holder bracket in a position that is convenient for you.
The number of pen holder bracket may differ depending on the model.

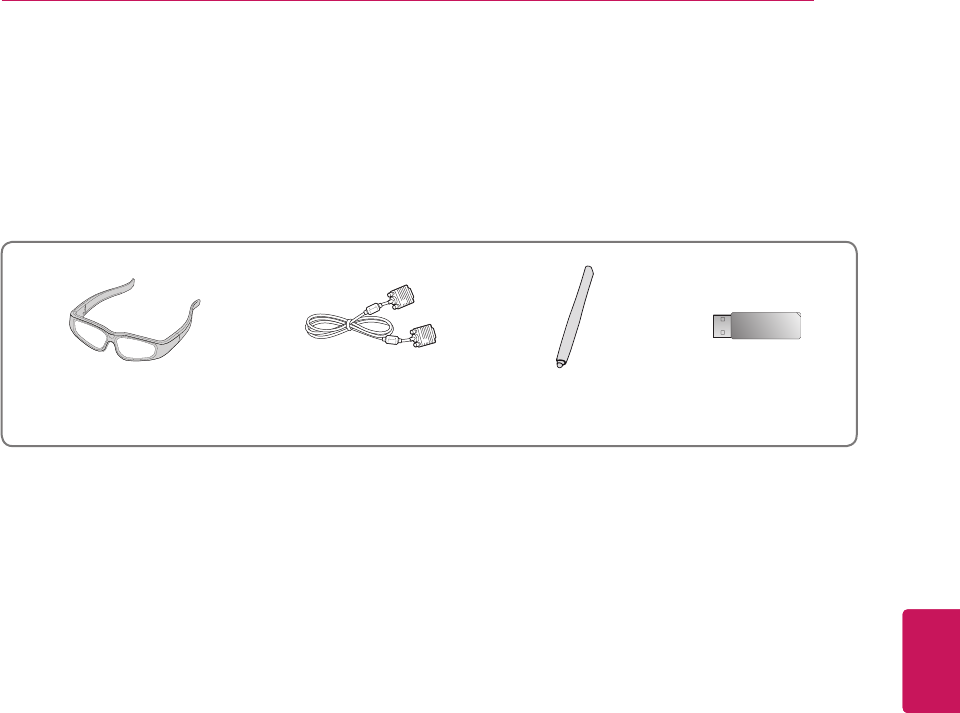

2 The number of 3D glasses may differ depending on the model or country.
Touch Pen Dongle
(AN-TD200)
Charging Cable Touch Pen1
(AN-TP200)
Pentouch Caution Guidelines Owner’s manual
Additional accessories
M5 x 18
x 8
1 The number of touch pen may differ depending on the model.
x 2
M5 x 18
x 8
![](asset-c.png)
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

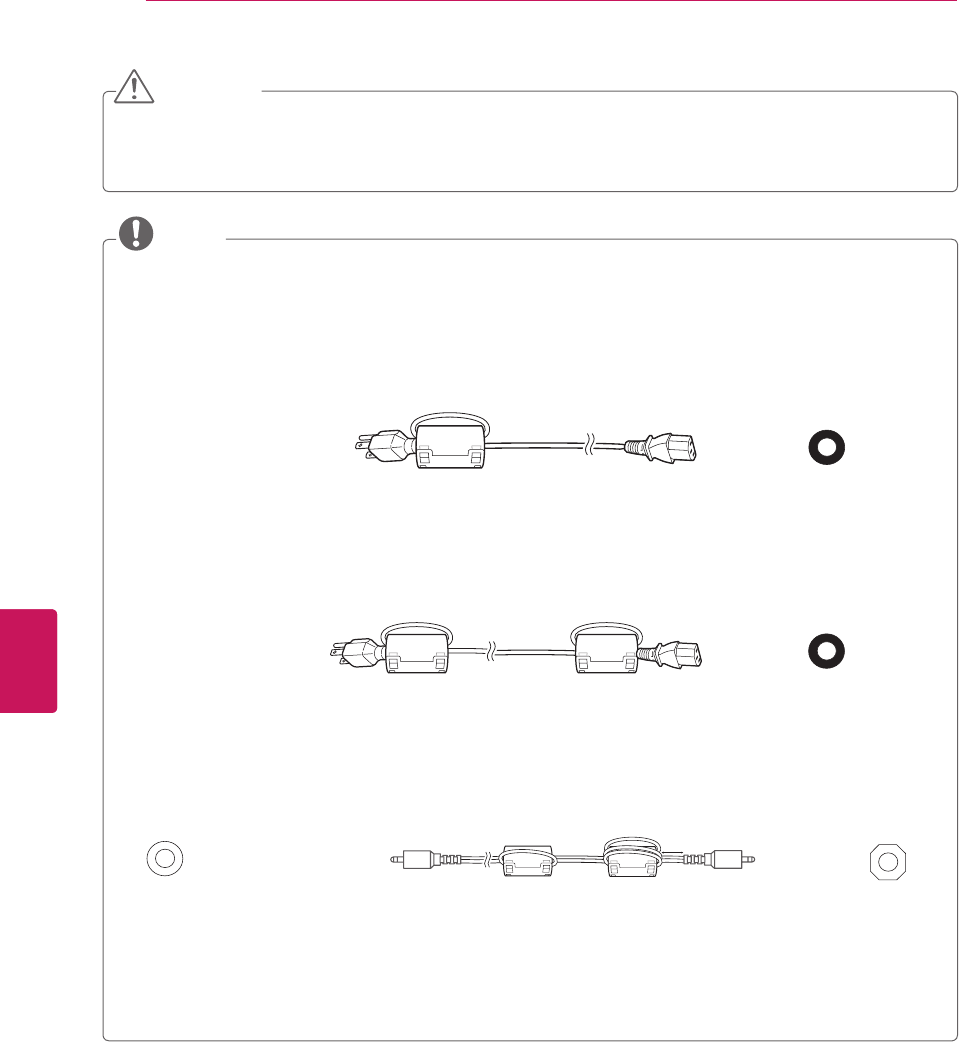

(How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to a wall plug.
[to a wall plug] [to the TV]
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall
plug.
[to a wall plug] [to the TV]
3 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV. Then Wind
the PC audio cable on the ferrite core once. Place the ferrite core close to an external device.
[to an External device]
10 mm (+/-5 mm)
[to the TV]
- If there is one ferrite core, follow as shown in Figure 1.
- If there are four ferrite cores, follow as shown in Figures 2 and 3.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the warranty.
In case of some model, the thin film on screen is a part of TV, So don’t take it off.
[Cross Section of
Ferrite Core]
[Figure 1]
[Cross Section of
Ferrite Core]
[Figure 2]
[Cross Section of
Ferrite Core]
[Cross Section of
Ferrite Core]
[Figure 3]
![](asset-d.png)
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
This device only works with compatible LG Plasma TV.
3D Glasses1
(AG-S230, AG-S250, AG-S270)
D-sub 15 pin signal cable2Touch Pen
(AN-TP200)
Touch Pen Dongle
(AN-TD200)
1 Supports PZ850 series
2 When using the VGA (D-sub 15 pin signal cable) PC connection, use the shielded signal interface cable
with a ferrite core to maintain standards compliance for the product.
![](asset-e.png)
14
ENG
ENGLISH
ASSEMBLING AND PREPARING

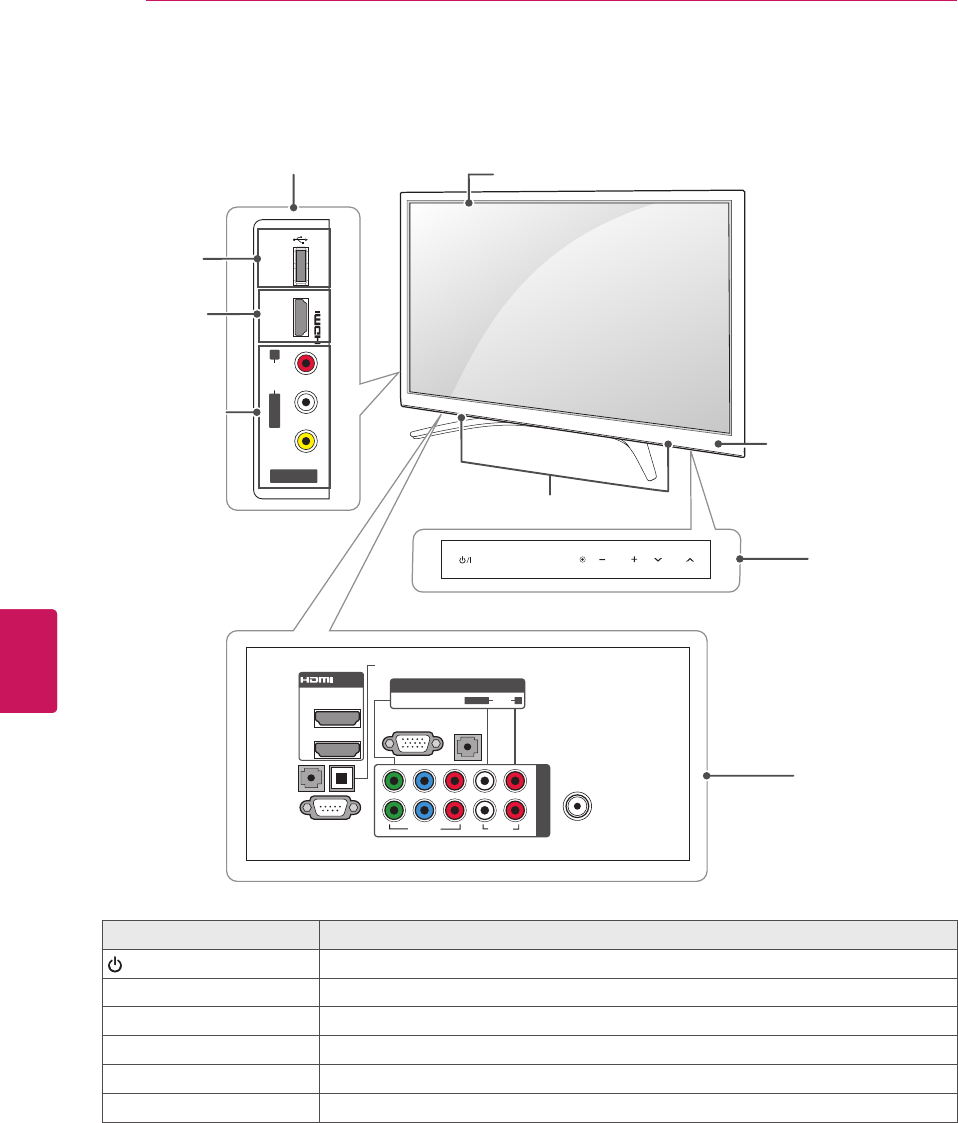

Parts and buttons
Touch button2Description
/ ITurns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume level.
v
CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB ININ 3
ENTER CH
VOL
HOME
INPUT
ANTENNA
/CABLE
IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC) AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
/DVI IN
2
1
2
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT IN
AV IN 1
Y PBPRRL
REMOTE
CONTROL IN
USB input
HDMI input
AV (Audio and
Video) input
Screen
Speakers
Rear Connection
panel (See p.74)
Touch buttons2
Side Connection panel
Remote control and
intelligent1 sensors
![](asset-f.png)
15
ENG
ENGLISH
ASSEMBLING AND PREPARING

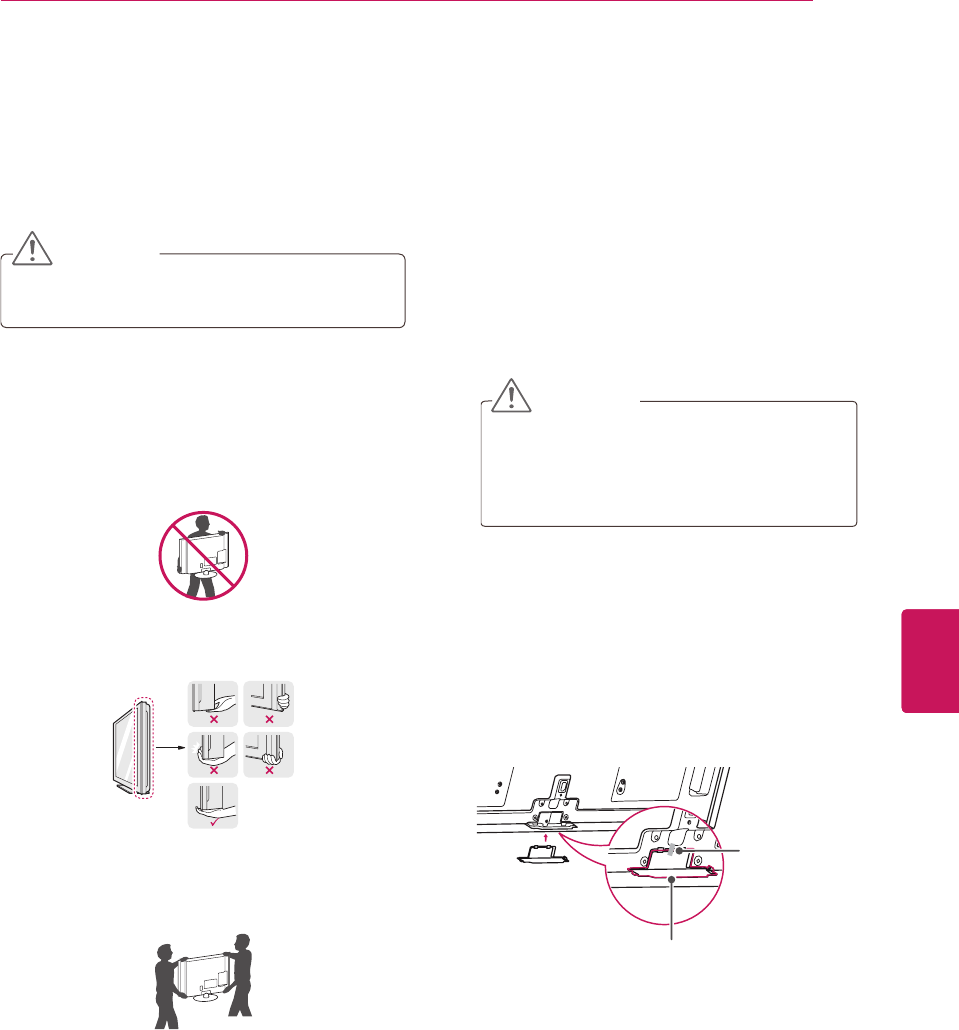

Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
CAUTION
Avoid touching the screen at all times, as
this may result in damage to the screen.
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
When holding the TV, the screen should face
away from you to prevent damage.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
When transporting a large TV, there should
be at least 2 people.
When transporting the TV by hand, hold the
TV as shown in the following illustration.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
Setting up the TV
Put your TV on a pedestal stand and mount the TV
on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
1 Lay the TV with the screen side down on a flat
surface.
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
Attach the protection cover tape.
- This will protect the opening from
accumulating dust and dirt.
- When installing the wall mounting bracket,
use the Protection cover.
Protection cover
Protection
cover tape
![](asset-10.png)
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
3 Assemble the parts of the STAND POLE with
the TV.
Model Screw for
assembly
Number of
screws
50PV490,
50PT490,
50PT490U,
50PT490R,
50PZ850
M6 x 28 2
60PV490,
60PZ850
M8 x 35 2
Stand Pole
Model Screw for
assembly
Number of
screws
50PV490,
50PT490,
50PT490U,
50PT490R,
50PZ850
M4 x 22 4
60PV490,
60PZ850
M5 x 18 4
4 Secure the TV and the STAND BASE with the
8 screws.
Screw for assembly Number of screws
M5 x 18 8
Stand Base
CAUTION
Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 6 screws and pull the stand away
from the TV.
![](asset-11.png)
17
ENG
ENGLISH
ASSEMBLING AND PREPARING

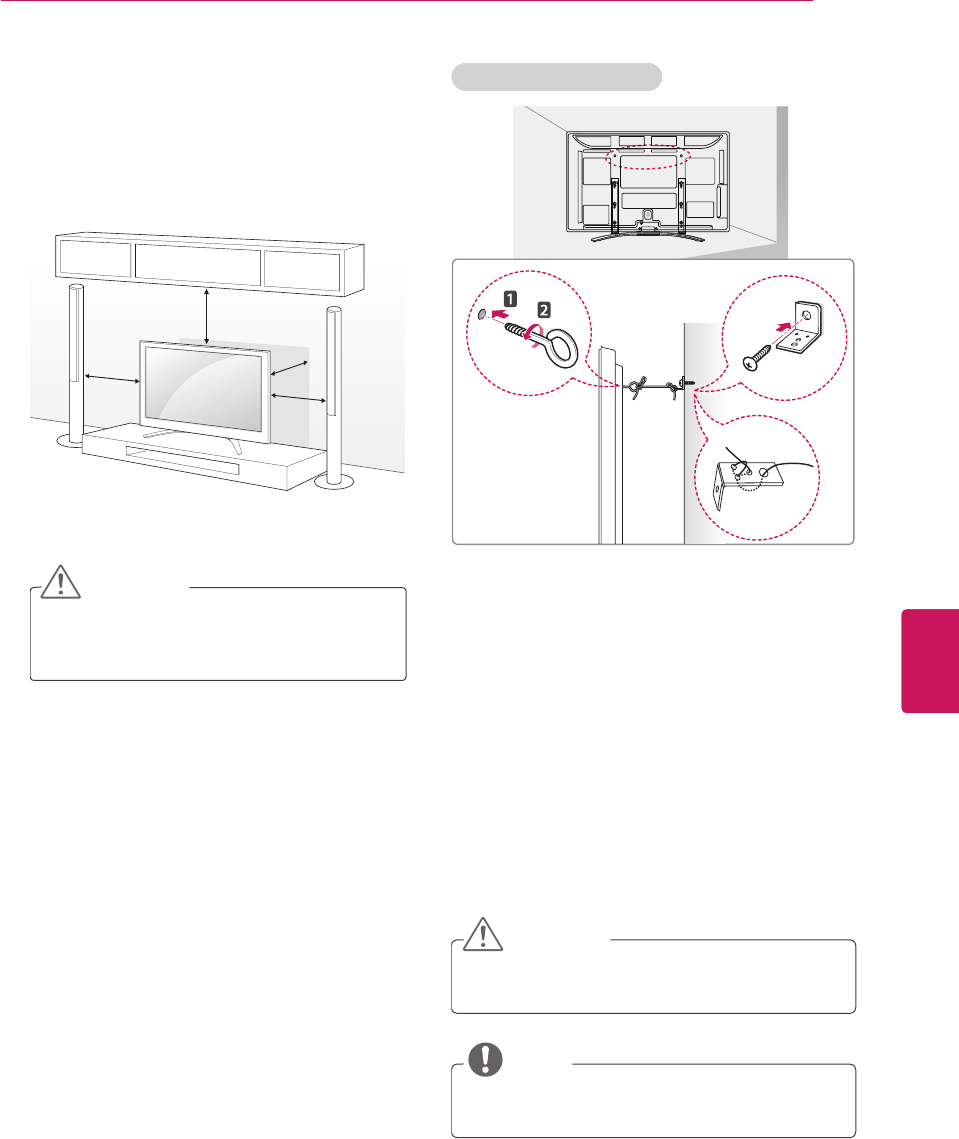

Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
Securing the TV to a wall
1 Insert and tighten the eye-bolts on the back of
the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
CAUTION
Make sure that children do not climb on or
hang on the TV.
NOTE
Use a platform or cabinet that is strong and
large enough to support the TV securely.
(4 inches)
![](asset-12.png)
18
ENG
ENGLISH
ASSEMBLING AND PREPARING

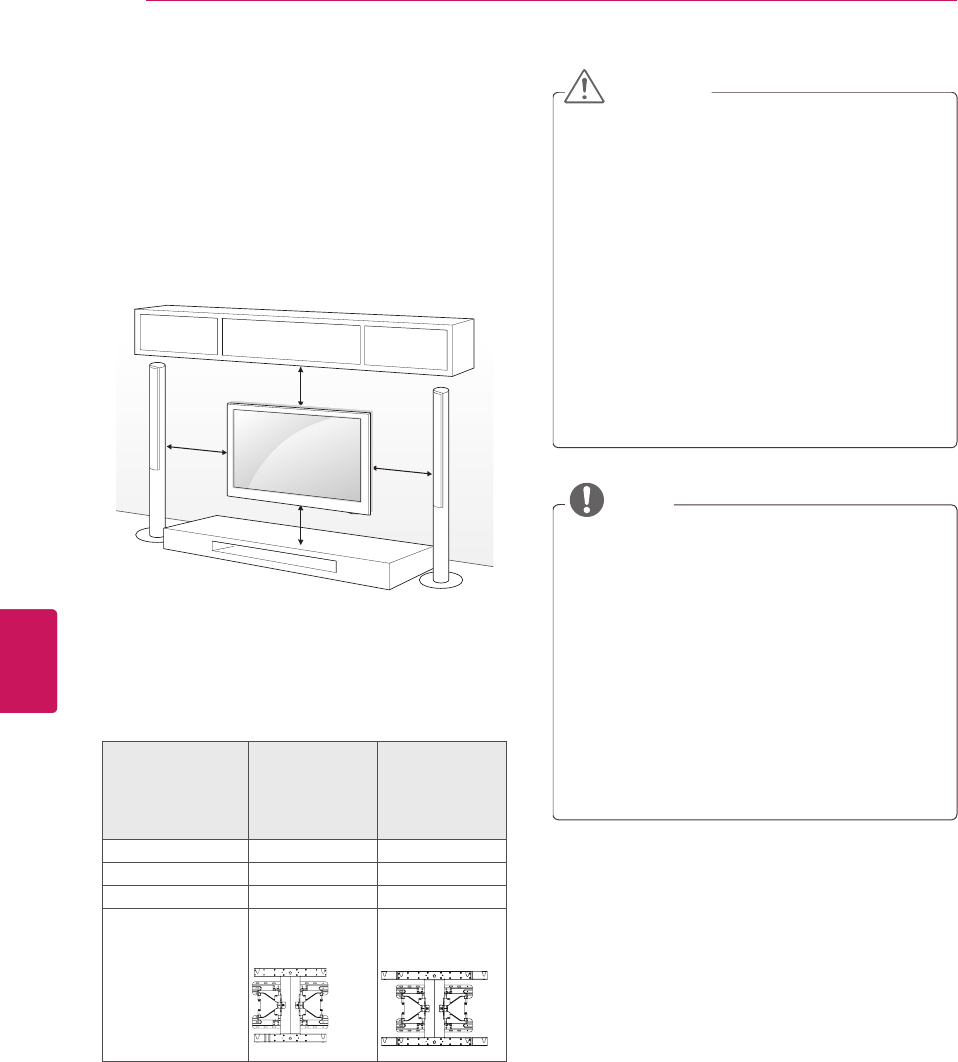

Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
We recommend that you use an LG brand wall
mount when mounting the TV to a wall.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model
50PV490
50PT490
50PT490U
50PT490R
50PZ850
60PV490
60PZ850
VESA 400 x 400 600 x 400
Standard screw M6 M8
Number of screws 4 4
Wall mount bracket
(optional)
PSW400B,
PSW400BG
PSW600B
PSW600BG
(4 inches)
CAUTION
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
For more information, refer to the manual
supplied with the wall mount.
![](asset-13.png)
19
ENG
ENGLISH
ASSEMBLING AND PREPARING

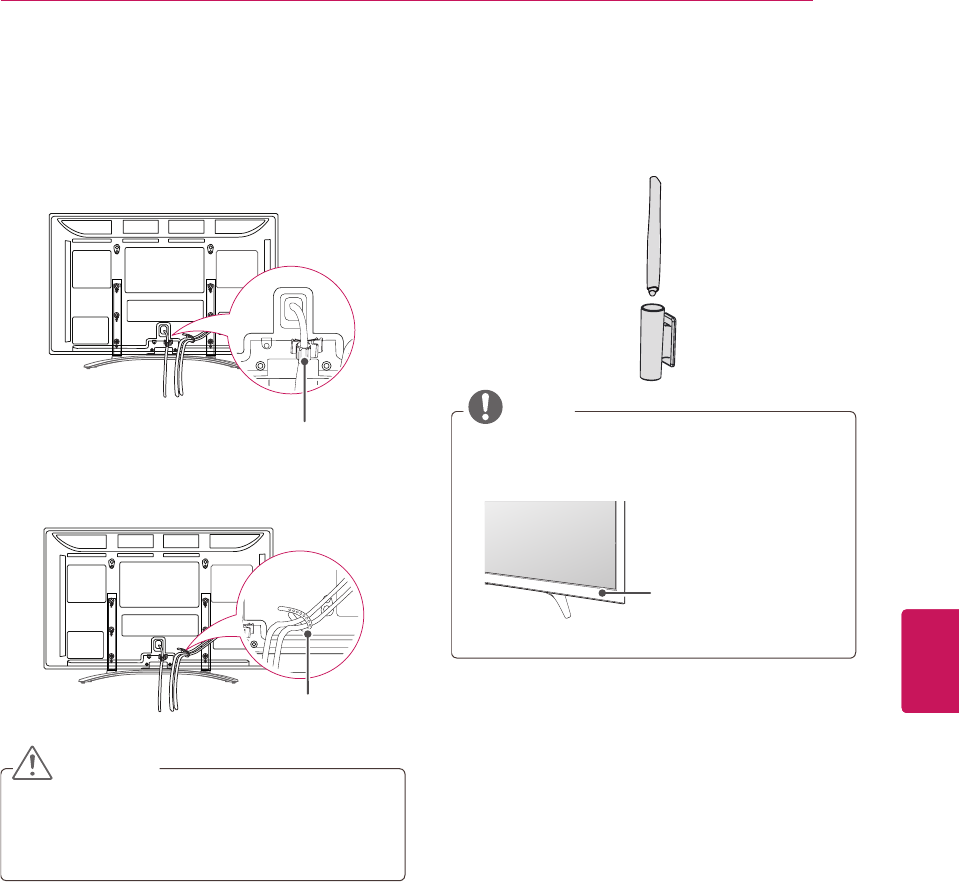

Tidying cables
1 Install the power cord holder and power cord.
It will help prevent the power cable from being
removed by accident.
Power cord holder
2 Gather and bind the cables with the cable
holder.
Cable holder
CAUTION
Do not move the TV by holding the cable
holder and power cord holder, as the cable
holders may break, and injuries and damage
to the TV may occur.
Attaching Pen Holder Bracket
You can attach the pen holder bracket in a
convenient position for use as below.
NOTE
Do not attach it to the intelligent sensors, or
remote control's signal receiver.
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB ININ 3
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC) AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
/DVI IN
2
1
2
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT IN
AV IN 1
Y PBPRRL
Remote control and
intelligent sensors
![](asset-14.png)
20
ENG
ENGLISH

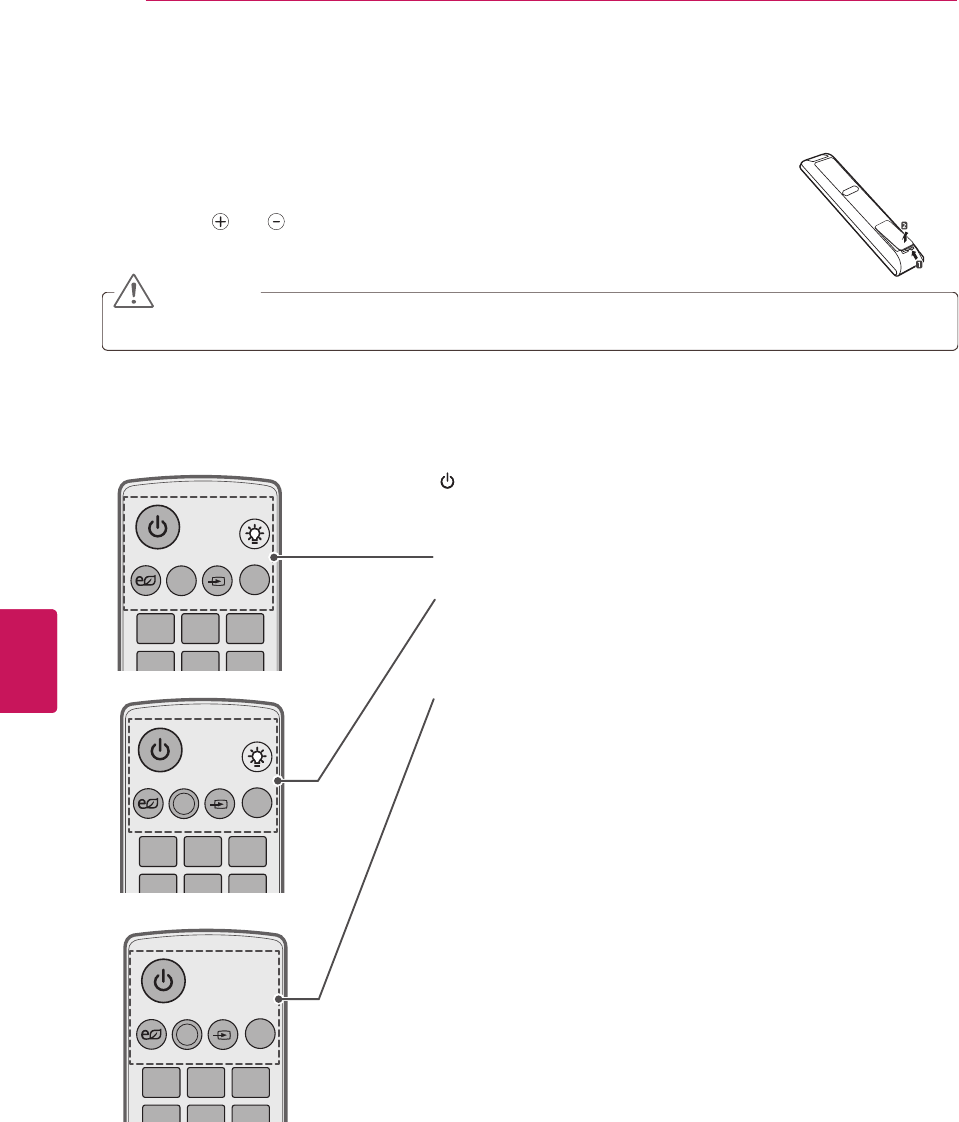

REMOTE CONTROL
Make sure to point the remote control toward at the remote control sensor on the TV.
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the and ends to the label inside the compartment, and close the
battery cover. To remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING
AV MODE
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
(POWER)
Turns the TV on or off.
LIGHT (Depending on model)
Illuminates the remote control buttons.
ENERGY SAVING (See p.64)
Adjusts the Energy Saving settings.
3D (For 3D TV) (See p.33)
Used for viewing 3D video.
AV MODE (See p.30)
Selects an AV mode.
INPUT (See p.30)
Rotates through inputs.
Also switches the TV on from standby.
TV
Returns to the last TV channel.
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
TOUCH
MUTE
MARK
LIST
Q.VIEW
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
![](asset-15.png)
21
ENG
ENGLISH
REMOTE CONTROL
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING
AV MODE
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
TOUCH
MUTE
MARK
LIST
Q.VIEW
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING

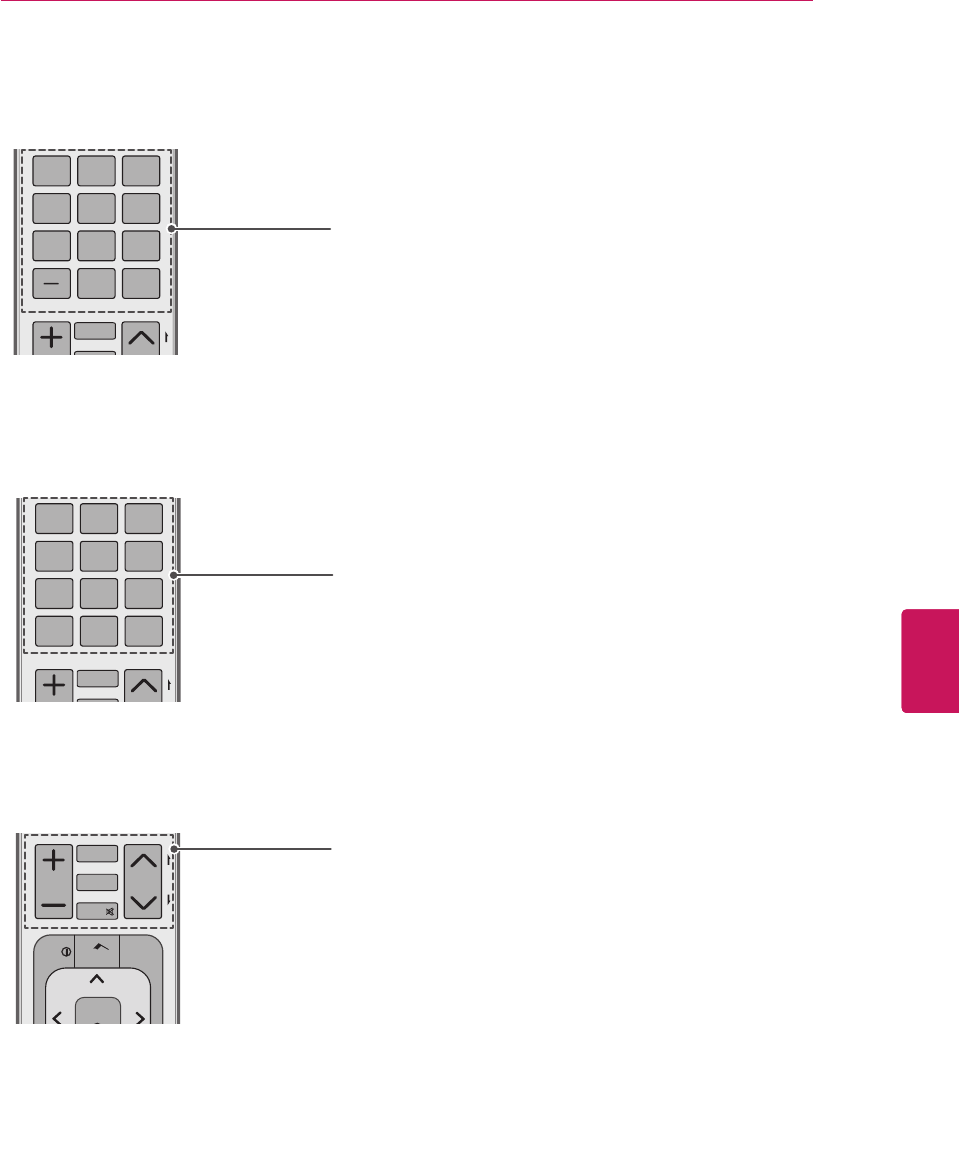

AV MODE
Number button
Enters numbers.
LIST (See p.26)
Accesses the saved channel list.
- (Dash)
Inserts a dash between numbers such as 2-1 and 2-2.
FLASHBK
Alternates between the two last channels selected (pressing repeatedly).
Number button
Enters numbers.
LIST (See p.26)
Accesses the saved channel list.
QVIEW
Alternates between the two last channels selected (pressing repeatedly).
VOL
Adjusts the volume level.
MARK
Selects a menu or option.
FAV (See p.26)
Accesses your favorite channel list.
TOUCH (See p.36)
Enters Pentouch mode.
MUTE
Mutes all sounds.
CH
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
![](asset-16.png)
22
ENG
ENGLISH
REMOTE CONTROL
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING
AV MODE
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING
AV MODE

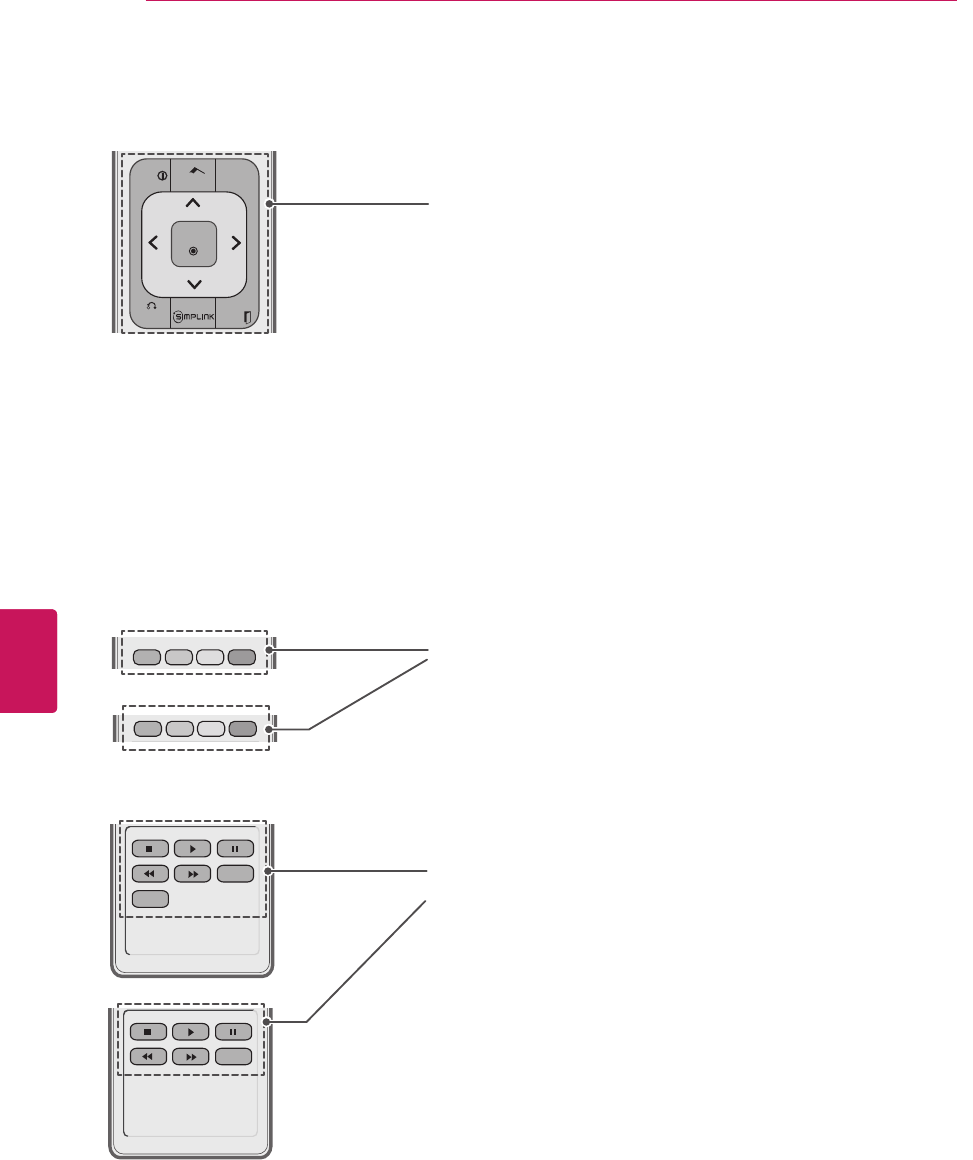

INFO (See p.27)
Views the information of the current program and screen.
Home
Accesses the main menus, or saves your input and exit the menus.
Q. MENU (See p.31)
Accesses the quick menu.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
BACK
Allows the user to move back one step in an interactive application or
other user interaction function.
SIMPLINK (See p.79)
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
EXIT
Clears all on-screen displays and returns to TV viewing.
Colored buttons
These access special functions in some menus.
3D SETTING (For 3D TV) (See p.34)
Used for viewing 3D video.
Control buttons
Controls the SIMPLINK compatible devices (USB,SIMPLINK).
FREEZE
Freezes the current frame (Not supported when using USB Mode and
Simplink.).
RATIO (See p.29)
Resizes an image.
AV MODE (See p.30)
Selects an AV mode.
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
INPUT
FAV
TOUCH
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
3D
3D SETTING
AV MODE
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
TOUCH
MUTE
MARK
LIST
Q.VIEW
BACK EXIT
ENTER
Q.MENU
FREEZE
RATIO
INFO
Home
LIGHT
ENERGY
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
3D
MUTE
MARK
LIST
FLASHBK
BACK EXIT
ENTER
Q.MENU
RATIO
INFO
Home
![](asset-17.png)
23
ENG
ENGLISH
WATCHING TV
WATCHING TV
Connecting to an antenna or
cable
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and a RF cable is
optional.
Connecting an antenna or basic
cable
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
Use a signal splitter to use more than 2 TVs.
Visit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
Connecting a cable box
Connect the TV to a cable box and the cable box
to a wall antenna socket with 2 RF cables (75 Ω).
CAUTION
Make sure not to bend the copper wire of
the RF cable.
Copper wire
Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
![](asset-18.png)
24
ENG
ENGLISH
WATCHING TV
Turning the TV on for the first
time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on
the remote control to turn the TV on.
The Initial setting screen appears if you turn
the TV on for the first time.
NOTE
You can also access Initial Setting by
accessing OPTION in the main menu.
3 Follow the on-screen instructions to customize
your TV settings according to your preferences.
Language Selects a language to
display.
Mode Setting Selects Home Use for
the home environment.
Time Zone Selects the time zone
and daylight saving.
Auto Tuning Scans and saves available
channels automatically.
NOTE
To display images in the best quality for
your home environment, select Home
Use.
Store Demo is suitable for the retail
environment.
If you select Store Demo, any
customized settings will switch back to
the default settings of Store Demo in 5
minutes.
4 When the basic settings are complete,
press ENTER.
NOTE
If you do not complete the Initial setting,
it will appear whenever the TV turns on.
Disconnect the power cord from the
power outlet when you do not use the
TV for a long period of time.
5 To turn the TV off, press the power button on
the remote control.
![](asset-19.png)
25
ENG
ENGLISH
WATCHING TV
Watching TV
1 In Standby mode, press the power button on
the remote control to turn the TV on.
2 Press INPUT and select TV.
3 Control the TV using the following buttons
while you are watching TV.
Button Description
CH (^, v) Scrolls through saved channels.
LIST1Selects a channel on the saved
channel list.
0 - 9 Selects a channel by entering
numbers.
VOL (+, -) Adjusts the volume level.
MUTE Mutes all sounds.
AV MODE2Selects an AV mode (See p.30).
Q.MENU Accesses the quick menus
(See p.31).
FLASHBK or
Q.VIEW
Alternates between the last two
channels selected.
RATIO Resizes an image (See p.29).
FREEZE Freezes the current frame while you
are watching TV.
1 The Lock icon () appears in front of a
channel blocked with parental control.
2 Each AV mode has the optimized image and
sound settings. If you select Off, the image
and sound settings will be restored to the
previously customized settings.
4 To turn the TV off, press the power button on
the remote control.
The TV switches to Standby mode.
Managing channels
*The Digital broadcasting (DTV, Cable DTV) is not
available for Philippines.
Setting up channels
Storing channels
To store channels automatically,
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to
CHANNEL and press ENTER.
3 Press the Navigation buttons to scroll to Auto
Tuning and press ENTER.
4 Select Start to start automatic tuning.
The TV scans and saves available channels
automatically.
NOTE
If the TV scans and saves channels,
the previously saved channels will be
overwritten.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
To store channels manually,
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll
CHANNEL and press ENTER.
3 Press the Navigation buttons to scroll to
Manual Tuning and press ENTER.
4 Scroll through the channel types, and then add
or delete channels.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
If the TV scans a blocked channel, you will
be prompted to enter your password to keep
the channel scanned.
You can store up to 1000 channels. The
number of channels that you can store
differs depending on the broadcasting signal
environment.
The channels are stored in the order of DTV,
TV, Cable DTV and Cable TV.
![](asset-1a.png)
26
ENG
ENGLISH
WATCHING TV
Editing your channel list
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to
CHANNEL and press ENTER.
3 Press the Navigation buttons to scroll to
Channel Edit and press ENTER.
4 Edit channels using the following buttons.
Button Description
^
Highlights the channel type.
^, v,
<
,
>
Scrolls through channel types or
channels.
ENTER Selects the highlighted channel to
view.
CH (^, v) Moves to the previous or next
page.
Blue button
Adds or deletes a channel.
The deleted channel displays in
blue.
FAV Registers or cancels the current
channel in favorite channel list.
Q.MENU Selects your desired favorite
channel group.
Yellow
button Blocks or unblocks a channel.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Selecting a channel on the channel list
1 Press LIST to access the channel list.
- To move to the previous or next page, press
CH (
^
,
v
).
- To tune to the “CHANNEL menu - Channel
Edit”, press Blue button.
2 Select a channel you want and press ENTER.
NOTE
The Lock icon () appears in front of a
channel blocked with parental control.
If you select the blocked channel, you will be
prompted to enter your password.
Using favorite channels
Add the channels that you watch frequently to the
favorite list.
Setting up your favorite list
1 Select a channel to add to the favorite list.
2 Press FAV.
3 Press the Navigation buttons to select your
desired favorite channel group.
4 Press the Yellow button to register or cancel
the current channel in favorite channel list.
Press the Blue button to move to Channel Edit.
5 Press the Navigation buttons to scroll to
Favorite.
6 Press ENTER to add the selected channel to
the favorite list.
7 When you are finished, press EXIT.
NOTE
You can also setup Favorite List in the
CHANNEL menu - Channel Edit.
Selecting a channel on the favorite list
1 Press FAV to access the favorite list.
- To move to the previous or next page, press
CH (
^
,
v
).
2 Select a channel you want and press ENTER.
![](asset-1b.png)
27
ENG
ENGLISH
WATCHING TV
Checking current program info
Press ENTER to view the information of the currently program while you are watching.
The following information appears at the top of the screen.
Start time Progress bar
Banner information Program title Current timeEnd time
Icon Description
Multilingual The program contains two or more audio language services. You can change the
audio language using the quick menu.
Dolby Digital The program contains a Dolby Digital audio signal in TV and HDMI input sources.
Caption The program contains one or more language caption services. You can change the
caption language using the quick menu.
Aspect ratio
The original aspect ratio of the video is 4:3.
The original aspect ratio of the video is 16:9 (wide).
Resolution
The video resolution is 720 x 480i.
The video resolution is 720 x 480p.
The video resolution is 1280 x 720p.
The video resolution is 1920 x 1080i.
The video resolution is 1920 x 1080p.
Rating The program contains Rating information.
See "LOCK Settings" on p.70.
![](asset-1c.png)
28
ENG
ENGLISH
WATCHING TV
Button Description
INFO Shows current channel information.
< or > Shows previous or next channel
information.
^ or v Changes a channel.
![](asset-1d.png)
29
ENG
ENGLISH
WATCHING TV
Using additional options

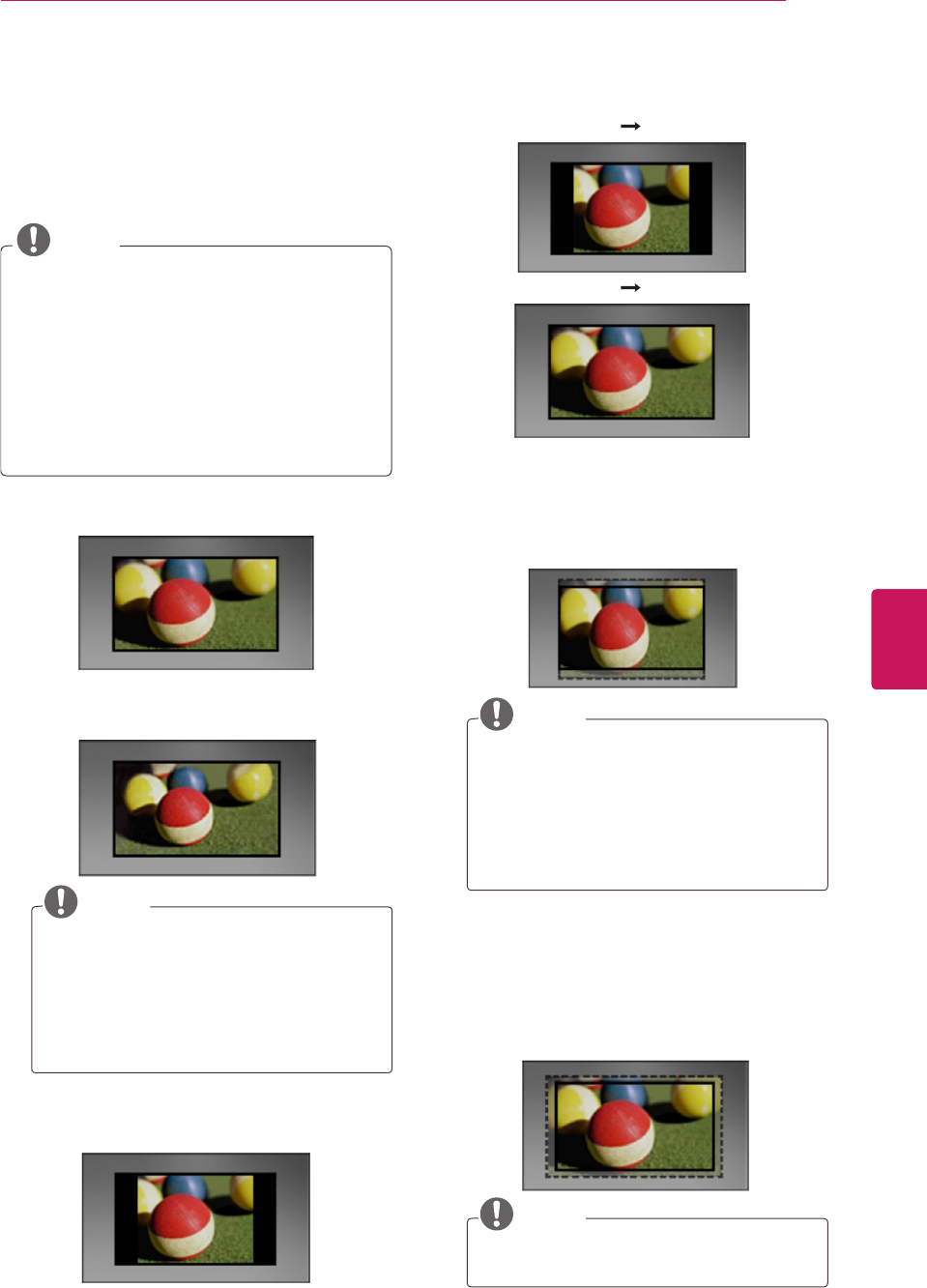

Adjusting aspect ratio
Resize an image t at its optimal size by pressing
RATIO while you are watching TV.
NOTE
You can also change the image size by
pressing Q. MENU or accessing Aspect
Ratio in the PICTURE menu.
The available ratio varies depending on the
input source.
- The input sources: HDMI-PC and RGB-PC
support 4:3 and 16:9.
- The input sources: HDMI-PC 1920 X 1080
supports all of the aspect ratios.
- 16:9: Resizes images to fit the screen width.
- Just Scan: Displays video images in the original
size without cutting off the edges.
NOTE
If you select Just Scan, you may see
image noises at the edge or edges of the
screen.
The input sources: DTV, Component,
HDMI-DTV, and DVI-DTV
(720p/1080i/1080p) support Just Scan.
- 4:3: Resizes images to the previous standard
4:3.
- Set By Program: Displays images in the same
aspect ratio as the original image.
(4:3 4:3 )
(16:9 16:9 )
- Zoom: Formats an image to fit the screen
width. The top and bottom of the image may
not appear.
NOTE
If you access, Aspect Ratio in the Quick
menus,
Press
<
or
>
to stretch an image
vertically.
Press
^
or
v
to move the zoom focus up
or down.
- Cinema Zoom: Formats an image to the
cinemascope ratio, 2.35:1.
To change the ratio of the cinema zoom,
press
<
or
>
and its range is from 1 to 16.
To move the zoom focus up or down,
press
^
or
v
.
NOTE
If you enlarge or reduce an image, the
image may be distorted.
Just Scan
Set By Program
Set By Program
![](asset-1e.png)
30
ENG
ENGLISH
WATCHING TV

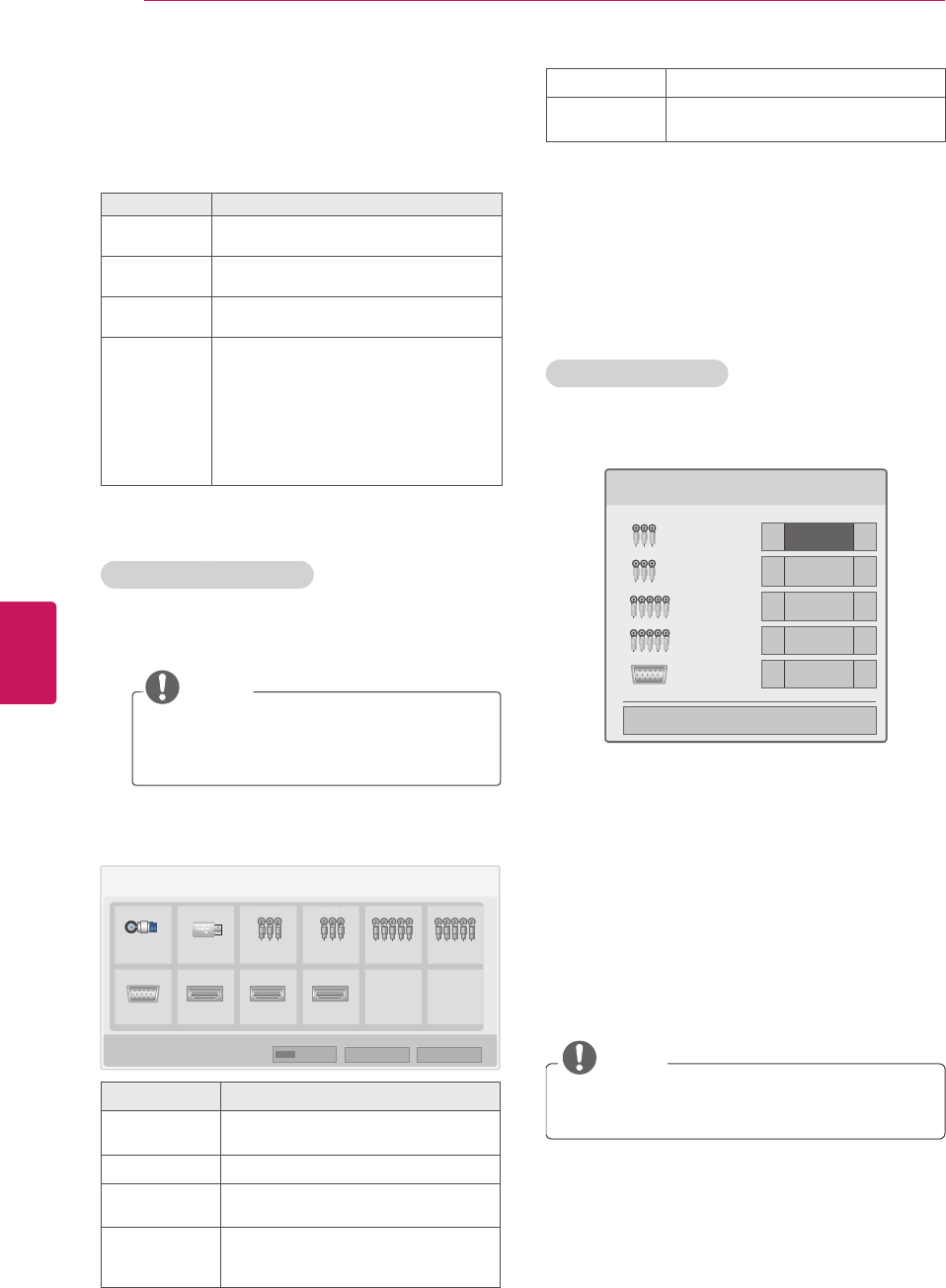

Changing AV modes
Each AV mode has optimized image and sound
settings.
Press AV MODE repeatedly to select an
appropriate mode.
Mode Description
Off Changes to the previously customized
settings.
Cinema Uses the optimized image and sound
settings for a cinematic look.
Sport Uses the optimized image and sound
settings for dynamic action sports.
Game Uses the optimized image and sound
settings for fast gaming.
When playing a video game using
PlayStation or Xbox. it is recommended
to use the Game mode.
When in Game mode, functions related
to picture quality will be optimized for
playing games.
Using the input list
Selecting an input source
1 Press INPUT to access the input sources.
- The connected device displays on each input
source.
NOTE
You can also access the input source list
by selecting INPUT in the Home menu.
(Depending on model)
2 Press the Navigation buttons to scroll to one of
the input sources and press ENTER.
Input source Description
TV Watch TV over the air, cable, and
digital cable broadcast.
USB Play media files from a thumb drive.
AV Watch video from a VCR or other
external devices.
Component Watch video from a DVD or other
external devices, or through a digital
set-top box.
RGB-PC Use the TV as a computer monitor.
HDMI Watches video from a HTS or other
high definition devices.
The disconnected input sources will be gray.
- To add an input label, press the Blue button.
You can easily identify a device connected to
each input source.
- To access the Pentouch, press the TOUCH
button. Various Pentouch functions are
available on the TV.
Adding an Input label
Add a label to an input source so that you can
easily identify a device connected to each input
source.
1 Press INPUT to access the input sources.
2 Press the Navigation buttons to scroll to one of
the input sources.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to one of
the input labels and press ENTER.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
This function is not supported in Pentouch
mode.
![](asset-1f.png)
31
ENG
ENGLISH
WATCHING TV

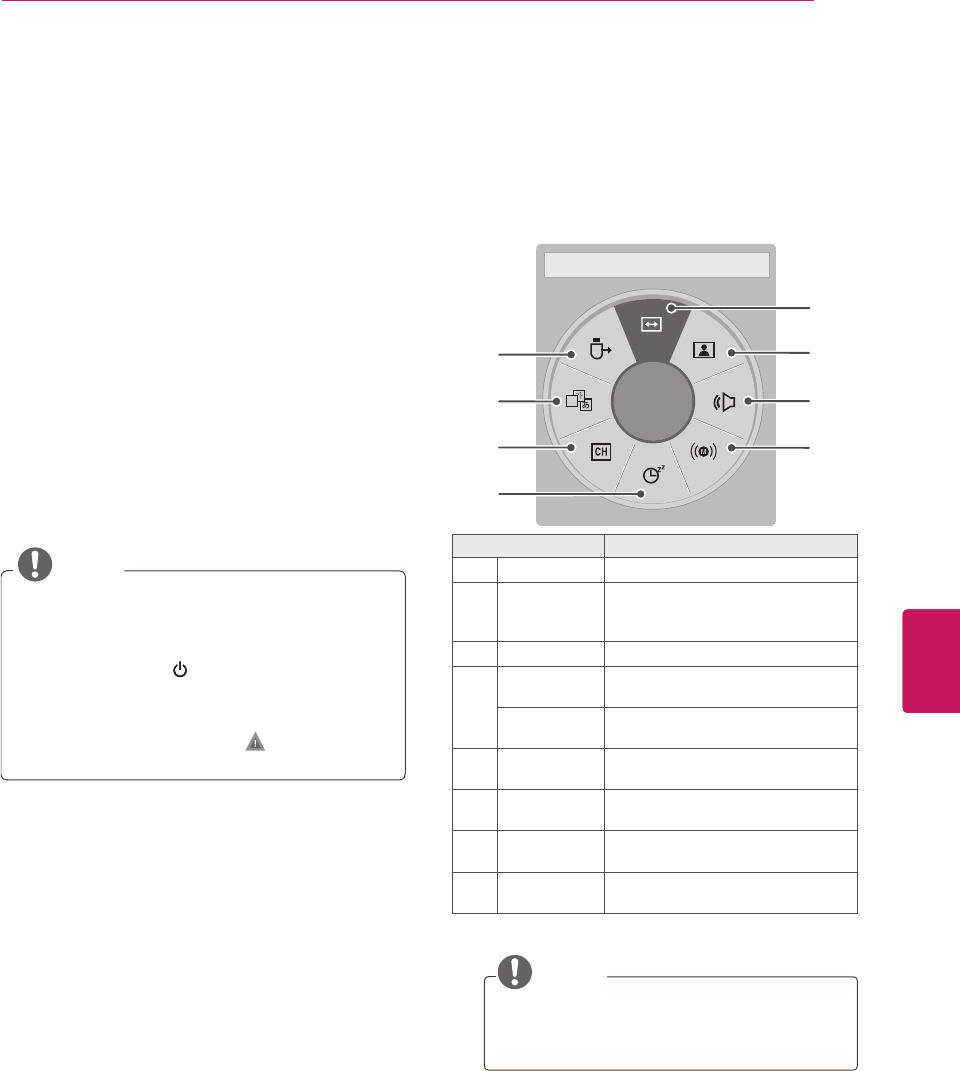

Locking the buttons on the TV
(Child Lock)
Lock the buttons on the TV to prevent any
unwanted operations or accidents by children.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to LOCK
and press ENTER.
3 Input password.
4 Press the Navigation buttons to scroll to
Key Lock and press ENTER.
5 Select On to activate the Key lock feature.
- To deactivate the Key lock feature, select Off.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
The TV is programmed to remember the last
setting after you turn the TV off.
If you turn the TV off with the Key lock
feature activated, , INPUT, CH (^, v) or
Number buttons on the remote control.
If you press any button on the TV with the
Key lock feature activated, Key Lock
appears on the screen.
Using the quick menu
Customize frequently used menus.
1 Press Q. MENU to access the quick menus.
2 Press the Navigation buttons to scroll through
the following menus.
A
8
1
2
3
4
7
6
5
Menu Description
1Aspect Ratio Changes the image size.
2Picture Mode
(Depending
on model)
Changes the image mode.
3Sound Mode Changes the sound mode.
4Multi Audio Changes the audio language
(Digital signal).
SAP Changes the MTS sound (Analog
signal).
5Sleep Timer Sets the length of time until the
TV to turns off.
6Del/Add Edits the channels to add or delete
the channel.
7Caption Activates or deactivate the
subtitles.
8USB Device Ejects a USB device when a USB
device is connected.
NOTE
The available menus and options may
differ from the input source that you are
using.
3 Press the Navigation buttons to scroll to the
option you want.
4 When you are finished, press Q. MENU.
![](asset-20.png)
32
ENG
ENGLISH
WATCHING TV
Using the customer support
Testing the Picture / Sound
To execute picture and sound tests.
1 Press Home to access the main menus.
2 Press the Red button to access Customer
Support.
3 Press the Navigation buttons to scroll Picture
Test or Sound Test and press ENTER.
4 If you have any problem, press the Navigation
buttons to scroll to Yes and press ENTER.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using the product or service
information
To check the product or service information
1 Press Home to access the main menus.
2 Press the Red button to access Customer
Support and press ENTER.
3 Press the Navigation buttons to scroll Product/
Service Info..
You can check the various product/Service
infomation based on your model.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
![](asset-21.png)
33
ENG
ENGLISH
3D IMAGING
3D IMAGING (FOR 3D
TV)
3D Technology
This TV can display in 3D via 3D broadcasting or
when the TV is connected to a compatible device,
such as a Blu-ray 3D Player. The viewer must
wear compatible 3D glasses in order to see these
images in 3D format.
When watching 3D imaging
After powering on the TV, a few seconds
may be needed for your TV to calibrate.
The TV may flicker slightly if the 3D imaging
is displayed under 3 wavelength fluorescent
light (50 Hz - 60 Hz) or magnetic fluorescent
lamp (50Hz - 60 Hz). In such instances, it is
recommended to turn the lights off.
If there is an obstacle between the TV and
the 3D glasses, the 3D imaging may not
display properly.
Do not use the TV in close proximity to other
electronic equipments and RF equipments.
The 3D imaging may not display if it is
viewed while you are lying down.
It may take a moment for you to see the
3D imaging if you look away from the TV
and then revert your eyes back to the 3D
program.
To watch the TV in 3D, you must put on your
3D glasses. For best results, you should
wear LG Brand 3D glasses. The 3D imaging
may not display properly when using another
brand of 3D glasses. Please see the 3D
glasses manual for instructions on how to
use the 3D glasses.
When watching 2D images, it is
recommended to take off the 3D glasses. If
you watch 2D images with the 3D glasses
on, you may see distorted images.
NOTE
If 3D TV broadcast standard changes in the
future and it is not supported by this TV set,
you may need a separate device, such as a
set-top-box.
When using 3D Glasses
CAUTION
3D glasses are sold separately. Refer to the
3D glasses manual for operating instructions.
Do not use the 3D glasses to replace your
corrective glasses, sunglasses or protective
goggles.
Do not store the 3D glasses in hot or cold
locations.
Do not drop objects onto the 3D glasses. Do
not drop or bend the glasses.
Since the lenses of the 3D glasses are
easily scratched, make sure to clean only
with a soft cloth. Shake off any dust before
using the cloth since the glasses are easily
scratched.
3D Imaging Viewing Range
TV size, viewing angle & other circumstances
may change the viewing distance and the angle of
view.
Viewing Distance Viewing Angle
2 m - 10 m
(6.5 ft - 32.8 ft)
120 ° (When the viewing
distance is 2 m (6.5 ft))
![](asset-22.png)
34
ENG
ENGLISH
3D IMAGING

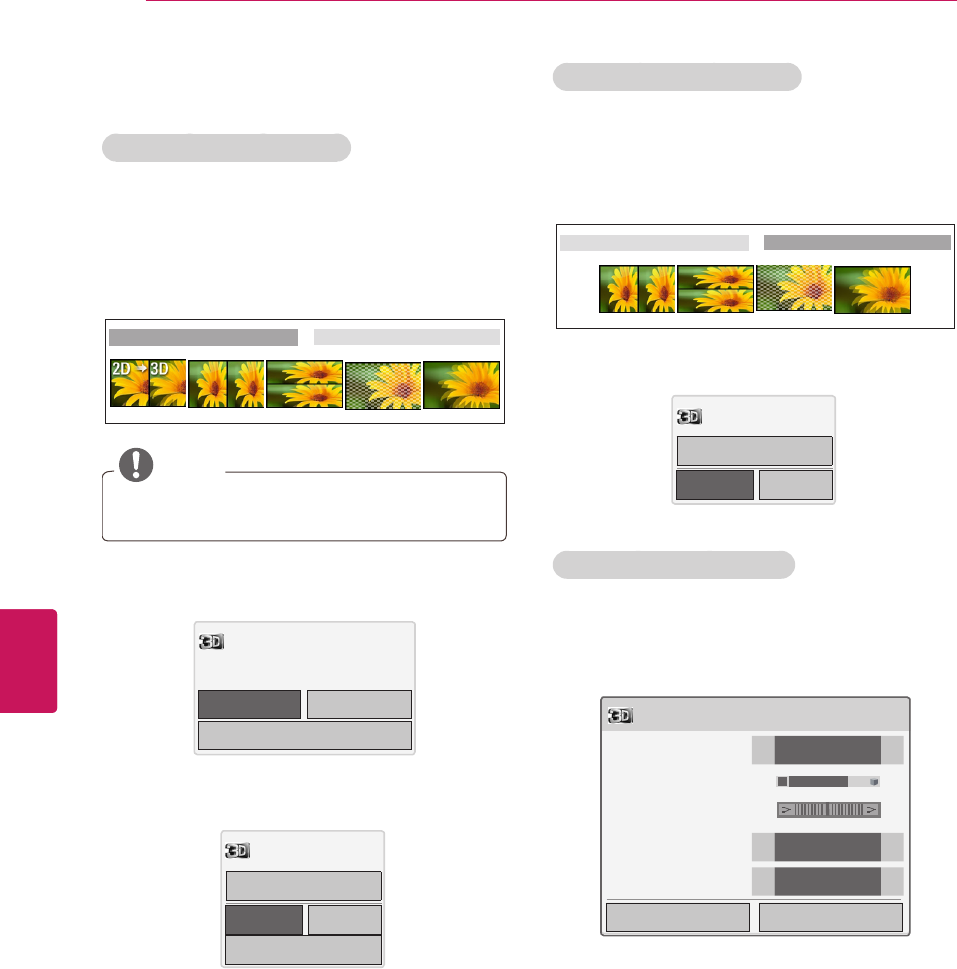

Viewing 3D Imaging
View 3D mode for 3D images
1 Play the 3D video or select 3D channel.
(2D to 3D mode is available with all contents.)
2 Press 3D and select same type in your
displayed picture on the screen.
(Select type on “3D Video” tab.)
3D Video 2D Video
NOTE
Turn on the 3D mode automatically for HDMI
input playing the 3D blueray titles.
3 Press ENTER on displayed information
window.
Power on your 3D glasses and put them on.
Sit 2 meters from TV to enjoy the best 3D
view.
4 To turn off the 3D mode, press 3D and select
ENTER.
Turn off 3D Mode.
View 2D mode for 3D images
1 Play the 3D video or select 3D channel.
2 Press 3D and select same type in your
displayed picture on the screen.
(Select type on “2D Video” tab.)
3D Video 2D Video
3 To turn off the 2D mode, press 3D and select
ENTER.
Turn off 2D Mode.
Using 3D quick menu option
1 Press 3D SETTING.
2 Use the following options while viewing 3D
imaging.
![](asset-23.png)
35
ENG
ENGLISH
3D IMAGING
Button Description
3D Picture Size
Cuts off the outer edges of the
picture and stretch it to fit the full
screen in 3D mode.
3D Depth
Adjusts the distance between the
object and the background in the
picture to enhance the 3D effect in
2D to 3D mode.
3D Viewpoint
Brings the picture (including both the
object and background images) to
the front or back to enhance the 3D
effect in 3D mode.
3D Picture
Balance
Adjusts the color and brightness
difference between the right and left
sides of the picture in 3D mode.
3D Picture
Correction
Changes the order of images in the
right and left sides of the picture in
3D mode.
CAUTION
Some menus may not work while watching
the TV in 3D.
The 3D imaging mode is disabled
automatically when switching DTV channels.
The screen may not be displayed properly
if you view 2D DTV images in 3D imaging
mode.
3D effect can be seen when 3D Mode is
selected appropriately for the 3D input signal
supplied to the TV.
For *mpo files (3D camera files), the 3D
imaging mode is enabled automatically.
3D may not be displayed properly for some
PC graphics cards.
![](asset-24.png)
36
ENG
ENGLISH
PENTOUCH
PENTOUCH
Using Pentouch
Pentouch allows you to use touch pen supported
features like Sketchbook, Photo Editor, Family
Diary, Gallery, Internet and My Office.
WARNING
Do not drop or throw the touch pen.Do not
swing the touch pen with the charging cable
connected to it. This can damage the product
or cause personal injury.
For people using pacemakers, the distance
between the touch pen and the pacemaker
should be at least 30 cm. Never use it
where wireless communication is prohibited.
Protect it from extreme vibrations or
magnetic objects.Wireless communications
can cause malfunctions or failures.
Do not use or store the touch pen in direct
sunlight, near a hot object (e.g., a heater
or fireplace), or in dusty or high-humidity
environments.This can result in product
deformation, malfunction, failure, or fire.
If abnormal sound, smoke, or odor is
detected, immediately remove the charging
cable and stop using the product. Contact a
service center. This can cause failures or fire.
If fluid leaks from the touch pen, do not
touch the fluid with bare hands. If fluid
comes into contact with eyes, immediately
rinse eyes with abundant tap water, then
consult a doctor. The fluid can cause
blindness. If the fluid comes into contact
with skin or clothing, immediately wash it
off with tap water. If the fluid causes skin
inflammation or injury, consult a doctor.
Do not allow the fluid to come into contact
with fire. Do not heat the product in a
microwave or convection oven.
Use the specified USB cable when charging
the battery.
Keep the touch pen out of reach of children
and away from unstable locations. Do not
let children or pets put the touch pen in their
mouths or lick the touch pen. Playing with or
swallowing it may cause serious injury.
Do not use the touch pen with wet hands.
Do not let foreign substances (e.g., soft
drinks or water) enter the touch pen; if this
happens, do not use the touch pen. Do
not touch the optic receiver of the touch
pen with a sharp object. This can result in
electrical shock or damage the product.
Do not use the product under extreme
temperature conditions. Do not use the
product immediately after going from the
cold outdoors to the warm indoors. This
can cause condensation in the pen. * This
can result in damaging the product. Turn
off the power and wait several hours until
the moisture evaporates before using the
product.
Never disassemble or modify the touch
pen. * The product warranty does not cover
damage or injury caused by unauthorized
disassembly. This can result in electrical
shock or damage the product.
If fluid leaks from the touch pen, the use of
fire in the vicinity is strictly prohibited. The
leaked fluid or gas can ignite a fire or cause
damage.
Avoid extreme shocks or impacts to the
product, for example, placing a heavy object
on it or pressing it.
Do not display fixed characters or images on
the screen for extended periods of time. This
can cause image sticking.
Do not connect the charging cable to
peripheral devices or disks that are not
specified. This can cause malfunctions or
failures.
Do not leave the touch pen on the floor.
Stepping on it can damage the product or
cause personal injury. Use the pen holder
provided with the touch pen.
Be careful when disposing of the product.
The touch pen consists of a lithium-ion
battery and plastic material. Burning can be
dangerous, so dispose of it according to local
regulations.
Do not remove the charging cable using
excessive force. This could damage the
charging port and PC.
Do not handle the touch pen with excessive
force. If you use the touch pen with
excessive force, you may leave foreign
substances on the screen. Clean the product
with the product cleaning cloth provided.
When multiple people use the touch pen,
make sure that sufficient space is available.
Collisions can cause injury or failures.
![](asset-25.png)
37
ENG
ENGLISH
PENTOUCH
Step of Using the Pentouch
Program
Follow the steps below to use the Pentouch
function.
1 Check the system requirements before
installation.
2 Install the Pentouch program and the USB
dongle driver from the installation CD.
3 Pair the pen and the dongle.
4 Connect the PC and the TV.
5 Configure the PC screen.
6 Activate the Pentouch mode on the TV.
7 Start the Pentouch program.
System Requirements
Make sure that the drivers are installed properly to
allow proper operation of the touch pen.
Windows 7 Starter Edition is not supported.
Supported Operating System
Windows XP 32 bit
Windows Vista
Windows 7
32 bit
64 bit
Recommended System Requirements for Pentouch
CPU: Dual-Core 2GHz or better
Memory: 1GB or more
HDD: 500MB or more
Display: Graphics card with
1920x1080
(
PV490, PZ850 series) or
1024x768 (
Other
models) via an RGB or HDMI output port
Windows 7 is recommend due to its support
of multi-touch.
NOTE
You must log in as an administrator to install
or remove the included software.
Make sure to install the drivers found on the
CD provided.
You can also download this program from
the LG Electronics website.
Make sure to close all running applications
before installing the drivers.
Installing the Pentouch Program
Follow the steps described in this manual to install
the program.
1 Prepare your computer and start it.
2 After the computer starts, insert the CD
provided. The installation screen appears
automatically.
(If the installation screen is not displayed
automatically, access My computer and then
click LG and index.htm to view the installation
screen.)
3 Click [Install the Pentouch Program] in the
installation window.
The default folder is used for installation.
A window appears to indicate that the
installation was completed successfully.
Installing the USB Dongle Driver
Install the Pentouch program before installing the
USB dongle driver.
1 Click [Install the Pentouch USB Dongle Driver]
in the installation window.
The default folder is used for installation.
A window appears to indicate that the
installation was completed successfully.
2 In Windows XP, the Found New Hardware
Wizard installs your driver automatically.
3 Restart your computer after the installation.
NOTE
Disconnect the USB dongle first to install the
driver.
![](asset-26.png)
38
ENG
ENGLISH
PENTOUCH
Removing the Pentouch Program
and Driver
If there is a problem with the Pentouch program or
driver installation or if an error occurs while using
the program, follow the steps below to remove
the program or driver, and then reinstall them.
1 On your computer, select [Start] → [Control
Panel] → [Add/Remove Programs] to remove
the Pentouch program or driver.
- The installed driver: LG Pentouch Multi-touch
Driver
- The installed Pentouch program: Pentouch TV
2 Click [Yes]. A window appears telling you that
the program/driver has been removed.
3 Please reboot your PC after removing the
program or the driver.
Pairing between Touch Pen and
Dongle
What is Pairing?
You need to pair the touch pen and the dongle
before using the touch pen.
Once paired, you do not need to pair them again
unless you:
Bought a new pen
Replaced the old pen with a new one
Attempt to pair a new touch pen for using
two pens simultaneously
Things to Know Before Pairing
This program allows pairing of up to two
pens and one dongle.
If you want to use two pens simultaneously,
they must be paired with your dongle one at
a time.
Pairing is not possible if a paired pen is
currently in use.
If you pair a new touch pen when two pens
have already been paired with your dongle,
all the previous pairing data is deleted.
Please use the installation CD provided
to install the driver on your PC. (For more
information on driver installation, see the
Driver Installation Guide.)

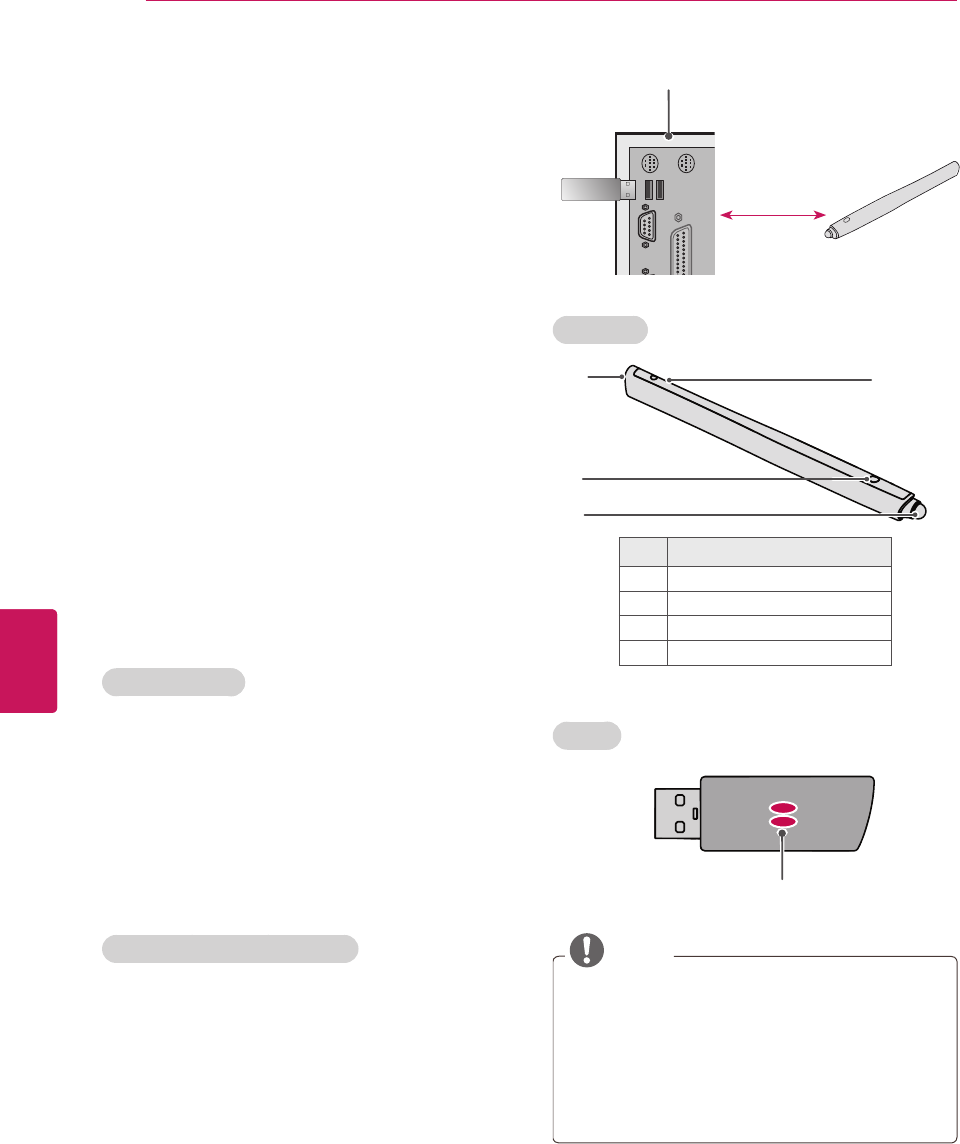

Computer Rear Panel
Pairing
Touch Pen
12
3
4
No. Description
1USB charging port
2LED indicator
3Power / Home button
4Touch pen tip switch
Dongle
Indicator LED
NOTE
For more information, please refer to the
user manual (Touch Pen, Dongle).
Touch pens and dongles are sold separately
at LG Electronics stores.
When you leave your touch pen unused for a
certain period of time (10 minutes), the pen
automatically powers off.
![](asset-27.png)
39
ENG
ENGLISH
PENTOUCH
Pairing for the First Time
1 Check that the LED indicator on the dongle
connected to the computer is red.
2 Keep the touch pen within 50 cm (20 inches)
of the dongle.
3 Press the / Home button on the touch pen
once.
4 The LED indicator on the touch pen will be red
for 2 seconds and blinks green 3 times when
pairing is complete.
5 If the LED indicator is red for 2 seconds and
blinks red 3 times, pairing is not successful.
Please try pairing again.
6 Once a pen is paired, the red LED blinks once
when you press the / Home button.
When Pairing Fails
1 Pairing fails if the dongle driver is not installed
on the computer.
2 Pairing fails if the LED indicator on the dongle
is not red.
3 Remove the dongle from the PC, reinsert it
and try pairing.
Unpairing (Resetting the touch pen)
1 Press the / Home button on the touch pen
and check that the red LED blinks once.
2 Press and hold the / Home button on the
touch pen for 9 to 10 seconds.
3 When the green light blinks once, release the
button. The red light blinks 3 times and the pen
is then in its initial state (unpaired).
Caution When Unpairing
1 Be careful not to unpair the pen by mistake. If
unpaired, try pairing it again.
2 If you unpair and pair a normally functioning
touch pen, the other paired pen may not work.
In this case, unpair the nonfunctioning touch
pen and pair it again by following the steps
described in the Pairing for the First Time
section.
Touch pen Operation
Once paired, you can use the touch pen in the
following ways.
1 Powering on
- Press the / Home button once. The red and
green LEDs will remain lit to indicate that the
power is on.
2 Powering off
- Press and hold the / Home button.
When the red LED turns on once briefly and
once again, release the button. The red LED
blinks 3 times and the pen is then powered
off.
3 Pressing the / Home button while using the
touch pen
- In the Pentouch program: Shows or hides
the toolbar of the feature.
- In Windows: Works in the same way as the
right-click function.
Point the touch pen at an object you want to
right-click, then press the button.
4 The double-click function may not work as
intended in Windows XP or Windows Vista.
If this is the case, use the / Home button
(right-click) instead.
5 The touch pen works in the same way as a
mouse in Windows.
NOTE
After 3 hours of a continuous charge, you
can use the touch pen for about 8 hours.
Pentouch operation may not be normal
while charging.
Green LED will be turned on during using
touch pen. If you don’t use touch pen, it will
be automatically turned off after 1 minute.
Touch pen LED indicator for battery status
- Charging: Red LED
- Charging complete: Green LED
- Battery level 20% or less: Red LED blinks
every 3 seconds
- No battery power: Red LED blinks every
second and powers off automatically.
![](asset-28.png)
40
ENG
ENGLISH
PENTOUCH
Using the Pentouch Function
You need the following items to use the Pentouch
functions:
- Computer with RGB or HDMI output
- RGB or HDMI cable
1 After connecting the TV and the PC with an
RGB cable or an HDMI cable, use the INPUT
button on the remote control and select the
input connected to the PC.
2 Configure your PC screen by referring to the
[Display Resolution Setting for Pentouch]
section. If your PC is a notebook computer,
you should configure the video to only be
displayed on the TV and not on the PC screen.
3 Enter the Pentouch mode on your TV.
- Press TOUCH button on the remote control or
Home to access the main menus. Then press
the navigation buttons to scroll to Pentouch
and press ENTER.
4 Select the correct computer input connection
to enter the Pentouch mode.
Select external Input connected to PC which installed Pentouch program.
RGB-PC HDMI1 HDMI2 HDMI3
PC PC PC PC
5 Use the touch pen or the mouse to start the
Pentouch program. Pressing the / Home
button on the touch pen works in the same
way as right-clicking the mouse.
NOTE
If you turn off the TV and turn it back on
while using the Pentouch function, the last
screen on which you were working appears.
To switch from Pentouch mode to others
mode, either press the INPUT button on the
remote control to select the desired input
or press the TV button to return to the TV
viewing screen.
Display Resolution Settings for
Pentouch
On a Desktop Computer
In Windows XP
Right-click the desktop and select [Properties]. In
the [Display Properties] window, set the screen
resolution to
1920x1080 (
PV490, PZ850 series) or
1024x768 (
Other models) under the [Settings] tab.
In Windows Vista
Right-click the desktop and select [Personalize]
and [Display Settings]. Set the screen resolution
to
1920x1080 (
PV490, PZ850 series) or
1024x768
(
Other models) in the [Resolution] section.
In Windows 7
Right-click the desktop and select [Screen Reso-
lution]. Set the screen resolution to
1920x1080
(
PV490, PZ850 series) or
1024x768 (
Other models)
in the [Resolution] section.
On a Laptop Computer
Method 1:
On your laptop, press the “Fn + switch screen”
key on the keyboard to display the computer
screen on your TV screen, then set the computer’s
display resolution to
1920x1080 (
PV490, PZ850
series) or
1024x768 (
Other models).
* Note: The switch screen key of the laptop may
be subject to change by the manufacturer.
LG Samsung HP Toshiba
Fn+F7 Fn+F4 Fn+F5 Fn+F5
Sony Acer Dell Lenovo
Fn+F7 Fn+F5 Fn+F8 Fn + F7
Method 2:
Open the control panel for the graphics card on
your computer.
Set [Display Mode] to the [Single Display] mode,
then select [LG TV] as the display to use.
* Set the computer’s display resolution to
1920x1080 (
PV490, PZ850 series) or
1024x768
(
Other models).
![](asset-29.png)
41
ENG
ENGLISH
PENTOUCH
NOTE
The method of changing display resolution
settings may vary according to the
computer’s configuration.
Pentouch does not support dual monitor
mode or duplicate (mirror) monitor mode.
Check that the PC screen is set to only be
displayed on the TV.
The switch screen key of the laptop may be
subject to change by the manufacturer.
CAUTION
The double-click function may not work as
intended in Windows XP and Vista because
these operating systems do not use touch
drivers.
The Pentouch operation may become slow
depending on the computer’s performance.
The screen size may change if you disconnect
the computer’s output port and connect it
again. If this happens, set the computer
resolution again.
If nothing is shown on the TV and the laptop
screen when you press the switch screen
key (Fn + manufacturer-specified key), try
pressing the key again.
The TV screen size may become smaller
when you press the switch screen key (Fn +
manufacturer-specified key). If this happens,
adjust the resolution again.
Changing the desktop icon properties
in Windows 7 may affect the Pentouch
program.
It is recommended not to run other
applications while using the Pentouch
program.
If the point you touch on the TV screen
using the touch pen and the point indicated
as touched on the computer screen do
not match when the computer and TV are
connected by a PC signal (RGB) cable, use
the TV remote control to select [Menu] →
[Picture] → [Screen] (RGB-PC), then select
[Auto Config.] to adjust the screen.
If the PC and TV are only connected by a PC
(RGB) signal cable, there will be no sound
from the TV. Please connect the PC and the
TV with a PC audio cable as well.
The Play Video function in Photo Editor may
not work as intended, depending on the
codecs installed on your computer.
Eraser function could be slower if drawing
objects are overlapped exceed program
performance depends on PC environment.
If you want to open programs with a single
click in Window XP or Vista, On your PC, go
to Start → Control Panel → Folder Options
and select "Single-click to open an item (point
to select)."
If your PC is running Windows XP, the virtual
keyboard will only support English.
When changing to the Pentouch mode, or
when changing the resolution in Pentouch
mode for RGB input signals, images may not
be displayed properly for a while due to auto
adjustment.
![](asset-2a.png)
42
ENG
ENGLISH
PENTOUCH

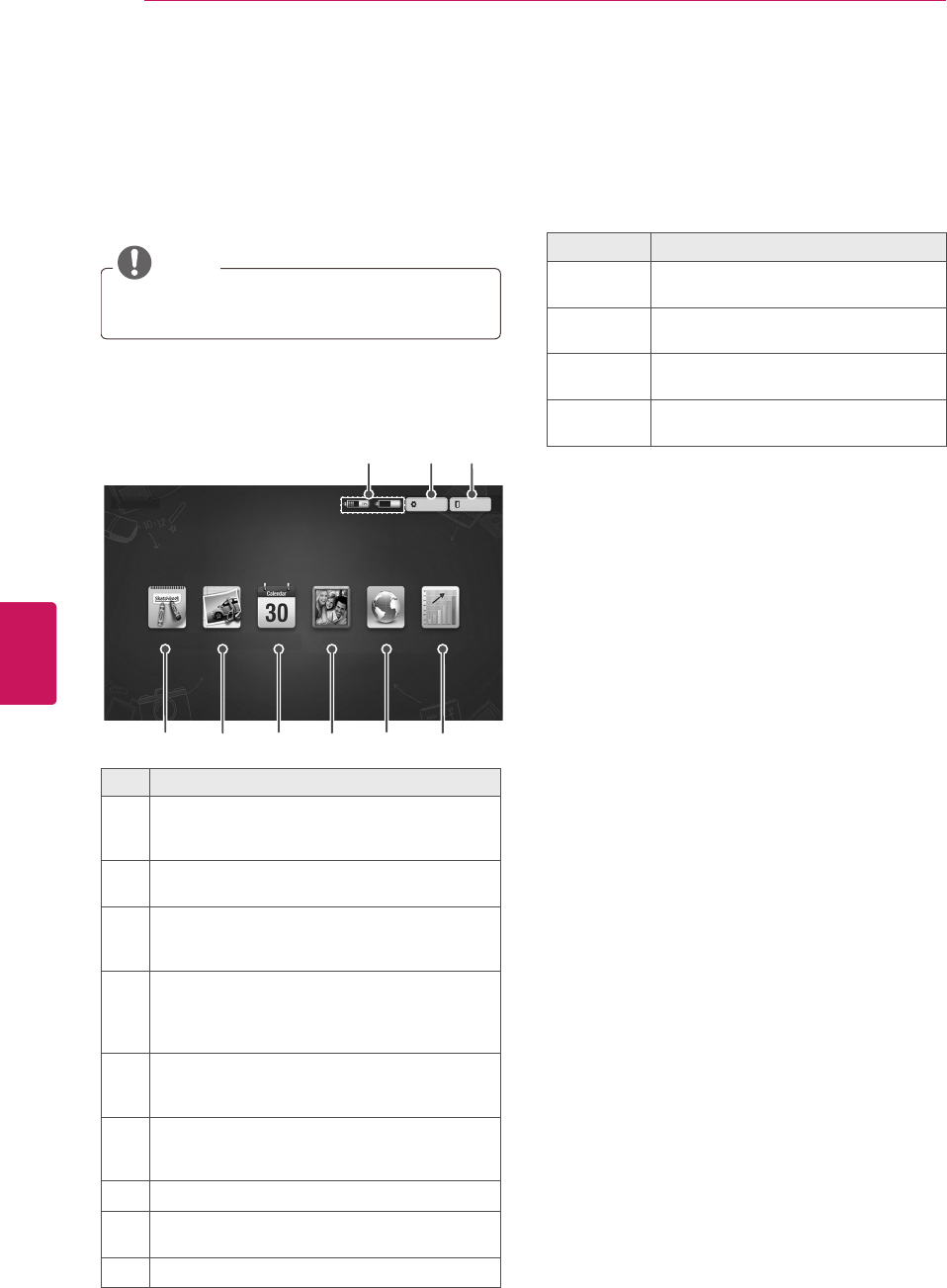

Checking the Pentouch
Functions
You see the home screen shown below when you
start the Pentouch.
1 Press TOUCH button on the remote control.
NOTE
You can also access the pentouch functions
by selecting Pentouch in the main menus.
2 Touch the screen with the touch pen to select
Sketchbook, Photo Editor, Family Diary,
Gallery, Internet or My Office.
Sketchbook Photo Editor Internet
Gallery
Family Diary My Office
Exit
Setting
87 9
1 2 3 4 5 6
Pentouch
No. Description
1Sketchbook
Select the background you want, then draw
pictures on it.
2Photo Editor
Draw or edit pictures on photos and videos.
3Family Diary
A journal of photos, videos, notes, and sketches
for family events by date.
4
Gallery
A collection of pictures drawn and saved in
Sketchbook, Photo Editor, Internet, and My
office.
5Internet
Launch the Web browser to capture the web
content, then draw or write memos on it.
6My Office
Supports the glass effect in Microsoft
Office and PDF files.
7Touch pen battery level
8Saving, opening folder location, screen saver
settings and selecting language
9Quit the Pentouch program
When you select the Setting,
1 Select Setting from the Pentouch Home
screen with the touch pen.
2 Select the desired option.
Option Description
Open folder Select a folder from which you will open
photos or video files.
Save folder Select a folder to which you want to
save images.
Screensaver Select the standby time for the
screensaver.
Language Select and change the language you
wish to work in.
![](asset-2b.png)
43
ENG
ENGLISH
PENTOUCH

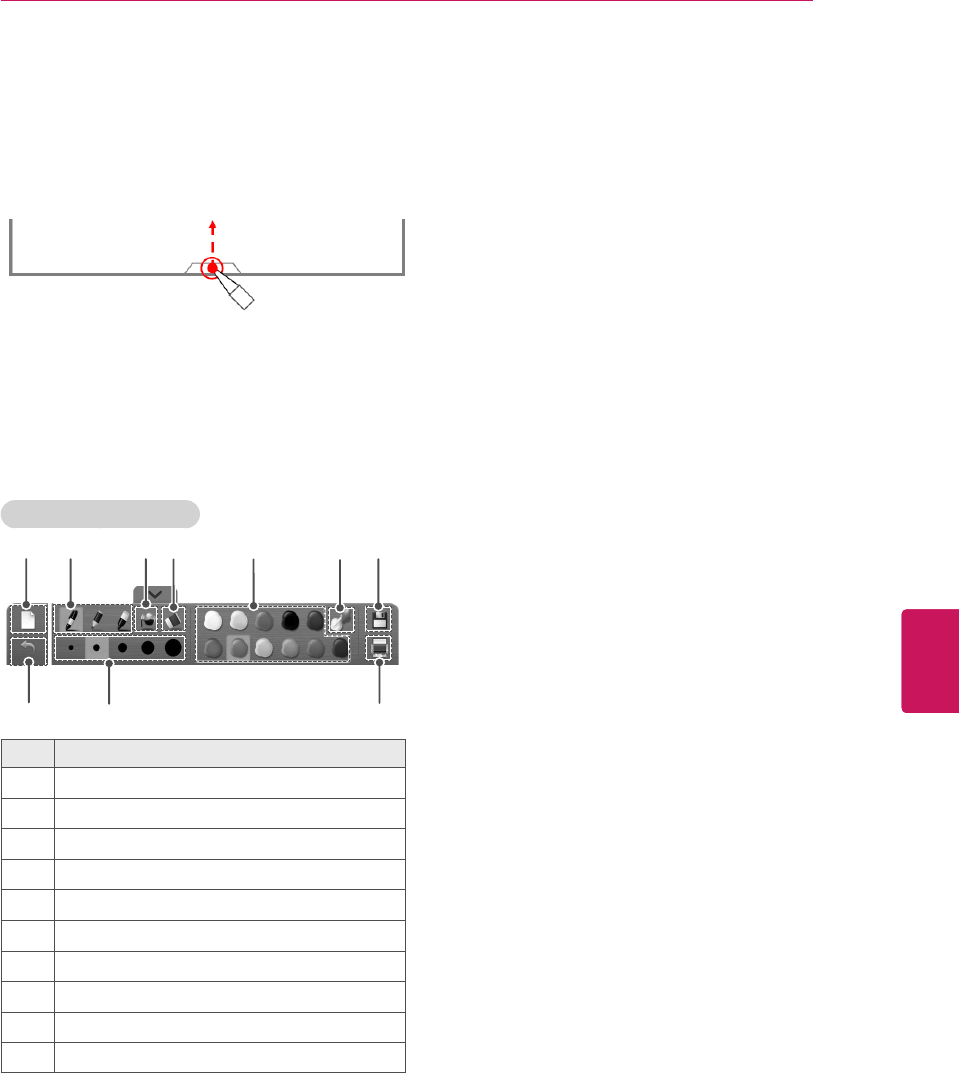

Using Toolbar
You can use the draw toolbar on all menu screens.
Display the toolbar by pointing the touch pen at
the bottom of the screen.
There are two types of toolbars: fixed and
specialized.
The fixed toolbar provides the functions used
for all menus.
The specialized toolbar provides the
functions used for a specific menu.
Fixed Toolbar Functions
24:
1
3 5 76 8 9
No. Description
1Remove the background and all the drawings.
2Undo up to 5 recent actions.
3Ink pen, highlighter pen, magic pen.
4Select the thickness of the current drawing tool.
5Fill a closed area with the selected color.
6Eraser
7Select a color for the current drawing tool.
8Select any color from the color wheel.
9Save
:Print
* Descriptions for the specialized toolbar functions
are provided in the menu function description
section.
![](asset-2c.png)
44
ENG
ENGLISH
PENTOUCH

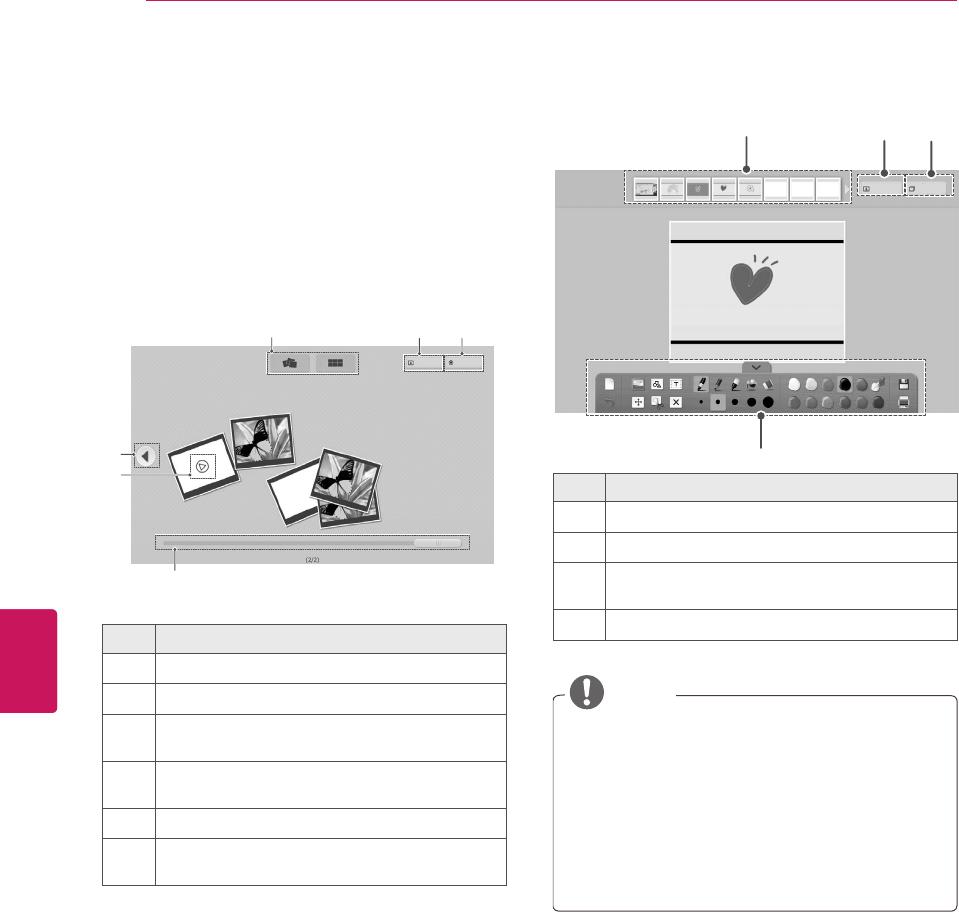

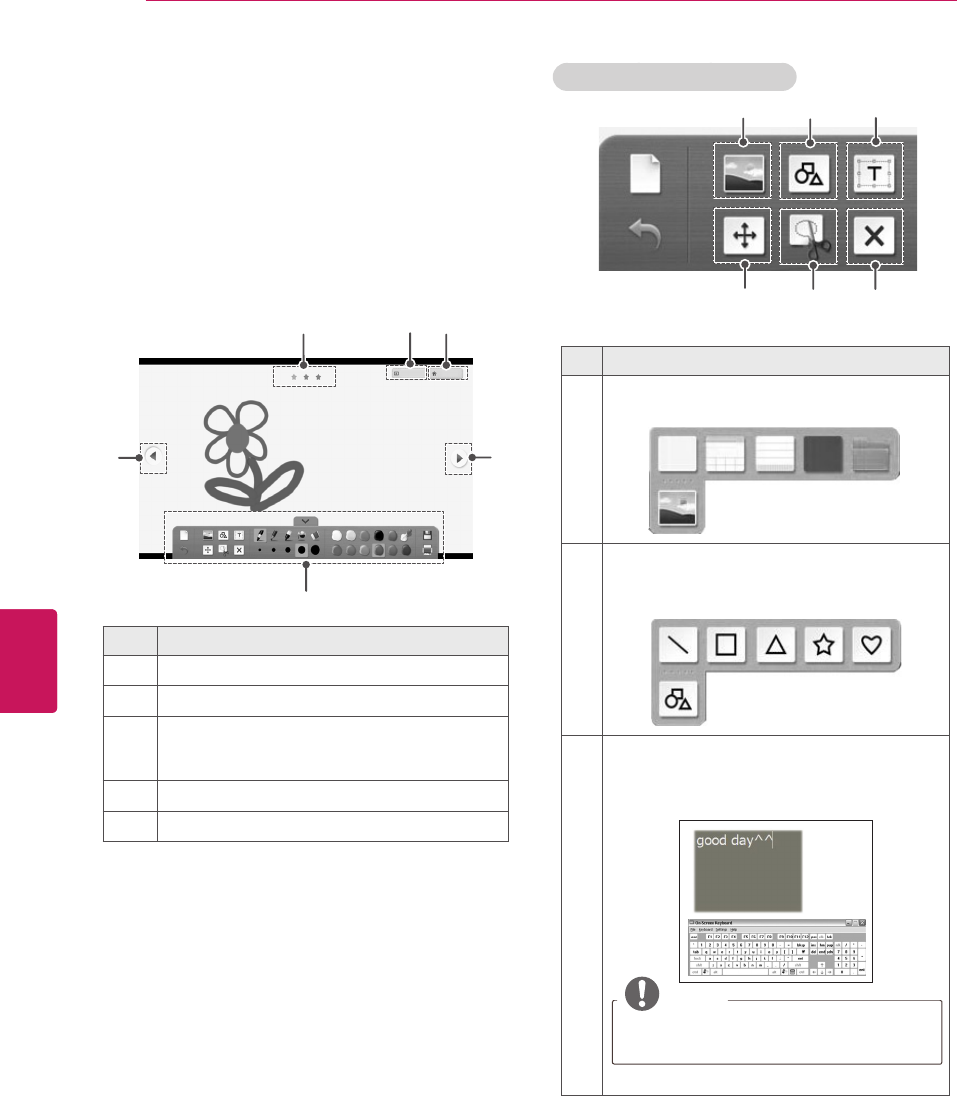

Using Sketchbook
You can select the background you want, then
draw pictures on it.
1 Touch the screen with the touch pen to select
Sketchbook.
2 Touch the screen with the touch pen to select
the desired option or use the toolbar to draw a
picture.
1
5
2
4
3 3
Gallery
Home
Sketchbook
No. Description
1Enter Gallery.
2Enter the Pentouch Home menu.
3Select them to go to the previous page or next
page.
You can move up to 3 pages.
4Current page position
5Toolbar functions

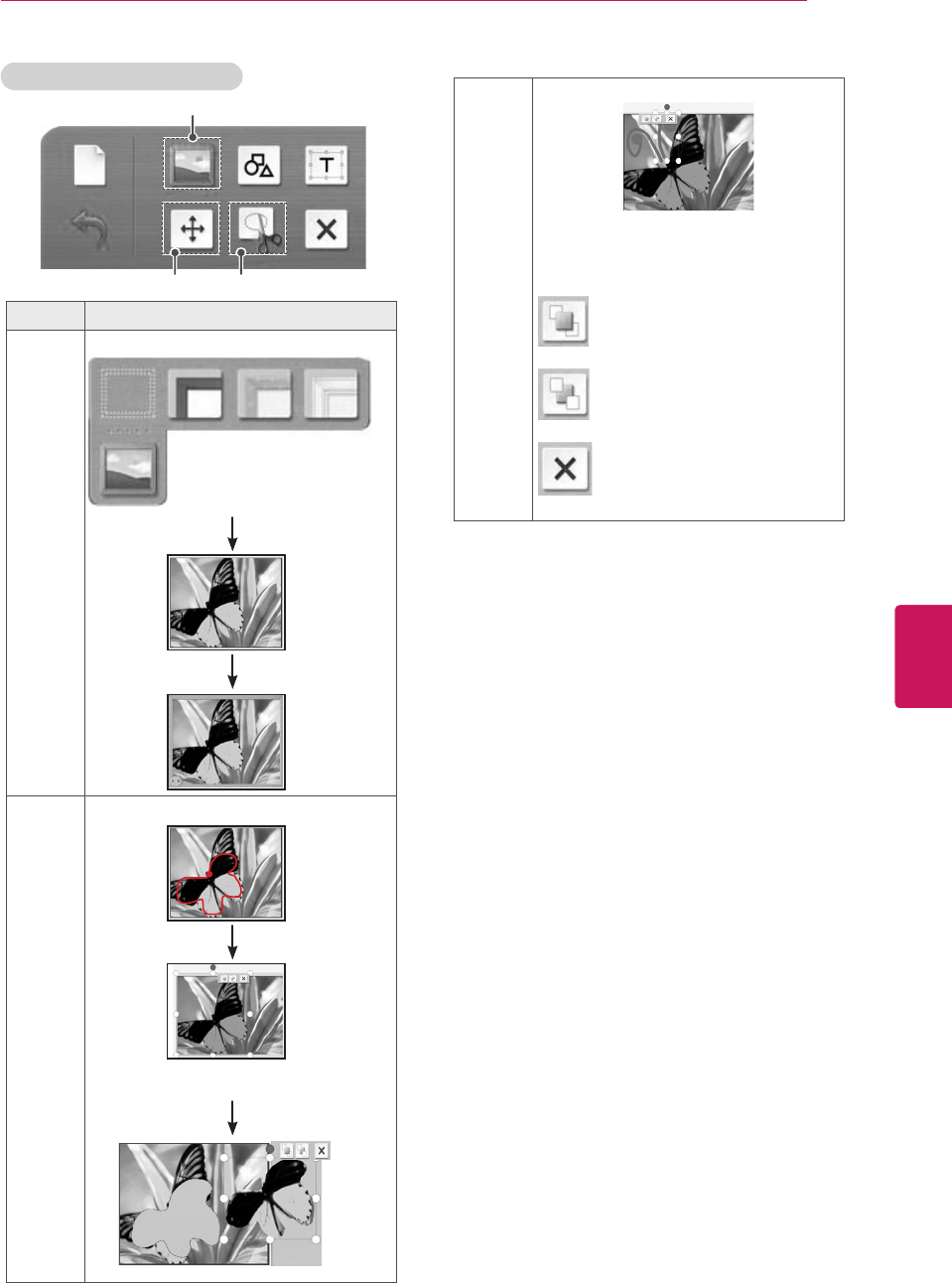

Specialized toolbar functions
45 6
23
1
No. Description
1
Select image for background.
2
Insert basic figures.
Select the desired icon, then short tap to
create a default size figure.
3
Insert text.
If you select an area to enter the text, a
keyboard will be displayed on the screen.
NOTE
For some operating systems, two virtual
keyboards may be displayed.
![](asset-2d.png)
45
ENG
ENGLISH
PENTOUCH
4

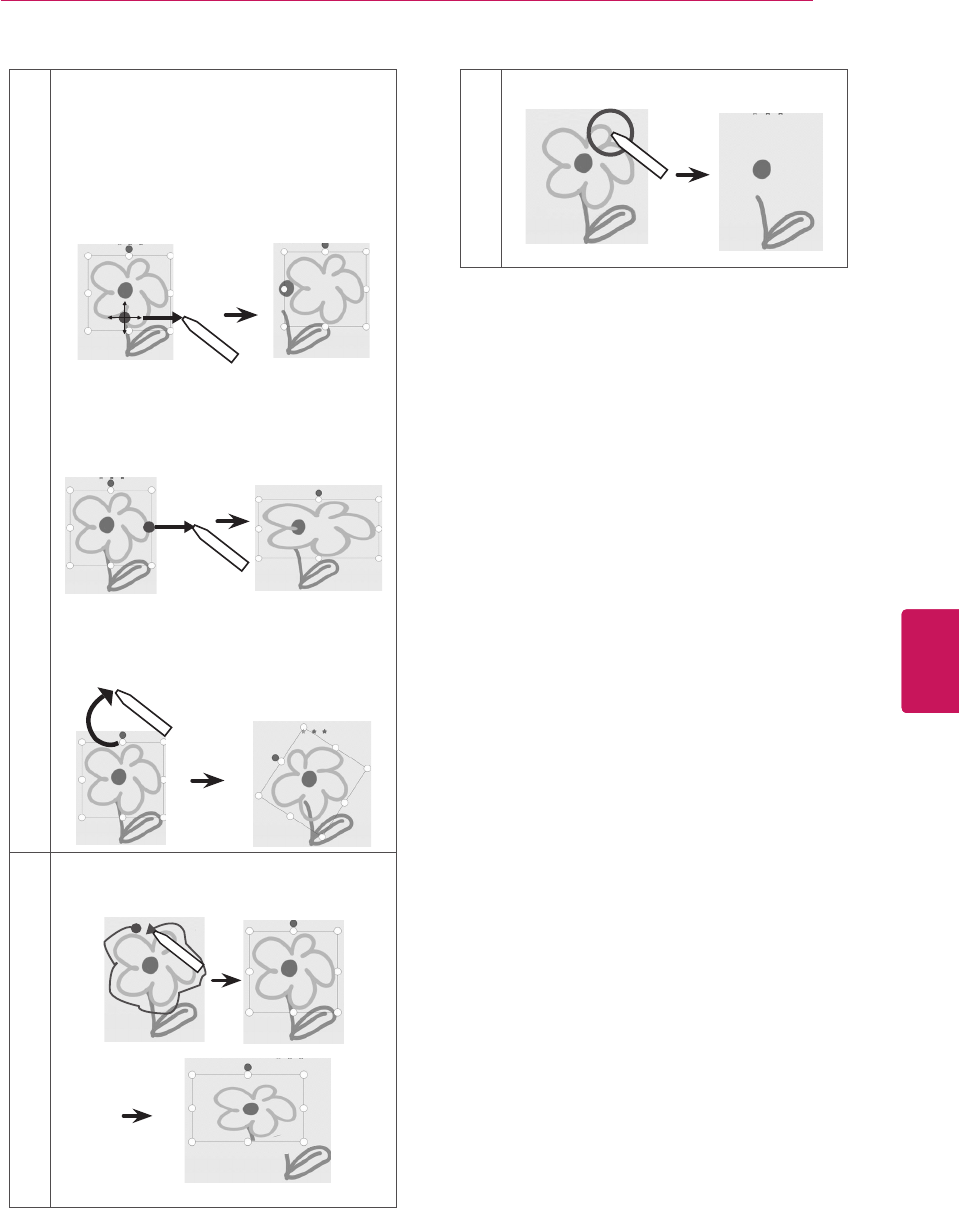

When dragging a line, pen or shape, you can
only move or resize a single object at a time.
If you short tap an object and drag, the area of
the selected object will be displayed.
Move
You can move an object by dragging the area
of the selected object.
Expansion / Reduction
You can expand or reduce an object by dragging one
of the 8 corners of the selected object. The object will
be resized based on the corresponding corner/edge.
↔
Rotation
Drag in rotation to rotate the selected object.
5
Cut the range and Move / Expansion /
Reduction / Rotation.
6
Delete object from the screen.
![](asset-2e.png)
46
ENG
ENGLISH
PENTOUCH
Using Photo Editor
You can draw or edit image on photos and video
capture images.
1 Touch the screen with the touch pen to select
Photo Editor.
2 Touch the screen with the touch pen to select
the desired option.
214
3
6
5
Gallery Home
Photo Editor
No. Description
1Enter Gallery.
2Enter the Pentouch Home menu.
3Select them to go to the previous page or next
page.
4Select photo list view option.
(Scattered view / Sorted view)
5Page navigation scrollbar
6Only one video can be played at a time; the
previously playing video is paused.
3 Select a photo or video you wish to decorate.
You can decorate the picture with the toolbar.
Photo Editor
Gallery Photo List
1
3
4
2
No. Description
1Enter Gallery.
2Open photo list.
3Previews of all photos and videos in the folder
are shown here. (from new to old)
4Toolbar functions
NOTE
When working with a video, you can use the
pause button and extract the image of the
paused frame to use it in Photo Editor.
You can edit the photos or videos stored in
the Photo List.
The TV may not properly play the video files
in the Pentouch mode depending on your
computer.
![](asset-2f.png)
47
ENG
ENGLISH
PENTOUCH
Specialized toolbar functions
23
1
No. Description
1Frame for image.
2
Cut from the image.
After select area to cut, you can change
it’s size.
3Move an object.
If you select an object, a mini pop-up win-
dow will display.
Bring to Front
Send to Back
Delete
![](asset-30.png)
48
ENG
ENGLISH
PENTOUCH

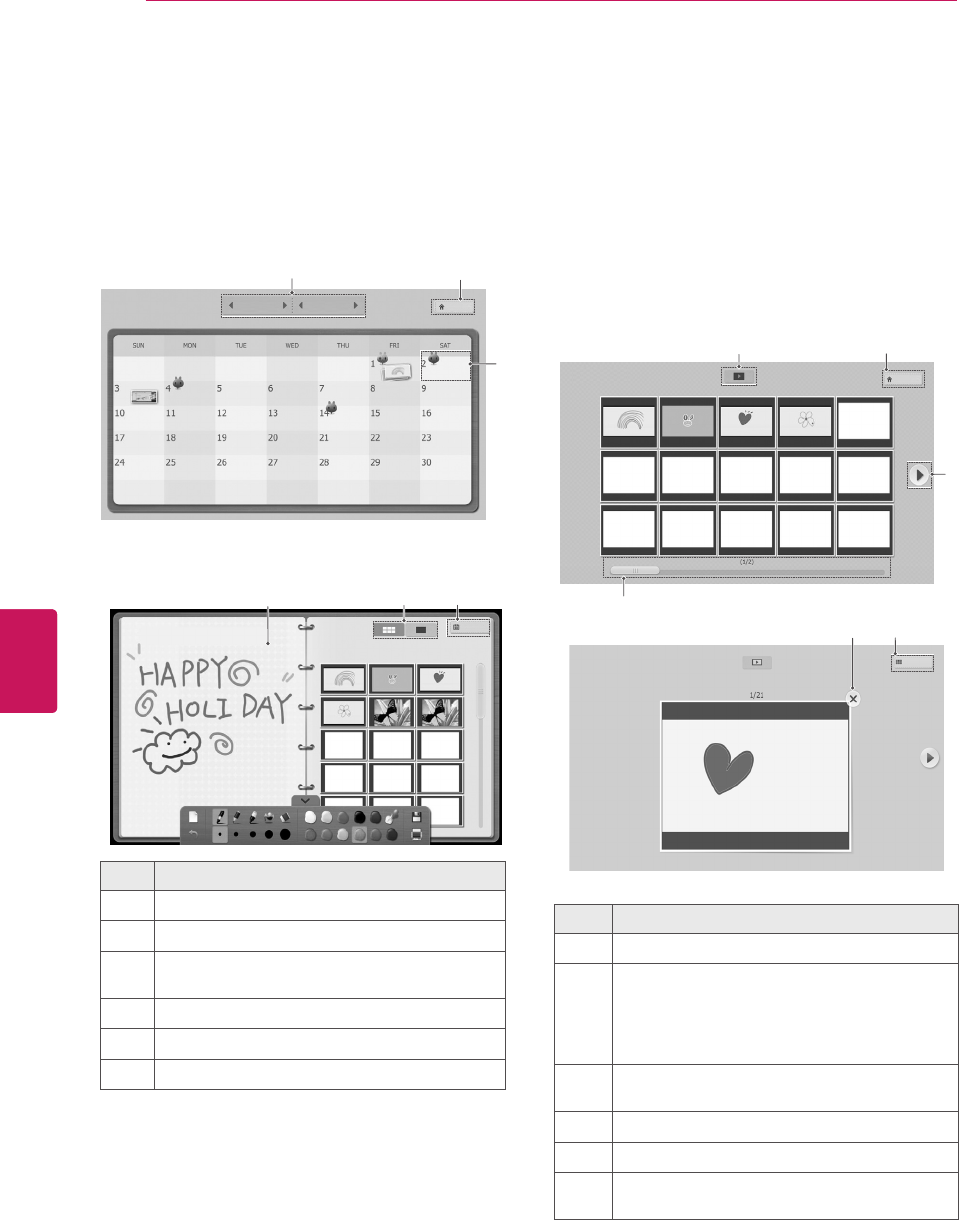

Using Gallery
This is the gallery of the images you made and
saved using Sketchbook, Photo Editor, Internet
and My Office.
1 Touch the screen with the touch pen to select
Gallery.
2 Touch the screen with the touch pen to select
the desired option, and enjoy the Gallery
screen.
12
3
4
Home
Gallery
My Gallery
Gallery
Gallery List
56
No. Description
1Enter the Pentouch Home menu.
2
Start slideshow from the first image on the
current page.
To stop the slide show, touch the screen while
the slide show is playing with the touch pen.
This will take you back to the previous screen.
3Page button: Select them to go to the previous
page or next page.
4Page navigation scrollbar
5Enter the Gallery List.
6When selected, the current image is deleted
and the next image is displayed.
Using Family Diary
You can keep a journal of photos, videos, notes,
and sketches for family events by date.
1 Touch the screen with the touch pen to select
Family Diary.
2 Select the desired date with the touch pen.
Home
Family Diary
12
3
May 2011
3 Use the toolbar to create and decorate the
family diary.
Family Diary
45
6
May. 13. 2011
No. Description
1Enter the Pentouch Home menu.
2Select date.
3Dates with images are shown with icons.
Select a date with images to see the screen.
4Open the Family Diary screen.
5Select Preview or Full Screen.
6Draw or write here.
![](asset-31.png)
49
ENG
ENGLISH
PENTOUCH
Using Internet
You can capture web content to draw or write
memos on it.
1 Touch the screen with the touch pen to select
Internet.
2 Touch the screen with the touch pen to select
the desired option or use the toolbar.
Home
13
2
4
No. Description
1Enter the Pentouch Home menu.
2Virtual keyboard tab: Insert text.
Select the virtual keyboard tab to display the
keyboard on the screen.
3
If you select a pen icon on your TV, the drawing
mode will be activated.
When you in drawing mode, the virtual keyboard
will be hidden.
4
If you select a mouse icon on your TV, the click
mode will be activated.
Drawings will be cleared when you exit the
drawing mode.
Specialized toolbar functions
1 4
2 3
No. Description
1
Memo
Select image for memo.
2Capture all
The Save confirmation message is shown.
3Capture selection
The Save confirmation message is shown after
you select an area to capture.
4Save
![](asset-32.png)
50
ENG
ENGLISH
PENTOUCH

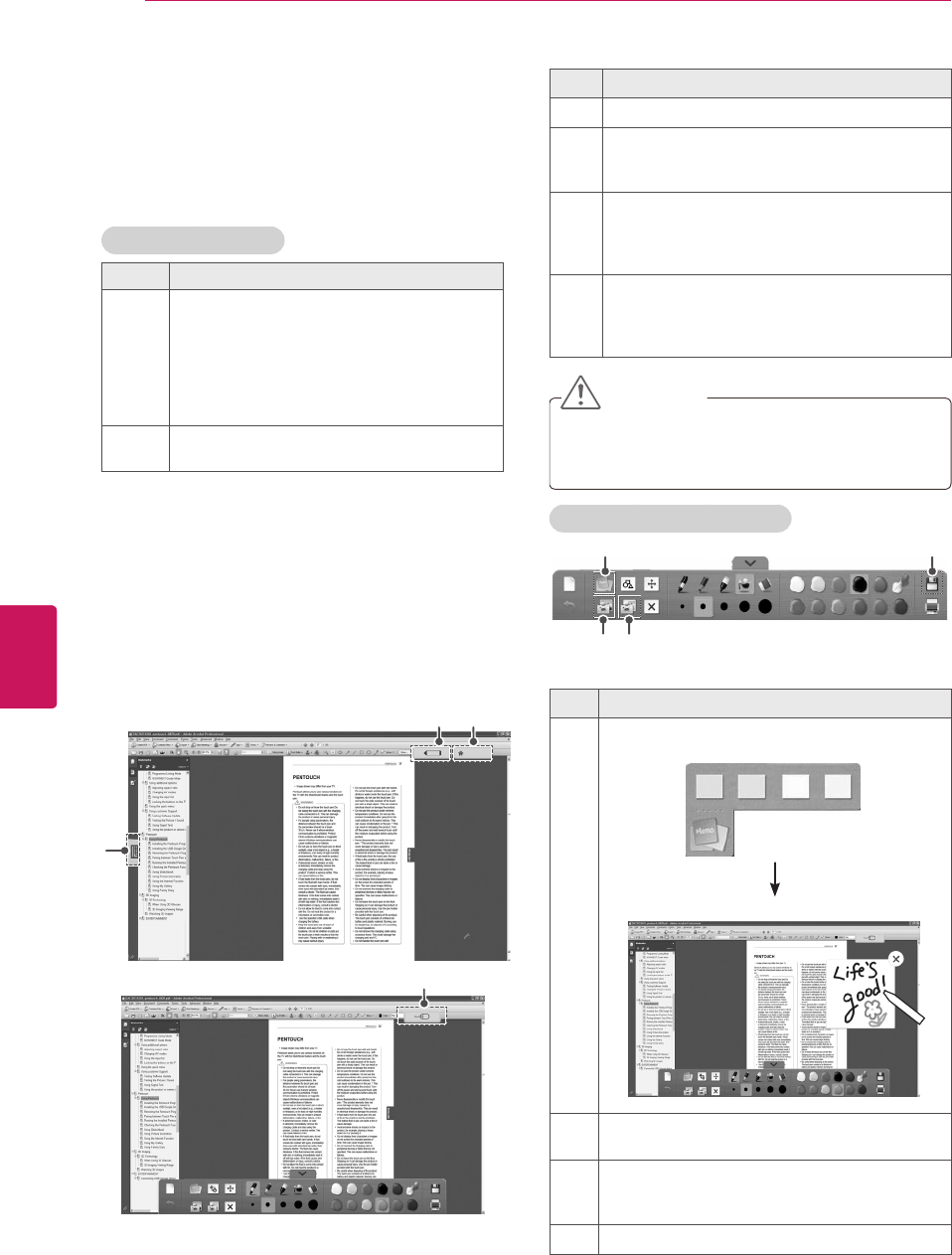

Using My Office
You can draw or write in Microsoft Office or PDF
files.
Folders and formats supported are displayed in a
window.
Supported file format
Type Supported file format
Office
Files
2003 version ppt, doc, xls
2007 version pptx, docx, xlsx
All Microsoft PowerPoint files (*.ppt, .pptx)
All Microsoft Word files (*.doc, .docx)
All Microsoft Excel files (*.xls, .xlsx)
Outlook data files (*.msg, *.eml)
PDF
Files
Adobe PDF files (*.pdf)
1 Touch the screen with the touch pen to select
My Office.
2 Touch the screen with the touch pen, then
in the Open popup window, select the file to
open.
3 Touch the screen with the touch pen to select
the desired option or use the toolbar.
Home
2
1
3
4
No. Description
1Enter the Pentouch Home menu.
2Virtual keyboard tab: Insert text.
Select the virtual keyboard tab to display the
keyboard on the screen.
3
If you select a pen icon on your TV, the drawing
mode will be activated.
When you in drawing mode, the virtual
keyboard will be hidden.
4
If you select a mouse icon on your TV, the click
mode will be activated.
Drawings will be cleared when you exit the
drawing mode.
CAUTION
Applications that support Microsoft Office
and PDF files must be installed on your
computer.
Specialized toolbar functions
1 4
32
No. Description
1
Memo
Select image for memo.
2Capture all
The Save confirmation message is shown.
3Capture selection
The Save confirmation message is shown after
you select an area to capture.
4Save
![](asset-33.png)
51
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT

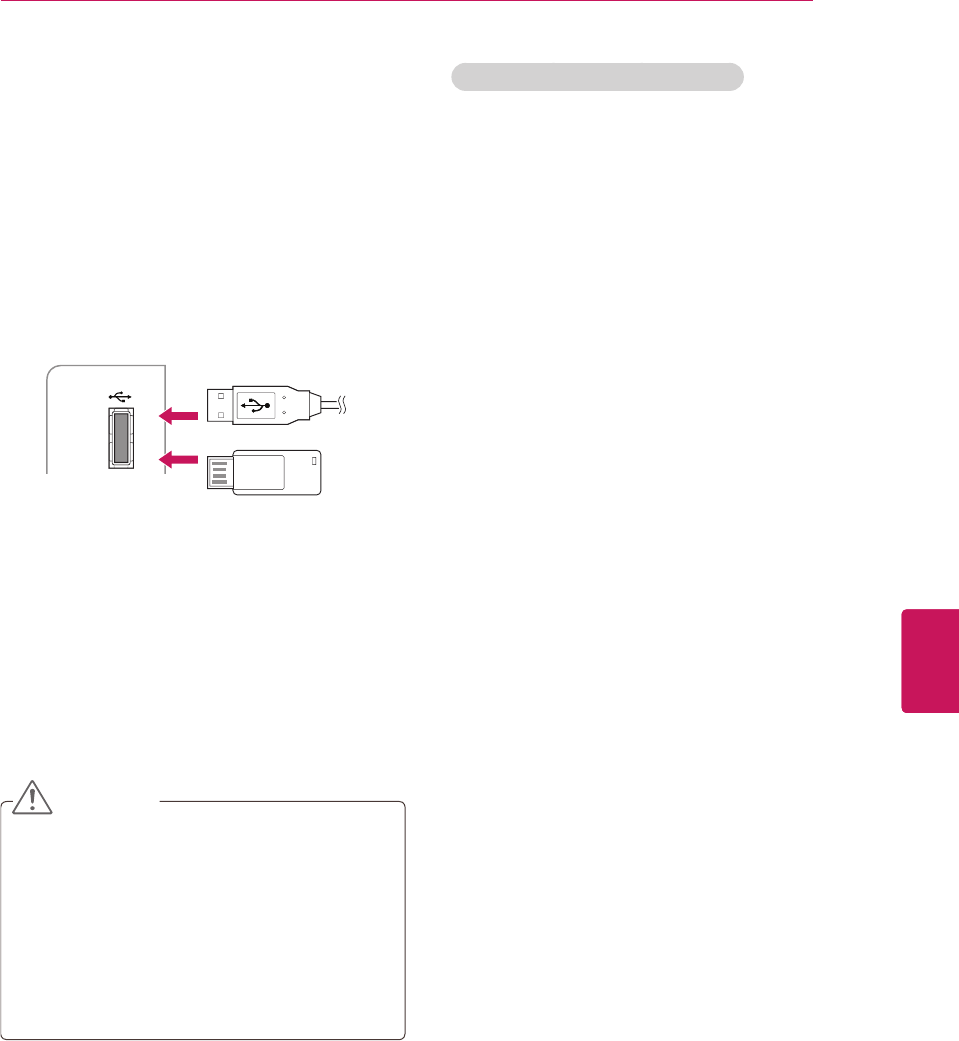

Connecting USB storage devices
Connect USB storage devices such as a USB
flash drive or external hard drive to the TV and use
multimedia features (See "Browsing files" on p. 52).
Connect a USB flash drive or USB memory
card reader to the TV as shown in the following
illustration.
or
A
V IN 2
L
/
M
ON
O
R
AUDIO
A
V
IDE
O
US
B IN
I
N
3
USB IN
To disconnect a USB storage device,
make sure to end the connection properly to
prevent damages to the TV or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB
Device and press ENTER.
3 Disconnect the USB storage device only when
the message says that it is safe to remove.
CAUTION
Do not turn the TV off or remove a USB
storage device while the USB storage device
is connected to the TV, as this could result
in loss of files or damage to the USB storage
device.
Back up your files saved on a USB storage
device frequently, as you may lose or
damage the files and this may be not
covered by the warranty.
Tips for using USB storage devices
The TV recognizes only a USB storage
device.
If you connect a USB storage device to the
TV through a USB hub, your TV may not
recognize the USB storage device.
The TV may not recognize a USB storage
device that requires a special driver.
The recognition speed of a USB storage
device may differ depending on the device.
Only use a USB storage device which has
normal music or image files.
Use only USB storage devices that are
formatted as a FAT 32 or NTFS file system.
If you format a USB storage device as a
NTFS file system, you cannot delete the
saved files.
You may need to connect a USB storage
device to an external power supply with a
power adapter.
If the TV does not recognize a connected
USB storage device, replace the cable and
try again. Do not use an excessively long
cable.
The TV does not support some USB storage
devices properly.
You can use a multi-partition (up to 4) USB
storage device.
You can use up to 4 USB storage devices at
a time by using a USB multi-card reader.
The file alignment method of a USB storage
device is similar to the one of Window XP.
You cannot create or delete a folder saved in
a USB storage device directly on the TV.
The number of characters for a file name is
up to 100 English characters.
If there are too many folders and files in one
folder, it may not operate properly.
The recommended capacity for a USB
external hard disk is 1 TB or less and for a
USB storage device is 32 GB or less.
If a USB external hard disk with the Energy
Saving feature does not work, turn the USB
external hard disk off and on again to make
it work properly. For more information, refer
to the user manual of the USB external hard
disk.
USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
The electrostatic can cause USB device’s
malfunction. In this case, USB Device has to
be plugged again.
![](asset-34.png)
52
ENG
ENGLISH
ENTERTAINMENT

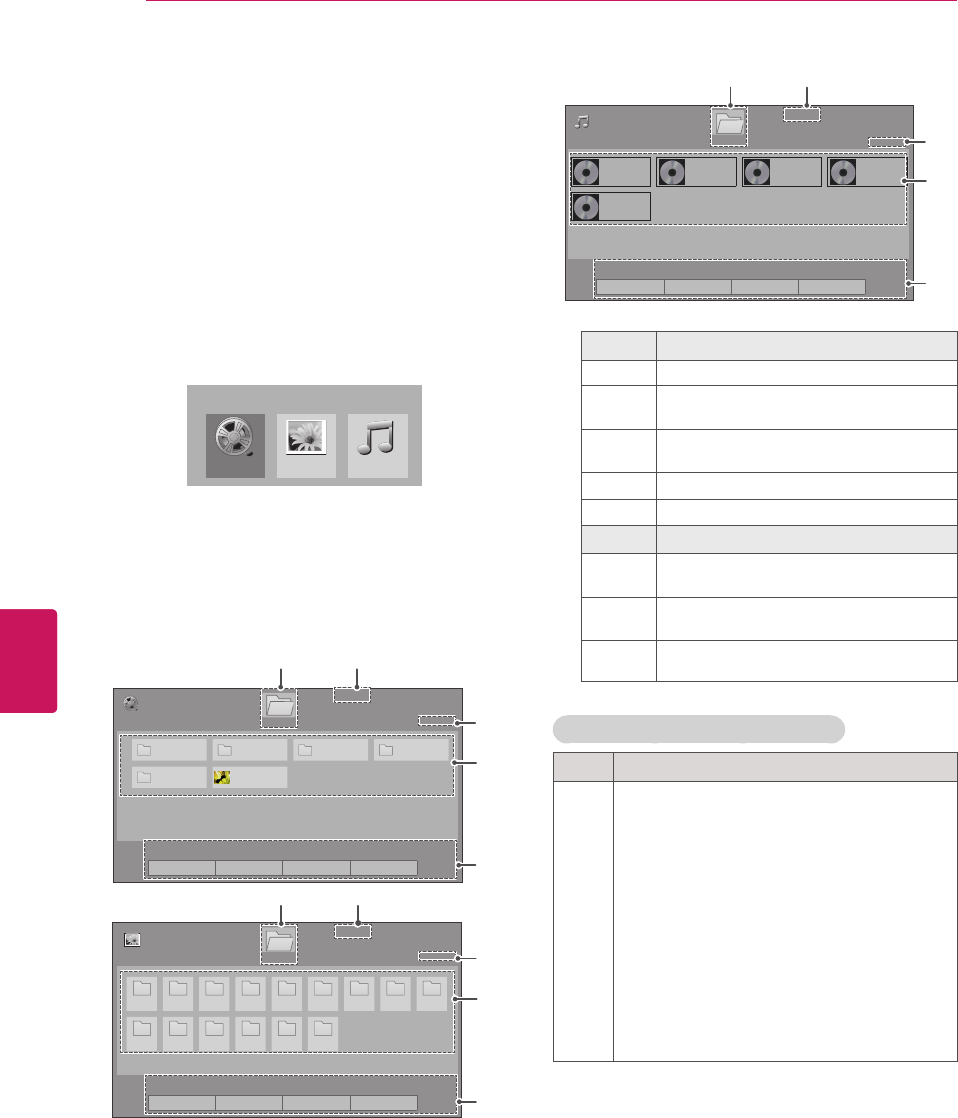

Browsing files
Access the photo, music, or movie lists and
browse files.
1 Connect a USB storage device.
2 Press Home to access the main menus.
3 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
4 Press Navigation buttons to scroll to MOVIE
LIST, PHOTO LIST, or MUSIC LIST and press
ENTER.
5 Select Drive1 to access the connected USB
storage device.
6 Press the Navigation buttons to Select a folder/
file you want.
1 2
3
4
5
1 2
3
4
5
1 2
3
4
5
No. Description
1Moves to the upper level folder.
2Current page number/total number of
pages
3Current page number/total number of
pages
4Contents under the folder focused on 1
5Available buttons on the remote control
Button Description
Green
button
Moves to Photo List, Music List, or
Movie List.
Yellow
button
Change Numbers: Changes the number
or thumbnails displayed at a time.
Blue
button Allows you to mark certain files.
Tips for using USB storage devices
Type Supported File Formats
Video MPG, MPEG, DAT, TS, TRP, TP, VOD, MP4,
MOV, MKV, DivX, AVI, Motion JPEG (AVI,
MP4, MKV), ASF, WMV, FLV
Resolution:
under 1920 pixel (width) x 1080 pixel (height)
Frame Rate:
under 30 frame/sec (1920 x 1080), under 60
frame/sec (1280 x 720)
Max bitrate of playable movie file: 20 Mbps
(Mega bit per second)
Bit rate of audio format: within 32 kbps to
320 kbps (MP3)
Supported subtitle format: *.smi, *.srt, *.sub
(MicroDVD, SubViewer 1.0/2.0), *.ass, *ssa,
*txt (TMPlayer), *.psb (PowerDivX)
![](asset-35.png)
53
ENG
ENGLISH
ENTERTAINMENT
Type Supported File Formats
Photo JPG
Available size
Baseline: 64 pixel (W) x 64 pixel (H) - 15360
pixel (W) x 8640 pixel (H)
Progressive: 64 pixel (W) x 64 pixel (H) -
1920 pixel (W) x 1440 pixel (H)
* Do not use the progressive option when
saving JPG files on your PC.
It may take some time to open high-
resolution images in full screen.
For 3D TV
File
Extensions
Item Profile
2D jpeg
jpg
jpe
Supproted
file format
SOF0:
baseline
SOF1: Extend
Sequential
SOF2:
Progressive
Photo size Min: 64 x 64
Max - Normal
Type: 15360
(W) x 8640 (H)
Progressive
Type: 1920
(W) x 1440 (H)
3D mpo Supproted
file format
mpo
Photo size
4:3 size: 3,648
x 2,736
2,592 x 1,944
2,048 x 1,536
3:2 size: 3,648
x 2,432
Music MP3
Bit rate range 32 Kbps - 320 Kbps
Sampling rate (Sampling Frequency)
MPEG1 layer 3: 32 kHz, 44.1 kHz,
48 kHz
MPEG2 layer 3: 16 kHz, 22.05 kHz,
24 kHz
MPEG2.5 layer 3: 8 kHz, 11.025 kHz,
12 kHz
* A copy-protected file will not play.
![](asset-36.png)
54
ENG
ENGLISH
ENTERTAINMENT
Viewing Videos
Your TV can display video files from a USB storage
device.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
3 Press the Navigation buttons to scroll to Movie
List and press ENTER.
4 Select Drive1 to access the connected USB
storage device.
5 Press the Navigation buttons to scroll to a
folder/file you want and press ENTER.
6 Play a movie by using the following menus/
buttons.
Button Description
Navigation
button Scrolls through the files.
ENTER Plays the highlighted file or enters
the mark mode.
CH (
^
,
v
)Moves to the previous or next
page.
MARK Enters the mark mode.
Menu Description
Play Marked Plays the selected video.
Mark All Selects all files.
Unmark All Clears all of your selections.
Exit Mark
Mode Exit the Mark Mode.
NOTE
: Abnormal files are displayed using this
graphic.
: Non-supported files are displayed using
this graphic.
7 Control playback by using the following
buttons.
Button Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans backward in a file.
Scans forward in a file.
and Plays videos in slow motion.
< or >
Skips to specific points in a file
during playback. The time of a
specific point will appear on the
status bar. In some files, this
function may not work properly.
ENERGY
SAVING
Increases or deceases the
brightness of your screen.
Q.MENU Shows the Option menu (See p.55).
AV MODE Selects the desired source.
BACK
Hides the menu on screen.
To see the menu again, press
ENTER button to display.
EXIT Returns to TV viewing.
Tips for playing video files
Some user-created subtitles may not work
properly.
Subtitles may not display some special
characters or HTML tags.
Subtitles in the non-supported languages are
unavailable.
The time information in an external subtitle
file should be arranged in ascending order to
play.
![](asset-37.png)
55
ENG
ENGLISH
ENTERTAINMENT
The screen may suffer from temporary
interruptions such as image stoppage or
faster playback when you change the audio
language.
If you play a damaged video file, the video
file may not be played correctly or some
player functions may not be unavailable.
The TV may not properly play the video files
produced with certain encoders.
If the recorded file does not have video or
audio, either video or audio is not outputted
If the TV plays the recorded file without
video or audio, either video or audio is not
outputted.
The TV may not smoothly play the video files
with a resolution higher than the supported
resolution for each frame.
The TV may not properly play the video
files not included on the specified type and
format.
The TV may not play the files encoded with
GMC (Global Motion Compensation) or
quarter-pel motion estimation.
The TV supports the only files saved in ASCII
code in subtitles.
The maximum number of characters
displayed on each subtitle line is 250
(Korean), 500 (English), and 500 (Numbers).
The TV supports the only 10,000 sync blocks
within the subtitle file.
The TV supports the H.264 codec up to the
profile level 4.1.
The TV does not support DTS audio codec.
The TV cannot play a video file whose size is
larger than 30 GB.
If you play a video file through the USB
connection that does not support the high
speed, the video player may not work
properly.
The TV supports a USB storage device
whose version is lower than 2.0. However,
the USB storage device may not work
properly in the movie list.
The video file and its subtitle should be in
the same folder and the name of the video
file and subtitle should be identical.
You can adjust the image by using ENERGY
SAVING and AV MODE. But you cannot
customize image options of each mode.
The TV may not play the video files in the
supported file format depending on the
encoded condition.
The TV will not play the video files that has a
damaged index or no index.
Q.MENU options for movie list
1 Press Q. MENU.
A pop-up window will appear.
2 Press the Navigation buttons to scroll to movie
list option and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
Set Video Play.
Option Description
Picture Size
Selects your desired picture format
for videos.
Full Mode: Files are played in full
screen mode according to the
aspect ratio of video.
Original Mode: Files are played in
their native size.
Audio
Language
Changes the Language Group of
the audio for video files. Files with
a single audio track cannot be
selected.
Subtitle
Language
The subtitles can be turned on or
off.
Language
Activated for SMI subtitles and
can select the language within the
subtitle.
Code Page
Subtitle font selection. When set
to default, contents are displayed
in the language set in "Option -
Language - Menu Language."
Subtitle
Language Group
Supported
Language
Latin1 English, Spanish,
French
Korean English, Korean
Sync
If the video is not synchronized
with the captions, it can be adjusted
by 0.5 second.
Position Move the location of the subtitles.
Size Changes the subtitle font size.
Repeat
Turn on/off repeat function of movie
playback. When turned on, the
file within the folder will be played
back repeatedly. When turned off,
if the next file name is similar to
the previous file, it can be played
sequentially.
![](asset-38.png)
56
ENG
ENGLISH
ENTERTAINMENT
NOTE
When replaying a video file after stopping,
select “Yes” to restart where it previously
stopped.
If continuous series files exist within the
folder, the next file will automatically be
played. But, this excludes cases when the
Repeat function of Movie List Option is
turned “On” (See p.55) or when set as Play
Marked.
Set Video.
Allows you to change Video presets. (Refer to
"PICTURE Settings" on p.64).
Set Audio.
Allows you to change Audio presets. (Refer to
"AUDIO Settings" on p.68).
![](asset-39.png)
57
ENG
ENGLISH
ENTERTAINMENT
DivX registration code
Registering the DivX code
The DivX registration code allows you to rent or
purchase the latest movies at www.divx.com/vod.
To play a rented or purchased DivX file, the file’s
registration code should be same as your TV’s
DivX registration code.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
VOD Registration and press ENTER.
5 View the registration code of your TV.
6 When you are finished, press ENTER.
NOTE
While you are checking the registration code,
some buttons may not work.
If you use the DivX registration code of
another device, you cannot play the rented
or purchased DivX file. Make sure to use the
DivX registration code assigned to your TV.
The video or audio files that are not
converted by the standard DivX codec may
be corrupted or not be played.
The DivX VOD code allows you to activate
up to 6 devices under one account.
Deactivating the DivX feature
You can deactivate all of the devices through the
web server and block devices from activating.
Delete the existing authentication information to
receive a new DivX user authentication for the
TV. Once this function is executed, a DivX user
authentication is required again to see DivX DRM
files.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Deregistration and press ENTER.
5 Select Yes to confirm.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
![](asset-3a.png)
58
ENG
ENGLISH
ENTERTAINMENT

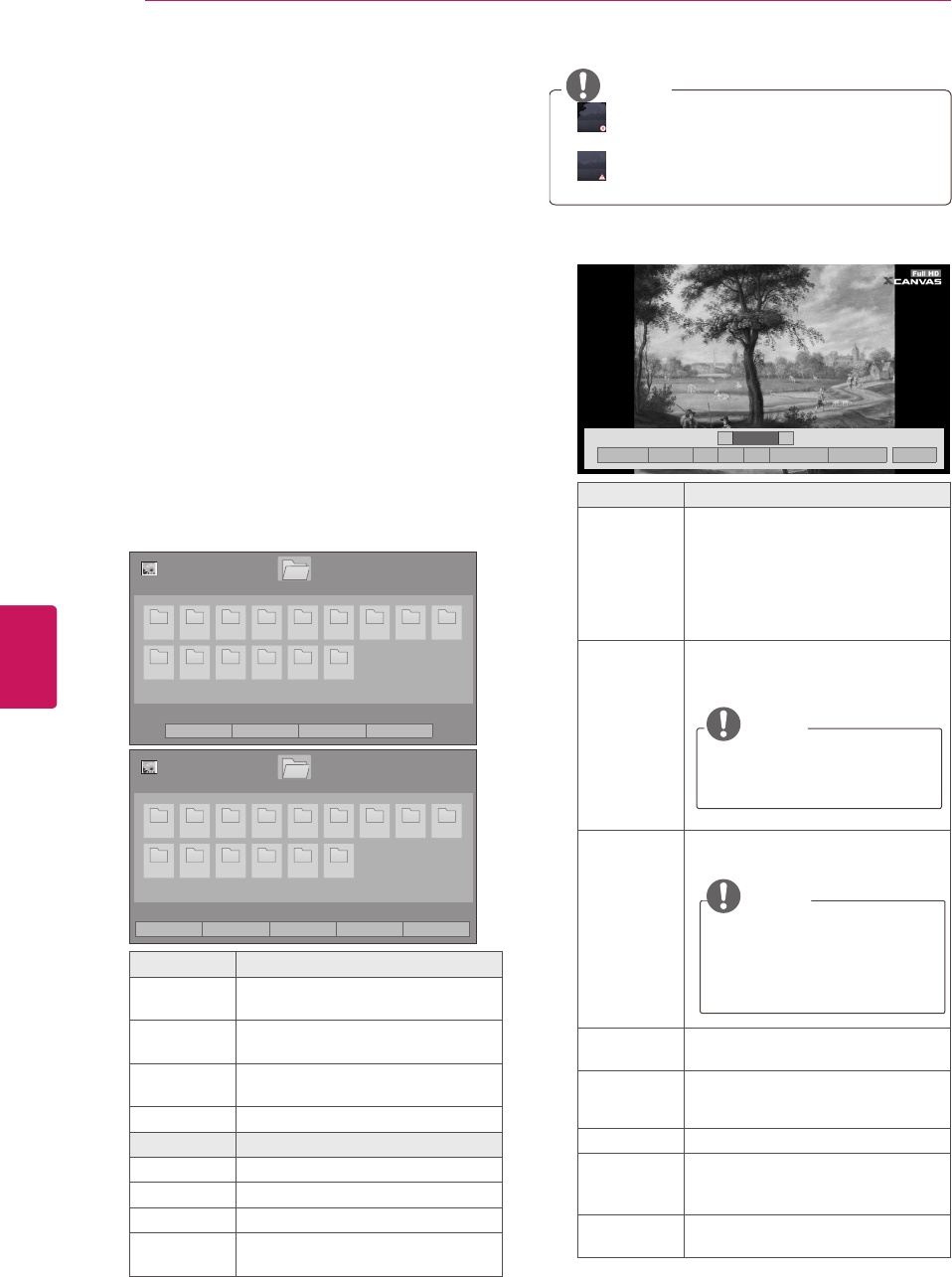

Viewing Photos
You can view image files saved on a USB storage
device. The displays on the screen may differ
based on the model.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
3 Press the Navigation buttons to scroll to Photo
List and press ENTER.
4 Select Drive1 to access the connected USB
storage device.
5 Press the Navigation buttons to scroll to a
folder/file you want and press ENTER.
6 View photos by using the following menus/
buttons.
Button Description
Navigation
button Scrolls the file.
ENTER Views the highlighted file or enters
the mark mode.
CH (
^
,
v
)Moves to the previous or next
page.
MARK Enters the mark mode.
Menu Description
View Marked Views the selected photo.
Mark All Selects all files
Unmark All Clears all of your selections.
Exit Mark
Mode Exits the Mark Mode.
NOTE
: Abnormal files are displayed using this
graphic.
: Non-supported files are displayed using
this graphic.
7 The following options are available while
viewing photos.
Option Description
Slideshow
Starts or stops a slideshow with
selected photos.
If there are no selected photos,
all photos saved in the current
folder display during a slideshow.
To set a slideshow speed, select
Option.
BGM
(Background
Music)
Turns the background music on
or off. To set the background
music folder, select Option.
NOTE
You can't change or set-up
the BGM while viewing the
*.mpo files (3D camera file).
(Rotate)
Rotates photos clockwise (90°,
180°, 270°, 360°).
NOTE
The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than
the supported resolution size.
(Zoom In) Views the photo by zoom in 2, 4
times by using Blue button.
(ENERGY
SAVING)
Increases or decreases the
brightness of your screen.
Option Shows the Option menu (See p.59).
Hide
Hides the option window.
To display the options, press
ENTER.
Exit Moves to the previous menu
screen.
![](asset-3b.png)
59
ENG
ENGLISH
ENTERTAINMENT
NOTE
Option values changed in Photo List do not
affect Movie List and Music List.
Option values changed in Photo List or
Music List are changed likewise in Photo List
and Music List, but not Movie List.
Q.MENU options for photo list
1 Press Q. MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to photo
list option and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
Set Photo View.
Option Description
Slide Speed Selects a slideshow speed (Fast,
Medium, Slow).
BGM
Selects a music folder for the
background music.
Repeat
Random
NOTE
You cannot change the music
folder while the background
music is playing.
Set Video.
Allows you to change Video presets. (Refer to
"PICTURE Settings" on p.64).
Set Audio.
Allows you to change Audio presets. (Refer to
"AUDIO Settings" on p.68).
![](asset-3c.png)
60
ENG
ENGLISH
ENTERTAINMENT

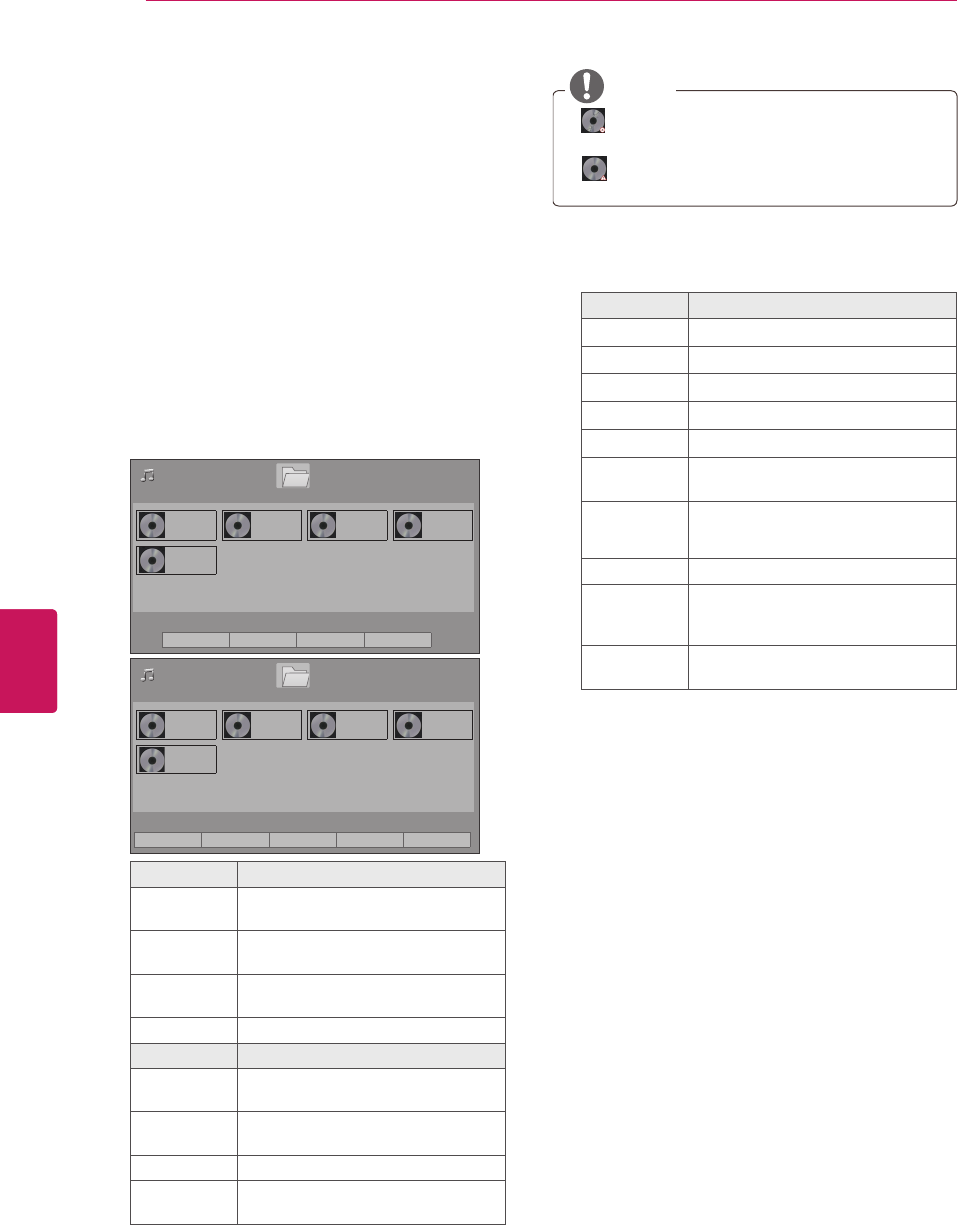

Listening to music
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press ENTER.
3 Press the Navigation buttons to scroll to Music
List and press ENTER.
4 Select Drive1 to access the connected USB
storage device.
5 Press the Navigation buttons to scroll to a
folder/file you want and press ENTER.
6 Play music by using the following menus/
buttons.
Button Description
Navigation
button Scrolls through the files.
ENTER Plays the highlighted file or enters
the mark mode.
CH (
^
,
v
)Moves to the previous or next
page.
MARK Enters the mark mode.
Menu Description
Play Marked Plays the selected music file.
Mark All Selects all files.
Unmark All Clears all of your selections.
Exit Mark
Mode Exits the Mark Mode.
NOTE
: Abnormal files are displayed using this
graphic.
: Non-supported files are displayed using
this graphic.
7 Control playback by using the following
buttons.
Button Description
Stops playback.
Plays a music file.
Pauses or resumes playback.
Skips to the previous file.
Skips to the next file.
Play with
Photo Displays photos during playback.
(ENERGY
SAVING)
Increases or deceases the
brightness of your screen.
Option Shows the Option menu (See p.61).
Hide
Hides the option window.
To display the options, press
ENTER.
Exit Moves to the previous menu
screen.
![](asset-3d.png)
61
ENG
ENGLISH
ENTERTAINMENT
Q.MENU options for music list
1 Press Q. MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to music
list option and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
NOTE
Option values changed in Movie List does
not affect the Photo List and Music List.
Option value changed in Photo List and
Music List are changed likewise in Photo List
and Music List.
Set Audio Play.
Select Repeat or Random option.
Set Audio.
Allows you to change Audio presets. (Refer to
"AUDIO Settings" on p.68).
NOTE
The TV will not play copy protected files.
If the TV is not in use for some time
during playback, the information box as a
screensaver will appear to prevent image
burn.
To return to the Music list screen, press
ENTER or BACK.
Time elapsed /Duration
File name
![](asset-3e.png)
62
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING TV SETTINGS

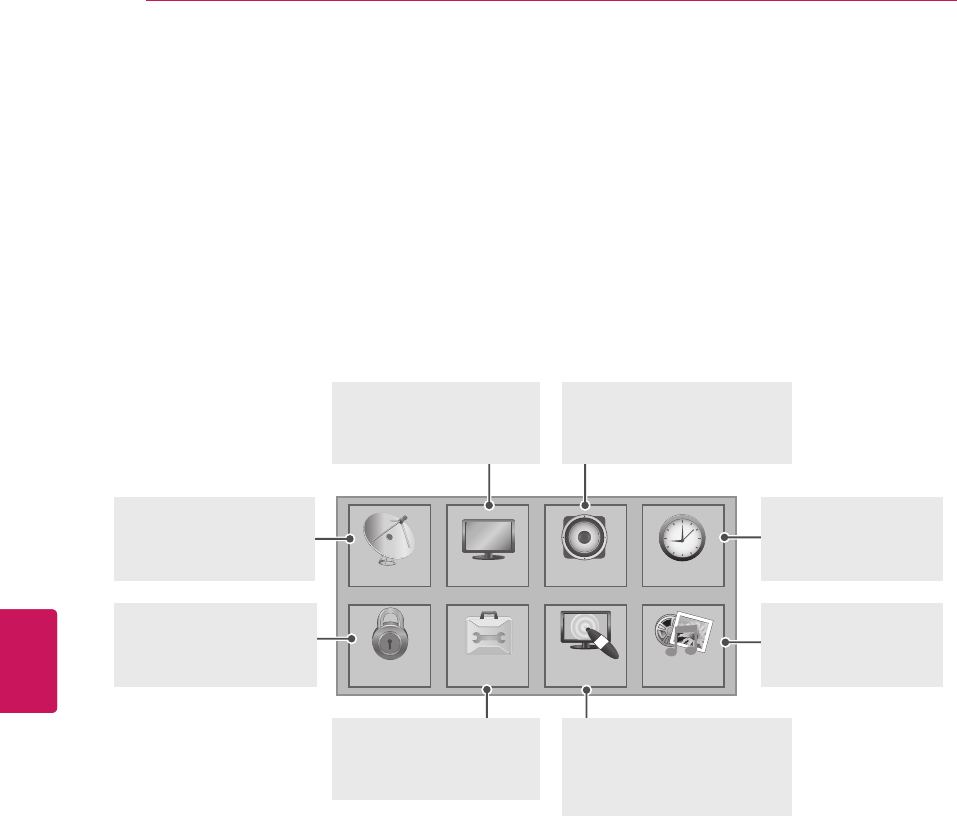

The Main Menus
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
4 When you are finished, press EXIT.
CHANNEL (See p.63)
Sets up and edit
channels.
PICTURE (See p.64)
Adjusts the image size,
quality, or effect.
AUDIO (See p.68)
Adjusts the sound quality,
effect, or volume level.
TIME (See p.69)
Sets the time, date,
or Timer feature.
MY MEDIA (See p.51)
Pentouch (See p.36)
Pentouch allows you to
use various functions
with touch pen on the TV.
LOCK (See p.70)
Locks or unlocks
channels and programs.
OPTION (See p.72)
Customizes
the general settings.
![](asset-3f.png)
63
ENG
ENGLISH

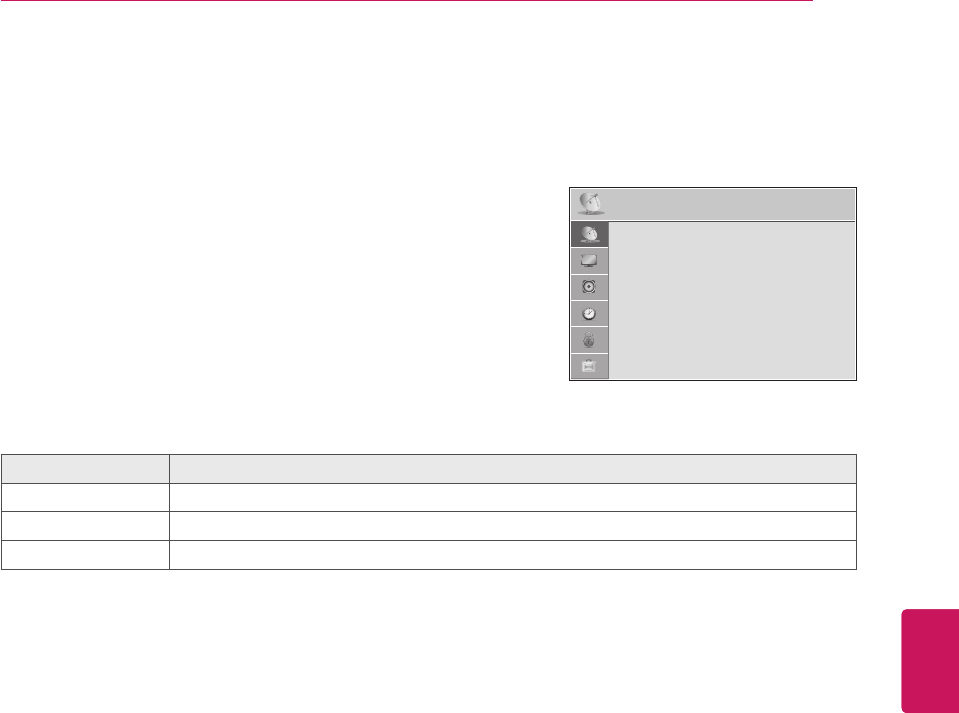

CUSTOMIZING SETTINGS
Customizing Settings
CHANNEL Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to CHANNEL and press
ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available channel settings are described in the following.
Setting Description
Auto Tuning Tunes and stores all available channels through antennas or cable inputs (See p.25).
Manual Tuning Tunes and stores the channels you want manually (See p.25).
Channel Edit Adds or deletes channels on the channel (See p.26).
![](asset-40.png)
64
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and press
ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available picture settings are described in the following.
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.29).
Picture Wizard Adjusts the image quality and calibrates the screen.
The customized options will be saved as Expert1 in the Picture Mode.
NOTE
If you use Picture Wizard, the Energy saving feature will turn off automatically.
To reset changes made by Picture Wizard, operate Picture Reset when Picture Mode is on
Expert1.
Energy Saving Reduces the power consumption by adjusting the screen brightness.
Option
Intelligent sensor The most suitable picture is automatically adjusted according to the surrounding
conditions.
Off Select if this feature is not necessary.
Minimum/
Medium/Maximum
Selects the brightness level.
Screen off The screen turns off in 3 seconds.
Pressing any button of the remote control will turn on the screen again.
![](asset-41.png)
65
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Picture Mode Selects one of the preset image or customizes options in each mode for the best TV screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the TV.
Mode (Depending on model)
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, color, and sharpness.
Standard Adjusts the image for the normal environment.
APS Maximizes video images reducing power consumption without hurting picture
quality.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in
a movie theater.
THX Cinema,
THX 3D Cinema,
THX Bright Room
Provides a cinema experience while watching a movie at home. The user
will be able enjoy the best level of screen quality without any separate
adjustments.
»THX Cinema express the optimal screen quality when the room is dark.
»THX Bright Room express the optimal screen quality when the room is
bright.
»When selecting THX Cinema, THX 3D Cinema or THX Bright Room,
Aspect ratio changes to Just scan.
NOTE
THX : THX (Thomlinson Holman’s Experiment) is an audio and video
certification standard established by George Lucas and Thomlinson. A
THX certified display guarantees screen quality that exceeds the display
standard specification in both hardware and software.
Sport Optimizes video images for high and dynamic actions by emphasizing primary
colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Photo Optimizes the still image like a photo file in USB mode.
»e.g.) when connecting the external device like a DSLR.
Expert Adjusts the detailed video image settings for video experts as well as general
viewers.
SCREEN (RGB-
PC)
Customizes the PC display options.
Option
Resolution Selects a proper resolution when your PC uses 1024 X 768, 1280 X 768, or
1360 X 768 resolution.
Auto Configure Sets the TV to optimize the options automatically for the TV display.
Position Locates the image at the proper position.
Size Adjusts the image size.
Phase Eliminates horizontal streaking.
Reset Restores the options to the default setting.
![](asset-42.png)
66
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic Image Options
Setting Description
Contrast Increases or decreases the amplitude of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color Adjusts intensity of all colors.
Tint Adjusts the balance between red and green levels.
Color Temp. Sets to warm to enhance hotter colors such as red, or set to cool to enhance cooler colors
such as blue.
Advanced Control Customizes the advanced options.
Picture Reset Restores the options of each mode to the factory default.
Advanced Image Options
Setting Description
Dynamic Contrast Adjusts the contrast to keep it at the best level according to the brightness of the screen.
The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color Adjusts screen colors so that they look livelier, richer and clearer. This feature enhances hue,
saturation and luminance so that red, blue and green white look more vivid.
Noise Reduction Reduces screen noise without compromising video quality.
Gamma You can adjust brightness of dark area and middle gray level area of the picture.
»Low: Make the dark and middle gray level areas brighter.
»Medium: Express the original picture level.
»High: Make the dark and middle gray level area darker.
Black Level Sets black level of the screen to proper level.
»Low: The reflection of the screen gets darker.
»High: The reflection of the screen gets brighter.
Film Mode Makes video clips recorded in film look more natural by eliminating judder effect.
DVD and Blu-ray movies are filmed at 24 frames per second (fps).
Color Gamut Advanced Control
Maximizes the utilization of color to increase color quality.
»Standard: Displays standard set of colors.
»Wide: Increase number of colors used.
Expert Control
Displays color domain of the signal.
»Standard: Displays standard set of colors.
»Wide: Increase number of colors used.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.
This function works well over Sharpness UI 60 value.
xvYCC This is produces richer colors.
This feature represents rich colors as much as a conventional video signal.
This function is enabled in “Picture mode - Cinema, Expert” when xvYCC signal is inputted
through HDMI.
Color Filter This is the function to filter the specific colors of the video.
You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern This is the pattern used for expert adjustment.
This function is enabled in “Picture Mode - Expert” when you watch DTV.
![](asset-43.png)
67
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Color Temperature Adjusts the overall color of the screen by changing the white baseline.
a. Gamma : Select Low, Medium, High
b. Method : 2 Points
Pattern: Inner, Outer
Red/Green/Blue Contrast, Red/Green/Blue
Brightness
d. Apply to all inputs
c. Method : 20 Point IRE
IRE (Institute of Radio Engineers) is the
unit to display the size of the video signal
and can be set among 0, 5, 10, 15 - 100
Plasma TV. You can adjust Red, Green or
Blue according to each setting.
Red/Green/Blue: The adjustment range is
-50 - +50.
Color Management
System
As the tool used by the experts to make adjustments by using the test patterns, this does
not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/
Blue/Cyan/Magenta/Yellow).
Color difference may not be distinctive even when you make the adjustments for the general
video.
Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.
Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is -30 - +30.
Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 - +30.
This feature is disable in RGB-PC and HDMI-PC mode.
![](asset-44.png)
68
ENG
ENGLISH
CUSTOMIZING SETTINGS

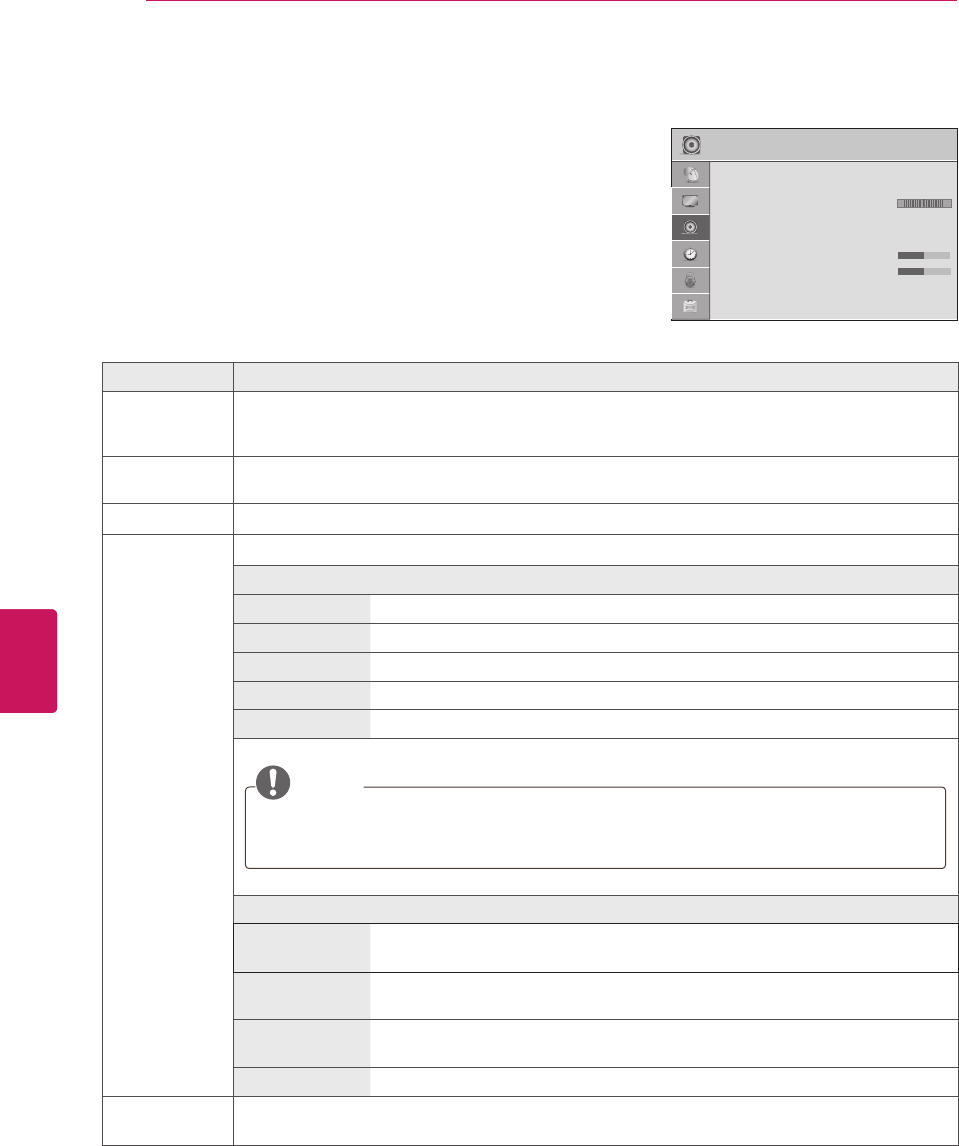

AUDIO Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available audio settings are described in the following.
Setting Description
Auto Volume Activates the Auto Volume feature to keep the volume level consistent whenever you change
channels. The volume level may not be consistent due to different signal conditions of broadcasting
stations.
Clear Voice II Sets whether to enhance human voice clarity. You can adjust the level of clarity when you set this
feature on.
Balance Adjusts balance between the left and right speakers according to your room environment.
Sound Mode Selects one of the preset sound modes or customizes options in each mode.
Mode
Standard Select when you want standard-quality sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sport Select when you watch sports events.
Game Select when you play games.
NOTE
If sound quality or volume is not at the level you want, it is recommended to use a separate
home theater system or amplifier to cope with different user environments.
If the Clear Voice II feature is on, Infinite Surround will not be activated.
Option
Infinite Surround Infinite Surround is a patented LG proprietary sound processing technology that
strives immersive 5.1 surround sound with just two front speakers.
Treble Controls the dominant sounds in the output. When you turn up the treble, it will
increase the output to the higher frequency range.
Bass Controls the softer sounds in the output. When you turn up the bass, it will
increase the output to the lower frequency range.
Reset Resets the sound mode to the default setting.
TV Speaker Turns on the internal speaker of the TV when using an external Hi-Fi system. You can use the TV
speaker as an audio output device even if there is no video input.
![](asset-45.png)
69
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to TIME and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available time settings are described in the following
Setting Description
Clock Sets the time, date, time zone, and daylight-saving time feature.
The time will be set automatically according to a digital channel signal which includes time
information provided by the broadcasting station. If not, set the time and date manually.
Off Time/On Time Sets the time to turn on or off the TV automatically. To use this function, you should set the current
time and date in advance.
NOTE
If you do not press any button within 2 hours after the TV turns on by the On Time feature,
the TV enters the Standby mode automatically.
If you set both Off time and On time features to the same time, the Off time feature
overrides the On time feature.
Sleep Timer Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the
Sleep timer feature will be set to off.
![](asset-46.png)
70
ENG
ENGLISH
CUSTOMIZING SETTINGS
LOCK Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to LOCK and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available lock settings are described in the following.
Setting Description
Set Password Changes the 4-digit password. The default PIN is “0 0 0 0”.
If you forget your password, press “0-3-2-5” on the remote control.
Lock System Activates or deactivates the lock system.
Block Channel Blocks the channels that contain inappropriate contents for children by pressing the Yellow button.
The Lock icon appears in front of the blocked channels. The channels can be selected but the screen
blank and the audio is muted.
To watch a locked channel, enter the password.
Movie Rating Blocks the movies that are only broadcasted on the TV and contain inappropriate contents, based on
the Motion Picture Association of America (MPAA) rating.
Rating
G General audiences – All ages admitted
PG Parental guidance suggested – Some material may not be suitable for children
PG-13 Patents strongly cautioned – Some material may be inappropriate for children
under 13
R Restricted – Under 17 requires accompanying parent or adult guardian
NC-17 No one 17 and under admitted
X Adults only
Blocking Off Permits all programs
TV Rating-
Children
(Depending on
model)
Blocks the children’s TV programs that parents do not want their children to watch. To block other
TV programs, you should set the TV Rating-General feature.
Rating
Age TV-Y (All children, including children from ages 2-6)
TV-Y7 (Directed to older children, suitable for children age 6 and above)
Fantasy Violence TY-Y7 (Directed to older children – Fantasy violence, suitable for children age 6
and above, containing more intense or combative fantasy violence)
![](asset-47.png)
71
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
TV Rating-
General
(Depending on
model)
Blocks the TV programs that you want based on the ratings by using the Parental Control Function
(V-Chip).
NOTE
The V-Chip electronically reads TV program ratings and allows parents to block program that
are unsuitable for children.
Rating
Age TV-G (General audience, suitable for all ages)
TV-PG (Parental guidance suggested, containing material that are unsuitable for
younger children)
TV-14 (Parents strongly cautioned, containing material that are unsuitable for
children age 14 and under)
TV-MA (Mature audience only, unsuitable for children age under 17)
Dialog
(suggestive
dialogue)
TV-PG or TV-14
Language
(coarse language)
TV-PG, TV-14, or TV-MA
Sex
(sexual situation)
TV-PG, TV-14, or TV-MA
Violence TV-PG, TV-14, or TV-MA
TV Rating-
English
(Depending on
model)
Selecting Canadian English rating system.
Rating
E Exempt
C Children
C8+ Children eight years and older
G General programming, suitable for all audiences
PG Parental Guidance
14+ Viewers 14 years and older
18+ Adult programming
Blocking Off Permits all programs
TV Rating-
French
(Depending on
model)
Selecting Canadian French rating system.
Rating
E Exempt
G General
8ans+ General-Not convenient for little children
13ans+ Not convenient for children of 13 years and younger
16ans+ Not convenient for children of 16 years and younger
18ans+ This programs is only for adults
Blocking Off Permits all programs
Downloadable
Rating
This function operates only when TV has received Region5 Rating data.
The name of the rating option may differ.
NOTE
This feature is available only for digital channels.
Input Block Blocks the input sources.
Key Lock Locks or unlocks the buttons on the TV.
![](asset-48.png)
72
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION Settings
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
The available general settings are described in the following.
Setting Description
Language Selects a desired language.
Option
Menu Language Selects a language for the display text.
Audio Language Selects an audio language for your program. This feature operates only
in the DTV or CADTV mode.
Caption Sets whether to display captions and customize your option in each mode.
Mode
CC 1-4 (Closed
Captioning)
Displays the audio portion of a TV program as text on the TV screen.
CC1 is the most common mode in use.
- Field 1 data channels: two Captions (CC1, CC2) and two Text (T1, T2).
- Field 2 data channels: two Captions (CC3, CC4) and two Text (T1, T2).
Text 1-4
Service 1-6 This is only available for the digital broadcasting system.
Option (For DTV, CADTV)
Size Selects the word size.
Font Selects a typeface for the text.
Text Color Selects a color for the text.
Text Opacity Adjusts the opacity for the text color.
Bg Color Selects a background color.
Bg Opacity Adjusts the opacity for the background color.
Edge Type Selects an edge type.
Edge Color Selects a color for the edges.
![](asset-49.png)
73
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
ISM Method Prevents image sticking or removes a ghost image.
A frozen still picture displayed on the screen for prolonged periods can result in a ghost image.
Mode
Normal Sets it if image sticking is never a problem.
Orbiter Avoids a ghost image on the screen.
The image will move every 2 minutes to help prevent ghost images.
However, it is best not to allow any fixed image to remain on the screen.
Color Wash Removes a ghost image on the screen.
The color block with the screen moved a little and the white pattern are
alternately displayed. It is difficult to see the after image on all colors.
Once it has been corrected it will not be visible in any color.
White Wash Removes a ghost image on the screen.
Use sparingly. Watch the TV normally for a while before using this
feature to see if the ghost image disappears on its own.
NOTE
An excessive ghosted image may be impossible to clear entirely
with White Wash. To return to normal viewing, press the any
button.
Initial Setting Resets the TV to factory default and erases all stored channels.
Customizes the TV settings to suit your preference. The initial setup screen will appear when you
turn on the TV for the first time.
NOTE
When selecting “Lock System - On”in the LOCK menu, the message to enter the password
appears.
If you forget your password, press “0-3-2-5” on the remote control.
Setting
Language Selects a desired language.
Mode Setting Selects Home Use for the home environment.
Selects Store Demo for the retail environment.
Selects Demo Mode to set to show special features of the TV. You can
cancel the demo mode by pressing any buttons except the Volume and
Mute buttons.
NOTE
When selecting Store Demo, Demo Mode will be activated.
Time Zone Sets the time zone and daylight saving.
Auto Tuning Scans and saves available channels automatically.
Set ID Adds an ID to the connected devices.
Mode Setting Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the best
picture in your home environment.
Option
Home Use Selects it for the home environment.
Store Demo Selects it for the retail environment.
Demo Mode Sets to show special features of the TV. You can cancel the demo mode
by pressing any buttons except the Volume and Mute buttons.
![](asset-4a.png)
74
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information of external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
NOTE
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable
to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual
provided with the connected device.
The external device connection may differ from the model.
Connect external devices to the TV regardless of the order of the TV port.
![](asset-4b.png)
75
ENG
ENGLISH
MAKING CONNECTIONS

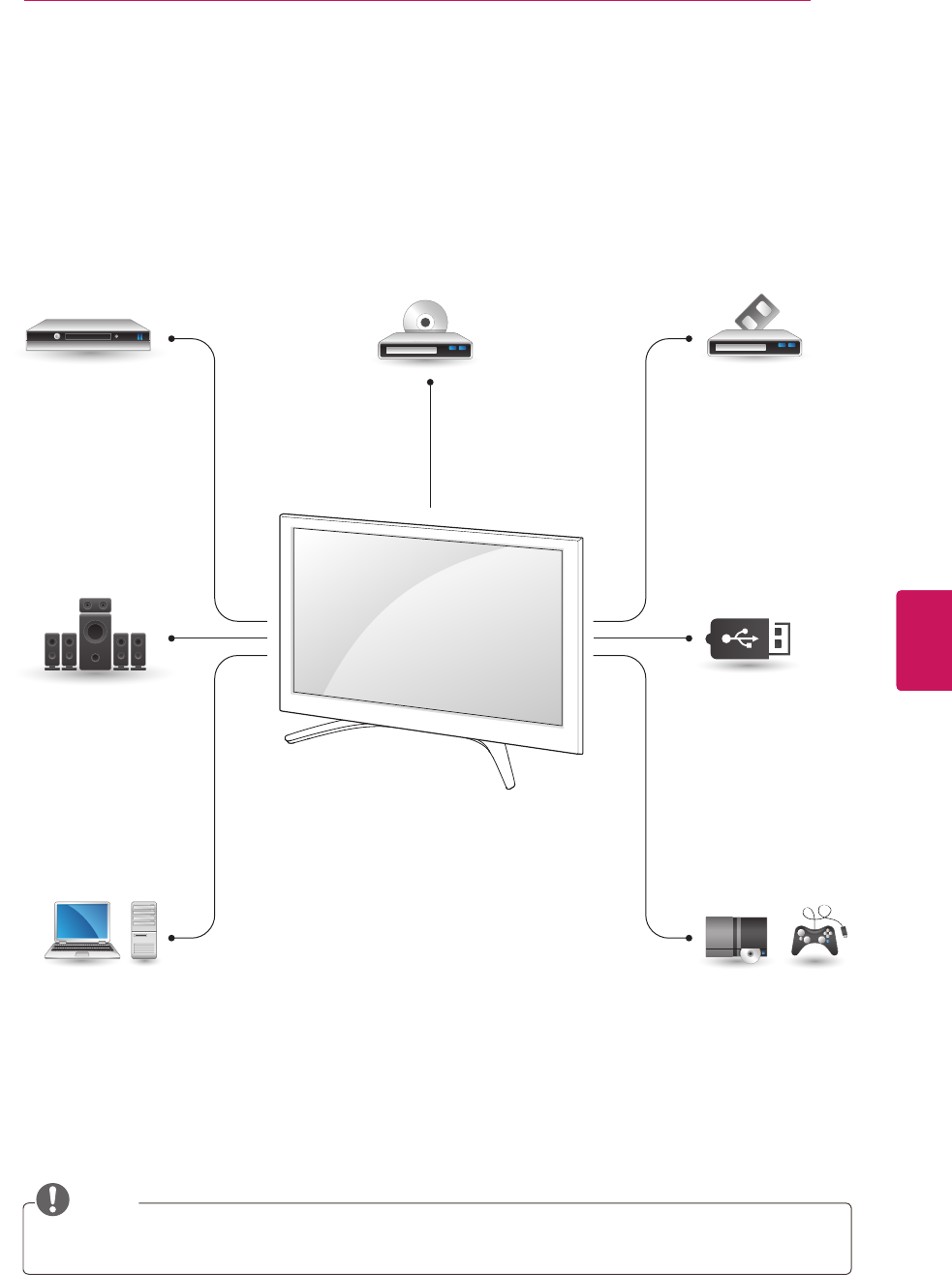

Connection Overview
Connect various external devices to the ports on the TV back panel.
1 Find an external device you want to connect to your TV as shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
NOTE
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
Refer to the external equipment’s manual for operating instructions.
HDMI – See p.76
DVI – See p.76
Component – See p.76
Composite – See p.76
Digital – See p.78
RGB – See p.77
Memory storage – See p.78
Memory card reader – See p.78
HD Receiver DVD VCR
Speaker USB
PC Gaming device
![](asset-4c.png)
76
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to a HD receiver,
DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
TV and select an appropriate input mode.
HDMI Connection
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown
in the following illustration.
NOTE
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
HDMI
DVI to HDMI Connection
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown in the
following illustration. To transmit an audio signal,
connect an audio cable.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
AUDIO IN
(RGB/DVI)
AUDIO OUT
DVI OUT
Component Connection
Transmits the analog video and audio signals from
an external device to the TV. Connect the external
device and the TV with the component cable as
shown in the following illustration.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
RS-232C IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL
IN
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
YL
P
B
P
R
R
VIDEO
AUDIO
L R
NOTE
If cables are installed incorrectly, it could
case the image to display in black and white
or with distorted color. Check to ensure the
cable are matched with the corresponding
color connection.
Composite Connection
Transmits the analog video and audio signals from
an external device to the TV. Connect the external
device and the TV with the composite cable as
shown in the following illustration.
NOTE
If you have a mono VCR, connect the audio
cable from the VCR to the AUDIO L/MONO
jack of the TV.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(CONTROL & SERVICE)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
AV IN 1
VIDEO
AUDIO
L/MONO
R
MONO
( )
AUDIOL R
VIDEO
![](asset-4d.png)
77
ENG
ENGLISH
MAKING CONNECTIONS

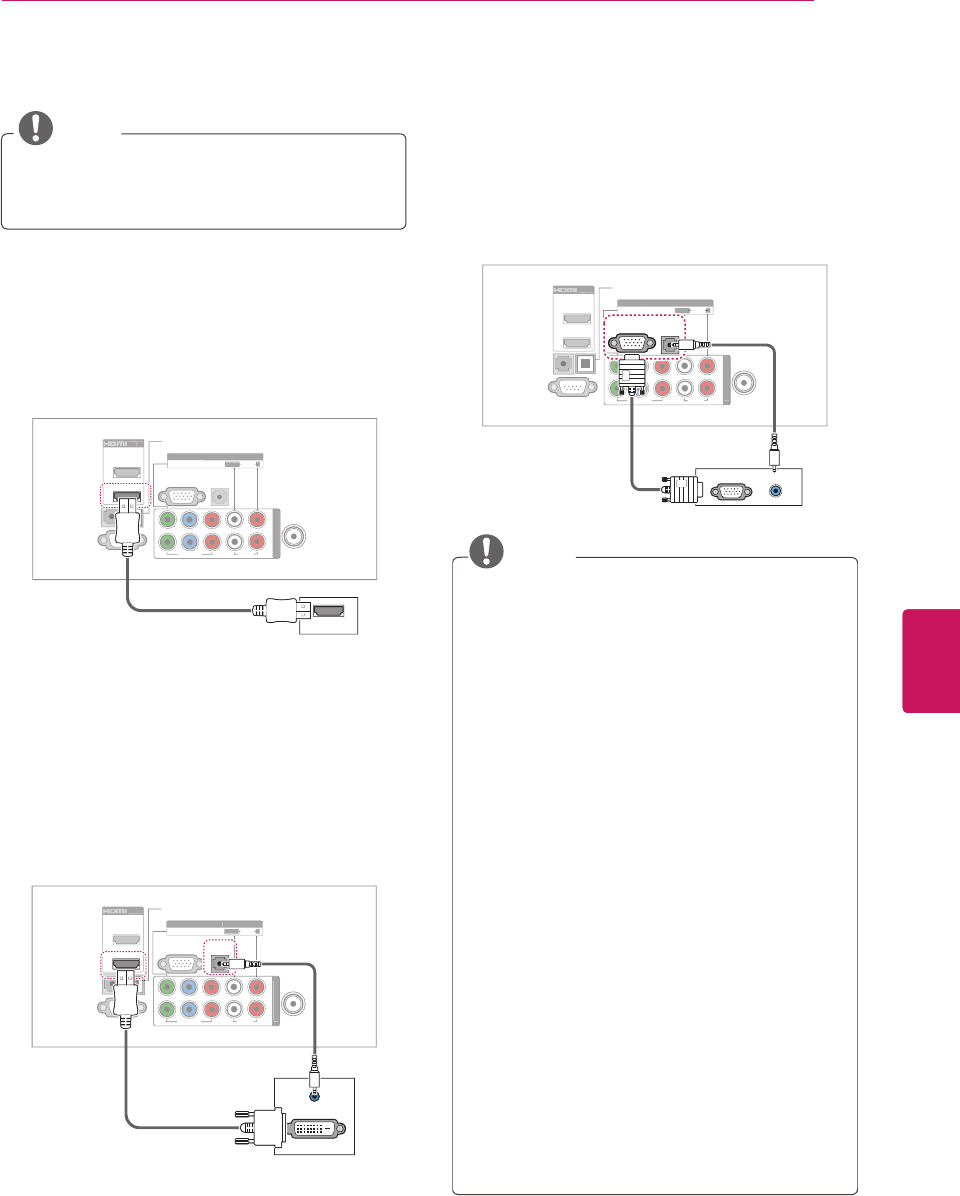

Connecting to a PC
NOTE
It is recommended to use the TV set with
the HDMI connection for the best image
quality.
HDMI Connection
Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TV
with the HDMI cable as shown in the following
illustration.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
HDMI
DVI to HDMI Connection
Transmits the digital video signal from your PC to
the TV. Connect the PC and the TV with the DVI-
HDMI cable as shown in the following illustration.
To transmit an audio signal, connect an audio
cable.
COMPONENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
AUDIO IN
(RGB/DVI)
AUDIO OUT
DVI OUT
RGB Connection
Transmits the analog video signal from your PC to
the TV. Connect the PC and the TV with the D-sub
15 pin signal cable as shown in the following
illustrations. To transmit an audio signal, connect
an audio cable.
CO
MP
O
NENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
IT
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
RGB IN (PC)
AUDIO IN
(RGB/DVI)
RGB OUT (PC)
AUDIO OUT
NOTE
To get the best picture quality, adjust the PC
graphics card to 1920x1080 (PV490, PZ850
series) or 1024x768 (Other models).
Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in
use.
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness.
If noise is present, change the PC output to
another resolution, change the refresh rate
to another rate or adjust the brightness and
contrast on the PICTURE menu until the
picture is clear.
Avoid keeping a fixed image on the screen
for a long period of time. The fixed image
may become permanently imprinted on the
screen.
The synchronization input form for Horizontal
and Vertical frequencies is separate.
Depending on the graphics card, some
resolution settings may not allow the image
to be positioned on the screen properly.
When selecting HDMI-PC, set the “Input
Label - PC” in the INPUT menu.
![](asset-4e.png)
78
ENG
ENGLISH
MAKING CONNECTIONS

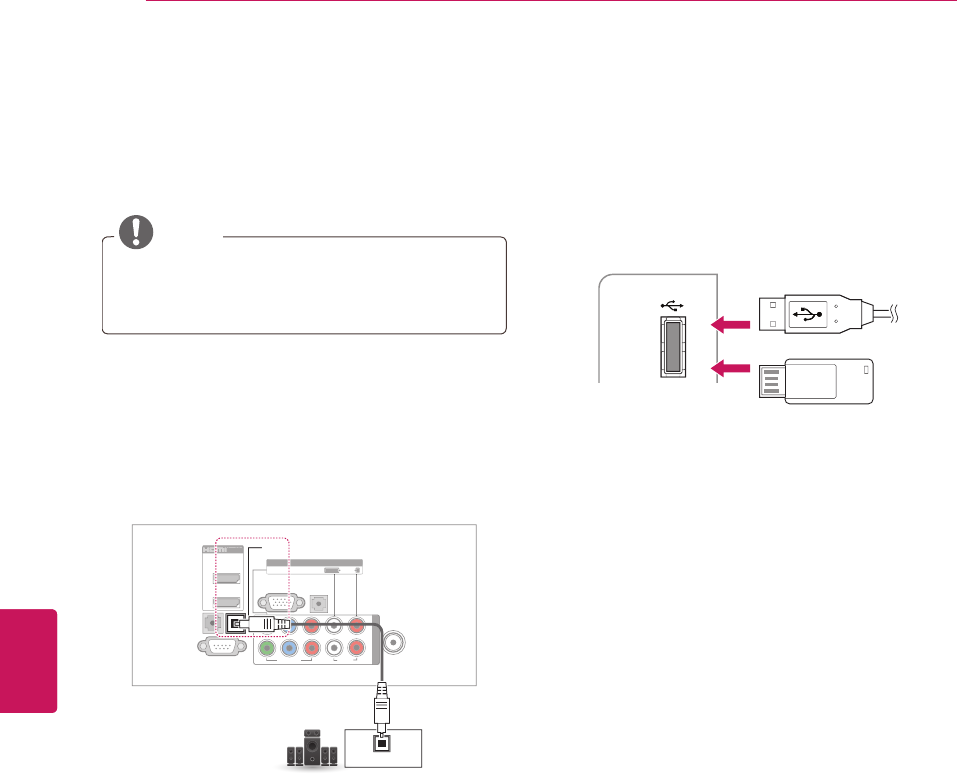

Connecting to a USB
Connect a USB storage device such as a USB
flash memory, external hard drive or a USB
memory card reader to the TV and access the
My media menu to use various multimedia files.
See "Connecting USB storage devices" on p.51 and
"Browsing files" on p. 52.
or
A
V IN 2
L
/
M
ON
O
R
AUDIO
A
V
IDE
O
US
B IN
I
N
3
USB IN
Connecting to an Audio
System
Use an optional external audio system instead of
the built-in speaker.
NOTE
If you use an optional external audio device
instead of the built-in speaker, set the TV
speaker feature to off (See p.68).
Digital optical audio connection
Transmits the digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown in
the following illustration.
COMPONENT IN
V
IDEO
AU
DI
O
Y
L
P
B
P
R
R
RGB IN (PC
)
AUDI
O
I
N
(
R
G
B
/
D
V
I
)
ANTENNA
/C
ABLE
IN
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
REM
O
T
E
C
ONTROL I
N
O
P
TI
C
AL
D
IG
I
T
A
L
AU
DI
O
OUT
A
V IN
1
1
/
DVI
I
N
V
IDE
O
AU
DI
O
L/MONO
O
O
R
R
R
2
1
2
OPTICAL
DIGITAL
AUDIO OUT
OPTICAL
AUDIO IN
![](asset-4f.png)
79
ENG
ENGLISH
MAKING CONNECTIONS

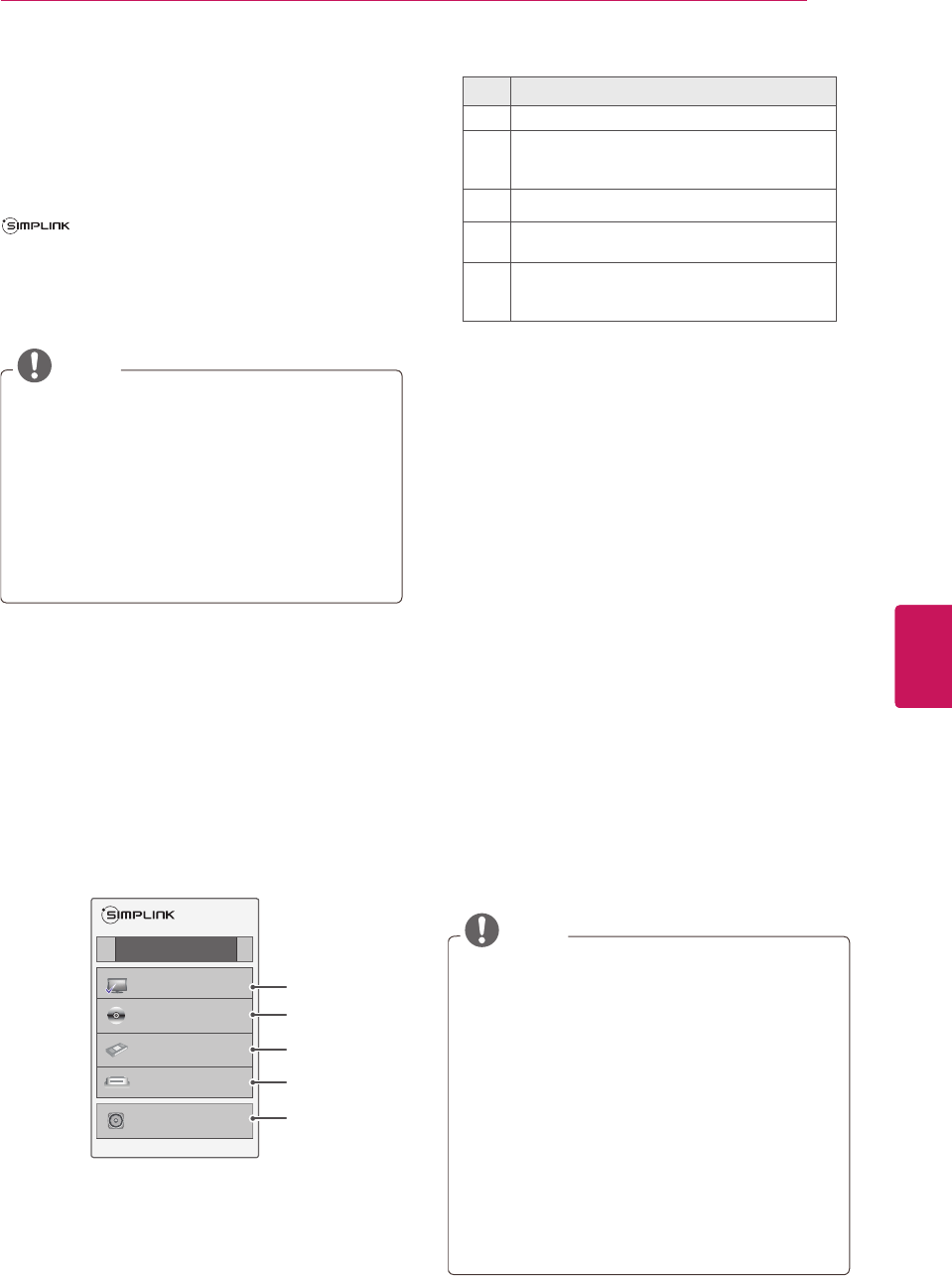

SIMPLINK Connection
Use the TV remote control to play and control the
AV device connected with the HDMI cable through
HDMI-CEC. Your TV only works with the devices
that support HDMI-CEC. But only devices with the
logo are fully supported.
Connect one end of the HDMI cable to the HDMI/
DVI IN or HDMI IN terminal on the rear of the TV
and the other end to the SIMPLINK device.
NOTE
If the connected device does not support
HDMI-CEC, the SIMPLINK feature is
unavailable.
To operate SIMPLINK, you should use
an High Speed HDMI cable with the CEC
(Consumer Electronics Control) function.
SIMPLINK may not work properly if you a
third-party device that has an HDMI-CEC
function.
Activating and Using the
SIMPLINK menus
1 Press SIMPLINK to access the SIMPLINK
menus.
2 Press the Navigation buttons to select to On.
3 Press the Navigation buttons to scroll to one of
the devices and press ENTER.
1
2
3
4
5
No. Description
1Displays the previously viewed TV channel.
2Plays discs. When multiple discs are
available, the title of the disc appears at the
bottom of the screen.
3Controls the connected VCR.
4HDD recordings playback: Controls the
recording stored in HDD.
5Audio out to home theater speaker or Audio
out to TV: Changes the audio output between
Home theater speaker and TV speaker.
- A check mark appears in front of the selected
device.
- Available devices display in a bright color.
- Unavailable devices display in grey.
4 Control the selected AV device.
- Direct Play: After connecting AV devices to
the TV, you can directly control the devices
and play media without additional settings.
- Select AV device: Enables you to select one
of the AV devices connected to the TV.
- Disc playback: Control connected AV devices
by pressing the Navigation buttons, ENTER,
, , , and .
- Power off all devices: When you power off
the TV, all connected devices are turned off.
- Switch audio-out: Offers an easy way to
switch audio-out.
- Sync Power on: When the equipment with
SIMPLINK function connected HDMI terminal
starts to play, The TV will automatically turn
on.
NOTE
If you change the input source by pressing
INPUT, the progressing function of the
SIMPLINK device will stop.
If you select a device that has the
home theater feature, the sound output
automatically switches to the home theater
speaker and the TV speaker turns off.
If a connected SIMPLINK home theater
system does not play the audio from the TV,
connect the DIGITAL AUDIO OUT terminal
on the rear of the TV to the DIGITAL AUDIO
IN terminal on the back of the SIMPLINK
device with an optical cable.
![](asset-50.png)
80
ENG
ENGLISH
MAINTENANCE
MAINTENANCE
Update and clean your TV regularly to keep the
best performance and to extend the product
lifespan.
Cleaning Your TV
CAUTION
Make sure to turn the power off and
disconnect the power cord and all other
cables first.
When the TV is left unattended and unused
for a long time, disconnect the power cord
from the wall outlet to prevent possible
damage from lightning or power surges.
Screen and frame
To remove dust or light dirt, wipe the surface with
a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a
soft cloth dampened in clean water or a diluted
mild detergent. Then wipe immediately with a dry
cloth.
CAUTION
Do not push, rub, or hit the surface with
your fingernail or a sharp object, as this may
result in scratches on the screen and image
distortions.
Do not use any chemicals, such as waxes,
benzene, alcohol, thinners, insecticides, air
fresheners, lubricants, as these may damage
the screen’s finish and cause discoloration.
Cabinet and stand
To remove dust or light dirt, wipe the cabinet with
a dry, clean, and soft cloth.
To remove major dirt, wipe the cabinet with a
soft cloth dampened in a clean water or water
containing a small amount of mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
Do not spray liquid onto the surface. If water
enters the TV, it may result in fire, electric
shock, or malfunction.
Do not use any chemicals as this may
deteriorate the surface.
Power cord
Remove the accumulated dust or dirt on the
power cord regularly.

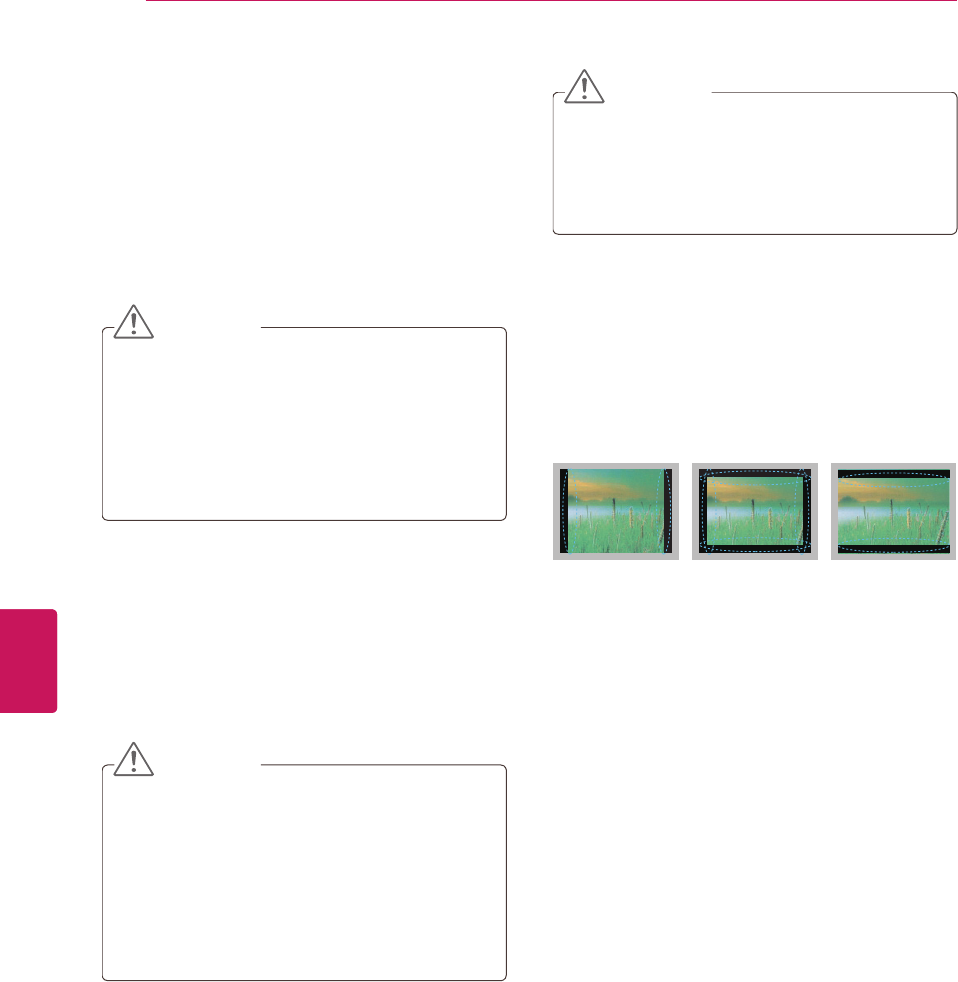

Preventing “Image burn” or
“Burn-in” on your TV screen
If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen
for a long period of time (1 or more hours for the
Plasma TV) to prevent image burn.
![](asset-51.png)
81
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
General
Problem Resolution
Cannot control the TV with the
remote control.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed ( to , to ).
Check if the appropriate input mode such as TV or VCR is set for using the
remote control.
No image display and no sound is
produced.
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV
turns on.
The image is muted during the product startup process. This is normal. If the
image does not appear in a few minutes, unplug the TV for 30 seconds and try
again. If the image still does not appear, contact the authorized service center
in your local area.
Cannot connect external devices. Refer to the "Connection Overview" and connect an external device.
The TV turns off suddenly. Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
Refer to the "Sleep Timer".
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
Audio
Problem Resolution
No sound is produced while images
are displaying.
Press VOL + or - button.
Check if the sound is muted by pressing MUTE.
Scroll to other channels. There may a problem with the broadcast.
Check if the TV Speaker feature is activated in the menu option.
No output from one of the speakers Adjust Balance in the menu option.
Unusual sound from inside the TV is
produced.
A change in ambient humidity or temperature may result in an unusual noise
when the product turns on or off. There is no problem with your product.
![](asset-52.png)
82
ENG
ENGLISH
TROUBLESHOOTING
Video
Problem Resolution
An image displays in black and
white or the color quality is poor.
Adjust the color setting in the menu option.
Keep a sufficient distance between this product and other electronic products.
Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears
or images blur
Check if there are local interferences such as an electrical appliance or power
tool.
Lines or streaks appear on images Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when
the product turns off
Pixels may have been damaged from a fixed image displayed for a long time
(image burn). Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen
appears extremely dark.
Adjust the brightness and contrast in the menu option.
“No Signal” appears on the screen. Check if the signal cable is connected between the TV and products properly.
Check the selected input source by pressing INPUT.
The display offset is wrong. Adjust the position setting in the Picture menu.
Check if the video card resolution and frequency are supported by the product.
If the frequency is out of range, set to the recommended resolution using the
display settings on the external device.
Thin lines appear in the background
of the screen.
Check the video cable connections.
Horizontal noises appear or
characters blur.
Adjust the Phase setting in the menu option.
Refer to the “SCREEN (RGB-PC)”.
The reception on some channels is
poor
Scroll to other channels. There may a problem with the broadcast.
The station signal may be weak. Aim the antenna to the proper direction.
Check if there is local interferences such as an electrical appliance or power
tool.
Movie
Problem Resolution
The file does not appear on the
Movie List.
Check whether the extension is supported.
Message is displayed
saying “This file is invalid” or the
audio is working normally but the
video is not working normally.
Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
Check whether the resolution is supported.
Check whether the video/audio codec is supported.
Check whether the frame rate is supported.
Message is displayed saying
“Unsupported Audio” or the video
is working normally but the audio is
not working normally.
Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
Check whether the audio codec is supported.
Check whether the bit rate is supported.
Check whether the sample rate is supported.
Subtitle is not working. Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
Check whether the video file and subtitle file name are the same.
Check whether the video file and subtitle file are located in the same folder.
Check whether the subtitle file is supported.
Check whether the language is supported. (When you open the subtitle file in
Memo Pad, you can check the language of the subtitle file.)
![](asset-53.png)
83
ENG
ENGLISH
TROUBLESHOOTING
Pentouch
Problem Resolution
The touch pen does not work. Check that you used the remote control to enter Pentouch mode.
Check that the Pentouch dongle is connected to the computer and the red
LED is on.
Press the / Home button on the touch pen to check that it is powered on.
Check that the touch pen is paired for use. (The touch pen is correctly paired
if the red LED is on once when you press the / Home button on the touch
pen.)
Set the computer screen to display only on the TV.
The TV screen doesn’t look normal
when using Pentouch.
Check that the computer is correctly connected to the TV.
Check that you are using the optimal resolution.
Set the aspect ratio on the TV to Just Scan.
The touch pen is touched on wrong
positions.
Set the computer screen to display only on the TV.
If the point you touch on the TV screen using the touch pen and the point
indicated as touched on the computer screen do not match when the
computer and the TV are connected by a PC signal (RGB) cable, use the TV
remote control to select [Menu] → [Picture] → [Screen] (RGB-PC), then select
[Auto Config.] to adjust the screen.
The touch pen movement is not
smooth.
Check whether the computer and the TV are too far from each other. Check
whether there are too many obstructions between the computer and the TV.
Check whether many other applications are running on the computer. (Please
avoid running other applications while using the Pentouch program.)
![](asset-54.png)
84
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating
Temperature
0 - 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C
Storage Humidity Less than 85 %
MODELS 50PV490
(50PV490-UC)
60PV490
(60PV490-UC)
Dimensions
(W x H x D)
With stand
1168.7 mm x 777.0 mm x 349.2 mm
(46.0 inch x 30.5 inch x 13.7 inch)
1387.4 mm x 920.5 mm x 395.6 mm
(54.6 inch x 36.2 inch x 15.5 inch)
Without stand
1168.7 mm x 712.2 mm x 52.5 mm
(46.0 inch x 28.0 inch x 2.0 inch)
1387.4 mm x 834.7 mm x 52.5 mm
(54.6 inch x 32.8 inch x 2.0 inch)
Weight With stand 29.7 kg (65.4 lbs) 42.0 kg (92.5 lbs)
Without stand 27.7 kg (61.0 lbs) 38.5 kg (84.8 lbs)
Current Value / Power consumption 3.3 A / 330 W 4.6 A / 460 W
Power requirement AC100 - 240 V ~ 50 / 60 Hz
Product specifications may be changed without prior notice due to upgrade of product functions.
MODELS
50PT490
(50PT490-UC)
50PT490U
(50PT490U-UA)
50PT490R
(50PT490R-MD)
Dimensions
(W x H x D)
With stand
1168.7 mm x 777.0 mm x 349.2 mm
(46.0 inch x 30.5 inch x 13.7 inch)
Without stand
1168.7 mm x 712.2 mm x 52.5 mm
(46.0 inch x 28.0 inch x 2.0 inch)
Weight With stand 29.4 kg (64.8 lbs)
Without stand 27.4 kg (60.4 lbs)
Current Value / Power consumption 3.0 A / 300 W
Power requirement AC100 - 240 V ~ 50 / 60 Hz
![](asset-55.png)
85
ENG
ENGLISH
SPECIFICATIONS
RF module (BM-LDS201) specification (For PZ850 series)
For TV By using a 2.4 GHz bandwidth radio frequency(RF).
Output: 1 dBm or lower
Maximum Communication Distance: 10 m (30 ft) in an open space
Bandwidth: 2.4 GHz (2.4035 GHz - 2.4783 GHz)
Transfer Rate: 250 kbps
FCC ID of RF module inside TV
FCC ID: BEJLDS201
MODELS 50PZ850
(50PZ850-UA)
60PZ850
(60PZ850-UA)
Dimensions
(W x H x D)
With stand
1168.7 mm x 777.0 mm x 349.2 mm
(46.0 inch x 30.5 inch x 13.7 inch)
1387.1 mm x 920.5 mm x 395.6 mm
(54.6 inch x 36.2 inch x 15.5 inch)
Without stand
1168.7 mm x 712.2 mm x 52.5 mm
(46.0 inch x 28.0 inch x 2.0 inch)
1387.1 mm x 834.9 mm x 52.5 mm
(54.6 inch x 32.8 inch x 2.0 inch)
Weight With stand 30.1 kg (66.3 lbs) 42.0 kg (92.5 lbs)
Without stand 28.1 kg (61.9 lbs) 38.5 kg (84.8 lbs)
Current Value / Power consumption 3.7 A / 370 W 5.3 A / 530 W
Power requirement AC100 - 240 V ~ 50 / 60 Hz
![](asset-56.png)
86
ENG
ENGLISH
SPECIFICATIONS
Component port connecting information
Component ports on the
TV Y PBPR
Video output ports
on DVD player
Y PBPR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Component supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720x480i 15.73
15.73
59.94
60.00
720x480p 31.47
31.50
59.94
60.00
1280x720p 44.96
45.00
59.94
60.00
1920x1080i 33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.432
67.50
23.976
24.00
29.97
30.00
59.94
60.00
RGB (PC), HDMI (PC) supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1360x768 47.712 60.015
1280x1024 63.981 60.02
1920x1080
RGB-PC 66.587 59.934
1920x1080
HDMI-PC 67.5 60.00
For 50/60PV490, 50/60PZ850
HDMI (DTV) supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720x480p 31.47
31.50
59.94
60.00
1280x720p 44.96
45.00
59.94
60.00
1920x1080i 33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.432
67.50
23.976
24.00
29.97
30.00
59.94
60.00
![](asset-57.png)
87
ENG
ENGLISH
SPECIFICATIONS
Video Supported Formats
File
Extension
name
Video Decoder Audio Codec Max Resolution
mpg, mpeg MPEG1, MPEG2 MP2, MP3, Dolby Digital, LPCM
1920 x 1080 @ 30p
(Only Motion JPEG
640x480@30p)
dat MPEG1 MP2
ts, trp, tp MPEG2, H.264, AVS, VC1 MP2, MP3, Dolby Digital, AAC, HE-AAC
vob MPEG1, 2 MP2, MP3, Dolby Digital, LPCM
mp4, mov
MPEG4,DivX 3.11, DivX 4.12,
DivX 5.x, DivX 6, Xvid 1.00, Xvid
1.01, Xvid 1.02, Xvid 1.03, Xvid
1.10-beta1/2H.264
AAC, HE-AAC, MP3
mkv H.264, MPEG-1,2,4 MP2, MP3, Dolby Digital, AAC
HE-AAC, LPCM
divx, avi
MPEG2, MPEG4, DivX 3.11, DivX
4, DivX 5, DivX 6, Xvid 1.00, Xvid
1.01, Xvid 1.02, Xvid 1.03, Xvid
1.10-beta1/2H.264
MP2, MP3, Dolby Digital, LPCM,
ADPCM, AAC, HE-AAC
Motion JPEG
(avi, mp4, mkv) JPEG LPCM, ADPCM
asf, wmv VC1 WMA
flv Sorenson H.263, H264 MP3, AAC
3D Supported Formats (For 3D TV)
Signal Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI Input
720p 1280x720 44.96 / 45.00
59.94 / 60.00
Top & Bottom, Side by Side
89.90 / 90.00 HDMI 3D Frame Packing
1080i
1920x1080
33.72 / 33.75 Top & Bottom, Side by Side
1080p
67.432 / 67.50 Top & Bottom, Side by Side, Checker Board
Single Frame Sequential
27.00 24.00 Top & Bottom, Side by Side, Checker Board
53.95 / 54.00 23.98 / 24.00 HDMI 3D Frame Packing
33.75 30.00 Top & Bottom, Side by Side
Checker Board
USB Input
1080p 1920x1080 33.75 30.00 Top & Bottom, Side by Side
Checker Board, MPO (Photo)
Resolution Playable 3D video format
Other Resolution Top & Bottom, Side by Side
PC Input
(PZ850 series)
1920x1080 66.587 59.93 Top & Bottom, Side by Side
Component 720p 1280x720 44.96 / 45.00 59.94 / 60.00 Top & Bottom, Side by Side
1080i 1920x1080 33.72 / 33.75 59.94 / 60.00
Signal Playable 3D video format
DTV 720p, 1080i Top & Bottom, Side by Side
![](asset-58.png)
88
ENG
ENGLISH
IR CODES
IR CODES
(Depending on model)
How to Connect
Connect your wired remote control to the Remote Control port on the TV.

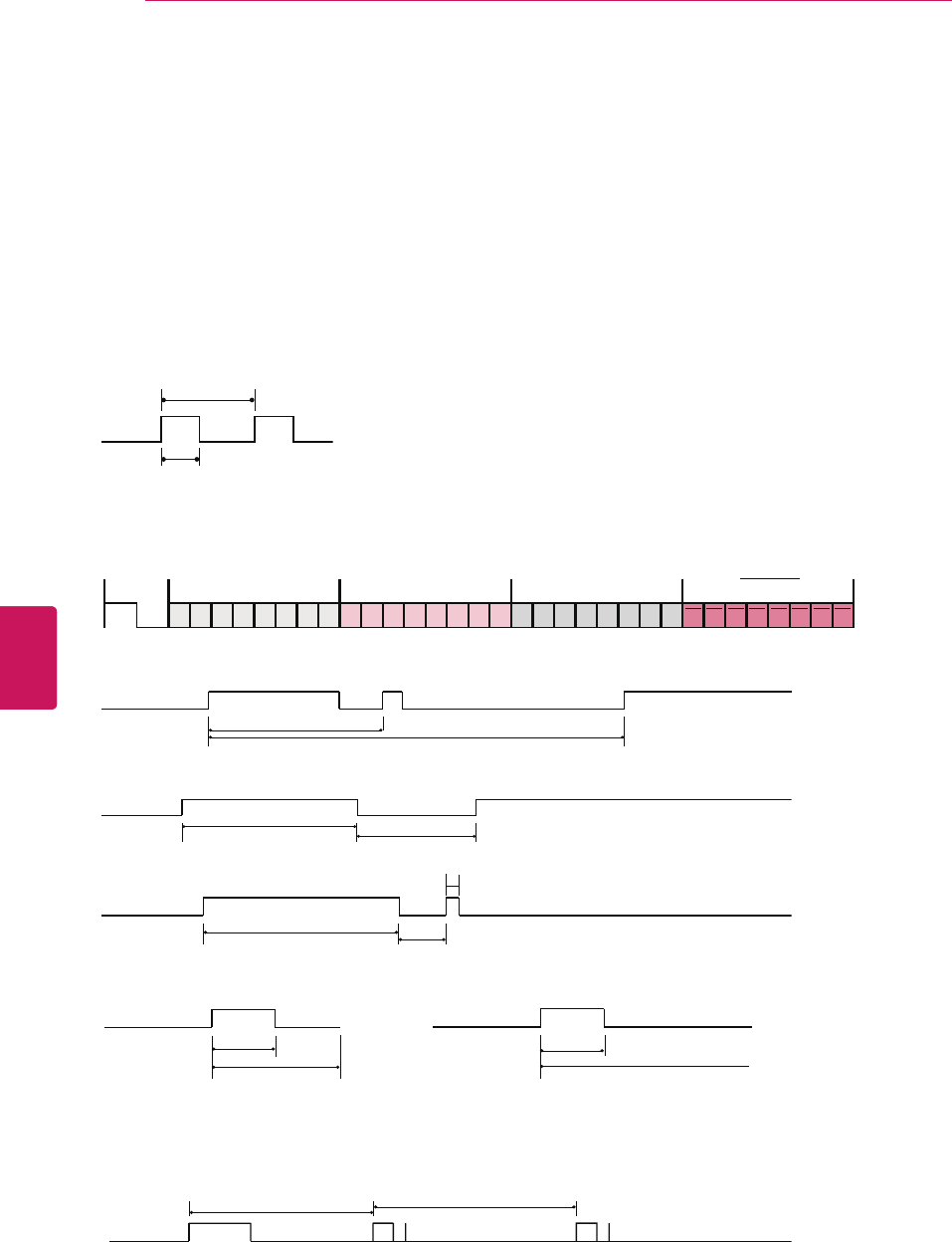

Remote Control IR Codes
Output waveform
Single pulse, modulated with 37.917kHz signal at 455kHz
T1
Tc
Frame configuration
1st frame
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
Repeat frame
Repeat code Tf
Lead code
4.5 ms
9 ms
Repeat code
2.25 ms
9 ms
0.55 ms
Bit description
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit “0” Bit “1”
Frame interval: Tf
The waveform is transmitted as long as a key is depressed.
Tf Tf
Tf=108ms @455KHz
![](asset-59.png)
89
ENG
ENGLISH
IR CODES
Code
(Hexa) Function Note Code
(Hexa) Function Note
08 POWER Remote control Button
(Power On/Off)
0F TV Remote control Button
DC 3D (For 3D TV) Remote control Button
45
Q.MENU
Remote control Button 5B EXIT Remote control Button
43 Home Remote control Button 6B TOUCH Remote control Button
0B INPUT Remote control Button D6 TV Discrete IR Code
(TV Input Selection)
10 - 19 Number Key 0-9 Remote control Button
4C - (Dash)/LIST Remote control Button C4 POWER ON Discrete IR Code
(Only Power On)
1A FLASHBK or
Q.VIEW
Remote control Button
9 MUTE/DELETE Remote control Button C5 POWER OFF Discrete IR Code
(Only Power Off)
2 VOL + Remote control Button
3 VOL - Remote control Button 5A AV1 Discrete IR Code
(AV1 Input Selection)
0CH
^
Remote control Button
1CH
v
Remote control Button D0 AV2 Discrete IR Code
(AV2 Input Selection)
1E FAV/MARK Remote control Button
40
^
Remote control Button BF COMPONENT1 Discrete IR Code
(Component1 Input
Selection)
41
v
Remote control Button
7
<
Remote control Button D4 COMPONENT2 Discrete IR Code
(Component2 Input
Selection)
6
>
Remote control Button
44 ENTER Remote control Button D5 RGB-PC Discrete IR Code
(RGB-PC Input Selection)
28 BACK Remote control Button
79 RATIO Remote control Button CE HDMI1 Discrete IR Code
(HDMI1 Input Selection)
BA FREEZE Remote control Button
95
ENERGY SAVING
Remote control Button CC HDMI2 Discrete IR Code
(HDMI2 Input Selection)
7E SIMPLINK Remote control Button
AA INFO Remote control Button E9 HDMI3 Discrete IR Code
(HDMI3 Input Selection)
30 AV MODE Remote control Button
72 RED Remote control Button 76 Ratio 4:3 Discrete IR Code
(Only 4:3 Mode)
71 GREEN Remote control Button
63 YELLOW Remote control Button 77 Ratio 16:9 Discrete IR Code
(Only 16:9 Mode)
61 BLUE Remote control Button
B1 nRemote control Button AF Ratio Zoom Discrete IR Code
(Only Zoom Mode)
B0 Remote control Button
BA yy Remote control Button
8E Remote control Button
8F Remote control Button
![](asset-5a.png)
90
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP

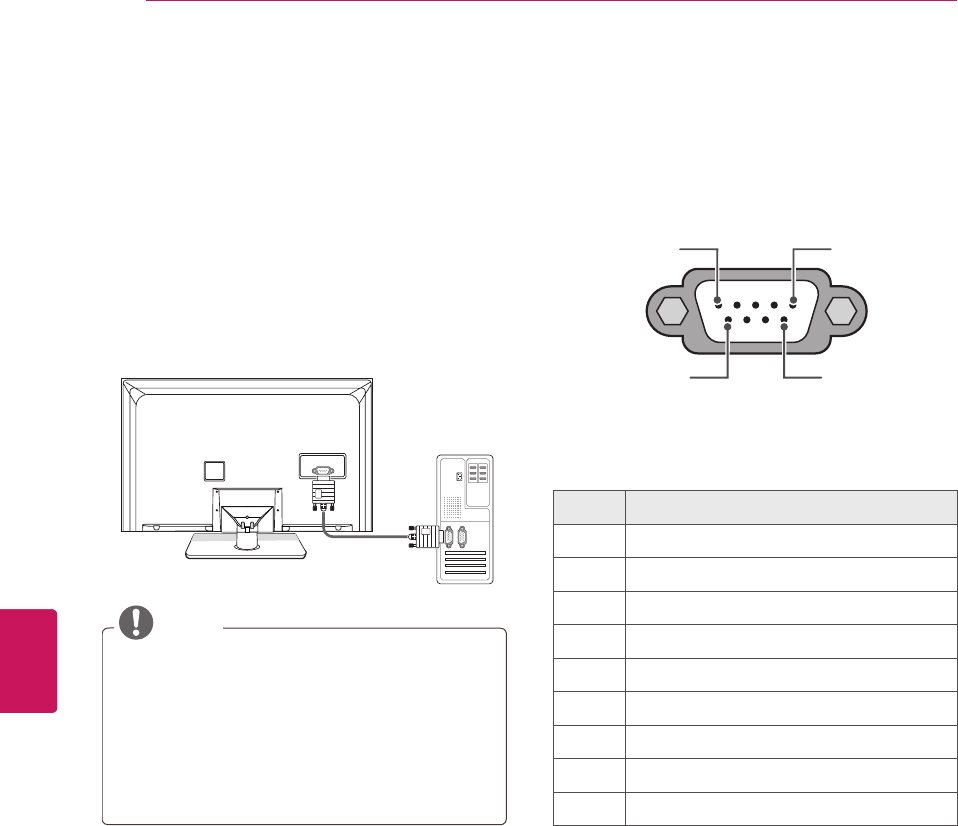

RS-232C Setup
Connect the RS-232C (serial port) input jack to
an external control device (such as a computer or
an A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
RS-232C IN
(CONTROL & SERVICE)
NOTE
RS-232C on this unit is intended to be used
with third party RS-232C control hardware
and software. The instructions below
are provided to help with programming
software or to test functionality using telenet
software. RS-232C connection cables are not
supplied with the product.
Type of connector;
D-Sub 9-Pin Male
1 5
6 9
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
![](asset-5b.png)
91
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
RS-232C configurations
7-Wire Configuration
(Serial female-female NULL modem cable)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations(Not standard)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
Set ID
Set ID number.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to
OPTION and press ENTER.
3 Press the Navigation buttons to scroll to Set ID
and press ENTER.
4 Scroll left or right to select a set ID number and
select CLOSE. The adjustment range is 1-99.
5 When you are finished, press EXIT.
*Real data mapping
0 : Step 0
…
A : Step 10 (SET ID 10)
…
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
…
63 : Step 99 (SET ID 99)
64 : Step 100
![](asset-5c.png)
92
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
Baud rate: 9600 bps (UART)
Data length: 8 bits
Parity : None
Stop bit: 1 bit
Communication code: ASCII code
Use a crossed (reverse) cable.
Command reference list
COMMAND1 COMMAND2 DATA
(Hexadecimal) COMMAND1 COMMAND2 DATA
(Hexadecimal)
01. Power k a 00 - 01 14. Treble k r 00 - 64
02. Input Select x b (See p.94) 15. Bass k s 00 - 64
03. Aspect
Ratio k c (See p.94) 16. Balance k t 00 - 64
04. Screen
Mute k d 00 - 01 17. 3D (For 3D
TV) x t (See p.95)
05. Volume
Mute k e 00 - 01 18. Color
Temperature x u 00 - 64
06. Volume
Control k f 00 - 64 19. Extended
3D (For 3D TV) x v (See p.95)
07. Contrast k g 00 - 64 20. ISM
Method j p (See p.96)
08. Brightness k h 00 - 64 21. Energy
Saving j q (See p.96)
09. Color k i 00 - 64 22. Auto
Configuration j u (See p.96)
10. Tint k j 00 - 64 24. Channel
Add/Del m b 00 - 01
11. Sharpness k k 00 - 64 25. Key m c (See p.96)
12. OSD Select k l 00 - 01
13. Remote
Control
Lock Mode
k m 00 - 01
COMMAND1 COMMAND2
DATA00
(Hexadecimal)
DATA01
(Hexadecimal)
DATA02
(Hexadecimal)
DATA03
(Hexadecimal)
DATA04
(Hexadecimal)
DATA05
(Hexadecimal)
23. Channel
Tuning m a
physical
program
high
major
program
low
major low minor high minor low attribute
![](asset-5d.png)
93
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the set.(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is
1~ 99. When selecting Set ID ‘0’, every connected the set is controlled. Set ID is indicated as decimal (1~
99) on menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol.
[DATA] : To transmit the command data.
Transmit the ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
* In this model, set will not send the status during the standby mode.
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[OK] : Use the large character.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[NG] : Use the large character
![](asset-5e.png)
94
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
01. Power (Command: k a)
To control Power On/Off of the set.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 00: Power Off Data 01: Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this model, set will send the Acknowledge
after power on processing completion.
There might be a time delay between command and
acknowledge.
02. Input Select (Command: x b)
To select input source for set.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00: DTV (Antenna) Data 01: DTV (Cable)
Data 10: Analog (Antenna) Data 11: Analog (Cable)
Data 20: AV1 Data 21: AV2
Data 40: Component1
Data 41: Component2
Data 60: RGB-PC Data 90: HDMI1
Data 91: HDMI2 Data 92: HDMI3
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
* Use the feature depending on your model.
03. Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3 Data: 09: Just scan
Data 02: 16:9 Data: 10: Cinema Zoom 1
Data 04: Zoom
…
Data 06: Set by program Data 1F: Cinema Zoom16
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
04. Screen Mute (Command: k d)
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00:
Screen mute off (Picture on), Video-out
Mute off
Data 01: Screen mute on (Picture off)
Data 10: Video-out Mute on
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of Video-out Mute on only,
TV will display On
Screen Display (OSD). But, in case of screen mute on,
TV will not display On Screen Display (OSD).
05. Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00: Volume mute on (Volume off)
Data 01: Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
06. Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
07. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
08. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
To adjust screen color.
You can also adjust color in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
11. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
![](asset-5f.png)
95
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
12. OSD Select (Command: k l)
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off Data 01: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
13. Remote Control Lock Mode (Command: k m)
To lock the remote control and the front panel
controls on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00: Lock off Data 01: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the Monitor set, use this mode. When
main power is on/off, remote control lock is released.
If Key Lock is on in the standby mode, TV will not
turn on by POWER button of remote control and on
the TV.
14. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
15. Bass (Command: k s)
To adjust bass.
You can also adjust bass in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
17. 3D (Command: x t) (For 3D TV)
To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][Cr]
Data1
00: 3D On 01: 3D Off
02: 3D to 2D 03: 2D to 3D
Data2
00: Top and Bottom 01: Side by Side
02: Check Board 03: Frame Sequential
Data3
00: Right to Left
01: Left to Right
Data4
3D Depth: Min : 00 ~ Max : 14
(*transmit by Hexadecimal code)
*If data1 is 00(3D On), data4 has no meaning.
*If data1 is 01(3D Off) or 02(3D to 2D), data2, data3
and data4 have no meaning.
*If data1 is 03(2D to 3D), data2 and data3 have no
meaning.
Data 1 Data 2 Data 3 Data 4
00 o o x
01 x x x
02 x x x
03 x x o
x : Don’t care
Acknowledgement [t][ ][OK][Data01][Data02]
[Data03][Data04][x][t][ ][NG][Data01][x]
18. Color Temperature (Command: x u)
To adjust color temperature.
You can also adjust color temperature in the
PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
19. Extended 3D (Command: x v) (For 3D TV)
To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr]
Data1: 3D option
00: 3D Picture Correction
01: 3D Depth (2D to 3D Only)
02: 3D Viewpoint
03: 3D Picture Size
04: 3D Picture Balance
05: 3D Optimization
Data2: It has own range for each 3D option
determined by Data1.
1) When Data1 is 00
00: Right to Left 01: Left to Right
2) When Data1 is 01, 02
Data Min: 00 ~ Max: 14 (*transmit by Hexadecimal
code)
3) When Data1 is 03
00: Just Scan 01: 16:9
4) When Data1 is 04
00: Off 01: On
5) When Data1 is 05
Data Min: 00 ~ Max: 02 (*transmit by Hexadecimal
code)
Acknowledgement [v][ ][OK][Data1][Data2][x]
[v][ ][NG][Data1][x]
* Use the feature depending on your model.
![](asset-60.png)
96
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
20. ISM Method (Command: j p)
To avoid having a fixed image remain on screen.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data 02: Orbiter
04: White Wash
08: Normal
20: Color Wash
Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]
21. Energy Saving (Command: j q)
To control the energy saving function.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 00: off
01: Minimum
02: Medium
03: Maximum
04: Auto/Intelligent sensor
(depending on model)
05: Screen off
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
22. Auto Configuration (Command: j u)
To adjust picture position and minimize image
shaking automatically. Auto configuration only works
in RGB-PC mode.
Transmission [ j ][u][ ][Set ID][ ][Data][Cr]
Data 01: To set
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
23. Channel Tuning (Command: m a)
To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel to the Major number, the Physical
number is not required when sending a command.
Data 00: Physical Channel Number
NTSC air: 02~45, NTSC cable: 01, 0E~7D
ATSC air: 01~45, ATSC cable: 01~87
Data 01 & 02: Major Channel Number
Data 01: High byte Data 02: Low byte
Two bytes are available for the Major and Minor,
normally only the second byte is used.
Data 03 & 04: Minor Channel Number
Not needed for NTSC.
The table above lists the binary code which must
be converted to Hexadecimal before sending. For
example:
The binary code to tune the sub source to an NTSC
cable channel is “1000 0001”, which translates to
“81” in Hex.
* 7th bit : For which source do you want to change
the channel.
* 6th bit: Use a two part or one part channel. Most
cases just use 0 since it’s ignored when using
NTSC.
* 5th bit: Use 0 with NTSC since it can only use
the physical channel number. Normally use 1 for
ATSC since most times it doesn’t matter what the
physical number is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 00 = Physical of 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
* Use the feature depending on your model.
24. Channel Add/Del (Command: m b)
To add and delete the channels.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00: Channel Delete Data 01: Channel Add
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
25. Key (Command: m c)
To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
When TV is in the standby mode, TV will turn on by
POWER button of remote control only.
![](asset-61.png)
97
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
* Table List (Channel Tuning)
7Main/Sub
Picture 6
Two/One
Part
Channel
5
Using
Physical
Channel
4
Reserved 3 2 1 0 Step
0 Main 0 Two 0 Use x 0 0 0 0 NTSC Air
1 Sub 1 One 1 No Use x 0 0 0 1 NTSC Cable
x 0 0 1 0 ATSC Air
x 0 0 1 1 ATSC Cable_std
x 0 1 0 0 ATSC Cable_hrc
x 0 1 0 1 ATSC Cable_irc
x 0 1 1 0 ATSC cable_auto
x 0 1 1 1 Reserved
x x x x x ...
x 1 1 1 1 Reserved
![](asset-62.png)
98
ENG
ENGLISH
OPEN SOURCE LICENSE
OPEN SOURCE LICENSE
Open source software notice
Please be informed that LG Electronics products may contain open source software listed in the tables
below.
License Component
OpenSSL license - openssl
MIT license - libcurl
- ncurses
expat license - expat
Freetype license - freetype
JPEG license - libjpeg
Zlib/libpng license - libmng
- libpng
- md5 checksum
- tinyxml
- zlib
X.net license - libicu
BSD license - strace
- xySSL
RSA data security license - MD5
LG Electronics products may also contain open source software listed as Components in the table below,
and you may download the complete source code thereof free of charge, from LG Electronics website
(http://opensource.lge.com) for a period of three (3) years from our last shipment of this product. Please be
informed that the open source software is subject to the terms and conditions of the applicable open
source licenses, which are provided to you hereinbelow.
License Component
GNU GPL v2.0 - Linux kernel 2.6
- busybox
- e2fsprogs
- gdbserver
- jfsutils
- mtd-utils
- procps
- u-boot
- udhcpc
GNU LGPL v2.1 - directFB
- gconv
- glibc
MPL 1.1 - nanox
![](asset-63.png)
99
ENG
ENGLISH
OPEN SOURCE LICENSE
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software
and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered
by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to
make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that
you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free
programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to sur-
render the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software,
or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the
rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them
these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no war-
ranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know
that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’
reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors
of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we
have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it
may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program
or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that
is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into
another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is
addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running the Program is not restricted, and the output from the Program is covered only if its contents consti-
tute a work based on the Program (independent of having been made by running the Program). Whether that is true
depends on what the Program does.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
![](asset-64.png)
100
ENG
ENGLISH
OPEN SOURCE LICENSE
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided
that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of war-
ranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other
recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program,
and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all
of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any
change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program
or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute
the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program
itself is interactive but does not normally print such an announcement, your work based on the Program is not required
to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms
of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part
regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code,
to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alterna-
tive is allowed only for noncommercial distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
![](asset-65.png)
101
ENG
ENGLISH
OPEN SOURCE LICENSE
The source code for a work means the preferred form of the work for making modifications to it. For an executable work,
complete source code means all the source code for all modules it contains, plus any associated interface definition files,
plus the scripts used to control compilation and installation of the executable. However, as a special exception, the
source code distributed need not include anything that is normally distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that
component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though
third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your
rights under this License. However, parties who have received copies, or rights, from you under this License will not
have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission
to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this
License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your
acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program
or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a
license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You
may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible
for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the
conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence
you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of
the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both
it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section
is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system, which is implemented by public license practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted inter-
faces, the original copyright holder who places the Program under this License may add an explicit geographical distribu-
tion limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to
time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems
or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which
![](asset-66.png)
102
ENG
ENGLISH
OPEN SOURCE LICENSE
applies to it and “any later version”, you have the option of following the terms and conditions either of that version or
of any later version published by the Free Software Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,
write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software
generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO
THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO
LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR
A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER
PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
GNU Lesser General Public License
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License,
version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically
libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you
first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any
particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed
to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish);
that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new
free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to
![](asset-67.png)
103
ENG
ENGLISH
OPEN SOURCE LICENSE
surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library
or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights
that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the
library, you must provide complete object files to the recipients, so that they can relink them with the library after making
changes to the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives
you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library
is modified by someone else and passed on, the recipients should know that what they have is not the original version,
so that the original author’s reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a
company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder.
Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom
of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the
GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary
General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free
programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally
speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such
linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax cri-
teria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the
ordinary General Public License. It also provides other free software developers Less of an advantage over competing
non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.
However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library,
so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more
frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain
by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a
large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more
people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a
program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version
of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference
between a “work based on the library” and a “work that uses the library”. The former contains code derived from the
library, whereas the latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copy-
right holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License
(also called “this License”). Each licensee is addressed as “you”.
![](asset-68.png)
104
ENG
ENGLISH
OPEN SOURCE LICENSE
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work
based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work contain-
ing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another
language. (Hereinafter, translation is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus the
scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running a program using the Library is not restricted, and output from such a program is covered only if its
contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether
that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium,
provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy
of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and
copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of
these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any
change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that
uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort
to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs
whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of
the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function
must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Library, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the
![](asset-69.png)
105
ENG
ENGLISH
OPEN SOURCE LICENSE
Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of
the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU
General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU
General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other
change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License
applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable
form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding
machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium cus-
tomarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access
to copy the source code from the same place satisfies the requirement to distribute the source code, even though third
parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being
compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of
the Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library
(because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore cov-
ered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the
work may be a derivative work of the Library even though the source code is not. Whether this is true is especially sig-
nificant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is
not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small
inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is
legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section
6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of
Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the
Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library
to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that
the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such
modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use
are covered by this License. You must supply a copy of this License. If the work during execution displays copyright
notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to
the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including what-
ever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an
executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/
![](asset-6a.png)
106
ENG
ENGLISH
OPEN SOURCE LICENSE
or source code, so that the user can modify the Library and then relink to produce a modified executable containing the
modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not neces-
sarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run
time a copy of the library already present on the user’s computer system, rather than copying library functions into the
executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the
modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified
in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy
the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs
needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not
include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel,
and so on) of the operating system on which the executable runs, unless that component itself accompanies the execut-
able.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other
library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution
of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these
two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library
facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining
where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will auto-
matically terminate your rights under this License. However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission
to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this
License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your accep-
tance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works
based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license
from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You
may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible
for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-
![](asset-6b.png)
107
ENG
ENGLISH
OPEN SOURCE LICENSE
ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-
isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the
Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section
is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest valid-
ity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system
which is implemented by public license practices. Many people have made generous contributions to the wide range of
software distributed through that system in reliance on consistent application of that system; it is up to the author/donor
to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted inter-
faces, the original copyright holder who places the Library under this License may add an explicit geographical distribution
limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In
such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from
time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which
applies to it and “any later version”, you have the option of following the terms and conditions either of that version or
of any later version published by the Free Software Foundation. If the Library does not specify a license version number,
you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible
with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation,
write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two
goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of soft-
ware generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE,
BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS
OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
![](asset-6c.png)
108
ENG
ENGLISH
OPEN SOURCE LICENSE
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it
free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms
(or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file
to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a
pointer to where the full notice is found.
<one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later
version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public
License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the
Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer”
for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James
Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
![](asset-6d.png)
109
ENG
ENGLISH
OPEN SOURCE LICENSE
Mozilla Public License 1.1 (MPL 1.1)
1. Definitions.
1.0.1. “Commercial Use”
means distribution or otherwise making the Covered Code available to a third party.
1.1. ‘’Contributor’’
means each entity that creates or contributes to the creation of Modifications.
1.2. ‘’Contributor Version’’
means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by
that particular Contributor.
1.3. ‘’Covered Code’’
means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case includ-
ing portions thereof.
1.4. ‘’Electronic Distribution Mechanism’’
means a mechanism generally accepted in the software development community for the electronic transfer of data.
1.5. ‘’Executable’’
means Covered Code in any form other than Source Code.
1.6. ‘’Initial Developer’’
means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.
1.7. ‘’Larger Work’’
means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.
1.8. ‘’License’’
means this document.
1.8.1. “Licensable”
means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequent-
ly
acquired, any and all of the rights conveyed herein.
1.9. ‘’Modifications’’
means any addition to or deletion from the substance or structure of either the Original Code or any previous
Modifications. When Covered Code is released as a series of files, a Modification
is:
(a) Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.
(b) Any new file that contains any part of the Original Code or previous Modifications.
1.10. ‘’Original Code’’
means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as
Original Code, and which, at the time of its release under this License is not already Covered Code governed by this
License.
1.10.1. “Patent Claims”
means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and appara-
tus claims, in any patent Licensable by grantor.
![](asset-6e.png)
110
ENG
ENGLISH
OPEN SOURCE LICENSE
1.11. ‘’Source Code’’
means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any
associated interface definition files, scripts used to control compilation and installation of an Executable, or source code
differential comparisons against either the Original Code or another well known, available Covered Code of the
Contributor’s choice. The Source Code can be in a compressed
or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.
1.12. “You’’ (or “Your”)
means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future
version of this License issued under Section 6.1.For legal entities, “You’’ includes any entity which controls, is controlled
by, or is under common control with You. For purposes of this definition, “control’’ means (a) the power, direct or indirect,
to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than
fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.
2. Source Code License.
2.1. The Initial Developer Grant.
The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellec-
tual property claims:
(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce,
modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications,
and/or as part of a Larger Work; and
(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice,
sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original
Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original Code;
2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or ii) the
combination of the Original Code with other software or devices.
2.2. Contributor Grant.
Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-
exclusive license
(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce, mod-
ify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either
on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone
and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale, have
made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combina-
tion of Modifications made by that Contributor with its Contributor Version (or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of
the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted from
the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party modifica-
tions of Contributor Version or ii) the combination of Modifications made by that Contributor with other software (except
as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the absence
of Modifications made by that Contributor.
![](asset-6f.png)
111
ENG
ENGLISH
OPEN SOURCE LICENSE
3. Distribution Obligations.
3.1. Application of License.
The Modifications which You create or to which You contribute are governed by the terms of this License, including
without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this
License or a future version of this License released under Section 6.1, and You must include a copy of this License with
every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code version that
alters or restricts the applicable version of this License or the recipients’ rights hereunder. However, You may include an
additional document offering the additional rights described in Section 3.5.
3.2. Availability of Source Code.
Any Modification which You create or to which You contribute must be made available in Source Code form under the
terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution
Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic Distribution
Mechanism,
must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months
after a subsequent version of that particular Modification has been made available to such recipients. You are responsible
for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is maintained
by a third party.
3.3. Description of Modifications.
You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create
that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived,
directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer
in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You describe the
origin or ownership of the Covered Code.
3.4. Intellectual Property Matters
(a) Third Party Claims.
If Contributor has knowledge that a license under a third party’s intellectual property rights is required to exercise the
rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code
distribution titled “LEGAL’’ which describes the claim and the party making the claim in sufficient detail that a recipient
will know whom to contact. If Contributor obtains such knowledge after the Modification is made available as described
in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and
shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those
who received the Covered Code that new knowledge has been obtained.
(b) Contributor APIs.
If Contributor’s Modifications include an application programming interface and Contributor has knowledge of patent
licenses which are reasonably necessary to implement that API, Contributor must also include this information in the
LEGAL file.
(c) Representations.
Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that Contributor’s
Modifications are Contributor’s original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by
this License.
3.5. Required Notices.
You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a
particular
Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory) where
a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your name as a
Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation for the Source
Code where You describe recipients’ rights or ownership rights relating to Covered Code. You may choose to offer, and
to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code.
However, You may do so only on Your own behalf, and not on behalf of the Initial Developer or any Contributor You must
make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by You alone, and You
hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or
such Contributor as a result of warranty, support, indemnity or liability terms You offer.
![](asset-70.png)
112
ENG
ENGLISH
OPEN SOURCE LICENSE
3.6. Distribution of Executable Versions.
You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that
Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under
the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The
notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in which
You describe recipients’ rights relating to the Covered Code. You may distribute the Executable version of Covered Code
or ownership rights under a license of Your choice, which may contain terms different from this License, provided that
You are in compliance with the terms of this License and that the license for the Executable version does not attempt to
limit or alter the recipient’s rights in the Source Code version from the rights set forth in this License. If You distribute
the Executable version under a different license You must make it absolutely clear that any terms which differ from this
License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to indemnify the Initial
Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any
such terms You offer.
3.7. Larger Works.
You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License
and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this License
are fulfilled for the Covered Code.
4. Inability to Comply Due to Statute or Regulation.
If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered Code
due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the maximum
extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL
file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohib-
ited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to
understand it.
5. Application of this License.
This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered
Code.
6. Versions of the License.
6.1. New Versions.
Netscape Communications Corporation (‘’Netscape’’) may publish revised and/or new versions of the License from time
to time. Each version will be given a distinguishing version number.
6.2. Effect of New Versions.
Once Covered Code has been published under a particular version of the License, You may always continue to use it
under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent
version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable
to Covered Code created under this License.
6.3. Derivative Works.
If You create or use a modified version of this License (which you may only do in order to apply it to code which is not
already Covered Code governed by this License), You must (a) rename Your license so that the phrases ‘’Mozilla’’,
‘’MOZILLAPL’’, ‘’MOZPL’’, ‘’Netscape’’, “MPL”, ‘’NPL’’ or any confusingly similar phrase do not appear in your license
(except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the license
contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of the Initial
Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be deemed to be
modifications of this License.)
7. DISCLAIMER OF WARRANTY.
COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN “AS IS’’ BASIS, WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS
FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGING. THE ENTIRE RISK
AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE
![](asset-71.png)
113
ENG
ENGLISH
OPEN SOURCE LICENSE
PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME
THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY
CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED
HEREUNDER EXCEPT UNDER THIS DISCLAIMER.
8. TERMINATION.
8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein
and fail
to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are
properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect
beyond the termination of this License shall survive.
8.2. If You initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against Initial
Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as
“Participant”) alleging that:
(a) such Participant’s Contributor Version directly or indirectly infringes any patent, then any and all rights granted by such
Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant terminate
prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay Participant a mutually
agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii) withdraw Your
litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable
royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not
withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the expiration
of the 60 day notice period specified above.
(b) any software, hardware, or device, other than such Participant’s Contributor Version, directly or indirectly infringes any
patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the
date You first made, used, sold, distributed, or had made, Modifications made by that Participant.
8.3. If You assert a patent infringement claim against Participant alleging that such Participant’s Contributor Version
directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the ini-
tiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under
Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license. 8.4. In the
event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resell-
ers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.
9. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),
CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY
DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR
MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL
HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT
APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY’S NEGLIGENCE TO THE
EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT
APPLY TO YOU.
10. U.S. GOVERNMENT END USERS.
The Covered Code is a ‘’commercial item,’’ as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of ‘’com-
mercial computer software’’ and ‘’commercial computer software documentation,’’ as such terms are used in 48 C.F.R.
12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S.
Government End Users acquire Covered Code with only those rights set forth herein.
![](asset-72.png)
114
ENG
ENGLISH
OPEN SOURCE LICENSE
11. MISCELLANEOUS.
This License represents the complete agreement concerning subject matter hereof. If any provision of this License is
held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This
License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise),
excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity
chartered or registered to do business in the United States of America, any litigation relating to this License shall be
subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara
County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable
attorneys’ fees and expenses. The application of the United Nations Convention on Contracts for the International Sale
of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed
against the drafter shall not apply to this License.
12. RESPONSIBILITY FOR CLAIMS.
As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or
indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors
to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any
admission of liability.
13. MULTIPLE-LICENSED CODE.
Initial Developer may designate portions of the Covered Code as Multiple-Licensed. Multiple-Licensed means that the
Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPL or the alternative
licenses, if any, specified by the Initial Developer in the file described in Exhibit A.
EXHIBIT A -Mozilla Public License.
``The contents of this file are subject to the Mozilla Public License
Version 1.1 (the “License”); you may not use this file except in
compliance with the License. You may obtain a copy of the License at
http://www.mozilla.org/MPL/
Software distributed under the License is distributed on an “AS IS”
basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the
License for the specific language governing rights and limitations under the License.
The Original Code is ______________________________________.
The Initial Developer of the Original Code is ________________________.
Portions created by ______________________ are Copyright (C) ______
_______________________.All Rights Reserved.
Contributor(s): ______________________________________.
Alternatively, the contents of this file may be used under the terms
of the _____ license (the [___] License), in which case the
provisions of [______] License are applicable instead of those
above.If you wish to allow use of your version of this file only
under the terms of the [____] License and not to allow others to use
your version of this file under the MPL, indicate your decision by
deleting the provisions above and replace them with the notice and
other provisions required by the [___] License. If you do not delete
the provisions above, a recipient may use your version of this file
under either the MPL or the [___] License.”
[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original
Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your
Modifications.]
![](asset-73.png)
115
ENG
ENGLISH
OPEN SOURCE LICENSE
OpenSSL License
Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.opens-
sl.org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived
from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without
prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.
org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS’’ AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The fol-
lowing conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL
code. The SSL documentation included with this distribution is covered by the same copyright terms except that the
holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is
used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the
form of a textual message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
![](asset-74.png)
116
ENG
ENGLISH
OPEN SOURCE LICENSE
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
“This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”
The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must
include an acknowledgement:
“This product includes software written by Tim Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e.
this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]
MIT license
- libcurl
Copyright (c) 1996 - 2010, Daniel Stenberg, <daniel@haxx.se>.
All rights reserved.
Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted,
provided that the above copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote
the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
- ncurses
Copyright (c) 1998 Free Software Foundation, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documen-
tation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use,
copy, modify, merge, publish, distribute, distribute with modifications, sublicense, and/or sell copies of the Software, and
to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE ABOVE COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR HE USE OR OTHER DEALINGS IN THE SOFTWARE.
![](asset-75.png)
117
ENG
ENGLISH
OPEN SOURCE LICENSE
Except as contained in this notice, the name(s) of the above copyright holders shall not be used in advertising or other-
wise to promote the ale, use or other dealings in this Software without prior written authorization.
Expat license
The source package was downloaded from <URL:http://expat.sourceforge.net>.
The original packager is Adam Di Carlo <aph@debian.org>.
The current maintainer is Ardo van Rangelrooij <ardo@debian.org>.
Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper
Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documenta-
tion files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy,
modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the
Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
The FreeType Project LICENSE
Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg
Introduction
============
The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType
font engine, various tools and contributions which rely on, or relate to, the FreeType Project.
This license applies to all files found in such packages, and which do not fall under their own explicit license. The license
affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least.
This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion
and use of free software in commercial and freeware products alike. As a consequence, its main points are that:
- We don’t promise that this software works. However, we will be interested in any kind of bug reports. (`as is’ distribu-
tion)
- You can use this software for whatever you want, in parts or full form, without having to pay us. (`royalty-free’ usage)
- You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge
somewhere in your documentation that you have used the FreeType code. (`credits’)
We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial prod-
ucts. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project.
Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We
![](asset-76.png)
118
ENG
ENGLISH
OPEN SOURCE LICENSE
thus encourage you to use the following text:
Portions of this software are copyright <year> The FreeType Project (www.freetype.org). All rights reserved.
Please replace <year> with the value from the FreeType version you actually use.
Legal Terms
0. Definitions
Throughout this license, the terms `package’, `FreeType Project’ and `FreeType archive’ refer to the set of files originally
distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project’, be they named
as alpha, beta or final release.
`You’ refers to the licensee, or person using the project, where `using’ is a generic term including compiling the project’s
source code as well as linking it to form a `program’ or `executable’. This program is referred to as `a program using the
FreeType engine’.
This license applies to all files distributed in the original FreeType Project, including all source code, binaries and docu-
mentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you
are unsure whether or not a particular file is covered by this license, you must contact us to verify this.
The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights
reserved except as specified below.
1. No Warranty
THE FREETYPE PROJECT IS PROVIDED `AS IS’ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES
CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.
2. Redistribution
This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, com-
pile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object
code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights
granted herein, subject to the following conditions:
- Redistribution of source code must retain this license file (`FTL.TXT’) unaltered; any additions, deletions or changes to
the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, origi-
nal files must be preserved in all copies of source files.
- Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the
FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in
your documentation, though this isn’t mandatory.
These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If
you use our work, you must acknowledge us. However, no fee need be paid to us.
3. Advertising
Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or
promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more
of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project’,
`FreeType Engine’, `FreeType library’, or `FreeType Distribution’.
As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted
material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify
it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all
the terms of this license.
4. Contacts
There are two mailing lists related to FreeType:
freetype@nongnu.org
Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution.
If you are looking for support, start in this list if you haven’t found anything to help you in the documentation.
freetype-devel@nongnu.org
![](asset-77.png)
119
ENG
ENGLISH
OPEN SOURCE LICENSE
Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.
Our home page can be found at http://www.freetype.org
JPEG license
This software is copyright (C) 1991-1998, Thomas G. Lane.
All Rights Reserved except as specified below.
Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose,
without fee, subject to these conditions:
(1) If any part of the source code for this software is distributed, then this README file must be included, with this
copyright and no-warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly
indicated in accompanying documentation.
(2) If only executable code is distributed, then the accompanying documentation must state that “this software is based
in part on the work of the Independent JPEG Group”.
(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable conse-
quences; the authors accept NO LIABILITY for damages of any kind.
zlib/libpng License
This product may contain open source software licensed under zlib/libpng License.
Libmng : Copyright © 2000-2008 Gerard Juyn (gerard@libmng.com)
Libpng : Copyright (c) 1998-2008 Glenn Randers-Pehrson
(Version 0.96 Copyright (c) 1996, 1997 Andreas Dilger)
(Version 0.88 Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.)
Md5 checksum : Copyright (C) 1999, 2000, 2002 Aladdin Enterprises.
Zlib : Copyright (C) 1995-2010 Jean-loup Gailly and Mark Adler
This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for
any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it
and redistribute it freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If
you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not
required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original soft-
ware.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly
Mark Adler
X.net license
Copyright (c) 1995-2001 International Business Machines Corporation and others
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documen
![](asset-78.png)
120
ENG
ENGLISH
OPEN SOURCE LICENSE
tation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use,
copy, modify, merge, publish, distribute, and/or sell copies of the Software, and to permit persons to whom the Software
is furnished to do so, provided that the above copyright notice(s) and this permission notice appear in all copies of the
Software and that both the above copyright notice(s) and this permission notice appear in supporting documentation.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS
INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL
DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN
AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION
WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote
the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
BSD license
- strace
Copyright (c) 1991, 1992 Paul Kranenburg <pk@cs.few.eur.nl>
Copyright (c) 1993 Branko Lankester <branko@hacktic.nl>
Copyright (c) 1993 Ulrich Pegelow <pegelow@moorea.uni-muenster.de>
Copyright (c) 1995, 1996 Michael Elizabeth Chastain <mec@duracef.shout.net>
Copyright (c) 1993, 1994, 1995, 1996 Rick Sladkey <jrs@world.std.com>
Copyright (C) 1998-2003 Wichert Akkerman <wakkerma@deephackmode.org>
Copyright (c) 2002-2008 Roland McGrath <roland@redhat.com>
Copyright (c) 2003-2008 Dmitry V. Levin <ldv@altlinux.org>
Copyright (c) 2007-2008 Jan Kratochvil <jan.kratochvil@redhat.com>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote prod-
ucts derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
- xyssl
Copyright (C) 2006-2008 Christophe Devine
Copyright (C) 2009 Paul Bakker <polarssl_maintainer at polarssl dot org>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
![](asset-79.png)
121
ENG
ENGLISH
OPEN SOURCE LICENSE
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote prod-
ucts derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
RSA Data Security license
Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved.
License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc. MD5
Message-Digest Algorithm” in all material mentioning or referencing this software or this function.
License is also granted to make and use derivative works provided that such works are identified as “derived from the
RSA Data Security, Inc. MD5 Message-Digest Algorithm” in all material mentioning or referencing the derived work.
RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability
of this software for any particular purpose. It is provided “as is” without express or implied warranty of any kind.
These notices must be retained in any copies of any part of this documentation and/or software.
![](asset-7a.png)
NOTE
ENG
Some video codecs listed in the manual may not be
supported, depending on the region (country).
POR
Alguns codecs de vídeo listados no manual podem não
ser suportados, dependendo da região (país).
POL
Niektóre kodeki wideo wymienione w instrukcji mogą
nie być obsługiwane, w zależności od regionu (kraju).
SPA
Algunos códecs de vídeo que figuran en el manual
pueden no ser compatibles, dependiendo de la región
(país).
THA
![](asset-7b.png)
The model and serial numbers of the TV is
located on the back of the TV
Record it below should you ever need service.
MODEL
SERIAL
