Please read this manual carefully before operating your TV and

retain it for future reference.

Safety and Reference

OWNER’S MANUAL

LED TV*

* LG LED TV applies LCD screen with LED backlights.

www.lg.com

*MFL70340102*

(1803-REV02)

Printed in Korea

65SK9500PUA

55SK9500PUA

65SK9550PUA

65SK9000PUA

55SK9000PUA

65SK8550PUA

55SK8550PUA

75SK8070PUA

75SK8050PUA

75SK8070AUB

65SK8000AUB

55SK8000AUB

65SK8000PUA

55SK8000PUA

49SK8000PUA

65SK8050PUA

55SK8050PUA

49SK8050PUA

65UK7700AUB

65UK7700PUD

55UK7700AUB

55UK7700PUD

49UK7700AUB

49UK7700PUD

65UK7500PUA

55UK7500PUA

49UK7500PUA

86UK6570PUB

75UK6570PUB

75UK6570PUA

86UK6570AUA

75UK6570AUA

70UK6570PUB

70UK6550PUA

70UK6570AUB

65UK6500AUA

55UK6500AUA

50UK6500AUA

43UK6500AUA

65UK6550PUB

55UK6550PUB

50UK6550PUB

43UK6550PUB

65UK6300PUE

55UK6300PUE

50UK6300PUE

49UK6300PUE

43UK6300PUE

65UK6300BUB

65UK6350PUC

55UK6300BUB

55UK6350PUC

50UK6300BUB

49UK6300BUB

49UK6350PUC

43UK6300BUB

75UK6270PUB

65UK6200PUA

43UK6350PUC

60UK6200PUA

60UK6250PUB

55UK6200PUA

55UK6250PUB

49UK6200PUA

49UK6250PUB

43UK6200PUA

43UK6250PUB

32LK610BPUA

49LK5750PUA

43LK5750PUA

86UK6570PUA

32LK610BBUA

ENGLISH

Important Safety Instruction

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the

apparatus.

• Only use attachments/accessories specied by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash

hands after handling.

By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not

limited to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration

agreement (including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.ca/arbitration

(Canada).

ENGLISH

Warning! Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The symbol is intended to alert the user to the presence of

uninsulated dangerous voltage within the product’s

enclosure that may be of sucient magnitude to constitute a risk

of electric shock to persons.

The symbol is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the device.

WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS

WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• Do not place the TV and/or remote control in the following

environments:

-Keep the product away from direct sunlight.

-An area with high humidity such as a bathroom

-Near any heat source such as stoves and other devices that

produce heat.

-Near kitchen counters or humidiers where they can easily be

exposed to steam or oil.

-An area exposed to rain or wind.

-Do not expose to dripping or splashing and do not place objects

lled with liquids, such as vases, cups, etc. on or over the

apparatus (e.g., on shelves above the unit).

-Near ammable objects such as gasoline or candles, or expose

the TV to direct air conditioning.

-Do not install in excessively dusty places.

Otherwise, this may result in re, electric shock, combustion/

explosion, malfunction or product deformation.

• Ventilation

-Install your TV where there is proper ventilation. Do not install in

a conned space such as a bookcase.

-Do not install the product on a carpet or cushion.

-Do not block or cover the product with cloth or other materials

while unit is plugged in.

• Take care not to touch the ventilation openings. When watching

the TV for a long period, the ventilation openings may become hot.

• Protect the power cord from physical or mechanical abuse, such as

being twisted, kinked, pinched, closed in a door, or walked upon.

Pay particular attention to plugs, wall outlets, and the point where

the cord exits the device.

• Do not move the TV whilst the Power cord is plugged in.

• Do not use a damaged or loosely tting power cord.

• Be sure do grasp the plug when unplugging the power cord. Do

not pull on the power cord to unplug the TV.

• Do not connect too many devices to the same AC power outlet as

this could result in re or electric shock.

• Disconnecting the Device from the Main Power

-The power plug is the disconnecting device. In case of an

emergency, the power plug must remain readily accessible.

• Do not let your children climb or cling onto the TV. Otherwise, the

TV may fall over, which may cause serious injury.

• Outdoor Antenna Grounding (Can dier by country):

-If an outdoor antenna is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity

of overhead power lines or other electric light or power circuits,

or where it can come in contact with such power lines or circuits

as death or serious injury can occur.

Be sure the antenna system is grounded to provide some

protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A.

provides information with respect to proper grounding of the

mast and supporting structure, grounding of the lead-in wire

to an antenna discharge unit, size of grounding conductors,

location of antenna discharge unit, connection to grounding

electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code,

ANSI/NFPA 70

ENGLISH

• Grounding (Except for devices which are not grounded.)

-TV with a three-prong grounded AC plug must be connected to

a three-prong grounded AC outlet. Ensure that you connect the

earth ground wire to prevent possible electric shock.

• Never touch this apparatus or antenna during a lightning storm.

You may be electrocuted.

• Make sure the power cord is connected securely to the TV and wall

socket if not secured damage to the Plug and socket may occur and

in extreme cases a re may break out.

• Do not insert metallic or inammable objects into the product. If a

foreign object is dropped into the product, unplug the power cord

and contact the customer service.

• Do not touch the end of the power cord while it is plugged in. You

may be electrocuted.

• If any of the following occur, unplug the product

immediately and contact your local customer service.

-The product has been damaged.

-If water or another substance enters the product (like an AC

adapter, power cord, or TV).

-If you smell smoke or other odors coming from the TV

-When lightning storms or when unused for long periods of time.

Even the TV is turned o by remote control or button, AC power

source is connected to the unit if not unplugged in.

• Do not use high voltage electrical equipment near the TV (e.g., a

bug zapper). This may result in product malfunction.

• Do not attempt to modify this product in any way without written

authorization from LG Electronics. Accidental re or electric shock

can occur. Contact your local customer service for service or repair.

Unauthorized modication could void the user’s authority to

operate this product.

• Use only an authorized attachments / accessories approved by

LG Electronics. Otherwise, this may result in re, electric shock,

malfunction, or product damage.

• Never disassemble the AC adapter or power cord. This may result in

re or electric shock.

• Handle the adapter carefully to avoid dropping or striking it. An

impact could damage the adapter.

• To reduce the risk of re or electrical shock, do not touch the TV

with wet hands. If the power cord prongs are wet or covered with

dust, dry the power plug completely or wipe dust o.

• Batteries

-Store the accessories (battery, etc.) in a safe location out of the

reach of children.

-Do not short circuit, disassemble, or allow the batteries to

overheat. Do not dispose of batteries in a re. Batteries should

not be exposed to excessive heat.

• Moving

-When moving, make sure the product is turned o, unplugged,

and all cables have been removed. It may take 2 or more people

to carry larger TVs. Do not press or put stress on the front panel

of the TV. Otherwise, this may result in product damage, re

hazard or injury.

• Keep the packing anti-moisture material or vinyl packing out of the

reach of children.

• Do not allow an impact shock, any objects to fall into the product,

and do not drop anything onto the screen.

• Do not press strongly upon the panel with a hand or a sharp

object such as a nail, pencil, or pen, or make a scratch on it. It may

causedamage to screen.

• Cleaning

-When cleaning, unplug the power cord and wipe gently with a

soft/dry cloth. Do not spray water or other liquids directly on the

TV. Do not clean your TV with chemicals including glass cleaner,

any type of air freshener, insecticide, lubricants, wax (car,

industrial), abrasive, thinner, benzene, alcohol etc., which can

damage the product and/or its panel. Otherwise, this may result

in electric shock or product damage.

ENGLISH

Preparing

• When the TV is turned on for the rst time after being shipped

from the factory, initialization of the TV may take approximately

one minute.

• Image shown may dier from your TV.

• Your TV’s OSD (On Screen Display) may dier slightly from that

shown in this manual.

• The available menus and options may dier from the input source

or product model that you are using.

• New features may be added to this TV in the future.

• The device must be easily accessed to a location outlet near the

access. Some devices are not made by turning on / o button,

turning o the device and unplugging the power cord.

• The items supplied with your product may vary depending upon

the model.

• Product specications or contents of this manual may be changed

without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and USB devices should

have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7

inches) width.

• Use an extension cable that supports USB 2.0 if the USB cable or

USB ash drive does not t into your TV’s USB port.

• Use a certied cable with the HDMI logo attached. If you do not use

a certied HDMI cable, the screen may not display or a connection

error may occur.

• Recommended HDMI cable types (3 m (9.84 feet) or less)

-High-Speed HDMI®/™ cable

-High-Speed HDMI®/™ cable with Ethernet

10 mm (0.39 inches)

18 mm (0.7 inches)

• How to use the ferrite core, (Depending upon model).

-Use the ferrite core to reduce the electromagnetic interference in

the power cord. Wind the power cord on the ferrite core once.

[Wall side] [TV side]

10 cm (+ / -2 cm)

Optional Extras

Optional extras can be changed or modied for quality improvement

without any notication. Contact your dealer for buying these items.

These devices work only with certain models.

The model name or design may be changed due to the manufacturer’s

circumstances or policies.

Magic Remote Control

(Depending upon model)

AN-MR18BA

Check whether your TV model supports Bluetooth in the Wireless

Module Specication to verify whether it can be used with the Magic

Remote.

Wall Mounting Bracket

(Depending upon model)

Make sure to use screws and wall mount bracket that meet the VESA

standard. Standard dimensions for the wall mount kits are described in

the following table.

Model

49SK80*

49UK77*

49UK75*

43/50UK65*

43/50UK63*

43UK62*

32LK61*

43LK57*

55SK80*

55UK77*

55UK75*

55UK65*

49/55UK63*

49/55UK62*

49LK57*

VESA (A x B) (mm) 200 x 200 300 x 300

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

(optional)

LSW240B

MSW240

OLW480B

MSW240

ENGLISH

Model

55/65SK95*

55/65SK90*

55/65SK85*

65SK80*

65UK77*

65UK75*

65UK65*

65UK63*

60/65UK62*

75SK80*

70/75/86UK65*

75UK62*

VESA (A x B) (mm) 300 x 300 600 x 400

Standard screw M6 M8

Number of screws 4 4

Wall mount bracket

(optional) OLW480B LSW640B

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV

from being scratched or damaged and for safe transportation regardless

of its type and size.

• It is recommended to move the TV in the box or packing material

that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and

all cables.

• When holding the TV, the screen should face away from you to

avoid damage.

• Hold the top and bottom of the TV frame rmly. Make sure not to

hold the transparent part, speaker, or speaker grille area.

• Use at least two people to move a large TV.

• When transporting the TV by hand, hold the TV as shown in the

following illustration.

• When transporting the TV, do not expose the TV to jolts or

excessive vibration.

• When transporting the TV, keep the TV upright; never turn the TV

on its side or tilt towards the left or right.

• When handling the TV, be careful not to damage the protruding

buttons.

• Avoid touching the screen at all times, as this may result in

damage to the screen.

• Do not place the product on the oor with its front facing

down without padding. Failure to do so may result in

damage to the screen.

• Do not move the TV by holding the cable holders, as the

cable holders may break, and injuries and damage to the

TV may occur, (Depending upon model).

• When attaching the stand to the TV set, place the screen

facing down on a cushioned table or at surface to protect

the screen from scratches.

Mounting on the Table

1 Lift and tilt the TV into its upright position on a table.

• Leave a minimum of 10 cm (4 inches) space from the wall for

proper ventilation.

10 cm

(4 inches)

10 cm

(Depending upon model)

2 Connect the power cord to a wall outlet.

ENGLISH

• Do not apply foreign substances (oils, lubricants, etc.) to

the screw parts when assembling the product.

(Doing so may damage the product.)

• If you install the TV on a stand, you need to take actions

to prevent the product from overturning. Otherwise, the

product may fall over, which may cause injury.

• Do not use any unapproved items to ensure the safety and

product life span.

• Any damage or injuries caused by using unapproved items

are not covered by the warranty.

• Make sure that the screws are fastened tightly. (If they

are not fastened securely enough, the TV may tilt forward

after being installed.)

• Do not fasten the screws with excessive force otherwise

they may strip and become loose.

Securing TV to the Wall

(Depending upon model)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back

of the TV.

• If there are bolts inserted at the eye-bolts position, remove the

bolts rst.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear

of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the at surface.

• Use a platform or cabinet that is strong and large enough to

support the TV securely.

• Brackets, bolts and ropes are not provided. You can obtain

additional accessories from your local dealer.

Mounting to the Wall

An optional wall mount can be used with your LG Television. Consult

with your local dealer for a wall mount that supports the VESA

standard used by your TV model. Carefully attach the wall mount

bracket at the rear of the TV. Install the wall mount bracket on a solid

wall perpendicular to the oor. If you are attaching the TV to other

building materials, please contact qualied personnel to install the

wall mount. Detailed instructions will be included with the wall mount.

We recommend that you use an LG brand wall mount. The LG wall

mount is easy to adjust or to connect the cables. When you do not use

LG’s wall mount bracket, use a wall mount bracket where the device is

adequately secured to the wall with enough space to allow connectivity

to external devices. If you are using a non-adjustable mount, attach the

mount to the wall. Attach the cables to the TV rst, then attach the TV

to the mount.

10 cm

10 cm (4 inches)

10 cm

(Depending upon model)

• Remove the stand before installing the TV on a wall

mount by performing the stand attachment in reverse.

• For more information of screws and wall mount bracket,

refer to the Separate purchase.

• If you intend to mount the product to a wall, attach VESA

standard mounting interface (optional parts) to the back

of the product. When you install the set to use the wall

mounting bracket (optional parts), x it carefully so as

not to drop.

• When mounting a TV on the wall, make sure not to install

the TV by hanging the power and signal cables on the

back of the TV.

• Do not install this product on a wall if it could be exposed

to oil or oil mist. This may damage the product and cause

it to fall.

ENGLISH

• Do not use a sharp object when you detached the cable

cover. This could damage the cable or the cabinet. It may

also cause personal harm, (Depending upon model).

• When installing the wall mounting bracket, it is recommended to

cover the stand hole using tape, in order to prevent the inux of

dust and insects, (Depending upon model).

Stand hole

Connections

You can connect various external devices to the TV. For more

information on external device’s connection, refer to the manual

provided with each device.

Antenna/Cable

Connect an antenna, cable, or cable box to watch TV while referring to

the following. The illustrations may dier from the actual items and an

RF cable is optional.

• Make sure not to bend the copper wire of the RF cable.

Copper wire

• Complete all connections between devices, and then connect the

power cord to the power outlet to prevent damage to your TV.

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG, Dolby Digital

• This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts

directly because the related standards have not been conrmed,

(Depending upon model).

Other connections

Connect your TV to external devices. For the best picture and audio

quality, connect the external device and the TV with the HDMI cable.

HDMI

• HDMI Audio Supported Format:

(Depending upon model)

DTS (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz),

DTS HD (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192

kHz),

True HD (48 kHz),

Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz),

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)

ENGLISH

(Only UHD models)

• ( ) Picture Additional Settings

HDMI ULTRA HD Deep Color

-On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)

-O : Support 4K @ 60 Hz 8 bit (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep

Color, your picture may be clearer. However, if the device doesn’t

support it, it may not work properly. In that case, change the TV’s

HDMI ULTRA HD Deep Color setting to o.

-This feature is available only on certain models which support

HDMI ULTRA HD Deep Color.

External Devices

Supported external devices are: Blu-ray player, HD receivers, DVD

players, VCRs, audio systems, USB storage devices, PC, gaming devices,

and other external devices. For more information on external device’s

connection, refer to the manual provided with each device.

• If you record a TV program on a Blu-ray/DVD recorder or VCR, make

sure to connect the TV signal input cable to the TV through a DVD

recorder or VCR. For more information about recording, refer to the

manual provided with the connected device.

• The external device connections shown may dier slightly from

illustrations in a manual.

• Connect external devices to the TV regardless about the order of

the TV port.

• If you connect a gaming device to the TV, use the cable supplied

with the gaming device.

• Refer to the external equipment’s manual for operating

instructions.

• In PC mode, there may be noise associated with the resolution,

vertical pattern, contrast or brightness. If noise is present, change

the PC output to another resolution, change the refresh rate to

another rate or adjust the brightness and contrast on the PICTURE

menu until the picture is clear. Depending upon the graphics card,

some resolution settings may not allow the image to be positioned

on the screen properly.

• Some USB Hubs may not work. If a USB device connected through

a USB Hub is not detected, connect it directly to the USB port on

the TV.

• When connecting via a wired LAN, it is recommended to use a CAT

7 cable.

• The TV may be capable of operating without a set-top-box from a

multichannel video programming distributor (MVPD).

• For LK series, HDR (High Dynamic Range) pictures can be viewed

over the Internet or via USB and HDMI 1.4 compatible devices.

Remote RS-232C setup

To obtain the RS-232C external control setup information, please

visit www.lg.com. Download and read the manual, (Depending upon

model).

• Do not drop the product or let it fall over when connecting

external devices. Otherwise, this may result in injury or

damage to the product.

• When connecting external devices such as video game

consoles, make sure the connecting cables are long

enough. Otherwise, the product may fall over, which may

cause injury or damage the product.

Using Button

You can simply operate the TV functions, using the button.

Basic functions

Power On (Press)

Power O 1 (Press and Hold)

Menu Control (Press 2)

Menu Selection (Press and Hold 3)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust

the Menu items using the button.

Turns the power o.

Changes the input source.

Scrolls through the saved channels.

Adjusts the volume level.

ENGLISH

Using Remote Control

(Depending upon model)

The descriptions in this manual are based on the buttons on the remote

control. Please read this manual carefully and use the TV correctly.

To install batteries, open the battery cover, replace batteries (1.5 V AAA)

matching the and ends to the label inside the compartment,

and close the battery cover. To remove the batteries, perform the

installation actions in reverse. This remote uses infrared light. When in

use, it should be pointed in the direction of the TV’s remote sensor.

Make sure to point the remote control toward the remote control sensor

on the TV.

1 2

(Some buttons and services may not be provided depending upon

models or regions.)

* To use the button, press and hold for more than 3 seconds.

(POWER) Turns the TV on or o.

Returns to the last TV channel.

Activates or deactivates the subtitles.

(Q. Settings) Accesses the Quick Settings.

(Search) Shows the search mode.

(Input) Changes the input source.

Number button Enters numbers.

(Dash) Inserts a dash between numbers such as 2-1 and 2-2.

Accesses the saved channel list.

Alternates between the two last channels selected (pressing

repeatedly).

* You can access the application or Live TV channel by

using the number buttons as registered.

Adjusts the volume level.

Accesses your favorite channel list.

Shows information on the current program.

(MUTE) Mutes all sounds.

* (MUTE) Accesses the Accessibility menu.

Scrolls through the saved channels.

Moves to the previous or next screen.

1, 2 Streaming Service buttons Connects to the Video

Streaming Service.

(Home) Accesses the Home menu.

* (Home) Shows the previous history.

Displays the program event according to time scheduler.

By zooming in on the selected area, you can view it in full

screen.

Navigation button (up / down / left / right) Scrolls through menus

or options.

Selects menus or options and conrms your input.

Returns to the previous screen.

Clears all on-screen displays and returns to TV viewing.

Enables SAP (Secondary Audio Program) Feature,

(Depending upon model).

Starts to record. (Only Time Machine Ready supported model)

(Depending upon model)

, , , , Control buttons for media contents

, , , These access special functions in some

menus.

ENGLISH

Using Magic Remote Control

(Depending upon model)

The descriptions in this manual are based on the buttons on the remote

control. Please read this manual carefully and use the TV correctly.

When the message “Magic remote battery is low. Please change the

battery.” is displayed, replace the batteries.

To install batteries, open the battery cover, replace batteries (1.5 V AA)

matching the and ends to the label inside the compartment,

and close the battery cover. Be sure to point the magic remote toward

the remote control sensor on the TV. To remove the batteries, perform

the installation actions in reverse. This remote uses infrared light. When

in use, it should be pointed in the direction of the TV’s remote sensor.

1 2

(Some buttons and services may not be provided depending upon

models or regions.)

* To use the button, press and hold for more than 3 seconds.

(POWER) Turns the TV on or o.

You can turn your set-top box on or o by adding the set-

top box to the universal remote control for your TV.

Number buttons Enters numbers.

- (Dash) Inserts a dash between numbers such as 2-1 and 2-2.

Accesses the saved channel list.

(Screen Remote) Displays the Screen Remote.

-Accesses the Universal Control Menu in some regions.

* (Screen Remote) SAP (Secondary Audio Program) Feature can

be enabled by pressing the key.

* You can access the application or Live TV channel by

using the number buttons as registered.

Adjusts the volume level.

(MUTE) Mutes all sounds.

* (MUTE) Accesses the Accessibility menu.

Scrolls through the saved channels.

* (Voice recognition)

Network connection is required to use the voice recognition function.

Once the voice display bar is activated on the TV screen, press and hold

the button and speak your command out loud.

(HOME) Accesses the Home menu.

* (HOME) Shows the previous history.

Wheel (OK) Press the center of the Wheel button to select a

menu. You can change channels by using the Wheel button.

(up/down/left/right) Press the up, down, left or right

button to scroll the menu. If you press buttons while the

pointer is in use, the pointer will disappear from the screen and Magic

Remote will operate like a general remote control. To display the

pointer on the screen again, shake Magic Remote to the left and right.

Returns to the previous level.

* Clears on-screen displays and returns to last input viewing.

Displays the program event according to time scheduler.

1, 2 Streaming Service buttons Connects to the Video

Streaming Service.

(INPUT) Changes the input source.

* (INPUT) Displays all the lists of external inputs.

(Q. Settings) Accesses the Quick Settings.

* (Q. Settings) Displays the All Settings menu.

, , , These access special functions in some menus.

, Control buttons for media contents

By zooming in on the selected area, you can view it in

full screen.

* You can zoom in on the area where the remote control is

pointed.

ENGLISH

Registering Magic Remote Control

How to register the Magic Remote Control

To use the Magic Remote, rst pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.

2 Point the Magic Remote at your TV and press the Wheel (OK) on

the remote control.

* If the TV fails to register the Magic Remote, try again after turning

the TV off and back on.

How to deregister the Magic Remote Control

Press the and (HOME) buttons at the same time, for ve

seconds, to unpair the Magic Remote with your TV.

* Pressing and holding the button will let you cancel and re-

• Do not mix new batteries with old batteries. This may

cause the batteries to overheat and leak.

• Failure to match the correct polarities of the battery

may cause the battery to burst or leak, resulting in re,

personal injury, or ambient pollution.

• This apparatus uses batteries. In your community there

might be regulations that require you to dispose of these

batteries properly due to environmental considerations.

Please contact your local authorities for disposal or

recycling information.

• Batteries inside or inside the product shall not be exposed

to excessive heat such as sunshine, re or the like.

Troubleshooting

Cannot control the TV with the remote control.

• Check if anything such as tape has been placed over the receiver.

• Check if there is any obstacle between the product and the remote

control.

• Replace the batteries with new fresh ones.

No image display and no sound is produced.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other

products.

The TV turns o suddenly.

• Check the power control settings. The power supply may be

interrupted.

• Check if the auto-o function is activated in the settings menu.

• If there is no signal while the TV is on, the TV will turn o

automatically after 15 minutes of inactivity.

Abnormal Display

• If the TV feels cold to the touch, there may be a small icker when

it is turned on. This is normal; there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing

as tiny red, green, or blue spots. However, they have no adverse

eect on the TV’s performance. Avoid touching the LCD screen or

holding your nger(s) against it for long periods of time. Doing so

may produce some temporary distortion eects on the screen.

• This panel is an advanced product that contains millions of pixels.

In a very few cases, you could see ne dots on the screen while

you’re viewing the TV. Those dots are deactivated pixels and do not

aect the performance and reliability of the TV.

• Displaying a still image for a prolonged period of time may cause

an image sticking. Avoid displaying a xed image on the TV screen

for a extended length of time.

ENGLISH

Generated Sound

• Cracking noise A cracking noise that occurs when watching or

turning o the TV is generated by plastic thermal contraction due

to temperature and humidity. This noise is common for products

where thermal deformation is required.

• Electrical circuit humming/panel buzzing A low level noise

is generated from a high-speed switching circuit, which supplies a

large amount of current to operate a product. It varies depending

upon the product. This generated sound does not aect the

performance and reliability of the product.

• When cleaning the product, be careful not to allow any

liquid or foreign objects to enter the gap between the

upper, left or right side of the panel and the guide panel,

(Depending upon model).

• Make sure to wring any excess water or cleaner from the

cloth.

• Do not spray water or cleaner directly onto the TV screen.

• Make sure to spray just enough of water or cleaner onto a

dry cloth to wipe the screen.

ENGLISH

Specications

Product specications may be changed without prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).

(Depending upon country)

Broadcasting Specifications

Television system ATSC, NTSC-M, 64 & 256 QAM

Program coverage

(Band) VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135

External antenna

impedance 75 Ω

(Except for LK61*, UK620*, UK627*)

Wireless module (LGSBWAC72) Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz

15 dBm

14.5 dBm

Bluetooth

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz 8.5 dBm

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional

frequency table.

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device

and the body.

FCC ID: BEJLGSBWAC72

IC: 2703H-LGSBWAC72

ENGLISH

(Only LK61*)

Wireless module (LGSWFAC81) Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz

20 dBm

15 dBm

14.5 dBm

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional

frequency table.

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device

and the body.

FCC ID: BEJLGSWFAC81

IC: 2703H-LGSWFAC81

(Only UK620*, UK627*)

Wireless module(LGSWFAC71) Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz

15 dBm

14.5 dBm

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional

frequency table.

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device

and the body.

FCC ID: BEJLGSWFAC71

IC: 2703H-LGSWFAC71

Environment condition

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)

Storage Humidity Less than 85 %

ENGLISH

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment to an outlet on a circuit dierent from that

to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received,

including interference that may cause undesired operation. Any

changes or modications in construction of this device which are not

expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users of the 5.25 to 5.35 GHz

and 5.65 to 5.85 GHz bands. These radar stations can cause interference

with and/or damage this device. This device cannot be co-located with

any other transmitter.

Open Source Software

Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open

source licenses, that is contained in this product, please visit http://

opensource.lge.com.

In addition to the source code, all referred license terms, warranty

disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM

for a charge covering the cost of performing such distribution (such

as the cost of media, shipping, and handling) upon email request to

opensource@lge.com.

This oer is valid for a period of three years after our last shipment of

this product. This oer is valid to anyone in receipt of this information.

Licenses

Supported licenses may dier by model.

ENGLISH

FCC RF Radiation Exposure

Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment. This transmitter must not be colocated

or operating in conjunction with any other antenna or transmitter. This

equipment should be installed and operated with minimum distance

20 cm (7.8 inches) between the radiator and your body. Users must

follow the specic operating instructions for satisfying RF exposure

compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s applicable licence-exempt

RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that

may cause undesired operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed

and operated with minimum distance 20 cm (7.8 inches) between the

antenna & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR

TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY

TO OPERATE THE EQUIPMENT.

RSS-247 Requirement

(For Canada)

[For product having the wireless function using 5 GHz frequency bands]

• The device for operation in the band 5150–5250 MHz is only for

indoor use to reduce the potential for harmful interference to

co-channel mobile satellite systems;

• For devices with detachable antenna(s), the maximum antenna

gain permitted for devices in the bands 5250-5350 MHz and

5470-5725 MHz shall be such that the equipment still complies

with the e.i.r.p. limit;

• For devices with detachable antenna(s), the maximum antenna

gain permitted for devices in the band 5725-5850 MHz shall be

such that the equipment still complies with the e.i.r.p. limits as

appropriate; and

• [For devices operating in the band 5250-5350 MHz having an

e.i.r.p. greater than 200 mW] Antenna type(s), antenna models(s),

and worst-case tilt angle(s) necessary to remain compliant with

the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3

of RSS-247 shall be clearly indicated.

Users should also be advised that high-power radars are allocated as

primary users (i.e. priority users) of the bands 5250-5350 MHz and

5650-5850 MHz and that these radars could cause interference and/or

damage to LE-LAN devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system installer’s attention to

Article 820-40 of the National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular, species that

the cable ground shall be connected to the grounding system of the

building, as close to the point of the cable entry as practical.

ENGLISH

WARNING!

Never place a television set in an unstable location. A television set may

fall, causing serious personal injury or death. Many injuries, particularly

to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the

television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the

supporting furniture.

• Not placing the television set on tall furniture (for example,

cupboards or bookcases) without anchoring both the furniture and

the television set to a suitable support.

• Not placing the television set on cloth or other materials that may

be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to

reach the television set or its controls.

If your existing television set is being retained and relocated, the same

considerations as above should be applied.

Symbols

Refers to alternating current (AC).

Refers to direct current (DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to

making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on

proper stands or installed according to the manufacturer’s recommendations. Televisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,

may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television

is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped

over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your

ability to safely mount your television.

• ALWAYS use a mount that has been recommended by the television manufacturer and has a

safety certication by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the television and mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount

installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the

purchase of a at-panel television. Special care should be made in the placement of older CRT

televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size

and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the

drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

CE.org/safety

The model and serial numbers of the TV are located on

the back and on one side of the TV. Record them below

should you ever need service.

MODEL

Serial NO.

LG Customer Information Center

For inquires or comments, visit www.lg.com or

call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

www.lg.com

Declaration of Conformity

Trade Name: LG

Responsible Party: LG Electronics Inc.

Address: 1000 Sylvan Ave. Englewood Cliffs NJ 07632

U.S.A

TEL: 201-266-2534

OWNER’S MANUAL

EXTERNAL CONTROL

DEVICE SETUP

Please read this manual carefully before operating the set and retain it for

future reference.

www.lg.com

ENG

ENGLISH

KEY CODES

• This feature is not available for all models.

Code

(Hexa) Function Note Code

(Hexa) Function Note

00 CH +, PR + R/C Button 53 List R/C Button

01 CH -, PR - R/C Button 5B Exit R/C Button

02 Volume + R/C Button 60 PIP(AD) R/C Button

03 Volume - R/C Button 61 Blue R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button

08 Power R/C Button 72 Red R/C Button

09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button

0B Input R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 9E LIVE MENU R/C Button

0F TV, TV/RAD R/C Button 7A User Guide R/C Button

10 - 19 * Number Key 0 - 9 R/C Button 7C Smart / Home R/C Button

1A Q.View / Flashback R/C Button 7E SIMPLINK R/C Button

1E FAV (Favorite Channel) R/C Button 8E ►►(Forward) R/C Button

20 Text (Teletext) R/C Button 8F ◄◄(Rewind) R/C Button

21 T. Opt (Teletext Option) R/C Button AA Info R/C Button

28 Return (BACK) R/C Button AB Program Guide R/C Button

30 AV (Audio / Video) Mode R/C Button B0 ►(Play) R/C Button

39 Caption/Subtitle R/C Button B1 ꕗ (Stop / File List) R/C Button

40 Λ

(Arrow Key / Cursor Up)

R/C Button B5 RECENT R/C Button

41 V (Arrow Key / Cursor

Down) R/C Button BA ꕘ (Freeze / Slow Play /

Pause) R/C Button

42 My Apps R/C Button BB Soccer R/C Button

43 Menu / Settings R/C Button BD ꔄ (REC) R/C Button

44 OK / Enter R/C Button DC 3D R/C Button

45 Q.Menu R/C Button 99 AutoConfig R/C Button

4C List, - (ATSC Only) R/C Button 9F App / * R/C Button

4D PICTURE R/C Button 9B TV / PC R/C Button

52 SOUND R/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer

or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

USB IN

(TV)

(PC)

(PC

)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

USB IN

(TV)

(PC

)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

The connection interface may differ from your TV.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

* The connection interface may differ from your TV.

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC

)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

- or

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC

)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

PC TV

RXD 2 2 TXD

TXD 3 1 RXD

GND 5 3 GND

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

D-Sub 9 Phone

RS-232C

(Serial port)

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending on model)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2 DATA

(Hexadecimal) COMMAND1 COMMAND2 DATA

(Hexadecimal)

01. Power* k a 00 to 01 15. Balance k t 00 to 64

02. Aspect

Ratio k c (p.7)

16. Color

(Colour)

Temperature

x u 00 to 64

03. Screen

Mute k d (p.7)

17. ISM

Method (Only

Plasma TV)

j p (p.8)

04. Volume

Mute k e 00 to 01 18. Equalizer j v (p.8)

05. Volume

Control k f 00 to 64 19. Energy

Saving j q 00 to 05

06. Contrast k g 00 to 64 20. Tune

Command m a (p.9)

07.

Brightness k h 00 to 64

21. Channel

(Programme)

Add/Del(Skip)

m b 00 to 01

08. Color/

Colour k i 00 to 64 22. Key m c Key Codes

09. Tint k j 00 to 64

23. Control

Backlight,

Control Panel

Light

m g 00 to 64

10.

Sharpness k k 00 to 32 24. Input

select (Main)

x b (p.11)

11. OSD

Select k l 00 to 01 25. 3D (Only

3D models)

x t (p.11)

12. Remote

Control Lock

Mode

k m 00 to 01

26. Extended

3D (Only 3D

models)

x v (p.12)

13. Treble k r 00 to 64

27. Auto

Configure

j u (p.12)

14. Bass k s 00 to 64

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not

executed and treated as NG.

With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with

USB-to-Serial converter cable, the command works only if TV is on.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set

can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.

[Cr] : Carriage Return - ASCII code ‘0x0D’

[ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the

data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254

01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998

10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

►To control Power *On or Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

►To Show TV is Power On or *Off

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback

presents status about each function.

02. Aspect Ratio (Command: k c)

(Main Picture Size)

►To adjust the screen format. (Main picture format)

You can also adjust the screen format using the

Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9)

04 : Zoom

05 : Zoom 2

(Latin America

except Colombia

Only)

06 : Set by Program/

Original

07 : 14:9

(Europe, Colombia, Mid-East,

Asia except South Korea and

Japan)

09 : * Just Scan

0B : Full Wide

(Europe, Colombia, Mid-

East, Asia except South

Korea and Japan)

10 to 1F : Cinema Zoom 1 to 16

0c : 21:9 (Depending on model)

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV,

AV partially.

03. Screen Mute (Command: k d)

►To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute

on, TV will not display OSD.

04. Volume Mute (Command: k e)

►To control volume mute on/off.

You can also adjust mute using the MUTE button

on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

►To adjust volume.

You can also adjust volume with the volume

buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

►To adjust screen contrast.

You can also adjust contrast in the PICTURE

menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

►To adjust screen brightness.

You can also adjust brightness in the PICTURE

menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

08. Color/Colour (Command: k i)

►To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

►To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

►To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE

menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

►To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

►To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode.

When main power is off & on (plug-off and plug-in,

after 20 - 30 seconds), external control lock is

released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not

turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

►To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

14. Bass (Command: k s)

►To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

15. Balance (Command: k t)

►To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

16. Color(Colour) Temperature (Command: x u)

►To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p) (Only Plasma TV)

►To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal

20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

18. Equalizer (Command : j v)

►Adjust EQ of the set.

Transmission [j][v][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0 0

MSB

Frequency Data

LSB

765Frequency 4 3 2 1 0 Step

000 1st Band 0 0 0 0 0 0(decimal)

0012nd Band 0 0 0 0 1 1(decimal)

010 3rd Band ... ... ... ... ... ...

011 4th Band 1 0 0 1 1 19(decimal)

100 5th Band 1 0 1 0 1 20(decimal)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

* It depends on model, and can adjust when sound

mode is EQ adjustable value.

19. Energy Saving (Command: j q)

►To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data

00 : Off

01 : Minimum

02 : Medium

03 : Maximum

04 : Auto (For LCD TV / LED TV) /

Intelligent sensor (For PDP TV)

05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

►Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ]

[Data 01][ ][Data 02][Cr]

* Analog Antenna/Cable

[Data 00][Data 01] Channel Data

Data 00 : High byte channel data

Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

- 00 : Antenna TV (ATV)

- 80 : Cable TV (CATV)

* Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data

Data 00 : High Channel data

Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)

Data 02 : Input Source (Digital)

- 10 : Antenna TV (DTV)

- 20 : Antenna Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the Analog antenna (PAL) Channel 10.

Set ID = All = 00

Data 00 & 01 = Channel Data is 10 = 00 0a

Data 02 = Analog Antenna TV = 00

Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1 = 00 01

Data 02 = Digital Antenna TV = 10

Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1000 = 03 E8

Data 02 = Digital Satellite TV = 40

Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

►To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor

channel number. The Physical number is the actual

digital channel number, the Major is the number that

the channel should be mapped to, and the Minor is

the sub-channel. Since the ATSC tuner automatically

maps the channel from the Major / Minor number,

the Physical number is not required when sending a

command in Digital.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

* Analog Antenna/Cable

Data 00 : Physical Channel Number

- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number

Data 01 & 02: xx (Don't care)

Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analog)

- 00 : Antenna TV (ATV)

- 01 : Cable TV (CATV)

* Digital Antenna/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01 : High byte Channel Data

Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor Channel Number

Data 03 : High byte Channel Data

Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Antenna TV (DTV) – Use Physical Channel

Number

- 06 : Cable TV (CADTV) – Use Physical Channel

Number

- 22 : Antenna TV (DTV) – Don’t Use Physical

Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical

Channel Number

- 46 : Cable TV (CADTV) – Use Physical/Major

Channel Number Only (One Part Channel)

- 66 : Cable TV (CADTV) – Use Major Channel

Number Only (One Part Channel)

- 0b : Cable DTV Plus – Use Physical Channel

Number

- 2b : Cable DTV Plus – Don’t Use Physical

Channel Number

- 4b : Cable DTV Plus – Use Physical/Major

Channel Number Only (One Part Channel)

- 6b : Cable DTV Plus – Use Major Channel

Number Only (One Part Channel)

Two bytes are available for each major and minor

channel data, but usually the low byte is used alone

(high byte is 0).

* Tune Command Examples:

1. Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00

Data 00 = Channel Data is 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = Analog Cable TV = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital antenna (ATSC) channel 30-3.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = Digital Antenna TV = 22

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

►To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Antenna/Satellite

Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01: High byte Channel Data

Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite)

Data 03: High byte Channel Data

Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Antenna TV (DTV)

- 42 : Antenna TV (DTV) – Use Physical/Major

Channel Number Only (One Part Channel)

- 62 : Antenna TV (DTV) – Use Major Channel

Number Only (One Part Channel)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples:

Tune to the digital antenna (ISDB-T) channel 17-1

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 17 = 00 11

Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Antenna TV = 02

Total = ma 00 00 00 11 00 01 02

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

2. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Don’t Care = 00 00

Data 05 = Digital BS TV = 07

Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)

(Command: m b)

►To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

22. Key (Command: m c)

►To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

• For LCD TV / LED TV

►To control the backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

• For Plasma TV

►To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

24. Input select (Command: x b)

(Main Picture Input)

►To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data

00 : DTV

02 : Satellite DTV

ISDB-BS (Japan)

03 : ISDB-CS1 (Japan)

04 : ISDB-CS2 (Japan)

11 : CATV

01 : CADTV

10 : ATV

20 : AV or AV1 21 : AV2

40 : Component1

60 : RGB

41 : Component2

90 : HDMI1

92 : HDMI3

91 : HDMI2

93 : HDMI4

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

25. 3D(Command: x t) (only 3D models)

(Depending on model)

►To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

* (Depending on model)

Data Structure

[Data 00] 00 : 3D On

01 : 3D Off

02 : 3D to 2D

03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side

02 : Check Board

03 : Frame Sequential

04 : Column interleaving

05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

* [Data 02], [Data 03] functions depend on model

and signal.

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and

[Data 02] have no meaning.

* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data

03] works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

26. Extended 3D(Command: x v) (only 3D models)

(Depending on model)

►To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction

01 : 3D Depth (3D Mode is Manual Only)

02 : 3D Viewpoint

06 : 3D Color Correction

07 : 3D Sound Zooming

08 : Normal Image View

09 : 3D Mode (Genre)

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00

00 : Right to Left

01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code)

Data value range(0 - 20) converts Viewpoint range

(-10 - +10) automatically (Depending on model)

* This option works when 3D Mode (Genre) is manual

only.

3) When [Data 00] is 06, 07

00 : Off

01 : On

4) When [Data 00] is 08

00 : Revert to 3D video from 3D-to-2D

converted 2D video

01 : Change 3D video to 2D video, except

2D-to-3D video

* If conversion condition doesn’t meet, command is

treated as NG.

5) When [Data 00] is 09

00 : Standard

02 : Cinema

04 : Manual

01 : Sport

03 : Extreme

05 : Auto

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

27. Auto Configure (Command: j u)

(Depending on model)

►To adjust picture position and minimize image

shaking automatically. It works only in RGB (PC)

mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set Auto Configure

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

www.lg.com

*MFL70500402*

43UK65*

12 14 16 20

X 2

(M4 X L16)

X 4

(M4 X L16)

50UK65*

12 14 16 20

X 4

(M4 X L20)

55UK65*

(M4 X L20)

65/70UK65*

12 14 16 20

X 6

(M4 X L30)

75/86UK65*

43UK65* 50/55/65UK65* 70UK65* 75/86UK65*

1 2

43UK65*, 70UK65*

50/55/65/75/86UK65*

3-A

3-B

50/55/65UK65*

75/86UK65*

4-A

50UK65* 4-B

55UK65* 4-C 65/75/86UK65*

(For USA and Canada only)

(Para Estados Unidos y Canadá)

This product qualies for ENERGY

STAR® in the factory default (Home

conguration)

setting. Changing the

factory default settings or enabling

other features may increase power consumption

that could exceed the limits necessary to quality

for ENERGY STAR®. Refer to ENERGYSTAR.gov

for more information on the ENERGY STAR®

program.

(Pour les États-Unis et le Canada)

Ce produit est conforme aux normes

ENERGY STAR® lorsque le réglage

d’usine par défaut (Résidentiel) est

sélectionné. Modier les réglages

d’usine par défaut ou activer d’autres fonction-

nalités augmente la consommation d’énergie

qui pourrait alors dépasser les limites de la

qualication ENERGY STAR®. Consultez le site

ENERGYSTAR.gov pour en savoir plus au sujet du

programme ENERGY STAR®.

ENGLISH

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

ESPAÑOL

Guía Rápida de Conguración

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

FRANÇAIS

Guide de configuration rapide

Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir

vous y reporter ultérieurement.

: Depending upon model / Según el modelo / Selon le modèle

ENGLISH Read Safety and Reference.

ESPAÑOL Leer Seguridad y Consultas.

FRANÇAIS Lisez Sécurité et références.

43UK6500AUA 75UK6570PUB

50UK6500AUA 75UK6570AUA

55UK6500AUA 75UK6570PUA

65UK6500AUA 86UK6570PUB

70UK6570PUB 86UK6570AUA

70UK6570AUB 86UK6570PUA

(1802-REV01)

Printed in Korea

3-B 70UK65*

43UK65*

3-A

AAA AA

AB C D E F F G

43UK6500AUA 975

(38.3) 975

(38,3) 625

(24.6) 625

(24,6) 216.4

(8.5) 216,4

(8,5) 571

(22.4) 571

(22,4) 86.4

(3.4) 86,4

(3,4) 9.1

(20)

9,1

(20)

(19.8) 9

(19,8) 110 W

50UK6500AUA 1,128

(44.4) 1 128

(44,4) 716

(28.1) 716

(28,1) 230.8

(9)

230,8

(9)

658

(25.9) 658

(25,9) 86.4

(3.4) 86,4

(3,4) 11.7

(25.7) 11,7

(25,7) 11.5

(25.3) 11,5

(25,3) 130 W

55UK6500AUA 1,237

(48.7)

1 237

(48,7)

777

(30.5)

777

(30,5) 230.8

(9)

230,8

(9)

718

(28.2)

718

(28,2)

63.8

(2.5)

63,8

(2,5)

16.2

(35.7)

16,2

(35,7)

(35.2)

(35,2) 140 W

65UK6500AUA 1,456

(57.3) 1 456

(57,3) 906

(35.6) 906

(35,6) 268.8

(10.5) 268,8

(10,5) 841

(33.1) 841

(33,1) 64.8

(2.5) 64,8

(2,5) 26.3

(57.9) 26,3

(57,9) 26

(57.3) 26

(57,3) 165 W

Power requirement / Alimentación requerida / Alimentation

AC 100-240 V ~ 50 / 60 Hz

70UK6570PUB

70UK6570AUB

1,573

(61.9) 1 573

(61,9) 980

(38.5) 980

(38,5) 297

(11.6) 297

(11,6) 910

(35.8) 910

(35,8) 69

(2.7) 69

(2,7) 33.2

(73.1) 33,2

(73,1) 32.5

(71.6) 32,5

(71,6) 270 W

75UK6570PUB

75UK6570AUA

75UK6570PUA

1,693

(66.6) 1 693

(66,6) 1,048

(41.2) 1 048

(41,2) 345

(13.5) 345

(13,5) 978

(38.5) 978

(38,5) 88.8

(3.4) 88,8

(3,4) 35.4

(78)

35,4

(78)

34.6

(76.2) 34,6

(76,2) 245 W

86UK6570PUB

86UK6570AUA

86UK6570PUA

1,943

(76.4) 1 943

(76,4) 1,188

(46.7) 1 188

(46,7) 345

(13.5) 345

(13,5) 1,118

(44)

1 118

(44)

93.3

(3.6) 93,3

(3,6) 45

(99.2) 45

(99,2) 44.2

(97.4) 44,2

(97,4) 325 W

Power requirement / Alimentación requerida / Alimentation

AC 120 V~ 50/60 Hz

, , , , :mm (inches / pulgadas / po)

, :kg (lbs / libras / lb)

VIDEO L/MONO AUDIO R

VIDEO/Y P

L/MONO AUDIO R

VIDEO/Y P

L/MONO AUDIO R

VIDEO AUDIO

ENGLISH

Easy TV Connect Guide (Animation)

ESPAÑOL

Guía Rápida de Conexión del

televisor

(Sólo en Inglés)

FRANÇAIS

Guide simplié pour la connexion

du téléviseur

(Offert en anglais seulement)

www.lg.com/us/support

Network Settings

1 Press the (Home) button on the remote to

access the Home menu. Point the (Settings)

icon and select by pressing the Wheel (OK)

button on the remote.

2 Point the

( )

(All Settings)

icon and select

by pressing the Wheel (OK) button on the

remote.

All Settings ()

3 Select the Network → Wired Connection

(Ethernet) or Wi-Fi Connection.


NETWORK

TV Name

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Not Connected

Wi-Fi Direct

Sound

Channels

Network

General

Safety

Accessibility

4 The device automatically tries to connect to the

network available (wired network first).

When you select the Wi-Fi Connection, the

network list available is displayed. Choose the

network you wish to use.


WI-FI CONNECTION

Network /

Sound

Channels

Network

General

Safety

Accessibility

ꔐ

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings

For wireless AP (Router) that have the

symbol, you need to enter the security key.

5 If the connection is successful, the "Connected

to Internet" is displayed.


NETWORK

TV Name

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Connected to Internet

Wi-Fi Direct

Sound

Channels

Network

General

Safety

Accessibility

You can check the status of connection in

Advanced Wi-Fi settings.


WI-FI CONNECTION

Network /

Sound

Channels

Network

General

Safety

Accessibility

ꔐ

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings

* Image shown may differ from your TV.

* Image shown on a PC or mobile phone may vary depending on the OS(Operating System).

* App icon positions may vary on the platform, depending upon the software version.

SMART TV Quick Setup Guide

www.lg.com

Troubleshooting Network Problems

1 Press the (Home) button on the remote to

access the Home menu. Point the (Settings)

icon and select by pressing the Wheel (OK)

button on the remote.

2 Point the ( ) (All Settings) icon and select

by pressing the Wheel (OK) button on the

remote.

All Settings ()

3 Select the Network → Wired Connection

(Ethernet) or Wi-Fi Connection → Advanced

Wi-Fi Settings.


NETWORK

TV Name

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Not Connected

Wi-Fi Direct

Sound

Channels

Network

General

Safety

Accessibility




WI-FI CONNECTION

Network /

Sound

Channels

Network

General

Safety

Accessibility

ꔐ

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings

Follow the instructions below that match to your

network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP

(Router) and cable modem.

2 Power off and power on in the following order;

(1st) the cable modem, wait for the cable

modem to reset, (2nd) the AP (Router), wait for

the AP (Router) to reset and (3rd) the TV.

3 If you are using a static IP, enter the IP directly.

4 Contact internet service provider or AP (Router)

manufacturer.

Check the AP (Router) or consult your Internet

service provider.

When X appears next to Gateway:

1 Unplug the power cord of the AP (Router) or

cable modem, wait 5 seconds. Reapply power.

2 Initialize (Reset) the AP (Router) or cable

modem.

3 Contact Internet service provider or AP (Router)

manufacturer.

When X appears next to DNS:

1 Unplug the power cord of the AP (Router) or

cable modem, wait 5 seconds. Reapply power.

2 After the cable modem or AP (Router) has

initialized (Reset), try to reconnect.

3 Check that the MAC address of the TV/AP

(Router) is registered with your Internet service

provider. (The MAC address displayed on the

right pane of the network status window

should be registered with your Internet service

provider.)

4 Check the AP (Router) manufacturer’s website

to make sure your router has the latest firmware

version installed.

SmartShare PC SW Installing & Setting

1 Install the SmartShare PC SW programme on your PC.

2 Go to . Then, select your region.

3 Select Support.

4 Select Software & Drivers. Then, select SmartShare.

5 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is

complete.

NOTE

ySmartshare service is only available if TV and other devices are connected via a single AP (Router).

SmartShare Connection to Smartphone

Updating the TV Firmware

* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may

take a few minutes.

1 (Home) → (Settings) →

( )

(All Settings) → General → About This TV → CHECK FOR

UPDATES

2 After checking the version of the software, update it.

If you check the "Allow Automatic Updates", you can update the software automatically.


GENERAL

Sound

Channels

Network

General

Safety

Accessibility

Eco Mode

Mobile TV On

LG Wireless Keyboard

Settings Help

No Signal Image

Reset to Initial Settings

About This TV

User Agreements


ABOUT THIS TV

General /

Sound

Channels

Network

General

Safety

Accessibility

Software Version xx.xx.xx

ꔐ Allow Automatic Updates

TV Information

User Guide

Open Source Software Notice

Set ID : 1

CHECK FOR UPDATES



1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must

on the same local network.

2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG

phones).

3 Enable your smartphone to share content files with other devices.

4 Open Device Connector application.

(Home) → Device Connector → Smartphone → CONTENT SHARE.

5 Select the file type you want to play (movie, audio or photo).

6 Select a movie, music or photo file to play on the TV.

7 Play the media file to view and enjoy it on your TV.

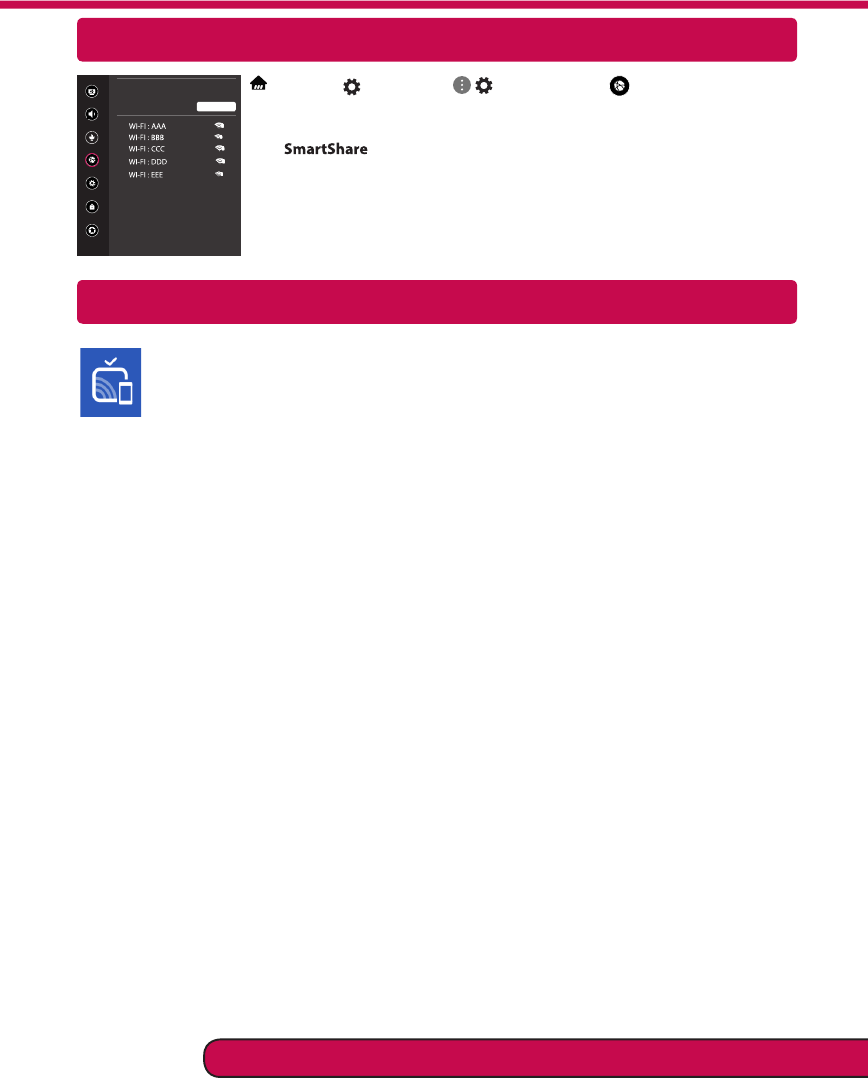

Miracast Setting

Wi-Fi Direct Setting

(Home) → (Settings) → ( ) (All Settings) → Network → Wi-Fi Direct

If a local network is not available, you can connect a portable device directly to the TV

using Wi-Fi Direct.

With , you can share files or screens of devices connected to Wi-Fi Direct.

1 When you open Wi-Fi Direct menu, a list of available devices appears.

2 When you are prompted to request connection, select Yes . Wi-Fi Direct is now

connected to your TV.

* You can only use devices that support Wi-Fi Direct.

Please call LG Customer Service if you experience any problems.

Miracast allows a portable device to send video and sound securely to the TV wirelessly.

1 Miracast should be set to "ON" on your portable device.

2 When your TV is detected, select the device on your portable device.

When connection is completed, the device screen appears on the TV screen.


WI-FI Direct

Network /

Sound

Channels

Network

General

Safety

Accessibility

ꔐ

REFRESH LIST

LG 75UK6570AUA User Manual Owner's MFL70340102 1.2 MFL70500402 1.1 RS QSGsmart Web OS4.0;

55UK6500AUA Owner's Manual MFL70340102_1.2+MFL70500402_1.1+RS+QSGsmartWebOS4.0; Most comprehensive of product setup and usage. (English)
