OWNER’S MANUAL

Network 3D Blu-ray Disc™

Player

Please read this manual carefully before operating

your set and retain it for future reference.

BD670/BD660

P/NO : SAC35095316 www.lg.com

1 Getting Started

Getting Started 3

Getting Started

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead

symbol within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product’s

enclosure that may be of sucient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature accompanying the

product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a

conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over heating. The

openings shall be never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer’s

instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read

this owner’s manual carefully and retain it for future

reference. Shall the unit require maintenance,

contact an authorized service center.

Use of controls, adjustments or the performance of

procedures other than those specied herein may

result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try

to open the enclosure. Visible laser radiation when

open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon

a dedicated circuit;

That is, a single outlet circuit which powers only

that appliance and has no additional outlets or

branch circuits. Check the specication page of this

owner’s manual to be certain. Do not overload wall

outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or

damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric

shock or re. Periodically examine the cord of your

appliance, and if its appearance indicates damage

or deterioration, unplug it, discontinue use of the

appliance, and have the cord replaced with an

exact replacement part by an authorized service

center. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. To

disconnect power from the mains, pull out the

mains cord plug. When installing the product,

ensure that the plug is easily accessible.

Getting Started4

Getting Started

1

This device is equipped with a portable battery or

accumulator.

Safety way to remove the battery or the

battery from the equipment: Remove the

old battery or battery pack, follow the steps

in reverse order than the assembly. To prevent

contamination of the environment and bring on

possible threat to human and animal health, the

old battery or the battery put it in the appropriate

container at designated collection points. Do

not dispose of batteries or battery together with

other waste. It is recommended that you use

local, free reimbursement systems batteries and

accumulators. The battery shall not be exposed to

excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to

water (dripping or splashing) and no objects lled

with liquids, such as vases, shall be placed on the

apparatus.

FCC Compliance Statement

This device complies with part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

NOTE: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used

in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference

to radio or television reception, which can be

determined by turning the equipment o and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

yReorient or relocate the receiving antenna.

yIncrease the separation between the equipment

and receiver.

yConnect the equipment into an outlet on a

circuit dierent from that to which the receiver is

connected.

yConsult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modications not

expressly approved by the party responsible for

compliance could void the user’s authority to

operate this equipment.

FCC RF Radiation Exposure Statement : This

equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

This equipment should be installed and operated

with minimum distance 20 cm between the

radiator and your body. End users must follow the

specic operating instructions for satisfying RF

exposure compliance. This transmitter must not be

co-located or operating in conjunction with any

other antenna or transmitter.

FCC Radio Frequency Interference

Requirements : This device is restricted to indoor

use due to its operation in the 5.15 to 5.25 GHz

frequency range. FCC requires this product to

be used indoors for the frequency range 5.15

to 5.25 GHz to reduce the potential for harmful

interference to co-channel Mobile Satellite systems.

CAUTION: Regulations of the FCC and FAA prohibit

airborne operation of radio-frequency wireless

devices because their signals could interfere with

critical aircraft instruments.

Responsible Party :

LG Electronics USA, Inc.1000 Sylvan Avenue

Englewood Clis, NJ 07632

TEL. : +1-800-243-0000

Getting Started 5

Getting Started

1

Notes on Copyrights

yBecause AACS (Advanced Access Content

System) is approved as content protection

system for Blu-ray Disc format, similar to use of

CSS (Content Scramble System) for DVD format,

certain restrictions are imposed on playback,

analog signal output, etc., of AACS protected

contents. The operation of this product and

restrictions on this product may vary depending

on your time of purchase as those restrictions

may be adopted and/or changed by AACS after

the production of this product.

yFurthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems

for Blu-ray Disc format, which imposes certain

restrictions including playback restrictions for

BD-ROM Mark and/or BD+ protected contents.

To obtain additional information on AACS, BD-

ROM Mark, BD+, or this product, please contact

an authorized Customer Service Center.

yMany BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only

connect your player directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted

picture from copy-protected discs.

yThis product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Rovi, and is intended for home and

other limited viewing uses only unless otherwise

authorized by Rovi. Reverse engineering or

disassembly is prohibited.

yUnder the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording,

use, display, distribution, or revision of television

programs, videotapes, BD-ROM discs, DVDs, CDs

and other materials may subject you to civil and/

or criminal liability.

IMPORTANT SAFETY

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not t into your outlet,

consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specied by

the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.

When a cart is used, use

caution when moving the cart/

apparatus combination to avoid injury from tip-

over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

Table of Contents6

Table of Contents

1 Getting Started

3 Safety Information

8 Introduction

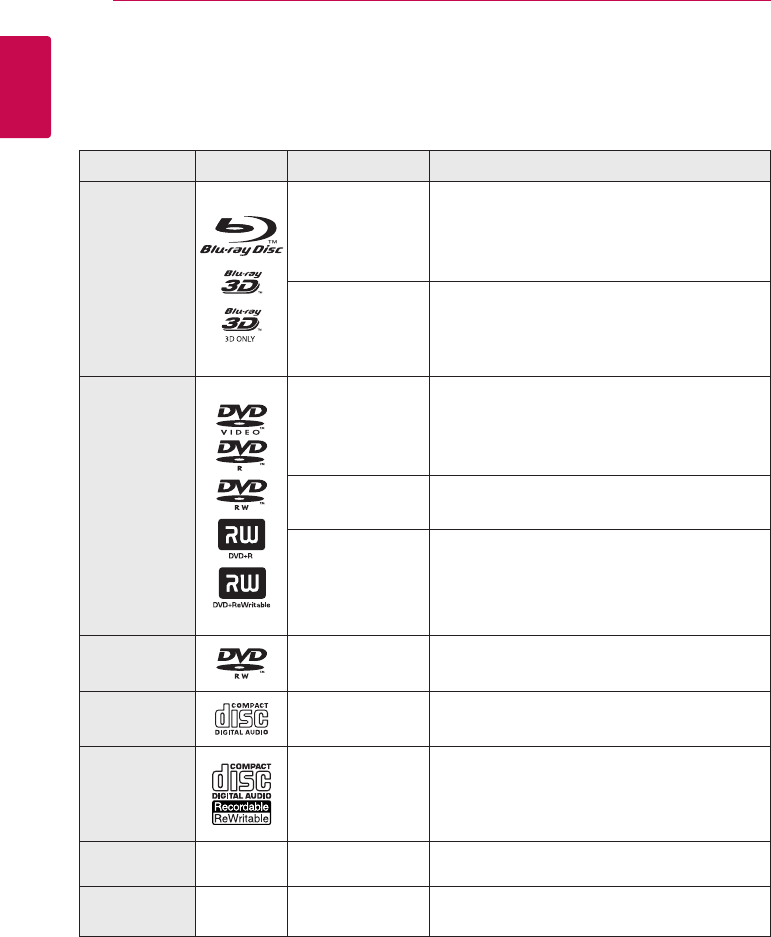

8 – Playable Discs and symbols used in

this manual

9 – About the “7” Symbol Display

10 – File requirement

11 – AVCHD (Advanced Video Codec High

Definition)

11 – About DLNA

12 – Certain System Requirements

12 – LG Remote

12 – WOL (Wake On LAN)

12 – Regional Code

12 – Compatibility Notes

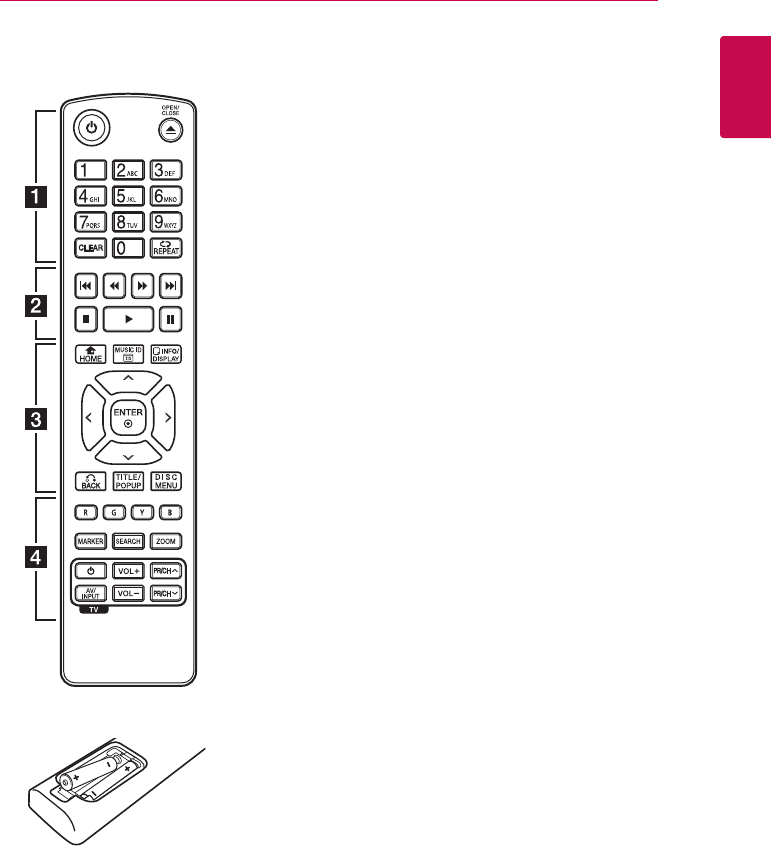

13 Remote control

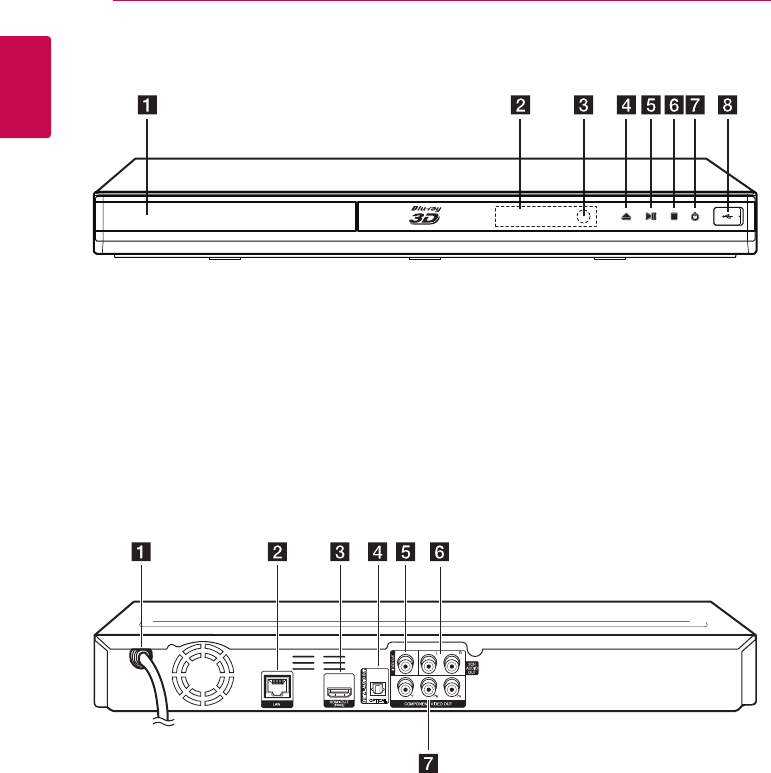

14 Front panel

14 Rear panel

2 Connecting

15 Connecting to Your TV

15 – HDMI Connection

16 – What is SIMPLINK?

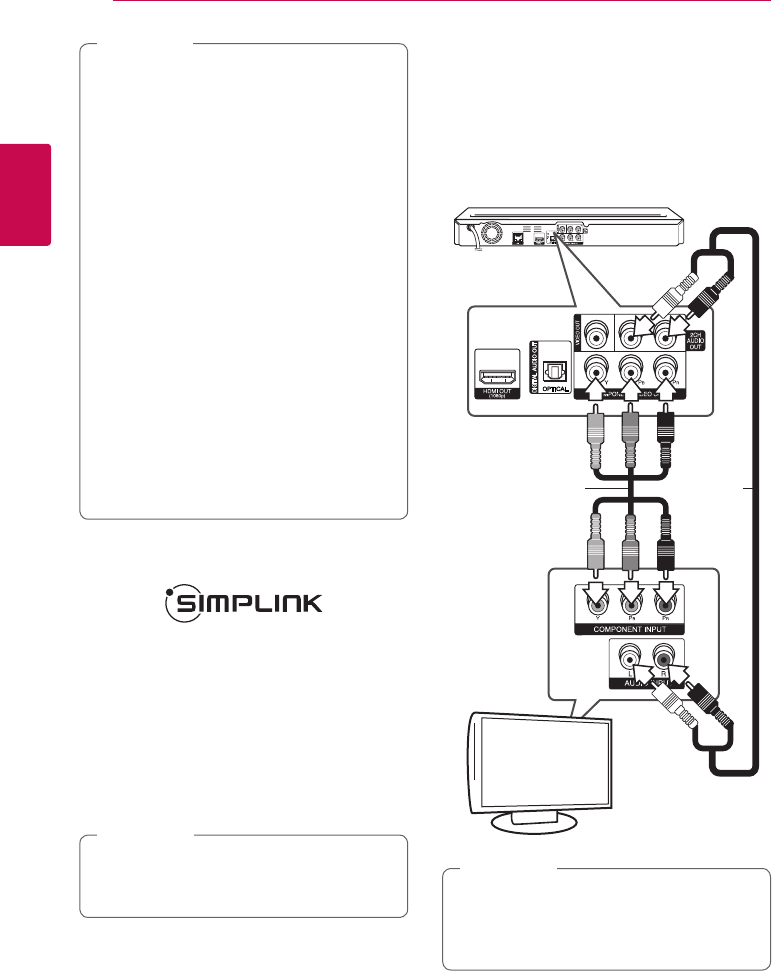

16 – Component Video Connection

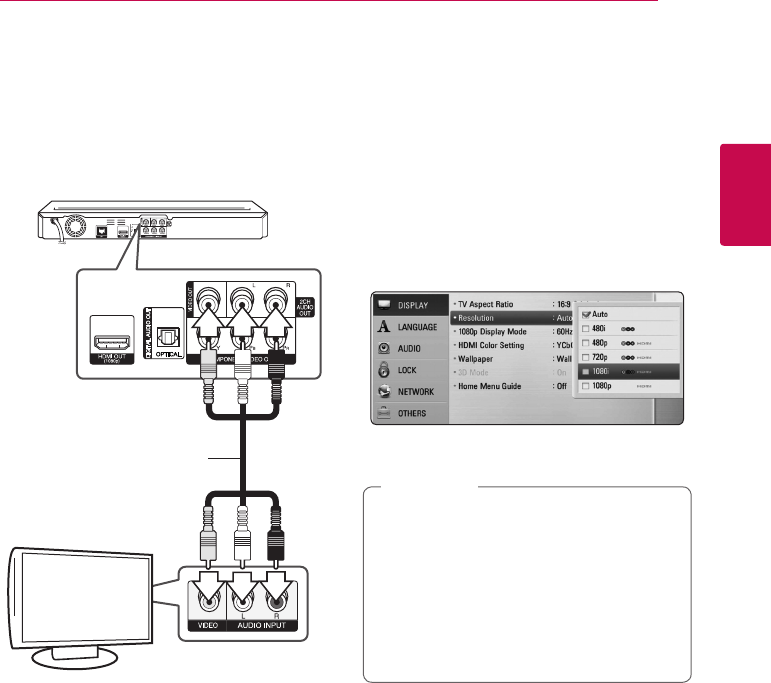

17 – Video/Audio (Left/Right) Connection

17 – Resolution Setting

18 Connecting to an Amplifier

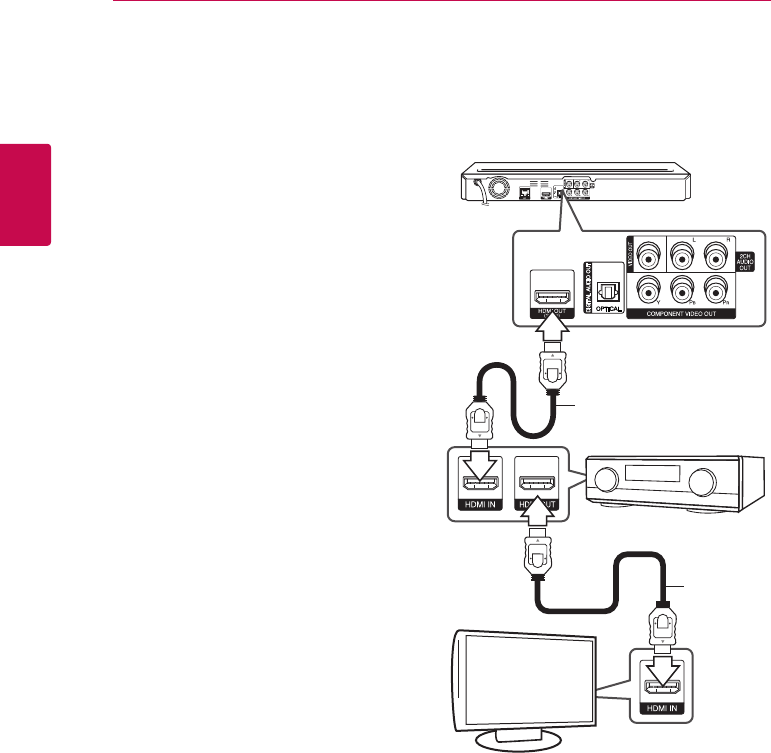

18 – Connecting to an Amplifier via HDMI

Output

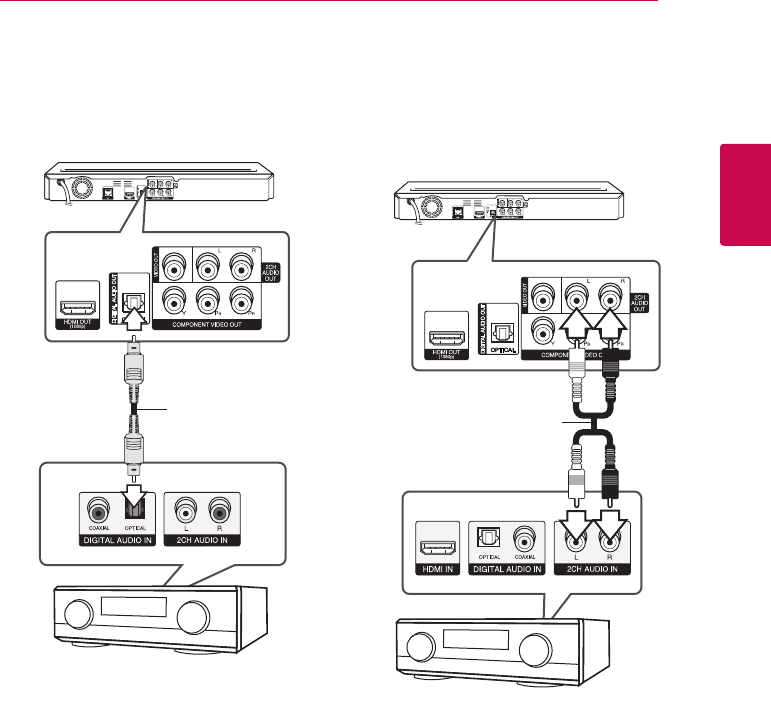

19 – Connecting to an Amplifier via Digital

Audio Output

19 – Connecting to an Amplifier via 2

Channel Audio Output

20 Connecting to your Home Network

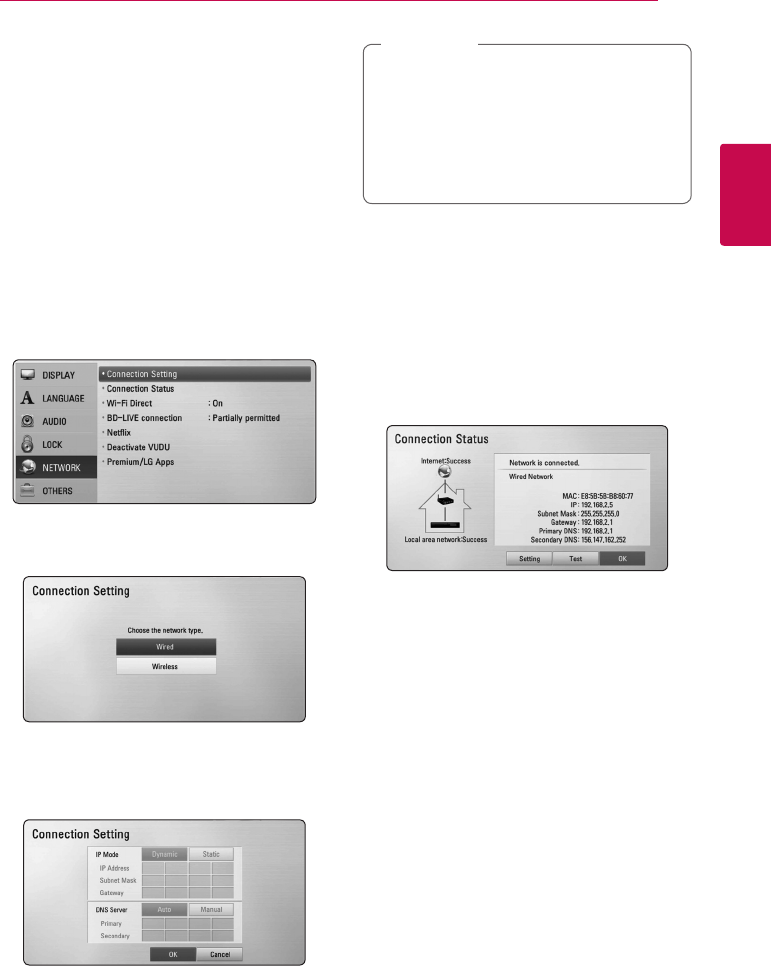

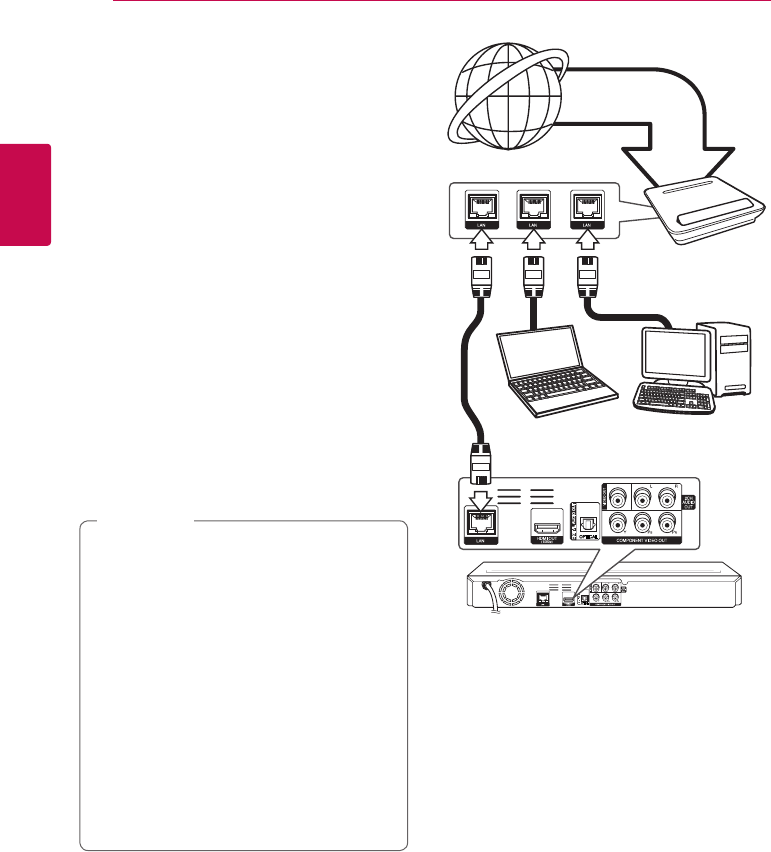

20 – Wired network connection

21 – Wired Network Setup

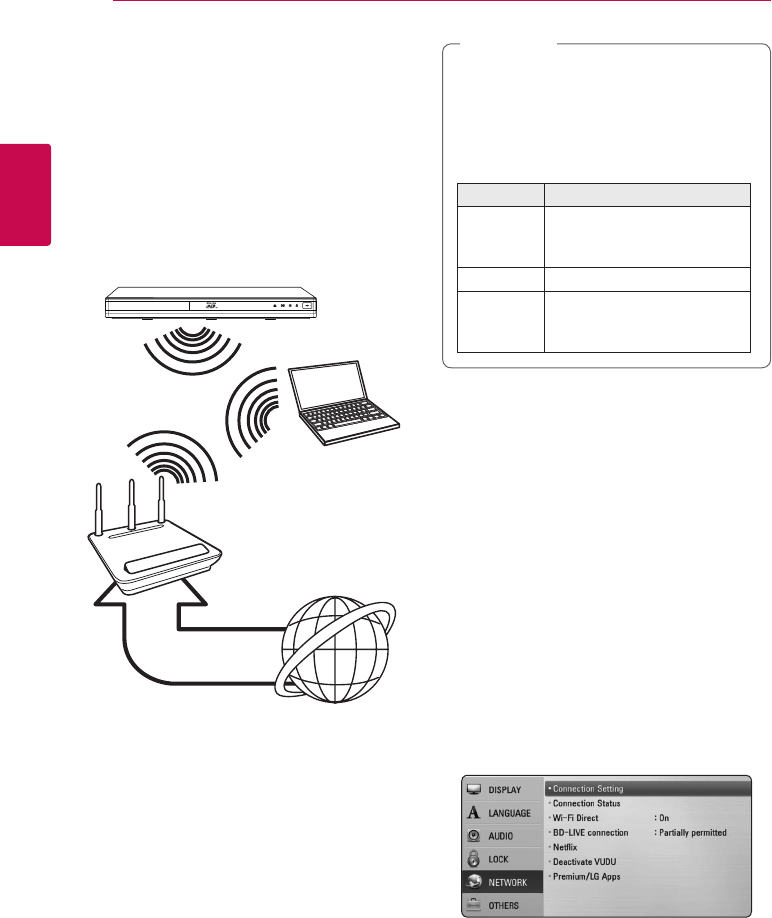

22 – Wireless Network Connection

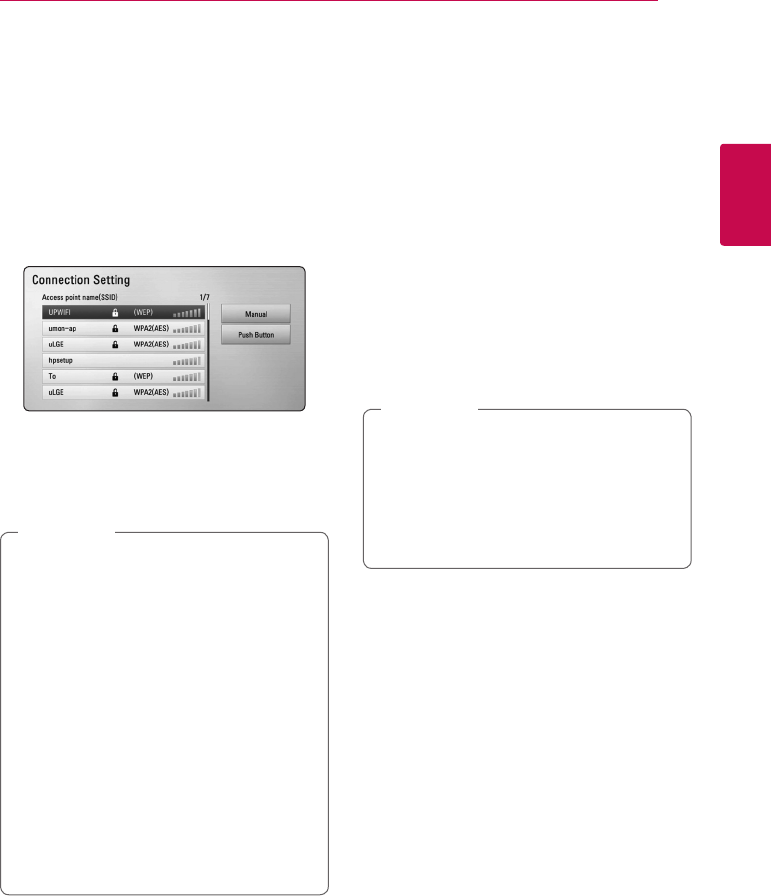

22 – Wireless Network Setup

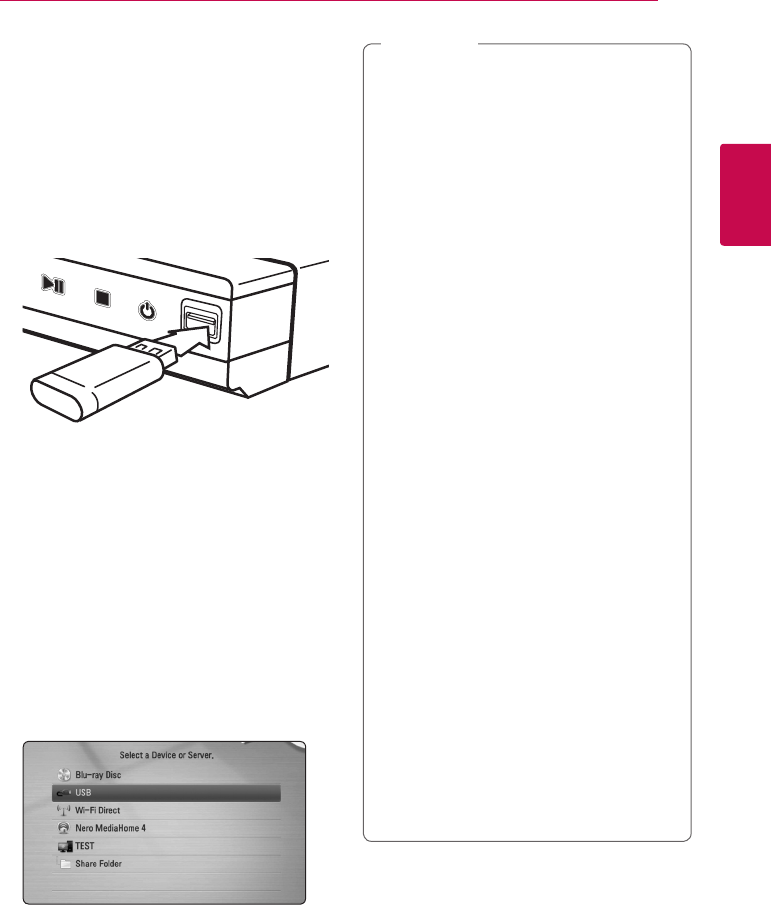

25 USB device connection

25 – Playback content in the USB device

3 System Setting

26 Settings

26 – Adjust the Setup Settings

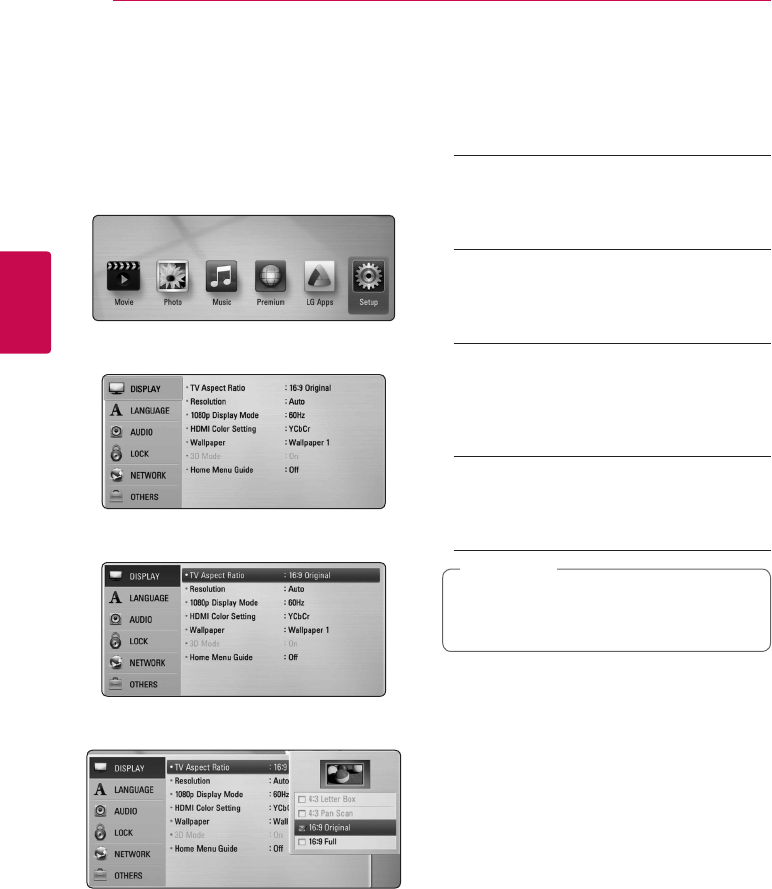

26 – [DISPLAY] Menu

28 – [LANGUAGE] Menu

28 – [AUDIO] Menu

30 – [LOCK] Menu

31 – [NETWORK] Menu

32 – [OTHERS] Menu

4 Operating

34 General Playback

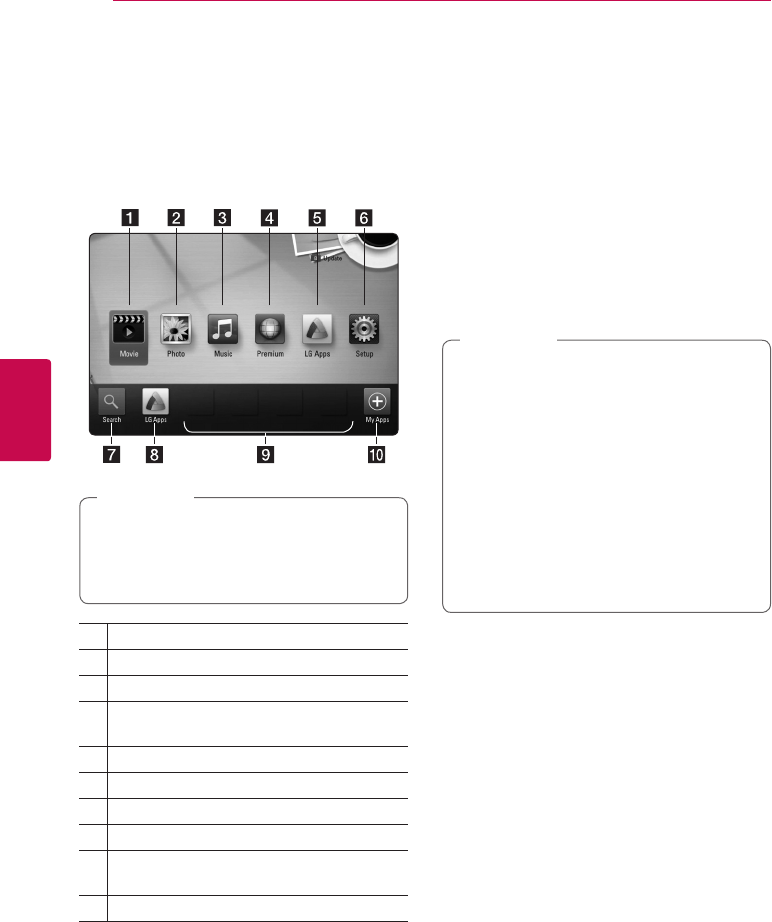

34 – Using [HOME] menu

34 – Playing a Disc

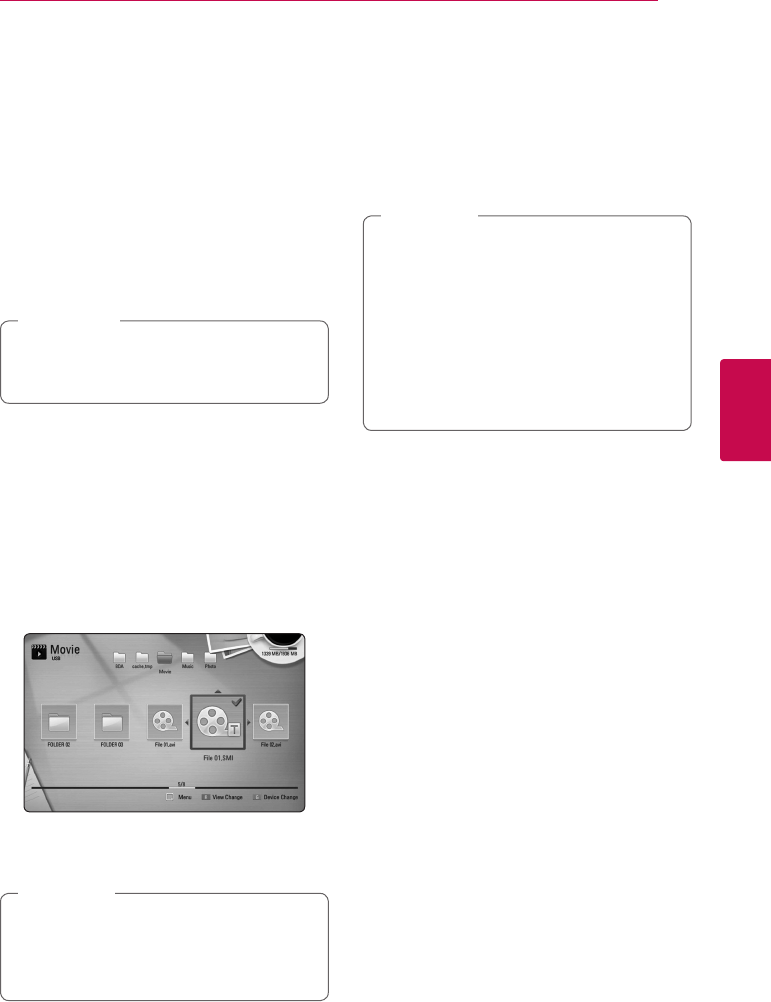

34 – Playing a file on disc/USB device

35 – Playing Blu-ray 3D disc

35 – Enjoying BD-Live™

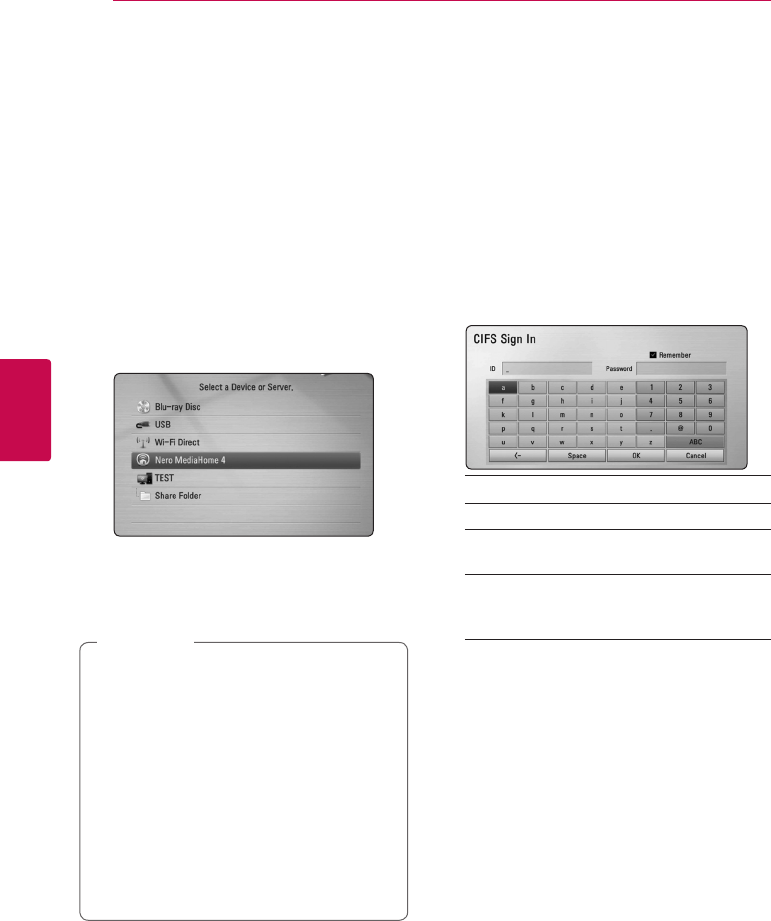

36 – Playing a file on a network server

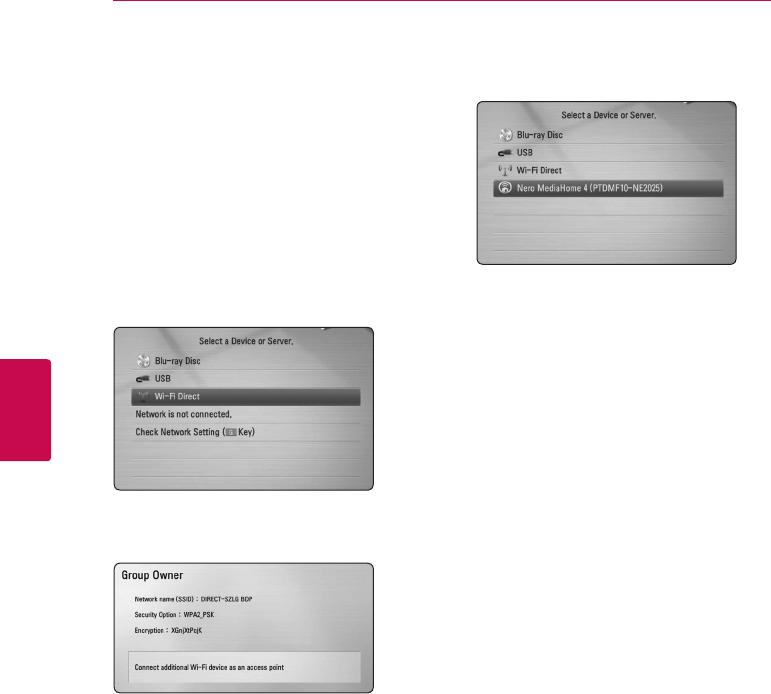

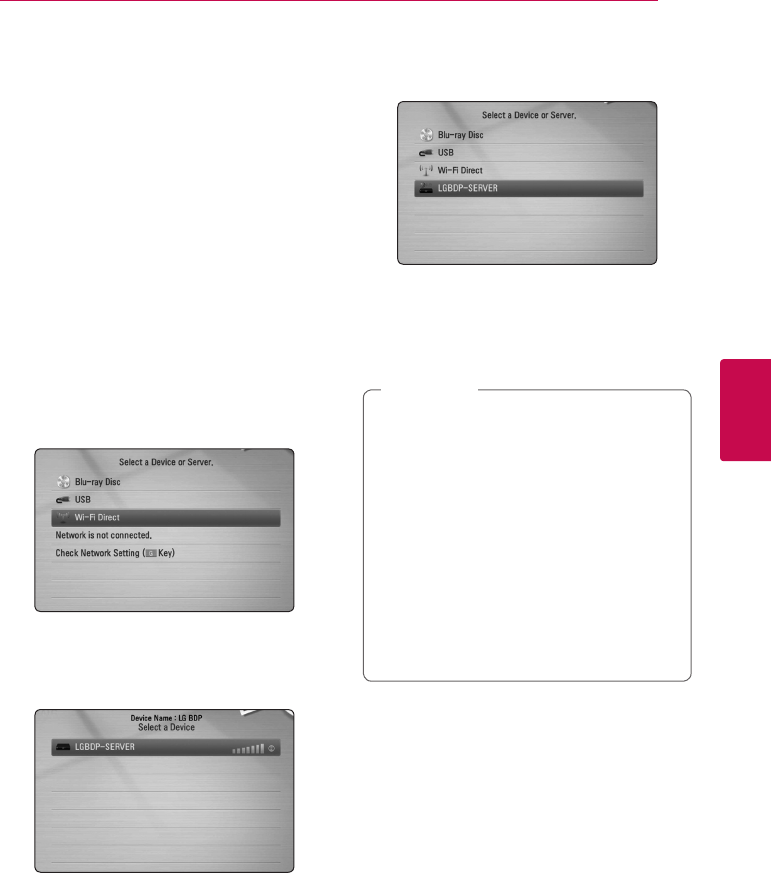

37 – Wi-Fi Direct™ Connection

39 – Basic operations for video and audio

content

39 – Basic operations for photo content

39 – Using the disc menu

40 – Resume playback

40 Advanced Playback

40 – Repeat Playback

41 – Repeating a specific portion

41 – Enlarge the playback image

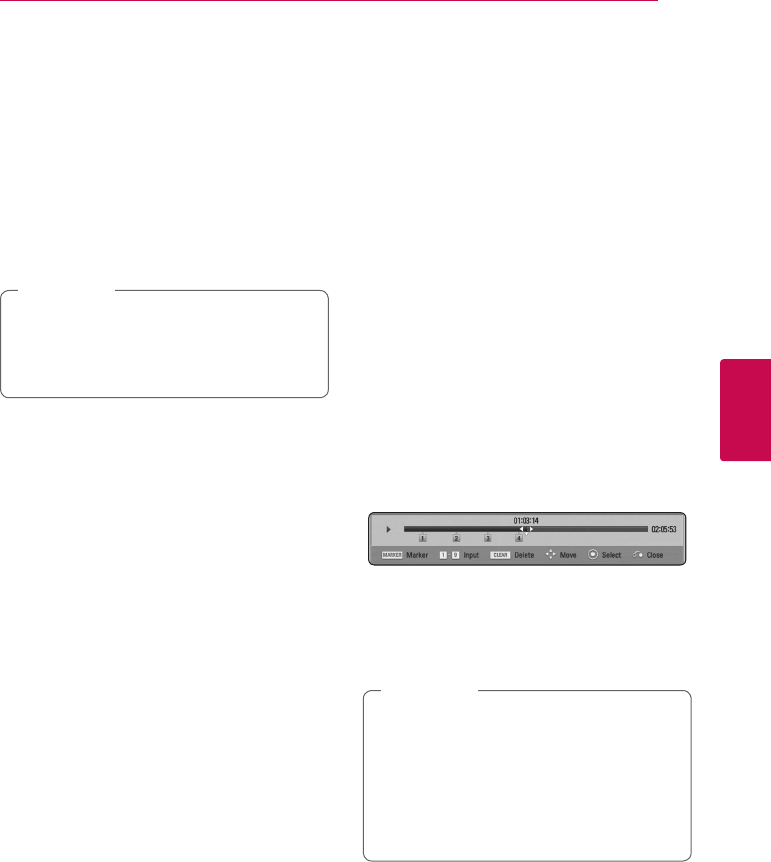

41 – Marker Search

42 – Using the search menu

42 – Changing content list view

43 – Viewing content information

43 – Selecting a subtitle file

43 – Last Scene Memory

43 – Applying your photo to the Wallpaper

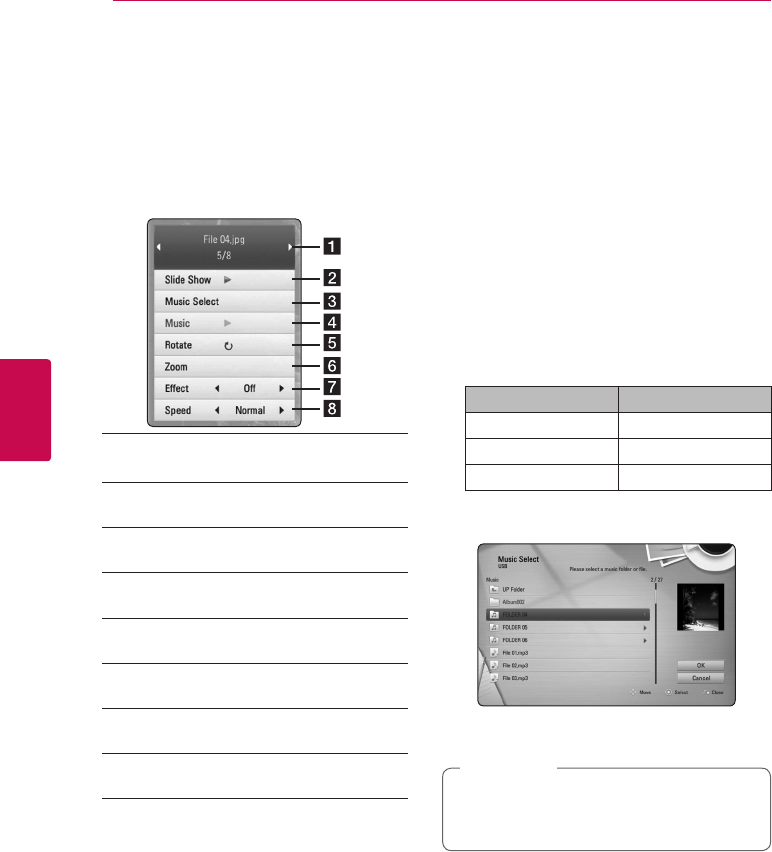

44 – Options while viewing a photo

44 – Listening to music while slide show

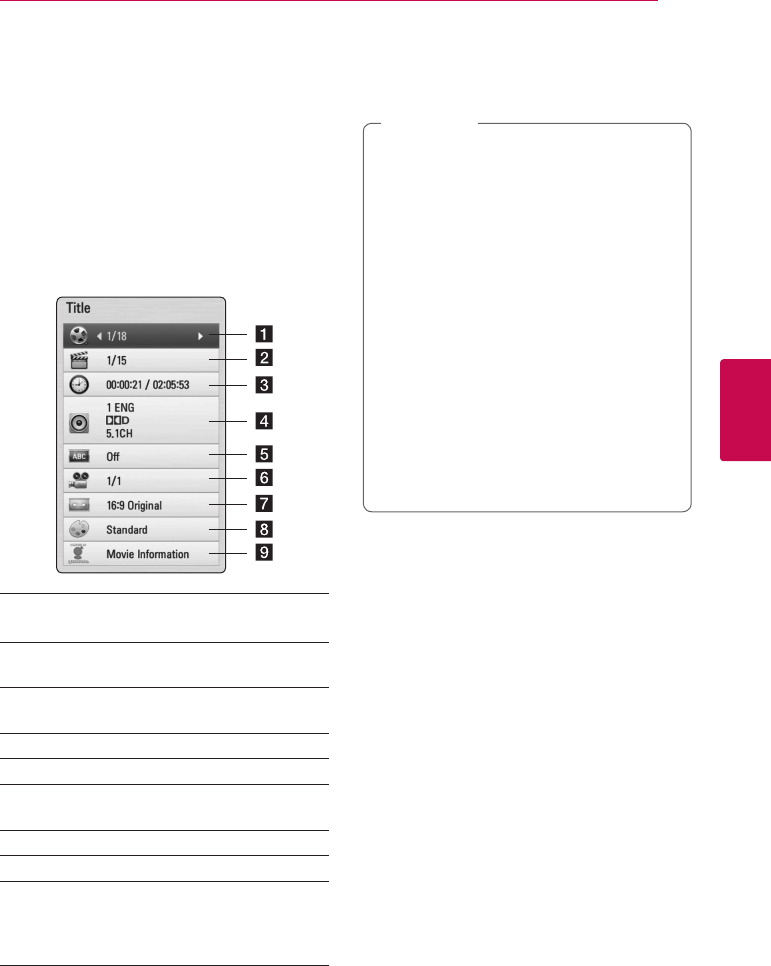

45 On-Screen display

45 – Displaying content information on-

screen

46 – Playing from selected time

46 – Hearing a different audio

46 – Selecting a subtitle language

46 – Watching from a different angle

47 – Changing the TV Aspect Ratio

Table of Contents 7

1

2

3

4

5

6

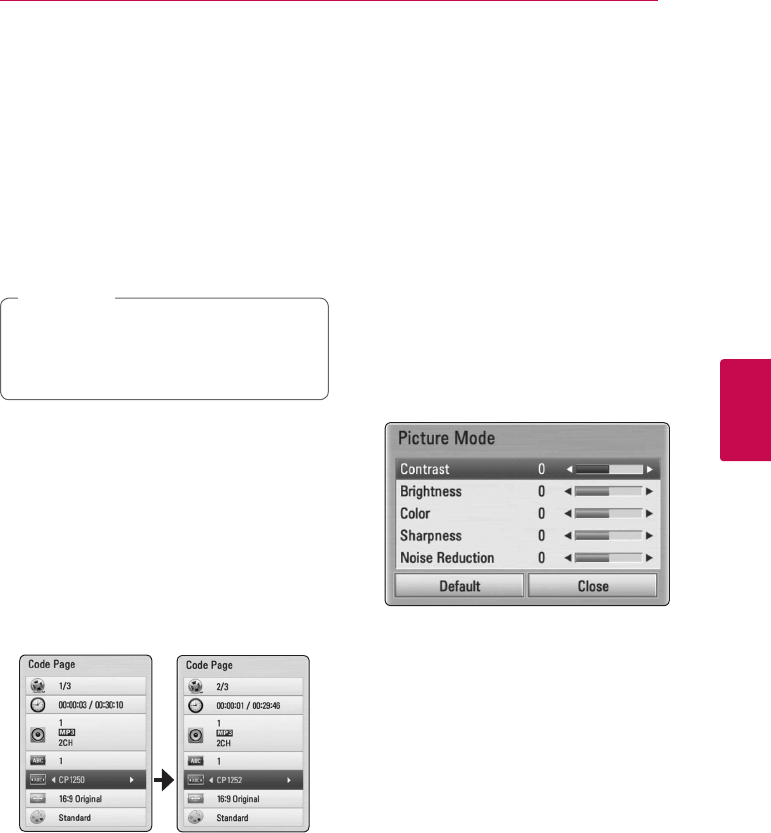

47 – Changing subtitle code page

47 – Changing the Picture Mode

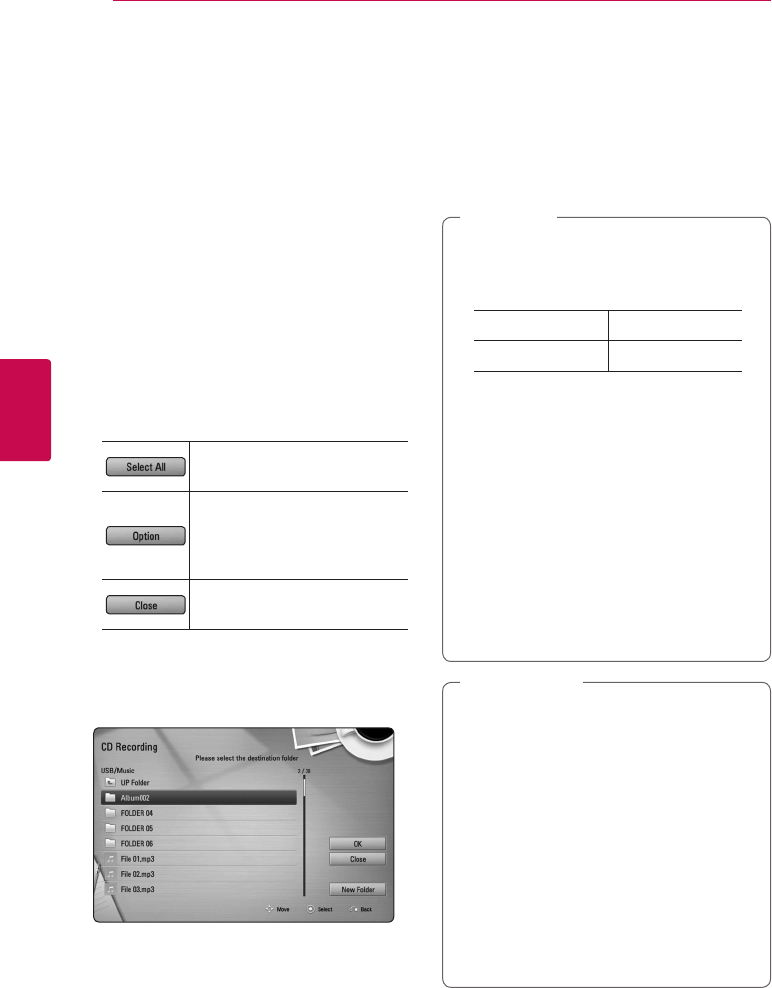

48 Audio CD Recording

49 Viewing information from Gracenote

Media Database

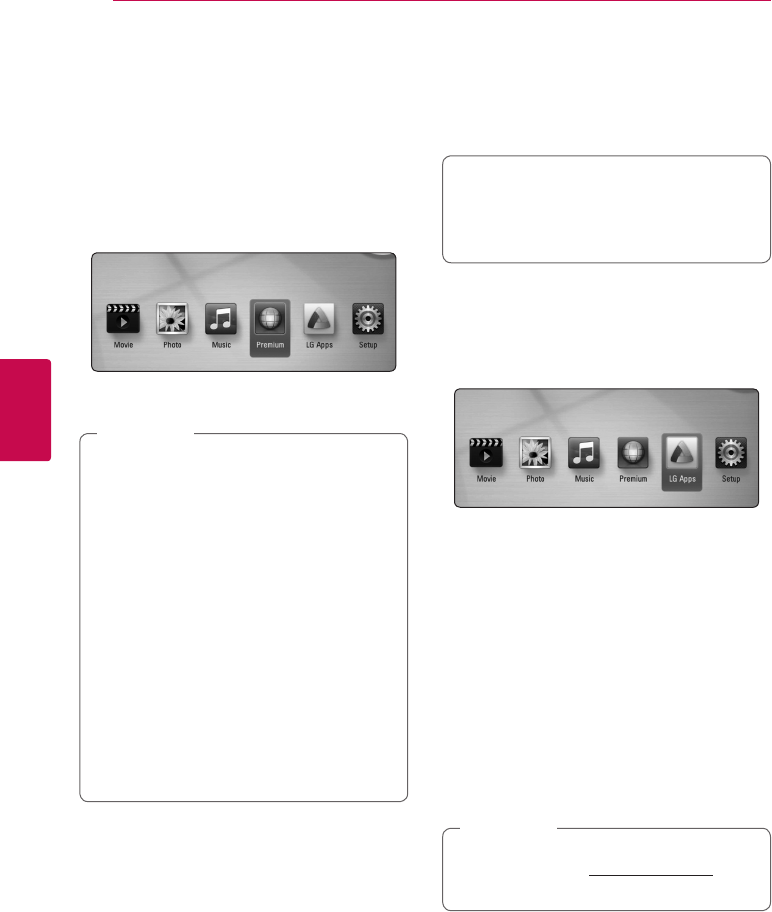

50 Using the Premium

50 Using the LG Apps

51 – Signing in

51 – Managing my Apps

5 Troubleshooting

52 Troubleshooting

52 – General

53 – Network

54 – Picture

54 – Customer Support

54 – Open source software notice

6 Appendix

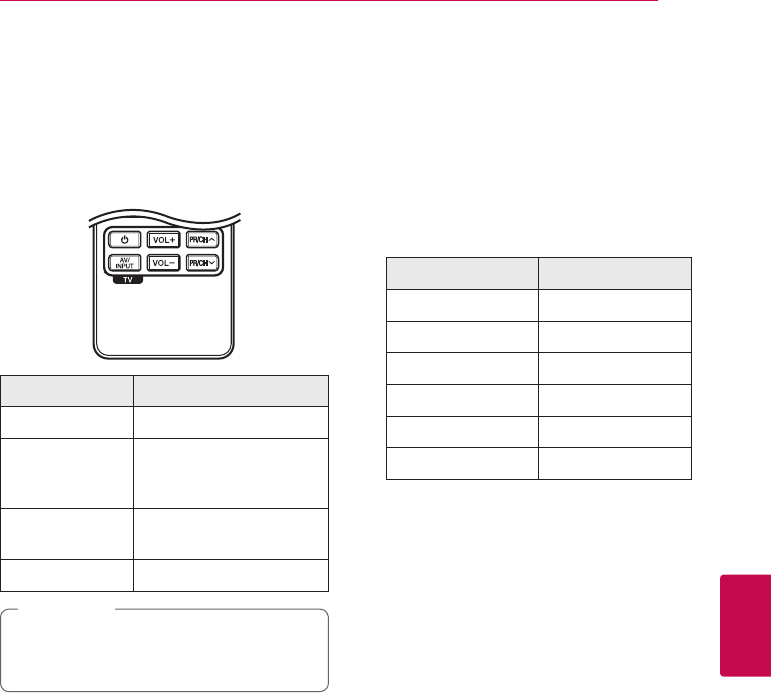

55 Controlling a TV with the Supplied

Remote Control

55 – Setting up the remote to control your

TV

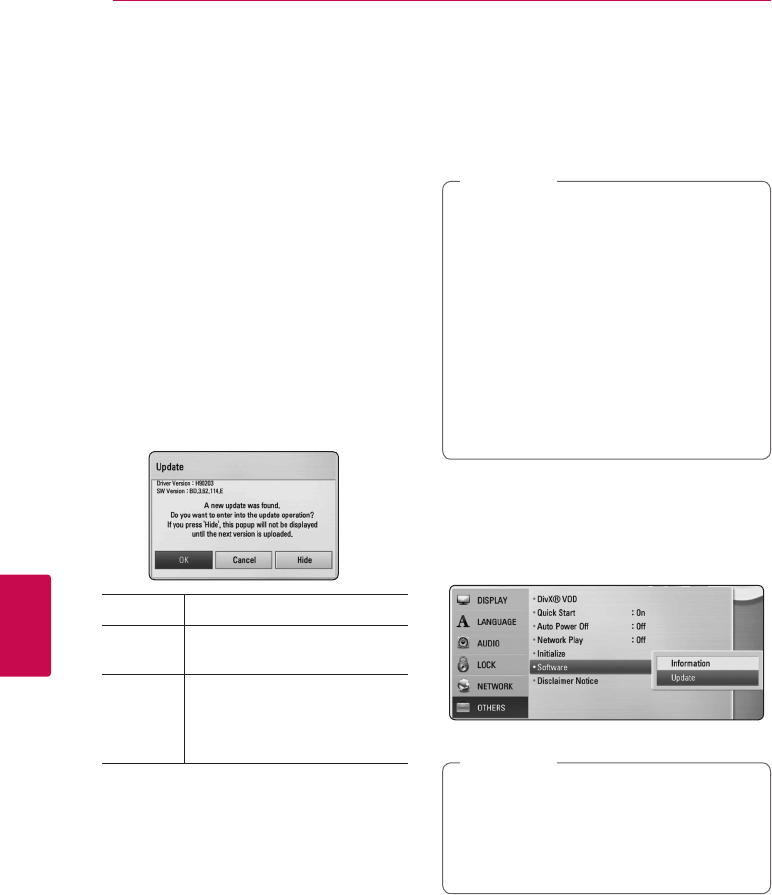

56 Network Software Update

56 – Network update notification

56 – Software Update

58 About Nero MediaHome 4 Essentials

58 – Installing Nero MediaHome 4

Essentials

59 – Sharing files and folders

60 Area Code List

61 Language code List

62 Trademarks and Licenses

64 Audio Output Specifications

66 Video Output Resolution

67 Specifications

68 Maintenance

68 – Handling the Unit

68 – Notes on Discs

69 Important Information Relating to

Network Services

Getting Started8

Getting Started

1

Introduction

Playable Discs and symbols used in this manual

Media/Term Logo Symbol Description

Blu-ray

e

yDiscs such as movies that can be purchased or

rented.

y“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

yBD-R/RE discs that are recorded in BDAV format.

y

u

i

yBD-R/RE discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(8 cm, 12 cm)

r

yDiscs such as movies that can be purchased or

rented.

yVideo mode and nalized only

ySupports the dual layer disc also

oFinalized AVCHD format

y

u

i

yDVD±R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

DVD-RW (VR)

(8 cm, 12 cm) rVR mode and nalized only

Audio CD

(8 cm, 12 cm) tAudio CD

CD-R/RW

(8 cm, 12 cm)

y

u

i

yCD-R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Note –,Indicates special notes and operating features.

Caution –>Indicates cautions for preventing possible damages

from abuse.

Getting Started 9

Getting Started

1

yDepending on the conditions of the

recording equipment or the CD-R/RW (or

DVD±R/RW) disc itself, some CD-R/RW (or

DVD±R/RW) discs cannot be played on the

unit.

yDepending on the recording software & the

nalization, some recorded discs (CD-R/RW,

DVD±R/RW, BD-R/RE) may not be playable.

yBD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a

DVD or CD Recorder may not play if the

disc is damaged or dirty, or if there is dirt or

condensation on the player’s lens.

yIf you record a disc using a personal

computer, even if it is recorded in a

compatible format, there are cases in which

it may not play because of the settings of

the application software used to create the

disc. (Check with the software publisher for

more detailed information.)

yThis player requires discs and recordings to

meet certain technical standards in order to

achieve optimal playback quality.

yPre-recorded DVDs are automatically set to

these standards. There are many dierent

types of recordable disc formats (including

CD-R containing MP3 or WMA les) and

these require certain pre-existing conditions

to ensure compatible playback.

yCustomers should note that permission

is required in order to download MP3 /

WMA les and music from the Internet.

Our company has no right to grant such

permission. Permission should always be

sought from the copyright owner.

yYou have to set the disc format option

to [Mastered] in order to make the discs

compatible with the LG players when

formatting rewritable discs. When setting

the option to Live System, you cannot use

it on LG player. (Mastered/Live File System :

Disc format system for windows Vista)

, Note About the “7” Symbol Display

“7” may appear on your TV display during

operation and indicates that the function explained

in this owner’s manual is not available on that

specic media.

Getting Started10

Getting Started

1

File requirement

Video files

File

Location

File

Extension Codec Format Audio Format Subtitle

Disc,

USB

“.avi”, “.divx”,

“.mpg”, “.mpeg”,

“.mkv”, “.mp4”,

“.asf”, “.wmv”,

“.m4v” (DRM

free)

DIVX3.xx, DIVX4.xx,

DIVX5.xx, DIVX6.xx

(standard playback

only), XVID, MPEG1 SS,

H.264/MPEG-4 AVC,

MPEG2 PS, MPEG2 TS,

VC-1 SM (WMV3)

Dolby Digital,

DTS, MP3,

WMA, AAC,

AC3

SubRip (.srt / .txt), SAMI (.smi),

SubStation Alpha (.ssa/.txt),

MicroDVD (.sub/.txt), VobSub

(.sub), SubViewer 1.0 (.sub),

SubViewer 2.0 (.sub/.txt), TMPlayer

(.txt), DVD Subtitle System (.txt)

DLNA, PC

“.avi”, “.divx”,

“.mpg”, “.mpeg”,

“.mkv”, “.mp4”,

“.asf”, “.wmv”,

DIVX3.xx, DIVX4.xx,

DIVX5.xx, DIVX6.xx

(standard playback

only), XVID, MPEG1 SS,

H.264/MPEG-4 AVC,

MPEG2 PS, MPEG2 TS,

VC-1 SM (WMV3)

Dolby Digital,

DTS, MP3,

WMA, AAC,

AC3

SubRip (.srt / .txt), SAMI (.smi),

SubStation Alpha (.ssa/.txt),

MicroDVD (.sub/.txt), SubViewer

1.0 (.sub), SubViewer 2.0 (.sub/.

txt), TMPlayer (.txt), DVD Subtitle

System (.txt)

Audio files

File

Location

File

Extension Sampling Frequency Bitrate Note

Disc,

USB,

DLNA, PC

“mp3”, “.wma”,

“.wav”, “.m4a”

(DRM free)

within 32 - 48 kHz

(WMA), within 16 - 48

kHz (MP3)

within 20 - 320 kbps

(WMA), within 32 - 320

kbps (MP3)

Some wav les are

not supported on

this player.

Photo files

File

Location

File

Extension

Recommended

Size

Note

Disc,

USB,

DLNA, PC

“.jpg”, “.jpeg”,

“.png”,

Less than 4,000 x 3,000 x 24 bit/pixel

Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless

compression photo image les

are not supported.

Getting Started 11

Getting Started

1

yThe le name is limited to 180 characters.

yMaximum les/Folder: Less than 2000 (total

number of les and folders)

yDepending on the size and number of the

les, it may take several minutes to read the

contents on the media.

yFile compatibility may dier depending on

the server.

yBecause the compatibility on DLNA server

are tested on the bundle DLNA server (Nero

MediaHome 4 Essentials) environment, le

requirements and playback functions may

dier depending on media servers.

yThe le requirements on page 10 are not

always compatible. There may have some

restrictions by le features and media

server’s ability.

yPlaying a video subtitle les are only

available on share folder of a PC or DLNA

media server created by supplied Nero

MediaHome 4 Essentials software on this

player package.

yThe les from removable media such as USB

drive, DVD-drive etc. on your media server

may not be shared properly.

yThis unit cannot support the ID3 Tag

embedded MP3 le.

yThe total playback time of audio le

indicated on the screen may not correct for

VBR les.

yHD video les contained on the CD or USB

1.0/1.1 may not played properly.

Blu-ray Disc, DVD or USB 2.0 are

recommended to play back HD video les.

yThis player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. For a le

with higher level, the warning message will

appear on the screen.

yThis player does not support les that are

recorded with GMC*1 or Qpel*2.

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

, Note AVCHD (Advanced Video

Codec High Definition)

yThis player can playback AVCHD format discs.

These discs are normally recorded and used in

camcorders.

yThe AVCHD format is a high denition digital

video camera format.

yThe MPEG-4 AVC/H.264 format is capable of

compressing images at higher eciency than

that of the conventional image compressing

format.

yThis player can playback AVCHD discs using

“x.v.Color” format.

ySome AVCHD format discs may not play

depending on the recording condition.

yAVCHD format discs need to be nalized.

y“x.v.Color” oers a wider color range than normal

DVD camcorder discs.

About DLNA

This Player is a DLNA Certied digital media player

that can display and play movie, photo and music

content from your DLNA-compatible digital media

server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a

cross-industry organization of consumer electronics,

computing industry and mobile device companies.

Digital Living provides consumers with easy sharing

of digital media through your home network.

The DLNA certication logo makes it easy

to nd products that comply with the DLNA

Interoperability Guidelines. This unit complies with

DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or

other DLNA compatible device is connected to

this player, some setting changes of software or

other devices may be required. Please refer to the

operating instructions for the software or device for

more information.

Getting Started12

Getting Started

1

Certain System Requirements

For high denition video playback:

yHigh denition display that has COMPONENT or

HDMI input jacks.

yBD-ROM disc with high denition content.

yHDMI or HDCP capable DVI input on your display

device is required for some content (as specied

by disc authors).

For Dolby® Digital Plus, Dolby TrueHD and DTS-HD

multi-channel audio playback:

yAn amplier/receiver with a built-in (Dolby

Digital, Dolby Digital Plus, Dolby TrueHD, DTS or

DTS-HD) decoder.

yMain, center, surround speakers and subwoofer

as necessary for chosen format.

For playing les on your PC’s share folder via your

home network, the PC requires below.

yWindows® XP (Service Pack 2 or higher),

Windows Vista® (no Service Pack required)

Windows 7® (no Service Pack required)

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yNetwork environment: 100 Mb Ethernet, WLAN

yMore than 1 folder on your PC has to be shared.

Visit suppot link of your operating system for

more information on le share settings.

LG Remote

You can control this player with your iPhone

or Android phone via your home network. This

player and your phone must be connected to your

wireless network device such as access point.

Visit “Apple iTunes” or “Google Apps Marketplace” for

detailed information of “LG Remote”.

WOL (Wake On LAN)

Users can turn on this player using WOL embeded

utility on your personal computer or smartphone

via your home network. To use this feature, this

player must be connected to the WOL available

access point or router. Refer to the relevant manual

of the utility or network devices for more detailed

information.

Regional Code

This unit has a regional code printed on the rear of

the unit. This unit can play only BD-ROM or DVD

discs labeled same as the rear of the unit or “ALL”.

Compatibility Notes

yBecause BD-ROM is a new format, certain disc,

digital connection and other compatibility issues

are possible. If you experience compatibility

problems, please contact an authorized

Customer Service Center.

yThis unit allows you to enjoy functions such

as picture-in-picture, secondary audio and

Virtual packages, etc., with BD-ROM supporting

BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1/ Final Standard Prole). Secondary video and

audio can be played from a disc compatible with

the picture-in-picture function. For the playback

method, refer to the instructions in the disc.

yViewing high-denition content and up-

converting standard DVD content may require a

HDMI-capable input or HDCP-capable DVI input

on your display device.

ySome BD-ROM and DVD discs may restrict the

use of some operation commands or features.

yDolby TrueHD, Dolby Digital Plus and DTS-HD are

supported with maximum 7.1 channels if you

use HDMI connection for the audio output of the

unit.

yYou can use a USB device to store some disc

related information, including downloaded on-

line content. The disc you are using will control

how long this information is retained.

Getting Started 13

Getting Started

1

Battery Installation

Remove the battery cover on the

rear of the Remote Control, and

insert two R03 (size AAA) batteries

with 4 and 5 matched correctly.

• • • • • • a • • • • • •

1 (POWER): Switches the player

ON or OFF.

B (OPEN/CLOSE): Opens and

closes the disc tray.

0-9 numerical buttons: Selects

numbered options in a menu or

inputs letters in the keypad menu.

CLEAR: Removes a mark on the

search menu or a number when

setting the password.

REPEAT (h): Repeats a desired

section or sequence.

• • • • • • b • • • • •

c/v (SCAN): Searches

backward or forward.

C/V (SKIP): Goes to the

next or previous chapter / track /

le.

Z (STOP): Stops playback.

z (PLAY): Starts playback.

M (PAUSE): Pauses playback.

• • • • • • c • • • • •

HOME (n): Displays or exits the

[Home Menu].

MUSIC ID: When connected

to the network, can provide

information about the current

song while video playback.

INFO/DISPLAY (m): Displays or

exits On-Screen Display.

Direction buttons: Selects an

option in the menu.

ENTER (b): Acknowledges menu

selection.

BACK (x): Exits the menu or

resumes playback. The resume

play function may not work

depending on the BD-ROM disc.

TITLE/POP-UP: Displays the DVD

title menu or BD-ROM’s pop-up

menu, if available.

DISC MENU: Accesses menu on a

disc.

• • • • • • d • • • • •

Colored (R, G, Y, B) buttons:

Use to navigate BD-ROM menus.

They are also used for [MOVIE],

[PHOTO], [MUSIC], [Premium] and

[LG Apps] menu.

MARKER: Marks any point during

playback.

SEARCH: Displays or exits the

search menu.

ZOOM: Displays or exits the

[Zoom] menu.

TV Control Buttons: See page 55.

Remote control

Getting Started14

Getting Started

1

Front panel

a Disc Tray

b Display Window

c Remote Sensor

d B (OPEN/CLOSE)

e N (PLAY / PAUSE)

f Z (STOP)

g 1 (POWER) Button

h USB Port

Rear panel

a AC power cord

b LAN port

c HDMI OUT

d DIGITAL AUDIO OUT (OPTICAL)

e VIDEO OUT

f 2CH AUDIO OUT (Left/Right)

g COMPONENT VIDEO OUT (Y PB PR)

2 Connecting

Connecting 15

Connecting

2

Connecting to Your TV

Make one of the following connections, depending

on the capabilities of your existing equipment.

yHDMI connection (page 15)

yComponent Video connection (page 16)

yVideo connection (page 17)

yDepending on your TV and other

equipment you wish to connect, there are

various ways you could connect the player.

Use only one of the connections described

in this manual.

yPlease refer to the manuals of your TV,

Stereo System or other devices as necessary

to make the best connections.

yDo not connect the player’s AUDIO OUT

jack to the phono in jack (record player) of

your audio system.

yDo not connect your player via your VCR.

The image could be distorted by the copy

protection system.

, Note

HDMI Connection

If you have a HDMI TV or monitor, you can connect

it to this player using a HDMI cable (Type A, High

Speed HDMI™ Cable). Connect the HDMI jack on

the player to the HDMI jack on a HDMI compatible

TV or monitor.

Rear of the unit

TV

HDMI

cable

Set the TV’s source to HDMI (refer to TV’s Owner’s

manual).

Additional Information for HDMI

yWhen you connect a HDMI or DVI compatible

device make sure of the following:

-Try switching o the HDMI/DVI device and

this player. Next, switch on the HDMI/DVI

device and leave it for around 30 seconds,

then switch on this player.

-The connected device’s video input is set

correctly for this unit.

-The connected device is compatible with

720x480p, 1280x720p, 1920x1080i or

1920x1080p video input.

yNot all HDCP-compatible HDMI or DVI devices

will work with this player.

-The picture will not be displayed properly

with non-HDCP device.

16

Connecting

2

Connecting

yIf a connected HDMI device does not accept

the audio output of the player, the HDMI

device’s audio sound may be distorted or

may not output.

yWhen you use HDMI connection, you can

change the resolution for the HDMI output.

(Refer to “Resolution Setting” on page 17)

ySelect the type of video output from the

HDMI OUT jack using [HDMI Color Setting]

option on the [Setup] menu (see page 27).

yChanging the resolution when the

connection has already been established

may result in malfunctions. To solve the

problem, turn o the player and then turn it

on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to

black screen. In this case, check the HDMI

connection, or disconnect the HDMI cable.

yIf there are noises or lines on the screen,

please check the HDMI cable (length is

generally limited to 4.5 m(15 ft.)).

, Note

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s with

SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power O, etc.

Refer to the TV owner’s manual for the details of

SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as

shown above.

Depending on the disc type or playing status,

some SIMPLINK operation may dier from your

purpose or not work.

, Note

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on the

player to the corresponding input jacks on the TV

using component video cable. Connect the left and

right AUDIO OUT jacks of the player to the audio

left and right IN jacks on the TV using the audio

cables.

Component

video cable

Audio

cable

Rear of the unit

TV

When you use COMPONENT VIDEO OUT

connection, you can change the resolution for

the output. (Refer to “Resolution setting” on

page 17)

, Note

Connecting 17

Connecting

2

Video/Audio (Left/Right)

Connection

Connect the VIDEO OUT jack on the player to the

video in jack on the TV using a video cable. Connect

the left and right AUDIO OUT jacks of the player to

the audio left and right IN jacks on the TV using the

audio cables.

Rear of the unit

TV

Video/Audio cable

Resolution Setting

The player provides several output resolutions for

HDMI OUT and COMPONENT VIDEO OUT jacks. You

can change the resolution using [Setup] menu.

1. Press HOME (n).

2. Use A/D to select the [Setup] and press

ENTER (b). The [Setup] menu appears.

3. Use W/S to select [DISPLAY] option then

press D to move to the second level.

4. Use W/S to select the [Resolution] option

then press ENTER (b) to move to the third level.

5. Use W/S to select the desired resolution then

press ENTER (b) to conrm your selection.

yIf your TV does not accept the resolution

you have set on the player, you can set

resolution to 480p as follows:

1. Press B to open the disc tray.

2 Press Z (STOP) for more than 5 seconds.

ySince several factors aect the resolution of

video output, see “Video Output Resolution”

on page 66.

, Note

Connecting18

Connecting

2

Connecting to an

Amplifier

Make one of the following connections, depending

on the capabilities of your existing equipment.

yHDMI Audio connection (page 18)

yDigital Audio connection (page 19)

y2CH Analog Audio connection (page 19)

Since many factors aect the type of audio output,

see “Audio Output Specications” for details (pages

64).

About Digital Multi-channel sound

A digital multi-channel connection provides the

best sound quality. For this, you need a multi-

channel Audio/Video Receiver that supports one

or more of the audio formats supported by your

player. Check the logos on the front of the Audio/

Video receiver and the manual. (PCM Stereo, PCM

Multi-Ch, Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, DTS and/or DTS-HD)

Connecting to an Amplifier via

HDMI Output

Connect the player’s HDMI OUT jack to the

corresponding in jack on your amplier using a

HDMI cable.

HDMI cable

HDMI cable

TV

Receiver/Amplier

Rear of the unit

Connect the amplier’s HDMI output jack to HDMI

input jack on your TV using a HDMI cable if your

amplier has HDMI output jack.

You will need to activate the player’s digital output.

(See “[AUDIO] Menu” on pages 28)

Connecting 19

Connecting

2

Connecting to an Amplifier via

Digital Audio Output

Connect the player’s DIGITAL AUDIO OUT jack

to the corresponding in jack (OPTICAL) on your

amplier using an optional digital audio cable.

Optical

cable

Receiver/Amplier

Rear of the unit

You will need to activate the player’s digital output.

(See “[AUDIO] Menu” on pages 28.)

Connecting to an Amplifier via

2 Channel Audio Output

Connect the Left and Right 2CH AUDIO OUT jacks

on the player to the audio left and right in jacks

on your amplier, receiver, or stereo system using

audio cables.

Audio cable

Receiver/Amplier

Rear of the unit

Connecting20

Connecting

2

Connecting to your

Home Network

This player can be connected to a local area

network (LAN) via the LAN port on the rear panel or

the internal wireless module.

By connecting the unit to a broadband home

network, you have access to services such as

software updates, BD-Live interactivity and on-line

content services.

Wired network connection

Using a wired network provides the best

performance, because the attached devices

connect directly to the network and are not subject

to radio frequency interference.

Please refer to the documentation for your network

device for further instructions.

Connect the player’s LAN port to the corresponding

port on your Modem or Router using a

commercially available LAN or Ethernet cable.

yWhen plugging or unplugging the LAN

cable, hold the plug portion of the cable.

When unplugging, do not pull on the LAN

cable but unplug while pressing down on

the lock.

yDo not connect a modular phone cable to

the LAN port.

ySince there are various connection

congurations, please follow the

specications of your telecommunication

carrier or internet service provider.

yIf you want to access content from PCs

or DLNA servers, this player must be

connected to the same local area network

with them via a router.

, Note

Rear of the unit

Router

Broadband

service

PC and/or DLNA certied server

Connecting 21

Connecting

2

Wired Network Setup

If there is a DHCP server on the local area network

(LAN) via wired connection, this player will

automatically be allocated an IP address. After

making the physical connection, a small number of

home networks may require the player’s network

setting to be adjusted. Adjust the [NETWORK]

setting as follow.

Preparation

Before setting the wired network, you need to

connect the broadband internet to your home

network.

1. Select [Connection Setting] option in the

[Setup] menu then press ENTER (b).

2. The [Connection Setting] menu appear on the

screen. Use W/S to select the [Wired] and

press ENTER (b).

3. Use W/S/A/D to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using W/S/

A/D and numerical buttons. If you make a

mistake while entering a number, press CLEAR

to clear the highlighted part.

, Note

4. Select [OK] and press ENTER (b) to apply

network settings.

5. The player will ask you to test the network

connection. Select [OK] and press ENTER (b) to

complete the network connection.

6. If you select [Test] and press ENTER (b) at

step 5 above, the network connection status is

displayed on the screen.

You can also test it on the [Connection Status]

in the [Setup] menu.

Connecting22

Connecting

2

Wireless Network Connection

Another connection option is to use an Access Point

or a wireless router. The network conguration and

connection method may vary depending on the

equipment in use and the network environment.

This player is equipped with an IEEE 802.11n (Dual-

band, 5 GHz and 2.4 GHz band) wireless module,

which also supports the 802.11a/b/g standards.

For the best wireless performance, we recommend

using a IEEE 802.11n certied Wi-Fi network (access

point or wireless router).

Wireless

Communication

PC and/or

DLNA certied server

Access Point or

Wireless Router

Broadband

service

Refer to the setup instructions supplied with

your access point or wireless router for detailed

connection steps and network settings.

For best performance, a direct wired connection

from this player to your home network’s router or

cable/DSL modem is always the best option.

If you do chose to use the wireless option, note that

performance can sometimes be aected by other

electronic devices in the home.

Available frequency range and channels for

5 GHz band are listed as below. But, there

may have the dierences and restrictions

depending on the country. Try setting your

access point with other channel if you have

diculties in wireless network connection.

Area Frequency Range

North

America

5.15-5.25 GHz (ch. 36-48),

5.725-5.825 GHz (ch. 149-161),

5.825-5.850 GHz (ch.165)

Europe 5.15-5.25 GHz (ch. 36-48)

Others 5.15-5.25 GHz (ch. 36-48),

5.725-5.825 GHz (ch. 149-161),

5.825- 5.850 GHz (ch.165)

, Note

Wireless Network Setup

For the wireless network connection, the player

needs to be set up for network communication.

This adjustment can be done from the [Setup]

menu. Adjust the [NETWORK] setting as follow.

Setting up the access point or the wireless router

is required before connecting the player to the

network.

Preparation

Before setting the wireless network, you need to:

-connect the broadband internet to the wireless

home network.

-set the access point or wireless router.

-note the SSID and security code of the network.

1. Select [Connection Setting] option in the

[Setup] menu then press ENTER (b).

Connecting 23

Connecting

2

2. The [Connection Setting] menu appear on the

screen. Use W/S to select [Wireless] and press

ENTER (b).

3. Select [Yes] and press ENTER (b) to continue.

The new connection settings reset the current

network settings.

4. The player scans the all available access points

or wireless routers within range and display

them as a list. Use W/S to select an access

point or wireless router on the list, and then

press ENTER (b).

If you have security on your access point or

wireless router, verify that the WEP or WPA key

that was entered into the player matches the

router’s information exactly. You need to input

the security code as necessary.

yWEP security mode generally have 4 keys

available on an access point or wireless

router’s setting. If your access point or

wireless router use WEP security, enter the

security code of the key “No.1” to connect

on your home network.

yAn Access Point is a device that allows you

to connect to your home network wirelessly.

yIf your access point or wireless router

supports the PIN Code conguration

method based on WPS(Wi-Fi Protected

Setup), press yellow (Y) colored button and

note the code number on the screen. And

then, enter the PIN number on a setting

menu of your access point or wireless router

to connect. Refer to the documentation for

your network device.

, Note

[Manual] – Your access point may not be

broadcasting its access point name (SSID).

Check your router settings through your

computer and either set your router to

broadcast SSID, or manually enter the access

point name (SSID) in [Manual].

[Push Button] – If your access point or

wireless router that supports the Push Button

Conguration method, select this option and

press the Push Button on your access point or

wireless router within 120 counts. You do not

need to know the access point name (SSID) and

security code of your access point or wireless

router.

5. Use W/S/A/D to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using W/S/

A/D and numerical buttons. If you make a

mistake while entering a number, press CLEAR

to clear the highlighted part.

, Note

6. Select [OK] and press ENTER (b) to apply

network settings.

7. The player will ask you to test the network

connection. Select [OK] and press ENTER (b) to

complete the network connection.

8. If you select [Test] and press ENTER (b) at

step 7 above, the network connection status is

displayed on the screen. You can also test it on

the [Connection Status] in the [Setup] menu.

Connecting24

Connecting

2

Notes on Network Connection:

yMany network connection problems during

set up can often be xed by re-setting the

router or modem. After connecting the player

to the home network, quickly power o and/

or disconnect the power cable of the home

network router or cable modem. Then power on

and/or connect the power cable again.

yDepending on the internet service provider (ISP),

the number of devices that can receive internet

service may be limited by the applicable terms

of service. For details, contact your ISP.

yOur company is not responsible for any

malfunction of the player and/or the internet

connection feature due to communication

errors/malfunctions associated with your

broadband internet connection, or other

connected equipment.

yThe features of BD-ROM discs made available

through the Internet Connection feature are not

created or provided by our company, and our

company is not responsible for their functionality

or continued availability. Some disc related

material available by the Internet Connection

may not be compatible with this player. If you

have questions about such content, please

contact the producer of the disc.

ySome internet contents may require a higher

bandwidth connection.

yEven if the player is properly connected and

congured, some internet contents may not

operate properly because of internet congestion,

the quality or bandwidth of your internet service,

or problems at the provider of the content.

ySome internet connection operations may not

be possible due to certain restrictions set by the

Internet service provider (ISP) supplying your

broadband Internet connection.

yAny fees charged by an ISP including, without

limitation, connection charges are your

responsibility.

yA 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your

internet service does not allow for such a

connection, you will not be able to connect the

player.

yYou must use a Router to use xDSL service.

yA DSL modem is required to use DSL service and

a cable modem is required to use cable modem

service. Depending on the access method of and

subscriber agreement with your ISP, you may not

be able to use the internet connection feature

contained in this player or you may be limited

to the number of devices you can connect at

the same time. (If your ISP limits subscription to

one device, this player may not be allowed to

connect when a PC is already connected.)

yThe use of a “Router” may not be allowed or its

usage may be limited depending on the policies

and restrictions of your ISP. For details, contact

your ISP directly.

yThe wireless network operate at 2.4GHz

radio frequencies that are also used by other

household devices such as cordless telephone,

Bluetooth® devices, microwave oven, and can be

aected by interference from them.

yTurn o all unused network equipment in

your local home network. Some devices may

generate network trac.

yFor the purpose of the better transmission,

placing the player from the access point as close

as possible.

yIn some instances, placing the access point or

wireless router at least 0.45 m (1.5 ft.) above the

oor may improve the reception.

yMove closer to the access point if possible or re-

orient the player so there is nothing between it

and the access point.

yThe reception quality over wireless depends on

many factors such as type of the access point,

distance between the player and access point,

and the location of the player.

ySet your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not

supported.

Connecting 25

Connecting

2

USB device connection

This player can play video, audio and photo les

contained in the USB device.

Playback content in the USB

device

1. Insert a USB device to the USB port until it ts

into place.

When you connect the USB device on the HOME

menu, the player plays an audio le contained in

the USB storage device automatically. If the USB

storage device is containing various types of les, a

menu for the le type selection will appear.

File loading may takes few minutes depending on

the number of content stored in the USB storage

device. Press ENTER (b) while [Cancel] is selected

to stop loading.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using A/D,

and press ENTER (b).

4. Select the [USB] option using W/S, and press

ENTER (b).

5. Select a le using W/S/A/D, and press

PLAY or ENTER (b) to play the le.

6. Withdraw the USB device carefully.

yThis player supports USB ash drive/

external HDD formatted in FAT16, FAT32 and

NTFS when accessing les (audio, photo,

video). However, for BD-Live and Audio CD

recording, only FAT16 and FAT32 formats

are supported. Use the USB ash drive/

external HDD formatted in either FAT16 or

FAT32 when using BD-Live and Audio CD

recording.

yThe USB device can be used for the local

storage for enjoying BD-Live discs with

Internet.

yThis unit can support up to 8 partitions of

the USB device.

yDo not extract the USB device during

operation (play, etc.).

yA USB device which requires additional

program installation when you have

connected it to a computer, is not

supported.

yUSB device: USB device that supports

USB1.1 and USB2.0.

yVideo, audio and photo les can be played.

For details of operations on each le, refer

to relevant pages.

yRegular back up is recommended to

prevent data loss.

yIf you use a USB extension cable, USB HUB

or USB Multi-reader, the USB device may not

be recognized.

ySome USB device may not work with this

unit.

yDigital camera and mobile phone are not

supported.

yUSB Port of the unit cannot be connected

to PC. The unit cannot be used as a storage

device.

, Note

3 System Setting

System Setting26

System Setting

3

Settings

Adjust the Setup Settings

You can change the settings of the player in the

[Setup] menu.

1. Press HOME (n).

2. Use A/D to select the [Setup] and press

ENTER (b). The [Setup] menu appears.

3. Use W/S to select the rst setup option, and

press D to move to the second level.

4. Use W/S to select a second setup option, and

press ENTER (b) to move to the third level.

5. Use W/S to select a desired setting, and press

ENTER (b) to conrm your selection.

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV

type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars

above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected.

Displays pictures cropped to ll your TV screen.

Both sides of the picture are cut o.

[16:9 Original]

Select when a 16:9 wide TV is connected. The

4:3 picture is displayed with an original 4:3

aspect ratio, with black bars appearing at the

left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The

4:3 picture is adjusted horizontally (in a linear

proportion) to ll the entire screen.

You cannot select [4:3 Letter Box] and

[4:3 Pan Scan] option when the resolution is

set to higher than 720p.

, Note

27

System Setting

3

Resolution

Sets the output resolution of the Component and

HDMI video signal. Refer to page 17 and 66 for details

about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to

TVs providing display information (EDID),

automatically selects the resolution best suited

to the connected TV.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[480p]

Outputs 480 lines of progressive video.

[480i]

Outputs 480 lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select

[24 Hz] for smooth presentation of lm material

(1080p/24 Hz) with a HDMI-equipped display

compatible with 1080p/24 Hz input.

yWhen you select [24 Hz], you may

experience some picture disturbance when

the video switches video and lm material.

In this case, select [60 Hz].

yEven when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with

1080p/24 Hz, the actual frame frequency of

the video output will be 60 Hz to match the

video source format.

, Note

HDMI Color Setting

Select the type of output from the HDMI OUT jack.

For this setting, please refer to the manuals of your

display device.

[YCbCr]

Select when connecting to a HDMI display

device.

[RGB]

Select when connecting to a DVI display

device.

Wallpaper

Changes the background of the initial screen.

3D Mode

Select the type of output mode for Blu-ray 3D disc

playback.

[O]

Blu-ray 3D disc playback will output as 2D

mode like a normal BD-ROM disc playback.

[On]

Blu-ray 3D disc playback will output as 3D

mode.

Home Menu Guide

This function allows you to display or delete the

guide bubble on the Home Menu. Set this option

to [On] for displaying guide.

System Setting

System Setting28

System Setting

3

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and on-

screen display.

Disc Menu/Disc Audio/

Disc Subtitle

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the

disc was recorded.

[Other]

Press ENTER (b) to select another language.

Use number buttons then press ENTER (b)

to enter the corresponding 4-digit number

according to the language code list on page 61.

[O] (Disc Subtitle only)

Turn o Subtitle.

Depending on the disc, your language setting

may not work.

, Note

[AUDIO] Menu

Each disc has a variety of audio output options. Set

the player’s Audio options according to the type of

audio system you use.

Since many factors aect the type of audio

output, see “Audio Output Specications” on

page 64 for details.

, Note

HDMI / Digital Output (SPDIF)

[PCM Stereo]

Select if you connect this unit’s HDMI OUT or

DIGITAL AUDIO OUT jack to a device with two-

channel digital stereo decoder.

[PCM Multi-Ch] (HDMI only)

Select if you connect this unit’s HDMI OUT jack

to a device with multi-channel digital decoder.

[DTS Re-Encode]

Select if you connect this unit’s HDMI OUT or

DIGITAL AUDIO OUT jack to a device with DTS

decoder.

[Primary Pass-Thru]

Select if you connect this unit’s DIGITAL AUDIO

OUT and HDMI OUT jack to a device with

LPCM, Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, DTS and DTS-HD decoder.

yWhen [HDMI] option is set to [PCM Multi-

Ch], the audio may output as PCM Stereo

if the PCM Multi-Ch information is not

detected from HDMI device with EDID.

yIf the [HDMI] or [Digital Output (SPDIF)]

option is set to [DTS Re-Encode], the DTS

Re-Encode audio is outputted for BD-ROM

discs with secondary audio and the original

audio is outputted for the other discs (like

[Primary Pass-Thru]).

, Note

System Setting 29

System Setting

3

Sampling Freq.

(Digital Audio Output)

[192 kHz]

Select this if your A/V Receiver or Amplier is

capable of handling 192 kHz signals.

[96 kHz]

Select this if your A/V Receiver or Amplier is

not capable of handling 192 kHz signals. When

this choice is made, this unit

automatically converts any 192 kHz signals to

96 kHz so your system can decode them.

[48 kHz]

Select this if your A/V Receiver or Amplier is

not capable of handling 192 kHz and 96 kHz

signal. When this choice is made, this unit

automatically converts any 192 kHz and 96 kHz

signals to 48 kHz so your system can decode

them.

Check the documentation for your A/V Receiver or

Amplier to verify its capabilities.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a

lower volume without losing clarity of sound.

[O]

Turns o this function.

[On]

Compress the dynamic range of the Dolby

Digital, Dolby Digital Plus or Dolby TrueHD

audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio

output is specied by itself.

And the dynamic range of the Dolby Digital

and Dolby Digital Plus are operated as same as

the [On] mode.

The DRC setting can be changed only when a

disc is not inserted or the unit is in complete

stop mode.

, Note

DTS Neo:6

If the player is connected to the multi-channel

Audio Receiver by HDMI connection, set this option

to enjoy the multi-channel surround sound with

the 2-channel audio source.

[O]

Outputs the stereo sound via front speakers.

[Music]

Outputs the multi-channel sounds that are

optimized for listening to music.

[Cinema]

Outputs the multi-channel sounds that are

optimized for watching movie.

yThis function is not available on an on-line

service.

yOnly the audio source with less than 48

kHz sampling frequency is available for this

function.

yThis function is available only when [HDMI]

option is set to [PCM Multi-Ch].

, Note

System Setting30

System Setting

3

[LOCK] Menu

The [LOCK] settings aect only CinemaNow movie,

Blu-ray Disc and DVD playback.

To access the any features in [LOCK] settings, you

must enter the 4-digit security code you have

created.

If you have not entered a password yet, you are

prompted to do so. Enter a 4-digit password twice,

and press ENTER (b) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press

ENTER (b) to create a new password.

[Change]

Enter the current password and press ENTER

(b). Enter a 4-digit password twice, and press

ENTER (b) to create a new password.

If you forget your password

If you forget your password, you can clear it using

the following steps:

1. Remove any disc that might be in the player.

2. Select [Password] option in the [Setup] menu.

3. Use Number buttons to enter “210499”. The

password is cleared.

If you make a mistake before pressing ENTER

(b), press CLEAR. Then input the correct

password.

, Note

DVD Rating

Blocks playback of rated DVD based on their

content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and

rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not

active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number

buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding

ratings recorded on them.

yThe [Blu-ray Disc Rating] will be applied

only for the Blu-ray disc that containing the

Advanced Rating Control.

yFor the region using MPAA rating level, refer

to the table below as an example.

Blu-ray Disc Rating MPAA Rating

0 G

8 PG

13 PG-13

17 R

18 NC-17

255 Not restricted

, Note

Area Code

Enter the code of the area whose standards were

used to rate the DVD video disc, based on the list

on page 60.

System Setting 31

System Setting

3

[NETWORK] Menu

The [NETWORK] settings are needed to use the

software update, BD-Live and on-line content

services.

Connection Setting

If your home network environment is ready to

connect the player, the player needs to be set the

wired or wireless network connection for network

communication. (See “Connecting to your Home

Network” on pages 20.)

Connection Status

If you want to check the network status on this

player, select the [Connection Status] options and

press ENTER (b) to check whether a connection

to the network and the internet have been

established.

Wi-Fi Direct

This player is a Wi-Fi Direct™ certied device. Wi-Fi

Direct™ is the technology that devices to connect

each other without connecting to an Access point

or a router. Set this option to [On] for activating the

Wi-Fi Direct™ mode. Refer to page 37 for the device

connection.

BD-LIVE connection

You can restrict Internet access when BD-Live

functions are used.

[Permitted]

Internet access is permitted for all BD-Live

contents.

[Partially permitted]

Internet access is permitted only for BD-

Live contents which have content owner

certicates. Internet access and AACS Online

functions are prohibited for all BD-Live contents

without a certicate.

[Prohibited]

Internet access is prohibited for all BD-Live

contents.

Netflix

[Netix ESN]

Display its unique Netix ESN (Electronic Serial

Number) that allows you to use the Netix

streaming.

[Deactivate Netix]

Deactivates your player. To activate the Netix

again, contact to the service provider.

Deactivate Vudu

You can deactivate your player from your Vudu

account. It is recommended that you do this if you

give your player to someone else who should not

share your Vudu account.

Premium/LG Apps

[Country Setting]

Select your area for displaying proper services

and contents on the [Premium] and [LG Apps]

feature.

[ID Management]

Displays the [ID Management] menu. You can

manage IDs that ever logged-in on this unit.

[Registration Code]

Display the unique code of this player for

servicing [Premium] and [LG Apps] feature.

System Setting32

System Setting

3

[OTHERS] Menu

DivX® VOD

ABOUT DIVX VIDEO: DivX® is a digital video format

created by DivX, Inc. This is an ocial DivX Certied®

device that plays DivX video. Visit divx.com for more

information and software tools to convert your les

into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certied® device must be registered in order to play

purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX

VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete

your registration.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the

deactivation code.

All the downloaded videos from DivX VOD

with this player’s registration code can only be

played back on this unit.

, Note

Quick Start

This player can stay in standby mode with low

power consumption, so that the player can

instantly boot without delay when you turn on this

unit. Set this option to [On] for activating [Quick

Start] function.

If [Quick Start] option is set to [On] and an

AC power is acceidently re-connected to

the player by power failure etc., the player

automatically boots itself to be the standby

status. Before operating the player, wait for a

while until the player is in standby status.

, Note

Auto Power Off

The screen saver appears when you leave the

player in Stop mode for about ve minutes. If

you set this option to [On], the unit automatically

turns o within 25 minutes since the Screen Saver

is displayed. Set this option to [O] to leave the

screen saver until the unit is operated by the user.

Network Play

This function allows you to control the playback

of media streamed from DLNA media server by a

DLNA certied smartphone. Most DLNA certied

smartphone has a function to control the playback

media on your home network. Set this option to

[On] for allowing your smartphone to control this

unit. Refer to instructions of your DLNA certied

smartphone or the application for more detailed

information.

yThis unit and the DLNA Certied

Smartphone must be connected to the

same network.

yTo use the [Network Play] function using a

DLNA certied smartphone, press HOME

(n) to display the home menu before

connecting to this unit.

yWhile controlling the unit using the

[Network Play] function, the remote control

may not work.

yAvailable le formats described on page 10

are not always supported on [Network Play]

function.

, Note

System Setting 33

System Setting

3

Initialize

[Factory Set]

You can reset the player to its original factory

settings.

[Blu-ray Storage Clear]

Initializes the BD-Live contents from the

connected USB storage.

If you reset the player to its original factory

settings using [Factory Set] option, you have

to set all the activation for the on-line services

and network settings again.

, Note

Software

[Information]

Displays the current software version.

[Update]

You can update the software by connecting

the unit directly to the software update server

(see page 56).

Disclaimer Notice

Press ENTER (b) to view the notice of Network

Service Disclaimer.

4 Operating

Operating34

Operating

4

General Playback

Using [HOME] menu

The home menu appears when you press HOME

(n). Use W/S/A/D to select a category and

press ENTER (b).

Depending on the region, the LG Apps service

may not be available at the moment. The

service will become available in these regions

through at software update.

, Note

a[Movie] - Plays video contents.

b[Photo] - Plays photo contents.

c[Music] - Plays audio contents.

d[Premium] - Displays the Premium Home

screen.

e[LG Apps] - Displays the [LG Apps] screen.

f[Setup] - Adjusts the system settings.

g[Search] - This function will be updated later.

h[LG Apps] - Displays the [LG Apps] screen.

i[Favorite Apps] - Shortcut for user’s favorite

Apps.

j[My Apps] - Display the [My Apps] screen.

Playing a Disc

ert

1. Press B (OPEN/CLOSE), and place a disc on the

disc tray.

2. Press B (OPEN/CLOSE) to close the disc tray.

For the most Audio CD, BD-ROM and

DVD-ROM discs, playback starts automatically.

3. Press HOME (n).

4. Select [Movie] or [Music] using A/D, and press

ENTER (b).

5. Select [Blu-ray Disc], [DVD], [VR] or [Audio]

option using W/S, and press ENTER (b).

yPlayback functions described in this manual

are not always available in every les and

media. Some functions can be restricted

depending on many factors.

yDepending on the BD-ROM titles, a USB

device connection may be needed for the

proper playback.

yUnnalized DVD VR format discs may not be

played in this player.

ySome DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot

support these kinds of discs.

, Note

Playing a file on disc/USB

device

yui

This player can play video, audio and photo les

contained in the disc or USB device.

1. Insert a data disc on the tray or connect a USB

device.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using A/D,

and press ENTER (b).

4. Select [Data] or [USB] option using W/S, and

press ENTER (b).

5. Select a le using W/S/A/D, and press

d(PLAY) or ENTER (b) to play the le.

Operating 35

Operating

4

Playing Blu-ray 3D disc

e

This player can play the Blu-ray 3D discs which

contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in

stereoscopic 3D mode, you need to:

y

Check your TV is 3D capable and has HDMI

input(s).

y Wear 3D glasses to enjoy the 3D experience

if it is necessary.

y

Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

y

Connect an HDMI cable (Type A, High

Speed HDMI™ Cable) between the player’s

HDMI output and TV’s HDMI input.

1. Press HOME (n), and set the [3D Mode] option

on the [Setup] menu to [On] (page 27).

2. Press B (OPEN/CLOSE), and place a disc on the

disc tray.

3. Press B (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

4. Refer to the owner’s manual of your 3D-ready

TV for the further instruction.

You may need to adjust the display settings and

focus on your TV’s setting for the improved 3D

eect.

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a movie

in 3D mode for inrm, child and pregnant

woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing contents in 3D,

it is strongly recommended to stop the

playback and rest until you feel normal.

>Caution

Enjoying BD-Live™

e

BD-ROM supporting BD-Live (BD-ROM version 2

Prole 2) that has a network extension function

allows you to enjoy more functions such as

downloading new movie trailers by connecting this

unit to the internet.

1. Check the network connection and settings

(page 20).

2. Insert a USB storage device to the USB port on

the front panel.

A USB storage device is needed to download

bonus content.

3. Press HOME (n), and set the [BD-LIVE

connection] option on the [Setup] menu (page

31).

Depending on a disc, the BD-Live function may

not be operated if [BD-LIVE connection] option

is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations are dier depending on the disc.

Refer to the manual supplied with the disc.

Do not extract the connected USB device

while content is being downloaded or a Blu-

ray disc is still in the disc tray. Doing so may

damage the connected USB device and BD-

Live features may not operate properly with

the damaged USB device anymore. If the

connected USB device seems damaged from

such an action, you can format the connected

USB device from the PC and reuse it with this

player.

>Caution

ySome BD-Live contents may be restrictively

accessed in some territories by contents

provider’s own decision.

yIt may take up to several minutes to load

and start enjoying BD-Live contents.

, Note

36

Operating

4

Operating

Playing a file on a network

server

yui

This player can play video, audio and photo les

located in a PC or a DLNA server through your

home network.

1. Check the network connection and settings

(page 20).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using A/D,

and press ENTER (b).

4. Select a DLNA media server or a share folder

on your PC on the list using W/S, and press

ENTER (b).

If you want to rescan available media server,

press the green (G) colored button.

5. Select a le using W/S/A/D, and press

ENTER (b) to play the le.

yThe le requirements are described on page

10.

yThe thumbnail of the unplayable les can

be displayed, but those cannot be played

on this player.

yThe subtitle le name and video le name

have to be the same and located at the

same folder.

yThe playback and operating quality may be

aected by your home network condition.

yYou may experience connection problems

depending on your server’s environment.

, Note

Entering a network user ID and the

password

Depending on your PC’s environment, you may

need to enter a network user ID and the password

for accessing a shared folder.

1. The keyboard menu appears automatically if the

network user ID and the password are required.

2. Use W/S/A/D to select a character then

press ENTER (b) to conrm your selection on

the virtual keyboard.

To enter a letter with an accent mark, press

INFO/DISPLAY (m) to display the extended

character set.

[Cancel] – Clear all entered characters.

[Space] – Inserts a space at the cursor position.

[<–] – Deletes the previous character at the

cursor position.

[ABC / abc / #+-=&] – Change the keyboard

menu settings to capital letters, small letters or

symbols.

3. When you nish entering the network user ID

and password, select [OK] using W/S/A/D

and press ENTER (b) to access the folder.

The network user ID and password will be

remembered after accessing the folder for your

convenience. If you do not want the network user

ID and password to be remembered, press red (R)

colored button to un-tick the [Remember] check

box before accessing the folder.

Operating 37

Operating

4

Wi-Fi Direct™ Connection

Connecting to a Wi-Fi Direct™

certified device

yui

This player can play movie, music and photo les

located in a Wi-Fi Direct™ certied device. The Wi-Fi

Direct™ technology make the player to be directely

connected to a Wi-Fi Direct™ certied device

without connecting to a network device such as an

access point.

1. Set the [Wi-Fi Direct] option on the [Setup]

menu to [On] (page 31).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using A/D,

and press ENTER (b).

4. Select [Wi-Fi Direct] option using W/S, and

press ENTER (b).

5. Select a Wi-Fi Direct™ device on the list using

W/S, and press ENTER (b).

Wi-Fi Direct™ connection will be automatically

proceeded.

If the Wi-Fi Direct™ device supports the PIN

Code conguration method based on WPS(Wi-

Fi Protected Setup), select a device on the list

and press yellow (Y) coloured button. Note the

PIN number on the screen. And then, enter the

PIN number on a setting menu of the device to

connect.

If you want to rescan available Wi-Fi Direct™

device, press the green (G) coloured button.

6. Select a server that shared from the connected

Wi-Fi Direct™ device using W/S, and press

ENTER (b) to navigate the server.

To select a server from the device list, les or

folders must be shared by DLNA server from the

connected Wi-Fi Direct™ device.

7. Select a le using W/S/A/D, and press

ENTER (b) to play the le.

yFor the purpose of the better transmission,

placing the player from the Wi-Fi Direct™

certied server as close as possible.

yThis unit can connect only 1 device at a

time. Multiple connection is not available.

yIf you try to connect wireless network while

a device is connected by Wi-Fi Direct™

function , Wi-Fi Direct™ connection will be

force disconnected.

yIf this player and a Wi-Fi Direct™ device

are connected to the dierent local area

network, Wi-Fi Direct™ connection may not

available.

, Note

Operating38

Operating

4

Connecting to a Wi-Fi available

devices

yui

This player can connect to a general Wi-Fi device

using Wi-Fi Direct™ function.

1. Set the [Wi-Fi Direct] option on the [Setup]

menu to [On] (page 31).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using A/D,

and press ENTER (b).

4. Select [Wi-Fi Direct] option using W/S, and

press ENTER (b).

5. Press red (R) coloured button to display the

[SSID], [Security Option] and [Encription] of the

player.

6. On your Wi-Fi device, make a network

connection to this player, using [Network name

(SSID)], [Security Option] and [Encription] at

step 5 above.

7. Press BACK (x) twice to display the device list.

8. Select a server that shared from the connected

Wi-Fi device using W/S, and press ENTER (b)

to navigate the server.

To select a server from the device list, les or

folders must be shared by DLNA server from the

connected device.

9. Select a le using W/S/A/D, and press

ENTER (b) to play the le.

Operating 39

Operating

4

Basic operations for video and

audio content

To stop playback

Press Z (STOP) while playback.

To pause playback

Press M (PAUSE) while playback.

Press d (PLAY) to resume playback.

To play frame-by-frame (Video)

Press M (PAUSE) while movie playback.

Press M (PAUSE) repeatedly to play Frame-by-Frame

playback.

To scan forward or backward

Press c or v to play fast forward or fast reverse

during playback.

You can change the various playback speeds by

pressing c or v repeatedly.

To slow down the playing speed

While the playback is paused, press v repeatedly

to play various speeds of slow motion.

To skip to the next/previous

chapter/track/file

During playback, press C or V to go to the

next chapter/track/le or to return to the beginning

of the current chapter/track/le.

Press C twice briey to step back to the previous

chapter/track/le.

In the le list menu of a server, there may have

many types of contents in a folder together. In this

case, press C or V to go to the previous or

next content with same type.

Basic operations for photo

content

To play a slide show

Press d (PLAY) to start slide show.

To stop a slide show

Press Z (STOP) while slide show.

To pause a slide show

Press M (PAUSE) while slide show.

Press d (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press A or D

to go to the previous or next photo.

Using the disc menu

ero

To display the disc menu

The menu screen may be displayed rst after

loading a disc which contains a menu. If you want

to display the disc menu while playback, press DISC

MENU.

Use W/S/A/D buttons to navigate through

menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that

appears while playback.

Press TITLE/POPUP while playback, and use W/S/

A/D buttons to navigate through menu items.

Operating40

Operating

4

Resume playback

eroyt

u

The unit records the point where you pressed the

Z (STOP) depending on the disc.

If “MZ (Resume Stop)” appears on the screen briey,

press d (PLAY) to resume playback (from the scene

point).

If you press Z (STOP) twice or unload the disc,

“Z(Complete Stop)” appears on the screen. The unit

will clear the stopped point.

yThe resume point may be cleared when a

button is pressed (for example; 1 (POWER),

B (OPEN/CLOSE), etc).

yOn BD-ROM discs with BD-J, the resume

playback function does not work.

yIf you press Z (STOP) once during BD-ROM

interactive title playback, the unit will be in

Complete Stop mode .

, Note

Advanced Playback

Repeat Playback

erotu

During playback, press REPEAT (h) repeatedly to

select a desired repeat mode.

Blu-ray Disc / DVD

jA- – Selected portion will be repeated continually.

jChapter – The current chapter will be played

back repeatedly.

jTitle – The current title will be played back

repeatedly.

To return to normal playback, press REPEAT (h)

repeatedly to select [O ].

Audio CDs/Audio les

;Track– The current track or le will be played

back repeatedly.

:All – All the tracks or les will be played back

repeatedly.

l – The tracks or les will be played back in

random order.

l:All – All the tracks or les will be played

back repeatedly in random order.

kA-B – Selected portion will be repeated

continually. (Audio CD only)

To return to normal playback, press CLEAR.

yIf you press V once during Repeat

Chapter/Track playback, the repeat playback

cancels.

yThis function may not work on some disc or

title.

, Note

Operating 41

Operating

4

Repeating a specific portion

erot

This player can repeat a portion you have selected.

1. While playback, press REPEAT (h) to select

[A-] at the beginning of the portion you wish to

repeat.

2. Press ENTER (b) at the end of the portion. Your

selected portion will be repeated continually.

3. To return to normal playback, press REPEAT

(h) repeatedly to select [O ].

yYou cannot select a portion less than 3

seconds.

yThis function may not work on some disc or

title.

, Note

Enlarge the playback image

eroyi

1. During playback or pause mode, press ZOOM to

display the [Zoom] menu.

2. Use red (R) or green (G) colored button to zoom

out or in the picture. You can move through the

zoomed picture using W/S/A/D buttons.

3. To return to the normal picture size, press yellow

(Y) colored button.

4. Press BACK (x) to exit the [Zoom] menu.

Marker Search

eroy

You can start playback from up to nine memorized

points.

To enter a marker

1. While playback, press MARKER at the desired

point. The Marker icon appears on the TV screen

briey.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on

the screen.

2. Press a number button to select a marker

number that you want to recall. Playback starts

from the marked scene.

To delete a Marker

1. Press SEARCH and the search menu appears on

the screen.

2. Press S to highlight a marker number.

Use A/D to select a marked scene that you

want to delete.

3. Press CLEAR and the marked scene is erased

from the search menu.

yThis function may not work depending on

discs, titles, server ability.

yAll marked points are cleared if the title

is in complete stop (Z) mode, the title is

changed or if you unload the disc.

yIf the total length of the title is less than 10

seconds, this function is not available.

, Note

Operating42

Operating

4

Using the search menu

eroy

Using search menu, you can easily to nd the point

where you want to start playback.

To search a point

1. During playback, press SEARCH to display the

search menu.

2. Press A/D to skip the playback 15 seconds

forward or backward. You can select a point that

you want to skip by pressing and holding A/

D button.

To start playback from a marked

scene

1. Press SEARCH and the search menu appears on

the screen.

2. Press S to highlight a marker number. Use A/

D to select a marked scene that you want to

start playback.

3. Press ENTER (b) to start playback from the

marked scene.

yThis function may not work depending on

discs, titles, server ability.

yThis function may not work depending on

the le type and ability of the media server.

, Note

Changing content list view

yui

On the [Movie], [Music] or [Photo] menu, you can

change the content list view.

Method 1

Press red (R) colored button repeatedly.

Method 2

1. On the content list, press INFO/DISPLAY (m) to

display the option menu.

2. Use W/S to select the [View Change] option.

3. Press ENTER (b) to change the content list

view.

Operating 43

Operating

4

Viewing content information

y

The player can display the content information.

1. Select a le using W/S/A/D.

2. Press INFO/DISPLAY (m) to display the option

menu.

3. Select the [Information] option using W/S,

and press ENTER (b).

The le information appears on the screen.

While movie playback, you can display the le

information by pressing TITLE/POPUP.

The information displayed on the screen

may not correct comparing actual content

information.

, Note

Selecting a subtitle file

y

If the subtitle le name is dierent from the video

le name, you need to select the subtitle le on the

[Movie] menu before playing the movie.

1. Use W/S/A/D to select the subtitle le you

wish to play in the [Movie] menu.

2. Press ENTER (b).

Press ENTER (b) again to deselect the subtitle

le. Selected subtitle le will be displayed when

you play the video le.

yIf you press Z (STOP) while playback, the

subtitle selection is cancelled.

yThis function is not available for playing le

on a server via home network.

, Note

Last Scene Memory

er

This unit memorizes the last scene from the last disc

that is viewed. The last scene remains in memory

even if you remove the disc from the unit or switch

o the unit. If you load a disc that has the scene

memorized, the scene is automatically recalled.

yLast Scene Memory function for a previous

disc is erased once a dierent disc is played.

yThis function may not work depending on

the disc.

yOn BD-ROM discs with BD-J, the last scene

memory function does not work.

yThis unit does not memorize settings of

a disc if you switch o the unit before

commencing to play it.

, Note

Applying your photo to the

Wallpaper

You can apply your photo to the wallpaper.

1. Press HOME (n).

2. Select [Photo] using A/D, and press ENTER

(b).

3. Select [Data] or [USB] option using W/S, and

press ENTER (b).

4. Select a photo le, and press INFO/DISPLAY (m)

to display the option menu.

5. Use W/S to select [Wallpaper], and press

ENTER (b) to apply.

The photo will be set as [Wallpaper 5] on the

[Setup] menu.

Operating44

Operating

4

Options while viewing a photo

i

You can use various options during viewing a

photo in full screen.

1. While viewing a photo in full screen, press INFO/

DISPLAY (m) to display the option menu.

2. Select an option using W/S.

aCurrent photo/Total number of photos

– Use A/D to view previous/next photo.

bSlide Show – Press ENTER (b) to start or

pause slide show.

cMusic Select – Select the background

music for the slide show (page 44).

dMusic –Press ENTER (b) to start or pause

background music.

eRotate – Press ENTER (b) to rotate the

photo clockwise.

fZoom – Press ENTER (b) to display the

[Zoom] menu.

gEect – Use A/D to select a transition

eect between photos in a slide show.

hSpeed – Use A/D to select a delaying

speed between photos in a slide show.

3. Press BACK(x) to exit the option menu.

Listening to music while slide

show

i

You can display photo les while listening to audio

les.

1. While viewing a photo in full screen, press INFO/

DISPLAY (m) to display the option menu.

2. Use W/S to select [Music Select] option, and

press ENTER (b) to display the [Music Select]

menu.

3. Use W/S to select a device, and press ENTER

(b).

Device that you can select are dier depending

on the location of the photo le you are

displaying in full screen.

Photo location Available Device

Disc, USB Disc, USB

Share Folder (PC) Share Folder (PC)

DLNA server DLNA server

4. Use W/S to select a le or a folder you wish to

play.

Select g and press ENTER (b) to display the

upper directory.

When selecting audio le from a server, folder

selection is not available. Only le selection is

available.

, Note

5. Use D to select [OK], and press ENTER (b) to

complete music selection.

Operating 45

Operating

4

On-Screen display

You can display and adjust various information and

settings about the content.

Displaying content information

on-screen

eroy

1. While playback, press INFO/DISPLAY (m) to

show various playback information.

aTitle – current title number/total number of

titles

bChapter – current chapter number/total

number of chapters

cTime – elapsed playing time/total playback

time

dAudio – selected audio language or channel

eSubtitle – selected subtitle.

fAngle – selected angle/total number of

angles

gTV Aspect Ratio – selected TV aspect Ratio

hPicture Mode – selected picture mode

iMovie Information – Select this option and

press ENTER (b) to display movie information

from Gracenote Media Database (BD-ROM/

DVD only).

2. Select an option using W/S.

3. Use A/D to adjust the selected option value.

4. Press BACK(x) to exit the On-Screen display.

yIf no button is pressed for a few seconds,

the on-screen display disappears.

yA title number cannot be selected on some

discs.

yAvailable items may dier depending on

discs or titles.

yIf an interactive Blu-ray Disc is playing back,

some setting information is displayed on

the screen but prohibited to be changed.

yTo use the [Movie Information] option, the

player must be connected to the broadband

internet for accessing the Gracenote Media

Database.

yLG is a licensee of Gracenote technology

and is not responsible or liable for

information from the Gracenote Media

Database.

, Note

Operating46

Operating

4

Playing from selected time

eroy

1. Press INFO/DISPLAY (m) during playback. The

time search box shows the elapsed playing

time.

2. Select the [Time] option and then input the

required start time in hours, minutes, and

seconds from left to right.

For example, to nd a scene at 2 hours, 10

minutes, and 20 seconds, enter “21020”.

Press A/D to skip the playback 60 seconds

forward or backward.

3. Press ENTER (b) to start playback from selected

time.

yThis function may not work on some disc or

titles.

yThis function may not work depending on

the le type and ability of the DLNA server.

, Note

Hearing a different audio

eroy

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [Audio] option.

3. Use A/D to select desired audio language,

audio track or audio channel.

ySome discs allow you to change audio

selections only via the disc menu. In this

case, press TITLE/POP-UP or DISC MENU

button and choose the appropriate audio

from the selections on the disc menu.

yImmediately after you have switched sound,

there may be a temporary discrepancy

between the display and actual sound.

yOn BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH]

in the on-screen display.

, Note

Selecting a subtitle language

eroy

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [Subtitle] option.

3. Use A/D to select desired subtitle language.

4. Press BACK(x) to exit the On-Screen display.

Some discs allow you to change subtitle

selections only via the disc menu. If this is the

case, press TITLE/POPUP or DISC MENU button

and choose the appropriate subtitle from the

selections on the disc menu.

, Note

Watching from a different

angle

er

If the disc contains scenes recorded at dierent

camera angles, you can change to a dierent

camera angle during playback.

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [Angle] option.

3. Use A/D to select desired angle.

4. Press BACK(x) to exit the On-Screen display.

Operating 47

Operating

4

Changing the TV Aspect Ratio

eroy

You can change the TV aspect ratio setting while

playback.

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [TV Aspect Ratio]

option.

3. Use A/D to select desired option.

4. Press BACK(x) to exit the On-Screen display.

Even if you change the value of the [TV Aspect

Ratio] option in On-Screen display, the [TV

Aspect Ratio] option in the [Setup] menu is

not changed.

, Note

Changing subtitle code page

y

If the subtitle is displayed in broken letter, you can

change the subtitle code page to view the subtitle

le properly.

1. During playback, press INFO/DISPLAY (m) to

display the playback menu.

2. Use W/S to select the [Code Page] option.

3. Use A/D to select desired code option.

4. Press BACK(x) to exit the On-Screen display.

Changing the Picture Mode

eroy

You can change the [Picture mode] option while

playback.

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [Picture Mode] option.

3. Use A/D to select desired option.

4. Press BACK(x) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/DISPLAY (m) to

display the On-Screen display.

2. Use W/S to select the [Picture Mode] option.

3. Use A/D to select the [User setting] option,

and press ENTER (b).

4. Use W/S/A/D to adjust the [Picture Mode]

options.

Select [Default] option then press ENTER (b) to

reset the all video adjustments.

5. Use W/S/A/D to select the [Close] option,

and press ENTER (b) to nish setting.

Operating48

Operating

4

Audio CD Recording

You can record one desired track or all of the tracks

in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on

the front panel.

2. Press B (OPEN/CLOSE), and place an Audio CD

on the disc tray.

Press B (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

3. Press INFO/DISPLAY (m) to display the option

menu.

4. Use W/S to select [CD Recording] option, and

press ENTER (b).

5. Use W/S to select a track you wish to copy on

the menu, and press ENTER (b).

Repeat this step to select tracks as many as you

can.

Selects all the tracks on an

Audio CD.

Selects an encoding option

from the pop-up menu

(128kbps, 192kbps, 320kbps or

Lossless).

Cancels the recording and

returns to the previous screen.

6. Use W/S/A/D to select [Start], and press

ENTER (b).

7. Use W/S/A/D to select a destination folder

to be copied.

If you want to create a new folder, use

W/S/A/D to select [New Folder] and press

ENTER (b).

Enter a folder name using virtual keyboard, and

press ENTER (b) while [OK] is selected.

8. Use W/S/A/D to select [OK], and press

ENTER (b) to start Audio CD recording.

If you want to stop in progressing Audio CD

recording, press ENTER (b) while [Cancel] is

highlighted.

9. A message appears when Audio CD recording is

completed. Press ENTER (b) to check the audio

le created in the destination folder.

yThe table below shows the average

recording time from an audio track with 4

minutes of playback time to an audio le

with 192 kbps as an example.

stop mode while playback

1.4 min. 2 min.

yRecording times in the table above are

approximate.

yActual recording time for USB storage

device varies depending on the USB storage

device’s ability.

yMake sure that there is minimum of 50 MB

free space is needed when recording into

the USB storage device.

yThe length of the audio should be longer

than 20 seconds for the proper recording.

yDo not turn o this player or extract the

connected USB storage device during Audio

CD recording.

, Note

The recording or copying features on this

player are provided for your personal and

non-commercial use. The making of

unauthorized copies of copy-protected

material, including computer programs, les,

broadcasts and sound recordings, may be an

infringement of copyrights and constitute a

criminal oense. This equipment should not be

used for such purposes. LG expressly disclaims

any responsibility for illegal distribution or

use of unauthorized content in commercial

purpose.

Be Responsible

Respect Copyrights

>Caution

Operating 49

Operating

4

Viewing information

from Gracenote Media

Database

The player can access the Gracenote Media

Database and loads the music information so that

Track name, Artist Name, Genre and other text

information can be displayed on the list.

Audio CD

When you insert an Audio CD, the player starts

playback automatically and load the music title

from the Gracenote Media Database.

If there is no music information from the database,

music titles will not appear on the screen.

Audio file

1. Select an audio le or audio track using W/S/

A/D.

2. Press INFO/DISPLAY (m) to display the option

menu.

3. Select the [Information] option using W/S,

and press ENTER (b).

The player accesses to Gracenote Media

Database for the music information.

Blu-ray Disc/DVD/Video file

While listening to a music from the movie being

played, press MUSIC ID to start loading the music

information from the Gracenote Media Database.

yThe player must be connected to the

broadband internet for accessing the

Gracenote Media Database.

yIf the music information is not in the

Gracenote Media Database, message

appears on the screen.

yDepending on the cases, it will takes a few

minutes to load music information from the

Gracenote Media Database.

yInformation may be displayed in broken

letters, if the language you selected is not

available on the Gracenote Media Database.

yThis function is not available for on-line

content and content in DLNA servers.

yLG is a licensee of Gracenote technology

and is not responsible or liable for

information from the Gracenote Media

Database.

yAudio CDs that users made for their only

private purposes cannot be supported in

this feature because they are not in the

Gracenote Media Database.

, Note

Operating50

Operating

4

Using the Premium

You can use various content services via Internet

with the Premium feature.

1. Check the network connection and settings

(page 20).

2. Press HOME (n).

3. Select the [Premium] using A/D, and press

ENTER (b).

4. Select an on-line service using W/S/A/D,

and press ENTER (b).

yDetailed information of each service,

contact to the content provider or visit

suppot link of the service.

yThe content of Premium services and

service related information, including user

interface, is subject to changes. Please refer

to the web site of each service for most up-

to-date information.

yUsing Premium features with wireless

network connection may result in improper

streaming speed by interference from

household devices that are using radio

frequencies.

yWhen you are rst time to access [Premium]

or [LG Apps] feature, current country setting

appears. If you want to change the country

setting, select [Edit] and press ENTER (b).

, Note

Using the LG Apps

You can use the LG application services on

this player via Internet. You can easily nd and

download various applications from LG App store.

Depending on the region, the LG Apps service

may not be available at the moment. The

service will become available in these regions

through at software update.

1. Check the network connection and settings

(page 20).

2. Press HOME (n).

3. Select the [LG Apps] using A/D, and press

ENTER (b).

4. Select a category using A/D, and press ENTER

(b).

5. Use W/S/A/D to select an application, and

press ENTER (b) to display the information.

6. Press ENTER (b) while [Install] icon is

highlighted. The application will be installed to

the player.

To install an application to the player, user needs

to sign in. Refer to page 51 for more information

of signning in.

7. Press yellow (Y) colored button to display the

[My Apps] screen.

8. Select the installed application and press ENTER

(b) to excute it.

To install a paid application, you need to be

a paid member. Visit www.lgappstv.com for

more information.

, Note

Operating 51

Operating

4

Signing in

To use the [LG Apps] feature, you need to sign in

with your account.

1. On the [LG Apps] or [My Apps] screen, press red

(R) colored button.

2. Fill the [ID] and [Password] eld using the virtual

keyboard.

If you do not have an account, press red (R)

colored button to register.

3. Use W/S/A/D to select [OK], and press

ENTER (b) to sign in with your account.

If you select the [Auto Sign In] check box,

your ID and password are remembered and

automatically signed in without entering them.

yIf you want to sign in with other account,

press red (R) colored button on [LG Apps] or

[My Apps] screen, and select [Change User]

option.

yTo view the information of your account and

applications, press red (R) colored button on

[LG Apps] or [My Apps] screen, and select

[Account Setting] option.

, Note

Managing my Apps

You can move or delete an installed application in

the [My Apps] menu.

Move an application

1. Select an application, and press green (G)

colored button to display the options.

2. Use W/S to select [Move], and press

ENTER(b).

3. Use W/S/A/D to select a position you want

to move to, and press ENTER (b).

Delete an application

1. Select an application, and press green (G)

colored button to display the options.

2. Use W/S to select [Delete], and press

ENTER(b).

3. Use A/D to select [Yes], and press ENTER (b)

to conrm.

5 Troubleshooting

Troubleshooting52

Troubleshooting

5

Troubleshooting

General

Symptom Cause & Solution

The Power does not turned on.

yPlug the power cord into the wall outlet securely.

The unit does not start

playback.

yInsert a playable disc. (Check the disc type, color system, and regional

code.)

yPlace the disc with the playback side down.

yPlace the disc on the disc tray correctly inside the guide.

yClean the disc.

yCancel the Rating function or change the rating level.

The angle cannot be changed.

yMulti-angles are not recorded on the DVD Video being played.

Cannot play video, photo or

audio les.

yThe les are not recorded in a format that the unit can play.

yThe unit does not support the codec of the video le.

The remote control does not

work properly.

yThe remote control is not pointed at the remote sensor of the unit.

yThe remote control is too far from the unit.

yThere is an obstacle in the path of the remote control and the unit.

yThe batteries in the remote control are exhausted.

The unit is plugged in, but the

power will not turn on or o.

You can reset the unit as follows.

1. Press and hold the POWER button for at least ve seconds. This will

force the unit to power o then turn the unit back on.

2. Unplug the power cord, wait at least ve seconds, and then plug it in

again.

The unit is not operating

normally.

53

Troubleshooting

5

Troubleshooting

Network

Symptom Cause & Solution

BD-Live feature does not work.

yThe connected USB storage may not have enough space. Connect

the USB storage with at least 1GB free space.

yEnsure that the unit is correctly connected to the local area network

and can access the internet (see page 20).

yYour broadband speed may not fast enough to use the BD-Live

features. Contact your Internet Service Provider (ISP) and increase the

broadband speed is recommended.

yThe [BD-LIVE connection] option in the [Setup] menu is set to

[Prohibited]. Set the option to [Permitted].

Streaming video services (such

as YouTube™, etc.) are often

stopped or “buer” during

playback.

yYour broadband service speed may not be fast enough to stream

video services. Contact your Internet Service Provider (ISP) and

increase the broadband speed is recommended.

Shared folder or les from your

PC or a media server are not

displayed on the device list..

yThe rewall or anti-virus software on your media server is running.

Turn o the rewall or anti-virus software running on your PC or

media server.

yThe player is not connected to the local area network that your PC or

the media server are connected.

Cannot connect the player to

the access point or wireless

LAN router.

yThe wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from

them.

Access point is not displayed

on the “Access point name” list.

yThe access point or wireless LAN router may not broadcast its SSID.

Set your access point to broadcast its SSID through your computer.

yYour network device such as access point may not set with available

frequency range and channel that this player can support.

Try setting the frequency range and channel on the network device

setting.

Troubleshooting54

Troubleshooting

5


Symptom Cause & Solution

There is no picture.

ySelect the appropriate video input mode on the TV so the picture

from the unit appears on the TV screen.

yConnect the video connection securely.

yCheck the [HDMI Color Setting] in the [Setup] menu is set to the

appropriate item that conforms to your video connection.

yYour TV may not support the resolution you have set on the player.

Change the resolution that your TV accepts.

yThe player’s HDMI OUT jack is connected to a DVI device that does

not support copyright protection.

Picture noise appears

yYou are playing a disc recorded in a colour system that is dierent

from your TV.

ySet the resolution which your TV accepts.

Blu-ray 3D disc playback does

not output 3D views.

yConnect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable).

yYour TV may not support “HDMI 3D mandatory format”.

yThe [3D Mode] option in the [Setup] menu is set to [O ].

Set the option to [On].

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new

features. To obtain the latest software for this player (if updates have been made), please visit

http://us.lgservice.com or contact LG Electronics customer care center.

Open source software notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit

http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are

available to download with the source code.

6 Appendix

Appendix 55

Appendix

6

Controlling a TV with

the Supplied Remote

Control

You can control your TV using the buttons below.

By pressing You can

1 (TV POWER) Turn the TV on or o.

AV/INPUT

Switch the TV’s input source

between the TV and other

input sources.

PR/CH W/S Scan up or down through

memorized channels.

VOL +/– Adjust the volume of the TV

Depending on the unit being connected, you

may not be able to control your TV using some

of the buttons.

, Note

Setting up the remote to

control your TV

You can operate your TV with the supplied remote

control.

If your TV is listed in the table below, set the

appropriate manufacturer code.

1. While holding down 1 (TV POWER) button,

and press the manufacturer code for your

TV with the numerical buttons (see the table

below).

Manufacturer Code Number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the 1 (TV POWER) button to complete

setting.

Depending on your TV, some or all buttons may not

function on the TV, even after entering the correct

manufacturer code. When you replace the batteries

of the remote, the code number you have set may

be reset to the default setting. Set the appropriate

code number again.

Appendix56

Appendix

6

Network Software

Update

Network update notification

From time to time, performance improvements

and/or additional features or services may be

made available to units that are connected to a

broadband home network. If there is new software

available and the unit is connected to a broadband

home network, the player will inform you about the

update as follows.

Option 1:

1. The update menu will appear on the screen

when you turn on the player.

2. Use A/D to select a desired option and then

press ENTER (b).

[OK] Starts the software update.

[Cancel] Exits the update menu and

displays it next booting.

[Hide] Exits the update menu and

it does not appear until next

software is uploaded in the

update server.

Option 2:

If the software update is available from the update

server, the “Update” icon appears in the Home

menu. Press blue (B) colored button to start the

update procedure.

Software Update

You can update the player using the latest software

to enhance the products operation and/or add

new features. You can update the software by

connecting the unit directly to the software update

server.

yBefore updating the software in your player,

remove any disc and USB Device from the

player.

yBefore updating the software in your player,

turn the player o and then turn it back on.

yDuring the software update procedure,

do not turn o the player or disconnect

AC power, or do not press any button.

yIf you cancel the update, turn o the power

and turn it on for stable performance.

yThis unit cannot be updated to previous

software version.

, Note

1. Check the network connection and settings

(page 20).

2. Select [Software] option in the [Setup] menu

then press ENTER (b).

3. Select [Update] option, and press ENTER (b).

The player will check for the newest update.

yPressing ENTER (b) while checking for the

update will end the process.

yIf there is no update available, the Message,

“No update is found.” appears. Press ENTER

(b) to return to the [Home Menu].

, Note

Appendix 57

Appendix

6

4. If newer version exists, the message “Do you

want to update?” appears.

5. Select [OK] to start update. (Selecting [Cancel]

will end the update.)

Do not turn o the power during the software

update.

>Caution

If the software includes the driver update, disc

tray may open during the process.

, Note

6. When update is completed, the message,

“Update is complete.” will appear, and then

power will turn o automatically after 5

seconds.

7. Turn the power back on. The system now

operates with the new version.

The Software Update function may not

work properly depending on your internet

environment. In this case, you can obtain

the latest software from the authorized LG

Electronics Service Center then update your

player. Refer to “Customer Support” on page 54.

, Note

Appendix58

Appendix

6

About Nero

MediaHome 4

Essentials

Nero MediaHome 4 Essentials is a software for

sharing video, audio and photo les stored on your

computer to this player as a DLNA-compatiable

digital media server.

yThe Nero MediaHome 4 Essentials CD-

ROM is designed for PCs and should not

be inserted in this player or in any product

other than a PC.

yThe supplied Nero MediaHome 4 Essentials

CD-ROM is a customized software edition

only for sharing les and folders to this

player.

yThe supplied Nero MediaHome 4 Essentials

software does not support following

functions: Transcoding, Remote UI, TV

control, Internet services and Apple iTunes

yThis manual explains operations with

the English version of Nero MediaHome

4 Essentials as examples. Follow the

explanation referring to the actual

operations of your language version.

, Note

Installing Nero MediaHome 4

Essentials

Before you install Nero MediaHome 4 Essentials,

check the system requirement shown below.

yWindows® XP (Service Pack 2 or higher), Windows

Vista® (no Service Pack required), Windows® XP

Media Center Edition 2005 (Service Pack 2 or

higher), Windows Server® 2003

yWindows Vista® 64-bit edition (application runs

in 32-bit mode)

yWindows® 7 64-bit edition (application runs in

32-bit mode)

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome stand-

alone

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yMemory: 256 MB RAM

yGraphics card with at least 32 MB video memory,

minimum resolution of 800 x 600 pixels, and 16-

bit color settings

yWindows® Internet Explorer® 6.0 or higher

yDirectX® 9.0c revision 30 (August 2006) or higher

yNetwork environment: 100 Mb Ethernet, WLAN

Start up your computer, and insert the supplied CD-

ROM disc into your computer’s CD-ROM drive. An

installation wizard will walk you through the quick

and uncomplicated installation process. To install

Nero MediaHome 4 Essentials, proceed as follows:

1. Close all Microsoft Windows programs and exit

any anti-virus software that may be running.

2. Insert the supplied CD-ROM disc into your

computer’s CD-ROM drive.

3. Click [Nero MediaHome 4 Essentials].

4. Click [Run] to start installation.

5. Click [Nero MediaHome 4 Essentials]. The

installation is prepared and the installation

wizard appears.

6. Click the [Next] button to display the serial

number input screen. Click [Next] to go to the

next step.

Appendix 59

Appendix

6

7. If you accept all conditions, click [I accept

the License Conditions] check box and click

[Next]. Installation is not possible without this

agreement.

8. Click [Typical] and click [Next]. The installation

process is started.

9. If you want to take part in the anonymous

collection of data, select the check box and click

the [Next] button.

10. Click the [Exit] button to complete the

installation.

Sharing files and folders

On your computer, you must share the folder

contained video, audio and/or photo content to

play them on this player.

This parts explains the procedure for selecting the

shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials”

icon on the desktop.

2. Click [Network] icon on the left and dene your

network name in the [Network name] eld. The

Network name you enter will be recognized by

your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares] screen.

5. Click [Add] icon to open the [Browse Folder]

window.

6. Select the folder containing the les you want

to share. The selected folder is added to the list

of shared folders.

7. Click [Start Server] icon to start the server.

yIf the shared folders or les are not displayed

on the player, click the folder on the [Local

Folders] tab and click [Rescan Folder] at the

[More] button.

yVisit www.nero.com for more information

and software tools

, Note

Appendix60

Appendix

6

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian

Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix 61

Appendix

6

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio],

[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar 6565

Afrikaans 6570

Albanian 8381

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laotian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Appendix62

Appendix

6

Trademarks and

Licenses

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™,

BONUSVIEW™ and the logos are trademarks of

the Blu-ray Disc Association.

“DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

Java and all Java-based trademarks and logos

are trademarks or registered trademarks of Sun

Microsystems, Inc. in the United States and other

countries.

HDMI, the HDMI logo and High-Denition

Multimedia Interface are trademarks or registered

trademarks of HDMI licensing LLC.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent

#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,226,616; 6,487,535; 7,212,872; 7,333,929;

7,392,195; 7,272,567 & other U.S. and worldwide

patents issued & pending. DTS and the symbol

are registered trademarks, & DTS-HD, DTS-HD

Master Audio, and the DTS logos are trademarks

of DTS, Inc. Product includes software. © DTS, Inc.

All Rights Reserved.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are

trademarks, service marks, or certication marks

of the Digital Living Network Alliance.

The Wi-Fi CERTIFIED Logo is a certication mark

of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a trademark of

the Wi-Fi Alliance.

“x.v.Color” is a trademark of Sony Corporation.

“AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

Appendix 63

Appendix

6

DivX®, DivX Certied® and associated logos

are trademark of DivX, Inc., and are used under

license.

Gracenote®, Gracenote logo and logotype,

and the “Powered by Gracenote” logo are

either registered trademarks or trademarks of

Gracenote, Inc. in the United States and/or other

countries.

Music recognition technology and related data

are provided by Gracenote®.

Portions of the content is copyright © Gracenote

or its providers.

Gracenote® End User License Agreement

This application or device contains software from

Gracenote, Inc. of Emeryville, California

(“Gracenote”). The software from Gracenote (the

“Gracenote Software”) enables this application to

perform disc and/or le identication and obtain

music-related information, including name, artist,

track, and title information (“Gracenote Data”) from

online servers or embedded databases (collectively,

“Gracenote Servers”) and to perform other

functions. You may use Gracenote Data only by

means of the intended End-User functions of this

application or device.

You agree that you will use Gracenote Data, the

Gracenote Software, and Gracenote Servers for

your own personal non-commercial use only. You

agree not to assign, copy, transfer or transmit the

Gracenote Software or any Gracenote Data to any

third party. YOU AGREE NOT TO USE OR EXPLOIT

GRACENOTE DATA, THE GRACENOTE SOFTWARE,

OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY

PERMITTED HEREIN.

You agree that your non-exclusive license to use

the Gracenote Data, the Gracenote Software, and

Gracenote Servers will terminate if you violate

these restrictions. If your license terminates, you

agree to cease any and all use of the Gracenote

Data, the Gracenote Software, and Gracenote

Servers. Gracenote reserves all rights in Gracenote

Data, the Gracenote Software, and the Gracenote

Servers, including all ownership rights. Under

no circumstances will Gracenote become liable

for any payment to you for any information that

you provide. You agree that Gracenote, Inc. may

enforce its rights under this Agreement against you

directly in its own name.

The Gracenote service uses a unique identier to

track queries for statistical purposes. The purpose

of a randomly assigned numeric identier is to

allow the Gracenote service to count queries

without knowing anything about who you are.

For more information, see the web page for the

Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of

Gracenote Data are licensed to you “AS IS.”

Gracenote makes no representations or warranties,

express or implied, regarding the accuracy of any

Gracenote Data from in the Gracenote Servers.

Gracenote reserves the right to delete data from

the Gracenote Servers or to change data categories

for any cause that Gracenote deems sucient. No

warranty is made that the Gracenote Software or

Gracenote Servers are error-free or that functioning

of Gracenote Software or Gracenote Servers will

be uninterrupted. Gracenote is not obligated to

provide you with new enhanced or additional data

types or categories that Gracenote may provide in

the future and is free to discontinue its services at

any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND

NON-INFRINGEMENT. GRACENOTE DOES NOT

WARRANT THE RESULTS THAT WILL BE OBTAINED

BY YOUR USE OF THE GRACENOTE SOFTWARE

OR ANY GRACENOTE SERVER. IN NO CASE WILL

GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL

OR INCIDENTAL DAMAGES OR FOR ANY LOST

PROFITS OR LOST REVENUES.

© Gracenote, Inc. 2009

Appendix64

Appendix

6

Audio Output Specifications

*1 The secondary and interactive audio may

not be included in the output bitstream if

[Digital Output (SPDIF)] or [HDMI] option is set

to [Primary Pass-Thru]. (Except LPCM Codec

: the output always include interactive and

secondary audio.)

*2 This player automatically selects the HDMI audio

according to the decoding capability of the

connected HDMI device even though [HDMI]

option is set to [Primary Pass-Thru].

*3 The [PCM Multi-CH]/[Primary Pass-Thru]

setting of the [HDMI] option and [DTS re-

encode] setting of the [Digital Output (SPDIF)]

option cannot be set together. If you set them

together, the [HDMI] or [Digital Output (SPDIF)]

option is set to [PCM Stereo] automatically.

*4 On the PCM audio output, the sampling

frequency of DIGITAL AUDIO OUT is limited to

96 kHz.

*5 If the [HDMI] or [Digital Output (SPDIF)] option

is set to [DTS re-encode], the audio output is

limited to 48 kHz and 5.1Ch. If the [HDMI] or

[Digital Output (SPDIF)] option is set to [DTS re-

encode], the DTS Re-encode audio is outputted

for BD-ROM discs, and the original audio is

outputted for the other discs (like [Primary Pass-

Thru]).

yIf [HDMI] option is set to [PCM Multi-CH] and

[Digital Output (SPDIF)] option is set to [Primary

Pass-Thru] while playback Dolby Digital Plus or

TrueHD audio, DIGITAL AUDIO OUT is limited to

“PCM 2ch”.

yIf the HDMI OUT jack is connected to your TV

with High Speed HDMI™ Cable and Dolby Digital

Plus/Dolby TrueHD is outputted from HDMI OUT

jack, DIGITAL AUDIO OUT jack is limited to “PCM

2ch” (When the HDMI and DIGITAL AUDIO OUT

are connected simultaneously).

Jack/Setting

Source

Analog

2CH Output

Digital Output (SPDIF) (DIGITAL AUDIO OUT)

*

4

PCM Stereo DTS Re-encode

*

3

*

5Primary Pass-Thru

Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 2ch DTS Dolby Digital

Dolby TrueHD PCM 2ch PCM 2ch DTS Dolby Digital

AAC PCM 2ch PCM 2ch DTS AAC

DTS PCM 2ch PCM 2ch DTS DTS

DTS-HD PCM 2ch PCM 2ch DTS DTS

Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 7.1ch PCM 2ch PCM 2ch DTS PCM 2ch

Jack/Setting

Source

HDMI OUT

PCM Stereo PCM

Multi-Ch

*

3

DTS Re-encode

*

3

*

5Primary Pass-Thru

*

1

*

2

*

3

Dolby Digital PCM 2ch PCM 5.1ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 7.1ch DTS Dolby Digital Plus

Dolby TrueHD PCM 2ch PCM 7.1ch DTS Dolby TrueHD

AAC PCM 2ch PCM 5.1ch DTS AAC

DTS PCM 2ch PCM 5.1ch DTS DTS

DTS-HD PCM 2ch PCM 7.1ch DTS DTS-HD

Linear PCM 2ch PCM 2ch PCM 2ch DTS Linear PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 5.1ch DTS Linear PCM 5.1ch

Linear PCM 7.1ch PCM 2ch PCM 7.1ch DTS Linear PCM 7.1ch

Appendix 65

Appendix

6

yThe audio is outputted as PCM 48 kHz/16 bit for

MP3/WMA le and PCM 44.1kHz/16 bit for Audio

CD while playback.

yThe Dolby TrueHD audio recorded on some Blu-

ray discs consists of Dolby Digital and TrueHD

audio. Dolby Digital audio is output through

DIGITAL AUDIO OUT jacks and “DD” displays on

the screen if TrueHD audio is not output (for

example, when [HDMI] is set to [PCM Stereo] and

[Digital Output (SPDIF)] is set to [Primary Pass-

Thru]).

yYou must select a digital audio output and

a maximum sampling frequency that your

Amplier (or AV receiver) accepts using [Digital

Output (SPDIF)], [HDMI] and [Sampling Freq.]

options on the [Setup] menu (see page 28).

yWith digital audio connection (DIGITAL AUDIO

OUT or HDMI), Disc Menu button sounds of BD-

ROM may not be heard if the [Digital Output

(SPDIF)] or [HDMI] option is set to [Primary Pass-

Thru].

yIf the audio format of the digital output does

not match the capabilities of your receiver, the

receiver will produce a strong, distorted sound

or no sound at all.

yMulti-channel Digital Surround Sound via digital

connection can only be obtained if your receiver

is equipped with a Digital Multi-channel decoder.

Appendix66

Appendix

6

Video Output Resolution

When the non-copy protected media is playing back

Video Out

Resolution HDMI OUT COMPONENT VIDEO OUT

HDMI connected HDMI disconnected

480i 480p 480i

480p 480p 480p

720p 720p 720p

1080i 1080i 1080i

1080p/24 Hz 1080p / 24 Hz 480i 1080i

1080p / 60 Hz 1080p / 60 Hz 480i 1080i

When the copy protected media is playing back

Video Out

Resolution HDMI OUT COMPONENT VIDEO OUT

480i 480p 480i

480p 480p 480i

720p 720p 480i

1080i 1080i 480i

1080p/24 Hz 1080p / 24 Hz 480i

1080p / 60 Hz 1080p / 60 Hz 480i

HDMI OUT connection

yIf you select a resolution manually and then

connect the HDMI jack to TV and your TV does

not accept it, the resolution setting is set to

[Auto].

yIf you select a resolution that your TV does not

accept, the warning message will appear. After

resolution change, if you cannot see the screen,

please wait 20 seconds and the resolution

will automatically revert back to the previous

resolution.

yThe 1080p video output frame rate may

be automatically set to either 24 Hz or 60

Hz depending both on the capability and

preference of the connected TV and based on

the native video frame rate of the content on the

BD-ROM disc.

COMPONENT VIDEO OUT

Connection

Blu-ray Disc, DVD, Netix or CinemaNow video

stream could prevent up-scaling on analog output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always

outputted at 480i resolution.

Appendix 67

Appendix

6

Specifications

General

Power requirements Refer to main label on the rear panel.

Power consumption 17 W

Dimensions (W x H x D) Approx. 430 x 49 x 202 mm (16.9 x 1.9 x 7.9 inches)

Net Weight (Approx.) 1.8 kg (4 lbs)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Outputs

VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector)

2CH AUDIO OUT 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL AUDIO OUT (OPTICAL) 3 V (p-p), Optical jack x 1

System

Laser Semiconductor laser

wavelength 405 nm / 650 nm

Signal system Standard NTSC color TV system

Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Signal-to-noise ratio More than 100 dB (ANALOG OUT connectors only)

Harmonic distortion Less than 0.008%

Dynamic range More than 95 dB

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Wireless LAN (internal antenna) Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless

networking access, compatible with 802.11a/b/g Wi-Fi networks.

Bus Power Supply (USB) DC 5 V 0 500 mA

yDesign and specications are subject to change without notice.

Appendix68

Appendix

6

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and

packing materials. If you need to ship the unit, for

maximum protection, re-pack the unit as it was

originally packed at the factory.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth lightly

moistened with a mild detergent solution. Do not

use strong solvents such as alcohol, benzine, or

thinner, as these might damage the surface of the

unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty

or worn, the picture quality could be diminished.

For details, please contact your nearest authorized

service center.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold

the disc by the edges so that ngerprints do not

get on the surface. Never stick paper or tape on the

disc.

Storing Discs

After playing, store the disc in its case. Do not

expose the disc to direct sunlight or sources of heat

and never leave it in a parked car exposed to direct

sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center to out.

Do not use strong solvents such as alcohol,

benzine, thinner, commercially available cleaners,

or anti-static spray intended for older vinyl records.

Appendix 69

Appendix

6

Important Information

Relating to Network

Services

All information, data, documents, communications,

downloads, les, text, images, photographs,

graphics, videos, webcasts, publications, tools,

resources, software, code, programs, applets,

widgets, applications, products and other content

(“Content”) and all services and oerings (“Services”)

provided or made available by or through any

third party (each a “Service Provider”) is the sole

responsibility of the Service Provider from whom it

originated.

The availability of and access to Content and

Services furnished by the Service Provider through

the LGE Device are subject to change at any time,

without prior notice, including, but not limited to

the suspension, removal or cessation of all or any

part of the Content or Services.

Should you have any inquiry or problem related

to the Content or Services, you may refer to the

Service Provider’s website for the most up-to-

date information. LGE is neither responsible nor

liable for customer service related to the Content

and Services. Any question or request for service

relating to the Content or Services should be made

directly to the respective Content and Service

Providers.

Please note that LGE is not responsible for any

Content or Services provided by the Service

Provider or any changes to, removal of, or cessation

of such Content or Services and does not warrant

or guaranty the availability of or access to such

Content or Services.
