ElectricandGasDryer

DLE0442W/DLG0452W

DLE0442S/DLG0452S

DLE5944WM/DLG5955WM

;2W

Dryer.

irefully, as it provides instructions

Maintenance.

]umbers, and retain the

at http://us.lge.com

P/No.: 3828EL4001H

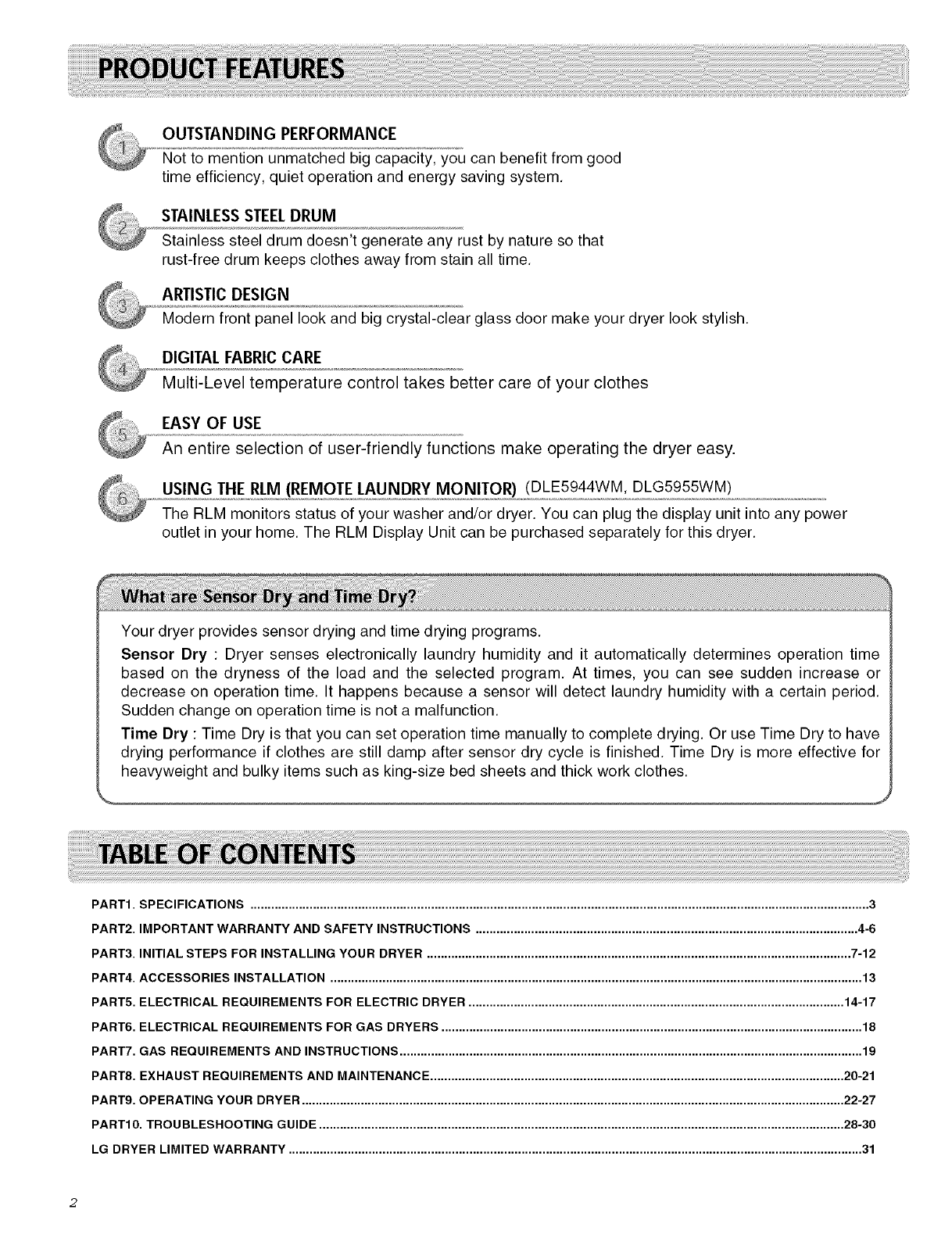

OUTSTANDING PERFORMANCE

Not to mention unmatched big capacity, you can benefit from good

time efficiency, quiet operation and energy saving system.

STAINLESS STEELDRUM

Stainless steel drum doesn't generate any rust by nature so that

rust-free drum keeps clothes away from stain all time.

ARTISTIC DESIGN

Modern front panel look and big crystal-clear glass door make your dryer look stylish.

DIGITAL FABRIC CARE

Multi-Level temperature control takes better care of your clothes

EASY OF USE

An entire selection of user-friendly functions make operating the dryer easy.

USING THE RLM (REMOTE LAUNDRY MONITOR) (DLE5944WM, DLG5955WM)

The RLM monitors status of your washer and/or dryer. You can plug the display unit into any power

outlet in your home. The RLM Display Unit can be purchased separately for this dryer.

Your dryer provides sensor drying and time drying programs.

Sensor Dry : Dryer senses electronically laundry humidity and it automatically determines operation time

based on the dryness of the load and the selected program. At times, you can see sudden increase or

decrease on operation time. It happens because a sensor will detect laundry humidity with a certain period.

Sudden change on operation time is not a malfunction.

Time Dry : Time Dry is that you can set operation time manually to complete drying. Or use Time Dry to have

drying performance if clothes are still damp after sensor dry cycle is finished. Time Dry is more effective for

heavyweight and bulky items such as king-size bed sheets and thick work clothes.

PART1. SPECIFICATIONS .................................................................................................................................................................................. 3

PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS .............................................................................................................. 4-6

PART3. INITIAL STEPS FOR INSTALLING YOUR DRYER .......................................................................................................................... 7-12

PART4. ACCESSORIES INSTALLATION ......................................................................................................................................................... 13

PART5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER ............................................................................................................ 14-17

PART6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS ......................................................................................................................... 18

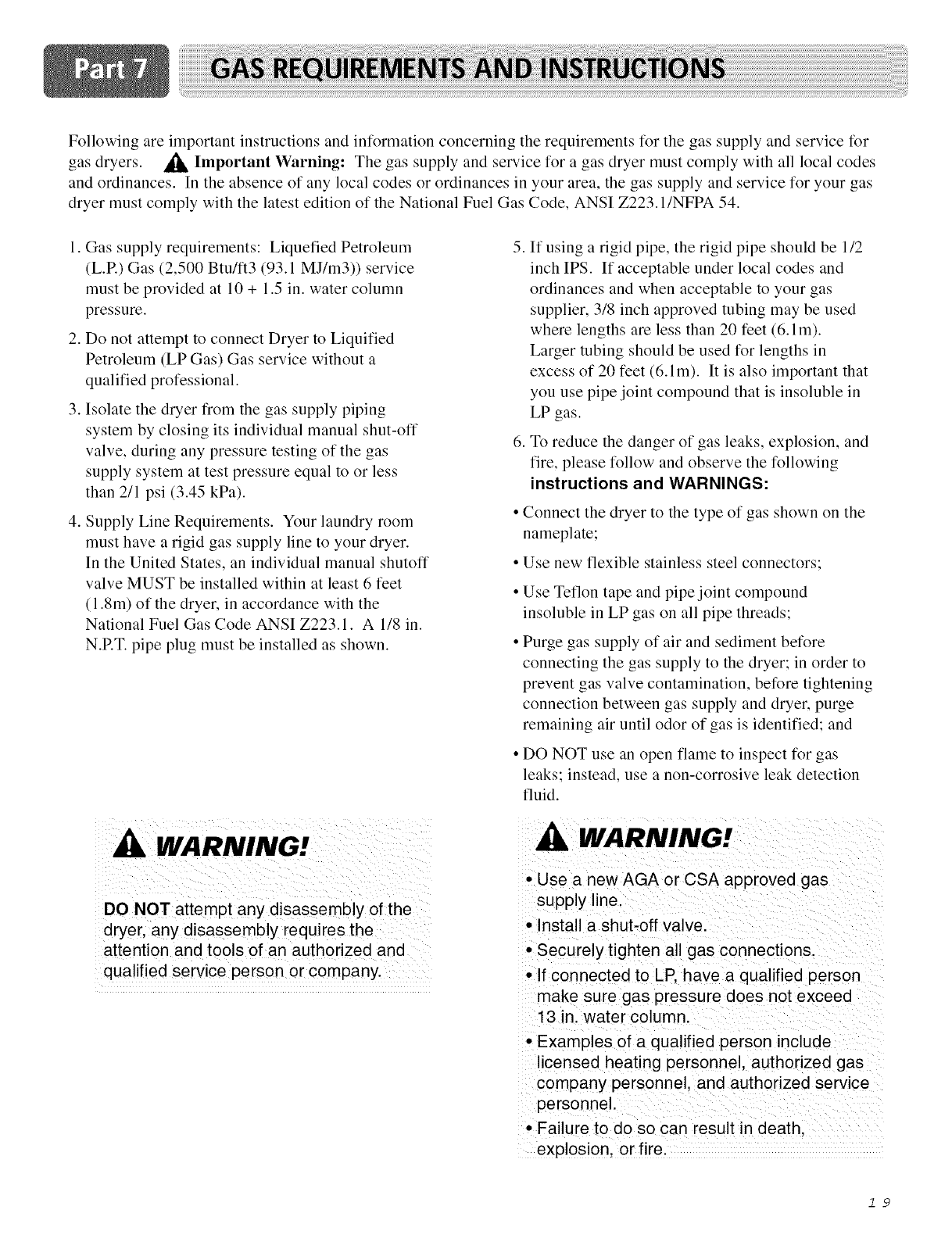

PART7. GAS REQUIREMENTS AND INSTRUCTIONS ..................................................................................................................................... 19

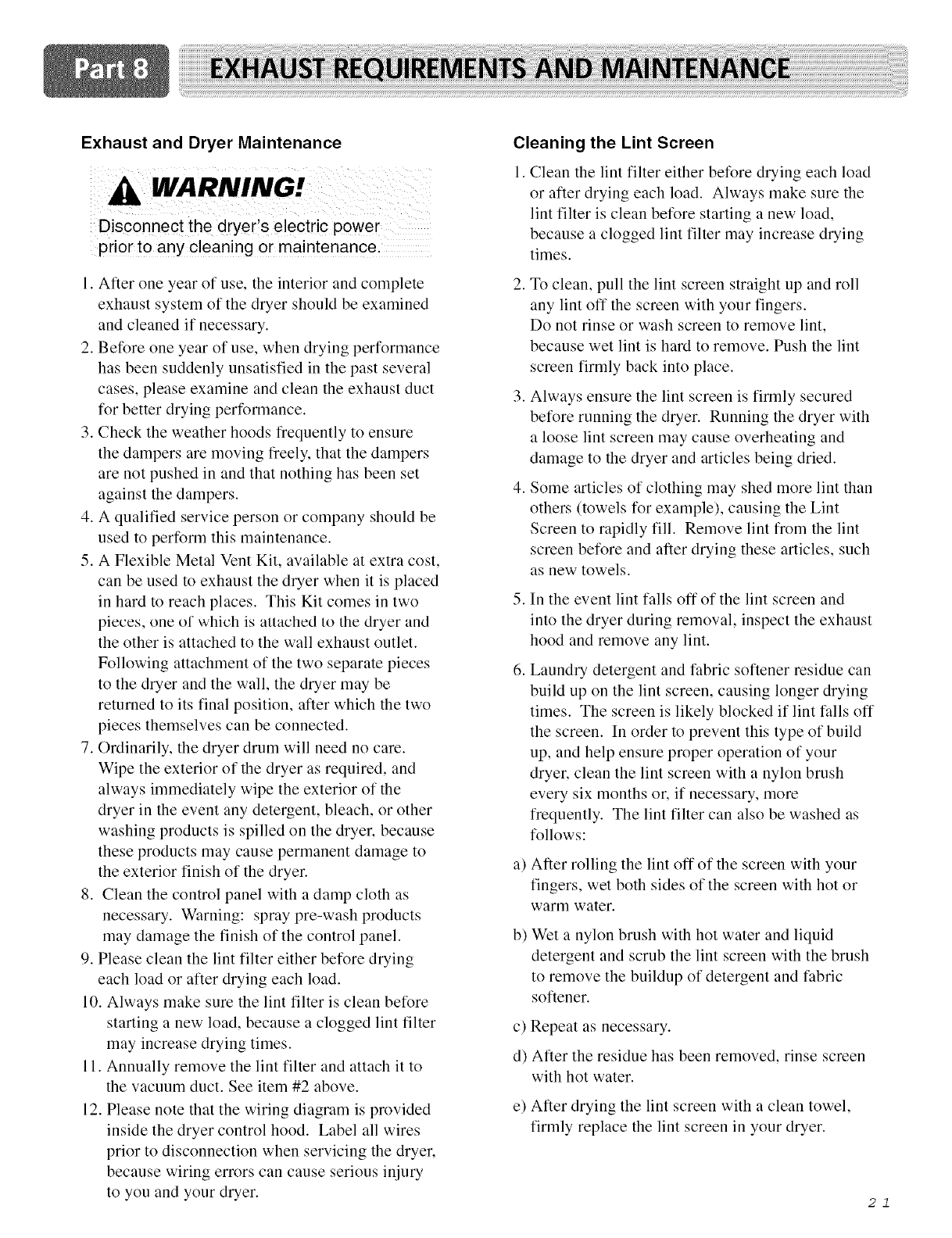

PART8. EXHAUST REQUIREMENTS AND MAINTENANCE ....................................................................................................................... 20-21

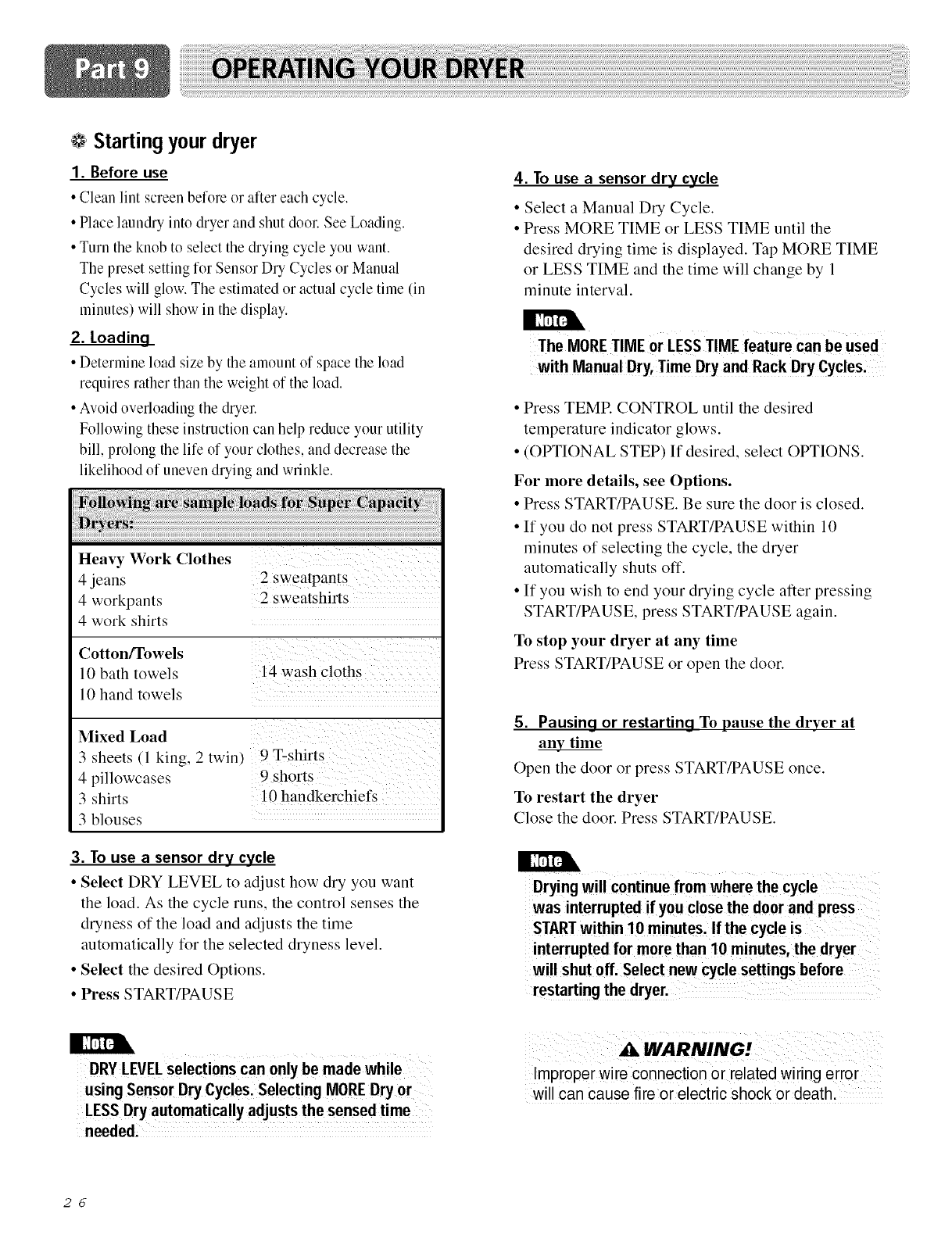

PART9. OPERATING YOUR DRYER ............................................................................................................................................................ 22-27

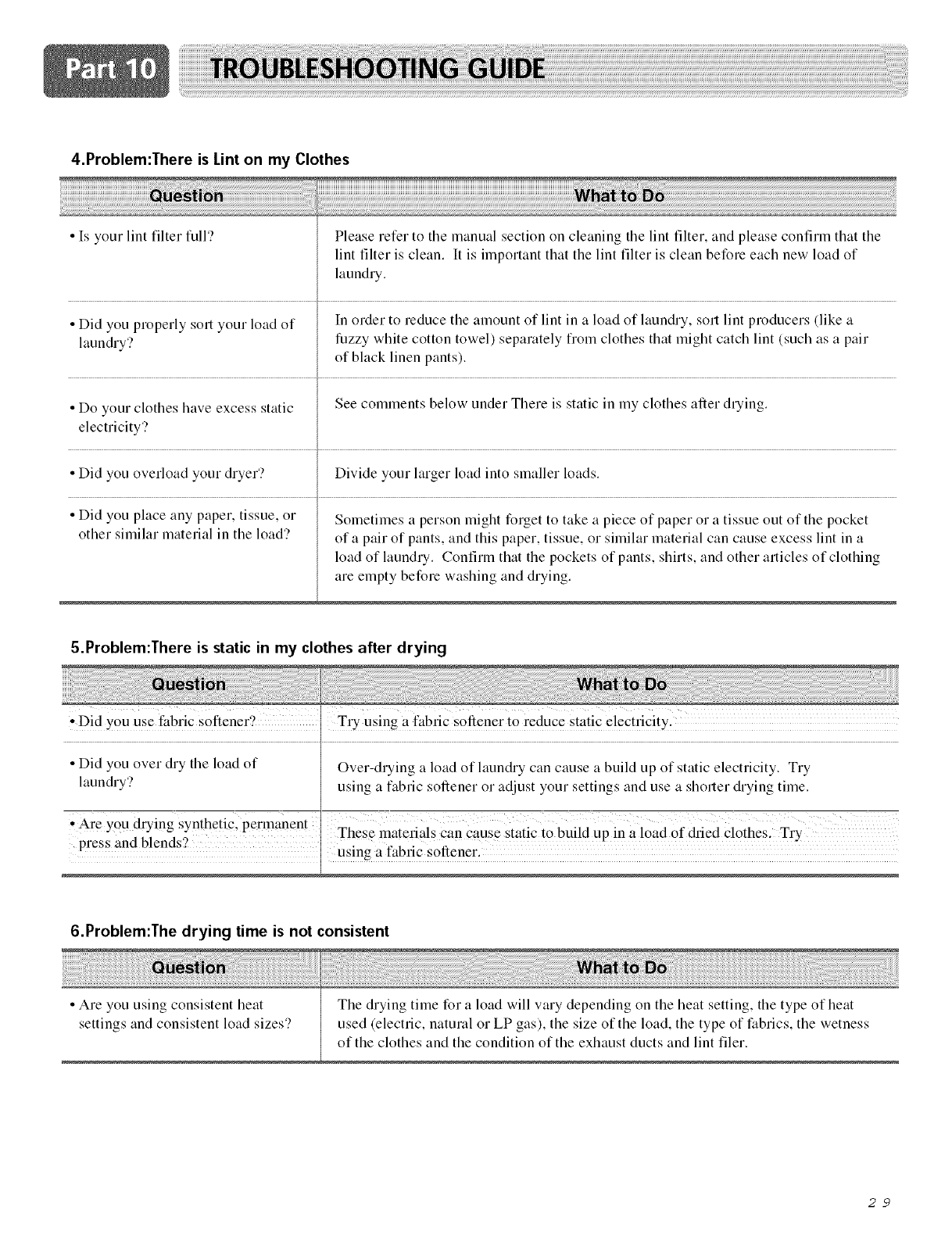

PART10. TROUBLESHOOTING GUIDE ....................................................................................................................................................... 28-30

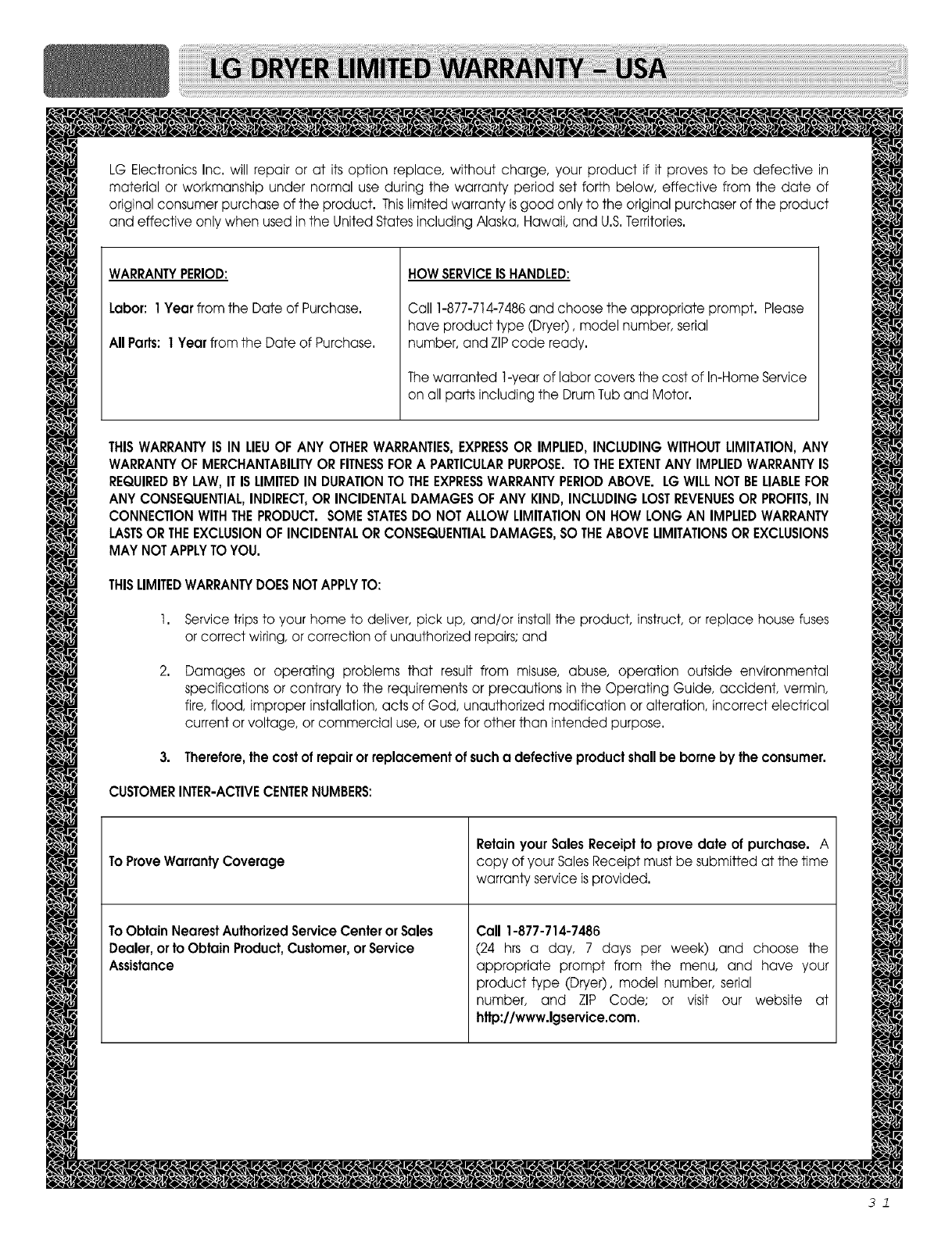

LG DRYER LIMITED WARRANTY ..................................................................................................................................................................... 31

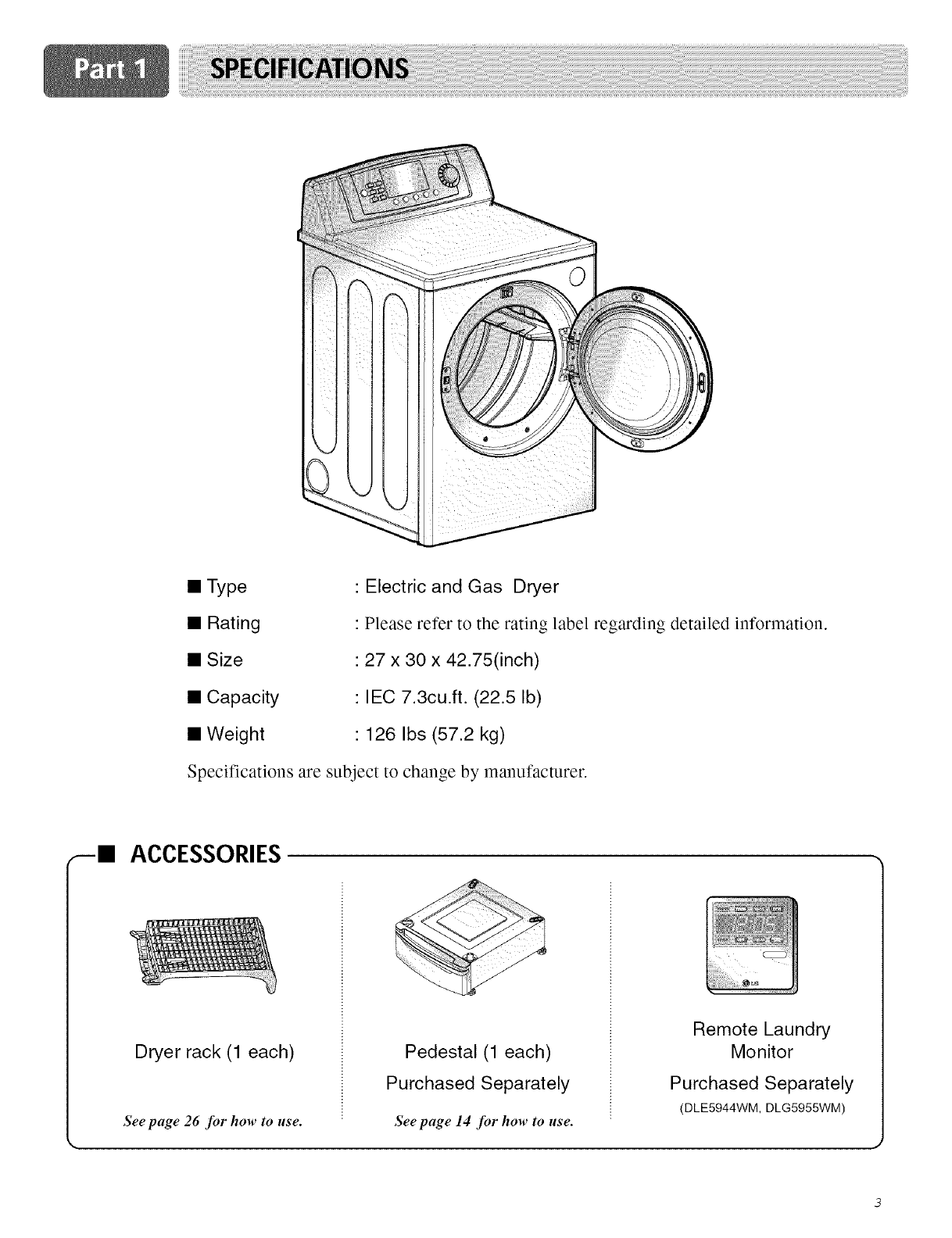

• Type Electric and Gas Dryer

• Rating Please refer to the rating label regarding detailed information.

• Size 27 x 30 x 42.75(inch)

• Capacity IEC 7.3cu.ft. (22.5 Ib)

• Weight 126 Ibs (57.2 kg)

Specifications are subject to change by manufacturer.

.--m ACCESSORIES

Dryer rack (1 each)

Seepage 26 for how to use.

Pedestal (1 each)

Purchased Separately

Seepage 14 for how to use.

Remote Laundry

Monitor

Purchased Separately

(DLE5944WM, DLG5955WM)

SEEKING WARRANTY ASSISTANCE

The Warranty for your Dryer is located at the end of this manual. Warranty Service is

available by contacting your nearest LG Service Center. If this product is installed and

operated per this manual, LG will repair or replace any parts defective in material or

workmanship throughout the Warranty period, beginning the Date of Purchase.

WARNING!

For your safety, the recommendations in this manual must be followed. To reduce the risk

of fire or explosion, electric shock, or to prevent property damage, personal injury, or

death when using your appliance, follow basic precautions, including the following.

Warranty Restriction: If the dryer is subjected to other than private family use, all warranty

coverage is effective for only 90 days.

You will need the complete Model and Serial Number when requesting Warranty Service. Proof of

purchase date is required.

Use the space below to record the model number and serial number of your new LG dryer.

Model No.

Serial No.

Date of Purchase

_I_ Staple your receipt HERE.

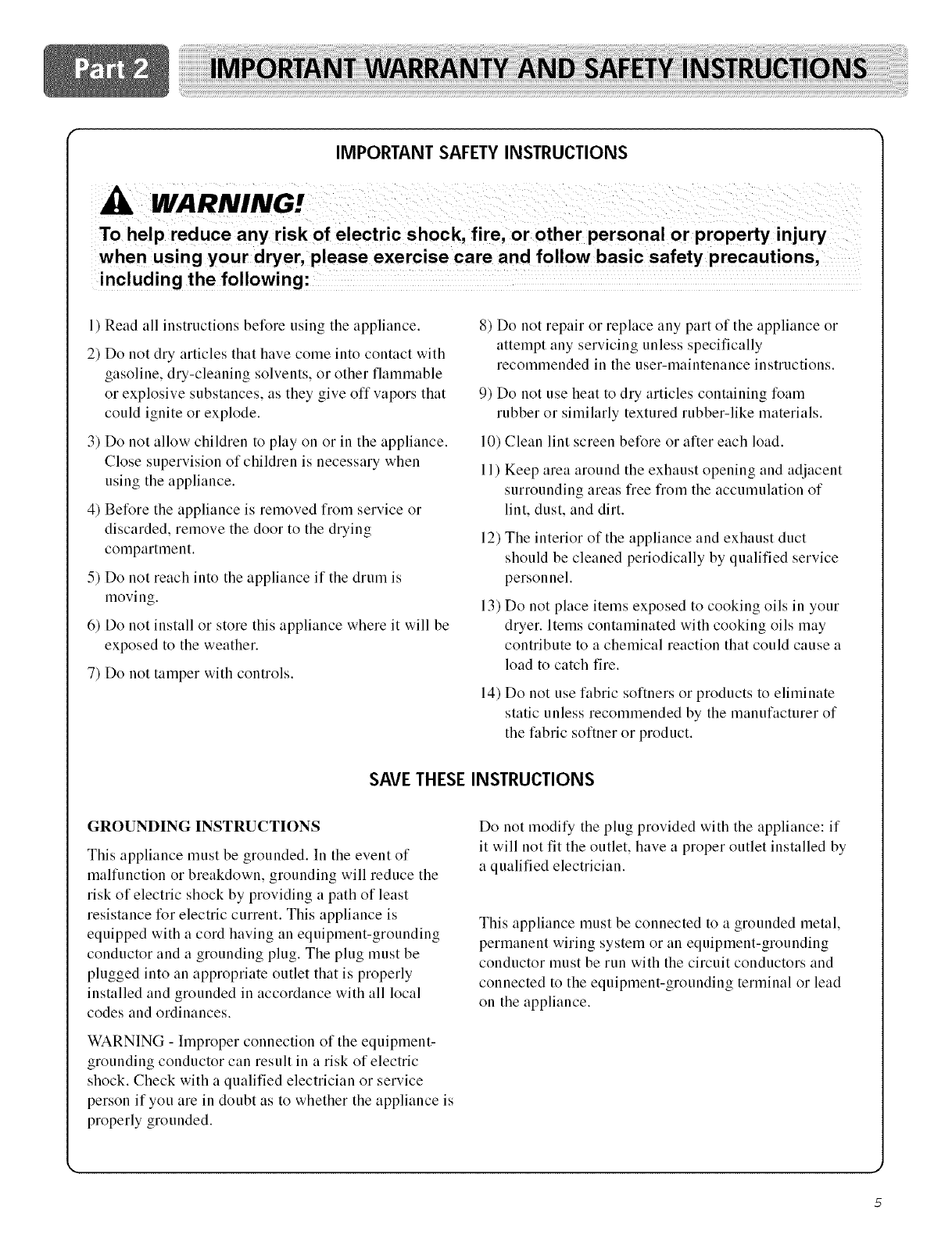

IMPORTANT SAFETY INSTRUCTIONS

To help reduce any risk of electric shock, fire, or other personal or property injury

1) Read all instructions betbre using the appliance.

2) Do not dry articles that have come into contact with

gasoline, dry-cleaning solvents, or other flalnmable

or explosive substances, as they give off vapors that

could ignite or explode.

3) Do not allow children to play on or in the appliance.

Close supervision of children is necessary when

using the appliance.

4) Be%re the appliance is removed from service or

discarded, remove the door to the drying

compartment.

5) Do not reach into the appliance if the drum is

movi ug.

6) Do not install or store this appliance where it will be

exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or

attempt any servicing unless specifically

recommended in the user-maintenance instructions.

9) Do not use heat to dry articles containing lbam

rubber or similarly textured rubber-like materials.

1o)

11)

Clean lint screen belbre or alter each load.

Keep area around the exhaust opening and adjacent

surrounding areas free fiom the accumulation of

lint, dust, and dirt.

12) The interior of the appliance and exhaust duct

should be cleaned periodically by qualified service

personnel.

13) Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a

load to catch fire.

14)Do not use fabric softuers or products to eliminate

static unless recommended by the manufacturer of

the fabric softuer or product.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least

resistance IBr electric current. This appliance is

equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

WARNING - Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or service

person if you are in doubt as to whether the appliance is

properly grounded.

Do not modify the plug provided with the appliance: if

it will not fit the outlet, have a proper outlet installed by

a qualified electrician.

This appliance must be connected to a grounded metal,

permanent wiring system or an equipment-grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead

on the appliance.

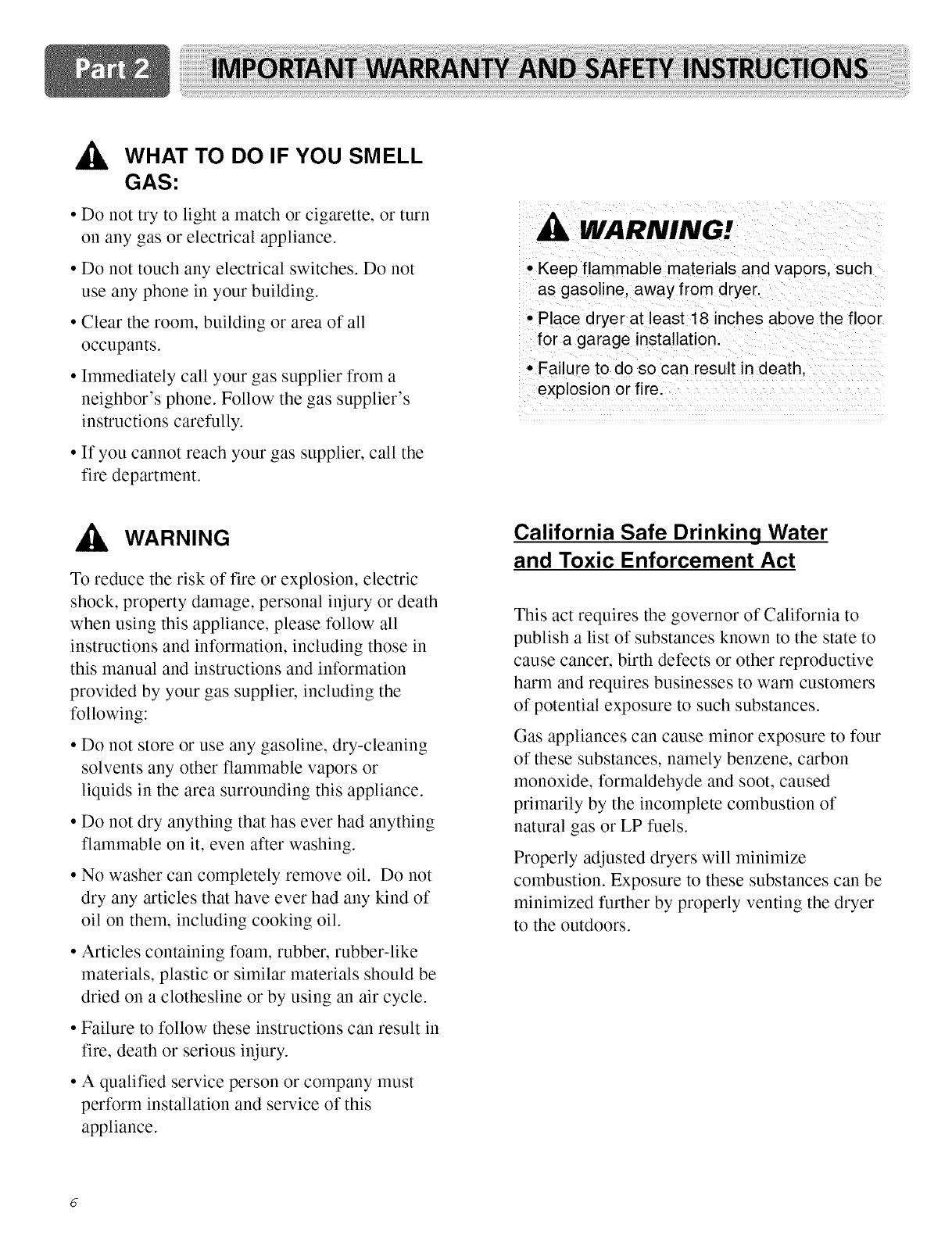

_, WHAT TO DO IF YOU SMELL

GAS:

•Do not try to light a match or cigarette, or turn

on any gas or electrical appliance.

• Do not touch any electrical switches. Do not

use any phone in your building.

• Clear the room, building or area of all

occupants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions carefully

• If you cannot reach your gas supplier, call the

fire department.

_, WARNING

To reduce the risk of fire or explosion, electric

shock, property damage, personal injury or death

when using this appliance, please follow all

instructions and information, including those in

this manual and instructions and information

provided by your gas supplier, including the

following:

• Do not store or use any gasoline, dry-cleaning

solvents any other flammable vapors or

liquids in the area surrounding this appliance.

• Do not dry anything that has ever had anything

flammable on it, even after washing.

• No washer can completely remove oil. Do not

dry any articles that have ever had any kind of

oil on them, including cooking oil.

• Articles containing foam, rubber, rubber-like

materials, plastic or similar materials should be

dried on a clothesline or by using an air cycle.

• Failure to follow these instructions can result in

fire, death or serious injury.

• A qualified service person or company must

perform installation and service of this

appliance.

WARNING!

•Keep flammable materials and vapors, such

as gasoline, away from dryer.

•Place dryer at least 18 inches above the floor

for a garage installation.

•Failure to do so can result in death

explosion or fire.

California Safe Drinking Water

and Toxic Enforcement Act

This act requires the governor of California to

publish a list of substances known to the state to

cause cancer, birth defects or other reproductive

harm and requires businesses to warn customers

of potential exposure to such substances.

Gas appliances can cause minor exposure to four

of these substances, namely benzene, carbon

monoxide, formaldehyde and soot, caused

primarily by the incomplete combustion of

natural gas or LP fuels.

Properly adjusted dryers will minimize

combustion. Exposure to these substances can be

minimized further by properly venting the dryer

to the outdoors.

Thefollowing instructionswill helpguideyouthroughtheinitial stepsof settingupyour dryerfor use.

Pleasenotethateverysectionof this manualprovidesimportantinformationregardingthepreparationand

useof yourdryer,andit is importantthatyoureviewthis entiremanualbeforeproceedingwith any

installationor use.More detailedinstructionsconcerningelectricalconnections,gasconnections,and

exhaustrequirementsareprovidedat otherpartsof this manual.

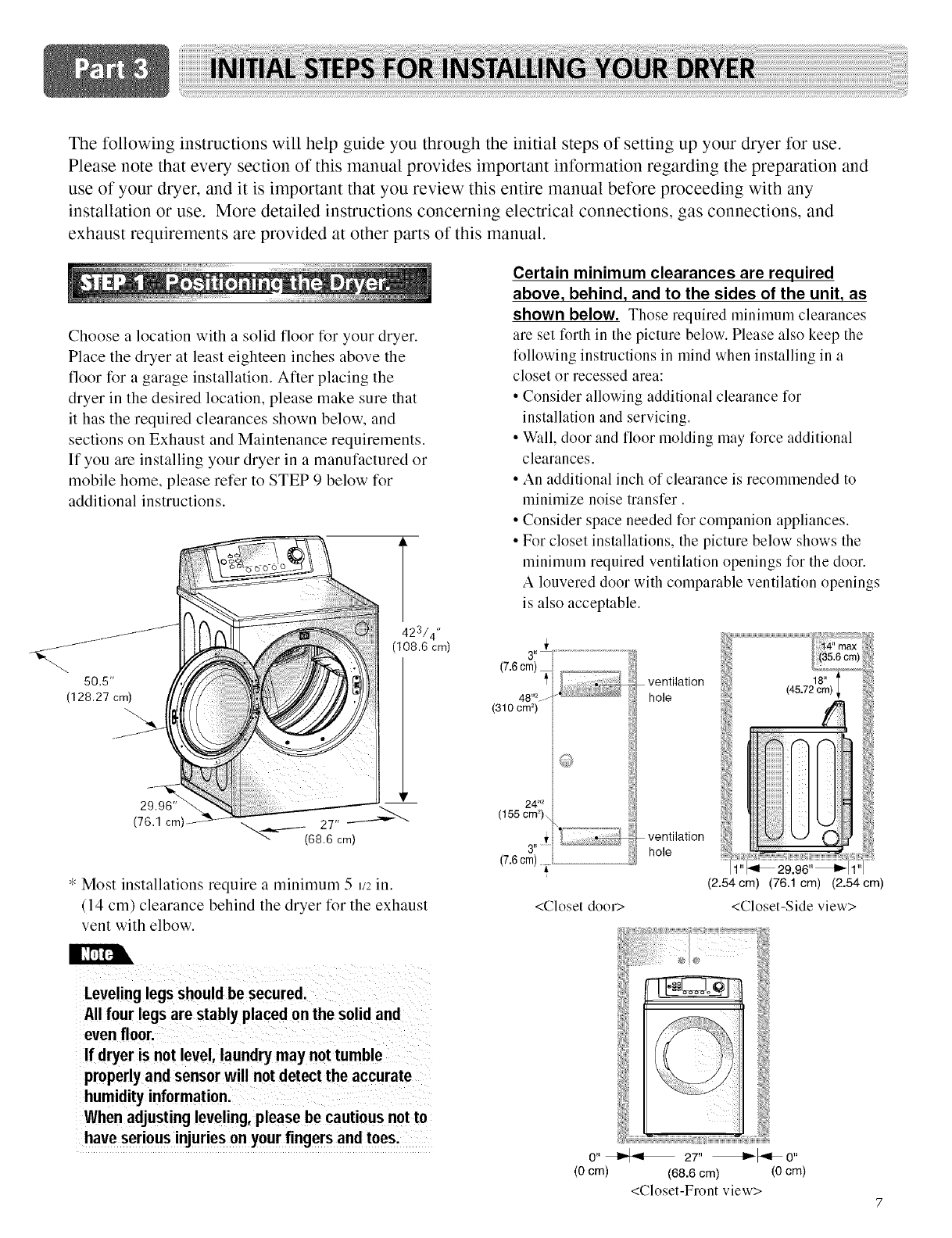

Choose a location with a solid floor for your dryer.

Place the dryer at least eighteen inches above the

floor for a garage installation. After placing the

dryer in the desired location, please make sure that

it has the required clearances shown below, and

sections on Exhaust and Maintenance requirements.

If you are installing your dryer in a manufactured or

mobile home, please refer to STEP 9 below for

additional instructions.

50.5"

(128.27 cm)

29.98"

(76.1 cm)

423/4"

108.6 cm)

* Most installations require a minimum 5 _/2in.

(14 cm) clearance behind the dryer for the exhaust

vent with elbow.

Certain minimum clearances are required

above, behind, and to the sides of the unit, as

shown below. Those required minimum clearances

are set forth in the picture below. Please also keep the

following instructions in mind when installing in a

closet or recessed area:

• Consider allowing additional clearance for

installation and servicing.

• Wall, door and floor molding may tk)rceadditional

clearances.

• An additional inch of clearance is recommended to

minimize noise transfer.

• Consider space needed tk)r companion appliances.

• For closet installations, the picture below shows the

minimum required ventilation openings t_r the door.

A louvered door with comparable ventilation openings

is also acceptable.

3Bt _ .....................................................

(7.6cm)

48 t_2.

(310 cm 2)

24*'2

(155 cm _)..

(7.6cm)

ventilation

hole

ventilation

hole _ZZC;...................

29.96"

(2.54cm) (76.1 cm) (2.54cm)

<Closet-Side view>

[ I_NFI L

Leveling legs should be secured.

All four legs are stably placed on the solid and

even floor.

If dryer is not level, laundry may not tumble

properly and sensor will not detect the accurate

humidity information.

When adjusting leveling, please be cautious not to

have serious injuries on your fingers and toes.

O" _ 27" _0"

(O cm) (68.6 cm) (0 cm)

<Closet-Front view>

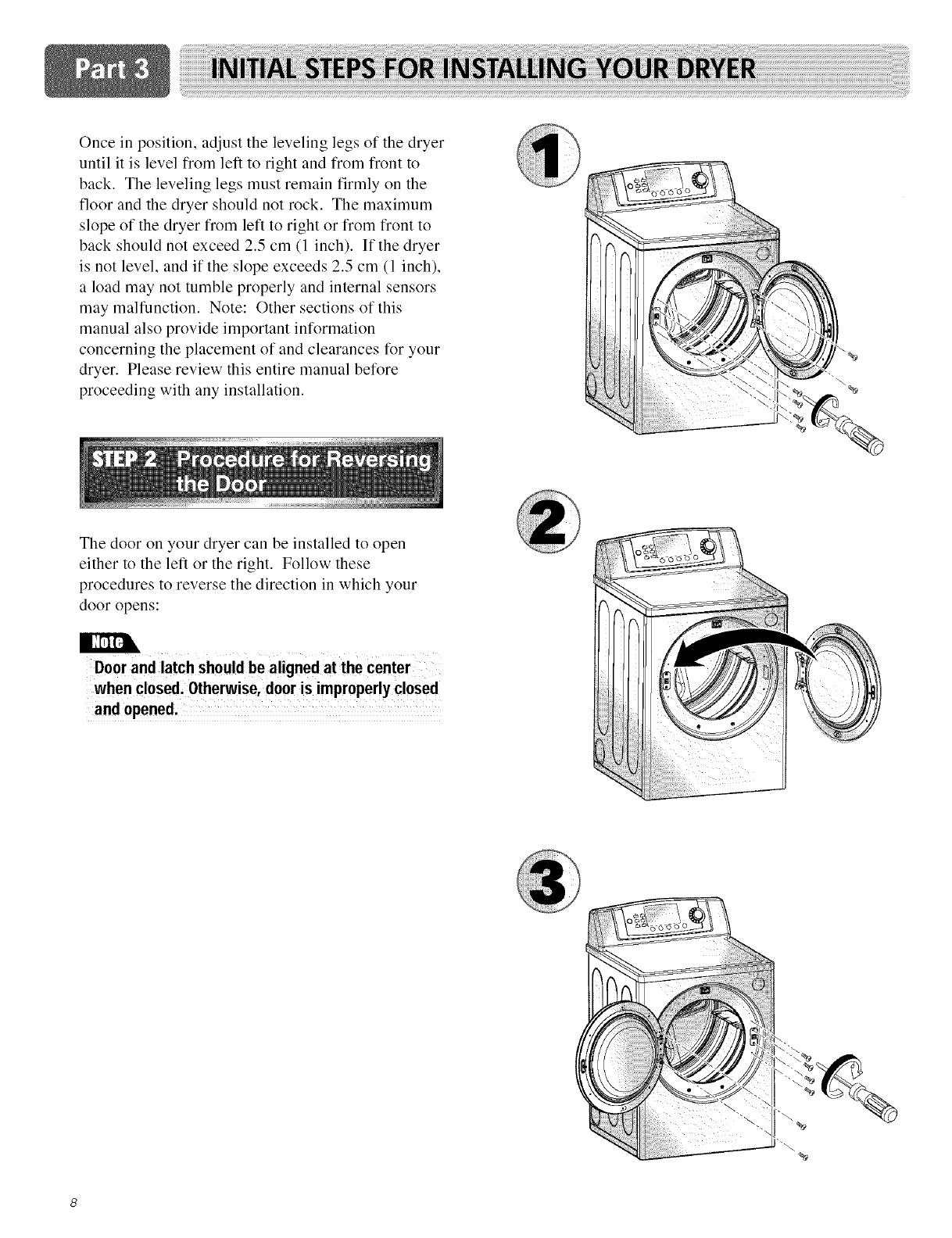

Once in position, adjust the leveling legs of the dryer

until it is level from left to right and from front to

back. The leveling legs must remain firmly on the

floor and the dryer should not rock. The maximum

slope of the dryer from left to right or from front to

back should not exceed 2.5 cm (1 inch). If the dryer

is not level, and if the slope exceeds 2.5 cm (1 inch),

a load may not tumble properly and internal sensors

may malfunction. Note: Other sections of this

manual also provide important information

concerning the placement of and clearances for your

dryer. Please review this entire manual before

proceeding with any installation.

The door on your dryer can be installed to open

either to the left or the right. Follow these

procedures to reverse the direction in which your

door opens:

Door and latch should be aligned at the center

when closed, Otherwise, door is improperly closed

and opened.

WARNING!

•Use a heavy metal vent.

•Do not use a plastic vent.

• Do not use a metal foil vent.

• Failure to follow these instructions can

result in death or fire

•Clean old ducts before installing this dryer

Vent end will face to the outside home and

improper taping and unstable installation of vent

will cause undesirable drying performance.

In addition to the following warnings, please refer

to manual section on Exhaust Requirements and

Maintenance. IMPORTANT: To reduce the risk of

tire, combustion, and gas accumulation, the dryer

must be vented to the outdoors. Please follow the

instructions (and all others in this manual) very

carefully.

• Do not use thin plastic or foil ducting.

• Use 4" (10.2 cm) diameter rigid or flexible metal

duct (note: venting materials are not supplied with

the dryer, and you should obtain the venting

materials necessary for proper installation)

• Position the Dryer such that the exhaust duct run is

as short as possible.

•Clean old ducts before installing this dryer

• The male end of each section of exhaust duct must

point away from the dryer

• Use as few elbow joints as possible.

• Use duct tape on all duct,joints

• Insulate ductwork that runs through unheated

areas in order to reduce condensation and lint

build-up on pipe walls; and

•PLEASE BE AWARE THAT FAILURE TO

EXHAUST THE DRYER CORRECTLY WILL

VOID THE DRYER'S WARRANTY.

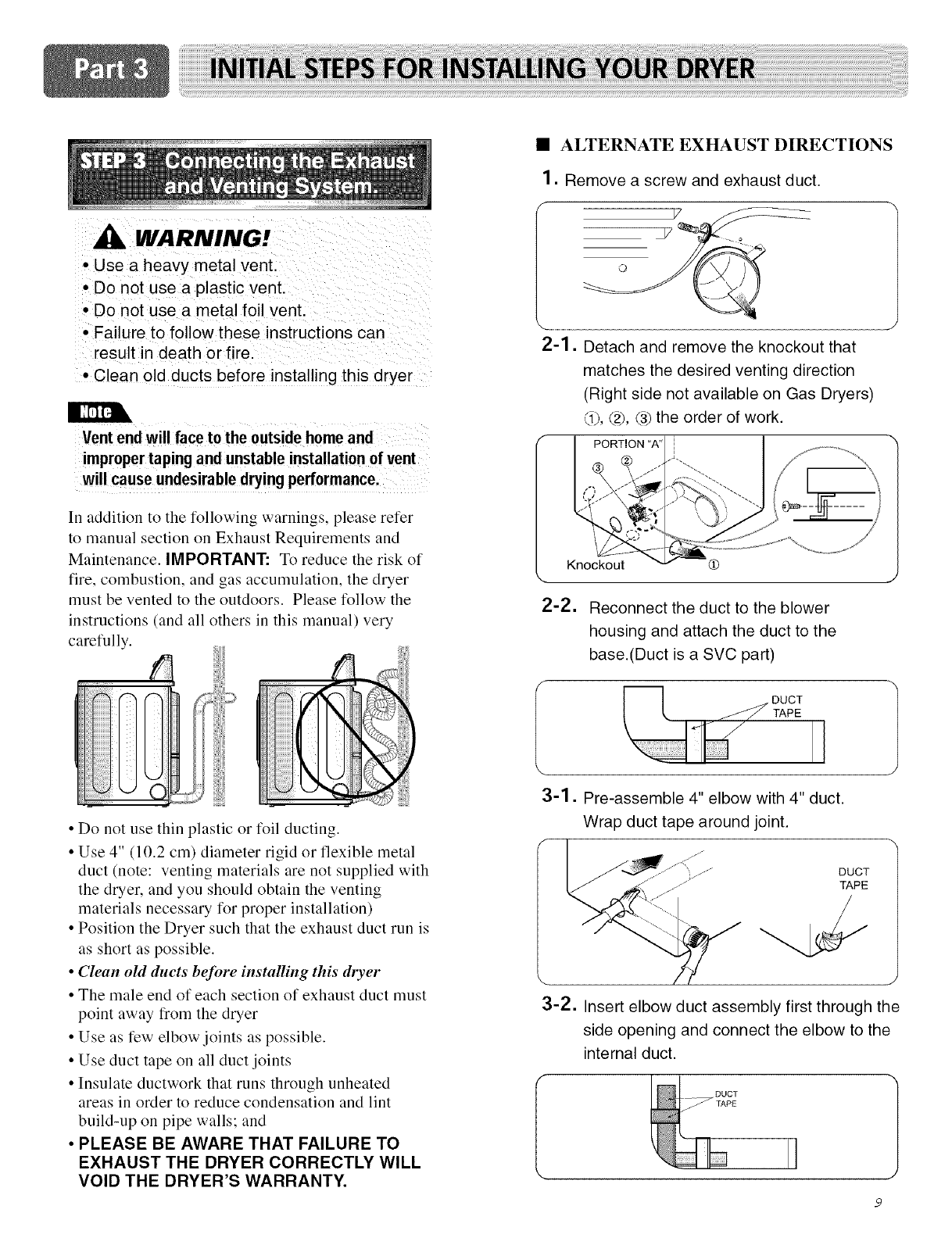

• ALTERNATE EXHAUST DIRECTIONS

1. Remove a screw and exhaust duct.

2-1. Detach and remove the knockout that

matches the desired venting direction

(Right side not available on Gas Dryers)

(.1-),('}), (3) the order of work.

PORTION"A" [

2-2,

Reconnect the duct to the blower

housing and attach the duct to the

base.(Duct is a SVC part)

3-1. Pre-assemble 4" elbow with 4" duct.

Wrap duct tape around joint.

DUCT

TAPE

3-2. Insert elbow duct assembly first through the

side opening and connect the elbow to the

internal duct.

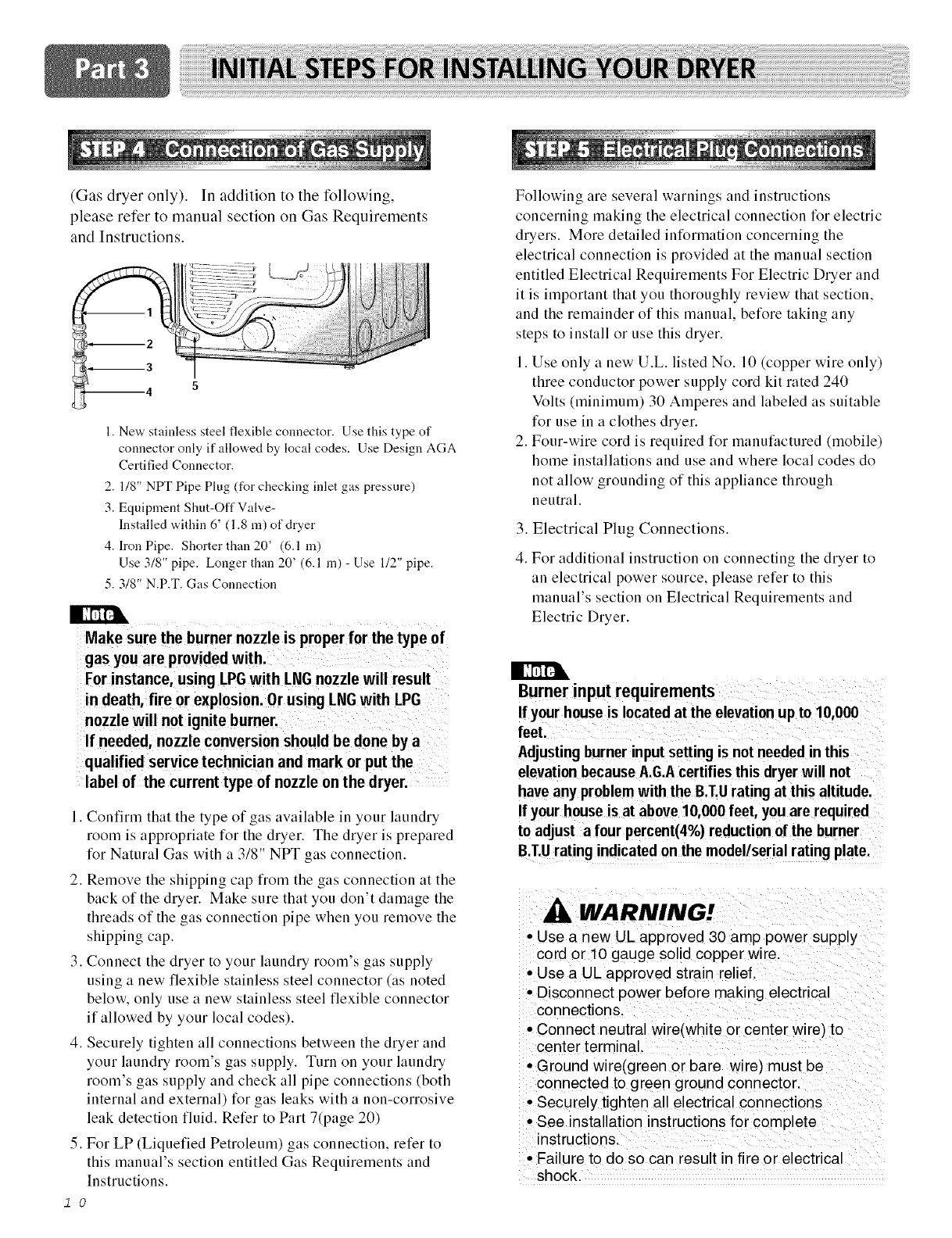

(Gas dryer only). In addition to the following,

please refer to manual section on Gas Requirements

and Instructions.

I. New stainless steel flexible connector. Use this type of

connector only if allowed by local codes. Use Design AGA

Certified Connector.

2. 118" NPT Pipe Plug (for checking inlet gas pressure)

3. Equipment Shut-Off Valve-

Installed within 6' (1.8 m) of dryer

4. Iron Pipe. Shorter than 20' (6.1 m)

Use 318" pipe. Longer than 20' (6.1 in) - Use 112"pipe.

5. 318" N.P.T. Gas Connection

Make sure the burner nozzle is proper for the type of

For instance, using LPGwith LNGnozzle will result

in death, fire or explosion, Or using LNG with LPG

If needed, nozzle conversion should be done by a

qualified service technician and mark or put the

label of the current type of nozzle on the dryer.

1. Confirm that the type of gas available in your laundry

room is appropriate for the dryer. The dryer is prepared

lbr Natural Gas with a 318" NPT gas connection.

2. Remove the shipping cap from the gas connection at the

back of the dryer. Make sure that you don't damage the

threads of the gas connection pipe when you remove the

shipping cap.

3. Connect the dryer m your laundry room's gas supply

using a new flexible stainless steel connector (as noted

below, only use a new stainless steel flexible connector

if allowed by your local codes).

4. Securely tighten all connections between the dryer and

your laundry room's gas supply. Turn on your laundry

room's gas supply and check all pipe connections (both

internal and external) tbr gas leaks with a non-corrosive

leak detection fluid. Refer m Part 7(page 20)

5. For LP (Liquefied Petroleum) gas connection, refer to

this manual's section entitled Gas Requirements and

Instructions.

Following are several warnings and instructions

concerning making the electrical connection lBr electric

dryers. More detailed information concerning the

electrical connection is provided at the manual section

entitled Electrical Requirements For Electric Dryer and

it is important that you thoroughly review that section,

and the remainder of this manual, before taking any

steps to install or use this dryer.

1. Use only a new U.L. listed No. 10 (copper wire only)

three conductor power supply cord kit rated 240

Volts (minimum) 30 Amperes and labeled as suitable

for usein a clothes dryer.

2. Four-wire cord is required for manufactured (mobile)

home installations and use and where local codes do

not allow grounding of this appliance through

neutral.

3. Electrical Plug Connections.

4. For additional instruction on connecting the dryer to

an electrical power source, please refer to this

manual's section on Electrical Requirements and

Electric Dryer.

Adjustingburnerinput setting is notneeded in this

elevationbecauseA.G.Acertifies this dryer wil! not

have any problemwith the B,T.Urating at this altitude.

If your house is at abovelo, ooofeet, youare required

to adjust a four percent(4%) reductionof the burner

&T.U rating !nd!catedon themodel/serial rating plate,

WARNING!

•Use a new UL approved 30 amp power supply

cord or 10 gauge solid copper w,re.

• Use a UL approved strain relief.

• Disconnect power before making electrical

connections.

• Connect neutral wire(white or center wire) to

center terminal.

• Ground wire(green or bare wire) must be

co nnected to green ground connector.

• Securely tighten all electrical connections

• See installation instructions for complete

instructions.

• Failure to do so can result in fire or electrical

shock.

Prior to the first use of this appliance, use all-

purpose cleaning products or a solution of detergent

and water, with damp clothes to remove from the

inside of the dryer drum/drying compartment any

dust or dirt that may have accumulated the inside of

the dryer. Plug-in your dryer after reviewing the

following parts on your dryer's Electrical

Requirements.

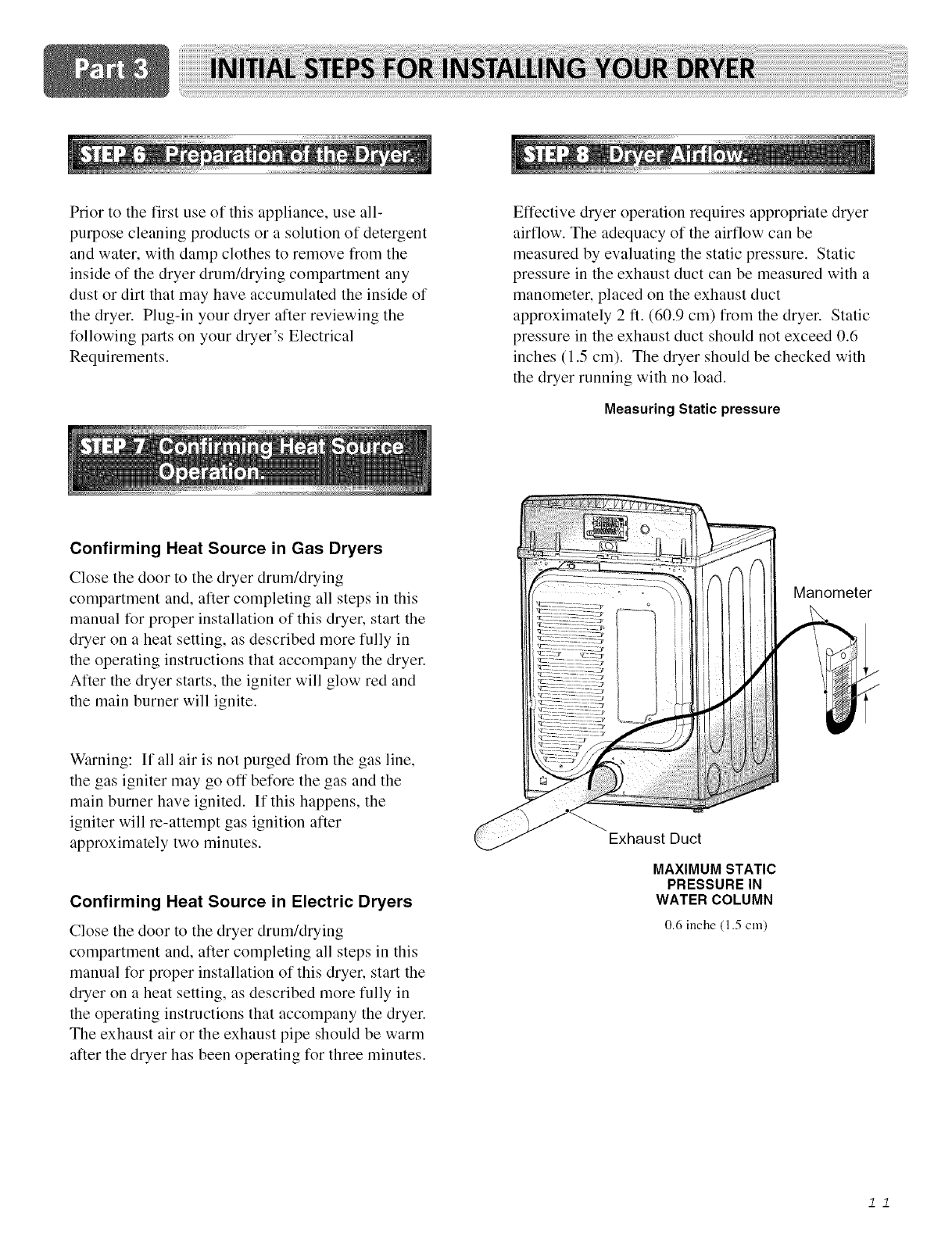

Effective dryer operation requires appropriate dryer

airflow. The adequacy of the airflow can be

measured by evaluating the static pressure. Static

pressure in the exhaust duct can be measured with a

manometer, placed on the exhaust duct

approximately 2 ft. (60.9 cm) from the dryer. Static

pressure in the exhaust duct should not exceed 0.6

inches (1.5 cm). The dryer should be checked with

the dryer running with no load.

Measuring Static pressure

Confirming Heat Source in Gas Dryers

Close the door to the dryer drum/drying

compartment and, alter completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting, as described more tully in

the operating instructions that accompany the dryer.

Alter the dryer starts, the igniter will glow red and

the main burner will ignite.

Warning: If all air is not purged from the gas line,

the gas igniter may go off before the gas and the

main burner have ignited. If this happens, the

igniter will re-attempt gas ignition after

approximately two minutes.

Confirming Heat Source in Electric Dryers

Close the door to the dryer drum/drying

compartment and, alter completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting, as described more tully in

the operating instructions that accompany the dryer.

The exhaust air or the exhaust pipe should be warm

alter the dryer has been operating for three minutes.

Manometer

Exhaust Duct

MAXIMUM STATIC

PRESSURE IN

WATER COLUMN

0.6 inche (1.5 cm)

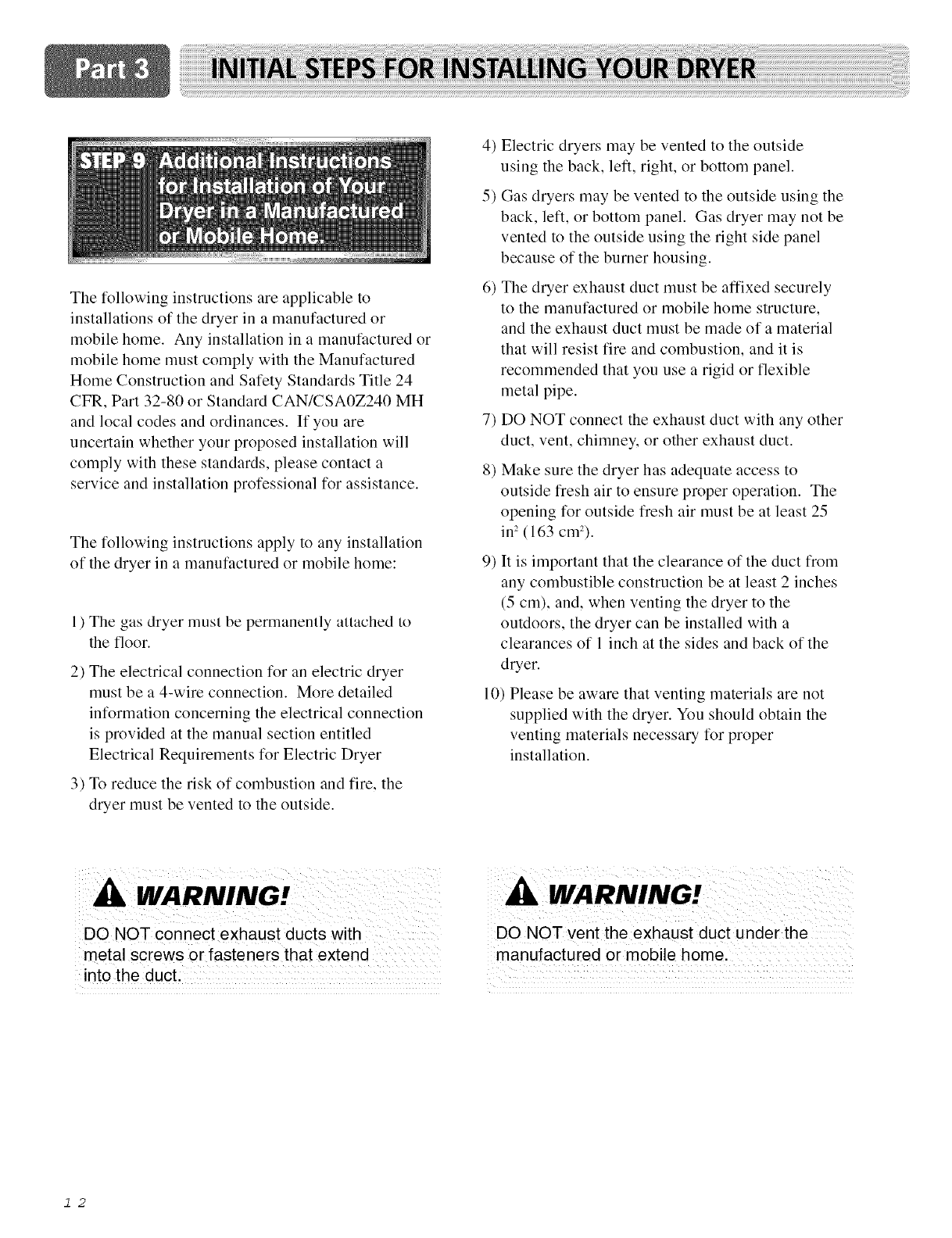

The following instructions are applicable to

installations of the dryer in a manufactured or

mobile home. Any installation in a manufactured or

mobile home must comply with the Manufactured

Home Construction and Safety Standards Title 24

CFR, Part 32-80 or Standard CAN/CSAOZ240 MH

and local codes and ordinances. If you are

uncertain whether your proposed installation will

comply with these standards, please contact a

service and installation professional for assistance.

The following instructions apply to any installation

of the dryer in a manufactured or mobile home:

1) The gas dryer must be permanently attached to

the floor.

2) The electrical connection for an electric dryer

must be a 4-wire connection. More detailed

information concerning the electrical connection

is provided at the manual section entitled

Electrical Requirements for Electric Dryer

3) To reduce the risk of combustion and fire, the

dryer must be vented to the outside.

Electric dryers may be vented to the outside

using the back, left, right, or bottom panel.

Gas dryers may be vented to the outside using the

back, left, or bottom panel. Gas dryer may not be

vented to the outside using the right side panel

because of the burner housing.

The dryer exhaust duct must be affixed securely

to the manufactured or mobile home structure,

and the exhaust duct must be made of a material

that will resist fire and combustion, and it is

recommended that you use a rigid or flexible

metal pipe.

DO NOT connect the exhaust duct with any other

duct, vent, chimney, or other exhaust duct.

Make sure the dryer has adequate access to

outside fresh air to ensure proper operation. The

opening for outside fresh air must be at least 25

in2 (163 cm_).

It is important that the clearance of the duct from

any combustible construction be at least 2 inches

(5 cm), and, when venting the dryer to the

outdoors, the dryer can be installed with a

clearances of 1 inch at the sides and back of the

dryer.

10) Please be aware that venting materials are not

supplied with the dryer. You should obtain the

venting materials necessary for proper

installation.

WARNING!

DO NOT connect exhaust ducts with

metal screws or fasteners that extend

into the duct:

WARNING!

DO NOT vent the exhaust duct Lnder the

manufactured or mobile home.

Remove pedestal, installation hardware, and

instructions from the shipping carton.

Position dryer on top of the pedestal.

NOTE : Because of the weight of the dryer

two or more people may be needed.

NOTE : If dryer was previously installed, uninstall

it as follows:

A. Uninstalling an electric dryer:

1) Unplug the power supply cord,

2) Pull the dryer away from the wall enough to

loosen the vent clamp. Loosen the clamp and

carefully remove the exhaust vent from the

dryer exhaust outlet.

B. Uninstalling a gas dryer:

1) Shut off Gas

2) Unplug Power Cord

3) Disconnect Gas Line from Dryer

4) Pull away and loosen vent clamp.

Disconnect venting.

combo

for dryer

Attach the double-faced tape of the bracket to the

dryer as shown so the bent parts of the brackets

align with the edge and can be attached to the

pedestal with screws.

NOTE : Attach the lower side first.

Be sure

firmly to

to press the adhesive parts of the brackets

the appliance.

Install the eight (8) screws(supplied) to attach the

brackets to the pedestal.

-- for dryer

for washer/

combo

Remove the paper from the

bracket.

Move the dryer to the desired place.

NOTE : The appliance and pedestal assembly

must be placed on a solid and level floor

for proper operation. Adjust the legs of the

appliance and pedestal by turning with a

wrench. Then, adjust the lock unt toward

the pedestal while holding the pedestal leg

using a wrench. 13

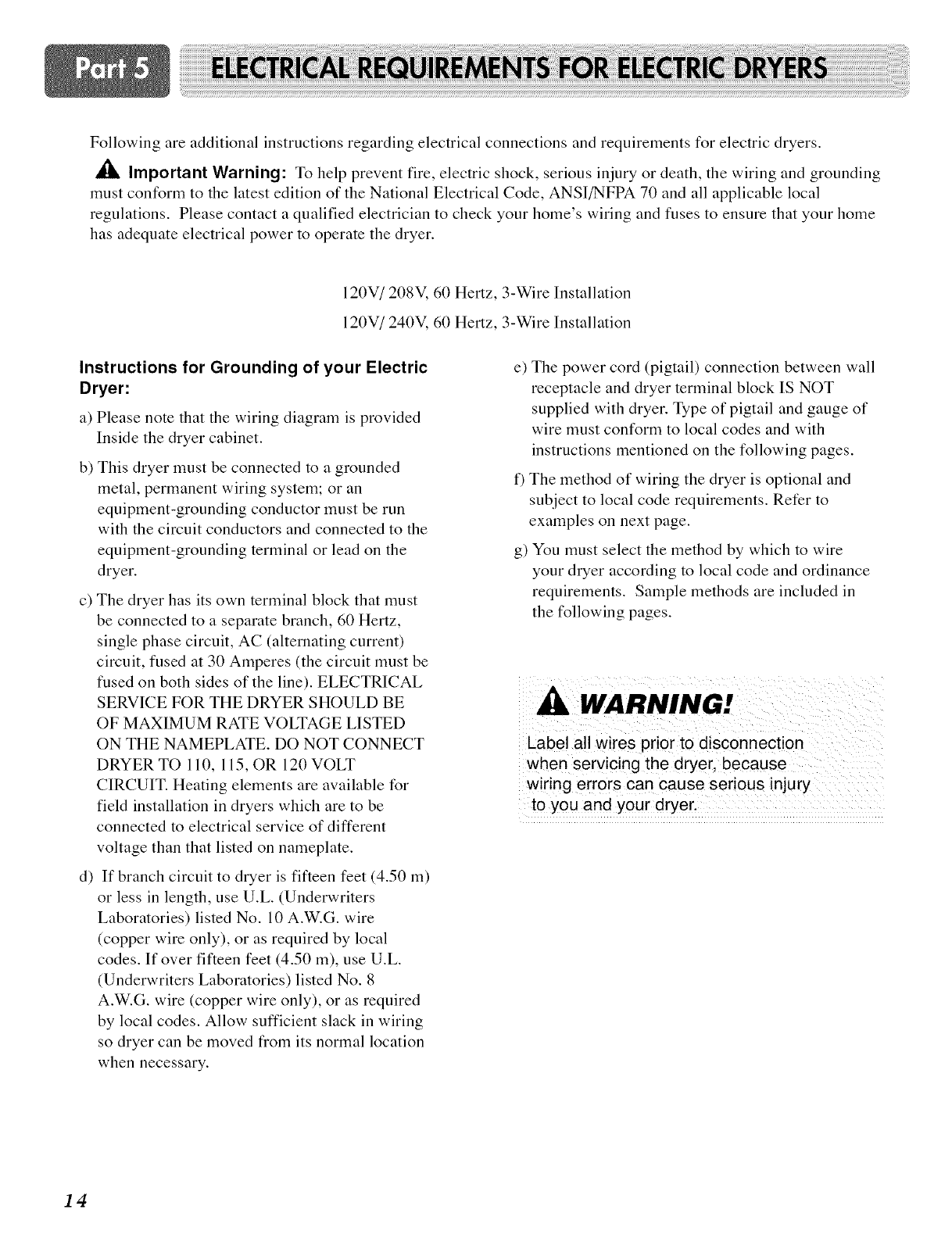

Following are additional instructions regarding electrical connections and requirements for electric dryers.

,_ Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local

regulations. Please contact a qualified electrician to check your home's wiring and fuses to ensure that your home

has adequate electrical power to operate the dryer.

120V/208M 60 Hertz, 3-Wire Installation

120V/240M 60 Hertz, 3-Wire Installation

Instructions for Grounding of your Electric

Dryer:

a) Please note that the wiring diagram is provided

Inside the dryer cabinet.

b) This dryer must be connected to a grounded

metal, permanent wiring system; or an

equipment-grounding conductor must be run

with the circuit conductors and connected to the

equipment-grounding terminal or lead on the

dryer.

c) The dryer has its own terminal block that must

be connected to a separate branch, 60 Hertz,

single phase circuit, AC (alternating current)

circuit, fused at 30 Amperes (the circuit must be

fused on both sides of the line). ELECTRICAL

SERVICE FOR THE DRYER SHOULD BE

OF MAXIMUM RATE VOLTAGE LISTED

ON THE NAMEPLATE. DO NOT CONNECT

DRYER TO 110, 115, OR 120 VOLT

CIRCUIT. Heating elements are available for

field installation in dryers which are to be

connected to electrical service of different

voltage than that listed on nameplate.

d) If branch circuit to dryer is fifteen feet (4.50 m)

or less in length, use U.L. (Underwriters

Laboratories) listed No. 10 A.W.G. wire

(copper wire only), or as required by local

codes. If over fifteen feet (4.50 m), use U.L.

(Underwriters Laboratories) listed No. 8

A.W.G. wire (copper wire only), or as required

by local codes. Allow sufficient slack in wiring

so dryer can be moved from its normal location

when necessary.

e) The power cord (pigtail) connection between wall

receptacle and dryer terminal block IS NOT

supplied with dryer. Type of pigtail and gauge of

wire must conform to local codes and with

instructions mentioned on the following pages.

t) The method of wiring the dryer is optional and

subject to local code requirements. Refer to

examples on next page.

g) You must select the method by which to wire

your dryer according to local code and ordinance

requirements. Sample methods are included in

the following pages.

WARNING!

Label all wires prior to disconnection

when servicing the dryer, because

wiring errors can cause serious injury

to you and your dryer.

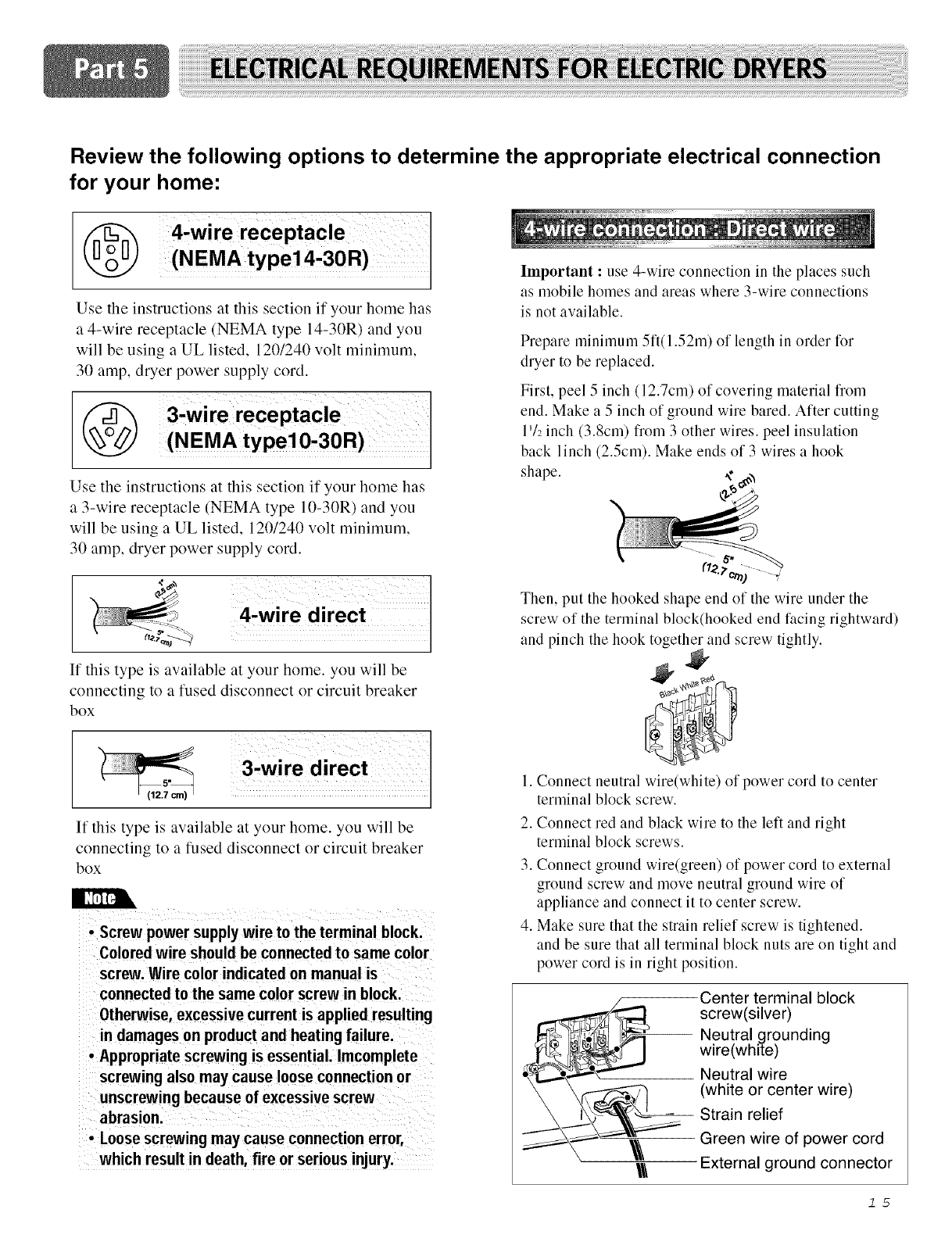

Review the following options to determine the appropriate electrical connection

for your home:

Use the instructions at this section if your home has

a 4-wire receptacle (NEMA type 14-30R) and you

will be using a UL listed, 1201240 volt minimum,

30 amp, dryer power supply cord.

Use the instructions at this section if your home has

a 3-wire receptacle (NEMA type 10-30R) and you

will be using a UL listed, 120/240 volt minimum,

30 amp, dryer power supply cord.

• i

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

• Screw power supply wire to the terminal block.

Colored wire should be connectedto same color

screw. Wire color indicated on manual is

connected to the same color screw in block.

Otherwise, excessive current is applied resulting

in damages on product and heating failure.

•Appropriate screwing is essential. Imcomplete

screwing also may cause loose connection or

unscrewing because of excessive screw

abrasion.

• Loose screwing may cause connection error,

which result in death, fire or serious injury.

Important : use 4-wire connection in the places such

as mobile homes and areas where 3-wire connections

is not available.

Prepare minimum 5ft(1.52m) of length in order tk)r

dryer to be replaced.

First, peel 5inch (12.7cm) of covering material from

end. Make a 5 inch of ground wire bared. After cutting

172 inch (3.8cm) from 3 other wires, peel insulation

back linch (2.5cm). Make ends of 3 wires a hook

shape. ,¢

Then, put the hooked shape end of the wire under the

screw of the terminal block(hooked end lacing rightward)

and pinch the hook together and screw tightly.

1. Connect neutral wire(white) of power cord to center

terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to external

ground screw and move neutral ground wire of

appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on tight and

power cord is in right position.

Center terminal block

screw(silver)

Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

Important : use 3-wire connection in the places

such as mobile homes and areas where 3-wire

connections is not available.

Prepare minimum 5ft(1.52m) of length in order for

dryer to be replaced.

First, peel 3 % inch (8.9cm) of covering material

from end and bare 1 inch from the ends.

'. .. ave

Then, put the hooked shape end of the wire under

the screw of the terminal block(hooked end facing

rightward) and pinch the hook together and screw

tightly.

1. Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Make sure that the strain relief screw is tightened

and be sure that all terminal block nuts are on

tight and power cord is in right position.

__ Center terminal

block screw(silver)

_A:rr_L"_r_ Neutral grounding

_:_'_ /_/:;_, wire(white)

i i •

__'_ Neutral grounding

'_'-_ wire(white)

___Strain relief

External ground

connector

• If your local codes or ordinances do not allow the

use of a 3 wire connection, or you are installing

your dryer in a mobile home, you must use a 4-

wire connection.

_ 4-wire receptacle

(NEMA type 14-30R)

,4-pront plug _ SP_udeetc_remnic_aIs

_nd prong_

_Neutral Prong

4-pront plug

!°

3/4 in. (1.9 cm)

UL approvea strain relief

Ring terminals

with

Center terminal block

screw(silver)

Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

Connect neutral wire(white) of power cord to

center terminal block screw.

Connect red and black wire to the left and right

terminal block screws.

Connect ground wire(green) of power cord to

external ground screw and move neutral ground

wire of appliance and connect it to center screw.

Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

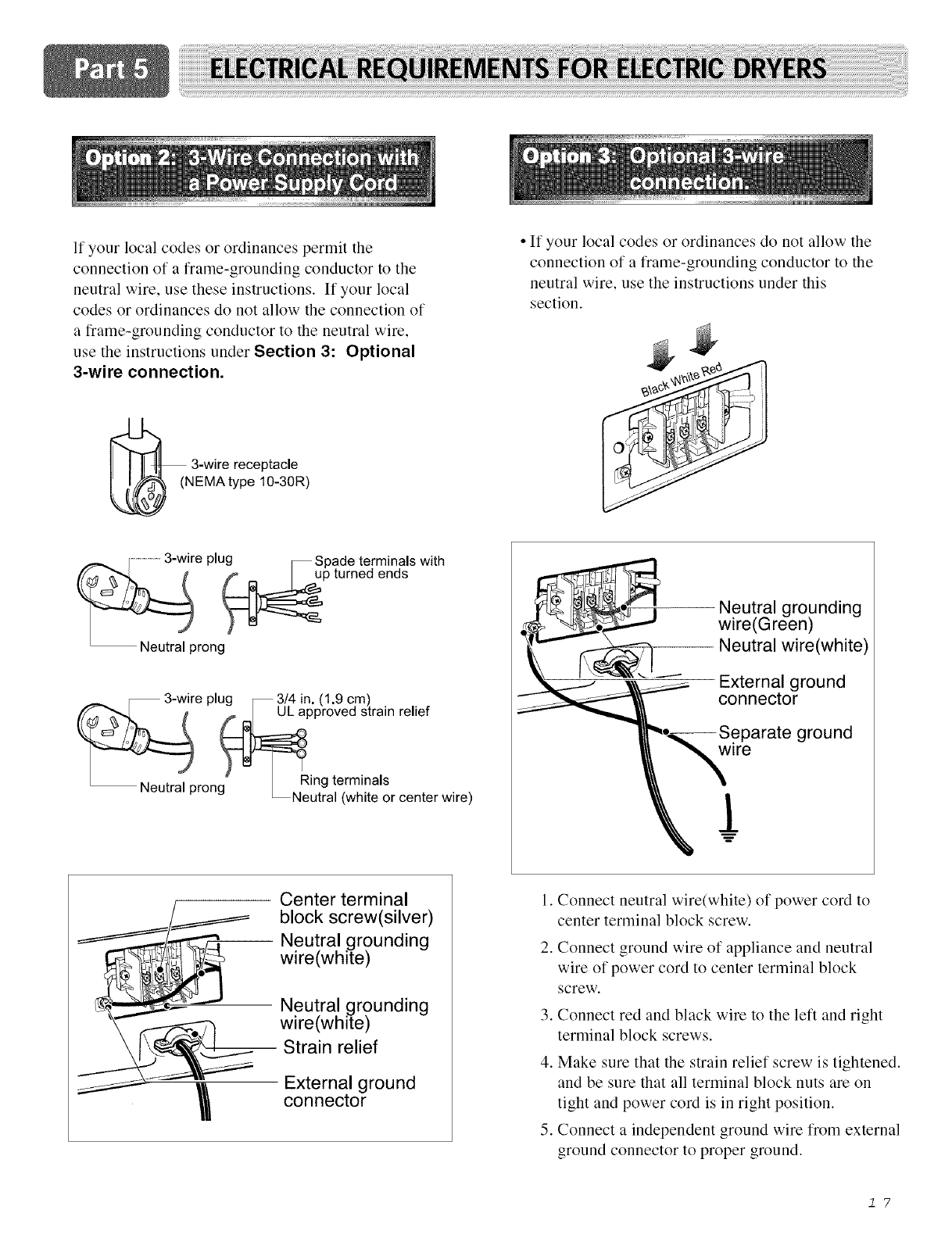

If yourlocalcodesorordinancespermitthe

connectionof aframe-groundingconductortothe

neutralwire,usetheseinstructions.If yourlocal

codesorordinancesdonotallowtheconnectionof

aframe-groundingconductorto theneutralwire,

usetheinstructionsunderSection 3: Optional

3-wire connection.

_( N3-wire receptacle

EMA type 10-30R)

3-wire plug _ Sp_detsgminda/s with

3-wire plug _ 3/4 in. (1.9 cm)

pproved strain relief

e a prong_ JRRing terminals

_Neutral (white or center wire)

Center terminal

block screw(silver)

Neutral grounding

wire(white)

Neutral grounding

wire(white)

Strain relief

External ground

connector

• If your local codes or ordinances do not allow the

connection of a frame-grounding conductor to the

neutral wire, use the instructions under this

section.

Neutral grounding

wire(Green)

Neutral wire(white)

External ground

connector

.o_-_ Separate ground

wlre

1.Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect ground wire of appliance and neutral

wire of power cord to center terminal block

screw.

3. Connect red and black wire to the left and right

terminal block screws.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

5. Connect a independent ground wire from external

ground connector to proper ground.

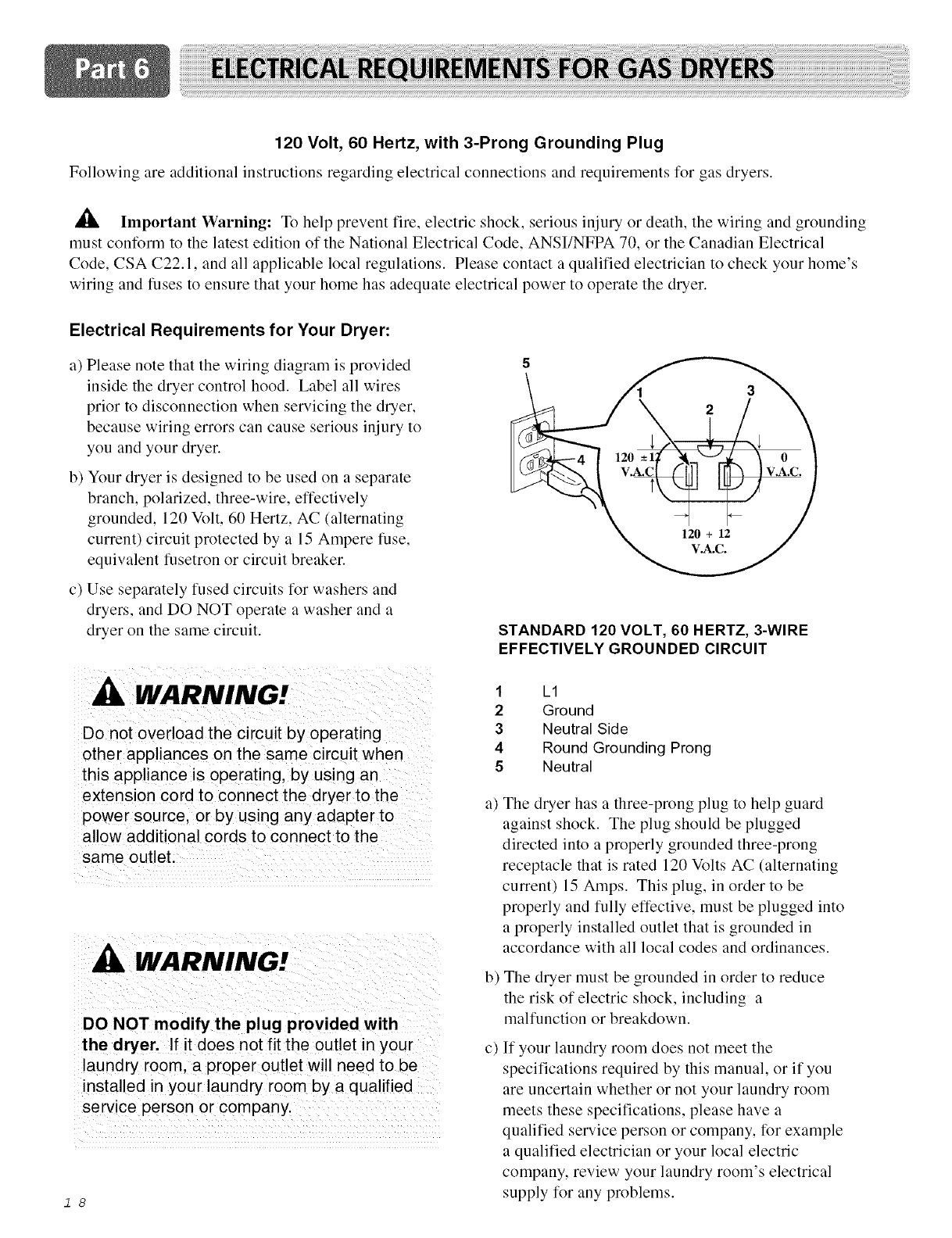

120 Volt, 60 Hertz, with 3-Prong Grounding Plug

Following are additional instructions regarding electrical connections and requirements for gas dryers.

Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1, and all applicable local regulations. Please contact a qualified electrician to check your home's

wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.

Electrical Requirements for Your Dryer:

a) Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wiring errors can cause serious injury to

you and your dryer.

b) Your dryer is designed to be used on a separate

branch, polarized, three-wire, effectively

grounded, 120 Volt, 60 Hertz, AC (alternating

current) circuit protected by a 15 Ampere fuse,

equivalent fusetron or circuit breaker.

c) Use separately fused circuits for washers and

dryers, and DO NOT operate a washer and a

dryer on the same circuit.

Do not over!oa d the cimuit by operating

other app!iances on the same circuit when

this applianc e is operating, by us!ng an

extension cord to connec t the dryer to the

power source, or by using any adapter to

allow additional cords to connect to the

same outlet:

WARNING!

DO NOT modify the plug provided with

the dryer. If it does not fit the outlet in your

laundry room, a proper outlet will need to be

installed in your laundry room by a qualified

service person or company.

STANDARD 120 VOLT, 60 HERTZ, 3-WIRE

EFFECTIVELY GROUNDED CIRCUIT

Ground

Neutral Side

Round Grounding Prong

Neutral

a) The dryer has a three-prong plug to help guard

against shock. The plug should be plugged

directed into a properly grounded three-prong

receptacle that is rated 120 Volts AC (alternating

current) 15 Amps. This plug, in order to be

properly and tully effective, must be plugged into

a properly installed outlet that is grounded in

accordance with all local codes and ordinances.

b) The dryer must be grounded in order to reduce

the risk of electric shock, including a

malfunction or breakdown.

c) If your laundry room does not meet the

specifications required by this manual, or if you

are uncertain whether or not your laundry room

meets these specifications, please have a

qualified service person or company, for example

a qualified electrician or your local electric

company, review your laundry room's electrical

supply for any problems.

Following are important instructions and information concerning the requirements for the gas supply and service for

gas dryers. _ Important Warning: The gas supply and service for a gas dryer must comply with all local codes

and ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas

dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223. I/NFPA 54.

1. Gas supply requirements: Liquefied Petroleum

(L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service

must be provided at 10 + 1.5 in. water column

pressure.

2. Do not attempt to connect Dryer to Liquified

Petroleum (LP Gas) Gas service without a

qualified professional.

3. Isolate the dryer from the gas supply piping

system by closing its individual manual shut-off

valve, during any pressure testing of the gas

supply system at test pressure equal to or less

than 211 psi (3.45 kPa).

4. Supply Line Requirements. Your laundry room

must have a rigid gas supply line to your dryer.

In the United States, an individual manual shutoff

valve MUST be installed within at least 6 feet

(1.8m) of the dryer, in accordance with the

National Fuel Gas Code ANSI Z223.1. A 1/8 in.

N.RT. pipe plug must be installed as shown.

DO NOT attempt any disassemb!y of the

dryer, any disassembly requires the

attention and tools of an authorized and

qualified service person or cornpany.

If using a rigid pipe, the rigid pipe should be 112

inch IPS. If acceptable under local codes and

ordinances and when acceptable to your gas

supplier, 3/8 inch approved tubing may be used

where lengths are less than 20 feet (6.1m).

Larger tubing should be used for lengths in

excess of 20 feet (6.1m). It is also important that

you use pipe joint compound that is insoluble in

LP gas.

To reduce the danger of gas leaks, explosion, and

fire, please follow and observe the following

instructions and WARNINGS:

Connect the dryer to the type of gas shown on the

nameplate;

Use new flexible stainless steel connectors;

Use Teflon tape and pipe joint compound

insoluble in LP gas on all pipe threads;

Purge gas supply of air and sediment before

connecting the gas supply to the dryer; in order to

prevent gas valve contamination, before tightening

connection between gas supply and dryer, purge

remaining air until odor of gas is identified; and

DO NOT use an open flame to inspect for gas

leaks; instead, use a non-corrosive leak detection

fluid.

WARNING!

• Use a new AGA or CSA approved gas

supply line.

• Install a shut-off valve.

• Securely tighten all gas connections.

• If connected to LP. have a qualified person

make sure gas pressure does not exceed

13 in. water column.

• Examples of a qual fled person include

licensed heating personnel, authorized gas

company personnel, and authorized service

personnel.

• Failure to do so can result in death.

explosion, or fire.

Following are important instructions and information concerning the exhaust requirements for your dryer.

,_t Important Warning: To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT

exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas

vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil

ducting.

/I¸ I /[ [I/

Number of 90° Maximum length of 4" Maximum length of 4',

(10,2 cm)diameter rigid (10.2 cm) diameter

Recommended

4" 4"

(10.2 cm) (10.2 cm)

Use Only for Short Run

Installations

2-1/2"

(6.35 cm)

0 65 feet (19.8 m) 45 feet (13.7 m)

155 feet (16.8 m) 35 feet (10.7 m)

247 feet (14.3 m) 30 feet (9.1 m)

3 36 feet (11.0 m) 25 feet (7.6 m)

4 28 feet (8.5 m) 20 feet (6.1 m)

55 feet (16.8 m)

47 feet (14.3 m)

41 feet (12.5 m)

30 feet (9.1 m)

22 feet (6.7 m)

35 feet (10.7 m)

27 feet (8.2 m)

21 feet (6.4 m)

17 feet (5.2 m)

15 feet (4.5m)

NOTE : Deduct 6 feet (1.8 m) for each additional elbow.

It is not recommended to use more than 4 90 °elbows.

Exhaust Requirements and Instructions:

1. Venting materials are not provided with the dryer

and you should obtain the necessary venting

materials locally. For example, the outer end of

exhaust pipe must have a weather hood with

hinged dampers to prevent back-draft when the

dryer is not in use.

2. The exhaust duct must be four inches (10.2 cm)

in diameter with no obstructions. The exhaust

duct should be kept as short as possible. Make

sure to clean any old ducts before installing your

new dryer.

.Rigid metal duct is recommended. Do not install

flexible duct in concealed spaces.

Non-combustible flexible metal duct is

acceptable. Do not use plastic or thin foil ducting.

4. DO NOT use sheet metal screws on exhaust pipe

joints or other t:astening means which extend into

the duct that could catch lint and reduce the

efficiency of the exhaust system. Secure all joints

with duct tape.

5. To maximize operating results, please observe the

duct length limitations noted in the chart above.

Exhaust and Dryer Maintenance

WARNING!

Disconnect the dryer!s e!ectric Power

prior to any cleaning or maintenance,

1. After one year of use, the interior and complete

exhaust system of the dryer should be examined

and cleaned if necessary.

2. Before one year of use, when drying performance

has been suddenly unsatisfied in the past several

cases, please examine and clean the exhaust duct

for better drying performance.

3. Check the weather hoods frequently to ensure

the dampers are moving freely, that the dampers

are not pushed in and that nothing has been set

against the dampers.

4. A qualified service person or company should be

used to perform this maintenance.

5. A Flexible Metal Vent Kit, available at extra cost,

can be used to exhaust the dryer when it is placed

in hard to reach places. This Kit comes in two

pieces, one of which is attached to the dryer and

the other is attached to the wall exhaust outlet.

Following attachment of the two separate pieces

to the dryer and the wall, the dryer may be

returned to its final position, after which the two

pieces themselves can be connected.

7. Ordinarily, the dryer drum will need no care.

Wipe the exterior of the dryer as required, and

always immediately wipe the exterior of the

dryer in the event any detergent, bleach, or other

washing products is spilled on the dryer, because

these products may cause permanent damage to

the exterior finish of the dryer.

8. Clean the control panel with a damp cloth as

necessary. Warning: spray pre-wash products

may damage the finish of the control panel.

9. Please clean the lint filter either before drying

each load or after drying each load.

10. Always make sure the lint filter is clean before

starting a new load, because a clogged lint filter

may increase drying times.

11. Annually remove the lint filter and attach it to

the vacuum duct. See item #2 above.

12. Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wiring errors can cause serious injury

to you and your dryer.

Cleaning the Lint Screen

1.Clean the lint filter either before drying each load

or alter drying each load. Always make sure the

lint filter is clean before starting a new load,

because a clogged lint filter may increase drying

times.

To clean, pull the lint screen straight up and roll

any lint off the screen with your fingers.

Do not rinse or wash screen to remove lint,

because wet lint is hard to remove. Push the lint

screen firmly back into place.

Always ensure the lint screen is firmly secured

before running the dryer. Running the dryer with

a loose lint screen may cause overheating and

damage to the dryer and articles being dried.

Some articles of clothing may shed more lint than

others (towels for example), causing the Lint

Screen to rapidly fill. Remove lint from the lint

screen before and after drying these articles, such

as new towels.

In the event lint falls off of the lint screen and

into the dryer during removal, inspect the exhaust

hood and remove any lint.

Laundry detergent and fabric softener residue can

build up on the lint screen, causing longer drying

times. The screen is likely blocked if lint falls off

the screen. In order to prevent this type of build

up, and help ensure proper operation of your

dryer, clean the lint screen with a nylon brush

every six months or, if necessary, more

frequently. The lint filter can also be washed as

follows:

a) After rolling the lint off of the screen with your

fingers, wet both sides of the screen with hot or

warm water.

b) Wet a nylon brush with hot water and liquid

detergent and scrub the lint screen with the brush

to remove the buildup of detergent and t:abric

softener.

c) Repeat as necessary.

d) After the residue has been removed, rinse screen

with hot water.

e) After drying the lint screen with a clean towel,

firmly replace the lint screen in your dryer.

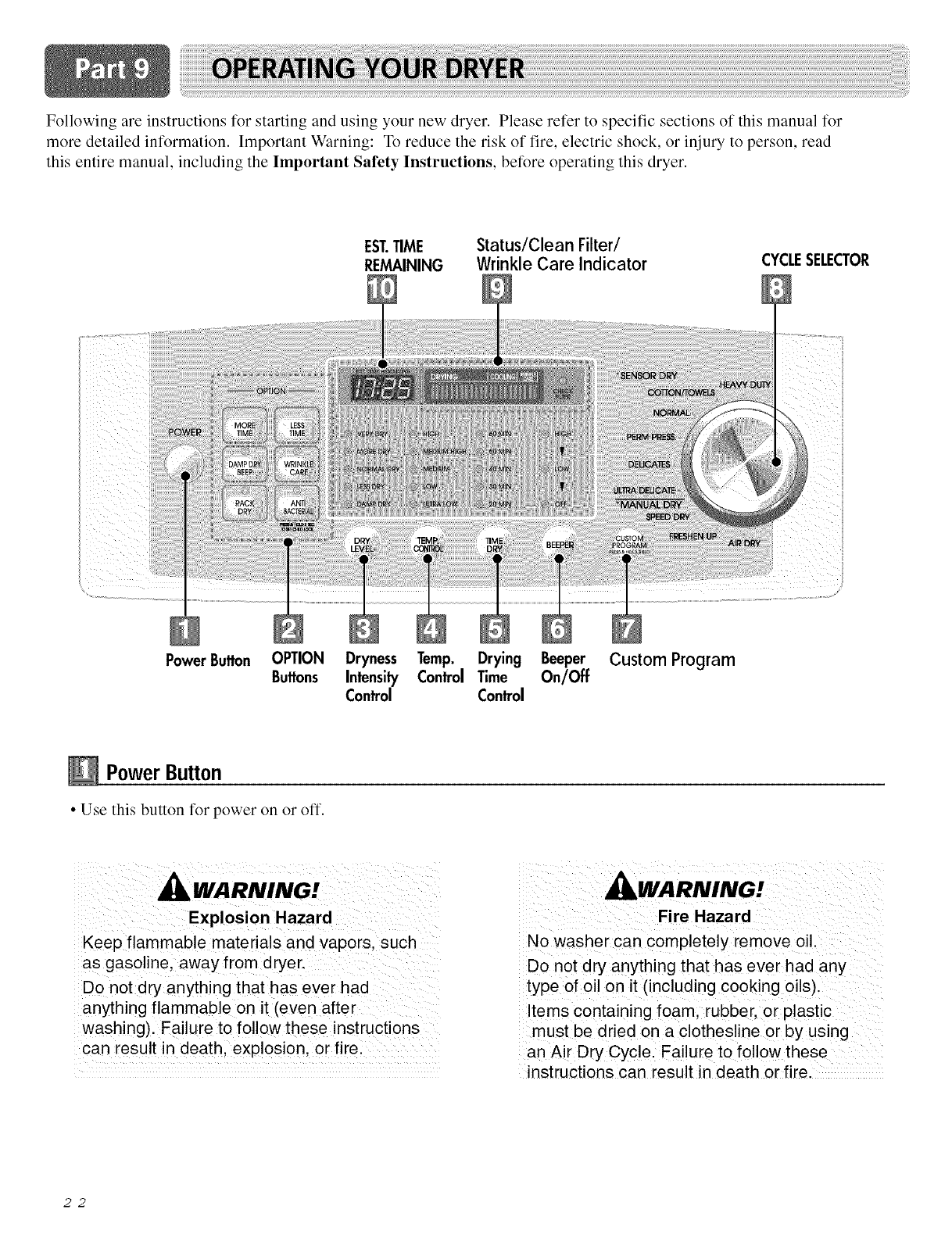

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for

more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to person, read

this entire manual, including the Important Safety Instr,dions, before operating this dryer.

EST.TIME

REMAINING

Status/Clean Filter/

Wrinkle Care Indicator CYCLESELECTOR

PowerButton OPTION Dryness Temp. Drying Beeper Custom Program

Buttons Intensity Control Time On/Off

Control Control

Power Button

• Use this button for power on or off.

Keep flammable materials and vapors, such

as gaso!ine, away from dryer.

D0n0t dry anything that has ever had

anything flammable on it (even after

washing). Failure to follow these instructions

can result in death, explosion, or firel

WARNING!

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any

type of oil on it (including cooking oils).

Items containinq foam. rubber, or plastic

must be dried on a clothesline or by using

an Air Dry Cycle. Failure to follow these

instructions can result in death or fire.

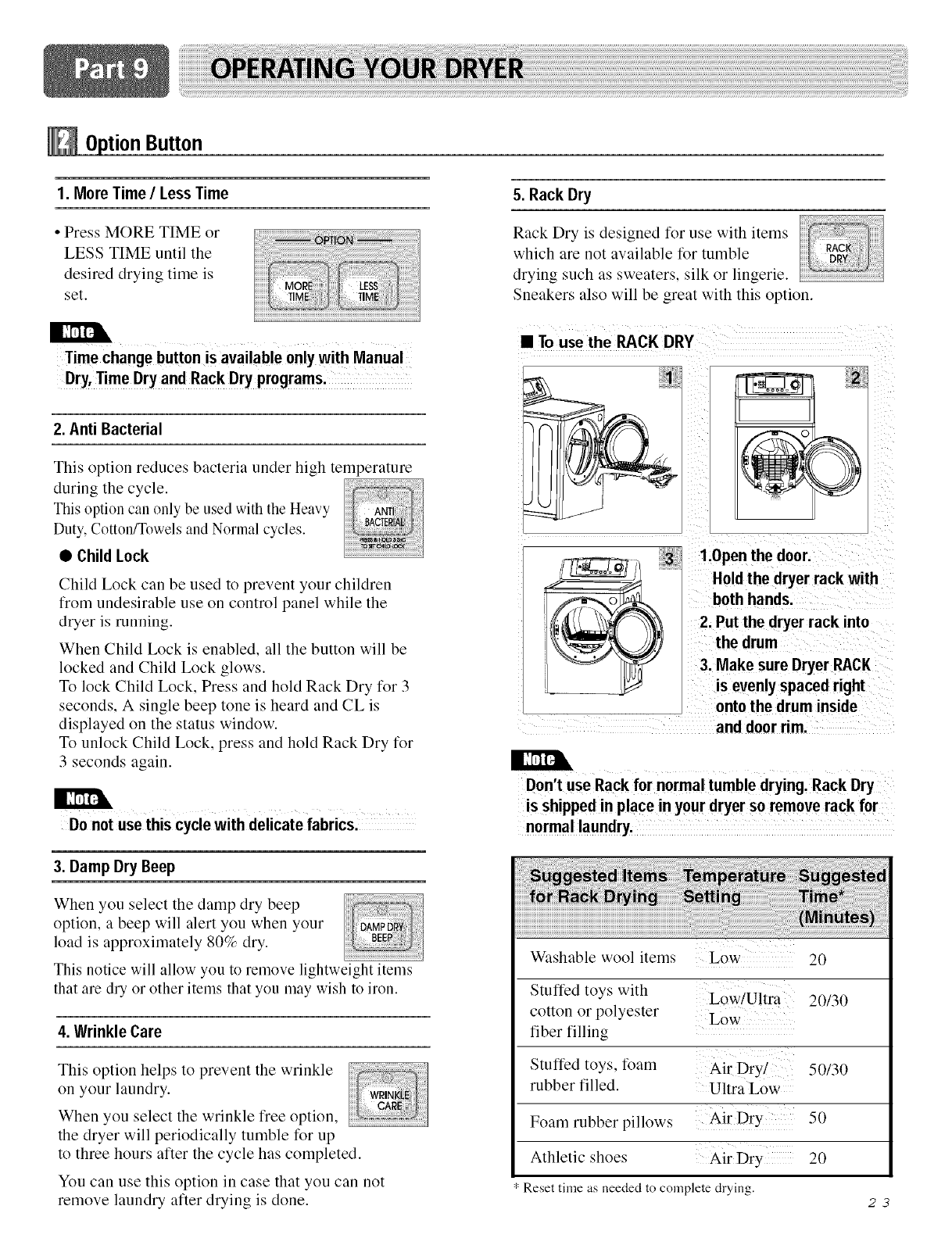

Button

1. More Time /Less Time

• Press MORE TIME or

LESS TIME until the

desired drying time is

set.

Time change button is available only with Manua!

Dry,Time Dryand Rack Dry programs.

2. Anti Bacterial

This option reduces bacteria under high temperature

during the cycle.

This option can only be used with the Heavy

iiiiiiii

Duty,Cotton/TowelsandNormalcycles

•Child Lock

Child Lock can be used to prevent your children

from undesirable use on control panel while the

dryer is running.

When Child Lock is enabled, all the button will be

locked and Child Lock glows.

To lock Child Lock, Press and hold Rack Dry for 3

seconds, A single beep tone is heard and CL is

displayed on the status window.

To unlock Child Lock, press and hold Rack Dry for

3 seconds again.

Do not use this cycle with delicate fabrics.

3. DampDryBeep

When you select the damp dry beep _

iiii......................._iiiiii ;:; i¸

option, a beep will alert you when your

load is approximately 80% dry.

This notice will allow you to remove lightweight items

that are dry or other items that you may wish to iron.

4. Wrinkle Care

This option helps to prevent the wrinkle

on your laundry.

When you select the wrinkle tree option,

the dryer will periodically tumble for up

to three hours after the cycle has completed.

You can use this option in case that you can not

remove laundry after drying is done.

5. Rack Dry

Rack Dry is designed for use with items

which are not available for tumble

drying such as sweaters, silk or lingerie.

Sneakers also will be great with this option.

•To use the RACK DRY

1.0pen the door.

Holdthe dryer rack with

both hands.

2. Put the dryer rack into

the drum

3. Make sure Dryer RACK

is evenly spaced right

onto the drum inside

and door rim.

Don,t use Rack for normal tumble drying. Rack Dry

is shipped in place in your dryer so remove rack for

normal laundry,

Washable wool items

Stuffed toys with

cotton or polyester

fiber filling

Stuffed toys, foam

robber filled.

Low

Low/U!tra

Low

Air Dry/

Ultra Low

Air DrY

Foam rubber pillows

Athletic shoes Air Dry

Reset time as needed to complete drying.

20/30

50130

Level

• Use this button to set dry level

• First, select sensor dry cycle.

• Select dry level to adjust how

much you want to dry the

load. As the cycle runs, the

control senses the dryness of

the load and adjusts the time

automatically based on the

selected dryness level.

DRYLEVELselections can only be made while

using Sensor Dry Cycles. Selecting

MOREDry or LESSDry automatically adjusts the

needed time which is already sensed.

Control

Use Time Control Option to

select temperatures for the

Manual Cycles. Press TEMP.

CONTROL until the desired

temperature setting glows.

Temperature modifiers cannot

be used with the Sensor Dry

Cycles.

Foam rubber-pillows, 20,30

padded bras, stuffed toys

Plastic-Shower curtains, 20_30

tableclothes

Rubber-backed rags 40 ' 50

Olefin, polypropylene, 10 : 20

shear nylon

Time Dry

Use Time Dry Option to change

Drying Time on your own.

You can select the desired operation

time manually by pressing Time Dry

button which ranges from 20 to 60

minutes.

Manual Dry Templ Default Time*

Cycles Load Type (Minutes)

SPEED DRY

SMALL LOADS High 25

FRESHEN UP Medium 20

Remove Wrinkles High

AIR DRY Air Dry 30

The BEEPER controls the

volume of the beep that is made

when you press any of the

buttons on the control panel and

the termination of any cycle is

indicated.

Press BEEPER to adjust the

sound level or turn off the signal.

CUSTOMPROGRAM

Custom Programming Set up your

favorite combination

of settings and save them here for one-

touch recall.

1. Select a cycle

2. Change DRY LEVEL and TEMP. CONTROL.

3. Select OPTIONS you want.

4. Press and hold the CUSTOM PROGRAM.

To recall your stored CUSTOM PROGRAM

Press CUSTOM PROGRAM button, then press

START/PAUSE.

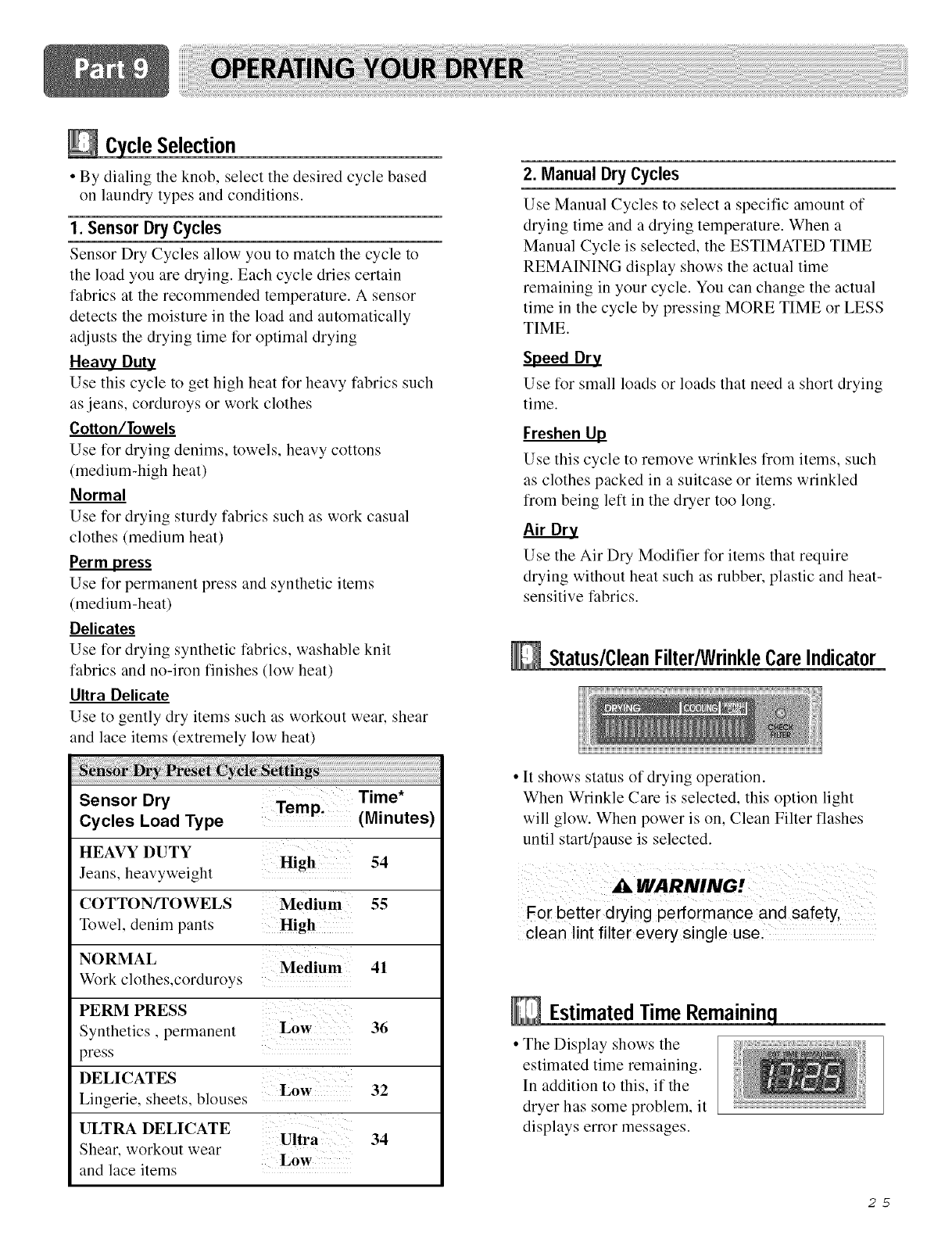

Selection

• By dialing the knob, select the desired cycle based

on laundry types and conditions.

1. Sensor Dry Cycles

Sensor Dry Cycles allow you to match the cycle to

the load you are drying. Each cycle dries certain

fabrics at the recommended temperature. A sensor

detects the moisture in the load and automatically

adjusts the drying time for optimal drying

Heavy Duty

Use this cycle to get high heat for heavy fabrics such

as jeans, corduroys or work clothes

Cotton/Towels

Use for drying denims, towels, heavy cottons

(medium-high heat)

Normal

Use for drying sturdy fabrics such as work casual

clothes (medium heat)

Perm press

Use for permanent press and synthetic items

(medium-heat)

Delicates

Use for drying synthetic fabrics, washable knit

fabrics and no-iron finishes (low heat)

Ultra Delicate

Use to gently dry items such as workout wear, shear

and lace items (extremely low heat)

Sensor Dry Time*

Temp, (Minutes)

Cycles Load Type

HEAVY DUTY High 54

Jeans, heavyweight

COTTON/TOWELS 55

Towel, denim pants High

NORMAL Medium 41

Work clothes,corduroys

PERM PRESS

Synthetics, permanent Low 36

press

DELICATES

Lingerie, sheets, blouses Low 32

ULTRA DELICATE Ultra 34

Shear, workout wear

and lace items Low

2. Manual Dry Cycles

Use Manual Cycles to select a specific amount of

drying time and a drying temperature. When a

Manual Cycle is selected, the ESTIMATED TIME

REMAINING display shows the actual time

remaining in your cycle. You can change the actual

time in the cycle by pressing MORE TIME or LESS

TIME.

Speed Dry

Use for small loads or loads that need a short drying

time.

Freshen Up

Use this cycle to remove wrinkles from items, such

as clothes packed in a suitcase or items wrinkled

from being left in the dryer too long.

Use the Air Dry Modifier for items that require

drying without heat such as rubber, plastic and heat-

sensitive fabrics.

Status/CleanFilter/WrinkleCareIndicator

• It shows status of drying operation.

When Wrinkle Care is selected, this option light

will glow. When power is on, Clean Filter flashes

until start/pause is selected.

For better drYing performance and safety,

clean lint fi!ter every single use,

EstimatedTime Remaininq

• The Display shows the

estimated time remaining.

In addition to this, if the

dryer has some problem, it

displays error messages.

Starting your dryer

1 Before use

• Clean lint screen before or after each cycle.

• Place laundry into dryer and shut door. See Loading.

• Turn the knob to select the drying cycle you want.

The preset setting for Sensor Dry Cycles or Manual

Cycles will glow. The estimated or actual cycle time (in

minutes) will show in the display.

2. I.oading

• Determine load size by the amount of space the load

requires rather than the weight of the load.

• Avoid overloading the dryer.

Following these instruction can help reduce your utility

bill, prolong the life of your clothes, and decrease the

likelihood of uneven drying and wrinkle.

Heavy Work Clothes

4 jeans 2 sweatpants

4 workpants 2 sweatshirts

4 work shirts

Cotton/Towels

10 bath towels

10 hand towels

Mixed Load

3 sheets (1 king, 2 twin)

4 pillowcases

3 shirts

3 blouses

9 T-shirts

9 shorts

10 handkerchiefs

3 To use a sensor dry cycle

•Select DRY LEVEL to adjust how dry you want

the load. As the cycle runs, the control senses the

dryness of the load and adjusts the time

automatically for the selected dryness level.

• Select the desired Options.

• Press START/PAUSE

DRY LEVELselections can only be made while

using Sensor DryCycles, Selecting MOREDry or

LESS Dryautomatically adjusts the sensed time

needed.

4 To use a sensor dry cycle

• Select a Manual Dry Cycle.

• Press MORE TIME or LESS TIME until the

desired drying time is displayed. Tap MORE TIME

or LESS TIME and the time will change by 1

minute interval.

The MORETIME or LESSTIME feature can be used

with Manual Dry, Time Dry and Rack Dry Cycles,

• Press TEMP. CONTROL until the desired

temperature indicator glows.

• (OPTIONAL STEP) If desired, select OPTIONS.

For more details, see Options.

•Press START/PAUSE. Be sure the door is closed.

•If you do not press START/PAUSE within 10

minutes of selecting the cycle, the dryer

automatically shuts off.

• If you wish to end your drying cycle after pressing

START/PAUSE, press START/PAUSE again.

To stop your dryer at any time

Press START/PAUSE or open the door.

5. Pausing or restarting To pause the dryer at

time

Open the door or press START/PAUSE once.

To restart the dryer

Close the door. Press START/PAUSE.

Drying will continue from where the cycle

was interrupted if youclose the door and press

STARTwithin 10 minutes, If the cycle is

interrupted for more than 10 minutes, the dryer

will shutoff Select new cycle settings before

Improper wire connection or related wiring error

will can cause fire or electric shock or death.

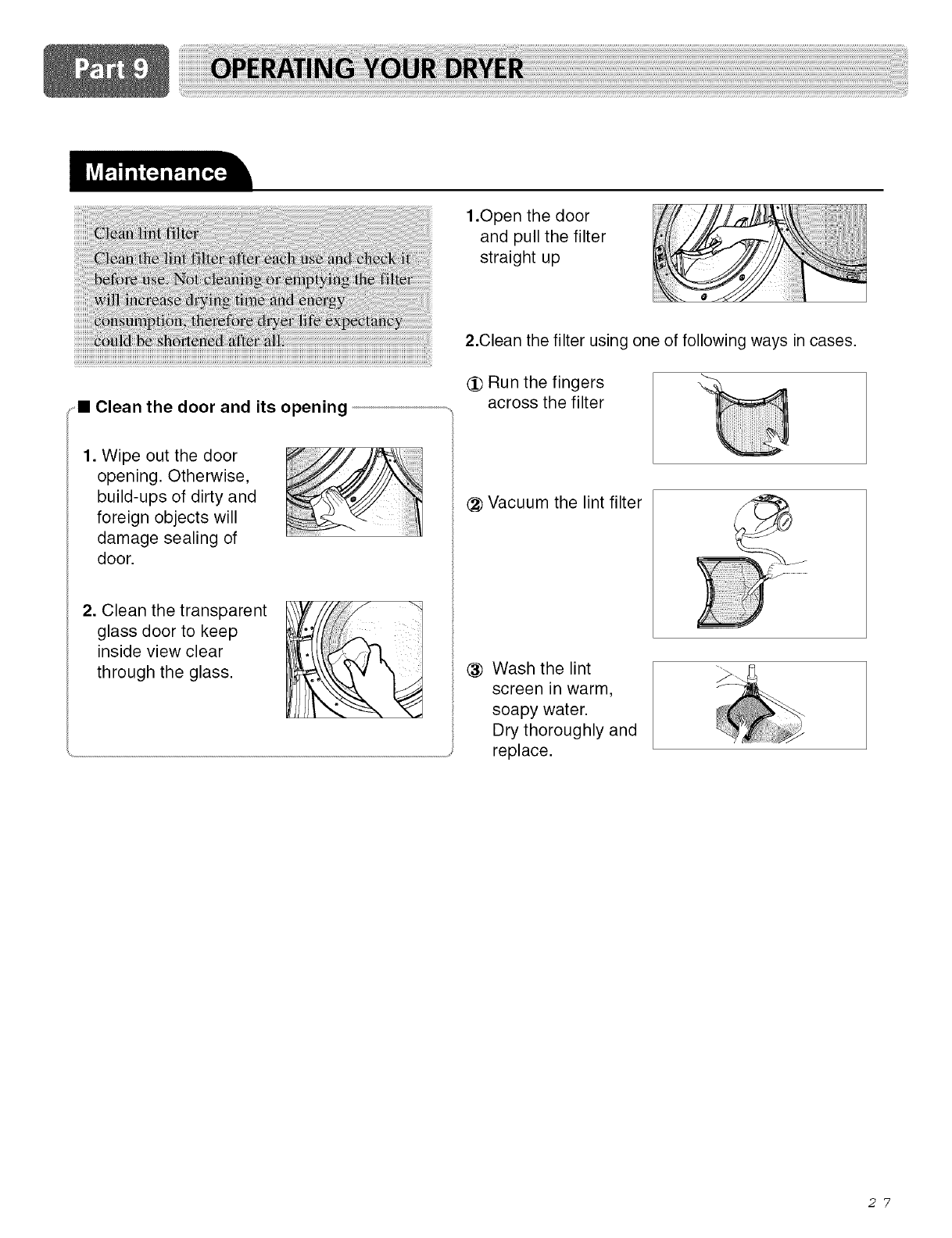

1.Open the door

and pull the filter

straight up

2.Clean the filter using one of following ways in cases.

Clean the door and its opening

Run the fingers

across the filter

1. Wipe out the door

opening. Otherwise,

build-ups of dirty and

foreign objects will

damage sealing of

door.

2. Clean the transparent

glass door to keep

inside view clear

through the glass.

(_ Vacuum the lint filter

Wash the lint

screen in warm,

soapy water.

Dry thoroughly and

replace.

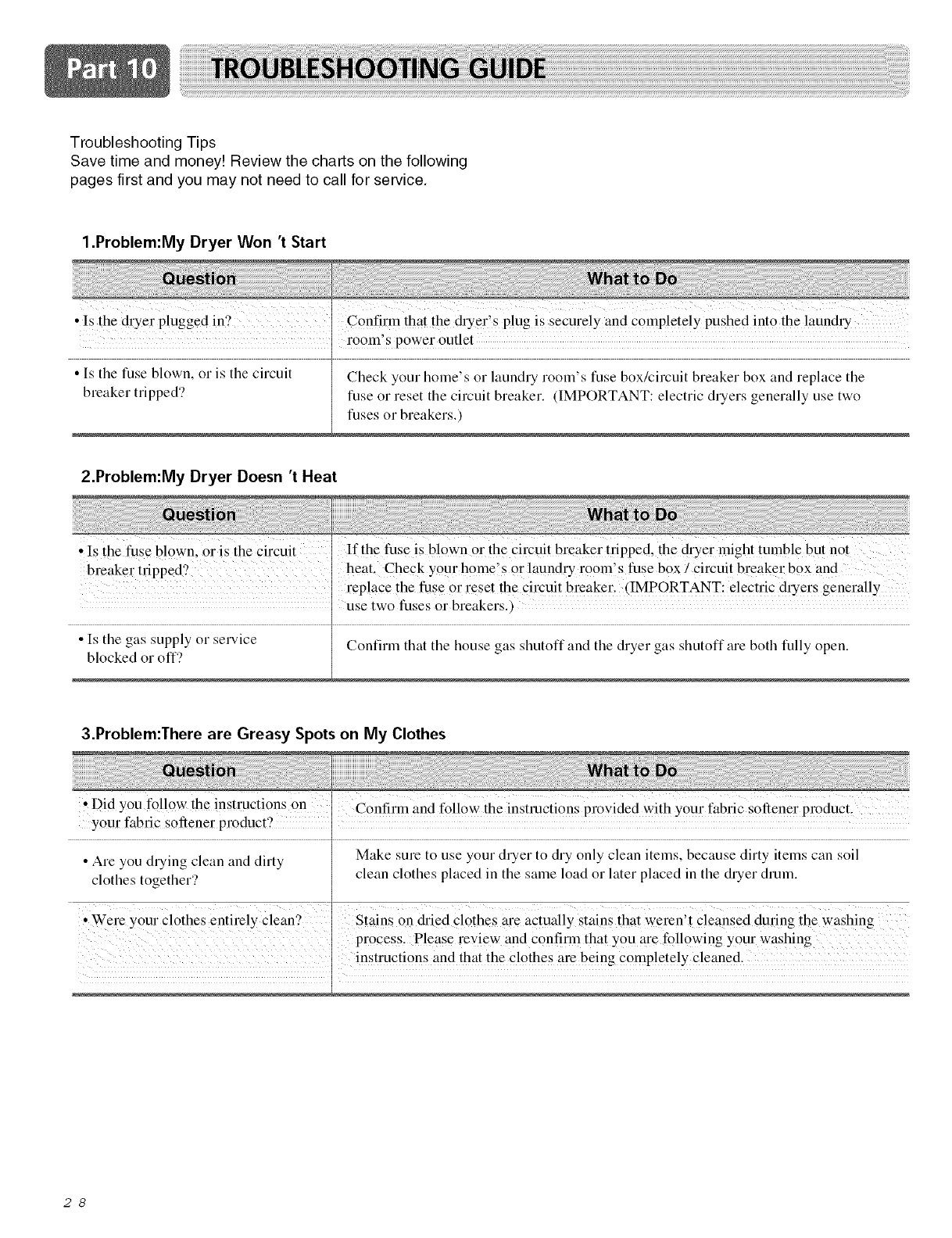

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

1.Problem:My Dryer Won't Start

• Is the dryer plugged in?

• Is the luse blown, or is the circuit

breaker tripped?

Confirm that the dryer s p!ug is securely and completely pushed int0 the laundry

_ower outlet

Check your holne's or laundry room's fuse box/circuit breaker box and replace the

fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two

fuses or breakers.)

2.Problem:My Dryer Doesn't Heat

, Is the fuse blown, or is the Circuit It" the fuse is blown 0r the circuit breaker tripped, the dryer might tumble but not

heat. Check Your home's 9r laundry room Sfuse box /Circuit breaker box and

reP!ace the fuse 0r reset the circuit breaker. (IMPORTANT: electric dryers generally

use two fuses o1" breakers.)

• Is the gas supply or service Confirm that the house gas shutoff and the dryer gas shutoff are both tully open.

blocked or off'?

3.Problem:lhere are Greasy Spots on My Clothes

Did you t_!!0w the instructions On _ _

• Confirm and follow the instructions provided with your fabric softener product,

your fabric softener product,

• Are you drying clean and dirty Make sure to use your dryer to dry only clean items, because dirty items can soil

clothes together? clean clothes placed in the same load or later placed in the dryer drum.

Wer e your clothes entirely Clean, Stains on &'ted clothes are actually stains that weren t cleansed during the washing

I process. Please !eyiew and c0nfinn that YOUare following YOre:washing

instructi0ns and that the c!0thes are being €omp!etely c!eaned.

4.Problem:There is Lint on my Clothes

•Is your lint filter full? Please refer to the manual section on cleaning the lint filter, and please confirm that the

lint filter is clean. It is important that the lint filter is clean before each new load of

laundry.

• Did you properly sort your load of In order to reduce the alnount of lint in a load of laundry, sort lint producers (like a

laundry'? fuzzy white cotton towel) separately fi'oln clothes that might catch lint (such as a pair

of black linen pants).

• Do your clothes have excess static See comments below under There is static in my clothes after drying.

electricity'?

• Did you overload your dryer? Divide your larger load into smaller loads.

• Did you place any paper, tissue, or Solnetimes a person might forget to take a piece of paper or a tissue out of the pocket

other similar material in the load'? of a pair of pants, and this paper, tissue, or similar material can cause excess lint in a

load of laundry. Confirm that the pockets of pants, shirts, and other articles of clothing

are empty before washing and drying.

5.Problem:]'here is static in my clothes after drying

• 9

Did YOUuse t:abric softener! TI) ' using a fabric s0_ener t° reduce stati c electricity:

• Did you over dry the load of I Over-drying a load of laundry can cause a build up of static electricity. Try

• . ,) ........

laundly: usm_ a fabric softener or adjust your settings and use a shorter drym_ tnne.

°Arevoudrvin_svnthetic, permanent I _.i £ ,i,.,.. , . ;_: _, i _.

- _ ; _ lnese mater als can cause statlc tot_ullauplna loaaoi oriea clothes, lry

press and blends I 2

using a fabric softener.

6.Problem:lhe drying time is not consistent

• Are you using consistent heat

settings and consistent load sizes'?

The drying time for a load will vary depending on the heat setting, the type of heat

used (electric, natural or LP gas), the size of the load, the type of fabrics, the wetness

of the clothes and the condition of the exhaust ducts and lint tiler.

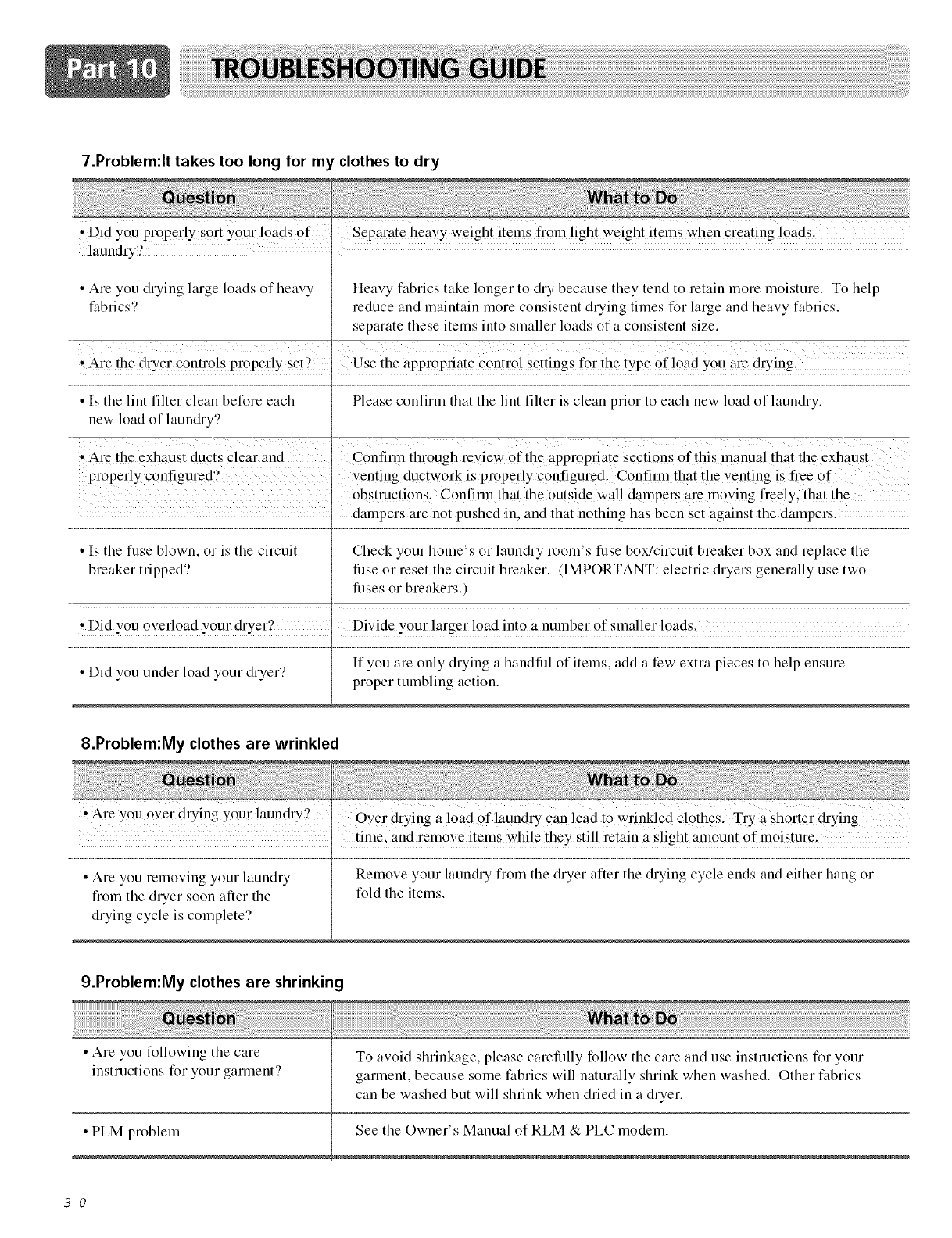

7.Problem:It takes too long for my clothes to dry

' Did you properly sort your loads of : "-............................................................ _7

Separate heavy weight items from light weight items when creating loads.

laundry9

•Are you drying large loads of heavy

fabrics?

, Are the dryer Controls pr0per!y Set?

Heavy fabrics take longer to dry because they tend to retain more moisture. To help

reduce and maintain more consistent drying times for large and heavy fabrics,

separate these items into smaller loads of a consistent size.

Use the appropriate control settings for the type of load you are drying,

• Is the lint filter clean before each Please confirm that the lint filter is clean prior to each new load of laundry.

new load of laundry?

• Are the exhaust ducts Clear and confirm through reyiew Of the appr0pt:iate Sections Ofthis manua! that the exhaust

r0 erl c0nfi ured ') ventin ductworkis ro erl confi urea Confirm thattheventin is fieeof

P P Y g , g .P P Y g • g_

0bstmcti0ns: Confirm that the outside wa!! dampers are moving fl:eely, that the

dampers m'e not pushed in, and that nothing has been set against the dampers.

• Is the fuse blown, or is the circuit Check your home's or laundry rooln's fuse box/circuit breaker box and replace the

breaker tripped? fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two

fuses or breakers.)

• Did you overload your dryer? Divide your larger load into a number of smaller loads.

• Did you under load your dryer? If you are only drying a handful of items, add a few extra pieces to help ensure

proper tumbling action.

8.Problem:My clothes are wrinkled

' A;'e you Over drying your laundry? ' .....................................

Over ch'ying a loadOflaundryCanleadtowrinkled Clothes. Try a Shorter ch:ying

time, and remove items while they still retain a Slight amount of moisture.

• Are you removing your laundry

fiom the dryer soon after the

drying cycle is complete?

Remove your laundry from the dryer after the drying cycle ends and either hang or

fold the itelns.

9.Problem:My clothes are shrinking

• Are you following the care

instructions for your garment?

• PLM problem

To avoid slmnkage, please carefully follow the care and use instructions for your

garment, because some fabrics will naturally shrink when washed. Other fabrics

can be washed but will shrink when dried in a dryer.

See the Owner' s Manual of RLM & PLC modem.

3 0

LG Electronics Inc. will repair or at its option replace, without charge, your product if it proves to be defective in

material or workmanship under normal use during the warranty period set forth below, effective from the date of

original consumer purchase of the product. Thislimited warranty is good only to the original purchaser of the product

and effective only when used in the United States including Alaska, Hawaii, and U.S.Territories.

WARRANTYPERIOD:

Labor: 1 Year from the Date of Purchase.

All Parts: IYear from the Date of Purchase.

HOW SERVICEISHANDLED:

Call 1-877-714-7486 and choose the appropriate prompt. Please

have product type (Dryer), model number, serial

number, and ZIP code ready.

The warranted 1-year of labor covers the cost of In-Home Service

on all parts including the Drum Tub and Motor.

THISWARRANTY IS IN LIEUOF ANY OTHERWARRANTIES,EXPRESSOR IMPLIED, INCLUDING WITHOUTLIMITATION,ANY

WARRANTYOF MERCHANTABILITYOR FITNESSFORA PARTICULARPURPOSE.TO THEEXTENTANY IMPLIEDWARRANTYIS

REQUIREDBY IAW, ITIS LIMITEDIN DURATIONTO THEEXPRESSWARRANTYPERIODABOVE. LGWILL NOT BELIABLEFOR

ANY CONSEQUENTIAL,INDIRECT,OR INCIDENTALDAMAGES OF ANY KIND, INCLUDING LOSTREVENUESOR PROFITS,IN

CONNECTION WITH THEPRODUCT. SOME STATESDO NOTALLOW LIMITATIONON HOW LONG AN IMPLIEDWARRANTY

LASTSOR THEEXCLUSIONOF INCIDENTALOR CONSEQUENTIALDAMAGES, SO THEABOVE LIMITATIONSOR EXCLUSIONS

MAY NOT APPLYTO YOU.

THISLIMITEDWARRANTYDOES NOT APPLYTO:

1. Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses

or correct wiring, or correction of unauthorized repairs; and

Damages or operating problems that result from misuse, abuse, operation outside environmental

specifications or contrary to the requirements or precautions in the Operating Guide, accident, vermin,

fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical

current or voltage, or commercial use, or use for other than intended purpose.

3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer.

CUSTOMERINTER-ACTIVECENTERNUMBERS:

ToProve Warranty Coverage

ToObtain Nearest Authorized Service Center or Sales

Dealer, or to Obtain Product, Customer, orService

Assistance

Retain your Sales Receipt to prove date of purchase. A

copy of your Sales Receipt must be submi_ed at the time

warranty service isprovided.

Call 1-877-714-7486

(24 hrs a day, 7 days per week) and choose the

appropriate prompt from the menu, and have your

product type (Dryer), model number, serial

number, and ZIP Code; or visit our website at

http://www.lgservice.com.

LG DLE0442G User Manual ELECTRIC DRYER Manuals And Guides L0707027

LG Residential Dryer Manual L0707027 LG Residential Dryer Owner's Manual, LG Residential Dryer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
