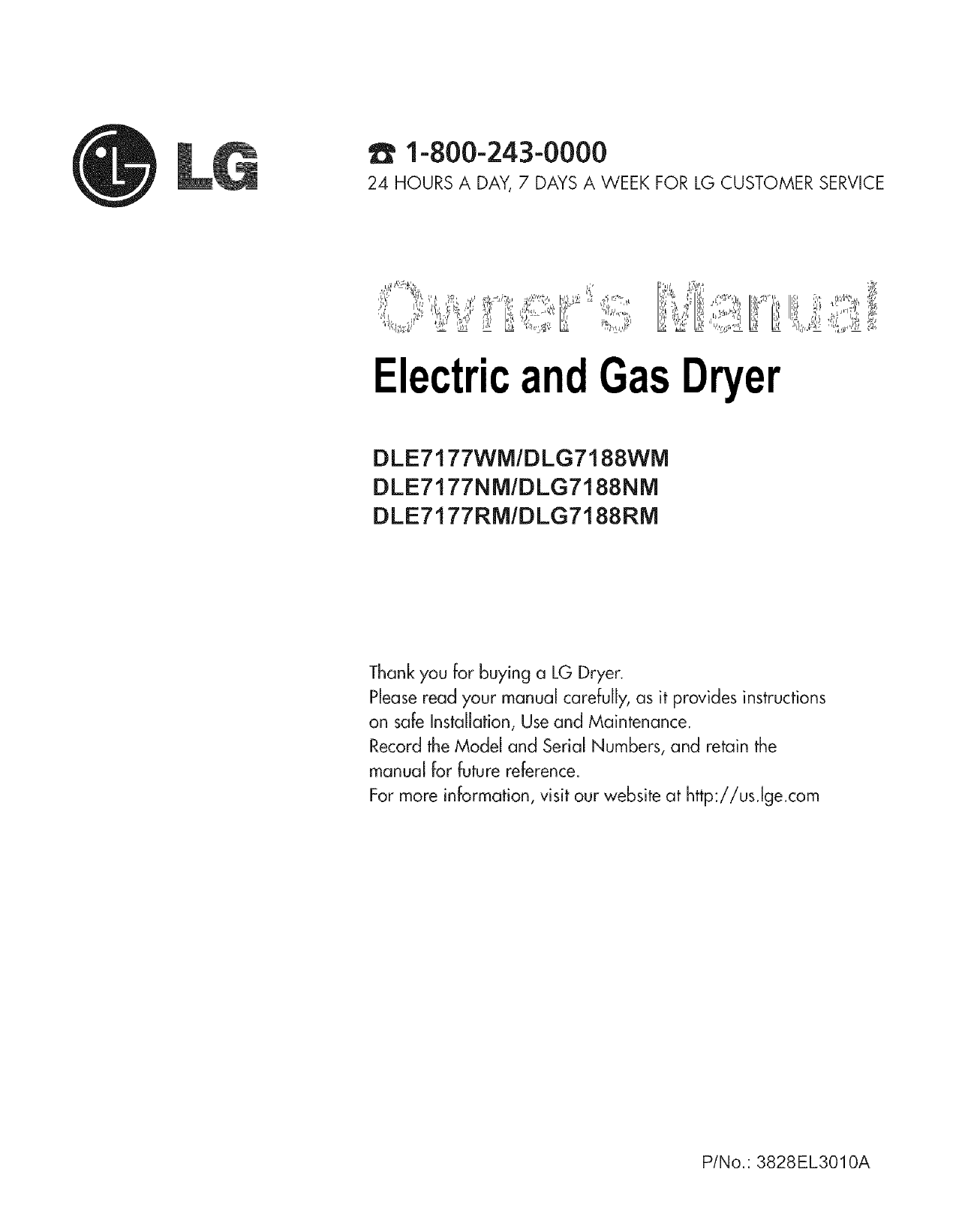

1-800-243-0000

24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE

_¢'/,, 4_" """n Ir_;_9_

,_: _',_"r _ _, ,_Y_'_!i,,rsi,_[ ,'_;"i

r,±j,

ElectricandGasDryer

DLE7177WNl/DLG7188WiVi

DLE7177NiVI/DLG7188NM

DLE7177RIVI/DLG7188RM

Thank you for buying a LG Dryer.

Pleaseread your manual carefully, as it provides instructions

on safe Installation, Useand Maintenance.

Record the Model and Serial Numbers, and retain the

manual for future reference.

For more information, visit our website at http:iius.lge.com

P/No.: 3828EL3010A

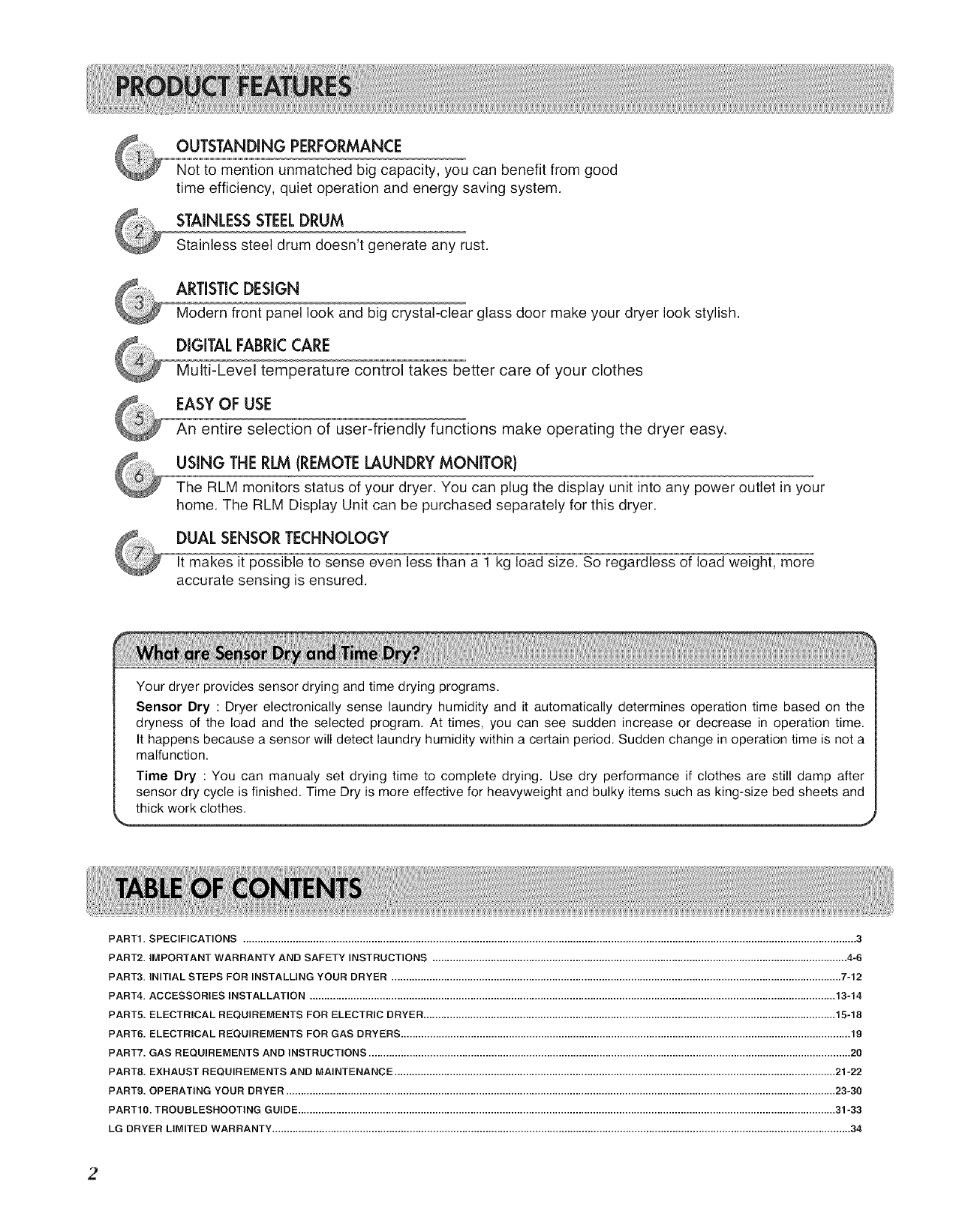

benefit from good

time efficiency, quiet operation and energy saving system.

STAINLESSSTEELDRUM

Stainless steel drum doesn't generate any rust.

ARTISTICDESIGN

Modern front panel look and big crystal-clear glass door make your dryer look stylish.

DIGITALFABRICCARE

Multi-Level temperature control takes better care of your clothes

EASYOF USE

An entire selection of user-friendly functions make operating the dryer easy.

USING THE RLM (REMOTELAUNDRYMONITOR)

The RLM monitors status of your dryer. You can plug the display unit into any power outlet in your

home. The RLM Display Unit can be purchased separately for this dryer.

DUAL SENSORTECHNOLOGY

It makes it possible to sense even less than a 1 kg load size. So regardless of load weight, more

accurate sensing is ensured.

Your dryer provides sensor drying and time drying programs.

Sensor Dry : Dryer electronically sense laundry humidity and it automatically determines operation time based on the

dryness of the load and the selected program. At times, you can see sudden increase or decrease in operation time.

It happens because a sensor will detect laundry humidity within a certain period. Sudden change in operation time is not a

malfunction.

Time Dry : You can manualy set drying time to complete drying. Use dry performance if clothes are still damp after

sensor dry cycle is finished. Time Dry is more effective for heavyweight and bulky items such as king-size bed sheets and

thick work clothes.

PART1. SPECIFICATIONS .................................................................................................................................................................................................................. 3

PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS .............................................................................................................................................. 4-6

PART3. INITIAL STEPS FOR INSTALLING YOUR DRYER .......................................................................................................................................................... 7-12

PART4. ACCESSORIES INSTALLATION .................................................................................................................................................................................... 13-14

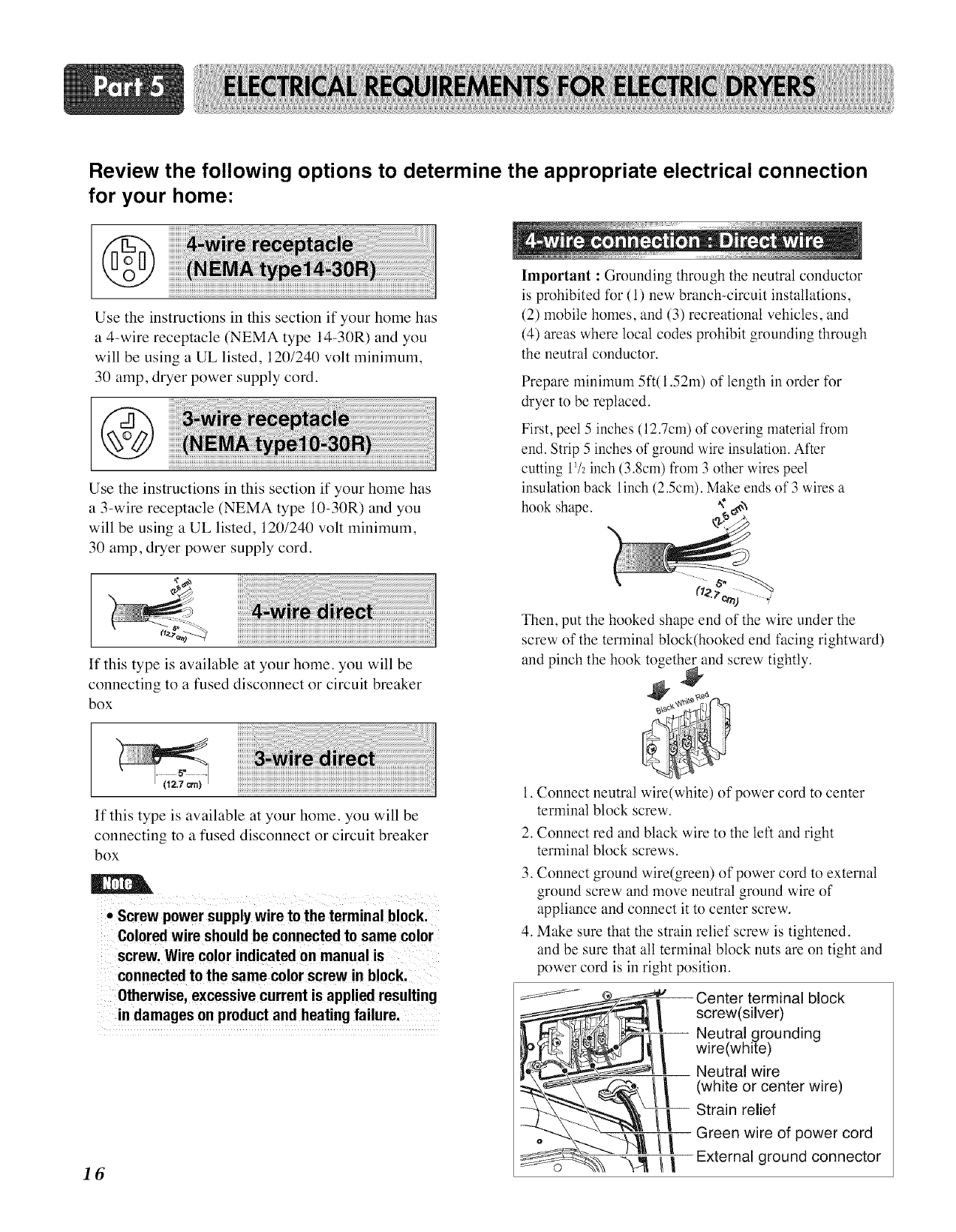

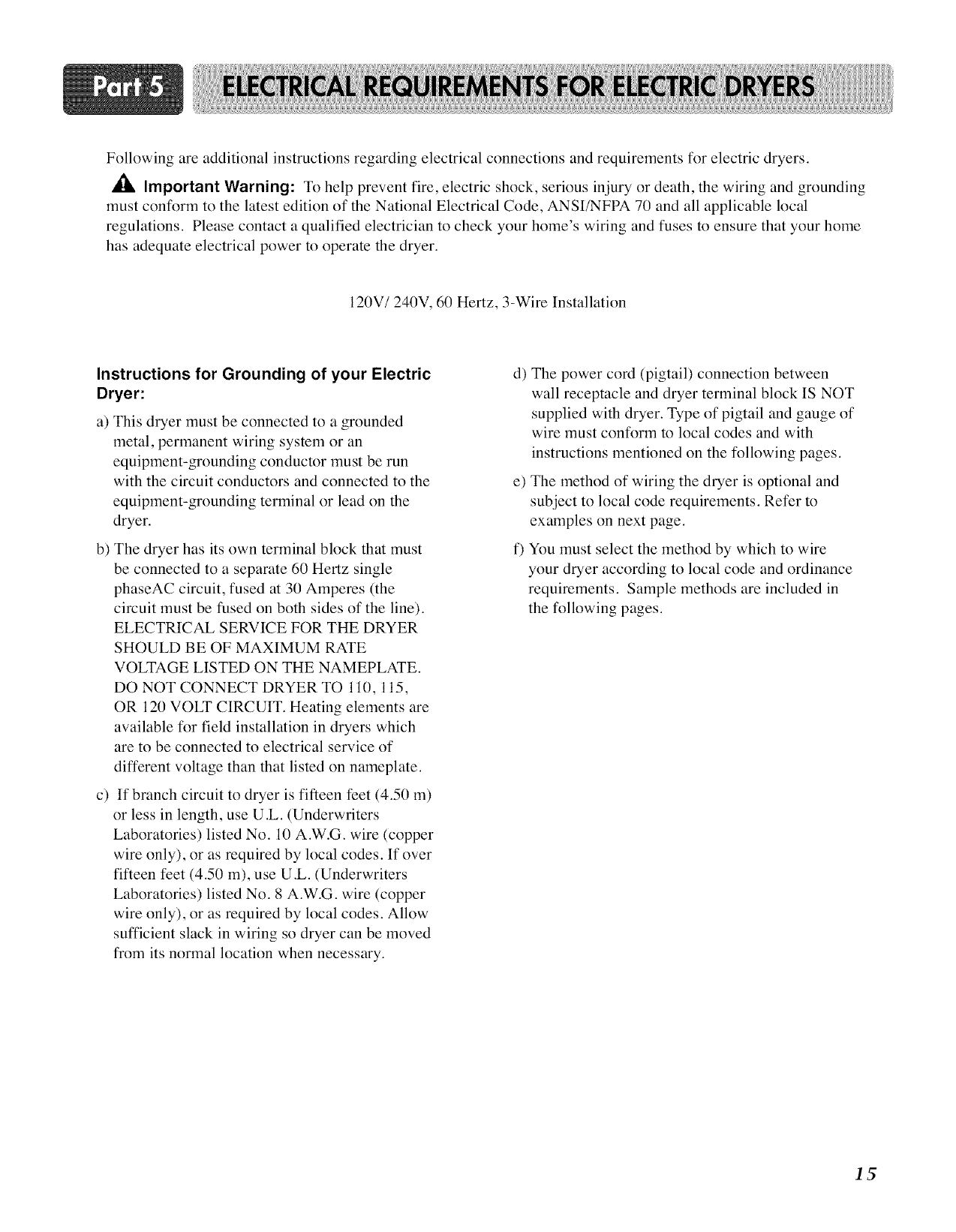

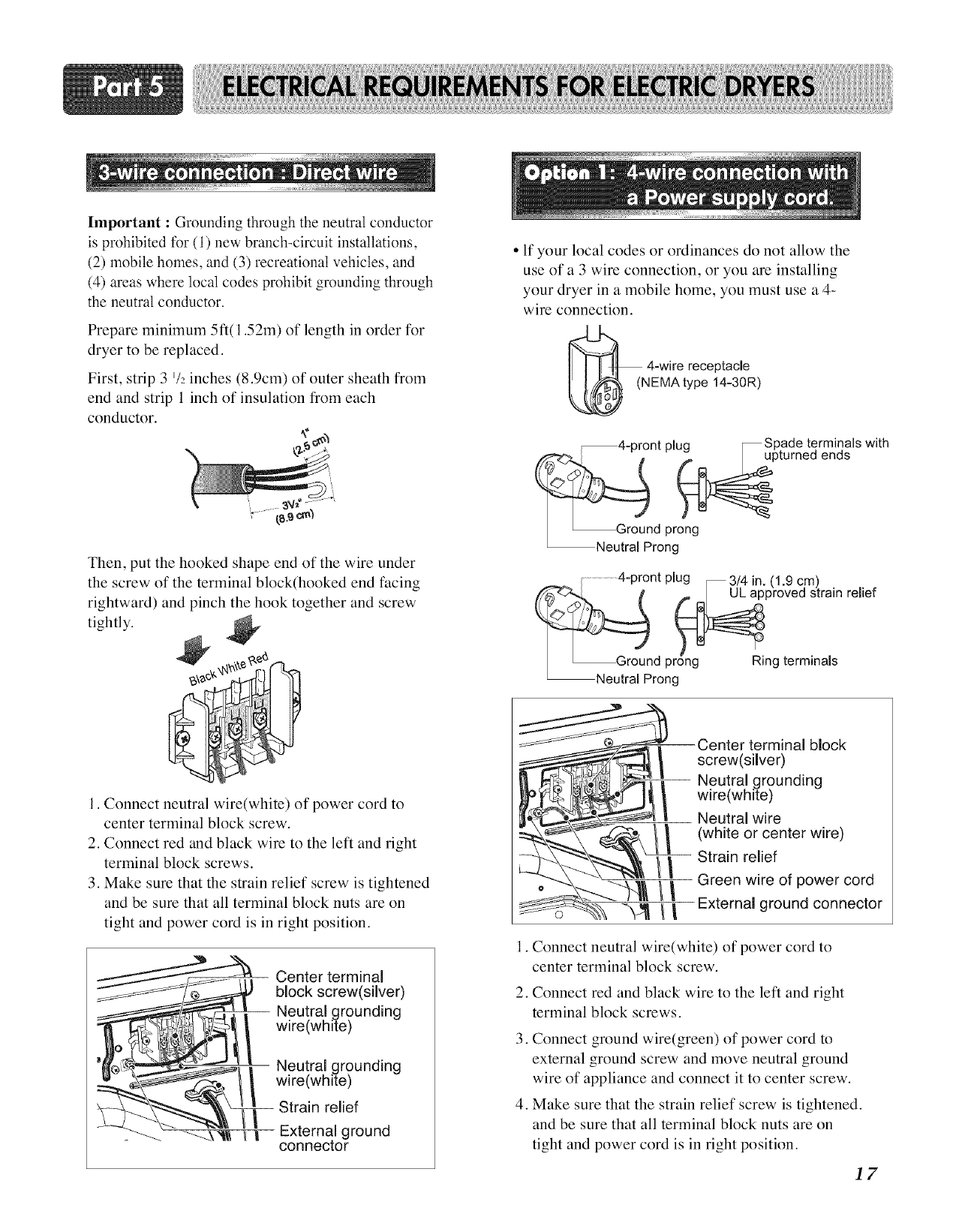

PART5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER ............................................................................................................................................. 15-18

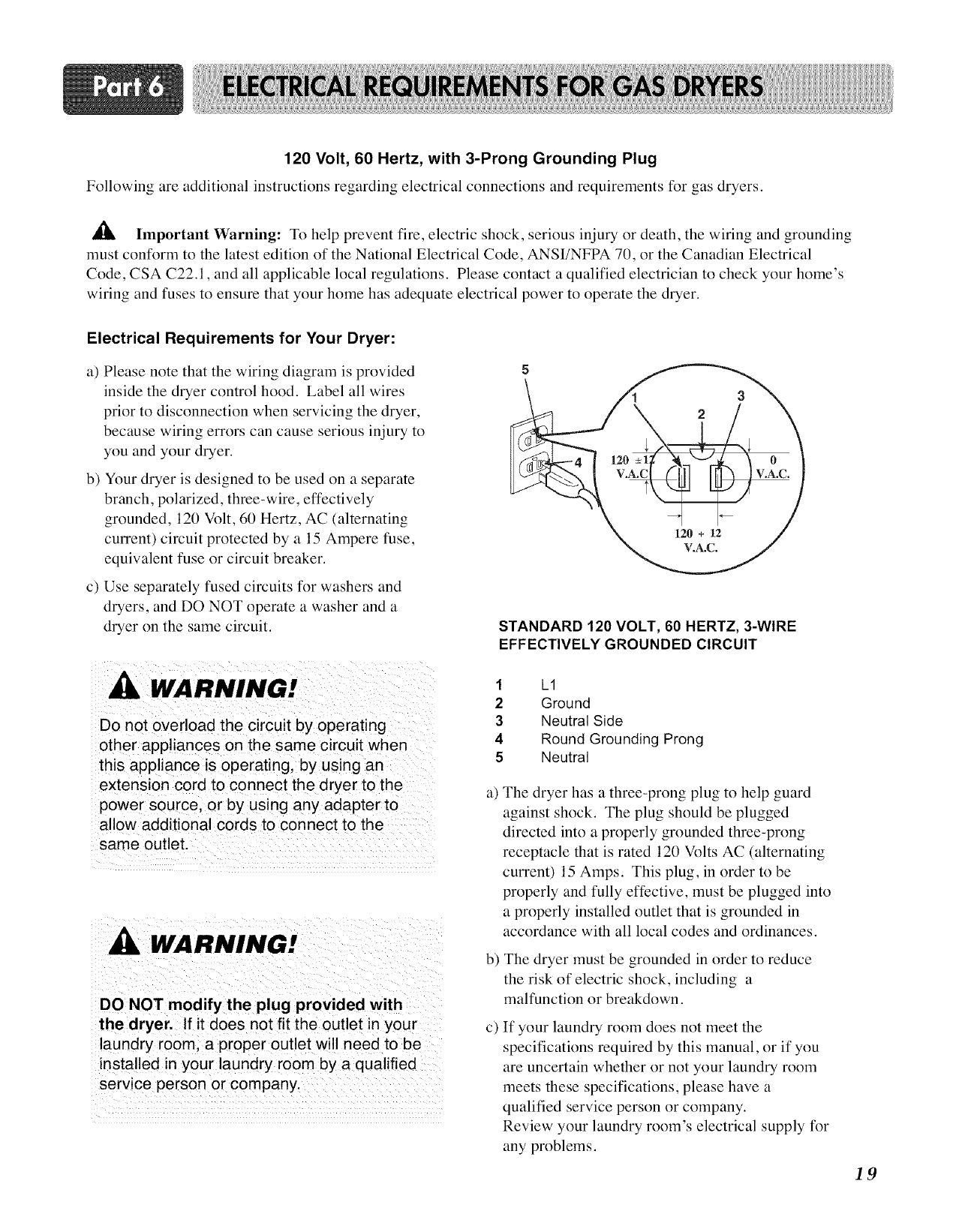

PART6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS .......................................................................................................................................................... lg

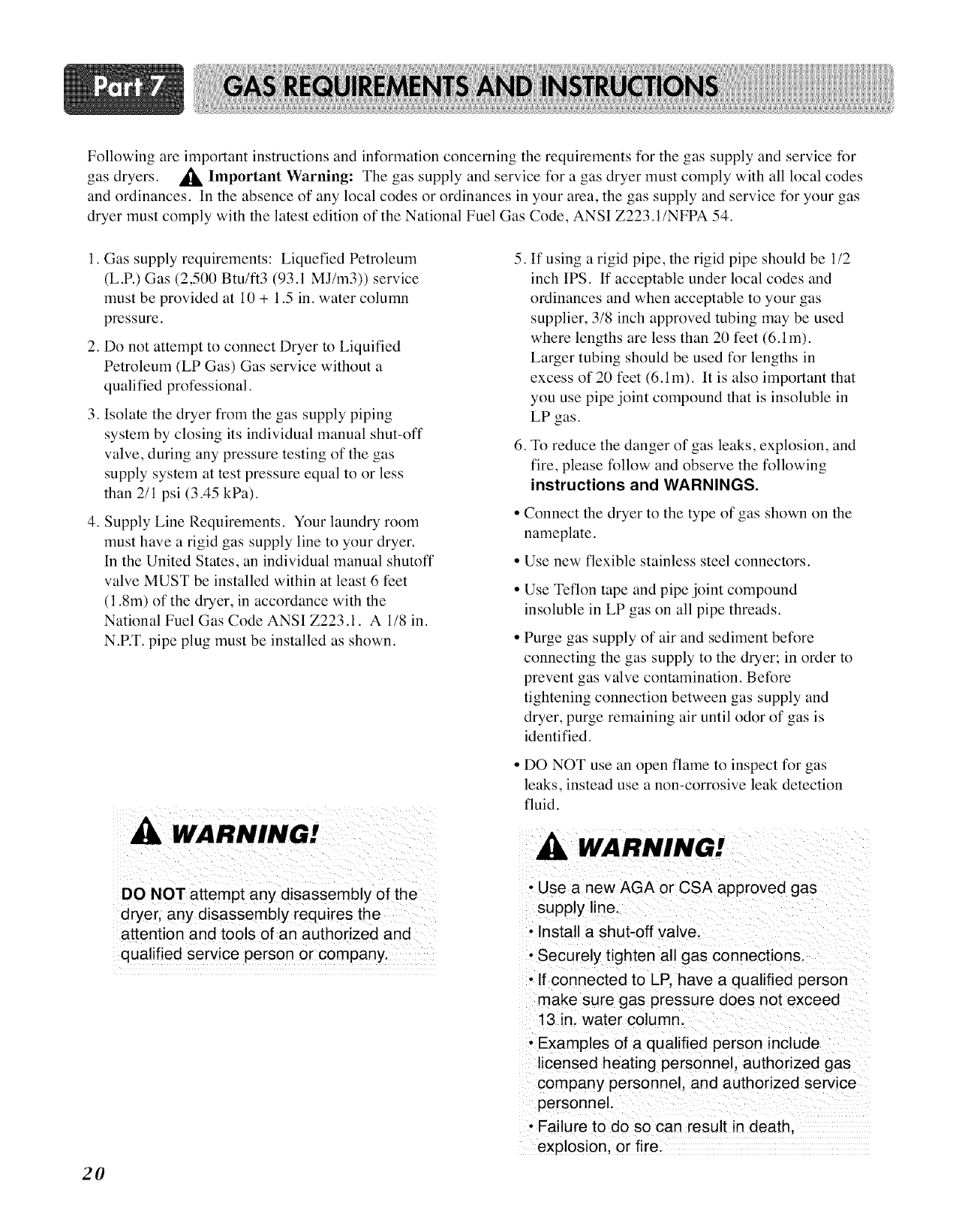

PART7. GAS REQUIREMENTS AND INSTRUCTIONS ..................................................................................................................................................................... 20

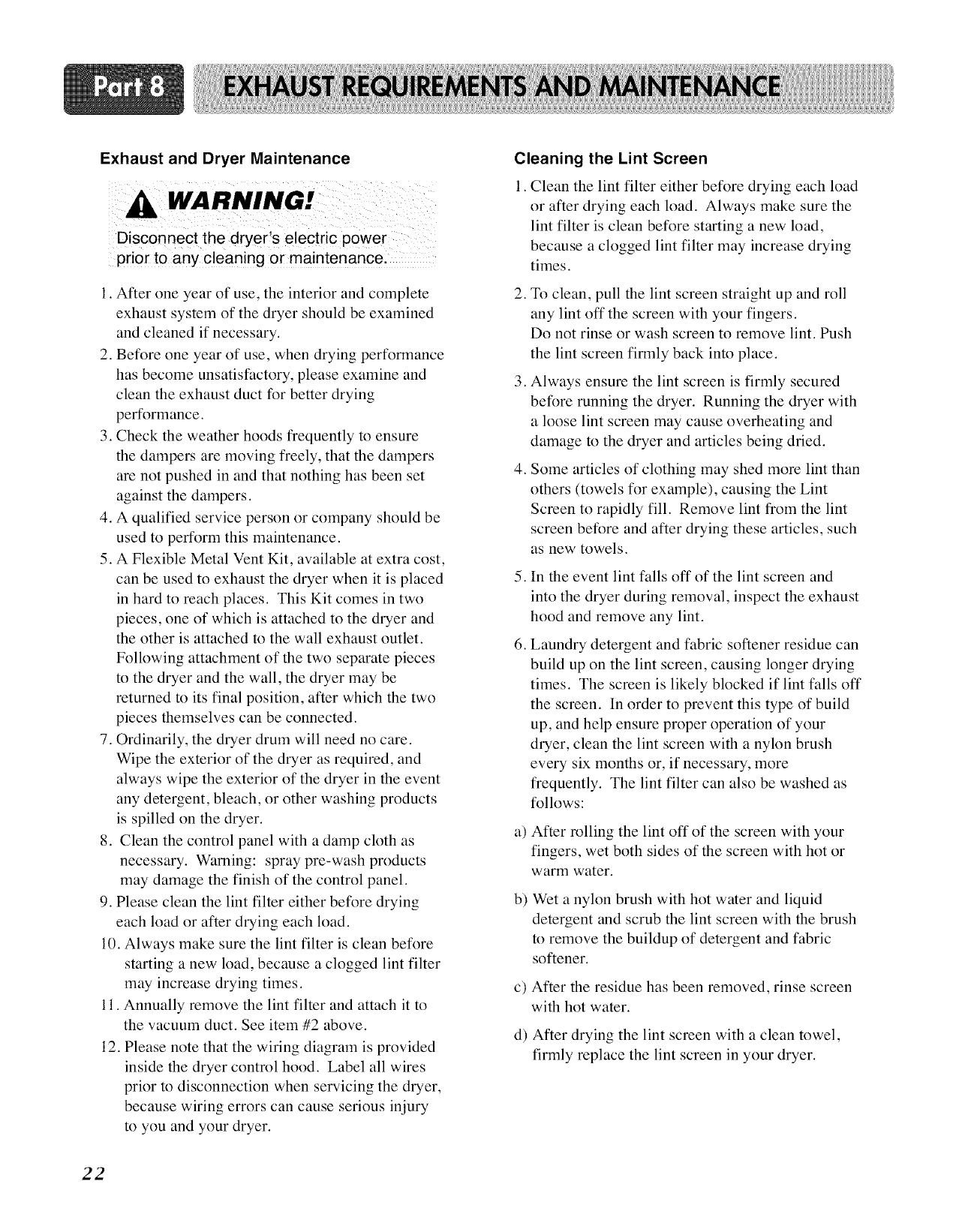

PART8. EXHAUST REQUIREMENTS AND MAINTENANCE ....................................................................................................................................................... 21-22

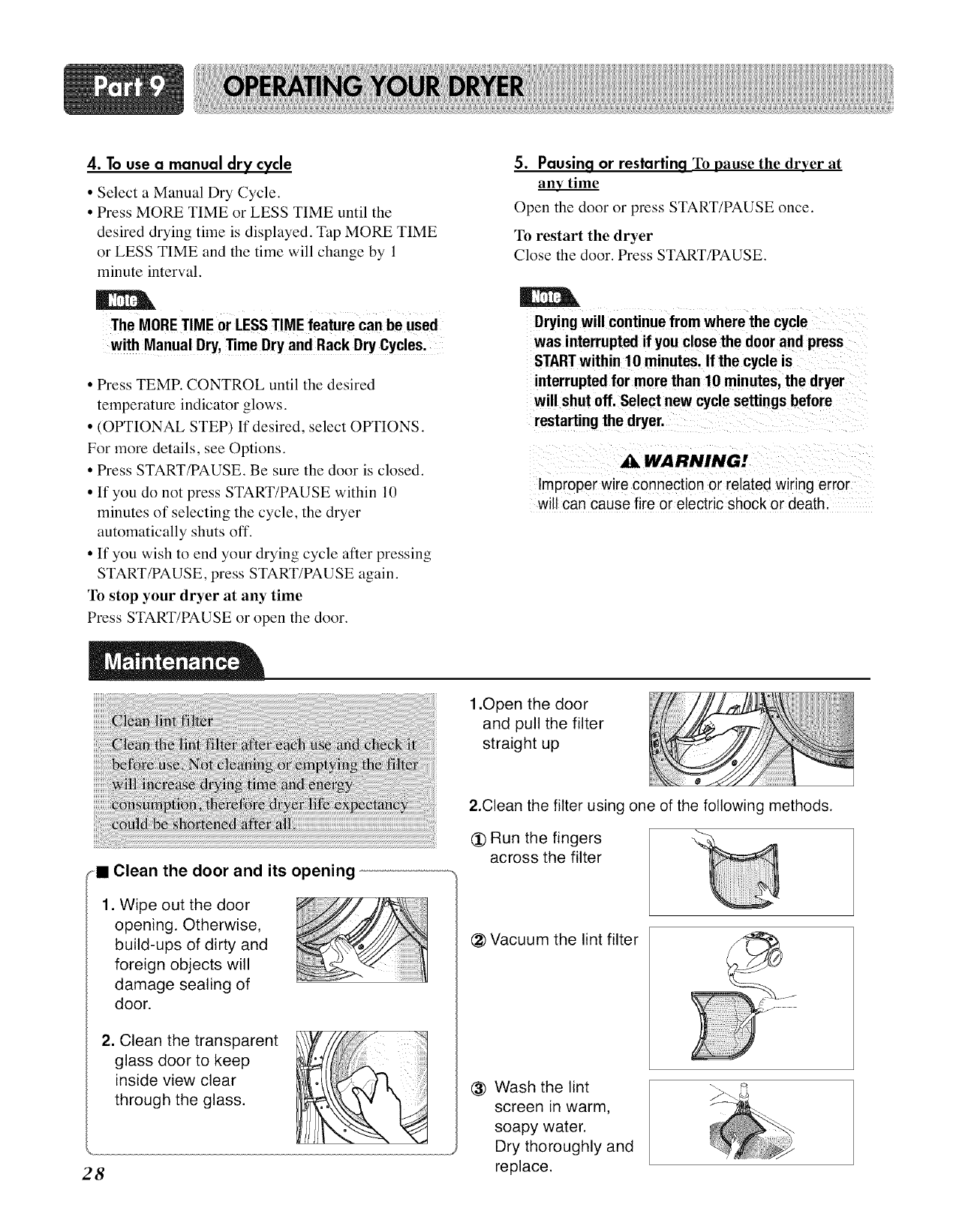

PART9. OPERATING YOUR DRYER ............................................................................................................................................................................................ 23-30

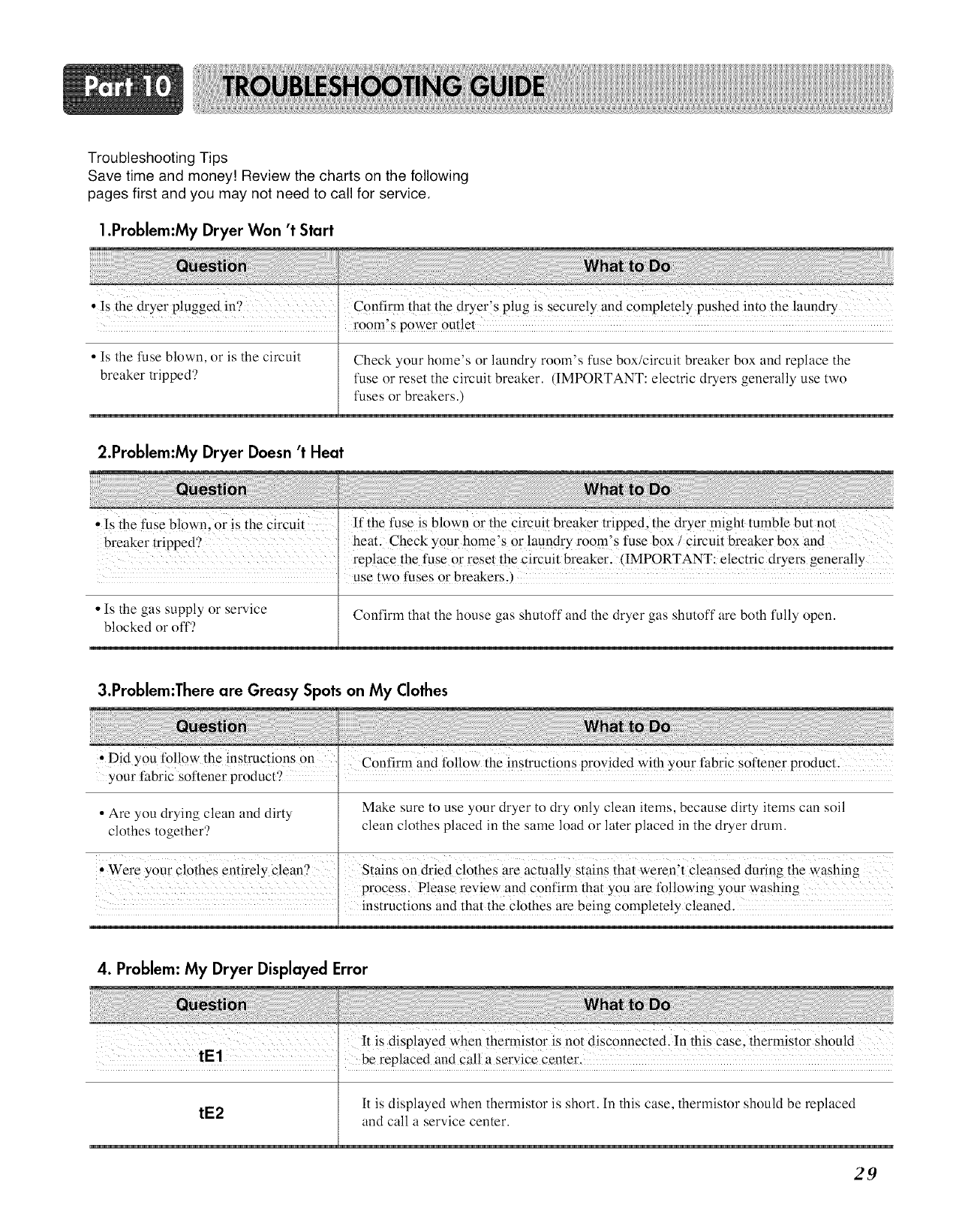

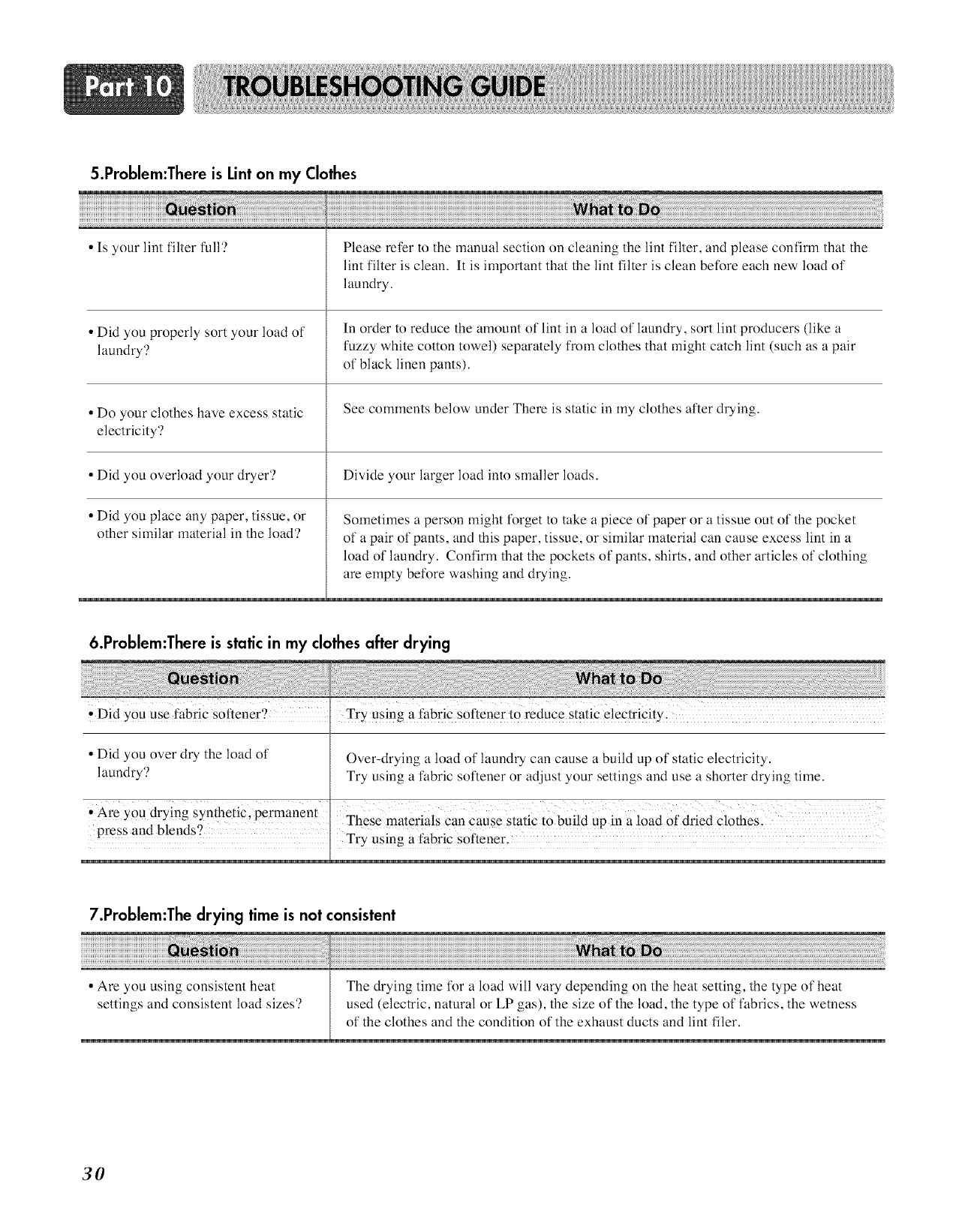

PART10. TROUBLESHOOTING GUIDE ........................................................................................................................................................................................ 31-33

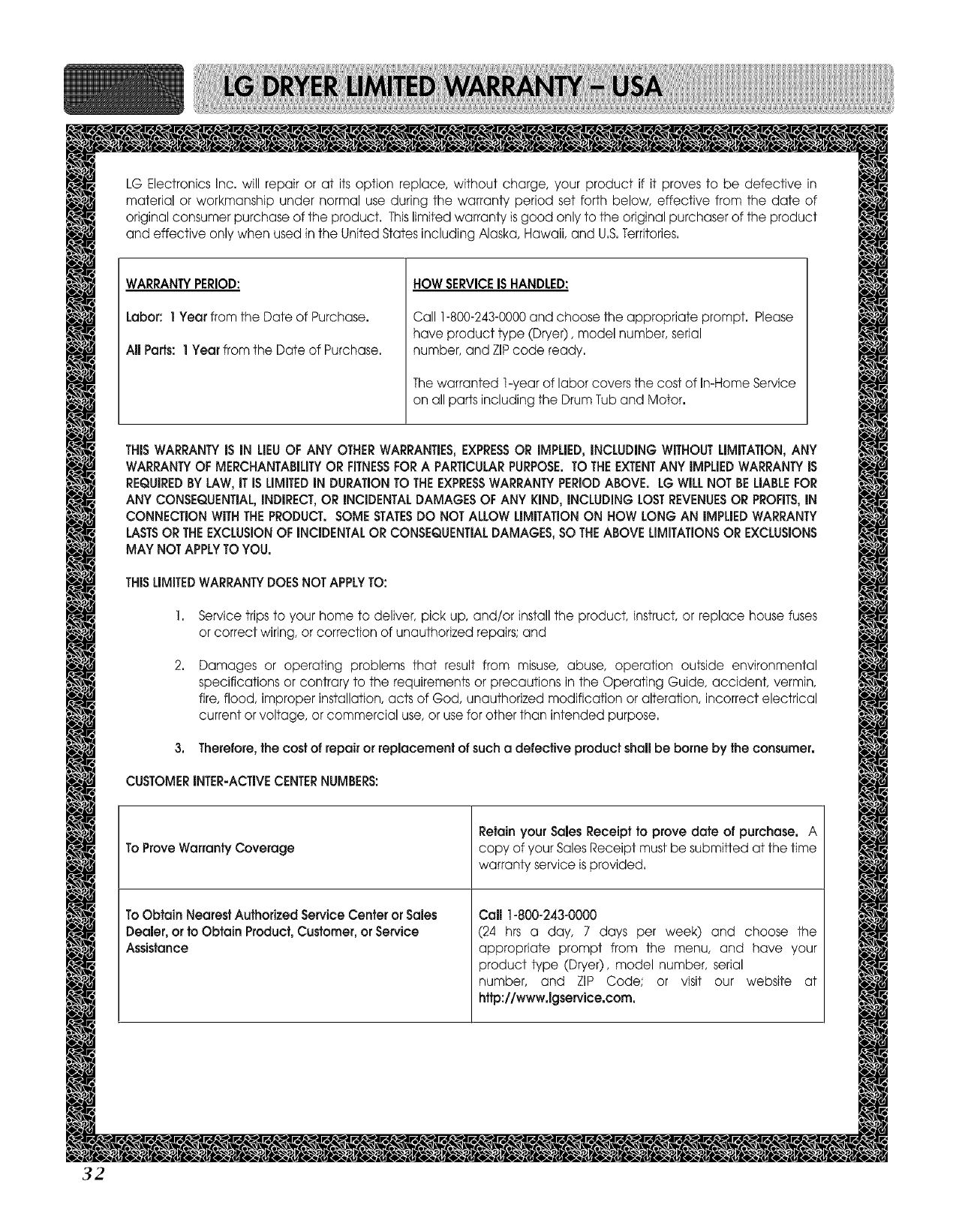

LG DRYER LIMITED WARRANTY ...................................................................................................................................................................................................... 34

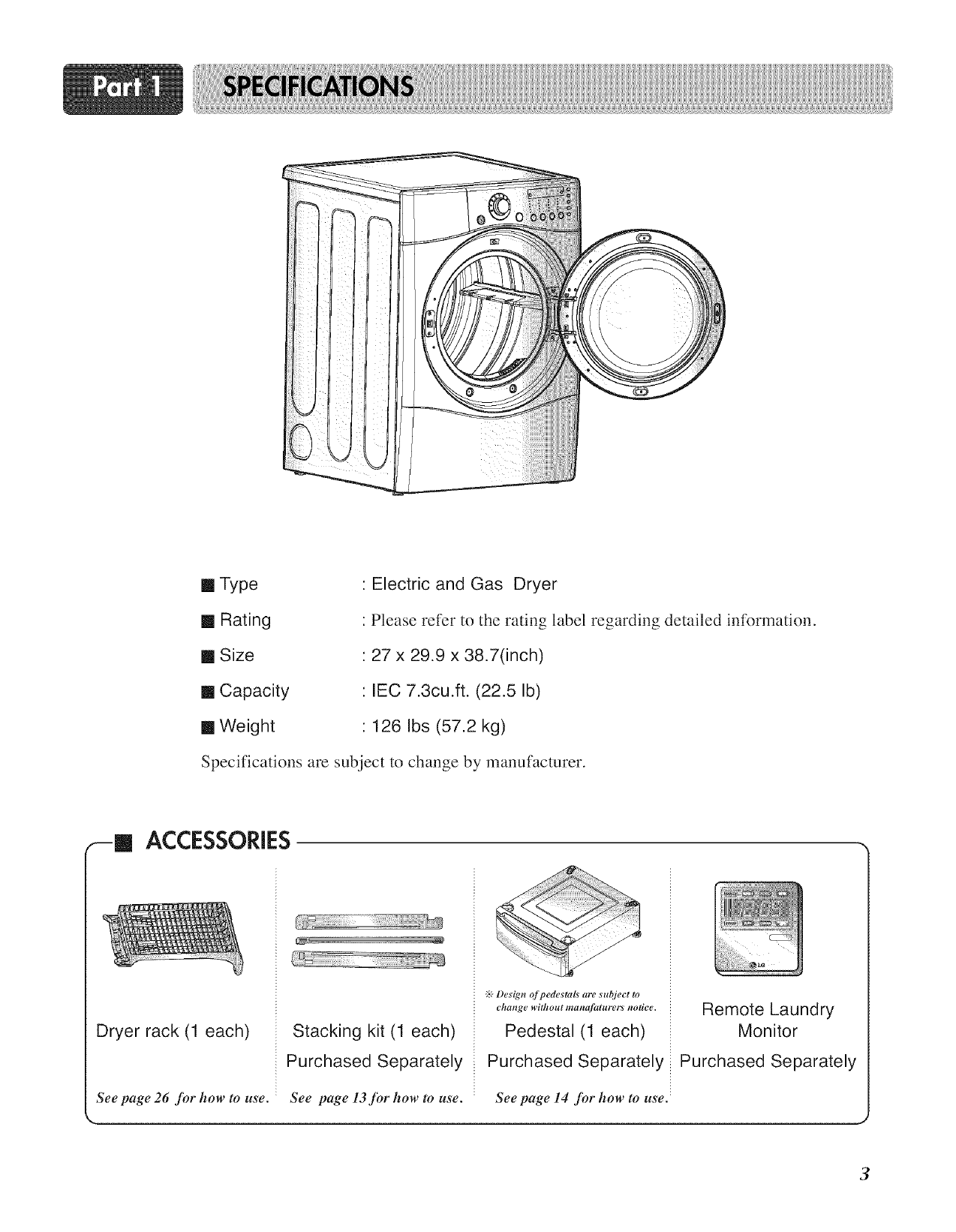

[] Type

[] Rating

[] Size

[] Capacity

[] Weight

: Electric and Gas Dryer

:Please refer to the rating label regarding detailed information.

:27 x29.9 x 38.7(inch)

:IEC 7.3cu.ft. (22.5 Ib)

: 126 Ibs (57.2 kg)

Specifications are subject to change by manufacturer.

ACCESSORIES

Dryer rack (1 each) Stacking kit (1 each)

Purchased Separately

.,,s:.Design qf pedestal_ are sul_ject to

cha_tge without manqfaturer_ notice.

Pedestal (1 each)

Purchased Separately

Remote Laundry

Monitor

Purchased Separately

See page 26 .[br how to use. See page 13.[br how to use. See page 14 .[br how to use.

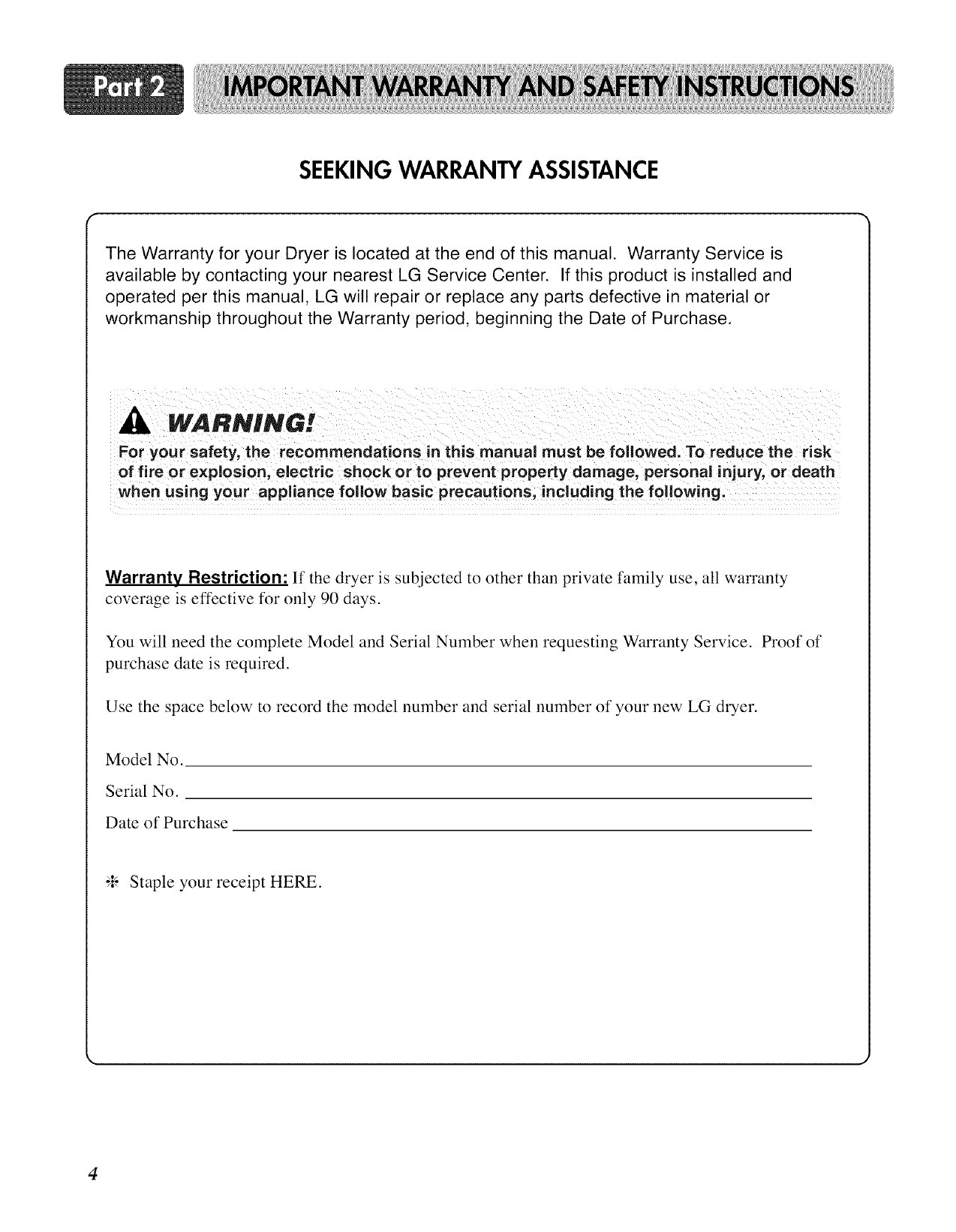

SEEKING WARRANTY ASSISTANCE

The Warranty for your Dryer is located at the end of this manual. Warranty Service is

available by contacting your nearest LG Service Center. If this product is installed and

operated per this manual, LG will repair or replace any parts defective in material or

workmanship throughout the Warranty period, beginning the Date of Purchase.

AWARNING!

For your safety, the recommendations in this manual must be followed. To reduce the risk

of fire or explosion, electric shock or to prevent property damage, personal injury, or death

when using your appliance foffow basic precautions, including the following.

Warranty Restriction: If the dryer is subjected to other than private family use, all warranty

coverage is effective for only 90 days.

You will need the complete Model and Serial Number when requesting Warranty Service. Proof of

purchase date is required.

Use the space below to record the model number and serial number of your new LG dryer.

Model No.

Serial No.

Date of Purchase

-_I_Staple your receipt HERE.

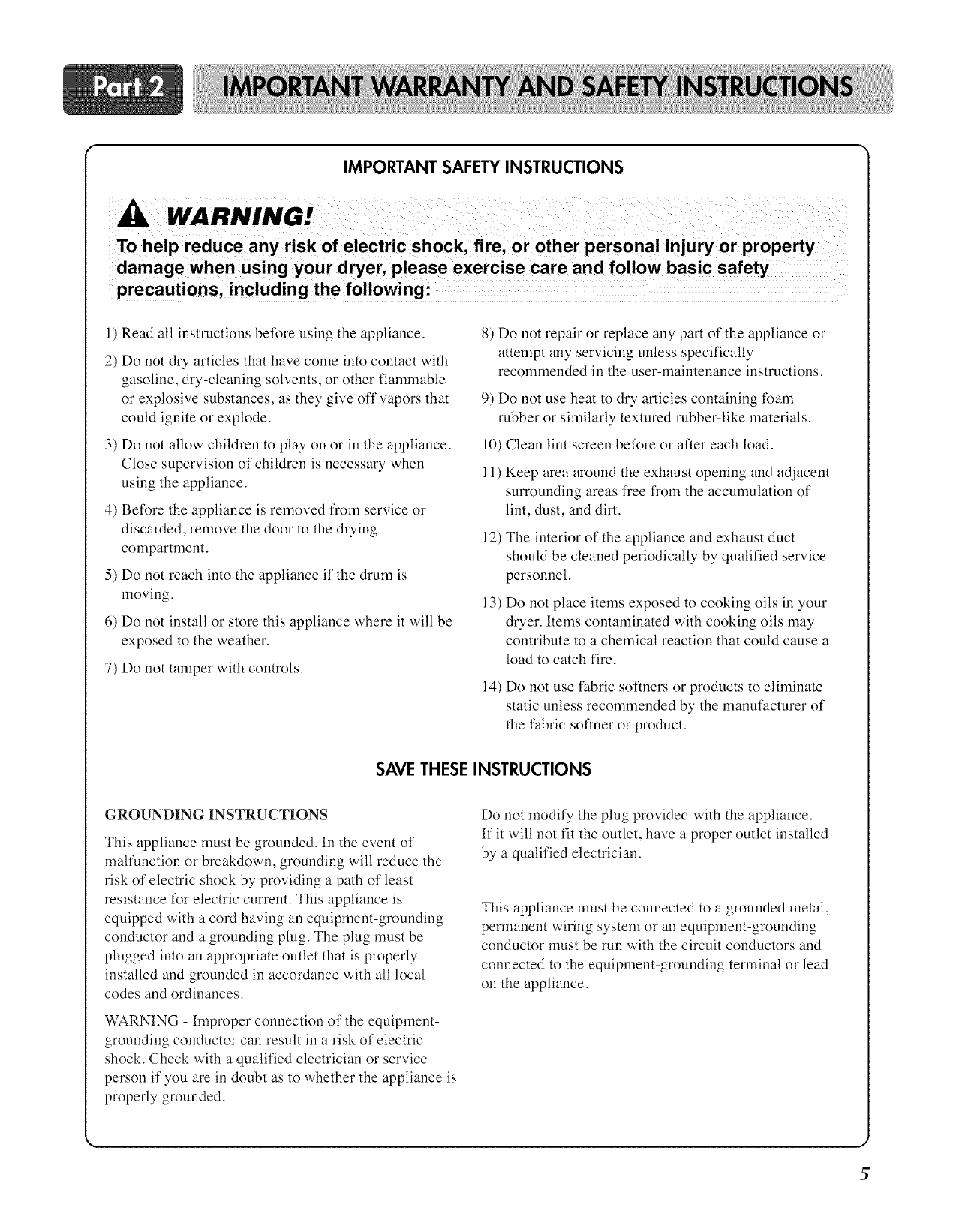

IMPORTANT SAFETY INSTRUCTIONS

1) Read all instructions beti_re using the appliance.

2) Do not dry articles that have come into contact with

gasoline, dry-cleaning solvents, or other flammable

or explosive substances, as they give off vapors that

could ignite or explode.

3) Do not allow children to play on or in the appliance.

Close supervision of children is necessary when

using the appliance.

4) Before the appliance is removed li'om service or

discarded, remove the door to the drying

compartment.

5) Do not reach into the appliance if the drum is

moving.

6) Do not install or store this appliance where it will be

exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or

attempt any servicing unless specifically

recommended in the user-maintenance instructions.

9) Do not use heat to dry articles containing foam

rubber or similarly textured rubber-like materials.

10) Clean lint screen beti_re or alier each load.

11) Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of

lint, dust, and dirt.

12) The interior of the appliance and exhaust duct

should be cleaned periodically by qualified service

personnel.

13) Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a

load to catch fire.

14) Do not use fabric sofiners or products to eliminate

static unless recommended by the manufacturer of

the fabric sofiner or product.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance nmst be grounded. In the event of

malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least

resistance liar electric current. This appliance is

equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

WARNING - Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or service

person if you are in doubt as to whether the appliance is

properly grounded.

Do not modify the plug provided with the appliance.

If it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

This appliance must be connected to a grounded metal,

permanent wiring system or an equipment-grounding

conductor must be run with the circuit conductors and

connected to the equipment-grom_ding terminal or lead

on the appliance.

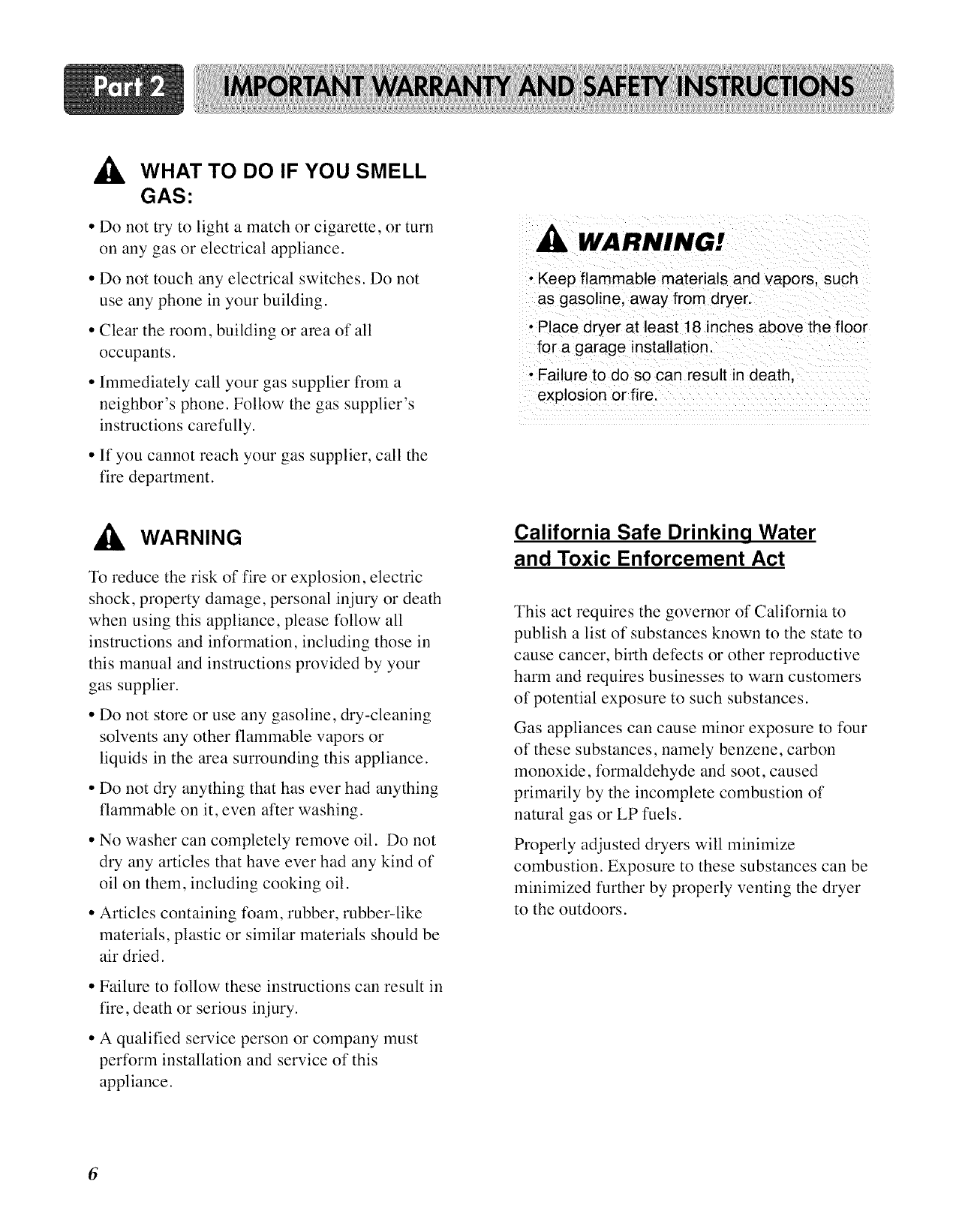

,_ WHAT TO DO IF YOU SMELL

GAS:

•Do not try to light a match or cigarette, or turn

on any gas or electrical appliance.

• Do not touch any electrical switches. Do not

use any phone in your building.

• Clear the room, building or area of all

occupants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions carefully.

° If you cannot reach your gas supplier, call the

fire department.

WARNINGS

•Keep flammable materials and vapors, such

as gasoline, away from dryer.

•Place dryer at least 18 inches above the floor

for a garage installation.

• Failure to do so can result in death

explosion or fire.

,_ WARNING

To reduce the risk of fire or explosion, electric

shock, property damage, personal injury or death

when using this appliance, please follow all

instructions and information, including those in

this manual and instructions provided by your

gas supplier.

• Do not store or use any gasoline, dry-cleaning

solvents any other flammable vapors or

liquids in the area surrounding this appliance.

• Do not dry anything that has ever had anything

flammable on it, even after washing.

• No washer can completely remove oil. Do not

dry any articles that have ever had any kind of

oil on them, including cooking oil.

•Articles containing foam, rubber, rubber-like

materials, plastic or similar materials should be

air dried.

•Failure to follow these instructions can result in

fire, death or serious injury.

• A qualified service person or company must

perform installation and service of this

appliance.

California Safe Drinking Water

and Toxic Enforcement Act

This act requires the governor of California to

publish a list of substances known to the state to

cause cancer, birth defects or other reproductive

harm and requires businesses to warn customers

of potential exposure to such substances.

Gas appliances can cause minor exposure to four

of these substances, namely benzene, carbon

monoxide, formaldehyde and soot, caused

primarily by the incomplete combustion of

natural gas or LP fuels.

Properly adjusted dryers will minimize

combustion. Exposure to these substances can be

minimized further by properly venting the dryer

to the outdoors.

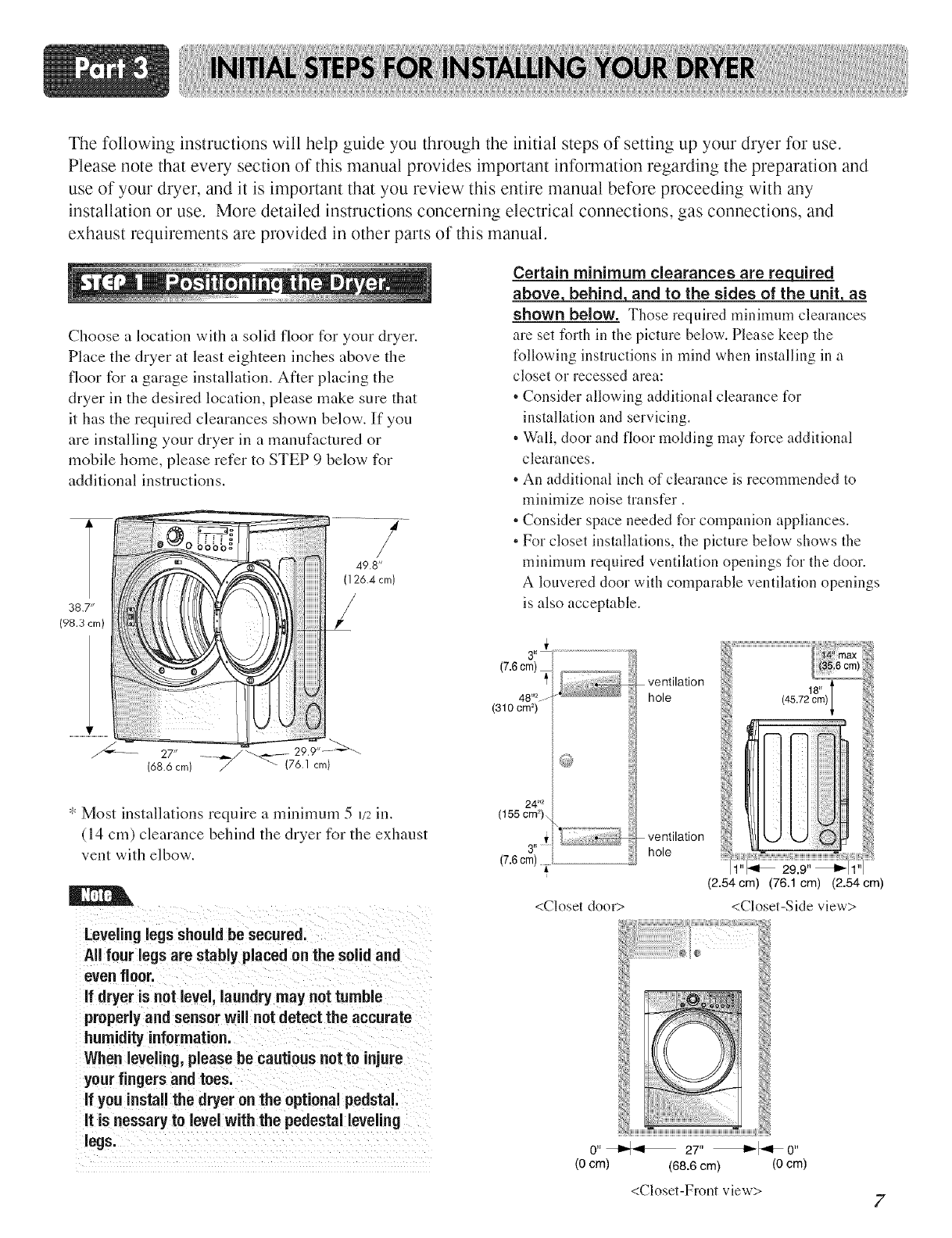

The following instructions will help guide you through the initial steps of setting up your dryer for use.

Please note that every section of this manual provides important information regarding the preparation and

use of your dryer, and it is important that you review this entire manual before proceeding with any

installation or use. More detailed instructions concerning electrical connections, gas connections, and

exhaust requirements are provided in other parts of this manual.

Choose a location with a solid floor for your dryer.

Place the dryer at least eighteen inches above the

floor for a garage installation. After placing the

dryer in the desired location, please make sure that

it has the required clearances shown below. If you

are installing your dryer in a manufactured or

mobile home, please refer to STEP 9 below for

additional instructions.

Certain minimum clearances are required

_he sides of the unit as

shown below. Those required minimum clearances

are set forth in the picture below. Please keep the

following instructions in mind when installing in a

closet or recessed area:

• Consider allowing additional clearance for

hlstalladon and servicing.

• Wall, door and floor molding may force additional

clearances.

• An additional inch of clearance is recommended to

minimize noise transfer.

• Consider space needed for companion appliances.

•For closet installations, the picture below shows the

minhnum required ventilation openings for the door.

A louvered door with comparable ventilation openings

is also acceptable.

* Most installations require a minimum 5 1/2 in.

(14 cm) clearance behind the dryer for the exhaust

vent with elbow.

Leveling legs should be secured.

All four legs are stably placed on the solid and

even fleer.

if dryer is not levN, laundry may not tumble

properly and sensor will not detect the accurate

humidity information.

When leveling, please be cautious not to injure

your lingers and toes.

If you install the dryer on the optional pedstal.

it is nessary to level with the pedestal levNing

legs.

3Bt ..........................................

(7.6cm)

48 t_2.

(310 cm 2)

24*'2

(155 cm_)..

(7.6cm)

ventilation

hole

ventilation

hole

"i _ 29.9"

(2.54cm) (76.1 cm) (2.54cm)

<Closet-Side view>

0" _ 27" _1_0"

(0 cm) (68.6 cm) (0 cm)

<Closet-Front view> 7

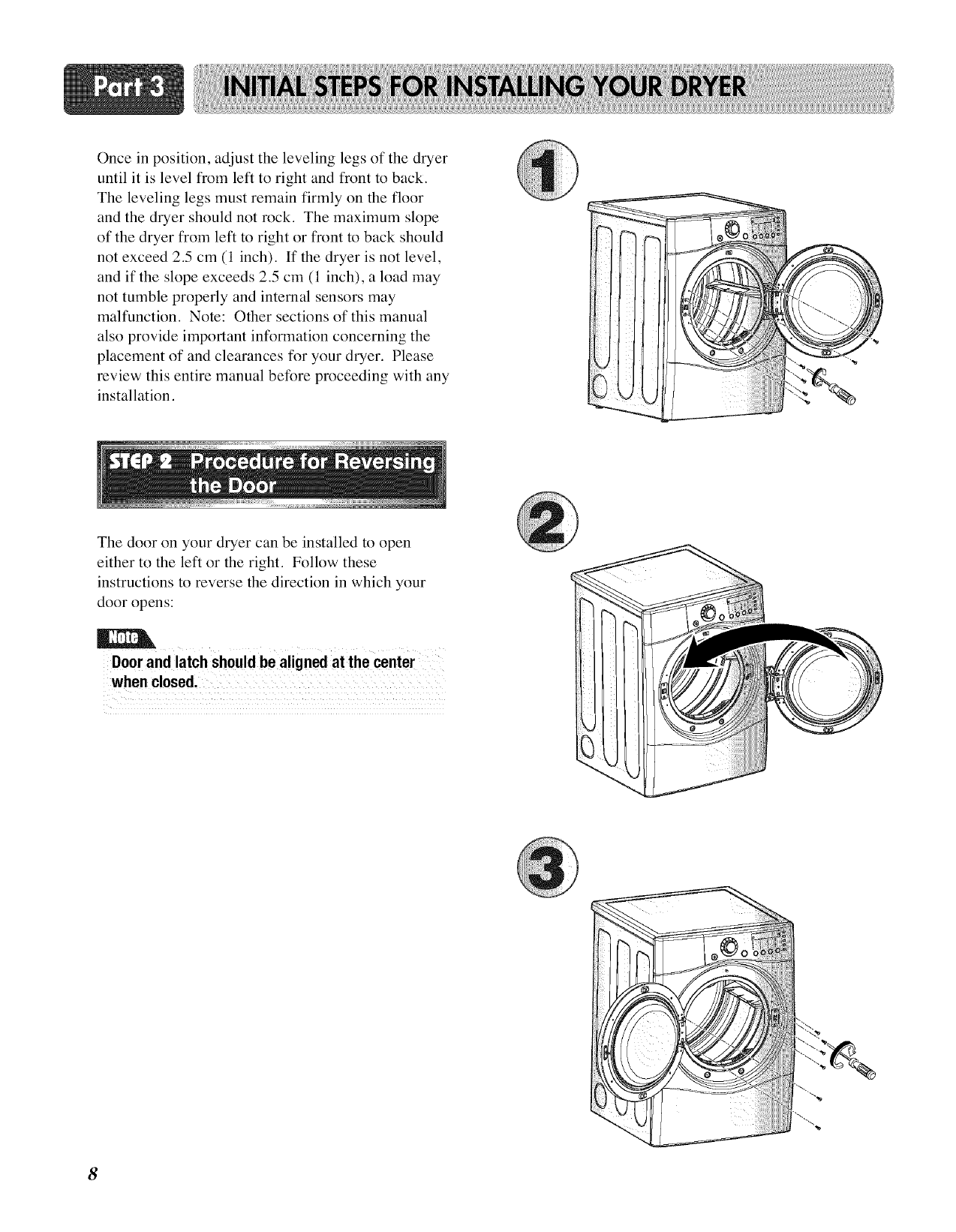

Once in position, adjust the leveling legs of the dryer

until it is level from left to right and front to back.

The leveling legs must remain firmly on the floor

and the dryer should not rock. The maximum slope

of the dryer from left to right or front to back should

not exceed 2.5 cm (1 inch). If the dryer is not level,

and if the slope exceeds 2.5 cm (1 inch), a load may

not tumble properly and internal sensors may

malfunction. Note: Other sections of this manual

also provide important information concerning the

placement of and clearances for your dryer. Please

review this entire manual before proceeding with any

installation.

The door on your dryer can be installed to open

either to the left or the right. Follow these

instructions to reverse the direction in which your

door opens:

Door and latch should be aligned at the center

WARNINGS

•Use a heavy metal vent.

• Do not use plastic or thin foil duct.

• Failure to follow these instructions can

result in death or fire.

• Clean old ducts before installing this dryer

Vent end will face to the outside home and

improper taping and unstable installation of vent

will cause undesirable drying performance,

In addition to the following warnings, please refer

to manual section on Exhaust Requirements and

Maintenance. iMPORTANT: To reduce the risk of

fire, combustion, and gas accumulation, the dryer

must be vented to the outdoors. Please follow the

instructions (and all others in this manual very

carefully.

•Do not use Plastic or thin foil duct.

• Use 4" (10.2 cm) diameter rigid or Semi-rigid

metal duct (note: venting materials are not

supplied with the dryer, and you should obtain the

venting materials necessary for proper installation)

• Position the Dryer such that the exhaust duct run is

as short as possible.

•Clean old ducts beJbre installing this dryer

• The male end of each section of exhaust duct must

point away from the dryer

• Use as few elbow joints as possible.

• Use duct tape on all duct joints

• Insulate ductwork that runs through unheated

areas in order to reduce condensation and lint

build-up on pipe walls.

•PLEASE BE AWARE THAT FAILURE TO

EXHAUST THE DRYER CORRECTLY WILL

VOID THE DRYER'S WARRANTY.

• ALTERNATE EXHAUST DIRECTIONS

]. Remove screw and exhaust duct.

2- |. Detach and remove the knockout that

matches the desired venting direction

(Right side not available on Gas Dryers)

0), @), _3)the order of work.

PORTION "A" I

Knockout

2-2.

Reconnect the duct to the blower

housing and attach the duct to the

base.(Duct is a SVC part)

3-1. Pre-assembte 4" elbow with 4" duct.

Wrap duct tape around joint.

DUCT

TAPE

3-2° Insert elbow duct assembly first through the

side opening and connect the elbow to the

internal duct.

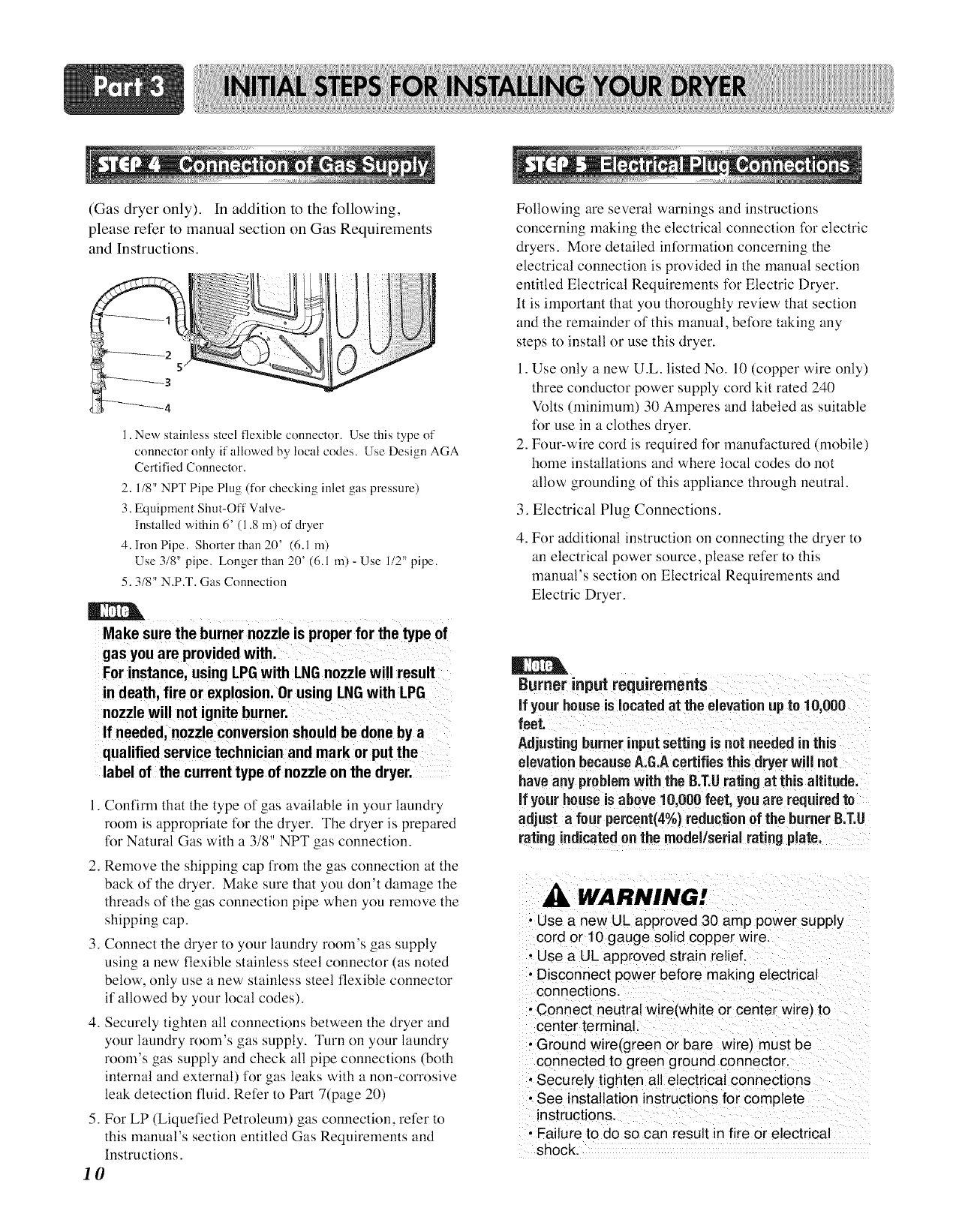

(Gas dryer only). In addition to the following,

please refer to manual section on Gas Requirements

and Instructions.

1. New stainless steel flexible connector. Use this type of

connector only if allowed by local codes. Use Design AGA

Certified Connector.

2.1/8" NPT Pipe Plug (for checking inlet gas pressure)

3. Equipment Shut-Off Valve-

Installed within 6' (1.8 m) of dryer

4. Iron Pipe. Shorter than 20' (6.1 m)

Use 3/8" pipe. Longer than 20' (6.1 m) - Use 1/2" pi_.

5.3/8" N.P.T. Gas Connection

Make sure the burner nozzle is proper for the type of

gas you are provided with.

For instance, using LPGwith LNGnozzle will result

in death, fire or explosion, Or using LNG with LPG

If needed, nozzle conversion should be done by a

qualified service technician and mark or put the

label of the current type of nozzle onthe dryer.

1. Confirm that the type of gas available in your laundry

room is appropriate lk)r the dryer. The dryer is prepared

tk)r Natural Gas with a 3/8" NPT gas connection.

2. Remove the shipping cap ti"om the gas connection at the

back of the dryer. Make sure that you don't damage the

threads of the gas connection pipe when you remove the

shipping cap.

3. Connect the dryer to your laundry room's gas supply

using a new flexible stainless steel connector (as noted

below, only use a new stainless steel flexible connector

if allowed by your local codes).

4. Securely tighten all connections between the dryer and

your laundry room's gas supply. Turn on your laundry

room's gas supply and check all pipe connections (both

internal and external) for gas leaks with a non-corrosive

leak detection fluid. Refer to Part 7(page 20)

5. For LP (Liquefied Petroleum) gas connection, refer to

this manual's section entitled Gas Requirements and

Instructions.

Following are several warnings and instructions

concerning making the electrical connection li)r electric

dryers. More detailed inli)rmation concerning the

electrical connection is provided in the manual section

entitled Electrical Requirements for Electric Dryer.

It is important that you thoroughly review that section

and the remainder of this manual, beti)re taking any

steps to install or use this dryer.

1. Use only a new U.L. listed No. 10 (copper wire only)

three conductor power supply cord kit rated 240

Volts (minimum) 30 Amperes and labeled as suitable

lk)r use in a clothes dryer.

2. Four-wire cord is required li)r manufactured (mobile)

home installations and where local codes do not

allow grounding of this appliance through neutral.

3. Electrical Plug Connections.

4. For additional instruction on connecting the dryer to

an electrical power source, please refer to this

manual's section on Electrical Requirements and

Electric Dryer.

ff your house is located at the elevation upto 10,000

feet.

Adjustingburner input setting is not needed in this

elevationbecauseA.G.Acert!fies this dryer will not

have any problemwith the B,T.Urating at this altitudel

If your house is above 10,000 feet, you are required

adjust a four percent(4%)reduction of the burner B.T.U

rating indicated on the mode!/serial rating

WARNING!

•Use a new UL approved 30 amp power supply

cord or 10 gauge solid copper w_re.

• Use a UL approved strain relief.

• Disconnect power before making electrica

connections.

•Connect neutral wire(white or center wire) to

center terminal.

• Ground wire(green or bare wire) must be

connected to green ground connector.

• Securely tighten all electrical connections

• See installation instructions for complete

instructions.

• Failure to do so can result in fire or electrical

shock.

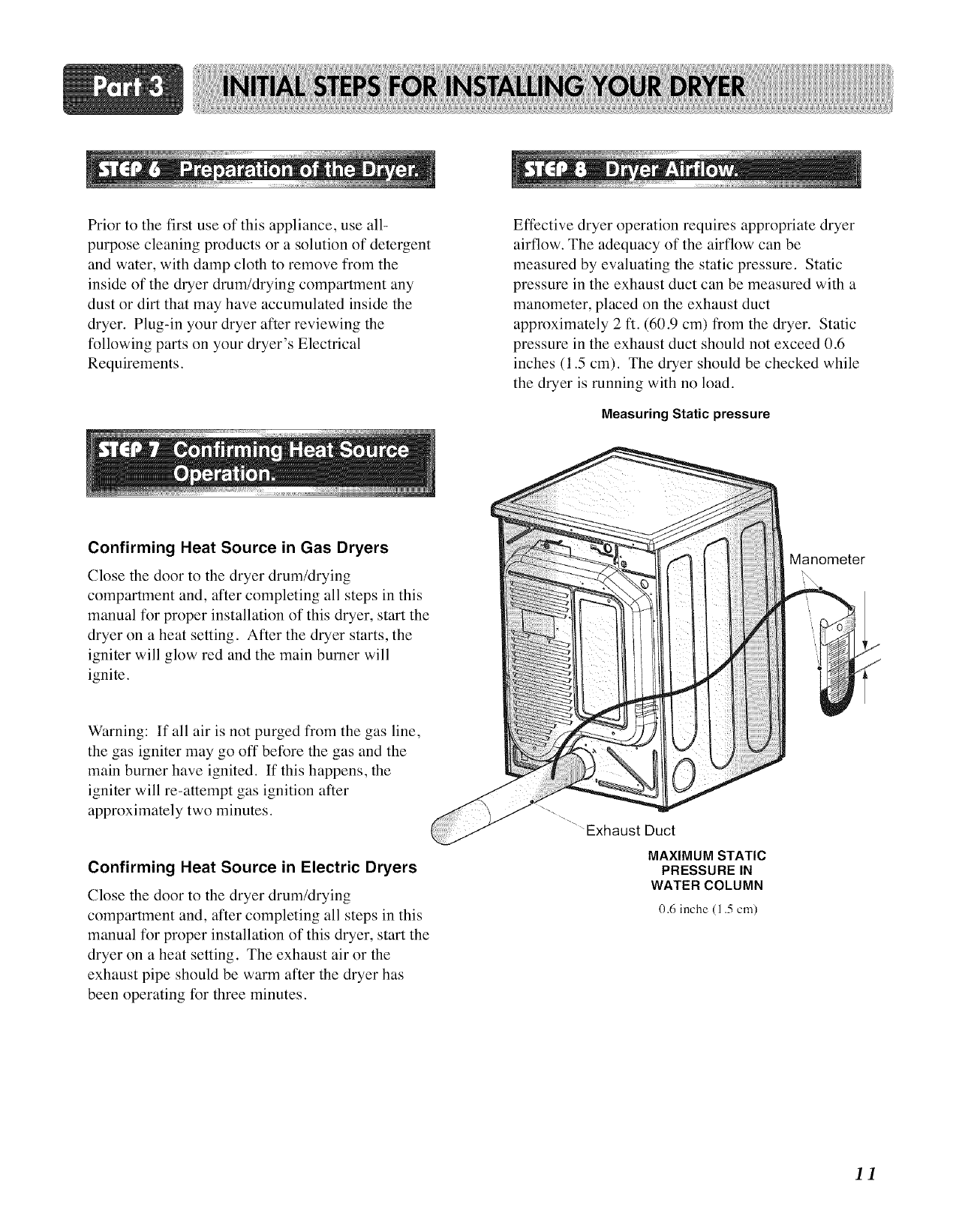

Prior to the first use of this appliance, use all-

purpose cleaning products or a solution of detergent

and water, with damp cloth to remove from the

inside of the dryer drum!drying compartment any

dust or dirt that may have accumulated inside the

dryer. Plug-in your dryer after reviewing the

following parts on your dryer's Electrical

Requirements.

Effective dryer operation requires appropriate dryer

airflow. The adequacy of the airflow can be

measured by evaluating the static pressure. Static

pressure in the exhaust duct can be measured with a

manometer, placed on the exhaust duct

approximately 2 ft. (60.9 cm) from the dryer. Static

pressure in the exhaust duct should not exceed 0.6

inches (1.5 cm). The dryer should be checked while

the dryer is running with no load.

Measuring Static pressure

Confirming Heat Source in Gas Dryers

Close the door to the dryer drum/drying

compartment and, after completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting. After the dryer starts, the

igniter will glow red and the main burner will

ignite.

Warning: If all air is not purged from the gas line,

the gas igniter may go off before the gas and the

main burner have ignited. If this happens, the

igniter will re-attempt gas ignition after

approximately two minutes.

Confirming Heat Source in Electric Dryers

Close the door to the dryer drum/drying

compartment and, after completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting. The exhaust air or the

exhaust pipe should be warm after the dryer has

been operating for three minutes.

Exhaust Duct

MAXIMUM STATIC

PRESSURE IN

WATER COLUMN

0.6 inche (1.5 cm)

Manometer

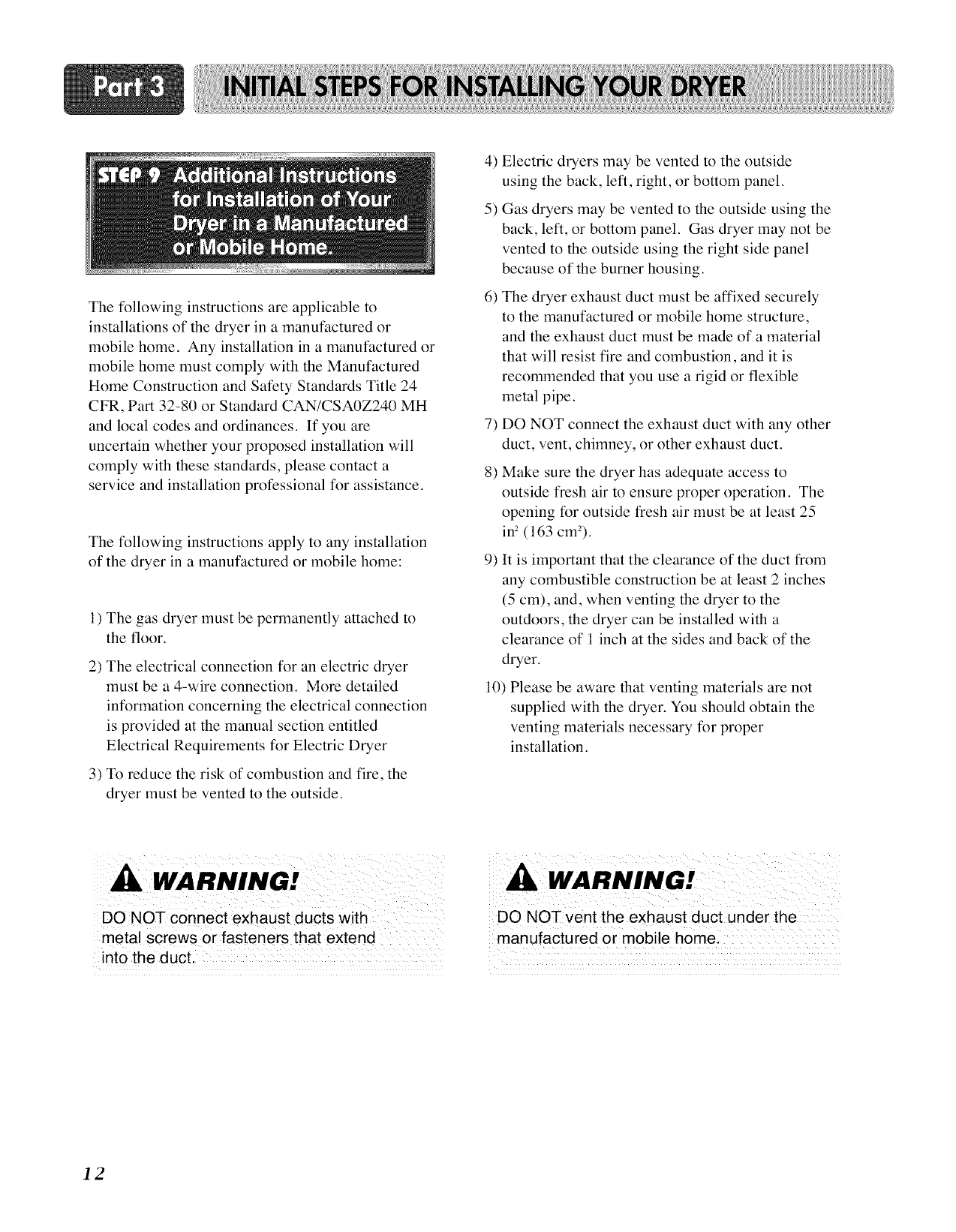

The following instructions are applicable to

installations of the dryer in a manufactured or

mobile home. Any installation in a manufactured or

mobile home must comply with the Manufactured

Home Construction and Safety Standards Title 24

CFR, Part 32-80 or Standard CAN/CSAOZ240 MH

and local codes and ordinances. If you are

uncertain whether your proposed installation will

comply with these standards, please contact a

service and installation professional for assistance.

The following instructions apply to any installation

of the dryer in a manufactured or mobile home:

1) The gas dryer must be permanently attached to

the floor.

2) The electrical connection for an electric dryer

must be a 4-wire connection. More detailed

information concerning the electrical connection

is provided at the manual section entitled

Electrical Requirements for Electric Dryer

3) To reduce the risk of combustion and fire, the

dryer must be vented to the outside.

4) Electric dryers may be vented to the outside

using the back, left, right, or bottom panel.

5) Gas dryers may be vented to the outside using the

back, left, or bottom panel. Gas dryer may not be

vented to the outside using the right side panel

because of the burner housing.

6) The dryer exhaust duct must be affixed securely

to the manufactured or mobile home structure,

and the exhaust duct must be made of a material

that will resist fire and combustion, and it is

recommended that you use a rigid or flexible

metal pipe.

7) DO NOT connect the exhaust duct with any other

duct, vent, chimney, or other exhaust duct.

8) Make sure the dryer has adequate access to

outside fresh air to ensure proper operation. The

opening for outside fresh air must be at least 25

in2 (163 cm:).

9) It is important that the clearance of the duct from

any combustible construction be at least 2 inches

(5 cm), and, when venting the dryer to the

outdoors, the dryer can be installed with a

clearance of 1 inch at the sides and back of the

dryer.

10) Please be aware that venting materials are not

supplied with the dryer. You should obtain the

venting materials necessary for proper

installation.

metal screws or fasteners that extend

into the duct.

WARNING!

DO NOT vent the exhaust duct under the

manufactured or mobile home.

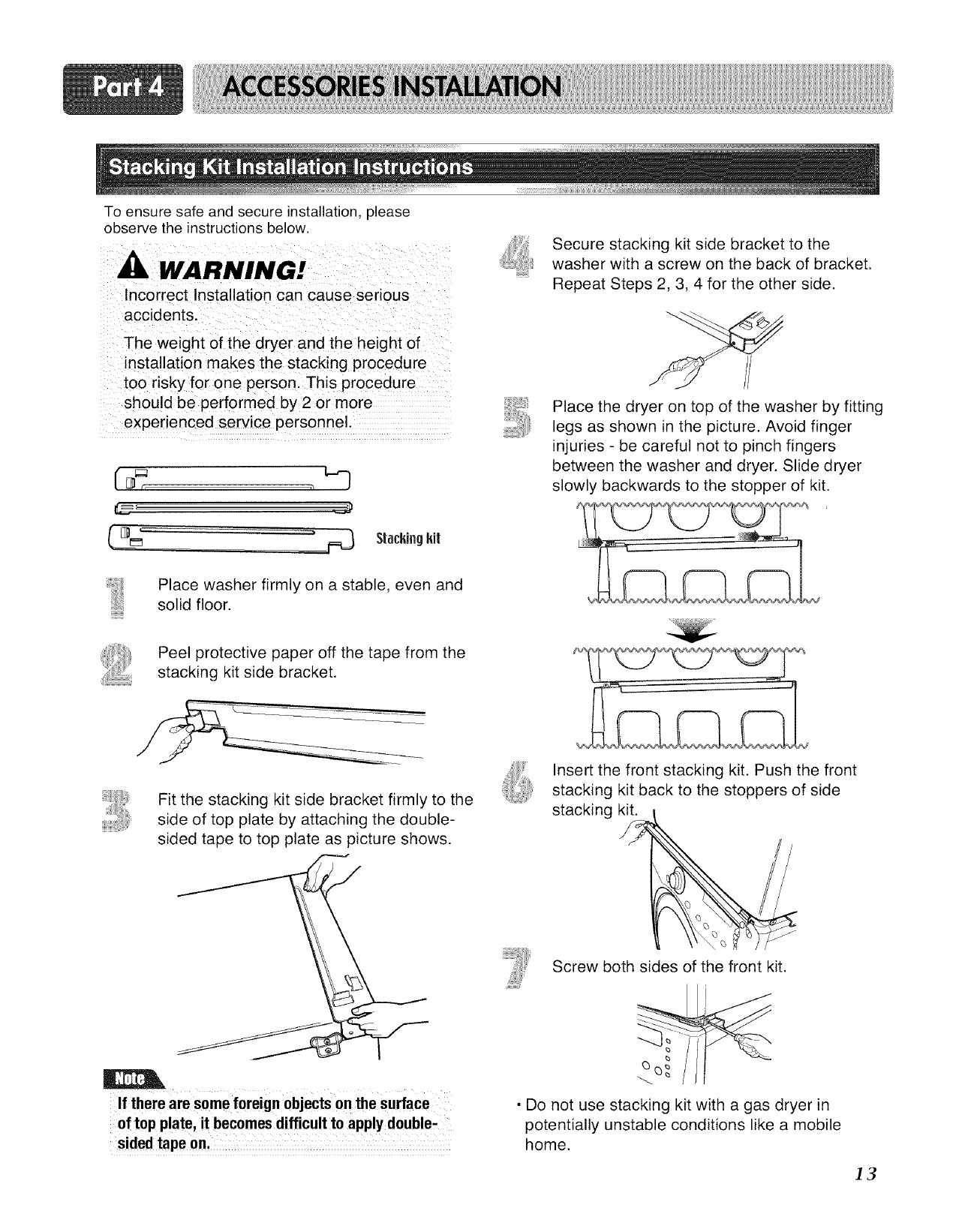

To ensure safe and secure installation, please

observe the instructions below.

WARNINGS

Incorrect Installation can cause serious

accidents.

The weight of the dryer and the height of

installation makes the stacking procedure

too risky for one person. This procedure

should be performed by 2 or more

experienced service personne.

Fm_}_, ,_ I_

6._ J

Stackingkit

Place washer firmly on a stable, even and

solid floor.

Secure stacking kit side bracket to the

washer with a screw on the back of bracket.

Repeat Steps 2, 3, 4 for the other side.

Place the dryer on top of the washer by fitting

legs as shown in the picture. Avoid finger

injuries - be careful not to pinch fingers

between the washer and dryer. Slide dryer

slowly backwards to the stopper of kit.

Peel protective paper off the tape from the

stacking kit side bracket.

Fit the stacking kit side bracket firmly to the

side of top plate by attaching the double-

sided tape to top plate as picture shows.

If there are some foreign objects on the surface

of top plate, it becomes difficult to apply double,

sided tape on,

Insert the front stacking kit. Push the front

stacking kit back to the stoppers of side

stacking kit.

Screw both sides of the front kit.

• Do not use stacking kit with a gas dryer in

potentially unstable conditions like a mobile

home.

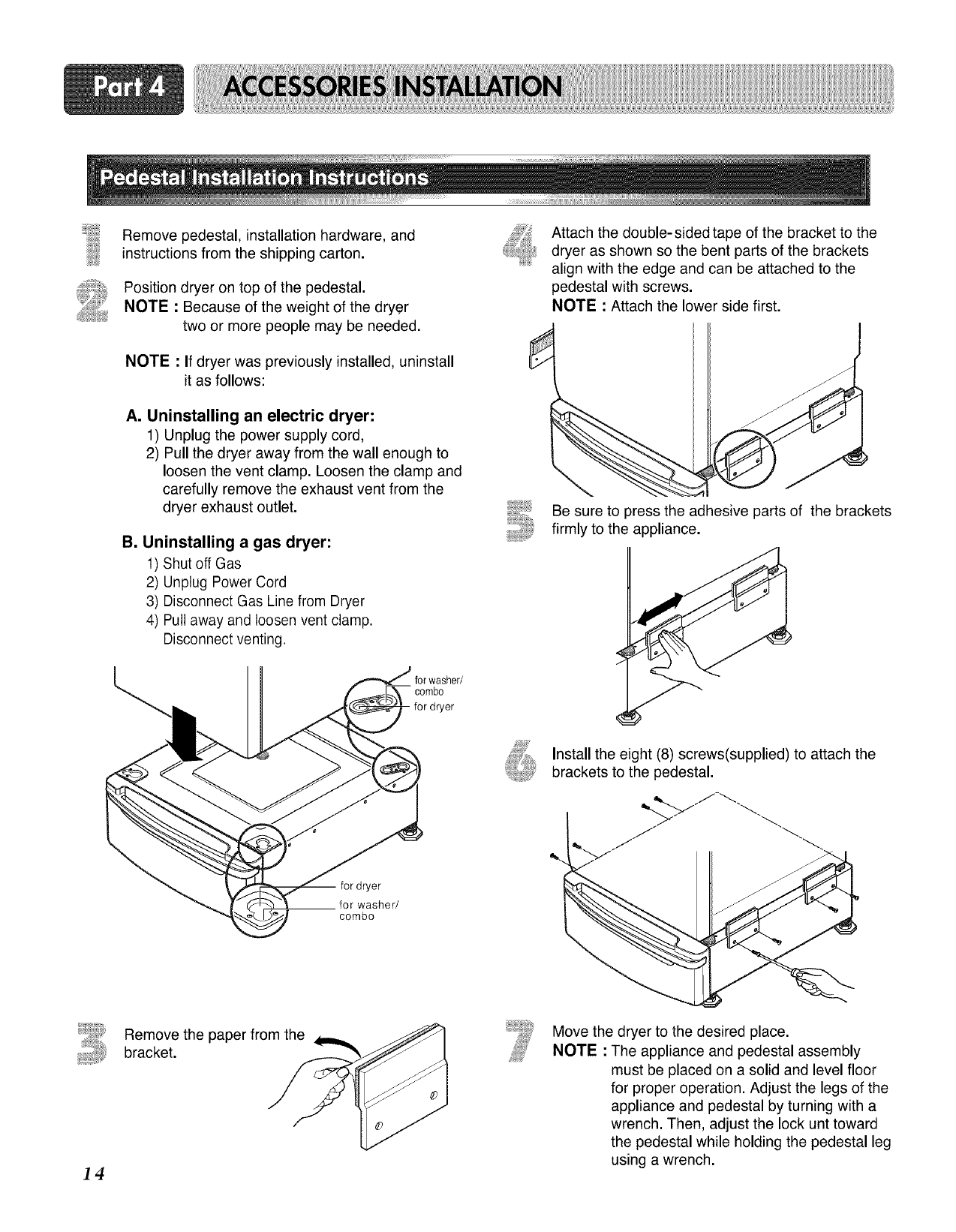

Remove pedestal, installation hardware, and

instructions from the shipping carton.

Position dryer on top of the pedestal.

NOTE : Because of the weight of the dryer

two or more people may be needed.

NOTE • If dryer was previously installed, uninstall

it as follows:

A. Uninstalling an electric dryer:

1) Unplug the power supply cord,

2) Pull the dryer away from the wall enough to

loosen the vent clamp. Loosen the clamp and

carefully remove the exhaust vent from the

dryer exhaust outlet.

B. Uninstalling a gas dryer:

1) Shut off Gas

2) Unplug Power Cord

3) Disconnect Gas Line from Dryer

4) Pull away and loosen vent clamp.

Disconnect venting.

Attach the double-sided tape of the bracket to the

dryer as shown so the bent parts of the brackets

align with the edge and can be attached to the

pedestal with screws.

NOTE : Attach the lower side first. I

Be sure to press the adhesive parts of the brackets

firmly to the appliance.

for dryer

for washer/

combo

Install the eight (8) screws(supplied) to attach the

brackets to the pedestal.

I,,/

Remove the paper from the

bracket.

Move the dryer to the desired place.

NOTE • The appliance and pedestal assembly

must be placed on a solid and level floor

for proper operation. Adjust the legs of the

appliance and pedestal by turning with a

wrench. Then, adjust the lock unt toward

the pedestal while holding the pedestal leg

using a wrench.

Following are additional instructions regarding electrical connections and requirements for electric dryers.

,_ Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local

regulations. Please contact a qualified electrician to check your home s wmn_ and fuses to ensure that your home

has adequate electrical power to operate the dryer.

120V/240V, 60 Hertz, 3-Wire Installation

Instructions for Grounding of your Electric

Dryer:

a) This dryer must be connected to a grounded

metal, permanent wiring system or an

equipment-grounding conductor must be run

with the circuit conductors and connected to the

equipment-grounding terminal or lead on the

dryer.

b) The dryer has its own terminal block that must

be connected to a separate 60 Hertz single

phaseAC circuit, fused at 30 Amperes (the

circuit must be fused on both sides of the line).

ELECTRICAL SERVICE FOR THE DRYER

SHOULD BE OF MAXIMUM RATE

VOLTAGE LISTED ON THE NAMEPLATE.

DO NOT CONNECT DRYER TO 110, 115,

OR 120 VOLT CIRCUIT. Heating elements are

available for field installation in dryers which

are to be connected to electrical service of

different voltage than that listed on nameplate.

c) If branch circuit to dryer is fifteen feet (4.50 m)

or less in length, use U.L. (Underwriters

Laboratories) listed No. 10 A.W.G. wire (copper

wire only), or as required by local codes. If over

fifteen feet (4.50 m), use U.L. (Underwriters

Laboratories) listed No. 8 A.W.G. wire (copper

wire only), or as required by local codes. Allow

sufficient slack in wiring so dryer can be moved

from its normal location when necessary.

d) The power cord (pigtail) connection between

wall receptacle and dryer terminal block IS NOT

supplied with dryer. Type of pigtail and gauge of

wire must conform to local codes and with

instructions mentioned on the following pages.

e) The method of wiring the dryer is optional and

subject to local code requirements. Refer to

examples on next page.

f) You must select the method by which to wire

your dryer according to local code and ordinance

requirements. Sample methods are included in

the following pages.

Review the following options to determine the appropriate electrical connection

for your home:

Use the instructions in this section if your home has

a 4-wire receptacle (NEMA type 14-30R) and you

will be using a UL listed, 120/240 volt minimum,

30 amp, dryer power supply cord.

Use the instructions in this section if your home has

a 3-wire receptacle (NEMA type 10-30R) and you

will be using a UL listed, 120/240 volt minimum,

30 amp, dryer power supply cord.

Important : Grounding through the neutral conductor

is prohibited for (1) new branch-circuit installations,

(2) mobile homes, and (3) recreational vehicles, and

(4) areas where local codes prohibit grounding through

the neutral conductor.

Prepare minimum 5ft( 1.52m) of length in order for

dryer to be replaced.

First, peel 5 inches (12.7cm) of covering material from

end. Strip 5 inches of ground wire insulation. After

cutting 1_/2inch (3.8cm) from 3 other wires peel

insulation back linch (2.5cm). Make ends of 3 wires a

hook shape. ¢

If this type is awlilable at your home. you will be

connecting to a fused disconnect or circuit breaker

box

Then, put the hooked shape end of the wire under the

screw of the terminal block(hooked end facing rightward)

and pinch the hook together and screw tightly.

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

•Screw power supply wire to the terminal block.

Colored wire should be connected to same color

screw. Wire color indicated on manual is

connected to the same color screw in block.

Otherwise, excessive current is applied resulting

in damages on product and heating failure.

1. Connect neutral wire(white) of power cord to center

terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to external

ground screw and move neutral ground wire of

appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on tight and

power cord is in right position.

Center terminal block

screw(silver)

Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

Important : Grounding through the neutral conductor

is prohibited tbr (1) new branch-circuit installations,

(2) mobile homes, and (3) recreational vehicles, and

(4) areas where local codes prohibit grounding through

the neutral conductor.

Prepare minimum 5ft( 1.52m) of length in order for

dryer to be replaced.

First, strip 3 _/2inches (8.9cm) of outer sheath from

end and strip 1 inch of insulation from each

conductor. ,¢

Then, put the hooked shape end of the wire under

the screw of the terminal block(hooked end facing

rightward) and pinch the hook together and screw

tightly.

1. Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Make sure that the strain relief screw is tightened

and be sure that all terminal block nuts are on

tight and power cord is in right position.

Ce est wmln er)

__ Neutralgrounding

_2_ I_]:_ _ wiretwhite)

,_o_ __,! Neutral grounding

_"_- __ _ wire(white)

._ _' _L__ Strain relief

_" _\ I/_r- External ground

connector

•If your local codes or ordinances do not allow the

use of a 3 wire connection, or you are installing

your dryer in a mobile home, you must use a 4-

wire connection.

{ 4-wire receptacle

NEMAtype 14-30R)

plua _ S Ptadet_rgic_s his

_4-pront with

_NeutrN Prong

nt plug _ 3/4 in. (1.9 cm)

pproved strain relief

_L NeeuGt[21Updop rg n g Ring terminals

Center terminal block

screw(siNer)

-- Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

1. Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to

external ground screw and move neutral ground

wire of appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

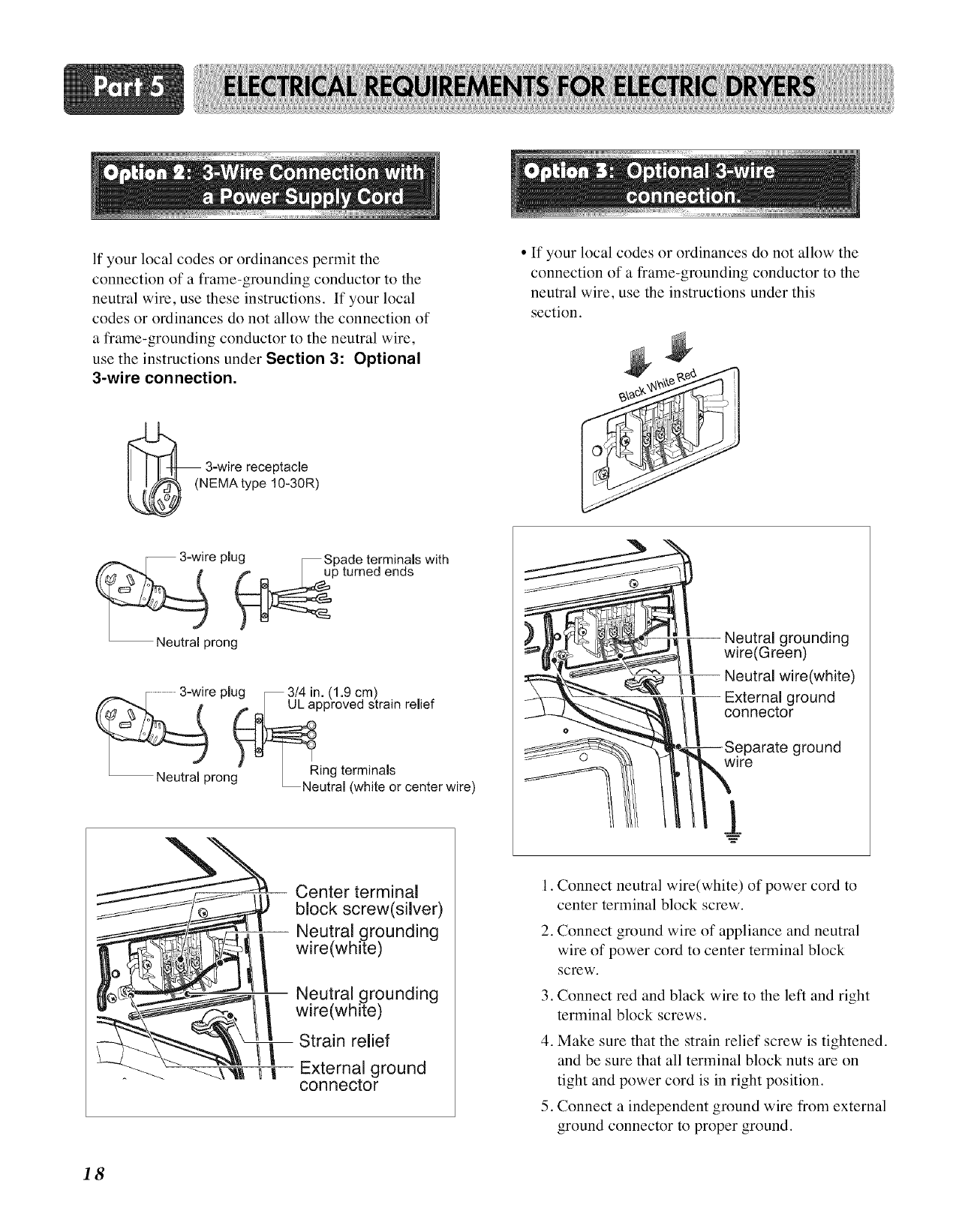

If your local codes or ordinances permit the

connection of a frame-grounding conductor to the

neutral wire, use these instructions. If your local

codes or ordinances do not allow the connection of

a frame-grounding conductor to the neutral wire,

use the instructions under Section 3: Optional

3-wire connection.

• If your local codes or ordinances do not allow the

connection of a frame-grounding conductor to the

neutral wire, use the instructions under this

section.

3-wire receptacle

EMA type 10-30R)

3-wire plug _ Spade terminals with

p turned ends

rong

3-wire plug _ 3/4 in, (1.9 cm)

pproved strain remief

rong _ Ring !erminals

P,leu_ral twnll:e or center wire)

Neutral grounding

wire(Green)

Neutral wire(white)

External ground

connector

--Separate ground

lre

Center terminal

block screw(silver)

Neutral grounding

wire(white)

Neutral grounding

wire(white)

Strain relief

External ground

connector

Connect neutral wire(white) of power cord to

center terminal block screw.

Connect ground wire of appliance and neutral

wire of power cord to center terminal block

screw.

Connect red and black wire to the left and right

terminal block screws.

Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

Connect a independent ground wire from external

ground connector to proper ground.

120 Volt, 60 Hertz, with 3-Prong Grounding Plug

Following are additional instructions regarding electrical connections and requirements for gas dryers.

,_ hnportant Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1, and all applicable local regulations. Please contact a qualified electrician to check your home's

wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.

Electrical Requirements for Your Dryer:

a) Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wiring errors can cause serious injury to

you and your dryer.

b) Your dryer is designed to be used on a separate

branch, polarized, three-wire, effectively

grounded, 120 Volt, 60 Hertz, AC (alternating

current) circuit protected by a 15 Ampere fuse,

equivalent fuse or circuit breaker.

c) Use separately fused circuits for washers and

dryers, and DO NOT operate a washer and a

dryer on the same circuit.

WARNING]

Do not overload the circuit by operating

other appliances on the same circuit when

this appliance is operating, by using an

extension cord to connect the dryer to the

power source, or by using any adapter to

allow additional cords to connect to the

same outlet.

DO NOT modify the plug provided wit h

the dryer.!f it doe s not fit the outlet in your

laundry room, apr0per out!et w!!! need to be

insta!l ed in your laundry room by a qualified

STANDARD 120 VOLT, 60 HERTZ, 3-WIRE

EFFECTIVELY GROUNDED CIRCUIT

Ground

Neutral Side

Round Grounding Prong

Neutral

a) The dryer has a three-prong plug to help guard

against shock. The plug should be plugged

directed into a properly grounded three-prong

receptacle that is rated 120 Volts AC (alternating

current) 15 Amps. This plug, in order to be

properly and fully effective, must be plugged into

a properly installed outlet that is grounded in

accordance with all local codes and ordinances.

b) The dryer must be grounded in order to reduce

the risk of electric shock, including a

malfunction or breakdown.

c) If your laundry room does not meet the

specifications required by this manual, or if you

are uncertain whether or not your hmndry room

meets these specifications, please have a

qualified service person or company.

Review your laundry room's electrical supply for

any problems.

Following are important instructions and information concerning the requirements for the gas supply and service for

gas dryers. _ hnportant Warning: The gas supply and service for a gas dryer must comply with all local codes

and ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas

dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

1. Gas supply requirements: Liquefied Petroleum

(L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service

must be provided at 10 + 1.5 in. water column

pressure.

2. Do not attempt to connect Dryer to Liquified

Petroleum (LP Gas) Gas service without a

qualified professkmal.

3. Isolate the dryer from the gas supply piping

system by closing its individual manual shut-off

valve, during any pressure testing of the gas

supply system at test pressure equal to or less

than 2/1 psi (3.45 kPa).

4. Supply Line Requirements. Your laundry room

must have a rigid gas supply line to your dryer.

In the United States, an individual manual shutoff

valve MUST be installed within at least 6 feet

(1.8m) of the dryer, in accordance with the

National Fuel Gas Code ANSI Z223.1. A 1/8 in.

N.P.T. pipe plug must be installed as shown.

DO NOT attempt any disassembly of the

dryer, any disassembly requires the

attention and tools of an authorized and

qualified service person or cornpany,

If using a rigid pipe, the rigid pipe should be 1/2

inch IPS. If acceptable under local codes and

ordinances and when acceptable to your gas

supplier, 3/8 inch approved tubing may be used

where lengths are less than 20 feet (6.1m).

Larger tubing should be used for lengths in

excess of 20 feet (6.1m). It is also important that

you use pipe joint compound that is insoluble in

LP gas.

To reduce the danger of gas leaks, explosion, and

fire, please follow and observe the folk)wing

instructions and WARNINGS.

Connect the dryer to the type of gas shown on the

nameplate.

Use new flexible stainless steel connectors.

Use Teflon tape and pipe joint compound

insoluble in LP gas on all pipe threads.

Purge gas supply of air and sediment before

connecting the gas supply to the dryer; in order to

prevent gas valve contamination. Before

tightening connection between gas supply and

dryer, purge remaining air until odor of gas is

identified.

• DO NOT use an open flame to inspect for gas

leaks, instead use a non-corrosive leak detection

fluid.

WARNING!

• Use a new AGA or CSA approved gas

supply line.

• Install a shut-off valve.

• Securely tighten all gas connections.

• If connected to LP, have a qualified person

make sure gas pressure does not exceed

13 in. water column.

• Examples of a qualified person include

licensed heating personnel, authorized gas

company personnel, and authorized se rvice

personnel.

• Failure to do so can result in death

explosion, or fire.

Following are important instructions and information concerning the exhaust requirements for your dryer.

,_ hnportant Warning: To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT

exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas

vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil

ducting.

Recommended

k___.

(10.2 cm)

Use Only for Short Run

Installations

2-t/2"

(6.36 cm)

65 feet (19.8 m)

55 feet (16.8 m)

47 feet (14.3 m)

36 feet (11.0 m)

28 feet (8.5 m)

55 feet (16.8 m)

47 feet (14.3 m)

41 feet (12.5 m)

30 feet (9.1 m)

22 feet (6.7 m)

45 feet (13.7 m)

35 feet (10.7 m)

30 feet (9.1 m)

25 feet (7.6 m)

20 feet (6.1 m)

35 feet (10.7 m)

27 feet (8.2 m)

21 feet (6.4 m)

17 feet (5.2 m)

15 feet (4.5m)

NOTE : Deduct 6 feet (1.8 m) for each additional elbow.

It is not recommended to use more than 4 90° elbows.

Exhaust Requirements and Instructions:

1. Venting materials are not provided with the dryer

and you should obtain the necessary venting

materials locally. For example, the outer end of

exhaust pipe must have a weather hood with hinged

dampers to prevent back-draft when the dryer is not

in use.

2. The exhaust duct nmst be tour inches (10.2 cm) in

diameter with no obstructions. The exhaust duct

should be kept as short as possible. Make sure to

clean any old ducts before installing your new dryer.

3. Rigid or semi-rigid metal ducting is recommended

for use as transition ducting between the dryer and

and the wall. In special installations when it is

impossible to make a connection with the above

recommendations, then a UL-listed flexible metal

transition duct may be used between the dryer and

wall connection only. The use of this ducting will

affect dry time.

4. DO NOT use sheet metal screws on exhaust pipe

joints or other fastening means which extend into

the duct that could catch tint and reduce the

efficiency of the exhaust system. Secure all joints

with duct tape.

5. To maximize operating results, please observe the

duct lenoth_ limitations noted in the chart above. 2 1

Exhaust and Dryer Maintenance

WARNINGs

i i i ii

Disconnect the dryer's electric power

prior to any cleaning or maintenance.

1. After one year of use, the interior and complete

exhaust system of the dryer should be examined

and cleaned if necessary.

2. Before one year of use, when drying performance

has become unsatisfactory, please examine and

clean the exhaust duct for better drying

performance.

3. Check the weather hoods frequently to ensure

the dampers are moving fleely, that the dampers

are not pushed in and that nothing has been set

against the dampers.

4. A qualifed service person or company should be

used to perform this maintenance.

5. A Flexible Metal Vent Kit, available at extra cost,

can be used to exhaust the dryer when it is placed

in hard to reach places. This Kit comes in two

pieces, one of which is attached to the dryer and

the other is attached to the wall exhaust outlet.

Following attachment of the two separate pieces

to the dryer and the wall, the dryer may be

returned to its final position, after which the two

pieces themselves can be connected.

7. Ordinarily, the dryer drum will need no care.

Wipe the exterior of the dryer as required, and

always wipe the exterior of the dryer in the event

any detergent, bleach, or other washing products

is spilled on the dryer.

8. Clean the control panel with a damp cloth as

necessary. Warning: spray pre-wash products

may damage the finish of the control panel.

9. Please clean the lint filter either before drying

each load or after drying each load.

10. Always make sure the lint filter is clean before

starting a new load, because a clogged lint filter

may increase drying times.

11. Annually remove the lint filter and attach it to

the vacuum duct. See item #2 above.

12. Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wiring errors can cause serious injury

to you and your dryer.

Cleaning the Lint Screen

1. Clean the lint filter either before drying each load

or after drying each load. Always make sure the

lint filter is clean before starting a new load,

because a clogged lint filter may increase drying

times.

To clean, pull the lint screen straight up and roll

any lint off the screen with your fingers.

Do not rinse or wash screen to remove lint. Push

the lint screen fnnly back into place.

Always ensure the lint screen is firmly secured

before running the dryer. Running the dryer with

a loose lint screen may cause overheating and

damage to the dryer and articles being dried.

Some articles of clothing may shed more lint than

others (towels for example), causing the Lint

Screen to rapidly fill. Remove lint from the lint

screen before and after drying these articles, such

as new towels.

In the event lint falls off of the lint screen and

into the dryer during removal, inspect the exhaust

hood and remove any lint.

Laundry detergent and fabric softener residue can

build up on the lint screen, causing longer drying

times. The screen is likely blocked if lint falls off

the screen. In order to prevent this type of build

up, and help ensure proper operation of your

dryer, clean the lint screen with a nylon brush

every six months or, if necessary, more

frequently. The lint filter can also be washed as

follows:

a) After rolling the lint off of the screen with your

fingers, wet both sides of the screen with hot or

warm water.

b) Wet a nylon brush with hot water and liquid

detergent and scrub the lint screen with the brush

to remove the buildup of detergent and fabric

softener.

c) After the residue has been removed, rinse screen

with hot water.

d) After drying the lint screen with a clean towel,

firmly replace the lint screen in your dryer.

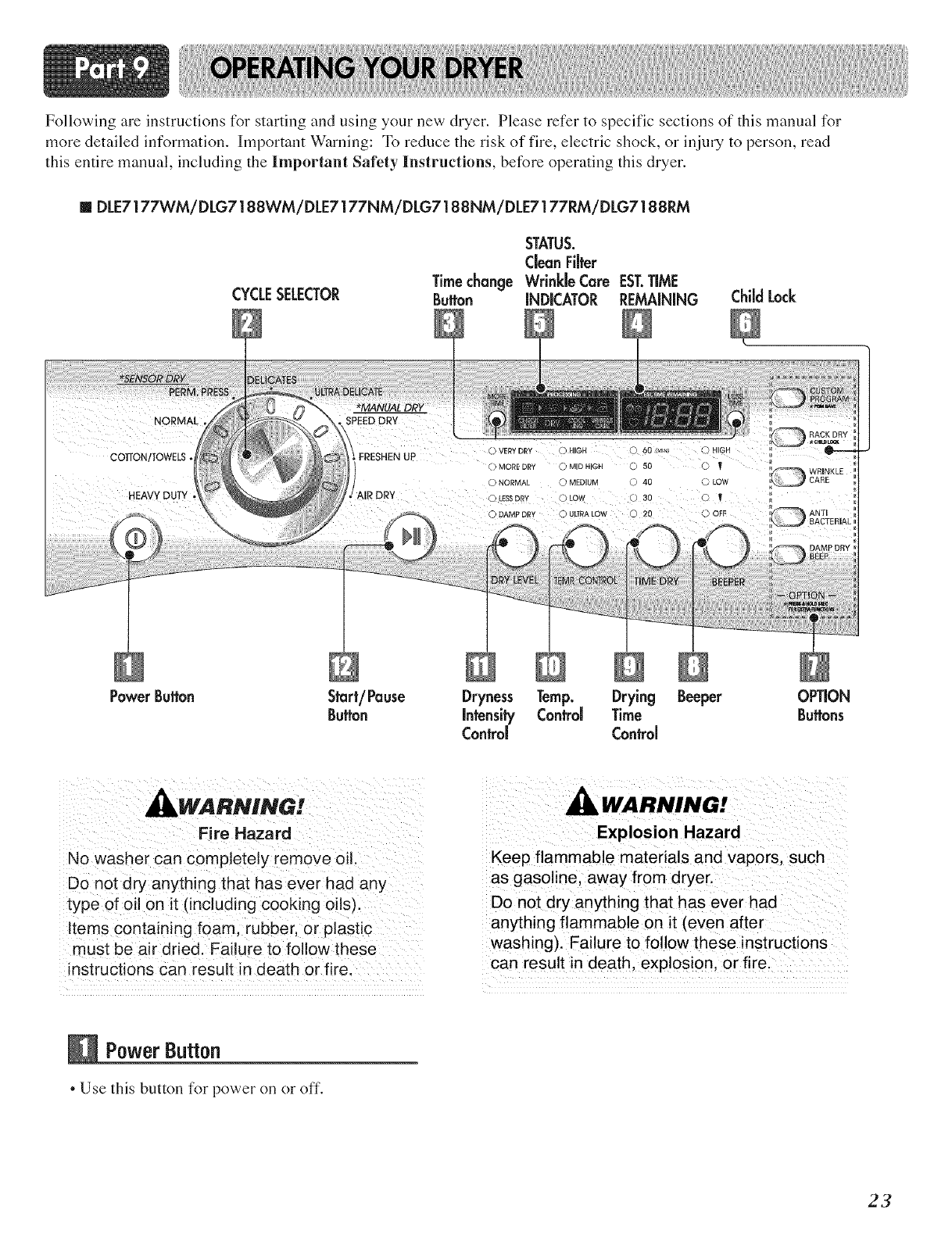

Followiugareinstructionsfor startingandusingyouruewdryer.Pleasereferto specificsectiousof thismauualfor

moredetailedinformation.ImportautWarning:Toreducetheriskof fire,electricshock,orinjuryto person,read

thiseutiremanual,includingtheImportant Safety Instructions, before operating this dryer.

m DLE7177WM/DLG7188WM/DLE7177NM/DLG7188NM/DLE7177RM/DLG7188RM

STATUS.

dean Filter

Timechange Wrinkle Care EST.TIME

CYCLESELECTOR Button INDICATOR REMAINING Child Lack

NORMAL

C01TON/TOWELS

HEAVY DUTY

"_MANUALDRY .......

SPEEDDRY _ _

O MORE DRY 0 MID HIGH 0 50 () I_ WRINKLE

O NORMAL 0 M£DIUM 0 40 0 LOW CARE

AIRDRY OL_gSDRY OLOW C) 30 O f

O DAMP DRY O ULTRA LOW O 20 ()OFF

Power Button Start/Pause Dryness Temp. Drying Beeper OPTION

Button intensity Contrd Time Burns

Control Control

WARNING!

Fire Hazard

No wasner can completely remove oil.

Do not dry anything that has ever had any

type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic

must be air dried. Failure to follow these

instructions can result in death or fire.

WARNING!

Explosion Hazard

Keep flammable materials and vapors, such

as gasoline, away from dryer.

Do not dry anything that has ever had

anything flammable on it (even after

washing). Failure to follow these instructions

can result in death, explosion, or fire.

Power Button

.Use this button for power on or off.

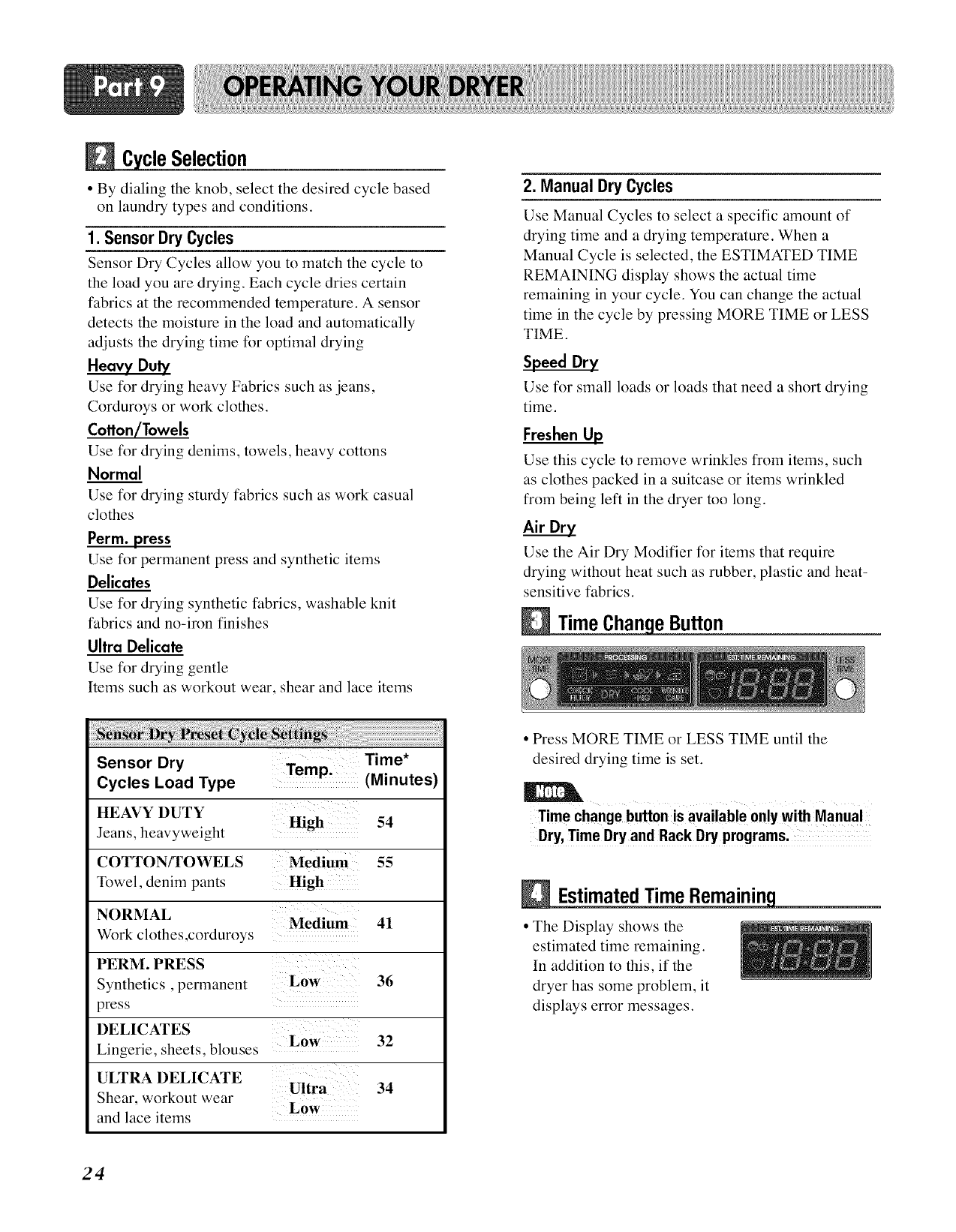

Selection

• By dialing the knob, select the desired cycle based

on laundry types and conditions.

1. Sensor Dry Cycles

Sensor Dry Cycles allow you to match the cycle to

the load you are drying. Each cycle dries certain

fabrics at the recommended temperature. A sensor

detects the moisture in the load and automatically

adjusts the drying time for optimal drying

Heavy Duly

Use for drying heavy Fabrics such as jeans,

Corduroys or work clothes.

Cotton/Towels

Use for drying denims, towels, heavy cottons

Normal

Use for drying sturdy fabrics such as work casual

clothes

Perm. press

Use for permanent press and synthetic items

Delicates

Use for drying synthetic fabrics, washable knit

fabrics and no-iron finishes

Ultra Delicate

Use for drying gentle

Items such as workout wear, shear and lace items

Sensor Dry

Cycles Load Type Templ Time*

(Minutes)

HEAVY DUTY High 54

Jeans, heavyweight

COTTON/TOWELS Medium 55

Towel, denim pants High

NORMAL Medium 41

Work clothes,corduroys

PERM. PRESS

Synthetics, permanent Low 36

press

DELICATES

Lingerie, sheets, blouses Low 32

ULTRA DELICATE Ultra 34

Shear, workout wear

and lace items Low

2. Manual Dry Cycles

Use Manual Cycles to select a specific amount of

drying time and a drying temperature. When a

Manual Cycle is selected, the ESTIMATED TIME

REMAINING display shows the actual time

remaining in your cycle. You can change the actual

time in the cycle by pressing MORE TIME or LESS

TIME.

Speed Dry

Use for small loads or loads that need a short drying

time.

Freshen Up

Use this cycle to remove wrinkles from items, such

as clothes packed in a suitcase or items wrinkled

from being left in the dryer too king.

Use the Air Dry Modifier for items that require

drying without heat such as rubber, plastic and heat-

sensitive fabrics.

Time Button

• Press MORE TIME or LESS TIME until the

desired drying time is set.

Time change button is available only with Manual

Dry, Time Dry and Rack Dry programs.

•The Display shows the

estimated time remaining.

In addition to this, if the

dryer has some problem, it

displays error messages.

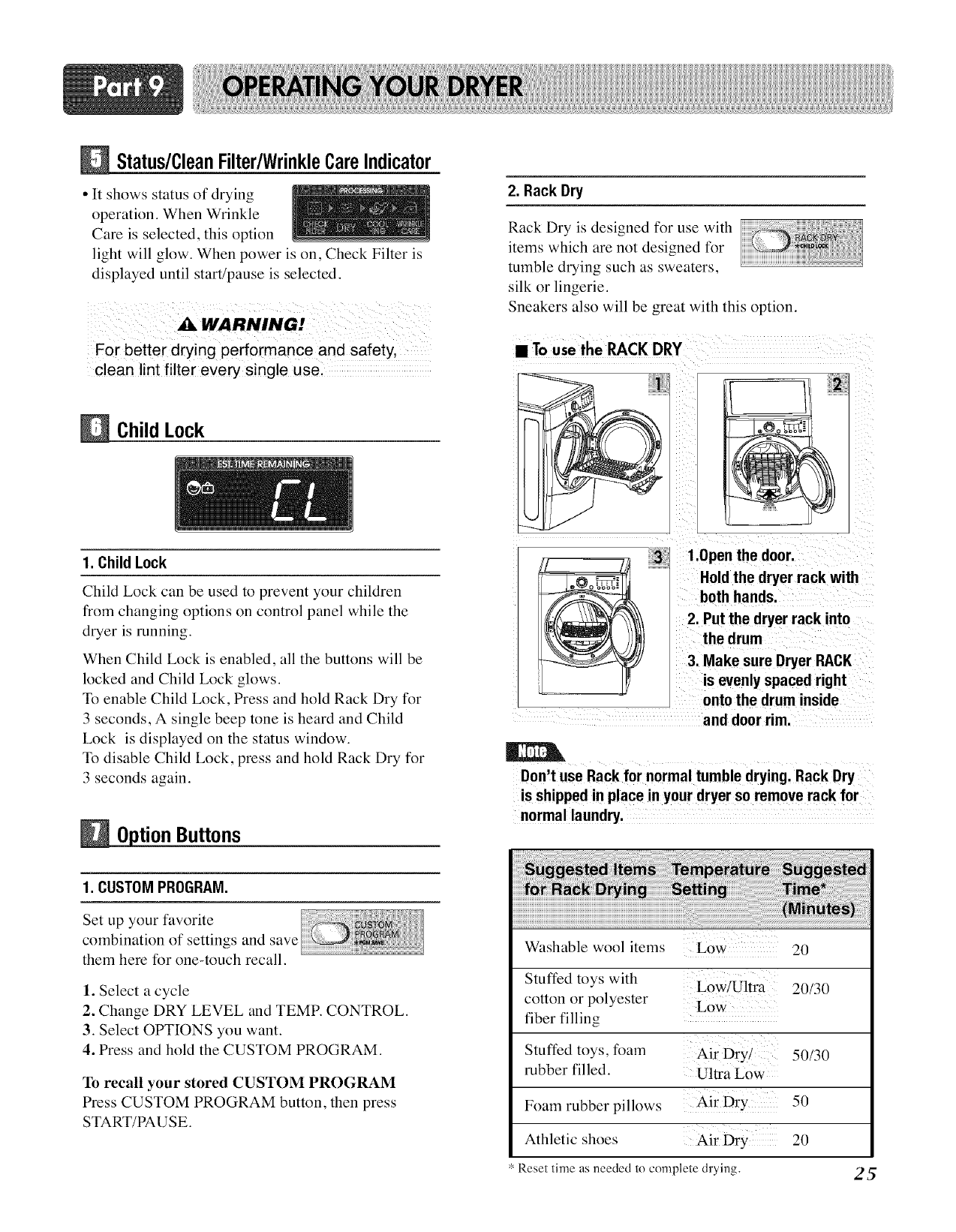

Status/CleanFilter/WrinkleCareIndicator

• It shows status of drying

operation. When Wrinkle

Care is selected, this option

light will glow. When power is on, Check Filter is

displayed until start/pause is selected.

For better drying performance and safety,

clean lint filter every single usel

Child Lock

1, Child Lock

Child Lock can be used to prevent your children

fiom changing options on control panel while the

dryer is running.

When Child Lock is enabled, all the buttons will be

locked and Child Lock glows.

To enable Child Lock, Press and hold Rack Dry for

3 seconds, A single beep tone is heard and Child

Lock is displayed on the status window.

To disable Child Lock, press and hold Rack Dry for

3 seconds again.

DtionButtons

1, CUSTOMPROGRAM,

2, Rack Dry

Rack Dry is designed for use with

items which are not designed for

tumble drying such as sweaters,

silk or lingerie.

Sneakers also will be great with this option.

•To use the RACKDRY

1.0pen the door.

Hold the dryer rack with

both hands,

2, Put the dryer rack into

the drum

3, Make sure Dryer RACK

is evenly spaced right

onto the drum inside

and door rim,

Don t use Rack for normal tumble drying. Rack Dry

is shipped in place in your dryer so remove rack for

normal laundry,

Set up your favorite

combination of settings and save

them here for one-touch recall.

1. Select a cycle

2. Change DRY LEVEL and TEMP. CONTROL.

3. Select OPTIONS you want.

4. Press and hold the CUSTOM PROGRAM.

_lb recall your stored CUSTOM PROGRAM

Press CUSTOM PROGRAM button, then press

START/PAUSE.

Washable wool items Low 20

Stuffed toys with Low!Ultra 20/30

cotton or polyester Low

fiber filling

Stuffed toys, foam 50/30

rubber filled. Ultra Low

Foam rubber pillows Air Dry 50

Athletic shoes Air Dry 20

* Reset time as needed to complete drying. 2_

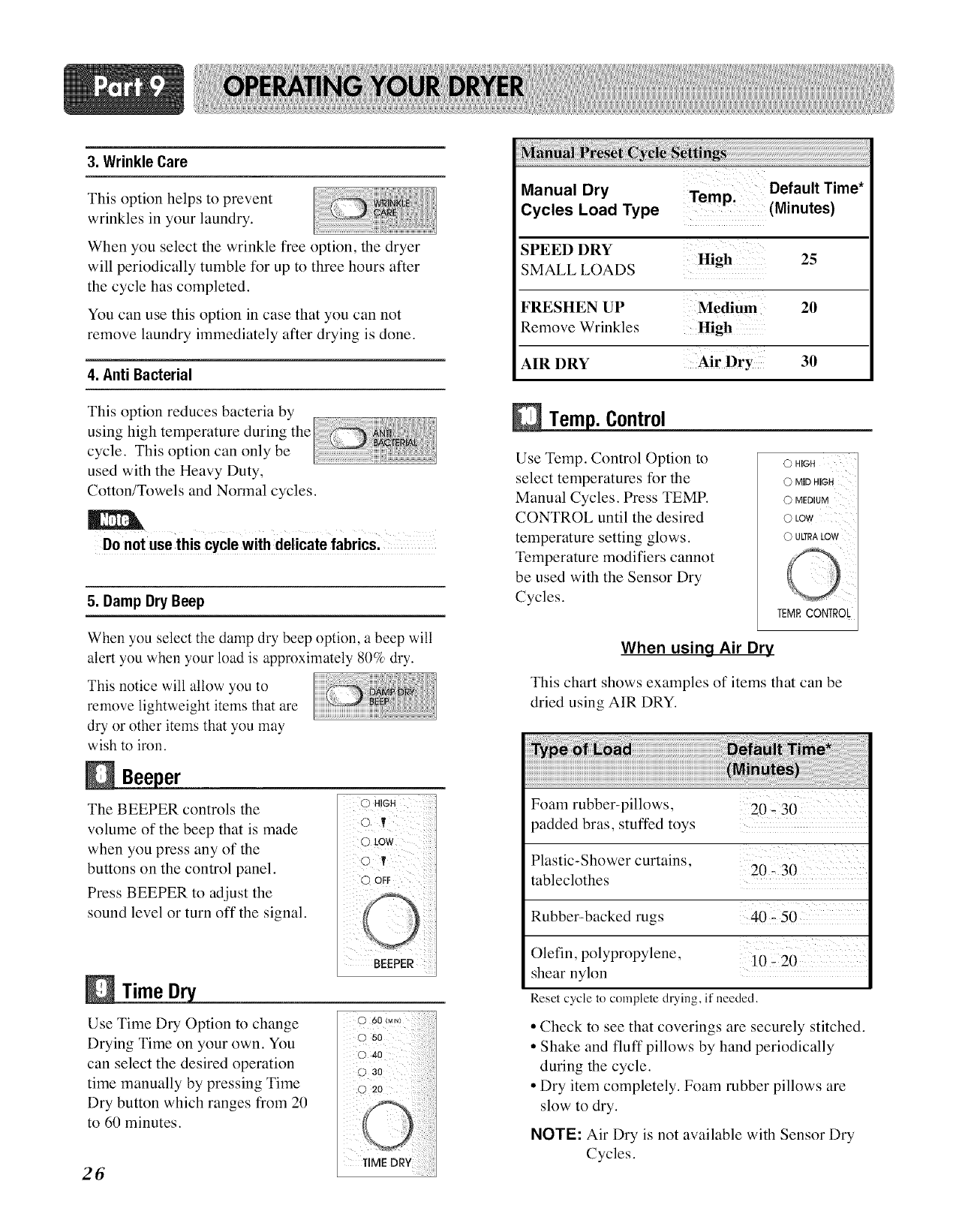

3. Wrinkle Care

This option helps to prevent

wrinkles in your laundry.

When you select the wrinkle free option, the dryer

will periodically tumble for up to three hours after

the cycle has completed.

You can use this option in case that you can not

remove laundry immediately after drying is done.

4. Anti Bacterial

This option reduces bacteria by

using high temperature during the

cycle. This option can only be

used with the Heavy Duty,

Cotton/Towels and Normal cycles.

Do not use this cycle with delicate fabrics.

5. Damp Dry Beep

When you select the damp dry beep option, a beep wilt

alert you when your load is approximately 80% dry.

This notice will allow you to

remove lightweight items that are

dry or other items that you may

wish to iron.

)er

The BEEPER controls the

volume of the beep that is made

when you press any of the

buttons on the control panel.

Press BEEPER to adjust the

sound level or turn off the signal.

Time Dry_

Use Time Dry Option to change

Drying Time on your own. You

can select the desired operation

time manually by pressing Time

Dry button which ranges from 20

to 60 minutes.

Manual Dry _Default Time*

Cycles Load Type lemp! (Minutes)

SPEED DRY

SMALL LOADS High 25

FRESHEN UP Medium 20

Remove Wrinkles High

AIR DRY 30

Control

Use Temp. Control Option to

select temperatures for the

Manual Cycles. Press TEMR

CONTROL until the desired

temperature setting glows.

Temperature modifiers cannot

be used with the Sensor Dry

Cycles.

0 HIGH

0 MID HIGH

0 MEDIUM

0 LOW

0 ULTRALOW

TEMRCONTROL

When using Air Dry

This chart shows examples of items that can be

dried using AIR DRY.

Foam rubber-pillows,

padded bras, stuffed toys

20-30

Plastic-Shower curtains, 20 ;30

tableclothes

Rubbe>backed rugs 40 _ 50

Olefin, polypropylene, 10 + 20

shear nylon

Reset cycle to complete drying, if needed.

• Check to see that coverings are securely stitched.

• Shake and fluff pillows by hand periodically

during the cycle.

• Dry item completely. Foam rubber pillows are

slow to dry.

NOTE: Air Dry is not available with Sensor Dry

Cycles.

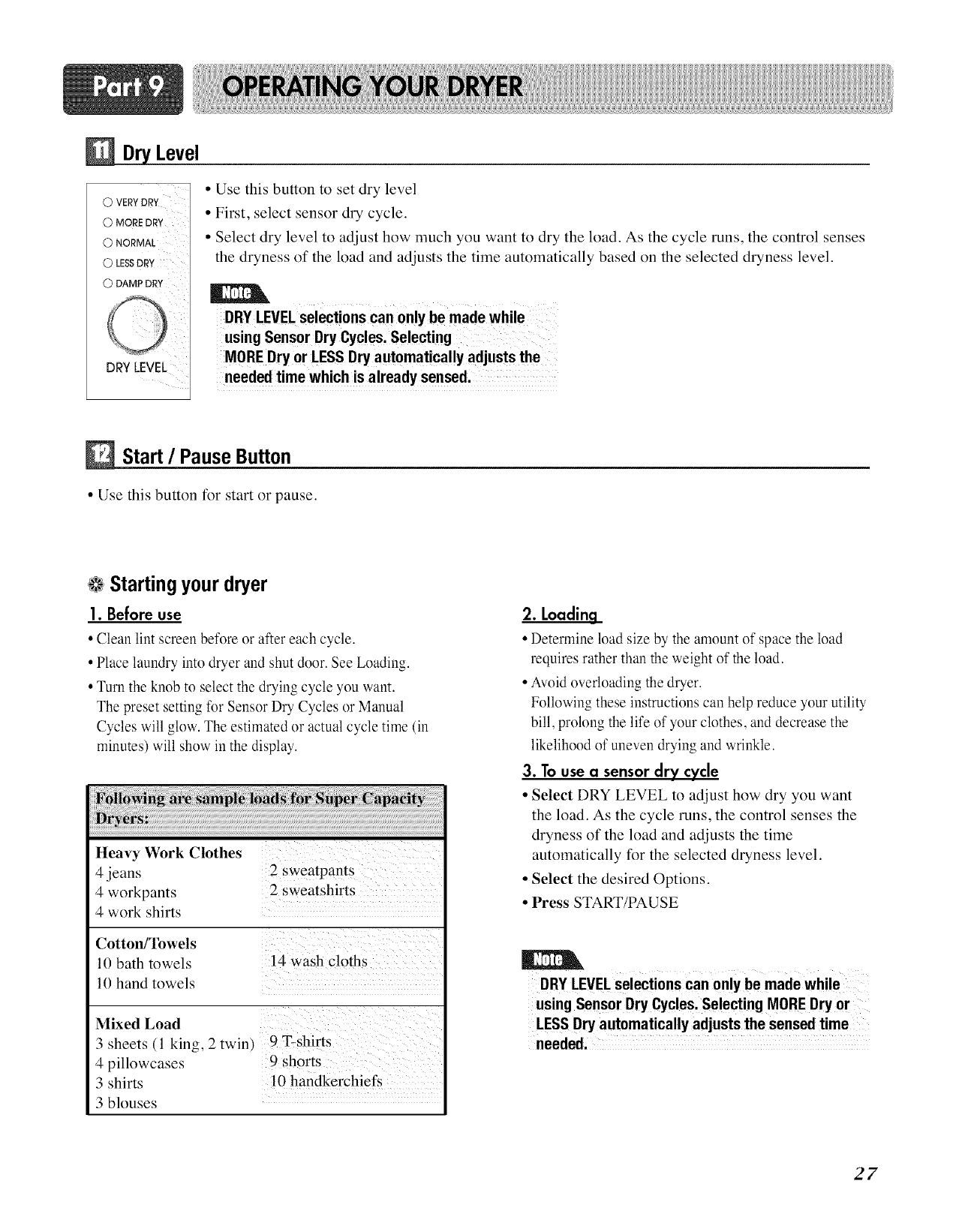

Level

@ VERY DRY

©MORE DRY

0 NORMAL

OLESSDRY

C) DAMP DRY

DRYLEVEL

• Use this button to set dry level

• First, select sensor dry cycle.

• Select dry level to adjust how much you want to dry the load. As the cycle runs, the control senses

the dryness of the load and adjusts the time automatically based on the selected dryness level.

DRY LEVELselections can only be made while

using Sensor Dry Cycles, Selecting

MORE Dry or LESS Dry automatically adjusts the

needed time which is already sensed,

Start /PauseButton

• Use this button for start or pause.

@Startingyour dryer

1. Before use

•Clean lint screen before or after each cycle.

• Place laundry into dryer and shut door. See Loading.

• Turn the knob to select the drying cycle you want.

The preset setting for Sensor Dry Cycles or Manual

Cycles will glow. The estimated or actual cycle time (in

minutes) will show in the display.

Foaowmg are sample loads for Super Capacity

Dryers:

Heavy Work Clothes

4 jeans 2 sweatpants

4 workpants 2 sweatshirts

4 work shirts

Cotton/Towels

10 bath towels 14 wash cloths

10 hand towels

Mixed Load

3 sheets (1 king, 2 twin}

4 pillowcases

3 shirts

3 blouses

9 T-shirts

9 shorts

10 handkerchiefs

2. Loading

• Determine load size by the amount of space tile load

requires rather than the weight of tile load.

• Avoid overloading tile dryer.

Following these instructions can help reduce your utility

bill, prolong tile life of your clothes, and decrease the

likelihood of uneven drying and wrinkle.

3. To use a sensor dry cycle

• Select DRY LEVEL to adjust how dry you want

the load. As the cycle runs, the control senses the

dryness of the load and adjusts the time

automatically for the selected dryness level

• Select the desired Options.

• Press START/PAUSE

DRYLEVELselections can only be made while

using Sensor Dry Cycles. Selecting MOREDry or

LESS Dry automatically adjusts the sensed time

needed.

4. To use a manual dry cycle

•Select a Manual Dry Cycle.

• Press MORE TIME or LESS TIME until the

desired drying time is displayed. Tap MORE TIME

or LESS TIME and the time will change by 1

minute interval.

The MORETIME or LESSTIME feature canbe used

with Manual Dry, Time Dry and Rack Dry Cycles.

•Press TEMR CONTROL until the desired

temperature indicator glows.

• (OPTIONAL STEP) If desired, select OPTIONS.

For more details, see Options.

• Press START/PAUSE. Be sure the door is closed.

• If you do not press START/PAUSE within 10

minutes of selecting the cycle, the dryer

automatically shuts off.

• If you wish to end your drying cycle after pressing

START/PAUSE, press START/PAUSE again.

To stop your dryer at any time

Press START/PAUSE or open the door.

5. Pausing or restarting To pause the dryer at

any time

Open the door or press START/PAUSE once.

To restart the dryer

Close the door. Press START/PAUSE.

Drying will continue from where the cycle

was interrupted if you close the door and press

STARTwithin 10 minutes. If the cycle is

interrupted for more than 10 minutes, the dryer

will shut off. Select new cycle settings before

restarting the dryer.

_l_ WARNING!

rnproper wire connection or related winng error

will can cause fire or electric shock or death.

1.0pen the door

and pull the filter

straight up

2.Clean the filter using one of the following methods.

!1 Clean the door and its opening

1. Wipe out the door

opening. Otherwise,

build-ups of dirty and

foreign objects will

damage sealing of

door.

2. Clean the transparent

glass door to keep

inside view clear

through the glass.

(_ Run the fingers

across the filter

Vacuum the lint filter

Wash the lint

screen in warm,

soapy water.

Dry thoroughly and

replace.

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

1.Problem:My Dryer Won't Start

• Is the dryer plugged in'? ' Confirm that the dryer's plug is securely and Completely pushed into the laundry

room's power outlet

• Is the fuse blown, or is the circuit Check your home's or laundry room's fuse box/circuit breaker box and replace the

breaker tripped? fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two

fuses or breakers.)

2.Problem:My Dryer Doesn't Heat

i _m

, Is the fuse blown, Or is the Circuit !f the tuse is blown or the Circuit breaker tripped the dryer might tumble but not

breaker tripped, heat. Check your home s or laundry room s fuse box /circuit breaker box and

replace the fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally

. use two fuses or breakers,)

• Is the gas supply or service Confirm that the house gas shutoff and the dryer gas shutoff are both fully ()pen.

blocked or ()IT'?

3.Problem:There are Greasy Spots on My Clothes

, Did yOUfollow the !nstmcti0n s On

your fabric soflener product'? Confirm and lb!!0w the instructions provided with Your fabric Softener product,

• Are you drying clean and dirty Make sure to use your dryer to dry only clean items, because dirty items can soil

clothes together? clean clothes placed in the same load or later placed in the dryer drmn.

, Were your clothes entir¢!y C!ean? Stains on dried clothes are actually Stains that werenTt cleanse d during the washing

rocess please review and confirm mat you are following Your washing

• instructions and that the clothes are being completely cleaned.

4. Problem:My Dryer Displayed Error

!t is displayed when thermistor is not disconnected: !n this Case, thermistor should

be replaced and Calla Service Center.

it is displayed when thermistor is short. In this case, thermistor should be replaced

tE2 and call a service center•

5.Problem:There is Linton my Clothes

• Is your lint filter lull? Please refer to the manual section on cleaning the lint filter, and please confirm that the

lint filter is clean. It is important that the lint filter is clean beti)re each new load of

laundry.

• Did you properly sort your load of In order to reduce the amount of lint in a load of laundry, sort lint producers (like a

laundry? fuzzy white cotton towel) separately trom clothes that might catch lint (such as a pair

of black linen pants).

• Do your clothes have excess static See comments below under There is static in my clothes at?er drying.

electricity?

• Did you overload your dryer? Divide your larger load into smaller loads.

• Did you place any paper, tissue, or

other similar material in the load? Sometimes a person might forget to take a piece of paper or a tissue out of the pocket

of a pair of pants, and this paper, tissue, or similar material can cause excess lint in a

load of laundry. Confirm that the pockets of pants, shirts, and other articles of clothing

fire empty before washing find drying.

6.Problem:There is static in my clothesafter drying

"Did you use fabric s0tteneri? Try using a fabric softener to reduce static e!ectricityi

• Did you over dry the load of Over-drying a load of laundry can cause a build up of static electricity.

laundry? Try using a fabric softener or adjust your settings and use a shorter drying time.

' Are you drying synlhetic permanent _; i : _ :;:11 , i ,..i ; 2

? lnesematerla!scancausestaucior)mloupmaloaoo[orleaclomes

press and blends'. ' _ ; ,., : ,_

lry using a iaDrlc sonener.

7.Problem:The drying time isnot consistent

• Are you using consistent heat The drying time for a load will vary depending on the heat setting, the type of heat

settings find consistent load sizes'? used (electric, natural or LP gas), the size of the load, the type of fabrics, the wetness

of the clothes find the condition of the exhaust ducts find lint filer.

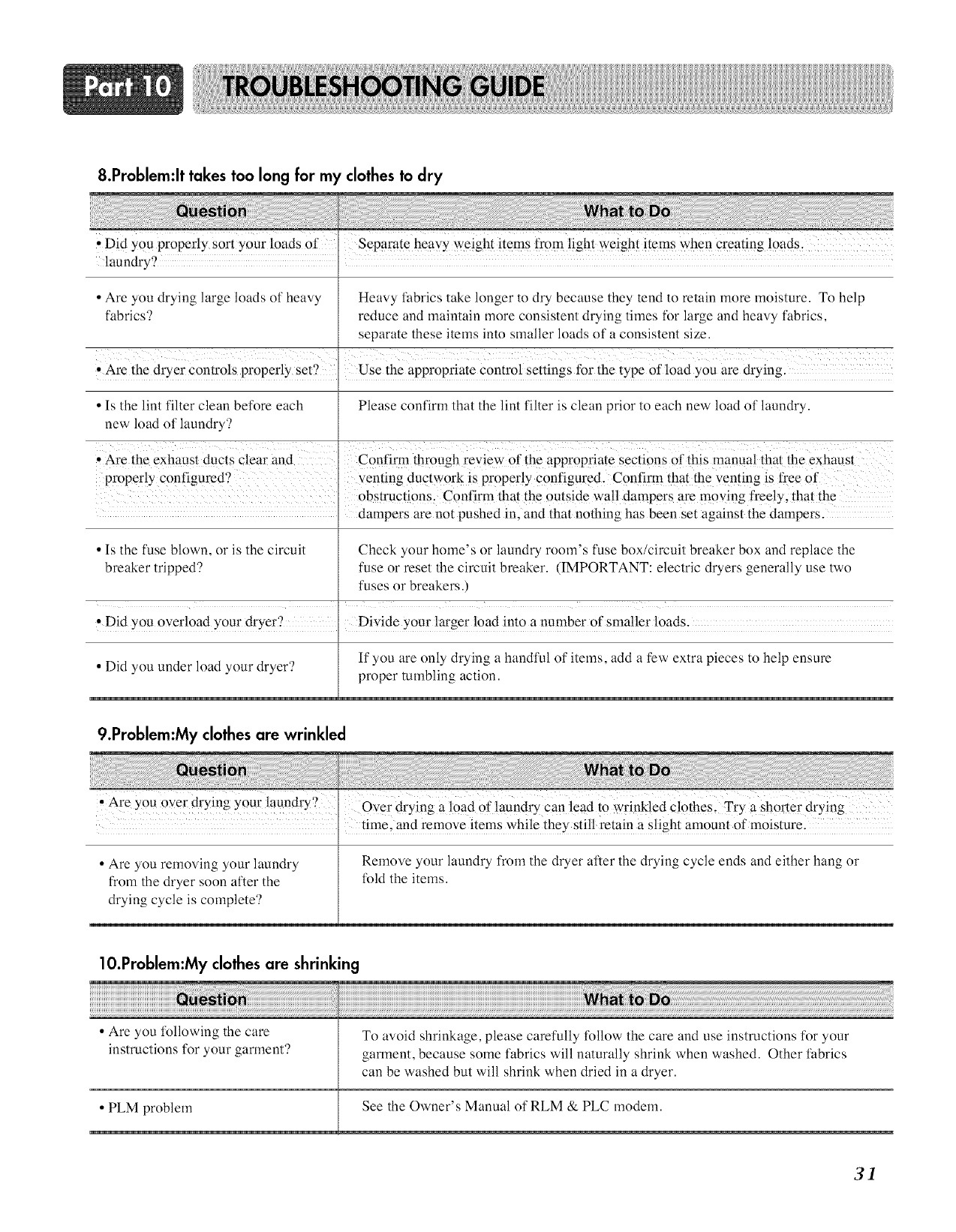

8.Problem:It takes too long for my clothesto dry

-- --E

,Did you properly Sort your loads ot Separate heavy weight items from light weight items when Creating loads.

laundry? I

• Are you drying large loads of heavy Heavy fabrics take longer to dry because they tend to retain more moisture. To help

fabrics? reduce find maintain more consistent drying times for large find heavy fabrics,

separate these items into smaller loads of a consistent size.

• Are the dryer controls properly set'? . Use the appropriate control settings tbr the type Of load you are drying.

• Is the lint filter clean before each Please confirm that the lint filter is clean prior to each new load of laundry.

new load of laundry?

, Are the exhaust ducts clear and Confirm through review of the appropriate sections of this manual that lhe exhaust

properly Configured'? venting ductw0rk is properly configured, Confirm that ae venting !S free Of

Obstructions, C0nfirm lhat the outside wa!l dampers are moying ikee!Y, that the

dampers are not pushed in, and that nothing has been set against the dampers.

• Is the fuse blown, or is the circuit Check your home's or laundry room's fuse box/circuit breaker box and replace the

breaker tripped? fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two

fuses or breakers.)

• Did you overload your dryer? . Divide your larger load into a number of smaller loads.

• Did you under load your dryer'? If you are only drying a handful of items, add a few extra pieces to help ensure

proper tumbling action.

9.Problem:My clothes are wrinkled

,Are YOUOyer drying_0ur laundrY? _ _ _

over drying a load of laundry Can lead to wrinkled Clothesl Try a Shorter drying

. time, and remove items while they still retain a slight amount of moisture.

• Are you removing your laundry Remove your laundry from the dryer after the drying cycle ends and either hang or

from the dryer soon after the fold the items.

drying cycle is complete?

l O.Problem:My clothesare shrinking

• Are you following the care To avoid shrinkage, please carefully follow the care find use instructions for your

instructions for your _arment'. garment, because some fabrics will naturally shrink when washed. Other fabrics

can be washed but will shrink when dried in a dryer.

•PLM problem See the Owner's Manual of RLM & PLC modem.

LG Electronics Inc. will repair or at its option replace, without charge, your product if it proves to be defective in

material or workmanship under normal use during the warranty period set forth below, effective from the date of

original consumer purchase of the product. Thislimited warranty is good only to the original purchaser of the product

and effective only when used in the United States including Alaska, Hawaii, and U.S.Territories.

WARRANTYPERIOD:

Labor: 1 Year from the Date of Purchase.

All Parts:1Year from the Date of Purchase.

HOW SERVICEIS HANDLED:

Call 1-800-243-0000 and choose the appropriate prompt. Please

have product type (Dryer), model number, serial

number, and ZiPcode ready.

Thewarranted t-year of labor covers the cost of In-Home Service

on all parts including the Drum Tub and Motor.

THiSWARRANTY iS iN LIEU OF ANY OTHERWARRANTIES,EXPRESSOR iMPLiED, iNCLUDiNG WITHOUTLiMiTATiON,ANY

WARRANTYOF MERCHANTABiLiTYOR FITNESSFORA PARTICULARPURPOSE.TO THEEXTENTANY iMPLiEDWARRANTYiS

REQUIREDBY LAW, iTiS LIMITEDiN DURATION TO THEEXPRESSWARRANTY PERIODABOVE. LG WILLNOT BELIABLEFOR

ANY CONSEQUENTIAL,INDIRECT,OR iNCiDENTAL DAMAGES OF ANY KIND, iNCLUDING LOSTREVENUESOR PROFITS,iN

CONNECTION WiTH THEPRODUCT. SOME STATESDO NOTALLOW LIMITATIONON HOW LONG AN iMPLiEDWARRANTY

LASTSOR THEEXCLUSIONOF iNCiDENTAL OR CONSEQUENTIALDAMAGES, SO THEABOVE UMITATIONSOR EXCLUSIONS

MAY NOTAPPLYTO YOU.

THiSUMITEDWARRANTYDOESNOTAPPLYTO:

1. Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses

or correct wiring, or correction of unauthorized repairs; and

2, Damages or operating problems that result from misuse, abuse, operation outside environmental

specifications or contrary to the requirements or precautions in the Operating Guide, accident, vermin,

fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical

current or voltage, or commercial use, or use for other than intended purpose.

3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer,

CUSTOMERINTER-ACTIVECENTERNUMBERS:

To ProveWarrantyCoverage

To Obtain NearestAuthorizedServiceCenterorSales

Dealer,ortoObtainProduct,Customer,orService

Assistance

Retain your Sales Receipt to prove date of purchase, A

copy of your Sales Receipt must be submitted at the time

warranty service is provided.

Carl 1-800-243-0000

(24 hrs a day, 7 days per week) and choose the

appropriate prompt from the menu, and have your

product type (Dryer), model number, serial

number, and ZIP Code; or visit our website at

http://www.lgservice.com.

LG DLE7177RM User Manual DRYER Manuals And Guides L0702357

LG Residential Dryer Manual L0702357 LG Residential Dryer Owner's Manual, LG Residential Dryer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
