LCD TV

OWNER'S MANUAL

MODELS: DU-37LZ55

Internet Home Page • http://www.lge.com

http://www.lg.ca

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote

this information to your dealer

when you require service.

P/NO • 38289UO490B (0509-REVO0)

Printed in Korea

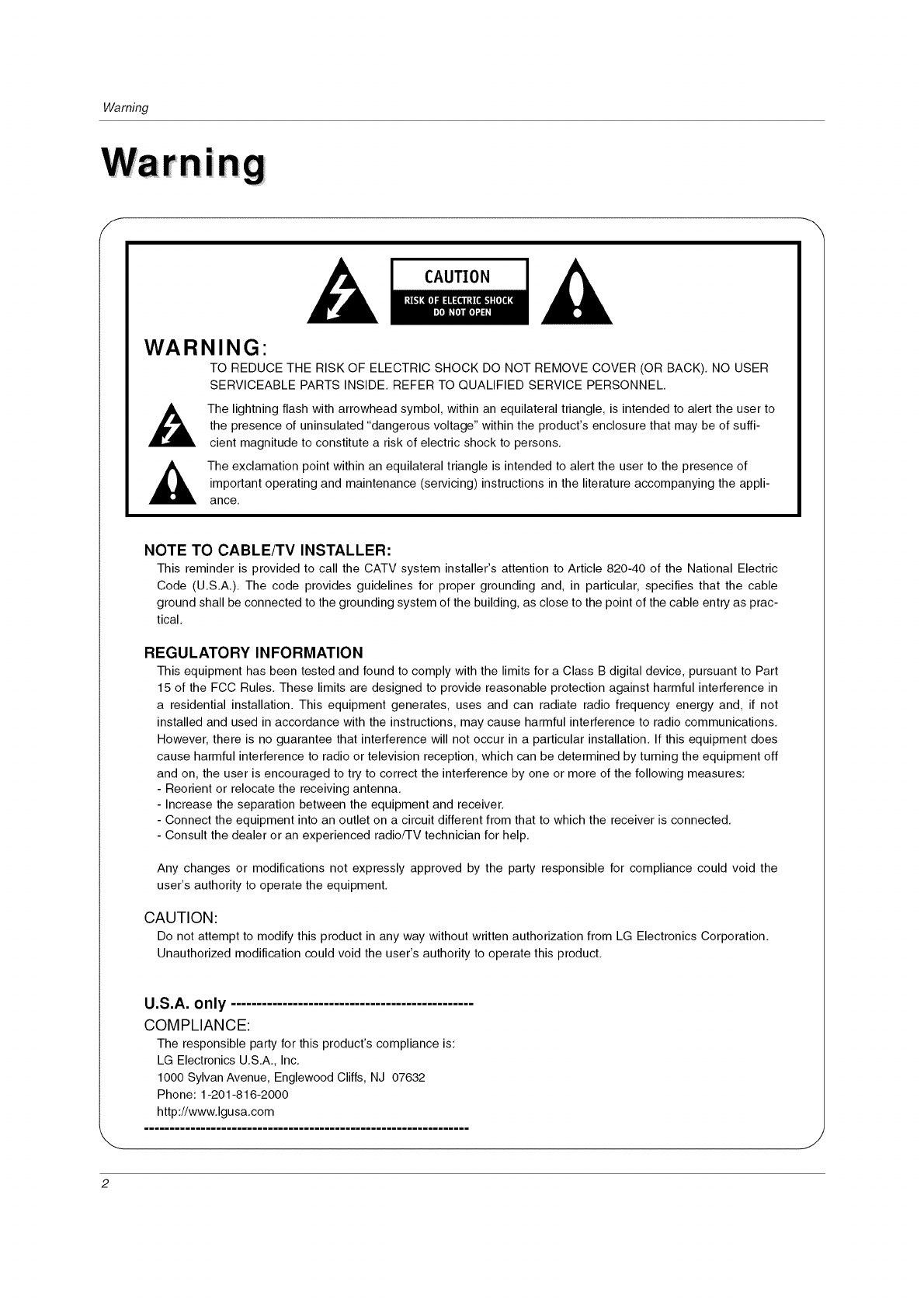

Warning

f

CAUTION

WARNING"

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli-

ance.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric

Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-

tical.

REGULATORY INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.

Unauthorized modification could void the user's authority to operate this product.

U.S.A. only

COMPLIANCE:

The responsible party for this product's compliance is:

LG Electronics U.S.A., Inc.

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

Phone: 1-201-816-2000

http://www.lgusa.com

J

2

f

Safety Instructions

ons

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or

sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara-

tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The

important safety instructions shall be entitled "Important Safety Instructions". The following safety instructions shall be includ-

ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding

statements after the end of the following safety instruction list. At the manufacturer's option, a picture or drawing that illus-

trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

PORTABLE CART WARNING

J

3

SafetyInstructions

ons

f

13.

14.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

16.

17.

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

Wet Location Marking :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

J

4

Contents

Warning/Caution ................................ 2

Safety Instructions ............................. 3-4

Introduction

Controls ............................... 6

Connection Options ...................... 7

Remote Control Key Functions ........... 8-9

Installation

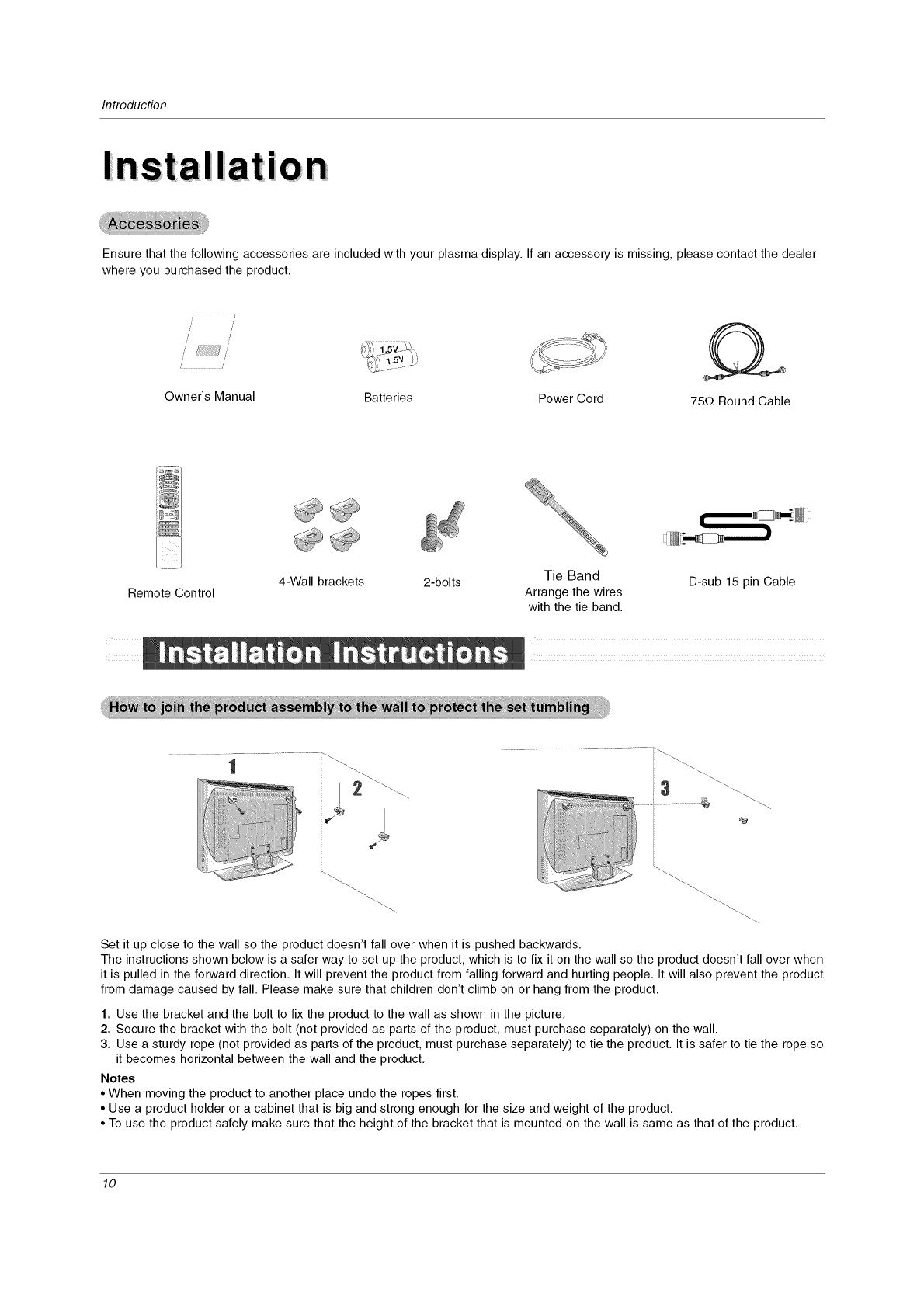

Accessories ............................. 10

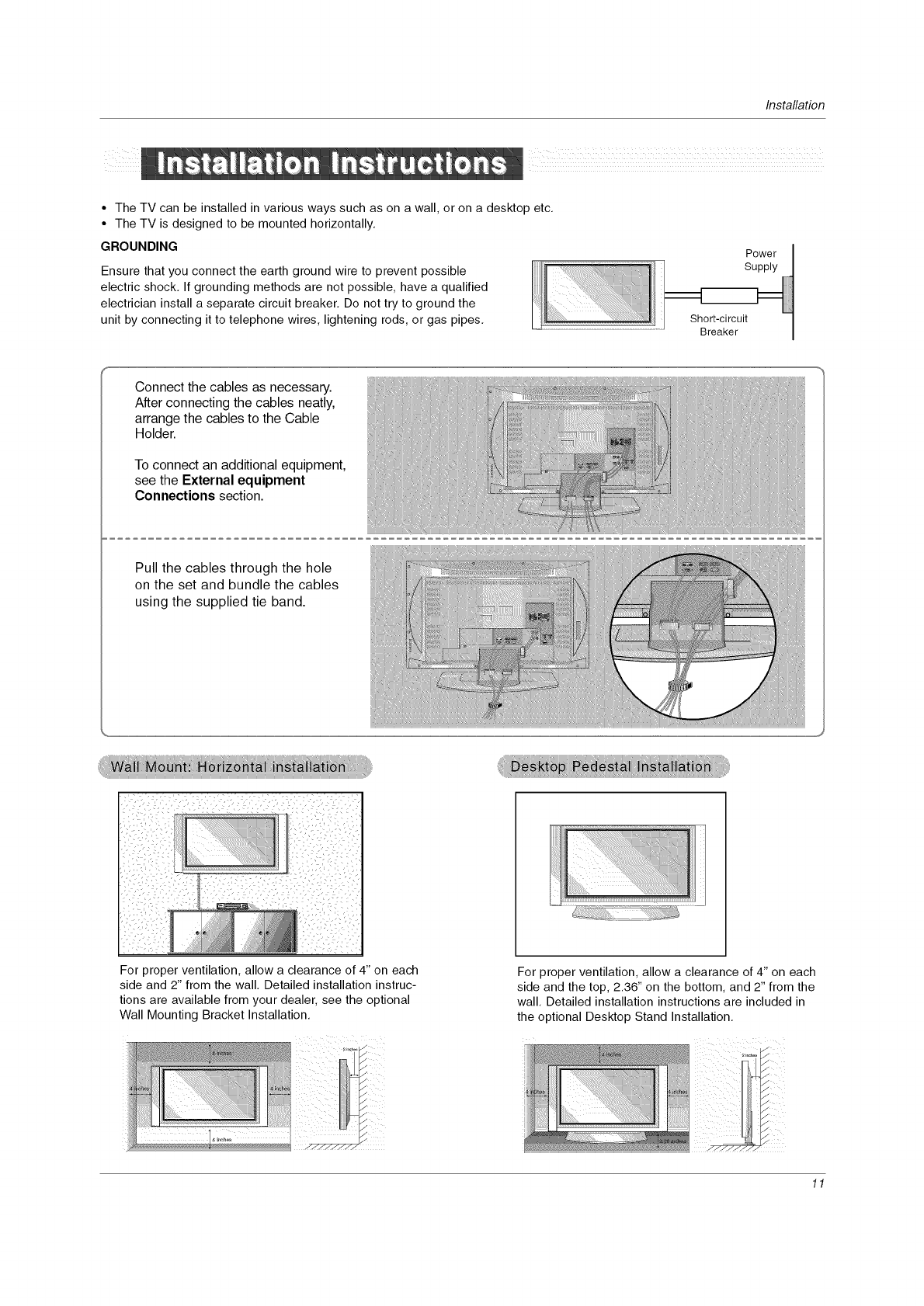

Installation Instructions .................. 10-11

How to join the product assembly to the wall to protect

the set tumbling .......................... 10

External Equipment Connections .......... 12-17

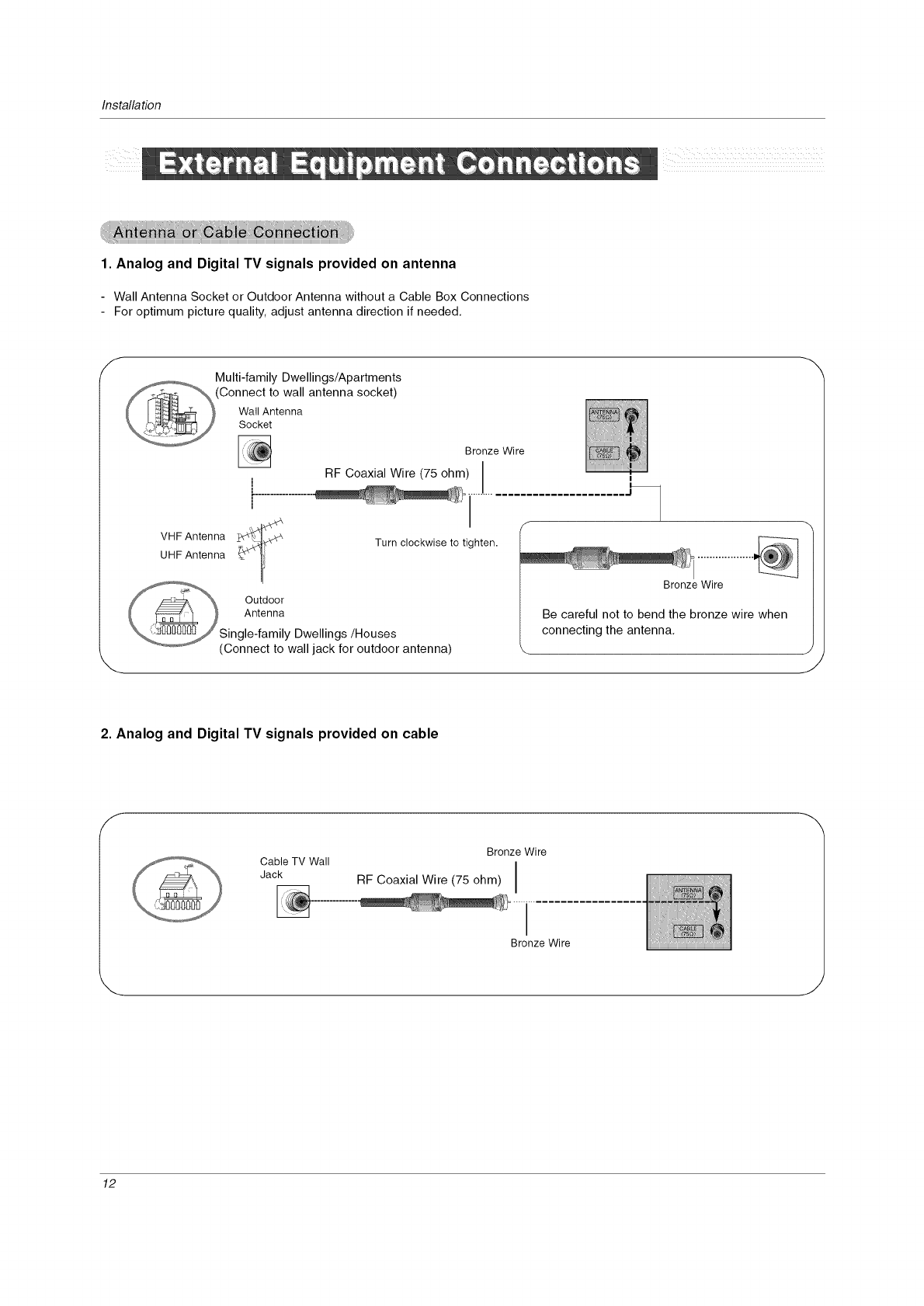

Antenna or Cable Connection ........... 12-13

VCR Setup ........................... 13

External A/V Source Setup ................ 14

DVD Setup ............................ 14

HDSTB Setup ......................... 15

PC Setup ............................. 16

Monitor Out Setup ...................... 17

Digital Audio Output ..................... 17

HDMI ............................... 18-20

Operation

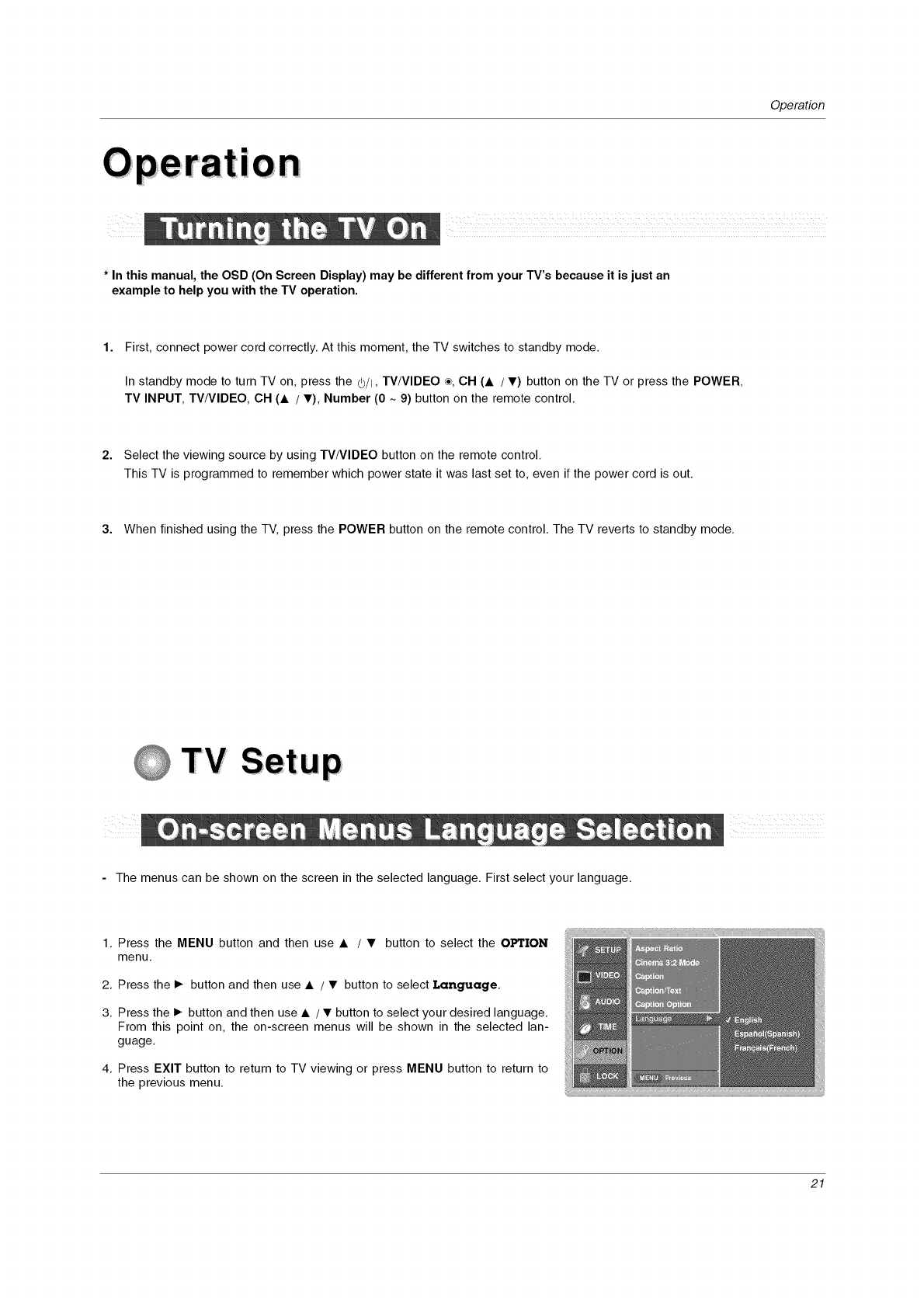

Turning the TV On ........................ 21

On-screen Menus Language Selection ......... 21

Setup Menu Options

EZ Scan (Channel Search) ................ 22

Manual Scan .......................... 22

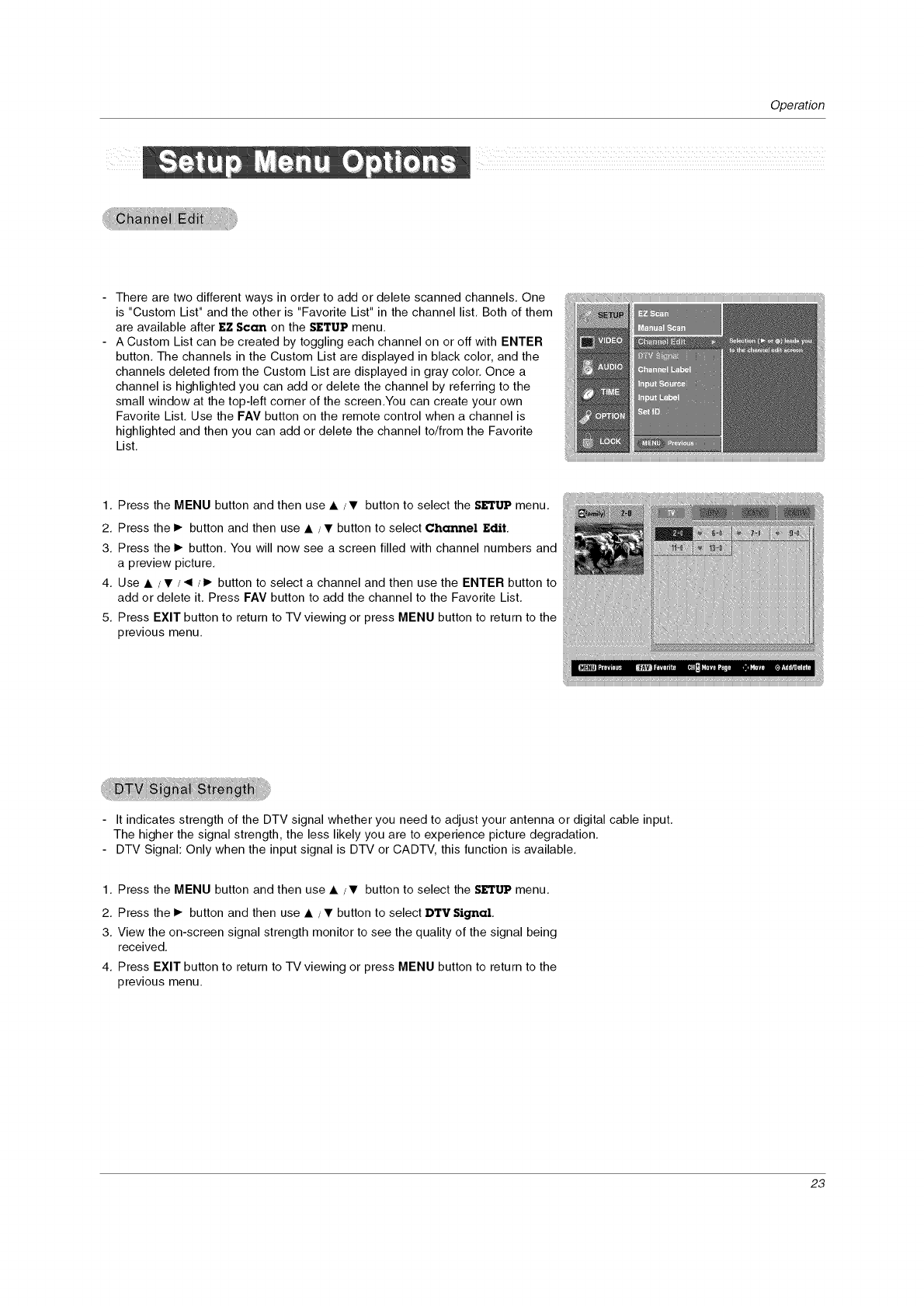

Channel Edit ........................... 23

DTV Signal Strength ..................... 23

Channel Label Setup .................... 24

Input Source ........................... 24

Input Label ............................ 24

Video Menu Options

EZ Picture ............................ 25

Manual Picture Control (Custom Option) ...... 25

Color Temperature Control ................ 25

Video Reset ........................... 25

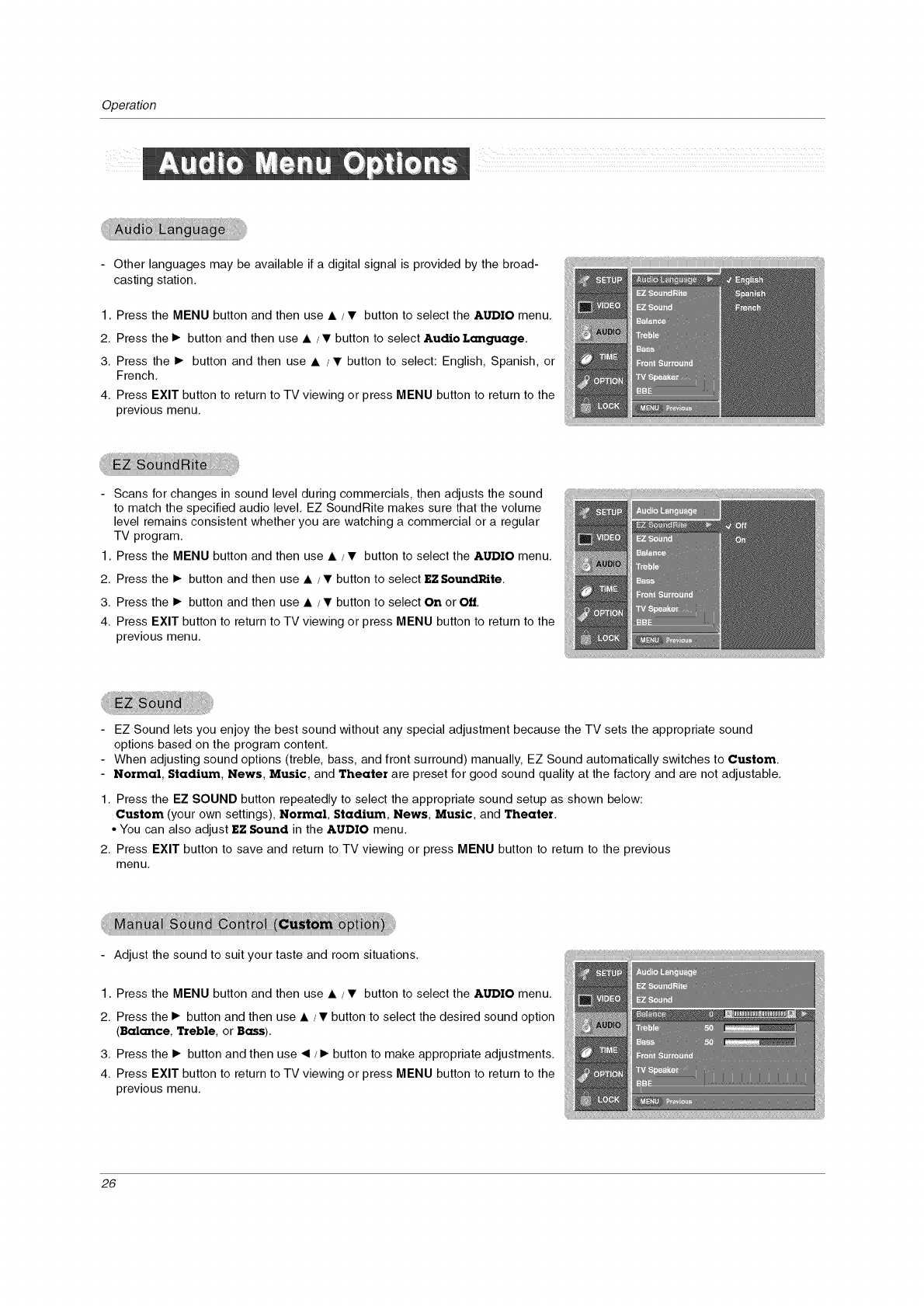

Audio Menu Options

Audio Language ........................ 26

EZ SoundRite /EZ Sound ................. 26

Manual Sound Control (Custom Option) ...... 26

Front Surround ......................... 27

TV Speakers On/Off Setup ................ 27

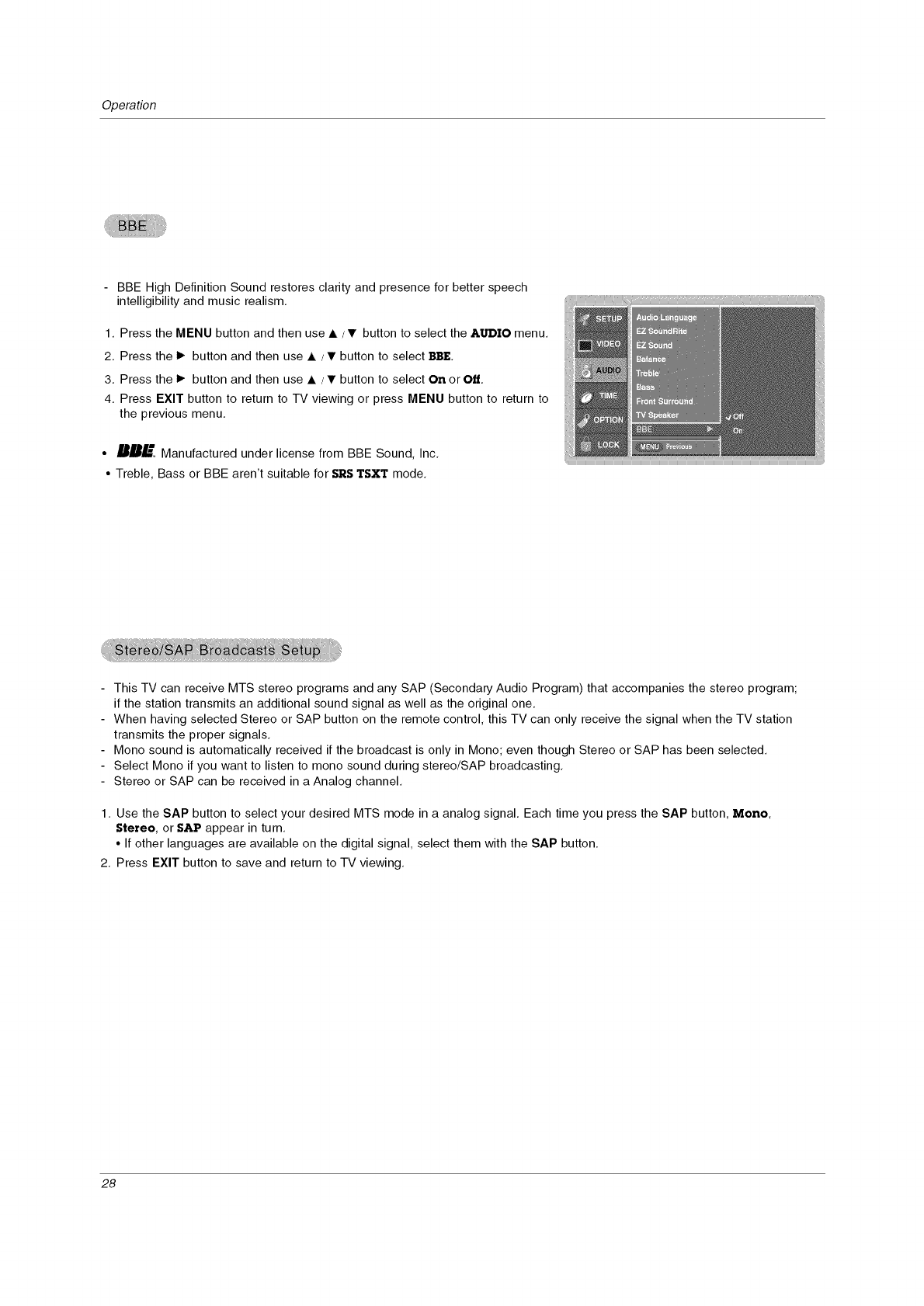

BBE ................................. 28

Stereo/SAP Broadcasts Setup .............. 28

Time Menu Options

Auto Clock Setup ....................... 29

Manual Clock Setup ..................... 29

On/Off Timer Setup ..................... 29

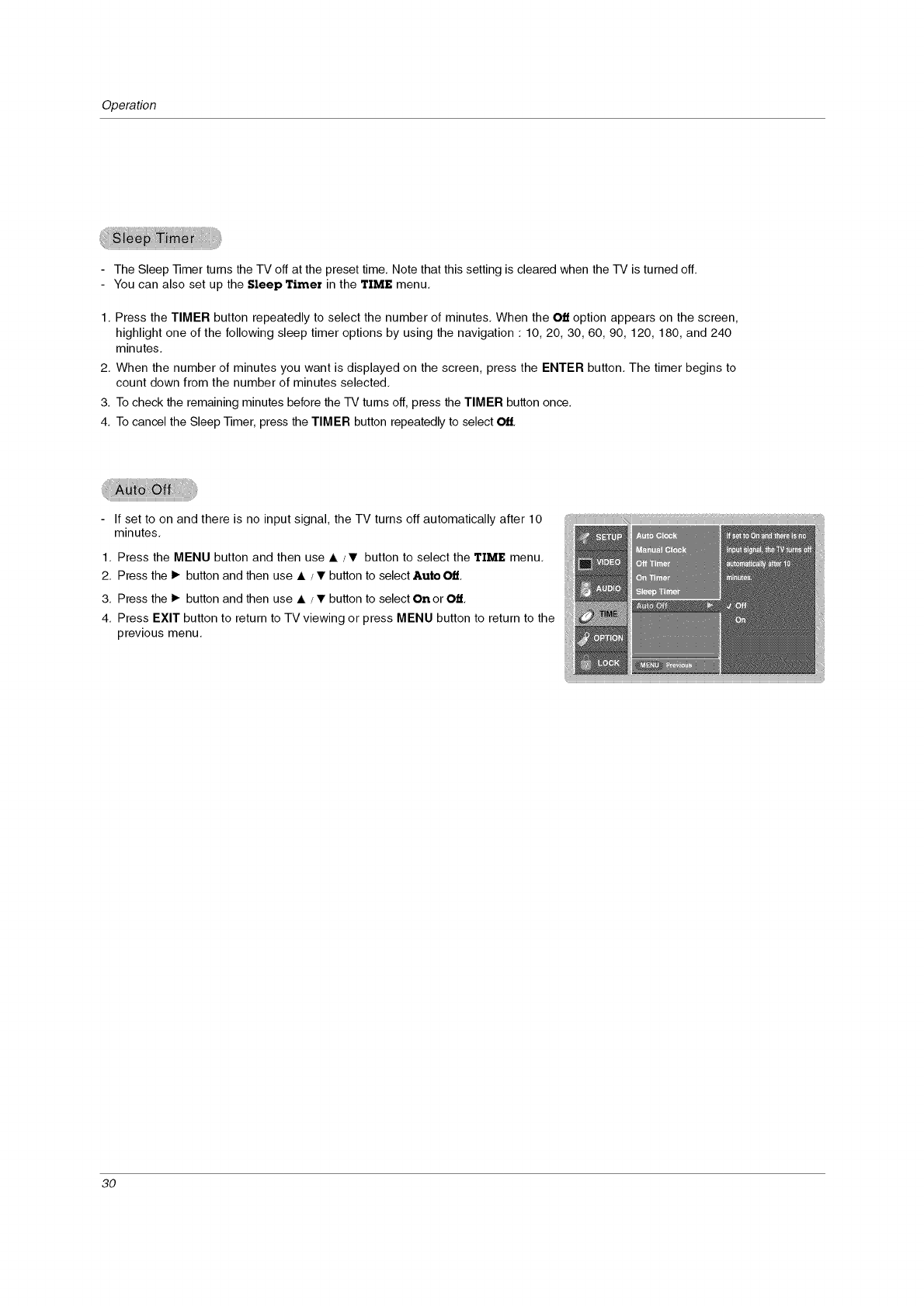

Sleep Timer /Auto Off .................... 30

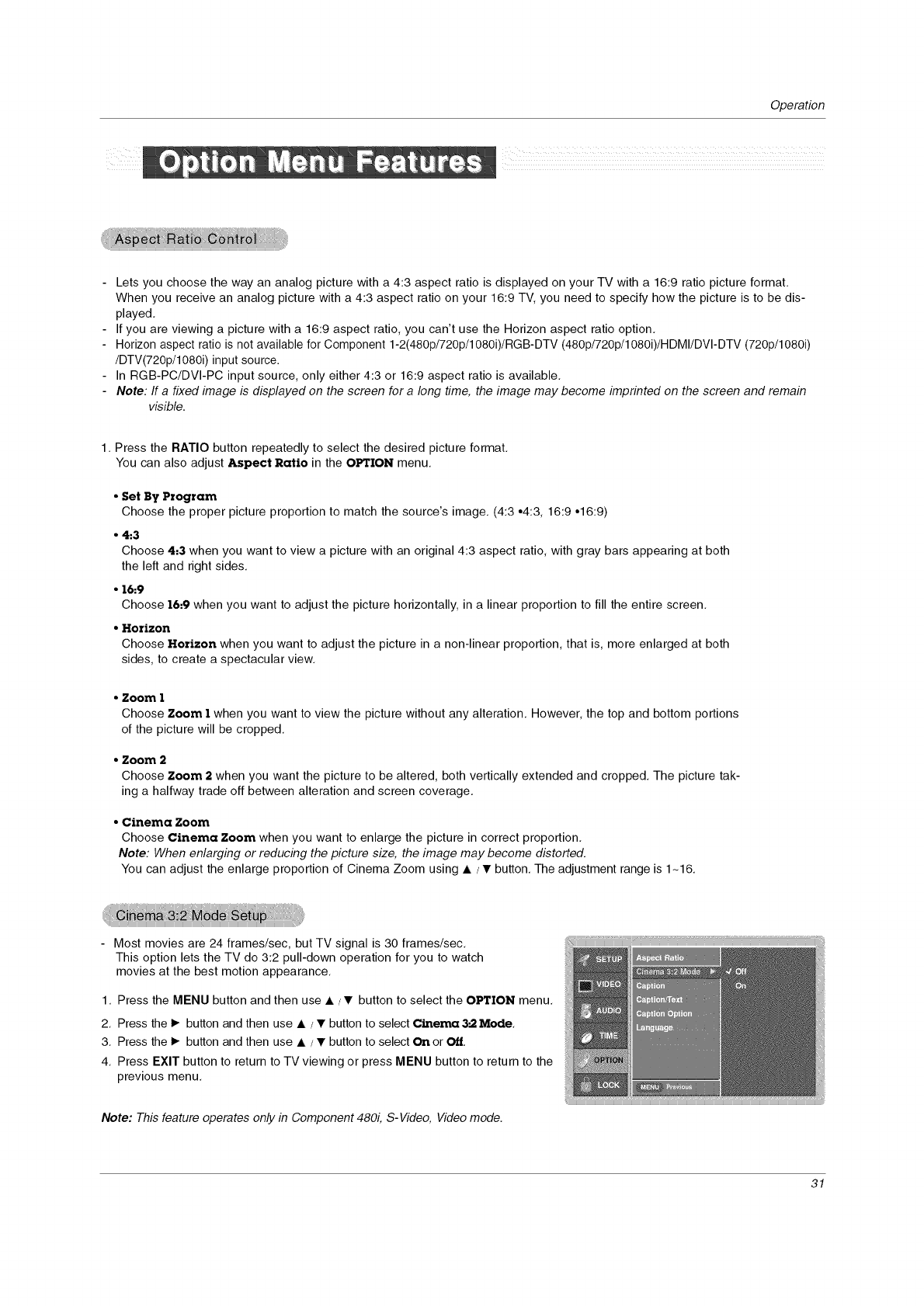

Option Menu Features

Aspect Ratio Control ..................... 31

Cinema 3:2 Mode Setup .................. 31

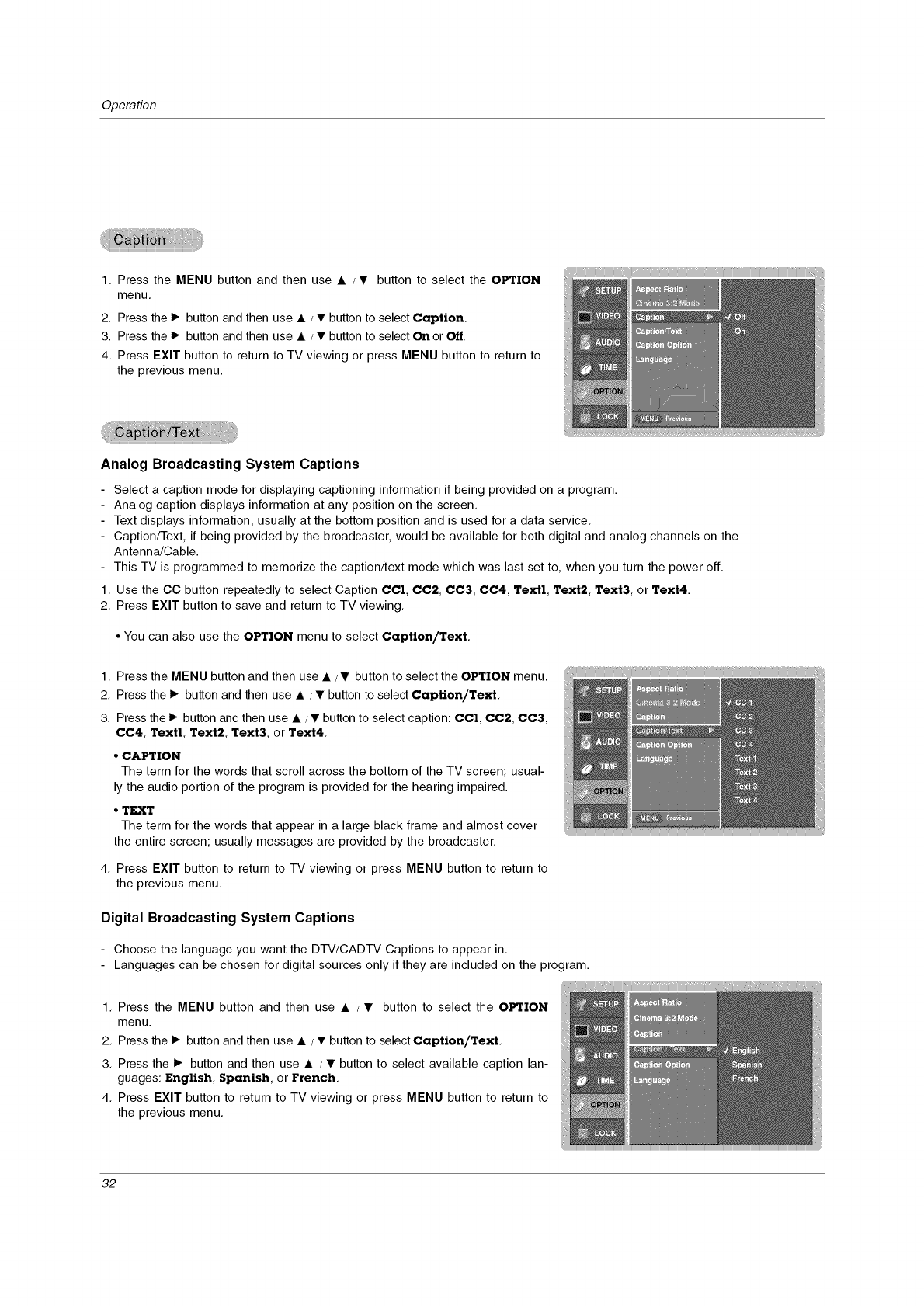

Caption ............................... 32

Caption /Text .......................... 32

Caption Option ........................ 33

Lock Menu Options

Parental Lock Setup ..................... 35

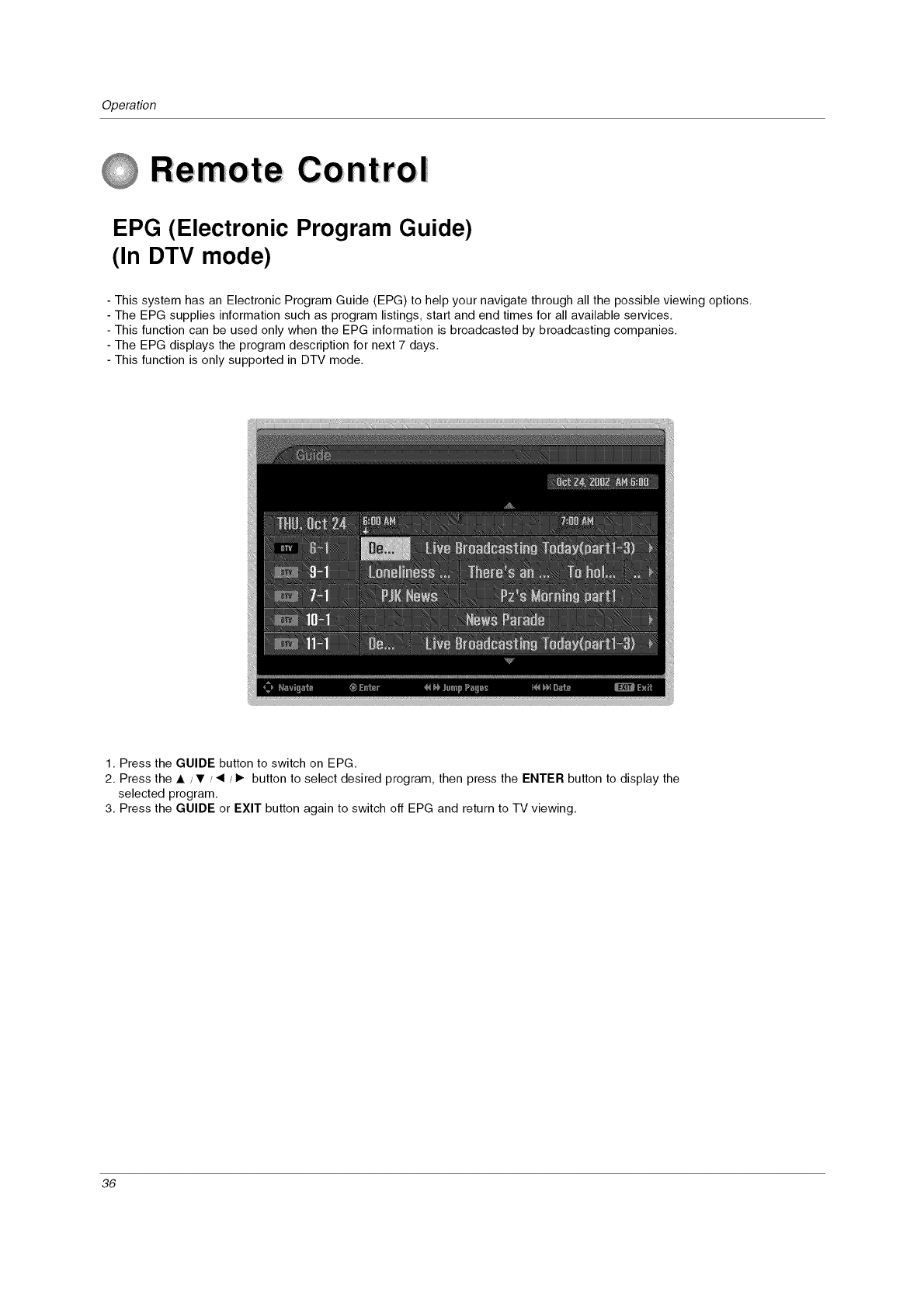

EPG (Electronic Program Guide) ............. 36

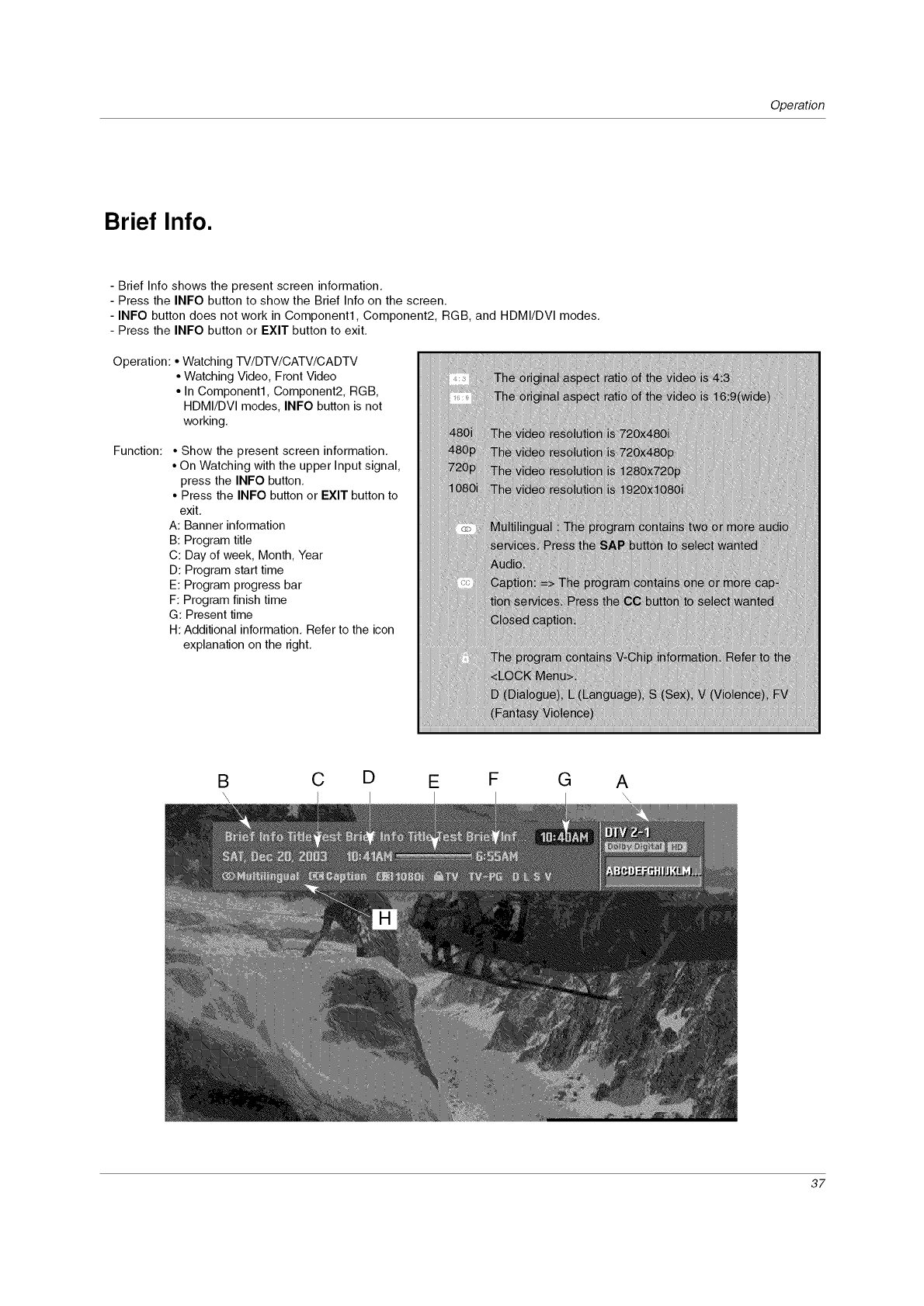

Brief Info ................................ 37

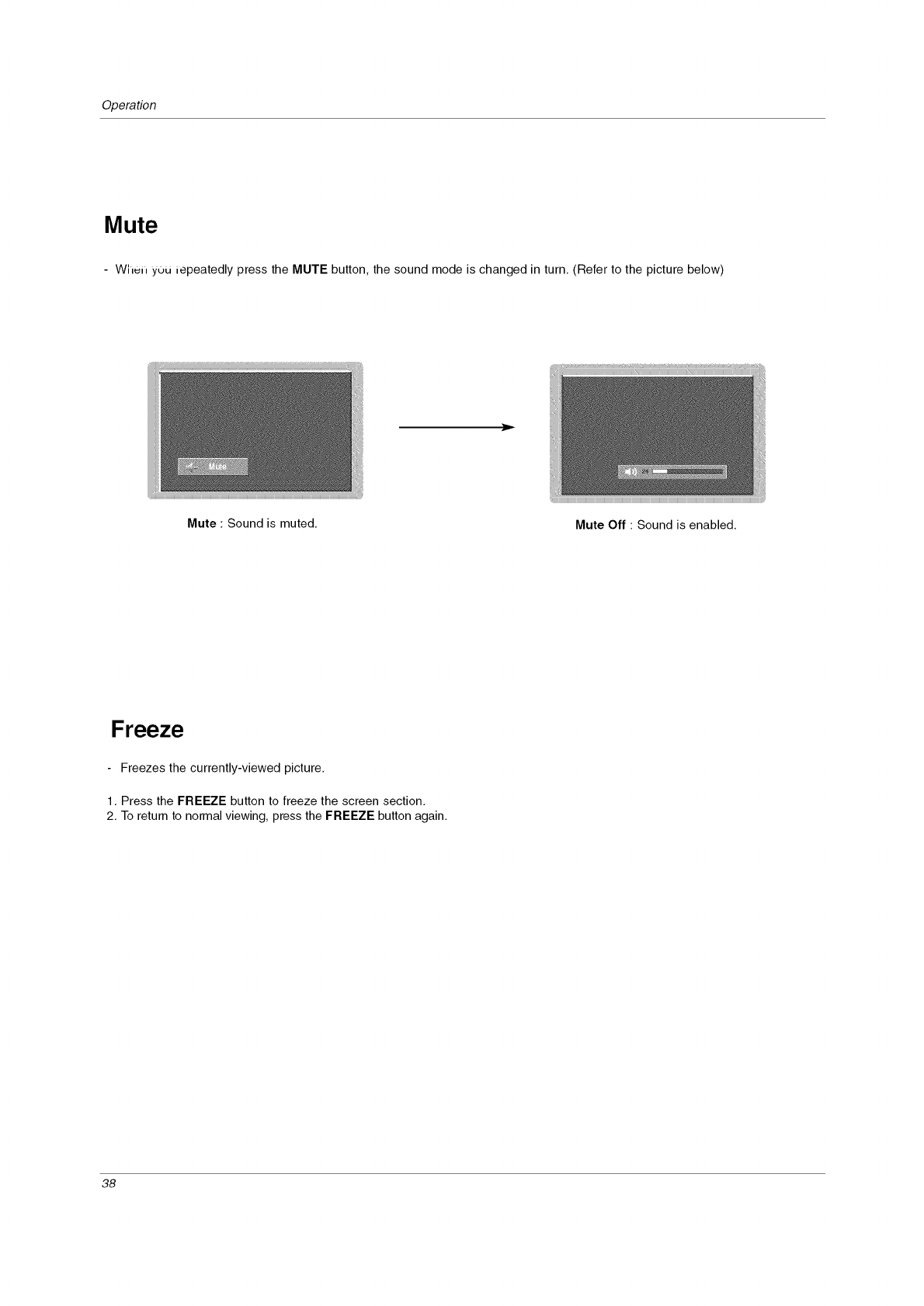

Mute .................................. 38

Freeze ................................. 38

Screen Setup for PC mode ....................... 39

External Control Device Setup ................ 40~45

IR Codes ................................ 46~47

Programming the Remote ...................... 48

Programming Codes ....................... 49~50

Troubleshooting Checklist ...................... 51

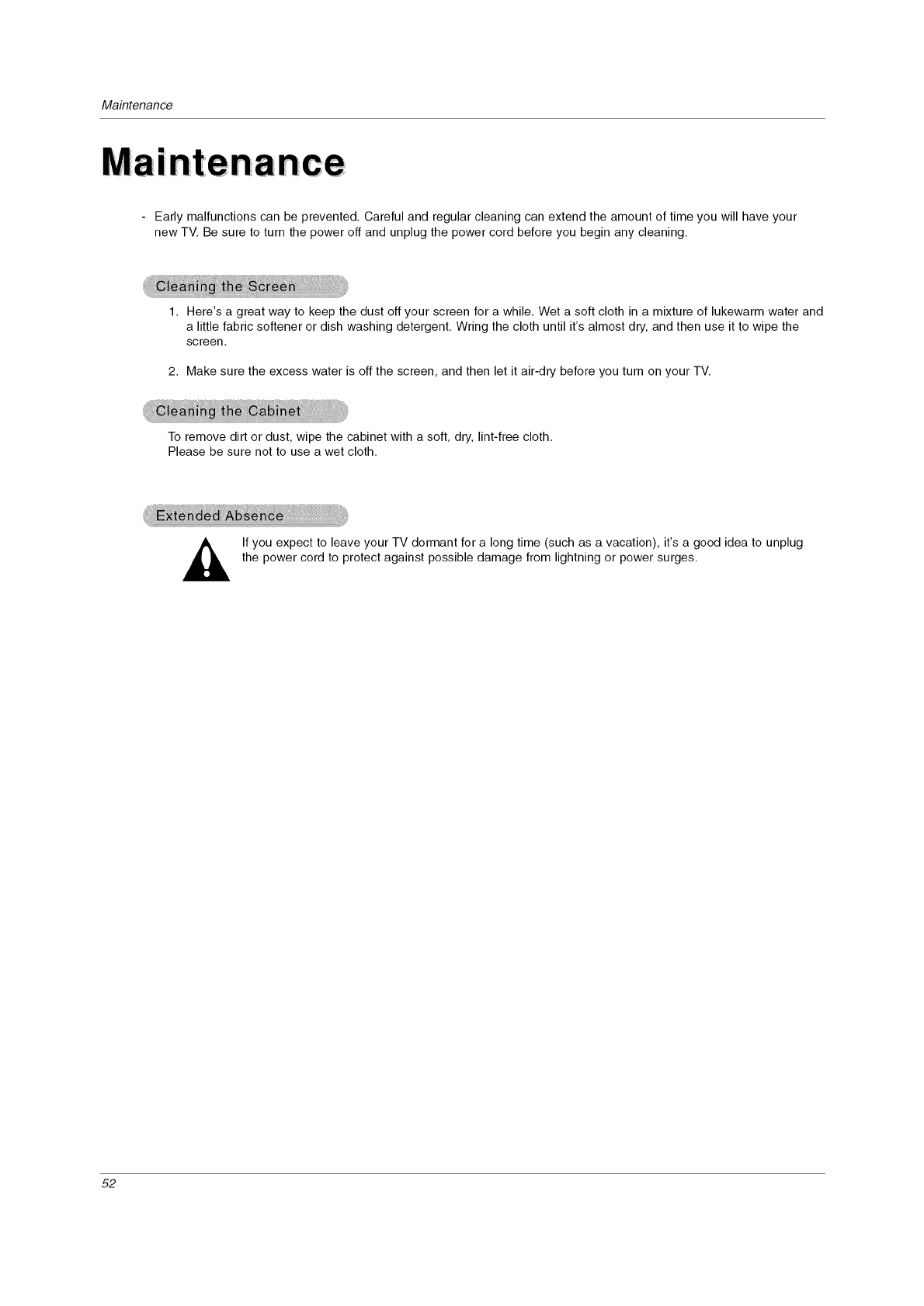

Maintenance ................................. 52

Product Specifications ......................... 53

Setup and Operation Checklist

Setup and Operation Checklist

(See pages 12-20 for available connection and operational setup options.)

1. Unpack TV and all accessories. 5. Turn video source equipment on.

2. Connect all external video and audio equipment.

see pages 12-17.

6. Select viewing source for TV.

See pages 24.

3 Install batteries in remote control.

See page 8.

4. Turn TV on.

See page 21.

7. Fine-tune source image and sound to your personal prefer-

ence or as required by source.

See pages 25- 28.

8. Additional features set up

See Contents above.

After reading this manual, keep it handy for future reference.

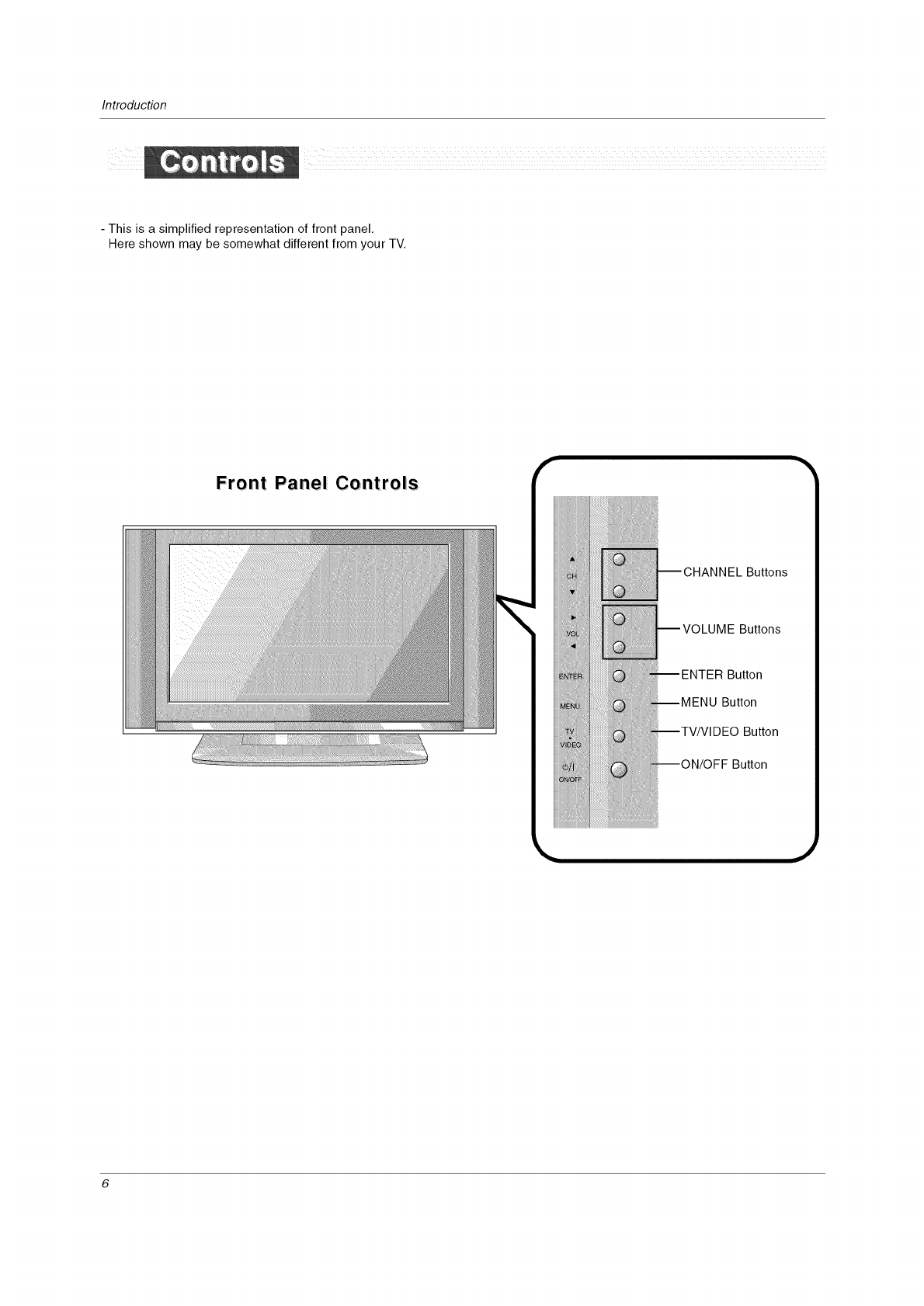

Introduction

- This is a simplified representation of front panel.

Here shown may be somewhat different from your TV.

Front Panel Controls

Buttons

Buttons

Button

Button

Button

_.J

Introduction

M M M M M M M M M M M M M M M M M M M M M M M M M M M M M

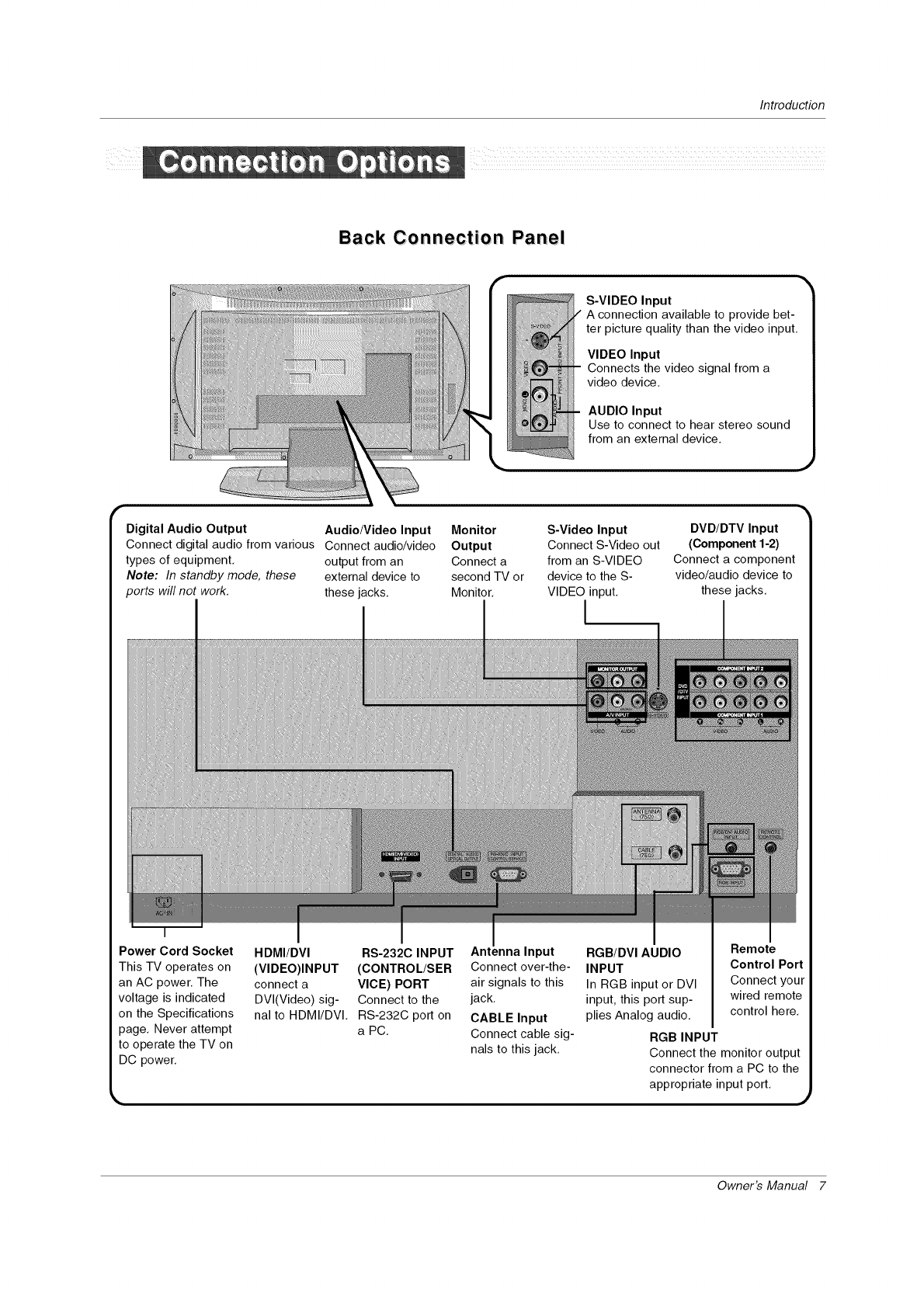

Back Connection Panel

S-VIDEO Input _

A connection available to provide bet- /

ter picture quality than the video input. /

/

VIDEO Input |

Connects the video signal from a |

video device. /

AUDIO Input |

Use to connect to hear stereo sound |

from an external device. /

J

Digital Audio Output

Connect digital audio from various

types of equipment.

Note: In standby mode, these

ports will not work.

Audio/Video Input Monitor

Connect audio/video Output

output from an Connect a

external device to second TV or

these jacks. Monitor.

S-Video Input DVD/DTV Input

Connect S-Video out (Component 1-2)

from an S-VIDEO Connect a component

device to the S- video/audio device to

VIDEO input, these jacks.

I

I

Power Cord Socket

This TV operates on

an AC power. The

voltage is indicated

on the Specifications

page. Never attempt

to operate the TV on

DC power.

HDMI/DVI

(VIDEO)INPUT

connect a

DVl(Video) sig-

nal to HDMI/DVI,

RS-232C INPUT Ant Input RGB/DVI AUDIO Remote

(CONTROL!SER Connect over-the- INPUT Control Port

VICE) PORT air signals to this In RGB input or DVI Connect your

wired remote

Connect to the jack. input, this port sup-

RS-232C port on CABLE Input plies Analog audio, control here.

a PC. Connect cable sig- RGB INPUT

nals to this jack. Connect the monitor output

connector from a PC to the

appropriate input port.

Owner's Manual 7

Introduction

- When using the remote control, aim it at the remote control sensor on the TV.

TV INPUT _

• Rotates the input mode between Antenna

and Cable.

MODE ............

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

a mode other than TV, for the remote to

operate an external device.

MENU _

Brings up the main menu to the screen.

EXIT _

Clears all on-screen displays and returns to

TV viewing from any menu.

TIMER

Lets you select the amount of time before

your TV turns itself off automatically.

MUTE

Switches the sound on or off.(Refer to p.38)

EZ PIC

Selects a factory preset picture mode

depending on the viewing environment.

_------ TV/VIDEO

External input modes rotate in regular

sequence: Antenna, Cable, Video, Front

Video, Component 1-2, RGB-DTV (or

RGB-PC) and HDMI/DVI input sources.

(Video, Front Video, Component 1-2 input

sources are linked automatically, only if

these are connected )

RATIO

Changes the aspect ratio.

_INFO

When you watch the TV, information dis-

plays on top of the screen. Not available

in Component 1-2, RGB and HDMI/DVI

mode. (Refer to p.37)

Scrolls the Favorite channels.

_FLASHBK

Tunes to the recent channels.

" REEZE

Freezes the currently-viewed picture.

Main picture is frozen.

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries

matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don't mix old or used batteries with new ones. Close

cove r.

Introduction

POWER ...........

Turns your TV or any other programmed

equipment on or off, depending on mode.

THUMBSTICK (Up/Down/Left/Right!ENTER) \

Allows you to navigate the on-screen menus _

and adjust the system settings to your pref- \

erence.

Select a closed caption:

Off, CC1-4, Text1-4.

VOLUME UP/DOWN _

Increases/decreases the sound level,

EZ SOUND _.

Selects the sound appropriate for the pro-

gram's character,

ADJUST /

Adjusts screen position, size, and phase in

PC mode.

PAGEi

VCR/DVD BUTTONS

• Control some video cassette recorders

or DVD players. ("RECORD" button is not

available for DVD players.)

Shows program schedule,

CHANNEL UP/DOWN

Selects available channels found with EZ

scan,

PAGE UP/PAGE DOWN

Moves from one full set of screen infor-

mation to the next one.

..... NUMBER buttons

SAP

Selects MTS sound: Mono, Stereo, and

SAP in Analog mode. Change the audio

language in DTV mode.

Introduction

I

I0 n

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer

where you purchased the product.

W

/

/ /

/' /

Owner's Manual Batteries Power Cord 75_ Round Cable

Remote Control 4-Wall brackets 2-bolts Tie Band

Arrange the wires

with the tie band.

D-sub 15 pin Cable

_!iii:iii i

i),_iii ,i ii i

iii}_NJiiiiiii!iiiii!!iiiiii_iiii_J_"'_'iiiiiiiiiiili

Set it up close to the wall so the product doesn't fall over when it is pushed backwards.

The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn't fall over when

it is pulled in the forward direction. It will prevent the product from falling forward and hurting people. It will also prevent the product

from damage caused by fall. Please make sure that children don't climb on or hang from the product.

1. Use the bracket and the bolt to fix the product to the wall as shown in the picture.

2. Secure the bracket with the bolt (not provided as parts of the product, must purchase separately) on the wall.

3. Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so

it becomes horizontal between the wall and the product.

Notes

• When moving the product to another place undo the ropes first.

• Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.

• To use the product safely make sure that the height of the bracket that is mounted on the wall is same as that of the product.

10

Installation

iii _i

• The TV can be installed in various ways such as on a wall, or on a desktop etc.

• The TV is designed to be mounted horizontally.

GROUNDING

Ensure that you connect the earth ground wire to prevent possible

electric shock. If grounding methods are not possible, have a qualified

electrician install a separate circuit breaker. Do not try to ground the

unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power J

Shert-circuit J

Breaker J

Connect the cables as necessary.

After connecting the cables neatly,

arrange the cables to the Cable

Holder.

To connect an additional equipment,

see the External equipment

Connections section.

Pull the cables through the hole

on the set and bundle the cables

using the supplied tie band.

For proper ventilation, allow a clearance of 4" on each

side and 2" from the wall. Detailed installation instruc-

tions are available from your dealer, see the optional

Wall Mounting Bracket Installation.

For proper ventilation, allow a clearance of 4" on each

side and the top, 2.36" on the bottom, and 2" from the

wall. Detailed installation instructions are included in

the optional Desktop Stand Installation.

11

Installation

1. Analog and Digital TV signals provided on antenna

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

For optimum picture quality, adjust antenna direction if needed.

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Wail Antenna

Socket

Bronze Wire

VHF Antenna Turn clockwise to tighten.

UHF Antenna

Outdoor

Antenna

Dwellings/Houses

(Connect to wall jack for outdoor antenna)

Bronze Wire

Be careful not to bend the bronze wire when

connecting the antenna.

J

Y

2. Analog and Digital TV signals provided on cable

f

Bronze Wire

Cable TV Wall

Jack RF Coaxial Wire (75 ohm) I

Bronze Wire

12

Installation

3. Analog and Digital TV signals provided on cable and antenna

f

Antenna Bronze Wire

RF Coaxial Wire (75 ohm)

CableTV Wall Turn clockwise to tighten.

Jack RF Coaxial Wire (75 ohm)

...............

Bronze Wire

fOHF

88

• To improve the picture quality in a poor signal area,

please purchase a signal amplifier and install properly.

• If the antenna needs to be split for two TV's, install a "2-

Way Signal Splitter" in the connections.

If the antenna is not installed properly, contact your deal-

er for assistance.

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

Connection Option 1

Set VCR output switch to channel 3 or 4 and

then tune the TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as

shown in the figure.

When connecting the TV to VCR, match the

jack colors (Video = yellow, Audio Left = white,

and Audio Right = red).

If you connect an S-VIDEO output from VCR to

the S-VIDEO input, the picture quality is

improved; compared to connecting a regular

VCR to the Video input.

2. Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner's

manual.)

3. Select the input source with using the

TV/VlDEO button on the remote control. Note

that this TV finds the connected input sources

automatically for Video, Front Video and

Component 1-2. It is presumed that RGB and

HDMI/DVl sources are connected.

,_ Do not connect to both Video and

S-Video at the same time.

VCR Rear

13

Installation

How to connect

Connect the audio and video cables from the external equip-

ment's output jacks to the TV input jacks, as shown in the

figure.

When connecting the TV to external equipment, match the

jack colors (Video = yellow, Audio Left = white, and Audio

Right = red).

How to use

1. Select the input source with using the TV/VIDEO button on

the remote control. Note that this TV finds the connected

input sources automatically for Video, Front Video and

Component 1-2. It is presumed that RGB and HDMI/DVI

sources are connected.

2. Operate the corresponding external equipment. Camcorder

Video Game

Device

DVD

How to connect

1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD

audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs

to the AUDIO INPUT jacks on the TV, as shown in the figure.

Note: If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/VlDEO button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select

the Video or Front Video external input source.)

3. Refer to the DVD player's manual for operating instructions.

• Component Input ports

To get better picture quality, connect a DVD player to the compo-

nent input ports as shown below.

Component ports y

on the TV

Video output ports

on DVD player

14

Installation

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital

signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

or

Digital Set-top Box

How to connect

Use the TV's COMPONENT (Y, PB, PR) INPUT, RGB or HDMI/DVI jack

for video connections, depending on your set-top box connector. Then,

make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner's manual for the

digital set-top box.)

2. Use TV/VlDEO on the remote control to select Component 1,

Component 2, RGB-DTV, or HDMI/DVI source.

Signal Component 1/2 RGB-DTV, HDMI!DVl

480i Yes No

480p Yes Yes

720p Yes Yes

1080i Yes Yes

15

Installation

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic

card accordingly.

<Whenconnectingwith a HDMIto DVI cable>

How to connect

1. Connect the PC to HDMI/DVl port of this TV with an HDMI-to-DVI cable(not sup-

plied with this product).

2. If the PC(or the sound card of the PC) has an analog audio output connector,

connect the PC's audio output to RGB/DVl AUDIO INPUT port located on the

upper side of RGB INPUT port.

HowTo Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.

2. Select HDMI/DVl input source in input source option of SETUP menu.(Refer to

R24)

TV/VlDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolu-

tion, vertical pattern, contrast or brightness in PC mode. If noise is present,

change the PC output to another resolution, change the refresh rate to another

rate or adjust the brightness and contrast on the VIDEO menu until the picture is

clear. If the refresh rate of the PC graphic card can not be changed, change the

PC graphic card or consult the manufacturer of the PC graphic card.

!

AU_DIO R

<When connecting with a D-sub 15 pin cable>

How to connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable(not supplied

with this product).

2. If the PC(or the sound card of the PC) has an analog audio output connector,

connect the PC's audio output to RGB/DVl AUDIO INPUT port located on the

upper side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.

2. Select RGB-PC input source in input source option of SETUP menu.(Refer to

R24)

Once you select RGB-PC in main input option of SETUP menu, TV/VIDEO but-

ton is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolu-

tion, vertical pattern, contrast or brightness in PC mode. If noise is present,

change the PC output to another resolution, change the refresh rate to another

rate or adjust the brightness and contrast on the VIDEO menu until the picture is

clear. If the refresh rate of the PC graphic card can not be changed, change the

PC graphic card or consult the manufacturer of the PC graphic card.

Monitor Display Specifications (RGB-PC

Resolution

640x350

640x480

720x400

Horizontal

Frequency(KHz)

31.468

31.469

37.861

37.500

31.469

Vertical

Frequency(Hz)

70.09

59.94

72.80

75.00

70,08

Resolution

800x600

1024x768

Horizontal

Frequency(KHz)

35.156

37.879

48.077

46,875

48,363

56,476

60,023

Vertical

Frequency(Hz)

56.25

60.31

72.18

75.00

60,00

70,06

75,02

16

Installation

Monitor Display Specifications (HDMI/DVI Mode)

Horizontal Vertical

Resolution Resolution Frequency(KHz) Frequency(Hz)

48.363 60.00

640x480 1024x768 56.476 70.06

60.023 75.02

800x600

Horizontal

Frequency(KHz)

31.469

37.861

37.500

35.156

37.879

48.077

46.875

Vertical

Frequency(Hz)

59.94

72.80

75.00

56.25

60.31

72.18

75.00

The TV has a special signal output capability which allows you to

hook up a second TV or monitor.

Connect the second TV or monitor to the TV's MONITOR OUTPUT.

See the Operating Manual of the second TV or monitor for further

details regarding that device's input settings.

Notes:

•Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources

cannot be used for Monitor out.

• When connecting with external audio equipments, such as amplif-

ers or speakers, please turn the TV speakers off.(Refer to p.27)

• We recommend to use the video and audio output jacks for VCR

recording.

Send the TV's audio to external audio equipment (stereo system) via

the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio

(Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (opti-

cal) input on the audio equipment.

See the external audio equipment instruction manual for operation.

Note: When connecting with external audio equipments, such as

amplifers or speakers, please turn the TV speakers off.(Refer to

p.27)

Caution: Do not look into the optical output port.

Looking at the laser beam may damage

your vision.

17

Installation

HIGH DI HNI]ION MUIXlMEDIA IN]ERF ACE

- HDMI TM, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing."

- This TV can receive the High-Definition Multimedia Interface(HDMI) or the Digital Visual Interface(DVI).

- This TV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for 720x480p, 1280x720p, and 1920x1080i resolu-

tion.

- When you connect this TV with a source device(DVD player, Set Top Box or PC) supporting Auto HDMI/DVI function, the output

resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI/DVI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the DVD Player or Set Top Box's output resolution to 1280x720p, and the PC graphics card's

output resolution to 1024x768, 60Hz.

- If the source device has an HDMI output, no other audio connection is necessary because HDMI-to-HDMI connection includes

both video and audio.

- If the source device has a DVI output and no HDMI output, a separated audio connection is necessary.

<When the source device(DVD player or Set Top Box) supports HDMI>

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

- If the source device supports Auto HDMI function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to R24)

TV/VlDEO button is also available for this purpose.

<When the source device(DVD player or Set Top Box) supports DVI>

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

2. A separated audio connection is necessary.

3. If the source device has an analog audio output connector, connect the PC's audio output to RGB/DVI AUDIO INPUT port locat-

ed on the upper side of RGB INPUT port.

How To Use

- If the source device supports Auto DVI function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto DVI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to R24)

TV/VlDEO button is also available for this purpose.

18

Installation

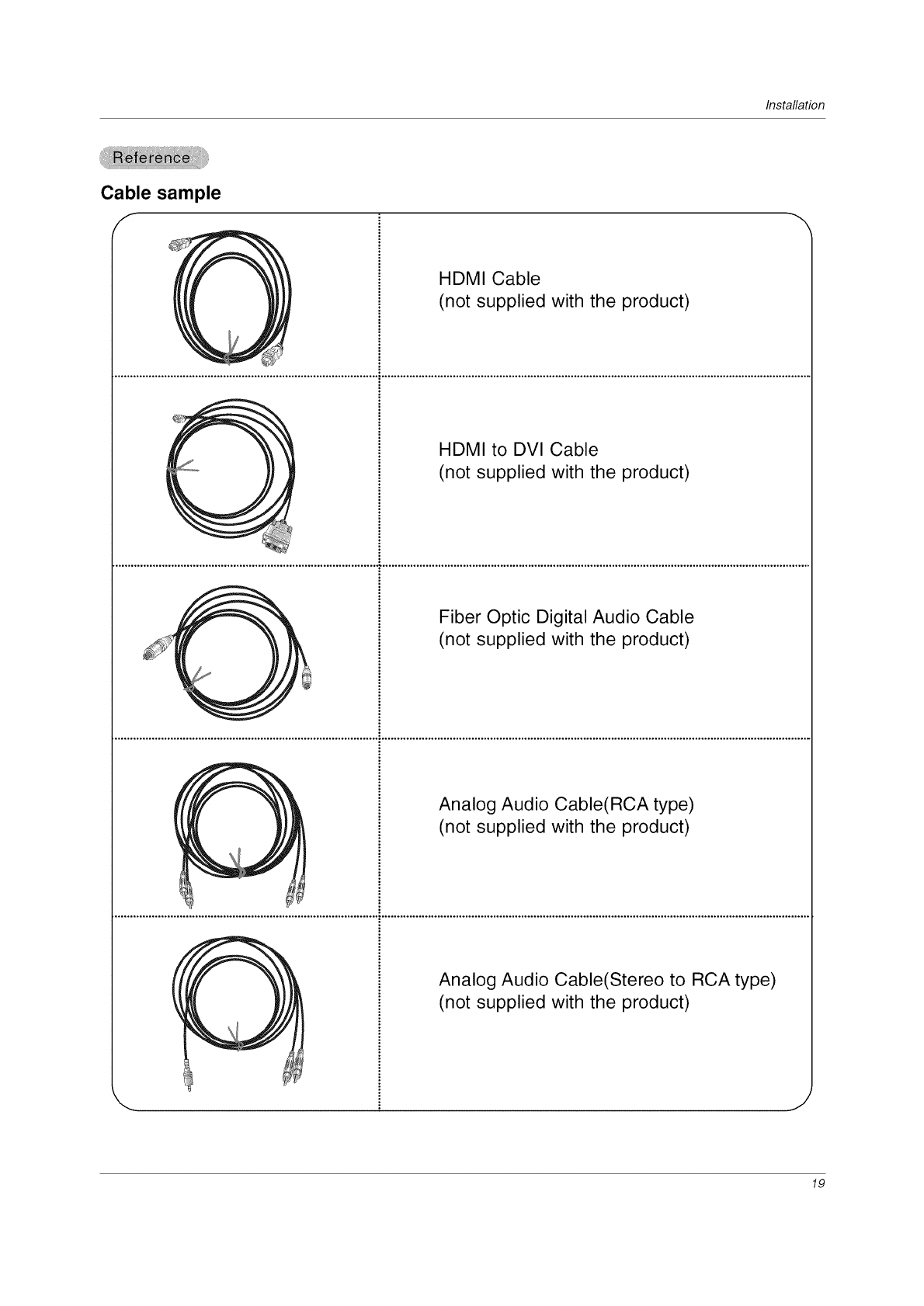

Cable sample

F

HDMI Cable

(not supplied with the product)

HDMI to DVl Cable

(not supplied with the product)

Fiber Optic Digital Audio Cable

(not supplied with the product)

Analog Audio Cable(RCA type)

(not supplied with the product)

Analog Audio Cable(Stereo to RCA type)

(not supplied with the product)

19

Installation

How to use

1. Connect the HDMI/DVl Source Devices(DVD Player or Set Top Box or PC) and the TV SET.

2. Turn on the display by pressing the POWER button on the TV SET and HDMI/DVl Source Devices remote control.

3. Select HDMI/DVl Input source in input source option of SETUP menu.(Refer to R24)

4. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in

HDMI/DVl Source Devices. If noise is present, change the HDMI/DVl Source Devices to another resolution, change the refresh

rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics card can

not changed, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

-Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.

-When Source Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to

Screen. As shown the lower picture, press the ADJUST button to adjust the screen Position of TV SET and contact an PC

graphics card service center,

-When Source Devices connected HDMI/DVl Input output TV SET Resolution(480p, 720p, 1080i), TV SET Display fit EIA/CEA-

861-B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.

-In case HDMI/DVI Source Devices is not connected Cable orpoor cable connection, "NO SIGNAL" OSD display in HDMI/DVI

Input. And In case of, Video Resolution not supported TV SET output in HDMI/DW Source Devices, "INVALID FORMAT" OSD

display. Refer to the Manual of HDMI/DVI Source Devices or contact your service center.

PC mode

In This Mode, the Supported TV SET Resolution Specification

- 1920x 1080 I @ 59.94Hz /60Hz, 16:9

- 1280 x 720 P @ 59.94Hz /60Hz, 16:9(preferred format)

- 720 x 480 P @ 59.94Hz /60Hz, 16:9

- 720 x 480 P @ 59.94Hz /60Hz, 4:3

In This Mode, the Supported PC Resolution Specification

640 x 480 @ 60Hz

640 x 480 @ 72Hz

640 x 480 @ 75Hz

800 x 600 @ 56Hz

800 x 600 @ 60Hz

800 x 600 @ 72Hz

800 x 600 @ 75Hz

1024 x 768 @ 60Hz(preferredformat)

1024 x 768 @ 70Hz

1024 x 768 @ 75Hz

2O

Operation

*In this manual, the OSD (On Screen Display) may be different from your TV's because it is just an

example to help you with the TV operation.

1. First, connect power cord correctly. At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the 0/I, TV/VlDEO _, CH (_, /•) button on the TV or press the POWER,

TV INPUT, TV/VIDEO, CH (_, /•), Number (0 ~ 9) button on the remote control.

2. Select the viewing source by using TV/VIDEO button on the remote control.

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

up

- The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use A /• button to select the OPTION

menu.

2. Press the IP- button and then use A /• button to select Language.

3. Press the IP- button and then use A /• button to select your desired language.

From this point on, the on-screen menus will be shown in the selected lan-

guage.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

21

Operation

Automatically finds all available channels through antenna or cable inputs, and stores them in memory on the channel list.

Run EZ Scan again after any Antenna!Cable connection changes.

- A password is required to gain access to EZ Scan menu if the Lock System is turned on.

1. Press the MENU button and then use A /•button to select the SETUP menu.

2. Press the I,- button and then use A /•button to select EZ Scan.

3. Press the ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for ANTENNA, and CABLE.

- A password is required to gain access to Manual Scan menu if the Lock System is turned on.

1. Press the MENU button and then use A/• button to select the SETUP menu.

2. Press the I,- button and then use A /• button to select Manuel Scan.

3. Press the I,- button and then use A /• button to select TV, DTV, CATV, and

CADTV.

4. Press the I,- button and then use A /• button to select channel number you

want to add or delete.

5. Press the ENTER button to add or delete for the channel number.

6. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Notes:

•This channel number is a physical channel number, which is different from the normal channel number shown in Channel

Edit.

• TV: analog antenna(over-the-air) TV signal

DTV: digital antenna(over-the-air) TV signal

CATV: analog cable TV signal

CADTV: digital cable TV signal

22

Operation

- There are two different ways in order to add or delete scanned channels. One

is "Custom List" and the other is "Favorite List" in the channel list. Both of them

are available after EZ Scan on the SETUP menu.

- A Custom List can be created by toggling each channel on or off with ENTER

button. The channels in the Custom List are displayed in black color, and the

channels deleted from the Custom List are displayed in gray color. Once a

channel is highlighted you can add or delete the channel by referring to the

small window at the top-left corner of the screen.You can create your own

Favorite List. Use the FAV button on the remote control when a channel is

highlighted and then you can add or delete the channel to/from the Favorite

List.

1. Press the MENU button and then use A/V button to select the SETUP menu.

2. Press the IP- button and then use A /•button to select Channel Edit.

3. Press the IP-button. You will now see a screen filled with channel numbers and

a preview picture,

4. Use A /•/ "_ / IP-button to select a channel and then use the ENTER button to

add or delete it. Press FAV button to add the channel to the Favorite List,

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu,

It indicates strength of the DTV signal whether you need to adjust your antenna or digital cable input.

The higher the signal strength, the less likely you are to experience picture degradation.

DTV Signal: Only when the input signal is DTV or CADTV, this function is available.

1. Press the MENU button and then use A/• button to select the SETUP menu.

2. Press the IP- button and then use A /•button to select DTV Signal.

3. View the on-screen signal strength monitor to see the quality of the signal being

received.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

23

Operation

Choose preset labels for your channels.

If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel -

even if you didn't preset a label for the channel.

1. Press the MENU button and then use A /• button to select the SETUP menu.

2. Press the I,- button and then use A /• button to select Chcmnel Label.

3. Press the I,- button. You will now see a screen filled with Labels and a preview screen.

4. Use the CH _/'_ button to select a channel to Label.

5. Use A /•/</I_ button to select the appropriate label for the channel, then press ENTER button to set the Label to

the selected channel.

If you press ENTER button in TV viewing mode, you will see the channel banner. ° For example:

Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

1. Press the MENU button and then use A /• button to select the SETUP menu.

2. Press the I_- button and then use A /• button to select Input Source.

3. Press the I,- button and then use A /• button to select the source: Antenna,

Cable, Video, Front Video, Component1, Component2, RGB-DTV (or RGB-PC),

HDMI/DVI.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Note:

• To toggle RGB-DTV and RGB-PC, select RGB-DTV(or RGB-PC) and press

button.

- Sets a label to each input source or lets you skip the input source which is not

in use when you press TV/VlDEO button.

1. Press the MENU button and then use A /• button to select the SETUP menu.

2. Press the I_- button and then use A /• button to select Input Label.

3. Press the I,- button and then use A/• button to select the source: Video, Front

Video, Component1, Component2, RGB, HDMI/DVI.

4. Press the </I,- button to select the label.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

24

Operation

EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the

program category.

- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ

Picture automatically changes to Custom.

-Daylight, Normal, Night Time, Movie, Video Game, and Sports settings are preset for optimum picture quality at

the factory and are not adjustable.

1. Press the EZ PIC button repeatedly to select the picture appearance setup option as shown below:

Custom (your own settings), Daylight, Normal, Night Time, Movie, Video Game, and Sports.

• You can also use the VIDEO menu to adjust EZ Picture.

2. Press the EXIT button to save and return to TV viewing or press MENU button to return to the previous menu.

Adjust the picture appearance to suit your preference and viewing situations.

1. Press the MENU button and then use A /• button to select the VIDEO menu.

2. Press the 1_ button and then use A/• button to select the desired picture option

(Contrast, Brightness, Color, Sharpness, or Tint ).

3. Press the IP- button and then use "_ / IP-button to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Choose one of three automatic color adjustments. Set to warm to enhance hotter

colors such as red, or set to cool to see less intense colors with more blue.

1. Press the MENU button and then use A /• button to select the VIDEO menu.

2. Press the IP- button and then use A /• button to select Color Temperature.

3. Press the IP- button and then use A /• button to select either Cool, Medium or

Warm.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Use to quickly reset all the Video menu options to their original factory preset

values.

1. Press the MENU button and then use A /• button to select the VIDEO menu.

2. Press the IP- button and then use A /• button to select Video Reset.

3. Press the IP- button to reset the Video menu options to original values.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

25

Operation

Other languages may be available if a digital signal is provided by the broad-

casting station.

1. Press the MENU button and then use A /•button to select the AUDIO menu.

2. Press the I,- button and then use A /• button to select Audio Language.

3. Press the I,- button and then use A /• button to select: English, Spanish, or

French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Scans for changes in sound level during commercials, then adjusts the sound

to match the specified audio level. EZ SoundRite makes sure that the volume

level remains consistent whether you are watching a commercial or a regular

TV program.

1. Press the MENU button and then use A /• button to select the AUDIO menu.

2. Press the IP-button and then use A /•button to select EZ SoundRite.

3. Press the IP-button and then use A /• button to select On or Oil.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu,

EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound

options based on the program content.

When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches to Custom.

Normal, Stadium, News, Music, and Theater are preset for good sound quality at the factory and are not adjustable.

1. Press the EZ SOUND button repeatedly to select the appropriate sound setup as shown below:

Custom (your own settings), Normal, Stadium, News, Music, and Theater.

•You can also adjust EZ Sound in the AUDIO menu.

2. Press EXIT button to save and return to TV viewing or press MENU button to return to the previous

menu.

Adjust the sound to suit your taste and room situations,

1. Press the MENU button and then use A /• button to select the AUDIO menu,

2, Press the 1_ button and then use A/• button to select the desired sound option

(Balance, Treble, or Bass).

3. Press the I,- button and then use "_/I,- button to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

26

Operation

is a trademark of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

1. Press the MENU button and then use A/• button to select the AUDIO menu.

2. Press the IP-button and then use A /•button to select Front Surround.

3. Press the 1_ button and then use A /•button to select Off, 3D EchoSound

System or SRS (Sound Retrieval System) TruSurround XT..

•3D EchoSound System

Creates a stunning simulated stereo effects from any mono sound and a

realistic three-dimensional sound with a very wide and deep sound stage

into stereo sound.

•SRS TruSurround XT

Takes advantage of any multi-channel format without needing to add extra

speakers or equipment. Dialog clarity, bass enrichment, and the addition of

stereo audio enhancement that produces an immersive sound experience

from standard stereo material.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Turn TV speakers off if using external audio equipment. Feature turns the TV

Speakers option On or Off.

1. Press the MENU button and then use A /• button to select the AUDIO menu.

2. Press the IP- button and then use A /• button to select TV Speaker.

3. Press the IP- button and then use A /• button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

27

Operation

BBE High Definition Sound restores clarity and presence for better speech

intelligibility and music realism.

1. Press the MENU button and then use A/V button to select the AUDIO menu.

2. Press the IP- button and then use A /• button to select BBE.

3. Press the IP- button and then use A /• button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

• _k" Manufactured under license from BBE Sound, Inc.

• Treble, Bass or BBE aren't suitable for SRSTSXT mode.

This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program;

if the station transmits an additional sound signal as well as the original one.

When having selected Stereo or SAP button on the remote control, this TV can only receive the signal when the TV station

transmits the proper signals.

Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.

Stereo or SAP can be received in a Analog channel.

1. Use the SAP button to select your desired MTS mode in a analog signal. Each time you press the SAP button, Mono,

Stereo, or SAP appear in turn.

• If other languages are available on the digital signal, select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

28

Operation

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually, if the current time is set incorrectly by the auto clock function.

1. Press the MENU button and then use A /•button to select the TIME menu.

2. Press the IP-button and then use A /• button to select Auto Clock,

3. Press the IP-button and then use A /• button to select On or Off.

4. Press the I_ button and then use A /• button to select your viewing area time

zone

•U,S,A: Eastern, Central, Mountain, Pacific, Alaska, or Hawaii,

• Canada: Eastern, Central, Mountain, Pacific, Nfld, or Atlantic,

5. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

If current time setting is wrong, reset the clock manually,

1. Press the MENU button and then use A /• button to select the TIME menu.

2. Press the IP-button and then use A /•button to select Manual Clock,

3, Press the IP-button and then use "41/ I_ button to select either the year, date,

or time option, Once selected, use the A /• button to set the year, date, and

time options,

4, Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu,

- Timer function operates only if the current time has been set.

- Off-Timer function overrides On-Timer function if they are both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to

standby mode.

1. Press the MENU button and then use A /• button to select the TIME menu.

2. Press the IP-button and then use A/• button to select Off Timer or On Timer.

3. Press the IP-button and then use A /• button to select On.

• To cancel On/Off timer function, select Off,

4. Press the IP-button and then use A/• button to set the hour.

5. Press the IP-button and then use A /• button to set the minutes.

6, For only On timer function

Press the IP- button and then use A /• button to select the channel at turn-on.

Press the IP- button and then use A/• button to set the sound level at turn-on.

7. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

29

Operation

The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

You can also set up the Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. When the Off option appears on the screen,

highlight one of the following sleep timer options by using the navigation : 10, 20, 30, 60, 90, 120, 180, and 240

minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to

count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.

If set to on and there is no input signal, the TV turns off automatically after 10

minutes.

1. Press the MENU button and then use A /• button to select the TIME menu.

2. Press the IP-button and then use A /• button to select Auto Off.

3. Press the IP-button and then use A /• button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

30

Operation

Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.

When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis-

played.

If you are viewing a picture with a 16:9 aspect ratio, you can't use the Horizon aspect ratio option.

Horizon aspect ratio is not available for Component 1-2(480p/720p/1080i)/RGB-DTV (480p/720p/1080i)/HDMI/DVI-DTV (720p/1080i)

/DTV(720p/1080i) input source.

In RGB-PC/DVI-PC input source, only either 4:3 or 16:9 aspect ratio is available.

Note: If a fixed image is displayed on the screen for a long time, the image may become imprinted on the screen and remain

visible.

1. Press the RATIO button repeatedly to select the desired picture format,

You can also adjust Aspect Ratio in the OPTION menu,

•Set By Program

Choose the proper picture proportion to match the source's image. (4:3 •4:3, 16:9 •16:9)

•4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both

the left and right sides.

•16:9

Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

•Horizon

Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both

sides, to create a spectacular view.

•Zoom 1

Choose Zoom 1when you want to view the picture without any alteration. However, the top and bottom portions

of the picture will be cropped.

•Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture tak-

ing a halfway trade off between alteration and screen coverage.

•Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion.

Note: When enlarging or reducing the picture size, the image may become distorted.

You can adjust the enlarge proportion of Cinema Zoom using A/• button. The adjustment range is 1-16.

Most movies are 24 frames/sec, but TV signal is 30 frames/sec.

This option lets the TV do 3:2 pull-down operation for you to watch

movies at the best motion appearance.

1. Press the MENU button and then use A/• button to select the OPTION menu.

2. Press the IP-button and then use A /• button to select Cinema 3..2Mode.

3. Press the IP-button and then use A /• button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Note: This feature operates only in Component 480L S-Video, Video mode.

31

Operation

1. Press the MENU button and then use • /V button to select the OPTION

menu,

2. PresstheIP-buttonand thenuse • /• buttontoselectCaption,

3. PresstheIP-buttonand thenuse • /• buttontoselectOn orOff.

4. Press EXIT buttonto returntoTV viewingorpress MENU buttontoreturnto

the previousmenu,

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if being provided on a program.

Analog caption displays information at any position on the screen.

Text displays information, usually at the bottom position and is used for a data service.

Caption/Text, if being provided by the broadcaster, would be available for both digital and analog channels on the

Antenna!Cable.

This TV is programmed to memorize the caption/text mode which was last set to, when you turn the power off.

1. Use the CC button repeatedly to select Caption CC1, CC2, CC3, CC4, Textl, Text2, Text& or Text4.

2. Press EXIT button to save and return to TV viewing.

• You can also use the OPTION menu to select Caption/Text.

1. Press the MENU button and then use • /• button to select the OPTION menu.

2. Press the IP- button and then use • /• button to select Caption/Text.

3. Press the IP- button and then use •/• button to select caption: CC1, CC2, CC3,

CC4, Textl, Text2, Text3, or Text4.

•CAPTION

The term for the words that scroll across the bottom of the TV screen; usual-

ly the audio portion of the program is provided for the hearing impaired.

•TEXT

The term for the words that appear in a large black frame and almost cover

the entire screen; usually messages are provided by the broadcaster.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Languages can be chosen for digital sources only if they are included on the program,

1. Press the MENU button and then use • /• button to select the OPTION

menu,

2. Press the IP- button and then use • /• button to select Caption/Text.

3. Press the I_ button and then use • /• button to select available caption lan-

guages: English, Spanish, or French.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

32

Operation

///////////////////////// //////////

Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use A/V button to select the OPTION

menu.

2. Press the IP-button and then use A /•button to select Caption Option.

3. Press the IP-button and then use "_ / IP-button to select Custom.

4. Use A /•button to customize the Style, Font, etc., to your preference. A pre-

view icon is provided at the bottom of the screen, use it to see the caption

language.

•Size: Set the size of the words.

•Font: Select a typeface for the words.

•Text Color: Choose a color for the text.

•Text Opacity: Specify the opacity for the text color.

•Bg (Background) Color: Select a background color.

•Bg (Background) Opacity: Select the opacity for the background

color.

•Edge Type: Select an edge type.

•Edge Color: Select a color for the edges.

5. Press EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

33

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.

The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the cat-

egories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV

Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating

System (MPAA) only,

Ratingsfor Movies previouslyshown intheaters:

Movie Ratings :

• Blocking Off

oG

• PG

• PG-13

oR

• NC-17

oX

(Permits all programs)

(General audience)

(Parental guidance suggested)

(Parents strongly cautioned)

(Restricted)

(No one 17 and under admitted)

(Adult only)

If you set PG-13 • G and PG movies will be avail-

able, PG-13, R, NC-17 and X will be blocked.

Ratings for Television

made-for-TV movies :

• TV-G

•TV-PG

•TV-14

• TV-MA

• TV-Y

• TV-Y7

programs including

(General audience)

(Parental guidance suggested)

(Parents strongly cautioned)

(Mature audience only)

(All children)

(Children 7 years older)

TV Rating-Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating-General:

°Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue- sexual dialogue (applies to TV-PG, TV-14)

• Language- adult language (applies to TV-PG, TV-

14, TV-MA)

• Sex- sexual situations (applies to TV-PG, TV-14,

TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Input Block

• Video, front Video (On, Off)

• Component 1, 2 (On, Off)

• RGB and HDMI/DVI (On, Off)

TV Rating-English:

• E (Exempt)

• C (Children)

• C8+ (8 years and up)

• G (General programming. Suitable

for all audiences)

• PG (Parental guidance suggested)

• 14+ (Viewers 14 years and up)

• 18+ (Adult programming)

• Blocking off (Permits all programming)

TV Rating-French:

• E (Exempt)

• G (General)

• 8 ans+ (8 years and up)

• 13 ans+ (13 years and up)

• 16 ans+ (16 years and up)

• 18 ans+ (Adults only)

• Blocking off (Permits all programming)

Input Block

• Video, front video (On, Off)

• Component 1, 2 (On, Off)

• RGB and HDMI/DVI (On, Off)

\ ,g

34

Operation

- Set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu.

1. Press the MENU button and then use A/• button to select the LOCK menu.

Then, press the IP-button

• The TV is set up with the initial password "0-0-0-0".

2. Usethe 4, /•button to choose from the followingLock Menu options.Oncethe

option is selected,change the settings to your preference.

• Lock System: Activates or disables the blocking scheme you set up

previously.

• Set Password: Change the password by inputting a new password

twice.

• Block Channel.: Select a channel number that you wish to block.

• Input block: Enables you to select a source to block from the exter-

nal source devices you have hooked up.

For USA

• Movie Rating (MPPA): Blocks movies according to the movie rat-

ings limits specified, so children cannot view certain movies. You can

set the ratings limit by blocking out all the movies with the ratings

above a specified level. Keep in mind that the movie ratings limit

only applies to movies shown on TV, not TV programs, such as soap

operas.

• TV Rating-Children: Prevents children from watching certain chil-

dren's TV programs, according to the ratings limit set. The children rat-

ing does not apply to other TV programs. Unless you block certain TV

programs intended for mature audiences in the TV Rating - sub menu,

your children can view those programs.

• TV Rating-Generah Based on the ratings, blocks certain TV pro-

grams that you and your family do not want to view.

For Canada

• TV Rating-English /TV Rating-French: Selecting canadian English

/French language rating system.

*_r_S.A.

* For Canada

3. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu,

Note:

•If you ever forget your password, key in '7" '7" '7" '7' on the remote control.

35

Operation

I

EPG (Electronic Program Guide)

(In DTV mode)

- This system has an Electronic Program Guide (EPG) to help your navigate through all the possible viewing options,

- The EPG supplies information such as program listings, start and end times for all available services,

- This function can be used only when the EPG information is broadcasted by broadcasting companies,

- The EPG displays the program description for next 7 days,

- This function is only supported in DTV mode,

1, Press the GUIDE button to switch on EPG,

2, Press the A/_'/'_/I,- button to select desired program, then press the ENTER button to display the

selected program,

3, Press the GUIDE or EXIT button again to switch off EPG and return to TV viewing,

36

Operation

Brief Info.

- Brief Info shows the present screen information.

- Press the INFO button to show the Brief Info on the screen.

- INFO button does not work in Component1, Component2, RGB, and HDMI/DVI modes.

- Press the INFO button or EXIT button to exit.

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• In Component1, Component2, RGB,

HDMI/DVl modes, INFO button is not

working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information

B: Program title

C: Day of week, Month, Year

D: Program start time

E: Program progress bar

F: Program finish time

G: Present time

H: Additional information. Refer to the icon

explanation on the right.

B C D E FGA

\

37

Operation

Mute

- Wi_ei_ you iepeatedly press the MUTE button, the sound mode is changed in turn. (Refer to the picture below)

Mute : Sound is muted, Mute Off : Sound is enabled,

Freeze

-Freezes the currently-viewed picture.

1. Press the FREEZE button to freeze the screen section.

2. To return to normal viewing, press the FREEZE button again.

38

Operation

Screen Setup for PC mode

• When RGB connect to PC input and select the RGB-PC, this function is used.

• When HDMI/DVl connect to PC input and select HDMI/DVl input, this function is used.

• In RGB-DTV mode, SIZE and PHASE is not available.

•After connecting RGB-PC or HDMI/DVl to PC input and checking the screen quality.

Display PC Adjust Menu using ADJUST button.

Position Adjust the screen position. After displaying the Adjust, select the screen position.

Size Adjust the screen size.

Phase Adjust the phase of Pixel clock.

In HDMI/DVI-PC mode, PHASE is not available.

Reset Initializating Position, Size, Phase adjustment.

39

ExternalControlDeviceSetup

External Control Device Setup

Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the Monitor's functions externally.

Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

RS-232C connection cables are not supplied with the Monitor.

PC

No. Pin Name /

/

1 No connection

2 RXD (Receive data) / /

3 TXD (Transmit data) _,__J

4 DTR (DTE side ready) @ @

5 GND

6 DSR (DCE side ready) _ \

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

1

5

9

6

RXD

TXD

GND

DTR

DSR

RTS

CTS

7-Wire Configurations

(Standard RS-232C cable)

PC TV

D-Sub 9

TXD RXD

RXD TXD

GND GND

DSR DTR

DTR DSR

CTS RTS

RTS CTS

3-Wire Configurations

(Not standard)

PC TV

D-Sub 9 D-Sub 9

TXD

RXD

GND

DTR

DSR

RTS

CTS

4O

ExtemalControlDeviceSetup

Use this function to specify a monitor ID number.

Refer to 'Real Data Mapping'. See page 42.

1. Press the MENU button and then use A /•button to select the SETUP menu.

2. Press the IP-button and then use A /• button to select SET ID.

3. Press the IP-button and then use A /•button to adjust SET ID to choose the

desired monitor ID number. The adjustment range of SET ID is 1 - 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

* Use a crossed (reverse) cable.

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

01. Power k a 0 - 1

02. Input Select k b 0 - 8

03. Aspect Ratio k c Reperto page42

04. Screen Mute k d 0 - 1

05. Volume Mute k e 0 - 1

06. Volume Control k f 0 - 64

07. Contrast k g 0 - 64

08. Brightness k h 0 - 64

09. Color k i 0 - 64

10. Tint k i0 - 64

11. Sharpness k k 0 - 64

12. OSD Select k I 0 - 1

13. Remote Control Lock Mode k m 0 - 1

14. Treble k r 0 - 64

15. Bass k s 0 - 64

16. Balance k t 0 - 64

17. Color Temperature k u 0 - 2

Transmission

I[Commandl][Command2][ ][Set ID][ ][Data][Cr] I

* [Command 1]: First command to control the set.(j,k,m or x)

* [Command 2]: Second command to control the set.

* [Set ID]: You can adjust the set ID to choose desired monitor

ID number in Setup menu. Adjustment range is 1

- 99. When selecting Set ID '0', every connected

the TV is controlled. Set ID is indicated as decimal

(1-99) on menu and as Hexa decimal (0x0-0x63)

on transmission/receiving protocol.

* [DATA]: To transmit command data.

Transmit 'FF' data to read status of command.

* [Cr]: Carriage Return

ASCII code '0x0D'

* [ ]: ASCII code 'space (0x20)'

OK Acknowledgement

I[Command2][ ][Set IU][ ][OK][Uata][x] I

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If

the data is data write mode, it returns the data of the PC

computer.

Error Acknowledgement

I[Command2][ ][Set ID][ ][NG][Data][x] I

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable

functions or communication errors.

Data 1: Illegal Code

2: Not supported function

3: Wait more time

COM- COM- DATA 0 DATA 1 DATA 2 DATA 3 DATA 4 DATA 5

MAND 1 MAND 2 (Hexadecimal) (Hexadecimal) (Hexadecimal) (Hexadecimal) (Hexadecimal) (Hexadecimal)

18. Channel Tuninq m a physical/program high major/program low major low minor high minor low attribute

19. Channel Add/Del m b 00 - 01

21. Input Select x b Reperto page 45

41

External Control Device Setup

01. Power (Command2:a)

I_ To control Power On/Off of the Monitor.

Transmission

[[k][a][ ][Set IU][ ][Uata][Cr] I

Data 0 : Power Off 1 : Power On

Acknowledgement

[[a][ ][Set IU][ ][OK][Uata][x] I

* In a like manner, if other functions transmit 'FF' data

based on this format, Acknowledgement data feedback

presents status about each function.

02. Input Select (Command2:b) (Main Picture Input)

I_ To select input source for the Monitor.

Transmission

I[k][b][ ][Set IU][ ][Uata][Cr] I

Data O: DTV 5: Component 2

1 : Analog 6: RGB-DTV

2: Video 7: RGB-PC

3: Front Video 8: HDMI/DVl

4: Component 1

Acknowledgement

I[b][ ][Set IU][ ][OK][Uata][x] I

03. Aspect Ratio (Command2:c) (Main picture format)

I_ To adjust the screen format.

You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

[[k][c][ ][Set IU][ ][Uata][Cr] I

Date 1:4:3

2:16:9

3: Horizon

4: Zoom 1

5: Zoom 2

6: Set by program

10: Cinema Zoom (1)

1 F: Cinema Zoom (16)

Acknowledgement

[[c][ ][Set IU][ ][OK][Uata][x] I

04. Screen Mute (Command2:d)

I_ To select screen mute on/off.

Transmission

[[k][d][ ][Set IU][ ][Uata][Cr] I

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

Acknowledgement

[[d][ ][Set IU][ ][OK][Uata][x] I

42

05. Volume Mute (Command2:e)

I_ To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

i[k][e][ ][Set IU][ ][Uata][Cr] J

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

Acknowledgement

I[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

I_ To adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

i[k][f][ ][Set IU][ ][Uata][Cr] ]

Data Min:O-Max:64

• Refer to 'Real data mapping' as shown below.

Acknowledgement

i[f][ ][Set IU][ ][OK][Uata][x] ]

07. Contrast (Command2:g)

I_ To adjust screen contrast.

You can also adjust contrast in the Video menu.

Transmission

[[k][g][ ][Set ID][ ][Data][Cr] J

Data Min:O-Max:64

• Refer to 'Real data mapping' as shown below.

Acknowledqement

[[g][ ][Set IU][ ][OK][Uata][x] J

08. Brightness (Command2:h)

I_ To adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

[[k][h][ ][Set IU][ ][Uata][Cr] J

Data Min:O-Max:64

• Refer to 'Real data mapping' as shown below.

Acknowledqement

i[h][ ][Set IU][ ][OK][Uata][x] ]

Real data mapping

0Step 0

A Step 10 (SET ID 10)

F Step 15 (SET ID 15)

10 Step 16 (SET ID 16)

i

63 Step 99 (SET ID 99)

64 Step 100

External Control Device Setup

09. Color (Command2:i)

• To adjust the screen color.

You can also adjust color in the Video menu.

Transmission

I[k][i][ ][Set IU][ ][Uata][Cr] I

Data Min:O-Max:64

•Refer to 'Real data mapping'. See page 42.

Acknowledqement

I[i][ ][Set IU][ ][OK][Uata][x] I

13. Remote Control Lock Mode (Command2:m)

• To lock the remote control and the front panel controls on

the set.

Transmission

[[k][m][ ][Set IU][ ][Uata][Cr] ]

Data O: Lock off 1 : Lock on

Acknowledqement

[[m][ ][Set IU][ ][OK][Uata][x] I

10. Tint (Command2:j)

• To adjust the screen tint.

You can also adjust tint in the Video menu.

Transmission

I[k][j][ ][Set IU][ ][Uata][Cr] I

Data Red:O-Green:64

• Refer to 'Real data mapping'. See page 42.

Acknowledqement

l[ j] [ ][Set ID][ ][OK][Data][x] I

14. Treble (Command2:r)

• To adjust treble.

You can also adjust treble in the Audio menu.

Transmission

I[k][r][ ][Set IU][ ][Uata][Cr] ]

Data Min: 0 _ Max: 64

• Refer to 'Real data mapping'. See page 42.

Acknowledgement

I[r][ ][Set IU][ ][OK][Uata][x] ]

11. Sharpness (Command2:k)

• To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

[[k][k][ ][Set IU][ ][Uata][Cr] J

Data Min: 0 _ Max: 64

• Refer to 'Real data mapping'. See page 42.

Acknowledgement

[[k][ ][Set IU][ ][OK][Uata][x] J

15. Bass (Command2:s)

• To adjust bass.

You can also adjust bass in the Audio menu.

Transmission

I[k][s][ ][Set IU][ ][Uata][Cr] ]

Data Min: 0 _ Max: 64

• Refer to 'Real data mapping'. See page 42.

Acknowledgement

I[s][ ][Set ID][ ][OK][Data][x] ]

12. OSD Select (Command2:l)

• To select OSD (On Screen Display) on/off.

Transmission

I[k][I][ ][Set IU][ ][Uata][Cr] ]

Data O:OSDoff l:0SDon

Acknowledgement

I[I][ ][Set ID][ ][OK][Data][x]

L

16. Balance (Command2:t)

• To adjust balance.

You can also adjust balance in the Audio menu.

Transmission

I[k][t][ ][Set IU][ ][Uata][Cr] ]

Data Min: 0 _ Max: 64

• Refer to 'Real data mapping'. See page 42.

Acknowledgement

I[t][ ][Set ID][ ][OK][Data][x] ]

43

ExternalControlDeviceSetup

17. Color Temperature (Command2:u)

I_ To adjust color temperature.

You can also adjust color temperature in the Video

menu,

Transmission

I[k][u][ ][Set IU][ ][Uata][Cr] I

Data O: Medium 1: Cool 2: Warm

Acknowledgement

I[u][ ][Set IU][ ][OK][Uata][x] I

18. Tune Command (Command: ma)

I_ To tune channel to following physical/major/minor number

Transmission

I[m][a][][SetD][][Data0][][Datal][][Data2][][Data3][][Data4][][Datab][Cr]I

I I

Data O: Physical Channel Number(Transmit by Hexadecimal code)

NTSC air:02~45

NTSC cable: 01, OE-7D

ATSC air:01-45

ATSC cable:01-87

Data 1,Data 2: MajorChannelNumber(twopart)/ChannelNumber(Onepart)

Data1: High byte

Data2: Low byte

Two part channel number: Major number-Minor number

One part channel number: If the channel band isATSC

digital cable, it can be used. In case of using one part chan

nel number, minor channel does not need.

Data 3, Data 4: Minor ChannelNumber(Data3: High byte)(Data4: Low byte)

Data 5:

Main Two/One

7 Picture 6 Part 0 Step

Channel

0 Main 0 Two 0 NTSCAir

1 1 One 1 _rnscC_e

0 ATSCAir

Using 4

5 =hysical Reserv 3

Shannel ed

0 Use x 0

1 No Use x 0

x 0

x 0

x 0

x 0

x 0

x 0

x x

x 1

2 1

0 0

0 0

0 1

0 1

1 0

1 0

1 1

1 1

x x

1 1

1 ATSC

C,_01es_l

ATSC

0 CaJ:_ hrc

1 ATSC

C_c

0 ATSG

cab_ auto

1 Resewed

X,-

1 Resewed

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tun-

ing can be done by only physical channel. In this case, using

physical channel bit must be low(0).

But if the channel band is ATSC air or ATSC cable, there are

two cases that physical channel enable or disable.

If the physical channel sending is meaningful, you should set

this bit low(0). If the physical channel sending is meaningless,

you should set this bit high(1 ).

Example)

1. Analog channel: NTSC cable, channel number(35), main

picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01 ):

main picture, two part(it's not mandatory), using physical chan-

nel, NTSC cable 'xx' data: don't care major and minor channel

number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don't know phys-

ical channel, major(30), minor(3)), main picture

Command: ma 00 xx 00 1E 00 03 22 attribute(0x22): main pic-

ture, two part, not using physical channel, ATSC air 'xx' data:

don't care analog channel number in case digital channel tun-

ing.

3. Digital channel: ATSC air, channel

number(physical(20),major(30), minor(5)), main picture

Command: ma 00 14 00 1E 00 05 02 attribute(0x02): main pic-

ture, two part, using physical channel, ATSC air.

Acknowledqement

[a][ ][Set ID][ ][OK][Data0][Datal][Data2][Data3][Data4][Data5][x]

[a][ ][Set ID][ ][NG][Data0][x]

19. Channel Add/Del (Command: mb)

I_ To add and delete the channels

Transmission

I[m][b][ ][Set ID][ ][Data][Cr] I

Data O: Channel Delete

1 : Channel Add

Acknowledgement

I[b][ ][Set IU][ ][OK][Uata][x] J

][NG][Data][x]ID][

[b][ ][Set

20. Key (Command: m c)

I_ To send IR remote key code

Transmission

[[m][c][ ][Set ID][ ][Data][Cr] ]

Data Key code: Refer to page 47.

Acknowledqement

[[c][ ][Set IU][ ][OK][Uata][x] ]

44

ExternalControlDeviceSetup

21. Input select(Command: x b) (Main Picture Input)

I_ To select input source for TV.

Transmission

I[x][b][][Set IU][][Uata][Cr] I

Data Structure

DATA(Hex) INPUT

oo DTV (Antenna)

01 DTV (Cable)

10 Analog (Antenna)

11 Analog (Cable)

20 Video

21 Front Video

40 Component 1

41 Component 2

50 RGB DTV

60 RGB PC

90 HDMI/DVI

Acknowledgement

I[b][ ][Set ID][ ][OK/NG][Data][x]

I

45

IRCodes

I_ Connect your wired remote control to the Remote Control port on the TV.

I_ Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Tc

__J--I__I--[__

I-°-tTt

I_ Configuration of frame

• 1st frame

I Lead Low

custom code

_]e COC1 C2C3C4C5C6C7

• Repeat frame

__1

_ Repeat code

I_ Lead code

__[

I_ 9 ms

Carrier frequency

FCAR= 1/Tc = fosc/12

Duty ratio = T1/Tc = 1/3

High

custom code

CO C1 C2 C3 C4 C5 C6 C7

Tf

I_ Repeat code

__[ 9ms

Data code

DO D1 D2 D3 D4 D5 D6 D7

I I

_1 _ 4.5 ms I

I

Data code

2.25 ms

Bit description

• Bit "0" mlmlm

o._..__ I

I-_ 1.12 ms

• Bit "1" m] m]

I-_ 2.24 ms

I1_ Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

Tf

_1 TM

mJ i I_ i

Tf

Tf=108ms @455KHz

Yl

46

IRCodes

Code (Hexa)

OB

OF

08

C4

C5

79

OE

10- 19

4C

1A

09

65

02

03

00

01

1E

AA

39

40

41

07

06

44

43

A9

52

4D

5B

OA

CB

D6

5A

DO

BF

D4

D5

D7

C6

76

77

AF

98

Function

TV/VIDEO

TV INPUT

POWER

POWER ON

POWER OFF

RATIO

TIMER

Number Key O- 9

-(Dash)

FLASHBK

MUTE R!C

FREEZE R!C

VOL • R!C

VOLT R!C

CH • R!C

CH • R!C

FAV R!C

INFO R!C

CC R!C

• R!C

• R!C

.,I R!C

_,- R!C

ENTER R!C

MENU R!C

GUIDE R!C

EZ SOUND R!C

EZ PIC R!C

EXIT R!C

SAP R!C

Note

R!C Button

R!C Button

R!C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R!C Button

R!C Button

R!C Button

R!C Button

R!C Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

Button

ADJUST

TV

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI/DVI

Ratio 4:3

Ratio 16:9

Ratio Zoom

MULTIMEDIA

R!C Button

Discrete IR Code (TV Input Selection)

Discrete IR Code (Video Input Selection)

Discrete IR Code (Front Video Input Selection)

Discrete IR Code (Component1 Input Selection)

Discrete IR Code (Component2 Input Selection)

Discrete IR Code (RGB-PC Input Selection)

Discrete IR Code (RGB-DTV Input Selection)

Discrete IR Code (HDMI/DVI Input Selection)

Discrete IR Code (Only 4:3 Mode)

Discrete IR Code (Only 16:9 Mode)

Discrete IR Code (Only Zoom1 Mode)

Discrete IR Code (Multmedia Selection)

47

Programmingthe Remote

Programm ing the Rem ote

I_ The remote is a multi-brand or a universal remote, It can be programmed to operate most remote-controllable devices of

other manufacturers,

Note that the remote may not control all models of other brands,

1. To find out whether your remote can operate the device without programming, turn on the device such as a VCR and press the

corresponding mode button on the remote.

After that, press the POWER button. If the device is turned off then it responds properly and the remote need not to be pro-

grammed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

2. Press the MENU and MUTE button continuously at the same time for 2 seconds, the current selected device button will be illu-

minated.

If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from

step 2.

3. Enter code numbers using the number button on the remote by refering the code table on the following pages. When pressing

the button, the light blinks at a time. If the device turned off, the programming is successful.

4. Press the MENU button to store the code. After blinking twice, this code is stored.

5. Test the remote functions to see if the device responds properly. If not, repeat from step 2.

48

ProgrammingCodes

Programming Cod es

Brand Codes

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIODYNAMICS 012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON 012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

Brand Codes

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

Brand

PORTLAND

PULSAR

QUARTZ

QUASAR

RCA

REALISTIC

RICO

RUNCO

SALORA

SAMSUNG

SANSUI

SANYO

SCOTT

SEARS

SHARP

SHINTOM

SONY

SOUNDESIGN

STS

SYLVANIA

SYMPHONIC

TANDY

Codes

108

O72

011 014

033 066 075 145

013 020 033 034

040 041 062 063

107 109 140 144

145 147

003 008 010 014

031 033 034 040

053 054 101

058

148

014

032 040 102 104

105 107 109 112

113 115 120 122

125

022 043 048 135

003 007 010 014

102 134

017 037 112 129

131

003 008 009 010

013 014 017 020

031 042 073 081

101

031 054 149

024

003 009 031 052

056 057 058 076

077 078 149

034

013

031 033 034 059

067

034

010 034

Brand Codes

TATU NG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH 012

VICTOR 048

VlDEOCONCEPTS 012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Brand

ABC

Codes

003

046

AJIN 112

ANTRONIK 014

ARCHER 005

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020

EASTERN 057

ELECTRICORD 032

GE 072

GEMINI 008

GI 052

004 039 042

052 053

007 014 024

030 040

062 066

022 025 054

O74

Brand

GOLDEN CHANNEL

HAMLIN

HITACHI

HOSPITALITY

JERROLD

LG (GOLDSTAR)

M-NET

MACOM

MAGNAVOX

MEMOREX

MOVIE TIME

NSC

OAK

PANASONIC

PARAGON

PHILIPS

Codes

O3O

049 050 055

052 055

070 077

002 003 004 008

009 010 052 069

074

001 106 101 005

037

033

010 012 064 079

100

028 032

015 028 038 071

073

016 031 037 053

044 047

100

006 012 013 020

PIONEER

POST NEWS WEEK

PRUCER

PTS

PULSAR

RCA

REGAL

REGENCY

REMBRANT

SAMSUNG

SCIENTIFICAT_NTA

SHERITECH

SIGNAL

SIGNATURE

SL MARX

Codes

065 085 090

034 051 052 063

O76

016

O59

011 048 071 072

073 074

100

047

049 050

057

025

102 107 030 068

003 011 041 042

043 045 046

022

030

052

030

Brand Codes

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

49

ProgrammingCodes

Brand

ALPHASTAR DSR

AMPLICA

BIRDVIEW

CHANNEL MASTER

CHAPARRAL

CITOH

CURTIS MATHES

DRAKE

DX ANTENNA

ECHOSTAR

ELECTRO HOME

EUROPLUS

FUJITSU

Codes

123

O5O

051 126

013 014

036 055

008 009

054

050 145

005 006

011 052

141

024 046

038 040

093 094

097 098

122

089

114

017

Brand

133

GENERALINSTRUMENT003

129 031

015 018 HITACHI

HOUSTONTRACKER

012 077

HUGHES

JANIEL

007 010 JERROLD

112 116 KATHREIN

LEGEND

056 076 LG

057 058 LUTRON

095 096 LUXOR

099 100 MACOM

MEMOREX

NEXTWAVE

NORSAT

Codes

134

004 016 029

059 101

139 140

033 037 039 051

057 104

O68

O6O

061

108

O57

001

132

O62

010

O65

O57

O28

O69

147

144

059 063 064

Brand Codes

PACESKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019

PRIMESTAR 030

PROSAT 072

RCA 066

REALISTIC 043

SAMSUNG 123

SATELLITESERVICECO028

085

SCIENTIFICATLANTA 032

SONY 103

STARCAST 041

SUPER GUIDE 020

TEECOM 023

102

110 111

106

O74

035 047 057

138

124 125 124 125

021 022 027 070 026 075 087

Brand Brand Brand

AIWA 028 070 096 PHILIPS

129 139 229 PIONEER

Brand Codes

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

VI EWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

AKAI

ANAM

BURMECTER

CARVER

CLARION

DAEWOO

DENON

FANTASIA

FINEARTS

FISHER

LG(GOLDSTAR)

HAITAI

HARMAN/KARDON

INKEL

Codes

014

125

23O

163

003 014 017 023

059 106 189 216

217 235 236

252

086

199

027 053 060 084

102 148 198 221

015 075 130 143

071

O22

089 099

001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

034 035 188 222

068

037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

Brand Codes

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

Codes

026 112 143

039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

Codes

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

APEX DIGITAL 022 MAGNAVOX 013 PHILIPS 013 SONY 007

DENON 020 014 MARANTZ 024 PIONEER 004 026 THOMPSON 005 006

GE 005 006 MITSUBISHI 002 PROCEED 021 TOSHIBA 019 008

HARMAN KARDON 027 NAD 023 PROSCAN 005 006 YAMAHA 009 018

JVC 012 ONKYO 008 017 RCA 005 006 ZENITH 010 016 025

LG 001 010 016 025 PANASONIC 003 009 SAMSUNG 011 015

50

TroubleshootingChecklist

CheckIist

where the TV's power cord was plugged in

Picture OK & " Press the VOLUME (A/v) button

Check to see if there is any object between the TV and the remote control

causing obstruction

Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p8)

fPicture appears slowly •

/after switching on

This is normal, the image is muted during the TV startup process Please

contact your service center, if the picture has not appeared after five minutes

•Select Color in the Video menu and press the I_ button.

(Refer to p.25)

• Activate any function to restore the brightness of the picture

fHorizontal/vertical bars .

Lor picture shaking

Check for local interference such as an electrical appliance or power tool

•Adjust Balance in the AUDIO menu. (Refer to p.26)

A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

51

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

,_ If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

52

Specification

Power requirement

Power Consumption

Television System

Program Coverage

External Antenna Impedance

AC100-240V - 50/60Hz 2.0A

190W

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 - 13, UHF 14 _ 69, CATV 1 _ 135, CADTV 1 _ 135, DTV2 _ 69

75 (2

• The specifications shown above may be changed without prior notice for quality improvement.

53

54

55
