Life's Good

"......'°_'_E ...... ° A UA

_ED LCD TV /LCD TV

Please read this manual carefully before operating

your set and retain it for future reference.

P/NO :SAC34134204 (IO01-REV02) www.lge.com

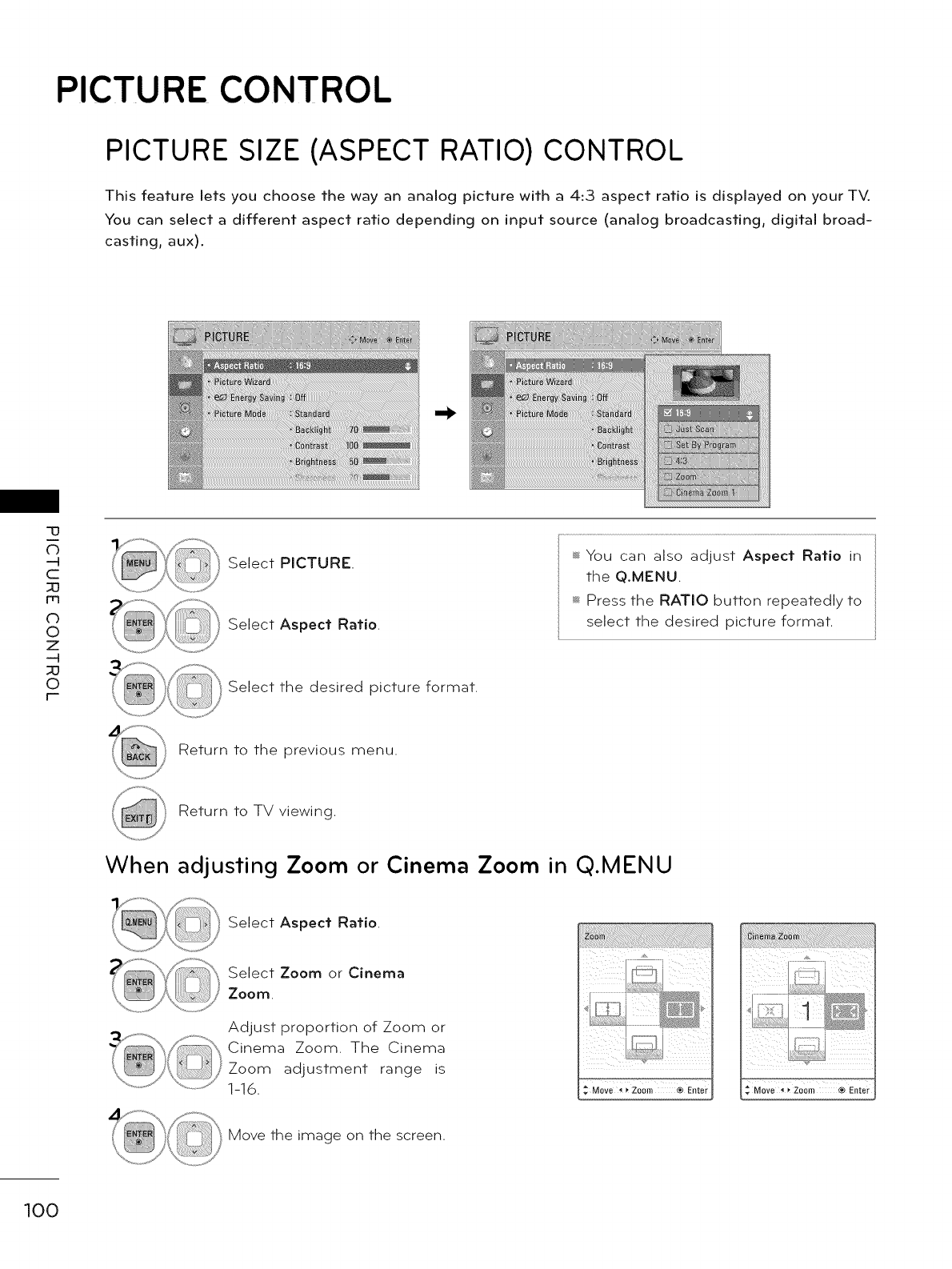

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

You can select a different aspect ratio depending on input source (analog broadcasting, digital broad-

casting, aux).

-o

-t

Select PICTURE.

Select Aspect Ratio.

Select the desired picture format.

_ You can also adjust Aspect Ratio in

the Q.MENU.

_ Press the RATIO button repeatedly to

select the desired picture format.

Return to the previous menu.

Return to TV viewing.

When adjusting Zoom or Cinema Zoom in Q.MENU

Select Aspect Ratio.

Select Zoom or Cinema

Zoom.

Adjust proportion of Zoom or

Cinema Zoom. The Cinema

Zoom adjustment range is

1-16. : Move _ _ Zoom ® Enter Move _ _Zoom ® Enter

Move the image on the screen.

IO0

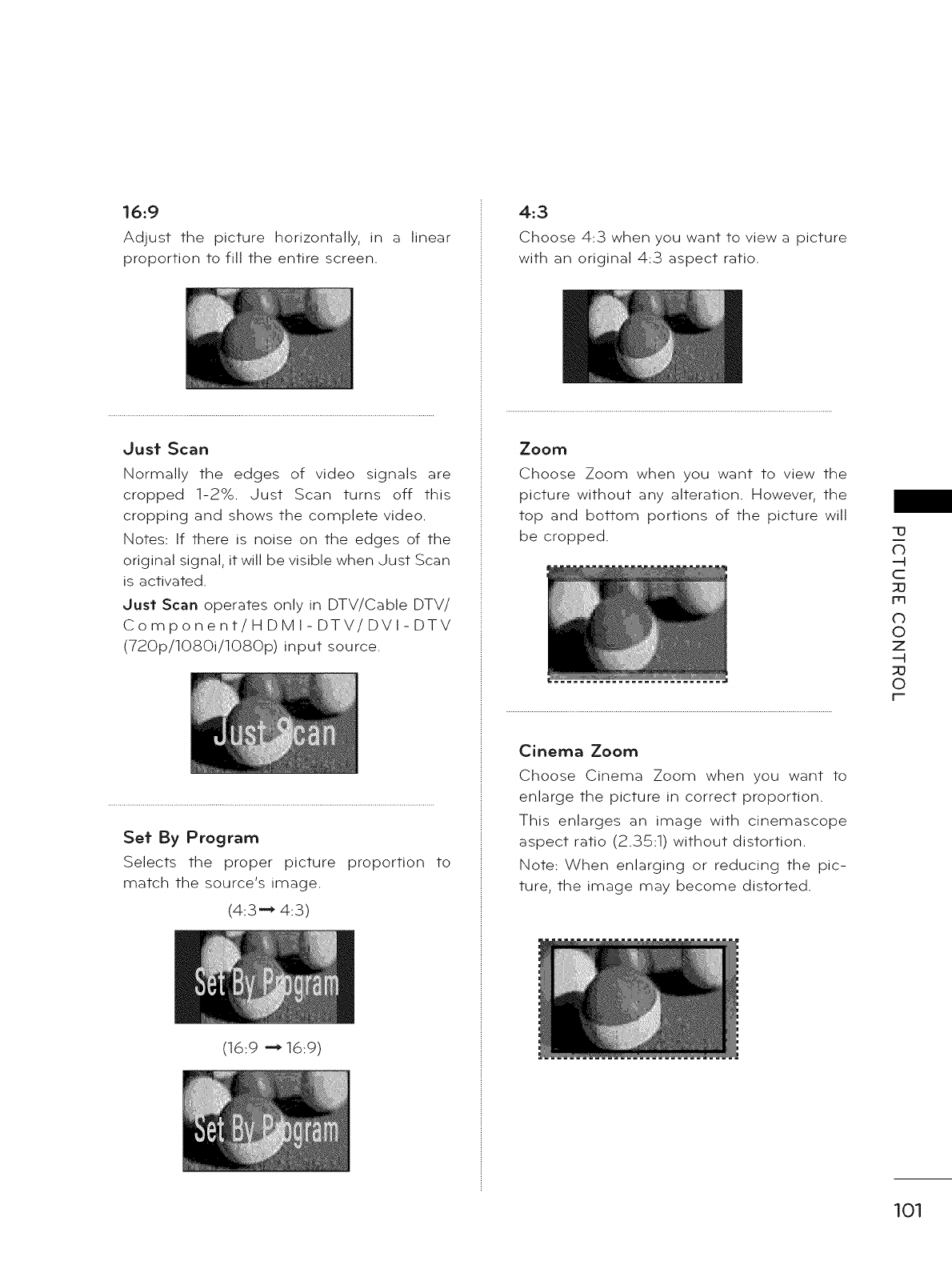

16:9

Adjust the picture horizontally, in a

proportion to fill the entire screen.

linear

Jusf Scan

Normally the edges of video signals are

cropped 1-2%. Just Scan turns off this

cropping and shows the complete video.

Notes: If there is noise on the edges of the

original signal, it will be visible when Just Scan

is activated.

Just Scan operates only in DTV/Cable DTV/

Component/H DMI- DTV/DVI-DTV

(720p/lOSOi/lOSOp) input source.

Set By Program

Selects the proper picture

match the source's image.

(4:3 "_ 4:3)

proportion to

(16:9 -_ 16:9)

4:3

Choose 4:3 when you want to view a picture

with an original 4:3 aspect ratio.

Zoom

Choose Zoom when you want to view the

picture without any alteration. However, the

top and bottom portions of the picture will

be cropped.

Cinema Zoom

Choose Cinema Zoom when you want to

enlarge the picture in correct proportion.

This enlarges an image with cinemascope

aspect ratio (2.35:1) without distortion.

Note: When enlarging or reducing the pic-

ture, the image may become distorted.

-u

101

PICTURE CONTROL

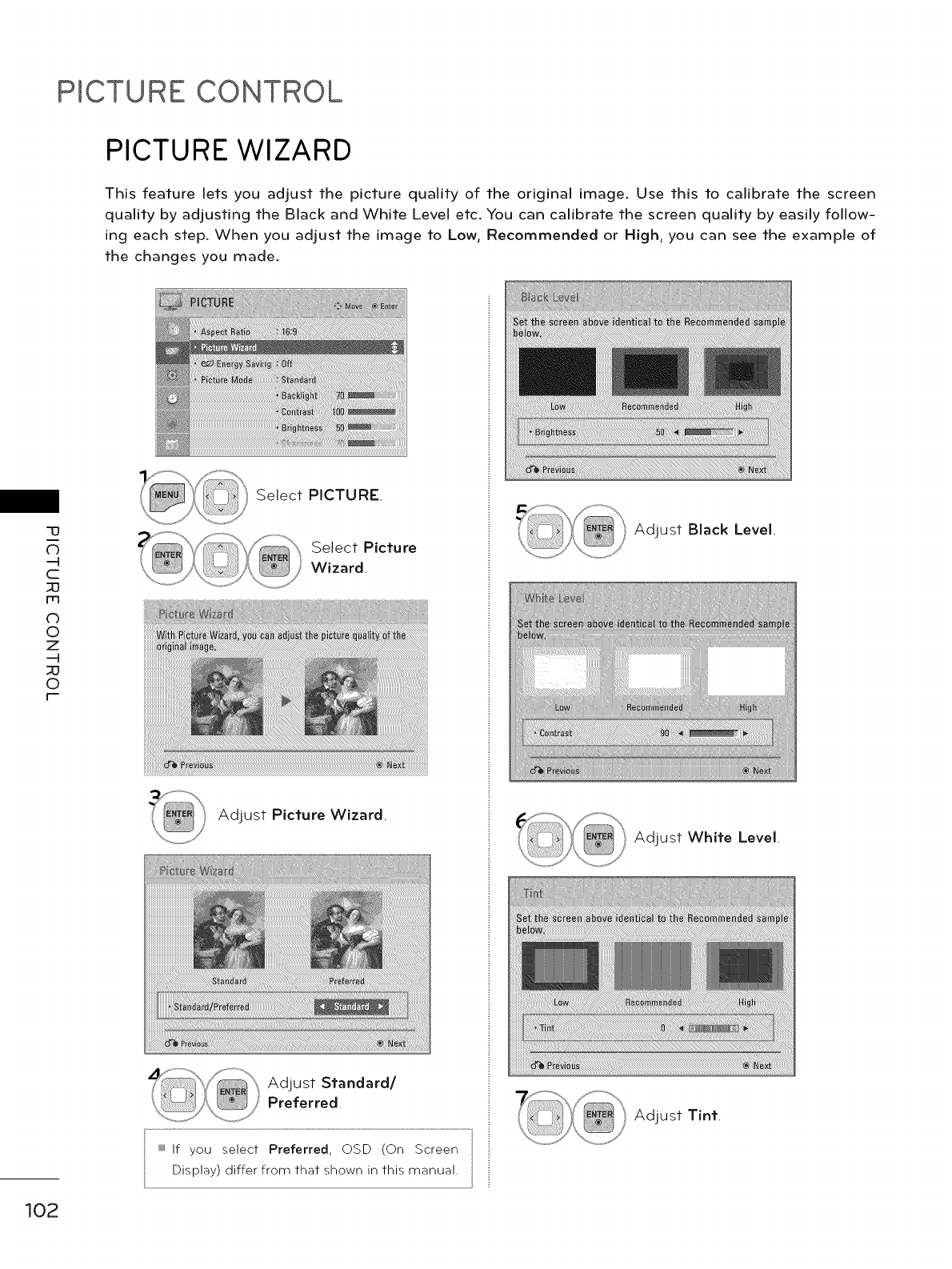

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen

quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily follow-

ing each step. When you adjust the image to Low, Recommended or High, you can see the example of

the changes you made.

-o

-t

iml

-t

Select PICTURE.

Select Picture

Wizard.

Adjust Picture Wizard.

Adjust Standard/

Preferred.

_ If you select Preferred, OSD (On Screen

Display) differ from that shown in this manual.

Adjust Black Level.

Adjust White Level.

Adjust Tint.

102

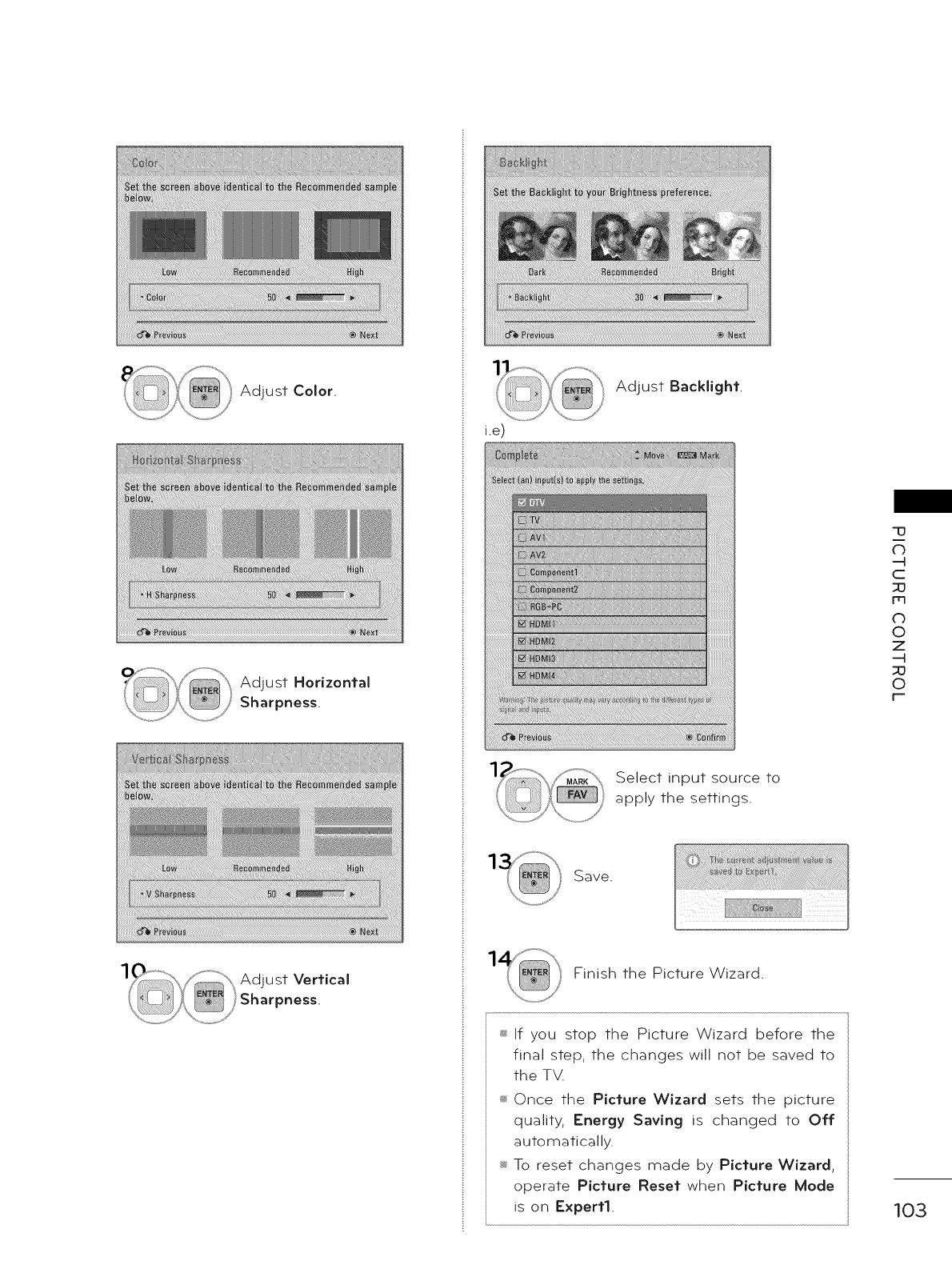

Adjust Color.

Adjust Horizontal

Sharpness.

Adjust Vertical

Sharpness.

i.e)

Adjust Backlight.

Select input source to

apply the settings.

Save.

Finish the Picture Wizard.

_ If you stop the Picture Wizard before the

final step, the changes will not be saved to

the TV.

_ Once the Picture Wizard sets the picture

quality, Energy Saving is changed to Off

automatically.

To reset changes made by Picture Wizard,

operate Picture Reset when Picture Mode

is on Expert1.

=13

103

PICTURE CONTROL

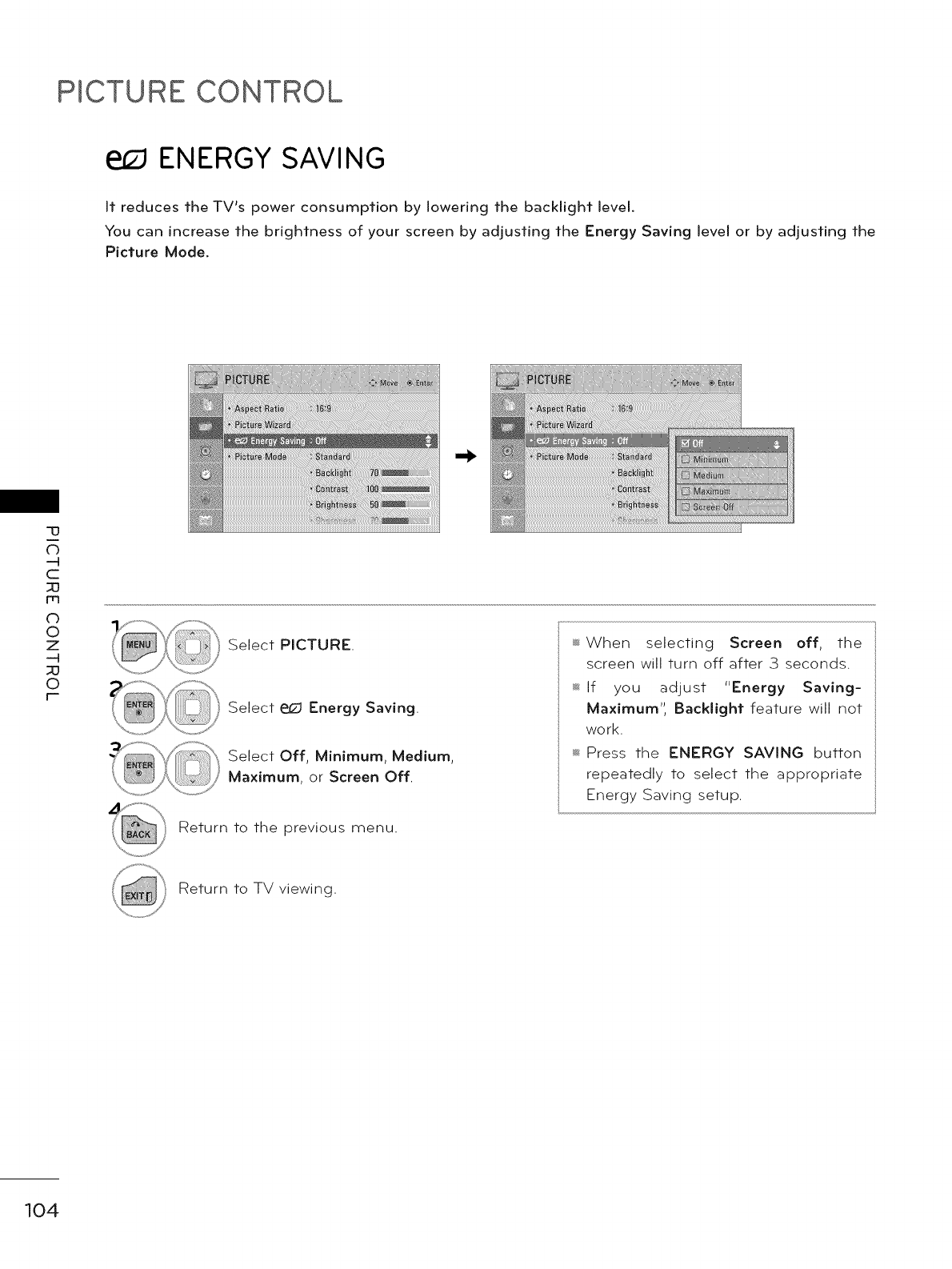

ENERGY SAVING

It reduces the TV's power consumption by lowering the backlight level.

You can increase the brightness of your screen by adjusting the Energy Saving level or by adjusting the

Picture Mode.

-o

-1

iml

-1

Select PICTURE.

Select e_ Energy Saving.

Select Off, Minimum, Medium,

Maximum, or Screen Off.

Return to the previous menu.

_ When selecting Screen off, the

screen will turn off after 3 seconds.

_ If you adjust "Energy Saving-

Maximum", Backlight feature will not

work.

_ Press the ENERGY SAVING button

repeatedly to select the appropriate

Energy Saving setup.

Return to TV viewing.

104

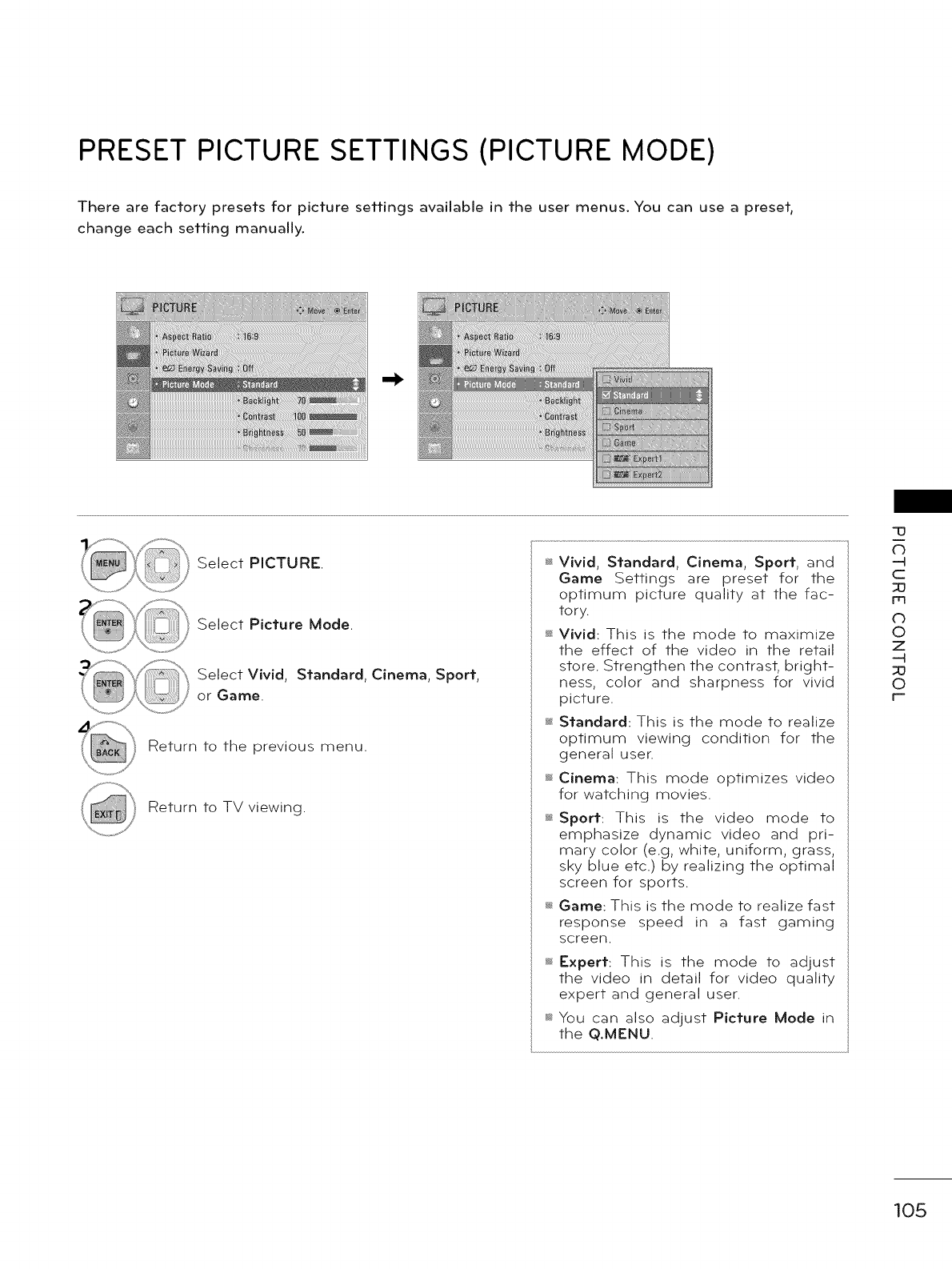

PRESET PICTURE SETTINGS (PICTURE MODE)

There are factory presets for picture settings available in the user menus. You can use a preset,

change each setting manually.

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport,

or Game.

Return to the previous menu.

Return to TV viewing. @

Vivid, Standard, Cinema, Sport, and

Game Settings are preset for the

optimum picture quality at the fac-

tory.

Vivid: This is the mode to maximize

the effect of the video in the retail

store. Strengthen the contrast, bright-

ness, color and sharpness for vivid

picture.

Standard: This is the mode to realize

optimum viewing condition for the

general user.

Cinema: This mode optimizes video

for watching movies.

Sport: This is the video mode to

emphasize dynamic video and pri-

mary color (e.g, white, uniform, grass,

sky blue etc.) by realizing the optimal

screen for sports.

Game: This is the mode to realize fast

response speed in a fast gaming

screen.

_ Expert: This is the mode to adjust

the video in detail for video quality

expert and general user.

You can also adjust Picture Mode in

the Q.MENU.

"13

--4

;[3

105

PICTURE CONTROL

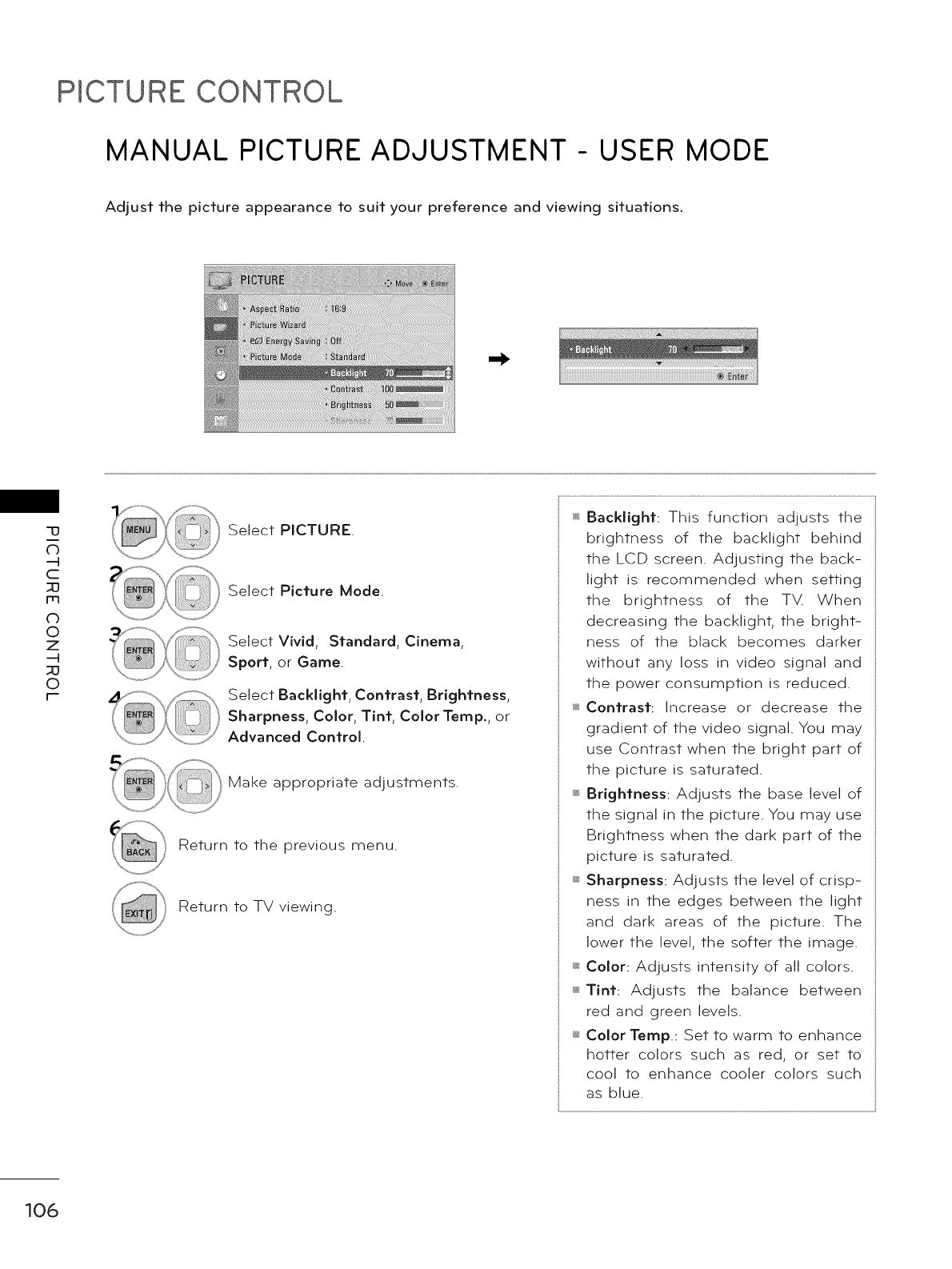

MANUAL PICTURE ADJUSTMENT - USER MODE

Adjust the picture appearance to suit your preference and viewing situations.

-u

-t

iml

-t

Select PICTURE.

Select Picture MOdel

Select Vivid, Standard, Cinema,

Sport, or Game.

Select Backlight, Contrast, Brightness,

Sharpness, Color, Tint, Color Temp., or

Advanced Control.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

_ Backlight: This function adjusts the

brightness of the backlight behind

the LCD screen. Adjusting the back-

light is recommended when setting

the brightness of the TV. When

decreasing the backlight, the bright-

ness of the black becomes darker

without any loss in video signal and

the power consumption is reduced.

_Contrast: Increase or decrease the

gradient of the video signal. You may

use Contrast when the bright part of

the picture is saturated.

_ Brightness: Adjusts the base level of

the signal in the picture. You may use

Brightness when the dark part of the

picture is saturated.

_ Sharpness: Adjusts the level of crisp-

ness in the edges between the light

and dark areas of the picture. The

lower the level, the softer the image.

_ Color: Adjusts intensity of all colors.

_ Tint: Adjusts the balance between

red and green levels.

_ Color Temp.: Set to warm to enhance

hotter colors such as red, or set to

cool to enhance cooler colors such

as blue.

106

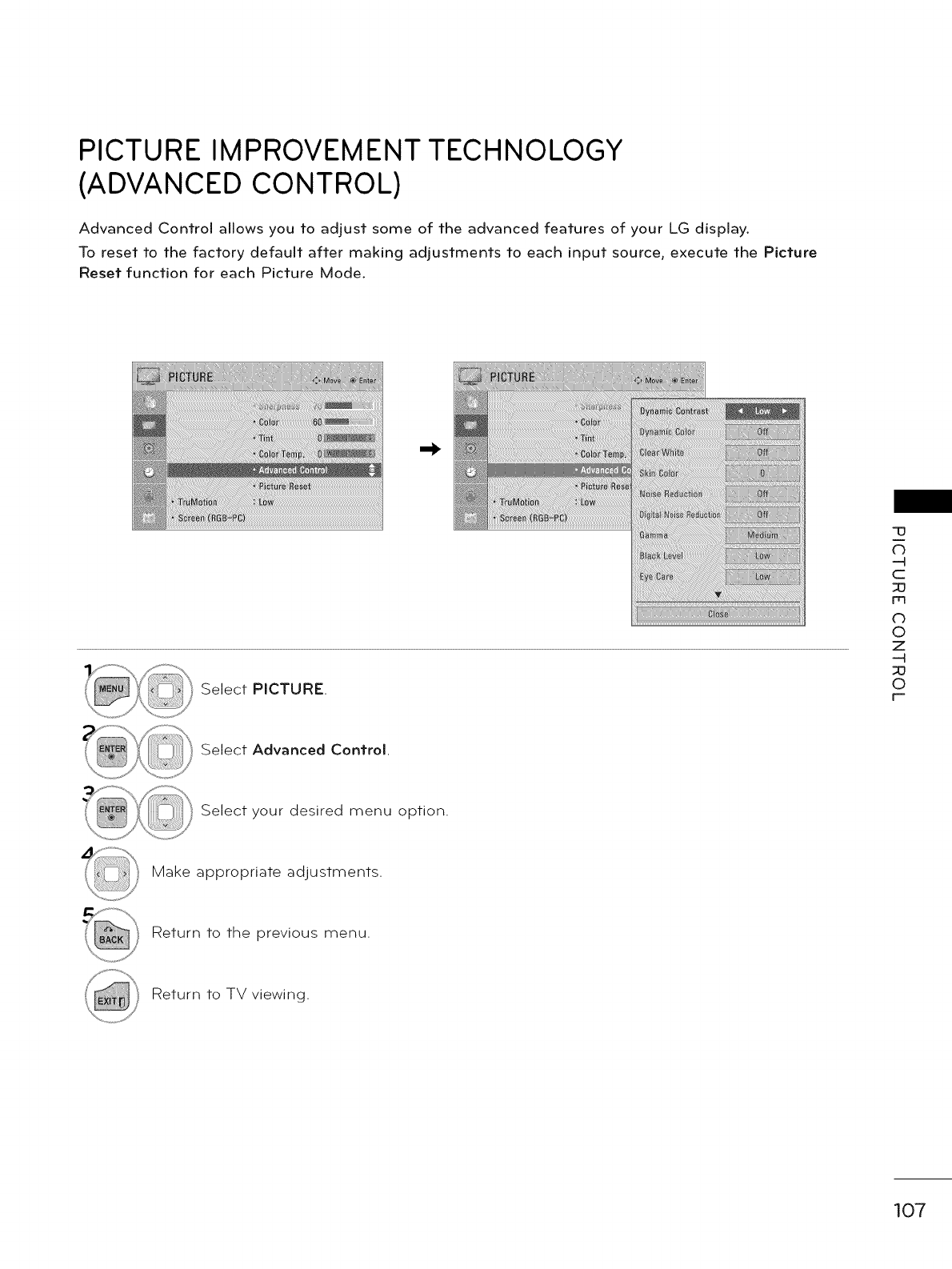

PICTURE IMPROVEMENT TECHNOLOGY

(ADVANCED CONTROL)

Advanced Control allows you to adjust some of the advanced features of your LG display.

To reset to the factory default after making adjustments to each input source, execute the Picture

Reset function for each Picture Mode.

Select PICTURE.

-13

--4

rrl

--4

Select Advanced Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

107

PICTURE CONTROL

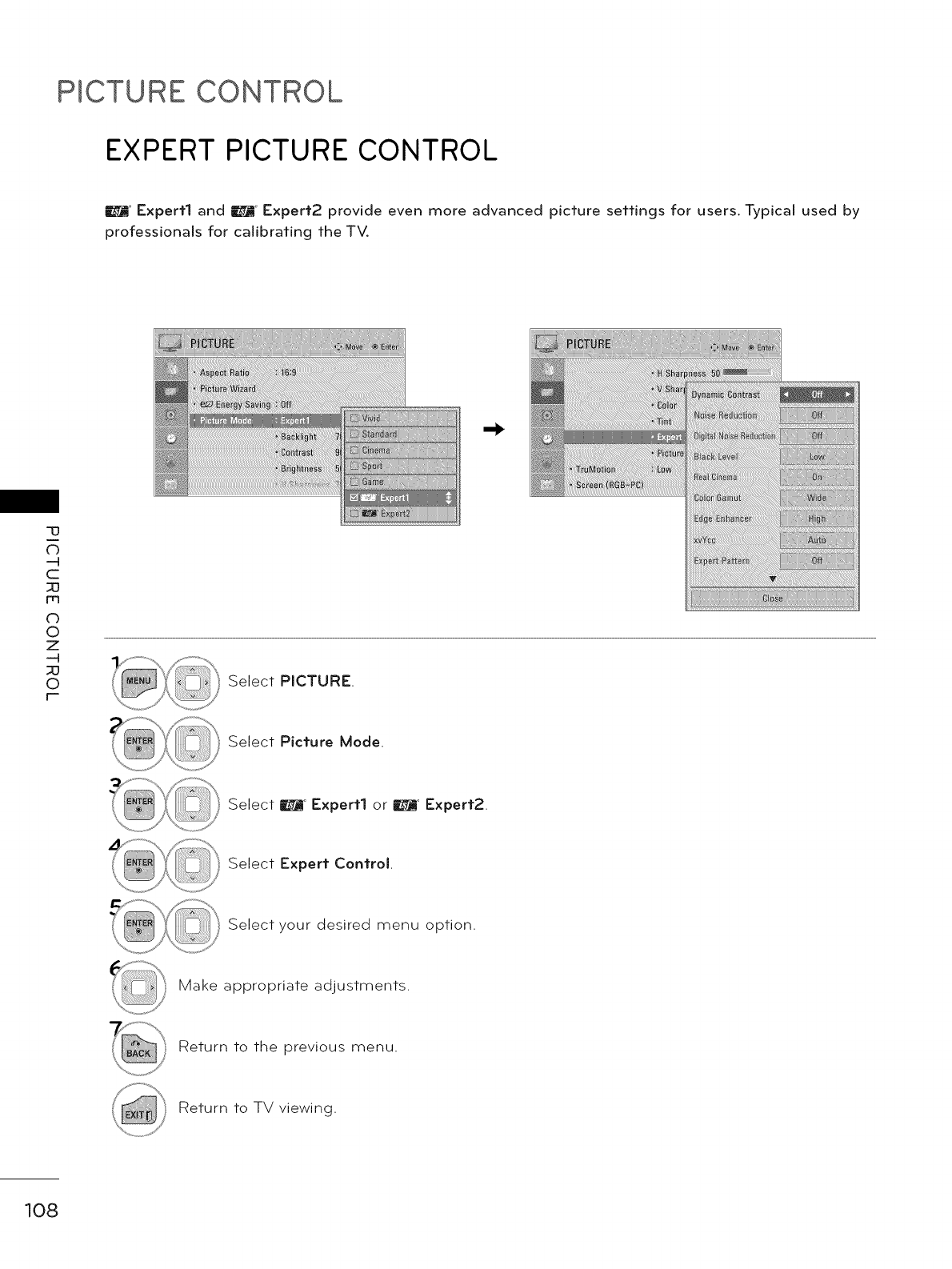

EXPERT PICTURE CONTROL

_ Expert1 and _ Expert2 provide even more advanced picture settings for users. Typical used by

professionals for calibrating the TV.

-1

iml

-1

Select PICTURE.

Select Picture MOdel

Select _ Expert1 or _ Expert2.

Select Expert Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the arevious menu.

Return to TV viewing.

108

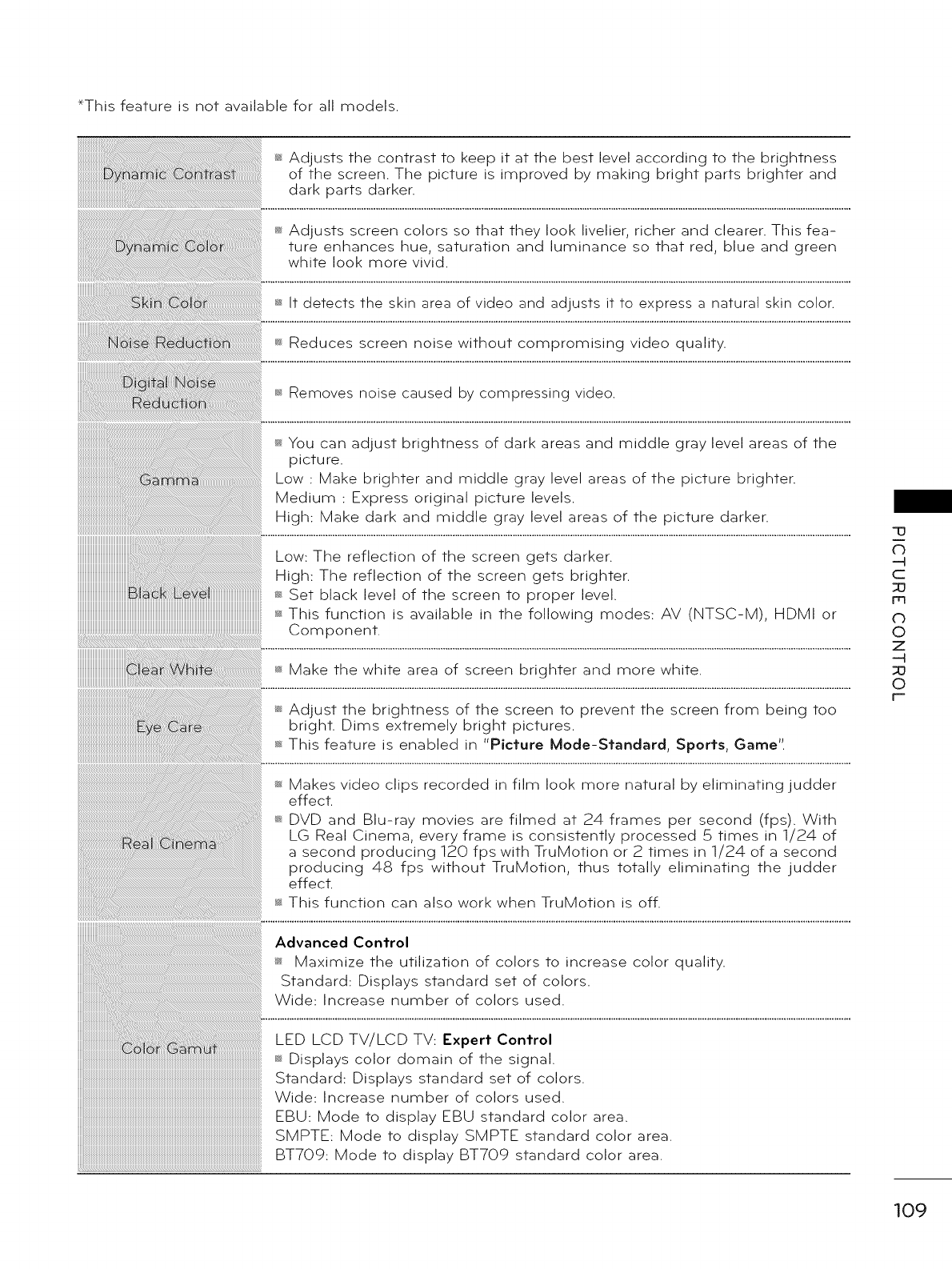

_This feature is not available for all models.

Adjusts the contrast to keep it at the best level according to the brightness

of the screen. The picture is improved by making bright parts brighter and

dark parts darker.

Adjusts screen colors so that they look livelier, richer and clearer. This fea-

ture enhances hue, saturation and luminance so that red, blue and green

white look more vivid.

It detects the skin area of video and adjusts it to express a natural skin color.

ssReduces screen noise without compromising video quality.

_',Removes noise caused by compressing video.

_ You can adjust brightness of dark areas and middle gray level areas of the

picture.

Low : Make brighter and middle gray level areas of the picture brighter.

Medium : Express original picture levels.

High: Make dark and middle gray level areas of the picture darker.

Low: The reflection of the screen gets darker.

High: The reflection of the screen gets brighter.

Set black level of the screen to proper level.

This function is available in the following modes: AV (NTSC-M), HDMI or

Component.

_ Make the white area of screen brighter and more white.

_ Adjust the brightness of the screen to prevent the screen from being too

bright. Dims extremely bright pictures.

This feature is enabled in "Picture Mode-Standard, Sports, Game".

Makes video clips recorded in film look more natural by eliminating judder

effect.

DVD and Blu-ray movies are filmed at 24 frames per second (fps). With

LG Real Cinema, every frame is consistently processed 5 times in 1/24 of

a second producing 120 fps with TruMotion or 2 times in 1/24 of a second

producing 48 fps without TruMotion, thus totally eliminating the judder

effect.

This function can also work when TruMotion is off.

-H

rrl

Advanced Control

_, Maximize the utilization of colors to increase color quality.

Standard: Displays standard set of colors.

Wide: Increase number of colors used.

109

PICTURE CONTROL

-1

iml

-1

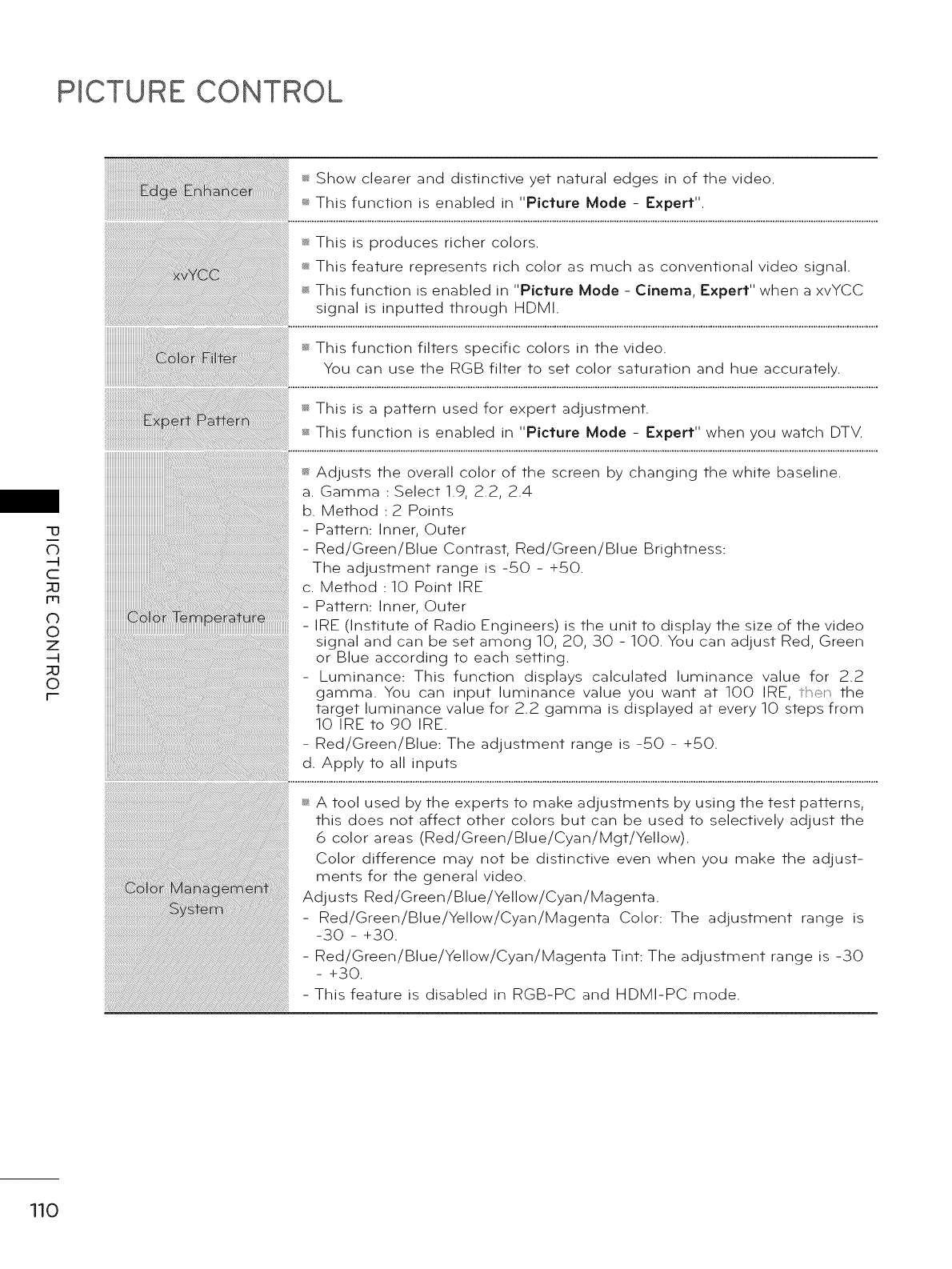

_ Show clearer and distinctive yet natural edges in of the video.

_ This function is enabled in "Picture Mode - Expert".

_ This is produces richer colors.

_ This feature represents rich color as much as conventional video signal.

This function is enabled in "Picture Mode - Cinema, Expert" when a xvYCC

signal is inputted through HDMI.

_ This function filters specific colors in the video.

You can use the RGB filter to set color saturation and hue accurately.

_, This is a pattern used for expert adjustment.

This function is enabled in "Picture Mode - Expert" when you watch DTV.

_<Adjusts the overall color of the screen by changing the white baseline.

a. Gamma :Select 1.9, 2.2, 2.4

b. Method :2 Points

- Pattern: Inner, Outer

- Red/Green/Blue Contrast, Red/Green/Blue Brightness:

The adjustment range is -50 - +50.

c. Method : 10 Point IRE

- Pattern: Inner, Outer

IRE (Institute of Radio Engineers) is the unit to display the size of the video

signal and can be set among 10, 20, 30 - 1OO. You can adjust Red, Green

or Blue according to each setting.

Luminance: This function displays calculated luminance value for 2.2

gamma. You can input luminance value you want at 1OO IRE, tker_ the

target luminance value for 2.2 gamma is displayed at every 10 steps from

10 IRE to 90 IRE.

- Red/Green/Blue: The adjustment range is -50 - +50.

d. Apply to all inputs

_ A tool used by the experts to make adjustments by using the test patterns,

this does not affect other colors but can be used to selectively adjust the

6 color areas (Red/Green/Blue/Cyan/Mgt/Yellow).

Color difference may not be distinctive even when you make the adjust-

ments for the general video.

Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.

- Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is

-30 - +30.

- Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30

- +30.

- This feature is disabled in RGB-PC and HDMI-PC mode.

110

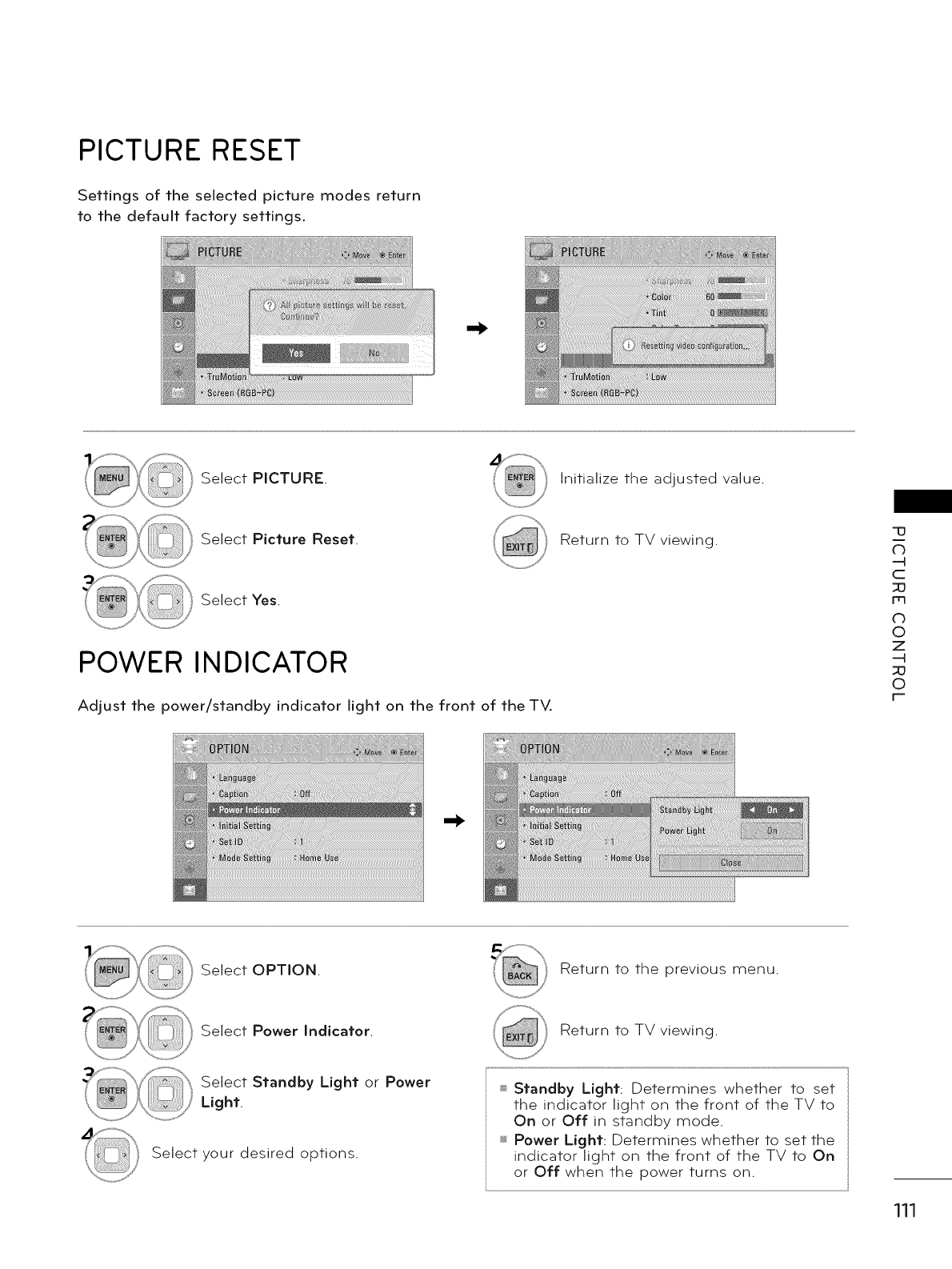

PICTURE RESET

Settings of the selected picture modes return

to the default factory settings.

Select PICTURE. Initialize the adjusted value.

Select Picture Reset.

Select Yes.

POWER INDICATOR

Adjust the power/standby indicator light on the front of the TV.

Return to TV viewing. "13

r--

Select OPTION. Return to the previous menu.

Select Power Indicator. Return to TV viewing.

Select Standby Light or Power

Light.

Select your desired options.

Standby Light: Determines whether to set

the indicator light on the front of the TV to

On or Off in standby mode.

Power Light: Determines whether to set the

indicator light on the front of the TV to On

or Off when the power turns on.

111

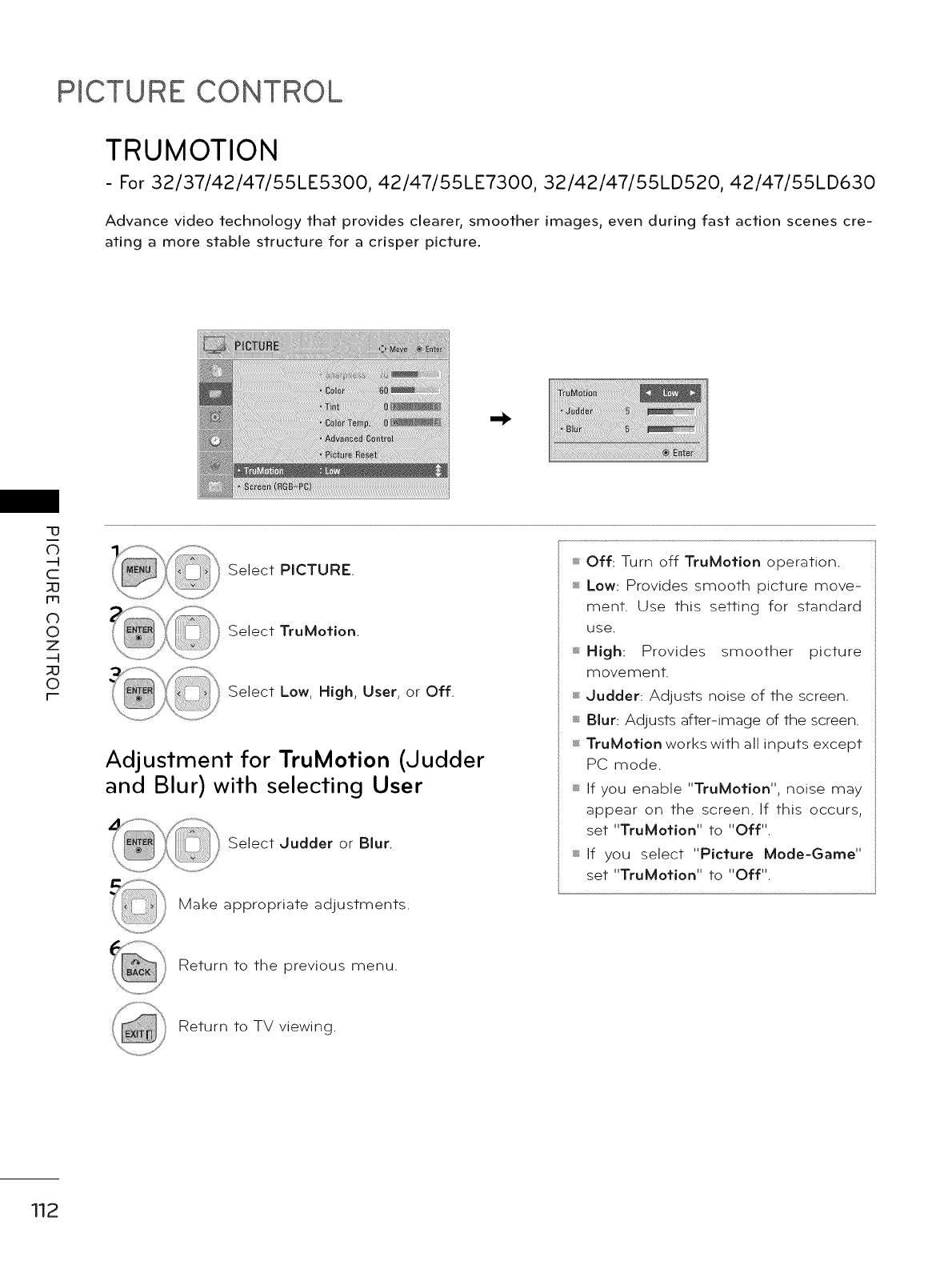

PICTURE CONTROL

TRUMOTION

- For 32/37/42/47/55LE5300, 42/47/55LE7300, 32/42/47/55LD520, 42/47/55LD630

Advance video technology that provides clearer, smoother images, even during fast action scenes cre-

ating a more stable structure for a crisper picture.

-o

-t

iml

-t

Select PICTURE.

Select TruMotion.

Select Low, High, User, or Off.

Adjustment for TruMotion (Judder

and Blur)with selecting User

Select Judder or Blur.

Make appropriate adjustments.

_ Off: Turn off TruMotion operation.

_ Low: Provides smooth picture move-

ment. Use this setting for standard

use.

_ High: Provides smoother picture

movement.

_dudder: Adjusts noise of the screen.

_ Blur: Adjusts after-image of the screen.

_ TruMotion works with all inputs except

PC mode.

_ If you enable "TruMotion", noise may

appear on the screen. If this occurs,

set "TruMotion" to "Off".

_ if you select "Picture Mode-Game"

set "TruMotion" to "Off".

Return to the arevious menu.

Return to TV viewing.

112

SOUND & LANGUAGE CONTROL

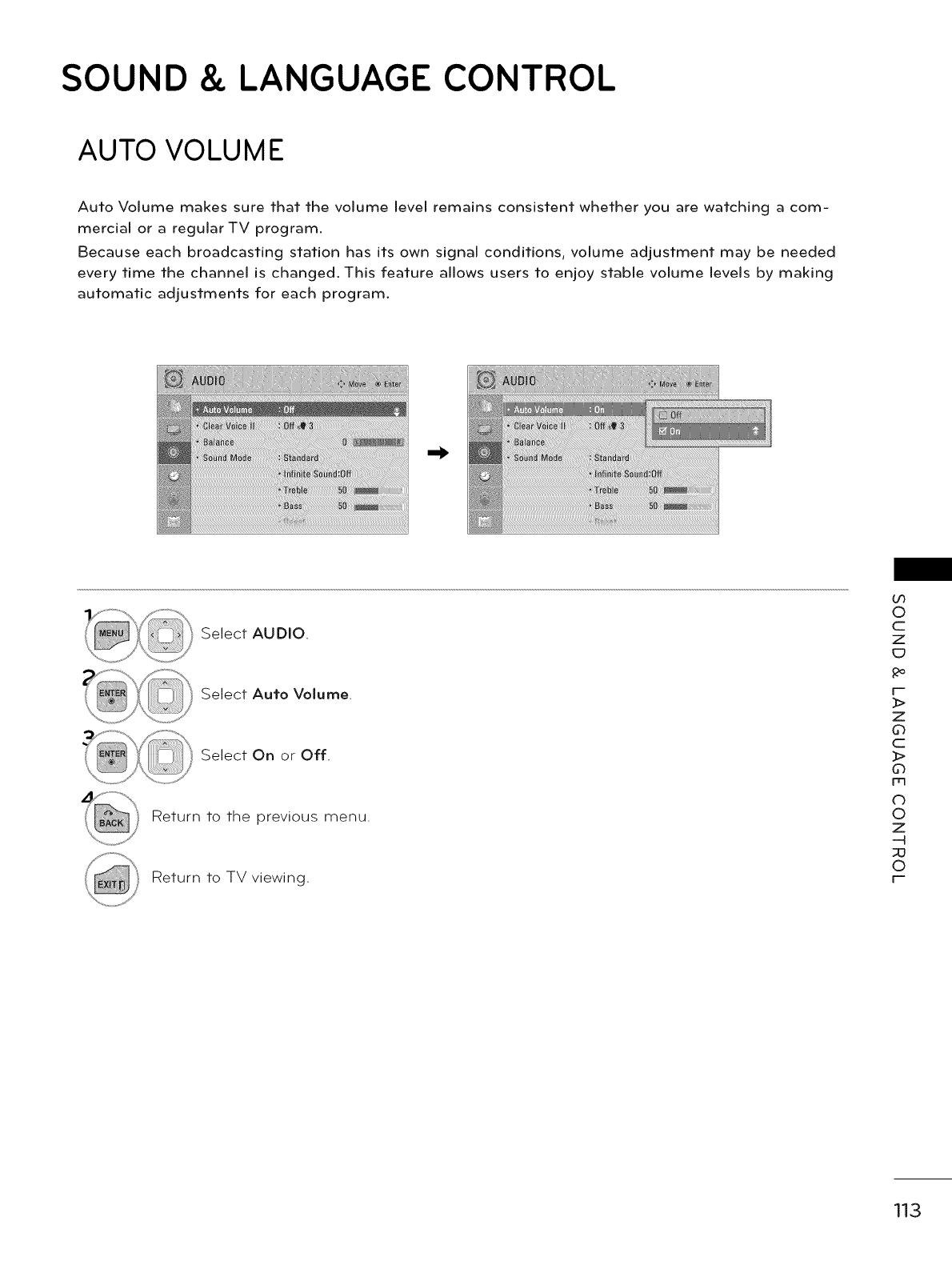

AUTO VOLUME

Auto Volume makes sure that the volume level remains consistent whether you are watching a com-

mercial or a regular TV program.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed

every time the channel is changed. This feature allows users to enjoy stable volume levels by making

automatic adjustments for each program.

Select AUDIO.

Select Auto Volume.

Select On or Off

Return to the previous menu.

Return to TV viewing.

F-

-4

113

SOUND & LANGUAGE CONTROL

CLEAR VOICE II

By differentiating the human sound range from others, it improves the sound quality of voices.

Select AUDIO.

Select Clear Voice II.

Select On or Off.

Adjustment for Clear Voice Level

with selecting On

Select Level.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

114

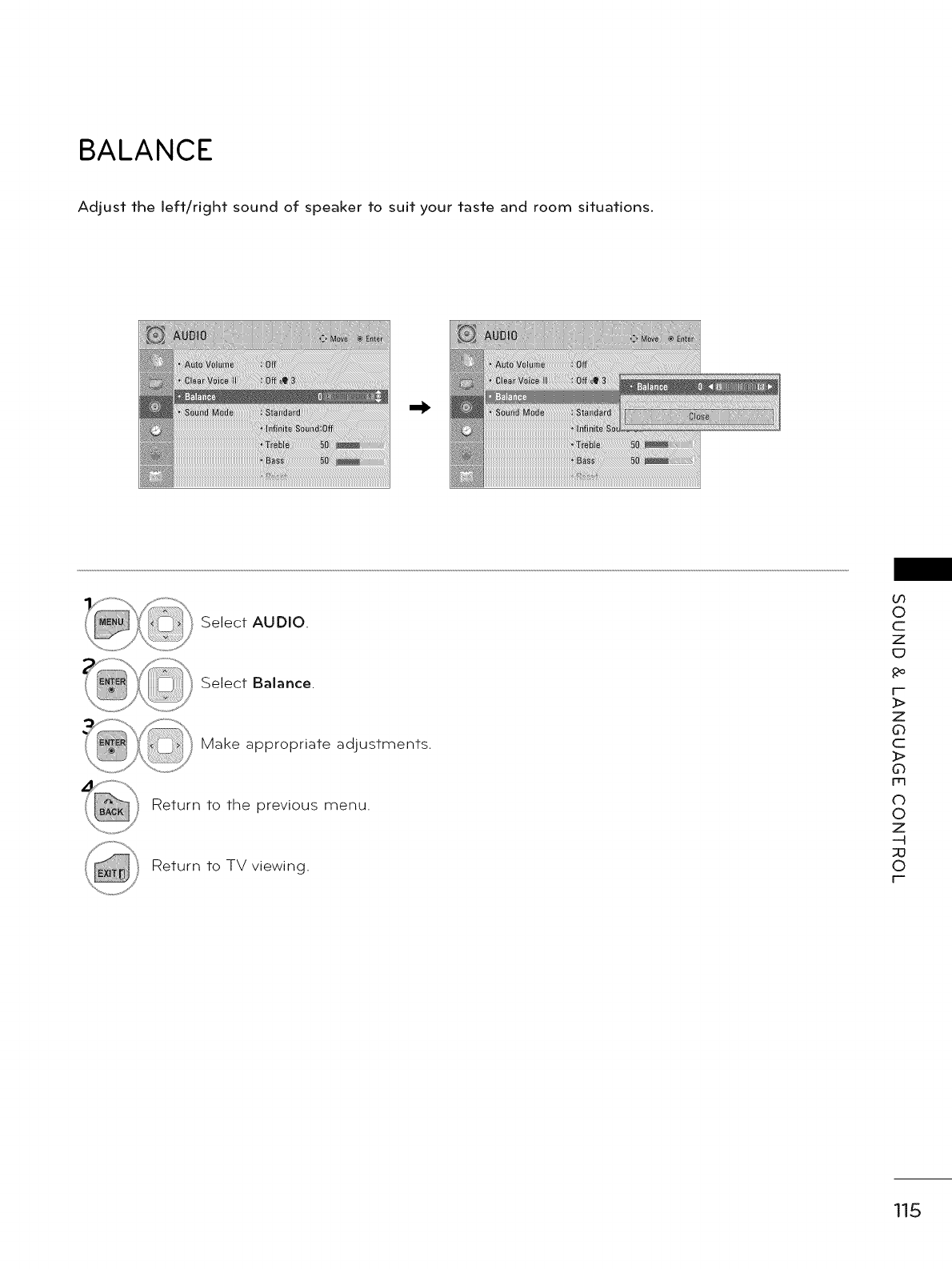

BALANCE

Adjust the left/right sound of speaker to suit your taste and room situations,

Select AUDIO.

Select Balance.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

or)

115

SOUND & LANGUAGE CONTROL

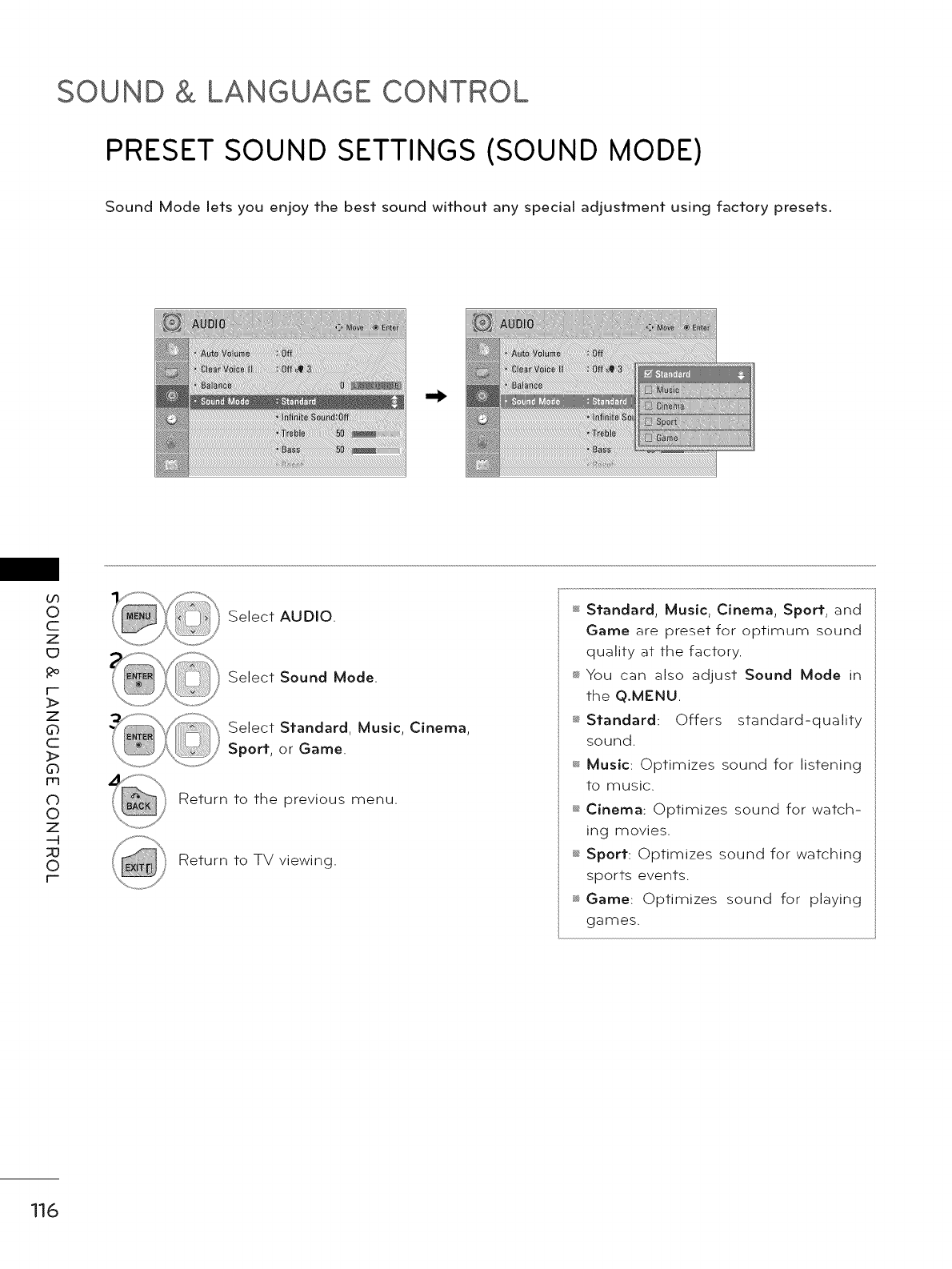

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment using factory presets.

-H

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema,

Sport, or Game.

Return to the previous menu.

Return to TV viewing.

_ Standard, Music, Cinema, Sport, and

Game are preset for optimum sound

quality at the factory.

You can also adjust Sound Mode in

the Q.MENU.

Standard: Offers standard-quality

sound.

_ Music: Optimizes sound for listening

to music.

_ Cinema: Optimizes sound for watch-

ing movies.

_ Sport: Optimizes sound for watching

sports events.

_ Game: Optimizes sound for playing

games.

116

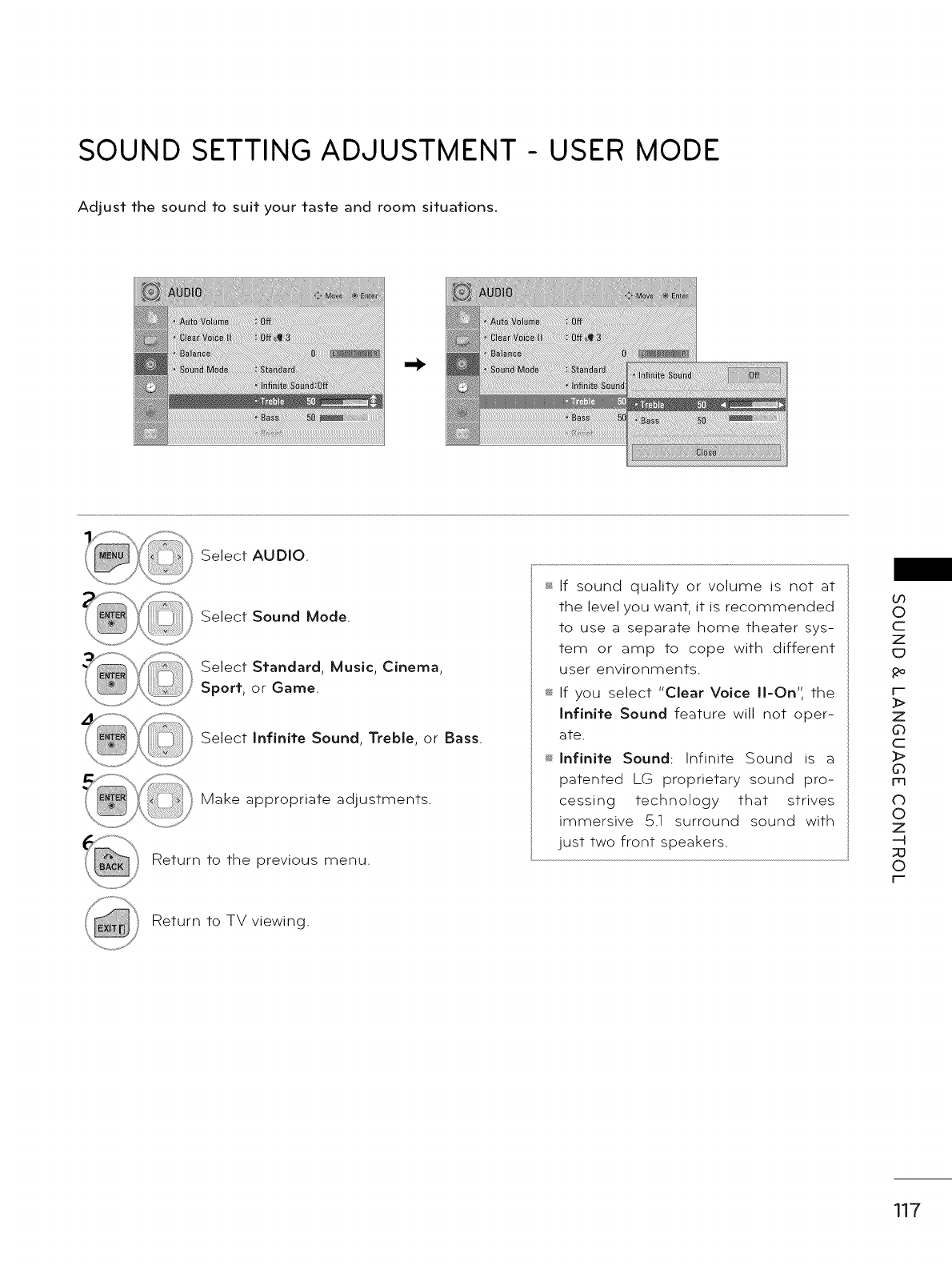

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema,

Sport, or Game.

Select Infinite Sound, Treble, or Bass.

Make appropriate adjustments.

Return to the previous menu.

_ If sound quality or volume is not at

the level you want, it is recommended

to use a separate home theater sys-

tem or amp to cope with different

user environments.

_ If you select "Clear Voice II-On", the

Infinite Sound feature will not oper-

ate.

_ Infinite Sound: Infinite Sound is a

patented LG proprietary sound pro-

cessing technology that strives

immersive 5.1 surround sound with

just two front speakers.

Return to TV viewing.

117

SOUND & LANGUAGE CONTROL

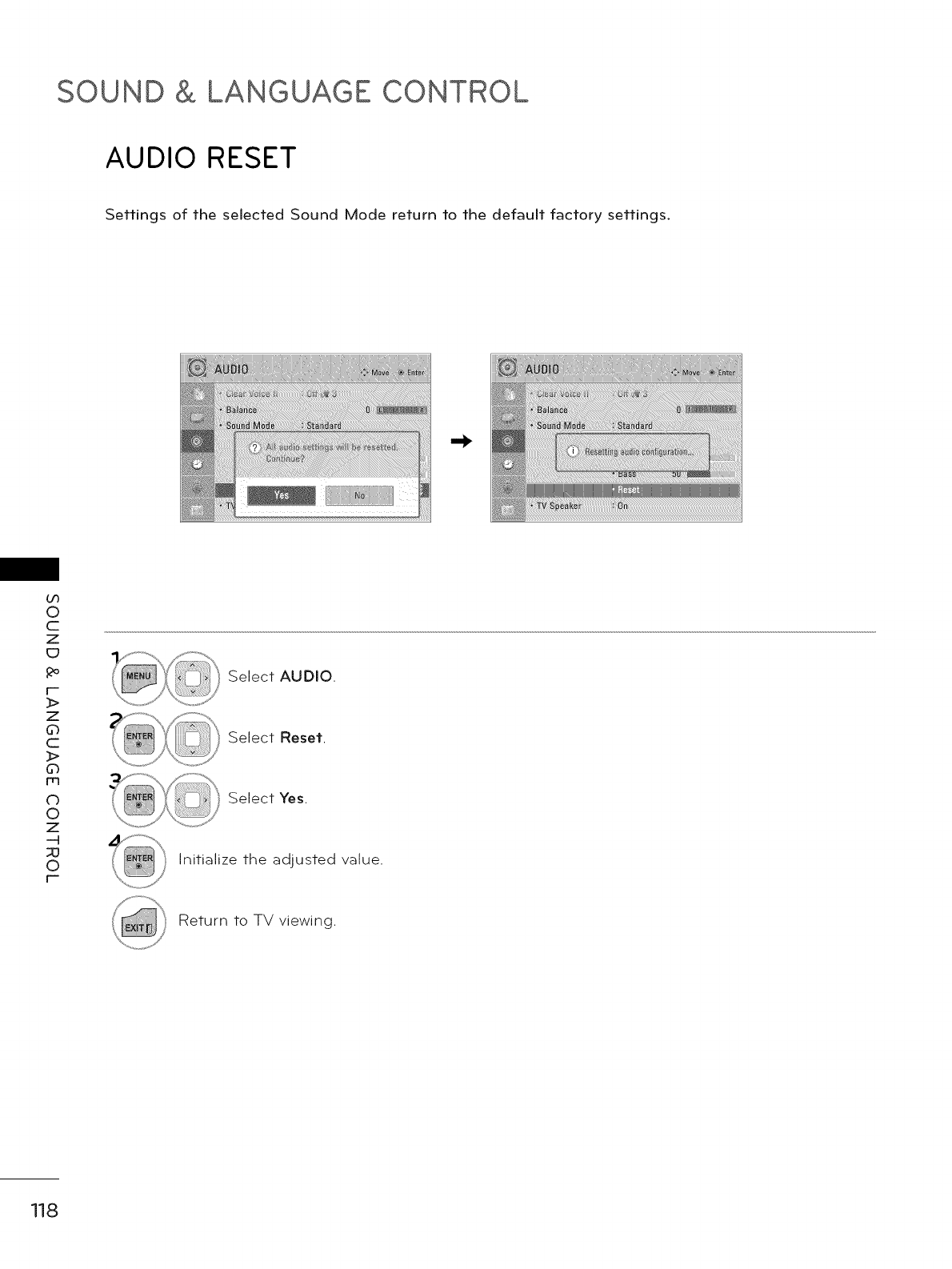

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

r'-

Select AUDIO.

Select Reset.

Select Yes.

Initialize the adjusted value.

Return to TV viewing.

118

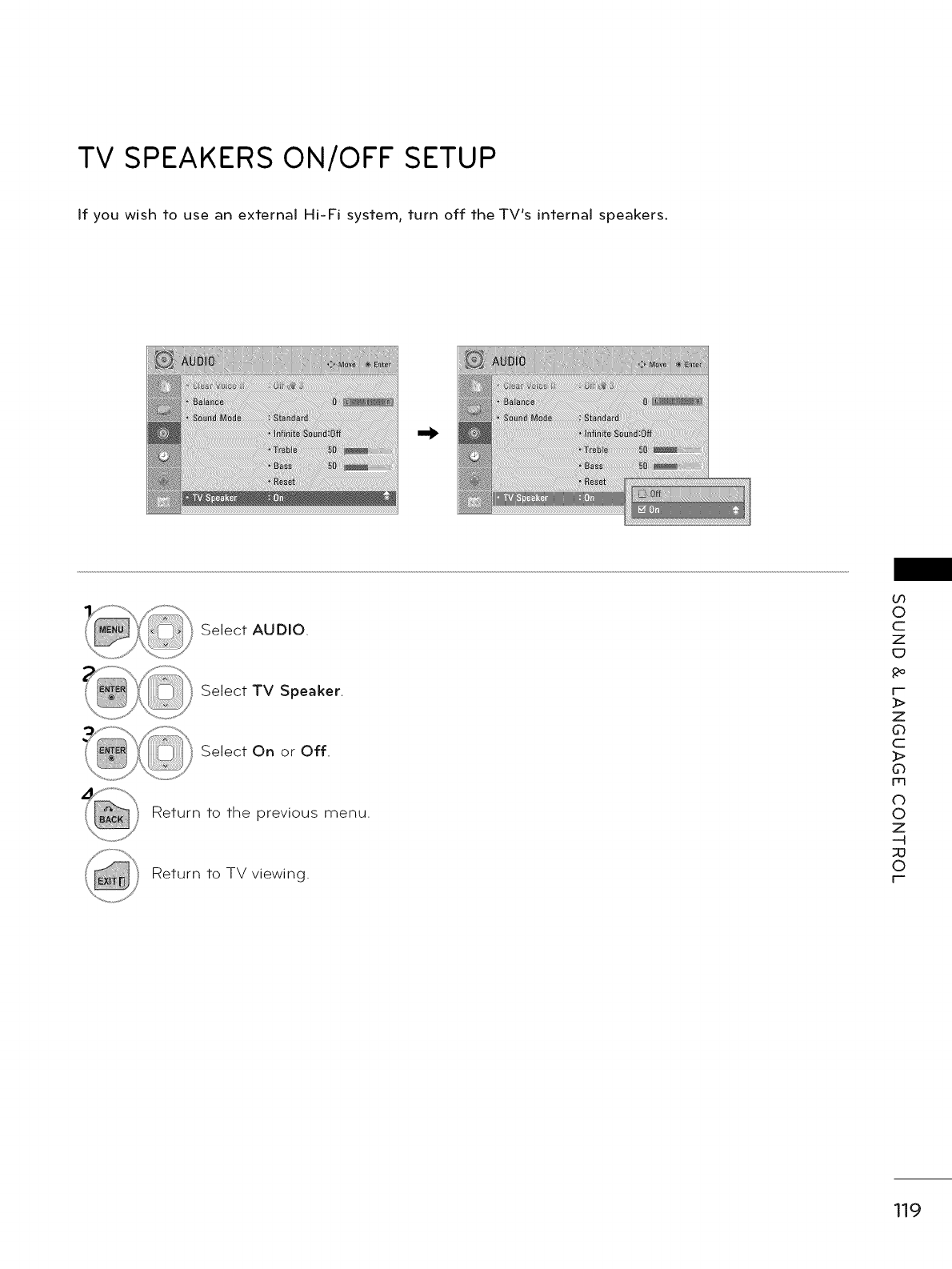

TV SPEAKERS ON/OFF SETUP

If you wish to use an external Hi-Fi system, turn off the TV's internal speakers.

Select AUDaO

Select TV Speaker.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

F-

119

SOUND & LANGUAGE CONTROL

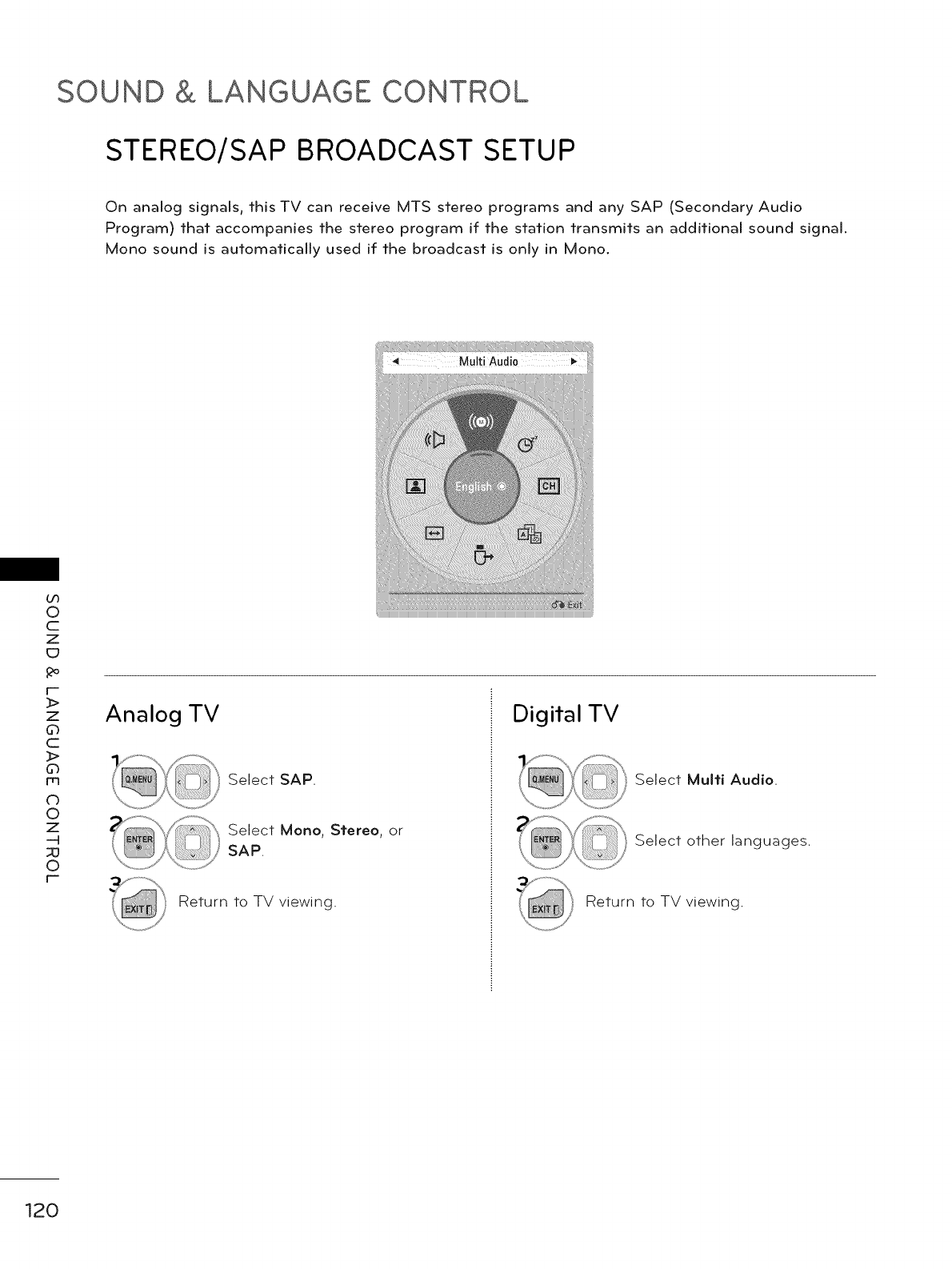

STEREO/SAP BROADCAST SETUP

On analog signals, this TV can receive MTS stereo programs and any SAP (Secondary Audio

Program) that accompanies the stereo program if the station transmits an additional sound signal.

Mono sound is automatically used if the broadcast is only in Mono.

r'-

-4

Analog TV

Select SAP.

Select Mono, Stereo, or

SAP.

Return to TV viewing.

Digital TV

Select Multi Audio.

Select other languages.

Return to TV viewing.

120

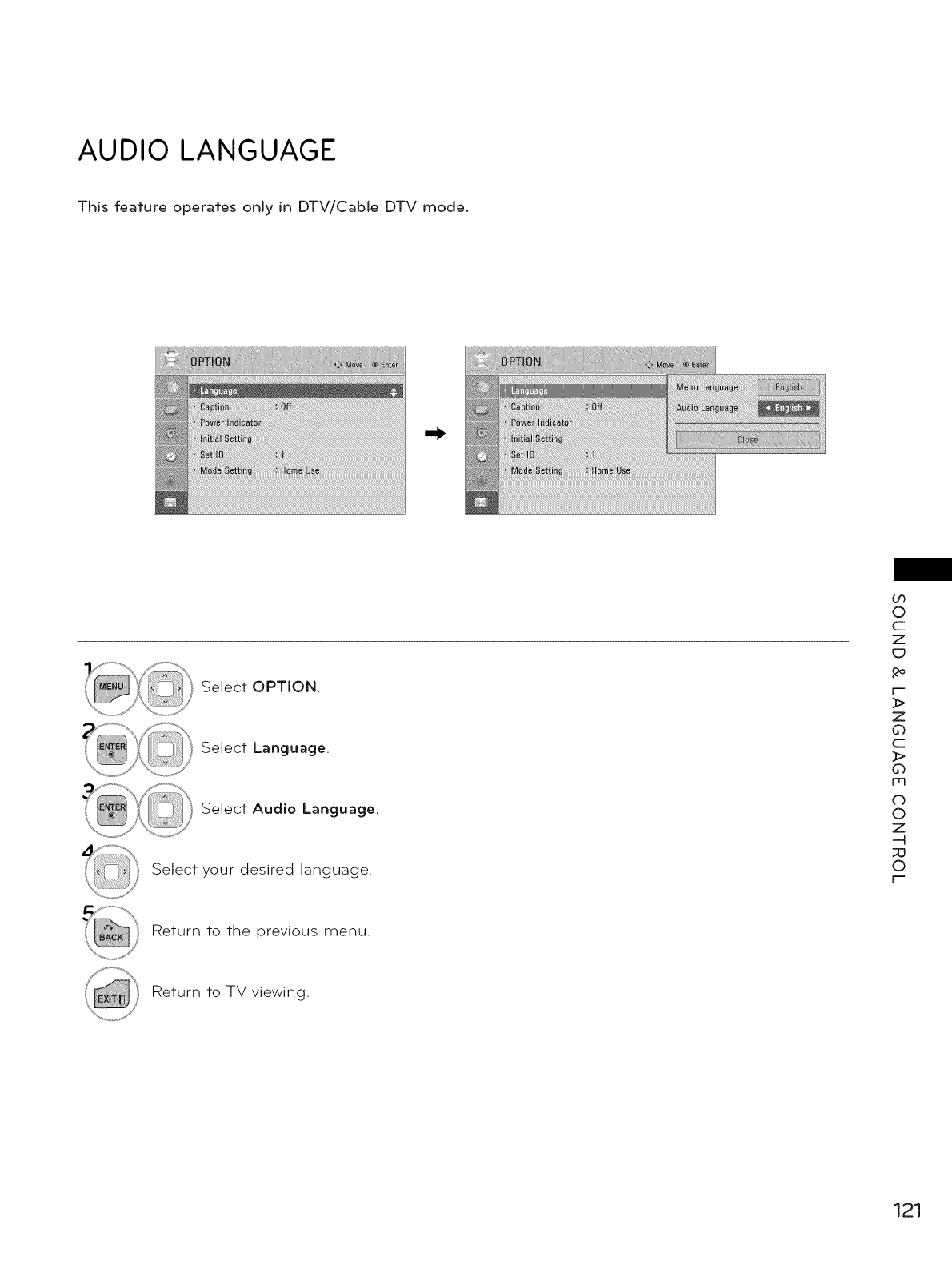

AUDIO LANGUAGE

This feature operates only in DTV/Cable DTV mode.

Select OPTION.

Select Language.

Select Audio Language.

Select your desired language.

r--

Return to the previous menu.

Return to TV viewing.

121

SOUND & LANGUAGE CONTROL

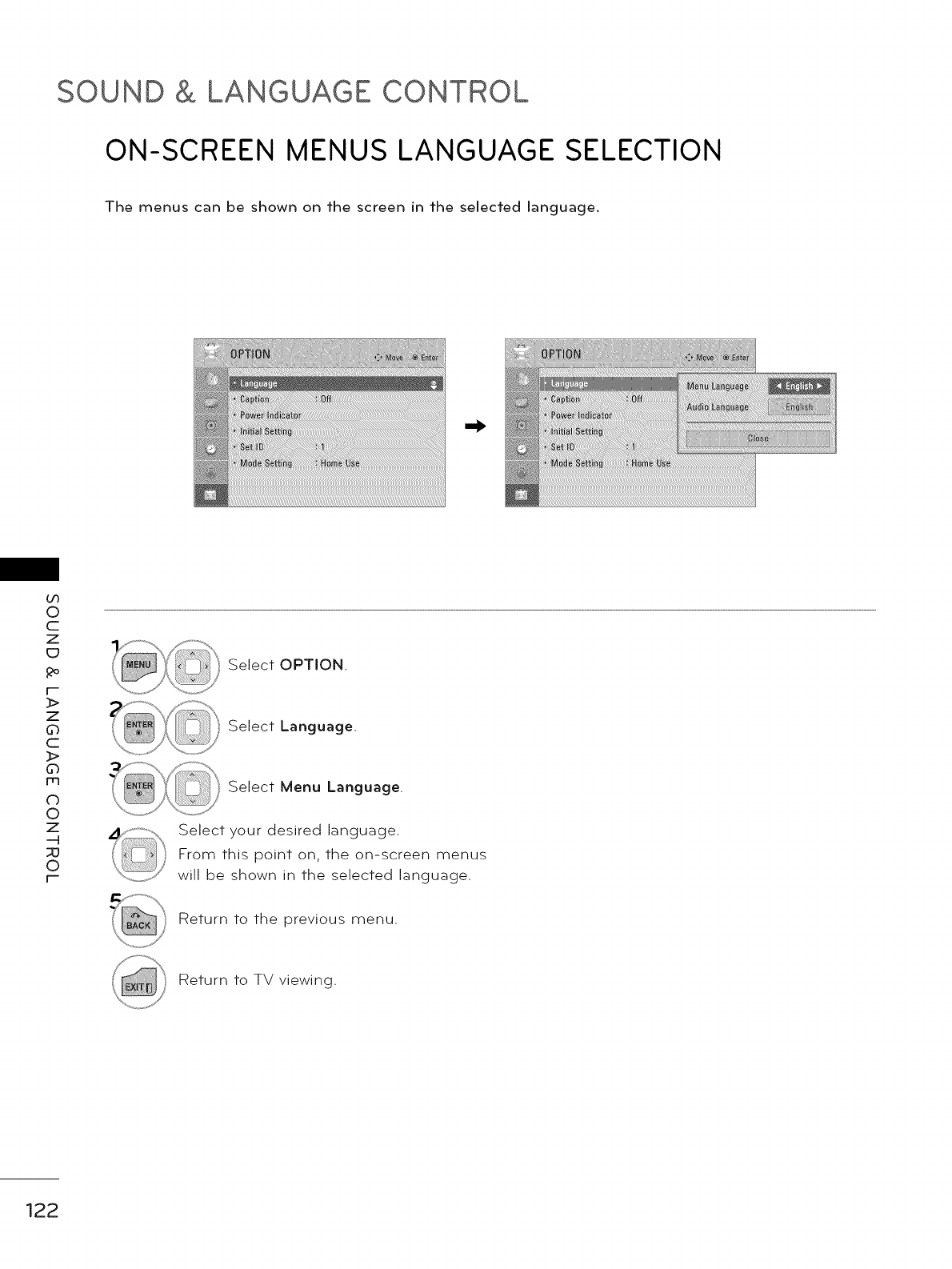

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

r'-

:x]

r'-

Select OPTION.

Select Language.

Select Menu Language.

Select your desired language.

From this point on, the on-screen menus

will be shown in the selected language.

Return to the previous menu.

Return to TV viewing.

122

CAPTION MODE

Analog Broadcasting System Captions

Captions are provided to help the hearing impaired watch TV. Select a caption mode for displaying

captioning information if provided on a program. Analog caption displays information at any position

on the screen and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would

be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to

memorize the caption/text mode which was last set when you turned the power off. This function is

only available when Caption Mode is set On.

Select OPTION.

Select Caption.

Select On.

Select CC1-4 or Text1-4.

Return to the previous menu.

Return to TV viewing.

_ When selecting Off, Sub-menus for

Analog, DTV, and Digital Option

become disabled.

_ Caption

The term for the words that scroll

across the bottom of the TV screen;

usually the audio portion of the pro-

gram provided for the hearing

impaired.

_ Text

The term for the words that appear in

a large black frame and almost cover

the entire screen; usually messages

provided by the broadcaster.

F-

123

SOUND & LANGUAGE CONTROL

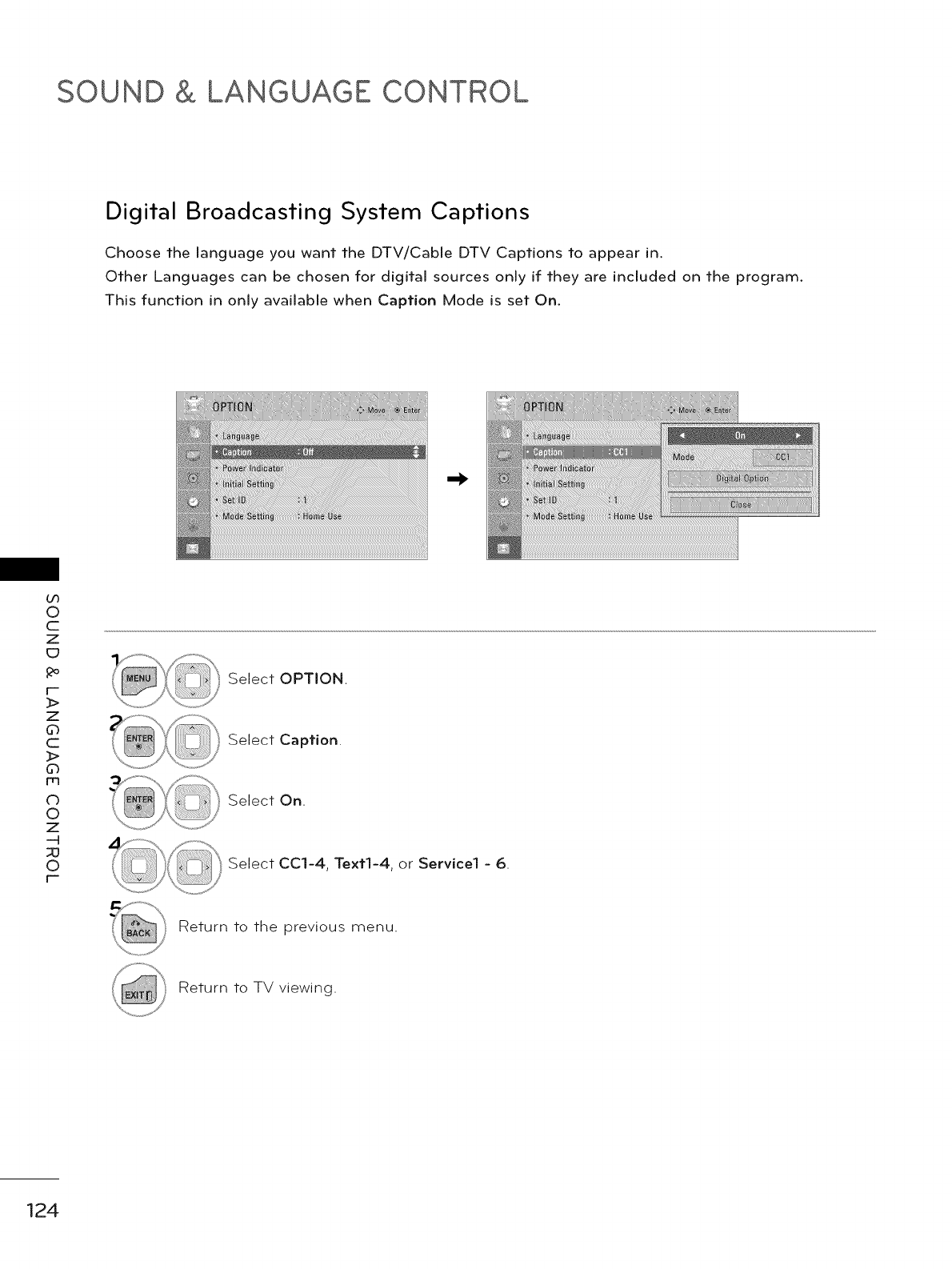

Digital Broadcasting System Captions

Choose the language you want the DTV/Cable DTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

:x]

Select OPTION.

Select Caption.

Select On.

Select CCl-4, Text1-4, or Service1 - 6.

Return to the previous menu.

Return to TV viewing.

124

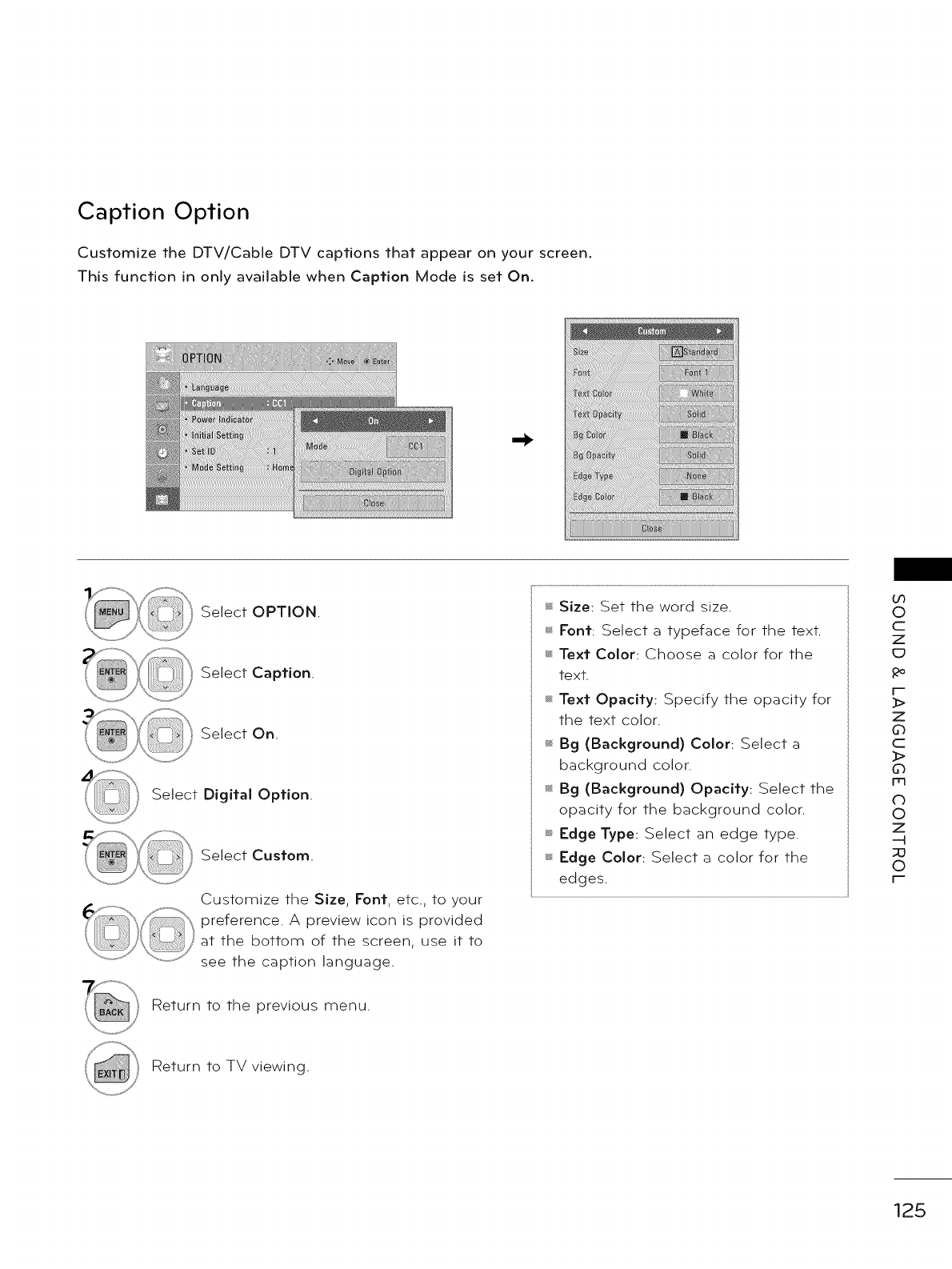

Caption Option

Customize the DTV/Cable DTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

Select OPTION.

Select Caption.

Select On.

Select Digital Option.

Select Custom.

Customize the Size, Font, etc., to your

preference. A preview icon is provided

at the bottom of the screen, use it to

see the caption language.

_ Size: Set the word size.

_ Font: Select a typeface for the text.

Text Color: Choose a color for the

text.

Text Opacity: Specify the opacity for

the text color.

_sBg (Background) Color: Select a

background color.

_ Bg (Background) Opacity: Select the

opacity for the background color.

Edge Type: Select an edge type.

_ Edge Color: Select a color for the

edges.

rr]

-4

r--

Return to the previous menu.

Return to TV viewing.

125

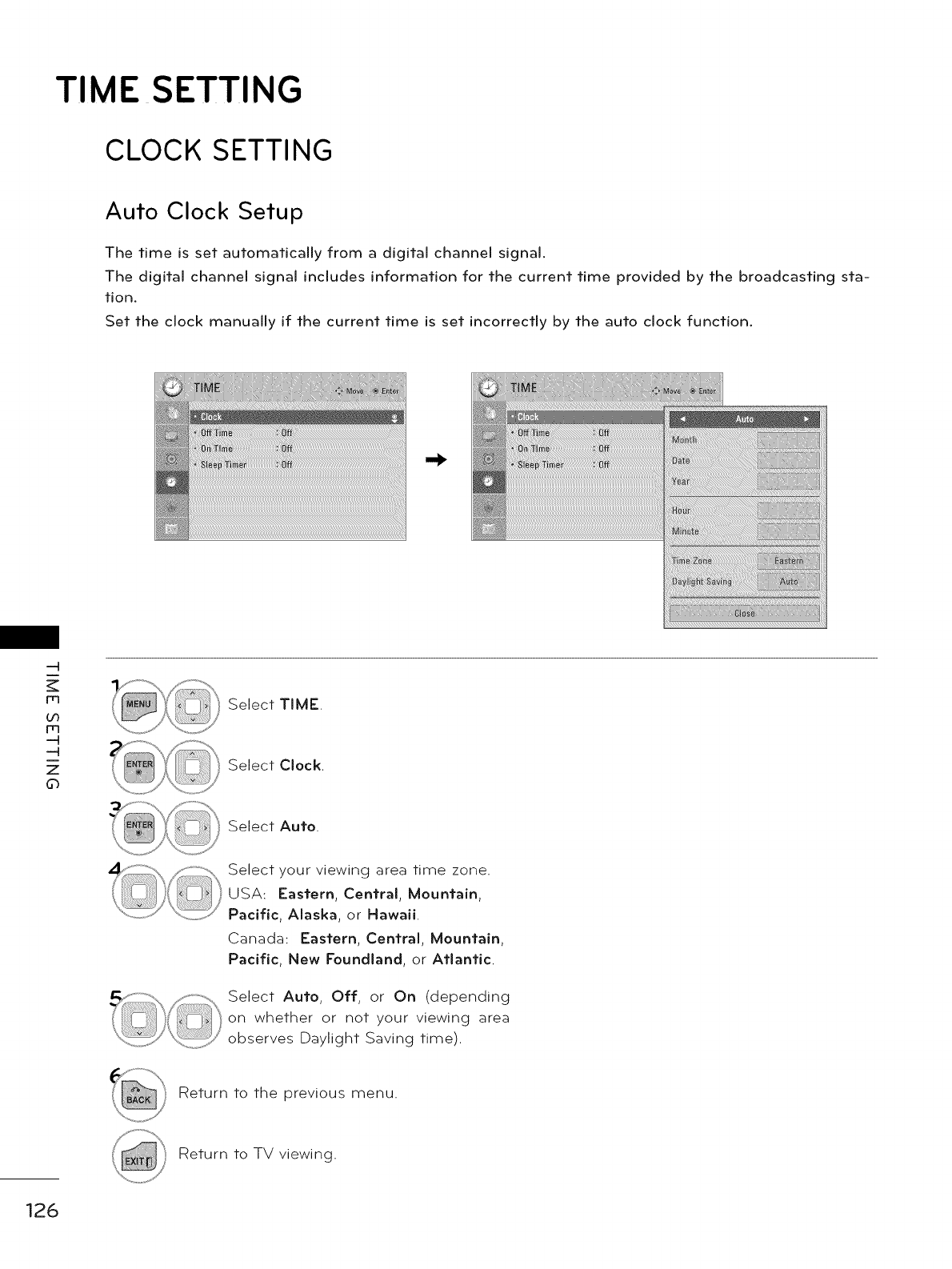

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting sta-

tion.

Set the clock manually if the current time is set incorrectly by the auto clock function.

-4

£/3

-4

Select TIME.

Select Clock.

Select Auto.

Select your viewing area time zone.

USA: Eastern, Central, Mountain,

Pacific, Alaska, or Hawaii.

Canada: Eastern, Central, Mountain,

Pacific, New Foundland, or Atlantic.

Select Auto, Off, or On (depending

on whether or not your viewing area

observes Daylight Saving time).

Return to the previous menu.

Return to TV viewing.

126

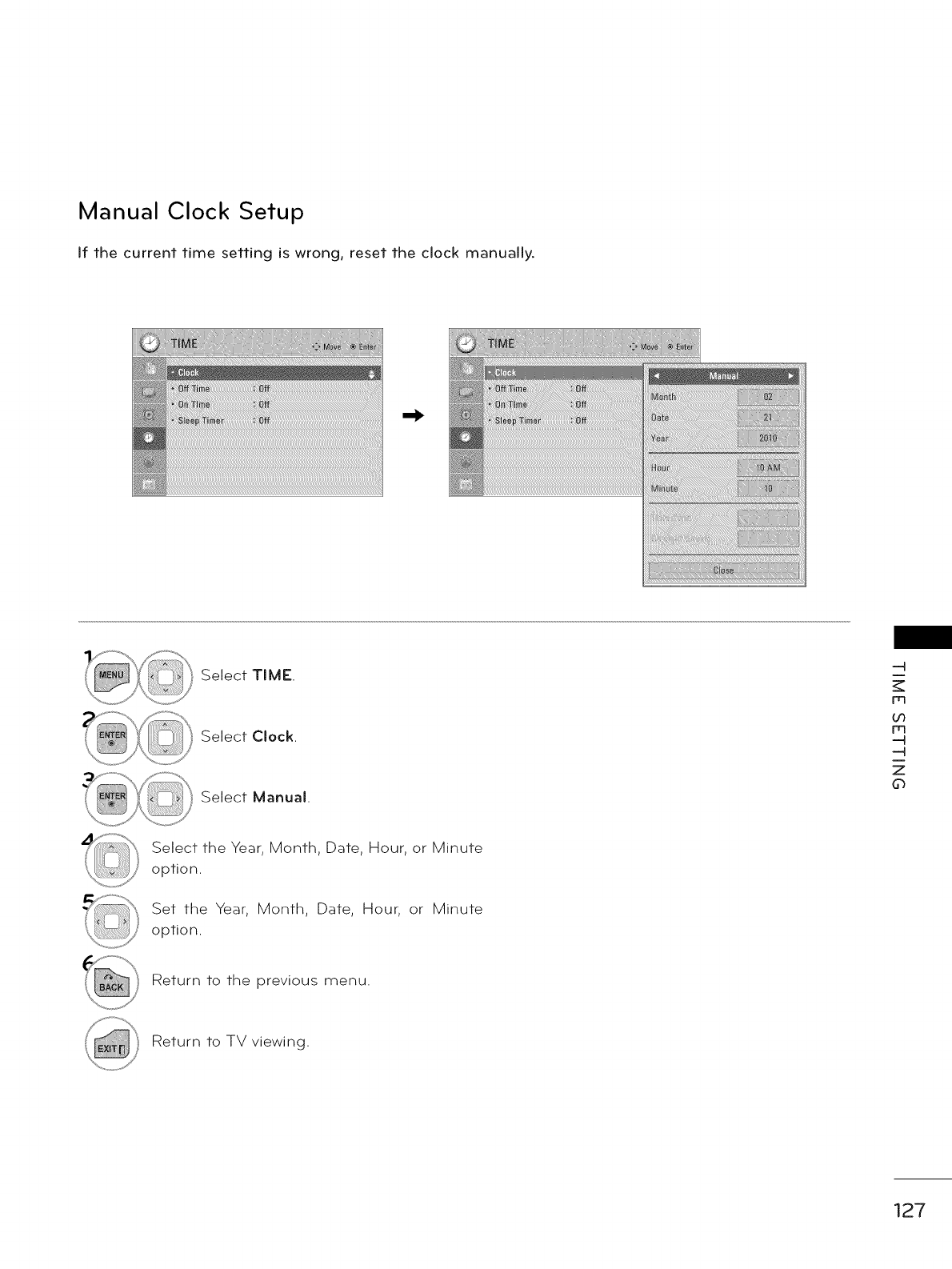

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

Select TIME.

Select Clock.

Select Manual.

--4

£/3

--4

Select the Year, Month, Date, Hour, or Minute

option.

Set the Year, Month, Date, Hour, or Minute

option.

Return to the previous menu.

Return to TV viewing.

127

TiME SETTING

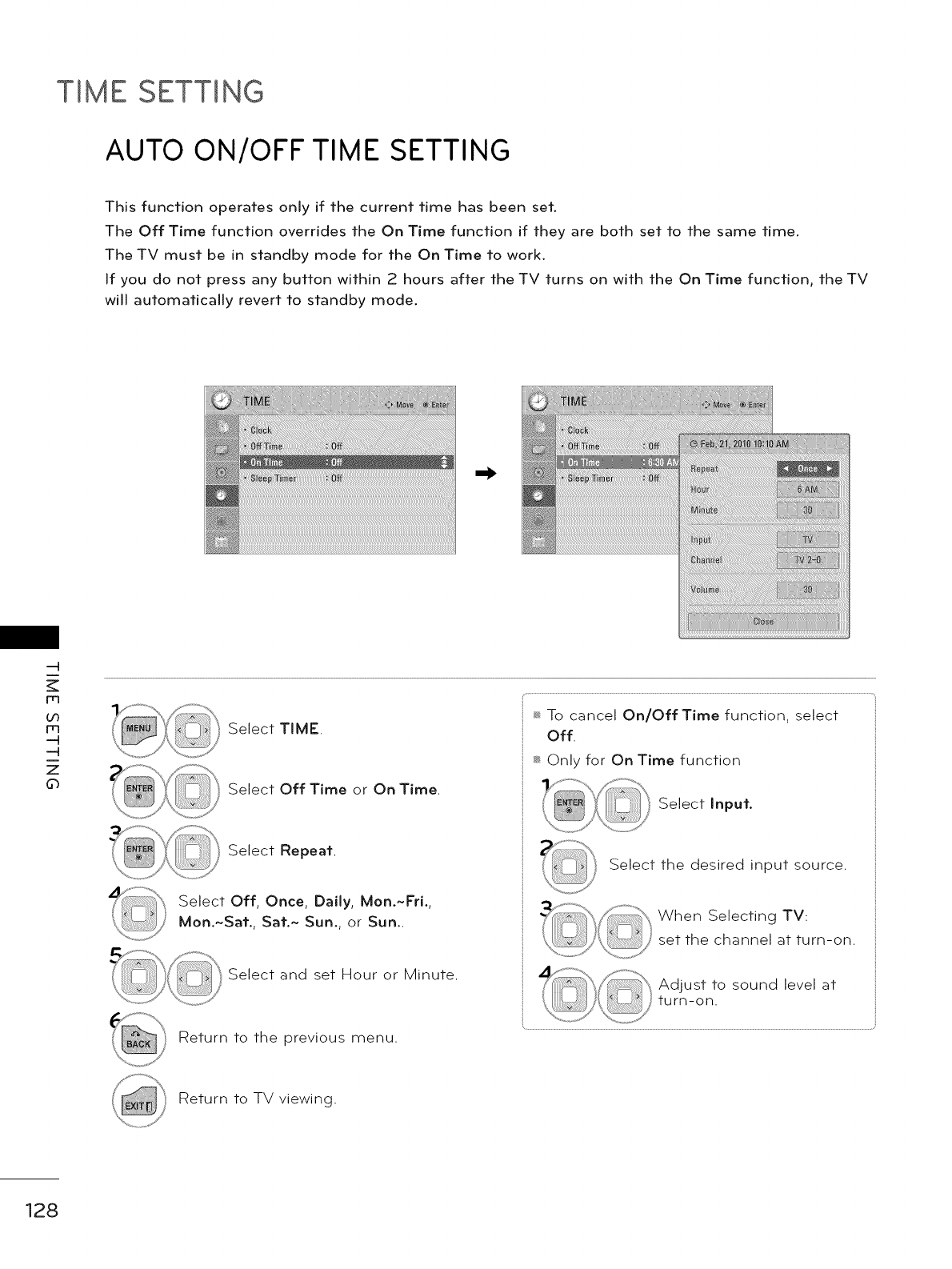

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

The Off Time function overrides the On Time function if they are both set to the same time.

The TV must be in standby mode for the On Time to work.

If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV

will automatically revert to standby mode.

-H

Select TIME.

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon.~Fri.,

Mon.~Sat., Sat.~ Sun., or Sun..

Select and set Hour or Minute.

Return to the previous menu.

_sTo cancel On/Off Time function, select

Off.

_a,Only for On Time function

Select Input.

Select the desired input source.

When Selecting TV:

set the channel at turn-on.

Adjust to sound level at

turn-on.

Return to TV viewing.

128

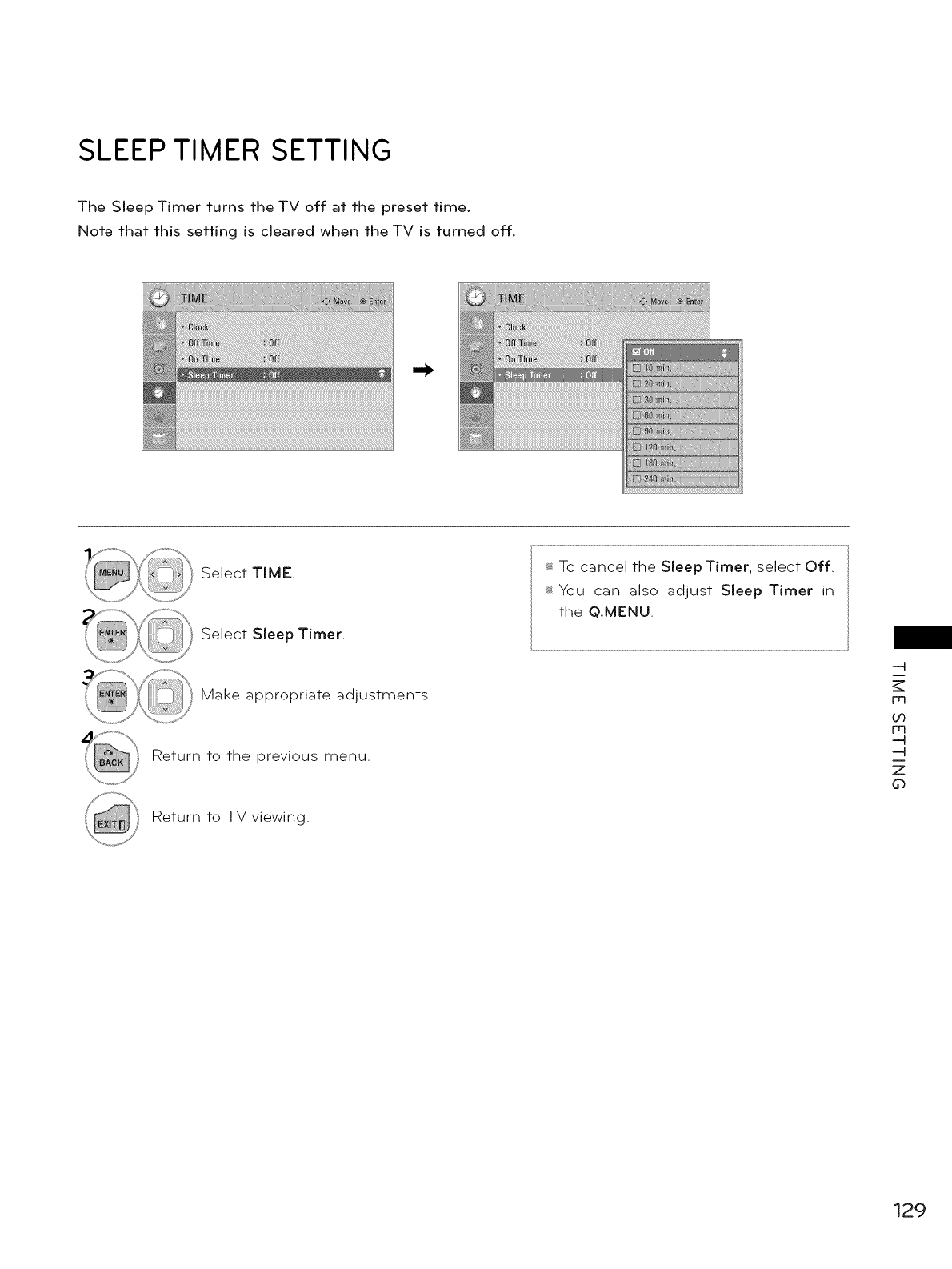

SLEEP TIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

Select TIME.

Select Sleep Timer.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

_ To cancel the Sleep Timer, select Off.

_ You can also adjust Sleep Timer in

the Q.MENU.

-4

129

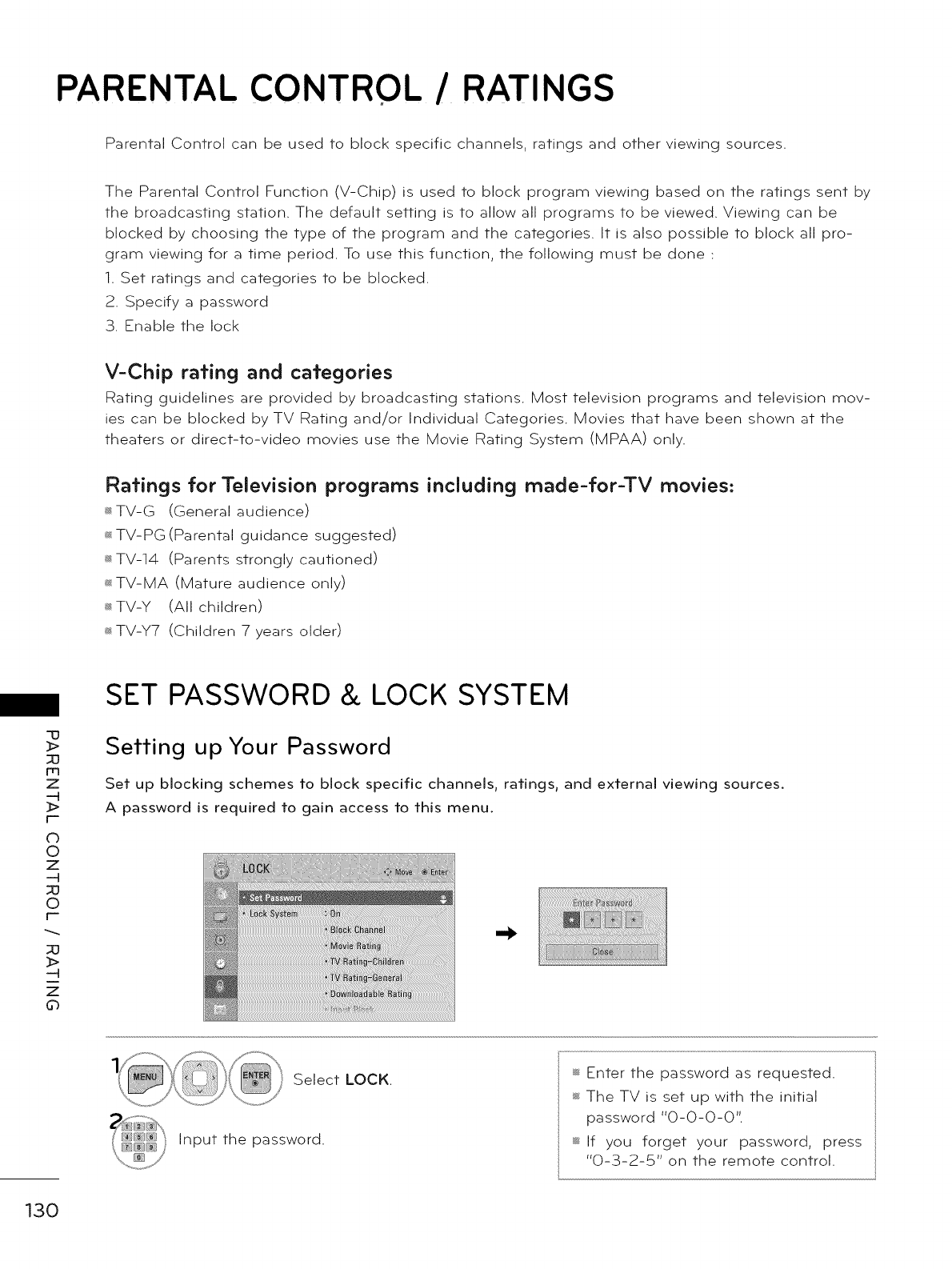

PARENTAL CONTROL /RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by

the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be

blocked by choosing the type of the program and the categories. It is also possible to block all pro-

gram viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television mov-

ies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the

theaters or direct-to-video movies use the Movie Rating System (MPAA) only.

Ratings for Television programs including made-for-TV movies:

_ TV-G (General audience)

_ TV-PG (Parental guidance suggested)

_ TV-14 (Parents strongly cautioned)

_ TV-MA (Mature audience only)

_ TV-Y (All children)

_ TV-Y7 (Children 7 years older)

"13

-.-I

r-"

-.-I

SET PASSWORD & LOCK SYSTEM

Setting up Your Password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Select LOCK.

Input the password.

_ Enter the password as requested.

_ The TV is set up with the initial

password "0-0-0-0".

_ If you forget your password, press

"0-3-2-5" on the remote control.

130

Set Password

Change the password by inputting a new password twice.

Select LOCK.

Input the password.

Select Set Password.

Choose any 4 digits for your new

password.

As soon as the 4 digits are entered,

re-enter the same 4 digits on the

Confirm.

Return to the previous menu.

Return to TV viewing.

"13

-4

131

PARENTAL CONTROL RATINGS

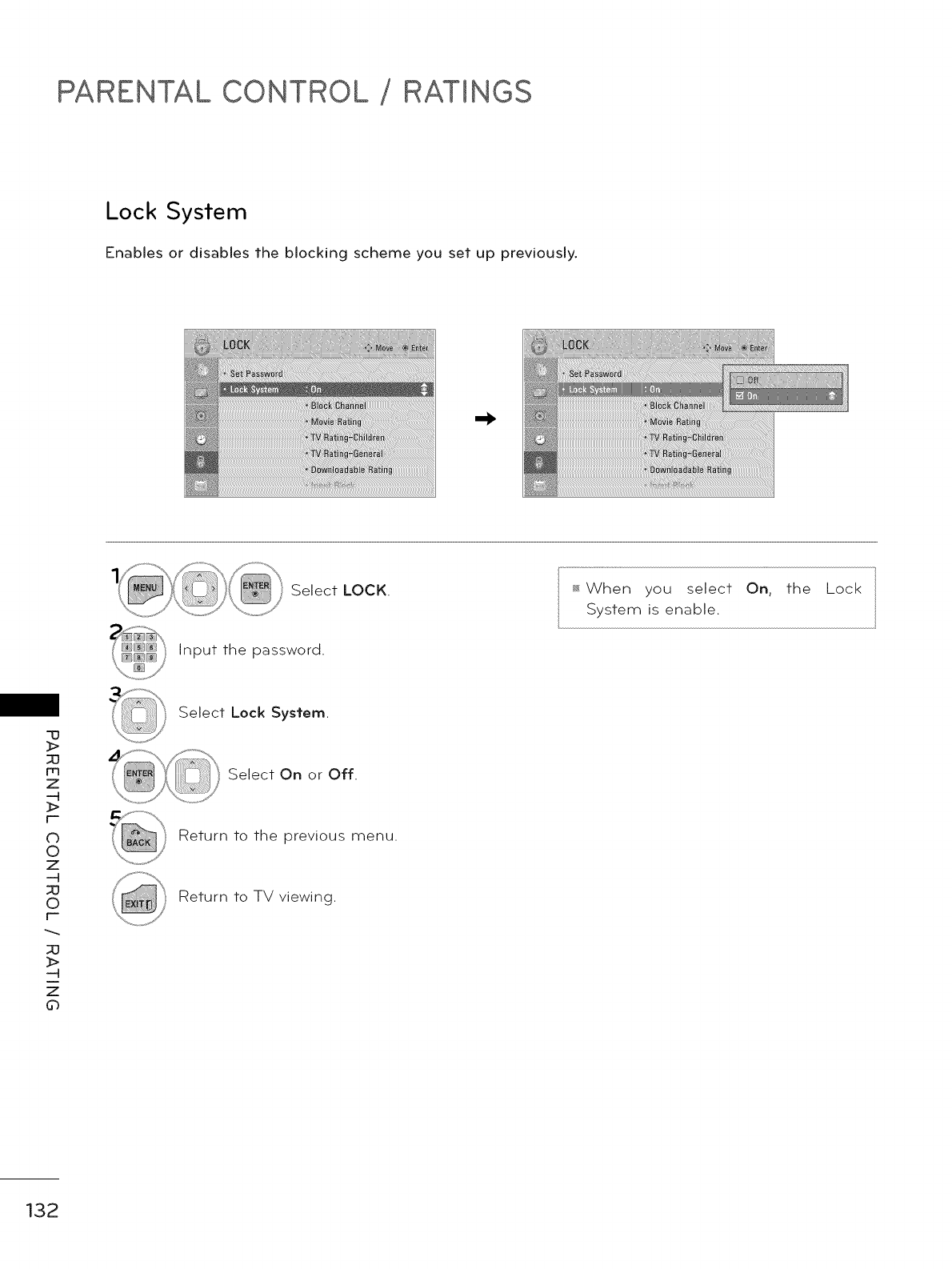

Lock System

Enables or disables the blocking scheme you set up previously.

Select LOCK.

Input the password.

_ When you select On, the Lock

System is enable.

"13

-4

r-"

-4

Select Lock System.

Select On or Off

Return to the previous menu.

Return to TV viewing.

132

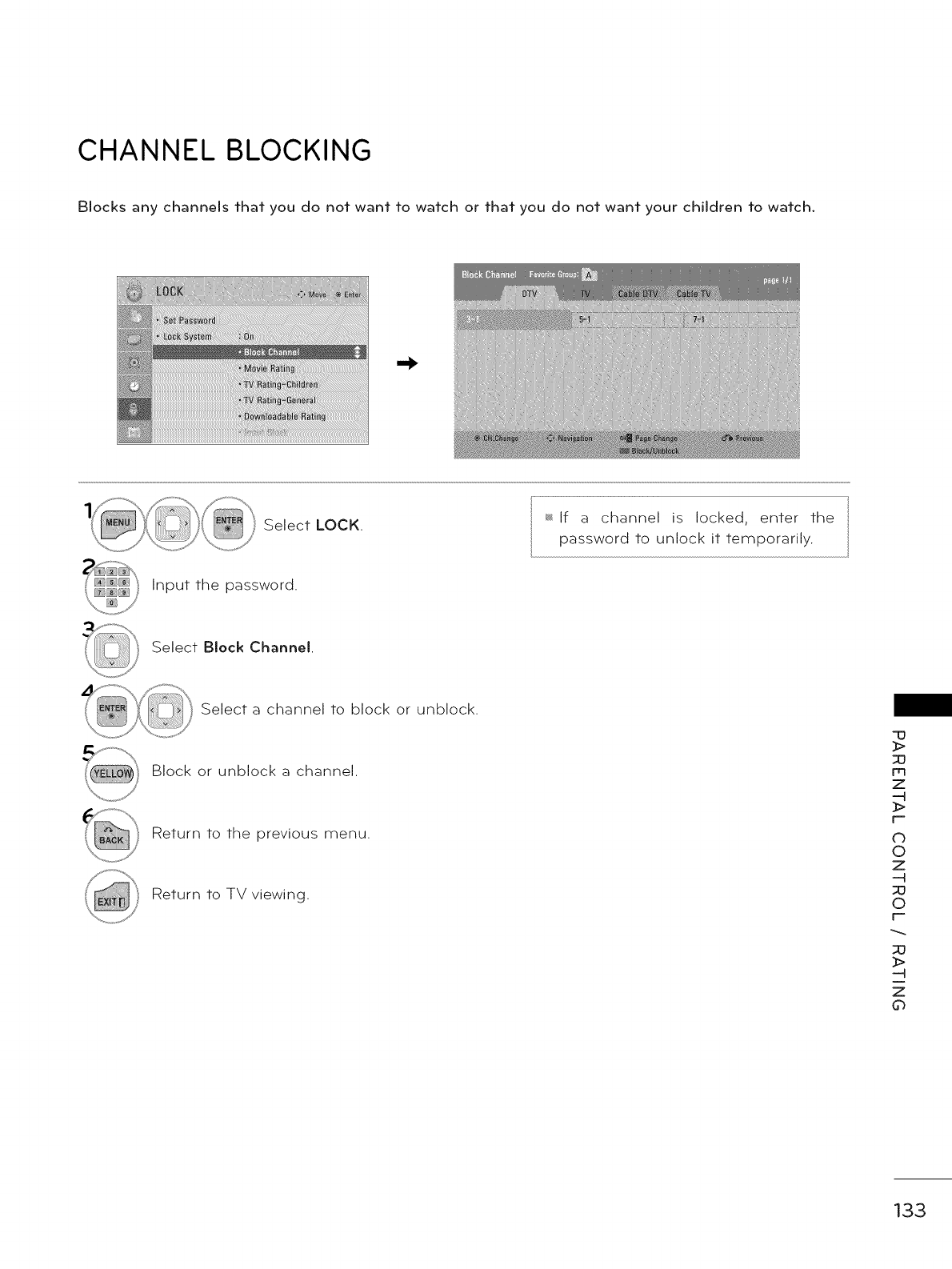

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

Select LOCK.

Input the password.

Select Block Channel.

If a channel is locked, enter the

password to unlock it temporarily.

Select a channel to block or unblock.

Block or unblock a channel.

Return to the previous menu.

Return to TV viewing.

133

PARENTAL CONTROL RATINGS

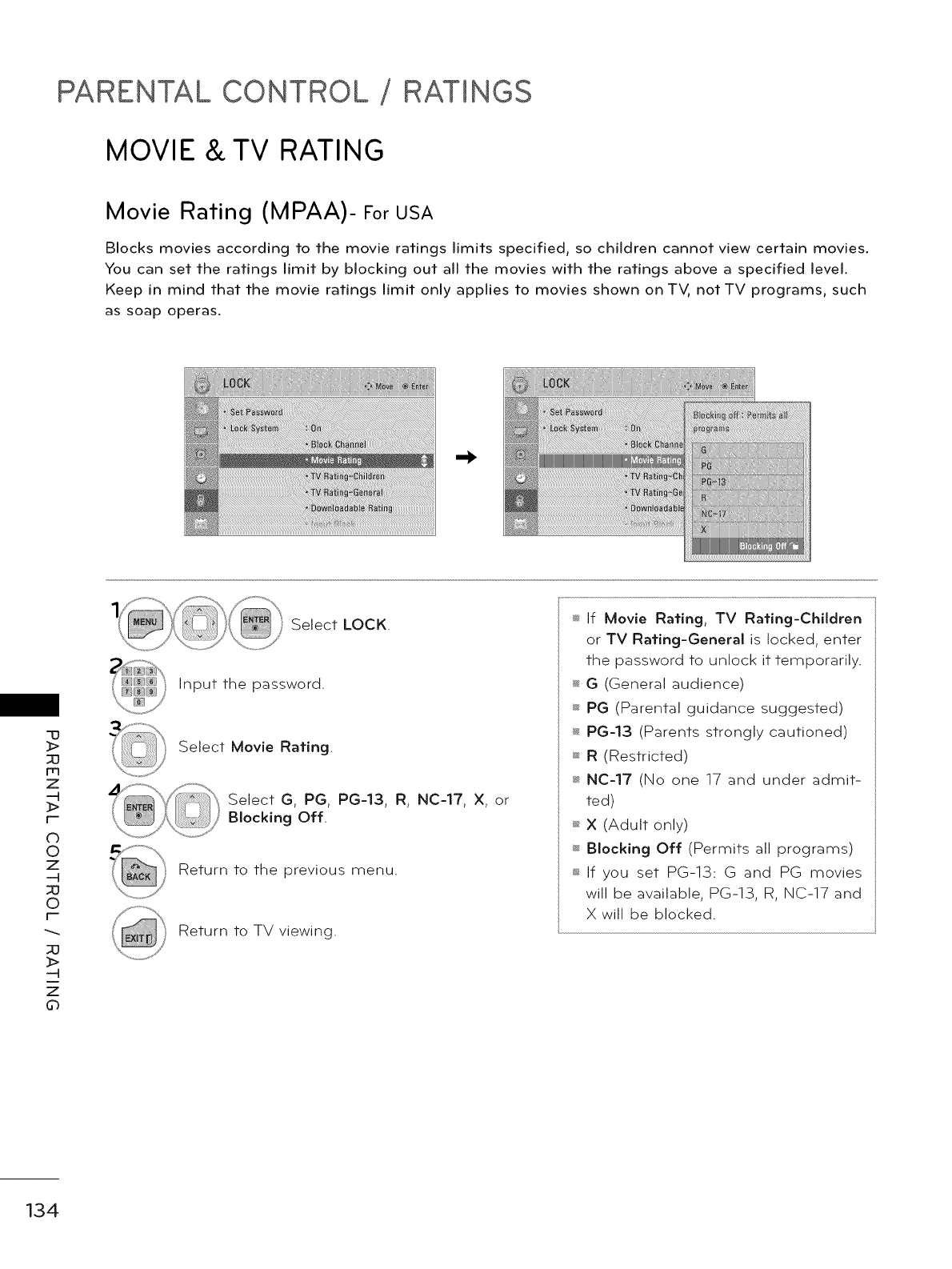

MOVIE & TV RATING

Movie Rating (MPAA)- For USA

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies.

You can set the ratings limit by blocking out all the movies with the ratings above a specified level.

Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such

as soap operas.

-o

-q

-.-I

r-"

-.-I

Select LOCK.

Input the password.

Select Movie Rating.

Select G, PG, PG-13, R, NC-17, X, or

Blocking Off.

Return to the previous menu.

Return to TV viewing.

_ If Movie Rating, TV Rating-Children

or TV Rating-General is locked, enter

the password to unlock it temporarily.

_ G (General audience)

_ PG (Parental guidance suggested)

_ PG-13 (Parents strongly cautioned)

_ R (Restricted)

_ NC-17 (No one 17 and under admit-

ted)

_ X (Adult only)

_ Blocking Off (Permits all programs)

_' If you set PG-13: G and PG movies

will be available, PG-13, R, NC-17 and

X will be blocked.

134

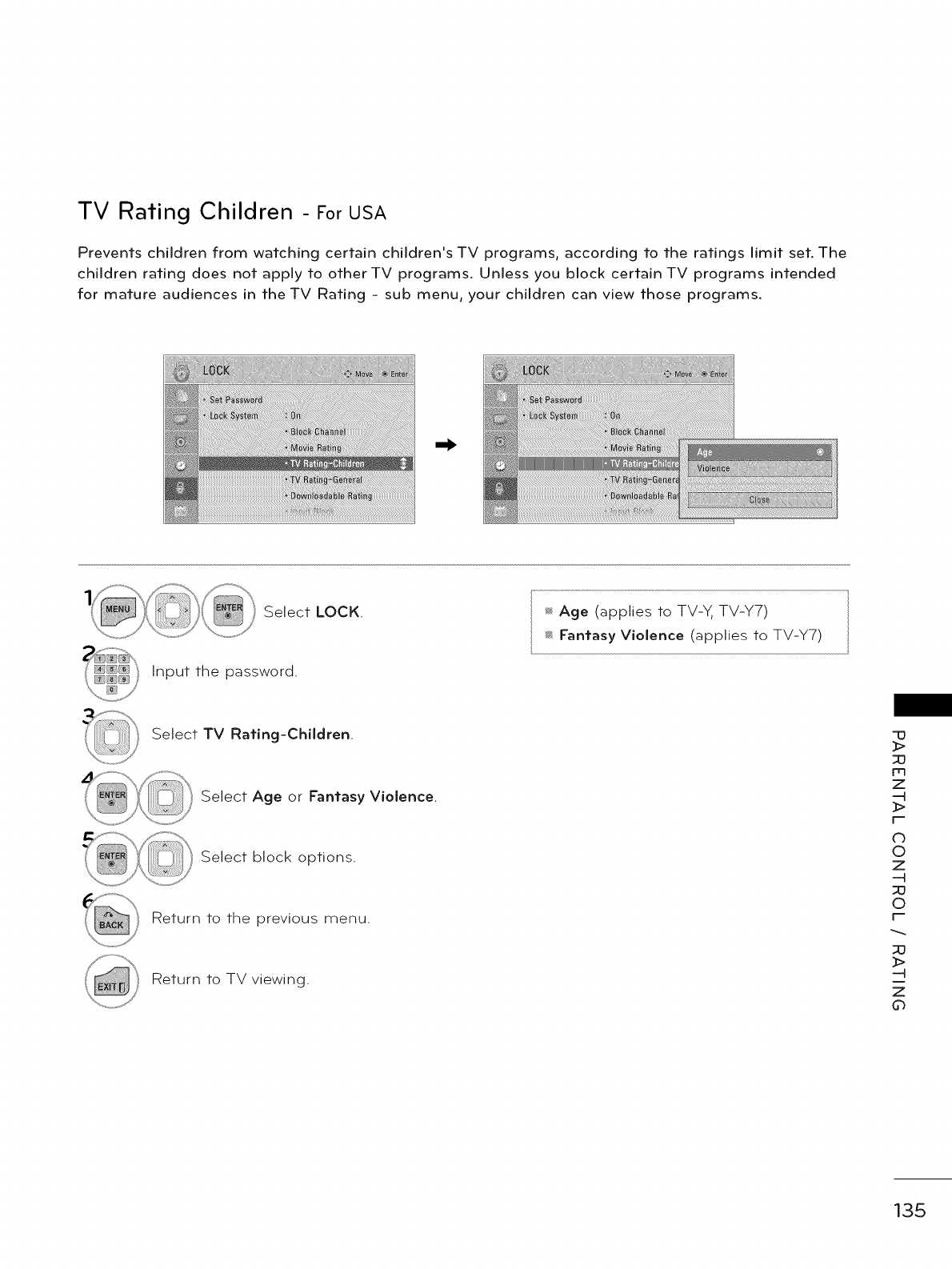

TV Rating Children -For USA

Prevents children from watching certain children's TV programs, according to the ratings limit set. The

children rating does not apply to other TV programs. Unless you block certain TV programs intended

for mature audiences in the TV Rating - sub menu, your children can view those programs.

Select LOCK.

Input the password.

_ Age (applies to TV-Y, TV-YT)

s_Fantasy Violence (applies to TV-Y7)

Select TV Rating-Children.

Select Age or Fantasy Violence.

Select block options.

Return to the previous menu.

Return to TV viewing.

"13

-4

135

PARENTAL CONTROL RATINGS

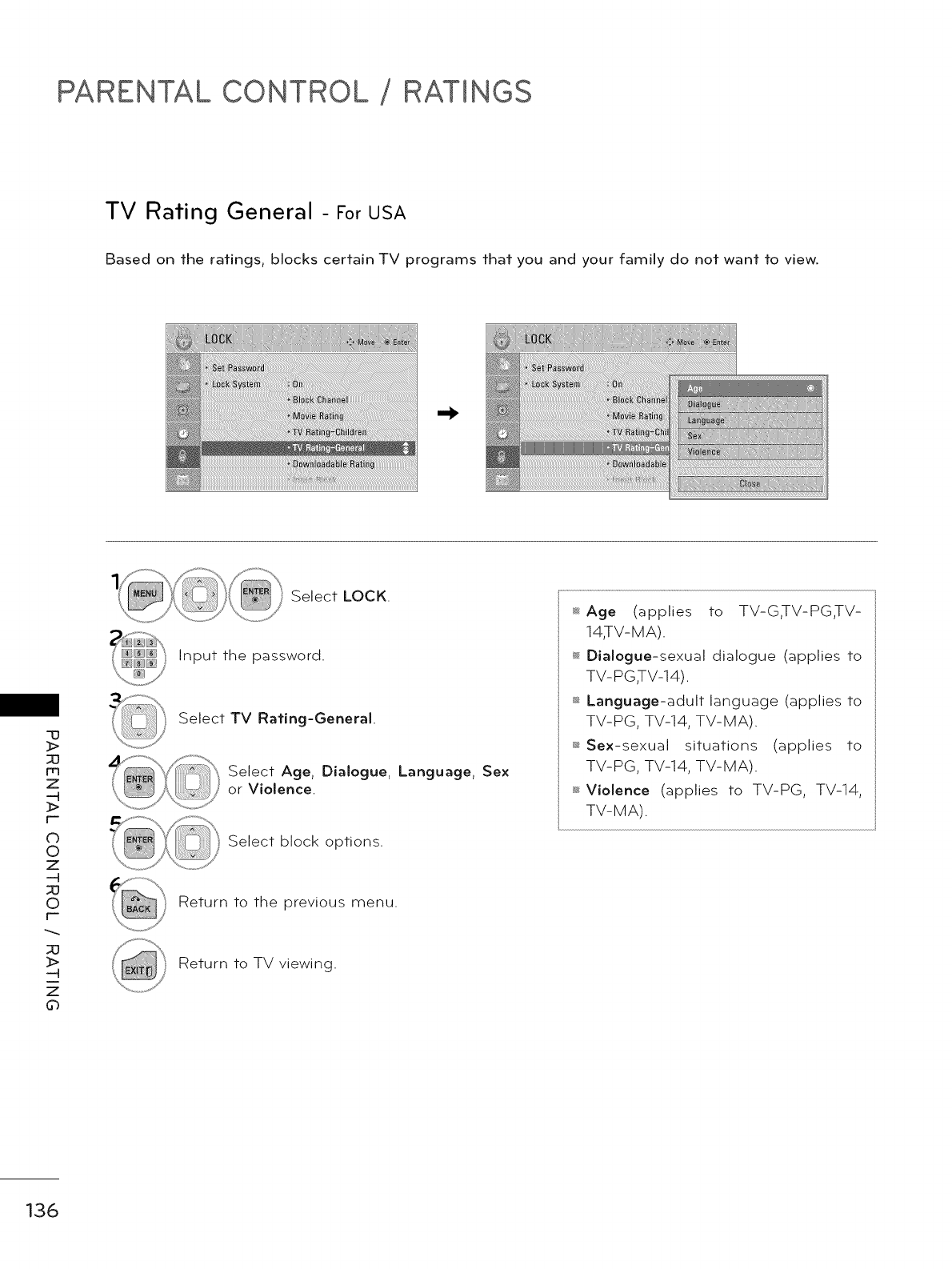

TV Rating General - For USA

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

-D

-.-I

r-"

-.-I

Select LOCK.

Input the password.

Select TV Rating-General.

Select Age, Dialogue, Language, Sex

or Violence.

Select block options.

Return to the previous menu.

Return to TV viewing.

_ Age (applies to TV-G,-I-V-PG,-I-V-

14,TV-MA).

_ Dialogue-sexual dialogue (applies to

TV- PG,-I-V-14).

_' Language-adult language (applies to

TV-PG, TV-14, TV-MA).

s_Sex-sexual situations (applies to

TV-PG, TV-14, TV-MA).

_ Violence (applies to TV-PG, TV-14,

TV-MA).

136

TV Rating English - For CANADA

Selecting Canadian English rating system.

Select LOCK.

Input the password.

Select TV Rating-English.

Select E, C, C8+, G, PG, 14% 18% or

Blocking Off.

Return to the previous menu.

Return to TV viewing.

_ If TV Rating-English or TV Rating-

French is locked, enter the password

to unlocked it temporarily.

_ E (Exempt)

_ C (Children)

C8+ (Children eight years and older)

_ G (General programming, suitable

for all audiences)

_ PG (Parental Guidance)

14+ (Viewers 14 years and older)

_ 18+ (Adult programming)

_4Blocking Off (Permits all programs)

"13

-4

137

PARENTAL CONTROL RATINGS

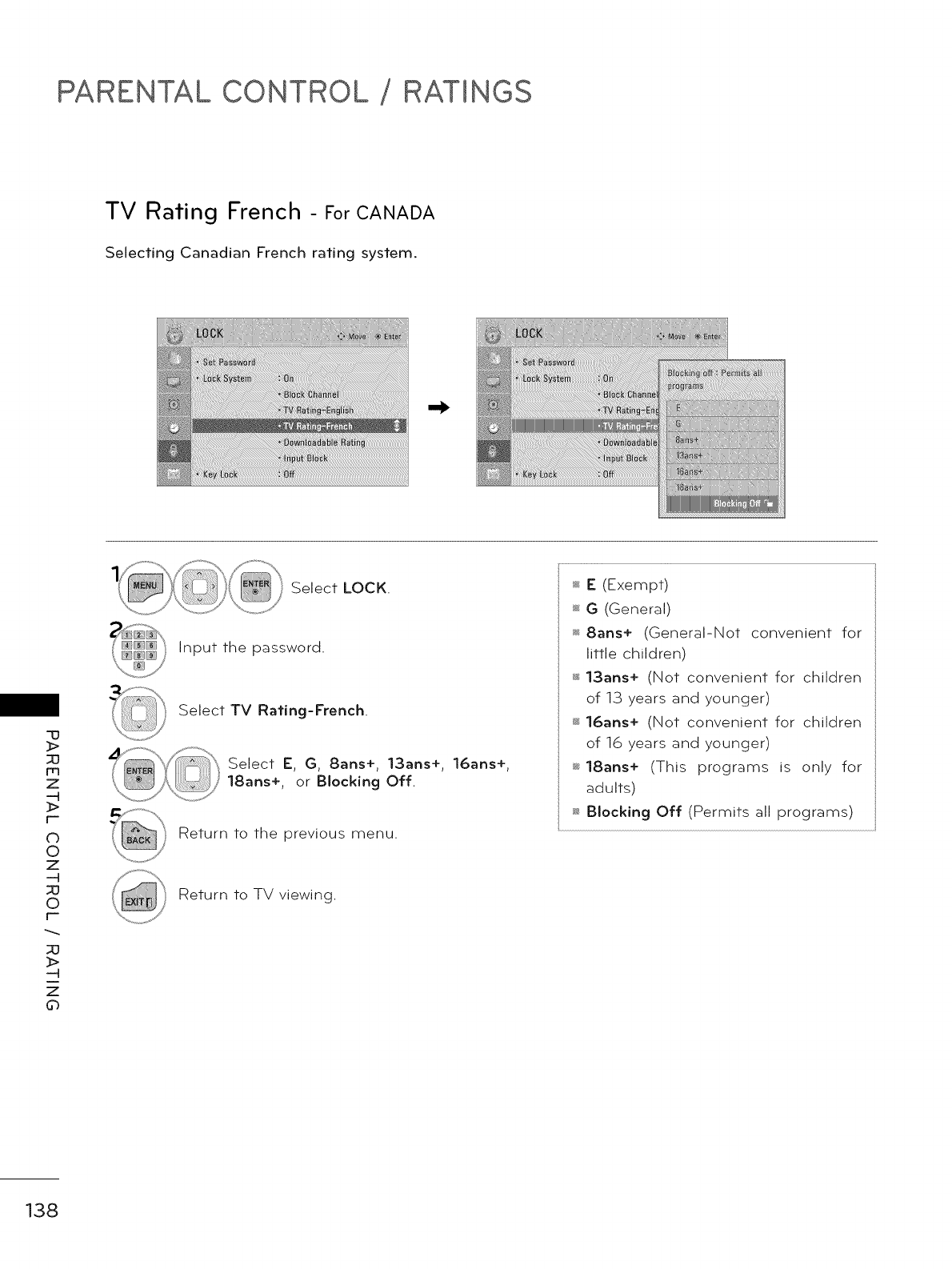

TV Rating French -For CANADA

Selecting Canadian French rating system.

--4

-4

r-"

-4

Select LOCK.

Input the password.

Select TV Rating-French.

Select E, G, 8ans+, 13ans+, 16ans+,

18ans+ or Blocking Off

Return to the grevious menu.

Return to TV viewing.

_ E (Exempt)

_ G (General)

_ 8ans+ (General-Not convenient for

little children)

_ 13ans+ (Not convenient for children

of 13 years and younger)

_s,16ans+ (Not convenient for children

of 16 years and younger)

18ans+ (This programs is only for

adults)

_ Blocking Off (Permits all programs)

138

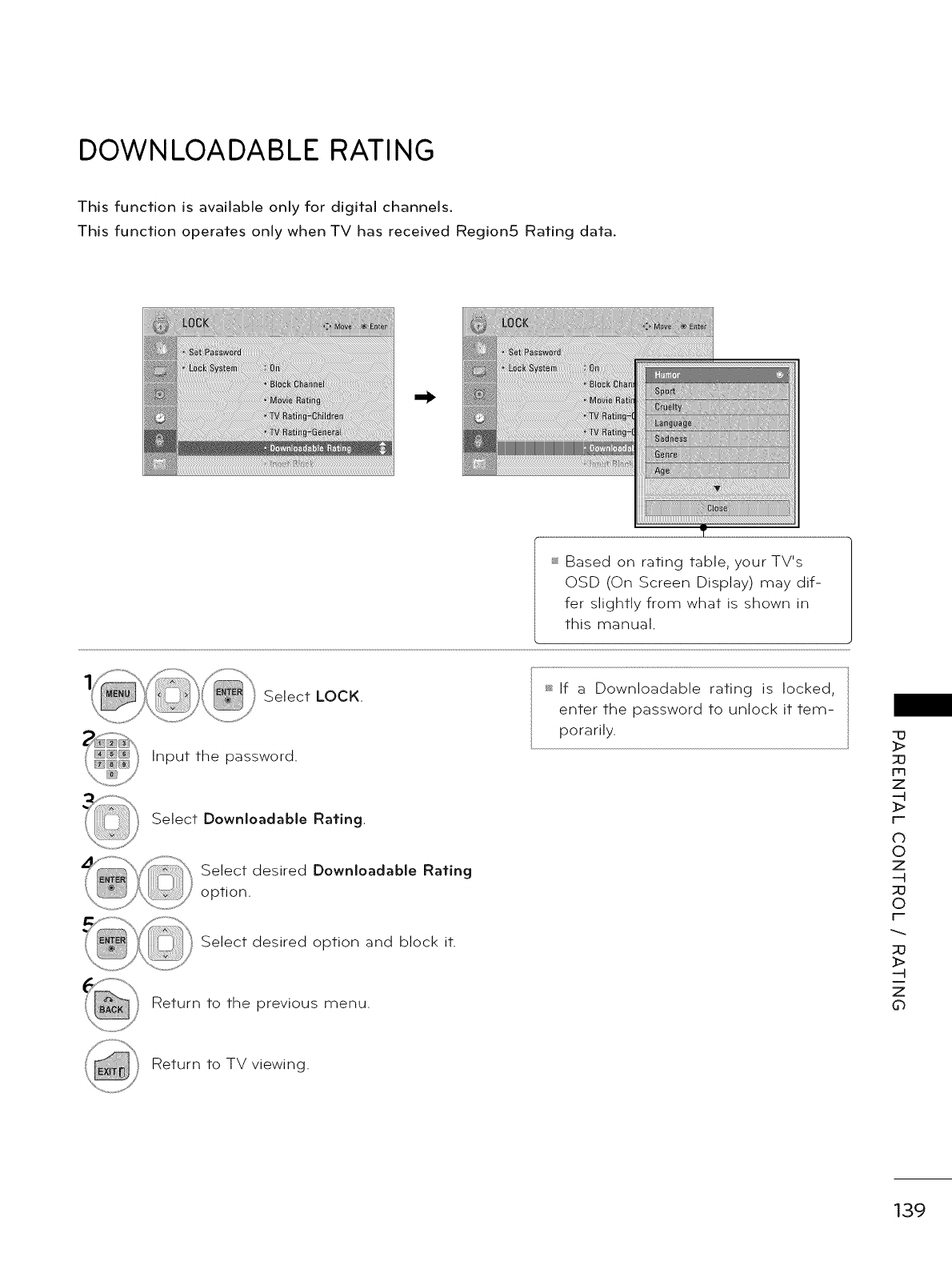

DOWNLOADABLE RATING

This function is available only for digital channels.

This function operates only when TV has received Region5 Rating data.

_ Based on rating table, your TV's

OSD (On Screen Display) may dif-

fer slightly from what is shown in

this manual.

Select LOCK.

Input the password.

Select Downloadable Rating.

Select desired Downloadable Rating

option.

Select desired option and block it.

Return to the previous menu.

_ If a Downloadable rating is locked,

enter the password to unlock it tem-

porarily. "lJ

-H

Return to TV viewing.

139

PARENTAL CONTROL RATINGS

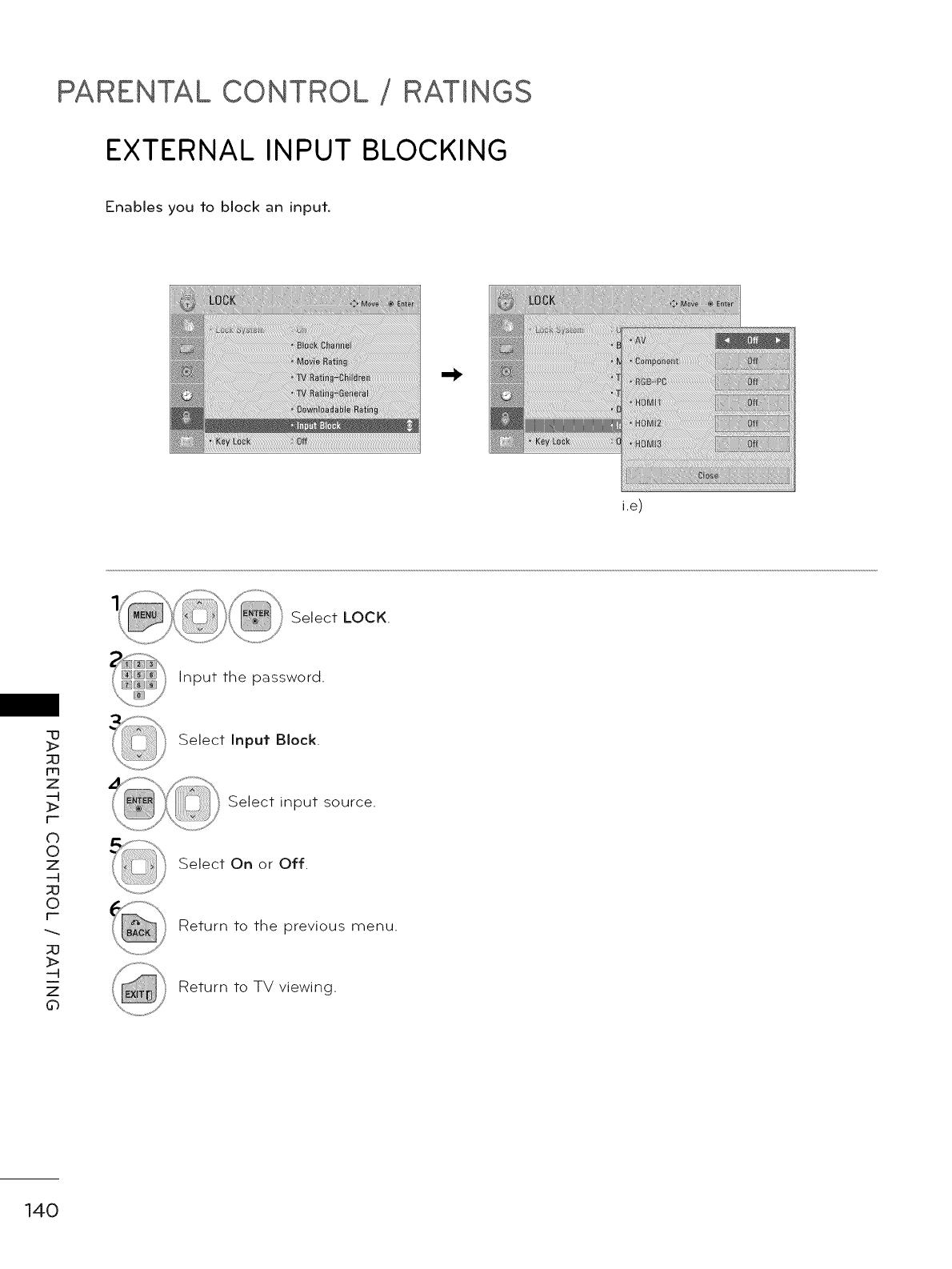

EXTERNAL INPUT BLOCKING

Enables you to block an input.

-u

-q

-.-I

r--

-.-I

Select LOCK.

s_/_/NN/ Input the password.

',,.<![/.,,,,x

Select Input Block.

Select input source.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

140

i.e)

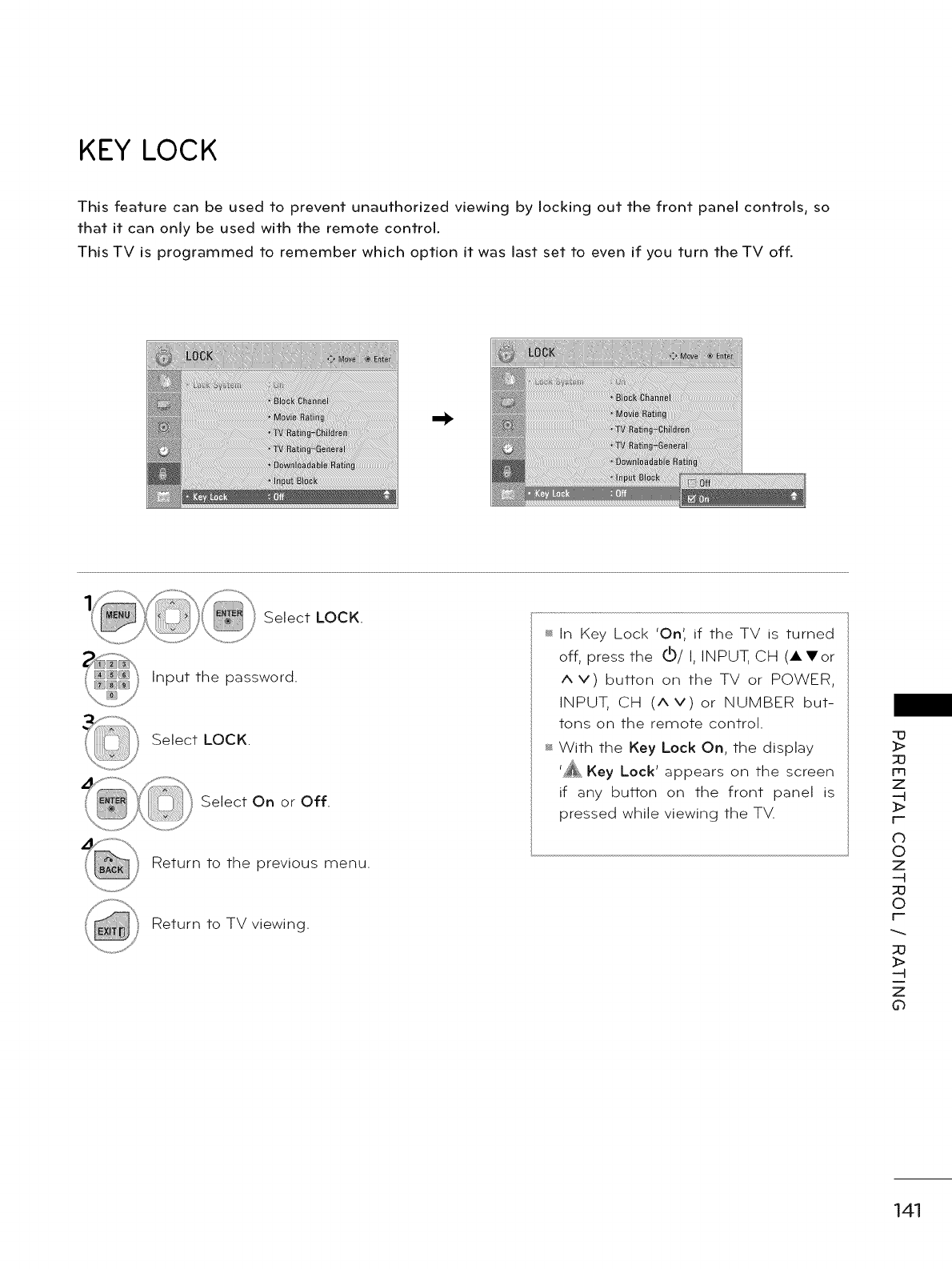

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so

that it can only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select LOCK.

Input the password.

Select LOCK.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

In Key Lock 'On', if the TV is turned

off, press the (_)/ I, INPUT, CH (AVor

A V) button on the TV or POWER,

INPUT, CH (AV)or NUMBER but-

tons on the remote control.

_ With the Key Lock On, the display

'_ Key Lock' appears on the screen

if any bulCon on the front panel is

pressed while viewing the TV.

141

APPENDIX

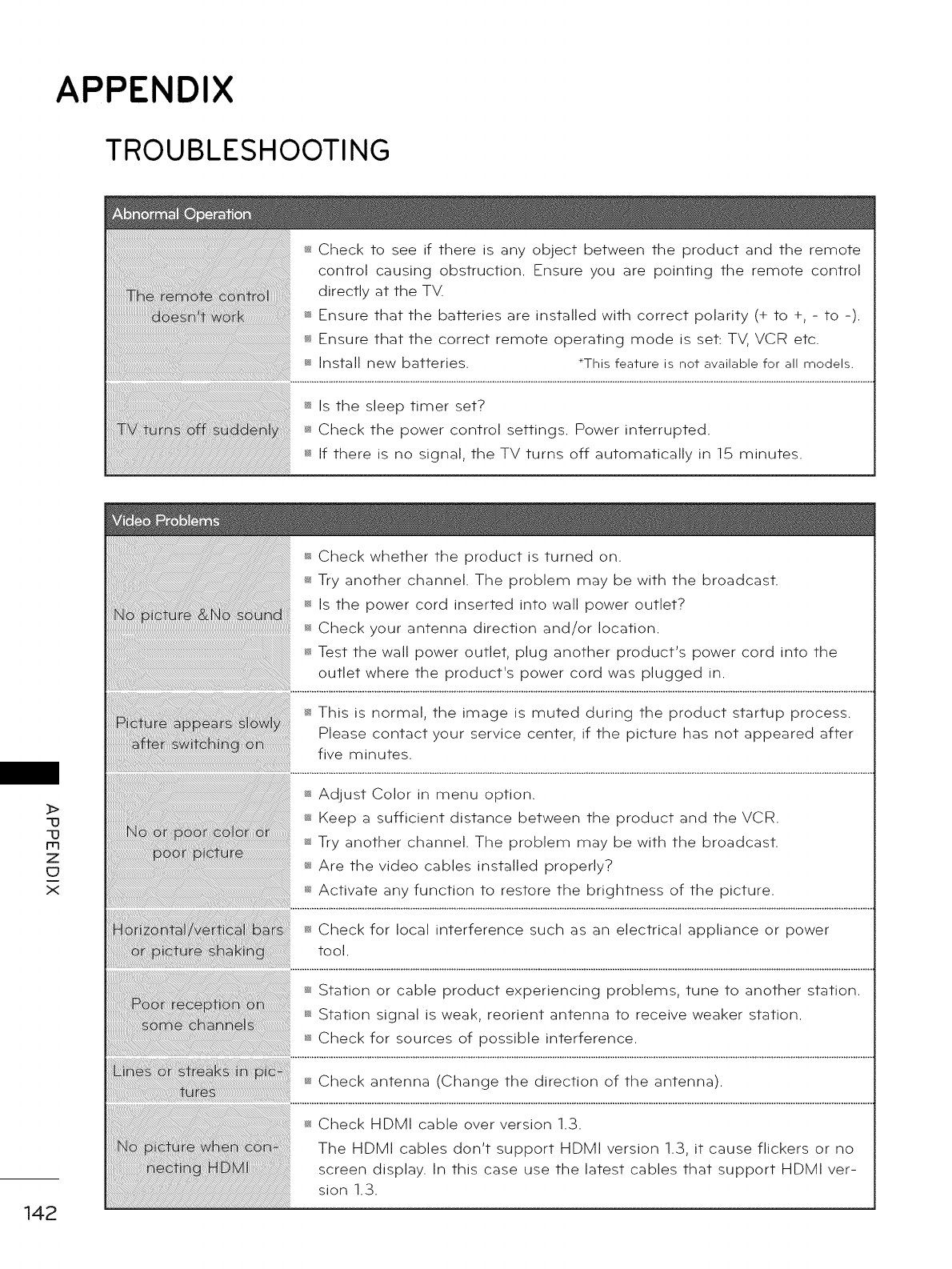

TROUBLESHOOTING

_ Is the sleep timer set?

s_Check the power control settings. Power interrupted.

If there is no signal, the TV turns off automatically in 15 minutes.

-o

142

Check whether the product is turned on.

Try another channel. The problem may be with the broadcast.

Is the power cord inserted into wall power outlet?

_ Check your antenna direction and/or location.

_ Test the wall power outlet, plug another product's power cord into the

outlet where the product's power cord was plugged in.

This is normal, the image is muted during the product startup process.

Please contact your service center, if the picture has not appeared after

five minutes.

t*_.Check for local interference such as an electrical appliance or power

tool.

*t_Station or cable product experiencing problems, tune to another station.

Station signal is weak, reorient antenna to receive weaker station.

_ Check for sources of possible interference.

s_Check HDMI cable over version 1.3.

The HDMI cables don't support HDMI version 1.3, it cause flickers or no

screen display. In this case use the latest cables that support HDMI ver-

sion 1.3.

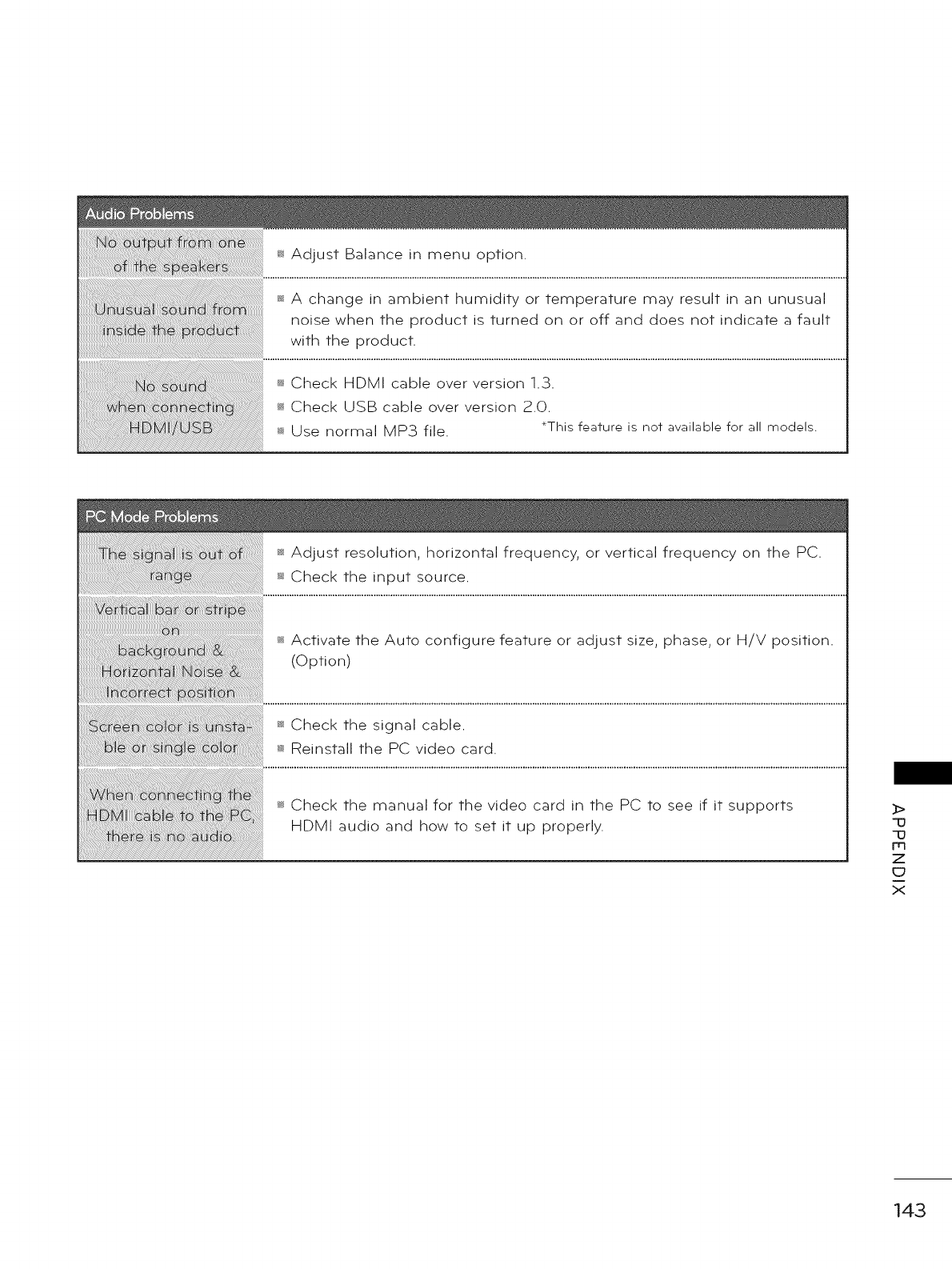

_;_A changeinambienthumidityortemperaturemayresultin anunusual

noisewhenthe productis turnedonor off anddoesnot indicatea fault

withthe product.

CheckHDMIcableoverversion1.3.

_CheckUSBcableoverversion2.0.

_ UsenormalMP3file. _Thisfeatureisnotavailableforallmodels.

_ActivatetheAutoconfigurefeatureoradjustsize,phase,or H/V position.

(Option)

_Checkthe signalcable.

_ Reinstallthe PCvideocard.

_Checkthe manualfor thevideocardinthe PCto seeif it supports

HDMIaudioand howto setit up properly. _>

"lJ

143

APPENDIX

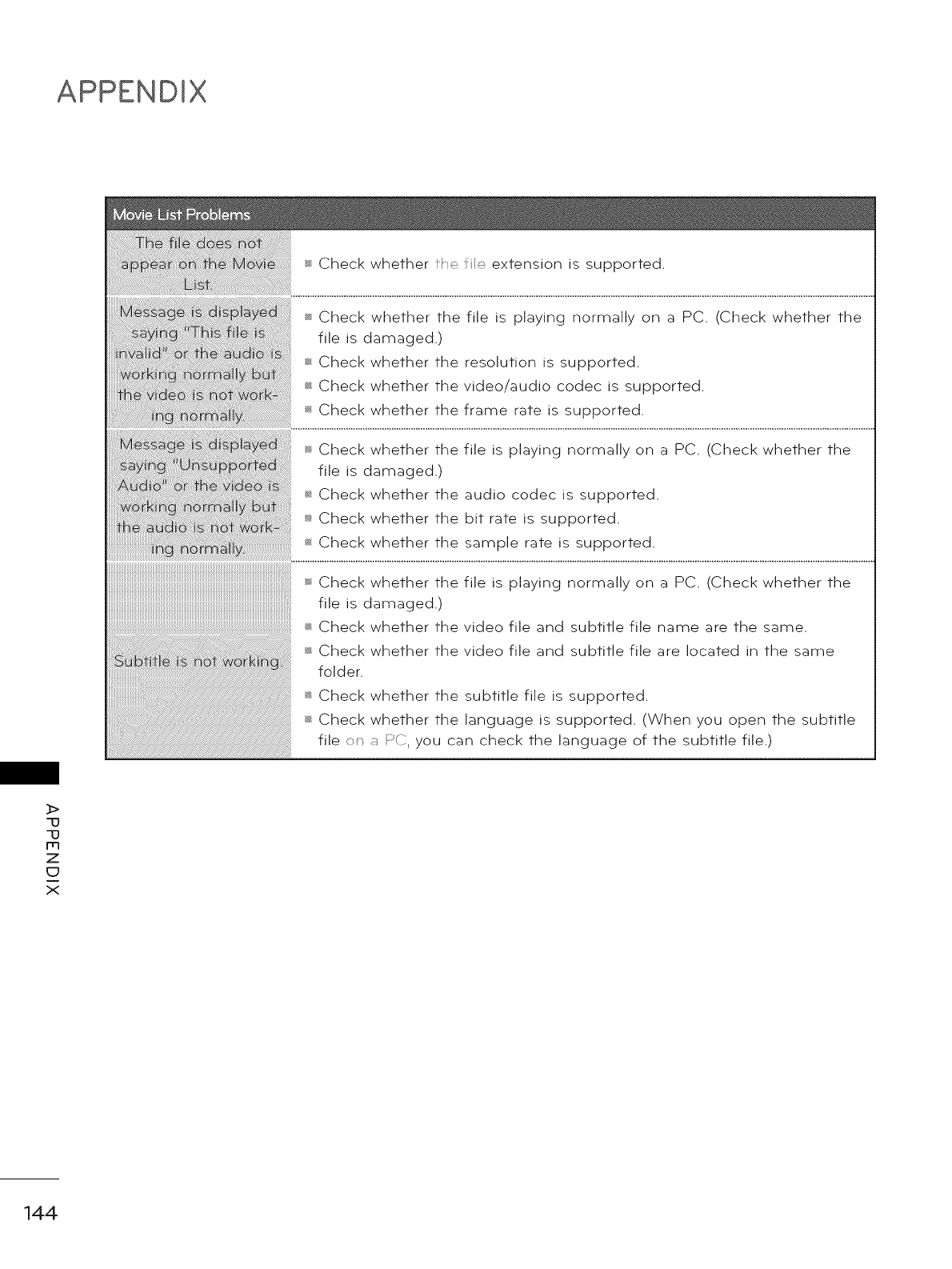

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the resolution is supported.

Check whether the video/audio codec is supported.

Check whether the frame rate is supported.

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the audio codec is supported.

Check whether the bit rate is supported.

Check whether the sample rate is supported.

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the video file and subtitle file name are the same.

Check whether the video file and subtitle file are located in the same

folder.

Check whether the subtitle file is supported.

Check whether the language is supported. (When you open the subtitle

file o/s ['C:, you can check the language of the subtitle file.)

144

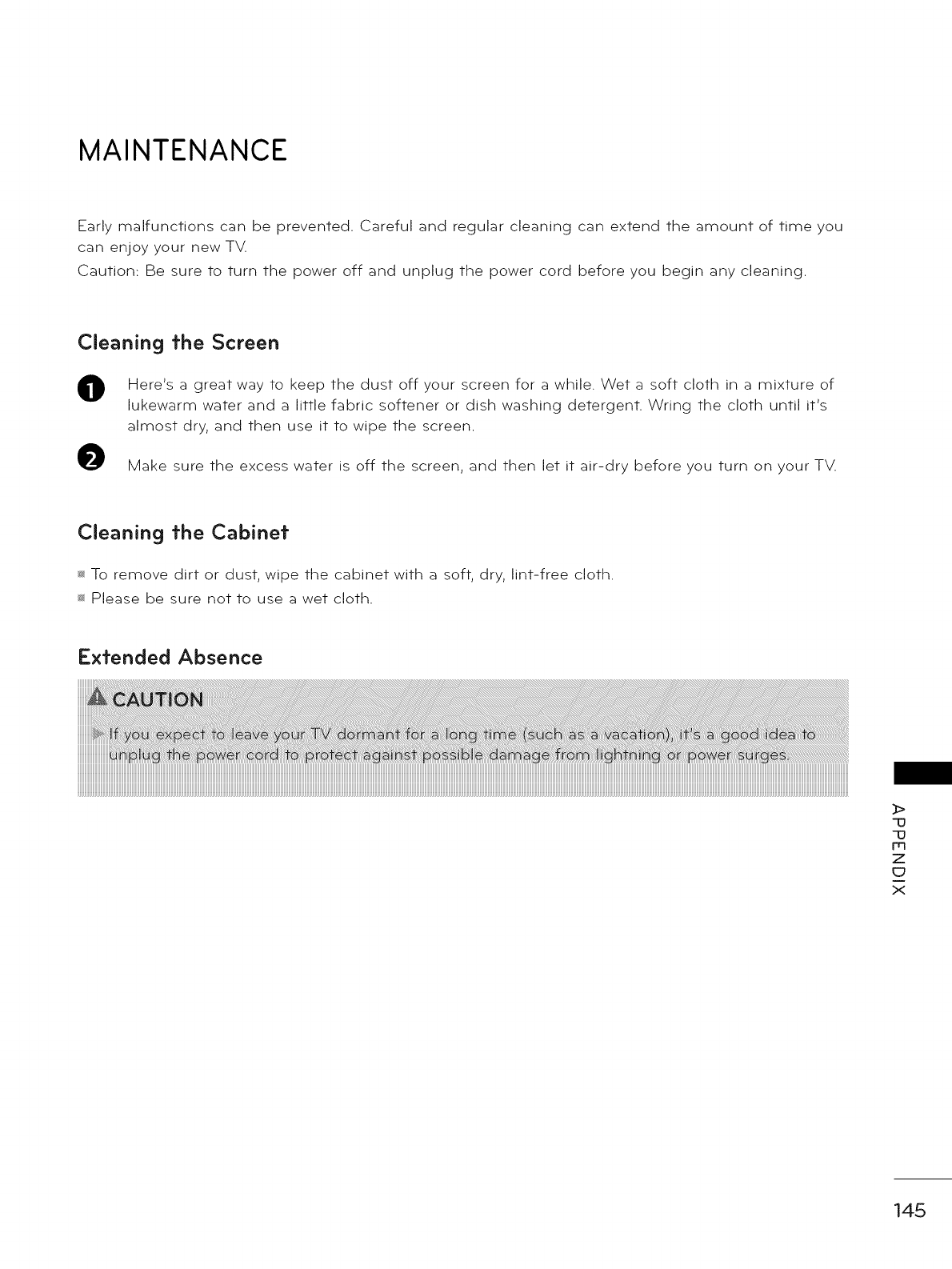

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you

can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of

lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's

almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

_ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

_ Please be sure not to use a wet cloth.

Extended Absence

145

APPENDIX

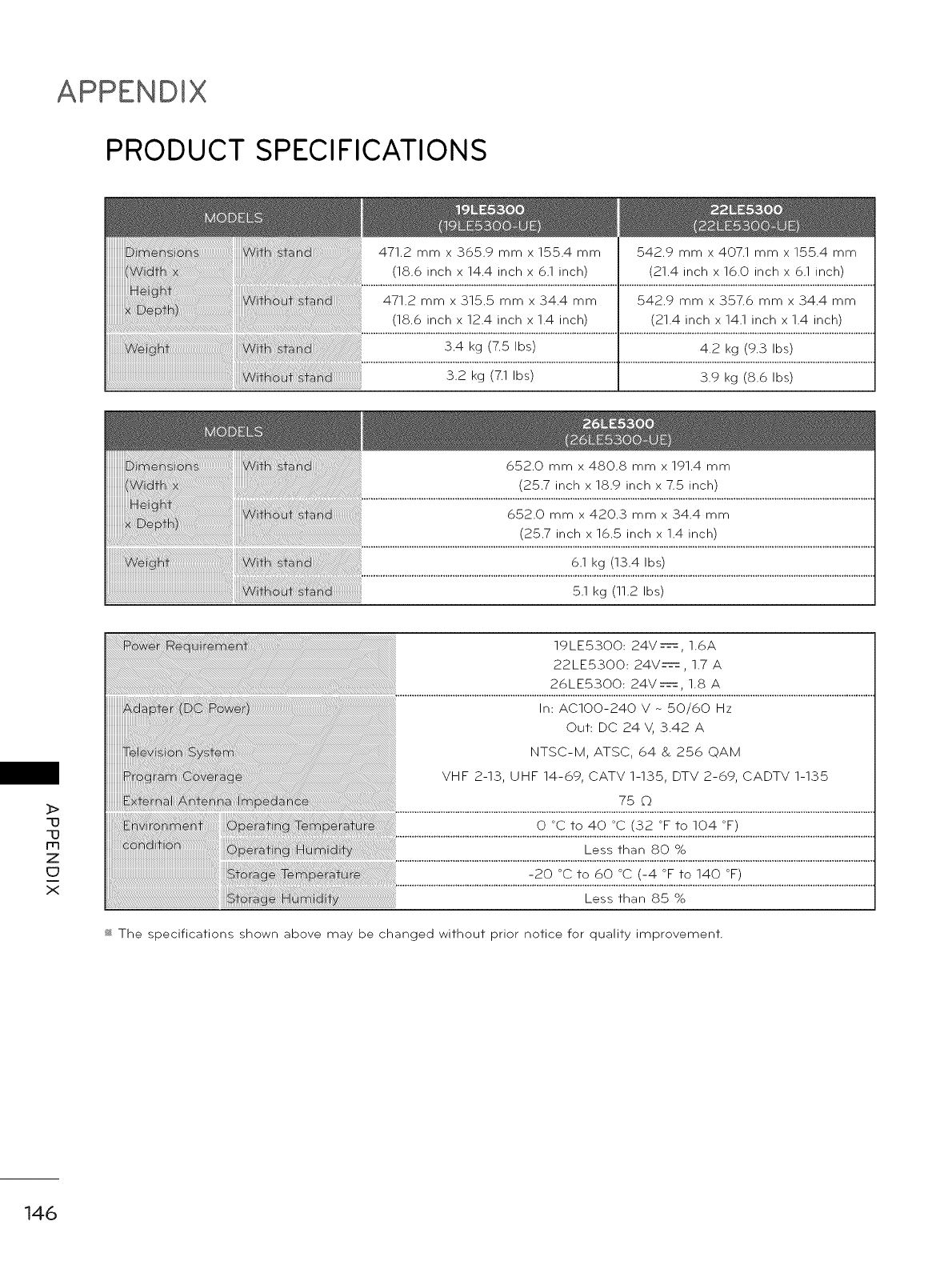

PRODUCT SPECIFICATIONS

52 kg (7,1 Ibs) 3,9 kg (8,6 Ibs)

6,1 kg (15.4 Ibs)

5,1 kg (11.2 Ibs)

-IS

19LE5300: 24V_-'_, 1.6A

22LE5300: 24V_-'_, 1.7 A

26LE5300: 24V_--_, 1.8 A

In: AC100-240 V N 50/60 Hz

Out: DC 24 V, 3.42 A

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

146

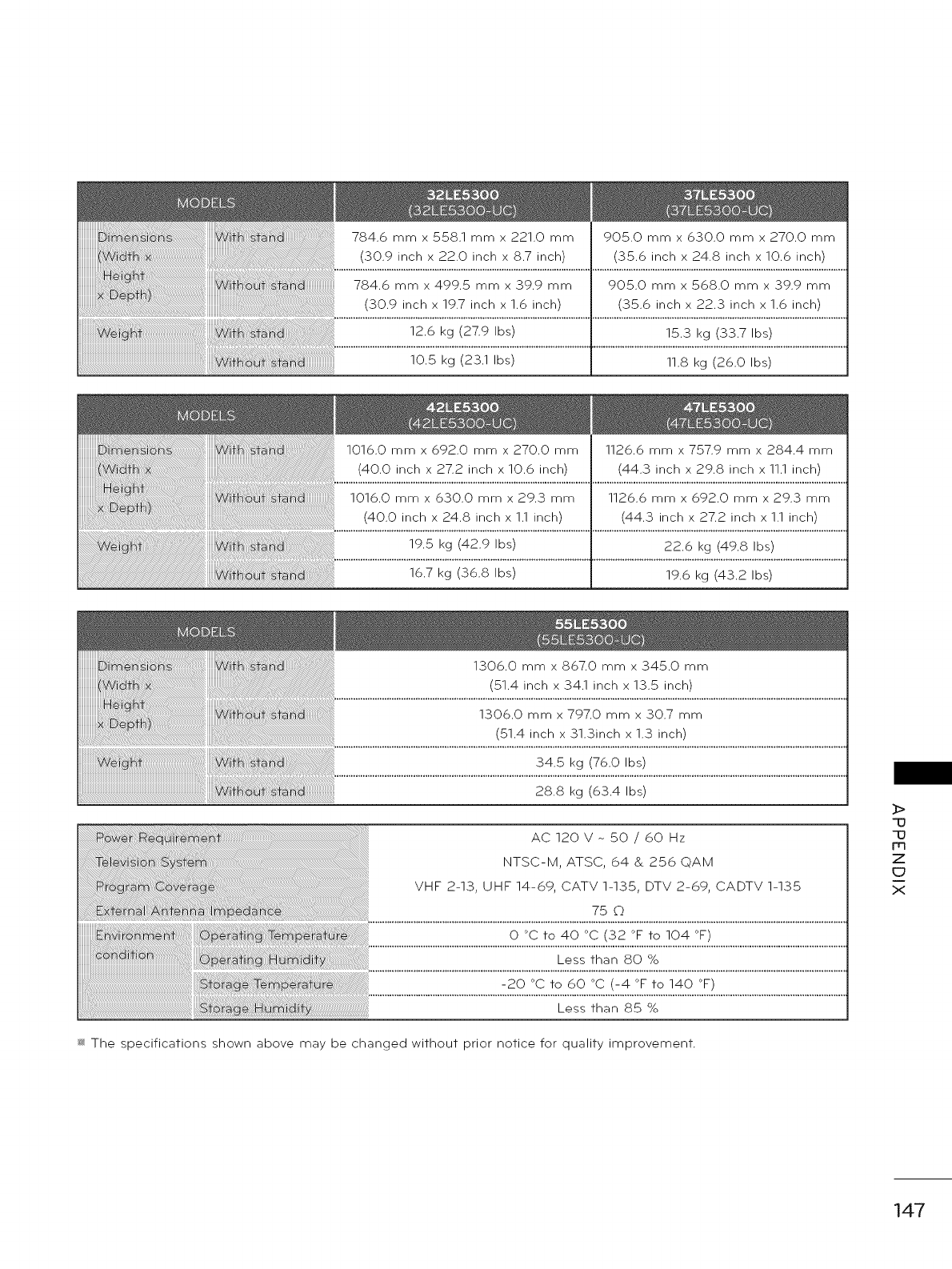

10,5 kg (23,1 Ibs) 11,8 kg (26,0 Ibs)

1016.0 mm x 630.0 mm x 29,3 mm

(40.0 inch x 24.8 inch x 1.1 inch)

16,7 kg (36,8 Ibs)

1126,6 mm x 692,0 mm x 29,3 mm

(44,3 inch x 27,2 inch x 1,1 inch)

19.6 kg (43,2 Ibs)

28,8 kg (63,4 Ibs)

AC120VN 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

147

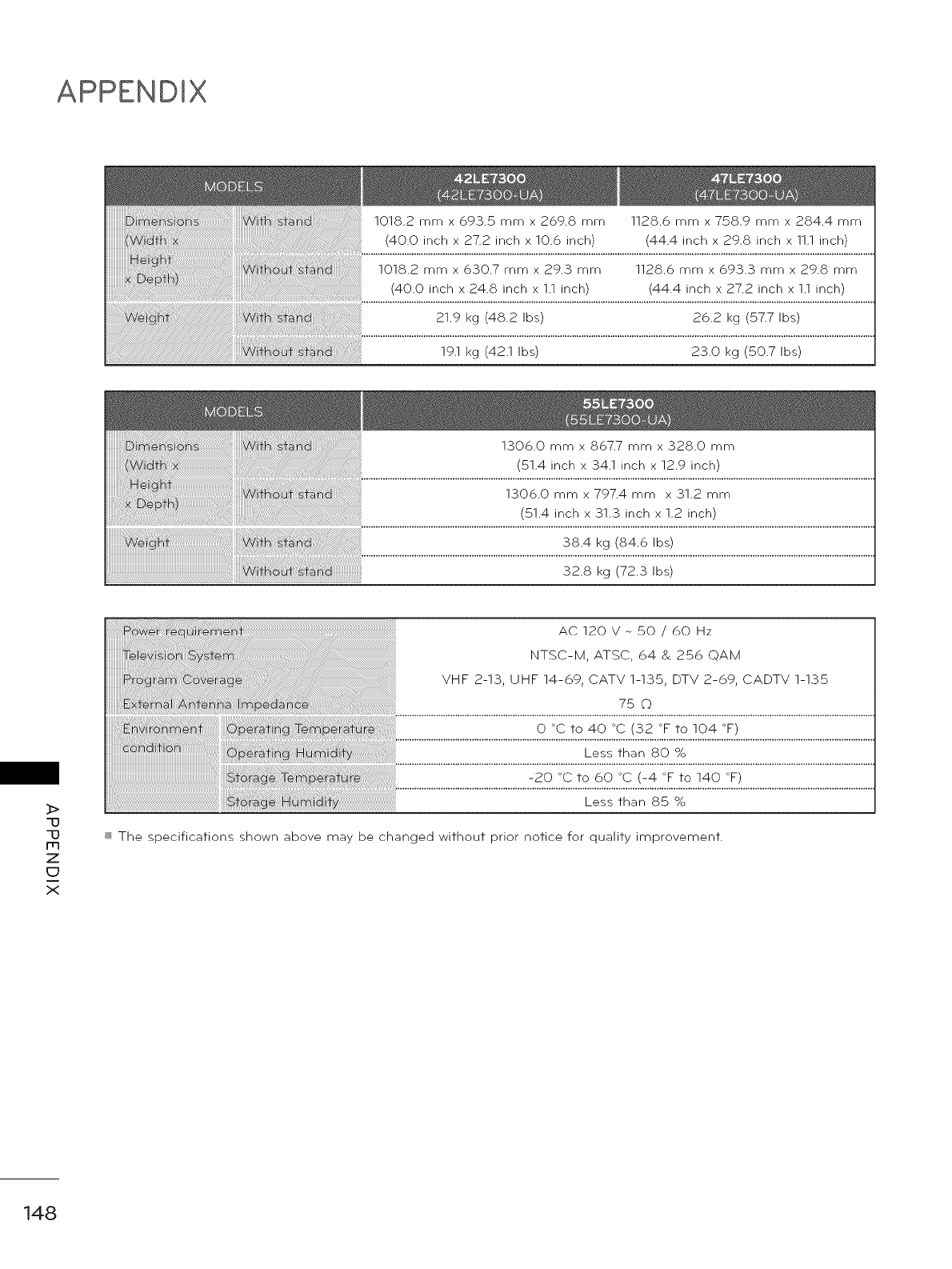

APPENDIX

21,9 kg (48,2 Ibs)

19,1 kg (42,1 Ibs)

26,2 kg (57,7 Ibs)

25,0 kg (50,7 Ibs)

52,8 kg (72,5 Ibs)

AC120 V N 50 /_O Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

-IS

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

148

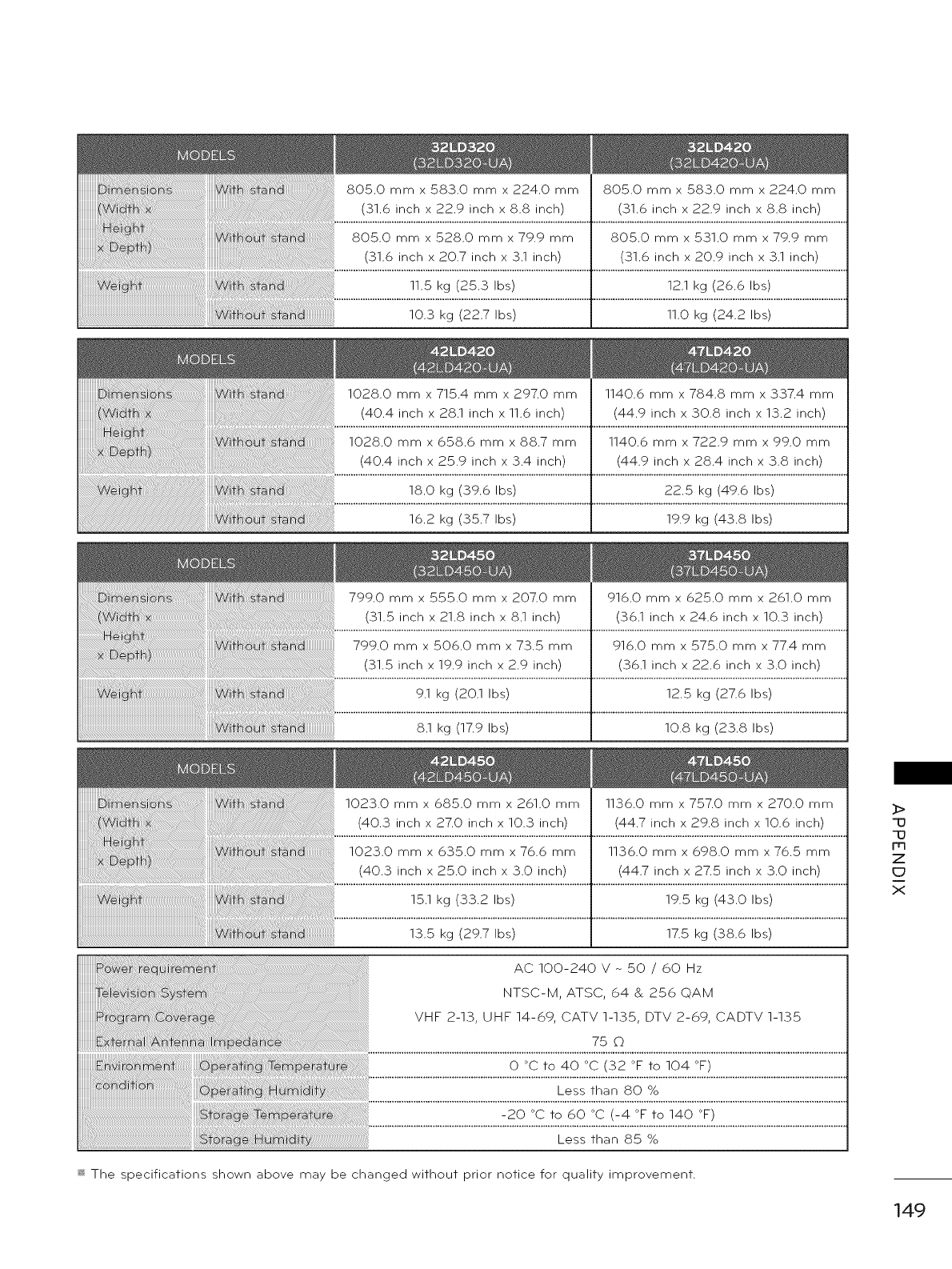

10,3 kg (22,7 Ibs) 11,0 kg (24,2 Ibs)

1028,0 mm x 658,6 mm x 88,7 mm

(40.4 inch x 25,9 inch x 3,4 inch)

16,2 kg (35,7 Ibs)

1140,6 mm x 722,9 mm x 99,0 mm

(44,9 inch x 28,4 inch x 3,8 inch)

19,9 kg (43,8 Ibs)

8,1 kg (17,9 Ibs) 10,8 kg (23,8 Ibs)

13,5 kg (29,7 Ibs) 17,5 kg (38,6 Ibs)

AC 100-240 V _ 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

0 °C to 40 °C (32 °F to 104 °F)

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

149

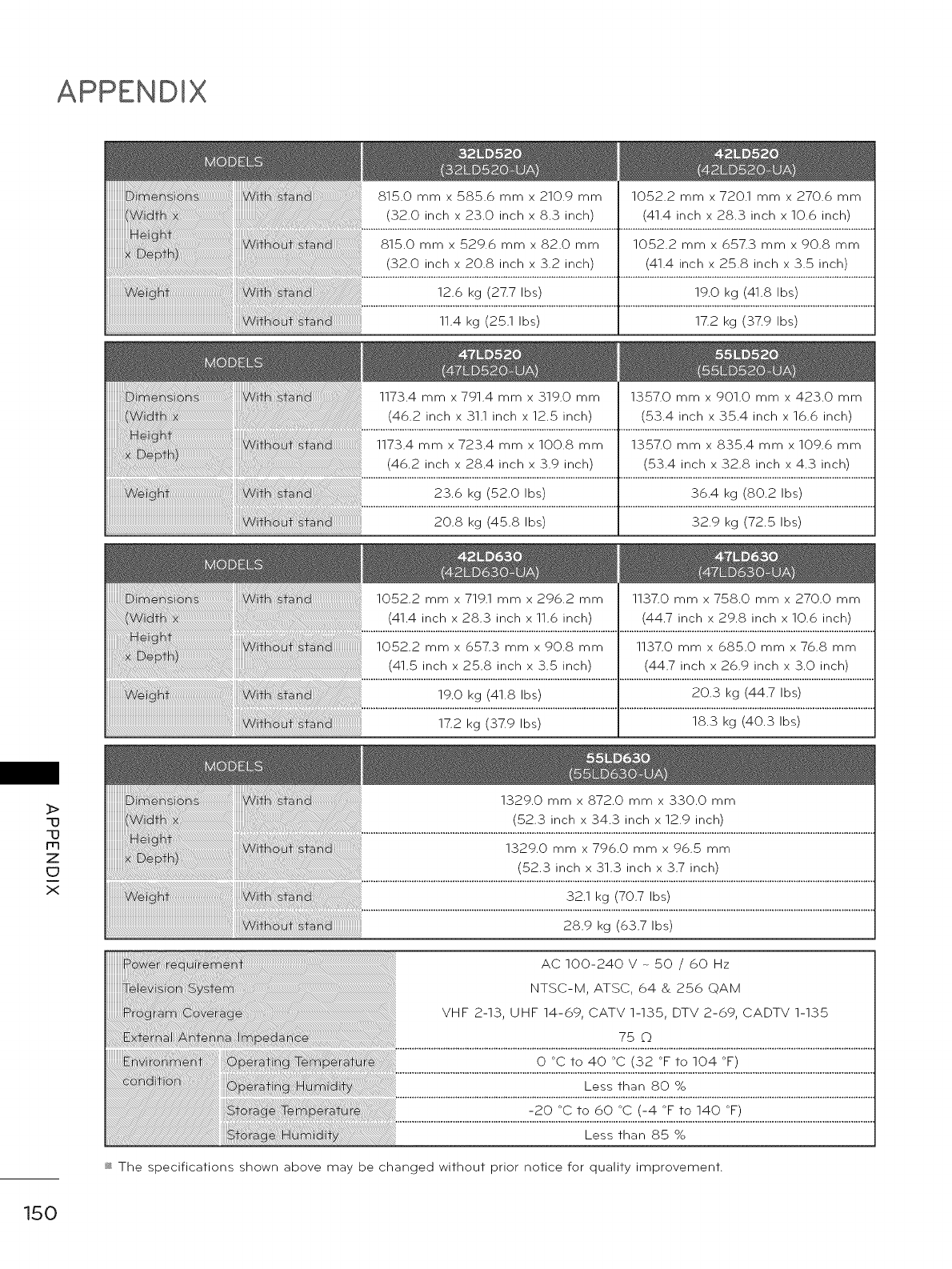

APPENDIX

11,4 kg (25,1 Ibs) 17,2 kg (57,9 Ibs)

20,8 kg (45,8 Ibs) 52,9 kg (72,5 Ibs)

17,2 kg (57,9 Ibs) 18,5 kg (40,5 Ibs)

-U

28,9 kg (65,7 Ibs)

AC 100-240 V N 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

0 °C to 40 °C (32 °F to 104 °F)

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

150

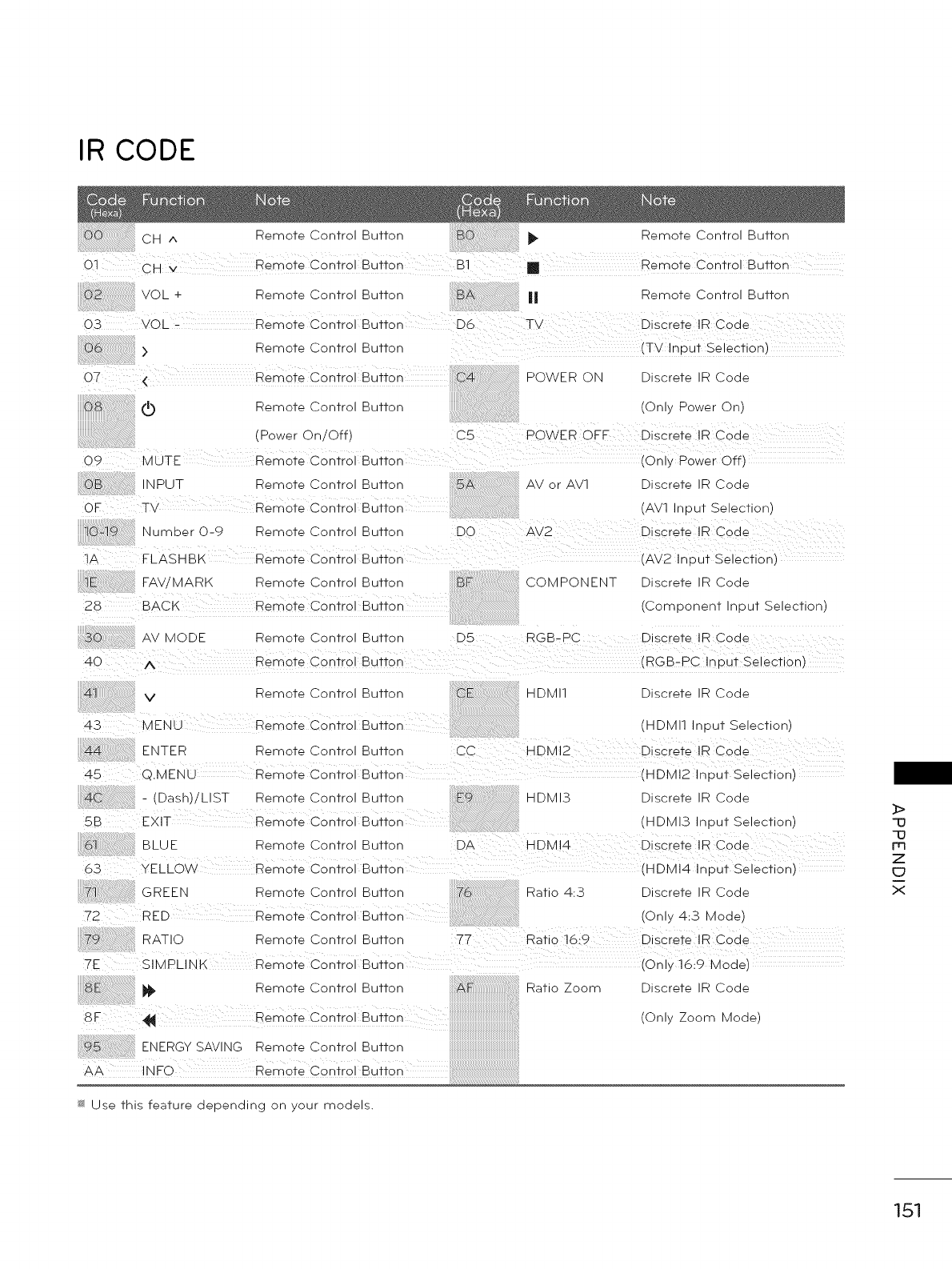

IR CODE

CH A Remote Control Button 11_ Remote Control Button

VOL + Remote Control Button

> Remote Control Button

i! i!i ! ! !i i!ii!!i!!i i! i! i! i! i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!i!ii!ii!ii!ii!ii!ii!ii!ii!iiiiiiiiiiiiiiiiiiiii!i!i i n Remote Control Button

BINPUT Remote Control Button AV or AVI

OF TV Remote c0ntFol But¢0n

Discrete IR Code

(AV1 Input Selection)

FAV!MARK Remote Control Button COMPONENT Discrete IR Code

28 BACK Remote Control Button (Component Input Selection)

AV MODE Remote Control Button D5 RGB.PC Discrete IR Code

V Remote Control Button HDMII Discrete IR Code

43 (HDMI1 Input Selection)

HDMI3 Discrete IR Code

(HDMI3 Input Selection)

GREEN Remote Control Button Ratio 4:3 Discrete IR Code

Remote control ButfOn (Only 4:3 Mode)

RATIO Remote Control Button ¥7 Ratio 16:9 Discrete IR Code

-U

Ratio Zoom Discrete IR Code

(Only Zoom Mode)

_ Use this feature depending on your models.

151

APPENDIX

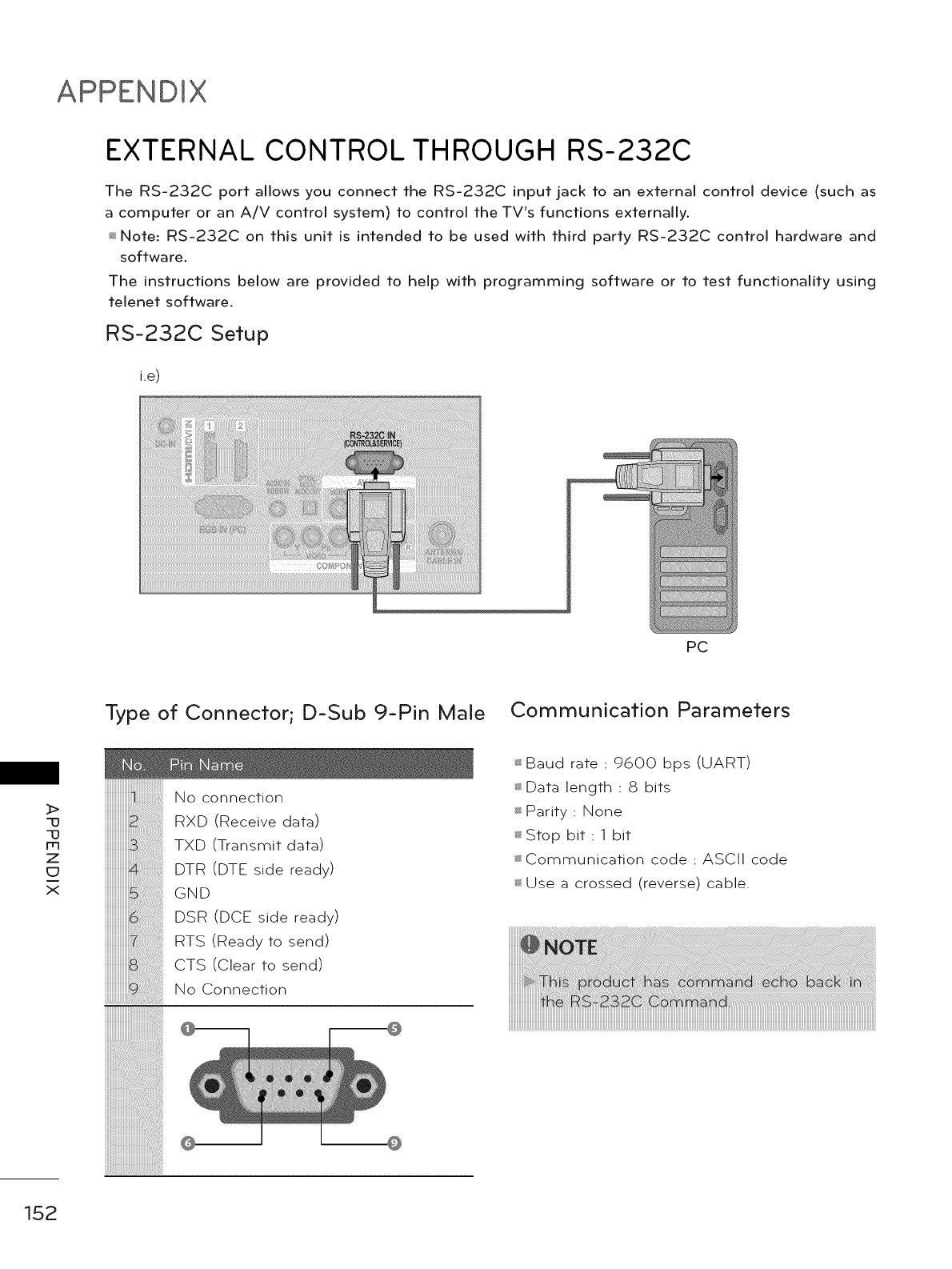

EXTERNAL CONTROL THROUGH RS-232C

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as

a computer or an A/V control system) to control the TV's functions externally.

_ Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and

software.

The instructions below are provided to help with programming software or to test functionality using

telenet software.

RS-232C Setup

i.e)

Type of Connector; D-Sub 9-Pin Male Communication Parameters

No connection

RXD (Receive data)

TXD (Transmit data)

DTR (DTE side ready)

GND

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No Connection

_ Baud rate: 9600 bps (UART)

_ Data length : 8 bits

_ Parity : None

_ Stop bit : 1 bit

_ Communication code :ASCII code

_ Use a crossed (reverse) cable.

152

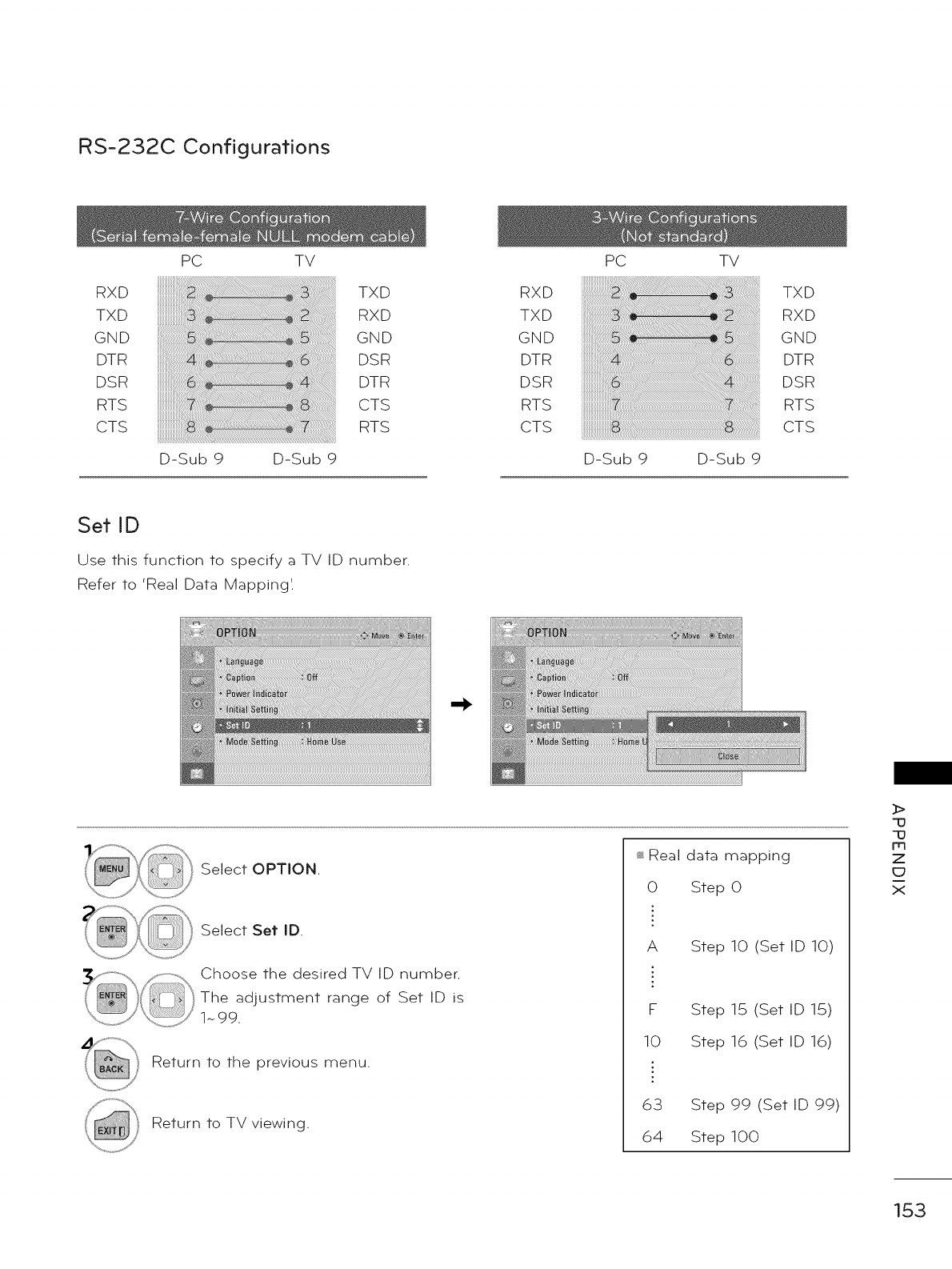

RS-232C Configurations

RXD

TXD

GND

DTR

DSR

RTS

CTS

PC TV

D-Sub 9 D-Sub 9

TXD

RXD

GND

DSR

DTR

CTS

RTS

RXD

TXD

GND

DTR

DSR

RTS

CTS

D-Sub 9

TXD

RXD

GND

DTR

DSR

RTS

CTS

Set ID

Use this function to specify a TV ID number.

Refer to 'Real Data Mapping'.

Select OPTION.

Select Set ID.

Choose the desired TV ID number.

The adjustment range of Set ID is

1-_99.

Return to the previous menu.

Return to TV viewing.

_ Real data mapping

Step 0

Step 10 (Set ID 10)

Step 15 (Set ID 15)

Step 16 (Set ID 16)

Step 99 (Set ID 99)

Step 100

"13

153

APPENDIX

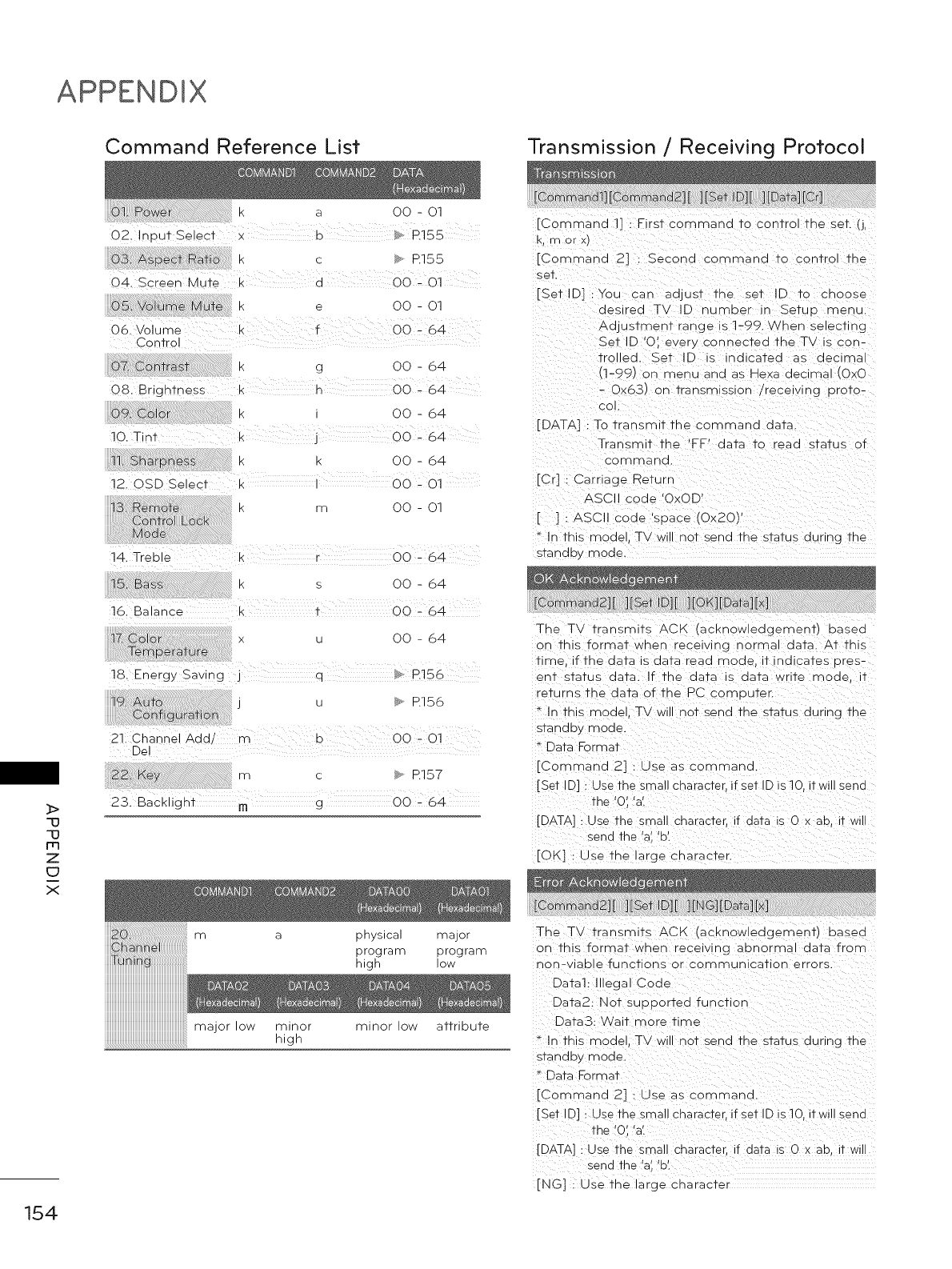

Command Reference List Transmission /Receiving Protocol

-0

OO - O1

,,,,... ¸¸4.::¸¸¸¸:¸¸¸::,.¸T: ::dX::: ..,::..,A J-}, k o > P.lSS

04. screen Mute d 00 _ 0i

e oo- ol

0a Volume f o0

Control

T.: k g oo- 64

k i 00- 64

101 Tint k QO _ 64

k k 00- 64

k m OO - O1

i4( TreBle k r O0 - 64

i i i i i k s 00- 64

16. Balance k t 00-64

.......

7. x u 00 - 64

:::::::To

]B. Energy Saving j R!56

_ R156

2]i Channel Add/ m b O0'Oi

231 BaCkiigBf g oo _ 6_

mphysical major

program program

high low

[Command ]] i Eirst €0mmand to control t he s et. (J,

k, m0ix)

[command 2] : Second comman d to contro I the

set.

[Se t D] iYo u can adjust the set !D tO Choose

desired ]-V ID number in setup meeu!

AdjuStment iange iS l-99. when Selecting

Set ID !O: eyery Connected the TV is Con-

trolled. Set ID is indicated as decimal

(1199) on menuand as HexadeCimal(oxo

_ 0x63)0 n transmission jreCeiying Protd_

Coli

[DATA] i To transmit the command data,

Transmit the 'FF' data to read status of

command.

[ ] { ASCI! code Ispace (Ox20)'

t In this model, TV will not send the status during the

standby mode.

The TV transmits ACK (aCknowledgement)based

on this format When receMng normal datal At this

time, if the data is data read mode, it indicates pres-

ent Status data: If the data is data write mode, it

returnS the data 0, the PC

t nths mode,TVw not send the status durng the

standby mode.

Data Format

[cOmmana2] i use asCOmmand.

[Set !D] i use the sma!! character, if Set ID is 10, it will Send

the O, a.

[DATA]: Use the small character, if data !sO xab it wil!

Send the a, b.

[OK] : Character.

The TV traasmits ACK (acknowledgement) Based

On this format when receMn9 abn0rmal data from

non-viable functions or Communication errors.

major low minor minor low attribute

high In this model, TV will not send the status during the

154

[Command 2] ;Use as command.

[Set ID] i Use the small character, if set IDis 10, it wi!! send

[DATA] : Use the small character, if data is 0 xab, it wil!

[NG] : Use the large character

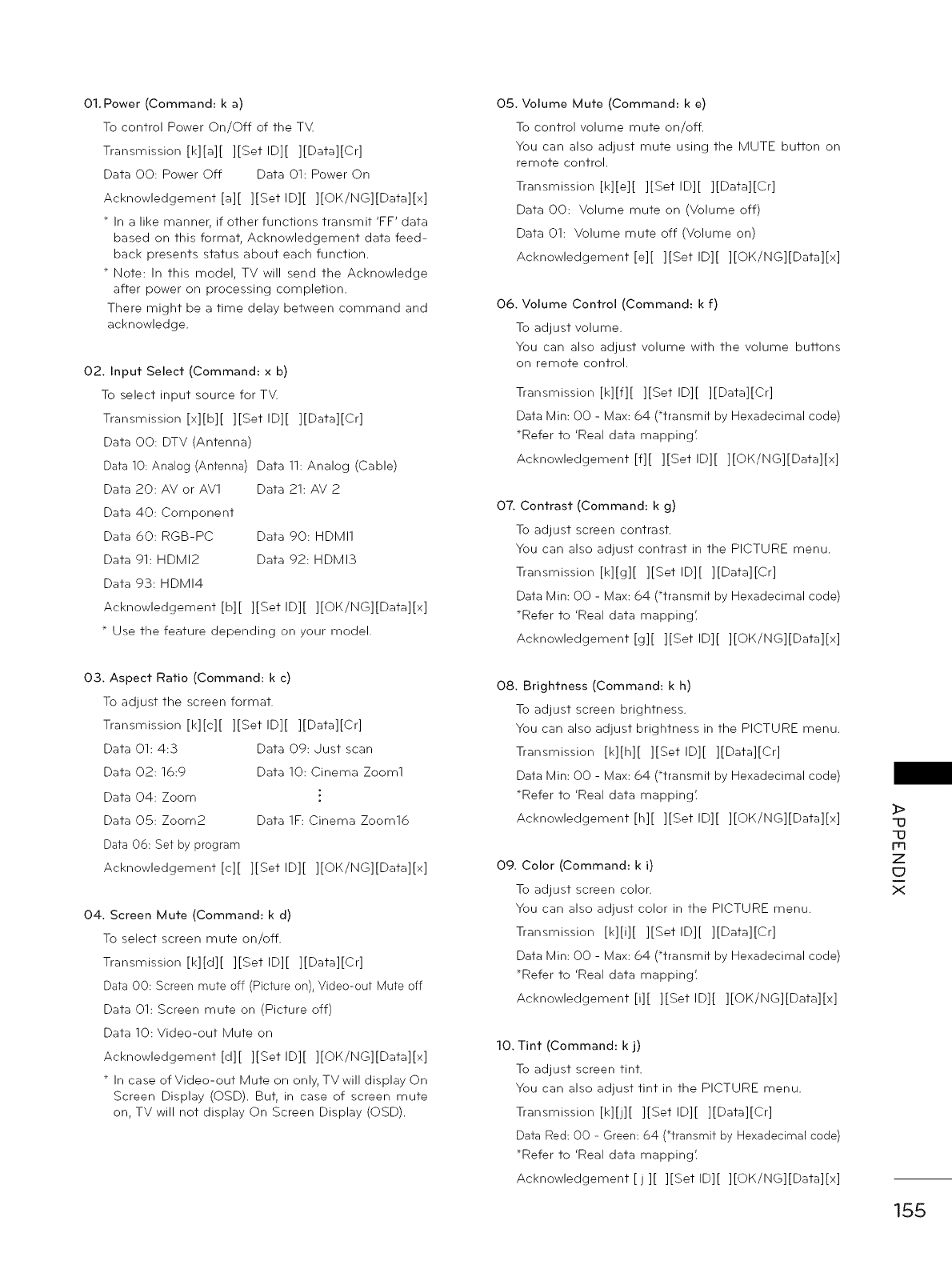

01.Power(Command:ka)

TocontrolPowerOn/OffoftheT_

Transmission[k][a][][SetID][][Data][Cr]

Data00:PowerOff Data01:PowerOn

Acknowledgement[a][][SetID][][OK/NG][Data][×]

* Inalikemanner,ifotherfunctionstransmit'FF'data

basedonthisformat,Acknowledgementdatafeed-

backpresentsstatusabouteachfunction.

* Note:Inthismodel,TVwillsendtheAcknowledge

afterpoweronprocessingcompletion.

Theremightbeatimedelaybetweencommandand

acknowledge.

02.InputSelect(Command:xb)

ToselectinputsourceforTV.

Transmission[x][b][][SetID][][Data][Cr]

Data00:DTV(Antenna)

Data10:Analog(Antenna)Data11:Analog(Cable)

Data20:AVorAV1

Data40:Component

Data60:RGB-PC

Data91:HDMI2

Data93:HDMI4

Acknowledgement[b][

Data21:AV2

Data90:HDMI1

Data92:HDMI3

][SetID][][OK/NG][Data][x]

Use the feature depending on your model

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission [k][c][

Data 01:4:3

Data 02:1.6:9

Data 04: Zoom

Data 05:Zoom2

Data 06: Set by program

][Set ID][ ][Data][Cr]

Data 09: Just scan

Data 10: Cinema Zoom1

Data 1F: Cinema Zoom16

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

04. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on), Video-out Mute off

Data 01: Screen mute on (Picture off)

Data 10: Video-out Mute on

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of Video-out Mute on only, TV will display On

Screen Display (OSD). But, in case of screen mute

on, TV wii} not display On Screen Display (OSD).

05. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

06. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons

on remote controk

Transmission [k][f][ ][Set ID][ ][Dafa][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mappingl

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

07. Contrast (Commands k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer 1o 'Real data mappingl

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

08. Brightness (Commands k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingl

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

09. Color (Command: k i)

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mappingt

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: O0 - Green: 64 (_transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [j ][ ][Set ID][ ][OK/NG][Data][x]

-[3

155

-0

156

APPENDIX

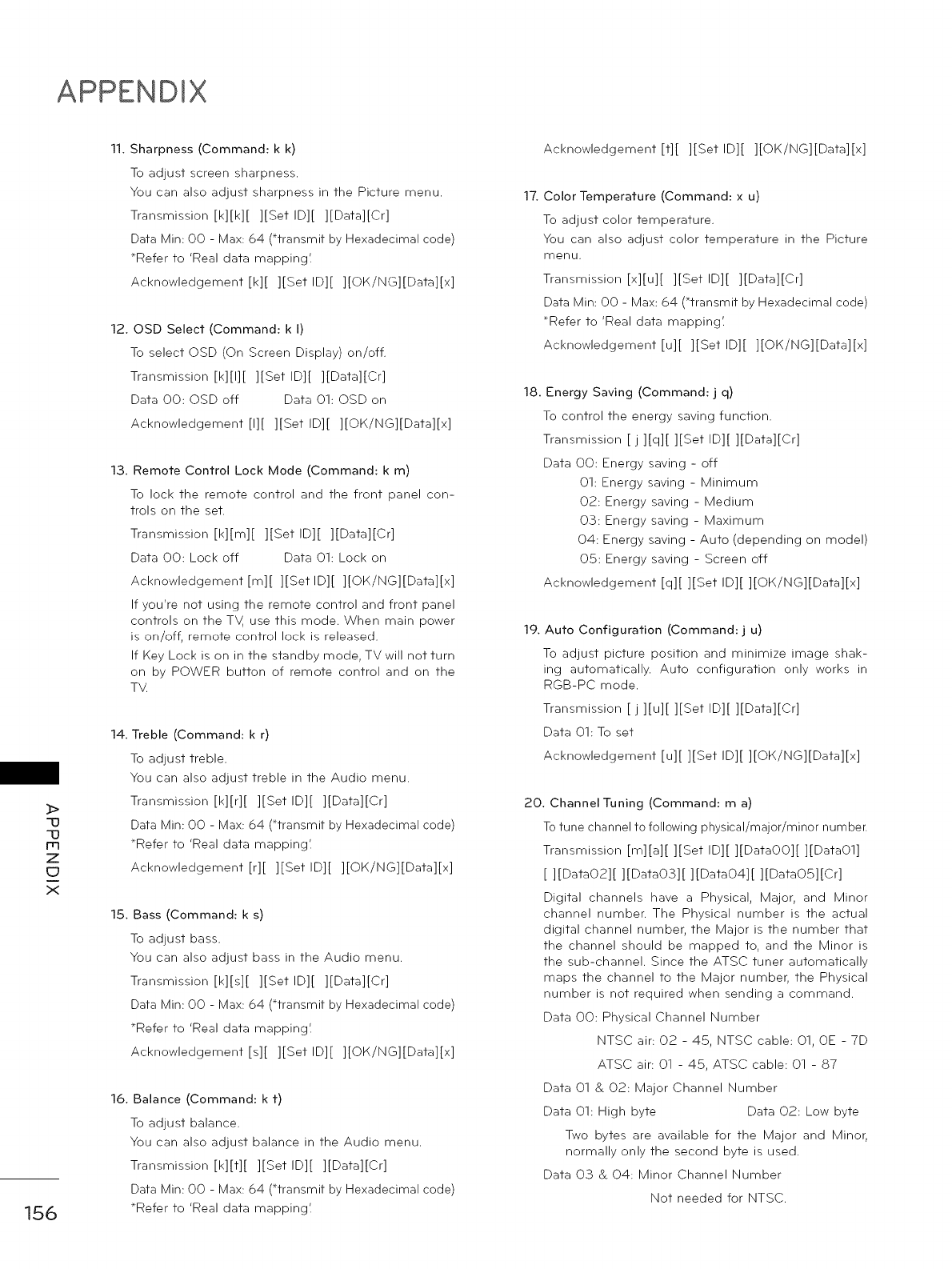

11. Sharpness (Command: k k)

To adjust screen sharpness.

You can also adjust sharpness in the Picture menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

12. OSD Select (Command: k I)

To select OSD (On Screen Display) on/off.

Transmission [k][I][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [I][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel con-

trols on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you're not using the remote control and front panel

controls on the TV, use this mode. When main power

is on/off, remote control lock is released.

If Key Lock is on in the standby mode, TV will not turn

on by POWER button of remote control and on the

TV.

14. Treble (Command: k r)

To adjust treble.

You can also adjust treble in the Audio menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

15. Bass (Command: k s)

To adjust bass.

You can also adjust bass in the Audio menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingt

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the Audio menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingt

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

17. Color Temperature (Command: x u)

To adjust color temperature.

You can also adjust color temperature in the Picture

menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

18. Energy Saving (Command: j q)

To control the energy saving function.

Transmission [ j ][q][ ][Set ID][ ][Data][Cr]

Data 00: Energy saving - off

01: Energy saving - Minimum

02: Energy saving - Medium

03: Energy saving - Maximum

04: Energy saving - Auto (depending on model)

05: Energy saving - Screen off

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

19. Auto Configuration (Command: j u)

To adjust picture position and minimize image shak-

ing automatically. Auto configuration only works in

RGB-PC mode.

Transmission [j ][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

20. Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][DataO0][ ][Data01]

[ ][Data02][ ][DataOS][ ][Data04][ ][DataOS][Cr]

Digital channels have a Physical, Major, and Minor

channel number. The Physical number is the actual

digital channel number, the Major is the number that

the channel should be mapped to, and the Minor is

the sub-channel. Since the ATSC tuner automatically

maps the channel to the Major number, the Physical

number is not required when sending a command.

Data 00: Physical Channel Number

NTSC air: 02 - 45, NTSC cable: 01, OE - 7D

ATSC air: 01 - 45, ATSC cable: 01 - 87

Data 01 & 02: Major Channel Number

Data 01: High byte Data 02: Low byte

Two bytes are available for the Major and Minor,

normally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

Data5:

The table above lists the binary code which must be

converted to Hexadecimal before sending. For exam-

ple: The binary code to tune the sub source to an

NTSC cable channel is "1000 0001'i which translates

to "81" in Hex.

7th bit : For which source do you want to change the

channel.

6th bit: Use a two part or one part channel. Most

cases just use 0 since it's ignored when using

NTSC.

5th bit: Use 0 with NTSC since it can only use the

physical channel number. Normally use 1 for ATSC

since most times it doesn't matter what the physical

number is.

4th bit: Set to O.

3-0 bits: Choose signal type.

_Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data O0 = Physical of 35 = 23

Data 01 & 02 = No Major = O0 O0

Data 03 & 04 = No Minor = O0 O0

Data 05 = 0000 0001 in binary = 01

Total = ma O0 23 O0 O0 O0 O0 01

2. Tune to the digital (ATSC) local channel 30-3.

Data O0 = Don't know Physical = O0

Data 01 & 02 = Major is 30 = O0 1E

Data 03 & 04 = Minor is 3 = O0 03

Data 05 = 0010 0010 in binary = 22

Total = ma O0 O0 O0 1E O0 03 22

21. Channel Add/Del (Command: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel DeleteData 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

22. Key (Command: m c)

To send IR remote control code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

See page 151.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

When TV is in the standby mode, TV will turn on by

POWER button of remote control only.

23. Backlight (Command: m g)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:O0 - Max:64 (_transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

157

APPENDIX

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

-13

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim cop-

ies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public License is intended to guarantee your free-

dom to share and change free software - to make sure the

software is free for all its users. This General Public License

applies to most of the Free Software Foundation's software

and to any other program whose authors commit to using

it. (Some other free software foundation software is cov-

ered by the GNU Lesser General Public License instead.)

You can apply it to your programs, too.

When we speak of free software, we are referring to free-

dom, not price. Our General Public Licenses are designed

to make sure that you have the freedom to distribute cop-

ies of free software (and charge for this service if you wish),

that you receive source code or can get it if you want it, that

you can change the software or use pieces of it in new free

programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that

forbid anyone to deny you these rights or to ask you to sur-

render the rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the soft-

ware, or if you modify it.

For example, if you distribute copies of such a program,

whether gratis or for a fee, you must give the recipients all

the rights that you have. You must make sure that they, too,

receive or can get the source code. And you must show

them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the

software, and (2) offer you this license which gives you legal

permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to

make certain that everyone understands that there is no

warranty for this free software. If the software is modified

by someone else and passed on, we want its recipients to

know that what they have is not the original, so that any

problems introduced by others will not reflect on the origi-

nal authors' reputations.

Finally, any free program is threatened constantly by soft-

ware patents. We wish to avoid the danger that redistribu-

tors of a free program will individually obtain patent licens-

es, in effect making the program proprietary. To prevent

this, we have made it clear that any patent must be

licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution

and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

O. This license applies to any program or other work which

contains a notice placed by the copyright holder saying

it may be distributed under the terms of this General

Public License. The "Program", below, refers to any such

program or work, and a "work based on the Program"

means either the Program or any derivative work under

Program or a portion of it, either verbatim or with modi-

fications and/or translated into another language.

(Hereinafter, translation is included without limitation in

the term "modification".) Each licensee is addressed as

"you".

Activities other than copying, distribution and modifica-

tion are not covered by this license; they are outside its

scope. The act of running the Program is not restricted,

and the output from the program is covered only if its

contents constitute a work based on the program (inde-

pendent of having been made by running the program).

Whether that is true depends on what the program

does.

You may copy and distribute verbatim copies of the

program's source code as you receive it, in any medium,

provided that you conspicuously and appropriately pub-

lish on each copy an appropriate copyright notice and

disclaimer of warranty; keep intact all the notices that

refer to this license and to the absence of any warranty;

and give any other recipients of the program a copy of

this license along with the Program.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty pro-

tection in exchange for a fee.

2. You may modify your copy or copies of the program or

any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications or

work under the terms of section 1 above, provided that

you also meet all of these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the

date of any change.

158

You must cause any work that you distribute or pub-

lish, that in whole or in part contains or is derived

from the Program or any part there of, to be licensed

as a whole at no charge to all third parties under the

terms of this license.

If the modified program normally reads commands

interactively when run, you must cause it, when start-

ed running for such interactive use in the most ordi-

nary way, to print or display an announcement includ-

ing an appropriate copyright notice and a notice that

there is no warranty (or else, saying that you provide

a warranty) and that users may redistribute the pro-

gram under these conditions, and telling the user

how to view a copy of this license. (Exception: if the

Program itself is interactive but does not normally

print such an announcement, your work based on the

Program is not required to print an announcement.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not

derived from the Program, and can be reasonably con-

sidered independent and separate works in themselves,

then this license, and its terms, do not apply to those

sections when you distribute them as separate works.

But when you distribute the same sections as part of a

whole which is a work based on the Program, the distri-

bution of the whole must be on the terms of this license,

whose permissions for other licensees extend to the

entire whole, and thus to each and every part regardless

of who wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the distribu-

tion of derivative or collective works based on the pro-

gram.

In addition, mere aggregation of another work not

based on the program with the Program (or with a work

based on the program) on a volume of a storage or

distribution medium does not bring the other work

under the scope of this license.

3. You may copy and distribute the program (or a work

based on it, under section 2) in object code or execut-

able form under the terms of sections 1 and 2 above

provided that you also do one of the following:

a) Accompany it with the complete corresponding

machine-readable source code, which must be dis-

tributed under the terms of sections 1 and 2 above

on a medium customarily used for software inter-

change; or,

b) Accompany it with a written offer, valid for at least

three years, to give any third party, for a charge no

more than your cost of physically performing source

distribution, a complete machine-readable copy of

the corresponding source code, to be distributed

under the terms of sections 1 and 2 above on a

medium customarily used for software interchange;

or,

c) Accompany it with the information you received as to

the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial

distribution and only if you received the program in

object code or executable form with such an offer, in

accord with Subsection b above.)

The source code for a work means the preferred form of

the work for making modifications to it. For an execut-

able work, complete source code means all the source

code for all modules it contains, plus any associated

interface definition files, plus the scripts used to control

compilation and installation of the executable. However,

as a special exception, the source code distributed need

not include anything that is normally distributed (in

either source or binary form) with the major compo-

nents (compiler, kernel, and so on) of the operating

system on which the executable runs, unless that com-

ponent itself accompanies the executable.

If distribution of executable or object code is made by

offering access to copy from a designated place, then

offering equivalent access to copy the source code from

the same place counts as distribution of the source

code, even though third parties are not compelled to

copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the

Program except as expressly provided under this license.

Any attempt otherwise to copy, modify, sublicense or

distribute the Program is void, and will automatically

terminate your rights under this license. However, par-

ties who have received copies, or rights, from you under

this license will not have their licenses terminated so

long as such parties remain in full compliance.

5. You are not required to accept this license, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the Program or its

derivative works. These actions are prohibited by law if

you do not accept this license. Therefore, by modifying

or distributing the program (or any work based on the

program), you indicate your acceptance of this license

to do so, and all its terms and conditions for copying,

distributing or modifying the program or works based

on it.

6. Each time you redistribute the program (or any work

based on the Program), the recipient automatically

receives a license from the original licensor to copy,

distribute or modify the Program subject to these terms

and conditions. You may not impose any further restric-

tions on the recipients' exercise of the rights granted

herein. You are not responsible for enforcing compliance

by third parties to this license.

"lJ

159

APPENDIX

x8.

If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not lim-

ited to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this license, they do not

excuse you from the conditions of this license. If you

cannot distribute so as to satisfy simultaneously your

obligations under this license and any other pertinent

obligations, then as a consequence you may not distrib-

ute the program at all. For example, if a patent license

would not permit royalty-free redistribution of the pro-

gram by all those who receive copies directly or indi-

rectly through you, then the only way you could satisfy

both it and this license would be to refrain entirely from

distribution of the program.

If any portion of this section is held invalid or unenforce-

able under any particular circumstance, the balance of

the section is intended to apply and the section as a

whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free soft-

ware distribution system, which is implemented by pub-

lic license practices. Many people have made generous

contributions to the wide range of software distributed

through that system in reliance on consistent applica-

tion of that system; it is up to the author/donor to

decide if he or she is willing to distribute software

through any other system and a licensee cannot impose

that choice.

This section is intended to make thoroughly clear what

is believed to be a consequence of the rest of this

license.

If the distribution and/or use of the program is restrict-

ed in certain countries either by patents or by copy-

righted interfaces, the original copyright holder who

places the program under this license may add an

explicit geographical distribution limitation excluding

those countries, so that distribution is permitted only in

or among countries not thus excluded. In such case, this

license incorporates the limitation as if written in the

body of this license.

The Free Software Foundation may publish revised and/

or new versions of the General Public License from time

to time. Such new versions will be similar in spirit to the

present version, but may differ in detail to address new

problems or concerns.

Each version is given a distinguishing version number. If

the program specifies a version number of this license

which applies to it and "any later version", you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation. If the program does not specifya

version number of this license, you may choose any ver-

sion ever published by the Free Software Foundation.

lO. If you wish to incorporate parts of the program into

other free programs whose distribution conditions are

different, write to the author to ask for permission. For

software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will

be guided by the two goals of preserving the free status

of all derivatives of our free software and of promoting

the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE PROGRAM

"AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. THE ENTIRE RISK AS TO

THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM

PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING, REPAIR OR CORRECTION.

12.1N NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE

THE PROGRAM (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED

INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES OR A FAILURE OF THE PROGRAM TO

OPERATE WITH ANY OTHER PROGRAMS), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

160

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the

greatest possible use to the public, the best way to achieve

this is to make it free software which everyone can redis-

tribute and change under these terms.

To do so, attach the following notices to the program. It is

safest to attach them to the start of each source file to

most effectively convey the exclusion of warranty; and each

file should have at least the "copyright" line and a pointer

to where the full notice is found.

one line to give the program's name and a brief idea of

what it does.

This program is free software; you can redistribute it and/

or modify it under the terms of the GNU General Public

License as published by the Free Software Foundation;

either version 2 of the license, or (at your option) any later

version.

This program is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU General Public

License for more details.

You should have received a copy of the GNU General

Public License along with this program; if not, write to the

Free Software Foundation, Inc., 51 Franklin Street, Fifth

Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic

and paper mail.

If the program is interactive, make it output a short notice

like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY;

for details type 'show wt This is free software, and you are

welcome to redistribute it under certain conditions; type

'show c' for details.

The hypothetical commands 'show w' and 'show c' should

show the appropriate parts of the General Public License.

Of course, the commands you use may be called some-

thing other than 'show w' and 'show c'; they could even be

mouse-clicks or menu items-whatever suits your program.

You should also get your employer (if you work as a pro-

grammer) or your school, if any, to sign a "copyright dis-

claimer" for the program, if necessary. Here is a sample;

alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

program 'Gnomovision' (which makes passes at compilers)

written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating

your program into proprietary programs. If your program is

a subroutine library, you may consider it more useful to

permit linking proprietary applications with the library. If

this is what you want to do, use the GNU Lesser General

Public License instead of this license. _>

161

APPENDIX

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

-U

162

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim cop-

ies of this license document, but changing it is not

allowed.

[This is the first released version of the Lesser GPL It also

counts as the successor of the GNU Library Public

License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your

freedom to share and change free software - to make sure

the software is free for all its users.

This license, the Lesser General Public License, applies to

some specially designated software packages - typically

libraries - of the Free Software Foundation and other

authors who decide to use it. You can use it too, but we

suggest you first think carefully about whether this license

or the ordinary General Public License is the better strat-

egy to use in any particular case, based on the explana-

tions below.

When we speak of free software, we are referring to free-

dom of use, not price. Our General Public Licenses are

designed to make sure that you have the freedom to dis-

tribute copies of free software (and charge for this service

if you wish); that you receive source code or can get it if you

want it; that you can change the software and use pieces

of it in new free programs; and that you are informed that

you can do these things.

To protect your rights, we need to make restrictions that

forbid distributors to deny you these rights or to ask you to

surrender these rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the library

or if you modify it.

For example, if you distribute copies of the library, whether

gratis or for a fee, you must give the recipients all the rights

that we gave you. You must make sure that they, too,

receive or can get the source code. If you link other code

with the library, you must provide complete object files to

the recipients, so that they can relink them with the library

after making changes to the library and recompiling it. And

you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copy-

right the library, and (2) we offer you this license, which

gives you legal permission to copy, distribute and/or mod-

ify the library.

To protect each distributor, we want to make it very clear

that there is no warranty for the free library. Also, if the

library is modified by someone else and passed on, the

recipients should know that what they have is not the

original version, so that the original author's reputation will

not be affected by problems that might be introduced by

others.

Finally, software patents pose a constant threat to the exis-

tence of any free program. We wish to make sure that a

company cannot effectively restrict the users of a free pro-

gram by obtaining a restrictive license from a patent

holder. Therefore, we insist that any patent license obtained

for a version of the library must be consistent with the full

freedom of use specified in this license.

Most GNU software, including some libraries, is covered by

the ordinary GNU General Public License. This license, the

GNU Lesser General Public License, applies to certain des-

ignated libraries, and is quite different from the ordinary

General Public License. We use this license for certain

libraries in order to permit linking those libraries into non-

free programs.

When a program is linked with a library, whether statically

or using a shared library, the combination of the two is

legally speaking a combined work, a derivative of the origi-

nal library. The ordinary General Public License therefore

permits such linking only if the entire combination fits its

criteria of freedom. The Lesser General Public License

permits more lax criteria for linking other code with the

library.

We call this license the "Lesser" General Public License

because it does Less to protect the user's freedom than

the ordinary General Public License. It also provides other

free software developers Less of an advantage over com-

peting non-free programs. These disadvantages are the

reason we use the ordinary General Public License for

many libraries. However, the Lesser license provides advan-

tages in certain special circumstances.

For example, on rare occasions, there may be a special

need to encourage the widest possible use of a certain

library, so that it becomes a de-facto standard. To achieve

this, non-free programs must be allowed to use the library.

A more frequent case is that a free library does the same

job as widely used non-free libraries. In this case, there is

little to gain by limiting the free library to free software only,

so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-

free programs enables a greater number of people to use

a large body of free software. For example, permission to

use the GNU C Library in non-free programs enables many

more people to use the whole GNU operating system, as

well as its variant, the GNU/Linux operating system.

AlthoughtheLesserGeneralPublicLicenseisLessprotec-

tiveoftheusers'freedom,itdoesensurethattheuserofa

programthatislinkedwiththeLibraryhasthefreedomand

thewherewithaltorunthatprogramusingamodifiedver-

sionoftheLibrary.

The precise terms and conditions for copying, distribution

and modification follow. Pay close attention to the differ-

ence between a "work based on the library" and a "work

that uses the library". The former contains code derived

from the library, whereas the latter must be combined with

the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

O. This license agreement applies to any software library or

other program which contains a notice placed by the

be distributed under the terms of this Lesser General

Public License (also called "this license"). Each license

is addressed as "you".

A "library" means a collection of software functions

and/or data prepared so as to be conveniently linked

with application programs (which use some of those

functions and data) to form executables.

The "Library", below, refers to any such software library or

work which has been distributed under these terms. A

"work based on the Library" means either the Library or

any derivative work under copyright law: that is to say, a

work containing the library or a portion of it, either verba-

tim or with modifications and/or translated straightfor-

wardly into another language. (Hereinafter, translation is

included without limitation in the term "modification't)

"Source code" for a work means the preferred form of

the work for making modifications to it. For a library,

complete source code means all the source code for all

modules it contains, plus any associated interface defi-

nition files, plus the scripts used to control compilation

and installation of the library.

Activities other than copying, distribution and modifica-

tion are not covered by this license; they are outside its

scope. The act of running a program using the Library

is not restricted, and output from such a program is

covered only if its contents constitute a work based on

the library (independent of the use of the Library in a

tool for writing it). Whether that is true depends on what

the library does and what the program that uses the

library does.

1. You may copy and distribute verbatim copies of the

library's complete source code as you receive it, in any

medium, provided that you conspicuously and appropri-

ately publish on each copy an appropriate copyright

notice and disclaimer of warranty; keep intact all the

notices that refer to this license and to the absence of

any warranty; and distribute a copy of this license along

with the Library.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty pro-

tection in exchange for a fee.

You may modify your copy or copies of the Library or

any portion of it, thus forming a work based on the

Library, and copy and distribute such modifications or

work under the terms of section 1 above, provided that

you also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent

notices stating that you changed the files and the

date of any change.

c) You must cause the whole of the work to be licensed

at no charge to all third parties under the terms of

this license.

d) If a facility in the modified Library refers to a function

or a table of data to be supplied by an application

program that uses the facility, other than as an argu-

ment passed when the facility is invoked, then you

must make a good faith effort to ensure that, in the

event an application does not supply such function or

table, the facility still operates, and performs what-

ever part of its purpose remains meaningful.

(For example, a function in a library to compute square

roots has a purpose that is entirely well-defined indepen-

dent of the application. Therefore, Subsection 2d

requires that any application-supplied function or table

used by this function must be optional: if the application

does not supply it, the square root function must still

compute square roots.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not

derived from the library, and can be reasonably consid-

ered independent and separate works in themselves,

then this license, and its terms, do not apply to those

sections when you distribute them as separate works.

But when you distribute the same sections as part of a

whole which is a work based on the library, the distribu-

tion of the whole must be on the terms of this license,

whose permissions for other licenses extend to the

entire whole, and thus to each and every part regardless

of who wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the distribu-

tion of derivative or collective works based on the library.

In addition, mere aggregation of another work not based

on the library with the library (or with a work based on

the library) on a volume of a storage or distribution

medium does not bring the other work under the scope

of this license.

163

APPENDIX

You may opt to apply the terms of the ordinary GNU

General Public License instead of this License to a given

copy of the Library. To do this, you must alter all the

notices that refer to this License, so that they refer to the

ordinary GNU General Public License, version 2, instead

of to this License. (If a newer version than version 2 of

the ordinary GNU General Public License has appeared,

then you can specify that version instead if you wish.) Do

not make any other change in these notices.

Once this change is made in a given copy, it is irrevers-

ible for that copy, so the ordinary GNU General Public

License applies to all subsequent copies and derivative

works made from that copy.

This option is useful when you wish to copy part of the

code of the library into a program that is not a library.

You may copy and distribute the library (or a portion or

derivative of it, under Section 2) in object code or exe-

cutable form under the terms of Sections 1 and 2 above

provided that you accompany it with the complete cor-

responding machine-readable source code, which must

be distributed under the terms of sections 1 and 2

above on a medium customarily used for software inter-

change.

If distribution of object code is made by offering access

to copy from a designated place, then offering equiva-

lent access to copy the source code from the same

place satisfies the requirement to distribute the source

code, even though third parties are not compelled to

copy the source along with the object code.

A program that contains no derivative of any portion of

the Library, but is designed to work with the Library by

being compiled or linked with it, is called a "work that

uses the Library't Such a work, in isolation, is not a

derivative work of the Library, and therefore falls outside

the scope of this license.

However, linking a "work that uses the library" with the

Library creates an executable that is a derivative of the

Library (because it contains portions of the library),

rather than a "work that uses the library't The executable

is therefore covered by this license. Section 6 states

terms for distribution of such executable.

When a "work that uses the library" uses material from

a header file that is part of the library, the object code

for the work may be a derivative work of the library even

though the source code is not.

Whether this is true is especially significant if the work

can be linked without the library, or if the work is itself a

library. The threshold for this to be true is not precisely

defined by law.

If such an object file uses only numerical parameters,

data structure layouts and accessories, and small mac-

ros and small inline functions (ten lines or less in

length), then the use of the object file is unrestricted,

regardless of whether it is legally a derivative work.

(Executable containing this object code plus portions of

the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you

may distribute the object code for the work under the

terms of Section 6. Any executable containing that work

also fall under Section 6, whether or not they are linked

directly with the library itself.

As an exception to the sections above, you may also

combine or link a "work that uses the library" with the

library to produce a work containing portions of the

library, and distribute that work under terms of your

choice, provided that the terms permit modification of

the work for the customer's own use and reverse engi-

neering for debugging such modifications.

You must give prominent notice with each copy of the

work that the library is used in it and that the Library and

its use are covered by this license. You must supply a

copy of this license. If the work during execution dis-

plays copyright notices, you must include the copyright

notice for the library among them, as well as a reference

directing the user to the copy of this license. Also, you

must do one of these things:

a) Accompany the work with the complete correspond-

ing machine-readable source code for the library

including whatever changes were used in the work

(which must be distributed under Sections 1 and 2

above); and, if the work is an executable linked with

the Library, with the complete machine-readable

"work that uses the Library", as object code and/or

source code, so that the user can modify the library

and then relink to produce a modified executable

containing the modified library. (It is understood that

the user who changes the contents of definitions files

in the library will not necessarily be able to recompile

the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking

with the library. A suitable mechanism is one that (1)

uses at run time a copy of the library already present

on the user's computer system, rather than copying

library functions into the executable, and (2) will oper-

ate properly with a modified version of the library, if the

user installs one, as long as the modified version is

interface-compatible with the version that the work

was made with.

c) Accompany the work with a written offer, valid for at

least three years, to give the same user the materials

specified in Subsection 6, above, for a charge no

more than the cost of performing this distribution.

d) If distribution of the work is made by offering access

to copy from a designated place, offer equivalent

access to copy the above specified materials from

the same place.

e) Verify that the user has already received a copy of

these materials or that you have already sent this user

a copy.

164

For an executable, the required form of the "work that

uses the library" must include any data and utility pro-

grams needed for reproducing the executable from it.

However, as a special exception, the materials to be

distributed need not include anything that is normally

distributed (in either source or binary form) with the

major components (compiler, kernel, and so on) of the

operating system on which the executable runs, unless

that component itself accompanies the executable.

It may happen that this requirement contradicts the

license restrictions of other proprietary libraries that do

not normally accompany the operating system. Such a

contradiction means you cannot use both them and the

library together in an executable that you distribute.

7. You may place library facilities that are a work based on

the library side-by-side in a single library together with

other library facilities not covered by this license, and

distribute such a combined library, provided that the

separate distribution of the work based on the Library

and of the other library facilities is otherwise permitted,

and provided that you do these two things:

a) Accompany the combined library with a copy of the

same work based on the Library, uncombined with

any other library facilities. This must be distributed

under the terms of the sections above.

b) Give prominent notice with the combined library of

the fact that part of it is a work based on the library,

and explaining where to find the accompanying

uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or dis-

tribute the library except as expressly provided under

this license. Any attempt otherwise to copy, modify,

sublicense, link with, or distribute the library is void, and

will automatically terminate your rights under this

license. However, parties who have received copies, or

rights, from you under this license will not have their

licenses terminated so long as such parties remain in

full compliance.

9. You are not required to accept this license, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the library or its

derivative works. These actions are prohibited by law if

you do not accept this license. Therefore, by modifying

or distributing the library (or any work based on the

library), you indicate your acceptance of this license to do

so, and all its terms and conditions for copying, distribut-

ing or modifying the library or works based on it.

lO. Each time you redistribute the library (or any work based

on the Library), the recipient automatically receives a

license from the original licensor to copy, distribute, link

with or modify the library subject to these terms and

conditions. You may not impose any further restrictions

on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by

third parties with this license.

11. If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not lim-

ited to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this license, they do not

excuse you from the conditions of this license. If you

cannot distribute so as to satisfy simultaneously your

obligations under this license and any other pertinent

obligations, then as a consequence you may not distrib-

ute the library at all. For example, if a patent license

would not permit royalty-free redistribution of the library

by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it

and this license would be to refrain entirely from distri-

bution of the library.

If any portion of this section is held invalid or unenforce-

able under any particular circumstance, the balance of

the section is intended to apply, and the section as a

whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free soft-

ware distribution system which is implemented by pub-

lic license practices. Many people have made generous

contributions to the wide range of software distributed

through that system in reliance on consistent applica-

tion of that system; it is up to the author/donor to

decide if he or she is willing to distribute software

through any other system and a license cannot impose

that choice.

This section is intended to make thoroughly clear what

is believed to be a consequence of the rest of this

license.

12. If the distribution and/or use of the library is restricted in

certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the

library under this license may add an explicit geograph-

ical distribution limitation excluding those countries, so

that distribution is permitted only in or among countries

not thus excluded. In such case, this license incorporates

the limitation as if written in the body of this license.

13.The Free Software Foundation may publish revised and/

or new versions of the Lesser General Public License

from time to time. Such new versions will be similar in

spirit to the present version, but may differ in detail to

address new problems or concerns.

Each version is given a distinguishing version number. If

the library specifies a version number of this license

which applies to it and "any later version", you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation.

165

APPENDIX

If the library does not specify a license version number,

you may choose any version ever published by the Free

Software Foundation.

14.1f you wish to incorporate parts of the library into other

free programs whose distribution conditions are incom-

patible with these, write to the author to ask for permis-

sion. For software which is copyrighted by the Free

Software Foundation, write to the Free Software

Foundation; we sometimes make exceptions for this.

Our decision will be guided by the two goals of preserv-

ing the free status of all derivatives of our free software

and of promoting the sharing and reuse of software

generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

LI B RA RY, TO TH E EXTENT PER M ITTED BY APPLICAB LE

LAW. EXCEPTWHEN OTHERWISE STATED IN WRITING

THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES

PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. THE ENTIRE RISK

AS TO THE QUALITY AND PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY

PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING, REPAIR OR CORRECTION.

16.1N NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE

THE LIBRARY (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED

INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES OR A FAILURE OF THE LIBRARY TO

OPERATE WITH ANY OTHER SOFTWARE), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the

greatest possible use to the public, we recommend making

it free software that everyone can redistribute and change.

You can do so by permitting redistribution under these

terms (or, alternatively, under the terms of the ordinary

General Public License).

To apply these terms, attach the following notices to the

library. It is safest to attach them to the start of each

source file to most effectively convey the exclusion of war-

ranty; and each file should have at least the "copyright" line

and a pointer to where the full notice is found.

one line to give the library's name and a brief idea of what

it does.

This library is free software; you can redistribute it and/or

modify it under the terms of the GNU Lesser General

Public License as published by the Free Software

Foundation; either version 2.1 of the license, or (at your

option) any later version.

This library is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU Lesser General

Public License for more details.

You should have received a copy of the GNU Lesser

General Public License along with this library; if not, write to

the Free Software Foundation, Inc., 51 Franklin Street, Fifth

Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic

and paper mail.

You should also get your employer (if you work as a pro-

grammer) or your school, if any, to sign a "copyright dis-

claimer" for the library, if necessary. Here is a sample; alter

the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

library 'Frob' (a library for tweaking knobs) written by James

Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

166

MOZILLA PUBLIC LICENSE

Version 1.1

1.Definitions.

1.0.1. "Commercial use" means distribution or otherwise

making the covered code available to a third party.

1.1. "Contributor" means each entity that creates or con-

tributes to the creation of modifications.

1.2. "Contributor version" means the combination of the

original code, prior modifications used by a contribu-

tor, and the modifications made by that particular

contributor.

1.3. "Covered code" means the original code or modifi-

cations or the combination of the original code and

modifications, in each case including portions there-

of.

1.4. "Electronic distribution mechanism" means a mech-

anism generally accepted in the software develop-

ment community for the electronic transfer of data.

1.5. "Executable" means covered code in any form other

than source code.

1.6. "Initial developer" means the individual or entity

identified as the initial Developer in the Source Code

notice required by exhibit A.

1.7. "Larger work" means a work which combines covered

code or portions thereof with code not governed by

the terms of this License.

1.8 "License" means this document.

1.81. "Licensable" means having the right to grant, to the

maximum extent possible, whether at the time of the

initial grant or subsequently acquired, any and all of

the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion

from the substance or structure of either the original

code or any previous modifications. When covered

code is released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a

file containing original code or previous modifica-

tions.

B. Any new file that contains any part of the original

code or previous modifications.

1.10. "Original code" means source code of computer

software code which is described in the source code

notice required by exhibit as original code, and

which, at the time of its release under this license is

not already covered code governed by this license.

1iOi. "Patent claims" means any patent claim(s), now

owned or hereafter acquired, including without limi-

tation, method, process, and apparatus claims, in any

patent licensable by grantor.

lil. "Source code" means the preferred form of the cov-

ered code for making modifications to it, including all

modules it contains, plus any associated interface

definition files, scripts used to control compilation

and installation of an executable, or source code dif-

ferential comparisons against either the original code

or another well known, available covered code of the

contributor's choice. The source code can be in a

compressed or archival form, provided the appropri-

ate decompression or de-archiving software is wide-

ly available for no charge.

1.12. "You" (or "Your") means an individual or a legal

entity exercising rights under, and complying with all

of the terms of, this license or a future version of this

license issued under section 6.1.

For legal entities, "You" includes any entity which

controls, is controlled by, or is under common control

with You. For purposes of this definition, "control"

means (a) the power, direct or indirect, to cause the

direction or management of such entity, whether by

contract or otherwise, or (b) ownership of more than

fifty percent (50%) of the outstanding shares or ben-

eficial ownership of such entity.

2. Source Code License.

2.1. The initial developer grant.

The initial developer hereby grants You a world-wide,

royalty-free, non-exclusive license, subject to third

party intellectual property claims:

a) under intellectual property rights (other than pat-

ent or trademark) licensable by initial developer to

use, reproduce, modify, display, perform, subli-

cense and distribute the original code (or portions

thereof) with or without modifications, and/or as

part of a larger work; and

(b) under patents claims infringed by the making,

using or selling of original code, to make, have

made, use, practice, sell, and offer for sale, and/

or otherwise dispose of the original code (or por-

tions there of).

167

APPENDIX

(c)

(d)

the licenses granted in this section 2.1(a) and (b)

are effective on the date Initial developer first

distributes original code under the terms of this

license.

Notwithstanding section 2.1(b) above, no patent

license is granted: 1) for code that You delete

from the original Code; 2) separate from the

original code; or 3) for infringements caused by:

i) the modification of the original code or ii) the

combination of the original code with other soft-

ware or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims,

each contributor hereby grants You a world-wide,

royalty-free, non-exclusive license

(a) under intellectual property rights (other than pat-

ent or trademark) licensable by contributor, to

use, reproduce, modify, display, perform, subli-

cense and distribute the modifications created by

such contributor (or portions thereof) either on

an unmodified basis, with other modifications, as

covered code and/or as part of a larger work; and

(b) under patent claims infringed by the making,

using, or selling of modifications made by that

contributor either alone and/or in combination

with its contributor version (or portions of such

combination), to make, use, sell, offer for sale,

have made, and/or otherwise dispose of: 1) modi-

fications made by that contributor (or portions

thereof); and 2) the combination of modifications

made by that contributor with its contributor ver-

sion (or portions of such combination).

are effective on the date contributor first makes

commercial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent

license is granted: 1) for any code that contributor

has deleted from the contributor version; 2)

separate from the contributor version; 3) for

infringements caused by: i) third party modifica-

tions of contributor version or ii) the combination

of modifications made by that contributor with

other software (except as part of the contributor

version) or other devices; or 4) under patent

claims infringed by covered code in the absence

of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.

The modifications which You create or to which you

contribute are governed by the terms of this license,

including without limitation section 2.2. The source

code version of covered code may be distributed

only under the terms of this license or a future ver-

sion of this license released under section 6.1, and

you must include a copy of this license with every

copy of the source code you distribute. You may not

offer or impose any terms on any source code ver-

sion that alters or restricts the applicable version of

this license or the recipients' rights hereunder.

However, you may include an additional document

offering the additional rights described in section

3.5.

3.2. Availability of source code.

Any modification which you create or to which you

contribute must be made available in source code

form under the terms of this license either on the

same media as an executable version or via an

accepted electronic distribution mechanism to any-

one to whom you made an executable version avail-

able; and if made available via electronic distribution

mechanism, must remain available for at least twelve

(12) months after the date it initially became avail-

able, or at least six (6) months after a subsequent

version of that particular modification has been

made available to such recipients. You are responsi-

ble for ensuring that the source code version remains

available even if the electronic distribution mecha-

nism is maintained by a third party.

3.3. Description of modifications.

You must cause all covered code to which you contrib-

ute to contain a file documenting the changes You

made to create that covered code and the date of any

change. You must include a prominent statement that

the modification is derived, directly or indirectly, from

original code provided by the initial developer and

including the name of the initial developer in (a) the

source code, and (b) in any notice in an executable

version or related documentation in which you describe

the origin or ownership of the covered code.

3.4. Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a

third party's intellectual property rights is required to

exercise the rights granted by such contributor under

sections 2.1 or 2.2, contributor must include a text file

with the source code distribution titled "LEGAL"

which describes the claim and the party making the

claim in sufficient detail that a recipient will know

whom to contact. If contributor obtains such knowl-

edge after the modification is made available as

described in section 3.2, contributor shall promptly

modify the LEGAL file in all copies contributor makes

available thereafter and shall take other steps (such

as notifying appropriate mailing lists or newsgroups)

reasonably calculated to inform those who received

the covered code that new knowledge has been

obtained.

(b) Contributor APIs.

If contributor's modifications include an application

programming interface and contributor has knowl-

edge of patent licenses which are reasonably neces-

sary to implement that API, contributor must also

include this information in the LEGAL file.

168

3.5.

3.6.

contributor represents that, except as disclosed pur-

suant to section 3.4(a) above, contributor believes that

contributor's modifications are contributor's original

creation(s) and/or contributor has sufficient rights to

grant the rights conveyed by this license.

Required notices.

You must duplicate the notice in exhibit A in each file

of the source code. If it is not possible to put such

notice in a particular source code file due to its struc-

ture, then You must include such notice in a location

(such as a relevant directory) where a user would be

likely to look for such a notice. If You created one or

more modification(s), you may add your name as a

contributor to the notice described in exhibit A. you

must also duplicate this license in any documenta-

tion for the source code where You describe recipi-

ents' rights or ownership rights relating to covered

code. You may choose to offer, and to charge a fee

for, warranty, support, indemnity or liability obliga-

tions to one or more recipients of covered code.

However, you may do so only on your own behalf, and

not on behalf of the Initial developer or any contribu-

tor. You must make it absolutely clear than any such

warranty, support, indemnity or liability obligation is

offered by you alone, and You hereby agree to

indemnify the Initial developer and every contributor

for any liability incurred by the Initial developer or

such contributor as a result of warranty, support,

indemnity or liability terms you offer.

Distribution of executable versions.

You may distribute covered code in executable form

only if the requirements of section 3.1-3.5 have been

met for that covered code, and if you include a notice

stating that the source code version of the covered

code is available under the terms of this license,

including a description of how and where you have

fulfilled the obligations of section 3.2. The notice

must be conspicuously included in any notice in an

executable version, related documentation or collat-

eral in which you describe recipients' rights relating

to the covered code. You may distribute the execut-

able version of covered code or ownership rights

under a license of your choice, which may contain

terms different from this license, provided that you

are in compliance with the terms of this license and

that the license for the executable version does not

attempt to limit or alter the recipient's rights in the

source code version from the rights set forth in this

license. If you distribute the executable version under

a different license you must make it absolutely clear

that any terms which differ from this license are

offered by you alone, not by the Initial developer or

any contributor. You hereby agree to indemnify the

initial developer and every contributor for any liability

incurred by the initial developer or such contributor

as a result of any such terms You offer.

code with other code not governed by the terms of

this license and distribute the larger work as a single

product. In such a case, you must make sure the

requirements of this license are fulfilled for the cov-

ered code.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the

terms of this license with respect to some or all of

the covered code due to statute, judicial order, or

regulation then you must: (a) comply with the terms

of this license to the maximum extent possible; and

(b) describe the limitations and the code they affect.

Such description must be included in the LEGAL file

described in section 3.4 and must be included with

all distributions of the source code. Except to the

extent prohibited by statute or regulation, such

description must be sufficiently detailed for a recipi-

ent of ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial devel-

oper has attached the notice in exhibit A and to

related covered code.

6. Versions of the license.

6.1. New versions.

Netscape communications corporation ("Netscape")

may publish revised and/or new versions of the

license from time to time. Each version will be given

a distinguishing version number.

6.2. Effect of new versions.

Once covered code has been published under a

particular version of the license, you may always con-

tinue to use it under the terms of that version. You

may also choose to use such covered code under

the terms of any subsequent version of the license

published by netscape. No one other than netscape

has the right to modify the terms applicable to cov-

ered code created under this license.

6.3. Derivative works.

If You create or use a modified version of this license

(which you may only do in order to apply it to code

which is not already covered code governed by this

license), You must (a) rename Your license so that the

phrases "Mozilla", "MOZILLAPL", "MOZPL",

"Netscape", "MPL", "NPL" or any confusingly similar

phrase do not appear in your license (except to note

that your license differs from this license) and (b)

otherwise make it clear that Your version of the

license contains terms which differ from the Mozilla

Public license and netscape Public License. (Filling in

the name of the initial developer, original code or

contributor in the notice described in exhibit A shall

not of themselves be deemed to be modifications of

this license.)

Larger works.

You may create a larger work by combining covered 169

APPENDIX

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS

LICENSE ON AN "AS IS" BASIS, WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESSED

OR IMPLIED, INCLUDING, WITHOUT LIMITATION,

WARRANTIES THAT THE COVERED CODE IS FREE

OF DEFECTS, MERCHANTABLE, FIT FOR A 8.3.

PARTICULAR PURPOSE OR NON-INFRINGING.

THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE COVERED CODE IS WITH

YOU. SHOULD ANY COVERED CODE PROVE

DEFECTIVE IN ANY RESPECT, YOU (NOT THE

INITIAL DEVELOPER OR ANY OTHER

CONTRIBUTOR) ASSUME THE COST OF ANY

NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES

AN ESSENTIAL PART OF THIS LICENSE. NO USE 8.4.

OF ANY COVERED CODE IS AUTHORIZED

HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will

terminate automatically if you fail to comply with

terms herein and fail to cure such breach within 30

days of becoming aware of the breach. All subli-

censes to the covered code which are properly

granted shall survive any termination of this license.

Provisions which, by their nature, must remain in

effect beyond the termination of this license shall

su rvive.

8.2. If you initiate litigation by asserting a patent infringe-

ment claim (excluding declatory judgment actions)

against initial developer or a contributor (the initial

developer or contributor against whom you file such

action is referred to as "Participant") alleging that:

(a) such participant's contributor version directly or

indirectly infringes any patent, then any and all

rights granted by such participant to you under

sections 2.1 and/or 2.2 of this license shall, upon

60 days notice from Participant terminate pro-

spectively, unless if within 60 days after receipt of

notice you either: (i) agree in writing to pay par-

ticipant a mutually agreeable reasonable royalty for

your past and future use of modifications made

by such participant, or (ii) withdraw your litigation

claim with respect to the contributor version

against such participant. If within 60 days of notice,

a reasonable royalty and payment arrangement

are not mutually agreed upon in writing by the

parties or the litigation claim is not withdrawn, the

rights granted by participant to you under sec-

tions 2.1 and/or 2.2 automatically terminate at the

expiration of the 60 day notice period specified

above.

(b) any software, hardware, or device, other than such

participant's contributor Version, directly or indi-

rectly infringes any patent, then any rights grant-

ed to You by such participant under sections

2i(b) and 2.2(b) are revoked effective as of the

date you first made, used, sold, distributed, or

had made, modifications made by that partici-

pant.

If you assert a patent infringement claim against

participant alleging that such participant's contribu-

tor version directly or indirectly infringes any patent

where such claim is resolved (such as by license or

settlement) prior to the initiation of patent infringe-

ment litigation, then the reasonable value of the

licenses granted by such participant under sections

2.1 or 2.2 shall be taken into account in determining

the amount or value of any payment or license.

In the event of termination under sections 81 or 8.2

above, all end user license agreements (excluding dis-

tributors and resellers) which have been validly

granted by you or any distributor hereunder prior to

termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO

LEGAL THEORY, WHETHER TORT (INCLUDING

NEGLIGENCE), CONTRACT, OR OTHERWISE,

SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER

CONTRIBUTOR, OR ANY DISTRIBUTOR OF

COVERED CODE,OR ANY SUPPLIER OF ANY OF

SUCH PARTIES, BE LIABLE TO ANY PERSON FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES OF ANY CHARACTER

INCLUDING, WITHOUT LIMITATION, DAMAGES

FOR LOSS OF GOODWILL, WORK STOPPAGE,

COMPUTER FAILURE OR MALFUNCTION, OR ANY

AND ALL OTHER COMMERCIAL DAMAGES OR

LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN

INFORMED OF THE POSSIBILITY OF SUCH

DAMAGES. THIS LIMITATION OF LIABILITY SHALL

NOT APPLY TO LIABILITY FOR DEATH OR

PERSONAL INJURY RESULTING FROM SUCH

PARTY'S NEGLIGENCE TO THE EXTENT

APPLICABLE LAW PROHIBITS SUCH LIMITATION.

SOME JURISDICTIONS DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION

AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that

term is defined in 48 C.ER 2.101 (Oct. 1995), con-

sisting of "commercial computer software" and "com-

mercial computer software documentation," as such

terms are used in 48 C.RR 12.212 (Sept. 1995).

Consistent with 48 C.RR 12.212 and 48 C.RR

227.7202-1 through 227.7202-4 (June 1995), all

U.S. Government end users acquire covered code

with only those rights set forth herein.

170

11. MISCELLANEOUS.

This license represents the complete agreement con-

cerning subject matter hereof. If any provision of this

license is held to be unenforceable, such provision

shall be reformed only to the extent necessary to

make it enforceable. This License shall be governed

by California law provisions (except to the extent

applicable law, if any, provides otherwise), excluding

its conflict-of-law provisions. With respect to dis-

putes in which at least one party is a citizen of, or an

entity chartered or registered to do business in the

united states of america, any litigation relating to this

License shall be subject to the jurisdiction of the

federal courts of the northern district of california,

with venue lying in santa clara county, california, with

the losing party responsible for costs, including with-

out limitation, court costs and reasonable attorneys'

fees and expenses. The application of the united

nations convention on contracts for the International

sale of goods is expressly excluded. Any law or regu-

lation which provides that the language of a contract

shall be construed against the drafter shall not apply

to this license.

12. RESPONSIBILITY FOR CLAIMS.

As between initial developer and the contributors,

each party is responsible for claims and damages

arising, directly or indirectly, out of its utilization of

rights under this license and you agree to work with

initial developer and contributors to distribute such

responsibility on an equitable basis. Nothing herein is

intended or shall be deemed to constitute any

admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the cov-

ered code as "Multiple-Licensed". "Multiple-

Licensed" means that the initial developer permits

you to utilize portions of the covered code under your

choice of the NPL or the alternative licenses, if any,

specified by the initial developer in the file described

in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public

License Version 1.1 (the "license"); you may not use this file

except in compliance with the License. You may obtain a

copy of the license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an

"AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either

express or implied. See the license for the specific lan-

guage governing rights and limitations under the License.

The Original Code is

The Initial Developer of the Original Code

Portions created by are Copyright

Contributor(s):

Alternatively, the contents of this file may be used under

the terms of the license (the "[ ] License"), in

which case the provisions of [ ] license are applicable

instead of those above. If you wish to allow use of your

version of this file only under the terms of the [ ] license

and not to allow others to use your version of this file under

the MPL, indicate your decision by deleting the provisions

above and replace them with the notice and other provi-

sions required by the [ ] license. If you do not delete the

provisions above, a recipient may use your version of this file

under either the MPL or the [ ] license."

NOTE: The text of this exhibit A may differ slightly from the

text of the notices in the source code files of the original

code. You should use the text of this exhibit A rather than

the text found in the original code/source code for Your

modifications.

171

Lifds Good

The model and seraJ number of the TV s located

on the back and one sde of the T\Z

Record if beow should you ever need setvice

MODEL

SERIAL

Life's Good

"......'°_'_E ...... ° A UA

_ED LCD TV /LCD TV

Please read this manual carefully before operating

your set and retain it for future reference.

P/NO :SAC34134204 (IO01-REV02) www.lge.com

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

You can select a different aspect ratio depending on input source (analog broadcasting, digital broad-

casting, aux).

-o

-t

Select PICTURE.

Select Aspect Ratio.

Select the desired picture format.

_ You can also adjust Aspect Ratio in

the Q.MENU.

_ Press the RATIO button repeatedly to

select the desired picture format.

Return to the previous menu.

Return to TV viewing.

When adjusting Zoom or Cinema Zoom in Q.MENU

Select Aspect Ratio.

Select Zoom or Cinema

Zoom.

Adjust proportion of Zoom or

Cinema Zoom. The Cinema

Zoom adjustment range is

1-16. : Move _ _ Zoom ® Enter Move _ _Zoom ® Enter

Move the image on the screen.

IO0

16:9

Adjust the picture horizontally, in a

proportion to fill the entire screen.

linear

Jusf Scan

Normally the edges of video signals are

cropped 1-2%. Just Scan turns off this

cropping and shows the complete video.

Notes: If there is noise on the edges of the

original signal, it will be visible when Just Scan

is activated.

Just Scan operates only in DTV/Cable DTV/

Component/H DMI- DTV/DVI-DTV

(720p/lOSOi/lOSOp) input source.

Set By Program

Selects the proper picture

match the source's image.

(4:3 "_ 4:3)

proportion to

(16:9 -_ 16:9)

4:3

Choose 4:3 when you want to view a picture

with an original 4:3 aspect ratio.

Zoom

Choose Zoom when you want to view the

picture without any alteration. However, the

top and bottom portions of the picture will

be cropped.

Cinema Zoom

Choose Cinema Zoom when you want to

enlarge the picture in correct proportion.

This enlarges an image with cinemascope

aspect ratio (2.35:1) without distortion.

Note: When enlarging or reducing the pic-

ture, the image may become distorted.

-u

101

PICTURE CONTROL

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen

quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily follow-

ing each step. When you adjust the image to Low, Recommended or High, you can see the example of

the changes you made.

-o

-t

iml

-t

Select PICTURE.

Select Picture

Wizard.

Adjust Picture Wizard.

Adjust Standard/

Preferred.

_ If you select Preferred, OSD (On Screen

Display) differ from that shown in this manual.

Adjust Black Level.

Adjust White Level.

Adjust Tint.

102

Adjust Color.

Adjust Horizontal

Sharpness.

Adjust Vertical

Sharpness.

i.e)

Adjust Backlight.

Select input source to

apply the settings.

Save.

Finish the Picture Wizard.

_ If you stop the Picture Wizard before the

final step, the changes will not be saved to

the TV.

_ Once the Picture Wizard sets the picture

quality, Energy Saving is changed to Off

automatically.

To reset changes made by Picture Wizard,

operate Picture Reset when Picture Mode

is on Expert1.

=13

103

PICTURE CONTROL

ENERGY SAVING

It reduces the TV's power consumption by lowering the backlight level.

You can increase the brightness of your screen by adjusting the Energy Saving level or by adjusting the

Picture Mode.

-o

-1

iml

-1

Select PICTURE.

Select e_ Energy Saving.

Select Off, Minimum, Medium,

Maximum, or Screen Off.

Return to the previous menu.

_ When selecting Screen off, the

screen will turn off after 3 seconds.

_ If you adjust "Energy Saving-

Maximum", Backlight feature will not

work.

_ Press the ENERGY SAVING button

repeatedly to select the appropriate

Energy Saving setup.

Return to TV viewing.

104

PRESET PICTURE SETTINGS (PICTURE MODE)

There are factory presets for picture settings available in the user menus. You can use a preset,

change each setting manually.

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport,

or Game.

Return to the previous menu.

Return to TV viewing. @

Vivid, Standard, Cinema, Sport, and

Game Settings are preset for the

optimum picture quality at the fac-

tory.

Vivid: This is the mode to maximize

the effect of the video in the retail

store. Strengthen the contrast, bright-

ness, color and sharpness for vivid

picture.

Standard: This is the mode to realize

optimum viewing condition for the

general user.

Cinema: This mode optimizes video

for watching movies.

Sport: This is the video mode to

emphasize dynamic video and pri-

mary color (e.g, white, uniform, grass,

sky blue etc.) by realizing the optimal

screen for sports.

Game: This is the mode to realize fast

response speed in a fast gaming

screen.

_ Expert: This is the mode to adjust

the video in detail for video quality

expert and general user.

You can also adjust Picture Mode in

the Q.MENU.

"13

--4

;[3

105

PICTURE CONTROL

MANUAL PICTURE ADJUSTMENT - USER MODE

Adjust the picture appearance to suit your preference and viewing situations.

-u

-t

iml

-t

Select PICTURE.

Select Picture MOdel

Select Vivid, Standard, Cinema,

Sport, or Game.

Select Backlight, Contrast, Brightness,

Sharpness, Color, Tint, Color Temp., or

Advanced Control.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

_ Backlight: This function adjusts the

brightness of the backlight behind

the LCD screen. Adjusting the back-

light is recommended when setting

the brightness of the TV. When

decreasing the backlight, the bright-

ness of the black becomes darker

without any loss in video signal and

the power consumption is reduced.

_Contrast: Increase or decrease the

gradient of the video signal. You may

use Contrast when the bright part of

the picture is saturated.

_ Brightness: Adjusts the base level of

the signal in the picture. You may use

Brightness when the dark part of the

picture is saturated.

_ Sharpness: Adjusts the level of crisp-

ness in the edges between the light

and dark areas of the picture. The

lower the level, the softer the image.

_ Color: Adjusts intensity of all colors.

_ Tint: Adjusts the balance between

red and green levels.

_ Color Temp.: Set to warm to enhance

hotter colors such as red, or set to

cool to enhance cooler colors such

as blue.

106

PICTURE IMPROVEMENT TECHNOLOGY

(ADVANCED CONTROL)

Advanced Control allows you to adjust some of the advanced features of your LG display.

To reset to the factory default after making adjustments to each input source, execute the Picture

Reset function for each Picture Mode.

Select PICTURE.

-13

--4

rrl

--4

Select Advanced Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

107

PICTURE CONTROL

EXPERT PICTURE CONTROL

_ Expert1 and _ Expert2 provide even more advanced picture settings for users. Typical used by

professionals for calibrating the TV.

-1

iml

-1

Select PICTURE.

Select Picture MOdel

Select _ Expert1 or _ Expert2.

Select Expert Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the arevious menu.

Return to TV viewing.

108

_This feature is not available for all models.

Adjusts the contrast to keep it at the best level according to the brightness

of the screen. The picture is improved by making bright parts brighter and

dark parts darker.

Adjusts screen colors so that they look livelier, richer and clearer. This fea-

ture enhances hue, saturation and luminance so that red, blue and green

white look more vivid.

It detects the skin area of video and adjusts it to express a natural skin color.

ssReduces screen noise without compromising video quality.

_',Removes noise caused by compressing video.

_ You can adjust brightness of dark areas and middle gray level areas of the

picture.

Low : Make brighter and middle gray level areas of the picture brighter.

Medium : Express original picture levels.

High: Make dark and middle gray level areas of the picture darker.

Low: The reflection of the screen gets darker.

High: The reflection of the screen gets brighter.

Set black level of the screen to proper level.

This function is available in the following modes: AV (NTSC-M), HDMI or

Component.

_ Make the white area of screen brighter and more white.

_ Adjust the brightness of the screen to prevent the screen from being too

bright. Dims extremely bright pictures.

This feature is enabled in "Picture Mode-Standard, Sports, Game".

Makes video clips recorded in film look more natural by eliminating judder

effect.

DVD and Blu-ray movies are filmed at 24 frames per second (fps). With

LG Real Cinema, every frame is consistently processed 5 times in 1/24 of

a second producing 120 fps with TruMotion or 2 times in 1/24 of a second

producing 48 fps without TruMotion, thus totally eliminating the judder

effect.

This function can also work when TruMotion is off.

-H

rrl

Advanced Control

_, Maximize the utilization of colors to increase color quality.

Standard: Displays standard set of colors.

Wide: Increase number of colors used.

109

PICTURE CONTROL

-1

iml

-1

_ Show clearer and distinctive yet natural edges in of the video.

_ This function is enabled in "Picture Mode - Expert".

_ This is produces richer colors.

_ This feature represents rich color as much as conventional video signal.

This function is enabled in "Picture Mode - Cinema, Expert" when a xvYCC

signal is inputted through HDMI.

_ This function filters specific colors in the video.

You can use the RGB filter to set color saturation and hue accurately.

_, This is a pattern used for expert adjustment.

This function is enabled in "Picture Mode - Expert" when you watch DTV.

_<Adjusts the overall color of the screen by changing the white baseline.

a. Gamma :Select 1.9, 2.2, 2.4

b. Method :2 Points

- Pattern: Inner, Outer

- Red/Green/Blue Contrast, Red/Green/Blue Brightness:

The adjustment range is -50 - +50.

c. Method : 10 Point IRE

- Pattern: Inner, Outer

IRE (Institute of Radio Engineers) is the unit to display the size of the video

signal and can be set among 10, 20, 30 - 1OO. You can adjust Red, Green

or Blue according to each setting.

Luminance: This function displays calculated luminance value for 2.2

gamma. You can input luminance value you want at 1OO IRE, tker_ the

target luminance value for 2.2 gamma is displayed at every 10 steps from

10 IRE to 90 IRE.

- Red/Green/Blue: The adjustment range is -50 - +50.

d. Apply to all inputs

_ A tool used by the experts to make adjustments by using the test patterns,

this does not affect other colors but can be used to selectively adjust the

6 color areas (Red/Green/Blue/Cyan/Mgt/Yellow).

Color difference may not be distinctive even when you make the adjust-

ments for the general video.

Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.

- Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is

-30 - +30.

- Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30

- +30.

- This feature is disabled in RGB-PC and HDMI-PC mode.

110

PICTURE RESET

Settings of the selected picture modes return

to the default factory settings.

Select PICTURE. Initialize the adjusted value.

Select Picture Reset.

Select Yes.

POWER INDICATOR

Adjust the power/standby indicator light on the front of the TV.

Return to TV viewing. "13

r--

Select OPTION. Return to the previous menu.

Select Power Indicator. Return to TV viewing.

Select Standby Light or Power

Light.

Select your desired options.

Standby Light: Determines whether to set

the indicator light on the front of the TV to

On or Off in standby mode.

Power Light: Determines whether to set the

indicator light on the front of the TV to On

or Off when the power turns on.

111

PICTURE CONTROL

TRUMOTION

- For 32/37/42/47/55LE5300, 42/47/55LE7300, 32/42/47/55LD520, 42/47/55LD630

Advance video technology that provides clearer, smoother images, even during fast action scenes cre-

ating a more stable structure for a crisper picture.

-o

-t

iml

-t

Select PICTURE.

Select TruMotion.

Select Low, High, User, or Off.

Adjustment for TruMotion (Judder

and Blur)with selecting User

Select Judder or Blur.

Make appropriate adjustments.

_ Off: Turn off TruMotion operation.

_ Low: Provides smooth picture move-

ment. Use this setting for standard

use.

_ High: Provides smoother picture

movement.

_dudder: Adjusts noise of the screen.

_ Blur: Adjusts after-image of the screen.

_ TruMotion works with all inputs except

PC mode.

_ If you enable "TruMotion", noise may

appear on the screen. If this occurs,

set "TruMotion" to "Off".

_ if you select "Picture Mode-Game"

set "TruMotion" to "Off".

Return to the arevious menu.

Return to TV viewing.

112

SOUND & LANGUAGE CONTROL

AUTO VOLUME

Auto Volume makes sure that the volume level remains consistent whether you are watching a com-

mercial or a regular TV program.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed

every time the channel is changed. This feature allows users to enjoy stable volume levels by making

automatic adjustments for each program.

Select AUDIO.

Select Auto Volume.

Select On or Off

Return to the previous menu.

Return to TV viewing.

F-

-4

113

SOUND & LANGUAGE CONTROL

CLEAR VOICE II

By differentiating the human sound range from others, it improves the sound quality of voices.

Select AUDIO.

Select Clear Voice II.

Select On or Off.

Adjustment for Clear Voice Level

with selecting On

Select Level.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

114

BALANCE

Adjust the left/right sound of speaker to suit your taste and room situations,

Select AUDIO.

Select Balance.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

or)

115

SOUND & LANGUAGE CONTROL

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment using factory presets.

-H

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema,

Sport, or Game.

Return to the previous menu.

Return to TV viewing.

_ Standard, Music, Cinema, Sport, and

Game are preset for optimum sound

quality at the factory.

You can also adjust Sound Mode in

the Q.MENU.

Standard: Offers standard-quality

sound.

_ Music: Optimizes sound for listening

to music.

_ Cinema: Optimizes sound for watch-

ing movies.

_ Sport: Optimizes sound for watching

sports events.

_ Game: Optimizes sound for playing

games.

116

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema,

Sport, or Game.

Select Infinite Sound, Treble, or Bass.

Make appropriate adjustments.

Return to the previous menu.

_ If sound quality or volume is not at

the level you want, it is recommended

to use a separate home theater sys-

tem or amp to cope with different

user environments.

_ If you select "Clear Voice II-On", the

Infinite Sound feature will not oper-

ate.

_ Infinite Sound: Infinite Sound is a

patented LG proprietary sound pro-

cessing technology that strives

immersive 5.1 surround sound with

just two front speakers.

Return to TV viewing.

117

SOUND & LANGUAGE CONTROL

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

r'-

Select AUDIO.

Select Reset.

Select Yes.

Initialize the adjusted value.

Return to TV viewing.

118

TV SPEAKERS ON/OFF SETUP

If you wish to use an external Hi-Fi system, turn off the TV's internal speakers.

Select AUDaO

Select TV Speaker.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

F-

119

SOUND & LANGUAGE CONTROL

STEREO/SAP BROADCAST SETUP

On analog signals, this TV can receive MTS stereo programs and any SAP (Secondary Audio

Program) that accompanies the stereo program if the station transmits an additional sound signal.

Mono sound is automatically used if the broadcast is only in Mono.

r'-

-4

Analog TV

Select SAP.

Select Mono, Stereo, or

SAP.

Return to TV viewing.

Digital TV

Select Multi Audio.

Select other languages.

Return to TV viewing.

120

AUDIO LANGUAGE

This feature operates only in DTV/Cable DTV mode.

Select OPTION.

Select Language.

Select Audio Language.

Select your desired language.

r--

Return to the previous menu.

Return to TV viewing.

121

SOUND & LANGUAGE CONTROL

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

r'-

:x]

r'-

Select OPTION.

Select Language.

Select Menu Language.

Select your desired language.

From this point on, the on-screen menus

will be shown in the selected language.

Return to the previous menu.

Return to TV viewing.

122

CAPTION MODE

Analog Broadcasting System Captions

Captions are provided to help the hearing impaired watch TV. Select a caption mode for displaying

captioning information if provided on a program. Analog caption displays information at any position

on the screen and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would

be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to

memorize the caption/text mode which was last set when you turned the power off. This function is

only available when Caption Mode is set On.

Select OPTION.

Select Caption.

Select On.

Select CC1-4 or Text1-4.

Return to the previous menu.

Return to TV viewing.

_ When selecting Off, Sub-menus for

Analog, DTV, and Digital Option

become disabled.

_ Caption

The term for the words that scroll

across the bottom of the TV screen;

usually the audio portion of the pro-

gram provided for the hearing

impaired.

_ Text

The term for the words that appear in

a large black frame and almost cover

the entire screen; usually messages

provided by the broadcaster.

F-

123

SOUND & LANGUAGE CONTROL

Digital Broadcasting System Captions

Choose the language you want the DTV/Cable DTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

:x]

Select OPTION.

Select Caption.

Select On.

Select CCl-4, Text1-4, or Service1 - 6.

Return to the previous menu.

Return to TV viewing.

124

Caption Option

Customize the DTV/Cable DTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

Select OPTION.

Select Caption.

Select On.

Select Digital Option.

Select Custom.

Customize the Size, Font, etc., to your

preference. A preview icon is provided

at the bottom of the screen, use it to

see the caption language.

_ Size: Set the word size.

_ Font: Select a typeface for the text.

Text Color: Choose a color for the

text.

Text Opacity: Specify the opacity for

the text color.

_sBg (Background) Color: Select a

background color.

_ Bg (Background) Opacity: Select the

opacity for the background color.

Edge Type: Select an edge type.

_ Edge Color: Select a color for the

edges.

rr]

-4

r--

Return to the previous menu.

Return to TV viewing.

125

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting sta-

tion.

Set the clock manually if the current time is set incorrectly by the auto clock function.

-4

£/3

-4

Select TIME.

Select Clock.

Select Auto.

Select your viewing area time zone.

USA: Eastern, Central, Mountain,

Pacific, Alaska, or Hawaii.

Canada: Eastern, Central, Mountain,

Pacific, New Foundland, or Atlantic.

Select Auto, Off, or On (depending

on whether or not your viewing area

observes Daylight Saving time).

Return to the previous menu.

Return to TV viewing.

126

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

Select TIME.

Select Clock.

Select Manual.

--4

£/3

--4

Select the Year, Month, Date, Hour, or Minute

option.

Set the Year, Month, Date, Hour, or Minute

option.

Return to the previous menu.

Return to TV viewing.

127

TiME SETTING

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

The Off Time function overrides the On Time function if they are both set to the same time.

The TV must be in standby mode for the On Time to work.

If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV

will automatically revert to standby mode.

-H

Select TIME.

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon.~Fri.,

Mon.~Sat., Sat.~ Sun., or Sun..

Select and set Hour or Minute.

Return to the previous menu.

_sTo cancel On/Off Time function, select

Off.

_a,Only for On Time function

Select Input.

Select the desired input source.

When Selecting TV:

set the channel at turn-on.

Adjust to sound level at

turn-on.

Return to TV viewing.

128

SLEEP TIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

Select TIME.

Select Sleep Timer.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

_ To cancel the Sleep Timer, select Off.

_ You can also adjust Sleep Timer in

the Q.MENU.

-4

129

PARENTAL CONTROL /RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by

the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be

blocked by choosing the type of the program and the categories. It is also possible to block all pro-

gram viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television mov-

ies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the

theaters or direct-to-video movies use the Movie Rating System (MPAA) only.

Ratings for Television programs including made-for-TV movies:

_ TV-G (General audience)

_ TV-PG (Parental guidance suggested)

_ TV-14 (Parents strongly cautioned)

_ TV-MA (Mature audience only)

_ TV-Y (All children)

_ TV-Y7 (Children 7 years older)

"13

-.-I

r-"

-.-I

SET PASSWORD & LOCK SYSTEM

Setting up Your Password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Select LOCK.

Input the password.

_ Enter the password as requested.

_ The TV is set up with the initial

password "0-0-0-0".

_ If you forget your password, press

"0-3-2-5" on the remote control.

130

Set Password

Change the password by inputting a new password twice.

Select LOCK.

Input the password.

Select Set Password.

Choose any 4 digits for your new

password.

As soon as the 4 digits are entered,

re-enter the same 4 digits on the

Confirm.

Return to the previous menu.

Return to TV viewing.

"13

-4

131

PARENTAL CONTROL RATINGS

Lock System

Enables or disables the blocking scheme you set up previously.

Select LOCK.

Input the password.

_ When you select On, the Lock

System is enable.

"13

-4

r-"

-4

Select Lock System.

Select On or Off

Return to the previous menu.

Return to TV viewing.

132

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

Select LOCK.

Input the password.

Select Block Channel.

If a channel is locked, enter the

password to unlock it temporarily.

Select a channel to block or unblock.

Block or unblock a channel.

Return to the previous menu.

Return to TV viewing.

133

PARENTAL CONTROL RATINGS

MOVIE & TV RATING

Movie Rating (MPAA)- For USA

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies.

You can set the ratings limit by blocking out all the movies with the ratings above a specified level.

Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such

as soap operas.

-o

-q

-.-I

r-"

-.-I

Select LOCK.

Input the password.

Select Movie Rating.

Select G, PG, PG-13, R, NC-17, X, or

Blocking Off.

Return to the previous menu.

Return to TV viewing.

_ If Movie Rating, TV Rating-Children

or TV Rating-General is locked, enter

the password to unlock it temporarily.

_ G (General audience)

_ PG (Parental guidance suggested)

_ PG-13 (Parents strongly cautioned)

_ R (Restricted)

_ NC-17 (No one 17 and under admit-

ted)

_ X (Adult only)

_ Blocking Off (Permits all programs)

_' If you set PG-13: G and PG movies

will be available, PG-13, R, NC-17 and

X will be blocked.

134

TV Rating Children -For USA

Prevents children from watching certain children's TV programs, according to the ratings limit set. The

children rating does not apply to other TV programs. Unless you block certain TV programs intended

for mature audiences in the TV Rating - sub menu, your children can view those programs.

Select LOCK.

Input the password.

_ Age (applies to TV-Y, TV-YT)

s_Fantasy Violence (applies to TV-Y7)

Select TV Rating-Children.

Select Age or Fantasy Violence.

Select block options.

Return to the previous menu.

Return to TV viewing.

"13

-4

135

PARENTAL CONTROL RATINGS

TV Rating General - For USA

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

-D

-.-I

r-"

-.-I

Select LOCK.

Input the password.

Select TV Rating-General.

Select Age, Dialogue, Language, Sex

or Violence.

Select block options.

Return to the previous menu.

Return to TV viewing.

_ Age (applies to TV-G,-I-V-PG,-I-V-

14,TV-MA).

_ Dialogue-sexual dialogue (applies to

TV- PG,-I-V-14).

_' Language-adult language (applies to

TV-PG, TV-14, TV-MA).

s_Sex-sexual situations (applies to

TV-PG, TV-14, TV-MA).

_ Violence (applies to TV-PG, TV-14,

TV-MA).

136

TV Rating English - For CANADA

Selecting Canadian English rating system.

Select LOCK.

Input the password.

Select TV Rating-English.

Select E, C, C8+, G, PG, 14% 18% or

Blocking Off.

Return to the previous menu.

Return to TV viewing.

_ If TV Rating-English or TV Rating-

French is locked, enter the password

to unlocked it temporarily.

_ E (Exempt)

_ C (Children)

C8+ (Children eight years and older)

_ G (General programming, suitable

for all audiences)

_ PG (Parental Guidance)

14+ (Viewers 14 years and older)

_ 18+ (Adult programming)

_4Blocking Off (Permits all programs)

"13

-4

137

PARENTAL CONTROL RATINGS

TV Rating French -For CANADA

Selecting Canadian French rating system.

--4

-4

r-"

-4

Select LOCK.

Input the password.

Select TV Rating-French.

Select E, G, 8ans+, 13ans+, 16ans+,

18ans+ or Blocking Off

Return to the grevious menu.

Return to TV viewing.

_ E (Exempt)

_ G (General)

_ 8ans+ (General-Not convenient for

little children)

_ 13ans+ (Not convenient for children

of 13 years and younger)

_s,16ans+ (Not convenient for children

of 16 years and younger)

18ans+ (This programs is only for

adults)

_ Blocking Off (Permits all programs)

138

DOWNLOADABLE RATING

This function is available only for digital channels.

This function operates only when TV has received Region5 Rating data.

_ Based on rating table, your TV's

OSD (On Screen Display) may dif-

fer slightly from what is shown in

this manual.

Select LOCK.

Input the password.

Select Downloadable Rating.

Select desired Downloadable Rating

option.

Select desired option and block it.

Return to the previous menu.

_ If a Downloadable rating is locked,

enter the password to unlock it tem-

porarily. "lJ

-H

Return to TV viewing.

139

PARENTAL CONTROL RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

-u

-q

-.-I

r--

-.-I

Select LOCK.

s_/_/NN/ Input the password.

',,.<![/.,,,,x

Select Input Block.

Select input source.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

140

i.e)

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so

that it can only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select LOCK.

Input the password.

Select LOCK.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

In Key Lock 'On', if the TV is turned

off, press the (_)/ I, INPUT, CH (AVor

A V) button on the TV or POWER,

INPUT, CH (AV)or NUMBER but-

tons on the remote control.

_ With the Key Lock On, the display

'_ Key Lock' appears on the screen

if any bulCon on the front panel is

pressed while viewing the TV.

141

APPENDIX

TROUBLESHOOTING

_ Is the sleep timer set?

s_Check the power control settings. Power interrupted.

If there is no signal, the TV turns off automatically in 15 minutes.

-o

142

Check whether the product is turned on.

Try another channel. The problem may be with the broadcast.

Is the power cord inserted into wall power outlet?

_ Check your antenna direction and/or location.

_ Test the wall power outlet, plug another product's power cord into the

outlet where the product's power cord was plugged in.

This is normal, the image is muted during the product startup process.

Please contact your service center, if the picture has not appeared after

five minutes.

t*_.Check for local interference such as an electrical appliance or power

tool.

*t_Station or cable product experiencing problems, tune to another station.

Station signal is weak, reorient antenna to receive weaker station.

_ Check for sources of possible interference.

s_Check HDMI cable over version 1.3.

The HDMI cables don't support HDMI version 1.3, it cause flickers or no

screen display. In this case use the latest cables that support HDMI ver-

sion 1.3.

_;_A changein ambienthumidityortemperaturemayresultin anunusual

noisewhenthe productis turnedonor off anddoesnot indicatea fault

withthe product.

CheckHDMIcableoverversion1.3.

_CheckUSBcableoverversion2.0.

_ UsenormalMP3file. _Thisfeatureisnotavailableforallmodels.

_ActivatetheAutoconfigurefeatureoradjustsize,phase,or H/V position.

(Option)

_Checkthe signalcable.

_ Reinstallthe PCvideocard.

_Checkthe manualfor thevideocardinthe PCto seeif it supports

HDMIaudioand howto setit upproperly. _>

"lJ

143

APPENDIX

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the resolution is supported.

Check whether the video/audio codec is supported.

Check whether the frame rate is supported.

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the audio codec is supported.

Check whether the bit rate is supported.

Check whether the sample rate is supported.

Check whether the file is playing normally on a PC. (Check whether the

file is damaged.)

Check whether the video file and subtitle file name are the same.

Check whether the video file and subtitle file are located in the same

folder.

Check whether the subtitle file is supported.

Check whether the language is supported. (When you open the subtitle

file o/s ['C:, you can check the language of the subtitle file.)

144

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you

can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of

lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's

almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

_ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

_ Please be sure not to use a wet cloth.

Extended Absence

145

APPENDIX

PRODUCT SPECIFICATIONS

52 kg (7,1 Ibs) 3,9 kg (8,6 Ibs)

6,1 kg (15.4 Ibs)

5,1 kg (11.2 Ibs)

-IS

19LE5300: 24V_-'_, 1.6A

22LE5300: 24V_-'_, 1.7 A

26LE5300: 24V_--_, 1.8 A

In: AC100-240 V N 50/60 Hz

Out: DC 24 V, 3.42 A

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

146

10,5 kg (23,1 Ibs) 11,8 kg (26,0 Ibs)

1016.0 mm x 630.0 mm x 29,3 mm

(40.0 inch x 24.8 inch x 1.1 inch)

16,7 kg (36,8 Ibs)

1126,6 mm x 692,0 mm x 29,3 mm

(44,3 inch x 27,2 inch x 1,1 inch)

19.6 kg (43,2 Ibs)

28,8 kg (63,4 Ibs)

AC120VN 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

147

APPENDIX

21,9 kg (48,2 Ibs)

19,1 kg (42,1 Ibs)

26,2 kg (57,7 Ibs)

25,0 kg (50,7 Ibs)

52,8 kg (72,5 Ibs)

AC120 V N 50 /_O Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

-IS

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

148

10,3 kg (22,7 Ibs) 11,0 kg (24,2 Ibs)

1028,0 mm x 658,6 mm x 88,7 mm

(40.4 inch x 25,9 inch x 3,4 inch)

16,2 kg (35,7 Ibs)

1140,6 mm x 722,9 mm x 99,0 mm

(44,9 inch x 28,4 inch x 3,8 inch)

19,9 kg (43,8 Ibs)

8,1 kg (17,9 Ibs) 10,8 kg (23,8 Ibs)

13,5 kg (29,7 Ibs) 17,5 kg (38,6 Ibs)

AC 100-240 V _ 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

0 °C to 40 °C (32 °F to 104 °F)

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

149

APPENDIX

11,4 kg (25,1 Ibs) 17,2 kg (57,9 Ibs)

20,8 kg (45,8 Ibs) 52,9 kg (72,5 Ibs)

17,2 kg (57,9 Ibs) 18,5 kg (40,5 Ibs)

-U

28,9 kg (65,7 Ibs)

AC 100-240 V N 50 /60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ©

0 °C to 40 °C (32 °F to 104 °F)

Less than 85 %

_ The specifications shown above may be changed without prior notice for quality improvement.

150

IR CODE

CH A Remote Control Button 11_ Remote Control Button

VOL + Remote Control Button

> Remote Control Button

i! i!i ! ! !i i!ii!!i!!i i! i! i! i! i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!i!ii!ii!ii!ii!ii!ii!ii!ii!iiiiiiiiiiiiiiiiiiiii!i!i i n Remote Control Button

BINPUT Remote Control Button AV or AVI

OF TV Remote c0ntFol But¢0n

Discrete IR Code

(AV1 Input Selection)

FAV!MARK Remote Control Button COMPONENT Discrete IR Code

28 BACK Remote Control Button (Component Input Selection)

AV MODE Remote Control Button D5 RGB.PC Discrete IR Code

V Remote Control Button HDMII Discrete IR Code

43 (HDMI1 Input Selection)

HDMI3 Discrete IR Code

(HDMI3 Input Selection)

GREEN Remote Control Button Ratio 4:3 Discrete IR Code

Remote control ButfOn (Only 4:3 Mode)

RATIO Remote Control Button ¥7 Ratio 16:9 Discrete IR Code

-U

Ratio Zoom Discrete IR Code

(Only Zoom Mode)

_ Use this feature depending on your models.

151

APPENDIX

EXTERNAL CONTROL THROUGH RS-232C

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as

a computer or an A/V control system) to control the TV's functions externally.

_ Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and

software.

The instructions below are provided to help with programming software or to test functionality using

telenet software.

RS-232C Setup

i.e)

Type of Connector; D-Sub 9-Pin Male Communication Parameters

No connection

RXD (Receive data)

TXD (Transmit data)

DTR (DTE side ready)

GND

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No Connection

_ Baud rate: 9600 bps (UART)

_ Data length : 8 bits

_ Parity : None

_ Stop bit : 1 bit

_ Communication code :ASCII code

_ Use a crossed (reverse) cable.

152

RS-232C Configurations

RXD

TXD

GND

DTR

DSR

RTS

CTS

PC TV

D-Sub 9 D-Sub 9

TXD

RXD

GND

DSR

DTR

CTS

RTS

RXD

TXD

GND

DTR

DSR

RTS

CTS

D-Sub 9

TXD

RXD

GND

DTR

DSR

RTS

CTS

Set ID

Use this function to specify a TV ID number.

Refer to 'Real Data Mapping'.

Select OPTION.

Select Set ID.

Choose the desired TV ID number.

The adjustment range of Set ID is

1-_99.

Return to the previous menu.

Return to TV viewing.

_ Real data mapping

Step 0

Step 10 (Set ID 10)

Step 15 (Set ID 15)

Step 16 (Set ID 16)

Step 99 (Set ID 99)

Step 100

"13

153

APPENDIX

Command Reference List Transmission /Receiving Protocol

-0

OO - O1

,,,,... ¸¸4.::¸¸¸¸:¸¸¸::,.¸T: ::dX::: ..,::..,A J-}, k o > P.lSS

04. screen Mute d 00 _ 0i

e oo- ol

0a Volume f o0

Control

T.: k g oo- 64

k i 00- 64

101 Tint k QO _ 64

k k 00- 64

k m OO - O1

i4( TreBle k r O0 - 64

i i i i i k s 00- 64

16. Balance k t 00-64

.......

7. x u 00 - 64

:::::::To

]B. Energy Saving j R!56

_ R156

2]i Channel Add/ m b O0'Oi

231 BaCkiigBf g oo _ 6_

mphysical major

program program

high low

[Command ]] i Eirst €0mmand to control t he s et. (J,

k, m0ix)

[command 2] : Second comman d to contro I the

set.

[Se t D] iYo u can adjust the set !D tO Choose

desired ]-V ID number in setup meeu!

AdjuStment iange iS l-99. when Selecting

Set ID !O: eyery Connected the TV is Con-

trolled. Set ID is indicated as decimal

(1199) on menuand as HexadeCimal(oxo

_ 0x63)0 n transmission jreCeiying Protd_

Coli

[DATA] i To transmit the command data,

Transmit the 'FF' data to read status of

command.

[ ] { ASCI! code Ispace (Ox20)'

t In this model, TV will not send the status during the

standby mode.

The TV transmits ACK (aCknowledgement)based

on this format When receMng normal datal At this

time, if the data is data read mode, it indicates pres-

ent Status data: If the data is data write mode, it

returnS the data 0, the PC

t nths mode,TVw not send the status durng the

standby mode.

Data Format

[cOmmana2] i use asCOmmand.

[Set !D] i use the sma!! character, if Set ID is 10, it will Send

the O, a.

[DATA]: Use the small character, if data !sO xab it wil!

Send the a, b.

[OK] : Character.

The TV traasmits ACK (acknowledgement) Based

On this format when receMn9 abn0rmal data from

non-viable functions or Communication errors.

major low minor minor low attribute

high In this model, TV will not send the status during the

154

[Command 2] ;Use as command.

[Set ID] i Use the small character, if set ID is 10, it wi!! send

[DATA] : Use the small character, if data is 0 xab, it wil!

[NG] : Use the large character

01.Power(Command:ka)

TocontrolPowerOn/OffoftheT_

Transmission[k][a][][SetID][][Data][Cr]

Data00:PowerOff Data01:PowerOn

Acknowledgement[a][][SetID][][OK/NG][Data][×]

* Inalikemanner,ifotherfunctionstransmit'FF'data

basedonthisformat,Acknowledgementdatafeed-

backpresentsstatusabouteachfunction.

* Note:Inthismodel,TVwillsendtheAcknowledge

afterpoweronprocessingcompletion.

Theremightbeatimedelaybetweencommandand

acknowledge.

02.InputSelect(Command:xb)

ToselectinputsourceforTV.

Transmission[x][b][][SetID][][Data][Cr]

Data00:DTV(Antenna)

Data10:Analog(Antenna)Data11:Analog(Cable)

Data20:AVorAV1

Data40:Component

Data60:RGB-PC

Data91:HDMI2

Data93:HDMI4

Acknowledgement[b][

Data21:AV2

Data90:HDMI1

Data92:HDMI3

][SetID][][OK/NG][Data][x]

Use the feature depending on your model

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission [k][c][

Data 01:4:3

Data 02:1.6:9

Data 04: Zoom

Data 05:Zoom2

Data 06: Set by program

][Set ID][ ][Data][Cr]

Data 09: Just scan

Data 10: Cinema Zoom1

Data 1F: Cinema Zoom16

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

04. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on), Video-out Mute off

Data 01: Screen mute on (Picture off)

Data 10: Video-out Mute on

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of Video-out Mute on only, TV will display On

Screen Display (OSD). But, in case of screen mute

on, TV wii} not display On Screen Display (OSD).

05. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

06. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons

on remote controk

Transmission [k][f][ ][Set ID][ ][Dafa][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mappingl

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

07. Contrast (Commands k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer 1o 'Real data mappingl

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

08. Brightness (Commands k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingl

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

09. Color (Command: k i)

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mappingt

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: O0 - Green: 64 (_transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [j ][ ][Set ID][ ][OK/NG][Data][x]

-[3

155

-0

156

APPENDIX

11. Sharpness (Command: k k)

To adjust screen sharpness.

You can also adjust sharpness in the Picture menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

12. OSD Select (Command: k I)

To select OSD (On Screen Display) on/off.

Transmission [k][I][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [I][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel con-

trols on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you're not using the remote control and front panel

controls on the TV, use this mode. When main power

is on/off, remote control lock is released.

If Key Lock is on in the standby mode, TV will not turn

on by POWER button of remote control and on the

TV.

14. Treble (Command: k r)

To adjust treble.

You can also adjust treble in the Audio menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

15. Bass (Command: k s)

To adjust bass.

You can also adjust bass in the Audio menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingt

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the Audio menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mappingt

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

17. Color Temperature (Command: x u)

To adjust color temperature.

You can also adjust color temperature in the Picture

menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

18. Energy Saving (Command: j q)

To control the energy saving function.

Transmission [ j ][q][ ][Set ID][ ][Data][Cr]

Data 00: Energy saving - off

01: Energy saving - Minimum

02: Energy saving - Medium

03: Energy saving - Maximum

04: Energy saving - Auto (depending on model)

05: Energy saving - Screen off

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

19. Auto Configuration (Command: j u)

To adjust picture position and minimize image shak-

ing automatically. Auto configuration only works in

RGB-PC mode.

Transmission [j ][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

20. Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][DataO0][ ][Data01]

[ ][Data02][ ][DataOS][ ][Data04][ ][DataOS][Cr]

Digital channels have a Physical, Major, and Minor

channel number. The Physical number is the actual

digital channel number, the Major is the number that

the channel should be mapped to, and the Minor is

the sub-channel. Since the ATSC tuner automatically

maps the channel to the Major number, the Physical

number is not required when sending a command.

Data 00: Physical Channel Number

NTSC air: 02 - 45, NTSC cable: 01, OE - 7D

ATSC air: 01 - 45, ATSC cable: 01 - 87

Data 01 & 02: Major Channel Number

Data 01: High byte Data 02: Low byte

Two bytes are available for the Major and Minor,

normally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

Data5:

The table above lists the binary code which must be

converted to Hexadecimal before sending. For exam-

ple: The binary code to tune the sub source to an

NTSC cable channel is "1000 0001'i which translates

to "81" in Hex.

7th bit : For which source do you want to change the

channel.

6th bit: Use a two part or one part channel. Most

cases just use 0 since it's ignored when using

NTSC.

5th bit: Use 0 with NTSC since it can only use the

physical channel number. Normally use 1 for ATSC

since most times it doesn't matter what the physical

number is.

4th bit: Set to O.

3-0 bits: Choose signal type.

_Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data O0 = Physical of 35 = 23

Data 01 & 02 = No Major = O0 O0

Data 03 & 04 = No Minor = O0 O0

Data 05 = 0000 0001 in binary = 01

Total = ma O0 23 O0 O0 O0 O0 01

2. Tune to the digital (ATSC) local channel 30-3.

Data O0 = Don't know Physical = O0

Data 01 & 02 = Major is 30 = O0 1E

Data 03 & 04 = Minor is 3 = O0 03

Data 05 = 0010 0010 in binary = 22

Total = ma O0 O0 O0 1E O0 03 22

21. Channel Add/Del (Command: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel DeleteData 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

22. Key (Command: m c)

To send IR remote control code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

See page 151.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

When TV is in the standby mode, TV will turn on by

POWER button of remote control only.

23. Backlight (Command: m g)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:O0 - Max:64 (_transmit by Hexadecimal code)

_Refer to 'Real data mapping'.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

157

APPENDIX

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

-13

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim cop-

ies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public License is intended to guarantee your free-

dom to share and change free software - to make sure the

software is free for all its users. This General Public License

applies to most of the Free Software Foundation's software

and to any other program whose authors commit to using

it. (Some other free software foundation software is cov-

ered by the GNU Lesser General Public License instead.)

You can apply it to your programs, too.

When we speak of free software, we are referring to free-

dom, not price. Our General Public Licenses are designed

to make sure that you have the freedom to distribute cop-

ies of free software (and charge for this service if you wish),

that you receive source code or can get it if you want it, that

you can change the software or use pieces of it in new free

programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that

forbid anyone to deny you these rights or to ask you to sur-

render the rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the soft-

ware, or if you modify it.

For example, if you distribute copies of such a program,

whether gratis or for a fee, you must give the recipients all

the rights that you have. You must make sure that they, too,

receive or can get the source code. And you must show

them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the

software, and (2) offer you this license which gives you legal

permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to

make certain that everyone understands that there is no

warranty for this free software. If the software is modified

by someone else and passed on, we want its recipients to

know that what they have is not the original, so that any

problems introduced by others will not reflect on the origi-

nal authors' reputations.

Finally, any free program is threatened constantly by soft-

ware patents. We wish to avoid the danger that redistribu-

tors of a free program will individually obtain patent licens-

es, in effect making the program proprietary. To prevent

this, we have made it clear that any patent must be

licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution

and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

O. This license applies to any program or other work which

contains a notice placed by the copyright holder saying

it may be distributed under the terms of this General

Public License. The "Program", below, refers to any such

program or work, and a "work based on the Program"

means either the Program or any derivative work under

Program or a portion of it, either verbatim or with modi-

fications and/or translated into another language.

(Hereinafter, translation is included without limitation in

the term "modification".) Each licensee is addressed as

"you".

Activities other than copying, distribution and modifica-

tion are not covered by this license; they are outside its

scope. The act of running the Program is not restricted,

and the output from the program is covered only if its

contents constitute a work based on the program (inde-

pendent of having been made by running the program).

Whether that is true depends on what the program

does.

You may copy and distribute verbatim copies of the

program's source code as you receive it, in any medium,

provided that you conspicuously and appropriately pub-

lish on each copy an appropriate copyright notice and

disclaimer of warranty; keep intact all the notices that

refer to this license and to the absence of any warranty;

and give any other recipients of the program a copy of

this license along with the Program.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty pro-

tection in exchange for a fee.

2. You may modify your copy or copies of the program or

any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications or

work under the terms of section 1 above, provided that

you also meet all of these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the

date of any change.

158

You must cause any work that you distribute or pub-

lish, that in whole or in part contains or is derived

from the Program or any part there of, to be licensed

as a whole at no charge to all third parties under the

terms of this license.

If the modified program normally reads commands

interactively when run, you must cause it, when start-

ed running for such interactive use in the most ordi-

nary way, to print or display an announcement includ-

ing an appropriate copyright notice and a notice that

there is no warranty (or else, saying that you provide

a warranty) and that users may redistribute the pro-

gram under these conditions, and telling the user

how to view a copy of this license. (Exception: if the

Program itself is interactive but does not normally

print such an announcement, your work based on the

Program is not required to print an announcement.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not

derived from the Program, and can be reasonably con-

sidered independent and separate works in themselves,

then this license, and its terms, do not apply to those

sections when you distribute them as separate works.

But when you distribute the same sections as part of a

whole which is a work based on the Program, the distri-

bution of the whole must be on the terms of this license,

whose permissions for other licensees extend to the

entire whole, and thus to each and every part regardless

of who wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the distribu-

tion of derivative or collective works based on the pro-

gram.

In addition, mere aggregation of another work not

based on the program with the Program (or with a work

based on the program) on a volume of a storage or

distribution medium does not bring the other work

under the scope of this license.

3. You may copy and distribute the program (or a work

based on it, under section 2) in object code or execut-

able form under the terms of sections 1 and 2 above

provided that you also do one of the following:

a) Accompany it with the complete corresponding

machine-readable source code, which must be dis-

tributed under the terms of sections 1 and 2 above

on a medium customarily used for software inter-

change; or,

b) Accompany it with a written offer, valid for at least

three years, to give any third party, for a charge no

more than your cost of physically performing source

distribution, a complete machine-readable copy of

the corresponding source code, to be distributed

under the terms of sections 1 and 2 above on a

medium customarily used for software interchange;

or,

c) Accompany it with the information you received as to

the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial

distribution and only if you received the program in

object code or executable form with such an offer, in

accord with Subsection b above.)

The source code for a work means the preferred form of

the work for making modifications to it. For an execut-

able work, complete source code means all the source

code for all modules it contains, plus any associated

interface definition files, plus the scripts used to control

compilation and installation of the executable. However,

as a special exception, the source code distributed need

not include anything that is normally distributed (in

either source or binary form) with the major compo-

nents (compiler, kernel, and so on) of the operating

system on which the executable runs, unless that com-

ponent itself accompanies the executable.

If distribution of executable or object code is made by

offering access to copy from a designated place, then

offering equivalent access to copy the source code from

the same place counts as distribution of the source

code, even though third parties are not compelled to

copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the

Program except as expressly provided under this license.

Any attempt otherwise to copy, modify, sublicense or

distribute the Program is void, and will automatically

terminate your rights under this license. However, par-

ties who have received copies, or rights, from you under

this license will not have their licenses terminated so

long as such parties remain in full compliance.

5. You are not required to accept this license, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the Program or its

derivative works. These actions are prohibited by law if

you do not accept this license. Therefore, by modifying

or distributing the program (or any work based on the

program), you indicate your acceptance of this license

to do so, and all its terms and conditions for copying,

distributing or modifying the program or works based

on it.

6. Each time you redistribute the program (or any work

based on the Program), the recipient automatically

receives a license from the original licensor to copy,

distribute or modify the Program subject to these terms

and conditions. You may not impose any further restric-

tions on the recipients' exercise of the rights granted

herein. You are not responsible for enforcing compliance

by third parties to this license.

"lJ

159

APPENDIX

x8.

If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not lim-

ited to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this license, they do not

excuse you from the conditions of this license. If you

cannot distribute so as to satisfy simultaneously your

obligations under this license and any other pertinent

obligations, then as a consequence you may not distrib-

ute the program at all. For example, if a patent license

would not permit royalty-free redistribution of the pro-

gram by all those who receive copies directly or indi-

rectly through you, then the only way you could satisfy

both it and this license would be to refrain entirely from

distribution of the program.

If any portion of this section is held invalid or unenforce-

able under any particular circumstance, the balance of

the section is intended to apply and the section as a

whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free soft-

ware distribution system, which is implemented by pub-

lic license practices. Many people have made generous

contributions to the wide range of software distributed

through that system in reliance on consistent applica-

tion of that system; it is up to the author/donor to

decide if he or she is willing to distribute software

through any other system and a licensee cannot impose

that choice.

This section is intended to make thoroughly clear what

is believed to be a consequence of the rest of this

license.

If the distribution and/or use of the program is restrict-

ed in certain countries either by patents or by copy-

righted interfaces, the original copyright holder who

places the program under this license may add an

explicit geographical distribution limitation excluding

those countries, so that distribution is permitted only in

or among countries not thus excluded. In such case, this

license incorporates the limitation as if written in the

body of this license.

The Free Software Foundation may publish revised and/

or new versions of the General Public License from time

to time. Such new versions will be similar in spirit to the

present version, but may differ in detail to address new

problems or concerns.

Each version is given a distinguishing version number. If

the program specifies a version number of this license

which applies to it and "any later version", you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation. If the program does not specifya

version number of this license, you may choose any ver-

sion ever published by the Free Software Foundation.

lO. If you wish to incorporate parts of the program into

other free programs whose distribution conditions are

different, write to the author to ask for permission. For

software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will

be guided by the two goals of preserving the free status

of all derivatives of our free software and of promoting

the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE PROGRAM

"AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. THE ENTIRE RISK AS TO

THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM

PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING, REPAIR OR CORRECTION.

12.1N NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE

THE PROGRAM (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED

INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES OR A FAILURE OF THE PROGRAM TO

OPERATE WITH ANY OTHER PROGRAMS), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

160

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the

greatest possible use to the public, the best way to achieve

this is to make it free software which everyone can redis-

tribute and change under these terms.

To do so, attach the following notices to the program. It is

safest to attach them to the start of each source file to

most effectively convey the exclusion of warranty; and each

file should have at least the "copyright" line and a pointer

to where the full notice is found.

one line to give the program's name and a brief idea of

what it does.

This program is free software; you can redistribute it and/

or modify it under the terms of the GNU General Public

License as published by the Free Software Foundation;

either version 2 of the license, or (at your option) any later

version.

This program is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU General Public

License for more details.

You should have received a copy of the GNU General

Public License along with this program; if not, write to the

Free Software Foundation, Inc., 51 Franklin Street, Fifth

Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic

and paper mail.

If the program is interactive, make it output a short notice

like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY;

for details type 'show wt This is free software, and you are

welcome to redistribute it under certain conditions; type

'show c' for details.

The hypothetical commands 'show w' and 'show c' should

show the appropriate parts of the General Public License.

Of course, the commands you use may be called some-

thing other than 'show w' and 'show c'; they could even be

mouse-clicks or menu items-whatever suits your program.

You should also get your employer (if you work as a pro-

grammer) or your school, if any, to sign a "copyright dis-

claimer" for the program, if necessary. Here is a sample;

alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

program 'Gnomovision' (which makes passes at compilers)

written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating

your program into proprietary programs. If your program is

a subroutine library, you may consider it more useful to

permit linking proprietary applications with the library. If

this is what you want to do, use the GNU Lesser General

Public License instead of this license. _>

161

APPENDIX

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

-U

162

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim cop-

ies of this license document, but changing it is not

allowed.

[This is the first released version of the Lesser GPL It also

counts as the successor of the GNU Library Public

License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your

freedom to share and change free software - to make sure

the software is free for all its users.

This license, the Lesser General Public License, applies to

some specially designated software packages - typically

libraries - of the Free Software Foundation and other

authors who decide to use it. You can use it too, but we

suggest you first think carefully about whether this license

or the ordinary General Public License is the better strat-

egy to use in any particular case, based on the explana-

tions below.

When we speak of free software, we are referring to free-

dom of use, not price. Our General Public Licenses are

designed to make sure that you have the freedom to dis-

tribute copies of free software (and charge for this service

if you wish); that you receive source code or can get it if you

want it; that you can change the software and use pieces

of it in new free programs; and that you are informed that

you can do these things.

To protect your rights, we need to make restrictions that

forbid distributors to deny you these rights or to ask you to

surrender these rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the library

or if you modify it.

For example, if you distribute copies of the library, whether

gratis or for a fee, you must give the recipients all the rights

that we gave you. You must make sure that they, too,

receive or can get the source code. If you link other code

with the library, you must provide complete object files to

the recipients, so that they can relink them with the library

after making changes to the library and recompiling it. And

you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copy-

right the library, and (2) we offer you this license, which

gives you legal permission to copy, distribute and/or mod-

ify the library.

To protect each distributor, we want to make it very clear

that there is no warranty for the free library. Also, if the

library is modified by someone else and passed on, the

recipients should know that what they have is not the

original version, so that the original author's reputation will

not be affected by problems that might be introduced by

others.

Finally, software patents pose a constant threat to the exis-

tence of any free program. We wish to make sure that a

company cannot effectively restrict the users of a free pro-

gram by obtaining a restrictive license from a patent

holder. Therefore, we insist that any patent license obtained

for a version of the library must be consistent with the full

freedom of use specified in this license.

Most GNU software, including some libraries, is covered by

the ordinary GNU General Public License. This license, the

GNU Lesser General Public License, applies to certain des-

ignated libraries, and is quite different from the ordinary

General Public License. We use this license for certain

libraries in order to permit linking those libraries into non-

free programs.

When a program is linked with a library, whether statically

or using a shared library, the combination of the two is

legally speaking a combined work, a derivative of the origi-

nal library. The ordinary General Public License therefore

permits such linking only if the entire combination fits its

criteria of freedom. The Lesser General Public License

permits more lax criteria for linking other code with the

library.

We call this license the "Lesser" General Public License

because it does Less to protect the user's freedom than

the ordinary General Public License. It also provides other

free software developers Less of an advantage over com-

peting non-free programs. These disadvantages are the

reason we use the ordinary General Public License for

many libraries. However, the Lesser license provides advan-

tages in certain special circumstances.

For example, on rare occasions, there may be a special

need to encourage the widest possible use of a certain

library, so that it becomes a de-facto standard. To achieve

this, non-free programs must be allowed to use the library.

A more frequent case is that a free library does the same

job as widely used non-free libraries. In this case, there is

little to gain by limiting the free library to free software only,

so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-

free programs enables a greater number of people to use

a large body of free software. For example, permission to

use the GNU C Library in non-free programs enables many

more people to use the whole GNU operating system, as

well as its variant, the GNU/Linux operating system.

AlthoughtheLesserGeneralPublicLicenseisLessprotec-

tiveoftheusers'freedom,itdoesensurethattheuserofa

programthatislinkedwiththeLibraryhasthefreedomand

thewherewithaltorunthatprogramusingamodifiedver-

sionoftheLibrary.

The precise terms and conditions for copying, distribution

and modification follow. Pay close attention to the differ-

ence between a "work based on the library" and a "work

that uses the library". The former contains code derived

from the library, whereas the latter must be combined with

the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

O. This license agreement applies to any software library or

other program which contains a notice placed by the

be distributed under the terms of this Lesser General

Public License (also called "this license"). Each license

is addressed as "you".

A "library" means a collection of software functions

and/or data prepared so as to be conveniently linked

with application programs (which use some of those

functions and data) to form executables.

The "Library", below, refers to any such software library or

work which has been distributed under these terms. A

"work based on the Library" means either the Library or

any derivative work under copyright law: that is to say, a

work containing the library or a portion of it, either verba-

tim or with modifications and/or translated straightfor-

wardly into another language. (Hereinafter, translation is

included without limitation in the term "modification't)

"Source code" for a work means the preferred form of

the work for making modifications to it. For a library,

complete source code means all the source code for all

modules it contains, plus any associated interface defi-

nition files, plus the scripts used to control compilation

and installation of the library.

Activities other than copying, distribution and modifica-

tion are not covered by this license; they are outside its

scope. The act of running a program using the Library

is not restricted, and output from such a program is

covered only if its contents constitute a work based on

the library (independent of the use of the Library in a

tool for writing it). Whether that is true depends on what

the library does and what the program that uses the

library does.

1. You may copy and distribute verbatim copies of the

library's complete source code as you receive it, in any

medium, provided that you conspicuously and appropri-

ately publish on each copy an appropriate copyright

notice and disclaimer of warranty; keep intact all the

notices that refer to this license and to the absence of

any warranty; and distribute a copy of this license along

with the Library.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty pro-

tection in exchange for a fee.

You may modify your copy or copies of the Library or

any portion of it, thus forming a work based on the

Library, and copy and distribute such modifications or

work under the terms of section 1 above, provided that

you also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent

notices stating that you changed the files and the

date of any change.

c) You must cause the whole of the work to be licensed

at no charge to all third parties under the terms of

this license.

d) If a facility in the modified Library refers to a function

or a table of data to be supplied by an application

program that uses the facility, other than as an argu-

ment passed when the facility is invoked, then you

must make a good faith effort to ensure that, in the

event an application does not supply such function or

table, the facility still operates, and performs what-

ever part of its purpose remains meaningful.

(For example, a function in a library to compute square

roots has a purpose that is entirely well-defined indepen-

dent of the application. Therefore, Subsection 2d

requires that any application-supplied function or table

used by this function must be optional: if the application

does not supply it, the square root function must still

compute square roots.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not

derived from the library, and can be reasonably consid-

ered independent and separate works in themselves,

then this license, and its terms, do not apply to those

sections when you distribute them as separate works.

But when you distribute the same sections as part of a

whole which is a work based on the library, the distribu-

tion of the whole must be on the terms of this license,

whose permissions for other licenses extend to the

entire whole, and thus to each and every part regardless

of who wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the distribu-

tion of derivative or collective works based on the library.

In addition, mere aggregation of another work not based

on the library with the library (or with a work based on

the library) on a volume of a storage or distribution

medium does not bring the other work under the scope

of this license.

163

APPENDIX

You may opt to apply the terms of the ordinary GNU

General Public License instead of this License to a given

copy of the Library. To do this, you must alter all the

notices that refer to this License, so that they refer to the

ordinary GNU General Public License, version 2, instead

of to this License. (If a newer version than version 2 of

the ordinary GNU General Public License has appeared,

then you can specify that version instead if you wish.) Do

not make any other change in these notices.

Once this change is made in a given copy, it is irrevers-

ible for that copy, so the ordinary GNU General Public

License applies to all subsequent copies and derivative

works made from that copy.

This option is useful when you wish to copy part of the

code of the library into a program that is not a library.

You may copy and distribute the library (or a portion or

derivative of it, under Section 2) in object code or exe-

cutable form under the terms of Sections 1 and 2 above

provided that you accompany it with the complete cor-

responding machine-readable source code, which must

be distributed under the terms of sections 1 and 2

above on a medium customarily used for software inter-

change.

If distribution of object code is made by offering access

to copy from a designated place, then offering equiva-

lent access to copy the source code from the same

place satisfies the requirement to distribute the source

code, even though third parties are not compelled to

copy the source along with the object code.

A program that contains no derivative of any portion of

the Library, but is designed to work with the Library by

being compiled or linked with it, is called a "work that

uses the Library't Such a work, in isolation, is not a

derivative work of the Library, and therefore falls outside

the scope of this license.

However, linking a "work that uses the library" with the

Library creates an executable that is a derivative of the

Library (because it contains portions of the library),

rather than a "work that uses the library't The executable

is therefore covered by this license. Section 6 states

terms for distribution of such executable.

When a "work that uses the library" uses material from

a header file that is part of the library, the object code

for the work may be a derivative work of the library even

though the source code is not.

Whether this is true is especially significant if the work

can be linked without the library, or if the work is itself a

library. The threshold for this to be true is not precisely

defined by law.

If such an object file uses only numerical parameters,

data structure layouts and accessories, and small mac-

ros and small inline functions (ten lines or less in

length), then the use of the object file is unrestricted,

regardless of whether it is legally a derivative work.

(Executable containing this object code plus portions of

the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you

may distribute the object code for the work under the

terms of Section 6. Any executable containing that work

also fall under Section 6, whether or not they are linked

directly with the library itself.

As an exception to the sections above, you may also

combine or link a "work that uses the library" with the

library to produce a work containing portions of the

library, and distribute that work under terms of your

choice, provided that the terms permit modification of

the work for the customer's own use and reverse engi-

neering for debugging such modifications.

You must give prominent notice with each copy of the

work that the library is used in it and that the Library and

its use are covered by this license. You must supply a

copy of this license. If the work during execution dis-

plays copyright notices, you must include the copyright

notice for the library among them, as well as a reference

directing the user to the copy of this license. Also, you

must do one of these things:

a) Accompany the work with the complete correspond-

ing machine-readable source code for the library

including whatever changes were used in the work

(which must be distributed under Sections 1 and 2

above); and, if the work is an executable linked with

the Library, with the complete machine-readable

"work that uses the Library", as object code and/or

source code, so that the user can modify the library

and then relink to produce a modified executable

containing the modified library. (It is understood that

the user who changes the contents of definitions files

in the library will not necessarily be able to recompile

the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking

with the library. A suitable mechanism is one that (1)

uses at run time a copy of the library already present

on the user's computer system, rather than copying

library functions into the executable, and (2) will oper-

ate properly with a modified version of the library, if the

user installs one, as long as the modified version is

interface-compatible with the version that the work

was made with.

c) Accompany the work with a written offer, valid for at

least three years, to give the same user the materials

specified in Subsection 6, above, for a charge no

more than the cost of performing this distribution.

d) If distribution of the work is made by offering access

to copy from a designated place, offer equivalent

access to copy the above specified materials from

the same place.

e) Verify that the user has already received a copy of

these materials or that you have already sent this user

a copy.

164

For an executable, the required form of the "work that

uses the library" must include any data and utility pro-

grams needed for reproducing the executable from it.

However, as a special exception, the materials to be

distributed need not include anything that is normally

distributed (in either source or binary form) with the

major components (compiler, kernel, and so on) of the

operating system on which the executable runs, unless

that component itself accompanies the executable.

It may happen that this requirement contradicts the

license restrictions of other proprietary libraries that do

not normally accompany the operating system. Such a

contradiction means you cannot use both them and the

library together in an executable that you distribute.

7. You may place library facilities that are a work based on

the library side-by-side in a single library together with

other library facilities not covered by this license, and

distribute such a combined library, provided that the

separate distribution of the work based on the Library

and of the other library facilities is otherwise permitted,

and provided that you do these two things:

a) Accompany the combined library with a copy of the

same work based on the Library, uncombined with

any other library facilities. This must be distributed

under the terms of the sections above.

b) Give prominent notice with the combined library of

the fact that part of it is a work based on the library,

and explaining where to find the accompanying

uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or dis-

tribute the library except as expressly provided under

this license. Any attempt otherwise to copy, modify,

sublicense, link with, or distribute the library is void, and

will automatically terminate your rights under this

license. However, parties who have received copies, or

rights, from you under this license will not have their

licenses terminated so long as such parties remain in

full compliance.

9. You are not required to accept this license, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the library or its

derivative works. These actions are prohibited by law if

you do not accept this license. Therefore, by modifying

or distributing the library (or any work based on the

library), you indicate your acceptance of this license to do

so, and all its terms and conditions for copying, distribut-

ing or modifying the library or works based on it.

lO. Each time you redistribute the library (or any work based

on the Library), the recipient automatically receives a

license from the original licensor to copy, distribute, link

with or modify the library subject to these terms and

conditions. You may not impose any further restrictions

on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by

third parties with this license.

11. If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not lim-

ited to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this license, they do not

excuse you from the conditions of this license. If you

cannot distribute so as to satisfy simultaneously your

obligations under this license and any other pertinent

obligations, then as a consequence you may not distrib-

ute the library at all. For example, if a patent license

would not permit royalty-free redistribution of the library

by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it

and this license would be to refrain entirely from distri-

bution of the library.

If any portion of this section is held invalid or unenforce-

able under any particular circumstance, the balance of

the section is intended to apply, and the section as a

whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free soft-

ware distribution system which is implemented by pub-

lic license practices. Many people have made generous

contributions to the wide range of software distributed

through that system in reliance on consistent applica-

tion of that system; it is up to the author/donor to

decide if he or she is willing to distribute software

through any other system and a license cannot impose

that choice.

This section is intended to make thoroughly clear what

is believed to be a consequence of the rest of this

license.

12. If the distribution and/or use of the library is restricted in

certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the

library under this license may add an explicit geograph-

ical distribution limitation excluding those countries, so

that distribution is permitted only in or among countries

not thus excluded. In such case, this license incorporates

the limitation as if written in the body of this license.

13.The Free Software Foundation may publish revised and/

or new versions of the Lesser General Public License

from time to time. Such new versions will be similar in

spirit to the present version, but may differ in detail to

address new problems or concerns.

Each version is given a distinguishing version number. If

the library specifies a version number of this license

which applies to it and "any later version", you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation.

165

APPENDIX

If the library does not specify a license version number,

you may choose any version ever published by the Free

Software Foundation.

14.1f you wish to incorporate parts of the library into other

free programs whose distribution conditions are incom-

patible with these, write to the author to ask for permis-

sion. For software which is copyrighted by the Free

Software Foundation, write to the Free Software

Foundation; we sometimes make exceptions for this.

Our decision will be guided by the two goals of preserv-

ing the free status of all derivatives of our free software

and of promoting the sharing and reuse of software

generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

LI B RA RY, TO TH E EXTENT PER M ITTED BY APPLICAB LE

LAW. EXCEPTWHEN OTHERWISE STATED IN WRITING

THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES

PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. THE ENTIRE RISK

AS TO THE QUALITY AND PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY

PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING, REPAIR OR CORRECTION.

16.1N NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE

THE LIBRARY (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED

INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES OR A FAILURE OF THE LIBRARY TO

OPERATE WITH ANY OTHER SOFTWARE), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the

greatest possible use to the public, we recommend making

it free software that everyone can redistribute and change.

You can do so by permitting redistribution under these

terms (or, alternatively, under the terms of the ordinary

General Public License).

To apply these terms, attach the following notices to the

library. It is safest to attach them to the start of each

source file to most effectively convey the exclusion of war-

ranty; and each file should have at least the "copyright" line

and a pointer to where the full notice is found.

one line to give the library's name and a brief idea of what

it does.

This library is free software; you can redistribute it and/or

modify it under the terms of the GNU Lesser General

Public License as published by the Free Software

Foundation; either version 2.1 of the license, or (at your

option) any later version.

This library is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU Lesser General

Public License for more details.

You should have received a copy of the GNU Lesser

General Public License along with this library; if not, write to

the Free Software Foundation, Inc., 51 Franklin Street, Fifth

Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic

and paper mail.

You should also get your employer (if you work as a pro-

grammer) or your school, if any, to sign a "copyright dis-

claimer" for the library, if necessary. Here is a sample; alter

the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

library 'Frob' (a library for tweaking knobs) written by James

Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

166

MOZILLA PUBLIC LICENSE

Version 1.1

1.Definitions.

1.0.1. "Commercial use" means distribution or otherwise

making the covered code available to a third party.

1.1. "Contributor" means each entity that creates or con-

tributes to the creation of modifications.

1.2. "Contributor version" means the combination of the

original code, prior modifications used by a contribu-

tor, and the modifications made by that particular

contributor.

1.3. "Covered code" means the original code or modifi-

cations or the combination of the original code and

modifications, in each case including portions there-

of.

1.4. "Electronic distribution mechanism" means a mech-

anism generally accepted in the software develop-

ment community for the electronic transfer of data.

1.5. "Executable" means covered code in any form other

than source code.

1.6. "Initial developer" means the individual or entity

identified as the initial Developer in the Source Code

notice required by exhibit A.

1.7. "Larger work" means a work which combines covered

code or portions thereof with code not governed by

the terms of this License.

1.8 "License" means this document.

1.81. "Licensable" means having the right to grant, to the

maximum extent possible, whether at the time of the

initial grant or subsequently acquired, any and all of

the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion

from the substance or structure of either the original

code or any previous modifications. When covered

code is released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a

file containing original code or previous modifica-

tions.

B. Any new file that contains any part of the original

code or previous modifications.

1.10. "Original code" means source code of computer

software code which is described in the source code

notice required by exhibit as original code, and

which, at the time of its release under this license is

not already covered code governed by this license.

1iOi. "Patent claims" means any patent claim(s), now

owned or hereafter acquired, including without limi-

tation, method, process, and apparatus claims, in any

patent licensable by grantor.

lil. "Source code" means the preferred form of the cov-

ered code for making modifications to it, including all

modules it contains, plus any associated interface

definition files, scripts used to control compilation

and installation of an executable, or source code dif-

ferential comparisons against either the original code

or another well known, available covered code of the

contributor's choice. The source code can be in a

compressed or archival form, provided the appropri-

ate decompression or de-archiving software is wide-

ly available for no charge.

1.12. "You" (or "Your") means an individual or a legal

entity exercising rights under, and complying with all

of the terms of, this license or a future version of this

license issued under section 6.1.

For legal entities, "You" includes any entity which

controls, is controlled by, or is under common control

with You. For purposes of this definition, "control"

means (a) the power, direct or indirect, to cause the

direction or management of such entity, whether by

contract or otherwise, or (b) ownership of more than

fifty percent (50%) of the outstanding shares or ben-

eficial ownership of such entity.

2. Source Code License.

2.1. The initial developer grant.

The initial developer hereby grants You a world-wide,

royalty-free, non-exclusive license, subject to third

party intellectual property claims:

a) under intellectual property rights (other than pat-

ent or trademark) licensable by initial developer to

use, reproduce, modify, display, perform, subli-

cense and distribute the original code (or portions

thereof) with or without modifications, and/or as

part of a larger work; and

(b) under patents claims infringed by the making,

using or selling of original code, to make, have

made, use, practice, sell, and offer for sale, and/

or otherwise dispose of the original code (or por-

tions there of).

167

APPENDIX

(c)

(d)

the licenses granted in this section 2.1(a) and (b)

are effective on the date Initial developer first

distributes original code under the terms of this

license.

Notwithstanding section 2.1(b) above, no patent

license is granted: 1) for code that You delete

from the original Code; 2) separate from the

original code; or 3) for infringements caused by:

i) the modification of the original code or ii) the

combination of the original code with other soft-

ware or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims,

each contributor hereby grants You a world-wide,

royalty-free, non-exclusive license

(a) under intellectual property rights (other than pat-

ent or trademark) licensable by contributor, to

use, reproduce, modify, display, perform, subli-

cense and distribute the modifications created by

such contributor (or portions thereof) either on

an unmodified basis, with other modifications, as

covered code and/or as part of a larger work; and

(b) under patent claims infringed by the making,

using, or selling of modifications made by that

contributor either alone and/or in combination

with its contributor version (or portions of such

combination), to make, use, sell, offer for sale,

have made, and/or otherwise dispose of: 1) modi-

fications made by that contributor (or portions

thereof); and 2) the combination of modifications

made by that contributor with its contributor ver-

sion (or portions of such combination).

are effective on the date contributor first makes

commercial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent

license is granted: 1) for any code that contributor

has deleted from the contributor version; 2)

separate from the contributor version; 3) for

infringements caused by: i) third party modifica-

tions of contributor version or ii) the combination

of modifications made by that contributor with

other software (except as part of the contributor

version) or other devices; or 4) under patent

claims infringed by covered code in the absence

of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.

The modifications which You create or to which you

contribute are governed by the terms of this license,

including without limitation section 2.2. The source

code version of covered code may be distributed

only under the terms of this license or a future ver-

sion of this license released under section 6.1, and

you must include a copy of this license with every

copy of the source code you distribute. You may not

offer or impose any terms on any source code ver-

sion that alters or restricts the applicable version of

this license or the recipients' rights hereunder.

However, you may include an additional document

offering the additional rights described in section

3.5.

3.2. Availability of source code.

Any modification which you create or to which you

contribute must be made available in source code

form under the terms of this license either on the

same media as an executable version or via an

accepted electronic distribution mechanism to any-

one to whom you made an executable version avail-

able; and if made available via electronic distribution

mechanism, must remain available for at least twelve

(12) months after the date it initially became avail-

able, or at least six (6) months after a subsequent

version of that particular modification has been

made available to such recipients. You are responsi-

ble for ensuring that the source code version remains

available even if the electronic distribution mecha-

nism is maintained by a third party.

3.3. Description of modifications.

You must cause all covered code to which you contrib-

ute to contain a file documenting the changes You

made to create that covered code and the date of any

change. You must include a prominent statement that

the modification is derived, directly or indirectly, from

original code provided by the initial developer and

including the name of the initial developer in (a) the

source code, and (b) in any notice in an executable

version or related documentation in which you describe

the origin or ownership of the covered code.

3.4. Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a

third party's intellectual property rights is required to

exercise the rights granted by such contributor under

sections 2.1 or 2.2, contributor must include a text file

with the source code distribution titled "LEGAL"

which describes the claim and the party making the

claim in sufficient detail that a recipient will know

whom to contact. If contributor obtains such knowl-

edge after the modification is made available as

described in section 3.2, contributor shall promptly

modify the LEGAL file in all copies contributor makes

available thereafter and shall take other steps (such

as notifying appropriate mailing lists or newsgroups)

reasonably calculated to inform those who received

the covered code that new knowledge has been

obtained.

(b) Contributor APIs.

If contributor's modifications include an application

programming interface and contributor has knowl-

edge of patent licenses which are reasonably neces-

sary to implement that API, contributor must also

include this information in the LEGAL file.

168

3.5.

3.6.

contributor represents that, except as disclosed pur-

suant to section 3.4(a) above, contributor believes that

contributor's modifications are contributor's original

creation(s) and/or contributor has sufficient rights to

grant the rights conveyed by this license.

Required notices.

You must duplicate the notice in exhibit A in each file

of the source code. If it is not possible to put such

notice in a particular source code file due to its struc-

ture, then You must include such notice in a location

(such as a relevant directory) where a user would be

likely to look for such a notice. If You created one or

more modification(s), you may add your name as a

contributor to the notice described in exhibit A. you

must also duplicate this license in any documenta-

tion for the source code where You describe recipi-

ents' rights or ownership rights relating to covered

code. You may choose to offer, and to charge a fee

for, warranty, support, indemnity or liability obliga-

tions to one or more recipients of covered code.

However, you may do so only on your own behalf, and

not on behalf of the Initial developer or any contribu-

tor. You must make it absolutely clear than any such

warranty, support, indemnity or liability obligation is

offered by you alone, and You hereby agree to

indemnify the Initial developer and every contributor

for any liability incurred by the Initial developer or

such contributor as a result of warranty, support,

indemnity or liability terms you offer.

Distribution of executable versions.

You may distribute covered code in executable form

only if the requirements of section 3.1-3.5 have been

met for that covered code, and if you include a notice

stating that the source code version of the covered

code is available under the terms of this license,

including a description of how and where you have

fulfilled the obligations of section 3.2. The notice

must be conspicuously included in any notice in an

executable version, related documentation or collat-

eral in which you describe recipients' rights relating

to the covered code. You may distribute the execut-

able version of covered code or ownership rights

under a license of your choice, which may contain

terms different from this license, provided that you

are in compliance with the terms of this license and

that the license for the executable version does not

attempt to limit or alter the recipient's rights in the

source code version from the rights set forth in this

license. If you distribute the executable version under

a different license you must make it absolutely clear

that any terms which differ from this license are

offered by you alone, not by the Initial developer or

any contributor. You hereby agree to indemnify the

initial developer and every contributor for any liability

incurred by the initial developer or such contributor

as a result of any such terms You offer.

code with other code not governed by the terms of

this license and distribute the larger work as a single

product. In such a case, you must make sure the

requirements of this license are fulfilled for the cov-

ered code.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the

terms of this license with respect to some or all of

the covered code due to statute, judicial order, or

regulation then you must: (a) comply with the terms

of this license to the maximum extent possible; and

(b) describe the limitations and the code they affect.

Such description must be included in the LEGAL file

described in section 3.4 and must be included with

all distributions of the source code. Except to the

extent prohibited by statute or regulation, such

description must be sufficiently detailed for a recipi-

ent of ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial devel-

oper has attached the notice in exhibit A and to

related covered code.

6. Versions of the license.

6.1. New versions.

Netscape communications corporation ("Netscape")

may publish revised and/or new versions of the

license from time to time. Each version will be given

a distinguishing version number.

6.2. Effect of new versions.

Once covered code has been published under a

particular version of the license, you may always con-

tinue to use it under the terms of that version. You

may also choose to use such covered code under

the terms of any subsequent version of the license

published by netscape. No one other than netscape

has the right to modify the terms applicable to cov-

ered code created under this license.

6.3. Derivative works.

If You create or use a modified version of this license

(which you may only do in order to apply it to code

which is not already covered code governed by this

license), You must (a) rename Your license so that the

phrases "Mozilla", "MOZILLAPL", "MOZPL",

"Netscape", "MPL", "NPL" or any confusingly similar

phrase do not appear in your license (except to note

that your license differs from this license) and (b)

otherwise make it clear that Your version of the

license contains terms which differ from the Mozilla

Public license and netscape Public License. (Filling in

the name of the initial developer, original code or

contributor in the notice described in exhibit A shall

not of themselves be deemed to be modifications of

this license.)

Larger works.

You may create a larger work by combining covered 169

APPENDIX

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS

LICENSE ON AN "AS IS" BASIS, WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESSED

OR IMPLIED, INCLUDING, WITHOUT LIMITATION,

WARRANTIES THAT THE COVERED CODE IS FREE

OF DEFECTS, MERCHANTABLE, FIT FOR A 8.3.

PARTICULAR PURPOSE OR NON-INFRINGING.

THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE COVERED CODE IS WITH

YOU. SHOULD ANY COVERED CODE PROVE

DEFECTIVE IN ANY RESPECT, YOU (NOT THE

INITIAL DEVELOPER OR ANY OTHER

CONTRIBUTOR) ASSUME THE COST OF ANY

NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES

AN ESSENTIAL PART OF THIS LICENSE. NO USE 8.4.

OF ANY COVERED CODE IS AUTHORIZED

HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will

terminate automatically if you fail to comply with

terms herein and fail to cure such breach within 30

days of becoming aware of the breach. All subli-

censes to the covered code which are properly

granted shall survive any termination of this license.

Provisions which, by their nature, must remain in

effect beyond the termination of this license shall

su rvive.

8.2. If you initiate litigation by asserting a patent infringe-

ment claim (excluding declatory judgment actions)

against initial developer or a contributor (the initial

developer or contributor against whom you file such

action is referred to as "Participant") alleging that:

(a) such participant's contributor version directly or

indirectly infringes any patent, then any and all

rights granted by such participant to you under

sections 2.1 and/or 2.2 of this license shall, upon

60 days notice from Participant terminate pro-

spectively, unless if within 60 days after receipt of

notice you either: (i) agree in writing to pay par-

ticipant a mutually agreeable reasonable royalty for

your past and future use of modifications made

by such participant, or (ii) withdraw your litigation

claim with respect to the contributor version

against such participant. If within 60 days of notice,

a reasonable royalty and payment arrangement

are not mutually agreed upon in writing by the

parties or the litigation claim is not withdrawn, the

rights granted by participant to you under sec-

tions 2.1 and/or 2.2 automatically terminate at the

expiration of the 60 day notice period specified

above.

(b) any software, hardware, or device, other than such

participant's contributor Version, directly or indi-

rectly infringes any patent, then any rights grant-

ed to You by such participant under sections

2i(b) and 2.2(b) are revoked effective as of the

date you first made, used, sold, distributed, or

had made, modifications made by that partici-

pant.

If you assert a patent infringement claim against

participant alleging that such participant's contribu-

tor version directly or indirectly infringes any patent

where such claim is resolved (such as by license or

settlement) prior to the initiation of patent infringe-

ment litigation, then the reasonable value of the

licenses granted by such participant under sections

2.1 or 2.2 shall be taken into account in determining

the amount or value of any payment or license.

In the event of termination under sections 81 or 8.2

above, all end user license agreements (excluding dis-

tributors and resellers) which have been validly

granted by you or any distributor hereunder prior to

termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO

LEGAL THEORY, WHETHER TORT (INCLUDING

NEGLIGENCE), CONTRACT, OR OTHERWISE,

SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER

CONTRIBUTOR, OR ANY DISTRIBUTOR OF

COVERED CODE,OR ANY SUPPLIER OF ANY OF

SUCH PARTIES, BE LIABLE TO ANY PERSON FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES OF ANY CHARACTER

INCLUDING, WITHOUT LIMITATION, DAMAGES

FOR LOSS OF GOODWILL, WORK STOPPAGE,

COMPUTER FAILURE OR MALFUNCTION, OR ANY

AND ALL OTHER COMMERCIAL DAMAGES OR

LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN

INFORMED OF THE POSSIBILITY OF SUCH

DAMAGES. THIS LIMITATION OF LIABILITY SHALL

NOT APPLY TO LIABILITY FOR DEATH OR

PERSONAL INJURY RESULTING FROM SUCH

PARTY'S NEGLIGENCE TO THE EXTENT

APPLICABLE LAW PROHIBITS SUCH LIMITATION.

SOME JURISDICTIONS DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION

AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that

term is defined in 48 C.ER 2.101 (Oct. 1995), con-

sisting of "commercial computer software" and "com-

mercial computer software documentation," as such

terms are used in 48 C.RR 12.212 (Sept. 1995).

Consistent with 48 C.RR 12.212 and 48 C.RR

227.7202-1 through 227.7202-4 (June 1995), all

U.S. Government end users acquire covered code

with only those rights set forth herein.

170

11. MISCELLANEOUS.

This license represents the complete agreement con-

cerning subject matter hereof. If any provision of this

license is held to be unenforceable, such provision

shall be reformed only to the extent necessary to

make it enforceable. This License shall be governed

by California law provisions (except to the extent

applicable law, if any, provides otherwise), excluding

its conflict-of-law provisions. With respect to dis-

putes in which at least one party is a citizen of, or an

entity chartered or registered to do business in the

united states of america, any litigation relating to this

License shall be subject to the jurisdiction of the

federal courts of the northern district of california,

with venue lying in santa clara county, california, with

the losing party responsible for costs, including with-

out limitation, court costs and reasonable attorneys'

fees and expenses. The application of the united

nations convention on contracts for the International

sale of goods is expressly excluded. Any law or regu-

lation which provides that the language of a contract

shall be construed against the drafter shall not apply

to this license.

12. RESPONSIBILITY FOR CLAIMS.

As between initial developer and the contributors,

each party is responsible for claims and damages

arising, directly or indirectly, out of its utilization of

rights under this license and you agree to work with

initial developer and contributors to distribute such

responsibility on an equitable basis. Nothing herein is

intended or shall be deemed to constitute any

admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the cov-

ered code as "Multiple-Licensed". "Multiple-

Licensed" means that the initial developer permits

you to utilize portions of the covered code under your

choice of the NPL or the alternative licenses, if any,

specified by the initial developer in the file described

in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public

License Version 1.1 (the "license"); you may not use this file

except in compliance with the License. You may obtain a

copy of the license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an

"AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either

express or implied. See the license for the specific lan-

guage governing rights and limitations under the License.

The Original Code is

The Initial Developer of the Original Code

Portions created by are Copyright

Contributor(s):

Alternatively, the contents of this file may be used under

the terms of the license (the "[ ] License"), in

which case the provisions of [ ] license are applicable

instead of those above. If you wish to allow use of your

version of this file only under the terms of the [ ] license

and not to allow others to use your version of this file under

the MPL, indicate your decision by deleting the provisions

above and replace them with the notice and other provi-

sions required by the [ ] license. If you do not delete the

provisions above, a recipient may use your version of this file

under either the MPL or the [ ] license."

NOTE: The text of this exhibit A may differ slightly from the

text of the notices in the source code files of the original

code. You should use the text of this exhibit A rather than

the text found in the original code/source code for Your

modifications.

171

Lifds Good

The model and seraJ number of the TV s located

on the back and one sde of the T\Z

Record if beow should you ever need setvice

MODEL

SERIAL

LG LCD Television Manual L1003018

Navigation menu

Versions of this User Manual:

Views

Navigation
