Model : LAS950M

SMART Hi-Fi AUDIO

Wireless Multi-room Sound Bar

ENGLISH | OWNER’S MANUAL

To view the instructions of advanced features,

visit http://www.lg.com and then download

Owner’s Manual.

Some of the content in this manual may dier

from your unit.

The actual product may dier from the image.

LAS950M

Copyright © 2015-2017 LG Electronics. All Rights Reserved

www.lg.com

1 Getting Started

Getting Started2

Getting Started

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead

symbol within an equilateral

triangle is intended to alert the

user to the presence of uninsulated

dangerous voltage within the

product’s enclosure that may be of

sucient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a

conned space such as a book case or similar unit.

CAUTION: Do not use high voltage products

around this product. (ex. Electrical swatter) This

product may malfunction due to electrical shock.

CAUTION: The apparatus should not be exposed to

water (dripping or splashing) and no objects lled

with liquids, such as vases, should be placed on the

apparatus.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over heating. The

openings shall be never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer’s

instruction has been adhered to.

NOTICE: For safety marking information including

product identication and supply ratings, please

refer to the main label on the bottom or the other

surface of the product.

For models using an adapter

Only use the AC adapter supplied with this device.

Do not use a power supply from another device or

another manufacturer. Using any other power cable

or power supply may cause damage to the device

and void your warranty.

CAUTION concerning the Power Cord

The Power Plug is the disconnecting device. In

case of an emergency, the Power Plug must remain

readily accessible.

Check the specication page of this owner’s

manual to be certain of the current requirements.

Do not overload wall outlets. Overloaded wall

outlets, loose or damaged wall outlets, extension

cords, frayed power cords, or damaged or cracked

wire insulation are dangerous. Any of these

conditions could result in electric shock or re.

Periodically examine the cord of your device, and if

its appearance indicates damage or deterioration,

unplug it, discontinue use of the device, and have

the cord replaced with an exact replacement part

by an authorized service center. Protect the power

cord from physical or mechanical abuse, such as

being twisted, kinked, pinched, closed in a door,

or walked upon. Pay particular attention to plugs,

wall outlets, and the point where the cord exits the

device.

Getting Started 3

Getting Started

1

This device is equipped with a portable battery or

accumulator.

Safety way to remove the battery from the

equipment: Remove the old battery or battery

pack, follow the steps in reverse order than

the assembly. To prevent contamination of the

environment and bring on possible threat to

human and animal health, the old battery or

the battery put it in the appropriate container

at designated collection points. Do not dispose

of batteries or battery together with other

waste. It is recommended that you use local,

free reimbursement systems batteries and

accumulators. The battery should not be exposed

to excessive heat such as sunshine, re or the like.

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information

6 Main Features

6 Introduction

7 Accessories

8 Front panel

8 Rear panel

9 Remote control

10 Installing the sound bar

10 – Installing the cover foot

10 Mounting the main unit on a wall

2 Connecting

12 Wireless subwoofer connection

13 Connection overview

13 Connecting to your TV

13 – Using an OPTICAL cable

14 – LG Sound Sync

15 – Using an HDMI cable

15 – Enjoy rich sound broadcast of the

channel with the sound bar

16 – What is SIMPLINK?

16 – ARC (Audio Return Channel) function

17 – Additional information for HDMI

17 Optional equipment connection

17 – HDMI connection

18 – PORT. (Portable) IN connection

19 – OPTICAL IN connection

19 – Connecting IR Blaster

20 Initial Multi-Room Setup

20 – Wired connection (MUSICflow Mesh

Network Connection)

20 – Wireless connection (Standard

Wireless Connection)

20 Installing “Music Flow Player” App

21 – Starting with Music Flow Player app

22 Connecting the speaker to your Home

Network

22 – Simple Connection (EZ Setup)

23 – Connecting the speaker to your

network with a LAN cable

25 – Connecting the speaker to your

Network via the Wi-Fi Setup Method

(Android)

28 – Connecting the speaker to your

Network via the Wi-Fi Setup Method

(iOS)

31 Connecting the speakers to your Home

Network (Additional)

31 – Connecting the additional speaker to

your network with a LAN cable

33 – Connecting the additional speaker

to your network via the Wi-Fi Setup

Method

35 Using the Bridge

35 – Use as a root device (wired to the

home router)

37 – Use as a wireless extender

38 Using Media Server for PC

38 – Music Flow PC Software for windows

39 – Nero MediaHome 4 Essentials for

Mac OS

3 Operating

41 Enjoying the Music with Music Flow Player

app

41 – Overview of Home menu

42 – Overview of the side menu

43 – Playing a song

44 – Overview of Playback

46 Different ways of listening to music

46 – Group Playback

47 – Surround Sound Mode (Home

Cinema Mode)

49 – Seamless playback

50 Setting the Speaker with Music Flow

Player app

50 – Overview of setting menu

50 – [General] Menu

51 – [Speakers] Menu

52 – [Alarms/Sleep Timer] Menu

52 – [Account management] Menu

52 – [Time Zone] Menu

53 – [Advanced Settings] Menu

55 – [Chromecast] Menu

55 – [Version Info.] Menu

55 – [Open source licenses] Menu

Table of Contents 5

1

2

3

4

5

56 Using a Bluetooth Wireless Technology

56 – About Bluetooth

56 – Bluetooth profiles

56 – Listening to Music of a Bluetooth

Device

57 Other operations

57 – DRC (Dynamic Range Control)

57 – AV Sync

57 – Using your TV remote control

58 – Turn off the sound temporarily

58 – Displaying input source information

58 – Sleep timer setting

58 – Auto power down

59 – AUTO POWER On/Off

59 Sound adjustment

59 – Adjust volume level automatically

59 – Adjust the Treble/Bass/Sub-woofer

59 – Night mode

60 Standby mode

60 – Standby mode

60 – Network standby mode

60 – Bluetooth standby mode

60 Reset the Speaker

60 – Resetting the speaker

4 Troubleshooting

61 Troubleshooting

61 – General

62 – Network

63 – Application and PC Software

5 Appendix

64 File requirement

64 Trademarks and licenses

65 Specifications

67 Handling the Speaker

67 Important Information Relating to

Network Services

68 TERMS OF USE

Some of the content in this manual may dier from Music Flow Player app depending on the

application’s version.

Getting Started6

Getting Started

1

Main Features

Made for iPod/iPhone/iPad or

Android device

Enjoys music from iPod/iPhone/iPad or Android

device with simple connection.

LG Sound Sync

Controls volume level of this unit by the remote

control of your LG TV that is compatible with LG

Sound Sync.

Portable In

Listens to music from your portable device.

Music Flow Player application

Listens to music stored on your smart device.

You can control this speaker with your iPod touch/

iPhone/iPad or Android device via Music Flow

Player app. This speaker and your smart device

must be connected to the same network. Visit

Apple “App Store” or Google “Play Store” or use the

QR code shown below to search for “Music Flow

Player” app. For detailed information, refer to page

20.

(Apple iOS)

(Android OS)

yDepending on the application’s version and the

settings of smart device, Music Flow Player app

may not be operated normally.

ySome smart devices may not be compatible with

this speaker.

Introduction

Symbol used in this manual

, Note

Indicates special notes and operating features.

> Caution

Indicates cautions for preventing possible damages

from abuse.

Getting Started 7

Getting Started

1

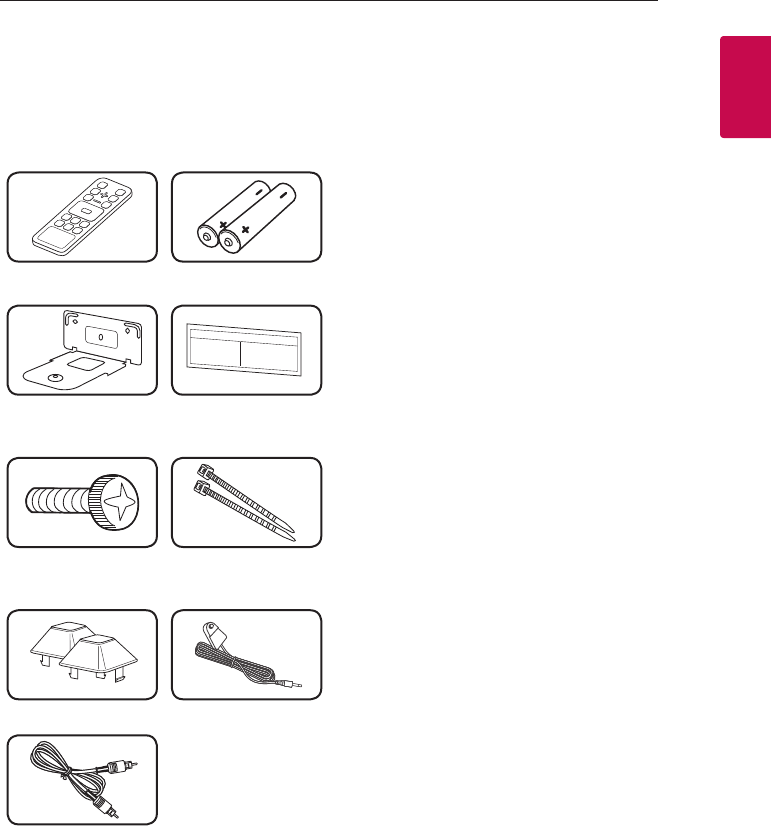

Accessories

Please check and identify the supplied accessories.

Designs and specications of the accessories are

subject to change without prior notice.

Remote control (1) Batteries (2)

Wall bracket (2) Wall bracket install

guide (1)

Screws (2) Cable ties for arranging

cables (2)

Foot IR Blaster

Optical

Getting Started8

Getting Started

1

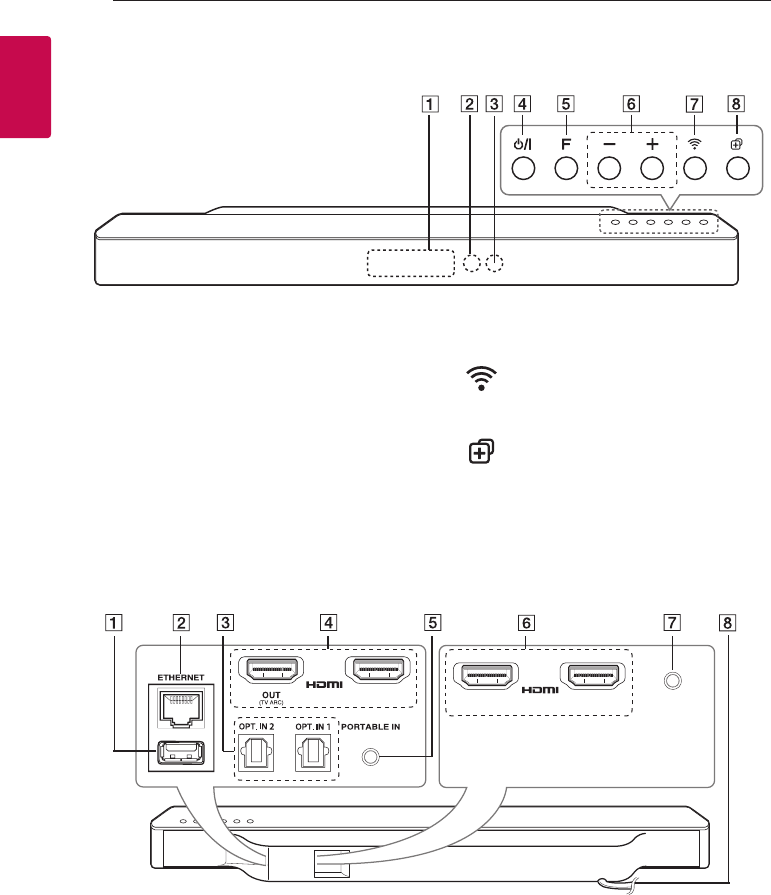

A

Display window

B

Remote sensor

C

LED indicator

Shows connection status.

D 1/! (Standby/On)

- Power On

- Switching to the standby mode (page 60)

E

F (Function)

Selects the function and input source.

F p/o (Volume)

Adjusts volume level.

G (Wi-Fi)

Connects your speaker to your network.

(page 25)

H (Add)

Adds the speaker to your network. (page 31)

Front panel

A S/W download connector (For service only)

B ETHERNET : LAN port

C OPT. IN 2/OPT. IN 1 : Optical input

D HDMI IN 1/HDMI OUT(TV ARC) : HDMI input /

output

E PORTABLE IN : Portable input

F HDMI IN 2/HDMI IN 3 : HDMI input

G IR BLASTER

H AC power cord

Rear panel

IN 2 IN 3IR BLASTER

IN 1

Getting Started 9

Getting Started

1

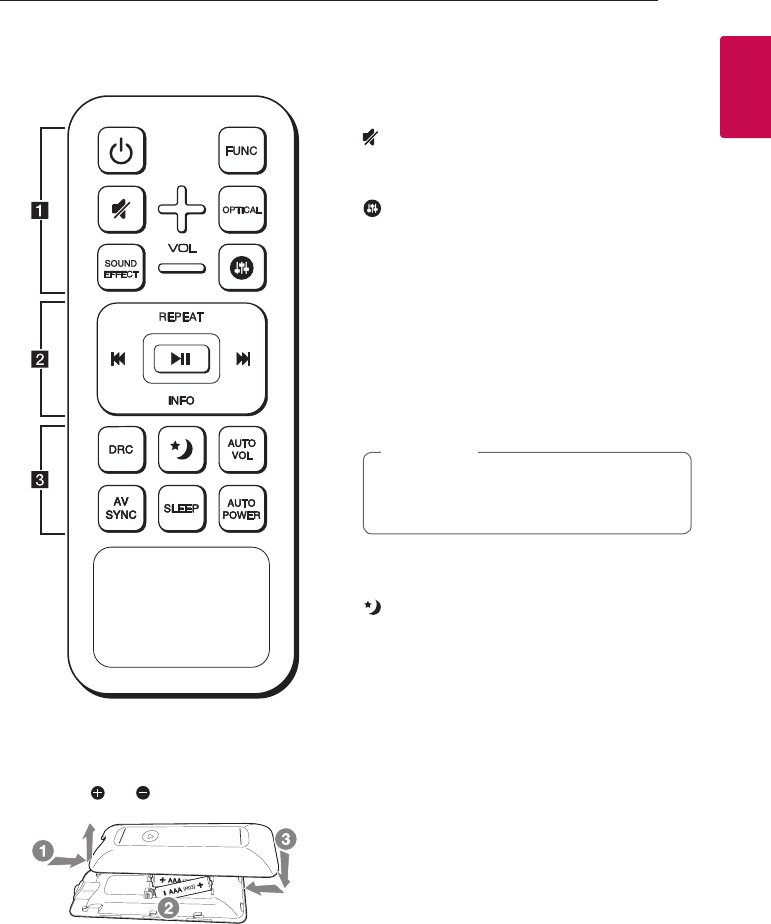

Remote control

Replacement of Battery

Remove the battery cover on the rear of the

Remote Control, and insert two R03 (size AAA)

batteries with and matched correctly.

• • • • • • • • • • a • • • • • • • • •

1 (Power) : Switches the unit ON or OFF. / Switches

to the standby mode.

FUNC : Selects the function and the input source.

(Mute) : Mutes the sound.

OPTICAL : Changes input source to OPTICAL

directly.

: Adjusts sound level of Treble, Bass and Sub-

woofer.

VOL o/p : Adjusts speaker volume.

• • • • • • • • • • b • • • • • • • • •

REPEAT : Listen to your music repeatedl-y.

C/V (Skip) :

- Skips Fast backward or Forward.

dM (Play/Pause) : Starts playback. / Pauses

playback.

INFO : Displays the input source information.

You can use these playback buttons after

play music by “Music Flow Player” App or PC

software.

, Note

• • • • • • • • • • c • • • • • • • • •

DRC : Turns on or o DRC function.

: Set Night mode to On to reduce the sound

intensity and improve neness and softness.

AUTO VOL : Turns on or o the AUTO VOLUME

mode.

AV SYNC : Synchronizes the audio and video.

SLEEP : Sets the system to turn o automatically at

a specied time.

AUTO POWER : Turns on or o AUTO POWER

function. (Refer to the page 59.)

Getting Started10

Getting Started

1

Installing the sound

bar

You can hear the sound by connecting the unit to

the other device : TV, Blu-ray disc player, DVD player,

etc.

Place the unit in front of the TV and connect it to

the device you want. (Refer to pp. 13 - 19)

You can place the wireless subwoofer anywhere in

your room. But it is better to place the subwoofer

near the main unit. Turn it slightly toward the center

of the room to reduce the wall reections.

yFor best performance of wireless connection

such as Bluetooth or wireless subwoofer,

do not install the unit on Metallic furniture

because wireless connection communicates

through a module positioned on the

bottom of the unit.

yBe careful not to make scratches on the

surface of the Unit /Sub-Woofer when

installing or moving them.

> Caution

Installing the cover foot

You can extend the height of the unit by using

cover foot (height : 11 mm)

1. Turn the unit upside down.

2. Peel off a sticker attached to the cover foot.

Then place it on the existing foot of the unit.

3. Press the cover foot with adequate force to get

it rmly xed.

Mounting the main

unit on a wall

You can mount the main unit on a wall.

Because it is dicult to make a connection

after installing this unit, you should connect

the cables before installation.

> Caution

Preparation materials

Unit

Wall bracket install guide

Screws

Screws (A)

Wall plug

Wall bracket

(Not supplied)

Getting Started 11

Getting Started

1

1. Match the TV’s BOTTOM EDGE of Wall bracket

install guide with the bottom of TV and attach

to the position.

TV

2. When you mount it on a wall (concrete), use the

wall plugs. You should drill some holes. A guide

sheet (Wall bracket install guide) is supplied to

drill. Use the sheet to check the point to drill.

3. Remove the Wall bracket install guide.

4. Fix the brackets with screws (A) as shown in the

illustration below.

Screws (A) and Wall Plugs are not supplied for

mounting the unit. We recommend the Hilti

(HUD-1 6 x 30) for the mounting.

, Note

5. Put the unit on the brackets to match screw

holes on the bottom of the unit.

6. Fix the unit with the screws firmly.

To detach the unit, perform it in reverse order.

, Note

yDo not install this unit upside down. It can

damage the parts of this unit or be the

cause of personal injury.

yDo not hang onto the installed unit and

avoid any impact to the unit.

ySecure the unit rmly to the wall so that it

does not fall o. If the unit falls o, it may

result in an injury or damage to the product.

yWhen the unit is installed on a wall, please

make sure that a child does not pull any of

connecting cables, as it may cause it to fall.

> Caution

2 Connecting

Connecting12

Connecting

2

Wireless subwoofer

connection

LED indicator of wireless subwoofer

LED Color Status

Green

(Blink)

The connection is trying.

Green The connection is completed.

Red The wireless subwoofer is

in standby mode or the

connection is failed.

O (No

display)

The power cord of wireless

subwoofer is disconnected.

Setting up the wireless subwoofer

for the first time

1. Connect the power cord of the wireless

subwoofer to the outlet.

2. Turn on the main unit : The main unit and

wireless subwoofer will be automatically

connected.

Manually pairing wireless subwoofer

When your connection is not completed, you can

see the red LED or the blinking of green LED on

the wireless subwoofer and the subwoofer does

not make sound. To solve the problem, follow the

below steps.

1. Adjust volume level of the main unit to

minimum.

-”VOL MIN” appears on the display window.

2. Press and hold (Mute) on the remote control

for about 3 seconds.

-“WL RESET” appears on the display window

briey.

3. If the LED of the wireless subwoofer already

blinks in green continually, you can skip this

step.

Press and hold PAIRING on the back of the

wireless subwoofer for more than 5 seconds.

-The LED of the wireless subwoofer lights up

alternately in red and green.

4. Disconnect the power cord of the main unit

and the wireless subwoofer.

5. Connect them again after the LED of the main

unit and the wireless subwoofer is fully turned

off.

The main unit and the wireless subwoofer will

be paired automatically when you turn on the

main unit.

-When the connection is completed, you can

see the green LED on the subwoofer.

yIt takes a few seconds (and may take longer)

for the main unit and the subwoofer to

communicate with each other and make

sounds.

yThe closer the main unit and the subwoofer,

the better sound quality. It is recommended

to install the main unit and the subwoofer

as close as possible and avoid the cases

below.

-There is a obstacle between the main

unit and the subwoofer.

-There is a device using same frequency

with this wireless connection such as a

medical equipment, a microwave or a

wireless LAN device.

, Note

Connecting 13

Connecting

2

Connection overview

Connect or disconnect the jack in order of the

image.

OUT

(TV ARC)

IN 1

or

Connecting to your TV

Please connect with this unit and TV using the

optical digital cable or HDMI cable considering the

state of the TV.

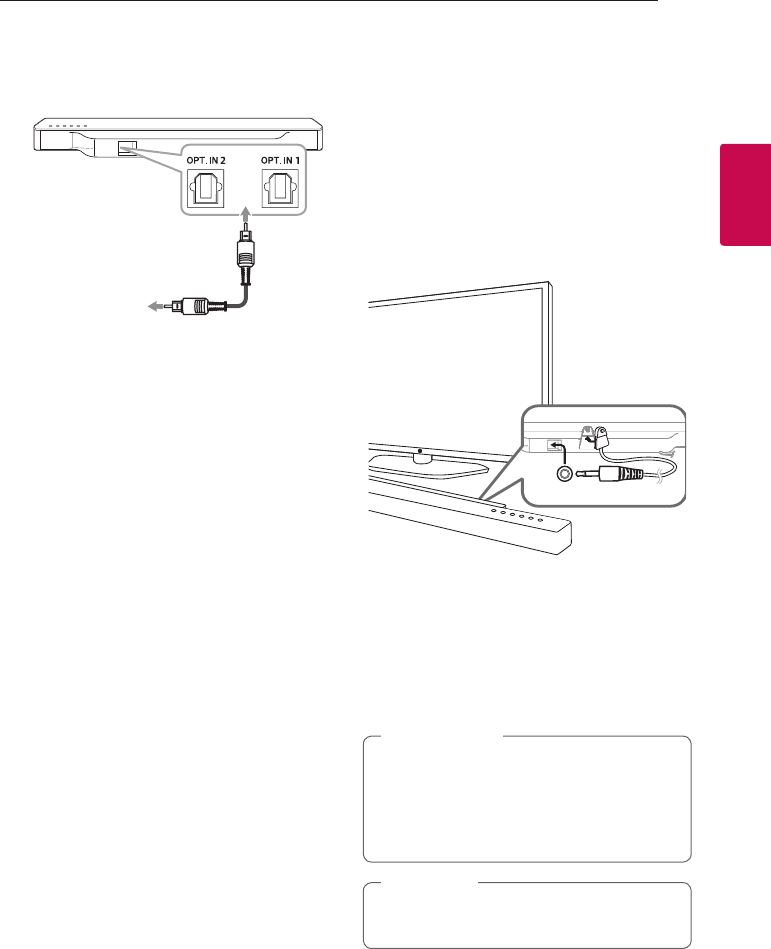

Using an OPTICAL cable

1. Connect the OPT. IN 1 or OPT. IN 2 jack on the

back of the unit to OPTICAL OUT jack on the TV

using an OPTICAL cable.

Optical cable

2. Set the input source to OPTICAL. Press

repeatedly FUNC on the remote control or

F on the unit until the function is selected.

To directly select the OPTICAL 1 or OPTICAL 2

function, press OPTICAL on the remote control.

yYou can enjoy the TV audio through the

speakers of this unit. In the case of some

TV models, you must select the external

speaker option from the TV menu. (For

details, reference your TV user manual.)

ySet up the sound output of TV to listen to

the sound through this unit :

TV setting menu [ [Sound] [ [TV Sound

output] [ [External speaker (Optical)]

yDetails of TV setting menu vary depending

on the manufacturers or models of your TV.

, Note

Connecting14

Connecting

2

LG Sound Sync

You can control some functions of this unit by

your TV’s remote control with LG Sound Sync. It is

compatible with the LG TV that is supported LG

Sound Sync. Make sure of the LG Sound Sync logo

on your TV.

Controllable function by LG TV’s remote control :

Volume up/down, mute

Refer to the TV’s instruction manual for the details

of LG Sound Sync.

Make one of the following connections, depending

on the capabilities of your equipment.

yYou can also use the remote control of

this unit while using LG Sound Sync. If you

use TV's remote control again, the unit

synchronizes with the TV.

yWhen the connection fails, make sure of the

condition of the TV and power.

yMake sure of the condition of this unit and

the connection in the cases below when

using LG Sound Sync.

-Turn o the unit.

-Changing the function to the others.

-Disconnecting the optical cable.

yThe amount of time to turn o this unit is

dierent depending on your TV when you

set AUTO POWER function to ON.

, Note

With wired connection

1. Connect your LG TV to the unit by using an

optical cable.

Optical cable

2. Set up the sound output of TV to listen to the

sound through this unit :

TV setting menu [ [Sound] [ [TV Sound

output] [ [LG Sound Sync (Optical)]

3. Turn on the unit by pressing 1 (Power) on the

remote control.

4. Select OPTICAL function by using FUNC on

the remote control or F on the unit until the

function is selected.

You can see “LG OPT” on the display window

if connecting normally between this unit and

your TV.

Details of TV setting menu vary depending on

the manufacturers or models of your TV.

, Note

With wireless connection

1. Turn on the unit by pressing 1 (Power) on the

remote control.

2. Select LG TV function by using FUNC on

the remote control or F on the unit until the

function is selected.

3. Set up LG Sound Sync (Wireless) on the TV. Refer

to the TV’s instruction manual.

“PAIRED” appears on the display window for

about 3 seconds and then you can see “LG TV”

on the display window if connecting normally

between this unit and your TV.

If you turned o the unit directly by pressing

1 (Power), LG Sound Sync (Wireless) will be

disconnected.

, Note

Connecting 15

Connecting

2

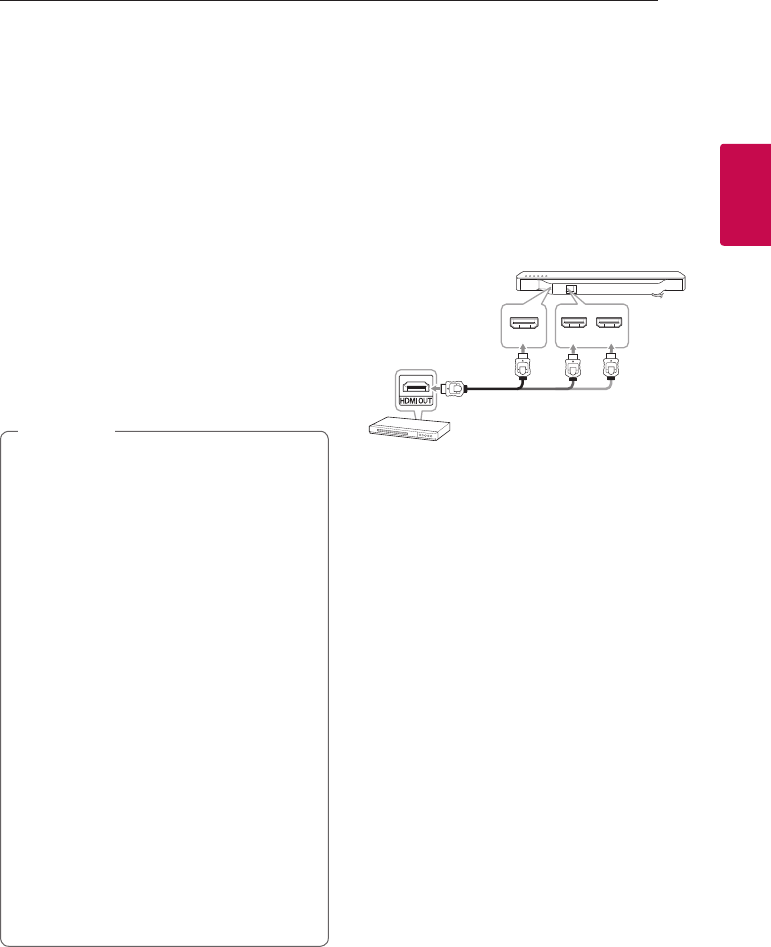

Using an HDMI cable

If you connect this unit to a TV that supports HDMI

CEC and ARC (Audio Return Channel), you can

enjoy the TV audio through the speakers of this unit

without connecting the optical cable.

Connect the HDMI OUT (TV ARC) jack on the back

of the unit to ARC jack on the TV using an HDMI

cable.

OUT

(TV ARC)

HDMI cable

yHDMI CEC (Consumer Electronics Control):

Using a single remote control, you have the

ability to operate CEC compatible devices

(TV, Sound Bar, Blue-ray player, etc.)

yYou can also enjoy extra functions such as

Bluetooth with FUNC on remote control

or F on this unit. When you go back to live

TV channel after using the extra functions

(Bluetooth) of this audio system, you should

choose your preferred speaker on TV to

enjoy the sound from this audio system

again.

, Note

HDMI cable Checklist

Some HDMI cables do not support the ARC

function, this can result in no sound output.

When connecting this unit to the TV, if there is no

sound, there might be a problem with the HDMI

cable. Therefore connect this unit to the TV and

check whether the Type A, High speed HDMI™

Cable with Ethernet.

STANDARD HDMI CABLE WITH ETHERNET

HIGH SPEED HDMI CABLE

HIGH SPEED HDMI CABLE WITH ETHERNET

(X)

(X)

(O)

Enjoy rich sound broadcast of

the channel with the sound

bar

Connection through HDMI Cable*

Your television must support the newest HDMI

features (HDMI CEC1) / ARC (Audio Return Channel))

to fully enjoy the Live broadcasting channel with

audio system through an HDMI cable. Unless your

TV supports these HDMI features, the audio system

should be connected through an OPTICAL cable.

1) HDMI CEC (High-Denition Multimedia Interface

Consumer Electronics Control)

Consumer Electronics Control (CEC) is an HDMI

feature designed to allow the user to command

and control the CEC-enabled devices, that are

connected through HDMI by using only one of

their remote controls.

* Trade names for CEC are SimpLink (LG) , Anynet+

(Samsung), BRAVIA Sync (Sony), EasyLink (Philips),

etc.

Connecting16

Connecting

2

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s with

SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control :

Power on/o, volume up/down, etc.

Refer to the TV owner’s manual for the details of

SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as

shown above.

yDepending on the state of the unit, some

SIMPLINK operation may dier from your

purpose or not work.

yDepending on a TV or a player which

is connected with this unit, SIMPLINK

operation may dier from your purpose.

, Note

ARC (Audio Return Channel)

function

The ARC function enables an HDMI capable TV to

send the audio stream to HDMI OUT of the unit.

To use this function :

-Your TV must support the HDMI-CEC and ARC

function and the HDMI-CEC and ARC must be

set to On.

-The setting method of HDMI-CEC and ARC may

dier depending on the TV. For details about

ARC function, refer to your TV manual.

-You must use the HDMI cable (Type A, High

Speed HDMI™ cable with Ethernet).

-You must connect the HDMI OUT on the unit

with HDMI IN of the TV that supports ARC

function using an HDMI cable.

-You can connect only one Sound bar to TV

compatible with ARC.

yARC function is automatically selected when

ARC signal comes in from TV, no matter

what kind of the function you are using.

yYou can enjoy the TV audio through the

speakers of this unit. In the case of some

TV models, you must select the external

speaker option from the TV menu. (For

details, reference your TV user manual.)

ySet up the sound output of TV to listen to

the sound through this unit :

TV setting menu [ [Sound] [ [TV Sound

output] [ [External speaker (HDMI ARC)]

yDetails of TV setting menu vary depending

on the manufacturers or models of your TV.

, Note

Connecting 17

Connecting

2

Additional information for

HDMI

yWhen you connect an HDMI or DVI compatible

device make sure of the following:

- Try switching off the HDMI/DVI device and this

player. Next, switch on the HDMI/DVI device

and leave it for around 30 seconds, then switch

on this player.

- The connected device’s video input is set

correctly for this unit.

- The connected device is compatible with

720 x 576p, 1280 x 720p, 1920 x 1080i or

1920 x 1080p video input.

yNot all HDCP-compatible HDMI or DVI devices

will work with this player.

- The picture will not be displayed properly with

non-HDCP device.

yIf a connected HDMI device does not accept

the audio output of the player, the HDMI

device’s audio sound may be distorted or

may not output.

yChanging the resolution when the

connection has already been established

may result in malfunctions. To solve the

problem, turn o the player and then turn it

on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to

black screen. In this case, check the HDMI

connection, or disconnect the HDMI cable.

yIf there are noises or lines on the screen,

please check the HDMI cable (length is

generally limited to 4.5 m(15 ft).

yYou cannot change the video resolution

in the HDMI IN mode. Change the video

resolution of the connected component.

yIf the video output signal is abnormal when

your personal computer is connected to

HDMI IN jack, change the resolution of your

personal computer to 576p, 720p, 1080i or

1080p.

, Note

Optional equipment

connection

HDMI connection

For enjoying sound only

You can enjoy the sound from the external device

you connect.

IN 1 IN 2 IN 3

To the Blu-ray disc player,

DVD player, etc.

1. Connect HDMI IN 1, HDMI IN 2 or HDMI IN 3 jack

on the back of the unit to HDMI OUT jack on the

audio device such as Blu-ray disc player, DVD

player, etc.

2. Set the input source to HDMI IN 1, HDMI IN

2 or HDMI IN 3. Press repeatedly FUNC on

the remote control or F on the unit until the

function is selected.

Connecting18

Connecting

2

For enjoying both sound and picture

You can enjoy both sound and picture from the

external device you connect.

IN 1 IN 2 IN 3

OUT

(TV ARC)

1. Connect HDMI IN 1, HDMI IN 2 or HDMI IN 3 jack

on the back of the unit to HDMI OUT jack on the

external device such as Blu-ray disc player, DVD

player, etc.

2. Connect HDMI OUT (TV ARC) jack on the back

of the unit to HDMI IN jack on the TV.

3. Set the input source to HDMI IN 1, HDMI IN

2 or HDMI IN 3. Press repeatedly FUNC on

the remote control or F on the unit until the

function is selected.

HDMI OUT jack is for TV connection. Even

though PCM multi channel is inputted to the

unit through an HDMI cable, the unit can only

output 2 channel to TV.

, Note

PORT. (Portable) IN

connection

Listening to music from your

portable player

The unit can be used to play the music from many

types of portable players or external devices.

1. Connect the portable player to the PORTABLE

IN connector of the unit.

2. Turn the power on by pressing 1 (Power).

3. Select the PORTABLE function by pressing

FUNC on the remote control or F on the unit

until the function is selected.

4. Turn on the portable player or external device

and start playing it.

Connecting 19

Connecting

2

OPTICAL IN connection

Connect an optical output jack of external devices

to the OPT. IN jack.

Optical cable

To the optical

output jack of

external device

1. Connect the OPT. IN 1 or OPT. IN 2 jack on the

back of the unit to optical out jack of your TV (or

digital device etc.)

2. Select the input source to OPTICAL by pressing

FUNC on the remote control or F on the unit

until the function is selected.

To directly select the OPTICAL 1 or OPTICAL 2

function, press OPTICAL on the remote control.

3. Listen to sound from the connected device.

4. Press OPTICAL to exit from OPTICAL.

Function is retuned to previous one.

To the optical output jack of external device

Connecting IR Blaster

IR blaster is supplied as an accessory with the unit

in order to communicate well with the remote

control and the TV.

Remote control of your TV may not be operated if

the unit hides the remote sensor of the TV.

You can solve the problem by connecting IR blaster

with LG TV.

IR BLASTER

TV

1. Remove the protective vinyl of IR blaster.

2. Put IR blaster on the back of the unit with the

sensor of IR blaster facing the remote sensor of

the TV.

3. Connect the end of IR blaster to IR BLASTER jack.

yDo not block ventilation when you put IR

blaster on the unit.

yDo not disconnect the power cord. If you

want to use IR blaster, keep the unit on

standby mode.

> Caution

Depending on your TV, some or all buttons

may not be function on the TV.

, Note

Connecting20

Connecting

2

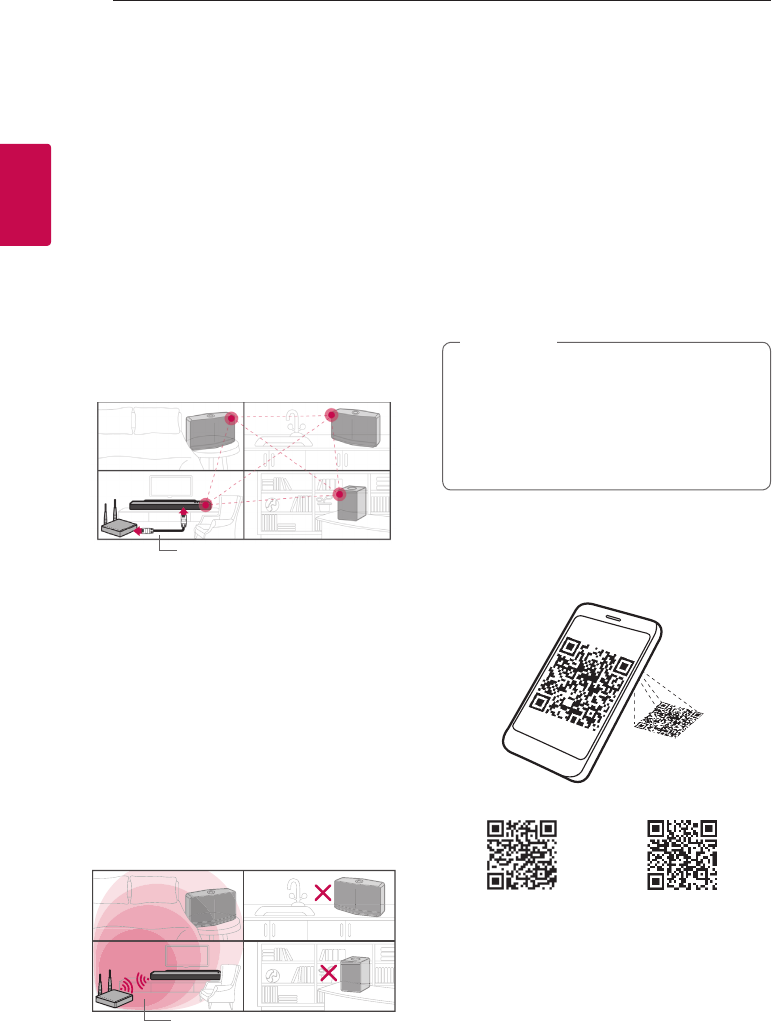

Initial Multi-Room

Setup

When installing the MUSICow product for the rst

time, you can choose two types of connection as

below.

Wired connection (MUSICflow

Mesh Network Connection)

Connect your speaker to the home router using

LAN cable.

Then you can connect the additional MUSICow

products (Optional) to your home network

wirelessly. Refer to “Connecting the speakers to

your Home Network (Additional)” on page 31.

LAN Cable

Wireless connection (Standard

Wireless Connection)

When the wired connection is unavailable between

your speaker and home router, this unit oers

music streaming service within home router’s Wi-Fi

coverage.

Connect one of the your speaker to the home

router wirelessly.

Then you can connect the additional MUSICow

products (Optional) to your home network

wirelessly. Refer to “Connecting the speakers to

your Home Network (Additional)” on page 31.

Wireless signal

Installing “Music Flow

Player” App

Through Apple “App Store” or

Google “Play Store”

1. Tap the Apple “App Store” icon or Google “Play

Store” icon.

2. Type in “Music Flow Player” in the search bar and

tap “Search”.

3. Select “Music Flow Player” in the search result list

to download.

yMusic Flow Player app will be available in

version of the software as follow;

Android OS : Ver 4.0 (ICS) (or later)

iOS O/S : Ver 6.0 (or later)

yDepending on the device, “Music Flow

Player” app may not work.

, Note

Through QR code

Install “Music Flow Player” app through QR code.

Scan the QR code using the scanning application.

(Apple iOS)

(Android OS)

Connecting 21

Connecting

2

yMake sure that your smart device is

connected to the internet.

yMake sure that your smart device has a

scanning application. If you don’t have,

download it from Apple “App Store” or

Google “Play Store”.

, Note

Starting with Music Flow

Player app

When you launch Music Flow Player app for the

rst time, the terms of use and Chromecast Service

appear on the screen.

1. Check the contents of terms of use and select

[Accept].

2. Check the contents of Chromecast Service and

select [Accept].

3. Select [Connect product] to install the speaker

you’ve purchased.

Refer to “Connecting the speaker to your Home

Network” on page

22

.

If you want to return to the terms of use

screen, initialize the Music Flow Player app on

the smart device’s setting menu.

, Note

Connecting22

Connecting

2

Connecting the

speaker to your Home

Network

Using a wired network provides the best

performance, because the attached devices

connect directly to the network without radio

frequency interference.

Please refer to the documentation for your network

device for further instructions.

Preparation

yMake sure that wireless network environment

using a router is installed at your home.

yMake sure that the speaker and the smart device

are connected to the same router.

Requirements

yWireless router

ySmart device (Android or iOS)

yMake sure that DHCP’s server is activated on

wireless router.

yIf you cannot connect the speaker with your

router, go to setting of the router and then

make sure that “Allow wireless client to see

each other and access my local network”

box is unchecked.

, Note

Simple Connection (EZ Setup)

Preparation

yFor Simple Connection, Wi-Fi network condition

is needed.

yMake sure that the Bluetooth setting on your

smart device in on.

ySimple Connection is supported by

Bluetooth Ver 4.0 (or higher).

yIf Simple Connection screen is not displayed

on the screen, connect the unit by the other

way. Please refer to “Connecting the speaker

to your network with a LAN cable” (page

23) or “Connecting the speaker to your

Network via the Wi-Fi Setup Method” (page

25 or page 28)

, Note

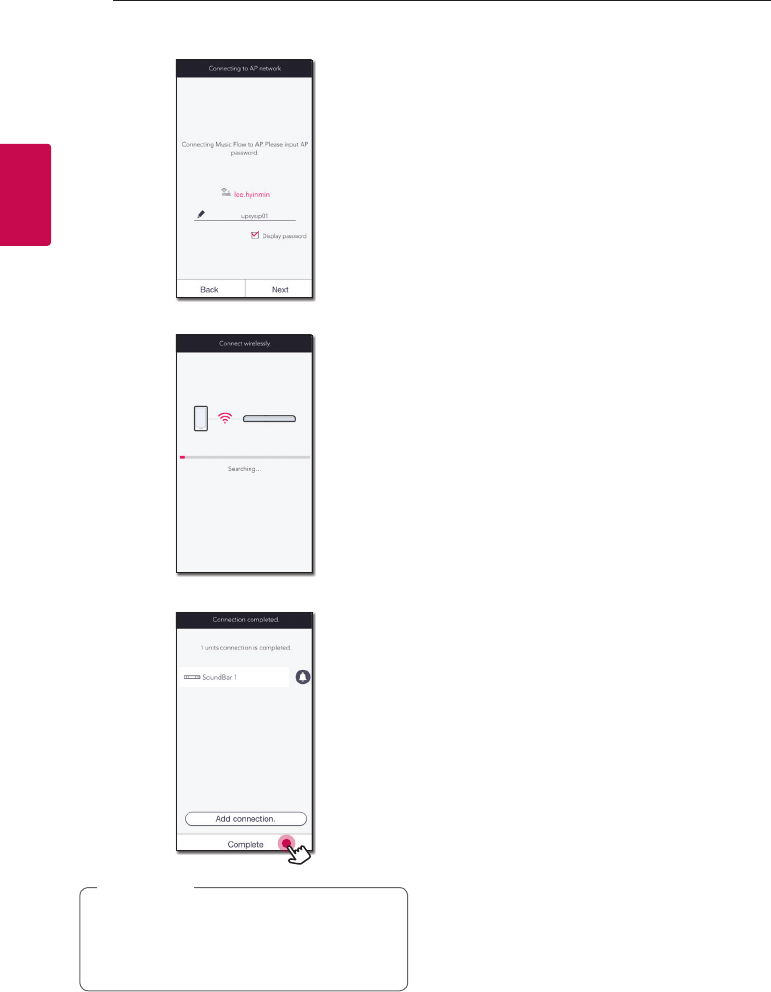

1. Plug in the desired device, and tap [Next].

2. App searches for the speaker and connects it

automatically, Tap [Next].

3. If the network password is set, security screen is

displayed. Type the password.

Connecting 23

Connecting

2

4. After typing password, tap [Next].

5. Tap [Finish] to finish making the connection.

After finishing, TV connection screen is

displayed. Follow the direction on the screen.

Connecting the speaker to

your network with a LAN cable

Connection overview

LAN

Broadband

service

Router

Connecting24

Connecting

2

1. Turn on the unit by using 1 on the remote

control or 1/! on the unit. The LED indicator

starts to blink in white.

2. On your smart device, launch Music Flow Player

app. Select [Connect product] to install the

speaker. Plug in the desired device, and tap

[Next].

3. Select the product you want to connect and

tap [Next] on the screen.

4. Select [Wired connection] on the screen.

5. Connect one end of the LAN cable to the

speaker’s LAN port and connect the other end

to your wireless router.

Wait a moment until the LED indicator stops

blinking and stays white.

6. Then select [Next] on the screen.

7. Select [Finish] to complete the connection.

After speaker connection, follow the instructions

for TV connection.

Connecting 25

Connecting

2

(If there is an update)

8. This application is checking the Version of

software of your speaker and then shows the

version.

Select [Next] after checking the version

information.

yYou cannot use the speaker without a

router. When using the wired router, you

can control the speaker with Music Flow PC

Software. (Page 38)

yThe speaker and the smart device should be

connected to the same router.

, Note

Connecting the speaker to

your Network via the Wi-Fi

Setup Method (Android)

Connection overview

Broadband

service

Router

Connecting26

Connecting

2

1. Turn on the unit by using 1 on the remote

control or 1/! on the unit. The LED indicator

starts to blink in white.

2. On your smart device, launch Music Flow Player

app. Select [Connect product] to install the

speaker. Plug in the desired device, and tap

[Next].

3. Select the product you want to connect and

tap [Next] on the screen.

4. Select [Wireless connection] on the screen.

5. Then select [Next] on the screen.

6. Press the button on the unit. Then the LED

indicator blinks in white and red alternately.

7. Then select [Next] on the screen.

8. If you have a password for your network, the

security screen appears on your smart device.

Enter your password.

Connecting 27

Connecting

2

9. Then select [Next] on the screen.

10. Select [Finish] to complete the connection.

After speaker connection, follow the instructions

for TV connection.

(If there is an update)

11. This application is checking the Version of

software of your speaker and then shows the

version.

Select [Next] after checking the version

information.

If the speaker fails to connect to your network

or its network connection operates abnormally,

place the speaker closer to your router and try

again.

, Note

Connecting28

Connecting

2

Connecting the speaker to

your Network via the Wi-Fi

Setup Method (iOS)

Connection overview

Broadband

service

Router

1. Turn on the unit by using 1 on the remote

control or 1/! on the unit. The LED indicator

starts to blink in white.

2. On your smart device, launch Music Flow Player

app. Select [Connect product] to install the

speaker. Plug in the desired device, and tap

[Next].

3. Select the product you want to connect and

tap [Next] on the screen.

4. Select [Wireless connection] on the screen.

5. Then select [Next] on the screen.

Connecting 29

Connecting

2

6. Press the button on the unit. Then the LED

indicator blinks in white and red alternately.

7. Then select [Next] on the screen.

8. On your iOS device, go to iOS setting -> Wi-

Fi setting and select “MusicFlow_Setup” to

connect.

yIf “MusicFlow_Setup” is not on the list, scan

for available Wi-Fi networks again.

yWhen your smart device is connected to

“MusicFlow_Setup”, you cannot use the

internet.

, Note

9. If you have a password for your network, the

security screen appears on your smart device.

Enter your password.

Connecting30

Connecting

2

10. Then select [Next] on the screen.

11. Then select [Next] on the screen.

12. Select [Complete] to complete the connection.

If the speaker fails to connect to your network

or its network connection operates abnormally,

place the speaker closer to your router and try

again.

, Note

Notes on Network Connection

yMany network connection problems during set

up can often be xed by re-setting the router.

After connecting the speaker to the home

network, quickly power o and/or disconnect

the power cable of the home network router or

cable modem. Then power on and/or connect

the power cable again.

yOur company is not responsible for any

malfunction of the speaker and/or the internet

connection feature due to communication

errors/malfunctions associated with your

broadband internet connection or other

connected equipment.

yThe wireless network operate at 2.4 GHz

radio frequencies that are also used by other

household devices such as cordless telephone,

Bluetooth devices, microwave oven, and can be

aected by interference from them.

yTurn o all unused network equipment in

your local home network. Some devices may

generate network trac.

yIf the speaker fails to connect to your network

or its network connection operates abnormally,

place the speaker closer to your router and try

again.

yDepending on your home network environment

and the performance of wireless router, it may

not work well to connect the speaker to your

wireless router.

yYou cannot connect the speaker to wireless

router which has hidden SSID.

yThe connection you’ve made may be

disconnected if you select other application or

change the setting of the connected speaker via

“Music Flow Player” app. In such a case, please

check the connection status.

yEven after connection of Music Flow Player app,

music may be output from your smart device. In

this case, select the connected speaker on the

playback screen.

yDepending on the speed of your network,

playback of online contents may not work well.

yWireless signal interference may lead to

disconnection of network or stopping playback.

Connecting 31

Connecting

2

yYou need to turn the speaker’s power o and on

again if you restart the router.

yYou need to perform a factory set and setup the

network connection for speaker, if you install

new router.

yIf you use other characters than the english

alphabet or digits for the SSID name of your

access point or wireless router, it may be

displayed dierently.

Connecting the

speakers to your Home

Network (Additional)

You can enjoy the music with multiple speakers

and single smart device you have.

Requirements

yWireless router

ySmart device (Android or iOS)

yAnother speaker

Signal interference may lead to stop playback.

, Note

Connecting the additional

speaker to your network with a

LAN cable

Broadband service

Router

Speaker (Main)

Speaker (Add)

LAN cable

Connection overview

Connecting32

Connecting

2

1. Connect the speaker (Main) to your network.

Refer to “Connecting the speaker to your Home

network” on page 22.

2. On your smart device, select the Music Flow

Player app. Tap the button.

3. Select the [Add Speaker] on the side menu.

You can also add another speaker by using

button on the screen of [Connected Speakers].

, Note

4. Plug in the desired device, and tap [Next].

5. Select the product you want to connect and

tap [Next] on the screen.

6. Select [Wired connection] on the screen.

Connecting 33

Connecting

2

7. Connect one end of the LAN cable to the

speaker’s ETHERNET port and connect the other

end to your wireless router.

Wait a moment until the LED indicator stops

blinking and stays white.

8. Then select [Next] on the screen.

9. Select [Finish] to complete the connection.

Connecting the additional

speaker to your network via

the Wi-Fi Setup Method

Broadband service

Router

Speaker (Main)

Speaker (Add)

LAN cable

Connection overview

Connecting34

Connecting

2

1. Connect the speaker (Main) to your network.

Refer to “Connecting the speaker to your Home

network” on page 22.

2. On your smart device, select the Music Flow

Player app. Tap the button.

3. Select the [Add Speaker] on the side menu.

You can also add another speaker by using

button on the screen of [Connected Speakers].

, Note

4. Select the product you want to connect and

tap [Next] on the screen.

5. Select [Wireless connection] on the screen.

6. Press the ADD button on the rear of the speaker

(Add). Then Network status LED blinks red.

Connecting 35

Connecting

2

7. Then select the [Next] on the screen.

8. Select [Finish] to complete the connection.

Speakers may be not connected if the distance

between the Sound Bar (Main) connected

by LAN cable and the speaker (Add) to be

connected is too far.

, Note

Using the Bridge

Bridge (R1) extends a range of use of speakers.

Please purchase it separately if you want to use.

Use as a root device (wired to

the home router)

If there is no speaker with wired

connection to the router

When your home router is located too far from any

speaker location that is to be connected via wired

mode, connect the Bridge (R1) to your home

router with LAN cable.

Bridge (R1)

1. Attach the power cord to the power port on

the rear of the Bridge (R1) and then plug the

power cord into an electrical outlet.

2. The power LED on the front of Bridge (R1)

turns on. On your smart device, select the Music

Flow Player app. Tap the button.

Connecting36

Connecting

2

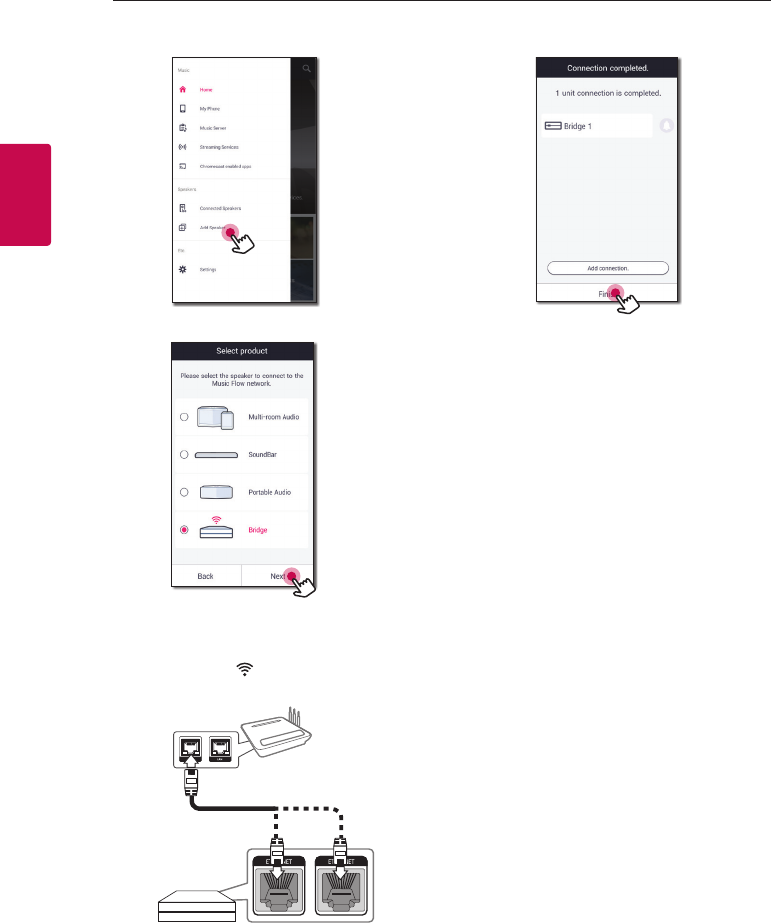

3. Select the [Add Speaker] on the side menu.

4. Select the [Bridge] and tap [Next] on the screen.

5. Following the instruction on Music Flow Player

app, connect the Bridge (R1) and the router

with LAN cable.

Wait a moment until Network status LED

stops blinking and stays white.

Bridge (R1)

And then select [Next].

6. Select [Finish] to complete the connection.

7. Connect the speaker to Bridge (R1). Refer

to “Connecting the speakers to your Home

Network (Additional)” on page 33.

Connecting 37

Connecting

2

Use as a wireless extender

If there is at least one speaker with

wired connection to the router

When you want to expand Music Flow mesh

network coverage, add the Bridge (R1) to your

home network.

Bridge (R1)

1. Attach the power cord to the power port on

the rear of the Bridge (R1) and then plug the

power cord into an electrical outlet.

2. The power LED on the front of Bridge (R1)

turns on. On your smart device, select the Music

Flow Player app. Tap the button.

3. Select the [Add Speaker] on the side menu.

4. Select the Bridge and tap [Next] on the screen.

5. Select [Wireless connection] and tap [Next] on

the screen.

Connecting38

Connecting

2

6. Follow the instruction on Music Flow Player app

and tap [Next] on the screen.

7. Select [Finish] to complete the connection.

8. Connect the speaker to Bridge (R1). Refer

to “Connecting the speakers to your Home

Network (Additional)” on page 33.

Using Media Server for

PC

Media server Software allows users to access audio

files stored in media server and enjoy them on this

speaker via home networking.

Before connecting to PC to play a le, Media server

Software should be installed on your PC.

Make sure that wireless network environment

using a router is installed at your home.

, Note

yWindows : Music Flow PC Software

yMac OS : Nero MediaHome 4 Essentials

Music Flow PC Software for

windows

About Music Flow PC Software

Music Flow PC Software makes you enjoy the

audio les stored on your media server (PC) via the

speaker.

Downloading Music Flow PC

Software

1. Start up your computer, visit http://www.lg.com.

If necessary, select your region.

2. Click support tab.

3. Fill your model name on the cover of owner’s

manual in search bar.

4. Find and download the “Music Flow PC

Software” file.

Installing Music Flow PC Software

1. Unzip and double-click “Setup.exe” to install

Music Flow PC Software. The installation is

prepared and the installation wizard appears.

2. Follow the directions of the installation wizard

displayed on the screen.

3. Click the [Exit] button to complete the

installation.

Connecting 39

Connecting

2

yYou might close rewalls and Anti-Virus

programs on your PC while installing Music

Flow PC Software.

yThe Music Flow PC Software is a customized

software edition only for sharing les and

folders to this speaker.

yIf you want a full explanation about Music

Flow PC Software, click the question marked

icon on home menu.

, Note

System requirements (Windows PC)

yCPU : Intel® 2.0 GHz or AMD Sempron™ 2000+

processors

yMemory : 1 GB of free RAM

yGraphics card : 64 MB video memory, minimum

resolution of 1024 x 768 pixels, and 16 bit color

settings

yFree Disk Space : 200 MB

yWindows® XP (Service Pack 2 or higher),

Windows Vista®, Windows® 7, Windows® 8.0,

Windows® 8.1, Windows® 10

yWindows® Media Player® 11.0 or higher

yNetwork environment: 100 MB Ethernet, WLAN

Sharing music files

On your computer, you must share the folder

contained music les to play them on this speaker.

This parts explains the procedure for selecting the

shared folders on your computer.

1. Double-click the “Music Flow PC Software” icon.

2. Click [ ] icon in the upper-right-hand corner

of the screen. The setting menu appears.

3. On the setting menu, click [ ] icon on the left

to go to the sharing le menu.

4. On the sharing le menu, Click [ ] icon to

open the [Browse Folder] window.

5. Select the folder containing the les you want

to share. The selected folder is added to the list

of shared folders.

Nero MediaHome 4 Essentials

for Mac OS

About Nero MediaHome Essentials

Nero MediaHome 4 Essentials is a software for

sharing video, audio and photo les stored on your

computer to this speaker as a digital media server.

Downloading Nero MediaHome

Essentials

1. Start up your computer, visit http://www.

lg.com.

If necessary, select your region.

2. Click support tab.

3. Fill your model name on the cover of owner’s

manual in search bar.

4. Find and download the “Nero MediaHome 4

Essentials” file.

Installing Nero MediaHome

Essentials

1. Before installation, close all running programs

including firewall and Anti-Virus programs.

2. Unzip and double-click NeroMediaHome.

dmg file, In the Nero MediaHome window,

drag the Nero MediaHome icon either to the

Applications folder within the window or to any

other desired location.

3. Follow the directions of the installation wizard

displayed on the screen.

4. Click the [Exit] button to complete the

installation.

Connecting40

Connecting

2

System requirements (Macintosh)

yMac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)

yMacintosh computer with an Intel x86 processor

yHard drive space: 200 MB hard drive space

for a typical installation of Nero MediaHome

standalone

yMemory: 256 MB RAM

Sharing music files

On your computer, you must share the folder

contained music les to play them on this speaker.

This parts explains the procedure for selecting the

shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials”

icon.

2. Click [Network] icon on the left and dene your

network name in the [Network name] eld. The

Network name you enter will be recognized by

your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares] screen.

5. Click [Add] icon to open the [Browse Folder]

window.

6. Select the folder containing the les you want

to share. The selected folder is added to the list

of shared folders.

7. Click [Start Server] icon to start the server.

The network drive cannot congure the shared

folder setting.

, Note

3 Operating

Operating 41

Operating

3

Enjoying the Music

with Music Flow Player

app

With Music Flow Player app, you can play music in

your smart device.

yFor more detailed instruction about Music

Flow Player app, switch on the [User Guide]

in [Settings] > [General] on the side menu.

ySome of the content in this part may dier

from Music Flow Player app depending on

the application’s version.

, Note

Preparation

1. Check the network connection with the

speaker. (Page 22)

2. To use the speaker, you must download and

install the Music Flow Player app. (Page 20)

Overview of Home menu

Launch Music Flow Player app on your smart

device. The [Home] appears.

aMenu button - Displays side menu bar.

bMy Songs - Displays music list on your phone.

c

Streaming Services – Displays the online

services. You can enjoy the online radio and

music.

dFavorites– Displays the favorites songs

eMost Played – Displays the songs most

played on this speaker.

fMy Playlists – Displays the playlists.

gTimeline – Displays the songs played on this

speaker.

hSearch - Searches music on your phone.

Depending on your smart device’s OS or

version of “Music Flow Player” app, some of the

content in this manual may dier.

, Note

Operating42

Operating

3

Edit the Online streaming Service

list

1. Launch Music Flow Player app on your smart

device. The [Home] appears.

2. Tap the [EDIT] menu.

ySelect the checkbox of the Online service you

want to see on Home.

yDrag upwards or downwards to change the

order of the Online service.

yTap the , add the online services.

In case of the Android device, you can add the

online services among the installed apps in the

device. If you select the added app, the app is

run during the Bluetooth pairing operation.

In case of the iOS device, when you connect

the added app, you should set the Bluetooth

connection for yourself.

The displayed Online Streaming Services may

vary depending on your region.

, Note

Overview of the side menu

1. Launch Music Flow Player app on your smart

device. The [Home] appears.

2. Tap the button.

3. Side menu appears.

aHome – Displays the Home menu.

bMy Phone – Displays the songs on this smart

device.

cMusic Server – Displays the songs on the

connected devices (Media server).

d

Streaming Services – Displays the online

services. You can enjoy the online radio and

music.

eChromecast enabled apps - Displays

available apps on Chromecast.

fConnected Speakers – Displays the

connected speaker.

gAdd Speaker – Goes to the speaker

installation screen.

hSettings – Displays the settings menu.

Operating 43

Operating

3

Playing a song

1. Launch Music Flow Player app on your smart

device. The [Home] appears.

2. Tap the button.

3. Side menu appears.

Select the [My Phone] on the side menu.

4. Select the desired album.

5. Select the desired song. Then selected song is

displayed and played.

If the speaker is not selected, the selecting

speaker pop-up appears. Select a desired

speaker.

, Note

Operating44

Operating

3

Managing a playlist

On an album screen, tap the [ ] of the desired

song. The pull down menu appears.

aPlay next – Selects music to play next.

bAdd to queue – Adds to queue list.

cAdd to playlist – Adds to a desired playlist.

Depending on your wireless environment,

playing a song with the speaker may not work

smoothly.

, Note

Overview of Playback

You can conrm and adjust various information on

the playback screen.

aDisplays the speaker that music plays through.

b

Displays current playing music.

- Repeats the desired contents. Every time

you click it, the state changed in the

(Repeat One) - (Repeat All) -

(Repeat O ) order.

- Shues the music on the list. Music will

be played in random order.

c

Adjusts playback.

- Adjusts the volume.

- Pauses playback.

/ - Skips fast backward or forward.

- Adjusts the sound eect.

d

Tap the , various option appears.

- Saves the music to the [Favorites]. You

can nd [Favorites] on [Home] tab

- Adds music to [My Playlist].

e

- Edits the current playlist.

- Selects a speaker to play.

- Displays music menu.

By using , you can control volume level

of each grouped speakers and change the

channel of them to [Surround], [Left] or [Right].

(Page 46)

, Note

Operating 45

Operating

3

Selecting Sound effect

This speaker has a number of pre-set surround

sound elds. You can select a desired sound mode

by tapping [ ].

The displayed items for the equalizer may be

dierent depending on sound sources and eects.

1. During playback, tap the [ ] as below.

2. Tap the A or D.

You can select the various sound eects.

Sound Eect Description

ASC

Analyzes the property of input

sound and provides the sound

optimized for the content in real

time.

Standard You can enjoy optimized sound.

Cinema You can enjoy more immersive

and cinematic surround sound.

You can set Treble and Bass value.

The set value will be reected to

the overall sound eect.

yWhen you play the songs with smart

device’s speaker, the sound equalizer is not

supported.

yYou can also select a desired sound mode

by using SOUND EFFECT on the remote

control.

yIn some of surround modes, some speakers,

there’s no sound or low sound. It depends

on the mode of surround and the source of

audio, it is not defective.

yYou may need to reset the surround mode,

after switching the input, sometimes even

after the sound le changed.

, Note

Operating46

Operating

3

Different ways of

listening to music

There are a number of diering ways of listening to

music : Group, Surround and Seamless playbacks.

If you want to enjoy the group playback and

Surround playback, it is recommended that at

least one speaker is connected by LAN cable.

To change speaker connection setting when

all the speaker have been already connected

wirelessly, reset all the speaker and connect

again after connecting the one speaker of

them.

In the wireless connection, the smoothness of

playback is subject to the location of installed

speaker. Install the speakers at a short distance

from the router. To enjoy the smooth group

playback or surround playback wirelessly, it is

recommended to use the router supporting

802.11n. In this case, set the router’s security

mode setting to OPEN or AES.

, Note

Group Playback

You can group multiple speakers linked to the

Music Flow Player app and play the same music

through all the connected speakers in the same

group.

1. Select [Connected Speakers] on the side menu

of Music Flow Player app.

2. Connected speakers appear.

Select the [ ] on the speaker desired song

plays through.

Operating 47

Operating

3

3. Grouping option appears.

Tap the checkbox to select the speaker you

want to play with. Then select [OK].

4. The speakers is ready to group playback.

yIf the speakers are not grouped, you can

enjoy dierent music on each speaker.

yIt is recommended to connect less than 5

devices for the smooth playback.

yThe weak signal because of the long

distance between speakers or wireless

router and signal interference may cause

abnormal playback.

yDepending on your wireless environment,

the grouping may be broken.

yFor smooth group playback, it is

recommended to select the speaker

connected by LAN cable as a master

speaker. If you set the master speaker

connected wirelessly, placed closer from the

speaker connected wired.

, Note

Surround Sound Mode (Home

Cinema Mode)

Simply add a LG MUSICow sound bar to your

network and synchronize it with your LG MUSICow

speakers to enjoy a home cinema system

experience.

1. Select [Connected Speakers] on the side menu

of Music Flow Player app.

2. Connected speakers appear.

Select the [ ] on the speaker.

Operating48

Operating

3

3. Surround environment option appears.

Select the left and right speakers by tapping

connected speakers. Then select [OK].

4. The speakers are ready to surround playback.

yIt is recommended to set the surround

speakers to same models.

yThe weak signal because of the long

distance between speakers or wireless

router and signal interference may cause

abnormal playback.

yDepending on your wireless environment,

the grouping may be broken.

yFor smooth playback, it is recommended to

select the speaker connected by LAN cable

as a master speaker. If you set the master

speaker connected wirelessly, placed closer

from the speaker connected wired.

yTo enjoy the home cinema system without

Music Flow Player app, follow the below

steps.

1. Plug in the Sound bar

2. Connect the sound bar to home

network. (Wired or Wireless)

3. Plug in the rear speakers.

4. Connect the rear speakers to home

network. (Wired or Wireless)

5. Press (Add) button on the sound

bar.

The sound bar beeps and [HOME

CINEMA READY] is scrolled on the

display window.

6. Press (Add) button on the left rear

speaker and wait for a few seconds.

7. After the left rear speaker connection,

press (Add) button on the right

rear speaker.

yIf the home cinema mode congure with

retained product, updates the speaker to

the latest version.

yCheck every speaker’s network connection

when you cannot set the speakers. If the

speakers are not connected to the home

network, refer the “Connecting the speaker

to your Home Network”.

, Note

Operating 49

Operating

3

Seamless playback

You can easily change the playing speaker from

your smart device or the speaker to the another

speaker without pause.

To use Seamless playback, you have to set up Auto

Music Play to On. (Page 54)

yIt is not supported when you go out of the

house with your smart device.

yWi-Fi function on smart device must be

turned on.

yIf the source is Portable In and Bluetooth,

seamless play is not supported. (Media

server and online streaming service are

supported).

yIn case of the online streaming service, the

music you are listening to is played from the

beginning.

yOn seamless play, each speaker keeps its

existing volume value. If no sound coming

out from the speaker during playback,

check the switched speaker’s volume is set

to 0.

, Note

Changing playing speaker from a

smart device to a speaker

1. If the smart device playing music is carried from

outside to a room where the connected speaker

is in, the pop-up window on the smart device

will appear to ask you which speaker you want

to play music through.

2. Select the speaker on the pop-up list, the music

you are listening to is played through without a

pause.

Operating50

Operating

3

Setting the Speaker

with Music Flow Player

app

With Music Flow Player app, you can set the

connected speaker in your smart device.

yFor more detailed instruction about Music

Flow Player app, switch on the [User Guide]

in [Settings] > [General] on the side menu.

ySome of the content in this part may dier

from Music Flow Player app depending on

the application’s version.

, Note

Preparation

1. Check the network connection with the

speaker. (Page 22)

2. To use the speaker, you must download and

install the Music Flow Player app. (Page 20)

Overview of setting menu

1. Launch Music Flow Player app on your smart

device.

2. Select [Settings] on the side menu.

aGeneral – Sets for easier use of the speaker.

bSpeakers – Sets connected speaker.

cAlarms/Sleep Timer – Wakes on and o the

speaker at a designated time.

dAccount Management – Manages online

streaming service.

eTime zone - Sets time zone.

fAdvanced settings – Displays the Advance

settings menu. (Page 53)

gChromecast - Displays the Chromecast menu.

hVersion Info. – Updates the speaker to the

latest version.

iOpen source licenses – Shows LGE Open

Source Software Notice.

[General] Menu

Sets for easier use of the speaker.

Lock Screen Setting (Android only)

This function allows you to display the Music Flow

Player on the lock screen. (Lock screen setting is

[ON] by default.)

[Lock Screen Setting] may dier from Music

Flow Player app depending on the Android’s

version.

, Note

User Guide

This function allows you to display or delete the

guide on the menu.

Gesture

When this function is on, you can easily continue

playback your music by simply shaking your mobile.

Operating 51

Operating

3

[Speakers] Menu

You can adjust speakers connected to your

network.

aRename – Renames the speaker.

bSpeaker LED – Turns on or o speaker’s LED

indicator.

cIP Info. - Shows the IP address of the speaker.

d

Compressed sound transmission – Adjusts

the compression of audio source according to

network status.

eDRC – Turns on or o DRC function.

(Page 57)

fNight – Turns on or o Night Mode function.

(Page 59)

gAuto Volume On/O – Turns on or o Auto

Volume function. (Page 59)

hAV Sync – Adjust the audio and video

Synchronization. (Page 57)

iWoofer level – Adjust Woofer level. (Page

59)

jAuto Display On/O – Turns on or o Auto

Display function.

kAuto Power On/O – Turns on or o Auto

Power function. (Page 59)

lBluetooth standby mode – Turns on or o

Bluetooth standby mode.

m

Connect SoundBar and TV – Guide you to

connect to your TV. (through Optical (Page

13) or HDMI (Page 15))

n

Using the TV remote control - Adjusts some

functions of this unit with your TV remote

control. (Page 57)

oInitialize – Resets the speaker.

pSystem version – Displays the current system

version.

q

Share usage data - Select whether to send

Chromecast usage data and crash reports to

Google.

rLearn about Chromecast built-in Privacy -

Shows Privacy policy of Chromecast.

Operating52

Operating

3

[Alarms/Sleep Timer] Menu

Turns on and o the speaker at a designated time.

Alarms

Speaker will let you know when it is time.

Deletes selected alarm.

Adds new alarm.

Sleep Timer

Sets a time to automatically turn o the speaker.

1. Select the speaker to set timer on [Sleep Timer]

in the [Alarms/Sleep Timer] menu.

2. Set the desired timer on selected speaker.

[Account management] Menu

Manages online streaming service.

[Time Zone] Menu

Automatic Time zone

It oers to use network provided time.

Set Time Zone

If you deselect [Automatic Time zone], you can

select your time zone yourself.

Operating 53

Operating

3

[Advanced Settings] Menu

Mesh Network Channel

If normal playback or group playback is not smooth

using multiple speakers including wireless speaker

connection, changed the mesh network channel to

improve network speed.

1. Select the [Settings] -> [Advanced Settings]

option.

2. Select the [Mesh Network Channel] option.

The channel information now being used is

displayed.

3. Select the channel to change.

4. The channel information is updated to the

selected channel.

yThe speaker is disconnected temporarily

during the channel changing.

yIf you changed the channel when the

speaker turned o, turn on and add it again.

yIf the speaker is not connected to network

after changing the channel, add the speaker

again.

, Note

Mesh Network direct connection

(Android only)

You can directly connect the smart device to

speaker connected your home network.

When your smart device is placed in a position

where it cannot connect to the home network,

select a nearby speaker in the [Mesh Network direct

connection] list and then connect the smart device

to the speaker.

Operating54

Operating

3

Auto Music Play

You can easily change the rendering device from

your smart device or a speaker to another speaker

by approaching your smart device to the desired

speaker.

yYour smart device should support bluetooth

(BLE).

yThis function is subject to the smart device

capability and the Wi-Fi network status.

yAuto music play option in the music ow app

should be turned on.

yThis function may cause more battery

consumption.

1. Turn on the [Auto Music Play] option in the

Advanced settings menu on the music flow

app.

2. Tag the smart device to LG Music Flow to play

for about 1 second.

Sensitivity Settings

Sets the operating distance of Auto Music Play

between the speaker and your smart device to

adjust sensitivity of Bluetooth(BLE).

-Place your smart device close enough to the

tag on the speaker. It is recommend to be

within about 5 cm.

-Set the slide bar at [Close], the leftmost

position.

-Move the slide to the right slowly until the

notication appears.

yThe smart device should support low power

Bluetooth (BLE).

yBLE support specications in case of android

can vary depending on the manufacturer.

ySupported operation system version

Device O/S

Android Android 4.3 (or later)

Apple iOS 7.1.2 (or later)

, Note

Operating 55

Operating

3

[Chromecast] Menu

Learn how to cast

Shows how to use Chromecast.

Chromecast enabled apps

Shows available apps on Chromecast.

Cast Groups

Select [Learn about Cast Groups] or [How to cast to

a group] to show the selected information.

To use Cast Groups, install Google Home

application. Download the application from

Apple “App Store” or Google “Play Store”.

, Note

Chromecast built-in open legal

documents

Select [Google Terms of Service], [Google Privacy

Policy] or [Open source licenses] to show the

selected information.

[Version Info.] Menu

Updates the speaker to the latest version.

App version info.

Displays the current application’s version.

Device version info.

Updates the latest speaker’s rmware version.

1. Find the speakers need to update and

tap the [ ].

2. Starts the software update.

[Open source licenses] Menu

Shows LGE Open Source Software Notice.

Operating56

Operating

3

Using a Bluetooth

Wireless Technology

About Bluetooth

Bluetooth® is wireless communication technology

for short range connection.

The sound may be interrupted when the

connection interfered by the other electronic wave

or you connect the bluetooth in the other rooms.

Connecting individual devices under Bluetooth®

wireless technology does not incur any charges. A

mobile phone with Bluetooth® wireless technology

can be operated via the Cascade if the connection

was made via Bluetooth® wireless technology.

Available Devices : Android device, iOS device

Bluetooth profiles

In order to use Bluetooth wireless technology,

devices must be able to interpret certain proles.

This speaker is compatible with following prole.

A2DP (Advanced Audio Distribution Prole)

Listening to Music of a

Bluetooth Device

Before you start the pairing procedure, make sure

that the Bluetooth feature on your smart device

is turned on. Refer to your Bluetooth device’s user

guide. Once a pairing operation is performed, it

does not need to be performed again.

1. Select the Bluetooth function by using FUNC

on the remote control or F on the unit until the

function is selected.

Appears “BT” and then “BT READY” in display

window.

2. Operate the Bluetooth device and perform

the pairing operation. When searching for this

speaker on your Bluetooth device, a list of the

devices found may appear in the Bluetooth

device display depending on the type of

Bluetooth device. Your speaker appears as “LG

HS9 (XX:XX) / LG LAS950M (XX:XX)”.

3. Select the “LG HS9 (XX:XX) / LG LAS950M

(XX:XX)”.

yXX:XX means the last four digits of

address. For example, if your unit

has a Bluetooth address such as

9C:02:98:4A:BC, you will see “LG HS9

(XX:XX) / LG LAS950M (XX:XX)” on your

Bluetooth device.

yDepending on the Bluetooth device

type, some device have a dierent

pairing way. Enter the PIN code (0000) as

needed.

, Note

4. When this unit is successfully connected with

your Bluetooth device, “PAIRED” will appear on

the display window.

5. Listen to music.

To play music in your Bluetooth device, refer to

your Bluetooth device’s user guide.

According to your Bluetooth device’s volume

level, the volume level of Bluetooth will be

adjusted.

Operating 57

Operating

3

yWhen using Bluetooth® technology, you

have to make a connection between the

unit and the bluetooth device as close as

possible and keep the distance.

However it may not work well in the case

below :

-There is a obstacle between the unit and

the bluetooth device.

-There is a device using same frequency

with Bluetooth® technology such as a

medical equipment, a microwave or a

wireless LAN device.

yThis unit supports Bluetooth auto pairing.

However it does not operate in the case

below:

-When you restart this unit.

-When you disconnect this unit by yourself.

-When you disconnect this unit on the

connected Bluetooth device.

yThe sound may be interrupted when the

connection is interfered with by the some

other electronic wave.

yYou cannot control the Bluetooth device

with this unit.

yPairing is limited to “One” Bluetooth® device.

Multi-Pairing is not supported.

yDepending on the type of the device,

you may not be able to use the Bluetooth

function.

yYou can enjoy using Bluetooth® when using

Phone, MP3, Notebook, etc..

yThe more distance between the unit and

the bluetooth device, the lower the sound

quality becomes.

yThe Bluetooth® connection will be

disconnected when the unit is turned o or

the Bluetooth® device gets too far from the

unit.

yIf the Bluetooth® connection is

disconnected, connect the Bluetooth®

device again.

yWhen a Bluetooth® device is not connected,

“BT READY” appears on the display window.

, Note Other operations

DRC (Dynamic Range Control)

Make the sound clear when the volume is turned

down (Dolby Digital only). Set to [DRC ON] by using

DRC.

AV Sync

When receiving audio signals from TV, sound and

images may not be matched. In the case, this

function can adjust the delay time.

1. Press AV SYNC.

2. Use

C/V to control the time which you

can set at between 0 and 300 ms.

Using your TV remote control

You can control some functions of this unit by

your TV remote control even by other company’s

product.

Controllable functions are volume up/down and

mute.

Press and hold INFO on the remote control for

about 3 seconds. “ON - TV REMOTE” appears and

you can control this unit by your TV remote control.

To check the status of this function, press and hold

INFO.

To turn off this function, press and hold INFO

and press it once again while “ON - TV REMOTE” is

scrolled.

ySupported TV brands

LG Panasonic Philips Samsung

Sharp Sony Toshiba Vizio

yMake sure that the sound output of your TV

is set to [External speaker].

yDepending on the remote control, this

function may not work well.

yThis function may not work well when some

TV control functions such as HDMI CEC,

SIMPLINK and LG Sound Sync set to ON.

, Note

Operating58

Operating

3

Turn off the sound temporarily

Press (Mute) to mute your unit.

You can mute your unit, for example, to answer

the telephone, “MUTE” is displayed in the display

window.

To cancel it, press (Mute) again on the remote

control or change the volume level.

Displaying input source

information

You can display various information of the input

source by pressing INFO.

OPTICAL/HDMI IN/PORTABLE : Audio format, Audio

channel

Sleep timer setting

This unit will turn o by itself after the time set.

Press SLEEP one or more times to select delay time

between 10 and 180 minutes.

To check the remaining time, press SLEEP.

To cancel the sleep function, press SLEEP

repeatedly until “SLEEP 10” appears, and then press

SLEEP once again while “SLEEP 10” is displayed.

You can check the remaining time before the

unit turns o . Press SLEEP the remaining time

appears in the display window.

, Note

Auto power down

This unit will turn itself o to save electric

consumption when the main unit is not connected

to an external device and is not used for 20

minutes.

It will also turn o after six hours if the Main unit is

connected to a device using portable input.

Operating 59

Operating

3

AUTO POWER On/Off

This unit automatically turns on and o by an input

source : Optical.

When you turn on your TV or an external device

connected to this unit, this unit recognizes the

input signal and selects the optical function. You

can hear the sound from your device.

This function turns on or o each time you press

AUTO POWER.

yAfter the unit is turned on by AUTO POWER

function, it will be automatically turned o if

there is no signal for a certain period of time

from the TV connected by LG Sound Sync

(Optical).

yAfter the unit is turned on by AUTO POWER

function, it will be automatically turned o if

there is no signal for a certain period of time

from the external device.

yIf you turned o the unit directly, it cannot

be turned on automatically by AUTO POWER

function. However the unit can be turned

on by AUTO POWER function when optical

signal comes in after 5 seconds of no signal.

yDepending on the connected device, this

function may not operate.

yIf you want to use AUTO POWER, SIMPLINK

must be turned o. It takes for about 30

seconds to switch on or o SIMPLINK.

, Note

Sound adjustment

Adjust volume level

automatically

This unit supports Auto volume function that

automatically adjusts the volume level.

When the output sound is too loud or too low,

press AUTO VOL on the remote control. So you can

enjoy the sound with appropriate levels.

To cancel this function, press the button again

while “ON” is displayed.

Adjust the Treble/Bass/Sub-

woofer

You can adjust the sound level of Treble, Bass and

Subwoofer as your preference.

TREBLE/BASS : -5 dB to 5 dB

SUBWF (Subwoofer) : -20 dB to 6 dB

1. Press button repeatedly to select TREBLE,

BASS or SUBWF (Subwoofer).

2. Press VOL o/p to adjust the sound level.

Night mode

Set Night mode to On to reduce the sound

intensity and improve neness and softness.

Press button on the remote control. So you can

activate Night mode. To cancel it, press button

again.

Operating60

Operating

3

Standby mode

The speaker switches to the standby mode if there

is no music playback or no button operation.

Standby mode

Option 1.

If network is disconnected and there is no music

playback and no button operation for 20 minutes,

the speaker switches to the standby mode. Then

“GOOD BYE” appears on the display window and

the LED indicator on the unit turns red.

Option 2.

If you press and hold 1/! on the unit or 1 on the

remote control for about 3 seconds, the speaker

switches to the standby mode. Then “GOOD BYE”

appears on the display window and the LED

indicator on the unit turns red.

Network standby mode

Option 1.

When network is connected but music is not

played and buttons are not pressed for 20 minutes,

the speaker switches to the network standby

mode. Then the LED indicator on the unit becomes

dimmed in white.

Option 2.

If you press 1/! on the unit or 1 on the remote

control, the speaker switches to the network

standby mode. Then the LED indicator on the unit

becomes dimmed in white.

On the Network Standby Mode, if you press

1/! button, the latest music playlist will be

played.

, Note

Bluetooth standby mode

If the Bluetooth standby mode is set to ON, the

speaker switches Bluetooth standby mode when is

turned o.

When you turn on the main unit in the Bluetooth

standby mode, Bluetooth and LG TV are able to

connect even if network is not connected.

yAdjust volume level of the main unit to

minimum. And then, press and hold VOL -

and DRC on the remote control for about

3 seconds. The speaker switches Bluetooth

standby mode.

yIf you turn o the unit in the Wi-Fi function,

Bluetooth standby mode does not operate.

yTo use this function, you should turn on the

AUTO POWER function.

, Note

Reset the Speaker

If the speaker is not turned on or doesn’t respond,

reset the speaker.

Resetting the speaker

yPress and hold the button until you hear

the beep sound once. You can see “DISABLED”

on the display window. Then all wireless network

ports are deactivated and the stored wireless

network information is deleted.

yPress and hold the button until you hear

the beep sound twice. You can see “RESET1” on

the display window. You can reset the speaker to

its original factory settings.

4 Troubleshooting

Troubleshooting 61

Troubleshooting

4

Troubleshooting

General

Symptoms Cause & Solution

The unit does not work

properly.

yTurn o the power of this unit and the connected external device (TV,

Woofer, DVD-player, Amplier, etc.) and turn it on again.

yDisconnect the power cord of this unit and the connected external device

(TV, Woofer, DVD-player, Amplier, etc.) and then try connecting again.

The power does not turn

on.

Is the power cord plugged into the outlet?

yConnect the power plug to the outlet.

A function does not

work when the button is

pressed.

Is there static electricity in the air?

yDisconnect the power plug and connect it again.

Sound is not produced. Is the volume set to minimum?

yAdjust the volume.

yWhen you are using connection with a external device (set top box,

Bluetooth device etc.), adjust volume level of the device.

Is the mute function activated?

yPress or adjust the volume level to cancel the mute function.

Is the function selected properly?

yCheck the input source and select the correct input source.

No woofer sound Is the subwoofer plugged in?

yPlug the power cord of subwoofer into the wall outlet securely.

Is pairing between the unit and the subwoofer disconnected?

yConnect the unit and the subwoofer. (Refer to the page 12.)

The remote control does

not work properly.

Is the remote control too far from the unit?

yOperate the remote control within about 7 m.

Is there an obstacle in the path of the remote control and the unit?

yRemove the obstacle.

Are the batteries in the remote control exhausted?

yReplace the batteries with new one.

The AUTO POWER

function does not work.

yCheck connection of the external device such as TV, DVD/Blu-Ray player or

Bluetooth device.

yCheck the state of SIMPLINK and turn o SIMPLINK.

yDepending on the connected device, this function may not operate.

LG Sound Sync does not

work.

yCheck whether your LG TV supports LG Sound Sync.

yCheck connection of LG Sound Sync.

yCheck sound setting of your TV and this unit.

Troubleshooting62

Troubleshooting

4

Symptoms Cause & Solution

When you feel the

output sound of the unit

is low.

Check the details below and adjust the unit according to them.

ySwitch [ON] state of DRC function to [OFF] by using remote controller.

yWith the sound bar connected with TV, change the AUDIO DIGITAL OUT

setting on TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM].

yWith the sound bar connected with Player, change the AUDIO DIGITAL OUT

setting on Player Setup Menu from [PCM] to [PRIMARY PASS-THROUGH] or

[BITSTREAM].

yChange Audio DRC setting on Player setup menu to [OFF] state.

Network

Symptoms Cause & Solution

Cannot connect the

speaker to your home

network.

The wireless communication may be interrupted from household devices that

are using radio frequencies. Move the speaker away from them.

Media servers are not

displayed on the device

list.

yThe rewall or anti-virus software on your media server is running. Turn o

the rewall or anti-virus software running on your media server.

yMake sure that the speaker is connected to the local area network that your

media server is connected.

Music Flow Player doesn’t

work properly.

Is the Music Flow Player plugged in?

yPlug in the Music Flow Player.

Is the LAN cable connected to the wireless router and the Music Flow Player

properly?

yConnect the LAN cable to the Ethernet port on the back of the Music

FlowPlayer and to your wireless router.

When the Music Flow Player is plugged in, does the Music Flow Player’s LED

show it’s operating properly?

yIf you experience troubles with connecting the Music Flow Player, try

relocating the speaker closer to the wireless router or the Music Flow Player.

If you restart the router?

yYou need to turn the speaker’s power o and on again.

If you install new router.

yYou need to perform a factory set and setup the network connection for

speaker.

Troubleshooting 63

Troubleshooting

4

Application and PC Software

Symptoms Cause & Solution

Music Flow Player app

doesn’t work properly.

Does an error occur when accessing the app?

yMake sure that your smart device is compatible with the app.

yMake sure that the Music Flow Player app is the latest version.

yMake sure that the speaker’s front LED turns from red to white.

Music Flow PC Software

doesn’t work properly.

Does the rewall on your PC or Mac set to enable?

yDisable all your rewalls and try to connect again. Refer to your rewall’s

instruction or website.

Is the LAN cable connected to the wireless router and your PC or Mac

properly?

yEnsure that the speaker and your PC or Mac are correctly connected to the

local area network and can access the internet.

yThe wireless communication may be interrupted from household devices

that are using radio frequencies. Move the speaker and your PC or Mac

away from them.

5 Appendix

Appendix64

Appendix

5

File requirement

Available File extensions : “.mp3”, “.wma”, “.ac”,

“.m4a”, “.aac”, “.ogg”, “.wav”

Sampling frequency: within 32 to 48 kHz (mp3,

wma), up to 192 kHz/24 bit (ac)

Bit rate: up to 320 kbps (mp3, wma)

yThe le requirements are not always compatible.

There may have some restrictions by le features

and media server’s ability.

ySome wav les are not supported on this

speaker.

yDepending on the types of le or ways of

recording, it may not play back.

ySome DRM-loaded les are not supported on

this speaker.

Trademarks and

licenses

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing

Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks, and DTS

Digital Surround is a trademark of DTS, Inc. ©

DTS, Inc. All Rights Reserved.

The Bluetooth® word mark and logos are

registered trademarks owned by the Bluetooth

SIG, Inc. and any use of such marks by LG

Electronics is under license.

Other trademarks and trade names are those of

their respective owners.

The terms HDMI and HDMI High-Denition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

Appendix 65

Appendix

5

Specifications

General

Power requirements Refer to the main label on the unit

Power consumption

50 W

Networked standby : 6.0 W

(If all network ports are activated.)

Dimensions (W x H x D) (1100 x 106 x 135) mm, 43.3 x 4.1 x 5.3 inches (without Foot)

Net Weight (Approx.) 8.2 kg (18 lb)

Operating temperature 5 °C to 35 °C

Operating humidity 5 % to 90 %

Input/Output

OPT. IN 3 V (p-p), Optical jack x 2

PORTABLE IN 0.5 Vrms (3.5 mm stereo jack) x 1

HDMI IN 19 Pin (Type A, HDMI™ connector) x 3

HDMI OUT 19 Pin (Type A, HDMI™ connector) x 1

Available Digital Input Audio

Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz, 96 kHz

Amplier

Total 700 W

Front 75 W x 2 (4 Ω at 1 kHz)

Rear 75 W x 2 (4 Ω at 1 kHz)

Surround 75 W x 2 (4 Ω at 1 kHz)

Center 75 W (4 Ω at 1 kHz)

Subwoofer 175 W (3 Ω at 80 Hz)

THD 10 %

Wireless subwoofer

Power requirements Refer to the main label on the subwoofer.

Power consumption 35 W

Type 1 Way 1 Speaker

Impedance 3 Ω

Rated Input Power 175 W

Max. Input Power 350 W

Dimensions (W x H x D) (296 x 332 x 296) mm, 11.6 x 13 x 11.6 inches

Net Weight (Approx.) 7.6 kg (16.7 lb)

Appendix66

Appendix

5

System

ETHERNET (LAN) port Ethernet jack x 1, 10 BASE-T/100 BASE-TX

Wireless LAN (Internal antenna) Integrated IEEE 802.11n (Draft 2.0) wireless networking access,

compatible with 802.11a/b/g/n Wi-Fi networks.

Bluetooth

Version 4.0

Codec SBC

yDesigns and specications are subject to change without prior notice.

Appendix 67

Appendix

5

Handling the Speaker

When shipping the speaker

Please save the original shipping carton and

packing materials. If you need to ship the speaker,

for maximum protection, re-pack the speaker as it

was originally packed at the factory.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the speaker.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the speaker for a long period of

time.

Cleaning the speaker

To clean the player, use a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth lightly

moistened with a mild detergent solution. Do not

use strong solvents such as alcohol, benzine, or

thinner, as these might damage the surface of the

speaker.

Important Information

Relating to Network

Services

All information, data, documents, communications,

downloads, les, text, images, photographs,

graphics, videos, webcasts, publications, tools,

resources, software, code, programs, applets,

widgets, applications, products and other content

(“Content”) and all services and oerings (“Services”)

provided or made available by or through any

third party (each a “Service Provider”) is the sole

responsibility of the Service Provider from whom it

originated.

The availability of and access to Content and

Services furnished by the Service Provider through

the LGE Device are subject to change at any time,

without prior notice, including, but not limited to

the suspension, removal or cessation of all or any

part of the Content or Services.

Should you have any inquiry or problem related

to the Content or Services, you may refer to the

Service Provider’s website for the most up-to-

date information. LGE is neither responsible nor

liable for customer service related to the Content

and Services. Any question or request for service

relating to the Content or Services should be made

directly to the respective Content and Service

Providers.

Please note that LGE is not responsible for any

Content or Services provided by the Service

Provider or any changes to, removal of, or cessation

of such Content or Services and does not warrant

or guaranty the availability of or access to such

Content or Services.

Appendix68

Appendix

5

TERMS OF USE

These Terms of Use apply to those individuals

and groups who use LG’s Multiroom Speaker (LG

Mutiroom Speaker), any software(s) associated with

LG Multiroom Speaker, this application and any

services associated this application (collectively “LG

Software”). They set out LGE’s responsibilities to you

as well as identifying the “dos” and “don’ts” that you

should be aware of when you use the LG Software.

LG Software is proprietary software owned by LG

Electronics Inc., a corporation registered in Korea

with its registered oce at Yeouido-dong 20,

Yeoungdeungpo-gu, Seoul, Korea. LGE, and its

licensors (“LGE”, “us” or “we”).

By accessing or using LG Software, you conrm

that you accept these Terms of Use and that you

agree to comply with them. If you do not agree

to these Terms of Use, you may not access or use

the LG Software. To the extent that any conict

arises between these Terms of Use and any other

document referred to in these Terms of Use, these

Terms of Use will take precedence, unless clearly

stated otherwise in the relevant document.

We grant you a non-exclusive license to use the

pre-installed copy of LG Software solely to the

extent necessary for you to use your LG Multiroom

Speaker personally and for no other purpose.

You acknowledge that all ownership rights in LG

Software anywhere in the world belong exclusively

to us and that no ownership rights in LG Software

are transferred to you. You are only entitled to the

limited use of LG Software as is granted in these

license terms.

You may not copy, modify, decompile or reverse

engineer our software in any way unless you are

allowed to do so by law. We reserve the right to

suspend, withdraw or discontinue all or part of the

Services without notice if we consider that you are

in breach of these Terms of Use.

You acknowledge that LG Software has not been

developed to meet your individual requirements.

We make no promises or guarantees that LG

Software is free from bugs or errors or that it

will always be available. We use commercially

reasonable eorts to provide LG Software on

a continuous, high quality basis but cannot

guarantee that they will always be available,

uninterrupted or error free. It is possible that

we may have to interrupt or discontinue the LG

Software or suspend or restrict your use of all

or any part of the Services where we consider it

reasonably necessary for technical, operational,

security, legal or regulatory reasons.

We do not accept any responsibility if for any reason

the Services or any part of them are unavailable at

any time or for any period.

Although you may use LG Software to download

and access content or applications made available

by third parties on your LG Software, we make no

promises or guarantees that you will always be able

to access such content or applications. So far as we

are legally able to do so, we exclude any warranties,

conditions or other terms which may be implied

into these license terms by law.

So far as we are legally able to do so, we exclude

any liability for any loss or damage incurred by you

or any other person in connection with your use

of LG Software. We are only responsible for loss or

damage suered that is a foreseeable result of our

breach of these license terms or our negligence

up to the amount specied below, but we are

not responsible for any loss or damage that is not

foreseeable . Loss or damage is foreseeable if it is

an obvious consequence of our breach or if it was

contemplated by you and us when you starting

using LG Software.

For any loss or damage that is not excluded under

these license terms, whether in contract, tort

(including negligence) or otherwise, the total

liability of us and our group of companies to you

is limited to the amount that you paid for your LG

Software service. To the extent permissible under

the applicable laws, some jurisdictions do not allow

the limitation or exclusion of liability for incidental

or consequential damages, or have legislation that

restricts the limitation or exclusion of liability, so the

above limitation may not apply to you.

Nothing is these license terms shall limit or

exclude our liability for death or personal injury

relating from our negligence, fraud or fraudulent

misrepresentation or any other liability that cannot

be excluded or limited by law.

LG Software provides access to “apps” and link

to other services owned and operated by third

parties, such as content providers. Any third party

apps, services and content that you access via the

Services are made available to you by these third

party providers and are outside the scope of these

Terms of Use.

Your dealings with any third party providers are

solely between you and the relevant provider and

Appendix 69

Appendix

5

may be subject to the provider’s own terms and

conditions and privacy policy. We encourage you

to read these documents, although we are not

responsible for their content. We do not accept any

responsibility for apps, services or content provided

by third party providers.

We may impose limits on the use of or access to

certain third party content, application or services,

in any case without notice or liability. We expressly

disclaims any responsibility or liability for any

change, interruption, disabling, removal of or

suspension of any content, application or service

made available through this LG Software. We are

neither responsible nor liable for customer service

related to the content, application and services.

Any question or request for service relating to third

party’s content, application or services should be

made directly to the respective content and service

providers or application developers, as appropriate.

These terms do not aect your statutory rights as a

consumer.

Suitability of the Services for children and parental

control tools

Modify this accordingly to suit if appropriate: The

Services are not directed at children under the age

of 13 and are not structured specically to attract

children under 13. Further, certain content that

you may access through your use of the Services

may contain material that you consider indecent,

objectionable or which may not be suitable for

children.

If you permit a child to use your LG Smart TV to

access the Services, you are solely responsible for

deciding whether or not the relevant Services are

appropriate for access by that child.

[Your Smart TV oers a parental control tool (by

way of a 4 digit PIN). If you have enabled the 4-digit

PIN, your LG Smart TV will not be able to display

restricted content unless you type in the PIN. You

are responsible for setting up and maintaining the

parental control tool and any other controls that

are available, and we will not be responsible for any

harm, loss or damage you suer or any other user

of your LG Smart TV suers as a result of your failure

to do so. Depending on the models of your LG

Smart TV, these features may not be available.

Viruses and Security

Modify this accordingly to suit if appropriate: We

use commercially reasonable eorts to ensure that

the Services are secure and virus free, but those

eorts cannot and do not guarantee that the

Services will be free from bugs, viruses, or other

vulnerabilities.

Further, we do not accept responsibility for any loss

or damage caused by a virus, distributed denial-

of-service attack, or other technologically harmful

material that may infect your LG Smart TV, data or

other material belonging to you, during your use of

the Services.

Modify as you think appropriate: Complaints

If you have any queries, concerns or complaints

about the Services, please contact [include

reference to non-personal LG email address].

Modify as you think appropriate: Miscellaneous

Unless expressly stated otherwise, these Terms of

Use and the documents referred to in them contain

the entire agreement between us and you relating

to your use of the Services and supersede any

previous agreements, arrangements, undertakings

or proposals, written or oral, between us and you

relating to your use of the Services.

We may assign, sub-contract or otherwise transfer

any or all of our rights and obligations under these

Terms of Use to any company, rm or person. We

can only do this if it does not materially aect

your rights under these Terms of Use. You may not

assign, sub-contract or otherwise transfer your

rights or obligations under these Terms to anyone

else (except where you dispose of your LG Smart TV

to a third party) unless you rst agree this with us in

writing.

If we decide not to exercise or enforce any right

that we have against you at a particular time, then

this does not prevent us from later deciding to

exercise or enforce that right.

If any part of these Terms of Use is found to be

illegal, invalid or otherwise unenforceable by a

court or regulator, then, where required, that part

shall be deleted and the remaining parts of the

Terms of Use will continue to be enforceable.

These Terms of Use do not create or infer any rights

that are enforceable by any person who is not party

to them.

These Terms of Use are governed by the laws of

the country where your LG Smart TV is sold and

both you and LGE agree to submit to the exclusive

jurisdiction of the courts of the country where your

LG Smart TV is sold in connection with the same

This Agreement shall be governed by the laws of

the Republic of Korea, excluding their conicts of

laws provisions.

Appendix70

Appendix

5

If you have any questions or comments about

these Terms of Use please contact www.lg.com.

These Terms of Use may be updated by LGE from

time to time. If we make a material change to

our Terms of Use, we will update you via your LG

Software or other means.

OPEN SOURCE SOFTWARE

NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained in

this product, please visit

http://opensource.lge.com.

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the cost

of performing such distribution (such as the cost of

media, shipping and handling) upon email request

to opensource@lge.com. This oer is valid for three

(3) years from the date on which you purchased the

product.
