P/No. MFL61944108

BOTTOM FREEZER

REFRIGERATOR

Please read this guide thoroughly

before operating and keep it handy for

reference at all times.

Models / Modèles

CONGÉLATEUR

INFÉRIEUR

RÉFRIGÉRATEUR

Veuillez lire ce manuel en entier avant de mettre

en marche l’unité et conservez-le à portée de la

main pour le consulter à tout moment.

LDN20718**, LDC22738**, LBN20517**, LBN20518**

Owner’s Manual

Manuel d’utilisateur

LBN22517**, LBN20511**, LBN20512**, LRBC20512**

REFRIGERADOR

CON CONGELADOR

INFERIOR

Manual de Usuario

Lea detenidamente estas instrucciones antes de

usar el refrigerador y guárdelas como referencia

para el futuro.

LBC20514**, LRBN20512**, LBC22520**, LDC22720**

LDN20517**

visit our web site http://www.lgservice.com LG Electronics

United States of America

LG Electronics will repair or at its option replace, without charge, your product which proves to be defective

in material or workmanship under normal use during the warranty period listed below from the date of

original purchase.

This warranty is good only to the original purchaser of the product during the warranty period as long as it is

in the U.S. including Alaska, Hawaii, and U.S. Territories.

LG Refrigerator / Freezer Warranty Period

Product Parts Labor

Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]

Sealed System 7 years 1 year [In-Home Service (Except Model GR-051)]

(Compressor, Condenser, Evaporator)

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF

THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF

USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR

CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR

ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY

OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how

long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you

specific legal rights and you may also have other rights which vary from state to state.

THE ABOVE WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or

plumbing, or correction of unauthorized repairs.

2. Damage to the product caused by accident, pests, fire, floods, or acts of God.

3. Repairs when your LG product is used in other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.

Therefore, these costs are paid by the consumer.

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the

replacement of defective parts, shall be borne by the owner.

CUSTOMER ASSISTANCE NUMBERS:

To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.

A Copy of your Sales Receipt must be submitted at the time

warranty service is provided.

To obtain Product or Customer (24 hrs a day, 7 days per week, 365 days per year)

Service Assistance: Press the appropriate menu option, and have your product type

(Refrigerator), model number, serial number, and ZIP/Postal

Code ready.

To obtain the nearest

Authorized Service Center:

Press the appropriate option, and have your product type

(Refrigerator), model number, serial number, and ZIP/Postal

Code ready.

LIMITED WARRANTY

(24 hrs a day, 7 days per week, 365 days per year)

Call 1-800-243-0000

Damages caused during and/or after delivery.

Display, discount, or refurbished units purchased with scratches, dents, or defects.

Proof of purchase is required and must be provided to LG in order to validate warranty.

TABLE OF CONTENTS

English Version 6

Warranty (USA) 2-3

Safety Instructions 7 -8

Grounding Requirements 8

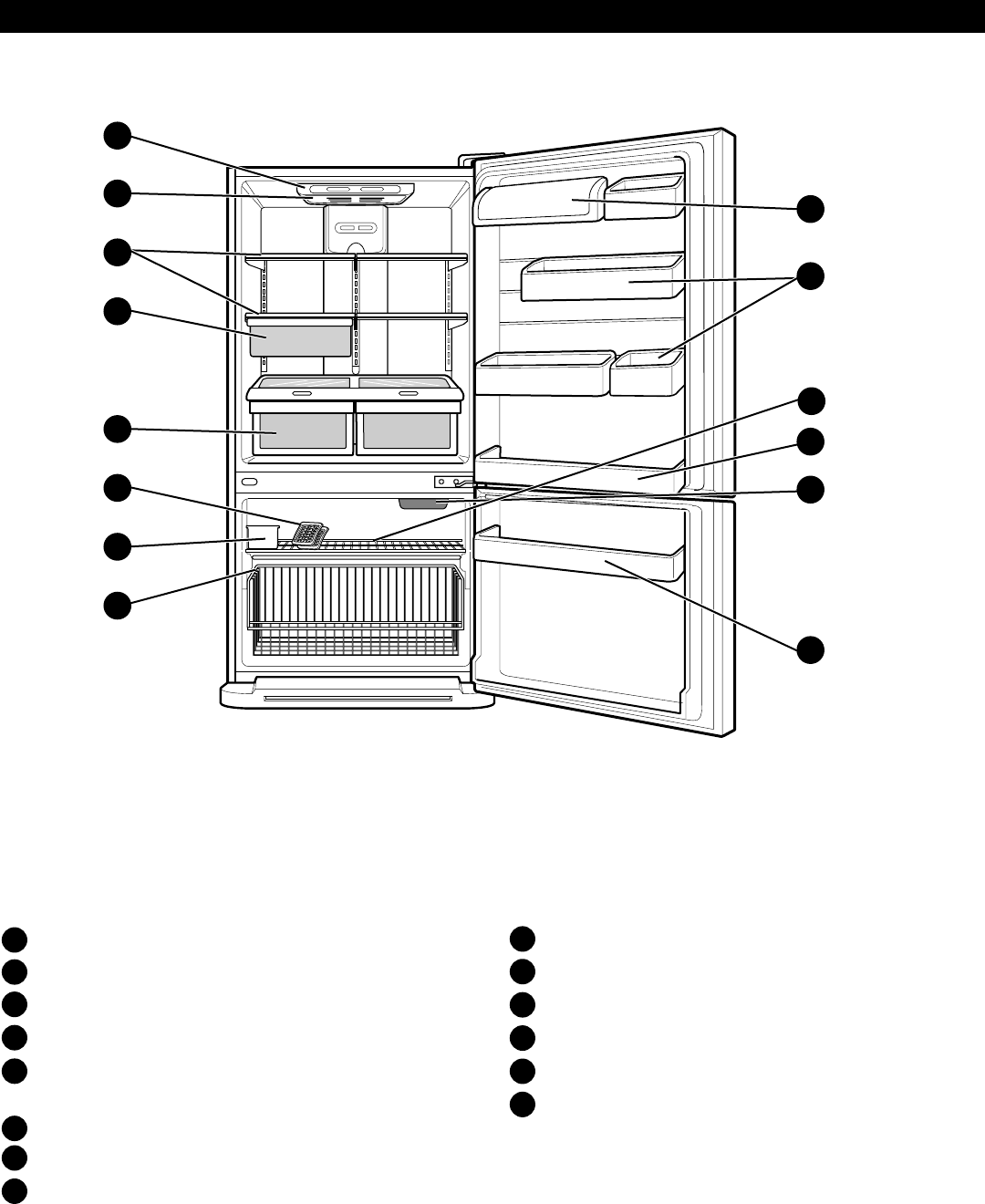

Parts and Features 9 - 11

Refrigerator Installation 12-19

Unpacking Your Refrigerator 12

Installation 12

Base Grille 12

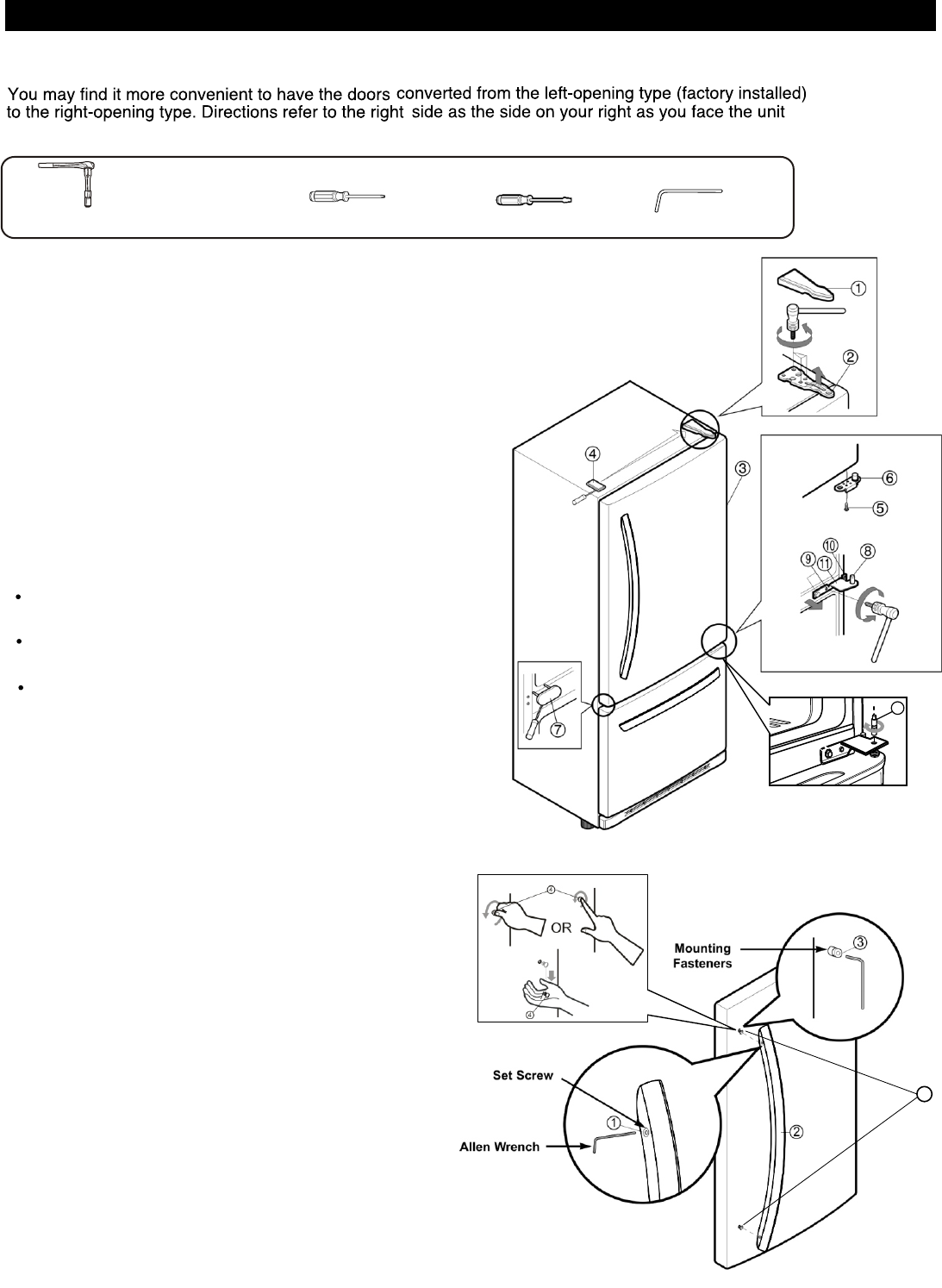

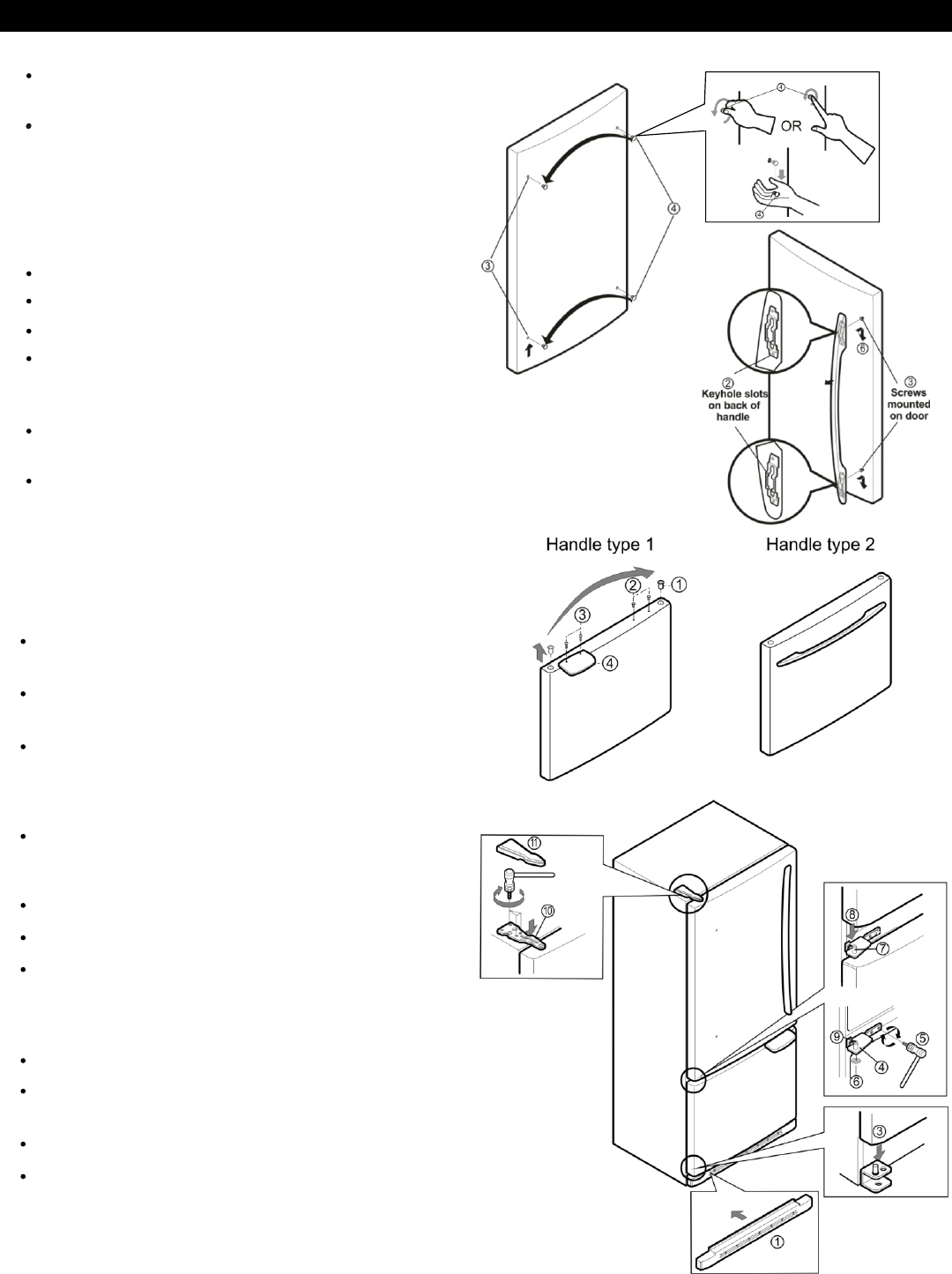

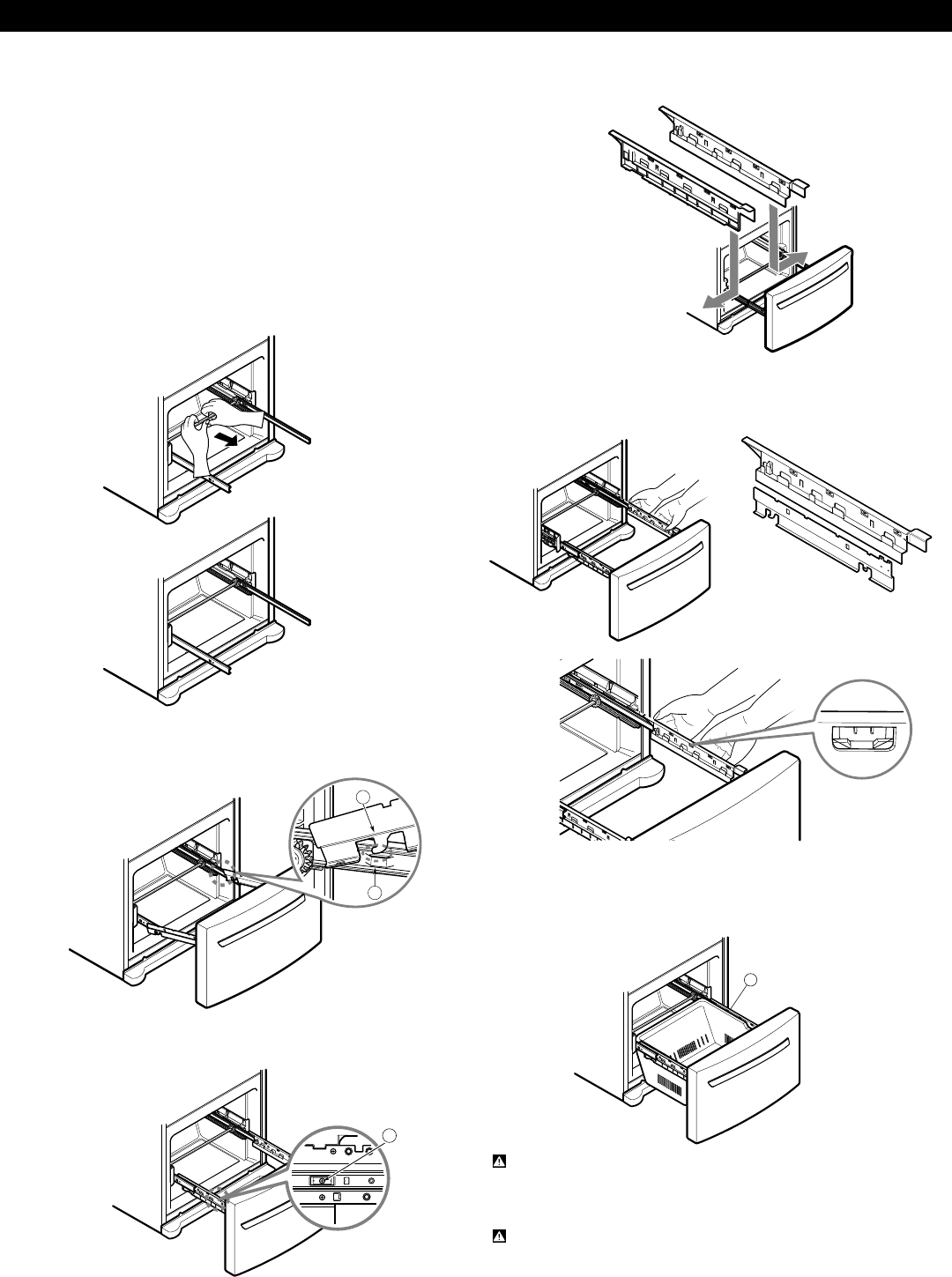

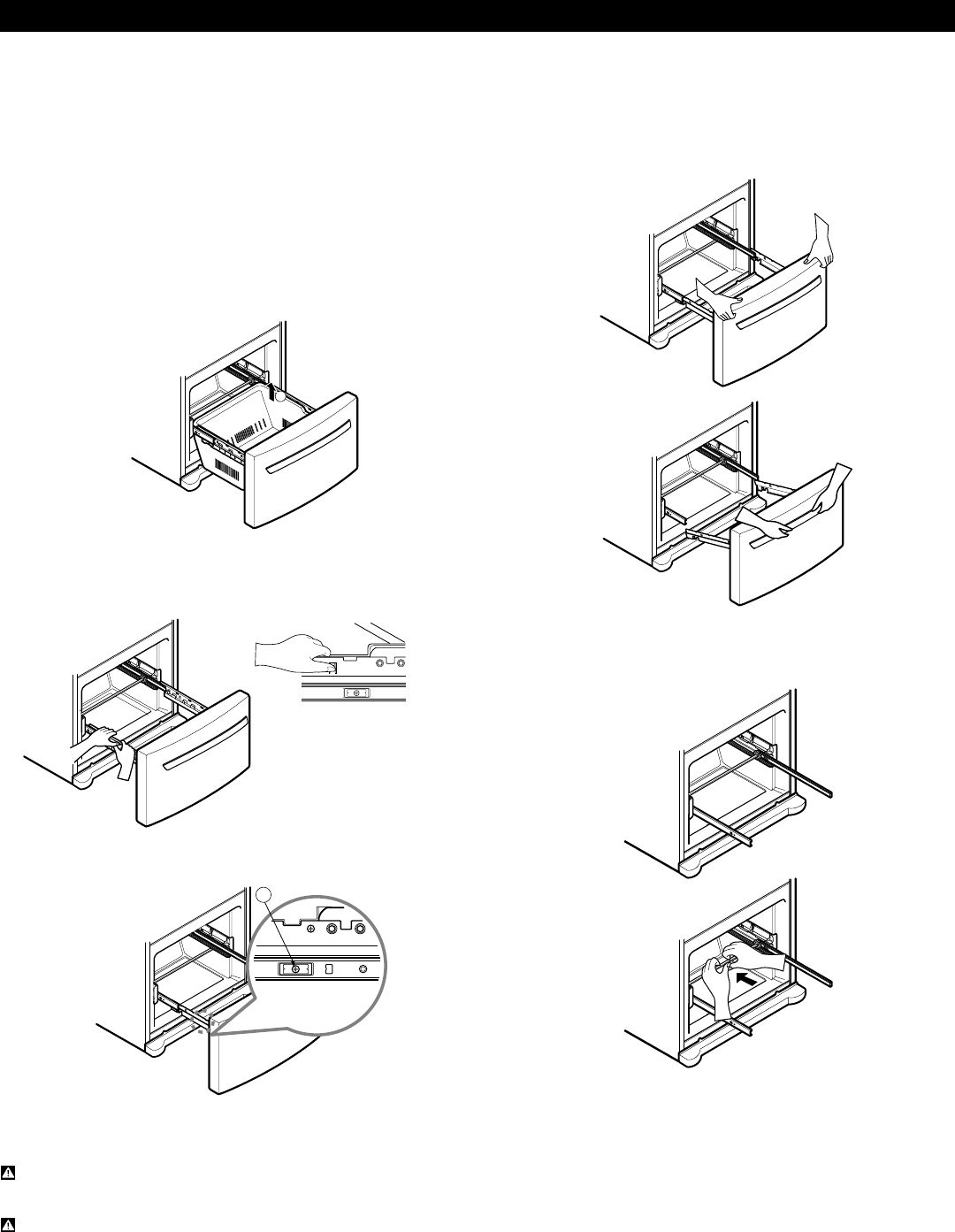

Removing, Reversing and Replacing

Your Refrigerator Doors 13-19

Door Closing and Alignment 19

Using Your Refrigerator 22 -29

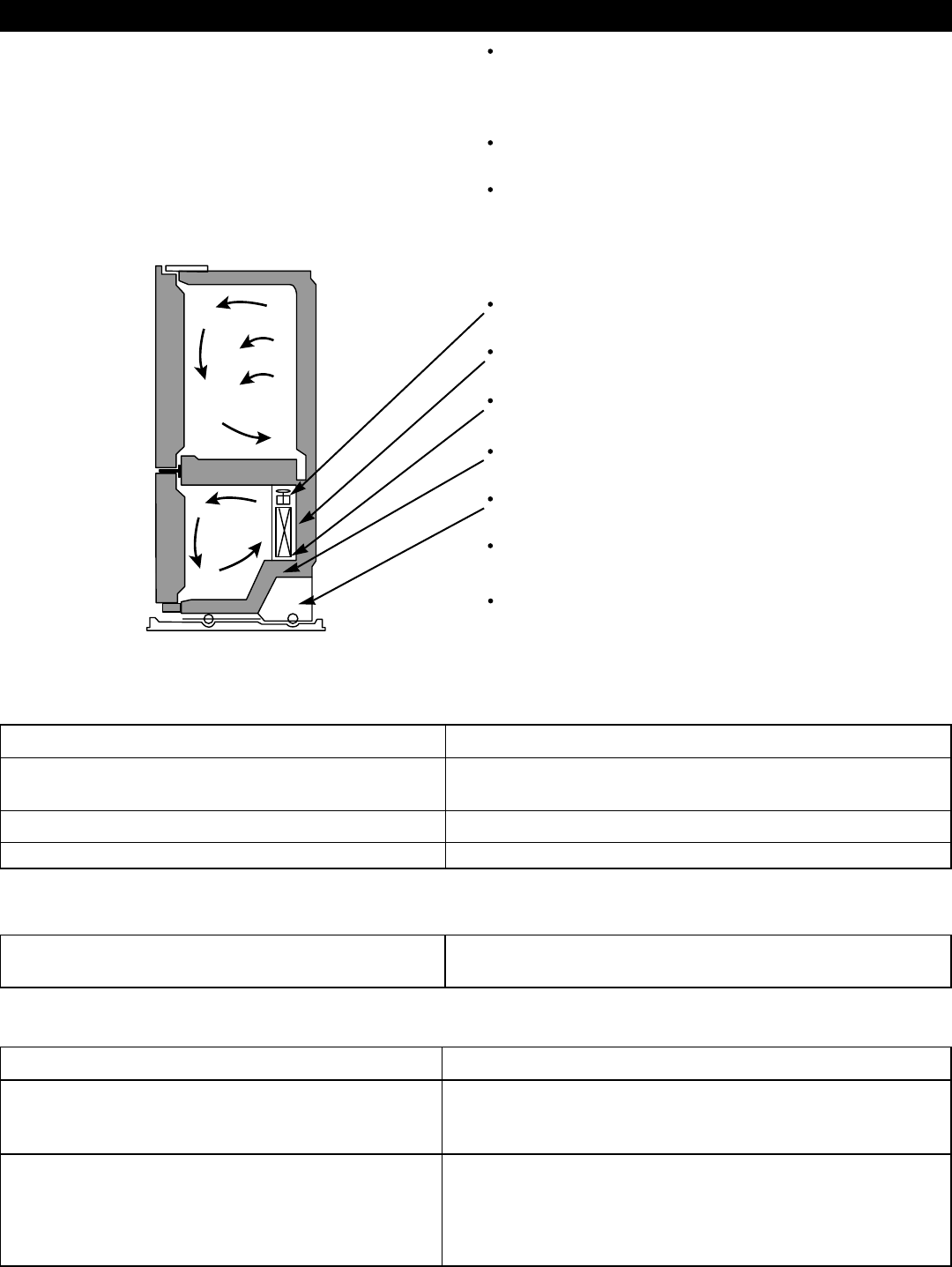

Ensuring Proper Air Circulation 20

Multi Flow

Door Alarm

Setting the Controls 20 -21

Adjusting Control Settings 21

Food Storage Guide 22

Storing Frozen Food 22

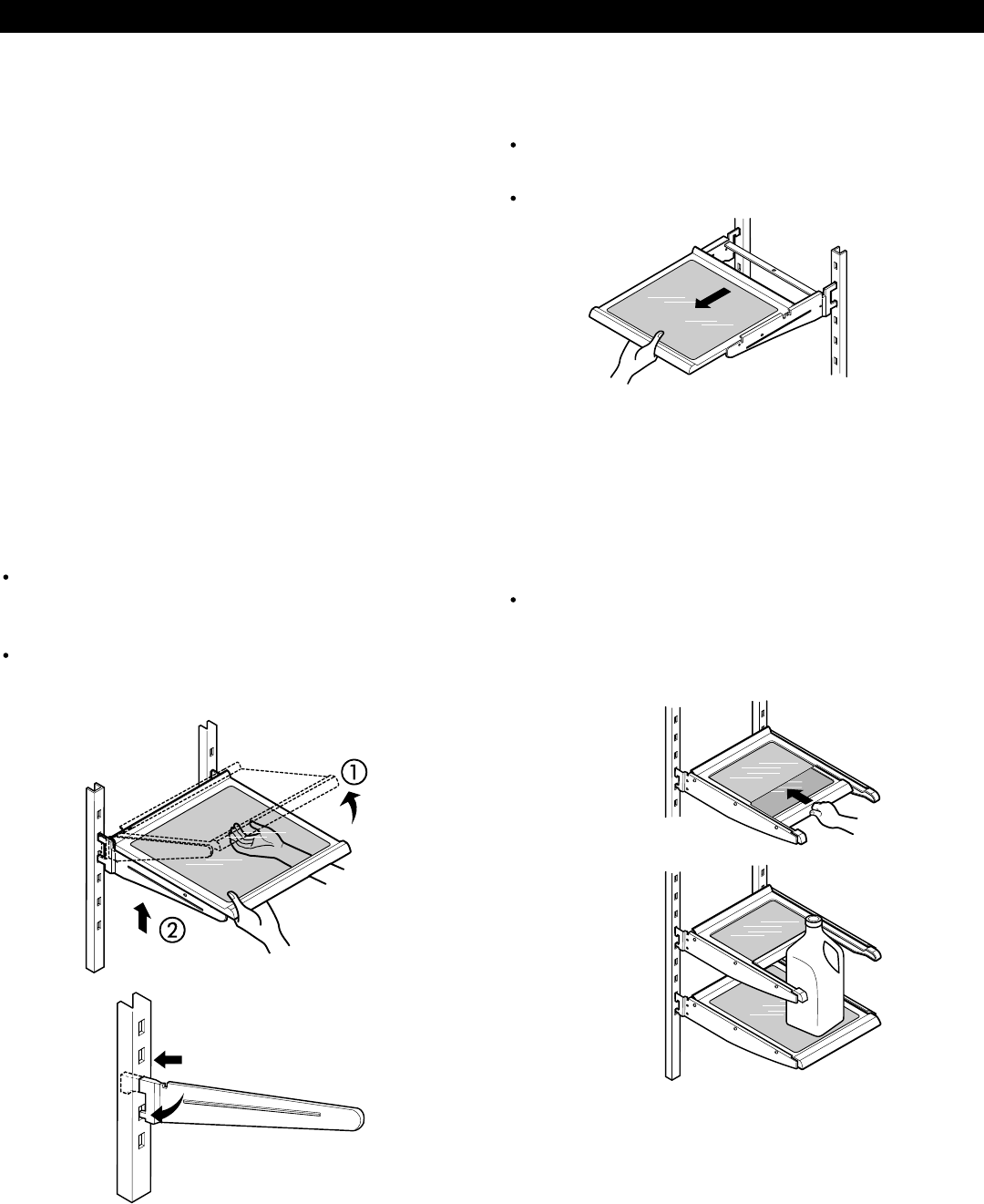

Refrigerator Shelves 23

Chef Fresh / Snack Pan 24

Crisper Humidity Control 24

Optibin Crisper 24

Crisper cover with lattice on inner surface 25

Door Racks 25

Design-A-Door 25

Dairy Bin 26

Ice Bin 26

DuraBase 26

Tilting Door 27

Wire Durabase 27

DuraBase Divider 26

Freezer Shelf 27

Care and Cleaning 28 -29

General Cleaning Tips 28

Outside 28

Inside Walls 28

Door Liner and Gaskets 28

Plastic Parts 28

Condenser Coils 28

Light Bulb Replacement 28 -29

Power Interruptions 29

When you go on vacation 29

About the Custom Cube Icemaker 30

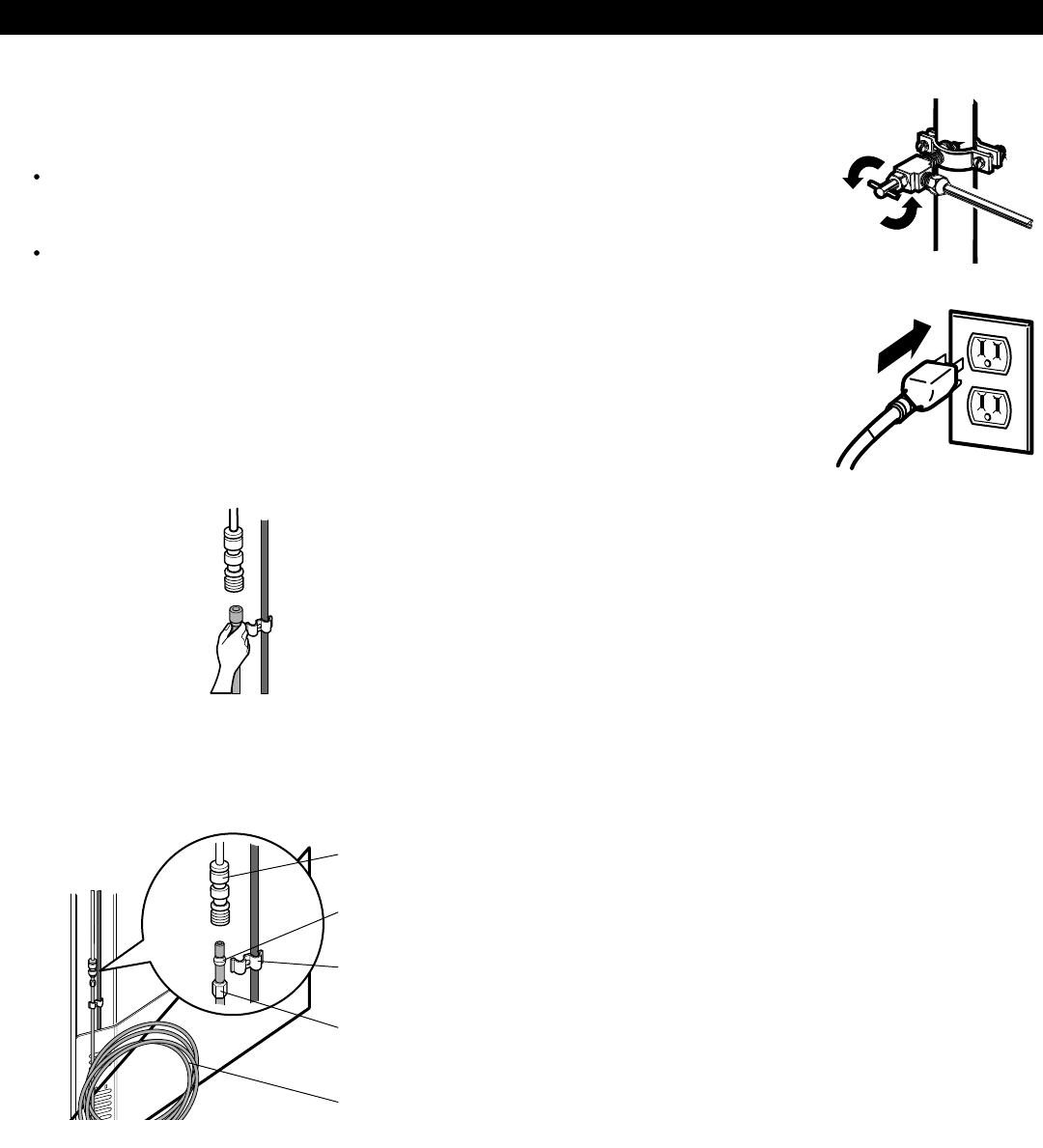

Connecting the Water Line 31 -33

Troubleshooting Guide 34 -37

French Version 38

Guide-Out Drawer Basket 27

For Drawer Models

For Swing Models

Spanish Version 70

Warranty (Canada) 4-5

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, CAUTION. These words mean:

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed.

SAFETY MESSAGES

WARNING

To reduce the risk of fire, electric shock, or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

NEVER unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull it straight out from the

outlet.

Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a cord

that shows cracks or abrasion damage along its length or at

either the plug or connector end.

When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

DO NOT store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

DO NOT allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

Keep fingers out of “pinch point” areas; clearances between

Unplug your refrigerator before cleaning or making any repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse box

in order to avoid contact with a live wire filament. (Aburned-

out light bulb may break when being replaced.) NOTE: Setting

either or both controls to the OFF position does not remove

power to the light circuit.

Read all instructions before using this appliance.

Use this appliance only for its intended purpose as described

in this use and care guide.

After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp or

wet. Skin may adhere to the extremely cold surfaces.

In refrigerators with automatic icemakers, avoid contact with

the moving parts of the ejector mechanism, or with the heating

element that releases the cubes. DO NOT place fingers or

hands on the automatic icemaking mechanism while the

refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and

Garden Bulletin No. 69 says:

“...You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold below

40 °F (4 °C).”

“...Thawed ground meats, poultry, or fish that have any off-odor

or off-color should not be refrozen and should not be eaten.

Thawed ice cream should be discarded. If the odor or color of

any food is poor or questionable, get rid of it. The food may be

dangerous to eat.”

“Even partial thawing and refreezing reduces the eating quality

of foods, particularly fruits, vegetables and prepared foods.

The eating quality of red meats is affected less than that of

many other foods. Use refrozen foods as soon as possible to

save as much of their quality as you can.”

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

the doors and cabinet are necessarily small. Be careful

when you open the doors when children are in the area.

For personal safety, this appliance must be properly grounded.

Have the wall outlet and the circuit checked by a qualified

electrician to make sure the outlet is properly grounded.

Do not store bottles in the freezer compartment - they may

break when frozen, causing damage.

WARNING

CAUTION

You can be killed or seriously injured if you don’t follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only.

DANGER You will be killed or seriously injured if you don’t follow instructions.

Your old refrigerator may have a cooling system that used If you are throwing away your old refrigerator, make sure

CFC’s (chlorofluorocarbons). CFC’s are believed to harm the CFC refrigerant is removed for proper disposal by a

stratospheric ozone. qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

DANGER: RISK OF CHILD ENTRAPMENT

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

Take off the doors.

Leave the shelves in place so that

children may not easily climb inside.

CFC DISPOSAL

GROUNDING REQUIREMENTS

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous... even if they will sit for “just a few days”. If

you are getting rid of your old refrigerator, please follow

the instructions at right to help prevent accidents.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 V, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

WARNING

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

Ensure proper

ground exists

before use.

3-prong

grounding

plug

3-prong

grounding type

wall receptacle

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source. When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

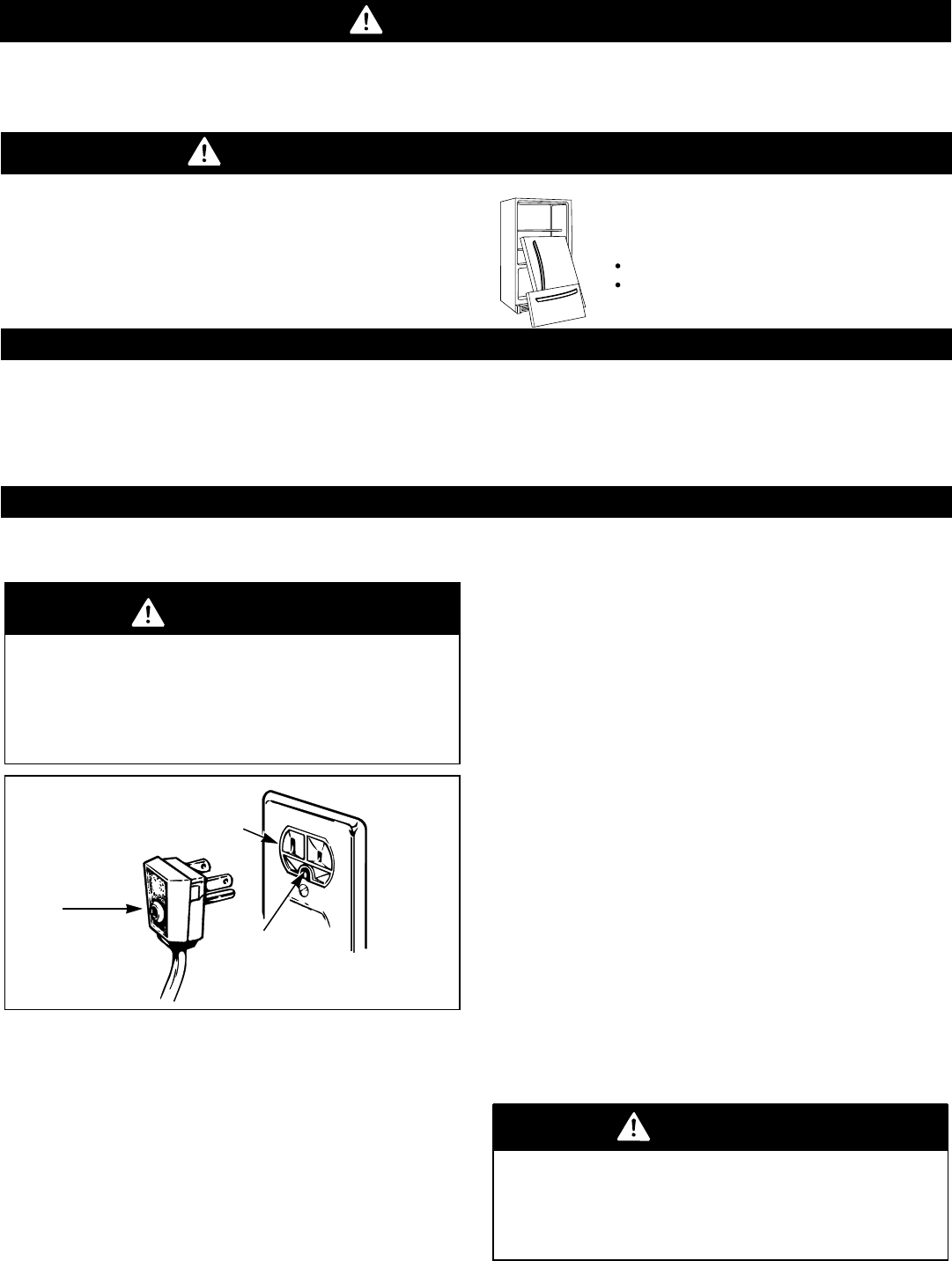

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

Conditions, we strongly recommend against the use of

an extension cord.

WARNING

POWER CORD REPLACEMENT

If the power cord is damaged, it must be replaced

by the manufacturer, by our service center or by

qualified personal by LG Electronics, to avoid some

risk.

However, if you still elect to use

an extension cord, it is absolutely necessary that it be

a UL-listed (in the United States) or ACNOR (Canada),

3-wire grounding type appliance extension cord having a

grounding type plug and outlet, and that the electrical rating

of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

CAUTION

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the

appliance by person responsible for their safety. Children should be supervised to ensure that they do not play with the

appliance.

Ice Bin

Durabase

Divider

Egg Box

Refrigerator Door Rack

Freezer Light

Pull out Drawer

*On some models

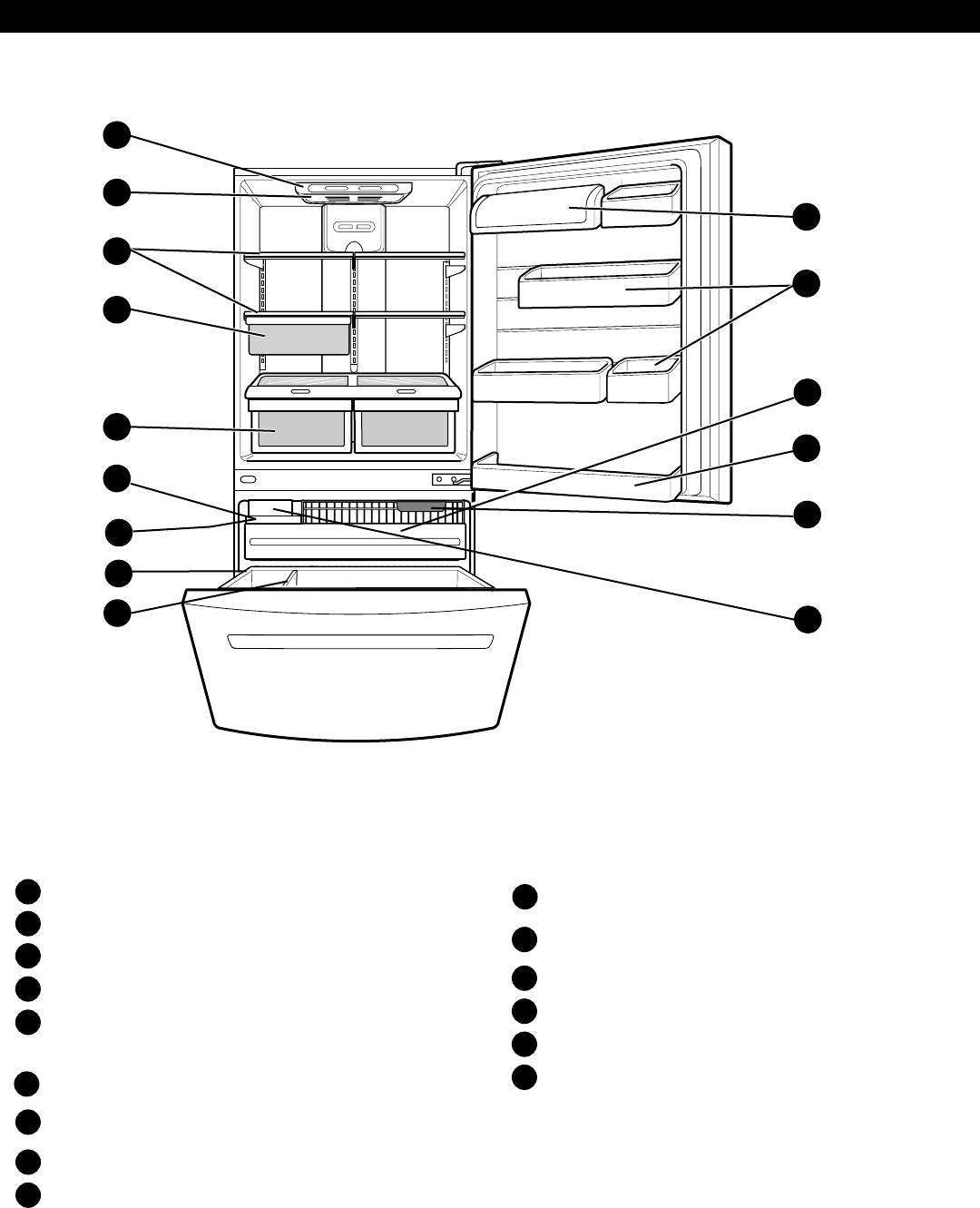

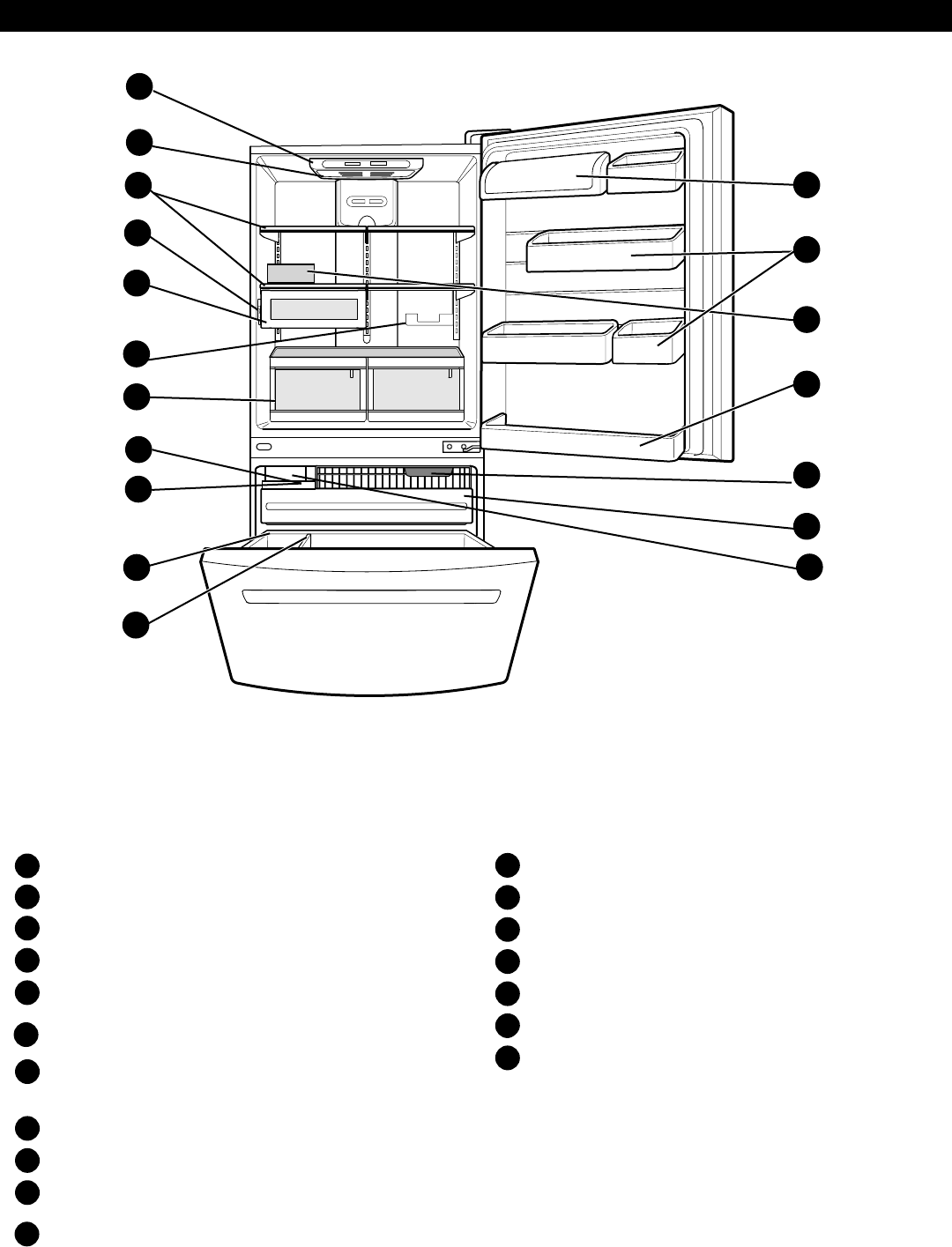

Use this section to become more familiar with the parts and features.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

PARTS AND FEATURES

Ice Tray (Inside of H)*

Optibin Crisper

Keeps fruits and vegetable fresh and crisper

Chef Fresh / Snack Pan

Can Dispenser*

Temperature Control*

Shelves

Refrigerator Light

Digital Sensor Control

Dairy Bin

Design-A-Door

Custom cube Icemaker*

Ice Bin

Durabase

Divider

Refrigerator Door Rack

Freezer Light

Pull out Drawer

*On some models

Use this section to become more familiar with the parts and features.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

Ice Tray (Inside of F)*

Optibin Crisper

Keeps fruits and vegetable fresh and crisper

Chef Fresh / Snack Pan

Shelves

Refrigerator Light

Digital Sensor Control

Dairy Bin

Design-A-Door

Custom cube Icemaker*

PARTS AND FEATURES

Use this section to become more familiar with the parts and features.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

PARTS AND FEATURES

Digital Sensor Control

Refrigerator Light

Shelves

Snack Pan

Optibin Crisper

Keeps fruits and vegetable fresh and crisp

Ice Trays*

Ice Bin

Wire Durabase

Dairy Bin

Design-A-Door

Wire Freezer Shelf

Refrigerator Door Rack

Freezer Light

Freezer Door Rack

*On some models

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or the

Tech Sheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

INSTALLATION

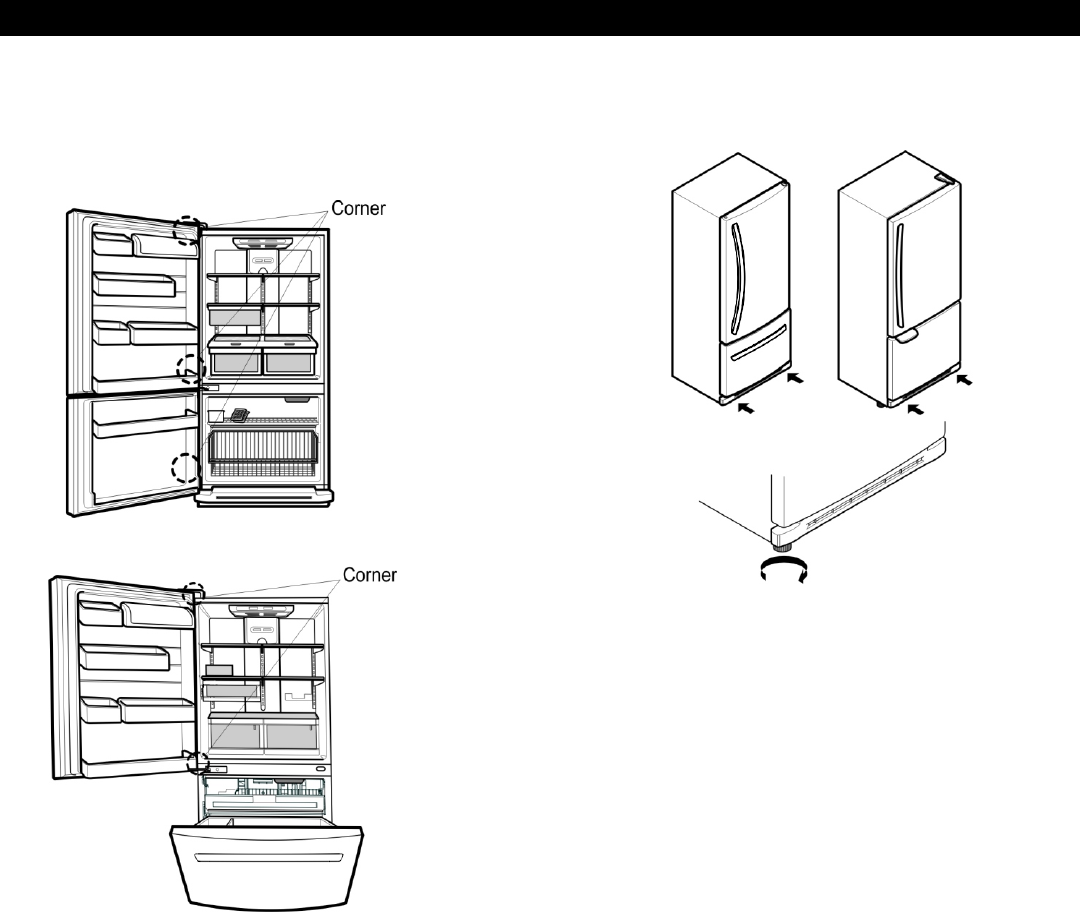

1. Avoid placing the unit near heat sources, direct sunlight,

or moisture.

2. To avoid vibration, the unit must be level. If required,

adjust the leveling screws to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly. Turn the leveling screws clockwise ( ) to

raise the unit, counterclockwise ( ) to lower it.

3. Install this appliance in an area where the temperature

is between 55 °F (13 °C) and 110°F (43 °C.) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for 2 or 3 hours before putting

food in it. Check the flow of cold air in the freezer

compartment to ensure proper cooling. Your refrigerator

is now ready for use.

WARNING:

Be careful when you work with hinge, base grille,

stopper etc. You may be injured.

Do not put hands or metal sticks into air vents, base

grille or bottom of refrigerator. You may be injured or

receive an electrical shock.

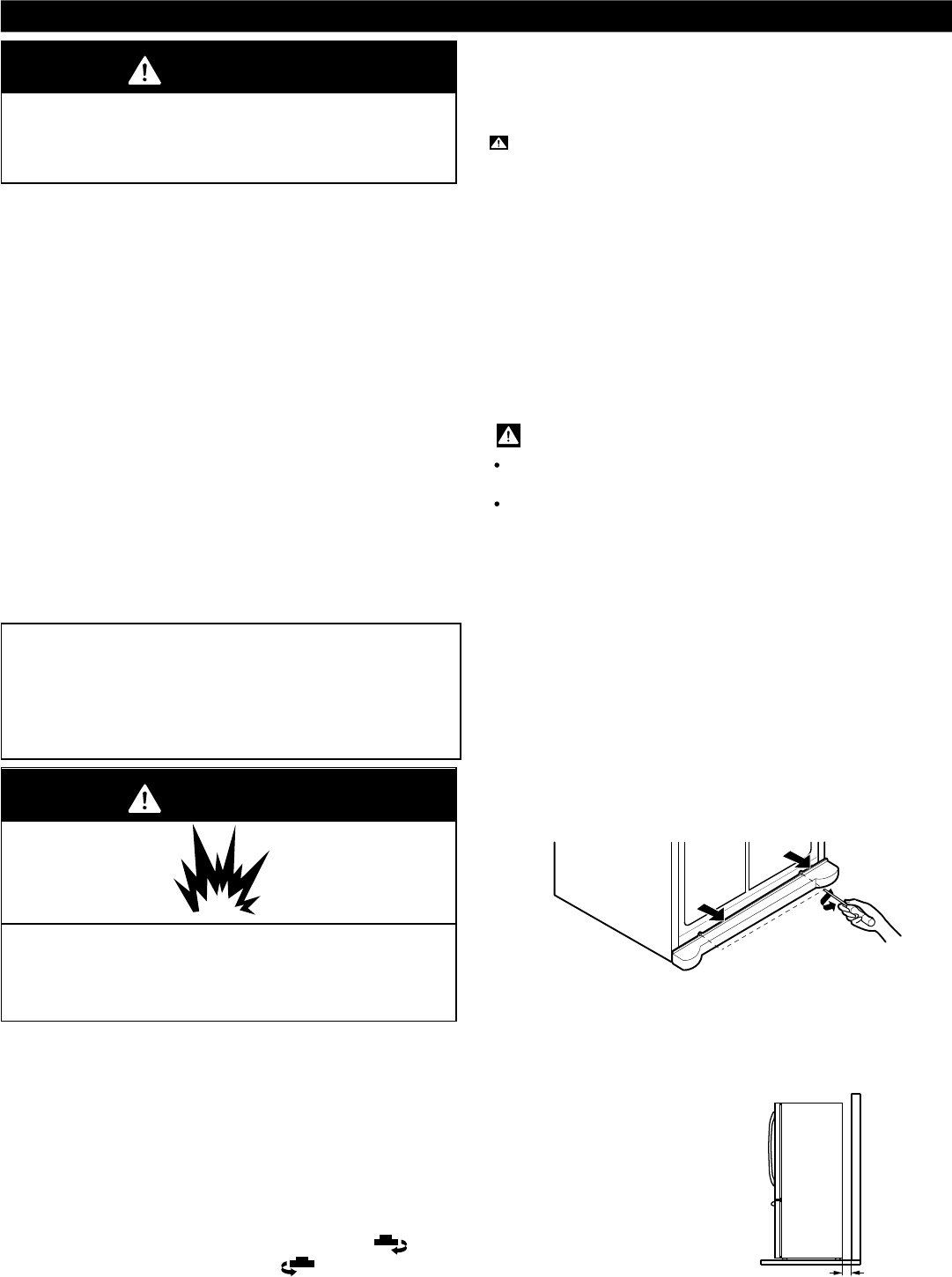

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

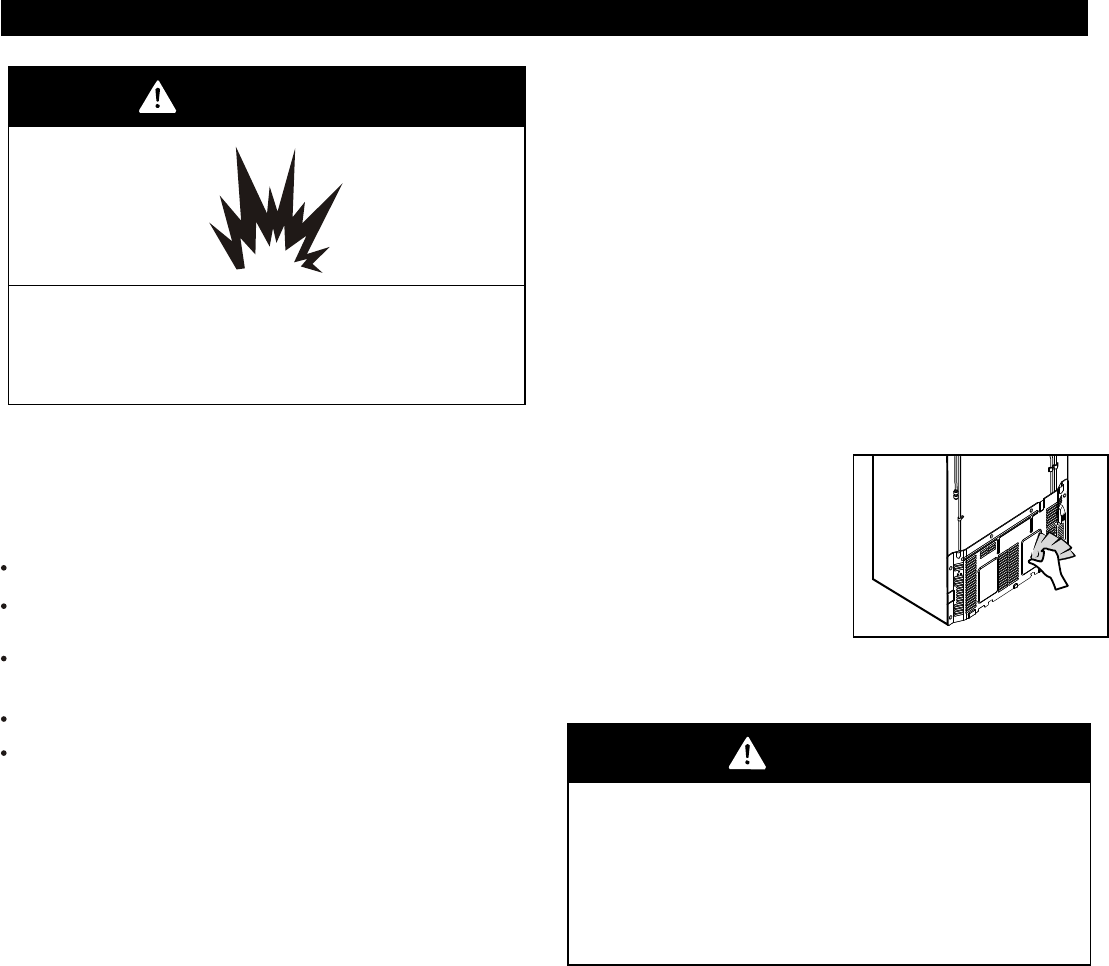

WARNING

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

Explosion Hazard

A proper distance from adjacent items

Please keep the refrigerator at a proper distance from other

things. Too small a distance from adjacent items may result

in lowered freezing capability and increased electricity

charge consumption.

(5.08 cm) 2”

BASE GRILLE INSTALLATION

To remove the base grille

To install or replace Base Grille:

1. Remove the 2 screws from the bottom front part of

refrigerator.

2. Place Base Grille into position and insert and tighten

screws.

1. Open the doors. (Refrigerator and Freezer)

2. Once doors are open, remove screws from Base Grille

and remove.

3. Reattach screws to the base of refrigerator.

REFRIGERATOR INSTALLATION

IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any

adjustable door or utility bins from doors.

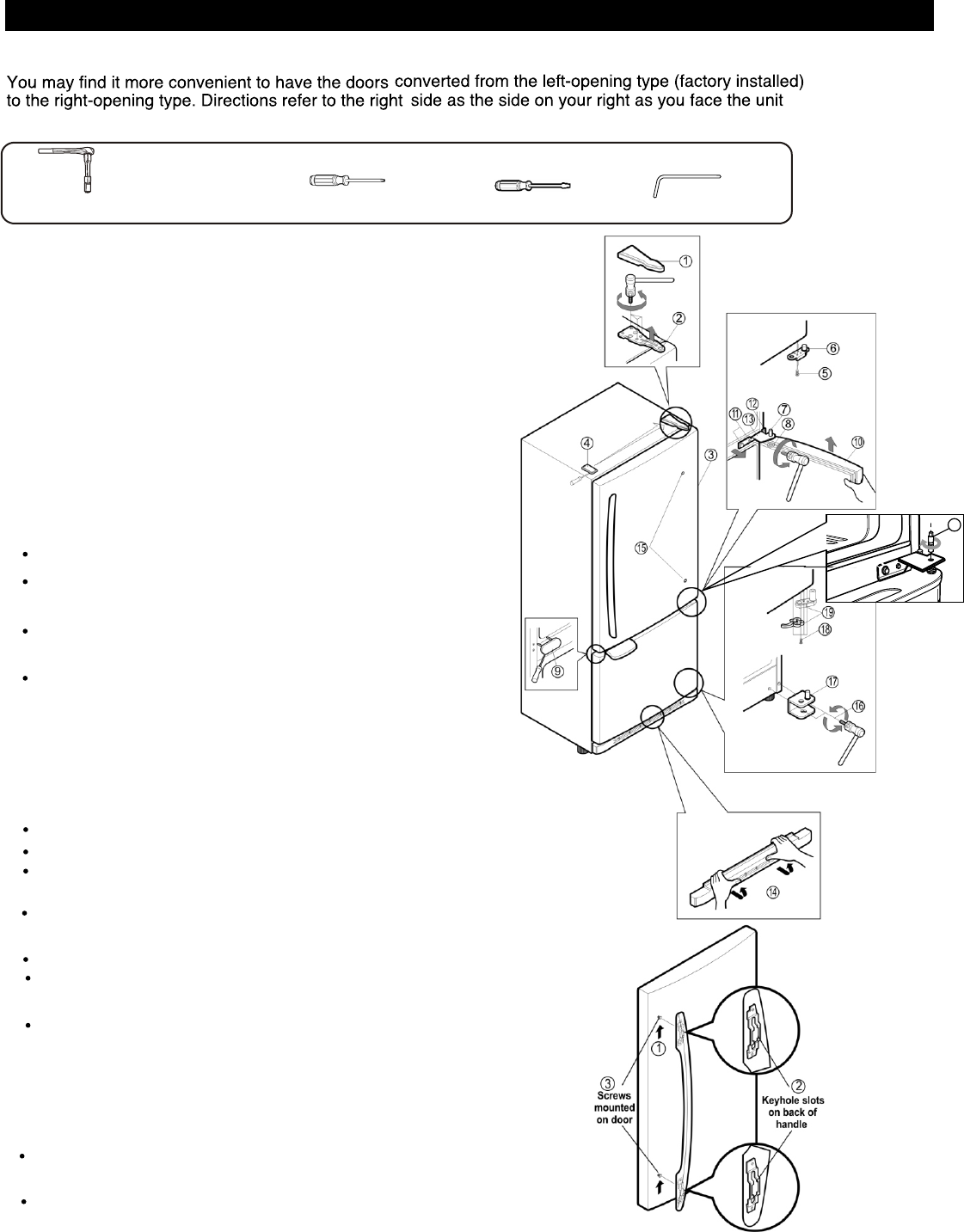

HOW TO REVERSE DOOR OPENING DIRECTION

(when converting from the left-opening type to right-

opening type)

1. Removing Refrigerator Door

Lift the Refrigerator door (3) slightly and remove it.

Loosen the 2 screws (9) and the 2 screws (10), and

lift off the middle hinge (11).

Use a flat tip screwdriver to pry off bottom hole cover

(7) and attach it on the right.

•

HOW TO REMOVE DOOR HANDLES

NOTE: Handle appearance may vary from illustrations

2.Removing Refrigerator Handle

•

Loosen the set screws (1) with the 3/32” Allen

Loosen the handle mounting fasteners (3)

wrench and remove the handle (2).

with the 1/4” Allen wrench.

Install the plug buttons (4) on the left side.

Install the handle mounting fasteners (3)

on the right side.

REMOVING,REVERSING AND REPLACING REFRIGERATOR DOORS (For Drawer Type Models)

T O O L S Y O U M A Y N E E D

Hex head socket wrench No. 2 Phillips screwdriver Flat head screwdriver Allen wrench

10 mm

1/4 in

3/8 in

1/4 in

3/32 in

Other Important and necessary tools are:

1/4 inch socket wrench 10mm open-end wrench

Adjustable wrench Flat 2-inch putty knife

•

••

•

Gently pry off the Top Hinge Cover with a flat head screwdriver

and remove (1).

Using 10 mm socket wrench, remove the 3 bolts and lift off the

Top Hinge. Set parts aside (2).

Pry off the cover (4) using a slotted screwdriver to find the

hole screw and attach it on the right.

Loosen the screws (5), remove the stopper (6) and

attach them on the left (on the opposite side).

Using a ¼-inch socket wrench, loosen and remove

Hinge Pin (8) from the Middle Hinge Pin Bracket.

door slightly and remove it.

NOTE: At this point the door will be loose, lift up

Carefully loosen the plug buttons with your fingers (4).

The buttons can be unscrewed with your fingers,

rotating the pieces counter clockwise, and then

the piece will be loose and fall. The buttons were

installed without some pressure, for this reason the

action can be done with your forefinger or thumb

finger or with both.

on this page

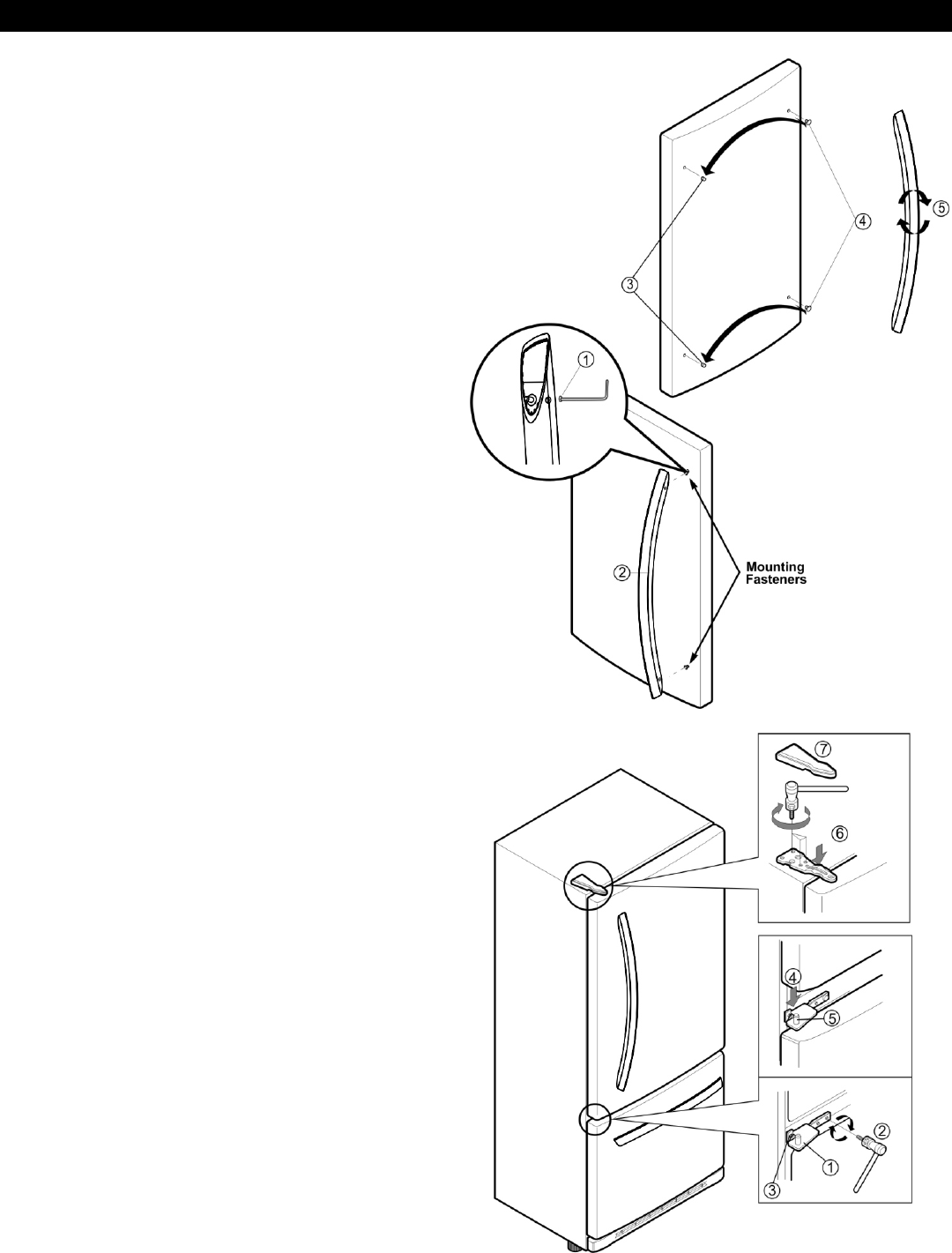

3. Replacing Refrigerator Handle

•

Place the handle (2) on the door by adjusting handle

Turn handle upside down (5)

footprints to fit mounting fastners and tighten the set

screws (1) with the 3/32 ” Allen wrench.

REFRIGERATOR INSTALLATION

4.Installing Refrigerator Door

Install the middle hinge (1) on the opposite side with the

screws (2), and the screw (3).

Install the door (4) so that it fits onto the middle hinge

pin (5).

Install the top hinge (6) with screws.

Reinstall top hinge cover (7).

•

REFRIGERATOR INSTALLATION

CAUTION: When you remove the drawer, do not hold

handle. If it comes off, it could cause personal injury.

CAUTION: When laying down the drawer, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side.

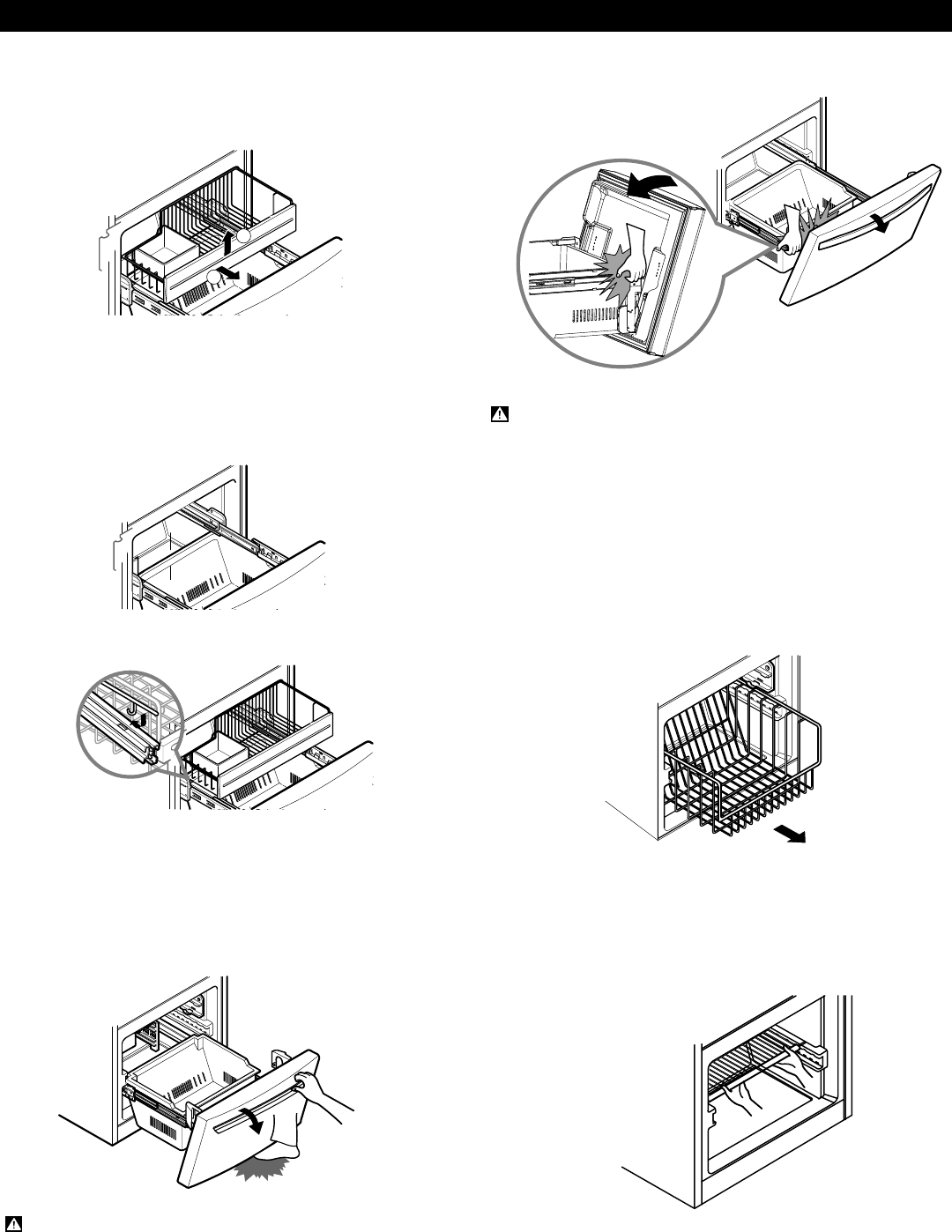

HOW TO REMOVE AND INSTALL THE

PULL OUT DRAWER

IMPORTANT: To avoid possible injury, product or property

damage, you will need two people to perform the following

instructions.

1.Removing Pull out Drawer

•Pull the drawer open to full lower extension. Remove the

lower basket (1) by lifting basket from rail system.

•Press both hangers with yours thumbs to lift it up.

•Separate the left and right rail cover

•Remove the screws(2) of the rail on both sides.

•With both hands, hold both sides of the door and pull it

up to separate it from the rails.

•With both hands, hold the center of the bar and push it

in to let both rails fitted simultaneously.

HOW TO REMOVE AND INSTALL THE

PULL OUT DRAWER

IMPORTANT: To avoid possible injur or product or property

damage, you will need two people to perform the following

instructions.

2.Installing Pull out Drawer

•With both hands, hold the center of the bar and pull it

out to let both rails out to full extension simultaneously.

•Hook door supports (1) into rail tabes (2) .

•Lower door into final position and tighten the screws (3)

•Make sure you have a right rail cover for each side.

•Align the top holes of the rail cover with the top holes of

the door supports to assemble the rail cover.

•With the drawer pulled out to full extension, insert the

lower basket (4) in the rail assembly.

WARNING: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

WARNING: DO NOT step or sit down on Freezer Door.

REFRIGERATOR INSTALLATION

Right

Rail cover

Left

Rail cover

Verify the hole’s assembly

REFRIGERATOR INSTALLATION

REMOVING,REVERSING AND REPLACING REFRIGERATOR DOORS (For Swing Type Models)

T O O L S Y O U M A Y N E E D

Hex head socket wrench No. 2 Phillips screwdriver Flat head screwdriver Allen wrench

10 mm

1/4 in

3/8 in

1/4 in

3/32 in

IMPORTANT: Before you begin, turn the refrigerator OFF

and unplug it. Remove food and any adjustable door or

utility bins from doors.

HOW TO REVERSE DOOR OPENING DIRECTION

(when converting from the left-opening type to right-

opening type)

Other Important and necessary tools are:

1/4 inch socket wrench 10mm open-end wrench

Adjustable wrench Flat 2-inch putty knife

•

••

•

1. Removing Refrigerator Door

Lift the Refrigerator door (3) slightly and remove it.

Pry off the cover (4) using a slotted screwdriver to find the

hole screw and attach it on the right.

Loosen the screws (5), remove the stopper (6) and

attach them on the left (on the opposite side).

Pry off the cover (9) using a slotted screwdriver and

attach it on the right.

2. Removing Freezer Door

Lift the door (10) slightly and remove it.

Loosen the 2 screws (11), the 2 screws (12), and lift

off the middle hinge (13).

Take off the base grille (14).

Loosen the 2 screws (16), remove the bottom hinge

(17), and attach on the left.

Loosen the 2 screws (18) and attach the stopper (19)

on the left side of the base.

3.Removing Refrigerator Handle

NOTE: To assist in installing the handle on the right

side, place a small piece of masking tape near the

top of the handle before removing.

Gently pry off the Top Hinge Cover with a flat head screwdriver

Using 10 mm socket wrench, remove the 3 bolts and lift off the

•

and remove (1).

Top Hinge. Set parts aside (2).

Using a ¼-inch socket wrench, loosen and remove

Hinge Pin (7) from the Middle Hinge Pin Bracket.

door slightly and remove it.

NOTE: At this point the door will be loose, lift up

Before, remove totally the refrigerator door.

Grasp the handle tightly with both hands and slide the

handle up (1)(this may require some force).

The keyhole slots (2) on the back of the handle allow

the handle to separate from the mounting screws (3).

Loosen the 2 screws (9) and the 2 screws (10), and

lift off the middle hinge (11).

•

REFRIGERATOR INSTALLATION

Use an adjustable wrench to remove the handle

mounting screws (3).

Install the plug buttons (4) on left side.

Install the handle mounting screw (3) on the right side

Hold the handle so the masking tape is at the bottom.

Align keyhole slots (2) on the top and bottom of the

back of the handle with the screws (3) mounted on

the front of the door.

Press the handle against the door front, making sure

that the screws (3) go into the keyhole slots (2).

Grasping the handle with both hands, press it firmly

against the front of the door and slide the handle

down (6). This may require some force.

4. Removing Freezer Handle

Remove the cap (1) and the 2 caps (2) using a slotted

screwdriver.

Loosen the 2 screws (3), take of f the handle (4), and

install it on the right.

Attach the caps you removed earlier [figures (1) and

(2)].

NOTE: Before start, check handle type in your model.

Handle Type 1

Handle Type 2

For this handle type is not neccesary remove it.

5. Installing Freezer Door

Install the base grille (1).

Install the door (3) onto the bottom hinge pin.

Install the middle hinge (4) on the opposite side with the

screw (5) and the screws (9).

6. Installing Refrigerator Door

Place the washer (6) on the middle hinge pin (7).

Install the door (8) so that it fits onto the middle hinge

pin (7).

Install the top hinge (10) with screws.

Reinstall top hinge cover (11).

Carefully loosen the plug buttons with your fingers (4).

The buttons can be unscrewed with your fingers,

rotating the pieces counter clockwise, and then

the piece will be loose and fall. The buttons were

installed without some pressure, for this reason the

action can be done with your forefinger or thumb

finger or with both.

REFRIGERATOR INSTALLATION

Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling screws clockwise. It

may take several more turns, and you should turn both

leveling screws the same amount.

DOOR CLOSING AND ALIGNMENT

Door Closing

Your refrigerator has two front leveling screws one on

the right and one on the left. If your refrigerator seems

unsteady or you want the doors to close easier, adjust

the refrigerator tilt using the instructions below:

1. Plug the refrigerator power cord into a 3-prong

grounded outlet. Move the refrigerator into its final

position.

2. Use a screwdriver to adjust the leveling screws. Turn

the leveling screw clockwise to raise that side of the

refrigerator or counterclockwise to lower it. It may take

several turns of the leveling screw to adjust the tilt of

the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws.

This makes it easier to adjust the screws.

4. Check, using a level.

5. Replace the base grille.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. Pry off the top hinge cover.

2. Loosen the top hinge screws using a 10 mm socket

or wrench.

3. Have someone hold the door in place or put a

spacer between the doors while you tighten the

top hinge screws.

4. Replace the top hinge cover.

AFTER COMPLETING THE JOB

Make sure that the four corners of the door gasket are

not folded over. To ensure a good seal, apply a small

amount of silicon grease on the gasket.

ENSURING PROPER AIR CIRCULATION

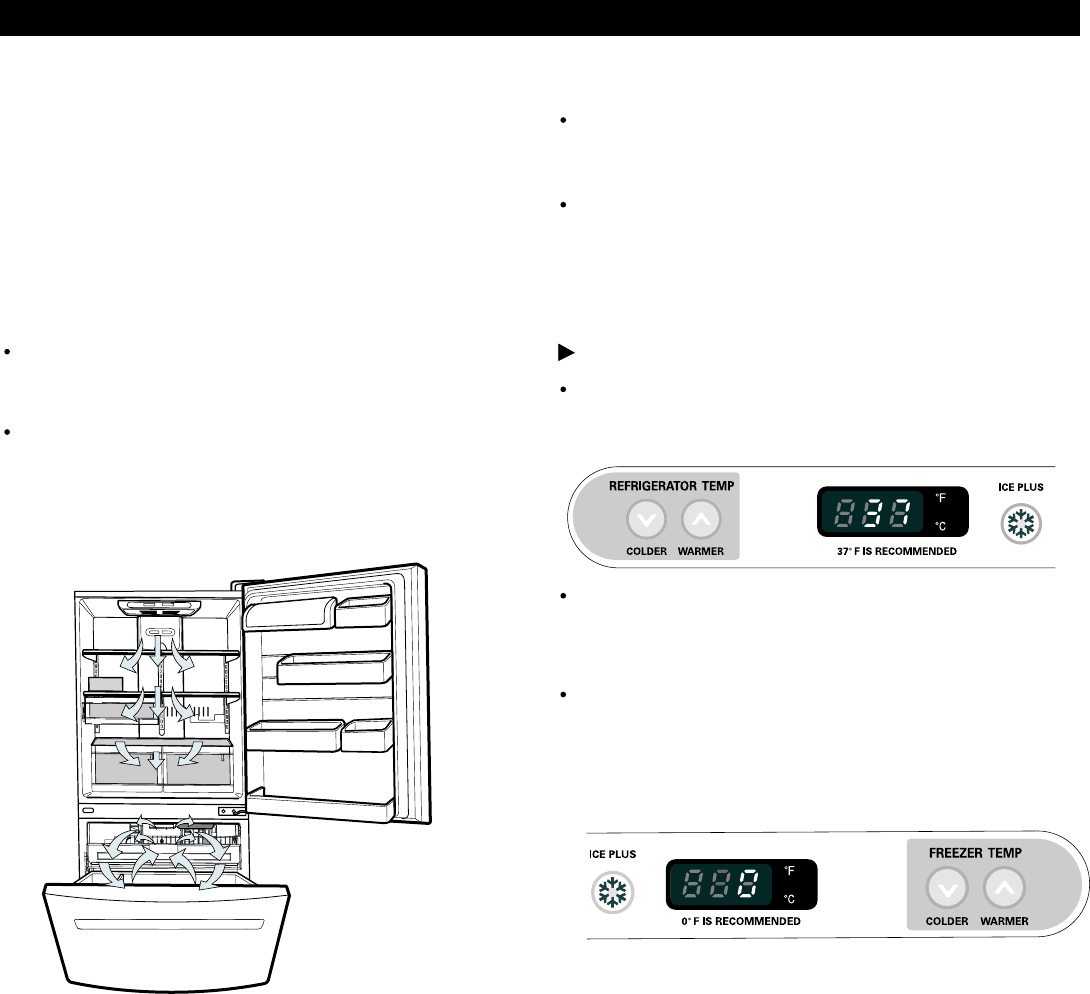

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, cool air enters through the bottom

of the freezer section and moves up. Most of the air then

flows through the freezer section vents and recirculates

under the freezer floor. The rest of the air enters the

refrigerator section through the top vent.

MULTI FLOW

The cooling fan operates more powerful and effective

If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

Do not block any of these vents with food packages. If

the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT:

DOOR ALARM

Because air circulates between both

sections, any odors formed in one section will transfer to

the other. You must thoroughly clean both sections to

eliminate odors. To prevent odor transfer and drying out of

food, wrap or cover foods tightly. (See the Food Storage

Guide section for details.)

SETTING THE CONTROLS

Your refrigerator has two controls that let you regulate

the temperature in the freezer and refrigerator

compartments.

Initially set the REFRIGERATOR CONTROL at 37 °F

(3 °C) and the FREEZER CONTROL at 0 °F ( -18 °C).

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature

as desired.

Refrigerator control:32 °F to 47 °F (0 °C to 8 °C)

The lower the number setting, the colder the refrigerator

compartment will become.

Freezer control: -6 °F to 9 °F (- 21 °C to - 13 °C)

When the setting is at a lower number, the freezer

compartment becomes colder.

NOTE: To change °F/°C press and HOLD COLDER key

co f freezer and COLDER key of refrigerator over 1 sec. at

the same time.

USING YOUR REFRIGERATOR

than in normal operation. This is specially noticeable

when new food is placed in the refrigerator compartment.

Ice Plus:

Press the Ice Plus key and the LED will turn

on. This function will remain activated for 24 hours and

intensify the cooling speed of freezer and increase the

amount of ice.

With this feature you´ll listen a alarm when the freezer or

refrigerator door is not closed within 1 minute after it is

opened. These tones repeat every 30 seconds.

The alarm is cancelled when the freezer or the refrigerator

is closed correctly.

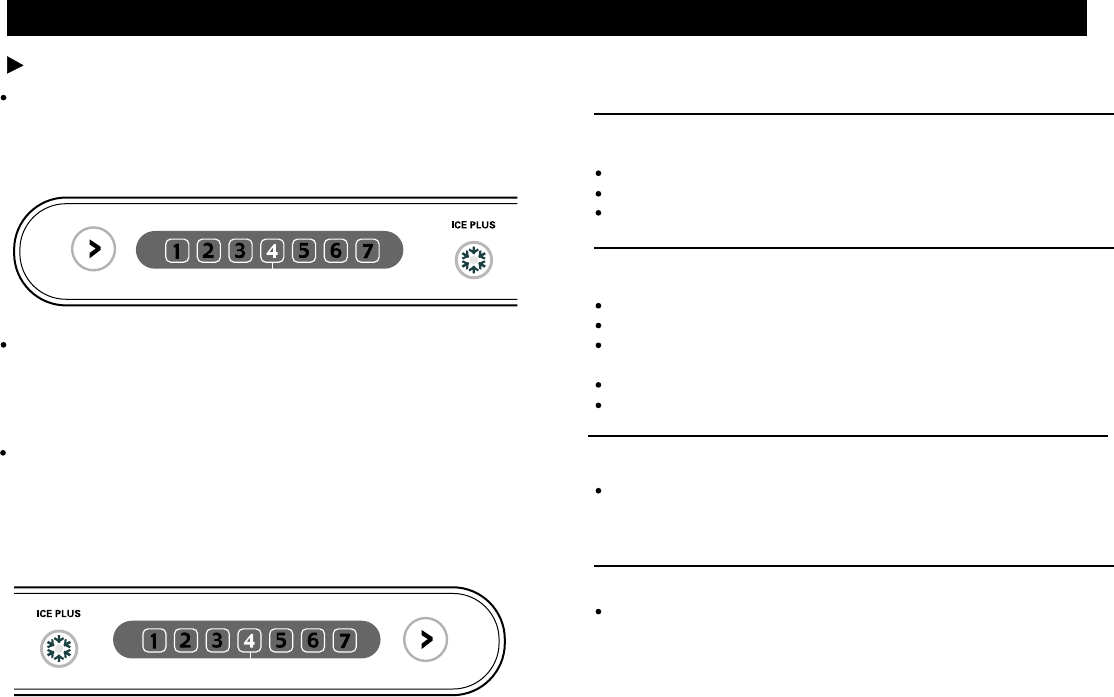

Identify your control type

Refrigerator control: position 1 to 7

(32 °F to 47 °F or 0 °C to 8 °C)

The higher the number setting, the colder the refrigerator

compartment will become.

Freezer control: position 1 to 7

(-6 °F to 8 °F or -21 °C to -13 °C)

When the setting is at a higher number, the freezer

compartment becomes colder.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put

food into the refrigerator. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage. The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections.) The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator first. Wait 24

hours after the refrigerator adjustment to check the

freezer temperature. If it is too warm or too cold, then

adjust the freezer control as well.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

RECOMMENDED

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR section Turn

too warm REFRIGERATOR

Door opened often control to next

Large amount of food added higher number,

Room temperature very warm wait 24 hours,

then re-check

FREEZER section too warm/ Turn FREEZER

ice not made fast enough control to next

Door opened often higher number,

Large amount of food added wait 24 hours,

Very cold room temperature Then re-check

(can’t cycle often enough)

Heavy ice usage

Air vents blocked by items Move items out of

airstream

REFRIGERATOR section too Turn

cold REFRIGERATOR

Controls not set correctly for control to next

your conditions lower number,

wait 24 hours,

then re-check

FREEZER section too cold Turn FREEZER

Controls not set correctly for control to next

your conditions lower number,

wait 24 hours,

then re-check

USING YOUR REFRIGERATOR

WARMER

ADJUST

REFRIGERATOR TEMP

4 IS RECOMMENDED

FREEZER TEMP

WARMER ADJUST

4 IS RECOMMENDED COLDER

Press the Ice Plus key and the LED will turn

on. This function will remain activated for 24 hours and

intensify the cooling speed of freezer and increase the

amount of ice.

Ice Plus

Identify your control type

FOOD STORAGE GUIDE

Storing Fresh Food

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Butter or margarine

Keep opened butter in a covered dish or closed

compartment. When storing an extra supply, wrap

in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to

use it. Once opened, rewrap tightly in plastic wrap or

aluminum foil.

Milk

Wipe milk cartons. For best storage, place milk on interior

shelf, not on door shelf.

Eggs

Store in original carton on interior shelf, not on door shelf.

Fruit

Wash, let dry, and store in refrigerator in plastic bags or in

the crisper. Do not wash or hull berries until you are ready

to use them. Sort and keep berries in their original

container in a crisper, or store in a loosely closed paper

bag on a refrigerator shelf.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and

discolored areas. Wash in cold water and drain. Place in a

plastic bag or plastic container and store in the crisper.

Vegetables with skins (carrots,peppers)

Place in plastic bags or plastic container and store

in crisper.

Fish

Chef fresh

Store most chef fresh in original wrapping as long as it is

airtight and moisture-proof. Rewrap if necessary.

Leftovers

Cover leftovers with plastic wrap or aluminum foil. Plastic

containers with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If you do, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food.

Packaging recommendations:

Rigid plastic containers with tight-fitting lids

Straight-sided canning/freezing jars

Heavy-duty aluminum foil

Plastic-coated paper

Non-permeable plastic wraps

Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use:

Bread wrappers

Non-polyethylene plastic containers

Containers without tight lids

Wax paper or wax-coated freezer wrap

Thin, semi-permeable wrap

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 lbs or 0.91

Leave enough space in the freezer for air to circulate around

Packages. Be careful to leave enough room at the front so

The door can close tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

NOTE: Do not store food near the sensor; it may cause

the sensor to malfunction.

USING YOUR REFRIGERATOR

WARNING

Suffocation Hazard

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO )

2. When it

vaporizes, it can displace oxygen, causing dizziness,

light-headedness, unconsciousness and death by

suffocation. Open a window and do not breathe

the vapors.

Use fresh fish and shellfish the same day purchased.

IMPORTANT: Do not store bottles in the freezer

compartment - they may break when frozen,

causing damage.

kg to 1.36 kg of food per cubic foot of freezer space).

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. These units are all glass

shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

To remove a shelf :Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

To replace a shelf : Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

NOTE: Make sure that shelves are level from one side to

the other. Failure to do so may result in the shelf falling or

spilling food.

Sliding Out Shelves (optional on some models)

You can slide some glass shelves in and out of your

refrigerator as follows.

To slide the shelf out, carefully pull front of shelf

toward you.

To slide shelf in, push shelf in until it stops.

To remove a sliding shelf from its metal frame:

1. Pull the shelf out to the stop position.

2. Tilt the front of the shelf up and pull it past the stop position.

3. Lift up the shelf to remove.

Replace the shelf by reversing the above steps.

Convenience Shelves (optional on some models)

Folding Shelf: You can store taller items such as gallon

containers or bottles by simply sliding the shelf back.

USING YOUR REFRIGERATOR

CHEF FRESH / SNACK PAN

While holding the chef fresh with one hand, pull it forward

slightly. Lift slightly and pull it out.

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

:Lets moist air out of the crisper for best storage of

fruits.

Keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

OPTIBIN CRISPERS

The OptiBin Crispers provide fresher-tasting fruit and

vegetables by letting you easily control humidity inside the

crisper. The OptiBin Crispers include: 1) a humidity

control knob at the front of the crisper cover and 2) a

large lattice on the inner surface of the cover to hold

or release moisture.

To remove the glass:

1. Lift up the glass after inserting a screwdriver under the

crisper cover.

To remove the crisper:

1. Slide crisper straight out to the stop.

2. Lift the front of the crisper, then pull it out to remove.

3.Replace the crisper by sliding it back in fully past the

drawer stop.

USING YOUR REFRIGERATOR

and .

2. Pull up and out.

(on some models)

“ ”

“ ” “ ”

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

and .

lets moist air out of the crisper for best storage of

fruits.

keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

(on some models)

CRISPER COVER WITH LATTICE ON INNER

SURFACE (on some models)

To remove the crisper cover:

1. Remove both crisper drawers.

2. While holding the crisper cover support (2), pull the

cover up and out (1).

WARNING: Be careful when handing glass cover since

glass is not attached to cover.

To remove the lattice on inner surface:

1. Remove crisper cover(as illustrated above).

2. Hold the glass cover and overtum crisper cover.

3. For each lattice hold lattice and pull sides of the cover

outward to remove lattice.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass

cover)and pull sides of the cover to insert lattice.

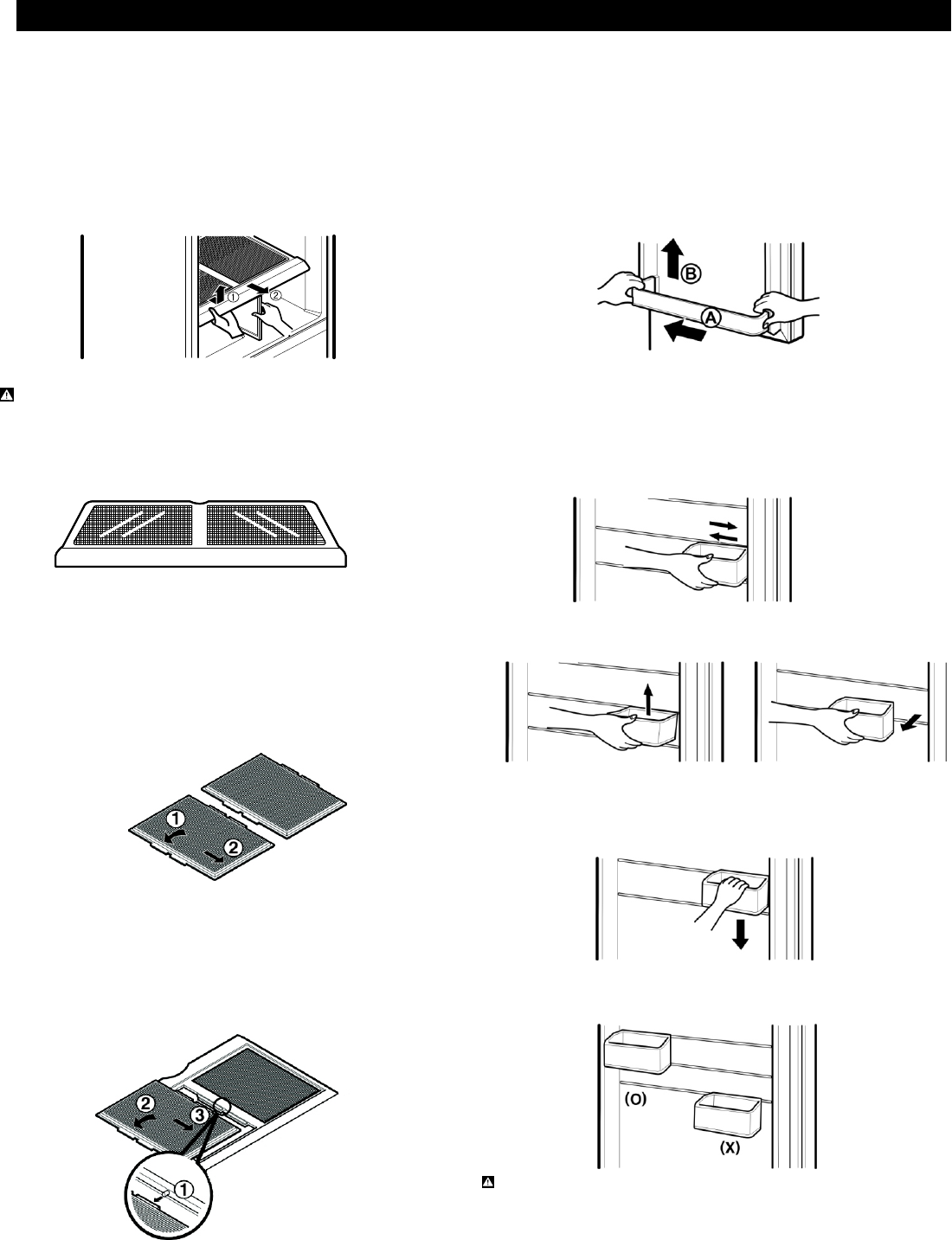

DOOR RACKS

The door racks may be removed for easier cleaning.

Snap-on Door Racks

To remove the racks:

1. Remove all items in the door racks.

2. Push the rack against the inside wall of the door (A)

and lift up the door rack (B).

To replace the racks:

Hold either end of the door rack against the inside wall of

2. Push down the rack until it locks in place.

DESIGN-A-DOOR

1. Bins can be moved to either side of the door.

To remove the bin, simply lift the bin and pull straight out.

3.To replace the bin, slide it in above the desired

support and push down until it locks completely

so that “click” sounds can be heard.

4.To move to lowest position, make sure if all bins are

correctly assembled so that they don’ t fall out of door.

WARNING: Somebody can be hurt if door bins are not

Firmly assembled.

NOTE: Do not adjust a bin that is loaded with food.

USINGYOURREFRIGERATOR

USING YOUR REFRIGERATOR

the door.

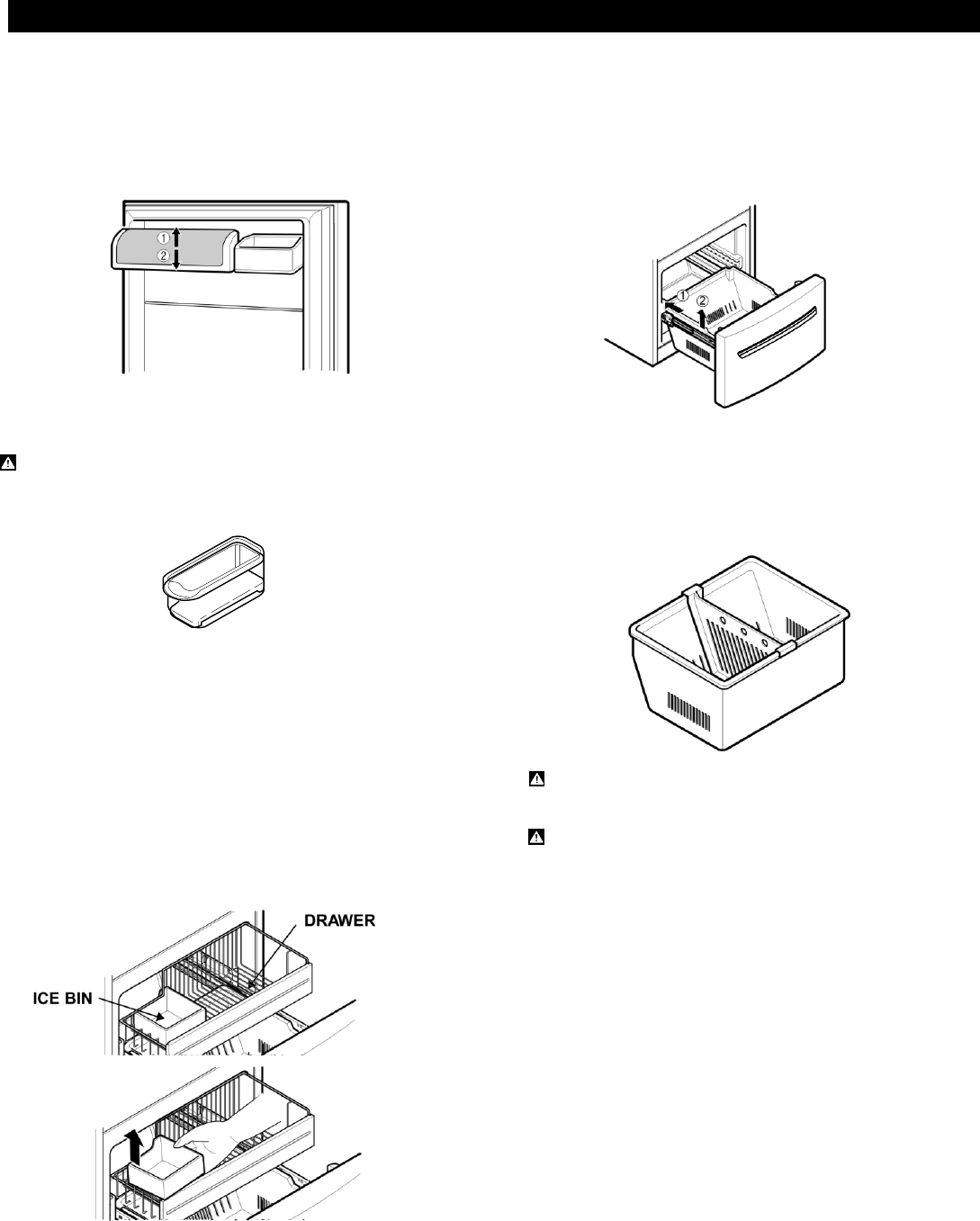

DAIRY BIN

1.To remove the dairy bin , simply lift it and pull straight

out.

2.To replace the dairy bin, slide it in above the desired

location and push down until it stops.

DURABASE (on some models)

To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and

pull straight out.

2. To install, insert the Durabase in rail assembly.

USING YOUR REFRIGERATOR

EGG BOX (on some models)

Store Egg Box on interior shelf, not on door shelf.

CAUTION: Do not use the egg box as an ice storage

bin in the freezer compartment. The egg box can easily

easily break if it freezes.

FREEZER SECTION

ICE BIN (on some models)

1.To separate the ice bin, pull out the drawer as much as

possible.

2. Gently lift and pull out the ice bin.

To reinstall, pull out the drawer as much as possible and set

the ice bin in its correct position, and then push in the drawer.

DURABASE DIVIDER (on some models)

The Durabase divider allows you to organize the

Durabase area into sections.

WARNING: There is enough open space in it for

children to climb inside.

WARNING: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

USING YOUR REFRIGERATOR

TILTING DOOR (on some models)

The tilting door provides easy access to stored foods.

How to use:

Tilt the door down and pull it out. E

adjust

To remove, lift basket up and pull out straight out.

GLIDE OUT DRAWER BASKET -

2. To Install, pull both rails out to full extension.

Hook the basket supports into the rail tabs and push to

the back of compartment.

WIRE DURABASE (on some models)

1. To remove wire Durabase, pull wire durabase out to full

extension.

Tilt up the front of the wire Durabase and pull it straight

out.

2. To install, insert the wire Durabase into frame rails and

push back into place.

FREEZER SHELF (on some models)

To remove the shelf, take it from the front part, and pull it

towards you.

To place the shelf, reverse the removal procedure.

(on some models)

WARNING: Be careful when you open tilting door so

that you do not injure your foot! To

WARNING:

To avoid hand injury, keep your hands away

from tilting device when drawer is open.

CARE AND CLEANING

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once a

month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

Unplug refrigerator or disconnect power.

Remove all removable parts, such as shelves, crispers,

Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces thoroughly.

Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or auto

paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly with

a soft cloth.

INSIDE WALLS (allow freezer to warm up so

cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water). Be sure the baking soda is

completely dissolved so does it not scratch the surfaces of

the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum plastic parts.

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

WARNING

etc.

PLASTIC PARTS (covers and panels)

Do not use paper towels, window sprays, abrasive

cleansers, or flammable fluids. These can scratch or

damage the material.

CONDENSER COILS

Remove grille base.

Use a vacuum cleaner with an extended attachment to

clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be

cleaned as often as every other month.

Replace grille base.

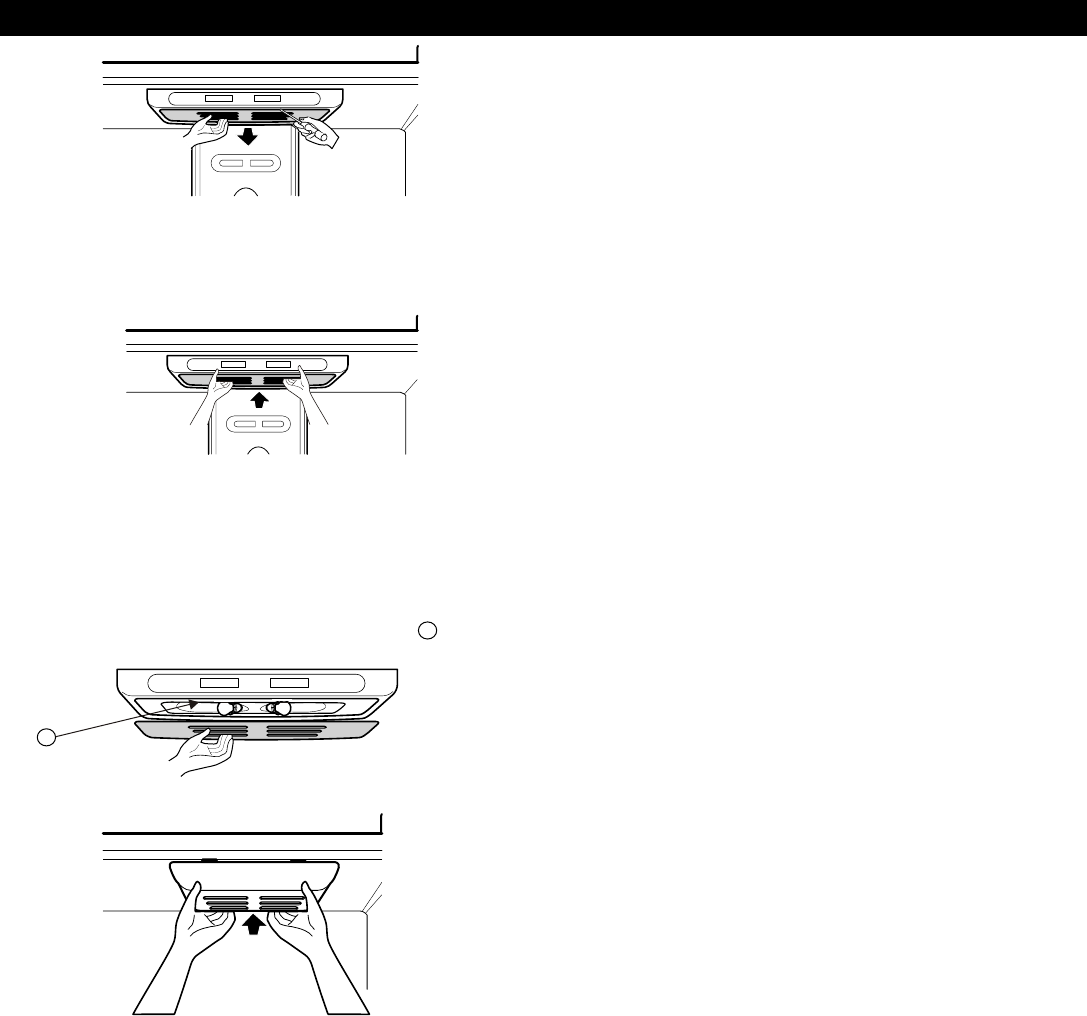

LIGHT BULB REPLACEMENT

To change the refrigerator light:

1. Unplug the power cord from the outlet.

2. Remove refrigerator shelves.

3. Release the hooks on the front of the light shield

with the help of a flat screwdriver and pull the

shield down to remove it.

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position

does not remove power to the light circuit.

WARNING

COVER BACK

Clean the cover back at least

refrigerator working efficiently.

twice a year to keep your

COVER BACK

will make light bulbs to come back on.

NOTE: The light bulbs wil turn off if door is left open for

seven continuous minutes. Shutting door for one second

Note: Avoid door surface contact with chemical products

that contain Phosphate or Chlorine.

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of 40 watts and the same

size and shape.

c) If neither a food locker nor dry ice is available,

consume or can perishable food at once.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Unplug the refrigerator.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6. Take out all removable parts, wrap them well and tape

them together so they do not shift and rattle during the

move.

7. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they do not

scrape the floor.

See the

Door Closing section.

8. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

4. Turn the bulb counter clockwise.

To change the freezer light:

1. Unplug refrigerator or disconnect power.

2. Reach behind light shield to remove bulb.

4. Plug in refrigerator or reconnect power.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask

how long it will be off.

1. If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

b) Place 2 lbs (0.91 kg) of dry ice in the freezer for every

cubic foot of freezer space. This will keep the food

frozen for two to four days. While handling dry ice,

wear gloves to protect your hands from frostbite.

3. Replace bulb with a wattage indicated in

111111

the refrigerator section, as shown in picture .

111111

5. To assemble, first insert the hooks at the back and

then push up the light shield.

CARE AND CLEANING

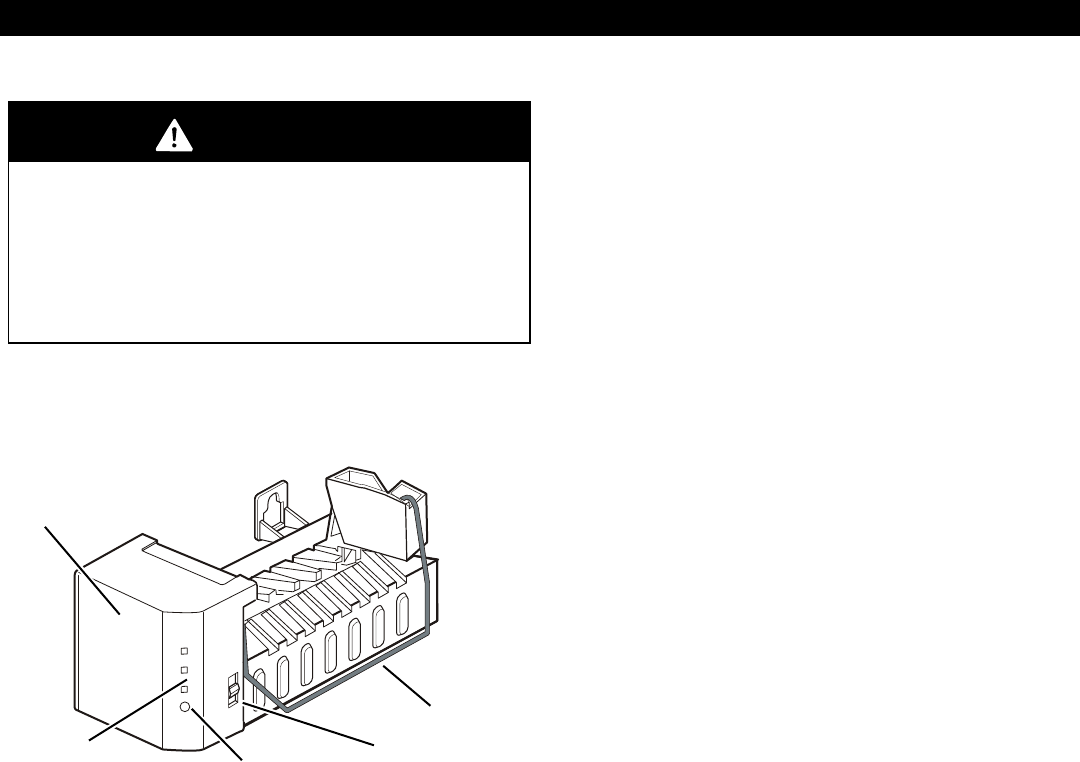

ABOUT THE AUTOMATIC ICEMAKER

NOTE: Automatic Ice Maker feature is included only in

certain models. Please check your product specification.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

The icemaker will produce eight cubes per cycle —

approximately 100–130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

Anewly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up one light. The higher the light position, the larger

the cubes will be. Pressing at highest position returns

indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

•When the water supply will be shut off for several hours.

•When the ice storage bin is removed for more than a

minute or two.

•When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

•The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

•You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

WARNING

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

Feeler Arm

Icemaker

Cube Size

Indicator Light Cube Size

Select Button

Power Switch

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

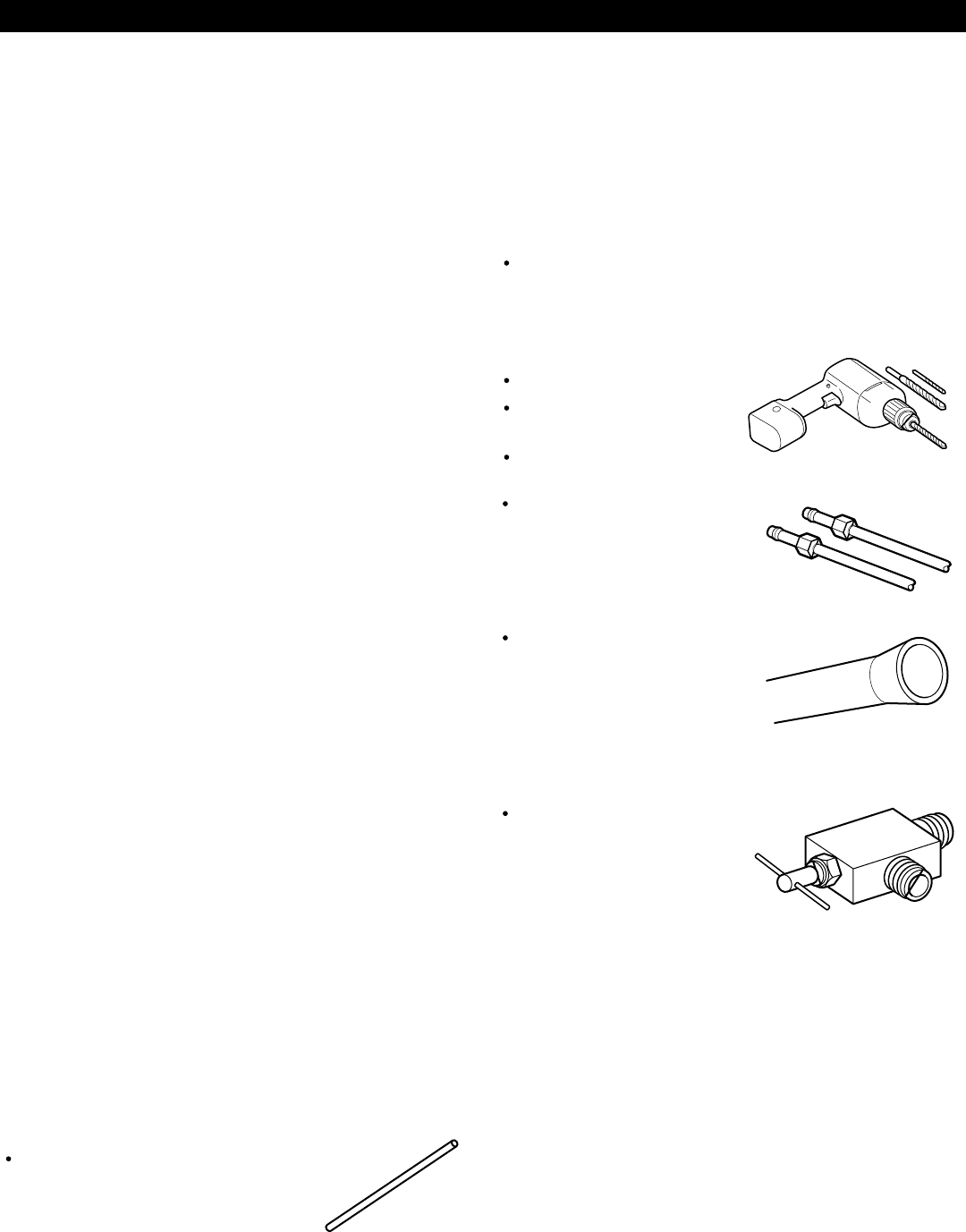

WHAT YOU WILL NEED

Copper Tubing, 1/4” outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10” [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

A cold water supply.The water pressure must be

between 20 and 120 PSI or 0.137 and 0.82 MPa on

120 PSI or 0.275 and 0.82 MPa on models with a

water filter.

Power drill.

or adjustable

wrench.

Straight- and Phillips-

blade screwdriver

Two 1/4” outer diameter

compression nuts and

2 ferrules (sleeves) to

connect the copper tubing to

the shut off valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

Shut off valve to connect to

the cold water line. The

Shut off valve should have a

water inlet with a minimum

inside diameter of 5/32” at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shut off valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

CONNECTING THE WATERLINE

NOTE: Water line installation is needed when the

Automatic Ice Maker and/or Water Dispenser features

are available on your product.

1/2”

models without a water filter and between 40 and

Connect only to the supply of drinking

Ÿ If a reverse osmosis water filtration system is connected

to your cold water supply, This water line installation is not

warranted by the refrigerator or icemaker manufacturer.

Follow next instructions carefully to minimize the risk of

expensive water damage.

Ÿ If a reverse osmosis water filtration system is connected

to your cold water supply, the water pressure to the reverse

osmosis system needs to be a minimum of 40 to 60 PSI or

0.27 MPa to 0.41MPa (2.8 kg·f/cm² ~ 4.2 kg·f/cm², less than

2 ~ 3 seconds to fill a cup of 7 oz capacity [0.2 liters]).

If the water pressure from the reverse osmosis system is less

than 21 PSI or 0.14 MPa (1.5 kg·f/cm², more than 4 seconds

to fill a cup of 7 oz capacity [0.2 liters]).

Ÿ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

Ÿ Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

Ÿ If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber.

water.

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUT OFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not over tighten or you may crush

the tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet or 2.44 m coiled into 3 turns of about 10” or

25.4 cm of diameter) to allow the refrigerator to move out

from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

CONNECTING THE WATERLINE

Vertical Cold

Water Pipe

Saddle-Type

Shutoff Valve

Pipe Clamp

Washer

Inlet End

Pipe Clamp

Clamp Screw

Saddle-Type

Shutoff Valve

Packing

Nut

Outlet

Valve Ferrule (sleeve)

Compression

Nut

CHOOSE THE VALVE LOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

DRILL THE HOLE FOR THE VALVE

Drill a 1/4” hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1/4 hole may result in

reduced ice production or smaller cubes.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTES:

Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

If your refrigerator does not have a water filter,

we recommend installing one. If your water supply

has sand or particles that could clog the screen of

the refrigerator’s water valve. Install the filter in the

water line near the refrigerator.

Remove the plastic flexible cap from the refrigerator

connection.

Place the compression nut and ferrule (sleeve) onto

the end of the tubing.

Insert the end of the tubing into the connection as far

as possible. While holding the tubing, tighten the fitting.

Fasten the tubing into the tubing Clamp attached to

the back of the refrigerator.

First, loosen the screw fastening the clamp. Next,

insert the tubing in the groove. Finally, re-fasten the

screw.

10.TURN THE WATER ON AT THE

SHUT OFF VALVE

Tighten any connections that

leak.

Reattach the compressor

compartment access cover.

11.PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so

that it does not vibrate against

the back of the refrigerator or

against the wall. Push the

refrigerator back to the wall.

12.START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15 °F (-9 °C) or below. It

will then begin operation automatically if the icemaker

power switch is in the I (on) position.

CONNECTING THE WATERLINE

Refrigerator

Connection

Ferule

(sleeve)

Tubing

Clamp

1/4”

Compression

Nut

1/4”

Tubing

IMPORTANT: Do not use old, worn or used waterlines,

only use new for a better use and service.

Connect only to the supply of drinking water for your

safety and health.

REFRIGERATOR DOES NOT OPERATE

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

A household fuse has blown or circuit Replace the fuse or reset the circuit breaker.

breaker tripped.

The refrigerator control is set to the OFF position. Refer to the Setting the Controls .

Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.

VIBRATION OR RATTLING NOISE

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See Installation Section.

LIGHTS DO NOT WORK

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

Light bulb has burned out.

TROUBLESHOOTING GUIDE

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn’t make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause

a popping noise.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the

defrost cycle.

Check if... Then...

Due to refrigerator's low energy consumption design, the

fans will remain off by the door switch activates the inner

compartment light.

Check if... Then...

Unplug the refrigerator prior to the replacement. Replace the

old bulb with a new 40 watts appliance bulb with same size

and shape on your local hardware store. (See Changing the

Light Bulb (s) section).

TROUBLESHOOTING GUIDE

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modern refrigerators with more storage space require

older model. more operating time.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

The door is opened often or a large amount Adding food and opening the door warms the refrigerator.

of food has just been added. It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food

warms the refrigerator. See the Food Storage Guide Section.

In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food

is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

See the Adjusting control settings Section.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

Doors will not close completely below.

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

Clean the condenser coils. Refer to the Care and Cleaning

section.

FROST OR ICE CRYSTALS ON FROZEN FOOD

The door is not closing properly. See Doors will not close completely above.

The door is opened often. When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

DOORS WILL NOT CLOSE COMPLETELY

The refrigerator is not level. See the Installation Section to level refrigerator.

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position. and baskets into their correct positions. See the Using Your

Refrigerator Section.

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Door Closing and

Alignment Section.

The doors were removed during product installation Remove and replace the doors according to the Removing,

and not properly replaced. Reversing and Replacing Refrigerator Doors section

or call a qualified service technician.

the refrigerator control was set correctly completely.

The refrigerator control was not set correctly for the

Check if... Then...

TROUBLESHOOTING GUIDE

ICE HAS OFF-TASTE OR ODOR

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long. Throw away old ice and make new supply.

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food

either compartment. is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning. See Care and Cleaning section.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

THERE IS WATER IN THE DEFROST DRAIN PAN

The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

The freezer temperature is cold enough to produce ice. Wait 24 hours after hook-up for ice production. See the Setting

the Controls Section.

Door left open. Check to see if something is holding the door open.

THE DOORS ARE DIFFICULT TO OPEN

The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator.

been opened. As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Smaller cube size level is selected. Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve.

line may be clogged.

Check if... Then...

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILD UP

The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and

from the freezer to the fresh food section and move all packages that block vents and restrict airflow. Refer

back again through air vents in the wall dividing to multi flow Section for the location of

the two sections. air vents.

The doors are opened often. When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once, keep

food organized so it is easy to find and close the door as

soon as the food is removed.

The control is not set correctly for the surrounding Refer to the Setting the Controls Section.

conditions. Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time.

Alarge amount of food has just been added Adding food warms the refrigerator. It can take a few hours

to the refrigerator or freezer. for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide Section.

The weather is humid. In humid weather, air carries moisture into refrigerator

when doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

TROUBLESHOOTING GUIDE

AUTOMATIC ICEMAKER DOES NOT WORK

Icemaker power switch in the O (off) position. Move the switch to the I (on) position.

Water supply turned off or not connected. See the Connecting the Water Line section.

Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.

Piled up cubes in the storage bin cause the icemaker Level cubes by hand.

to shut off.

Check if... Then...

The doors are not closing completely. See Doors will not close completely.

LG LBC22520ST MFL61944108 Owners Manual KS US MS CI User Owner's En

LBC22520ST Owner's Manual File?fileId=KROWM000280656 Most comprehensive of product setup and usage. (English)

Navigation menu

Versions of this User Manual:

Views

Navigation
