Life's Good

OWNER'S MANUAL

GAS RA GE

Read this owner's manua! thorough|y before operating the app|iance

and keep it handy for reference at a|| times.

_- _ WARNING

If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury or death.

,, Do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

,, WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

-Do not touch any electrical switch.

-Do not use any phone in your building.

- Immediately call your gas supplier from a neighbor's phone. Follow the

gas supplier's instructions.

-if you cannot reach your gas supplier, call the fire department.

,, Installation and service must be performed by a qualified installer, service

agency, or the gas supplier.

LDG4315ST

LDG4313ST

LDG4311ST LDG4311SB LDG4311SW

MFL68920501 02 www.[g.com

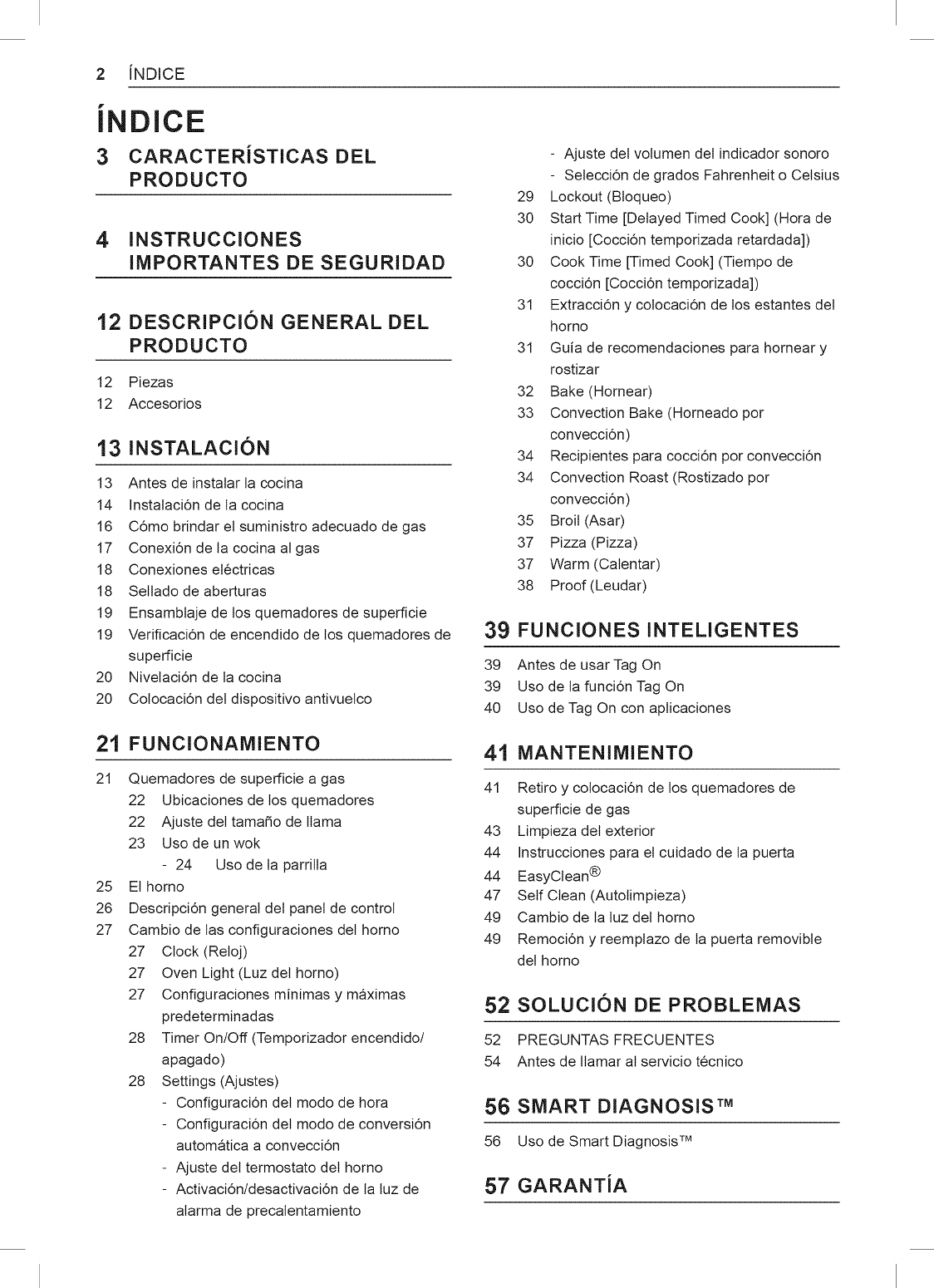

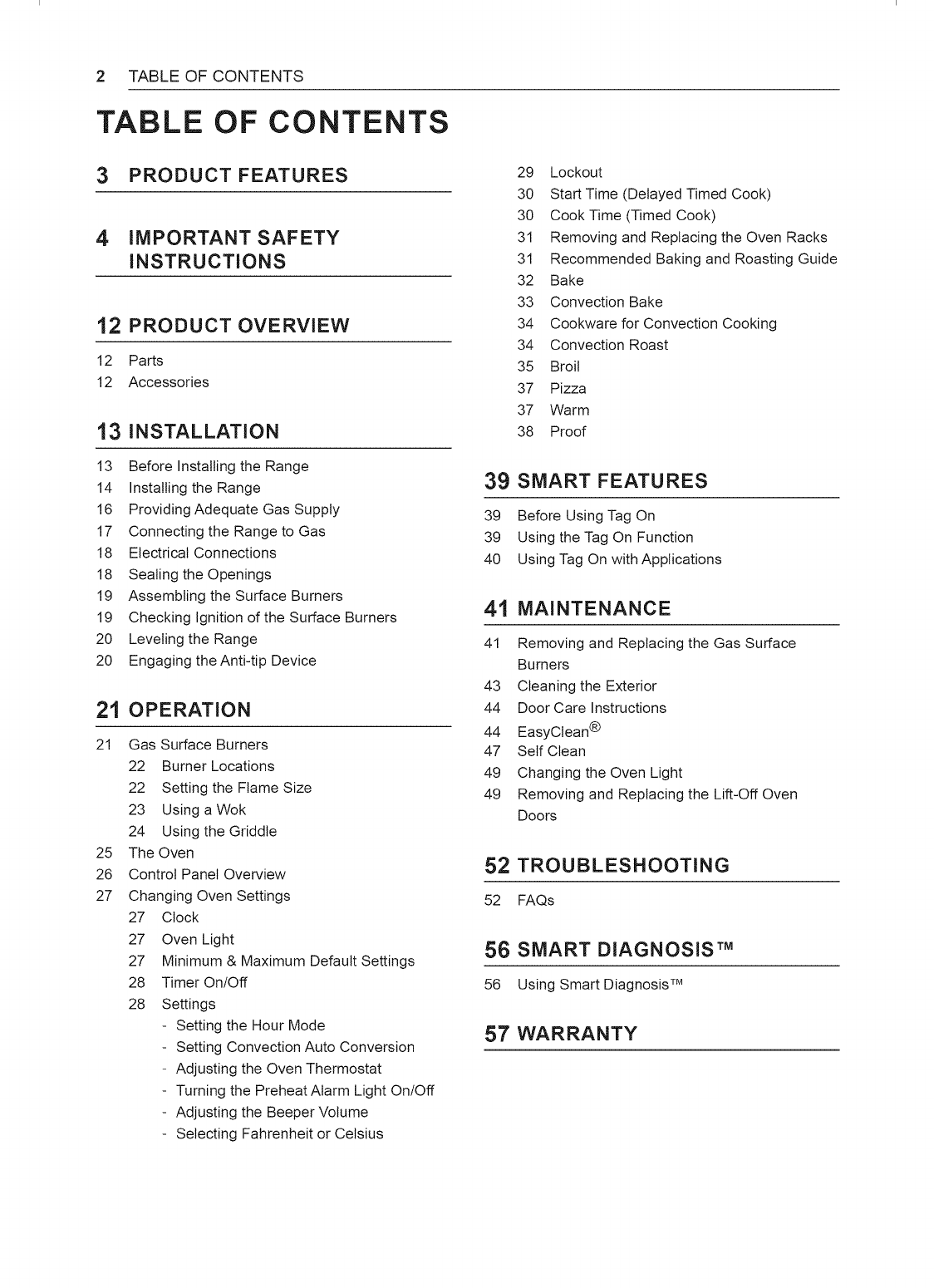

2 TABLE OF CONTENTS

TABLE OF CONTENTS

3PRODUCT FEATURES

4iMPORTANT SAFETY

iNSTRUCTiONS

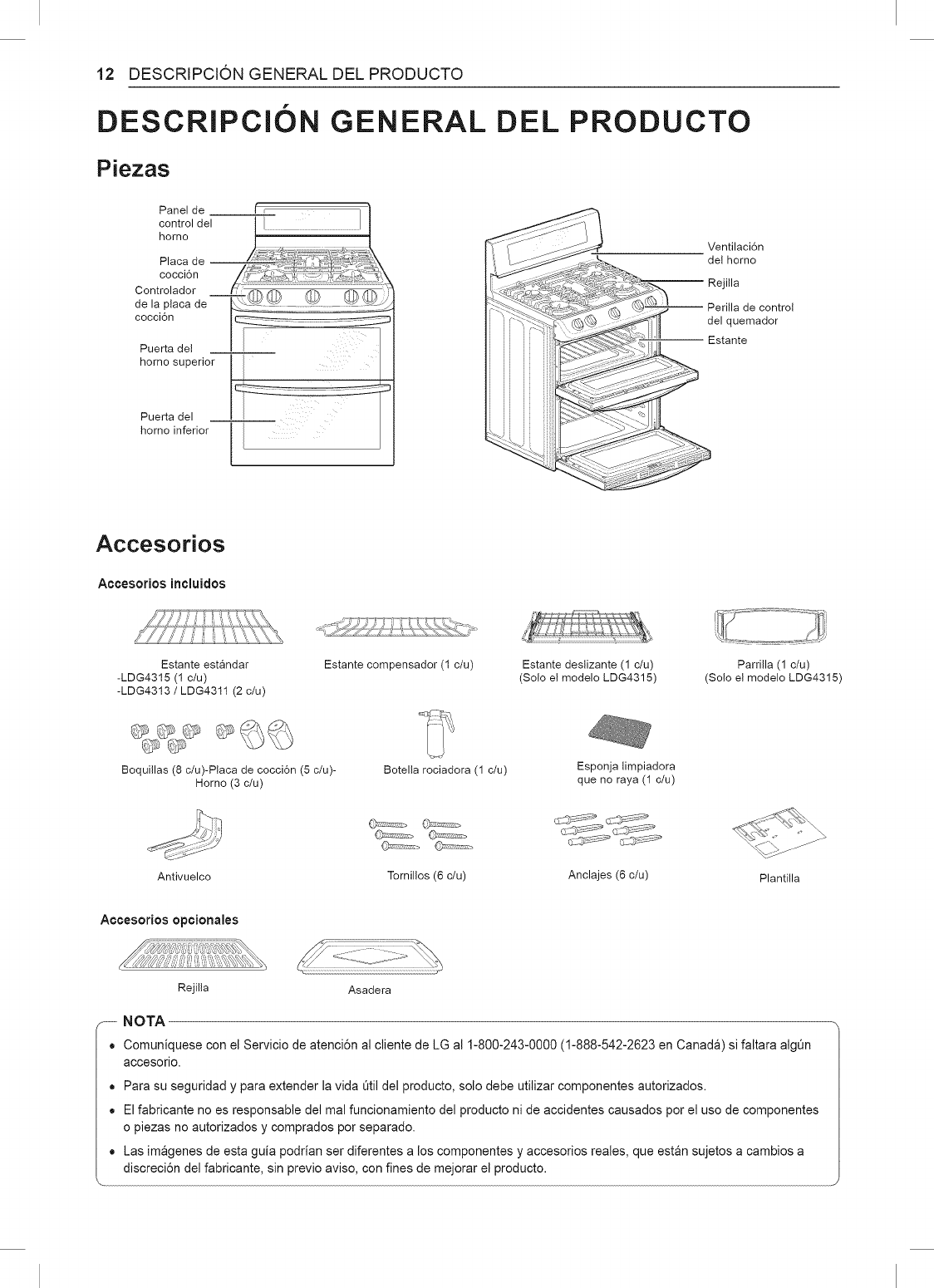

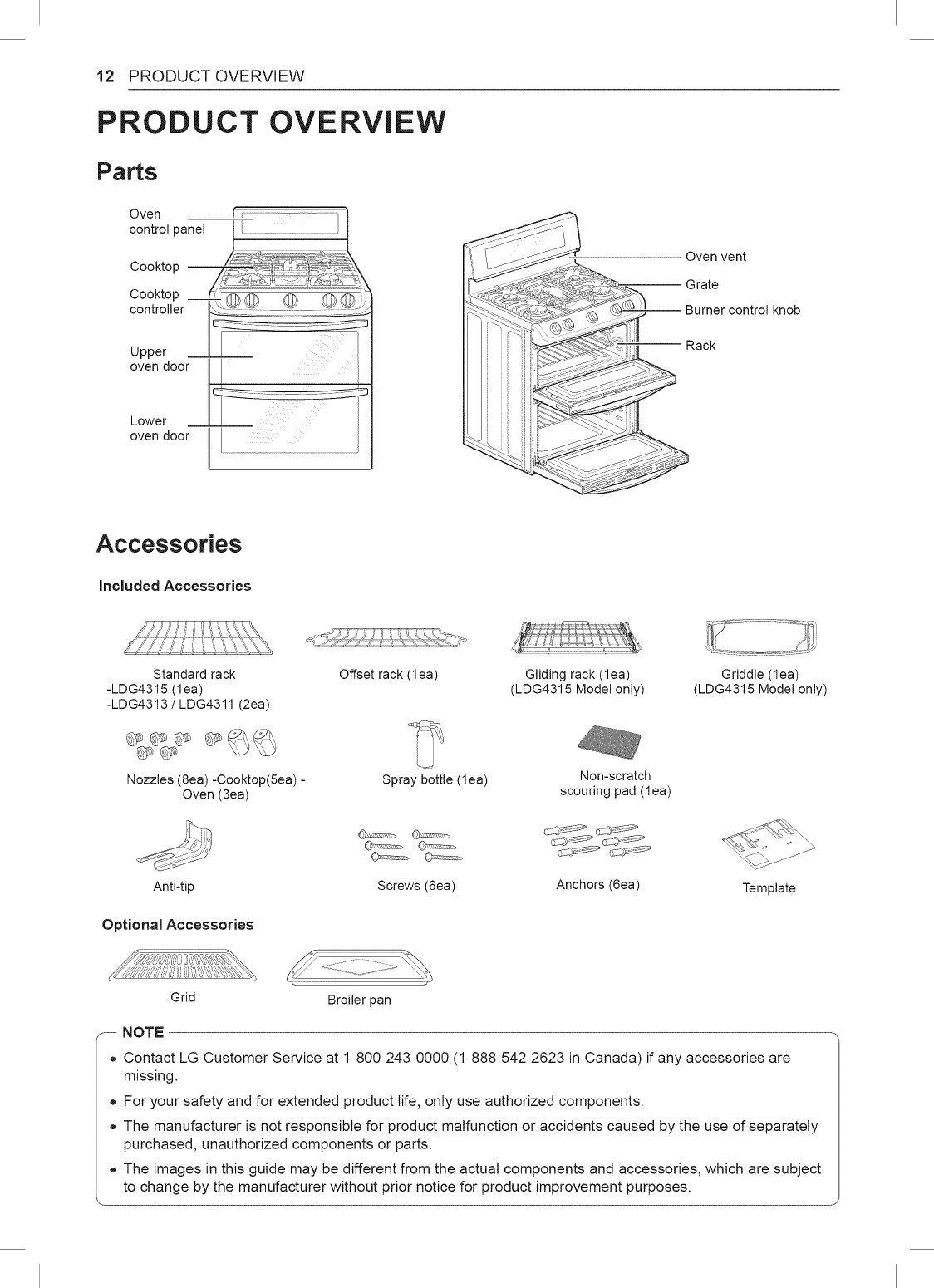

12 PRODUCT OVERVIEW

12 Parts

12 Accessories

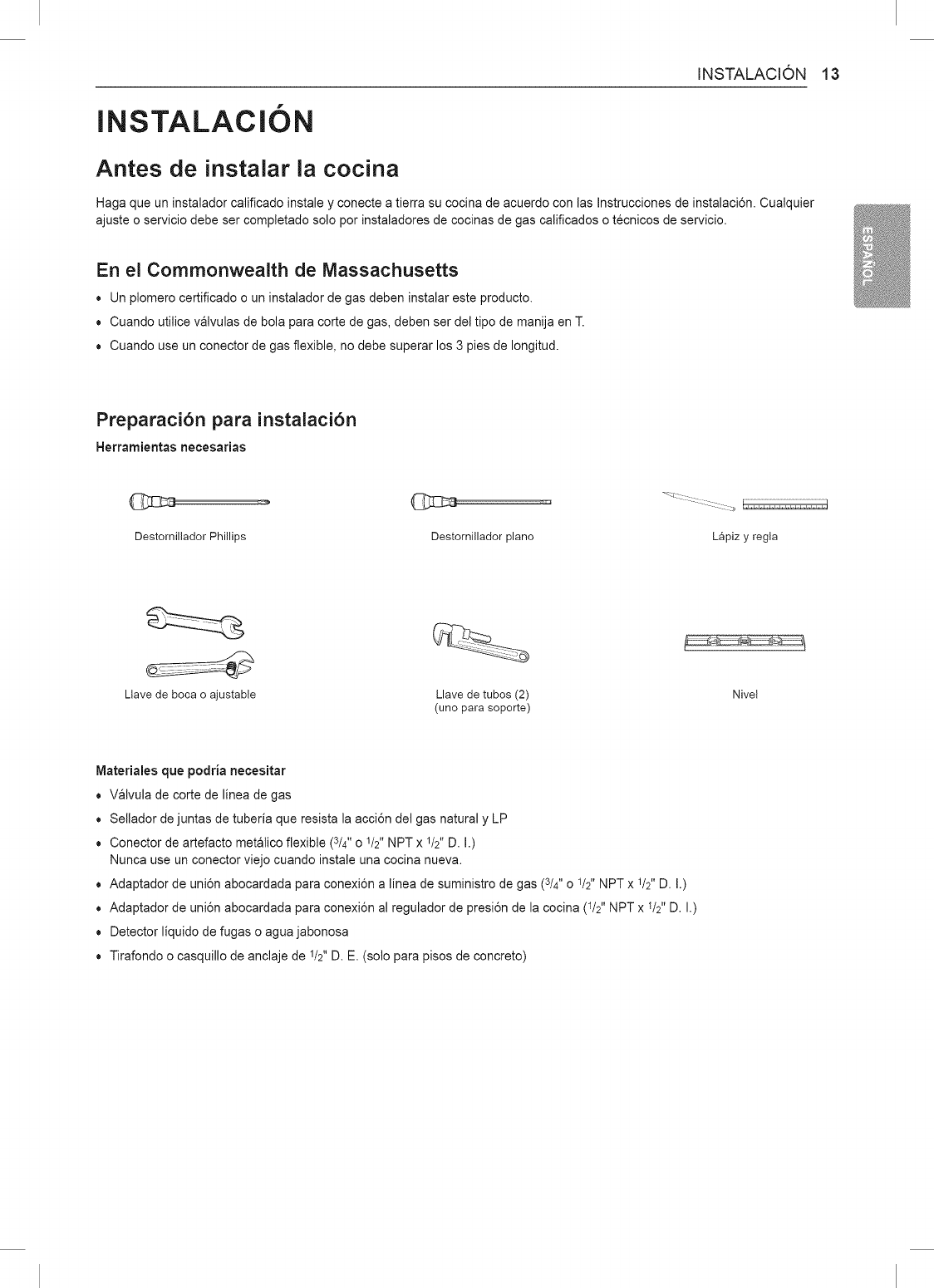

13 iNSTALLATiON

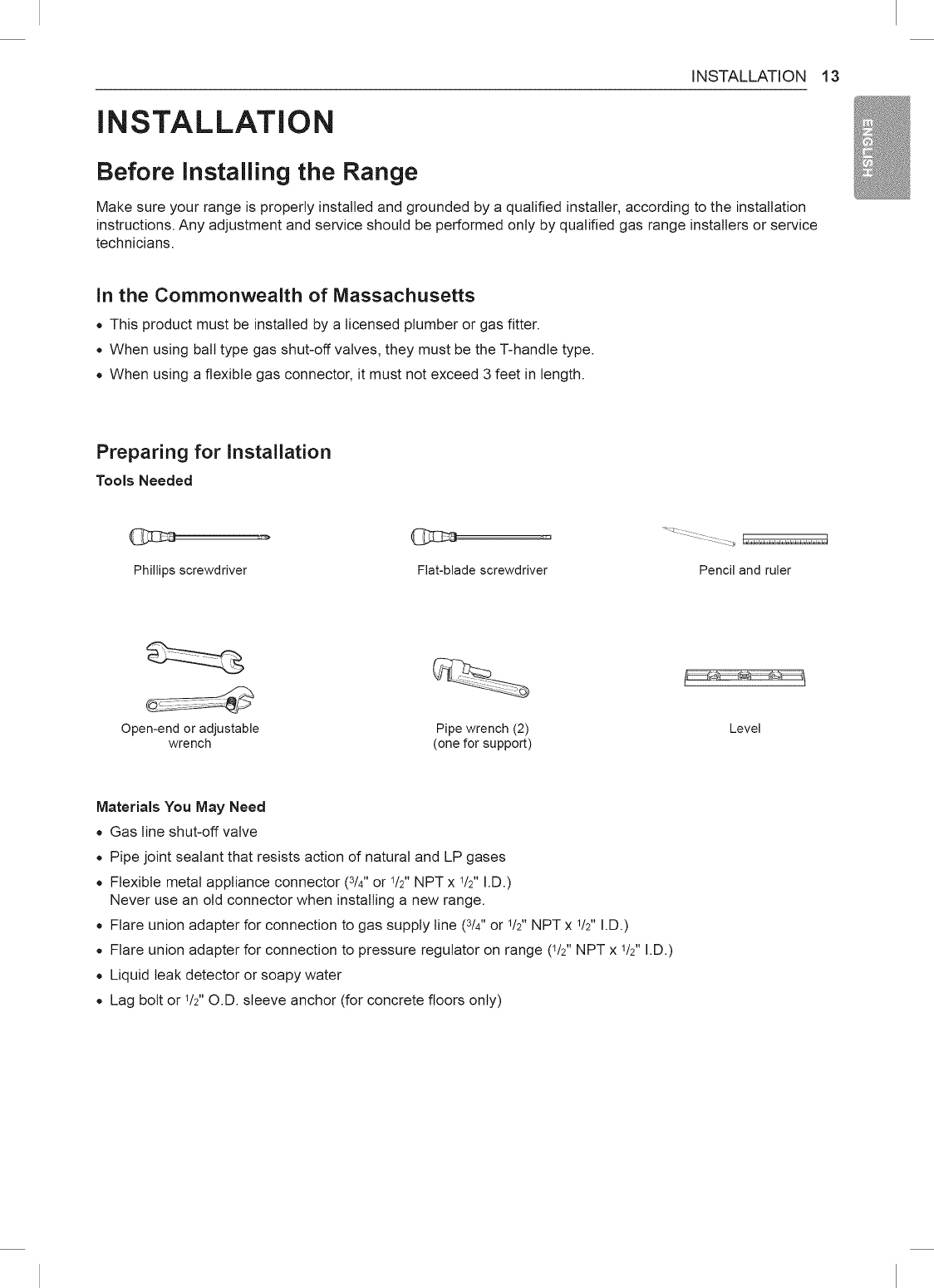

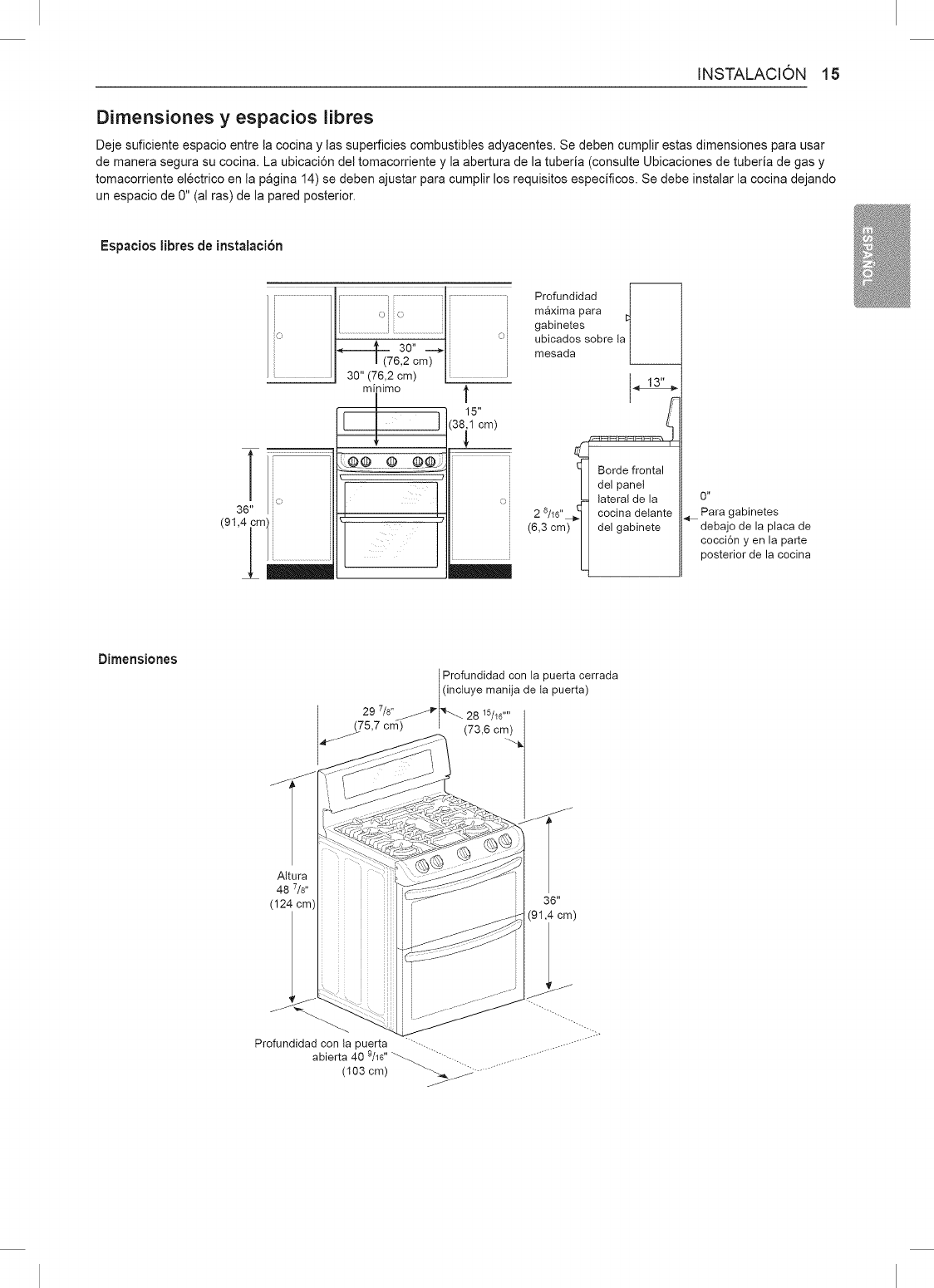

13 Before Installing the Range

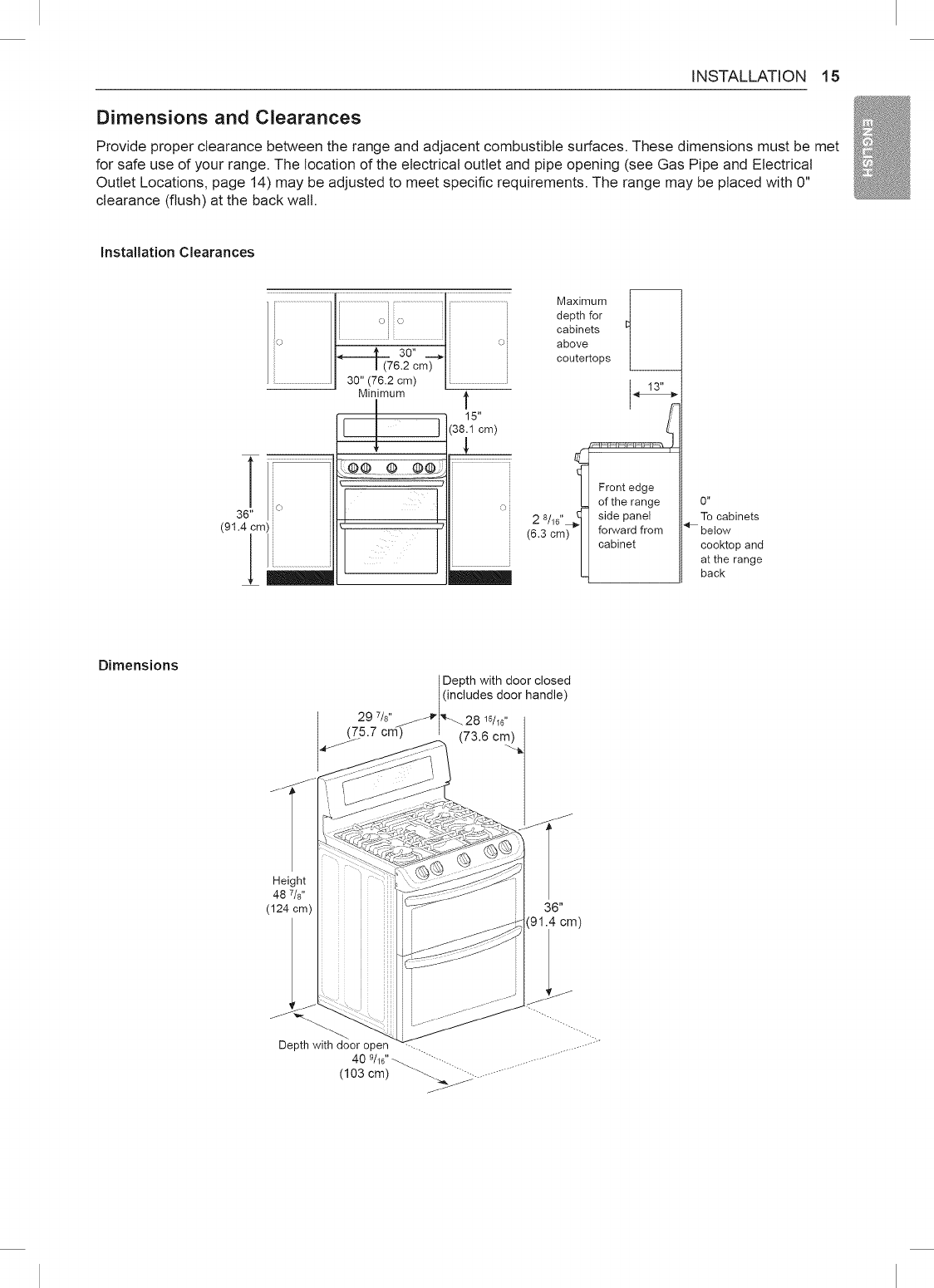

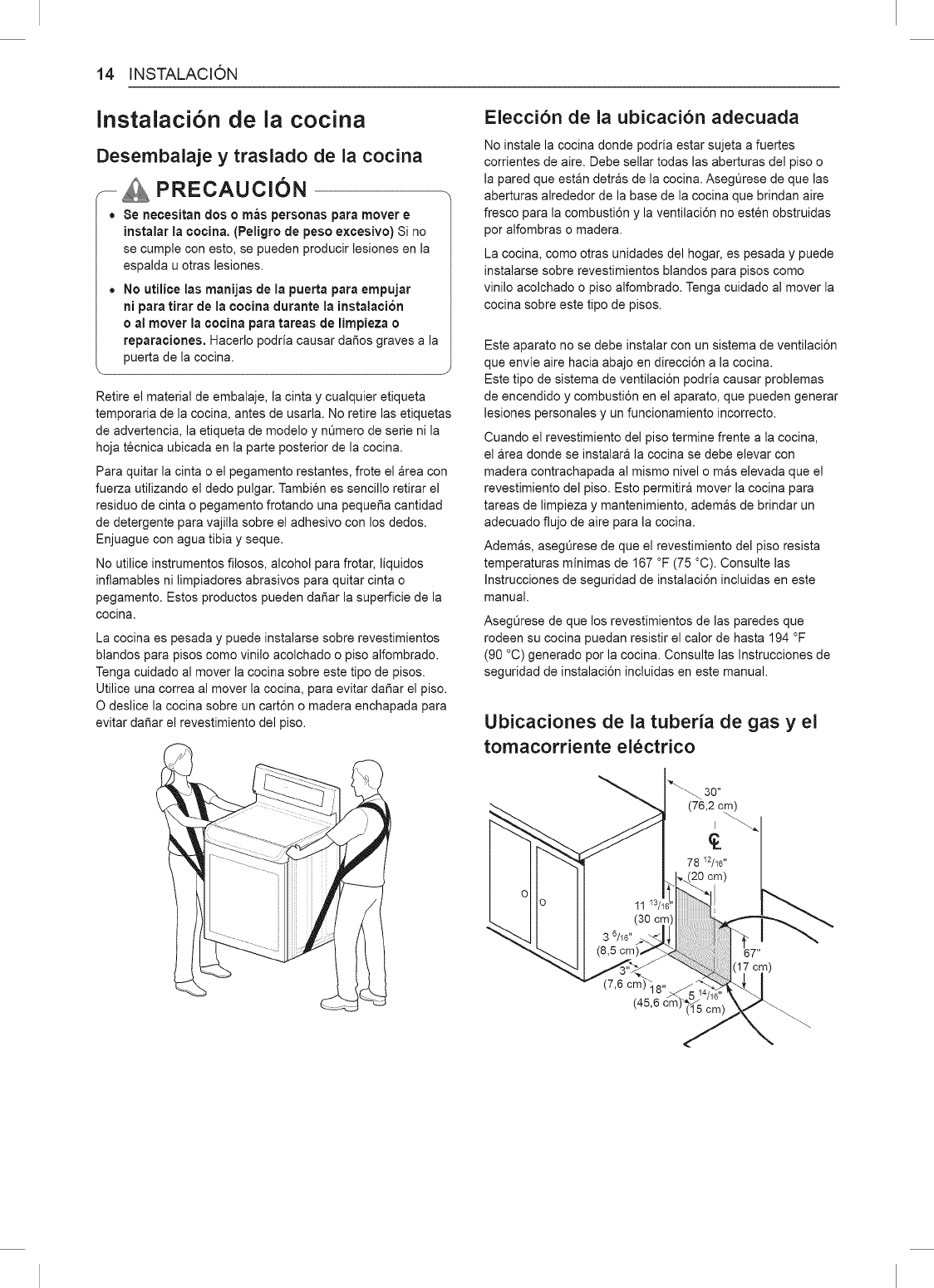

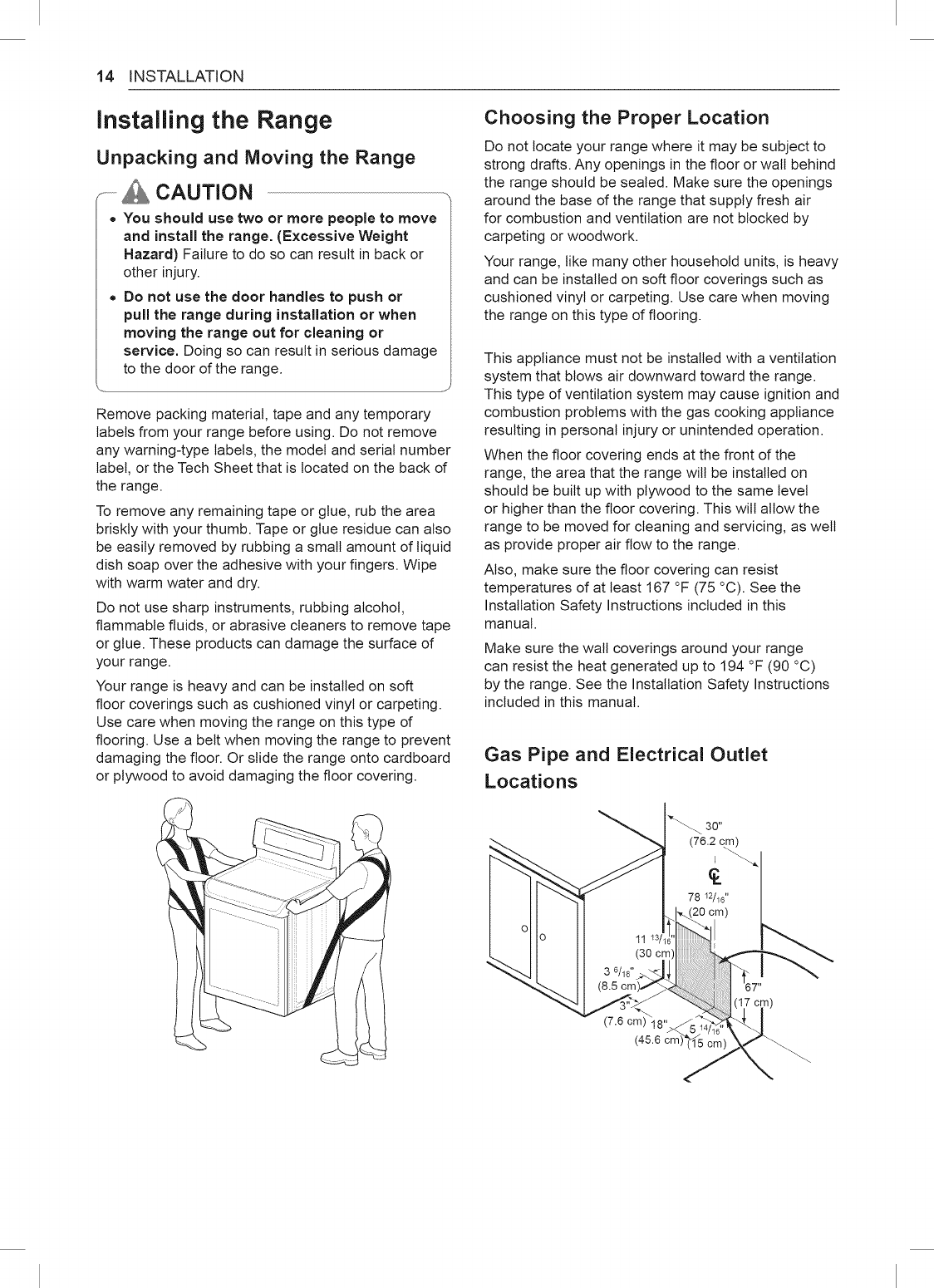

14 Installing the Range

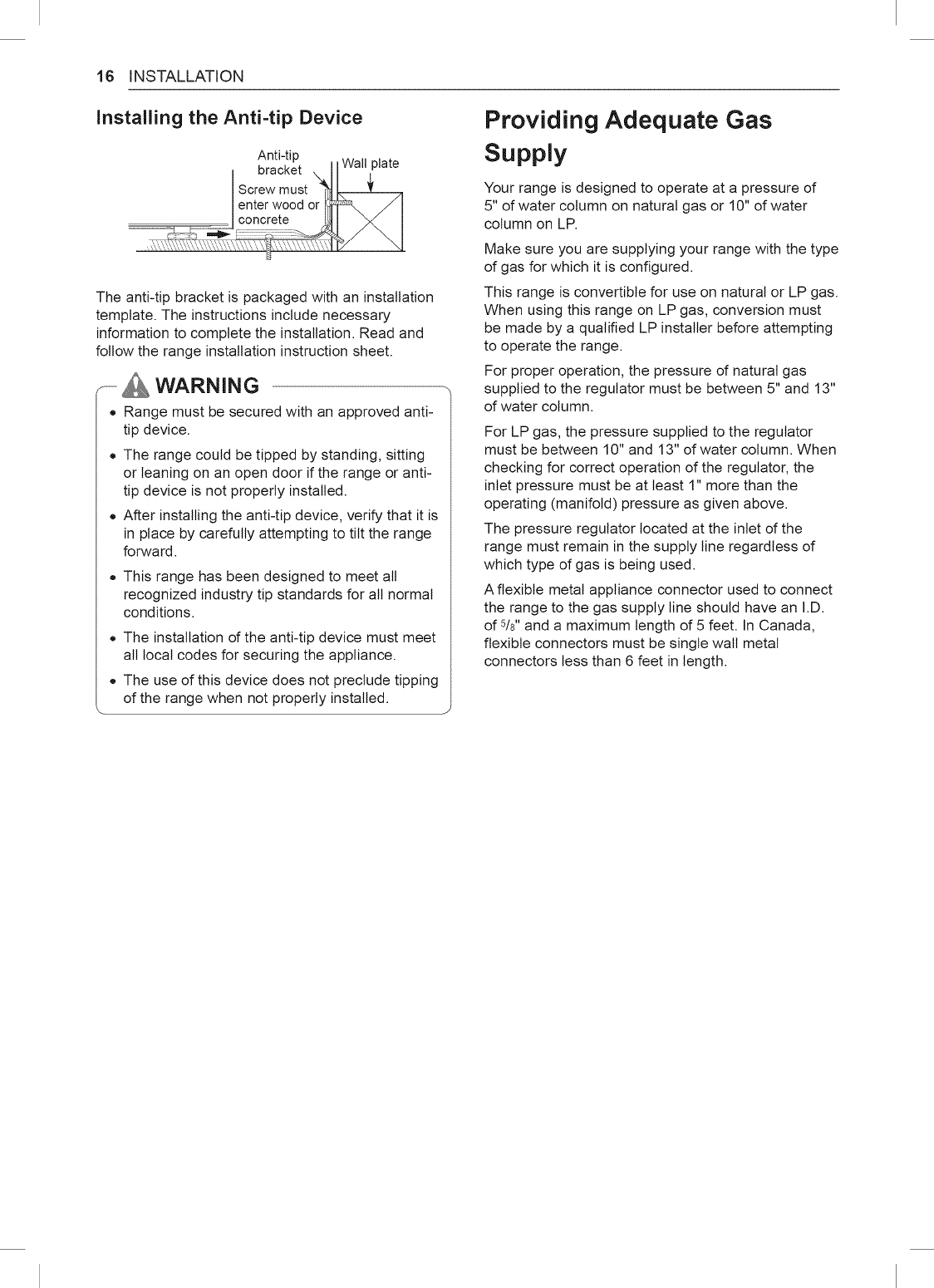

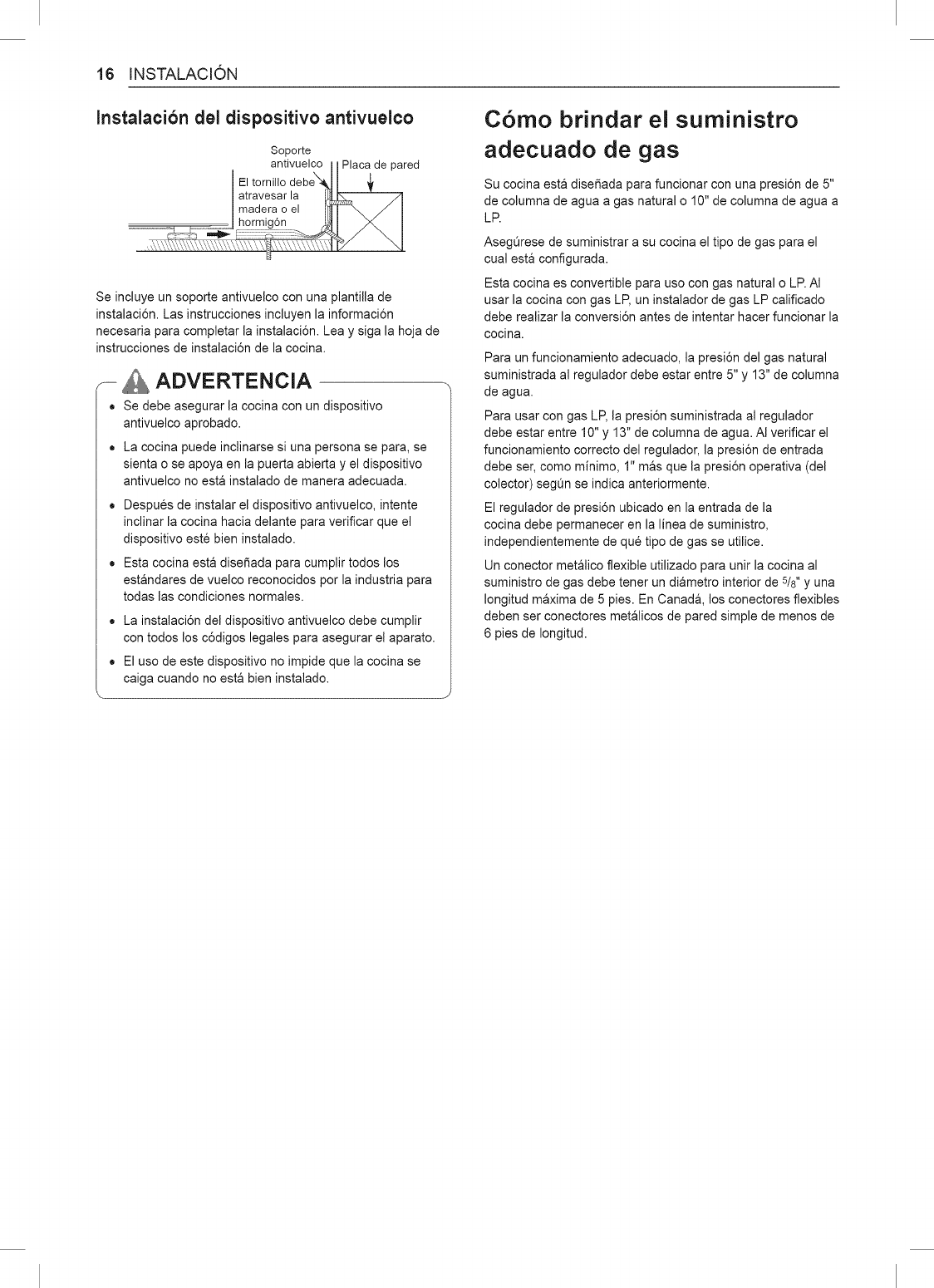

16 Providing Adequate Gas Supply

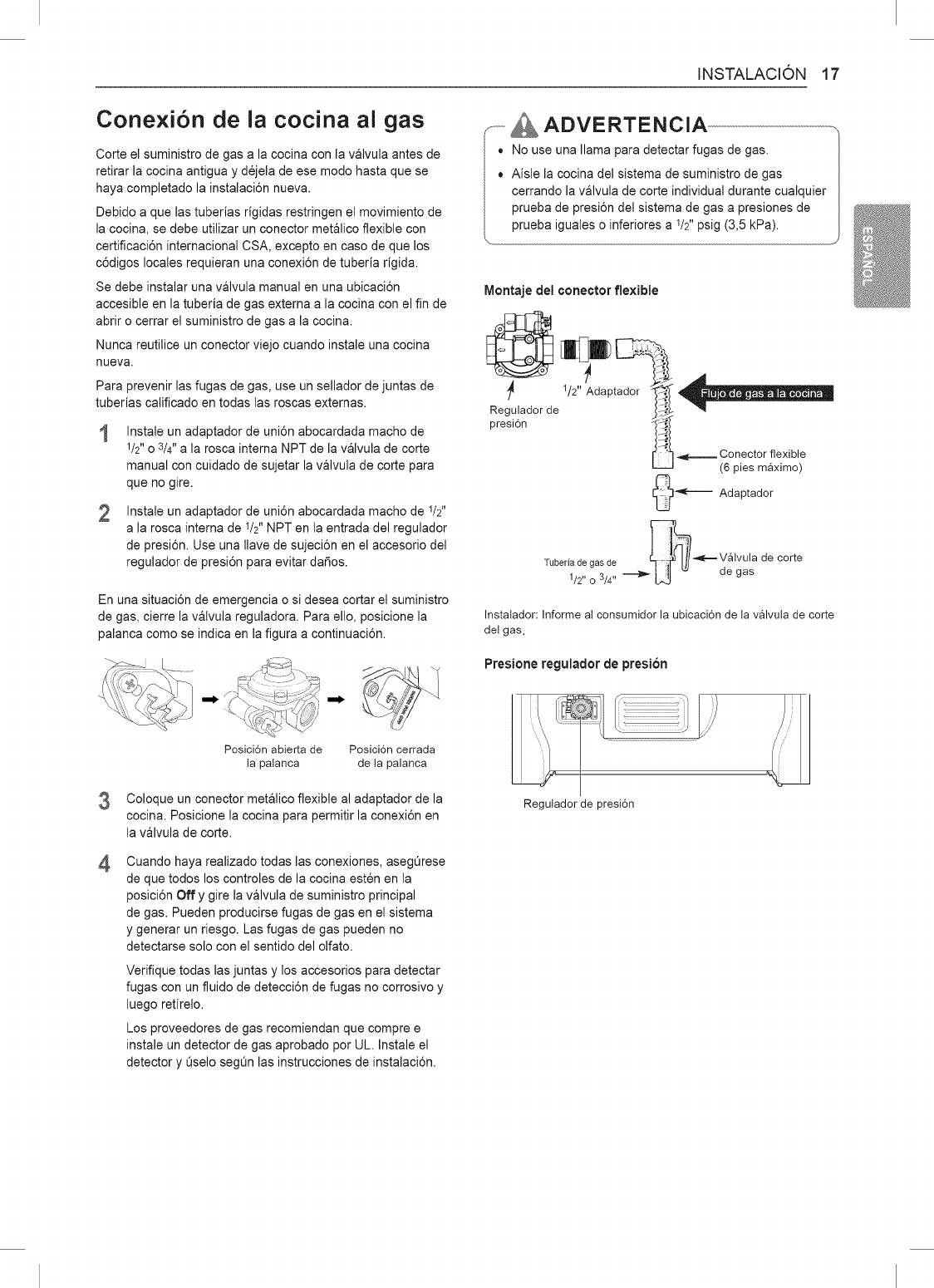

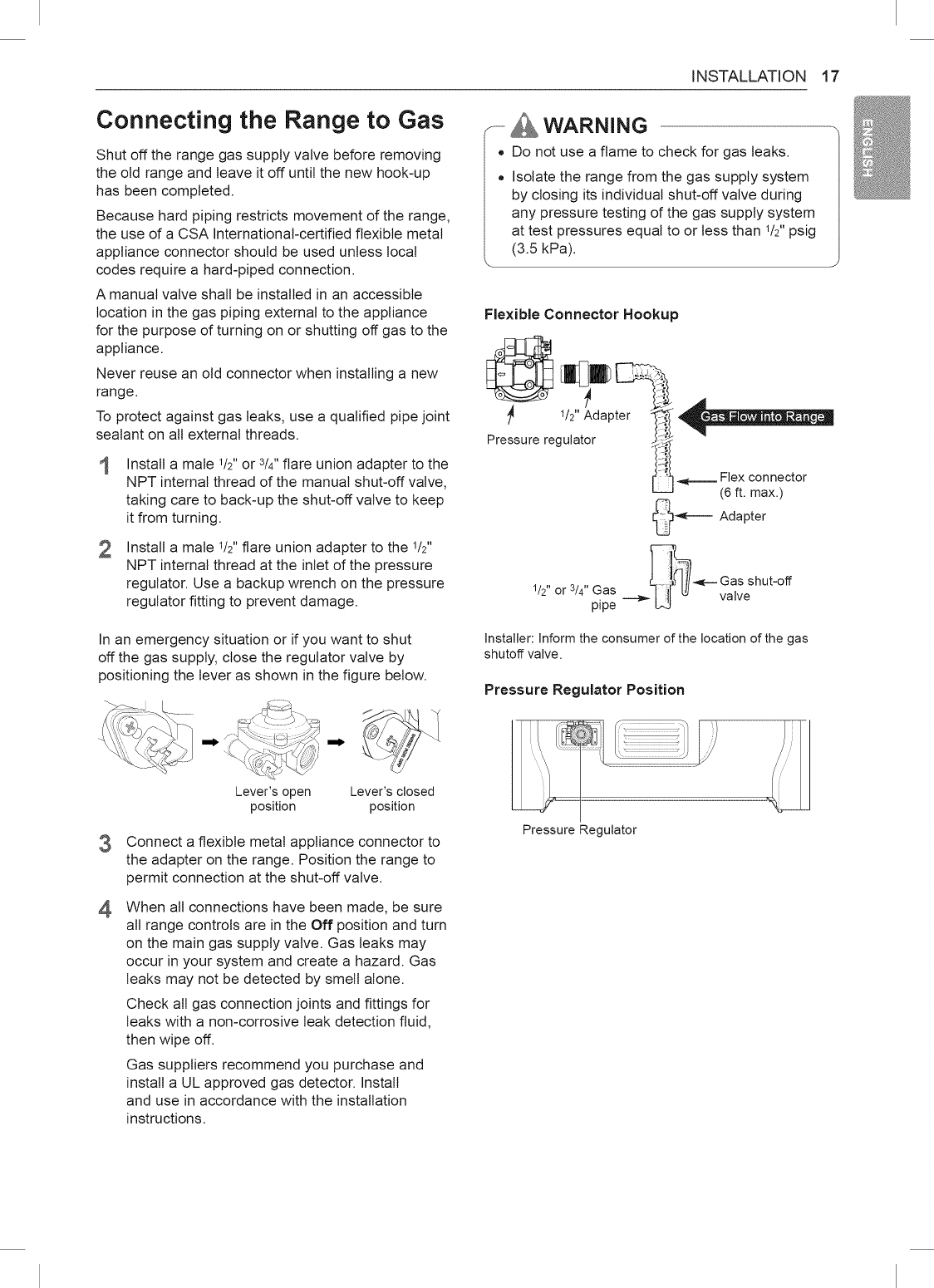

17 Connecting the Range to Gas

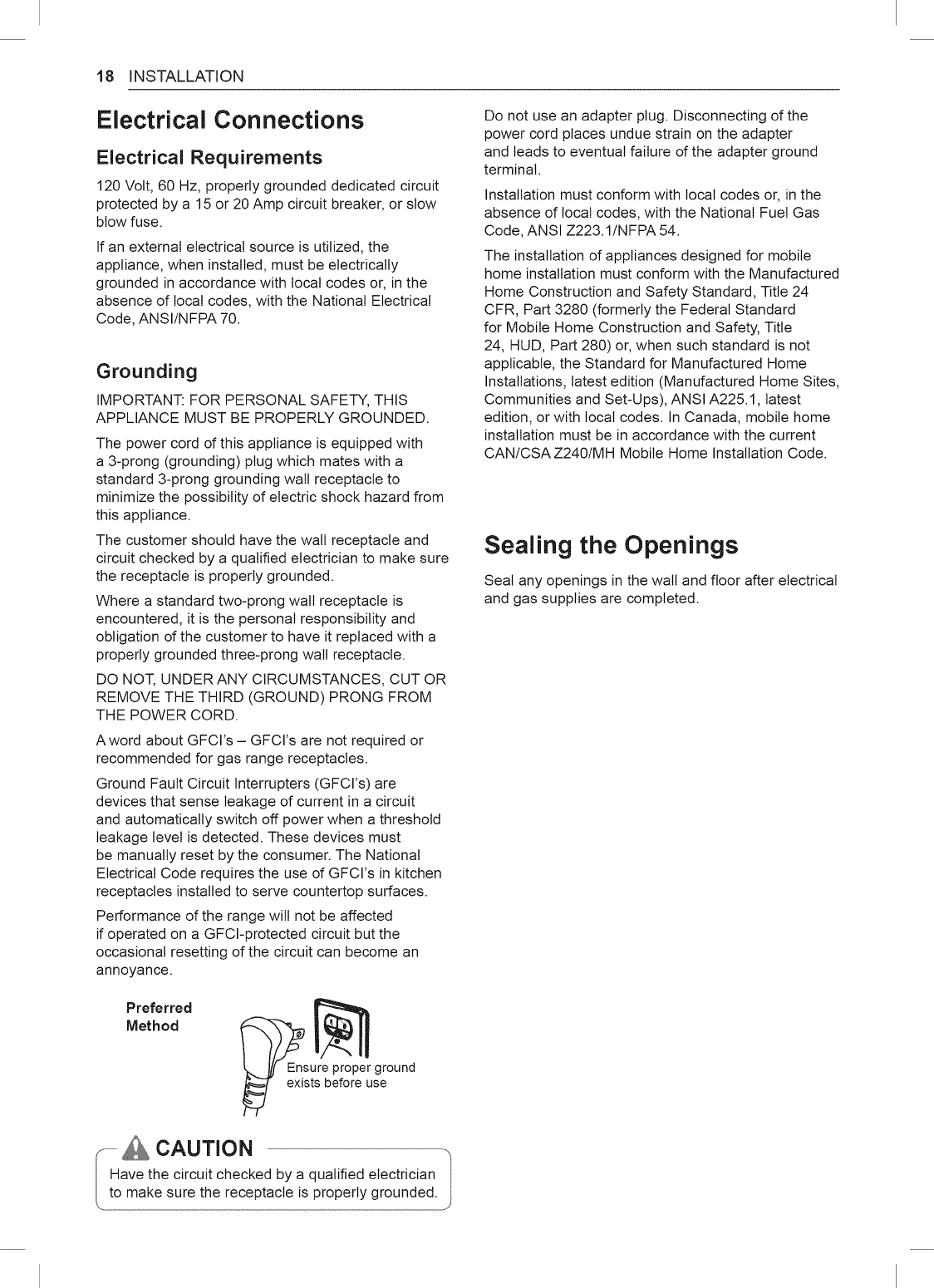

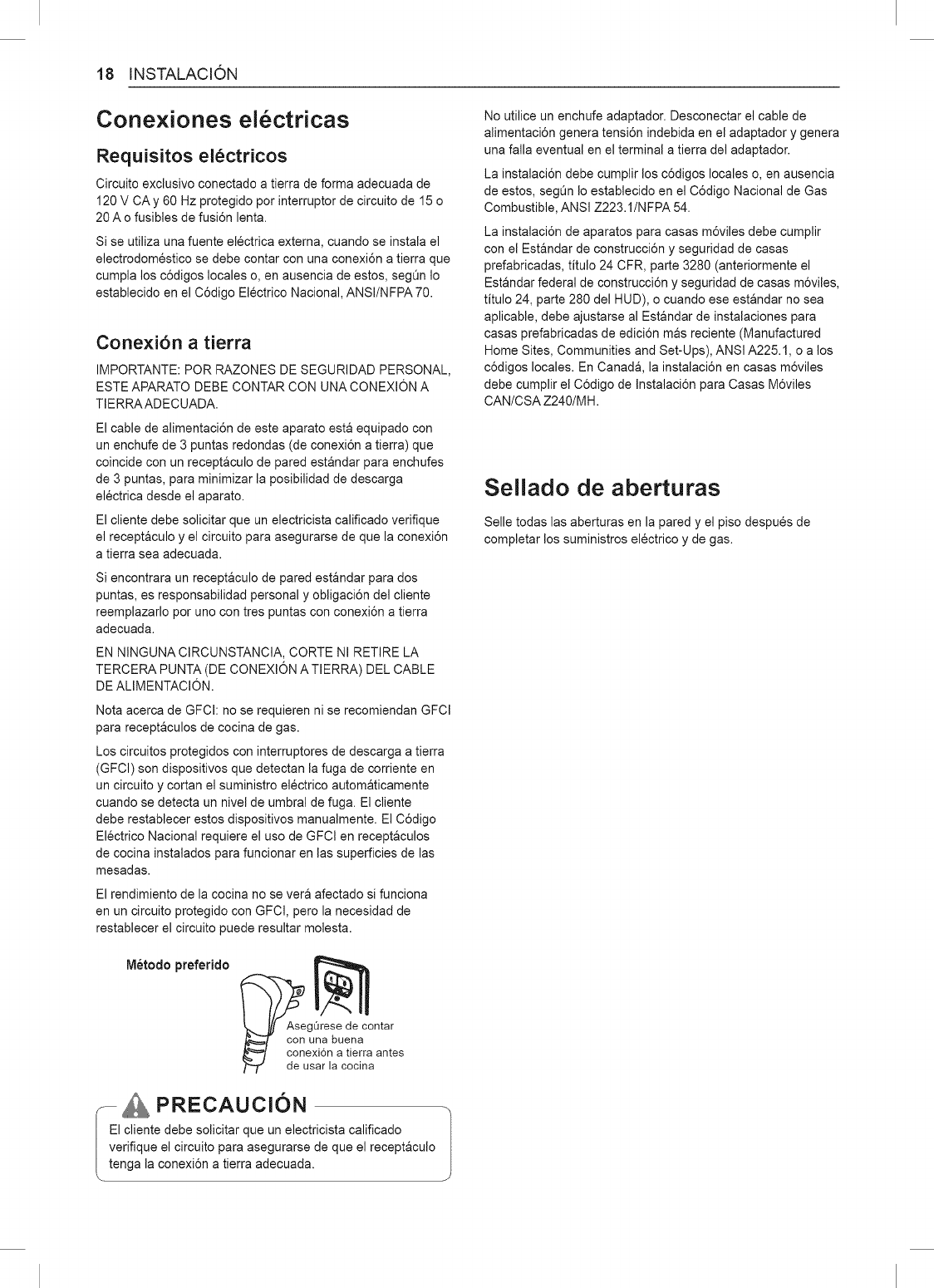

18 Electrical Connections

18 Sealing the Openings

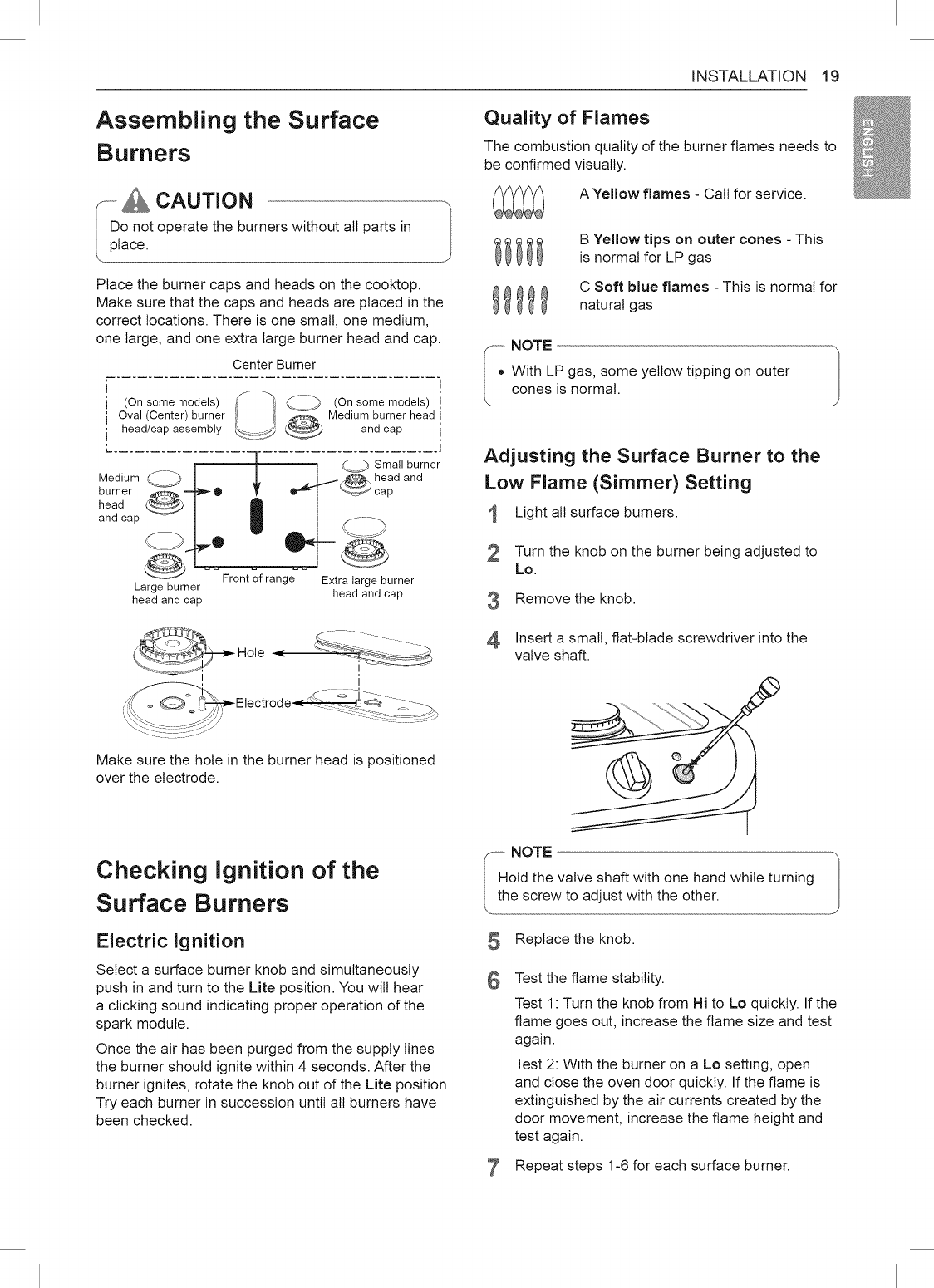

19 Assembling the Surface Burners

19 Checking Ignition of the Surface Burners

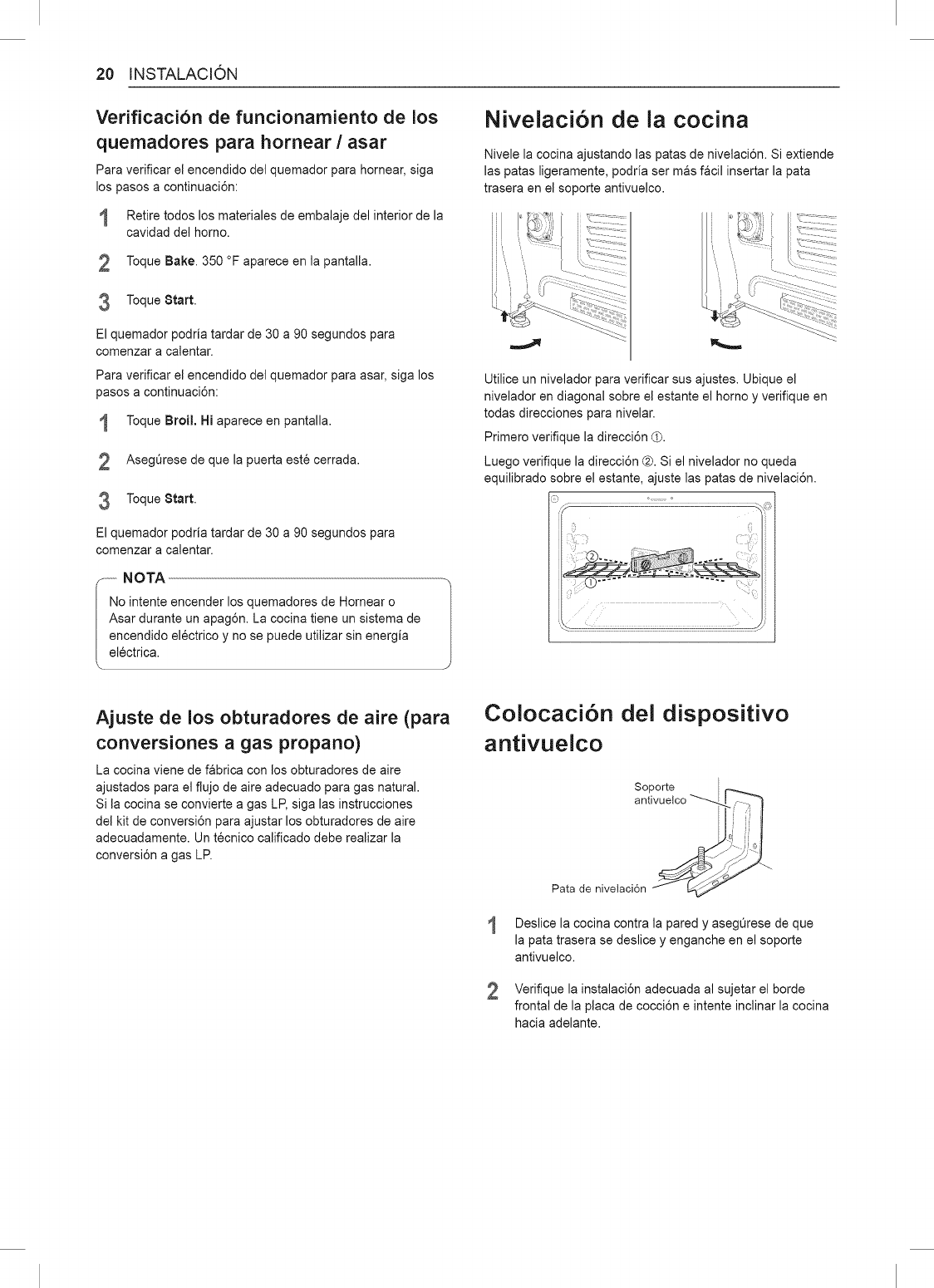

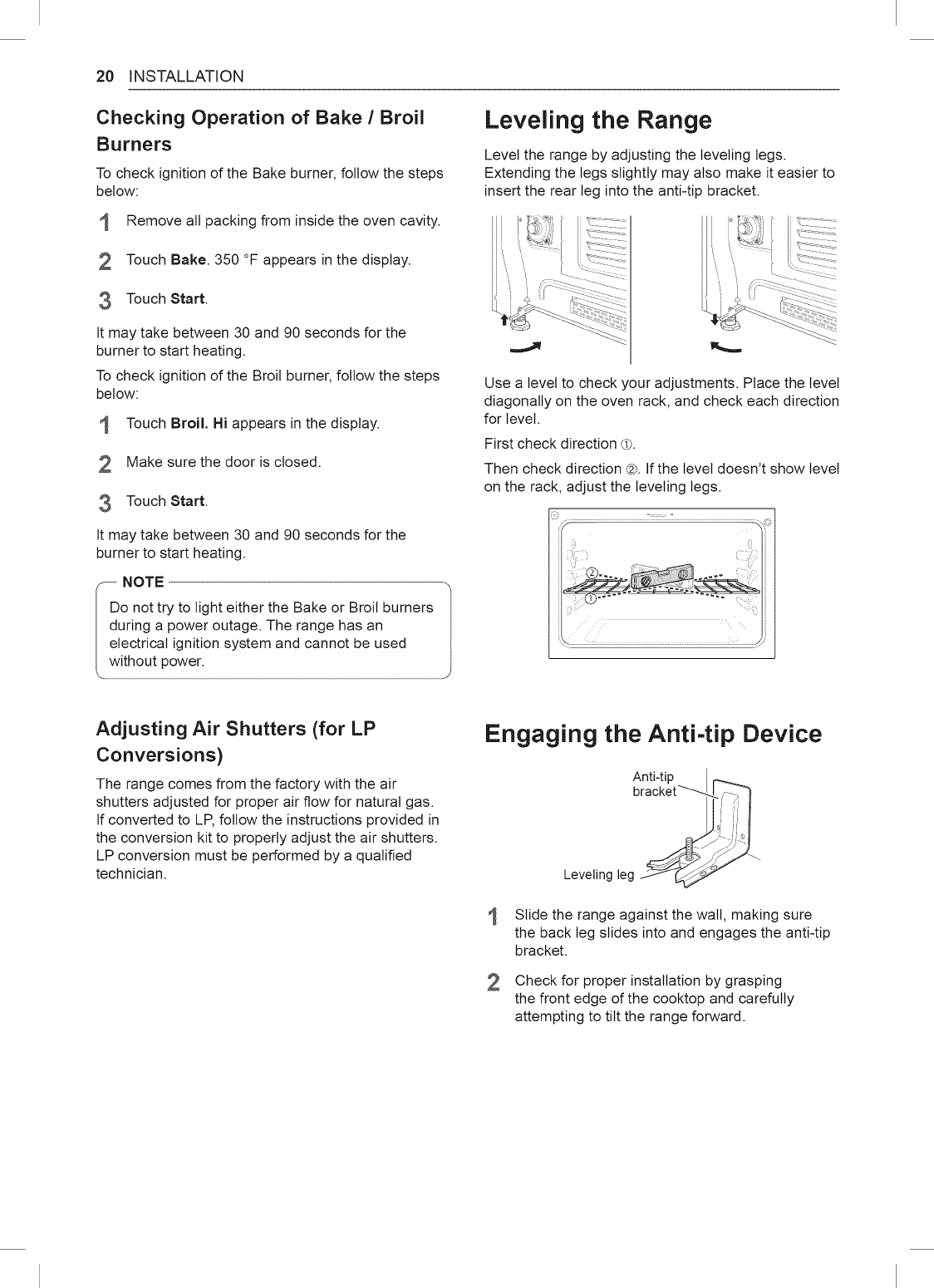

20 Leveling the Range

20 Engaging the Anti-tip Device

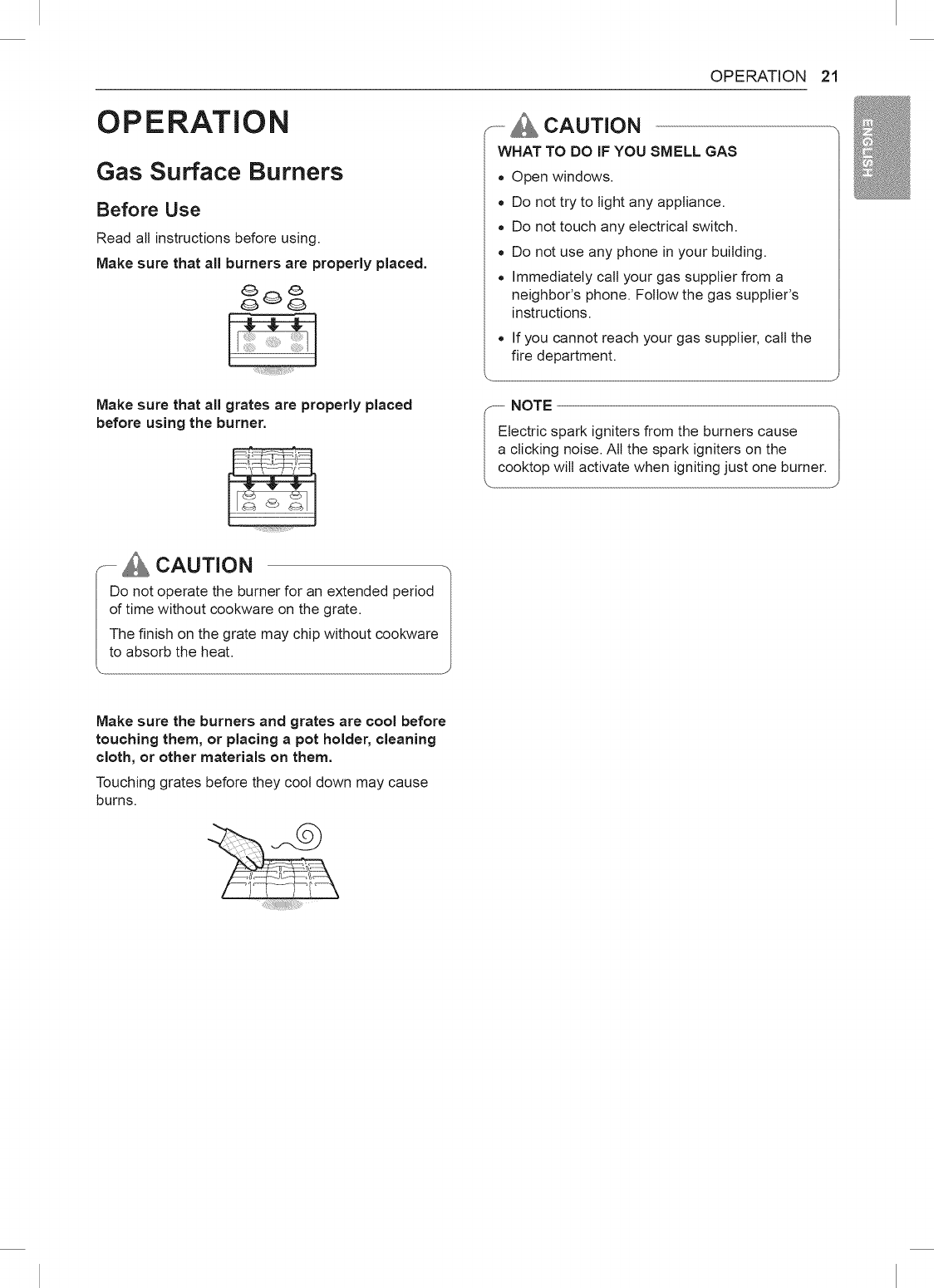

OPERATION

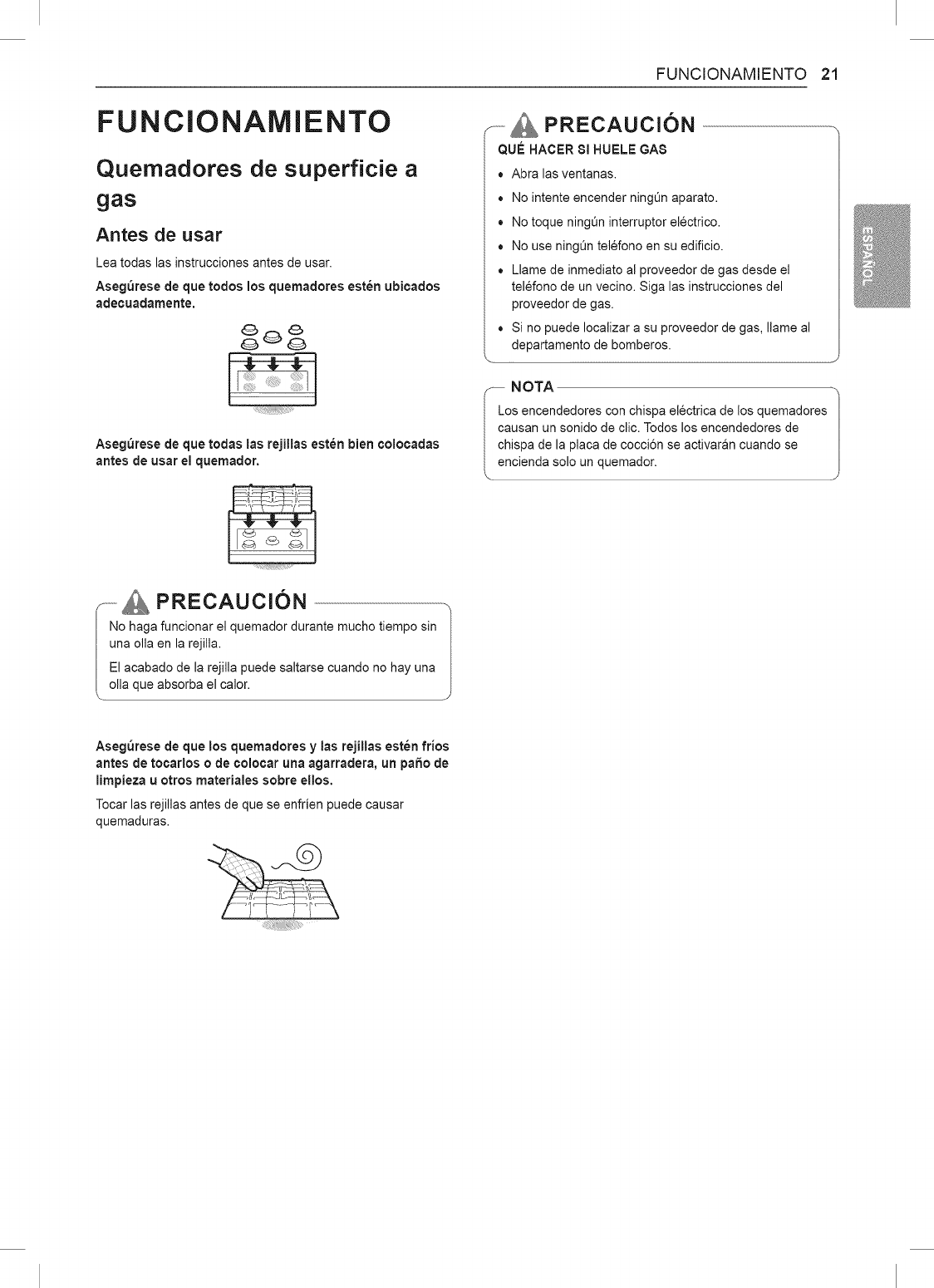

Gas Surface Burners

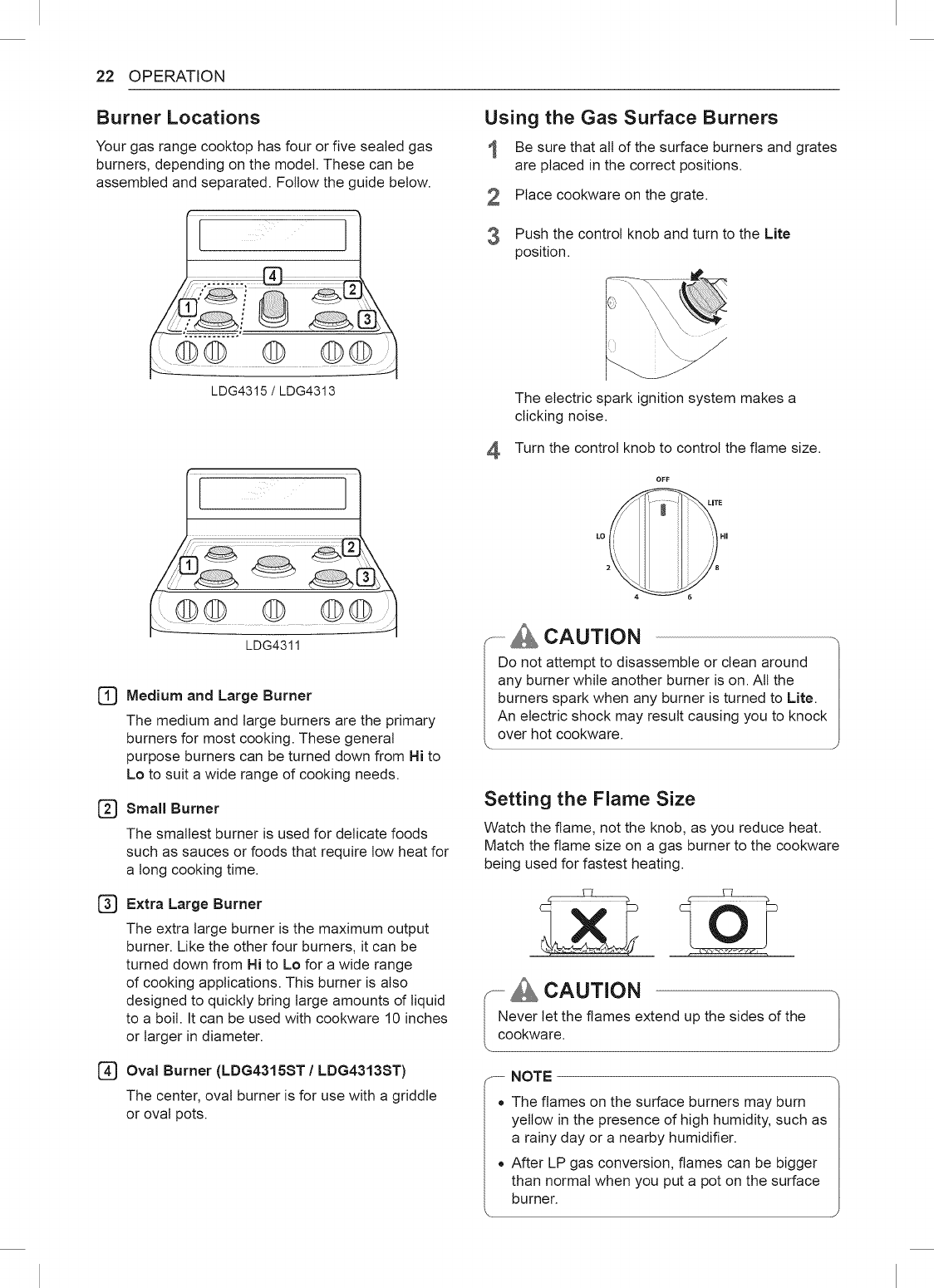

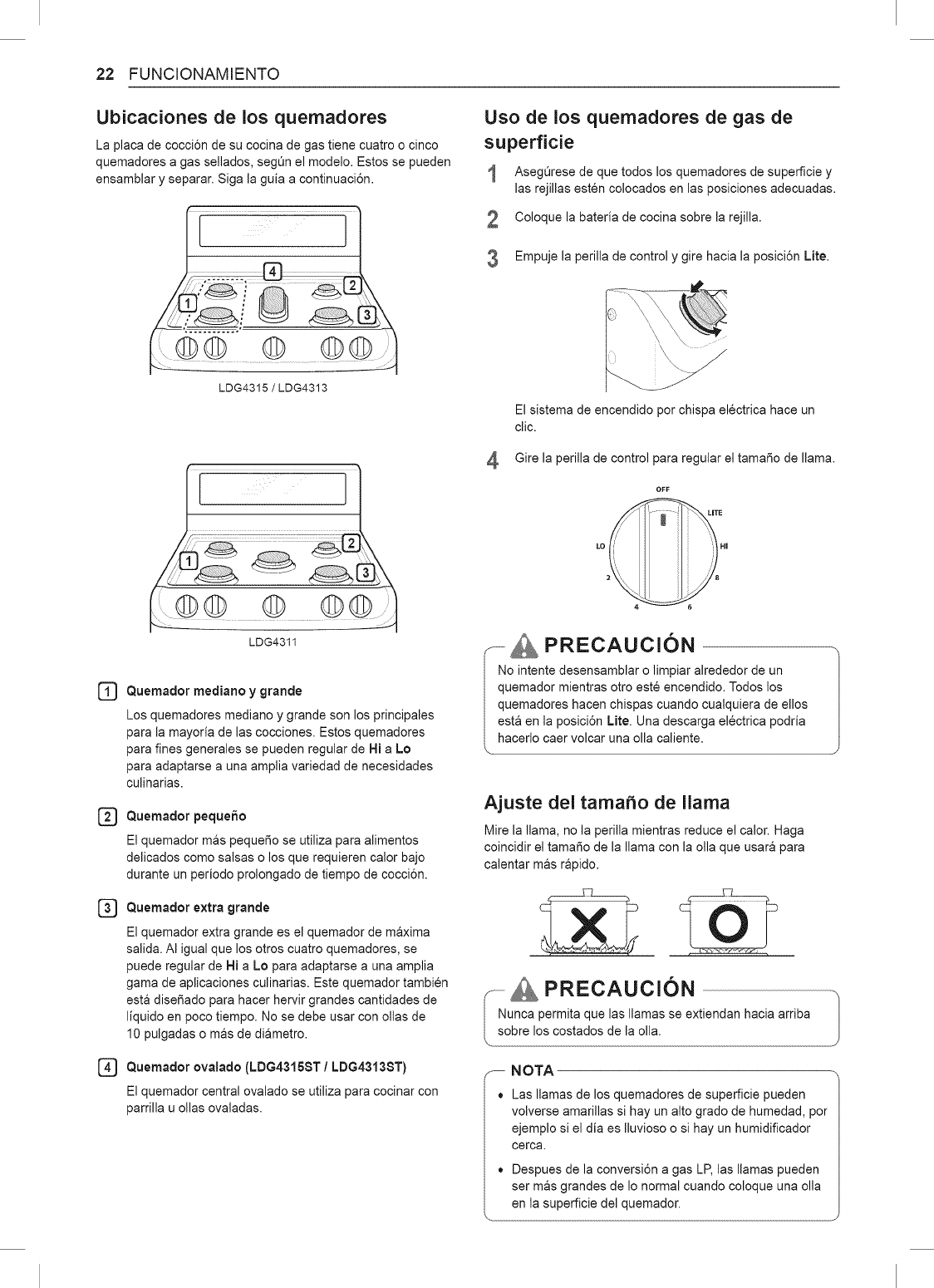

22 Burner Locations

22 Setting the Flame Size

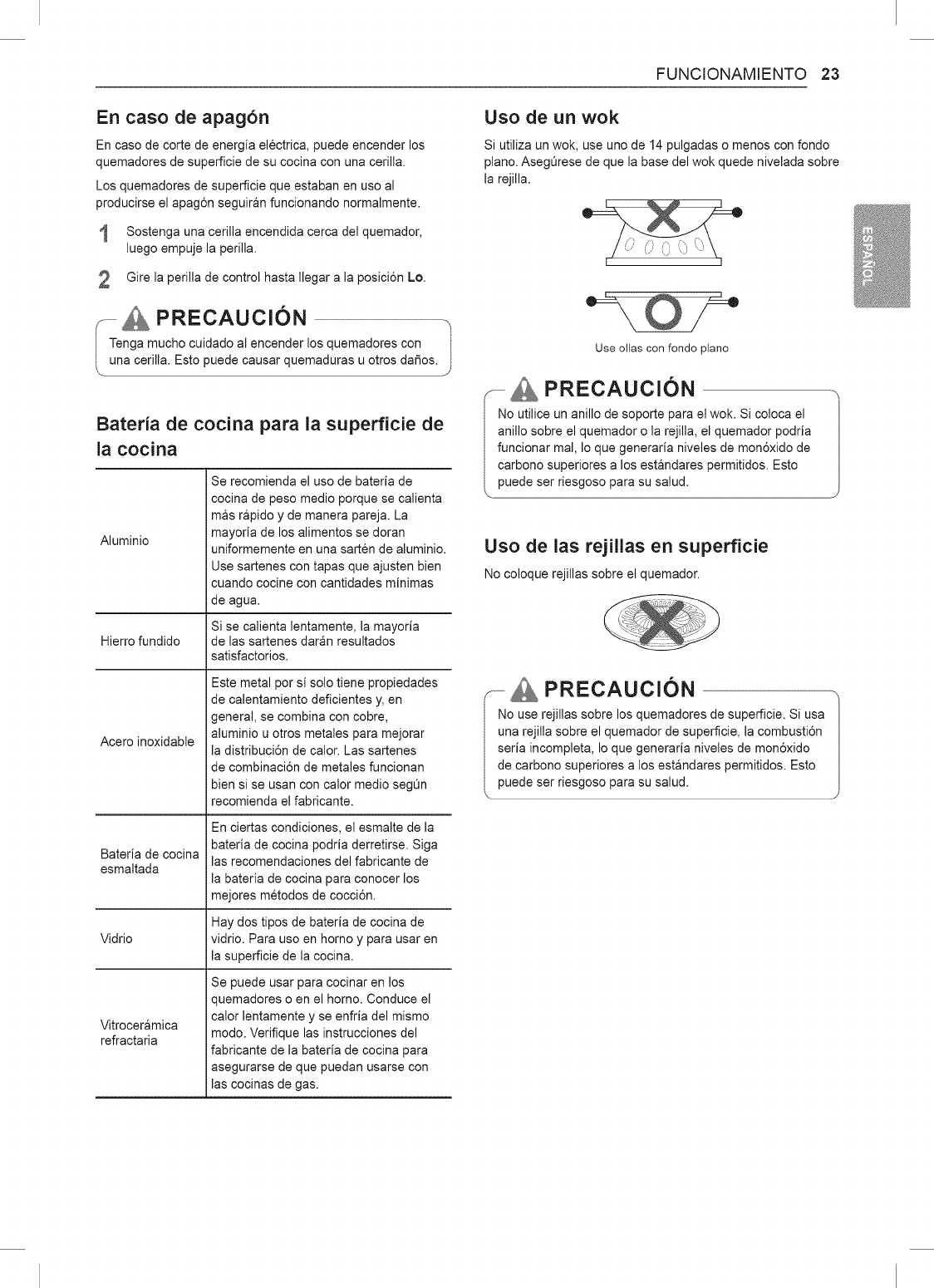

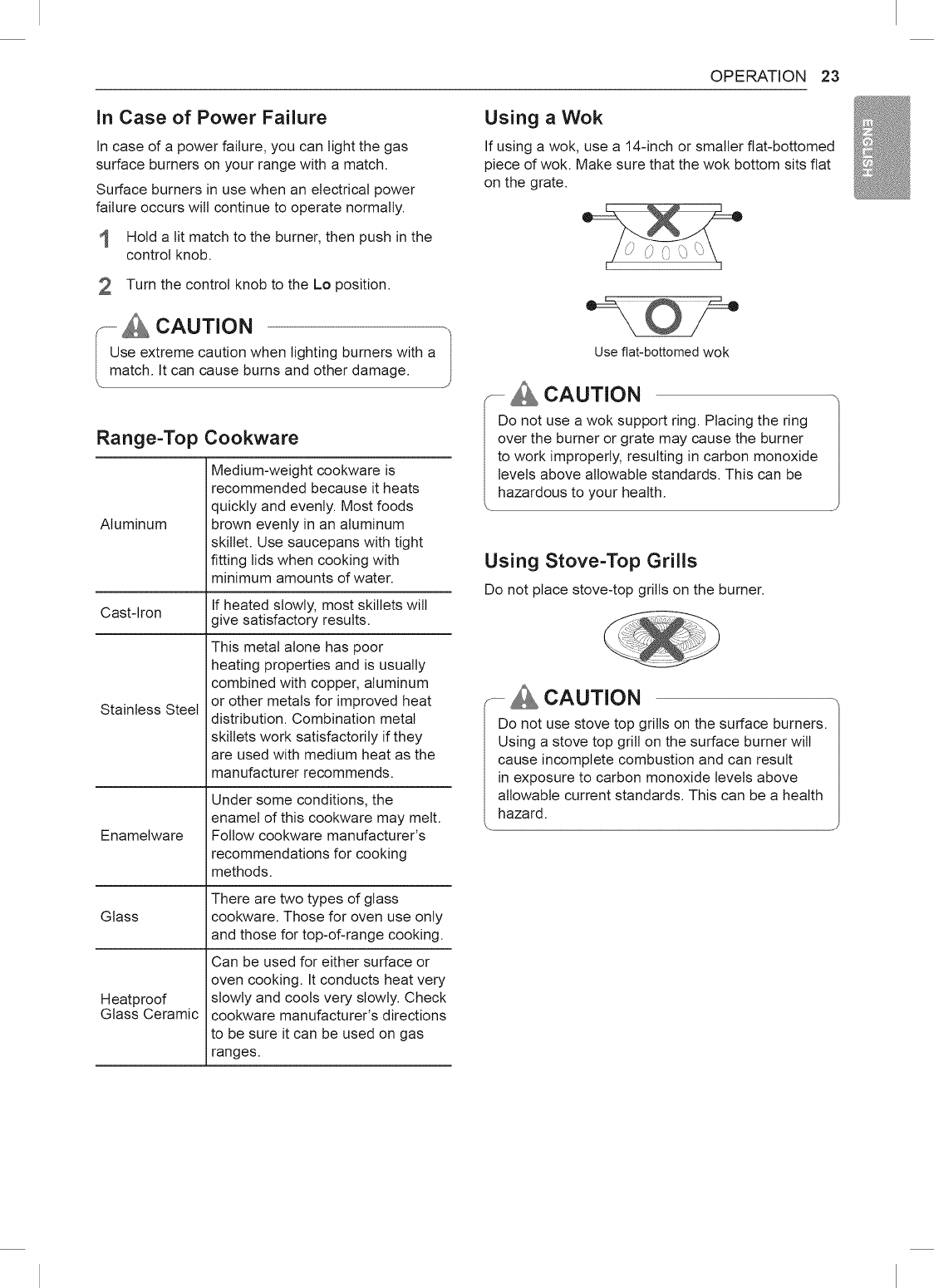

23 Using a Wok

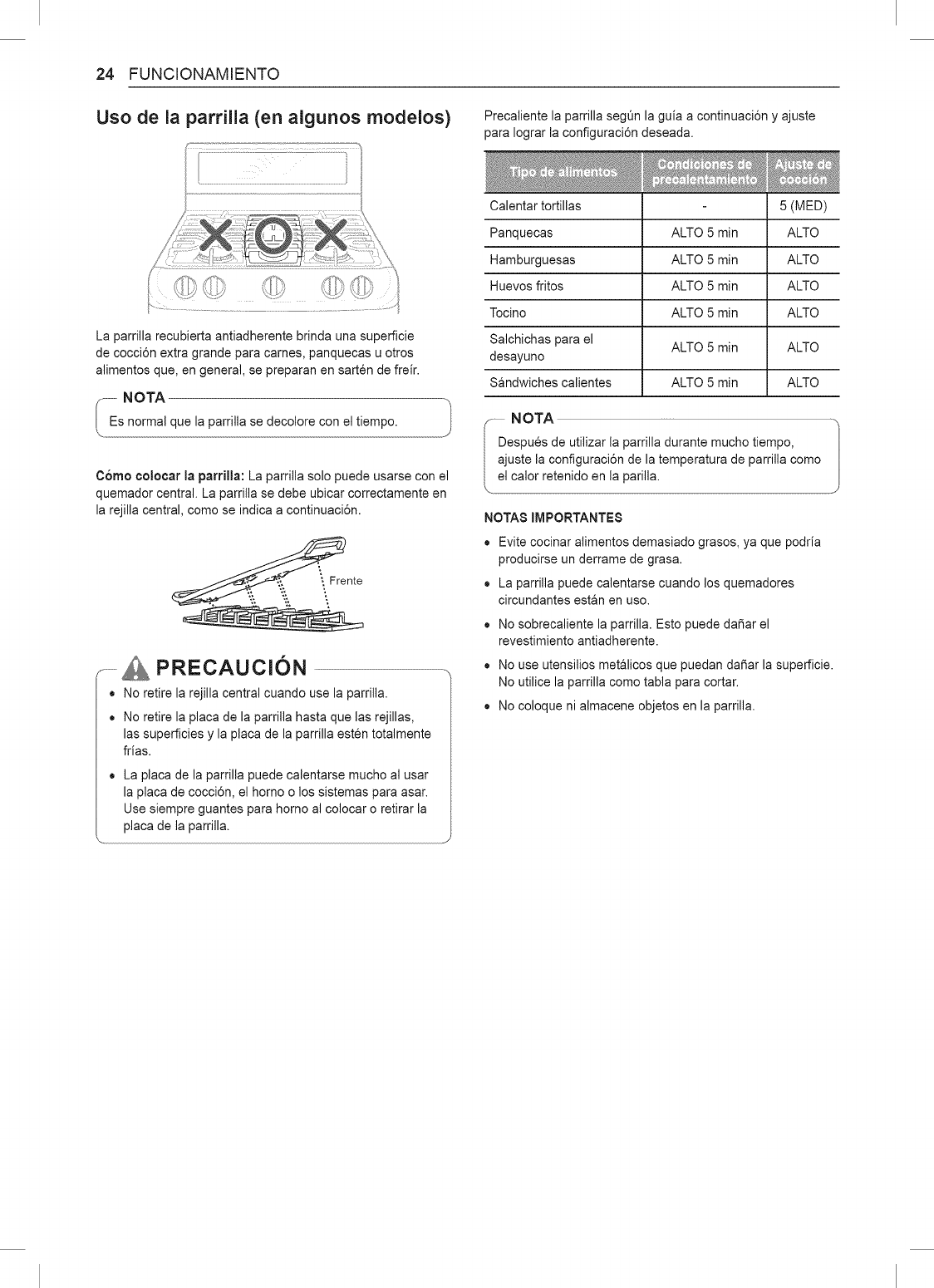

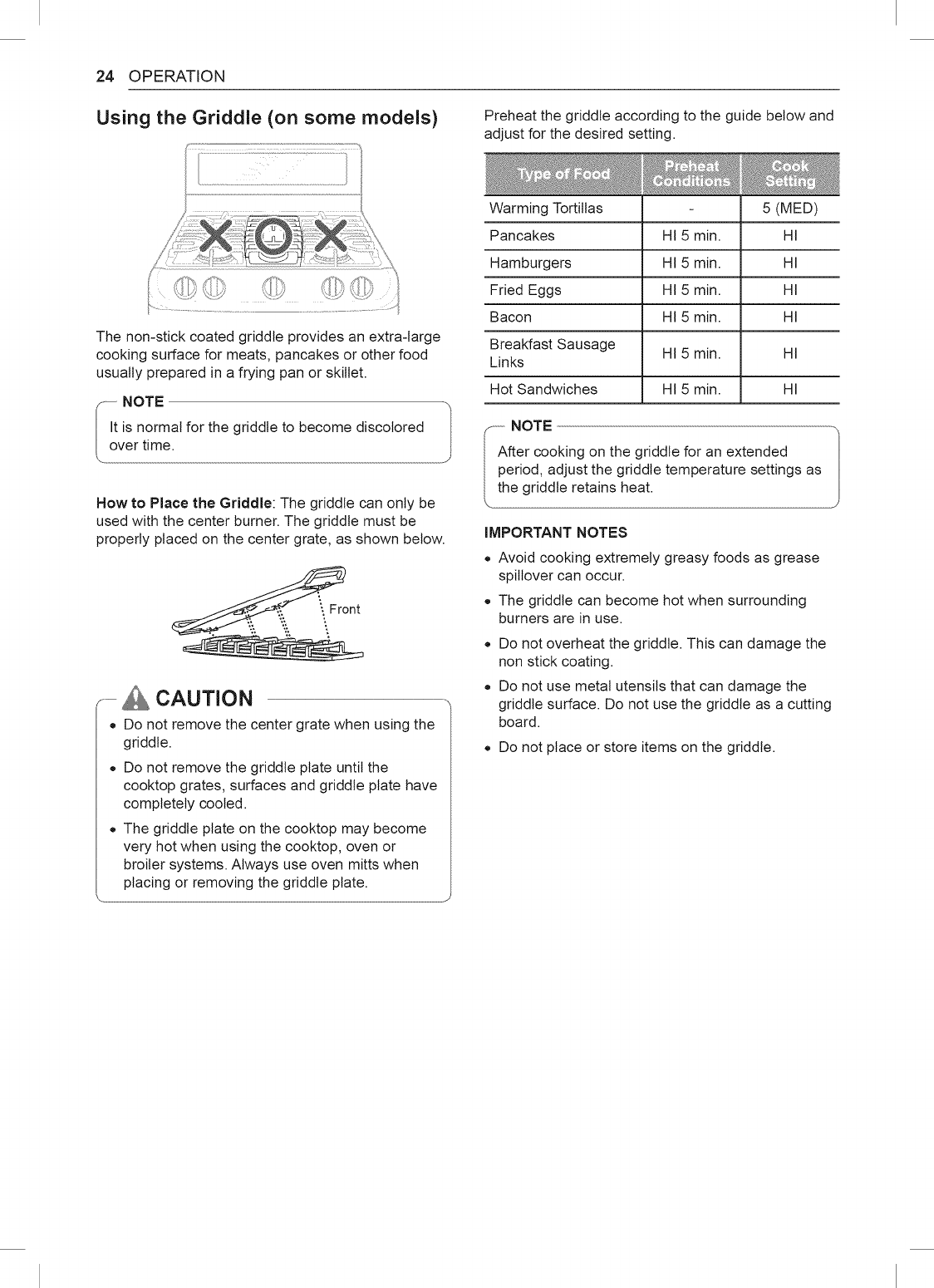

24 Using the Griddle

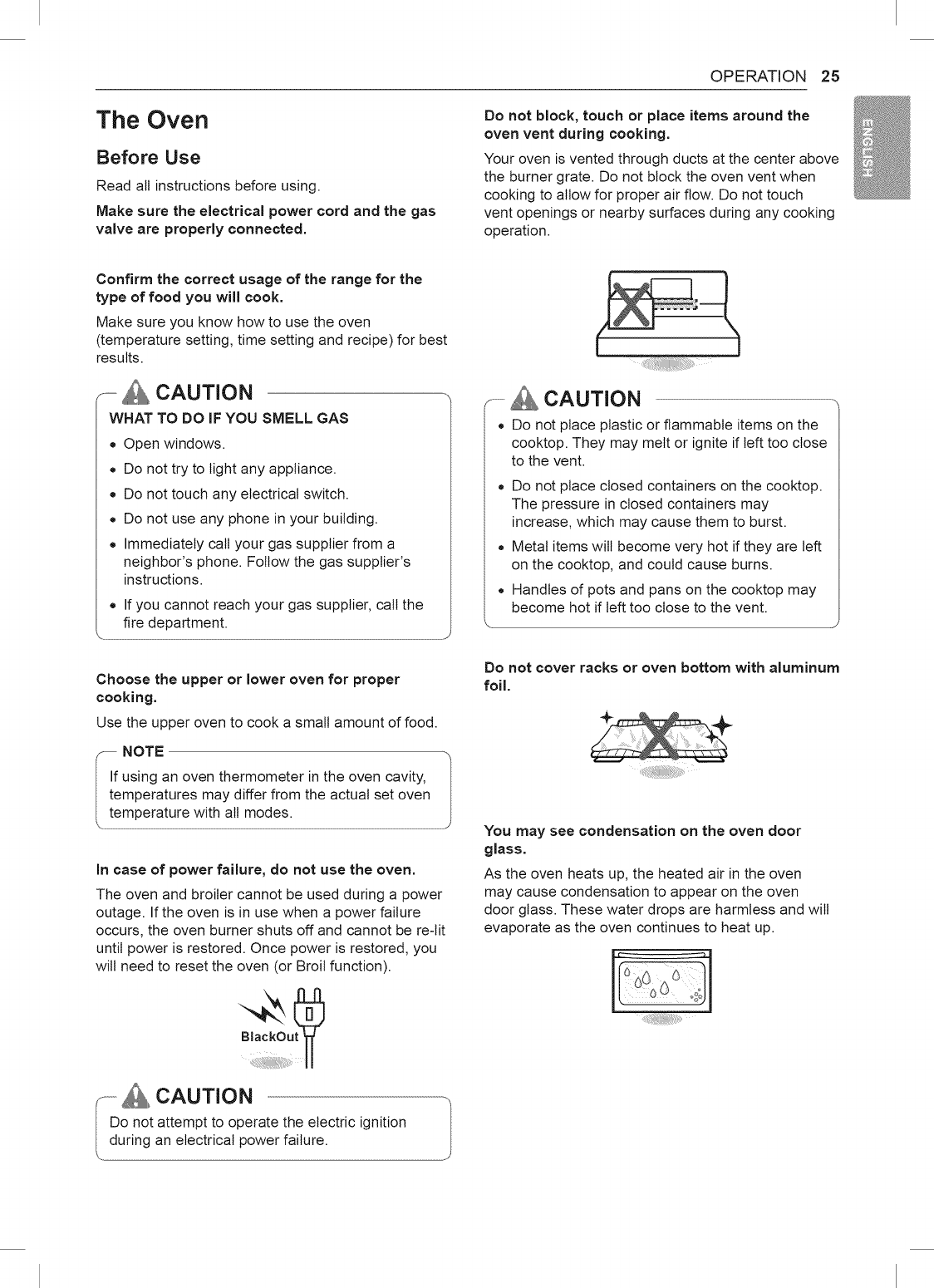

The Oven

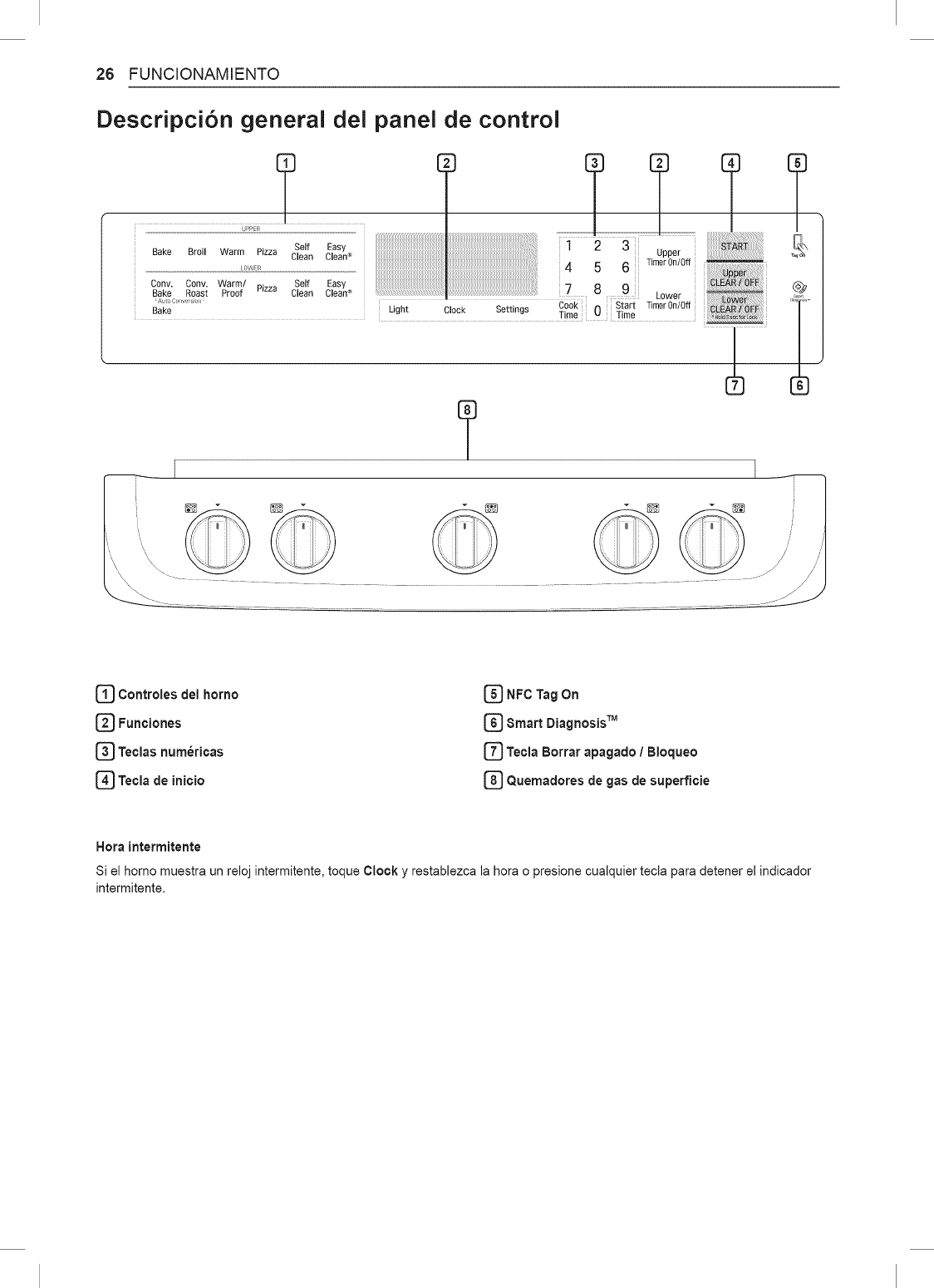

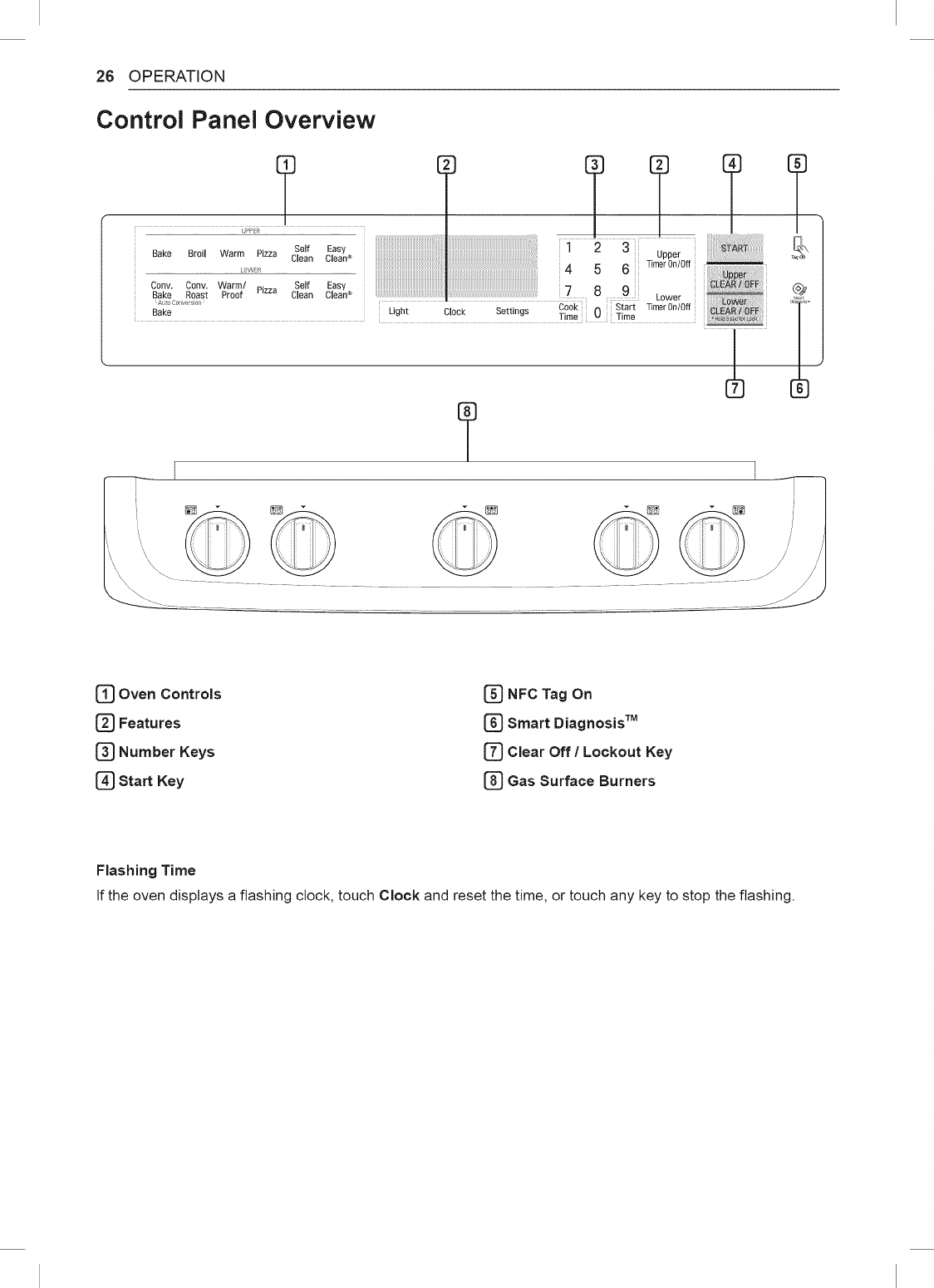

Control Panel Overview

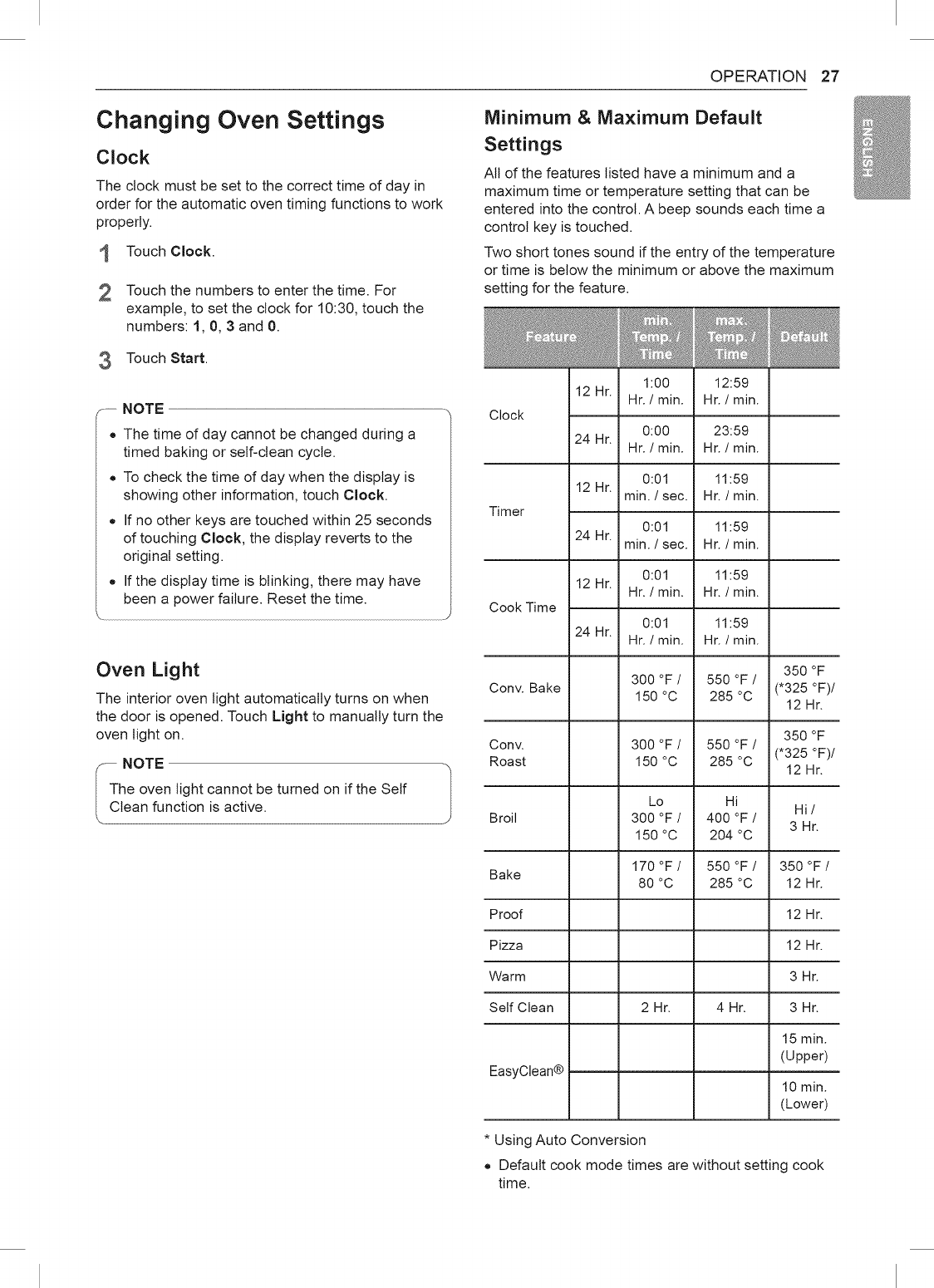

Changing Oven Settings

27 Clock

27 Oven Light

27 Minimum & Maximum Default Settings

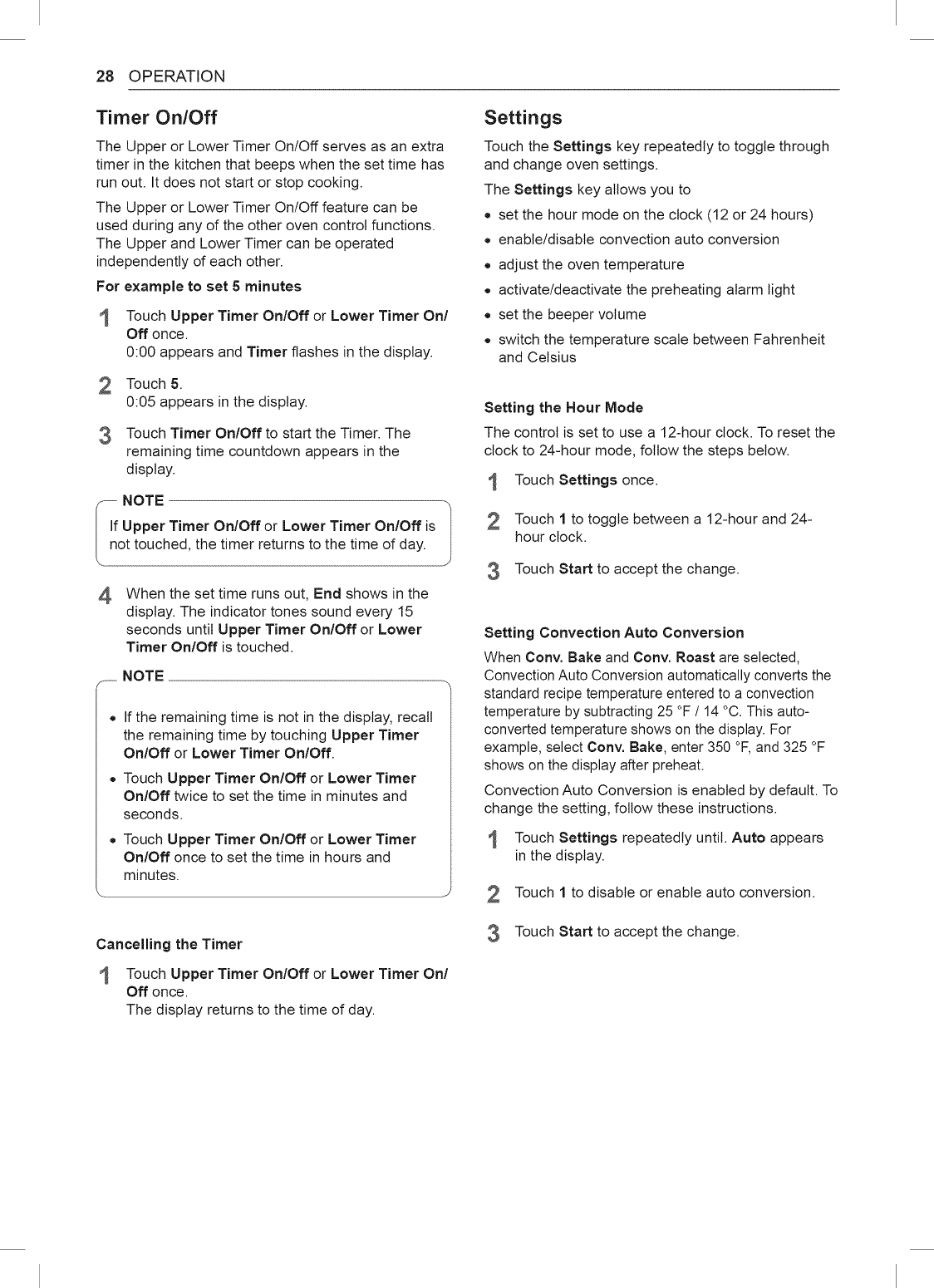

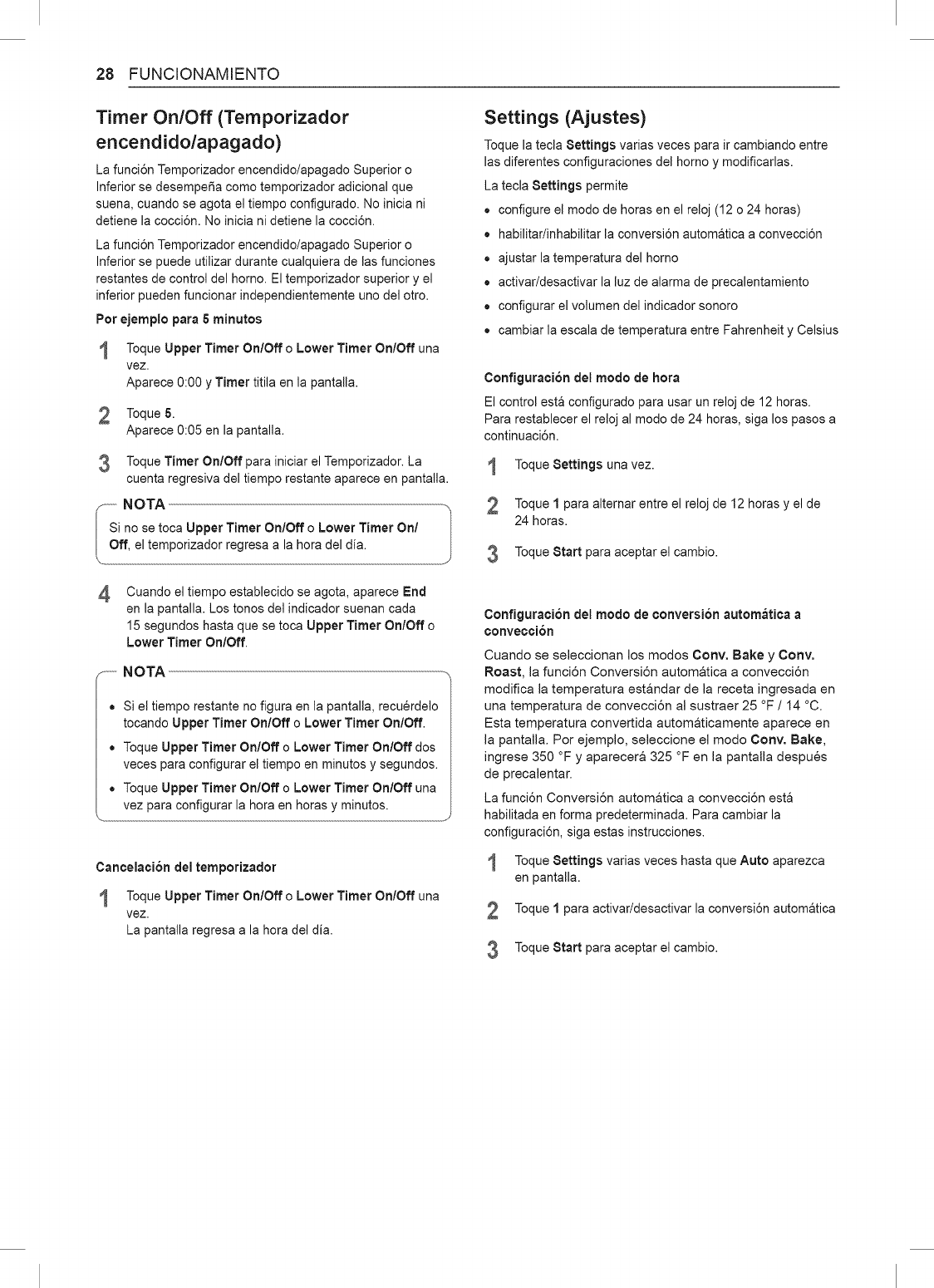

28 Timer On/Off

28 Settings

Setting the Hour Mode

Setting Convection Auto Conversion

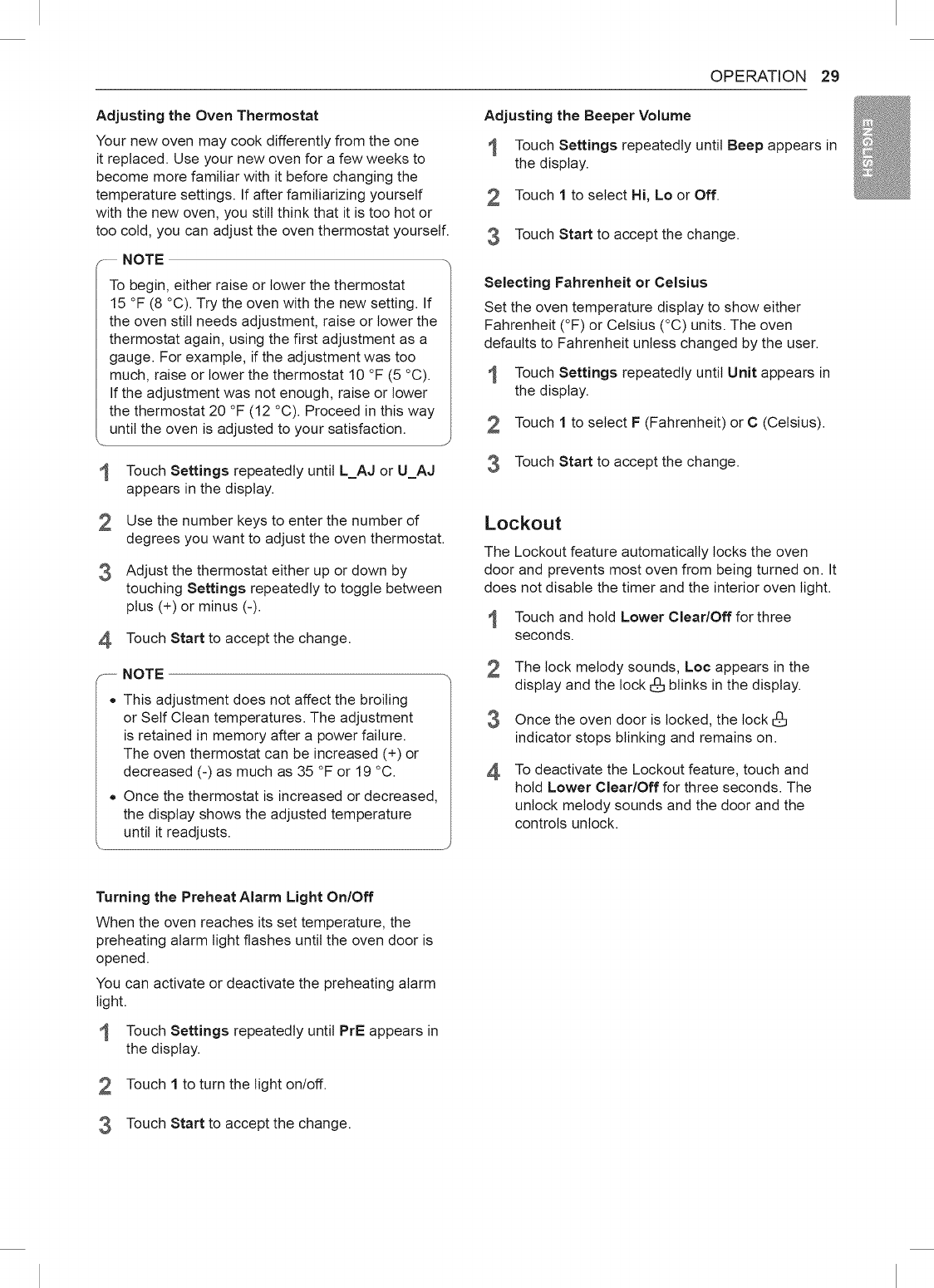

Adjusting the Oven Thermostat

Turning the Preheat Alarm Light On/Off

Adjusting the Beeper Volume

Selecting Fahrenheit or Celsius

29 Lockout

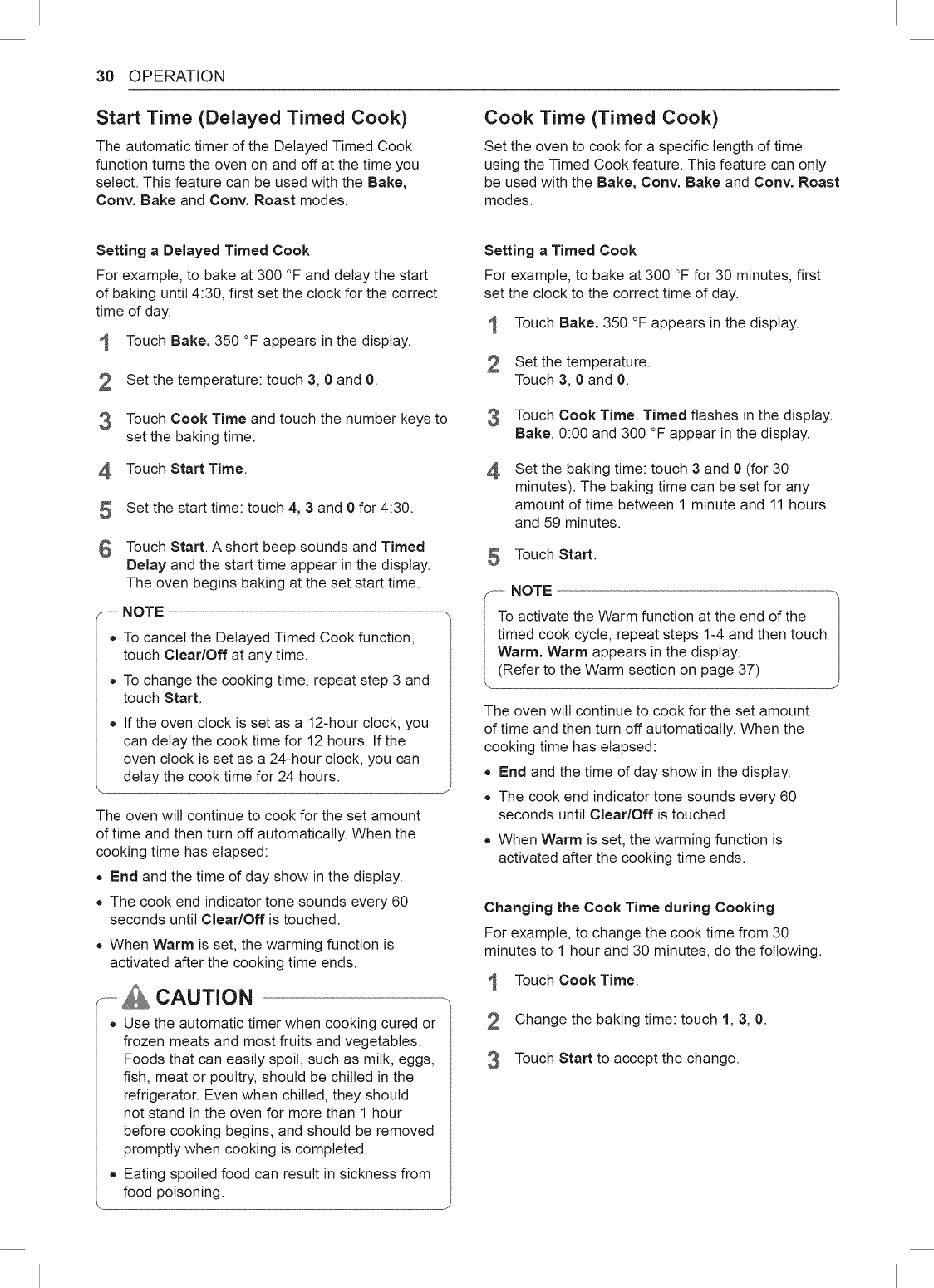

30 Start Time (Delayed Timed Cook)

30 Cook Time (Timed Cook)

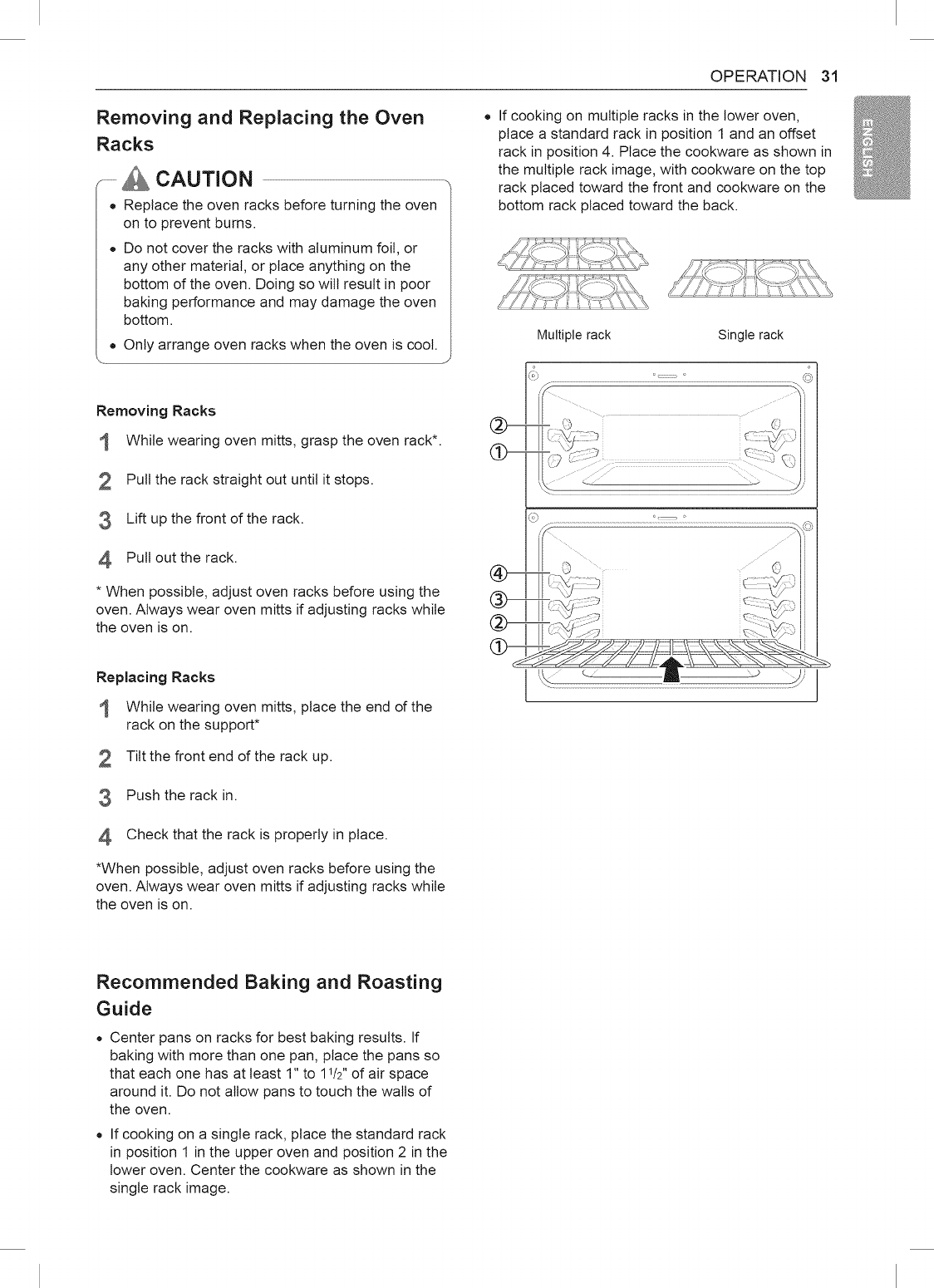

31 Removing and Replacing the Oven Racks

31 Recommended Baking and Roasting Guide

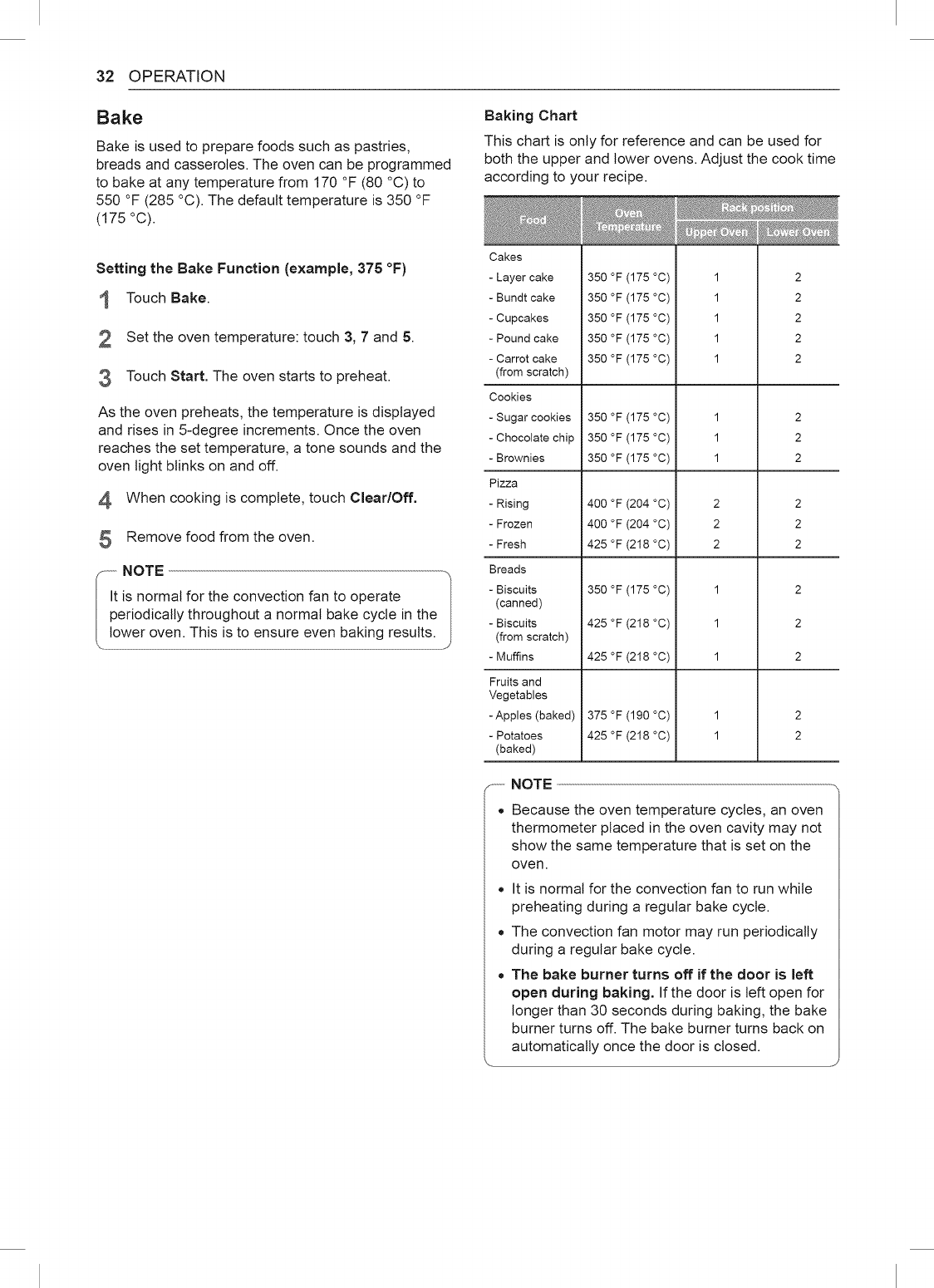

32 Bake

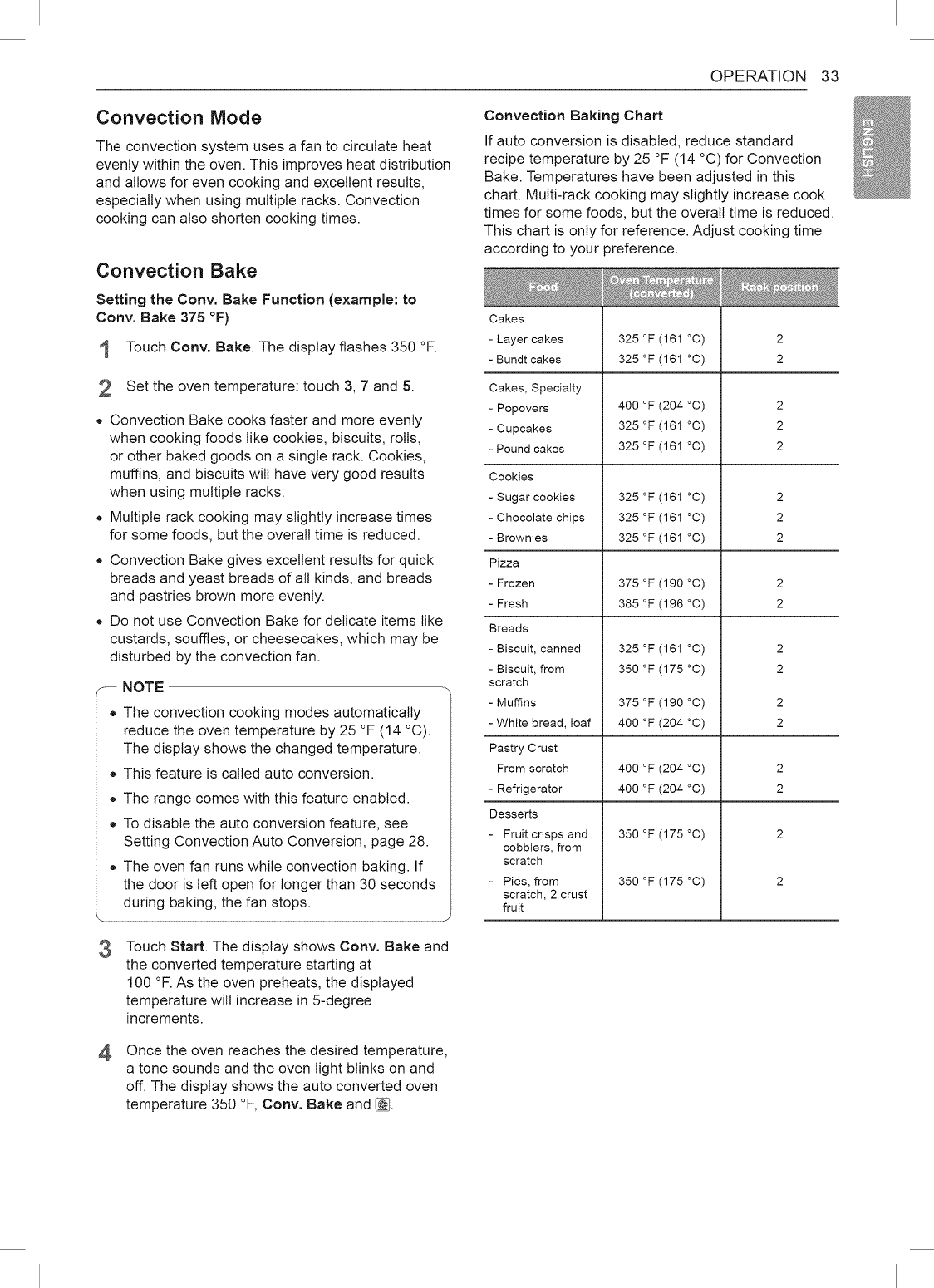

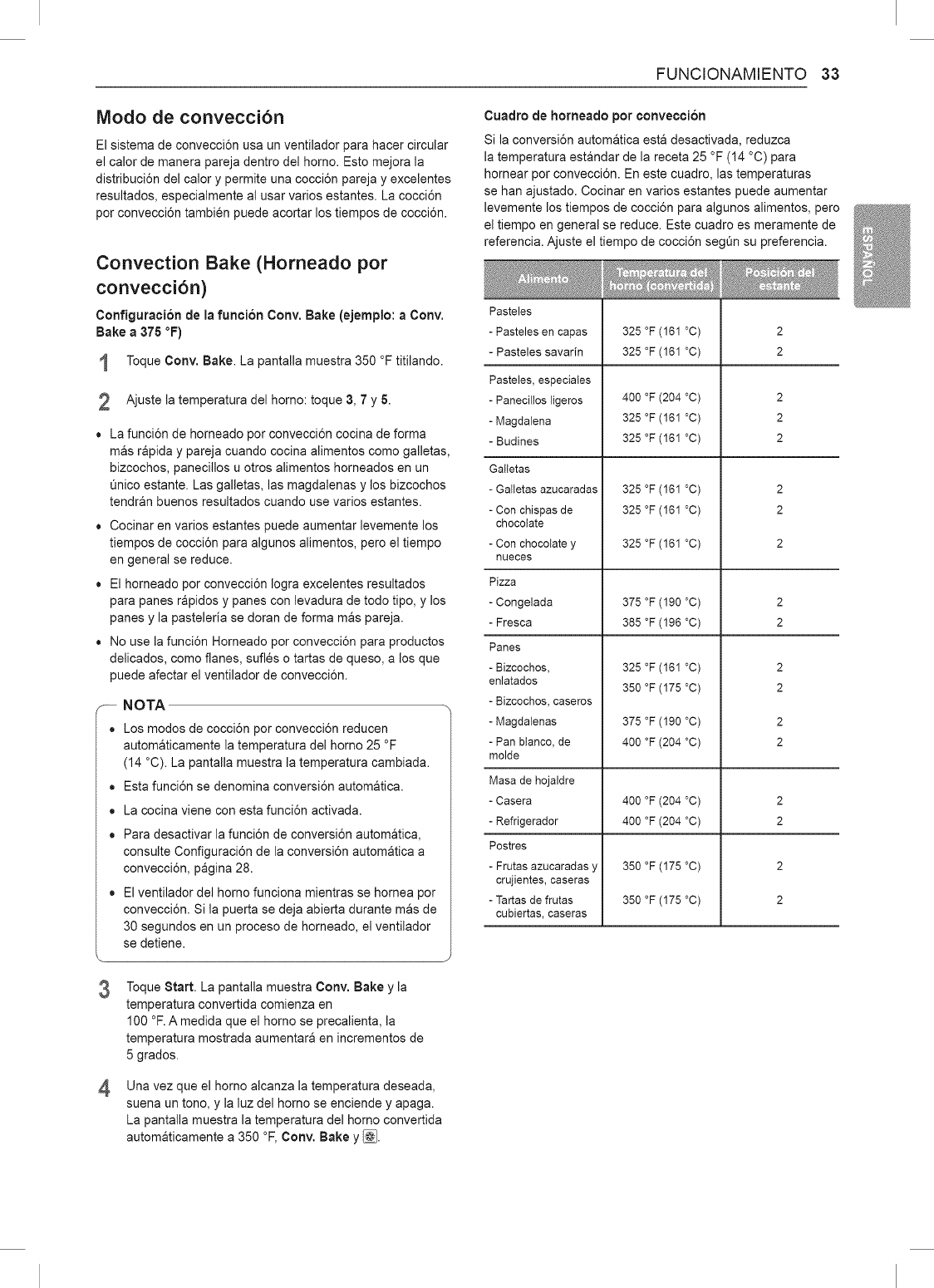

33 Convection Bake

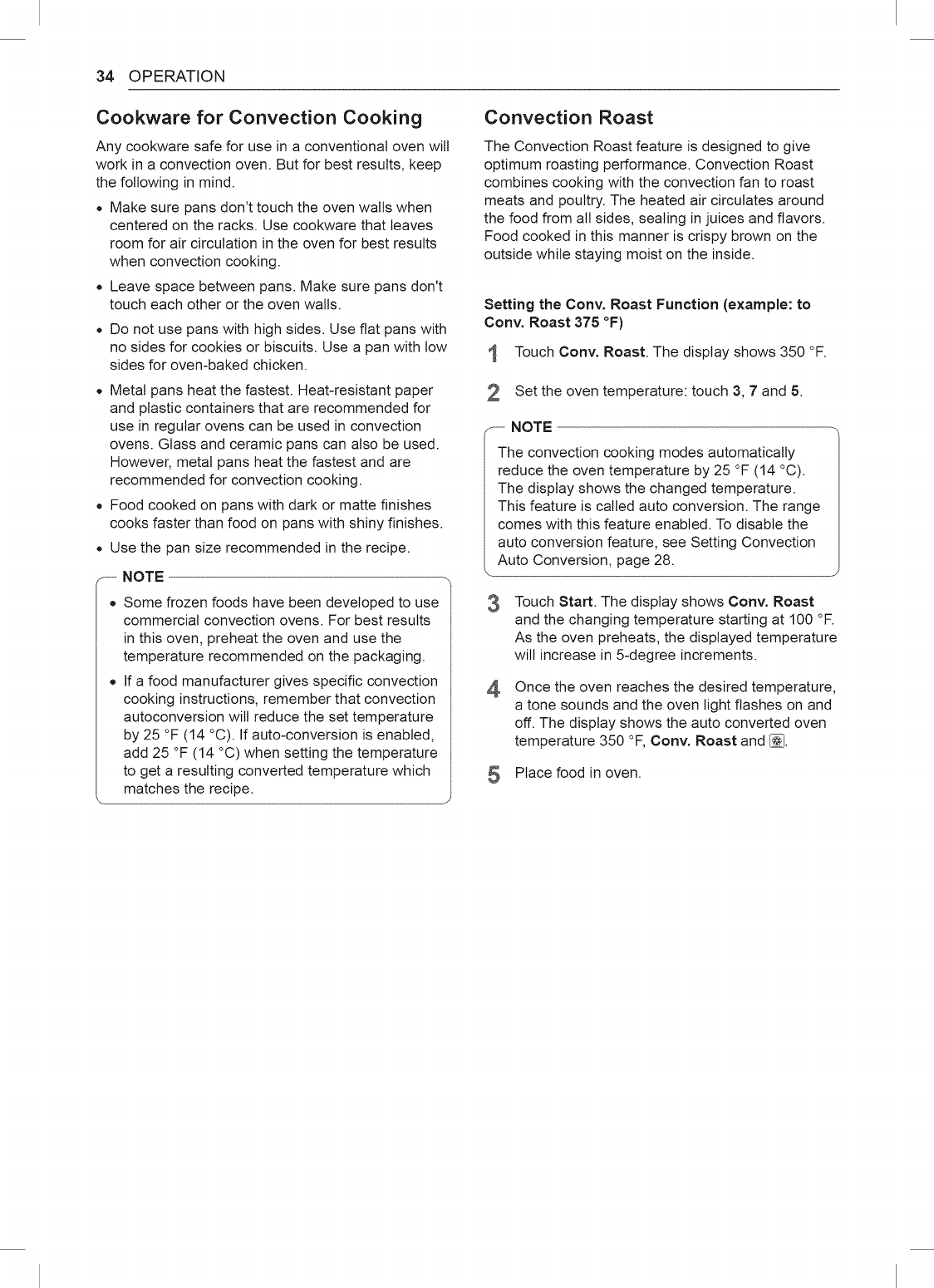

34 Cookware for Convection Cooking

34 Convection Roast

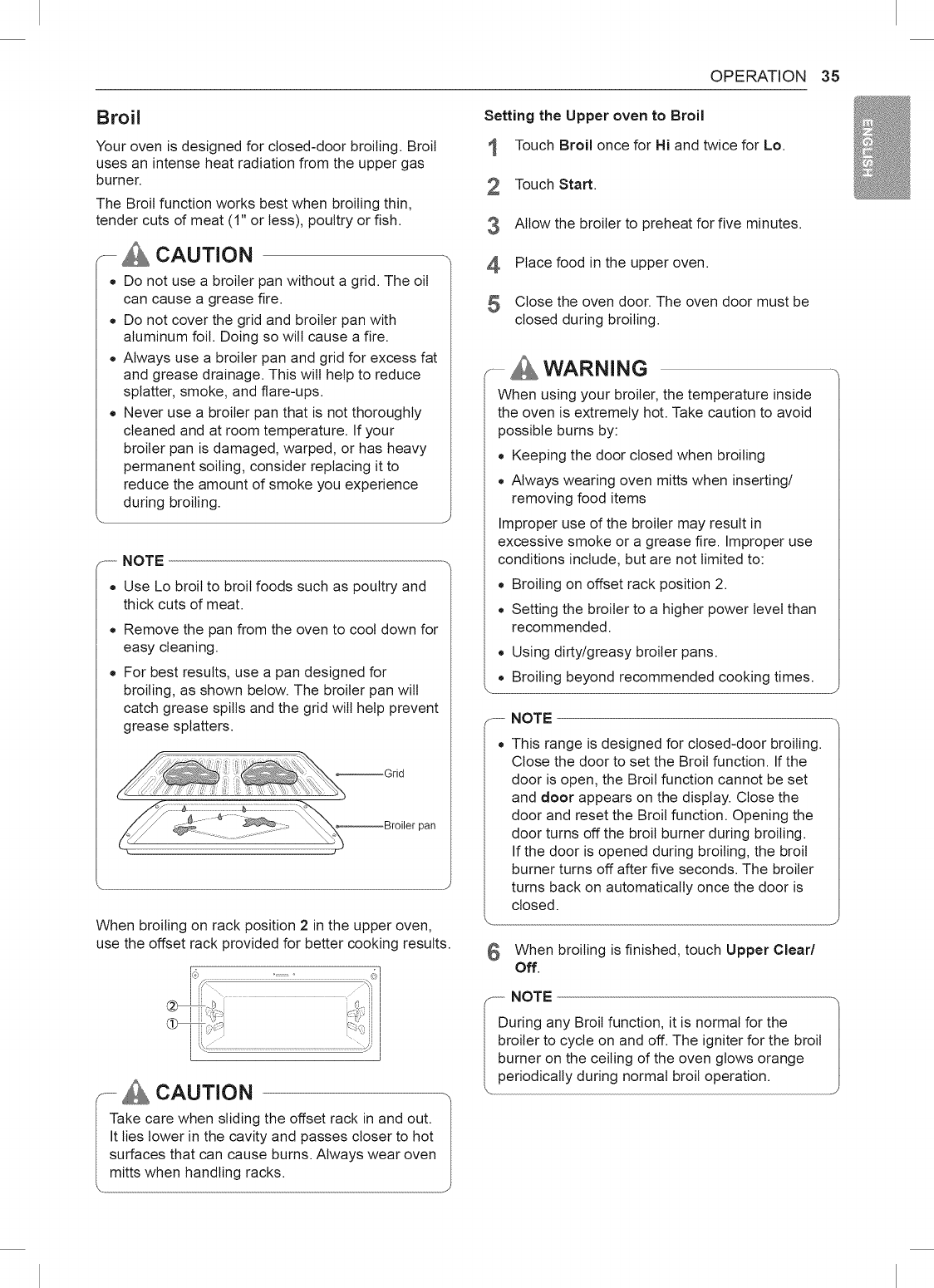

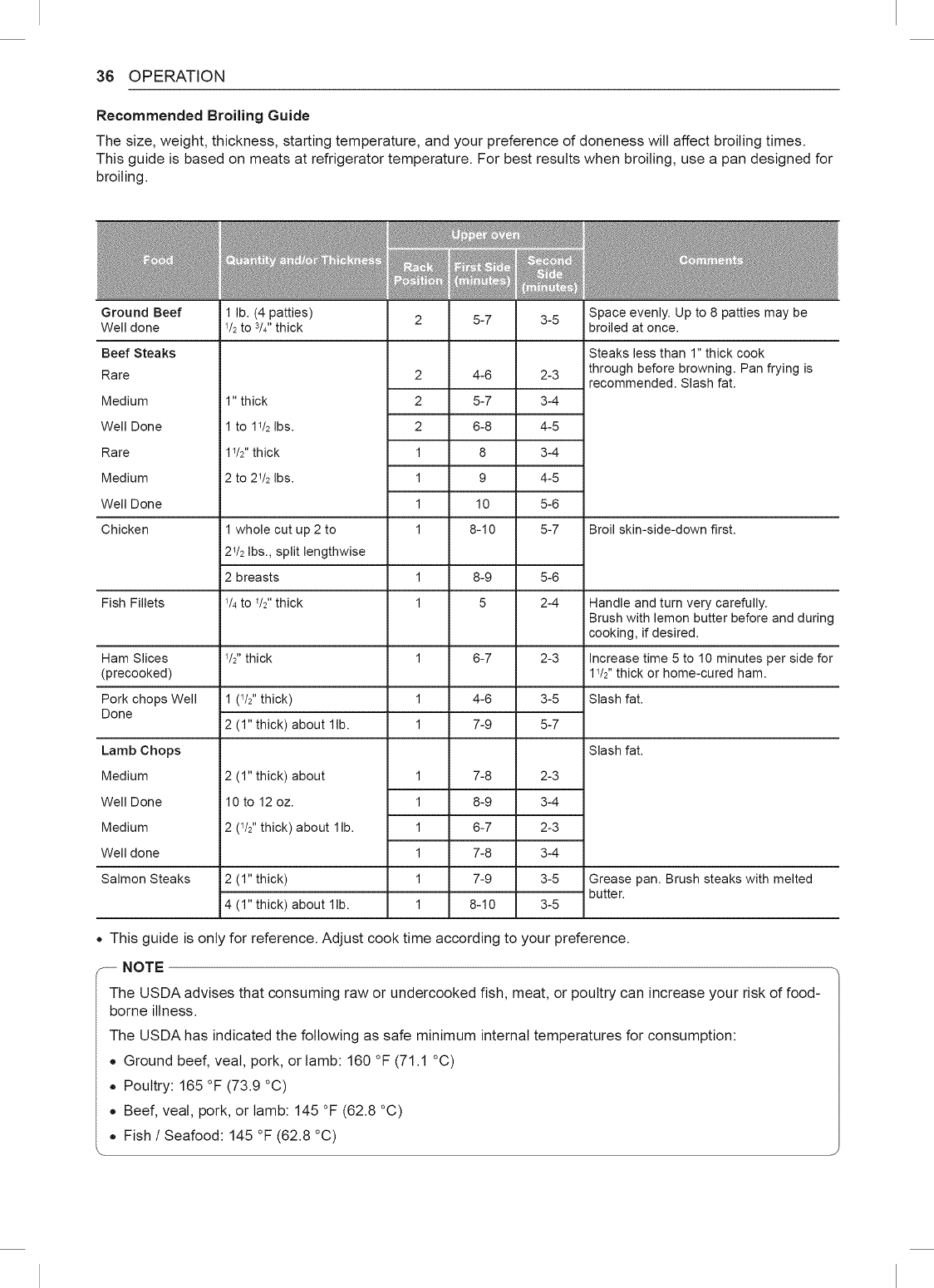

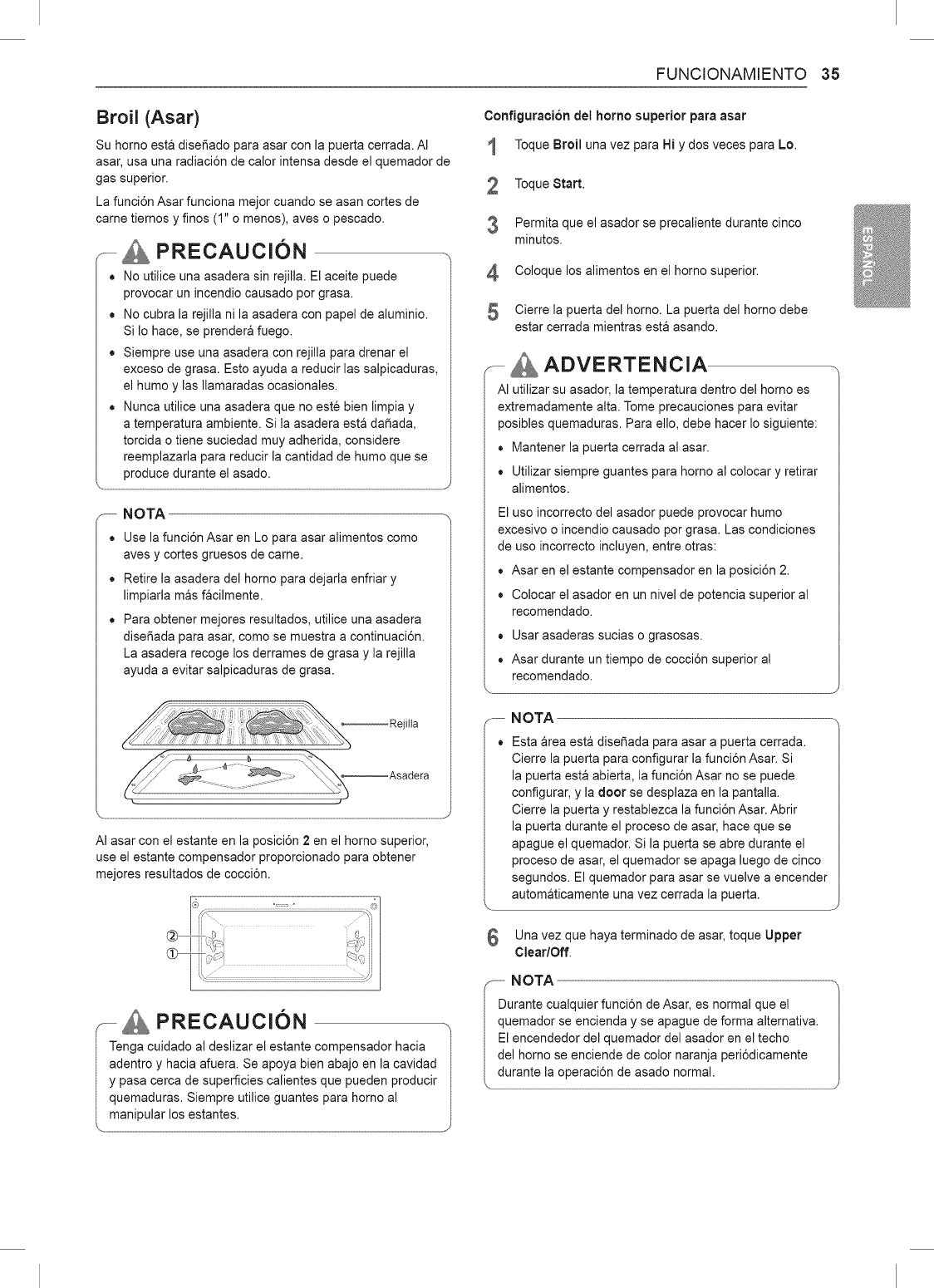

35 Broil

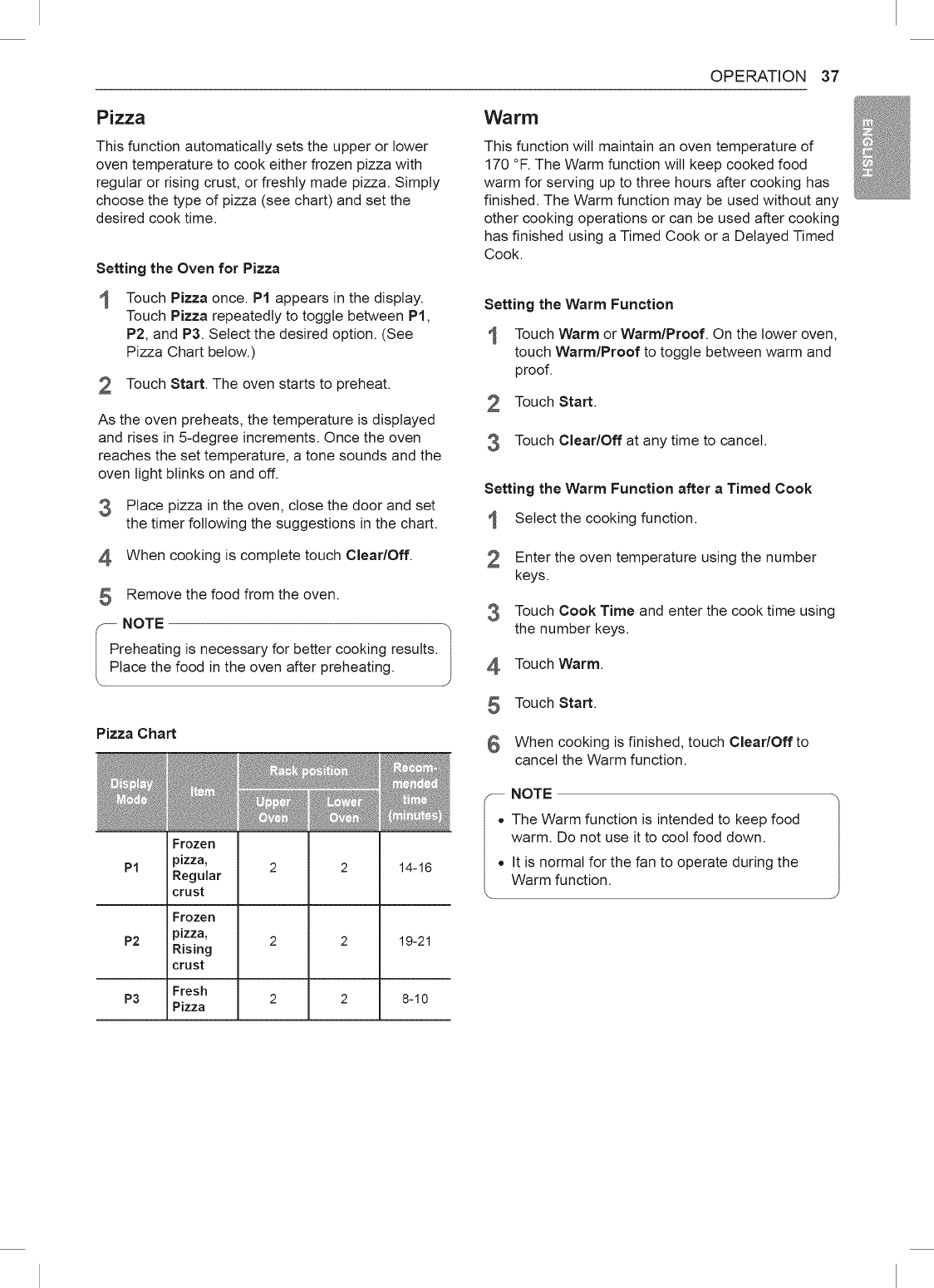

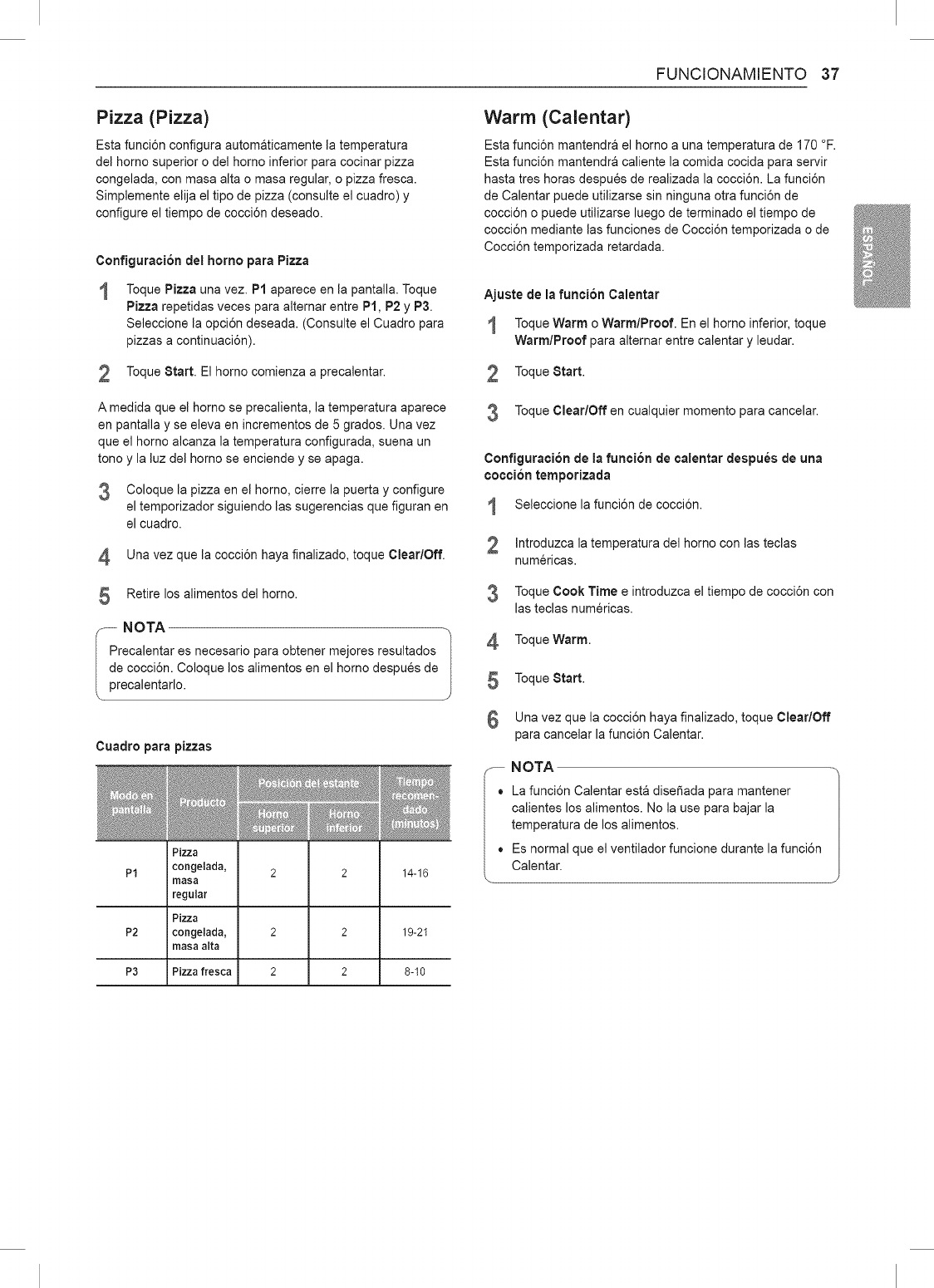

37 Pizza

37 Warm

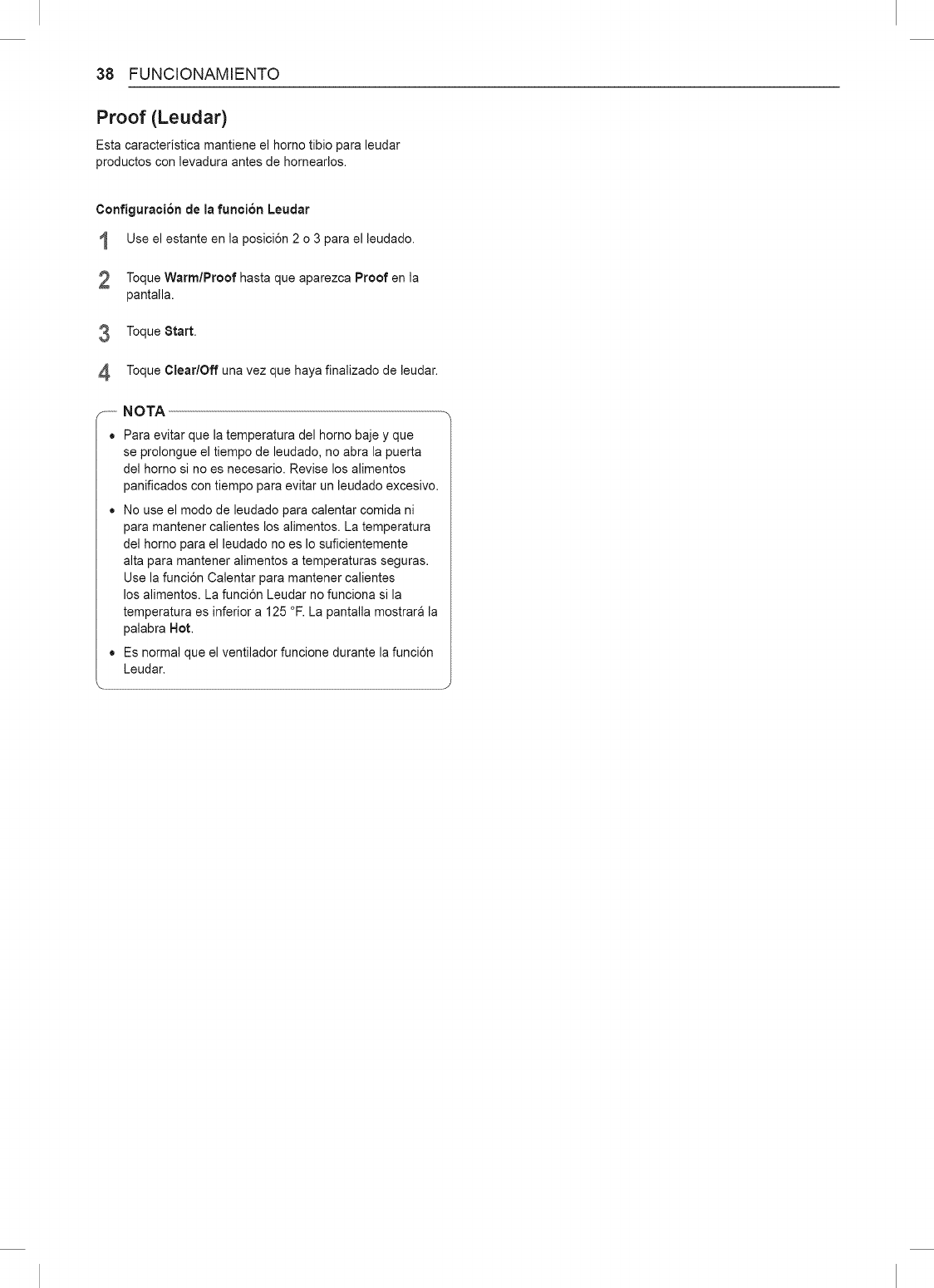

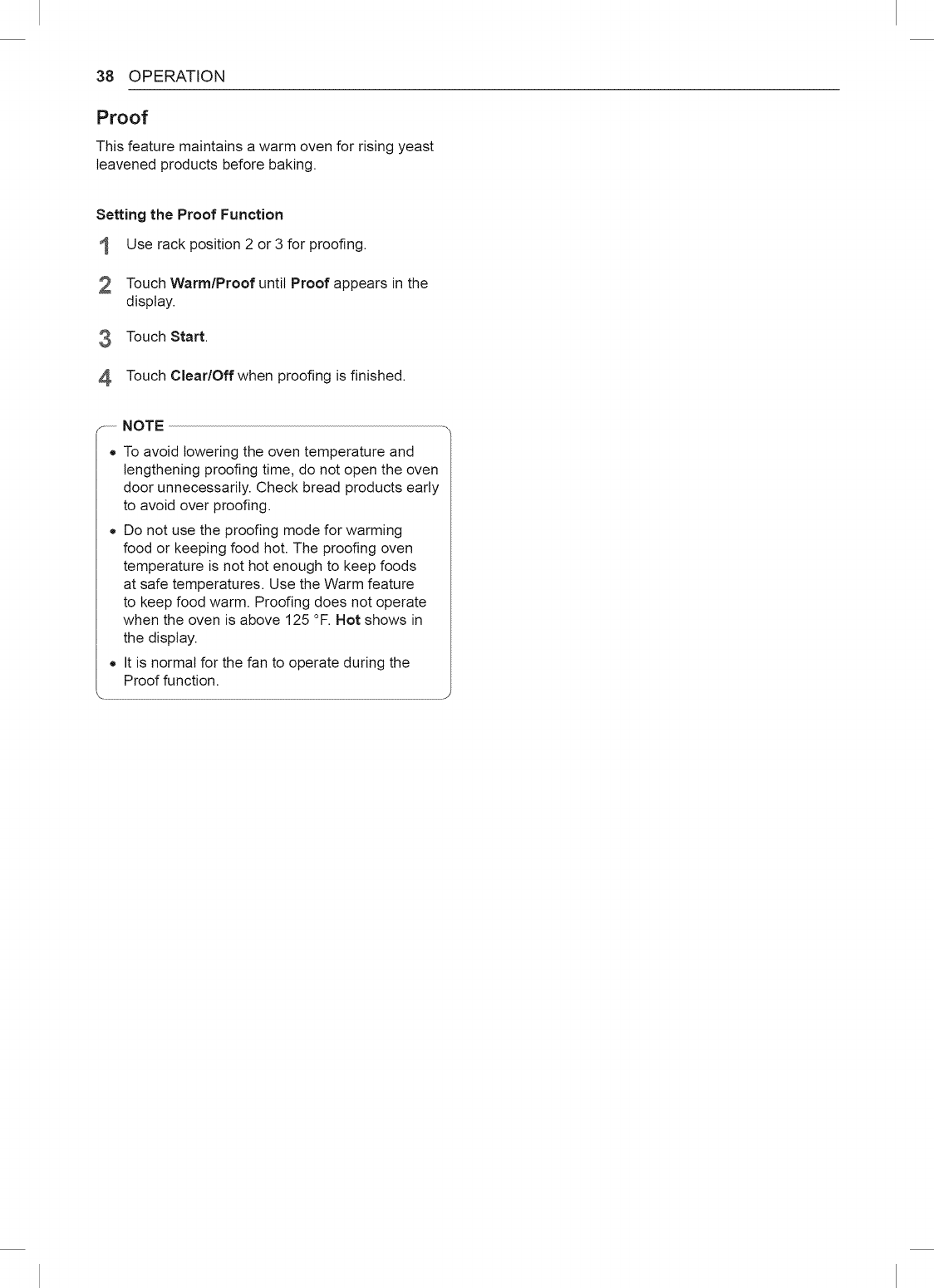

38 Proof

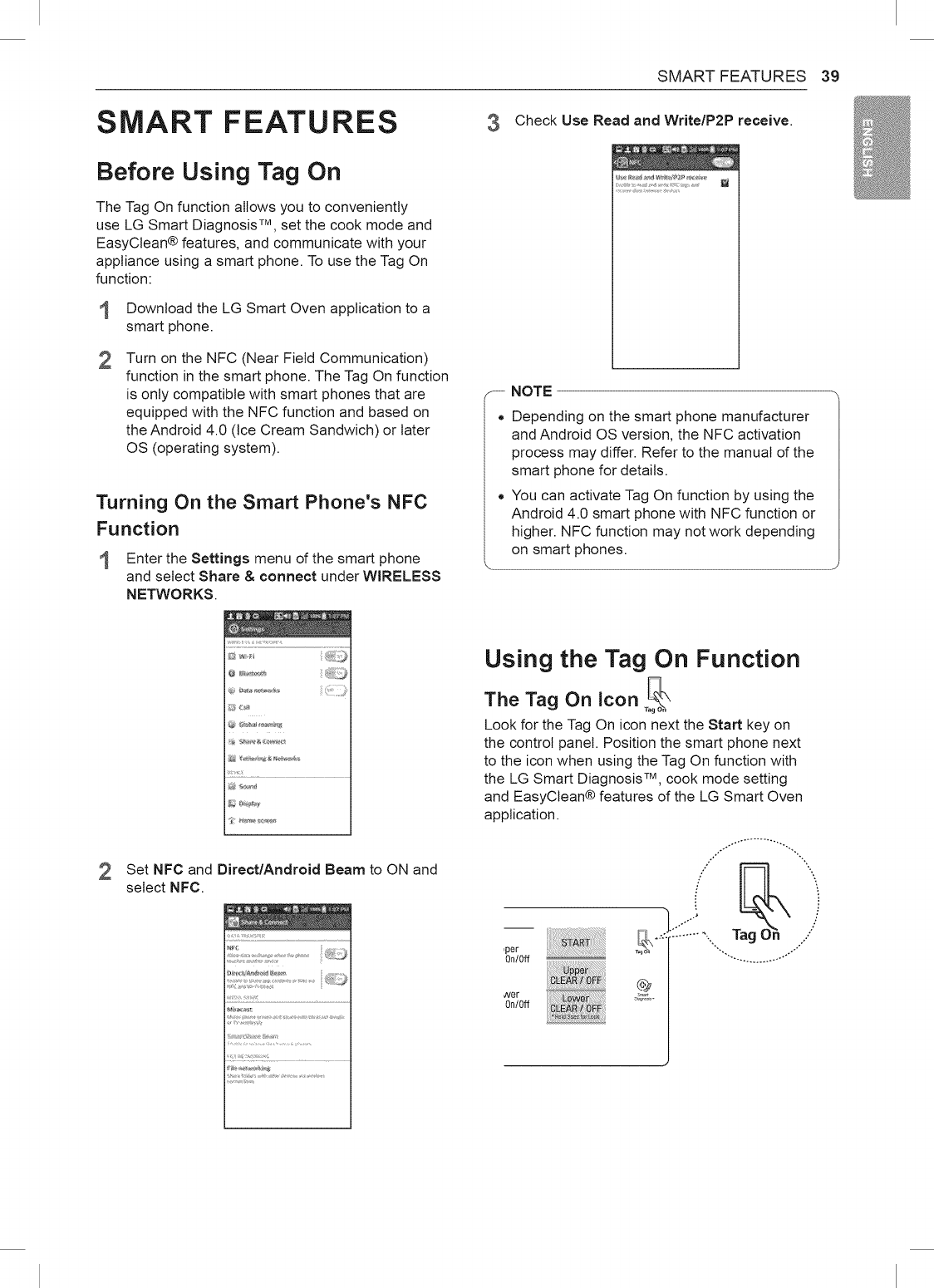

39 SMART FEATURES

39 Before Using Tag On

39 Using the Tag On Function

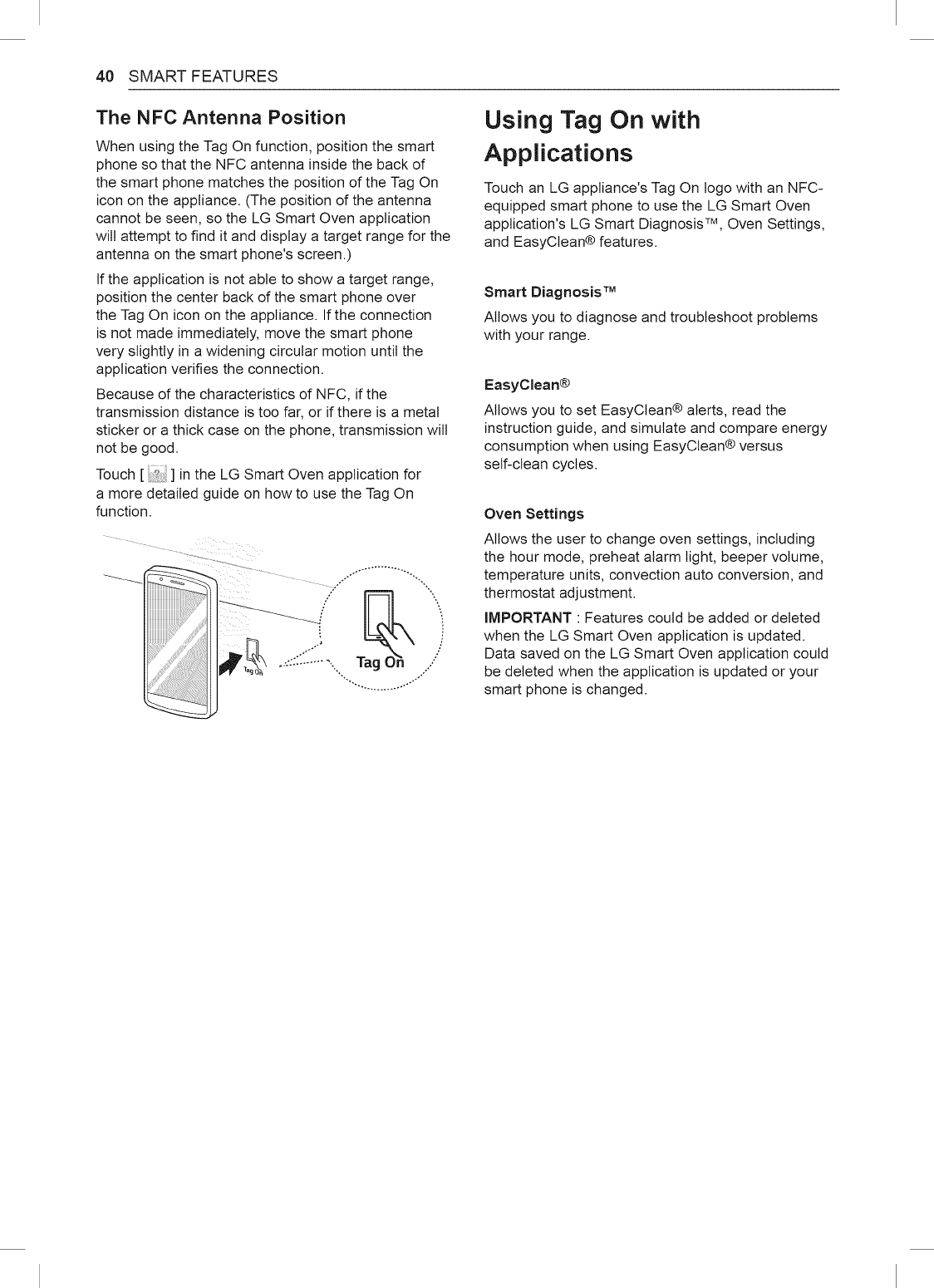

40 Using Tag On with Applications

MAINTENANCE41

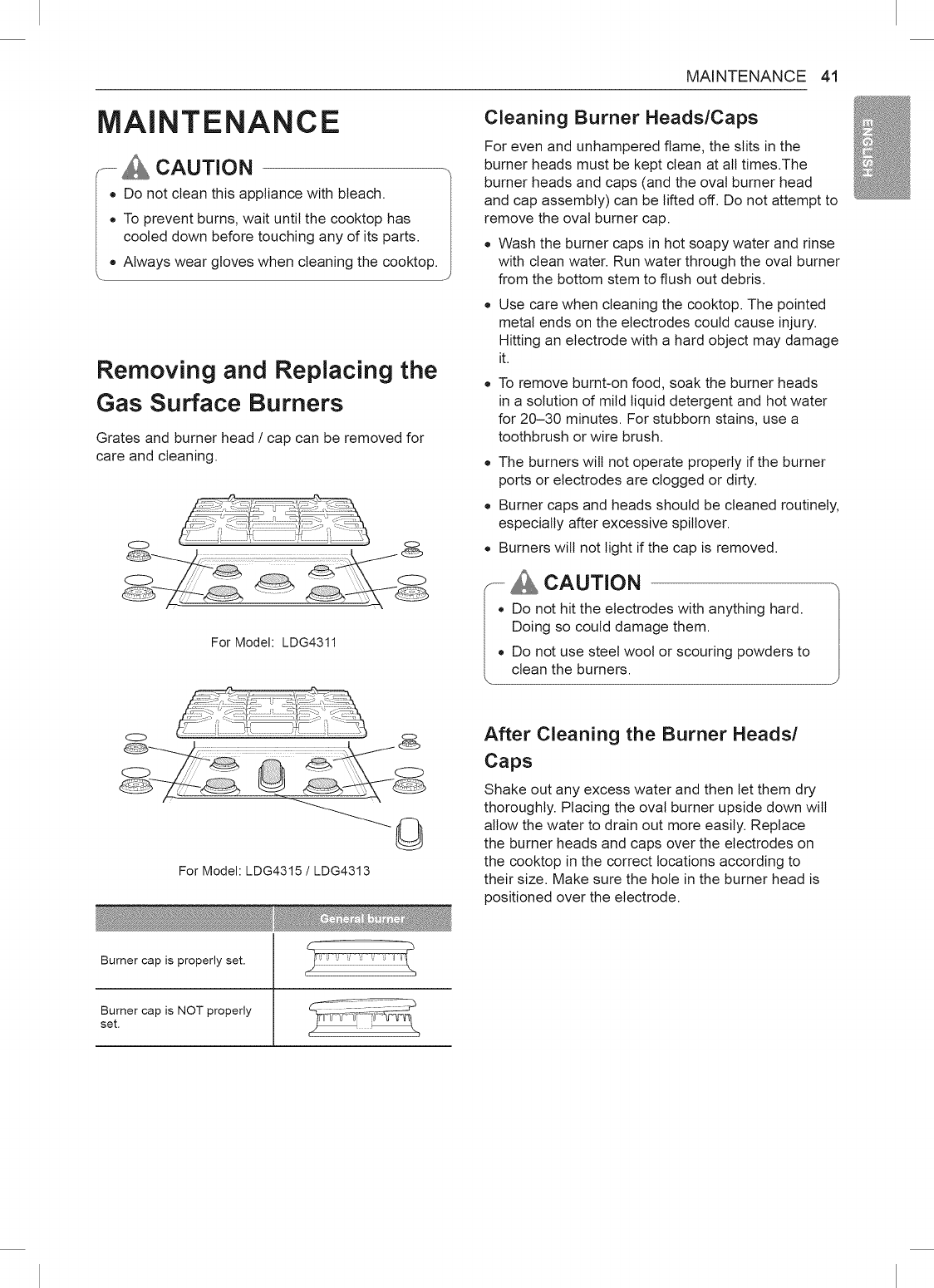

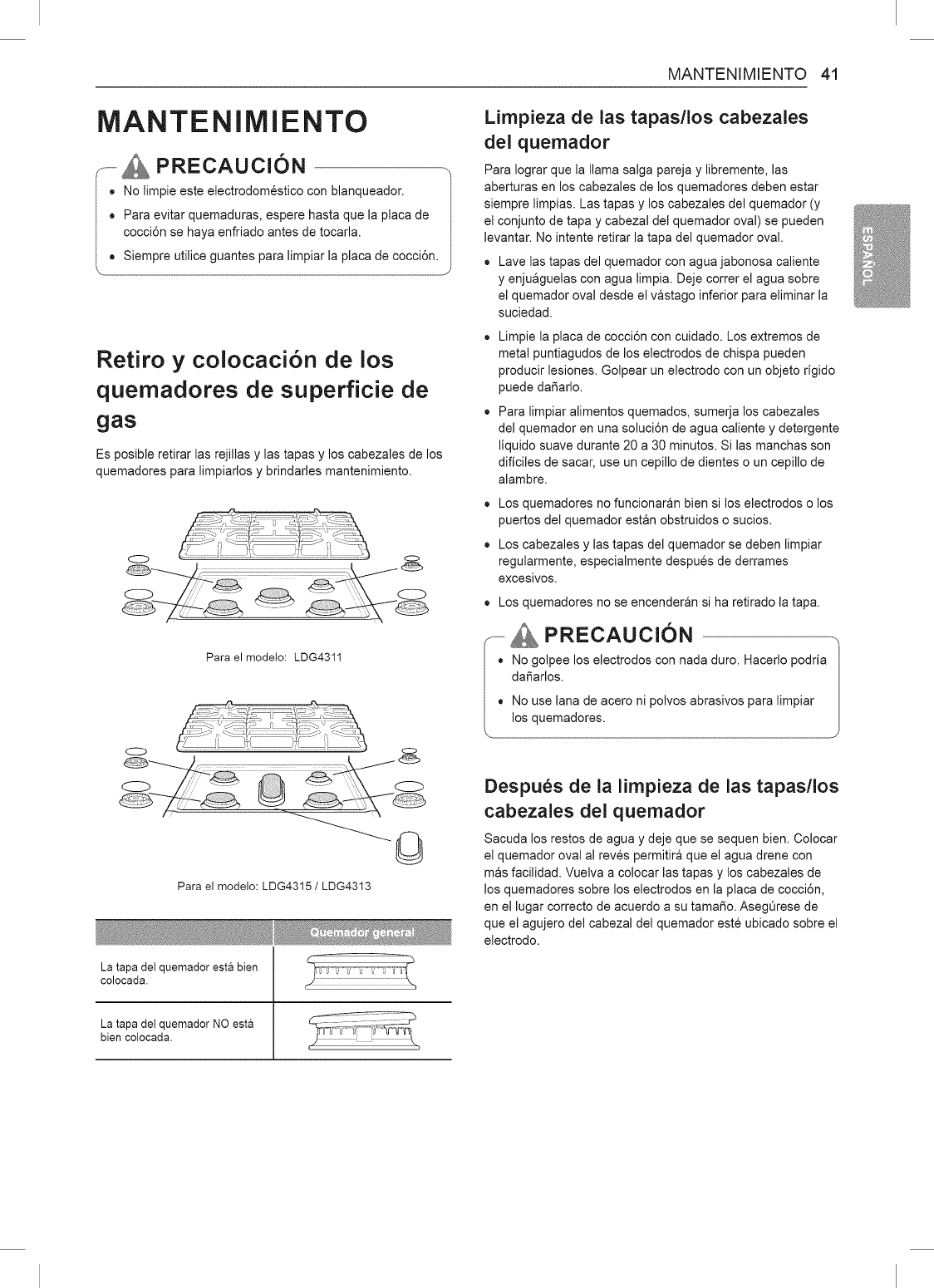

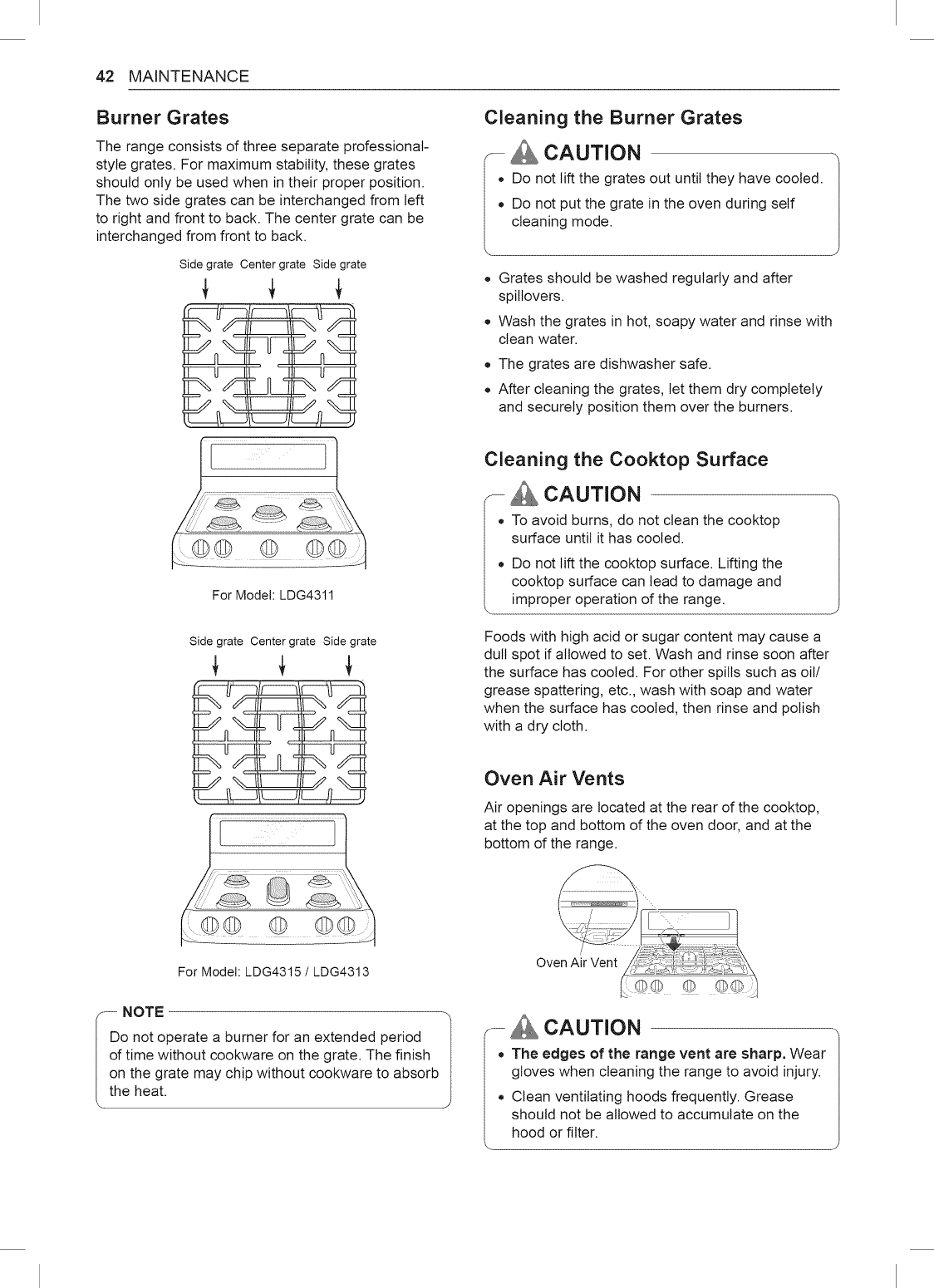

41 Removing and Replacing the Gas Surface

Burners

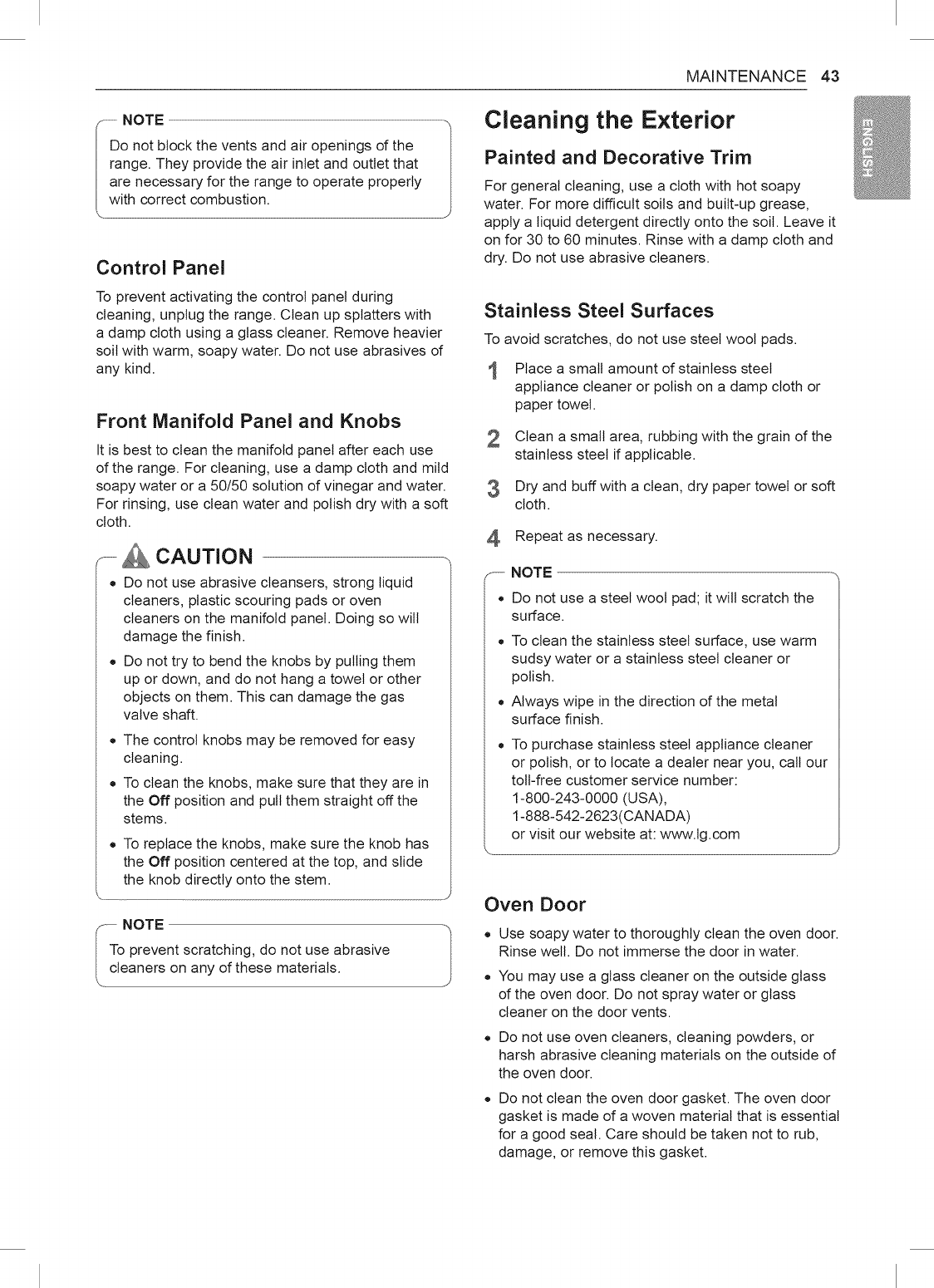

43 Cleaning the Exterior

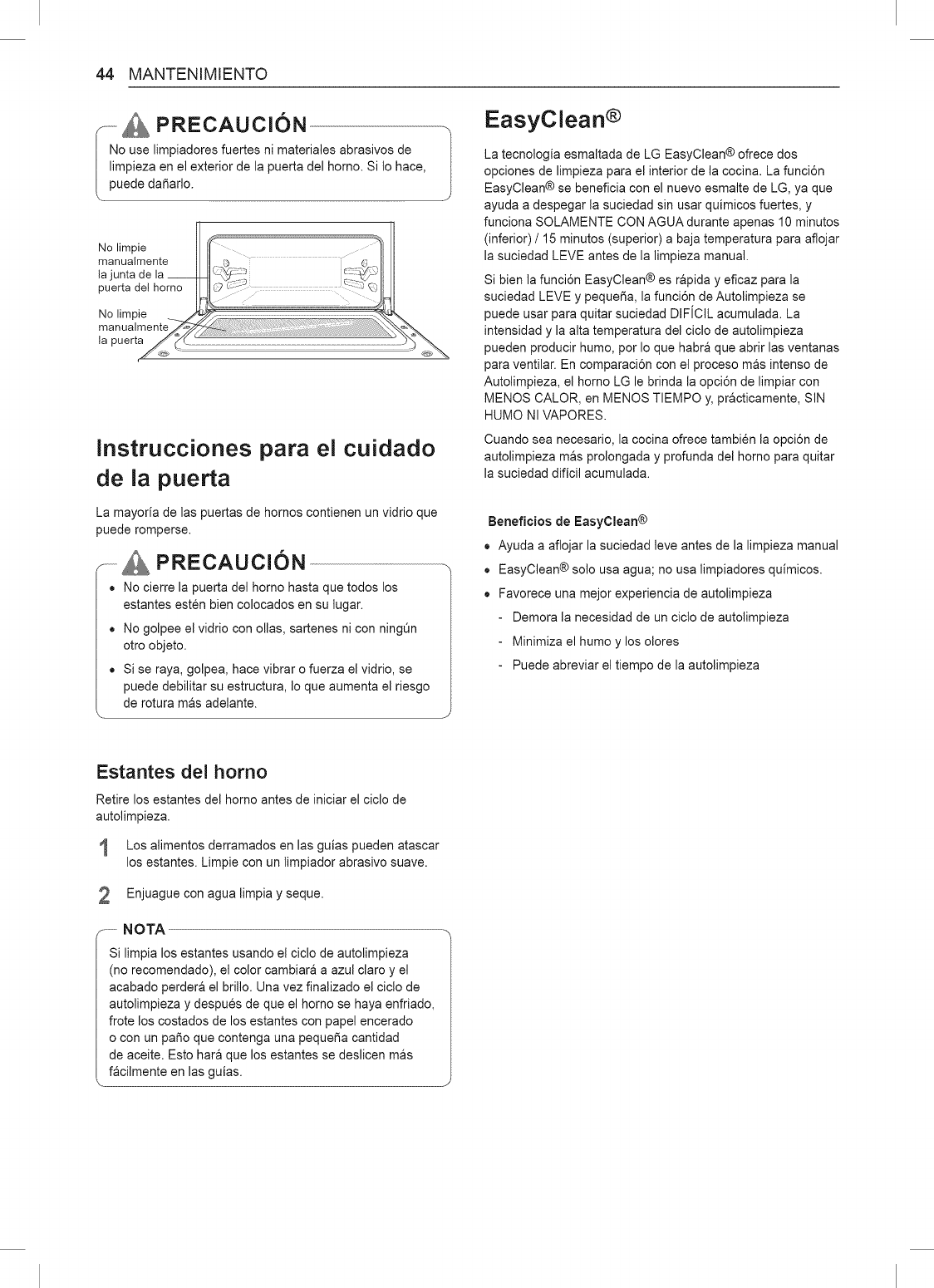

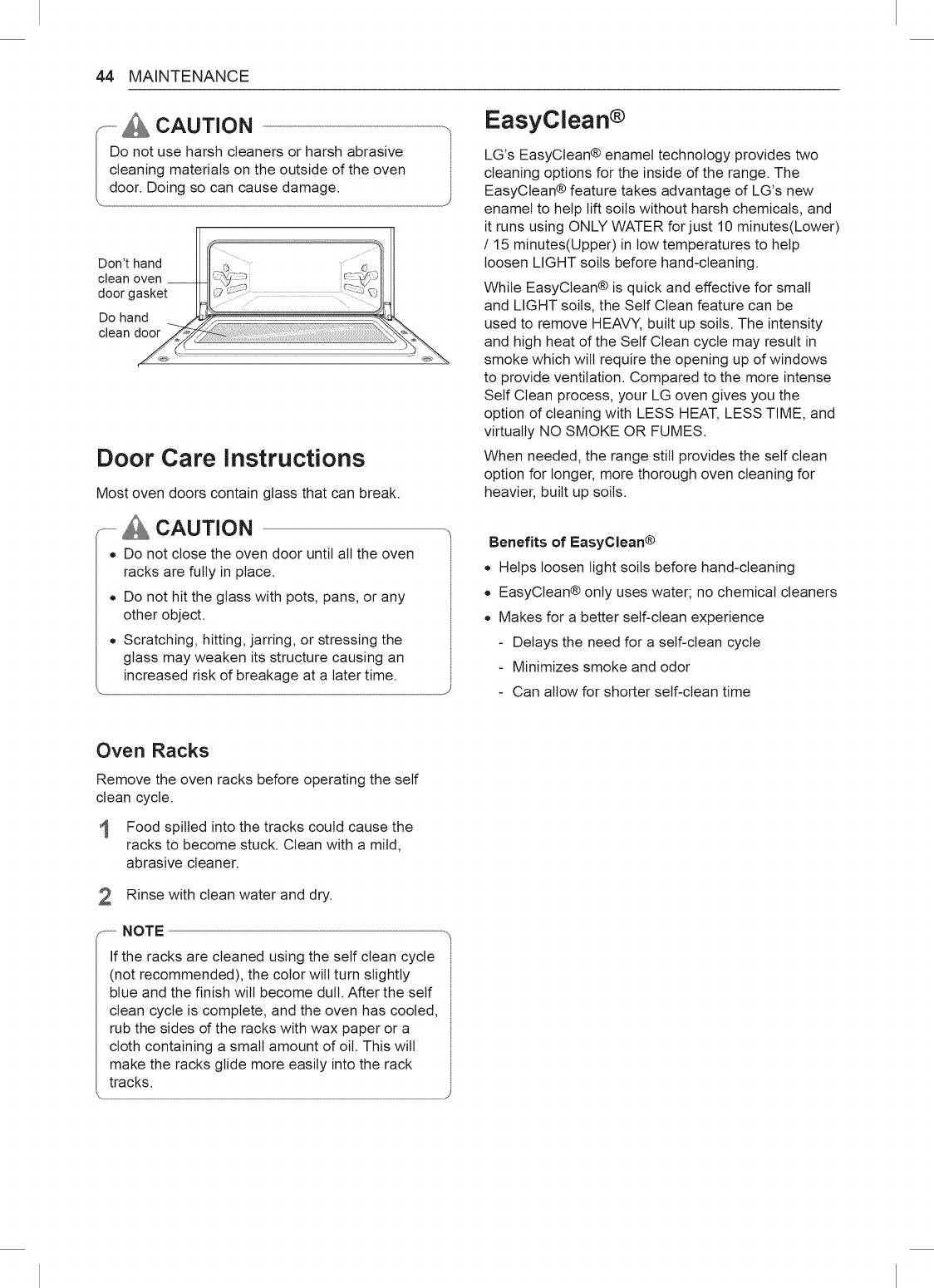

44 Door Care Instructions

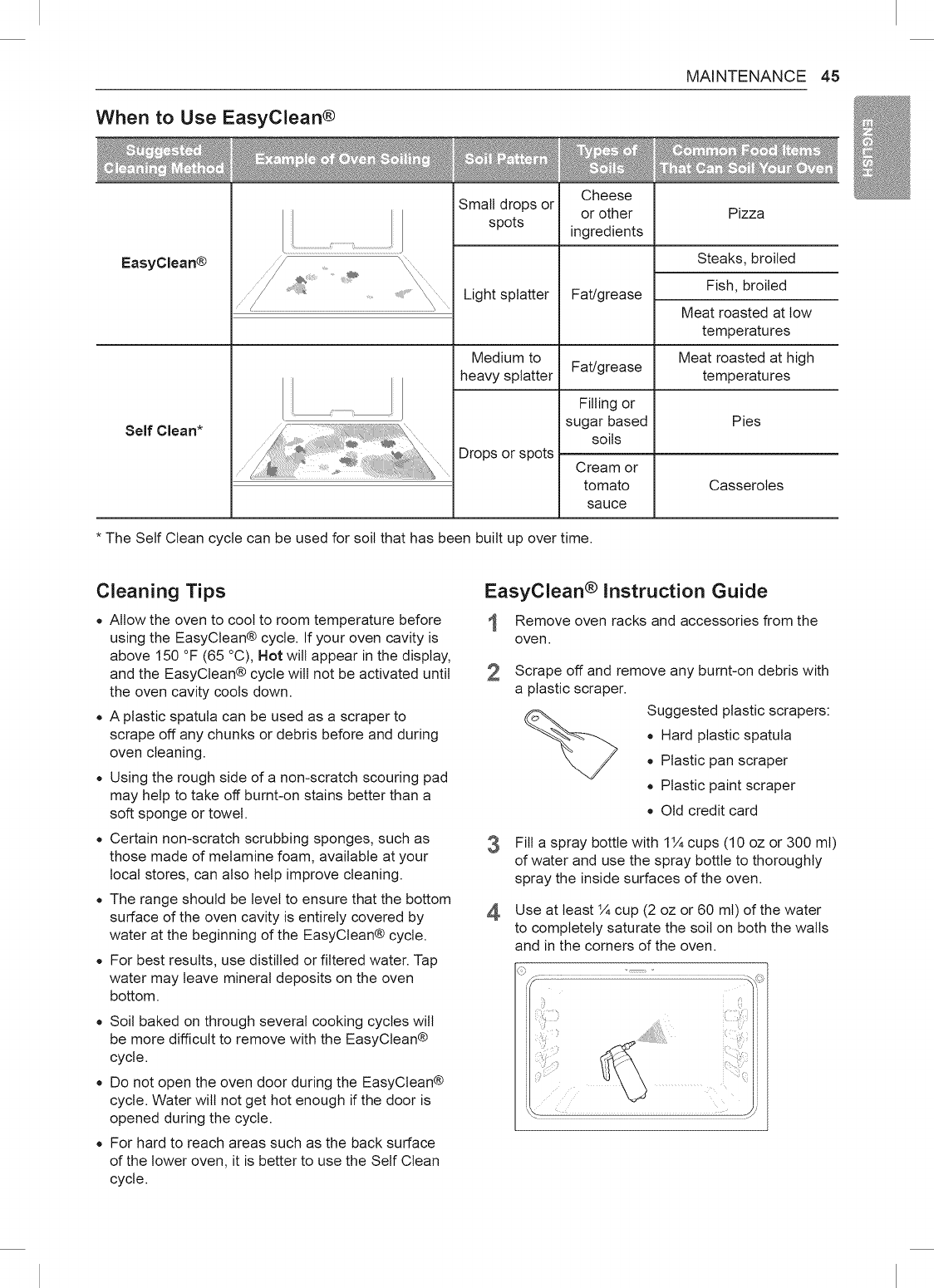

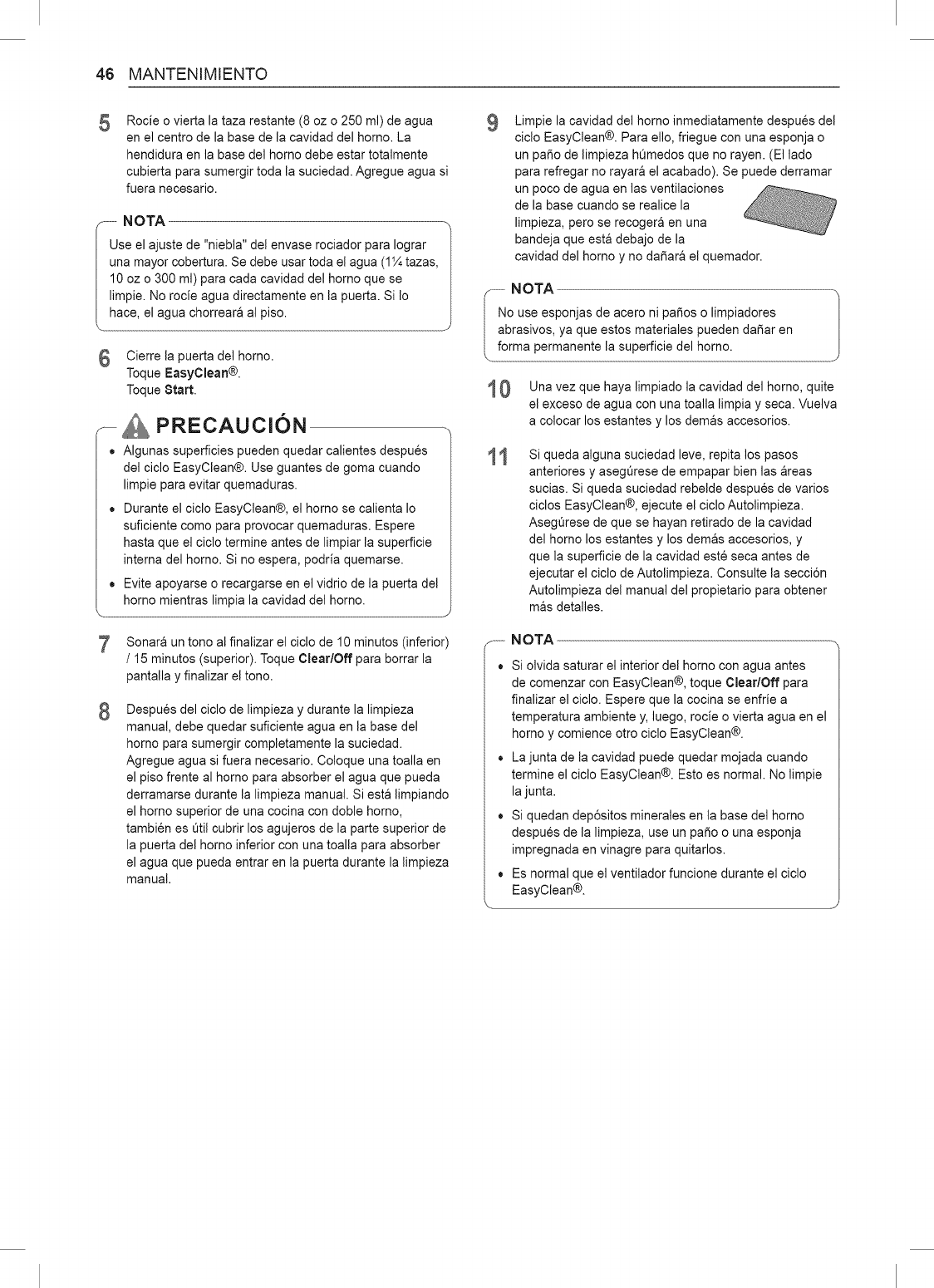

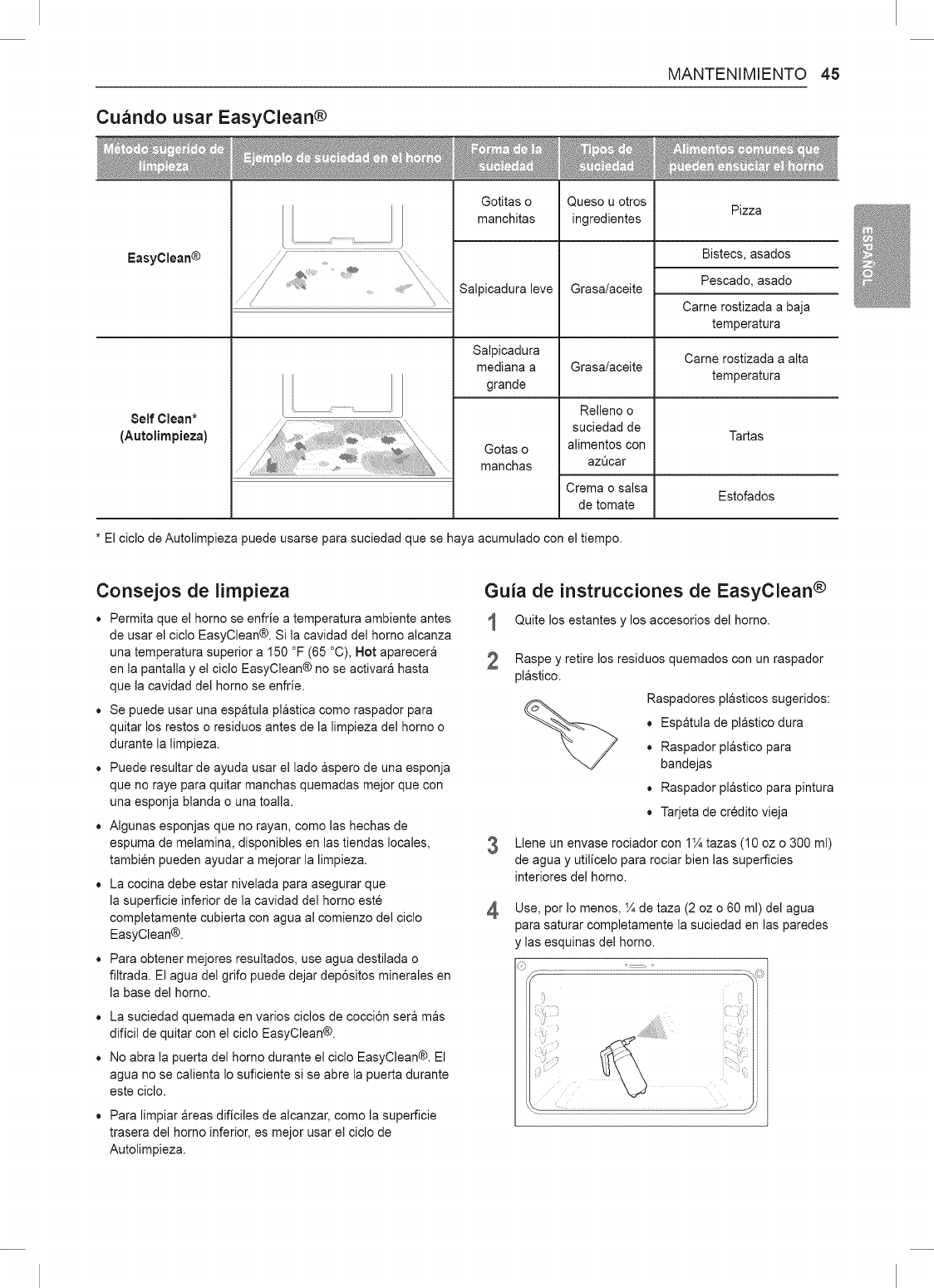

44 EasyClean ®

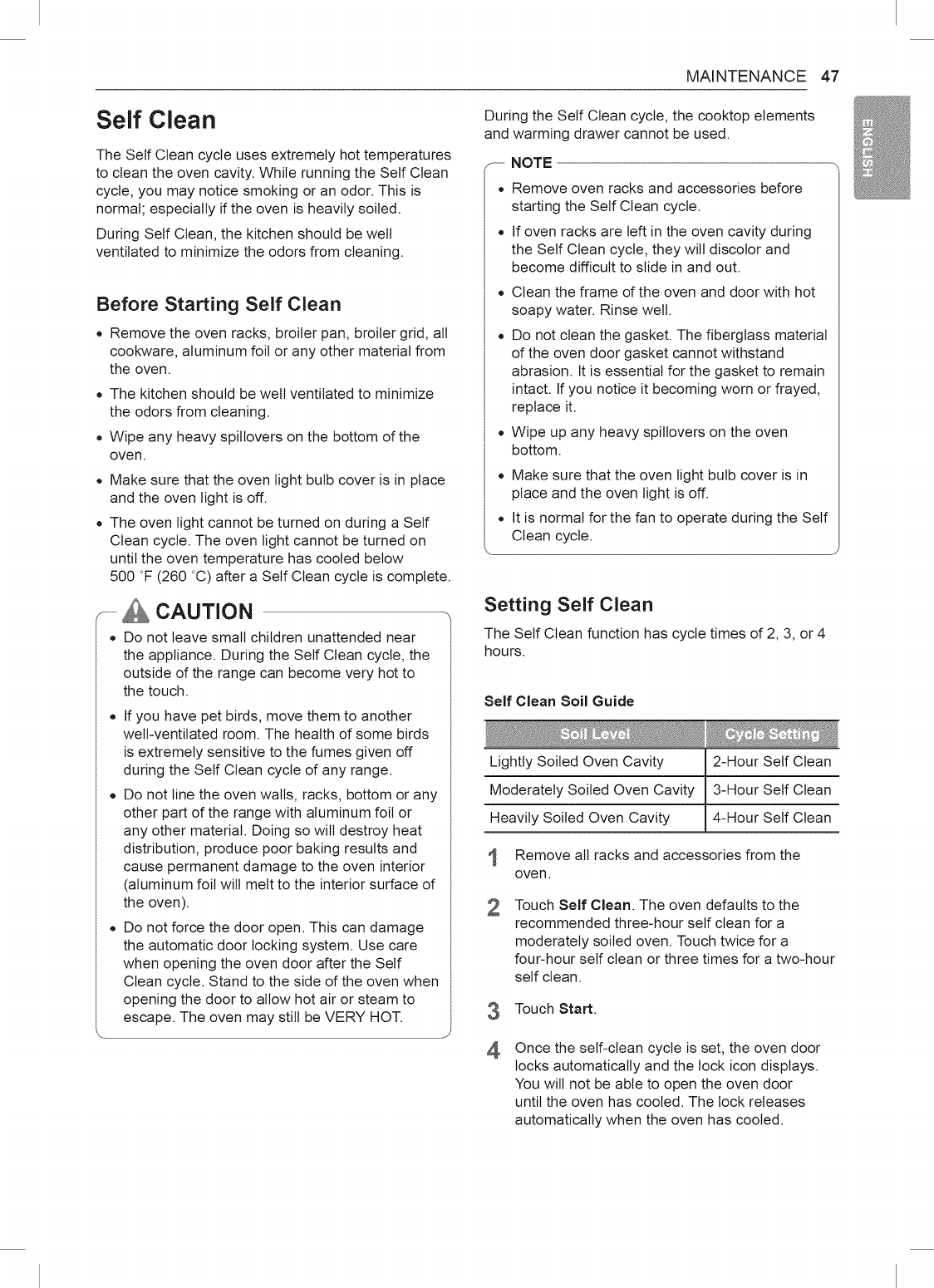

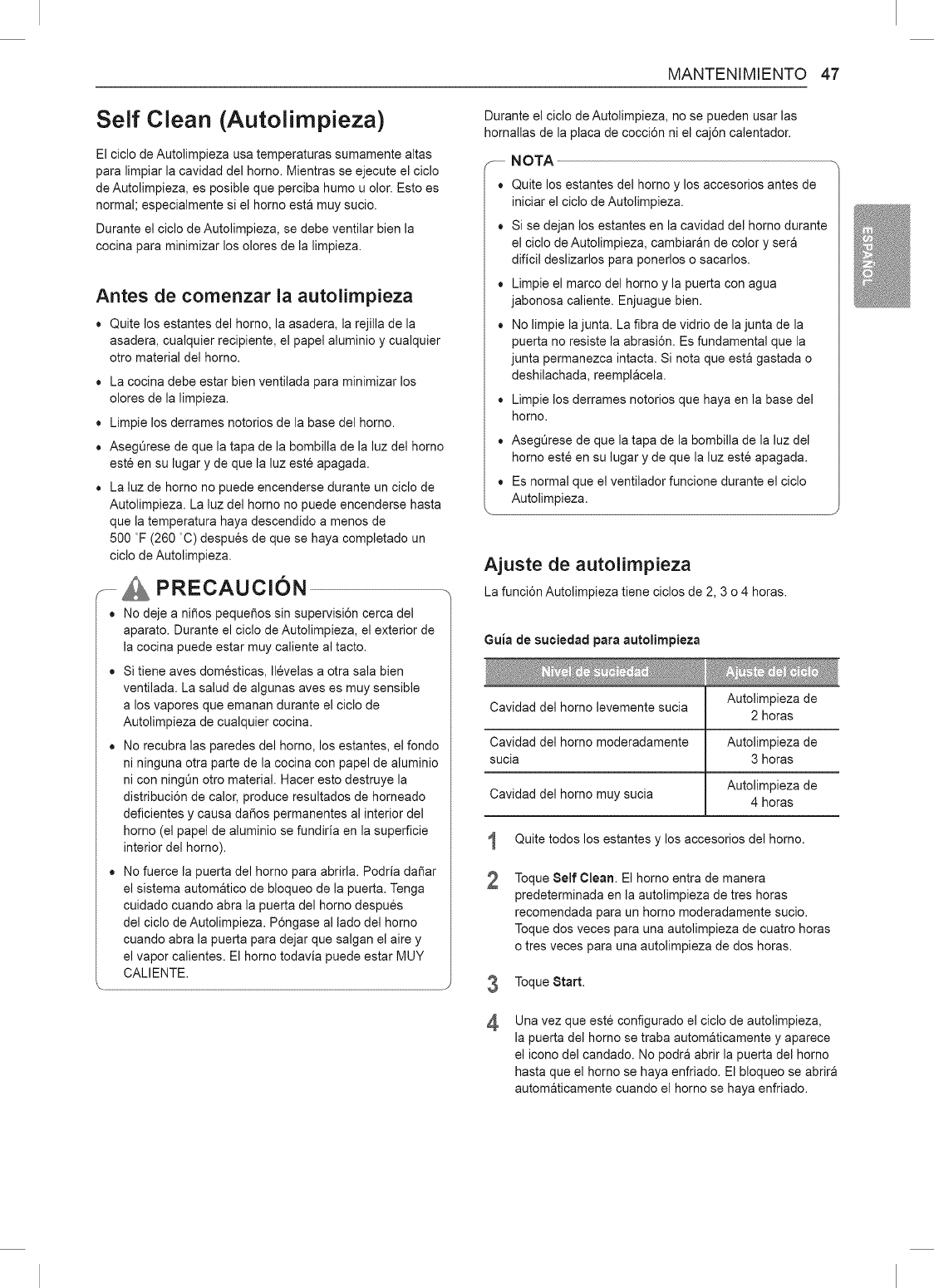

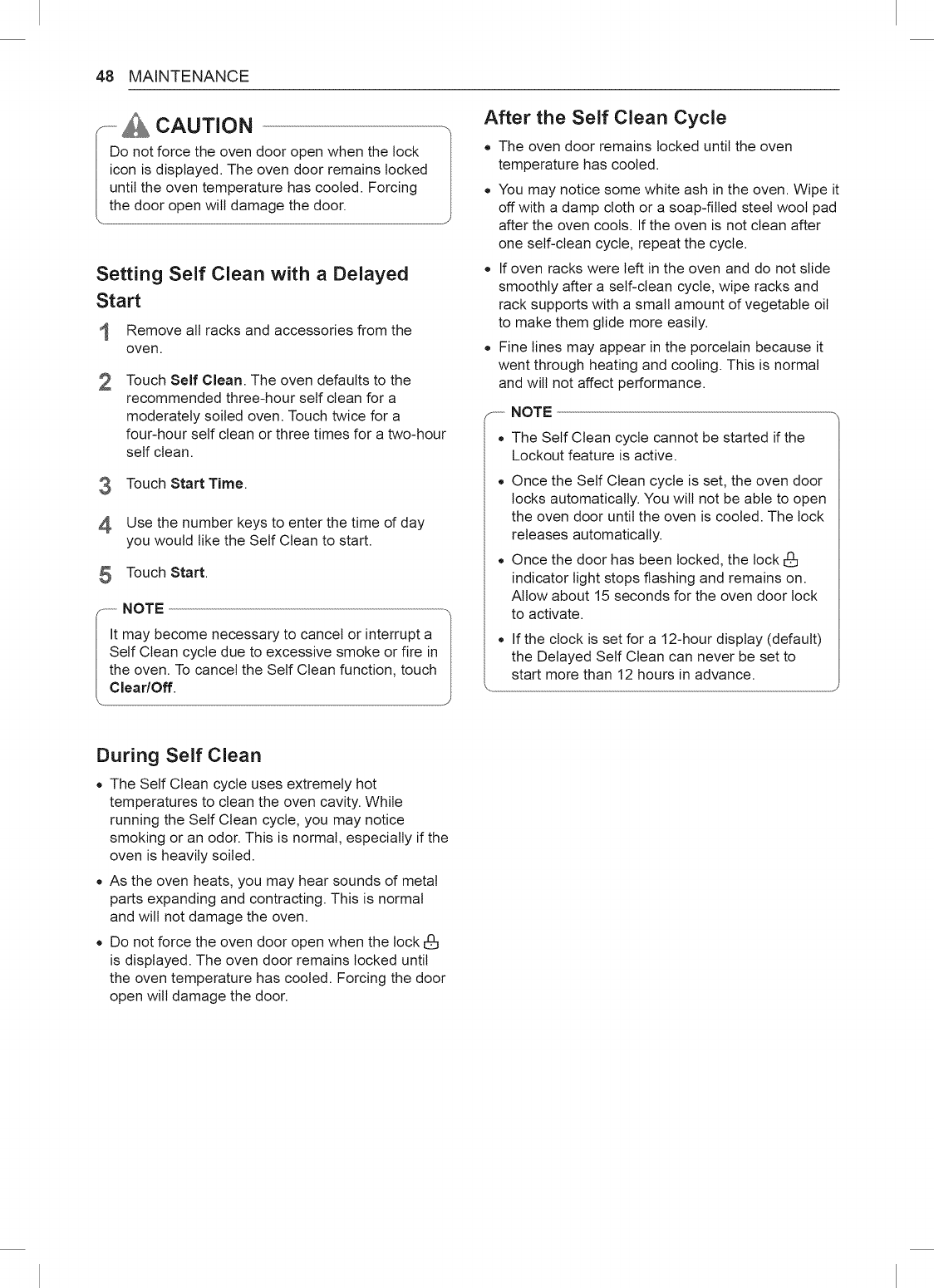

47 Self Clean

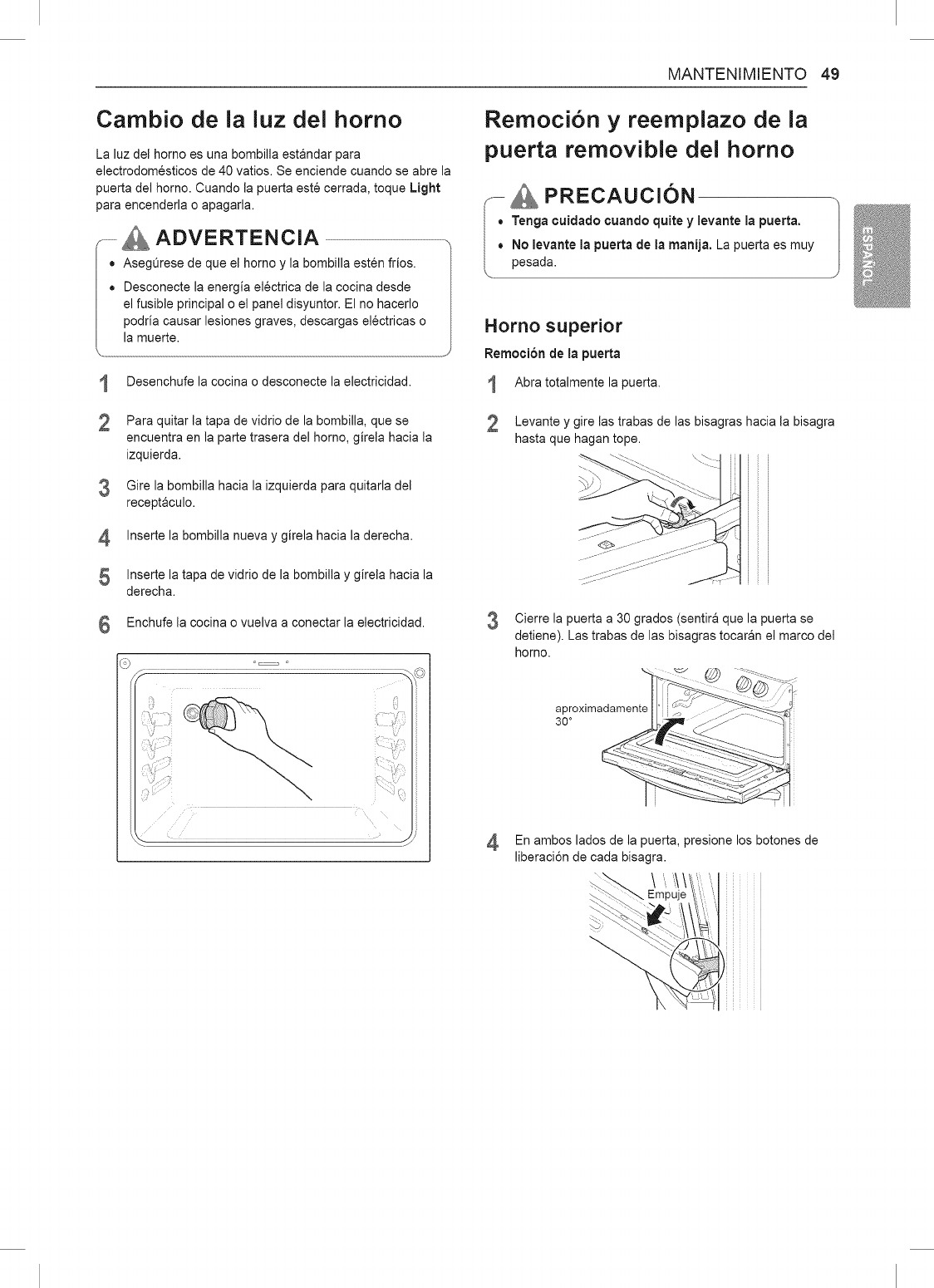

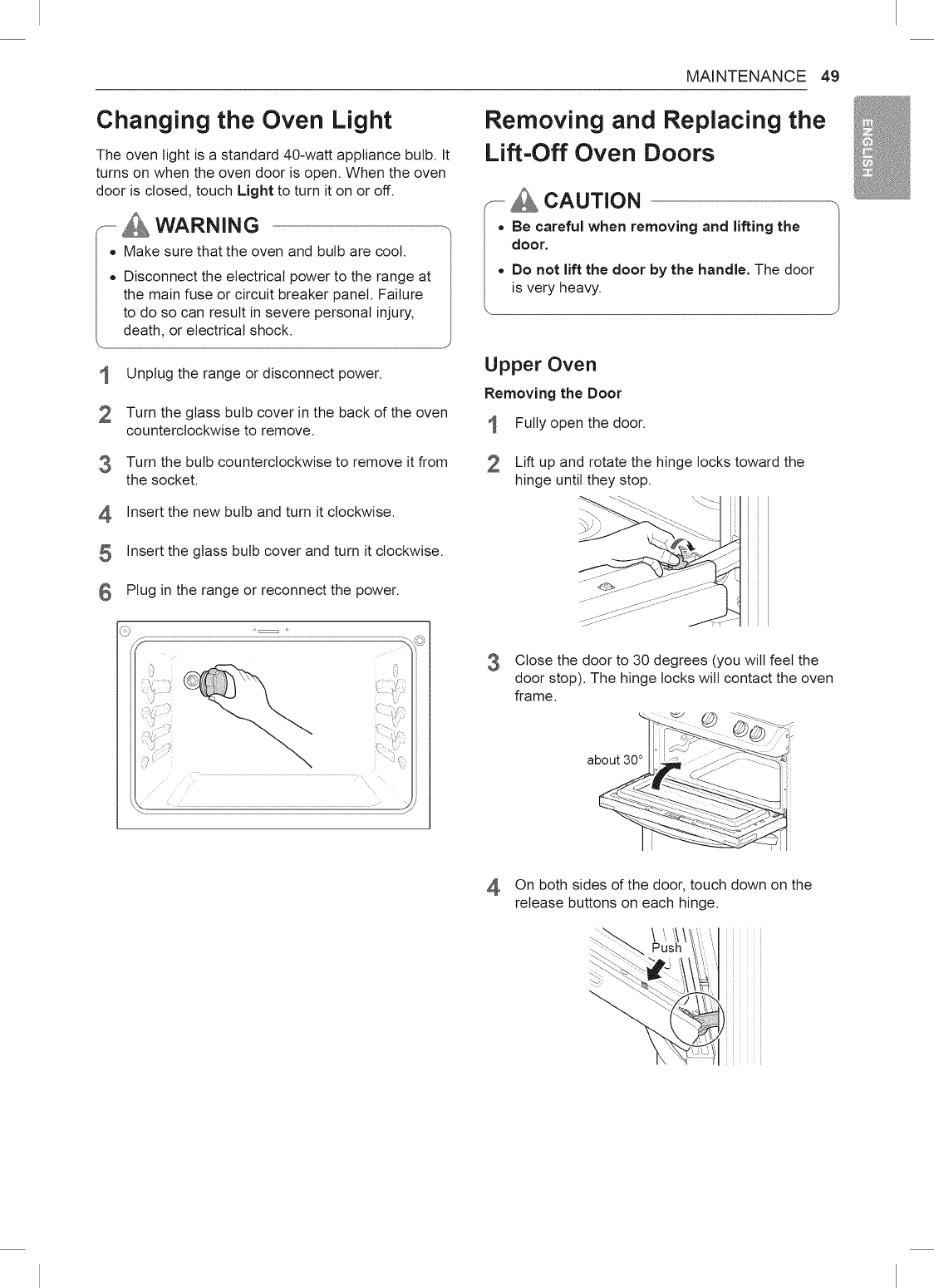

49 Changing the Oven Light

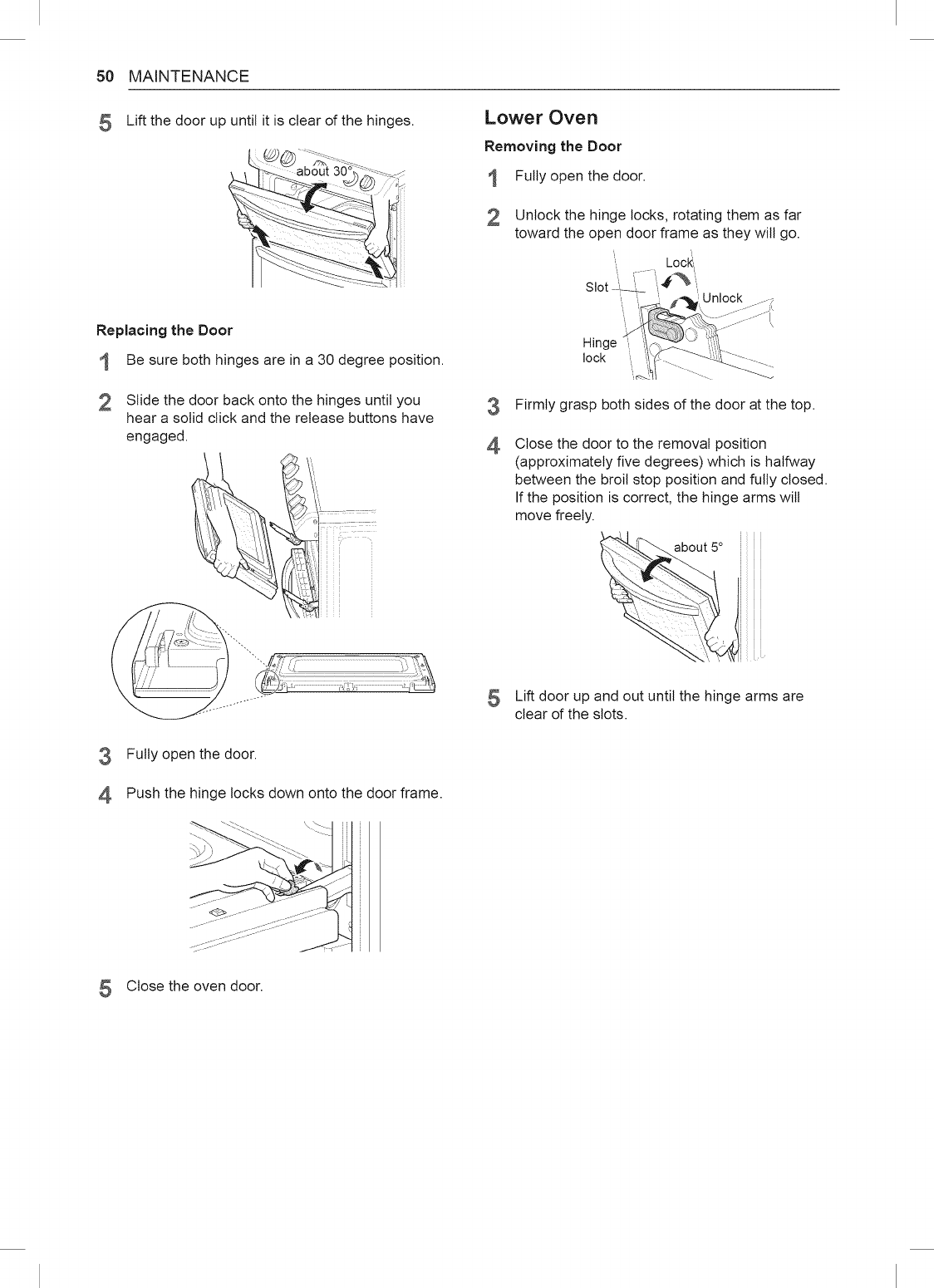

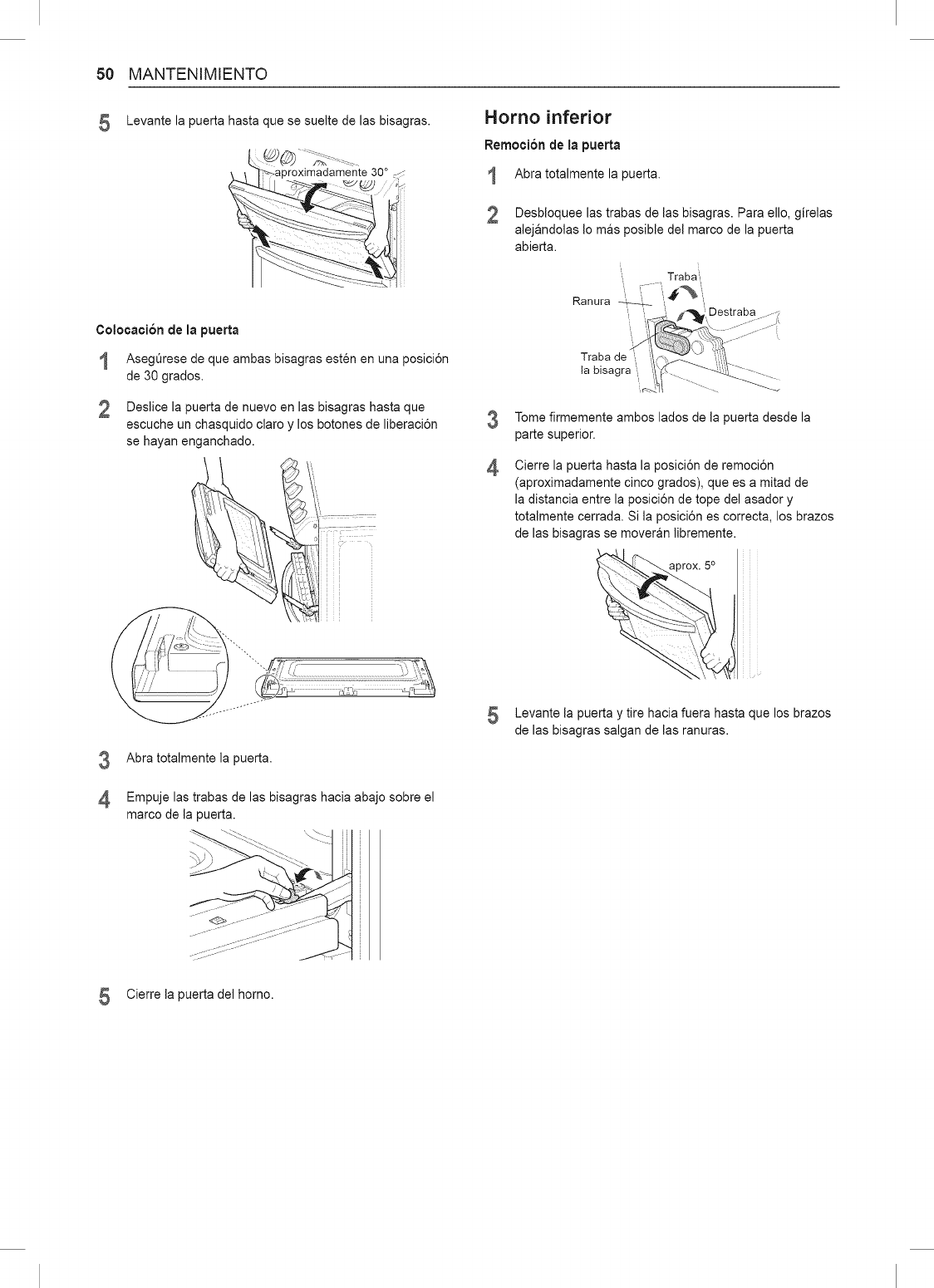

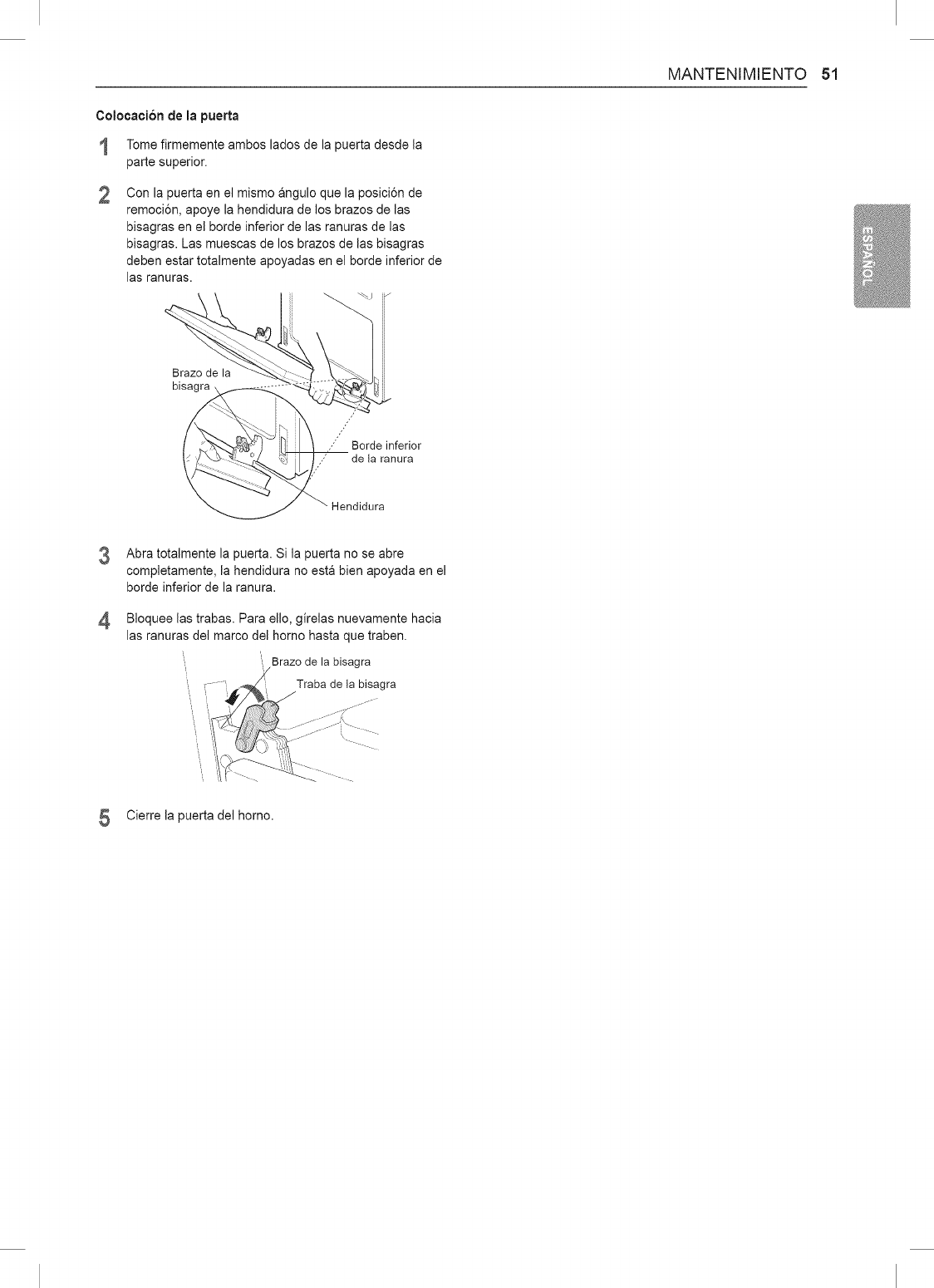

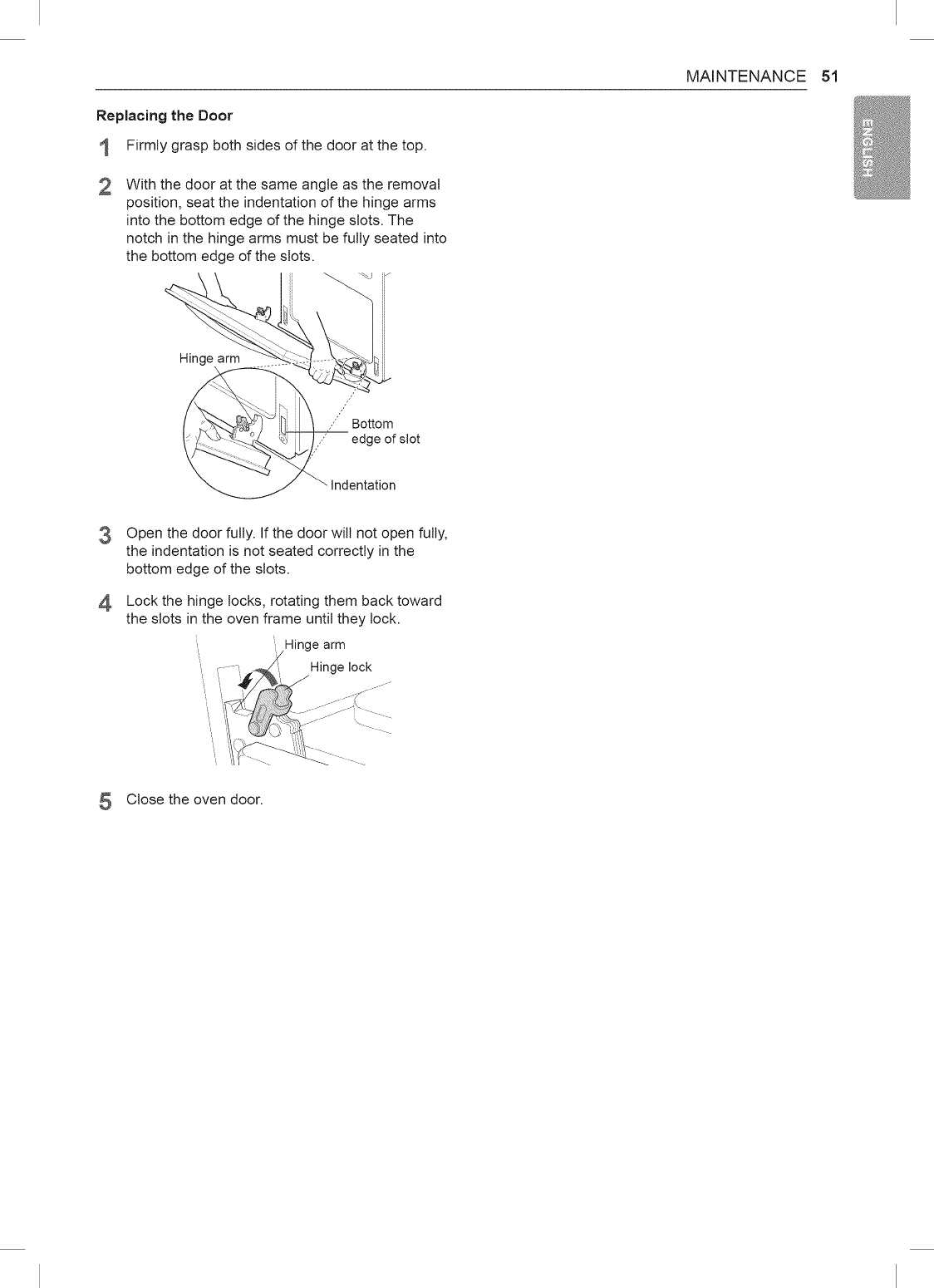

49 Removing and Replacing the Lift-Off Oven

Doors

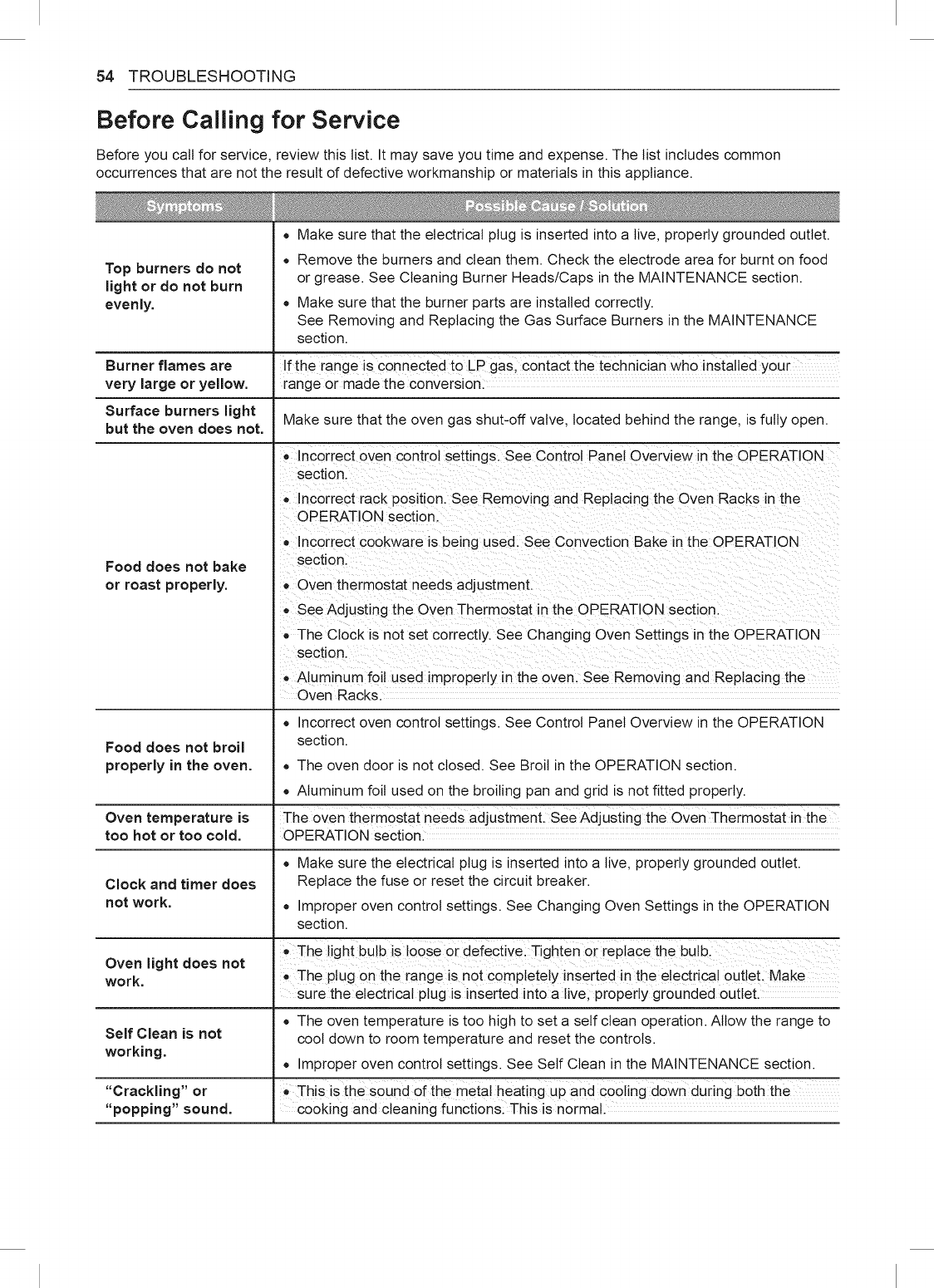

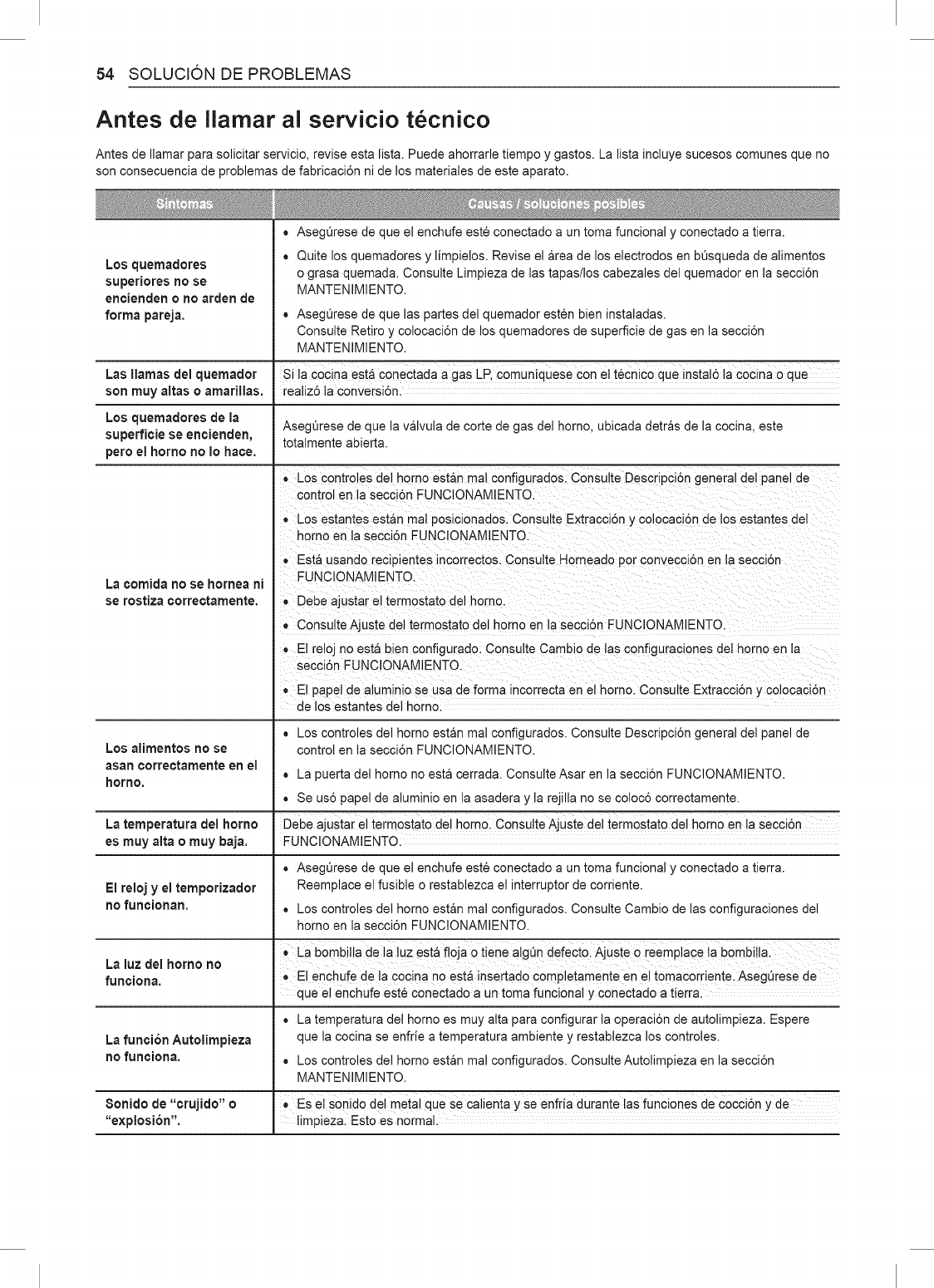

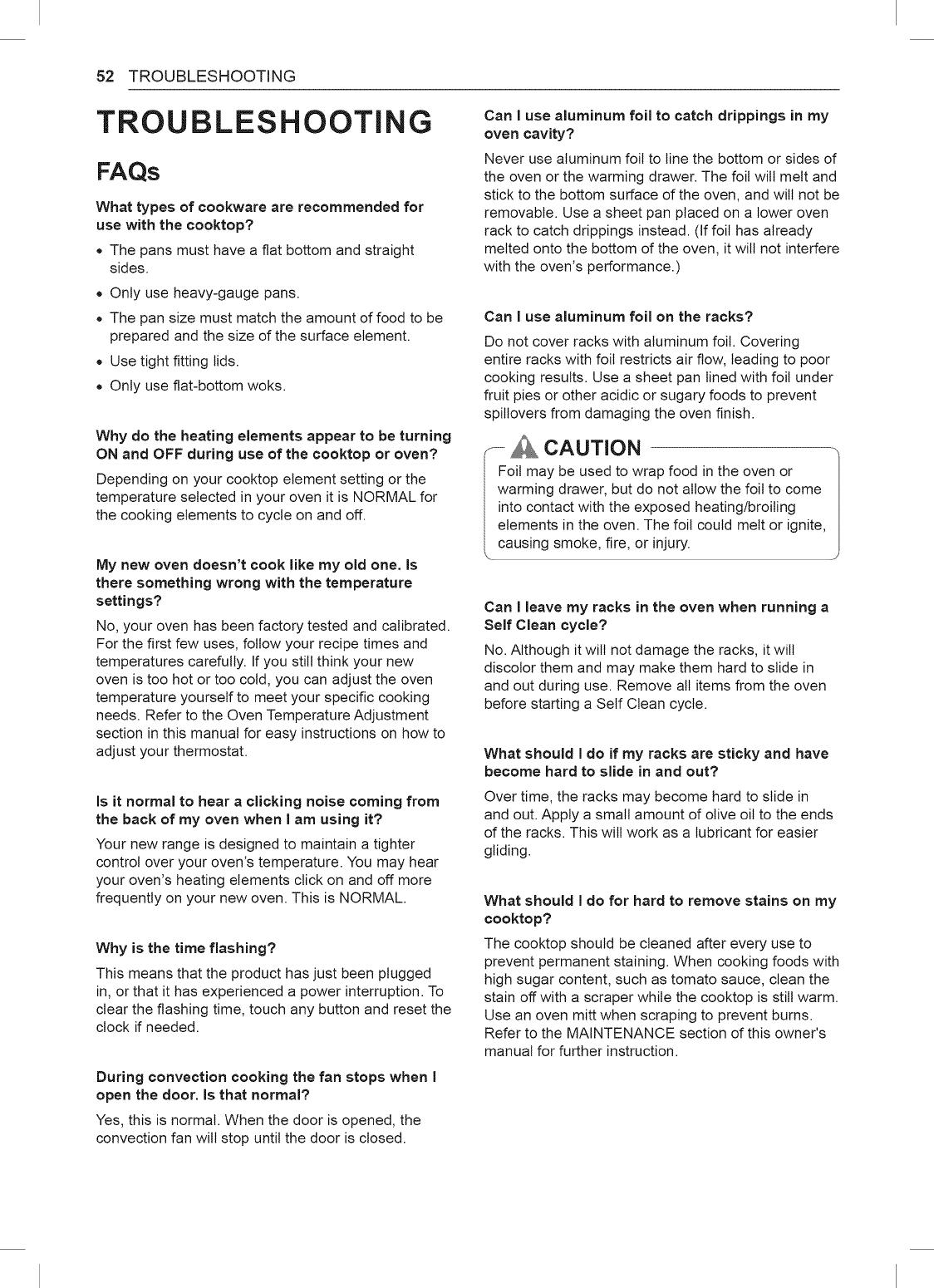

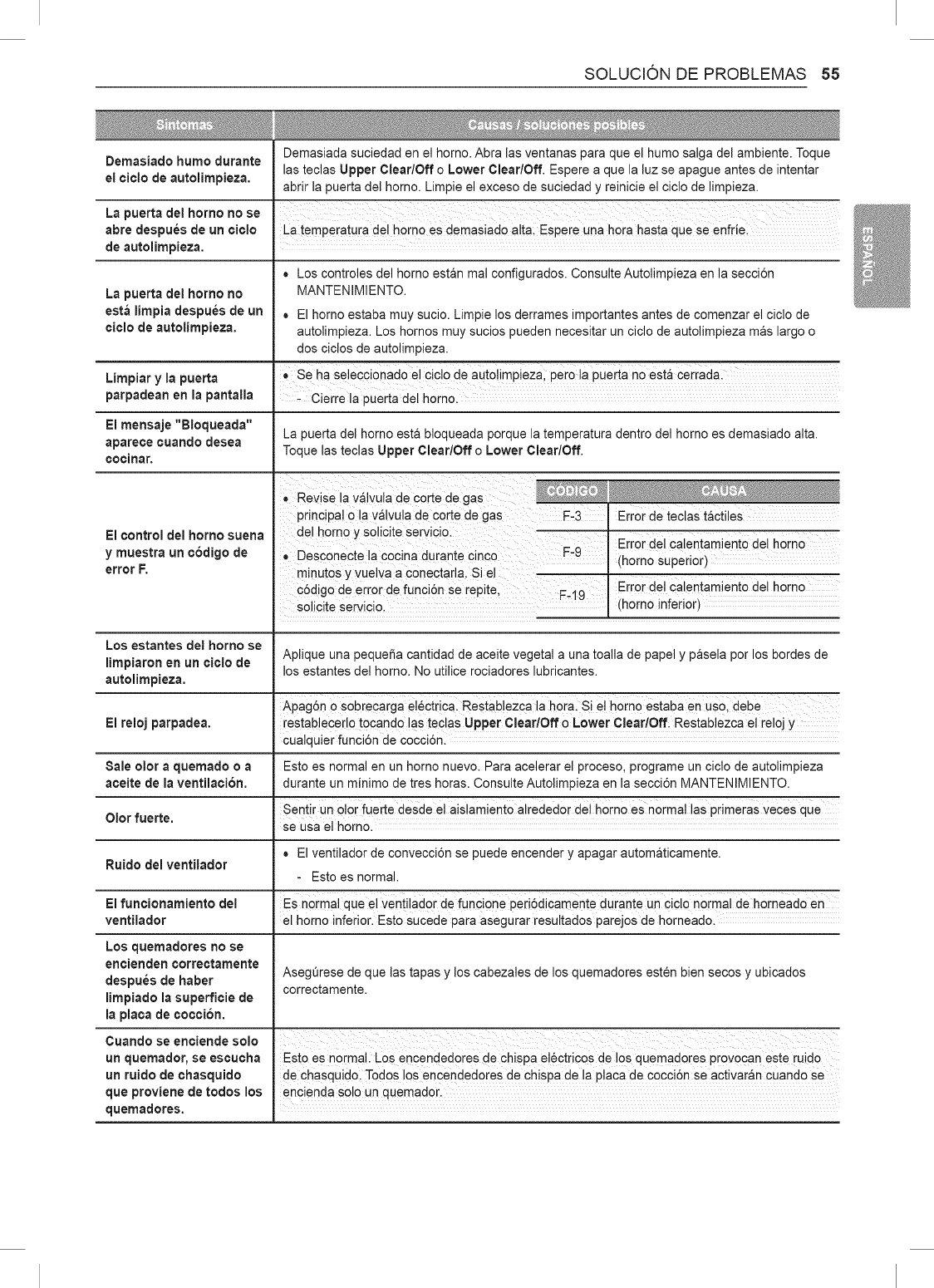

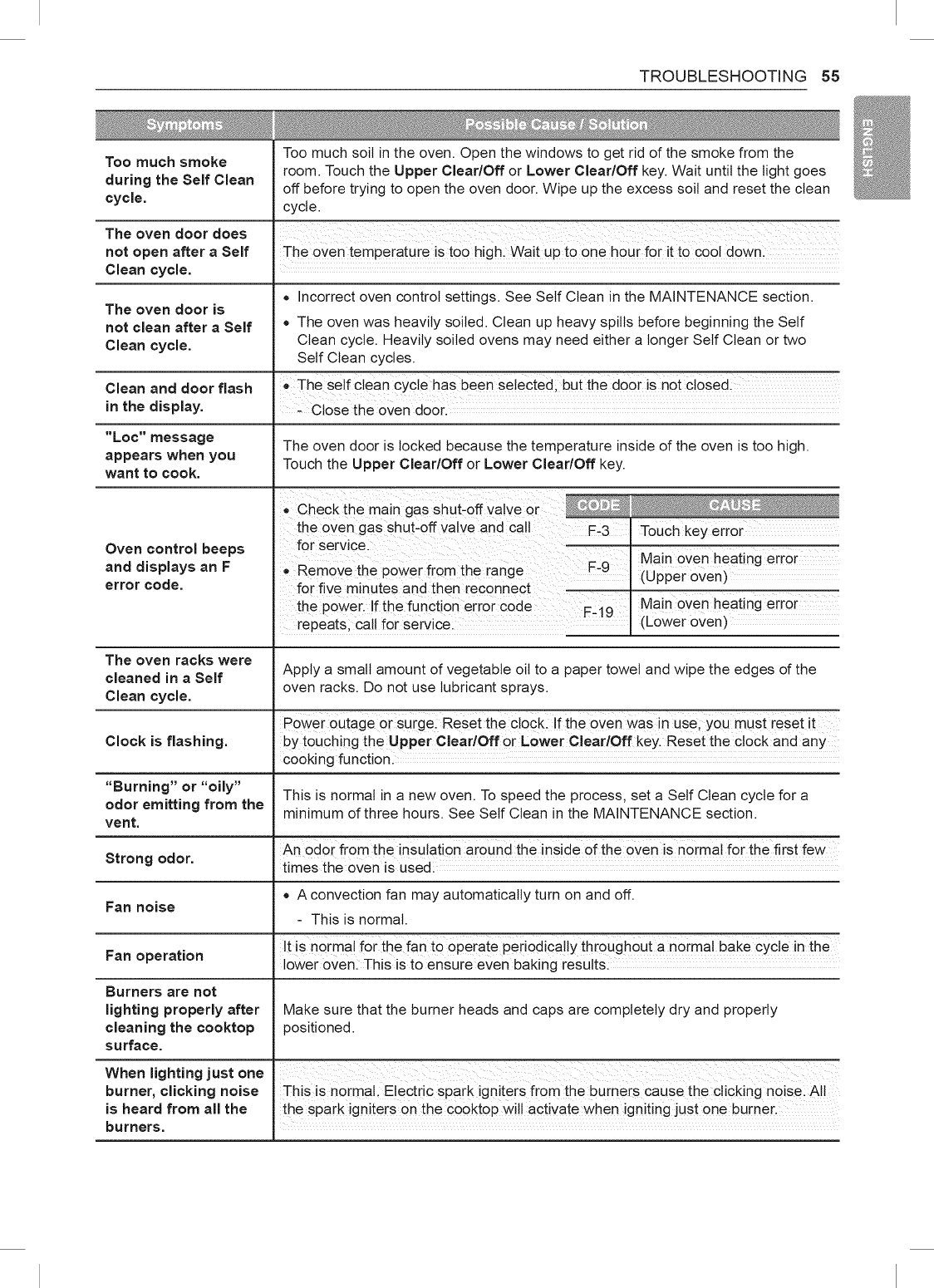

52 TROUBLESHOOTING

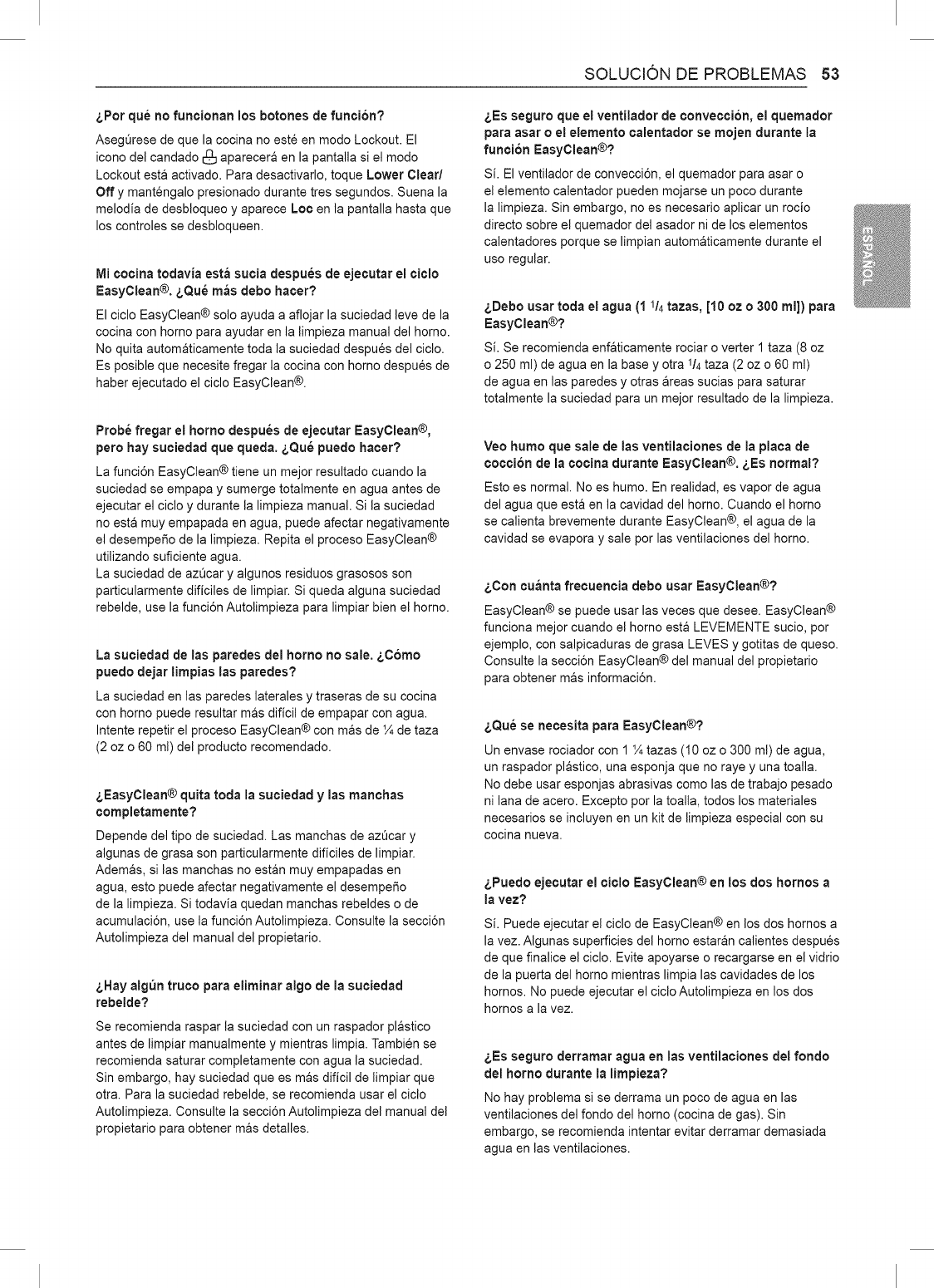

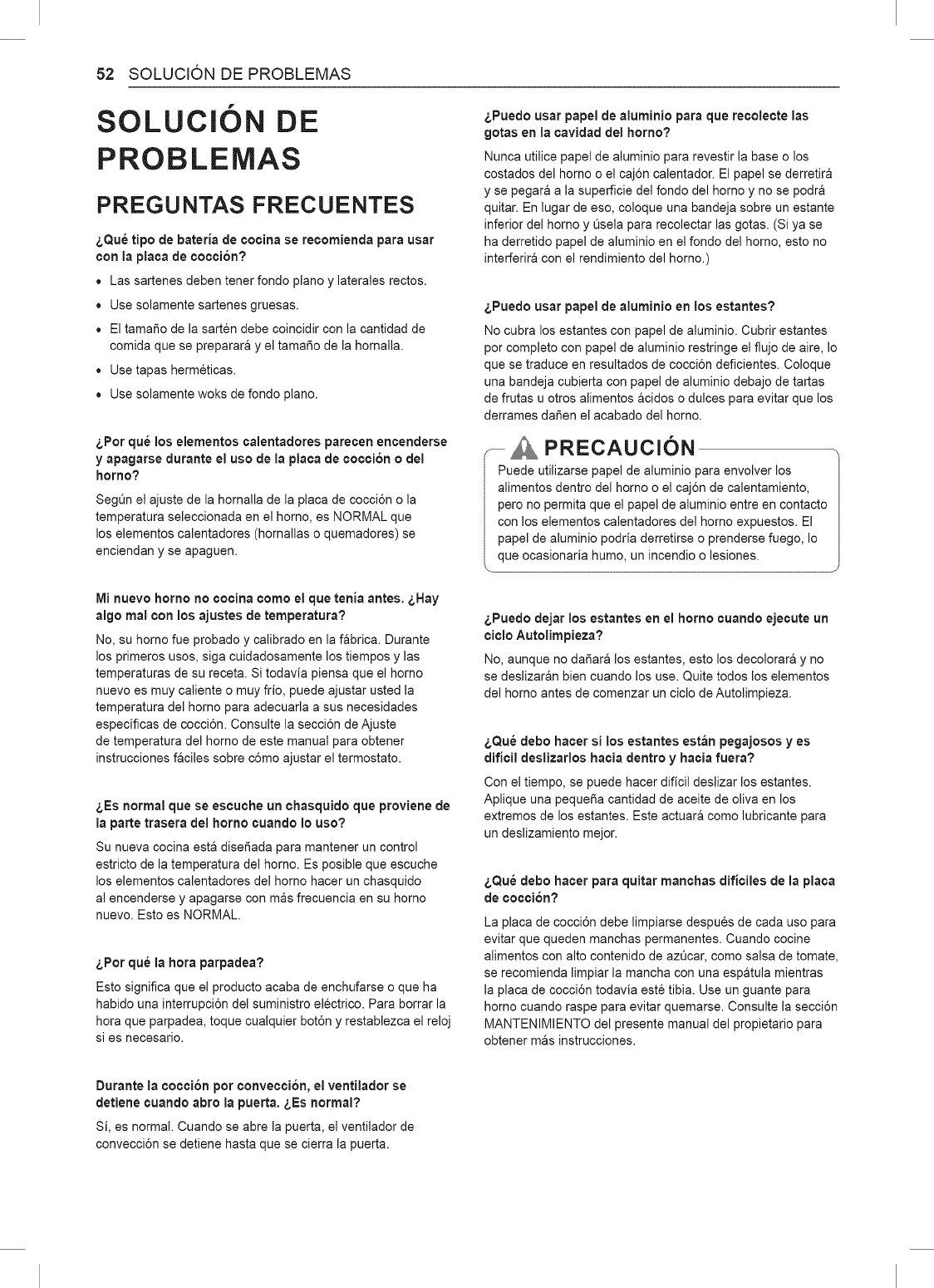

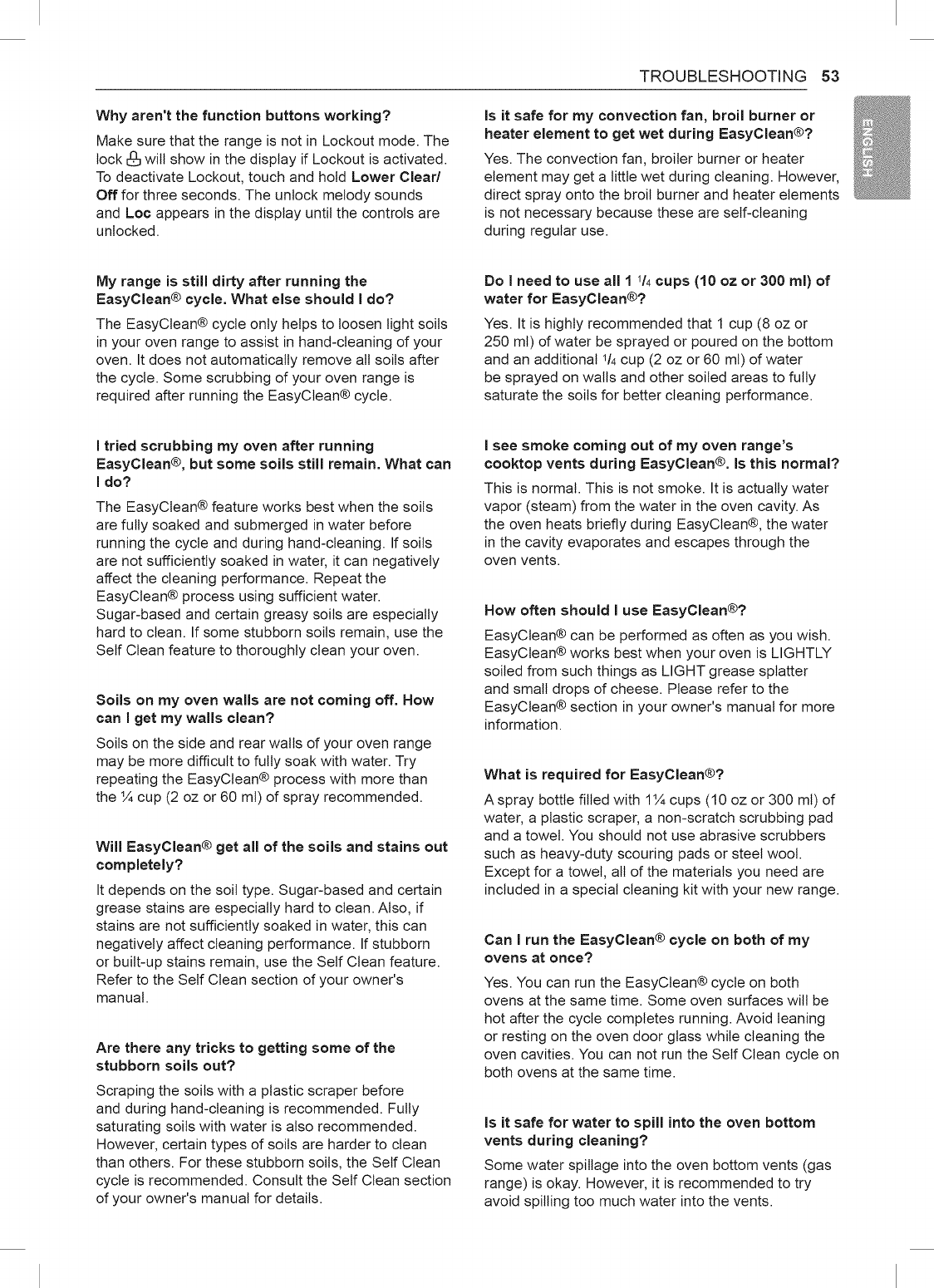

52 FAQs

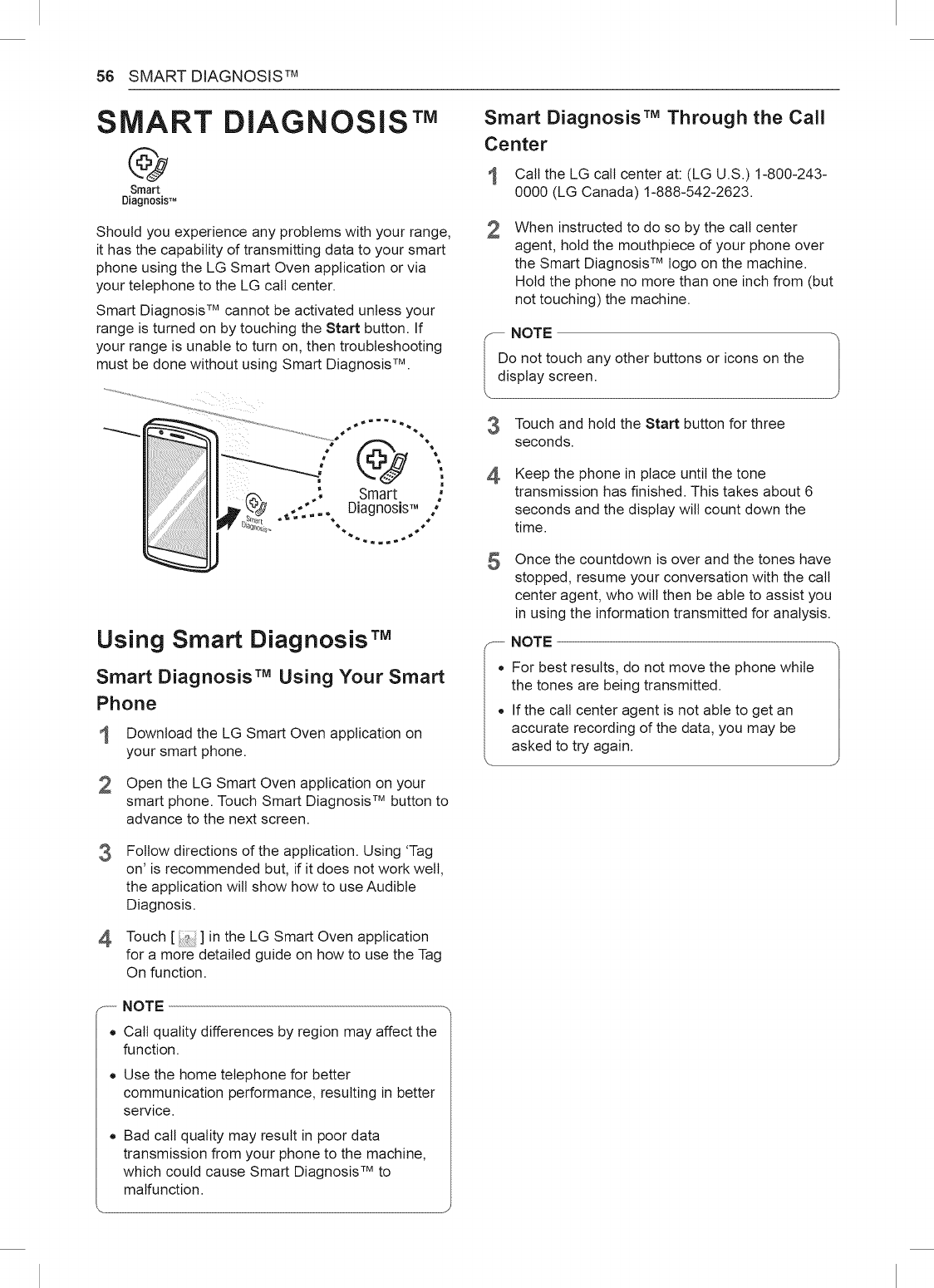

56 SMART DIAGNOSIS TM

56 Using Smart Diagnosis TM

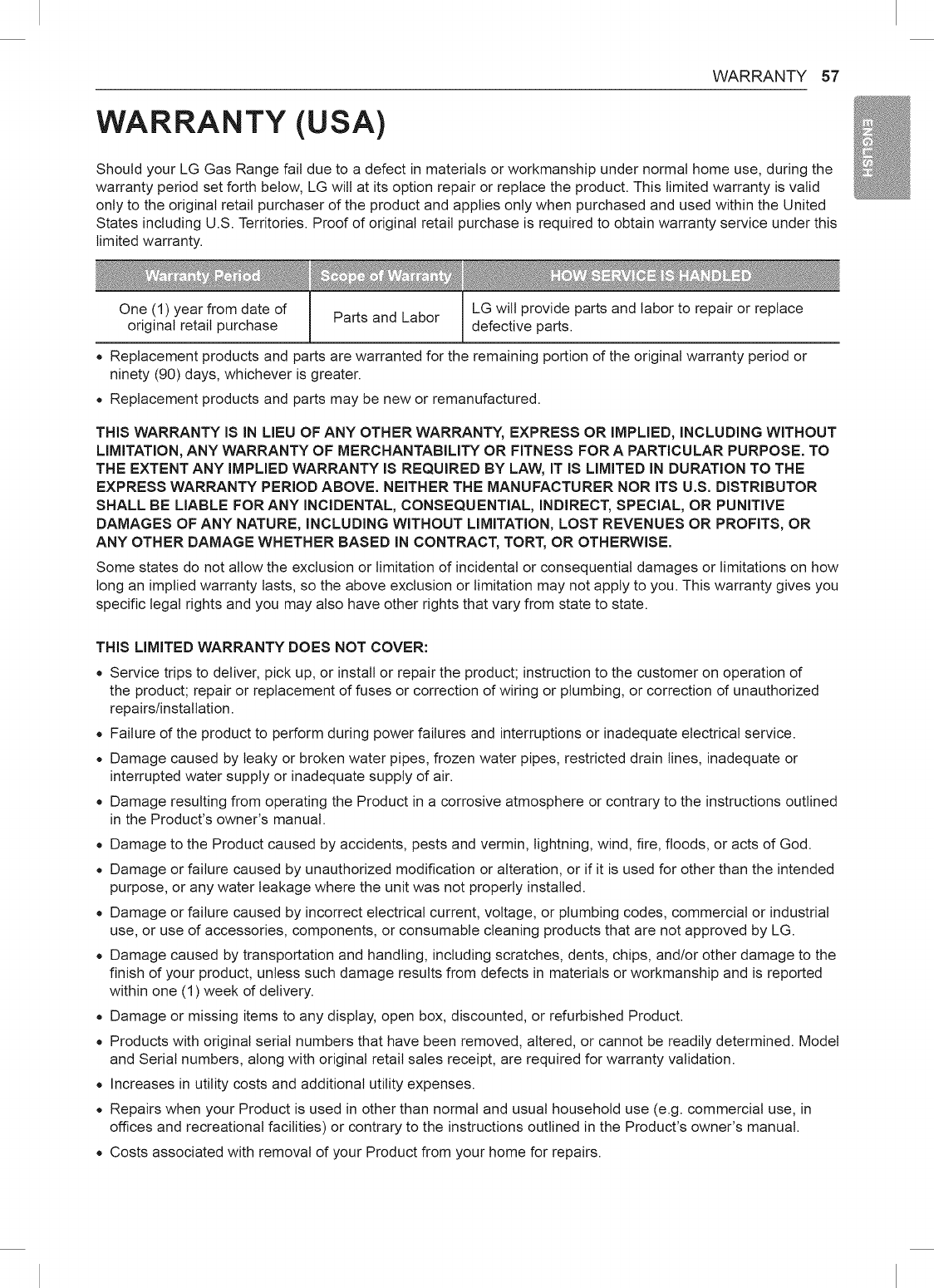

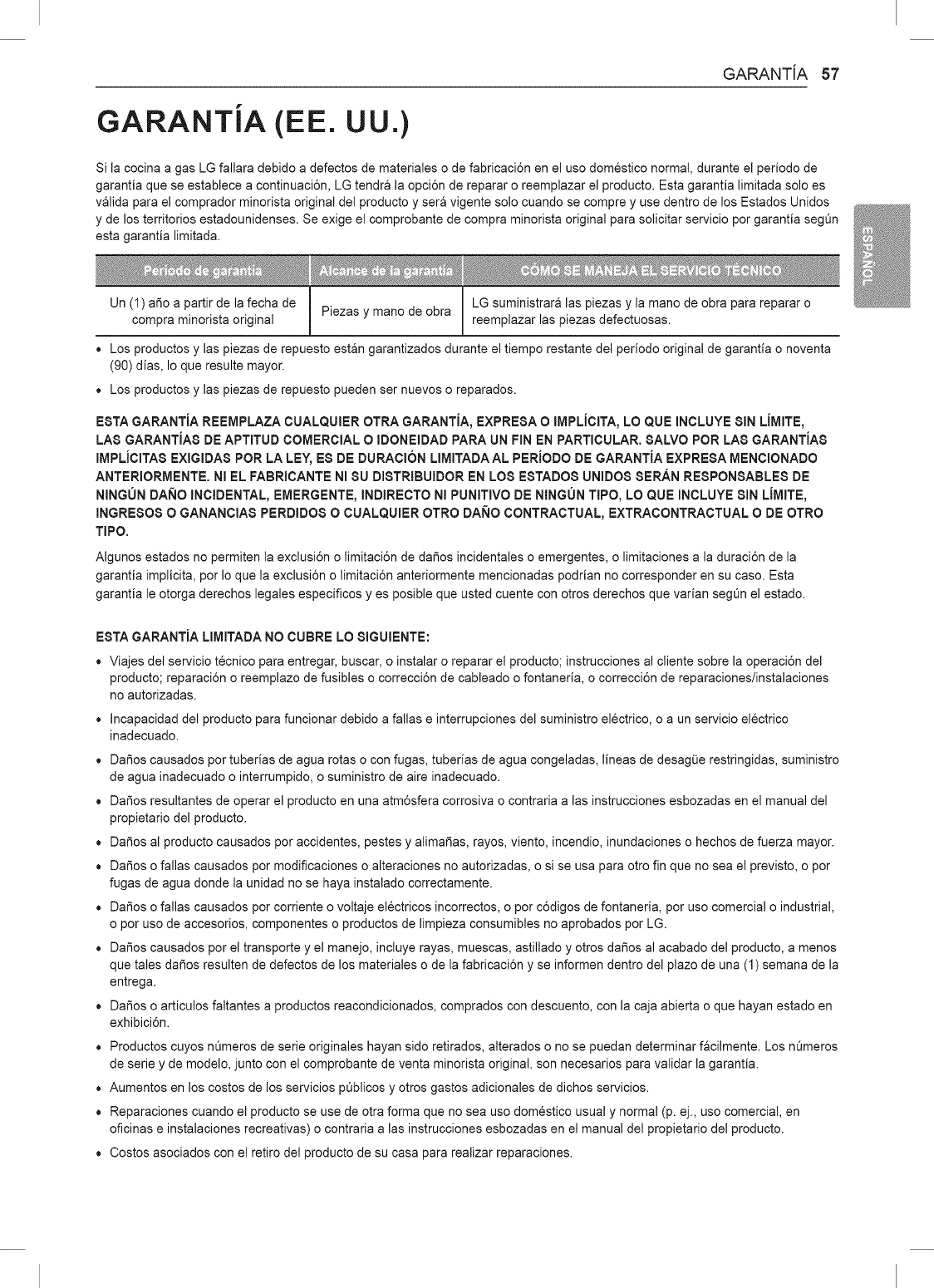

57 WARRANTY

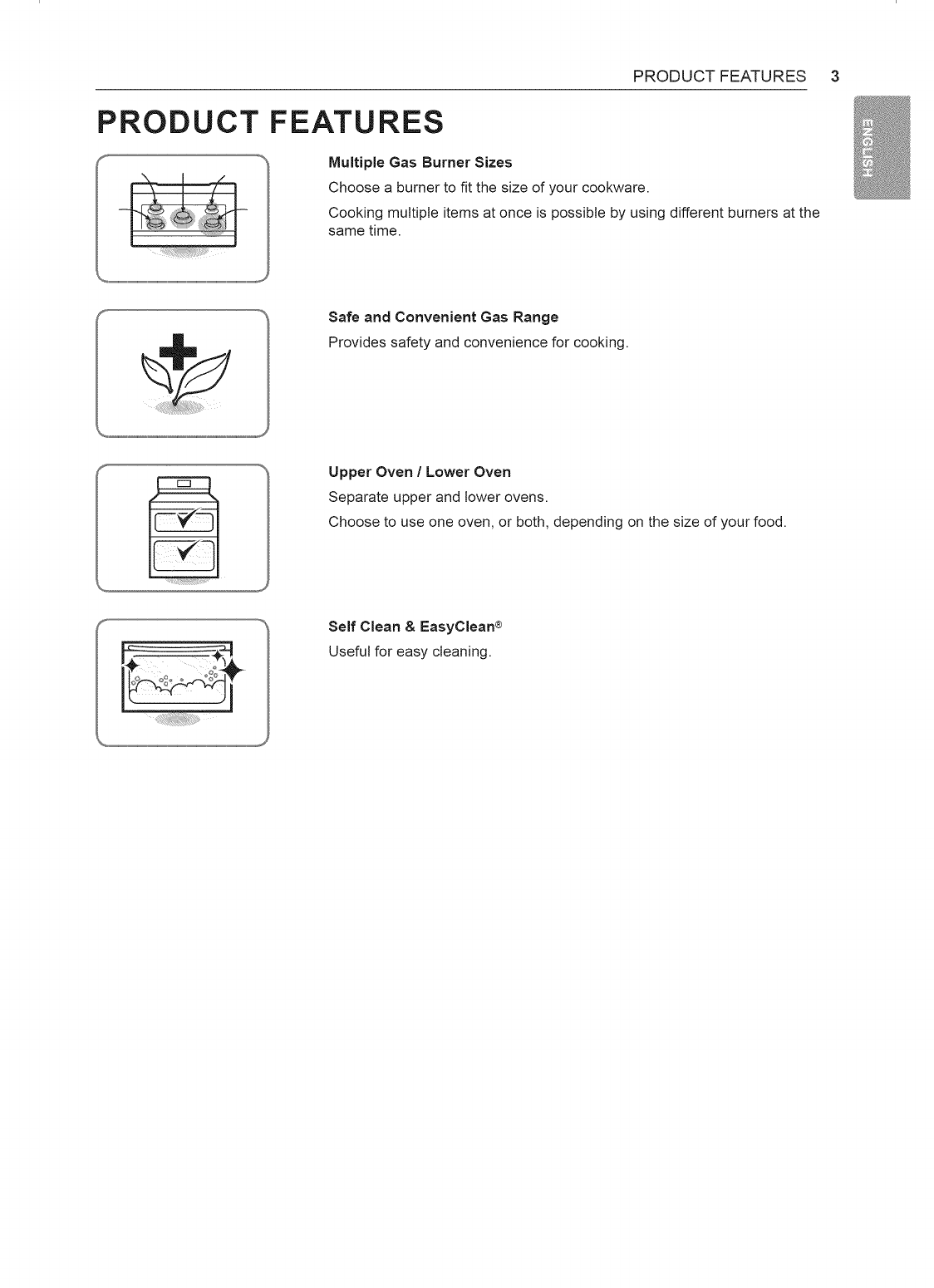

PRODUCT FEATURES 3

PRODUCT FEATURES

Multiple Gas Burner Sizes

Choose a burner to fit the size of your cookware.

Cooking multiple items at once is possible by using different burners at the

same time.

Safe and Convenient Gas Range

Provides safety and convenience for cooking.

Upper Oven /Lower Oven

Separate upper and lower ovens.

Choose to use one oven, or both, depending on the size of your food.

Self Clean & EasyClean ®

Useful for easy cleaning.

4 IMPORTANT SAFETY INSTRUCTIONS

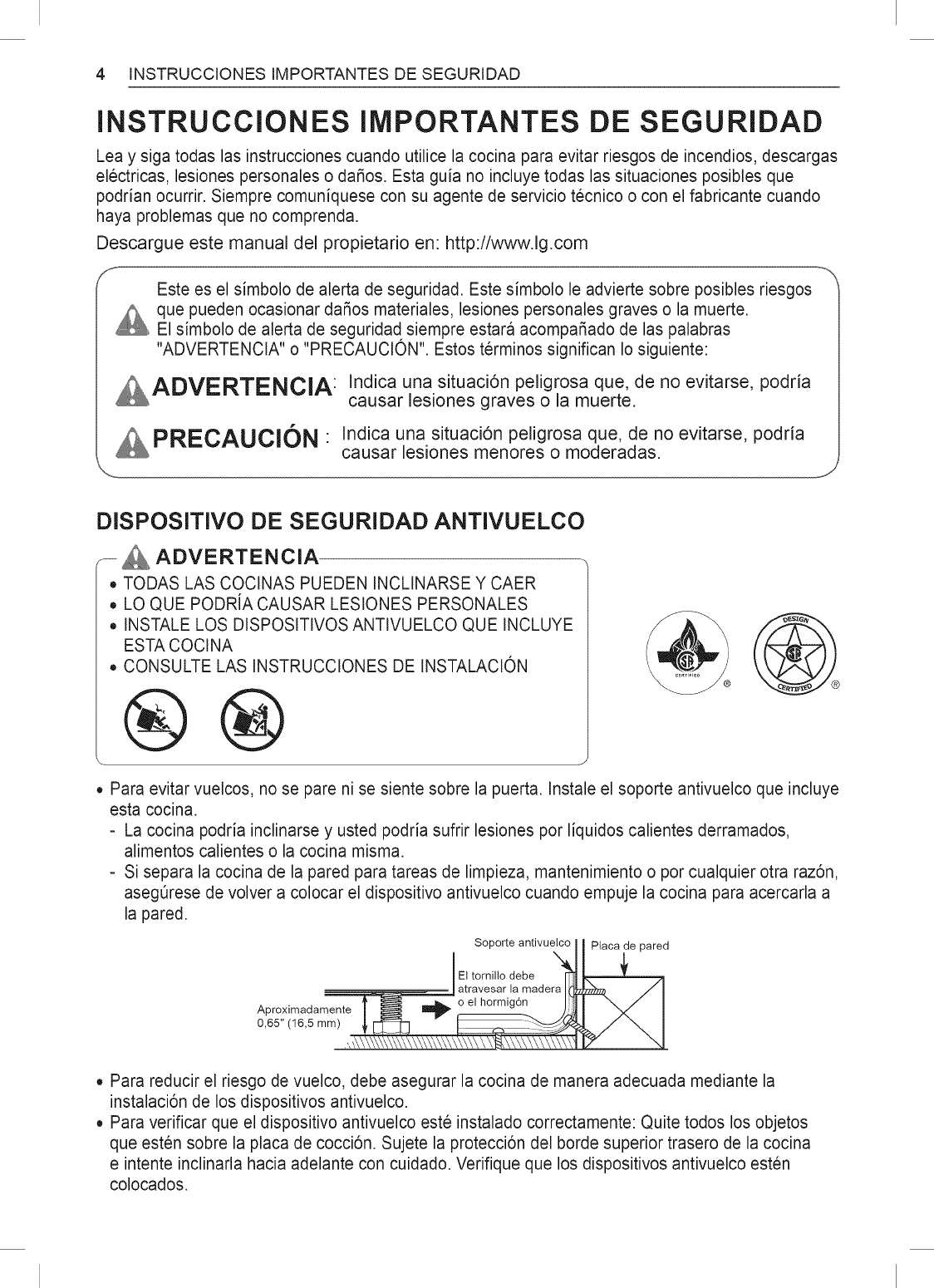

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions when using the range to prevent the risk of fire, electric

shock, personal injury, or damage. This guide does not cover all possible conditions that

may occur. Always contact your service agent or manufacturer about problems that you do

not understand.

Download this owner's manual at: http://wwwJg.com

This is the safety alert symbol. This symbol alerts you to potential hazards that

can result in property damage and/or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word

WARNING or CAUTION. These words mean:

WARNING -!ndicates a hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION - !ndicates a hazardous situation which, if not avoided, could result

in minor or moderate injury.

ANTI-TIP DEVICE

- _ WARNING -,

o ALL RANGES CAN TIP

,, INJURY TO PERSONS COULD RESULT

,, INSTALLANTFTIP DEVICES PACKED WITH RANGE

,, SEE INSTALLATION INSTRUCTIONS

,, To avoid tipping, do not step or sit on the door. Install the anti=tip bracket packed with this

range.

- The range could be tipped and injury might result from spilled hot liquid, food, or the

range itself.

- If the range is pulled away from the wall for cleaning, service, or any other reason,

ensure that the anti-tip device is properly reengaged when the range is pushed back

against the wall.

Approximately

0.65" (16.5 mm)

,, To reduce the risk of the range tipping over, the range must be secured by properly

installing the anti-tip devices.

,, To check that the anti-tip bracket is properly installed: Remove any items on the cooktop.

Grasp the top rear edge of the range back guard and carefully attempt to tilt it forward.

Verify that the anti-tip devices are engaged.

,, Remove the warming or storage drawers and visually inspect that the rear leveling leg is

fully inserted into the anti-tip bracket.

,, Refer to the installation manual for proper anti-tip bracket installation.

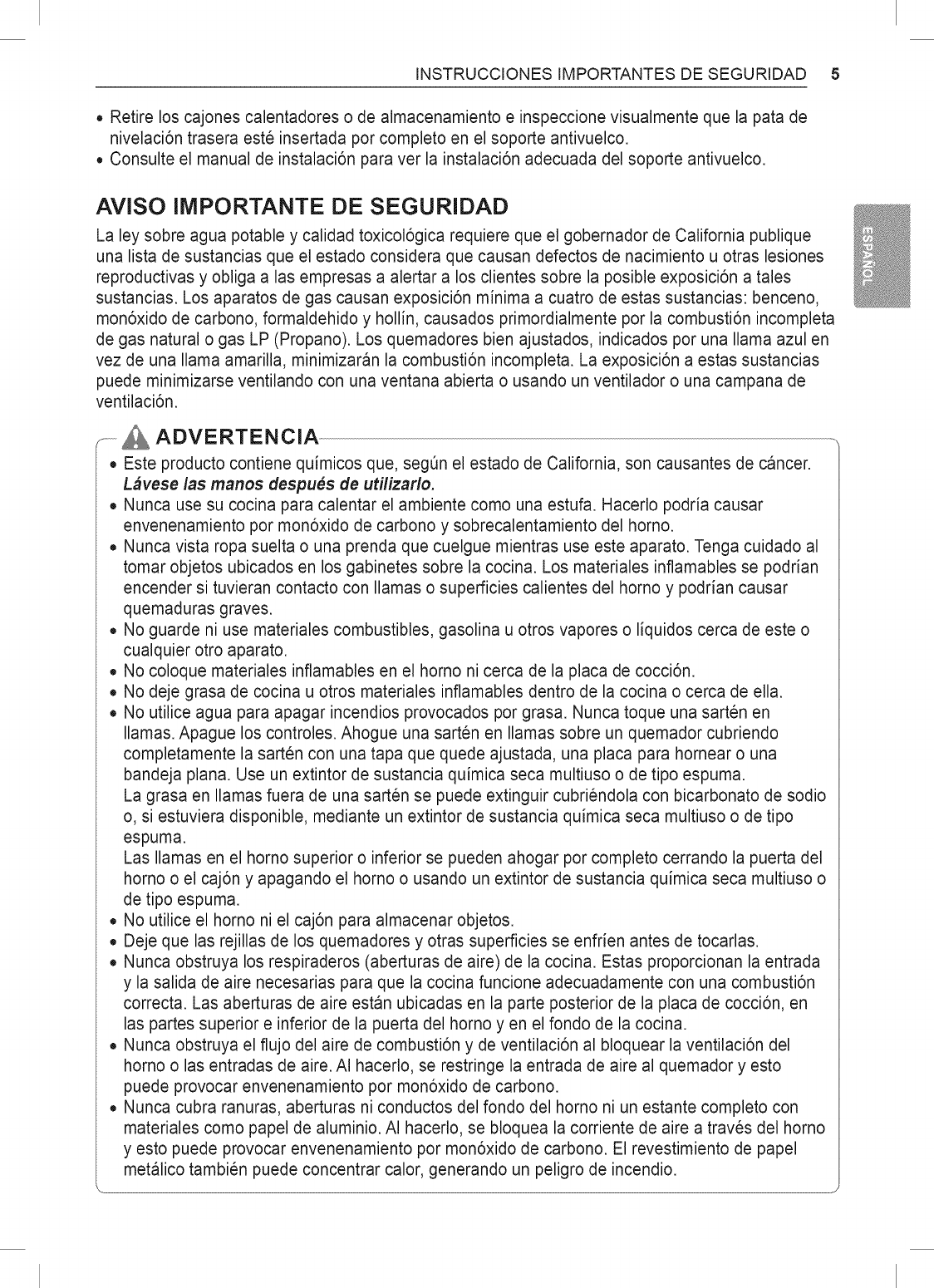

IMPORTANT SAFETY INSTRUCTIONS 5

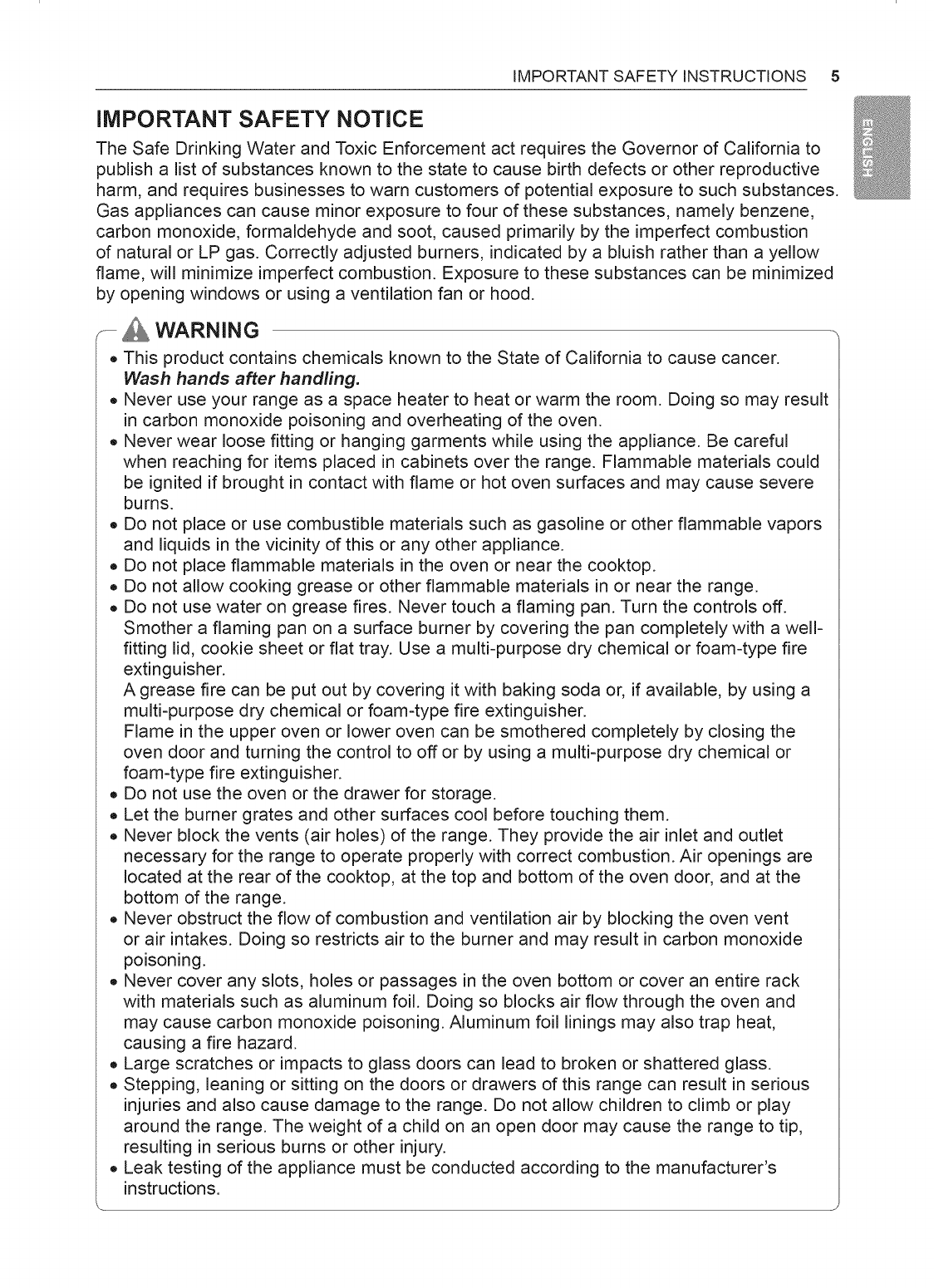

IMPORTANT SAFETY NOTICE

The Safe Drinking Water and Toxic Enforcement act requires the Governor of California to

publish a list of substances known to the state to cause birth defects or other reproductive

harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene,

carbon monoxide, formaldehyde and soot, caused primarily by the imperfect combustion

of natural or LP gas. Correctly adjusted burners, indicated by a bluish rather than a yellow

flame, will minimize imperfect combustion. Exposure to these substances can be minimized

by opening windows or using a ventilation fan or hood.

-._WARNING -,

,, This product contains chemicals known to the State of California to cause cancer.

Wash hands after handling.

,, Never use your range as a space heater to heat or warm the room. Doing so may result

in carbon monoxide poisoning and overheating of the oven.

,, Never wear loose fitting or hanging garments while using the appliance. Be careful

when reaching for items placed in cabinets over the range. Flammable materials could

be ignited if brought in contact with flame or hot oven surfaces and may cause severe

burns.

,, Do not place or use combustible materials such as gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

,, Do not place flammable materials in the oven or near the cooktop.

,, Do not allow cooking grease or other flammable materials in or near the range.

,, Do not use water on grease fires. Never touch a flaming pan. Turn the controls off.

Smother a flaming pan on a surface burner by covering the pan completely with a well-

fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire

extinguisher.

A grease fire can be put out by covering it with baking soda or, if available, by using a

multi-purpose dry chemical or foam-type fire extinguisher.

Flame in the upper oven or lower oven can be smothered completely by closing the

oven door and turning the control to off or by using a multi-purpose dry chemical or

foam-type fire extinguisher.

,, Do not use the oven or the drawer for storage.

,, Let the burner grates and other surfaces cool before touching them.

,, Never block the vents (air holes) of the range. They provide the air inlet and outlet

necessary for the range to operate properly with correct combustion. Air openings are

located at the rear of the cooktop, at the top and bottom of the oven door, and at the

bottom of the range.

,, Never obstruct the flow of combustion and ventilation air by blocking the oven vent

or air intakes. Doing so restricts air to the burner and may result in carbon monoxide

poisoning.

,, Never cover any slots, holes or passages in the oven bottom or cover an entire rack

with materials such as aluminum foil. Doing so blocks air flow through the oven and

may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat,

causing a fire hazard.

,, Large scratches or impacts to glass doors can lead to broken or shattered glass.

,, Stepping, leaning or sitting on the doors or drawers of this range can result in serious

injuries and also cause damage to the range. Do not allow children to climb or play

around the range. The weight of a child on an open door may cause the range to tip,

resulting in serious burns or other injury.

,, Leak testing of the appliance must be conducted according to the manufacturer's

instructions.

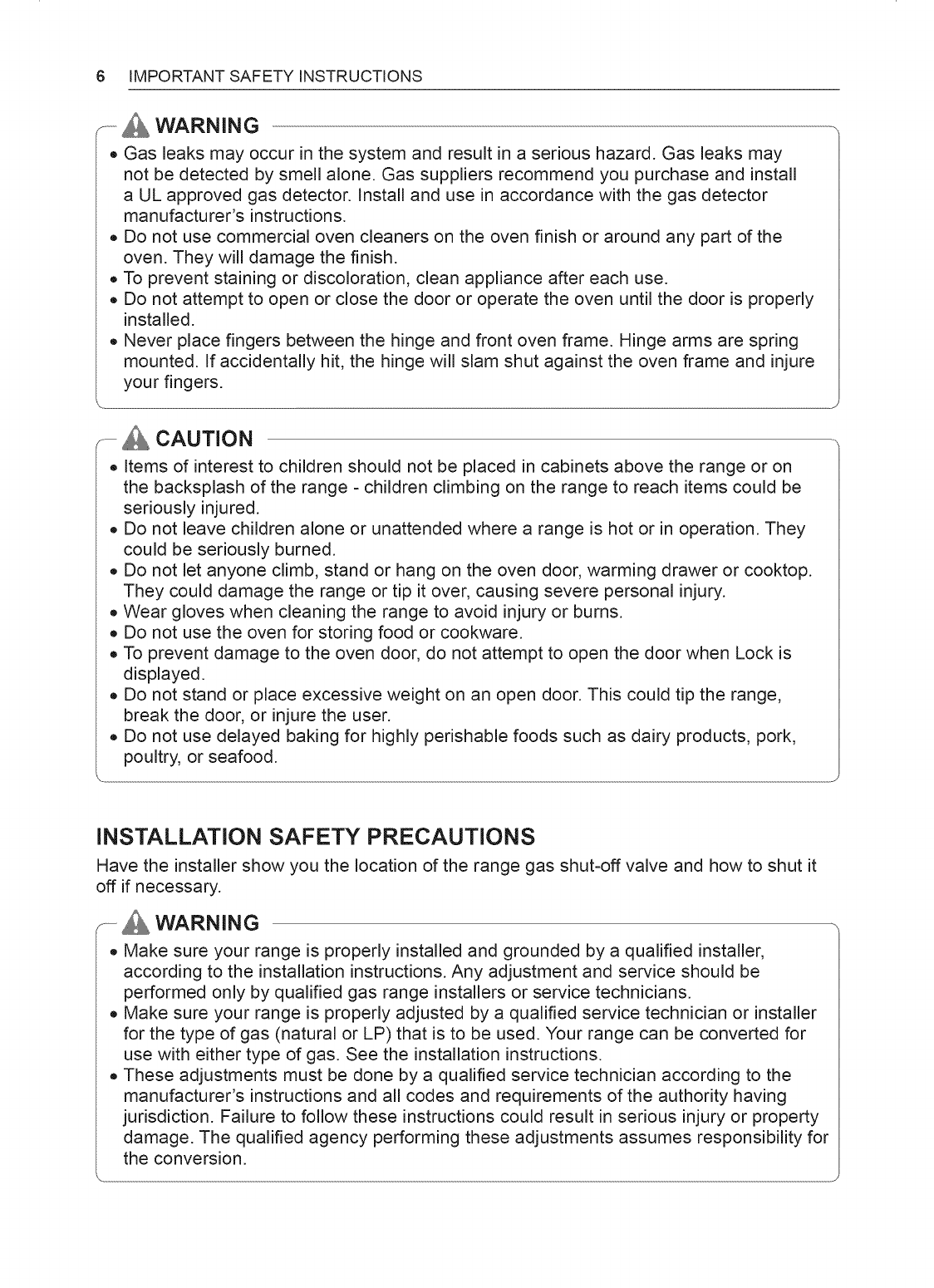

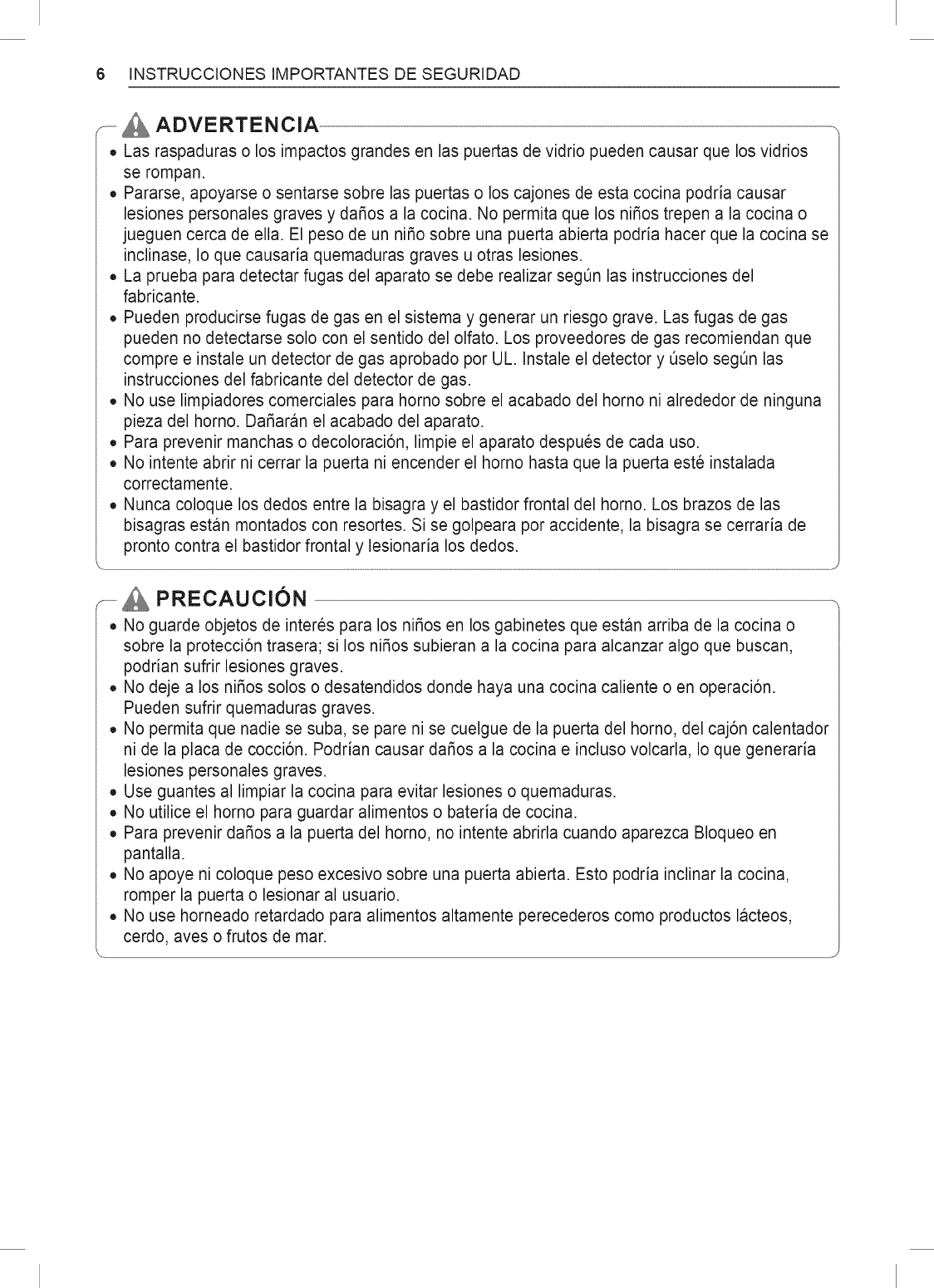

6 IMPORTANT SAFETY INSTRUCTIONS

.........._ WARNING

,, Gas leaks may occur in the system and result in aserious hazard. Gas leaks may

not be detected by smell alone. Gas suppliers recommend you purchase and install

a UL approved gas detector. Install and use in accordance with the gas detector

manufacturer's instructions.

,, Do not use commercial oven cleaners on the oven finish or around any part of the

oven. They will damage the finish.

,, To prevent staining or discoloration, clean appliance after each use.

,, Do not attempt to open or close the door or operate the oven until the door is properly

installed.

,, Never place fingers between the hinge and front oven frame. Hinge arms are spring

mounted. If accidentally hit, the hinge will slam shut against the oven frame and injure

your fingers.

_- _ CAUTION _,

,, Items of interest to children should not be placed in cabinets above the range or on

the backsplash of the range - children climbing on the range to reach items could be

seriously injured.

,, Do not leave children alone or unattended where a range is hot or in operation. They

could be seriously burned.

,, Do not let anyone climb, stand or hang on the oven door, warming drawer or cooktop.

They could damage the range or tip it over, causing severe personal injury.

,, Wear gloves when cleaning the range to avoid injury or burns.

,, Do not use the oven for storing food or cookware.

,, To prevent damage to the oven door, do not attempt to open the door when Lock is

displayed.

,, Do not stand or place excessive weight on an open door. This could tip the range,

break the door, or injure the user.

,, Do not use delayed baking for highly perishable foods such as dairy products, pork,

poultry, or seafood.

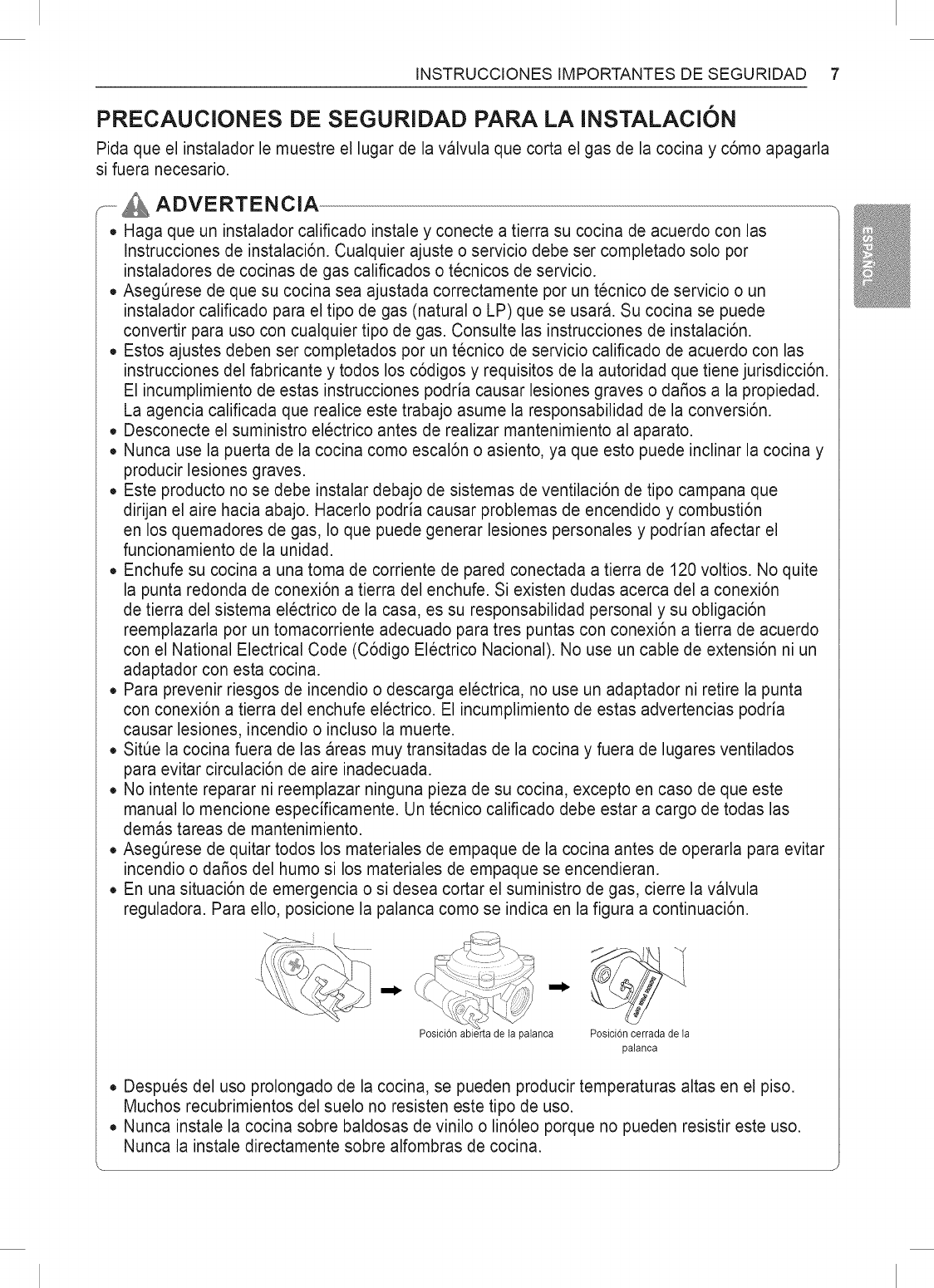

INSTALLATION SAFETY PRECAUTIONS

Have the installer show you the location of the range gas shut-off valve and how to shut it

off if necessary.

......_ WARNING

,, Make sure your range is properly installed and grounded by a qualified installer,

according to the installation instructions. Any adjustment and service should be

performed only by qualified gas range installers or service technicians.

,, Make sure your range is properly adjusted by a qualified service technician or installer

for the type of gas (natural or LP) that is to be used. Your range can be converted for

use with either type of gas. See the installation instructions.

,, These adjustments must be done by a qualified service technician according to the

manufacturer's instructions and all codes and requirements of the authority having

jurisdiction. Failure to follow these instructions could result in serious injury or property

damage. The qualified agency performing these adjustments assumes responsibility for

the conversion.

IMPORTANT SAFETY INSTRUCTIONS 7

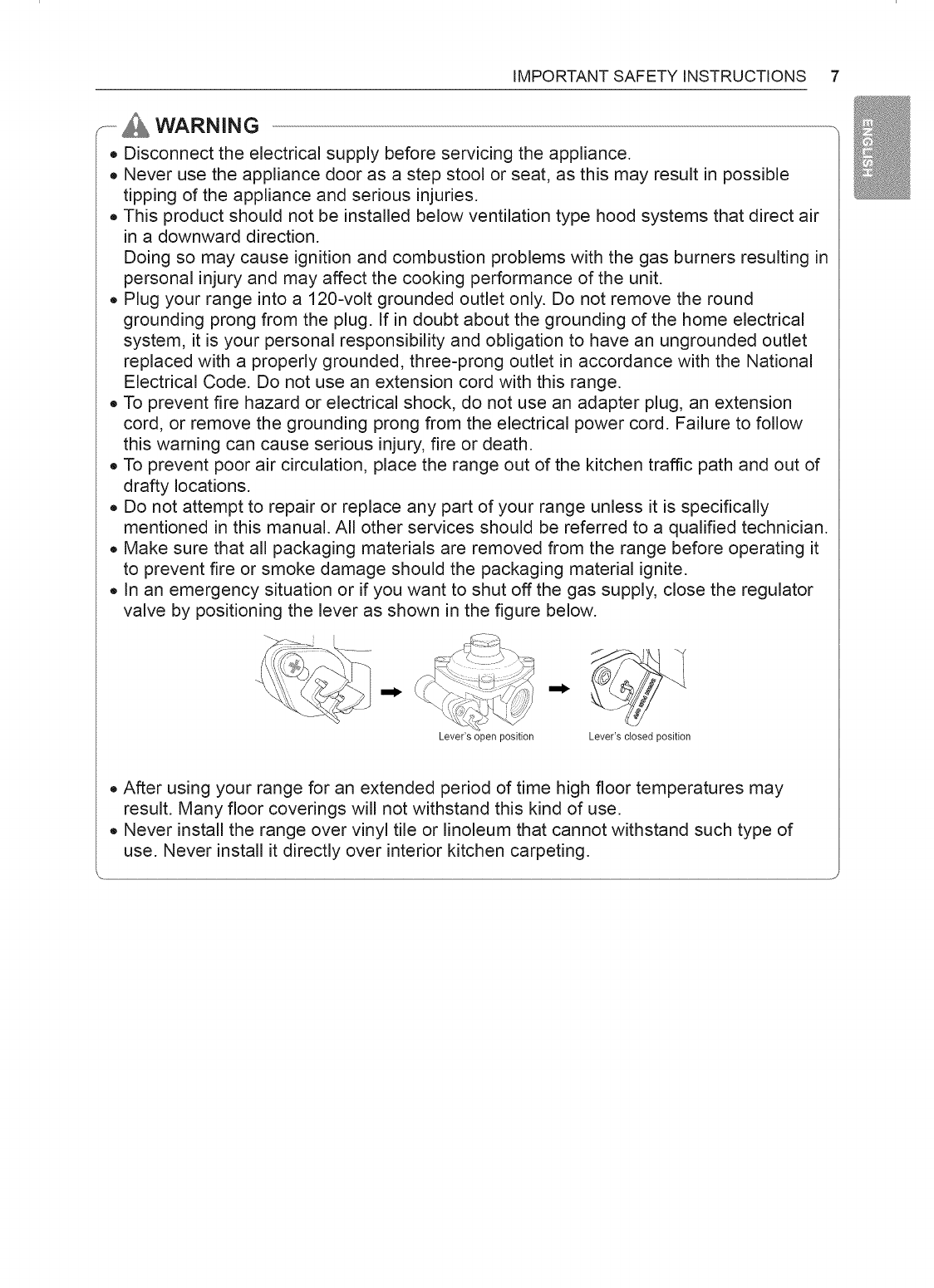

r...-_ WARNING

,, Disconnect the electrical supply before servicing the appliance.

,, Never use the appliance door as a step stool or seat, as this may result in possible

tipping of the appliance and serious injuries.

,, This product should not be installed below ventilation type hood systems that direct air

in a downward direction.

Doing so may cause ignition and combustion problems with the gas burners resulting in

personal injury and may affect the cooking performance of the unit.

,, Plug your range into a 120-volt grounded outlet only. Do not remove the round

grounding prong from the plug. if in doubt about the grounding of the home electrical

system, it is your persona[ responsibility and obligation to have an ungrounded outlet

replaced with a properly grounded, three-prong outlet in accordance with the National

Electrical Code. Do not use an extension cord with this range.

,, To prevent fire hazard or electrical shock, do not use an adapter plug, an extension

cord, or remove the grounding prong from the electrical power cord. Failure to follow

this warning can cause serious injury, fire or death.

,, To prevent poor air circulation, place the range out of the kitchen traffic path and out of

drafty locations.

,, Do not attempt to repair or replace any part of your range unless it is specifically

mentioned in this manual. A[[ other services should be referred to a qualified technician.

,, Make sure that ai[ packaging materials are removed from the range before operating it

to prevent fire or smoke damage should the packaging material ignite.

,, in an emergency situation or if you want to shut off the gas supply, dose the regulator

valve by positioning the [ever as shown in the figure below.

Lever's open position Lever's closed position

,, After using your range for an extended period of time high floor temperatures may

result. Many floor coverings wi[[ not withstand this kind of use.

,, Never install the range over vinyl tile or linoleum that cannot withstand such type of

use. Never install it directly over interior kitchen carpeting.

8 IMPORTANT SAFETY INSTRUCTIONS

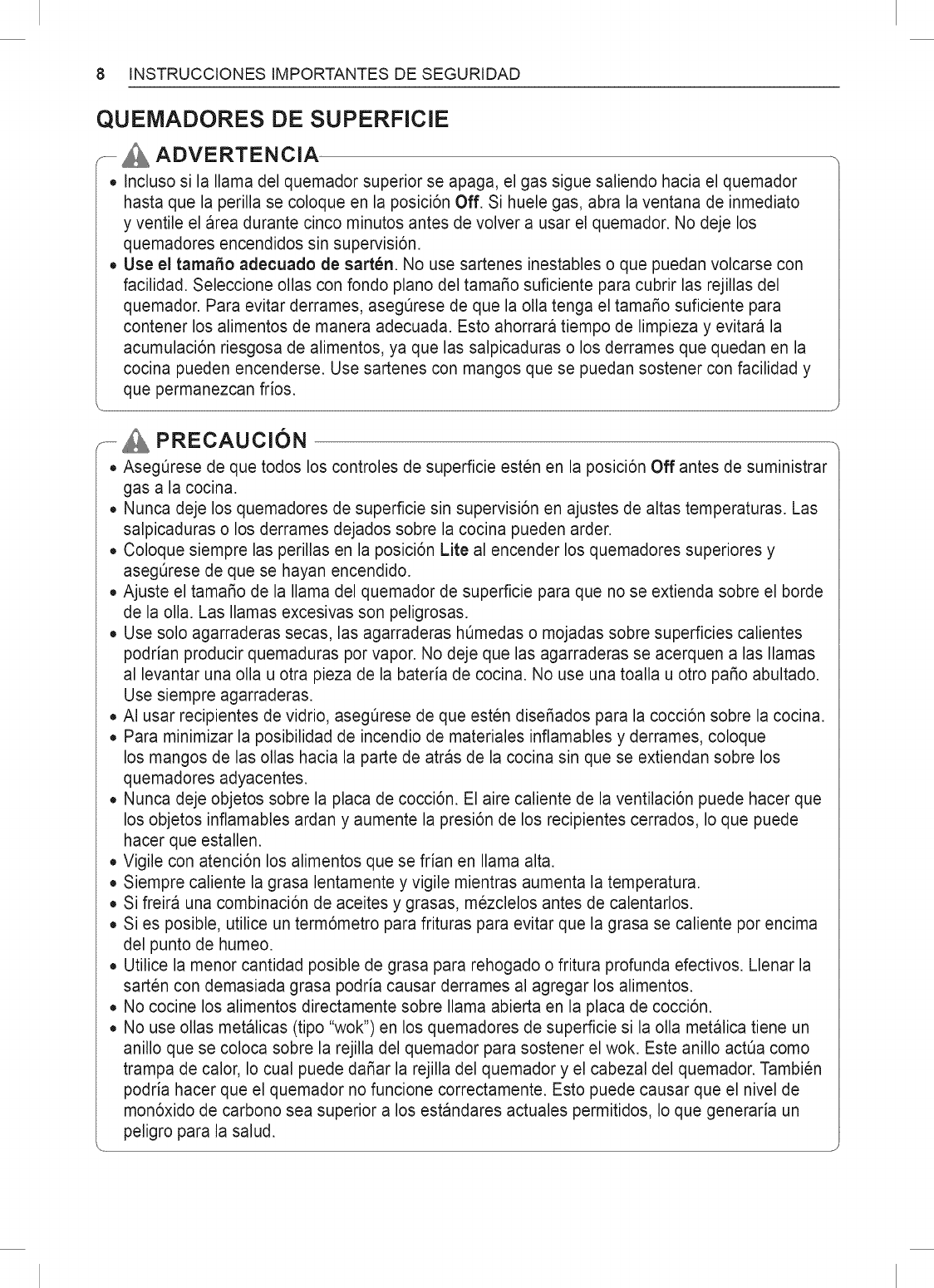

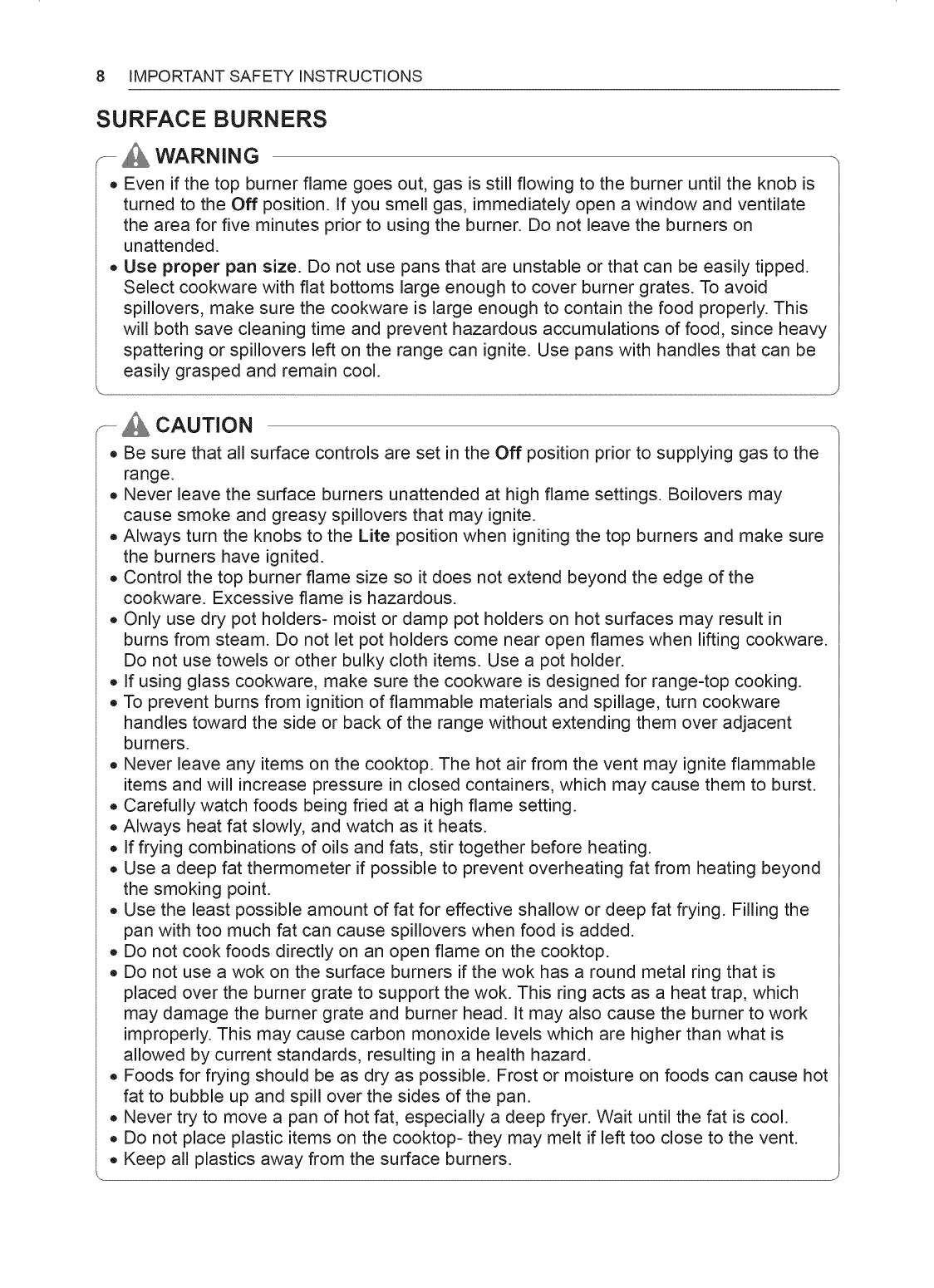

SURFACE BURNERS

WARNING

o Even if the top burner flame goes out, gas is still flowing to the burner until the knob is

turned to the Off position. If you smell gas, immediately open a window and ventilate

the area for five minutes prior to using the burner. Do not leave the burners on

unattended.

Use proper pan size. Do not use pans that are unstable or that can be easily tipped.

Select cookware with flat bottoms large enough to cover burner grates. To avoid

spillovers, make sure the cookware is large enough to contain the food properly. This

will both save cleaning time and prevent hazardous accumulations of food, since heavy

spattering or spillovers left on the range can ignite. Use pans with handles that can be

easily grasped and remain cool.

......_ CAUTION

. Be sure that all surface controls are set in the Off position prior to supplying gas to the

range.

Never leave the surface burners unattended at high flame settings. Boilovers may

cause smoke and greasy spillovers that may ignite.

Always turn the knobs to the Lite position when igniting the top burners and make sure

the burners have ignited.

Control the top burner flame size so it does not extend beyond the edge of the

cookware. Excessive flame is hazardous.

Only use dry pot holders- moist or damp pot holders on hot surfaces may result in

burns from steam. Do not let pot holders come near open flames when lifting cookware.

Do not use towels or other bulky cloth items. Use a pot holder.

if using glass cookware, make sure the cookware is designed for range-top cooking.

To prevent burns from ignition of flammable materials and spillage, turn cookware

handles toward the side or back of the range without extending them over adjacent

burners.

Never leave any items on the cooktop. The hot air from the vent may ignite flammable

items and will increase pressure in closed containers, which may cause them to burst.

,, Carefully watch foods being fried at a high flame setting.

Always heat fat slowly, and watch as it heats.

,, If frying combinations of oils and fats, stir together before heating.

Use a deep fat thermometer if possible to prevent overheating fat from heating beyond

the smoking point.

Use the least possible amount of fat for effective shallow or deep fat frying. Filling the

pan with too much fat can cause spillovers when food is added.

Do not cook foods directly on an open flame on the cooktop.

Do not use a wok on the surface burners if the wok has a round metal ring that is

placed over the burner grate to support the wok. This ring acts as a heat trap, which

may damage the burner grate and burner head. It may also cause the burner to work

improperly. This may cause carbon monoxide levels which are higher than what is

allowed by current standards, resulting in a health hazard.

Foods for frying should be as dry as possible. Frost or moisture on foods can cause hot

fat to bubble up and spill over the sides of the pan.

,, Never try to move a pan of hot fat, especially a deep fryer. Wait until the fat is cool.

Do not place plastic items on the cooktop- they may melt if left too close to the vent.

Keep all plastics away from the surface burners.

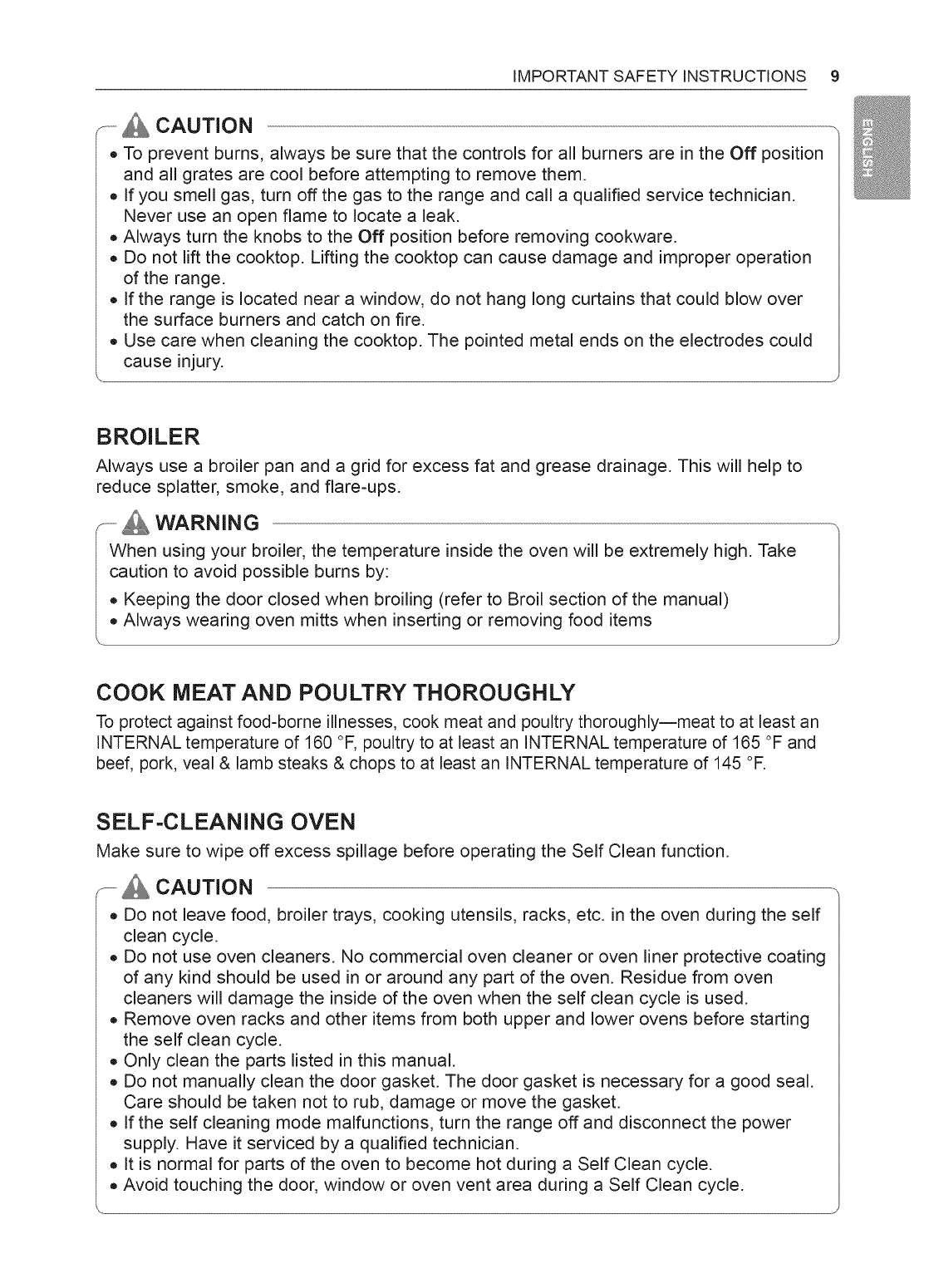

IMPORTANT SAFETY INSTRUCTIONS 9

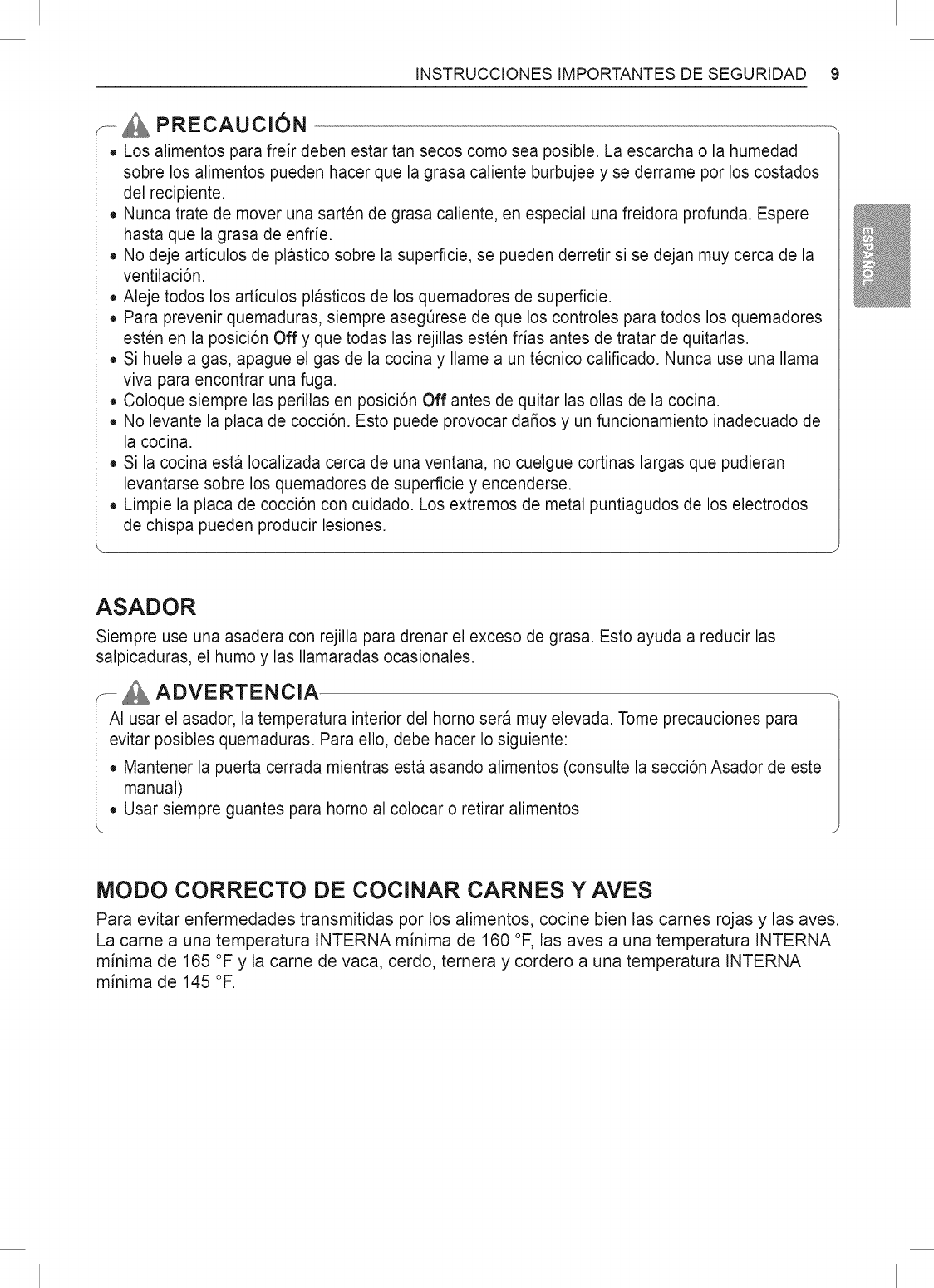

.........._ CAUTION

, To prevent burns, always be sure that the controls for all burners are in the Off position

and all grates are cool before attempting to remove them.

o If you smell gas, turn off the gas to the range and call a qualified service technician.

Never use an open flame to locate a leak.

,, Always turn the knobs to the Off position before removing cookware.

• Do not lift the cooktop. Lifting the cooktop can cause damage and improper operation

of the range.

If the range is located near a window, do not hang long curtains that could blow over

the surface burners and catch on fire.

Use care when cleaning the cooktop. The pointed metal ends on the electrodes could

cause injury.

BROILER

Always use a broiler pan and a grid for excess fat and grease drainage. This will help to

reduce splatter, smoke, and flare-ups.

_-IA WARNING

hen using your broiler, the temperature inside the oven will be extremely high. Take

aution to avoid possible burns by:

Keeping the door closed when broiling (refer to Broil section of the manual)

Always wearing oven mitts when inserting or removing food items

COOK MEAT AND POULTRY THOROUGHLY

To protect against food=borne illnesses, cook meat and poultry thoroughly--meat to at least an

INTERNAL temperature of 160 °F, poultry to at least an INTERNAL temperature of 165 °F and

beef, pork, veal & lamb steaks & chops to at least an INTERNAL temperature of 145 °F.

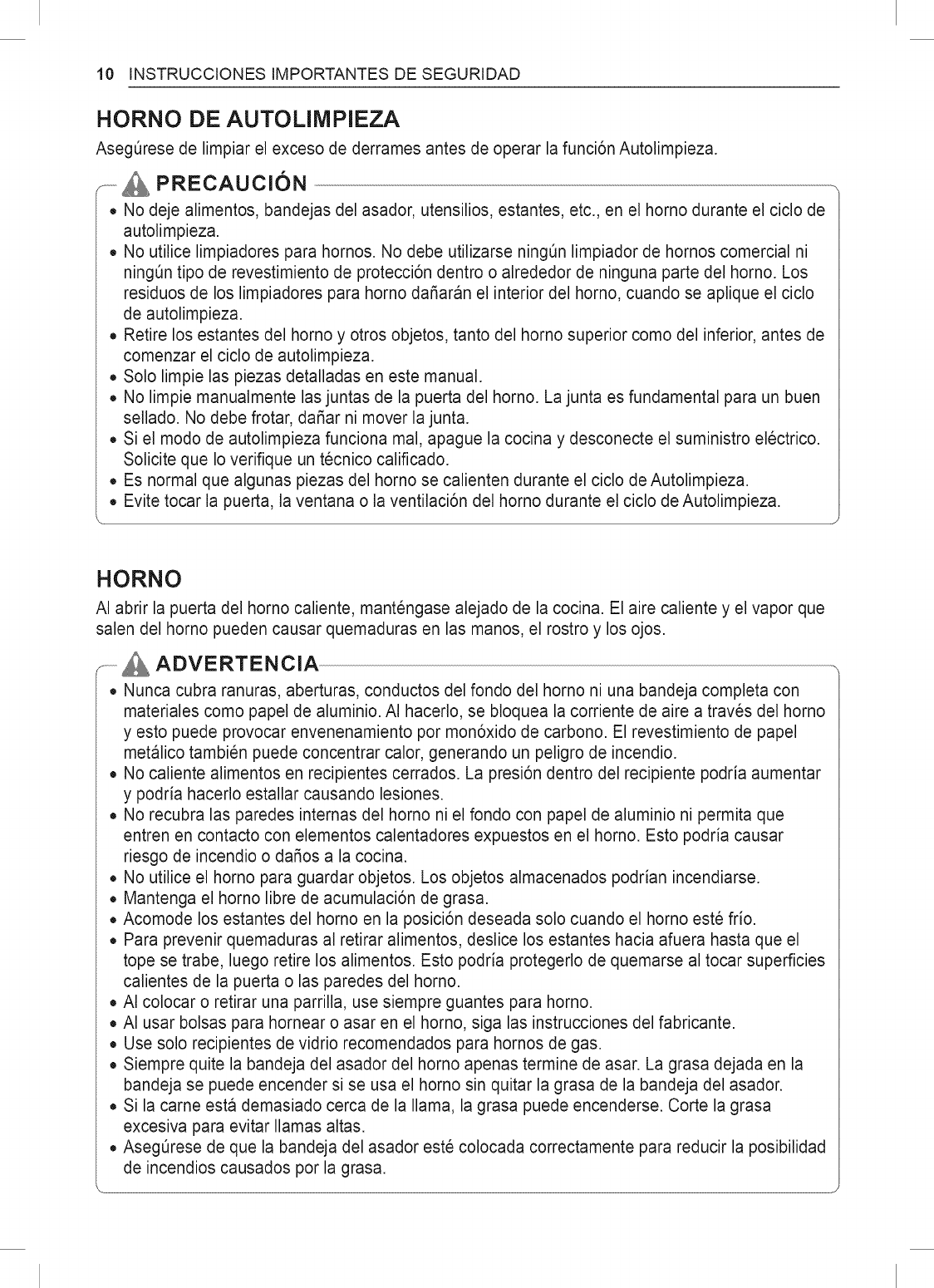

SELF-CLEANING OVEN

Make sure to wipe off excess spillage before operating the Self Clean function.

.........._ CAUTION

, Do not leave food, broiler trays, cooking utensils, racks, etc. in the oven during the self

clean cycle.

o Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating

of any kind should be used in or around any part of the oven. Residue from oven

cleaners will damage the inside of the oven when the self clean cycle is used.

Remove oven racks and other items from both upper and lower ovens before starting

the self clean cycle.

Only clean the parts listed in this manual.

, Do not manually clean the door gasket. The door gasket is necessary for a good seal.

Care should be taken not to rub, damage or move the gasket.

, if the self cleaning mode malfunctions, turn the range off and disconnect the power

supply. Have it serviced by a qualified technician.

,, it is normal for parts of the oven to become hot during aSelf Clean cycle.

Avoid touching the door, window or oven vent area during a Self Clean cycle.

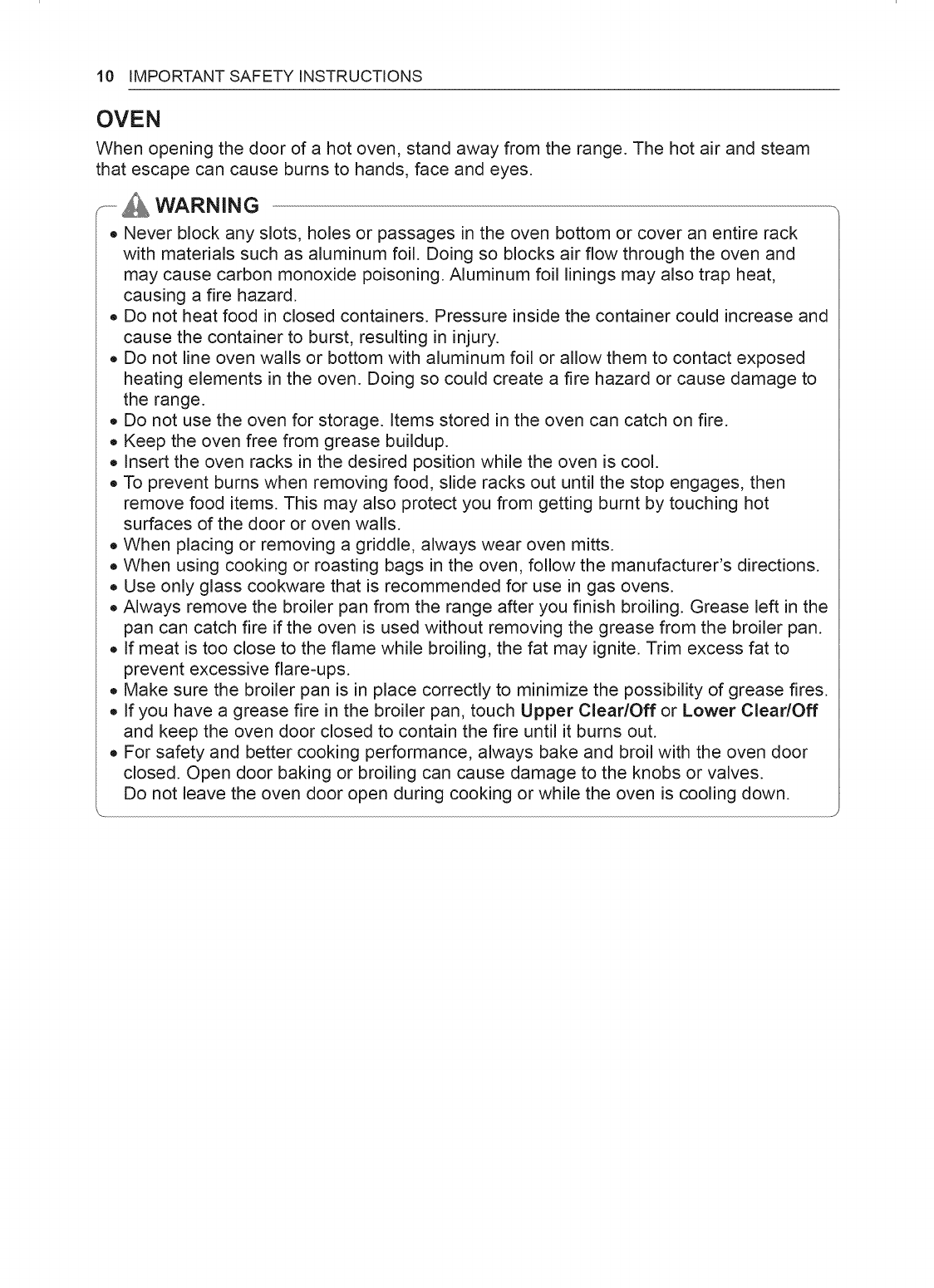

10 IMPORTANT SAFETY INSTRUCTIONS

OVEN

When opening the door of a hot oven, stand away from the range. The hot air and steam

that escape can cause burns to hands, face and eyes.

............_ WARNING

,, Never block any slots, holes or passages in the oven bottom or cover an entire rack

with materials such as aluminum foil. Doing so blocks air flow through the oven and

may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat,

causing a fire hazard.

,, Do not heat food in closed containers. Pressure inside the container could increase and

cause the container to burst, resulting in injury.

,, Do not line oven walls or bottom with aluminum foil or allow them to contact exposed

heating elements in the oven. Doing so could create a fire hazard or cause damage to

the range.

,, Do not use the oven for storage. Items stored in the oven can catch on fire.

,, Keep the oven free from grease buildup.

,, Insert the oven racks in the desired position while the oven is cool.

,, To prevent burns when removing food, slide racks out until the stop engages, then

remove food items. This may also protect you from getting burnt by touching hot

surfaces of the door or oven walls.

,, When placing or removing a griddle, always wear oven mitts.

,, When using cooking or roasting bags in the oven, follow the manufacturer's directions.

,, Use only glass cookware that is recommended for use in gas ovens.

,, Always remove the broiler pan from the range after you finish broiling. Grease left in the

pan can catch fire if the oven is used without removing the grease from the broiler pan.

,, If meat is too close to the flame while broiling, the fat may ignite. Trim excess fat to

prevent excessive flare-ups.

,, Make sure the broiler pan is in place correctly to minimize the possibility of grease fires.

,, If you have a grease fire in the broiler pan, touch Upper Clear/Off or Lower Clear/Off

and keep the oven door closed to contain the fire until it burns out.

,, For safety and better cooking performance, always bake and broil with the oven door

closed. Open door baking or broiling can cause damage to the knobs or valves.

Do not leave the oven door open during cooking or while the oven is cooling down.

IMPORTANT SAFETY INSTRUCTIONS 11

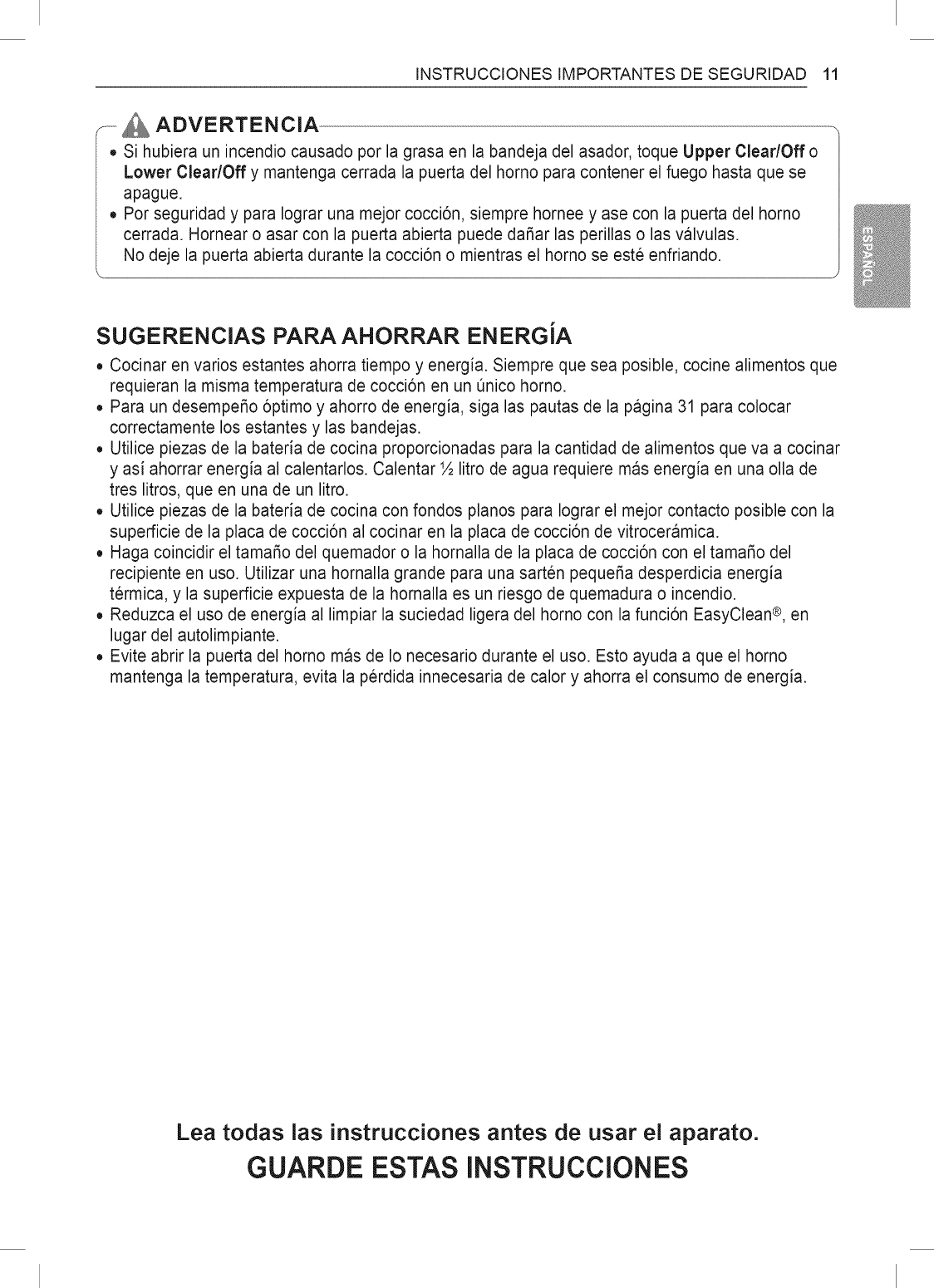

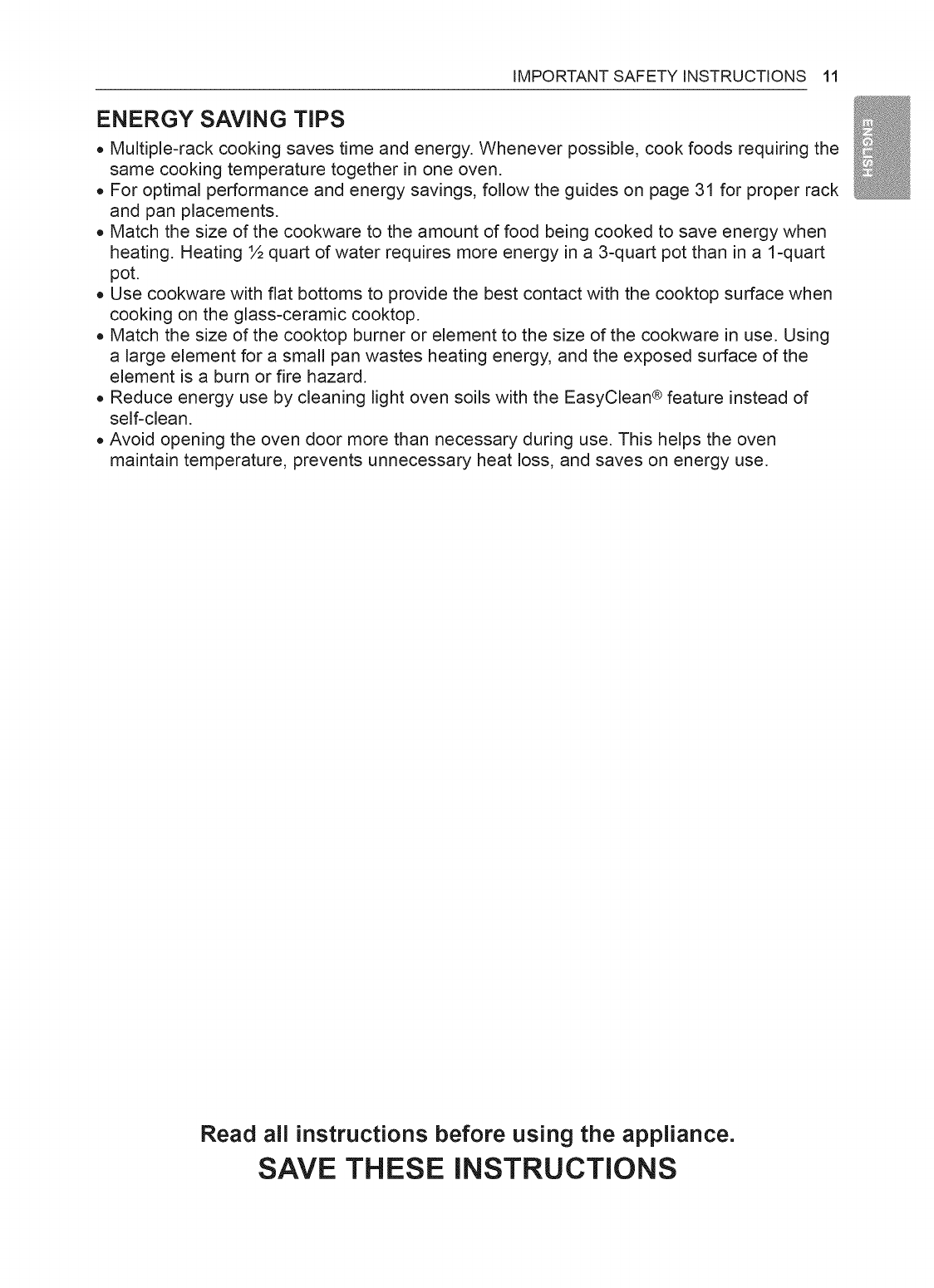

ENERGY SAVING TIPS

,, Multiple-rack cooking saves time and energy. Whenever possible, cook foods requiring the

same cooking temperature together in one oven.

,, For optimal performance and energy savings, follow the guides on page 31 for proper rack

and pan placements.

,, Match the size of the cookware to the amount of food being cooked to save energy when

heating. Heating ½ quart of water requires more energy in a 3-quart pot than in a 1-quart

pot.

,, Use cookware with flat bottoms to provide the best contact with the cooktop surface when

cooking on the glass-ceramic cooktop.

,, Match the size of the cooktop burner or element to the size of the cookware in use. Using

a large element for a small pan wastes heating energy, and the exposed surface of the

element is a burn or fire hazard.

,, Reduce energy use by cleaning light oven soils with the EasyClean ® feature instead of

self-clean.

,, Avoid opening the oven door more than necessary during use. This helps the oven

maintain temperature, prevents unnecessary heat loss, and saves on energy use.

Read all instructions before using the appliance.

SAVE THESE INSTRUCTIONS

12 PRODUCT OVERVIEW

PRODUCT OVERVIEW

Parts

Oven

control panel

Cooktop

Cooktop __

controller

Upper

oven door

Lower

oven door

:i__I ii

Oven vent

-- Grate

-- Burnercontrol knob

-- Rack

Accessories

Included Accessories

Standard rack

-LDG4315 (lea)

-LDG4313 /LDG4311 (2ea)

Nozzles (8ea) -Cooktop(5ea) -

Oven (3ea)

Offset rack (lea)

Spray bottle (1ea)

Gliding rack (lea)

(LDG4315 Model only)

Non-scratch

scouting pad (lea)

Griddle (lea)

(LDG4315 Model only)

Anti-tip

Optional Accessories

Screws (6ea) Anchors (6ea) Template

Grid Broiler pan

_---------NOTE

• Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are

missing.

For your safety and for extended product life, only use authorized components.

The manufacturer is not responsible for product malfunction or accidents caused by the use of separately

purchased, unauthorized components or parts.

The images in this guide may be different from the actual components and accessories, which are subject

to change by the manufacturer without prior notice for product improvement purposes.

INSTALLATION 13

INSTALLATION

Before Installing the Range

Make sure your range is properly installed and grounded by a qualified installer, according to the installation

instructions. Any adjustment and service should be performed only by qualified gas range installers or service

technicians.

in the Commonwealth of Massachusetts

• This product must be installed by a licensed plumber or gas fitter.

When using ball type gas shut-off valves, they must be the T-handle type.

When using a flexible gas connector, it must not exceed 3 feet in length.

Preparing for installation

Tools Needed

Phillips screwdriver Flat-blade screwdriver Penciland ruler

Open-end oradjustable

wrench Pipe wrench (2)

(one for support)

Level

Materials You May Need

Gas line shut-off valve

Pipe joint sealant that resists action of natural and LP gases

Flexible metal appliance connector (3/4"or 1/2"NPT x V2" I.D.)

Never use an old connector when installing a new range.

Flare union adapter for connection to gas supply line (3/4"or 1/2"NPT x V2" I.D.)

Flare union adapter for connection to pressure regulator on range (1/2" NPT x 1/2"I.D.)

Liquid leak detector or soapy water

Lag bolt or V2" O.D. sleeve anchor (for concrete floors only)

14 INSTALLATION

Installing the Range

Unpacking and Moving the Range

7 CAUTION

•You should use two or more people to move

and install the range. (Excessive Weight

Hazard) Failure to do so can result in back or

other injury.

Do not use the door handles to push or

pull the range during installation or when

moving the range out for cleaning or

service. Doing so can result in serious damage

to the door of the range.

Remove packing material, tape and any temporary

labels from your range before using. Do not remove

any warning-type labels, the model and serial number

label, or the Tech Sheet that is located on the back of

the range.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also

be easily removed by rubbing a small amount of liquid

dish soap over the adhesive with your fingers. Wipe

with warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove tape

or glue. These products can damage the surface of

your range.

Your range is heavy and can be installed on soft

floor coverings such as cushioned vinyl or carpeting.

Use care when moving the range on this type of

flooring. Use a belt when moving the range to prevent

damaging the floor. Or slide the range onto cardboard

or plywood to avoid damaging the floor covering.

Choosing the Proper Location

Do not locate your range where it may be subject to

strong drafts. Any openings in the floor or wall behind

the range should be sealed. Make sure the openings

around the base of the range that supply fresh air

for combustion and ventilation are not blocked by

carpeting or woodwork.

Your range, like many other household units, is heavy

and can be installed on soft floor coverings such as

cushioned vinyl or carpeting. Use care when moving

the range on this type of flooring.

This appliance must not be installed with a ventilation

system that blows air downward toward the range.

This type of ventilation system may cause ignition and

combustion problems with the gas cooking appliance

resulting in personal injury or unintended operation.

When the floor covering ends at the front of the

range, the area that the range will be installed on

should be built up with plywood to the same level

or higher than the floor covering. This wilt allow the

range to be moved for cleaning and servicing, as welt

as provide proper air flow to the range.

Also, make sure the floor covering can resist

temperatures of at least 167 °F (75 °C). See the

Installation Safety Instructions included in this

manual.

Make sure the wall coverings around your range

can resist the heat generated up to 194 °F (90 °C)

by the range. See the Installation Safety Instructions

included in this manual.

Gas Pipe and Electrical Outlet

Locations

_30"

(76.2 cm)

78 12/16"

cm)

(45.6

INSTALLATION 15

Dimensions and Clearances

Provide proper clearance between the range and adjacent combustible surfaces. These dimensions must be met

for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electrical

Outlet Locations, page 14) may be adjusted to meet specific requirements. The range may be placed with 0"

clearance (flush) at the back wall.

Installation Clearances

36"

(91,4 cm)

15"

(38.1 cm)

Maximum

depth for

cabinets

above

coutertops

Front edge

of the range

2 8/16" side panel

(8,3 cm) forward from

cabinet

To cabinets

below

cooktop and

at the range

back

Dimensions

Depth with door closed

I(includes door handle)

29 7/8"_-r_..._ 28 w16,,

4_ (_75.7 on1) I (73.6 cm))

Height

48 7/8"

(124 cm)

Depth with door open ........

40 9/I6" _. ........

(103 cm) _ ............. -

16 INSTALLATION

Installing the Anti=tip Device

j_onC!iWli_tr__Ant_iPt /,WaHplate

....... _..... ",",",'\/F/ _1

The anti-tip bracket is packaged with an installation

template. The instructions include necessary

information to complete the installation. Read and

follow the range installation instruction sheet.

---------WARNING

• Range must be secured with an approved anti-

tip device.

The range could be tipped by standing, sitting

or leaning on an open door if the range or anti-

tip device is not properly installed.

After installing the anti-tip device, verify that it is

in place by carefully attempting to tilt the range

forward.

This range has been designed to meet all

recognized industry tip standards for all normal

conditions.

The installation of the anti-tip device must meet

all local codes for securing the appliance.

The use of this device does not preclude tipping

of the range when not properly installed.

Providing Adequate Gas

Supply

Your range is designed to operate at a pressure of

5" of water column on natural gas or 10" of water

column on LP.

Make sure you are supplying your range with the type

of gas for which it is configured.

This range is convertible for use on natural or LP gas.

When using this range on LP gas, conversion must

be made by a qualified LP installer before attempting

to operate the range.

For proper operation, the pressure dnatural gas

supplied to the regulator must be between 5" and 13"

of water column.

For LP gas, the pressure supplied to the regulator

must be between 10" and 13" of water column. When

checking for correct operation of the regulator, the

inlet pressure must be at least 1" more than the

operating (manifold) pressure as given above.

The pressure regulator located at the inlet of the

range must remain in the supply line regardless of

which type of gas is being used.

A flexible metal appliance connector used to connect

the range to the gas supply line should have an I.D.

of 5/8"and a maximum length of 5 feet. In Canada,

flexible connectors must be single watt metal

connectors less than 6 feet in length.

INSTALLATION 17

Connecting the Range to Gas

Shut off the range gas supply valve before removing

the old range and leave it off until the new hook-up

has been completed.

Because hard piping restricts movement of the range,

the use of a CSA International-certified flexible metal

appliance connector should be used unless local

codes require a hard-piped connection.

A manual valve shall be installed in an accessible

location in the gas piping external to the appliance

for the purpose of turning on or shutting off gas to the

appliance.

Never reuse an old connector when installing a new

range.

To protect against gas leaks, use a qualified pipe joint

sealant on all external threads.

Install a male 1/2"or 3/4"flare union adapter to the

NPT internal thread of the manual shut-off valve,

taking care to back-up the shut-off valve to keep

it from turning.

Install a male 1/2"flare union adapter to the 1/2"

NPT internal thread at the inlet of the pressure

regulator. Use a backup wrench on the pressure

regulator fitting to prevent damage.

In an emergency situation or if you want to shut

off the gas supply, close the regulator valve by

positioning the lever as shown in the figure below.

WARNING

• Do not use a flame to check for gas leaks.

Isolate the range from the gas supply system

by closing its individual shut-off valve during

any pressure testing of the gas supply system

at test pressures equal to or tess than _/2"psig

(3.5 kPa).

Flexible Connector Hookup

1/2" Adapter

Pressure regulator

installer: inform the consumer of the location of the gas

shutoff valve.

Pressure Regulator Position

m i

Lever's open Lever's closed

position position

Connect a flexible metal appliance connector to

the adapter on the range. Position the range to

permit connection at the shut-off valve.

When all connections have been made, be sure

all range controls are in the Off position and turn

on the main gas supply valve. Gas leaks may

occur in your system and create a hazard. Gas

leaks may not be detected by smell alone.

Check all gas connection joints and fittings for

leaks with a non-corrosive leak detection fluid,

then wipe off.

Gas suppliers recommend you purchase and

install a UL approved gas detector. Install

and use in accordance with the installation

instructions.

Pressure Regulator

18 INSTALLATION

Electrical Connections

Electrical Requirements

120 Volt, 60 Hz, properly grounded dedicated circuit

protected by a 15 or 20 Amp circuit breaker, or slow

blow fuse.

If an external electrical source is utilized, the

appliance, when installed, must be electrically

grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical

Code, ANSI/NFPA 70.

Grounding

IMPORTANT: FOR PERSONAL SAFETY, THIS

APPLIANCE MUST BE PROPERLY GROUNDED.

The power cord of this appliance is equipped with

a 3-prong (grounding) plug which mates with a

standard 3-prong grounding wall receptacle to

minimize the possibility of electric shock hazard from

this appliance.

The customer should have the wall receptacle and

circuit checked by a qualified electrician to make sure

the receptacle is properly grounded.

Where a standard two-prong wall receptacle is

encountered, it is the personal responsibility and

obligation of the customer to have it replaced with a

properly grounded three-prong wall receptacle.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR

REMOVE THE THIRD (GROUND) PRONG FROM

THE POWER CORD.

Aword about GFCI's -GFCI's are not required or

recommended for gas range receptacles.

Ground Fault Circuit Interrupters (GFCI's) are

devices that sense leakage of current in a circuit

and automatically switch off power when a threshold

leakage level is detected. These devices must

be manually reset by the consumer. The National

Electrical Code requires the use of GFCI's in kitchen

receptacles installed to serve countertop surfaces.

Performance of the range will not be affected

if operated on a GFCI-protected circuit but the

occasional resetting of the circuit can become an

annoyance.

Preferred

Method

CAUTION

Have the circuit checked by a qualified electrician

to make sure the receptacle is properly grounded.

Do not use an adapter plug. Disconnecting of the

power cord places undue strain on the adapter

and leads to eventual failure of the adapter ground

terminal.

Installation must conform with local codes or, in the

absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54.

The installation of appliances designed for mobile

home installation must conform with the Manufactured

Home Construction and Safety Standard, Title 24

CFR, Part 3280 (formerly the Federal Standard

for Mobile Home Construction and Safety, Title

24, HUD, Part 280) or, when such standard is not

applicable, the Standard for Manufactured Home

Installations, latest edition (Manufactured Home Sites,

Communities and Set-Ups), ANSI A225.1, latest

edition, or with local codes. In Canada, mobile home

installation must be in accordance with the current

CAN/CSA Z240/MH Mobile Home Installation Code.

Sealing the Openings

Seat any openings in the wall and floor after electrical

and gas supplies are completed.

INSTALLATION 19

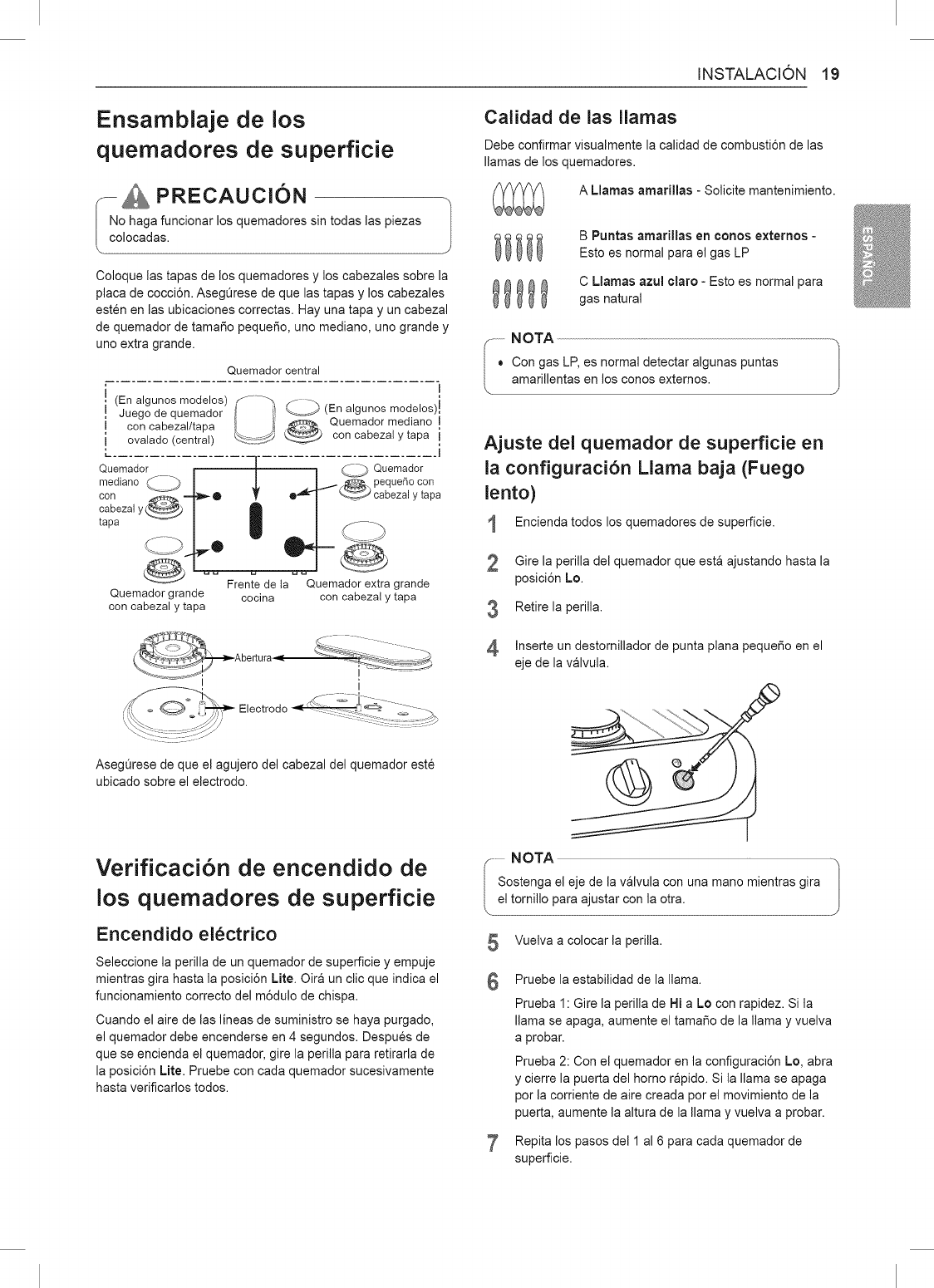

Assembling the Surface

Burners

-- _ CAUTION

Do not operate the burners without all parts in

place.

Place the burner caps and heads on the cooktop.

Make sure that the caps and heads are placed in the

correct locations. There is one small, one medium,

one large, and one extra large burner head and cap.

Center Burner

(On some models) i_f_--_!_ __!--_ (On some models)

Oval (Center) burner i i

/ I! Medium burner head

head/cap assembly _?. _,-_ _/_'-_ and cap

,4f_:ttt_ ....

Hole

I I

Make sure the hole in the burner head is positioned

over the electrode.

Checking Ignition of the

Surface Burners

Electric Ignition

Select a surface burner knob and simultaneously

push in and turn to the Lite position. You will hear

a clicking sound indicating proper operation of the

spark module.

Once the air has been purged from the supply lines

the burner should ignite within 4 seconds. After the

burner ignites, rotate the knob out of the Lite position.

Try each burner in succession until all burners have

been checked.

Quality of Flames

The combustion quality of the burner flames needs to

be confirmed visually.

A Yellow flames - Call for service.

B Yellow tips on outer cones - This

is normal for LP gas

CSoft blue flames - This is normal for

natural gas

NOTE

-o ith LP gas, some yellow tipping on outer /cones is normal. J

Adjusting the Surface Burner to the

Low Flame (Simmer) Setting

1Light all surface burners.

Turn the knob on the burner being adjusted to

Lo.

Remove the knob.

4Insert a small, fiat-blade screwdriver into the

valve shaft.

-.- NOTE

Hold the valve shaft with one hand while turning

the screw to adjust with the other.

Replace the knob.

6Test the flame stability.

Test 1: Turn the knob from Hi to Lo quickly. If the

flame goes out, increase the flame size and test

again.

Test 2: With the burner on a Lo setting, open

and close the oven door quickly. If the flame is

extinguished by the air currents created by the

door movement, increase the flame height and

test again.

Repeat steps 1-6 for each surface burner.

20 INSTALLATION

Checking Operation of Bake /Broil

Burners

To check ignition of the Bake burner, follow the steps

below:

Leveling the Range

Level the range by adjusting the leveling legs.

Extending the legs slightly may also make it easier to

insert the rear leg into the anti-tip bracket.

1 Remove all packing from inside the oven cavity.

2 Touch Bake. 350 °F appears in the display.

3Touch Start.

It may take between 30 and 90 seconds for the

burner to start heating.

To check ignition of the Broil burner, follow the steps

below:

1 Touch Broil. Hi appears in the display.

Make sure the door is closed.

3Touch Start.

It may take between 30 and 90 seconds for the

burner to start heating.

...........NOTE

Do not try to light either the Bake or Broil burners

during a power outage. The range has an

electrical ignition system and cannot be used

without power.

Use a level to check your adjustments. Place the level

diagonally on the oven rack, and check each direction

for level.

First check direction _.

Then check direction @. If the level doesn't show level

on the rack, adjust the leveling legs.

Adjusting Air Shutters (for LP

Conversions)

The range comes from the factory with the air

shutters adjusted for proper air flow for natural gas.

If converted to LP, follow the instructions provided in

the conversion kit to properly adjust the air shutters.

LP conversion must be performed by a qualified

technician.

Engaging the Anti-tip Device

Anti-tip I_

bracket"_,L, ,,.__

; i

Leveling leg __

1 Slide the range against the wall, making sure

the back leg slides into and engages the anti-tip

bracket.

Check for proper installation by grasping

the front edge of the cooktop and carefully

attempting to tilt the range forward.

OPERATION

Gas Surface Burners

Before Use

Read all instructions before using.

Make sure that all burners are properly placed.

OPERATION 21

Make sure that all grates are properly placed

before using the burner.

_ _ CAUTION

WHAT TO DO IF YOU SMELL GAS

• Open windows.

Do not try to light any appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

If you cannot reach your gas supplier, call the

fire department.

r..- NOTE

Electric spark igniters from the burners cause |

a clicking noise. All the spark igniters on the J

cooktop wilt activate when igniting just one burner.

- _ CAUTION -_

Do not operate the burner for an extended period

of time without cookware on the grate.

The finish on the grate may chip without cookware

to absorb the heat

Make sure the burners and grates are cool before

touching them, or placing apot holder, cleaning

cloth, or other materials on them.

Touching grates before they cool down may cause

burns.

22 OPERATION

Burner Locations

Your gas range cooktop has four or five sealed gas

burners, depending on the model. These can be

assembled and separated. Follow the guide below.

Using the Gas Surface Burners

1Be sure that all of the surface burners and grates

are placed in the correct positions.

2 Place cookware on the grate.

3Push the control knob and turn to the Life

position.

LDG4315 /LDG4313

LDG4311

[] Medium and Large Burner

The medium and large burners are the primary

burners for most cooking. These general

purpose burners can be turned down from Hi to

Lo to suit a wide range of cooking needs.

Small Burner

The smallest burner is used for delicate foods

such as sauces or foods that require low heat for

a long cooking time.

_} Extra Large Burner

The extra large burner is the maximum output

burner. Like the other four burners, it can be

turned down from Hi to Lo for a wide range

of cooking applications. This burner is also

designed to quickly bring large amounts of liquid

to a boil. It can be used with cookware 10 inches

or larger in diameter.

[_ Oval Burner (LDG4315ST /LDG4313ST)

The center, oval burner is for use with a griddle

or oval pots.

The electric spark ignition system makes a

clicking noise.

4Turn the control knob to control the flame size.

OFF

LIT£

LO _HI

CAUTION

Onot attempt to disassemble or clear around

ny burner while another burrer is on. All the

urners spark when any burner is turned to Life.

n electric shock may result causing you to knock

ver hot cookware.

Setting the Flame Size

Watch the flame, not the knob, as you reduce heat.

Match the flame size on a gas burner to the cookware

being used for fastest heating.

F7 C7

IN CAUTION -,

ever let the flames extend up the sides of the

cookware ,J

-.----NOTE

• The flames on the surface burners may burn

yellow in the presence of high humidity, such as

a rainy day or a nearby humidifier.

After LP gas conversion, flames can be bigger

than normal when you put a pot on the surface

burner.

in Case of Power Failure

In case of a power failure, you can light the gas

surface burners on your range with a match.

Surface burners in use when an electrical power

failure occurs wilt continue to operate normally.

1Hold a tit match to the burner, then push in the

control knob.

2 Turn the control knob to the Lo position.

............CAUTION

Use extreme caution when lighting burners with a

match. It can cause burns and other damage.

Range=Top Cookware

Aluminum

Medium-weight cookware is

recommended because it heats

quickly and evenly. Most foods

brown evenly in an aluminum

skillet. Use saucepans with tight

fitting lids when cooking with

minimum amounts of water.

If heated slowly, most skillets will

Cast-Iron give satisfactory results.

Stainless Steel

Enamelware

Glass

Heatproof

Glass Ceramic

This metal alone has poor

heating properties and is usually

combined with copper, aluminum

or other metals for improved heat

distribution. Combination metal

skillets work satisfactorily if they

are used with medium heat as the

manufacturer recommends.

Under some conditions, the

enamel of this cookware may melt.

Follow cookware manufacturer's

recommendations for cooking

methods.

There are two types of glass

cookware. Those for oven use only

and those for top-of-range cooking.

Can be used for either surface or

oven cooking. It conducts heat very

slowly and cools very slowly. Check

cookware manufacturer's directions

to be sure it can be used on gas

ranges.

OPERATION 23

Using a Wok

If using a wok, use a 14-inch or smaller flat-bottomed

piece of wok. Make sure that the wok bottom sits flat

on the grate.

Use flat-bottomed wok

CAUTION -.,

o not use a wok support ring. Placing the ring

ver the burner or grate may cause the burner

work improperly, resulting in carbon monoxide

vets above allowable standards. This can be

azardous to your health.

Using Stove=Top Grills

Do not place stove-top grills on the burner.

CAUTION

Do not use stove top grills on the surface burners.

Using a stove top grill on the surface burner will

cause incomplete combustion and can result

in exposure to carbon monoxide levels above

allowable current standards. This can be a health

hazard.

24 OPERATION

Using the Griddle (on some models) Preheat the griddle according to the guide below and

adjust for the desired setting.

The non-stick coated griddle provides an extra-large

cooking surface for meats, pancakes or other food

usually prepared in a frying pan or skillet.

..... NOTE

It is normal for the griddle to become discoloredover time.

How to Place the Griddle: The griddle can only be

used with the center burner. The griddle must be

properly placed on the center grate, as shown below.

_ont

CAUTION

• Do not remove the center grate when using the

griddle.

Do not remove the griddle plate until the

cooktop grates, surfaces and griddle plate have

completely cooled.

The griddle plate on the cooktop may become

very hot when using the cooktop, oven or

broiler systems. Always use oven mitts when

placing or removing the griddle plate.

Warming Tortillas 5 (MED)

Pancakes HI 5 min. HI

Hamburgers HI 5 min. HI

Fried Eggs HI 5 min. HI

Bacon HI 5 min. HI

Breakfast Sausage HI 5 min. HI

Links

Hot Sandwiches HI 5 min. HI

F..- NOTE --

After cooking on the griddle for an extended |

period, adjust the griddle temperature settings as

the griddle retains heat.

IMPORTANT NOTES

,, Avoid cooking extremely greasy foods as grease

spittover can occur.

,, The griddle can become hot when surrounding

burners are in use.

,, Do not overheat the griddle. This can damage the

non stick coating.

,, Do not use metal utensils that can damage the

griddle surface. Do not use the griddle as a cutting

board.

,, Do not place or store items on the griddle.

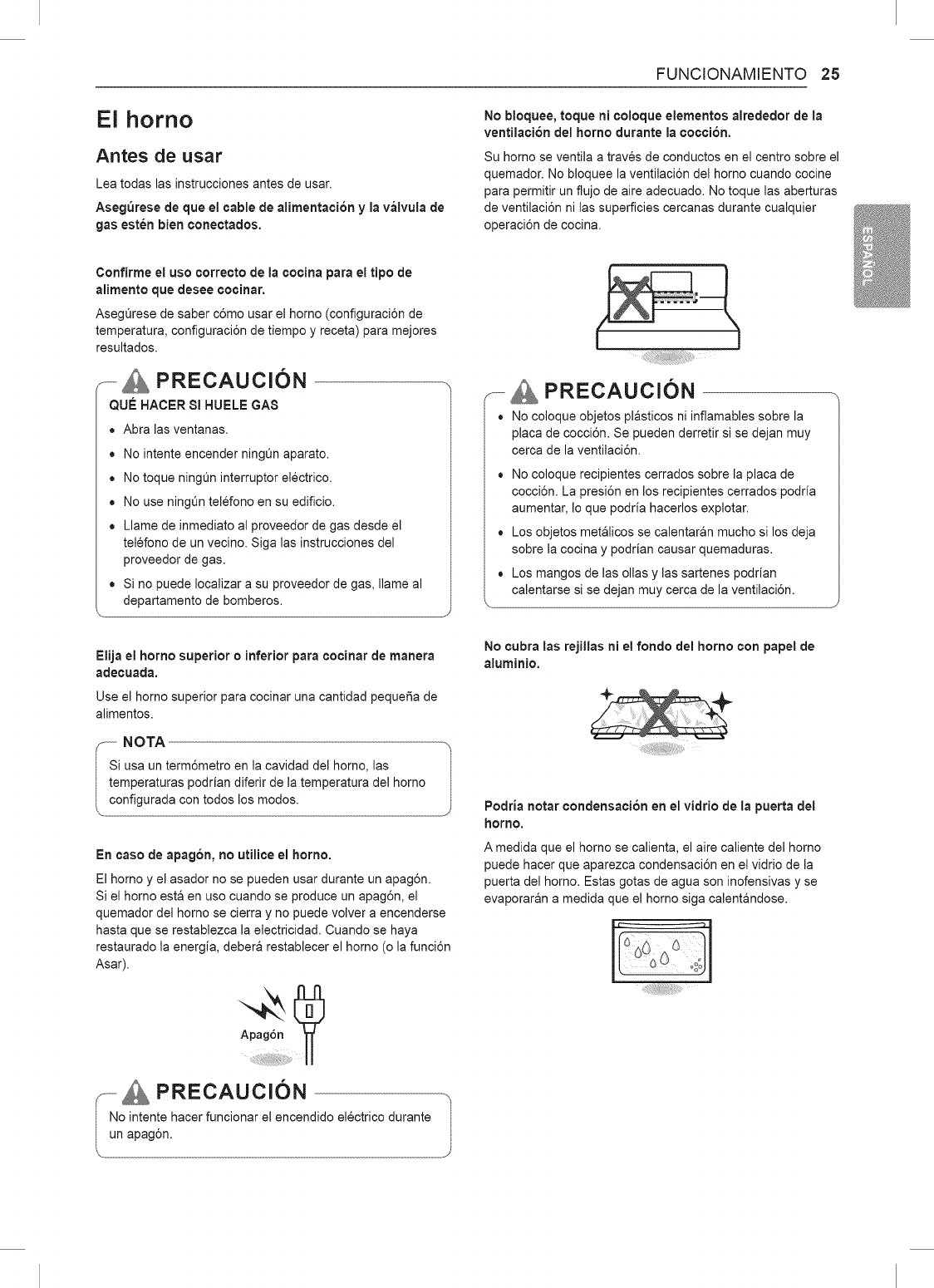

The Oven

Before Use

Read all instructions before using.

Make sure the electrical power cord and the gas

valve are properly connected.

OPERATION 25

Do not block, touch or place items around the

oven vent during cooking.

Your oven is vented through ducts at the center above

the burner grate. Do not block the oven vent when

cooking to allow for proper air flow. Do not touch

vent openings or nearby surfaces during any cooking

operation.

Confirm the correct usage of the range for the

type of food you will cook.

Make sure you know how to use the oven

(temperature setting, time setting and recipe) for best

results.

+- CAUTION

WHAT TO DO IF YOU SMELL GAS

* Open windows.

. Do not try to light any appliance.

. Do not touch any electrical switch.

. Do not use any phone in your building.

. Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

. If you cannot reach your gas supplier, call the

fire department.

CAUTION

Do not place plastic or flammable items on the

cooktop. They may melt or ignite if left too close

to the vent.

Do not place closed containers on the cooktop.

The pressure in closed containers may

increase, which may cause them to burst.

Metal items will become very hot if they are left

on the cooktop, and could cause burns.

Handles of pots and pans on the cooktop may

become hot if left too close to the vent.

Choose the upper or lower oven for proper

cooking.

Use the upper oven to cook a small amount of food.

F NOTE

If using an oven thermometer in the oven cavity,

temperatures may differ from the actual set oven

temperature with all modes.

In case of power failure, do not use the oven.

The oven and broiler cannot be used during a power

outage. If the oven is in use when a power failure

occurs, the oven burner shuts off and cannot be re-tit

until power is restored. Once power is restored, you

will need to reset the oven (or Broil function).

F. CAUTION

Do not attempt to operate the electric ignition

during an electrical power failure.

Do not cover racks or oven bottom with aluminum

foil.

You may see condensation on the oven door

glass.

As the oven heats up, the heated air in the oven

may cause condensation to appear on the oven

door glass. These water drops are harmless and will

evaporate as the oven continues to heat up.

26 OPERATION

Control Panel Overview TTT

UPPE_

self Easy 1 2 3

Bake Broil Warm Pizza Clean Clean Upper

............... 4 5 6 T,met0n/0#

Easy 7

c.... c.... Warm/PizzaSoil

BakeAutocom_,,_,c,_R°astProof .... 8 .........9 Lower

Bake Light Clock Settings Cook 0 Start Timer0n/0ff

lime lime _ _ ,,_1_

[_ Oven Controls

[_ Features

[_ Number Keys

[_ Start Key

[_ NFC Tag On

[_ Smart Diagnosis TM

[_ Clear Off /Lockout Key

[_ Gas Surface Burners

Flashing Time

If the oven displays a flashing clock, touch Clock and reset the time, or touch any key to stop the flashing.

OPERATION 27

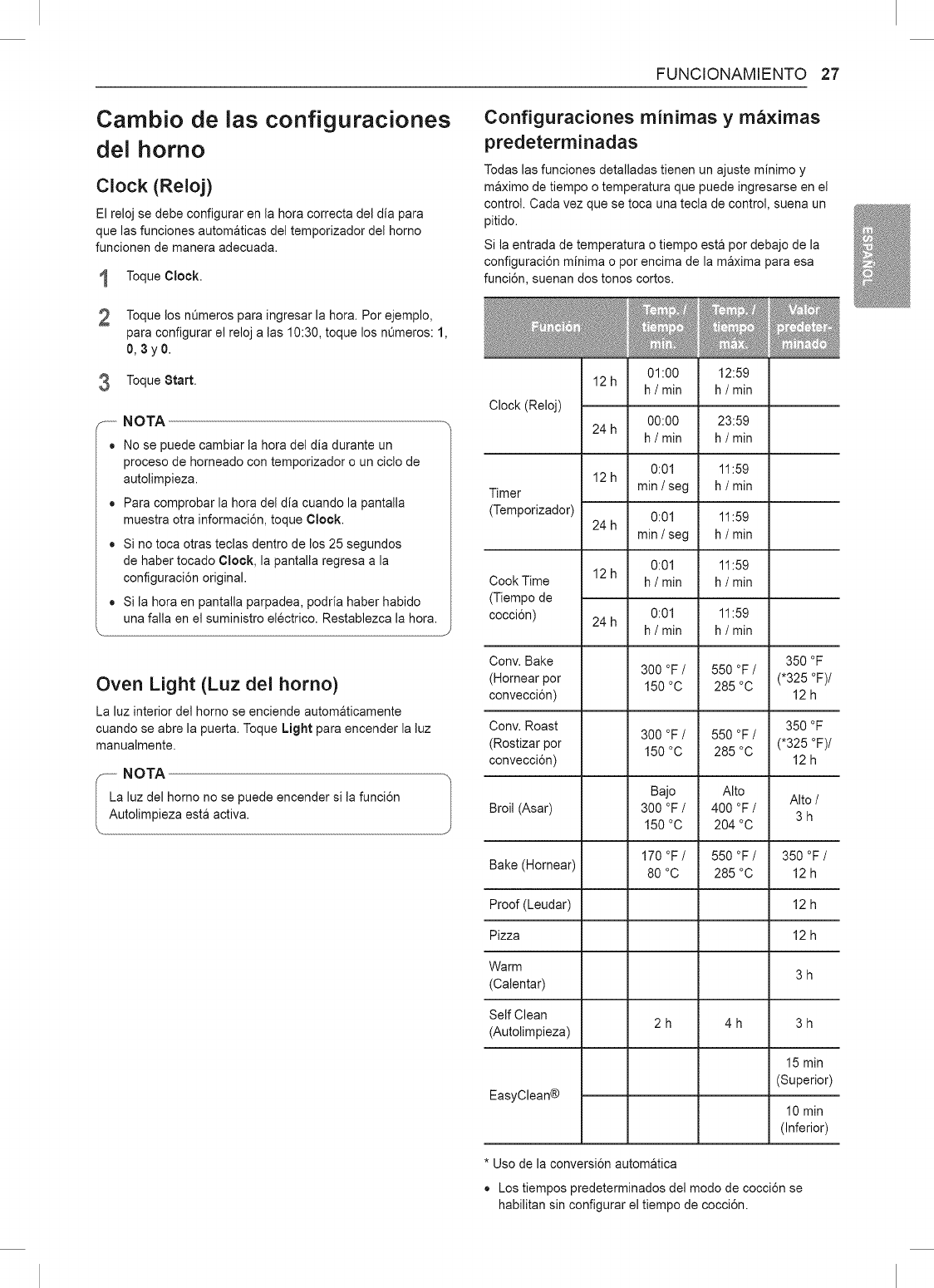

Changing Oven Settings

Clock

The clock must be set to the correct time of day in

order for the automatic oven timing functions to work

properly.

1 Touch Clock.

2 Touch the numbers to enter the time. For

example, to set the clock for 10:30, touch the

numbers: 1, 0, 3 and 0.

3Touch Start.

_-- NOTE

The time of day cannot be changed during a

timed baking or self-clean cycle.

To check the time of day when the display is

showing other information, touch Clock.

If no other keys are touched within 25 seconds

of touching Clock, the display reverts to the

original setting.

If the display time is blinking, there may have

been a power failure. Reset the time.

Oven Light

The interior oven light automatically turns on when

the door is opened. Touch Light to manually turn the

oven light on.

NOTE

The oven light cannot be turned on if the Self

Clean function is active.

Minimum &Maximum Default

Settings

All of the features listed have a minimum and a

maximum time or temperature setting that can be

entered into the control. A beep sounds each time a

control key is touched.

Two short tones sound if the entry of the temperature

or time is below the minimum or above the maximum

setting for the feature.

Clock

Timer

Cook Time
