Life's Good

OWNER'S MANUAL

FRENCH DOOR

REFRIGERATOR

Please read this guide thoroughly before operating and

keep it handy for reference at ail times.

P/No. :MFL63728505 www.lge.com

INIRODUCIION

iMPORTANT SAFETY iNFORMATiON

Basic Safety Precautions ........................................ 3

CFC Disposal .......................................................... 4

How to Connect Electricity ...................................... 5

PARTS AND FEATURES

Special Features ..................................................... 6

Key Parts and Components .................................... 7

INSTALLATION

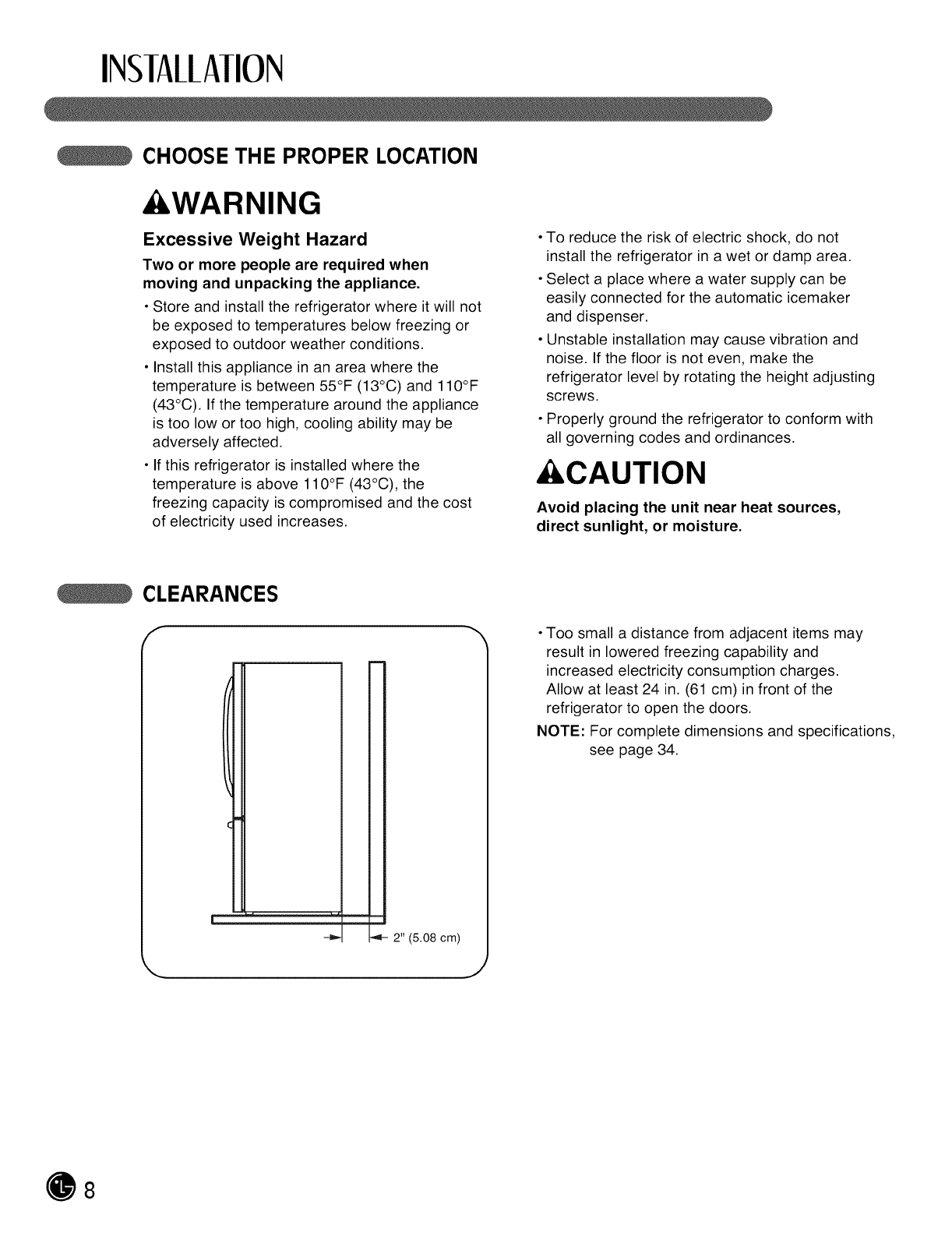

Choose the Proper Location ................................... 8

Clearances .............................................................. 8

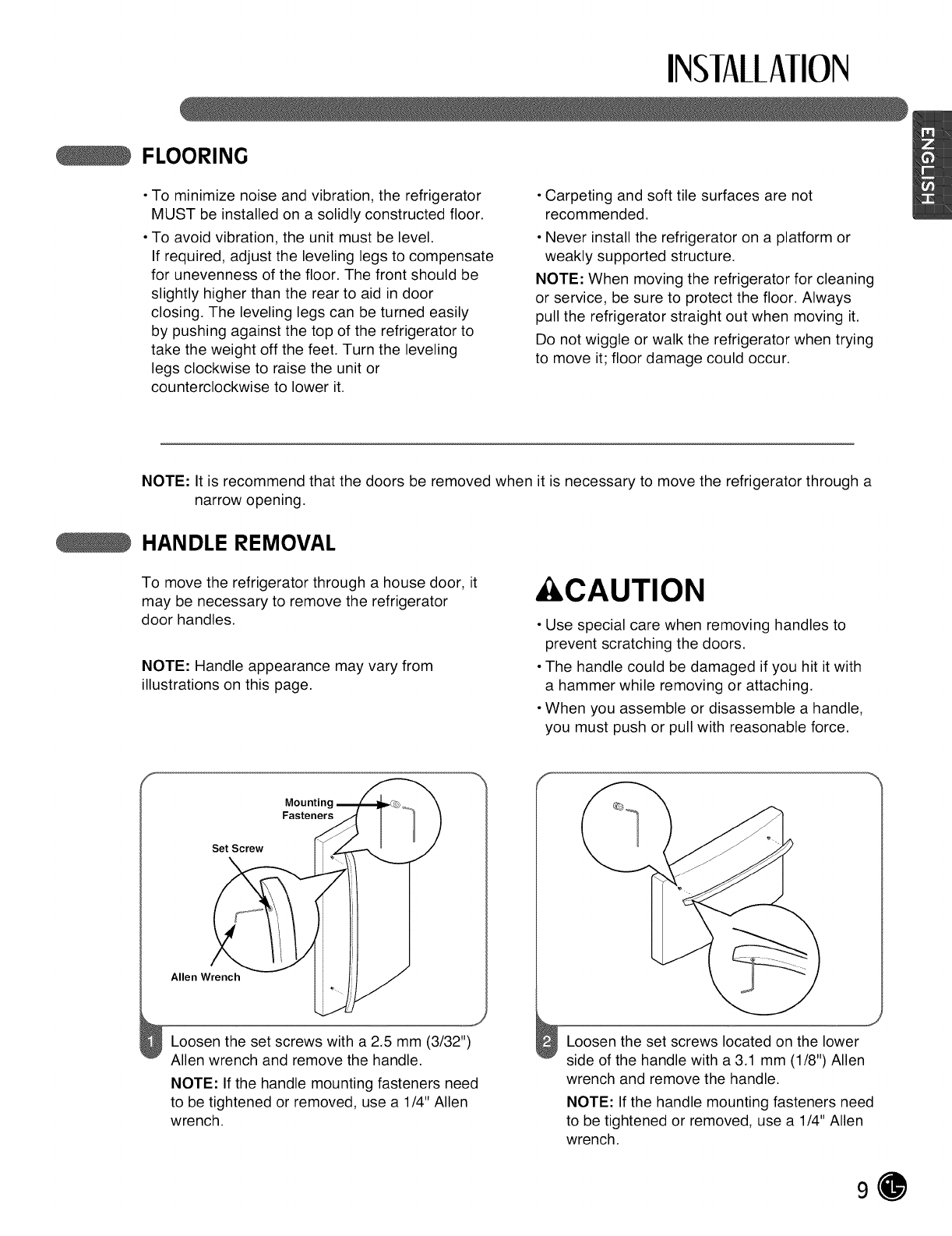

Flooring ................................................................... 9

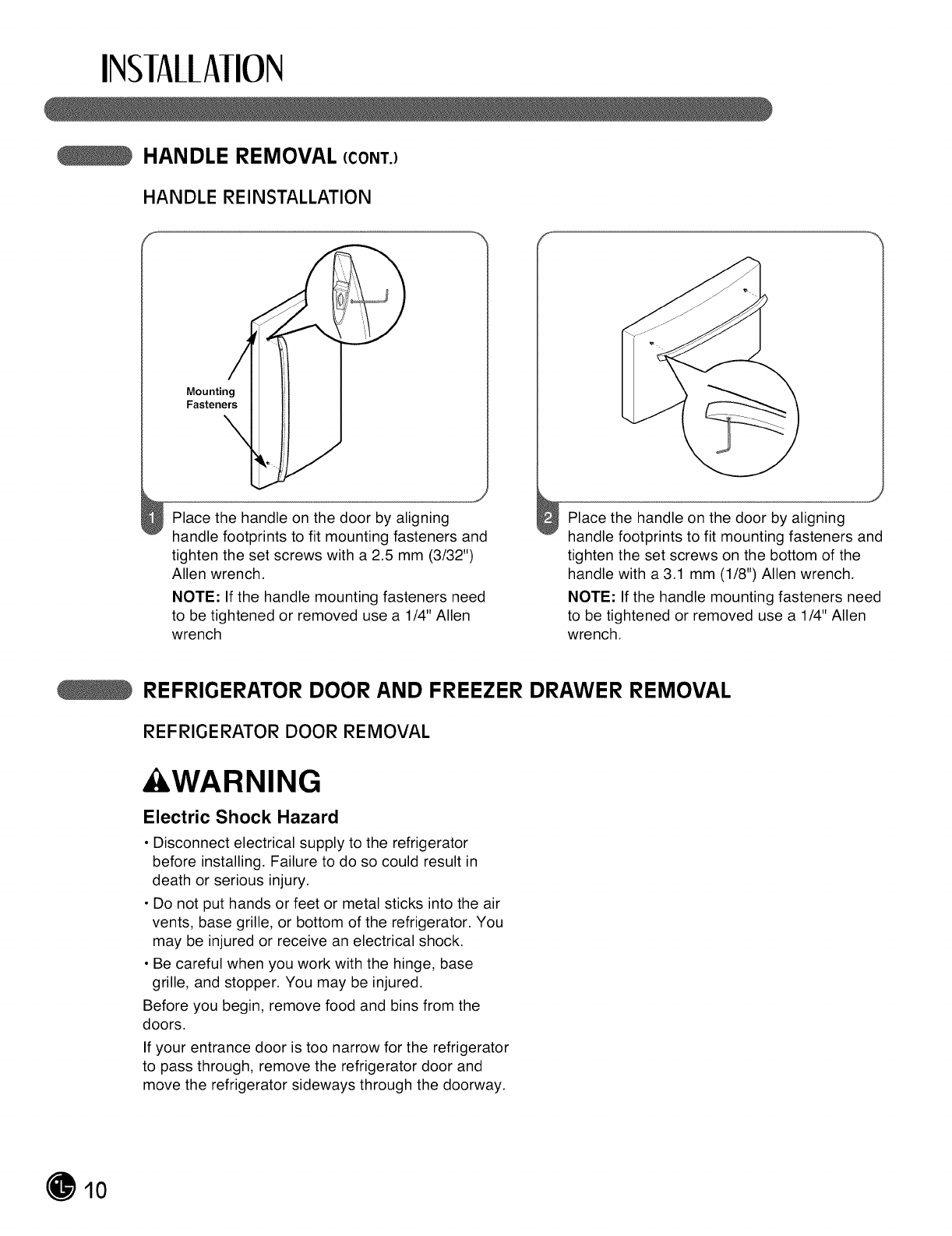

Handle Removal ...................................................... 9

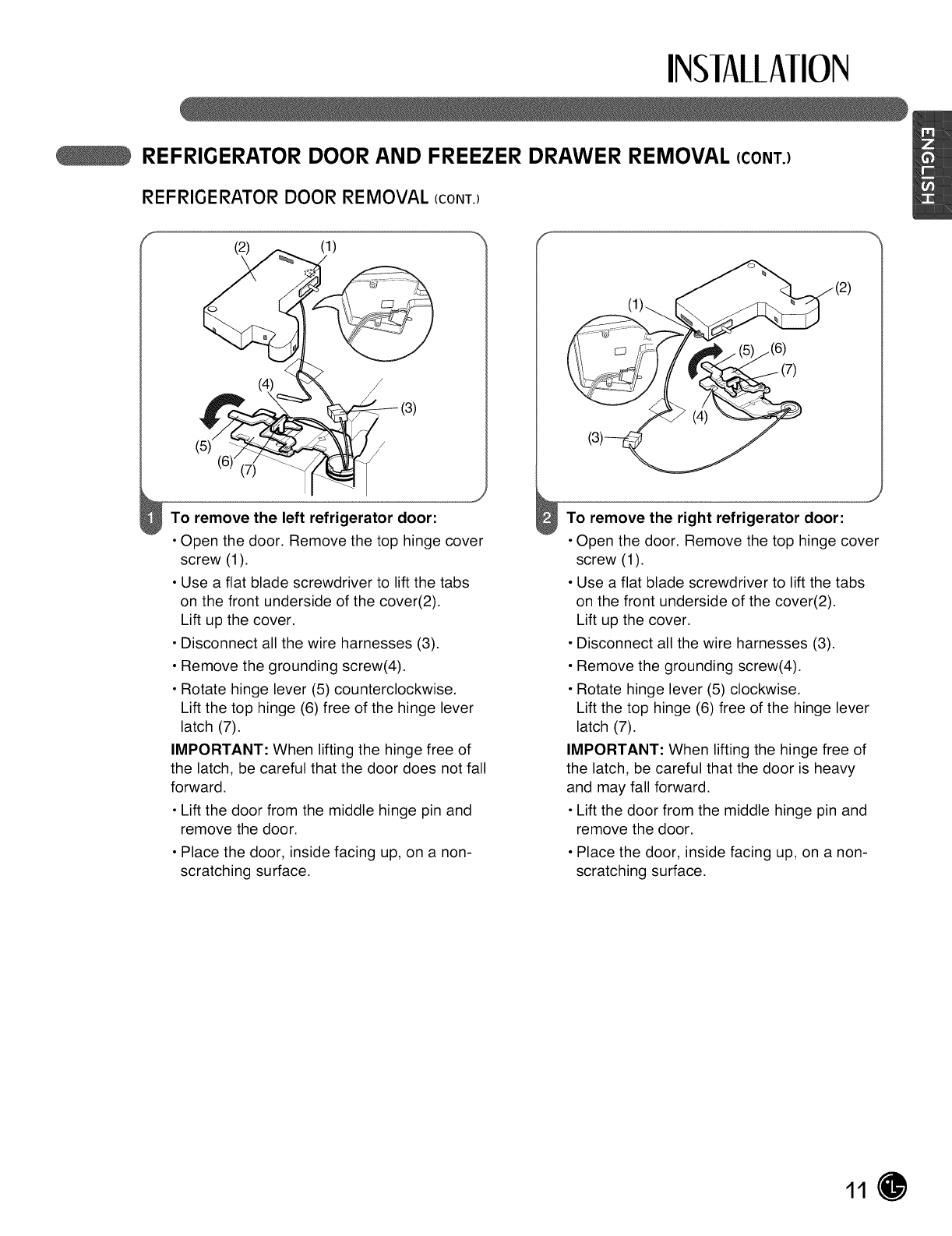

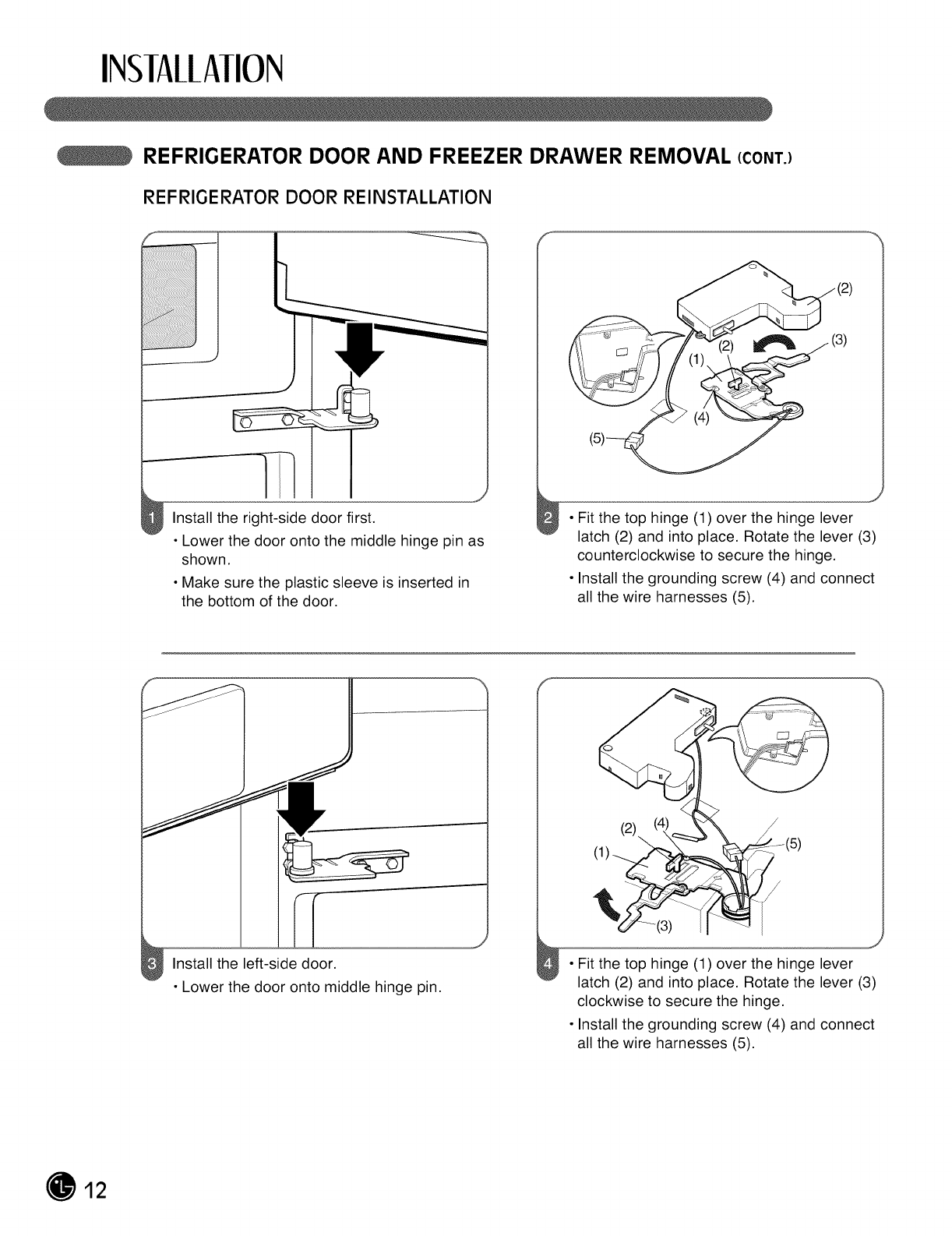

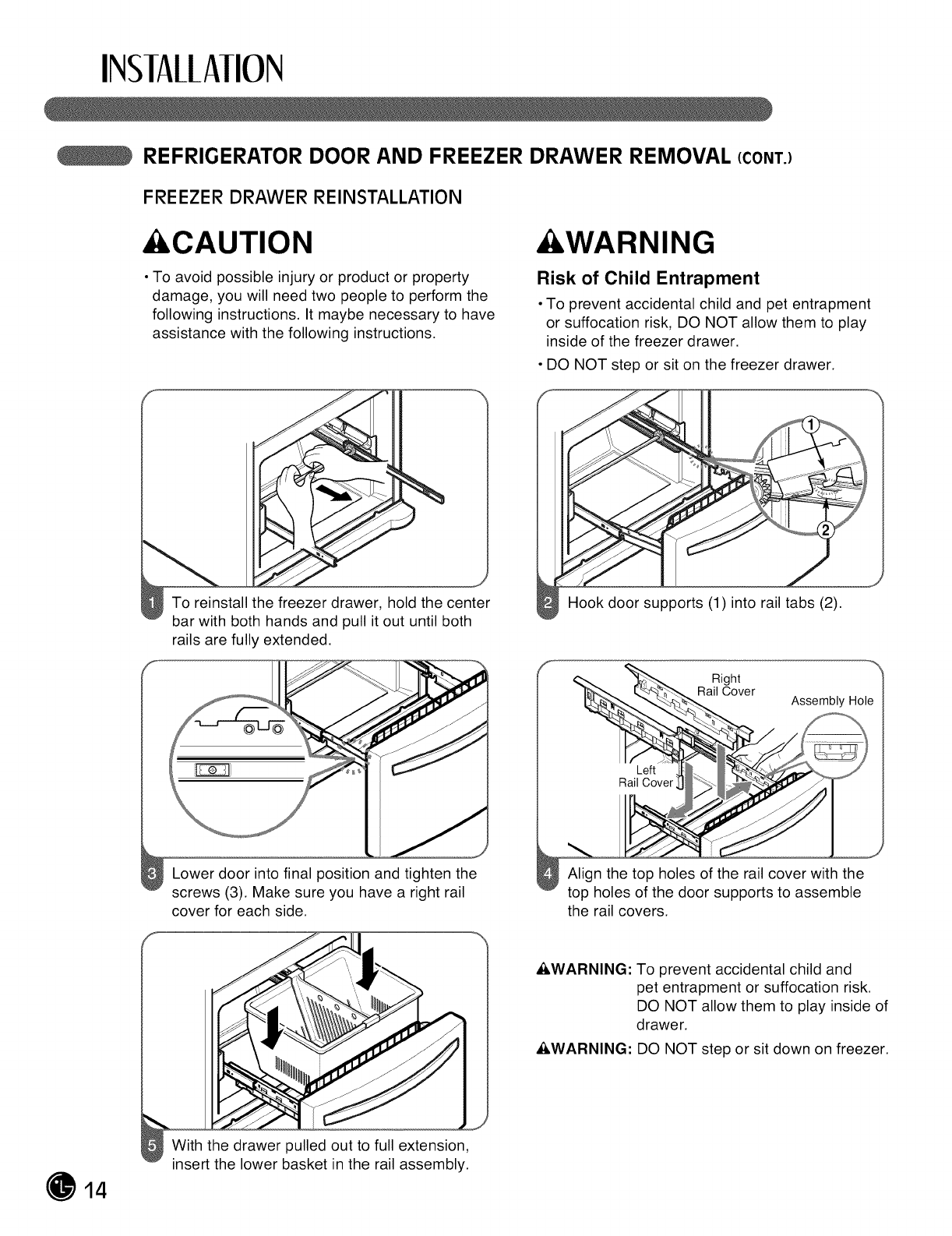

Refrigerator Door and Freezer Drawer Removal ..10

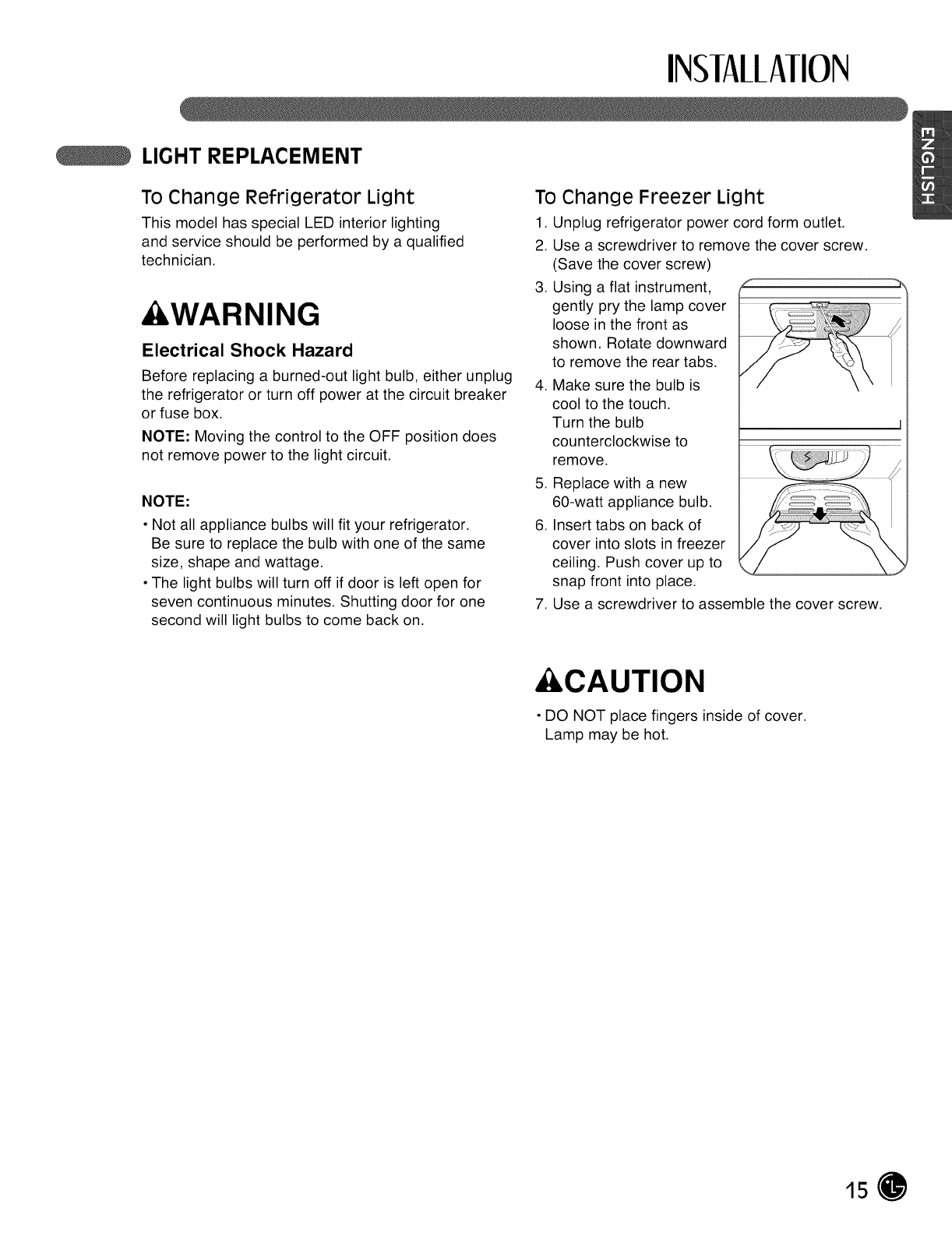

Light Replacement ................................................ 15

Connecting the Water Supply ............................... 16

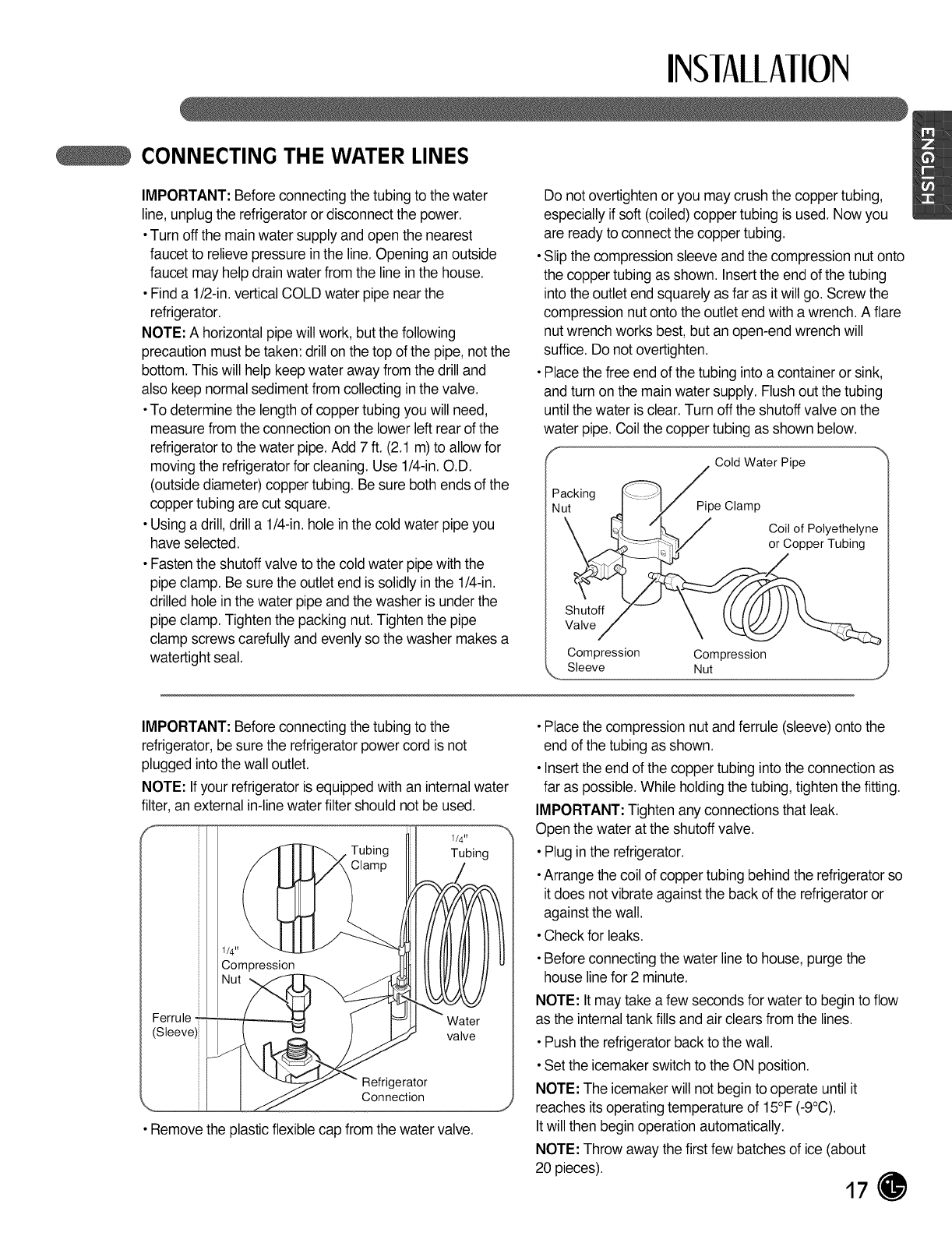

Connecting the Water Lines .................................. 17

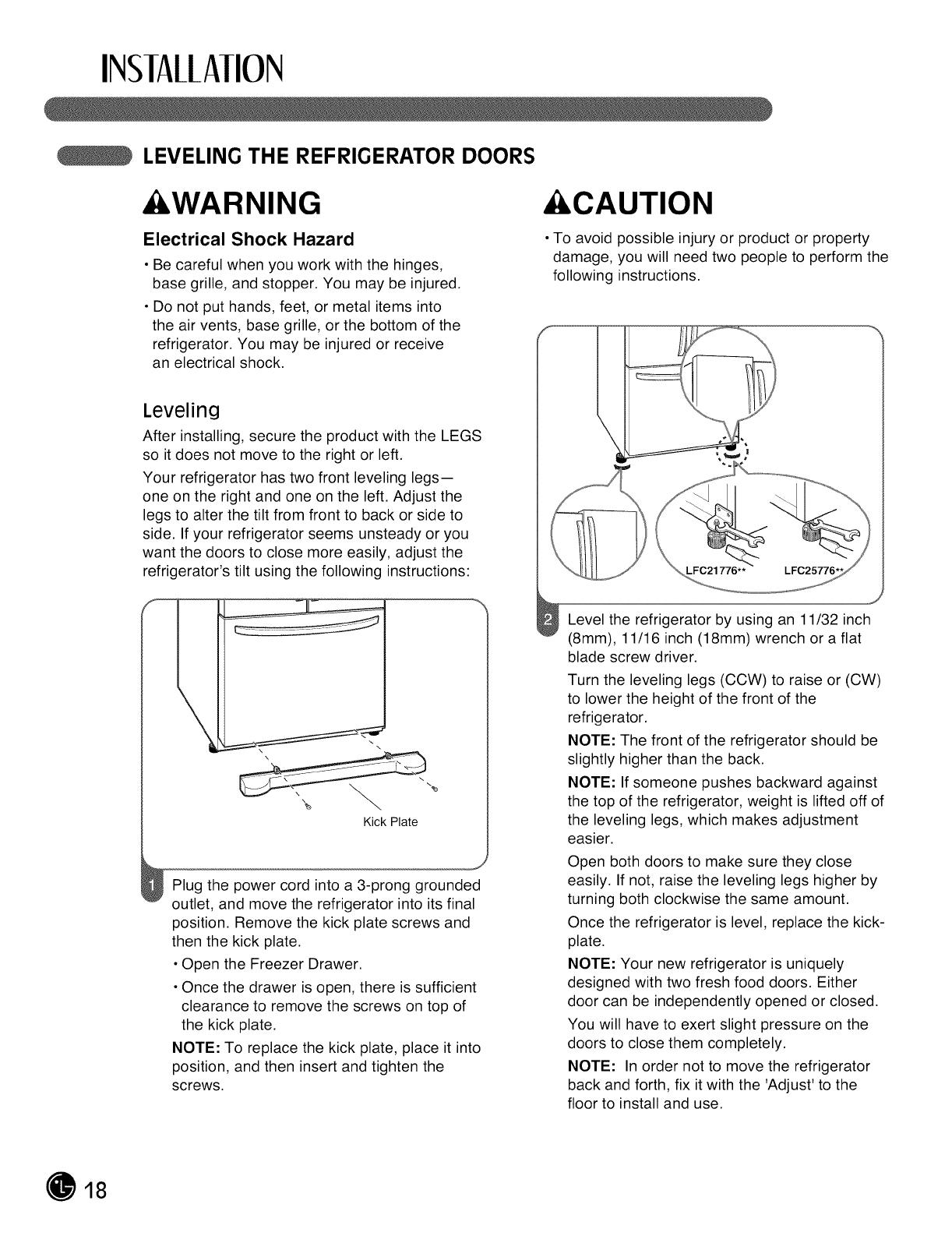

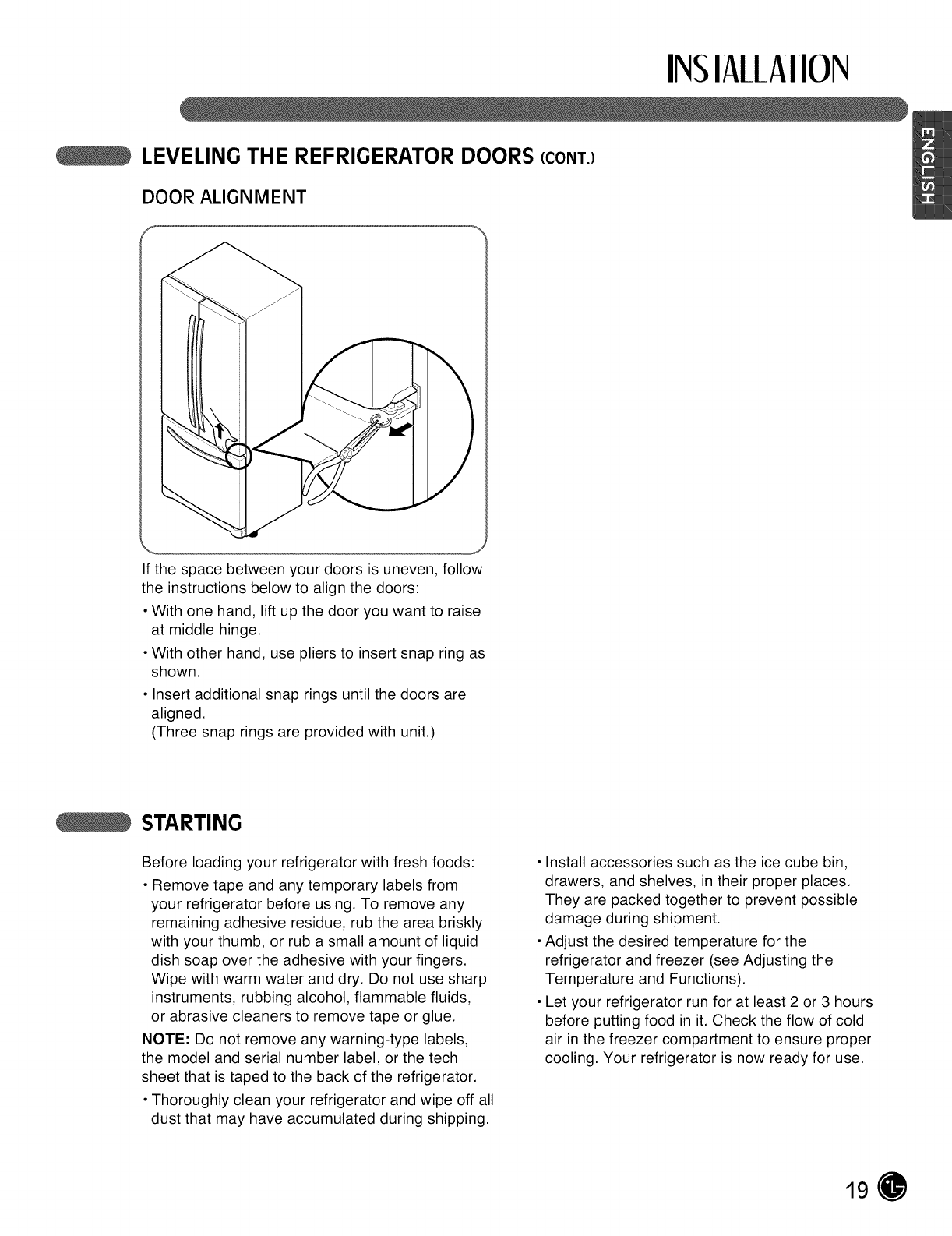

Leveling the Refrigerator Doors ............................ 18

Starting .................................................................. 19

HOW TO USE

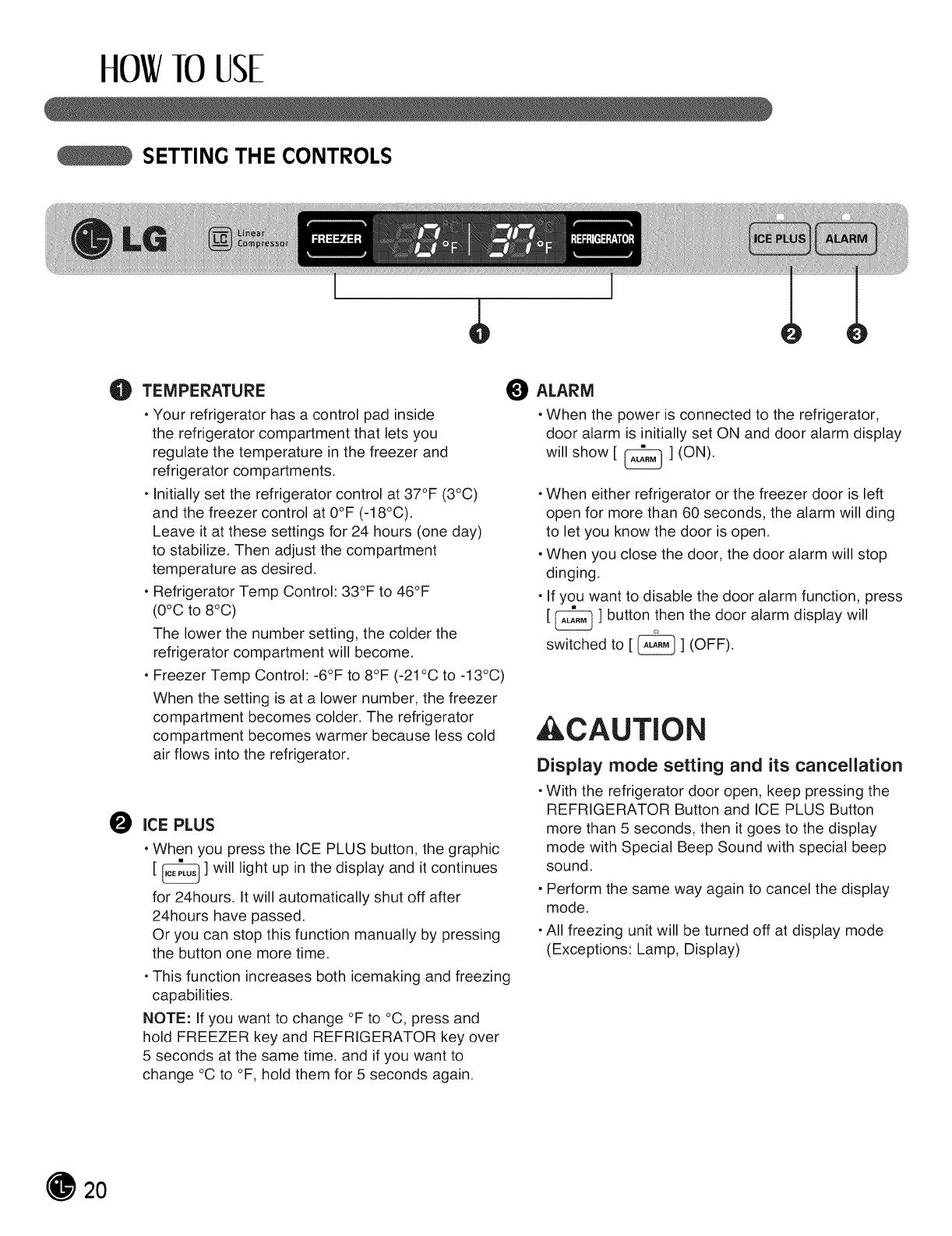

Setting The Controls ............................................. 20

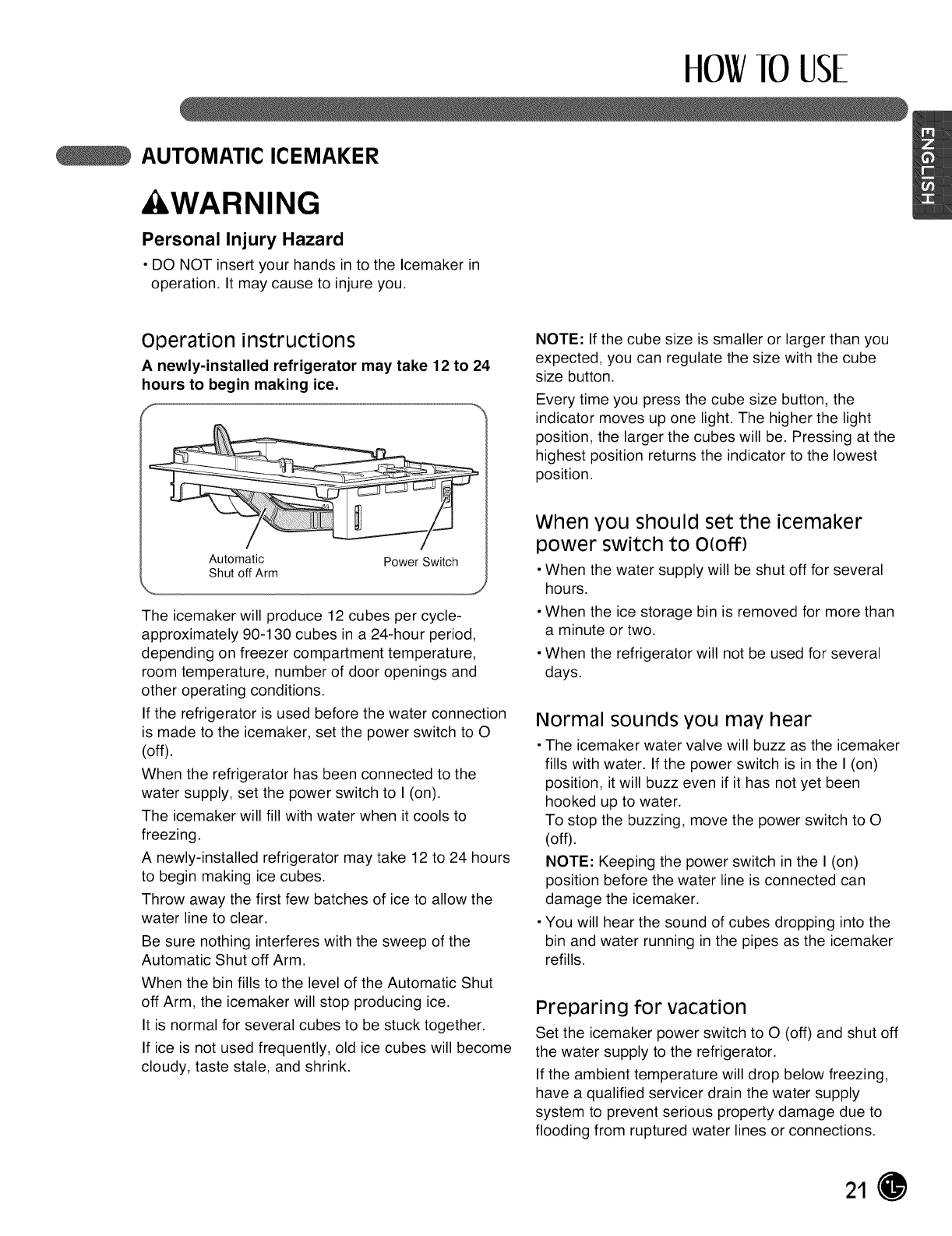

Automatic Icemaker ............................................. 21

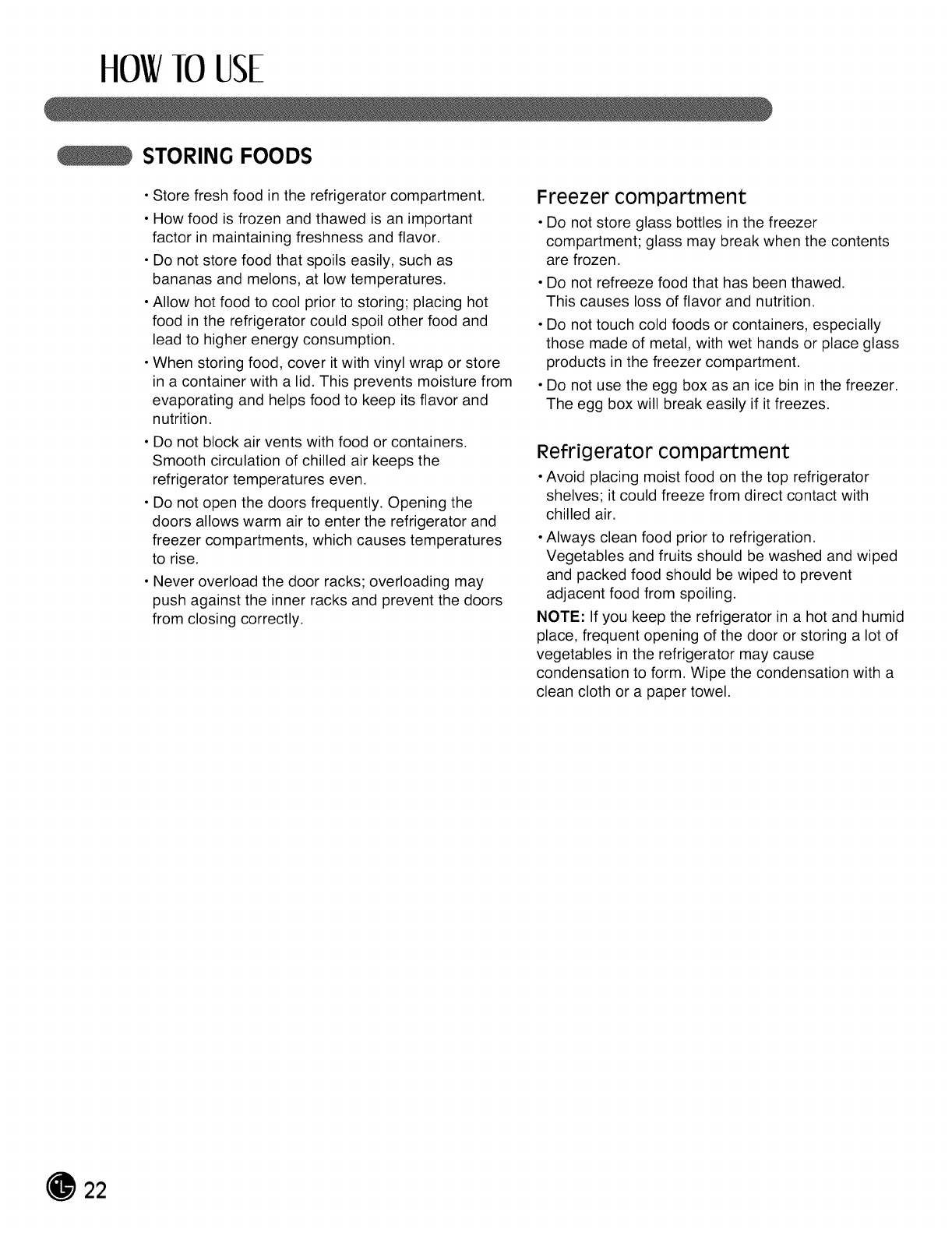

Storing Foods ....................................................... 22

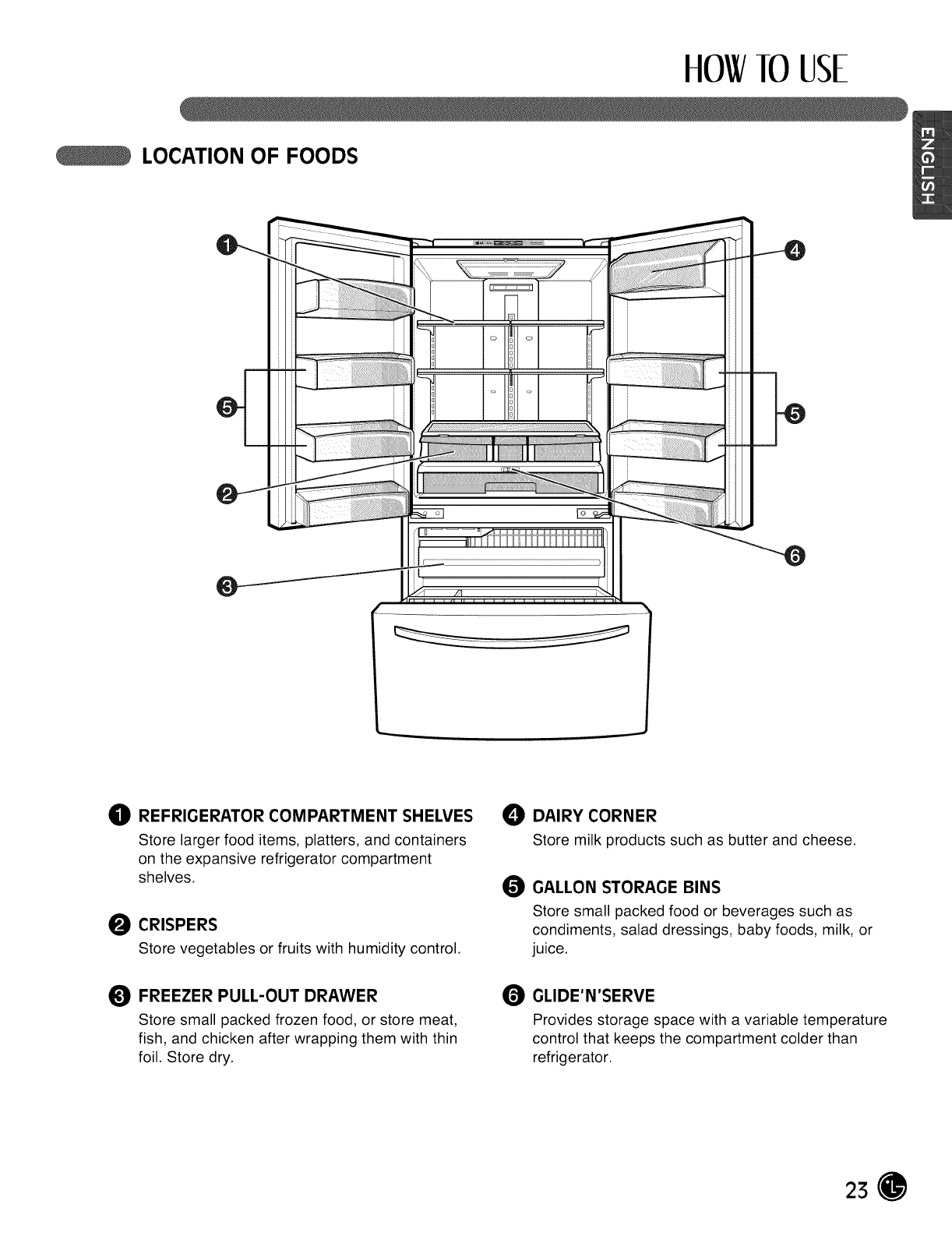

Location of Foods ................................................. 23

Shelf Height Adjustment ....................................... 24

THANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG French Door

Refrigerator combines

advanced cooling technology

with simple operation and high

efficiency. Follow the operating

and care instructions in this

manual and your refrigerator

will provide you with many years

of reliable service.

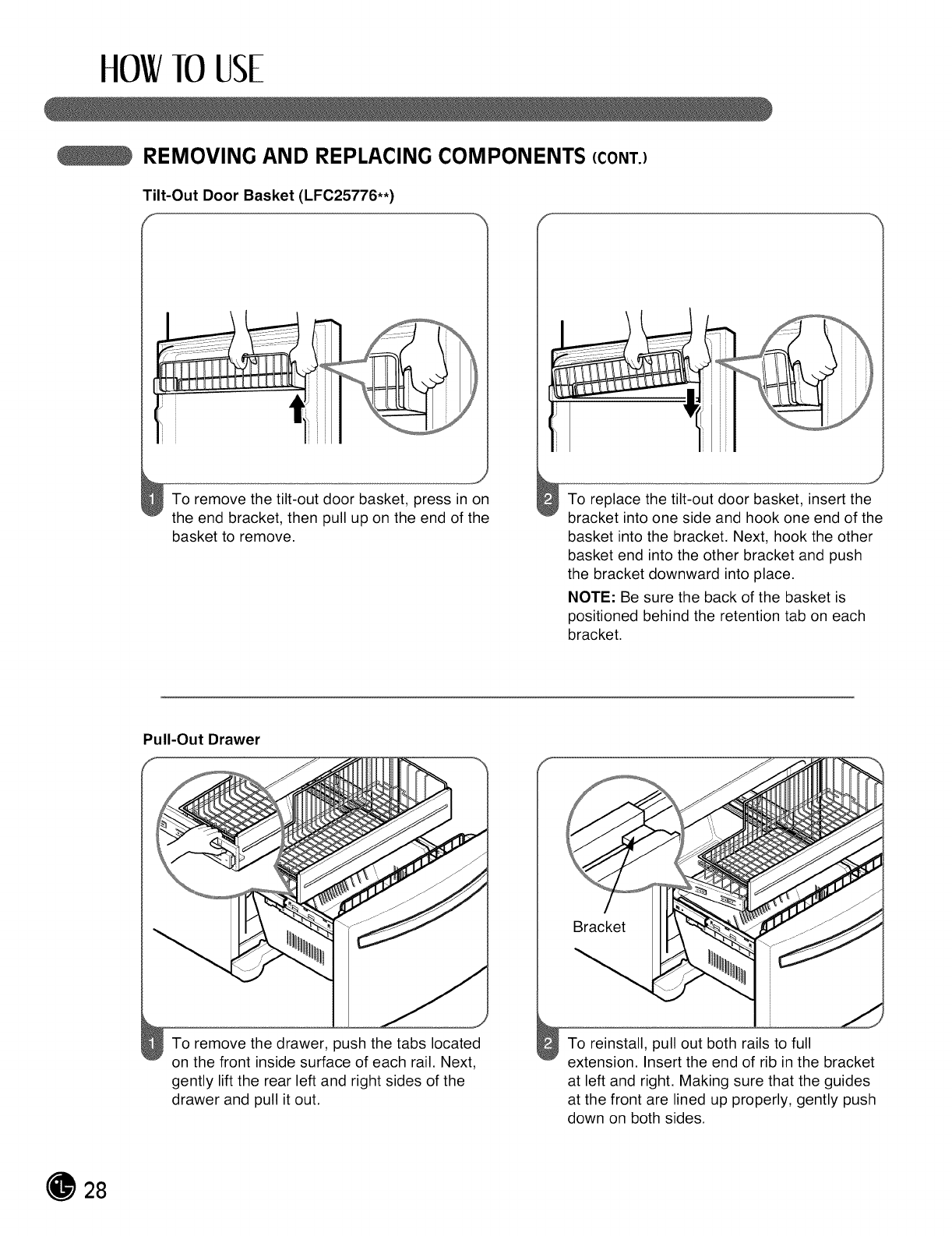

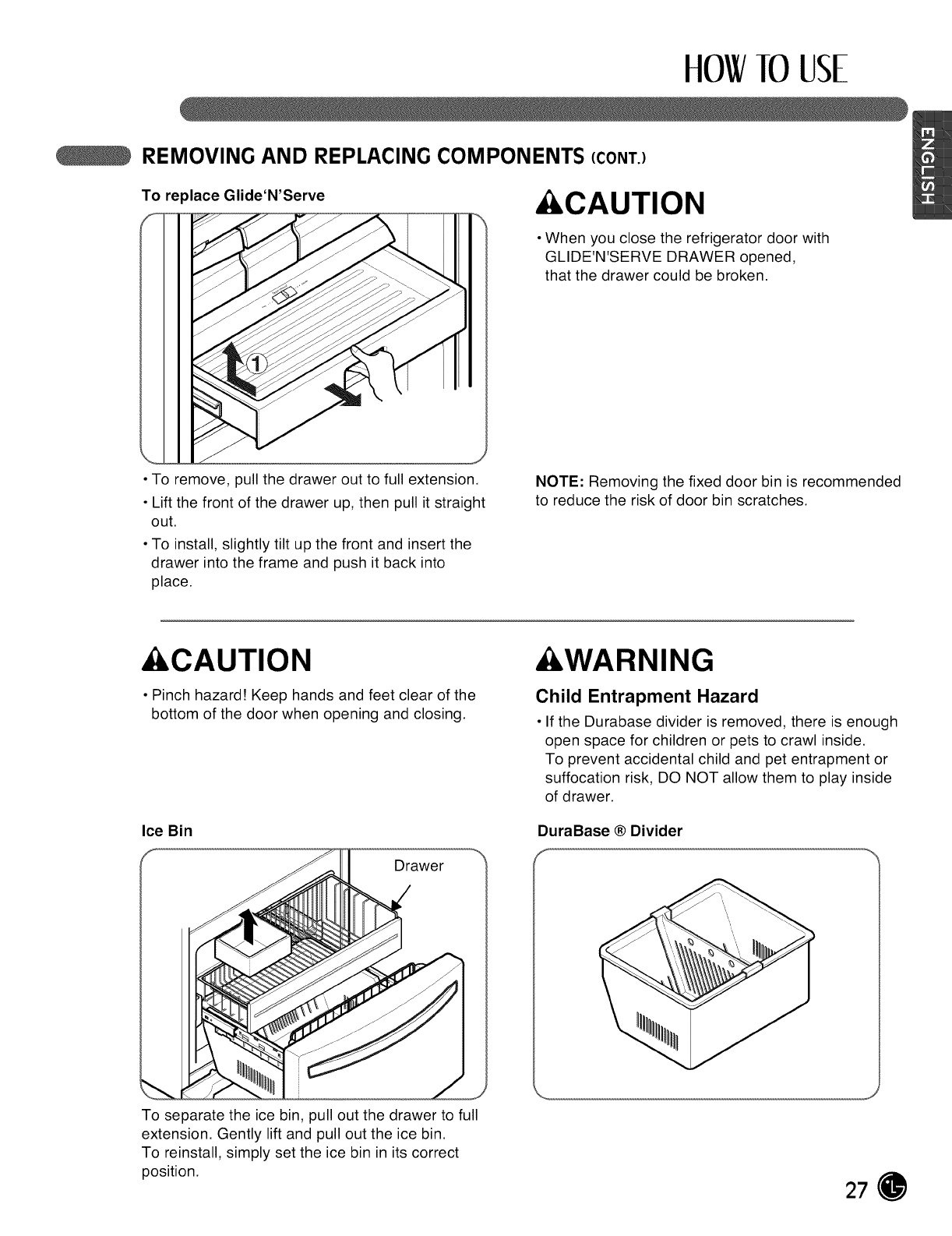

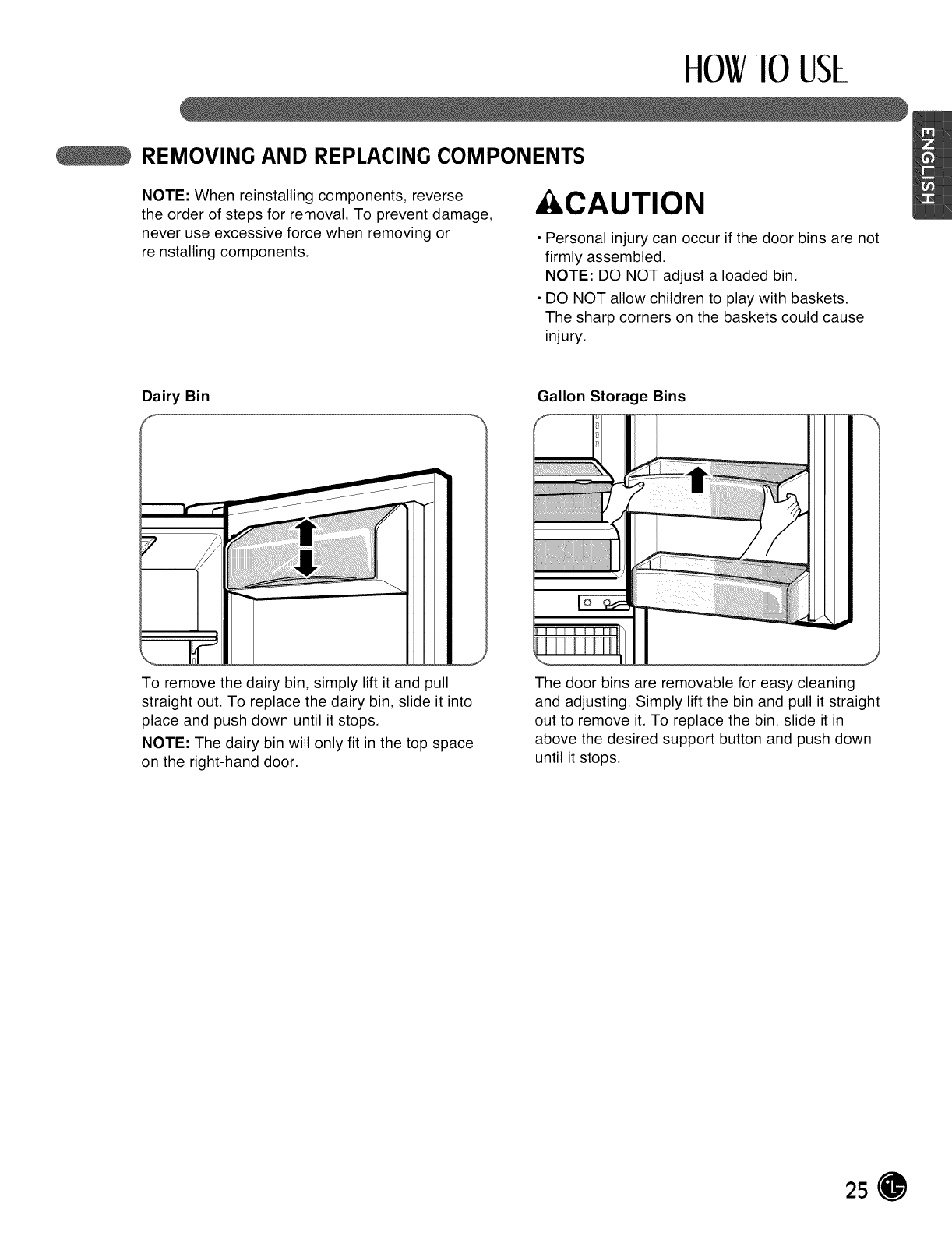

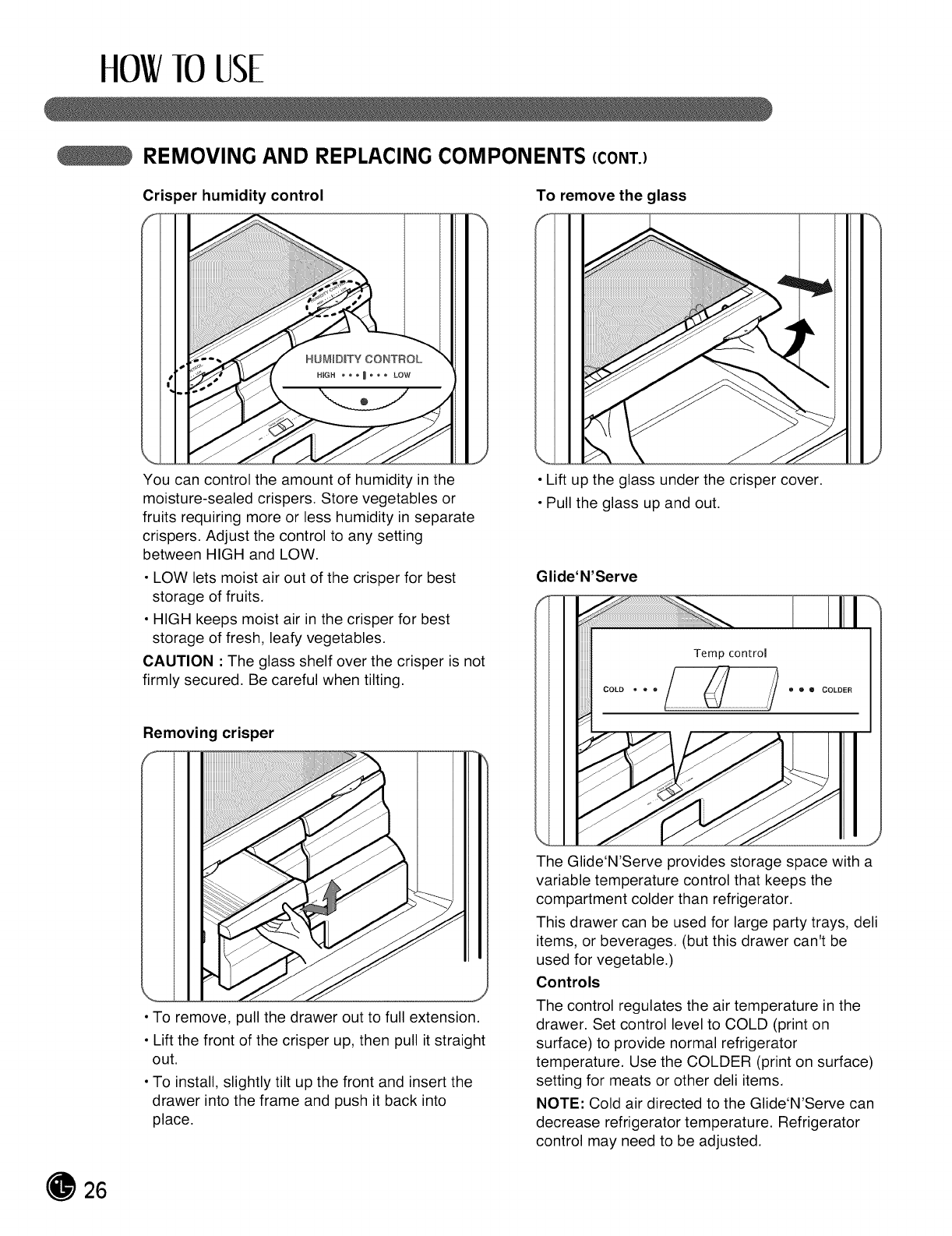

Removing and Replacing Components ................ 25

CARE AND CLEANING

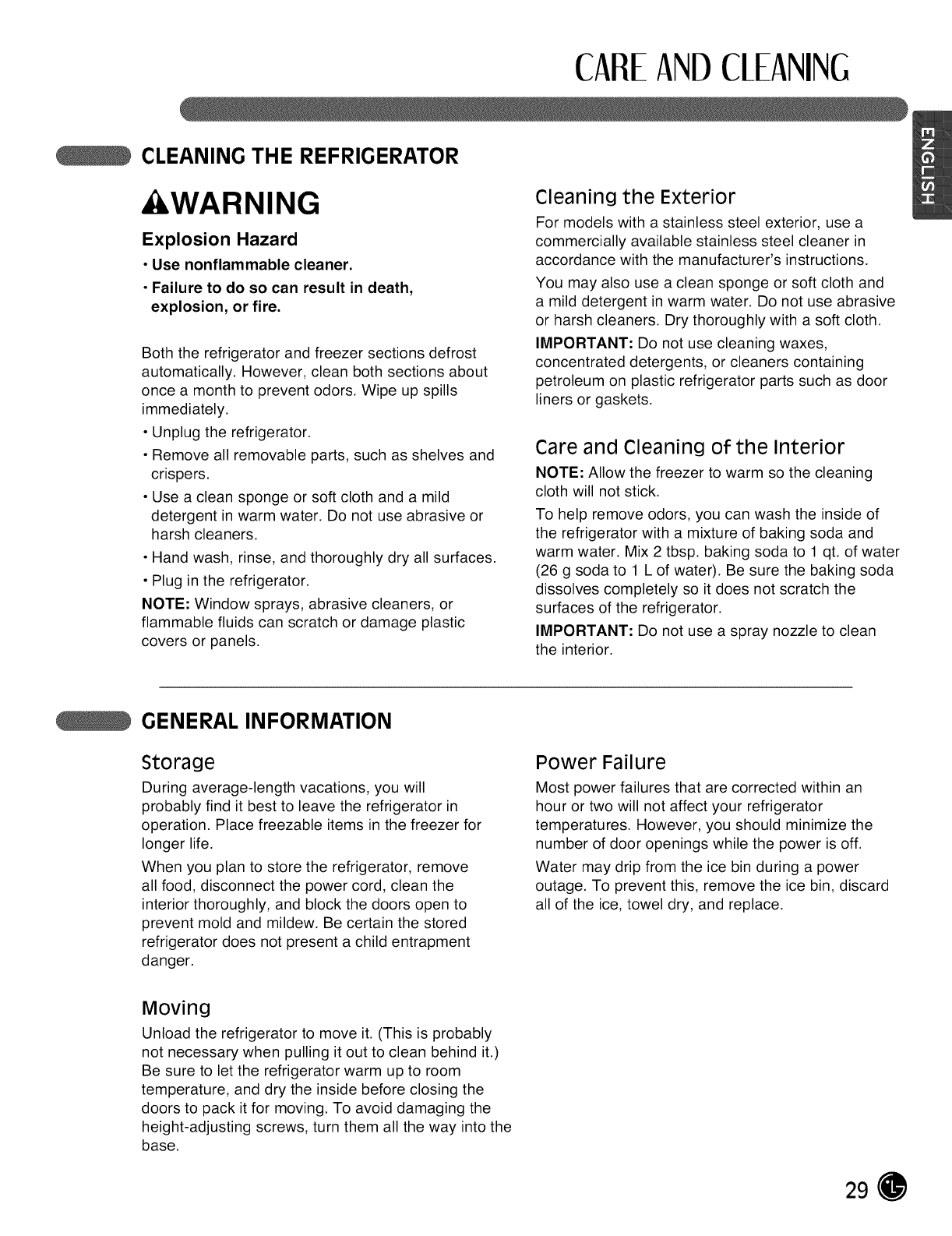

Cleaning the Refrigerator ..................................... 29

General Information ............................................. 29

TROUBLESHOOTING

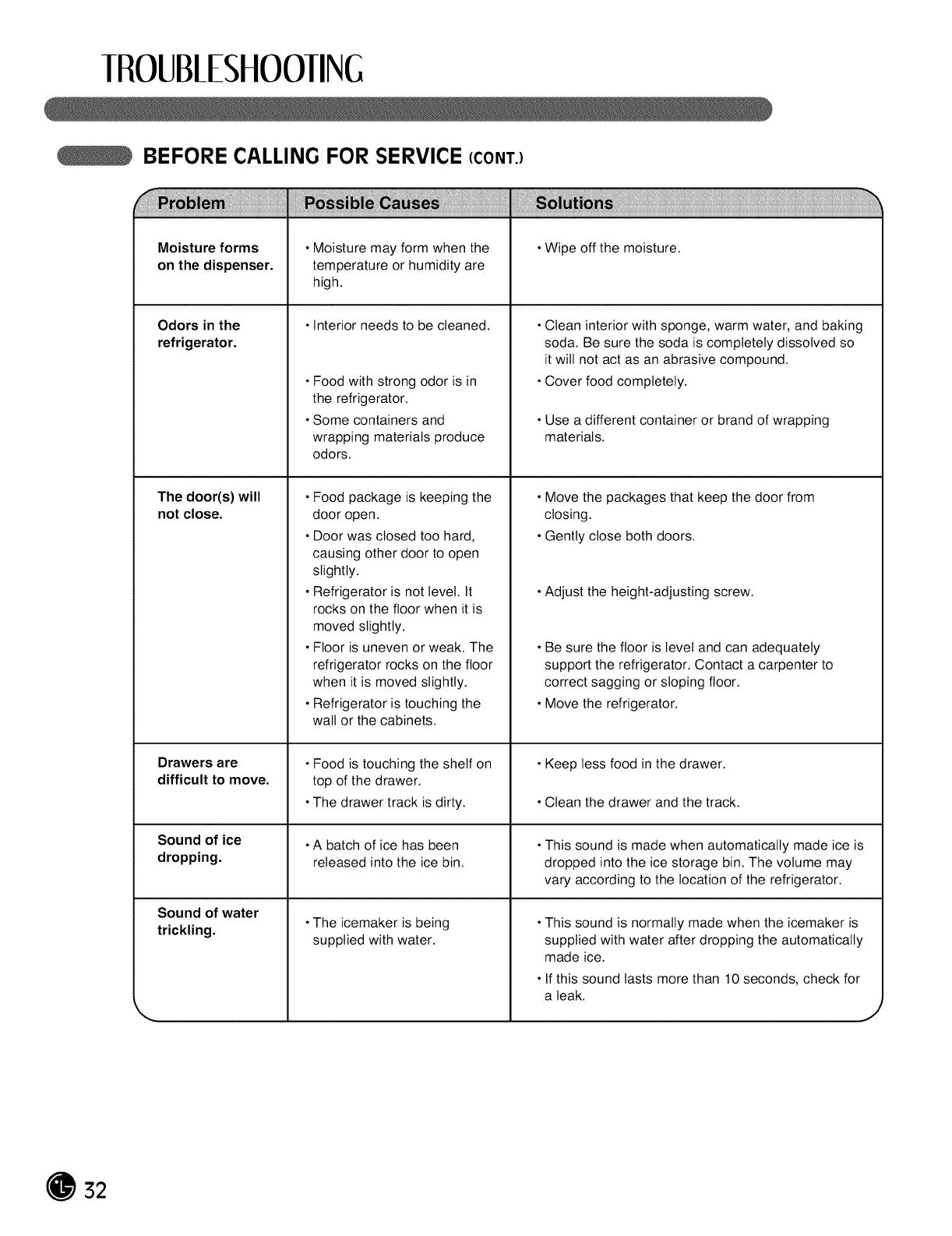

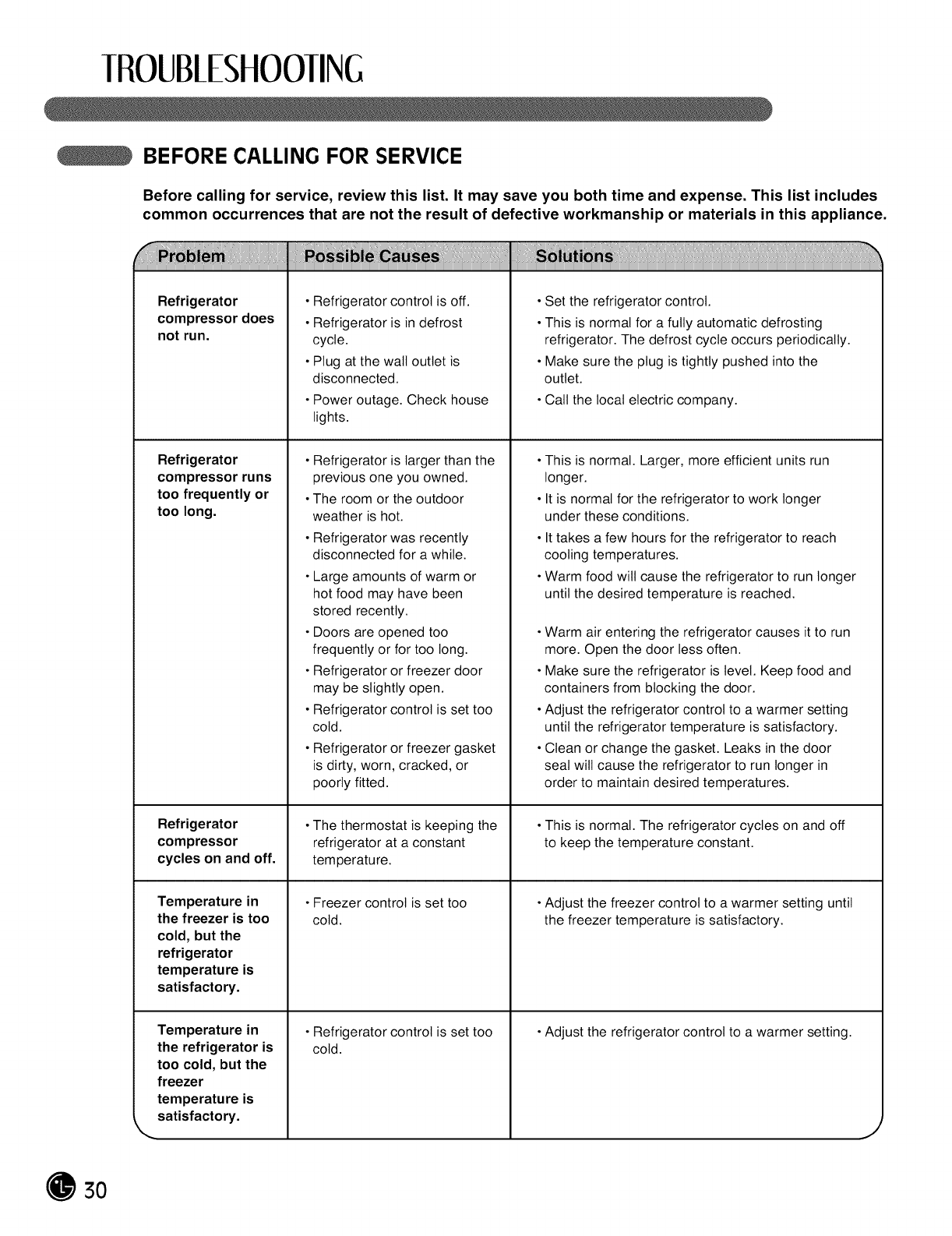

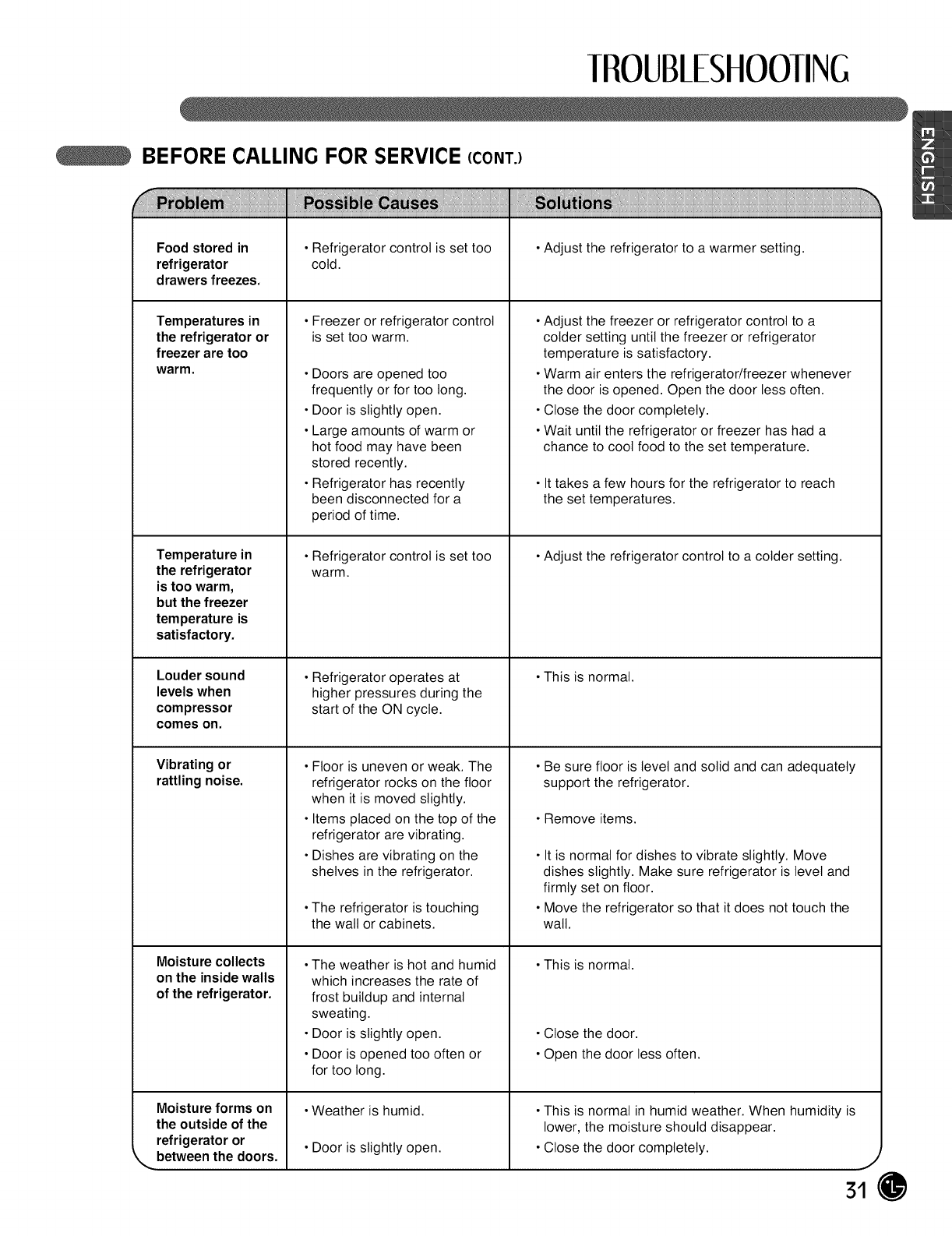

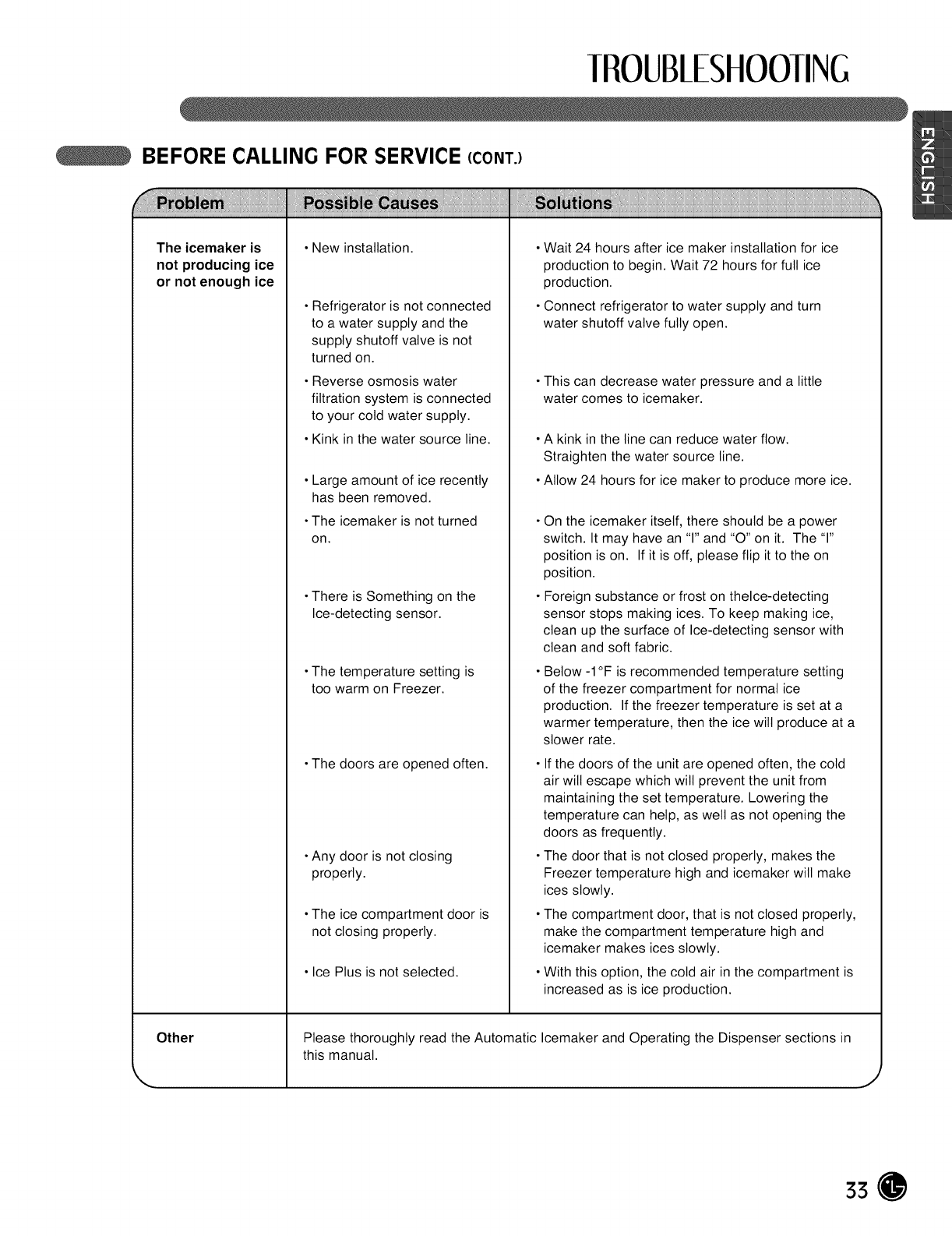

Before Calling for Service .............................. 30

SPECIFICATIONS

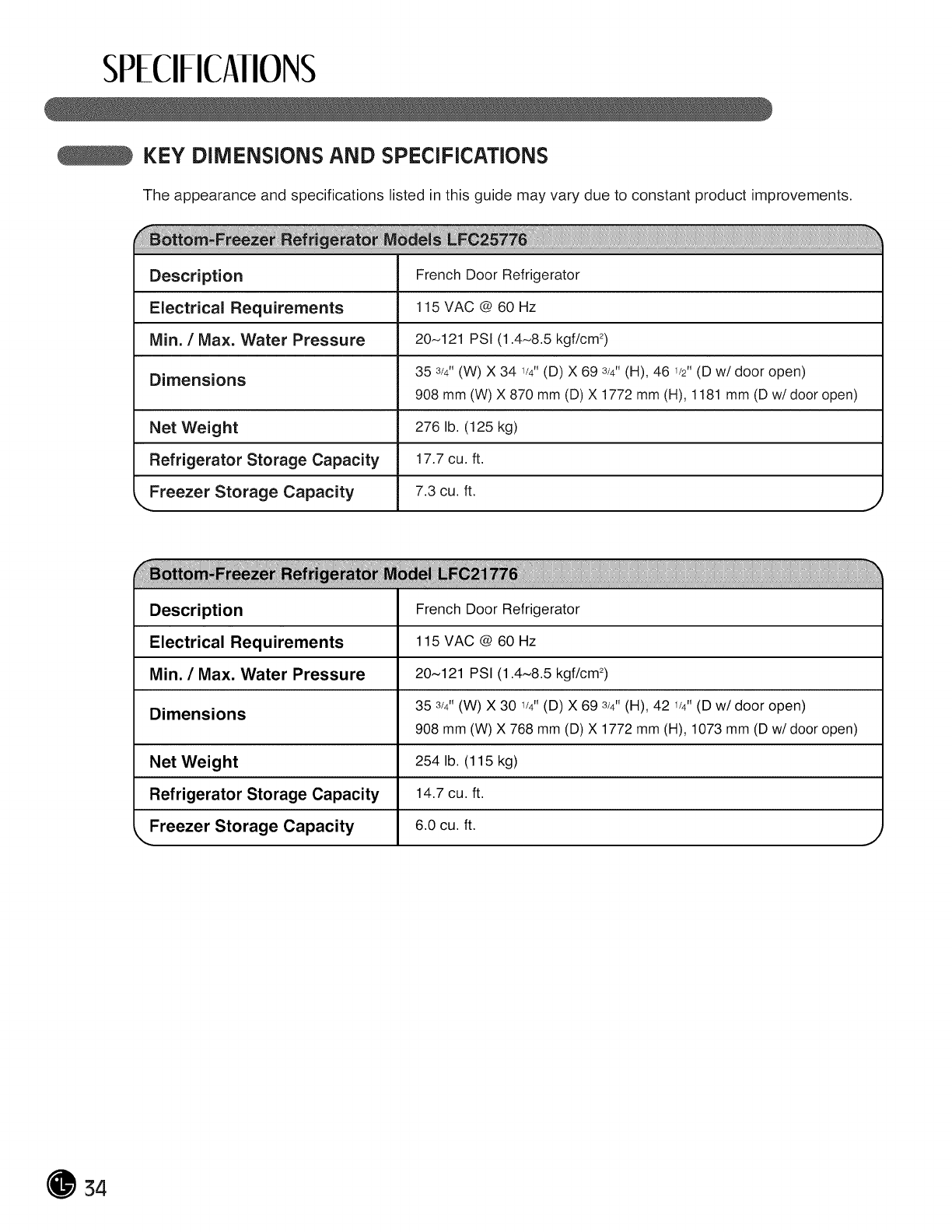

Key Dimensions and Specifications ..................... 34

WARRANTY

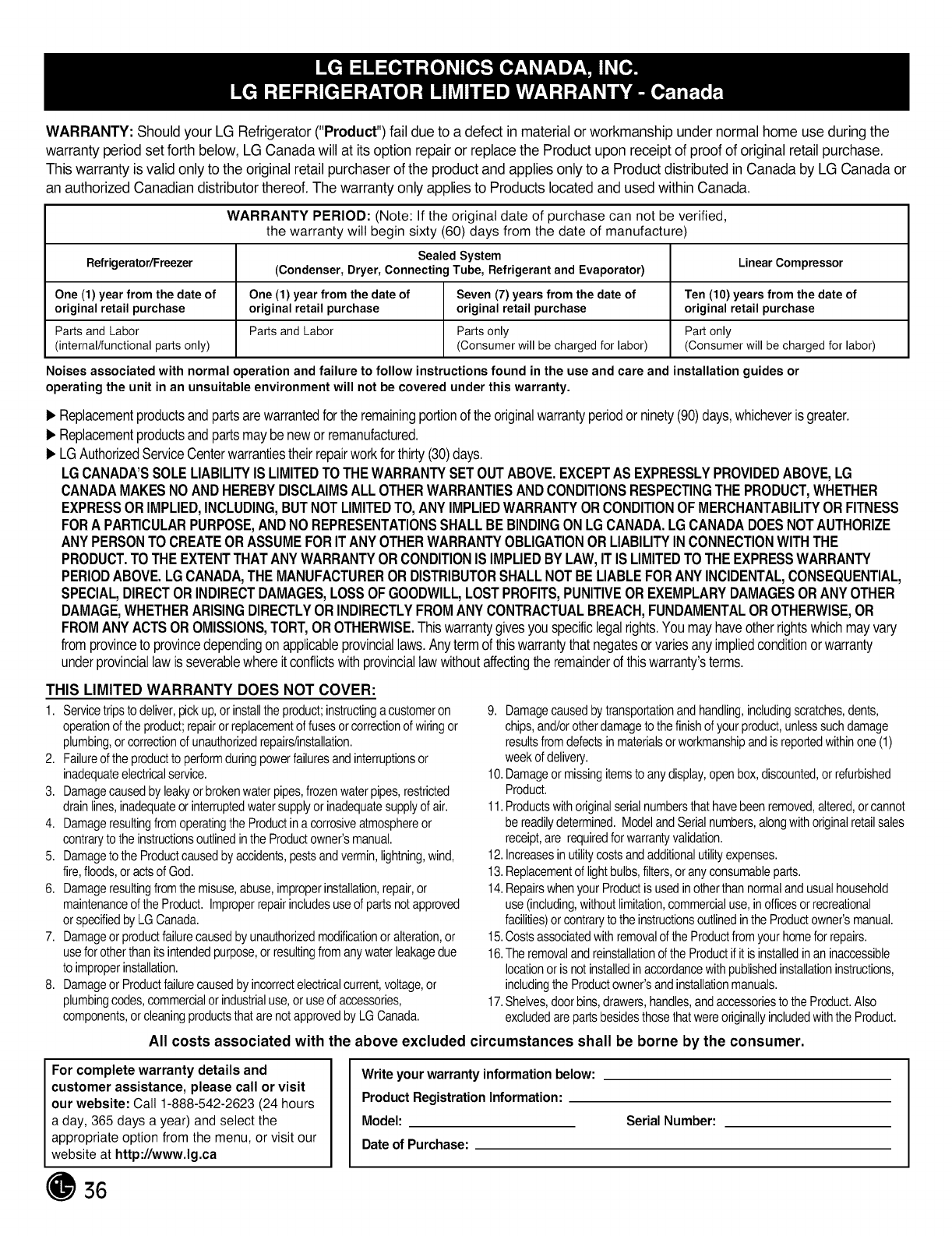

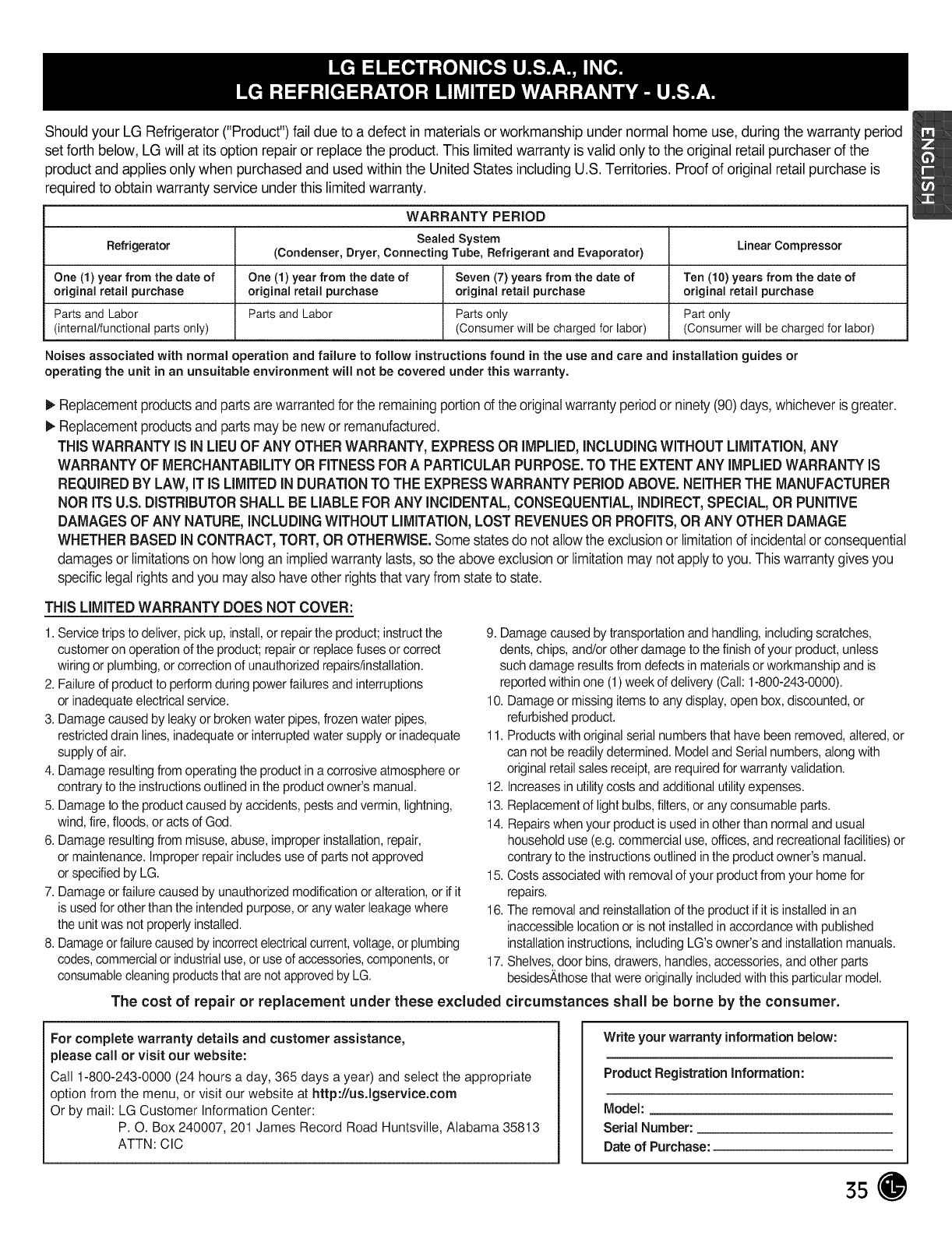

Product Registration Information .......................... 35

IMPORIANTSAFELYINFORMATION

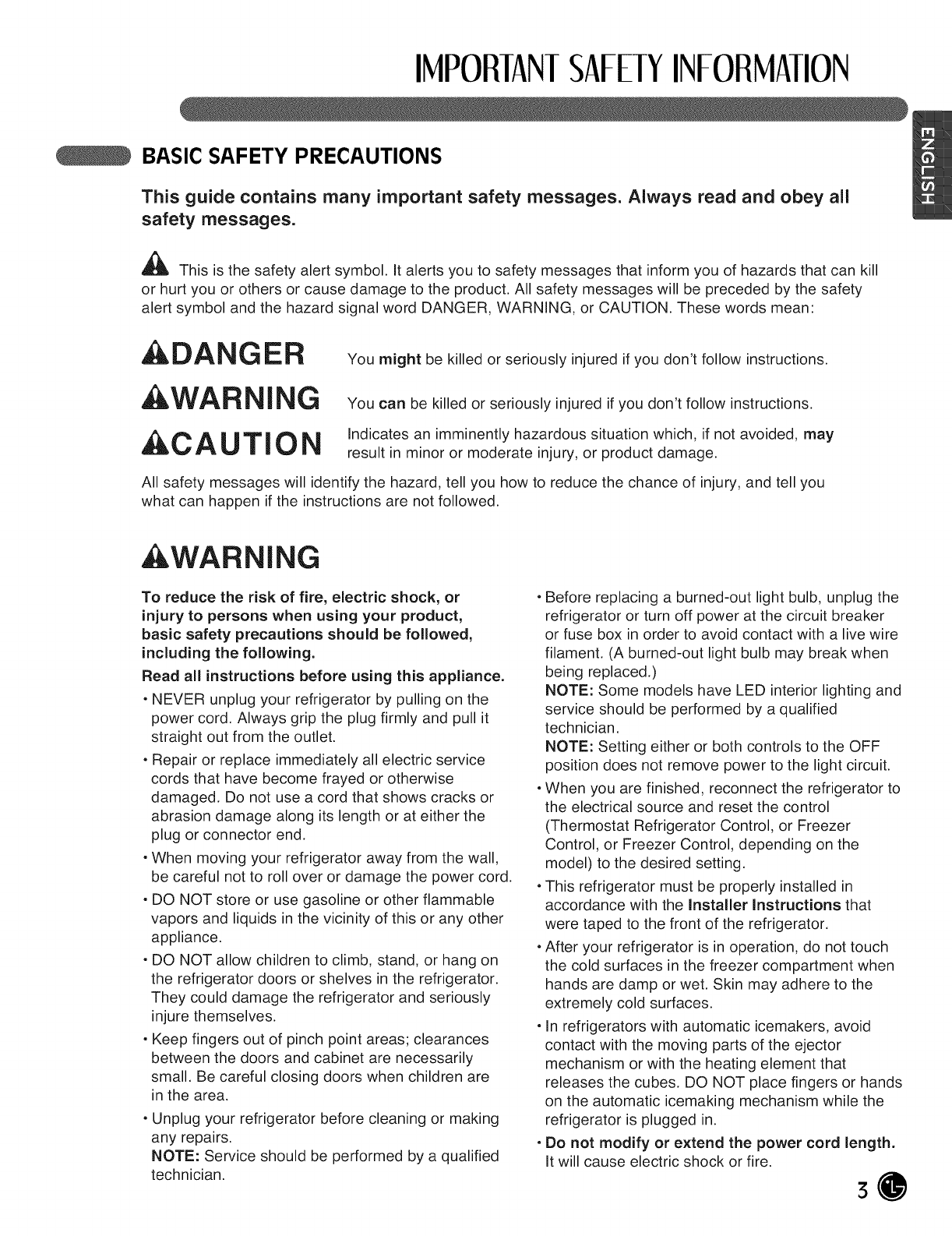

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all

safety messages.

,_ This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety

alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

WARNING

CAUTION

You might be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided, may

result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or

injury to persons when using your product,

basic safety precautions should be followed,

including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

•Repair or replace immediately all electric service

cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or

abrasion damage along its length or at either the

plug or connector end.

•When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

•DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

•DO NOT allow children to climb, stand, or hang on

the refrigerator doors or shelves in the refrigerator.

They could damage the refrigerator and seriously

injure themselves.

•Keep fingers out of pinch point areas; clearances

between the doors and cabinet are necessarily

small. Be careful closing doors when children are

in the area.

•Unplug your refrigerator before cleaning or making

any repairs.

NOTE: Service should be performed by a qualified

technician.

•Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker

or fuse box in order to avoid contact with a live wire

filament. (A burned-out light bulb may break when

being replaced.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified

technician.

NOTE: Setting either or both controls to the OFF

position does not remove power to the light circuit.

•When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat Refrigerator Control, or Freezer

Control, or Freezer Control, depending on the

model) to the desired setting.

•This refrigerator must be properly installed in

accordance with the Installer Instructions that

were taped to the front of the refrigerator.

•After your refrigerator is in operation, do not touch

the cold surfaces in the freezer compartment when

hands are damp or wet. Skin may adhere to the

extremely cold surfaces.

•In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector

mechanism or with the heating element that

releases the cubes. DO NOT place fingers or hands

on the automatic icemaking mechanism while the

refrigerator is plugged in.

• Do not modify or extend the power cord length.

It will cause electric shock or fire.

IMPORIANISAFELYINFORMAIION

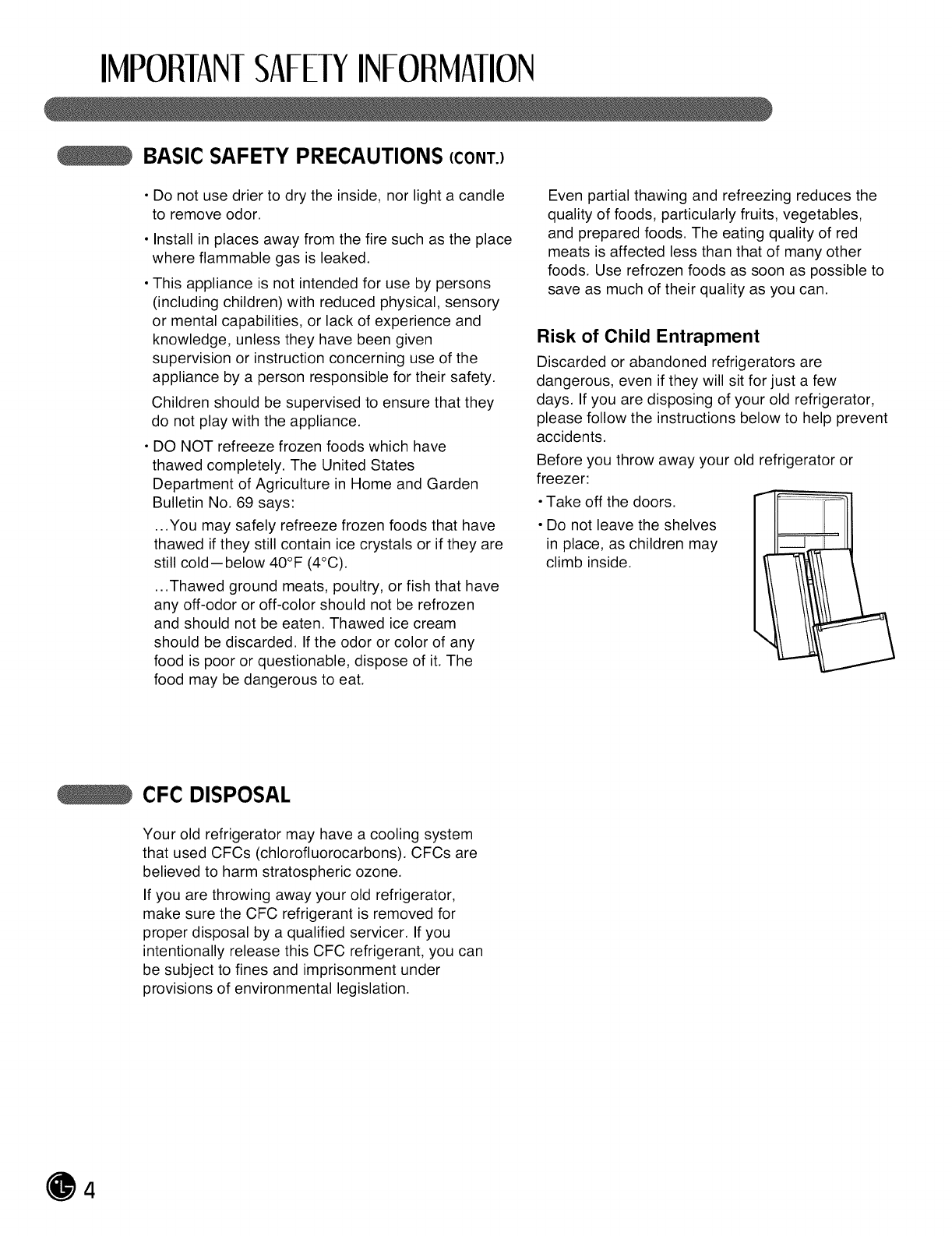

BASIC SAFETY PRECAUTIONS (CONT.)

• DO not use drier to dry the inside, nor light a candle

to remove odor.

•Install in places away from the fire such as the place

where flammable gas is leaked.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

• DO NOT refreeze frozen foods which have

thawed completely. The United States

Department of Agriculture in Home and Garden

Bulletin No. 69 says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold--below 40°F (4°C).

...Thawed ground meats, poultry, or fish that have

any off-odor or off-color should not be refrozen

and should not be eaten. Thawed ice cream

should be discarded. If the odor or color of any

food is poor or questionable, dispose of it. The

food may be dangerous to eat.

Even partial thawing and refreezing reduces the

quality of foods, particularly fruits, vegetables,

and prepared foods. The eating quality of red

meats is affected less than that of many other

foods. Use refrozen foods as soon as possible to

save as much of their quality as you can.

Risk of Child Entrapment

Discarded or abandoned refrigerators are

dangerous, even if they will sit for just a few

days. If you are disposing of your old refrigerator,

please follow the instructions below to help prevent

accidents.

Before you throw away your old refrigerator or

freezer:

• Take off the doors.

• Do not leave the shelves

in place, as children may

climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system

that used CFCs (chlorofluorocarbons). CFCs are

believed to harm stratospheric ozone.

If you are throwing away your old refrigerator,

make sure the CFC refrigerant is removed for

proper disposal by a qualified servicer. If you

intentionally release this CFC refrigerant, you can

be subject to fines and imprisonment under

provisions of environmental legislation.

IMPORIANTSAFELYINFORMATION

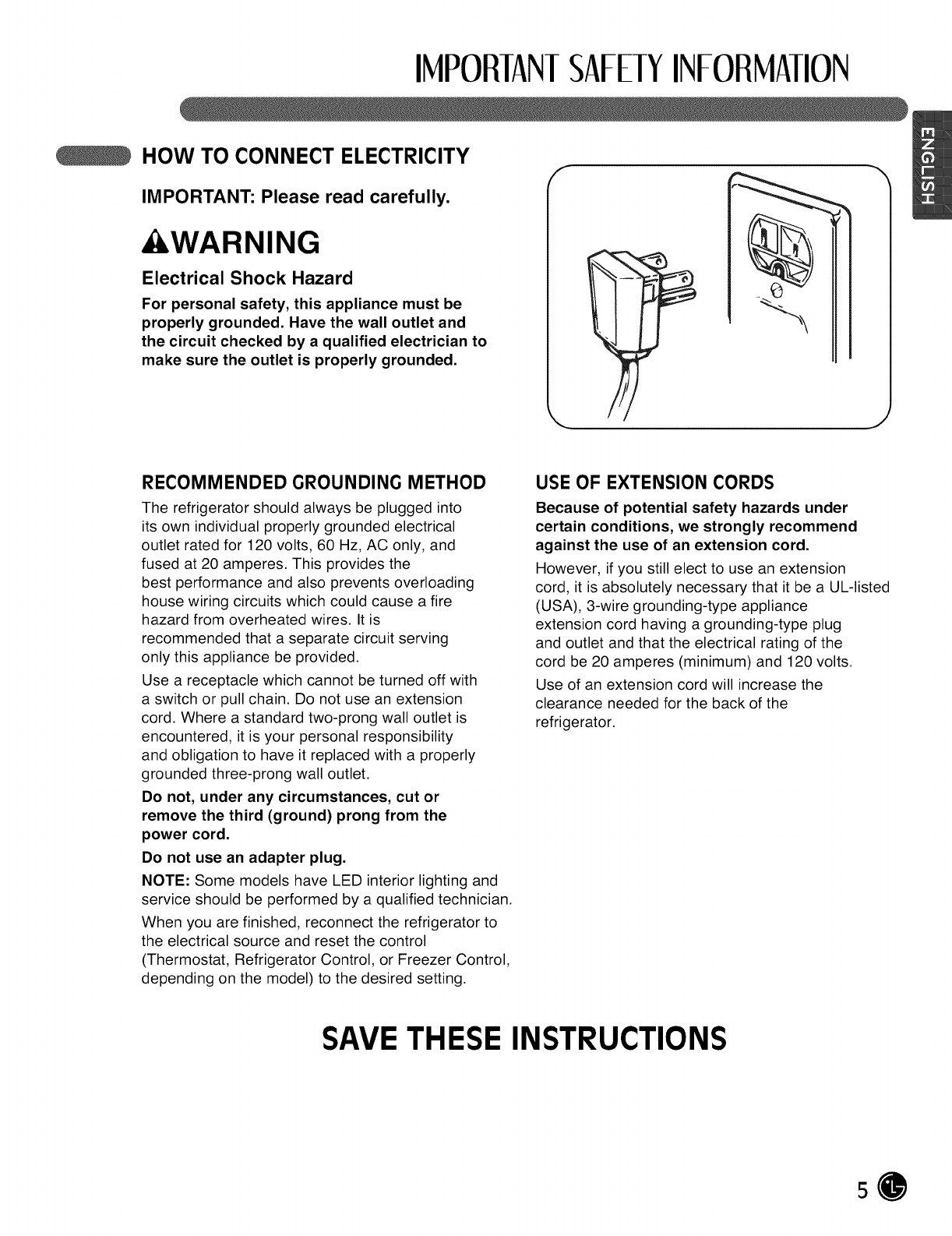

HOW TO CONNECT ELECTRICITY

IMPORTANT: Please read carefully.

&WARNING

Electrical Shock Hazard

For personal safety, this appliance must be

properly grounded. Have the wall outlet and

the circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into

its own individual properly grounded electrical

outlet rated for 120 volts, 60 Hz, AC only, and

fused at 20 amperes. This provides the

best performance and also prevents overloading

house wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit serving

only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord. Where a standard two-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded three-prong wall outlet.

Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

Do not use an adapter plug.

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat, Refrigerator Control, or Freezer Control,

depending on the model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under

certain conditions, we strongly recommend

against the use of an extension cord.

However, if you still elect to use an extension

cord, it is absolutely necessary that it be a UL-listed

(USA), 3-wire grounding-type appliance

extension cord having a grounding-type plug

and outlet and that the electrical rating of the

cord be 20 amperes (minimum) and 120 volts.

Use of an extension cord will increase the

clearance needed for the back of the

refrigerator.

SAVE THESE INSTRUCTIONS

PARISANDFEAIURES

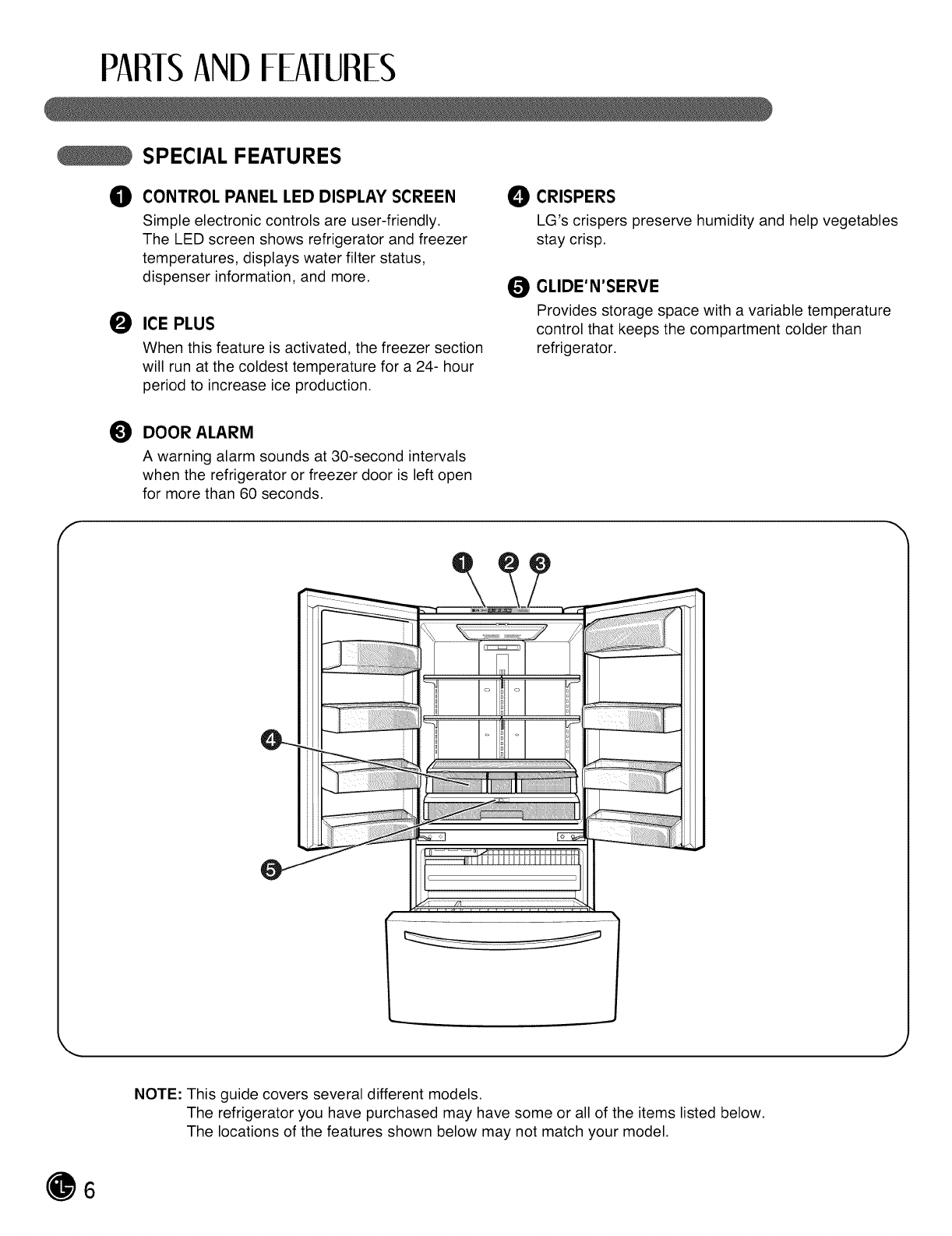

SPECIAL FEATURES

OCONTROL PANEL LED DISPLAY SCREEN

Simple electronic controls are user-friendly.

The LED screen shows refrigerator and freezer

temperatures, displays water filter status,

dispenser information, and more.

eICE PLUS

When this feature is activated, the freezer section

will run at the coldest temperature for a 24- hour

period to increase ice production.

0 CRISPERS

LG's crispers preserve humidity and help vegetables

stay crisp.

OGLIDE'N'SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

eDOOR ALARM

A warning alarm sounds at 30-second intervals

when the refrigerator or freezer door is left open

for more than 60 seconds.

NOTE: This guide covers several different models.

The refrigerator you have purchased may have some or all of the items listed below.

The locations of the features shown below may not match your model.

PARISANDFEAIURES

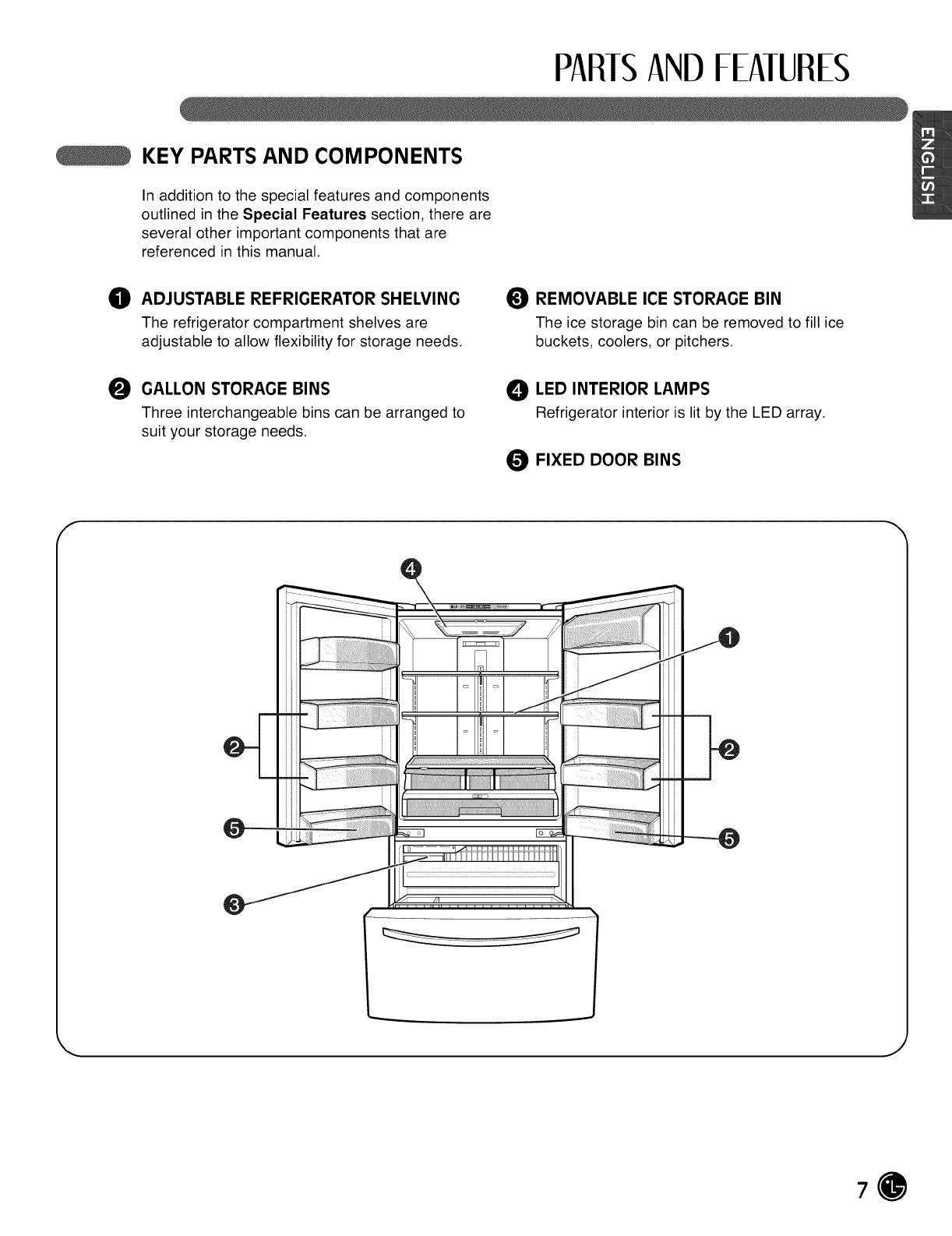

KEY PARTS AND COMPONENTS

In addition to the special features and components

outlined in the Special Features section, there are

several other important components that are

referenced in this manual.

OADJUSTABLE REFRIGERATOR SHELVING

The refrigerator compartment shelves are

adjustable to allow flexibility for storage needs.

GALLON STORAGE BINS

Three interchangeable bins can be arranged to

suit your storage needs.

REMOVABLE ICE STORAGE BIN

The ice storage bin can be removed to fill ice

buckets, coolers, or pitchers.

OLED INTERIOR LAMPS

Refrigerator interior is lit by the LED array.

OFIXED DOOR BINS

INSIA//AIION

CHOOSE THE PROPER LOCATION

&WARNING

Excessive Weight Hazard

Two or more people are required when

moving and unpacking the appliance.

•Store and install the refrigerator where it will not

be exposed to temperatures below freezing or

exposed to outdoor weather conditions.

• Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or too high, cooling ability may be

adversely affected.

• If this refrigerator is installed where the

temperature is above 110°F (43°C), the

freezing capacity is compromised and the cost

of electricity used increases.

• To reduce the risk of electric shock, do not

install the refrigerator in a wet or damp area.

• Select a place where a water supply can be

easily connected for the automatic icemaker

and dispenser.

• Unstable installation may cause vibration and

noise. If the floor is not even, make the

refrigerator level by rotating the height adjusting

screws.

• Properly ground the refrigerator to conform with

all governing codes and ordinances.

&CAUTION

Avoid placing the unit near heat sources,

direct sunlight, or moisture.

CLEARANCES

2" (5.08 cm)

• Too small a distance from adjacent items may

result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 in. (61 cm) in front of the

refrigerator to open the doors.

NOTE: For complete dimensions and specifications,

see page 34.

INSIA//AIION

FLOORING

• To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

• To avoid vibration, the unit must be level.

If required, adjust the leveling legs to compensate

for unevenness of the floor. The front should be

slightly higher than the rear to aid in door

closing. The leveling legs can be turned easily

by pushing against the top of the refrigerator to

take the weight off the feet. Turn the leveling

legs clockwise to raise the unit or

counterclockwise to lower it.

• Carpeting and soft tile surfaces are not

recommended.

• Never install the refrigerator on a platform or

weakly supported structure.

NOTE: When moving the refrigerator for cleaning

or service, be sure to protect the floor. Always

pull the refrigerator straight out when moving it.

Do not wiggle or walk the refrigerator when trying

to move it; floor damage could occur.

NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a

narrow opening.

HANDLE REMOVAL

To move the refrigerator through a house door, it

may be necessary to remove the refrigerator

door handles.

NOTE: Handle appearance may vary from

illustrations on this page.

&CAUTION

• Use special care when removing handles to

prevent scratching the doors.

• The handle could be damaged if you hit it with

a hammer while removing or attaching.

• When you assemble or disassemble a handle,

you must push or pull with reasonable force.

Mountinc

Fasteners

Set Screw

Allen Wrench

Loosen the set screws with a 2.5 mm (3/32")

Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4" Allen

wrench.

the set screws located on the lower

side of the handle with a 3.1 mm (1/8") Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4" Allen

wrench.

INSIA//AIION

HANDLE REMOVAL (CONT.)

HANDLE RE INSTALLATION

Mounting

Fasteners

Place the handle on the door by aligning

handle footprints to fit mounting fasteners and

tighten the set screws with a 2.5 mm (3/32")

Allen wrench.

NOTE: If the handle mounting fasteners need

to be tightened or removed use a 1/4" Allen

wrench

Place the handle on the door by aligning

handle footprints to fit mounting fasteners and

tighten the set screws on the bottom of the

handle with a 3.1 mm (1/8") Allen wrench.

NOTE: If the handle mounting fasteners need

to be tightened or removed use a 1/4" Allen

wrench.

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

REFRIGERATOR DOOR REMOVAL

&WARNING

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator

before installing. Failure to do so could result in

death or serious injury.

• Do not put hands or feet or metal sticks into the air

vents, base grille, or bottom of the refrigerator. You

may be injured or receive an electrical shock.

• Be careful when you work with the hinge, base

grille, and stopper. You may be injured.

Before you begin, remove food and bins from the

doors.

If your entrance door is too narrow for the refrigerator

to pass through, remove the refrigerator door and

move the refrigerator sideways through the doorway.

INSIA//AIION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)

REFRIGERATOR DOOR REMOVAL (CONT.)

(2) (1)

To remove the left refrigerator door:

•Open the door. Remove the top hinge cover

screw (1).

• Use a flat blade screwdriver to lift the tabs

on the front underside of the cover(2).

Lift up the cover.

• Disconnect all the wire harnesses (3).

• Remove the grounding screw(4).

• Rotate hinge lever (5) counterclockwise.

Lift the top hinge (6) free of the hinge lever

latch (7).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door does not fall

forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

To remove the right refrigerator door:

• Open the door. Remove the top hinge cover

screw (1).

• Use a flat blade screwdriver to lift the tabs

on the front underside of the cover(2).

Lift up the cover.

• Disconnect all the wire harnesses (3).

• Remove the grounding screw(4).

• Rotate hinge lever (5) clockwise.

Lift the top hinge (6) free of the hinge lever

latch (7).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door is heavy

and may fall forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

INSIA//AIION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)

REFRIGERATOR DOOR REINSTALLATION

Install the right-side door first.

• Lower the door onto the middle hinge pin as

shown.

• Make sure the plastic sleeve is inserted in

the bottom of the door.

(3)

• Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever (3)

counterclockwise to secure the hinge.

• Install the grounding screw (4) and connect

all the wire harnesses (5).

Install the left-side door.

• Lower the door onto middle hinge pin.

//(5)

• Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever (3)

clockwise to secure the hinge.

• Install the grounding screw (4) and connect

all the wire harnesses (5).

INSIA//AIION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)

FREEZER DRAWER REMOVAL

&CAUTION

•Care should be taken to avoid product or property

damage when removing the freezer door. It maybe

necessary to have assistance with the following

insturctions.

• To avoid damage do not hold the handle when

removing the door. It could come off and cause and

injury.

Separate the left and right rail cover

With both hands, hold both sides of the door

and pull it up to separate it from the rails.

To remove the freezer drawer, pull the drawer

open to full extension. Remove the lower

DuraBase ® basket by lifting the basket from

the rail system.

Remove the screws of the rail on

both sides.

With both hands, flex the center bar enough

to allow the gears on both ends to release

from the track.

_,CAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause

personal injury.

&CAUTION: When placing the drawer on the floor, care should be taken to avoid floor damage.

INSIA//AIION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)

FREEZER DRAWER REINSTALLATION

&CAUTION &WARNING

•To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions. It maybe necessary to have

assistance with the following instructions.

Risk of Child Entrapment

• To prevent accidental child and pet entrapment

or suffocation risk, DO NOT allow them to play

inside of the freezer drawer.

• DO NOT step or sit on the freezer drawer.

To reinstall the freezer drawer, hold the center

bar with both hands and pull it out until both

rails are fully extended.

Hook door supports (1) into rail tabs (2).

Right

Rail Cover

Left

Rail Cover

Lower door into final position and tighten the

screws (3). Make sure you have a right rail

cover for each side.

Align the top holes of the rail cover with the

top holes of the door supports to assemble

the rail covers.

_,WARNING: To prevent accidental child and

pet entrapment or suffocation risk.

DO NOT allow them to play inside of

drawer.

_,WARNING: DO NOT step or sit down on freezer.

With the drawer pulled out to full extension,

insert the lower basket in the rail assembly.

INSIA//AIION

LIGHT REPLACEMENT

TO change RefrigeratOr Light

This model has special LED interior lighting

and service should be performed by a qualified

technician.

&WARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position does

not remove power to the light circuit.

NOTE:

• Not all appliance bulbs will fit your refrigerator.

Be sure to replace the bulb with one of the same

size, shape and wattage.

• The light bulbs will turn off if door is left open for

seven continuous minutes. Shutting door for one

second will light bulbs to come back on.

TO Change Freezer Light

1. Unplug refrigerator power cord form outlet.

2. Use a screwdriver to remove the cover screw.

(Save the cover screw)

3. Using a flat instrument, f

gently pry the lamp cover

loose in the front as

shown. Rotate downward

to remove the rear tabs.

4. Make sure the bulb is

cool to the touch.

Turn the bulb

counterclockwise to

remove.

5. Replace with a new

60-watt appliance bulb.

6. Insert tabs on back of

cover into slots in freezer

ceiling. Push cover up to

snap front into place.

7. Use a screwdriver to assemble the cover screw.

&CAUTION

• DO NOT place fingers inside of cover.

Lamp may be hot.

INSIA//AIION

CONNECTING THE WATER SUPPLY

&WARNING

Connect to safe drinking water supply

only.

•The water pressure must be between 20 and

120 p.s.i. (1.4~8.4 kgf/cm 2) on models without

a water filter and between 43 and 121 p.s.i.

(3~8.5 kgf/cm 2)on models with a water filter.

• If water pressure does not reach 20 psi

(1.4 kgf/cm _)or falls below, it is necessary to

purchase a separate pressure pump for normal

automatic icemaker and water dispensing operation.

• It is recommended that the total length of the water

feed tube does not exceed 26 ft. (8 m).

• Install the water supply line where it will not be

affected by heat.

• If a reverse osmosis water filtration system is

connected to your cold water supply, This water line

installation is not warranted by the refrigerator or

icemaker manufacturer. Follow next instructions

carefully to minimize the risk of expensive water

damage.

• If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (2.8 kgf/cm _~

4.2 kgf/cm 2,less than 2.0~3.0sec to fill a cup of

7oz capacity).

If the water pressure from the reverse osmosis

system is less than 20 psi (1.4 kgf/cm _,more than

4.0sec to fill a cup of 7oz capacity):

• Check to see whether the sediment filter in the

reverse osmosis system is blocked. Replace the

filter if necessary.

• Allow the storage tank on the reverse osmosis

system to refill after heavy usage.

• If the issue about water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

IMPORTANT: Read all directions thoroughly before

you begin.

• If operating the refrigerator before installing the

water connection, turn the icemaker to the OFF

position to prevent operation without water.

• All installations must be in accordance with local

plumbing code requirements.

• Use copper tubing and check for leaks.

• Install tubing only in areas where temperatures will

remain above freezing.

• It may take up to 24 hours for the icemaker to begin

producing ice.

Tools Required

• Standard screwdriver

• 7/16-in. and 1/2-in. open-end wrenches or two

adjustable wrenches

• 1/4-in. nut driver

• 1/4-in. drill bit

• Hand drill or electric drill (properly grounded)

NOTE: Refrigerator dealers offer a kit with a 1/4-in.

saddle-type shutoff valve, a union, and copper tubing.

Before purchasing, make sure a saddle-type valve

complies with local plumbing codes.

Do not use a piercing-type or 3/16-in. saddle valve

which reduces water flow and clogs more easily.

NOTE: The Commonwealth of Massachusetts

Plumbing Code 248CMR shall be adhered to.

Saddle valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed plumber.

Cold Water Supply

•The icemaker water valve contains a flow washer

which is used as a water pressure regulator.

•The icemaker needs to be connected to a cold water

line with water pressure between 20~120 psi

(1.4~8.4 kgf/cm 2)on models without a water filter

and between 43 and 121 p.s.i. (3~8.5 kgf/cm 2)on

models with a water filter.

INSIA//AIION

CONNECTING THE WATER LINES

IMPORTANT: Before connecting the tubing to the water

line, unplug the refrigeratoror disconnect the power.

•Turn off the main water supply and open the nearest

faucet to relieve pressure in the line. Opening an outside

faucet may help drainwater from the linein the house.

• Find a 1/2-in.vertical COLD water pipe near the

refrigerator.

NOTE: A horizontal pipe will work, but the following

precaution must be taken: drill on the top of the pipe, not the

bottom. This will help keep water away from the drill and

also keep normal sediment from collecting in the valve.

•To determine the length of copper tubing you will need,

measure from the connection on the lower left rear of the

refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for

moving the refrigeratorfor cleaning. Use 1/4-in.O.D.

(outside diameter) copper tubing. Be sure both ends of the

copper tubing are cut square.

•Using a drill, drill a 1/4-in.hole inthe cold water pipe you

have selected.

• Fasten the shutoff valve to the cold water pipe with the

pipe clamp. Be sure the outlet end is solidly inthe 1/4-in.

drilled hole in the water pipe and the washer is underthe

pipe clamp. Tighten the packing nut.Tighten the pipe

clamp screws carefully and evenly so the washer makes a

watertight seal.

Do not overtighten or you may crush the copper tubing,

especially if soft (coiled) copper tubing is used. Now you

are ready to connect the copper tubing.

•Slip the compression sleeve and the compression nut onto

the copper tubing as shown. Insertthe end of the tubing

into the outlet end squarely as far as it will go. Screw the

compression nut onto the outlet end with a wrench. A flare

nut wrench works best, but an open-end wrench will

suffice. Do not overtighten.

•Place the free end of the tubing into a container or sink,

and turn on the main water supply. Flushout the tubing

until the water is clear. Turn off the shutoff valve on the

water pipe. Coil the copper tubing as shown below.

Cold Water Pipe

Packing

Nut

\Pipe Clamp

Coil of Polyethelyne

or Copper Tubing

Shutoff

Compression Compression

IMPORTANT: Before connecting the tubing to the

refrigerator, be sure the refrigerator power cord is not

plugged into the wall outlet.

NOTE: Ifyour refrigeratoris equipped with an internal water

filter, an external in-line water filter should not be used.

Tubing

1/4"

Tubing

1/4"

Water

valve

Refrigerator

Connection

• Remove the plastic flexible cap from the water valve.

•Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

•Insert the end of the copper tubing into the connection as

far as possible. While holding the tubing, tighten the fitting.

IMPORTANT: Tighten any connections that leak.

Open the water at the shutoff valve.

• Plugin the refrigerator.

•Arrange the coil of copper tubing behind the refrigerator so

it does not vibrate against the back of the refrigeratoror

against the wall.

•Check for leaks.

•Before connecting the water line to house, purge the

house line for 2 minute.

NOTE: It may take a few seconds for water to begin to flow

as the internal tank fills and air clears from the lines.

• Push the refrigerator back to the wall.

•Set the icemaker switch to the ON position.

NOTE: The icemaker will not begin to operate until it

reaches its operating temperature of 15°F (-9°C).

It will then begin operation automatically.

NOTE: Throw away the first few batches of ice (about

20 pieces).

INSIA//AIION

LEVELING THE REFRIGERATOR DOORS

&WARNING

Electrical Shock Hazard

•Be careful when you work with the hinges,

base grille, and stopper. You may be injured.

• Do not put hands, feet, or metal items into

the air vents, base grille, or the bottom of the

refrigerator. You may be injured or receive

an electrical shock.

Leveling

After installing, secure the product with the LEGS

so it does not move to the right or left.

Your refrigerator has two front leveling legs--

one on the right and one on the left. Adjust the

legs to alter the tilt from front to back or side to

side. If your refrigerator seems unsteady or you

want the doors to close more easily, adjust the

refrigerator's tilt using the following instructions:

Kick Plate

Plug the power cord into a 3-prong grounded

outlet, and move the refrigerator into its final

position. Remove the kick plate screws and

then the kick plate.

• Open the Freezer Drawer.

• Once the drawer is open, there is sufficient

clearance to remove the screws on top of

the kick plate.

NOTE: To replace the kick plate, place it into

position, and then insert and tighten the

screws.

&CAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

Level the refrigerator by using an 11/32 inch

(8mm), 11/16 inch (18mm) wrench or a flat

blade screw driver.

Turn the leveling legs (CCW) to raise or (CW)

to lower the height of the front of the

refrigerator.

NOTE: The front of the refrigerator should be

slightly higher than the back.

NOTE: If someone pushes backward against

the top of the refrigerator, weight is lifted off of

the leveling legs, which makes adjustment

easier.

Open both doors to make sure they close

easily. If not, raise the leveling legs higher by

turning both clockwise the same amount.

Once the refrigerator is level, replace the kick-

plate.

NOTE: Your new refrigerator is uniquely

designed with two fresh food doors. Either

door can be independently opened or closed.

You will have to exert slight pressure on the

doors to close them completely.

NOTE: In order not to move the refrigerator

back and forth, fix it with the 'Adjust' to the

floor to install and use.

INSIA//AIION

LEVELING THE REFRIGERATOR DOORS (cont.)

DOOR ALIGNMENT

If the space between your doors is uneven, follow

the instructions below to align the doors:

• With one hand, lift up the door you want to raise

at middle hinge.

• With other hand, use pliers to insert snap ring as

shown.

• Insert additional snap rings until the doors are

aligned.

(Three snap rings are provided with unit.)

STARTING

Before loading your refrigerator with fresh foods:

• Remove tape and any temporary labels from

your refrigerator before using. To remove any

remaining adhesive residue, rub the area briskly

with your thumb, or rub a small amount of liquid

dish soap over the adhesive with your fingers.

Wipe with warm water and dry. Do not use sharp

instruments, rubbing alcohol, flammable fluids,

or abrasive cleaners to remove tape or glue.

NOTE: Do not remove any warning-type labels,

the model and serial number label, or the tech

sheet that is taped to the back of the refrigerator.

• Thoroughly clean your refrigerator and wipe off all

dust that may have accumulated during shipping.

• Install accessories such as the ice cube bin,

drawers, and shelves, in their proper places.

They are packed together to prevent possible

damage during shipment.

• Adjust the desired temperature for the

refrigerator and freezer (see Adjusting the

Temperature and Functions).

• Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold

air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

HOW|0 USE

SETTING THE CONTROLS

OTEMPERATURE OALARM

•Your refrigerator has a control pad inside

the refrigerator compartment that lets you

regulate the temperature in the freezer and

refrigerator compartments.

•Initially set the refrigerator control at 37°F (3°C)

and the freezer control at 0°F (-18°C).

Leave it at these settings for 24 hours (one day)

to stabilize. Then adjust the compartment

temperature as desired.

•Refrigerator Temp Control: 33°F to 46°F

(o°c to 8°0)

The lower the number setting, the colder the

refrigerator compartment will become.

•Freezer Temp Control: -6°F to 8°F (-21°C to -13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. The refrigerator

compartment becomes warmer because less cold

air flows into the refrigerator.

ICE PLUS

• When you press the ICE PLUS button, the graphic

[ _ ] will light up in the display and it continues

for 24hours. It will automatically shut off after

24hours have passed.

Or you can stop this function manually by pressing

the button one more time.

•When the power is connected to the refrigerator,

door alarm is initially set ON and door alarm display

will show [ _ ] (ON).

•When either refrigerator or the freezer door is left

open for more than 60 seconds, the alarm will ding

to let you know the door is open.

•When you close the door, the door alarm will stop

dinging.

•If you want to disable the door alarm function, press

[ _ ] button then the door alarm display will

switched to [ _ ] (OFF).

,CAUTION

Display mode setting and its cancellation

• With the refrigerator door open, keep pressing the

REFRIGERATOR Button and ICE PLUS Button

more than 5 seconds, then it goes to the display

mode with Special Beep Sound with special beep

sound.

•Perform the same way again to cancel the display

mode.

•All freezing unit will be turned off at display mode

(Exceptions: Lamp, Display)

•This function increases both icemaking and freezing

capabilities.

NOTE: If you want to change °F to °C, press and

hold FREEZER key and REFRIGERATOR key over

5 seconds at the same time. and if you want to

change °C to °F, hold them for 5 seconds again.

HOW10USE

AUTOMATIC ICEMAKER

WARNING

Personal Injury Hazard

•DO NOT insert your hands in to the Icemaker in

operation. It may cause to injure you.

Operation instructions

Anewly-installed refrigerator may take 12 to 24

hours to begin making ice.

Automatic Power Switch

Shut off Arm

The icemaker will produce 12 cubes per cycle-

approximately 90-130 cubes in a 24-hour period,

depending on freezer compartment temperature,

room temperature, number of door openings and

other operating conditions.

If the refrigerator is used before the water connection

is made to the icemaker, set the power switch to O

(off).

When the refrigerator has been connected to the

water supply, set the power switch to I (on).

The icemaker will fill with water when it cools to

freezing.

A newly-installed refrigerator may take 12 to 24 hours

to begin making ice cubes.

Throw away the first few batches of ice to allow the

water line to clear.

Be sure nothing interferes with the sweep of the

Automatic Shut off Arm.

When the bin fills to the level of the Automatic Shut

off Arm, the icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube

size button.

Every time you press the cube size button, the

indicator moves up one light. The higher the light

position, the larger the cubes will be. Pressing at the

highest position returns the indicator to the lowest

position.

When you should set the icemaker

power switch to O(off)

•When the water supply will be shut off for several

hours.

• When the ice storage bin is removed for more than

a minute or two.

• When the refrigerator will not be used for several

days.

Normal sounds you may hear

•The icemaker water valve will buzz as the icemaker

fills with water. If the power switch is in the I (on)

position, it will buzz even if it has not yet been

hooked up to water.

To stop the buzzing, move the power switch to O

(off).

NOTE: Keeping the power switch in the I (on)

position before the water line is connected can

damage the icemaker.

• You will hear the sound of cubes dropping into the

bin and water running in the pipes as the icemaker

refills.

Preparing for vacation

Set the icemaker power switch to O (off) and shut off

the water supply to the refrigerator.

If the ambient temperature will drop below freezing,

have a qualified servicer drain the water supply

system to prevent serious property damage due to

flooding from ruptured water lines or connections.

HOW|0 USE

STORING FOODS

• Store fresh food in the refrigerator compartment.

• How food is frozen and thawed is an important

factor in maintaining freshness and flavor.

• Do not store food that spoils easily, such as

bananas and melons, at low temperatures.

• Allow hot food to cool prior to storing; placing hot

food in the refrigerator could spoil other food and

lead to higher energy consumption.

• When storing food, cover it with vinyl wrap or store

in a container with a lid. This prevents moisture from

evaporating and helps food to keep its flavor and

nutrition.

• Do not block air vents with food or containers.

Smooth circulation of chilled air keeps the

refrigerator temperatures even.

• Do not open the doors frequently. Opening the

doors allows warm air to enter the refrigerator and

freezer compartments, which causes temperatures

to rise.

• Never overload the door racks; overloading may

push against the inner racks and prevent the doors

from closing correctly.

Freezer compartment

•Do not store glass bottles inthe freezer

compartment; glass may break when the contents

are frozen.

•Do not refreeze food that has been thawed.

This causes loss of flavor and nutrition.

• Do not touch cold foods or containers, especially

those made of metal, with wet hands or place glass

products in the freezer compartment.

• Do not use the egg box as an ice bin in the freezer.

The egg box will break easily if it freezes.

Refrigerator compartment

• Avoid placing moist food on the top refrigerator

shelves; it could freeze from direct contact with

chilled air.

• Always clean food prior to refrigeration.

Vegetables and fruits should be washed and wiped

and packed food should be wiped to prevent

adjacent food from spoiling.

NOTE: If you keep the refrigerator in a hot and humid

place, frequent opening of the door or storing a lot of

vegetables in the refrigerator may cause

condensation to form. Wipe the condensation with a

clean cloth or a paper towel.

HOW]0 USE

LOCATION OF FOODS

OREFRIGERATOR COMPARTMENT SHELVES

Store larger food items, platters, and containers

on the expansive refrigerator compartment

shelves.

0 CRISPERS

Store vegetables or fruits with humidity control.

ODAIRYCORNER

Store milk products such as butter and cheese.

GALLON STORAGE BINS

Store small packed food or beverages such as

condiments, salad dressings, baby foods, milk, or

juice.

FREEZER PULL-OUT DRAWER

Store small packed frozen food, or store meat,

fish, and chicken after wrapping them with thin

foil. Store dry.

OGLIDE'N'SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

HOW10USE

SHELF HEIGHT ADJUSTMENT

The shelves in your refrigerator are adjustable to

meet your individual storage needs.

Storing similar food items together in your

refrigerator and adjusting the shelves to fit

different heights of items will make finding the

exact item you want easier; it will also reduce

the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if

exposed to sudden temperature changes or impact,

such as bumping. For your protection, glass shelves

are made with tempered glass, which will shatter into

small, pebble-sized pieces.

NOTE: Glass shelves are heavy. Use special care

when removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and place

shelves in the position you want.

&CAUTION

Make sure that shelves are level from one side to the

other. Failure to do so may result in the shelf's falling

or spilling food.

Remove Shelf

Tilt up the front of the shelf. Lift up the back

and pull out the shelf.

Reinstall Shelf

Tilt up the front of the shelf and guide the shelf

hooks into the slots at a desired height. Then

lower the front of the shelf so that the hooks drop

into the slots.

Folding Shelf

You can store taller items such as a gallon

container or bottles by simply pushing the front

half of shelf underneath back half of shelf.

Pull toward you to returm to a full shelf.

HOW1t3USE

REMOVING AND REPLACING COMPONENTS

NOTE: when reinstalling components, reverse

the order of steps for removal. TO prevent damage,

never use excessive force when removing or

reinstalling components.

&CAUTION

• Personal injury can occur if the door bins are not

firmly assembled.

NOTE: DO NOT adjust a loaded bin.

• DO NOT allow children to play with baskets.

The sharp corners on the baskets could cause

injury.

Dairy Bin Gallon Storage Bins

To remove the dairy bin, simply lift it and pull

straight out. To replace the dairy bin, slide it into

place and push down until it stops.

NOTE: The dairy bin will only fit in the top space

on the right-hand door.

The door bins are removable for easy cleaning

and adjusting. Simply lift the bin and pull it straight

out to remove it. To replace the bin, slide it in

above the desired support button and push down

until it stops.

HOW10 USE

REMOVING AND REPLACING COMPONENTS ((:ONT.)

Cris )er humidity control

You can control the amount of humidity in the

moisture-sealed crispers. Store vegetables or

fruits requiring more or less humidity in separate

crispers. Adjust the control to any setting

between HIGH and LOW.

• LOW lets moist air out of the crisper for best

storage of fruits.

• HIGH keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

CAUTION : The glass shelf over the crisper is not

firmly secured. Be careful when tilting.

Removing crisper

• To remove, pull the drawer out to full extension.

• Lift the front of the crisper up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into

place.

To remove the glass

f----

• Lift up the glass under the crisper cover.

• Pull the glass up and out.

Glide'N'Serve

The Glide'N'Serve provides storage space with a

variable temperature control that keeps the

compartment colder than refrigerator.

This drawer can be used for large party trays, deli

items, or beverages. (but this drawer can't be

used for vegetable.)

Controls

The control regulates the air temperature in the

drawer. Set control level to COLD (print on

surface) to provide normal refrigerator

temperature. Use the COLDER (print on surface)

setting for meats or other deli items.

NOTE: Cold air directed to the Glide'N'Serve can

decrease refrigerator temperature. Refrigerator

control may need to be adjusted.

HOW10 USE

REMOVING AND REPLACING COMPONENTS (CONT.)

TO re _lace Glide'N'Serve

•To remove, pull the drawer out to full extension.

• Lift the front of the drawer up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into

place.

&CAUTION

• When you close the refrigerator door with

GLIDE'N'SERVE DRAWER opened,

that the drawer could be broken.

NOTE: Removing the fixed door bin is recommended

to reduce the risk of door bin scratches.

&CAUTION

• Pinch hazard! Keep hands and feet clear of the

bottom of the door when opening and closing.

Ice Bin

Drawer

To separate the ice bin, pull out the drawer to full

extension. Gently lift and pull out the ice bin.

To reinstall, simply set the ice bin in its correct

position.

&WARNING

Child Entrapment Hazard

• If the Durabase divider is removed, there is enough

open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to play inside

of drawer.

DuraBase ®Divider

HOW10 USE

REMOVING AND REPLACING COMPONENTS (CONT.)

Tilt-Out Door Basket (LFC25776.*)

To remove the tilt-out door basket, press in on

the end bracket, then pull up on the end of the

basket to remove.

To replace the tilt-out door basket, insert the

bracket into one side and hook one end of the

basket into the bracket. Next, hook the other

basket end into the other bracket and push

the bracket downward into place.

NOTE: Be sure the back of the basket is

positioned behind the retention tab on each

bracket.

Pull-Out Drawer

To remove the drawer, push the tabs located

on the front inside surface of each rail. Next,

gently lift the rear left and right sides of the

drawer and pull it out.

Bracket

To reinstall, pull out both rails to full

extension. Insert the end of rib in the bracket

at left and right. Making sure that the guides

at the front are lined up properly, gently push

down on both sides.

CAREANDCLEANING

CLEANING THE REFRIGERATOR

&WARNING

Explosion Hazard

• Use nonflammable cleaner.

•Failure to do so can result in death,

explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about

once a month to prevent odors. Wipe up spills

immediately.

• Unplug the refrigerator.

• Remove all removable parts, such as shelves and

crispers.

• Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive or

harsh cleaners.

• Hand wash, rinse, and thoroughly dry all surfaces.

• Plug in the refrigerator.

NOTE: Window sprays, abrasive cleaners, or

flammable fluids can scratch or damage plastic

covers or panels.

Cleaning the Exterior

For models with a stainless steel exterior, use a

commercially available stainless steel cleaner in

accordance with the manufacturer's instructions.

You may also use a clean sponge or soft cloth and

a mild detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft cloth.

IMPORTANT: Do not use cleaning waxes,

concentrated detergents, or cleaners containing

petroleum on plastic refrigerator parts such as door

liners or gaskets.

Care and Cleaning of the Interior

NOTE: Allow the freezer to warm so the cleaning

cloth will not stick.

To help remove odors, you can wash the inside of

the refrigerator with a mixture of baking soda and

warm water. Mix 2 tbsp. baking soda to 1 qt. of water

(26 g soda to 1 L of water). Be sure the baking soda

dissolves completely so it does not scratch the

surfaces of the refrigerator.

IMPORTANT: Do not use a spray nozzle to clean

the interior.

GENERAL INFORMATION

Storage

During average-length vacations, you will

probably find it best to leave the refrigerator in

operation. Place freezable items in the freezer for

longer life.

When you plan to store the refrigerator, remove

all food, disconnect the power cord, clean the

interior thoroughly, and block the doors open to

prevent mold and mildew. Be certain the stored

refrigerator does not present a child entrapment

danger.

Power Failure

Most power failures that are corrected within an

hour or two will not affect your refrigerator

temperatures. However, you should minimize the

number of door openings while the power is off.

Water may drip from the ice bin during a power

outage. To prevent this, remove the ice bin, discard

all of the ice, towel dry, and replace.

Moving

Unload the refrigerator to move it. (This is probably

not necessary when pulling it out to clean behind it.)

Be sure to let the refrigerator warm up to room

temperature, and dry the inside before closing the

doors to pack it for moving. To avoid damaging the

height-adjusting screws, turn them all the way into the

base.

IROUBIESHOOIING

BEFORE CALLING FOR SERVICE

Before calling for service, review this list. It may save you both time and expense. This list includes

common occurrences that are not the result of defective workmanship or materials in this appliance.

i L!!!!!!!!!!!! !!!!!!iiiiilii ....

Refrigerator

compressor does

not run.

Refrigerator

compressor runs

too frequently or

too long.

Refrigerator

compressor

cycles on and off.

Temperature in

the freezer is too

cold, but the

refrigerator

temperature is

satisfactory.

Temperature in

the refrigerator is

too cold, but the

freezer

temperature is

_,,, satisfactory.

•Refrigerator control is off.

• Refrigerator is in defrost

cycle.

• Plug at the wall outlet is

disconnected.

• Power outage. Check house

lights.

• Refrigerator is larger than the

previous one you owned.

•The room or the outdoor

weather is hot.

• Refrigerator was recently

disconnected for a while.

• Large amounts of warm or

hot food may have been

stored recently.

• Doors are opened too

frequently or for too tong.

• Refrigerator or freezer door

may be slightly open.

• Refrigerator control is set too

cold.

• Refrigerator or freezer gasket

is dirty, worn, cracked, or

poorly fitted.

•The thermostat is keeping the

refrigerator at a constant

temperature.

• Freezer control is set too

cold.

• Refrigerator control is set too

cold.

• Set the refrigerator control.

•This is normal for a fully automatic defrosting

refrigerator. The defrost cycle occurs periodically.

• Make sure the plug is tightly pushed into the

outlet.

• Call the local electric company.

•This is normal. Larger, more efficient units run

longer.

• It is normal for the refrigerator to work longer

under these conditions.

• It takes a few hours for the refrigerator to reach

cooling temperatures.

•Warm food will cause the refrigerator to run longer

until the desired temperature is reached.

•Warm air entering the refrigerator causes it to run

more. Open the door less often.

• Make sure the refrigerator is level. Keep food and

containers from blocking the door.

•Adjust the refrigerator control to a warmer setting

until the refrigerator temperature is satisfactory.

• Clean or change the gasket. Leaks in the door

seal wilt cause the refrigerator to run longer in

order to maintain desired temperatures.

•This is normal. The refrigerator cycles on and off

to keep the temperature constant.

•Adjust the freezer control to a warmer setting until

the freezer temperature is satisfactory.

•Adjust the refrigerator control to a warmer setting.

IROUBIESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

Food stored in

refrigerator

drawers freezes.

Temperatures in

the refrigerator or

freezer are too

warm.

Temperature in

the refrigerator

is too warm,

but the freezer

temperature is

satisfactory.

Louder sound

levels when

compressor

comes on.

Vibratingor

rattling noise.

Moisture collects

on the inside walls

of the refrigerator.

Moisture forms on

the outside of the

refrigerator or

kbetween the doors.

•Refrigerator control is set too

cold.

• Freezer or refrigerator control

is set too warm.

• Doors are opened too

frequently or for too tong.

• Door is slightly open.

• Large amounts of warm or

hot food may have been

stored recently.

• Refrigerator has recently

been disconnected for a

period of time.

• Refrigerator control is set too

warm.

• Refrigerator operates at

higher pressures during the

start of the ON cycle.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Items placed on the top of the

refrigerator are vibrating.

• Dishes are vibrating on the

shelves in the refrigerator.

• The refrigerator is touching

the watt or cabinets.

• The weather is hot and humid

which increases the rate of

frost buildup and internal

sweating.

• Door is slightly open.

• Door is opened too often or

for too long.

• Weather is humid.

• Door is slightly open.

• Adjust the refrigerator to a warmer setting.

• Adjust the freezer or refrigerator control to a

colder setting until the freezer or refrigerator

temperature is satisfactory.

• Warm air enters the refrigerator/freezer whenever

the door is opened. Open the door less often.

• Close the door completely.

• Wait until the refrigerator or freezer has had a

chance to cool food to the set temperature.

• It takes a few hours for the refrigerator to reach

the set temperatures.

• Adjust the refrigerator control to a colder setting.

• This is normal.

• Be sure floor is level and solid and can adequately

support the refrigerator.

• Remove items.

• It is normal for dishes to vibrate slightly. Move

dishes slightly. Make sure refrigerator is level and

firmly set on floor.

• Move the refrigerator so that it does not touch the

watt.

• This is normal.

• Close the door.

• Open the door less often.

• This is normal in humid weather. When humidity is

lower, the moisture should disappear.

• Close the door completely. J

IROUBIESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

!!!! _

Moisture forms

on the dispenser.

Odors in the

refrigerator.

The door(s) will

not close.

Drawers are

difficult to move.

Sound of ice

dropping.

•Moisture may form when the

temperature or humidity are

high.

Sound of water

trickling.

• Interior needs to be cleaned.

• Food with strong odor is in

the refrigerator.

• Some containers and

wrapping materials produce

odors.

• Food package is keeping the

door open.

• Door was closed too hard,

causing other door to open

slightly.

• Refrigerator is not level. It

rocks on the floor when it is

moved slightly.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Refrigerator is touching the

wall or the cabinets.

• Food is touching the shelf on

top of the drawer.

•The drawer track is dirty.

•A batch of ice has been

released into the ice bin.

•The icemaker is being

supplied with water.

•Wipe off the moisture.

• Clean interior with sponge, warm water, and baking

soda. Be sure the soda is completely dissolved so

it wilt not act as an abrasive compound.

• Cover food completely.

• Use a different container or brand of wrapping

materials.

• Move the packages that keep the door from

closing.

• Gently close both doors.

•Adjust the height-adjusting screw.

• Be sure the floor is level and can adequately

support the refrigerator. Contact a carpenter to

correct sagging or sloping floor.

• Move the refrigerator.

• Keep less food in the drawer.

• Clean the drawer and the track.

•This sound is made when automatically made ice is

dropped into the ice storage bin. The volume may

vary according to the location of the refrigerator.

•This sound is normally made when the icemaker is

supplied with water after dropping the automatically

made ice.

• If this sound lasts more than 10 seconds, check for

a leak.

IROUBIESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

The icemaker is

not producing ice

or not enough ice

•New installation.

• Refrigerator is not connected

to a water supply and the

supply shutoff valve is not

turned on.

• Reverse osmosis water

filtration system is connected

to your cold water supply.

• Kink in the water source line.

• Large amount of ice recently

has been removed.

• The icemaker is not turned

on.

• There is Something on the

Ice-detecting sensor.

• The temperature setting is

too warm on Freezer.

• The doors are opened often.

• Any door is not closing

properly.

• The ice compartment door is

not closing properly.

• Ice Plus is not selected.

Other

• Wait 24 hours after ice maker installation for ice

production to begin. Wait 72 hours for full ice

production.

• Connect refrigerator to water supply and turn

water shutoff valve fully open.

• This can decrease water pressure and a little

water comes to icemaker.

• A kink in the line can reduce water flow.

Straighten the water source line.

• Allow 24 hours for ice maker to produce more ice.

• On the icemaker itself, there should be a power

switch. It may have an 'T' and "0" on it. The 'T'

position is on. If it is off, please flip it to the on

position.

• Foreign substance or frost on thelce-detecting

sensor stops making ices. To keep making ice,

clean up the surface of Ice-detecting sensor with

clean and soft fabric.

• Below -1°F is recommended temperature setting

of the freezer compartment for normal ice

production. If the freezer temperature is set at a

warmer temperature, then the ice wilt produce at a

slower rate.

• If the doors of the unit are opened often, the cold

air will escape which will prevent the unit from

maintaining the set temperature. Lowering the

temperature can help, as welt as not opening the

doors as frequently.

• The door that is not closed properly, makes the

Freezer temperature high and icemaker will make

ices slowly.

• The compartment door, that is not closed properly,

make the compartment temperature high and

icemaker makes ices slowly.

• With this option, the cold air in the compartment is

increased as is ice production.

Please thoroughly read the Automatic Icemaker and Operating the Dispenser sections in

this manual.

SPECIFICAIIONS

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this guide may vary due to constant product improvements.

Description French Door Refrigerator

Electrical Requirements 115 VAC @ 60 Hz

Min. /Max. Water Pressure 20~121 PSi (1.4~8.5 kgf/cm 2)

35 3/4"(W) X 34 1/4"(D) X 69 3/4" (H), 46 1/2"(D w/door open)

Dimensions 908 mm (W) X 870 mm (D) X 1772 mm (H), 1181 mm (D w/door open)

Net Weight 276 lb. (125 kg)

Refrigerator Storage Capacity 17.7 cu. ft.

Freezer Storage Capacity 7.3 cu. ft,

Description French Door Refrigerator

Electrical Requirements 115 VAC @ 60 Hz

Min. /Max. Water Pressure 20~121 PSI (1.4~8.5 kgf/cm 2)

35 3/4 H (W) X 30 1/4 H (D) X 69 3/4 'T (H), 42 1/4"(D w/door open)

Dimensions 908 mm (W) X 768 mm (D) X 1772 mm (H), 1073 mm (D w/door open)

Net Weight 254 lb. (115 kg)

Refrigerator Storage Capacity 14.7 cu. ft.

Freezer Storage Capacity 6.0 cu. ft.

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period

set forth below, LG will at its option repairor replace the product. This limitedwarranty is valid only to the original retail purchaser of the

product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is

requiredto obtain warranty service underthis limited warranty.

WARRANTY PERIOD

Sealed System Linear Compressor

Refrigerator (Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date of One (1) year from the date of Seven (7) years from the date of Ten (10) years from the date of

original retail purchase original retail purchase original retail purchase original retail purchase

Parts and Labor Parts and Labor Parts only Part only

(internal/functional parts only) (Consumer will be charged for labor) (Consumer will be charged for labor)

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or

operating the unit in an unsuitable environment will not be covered under this warranty.

Replacementproductsandpartsare warrantedfor the remainingportionof the originalwarrantyperiodor ninety(90)days, whicheverisgreater.

Replacementproductsand partsmay be newor remanufactured.

THIS WARRANTY IS IN UEU OF ANY OTHERWARRANTY, EXPRESSOR IMPLIED,INCLUDINGWITHOUTUMITATION,ANY

WARRANTY OF MERCHANTABILITYOR RTNESS FORA PARTICULARPURPOSE.TO THE EXTENTANY IMPUED WARRANTY IS

REQUIREDBY LAW, IT iS UMITED iN DURATIONTO THE EXPRESSWARRANTY PERIODABOVE. NEITHERTHE MANUFACTURER

NOR ITSU.S. DISTRIBUTORSHALL BE UABLE FORANY INCIDENTAL,CONSEQUENTIAL,iNDIRECT,SPECIAL, OR PUNITIVE

DAMAGES OFANY NATURE, INCLUDINGWITHOUTUMITATION, LOST REVENUESOR PRORTS, OR ANY OTHER DAMAGE

WHETHERBASED IN CONTRACT,TORT,OR OTHERWISE.Some statesdo notallow the exclusionor limitationof incidentalor consequential

damagesor limitationson how longan impliedwarrantylasts,so the aboveexclusionor limitationmay not applyto you. Thiswarrantygivesyou

specificlegalrightsandyou mayalso haveother rightsthatvaryfromstate to state.

THiS LiMiTEDWARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the

customeron operation of the product; repair or replacefuses or correct

wiring or plumbing, or correctionof unauthorized repairs/installation.

2. Failure of product to perform during power failuresand interruptions

or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes,

restricteddrain lines, inadequate or interrupted water supply or inadequate

supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or

contraryto the instructions outlinedin the product owner's manual.

5. Damage to the product caused by accidents, pests and vermin, lightning,

wind, fire, floods, or acts of God.

6. Damage resulting from misuse, abuse, improper installation,repair,

or maintenance. Improperrepair includes use of parts not approved

or specified by LG.

7. Damage or failure caused by unauthorizedmodification or alteration, or if it

is used for other than the intended purpose, or any water leakage where

the unitwas not properly installed.

8. Damageor failurecaused by incorrectelectricalcurrent,voltage,or plumbing

codes,commercialor industrialuse,oruse of accessories,components,or

consumablecleaningproductsthatare not approvedby LG.

9. Damage caused by transportationand handling, includingscratches,

dents, chips, and/or other damage to the finish of your product, unless

suchdamage results from defects in materials or workmanship and is

reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damageor missing itemsto any display,open box, discounted,or

refurbished product.

11. Productswith original serial numbersthat have been removed, altered, or

can not be readily determined. Model and Serial numbers, along with

original retailsales receipt, are required for warranty validation.

12. Increases in utilitycosts and additional utilityexpenses.

13. Replacement of light bulbs, filters,or any consumable parts.

14. Repairs when your product is used in other than normal and usual

householduse (e.g. commercial use, offices, and recreational facilities)or

contrary to the instructionsoutlined in the productowner's manual.

15. Costs associatedwith removal of your product from your home for

repairs.

16. The removal and reinstallationof the product if it is installed in an

inaccessible location or is not installed in accordance with published

installation instructions, including LG's owner's and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts

besidesAthose that were originally includedwith this particular model.

circumstances shall be borne by the consumer.The cost of repair or replacement under these excluded

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate

option from the menu, or visit our website at http://us.lgservice.com

Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813

ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the

warranty period set forth below, LG Canada will at its option repairor replace the Product upon receipt of proof of original retail purchase.

This warranty is valid only to the original retail purchaser of the product and applies only to a Productdistributed in Canada by LG Canada or

an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty wilt begin sixty (60) days from the date of manufacture)

Sealed System Linear Compressor

Refrigerator/Freezer (Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date of One (1) year from the date of Seven (7) years from the date of Ten (10) years from the date of

original retail purchase original retail purchase original retail purchase original retail purchase

Parts and Labor Parts and Labor Parts only Part only

(internal/functional parts only) (Consumer will be charged for labor) (Consumer will be charged for labor)

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or

operating the unit in an unsuitable environment will not be covered under this warranty.

Replacementproductsandpartsarewarrantedforthe remainingportionof theoriginalwarrantyperiodorninety(90)days,whicheveris greater.

Replacementproductsandpartsmaybeneworremanufactured.

LGAuthorizedServiceCenterwarrantiestheirrepairworkforthirty(30)days.

LG CANADA'SSOLELIABILITYIS LIMITEDTO THEWARRANTYSETOUTABOVE.EXCEPTAS EXPRESSLYPROVIDEDABOVE,LG

CANADAMAKESNOAND HEREBYDISCLAIMSALL OTHERWARRANTIESANDCONDITIONSRESPECTINGTHEPRODUCT,WHETHER

EXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,ANY IMPLIEDWARRANTYORCONDITIONOFMERCHANTABILITYOR FITNESS

FORA PARTICULARPURPOSE,ANDNO REPRESENTATIONSSHALL BEBINDINGON LGCANADA.LGCANADADOESNOTAUTHORIZE

ANY PERSONTOCREATEORASSUMEFORITANYOTHERWARRANTYOBLIGATIONORLIABILITYINCONNECTIONWITHTHE

PRODUCT.TO THEEXTENTTHATANY WARRANTYORCONDITIONISIMPLIEDBY LAW,ITIS LIMITEDTOTHE EXPRESSWARRANTY

PERIODABOVE.LGCANADA,THEMANUFACTURERORDISTRIBUTORSHALL NOTBE LIABLEFORANY INCIDENTAL,CONSEQUENTIAL,

SPECIAL,DIRECTORINDIRECTDAMAGES,LOSSOFGOODWILL,LOSTPROFITS,PUNITIVEOR EXEMPLARYDAMAGESORANY OTHER

DAMAGE,WHETHERARISINGDIRECTLYORINDIRECTLYFROMANYCONTRACTUALBREACH,FUNDAMENTALOROTHERWISE,OR

FROMANYACTSOROMISSIONS,TORT,OROTHERWISE.Thiswarrantygivesyouspecificlegalrights.Youmayhaveotherrightswhichmayvary

fromprovinceto provincedependingonapplicableprovinciallaws.Anytermof thiswarrantythatnegatesorvariesanyimpliedconditionorwarranty

underprovinciallaw isseverablewhereit conflictswithprovinciallawwithoutaffectingtheremainderof thiswarranty'sterms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Servicetripsto deliver,pickup,orinstalltheproduct;instructinga customeron

operationof theproduct;repairorreplacementof fusesorcorrectionof wiringor

plumbing,or correctionof unauthorizedrepairs/installation.

2. Failureof theproductto performduringpowerfailuresandinterruptionsor

inadequateelectricalservice.

3. Damagecausedby leakyor brokenwaterpipes,frozenwaterpipes,restricted

drainlines,inadequateor interruptedwatersupplyor inadequatesupplyofair.

4. DamageresultingfromoperatingtheProductina corrosiveatmosphereor

contraryto theinstructionsoutlinedinthe Productowner'smanual.

5. Damageto the Productcausedbyaccidents,pestsand vermin,lightning,wind,

fire,floods,oractsof God.

6. Damageresultingfromthemisuse,abuse,improperinstallation,repair,or

maintenanceofthe Product.Improperrepairincludesuseof partsnotapproved

orspecifiedbyLG Canada.

7. Damageorproductfailurecausedbyunauthorizedmodificationoralteration,or

useforotherthanitsintendedpurpose,orresultingfromanywaterleakagedue

to improperinstallation.

8. DamageorProductfailurecausedbyincorrectelectricalcurrent,voltage,or

plumbingcodes,commercialor industrialuse,oruseofaccessories,

components,orcleaningproductsthatarenotapprovedbyLG Canada.

9. Damagecausedbytransportationand handling,includingscratches,dents,

chips,and/orotherdamageto thefinishof yourproduct,unlesssuch damage

resultsfromdefectsinmaterialsorworkmanshipandisreportedwithinone(1)

weekof delivery.

10.Damageormissingitemsto any display,openbox,discounted,or refurbished

Product.

11.Productswithoriginalserialnumbersthathavebeenremoved,altered,orcannot

bereadilydetermined.Modeland Serialnumbers,alongwithoriginalretailsales

receipt,are requiredforwarrantyvalidation.

12.increasesin utilitycostsandadditionalutilityexpenses.

13.Replacementof lightbulbs,filters,orany consumableparts.

14.Repairswhenyour Productis usedinotherthan normaland usualhousehold

use(including,withoutlimitation,commercialuse,in officesor recreational

facilities)or contraryto theinstructionsoutlinedintheProductowner'smanual.

15.Costsassociatedwithremovalof theProductfrom yourhomefor repairs.

16.The removalandreinstallationof theProductifit isinstalledinan inaccessible

locationoris notinstalledinaccordancewithpublishedinstallationinstructions,

includingthe Productowner'sandinstallationmanuals.

17.Shelves,doorbins,drawers,handles,andaccessoriesto the Product.Also

excludedarepartsbesidesthosethatwereoriginallyincludedwiththe Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and

customer assistance, please call or visit

our website: Call 1-888-542-2623 (24 hours

a day, 365 days a year) and select the

appropriate option from the menu, or visit our

website at http://www.lg,ca

Write your warranty information below:

Product Registration Information:

Model: Serial Number:

Date of Purchase:

Life's Good

For nqu res or comments, vst www Ige corn or call;

1-800-243-0000

1-888-865-3026

1-888-542-2623

USA, Co-_sumer User

USA, Co T__ercial User

CANADA

LG LFC25776ST/00 User Manual REFRIGERATOR Manuals And Guides 1006697L

Navigation menu

Versions of this User Manual:

Views

Navigation
