Life's Good

Z}.., . ,.>9 V7 r'_,,_ _+__,.,)/""q L.....

FRE CH DOOR

REFRIGERATOR

Please read this owner's manual thoroughly before

operating and keep it handy for reference at all times.

LFXC24726*

MFL62184478

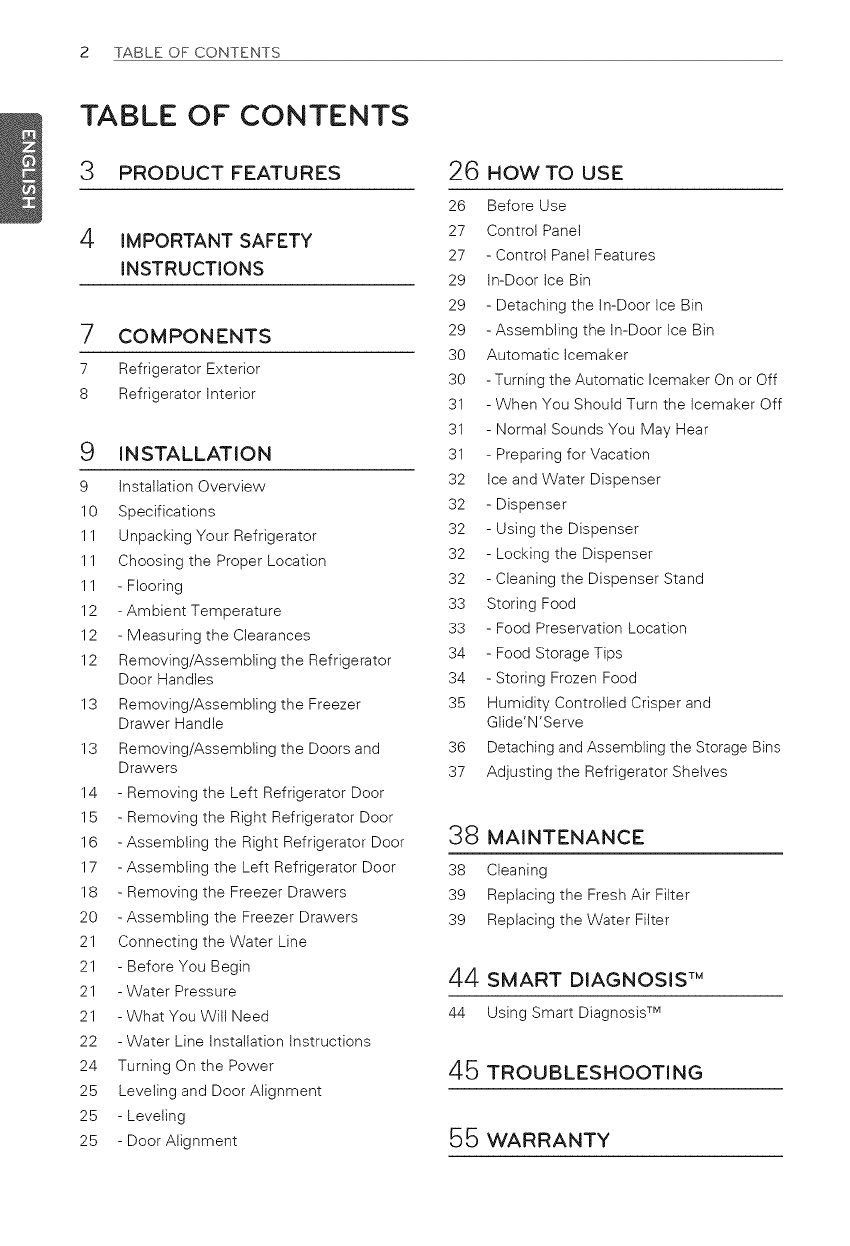

2 TABLE OF CONTENTS

TABLE OF CONTENTS

3 PRODUCT FEATURES

4IMPORTANT SAFETY

INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

8 Refrigerator interior

INSTALLATION

Installation Overview

Specifications

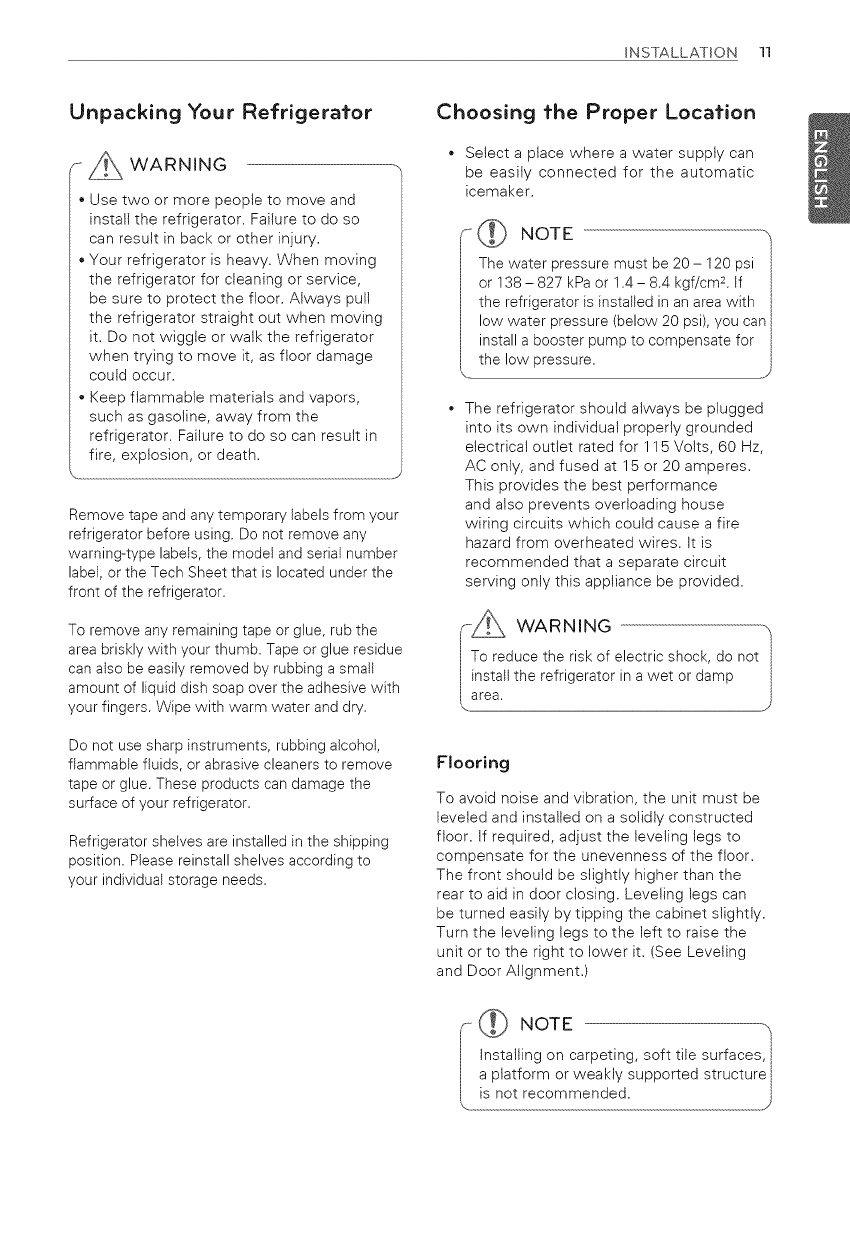

Unpacking Your Refrigerator

Choosing the Proper Location

- Flooring

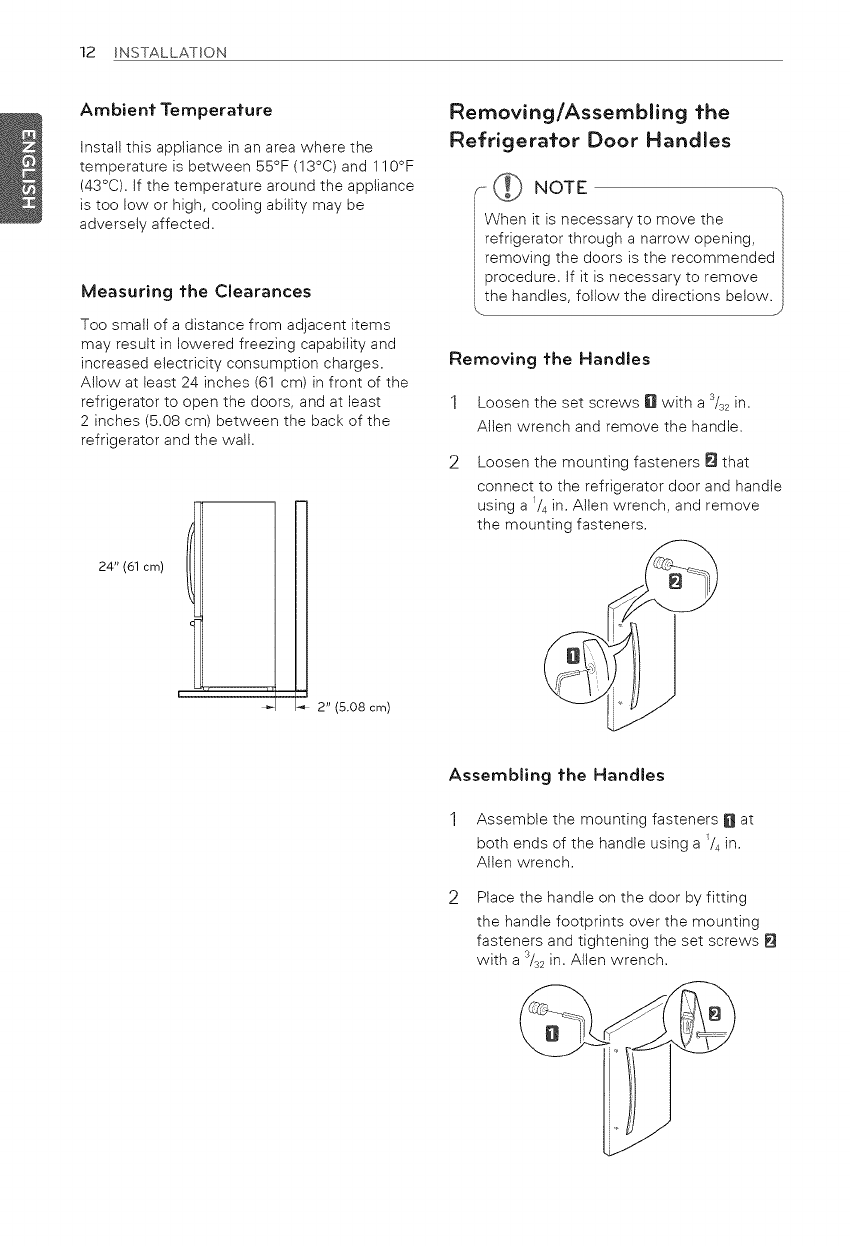

- Ambient Temperature

- Measuring the Clearances

Removing/Assembling the Refrigerator

Door Handles

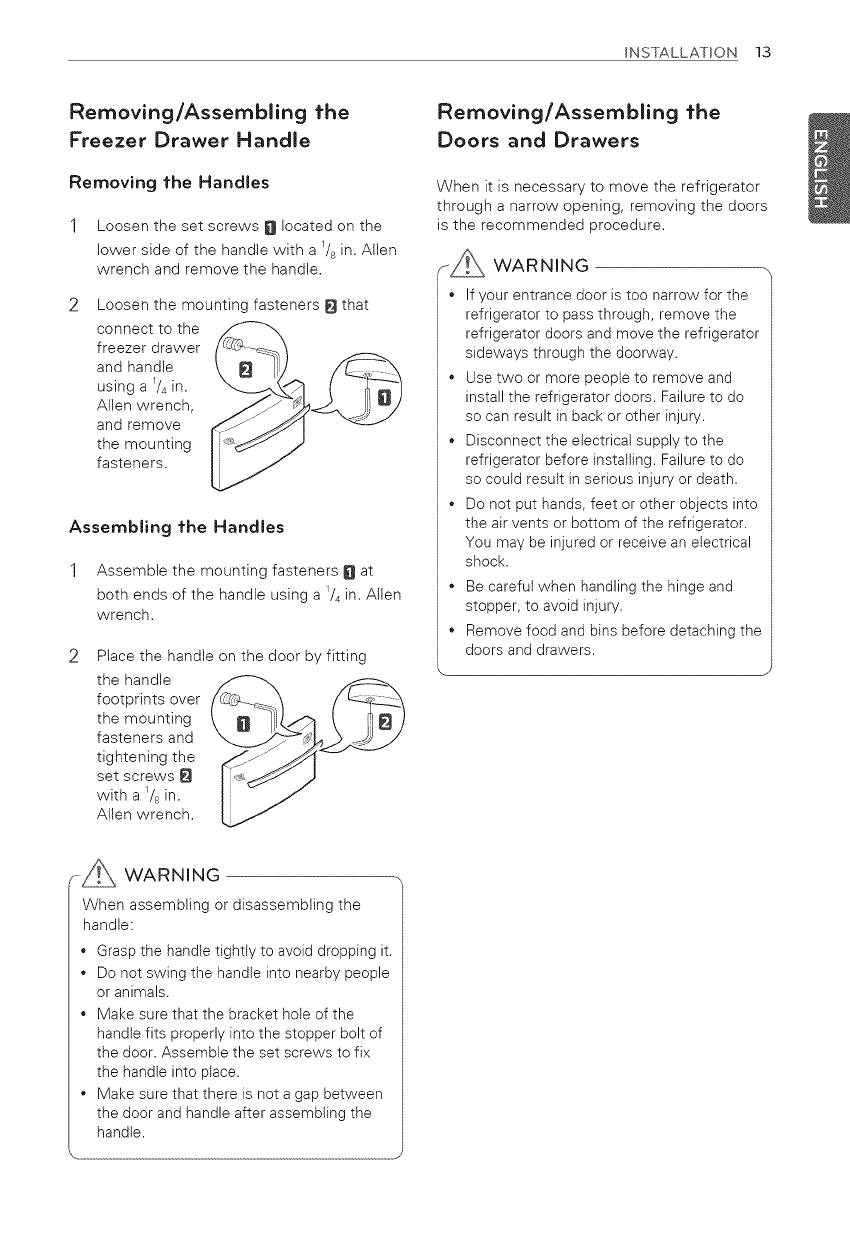

Removing/Assembling the Freezer

Drawer Handle

Removing/Assembling the Doors and

Drawers

- Removing the Left Refrigerator Door

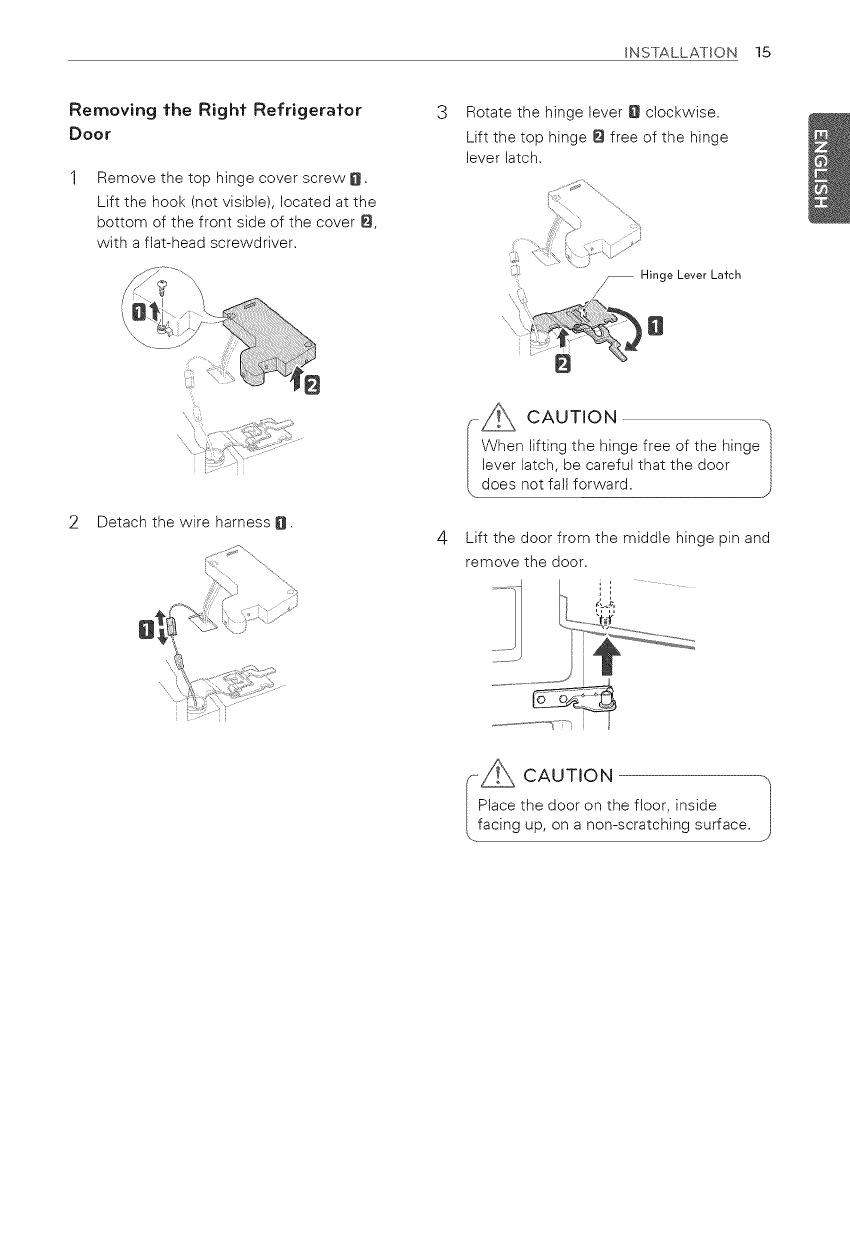

- Removing the Right Refrigerator Door

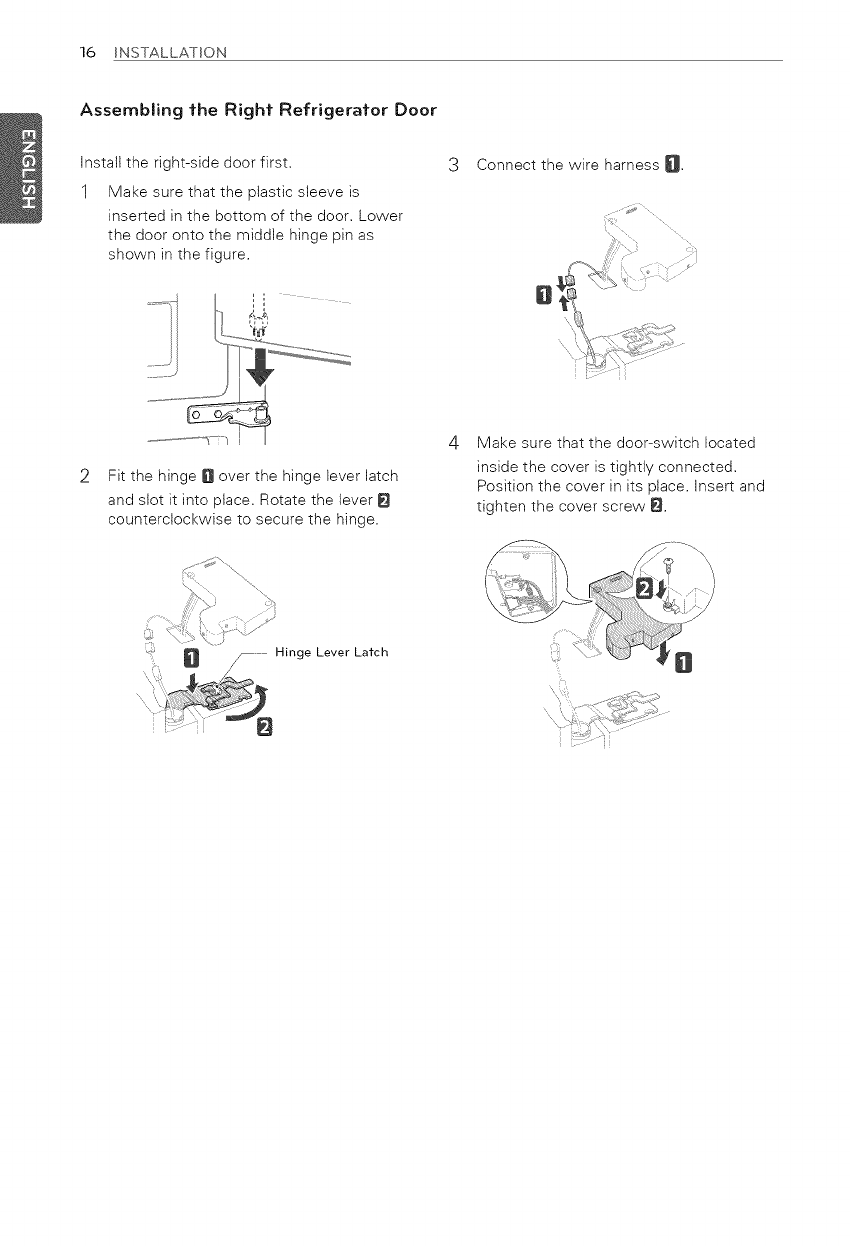

- Assembling the Right Refrigerator Door

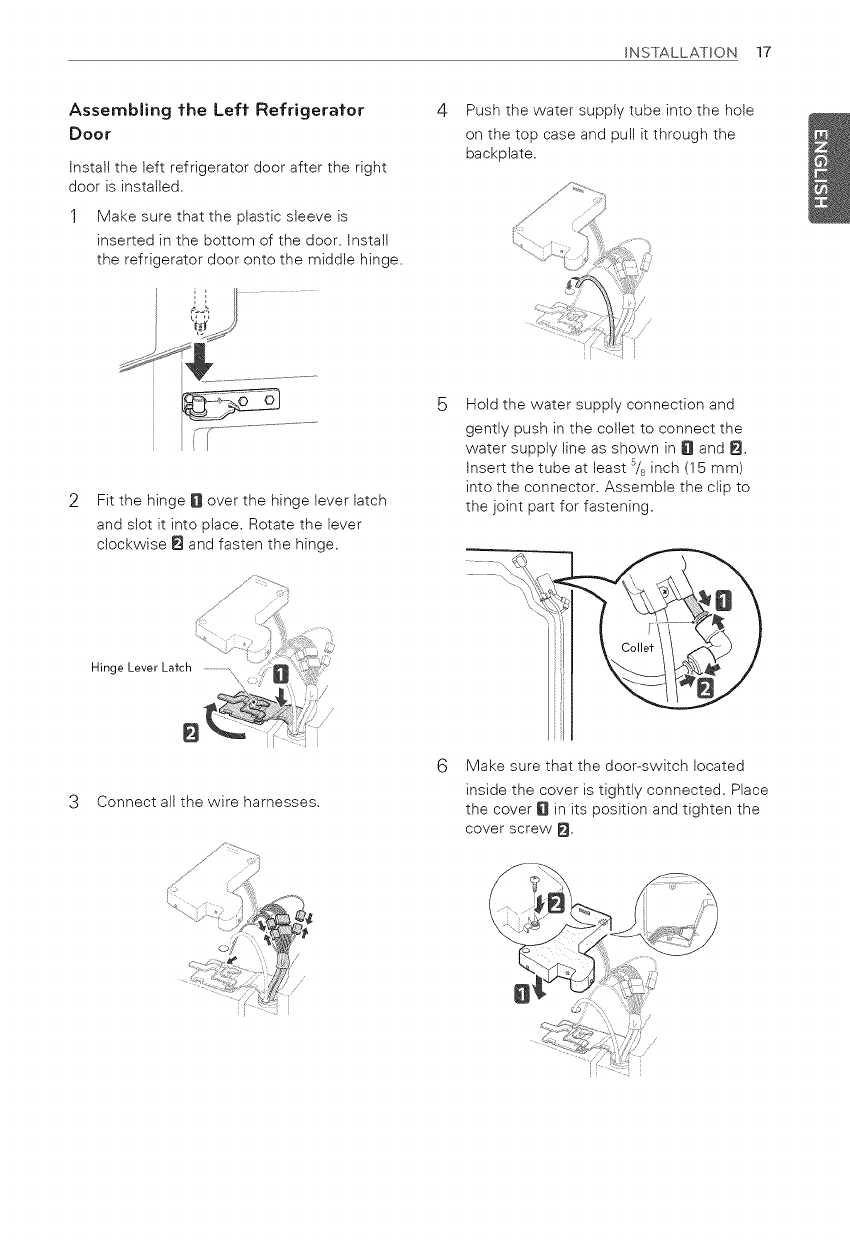

- Assembling the Left Refrigerator Door

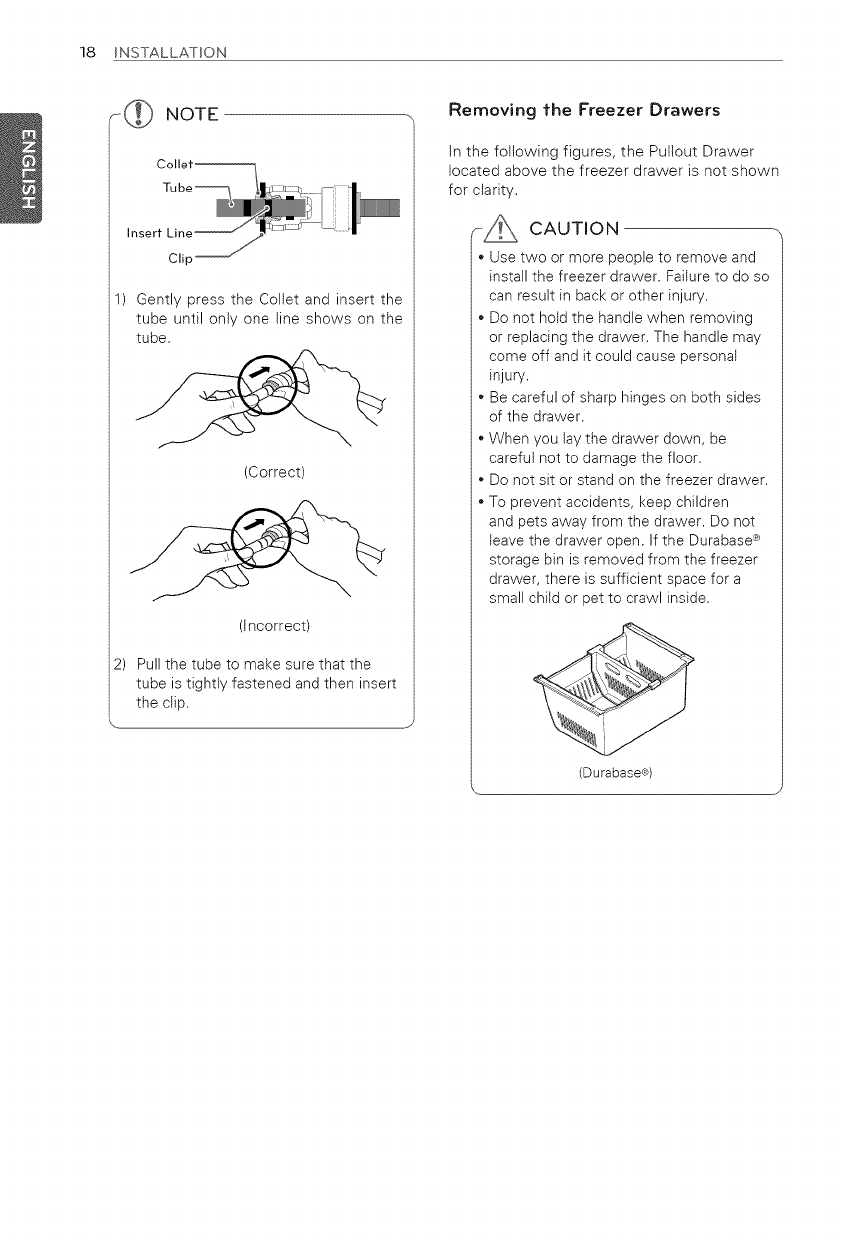

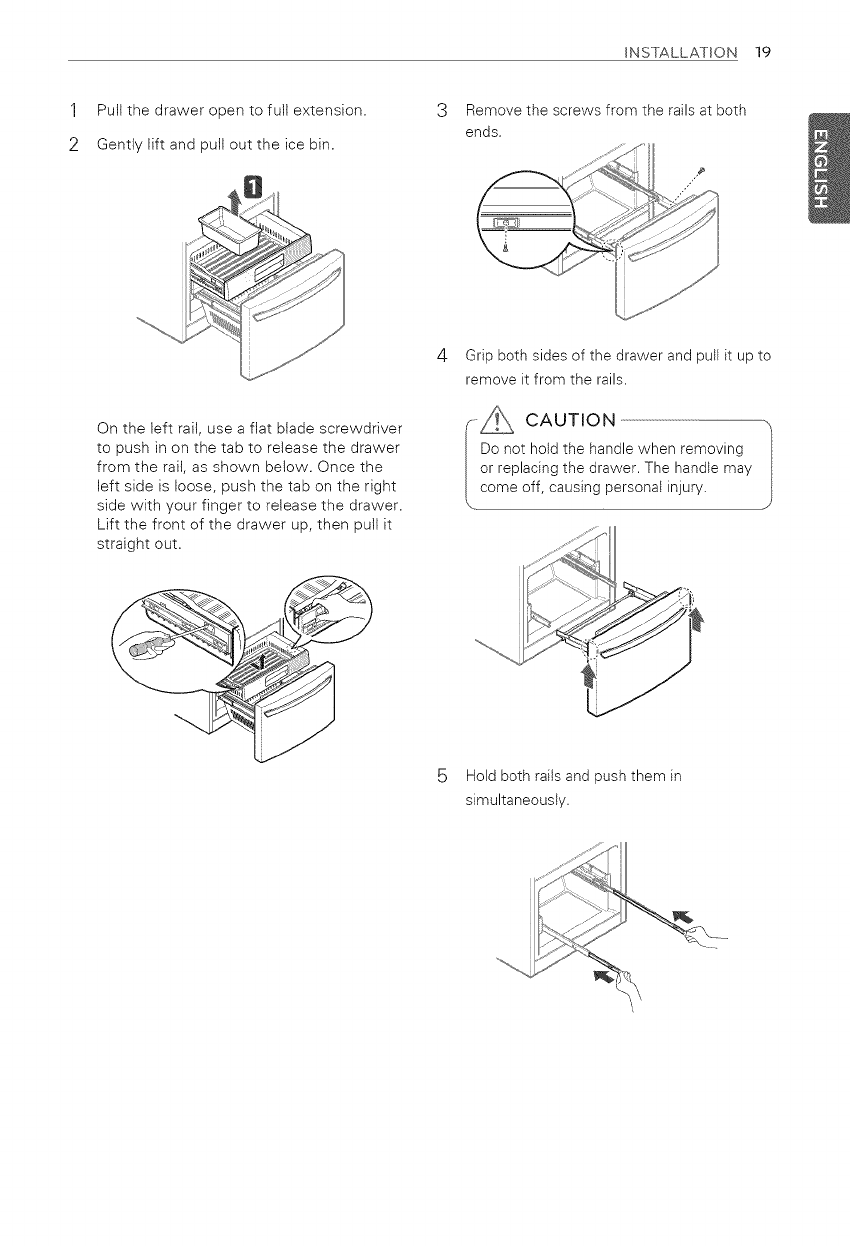

- Removing the Freezer Drawers

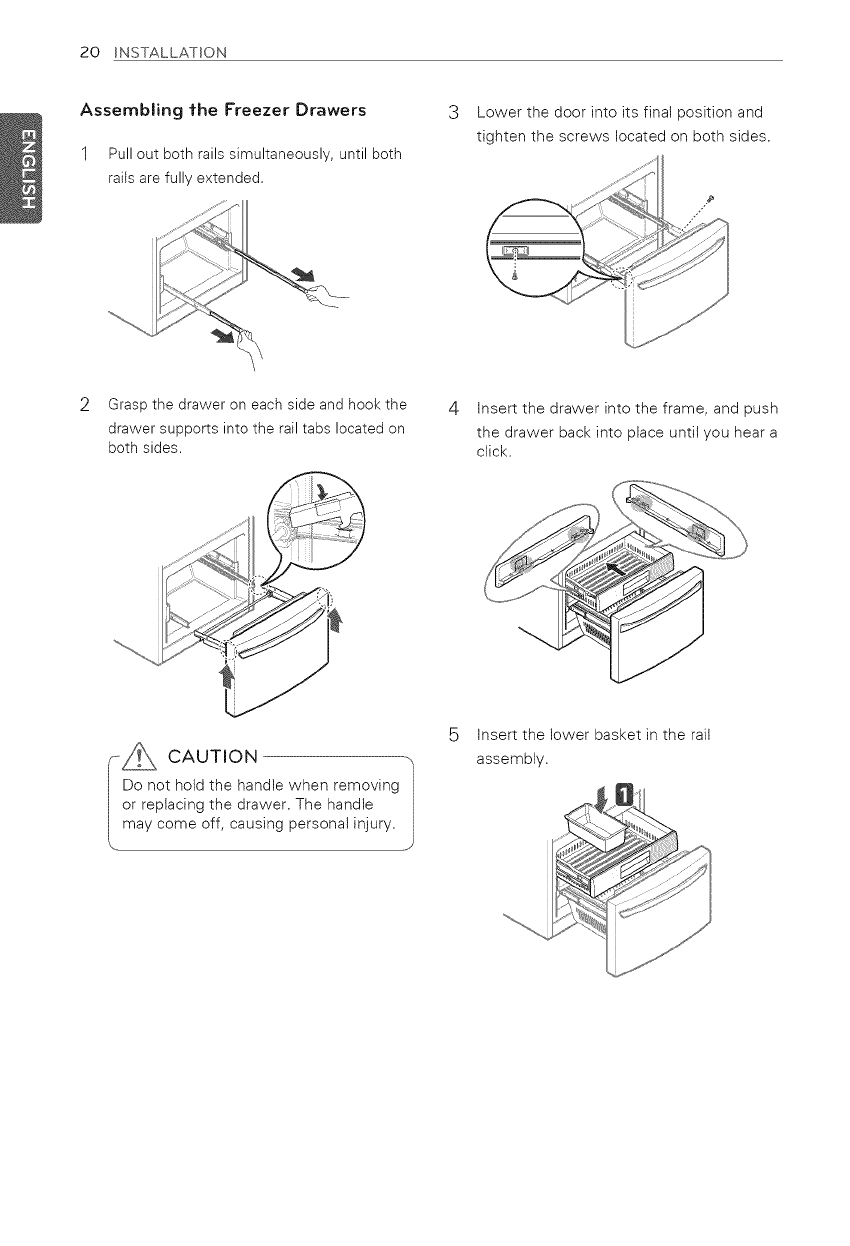

- Assembling the Freezer Drawers

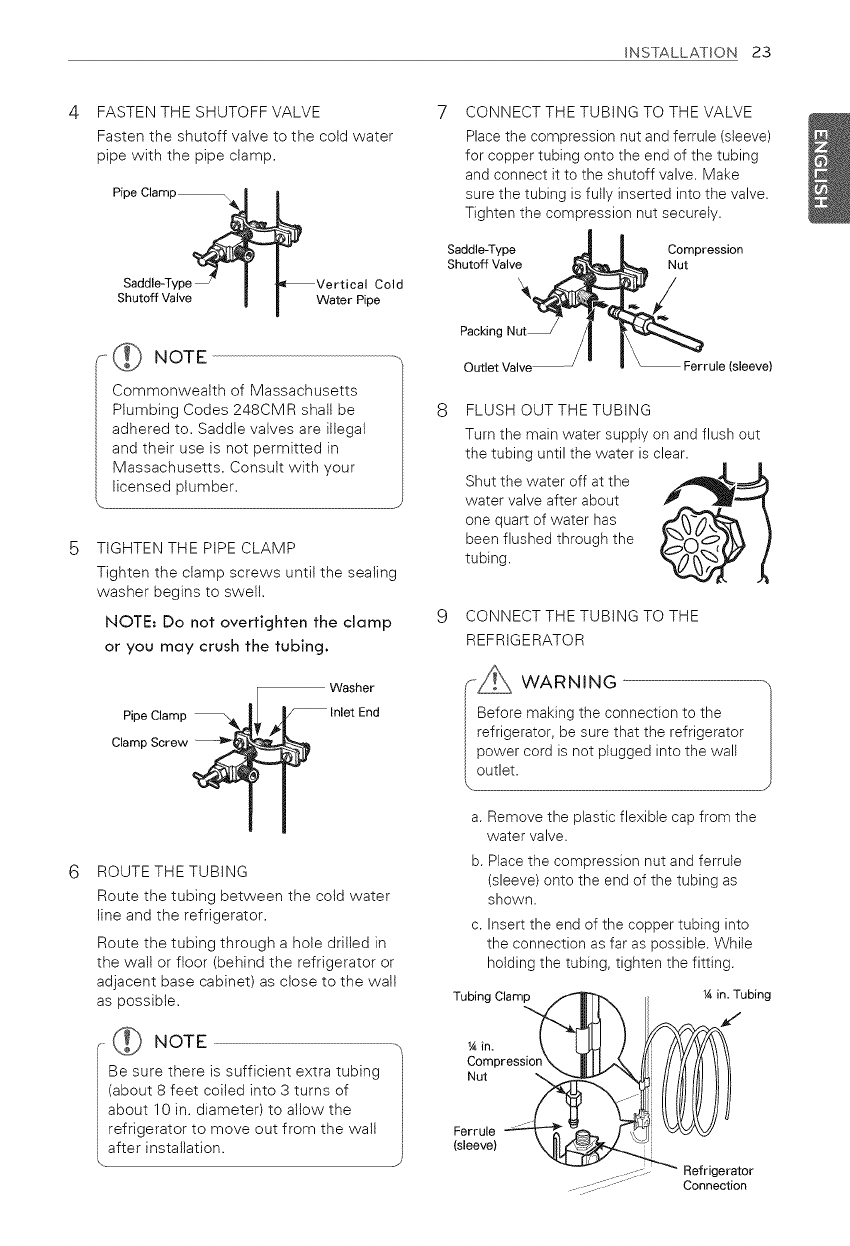

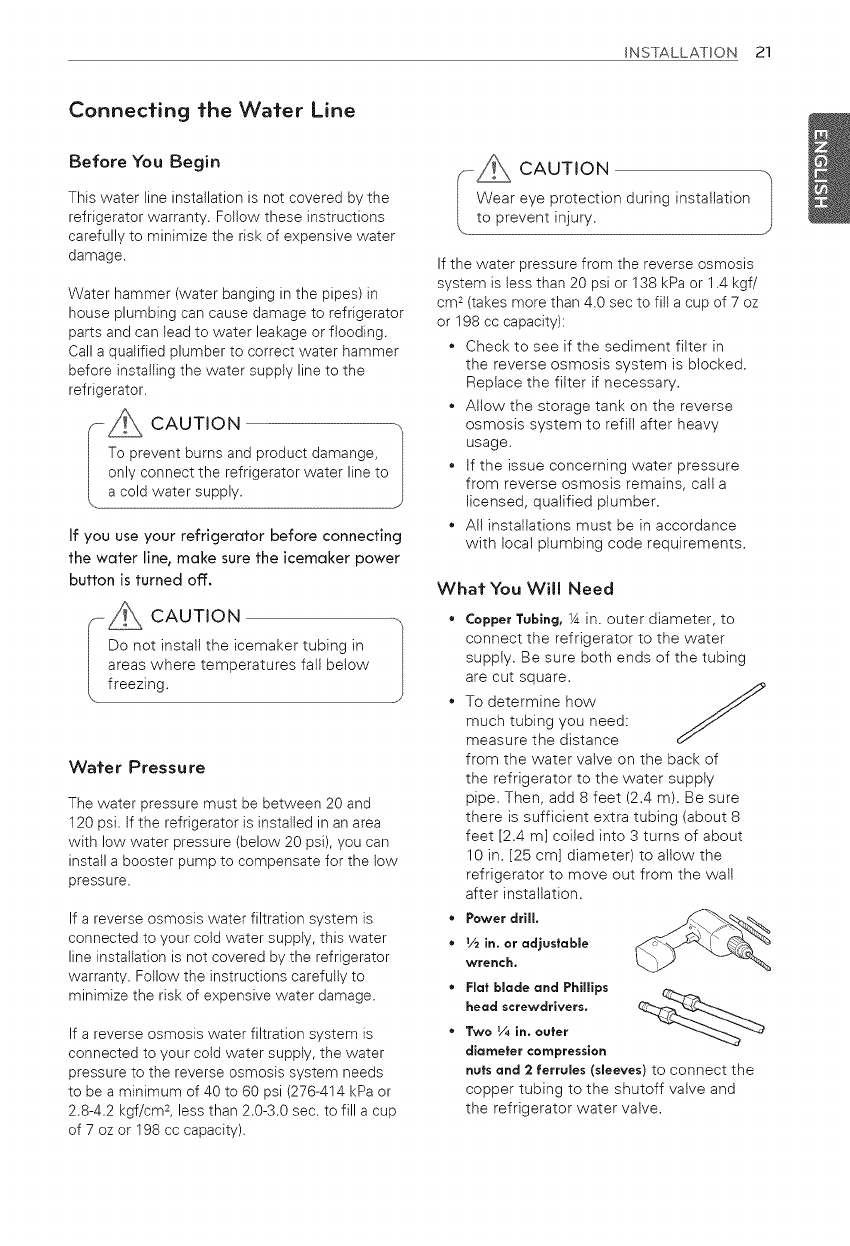

Connecting the Water Line

- Before You Begin

- Water Pressure

- What You Will Need

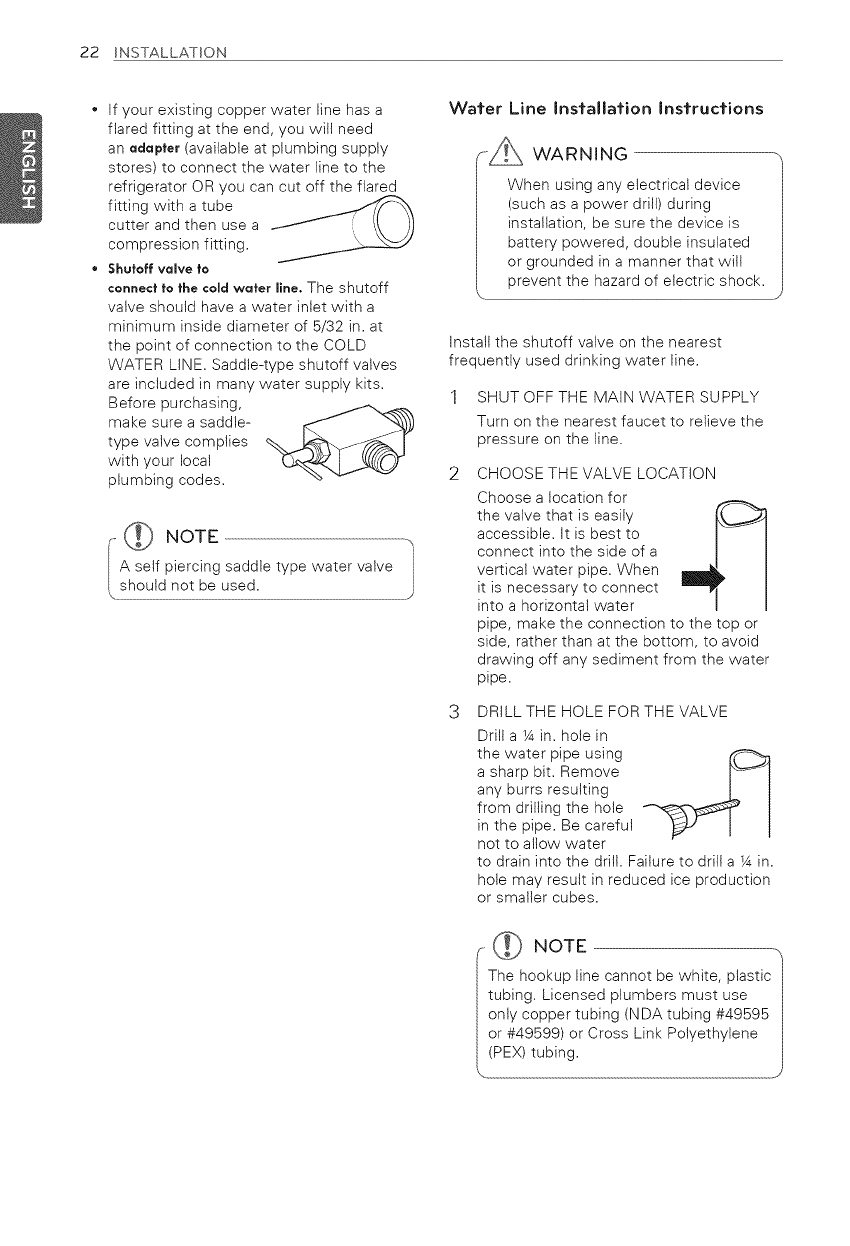

- Water Line Installation Instructions

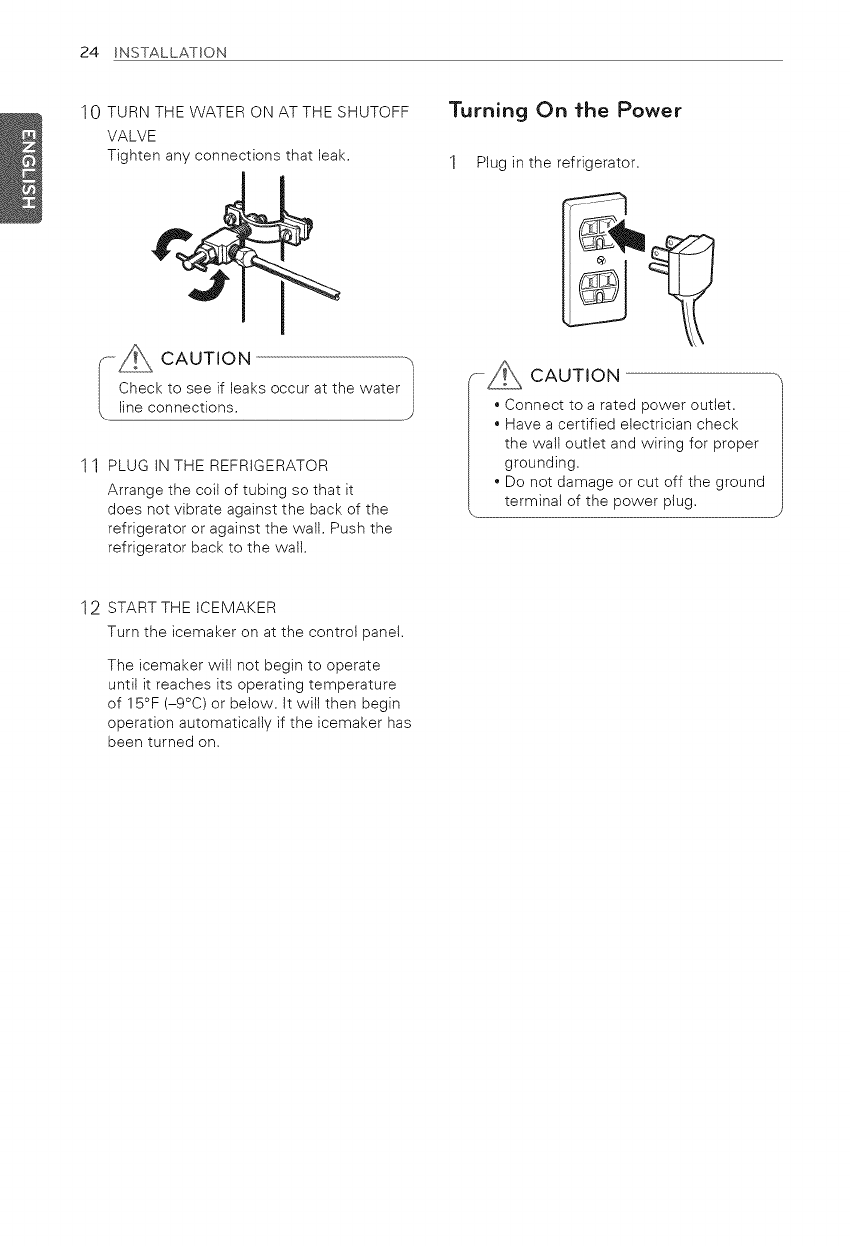

Turning On the Power

Leveling and Door Alignment

- Leveling

- Door Alignment

26 HOW TO USE

26 Before Use

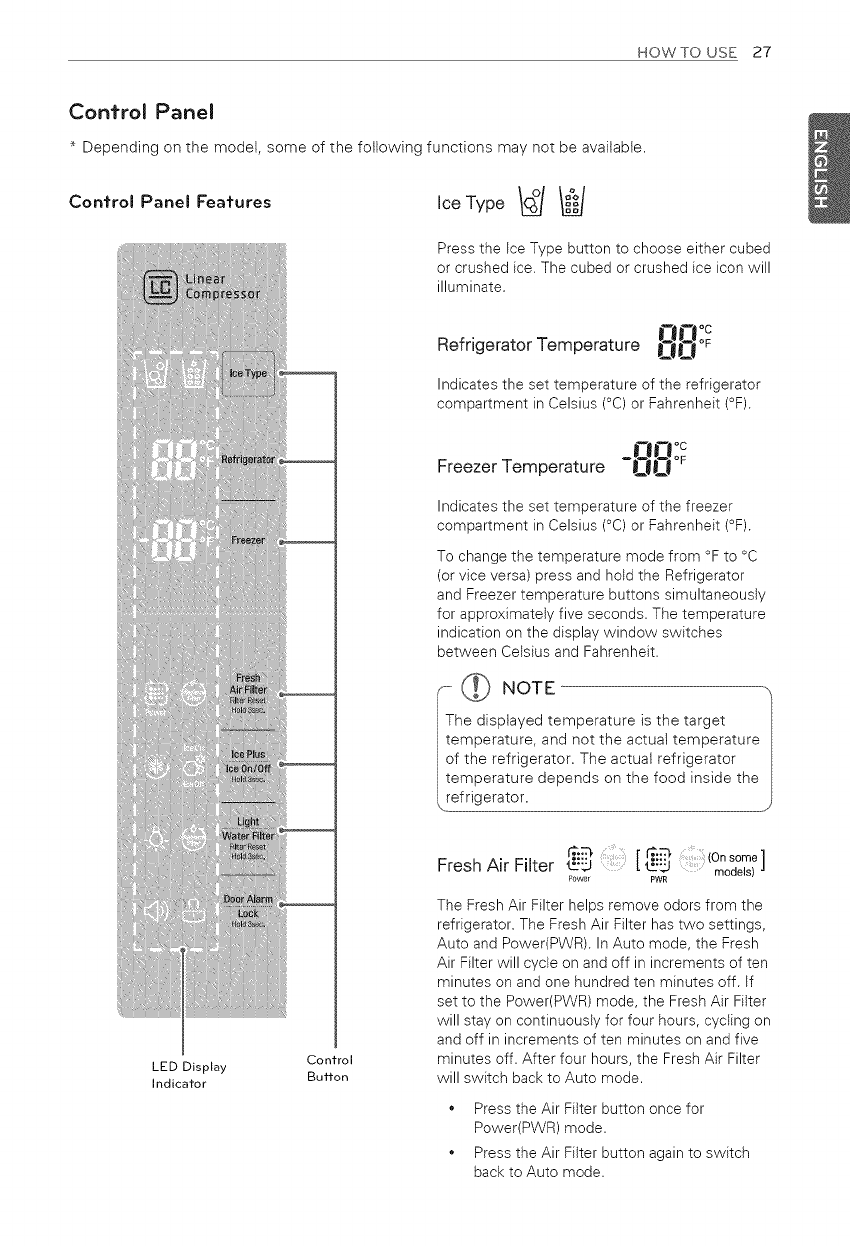

27 Control Panel

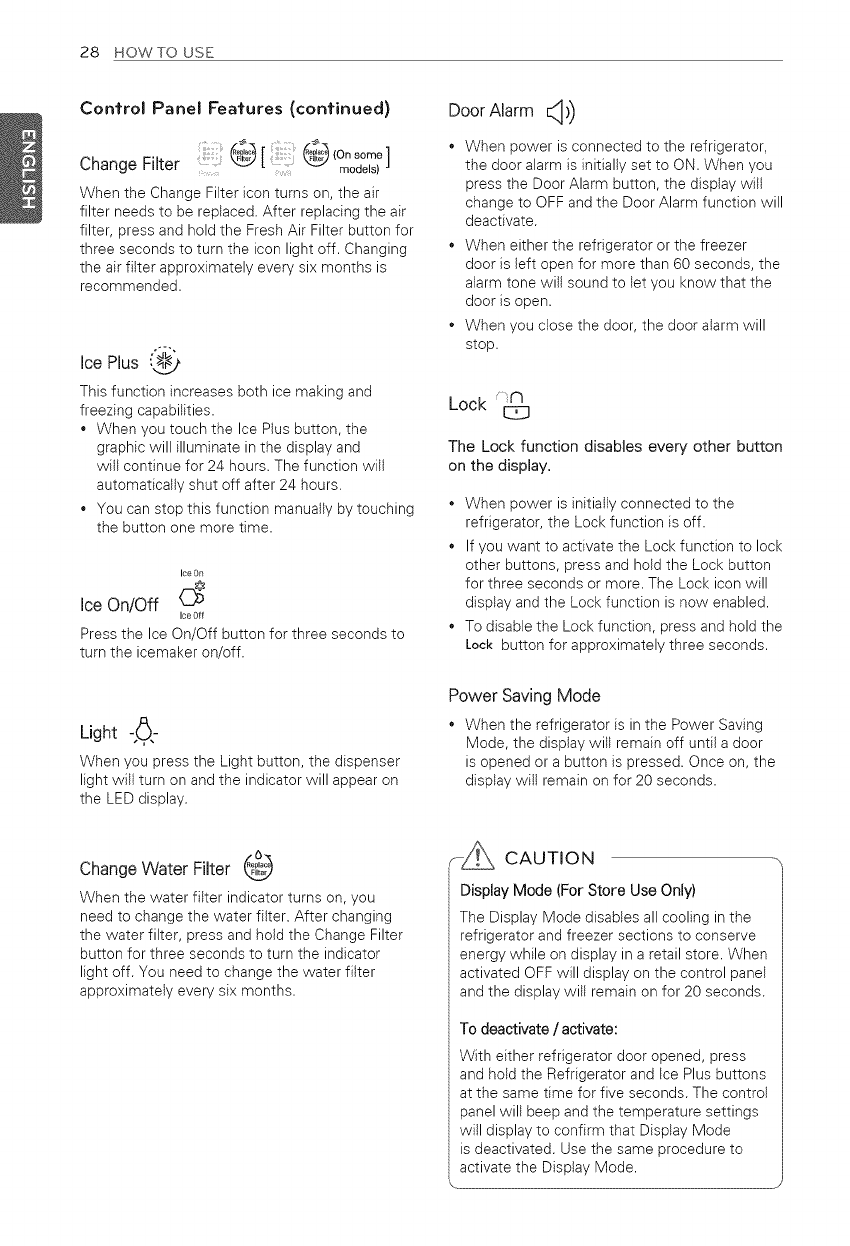

27 - Control Panet Features

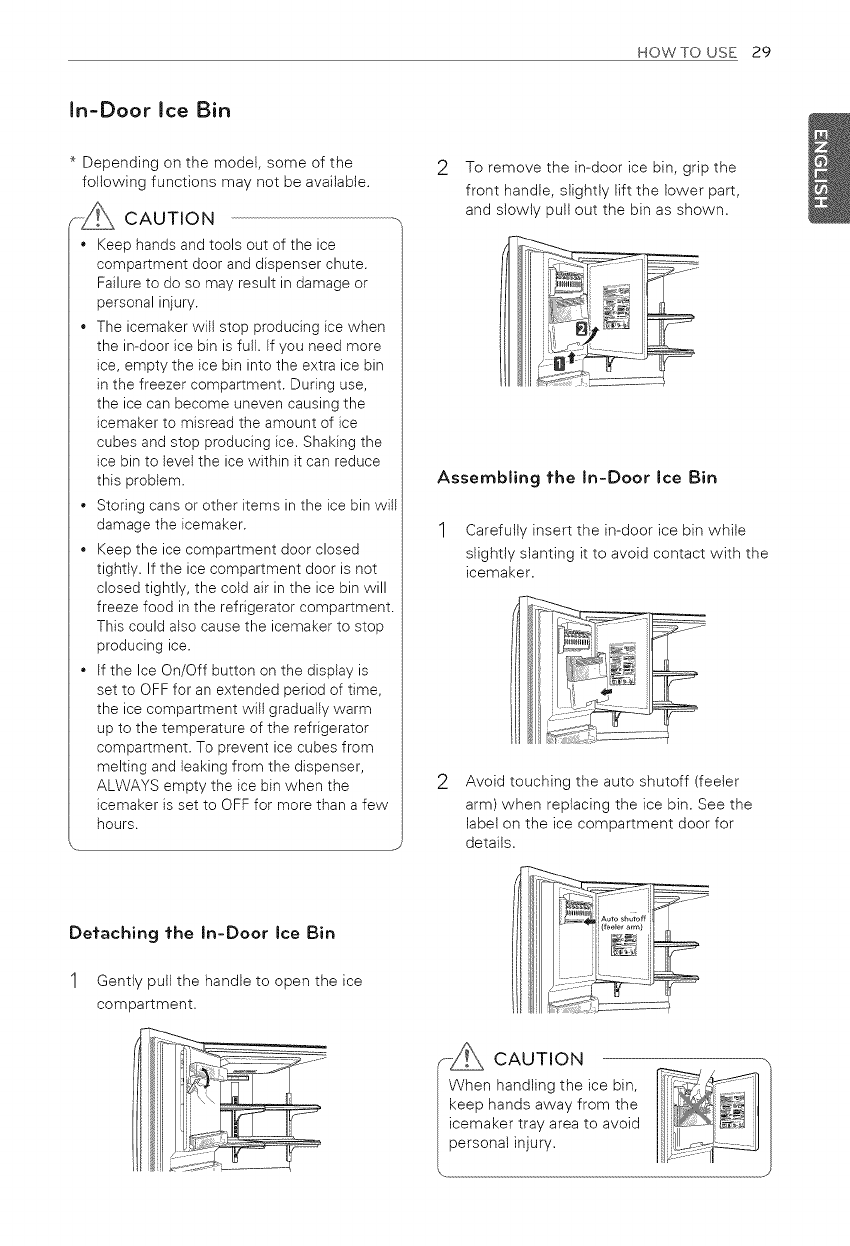

29 In-Door ice Bin

29 - Detaching the In-Door ice Bin

29 - Assembling the In-Door ice Bin

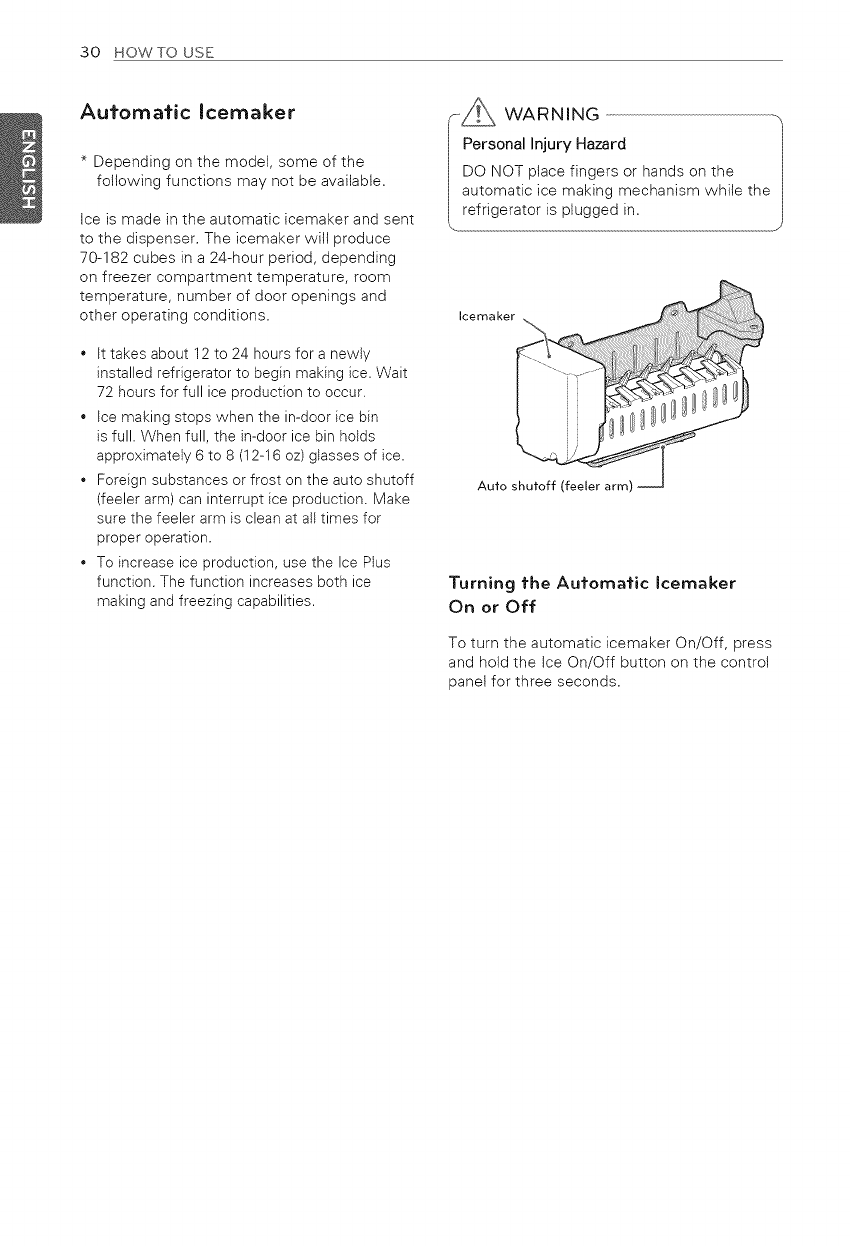

30 Automatic icemaker

30 - Turning the Automatic Icemaker On or Off

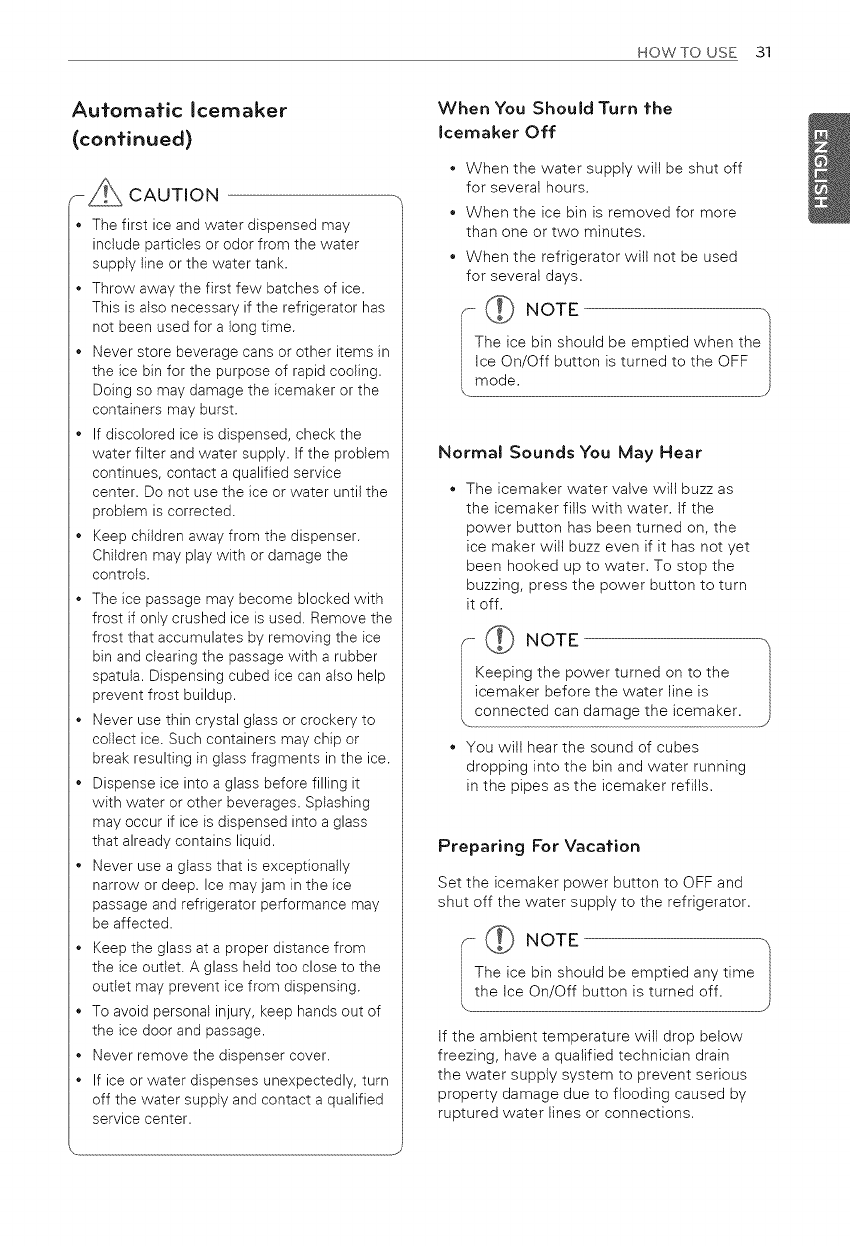

31 - When You Should Turn the icemaker Off

31 - Normal Sounds You May Hear

31 - Preparing for Vacation

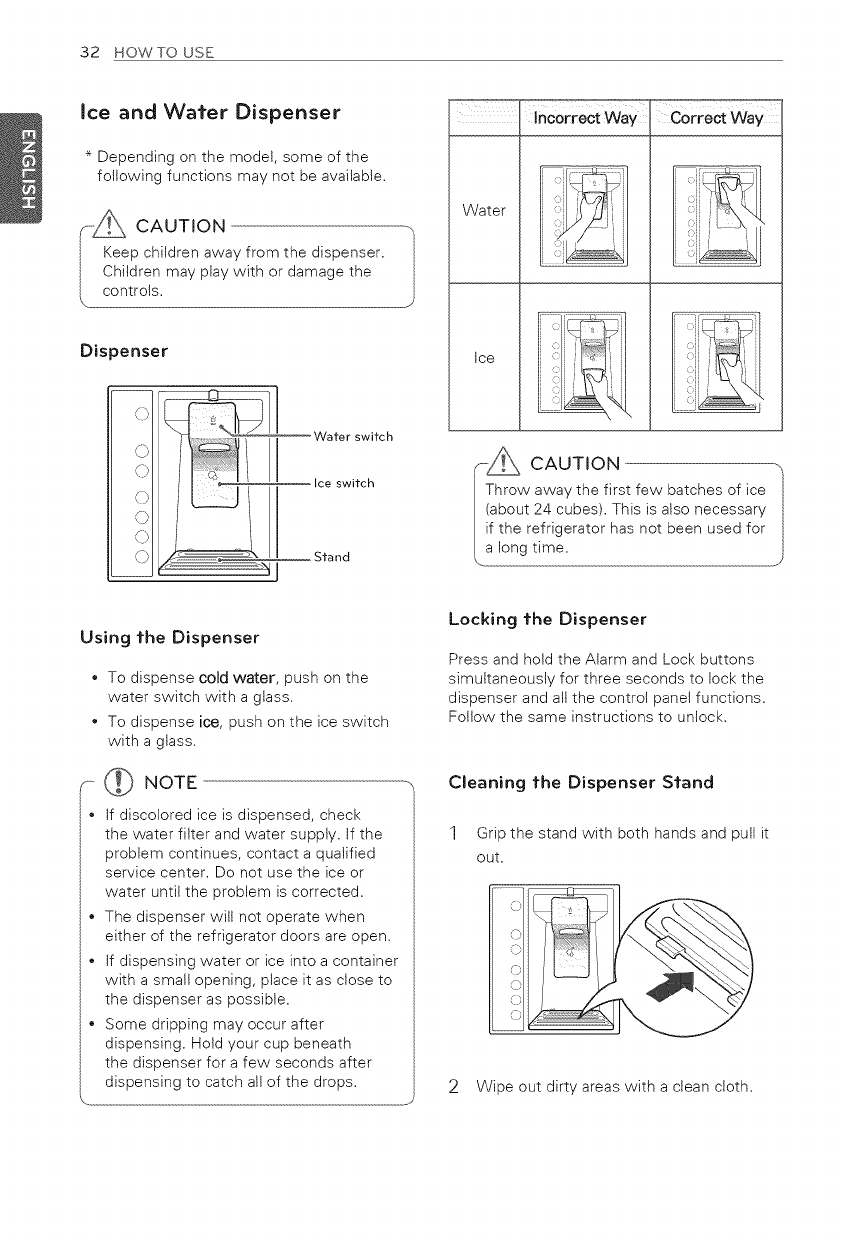

32 ice and Water Dispenser

32 - Dispenser

32 - Using the Dispenser

32 - Locking the Dispenser

32 - Cleaning the Dispenser Stand

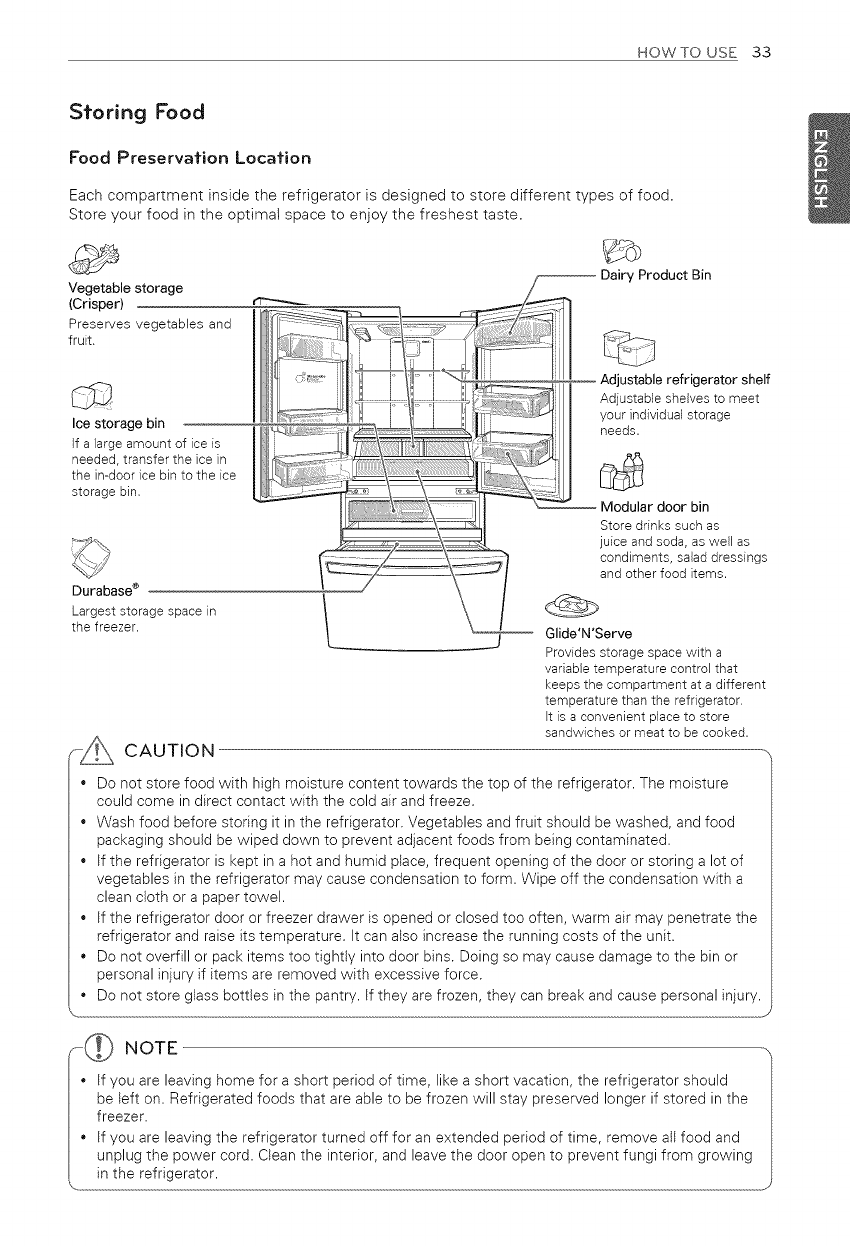

33 Storing Food

33 - Food Preservation Location

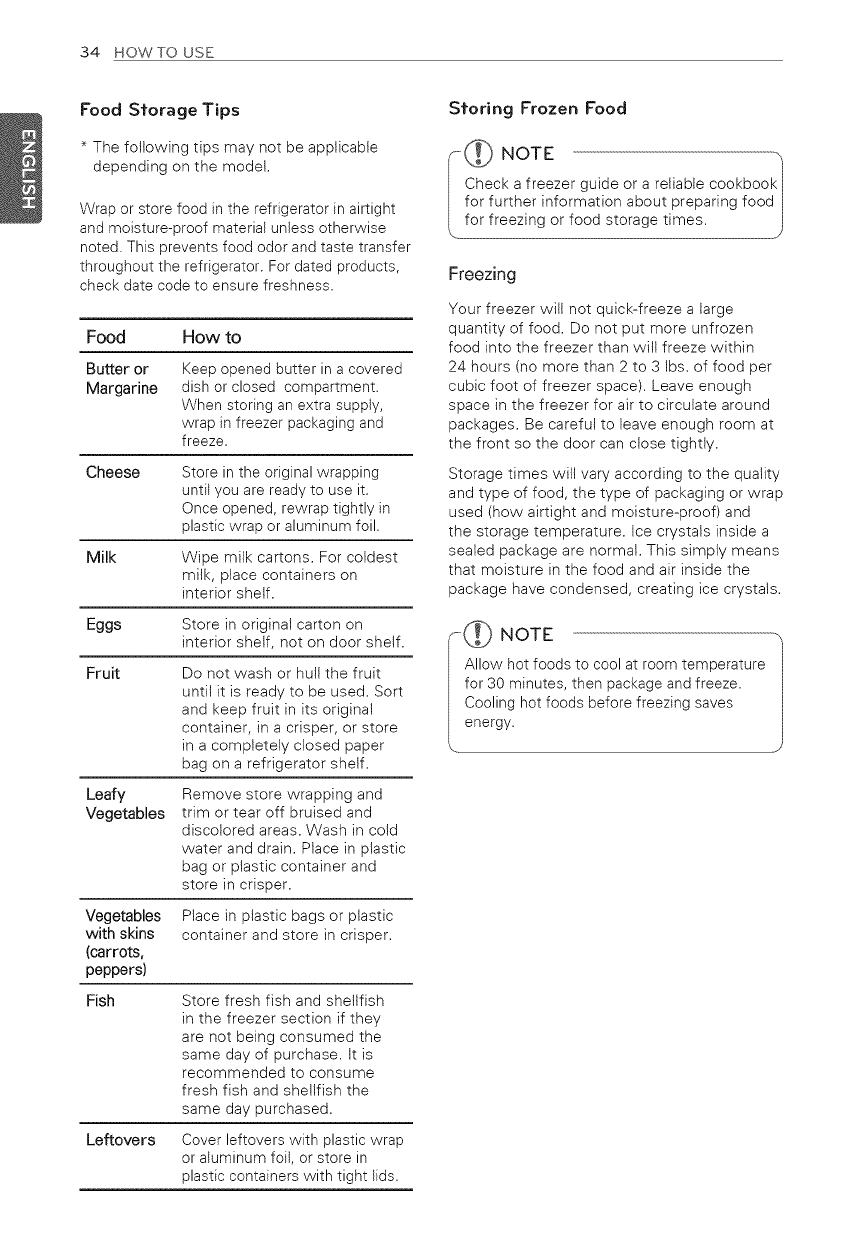

34 - Food Storage Tips

34 -Storing Frozen Food

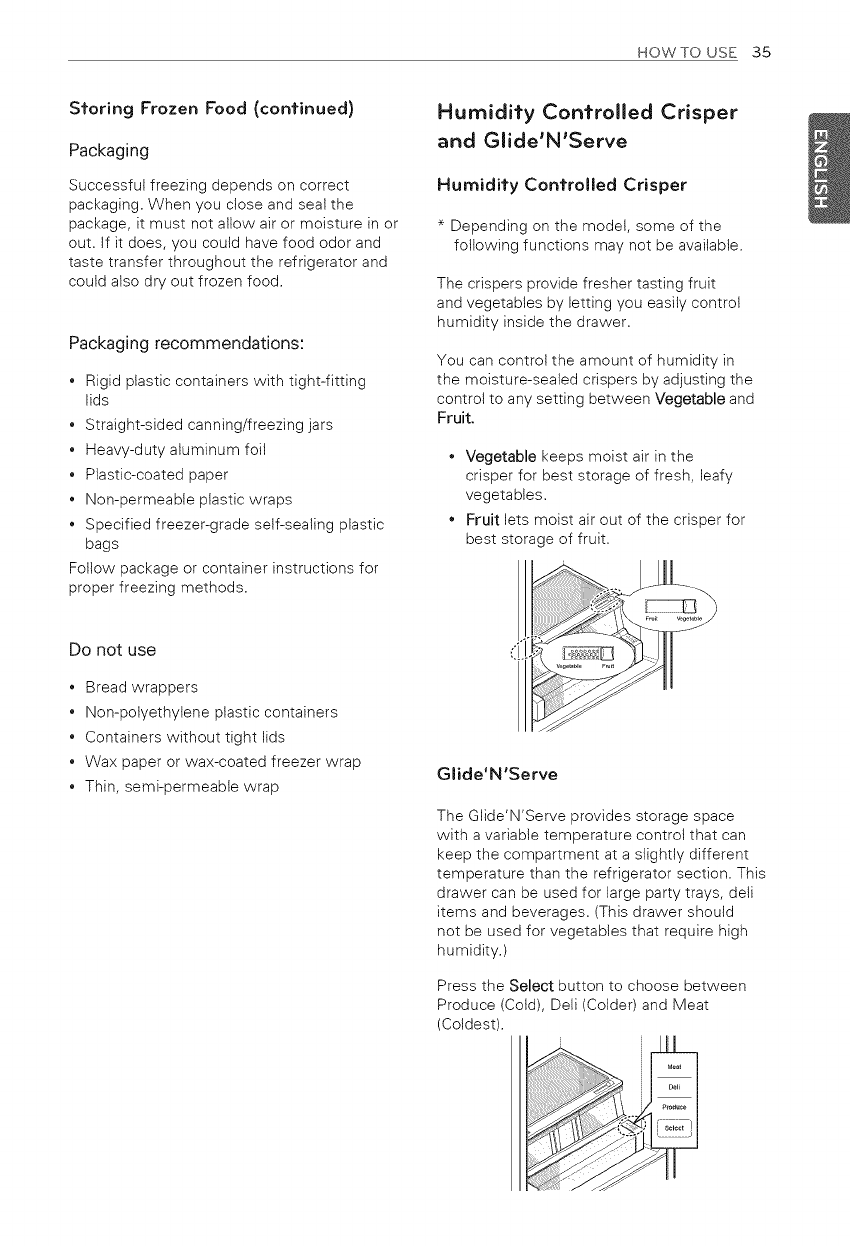

35 Humidity Controlled Crisper and

Glide'N'Serve

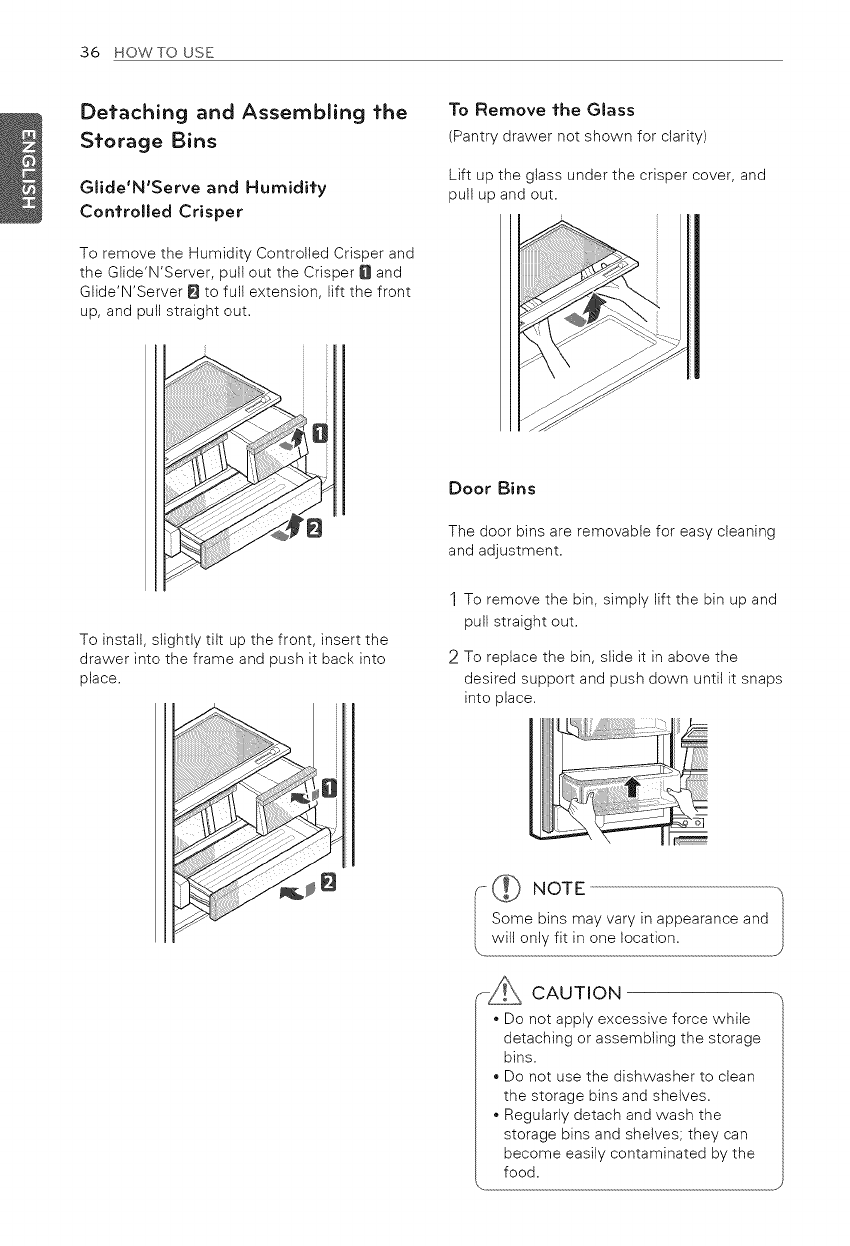

36 Detaching and Assembling the Storage Bins

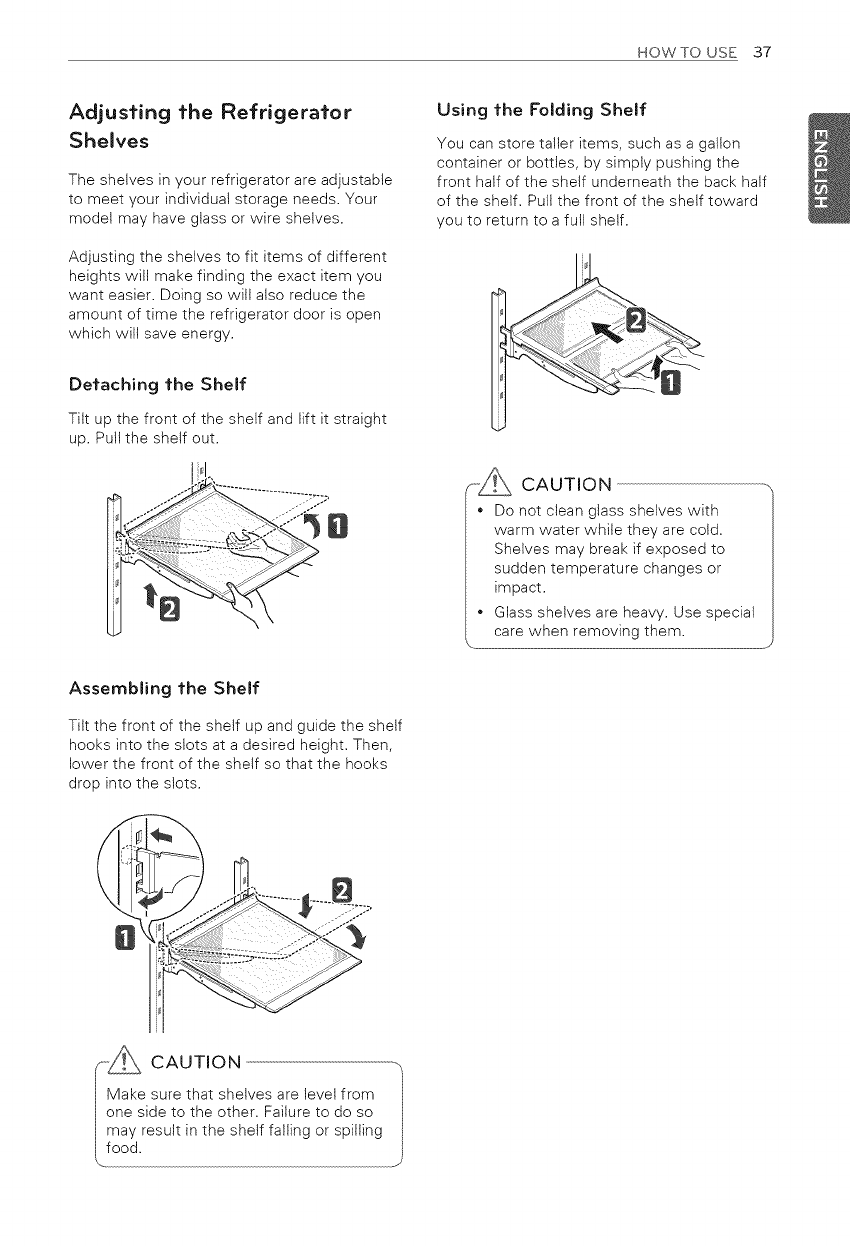

37 Adjusting the Refrigerator Shelves

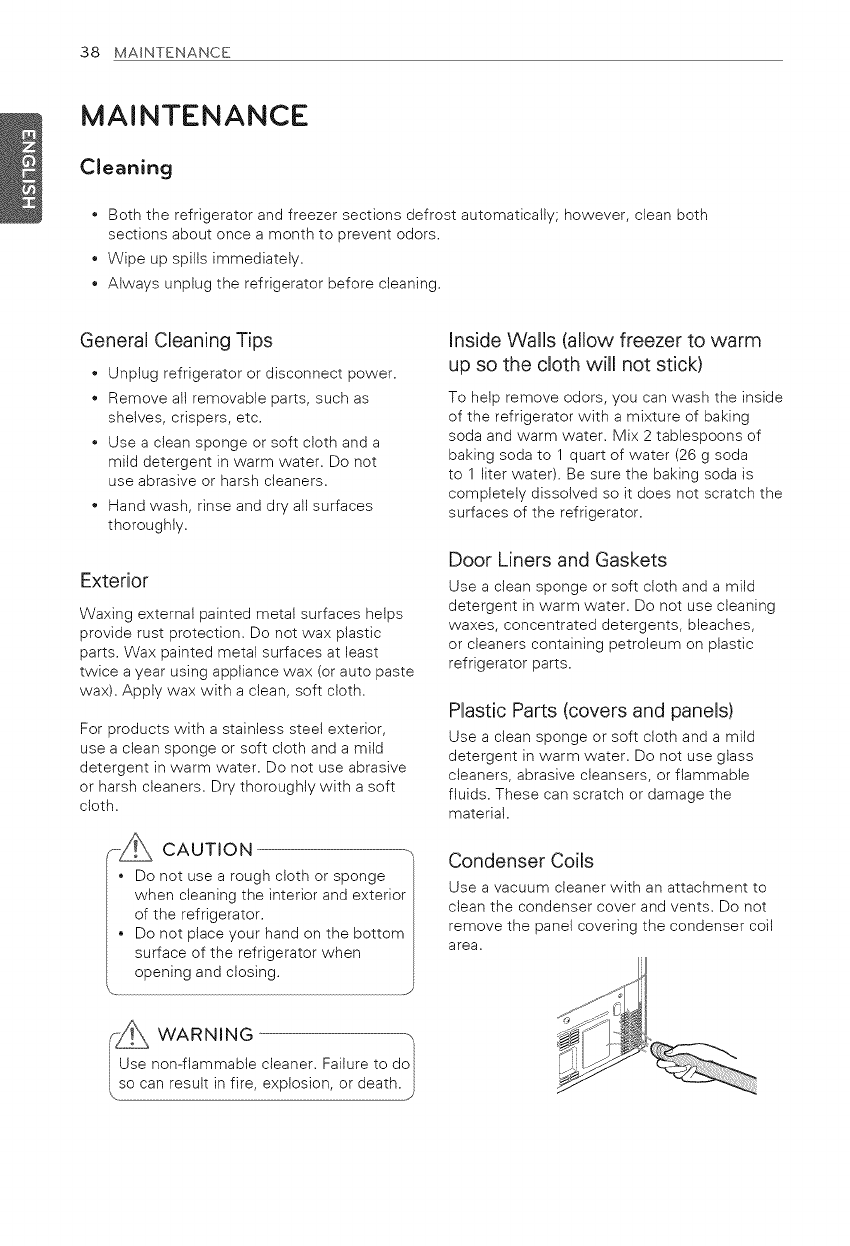

38 MAINTENANCE

38 Cleaning

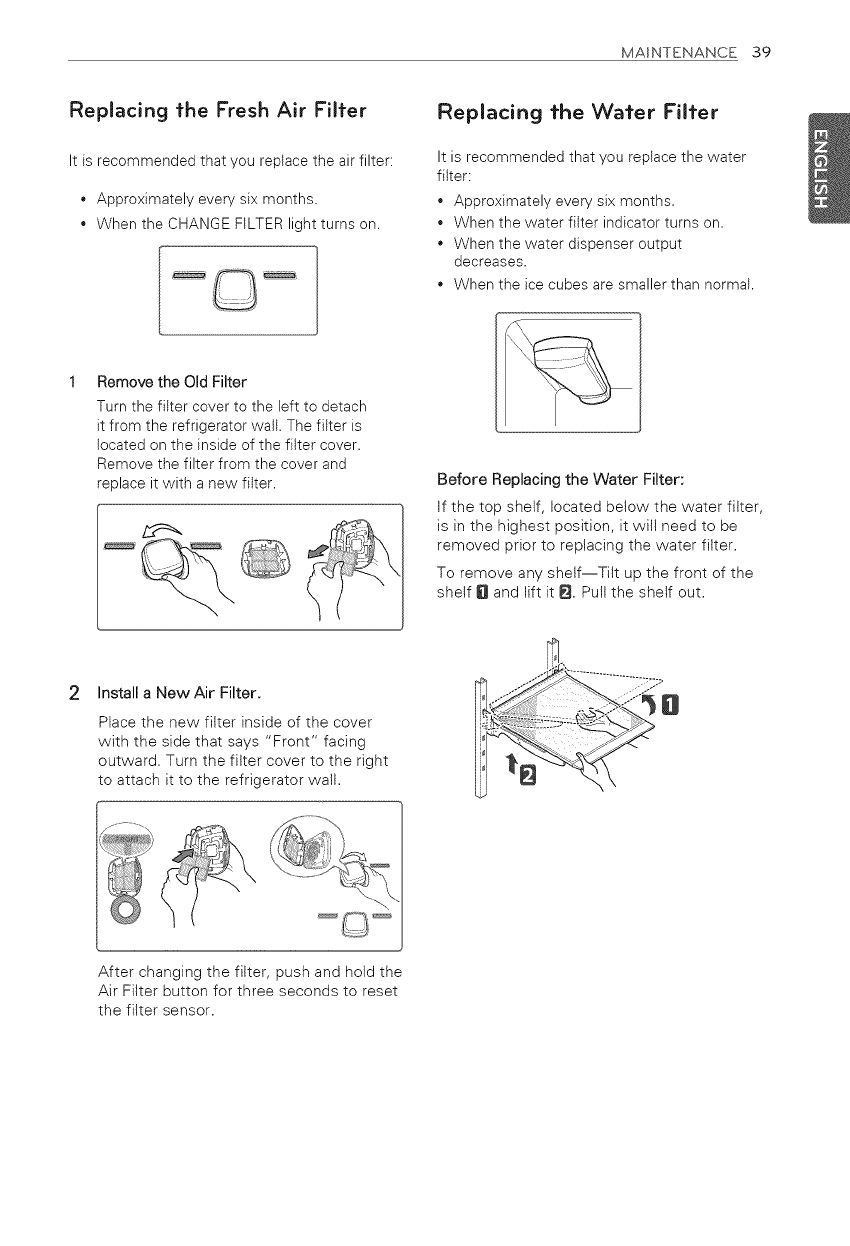

39 Replacing the Fresh Air Filter

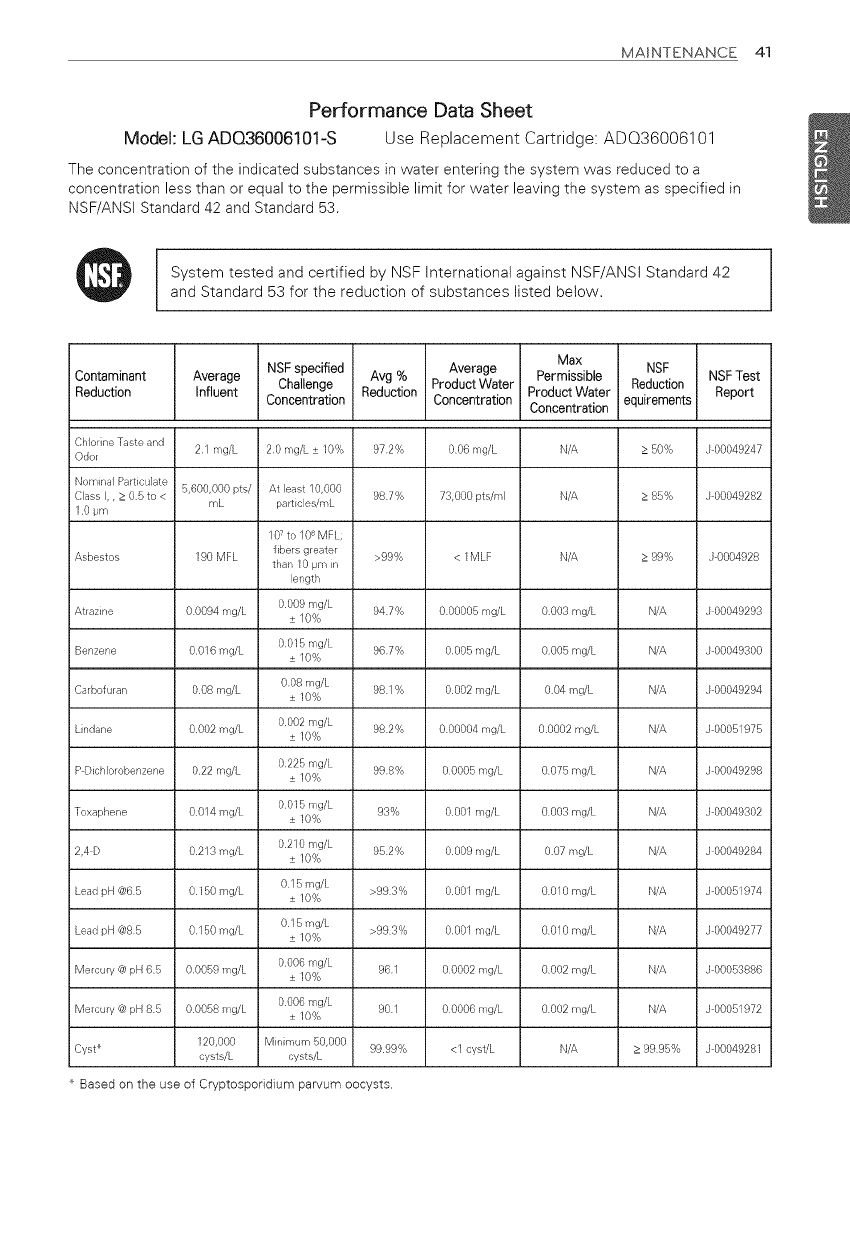

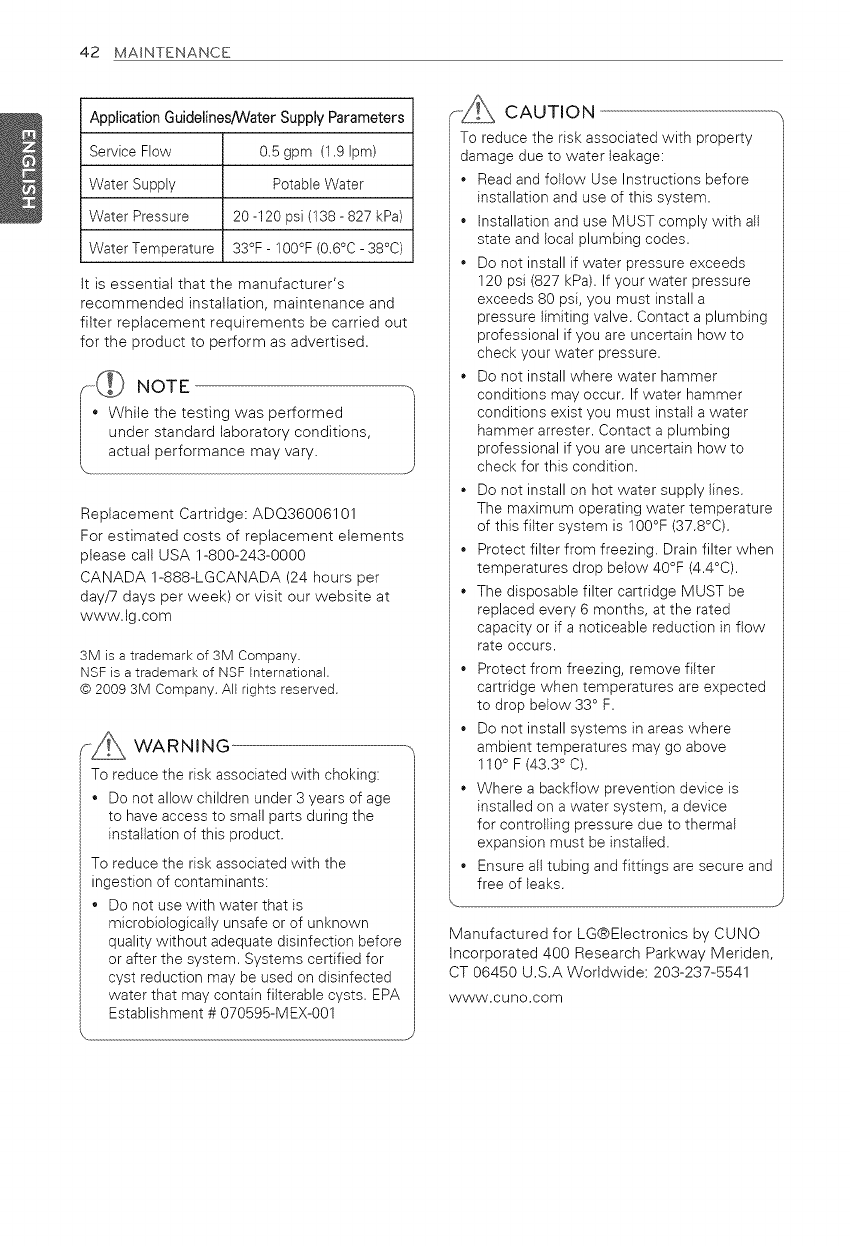

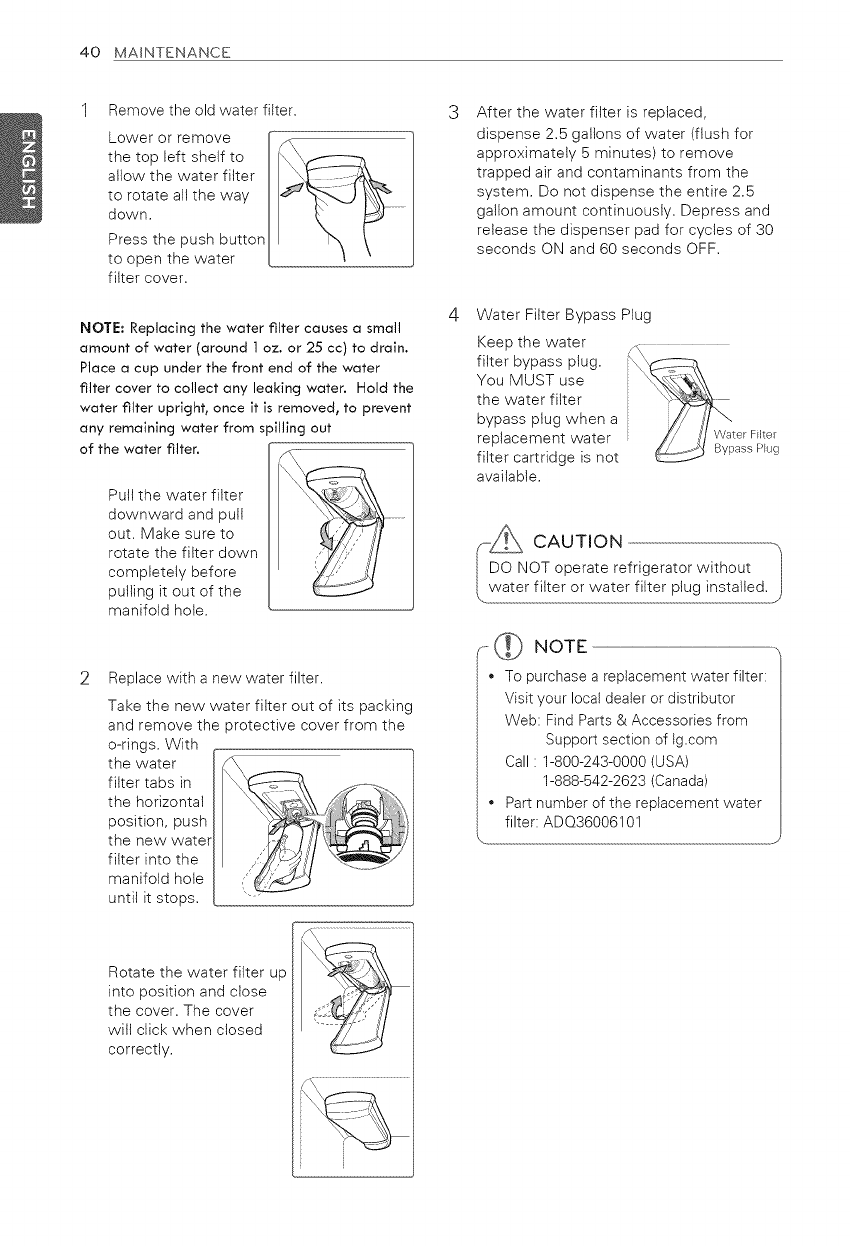

39 Replacing the Water Filter

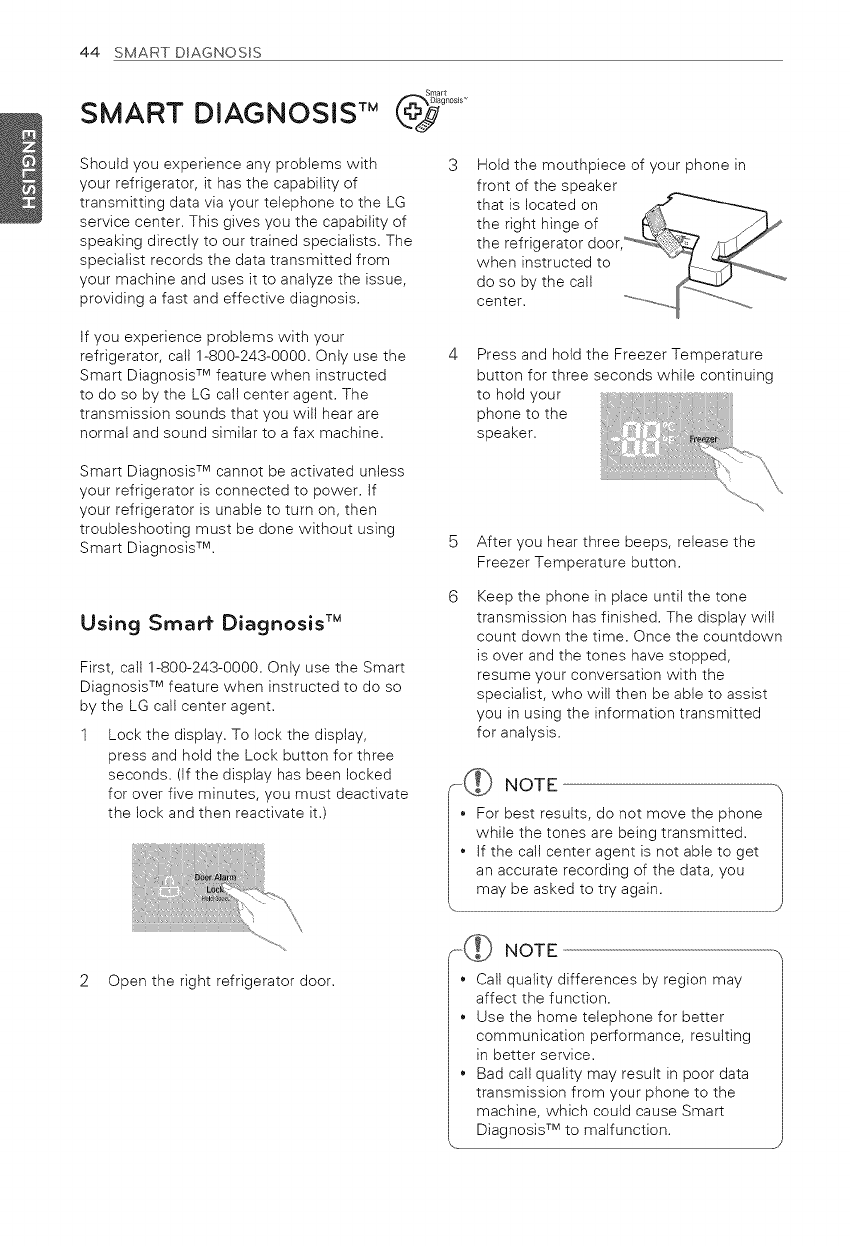

44 SMART DIAGNOSIS TM

44 Using Smart Diagnosis TM

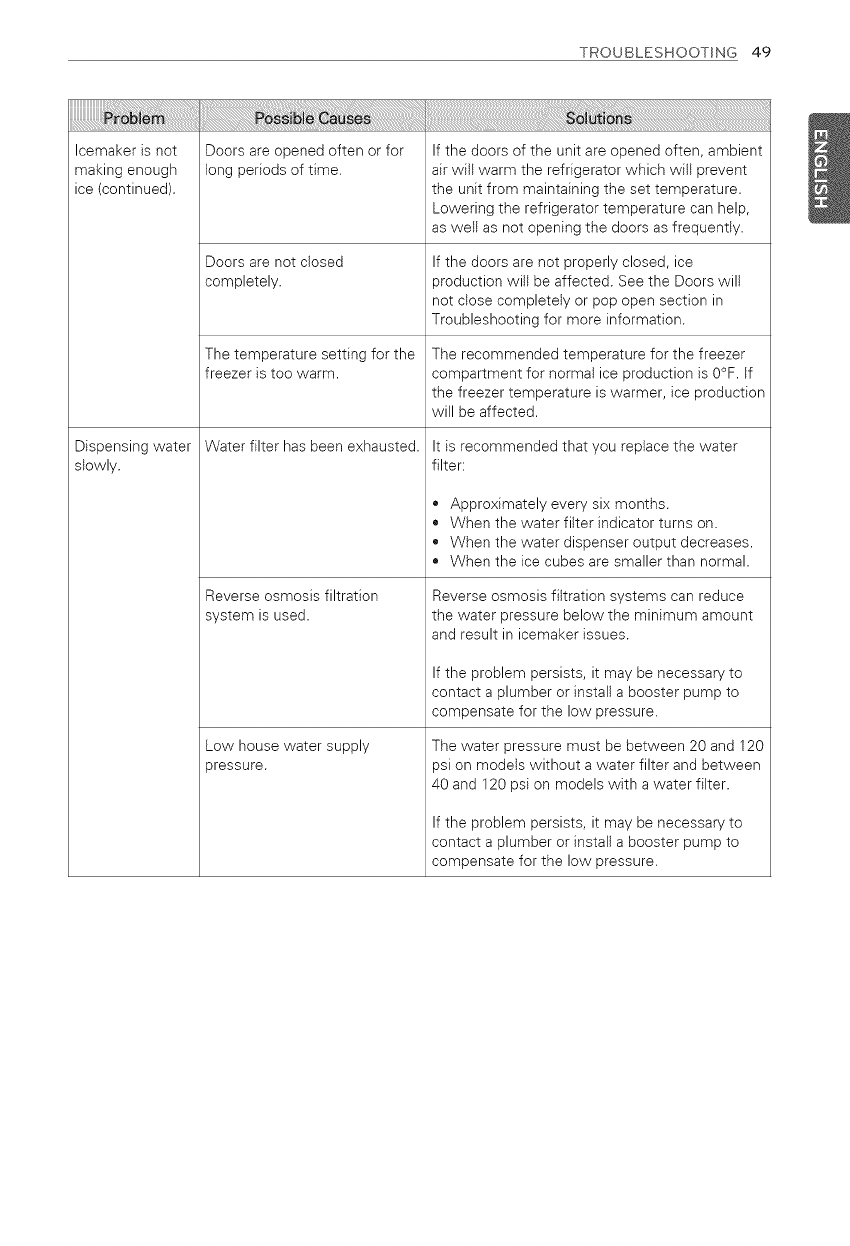

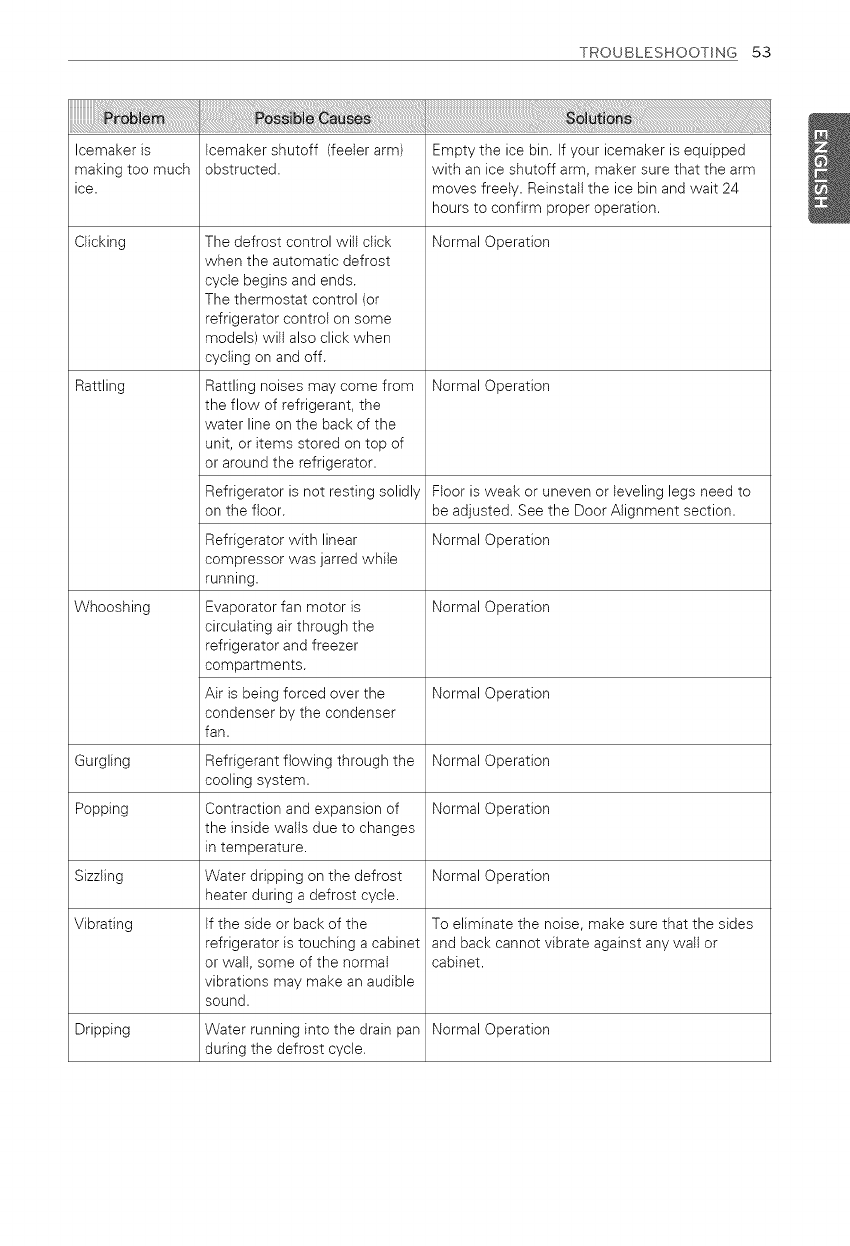

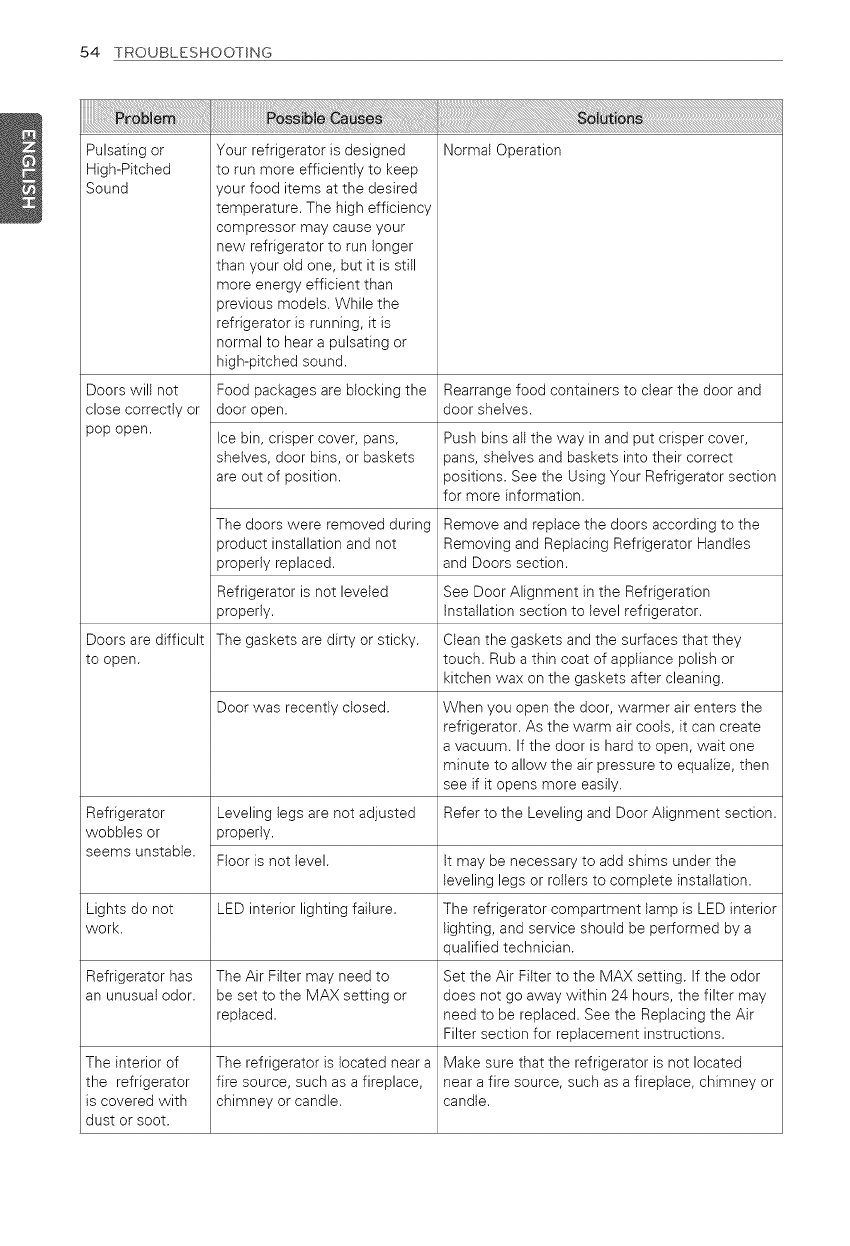

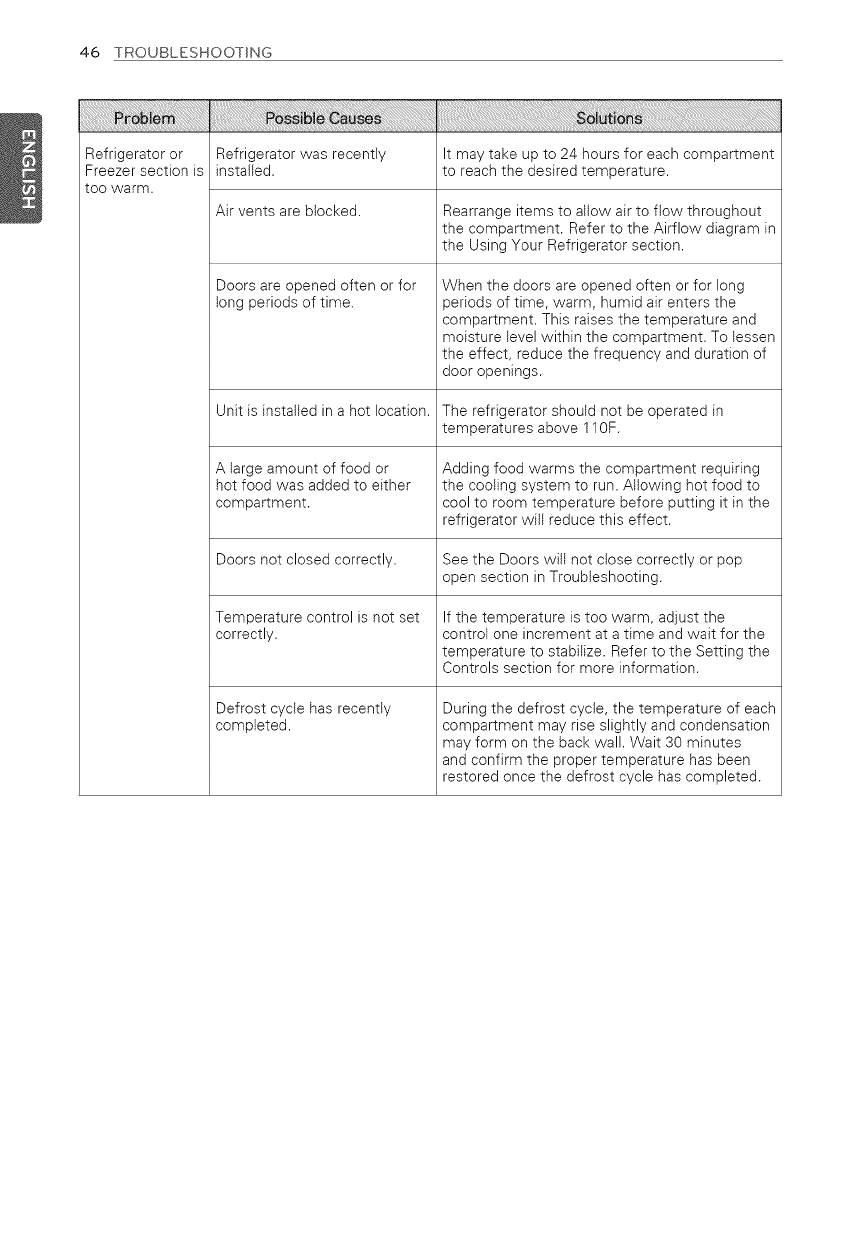

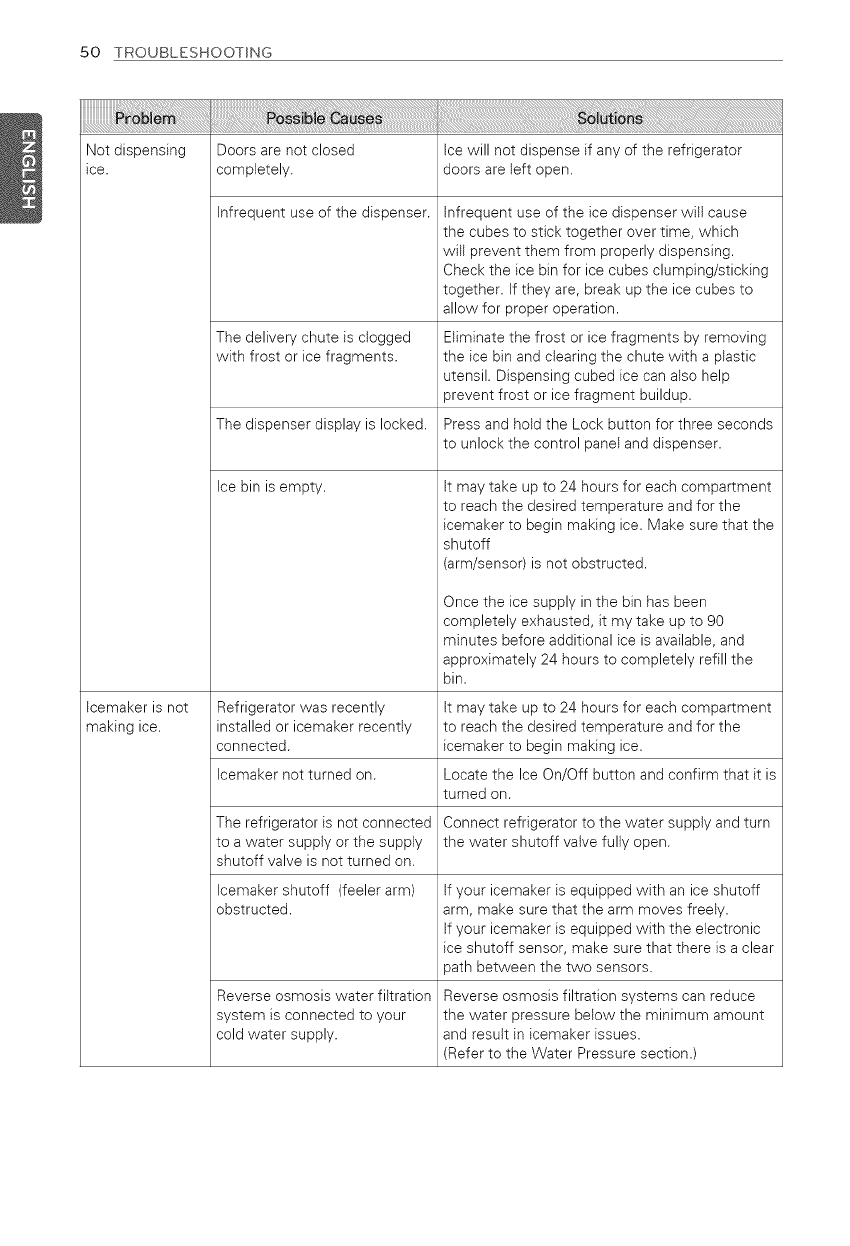

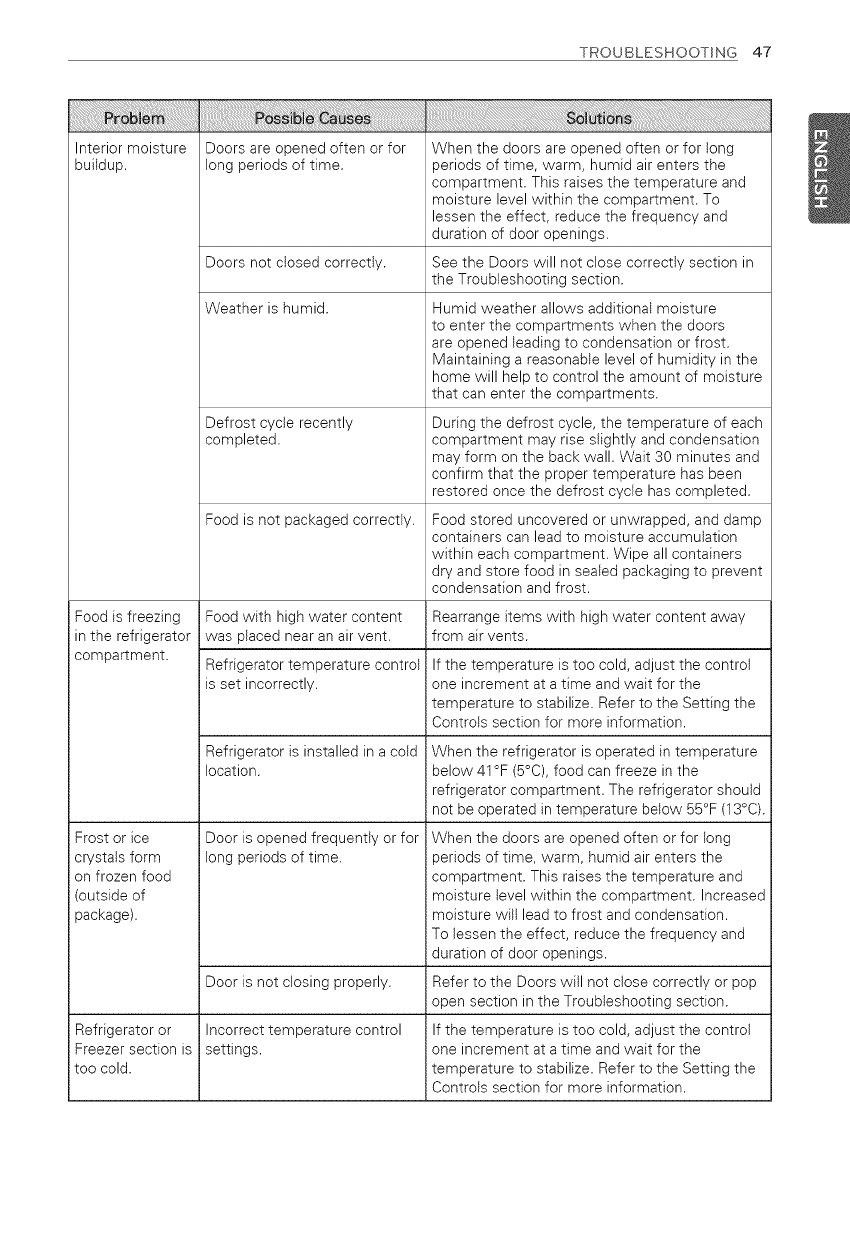

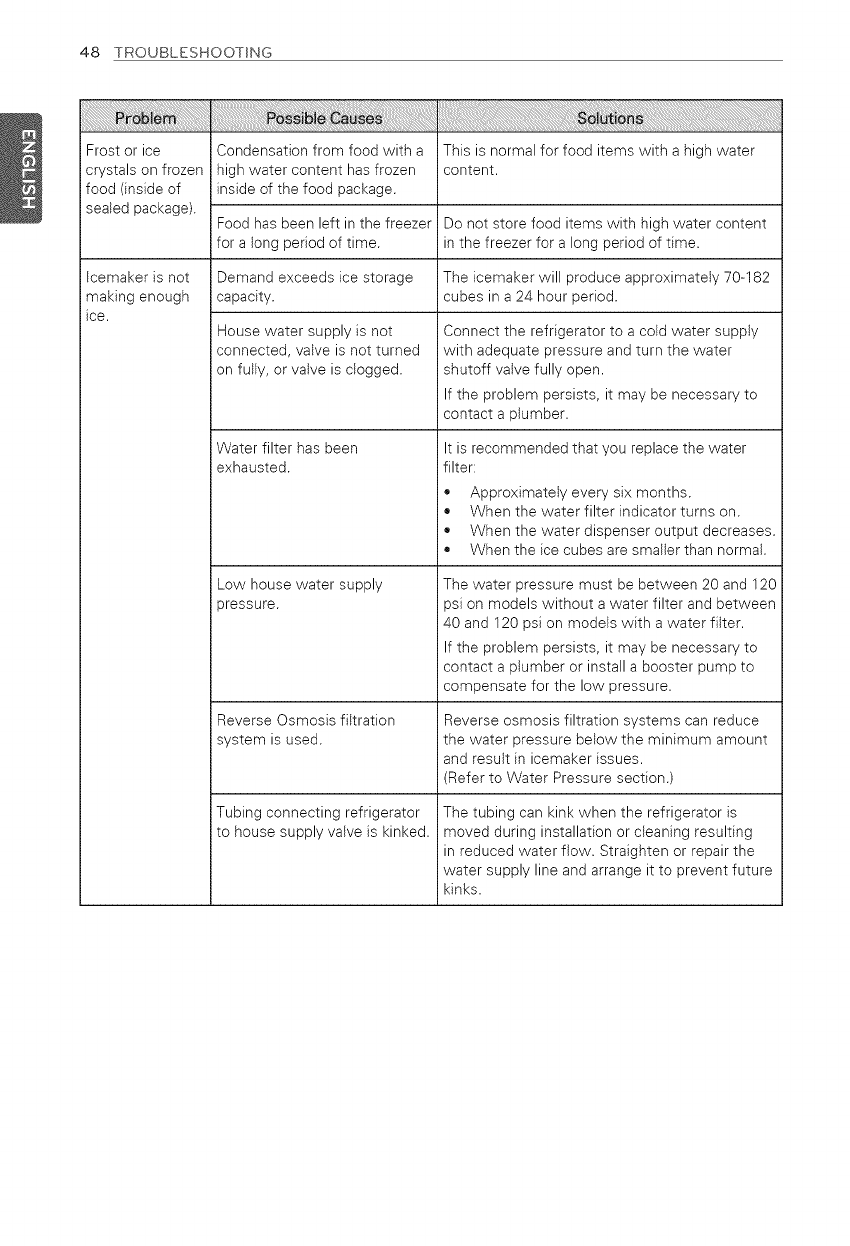

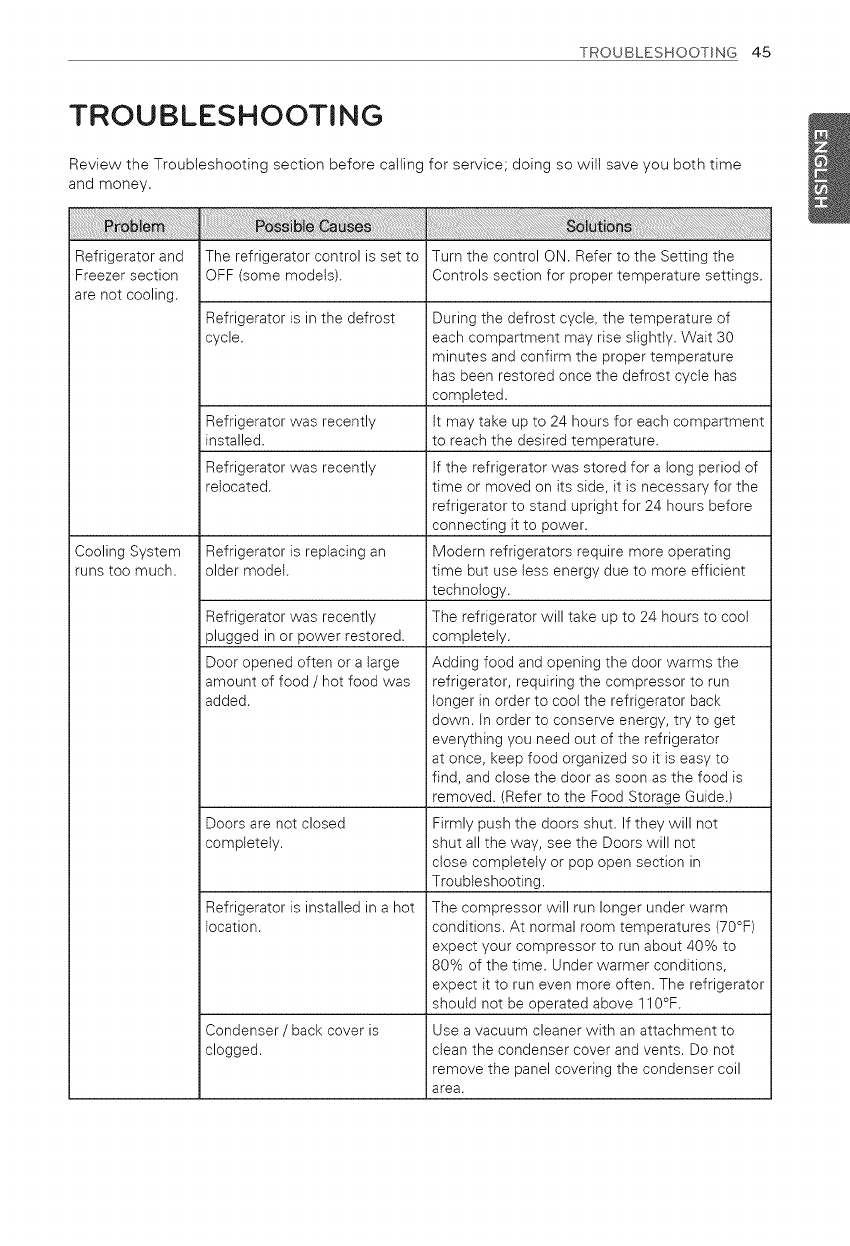

45 TROUBLESHOOTING

55 WARRANTY

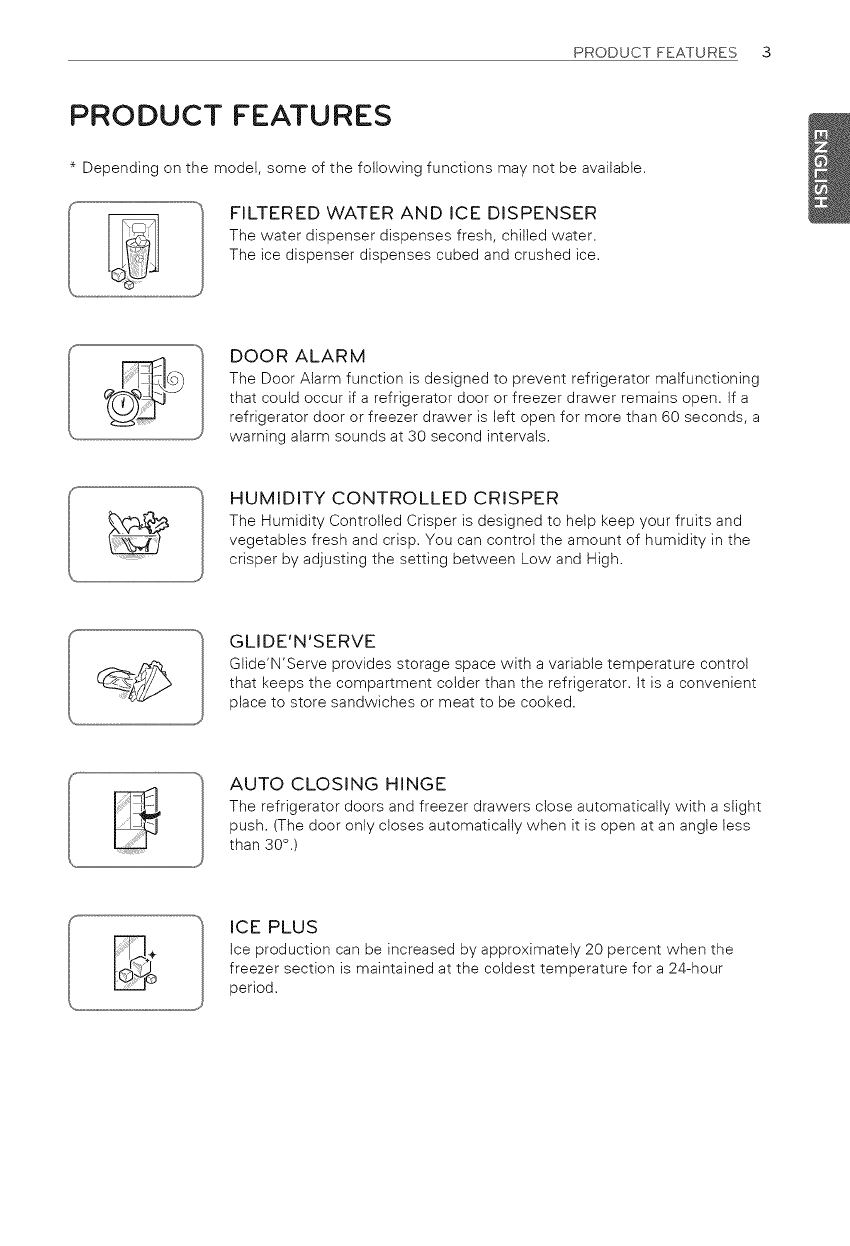

PRODUCT FEATURES 3

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available.

FILTERED WATER AND ICE DISPENSER

The water dispenser dispenses fresh, chilled water.

The ice dispenser dispenses cubed and crushed ice.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning

that could occur if a refrigerator door or freezer drawer remains open. If a

refrigerator door or freezer drawer is left open for more than 60 seconds, a

warning alarm sounds at 30 second intervals.

HUMIDITY CONTROLLED CRISPER

The Humidity Controlled Crisper is designed to help keep your fruits and

vegetables fresh and crisp. You can control the amount of humidity in the

crisper by adjusting the setting between Low and High.

GLIDE'N'SERVE

Glide'N'Serve provides storage space with a variable temperature control

that keeps the compartment colder than the refrigerator. It is a convenient

place to store sandwiches or meat to be cooked.

AUTO CLOSING HINGE

The refrigeratordoors and freezerdrawers closeautomaticallywith a slight

push. (Thedoor onlyclosesautomaticallywhen itisopen atan angle less

than 30°.)

ICE PLUS

ice production can be increased by approximately 20 percent when the

freezer section is maintained at the coldest temperature for a 24-hour

period.

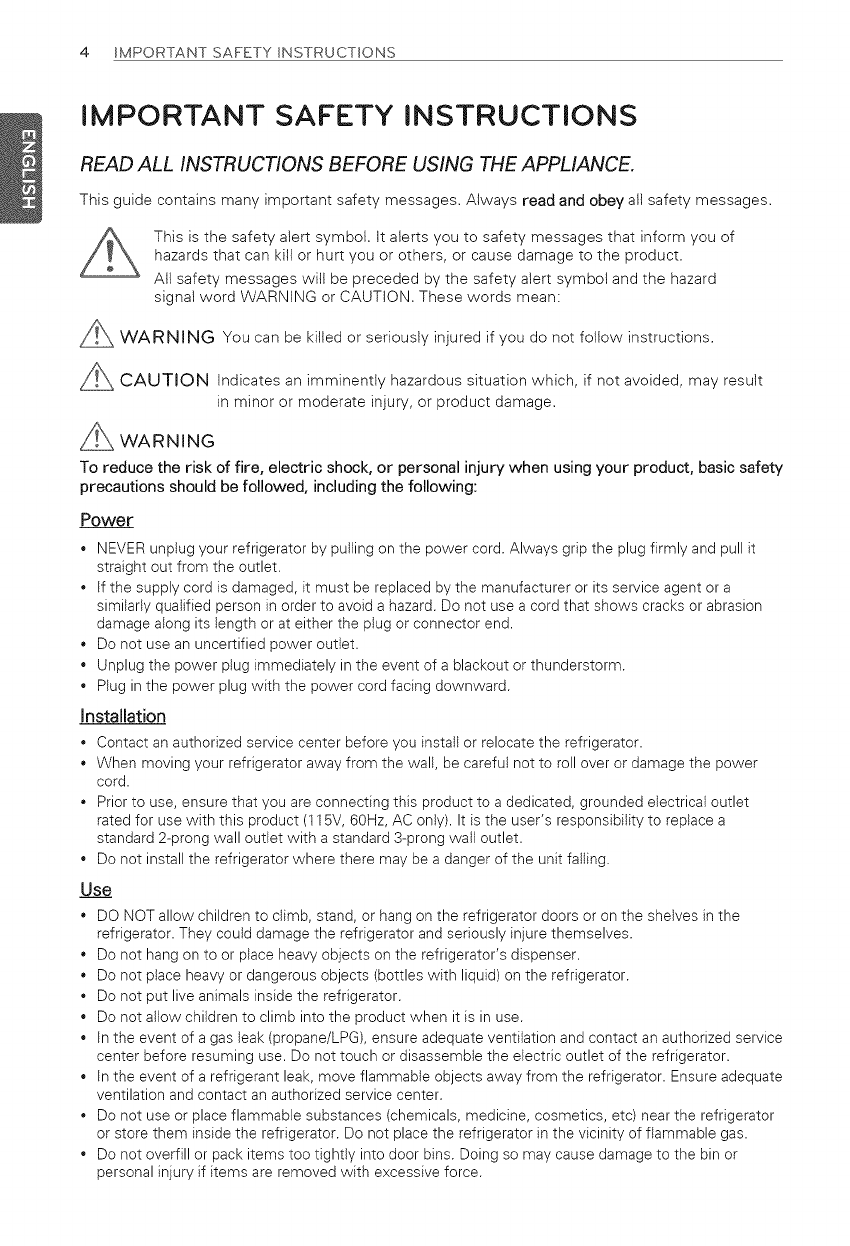

4 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of

hazards that can kitl or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

_ WARNING You can be killed or seriously injured if you do not follow instructions.

_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result

in minor or moderate injury, or product damage.

_ WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

Power

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it

straight out from the outlet.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion

damage along its length or at either the plug or connector end.

• Do not use an uncertified power outlet.

• Unplug the power plug immediately in the event of a blackout or thunderstorm.

• Plug in the power plug with the power cord facing downward.

Installation

Contact an authorized service center before you install or relocate the refrigerator,

When moving your refrigerator away from the wall, be careful not to roll over or damage the power

cord.

Prior to use, ensure that you are connecting this product to a dedicated, grounded electrical outlet

rated for use with this product (t 15V, 60Hz, AC only). It is the user's responsibility to replace a

standard 2-prong wall outlet with a standard 3-prong wall outlet.

Do not install the refrigerator where there may be a danger of the unit falling.

Use

DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the

refrigerator. They could damage the refrigerator and seriously injure themselves.

Do not hang on to or place heavy objects on the refrigerator's dispenser.

Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.

Do not put live animals inside the refrigerator.

Do not allow children to climb into the product when it is in use.

In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service

center before resuming use. Do not touch or disassemble the electric outlet of the refrigerator.

In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure adequate

ventilation and contact an authorized service center.

Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator

or store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.

Do not overfill or pack items tee tightly into door bins. Doing so may cause damage to the bin or

personal injury if items are removed with excessive force.

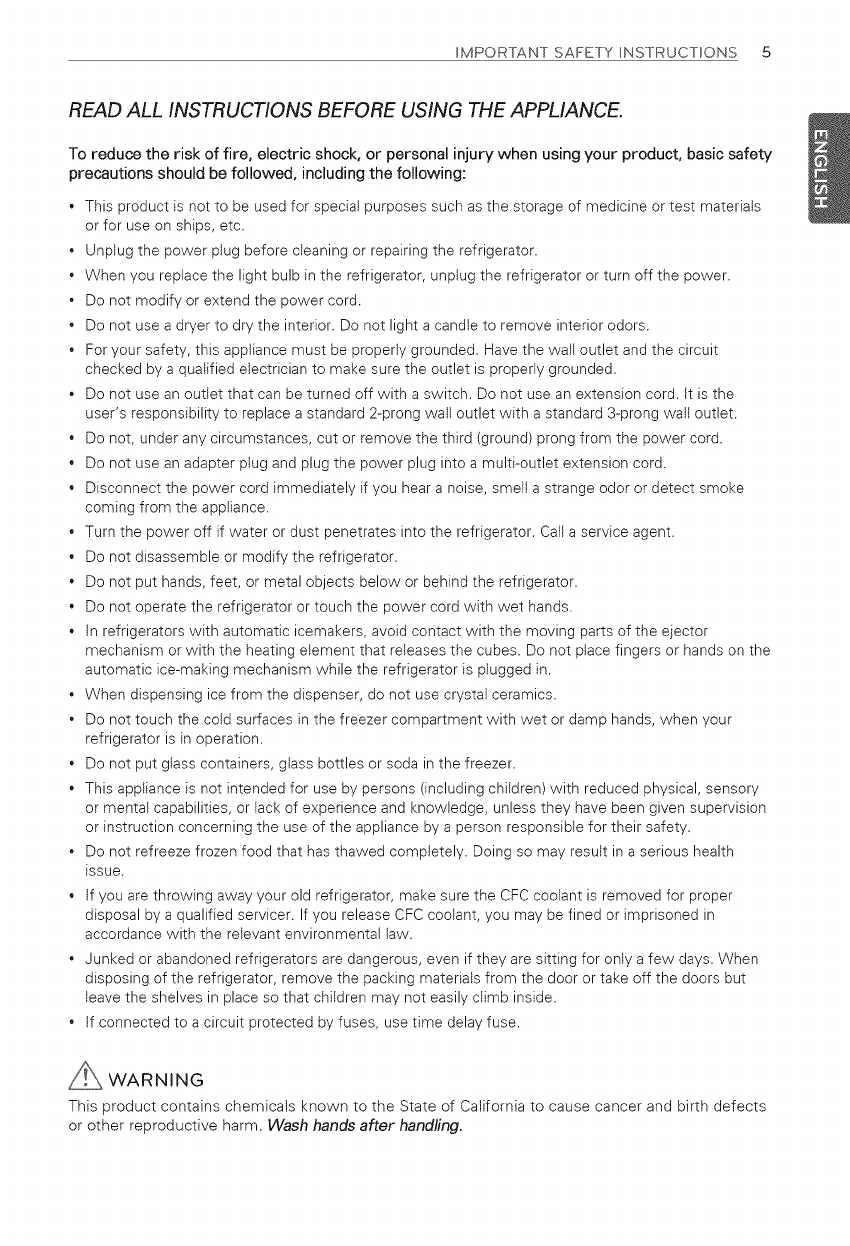

IMPORTANT SAFETY INSTRUCTIONS 5

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

• This product is not to be used for special purposes such as the storage of medicine or test materials

or for use on ships, etc.

• Unplug the power plug before cleaning or repairing the refrigerator

• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.

• Do not modify or extend the power cord.

• Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.

• For your safety, this appliance must be properly grounded Have the wall outlet and the circuit

checked by a qualified electrician to make sure the outlet is properly grounded

• Do not use an outlet that can be turned off with a switch Do not use an extension cord It is the

user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.

• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke

coming from the appliance.

• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent

• Do not disassemble or modify the refrigerator

• Do not put hands, feet, or metal objects below or behind the refrigerator

• Do not operate the refrigerator or touch the power cord with wet hands

• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector

mechanism or with the heating element that releases the cubes. Do not place fingers or hands on the

automatic ice-making mechanism while the refrigerator is plugged in

• When dispensing ice from the dispenser, do not use crystal ceramics

• Do not touch the cow surfaces in the freezer compartment with wet or damp hands, when your

refrigerator is in operation

• Do not put glass containers, glass bottles or soda in the freezer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning the use of the appliance by a person responsible for their safety.

• Do not refreeze frozen food that has thawed completely Doing so may result in a serious health

issue.

• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper

disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in

accordance with the relevant environmental law.

• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days When

disposing of the refrigerator, remove the packing materials from the door or take off the doors but

leave the shelves in place so that children may not easily climb inside

• If connected to a circuit protected by fuses, use time delay fuse

_ WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects

or other reproductive harm, Wash hands after handling.

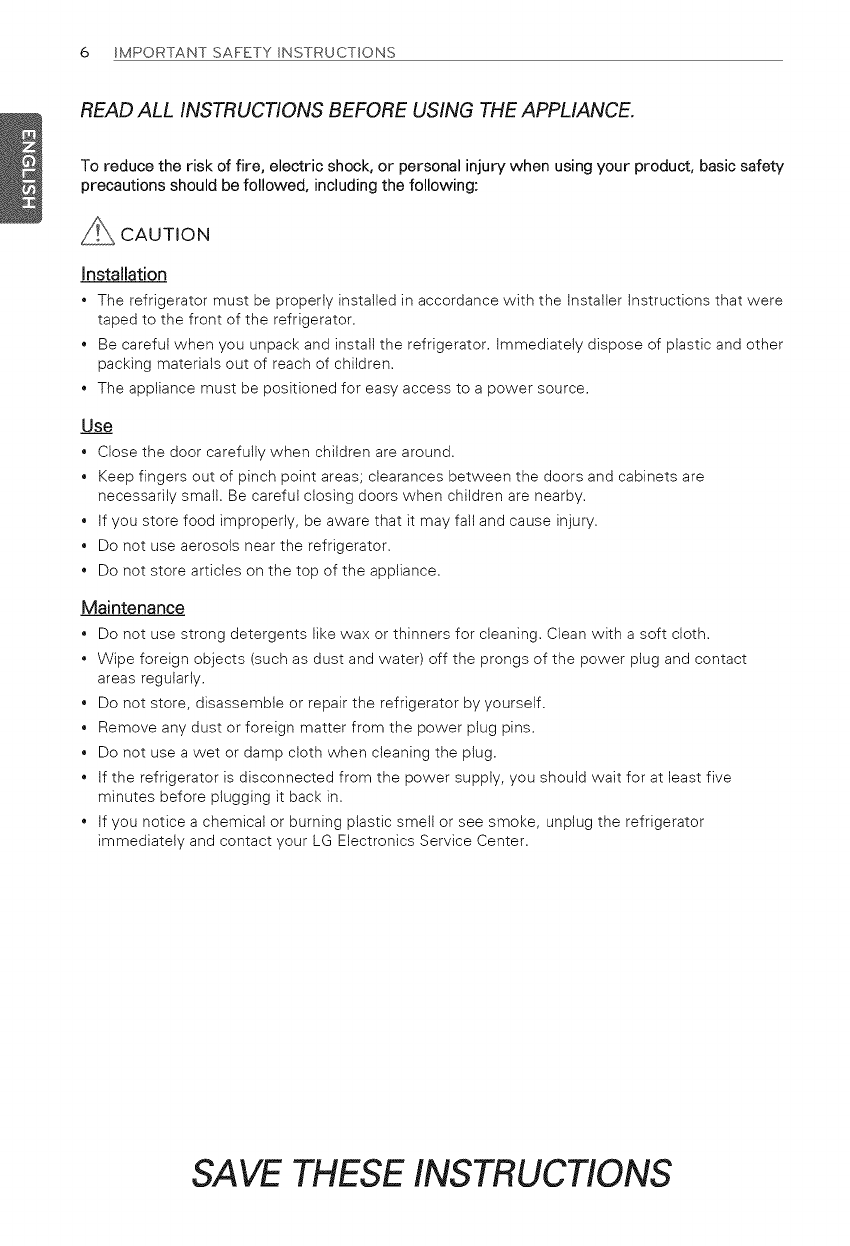

6 IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

_ CAUTION

Installation

• The refrigerator must be properly installed in accordance with the Installer Instructions that were

taped to the front of the refrigerator.

• Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and other

packing materials out of reach of children.

• The appliance must be positioned for easy access to a power source.

Use

Close the door carefully when children are around.

Keep fingers out of pinch point areas; clearances between the doors and cabinets are

necessarily small. Be careful closing doors when children are nearby.

If you store food improperly, be aware that it may fall and cause injury.

Do not use aerosols near the refrigerator.

Do not store articles on the top of the appliance.

Maintenance

Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.

Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact

areas regularly.

Do not store, disassemble or repair the refrigerator by yourself.

Remove any dust or foreign matter from the power plug pins.

Do not use a wet or damp cloth when cleaning the plug.

If the refrigerator is disconnected from the power supply, you should wait for at least five

minutes before plugging it back in.

If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator

immediately and contact your LG Electronics Service Center.

SAVE THESE INSTRUCTIONS

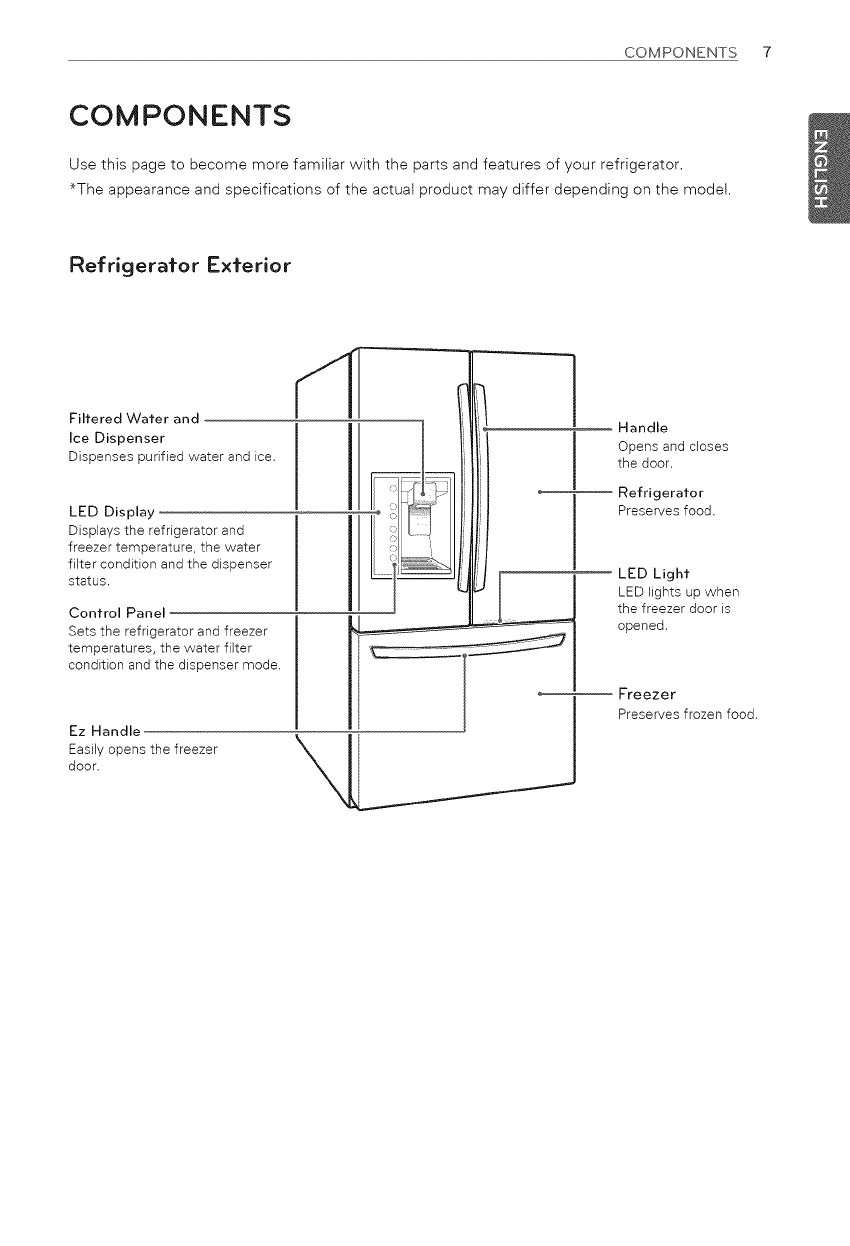

COMPONENTS 7

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

*The appearance and specifications of the actual product may differ depending on the model.

Refrigerafor Exferior

Filtered Water and

Ice Dispenser

Dispenses purified water and ice.

LED Display

Displays the refrigerator and

freezer temperature, the water

filter condition and the dispenser

status.

Control Panel

Sets the refrigerator and freezer

temperatures, the water filter

condition and the dispenser mode.

Ez Handle

EasiJy opens the freezer

door.

Handle

Opens and doses

the door.

•Refrigerator

Preserves food.

LED Light

LED lights up when

the freezer door is

opened.

Freezer

Preserves frozen food.

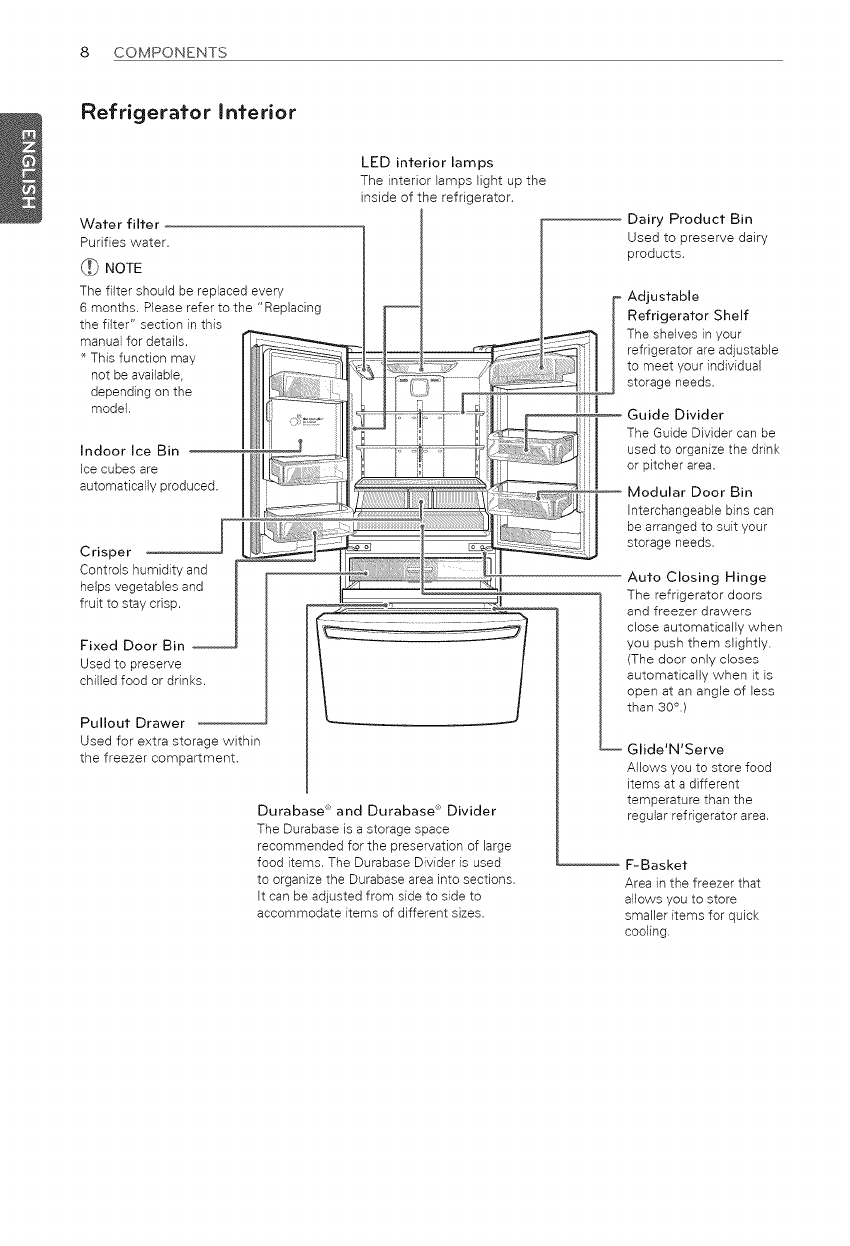

8 COMPONENTS

Refrigerafor Inferior

Water filter

Purifies water.

_!} NOTE

The filter should be replaced every

6 months, Please refer to the "Replacing

the filter" section in this

manual for details.

This function may

not be available,

depending on the

model.

LED interior lamps

The interior lamps light up the

inside of the refrigerator.

Indoor Ice Bin

Ice cubes are

automatically produced.

Crisper

Controls humidity and °

helps vegetab)es and

fruit to stay crisp.

Fixed Door Bin

Used to preserve

chilled food or drinks.

Pullout Drawer

Used for extra storage within

the freezer compartment.

Durabase '_ and Durabase '_)Divider

The Durabase Jsa storage space

recommended for the preservation of large

food items. The Durabase Divider is used

to organize the Durabase area into sections.

It can be adjusted from side to side to

accommodate items of different sizes.

Dairy Product Bin

Used to preserve dairy

products.

Adjustable

Refrigerator Shelf

The shelves in your

refrigerator are adjustable

to meet your individual

storage needs.

Guide Divider

The Guide Divider can be

used to organize the drink

or pitcher area.

Modular Door Bin

Interchangeable bins can

be arranged to suit your

storage needs.

Auto Closing Hinge

The refrigerator doors

and freezer drawers

close automatically when

you push them slightly.

(The door only closes

automatica[Iy when it is

open at an angle of less

than 30°.)

-- Glide'N'Serve

Allows you to store food

items at a different

temperature than the

regular refrigerator area.

F-Basket

Area in the freezer that

allows you to store

smaller items for quick

cooling.

INSTALLATION9

INSTALLATION

Insfallafion Overview

Please read the following installation instructions first after purchasing this product or transporting

it to another location.

Unpacking your

refrigerator

2 Choosing the proper

location

3 Disassembling/Assembling

........

4 Connecting the water

supply and water line

5 Leveling and Door

Alignment

_'.) NOTE

onnect to potable water supply only. }

10 INSTALLATION

Specificafions

The appearance and specifications listed in this manual may vary due to constant product

improvements.

Bottom4reezer refrigerator model LFXC24726 _ ................

Description French door refrigerator

Electrical requirements 115 VAC @ 60 Hz

Min. /Max. Water pressure 20 - 120 psi (138 - 827 kPa)

Dimensions 35 3/4" (W) X 30 7/8" (D) X 70 1/4" (H), 42 3/4" (D w/door open)

908 mm (W) X 784 mm (D) X 1782 mm (H), 1085 mm (D w/door open)

Net weight 304 Ib. (138 kg)

INSTALLATION 11

Unpacking Your Refrigerator

_ WARNING

Use two or more people to move and

install the refrigerator. Failure to do so

can result in back or other injury.

Your refrigerator is heavy. When moving

the refrigerator for cleaning or service,

be sure to protect the floor. Always pull

the refrigerator straight out when moving

it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage

could occur.

Keep flammable materials and vapors,

such as gasoline, away from the

refrigerator. Failure to do so can result in

fire, explosion, or death.

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any

warning-type labels, the model and serial number

label, or the Tech Sheet that is located under the

front of the refrigerator.

To remove any remaining tape or glue, rub the

area briskly with your thumb. Tape or glue residue

can also be easily removed by rubbing a small

amount of liquid dish soap over the adhesive with

your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the

surface of your refrigerator.

Refrigerator shelves are installed in the shipping

position. Please reinstall shelves according to

your individual storage needs.

Choosing the Proper Location

Select a place where a water supply can

be easily connected for the automatic

icemaker.

-_) NOTE

The water pressure must be 20 - 120 psi

or 138 - 827 kPa or 1.4 - 8.4 kgf/cm _.If

the refrigerator is installed in an area with

low water pressure (below 20 psi), you ca_

install a booster pump to compensate for

the low pressure.

The refrigerator should always be plugged

into its own individual properly grounded

electrical outlet rated for 115 Volts, 60 Hz,

AC only, and fused at 15 or 20 amperes.

This provides the best performance

and also prevents overloading house

wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit

serving only this appliance be provided.

-T_ WARNING

o reduce the risk of electric shock, do not

nstall the refrigerator in a wet or damp

area.

Flooring

To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed

floor. If required, adjust the leveling legs to

compensate for the unevenness of the floor.

The front should be slightly higher than the

rear to aid in door closing. Leveling legs can

be turned easily by tipping the cabinet slightly.

Turn the leveling legs to the left to raise the

unit or to the right to lower it. (See Leveling

and Door Alignment.)

'_(2 NOTE

Installing on carpeting, soft tile surfaces

a platform or weakly supported structur_

is not recommended i

12 INSTALLATION

Ambient Temperature

Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or high, cooling ability may be

adversely affected.

Measuring the Clearances

Too small of a distance from adjacent items

may result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the

refrigerator to open the doors, and at least

2 inches (5.08 cm) between the back of the

refrigerator and the wall.

24" (61 cm)

_- 2" (5.08 cm)

Removing/Assembling the

Refrigerator Door Handles

@ NoTE /

I When it is necessary to move the J

I refrigerator through a narrow opening,

I removing the doors is the recommended I

I procedure. If it is necessary to remove /

(,the handles, follow the directions below._

Removing the Handles

Loosen the set screws D with a s/s2 in.

Allen wrench and remove the handle.

Loosen the mounting fasteners D that

connect to the refrigerator door and handle

using a//4 in. Allen wrench, and remove

the mounting fasteners.

Assembling the Handles

1Assemble the mounting fasteners _ at

both ends of the handle using a/4 in.

Alien wrench.

2Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a s/s2in. Allen wrench.

INSTALLATION 13

Removing/Assembling fhe

Freezer Drawer Handle

Removing "the Handles

1Loosen the set screws D located on the

lower side of the handle with a 1/sin. Atlen

wrench and remove the handle.

Loosen the mounting fasteners _ that

connect to the

freezer drawer

and handle

using a//4 in.

Allen wrench,

and remove

the mounting

fasteners.

Assembling "the Handles

1Assemble the mounting fasteners D at

both ends of the handle using a//4 in. Atlen

wrench.

Place the handle on the door by fitting

the handle

footprints over

the mounting

fasteners and

tightening the

set screws

with a//g in.

Allen wrench.

Removing/Assembling fhe

Doors and Drawers

When it is necessary to move the refrigerator

through a narrow opening, removing the doors

is the recommended procedure.

F_ WARNING

•If your entrance door is too narrow for the

refrigerator to pass through, remove the

refrigerator doors and move the refrigerator

sideways through the doorway.

• Use two or more people to remove and

install the refrigerator doors. Failure to do

so can result in back or other injury.

• Disconnect the electrical supply to the

refrigerator before installing. Failure to do

so could result in serious injury or death.

• Do net put hands, feet or other objects into

the air vents or bottom of the refrigerator.

You may be injured or receive an electrical

shock.

• Be careful when handling the hinge and

stopper, to avoid injury.

° Remove food and bins before detaching the

doors and drawers.

r_ WARNING

When assembling or disassembling the

handle:

•Grasp the handle tightly to avoid dropping it.

•Do not swing the handle into nearby people

or animals.

•Make sure that the bracket hole of the

handle fits properly into the stopper bolt of

the door. Assemble the set screws to fix

the handle into place.

•Make sure that there is not a gap between

the door and handle after assembling the

handle.

\__J

14 INSTALLATION

Removing the Left Refrigerator Door

The water supply is connected to the

upper right part of the rear surface of the

refrigerator. Remove the ring in the joint

area. Hold the water supply connection

and gently push the Collet to detach the

water supply line as shown in O and _.

@NoTE

Detachment of the water supply line is

applicable only when detaching the left

refrigerator door.

Rotate the hinge lever counterclockwise

D. Lift the top hinge Q free of the hinge

lever latch.

Hinge Lever Latch

__ CAUTION 1

en lifting the hinge free of the latch, be

careful that the door does not fall forward.

Lift the door from the middle hinge pin and

remove the door.

2Remove the D screw from the hinge cover

at the top of the refrigerator. Lift the hook

(not visible), located at the bottom of the

front side of the cover 0 with a flat-head

screwdriver.

3 Remove the cover and pull out the tube •

Disconnect all wire harnesses Q.

INSTALLATION 15

Removing the Right Refrigerator

Door

Remove the top hinge cover screw O.

Lift the hook (not visible), located at the

bottom of the front side of the cover _,

with a flat-head screwdriver.

3Rotate the hinge lever D clockwise.

Lift the top hinge Q free of the hinge

lever latch.

-- Hinge Lever Latch

2Detach the wire harness D. 4

.._ CAUTION ....

When lifting the hinge free of the hinge I

lever latch, be careful that the door /

does not fall forward. J

Lift the door from the middle hinge pin and

remove the door.

CAUTION -/

Place the door on the floor, inside

.facing up on a non-scratching surface

16 INSTALLATION

Assembling "the Right Refrigerator Door

Install the right-side door first.

1Make sure that the plastic sleeve is

inserted in the bottom of the door. Lower

the door onto the middle hinge pin as

shown in the figure.

3Connect the wire harness D.

2Fit the hinge D over the hinge lever latch

and slot it into place. Rotate the lever

counterclockwise to secure the hinge.

4Make sure that the door-switch located

inside the cover is tightly connected.

Position the cover in its place. Insert and

tighten the cover screw Q.

, ............

j- \ _ ,

..... Hinge Lever Larch

INSTALLATION 17

Assembling "the Left Refrigerator

Door

Install the left refrigerator door after the right

door is installed.

1Make sure that the plastic sleeve is

inserted in the bottom of the door. Install

the refrigerator door onto the middle hinge.

4Push the water supply tube into the hole

on the top case and pull it through the

backptate.

Fit the hinge D over the hinge lever latch

and slot it into place. Rotate the lever

clockwise _ and fasten the hinge.

Hinge Lever Latch

:3 Connect all the wire harnesses.

Hold the water supply connection and

gently push in the coiiet to connect the

water supply line as shown in O and _.

insert the tube at least 5/8inch (15 mm)

into the connector. Assemble the clip to

the joint part for fastening.

co,, ....

Make sure that the door-switch located

inside the cover is tightly connected. Place

the cover O in its )osition and tighten the

cover screw _.

18 INSTALLATION

,_-_ NOTE

) Gently press the Collet and insert the

tube until only one line shows on the

tube.

(Correct)

(Incorrect)

2) Pull the tube to make sure that the

tube is tightly fastened and then insert

the clip.

Removing fhe Freezer Drawers

In the following figures, the Pullout Drawer

located above the freezer drawer is not shown

for clarity.

_-_ CAUTION -,

Use two or more people to remove and

install the freezer drawer. Failure to do so

can result in back or other injury.

Do not hold the handle when removing

or replacing the drawer. The handle may

come off and it could cause personal

injury.

Be careful of sharp hinges on both sides

of the drawer.

When you lay the drawer down, be

careful not to damage the floor.

Do not sit or stand on the freezer drawer.

• To prevent accidents, keep children

and pets away from the drawer. Do not

leave the drawer open. If the Durabase ®

storage bin is removed from the freezer

drawer, there is sufficient space for a

small child or pet to crawl inside.

(Durabase®)

INSTALLATION 19

1Pull the drawer open to full extension.

2Gently lift and pull out the ice bin.

3 Remove the screws from the rails at both

ends.

On the left rail, use a flat blade screwdriver

to push in on the tab to release the drawer

from the rail, as shown below. Once the

left side is loose, push the tab on the right

side with your finger to release the drawer.

Lift the front of the drawer up, then pull it

straight out.

4Grip both sides of the drawer and pull it up to

remove it from the rails.

_ CAUTION

Do not hold the handle when removing

or replacing the drawer. The handle may

come off, causing personal injury.

5 Hold both rails and push them in

simultaneously.

20 INSTALLATION

Assembling fhe Freezer Drawers

1Pull out both rails simultaneously, until both

rails are fully extended.

3Lower the door into its final position and

tighten the screws located on both sides.

2Grasp the drawer on each side and hook the

drawer supports into the rail tabs located on

both sides.

4Insert the drawer into the frame, and push

the drawer back into place until you hear a

click.

-_ CAUTION

Do not hold the handle when removing

or replacing the drawer. The handle

may come off, causing personal injury.

5 Insert the lower basket in the rail

assembly.

INSTALLATION 21

Connecting the Wafer Line

Before You Begin

This water line installation is not covered by the

refrigerator warranty. Follow these instructions

carefully to minimize the risk of expensive water

damage.

Water hammer (water banging in the pipes) in

house plumbing can cause damage to refrigerator

parts and can lead to water leakage or flooding.

Call a qualified plumber to correct water hammer

before installing the water supply line to the

refrigerator.

_----_ CAUTION

To prevent burns and product damange,

only connect the refrigerator water line to

a cold water supply.

If you use your refrigeretor before connecting

the water line, make sure the icemaker power

button is turned ofF.

S-_ CAUTION --,

Do not install the icemaker tubing in /

areas where temperatures fall below

freezing.

Water Pressure

The water pressure must be between 20 and

120 psi. If the refrigerator is installed in an area

with low water pressure (below 20 psi), you can

install a booster pump to compensate for the low

pressure.

If a reverse osmosis water filtration system is

connected to your cold water supply, this water

line installation is not covered by the refrigerator

warranty. Follow the instructions carefully to

minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (276-414 kPa or

2.8-4.2 kgf/cm 2, less than 2.0-3.0 sec. to fill a cup

of 7 oz or 198 cc capacity).

,-_ CAUTION

Wear eye protection during installation

to prevent injury.

If the water pressure from the reverse osmosis

system is less than 20 psi or 138 kPa or 1.4 kgf/

cm2 (takes more than 4.0 sec to fill a cup of 7 oz

or 198 cc capacity):

• Check to see if the sediment filter in

the reverse osmosis system is blocked.

Replace the filter if necessary.

• Allow the storage tank on the reverse

osmosis system to refill after heavy

usage.

• If the issue concerning water pressure

from reverse osmosis remains, call a

licensed, qualified plumber.

• Atl installations must be in accordance

with local plumbing code requirements.

What You Will Need

Copper Tubing, 1A in. outer diameter, to

connect the refrigerator to the water

supply. Be sure both ends of the tubing

are cut square. /,42

To determine how _"

much tubing you need:

measure the distance

from the water valve on the back of

the refrigerator to the water supply

pipe. Then, add 8 feet (2.4 m). Be sure

there is sufficient extra tubing (about 8

feet [2.4 m] coiled into 3 turns of about

10 in. [25 cm] diameter) to allow the

refrigerator to move out from the wan

after installation.

Powerdrill.

*1/2 in. or adjusfabme

wrench.

Ra_, blade and PhiHips

head screwdrivers.

Two 1/t in. outer

dlarne_er compression

nu_s and 2 ferrumes (sleeves) to connect the

copper tubing to the shutoff valve and

the refrigerator water valve.

22 INSTALLATION

•If your existing copper water line has a

flared fitting at the end, you will need

an adapter (available at plumbing supply

stores) to connect the water line to the

refrigerator OR you can cut off the flared

fitting with a tube

cutter and then use a

compression fitting.

•Shutoff valve !a

connect I'o the cold water line. The shutoff

valve should have a water inlet with a

minimum inside diameter of 5/32 in. at

the point of connection to the COLD

WATER LINE. Saddle-type shutoff valves

are included in many water supply kits.

Before purchasing,

make sure a saddle-

type valve complies

with your local

plumbing codes.

._ _) NOTE

A self piercing saddle type water valve

should not be used. #

Water Line Installation Instructions

'_ WARNING

When using any electrical device

(such as a power drill) during

installation, be sure the device is

battery powered, double insulated

or grounded in a manner that will

prevent the hazard of electric shock.

install the shutoff valve on the nearest

frequently used drinking water line.

1SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the

pressure on the line.

2CHOOSE THE VALVE LOCATION

Choose a location for

the valve that is easily (_(,,_

accessible. It is best to

connect into the side of a

vertical water pipe. When

it is necessary to connect

into a horizontal water

pipe, make the connection to the top or

side, rather than at the bottom, to avoid

drawing off any sediment from the water

pipe.

3DRILL THE HOLE FOR THE VALVE

Drill a _Ain. hole in

the water pipe using

a sharp bit. Remove

any burrs resulting

from drilling the hole

in the pipe. Be careful

not to allow water

to drain into the drill. Failure to drill a _Ain.

hole may result in reduced ice production

or smaller cubes.

ida) NOTE ...................................

The hookup line cannot be white, ptastic /

tubing. Licensed plumbers must use I

only copper tubing (NDA tubing #49595 I

or #49599) or Cross Link Polyethylene I

(PEX) tubing

INSTALLATION 23

4FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water

pipe with the pipe clamp.

Pipe Clamp_

Saddle-Type _ _ _Vertical Cold

Shutoff Valve _ I Water Pipe

r- _) NOTE

Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be

adhered to. Saddle valves are illegal

and their use is not permitted in

Massachusetts. Consult with your

licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE, + Do not overfighten the clamp

or you may crush the tubing.

Pipe Clamp

Clamp Screw

Washer

t Inlet End

ROUTE THE TUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or floor (behind the refrigerator or

adjacent base cabinet) as close to the wall

as possible.

_ C_ NOTE

Be sure there is sufficient extra tubing

(about 8 feet coiled into 3 turns of

about 10 in. diameter) to allow the

refrigerator to move out from the wall

after installation.

7 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing

and connect it to the shutoff valve. Make

sure the tubing is fully inserted into the valve.

Tighten the con- )ression nut securely.

Saddle-Type / Compression

Shutoff Valve +_ _ Nut

Packing Nu_m_+_t'__+ _r

Outlet Valve ule (sleeve)

S FLUSH OUT THE TUBING

Turn the main water supply on and flush out

the tubing until the water is clear.

Shut the water off at the __

water valve after about

one quart of water has

been flushed through the

tubing.

9 CONNECT THE TUBING TO THE

REFRIGERATOR

_ WARNING

Before making the connection to the

refrigerator, be sure that the refrigerator

power cord is not plugged into the wall

outlet.

a. Remove the plastic flexible cap from the

water valve.

b. Place the compression nut and ferrule

(sleeve) onto the end of the tubing as

shown.

c. Insert the end of the copper tubing into

the connection as far as possible. While

holding the tubing, tighten the fitting.

Tubing Clamp _ 1,4.in+ Tubing

Compression'_IIIIIAX It //Y_/t_tttl

Nut ....... +......

Ferrule _ _ ff

(sleeve) Refrigerator

..... :_1- Connection

24 INSTALLATION

10 TURN THE WATER ON AT THE SHUTOFF

VALVE

Tighten any connections that leak.

Turning On fhe Power

1Plug in the refrigerator.

CAUT,ON 1

Check to see if leaks occur at the water

line connections.

11 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it

does not vibrate against the back of the

refrigerator or against the waN. Push the

refrigerator back to the waN.

_-_ CAUTION

• Connect to a rated power outlet.

• Have a certified electrician check

the wait outlet and wiring for proper

grounding.

• Do not damage or cut off the ground

terminal of the power plug.

12 START THE ICEMAKER

Turn the icemaker on at the control panel.

The icemaker wilt not begin to operate

until it reaches its operating temperature

of 15°F (-9°C) or below. It wilt then begin

operation automatically if the icemaker has

been turned on.

INSTALLATION 25

Leveling and Door Alignmenf

Leveling

After installing, ptug the refrigerator's power

cord into a 3-prong grounded outlet and push

the refrigerator into the final position.

Your refrigerator has two front leveling legs--

one on the right and one on the left. Adjust the

legs to alter the tilt from front-to-back or side-

to-side. If your refrigerator seems unsteady, or

you want the doors to close more easily, adjust

the refrigerator's tilt using the instructions

below:

Door Alignment

Both the left and right refrigerator doors have

an adjustable nut, located on the bottom hinge,

to raise and lower them to align properly.

If the space between your doors is uneven,

follow the instructions below to align the doors

evenly:

Use the wrench (included with the Owner's

Manual) to turn the nut in the door hinge to

adjust the height. Turn it to the right to raise or

to the left to lower the height.

Turn the leveling leg to the left to raise

that side of the refrigerator or to the right

to lower it. It may take several turns of the

leveling leg to adjust the tilt of the

refrigerator.

_ NOTE

A flare nut wrench works best, but an

open-end wrench will suffice.

Do not over-tighten.

Open both doors again and check to make

sure that they close easily. If the doors do

not close easily, tilt the refrigerator slightly

more to the rear by turning both leveling

legs to the left. It may take several more

turns, and you should turn both leveling

legs the same amount.

26 HOWTO USE

HOW TO USE

Before use

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during

shipping.

tCAUTION

o not scratch the refrigerator with a sharp object or use a detergent that

contains alcohol, a flammable liquid or an abrasive when removing any tape

or adhesive from the refrigerator,.

Do not peel off the model or serial number label or the technical information

on the rear surface of the refrigerator.

_ @ NOTE

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Connect the power supply.

Check if the power supply is connected before use.

Read the "Turning On the Power" section.

Turn off the icemaker if the refrigerator is not yet connected to the

water supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator

into the grounded electric outlet.

* This is applicable only to certain models.

f-_ CAUTION

Running the automatic icemaker before connecting it to the water

supply may cause the refrigerator to malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in

it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

-_ CAUTION

utting food in the refrigerator before it has cooled could cause the

food to spoil, or a bad odor could linger inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature lowers.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive

tape from inside the refrigerator and open the refrigerator doors and the freezer

drawers for ventilation.

HOWTO USE 27

Confrol Panel

* Depending on the model, some of the following functions may not be available,

Control Panel Features

LED Display

Indicator

Press the Ice Type button to choose either cubed

or crushed ice. The cubed or crushed ice icon will

illuminate.

Refrigerator Temperature ![c

Indicates the set temperature of the refrigerator

compartment in Celsius (°C) or Fahrenheit (°F).

_o c

|l|l o

Freezer Temperature ....QU r

Indicates the set temperature of the freezer

compartment in Celsius (°C) or Fahrenheit (°F).

To change the temperature mode from °F to °C

(or vice versa) press and hold the Refrigerator

and Freezer temperature buttons simultaneously

for approximately five seconds. The temperature

indication on the display window switches

between Celsius and Fahrenheit.

NOTE

he displayed temperature is the target

emperature, and not the actual temperature

f the refrigerator. The actual refrigerator

emPerature depends on the food inside the

Control

Button

Fresh Air Filter L_:_J [L_=_ On some ]

models)

Power PWR

The Fresh Air Filter helps remove odors from the

refrigerator. The Fresh Air Filter has two settings,

Auto and Power(PWR). In Auto mode, the Fresh

Air Filter will cycle on and off in increments of ten

minutes on and one hundred ten minutes off. If

set to the Power(PWR) mode, the Fresh Air Filter

will stay on continuously for four hours, cycling on

and off in increments of ten minutes on and five

minutes off. After four hours, the Fresh Air Filter

will switch back to Auto mode.

• Press the Air Filter button once for

Power(PWR) mode.

• Press the Air Filter button again to switch

back to Auto mode.

28 HOWTO USE

Control Panel Features (continued)

@ @ %SW]Change Filter [ I

When the Change Filter icon turns on, the air

filter needs to be replaced. After replacing the air

filter, press and hold the Fresh Air Filter button for

three seconds to turn the icon light off. Changing

the air filter approximately every six months is

recommended.

Ice Plus "_

This function increases both ice making and

freezing capabilities.

* When you touch the Ice Plus button, the

graphic will illuminate in the display and

will continue for 24 hours. The function will

automatically shut off after 24 hours.

* You can stop this function manually by touching

the button one more time.

IceOn

Ice On/Off C_

Ice Off

Press the Ice On/Off button for three seconds to

turn the icemaker on/off.

Light -b-

When you press the Light button, the dispenser

light will turn on and the indicator will appear on

the LED display.

Door Alarm 4))

• When power is connected to the refrigerator,

the door alarm is initially set to ON. When you

press the Door Alarm button, the display will

change to OFF and the Door Alarm function will

deactivate.

• When either the refrigerator or the freezer

door is left open for more than 60 seconds, the

alarm tone will sound to let you know that the

door is open.

• When you close the door, the door alarm will

stop.

Lock nEZ:]

The Lock function disables every other button

on the display.

• When power is initially connected to the

refrigerator, the Lock function is off.

• If you want to activate the Lock function to lock

other buttons, press and hold the Lock button

for three seconds or more. The Lock icon will

display and the Lock function is now enabled.

• To disable the Lock function, press and hold the

Lock button for approximately three seconds.

Power Saving Mode

• When the refrigerator is in the Power Saving

Mode, the display will remain off until a door

is opened or a button is pressed. Once on, the

display will remain on for 20 seconds.

Change Water Filter _°_°_

When the water filter indicator turns on, you

need to change the water filter. After changing

the water filter, press and hold the Change Filter

button for three seconds to turn the indicator

light off. You need to change the water filter

approximately every six months.

r _ CAUTION

Display Mode (For Store Use Only)

The Display Mode disables all cooling in the

refrigerator and freezer sections to conserve

energy while on display in a retail store, When

activated OFF will display on the control panel

and the display will remain on for 20 seconds.

To deactivate /activate:

With either refrigerator door opened, press

and hold the Refrigerator and Ice Plus buttons

at the same time for five seconds. The control

panel will beep and the temperature settings

will display to confirm that Display Mode

is deactivated. Use the same procedure to

activate the Display Mode.

HOWTO USE 29

In-Door ice Bin

* Depending on the model, some of the

following functions may not be available.

_"_ CAUTION

,Keep hands and tools out of the ice

compartment door and dispenser chute.

Failure to do so may result in damage or

personal injury.

,The icemaker will stop producing ice when

the in-door ice bin is full. If you need more

ice, empty the ice bin into the extra ice bin

in the freezer compartment. During use,

the ice can become uneven causing the

icemaker to misread the amount of ice

cubes and stop producing ice. Shaking the

ice bin to level the ice within it can reduce

this problem.

,Storing cans or other items in the ice bin wi

damage the icemaker.

,Keep the ice compartment door closed

tightly. If the ice compartment door is not

closed tightly, the cold air in the ice bin will

freeze food in the refrigerator compartment.

This could also cause the icemaker to stop

producing ice.

,If the Ice On/Off button on the display is

set to OFF for an extended period of time,

the ice compartment will gradually warm

up to the temperature of the refrigerator

compartment. To prevent ice cubes from

melting and leaking from the dispenser,

ALWAYS empty the ice bin when the

icemaker is set to OFF for more than a few

hours.

2To remove the in-door ice bin, grip the

front handle, slightly lift the lower part,

and slowly pull out the bin as shown.

Assembling "the In-Door Ice Bin

1Carefully insert the in-door ice bin while

slightly slanting it to avoid contact with the

icemaker.

2Avoid touching the auto shutoff (feeler

arm) when replacing the ice bin. See the

labet on the ice compartment door for

details.

Det'aching "the In-Door Ice Bin

1Gently pull the handle to open the ice

compartment.

_ CAUTION

en handling the ice bin,

eep hands away from the

emaker tray area to avoid

ersonal injury.

30 HOWTO USE

Automatic Icemaker

* Depending on the model, some of the

following functions may not be available.

Ice is made in the automatic icemaker and sent

to the dispenser. The icemaker will produce

70-182 cubes in a 24-hour period, depending

on freezer compartment temperature, room

temperature, number of door openings and

other operating conditions.

•It takes about 12 to 24 hours for a newly

installed refrigerator to begin making ice. Wait

72 hours for full ice production to occur.

•Ice making stops when the in-door ice bin

is full. When full, the in-door ice bin holds

approximately 6 to 8 (12-16 oz) glasses of ice.

•Foreign substances or frost on the auto shutoff

(feeler arm) can interrupt ice production. Make

sure the feeler arm is clean at all times for

proper operation.

•To increase ice production, use the Ice Plus

function. The function increases both ice

making and freezing capabilities.

-_ WARNING

Personal Injury Hazard

DO NOT place fingers or hands on the

automatic ice making mechanism while the

refrigerator is plugged in

Jcemaker

Auto shutoff (feeler arm)

Turning the Automatic Icemaker

On or Off

To turn the automatic icemaker On/Off, press

and hold the Ice On/Off button on the control

panel for three seconds.

HOWTO USE 31

Automatic Icemaker

(continued)

-_ CAUTION

• The first ice and water dispensed may

include particles or odor from the water

supply line or the water tank.

• Throw away the first few batches of ice.

This is also necessary if the refrigerator has

not been used for a long time.

• Never store beverage cans or other items in

the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

• If discolored ice is dispensed, check the

water filter and water supply. If the problem

continues, contact a qualified service

center. Do not use the ice or water until the

problem is corrected.

• Keep children away from the dispenser.

Children may play with or damage the

controls.

• The ice passage may become blocked with

frost if only crushed ice is used. Remove the

frost that accumulates by removing the ice

bin and clearing the passage with a rubber

spatula. Dispensing cubed ice can also help

prevent frost buildup.

° Never use thin crystal glass or crockery to

collect ice. Such containers may chip or

break resulting in glass fragments in the ice.

° Dispense ice into a glass before filling it

with water or other beverages. Splashing

may occur if ice is dispensed into a glass

that already contains liquid.

° Never use a glass that is exceptionally

narrow or deep. Ice may jam in the ice

passage and refrigerator performance may

be affected.

° Keep the glass at a proper distance from

the ice outlet. A glass held too close to the

outlet may prevent ice from dispensing.

° To avoid personal injury, keep hands out of

the ice door and passage.

° Never remove the dispenser cover.

° If ice or water dispenses unexpectedly, turn

off the water supply and contact a qualified

service center.

When You Should Turn the

Icemaker Off

* When the water supply will be shut off

for several hours.

* When the ice bin is removed for more

than one or two minutes.

* When the refrigerator will not be used

for several days.

NOTE -,

he ice bin should be emptied when the

ce On/Off button is turned to the OFF I

Normal Sounds You May Hear

* The icemaker water valve wilt buzz as

the icemaker fills with water. If the

power button has been turned on, the

ice maker wilt buzz even if it has not yet

been hooked up to water. To stop the

buzzing, press the power button to turn

it off.

'"@ NOTE

Keeping the power turned on to the

icemaker before the water line is

connected can damage the icemaker.

° You will hear the sound of cubes

dropping into the bin and water running

in the pipes as the icemaker refills.

Preparing For Vacation

Set the icemaker power button to OFF and

shut off the water supply to the refrigerator.

@NOTE }

The ice bin should be emptied any time

the Ice On/Off button is turned off.

If the ambient temperature will drop below

freezing, have a qualified technician drain

the water supply system to prevent serious

property damage due to flooding caused by

ruptured water lines or connections.

32 HOWTO USE

Ice and Wafer Dispenser

Depending on the model, some of the

following functions may not be available.

_ CAUTION

Keep children away from the dispenser.

Children may play with or damage the

controls.

Dispenser

Using the Dispenser

To dispense cold water, push on the

water switch with a glass.

To dispense ice, push on the ice switch

with a glass.

_ @ NOTE

If discolored ice is dispensed, check

the water filter and water suppty. If the

problem continues, contact a qualified

service center. Do not use the ice or

water until the problem is corrected.

The dispenser will not operate when

either of the refrigerator doors are open.

If dispensing water or ice into a container

with a small opening, place it as close to

the dispenser as possible.

Some dripping may occur after

dispensing. Hold your cup beneath

the dispenser for a few seconds after

dispensing to catch all of the drops.

Incorrect Way €orrect WaY

Water

Ice

CAUTION

row away the first few batches of ice

about 24 cubes). This is also necessary

f the refrigerator has not been used for

Locking the Dispenser

Press and hold the Alarm and Lock buttons

simultaneously for three seconds to lock the

dispenser and alt the control panel functions.

Follow the same instructions to unlock.

Cleaning the Dispenser Stand

1Grip the stand with both hands and pull it

out.

2Wipe out dirty areas with a clean cloth.

HOWTO USE 33

Sforing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

y Product Bin

Vegetable storage

(Crisper)

Preserves vegetables and

fruit.

Ice storage bin

If a large amount of ice is

needed, transfer the ice in

the in-door ice bin to the ice

storage bin,

Durabase ¢

Largest storage space in

the freezer,

Adjustable refrigerator shelf

Adjustable shelves to meet

your individual storage

needs.

Modular door bin

Store drinks such as

juice and soda,as well as

condiments,saladdressings

andother food items.

I Glide'N'Serve

Providesstoragespacewith a

variabletemperature control that

keepsthe compartment at a different

temperaturethan the refrigerator.

It isa convenientplaceto store

sandwichesor meat to be cooked.

,-_ CAUTION

• Do not store food with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

• Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

packaging should be wiped down to prevent adjacent foods from being contaminated.

• If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of

vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a

clean cloth or a paper towel.

• If the refrigerator door or freezer drawer is opened or closed too often, warm air may penetrate the

refrigerator and raise its temperature. It can also increase the running costs of the unit.

• Do not overfill or pack items tee tightly into door bins. Doing so may cause damage to the bin or

personal injury if items are removed with excessive force.

• Do not store glass bottles in the pantry. If they are frozen, they can break and cause personal injury.

/_ NOTE

If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the

freezer.

• If you are leaving the refrigerator turned off for an extended period of time, remove all food and

unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing

in the refrigerator.

34 HOWTO USE

Food Storage Tips

The following tips may not be applicable

depending on the model.

Wrap or store food in the refrigerator in airtight

and moisture-proof material unless otherwise

noted. This prevents food odor and taste transfer

throughout the refrigerator. For dated products,

check date code to ensure freshness.

Food How to

Butter or Keep opened butter in a covered

Margarine dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese Store in the original wrapping

until you are ready to use it.

Once opened, rewrap tightly in

plastic wrap or aluminum foil.

Milk Wipe milk cartons. For coldest

milk, place containers on

interior shelf.

Eggs Store in original carton on

interior shelf, not on door shelf.

Fruit Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store

in a completely closed paper

bag on a refrigerator shelf.

Leafy

Vegetables

with skins

(carrots,

peppers)

Fish

Remove store wrapping and

trim or tear off bruised and

discolored areas. Wash in cold

water and drain. Place in plastic

bag or plastic container and

store in crisper.

Place in plastic bags or plastic

container and store in crisper.

Store fresh fish and shellfish

in the freezer section if they

are not being consumed the

same day of purchase. It is

recommended to consume

fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil, or store in

plastic containers with tight lids.

Storing Frozen Food

d!)NOTE "/

Check a freezer guide or a reliable cookbook J

for further information about preparing foodJ

Freezing

Your freezer will not quick-freeze a large

quantity of food. Do not put more unfrozen

food into the freezer than will freeze within

24 hours (no more than 2 to 3 Ibs. of food per

cubic foot of freezer space). Leave enough

space in the freezer for air to circulate around

packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality

and type of food, the type of packaging or wrap

used (how airtight and moisture-proof) and

the storage temperature. Ice crystals inside a

sealed package are normal. This simply means

that moisture in the food and air inside the

package have condensed, creating ice crystals.

NOTE

Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze.

Cooling hot foods before freezing saves

HOWTO USE 35

Storing Frozen Food (continued)

Packaging

Successful freezing depends on correct

packaging. When you close and seal the

package, it must not altow air or moisture in or

out. If it does, you could have food odor and

taste transfer throughout the refrigerator and

could also dry out frozen food.

Packaging recommendations:

Rigid plastic containers with tight-fitting

lids

Straight-sided canning/freezing jars

Heavy-duty aluminum foil

Plastic-coated paper

Non-permeable ptastic wraps

Specified freezer-grade self-sealing plastic

bags

Follow package or container instructions for

proper freezing methods.

Humidify Confrolled Crisper

and Glide'N°Serve

Humidify Cont"rolled Crisper

* Depending on the model, some of the

following functions may not be available.

The crispers provide fresher tasting fruit

and vegetables by letting you easily control

humidity inside the drawer.

You can control the amount of humidity in

the moisture-sealed crispers by adjusting the

control to any setting between Vegetable and

Fruit.

Vegetable keeps moist air in the

crisper for best storage of fresh, leafy

vegetables.

Fruit lets moist air out of the crisper for

best storage of fruit.

Do not use

Bread wrappers

Non-polyethylene plastic containers

Containers without tight lids

Wax paper or wax-coated freezer wrap

Thin, semi-permeable wrap GlJde'N'Serve

The Glide'N'Serve provides storage space

with a variable temperature control that can

keep the compartment at a slightly different

temperature than the refrigerator section. This

drawer can be used for large party trays, dell

items and beverages. (This drawer should

not be used for vegetables that require high

humidity.)

Press the Select button to choose between

Produce (Cold), Dell (Colder) and Meat

(Coldest).

36 HOWTO USE

Defaching and Assembling fhe

Sforage Bins

Glide'N'Serve and Humidi,,y

Con'trolled Crisper

To remove the Humidity Controlled Crisper and

the Glide'N'Server, pull out the Crisper D and

Glide'N'Server _ to full extension, lift the front

up, and pull straight out.

To install, slightly tilt up the front, insert the

drawer into the frame and push it back into

place.

To Remove "the Glass

(Pantry drawer not shown for clarity)

Lift up the glass under the crisper cover, and

pull up and out.

Door Bins

The door bins are removable for easy cleaning

and adjustment.

1To remove the bin, simply lift the bin up and

pull straight out.

2To replace the bin, slide it in above the

desired support and push down until it snaps

into place.

_-{_ NOTE "/

/ Some bins may vary in appearance and

will only fit in one location

s_ CAUTION

• Do not apply excessive force while

detaching or assembling the storage

bins.

• Do not use the dishwasher to clean

the storage bins and shelves.

• Regularly detach and wash the

storage bins and shelves; they can

become easily contaminated by the

food.

HOWTO USE 37

Adjusting the Refrigerator

Shelves

The shelves in your refrigerator are adjustable

to meet your individual storage needs. Your

model may have glass or wire shelves.

Adjusting the shelves to fit items of different

heights will make finding the exact item you

want easier. Doing so will also reduce the

amount of time the refrigerator door is open

which will save energy.

Detaching the Shelf

Tilt up the front of the shelf and lift it straight

up. Pull the shelf out.

Using the Folding Shelf

You can store taller items, such as a gallon

container or bottles, by simply pushing the

front hatf of the shelf underneath the back half

of the shelf. Pull the front of the shelf toward

you to return to a full shelf.

_--_ CAUTION

.Do not clean glass shelves with

warm water while they are cold.

Shelves may break if exposed to

sudden temperature changes or

impact.

*Glass shelves are heavy. Use special

care when removing them.

Assembling the Shelf

Tilt the front of the shelf up and guide the shelf

hooks into the slots at a desired height. Then,

lower the front of the shelf so that the hooks

drop into the slots.

_,----_ CAUTION

Make sure that shelves are level from

one side to the other. Failure to do so

may result in the shelf failing or spilling

food.

38 MAINTENANCE

MAINTENANCE

Cleaning

• Both the refrigerator and freezer sections defrost automatically; however, clean both

sections about once a month to prevent odors.

Wipe up spills immediately.

Always unplug the refrigerator before cleaning.

General Cbaning Tips

Unplug refrigerator or disconnect power.

Remove all removable parts, such as

shelves, crispers, etc.

Use a clean sponge or soft cloth and a

mild detergent in warm water. Do not

use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces

thoroughly.

Exterior

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic

parts. Wax painted metal surfaces at least

twice a year using appliance wax (or auto paste

wax). Apply wax with a clean, soft cloth.

For products with a stainless steet exterior,

use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft

cloth.

CAUTION

o not use a rough clothorsponge

when cleaningthe interiorand exteriol

ofthe refrigerator,

Do not placeyour hand on the bottom

surfaceof the refrigeratorwhen

openingand closing.

Inside Wails (allow freezer to warm

up so the cloth will not stick)

To help remove odors, you can wash the inside

of the refrigerator with a mixture of baking

soda and warm water. Mix 2 tablespoons of

baking soda to 1 quart of water (26 g soda

to 1 liter water). Be sure the baking soda is

completely dissolved so it does not scratch the

surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use cleaning

waxes, concentrated detergents, bleaches,

or cleaners containing petroleum on plastic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use glass

cleaners, abrasive cleansers, or flammable

fluids. These can scratch or damage the

material.

Condenser Coils

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

/_ WARNING '/

se non-flammable cleaner, Failure to do I

o can result in fire, explosion, or death,

MAINTENANCE 39

Replacing the Fresh Air Filter

It is recommended that you replace the air filter:

• Approximately every six months.

• When the CHANGE FILTER light turns on.

Replacing fhe Wafer Filfer

It is recommended that you replace the water

filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output

decreases.

• When the ice cubes are smaller than normal.

Remove the Old Filter

Turn the filter cover to the left to detach

it from the refrigerator waN. The filter is

located on the inside of the filter cover.

Remove the filter from the cover and

replace it with a new filter. Before Replacing the Water Filter:

If the top sheif, located below the water filter,

is in the highest position, it will need to be

removed prior to replacing the water filter.

To remove any shelf--Tilt up the front of the

shelf D and lift it _. Pull the shelf out.

2Install a NewAir Filter,

Place the new filter inside of the cover

with the side that says "Front" facing

outward. Turn the filter cover to the right

to attach it to the refrigerator wail.

After changing the filter, push and hold the

Air Filter button for three seconds to reset

the filter sensor.

40 MAINTENANCE

Remove the old water filter.

Lower or remove [ f\

the top left shelf to

aliow the water filter

to rotate all the way ........

down.

Press the push button

to open the water [.

filter cover.

NOTE: Replacing the water filter causes a small

amount of water (around 1 oz. or 25 cc) to drain.

Place a cup under the front end of the water

filter cover to collect any leaking water. Hold the

water filter uprights once it is removed_ to prevent

any remaining water from spilling out

of the water filter.

Pull the water filter

downward and pull

out. Make sure to

rotate the filter down

completely before

pulling it out of the

manifold hole.

2Replace with a new water filter.

Take the new water filter out of its packing

and remove the protective cover from the

o-rings. With

the water

filter tabs in

the horizontal

position, push

the new water

filter into the

manifold hole

until it stops.

After the water filter is replaced,

dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove

trapped air and contaminants from the

system. Do not dispense the entire 2.5

galton amount continuously. Depress and

release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

Water Filter Bypass Plug

Keep the water

filter bypass plug.

You MUST use

the water filter

bypass plug when a

replacement water

filter cartridge is not

available.

Water Filter

Bypass Plug

I_N CAUTION

OT operaterefrigeratorwithout

ater filter orwater filter plug installed. ]

sT'_

"_k_ NOTE --,

• To purchase a replacement water filter:

Visit your local dealer or distributor

Web: Find Parts & Accessories from

Support section of Ig.com

Ball: 1-800-243-0000 (USA)

1-888-542-2623 (Canada)

Part number of the replacement water

filter: ADQ36006101

Rotate the water filter up

into position and close

the cover. The cover

wilt click when closed

correctly.

MAINTENANCE 41

Performance Data Sheet

Model: LGADQ36006101-S Use ReplacementCartridge:ADQ36006101

The concentration of the indicated substances in water entering the system was reduced to a

concentration less than or equal to the permissible limit for water leaving the system as specified in

NSF/ANSI Standard 42 and Standard 53.

System tested and certified by NSF International against NSF/ANSt Standard 42

and Standard 53 for the reduction of substances listed below.

i Contaminant

Reduction Average

Influent

Average

NSF specified Avg % Product Water

Challenge Reduction

Concentration Concentration

Max

Permissible NSF

Reduction

Product Water

Concentration equirements

Chlorine Taste and

Odor

Nominal Particulate

Class I,, _>05 to <

I 0 _lrr_

Asbestos

Atrazine

i Benzene

Carbofuran

i Lindane

P Dichlorobenzene

i Toxapbene

2,4D

Lead pH @65

Lead pH @85

i Mercury @pH 65

Mercury @pH 85

Cyst _

21 mg/L

5,600,000 pts/

190 MFL

00094 mg/L

0016 mg/L

008 mg/L

0002 mg/L

022 mg/L

0014 mg/b

0213 mg/L

0 150 mg/b

0150 mg/L

00059 mg/L

00058 mg/L

120,000

cysts/L

20 mg/L ± 10% 972% 006 mg/L

At least 10,000 987% 73,000 pts/m}

partic}es/mL

107to 10s MFL;

fibers greater

thai] 10 pm in

length

N/A _>50%

N/A _>85%

>99% < 1MLF

0009 mg/L 947% 000005 mg/L

± 10%

0015 mg/L 967% 0005 mg/L

± 10%

008 mg/L 981% 0002 mg/L

± 10%

0002 mg/L 982% 000004 mg/L

± 10%

0225 mg/L 998% 00006 mg/L

± 10%

0015 mg/L 93% 0001 mg/L

± 10%

0210 mg/L 952% 0009 mg/L

± 10%

015 mg/L >993% 0001 mg/L

± 10%

015 mg/L >993% 0001 mg/L

± 10%

0006 mg/L 961 00002 mg/L

± 10%

0006 mg/L 901 00006 mg/L

± 10%

Minimum 50,000

cysts/L 9999% <1 cyst/L

NSF Test

Report

J00049247

J00049282

x Based on the use of Cryptosporidium parvum oocysts.

0003 mg/L N/A J 00049293

0005 mg/L N/A J 00049300

004 mg/L N/A J 00049294

00002 mg/L N/A J 00051975

0075mg/L N/A J 00049298

00O3mg/L N/A J 00049302

007 mg/L N/A J 00049284

0010 mg/L N/A J 00051974

0010mg/L N/A J 00049277

00O2mg/b N/A J 00053886

0002 mg/L N/A J 00051972

N/A _ 9995% J 00049281

N/A _>99% J 0004928

42 MAINTENANCE

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 Ipm)

Water Supply Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

It is essential that the manufacturer's

recommended installation, maintenance and

filter replacement requirements be carried out

for the product to perform as advertised.

@ NOTE

While the testing was performed

under standard laboratory conditions,

actual performance may vary.

Replacement Cartridge: ADQ36006101

For estimated costs of replacement etements

piease call USA 1-800-243-0000

CANADA 1-888-LGCANADA (24 hours per

day/7 days per week) or visit our website at

www.lg.com

3M is a trademark of 3M Company.

NSF is a trademark of NSF international.

F_ WARNING

To reduce the risk associated with choking:

• Do not allow children under 3 years of age

to have access to small parts during the

installation of this product.

To reduce the risk associated with the

ingestion of contaminants:

• Do not use with water that is

microbiologicaliy unsafe or of unknown

quality without adequate disinfection before

or after the system. Systems certified for

cyst reduction may be used on disinfected

water that may contain filterable cysts. EPA

Establishment # 070595-MEX-001

r---_ CAUTION

To reduce the risk associated with property

damage due to water leakage:

• Read and follow Use Instructions before

installation and use of this system.

• Installation and use MUST comply with all

state and local plumbing codes.

• Do not install if water pressure exceeds

120 psi (827 kPa). If your water pressure

exceeds 80 psi, you must install a

pressure limiting valve. Contact a plumbing

professional if you are uncertain how to

check your water pressure.

• Do not install where water hammer

conditions may occur. If water hammer

conditions exist you must install a water

hammer arrester. Contact a plumbing

professional if you are uncertain how to

check for this condition.

• Do not install on hot water supply lines.

The maximum operating water temperature

of this filter system is 100°F (37.8°C).

• Protect filter from freezing. Drain filter when

temperatures drop below 40°F (4.4°C).

• The disposable filter cartridge MUST be

replaced every 6 months, at the rated

capacity or if a noticeable reduction in flow

rate occurs.

• Protect from freezing, remove filter

cartridge when temperatures are expected

to drop below 33 ° F.

• Do not install systems in areas where

ambient temperatures may go above

110° F (43.3° C).

• Where a backflow prevention device is

installed on a water system, a device

for controlling pressure due to thermal

expansion must be installed.

• Ensure all tubing and fittings are secure and

free of leaks.

Manufactured for LG@Electronics by CUNO

Incorporated 400 Research Parkway Meriden,

CT 06450 U.S.A Worldwide: 203-237-5541

www,cuno,com

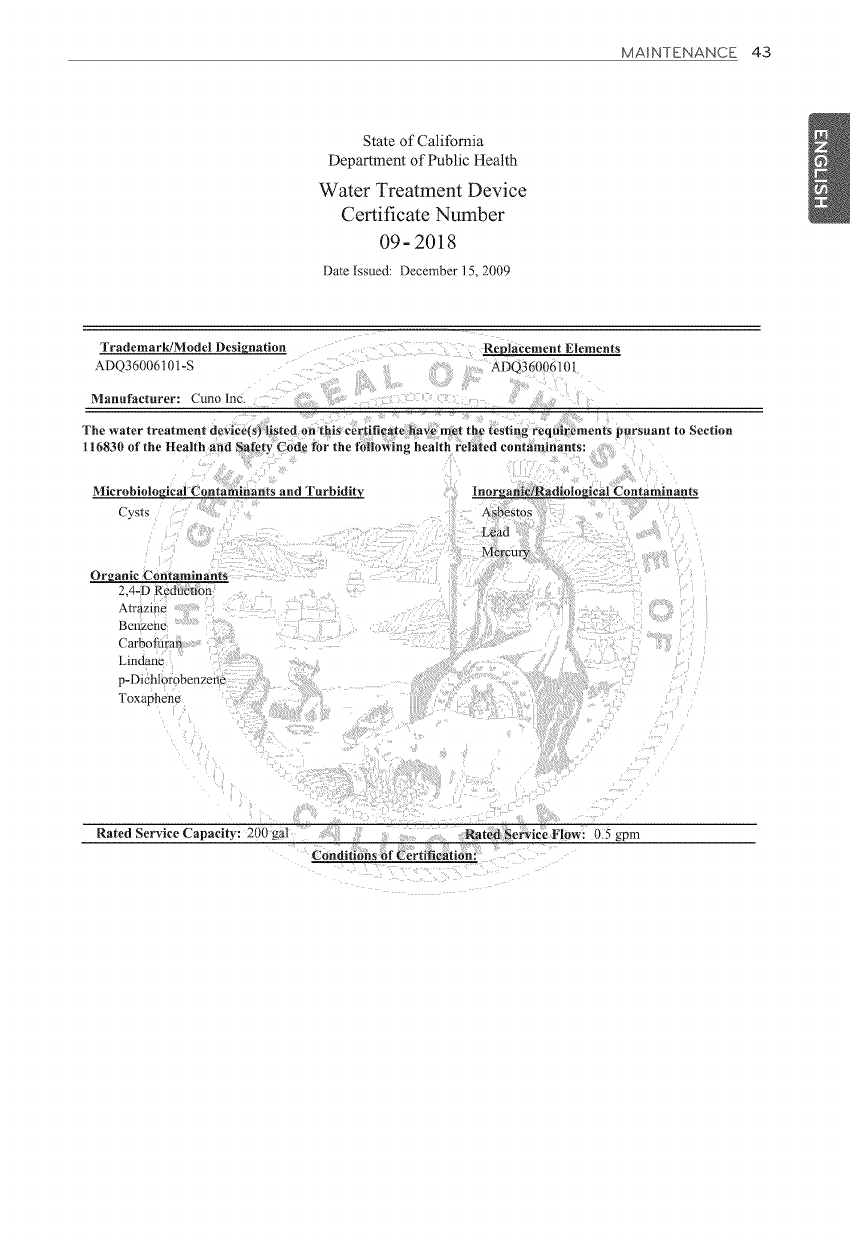

MAgNTENANCE 43

State of California

Depamnent of Public Health

Water Treatment Device

Certificate Number

09- 2018

Date Issued: December 15, 2009

Trademark/Model Designation

ADQ36006101-S

R_acement Elements

ADQ36006101

Manufacturer: Cuno Inc.

The water treatment device(s) listed on this certificate have met the _esting requirements pursuant to section

116830 of the Health and gaiety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity Inor_anie/Radinlogical Contaminants

Cysls

Oroauic Contaminants

Bellzenc

Carbofura_

Lindane

p-Dichlorobenzene

Toxaphene

Rated Service Capacity: 200 ga/ Rated Se_ice Flow: 0.5 gpm

44 SMART DIAGNOSIS

SMART DIAGNOSIS TM

Should you experience any problems with

your refrigerator, it has the capability of

transmitting data via your telephone to the LG

service center. This gives you the capability of

speaking directly to our trained specialists. The

specialist records the data transmitted from

your machine and uses it to analyze the issue,

providing a fast and effective diagnosis.

If you experience problems with your

refrigerator, can 1-800-243-0000. Only use the

Smart Diagnosis TM feature when instructed

to do so by the LG call center agent. The

transmission sounds that you will hear are

normal and sound similar to a fax machine.

Smart Diagnosis TM cannot be activated unless

your refrigerator is connected to power. If

your refrigerator is unable to turn on, then

troubleshooting must be done without using

Smart Diagnosis TM.

Using Smart Diagnosis TM

First, can 1-800-243-0000. Only use the Smart

Diagnosis TM feature when instructed to do so

by the LG call center agent.

1 Lock the display. To lock the display,

press and hold the Lock button for three

seconds. (If the display has been locked

for over five minutes, you must deactivate

the lock and then reactivate it.)

2 Open the right refrigerator door.

Hold the mouthpiece of your phone in

front of the speaker

that is located on

the right hinge of

the refrigerator

when instructed to

do so by the call

center.

Press and hold the Freezer Temperature

button for three seconds while continuing

to hold your

phone to the

speaker.

After you hear three beeps, release the

Freezer Temperature button.

Keep the phone in place until the tone

transmission has finished. The display will

count down the time. Once the countdown

is over and the tones have stopped,

resume your conversation with the

specialist, who will then be abte to assist

you in using the information transmitted

for analysis.

NOTE

For best results, do not move the phone

while the tones are being transmitted.

If the call center agent is not able to get

an accurate recording of. the data, you

,-C_ NOTE

• Call quality differences by region may

affect the function.

• Use the home telephone for better

communication performance, resulting

in better service.

• Bad call quality may result in poor data

transmission from your phone to the

machine, which could cause Smart

Diagnosis TM to malfunction.

TROUBLESHOOTING 45

TROUBLESHOOTING

Review the Troubleshooting section before calling for service; doing so will save you both time

and money.

Refrigerator and The refrigerator control is set to Turn the control ON. Refer to the Setting the

Freezer section OFF (some models). Controls section for proper temperature settings.

are not cooling.

Refrigerator is in the defrost

cycle.

Refrigerator was recently

installed.

Refrigerator was recently

relocated.

Cooling System Refrigerator is replacing an

runs too much. older model.

Refrigerator was recently

plugged in or power restored.

Door opened often or a large

amount of food /hot food was

added.

Doors are not closed

completely.

Refrigerator is installed in a hot

location.

Condenser /back cover is

clogged.

i During the defrost cycle, the temperature of

i each compartment may rise slightly. Wait 30

minutes and confirm the proper temperature

i has been restored once the defrost cycle has

i completed.

i lt may take up to 24 hours for each compartment

i to reach the desired temperature.

i If the refrigerator was stored for a long period of

i time or moved on its side, it is necessary for the

i refrigerator to stand upright for 24 hours before

i connecting it to power.

Modern refrigerators require more operating

time but use less energy due to more efficient

technology.

iThe refrigerator will take up to 24 hours to cool

i completely.

i Adding food and opening the door warms the

i refrigerator, requiring the compressor to run

i longer in order to cool the refrigerator back

down. In order to conserve energy, try to get

i everything you need out of the refrigerator

i at once, keep food organized so it is easy to

ifind, and close the door as soon as the food is

removed. (Refer to the Food Storage Guide.)

i Firmly push the doors shut. If they will not

shut all the way, see the Doors will not

i close completely or pop open section in

iTroubleshooting.

iThe compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to

80% of the time. Under warmer conditions,

expect it to run even more often. The refrigerator

i should not be operated above 1IO°F.

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

i remove the panel covering the condenser coil

area.

46 TROUBLESHOOTING

Refrigerator or Refrigerator was recently It may take up to 24 hours for each compartment

Freezer section is installed, to reach the desired temperature.

too warm.

Air vents are blocked. Rearrange items to allow air to flow throughout

the compartment. Refer to the Airflow diagram in

the Using Your Refrigerator section.

Doors are opened often or for

long periods of time.

Unit is installed in a hot location.

A large amount of food or

hot food was added to either

compartment.

Doors not closed correctly.

Temperature control is not set

correctly.

Defrost cycle has recently

completed.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

The refrigerator should not be operated in

temperatures above 11OF.

Adding food warms the compartment requiring

the cooling system to run. Allowing hot food to

cool to room temperature before putting it in the

refrigerator will reduce this effect.

See the Doors will not close correctly or pop

open section in Troubleshooting.

If the temperature is too warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes

and confirm the proper temperature has been

restored once the defrost cycle has completed.

TROUBLESHOOTING 47

Interior moisture

buildup.

Food is freezing

in the refrigerator

compartment.

Frost or ice

crystals form

on frozen food

(outside of

package).

Doors are opened often or for

long periods of time.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To

lessen the effect, reduce the frequency and

duration of door openings.

Doors not closed correctly. See the Doors will not close correctly section in

the Troubleshooting section.

Weather is humid.

Defrost cycle recently

completed.

Food is not packaged correctly.

Food with high water content

was placed near an air vent.

Refrigerator temperature control

is set incorrectly.

Refrigerator is installed in a cold

location.

Door is opened frequently or for

long periods of time.

Door is not closing properly.

Refrigerator or Incorrect temperature control

Freezer section is settings.

too cold.

Humid weather allows additional moisture

to enter the compartments when the doors

are opened leading to condensation or frost.

Maintaining a reasonable level of humidity in the

home will help to control the amount of moisture

that can enter the compartments.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm that the proper temperature has been

restored once the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation

within each compartment. Wipe all containers

dry and store food in sealed packaging to prevent

condensation and frost.

Rearrange items with high water content away

from air vents.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

When the refrigerator is operated in temperature

below 41°F (5°C), food can freeze in the

refrigerator compartment. The refrigerator should

not be operated in temperature below 55°F (13°C).

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. Increased

moisture will lead to frost and condensation.

To lessen the effect, reduce the frequency and

duration of door openings.

Refer to the Doors will not close correctly or pop

open section in the Troubleshooting section.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

48 TROUBLESHOOTING

Frostorice Condensationfromfoodwitha Thisisnormalforfooditemswithahighwater

crystalsonfrozenhighwatercontenthasfrozencontent.

food(insideof insideofthefoodpackage.

sealedpackage).

FoodhasbeenleftinthefreezerDonotstorefooditemswithhighwatercontent

foralongperiodoftime. inthefreezerforalongperiodoftime.

Icemakerisnot DemandexceedsicestorageTheicemakerwillproduceapproximately70-182

makingenoughcapacity, cubesina24hourperiod.

ice. House water supply is not

connected, valve is not turned

on fully, or valve is clogged.

Water filter has been

exhausted.

Low house water supply

pressure.

Reverse Osmosis filtration

system is used.

Tubing connecting refrigerator

to house supply valve is kinked.

Connect the refrigerator to a cold water supply

with adequate pressure and turn the water

shutoff valve fully open.

If the problem persists, it may be necessary to

contact a plumber.

It is recommended that you replace the water

filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

The water pressure must be between 20 and 120

psi on models without a water filter and between

40 and 120 psi on models with a water filter.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to Water Pressure section.)

The tubing can kink when the refrigerator is

moved during installation or cleaning resulting

in reduced water flow. Straighten or repair the

water supply line and arrange it to prevent future

kinks.

TROUBLESHOOTING 49

Icemaker is not

making enough

ice (continued).

Dispensing water

slowly.

Doors are opened often or for

long periods of time.

Doors are not dosed

completely.

The temperature setting for the

freezer is too warm.

Water filter has been exhausted.

Reverse osmosis filtration

system is used.

Low house water supply

pressure.

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent

the unit from maintaining the set temperature.

Lowering the refrigerator temperature can help,

as well as not opening the doors as frequently.

If the doors are not properly closed, ice

production will be affected. See the Doors will

not close completely or pop open section in

Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is O°F. tf

the freezer temperature is warmer, ice production

will be affected.

It is recommended that you replace the water

filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

The water pressure must be between 20 and 120

psi on models without a water filter and between

40 and 120 psi on models with a water filter.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

50 TROUBLESHOOTING

Not dispensing Doors are not closed Ice will not dispense if any of the refrigerator

ice. completely, doors are left open.

Infrequent use of the dispenser.

Icemaker is not

making ice.

The delivery chute is clogged

with frost or ice fragments.

Infrequent use of the ice dispenser will cause

the cubes to stick together over time, which

will prevent them from properly dispensing.

Check the ice bin for ice cubes clumping!sticking

together. If they are, break up the ice cubes to

allow for proper operation.

Eliminate the frost or ice fragments by removing

the ice bin and clearing the chute with a plastic

utensil. Dispensing cubed ice can also help

prevent frost or ice fragment buildup.

The dispenser display is locked. Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

Ice bin is empty.

Refrigerator was recently

installed or icemaker recently

connected.

Icemaker not turned on.

The refrigerator is not connected

to a water supply or the supply

shutoff valve is not turned on.

Icemaker shutoff (feeler arm)

obstructed.

Reverse osmosis water filtration

system is connected to your

cold water supply.

It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice. Make sure that the

shutoff

(arm/sensor) is not obstructed.

Once the ice supply in the bin has been

completely exhausted, it my take up to 90

minutes before additional ice is available, and

approximately 24 hours to completely refill the

bin.

It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice.

Locate the Ice On/Off button and confirm that it is

turned on.

Connect refrigerator to the water supply and turn

the water shutoff valve fully open.

If your icemaker is equipped with an ice shutoff

arm, make sure that the arm moves freely.

If your icemaker is equipped with the electronic

ice shutoff sensor, make sure that there is a clear

path between the two sensors.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to the Water Pressure section.)

TROUBLESHOOTING 51

Not dispensing

water.

New installation or water line

recently connected.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped air

and contaminants from the system.

Do not dispense the entire 2.5 gallon amount

continuously. Depress and release the dispenser

pad for cycles of 30 seconds ON and 60 seconds

OFF.

The dispenser panel is locked. Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

The dispenser is not set for The dispenser can be set for ice or water. Make

water dispensing, certain that the control panel is set for the proper

operation. Press the Water button on the control

panel to dispense water.

Refrigerator or freezer doors are Water will not dispense if any of the refrigerator

not closed properly, doors are left open.

Water filter has been recently

removed or replaced.

Tubing connecting refrigerator

to house supply valve is kinked.

The house water supply is not

connected, the valve is not

turned on fully, or the valve is

clogged.

After the water filter is replaced, dispense 2.5

gallons of water (flush for approximately 5

minutes) to remove trapped air and contaminants

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release

the dispenser pad for cycles of 30 seconds ON

and 60 seconds OFF.

The tubing can kink when the refrigerator is

moved during installation or cleaning resulting in

reduced water flow. Straighten or repair the water

supply line and arrange it to prevent future kinks.

Connect refrigerator to the water supply and turn

the water shutoff valve fully open.

If the problem persists, it may be necessary to

contact a plumber.

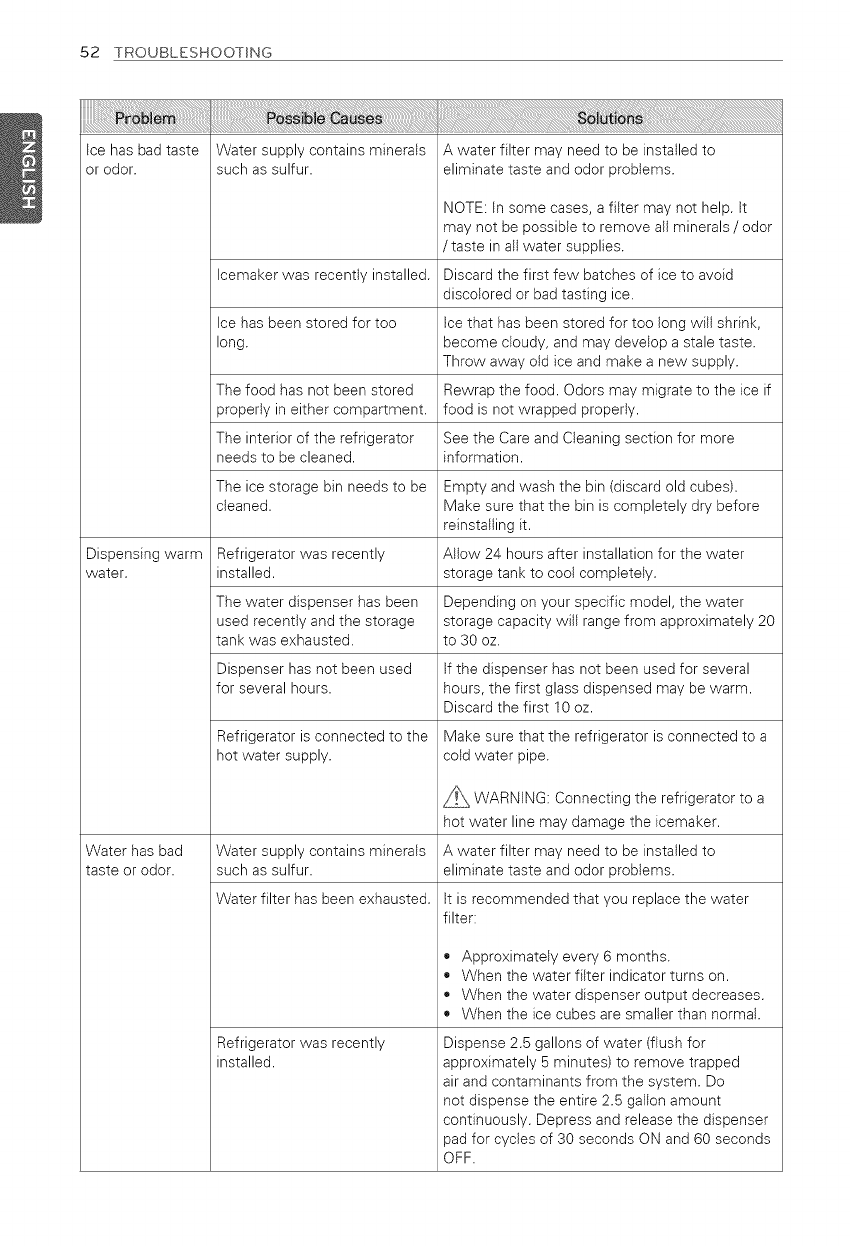

52 TROUBLESHOOTING

Ice has bad taste

or odor.

Water supply contains minerals

such as sulfur.

A water filter may need to be installed to

eliminate taste and odor problems.

NOTE: In some cases, a filter may not help. It

may not be possible to remove all minerals /odor

/taste in all water supplies.

Discard the first few batches of ice to avoid

discolored or bad tasting ice.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

See the Care and Cleaning section for more

information.

Icemaker was recently installed.

Ice has been stored for too

long.

The food has not been stored

properly in either compartment.

The interior of the refrigerator

needs to be cleaned.

The ice storage bin needs to be Empty and wash the bin (discard old cubes).

cleaned. Make sure that the bin is completely dry before

reinstalling it.

Dispensing warm Refrigerator was recently Allow 24 hours after installation for the water

water, installed, storage tank to cool completely.

The water dispenser has been Depending on your specific model, the water

used recently and the storage storage capacity will range from approximately 20

tank was exhausted, to 30 oz.

Dispenser has not been used If the dispenser has not been used for several

for several hours, hours, the first glass dispensed may be warm.

Discard the first 10 oz.

Refrigerator is connected to the

hot water supply.

Water has bad Water supply contains minerals

taste or odor. such as sulfur.

Water filter has been exhausted.

Refrigerator was recently

installed.

Make sure that the refrigerator is connected to a

cold water pipe.

z_2_.'.,_WARNING: Connecting the refrigerator to a

hot water line may damage the icemaker.

A water filter may need to be installed to

eliminate taste and odor problems.

It is recommended that you replace the water

filter:

• Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped

air and contaminants from the system. Do

not dispense the entire 2.5 gallon amount

continuously. Depress and release the dispenser

pad for cycles of 30 seconds ON and 60 seconds

OFF.

TROUBLESHOOTING53

Icemakeris Icemakershutoff(feelerarm) Emptytheicebin.Ifyouricemakerisequipped

makingtoomuchobstructed, withaniceshutoffarm,makersurethatthearm

ice. movesfreely.Reinstalltheicebinandwait24

hourstoconfirmproperoperation.

Clicking NormalOperation

Thedefrostcontrolwillclick

whentheautomaticdefrost

cyclebeginsandends.

Thethermostatcontrol(or

refrigeratorcontrolonsome

models)willalsoclickwhen

cyclingonandoff.

Rattlingnoisesmaycomefrom

theflowofrefrigerant,the

waterlineonthebackofthe

unit,oritemsstoredontopof

oraroundtherefrigerator.

Refrigeratorisnotrestingsolidly

onthefloor.

Rattling NormalOperation

Floorisweakorunevenorlevelinglegsneedto

beadjusted.SeetheDoorAlignmentsection.

Refrigeratorwithlinear NormalOperation

compressorwasjarredwhile

running.

Whooshing Evaporatorfanmotoris NormalOperation

circulatingairthroughthe

refrigeratorandfreezer

compartments.

Airisbeingforcedoverthe NormalOperation

condenserbythecondenser

fan.

Gurgling Refrigerantflowingthroughthe NormalOperation

coolingsystem.

Popping Contractionandexpansionof NormalOperation

theinsidewailsduetochanges

intemperature.

Sizzling Waterdrippingonthedefrost NormalOperation

heaterduringadefrostcycle.

Vibrating Ifthesideorbackofthe Toeliminatethenoise,makesurethatthesides

refrigeratoristouchingacabinetandbackcannotvibrateagainstanywallor

orwall,someofthenormal cabinet.

vibrationsmaymakeanaudible

sound.

Dripping WaterrunningintothedrainpanNormalOperation

duringthedefrostcycle.

54 TROUBLESHOOTING

Pulsating or

High-Pitched

Sound

Your refrigerator is designed

to run more efficiently to keep

your food items at the desired

temperature. The high efficiency

compressor may cause your

new refrigerator to run longer

than your old one, but it is still

more energy efficient than

previous models. While the

refrigerator is running, it is

normal to hear a pulsating or

high-pitched sound.

Food packages are blocking the

door open.

Ice bin, crisper cover, pans,

shelves, door bins, or baskets

are out of position.

Normal Operation

Doors win not Rearrange food containers to dear the door and

close correctly or door shelves.

pop open. Push bins all the way in and put crisper cover,

pans, shelves and baskets into their correct

positions. See the Using Your Refrigerator section

for more information.

The doors were removed during Remove and replace the doors according to the

product installation and not Removing and Replacing Refrigerator Handles

properly replaced, and Doors section.

Refrigerator is not leveled See Door Alignment in the Refrigeration

properly. Installation section to level refrigerator.

Doors are difficult The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they

to open. touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

Door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create

a vacuum. If the door is hard to open, wait one

minute to allow the air pressure to equalize, then

see if it opens more easily.

Refrigerator Leveling legs are not adjusted Refer to the Leveling and Door Alignment section.

wobbles or properly.

seems unstable. Floor is not level. It may be necessary to add shims under the

leveling legs or rollers to complete insta%tion.

Lights do not LED interior lighting failure. The refrigerator compartment lamp is LED interior

work. lighting, and service should be performed by a

qualified technician.

Refrigerator has The Air Filter may need to Set the Air Filter to the MAX setting. If the odor

an unusual odor. be set to the MAX setting or does not go away within 24 hours, the filter may

replaced, need to be replaced. See the Replacing the Air

Filter section for replacement instructions.

The interior of The refrigerator is located near a Make sure that the refrigerator is not located

the refrigerator fire source, such as a fireplace, near a fire source, such as a fireplace, chimney or

is covered with chimney or candle, candle.

dust or soot.

WARRANTY 55

WARRANTY (USA)

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under

normal home use, during the warranty period set forth below, LG will at its option repair or replace

the product. This limited warranty is valid only to the original retail purchaser of the product and

applies only when purchased and used within the United States including U.S. Territories. Proof of

original retail purchase is required to obtain warranty service under this limited warranty.

WARRANTY PERIOD

Sealed System

Refrigerator (Condenser, Dryer, Connecting Tube, Linear Compressor

Refrigerant and Evaporator)

One (1) year from One (1) year from the Seven (7) years from Ten (10) years from the

the date of original date of original retail the date of original date of original retail

retail purchase purchase retail purchase purchase

Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will

(internal/functional will be charged for be charged for labor)

parts only) labor)

Noises associated with normal operation and failure to follow instructions found in the use and

care and installation guides or operating the unit in an unsuitable environment will not be covered

under this warranty.

1_ Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

1_ Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,

INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED

BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.

NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY

OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how

long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This

warranty gives you specific legal rights and you may also have other rights that vary from state

to state.

56 WARRANTY

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation

of the product; repair or replace fuses or correct wiring or plumbing, or correction of unauthorized

repairs/insta%tion.

2. Failure of product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate

or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the

instructions outlined in the product owner's manual.

5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of

God.

6. Damage resulting from misuse, abuse, improper insta%tion, repair, or maintenance. Improper repair

includes use of parts not approved or specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the

intended purpose, or any water leakage where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial

or industrial use, or use of accessories, components, or consumable cleaning products that are not

approved by LG.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).

0. Damage or missing items to any display, open box, discounted, or refurbished product.

1. Products with original serial numbers that have been removed, altered, or can not be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

2. Increases in utility costs and additional utility expenses.

3. Replacement of light bulbs, filters, or any consumable parts.

4. Repairs when your product is used in other than normal and usual household use (e.g. commercial

use, offices, and recreational facilities) or contrary to the instructions outlined in the product owner's

manual.

5. Costs associated with removal of your product from your home for repairs.

6. The removal and reinstallation of the product if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions, including LG's owner's and insta%tion

manuals.

7. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were originally

included with this particular model.

8. Service trips to your home to teach you how to use the product.

9. Replacement of the water filter cartridge due to water pressure that is outside the specified

operating range or due to excessive sediment in the water supply.

The cost of repair or replacement under these excluded circumstances shall be borne

by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at http://wvcwJg.eom Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

WARRANTY 57

WARRANTY (Canada)

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship

under normal home use during the warranty period set forth below, LG Canada will at its option

repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid

only to the originat retail purchaser of the product and applies only to a Product distributed in Canada

by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products

located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

Refrigerator/ Sealed System Linear Compressor

Freezer (Condenser, Dryer, Connecting Tube,

Refrigerant and Evaporator)

One (1) year from One (1) year from Seven (7) years from Ten (10) years from the

the date of original the date of original the date of original date of original retail

retail purchase retail purchase retail purchase purchase

Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will

(internal/functional will be charged for be charged for labor)

parts only) labor)

Noises associated with normal operation and failure to follow instructions found in the use and care

and installation guides or operating the unit in an unsuitable environment will not be covered under

this warranty.

Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

Replacement products and parts may be new or remanufactured.

LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT

AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS

ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR

CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND

NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT

AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY

OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT

ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS

WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL

NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT

DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES

OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY

CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR

OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may

have other rights which may vary from province to province depending on applicable provincial

laws. Any term of this warranty that negates or varies any implied condition or warranty under

provincial law is severable where it conflicts with provincial law without affecting the remainder

of this warranty's terms.

58 WARRANTY

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of

the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of

unauthorized repairs/insta%tion.

2. Failure of the product to perform during power failures and interruptions or inadequate electrical

service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate

or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the

instructions outlined in the Product owner's manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of

God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the

Product. Improper repair includes use of parts not approved or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its

intended purpose, or resulting from any water leakage due to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,

commercial or industrial use, or use of accessories, components, or cleaning products that are not

approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery.

0. Damage or missing items to any display, open box, discounted, or refurbished Product.

1. Products with original serial numbers that have been removed, altered, or cannot be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

2. Increases in utility costs and additional utility expenses.

3. Replacement of light bulbs, filters, or any consumable parts.

4. Repairs when your Product is used in other than normal and usual household use (including, without

limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined

in the Product owner's manual.

5. Costs associated with removal of the Product from your home for repairs.

6. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions, including the Product owner's and

installation manuals.

7. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts

besides those that were originally included with the Product.

8. Service trips to your home to teach you how to use the product.

9. Replacement of the water filter cartridge due to water pressure that is outside the specified

operating range or due to excessive sediment in the water supply.

All costs associated with the above excluded circumstances

shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at http://wwwJg.com

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

Life's Good

[Or [r'lqH[r[@s or COFF/rT/enTs_

visil www_[g_com or ca[[;

1-800-243-0000 ,s/,,,c.,._,,_,,e,;<_,

1-888-865-3026 ,s/,,,co,_............,,,÷

1-888-542-2623 CAN/,,_>/,,

LG LFXC24726S/00 User Manual REFRIGERATOR Manuals And Guides 1407049L

Navigation menu

Versions of this User Manual:

Views

Navigation
