website:htW_ us Igse_vice ¢o_'_
IE
OWNER'SMANUAL&COOKINGGUIDE
PLEASE READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING,.
LMA1150SV

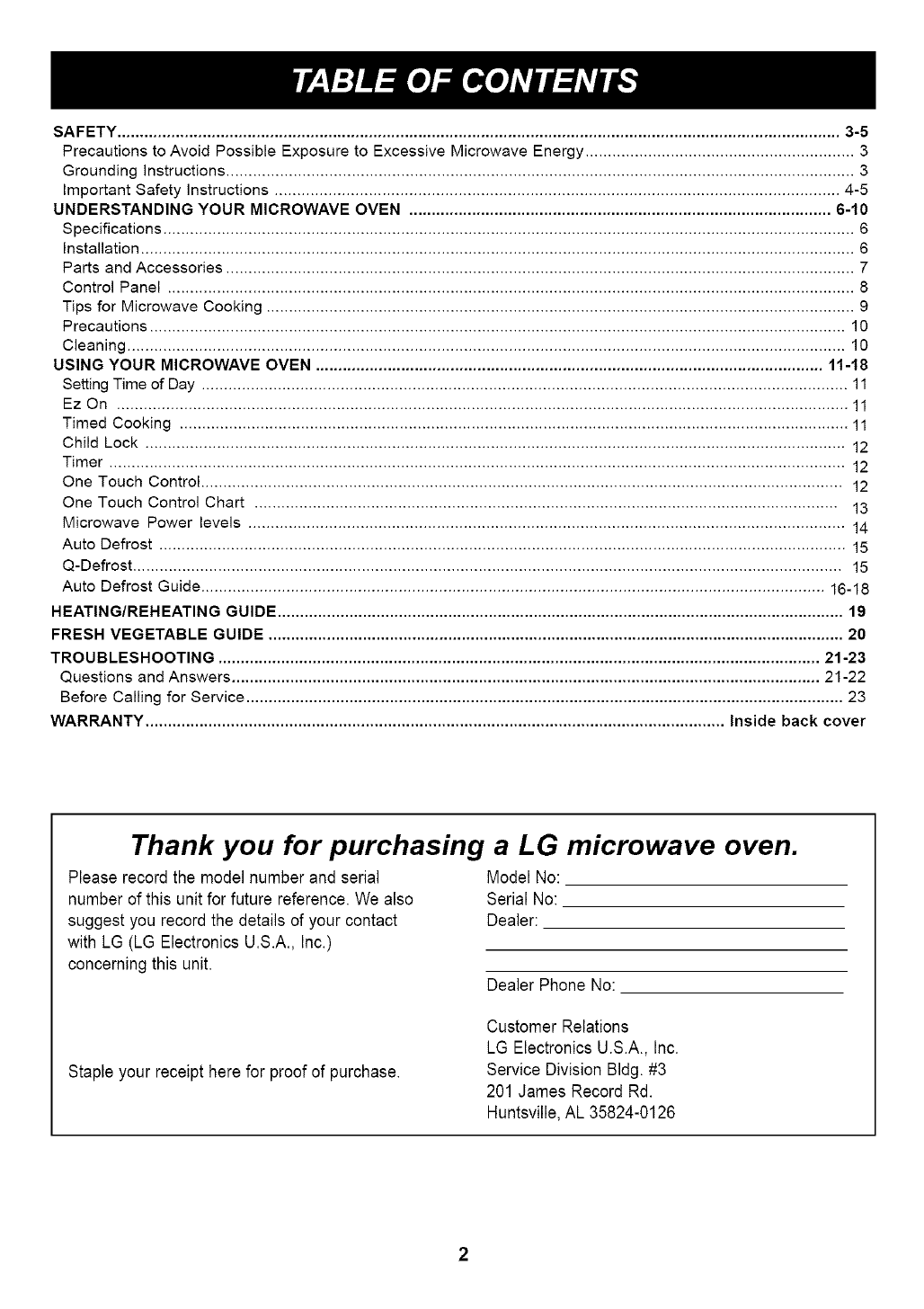

SAFETY ................................................................................................................................................................. 3-5
Precautions to Avoid Possible Exposure to Excessive Microwave Energy ............................................................ 3
Grounding instructions ............................................................................................................................................ 3
Important Safety Instructions .............................................................................................................................. 4-5
UNDERSTANDING YOUR MICROWAVE OVEN .............................................................................................. 6-10
Specifications .......................................................................................................................................................... 6
Installation ............................................................................................................................................................... 6
Parts and Accessories ............................................................................................................................................ 7
Control Panel ......................................................................................................................................................... 8

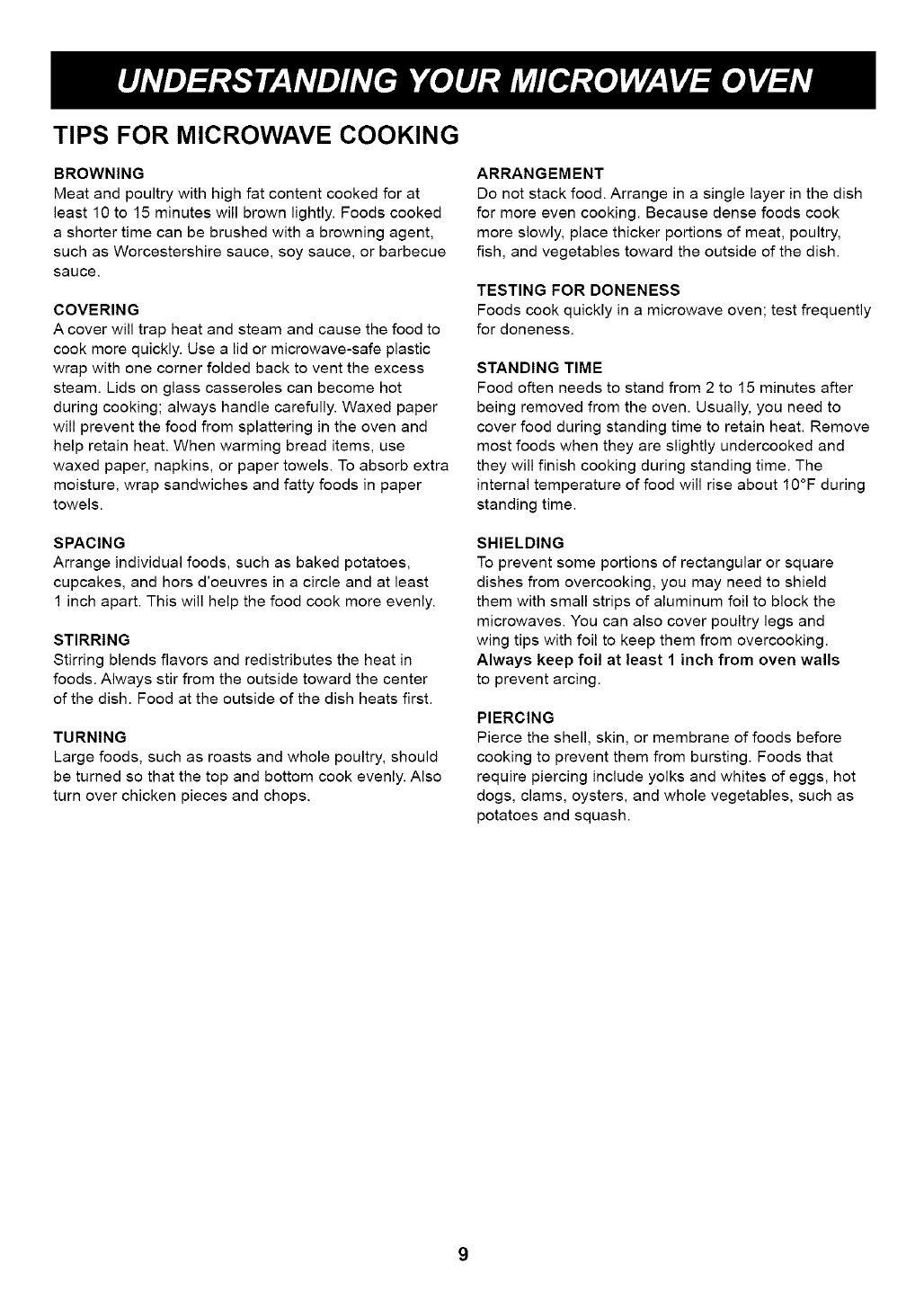

Tips for Microwave Cookin( ................................................................................................................................... 9

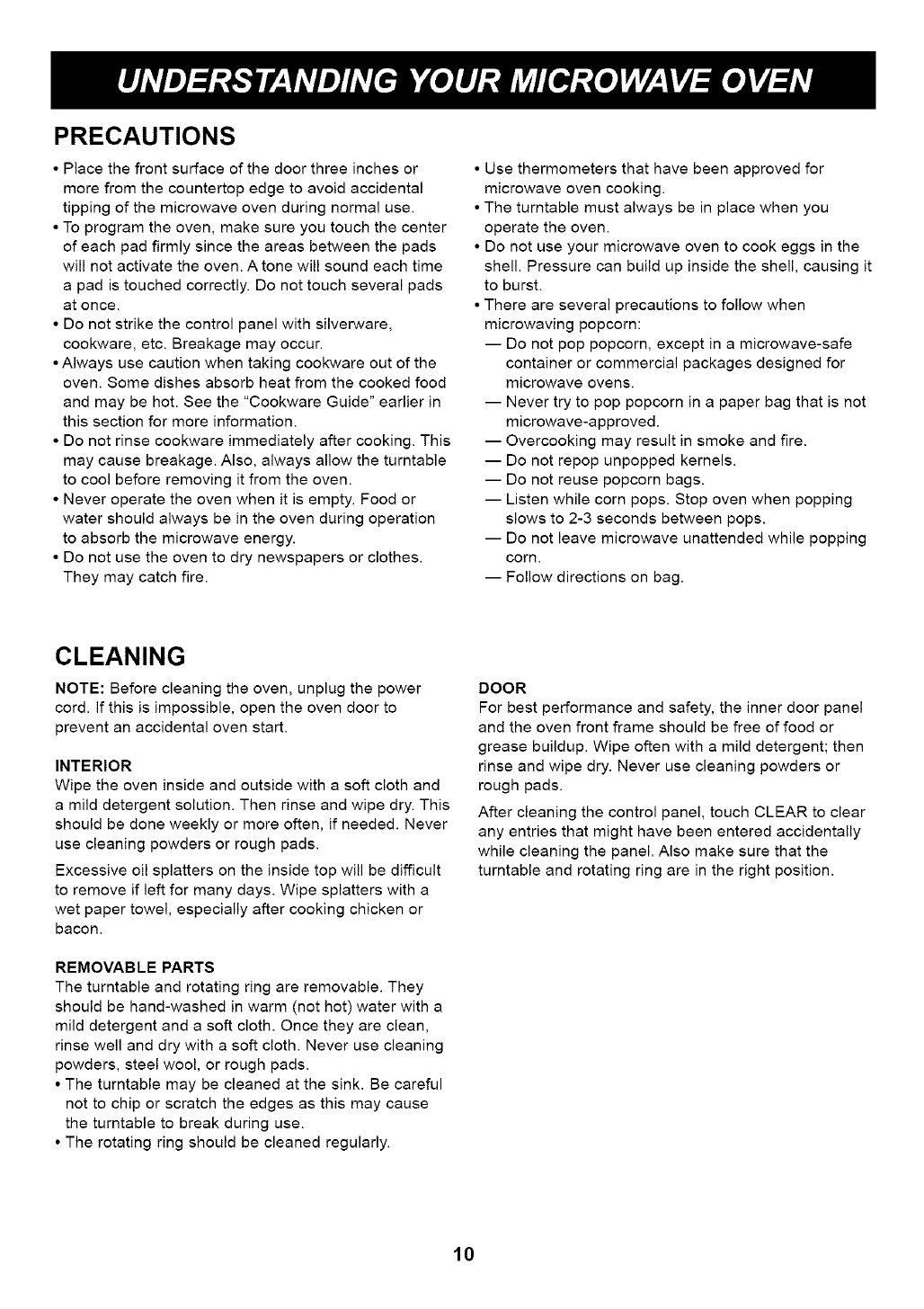

Precautions ........................................................................................................................................................... 10
Cleaning ................................................................................................................................................................ 10
USING YOUR MICROWAVE OVEN ................................................................................................................. 11-18
Setting Time of Day ................................................................................................................................................ 11
Ez On ................................................................................................................................................................... 11
Timed Cooking ..................................................................................................................................................... 11
Child Lock ............................................................................................................................................................ 12
Timer .................................................................................................................................................................... 12
One Touch Control ............................................................................................................................................... 12
One Touch Control Chart .................................................................................................................................. 13

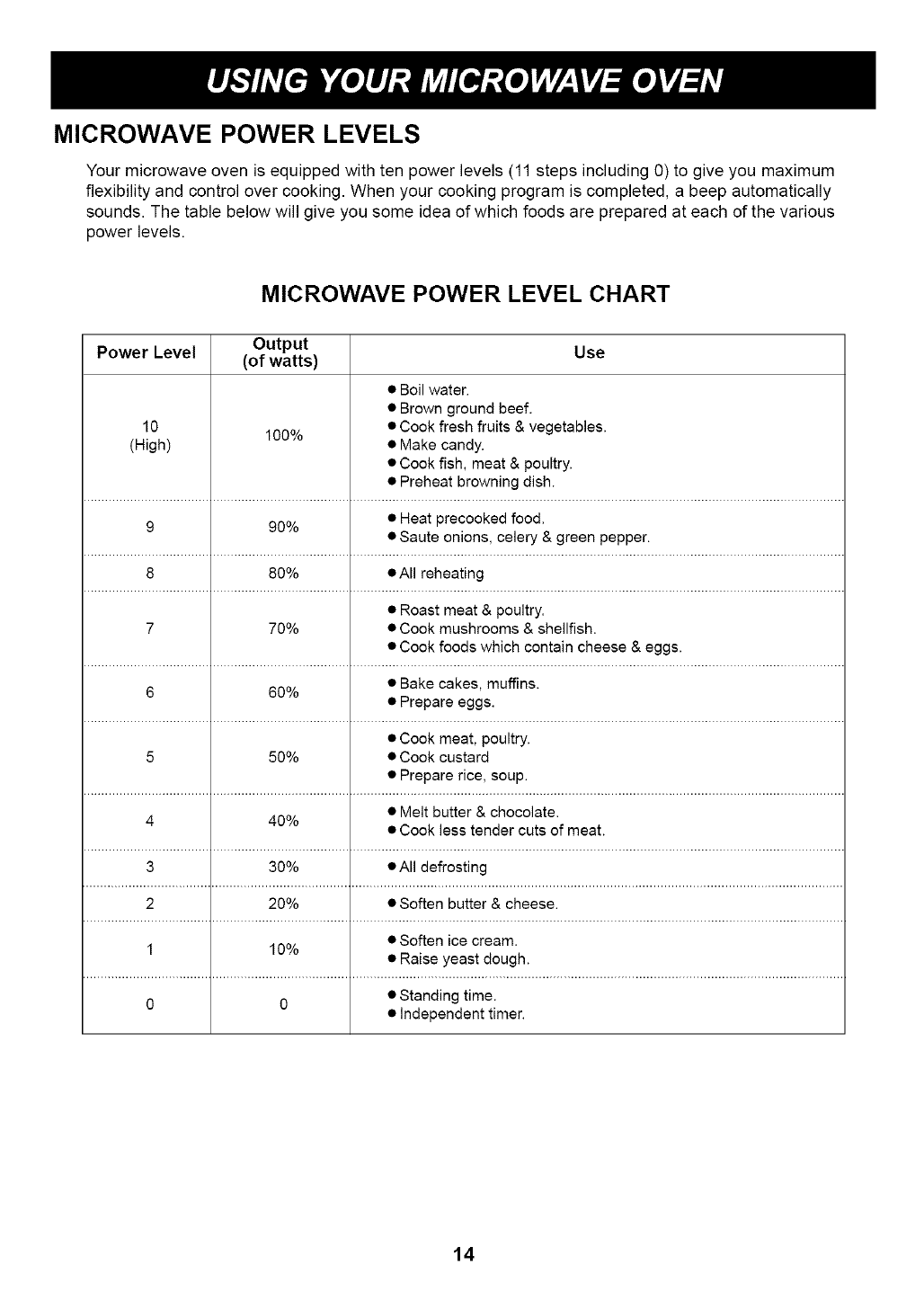

Microwave Power levels ..................................................................................................................................... 14

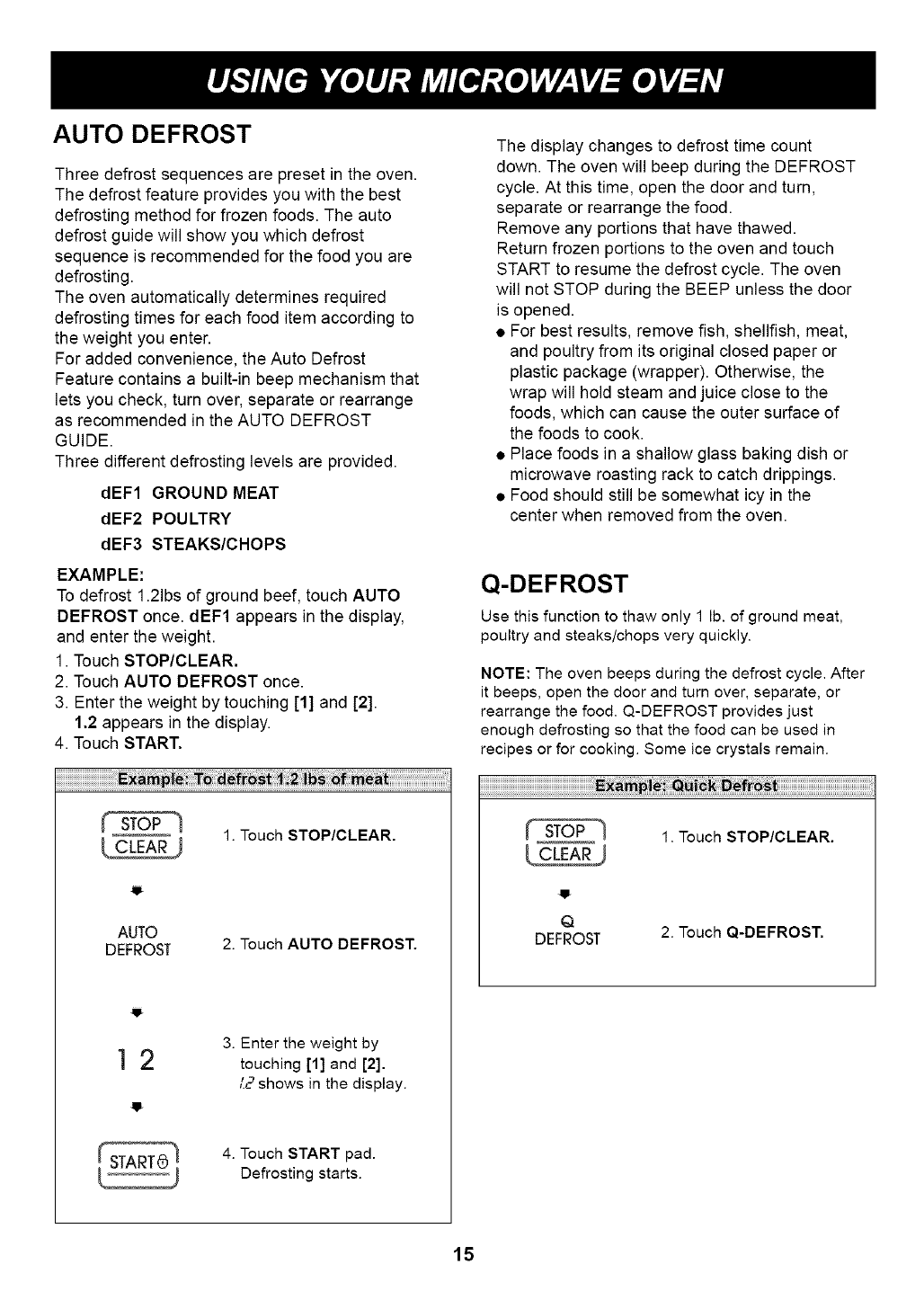

Auto Defrost ......................................................................................................................................................... 15
Q-Defrost .............................................................................................................................................................. 15

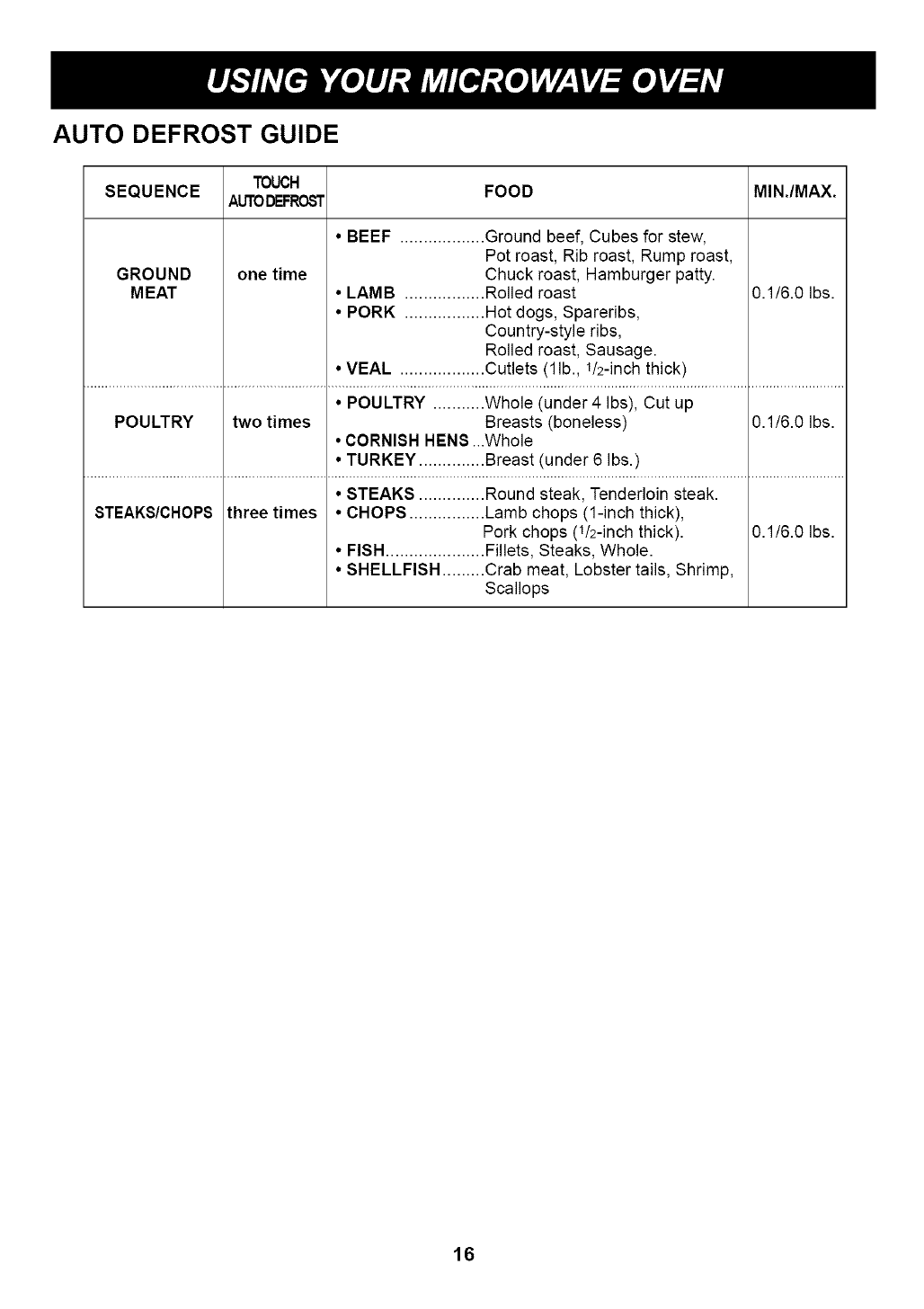

Auto Defrost Guide ........................................................................................................................................... 16-18

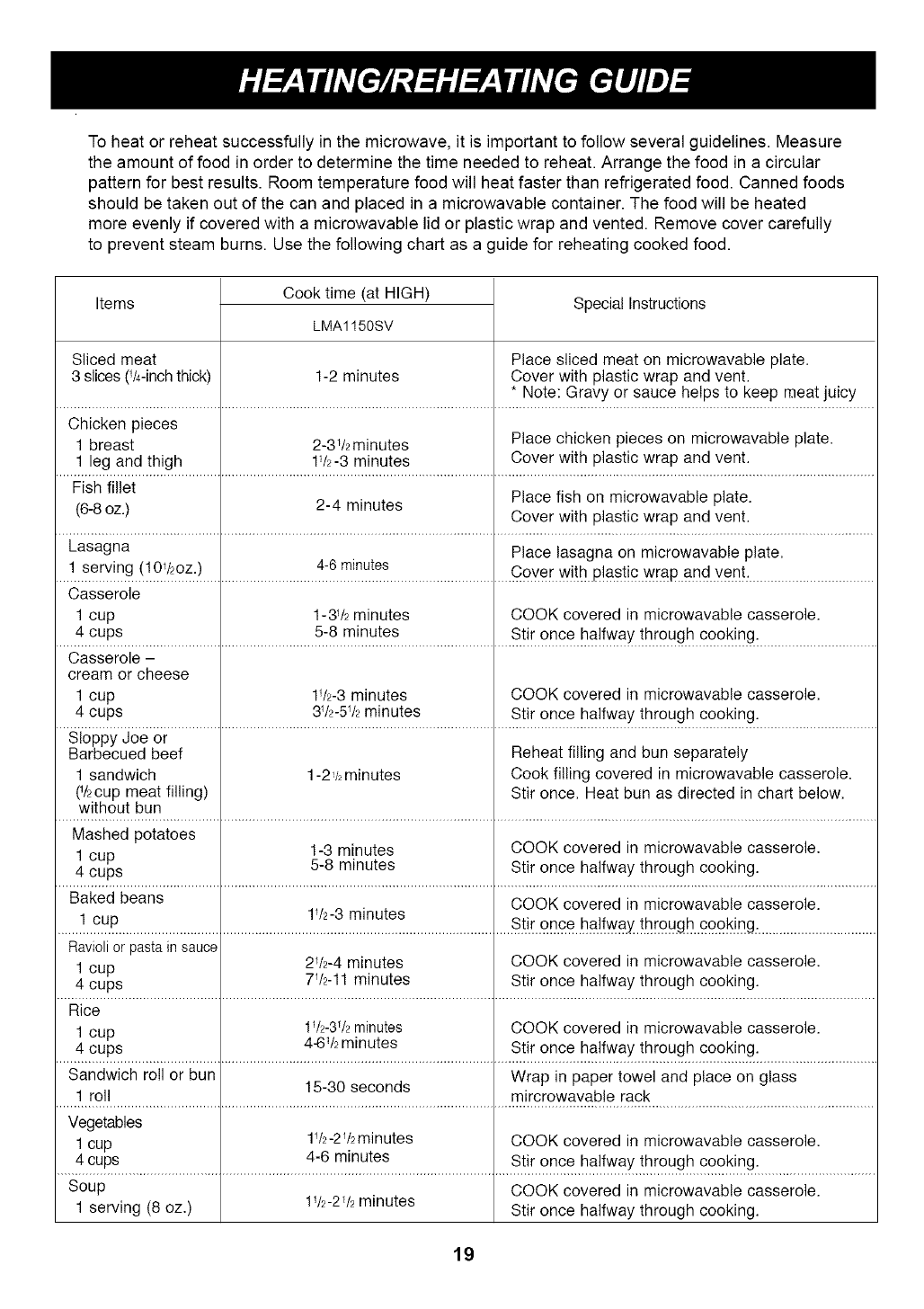

HEATING/REHEATING GUIDE .............................................................................................................................. 19

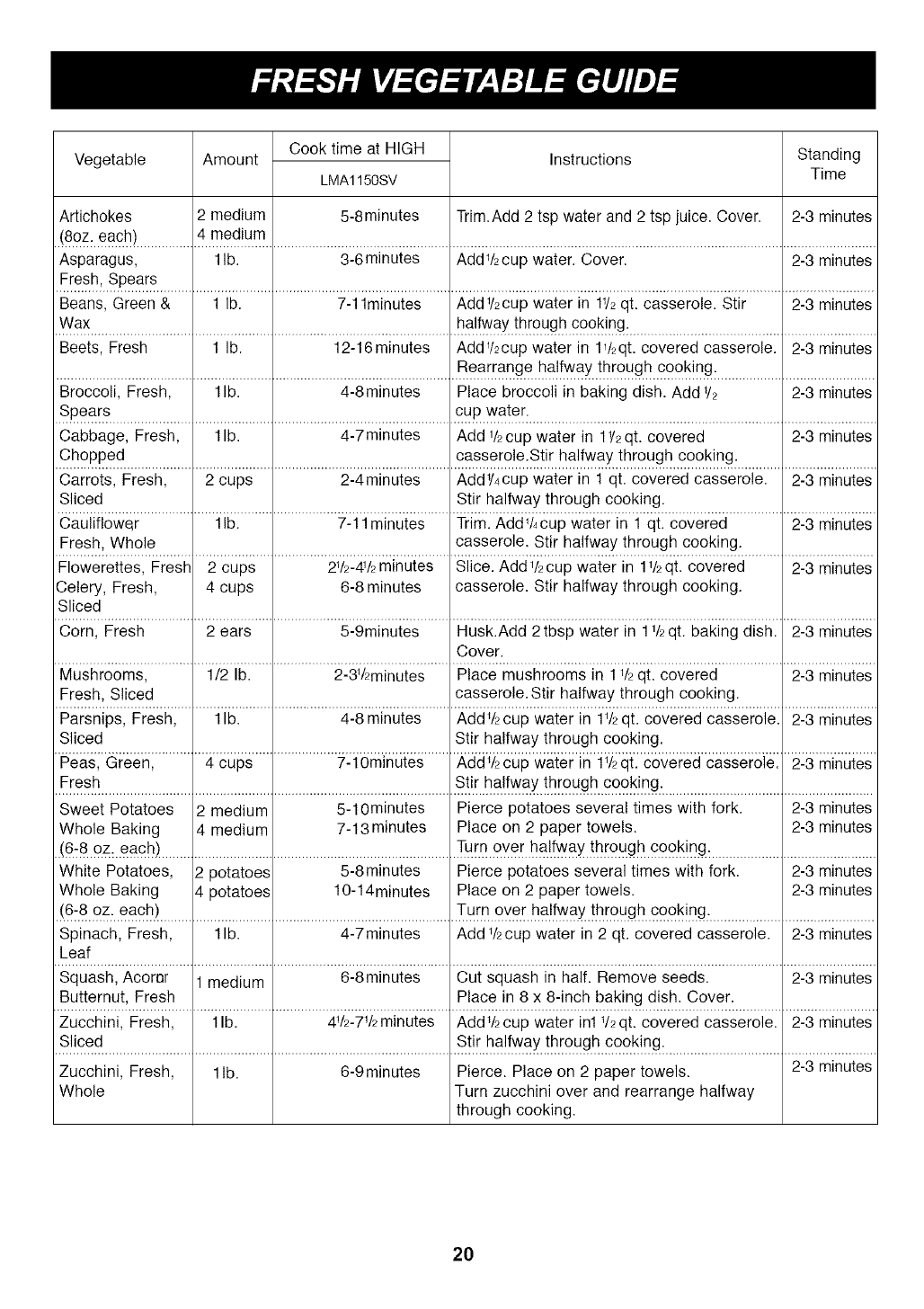

FRESH VEGETABLE GUIDE ................................................................................................................................ 20
TROUBLESHOOTING ...................................................................................................................................... 21-23

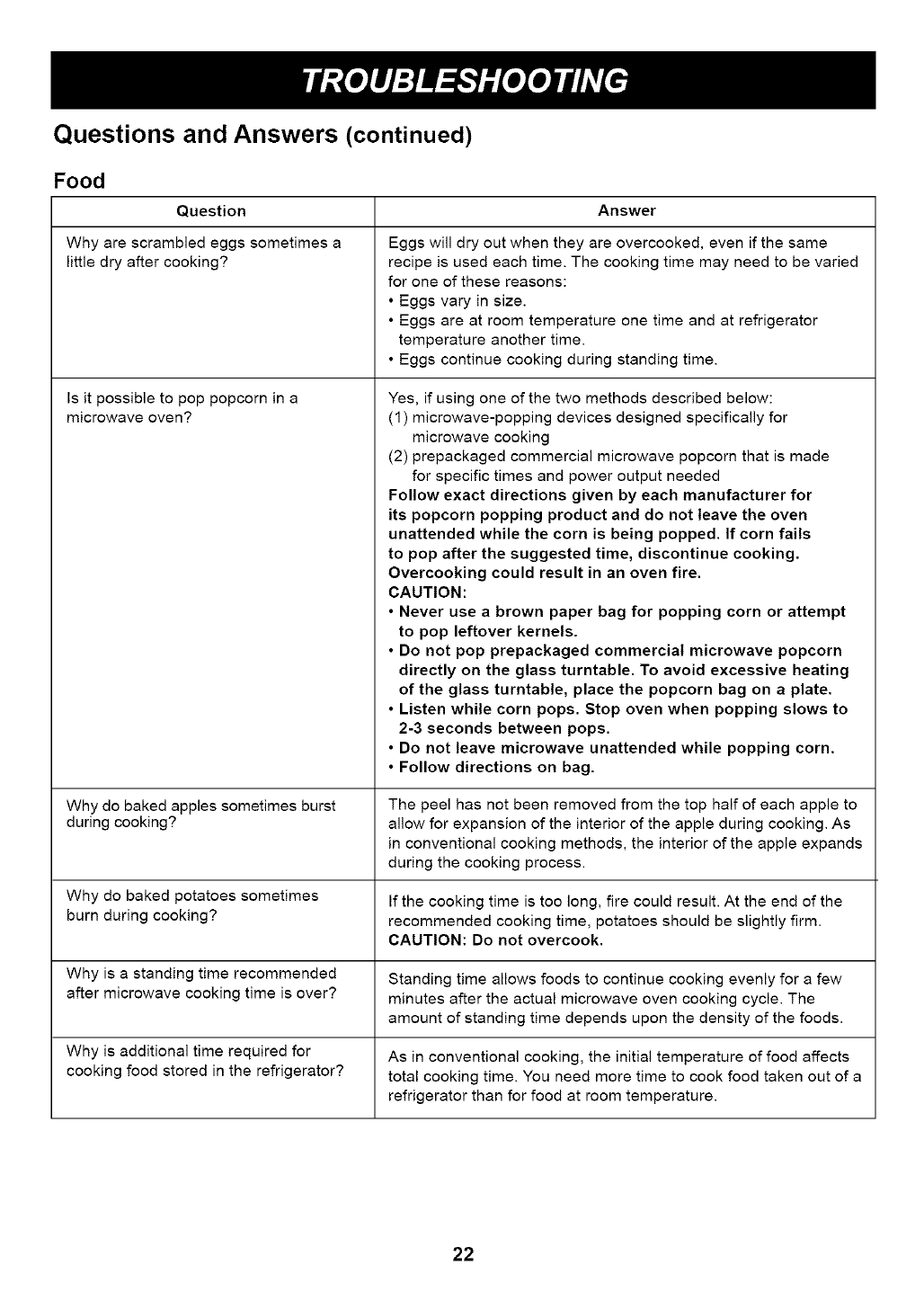

Questions and Answers ................................................................................................................................... 21-22

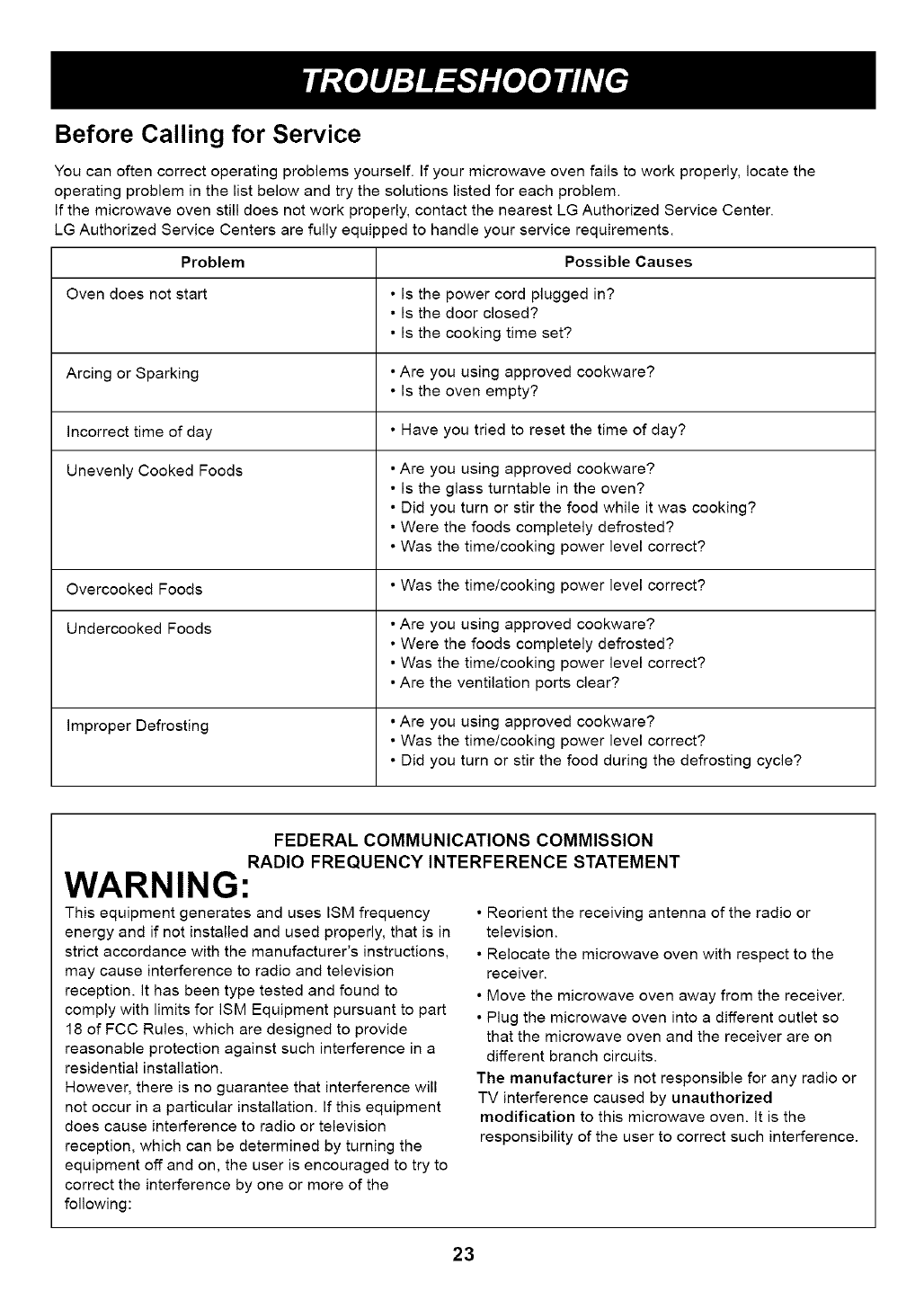

Before Calling for Service ..................................................................................................................................... 23

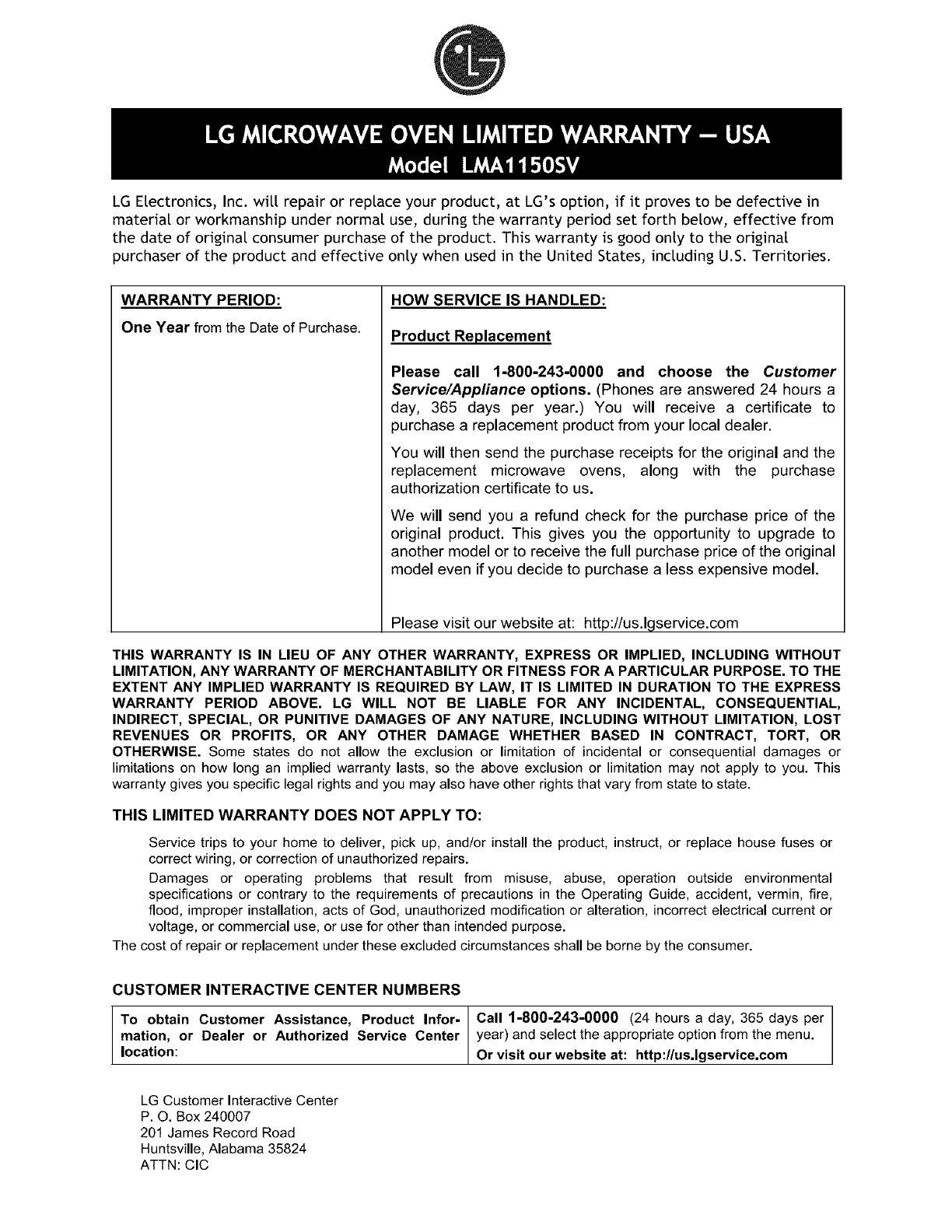

WARRANTY ................................................................................................................................. Inside back cover
Thank you for purchasing aLG microwave oven.
Please record the model number and serial
number of this unit for future reference. We also
suggest you record the details of your contact
with LG (LG Electronics U.S.A., Inc.)
concerning this unit.
Model No:
Serial No:
Dealer:
Dealer Phone No:
Staple your receipt here for proof of purchase.
Customer Relations
LG Electronics U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126

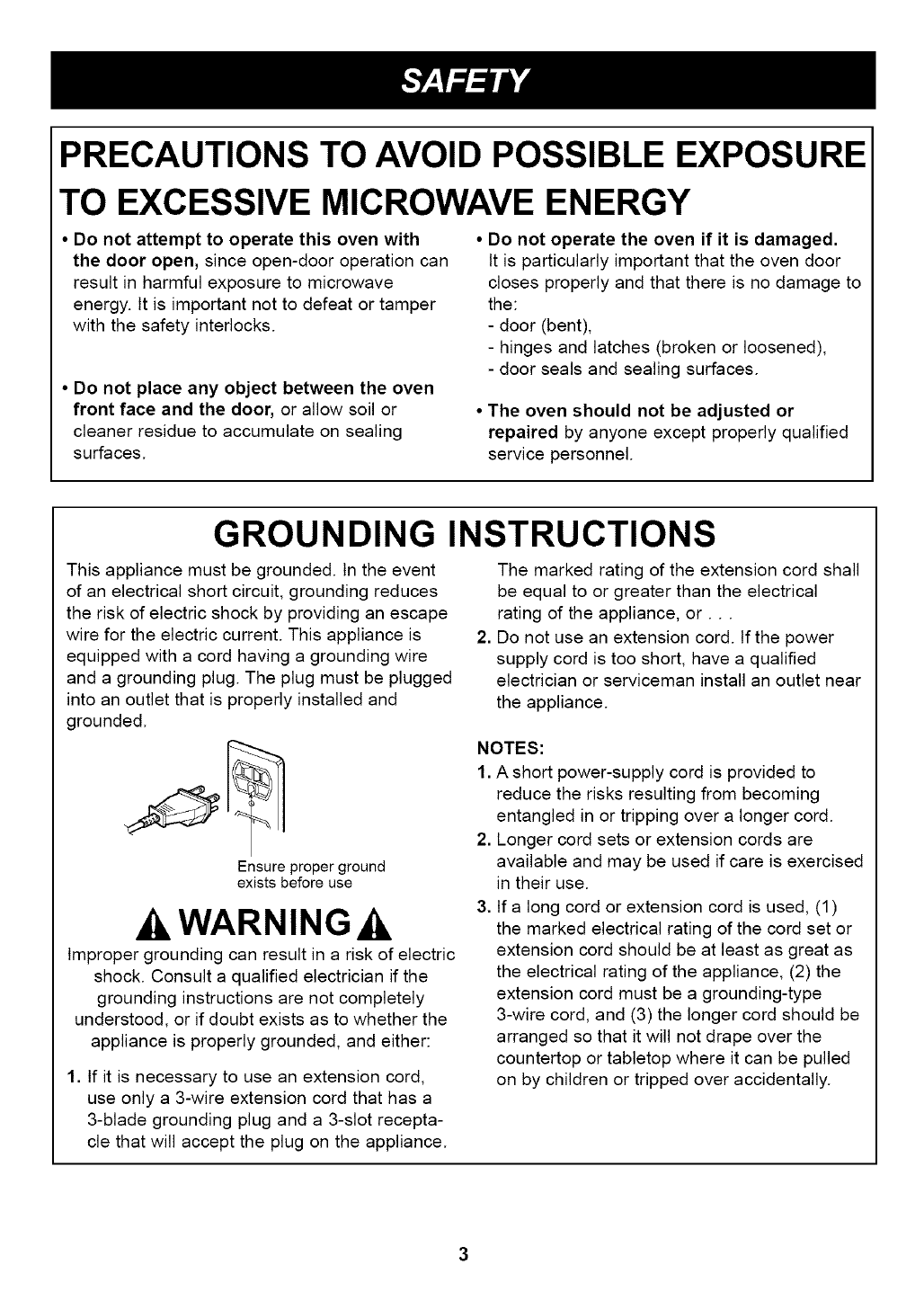

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
• Do not attempt to operate this oven with
the door open, since open-door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.
•Do not place any object between the oven
front face and the door, or allow soil or
cleaner residue to accumulate on sealing
surfaces.
•Do not operate the oven if it is damaged.
It is particularly important that the oven door
closes properly and that there is no damage to
the:
- door (bent),
- hinges and latches (broken or loosened),
- door seals and sealing surfaces.
• The oven should not be adjusted or
repaired by anyone except properly qualified
service personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape
wire for the electric current. This appliance is
equipped with a cord having a grounding wire
and a grounding plug. The plug must be plugged
into an outlet that is properly installed and
grounded.
Ensure proper ground
exists before use
WARNING
Improper grounding can result in a risk of electric
shock. Consult a qualified electrician if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded, and either:
1. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot recepta-
cle that will accept the plug on the appliance.
The marked rating of the extension cord shall
be equal to or greater than the electrical
rating of the appliance, or...
2. Do not use an extension cord. tf the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet near
the appliance.
NOTES:
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used, (1
the marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance, (2) the
extension cord must be a grounding-type
3-wire cord, and (3) the longer cord should be
arranged so that it will not drape over the
countertop or tabletop where it can be pulled
on by children or tripped over accidentally.

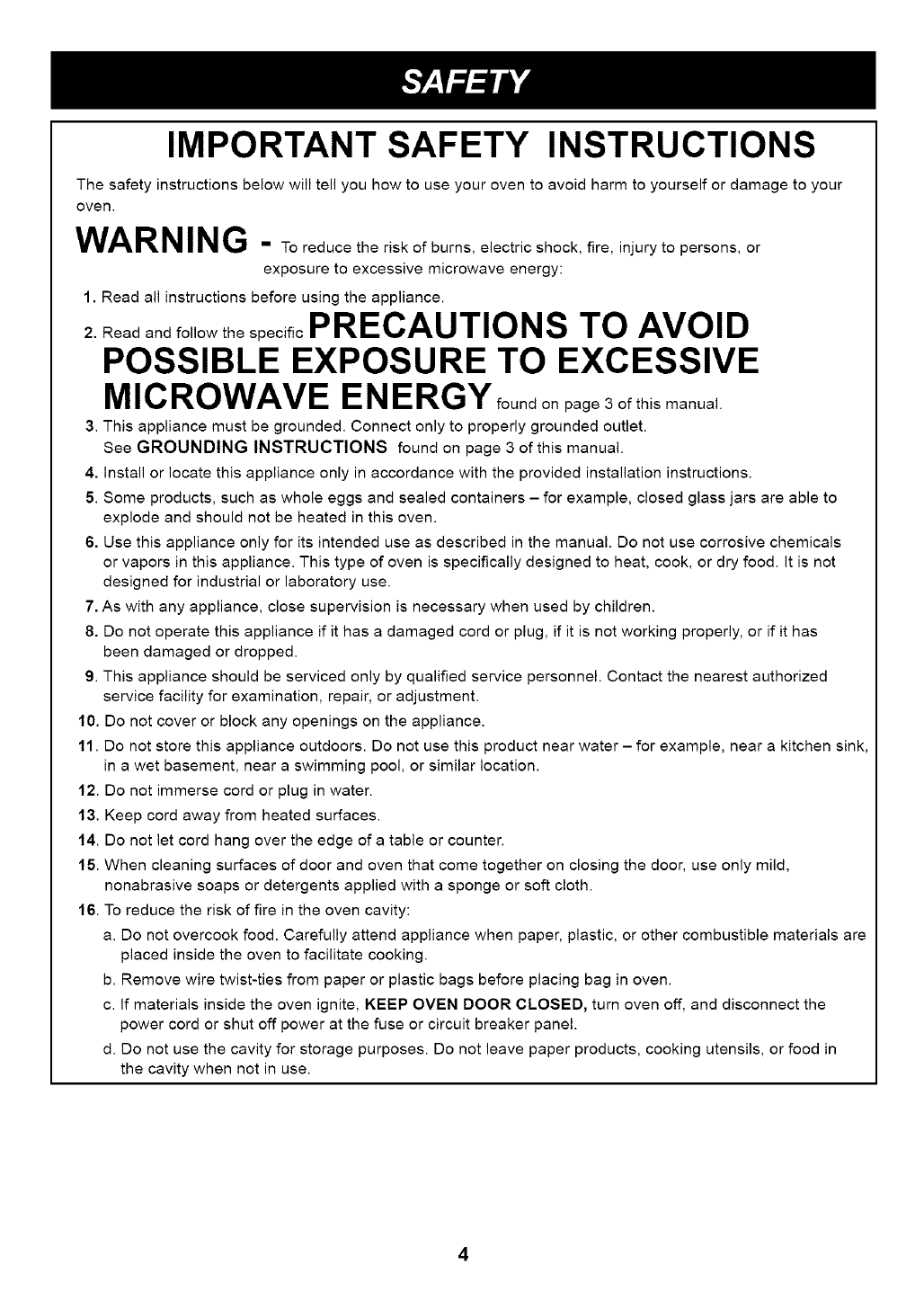

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your
oven.
WARN ING -To reduce the risk of burns, electric shock, fire, injury to persons, or
exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2Readandfo,,owthespecificPRECAUTIONSTO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY foundonpage3ofthismanoa,
3. This appliance must be grounded. Connect only to properly grounded outlet.
See GROUNDING INSTRUCTIONS found on page 3 of this manual.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products, such as whole eggs and sealed containers - for example, closed glass jars are able to
explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals
or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. it is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has
been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for example, near akitchen sink,
in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over the edge of a table or counter.
15. When cleaning surfaces of door and oven that come together on closing the door, use only mild,
nonabrasive soaps or detergents applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the
power cord or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in
the cavity when not in use.
4

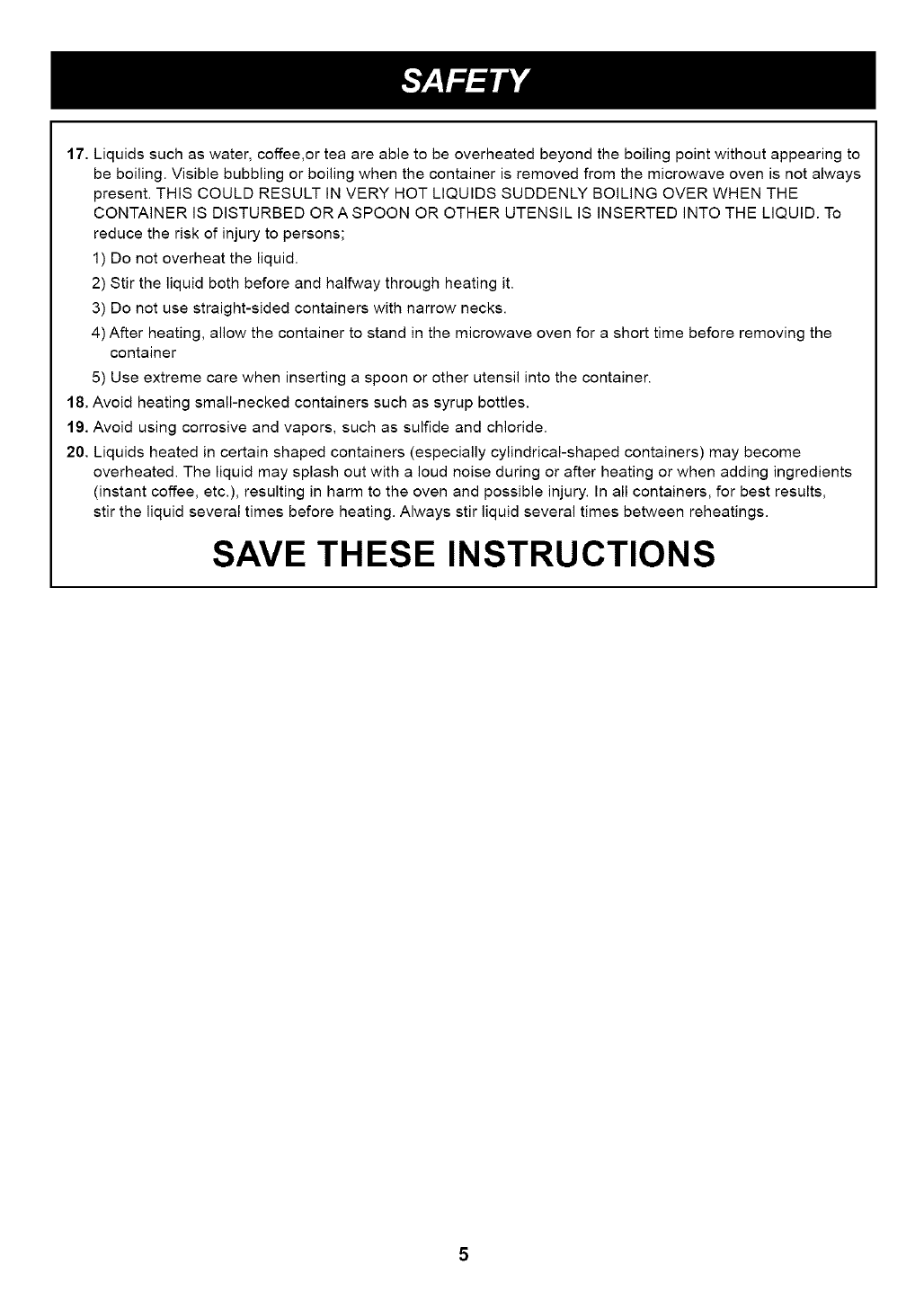

17. Liquids such as water, coffee,or tea are able to be overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To
reduce the risk of injury to persons;
1 ) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time before removing the
container
5) Use extreme care when inserting a spoon or other utensil into the container.
18. Avoid heating small-necked containers such as syrup bottles.
19. Avoid using corrosive and vapors, such as sulfide and chloride.
20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become
overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients
(instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results,
stir the liquid several times before heating. Always stir liquid several times between reheatings.
SAVE THESE INSTRUCTIONS
5

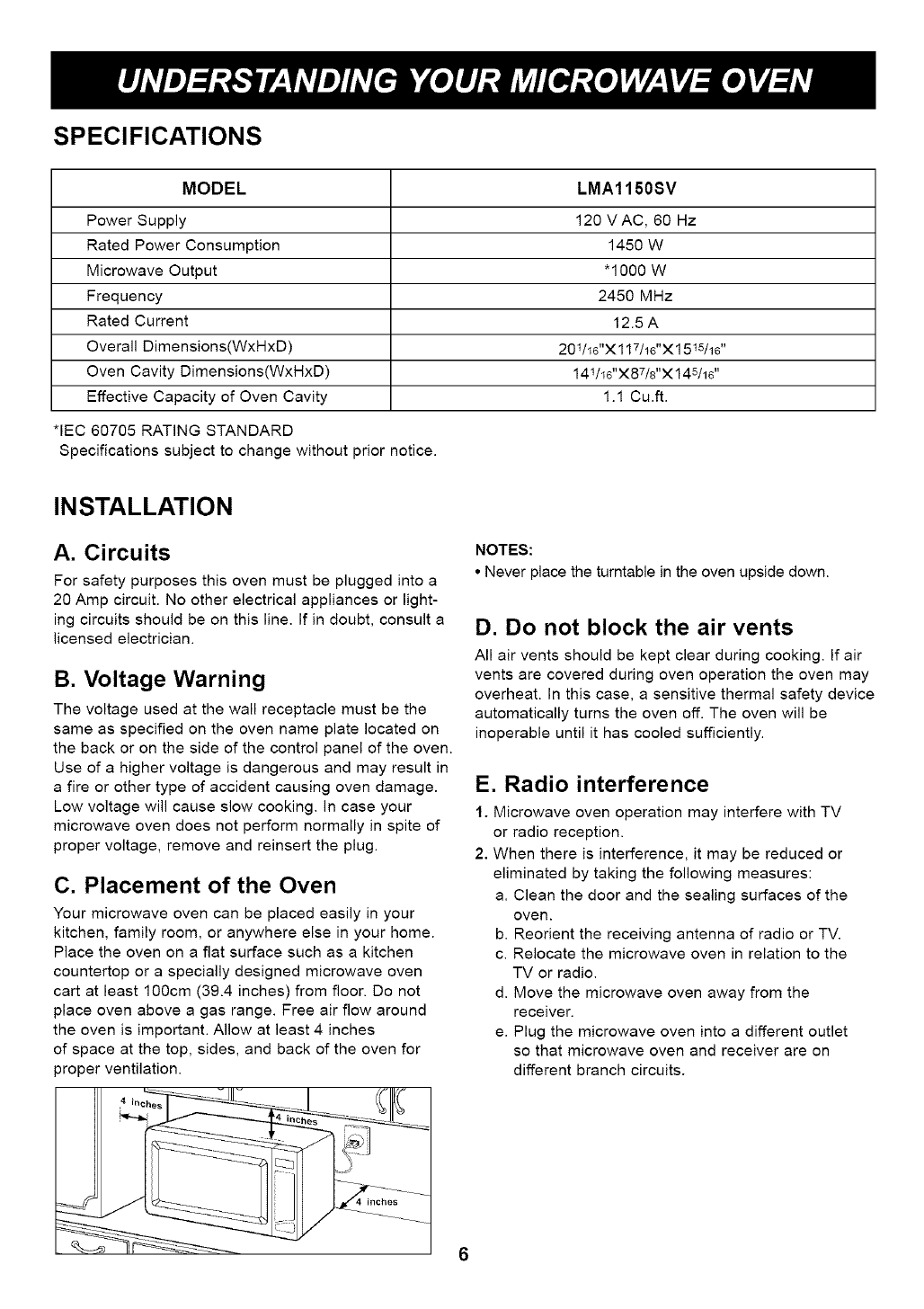

SPECIFICATIONS
MODEL
Power Supply
Rated Power Consumption
Microwave Output
Frequency
Rated Current
Overall Dimensions(WxHxD)
Oven Cavity Dimensions(WxHxD)
Effective Capacity of Oven Cavity
*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.
LMA11508V
120VAC, 60Hz
1450 W
"1000 W
2450 MHz
12.5A
201/I6"X117/16"X1 515/16"
14 llI6"X87/8"X 145/16''
1.1 Cu.ft.
INSTALLATION
A. Circuits
For safety purposes this oven must be plugged into a
20 Amp circuit. No other electrical appliances or light-
ing circuits should be on this line. If in doubt, consult a
licensed electrician.
B. Voltage Warning
The voltage used at the wall receptacle must be the
same as specified on the oven name plate located on
the back or on the side of the control panel of the oven.
Use of a higher voltage is dangerous and may result in
a fire or other type of accident causing oven damage.
Low voltage will cause slow cooking. In case your
microwave oven does not perform normally in spite of
proper voltage, remove and reinsert the plug.
C. Placement of the Oven
Your microwave oven can be placed easily in your
kitchen, family room, or anywhere else in your home.
Place the oven on a fiat surface such as a kitchen
countertop or a specially designed microwave oven
cart at least 100cm (39.4 inches) from floor. Do not
place oven above a gas range. Free air flow around
the oven is important. Allow at least 4 inches
of space at the top, sides, and back of the oven for
proper ventilation.
4 inches
NOTES:
• Never place the turntable in the oven upside down.
D. Do not block the air vents
All air vents should be kept clear during cooking. If air
vents are covered during oven operation the oven may
overheat. In this case, a sensitive thermal safety device
automatically turns the oven off. The oven will be
inoperable until it has cooled sufficiently.
E. Radio interference
1. Microwave oven operation may interfere with TV
or radio reception.
2. When there is interference, it may be reduced or
eliminated by taking the following measures:
a. Clean the door and the sealing surfaces of the
oven.
b. Reorient the receiving antenna of radio or TV.
c. Relocate the microwave oven in relation to the
TV or radio.
d. Move the microwave oven away from the
receiver.
e. Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
6

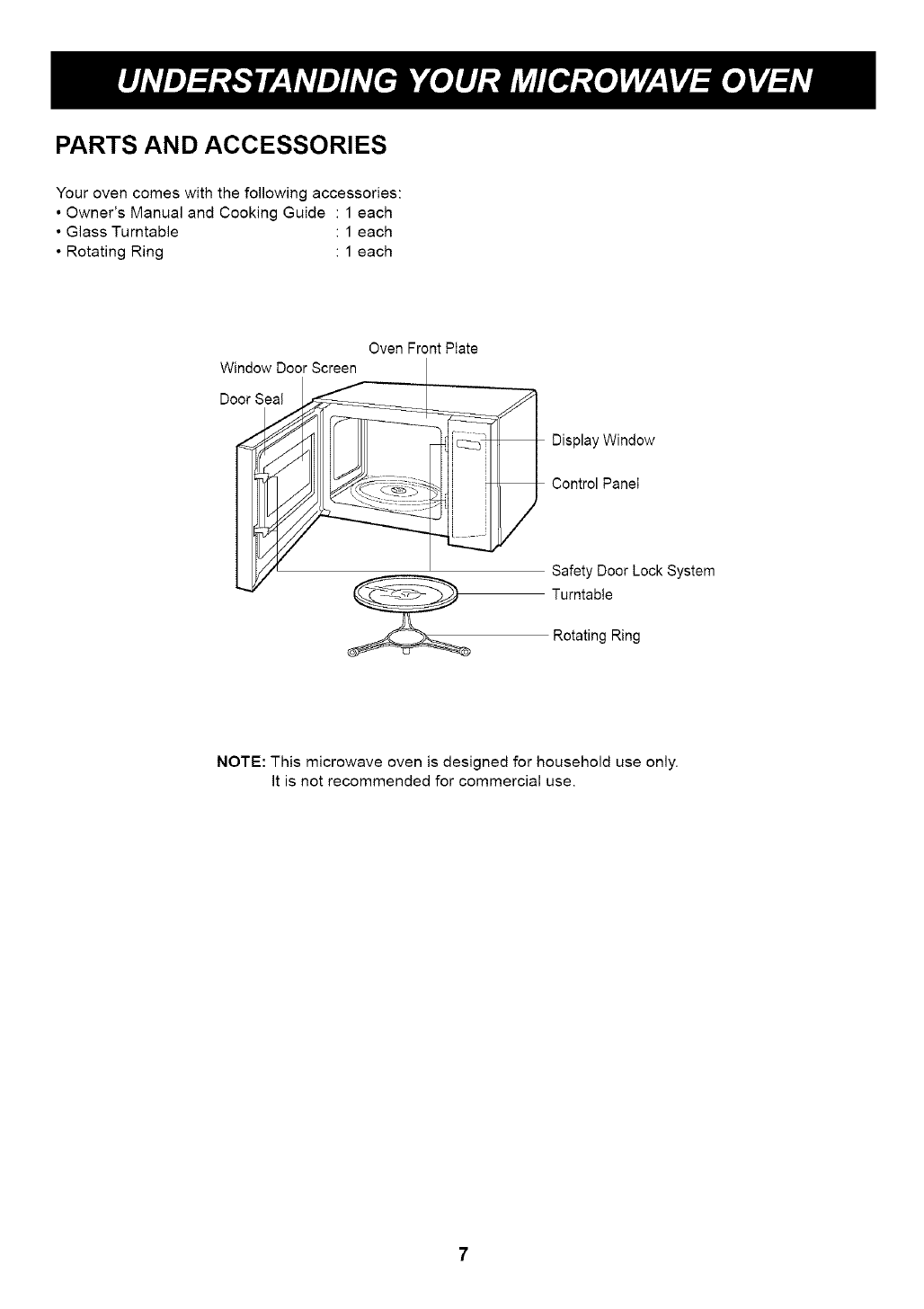

PARTS AND ACCESSORIES
Your oven comes with the following accessories:
• Owner's Manual and Cooking Guide : 1 each
• Glass Turntable : 1 each
• Rotating Ring : 1 each
Window Door Screen
Door Seal
Oven Front Plate
Display Window
Control Panei
Safety Door Lock System
Turntable
Rotating Ring
NOTE: This microwave oven is designed for household use only.
It is not recommended for commercial use.

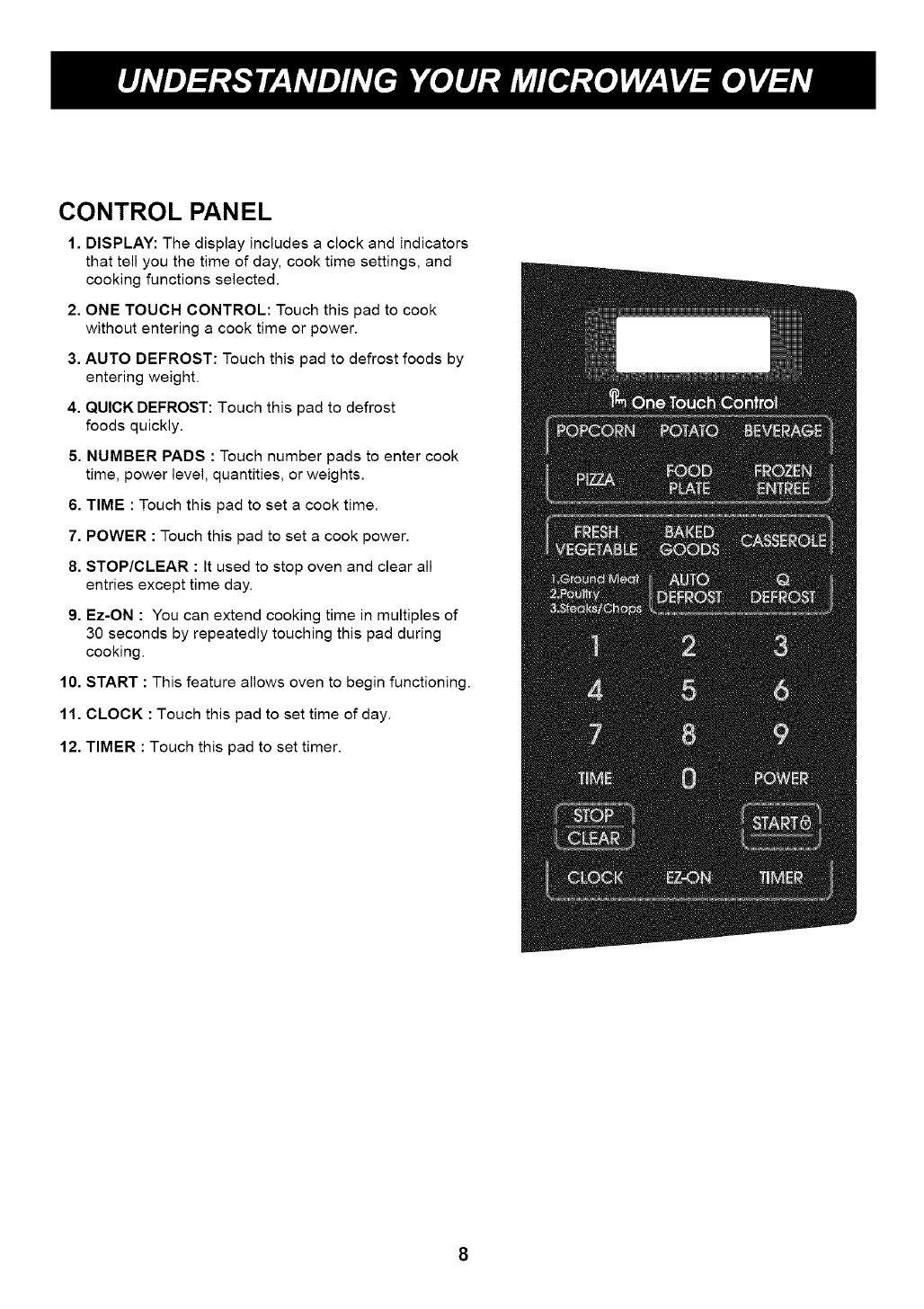

CONTROL PANEL
1. DISPLAY: The display includes a clock and indicators
that tell you the time of day, cook time settings, and
cooking functions selected.
2. ONE TOUCH CONTROL: Touch this pad to cook
without entering a cook time or power.
3. AUTO DEFROST: Touch this pad to defrost foods by
entering weight.
4. QUICK DEFROST: Touch this pad to defrost
foods quickly.
5. NUMBER PADS : Touch number pads to enter cook
time, power level, quantities, or weights.
6. TIME : Touch this pad to set a cook time.
7. POWER : Touch this pad to set a cook power.
8. STOP/CLEAR : It used to stop oven and clear all
entries except time day.
9. Ez-ON : You can extend cooking time in multiples of
30 seconds by repeatedly touching this pad during
cooking.
10. START : This feature allows oven to begin functioning.
11. CLOCK : Touch this pad to set time of day.
12. TIMER : Touch this pad to set timer.
TIPS FOR MICROWAVE COOKING
BROWNING
Meat and poultry with high fat content cooked for at
least 10 to 15 minutes will brown lightly. Foods cooked
a shorter time can be brushed with a browning agent,
such as Worcestershire sauce, soy sauce, or barbecue
sauce.
COVERING
A cover will trap heat and steam and cause the food to
cook more quickly. Use a lid or microwave-safe plastic
wrap with one corner folded back to vent the excess
steam. Lids on glass casseroles can become hot
during cooking; always handle carefully. Waxed paper
will prevent the food from splattering in the oven and
help retain heat. When warming bread items, use
waxed paper, napkins, or paper towels. To absorb extra
moisture, wrap sandwiches and fatty foods in paper
towels.
SPACING
Arrange individual foods, such as baked potatoes,
cupcakes, and hors d'oeuvres in a circle and at least
1 inch apart. This will help the food cook more evenly.
STIRRING
Stirring blends flavors and redistributes the heat in
foods. Always stir from the outside toward the center
of the dish. Food at the outside of the dish heats first.
TURNING
Large foods, such as roasts and whole poultry, should
be turned so that the top and bottom cook evenly. Also
turn over chicken pieces and chops.
ARRANGEMENT
Do not stack food. Arrange in a single layer in the dish
for more even cooking. Because dense foods cook
more slowly, place thicker portions of meat, poultry,
fish, and vegetables toward the outside of the dish.
TESTING FOR DONENESS
Foods cook quickly in a microwave oven; test frequently
for doneness.
STANDING TIME
Food often needs to stand from 2 to 15 minutes after
being removed from the oven. Usually, you need to
cover food during standing time to retain heat. Remove
most foods when they are slightly undercooked and
they will finish cooking during standing time. The
internal temperature of food will rise about IO°F during
standing time.
SHIELDING
To prevent some portions of rectangular or square
dishes from overcooking, you may need to shield
them with small strips of aluminum foil to block the
microwaves. You can also cover poultry legs and
wing tips with foil to keep them from overcooking.
Always keep foil at least 1inch from oven walls
to prevent arcing.
PIERCING
Pierce the shell, skin, or membrane of foods before
cooking to prevent them from bursting. Foods that
require piercing include yolks and whites of eggs, hot
dogs, clams, oysters, and whole vegetables, such as
potatoes and squash.
PRECAUTIONS
• Place the front surface of the door three inches or
more from the countertop edge to avoid accidental
tipping of the microwave oven during normal use.
• To program the oven, make sure you touch the center
of each pad firmly since the areas between the pads
will not activate the oven. A tone will sound each time
a pad is touched correctly. Do not touch several pads
at once.
• Do not strike the control panel with silverware,
cookware, etc. Breakage may occur.
• Always use caution when taking cookware out of the
oven. Some dishes absorb heat from the cooked food
and may be hot. See the "Cookware Guide" earlier in
this section for more information.
• Do not rinse cookware immediately after cooking. This
may cause breakage. Also, always allow the turntable
to cool before removing it from the oven.
• Never operate the oven when it is empty. Food or
water should always be in the oven during operation
to absorb the microwave energy.
• Do not use the oven to dry newspapers or clothes.
They may catch fire.
• Use thermometers that have been approved for
microwave oven cooking.
• The turntable must always be in place when you
operate the oven.
• Do not use your microwave oven to cook eggs in the
shell. Pressure can build up inside the shell, causing it
to burst.
• There are several precautions to follow when
microwaving popcorn:
-- Do not pop popcorn, except in a microwave-safe
container or commercial packages designed for
microwave ovens.
-- Never try to pop popcorn in a paper bag that is not
microwave-approved.
-- Overcooking may result in smoke and fire.
-- Do not repop unpopped kernels.
-- Do not reuse popcorn bags.
-- Listen while corn pops. Stop oven when popping
slows to 2-3 seconds between pops.
-- Do not leave microwave unattended while popping
corn.
-- Follow directions on bag.
CLEANING
NOTE: Before cleaning the oven, unplug the power
cord. If this is impossible, open the oven door to
prevent an accidental oven start.
INTERIOR
Wipe the oven inside and outside with a soft cloth and
amild detergent solution. Then rinse and wipe dry. This
should be done weekly or more often, if needed. Never
use cleaning powders or rough pads.
Excessive oil splatters on the inside top will be difficult
to remove if left for many days. Wipe splatters with a
wet paper towel, especially after cooking chicken or
bacon.
REMOVABLE PARTS
The turntable and rotating ring are removable. They
should be hand-washed in warm (not hot) water with a
mild detergent and a soft cloth. Once they are clean,
rinse well and dry with a soft cloth. Never use cleaning
powders, steel wool, or rough pads.
• The turntable may be cleaned at the sink. Be careful
not to chip or scratch the edges as this may cause
the turntable to break during use.
• The rotating ring should be cleaned regularly.
DOOR
For best performance and safety, the inner door panel
and the oven front frame should be free of food or
grease buildup. Wipe often with a mild detergent; then
rinse and wipe dry. Never use cleaning powders or
rough pads.
After cleaning the control panel, touch CLEAR to clear
any entries that might have been entered accidentally
while cleaning the panel. Also make sure that the
turntable and rotating ring are in the right position.
10

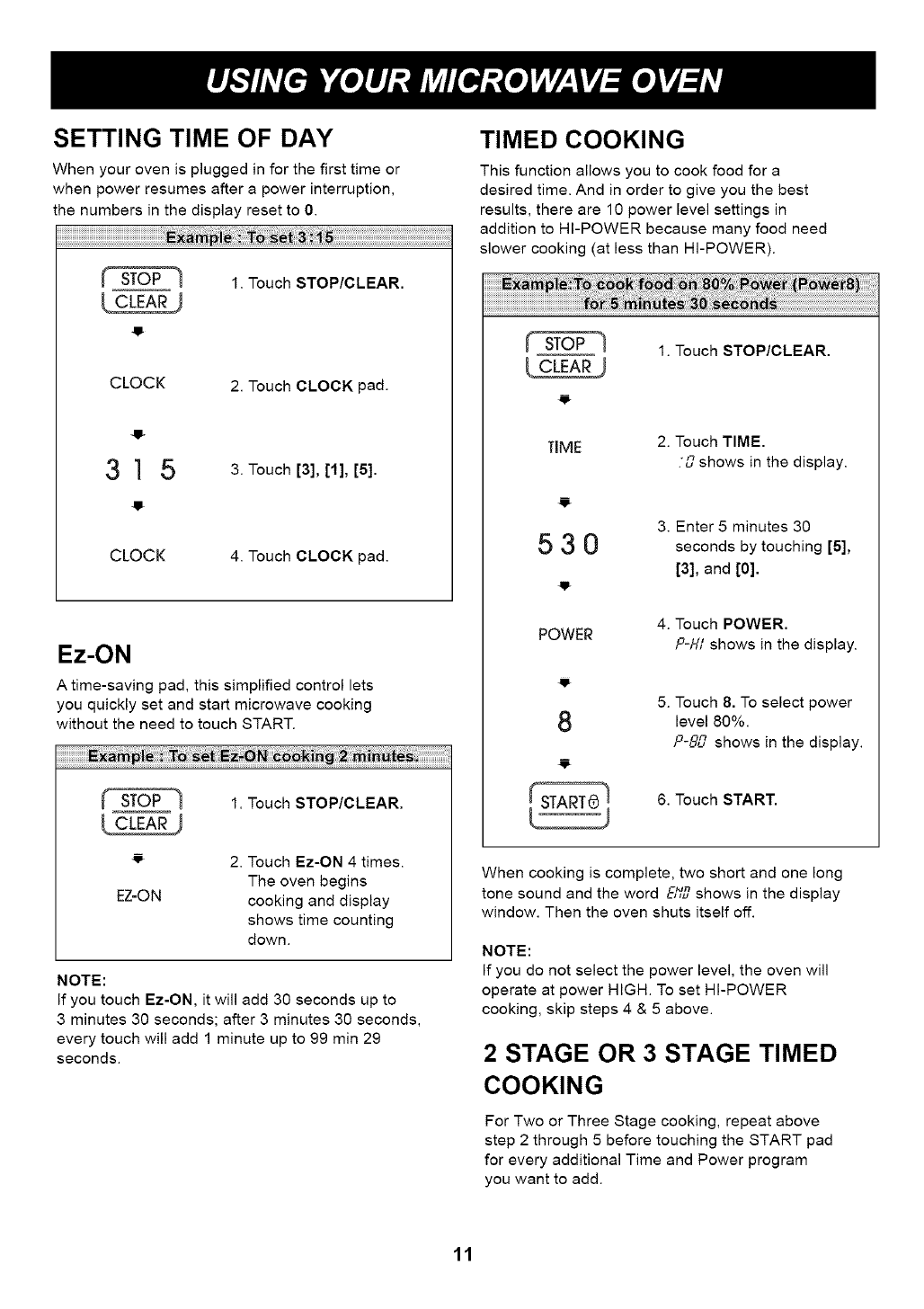

SETTING TIME OF DAY
When your oven is plugged in for the first time or
when power resumes after a power interruption,
the numbers in the display reset to 0.
1. Touch STOP/CLEAR.
m-
CLOCK
-I
315
u
2. Touch CLOCK pad.
3. Touch [3], [1], [5].
CLOCK 4. Touch CLOCK pad.
Ez-ON
A time-saving pad, this simplified control lets
you quickly set and start microwave cooking
without the need to touch START.
_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_i_E_!i_i_!i!_!_i_i_i_i_!_!_i_i_i!!_!_N_:_:_¸¸_!I_I_!_!i!_!ii_il;i;i_i_ii_ii_il_¸i!!_!_i_i!_i_!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!_!_i
1. Touch STOP/CLEAR.
_- 2. Touch Ez-ON 4 times.
The oven begins
EZ=ON cooking and display
shows time counting
down.
NOTE:
If you touch Ez-ON, it will add 30 seconds up to
3 minutes 30 seconds; after 3 minutes 30 seconds,
every touch will add 1 minute up to 99 min 29
seconds.
TIMED COOKING
This function allows you to cook food for a
desired time. And in order to give you the best
results, there are 10 power level settings in
addition to HI-POWER because many food need
slower cooking (at less than HI-POWER).
q_
1. Touch STOP/CLEAR.
TiME 2. Touch TIME.
.'L?shows in the display.
3. Enter 5 minutes 30
530 seconds by touching [5],
[3], and [0].
POWER
qt
8
4. Touch POWER.
P-HI shows in the display.
5. Touch 8. To select power
level 80%.
P-8_ shows in the display.
6. Touch START.
When cooking is complete, two short and one long
tone sound and the word EI',_ shows in the display
window. Then the oven shuts itself off.
NOTE:
If you do not select the power level, the oven will
operate at power HIGH. To set HI-POWER
cooking, skip steps 4 & 5 above.
2 STAGE OR 3 STAGE TIMED
COOKING
For Two or Three Stage cooking, repeat above
step 2 through 5 before touching the START pad
for every additional Time and Power program
you want to add.
11

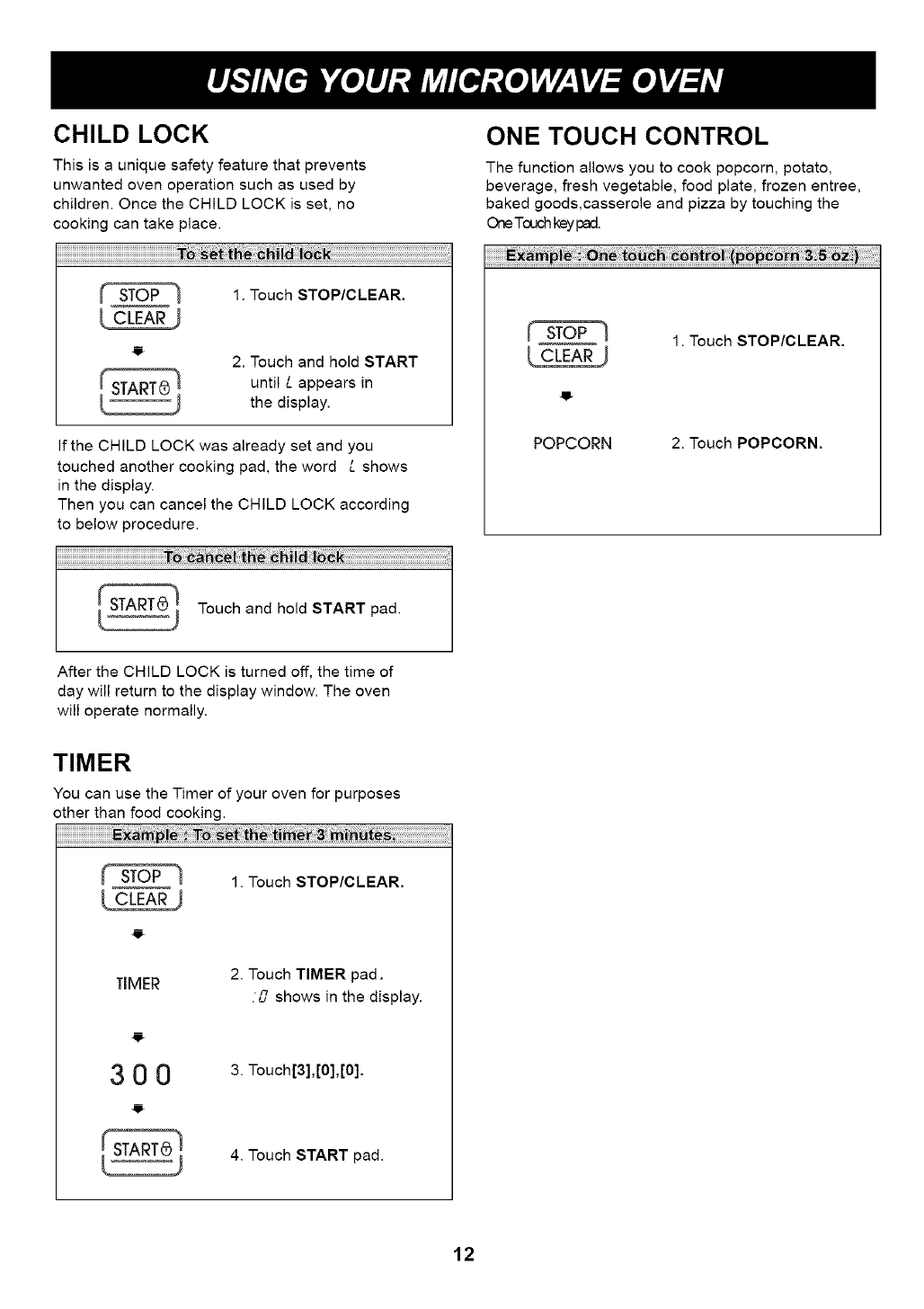

CHILD LOCK
This is a unique safety feature that prevents
unwanted oven operation such as used by
children. Once the CHILD LOCK is set, no
cooking can take place.
1. Touch STOP/CLEAR.
w2. Touch and hold START
until Lappears in
the display.
If the CHILD LOCK was already set and you
touched another cooking pad, the word Lshows
in the display.
Then you can cancel the CHILD LOCK according
to below procedure.
td
Touch and hold START pad.
After the CHILD LOCK is turned off, the time of
day will return to the display window. The oven
will operate normally.
TIMER
You can use the Timer of your oven for purposes
other than food cooking.
To :
1. Touch STOP/CLEAR.
-v-
TIMER
3OO
2. Touch TIMER pad.
:n shows in the display.
3. Touch[3],[0],[0].
4. Touch START pad.
ONE TOUCH CONTROL
The function allows you to cook popcorn, potato,
beverage, fresh vegetable, food plate, frozen entree,
baked goods,casserole and pizza by touching the
OneTouchkeypad.
POPCORN
1. Touch STOP/CLEAR.
2. Touch POPCORN.
12

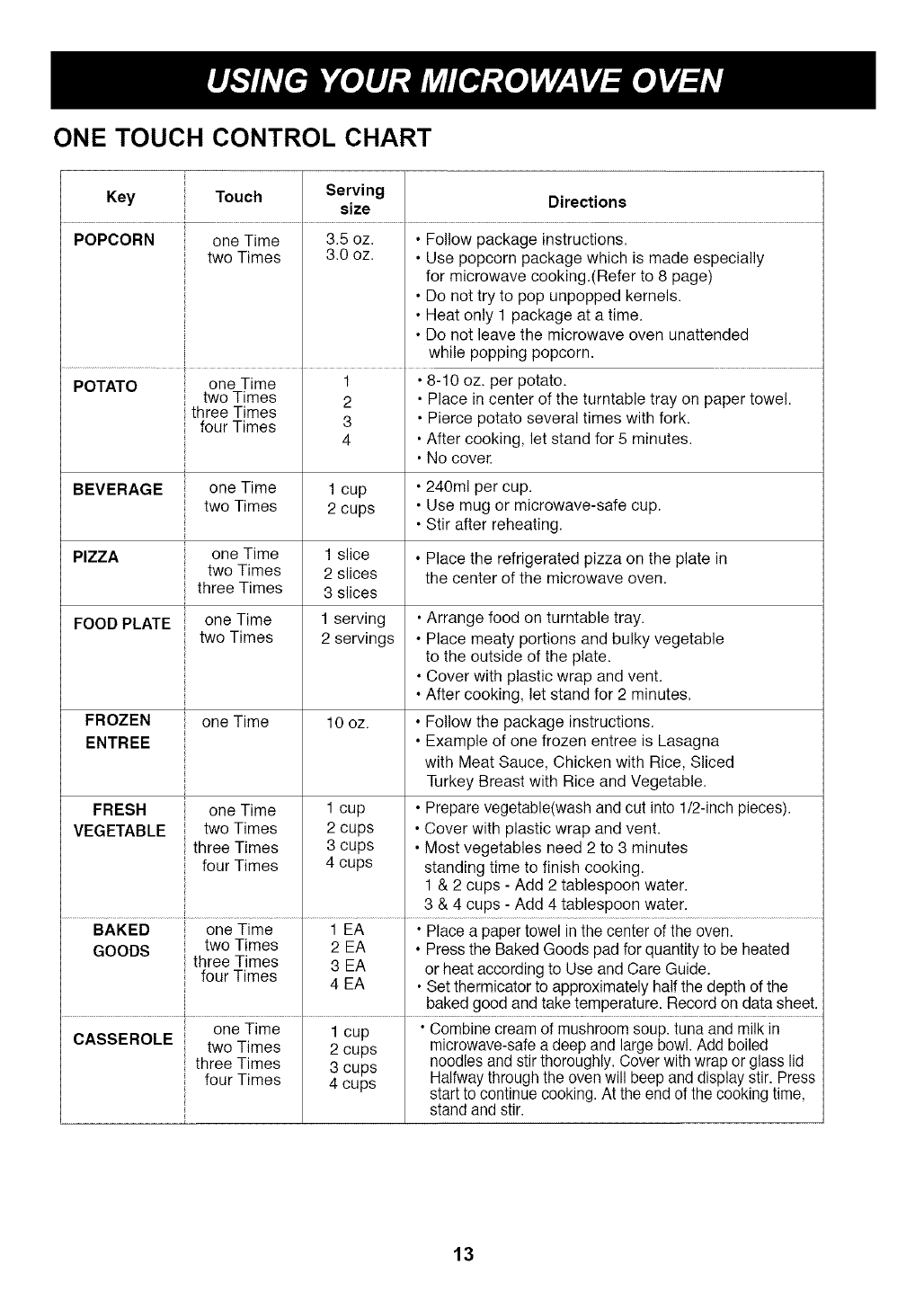

ONE TOUCH CONTROL CHART
Key
POPCORN
Touch
one Time
two Times
Serving
size
3.5 oz.
3.0 oz.
POTATO one Time 1
:: two Times 2
three Times 3
four Times 4
BEVERAGE
PIZZA
FOOD PLATE
FROZEN
ENTREE
FRESH
VEGETABLE
one Time
two Times
one Time
two Times
three Times
one Time
two Times
one Time
one Time
two Times
three Times
four Times
1 cup
2 cups
1 slice
2 slices
3 slices
1 serving
2 servings
10 oz.
1 cup
2 cups
3 cups
4 cups
Directions
• Follow package instructions.
• Use popcorn package which is made especially
for microwave cooking.(Refer to 8 page)
• Do not try to pop unpopped kernels.
• Heat only 1 package at a time.
• Do not leave the microwave oven unattended
while popping popcorn.
• 8-10 oz. per potato.
• Place in center of the turntable tray on paper towel.
• Pierce potato several times with fork.
• After cooking, let stand for 5 minutes.
•No cover.
• 240ml per cup.
• Use mug or microwave-safe cup.
• Stir after reheating.
• Place the refrigerated pizza on the plate in
the center of the microwave oven.
• Arrange food on turntable tray.
• Place meaty portions and bulky vegetable
to the outside of the plate.
• Cover with plastic wrap and vent.
• After cooking, let stand for 2 minutes.
• Follow the package instructions.
• Example of one frozen entree is Lasagna
with Meat Sauce, Chicken with Rice, Sliced
Turkey Breast with Rice and Vegetable.
• Prepare vegetable(wash and cut into 1/2-inch pieces).
• Cover with plastic wrap and vent.
• Most vegetables need 2 to 3 minutes
standing time to finish cooking.
1 & 2 cups - Add 2 tablespoon water.
3 & 4 cups - Add 4 tablespoon water.
GOODS two Times
three Times
four Times
CASSEROLE ii two Times
three Times
four Times
2 EA • Press the Baked Goods pad for quantity to be heated
3 EA or heat according to Use and Care Guide.
4 EA • Set thermicator to approximately half the depth of the
baked good and take temperature. Record on data sheet.
2 cups microwave-safe a deep and large bowl. Add boiled
3 cups noodles and stir thoroughly. Cover with wrap or glass lid
4 cups Halfway through the oven will beep and display stir. Press
start to continue cooking. At the end of the cooking time,
stand and stir.
13
MICROWAVE POWER LEVELS
Your microwave oven is equipped with ten power levels (11 steps including 0) to give you maximum
flexibility and control over cooking. When your cooking program is completed, a beep automatically
sounds. The table below will give you some idea of which foods are prepared at each of the various
power levels.
MICROWAVE POWER LEVEL CHART
Output
(of watts)
Power Level Use
• Boil water.
• Brown ground beef.
10 100% • Cook fresh fruits & vegetables.
(High) • Make candy.
• Cook fish, meat & poultry.
• Preheat browning dish.
9 90% • Heat precooked food.
• Saute onions, celery & green pepper.
8 80% • All reheating
• Roast meat & poultry.
7 70% • Cook mushrooms & shellfish.
• Cook foods which contain cheese & eggs.
• Bake cakes, muffins.
6 60% • Prepare eggs.
• Cook meat, poultry.
5 50% • Cook custard
• Prepare rice, soup.
• Melt butter & chocolate.
4 40% • Cook less tender cuts of meat.
3 30% • All defrosting
2 20% • Soften butter & cheese.
• Soften ice cream.
1 10% • Raise yeast dough.
0 O • Standing time.
• Independent timer.
14
AUTO DEFROST
Three defrost sequences are preset in the oven.
The defrost feature provides you with the best
defrosting method for frozen foods. The auto
defrost guide will show you which defrost
sequence is recommended for the food you are
defrosting.
The oven automatically determines required
defrosting times for each food item according to
the weight you enter.
For added convenience, the Auto Defrost
Feature contains a built-in beep mechanism that
lets you check, turn over, separate or rearrange
as recommended in the AUTO DEFROST
GUIDE.
Three different defrosting levels are provided.
dEF1 GROUND MEAT
dEF2 POULTRY
dEF3 STEAKS/CHOPS
EXAMPLE:
To defrost 1.21bsof ground beef, touch AUTO
DEFROST once. CLEF1appears in the display,
and enter the weight.
1. Touch STOP/CLEAR.
2. Touch AUTO DEFROST once.
3. Enter the weight by touching [1] and [2].
1.2 appears in the display.
4. Touch START.
!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iii
1. Touch STOP/CLEAR.
AUTO
DEFROST 2. Touch AUTO DEFROST.
12 3. Enter the weight by
touching [1] and [2].
L2 shows in the display.
4. Touch START pad.
Defrosting starts.
The display changes to defrost time count
down. The oven will beep during the DEFROST
cycle. At this time, open the door and turn,
separate or rearrange the food.
Remove any portions that have thawed.
Return frozen portions to the oven and touch
START to resume the defrost cycle. The oven
will not STOP during the BEEP unless the door
is opened.
•For best results, remove fish, shellfish, meat,
and poultry from its original closed paper or
plastic package (wrapper). Otherwise, the
wrap will hold steam and juice close to the
foods, which can cause the outer surface of
the foods to cook.
• Place foods in a shallow glass baking dish or
microwave roasting rack to catch drippings.
• Food should still be somewhat icy in the
center when removed from the oven.
Q-DEFROST
Use this function to thaw only 1 lb. of ground meat,
poultry and steaks/chops very quickly.
NOTE: The oven beeps during the defrost cycle. After
it beeps, open the door and turn over, separate, or
rearrange the food. Q-DEFROST provides just
enough defrosting so that the food can be used in
recipes or for cooking. Some ice crystals remain.
I
1. Touch STOP/CLEAR.
Q
DEFROST 2. Touch Q-DEFROST.
15
AUTO DEFROST GUIDE
TOUCH
ALrroDF.FROS_
SEQU ENCE FOOD MIN./MAX.
• BEEF .................. Ground beef, Cubes for stew,
Pot roast, Rib roast, Rump roast,
GROUND one time Chuck roast, Hamburger patty.
MEAT • LAMB ................. Rolled roast 0.1/6.0 Ibs.
• PORK ................. Hot dogs, Spareribs,
Country-style ribs,
Rolled roast, Sausage.
• VEAL .................. Cutlets (lib., 1/2-inchthick)
• POULTRY ........... Whole (under 4 Ibs), Cut up
POULTRY two times Breasts (boneless) 0.1/6.0 Ibs.
•CORNISH HENS ...Whole
• TURKEY .............. Breast (under 6 Ibs.)
• STEAKS .............. Round steak, Tenderloin steak.
$TEAKS/CHOPS three times • CHOPS ................ Lamb chops (1-inch thick),
Pork chops (1/2-inchthick). 0.1/6.0 Ibs.
• FISH ..................... Fillets, Steaks, Whole.
• SHELLFISH ......... Crab meat, Lobster tails, Shrimp,
Scallops
16
WARNING: Do not use aluminum foil during cooking cycle.

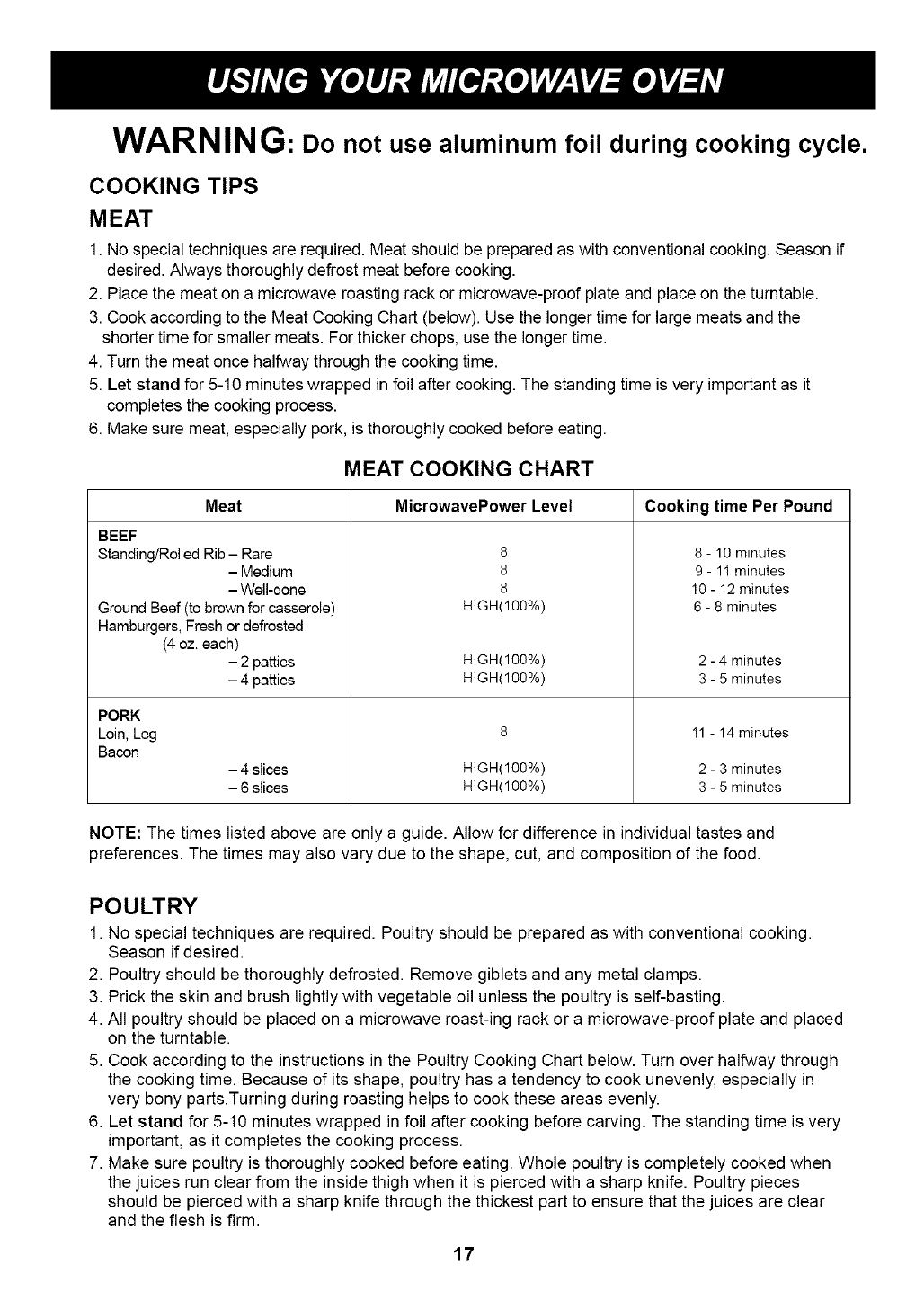

COOKING TIPS
MEAT
1. No special techniques are required. Meat should be prepared as with conventional cooking. Season if
desired. Always thoroughly defrost meat before cooking.
2. Place the meat on a microwave roasting rack or microwave-proof plate and place on the turntable.
3. Cook according to the Meat Cooking Chart (below). Use the longer time for large meats and the
shorter time for smaller meats. For thicker chops, use the longer time.
4. Turn the meat once halfway through the cooking time.
5. Let stand for 5-10 minutes wrapped in foil after cooking. The standing time is very important as it
completes the cooking process.
6. Make sure meat, especially pork, is thoroughly cooked before eating.
MEAT COOKING CHART
Meat MicrowavePower Level Cooking time Per Pound
BEEF
Standing/Rolled Rib - Rare
- Medium
- Well-done
Ground Beef (to brown for casserole)
Hamburgers, Fresh or defrosted
(4 oz. each)
- 2 patties
- 4 patties
PORK
Loin, Leg
Bacon
-4 slices
-6 slices
8
8
8
HIGH(100%)
HIGH(100%)
HIGH(100%)
8
HIGH(100%)
HIGH(100%)
8 - 10 minutes
9 - 11 minutes
10 - 12 minutes
6 - 8 minutes
2 - 4 minutes
3 - 5 minutes
11 - 14 minutes
2 - 3 minutes
3 - 5 minutes
NOTE: The times listed above are only a guide. Allow for difference in individual tastes and
preferences. The times may also vary due to the shape, cut, and composition of the food.
POULTRY
1. No special techniques are required. Poultry should be prepared as with conventional cooking.
Season if desired.
2. Poultry should be thoroughly defrosted. Remove giblets and any metal clamps.
3. Prick the skin and brush lightly with vegetable oil unless the poultry is self-basting.
4. All poultry should be placed on a microwave roast-ing rack or a microwave-proof plate and placed
on the turntable.
5. Cook according to the instructions in the Poultry Cooking Chart below. Turn over halfway through
the cooking time. Because of its shape, poultry has a tendency to cook unevenly, especially in
very bony parts.Turning during roasting helps to cook these areas evenly.
6. Let stand for 5-10 minutes wrapped in foil after cooking before carving. The standing time is very
important, as it completes the cooking process.
7. Make sure poultry is thoroughly cooked before eating. Whole poultry is completely cooked when
the juices run clear from the inside thigh when it is pierced with a sharp knife. Poultry pieces
should be pierced with a sharp knife through the thickest part to ensure that the juices are clear
and the flesh is firm.
17
WARNING: Do not use aluminum foil during cooking cycle.

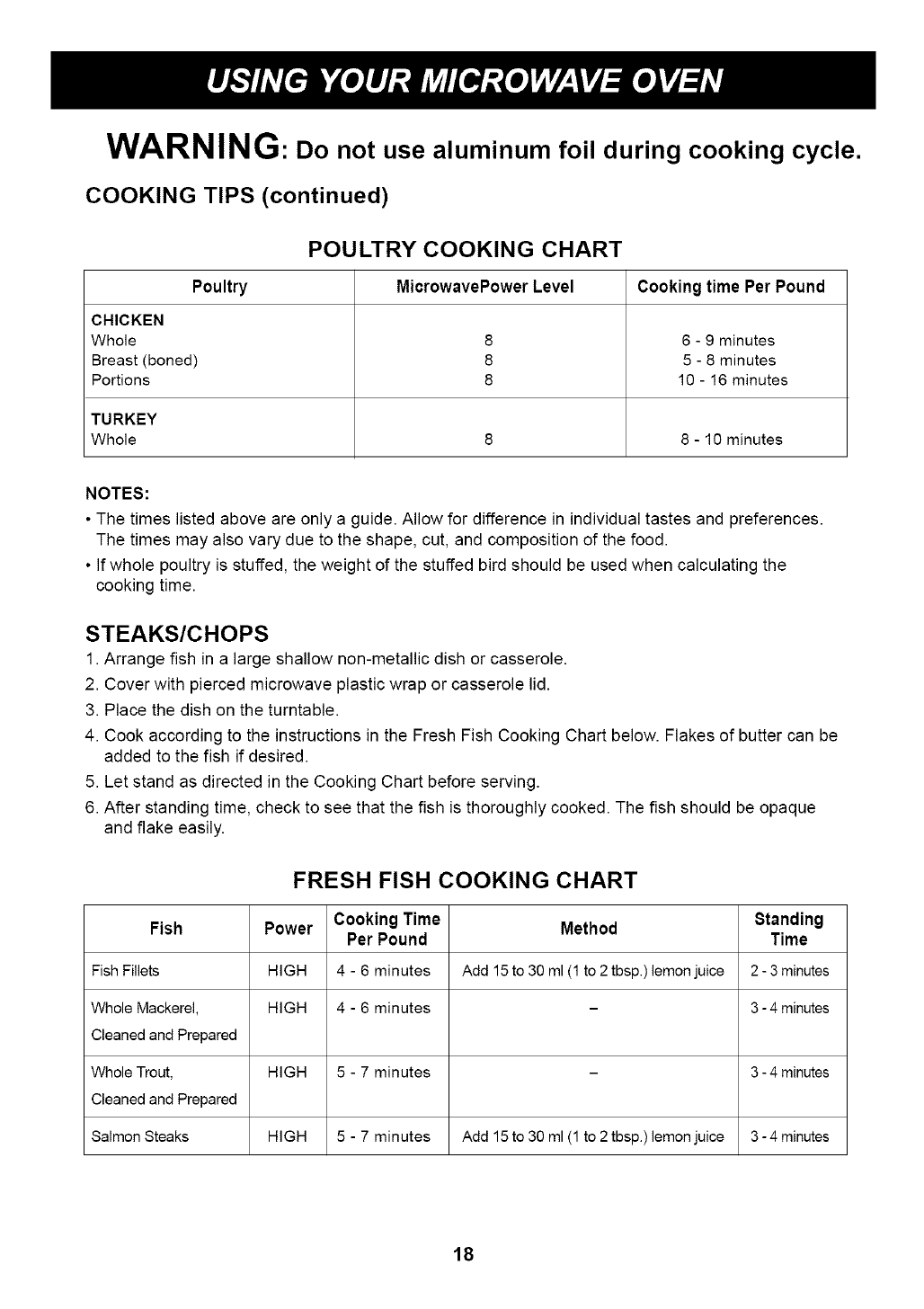

COOKING TIPS (continued)
POULTRY COOKING CHART
Poultry MicrowavePower Level Cooking time Per Pound
CHICKEN
Whole 8 6 -9 minutes
Breast (boned) 8 5 -8 minutes
Portions 8 10 -16 minutes
TURKEY
Whole 8 8 -10 minutes
NOTES:
•The times listed above are only a guide. Allow for difference in individual tastes and preferences.
The times may also vary due to the shape, cut, and composition of the food.
• If whole poultry is stuffed, the weight of the stuffed bird should be used when calculating the
cooking time.
STEAKS/CHOPS
1. Arrange fish in a large shallow non-metallic dish or casserole.
2. Cover with pierced microwave plastic wrap or casserole lid.
3. Place the dish on the turntable.
4. Cook according to the instructions in the Fresh Fish Cooking Chart below. Flakes of butter can be
added to the fish if desired.
5. Let stand as directed in the Cooking Chart before serving.
6. After standing time, check to see that the fish is thoroughly cooked. The fish should be opaque
and flake easily.
FRESH FISH COOKING CHART
Fish Power Cooking Time Method Standing
Per Pound Time
Fish Fillets HIGH 4 -6 minutes Add 15to30 ml (1 to 2 tbsp.) lemon juice 2- 3 minutes
Whole Mackerel, HIGH 4 - 6 minutes - 3 - 4 minutes
Cleaned and Prepared
Whole Trout, HIGH 5 - 7 minutes - 3 - 4 minutes
Cleaned and Prepared
Salmon Steaks HIGH 5- 7 minutes Add 15 to 30 ml (1 to 2 tbsp.) lemon juice 3-4 minutes
18
To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure
the amount of food in order to determine the time needed to reheat. Arrange the food in a circular
pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods
should be taken out of the can and placed in a microwavable container. The food will be heated
more evenly if covered with a microwavable lid or plastic wrap and vented. Remove cover carefully
to prevent steam burns. Use the following chart as a guide for reheating cooked food.
Items
Sliced meat
3 slices (V4-inchthick)
Cook time (at HIGH)
LMA1!50SV
1-2 minutes
Special Instructions
Place sliced meat on microwavable plate.
Cover with plastic wrap and vent.
* Note: Gravy or sauce helps to keep meat juicy
Chicken pieces
1 breast 2-31/2minutes Place chicken pieces on microwavable plate.
1 leg and thigh 1V2-3 minutes Cover with plastic wrap and vent.
Fish fillet
(6-8 oz.) 2-4 minutes Place fish on microwavable plate.
Cover with plastic wrap and vent.
Lasagna Place lasagna on microwavable plate,
serving (101t_oz.) 4-6 minutes
...!............................................................................................................................_o_e__v_hp!as!!c.wrapand..ven!....................................
Casserole
1 cup 1-3V2minutes COOK covered in microwavable casserole,
4 cups 5-8 minutes Stir once halfway through cooking.
Casserole -
cream or cheese
1 cup 1V2-3minutes COOK covered in microwavable casserole,
4 cups 31/t-51/tminutes Stir once halfway through cooking.
Sloppy Joe or
Barbecued beef Reheat filling and bun separately
1 sandwich 1-2!/2minutes Cook filling covered in microwavable casserole.
(1/zcup meat filling) Stir once, Heat bun as directed in chart below,
without bun
Mashed potatoes
1 cup 1-3 minutes COOK covered in microwavable casserole,
4 cups 5-8 minutes Stir once halfway through cooking.
Baked beans COOK covered in microwavable casserole,
1 cup 11/2-3minutes
..............................................................................................................................#_.L2n£eh#.[.tw#._.!ht£99b..£gek._.%..................................
Raviolior pasta in sauce
1 cup 21/2-4minutes COOK covered in microwavable casserole,
4 cups 71/2-11minutes Stir once halfway through cooking.
Rice
1 cup 1V2-3V2minutes COOK covered in microwavable casserole,
4 cups 4-6V2minutes Stir once halfway through cooking.
Sandwich roll or bun 15-30 seconds Wrap in paper towel and place on glass
1 roll mircrowavable rack
Vegetables
1 cup 11/2-21/2minutes COOK covered in microwavable casserole,
4 cups 4-6 minutes Stir once halfway through cooking.
Soup COOK covered in microwavable casserole,
1 serving (8 oz.) 1V2-2V2minutes Stir once halfway through cooking.
19
Vegetable Amount Cook time at HIGH Instructions Standing
LMA1150SV Time
Artichokes 2 medium 5-8minutes Trim.Add 2 tsp water and 2 tsp juice. Cover. 2-3 minutes
• ..................4..me !u.m...........................................................................................................................................................................
Asparagus, 1Ib. 3-6minutes Addl/2cup water. Cover. 2-3 minutes
Fresh, Spears
Beans, Green & 1 lb. 7-1 1minutes Add V2cup water in 11/2qt. casserole. Stir 2-3 minutes
Wax halfway through cooking.
Beets, Fresh 1 lb. 12-16minutes Addl/2cup water in 11/2qt. covered casserole. 2-3 minutes
Rearrange halfway through cooking.
Broccoli, Fresh, 1lb. 4-8minutes Place broccoli in baking dish. Add Y2 2-3 minutes
Spears cup water•
Cabbage, Fresh, 1lb. 4-7 minutes Add 1/2cup water in 1V2qt. covered 2-3 minutes
Chopped casserole.Stir halfway through cooking.
Carrots, Fresh, 2 cups 2-4minutes AddV4cup water in 1 qt. covered casserole. 2-3 minutes
Sliced Stir halfway through cooking.
Cauliflower 1lb. 7-1 1minutes Trim. Addq4cup water in 1 qt. covered 2-3 minutes
Fresh, Whole casserole. Stir halfway through cooking.
Flowerettes, Fresh 2 cups 21/2-41fzminutes Slice. AddY2cup water in 1Y2qt. covered 2-3 minutes
Celery, Fresh, 4 cups 6-8 minutes casserole. Stir halfway through cooking.
Sliced
Corn, Fresh 2 ears 5-9minutes Husk.Add 2 tbsp water in 11/2qt. baking dish. 2-3 minutes
Cover.
Mushrooms, 1/2 lb. 2-31/2minutes Place mushrooms in 1 1/2qt. covered 2-3 minutes
Fresh, Sliced casserole. Stir halfway through cooking.
Parsnips, Fresh, 1lb. 4-8 minutes AddY2 cup water in 11/2qt. covered casserole. 2-3 minutes
Sliced Stir halfway through cooking.
Peas, Green, 4 cups 7-10minutes AddY2cup water in 1Yzqt. covered casserole. 2-3 minutes
Fresh Stir halfway through cooking.
Sweet Potatoes 2 medium 5-10minutes Pierce potatoes several times with fork. 2-3 minutes
Whole Baking 4 medium 7-13minutes Place on 2 paper towels. 2-3 minutes
.{6:8.o.z:..¢#qb)...................................................................................THr.Q.£?:e.:ha. .!w Y ..............................................
White Potatoes, 2 potatoes 5-8minutes Pierce potatoes several times with fork. 2-3 minutes
Whole Baking 4 potatoes 10-14minutes Place on 2 paper towels. 2-3 minutes
•!.6:.8.£Z....eaeh.)....................................................................................T.ur.n ..............................................
Spinach, Fresh, lib. 4-7minutes Add Y._cupwater in 2 qt. covered casserole. 2-3 minutes
Leaf
Squash, Acornr 1 medium 6-8minutes Cut squash in half. Remove seeds. 2-3 minutes
Butternut, Fresh Place in 8 x 8-inch baking dish. Cover.
Zucchini, Fresh, lib. 41/._-71fzminutes AddY_ cup water in1 t/2qt. covered casserole. 2-3 minutes
Sliced Stir halfway through cooking.
Zucchini, Fresh, 1tb. 6-9minutes Pierce. Place on 2 paper towels. 2-3 minutes
Whole Turn zucchini over and rearrange halfway
through cooking.
20

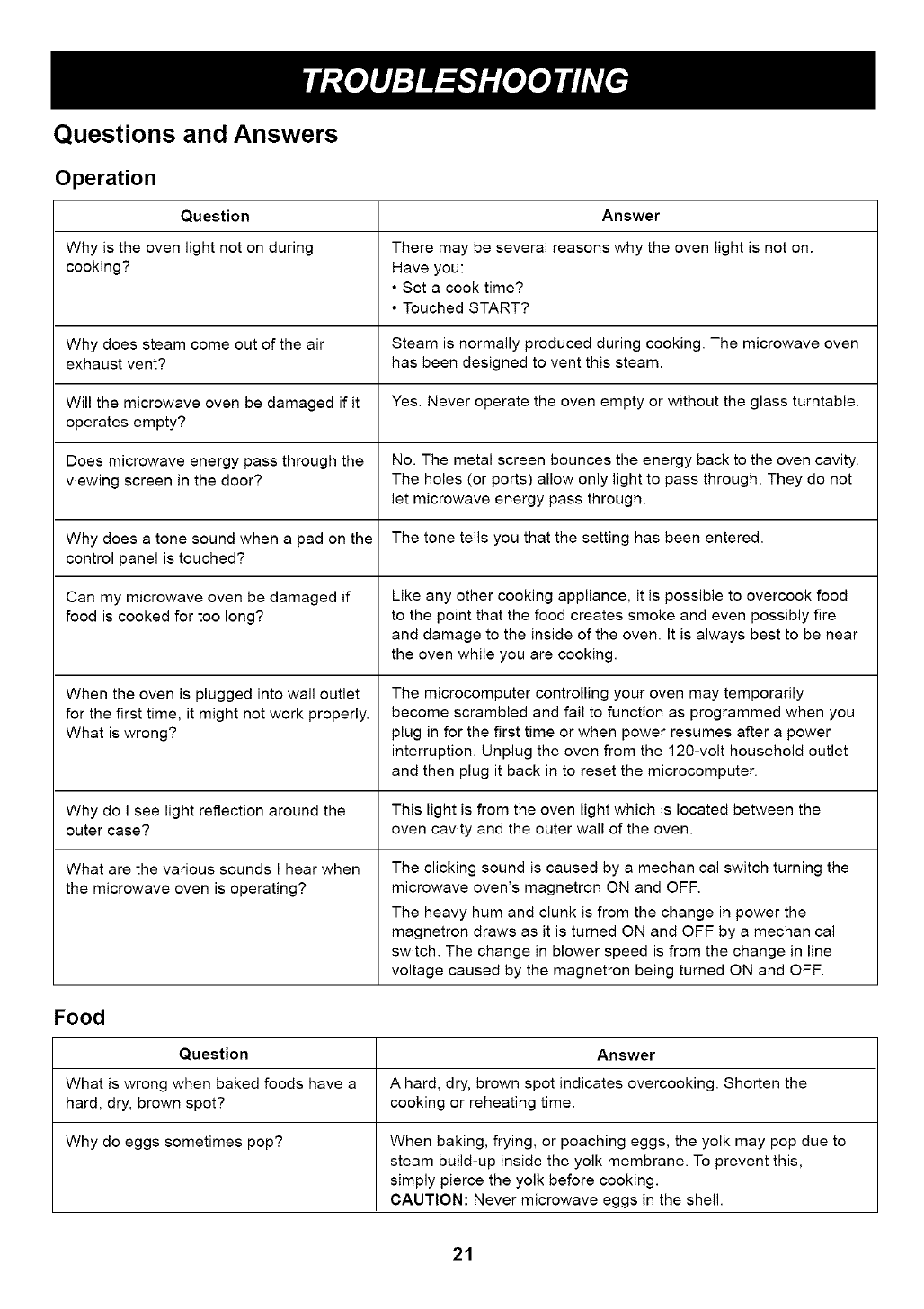

Questions and Answers
Operation
Question Answer
Why is the oven light not on during There may be several reasons why the oven light is not on.
cooking? Have you:
• Set a cook time?
• Touched START?
Why does steam come out of the air Steam is normally produced during cooking. The microwave oven
exhaust vent? has been designed to vent this steam.
Will the microwave oven be damaged if it Yes. Never operate the oven empty or without the glass turntable.
operates empty?
Does microwave energy pass through the No. The metal screen bounces the energy back to the oven cavity.
viewing screen in the door? The holes (or ports) allow only light to pass through. They do not
let microwave energy pass through.
Why does a tone sound when a pad on the The tone tells you that the setting has been entered.
control panel is touched?
Can my microwave oven be damaged if Like any other cooking appliance, it is possible to overcook food
food is cooked for too long? to the point that the food creates smoke and even possibly fire
and damage to the inside of the oven. It is always best to be near
the oven while you are cooking.
When the oven is plugged into wall outlet The microcomputer controlling your oven may temporarily
for the first time, it might not work properly, become scrambled and fail to function as programmed when you
What is wrong? plug in for the first time or when power resumes after a power
interruption. Unplug the oven from the 120-volt household outlet
and then plug it back in to reset the microcomputer.
Why do I see light reflection around the This light is from the oven light which is located between the
outer case? oven cavity and the outer wall of the oven.
What are the various sounds I hear when
the microwave oven is operating?
The clicking sound is caused by a mechanical switch turning the
microwave oven's magnetron ON and OFF.
The heavy hum and clunk is from the change in power the
magnetron draws as it is turned ON and OFF by a mechanical
switch. The change in blower speed is from the change in line
voltage caused by the magnetron being turned ON and OFF.
Food
Question Answer
What is wrong when baked foods have a A hard, dry, brown spot indicates overcooking. Shorten the
hard, dry, brown spot? cooking or reheating time.
Why do eggs sometimes pop? When baking, frying, or poaching eggs, the yolk may pop due to
steam build-up inside the yolk membrane. To prevent this,
simply pierce the yolk before cooking.
CAUTION: Never microwave eggs in the shell.
21
Questions and Answers (continued)
Food
Question
Why are scrambled eggs sometimes a
little dry after cooking?
Is it possible to pop popcorn in a
microwave oven?
Why do baked apples sometimes burst
during cooking?
Why do baked potatoes sometimes
burn during cooking?
Why is a standing time recommended
after microwave cooking time is over?
Why is additional time required for
cooking food stored in the refrigerator?
Answer
Eggs will dry out when they are overcooked, even if the same
recipe is used each time. The cooking time may need to be varied
for one of these reasons:
• Eggs vary in size.
• Eggs are at room temperature one time and at refrigerator
temperature another time.
• Eggs continue cooking during standing time.
Yes, if using one of the two methods described below:
(1) microwave-popping devices designed specifically for
microwave cooking
(2) prepackaged commercial microwave popcorn that is made
for specific times and power output needed
Follow exact directions given by each manufacturer for
its popcorn popping product and do not leave the oven
unattended while the corn is being popped. If corn fails
to pop after the suggested time, discontinue cooking.
Overcooking could result in an oven fire.
CAUTION:
• Never use a brown paper bag for popping corn or attempt
to pop leftover kernels.
• Do not pop prepackaged commercial microwave popcorn
directly on the glass turntable. To avoid excessive heating
of the glass turntable, place the popcorn bag on a plate.
• Listen while corn pops. Stop oven when popping slows to
2-3 seconds between pops.
• Do not leave microwave unattended while popping corn.
• Follow directions on bag.
The peel has not been removed from the top half of each apple to
allow for expansion of the interior of the apple during cooking. As
in conventional cooking methods, the interior of the apple expands
during the cooking process.
If the cooking time is too long, fire could result. At the end of the
recommended cooking time, potatoes should be slightly firm.
CAUTION: Do not overcook.
Standing time allows foods to continue cooking evenly for a few
minutes after the actual microwave oven cooking cycle. The
amount of standing time depends upon the density of the foods.
As in conventional cooking, the initial temperature of food affects
total cooking time. You need more time to cook food taken out of a
refrigerator than for food at room temperature.
22
Before Calling for Service
You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the
operating problem in the list below and try the solutions listed for each problem.
If the microwave oven still does not work properly, contact the nearest LG Authorized Service Center.
LG Authorized Service Centers are fully equipped to handle your service requirements.
Problem Possible Causes
Oven does not start • Is the power cord plugged in?
• Is the door closed?
• Is the cooking time set?
Arcing or Sparking • Are you using approved cookware?
• Is the oven empty?
incorrect time of day • Have you tried to reset the time of day?
Unevenly Cooked Foods • Are you using approved cookware?
• Is the glass turntable in the oven?
• Did you turn or stir the food while it was cooking?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
Overcooked Foods • Was the time/cooking power level correct?
Undercooked Foods • Are you using approved cookware?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
• Are the ventilation ports clear?
improper Defrosting • Are you using approved cookware?
• Was the time/cooking power level correct?
• Did you turn or stir the food during the defrosting cycle?
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions,
may cause interference to radio and television
reception. It has been type tested and found to
comply with limits for ISM Equipment pursuant to part
18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a
residential installation.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the
following:
• Reorient the receiving antenna of the radio or
television.
• Relocate the microwave oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modification to this microwave oven. It is the
responsibility of the user to correct such interference.
23
LG Electronics, Inc. will repair or replace your product, at LG's option, if it proves to be defective in
material or workmanship under normal use, during the warranty period set forth below, effective from
the date of original consumer purchase of the product. This warranty is _lood only to the original
purchaser of the product and effective only when used in the United States, including U.S. Territories.
WARRANTY PERIOD:
One Year from the Date of Purchase.
HOW SERVICE IS HANDLED:
Product Replacement
Please call 1-800-243-0000 and choose the Customer
Service/Appliance options. (Phones are answered 24 hours a
day, 365 days per year.) You will receive a certificate to
purchase a replacement product from your local dealer.
You will then send the purchase receipts for the original and the
replacement microwave ovens, along with the purchase
authorization certificate to us.
We will send you a refund check for the purchase price of the
original product. This gives you the opportunity to upgrade to
another model or to receive the full purchase price of the original
model even if you decide to purchase a less expensive model.
Please visit our website at: http://us.lgservice.com
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST
REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR
OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or
correct wiring, or correction of unauthorized repairs.
Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire,
flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or
voltage, or commercial use, or use for other than intended purpose.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMERINTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product Infor-
mation, or Dealer or Authorized Service Center
location:
Call 1-800-243-0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http://us.lgservice.com
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: CIC
OLG Electren_¢s In¢o
P/NO.: 3828W5A8331 Printed in China
