Open the PDF directly: View PDF .
Page Count: 46

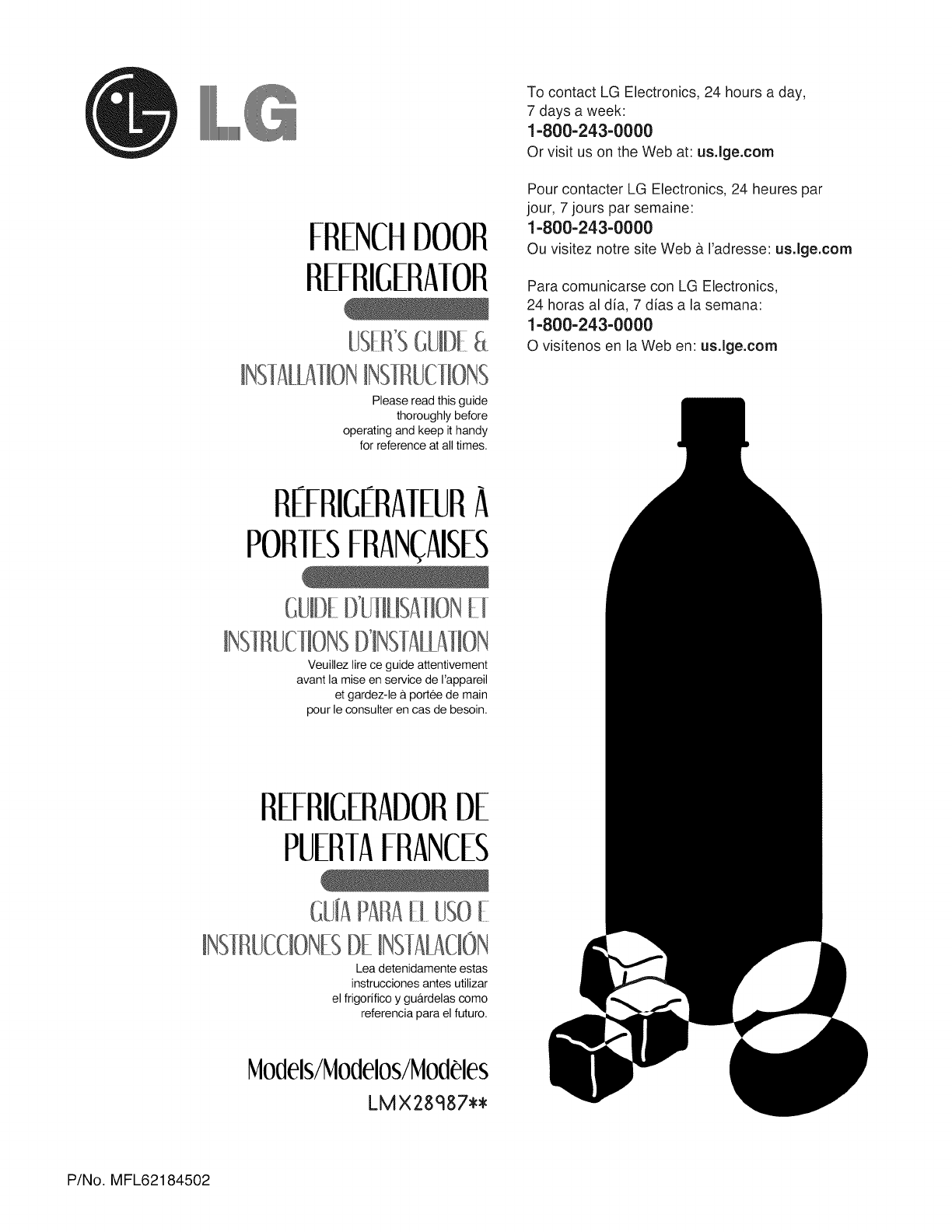

FRENCHDOOR

REFRIGERAIOR

USER'SCUID[_.

INS[AHA[IONINSMUCI+ONS

Please read this guide

thoroughly before

operating and keep it handy

for reference at all times.

To contact LG Electronics, 24 hours a day,

7 days a week:

1-800-243-0000

Or visit us on the Web at: us.lge.com

Pour contacter LG Electronics, 24 heures par

jour, 7 jours par semaine:

1-800-243-0000

Ou visitez notre site Web a I'adresse: us.ige.com

Para comunicarse con LG Electronics,

24 horas al dia, 7 dias a la semana:

1-800-243-0000

O visitenos en la Web en: us.lge.com

RfFRIGERAIFURA

po sFRANCAIsES

cUiD[D'lj_IIUSAilONEl

iNsMUcliONsDl+si,_tiAllON

Veuillez lire ce guide attentivement

avant la mise en service de I'appareil

et gardez-le & portee de main

pour le consulter en cas de besoin.

REFRIGERADORDE

PUERIAFRANCES

cU[APARAElUSO[

I+sii+UccIO+EsDEINsiAb_cIO+

Lea detenidamente estas

instrucciones antes utilizar

el frigorifico y gua_rdelascomo

referencia para el futuro.

Models/Modelos/Modeles

LMX28g87**

P/No. MFL62184502

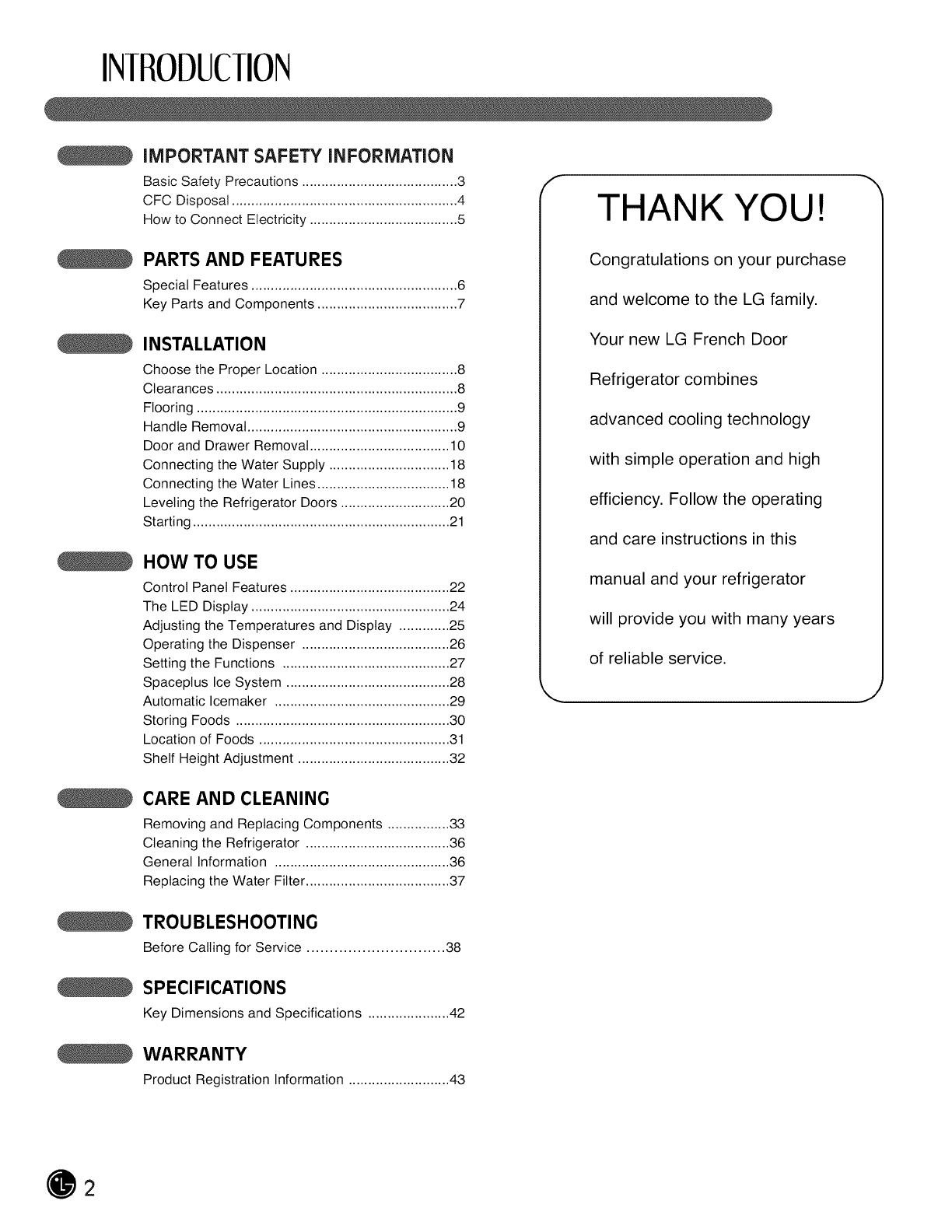

INIRODUCIION

IMPORTANT SAFETY INFORMATION

Basic Safety Precautions ........................................ 3

CFC Disposal .......................................................... 4

How to Connect Electricity ...................................... 5

PARTS AND FEATURES

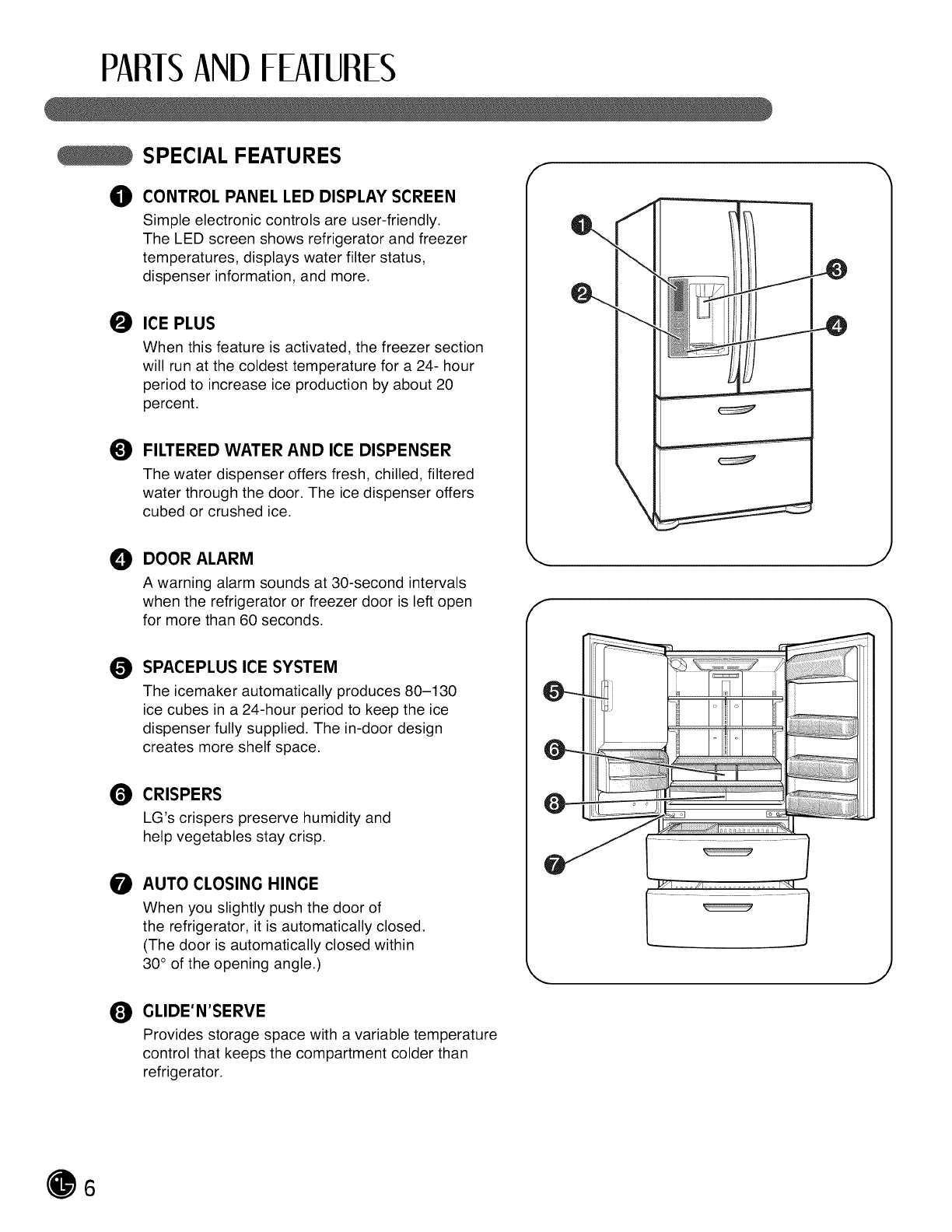

Special Features ..................................................... 6

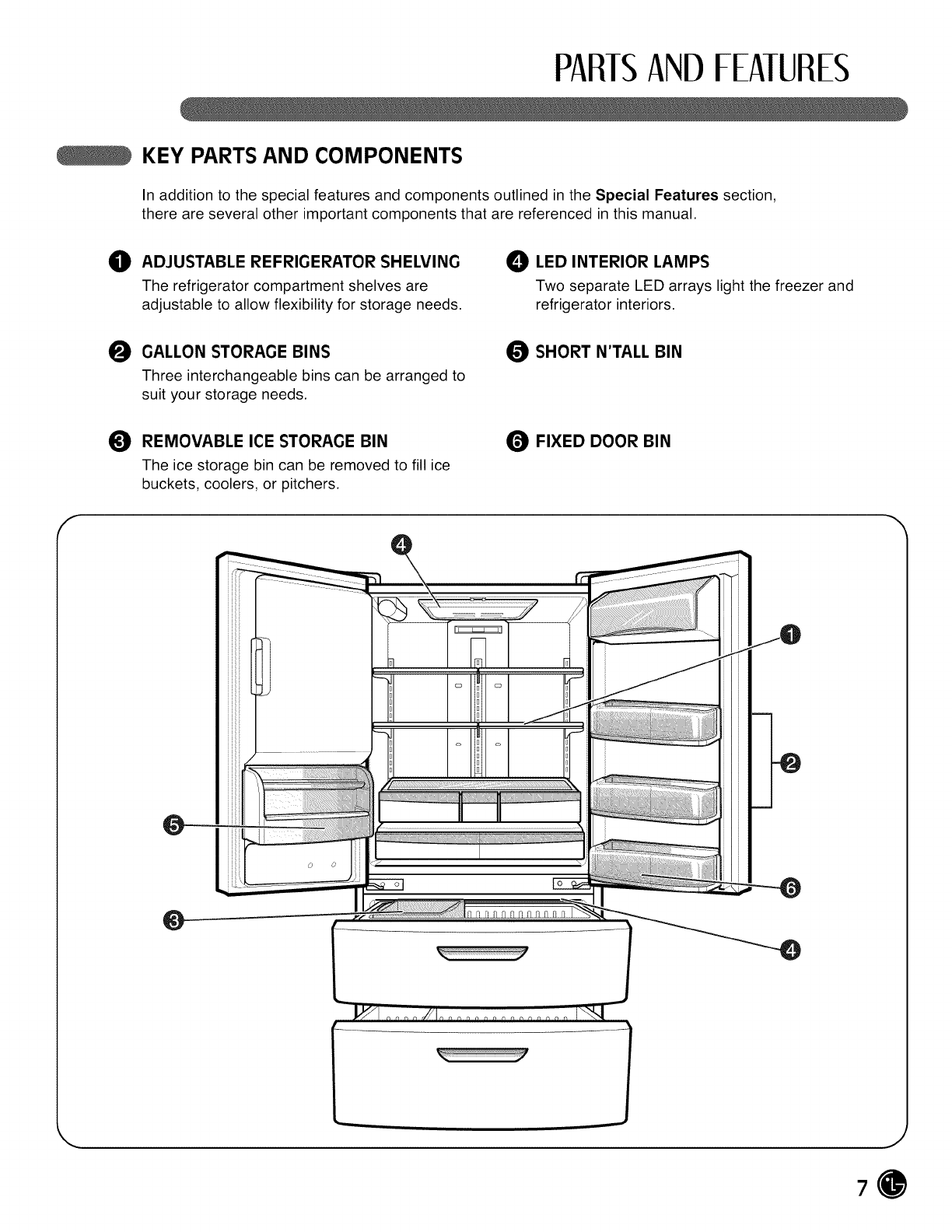

Key Parts and Components .................................... 7

INSTALLATION

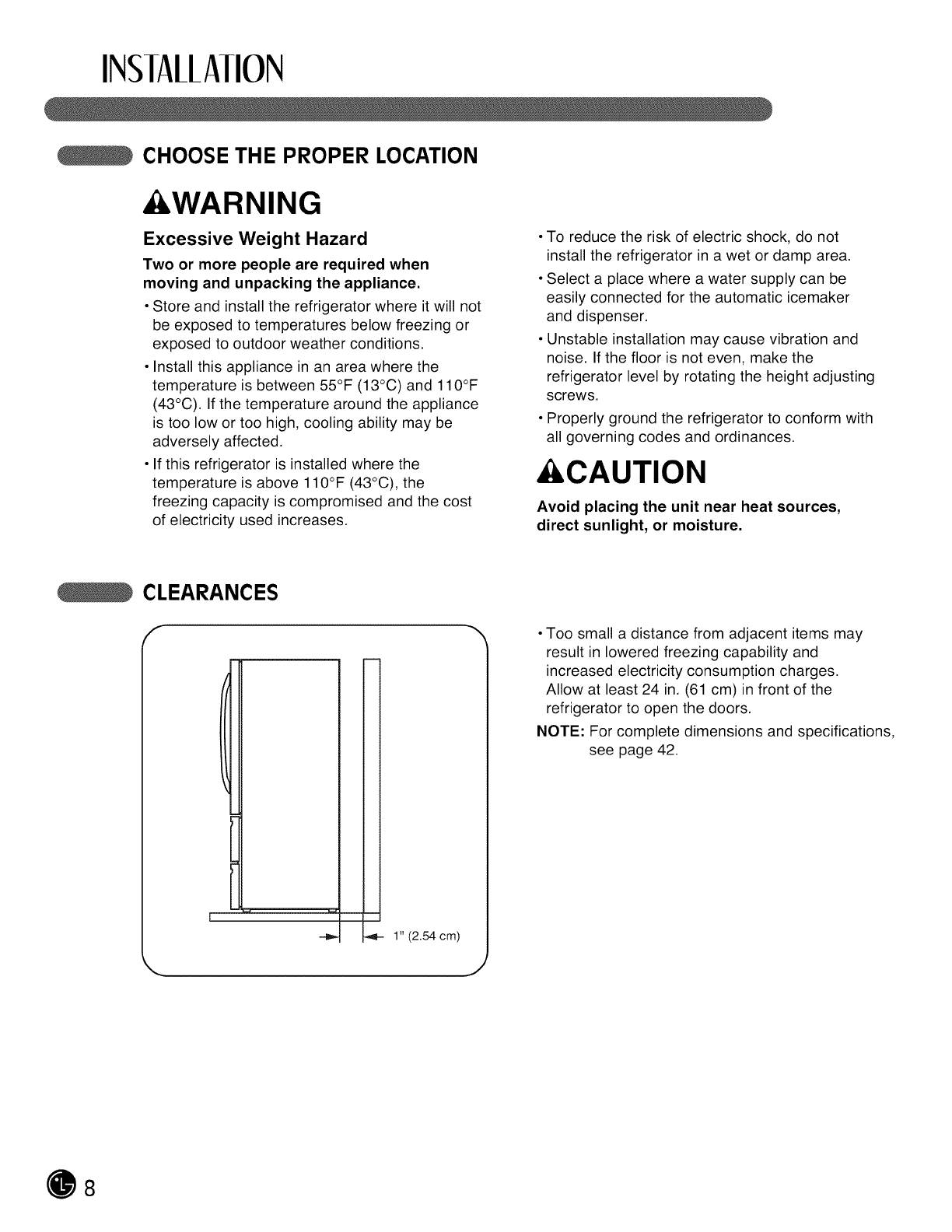

Choose the Proper Location ................................... 8

Clearances .............................................................. 8

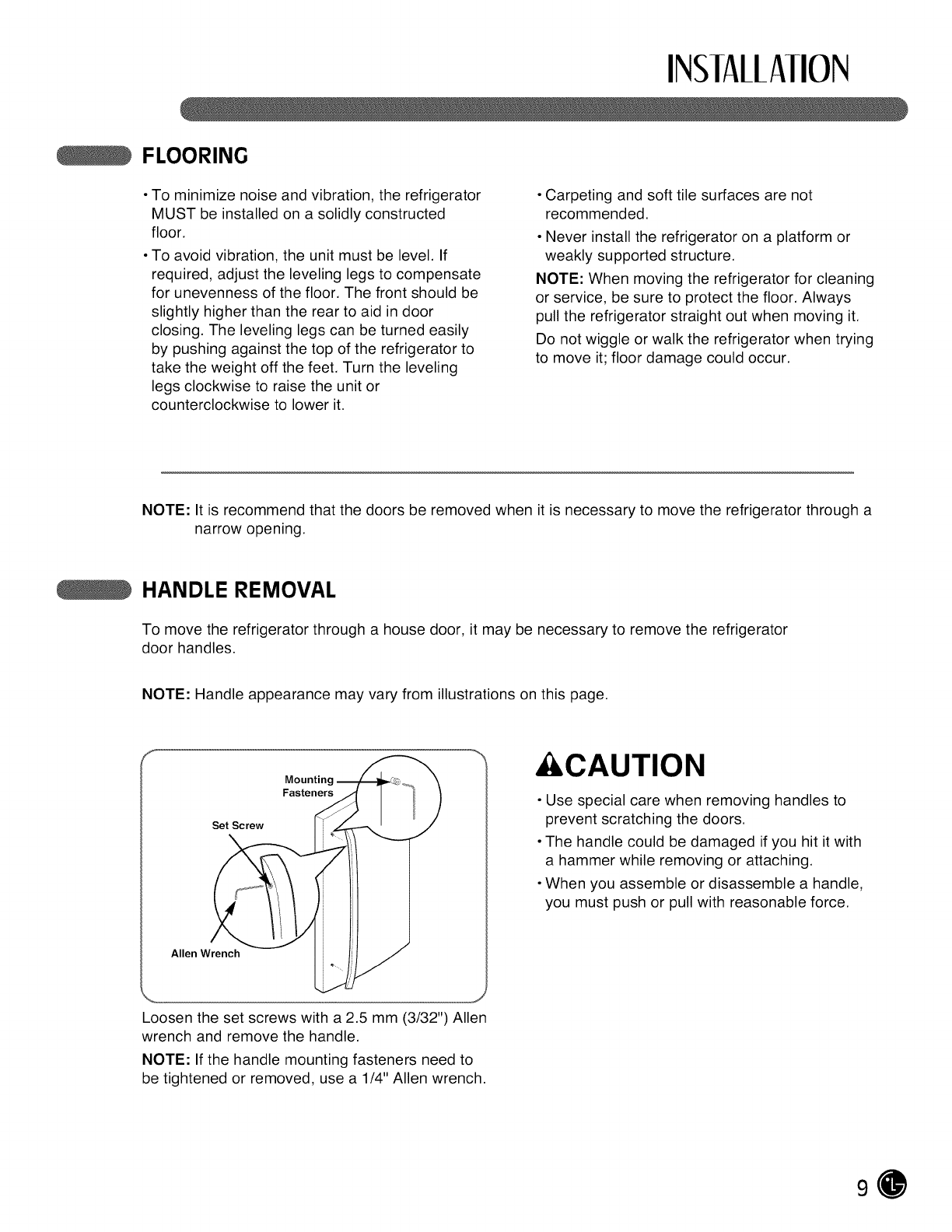

Flooring ................................................................... 9

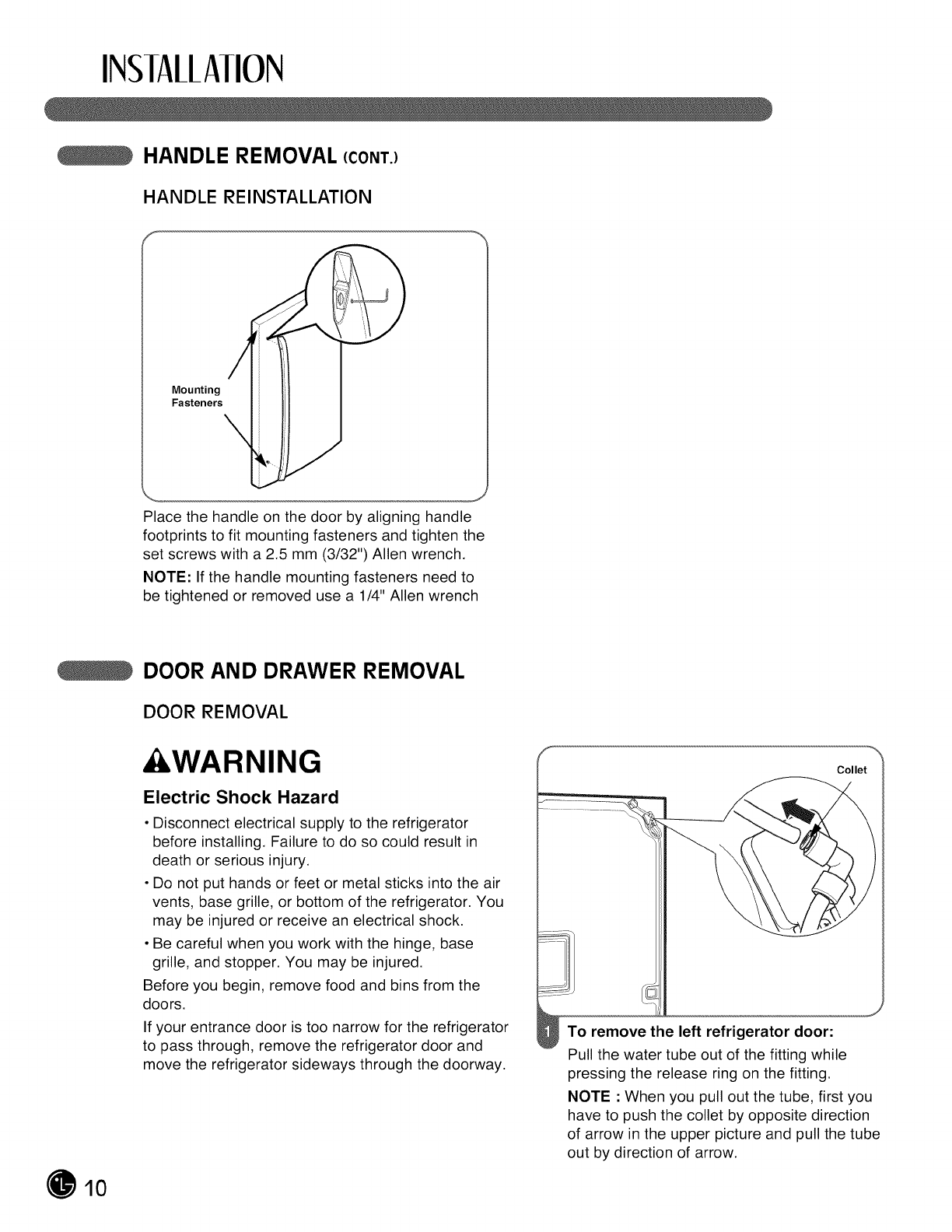

Handle Removal ...................................................... 9

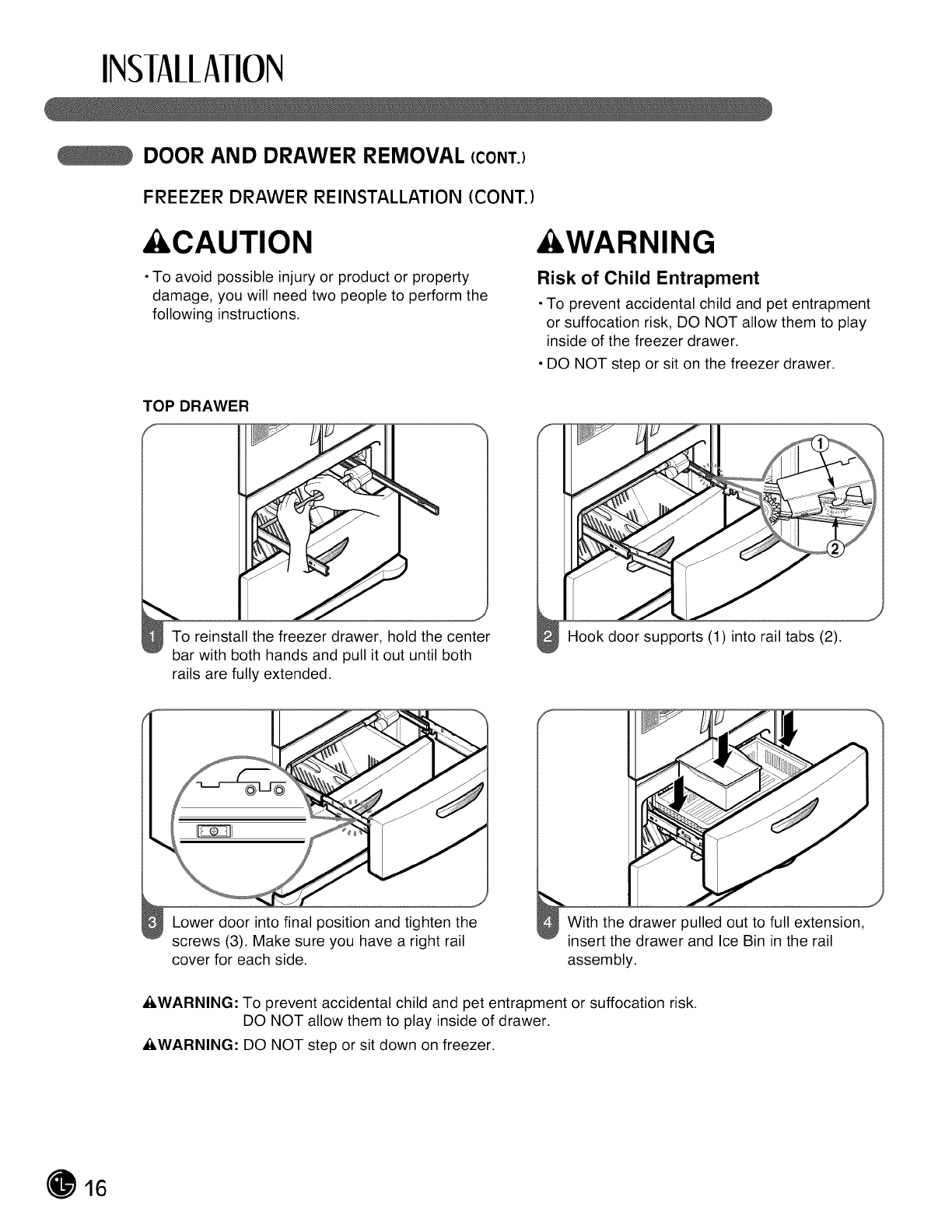

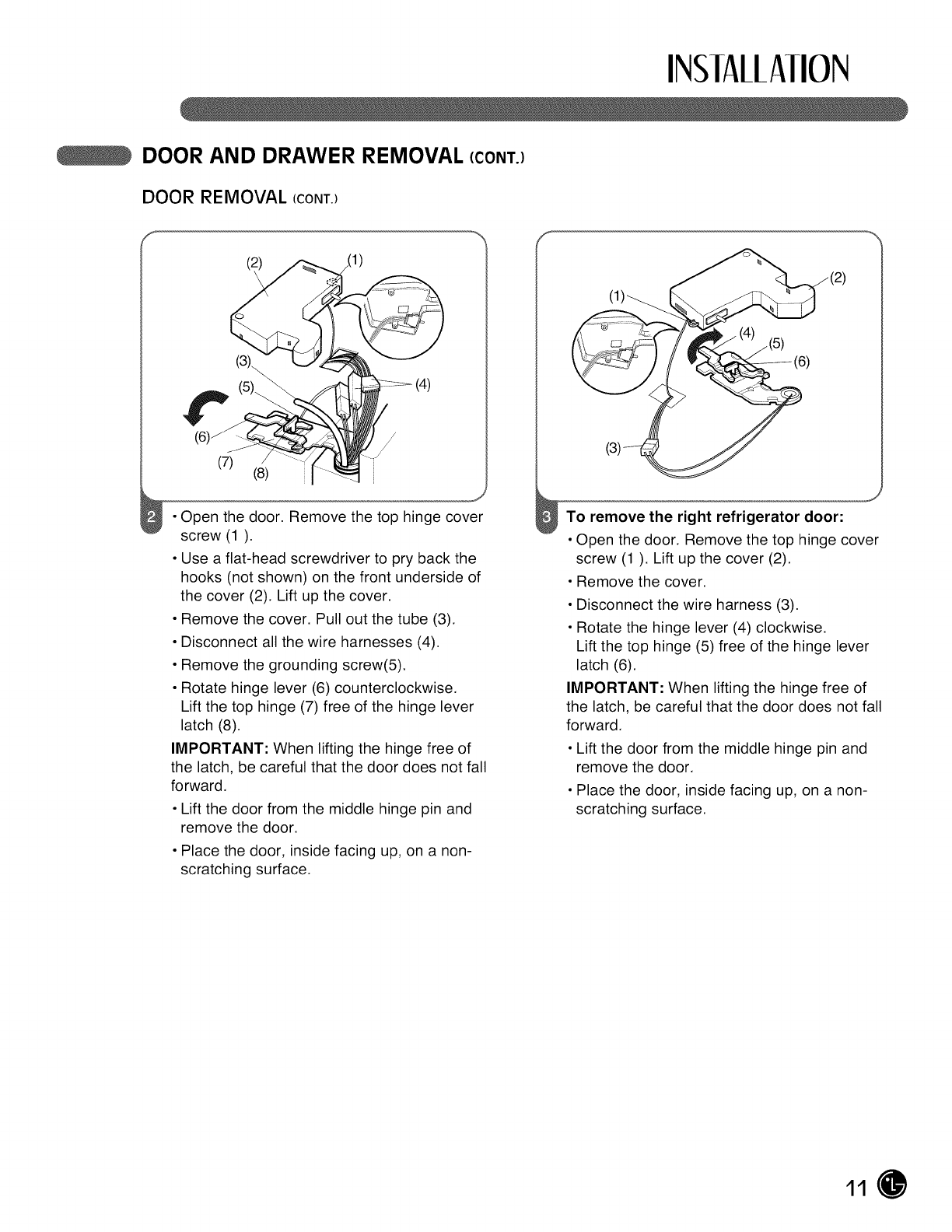

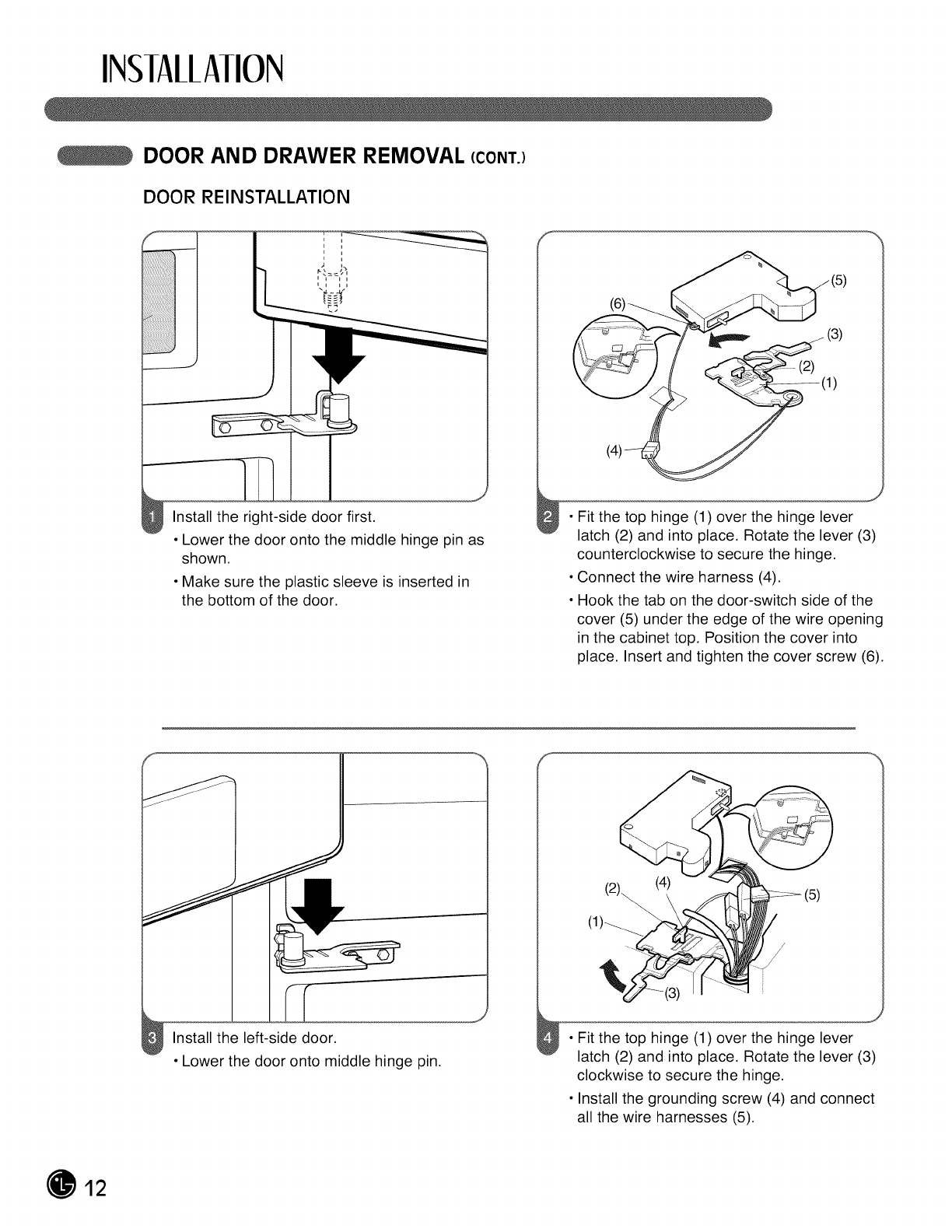

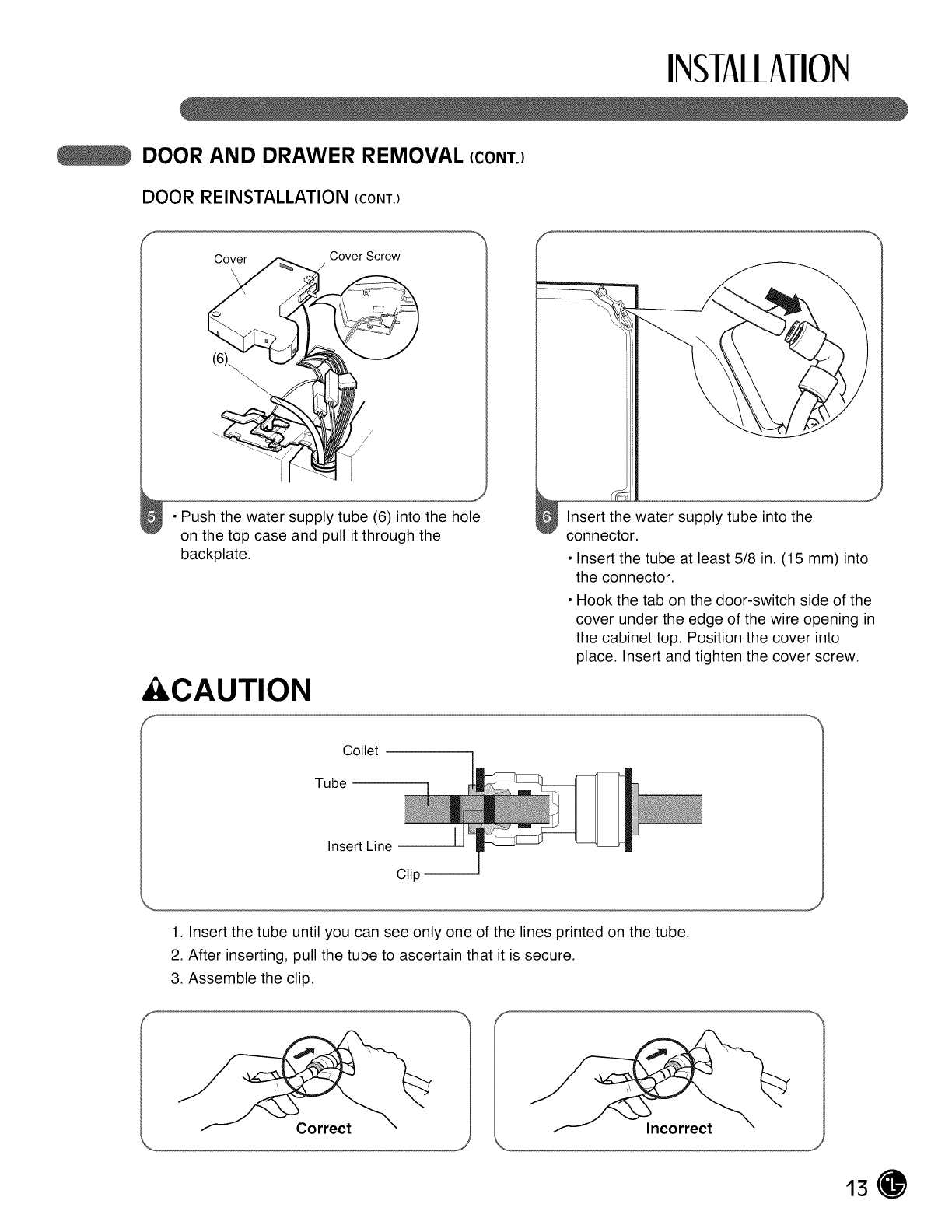

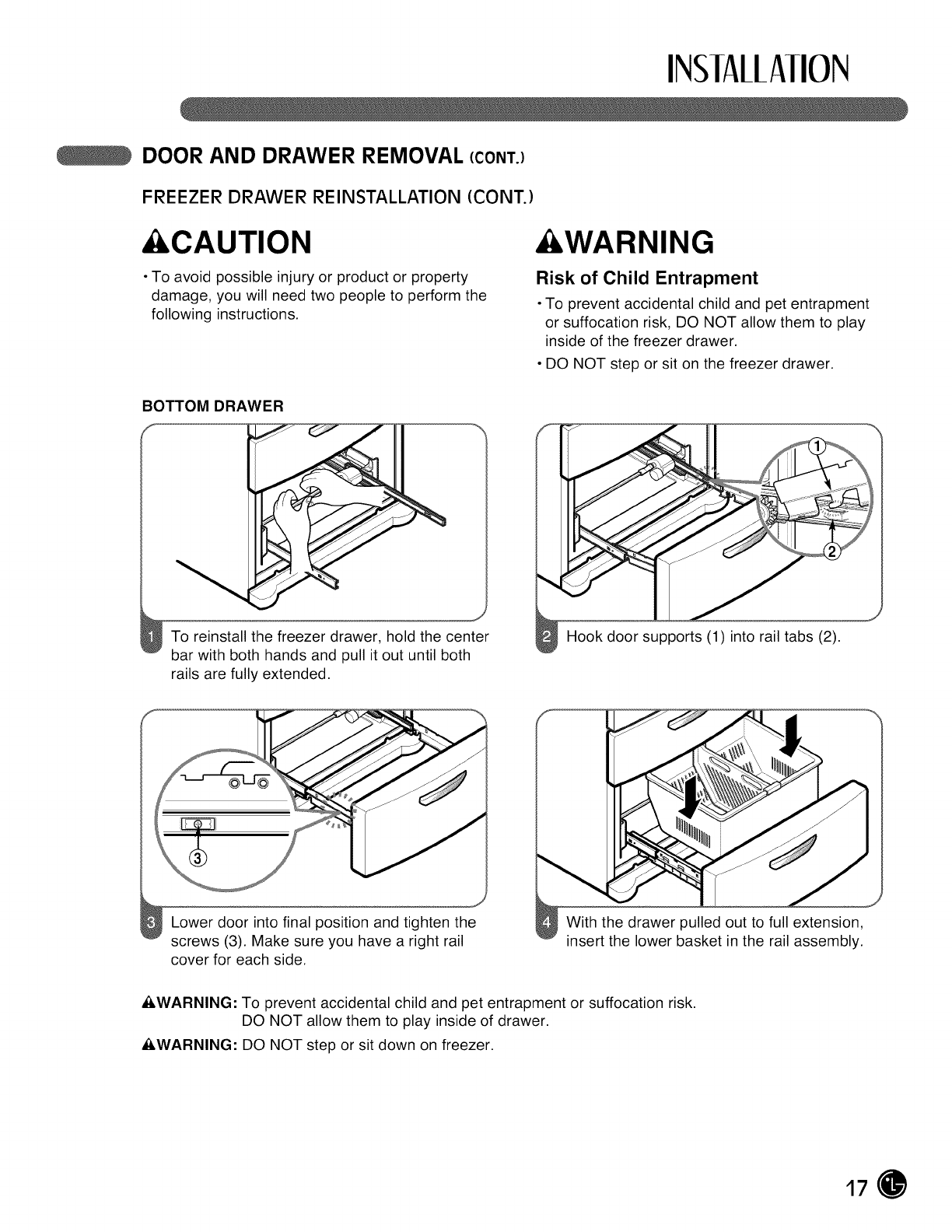

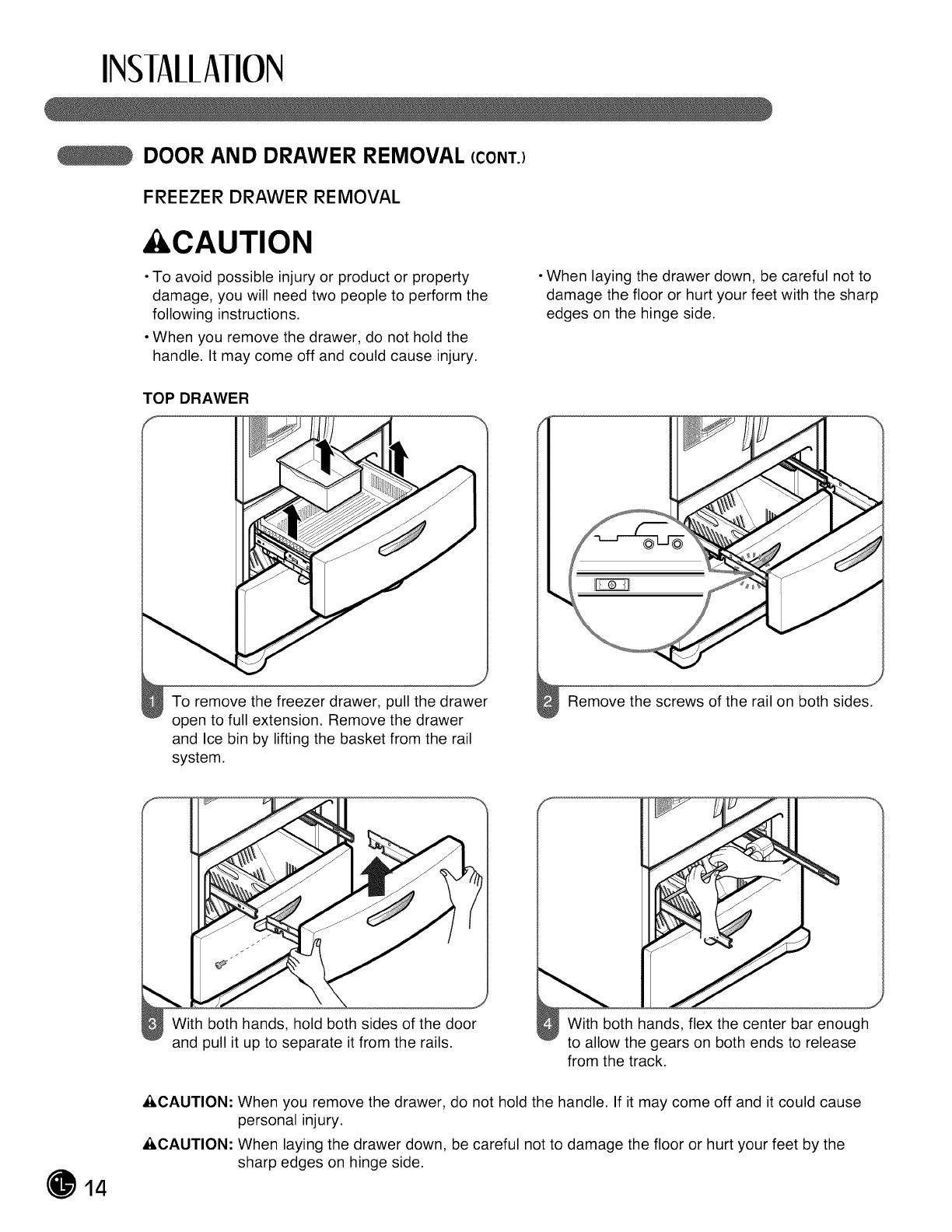

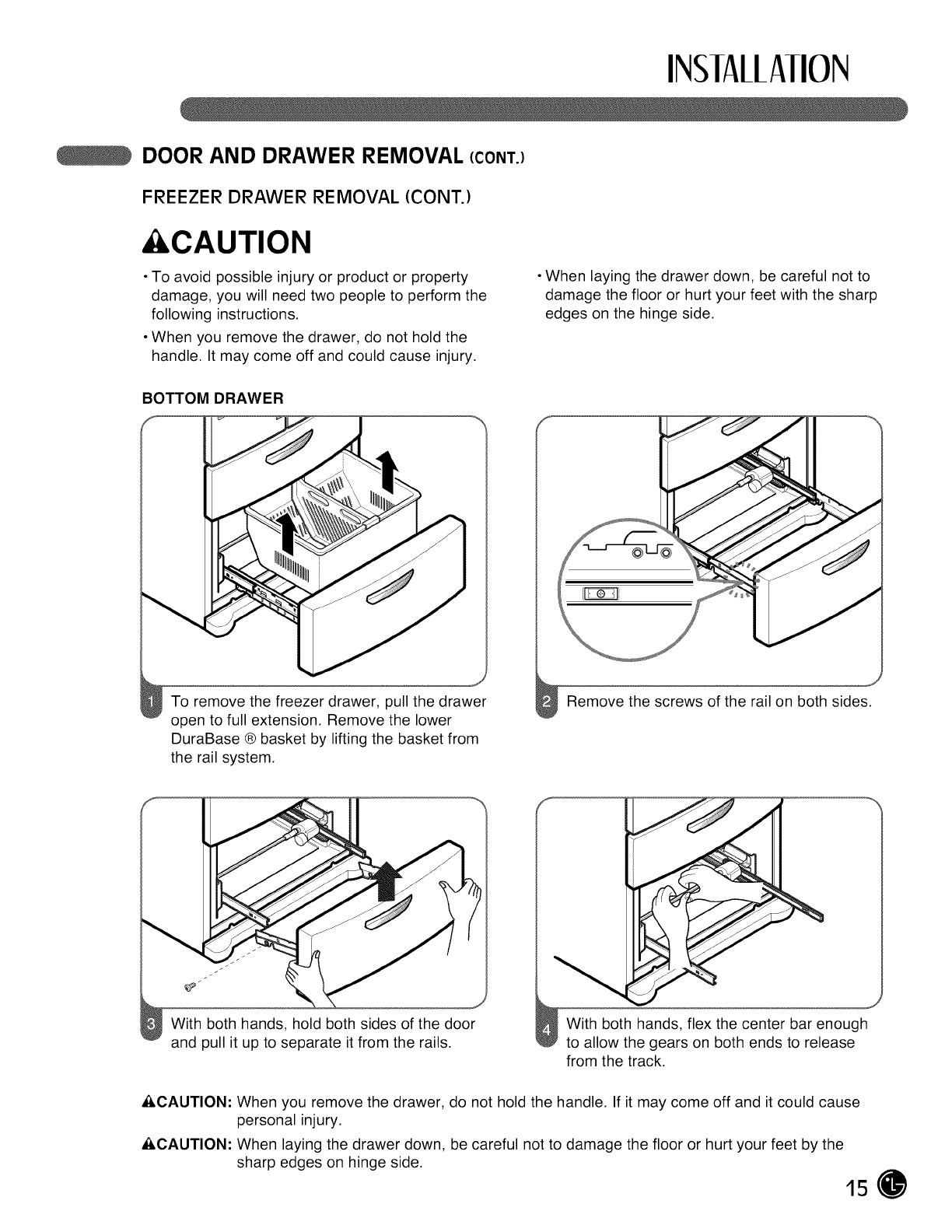

Door and Drawer Removal .................................... 10

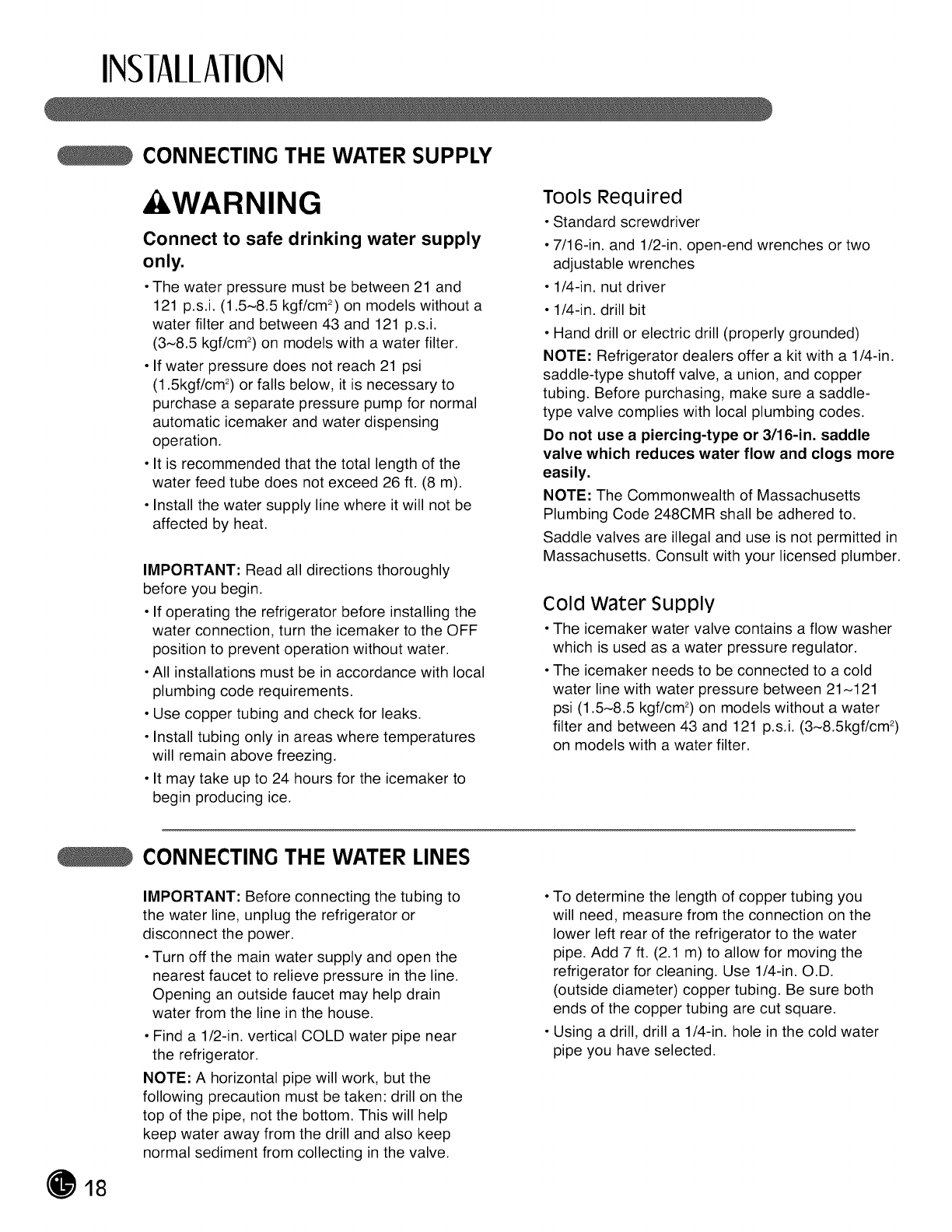

Connecting the Water Supply ............................... 18

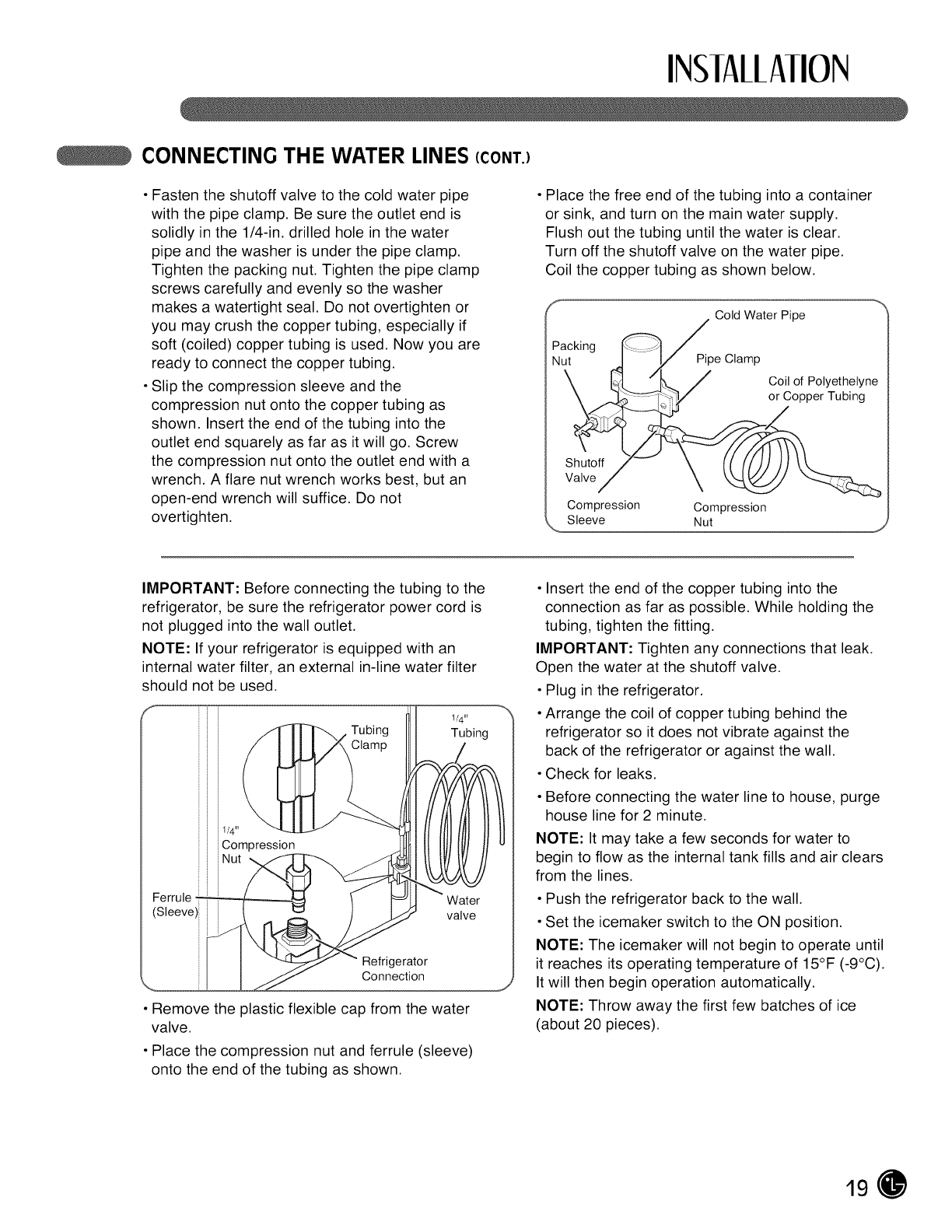

Connecting the Water Lines .................................. 18

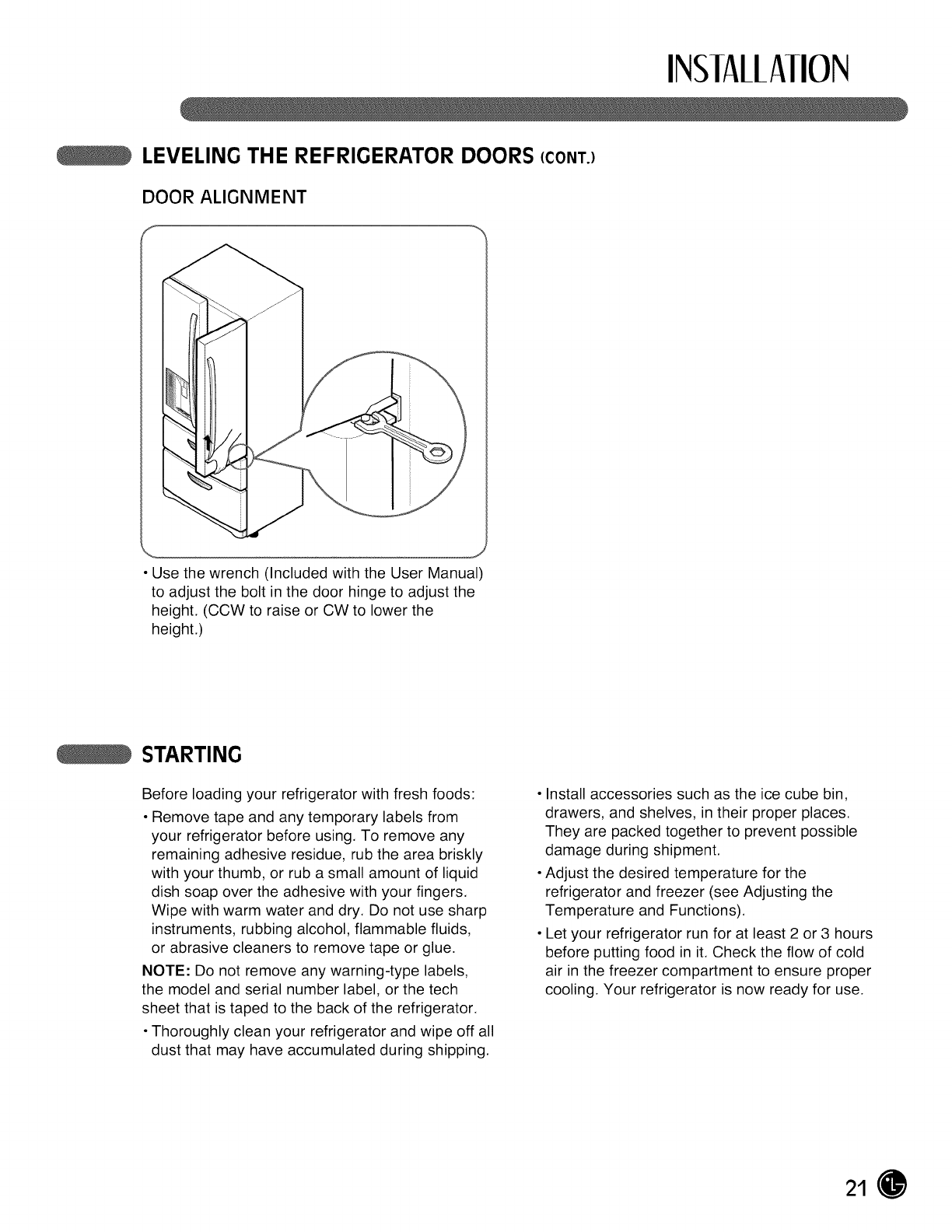

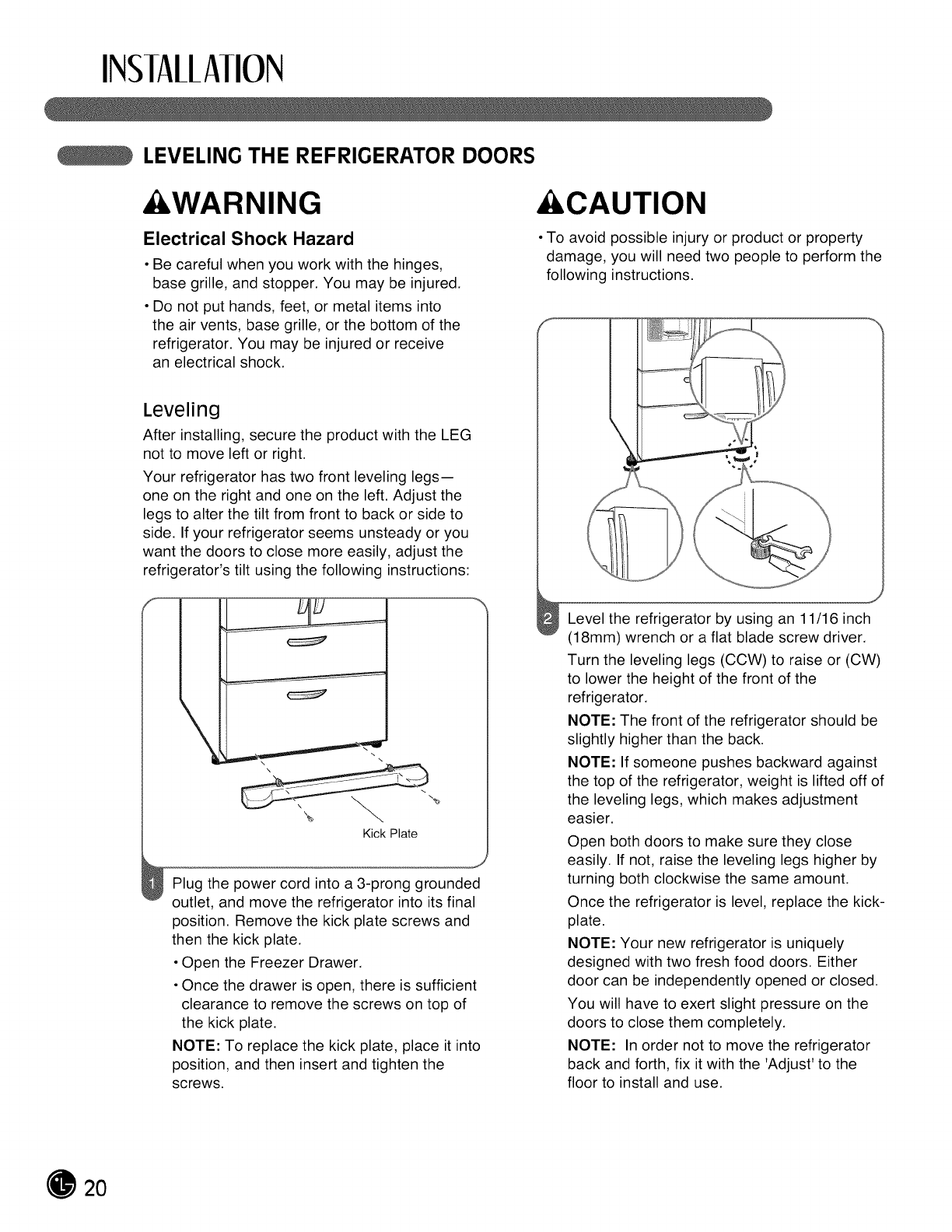

Leveling the Refrigerator Doors ............................ 20

Starting .................................................................. 21

HOW TO USE

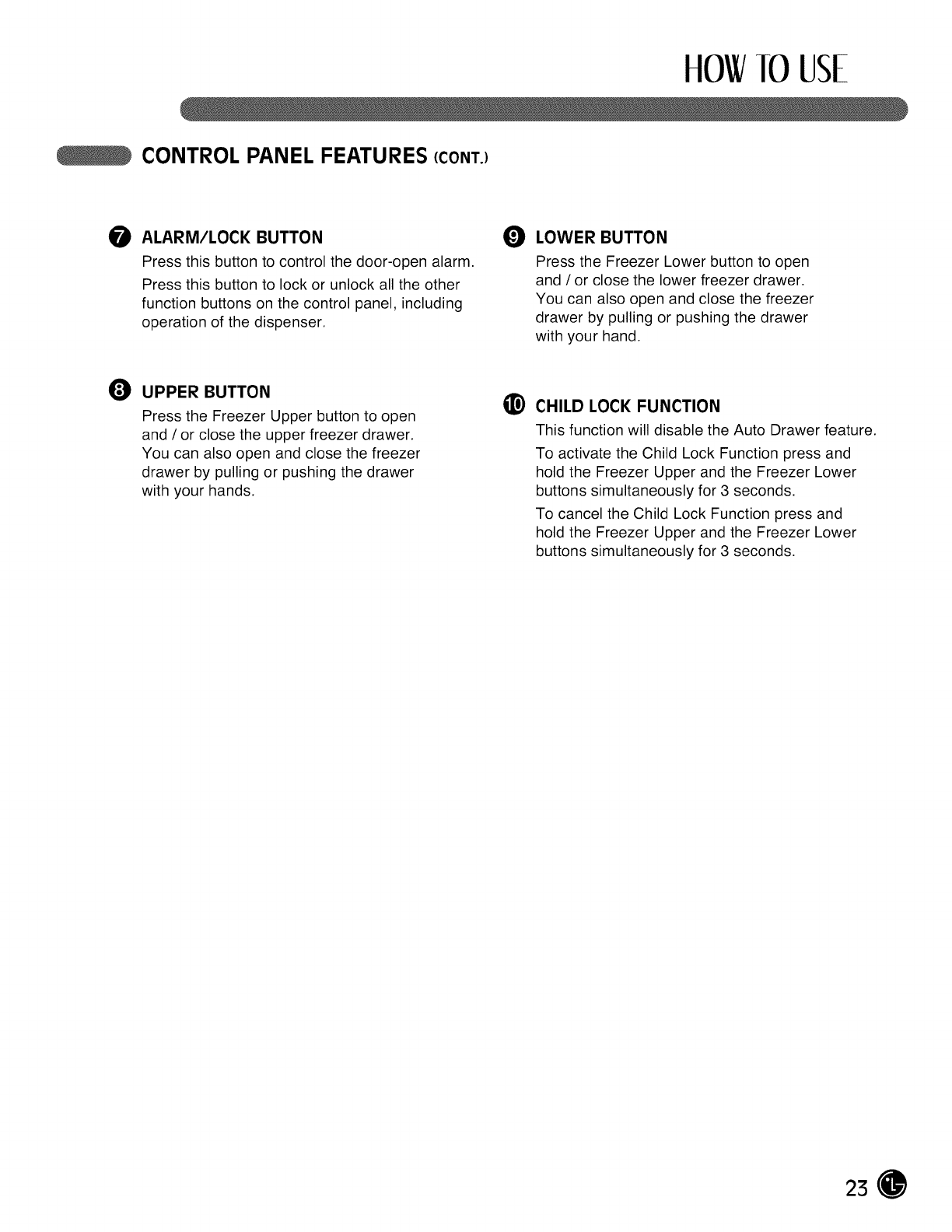

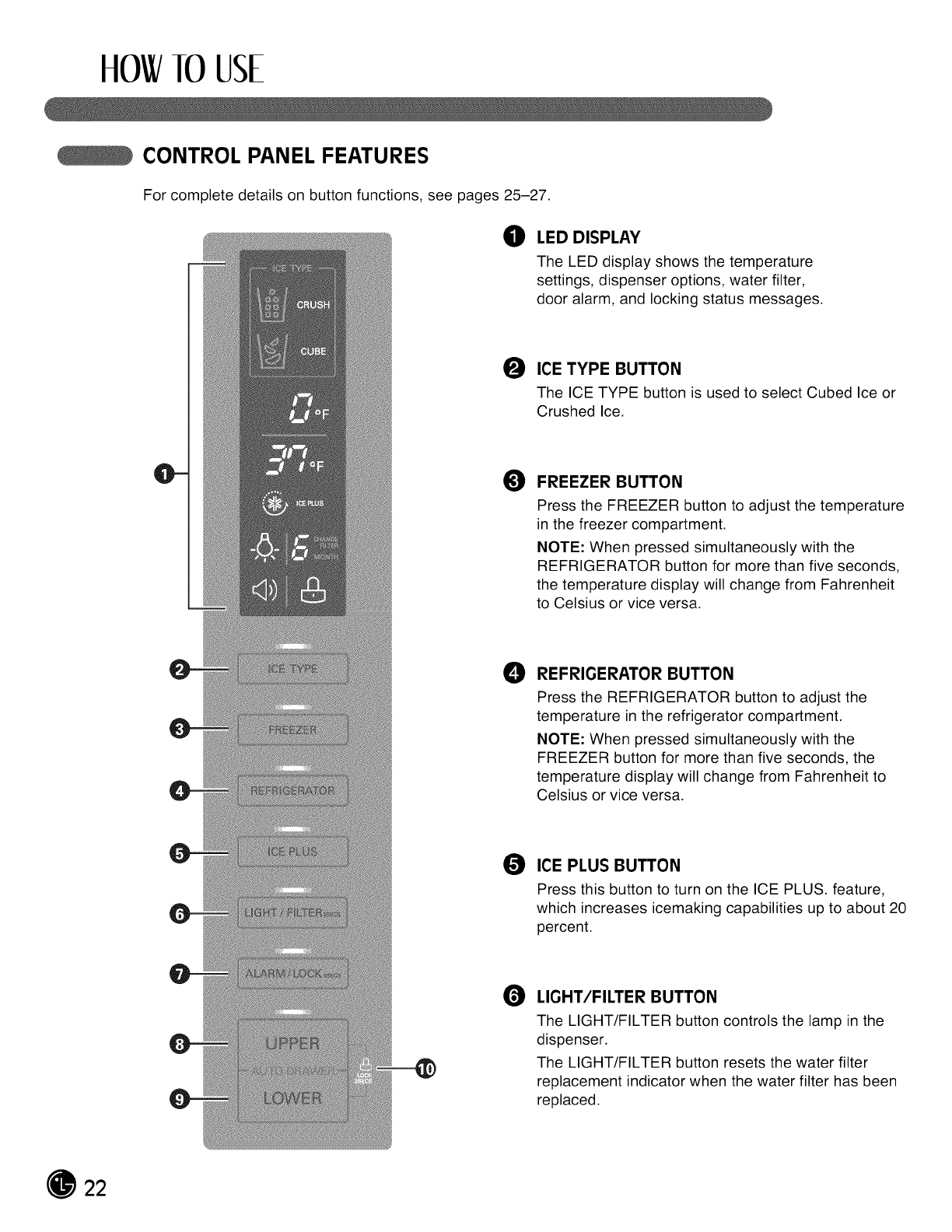

Control Panel Features ......................................... 22

The LED Display ................................................... 24

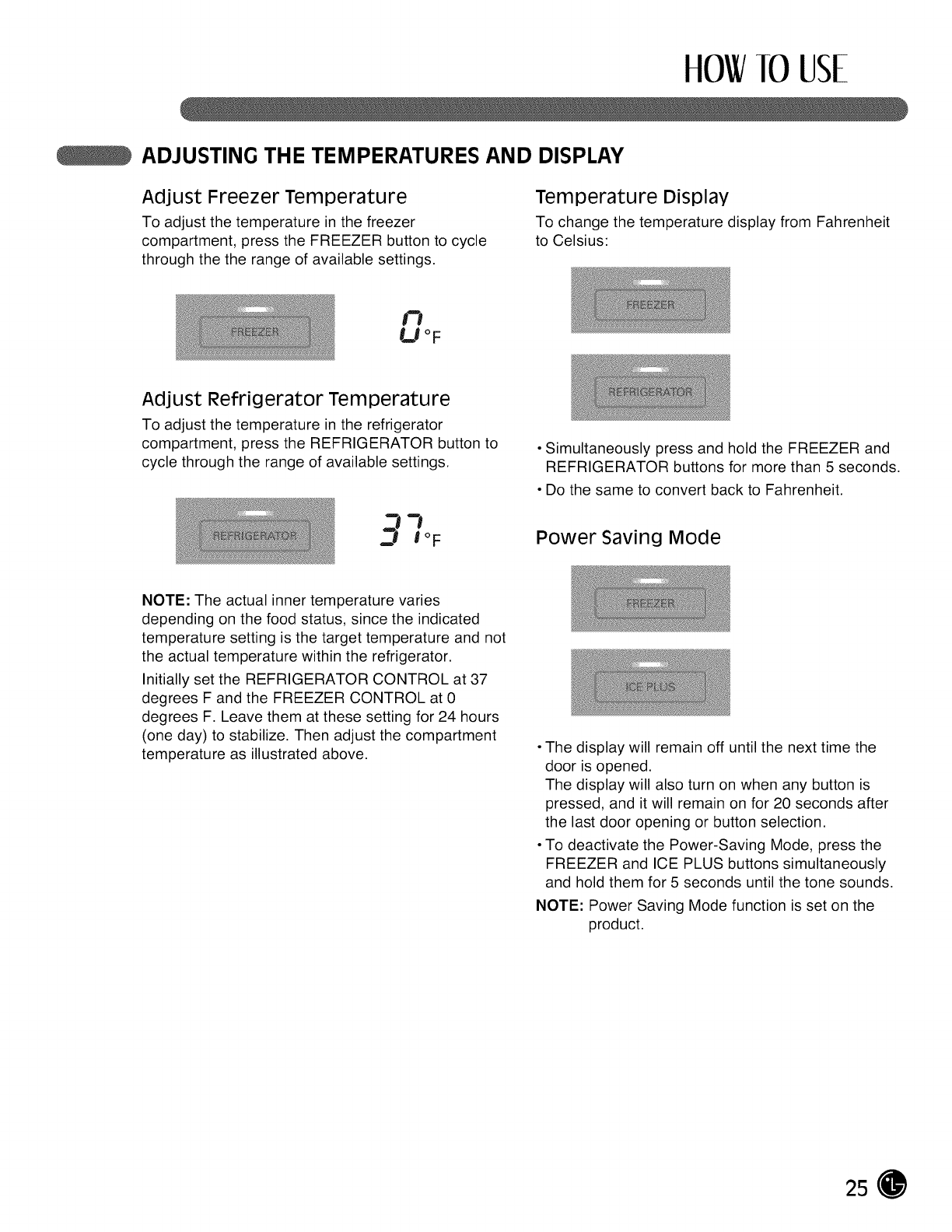

Adjusting the Temperatures and Display ............. 25

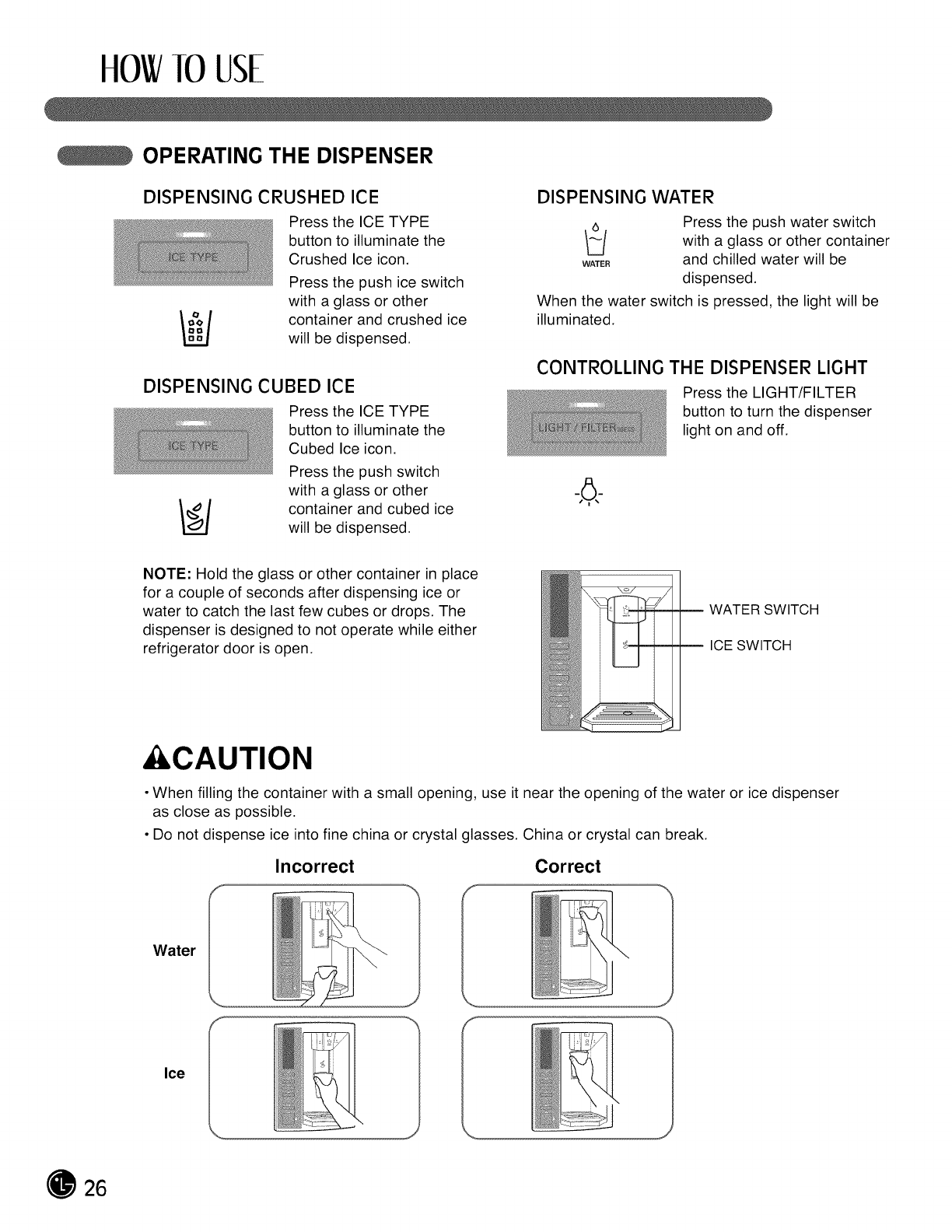

Operating the Dispenser ...................................... 26

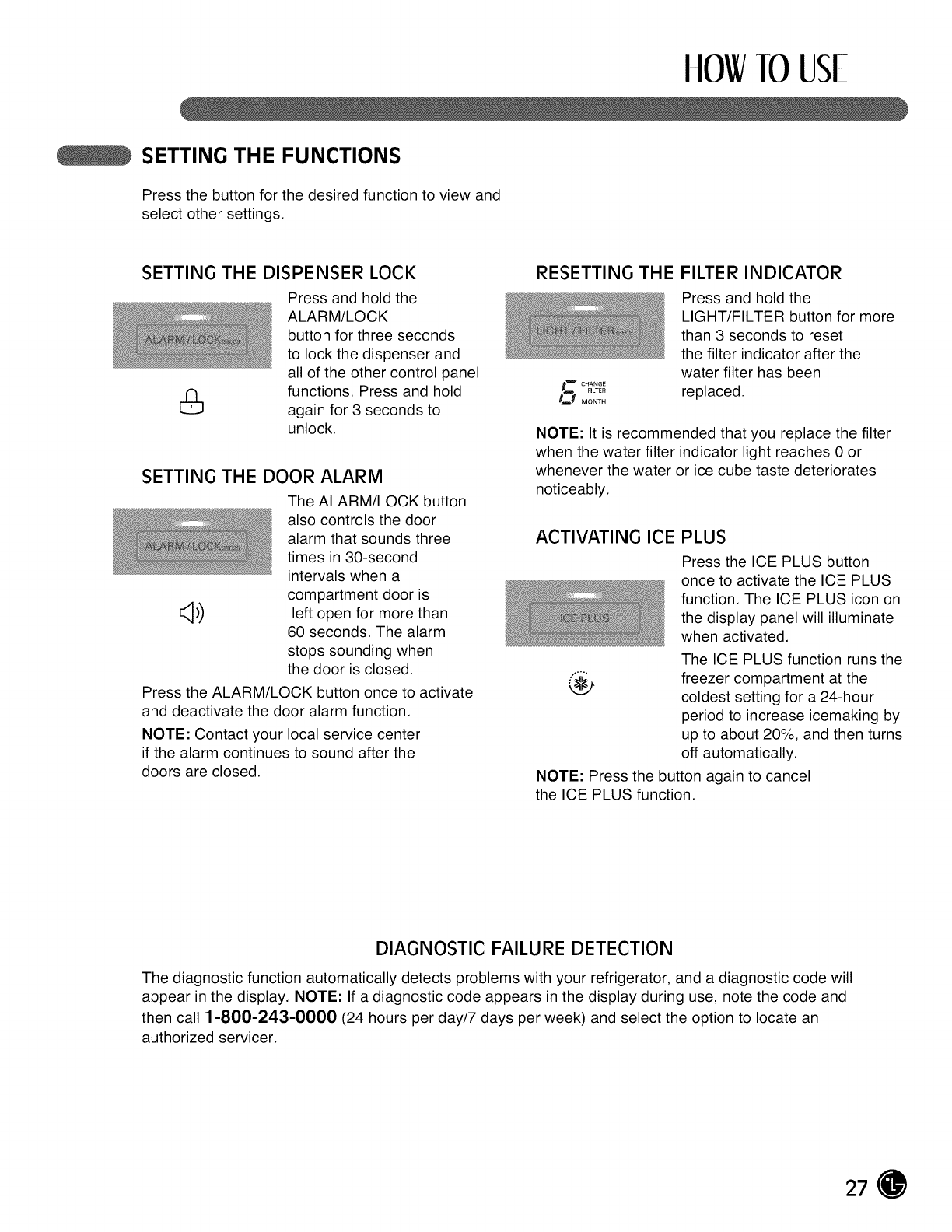

Setting the Functions ........................................... 27

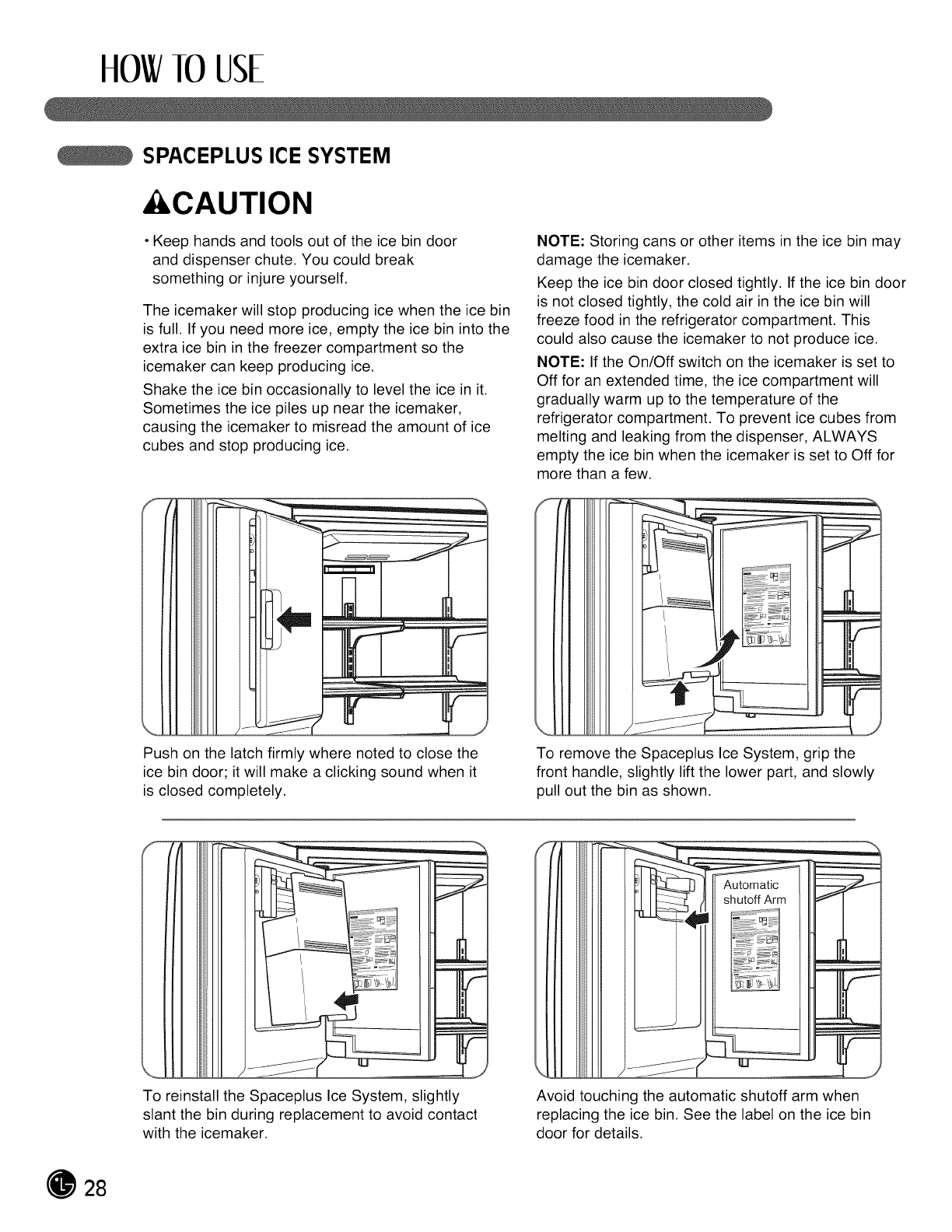

Spaceplus Ice System .......................................... 28

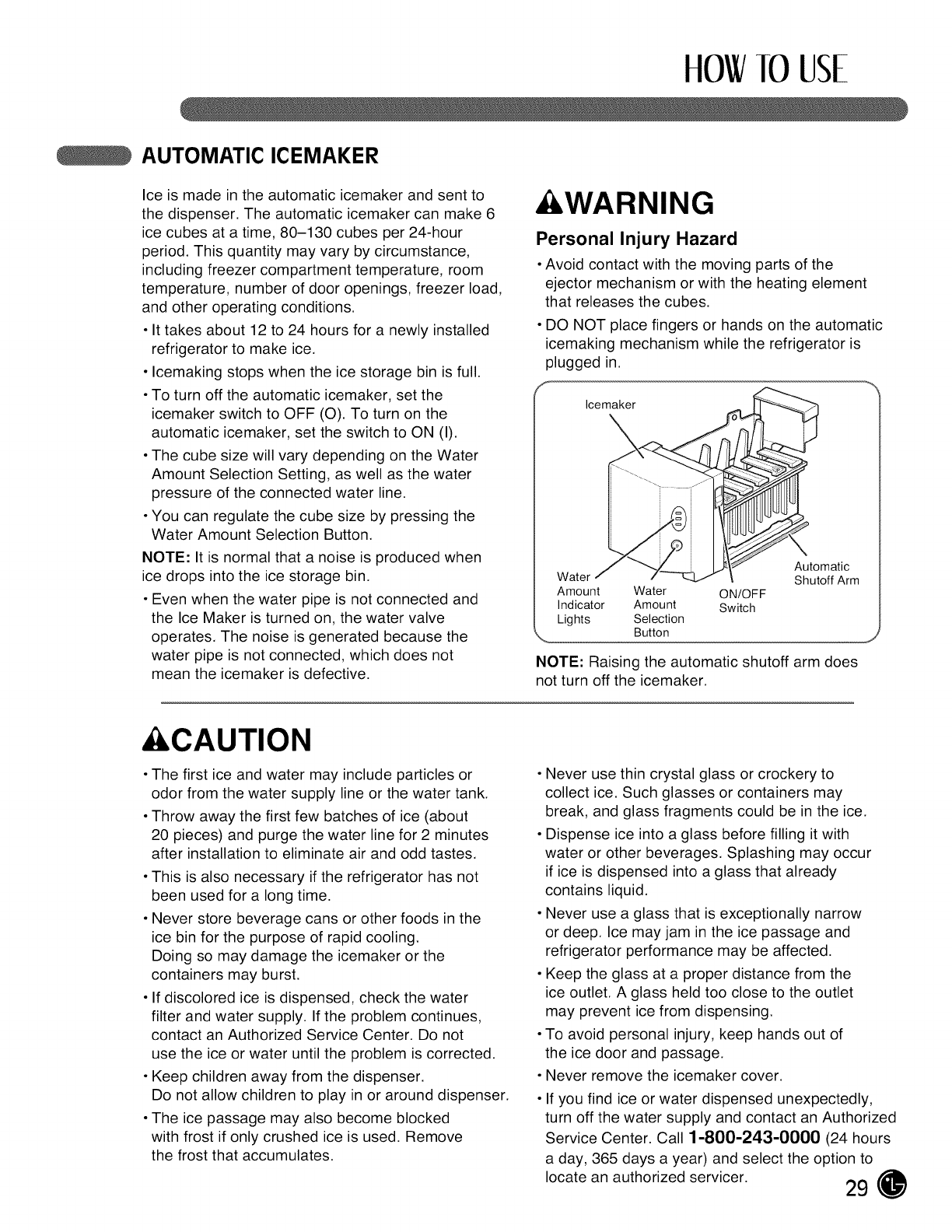

Automatic Icemaker ............................................. 29

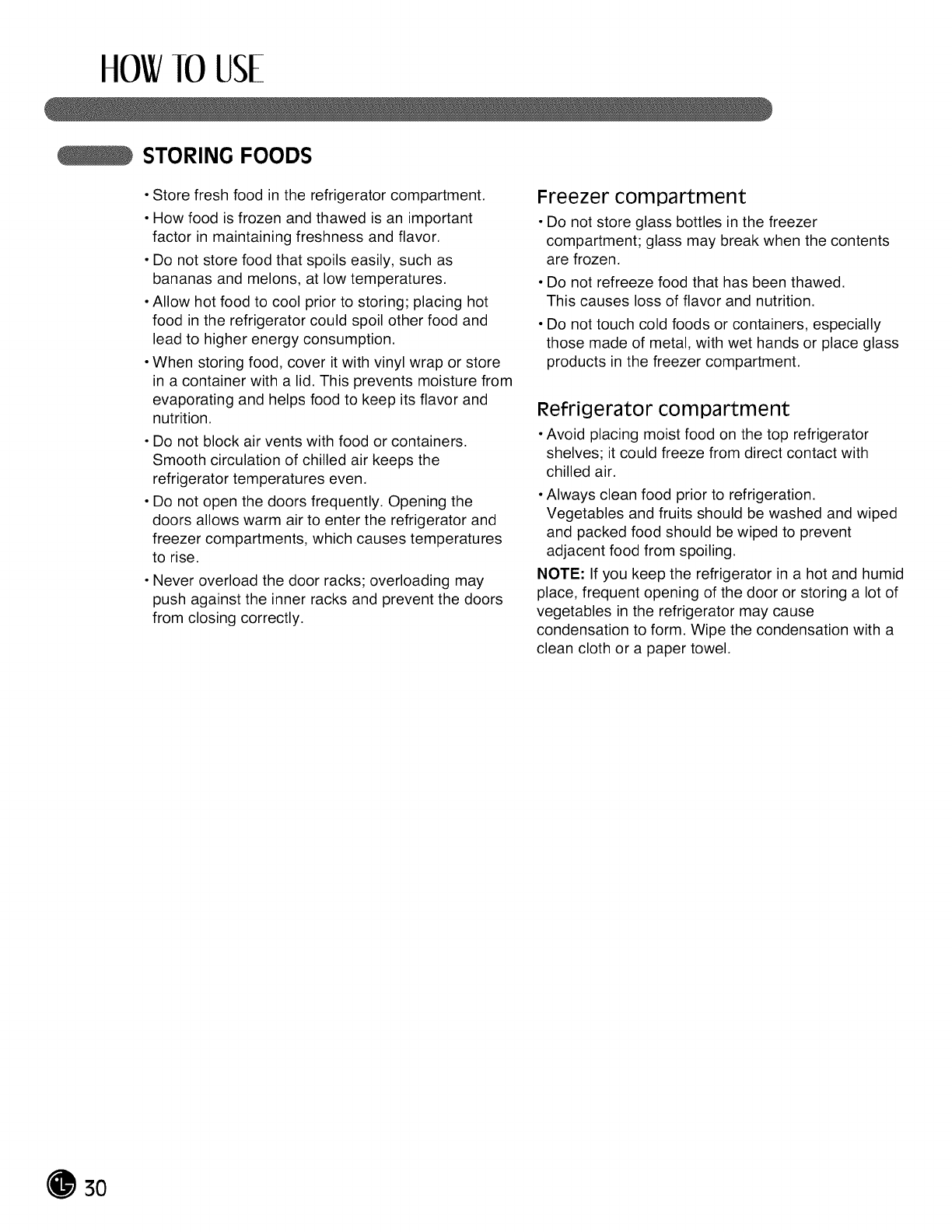

Storing Foods ....................................................... 30

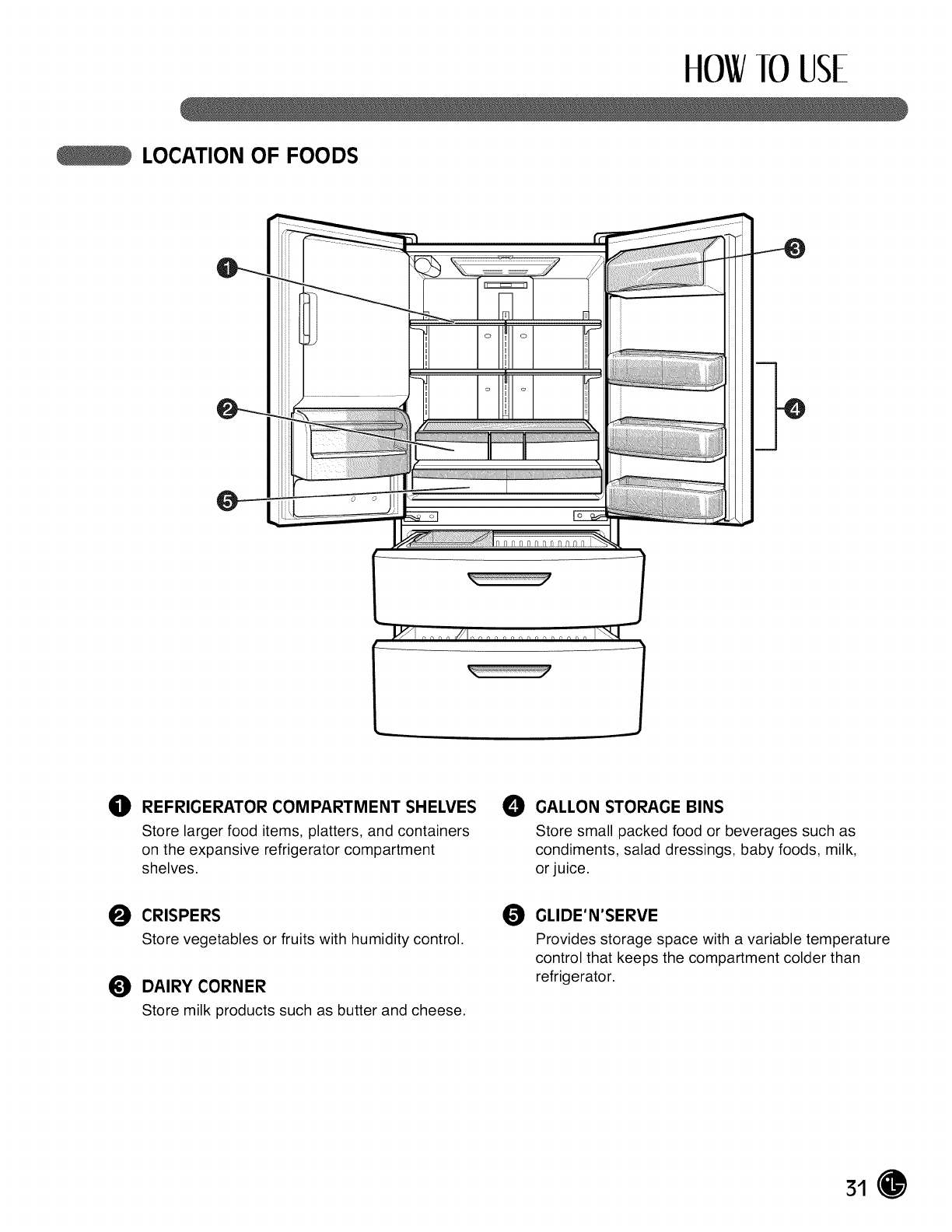

Location of Foods ................................................. 31

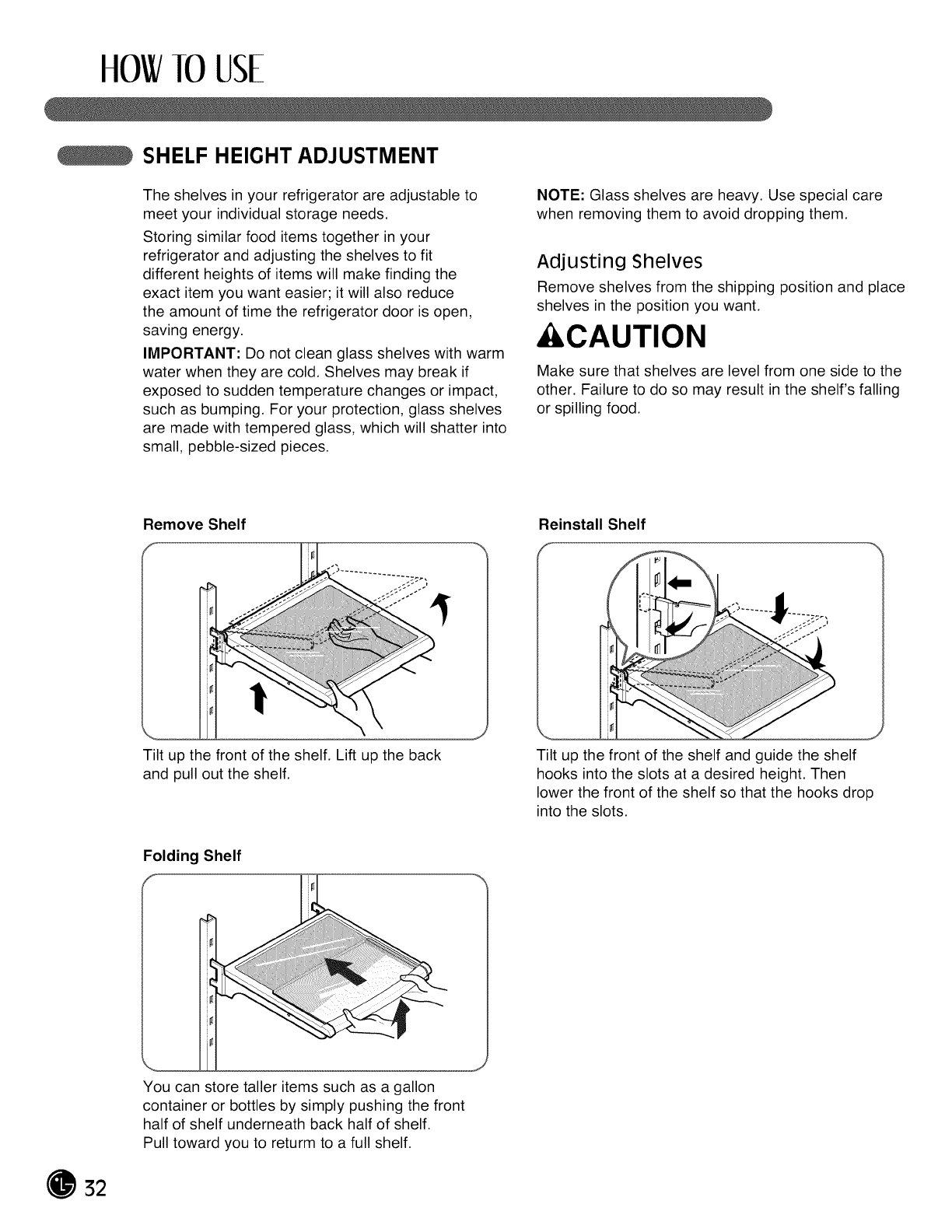

Shelf Height Adjustment ....................................... 32

CARE AND CLEANING

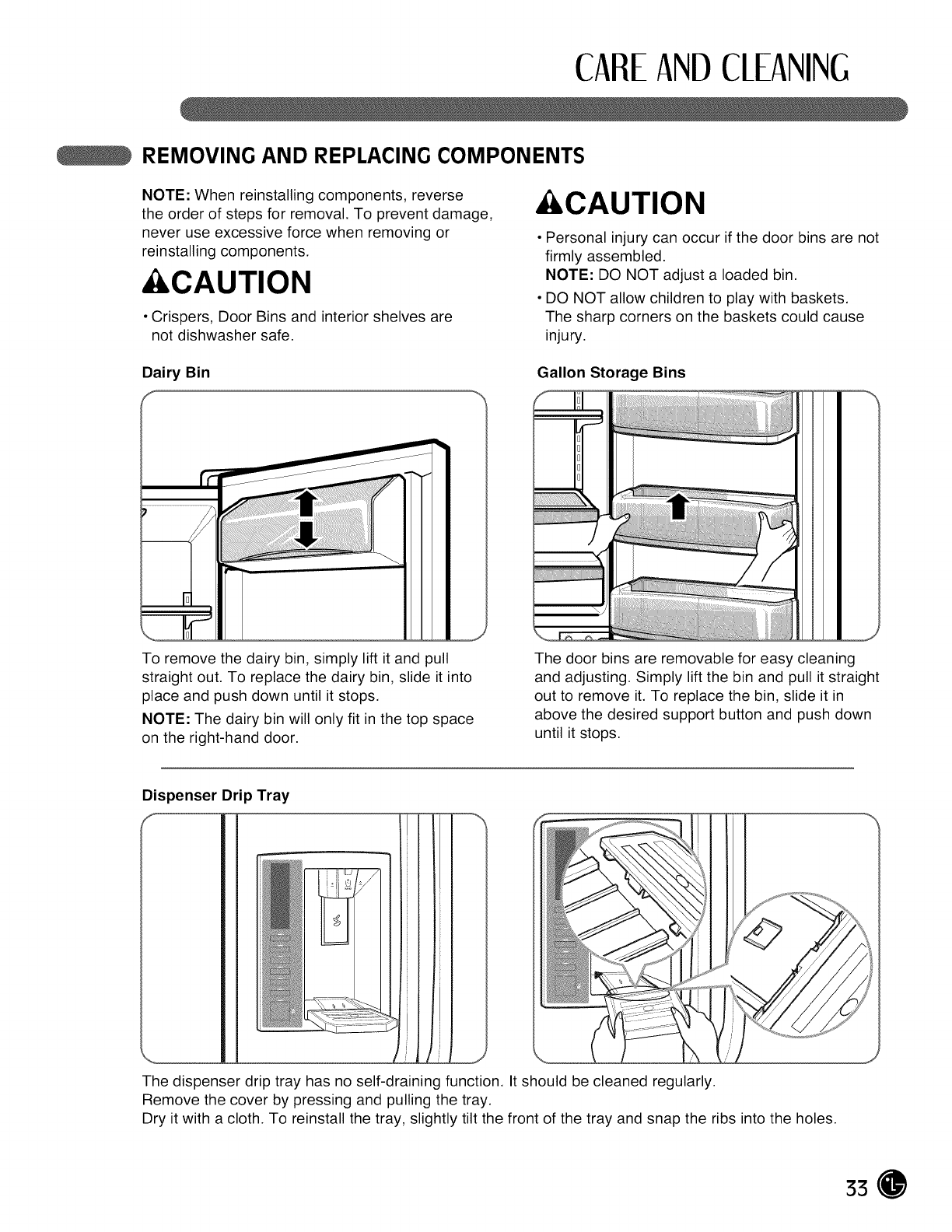

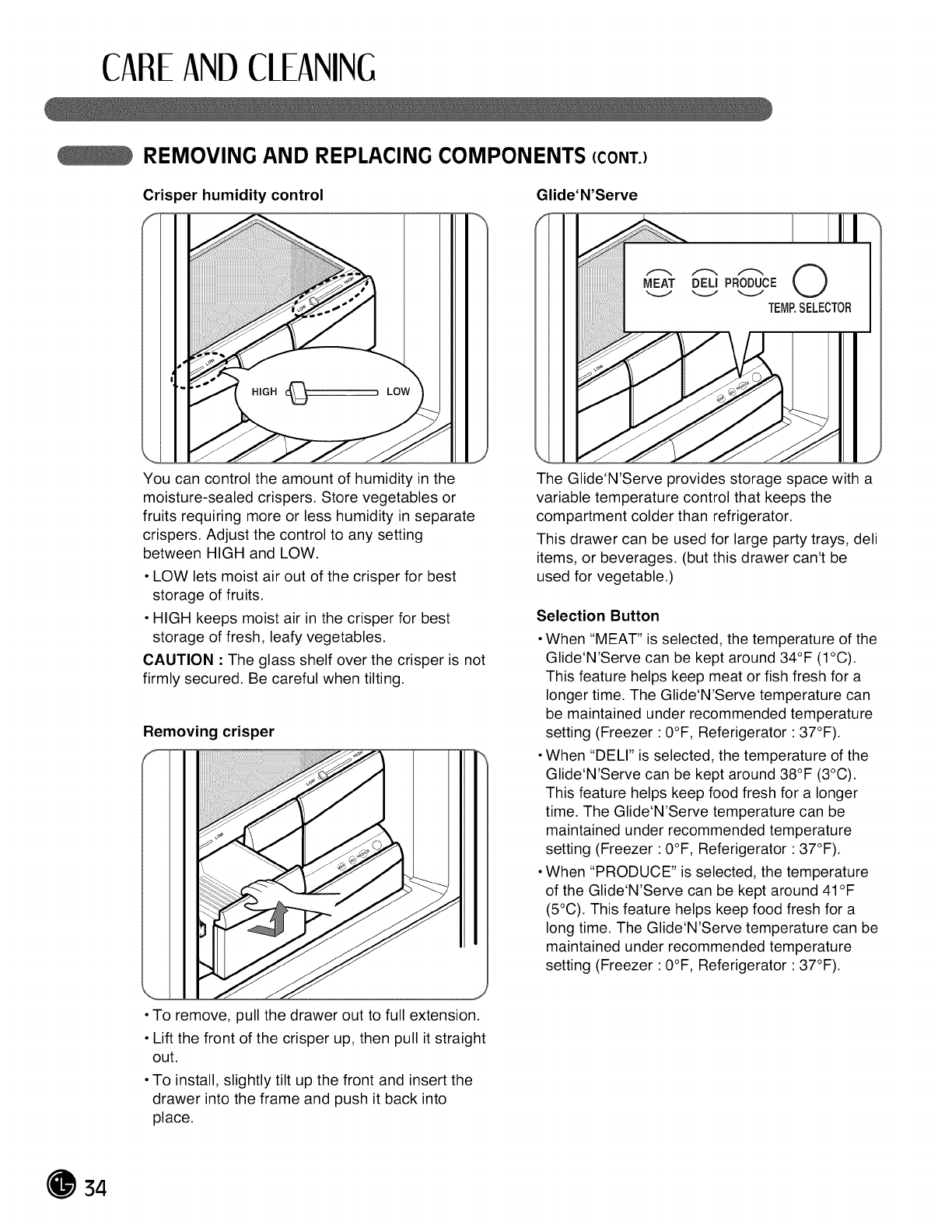

Removing and Replacing Components ................ 33

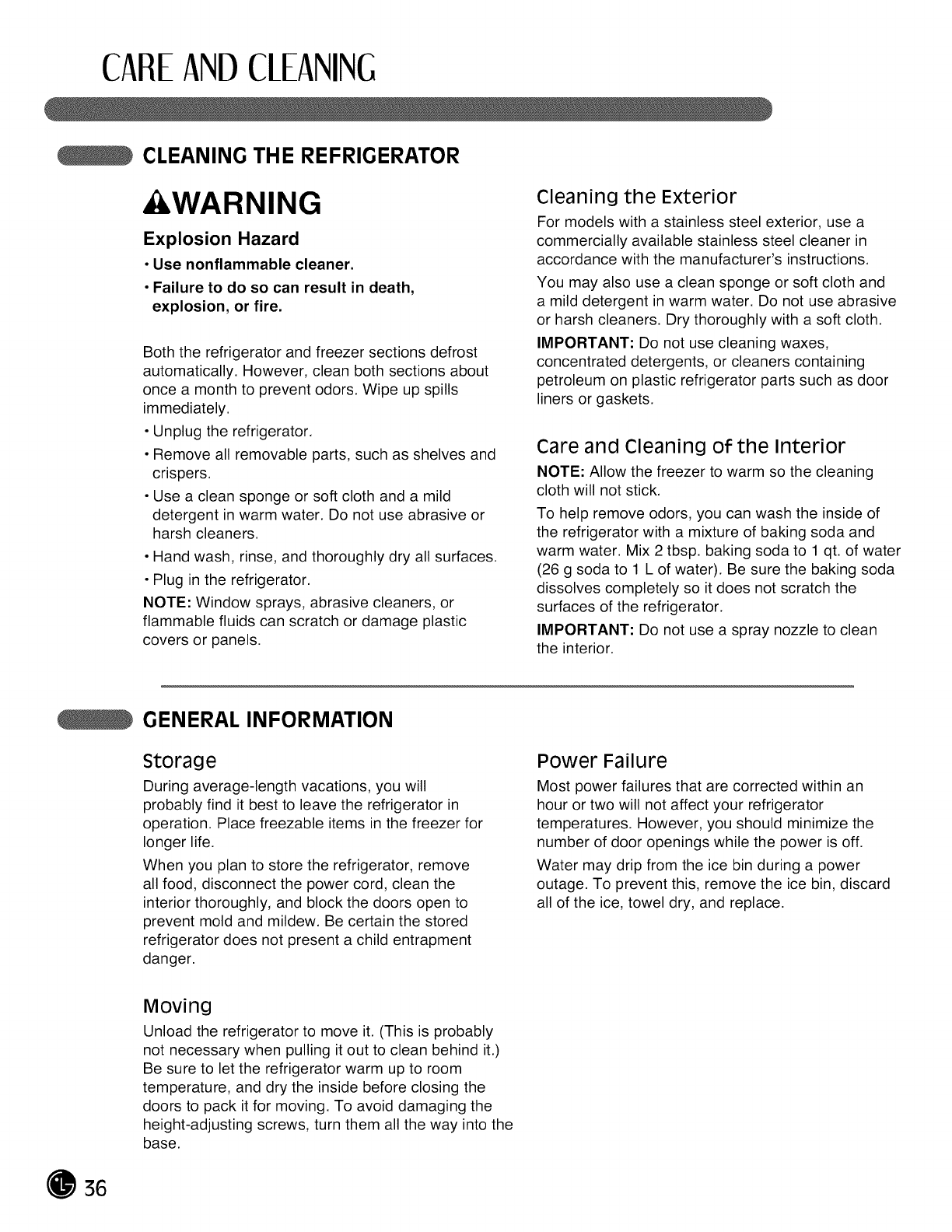

Cleaning the Refrigerator ..................................... 36

General Information ............................................. 36

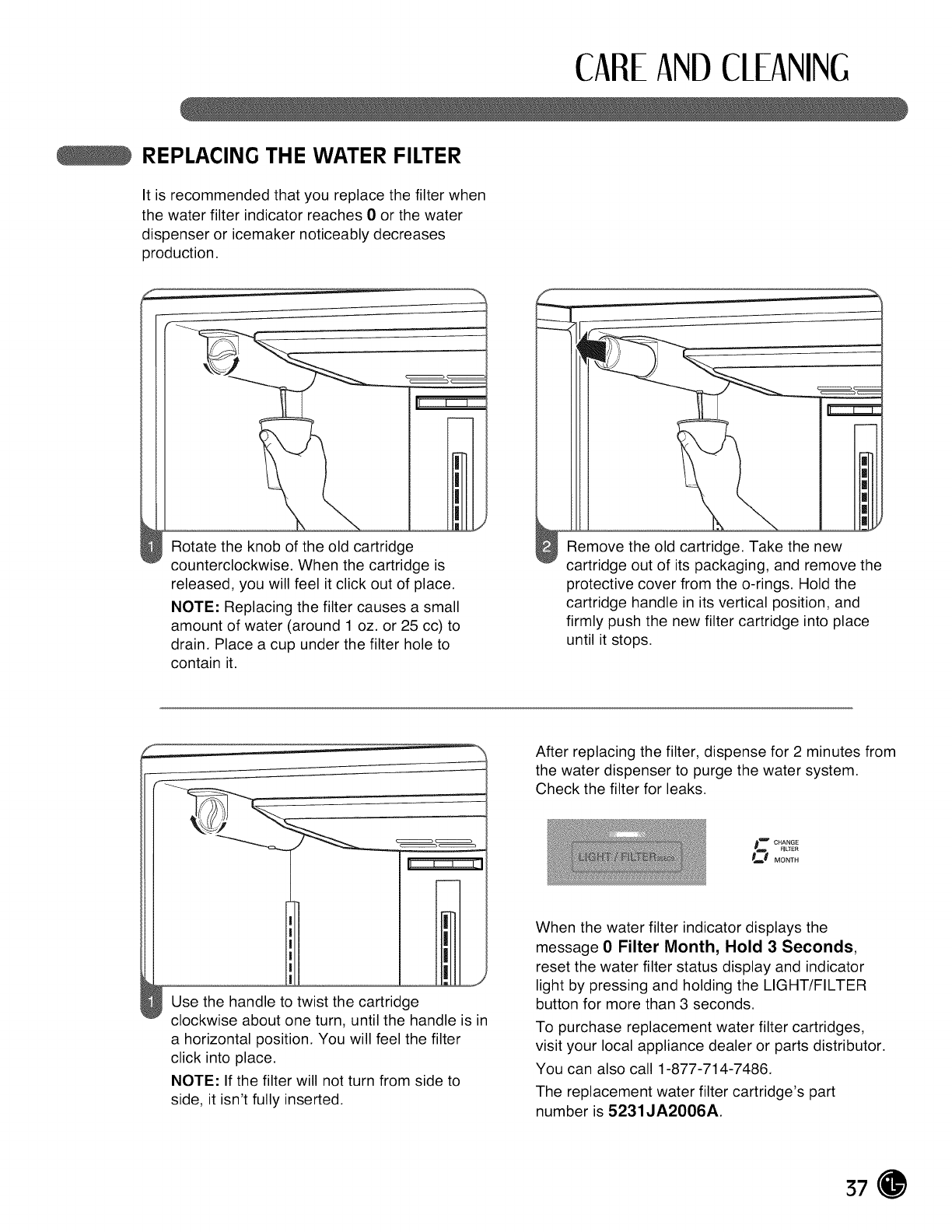

Replacing the Water Filter ..................................... 37

TROUBLESHOOTING

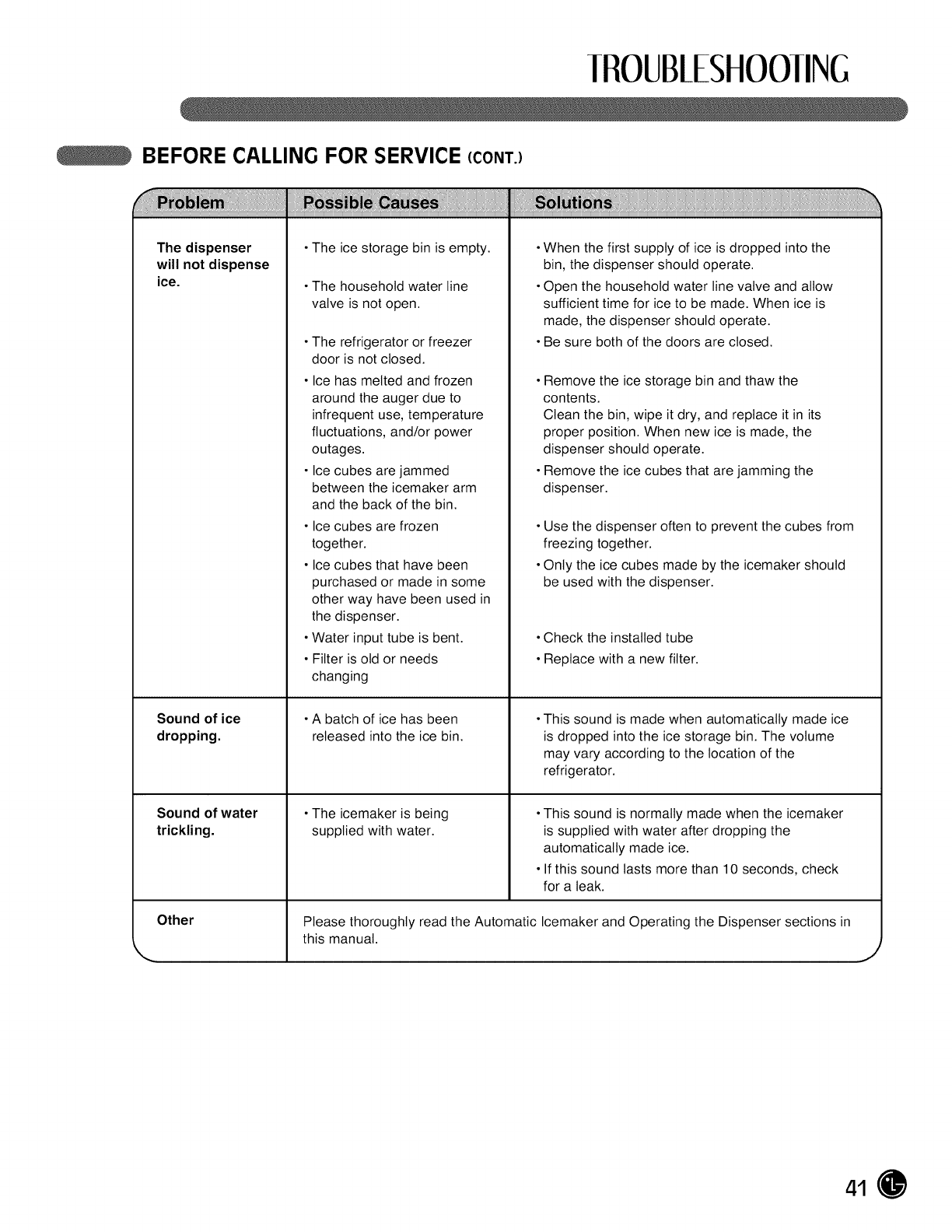

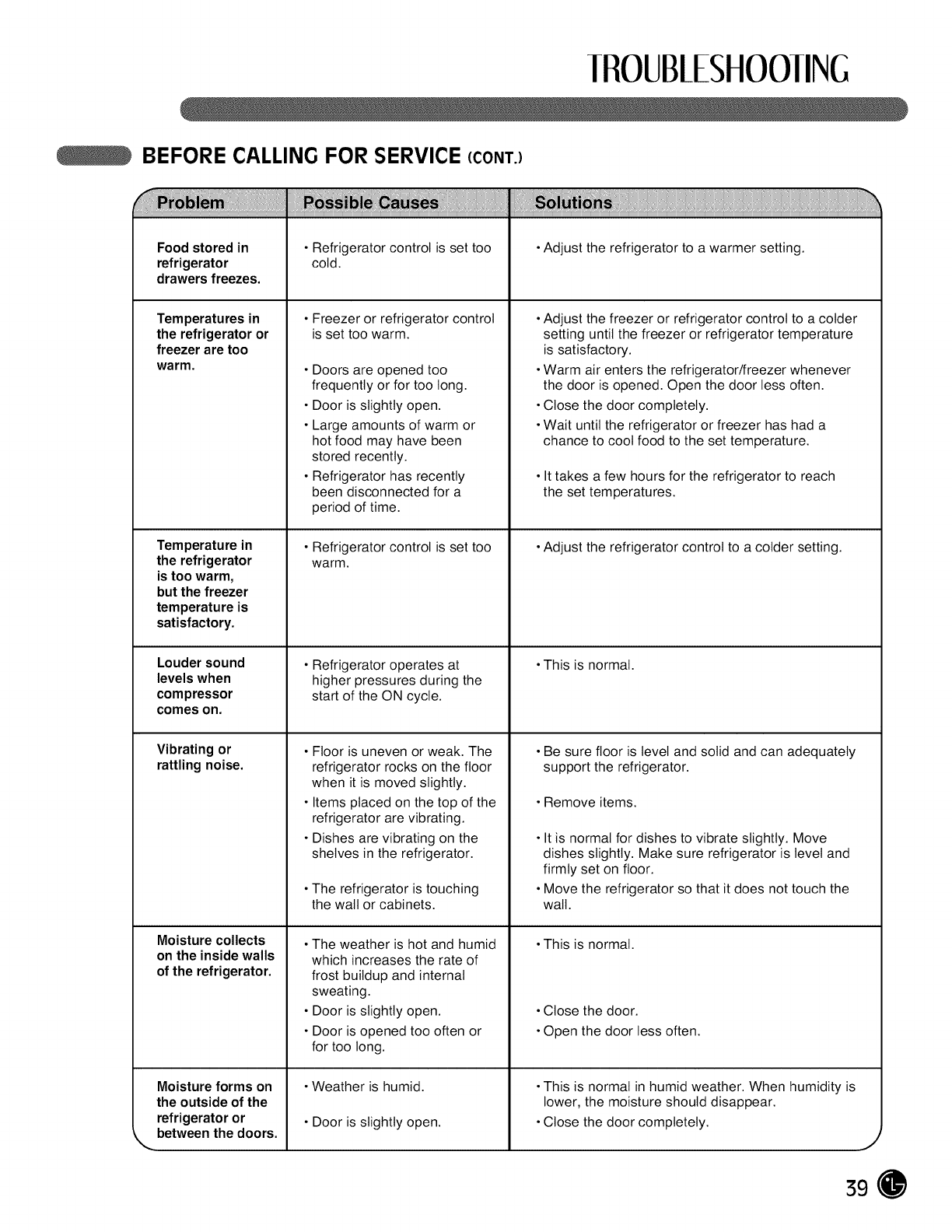

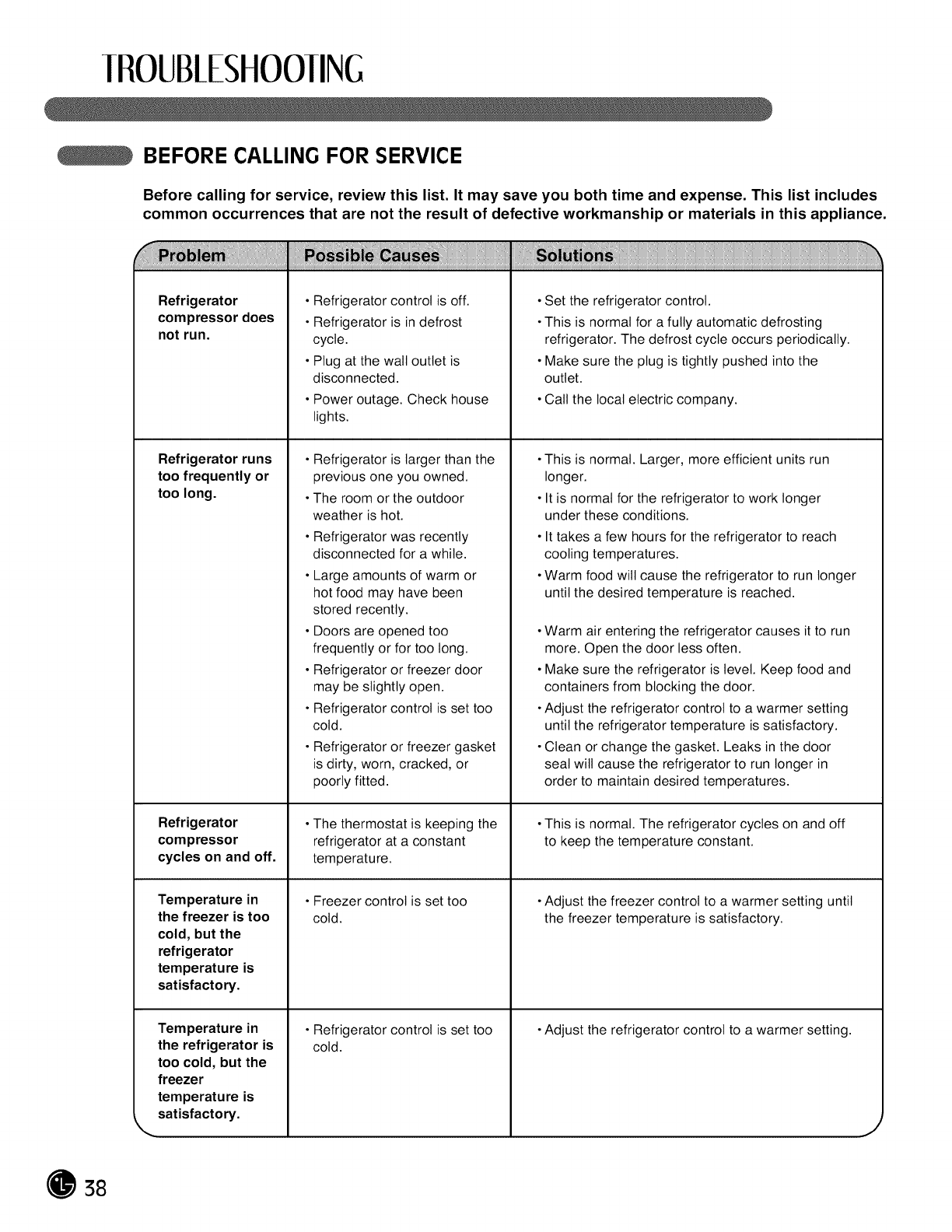

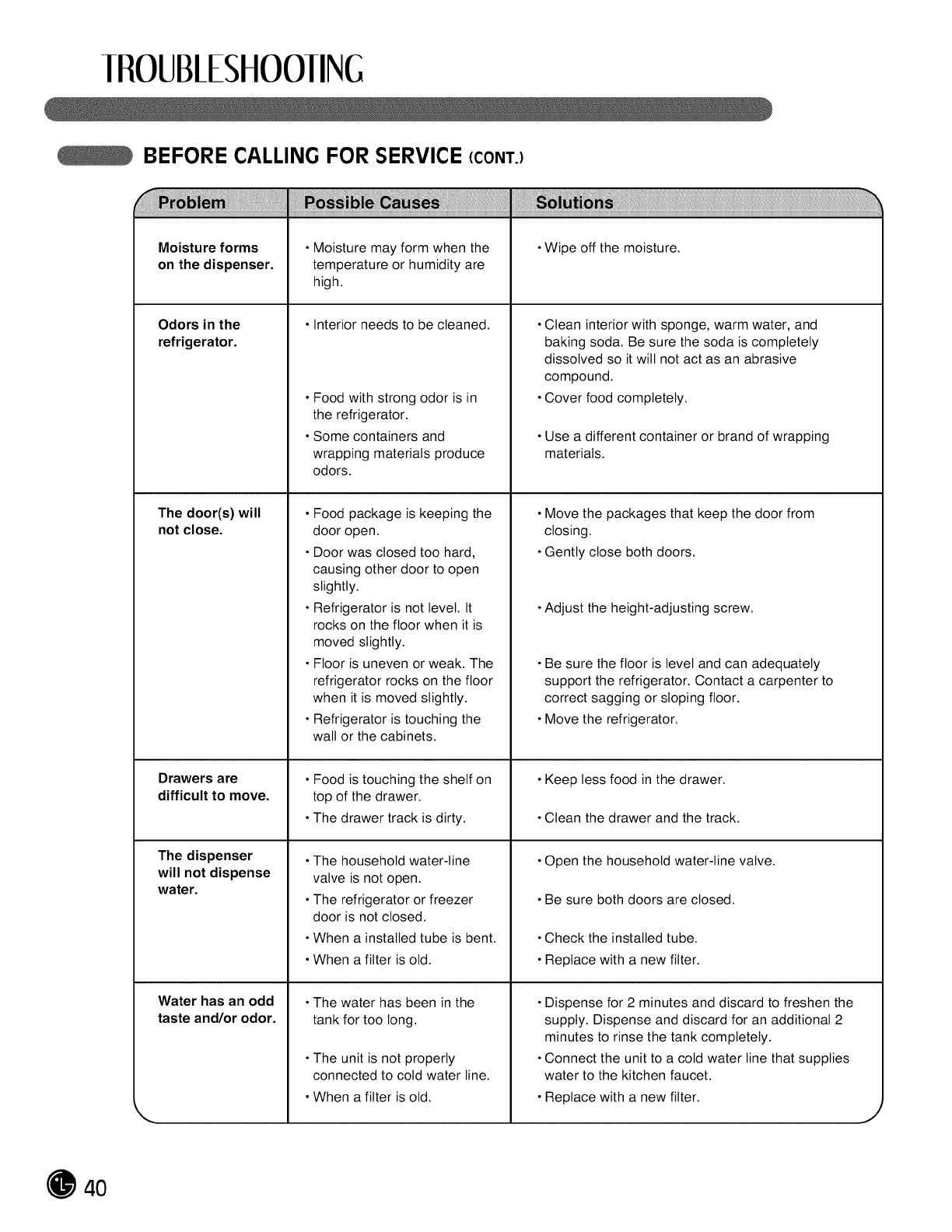

Before Calling for Service .............................. 38

SPECIFICATIONS

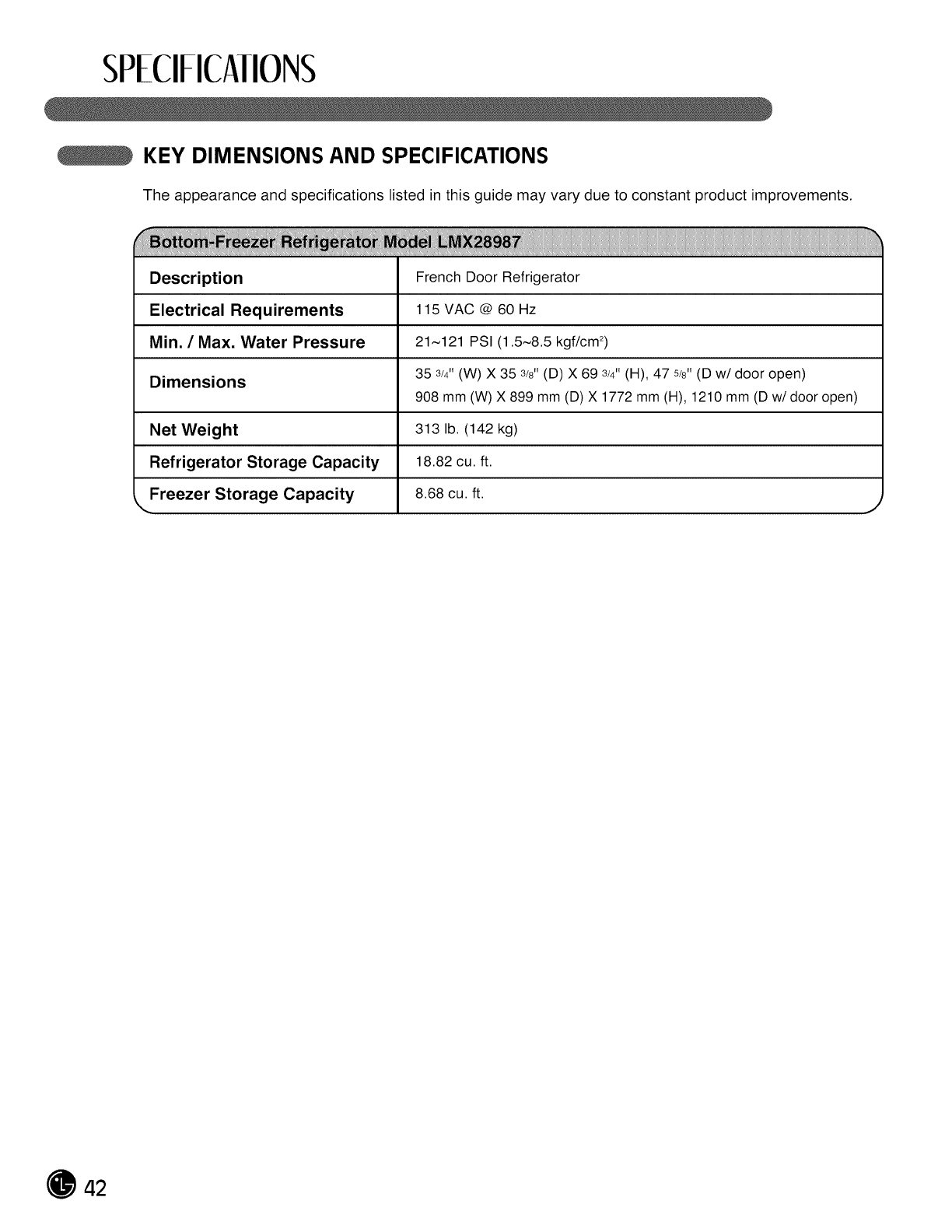

Key Dimensions and Specifications ..................... 42

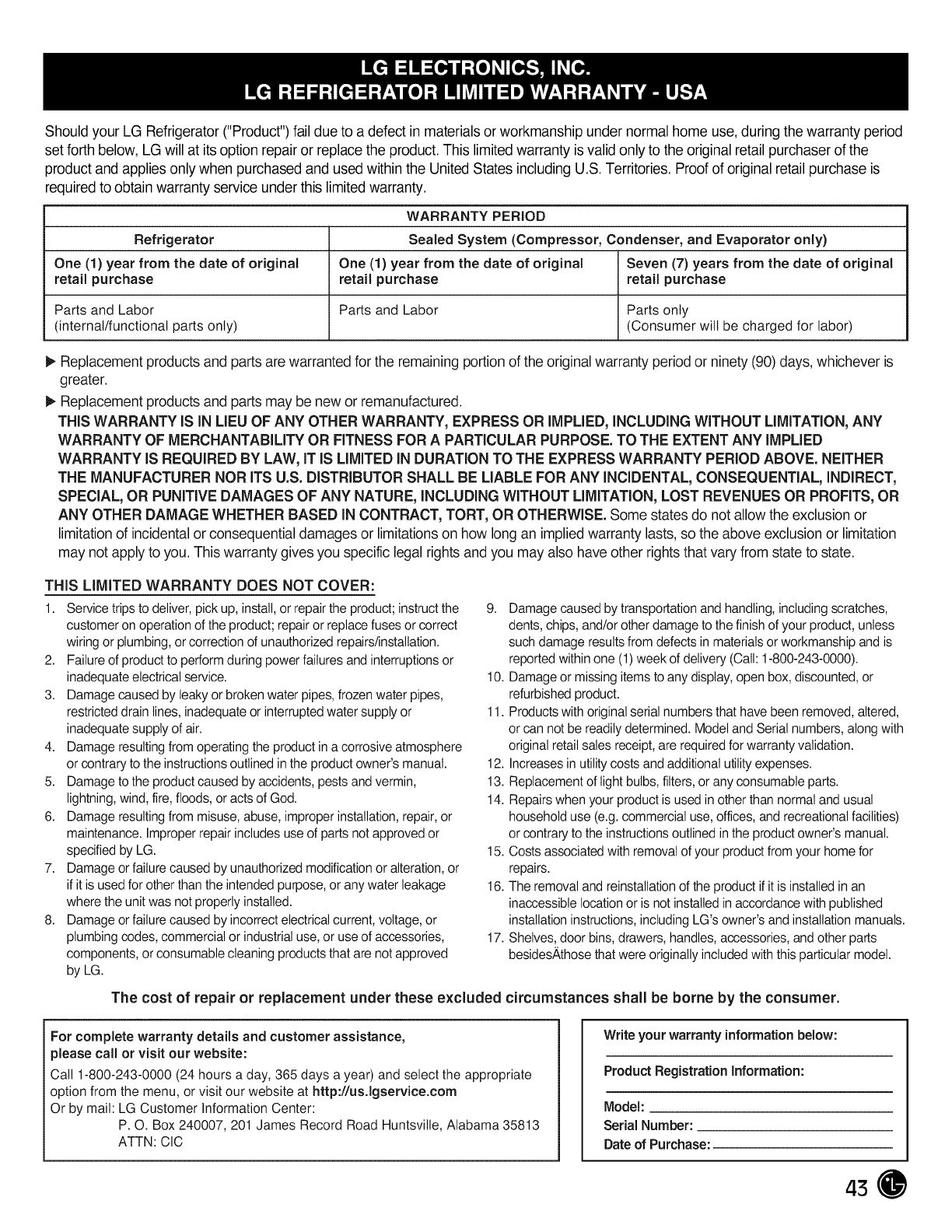

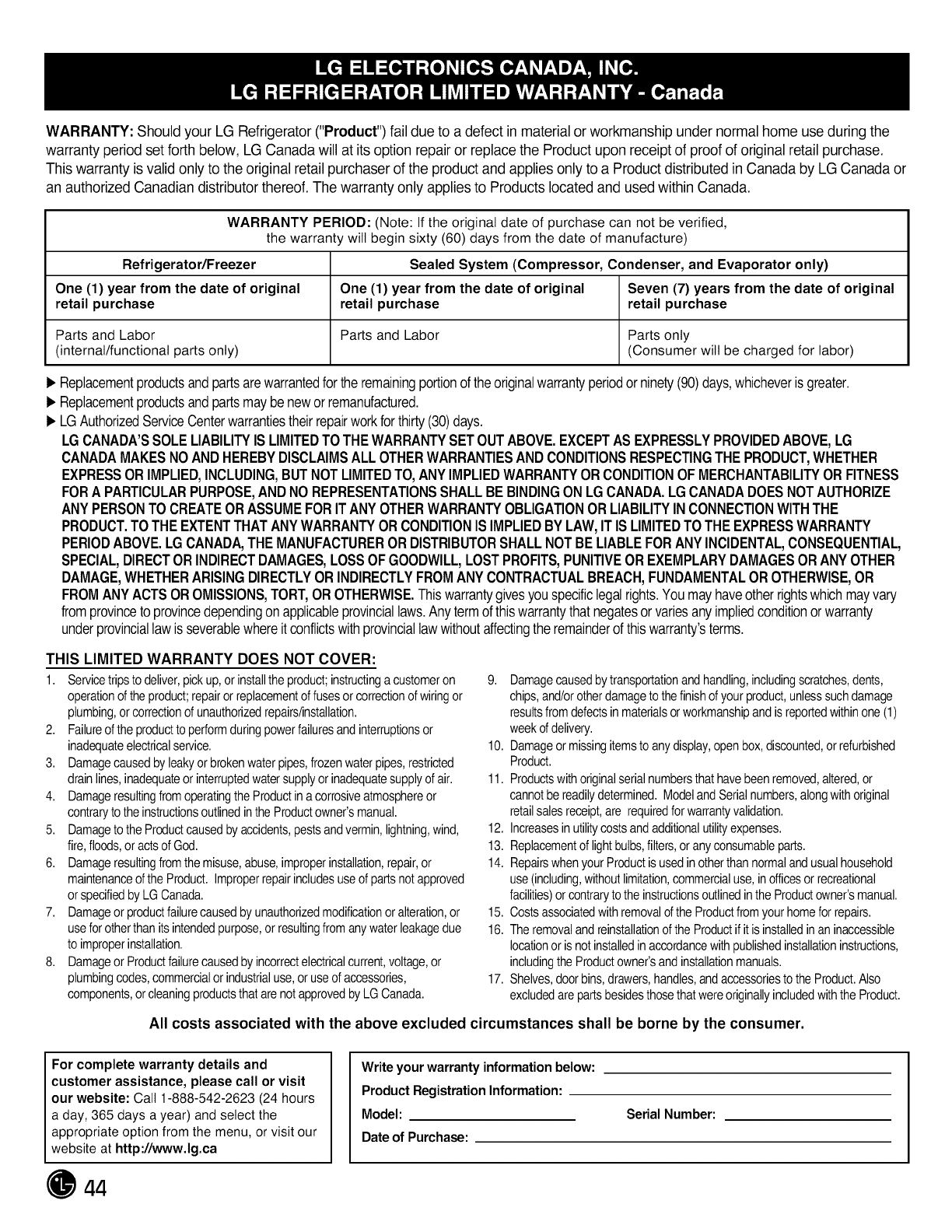

WARRANTY

Product Registration Information .......................... 43

fTHANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG French Door

Refrigerator combines

advanced cooling technology

with simple operation and high

efficiency. Follow the operating

and care instructions in this

manual and your refrigerator

will provide you with many years

of reliable service.

IMPORIAN!SAFELYINFORMAIlON

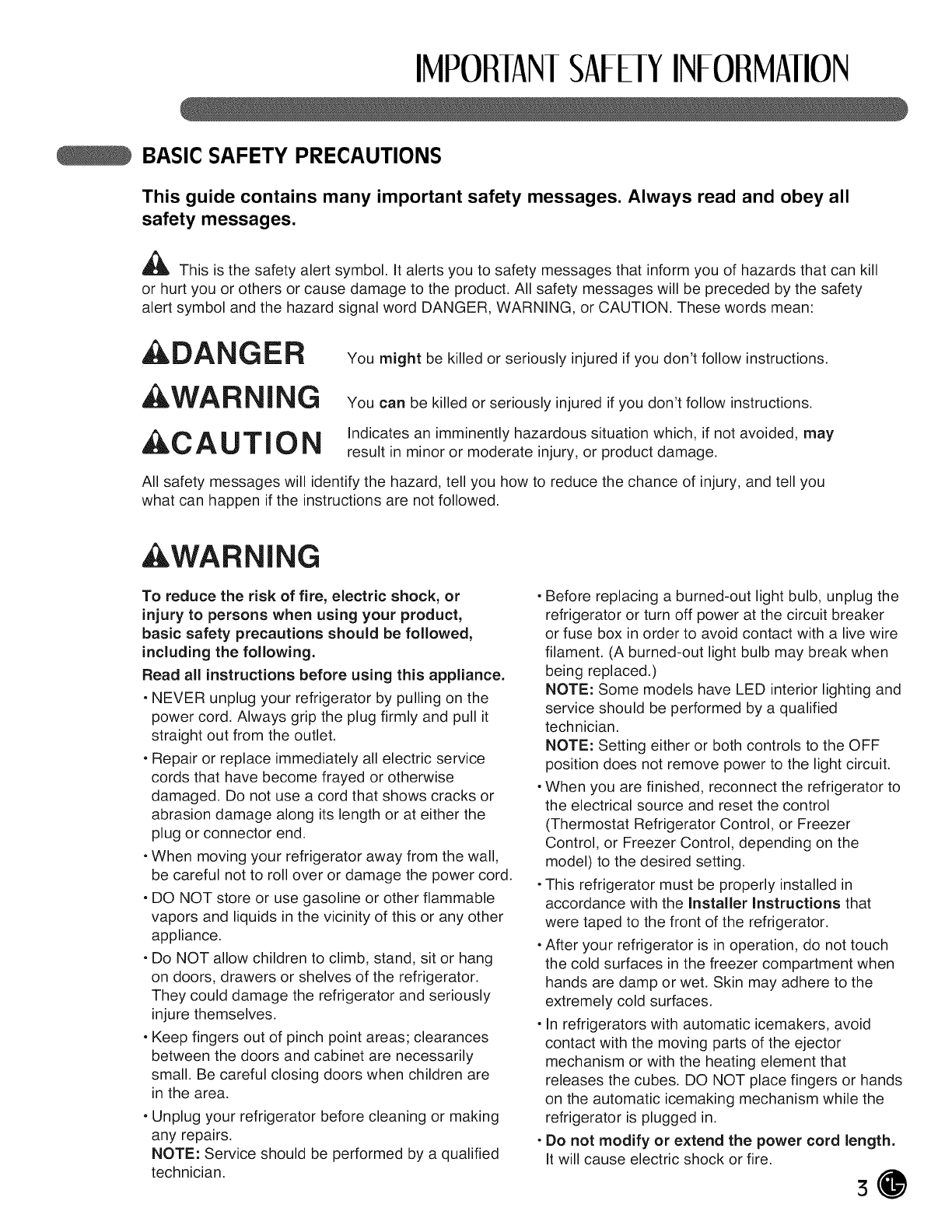

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all

safety messages.

,_ This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety

alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

WARNING

&CAUTION

You might be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided, may

result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or

injury to persons when using your product,

basic safety precautions should be followed,

including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

• Repair or replace immediately all electric service

cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or

abrasion damage along its length or at either the

plug or connector end.

•When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

• Do NOT allow children to climb, stand, sit or hang

on doors, drawers or shelves of the refrigerator.

They could damage the refrigerator and seriously

injure themselves.

•Keep fingers out of pinch point areas; clearances

between the doors and cabinet are necessarily

small. Be careful closing doors when children are

in the area.

• Unplug your refrigerator before cleaning or making

any repairs.

NOTE: Service should be performed by a qualified

technician.

•Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker

or fuse box in order to avoid contact with a live wire

filament. (A burned-out light bulb may break when

being replaced.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified

technician.

NOTE: Setting either or both controls to the OFF

position does not remove power to the light circuit.

•When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat Refrigerator Control, or Freezer

Control, or Freezer Control, depending on the

model) to the desired setting.

• This refrigerator must be properly installed in

accordance with the installer Instructions that

were taped to the front of the refrigerator.

•After your refrigerator is in operation, do not touch

the cold surfaces in the freezer compartment when

hands are damp or wet. Skin may adhere to the

extremely cold surfaces.

•In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector

mechanism or with the heating element that

releases the cubes. DO NOT place fingers or hands

on the automatic icemaking mechanism while the

refrigerator is plugged in.

• Do not modify or extend the power cord length.

It will cause electric shock or fire.

IMPORIAN!SAFELYINFORMATION

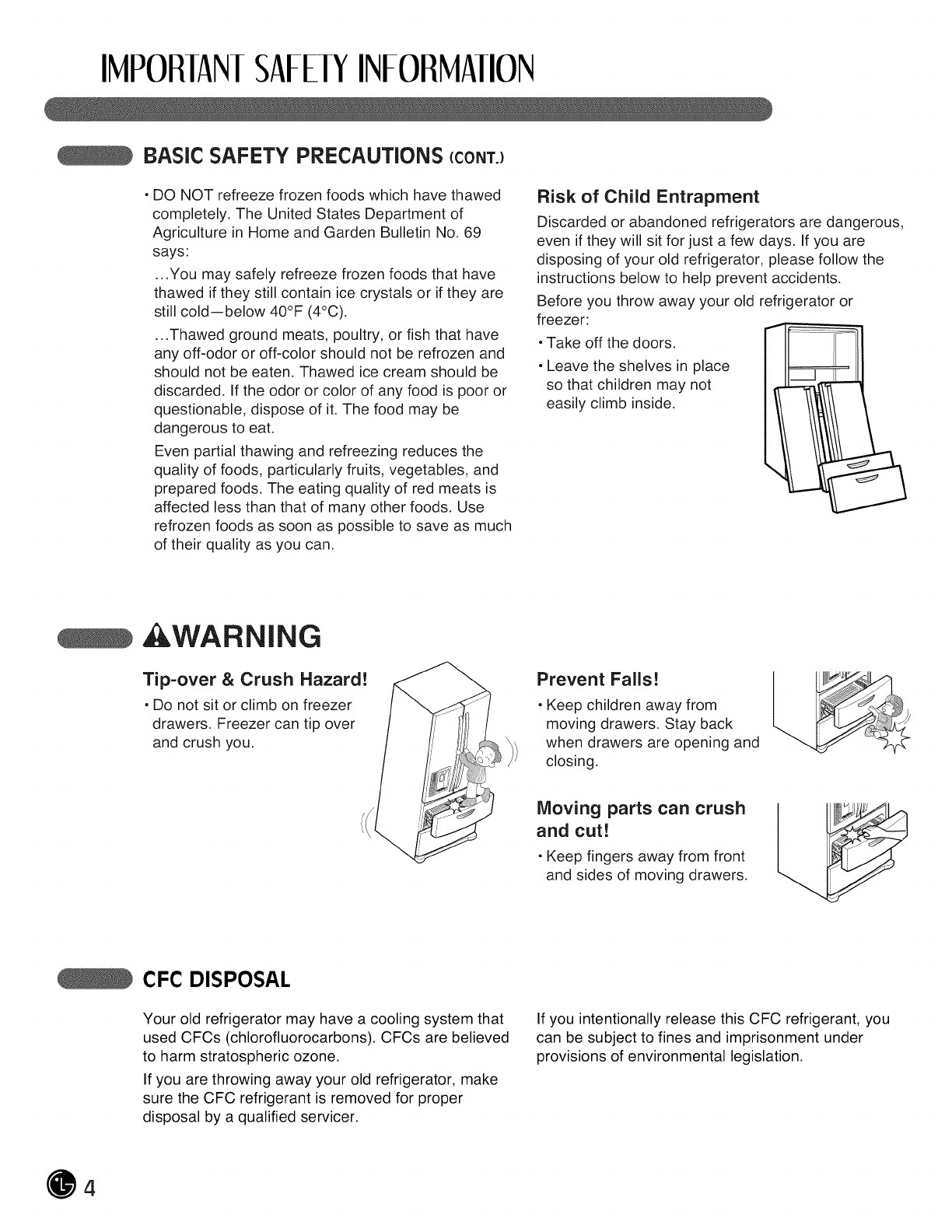

BASic SAFETY PREcAUTiONS (cONT.)

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69

says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold--below 40°F (4°C).

...Thawed ground meats, poultry, or fish that have

any off-odor or off-color should not be refrozen and

should not be eaten. Thawed ice cream should be

discarded. If the odor or color of any food is poor or

questionable, dispose of it. The food may be

dangerous to eat.

Even partial thawing and refreezing reduces the

quality of foods, particularly fruits, vegetables, and

prepared foods. The eating quality of red meats is

affected less than that of many other foods. Use

refrozen foods as soon as possible to save as much

of their quality as you can.

Risk of Child Entrapment

Discarded or abandoned refrigerators are dangerous,

even if they will sit for just a few days. If you are

disposing of your old refrigerator, please follow the

instructions below to help prevent accidents.

Before you throw away your old refrigerator or

freezer:

• Take off the doors.

• Leave the shelves in place

so that children may not

easily climb inside.

f .......

, WARNING

Tip-over & Crush Hazard!

• Do not sit or climb on freezer

drawers. Freezer can tip over

and crush you.

Prevent Fails!

• Keep children away from

moving drawers. Stay back

when drawers are opening and

closing.

Moving parts can crush

and cut!

• Keep fingers away from front

and sides of moving drawers.

CFC DISPOSAL

Your old refrigerator may have a cooling system that

used CFCs (chlorofluorocarbons). CFCs are believed

to harm stratospheric ozone.

If you are throwing away your old refrigerator, make

sure the CFC refrigerant is removed for proper

disposal by a qualified servicer.

If you intentionally release this CFC refrigerant, you

can be subject to fines and imprisonment under

provisions of environmental legislation.

IMPORIAN!SAFELYINFORMAIlON

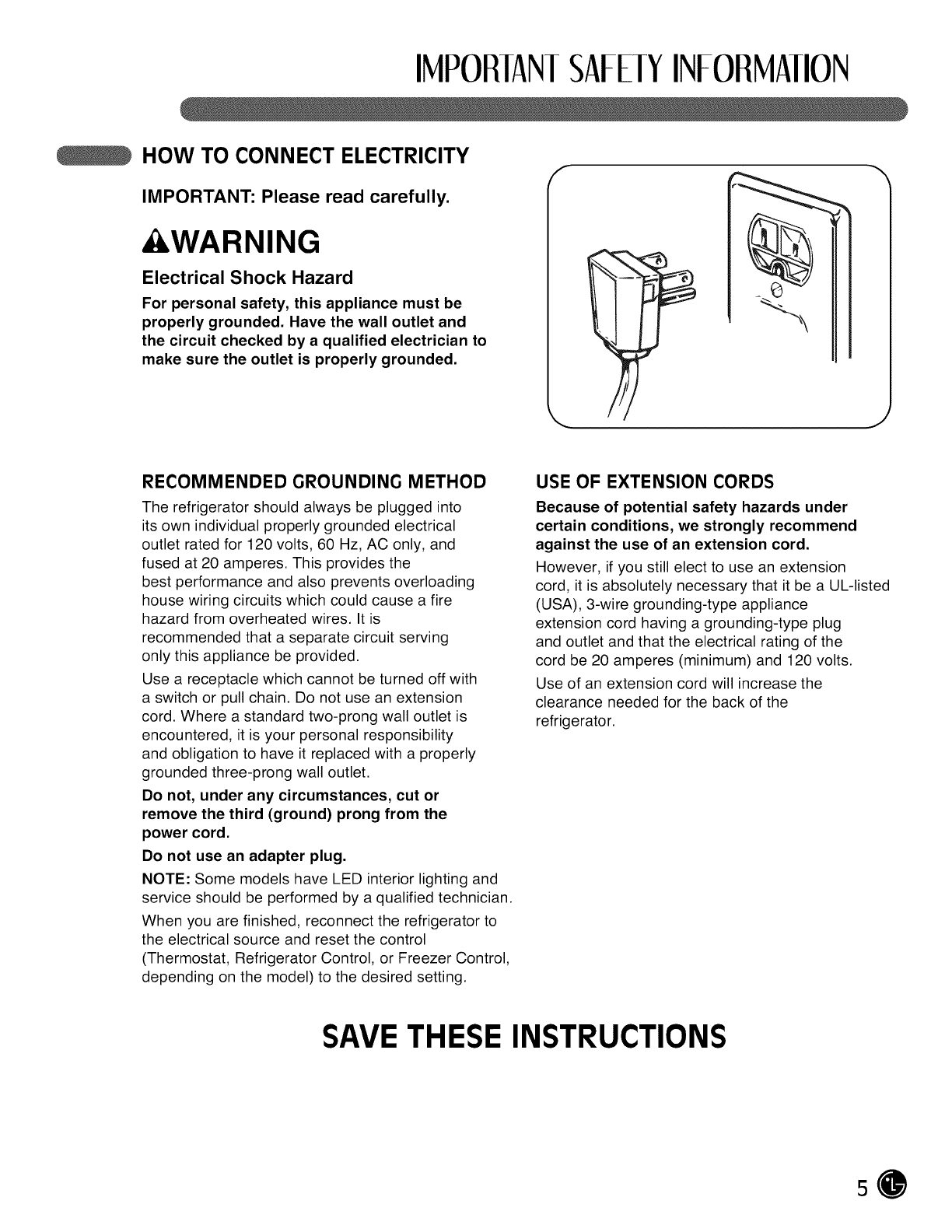

HOW TO CONNECT ELECTRICITY

IMPORTANT: Please read carefully.

&WARNING

Electrical Shock Hazard

For personal safety, this appliance must be

properly grounded. Have the wall outlet and

the circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into

its own individual properly grounded electrical

outlet rated for 120 volts, 60 Hz, AC only, and

fused at 20 amperes. This provides the

best performance and also prevents overloading

house wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit serving

only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord. Where a standard two-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded three-prong wall outlet.

Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

Do not use an adapter plug.

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat, Refrigerator Control, or Freezer Control,

depending on the model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under

certain conditions, we strongly recommend

against the use of an extension cord.

However, if you still elect to use an extension

cord, it is absolutely necessary that it be a UL-listed

(USA), 3-wire grounding-type appliance

extension cord having a grounding-type plug

and outlet and that the electrical rating of the

cord be 20 amperes (minimum) and 120 volts.

Use of an extension cord will increase the

clearance needed for the back of the

refrigerator.

SAVE THESE INSTRUCTIONS

PARISANDFEATURES

SPECIAL FEATURES

_Jl CONTROL PANEL LED DISPLAY SCREEN

Simple electronic controls are user-friendly.

The LED screen shows refrigerator and freezer

temperatures, displays water filter status,

dispenser information, and more.

OICE PLUS

When this feature is activated, the freezer section

will run at the coldest temperature for a 24- hour

period to increase ice production by about 20

percent.

FILTERED WATER AND ICE DISPENSER

The water dispenser offers fresh, chilled, filtered

water through the door. The ice dispenser offers

cubed or crushed ice.

DOOR ALARM

A warning alarm sounds at 30-second intervals

when the refrigerator or freezer door is left open

for more than 60 seconds.

SPACEPLUS ICE SYSTEM

The icemaker automatically produces 80-130

ice cubes in a 24-hour period to keep the ice

dispenser fully supplied. The in-door design

creates more shelf space.

CRISPERS

LG's crispers preserve humidity and

help vegetables stay crisp.

AUTO CLOSING HINGE

When you slightly push the door of

the refrigerator, it is automatically closed.

(The door is automatically closed within

30 ° of the opening angle.)

GLIDE'N'SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

PARTSANDFEATURES

KEY PARTS AND COMPONENTS

In addition to the special features and components outlined in the Special Features section,

there are several other important components that are referenced in this manual.

_II ADJUSTABLE REFRIGERATOR SHELVING

The refrigerator compartment shelves are

adjustable to allow flexibility for storage needs.

OLED INTERIOR LAMPS

Two separate LED arrays light the freezer and

refrigerator interiors.

GALLON STORAGE BINS

Three interchangeable bins can be arranged to

suit your storage needs.

SHORT N'TALL BIN

OREMOVABLE ICE STORAGE BIN

The ice storage bin can be removed to fill ice

buckets, coolers, or pitchers.

FIXED DOOR BIN

INSIAllAIION

CHOOSE THE PROPER LOCATION

&WARNING

Excessive Weight Hazard

Two or more people are required when

moving and unpacking the appliance.

•Store and install the refrigerator where it will not

be exposed to temperatures below freezing or

exposed to outdoor weather conditions.

• Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or too high, cooling ability may be

adversely affected.

• If this refrigerator is installed where the

temperature is above 110°F (43°C), the

freezing capacity is compromised and the cost

of electricity used increases.

• To reduce the risk of electric shock, do not

install the refrigerator in a wet or damp area.

• Select a place where a water supply can be

easily connected for the automatic icemaker

and dispenser.

• Unstable installation may cause vibration and

noise. If the floor is not even, make the

refrigerator level by rotating the height adjusting

screws.

• Properly ground the refrigerator to conform with

all governing codes and ordinances.

&CAUTION

Avoid placing the unit near heat sources,

direct sunlight, or moisture.

CLEARANCES

[

1" (2.54 cm)

• Too small a distance from adjacent items may

result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 in. (61 cm) in front of the

refrigerator to open the doors.

NOTE: For complete dimensions and specifications,

see page 42.

INSIAllAIION

FLOORING

• To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed

floor.

• To avoid vibration, the unit must be level. If

required, adjust the leveling legs to compensate

for unevenness of the floor. The front should be

slightly higher than the rear to aid in door

closing. The leveling legs can be turned easily

by pushing against the top of the refrigerator to

take the weight off the feet. Turn the leveling

legs clockwise to raise the unit or

counterclockwise to lower it.

• Carpeting and soft tile surfaces are not

recommended.

• Never install the refrigerator on a platform or

weakly supported structure.

NOTE: When moving the refrigerator for cleaning

or service, be sure to protect the floor. Always

pull the refrigerator straight out when moving it.

Do not wiggle or walk the refrigerator when trying

to move it; floor damage could occur.

NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a

narrow opening.

HANDLE REMOVAL

To move the refrigerator through a house door, it may be necessary to remove the refrigerator

door handles.

NOTE: Handle appearance may vary from illustrations on this page.

Set Screw

Allen Wrench

Mountinq

Fasteners

&CAUTION

• Use special care when removing handles to

prevent scratching the doors.

• The handle could be damaged if you hit it with

a hammer while removing or attaching.

• When you assemble or disassemble a handle,

you must push or pull with reasonable force.

Loosen the set screws with a 2.5 mm (3/32") Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need to

be tightened or removed, use a 1/4" Allen wrench.

INSIAllAIION

HANDLE REMOVAL (CONT.)

HANDLE REINSTALLATION

f _

Mounting

Fasteners \

Place the handle on the door by aligning handle

footprints to fit mounting fasteners and tighten the

set screws with a 2.5 mm (3/32") Allen wrench.

NOTE: If the handle mounting fasteners need to

be tightened or removed use a 1/4" Allen wrench

DOOR AND DRAWER REMOVAL

DOOR REMOVAL

&WARNING

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator

before installing. Failure to do so could result in

death or serious injury.

• Do not put hands or feet or metal sticks into the air

vents, base grille, or bottom of the refrigerator. You

may be injured or receive an electrical shock.

• Be careful when you work with the hinge, base

grille, and stopper. You may be injured.

Before you begin, remove food and bins from the

doors.

If your entrance door is too narrow for the refrigerator

to pass through, remove the refrigerator door and

move the refrigerator sideways through the doorway.

To remove the left refrigerator door:

Pull the water tube out of the fitting while

pressing the release ring on the fitting.

NOTE : When you pull out the tube, first you

have to push the collet by opposite direction

of arrow in the upper picture and pull the tube

out by direction of arrow.

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

DOOR REMOVAL (CONT.)

(2)

(4)

(7) (8)

•Open the door. Remove the top hinge cover

screw (1).

• Use a flat-head screwdriver to pry back the

hooks (not shown) on the front underside of

the cover (2). Lift up the cover.

• Remove the cover. Pull out the tube (3).

• Disconnect all the wire harnesses (4).

• Remove the grounding screw(5).

• Rotate hinge lever (6) counterclockwise.

Lift the top hinge (7) free of the hinge lever

latch (8).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door does not fall

forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

j(5)

To remove the right refrigerator door:

• Open the door. Remove the top hinge cover

screw (1). Lift up the cover (2).

• Remove the cover.

• Disconnect the wire harness (3).

• Rotate the hinge lever (4) clockwise.

Lift the top hinge (5) free of the hinge lever

latch (6).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door does not fall

forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

DOOR REINSTALLATION

Install the right-side door first.

• Lower the door onto the middle hinge pin as

shown.

• Make sure the plastic sleeve is inserted in

the bottom of the door.

• Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever (3)

counterclockwise to secure the hinge.

• Connect the wire harness (4).

• Hook the tab on the door-switch side of the

cover (5) under the edge of the wire opening

in the cabinet top. Position the cover into

place. Insert and tighten the cover screw (6).

Install the left-side door.

• Lower the door onto middle hinge pin.

(2)\\ (4)

• Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever (3)

clockwise to secure the hinge.

• Install the grounding screw (4) and connect

all the wire harnesses (5).

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

DOOR REINSTALLATION (CONT.)

Cover Cover Screw

(6)....\

•Push the water supply tube (6) into the hole

on the top case and pull it through the

backplate.

&CAUTION

Insert the water supply tube into the

connector.

• Insert the tube at least 5/8 in. (15 mm) into

the connector.

• Hook the tab on the door-switch side of the

cover under the edge of the wire opening in

the cabinet top. Position the cover into

place. Insert and tighten the cover screw.

Collet

Tube

Insert Line

Clip --

1. Insert the tube until you can see only one of the lines printed on the tube.

2. After inserting, pull the tube to ascertain that it is secure.

3. Assemble the clip.

Correct Incorrect

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

FREEZER DRAWER REMOVAL

&CAUTION

•To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

• When you remove the drawer, do not hold the

handle. It may come off and could cause injury.

TOP DRAWER

• When laying the drawer down, be careful not to

damage the floor or hurt your feet with the sharp

edges on the hinge side.

To remove the freezer drawer, pull the drawer

open to full extension. Remove the drawer

and Ice bin by lifting the basket from the rail

system.

Remove the screws of the rail on both sides.

With both hands, hold both sides of the door

and pull it up to separate it from the rails.

With both hands, flex the center bar enough

to allow the gears on both ends to release

from the track.

_,CAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause

personal injury.

_,CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the

sharp edges on hinge side.

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

FREEZER DRAWER REMOVAL (CONT.)

&CAUTION

•To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

• When you remove the drawer, do not hold the

handle. It may come off and could cause injury.

BOTTOM DRAWER

• When laying the drawer down, be careful not to

damage the floor or hurt your feet with the sharp

edges on the hinge side.

To remove the freezer drawer, pull the drawer

open to full extension. Remove the lower

DuraBase ® basket by lifting the basket from

the rail system.

_ Remove the screws of the rail on both sides.

With both hands, hold both sides of the door

and pull it up to separate it from the rails.

With both hands, flex the center bar enough

to allow the gears on both ends to release

from the track.

_,CAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause

personal injury.

_,CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the

sharp edges on hinge side.

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

FREEZER DRAWER REINSTALLATION (CONT.)

kCAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

TOP DRAWER

&WARNING

Risk of Child Entrapment

• To prevent accidental child and pet entrapment

or suffocation risk, DO NOT allow them to play

inside of the freezer drawer.

• DO NOT step or sit on the freezer drawer.

To reinstall the freezer drawer, hold the center

bar with both hands and pull it out until both

rails are fully extended.

Hook door supports (1) into rail tabs (2).

Lower door into final position and tighten the

screws (3). Make sure you have a right rail

cover for each side.

With the drawer pulled out to full extension,

insert the drawer and Ice Bin in the rail

assembly.

_,WARNING: To prevent accidental child and pet entrapment or suffocation risk.

DO NOT allow them to play inside of drawer.

_,WARNING: DO NOT step or sit down on freezer.

INSIAllAIION

DOOR AND DRAWER REMOVAL (CONT.)

FREEZER DRAWER REINSTALLATION (CONT.)

kCAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

BOTTOM DRAWER

&WARNING

Risk of Child Entrapment

• To prevent accidental child and pet entrapment

or suffocation risk, DO NOT allow them to play

inside of the freezer drawer.

• DO NOT step or sit on the freezer drawer.

To reinstall the freezer drawer, hold the center

bar with both hands and pull it out until both

rails are fully extended.

Hook door supports (1 into rail tabs (2).

Lower door into final position and tighten the

screws (3). Make sure you have a right rail

cover for each side.

With the drawer pulled out to full extension,

insert the lower basket in the rail assembly.

_,WARNING: To prevent accidental child and pet entrapment or suffocation risk.

DO NOT allow them to play inside of drawer.

_,WARNING: DO NOT step or sit down on freezer.

INSIAllAIION

CONNECTING THE WATER SUPPLY

&WARNING

Connect to safe drinking water supply

only.

•The water pressure must be between 21 and

121 p.s.i. (1.5~8.5 kgf/cm 2) on models without a

water filter and between 43 and 121 p.s.i.

(3~8.5 kgf/cm 2) on models with a water filter.

• If water pressure does not reach 21 psi

(1.5kgf/cm _)or falls below, it is necessary to

purchase a separate pressure pump for normal

automatic icemaker and water dispensing

operation.

• It is recommended that the total length of the

water feed tube does not exceed 26 ft. (8 m).

• Install the water supply line where it will not be

affected by heat.

IMPORTANT: Read all directions thoroughly

before you begin.

• If operating the refrigerator before installing the

water connection, turn the icemaker to the OFF

position to prevent operation without water.

• All installations must be in accordance with local

plumbing code requirements.

• Use copper tubing and check for leaks.

• Install tubing only in areas where temperatures

will remain above freezing.

• It may take up to 24 hours for the icemaker to

begin producing ice.

Tools Required

• Standard screwdriver

• 7/16-in. and 1/2-in. open-end wrenches or two

adjustable wrenches

• 1/4-in. nut driver

• 1/4-in. drill bit

• Hand drill or electric drill (properly grounded)

NOTE: Refrigerator dealers offer a kit with a 1/4-in.

saddle-type shutoff valve, a union, and copper

tubing. Before purchasing, make sure a saddle-

type valve complies with local plumbing codes.

Do not use a piercing-type or 3/16-in. saddle

valve which reduces water flow and clogs more

easily.

NOTE: The Commonwealth of Massachusetts

Plumbing Code 248CMR shall be adhered to.

Saddle valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed plumber.

Cold Water Supply

•The icemaker water valve contains a flow washer

which is used as a water pressure regulator.

•The icemaker needs to be connected to a cold

water line with water pressure between 21 ~121

psi (1.5~8.5 kgf/cm 2) on models without awater

filter and between 43 and 121 p.s.i. (3~8.5kgf/cm 2)

on models with a water filter.

CONNECTING THE WATER LINES

IMPORTANT: Before connecting the tubing to

the water line, unplug the refrigerator or

disconnect the power.

• Turn off the main water supply and open the

nearest faucet to relieve pressure in the line.

Opening an outside faucet may help drain

water from the line in the house.

• Find a 1/2-in. vertical COLD water pipe near

the refrigerator.

NOTE: A horizontal pipe will work, but the

following precaution must be taken: drill on the

top of the pipe, not the bottom. This will help

keep water away from the drill and also keep

normal sediment from collecting in the valve.

• To determine the length of copper tubing you

will need, measure from the connection on the

lower left rear of the refrigerator to the water

pipe. Add 7 ft. (2.1 m) to allow for moving the

refrigerator for cleaning. Use 1/4-in. O.D.

(outside diameter) copper tubing. Be sure both

ends of the copper tubing are cut square.

• Using a drill, drill a 1/4-in. hole in the cold water

pipe you have selected.

INSIAllAIION

CONNECTING THE WATER LINES (CONT.)

• Fasten the shutoff valve to the cold water pipe

with the pipe clamp. Be sure the outlet end is

solidly in the 1/4-in. drilled hole in the water

pipe and the washer is under the pipe clamp.

Tighten the packing nut. Tighten the pipe clamp

screws carefully and evenly so the washer

makes a watertight seal. Do not overtighten or

you may crush the copper tubing, especially if

soft (coiled) copper tubing is used. Now you are

ready to connect the copper tubing.

• Slip the compression sleeve and the

compression nut onto the copper tubing as

shown. Insert the end of the tubing into the

outlet end squarely as far as it will go. Screw

the compression nut onto the outlet end with a

wrench. A flare nut wrench works best, but an

open-end wrench will suffice. Do not

overtighten.

• Place the free end of the tubing into a container

or sink, and turn on the main water supply.

Flush out the tubing until the water is clear.

Turn off the shutoff valve on the water pipe.

Coil the copper tubing as shown below.

Cold Water Pipe

Packing

Nut

\Pipe Clamp

Coil of Polyethelyne

or Copper Tubing

Shutoff

Compression Compression

IMPORTANT: Before connecting the tubing to the

refrigerator, be sure the refrigerator power cord is

not plugged into the wall outlet.

NOTE: If your refrigerator is equipped with an

internal water filter, an external in-line water filter

should not be used.

1/4'_

Tubing

Connection

• Remove the plastic flexible cap from the water

valve.

• Place the compression nut and ferrule (sleeve)

onto the end of the tubing as shown.

• Insert the end of the copper tubing into the

connection as far as possible. While holding the

tubing, tighten the fitting.

IMPORTANT: Tighten any connections that leak.

Open the water at the shutoff valve.

• Plug in the refrigerator.

• Arrange the coil of copper tubing behind the

refrigerator so it does not vibrate against the

back of the refrigerator or against the wall.

• Check for leaks.

• Before connecting the water line to house, purge

house line for 2 minute.

NOTE: It may take a few seconds for water to

begin to flow as the internal tank fills and air clears

from the lines.

• Push the refrigerator back to the wall.

• Set the icemaker switch to the ON position.

NOTE: The icemaker will not begin to operate until

it reaches its operating temperature of 15°F (-9°C).

It will then begin operation automatically.

NOTE: Throw away the first few batches of ice

(about 20 pieces).

INSIAllAIION

LEVELING THE REFRIGERATOR DOORS

&WARNING

Electrical Shock Hazard

•Be careful when you work with the hinges,

base grille, and stopper. You may be injured.

• Do not put hands, feet, or metal items into

the air vents, base grille, or the bottom of the

refrigerator. You may be injured or receive

an electrical shock.

Leveling

After installing, secure the product with the LEG

not to move left or right.

Your refrigerator has two front leveling legs--

one on the right and one on the left. Adjust the

legs to alter the tilt from front to back or side to

side. If your refrigerator seems unsteady or you

want the doors to close more easily, adjust the

refrigerator's tilt using the following instructions:

Kick Plate

Plug the power cord into a 3-prong grounded

outlet, and move the refrigerator into its final

position. Remove the kick plate screws and

then the kick plate.

• Open the Freezer Drawer.

• Once the drawer is open, there is sufficient

clearance to remove the screws on top of

the kick plate.

NOTE: To replace the kick plate, place it into

position, and then insert and tighten the

screws.

&CAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

Level the refrigerator by using an 11/16 inch

(18mm) wrench or a flat blade screw driver.

Turn the leveling legs (CCW) to raise or (CW)

to lower the height of the front of the

refrigerator.

NOTE: The front of the refrigerator should be

slightly higher than the back.

NOTE: If someone pushes backward against

the top of the refrigerator, weight is lifted off of

the leveling legs, which makes adjustment

easier.

Open both doors to make sure they close

easily. If not, raise the leveling legs higher by

turning both clockwise the same amount.

Once the refrigerator is level, replace the kick-

plate.

NOTE: Your new refrigerator is uniquely

designed with two fresh food doors. Either

door can be independently opened or closed.

You will have to exert slight pressure on the

doors to close them completely.

NOTE: In order not to move the refrigerator

back and forth, fix it with the 'Adjust' to the

floor to install and use.

INSIAllAIION

LEVELING THE REFRIGERATOR DOORS (CONT.)

DOOR ALIGNMENT

•Use the wrench (Included with the User Manual)

to adjust the bolt in the door hinge to adjust the

height. (CCW to raise or CW to lower the

height.)

STARTING

Before loading your refrigerator with fresh foods:

• Remove tape and any temporary labels from

your refrigerator before using. To remove any

remaining adhesive residue, rub the area briskly

with your thumb, or rub a small amount of liquid

dish soap over the adhesive with your fingers.

Wipe with warm water and dry. Do not use sharp

instruments, rubbing alcohol, flammable fluids,

or abrasive cleaners to remove tape or glue.

NOTE: Do not remove any warning-type labels,

the model and serial number label, or the tech

sheet that is taped to the back of the refrigerator.

• Thoroughly clean your refrigerator and wipe off all

dust that may have accumulated during shipping.

• Install accessories such as the ice cube bin,

drawers, and shelves, in their proper places.

They are packed together to prevent possible

damage during shipment.

• Adjust the desired temperature for the

refrigerator and freezer (see Adjusting the

Temperature and Functions).

• Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold

air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

HOW10 USE

CONTROL PANEL FEATURES

For complete details on button functions, see pages 25-27.

OLED DISPLAY

The LED display shows the temperature

settings, dispenser options, water filter,

door alarm, and locking status messages.

ICE TYPE BUTTON

The ICE TYPE button is used to select Cubed Ice or

Crushed Ice.

FREEZER BUTTON

Press the FREEZER button to adjust the temperature

in the freezer compartment.

NOTE: When pressed simultaneously with the

REFRIGERATOR button for more than five seconds,

the temperature display will change from Fahrenheit

to Celsius or vice versa.

REFRIGERATOR BUTTON

Press the REFRIGERATOR button to adjust the

temperature in the refrigerator compartment.

NOTE: When pressed simultaneously with the

FREEZER button for more than five seconds, the

temperature display will change from Fahrenheit to

Celsius or vice versa.

ICE PLUS BUTTON

Press this button to turn on the ICE PLUS. feature,

which increases icemaking capabilities up to about 20

percent.

OLIGHT/FILTER BUTTON

The LIGHT/FILTER button controls the lamp in the

dispenser.

The LIGHT/FILTER button resets the water filter

replacement indicator when the water filter has been

replaced.

ttOWlO USE

CONTROL PANEL FEATURES (CONT.)

OALARM/LOCK BUTTON

Press this button to control the door-open alarm.

Press this button to lock or unlock all the other

function buttons on the control panel, including

operation of the dispenser.

OLOWER BUTTON

Press the Freezer Lower button to open

and /or close the lower freezer drawer.

You can also open and close the freezer

drawer by pulling or pushing the drawer

with your hand.

UPPER BUTTON

Press the Freezer Upper button to open

and /or close the upper freezer drawer.

You can also open and close the freezer

drawer by pulling or pushing the drawer

with your hands.

@CHILD LOCK FUNCTION

This function will disable the Auto Drawer feature.

To activate the Child Lock Function press and

hold the Freezer Upper and the Freezer Lower

buttons simultaneously for 3 seconds.

To cancel the Child Lock Function press and

hold the Freezer Upper and the Freezer Lower

buttons simultaneously for 3 seconds.

ttOW10USE

THE LED DISPLAY

The LED display shows the temperature settings,

dispenser options, water filter, door alarm, and

locking status messages.

DISPENSER SELECTION iNDICATOR

Shows Cubed ice or Crushed Ice selection

that will be dispensed when the push switch

is pressed.

FREEZER TEMPERATURE

Indicates the set temperature of the freezer

compartment in Celsius or Fahrenheit.

REFRIGERATOR TEMPERATURE

Indicates the set temperature of the refrigerator

compartment in Celsius or Fahrenheit.

iCE PLUS

When the ICE PLUS button is pressed,

the display will indicate the selected function

has been activated.

DISPENSER LIGHT INDICATOR

When the LIGHT button is pressed,

the display will indicate the selected function:

The dispenser light is on, this indicator will

appear on the display panel.

DOOR ALARM INDICATOR

This indicator shows that the door-open

warning alarm is activated.

WATER FILTER STATUS

This indicator shows the current status for

the water filter. See Resetting the Filter Indicator.

,CAUTION

Display mode setting and its cancellation

• With the refrigerator door open, keep pressing the

REFRIGERATOR button and ICE PLUS button

more than 5 seconds, then it goes to the display

mode.

• Perform the same way again to cancel the display

mode.

• All freezing units do not work at the display mode.

OLOCK STATUS

This indicator shows the current status for

the control panel functions is set to LOCK.

HOW10 USE

ADJUSTING THE TEMPERATURES AND DISPLAY

Adjust Freezer Temperature

TO adjust the temperature in the freezer

compartment, press the FREEZER button to cycle

through the the range Of available settings.

Temperature Display

To Change the temperature display from Fahrenheit

to Celsius:

U°F

Adjust Refrigerator Temperature

To adjust the temperature in the refrigerator

compartment, press the REFRIGERATOR button to

cycle through the range of available settings. •Simultaneously press and hold the FREEZER and

REFRIGERATOR buttons for more than 5 seconds.

• Do the same to convert back to Fahrenheit.

Power Saving Mode

NOTE: The actual inner temperature varies

depending on the food status, since the indicated

temperature setting is the target temperature and not

the actual temperature within the refrigerator.

Initially set the REFRIGERATOR CONTROL at 37

degrees F and the FREEZER CONTROL at 0

degrees F. Leave them at these setting for 24 hours

(one day) to stabilize. Then adjust the compartment

temperature as illustrated above. • The display will remain off until the next time the

door is opened.

The display will also turn on when any button is

pressed, and it will remain on for 20 seconds after

the last door opening or button selection.

• To deactivate the Power-Saving Mode, press the

FREEZER and ICE PLUS buttons simultaneously

and hold them for 5 seconds until the tone sounds.

NOTE: Power Saving Mode function is set on the

product.

ttOWTOUSE

OPERATING THE DISPENSER

DISPENSING CRUSHED ICE

Press the ICE TYPE

button to illuminate the

Crushed Ice icon.

Press the push ice switch

with a glass or other

/_ /container and crushed ice

will be dispensed.

DISPENSING CUBED ICE

Press the ICE TYPE

button to illuminate the

Cubed Ice icon.

Press the push switch

with a glass or other

container and cubed ice

will be dispensed.

DISPENSING WATER

WATER

Press the push water switch

with a glass or other container

and chilled water will be

dispensed.

When the water switch is pressed, the light will be

illuminated.

CONTROLLING THE DISPENSER LIGHT

Press the LIGHT/FILTER

button to turn the dispenser

light on and off.

NOTE: Hold the glass or other container in place

for a couple of seconds after dispensing ice or

water to catch the last few cubes or drops. The

dispenser is designed to not operate while either

refrigerator door is open.

WATER SWITCH

ICE SWITCH

&CAUTION

• When filling the container with a small opening, use it near the opening of the water or ice dispenser

as close as possible.

• Do not dispense ice into fine china or crystal glasses. China or crystal can break.

Incorrect Correct

Water

Ice

ttOW10 USE

SETTING THE FUNCTIONS

Press the button for the desired function to view and

select other settings.

SETTING THE DISPENSER LOCK

PreSS and hold the

ALARM/LOCK

button for three seconds

to lock the dispenser and

all of the other control panel

i_] functions. Press and hold

again for 3 seconds to

unlock.

SETTING THE DOOR ALARM

The ALARM/LOCK button

also controls the door

alarm that sounds three

times in 30-second

intervals when a

compartment door is

K1)) left open for more than

60 seconds. The alarm

stops sounding when

the door is closed.

Press the ALARM/LOCK button once to activate

and deactivate the door alarm function.

NOTE: Contact your local service center

if the alarm continues to sound after the

doors are closed.

RESETTING THE FILTER INDICATOR

Press and hold the

LIGHT/FILTER button for more

than 3 seconds to reset

the filter indicator after the

water filter has been

_Z CHANGE

...... replaced.

n_t MONTH

NOTE: It is recommended that you replace the filter

when the water filter indicator light reaches 0 or

whenever the water or ice cube taste deteriorates

noticeably.

ACTIVATING ICE PLUS

Press the ICE PLUS button

once to activate the ICE PLUS

function. The ICE PLUS icon on

the display panel will illuminate

when activated.

The ICE PLUS function runs the

.."__ freezer compartment at the

coldest setting for a 24-hour

period to increase icemaking by

up to about 20%, and then turns

off automatically.

NOTE: Press the button again to cancel

the ICE PLUS function.

DIAGNOSTIC FAILURE DETECTION

The diagnostic function automatically detects problems with your refrigerator, and a diagnostic code will

appear in the display. NOTE: If a diagnostic code appears in the display during use, note the code and

then call 1-800-243-0000 (24 hours per day/7 days per week) and select the option to locate an

authorized servicer.

ttOW10 USE

SPACEPLUS ICE SYSTEM

&CAUTION

•Keep hands and tools out of the ice bin door

and dispenser chute. You could break

something or injure yourself.

The icemaker will stop producing ice when the ice bin

is full. If you need more ice, empty the ice bin into the

extra ice bin in the freezer compartment so the

icemaker can keep producing ice.

Shake the ice bin occasionally to level the ice in it.

Sometimes the ice piles up near the icemaker,

causing the icemaker to misread the amount of ice

cubes and stop producing ice.

Push on the latch firmly where noted to close the

ice bin door; it will make a clicking sound when it

is closed completely.

NOTE: Storing cans or other items in the ice bin may

damage the icemaker.

Keep the ice bin door closed tightly. If the ice bin door

is not closed tightly, the cold air in the ice bin will

freeze food in the refrigerator compartment. This

could also cause the icemaker to not produce ice.

NOTE: If the On/Off switch on the icemaker is set to

Off for an extended time, the ice compartment will

gradually warm up to the temperature of the

refrigerator compartment. To prevent ice cubes from

melting and leaking from the dispenser, ALWAYS

empty the ice bin when the icemaker is set to Off for

more than a few.

To remove the Spaceplus Ice System, grip the

front handle, slightly lift the lower part, and slowly

pull out the bin as shown.

To reinstall the Spaceplus Ice System, slightly

slant the bin during replacement to avoid contact

with the icemaker.

Avoid touching the automatic shutoff arm when

replacing the ice bin. See the label on the ice bin

door for details.

HOW113USE

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to

the dispenser. The automatic icemaker can make 6

ice cubes at a time, 80-130 cubes per 24-hour

period. This quantity may vary by circumstance,

including freezer compartment temperature, room

temperature, number of door openings, freezer load,

and other operating conditions.

• It takes about 12 to 24 hours for a newly installed

refrigerator to make ice.

• Icemaking stops when the ice storage bin is full.

• To turn off the automatic icemaker, set the

icemaker switch to OFF (O). To turn on the

automatic icemaker, set the switch to ON (I).

• The cube size will vary depending on the Water

Amount Selection Setting, as well as the water

pressure of the connected water line.

• You can regulate the cube size by pressing the

Water Amount Selection Button.

NOTE: It is normal that a noise is produced when

ice drops into the ice storage bin.

• Even when the water pipe is not connected and

the Ice Maker is turned on, the water valve

operates. The noise is generated because the

water pipe is not connected, which does not

mean the icemaker is defective.

&WARNING

Personal Injury Hazard

• Avoid contact with the moving parts of the

ejector mechanism or with the heating element

that releases the cubes.

• DO NOT place fingers or hands on the automatic

icemaking mechanism while the refrigerator is

plugged in.

Icemaker /

Auto at,c

Water Shutoff Arm

Amount Water ON/OFF

Indicator Amount Switch

Lights Selection

Button

NOTE: Raising the automatic shutoff arm does

not turn off the icemaker.

&CAUTION

• The first ice and water may include particles or

odor from the water supply line or the water tank.

• Throw away the first few batches of ice (about

20 pieces) and purge the water line for 2 minutes

after installation to eliminate air and odd tastes.

• This is also necessary if the refrigerator has not

been used for a long time.

• Never store beverage cans or other foods in the

ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

• If discolored ice is dispensed, check the water

filter and water supply. If the problem continues,

contact an Authorized Service Center. Do not

use the ice or water until the problem is corrected.

• Keep children away from the dispenser.

Do not allow children to play in or around dispenser.

• The ice passage may also become blocked

with frost if only crushed ice is used. Remove

the frost that accumulates.

• Never use thin crystal glass or crockery to

collect ice. Such glasses or containers may

break, and glass fragments could be in the ice.

• Dispense ice into a glass before filling it with

water or other beverages. Splashing may occur

if ice is dispensed into a glass that already

contains liquid.

• Never use a glass that is exceptionally narrow

or deep. Ice may jam in the ice passage and

refrigerator performance may be affected.

• Keep the glass at a proper distance from the

ice outlet. A glass held too close to the outlet

may prevent ice from dispensing.

• To avoid personal injury, keep hands out of

the ice door and passage.

• Never remove the icemaker cover.

• If you find ice or water dispensed unexpectedly,

turn off the water supply and contact an Authorized

Service Center. Call 1-800-243-0000 (24 hours

a day, 365 days a year) and select the option to

locate an authorized servicer. 29

HOW10 USE

STORING FOODS

• Store fresh food in the refrigerator compartment.

• How food is frozen and thawed is an important

factor in maintaining freshness and flavor.

• Do not store food that spoils easily, such as

bananas and melons, at low temperatures.

• Allow hot food to cool prior to storing; placing hot

food in the refrigerator could spoil other food and

lead to higher energy consumption.

• When storing food, cover it with vinyl wrap or store

in a container with a lid. This prevents moisture from

evaporating and helps food to keep its flavor and

nutrition.

Do not block air vents with food or containers.

Smooth circulation of chilled air keeps the

refrigerator temperatures even.

Do not open the doors frequently. Opening the

doors allows warm air to enter the refrigerator and

freezer compartments, which causes temperatures

to rise.

Never overload the door racks; overloading may

push against the inner racks and prevent the doors

from closing correctly.

Freezer compartment

•Do not store glass bottles inthe freezer

compartment; glass may break when the contents

are frozen.

• Do not refreeze food that has been thawed.

This causes loss of flavor and nutrition.

• Do not touch cold foods or containers, especially

those made of metal, with wet hands or place glass

products in the freezer compartment.

Refrigerator compartment

• Avoid placing moist food on the top refrigerator

shelves; it could freeze from direct contact with

chilled air.

• Always clean food prior to refrigeration.

Vegetables and fruits should be washed and wiped

and packed food should be wiped to prevent

adjacent food from spoiling.

NOTE: If you keep the refrigerator in a hot and humid

place, frequent opening of the door or storing a lot of

vegetables in the refrigerator may cause

condensation to form. Wipe the condensation with a

clean cloth or a paper towel.

ttOWlO USE

LOCATION OF FOODS

ti_ REFRIGERATOR COMPARTMENT SHELVES

Store larger food items, platters, and containers

on the expansive refrigerator compartment

shelves.

OGALLON STORAGE BINS

Store small packed food or beverages such as

condiments, salad dressings, baby foods, milk,

or juice.

CRISPERS

Store vegetables or fruits with humidity control.

ODAIRY CORNER

Store milk products such as butter and cheese.

GLIDE'N'SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

CAREANDCLEANING

REMOVING AND REPLACING COMPONENTS

NOTE: When reinstalling components, reverse

the order of steps for removal. To prevent damage,

never use excessive force when removing or

reinstalling components.

&CAUTION

• Crispers, Door Bins and interior shelves are

not dishwasher safe.

&CAUTION

• Personal injury can occur if the door bins are not

firmly assembled.

NOTE: DO NOT adjust a loaded bin.

• DO NOT allow children to play with baskets.

The sharp corners on the baskets could cause

injury.

Dairy Bin

To remove the dairy bin, simply lift it and pull

straight out. To replace the dairy bin, slide it into

place and push down until it stops.

NOTE: The dairy bin will only fit in the top space

on the right-hand door.

Gallon Storage Bins

The door bins are removable for easy cleaning

and adjusting. Simply lift the bin and pull it straight

out to remove it. To replace the bin, slide it in

above the desired support button and push down

until it stops.

Dispenser Drip Tray

The dispenser drip tray has no self-draining function. It should be cleaned regularly.

Remove the cover by pressing and pulling the tray.

Dry it with a cloth. To reinstall the tray, slightly tilt the front of the tray and snap the ribs into the holes.

CAREANDCLEANING

REMOVING AND REPLACING COMPONENTS ((:ONT.)

Cris _er humidity control

HIGH _) j LOW

YOU can control the amount of humidity in the

moisture-sealed crispers. Store vegetables or

fruits requiring more or less humidity in separate

crispers. Adjust the control to any setting

between HIGH and LOW.

• LOW lets moist air out of the crisper for best

storage of fruits.

• HIGH keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

CAUTION : The glass shelf over the crisper is not

firmly secured. Be careful when tilting.

Removing crisper

• To remove, pull the drawer out to full extension.

• Lift the front of the crisper up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into

place.

Glide'N'Serve

The Glide'N'Serve provides storage space with a

variable temperature control that keeps the

compartment colder than refrigerator.

This drawer can be used for large party trays, deli

items, or beverages. (but this drawer can't be

used for vegetable.)

Selection Button

• When "MEAT" is selected, the temperature of the

Glide'N'Serve can be kept around 34°F (1°C).

This feature helps keep meat or fish fresh for a

longer time. The Glide'N'Serve temperature can

be maintained under recommended temperature

setting (Freezer :0°F, Referigerator : 37°F).

• When "DELl" is selected, the temperature of the

Glide'N'Serve can be kept around 38°F (3°C).

This feature helps keep food fresh for a longer

time. The Glide'N'Serve temperature can be

maintained under recommended temperature

setting (Freezer :0°F, Referigerator : 37°F).

• When "PRODUCE" is selected, the temperature

of the Glide'N'Serve can be kept around 41°F

(5°C). This feature helps keep food fresh for a

long time. The Glide'N'Serve temperature can be

maintained under recommended temperature

setting (Freezer :0°F, Referigerator : 37°F).

CAREANDCLEANING

REMOVING AND REPLACING COMPONENTS (CONT.)

To remove the glass

•Lift up the glass under the crisper cover.

• Pull the glass up and out.

To replace Glide'N'Serve

•To remove, pull the drawer out to full extension.

• Lift the front of the drawer up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into place.

&CAUTION

• When you close the refrigerator door with

GLIDE'N'SERVE DRAWER opened, that drawer

could be broken.

&CAUTION

• Pinch hazard! Keep hands and feet clear of the

bottom of the door when opening and closing.

Ice Bin

Drawer

To separate the ice bin, pull out the drawer to full

extension. Gently lift and pull out the ice bin.

To reinstall, simply set the ice bin in its correct

position.

&WARNING

Child Entrapment Hazard

• Ifthe Durabasedivider is removed, there is enough open

space for children or pets to crawl inside.To prevent

accidental child and pet entrapment or suffocation risk,

DO NOT allow them to play inside of drawer.

DuraBase ®Divider

CAREANDCLEANING

CLEANING THE REFRIGERATOR

&WARNING

Explosion Hazard

• Use nonflammable cleaner.

•Failure to do so can result in death,

explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about

once a month to prevent odors. Wipe up spills

immediately.

• Unplug the refrigerator.

• Remove all removable parts, such as shelves and

crispers.

• Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive or

harsh cleaners.

• Hand wash, rinse, and thoroughly dry all surfaces.

• Plug in the refrigerator.

NOTE: Window sprays, abrasive cleaners, or

flammable fluids can scratch or damage plastic

covers or panels.

Cleaning the Exterior

For models with a stainless steel exterior, use a

commercially available stainless steel cleaner in

accordance with the manufacturer's instructions.

You may also use a clean sponge or soft cloth and

a mild detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft cloth.

IMPORTANT: Do not use cleaning waxes,

concentrated detergents, or cleaners containing

petroleum on plastic refrigerator parts such as door

liners or gaskets.

Care and Cleaning of the Interior

NOTE: Allow the freezer to warm so the cleaning

cloth will not stick.

To help remove odors, you can wash the inside of

the refrigerator with a mixture of baking soda and

warm water. Mix 2 tbsp. baking soda to 1 qt. of water

(26 g soda to 1 L of water). Be sure the baking soda

dissolves completely so it does not scratch the

surfaces of the refrigerator.

IMPORTANT: Do not use a spray nozzle to clean

the interior.

GENERAL INFORMATION

Storage

During average-length vacations, you will

probably find it best to leave the refrigerator in

operation. Place freezable items in the freezer for

longer life.

When you plan to store the refrigerator, remove

all food, disconnect the power cord, clean the

interior thoroughly, and block the doors open to

prevent mold and mildew. Be certain the stored

refrigerator does not present a child entrapment

danger.

Power Failure

Most power failures that are corrected within an

hour or two will not affect your refrigerator

temperatures. However, you should minimize the

number of door openings while the power is off.

Water may drip from the ice bin during a power

outage. To prevent this, remove the ice bin, discard

all of the ice, towel dry, and replace.

Moving

Unload the refrigerator to move it. (This is probably

not necessary when pulling it out to clean behind it.)

Be sure to let the refrigerator warm up to room

temperature, and dry the inside before closing the

doors to pack it for moving. To avoid damaging the

height-adjusting screws, turn them all the way into the

base.

CAREANDCLEANING

REPLACING THE WATER FILTER

It is recommended that you replace the filter when

the water filter indicator reaches 0 or the water

dispenser or icemaker noticeably decreases

production.

11 I I

Rotate the knob of the old cartridge

counterclockwise. When the cartridge is

released, you will feel it click out of place.

NOTE: Replacing the filter causes a small

amount of water (around 1 oz. or 25 cc) to

drain. Place a cup under the filter hole to

contain it.

Remove the old cartridge. Take the new

cartridge out of its packaging, and remove the

protective cover from the o-rings. Hold the

cartridge handle in its vertical position, and

firmly push the new filter cartridge into place

until it stops.

Use the handle to twist the cartridge

clockwise about one turn, until the handle is in

a horizontal position. You will feel the filter

click into place.

NOTE: If the filter will not turn from side to

side, it isn't fully inserted.

After replacing the filter, dispense for 2 minutes from

the water dispenser to purge the water system.

Check the filter for leaks.

CHANGE

_,_ FILTER

_ MONTH

When the water filter indicator displays the

message 0 Filter Month, Hold 3 Seconds,

reset the water filter status display and indicator

light by pressing and holding the LIGHT/FILTER

button for more than 3 seconds.

To purchase replacement water filter cartridges,

visit your local appliance dealer or parts distributor.

You can also call 1-877-714-7486.

The replacement water filter cartridge's part

number is 5231JA2006A.

IROUBI_ESHOOIING

BEFORE CALLING FOR SERVICE

Before calling for service, review this list. It may save you both time and expense. This list includes

common occurrences that are not the result of defective workmanship or materials in this appliance.

Refrigerator

compressor does

not run.

Refrigerator runs

too frequently or

too long.

Refrigerator

compressor

cycles on and off.

Temperature in

the freezer is too

cold, but the

refrigerator

temperature is

satisfactory.

Temperature in

the refrigerator is

too cold, but the

freezer

temperature is

_,,,. satisfactory.

•Refrigerator control is off.

• Refrigerator is in defrost

cycle.

• Plug at the wall outlet is

disconnected.

• Power outage. Check house

lights.

• Refrigerator is larger than the

previous one you owned.

• The room or the outdoor

weather is hot.

• Refrigerator was recently

disconnected for a while.

• Large amounts of warm or

hot food may have been

stored recently.

• Doors are opened too

frequently or for too long.

• Refrigerator or freezer door

may be slightly open.

• Refrigerator control is set too

cold.

• Refrigerator or freezer gasket

is dirty, worn, cracked, or

poorly fitted.

• The thermostat is keeping the

refrigerator at a constant

temperature.

• Freezer control is set too

cold.

• Refrigerator control is set too

cold.

• Set the refrigerator control.

•This is normal for a fully automatic defrosting

refrigerator. The defrost cycle occurs periodically.

• Make sure the plug is tightly pushed into the

outlet.

• Call the local electric company.

•This is normal. Larger, more efficient units run

longer.

• It is normal for the refrigerator to work longer

under these conditions.

• It takes a few hours for the refrigerator to reach

cooling temperatures.

•Warm food will cause the refrigerator to run longer

until the desired temperature is reached.

•Warm air entering the refrigerator causes it to run

more. Open the door less often.

• Make sure the refrigerator is level. Keep food and

containers from blocking the door.

•Adjust the refrigerator control to a warmer setting

until the refrigerator temperature is satisfactory.

• Clean or change the gasket. Leaks in the door

seal will cause the refrigerator to run longer in

order to maintain desired temperatures.

•This is normal. The refrigerator cycles on and off

to keep the temperature constant.

•Adjust the freezer control to a warmer setting until

the freezer temperature is satisfactory.

•Adjust the refrigerator control to a warmer setting.

IROUB/ESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

Food stored in

refrigerator

drawers freezes.

Temperatures in

the refrigerator or

freezer are too

warm.

Temperature in

the refrigerator

is too warm,

but the freezer

temperature is

satisfactory.

Louder sound

levels when

compressor

comes on.

Vibratingor

rattlingnoise.

Moisture collects

on the inside walls

of the refrigerator.

Moisture forms on

the outside of the

refrigerator or

_between the doors.

•Refrigerator control is set too

cold.

• Freezer or refrigerator control

is set too warm.

• Doors are opened too

frequently or for too long.

• Door is slightly open.

• Large amounts of warm or

hot food may have been

stored recently.

• Refrigerator has recently

been disconnected for a

period of time.

• Refrigerator control is set too

warm.

• Refrigerator operates at

higher pressures during the

start of the ON cycle.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Items placed on the top of the

refrigerator are vibrating.

• Dishes are vibrating on the

shelves in the refrigerator.

• The refrigerator is touching

the watt or cabinets.

• The weather is hot and humid

which increases the rate of

frost buildup and internal

sweating.

• Door is slightly open.

• Door is opened too often or

for too long.

• Weather is humid.

• Door is slightly open.

• Adjust the refrigerator to a warmer setting.

• Adjust the freezer or refrigerator control to a colder

setting until the freezer or refrigerator temperature

is satisfactory.

• Warm air enters the refrigerator/freezer whenever

the door is opened. Open the door less often.

• Close the door completely.

• Wait until the refrigerator or freezer has had a

chance to cool food to the set temperature.

• It takes a few hours for the refrigerator to reach

the set temperatures.

• Adjust the refrigerator control to a colder setting.

• This is normal.

• Be sure floor is level and solid and can adequately

support the refrigerator.

• Remove items.

• It is normal for dishes to vibrate slightly. Move

dishes slightly. Make sure refrigerator is level and

firmly set on floor.

• Move the refrigerator so that it does not touch the

wall.

• This is normal.

• Close the door.

• Open the door less often.

• This is normal in humid weather. When humidity is

lower, the moisture should disappear.

• Close the door completely. J

IROUBI_ESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

Moisture forms

on the dispenser.

Odors in the

refrigerator.

The door(s) will

not close.

Drawers are

difficult to move.

The dispenser

will not dispense

water.

Water has an odd

taste and/or odor.

•Moisture may form when the

temperature or humidity are

high.

• Interior needs to be cleaned.

• Food with strong odor is in

the refrigerator.

• Some containers and

wrapping materials produce

odors.

• Food package is keeping the

door open.

• Door was closed too hard,

causing other door to open

slightly.

• Refrigerator is not level. It

rocks on the floor when it is

moved slightly.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Refrigerator is touching the

wall or the cabinets.

• Food is touching the shelf on

top of the drawer.

• The drawer track is dirty.

• The household water-line

valve is not open.

• The refrigerator or freezer

door is not closed.

• When a installed tube is bent.

• When a filter is old.

• The water has been in the

tank for too long.

• The unit is not properly

connected to cold water line.

• When a filter is old.

•Wipe off the moisture.

• Clean interior with sponge, warm water, and

baking soda. Be sure the soda is completely

dissolved so it wilt not act as an abrasive

compound.

• Cover food completely.

• Use a different container or brand of wrapping

materials.

• Move the packages that keep the door from

closing.

• Gently close both doors.

•Adjust the height-adjusting screw.

• Be sure the floor is level and can adequately

support the refrigerator. Contact a carpenter to

correct sagging or sloping floor.

• Move the refrigerator.

• Keep less food in the drawer.

• Clean the drawer and the track.

• Open the household water-line valve.

• Be sure both doors are closed.

• Check the installed tube.

• Replace with a new filter.

• Dispense for 2 minutes and discard to freshen the

supply. Dispense and discard for an additional 2

minutes to rinse the tank completely.

• Connect the unit to a cold water line that supplies

water to the kitchen faucet.

• Replace with a new filter. J

IROUB/ESHOOIING

BEFORE CALLING FOR SERVICE (CONT.)

The dispenser

will not dispense

ice.

Sound of ice

dropping.

Sound of water

trickling.

Other

•The ice storage bin is empty.

• The household water line

valve is not open.

• The refrigerator or freezer

door is not closed.

• Ice has melted and frozen

around the auger due to

infrequent use, temperature

fluctuations, and/or power

outages.

• Ice cubes are jammed

between the icemaker arm

and the back of the bin.

• Ice cubes are frozen

together.

• Ice cubes that have been

purchased or made in some

other way have been used in

the dispenser.

• Water input tube is bent.

• Filter is old or needs

changing

• A batch of ice has been

released into the ice bin.

• The icemaker is being

supplied with water.

• When the first supply of ice is dropped into the

bin, the dispenser should operate.

• Open the household water line valve and allow

sufficient time for ice to be made. When ice is

made, the dispenser should operate.

• Be sure both of the doors are closed.

• Remove the ice storage bin and thaw the

contents.

Clean the bin, wipe it dry, and replace it in its

proper position. When new ice is made, the

dispenser should operate.

• Remove the ice cubes that are jamming the

dispenser.

• Use the dispenser often to prevent the cubes from

freezing together.

• Only the ice cubes made by the icemaker should

be used with the dispenser.

• Check the installed tube

• Replace with a new filter.

• This sound is made when automatically made ice

is dropped into the ice storage bin. The volume

may vary according to the location of the

refrigerator.

• This sound is normally made when the icemaker

is supplied with water after dropping the

automatically made ice.

• If this sound lasts more than 10 seconds, check

for a leak.

Please thoroughly read the Automatic Icemaker and Operating the Dispenser sections in

this manual.

SPECIFICAIIONS

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this guide may vary due to constant product improvements.

_iii iliiii i _;;;_ii i ii_iiiiiiiiiii!i;iiiiiiiiiiiii ii!iiiiiiii i_ii!i!i!iiiii/_iiii!¸iiii!i!i!i¸ iiiliii !!!!_i_ii ii;iiiil¸¸_i!!iiiii%; i iii!i!ii iiiiii!iiii!iiii!!iiilii

Description French Door Refrigerator

Electrical Requirements 115 VAC @ 60 Hz

Min. /Max. Water Pressure 21~121 PSI (1.5~8.5 kgf/cm 2)

35 3/4" (W) X 35 3/8" (D) X 69 3/4" (H), 47 s/8" (D w/door open)

Dimensions

908 mm (W) X 899 mm (D) X 1772 mm (H), 1210 mm (D w/door open)

Net Weight 313 lb. (142 kg)

Refrigerator Storage Capacity 18.82 cu. ft.

Freezer Storage Capacity 8.68 cu. ft.

Should your LG Refrigerator("Product") faildue to a defect in materials or workmanship under normal home use, during the warranty period

set forth below, LG will at its option repair or replace the product. This limitedwarranty is valid only to the original retail purchaser of the

product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is

requiredto obtain warranty service under this limited warranty.

WARRANTY PERIOD

Refrigerator Sealed System (Compressor, Condenser, and Evaporator only)

One (1) year from the date of original One (1) year from the date of original Seven (7) years from the date of original

retail purchase retail purchase retail purchase

Parts and Labor Parts and Labor Parts only

(internal/functional parts only) (Consumer wilt be charged for labor)

I_ Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90)days, whichever is

greater.

I_ Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY iS REQUIRED BY LAW, iT IS LiMiTED iN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER

THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY iNCiDENTAL, CONSEQUENTIAL, iNDIRECT,

SPECIAL, OR PUNiTiVE DAMAGES OF ANY NATURE, iNCLUDING WITHOUT LiMiTATiON, LOST REVENUES OR PROFITS, OR

ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or

limitation of incidental or consequential damages or limitationson how long an implied warranty lasts, so the above exclusion or limitation

may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the

customer on operation ofthe product; repair or replace fuses or correct

wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of product to perform during power failures and interruptions or

inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes,

restricted drain lines, inadequate or interrupted water supply or

inadequate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere

or contrary to the instructions outlined in the product owner's manual.

5. Damage to the product caused by accidents, pests and vermin,

lightning, wind, fire, floods, or acts of God.

6. Damage resulting from misuse, abuse, improper installation, repair, or

maintenance. Improper repair includes use of parts not approved or

specified by LG.

7. Damage or failure caused by unauthorized modification or alteration,or

if it isused for other than the intended purpose, or any water leakage

where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or

plumbing codes, commercial or industrial use, or use of accessories,

components, or consumable cleaning products that are not approved

by LG.

9. Damage caused by transportation and handling, including scratches,

dents, chips, and/or other damage to the finish of your product, unless

such damage results from defects in materials or workmanship and is

reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or

refurbished product.

11. Products with originalserial numbers that have been removed, altered,

or can not be readily determined. Model and Serial numbers, along with

original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual

household use (e.g.commercial use, offices, and recreational facilities)

or contrary to the instructions outlined in the product owner's manual.

15. Costs associated with removal of your product from your home for

repairs.

16. The removal and reinstallation of the product if it is installed in an

inaccessible location or is not installed in accordance with published

installationinstructions, including LG's owner's and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts

besides_,those that were originally included with this particular model.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate

option from the menu, or visit our website at http://us.lgservice.com

Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813

ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the

warranty period set forth below, LG Canada will at its option repairor replace the Product upon receipt of proof of original retail purchase.

This warranty is valid only to the original retail purchaser of the product and applies only to a Productdistributed in Canada by LG Canada or

an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

Refrigerator/Freezer Sealed System (Compressor, Condenser, and Evaporator only)

One (1) year from the date of original One (1) year from the date of original Seven (7) years from the date of original

retail purchase retail purchase retail purchase

Parts and Labor Parts and Labor Parts only

(internal/functional parts only) (Consumer wilt be charged for labor)

Replacementproductsandpartsarewarrantedforthe remainingportionof theoriginalwarrantyperiodorninety(90)days,whicheveris greater.

Replacementproductsandpartsmaybeneworremanufactured.

LGAuthorizedServiceCenterwarrantiestheirrepairworkbr thirty(30)days.

LGCANADA'SSOLELIABILITYIS LIMITEDTO THEWARRANTYSETOUTABOVE.EXCEPTAS EXPRESSLYPROVIDEDABOVE,LG

CANADAMAKESNO ANDHEREBYDISCLAIMSALL OTHERWARRANTIESANDCONDITIONSRESPECTINGTHEPRODUCT,WHETHER

EXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIEDWARRANTYORCONDITIONOFMERCHANTABILITYOR FITNESS

FORA PARTICULARPURPOSE,AND NOREPRESENTATIONSSHALL BEBINDINGON LGCANADA.LGCANADADOESNOTAUTHORIZE

ANY PERSONTO CREATEORASSUMEFORITANY OTHERWARRANTYOBLIGATIONOR LIABILITYINCONNECTIONWITHTHE

PRODUCT.TO THEEXTENTTHATANYWARRANTYORCONDITIONISIMPLIEDBYLAW,ITIS LIMITEDTOTHEEXPRESSWARRANTY

PERIODABOVE.LGCANADA,THEMANUFACTURERORDISTRIBUTORSHALLNOTBE LIABLEFORANY INCIDENTAL,CONSEQUENTIAL,

SPECIAL,DIRECTORINDIRECTDAMAGES,LOSSOFGOODWILL,LOSTPROFITS,PUNITIVEOR EXEMPLARYDAMAGESORANY OTHER

DAMAGE,WHETHERARISINGDIRECTLYORINDIRECTLYFROMANYCONTRACTUALBREACH,FUNDAMENTALOROTHERWISE,OR

FROMANYACTSOROMISSIONS,TORT,OR OTHERWISE.Thiswarrantygivesyouspecificlegalrights.Youmayhaveotherrightswhichmayvary

fromprovincetoprovincedependingonapplicableprovinciallaws.Anytermof thiswarrantythatnegatesorvariesanyimpliedconditionorwarranty

underprovinciallaw isseverablewhereit conflictswithprovinciallawwithoutaffectingtheremainderof thiswarranty'sterms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Servicetripsto deliver,pickup,orinstalltheproduct;instructinga customeron

operationof theproduct;repairor replacementof fusesorcorrectionof wiringor

plumbing,or correctionof unauthorizedrepairs/installation.

2. Failureof theproductto performduringpowerfailuresandinterruptionsor

inadequateelectricalservice.

3. Damagecausedby leakyor brokenwaterpipes,frozenwaterpipes,restricted

drainlines,inadequateor interruptedwatersupplyorinadequatesupplyof air.

4. DamageresultingfromoperatingtheProductina corrosiveatmosphereor

contraryto theinstructionsoutlinedinthe Productowner'smanual.

5. Damageto the Productcausedbyaccidents,pestsandvermin,lightning,wind,

fire,floods,oractsof God.

6. Damageresultingfromthemisuse,abuse,improperinstallation,repair,or

maintenanceofthe Product. Improperrepairincludesuse of partsnot approved

orspecifiedbyLG Canada.

7. Damageorproductfailurecausedbyunauthorizedmodificationoralteration,or

useforotherthan itsintendedpurpose,orresultingfromanywaterleakagedue

to improperinstallation.

8. Damageor Productfailurecausedbyincorrectelectricalcurrent,voltage,or

plumbingcodes,commercialorindustrialuse,oruseof accessories,

components,or cleaningproductsthatare notapprovedbyLG Canada.

9. Damagecausedbytransportationandhandling,includingscratches,dents,

chips,and/orotherdamageto the finishofyour product,unlesssuchdamage

resultsfromdefectsinmaterialsorworkmanshipandis reportedwithinone(1)

weekof delivery.

10. Damageormissingitemsto any display,openbox,discounted,or refurbished

Product.

11. Productswithoriginalserialnumbersthathavebeenremoved,altered,or

cannotbereadilydetermined.Modeland Serialnumbers,alongwithoriginal

retailsalesreceipt,are requiredforwarrantyvalidation.

12. increasesin utilitycostsandadditionalutilityexpenses.

13. Replacementof lightbulbs,filters,oranyconsumableparts.

14. Repairswhenyour Productisusedinotherthan normaland usualhousehold

use(including,withoutlimitation,commercialuse,in officesor recreational

facilities)or contraryto the instructionsoutlinedintheProductowner'smanual.

15. Costsassociatedwithremovalof theProductfromyourhomefor repairs.

16. The removaland reinstallationof theProductifit is installedinaninaccessible

locationoris notinstalledinaccordancewithpublishedinstallationinstructions,

includingthe Productowner'sandinstallationmanuals.

17. Shelves,doorbins,drawers,handles,andaccessoriestothe Product.Also

excludedare partsbesidesthosethatwereoriginallyincludedwiththe Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and

customer assistance, please call or visit

our website: Call 1-888-542-2623 (24 hours

a day, 365 days a year) and select the

appropriate option from the menu, or visit our

website at http://www.lg,ca

Write your warranty information below:

Product Registration Information:

Model:

Date of Purchase:

Serial Number:

NOIES

P/No. MFL62184502

LG LMX28987ST User Manual REFRIGERATOR Manuals And Guides L1004185

LG Bottom Mount Refrigerator Manual L1004185 LG Bottom Mount Refrigerator Owner's Manual, LG Bottom Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
