OWNER’S MANUAL

FRENCH DOOR

REFRIGERATOR

Please read this owner's manual thoroughly before

operating and keep it handy for reference at all times.

LMXS30776*

www.lg.com

ENGLISH FRANÇAIS ESPAÑOL

2TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 PRODUCT FEATURES

4

IMPORTANT SAFETY

INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

8 Refrigerator Interior

9 INSTALLATION

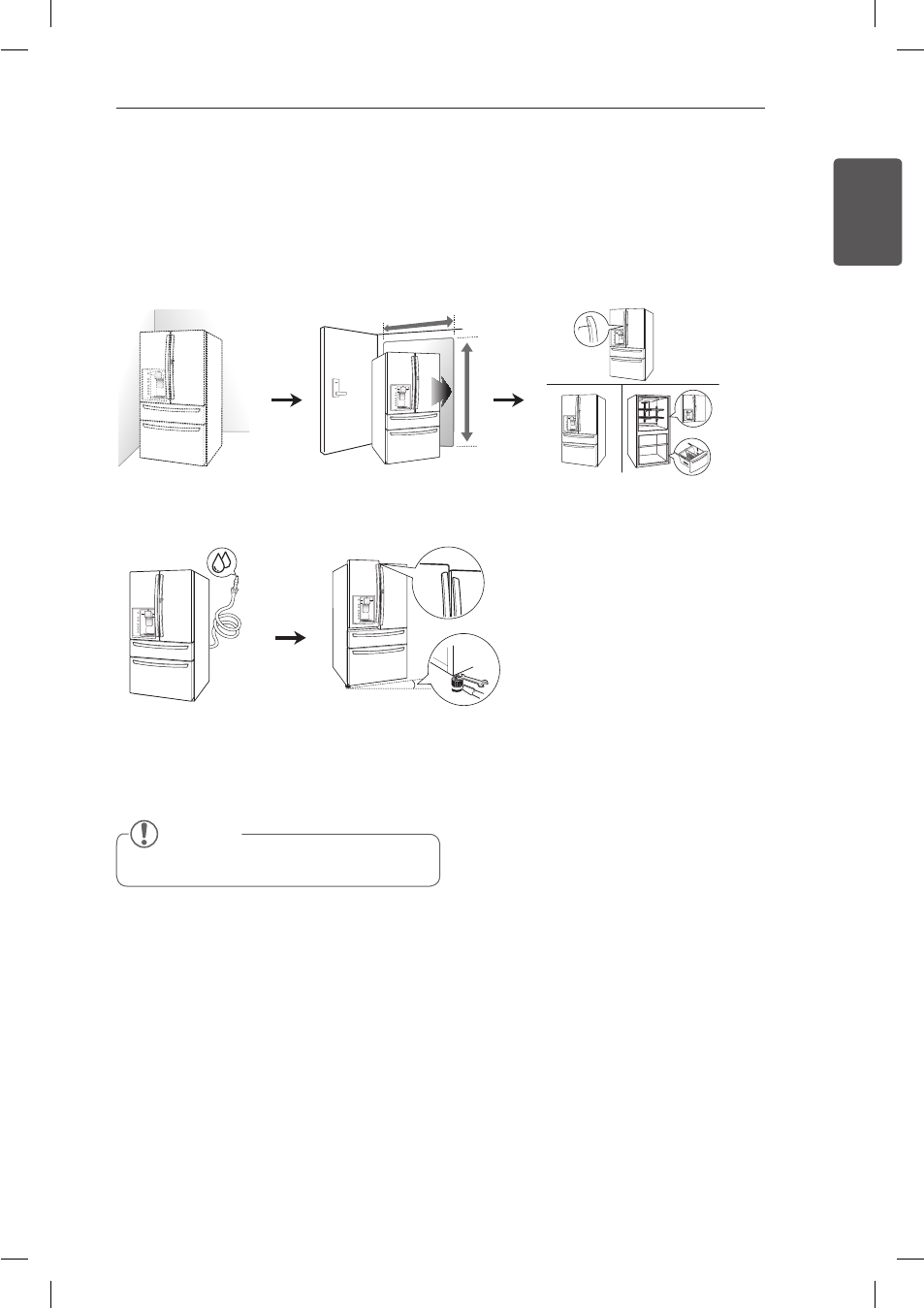

9 Installation Overview

10 Specifications

11 Unpacking Your Refrigerator

11 Choosing the Proper Location

11 - Flooring

12 - Ambient Temperature

12 - Measuring the Clearances

12 Removing/Assembling the Refrigerator

Door Handles

13 Removing/Assembling the Freezer

Drawer Handle

13 Removing/Assembling the Doors and

Drawers

14 - Removing the Left Refrigerator Door

15 - Removing the Right Refrigerator Door

16 - Assembling the Right Refrigerator Door

17 - Assembling the Left Refrigerator Door

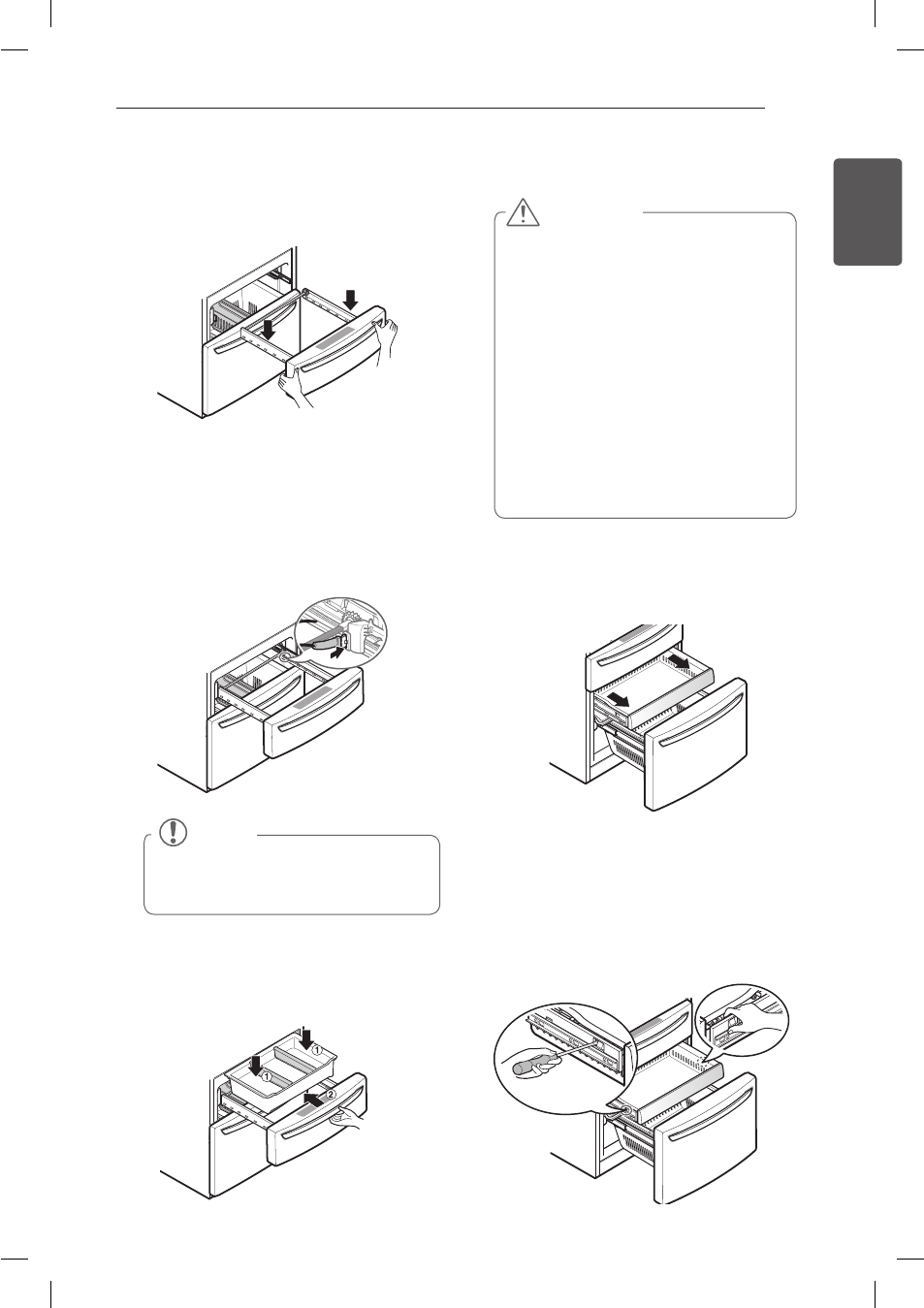

18 - Removing the CustomChill™ Drawer

19 - Assembling the CustomChill™ Drawer

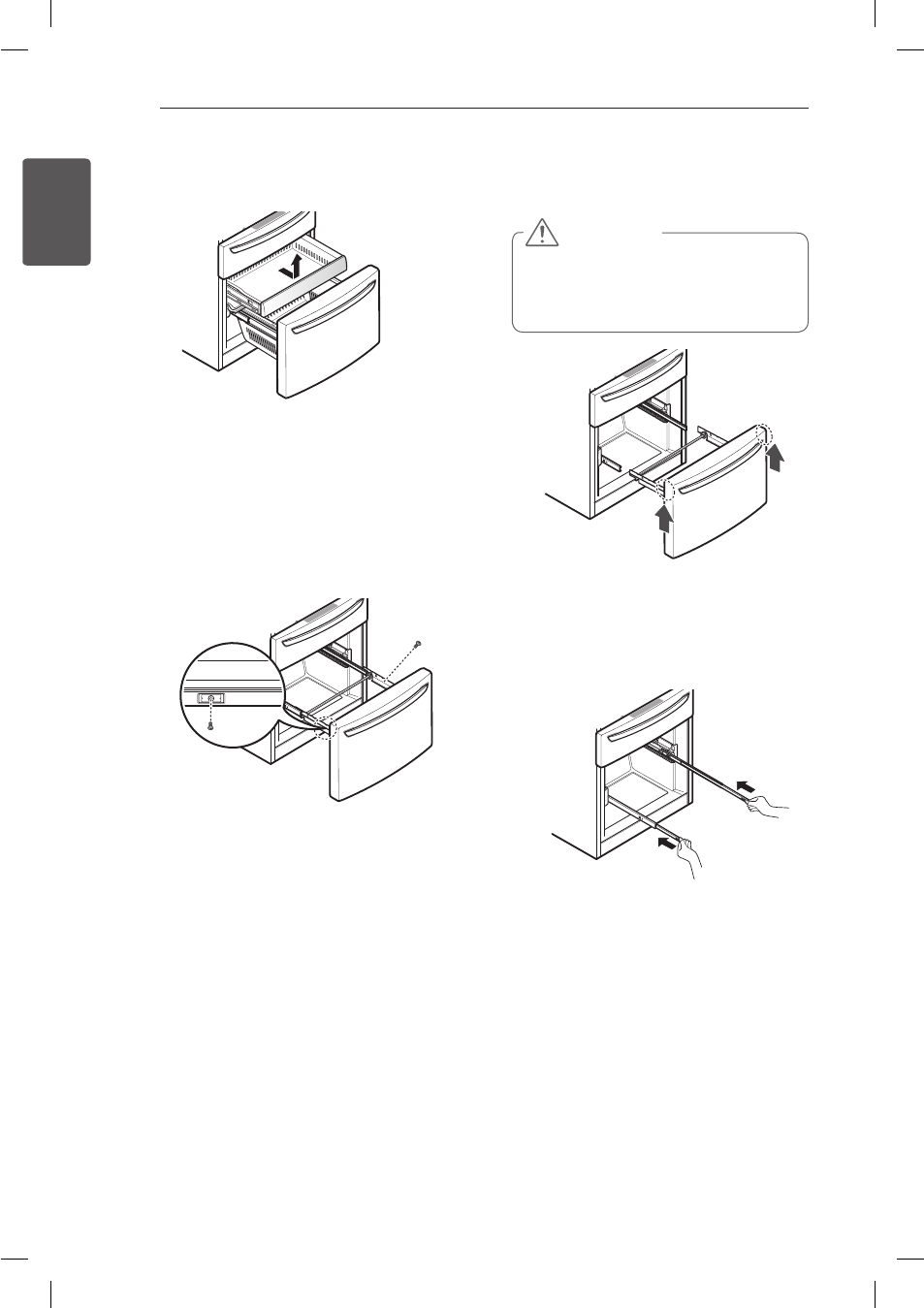

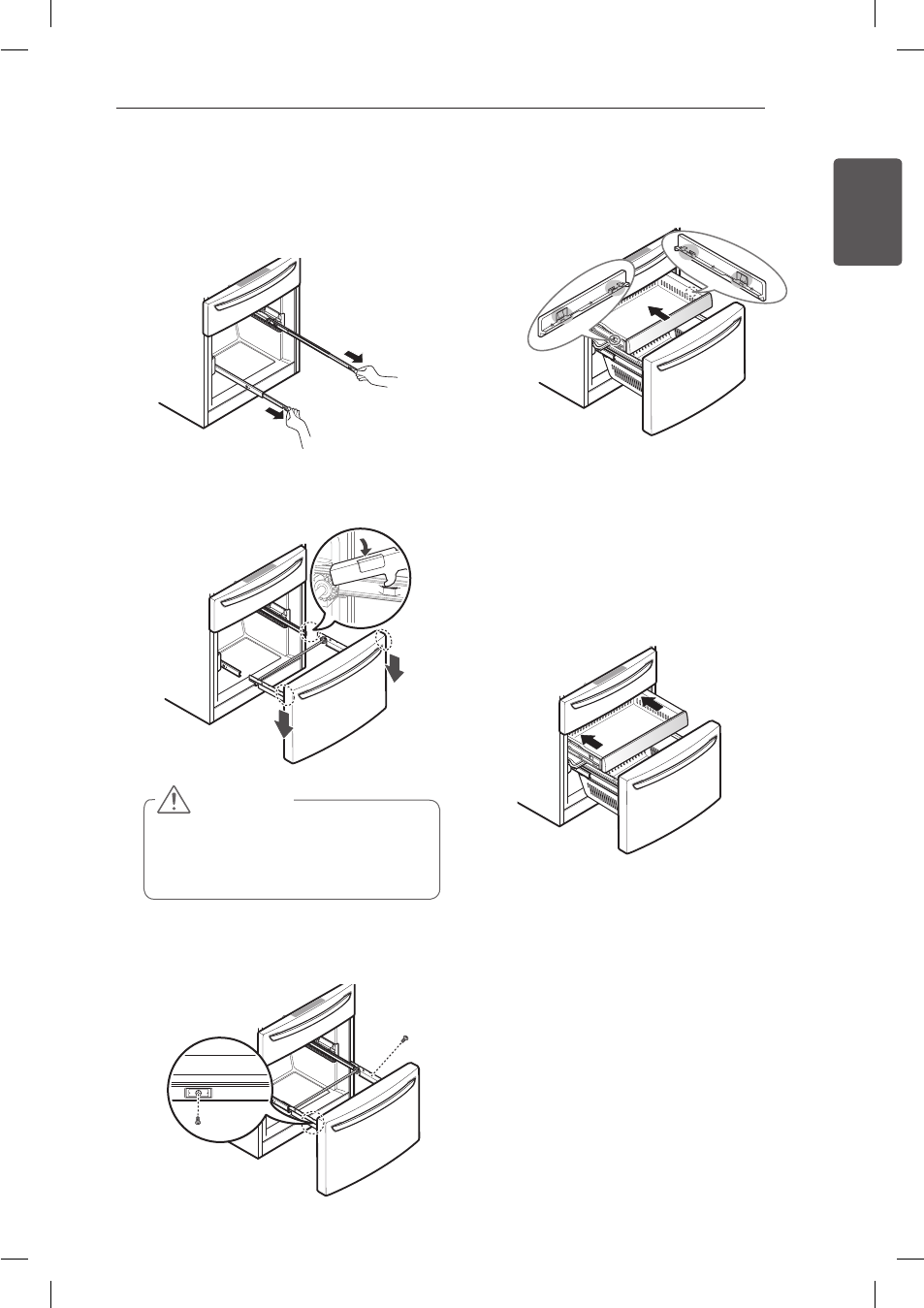

19 - Removing the Freezer Drawer

21 - Assembling the Freezer Drawer

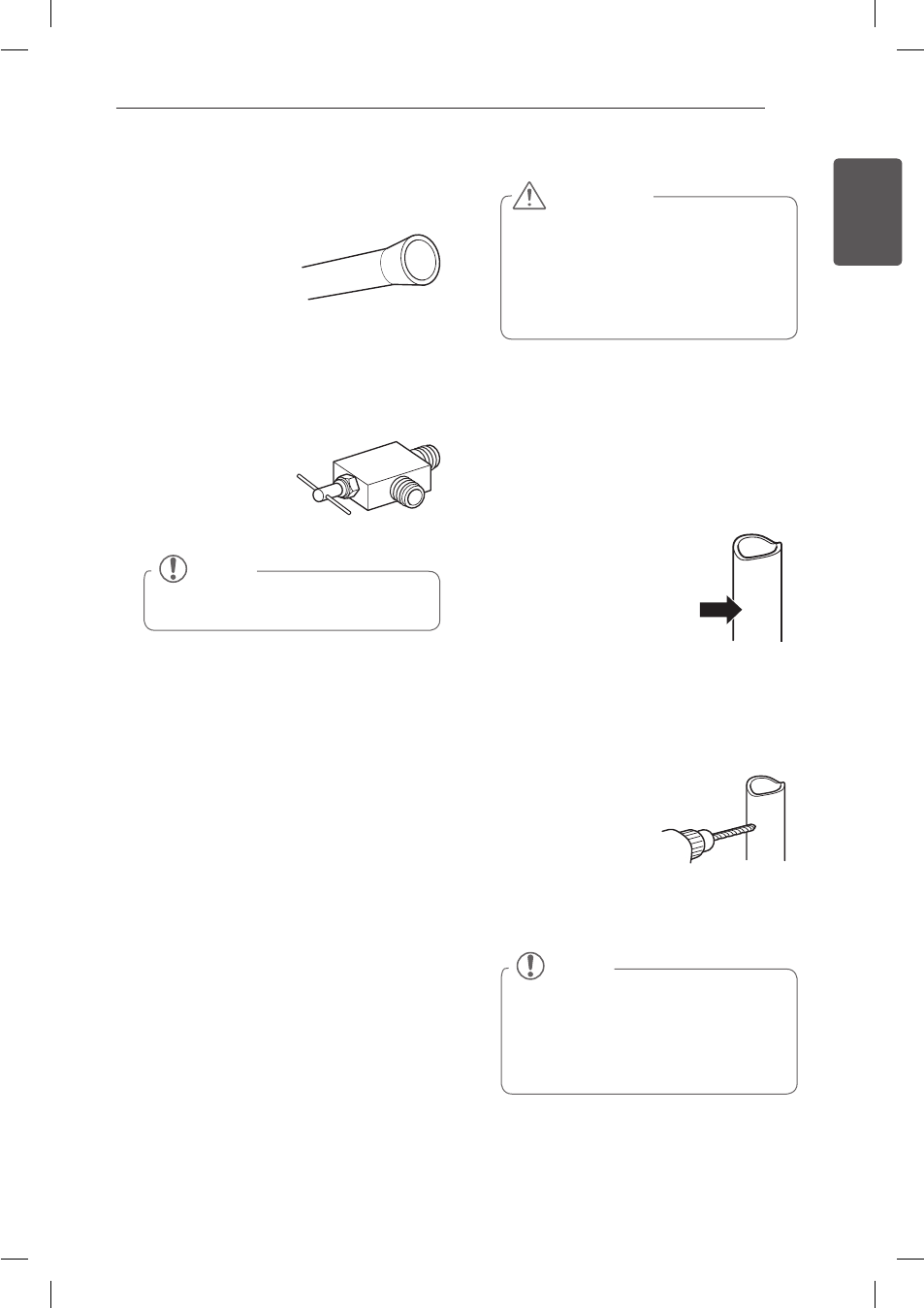

22 Connecting the Water Line

22 - Before You Begin

22 - Water Pressure

22 - What You Will Need

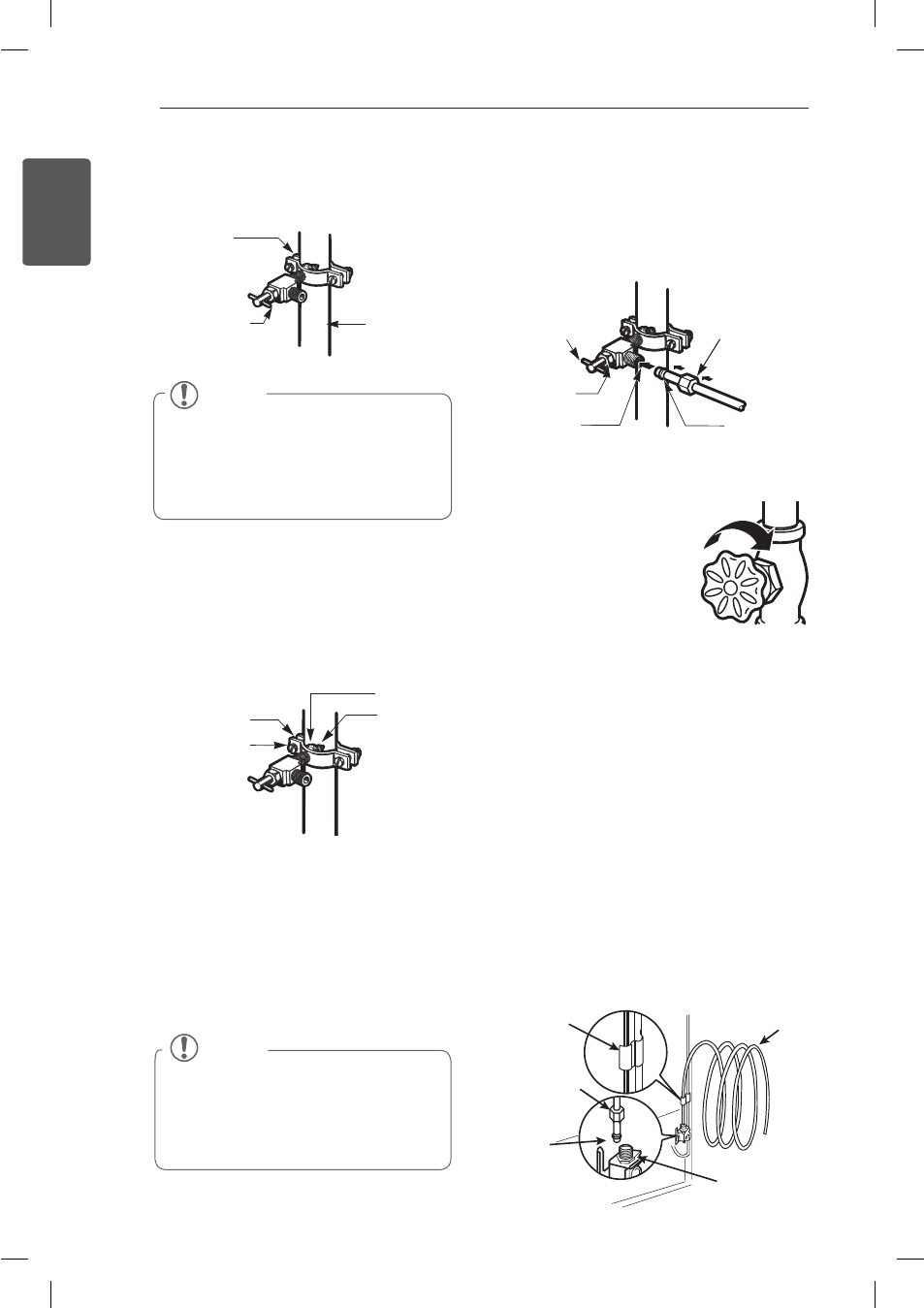

23 - Water Line Installation Instructions

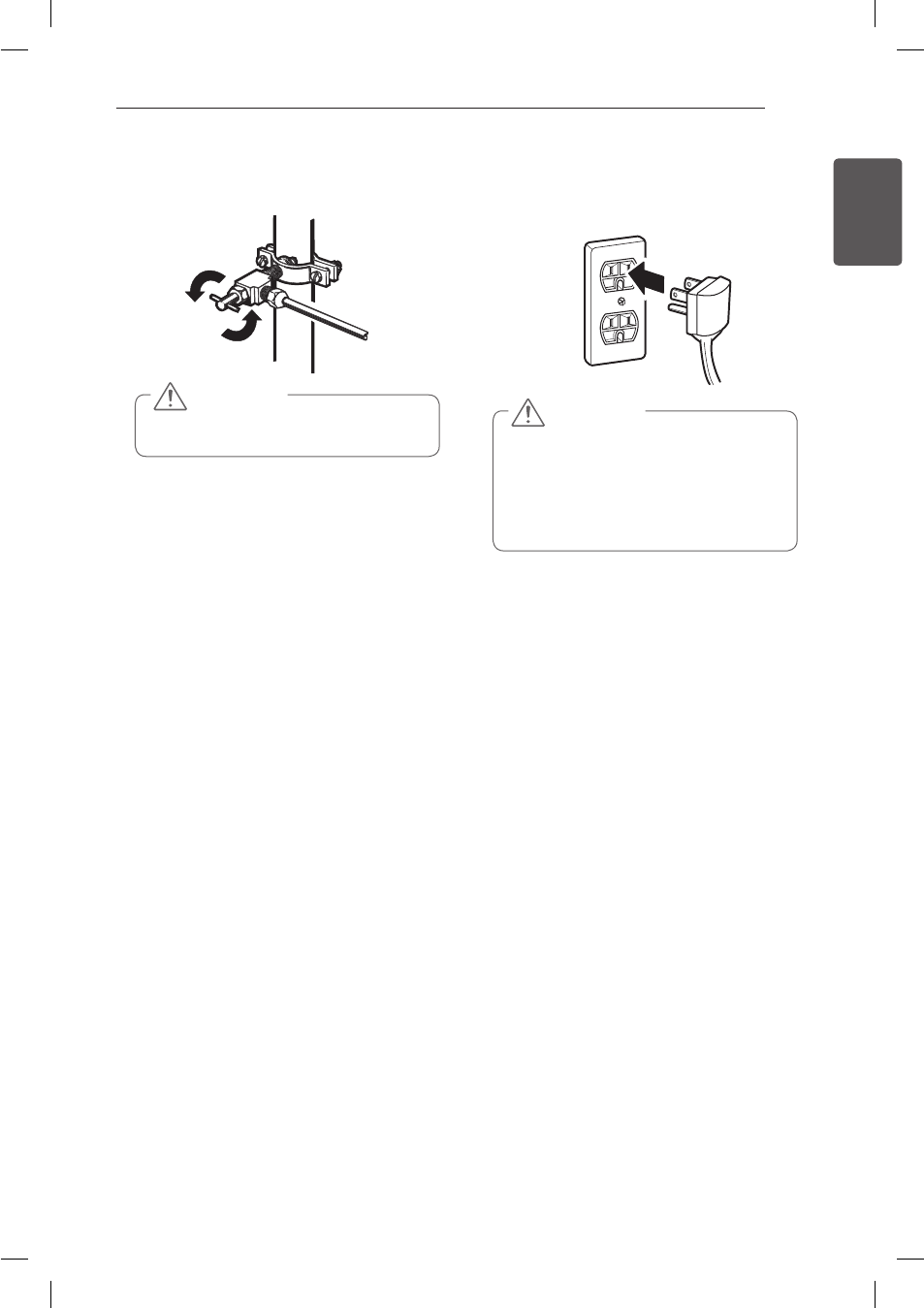

25 Turning On the Power

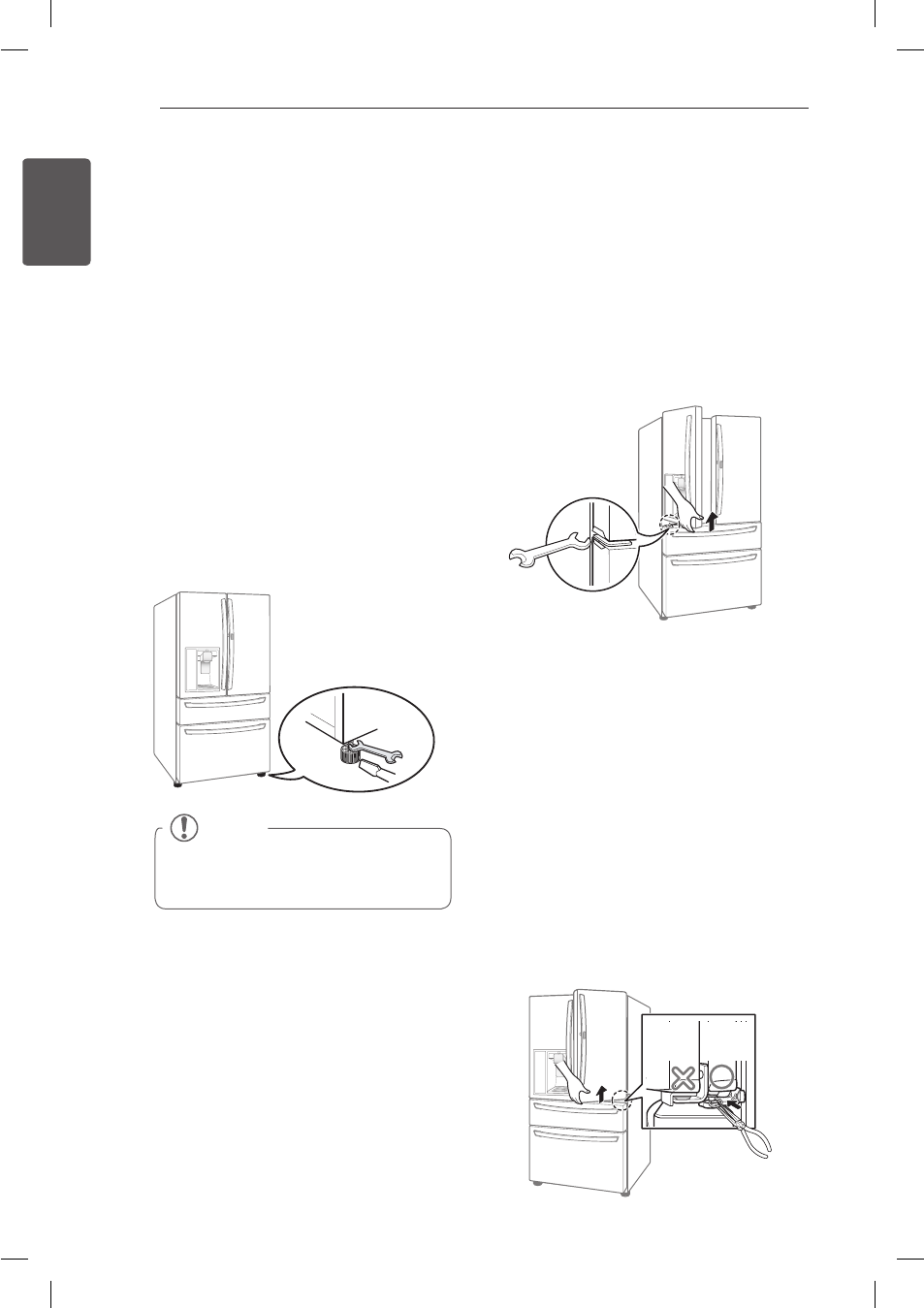

26 Leveling and Door Alignment

26 - Leveling

26 - Door Alignment

27 HOW TO USE

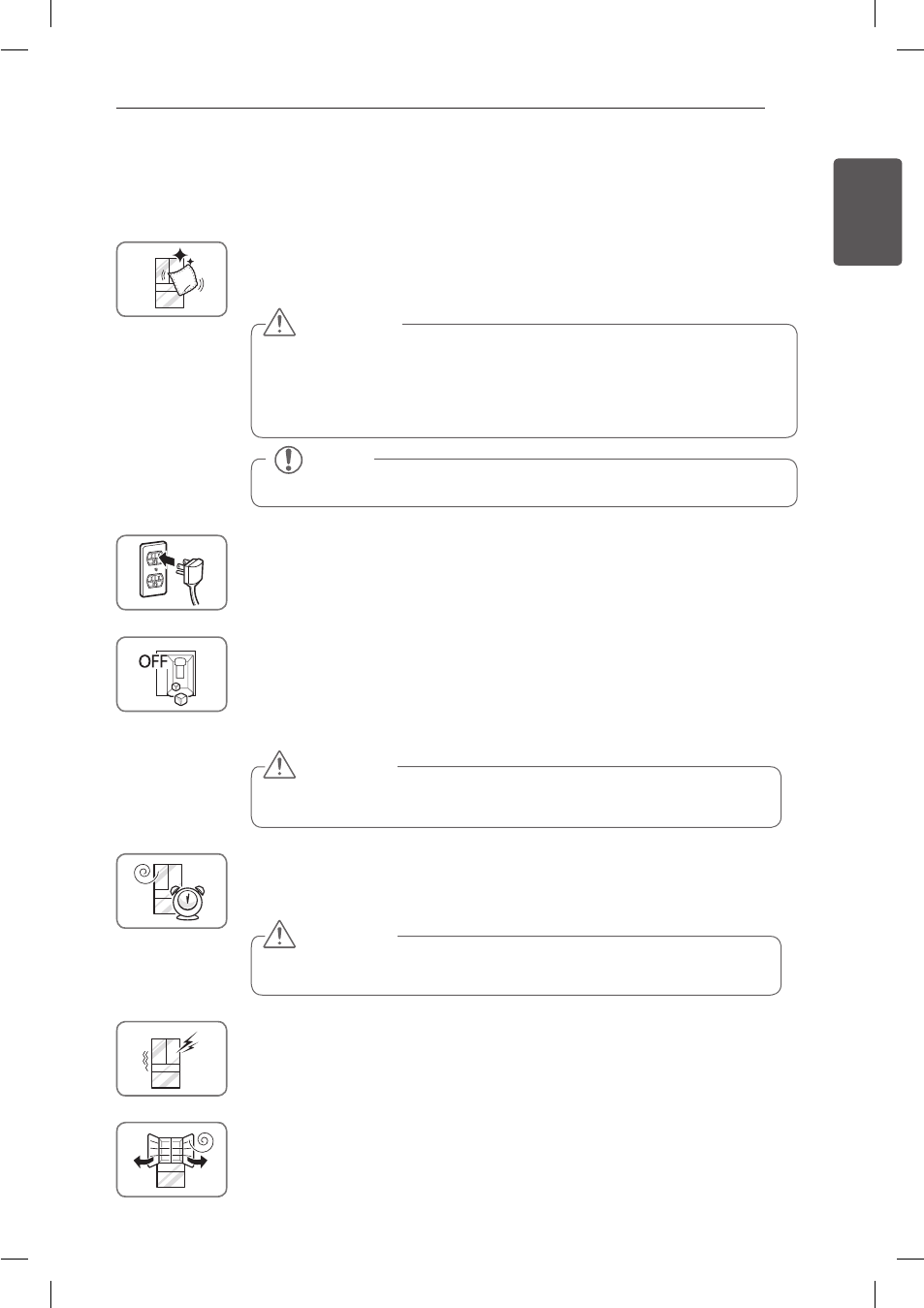

27 Before Use

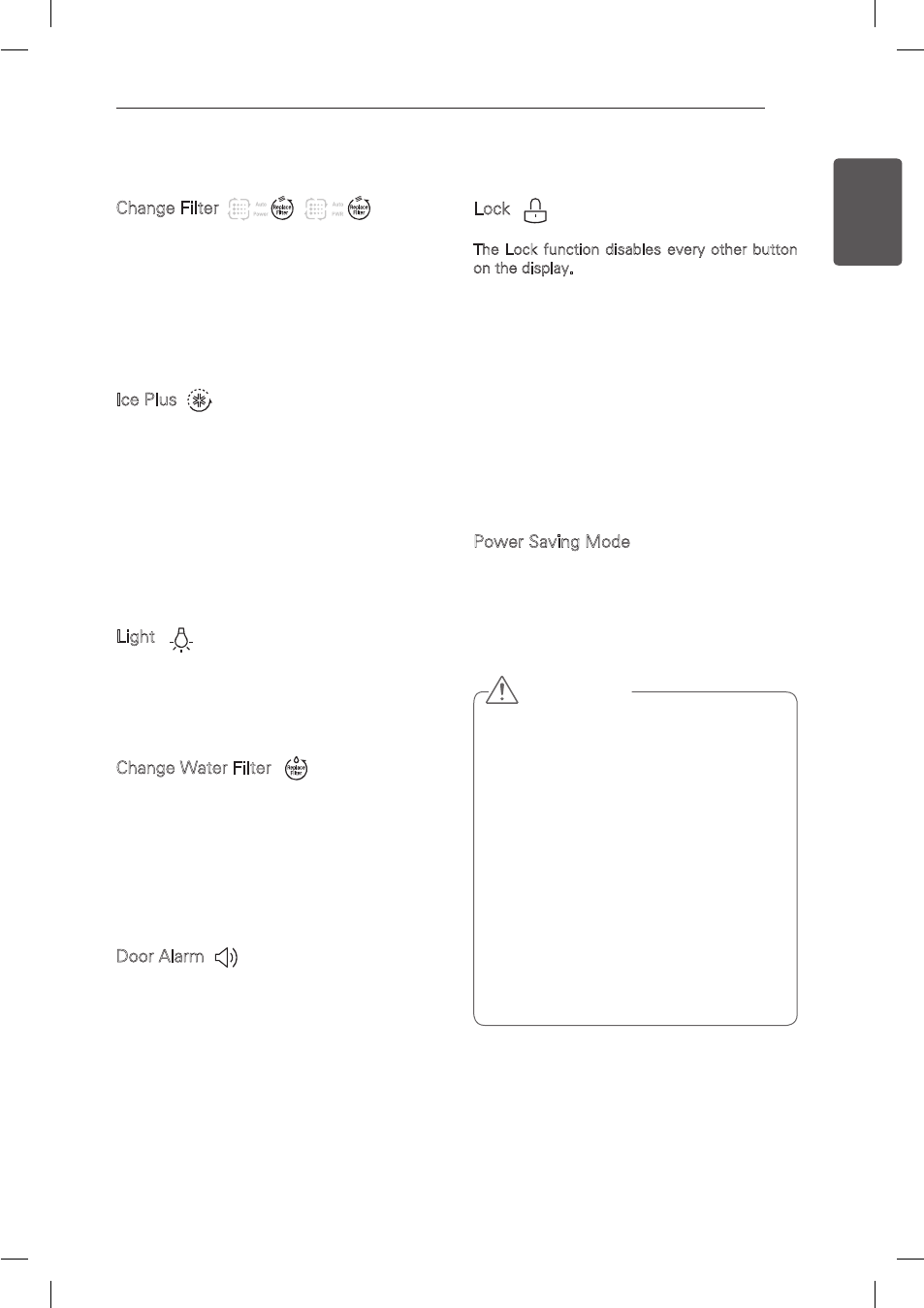

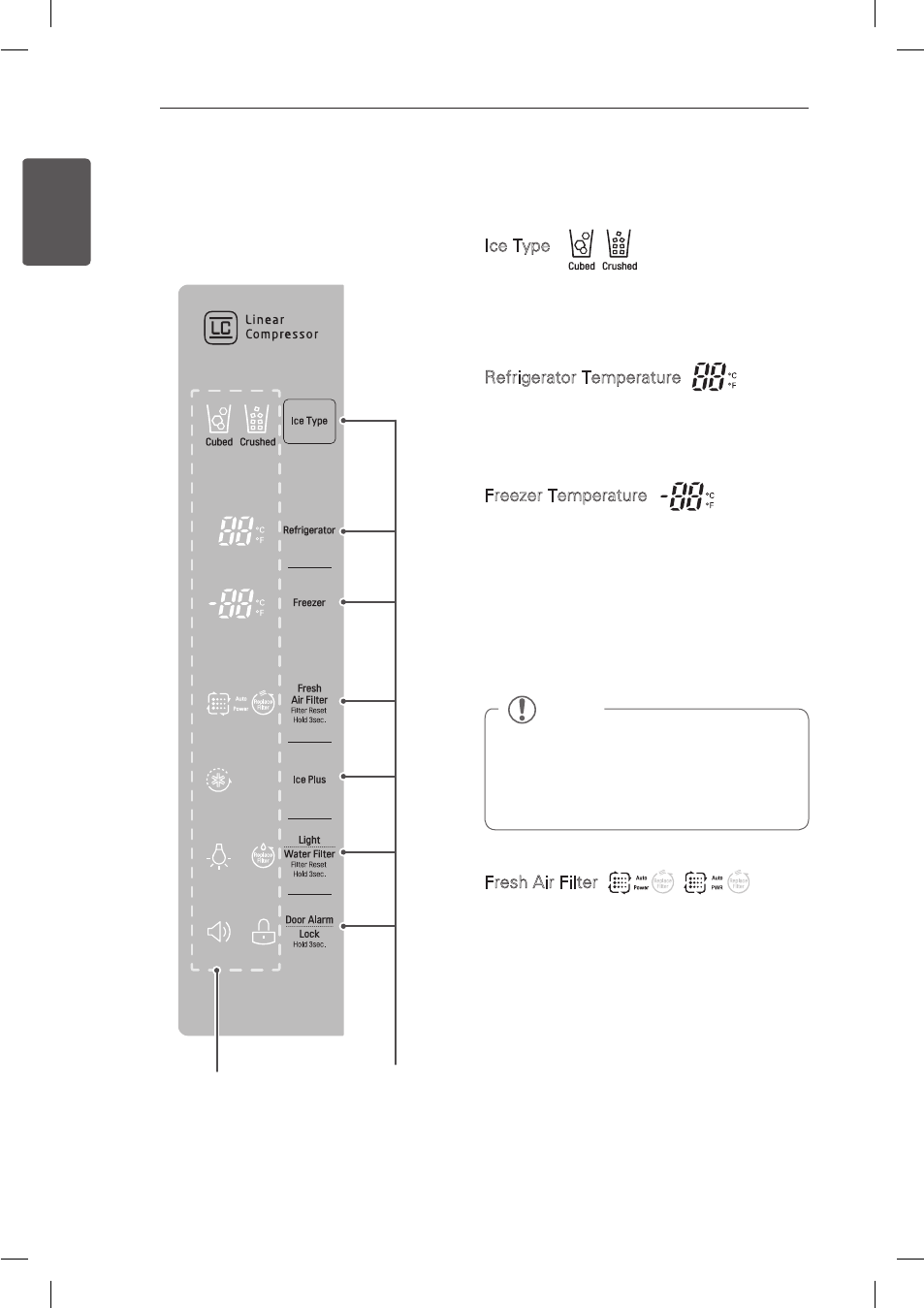

28 Control Panel

28 - Control Panel Features

30 In-Door Ice Bin

30 - Detaching the In-Door Ice Bin

30 - Assembling the In-Door Ice Bin

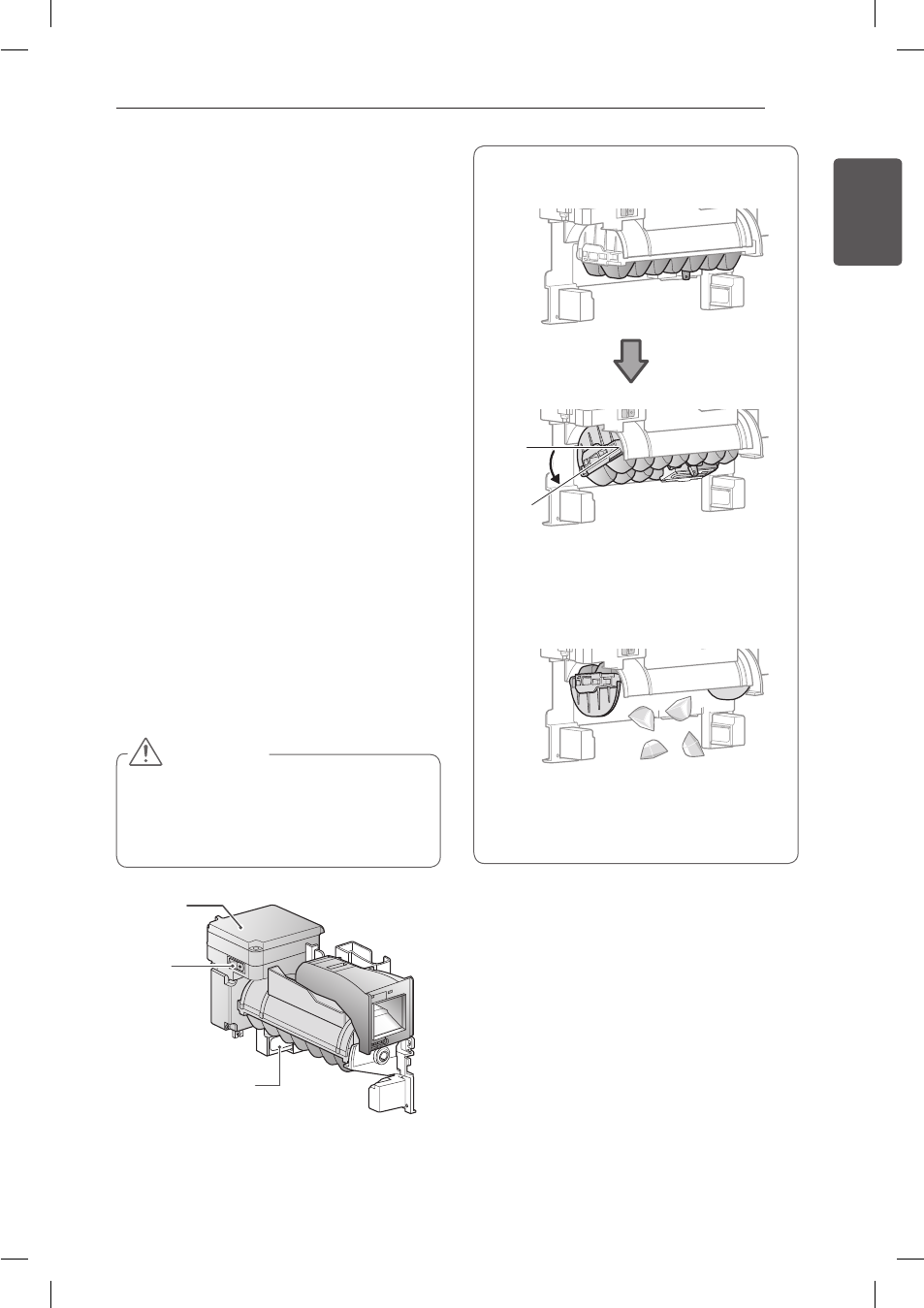

31 Automatic Icemaker

31

- Turning the Automatic Icemaker On or Off

32 - When You Should Turn the Icemaker Off

32 - Normal Sounds You May Hear

32 - Preparing for Vacation

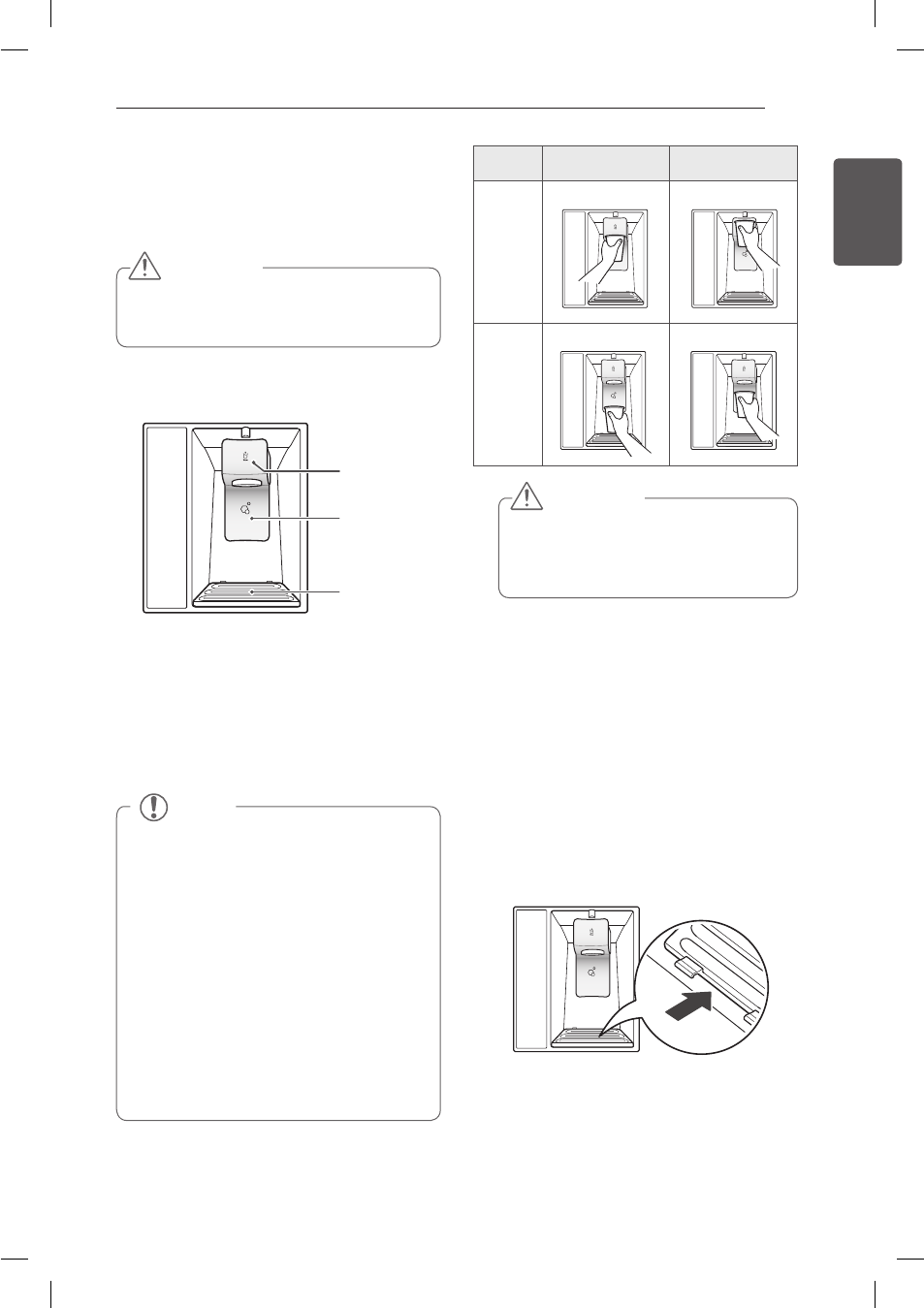

33 Ice and Water Dispenser

33 - Dispenser

33 - Using the Dispenser

33 - Locking the Dispenser

33 - Cleaning the Dispenser Stand

34 Storing Food

34 - Food Preservation Location

35 - Food Storage Tips

35 - Storing Frozen Food

36 Glide‘N’Access™

36 EasyReach™

37

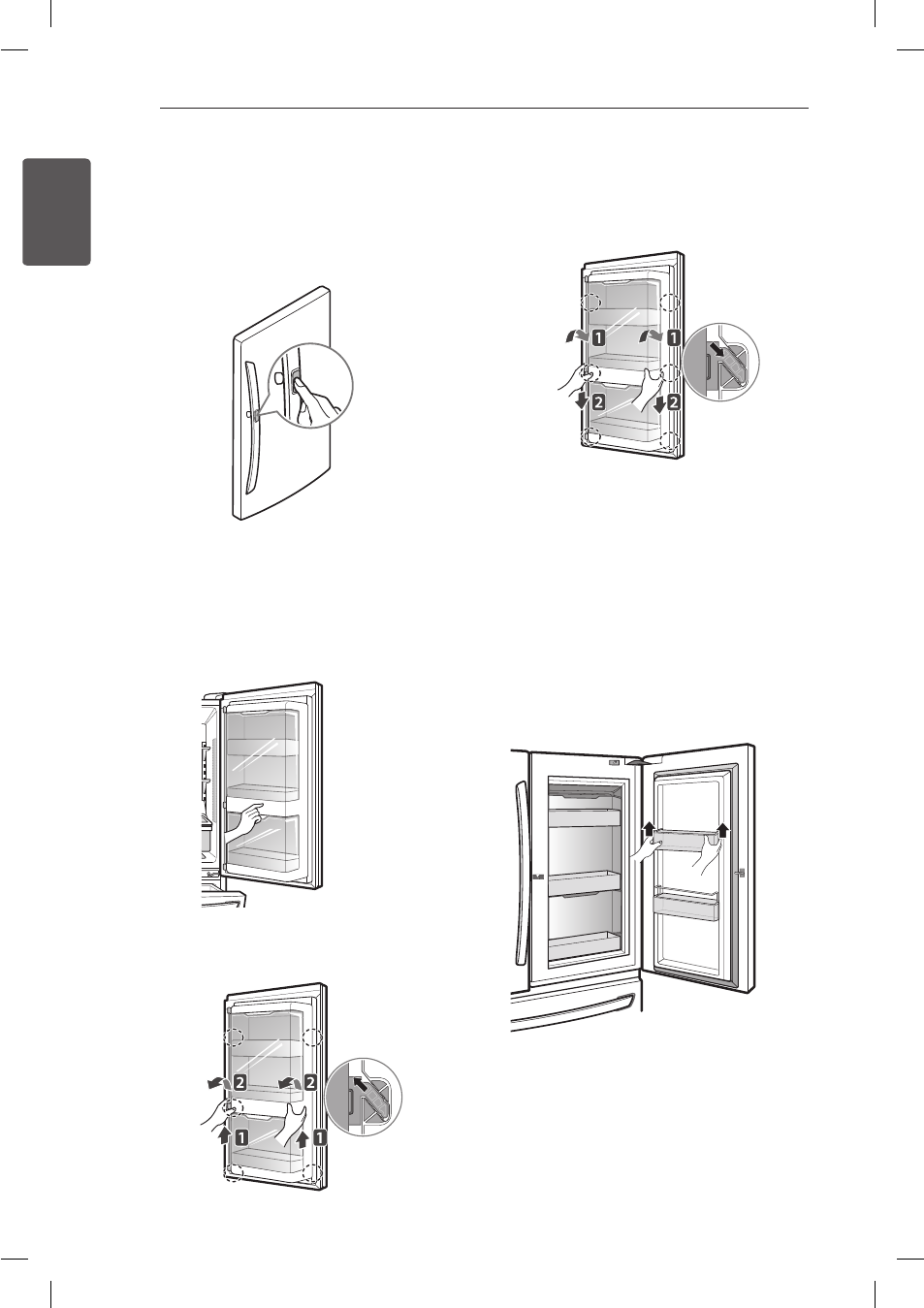

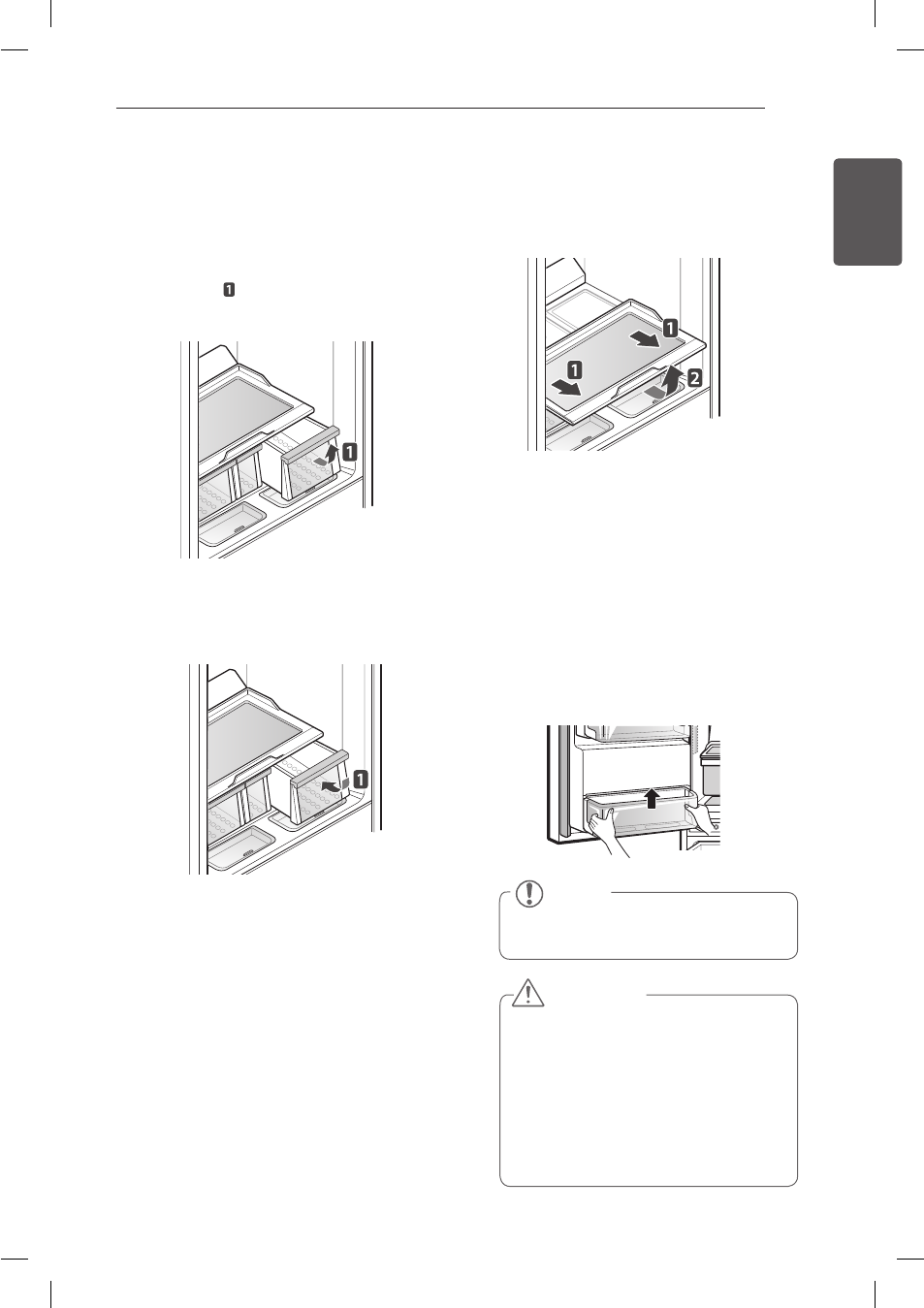

Detaching and Assembling the Storage Bins

38

Door-In-Door

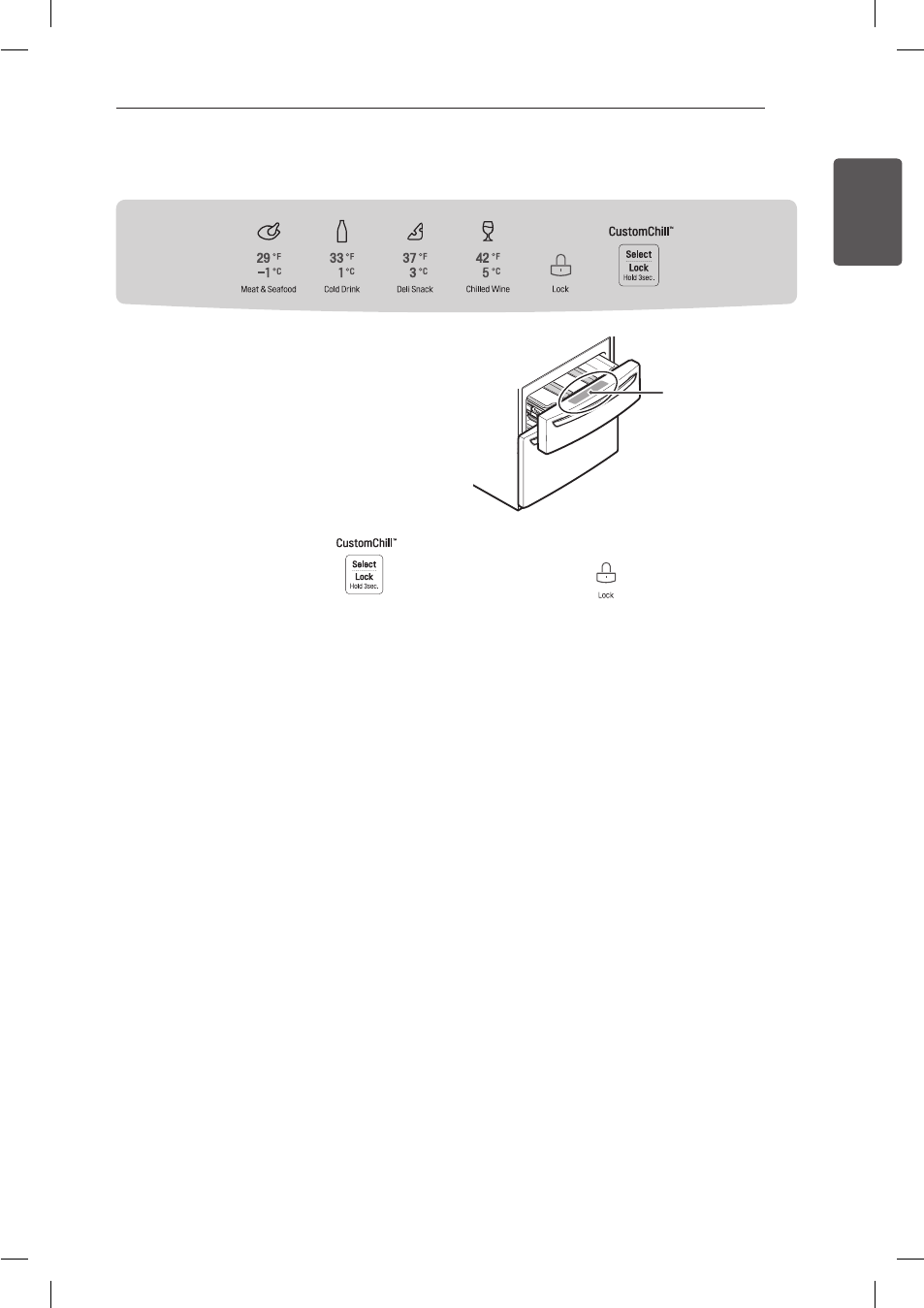

39 CustomChill™ Drawer

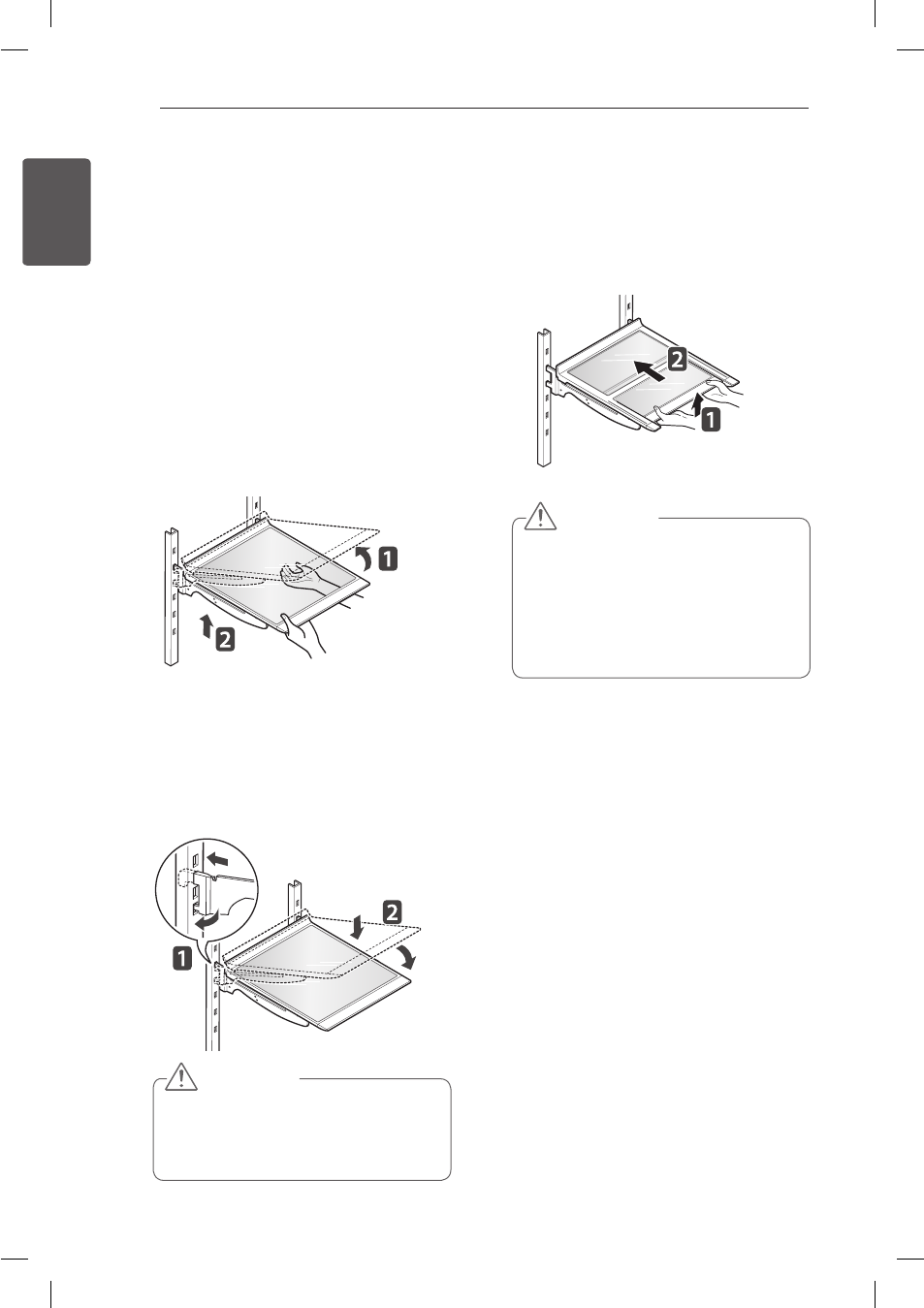

40 Adjusting the Refrigerator Shelves

41 MAINTENANCE

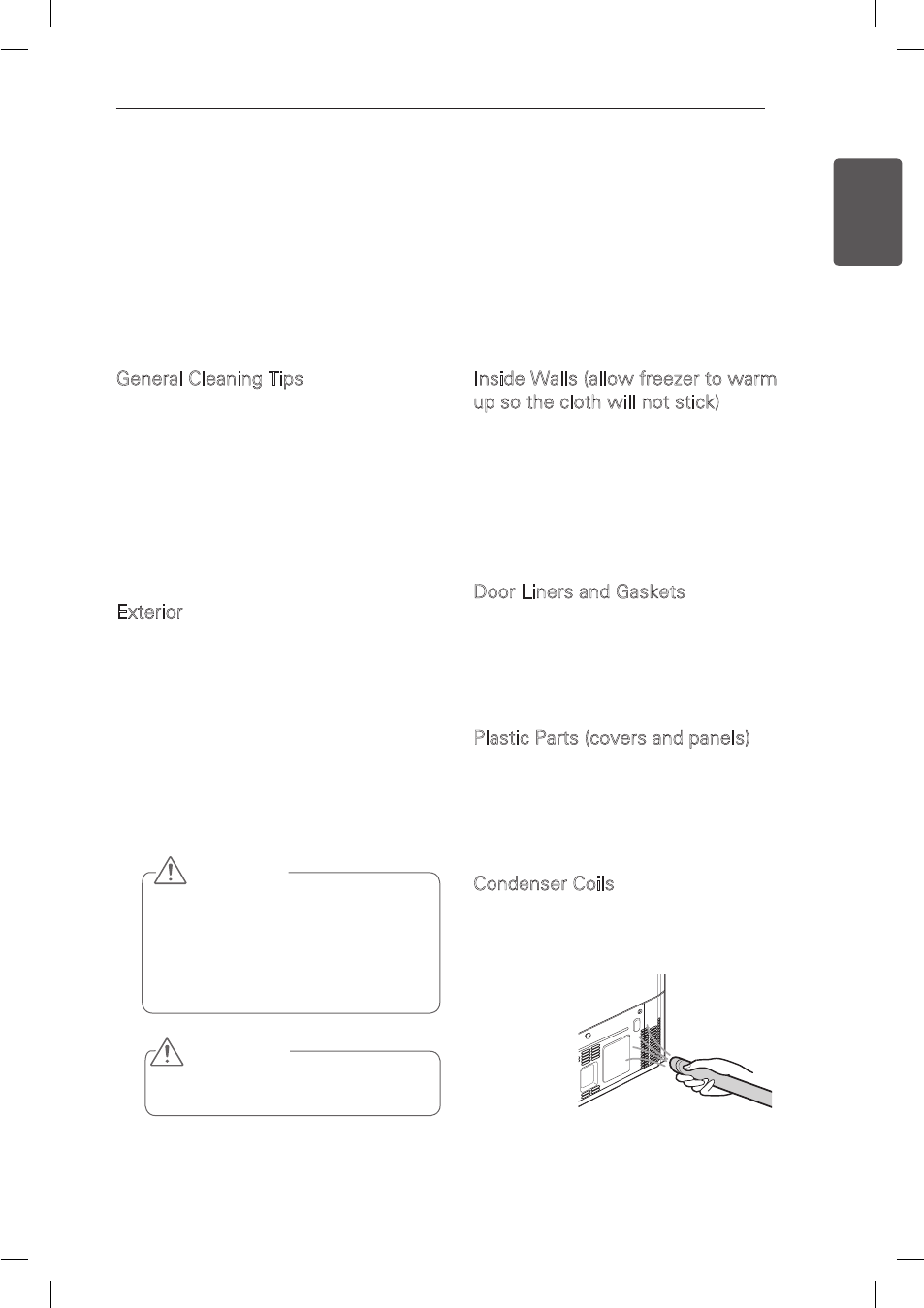

41 Cleaning

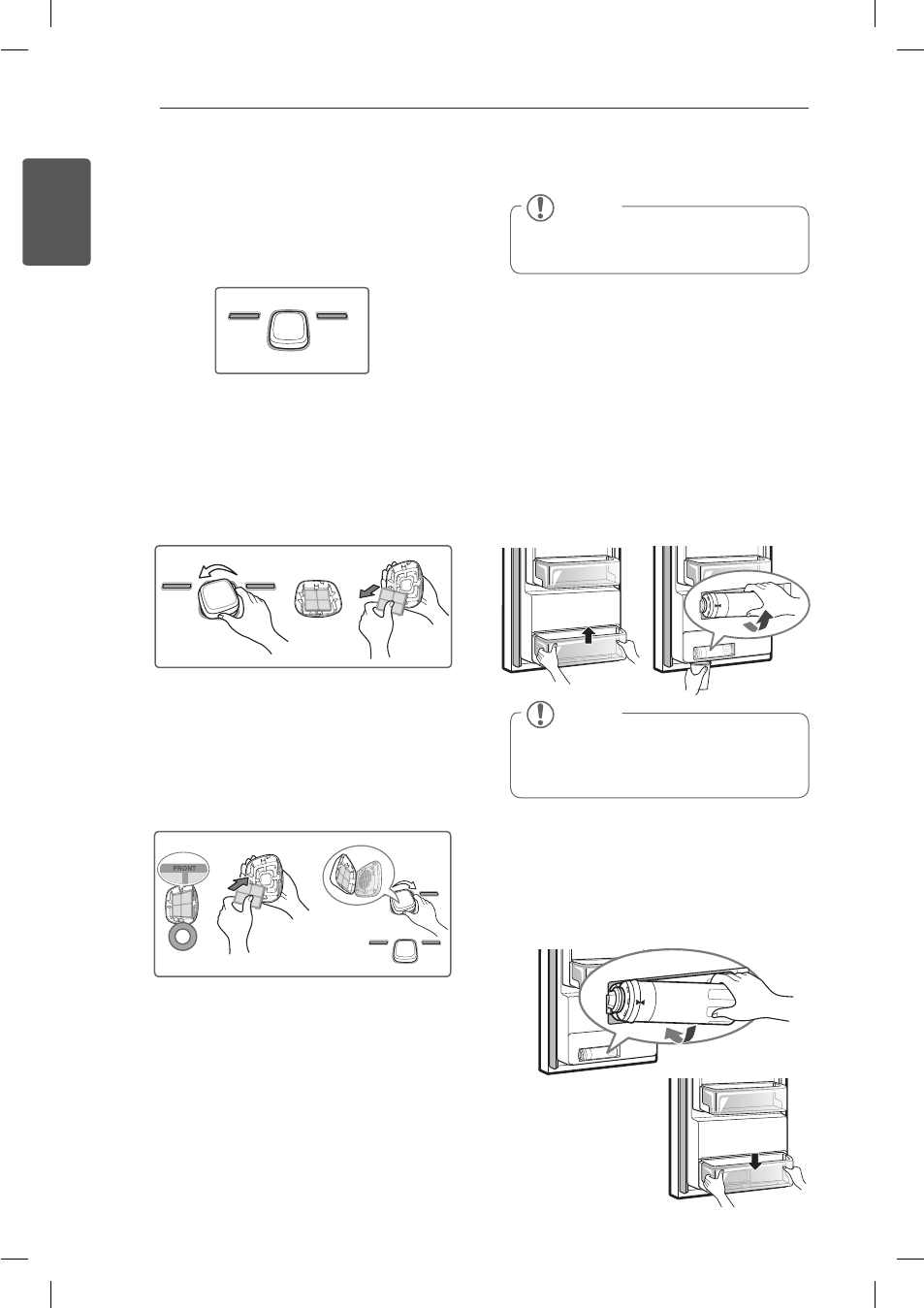

42 Replacing the Fresh Air Filter

42 Replacing the Water Filter

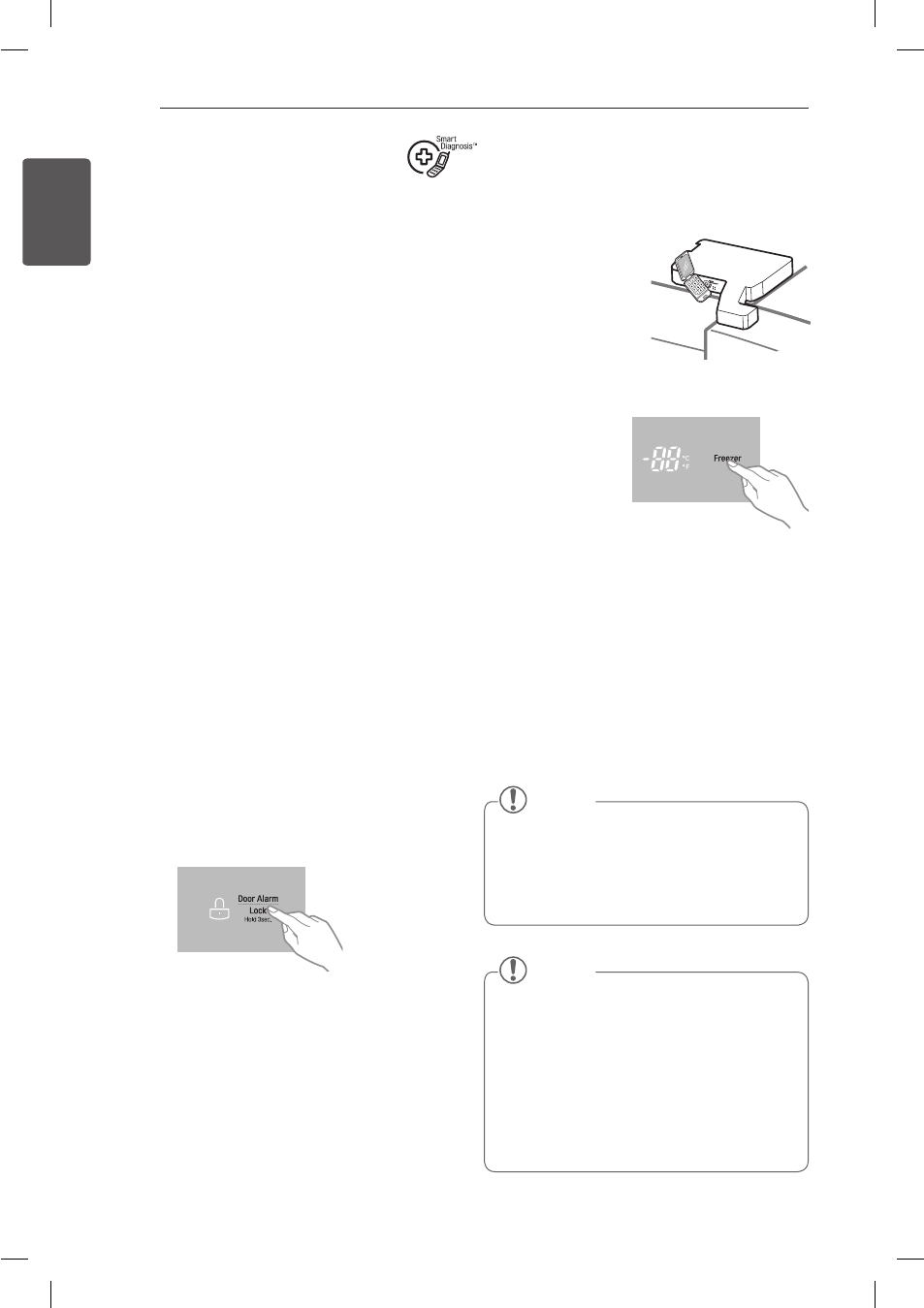

46 SMART DIAGNOSIS™

46 Using Smart Diagnosis™

47 TROUBLESHOOTING

57 WARRANTY

3

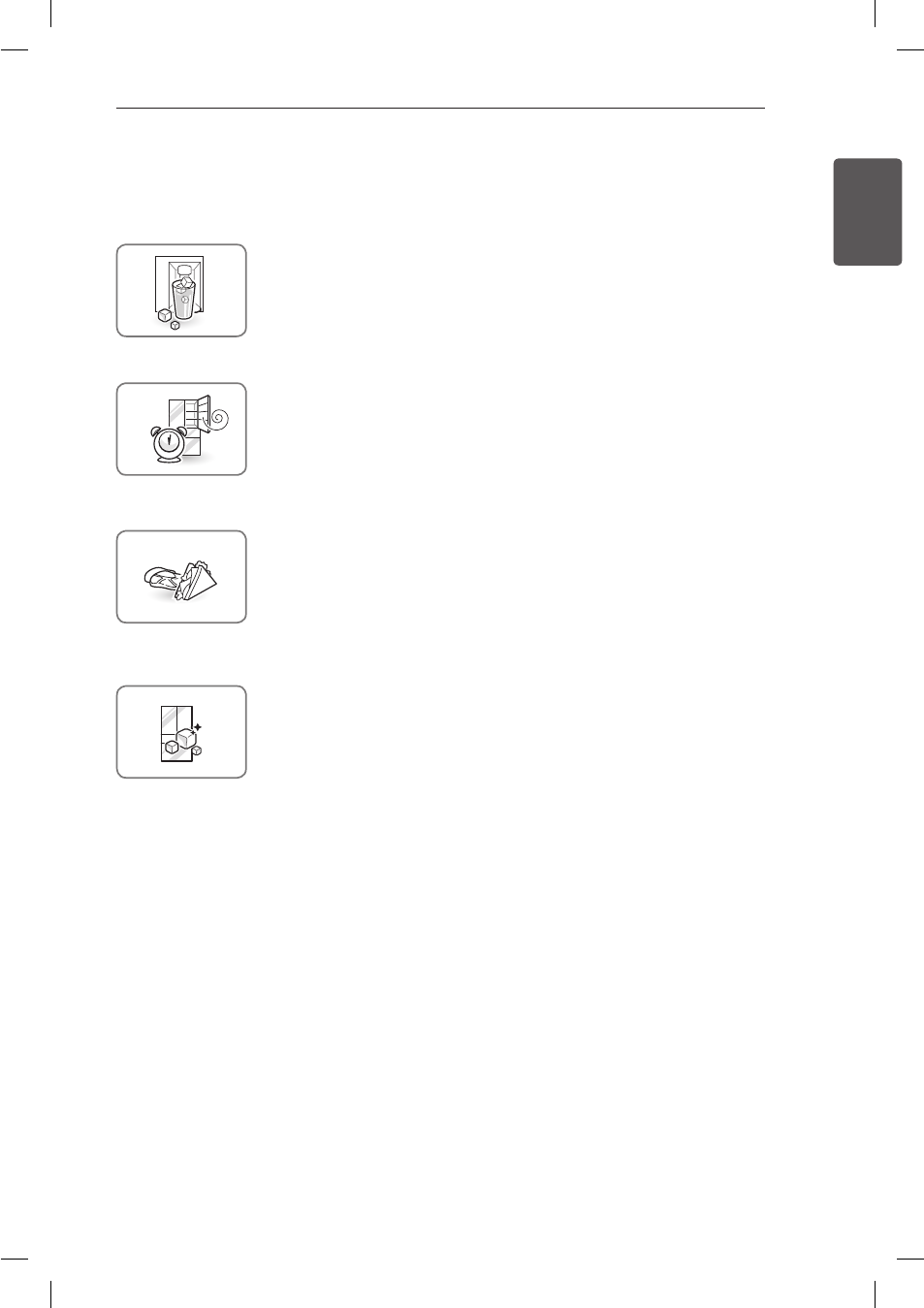

PRODUCT FEATURES

ENGLISH

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available.

FILTERED WATER AND ICE DISPENSER

The water dispenser dispenses fresh, chilled water.

The ice dispenser dispenses cubed and crushed ice.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning

that could occur if a refrigerator door or freezer drawer remains open. If a

refrigerator door or freezer drawer is left open for more than 60 seconds, a

warning alarm sounds at 30 second intervals.

CUSTOMCHILL™ DRAWER

The CustomChill™ Drawer provides storage space with a variable

temperature control that keeps the compartment either colder or warmer

than the refrigerator. Use it to store meat and seafood, cold drinks, deli

snacks, or chilled wine.

ICE PLUS

Ice production can be increased by approximately 20 percent when the

freezer section is maintained at the coldest temperature for a 24-hour

period.

4IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

WARNING You can be killed or seriously injured if you do not follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result

in minor or moderate injury, or product damage.

WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

Power

NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it

y

straight out from the outlet.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

y

similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion

damage along its length or at either the plug or connector end.

Do not use an uncertified power outlet.

y

Unplug the power plug immediately in the event of a blackout or thunderstorm.

y

Plug in the power plug with the power cord facing downward.

y

Installation

Contact an authorized service center before you install or relocate the refrigerator.

y

When moving your refrigerator away from the wall, be careful not to roll over or damage the power

y

cord.

Prior to use, ensure that you are connecting this product to a dedicated, grounded electrical outlet

y

rated for use with this product (115V, 60Hz, AC only). It is the user’s responsibility to replace a

standard 2-prong wall outlet with a standard 3-prong wall outlet.

Do not install the refrigerator where there may be a danger of the unit falling.

y

Use

DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the

y

refrigerator. They could damage the refrigerator and seriously injure themselves.

Do not hang on to or place heavy objects on the refrigerator’s dispenser.

y

Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.

y

Do not put live animals inside the refrigerator.

y

Do not allow children to climb into the product when it is in use.

y

In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service

y

center before resuming use. Do not touch or disassemble the electric outlet of the refrigerator.

In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure adequate

y

ventilation and contact an authorized service center.

Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator

y

or store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.

This is the safety alert symbol. It alerts you to safety messages that inform you of

hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

5

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

This product is not to be used for special purposes such as the storage of medicine or test materials

y

or for use on ships, etc.

Unplug the power plug before cleaning or repairing the refrigerator.

y

When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.

y

Do not modify or extend the power cord.

y

Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.

y

For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit

y

checked by a qualified electrician to make sure the outlet is properly grounded.

Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the

y

user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

y

Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.

y

Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke

y

coming from the appliance.

Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.

y

Do not disassemble or modify the refrigerator.

y

Do not put hands, feet, or metal objects below or behind the refrigerator.

y

Do not operate the refrigerator or touch the power cord with wet hands.

y

In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector

y

mechanism or with the heating element that releases the cubes. Do not place fingers or hands on the

automatic ice-making mechanism while the refrigerator is plugged in.

When dispensing ice from the dispenser, do not use crystal ceramics.

y

Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your

y

refrigerator is in operation.

Do not put glass containers, glass bottles or soda in the freezer.

y

This appliance is not intended for use by persons (including children) with reduced physical, sensory

y

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning the use of the appliance by a person responsible for their safety.

Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health

y

issue.

If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper

y

disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in

accordance with the relevant environmental law.

Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When

y

disposing of the refrigerator, remove the packing materials from the door or take off the doors but

leave the shelves in place so that children may not easily climb inside.

If connected to a circuit protected by fuses, use time delay fuse.

y

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects

or other reproductive harm.

Wash hands after handling.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

6IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

CAUTION

Installation

The refrigerator must be properly installed in accordance with the Installer Instructions that were

y

taped to the front of the refrigerator.

Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and other

y

packing materials out of reach of children.

The appliance must be positioned for easy access to a power source.

y

Use

Close the door carefully when children are around.

y

Keep fingers out of pinch point areas; clearances between the doors and cabinets are

y

necessarily small. Be careful closing doors when children are nearby.

If you store food improperly, be aware that it may fall and cause injury.

y

Do not use aerosols near the refrigerator.

y

Do not store articles on the top of the appliance.

y

Maintenance

Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.

y

Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact

y

areas regularly.

Do not store, disassemble or repair the refrigerator by yourself.

y

Remove any dust or foreign matter from the power plug pins.

y

Do not use a wet or damp cloth when cleaning the plug.

y

If the refrigerator is disconnected from the power supply, you should wait for at least five

y

minutes before plugging it back in.

If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator

y

immediately and contact your LG Electronics Service Center.

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following:

SAVE THESE INSTRUCTIONS

7

COMPONENTS

ENGLISH

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

*The appearance and specifications of the actual product may differ depending on the model.

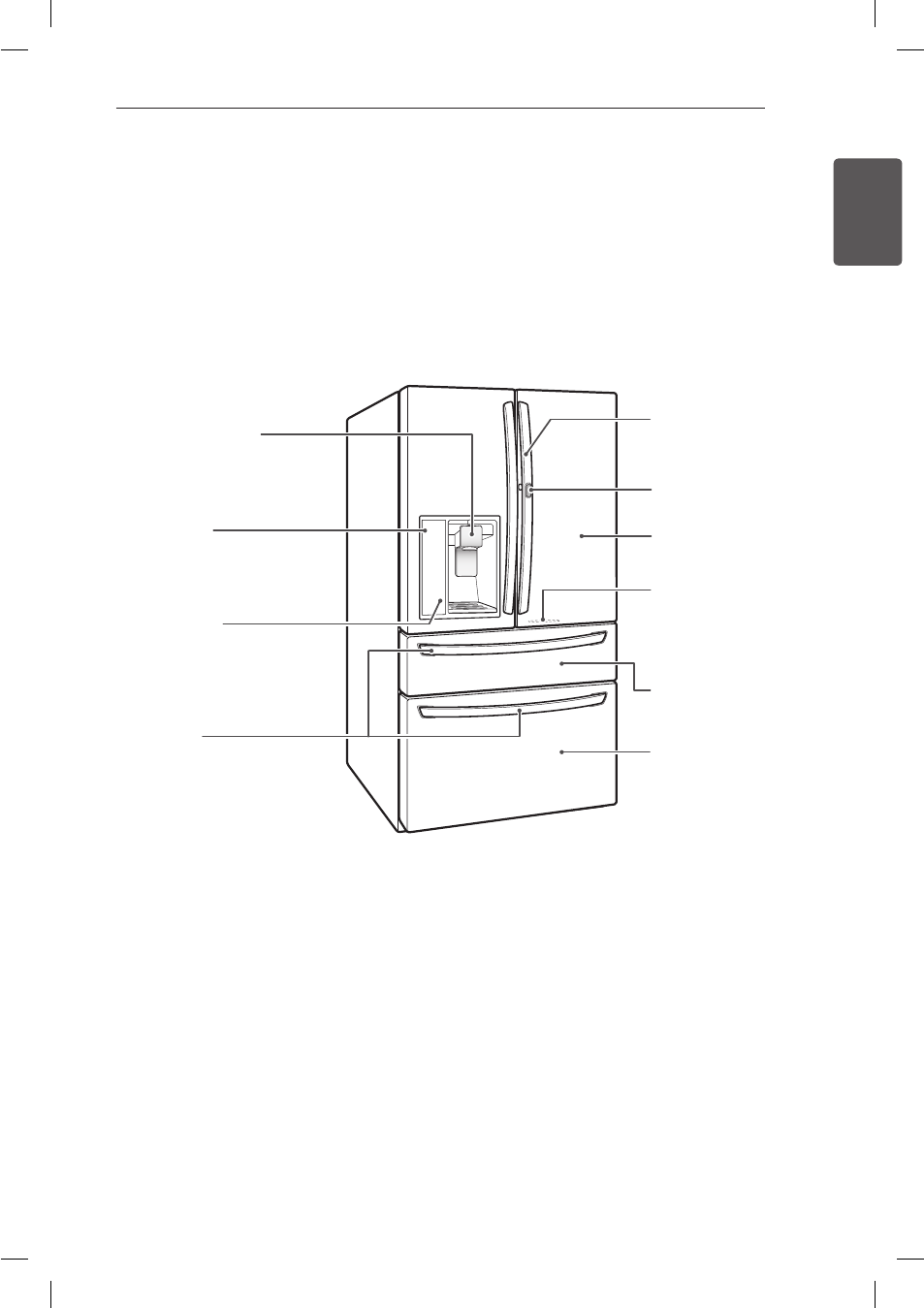

Refrigerator Exterior

Button

Handle

Opens and closes

the door.

Filtered Water and

Ice Dispenser

Dispenses purified water and ice.

LED Display

Displays the refrigerator and freezer

temperature, the water filter

condition and the dispenser status.

Control Panel

Sets the refrigerator and freezer

temperatures, the water filter

condition and the dispenser mode.

Refrigerator

Preserves food.

Freezer

Preserves frozen food.

Ez Handle

Easily opens the freezer

door.

LED Light

LED lights up when

the freezer door is

opened.

CustomChill™

Drawer

8COMPONENTS

ENGLISH

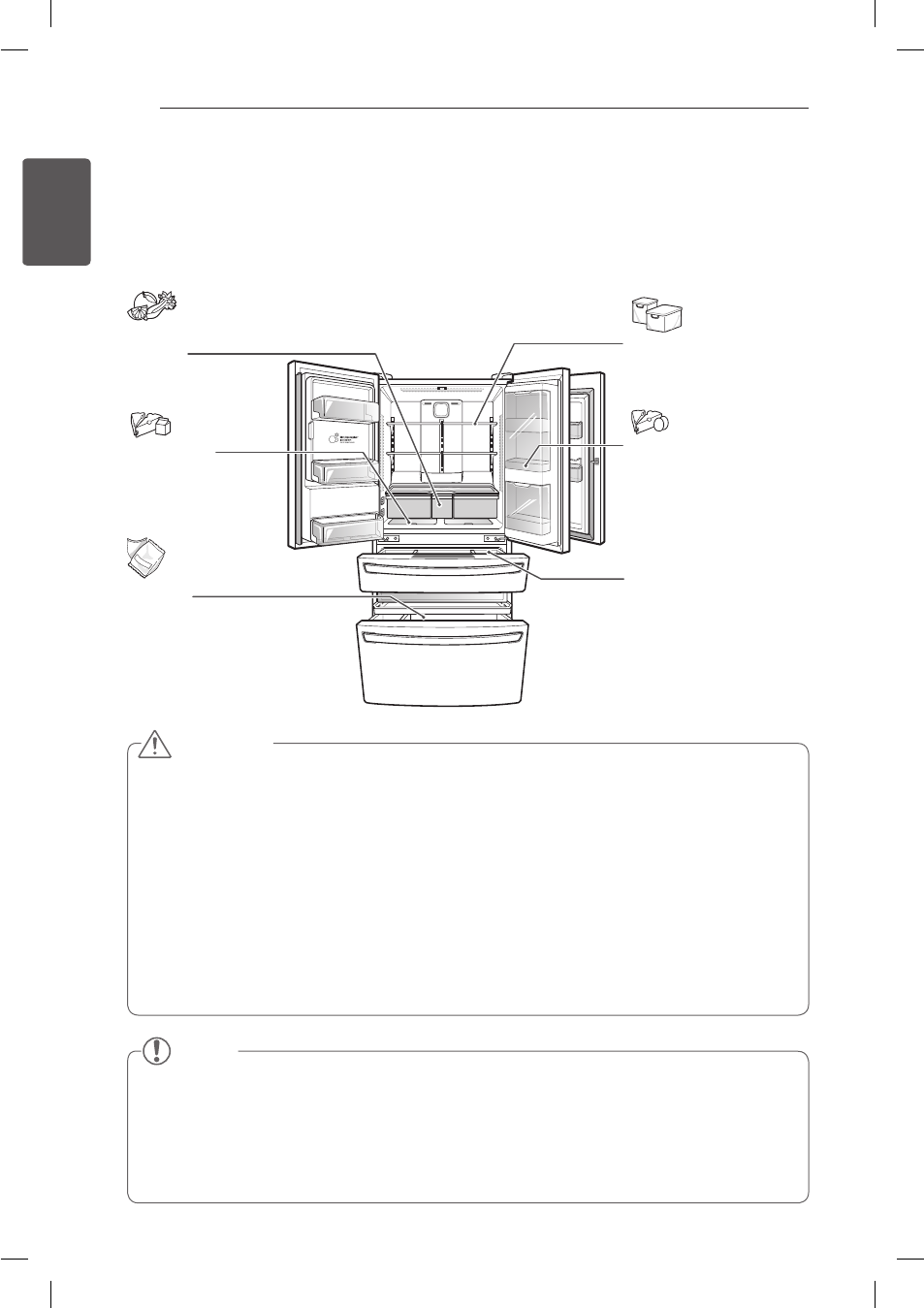

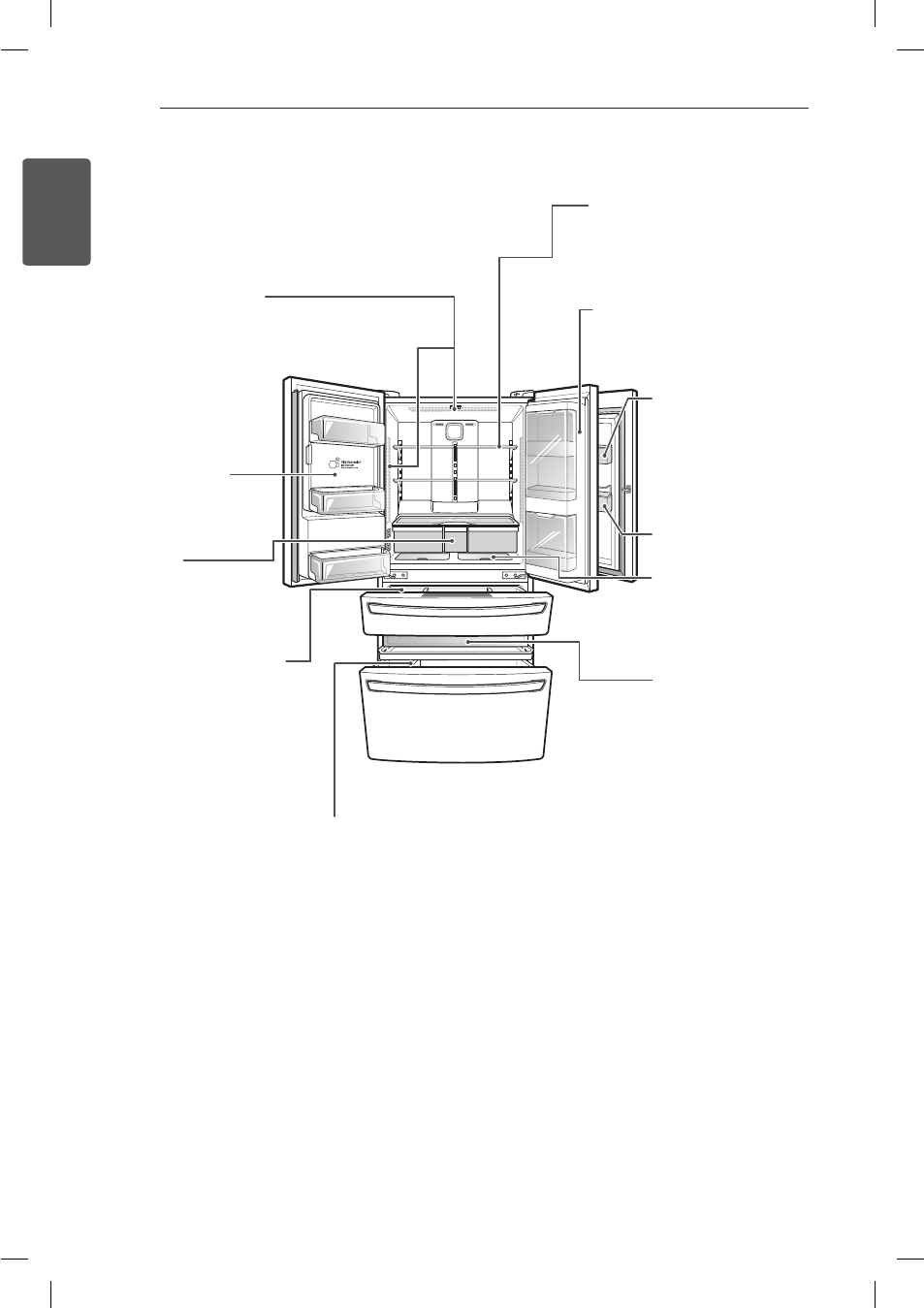

Refrigerator Interior

Door-In-Door Case

A convenient storage area for

frequently-used items that require

easy access.

Adjustable Refrigerator Shelf

The shelves in your refrigerator are

adjustable to meet your individual

storage needs.

Cheese & Butter Bin

Cheese & butter and

Condiment bins, that

are specially designed

for these items, making

spreading butter and

slicing cheese easier.

Condiment Bin

Pullout Drawer

Used for extra storage

within the freezer

compartment.

EasyReach™

You can store small items,

or defrost an item.

Indoor Ice Bin

Ice cubes are

automatically produced.

Crisper

Helps vegetables and

fruits to stay crisp.

CustomChill™ Drawer

Variable temperature storage

that can be set either colder or

warmer than the refrigerator.

The CustomChill™ drawer

is not intended for long-term

frozen storage.

Durabase® and Durabase® Divider

The Durabase is a storage space

recommended for the preservation of large

food items. The Durabase Divider is used

to organize the Durabase area into sections.

It can be adjusted from side to side to

accommodate items of different sizes.

LED interior lamps

The interior lamps light up

the inside of the refrigerator.

9

INSTALLATION

ENGLISH

INSTALLATION

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting

it to another location.

1 Unpacking your

refrigerator

2 Choosing the proper

location

3 Disassembling/Assembling

4 Connecting the water

supply and water line

5 Leveling and Door

Alignment

NOTE

Connect to potable water supply only.

10 INSTALLATION

ENGLISH

Specifications

The appearance and specifications listed in this manual may vary due to constant product

improvements.

Dimensions

35 3/4" (W) X 39 1/8" (D) X 70 1/4" (H), 51" (D w/ door open)

908 mm (W) X 994 mm (D) X 1785 mm (H), 1295 mm (D w/ door open)

Net weight 391 lb. (177 kg)

11

INSTALLATION

ENGLISH

Choosing the Proper Location

Select a place where a water supply can

y

be easily connected for the automatic

icemaker.

Unpacking Your Refrigerator

WARNING

Use two or more people to move and

y

install the refrigerator. Failure to do so

can result in back or other injury.

Your refrigerator is heavy. When moving

y

the refrigerator for cleaning or service,

be sure to protect the floor. Always pull

the refrigerator straight out when moving

it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage

could occur.

Keep flammable materials and vapors,

y

such as gasoline, away from the

refrigerator. Failure to do so can result in

fire, explosion, or death.

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any

warning-type labels, the model and serial number

label, or the Tech Sheet that is located under the

front of the refrigerator.

To remove any remaining tape or glue, rub the

area briskly with your thumb. Tape or glue residue

can also be easily removed by rubbing a small

amount of liquid dish soap over the adhesive with

your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the

surface of your refrigerator.

Refrigerator shelves are installed in the shipping

position. Please reinstall shelves according to

your individual storage needs.

The refrigerator should always be plugged

y

into its own individual properly grounded

electrical outlet rated for 115 Volts, 60 Hz,

AC only, and fused at 15 or 20 amperes.

This provides the best performance

and also prevents overloading house

wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit

serving only this appliance be provided.

WARNING

To reduce the risk of electric shock, do not

install the refrigerator in a wet or damp

area.

NOTE

The water pressure must be 20~120

psi or 138~827 kPa or 1.4~8.4 kgf/cm²

on models without a water filter and

40~120 psi or 276~827 kPa or 2.8~8.4

kgf/cm² on models with a water filter.

Flooring

To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed

floor. If required, adjust the leveling legs to

compensate for unevenness of the floor. The

front should be slightly higher than the rear to

aid in door closing. Leveling legs can be turned

easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to

the right to lower it. (See Leveling and Door

AlIgnment.)

NOTE

Installing on carpeting, soft tile surfaces,

a platform or weakly supported structure

is not recommended.

12 INSTALLATION

ENGLISH

Ambient Temperature

Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or high, cooling ability may be

adversely affected.

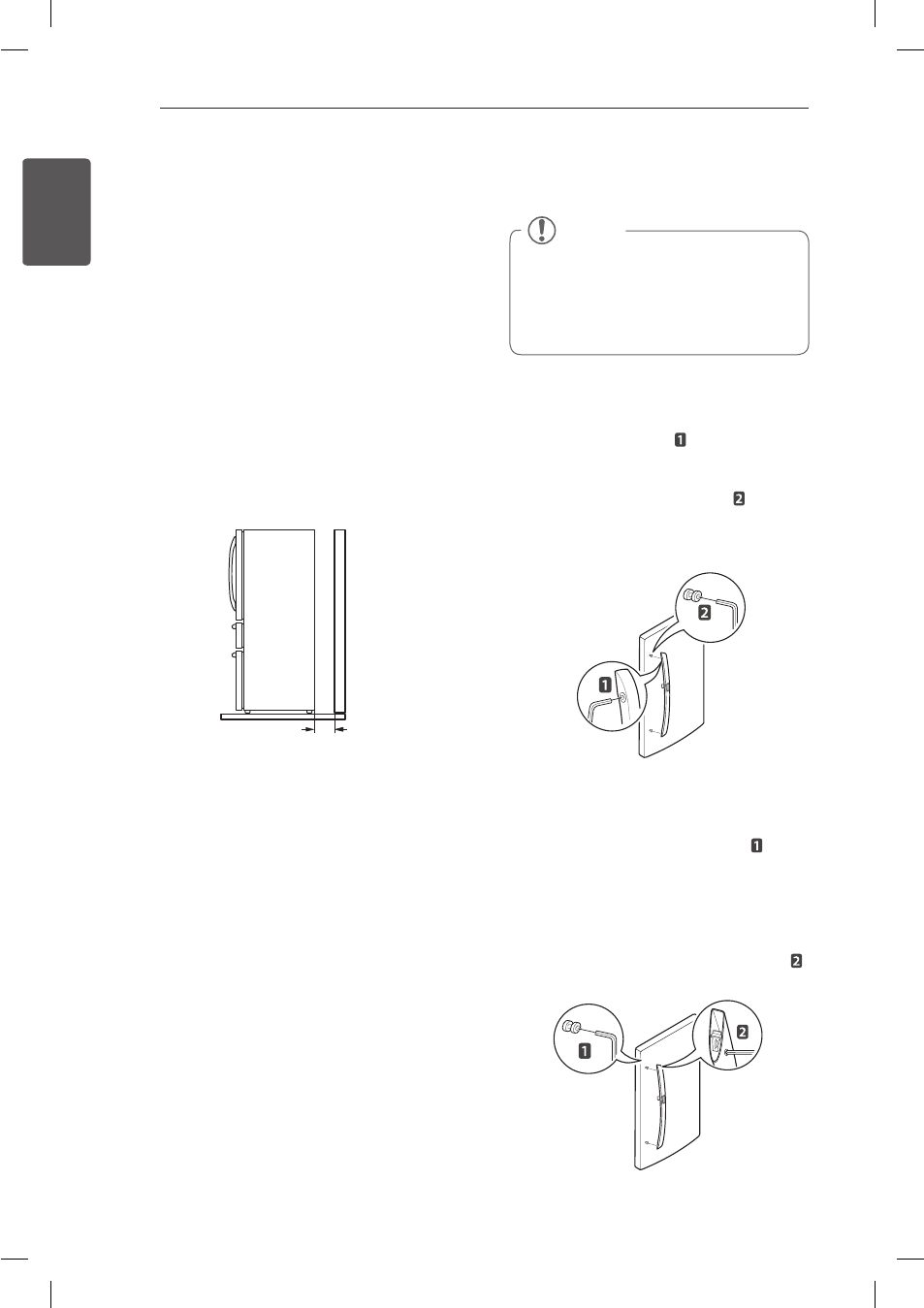

Measuring the Clearances

Too small of a distance from adjacent items

may result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the

refrigerator to open the doors, and at least

2 inches (5.08 cm) between the back of the

refrigerator and the wall.

2” (5.08 cm)

24” (61 cm)

Removing/Assembling the

Refrigerator Door Handles

Removing the Handles

1 Loosen the set screws with a 3/32 in.

Allen wrench and remove the handle.

2 Loosen the mounting fasteners that

connect to the refrigerator door and handle

using a 1/4 in. Allen wrench, and remove

the mounting fasteners.

Assembling the Handles

1 Assemble the mounting fasteners at

both ends of the handle using a 1/4 in.

Allen wrench.

2 Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/32 in. Allen wrench.

NOTE

When it is necessary to move the

refrigerator through a narrow opening,

removing the doors is the recommended

procedure. If it is necessary to remove

the handles, follow the directions below.

13

INSTALLATION

ENGLISH

WARNING

If your entrance door is too narrow for the

y

refrigerator to pass through, remove the

refrigerator doors and move the refrigerator

sideways through the doorway.

Use two or more people to remove and

y

install the refrigerator doors. Failure to do

so can result in back or other injury.

Disconnect the electrical supply to the

y

refrigerator before installing. Failure to do

so could result in serious injury or death.

Do not put hands, feet or other objects into

y

the air vents or bottom of the refrigerator.

You may be injured or receive an electrical

shock.

Be careful when handling the hinge and

y

stopper, to avoid injury.

Remove food and bins before detaching the

y

doors and drawers.

Removing/Assembling the

Doors and Drawers

When it is necessary to move the refrigerator

through a narrow opening, removing the doors

is the recommended procedure.

WARNING

When assembling or disassembling the

handle:

Grasp the handle tightly to avoid dropping it.

y

Do not swing the handle into nearby people

y

or animals.

Make sure that the bracket hole of the

y

handle fits properly into the stopper bolt of

the door. Assemble the set screws to fix

the handle into place.

Make sure that there is not a gap between

y

the door and handle after assembling the

handle.

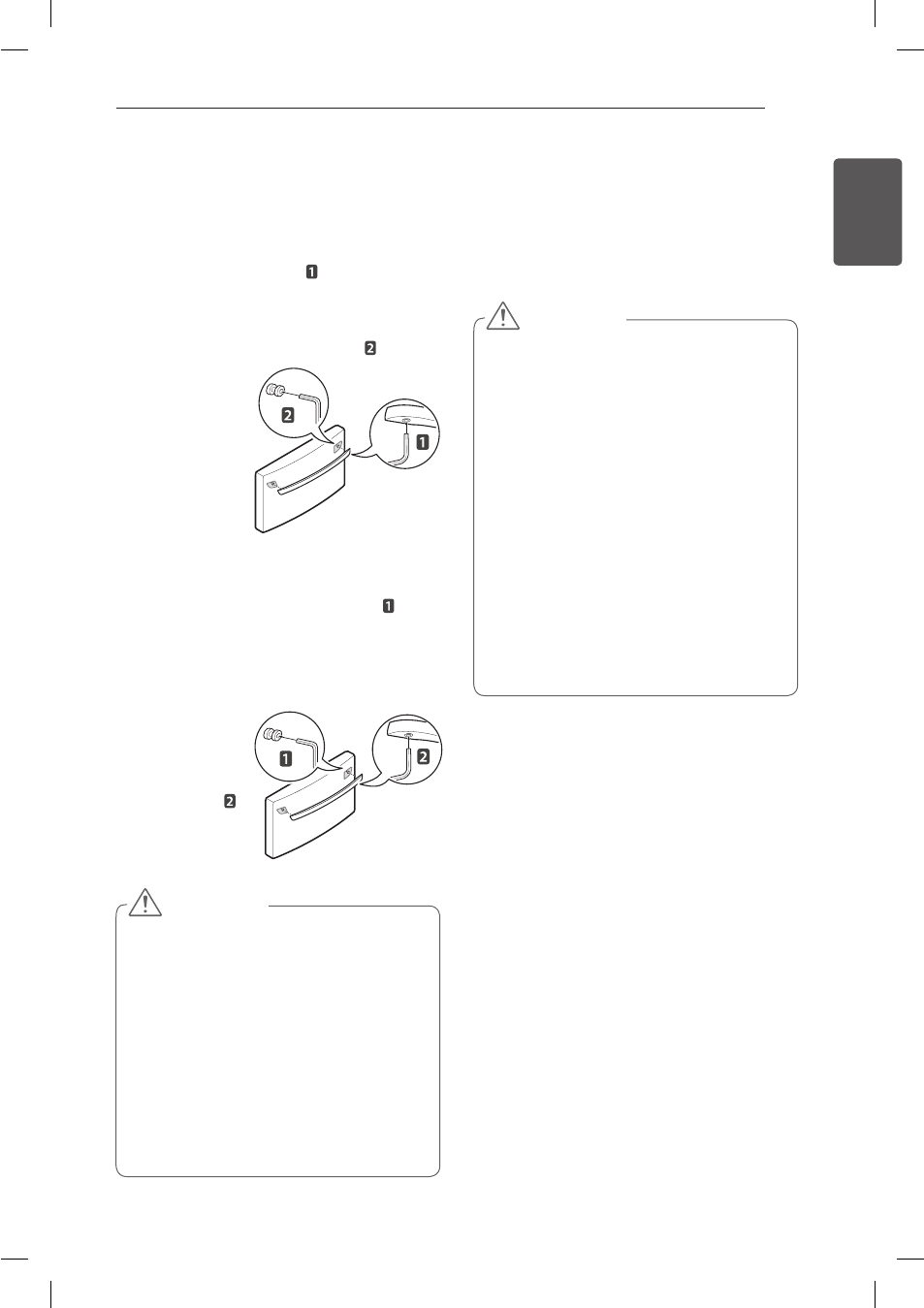

Removing/Assembling the

Freezer Drawer Handle

Removing the Handle

1 Loosen the set screws located on the

lower side of the handle with a 1/8 in. Allen

wrench and remove the handle.

2 Loosen the mounting fasteners that

connect to the

freezer drawer

and handle

using a 1/4 in.

Allen wrench,

and remove

the mounting

fasteners.

Assembling the Handle

1 Assemble the mounting fasteners at

both ends of the handle using a 1/4 in. Allen

wrench.

2 Place the handle on the door by fitting

the handle

footprints over

the mounting

fasteners and

tightening the

set screws

with a 1/8 in.

Allen wrench.

14 INSTALLATION

ENGLISH

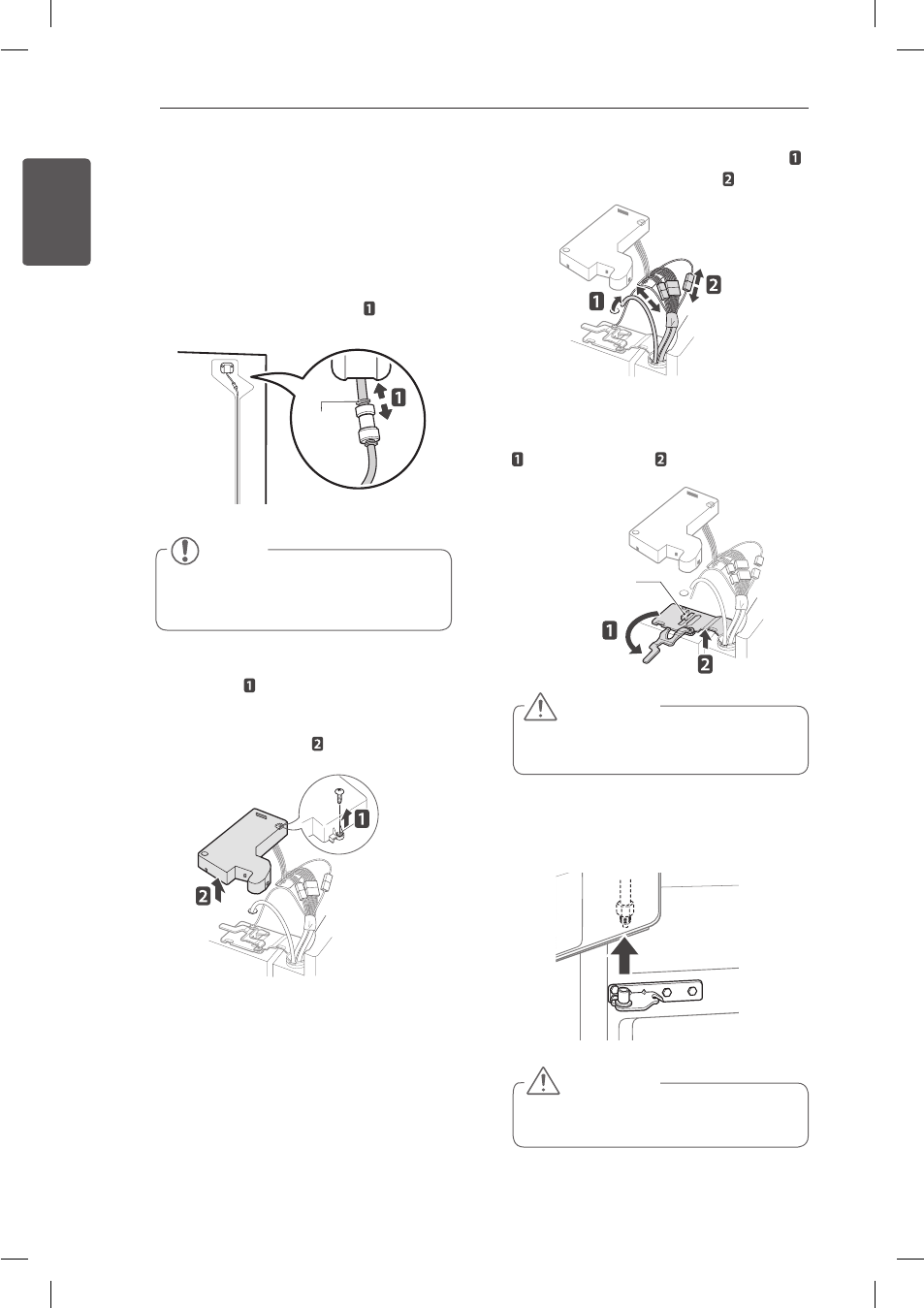

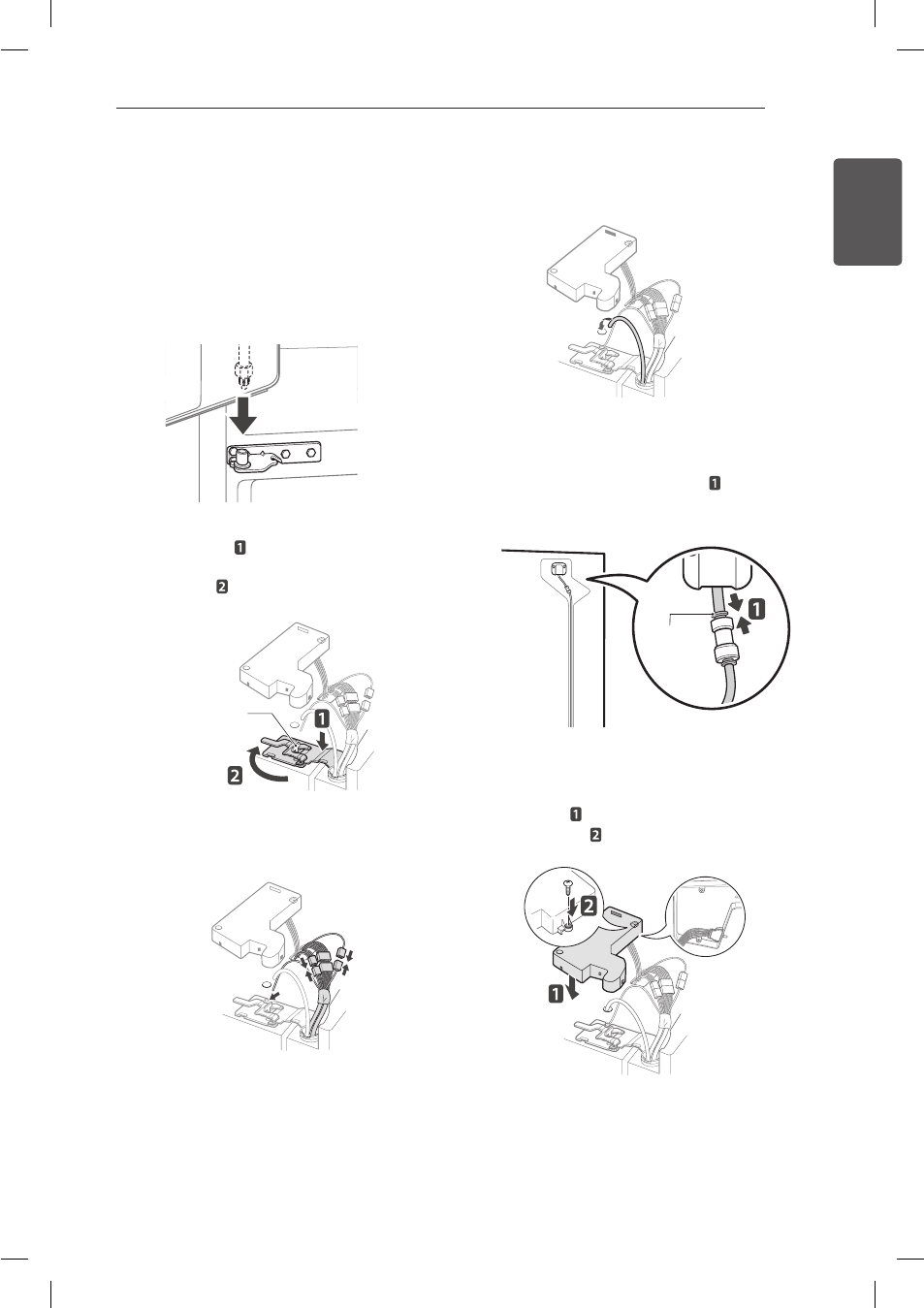

Removing the Left Refrigerator Door

1 The water supply is connected to the

upper right part of the rear surface of the

refrigerator. Remove the ring in the joint

area. Hold the water supply connection

and gently push the Collet to detach the

water supply line as shown in .

NOTE

Detachment of the water supply line is

applicable only when detaching the left

refrigerator door.

Collet

2 Remove the screw from the hinge cover

at the top of the refrigerator. Lift the hook

(not visible), located at the bottom of the

front side of the cover with a flat-head

screwdriver.

3 Remove the cover and pull out the tube .

Disconnect all wire harnesses .

4 Rotate the hinge lever counterclockwise

. Lift the top hinge free of the hinge

lever latch.

CAUTION

When lifting the hinge free of the latch, be

careful that the door does not fall forward.

Hinge Lever Latch

5 Lift the door from the middle hinge pin and

remove the door.

CAUTION

Place the door, inside facing up, on a

non-scratching surface.

15

INSTALLATION

ENGLISH

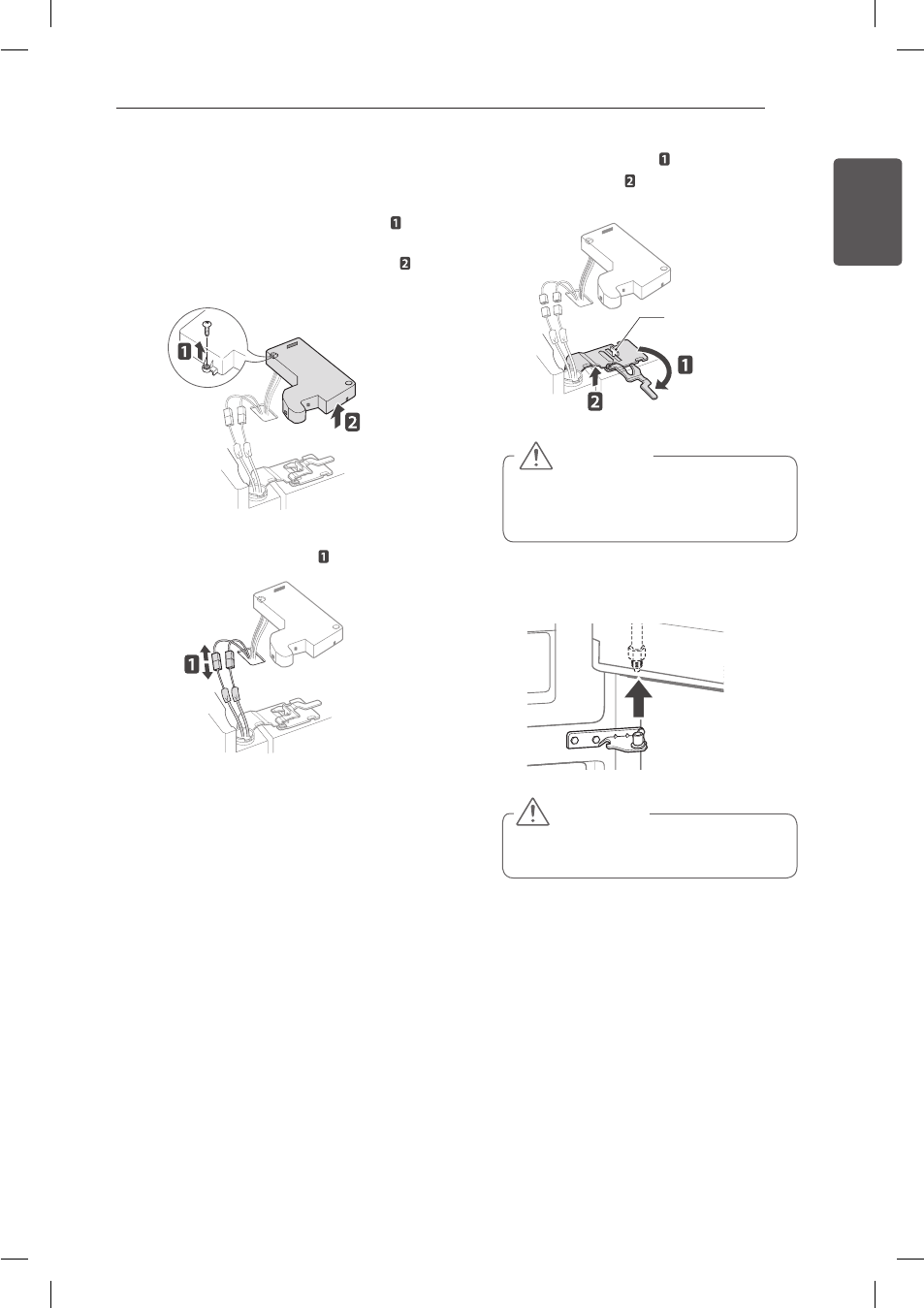

Removing the Right Refrigerator

Door

1 Remove the top hinge cover screw .

Lift the hook (not visible), located at the

bottom of the front side of the cover ,

with a flat-head screwdriver.

2 Detach the wire harness .

CAUTION

When lifting the hinge free of the hinge

lever latch, be careful that the door

does not fall forward.

Hinge Lever Latch

3 Rotate the hinge lever clockwise.

Lift the top hinge free of the hinge

lever latch.

4 Lift the door from the middle hinge pin and

remove the door.

CAUTION

Place the door, inside facing up, on a

non-scratching surface.

16 INSTALLATION

ENGLISH

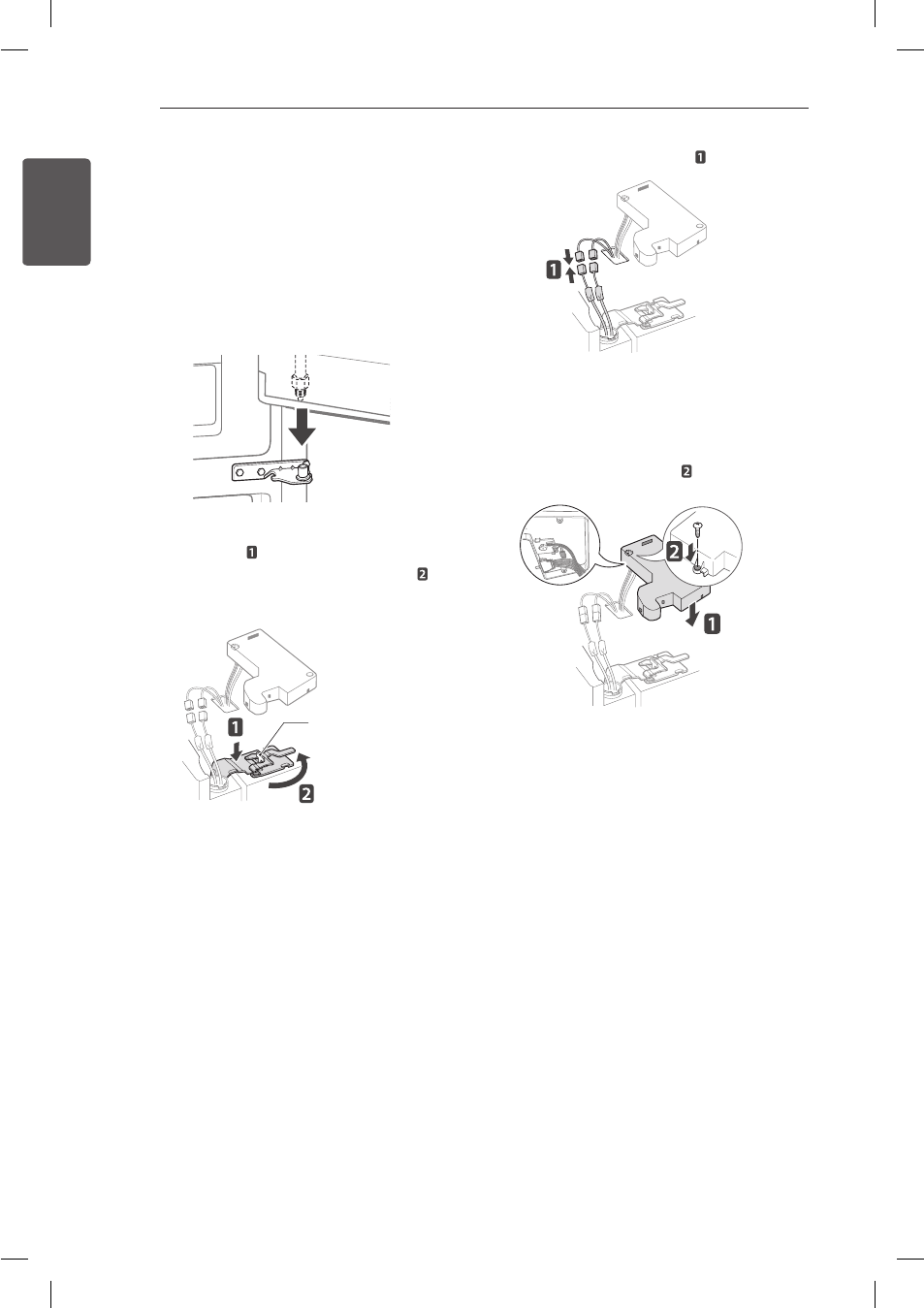

Install the right-side door first.

1 Make sure that the plastic sleeve is

inserted in the bottom of the door. Lower

the door onto the middle hinge pin as

shown in the figure.

2 Fit the hinge over the hinge lever latch

and slot it into place. Rotate the lever

counterclockwise to secure the hinge.

Assembling the Right Refrigerator

Door

Hinge Lever Latch

4 Make sure that the door-switch located

inside the cover is tightly connected.

Position the cover in its place. Insert and

tighten the cover screw .

3 Connect the wire harness .

17

INSTALLATION

ENGLISH

Install the left refrigerator door after the right

door is installed.

1 Make sure that the plastic sleeve is

inserted in the bottom of the door. Install

the refrigerator door onto the middle hinge.

2 Fit the hinge over the hinge lever latch

and slot it into place. Rotate the lever

clockwise and fasten the hinge.

Assembling the Left Refrigerator

Door

3 Connect all the wire harnesses.

Hinge Lever Latch

4 Push the water supply tube into the hole

on the top case and pull it through the

backplate.

5 Hold the water supply connection and

gently push in the collet to connect the

water supply line as shown in . Insert

the tube at least 5/8 inch (15 mm) into the

connector.

6 Make sure that the door-switch located

inside the cover is tightly connected. Place

the cover in its position and tighten the

cover screw .

Collet

18 INSTALLATION

ENGLISH

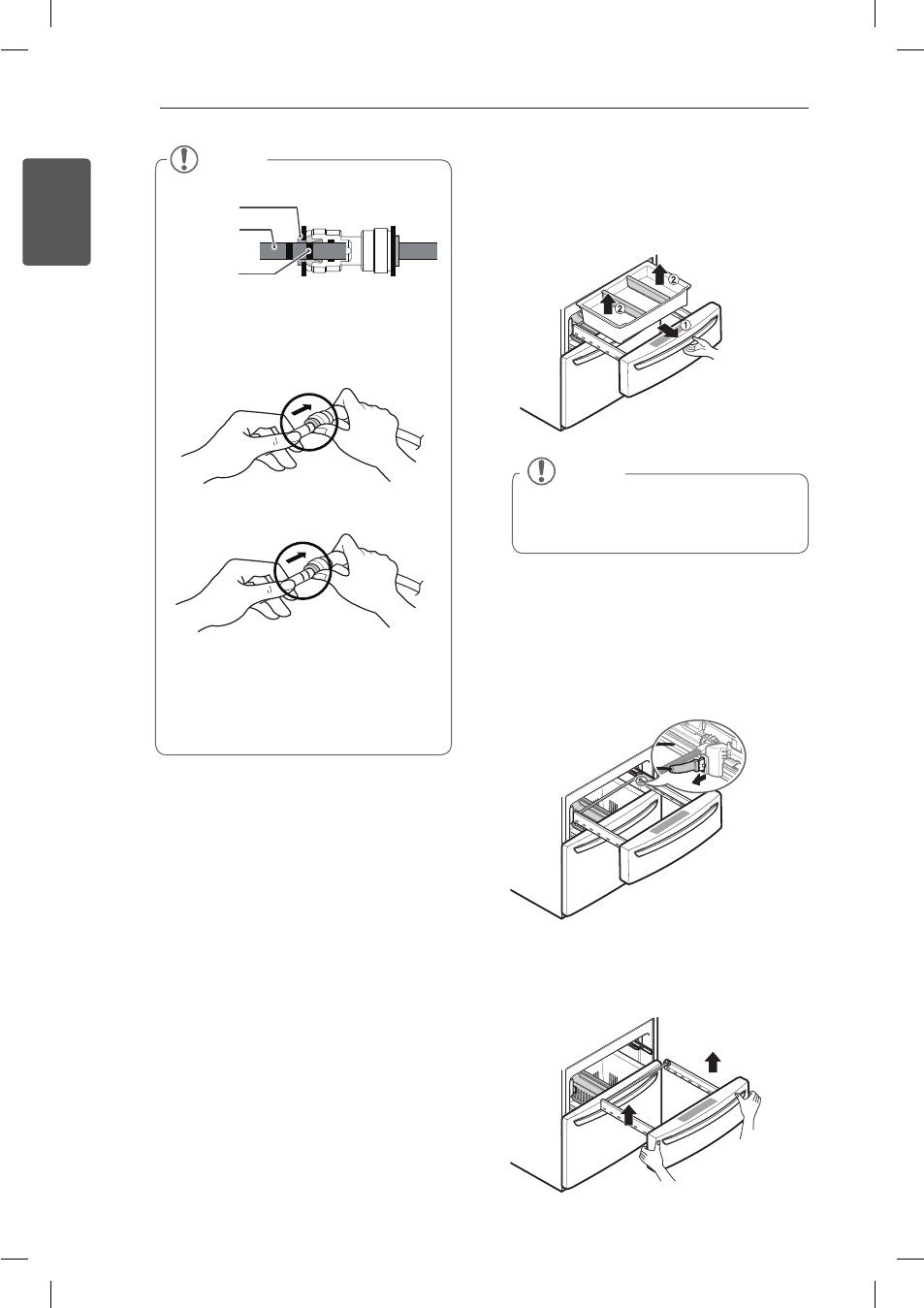

NOTE

1) Gently insert the tube until only one

line shows on the tube.

(Correct)

(Incorrect)

2) Pull the tube to make sure that the

tube is tightly fastened.

Collet

Tube

Insert Line

Removing the CustomChill™ Drawer

1 Pull the drawer open to full extension.

Remove the basket by lifting the basket

from the rail system.

3 Hold both sides of the door and lift it to

remove it from the rail system.

2 Disconnect the wire harness connection

at the end of the right rail by pressing on

the tabs on either side. It may help to use

a small, flat-blade screwdriver to apply

pressure to the ends of the tabs on either

side.

NOTE

Before removing the CustomChill™

drawer, it must be disconnected from

the temperature control.

19

INSTALLATION

ENGLISH

Assembling the CustomChill™ Drawer

1 Grasp the door on each side and lower it

into place on the rail system.

3 Pull the drawer open to full extension.

Lower the basket onto the rail system.

2 Reconnect the wire harness to the

connection at the end of the right rail by

aligning the two ends and pushing them

together until you hear a click. The tabs

should snap back into place. Tug gently to

make sure the connection is secure.

1 Pull the freezer drawer open to full extension.

2 Remove the top pullout drawer by first pulling

the drawer open to full extension.

On the left rail, use a flat blade screwdriver to

push in on the tab to release the drawer from

the rail, as shown below. Once the left side is

loose, push the tab on the right side with your

finger to release the drawer. Lift the front of

the drawer up, then pull it straight out.

CAUTION

Use two or more people to remove and

y

install the freezer drawer. Failure to do so

can result in back or other injury.

Do not hold the handle when removing

y

or replacing the drawer. The handle may

come off, causing personal injury.

Be careful of sharp hinges on both sides

y

of the drawer.

When you lay the drawer down, be

y

careful not to damage the floor.

Do not sit or stand on the freezer drawer.

y

To prevent accidents, keep children and

y

pets away from the drawer. Do not leave

the drawer open.

Removing the Freezer Drawer

NOTE

If you do not reconnect the wire

harness securely, the CustomChill™

drawer will not work properly.

20 INSTALLATION

ENGLISH

3 Remove the middle drawer by pulling the

drawer out to full extension. Lift the front

of the drawer up, then pull it straight out.

4 Remove the Durabase by opening the

freezer drawer to full extension and lifting

the basket off of the rail assembly.

5

Remove the screws from the rails at both

ends.

6

With both hands, grip both sides of the

drawer and pull it up to remove it from the

rails.

7

With both hands, hold each rail and push

them in simultaneously.

CAUTION

Do not hold the handle when removing

or replacing the drawer. The handle may

come off and it could cause personal

injury.

21

INSTALLATION

ENGLISH

3 Lower the door into final position and

tighten the screws located on both sides.

4 Insert the the top pullout drawer into the

frame, and push the drawer back into place

until you hear a click.

5 Slightly tilt up the front of the middle

drawer, insert the drawer into the frame,

and push it back into place.

6 Insert the lower basket in the rail

assembly.

Assembling the Freezer Drawer

1

With both hands, pull out each rail

simultaneously until both rails are fully

extended.

2

Grasp the drawer on each side and hook the

drawer supports into the rail tabs located on

both sides.

CAUTION

Do not hold the handle when removing

or replacing the drawer. The handle

may come off and it could cause

personal injury.

22 INSTALLATION

ENGLISH

CAUTION

Wear eye protection during installation

to prevent injury.

Connecting the Water Line

Before You Begin

This water line installation is not covered by the

refrigerator warranty. Follow these instructions

carefully to minimize the risk of expensive water

damage.

Water hammer (water banging in the pipes) in

house plumbing can cause damage to refrigerator

parts and can lead to water leakage or flooding.

Call a qualified plumber to correct water hammer

before installing the water supply line to the

refrigerator.

If you use your refrigerator before connecting

the water line, make sure the icemaker power

switch is in the OFF (O) position.

Water Pressure

The water pressure must be 20~120 psi or

138~827 kPa or 1.4~8.4 kgf/cm² on models

without a water filter and 40~120 psi or 276~827

kPa or 2.8~8.4 kgf/cm² on models with a water

filter.

If a reverse osmosis water filtration system is

connected to your cold water supply, this water

line installation is not covered by the refrigerator

warranty. Follow the instructions carefully to

minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (276~414 kPa or

2.8~4.2 kgf/cm², less than 2.0~3.0 sec. to fill a

cup of 7 oz or 198 cc capacity).

If the water pressure from the reverse osmosis

system is less than 20 psi or 138 kPa or 1.4 kgf/

cm² (takes more than 4.0 sec to fill a cup of 7 oz

or 198 cc capacity):

Check to see if the sediment filter in

y

the reverse osmosis system is blocked.

Replace the filter if necessary.

Allow the storage tank on the reverse

y

osmosis system to refill after heavy

usage.

If the issue concerning water pressure

y

from reverse osmosis remains, call a

licensed, qualified plumber.

All installations must be in accordance

y

with local plumbing code requirements.

What You Will Need

Copper Tubing,

y ¼ in. outer diameter, to

connect the refrigerator to the water

supply. Be sure both ends of the tubing

are cut square.

To determine how

y

much tubing you need:

measure the distance

from the water valve on the back of

the refrigerator to the water supply

pipe. Then, add 8 feet (2.4 m). Be sure

there is sufficient extra tubing (about 8

feet [2.4 m] coiled into 3 turns of about

10 in. [25 cm] diameter) to allow the

refrigerator to move out from the wall

after installation.

Power drill.

y

½ in. or adjustable

y

wrench.

Flat blade and Phillips

y

head screwdrivers.

Two ¼ in. outer

y

diameter compression

nuts and 2 ferrules (sleeves) to connect the

copper tubing to the shutoff valve and

the refrigerator water valve.

CAUTION

Do not install the icemaker tubing in

areas where temperatures fall below

freezing.

CAUTION

To prevent burns and product damage,

only connect the refrigerator water line to

a cold water supply.

23

INSTALLATION

ENGLISH

NOTE

A self piercing saddle type water valve

should not be used.

NOTE

The hookup line cannot be white, plastic

tubing. Licensed plumbers must use

only copper tubing (NDA tubing #49595

or #49599) or Cross Link Polyethylene

(PEX) tubing.

If your existing copper water line has a

y

flared fitting at the end, you will need

an adapter (available at plumbing supply

stores) to connect the water line to the

refrigerator OR you

can cut off the flared

fitting with a tube

cutter and then use a

compression fitting.

Shutoff valve

y to connect to the cold

water line. The shutoff valve should

have a water inlet with a minimum

inside diameter of 5/32 in. at the point of

connection to the COLD WATER LINE.

Saddle-type shutoff valves are included

in many water

supply kits. Before

purchasing, make

sure a saddle-type

valve complies with

your local plumbing codes.

Water Line Installation Instructions

Install the shutoff valve on the nearest

frequently used drinking water line.

1 SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the

pressure on the line.

2 CHOOSE THE VALVE LOCATION

Choose a location for

the valve that is easily

accessible. It is best to

connect into the side of a

vertical water pipe. When

it is necessary to connect

into a horizontal water

pipe, make the connection to the top or

side, rather than at the bottom, to avoid

drawing off any sediment from the water

pipe.

3 DRILL THE HOLE FOR THE VALVE

Drill a ¼ in. hole in

the water pipe using

a sharp bit. Remove

any burrs resulting

from drilling the hole

in the pipe. Be careful

not to allow water

to drain into the drill. Failure to drill a ¼ in.

hole may result in reduced ice production

or smaller cubes.

WARNING

When using any electrical device

(such as a power drill) during

installation, be sure the device is

battery powered, double insulated

or grounded in a manner that will

prevent the hazard of electric shock.

24 INSTALLATION

ENGLISH

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water

pipe with the pipe clamp.

Pipe Clamp

Saddle-Type

Shutoff Valve Vertical Cold

Water Pipe

NOTE

Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered

to. Saddle valves are illegal and their use is

not permitted in Massachusetts. Consult

with your licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE: Do not overtighten the clamp or

you may crush the tubing.

6 ROUTE THE TUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or floor (behind the refrigerator or

adjacent base cabinet) as close to the wall

as possible.

Pipe Clamp

Clamp Screw

Washer

Inlet End

7 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule

(sleeve) for the copper tubing onto the

end of the tubing and connect it to the

shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the

compression nut securely.

8 FLUSH OUT THE TUBING

Turn the main water

supply on and flush out

the tubing until the water

is clear.

Shut the water off at the

water valve after about

one quart of water has

been flushed through the tubing.

9 CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection

to the refrigerator, be sure that the

refrigerator power cord is not plugged into

the wall outlet.

a. Remove the plastic flexible cap from the

water valve.

b. Place the compression nut and ferrule

(sleeve) onto the end of the tubing as

shown.

c. Insert the end of the copper tubing into

the connection as far as possible. While

holding the tubing, tighten the fitting.

Tubing Clamp ¼ in. Tubing

¼ in.

Compression

Nut

Refrigerator

Connection

Ferrule

(sleeve)

Saddle-Type

Shutoff Valve

Packing Nut

Outlet Valve

Compression

Nut

Ferrule (sleeve)

NOTE

Be sure there is sufficient extra tubing

(about 8 feet coiled into 3 turns of

about 10 in. diameter) to allow the

refrigerator to move out from the wall

after installation.

25

INSTALLATION

ENGLISH

10 TURN THE WATER ON AT THE SHUTOFF

VALVE

Tighten any connections that leak.

11 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it

does not vibrate against the back of the

refrigerator or against the wall. Push the

refrigerator back to the wall.

12 START THE ICEMAKER

Set the icemaker power switch to the ON

position.

The icemaker will not begin to operate

until it reaches its operating temperature

of 15°F (–9°C) or below. It will then begin

operation automatically if the icemaker

power switch is in the ON (I) position.

Turning On The Power

Plug in the refrigerator.

CAUTION

Check to see if leaks occur at the water

line connections.

CAUTION

Connect to a rated power outlet.

y

Have a certified electrician check

y

the wall outlet and wiring for proper

grounding.

Do not damage or cut off the ground

y

terminal of the power plug.

26 INSTALLATION

ENGLISH

Leveling and Door Alignment

Leveling

After installing, plug the refrigerator’s power

cord into a 3-prong grounded outlet and push

the refrigerator into the final position.

Your refrigerator has two front leveling legs—

one on the right and one on the left. Adjust the

legs to alter the tilt from front-to-back or side-

to-side. If your refrigerator seems unsteady, or

you want the doors to close more easily, adjust

the refrigerator’s tilt using the instructions

below:

1 Turn the leveling leg to the left to raise

that side of the refrigerator or to the right

to lower it. It may take several turns of the

leveling leg to adjust the tilt of the

refrigerator.

2 Open both doors again and check to make

sure that they close easily. If the doors do

not close easily, tilt the refrigerator slightly

more to the rear by turning both leveling

legs to the left. It may take several more

turns, and you should turn both leveling

legs the same amount.

NOTE

A flare nut wrench works best, but an

open-end wrench will suffice.

Do not over-tighten.

Door Alignment

The left refrigerator door has an adjustable nut,

located on the bottom hinge, to raise and lower

the door for proper alignment.

If the space between your doors is uneven, follow

the instructions below to align the doors:

Use the wrench (included with the Use & Care

Guide) to turn the nut in the door hinge to adjust

the height. To the right to raise or to the left to

lower the height.

The right refrigerator door does not have an

adjustable nut.

If the space between your doors is uneven, follow

the instructions below to align the right door:

1 With one hand, lift up both the inner and

outer door sections of the right door to raise

them at the middle hinge. (Opening the door

may make lifting it easier)

2 With the other hand, use pliers to insert the

snap ring on the middle hinge of the inner

door section as shown. Do not insert the ring

on the hinge of the outer door section.

3 Insert additional snap rings until the right door

is aligned. (Two snap rings are provided with

the unit.)

Outer

Door

Inner

Door

27

HOW TO USE

ENGLISH

HOW TO USE

Before use

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during

shipping.

NOTE

Remove adhesive residue by wiping it off with your thumb or dish detergent.

CAUTION

Do not scratch the refrigerator with a sharp object or use a detergent that

y

contains alcohol, a flammable liquid or an abrasive when removing any tape

or adhesive from the refrigerator,.

Do not peel off the model or serial number label or the technical information

y

on the rear surface of the refrigerator.

Connect the power supply.

Check if the power supply is connected before use.

Read the “Turning On The Power” section.

CAUTION

Running the automatic icemaker before connecting it to the water

supply may cause the refrigerator to malfunction.

Turn off the icemaker if the refrigerator is not yet connected to the

water supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator

into the grounded electric outlet.

* This is applicable only to certain models.

CAUTION

Putting food in the refrigerator before it has cooled could cause the

food to spoil, or a bad odor could linger inside the refrigerator.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in

it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature lowers.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive

tape from inside the refrigerator and open the refrigerator doors and the freezer

drawers for ventilation.

28 HOW TO USE

ENGLISH

NOTE

The displayed temperature is the target

temperature, and not the actual temperature

of the refrigerator. The actual refrigerator

temperature depends on the food inside the

refrigerator.

Control Panel

* Depending on the model, some of the following functions may not be available.

Control Panel Features

LED Display

Indicator

Control

Button

Ice Type

Press the Ice Type button to choose either cubed

or crushed ice. The cubed or crushed ice icon will

illuminate.

Refrigerator Temperature

Indicates the set temperature of the refrigerator

compartment in Celsius (°C) or Fahrenheit (°F).

Freezer Temperature

Indicates the set temperature of the freezer

compartment in Celsius (°C) or Fahrenheit (°F).

To change the temperature mode from °F to °C

(or vice versa) press and hold the Refrigerator

and Freezer temperature buttons simultaneously

for approximately five seconds. The temperature

indication on the display window switches

between Celsius and Fahrenheit.

Fresh Air Filter

The Fresh Air Filter helps remove odors from the

refrigerator. The Fresh Air Filter has two settings,

Auto and Power(PWR). In Auto mode, the Fresh

Air Filter will cycle on and off in increments of ten

minutes on and one hundred ten minutes off. If

set to the Power(PWR) mode, the Fresh Air Filter

will stay on continuously for four hours, cycling on

and off in increments of ten minutes on and five

minutes off. After four hours, the Fresh Air Filter

will switch back to Auto mode.

Press the Fresh Air Filter button once for

y

Power(PWR) mode.

Press the Fresh Air Filter button again to

y

switch back to Auto mode.

[ ]

( On some

models)

29

HOW TO USE

ENGLISH

Change Filter

When the Change Filter icon turns on, the air

filter needs to be replaced. After replacing the

air filter, press and hold the Fresh Air Filter

button for three seconds to turn the icon light

off. Change the air filter approximately every

6 months.

Control Panel Features (continued)

Ice Plus

This function increases both ice making and

freezing capabilities.

When you touch the

yIce Plus button, the

graphic will illuminate in the display and

will continue for 24 hours. The function will

automatically shut off after 24 hours.

You can stop this function manually by

y

touching the button one more time.

Light

When you press the Light button, the

dispenser light will turn on and the indicator

will appear on the LED display.

Change Water Filter

When the Water Filter indicator turns on,

you need to change the water filter. After

changing the water filter, press and hold the

Change Filter button for three seconds to turn

the indicator light off. Change the water filter

approximately every six months.

Door Alarm

When power is connected to the

y

refrigerator, the door alarm is initially set

to ON. When you press the Alarm button,

the display will change to OFF and the Door

Alarm function will deactivate.

When either the refrigerator or the freezer

y

door is left open for more than 60 seconds,

the alarm tone will sound to let you know

that the door is open.

When you close the door, the door alarm

y

will stop.

Lock

The Lock function disables every other button

on the display.

When power is initially connected to the

y

refrigerator, the Lock function is off.

If you want to activate the

yLock function to

lock other buttons, press and hold the Lock

button for three seconds or more. The Lock

icon will display and the Lock function is now

enabled.

To disable the

yLock function, press and hold

the Lock button for approximately three

seconds.

Power Saving Mode

When the refrigerator is in the

yPower Saving

Mode, the display will remain off until a door

is opened or a button is pressed. Once on,

the display will remain on for 20 seconds.

[ ]

( On some

models)

CAUTION

Display Mode (For Store Use Only)

The Display Mode disables all cooling in the

refrigerator and freezer sections to conserve

energy while on display in a retail store. When

activated, OFF will display on the control panel

and the display will remain on for 20 seconds.

To deactivate / activate:

With either refrigerator door opened, press

and hold the Refrigerator and Ice Plus buttons

at the same time for five seconds. The control

panel will beep and the temperature settings

will display to confirm that Display Mode

is deactivated. Use the same procedure to

activate the Display Mode.

30 HOW TO USE

ENGLISH

Ice-detecting

sensor

CAUTION

When handling the ice bin,

keep hands away from the

icemaker tray area to avoid

personal injury.

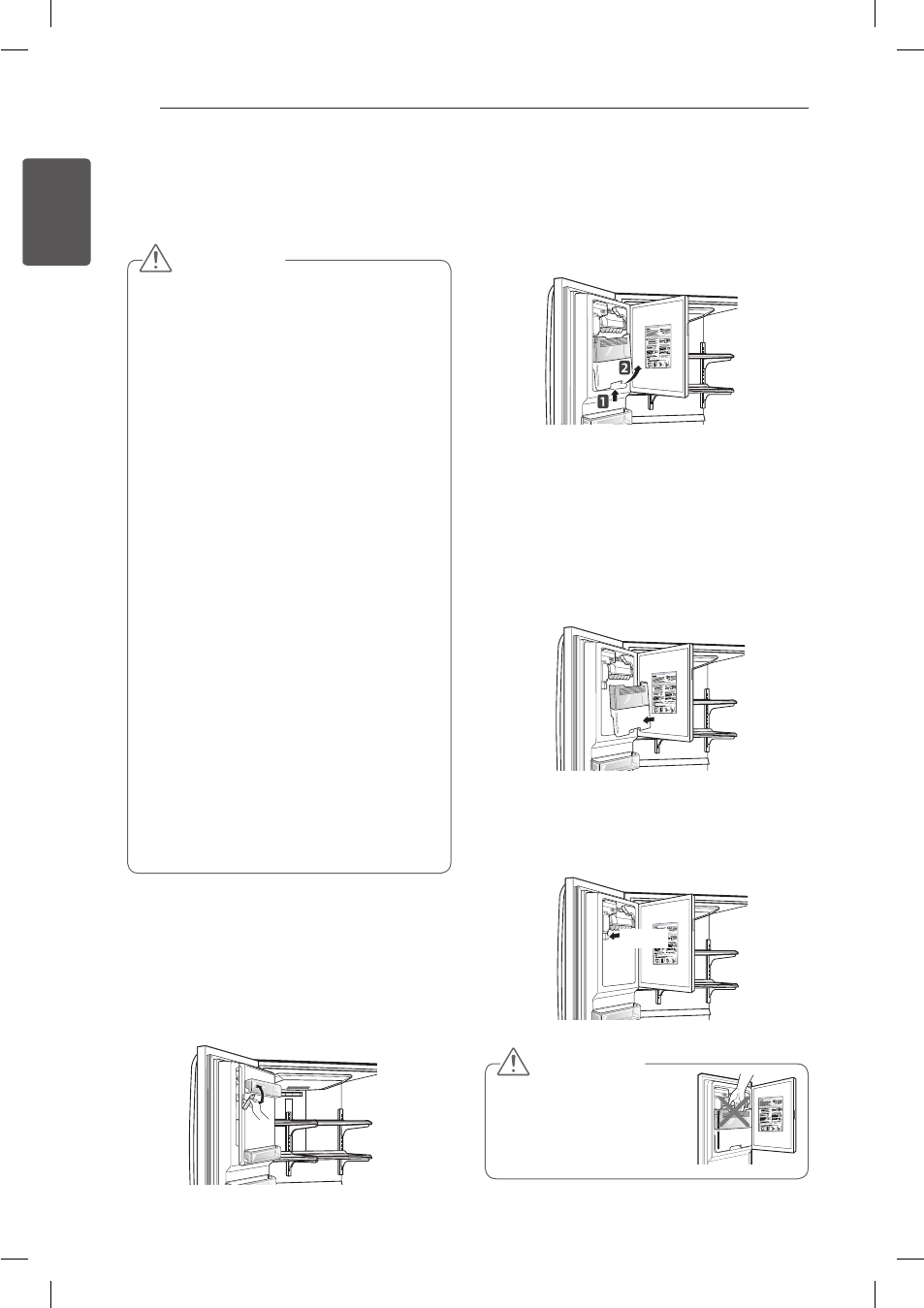

In-Door Ice Bin

* Depending on the model, some of the

following functions may not be available.

Detaching the In-Door Ice Bin

1 Gently pull the handle to open the ice

compartment.

2 To remove the in-door ice bin, grip the

front handle, slightly lift the lower part,

and slowly pull out the bin as shown.

Assembling the In-Door Ice Bin

1 Carefully insert the in-door ice bin while

slightly slanting it to avoid contact with the

icemaker.

2 Avoid touching the ice-detecting sensor

when replacing the ice bin. See the label

on the ice compartment door for details.

CAUTION

Keep hands and tools out of the ice

y

compartment door and dispenser chute.

Failure to do so may result in damage or

personal injury.

The icemaker will stop producing ice when

y

the in-door ice bin is full. If you need more

ice, empty the ice bin into the extra ice bin

in the freezer compartment. During use,

the ice can become uneven causing the

icemaker to misread the amount of ice

cubes and stop producing ice. Shaking the

ice bin to level the ice within it can reduce

this problem.

Storing cans or other items in the ice bin will

y

damage the icemaker.

Keep the ice compartment door closed

y

tightly. If the ice compartment door is not

closed tightly, the cold air in the ice bin will

freeze food in the refrigerator compartment.

This could also cause the icemaker to stop

producing ice.

If the O

yN/OFF switch on the icemaker is

set to OFF for an extended period of time,

the ice compartment will gradually warm

up to the temperature of the refrigerator

compartment. To prevent ice cubes from

melting and leaking from the dispenser,

ALWAYS empty the ice bin when the

icemaker is set to OFF for more than a few

hours.

31

HOW TO USE

ENGLISH

Automatic Icemaker

* Depending on the model, some of the

following functions may not be available.

Ice is made in the automatic icemaker and sent

to the dispenser. The icemaker will produce

70~182 cubes in a 24-hour period, depending

on freezer compartment temperature, room

temperature, number of door openings and

other operating conditions.

It takes about 12 to 24 hours for a newly

y

installed refrigerator to begin making ice. Wait

72 hours for full ice production to occur.

Ice making stops when the in-door ice bin

y

is full. When full, the in-door ice bin holds

approximately 6 to 8 (12~16 oz or 340~455 cc)

glasses of ice.

The water pressure must be 20~120 psi or

y

138~827 kPa or 1.4~8.4 kgf/cm² on models

without a water filter and 40~120 psi or

276~827 kPa or 2.8~8.4 kgf/cm² on models

with a water filter to produce the normal

amount and size of ice cubes.

Foreign substances or frost on the ice-

y

detecting sensor can interrupt ice production.

Make sure the sensor area is clean at all times

for proper operation.

Ice-detecting

Sensor

Power

Switch

Icemaker Turning the Automatic Icemaker

On or Off

To turn off the automatic icemaker, set the

icemaker switch to OFF (O). To turn on the

automatic icemaker, set the switch to ON (I).

WARNING

Personal Injury Hazard

DO NOT place fingers or hands on the

automatic ice making mechanism while the

refrigerator is plugged in.

1 hour later from

supplying water

Tilting

Water fills the ice tray.

60 minutes after water has been added

y

to the ice tray, the ice tray will sit slightly

tilted to help the cold air reach the ice.

The ice-detecting sensors will sense

y

when the ice is ready to be dumped

into the ice bin.

32 HOW TO USE

ENGLISH

Automatic Icemaker

(continued)

The first ice and water dispensed may

y

include particles or odor from the water

supply line or the water tank.

Throw away the first few batches of ice.

y

This is also necessary if the refrigerator has

not been used for a long time.

Never store beverage cans or other items in

y

the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

If discolored ice is dispensed, check the

y

water filter and water supply. If the problem

continues, contact a qualified service

center. Do not use the ice or water until the

problem is corrected.

Keep children away from the dispenser.

y

Children may play with or damage the

controls.

The ice passage may become blocked with

y

frost if only crushed ice is used. Remove the

frost that accumulates by removing the ice

bin and clearing the passage with a rubber

spatula. Dispensing cubed ice can also help

prevent frost buildup.

Never use thin crystal glass or crockery to

y

collect ice. Such containers may chip or

break resulting in glass fragments in the ice.

Dispense ice into a glass before filling it

y

with water or other beverages. Splashing

may occur if ice is dispensed into a glass

that already contains liquid.

Never use a glass that is exceptionally

y

narrow or deep. Ice may jam in the ice

passage and refrigerator performance may

be affected.

Keep the glass at a proper distance from

y

the ice outlet. A glass held too close to the

outlet may prevent ice from dispensing.

To avoid personal injury, keep hands out of

y

the ice door and passage.

Never remove the dispenser cover.

y

If ice or water dispenses unexpectedly, turn

y

off the water supply and contact a qualified

service center.

CAUTION

When You Should Turn the

Icemaker Off

When the water supply will be shut off

y

for several hours.

When the ice bin is removed for more

y

than one or two minutes.

When the refrigerator will not be used

y

for several days.

Normal Sounds You May Hear

The icemaker water valve will buzz as

y

the icemaker fills with water. If the

power switch is in the ON (I) position,

it will buzz even if it has not yet been

hooked up to water. To stop the buzzing,

move the power switch to OFF (O).

You will hear the sound of cubes

y

dropping into the bin and water running

in the pipes as the icemaker refills.

Preparing for Vacation

Set the icemaker power switch to OFF (O) and

shut off the water supply to the refrigerator.

If the ambient temperature is expected to drop

below freezing, have a qualified technician

drain the water supply system to prevent

serious property damage due to flooding

caused by ruptured water lines or connections.

NOTE

The ice bin should be emptied when the

icemaker on/off switch is turned to the

OFF position.

NOTE

Keeping the power switch in the ON

(I) position before the water line is

connected can damage the icemaker.

NOTE

The ice bin should be emptied anytime

the icemaker on/off switch is turned to

the OFF (O) position.

33

HOW TO USE

ENGLISH

Ice and Water Dispenser

* Depending on the model, some of the

following functions may not be available.

CAUTION

Keep children away from the dispenser

to prevent children playing with or

damaging the controls.

Dispenser

Ice switch

Stand

Water switch

Using the Dispenser

To dispense

ycold water, push on the

water switch with a glass.

To dispense

y ice, push on the ice switch

with a glass.

NOTE

If discolored ice is dispensed, check

y

the water filter and water supply. If the

problem continues, contact a qualified

service center. Do not use the ice or

water until the problem is corrected.

The dispenser will not operate when

y

either of the refrigerator doors are open.

If dispensing water or ice into a container

y

with a small opening, place it as close to

the dispenser as possible.

Some dripping may occur after

y

dispensing. Hold your cup beneath

the dispenser for a few seconds after

dispensing to catch all of the drops.

Incorrect Way Correct Way

Water

Ice

CAUTION

Throw away the first few batches of ice

(about 24 cubes). This is also necessary

if the refrigerator has not been used for

a long time.

Locking the Dispenser

Press and hold the Alarm and Lock button

simultainously for 3 seconds to lock the

dispenser and all the control panel functions.

Follow the same instructions to unlock.

Cleaning the Dispenser Stand

1 Grip the stand with both hands and pull it

out.

2 Wipe out dirty areas with a clean cloth.

34 HOW TO USE

ENGLISH

Storing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

NOTE

If you are leaving home for a short period of time, like a short vacation, the refrigerator should

y

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the

freezer.

If you are leaving the refrigerator turned off for an extended period of time, remove all food

y

and unplug the power cord. Clean the interior, and leave the door open to prevent fungi from

growing in the refrigerator.

Adjustable refrigerator shelf

Adjustable shelves to meet

your individual storage needs.

CustomChill™ Drawer

Adjust the temperature to store

meat and seafood, cold drinks,

deli snacks, or chilled wine.

Door-in-Door

Recommended types of food

to store in the Door-In-Door

section are butter, margarine,

cream cheese, peanut butter,

ketchup, mustard, relish, etc.

Vegetable storage

(Crisper)

Preserves vegetables

and fruit.

Durabase

®

Largest storage space in

the freezer.

EasyReach™

You can store small

items, or put an item to

defrost.

CAUTION

Do not store food with high moisture content towards the top of the refrigerator. The moisture

y

could come in direct contact with the cold air and freeze.

Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

y

packaging should be wiped down to prevent adjacent foods from being contaminated.

If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of

y

vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a

clean cloth or a paper towel.

If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the

y

refrigerator and raise its temperature. It can also increase the cost to run the appliance.

Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or

y

personal injury if items are removed with excessive force.

The temperature inside the EasyReach™ is slightly lower than in the shelf or door bin area.

y

35

HOW TO USE

ENGLISH

Food Storage Tips

* The following tips may not be applicable

depending on the model.

Wrap or store food in the refrigerator in airtight

and moisture-proof material unless otherwise

noted. This prevents food odor and taste transfer

throughout the refrigerator. For dated products,

check date code to ensure freshness.

Food How to

Butter or

Margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese

Store in the original wrapping

until you are ready to use it.

Once opened, rewrap tightly in

plastic wrap or aluminum foil.

Milk Wipe milk cartons. For coldest

milk, place containers on

interior shelf.

Eggs Store in original carton on

interior shelf, not on door shelf.

Fruit Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store

in a completely closed paper

bag on a refrigerator shelf.

Leafy

Vegetables

Remove store wrapping and

trim or tear off bruised and

discolored areas. Wash in cold

water and drain. Place in plastic

bag or plastic container and

store in crisper.

Vegetables

with skins

(carrots,

peppers)

Place in plastic bags or plastic

container and store in crisper.

Fish Store fresh fish and shellfish

in the freezer section if they

are not being consumed the

same day of purchase. It is

recommended to consume

fresh fish and shellfish the

same day purchased.

Leftovers

Cover leftovers with plastic wrap

or aluminum foil, or store in

plastic containers with tight lids.

Storing Frozen Food

Freezing

Your freezer will not quick-freeze a large

quantity of food. Do not put more unfrozen

food into the freezer than will freeze within

24 hours (no more than 2 to 3 lbs. of food per

cubic foot of freezer space). Leave enough

space in the freezer for air to circulate around

packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality

and type of food, the type of packaging or wrap

used (how airtight and moisture-proof) and

the storage temperature. Ice crystals inside a

sealed package are normal. This simply means

that moisture in the food and air inside the

package have condensed, creating ice crystals.

NOTE

Check a freezer guide or a reliable cookbook

for further information about preparing food

for freezing or food storage times.

NOTE

Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze.

Cooling hot foods before freezing saves

energy.

36 HOW TO USE

ENGLISH

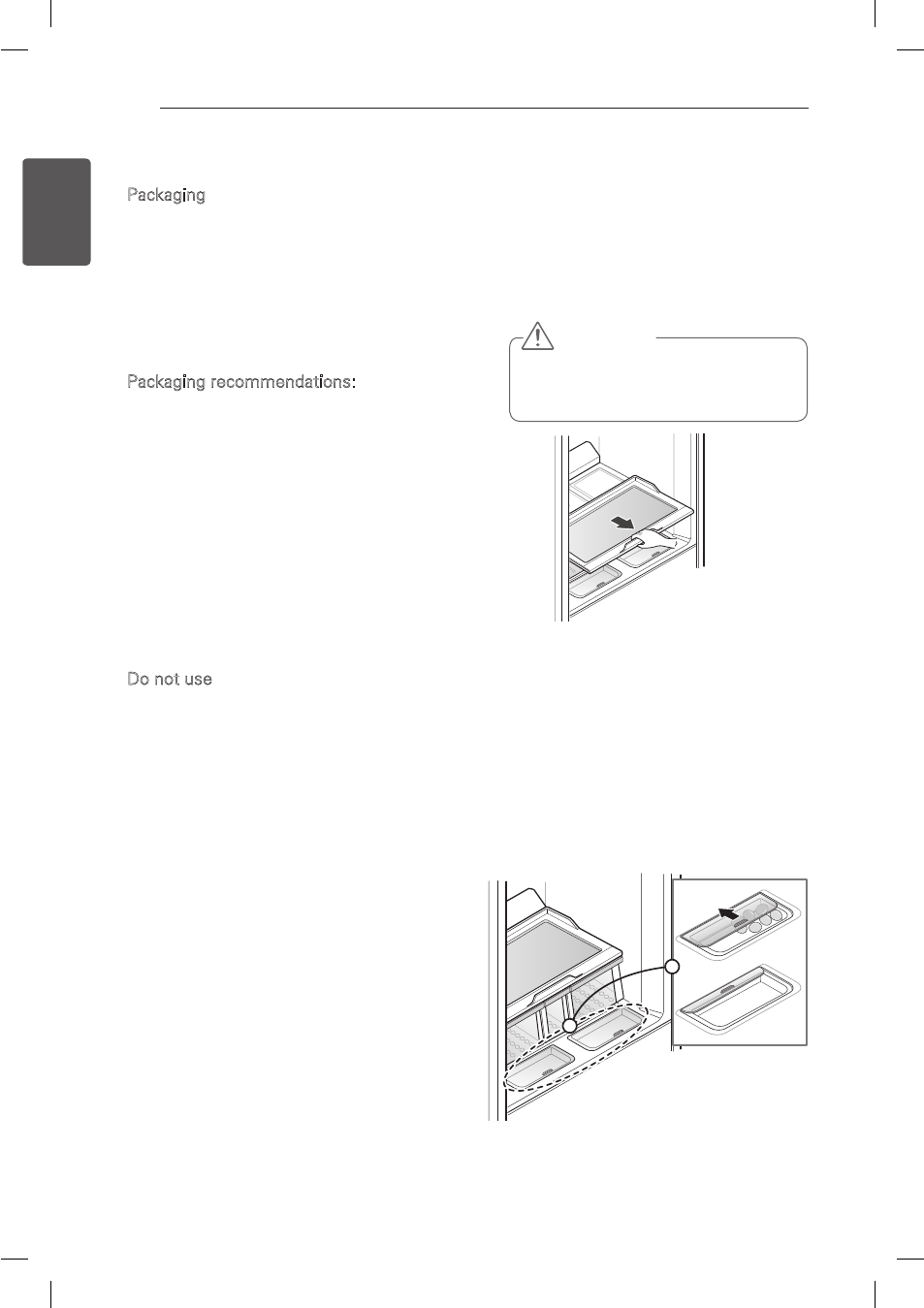

Glide‘N’Access™

The Glide’N’Access™ slides out for easy loading

of large items, like sheet cakes or deli trays, and

to give you easy access to items stored at the

back of the shelf.

To slide out, grasp the handle at the front of the

shelf and gently pull forward. Push back to slide

in.

Storing Frozen Food (continued)

Packaging

Successful freezing depends on correct

packaging. When you close and seal the

package, it must not allow air or moisture in or

out. If it does, you could have food odor and

taste transfer throughout the refrigerator and

could also dry out frozen food.

Packaging recommendations:

Rigid plastic containers with tight-fitting

y

lids

Straight-sided canning/freezing jars

y

Heavy-duty aluminum foil

y

Plastic-coated paper

y

Non-permeable plastic wraps

y

Specified freezer-grade self-sealing plastic

y

bags

Follow package or container instructions for

proper freezing methods.

Do not use

Bread wrappers

y

Non-polyethylene plastic containers

y

Containers without tight lids

y

Wax paper or wax-coated freezer wrap

y

Thin, semi-permeable wrap

y

EasyReach™

The EasyReach™ compartments are slightly

cooler than the shelf or door bin areas, so they

are a convenient place to store dairy snacks or

other small items you want to keep especially

cold. They are also a handy place to defrost

meat.

Open and close by pulling the handle.

CAUTION

Take care when sliding the

Glide'N'Access™ in and out, as taller

items may fall, causing damage or injury.

37

HOW TO USE

ENGLISH

Detaching and Assembling the

Storage Bins

Glide‘N’Access™ Crisper

To remove the Glide‘N’Access™ Crisper, pull

out the Crisper to full extension, lift the front

up, and pull straight out.

To install, slightly tilt up the front, insert the

drawer into the frame and push it back into

place.

To Remove Glide‘N’Access™

To remove the Glide‘N’Access™, pull out the

shelf to full extension, lift the front up and pull

straight out.

Door Bins

The door bins are removable for easy cleaning

and adjustment.

1

To remove the bin, simply lift the bin up

and pull straight out.

2

To replace the bin, slide it in above the

desired support and push down until it

snaps into place.

NOTE

Some bins may vary in appearance and

will only fit in one location.

CAUTION

Do not apply excessive force while

y

detaching or assembling the storage

bins.

Do not use the dishwasher to clean

y

the storage bins and shelves.

Regularly detach and wash the

y

storage bins and shelves; they can

become easily contaminated by the

food.

38 HOW TO USE

ENGLISH

1 To remove the Door-In-Door case, lift up

and pull out.

2 To replace the Door-In-Door case, line up

the tabs on the Door-In-Door Case with

the slots on the door and push the case

down until it snaps into place.

Door-In-Door Case

To open the Door-In-Door case, slightly push

the marked area to pop it open. The Door-In-

Door Case is removable for easy cleaning and

adjustment.

Door-In-Door

Door-In-Door Compartment

To access the Door-in-Door compartment, lightly

press the button on the right refrigerator door

handle to open the door.

Door-In-Door Door Bins

The Door-In-Door inner and outer door bins are

removable for easy cleaning.

1 To remove the door bins, lift up and pull

out.

2 To replace the door bins, slide the door

bin in above the desired support and push

down until it snaps into place.

39

HOW TO USE

ENGLISH

CustomChill™ Drawer

The CustomChill™ Drawer provides storage

space with a variable temperature control that

can be adjusted to keep the compartment

either colder or warmer than the refrigerator.

Setting the Temperature

Press the Select/Lock button repeatedly to

toggle through the four temperature settings.

Store meat and seafood at 29°F/-1°C, cold

drinks at 33°F/1°C, deli snacks at 37°F/3°C, or

chilled wine at 42°F/5°C.

Control Lock

The control panel can also be locked to prevent

the temperature from accidentally being

changed or tampered with by children. To

lock the panel, press and hold the Select/Lock

button for three seconds until the Lock icon

lights up. To unlock the panel, press and hold

the Select/Lock button until the Lock icon light

turns off.

Control Panel

40 HOW TO USE

ENGLISH

Adjusting the Refrigerator

Shelves

The shelves in your refrigerator are adjustable

to meet your individual storage needs. Your

model may have glass or wire shelves.

Adjusting the shelves to fit items of different

heights will make finding the exact item you

want easier. Doing so will also reduce the

amount of time the refrigerator door is open

which will save energy.

Detaching the Shelf

Tilt up the front of the shelf and lift it straight

up. Pull the shelf out.

Assembling the Shelf

Tilt the front of the shelf up and guide the shelf

hooks into the slots at a desired height. Then,

lower the front of the shelf so that the hooks

drop into the slots.

Using the Folding Shelf

You can store taller items, such as a gallon

container or bottles, by simply pushing the

front half of the shelf underneath the back half

of the shelf. Pull the front of the shelf toward

you to return to a full shelf.

CAUTION

Do not clean glass shelves with

y

warm water while they are cold.

Shelves may break if exposed to

sudden temperature changes or

impact.

Glass shelves are heavy. Use special

y

care when removing them.

CAUTION

Make sure that shelves are level from

one side to the other. Failure to do so

may result in the shelf falling or spilling

food.

41

MAINTENANCE

ENGLISH

MAINTENANCE

Cleaning

Both the refrigerator and freezer sections defrost automatically; however, clean both

y

sections about once a month to prevent odors.

Wipe up spills immediately.

y

Always unplug the refrigerator before cleaning.

y

General Cleaning Tips

Unplug refrigerator or disconnect power.

y

Remove all removable parts, such as

y

shelves, crispers, etc.

Use a clean sponge or soft cloth and a

y

mild detergent in warm water. Do not

use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces

y

thoroughly.

Exterior

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic

parts. Wax painted metal surfaces at least

twice a year using appliance wax (or auto paste

wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior,

use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft

cloth.

Inside Walls (allow freezer to warm

up so the cloth will not stick)

To help remove odors, you can wash the inside

of the refrigerator with a mixture of baking

soda and warm water. Mix 2 tablespoons of

baking soda to 1 quart of water (26 g soda

to 1 liter water) Be sure the baking soda is

completely dissolved so it does not scratch the

surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use cleaning

waxes, concentrated detergents, bleaches,

or cleaners containing petroleum on plastic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use glass

cleaners, abrasive cleansers, or flammable

fluids. These can scratch or damage the

material.

Condenser Coils

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

CAUTION

Do not use a rough cloth or sponge

y

when cleaning the interior and exterior

of the refrigerator.

Do not place your hand on the bottom

y

surface of the refrigerator when

opening and closing.

WARNING

Use non-flammable cleaner. Failure to do

so can result in fire, explosion, or death.

42 MAINTENANCE

ENGLISH

2 Install a New Air Filter.

Place the new filter inside of the cover

with the side that says “Front” facing

outward. Turn the filter cover to the right

to attach to the refrigerator wall.

After changing the filter, push and hold the

Air Filter button for three seconds to reset

the filter sensor.

Replacing the Fresh Air Filter

It is recommended that you replace the air filter:

Approximately every six months.

y

When the CHANGE FILTER light turns on.

y

1 Remove the Old Filter

Turn the filter cover to the left to detach

from the refrigerator wall. The filter is

located on the inside of the filter cover.

Remove the filter from the cover and

replace it with a new filter.

Replacing the Water Filter

It is recommended that you replace the water filter:

Ap

yproximately every six months.

When the water filter indicator turns on.

y

When the water dispenser output decreases.

y

When the ice cubes are smaller than normal.

y

3

Assemble the door

bin.

1 Remove the old water filter.

Lift up and remove the lower door bin. Swing

the right end of the water filter out of the

compartment and then grasp and rotate the

filter counterclockwise to remove it from the

filter head.

NOTE

Replacing the water filter could cause a

small amount of water to drain. Place a cup

under the filter head to catch any water.

NOTE

This refrigerator does not require a filter

bypass plug when the filter is not in place.

2

Replace with a new water filter.

Insert the new filter into the filter head and

rotate it clockwise until the arrow on the

new filter lines up with the arrow on the

filter head. Swing the filter back into the

compartment.

43

MAINTENANCE

ENGLISH

Performance Data Sheet

Use Replacement Cartridge: ADQ73613401

The concentration of the indicated substances in water entering the system was reduced to a

concentration less than or equal to the permissible limit for water leaving the system as specified in

NSF/ANSI Standard 42 and Standard 53.

Capacity 200 Gallons (757 Liters) Contaminant Reduction Determined by NSF testing.

System tested and certified by NSF International against NSF/ANSI Standard 42

and Standard 53 for the reduction of substances listed below.

Contaminant

Reduction Average

Influent

NSF specified

Challenge

Concentration

Avg %

Reduction

Average

Product Water

Concentration

Max

Permissible

Product Water

Concentration

NSF Reduction

equirements

Chlorine Taste and

Odor 2.0 mg/L 2.0 mg/L ± 10% 97.5% 0.05 mg/L N/A ≥ 50%

Nominal Particulate

Class I, , ≥ 0.5 to <

1.0 µm

5,600,000 pts/

mL

At least 10,000 particles/

mL 99.3% 73,000 pts/ml N/A ≥ 85%

Asbestos 170 MFL

107 to 108 MFL; fibers

greater than 10 µm in

length

>99% < 1MLF N/A ≥ 99%

Atrazine 0.0087 mg/L 0.009 mg/L ± 10% 94.2% 0.0005 mg/L 0.003 mg/L N/A

Benzene 0.017 mg/L 0.015 mg/L ± 10% 97.0% < 0.0005 mg/L 0.005 mg/L N/A

Carbofuran 0.073 mg/L 0.08 mg/L ± 10% 98.8% 0.001 mg/L 0.04 mg/L N/A

Lindane 0.002 mg/L 0.002 mg/L ± 10% 98.8% 0.00002 mg/L 0.0002 mg/L N/A

P-Dichlorobenzene 0.263 mg/L 0.225 mg/L ± 10% 99.6% 0.001 mg/L 0.075 mg/L N/A

Toxaphene 0.015 mg/L 0.015 mg/L ± 10% 93.5% 0.001 mg/L 0.003 mg/L N/A

2,4-D 0.25 mg/L 0.210 mg/L ± 10% 99.5% 0.0012 mg/L 0.07 mg/L N/A

Lead pH @6.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A

Lead pH @8.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A

Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L ± 10% 96.5 0.0002 mg/L 0.002 mg/L N/A

Mercury @ pH 8.5 0.0062 mg/L 0.006 mg/L ± 10% 86.9 0.0081 mg/L 0.002 mg/L N/A

Cyst* 200,000

cysts/L Minimum 50,000 cysts/L >99.99% <1 cyst/L N/A ≥ 99.95%

* Based on the use of Cryptosporidium parvum oocysts.

44 MAINTENANCE

ENGLISH

It is essential that the manufacturer’s

recommended installation, maintenance and filter

replacement requirements be carried out for the

product to perform as advertised.

Replacement Cartridge: ADQ73613401

For estimated costs of replacement elements

please call 1-877-714-7486 or visit our website at

www.lge.com

Refer to the “warranty” section of the

Refrigerator Owner’s Manual for Limited Warranty

information.

Note that while the testing was performed under

standard laboratory conditions, actual performance

may vary.

Read, understand, and follow all safety Information contained in these instructions prior to installation and

use of this product. Retain these instructions for future reference.

NSF System Trade Name Code : ADQ73613401-S

NSF Replacement Code : ADQ73613401

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Community or private well

— Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

Water Temperature 33-100°F (0.6 -37.8°C)

Capacity 200 gallons (757 liters)

WARNING

To reduce the risk associated with the ingestion of contaminants:

Do not

y use with water that is microbiologically unsafe or of unknown quality without adequate

disinfection before or after the system. Systems certified for cyst reduction may be used on

disinfected water that may contain filterable cysts.

CAUTION

Please note that water could fall while replacing filter which could result property damage.

To reduce the risk associated with property damage due to water leakage:

Read and follow

y Use Instructions before installation and use of this system.

Installation

ymust comply with existing state or local plumbing codes.

Protect filter from freezing

y Drain filter when room temperature drops below 33°F (0.6°C).

Do not

y install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi,

you must install a pressure limiting valve. Contact a plumbing professional if you are uncertain how

to check your water pressure.

Do not

y install where water hammer conditions may occur. If water hammer conditions exist you

must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to

check for this condition.

Do not

y install on hot water supply lines. Install on cold water lines only. The maximum operating

water temperature of this filter system is 100°F (37.8°C).

Where a backflow prevention device is installed on a water system, a device for controlling pressure

y

due to thermal expansion must be installed.

The disposable filter cartridge

ymust be replaced every six months, at the rated capacity or if a

noticeable reduction in flow rate occurs.

NSF is a trademark of NSF International. LG is a trademark of LG Corp. MCM Co..Ltd.

Application Guidelines / Water Supply Parameters

SAFETY INFORMATION

45

MAINTENANCE

ENGLISH

California Department of Public Health Certification 14-3015

46 SMART DIAGNOSIS

ENGLISH

3 Hold the mouthpiece of your phone in front

of the speaker that

is located on the

right hinge of the

refrigerator door,

when instructed

to do so by the call

center.

4 Press and hold the Freezer button for three

seconds while

continuing to

hold your phone

to the speaker.

5 After you hear three beeps, release the

Freezer button.

6 Keep the phone in place until the tone

transmission has finished. This takes about

6 seconds, and the display will count down

the time. Once the countdown is over

and the tones have stopped, resume your

conversation with the specialist, who will then

be able to assist you in using the information

transmitted for analysis.

Should you experience any problems with your

refrigerator, it has the capability of transmitting

data via your telephone to the LG service

center. This allows you to speak directly to our

trained specialists. The specialist records the

data transmitted from your machine and uses

it to analyze the issue, providing a fast and

effective diagnosis.

If you experience problems with your

refrigerator, call 1-800-243-0000. Only use the

Smart Diagnosis™ feature when instructed

to do so by the LG call center agent. The

transmission sounds that you will hear are

normal and sound similar to a fax machine.

Smart Diagnosis™ cannot be activated unless

your refrigerator is connected to power. If

your refrigerator is unable to turn on, then

troubleshooting must be done without using

Smart Diagnosis™.

Using Smart Diagnosis™

First, call 1-800-243-0000. Only use the Smart

Diagnosis™ feature when instructed to do so

by the LG call center agent.

1 Lock the display. To lock the display,

press and hold the Lock button for three

seconds. (If the display has been locked

for over five minutes, you must deactivate

the lock and then reactivate it.)

2 Open the right refrigerator door.

SMART DIAGNOSIS

NOTE

For best results, do not move the phone

y

while the tones are being transmitted.

If the call center agent is not able to get

y

an accurate recording of the data, you

may be asked to try again.

NOTE

Call quality differences by region may

y

affect the function.

Use a land line rather than a cell phone

y

for better communication performance,

resulting in better service.

Bad call quality may result in poor data

y

transmission from your phone to the

machine, which could cause Smart

Diagnosis™ to malfunction.

47

TROUBLESHOOTING

ENGLISH

TROUBLESHOOTING

Review the Troubleshooting section before calling for service; doing so will save you both time

and money.

Problem Possible Causes Solutions

Refrigerator and

Freezer section

are not cooling.

The refrigerator control is set to

OFF (some models).

Turn the control ON. Refer to the Setting the

Controls section for proper temperature settings.

Refrigerator is in the defrost

cycle.

During the defrost cycle, the temperature of

each compartment may rise slightly. Wait 30

minutes and confirm the proper temperature

has been restored once the defrost cycle has

completed.

Refrigerator was recently

installed.

It may take up to 24 hours for each compartment

to reach the desired temperature.

Refrigerator was recently

relocated.

If the refrigerator was stored for a long period of

time or moved on its side, it is necessary for the

refrigerator to stand upright for 24 hours before

connecting it to power.

Cooling System

runs too much.

Refrigerator is replacing an

older model.

Modern refrigerators require more operating

time but use less energy due to more efficient

technology.

Refrigerator was recently

plugged in or power restored.

The refrigerator will take up to 24 hours to cool

completely.

Door opened often or a large

amount of food / hot food was

added.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run

longer in order to cool the refrigerator back

down. In order to conserve energy, try to get

everything you need out of the refrigerator

at once, keep food organized so it is easy to

find, and close the door as soon as the food is

removed. (Refer to the Food Storage Guide.)

Doors are not closed

completely.

Firmly push the doors shut.

Refrigerator is installed in a hot

location.

The compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to

80% of the time. Under warmer conditions,

expect it to run even more often. The refrigerator

should not be operated above 110°F.

Condenser / back cover is

clogged.

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

48 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Refrigerator or

Freezer section is

too warm.

Refrigerator was recently

installed. It may take up to 24 hours for each compartment

to reach the desired temperature.

Air vents are blocked. Rearrange items to allow air to flow throughout

the compartment. Refer to the Airflow diagram in

the Using Your Refrigerator section.

Doors are opened often or for

long periods of time. When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

Unit is installed in a hot location. The refrigerator should not be operated in

temperatures above 110°F.

A large amount of food or

hot food was added to either

compartment.

Adding food warms the compartment requiring

the cooling system to run. Allowing hot food to

cool to room temperature before putting it in the

refrigerator will reduce this effect.

Doors not closed correctly. See the Doors will not close correctly or pop

open section in Troubleshooting.

Temperature control is not set

correctly. If the temperature is too warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

Defrost cycle has recently

completed. During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes

and confirm the proper temperature has been

restored once the defrost cycle has completed.

49

TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Interior moisture

buildup. Doors are opened often or for

long periods of time. When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To

lessen the effect, reduce the frequency and

duration of door openings.

Doors not closed correctly. See the Doors will not close correctly section in

the Troubleshooting section.

Weather is humid. Humid weather allows additional moisture

to enter the compartments when the doors

are opened leading to condensation or frost.

Maintaining a reasonable level of humidity in the

home will help to control the amount of moisture

that can enter the compartments.

Defrost cycle recently

completed. During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm that the proper temperature has been

restored once the defrost cycle has completed.

Food is not packaged correctly. Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation

within each compartment. Wipe all containers

dry and store food in sealed packaging to prevent

condensation and frost.

Food is freezing

in the refrigerator

compartment.

Food with high water content

was placed near an air vent.

Rearrange items with high water content away

from air vents.

Refrigerator temperature control

is set incorrectly.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

Refrigerator is installed in a cold

location.

When the refrigerator is operated in temperatures

below 41°F (5°C), food can freeze in the

refrigerator compartment. The refrigerator should

not be operated in temperatures below 55°F (13°C).

Frost or ice

crystals form

on frozen food

(outside of

package).

Door is opened frequently or for

long periods of time.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. Increased

moisture will lead to frost and condensation.

To lessen the effect, reduce the frequency and

duration of door openings.

Door is not closing properly. Refer to the Doors will not close correctly or pop

open section in the Troubleshooting section.

Refrigerator or

Freezer section is

too cold.

Incorrect temperature control

settings.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

50 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Frost or ice

crystals on frozen

food (inside of

sealed package).

Condensation from food with a

high water content has frozen

inside of the food package.

This is normal for food items with a high water

content.

Food has been left in the freezer

for a long period of time.

Do not store food items with high water content

in the freezer for a long period of time.

Icemaker is not

making enough

ice.

Demand exceeds ice storage

capacity.

The icemaker will produce approximately 70~182

cubes in a 24 hour period.

House water supply is not

connected, valve is not turned

on fully, or valve is clogged.

Connect the refrigerator to a cold water supply

with adequate pressure and turn the water

shutoff valve fully open.

If the problem persists, it may be necessary to

contact a plumber.

Water filter has been

exhausted.

It is recommended that you replace the water

filter:

Approximately every six months.•

When the water filter indicator turns on.•

When the water dispenser output decreases. •

When the ice cubes are smaller than normal.•

Low house water supply

pressure.

The water pressure must be 20~120 psi or

138~827 kPa or 1.4~8.4 kgf/cm² on models

without a water filter and 40~120 psi or 276~827

kPa or 2.8~8.4 kgf/cm² on models with a water

filter.

If the problem persists, it may be necessary to

contact a plumber.

Reverse Osmosis filtration

system is used.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to Water Pressure section.)

Tubing connecting refrigerator

to house supply valve is kinked.

The tubing can kink when the refrigerator is

moved during installation or cleaning resulting

in reduced water flow. Straighten or repair the

water supply line and arrange it to prevent future

kinks.

51

TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Icemaker is not

making enough

ice (continued).

Doors are opened often or for

long periods of time.

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent

the unit from maintaining the set temperature.

Lowering the refrigerator temperature can help,

as well as not opening the doors as frequently.

Doors are not closed

completely.

If the doors are not properly closed, ice

production will be affected. See the Doors will

not close completely or pop open section in Parts

& Features Troubleshooting for more information.

The temperature setting for the

freezer is too warm.

The recommended temperature for the freezer

compartment for normal ice production is 0°F. If

the freezer temperature is warmer, ice production

will be affected.

Dispensing water

slowly.

Water filter has been exhausted. It is recommended that you replace the water

filter:

Approximately every six months.•

When the water filter indicator turns on.•

When the water dispenser output decreases. •

When the ice cubes are smaller than normal.•

Reverse osmosis filtration

system is used.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

If the problem persists, it may be necessary to

contact a plumber.

Low house water supply

pressure.

The water pressure must be 20~120 psi or

138~827 kPa or 1.4~8.4 kgf/cm² on models

without a water filter and 40~120 psi or 276~827

kPa or 2.8~8.4 kgf/cm² on models with a water

filter.

If the problem persists, it may be necessary to

contact a plumber.

52 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Not dispensing

ice.

Doors are not closed

completely.

Ice will not dispense if any of the refrigerator

doors are left open.

Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause

the cubes to stick together over time, which

will prevent them from properly dispensing.

Check the ice bin for ice cubes clumping/sticking

together. If they are, break up the ice cubes to

allow for proper operation.

The delivery chute is clogged

with frost or ice fragments.

Eliminate the frost or ice fragments by removing

the ice bin and clearing the chute with a plastic

utensil. Dispensing cubed ice can also help

prevent frost or ice fragment buildup.

The dispenser display is locked. Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

Ice bin is empty. It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice. Make sure that the

shutoff (arm/sensor) is not obstructed.

Once the ice supply in the bin has been

completely exhausted, it my take up to 90

minutes before additional ice is available, and

approximately 24 hours to completely refill the

bin.

Icemaker is not

making ice.

Refrigerator was recently

installed or icemaker recently

connected.

It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice.

Icemaker not turned on. Locate the icemaker ON/OFF switch and confirm

that it is in the ON (I) position.

The ice detecting sensor is

obstructed.

Foreign substances or frost on the ice-detecting

sensor can interrupt ice production. Make sure

that the sensor area is clean at all times for proper

operation.

The refrigerator is not connected

to a water supply or the supply

shutoff valve is not turned on.

Connect refrigerator to the water supply and turn

the water shutoff valve fully open.

Icemaker shutoff (arm or

sensor) obstructed.

If your icemaker is equipped with an ice shutoff

arm, make sure that the arm moves freely. If

your icemaker is equipped with the electronic ice

shutoff sensor, make sure that there is a clear

path between the two sensors.

Reverse osmosis water filtration

system is connected to your

cold water supply.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to the Water Pressure section.)

53

TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Not dispensing

water.

New installation or water line

recently connected.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped air

and contaminants from the system.

Do not dispense the entire 2.5 gallon amount

continuously. Depress and release the dispenser

pad for cycles of 30 seconds ON and 60 seconds

OFF.

The dispenser panel is locked. Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

The dispenser is not set for

water dispensing.

The dispenser can be set for ice or water. Make

certain that the control panel is set for the proper

operation. Press the Water button on the control

panel to dispense water.

Refrigerator or freezer doors are

not closed properly.

Water will not dispense if any of the refrigerator

doors are left open.

Water filter has been recently

removed or replaced.

After the water filter is replaced, dispense 2.5

gallons of water (flush for approximately 5

minutes) to remove trapped air and contaminants

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release

the dispenser pad for cycles of 30 seconds ON

and 60 seconds OFF.

Tubing connecting refrigerator

to house supply valve is kinked.

The tubing can kink when the refrigerator is

moved during installation or cleaning resulting in

reduced water flow. Straighten or repair the water

supply line and arrange it to prevent future kinks.

The house water supply is not

connected, the valve is not

turned on fully, or the valve is

clogged.

Connect refrigerator to the water supply and turn

the water shutoff valve fully open.

If the problem persists, it may be necessary to

contact a plumber.

54 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Ice has bad taste

or odor.

Water supply contains minerals

such as sulfur.

A water filter may need to be installed to

eliminate taste and odor problems.

NOTE: In some cases, a filter may not help. It

may not be possible to remove all minerals / odor

/ taste in all water supplies.

Icemaker was recently installed. Discard the first few batches of ice to avoid

discolored or bad tasting ice.

Ice has been stored for too

long.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

The food has not been stored

properly in either compartment.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

The interior of the refrigerator

needs to be cleaned.

See the Care and Cleaning section for more

information.

The ice storage bin needs to be

cleaned.

Empty and wash the bin (discard old cubes).

Make sure that the bin is completely dry before

reinstalling it.

Dispensing warm

water.

Refrigerator was recently

installed.

Allow 24 hours after installation for the water

storage tank to cool completely.

The water dispenser has been

used recently and the storage

tank was exhausted.

Depending on your specific model, the water

storage capacity will range from approximately 20

to 30 oz.

Dispenser has not been used

for several hours.

If the dispenser has not been used for several

hours, the first glass dispensed may be warm.

Discard the first 10 oz.

Refrigerator is connected to the

hot water supply.

Make sure that the refrigerator is connected to a

cold water pipe.

WARNING: Connecting the refrigerator to a

hot water line may damage the icemaker.

Water has bad

taste or odor.

Water supply contains minerals

such as sulfur.

A water filter may need to be installed to

eliminate taste and odor problems.

Water filter has been exhausted. It is recommended that you replace the water

filter:

Approximately every 6 months.•

When the water filter indicator turns on.•

When the water dispenser output decreases. •

When the ice cubes are smaller than normal.•

Refrigerator was recently

installed.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped

air and contaminants from the system. Do

not dispense the entire 2.5 gallon amount

continuously. Depress and release the dispenser

pad for cycles of 30 seconds ON and 60 seconds

OFF.

55

TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Icemaker is

making too much

ice.

Icemaker shutoff (arm/sensor)

is obstructed.

Empty the ice bin. If your icemaker is equipped

with an ice shutoff arm, make sure that the arm

moves freely. If your icemaker is equipped with

the electronic ice shutoff sensor, make sure that

there is a clear path between the two sensors.

Reinstall the ice bin and wait 24 hours to confirm

proper operation.

Clicking The defrost control will click

when the automatic defrost

cycle begins and ends.

The thermostat control (or

refrigerator control on some

models) will also click when

cycling on and off.

Normal Operation

Rattling Rattling noises may come from

the flow of refrigerant, the

water line on the back of the

unit, or items stored on top of

or around the refrigerator.

Normal Operation

Refrigerator is not resting solidly

on the floor.

Floor is weak or uneven or leveling legs need to

be adjusted. See the Door Alignment section.

Refrigerator with linear

compressor was jarred while

running.

Normal Operation

Whooshing Evaporator fan motor is

circulating air through the

refrigerator and freezer

compartments.

Normal Operation

Air is being forced over the

condenser by the condenser

fan.

Normal Operation

Gurgling Refrigerant flowing through the

cooling system.

Normal Operation

Popping Contraction and expansion of

the inside walls due to changes

in temperature.

Normal Operation

Sizzling Water dripping on the defrost

heater during a defrost cycle.

Normal Operation

Vibrating If the side or back of the

refrigerator is touching a cabinet

or wall, some of the normal

vibrations may make an audible

sound.

To eliminate the noise, make sure that the sides

and back cannot vibrate against any wall or

cabinet.

Dripping Water running into the drain pan

during the defrost cycle.

Normal Operation

56 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Pulsating or

High-Pitched

Sound

Your refrigerator is designed

to run more efficiently to keep

your food items at the desired

temperature. The high efficiency

compressor may cause your

new refrigerator to run longer

than your old one, but it is still

more energy efficient than

previous models. While the

refrigerator is running, it is

normal to hear a pulsating or

high-pitched sound.

Normal Operation

Doors will not

close correctly or

pop open.

Food packages are blocking the

door open.

Rearrange food containers to clear the door and

door shelves.

Ice bin, crisper cover, pans,

shelves, door bins, or baskets

are out of position.

Push bins all the way in and put crisper cover,

pans, shelves and baskets into their correct

positions. See the Using Your Refrigerator section

for more information.

The doors were removed during

product installation and not

properly replaced.

Remove and replace the doors according to the

Removing and Replacing Refrigerator Handles

and Doors section.

Refrigerator is not leveled

properly.

See Door Alignment in the Refrigerator Installation

section to level refrigerator.

Doors are difficult

to open.

The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they

touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

Door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create

a vacuum. If the door is hard to open, wait one

minute to allow the air pressure to equalize, then

see if it opens more easily.

Refrigerator

wobbles or

seems unstable.

Leveling legs are not adjusted

properly.

Refer to the Leveling and Door Alignment section.

Floor is not level. It may be necessary to add shims under the

leveling legs or rollers to complete installation.

Lights do not

work.

LED interior lighting failure. The refrigerator compartment lamp is LED interior

lighting, and service should be performed by a

qualified technician.

Refrigerator has

an unusual odor.

The Air Filter may need to

be set to the MAX setting or

replaced.

Set the Air Filter to the MAX setting. If the odor

does not go away within 24 hours, the filter may

need to be replaced. See the Replacing the Air

Filter section for replacement instructions.

The interior of

the refrigerator

is covered with

dust or soot.

The refrigerator is located near a

fire source, such as a fireplace,

chimney or candle.

Make sure that the refrigerator is not located

near a fire source, such as a fireplace, chimney or

candle.

57

WARRANTY

ENGLISH

Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under

normal home use, during the warranty period set forth below, LG will at its option repair or replace

the product. This limited warranty is valid only to the original retail purchaser of the product and

applies only when purchased and used within the United States including U.S. Territories. Proof of

original retail purchase is required to obtain warranty service under this limited warranty.

Noises associated with normal operation and failure to follow instructions found in the use and

care and installation guides or operating the unit in an unsuitable environment will not be covered

under this warranty.

 Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

 Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,

INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED

BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.

NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY

OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how

long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This

warranty gives you specific legal rights and you may also have other rights that vary from state

to state.

WARRANTY (USA)

WARRANTY PERIOD

Refrigerator

Sealed System

(Condenser, Dryer, Connecting Tube,

Refrigerant and Evaporator)

Linear Compressor

One (1) year from

the date of original

retail purchase

One (1) year from the

date of original retail

purchase

Seven (7) years from

the date of original

retail purchase

Ten (10) years from the

date of original retail

purchase

Parts and Labor

(internal/functional

parts only)

Parts and Labor Parts only (Consumer

will be charged for

labor)

Part only (Consumer will

be charged for labor)

58 WARRANTY

ENGLISH

For complete warranty details and customer assistance, please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at

http://www.lg.com

Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC

Write your warranty information below: _______________________________________________

Product Registration Information: _____________________________________________________

Model: ____________________________________________________________________________

Serial Number: _____________________________________________________________________

Date of Purchase: __________________________________________________________________

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation

of the product; repair or replace fuses or correct wiring or plumbing, or correction of unauthorized

repairs/installation.

2. Failure of product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate

or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the

instructions outlined in the product owner’s manual.

5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of

God.

6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair

includes use of parts not approved or specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the

intended purpose, or any water leakage where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial

or industrial use, or use of accessories, components, or consumable cleaning products that are not

approved by LG.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or refurbished product.

11. Products with original serial numbers that have been removed, altered, or can not be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual household use (e.g. commercial

use, offices, and recreational facilities) or contrary to the instructions outlined in the product owner’s

manual.

15. Costs associated with removal of your product from your home for repairs.

16. The removal and reinstallation of the product if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions, including LG’s owner’s and installation

manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were originally

included with this particular model.

18. Service trips to your home to teach you how to use the product.

19. Replacement of the water filter cartridge due to water pressure that is outside the specified

operating range or due to excessive sediment in the water supply.

The cost of repair or replacement under these excluded circumstances shall be borne

by the consumer.

59

WARRANTY

ENGLISH

WARRANTY (Canada)

WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship

under normal home use during the warranty period set forth below, LG Canada will at its option

repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid

only to the original retail purchaser of the product and applies only to a Product distributed in Canada

by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products

located and used within Canada.

Noises associated with normal operation and failure to follow instructions found in the use and care

and installation guides or operating the unit in an unsuitable environment will not be covered under

this warranty.

 Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

 Replacement products and parts may be new or remanufactured.

 LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT

AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS

ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR

CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND

NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT

AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY

OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT

ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS

WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL

NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT

DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES

OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY

CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR

OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may

have other rights which may vary from province to province depending on applicable provincial

laws. Any term of this warranty that negates or varies any implied condition or warranty under

provincial law is severable where it conflicts with provincial law without affecting the remainder

of this warranty’s terms.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

Refrigerator/

Freezer

Sealed System

(Condenser, Dryer, Connecting Tube,

Refrigerant and Evaporator)

Linear Compressor

One (1) year from

the date of original

retail purchase

One (1) year from

the date of original

retail purchase

Seven (7) years from

the date of original

retail purchase

Ten (10) years from the

date of original retail

purchase

Parts and Labor

(internal/functional

parts only)

Parts and Labor Parts only (Consumer

will be charged for

labor)

Part only (Consumer will

be charged for labor)

60 WARRANTY

ENGLISH

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at http://www.lg.com

Write your warranty information below: _________________________________________________

Product Registration Information: _______________________________________________________

Model: ______________________________________________________________________________

Serial Number: _______________________________________________________________________

Date of Purchase: ____________________________________________________________________

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of

the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of

unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or inadequate electrical

service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate

or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the

instructions outlined in the Product owner’s manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of

God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the

Product. Improper repair includes use of parts not approved or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its

intended purpose, or resulting from any water leakage due to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,

commercial or industrial use, or use of accessories, components, or cleaning products that are not

approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished Product.

11. Products with original serial numbers that have been removed, altered, or cannot be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household use (including, without

limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined

in the Product owner’s manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions, including the Product owner’s and

installation manuals.

17. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts

besides those that were originally included with the Product.

18. Service trips to your home to teach you how to use the product.

19. Replacement of the water filter cartridge due to water pressure that is outside the specified

operating range or due to excessive sediment in the water supply.

All costs associated with the above excluded circumstances

shall be borne by the consumer.

1-800-243-0000

1-888-865-3026

1-888-542-2623

USA, Consumer User

USA, Commercial User

CANADA

For inquiries or comments,

visit www.lg.com or call;

www.lg.com

Register your product Online!

LG Customer Information Center
