OWNER’S MANUAL

AIR CONDITIONER

Please read this manual carefully before operating

your air conditioner and retain it for future reference.

www.lgappliances.com

TYPE PORTABLE AIR CONDITIONER

MODEL LP1014WNR

INTRODUCTION

IMPORTANT SAFETY INSTRUCTIONS

Basic Safety Precautions . . . . . . . . . . . . . . . . . . .3 - 6

Electrical Safety

CARE AND CLEANING

Before Calling for Service

TROUBLESHOOTING

Product Registration Information

Water Drainage

Storing the Air Conditioner

WARRANTY

Window Vent Panel and Extensions

Installation in Vertical Sliding Windows

Installation in Casement Style Windows . . . . . . .18,19

INSTALLATION INSTRUCTIONS

Selection of Installation Location

Attaching the Hose and Diffuser

PARTS AND FEATURES

Key Parts and Components . . . . . . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . . . . . . . 22

Cleaning the Case. . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . 21

HOW TO USE

Before Using Your Air Conditioner

Control Panel and Remote

. . . . . . . . . . . . . . . . 11,12

Preparing for Installation

. . . . . . . . . . . . . . . 14

. . . . . . . . . . . . . . . 14

. . . . . . . . . . . . 15

. . . . . . . . . . . . . . . . . 23,24

. . . . . . . . . . . . . . .25

2

Congratulations on your purchase

and welcome to the LG family.

Your new LG Air Conditioner

combines high-efficiency operation

with portable convenience.

If you follow the operating and care

instructions in this manual, your air

conditioner will provide you with

many years of reliable service.

THANK YOU!

. . . . . . . . . . . . 9, 10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . 13

. . . . . . . 16,17

. . . . . . . . . . . . . . . . . . . . . . . . . . . .20

IMPORTANT SAFETY INSTRUCTIONS

3

EnglishEnglish

Do not store flammables like

gasoline benzene thinner

etc. near the air conditioner.

BASIC SAFETY PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

4

Unplug the unit when not

using it for a long time.

Wax

Thinner

IMPORTANT SAFETY INSTRUCTIONS

5

EnglishEnglish

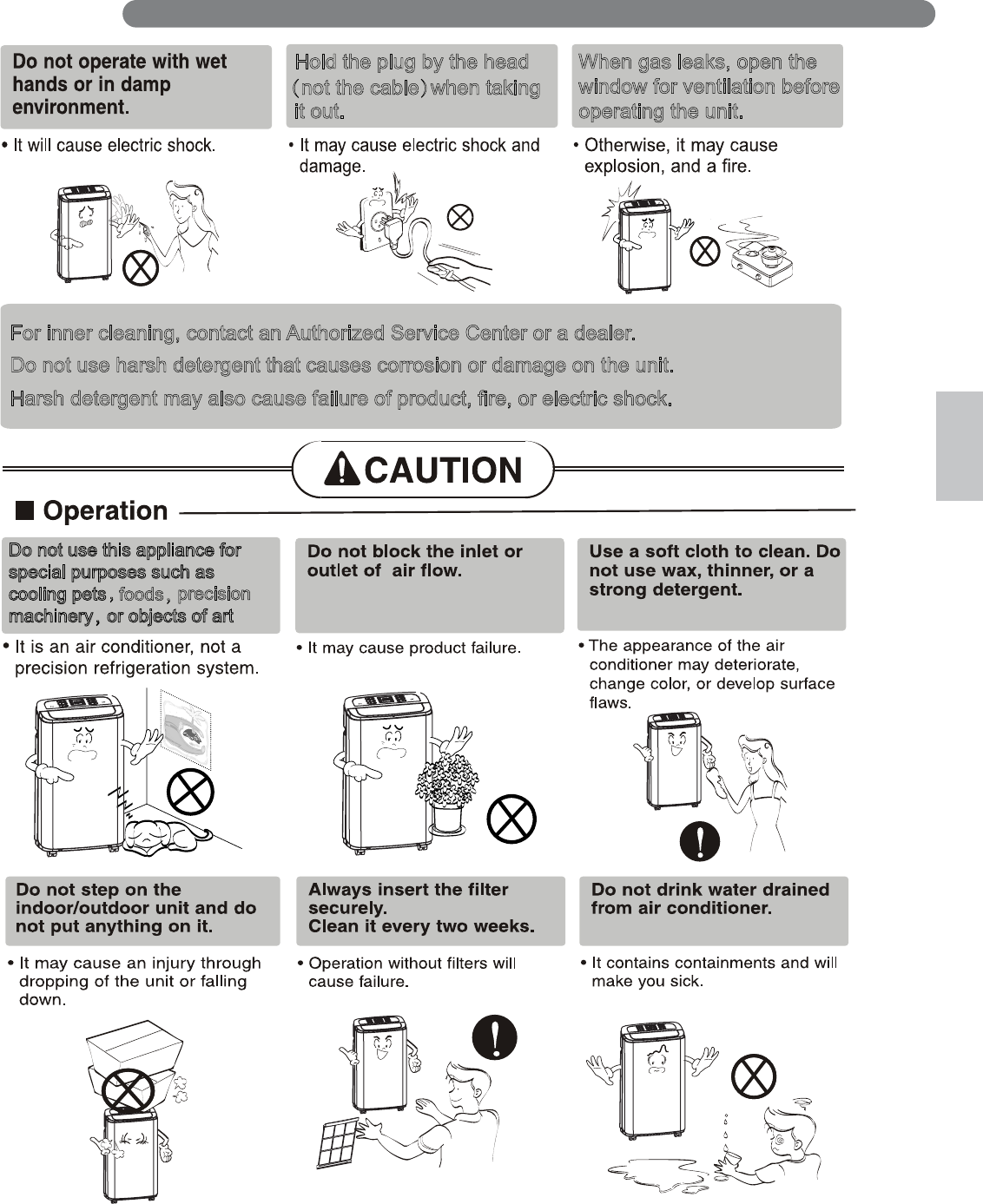

When gas leaks, open the

window for ventilation before

operating the unit.

Hold the plug by the head

it out.

（not the cable）when taking

For inner cleaning, contact an Authorized Service Center or a dealer.

Do not use harsh detergent that causes corrosion or damage on the unit.

Harsh detergent may also cause failure of product, fire, or electric shock.

Do not use this appliance for

special purposes such as

cooling pets foods，

precision

machinery，or objects of art

，

IMPORTANT SAFETY INSTRUCTIONS

6

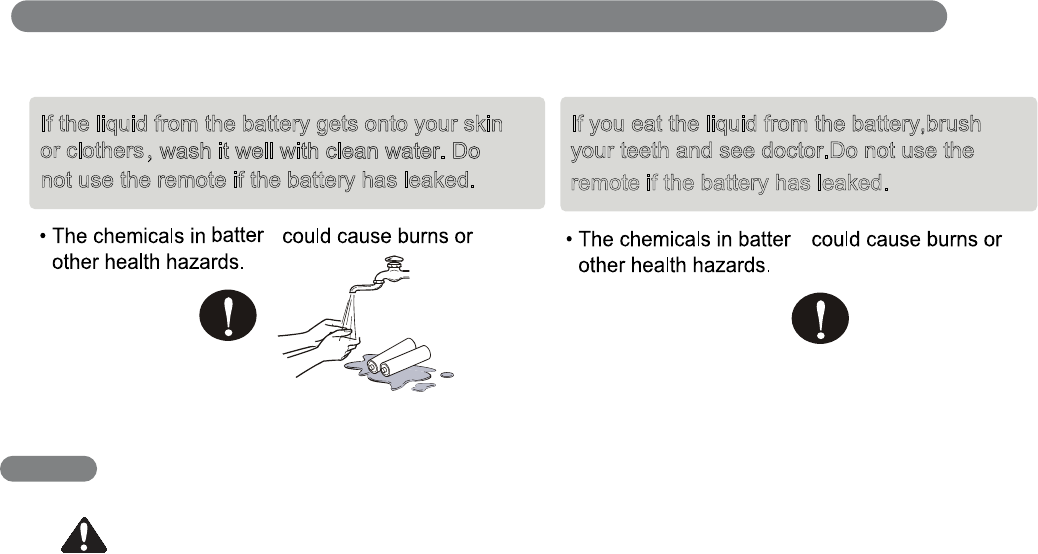

If the liquid from the battery gets onto your skin

or clothers，

wash it well with clean water. Do

not use the remote if the battery has leaked.

y

If you eat the liquid from the battery,brush

your teeth and see doctor.Do not use the

remote if the battery has leaked.

y

ELECTRICAL SAFETY

WARNING

Electrical Shock Hazard

Failure to follow these instructions can result

in death, fire, or electrical shock.

•This unit must be properly grounded.

•Do not, under any circumstances, cut or

remove the ground prong.

•If you do not have a properly grounded

outlet, or if there is any doubt that the outlet

is not properly grounded, a qualified

electrician should check the outlet and

circuit, and, if necessary, install a properly

grounded outlet.

•This air conditioner must be plugged

into a grounded 60 Hz, 120 VAC outlet

protected by a 15 amp time delay fuse

or circuit breaker.

•This air conditioner must be installed in

accordance with national wiring codes.

•Do not alter or modify the plug or cord

of this air conditioner. If the power cord

becomes worn or damaged, the cord should

only be replaced by a qualified service

technician using genuine replacement parts.

•Do not use an extension cord.

7

English

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

For additional safety,

the power cord

features an integrated

circuit breaker. Test

and reset buttons are

provided on the plug

case.

The circuit breaker

should be tested

periodically by

pressing the TEST

button then the RESET button. If the TEST

button does not cause the circuit breaker to trip,

or if the RESET button will not stay engaged,

unplug the air conditioner immediately and

contact your LG service technician.

INTEGRATED CIRCUIT BREAKER

Test

Reset

ELECTRICAL SAFETY

Due to potential safety hazards, the use of

an adapter plug is strongly discouraged.

For temporary connections, use only a

UL-listed adapter. Ensure that the large slot

in the adapter is aligned with the large slot

in the outlet.

To prevent damage to the adapter’s ground

terminal, hold the adapter in place while

plugging in or unplugging the air conditioner.

• Attaching the adapter ground terminal to

the wall receptacle cover screw does not

ground the appliance unless the cover

screw is metal and not insulated, and the

wall receptacle is grounded through the

house wiring.

• Frequent connection and disconnection

can damage the ground terminal on the

adapter. Never use a broken or damaged

adapter.

SAVE THESE INSTRUCTIONS

PREFERRED

GROUNDING METHOD

Ensure proper

ground exists

before use.

TEMPORARY GROUNDING

METHOD

Ensure proper

ground exists

before use.

8

PARTS AND FEATURE S

KEY PARTS AND COMPONENTS

8

1

2

3

5

SWIVELING CASTERS

INFRARED REMOTE CONTROLLER

Swiveling casters allow you to move the air conditioner easily

on most floor surfaces.

The remote controller allows you to adjust the temperature

and operate most functions of the air conditioner

from across the room.

AIR DISCHARGE

HOSE

Use the di

AND DIFFUSER

Use the diffuser and hose to connect the air conditioner to the

window installation kit to vent exhaust air outside.

CONTROL PANEL AND DISPLAY

Easy-to-read digital display shows the set temperature and

indicator lights show the operating mode. Simple push buttons

make changing settings quick and easy.

The direction of air can be controlled wherever you want to cool

by adjusting the horizontal louver.

8

6BOTTOM DRAIN PORT

Before moving the air conditioner, drain the internal water

in the collection tank completely by using bottom drain port.

7AIR FILTER

The horizontal direction is adjusted by moving the lever to the left

or right.

Touching the horizontal louvers adjusts the air direction up or

down.

2

1

4

3

5

Dry

4INTEGRATED HANDLES

Integrated handles provide a convenient grip when lifting the

air conditioner.

7

6

Refer to the Installation Instructions included in

this manual before using the air conditioner.

Once the air conditioner has been properly

assembled and installed:

Plug the power cord into its own dedicated

properly grounded outlet.

Do not plug

other

it could overload the outlet and create a

e hazard.

Make sure the air conditioner and cord is

positioned where it does not create a

tripping hazard and will receive adequate

ventilation. Do not place it directly next to

furniture or objects that could block the

vent openings.

Make sure that any items that could be

blown over or damaged by the airflow from

the fan are out of the airflow path.

PREPARING FOR OPERATION

1

2

appliances into the same outlet;

fire

3

•Do not remain in the direct airflow from the air

conditioner for extended periods of time.

•When used at the same time as stoves,

fireplaces, and other combustion devices,

make sure there is a sufficient flow of fresh air

into the room. Do not use in tightly enclosed

spaces with these types of devices.

•This air conditioner is intended for household

use as a consumer comfort appliance. Do not

use it as a precision climate control system,

or for purposes such as cooling precision

equipment, food, pets, plants, artwork, etc.

Such items could be damaged.

•Do not bend the hose downward when

window installation kit is not applied. It may

cause failure of air conditioner or performance

deterioration.

IMPORTANT:

Remove and store packing materials for reuse.

Remove any shipping tape before using the

air conditioner. If the tape leaves behind any

adhesive, rub a small amount of liquid dish

soap onto it and wipe with a damp cloth. Do

NOT use sharp instruments, alcohol, thinners,

or abrasive cleaners to remove adhesive.

They could damage the finish.

UNPACKING THE AIR CONDITIONER

BEFORE USING YOUR AIR CONDITIONER

HOW TO USE

9

English

BEFORE USING YOUR AIR CONDITIONER

INSERTING BATTERIES IN THE REMOTE

Before using your remote, install the provided

AAA batteries.

Press and glide the battery cover on the back

of the remote, then you can remove the cover.

Insert two new alkaline AAA batteries into

the battery compartment, being sure to note

the proper polarity.

Reattach the battery cover.

NOTE :

Use only alkaline batteries. Do not use

rechargeable batteries.

When replacing batteries, always replace both

batteries with new batteries. Do not mix old

and new batteries.

If the air conditioner will not be used for an

extended period of time, remove the batteries

from the remote.

HOW TO USE

10

Be sure to note

proper polarity!

1

2

3

English

CAUTION

•

Iftheliquidfromthebatteriesgetsontoyourskinorclothes,washitwellwithcleanwater.

Do not use the remote if the batteries have leaked.

• Ifyoueattheliquidfromthebatteries,brushyourteethandseedoctor.

The chemicals in batteries could cause burns or other health hazards.

CONTROL PANEL AND REMOTE

POWER

Press the POWER button to turn the air conditioner

ON or OFF. Any control settings such as Cool, Dry,

Fan, and Fan Speed will be retained in memory when

the power is off. When turned on after being

unplugged, the air conditioner will automatically

reset. Any settings will need to be re-entered.

MODE

Press this button to select the operating mode such

as Cool, Dry (Dehumidify), or Fan for the air conditioner.

And you can see the active mode through the

indicator lights.The default setting is Cool. Press the

MODE button to change to Dry (Dehumidify), press

again to change to Fan, and again to change to Cool.

FAN

Adjusts the circulation fan speed between High and

Low fan speed. The selected fan speed will be

shown through the indicator lights. The function can

be used in Cool and Fan modes. When changing

fan speeds, there is a brief delay before the fan

motor changes speed.

Operation of functions is the same when using the remote

or the control panel, unless otherwise stated.

11

NOTE:

The remote sensor is located under the LED display.

Point the remote anywhere at the sensor. The remote may

not work if the sensor is in bright light or if there is not a

clear path between the remote and the sensor.

TIMER

4

When the TIMER function is selected, you can set

the air conditioner to either automatically turn

OFF or turn ON after a delay of up to 24 hours.

The display will show 0. Use the buttons

to adjust the delay time from 1 to 24 hours, in one

hour increments.

To set an automatic off delay, press the TIMER

button while the air conditioner is running and

use the buttons to adjust the delay time.

air conditioner will automatically turn off after the

set delay.

To set an automatic on delay, press the TIMER

button while the air conditioner is off and use

the buttons to adjust the delay time.

The display will show the number of hours

remaining until the unit is set to come on. The

air conditioner will automatically turn on after

the set delay.

If you want to know how many hours you have

setted, press the TIMER button and then you

can see the time through the LED display.

If you want to change the set timer, press the

TIMER button and adjust the time when the

number is flickering.

To cancel the Timer function, press the

TIMER

button and adjust the number to 0 when the

number is flickering, then the function will be

canceled in a few seconds.

Another better method is press the TIMER

button and press this button again when the

number is still flickering.

1

2

8

HOW TO USE

COOL

Compressor runs and cools the room. Use the

/ and FAN buttons to set the desired

temperature and circulation fan speed.

FAN

Fan circulates air but compressor does not run.

Use the FAN button to set the desired fan speed.

DRY

Dry mode is used to remove humidity from

the room without additional cooling.

Fan speed is pre-set and cannot be adjusted.

Mode Features

English

3

1

2

4 3 5

6

Dry 3

4

7

5

2

1

8

8

1

3

9

4

7

Dry

CONTROL PANEL AND REMOTE

1

8

English

12

5

Increases the temperature by 1 °F every 2 hours

to allow a more comforable adjustment for the user.

7SLEEP

8°C/°F(CELSIUS AND FAHRENHEIT

EXCHANGE BUTTON)

When the displayed temperature is °C (or °F), you

can press this button to switch to °F (or °C).

1

2

4 3 5

6

Dry

Dry

5

2

1

8

8

1

3

9

4

7

Dry

9CONTINUOUS

After setting continuous, the unit will keep running

no matter what temperature is selected.

Operation of functions is the same when using the remote

or the control panel, unless otherwise stated.

NOTE:

The remote sensor is located under the LED display.

Point the remote anywhere at the sensor. The remote may

not work if the sensor is in bright light or if there is not a

clear path between the remote and the sensor.

In COOL and DRY modes, the buttons

adjust the set temperature up to 86°F or down to

60°F, in one degree increments. The temperature

can be switched between degrees Fahrenheit and

degrees Celsius, pressing the button and

button at the same time, or pressing °F /°C button

on the remote.

When the TIMER function is selected, use the

buttons to adjust the delay time from 1 to

24 hours, in one hour increments.

If you press and hold the buttons, the set

temperature or time will change automatically after

a few seconds.

NOTE: The displayed temperature is the SET

temperature, not the room temperature. In COOL or

DRY mode, the thermostat in the air conditioner

will run the compressor until the set temperature is

reached, then cycle the compressor on and off to

maintain the set temperature.

/

(TEMP/TIMER)

LED Display

6

LED display shows the set temperature, fan

speed, or the selected TIMER delay.

Indicators will light to show active mode and

additional settings. The LED display will show

the FL to indicate when the internal water drain

tank needs to be emptied.

HOW TO USE

AUTO RESTART

During operation in failure o

Plug in, the LED display will light

When you plug the power cord into grounded outlet,

LED display will show room tempreature and power indicator(red light)

After push power button to operate the product,

red light above the power button will be changed gree light

f electric power,

the unit runs as previous setting operation.

NOTICE

NOTICE

13

2 Type A Screws 1 Type B Screw 1 Type C Screw

The following components are used for window venting.

Not all components are used for every installation.

EXHAUST COMPONENTS

Window Installation Kit (includes 1 Window

Vent Panel and 3 Extension Panels)

Flexible Venting Hose

2 Type A Foam Seals

(Adhesive)

Diffuser

Security Bracket

1 Type B Foam Seal

(Non-adhesive)

2 Type C Foam Seals

(Adhesive type-Shorter)

English

INSTALLATION INSTRUCTIONS

PREPARING FOR INSTALLATION

WARNING The air conditioner is heavy! Use two or more people to

lift and install the unit! Failure to do so could result in back injury or other injuries.

1 Window Vent Panel

Panel A (18’’)

3 Extension Panels

Panel C (17’’) Panel D (17’’)

Panel B (9’’)

INSTALLATION INSTRUCTIONS

SELECTION OF INSTALLATION LOCATION

Place the unit on a level floor.

For best performance,allow at least 20 in

of air space on all sides of the unit for

good air circulation.

1

2

The length of the exhaust hose is specially designed according to the specification of this product.

Do not replace or extend it with your own private hose as this could cause malfunction.

WARNING

14

Place the unit near a window. The hose

and diffuser will be used to connect the air

conditioner to the window installation kit to

vent exhaust air outside.

3

ATTACHING THE HOSE AND DIFFUSER

LOCK

UNLOCK

Insert the vent hose into

the hole on the back of

the air conditioner and rotate counter clockwise.

20 in

20 in

INSTALLATION INST RUC TIONS

WINDOW VENT PANEL AND EXTENSIONS

The window installation kit allows you to install the air conditioner in most vertical-sliding windows

18" to 50" wide, or casement-style windows from 18" to 50 " high.

For an 18" window opening, use the window

vent panel by itself.

For window openings from 19" to 26",

use the window vent panel (Panel A) and a

extension panel (Panel B).

use the window vent panel (Panel A) and a

extension panel (Panel C).

eht esu ,"05 ot " 53 morf sgninepo wodniw roF

window vent panel and two extension panels

(Panel C and Panel D).

Panel A

Panel A

18"

18"

Panel A

19"− 26"

19"− 26"

Panel B

Panel A

English

Fig. “a” Fig. “b”

27"−34"

Fig. “c” Fig. “d”

3 ot " 72 morf sgninepo wodniw roF 4",

A B C D

18" 9" 17" 17"

18" √a

19" −26" √ √ b

√ √ c

√d

Fig.

Panel

Window Length

1

√ √

1. Please check your window length and choose the

fit panels from the above tabel.

2. If your window length need more than 2 panels, after

adjust the length, please use type A screw to fix them.

Panel D

Panel A

Panel C

Panel A

Panel C

Panel D

Panel A

Panel C

Screw A

27" − 34"

35" −50"

27"−34"

35"−50"

35"−50"

Window Installation Kit (includes 1 Window

Vent Panel and 3 Extension Panels)

Panel A (18’’) Panel C (17’’) Panel D (17’’)

Panel B (9’’)

1 Window Vent Panel 3 Extension Panels

Panel B

Panel A

Panel C

NOTE: The window installation kit can be used with vertical sliding windows between

18" and 50" wide.

INSTALLATION INSTRUCTIONS

INSTALLATION IN VERTICAL SLIDING WINDOWS

16

Foam seal A

(Adhesive type)

Foam seal C

(Adhesive type-shorter)

Sellante de espuma A

(Tipo adhesivo)

Tipo C de sellado con espuma

(tipo adhesivo-más corto).

Joints en Mousse A

(Adhesive type)

Joints en Mousse C

(Plus court de type adhésif)

1Cut the foam seal A (adhesive type) &

C (adhesive type-shorter) to the proper

length, and attach it to the window sash

and frame.

2Insert the vent panel assembly, including

extension panels, if needed, into the window

opening. Extend the extension panels, if

used.

Foam seal B

(Non-adhesive type)

3Cut the foam seal B (Non-adhesive type) to

the window width. Stuff the foam seal B

between the glass and the window to

prevent air and insects from getting into the

room.

4Install the security bracket with a type B

screw as shown if you need.

Type B

screw

Security Bracket

Extension panel

(if required)

Vent

Panel

INSTALLATION IN VERTICAL SLIDING WINDOWS

INSTAL LAT ION I NSTR U CTIONS

17

5

English

If you want fix the diffuser more firmly, use

the type C screw.

Small gap

First

Insert

Second

Slide

First insert to the vent panel fully and then

slide for locking.

Type C screw

Insert the diffuser into the Vent Panel. And

then slide.

Foam seal A

(Adhesive type)

Foam seal C

(Adhesive

type-shorter)

1Cut the foam seal A (adhesive type) &

C (adhesive type-shorter) to the proper

length, and attach it to the window sash and

frame.

2Insert the vent panel assembly, including

extension panels, if needed, into the window

opening. Extend the extension panels, if

used.

Foam seal B

(Non-adhesive type)

3Cut the foam seal B (Non-adhesive type) to

the window height. Stuff the foam seal B

between the glass and the window to

prevent air and insects from getting into the

room.

Vent

Panel

INSTALLATION IN CASEMENT STYLE WINDOWS

NOTE:The window installation kit can be used with casement windows between 18

″

and 50

″

tall.

I NSTA LLATI ON I NS T RU CTI ONS

Extension panel

(if required)

Joints en

Mousse C

(plus court de

type adhésif)

Sellado con

espuma A

(tipo adhesivo)

Sellado con

espuma C

(tipo adhesivo-

más corto)

Sellado con espuma B

(tipo adhesivo)

4

Install the window security bracket with a

type B screw as shown.

Type B screw

Security

bracket

18

INSTALLATION IN CASEMENT STYLE WINDOWS

INSTALLATION I NSTRUCTIONS

19

English

5

If you want fix the diffuser more firmly, use

the type C screw.

Small gap

First

Insert

Second

Slide

First insert to the vent panel fully and then

slide for locking.

Type C screw

Insert the diffuser into the Vent Panel. And

then slide.

CA RE AND C LEANING

Your air conditioner is designed for year-round

operation with only minimal cleaning and

maintenance.

For maximum efficiency, it is recommended

that you have the cooling coils inspected and

cleaned annually. Your local LG Authorized

Service Center can provide this inspection

and cleaning service for a nominal fee.

WARNING

•Unplug the air conditioner before cleaning or performing any maintenance or servicing.

•Be careful when cleaning coils or removing or reinstalling the filter—the cooling fins are

sharp!

Failure to follow the above precautions could result in electrical shock or personal injury.

WATER DRAINAGE A

Using the Upper Drain Port (Dry Mode Only)

This product has a self-evaporative system. The condensing water will be recycled to cool the

condenser. This can not only improve cooling efficiency, but also save energy for you.

• This can be used when you need dehumidification in high humidity.

• Under the Cool or Fan mode, there’s no need of using the upper drain port.

• During DRY(dehumidifying) mode, remove the drain plug and the exhaust hose from the back of the unit.

• Install a drain hose (12mm [1/2"] inside diameter) and place the open end of the hose at a suitable drain

location or outdoors.

•

Unplug the air conditioner, disconnect the exhaust hose from the back, and move the air conditioner to

a suitable drain location or outdoors. You may also place a pan under the drain that will hold up to 2 pints

of water.

When the internal water collection tank is full , the LED display will show FL and the air conditioner

will turn off until the tank is emptied.

•

Remove the drain cap from the drain outlet.

•

Once the water collection tank is drained, reinstall the

drain cap, making sure it is on securely.

•

Place the air conditioner in the desired location,

reconnect the exhaust hose, and plug in the air

conditioner.

20

Using the Bottom Drain Port

NOTES: When turned on after being unplugged, the air conditioner will automatically reset to

COOL mode, with a temperature setting of 72°F.

FL apperars in the display

The water collection tank is full, drain the tank and restart the air conditioner.

NOTICE

CARE AND CLEANING

21

CLEANING THE CASE

Wipe the case with a slightly damp cloth, then wipe dry

with a dry cloth or towel.

CLEANING THE AIR FILTER

The air filter should be cleaned every two weeks; depending on indoor air quality, more

frequent cleaning may be needed. A dirty air filter will decrease airflow and reduce efficiency.

Do not operate the air conditioner without

the air filter in place.

Pull out the air filter by the handle.

1

Use a vacuum cleaner to clean the filter. If the filter is

heavily soiled, it can be washed in warm water using a

mild detergent.

Do not use harsh cleaners or very hot water.

Do not wash in a dishwasher.

Allow the filter to dry completely before reinstalling.

Reinsert the filter.

2

3

4

English

1

• To prevent damage to the finish, do not use gasoline,

benzene, thinner, etc., or any abrasive cleansers to

clean the air conditioner; they may damage the finish.

• Never pour water onto or into the air conditioner.

It could damage internal components and create a

shock and fire hazard.

1

2

3

1

2

3

4

4

STORING THE AIR CONDITIONER

If the air conditioner will not be used for an

extened period of time:

To drain the water collection tank completely,

leave the bottom drain cap off long enough to

allow any residual water to drain out. Once

the tank is completely drained and no more

water flows out, reinstall the cap.

Remove and clean the filter, allow it to dry

completely, then reinstall it.

Store the air conditioner in a cool, dry

location, away from direct sunlight, extreme

temperatures, and excessive dust.

Remove the batteries from the remote.

Before using the air conditioner again:

Make sure the filter and drain cap are

in place

Check the power cord to make sure it is in

good condition, with no cracks or damage.

Place new batteries in the remote.

Install the air conditioner as described in the

Installation Instructions.

CARE AND CLEANING

22

BEFORE CALLING FOR SERVICE

TROUBLESHOOTING

Before you call for service, review this list. It may save you time and expense. This list includes

common occurrences that are not the result of a defect in workmanship or materials.

Air

conditioner

does not

start

The air conditioner is

unplugged.

Make sure the air conditioner plug is pushed

completely into the outlet.

The fuse is blown/circuit

breaker is tripped. Check the house fuse/circuit breaker box and

replace the fuse or reset the breaker.

Power failure. If power failure occurs, turn the mode control

to Off. When power is restored, wait 3 minutes

to restart the air conditioner to prevent tripping

of the compressor overload.

The current interrupter

device is tripped.

Press the RESET button located on the power

cord plug. If the RESET button will not stay

engaged, discontinue use of the air conditioner

and contact a qualified service technician.

Air conditioner

does not cool

as it should

Airflow is restricted.

The room may have been

hot.

The cooling coils are iced

over.

The air filter is dirty.

Make sure there are no curtains, blinds, or

furniture blocking the front of the air conditioner.

In COOL model，press the DECREASE pad.

Clean the filter at least every 2 weeks.

See the Care and Cleaning section.

When the air conditioner is first turned on, you

need to allow time for the room to cool down.

Ice may block the air flow and obstruct the air

conditioner from properly cooling the room.

Set the mode control at High Fan or High Cool.

The temp control may not

be set correctly.

FL appears in the display. The water collection tank is full. Drain the tank

and reset your settings.

Room temperature is less

than the set temperature.

This is normal. The air conditioner automatically

shuts off when the room equals or is less than

the set temperature. Adjust the temperature

setting, if needed.

Air conditioner

runs too often

or too long

Area to be cooled is too

large for the air conditioner.

Doors or windows are open.

Consult your dealer for the air conditioner

capacity necessary to cool the desired area.

Make sure doors and windows are closed.

23

Air conditioner

freezing up

English

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Code

appears in

the display.

The water collection tank

is full.

Empty the water collection tank.

See the Care and Cleaning section.

FL

Short or open circuit in the

indoor air thermistor.

Unplug the air conditioner and contact your

authorized LG service center.

E1

Short or open circuit in the

indoor pipe thermistor.

Unplug the air conditioner and contact your

authorized LG service center.

E2

E4

24

The coil sensor temperature

is low, the unit will stop

and display E4 to defrost.

After defrost, the unit will re-start.

WARRANTY

LG PORTABLE AIR CONDITIONER LIMITED WARRANTY - USA

WHAT THIS WARRANTY COVERS:

LG Electronics U.S.A., Inc. (“LG”) warrants your LG Portable Air Conditioner ("product") against defect in materials or workmanship

under normal household use, during the warranty period set forth below, LG will, at its option, repair or replace the product. This

limited warranty is valid only to the original retail purchaser of the product, is not assignable or transferrable to any subsequent

purchaser or user, and applies only when the product is purchased through an LG authorized dealer or distributor and used within

the United States (“U.S.”) including U.S. Territories.

Note: Replacement products and repair parts may be new or factory-remanufactured and are warranted for the remaining portion

of the original unit’s warranty period or ninety (90) days, whichever is longer. Please retain dated receipt or delivery ticket as

evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative).

WARRANTY PERIOD:

1 year from the Date of Purchase: Any internal/ functional Parts and Labor.

HOW SERVICE IS HANDLED: In-Home Service

In-home service will be provided during the warranty period subject to availability within the United States. In-home service may

not be available in all areas. To receive in-home service, the product must be unobstructed and accessible to service personnel. If

during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home

service is unavailable, LG may elect, at our option, to provide for transportation of our choice to and from a LG authorized service

center.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product or

for instruction on product use.

2. Replacing house fuses or resetting of circuit breakers,

correction of house wiring or plumbing, or correction of

product installation.

3. Damage or failure caused by leaky/ broken/ frozen water

pipes, restricted drain lines, inadequate or interrupted

water supply or inadequate supply of air.

4. Damage or failure caused by accidents, pests and vermin,

lightning, wind, fire, floods or acts of God.

5. Damage or failure resulting from misuse, abuse, improper

installation, repair or maintenance. Improper repair

includes use of parts not approved or specified by LG.

6. Damage or failure caused by unauthorized modification or

alteration to the product.

7. Damage or failure caused by incorrect electrical current,

voltage, or plumbing codes.

8. Cosmetic damage, including scratches, dents, chips or

other damage to the finish of the product, unless such

damage results from defects in materials or

workmanship and is reported to LG within seven (7)

calendar days from the date of delivery.

9. Damage or missing items to any display, open box,

discounted, or refurbished product.

10. Product where the original factory serial numbers have

been removed, defaced or changed in any way.

11. Repairs when product is used in other than normal and

usual household use (e.g. rental, commercial use,

offices, or recreational facilities) or contrary to the

instructions outlined in the owner’s manual.

12. The removal and reinstallation of the Product if it is

installed in an inaccessible location.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING AND WITHOUT LIMITATION TO, ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS

REQUIRED BY LAW, THIS WARRANTY IS LIMITED IN DURATION TO THE TERM PERIOD EXPRESSED ABOVE. REPAIR OR

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER. NEITHER THE

MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR

PUNITIVE DAMAGES OF ANY NATURE, INCLUDING AND WITHOUT LIMITATION TO, LOST REVENUES OR PROFITS, OR ANY OTHER

DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS

ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. THIS

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION:

Call 1-800-243-0000 or visit our website at www.lg.com.

Mail to: LG Customer Information Center (ATTN: CIC)

201 James Record Road, Huntsville, AL 35824

1-800-243-0000

LG Customer Information Center

Register your product Online！

www.lgappliances.com

LG ELECTRONICS,INC.

1000 Sylvan Ave.,Englewood Cliffs,NJ 07632
