LG OLED55B6P User Manual Owner's OLED B6 US;

User Manual: LG OLED55B6P Owner's Manual Most comprehensive of product setup and usage. (English)

Open the PDF directly: View PDF .
Page Count: 46

P/No: MFL69383622 (1605-REV01)

OLED TV

OLED55B6P

OLED65B6P

www.lg.com

ENGLISH

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

ESPAÑOL

Guía Rápida de Confi guración

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

FRANÇAIS

Guide de confi guration rapide

Avant d’utiliser l’appareil, veuillez lire attentivement ce guide et conservez-le pour pouvoir vous y reporter ultérieurement.

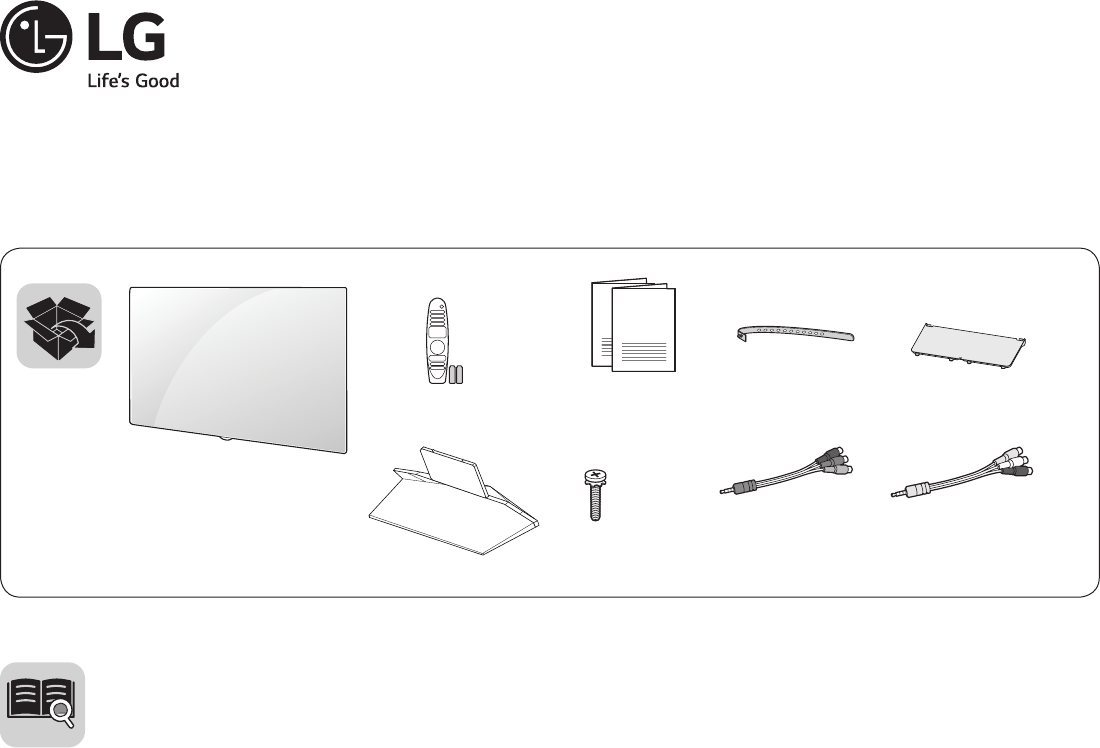

AA

X 4

(M4 x L12)

Read Safety and Reference.

Leer Seguridad y Consultas.

Lisez Sécurité et références.

ENGLISH

ESPAÑOL

FRANÇAIS

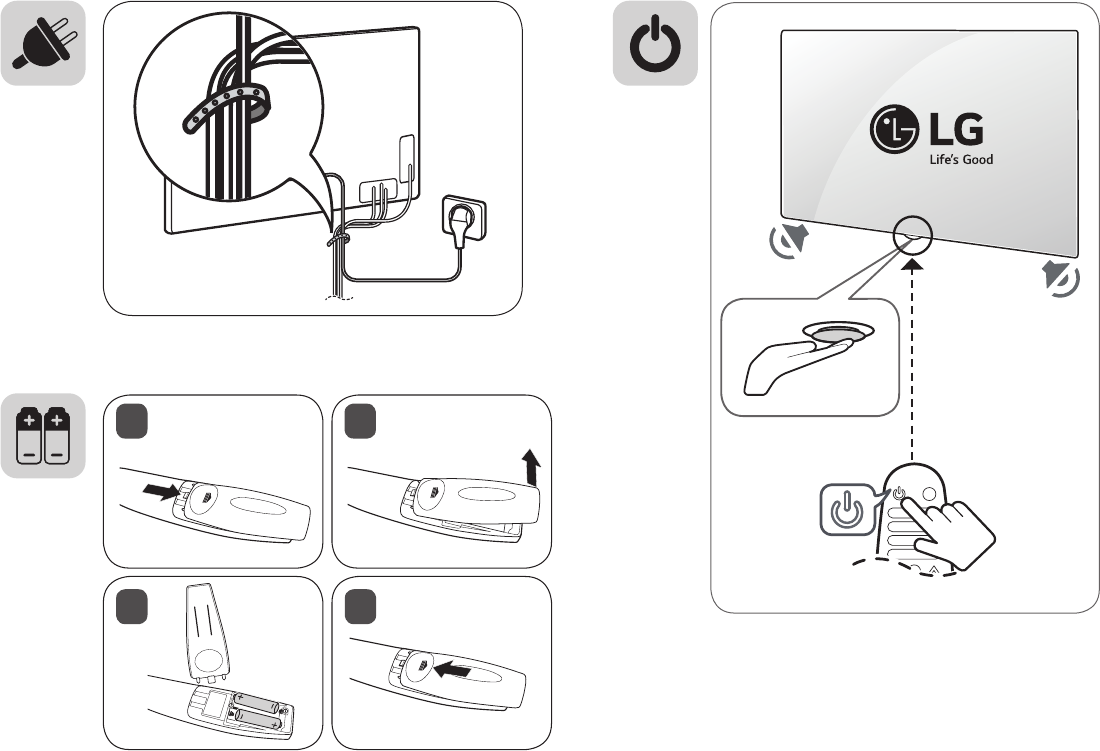

1

4 5

2 3

1

3 4

2

12

0

ESPAÑOL

FRANÇAIS

MODELS OLED55B6P

(OLED55B6P-U)

OLED65B6P

(OLED65B6P-U)

Dimensions

W x H x T (D)

With stand 1,229 x 759 x 225 (mm) 1,451 x 882 x 225 (mm)

48.3 x 29.8 x 8.8 (inches) 57.1 x 34.7 x 8.8 (inches)

Without stand 1,229 x 715 x 48.6 (mm) 1,451 x 838 x 48.6 (mm)

48.3 x 28.1 x 1.9 (inches) 57.1 x 32.9 x 1.9 (inches)

Weight With stand 19.5 kg (42.9 lbs) 25.9 kg (57.1 lbs)

Without stand 16.2 kg (35.7 lbs) 22.6 kg (49.8 lbs)

Current value / Power consumption

For USA and Canada

2.7 A / 270 W 3.3 A / 330 W

For Mexico 3.6 A / 360 W 4.8 A / 480 W

Power requirement AC 120 V ~ 50 / 60 Hz

MODELOS OLED55B6P

(OLED55B6P-U)

OLED65B6P

(OLED65B6P-U)

MODÈLES

Dimensiones

Ancho x altura x grosor (profundidad)

Con base 1 229 x 759 x 225 (mm) 1 451 x 882 x 225 (mm)

Avec support 48,3 x 29,8 x 8,8 (pulgadas / po) 57,1 x 34,7 x 8,8 (pulgadas / po)

Dimensions

L x H x E (P)

Sin base 1 229 x 715 x 48,6 (mm) 1 451 x 838 x 48,6 (mm)

Sans support 48,3 x 28,1 x 1,9 (pulgadas / po) 57,1 x 32,9 x 1,9 (pulgadas / po)

Peso Con base 19,5 kg (42,9 libras / lb) 25,9 kg (57,1 libras / lb)

Avec support

Poids Sin base 16,2 kg (35,7 libras / lb) 22,6 kg (49,8 libras / lb)

Sans support

Corriente de consumo /

Consumo de potencia

Para Estados Unidos y Canadá 2,7 A / 270 W 3,3 A / 330 W

Para México 3,6 A / 360 W 4,8 A / 480 W

Valeur courante /

Consommation électrique

Pour les États-Unis et le Canada 2,7 A / 270 W 3,3 A / 330 W

Pour le Mexique 3,6 A / 360 W 4,8 A / 480 W

Alimentación requerida AC 120 V ~ 50 / 60 Hz

Alimentation

ENGLISH

*MFL69383622*

www.lg.com

OLED55B6P

OLED65B6P

OLED55C6P

OLED65C6P

OLED55E6P

OLED65E6P

Please read this manual carefully before operating your set and retain it for

future reference.

Safety and Reference

P/NO : MFL69383602 (1606-REV02)

*MFL69383602*

2

ENGLISH

Important Safety Instructions

Always comply with the following precautions

to avoid dangerous situations and ensure peak

performance of your product.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the presence of

uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an

equilateral triangle is intended to alert the

user to the presence of important operating

and maintenance (servicing) instructions in the

literature accompanying the device.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may

be seriously injured or there is a possibility of

accident or death.

CAUTION

If you ignore the caution message, you may

be slightly injured or the product may be

damaged.

NOTE

The note helps you understand and use the

product safely. Please read the note carefully

before using the product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

•Do not use this apparatus near water.

•Clean only with dry cloth.

•Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

•Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

•Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

•Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

WARNING: This product contains chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm.

Wash hands

after handling.

3

ENGLISH

•Only use attachments/accessories specified by

the manufacturer.

•Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•Unplug this apparatus during lightning storms

or when unused for long periods of time.

•Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

•Do not press strongly upon the panel with a

hand or a sharp object such as a nail, pencil, or

pen, or make a scratch on it.

•Do not stick metal objects or any other

conductive material into the power cord. Do

not touch the end of the power cord while it is

plugged in.

•Keep the packing anti-moisture material or

vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the

nearest hospital. Additionally, vinyl packing can

cause suffocation. Keep it out of the reach of

children.

•CAUTION concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s

manual to be certain concerning current

requirements. Do not connect too many

devices to the same AC power outlet as this

could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords,

frayed power cords, or damaged or cracked

wire insulation are dangerous. Any of these

conditions could result in electric shock or fire.

Periodically examine the cord of your device,

and if its appearance indicates damage or

deterioration, unplug it, discontinue use of

the device, and have the cord replaced with

an exact replacement part by an authorized

servicer. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the device. Do not

move the TV with the power cord plugged in. Do

not use a damaged or loose power cord. Be sure

do grasp the plug when unplugging the power

cord. Do not pull on the power cord to unplug

the TV.

•Warning - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product near

flammable objects such as gasoline or candles,

or expose the TV to direct air conditioning.

•Do not expose to dripping or splashing and

do not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.,

on shelves above the unit).

4

ENGLISH

•Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire

to prevent possible electric shock (i.e., a TV

with a three-prong grounded AC plug must

be connected to a three-prong grounded AC

outlet).

If grounding methods are not possible, have

a qualified electrician install a separate circuit

breaker. Do not try to ground the unit by

connecting it to telephone wires, lightning rods,

or gas pipes.

Circuit

Breaker

Power

Supply

•As long as this unit is connected to the AC wall

outlet, it is not disconnected from the AC power

source even if the unit is turned off.

•Do not attempt to modify this product in any

way without written authorization from LG

Electronics. Unauthorized modification could

void the user’s authority to operate this product.

•Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can come in contact with

such power lines or circuits as death or serious

injury can occur. Be sure the antenna system is

grounded to provide some protection against

voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC)

in the U.S.A. provides information with respect

to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding

conductors, location of antenna discharge

unit, connection to grounding electrodes, and

requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Grounding Conductor

(NEC Section 810-21)

Antenna Lead in Wire

Electric Service

Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Ground Clamp Power Service Grounding

Electrode System

(NEC Art 250, Part H)

NEC: National Electrical Code

•Cleaning

When cleaning, unplug the power cord and wipe

gently with a soft cloth to prevent scratching. Do

not spray water or other liquids directly on the

TV as electric shock may occur. Do not clean with

chemicals such as alcohol, thinners, or benzene.

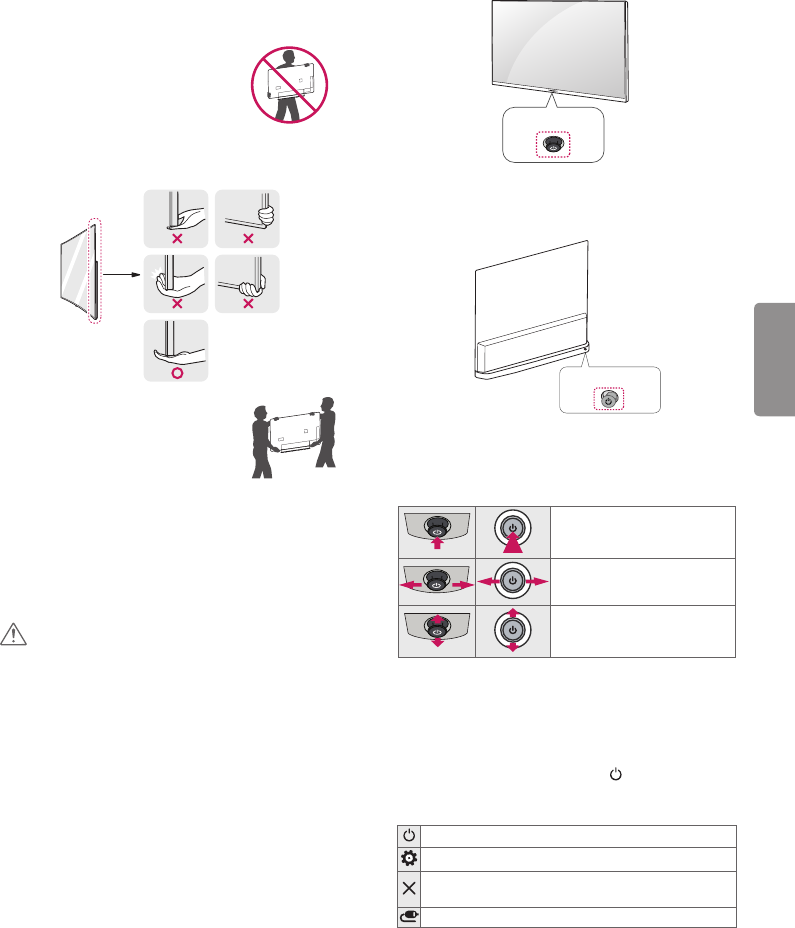

•Moving

Make sure the product is turned off, unplugged,

and all cables have been removed. It may take 2

or more people to carry larger TVs. Do not press

or put stress on the front panel of the TV.

•Ventilation

Install your TV where there is proper ventilation.

Do not install in a confined space such as a

bookcase. Do not cover the product with cloth or

other materials while plugged in. Do not install

in excessively dusty places.

•If you smell smoke or other odors coming from

the TV, unplug the power cord and contact an

authorized service center.

•Keep the product away from direct sunlight.

•Never touch this apparatus or antenna during a

lightning storm.

•When mounting a TV on the wall, make sure not

to install the TV by hanging the power and signal

cables on the back of the TV.

•Do not allow an impact shock or any objects to

fall into the product, and do not drop anything

onto the screen.

•DISCONNECTING THE DEVICE FROM THE MAIN

POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must

remain readily accessible.

•Make sure the power cord is connected securely

to the power plug on the TV. (Depending upon

model)

•Batteries

Store the accessories (battery, etc.) in a safe

location out of the reach of children.

•This apparatus uses batteries. In your community

there might be regulations that require you

to dispose of these batteries properly due to

environmental considerations. Please contact

your local authorities for disposal or recycling

information.

5

ENGLISH

Viewing 3D Imaging

(For 3D models)

CAUTION

•Guardians should not leave children

unsupervised who are watching a 3D video.

Guardians should make children stop watching

the video and take a rest if they experience eye

fatigue, headache, or dizziness.

•When viewing a 3D video, some may experience

discomfort such as a headache, dizziness,

fatigue, or blurred vision. In this case, stop

watching the 3D video and take a rest.

•If you watch a 3D video for a long time, you

may experience eye fatigue. In this case, stop

watching the 3D video and take a rest.

•Only use LG 3D glasses. Otherwise, you may not

be able to view 3D videos properly.

•Do not use 3D glasses instead of your normal

glasses, sunglasses, or protective goggles. Place

the 3D glasses over your normal eye ware.

•Do not keep your 3D glasses in extremely high or

low temperatures. It will cause deformation.

•Do not use the 3D glasses while walking or

moving around. It may cause an accident or

injury.

•Be careful not to poke your eye with the frames

of the 3D glasses.

•Do not watch 3D content if you have

photosensitive seizures, epilepsy, or heart

disease.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble, or allow the

batteries to overheat.

•Do not use high voltage electrical equipment

near the TV, (e.g., a bug zapper).

This may result in product malfunction.

•Dot Defect

This panel is an advanced product that contains

millions of pixels. In a very few cases, you could

see fine dots on the screen while you’re viewing

the TV. Those dots are deactivated pixels and

do not affect the performance and reliability of

the TV.

•Generated Sound

Cracking noise A cracking noise that occurs

when watching or turning off the TV is

generated by plastic thermal contraction due to

temperature and humidity. This noise is common

for products where thermal deformation is

required.

Electrical circuit humming/panel buzzing

A low level noise is generated from a high-

speed switching circuit, which supplies a large

amount of current to operate a product. It varies

depending upon the product. This generated

sound does not affect the performance and

reliability of the product.

•Take care not to touch the ventilation openings.

When watching the TV for a long period, the

ventilation openings may become hot. This does

not affect the performance of the product or

cause defects in the product.

•Do not install this product on a wall if it could be

exposed to oil or oil mist. This may damage the

product and cause it to fall.

•If the TV feels cold to the touch, there may

be a small flicker when it is turned on. This is

normal; there is nothing wrong with TV. Some

minute dot defects may be visible on the screen,

appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the

TV’s performance. Avoid touching the screen or

holding your finger(s) against it for long periods

of time. Doing so may produce some temporary

distortion effects on the screen.

•Displaying a still image for a prolonged period of

time may cause an image sticking.

Avoid displaying a fixed image on the TV screen

for a extended length of time.

•Some horizontal lines may appear when the

Clear Panel Noise feature is performed. It is

normal and there is no need to be concerned.

6

ENGLISH

Preparing

NOTE

•When the TV is turned on for the first time after

being shipped from the factory, initialization of

the TV may take approximately one minute.

•Image shown may differ from your TV.

•Your TV’s OSD (On Screen Display) may differ

slightly from that shown in this manual.

•The available menus and options may differ from

the input source or product model that you are

using.

•New features may be added to this TV in the

future.

•The items supplied with your product may vary

depending upon the model.

•Product specifications or contents of this manual

may be changed without prior notice due to

upgrade of product functions.

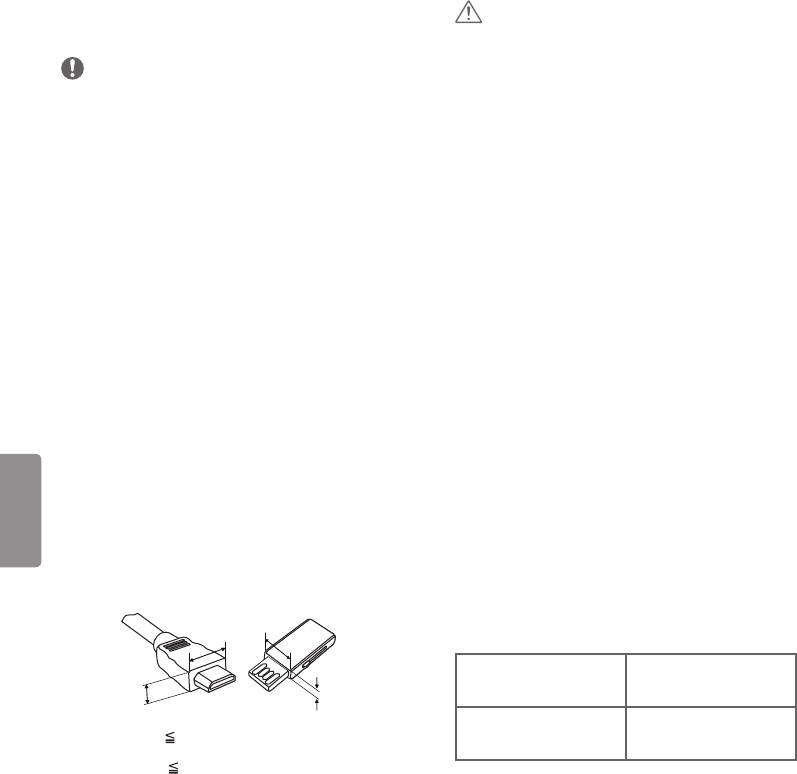

•For an optimal connection, HDMI cables and

USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

•Use an extension cable that supports USB 2.0 if

the USB cable or USB flash drive does not fit into

your TV’s USB port.

•Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

•Recommended HDMI cable types (3 m or less)

- High-Speed HDMI®/TM cable

- High-Speed HDMI ®/TM cable with Ethernet

B

AA

B

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

CAUTION

•Do not use any unapproved items to ensure the

safety and product’s lifespan.

•Any damages or injuries by using unapproved

items are not covered by the warranty.

•Some models appear to have a thin film on the

screen. It is actually part of the screen; do not

remove it.

•When attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

•Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV

may tilt forward after being installed.)

•Do not fasten the screws with excessive force;

otherwise, they may be worn out and become

loose.

•Make sure to wring any excess water or cleaner

from the cloth.

•Do not spray water or cleaner directly onto the

TV screen.

•Make sure to spray just enough of water or

cleaner onto a dry cloth to wipe the screen.

Optional Extras

Optional extras can be changed or modified for

quality improvement without any notification.

Contact your dealer for buying these items.

These devices work only with certain models.

The model name or design may be changed due to

the manufacturer’s circumstances or policies.

(Depending upon model)

AG-F***

Cinema 3D Glasses

AG-F***DP

Dual Play Glasses

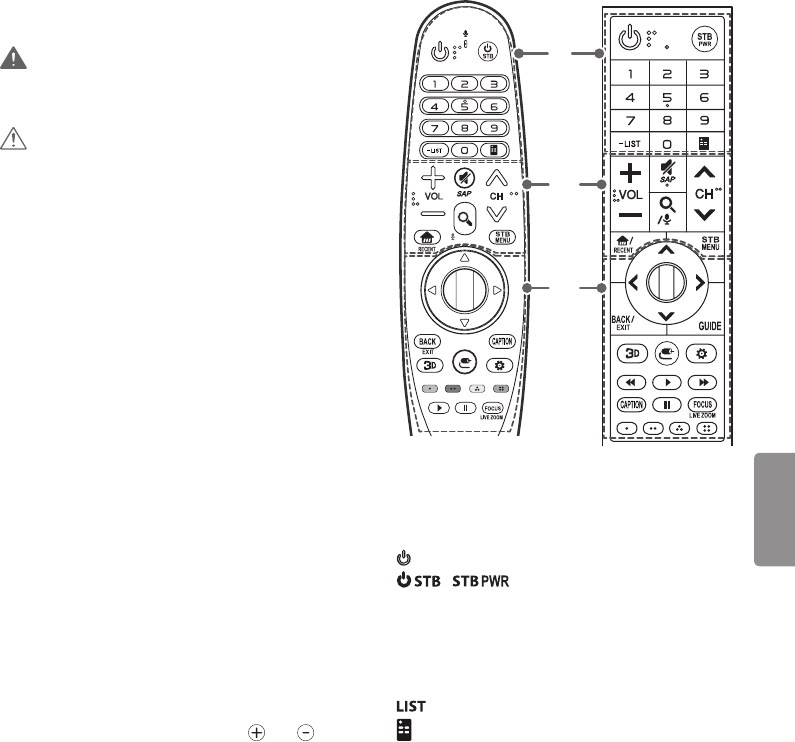

AN-MR650

Magic Remote

AN-VC550

Smart Camera

7

ENGLISH

Lifting and Moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for safe transportation regardless of

its type and size.

•It is recommended to move the TV in the box or

packing material that the TV originally came in.

•Before moving or lifting the TV, disconnect the

power cord and all cables.

•When holding the TV, the screen

should face away from you to

avoid damage.

•Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grille area.

•Use at least two people to move

a large TV.

•When transporting the TV by

hand, hold the TV as shown in the

following illustration.

•When transporting the TV, do not expose the TV

to jolts or excessive vibration.

•When transporting the TV, keep the TV upright;

never turn the TV on its side or tilt towards the

left or right.

•When handling the TV, be careful not to damage

the protruding buttons.

CAUTION

•Avoid touching the screen at all times, as this

may result in damage to the screen.

•Do not place the product on the floor with its

front facing down without padding. Failure to do

so may result in damage to the screen.

•Do not move the TV by holding the cable

holders, as the cable holders may break, and

injuries and damage to the TV may occur.

(Depending upon model)

Using the Button

(Depending upon model)

You can simply operate the TV functions, pressing

or moving the button.

[A type]

Joystick Button

[B type]

Joystick Button

Basic Functions

Power On (Press)

Power Off (Press and Hold)

1

Volume Control

Channels Control

1 A

ll running apps will close.

Adjusting the Menu

When the TV is turned on, press button one time.

You can adjust the Menu items pressing or moving

the buttons.

Turns the power off.

Accesses the setting menu.

Clears on-screen displays and returns to TV

viewing.

Changes the input source.

8

ENGLISH

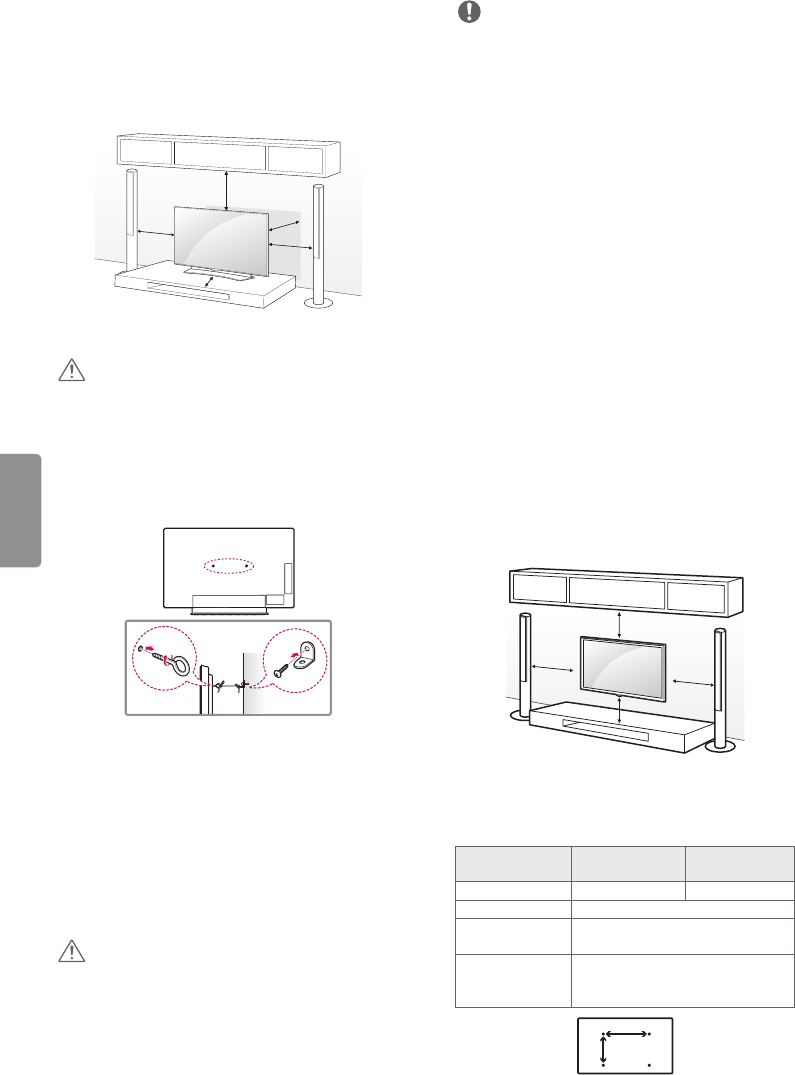

Mounting on a Table

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (4 inches) (minimum) space from

the wall for proper ventilation.

10 cm

10 cm

10 cm

10 cm

(4 inches)

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

•Do not place the TV near or on sources of heat,

as this may result in fire or other damage.

Securing the TV to a Wall (optional)

(Depending upon model)

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and

the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope or cable. Make sure to keep

the rope parallel to the flat surface.

CAUTION

•Make sure that children do not climb on or hang

on the TV.

NOTE

•Use a platform or cabinet that is strong and large

enough to support the TV securely.

•Brackets, bolts, and ropes are optional. You can

obtain additional accessories from your local

dealer.

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for

a wall mount that supports the VESA standard

used by your TV model. Carefully attach the wall

mount bracket at the rear of the TV. Install the wall

mount bracket on a solid wall perpendicular to the

floor. If you are attaching the TV to other building

materials, please contact qualified personnel to

install the wall mount. Detailed instructions will

be included with the wall mount. We recommend

that you use an LG brand wall mount. The LG wall

mount is easy to adjust or to connect the cables.

When you do not use LG’s wall mount bracket,

use a wall mount bracket where the device is

adequately secured to the wall with enough space

to allow connectivity to external devices. If you are

using a non-adjustable mount, attach the mount

to the wall. Attach the cables to the TV first, then

attach the TV to the mount.

10 cm

10 cm

10 cm

10 cm

(4 inches)

Make sure to use screws and wall mounts that

meet the VESA standard. Standard dimensions for

the wall mount kits are described in the following

table.

Model OLED55/65B6P OLED55/65C6P,

OLED55/65E6P

VESA (A x B) 300 x 200 400 x 200

Standard screw M6

Number of

screws 4

Wall mount

bracket

(optional)

OTW420B

A

B

9

ENGLISH

CAUTION

•Remove the stand before installing the TV on a

wall mount by performing the stand attachment

in reverse.

NOTE

•To remove the stand, hold the top and bottom

of stand, then pull it out while also lowering it as

shown in the following illustration.

(For OLED55/65E6P)

1

2

1

2

• To install the wall mount, use the stand

assembly screws to attach the wall mount cover

to the bottom of the product as shown in the

following illustration. (For OLED55/65E6P)

Provided Item

Wall mount

cover X 2

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD

players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices.

For more information on an external device’s

connection, refer to the manual provided with

each device.

NOTE

•If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input

cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to

the manual provided with the connected device.

•The external device connections shown may

differ slightly from illustrations in a manual.

•Connect external devices to the TV regardless

about the order of the TV port.

•If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

•Refer to the external equipment’s manual for

operating instructions.

•In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast,

or brightness. If noise is present, change the PC

output to another resolution, change the refresh

rate to another rate, or adjust the brightness and

contrast on the PICTURE menu until the picture

is clear.

•Depending upon the graphics card, some

resolution settings may not allow the image to

be positioned on the screen properly.

•Some USB Hubs may not work. If a USB device

connected through a USB Hub is not detected,

connect it directly to the USB port on the TV.

•The TV may be capable of operating without a

set-top from a multichannel video programming

distributor (MVPD).

Connecting to an Antenna or Cable

Connect an antenna, cable, or cable box to watch

TV. The illustrations may differ from the actual

items and an RF cable is optional.

CAUTION

•Make sure not to bend the copper wire of the RF

cable.

Copper wire

•Complete all connections between devices, and

then connect the power cord to the power outlet

to prevent damage to your TV.

NOTE

•Use a signal splitter to use 2 TVs or more.

•DTV Audio Supported Codec: MPEG,

Dolby Digital.

•Direct ULTRA HD broadcast is unavailable in

areas without an ULTRA HD signal.

•This TV cannot receive ULTRA HD (3840 x 2160

pixels) broadcasts directly because the related

standards have not been confirmed.

(Depending upon model)

10

ENGLISH

Other Connections

Connect your TV to external devices. For the best

picture and audio quality, connect the external

device and the TV with the HDMI cable. Depending

upon the model, a cable may not be provided.

NOTE

• > > > General >

HDMI ULTRA HD Deep Color:

- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)

- Off : Support 4K @ 60 Hz 8bit (4:2:0)

•If the device connected to Input Port also

supports ULTRA HD Deep Color, your picture

may be clearer. However, if the device doesn’t

support it, it may not work properly. In that case,

connect the device to a different HDMI port or

change the TV’s HDMI ULTRA HD Deep Color

setting to Off.

- This feature is available only on certain models

which support HDMI ULTRA HD Deep Color.

•HDMI Audio Supported Format:

DTS (44.1 kHz / 48 kHz),

AC3 (32 kHz / 44.1 kHz / 48 kHz),

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz /

192 kHz) (Depending upon model)

Slim Remote Control

(Depending upon model)

The descriptions in this manual are based on

the buttons on the remote control. Please read

this manual carefully and use the TV correctly.

To replace coin batteries, turn the battery cover

counterclockwise by using a coin. Then, take the

battery cover. Insert and fix the battery (CR2032)

with the facing forward. And, Put the battery

cover on the remote control and turn it clockwise

to close. To remove the coin batteries, perform

the installation actions in reverse. When in use,

it should be pointed in the direction of the TV’s

remote sensor.

A

B

A

(POWER) Turns the TV on or off.

You can turn your set-top box on or off

by adding the set-top box to the universal remote

control for your TV.

Adjusts the volume level.

(MUTE) Mutes all sounds.

* Video descriptions function will be enabled.

•SAP (Secondary Audio Program) Feature can also

be enabled by pressing the key.

Scrolls through the saved channels.

B

Returns to the previous screen.

* Clears all on-screen displays and returns to

TV viewing.

(Home) Accesses the Home menu.

INPUT Changes the input source.

* Pressing and holding the INPUT button

displays all the lists of external inputs.

Navigation buttons) Scrolls through

menus or options. (up/down/left/right)

Selects menus or options and confirms your

input.

* : To use the button, press and hold for more than

3 seconds.

11

ENGLISH

Battery Installation

WARNING

DO NOT INGEST BATTERY. CHEMICAL BURN

HAZARD.

CAUTION

•The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, incinerate, or heat

above 100 °C (212 °F). Replace the battery part

no. CR2032 only. Use of another battery may

present a risk of fire or explosion. Dispose of

used battery. Keep battery away from children.

Do not disassemble or dispose of in fire.

•[The remote control supplied with] This product

contains a coin/button cell battery. If the coin/

button cell battery is swallowed, it can cause

severe internal burns in just 2 hours and can lead

to death. Keep new and used batteries away

from children. If the battery compartment does

not close securely, stop using the product and

keep it away from children. If you think batteries

might have been swallowed or placed inside

any part of the body, seek immediate medical

attention.

•If you have long nails, do not open the battery

cover by using your finger. Or else, your nail

could break.

Magic Remote Functions

(Depending upon model)

When the message

Magic remote battery is low.

Change the battery.

is displayed, replace the

battery. To install batteries, open the battery cover,

replace batteries (1.5 V AA) matching and

ends to the label inside the compartment, and

close the battery cover. Failure to match the correct

polarities of the battery may cause the battery to

burst or leak, resulting in fire, personal injury, or

ambient pollution. Be sure to point the remote

control at the remote control sensor on the TV.

To remove the batteries, perform the installation

actions in reverse.

This remote uses infrared light. When in use, it

should be pointed in the direction of the TV’s

remote sensor.

B

C

A

A

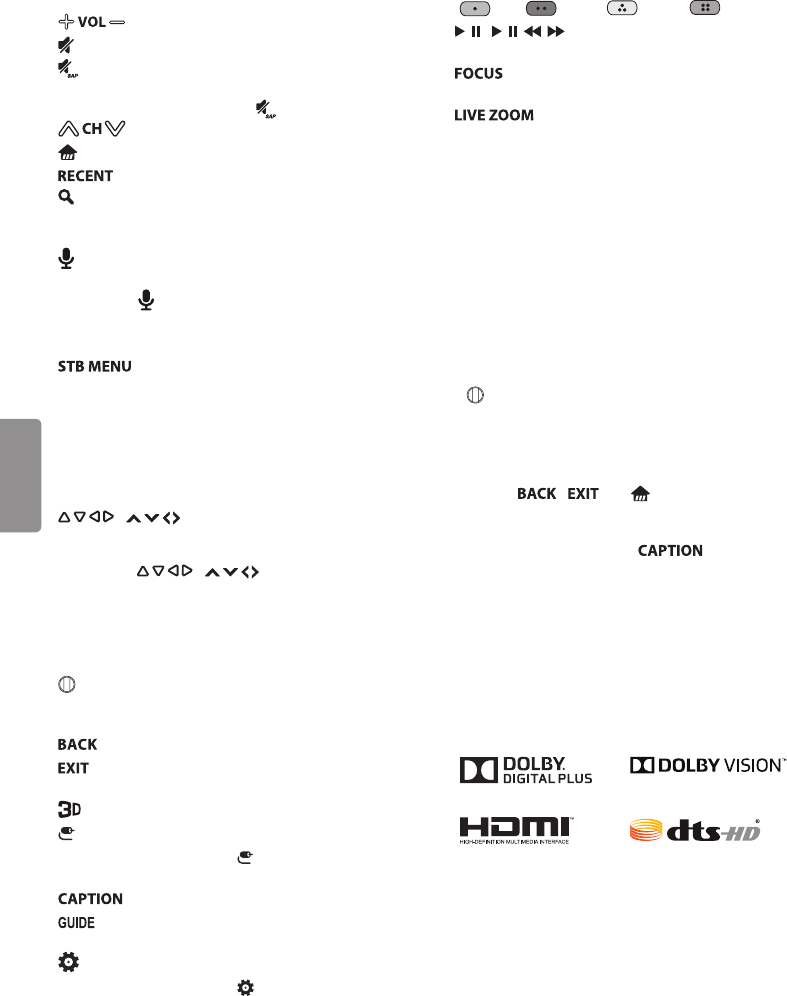

(POWER) Turns the TV on or off.

/ You can turn your set-top box on

or off by adding the set-top box to the universal

remote control for your TV.

Number button Enters numbers.

- (Dash) Inserts a dash between numbers such as

2-1 and 2-2.

Accesses the saved channel list.

(Screen Remote) Displays the Screen Remote.

•Accesses the Universal Control Menu in some

regions.

12

ENGLISH

B

Adjusts the volume level.

(MUTE) Mutes all sounds.

* Video descriptions function will be enabled.

•SAP (Secondary Audio Program) Feature can also

be enabled by pressing the key.

Scrolls through the saved channels.

(Home) Accesses the Home menu.

* Shows the previous history.

(Search) Search for content such as channels,

movies and other videos, or perform a web search

by entering your search terms in the search box.

(Voice recognition) * Network connection is

required to use the voice recognition function.

1 Press the (Voice recognition) button.

2 Speak when the voice display window appears

on the TV screen.

Displays the set-top box Home menu.

(When you are not watching with a set-top box:

the set-top box screen is displayed.)

C

/ Navigation buttons) Press the

up, down, left or right button to scroll the menu.

(up/down/left/right)

If you press / buttons while the

pointer is in use, the pointer will disappear from

the screen and Magic Remote will operate like a

general remote control. To display the pointer on

the screen again, shake Magic Remote to the left

and right.

(Wheel) (OK) Press the center of the Wheel

button to select a menu. You can change channels

by using the Wheel button.

Returns to the previous screen.

* Clears all on-screen displays and returns to

TV viewing.

Used for viewing 3D video. (For 3D models)

INPUT Changes the input source.

* Pressing and holding the INPUT button

displays all the lists of external inputs.

Activates or deactivates the subtitles.

Displays the program event according to

time scheduler. (Depending upon model)

(Q. Settings) Accesses the quick settings.

* Pressing and holding the (Q. Settings) button

displays the All Settings menu.

Color buttons These access special functions in

some menus.

( Red, Green, Yellow, Blue)

, / , , , Control buttons for media

contents (Depending upon model)

You can zoom in on the area where the

remote control is pointed.

* By zooming in on the selected area,

you can view it in full screen.

* : To use the button, press and hold for more than

3 seconds.

Registering Magic Remote

How to Register the Magic Remote

To use the Magic Remote, first pair it with your TV.

1 Put batteries into the Magic Remote and turn the

TV on.

2 Point the Magic Remote at your TV and press the

(Wheel) (OK) on the remote control.

•If the TV fails to register the Magic Remote, try

again after turning the TV off and back on.

How to Deregister the Magic Remote

Press the / and (Home) buttons

at the same time, for five seconds, to unpair the

Magic Remote with your TV.

•Pressing and holding the button will

let you cancel and re-register Magic Remote at

once.

Licenses

Supported licenses may differ by model.

For more information about licenses,

visit

www.lg.com

.

13

ENGLISH

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained in

this product, please visit

http://opensource.lge.com

.

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download. LG Electronics will also

provide open source code to you on CD-ROM for

a charge covering the cost of performing such

distribution (such as the cost of media, shipping,

and handling) upon email request to

opensource@

lge.com

. This offer is valid for three (3) years from

the date on which you purchased the product.

External Control Device Setup

To obtain the external control device setup

information, please visit

www.lg.com

.

(Depending upon model)

Troubleshooting

•Cannot control the TV with the remote control.

- Check if anything such as tape has been placed

over the receiver.

- Check if there is any obstacle between the

product and the remote control.

- Replace the batteries with new ones.

•No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall

outlet.

- Check if there is a problem in the wall outlet by

connecting other products.

•The TV turns off suddenly.

- Check the power control settings. The power

supply may be interrupted.

- Check if the Sleep Timer / Timer Power Off

feature is activated in the TIMERS settings.

- If there is no signal while the TV is on, the TV

will turn off automatically after 15 minutes of

inactivity.

Specifications

Product specifications may be changed without

prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on

the FTC label is measured in accordance with the

Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the

usage environment (The content watched, TV

settings, etc.).

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,

CADTV 1-135

External Antenna Impedance

75 Ω

Environment Condition

•Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

•Operating Humidity

Less than 80 %

•Storage Temperature

- 20 °C to 60 °C (-4 °F to 140 °F)

•Storage Humidity

Less than 85 %

14

ENGLISH

Wireless Module (LGSBWAC61)

Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz

15 dBm

16 dBm

12.5 dBm

Bluetooth

Frequency Range Output Power (Max.)

2400 to 2483.5 MHz 10 dBm

•As band channels can vary per country, the

user cannot change or adjust the operating

frequency. This product is configured for the

regional frequency table.

•For consideration of the user, this device should

be installed and operated with a minimum

distance of 20 cm (7.8 inches) between the

device and the body.

•FCC ID: BEJLGSBWAC61

IC: 2703H-LGSBWAC61

15

ENGLISH

Regulatory

FCC Notice

(For USA)

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses,

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the

equipment and the receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference and (2) this device must accept any

interference received, including interference that

may cause undesired operation of the device.

Any changes or modifications in construction of

this device which are not expressly approved by

the party responsible for compliance could void

the user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users

of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with

and/or damage this device. This device cannot be

co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-

located or operating in conjunction with any other

antenna or transmitter.

This equipment should be installed and operated

with minimum distance 20 cm (7.8 inches)

between the antenna and your body. Users must

follow the specific operating instructions for

satisfying RF exposure compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s

licence-exempt RSSs. Operation is subject to the

following two conditions:

1 This device may not cause interference; and

2 This device must accept any interference,

including interference that may cause undesired

operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm

(7.8 inches) between the antenna & your body.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

16

ENGLISH

WARNING

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

1 The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the

potential for harmful interference to co-channel

mobile satellite systems;

2 For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the bands 5250-5350 MHz and 5470-5725 MHz

shall be such that the equipment still complies

with the e.i.r.p. limit;

3 For devices with detachable antenna(s), the

maximum antenna gain permitted for devices in

the band 5725-5850 MHz shall be such that the

equipment still complies with the e.i.r.p. limits

specified for point-to-point and non-point-to-

point operation as appropriate; and

4 The worst-case tilt angle(s) necessary to remain

compliant with the e.i.r.p. elevation mask

requirement set forth in Section 6.2.2(3) shall be

clearly indicated.(devices operating in the band

5250-5350 MHz with a maximum e.i.r.p. greater

than 200 mW)

5 High-power radars are allocated as primary

users (i.e. priority users) of the bands 5250–5350

MHz and 5650–5850 MHz and that these radars

could cause interference and/or damage to LE-

LAN devices.

Note to Cable/TV Installer

(For USA and Canada)

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected

to the grounding system of the building, as close

to the point of the cable entry as practical.

WARNING!

Never place a television set in an unstable

location. A television set may fall, causing serious

personal injury or death. Many injuries, particularly

to children, can be avoided by taking simple

precautions such as:

•Using cabinets or stands recommended by the

manufacturer of the television set.

•Only using furniture that can safely support the

television set.

•Ensuring the television set is not overhanging

the edge of the supporting furniture.

•Not placing the television set on tall furniture

(for example, cupboards or bookcases) without

anchoring both the furniture and the television

set to a suitable support.

•Not placing the television set on cloth or other

materials that may be located between the

television set and supporting furniture.

•Educating children about the dangers of

climbing on furniture to reach the television set

or its controls.

If your existing television set is being retained

and relocated, the same considerations as above

should be applied.

Symbols

Refers to alternating current(AC).

Refers to direct current(DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to

making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on

proper stands or installed according to the manufacturer’s recommendations. Televisions that

are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,

may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television

is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of

drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped

over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your

ability to safely mount your television.

• ALWAYS use a mount that has been recommended by the television manufacturer and has a

safety certication by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the television and mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder

block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount

installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the

purchase of a at-panel television. Special care should be made in the placement of older CRT

televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size

and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the

drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

CE.org/safety

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

Register your product online!

www.lg.com

The model and serial numbers of the TV are located on the

back and one side of the TV.

Record them below should you ever need service.

MODEL

SERIAL

Declaration of Conformity

Trade Name LG

Model OLED55B6P-U, OLED65B6P-U,

OLED55C6P-U, OLED65C6P-U,

OLED55E6P-U, OLED65E6P-U

Responsible

Party

LG Electronics Inc.

Address 1000 Sylvan Ave.

Englewood Cliffs NJ 07632

U.S.A

TEL 201 - 266 - 2534

OWNER’S MANUAL

EXTERNAL CONTROL

DEVICE SETUP

Please read this manual carefully before operating the set and retain it for

future reference.

www.lg.com

2

ENG

ENGLISH

2KEY CODES

KEY CODES

• This feature is not available for all models.

Code

(Hexa) Function Note Code

(Hexa) Function Note

00 CH +, PR + R/C Button 53 List R/C Button

01 CH -, PR - R/C Button 5B Exit R/C Button

02 Volume + R/C Button 60 PIP(AD) R/C Button

03 Volume - R/C Button 61 Blue R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button

08 Power R/C Button 72 Red R/C Button

09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button

0B Input R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 7A User Guide R/C Button

0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button

10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button

1A Q.View / Flashback R/C Button 8E ►► (Forward) R/C Button

1E FAV (Favorite Channel) R/C Button 8F ◄◄ (Rewind) R/C Button

20 Text (Teletext) R/C Button AA Info R/C Button

21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button

28 Return (BACK) R/C Button B0 ► (Play) R/C Button

30 AV (Audio / Video) Mode R/C Button B1 ꕗ (Stop / File List) R/C Button

39 Caption/Subtitle R/C Button BA ꕘ (Freeze / Slow Play /

Pause) R/C Button

40 Λ

(Arrow Key / Cursor Up)

R/C Button BB Soccer R/C Button

41 V (Arrow Key / Cursor

Down) R/C Button BD ꔄ (REC) R/C Button

42 My Apps R/C Button DC 3D R/C Button

43 Menu / Settings R/C Button 99 AutoConfig R/C Button

44 OK / Enter R/C Button 9F App / * R/C Button

45 Q.Menu R/C Button

4C List, - (ATSC Only) R/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

3

ENGENGLISH

3

EXTERNAL CONTROL DEVICE SETUP

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer

or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

The connection interface may differ from your TV.

4

ENG

ENGLISH

4EXTERNAL CONTROL DEVICE SETUP

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

* The connection interface may differ from your TV.

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC

)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

- or

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC

)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

1

6

5

9

PC TV

RXD 2 2 TXD

TXD 3 1 RXD

GND 5 3 GND

OR

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

D-Sub 9 Phone

RS-232C

(Serial port)

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending on model)

5

ENGENGLISH

5

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2 DATA

(Hexadecimal) COMMAND1 COMMAND2 DATA

(Hexadecimal)

01. Power* k a 00 to 01 15. Balance k t 00 to 64

02. Aspect

Ratio k c (p.7)

16. Color

(Colour)

Temperature

x u 00 to 64

03. Screen

Mute k d (p.7)

17. ISM

Method (Only

Plasma TV)

j p (p.8)

04. Volume

Mute k e 00 to 01 18. Equalizer j v (p.8)

05. Volume

Control k f 00 to 64 19. Energy

Saving j q 00 to 05

06. Contrast k g 00 to 64 20. Tune

Command m a (p.9)

07.

Brightness k h 00 to 64

21. Channel

(Programme)

Add/Del(Skip)

m b 00 to 01

08. Color/

Colour k i 00 to 64 22. Key m c Key Codes

09. Tint k j 00 to 64

23. Control

Backlight,

Control Panel

Light

m g 00 to 64

10.

Sharpness k k 00 to 32 24. Input

select (Main)

x b (p.11)

11. OSD

Select k l 00 to 01 25. 3D (Only

3D models)

x t (p.11)

12. Remote

Control Lock

Mode

k m 00 to 01

26. Extended

3D (Only 3D

models)

x v (p.11)

13. Treble k r 00 to 64

27. Auto

Configure

j u (p.12)

14. Bass k s 00 to 64

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not

executed and treated as NG.

With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with

USB-to-Serial converter cable, the command works only if TV is on.

6

ENG

ENGLISH

6EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set

can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.

[Cr] : Carriage Return - ASCII code ‘0x0D’

[ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the

data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254

01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998

10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

7

ENGENGLISH

7

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

►To control Power *On or Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

►To Show TV is Power On or *Off

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback

presents status about each function.

02. Aspect Ratio (Command: k c)

(Main Picture Size)

►To adjust the screen format. (Main picture format)

You can also adjust the screen format using the

Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9)

04 : Zoom

05 : Zoom 2

(Latin America

except Colombia

Only)

06 : Set by Program/

Original

07 : 14:9

(Europe, Colombia, Mid-East,

Asia except South Korea and

Japan)

09 : * Just Scan

0B : Full Wide

(Europe, Colombia, Mid-

East, Asia except South

Korea and Japan)

10 to 1F : Cinema Zoom 1 to 16

0c : 21:9 (Depending on model)

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV,

AV partially.

03. Screen Mute (Command: k d)

►To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute

on, TV will not display OSD.

04. Volume Mute (Command: k e)

►To control volume mute on/off.

You can also adjust mute using the MUTE button

on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

►To adjust volume.

You can also adjust volume with the volume

buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

►To adjust screen contrast.

You can also adjust contrast in the PICTURE

menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

►To adjust screen brightness.

You can also adjust brightness in the PICTURE

menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

►To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

8

ENG

ENGLISH

8EXTERNAL CONTROL DEVICE SETUP

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

►To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

►To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE

menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

►To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

►To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode.

When main power is off & on (plug-off and plug-in,

after 20 - 30 seconds), external control lock is

released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not

turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

►To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

14. Bass (Command: k s)

►To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

15. Balance (Command: k t)

►To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

16. Color(Colour) Temperature (Command: x u)

►To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p) (Only Plasma TV)

►To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal

20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

18. Equalizer (Command : j v)

►Adjust EQ of the set.

Transmission [j][v][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0 0

MSB

Frequency Data

LSB

7 6 5 Frequency 4 3 2 1 0 Step

0 0 0 1st Band 0 0 0 0 0 0(decimal)

0 0 1 2nd Band 0 0 0 0 1 1(decimal)

0 1 0 3rd Band ... ... ... ... ... ...

0 1 1 4th Band 0 0 0 1 1 19(decimal)

9

ENGENGLISH

9

EXTERNAL CONTROL DEVICE SETUP

1 0 0 5th Band 0 0 1 0 1 20(decimal)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

* It depends on model, and can adjust when sound

mode is EQ adjustable value.

19. Energy Saving (Command: j q)

►To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data

00 : Off

01 : Minimum

02 : Medium

03 : Maximum

04 : Auto (For LCD TV / LED TV) /

Intelligent sensor (For PDP TV)

05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

►Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ]

[Data 01][ ][Data 02][Cr]

* Analog Antenna/Cable

[Data 00][Data 01] Channel Data

Data 00 : High byte channel data

Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

- 00 : Antenna TV (ATV)

- 80 : Cable TV (CATV)

* Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data

Data 00 : High Channel data

Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)

Data 02 : Input Source (Digital)

- 10 : Antenna TV (DTV)

- 20 : Antenna Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the Analog antenna (PAL) Channel 10.

Set ID = All = 00

Data 00 & 01 = Channel Data is 10 = 00 0a

Data 02 = Analog Antenna TV = 00

Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1 = 00 01

Data 02 = Digital Antenna TV = 10

Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1000 = 03 E8

Data 02 = Digital Satellite TV = 40

Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

►To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor

channel number. The Physical number is the actual

digital channel number, the Major is the number that

the channel should be mapped to, and the Minor is

the sub-channel. Since the ATSC tuner automatically

maps the channel from the Major / Minor number,

the Physical number is not required when sending a

command in Digital.

* Analog Antenna/Cable

Data 00 : Physical Channel Number

- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number

Data 01 & 02: xx (Don't care)

Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analog)

- 00 : Antenna TV (ATV)

- 01 : Cable TV (CATV)

* Digital Antenna/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01 : High byte Channel Data

Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor Channel Number

Data 03 : High byte Channel Data

Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Antenna TV (DTV) – Use Physical Channel

Number

- 06 : Cable TV (CADTV) – Use Physical Channel

10

ENG

ENGLISH

10 EXTERNAL CONTROL DEVICE SETUP

Number

- 22 : Antenna TV (DTV) – Don’t Use Physical

Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical

Channel Number

- 46 : Cable TV (CADTV) – Use Major Channel

Number Only (One Part Channel)

Two bytes are available for each major and minor

channel data, but usually the low byte is used alone

(high byte is 0).

* Tune Command Examples:

1. Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00

Data 00 = Channel Data is 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = Analog Cable TV = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital antenna (ATSC) channel 30-3.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = Digital Antenna TV = 22

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

►To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Antenna/Satellite

Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01: High byte Channel Data

Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite)

Data 03: High byte Channel Data

Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Antenna TV (DTV)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples:

1

Tune to the digital antenna (ISDB-T) channel 17-1

.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 17 = 00 11

Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Antenna TV = 02

Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Don’t Care = 00 00

Data 05 = Digital BS TV = 07

Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)

(Command: m b)

►To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

22. Key (Command: m c)

►To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

• For LCD TV / LED TV

►To control the backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

• For Plasma TV

►To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

11

ENGENGLISH

11

EXTERNAL CONTROL DEVICE SETUP

24. Input select (Command: x b)

(Main Picture Input)

►To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data

00 : DTV

02 : Satellite DTV

ISDB-BS (Japan)

03 : ISDB-CS1 (Japan)

04 : ISDB-CS2 (Japan)

11 : CATV

01 : CADTV

10 : ATV

20 : AV or AV1 21 : AV2

40 : Component1

60 : RGB

41 : Component2

90 : HDMI1

92 : HDMI3

91 : HDMI2

93 : HDMI4

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

25. 3D(Command: x t) (only 3D models)

(Depending on model)

►To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

* (Depending on model)

Data Structure

[Data 00] 00 : 3D On

01 : 3D Off

02 : 3D to 2D

03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side

02 : Check Board

03 : Frame Sequential

04 : Column interleaving

05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

* [Data 02], [Data 03] functions depend on model

and signal.

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and

[Data 02] have no meaning.

* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data

03] works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

26. Extended 3D(Command: x v) (only 3D models)

(Depending on model)

►To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction

01 : 3D Depth (3D Mode is Manual Only)

02 : 3D Viewpoint

06 : 3D Color Correction

07 : 3D Sound Zooming

08 : Normal Image View

09 : 3D Mode (Genre)

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00

00 : Right to Left

01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code)

Data value range(0 - 20) converts Viewpoint range

(-10 - +10) automatically (Depending on model)

* This option works when 3D Mode (Genre) is manual

only.

3) When [Data 00] is 06, 07

00 : Off

01 : On

4) When [Data 00] is 08

00 : Revert to 3D video from 3D-to-2D

converted 2D video

01 : Change 3D video to 2D video, except

2D-to-3D video

* If conversion condition doesn’t meet, command is

treated as NG.

5) When [Data 00] is 09

00 : Standard

02 : Cinema

04 : Manual

01 : Sport

03 : Extreme

05 : Auto

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

12

ENG

ENGLISH

12 EXTERNAL CONTROL DEVICE SETUP

27. Auto Configure (Command: j u)

(Depending on model)

►To adjust picture position and minimize image

shaking automatically. It works only in RGB (PC)

mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

1 Press the (Home) button to access the

Smarthome menu. Select (Settings) and press

Wheel (OK).

2 Select (All Settings) and press Wheel (OK).

3 Select the Network Wired Connection

(Ethernet) or Wi-Fi Connection.


Sound

Channels

Network

General

NETWORK

TV Name

[LG] webOS TV

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Not Connected

Wi-Fi Direct

LG Connect Apps

Accessibility

Safety

4 The device automatically tries to connect to the

available network (wired network first).

When you select the Wi-Fi Connection, the

network list available is displayed. Choose the

network you wish to use.

WI-FI NETWORK

Network /

iptime_xu.ji

iptime_shinsung.kang

iptime_ungkee.choi

iptime_sungho.jo

iptime_seungjun.lee

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings


Sound

Channels

Network

General

Accessibility

Safety

For wireless AP (Router) that has the

symbol, you need

to enter the security key.

5 If the connection is completed, Connected to

Internet is displayed.


Sound

Channels

Network

General

NETWORK

TV Name

[LG] webOS TV

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Connected to Internet

Wi-Fi Direct

LG Connect Apps

Accessibility

Safety

You can check the status of connection

in Advanced Wi-Fi Settings.

WI-FI NETWORK

Network /

iptime_xu.ji

iptime_shinsung.kang

iptime_ungkee.choi

iptime_sungho.jo

iptime_seungjun.lee

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings


Sound

Channels

Network

General

Accessibility

Safety

* Image shown may differ from your TV.

* Image shown on a PC or mobile phone may vary depending upon the Operating System (OS).

* Depending upon the version of the software, icon position can be changed.

Network Settings

webOS TV Quick Setup Guide

ENGLISH

Troubleshooting Network Problems

1 Press the (Home) button to access the

Smarthome menu. Select (Settings) and press

Wheel (OK).

2 Select (All Settings) and press Wheel (OK).

3 Select the Network Wired Connection

(Ethernet) or Wi-Fi Connection Advanced Wi-

Fi Settings.


Sound

Channels

Network

General

NETWORK

TV Name

[LG] webOS TV

Wired Connection (Ethernet)

Not Connected

Wi-Fi Connection

Not Connected

Wi-Fi Direct

LG Connect Apps

Accessibility

Safety

WI-FI NETWORK

Network /

iptime_xu.ji

iptime_shinsung.kang

iptime_ungkee.choi

iptime_sungho.jo

iptime_seungjun.lee

Add a Hidden Wireless Network

Connect via WPS PBC

Connect via WPS PIN

Advanced Wi-Fi Settings


Sound

Channels

Network

General

Accessibility

Safety

Follow the instructions below that match to your

network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV,

AP (Router) and cable modem.

2 Power off and power on in the following order; (1st)

the cable modem, wait for the cable modem to reset,

(2nd) the AP (Router), wait for the AP (Router) to

reset and (3rd) the TV.

3 If you are using a static IP, enter the IP directly.

4 Contact Internet service provider or AP (Router)

manufacturer.

Check the AP (Router) or consult your Internet

service provider.

When X appears next to Gateway:

1 Unplug the power cord of the AP (Router) or cable

modem, wait 10 seconds. Reapply power.

2 Initialize (Reset) the AP (Router) or cable modem.

3 Contact Internet service provider or AP

(Router) manufacturer.

When X appears next to DNS:

1 Unplug the power cord of the cable modem or the

AP (Router), wait 10 seconds. Reapply power.

2 After the cable modem or AP (Router) has

initialized (Reset), try to reconnect.

3 Check that the MAC address of the TV/AP (Router)

is registered with your Internet service provider.

(The MAC address displayed on the right pane of

the network status window should be registered

with your Internet service provider.)

4 Check the AP (Router) manufacturer’s website

to make sure your router has the latest firmware

version installed.

Depending upon the version of the software, icon position can be changed.

ENGLISH

SmartShare PC SW Installation & Setting

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the

same local network.

2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).

3 Enable your smartphone to share content files with other devices.

4 Open Device Connector application on TV. (Home) Device Connector Smartphone CONTENT

SHARE.

5 Select the file type you want to play (movie, audio, or photo).

6 Select a movie, music, or photo file to play on the TV.

7 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

(Home) (Settings) (All Settings) General About This TV CHECK FOR UPDATES

You can check the Software Version and update it.

If you check the Allow Automatic Updates, the TV will check for updated software automatically each time the set

is turned on (Internet Connection is required).

* When the TV is turned on for the first time after a software update, initialization of the TV may take approximately

one minute.

GENERAL

Language

Location

Time & Date

Timers

Standby Light

Home/Store Mode

Power saving mode

SIMPLINK

Settings Help

Reset to Initial Settings

About This TV


Sound

Channels

Network

General

Accessibility

Safety

ABOUT THIS TV

General /

Software Version xx.xx.xx

CHECK FOR UPDATES

Allow Automatic Updates

TV Information

LG webOS TV

LG Remote Service

Customer Service

x-xxx-xxx-xxxx

User Agreements

Legal Notice

Open Source Software Notice


Sound

Channels

Network

General

Accessibility

Safety

ySmartShare service is only available if TV and other devices are connected to the same AP (Router).

NOTE

Install the SmartShare PC SW program on your PC.

1 Go to

www.lg.com

. Then, select your region.

2 Select SUPPORT.

3 Select Software & Firmware. Then, search for your model. Then, select SmartShare PC SW.

4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is

complete.

ENGLISH

Wi-Fi Direct Setting

(Home) (Settings) (All Settings) Network Wi-Fi DIRECT

If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.

With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.

Miracast Setting

WiDi (Wireless Display) Setting

Intel® WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network for

mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos, photos,

online shows and more in full HD on your TV with great image clarity and sound.

(Home) / (Input) (Screen Share)

1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program.

* LG TVs do not need to register.

* For more information on Intel® WiDi, visit

http://intel.com/go/widi

.

* You can control your PC using the Magic Remote. (above WiDi version 4.2)

2 It detects LG webOS TVs available, which supports WiDi. In the list, select the TV you want and click Connect.

Enter the number shown on the screen into the input field ( ) on your laptop and then click Continue.

Notebook Screen

3 The laptop screen appears on the TV screen. The wireless environment may affect the screen display. If the

connection is poor, the Intel® WiDi connection may be lost.


Sound

Channels

Network

General

Accessibility

Safety

WI-FI DIRECT

LG Smart+ TV

REFRESH LIST

Network / 1 When you open Wi-Fi Direct menu, a list of available devices appears. Select your

device.

2 When you are prompted to the connection request, select Ye s . Wi-Fi Direct is

now connected to your TV.

* You can only use devices that support WiFi Direct.

Miracast allows a portable device to send video and sound securely to the TV wirelessly.

(Home) / (Input) (Screen Share)

1 Miracast should be set to ON on your portable device.

2 When your TV is detected, select the device on your portable device.

When connection is completed, the device screen appears on the TV screen.

* If you turn Listen Mode to ON after launching the Screen Share app, you can connect the device without starting

the Screen Share app.

ENGLISH

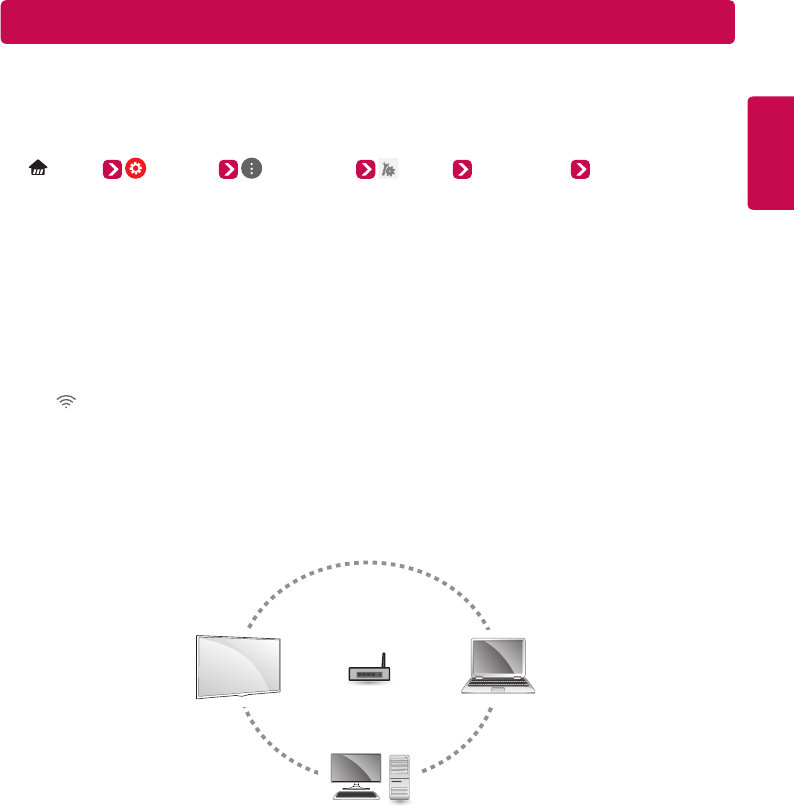

Troubleshooting Wi-Fi Network Problems

Checkpoints

yMake sure that you have the latest version of the software.

-If you are using a Wi-Fi router, check whether you have the latest firmware installed.

-If there are any available updates, update the firmware according to the manufacturer's instructions.

- Check the current software version and if there is an available update, install it.

(Home) (Settings) (All Settings) General About This TV Software Version

yCheck if the same symptom occurs with two or more Wi-Fi devices.

-Wi-Fi problems may be related to network condition and a device that is connected to the network.

- If other Wi-Fi devices can connect to the Internet at the same location as the TV, then your Wi-Fi router is

probably normal.

yCheck the power and Ethernet cables of the Wi-Fi router.

- When the Ethernet cable connected to the Wi-Fi router is loose or disconnected, network problems can

occur.

-Check all power and Ethernet cables of the Wi-Fi router to see if they are correctly connected.

yCheck the Wi-Fi router to see if the router is set to the recommended wireless settings. If network problems

continue, reset your network devices.

yCheck the signal strength of the Wi-Fi router to connect to from the TV UI.

-The that is next to the Wi-Fi router name (SSID) in the menu indicates the sensitivity of the receiver.

-It is recommended that you connect to a Wi-Fi network with 3 or more bars of signal strength.

- If the number of bars indicating signal strength are less than 3, the network connection status may be weak

or unstable, so shorten the distance between the Wi-Fi router and the TV.

yIf the signal strength of the Wi-Fi router is weak, wireless speed slowdowns and network disconnection may

occur.

yTo supplement wireless coverage of network equipment, your Wi-Fi router should be placed in the middle of

the network equipment.

Wi-Fi Router

yInterference Factors

If there is any interference from surrounding equipment, the network connection may be weak or unstable.

-Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth

-Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth

-Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth

- Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate

in the 2.4 GHz or 5 GHz bandwidth.

y How to reduce the effects of interference between Wi-Fi and Bluetooth devices

- Set the channel on your wireless network equipment to avoid the 2.4 GHz or 5 GHz bandwidth which has lots

of interference.

-If possible, use the 5 GHz wireless network.

- If the Wi-Fi router is located too far away or in environments with high interference, the network connection

may be weak or unstable.

- In this case, move the Wi-Fi router closer to the TV or check if there are any obstructions (e.g., concrete walls,

cabinets) between the two devices.

ENGLISH

yRadio Frequency (RF) Interference and Absorbing Obstructions

Type of Barrier Interference

Potential Type of Barrier Interference

Potential Type of Barrier Interference

Potential

Wood Low Water Medium Plaster High

Synthetic material Low Bricks Medium Concrete High

Glass Low Marble Medium Bulletproof glass High

Metal Very High
