LICENSES
SAFETY PRECAUTIONS
PREPARATION

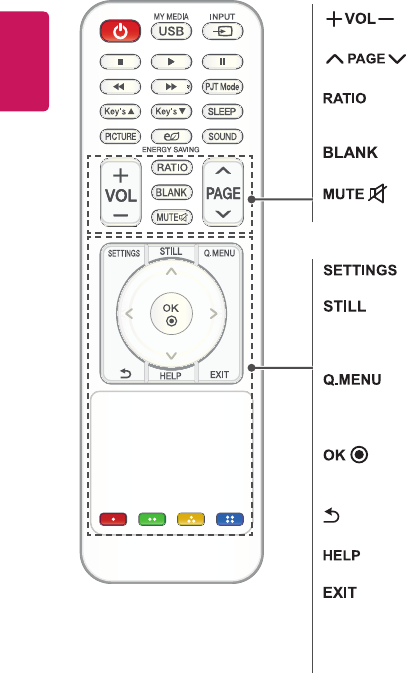

REMOTE CONTROL
USING THE PROJECTOR
ENTERTAINMENT
- Using SCREEN SHARE
- Setting Up Bluetooth on the Projector
MY MEDIA
- Before Using
  - Connecting a USB Device
  - Removing a USB Device
- To Use My Media
CUSTOMIZING SETTINGS
CONNECTING DEVICES
MAINTENANCE
- Cleaning
  - Cleaning the Lens
  - Cleaning the Projector Case
SPECIFICATIONS

PH150G

PH150B

Please read the safety information carefully before using this product.

Owner's Manual

LG Minibeam Nano

Lcos Projector

www.lg.com

P/NO : SAC37034653 (1705-REV01)

ENGLISH

LICENSES

Supported licenses may differ by model. For more information about

licenses, visit www.lg.com.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D

symbol are trademarks of Dolby

Laboratories.

This DivX Certied® device has passed

rigorous testing to ensure it plays DivX®

video.

To play purchased DivX movies, rst

your registration code in the DivX VOD

section of your device setup menu.

DivX Certied® to play DivX® video up to

HD 1080p, including premium content.

DivX®, DivX Certied® and associated

logos are trademarks of DivX, LLC and are

used under license.

Covered by DivX Patents 7,295,673;

7,515,710; RE45,052; and others available

at [www.divx.com/patents]

The terms HDMI and HDMI High-Denition

Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of

HDMI Licensing LLC in the United States

and other countries.

This device meets the EMC requirements for home appliances (Class

B) and is intended for home usage. This device can be used in all

regions.



• Image shown may differ from your projector.

• Your projector’s OSD (On Screen Display) may differ slightly from

that shown in this manual.

NOTE

ENGLISH

SAFETYPRECAUTIONS

Please take note of the safety instructions to prevent any potential accident

or misuse of the projector.

• Safety precautions are given in two forms, i.e., WARNING and CAUTION

as detailed below.

WARNING Failure to follow the instructions may cause serious

injury and even death.

CAUTION Failure to follow the instructions may cause personal

injury or product damage.

• Read the owner's manual carefully and keep it on hand.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning ash with

arrowhead symbol, within

an equilateral triangle, is

intended to alert the user to the

presence of uninsulated dangerous

voltage within the product’s

enclosure that may be of sufcient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point

within an equilateral

triangle is intended to alert

the user to the presence of

important operating and

maintenance (servicing)

instructions in the literature

accompanying the device.

WARNING/CAUTION

-TO REDUCE THE RISK

OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR

MOISTURE.

Readtheseinstructions.

Keeptheseinstructions.

Heedallwarnings.

Followallinstructions.

IndoorInstallation

WARNING

• Do not use the projector outside

and do not expose the product

to any humidity or water.

-Since the product is not

waterproof, this may result in

a re or electric shock.

• Do not place the projector in

direct sunlight or near heat

sources such as radiators, res,

stoves, etc.

-This may result in re.

• Do not place flammable

materials such as aerosols near

the projector.

-This may result in re.

ENGLISH

• Do not allow children to cling to

or climb up to the projector.

-This may cause the projector

to fall, causing injury or death.

• Do not install the product in a

place with no ventilation (e.g.,

on a bookshelf or in a closet) or

on a carpet or cushion.

-This may result in re due

to the increase in internal

temperature.

• Do not place the product close

to sources of steam, oil or oil

mist, such as humidiers and

kitchen counters.

-Failure to do so may result

in re, electric shock, or

corrosion.

• Do not install the product onto

a wall or ceiling that is close to

sources of oil or oil mist.

-The product may be

damaged and fall, resulting in

serious injury.

• Do not place the projector where

it might be exposed to dust.

-This may result in re.

• Do not use the projector in a

damp place such as a bathroom

where it is likely to get wet.

-This may result in re or

electric shock.

• Do not allow a tablecloth or

curtain to block the air vent.

-This may result in re due to

the increase in the internal

temperature.

• Ensure good ventilation around

the projector. The distance

between the projector and the

wall should be at least 30 cm.

-This will prevent re due to

the increase in the internal

temperature.

CAUTION

• When placing the projector on a

table or shelf, be careful not to

put it near the edge.

-The projector could fall due

to balance problems, which

may cause personal injury or

damage to the product. Make

sure to use the projector

cabinet or stand that ts the

projector.

ENGLISH

• When moving the projector,

make sure to switch it off and

remove the power plug and

cords.

-The power cord may be

damaged, resulting in re or

electric shock.

• Do not place the projector on

an unstable or vibrating surface

such as a wobbly shelf or a

slope.

-It may fall and cause injury.

• Be careful not to tip the projector

over when connecting external

devices to the projector.

-This may cause personal

injury or damage to the

projector.

Power

WARNING

• DISCONNECTING THE

DEVICE FROM THE MAIN

POWER

-The Power plug is the

disconnecting device. In case

of an emergency, the Power

Plug must remain readily

accessible.

• The grounding wire should be

connected. (Except for devices

which are not grounded.)

-Ensure that you connect the

grounding cable to avoid

electric shock.

If it is not possible to ground

the unit, have a qualified

electrician install a separate

circuit breaker.

Do not try to ground the

projector by connecting it to

telephone wires, lightning

rods, or gas pipes.

• The power plug should be

inserted fully into the power

outlet.

-An unstable connection may

cause a fire.

• Do not place heavy objects on

the power cord.

-This may result in re or

electric shock.

• Never touch the power plug with

wet hands.

-This may result in electric

shock.

• Do not plug too many devices

into one multi-power outlet.

-This may result in re due to

the power outlet overheating.

ENGLISH

• Keep the AC adapter, power

plug, and the used power outlet

clean from dust or foreign

materials building up.

– This may result in re.

• If there is any smoke or a

burning smell from the projector

or AC adapter, stop using the

product immediately. Disconnect

the power cord from the power

outlet, and then contact the

customer service center.

– This may result in re.

• To turn off the main power,

remove the power plug, which

should be positioned so it is

easy to access for operation.

CAUTION

• Always grab the plug to remove

the AC adapter or power cord.

– Otherwise, this may result

in a re or may damage the

product.

• Refrain from constantly bending

the power cord of the AC

adapter.

– If the power cord is bent

excessively for a long period

of time, the cord may break

inside. This may result in a

re or electric shock.

• Ensure the power cord and plug

are not damaged, modified,

severely bent, twisted, pulled,

sandwiched or hot. Do not use

the product if the power outlet

is loose.

– This may result in re or

electric shock.

• Keep the power cord away from

heating devices.

-The wire's sheath may melt,

which may result in re or

electric shock.

ENGLISH

• Place the projector where

people will not trip over or step

on the power cord to protect the

power cord and plug from any

damage.

-This may result in re or

electric shock.

• Do not turn the projector on or

off by plugging in the power plug

or unplugging it from the power

outlet. (Do not use the power

plug as a switch.)

-This may result in electric

shock or damage to the

product.

• Do not insert a conductor

into the other side of the wall

outlet while the power plug is

inserted into the wall outlet.

In addition, do not touch the

power plug immediately after it

is disconnected from the wall

outlet.

-This may result in electric

shock.

• Only use the official power cord

provided by LG Electronics. Do

not use other power cords.

-This may result in re or

electric shock.

• If any water or foreign materials

have gone into the AC adapter,

power cord, or the interior of the

projector, turn off the projector

by pressing the power button.

Remove all the cables, and then

contact the customer service

center.

– This may result in re or

electric shock.

• The surface of the AC adapter is

hot. Keep the AC adapter out of

the reach of children and avoid

touching it during use.

• Never disassemble the power

supply devices (AC adapter/

power cord, etc.).

– This may damage the power

cord and result in a re or

electric shock.

• Connect the AC adapter and the

power cord firmly.

– Not doing so may result in a

product failure or re.

ENGLISH

• Do not place heavy objects

or put pressure on the power

cord and AC adapter and avoid

damage.

– This may result in a re or

may damage the product.

• Always use the AC adapter

provided or any AC adapters

approved and certified by LG

Electronics.

– Any other AC adapter

connected may result in the

screen ickering.

WheninUse

WARNING

• Do not place anything

containing liquid on top of the

projector such as a vase, flower

pot, cup, cosmetics, medicine,

or ornaments, candles, etc.

-This may result in re or

electric shock, or cause injury

due to falling.

• In the event that there is a

heavy impact or the cabinet is

damaged, switch it off, unplug

it from the power outlet and

contact an authorized service

center.

-This may result in electric

shock.

• Do not insert pieces of metal

such as coins, hairpins, or metal

debris, nor ammable materials

such as paper or matches into

the projector.

-This is to prevent electric

shock or re.

ENGLISH

• Make sure that a child does

not swallow the batteries when

you replace the old remote

control batteries with new ones.

Keep batteries out of reach of

children.

-If a child swallows a battery,

consult a doctor immediately.

• Never open any cover on the

projector.

-There is a high risk of electric

shock.

• Do not look directly into the lens

when the projector is in use.

-The bright light may damage

your eyes.

• When the lamp is on or has just

been turned off, avoid touching

the air vent or lamp, because

these will be very hot.

• If there is a gas leak in the

room with the projector, do not

touch the projector or power

outlet. Open the windows for

ventilation.

-Sparks may cause re or

burns.

• Unplug the power cord from the

outlet during a lightning storm.

-This will prevent shock or

damage to the projector.

• Do not use the projector near

electronic devices that generate

a strong magnetic eld.

• Keep the plastic film used for

packaging the projector out of

the reach of children.

– If not handled safely, it can

cause suffocation.

• Do not keep your hand on the

projector for a long time when it

is running.

• When you play a game by

connecting a game console to

a projector, it is recommended

that you maintain a distance

of more than four times the

diagonal length of the screen.

-Make sure that the

connecting cable is long

enough. Otherwise, the

product may fall causing

personal injury or damage to

the product.

• Do not place the projector or its

remote control with battery in

an extremely high temperature

environment.

-This may result in re.

ENGLISH

CAUTION

• Do not place heavy objects on

the projector.

-It may fall down and cause

personal injury.

• Be careful not to allow any

impact to the lens during

transport.

• Do not touch the lens of the

projector.

-The lens may be damaged.

• Do not use any sharp tools on

the projector such as a knife

or hammer, because this may

damage the casing.

• In the event that no image

appears on the screen or no

sound is heard, stop using

the projector. Switch off the

projector, unplug it from the

power outlet and contact our

service center.

-This may result in re or

electric shock.

• Do not drop anything onto the

projector or allow anything to

bang into the projector.

-This may cause damage

to the projector or personal

injury.

• It is recommended that you

maintain a distance of more

than 5 to 7 times the diagonal

length of the screen.

– If you watch the screen at

a close distance for a long

time, your eye sight may

become worse.

• Do not block the light beam

emitted from the projector using

a book or other object.

-Lengthy exposure to the

projector beam may result in

re. In addition, the lens may

be overheated and damaged

by the reected heat. Disable

the AV function to stop

projection temporarily or turn

off the power.

• Do not start the projector with

the volume turned up high.

-High volume may damage

hearing.

• Do not use high voltage

electrical equipment near the

projector, (e.g., a bug zapper).

This may result in product

malfunction.

ENGLISH

Cleaning

WARNING

• Do not spray the projector with

water when cleaning. Make sure

water does not flow into the

projector.

-This may result in re or

electric shock.

• When there is smoke or a

strange smell coming out from

the projector or a foreign object

falls into the projector, please

switch it off and unplug it from

the power outlet and contact our

service center.

-Otherwise, this may result in

re or electric shock.

• Use air spray, a soft cloth, or a

cotton swab moistened with a

lens cleaning chemical or alcohol

to remove dust or stains on the

front projection lens.

CAUTION

• Contact your seller or our service

center once a year to clean the

internal parts of the projector.

-If you do not clean the

projector for a long period of

time, dust will accumulate,

which may result in re or

damage to the projector.

• When cleaning plastic parts such

as the projector case, unplug the

power first and wipe with a soft

cloth. Do not spray with water

or wipe with a wet cloth. Never

use glass cleaner, automobile or

industrial polish, abrasives, wax,

benzene, or alcohol as these can

damage the projector.

-This can result in re, electric

shock or cause damage to

the product (deformation and

corrosion).

ENGLISH

• Do not wipe the optical system

(lens, mirror) right after the

product has been turned off

or while the product is being

operated. When cleaning each

part of the product, remove the

power cord and wipe gently

with a soft cloth. Do not spray

with water or wipe with a wet

cloth. Do not use detergents,

automobile or industrial polish,

abrasive substances, wax,

benzene, alcohol, water, etc. on

the product's main unit or optical

system (lens, mirror) as this may

damage the product.

– This can result in re, electric

shock or cause damage to

the product (deformation and

corrosion).

• Remove the plug from the outlet

before cleaning the product.

-Otherwise, this may result in

electric shock.

Others

WARNING

• Some users may experience

a seizure or other abnormal

symptoms when they are

exposed to a flashing light or

particular patterns from a video

game.

• When you go out, place the

projector out of reach of

animals, and remove the power

plug from the wall outlet.

-Using a damaged power cord

may result in short circuit

or re.

• Do not use the projector near

high-precision electronic devices

or those that transmit weak

radio signal.

-This may affect the operation

of the product, causing an

accident.

• Only a qualified technician

can disassemble or modify

the projector. For diagnosis,

adjustment, or repair, contact

your seller or our service center.

-This may result in re or

electric shock.

• Proper ventilation required, do

not block airow around unit.

Doing so can cause injury and

internal overheating.

ENGLISH

• Do not touch the lens; doing so

can result in burns or damage

to lens. Lens and unit may be

HOT during and immediately

after use. Use caution when

handling unit, allowing for proper

cool down.

• Only use a grounded electrical

outlet. (Except for devices which

are not grounded.)

• Do not insert anything into or

cover up the exhaust vents.

-This may result in re or

electric shock.

• Follow all maintenance

guidelines for optimal use;

service only at an authorized

service center.

• Keep the batteries and remote

out of reach of children.

– This will prevent personal

injury or damage to the

product.

CAUTION

• Do not use or store the projector

outdoors for long periods of

time.

• Do not mix new batteries with

old

ones.

-Burst or leaking batteries may

result in damage or injury.

• Be sure to unplug if the projector

is not

to be used for a long

period.

-Accumulated dust may result

in re or electric shock due to

overheating, ignition, or poor

insulation.

• Only use the specified type of

battery.

-Burst or leaking batteries may

result in damage or injury.

• Make sure you use the same

type of battery when replacing.

– In the case of a battery

contact failure, the battery

may drain quickly or the

remote control may not work

properly.

• Dispose of used batteries

properly.

-This may result in explosion

or re. The correct method of

disposal may vary depending

on your country or region.

Dispose of the battery pack

as instructed.

ENGLISH

• Do not throw or disassemble the

battery.

-This may result in re or

explosion due to damage to

the battery.

• Store batteries away from

metallic objects,

such as keys

and paper clips.

-Excess current may cause a

rapid increase in temperature,

resulting in re or burns.

• Do not store the batteries near

any

heat source, such as a

heater.

-This may result in re or

damage to the product.

• Do not store batteries at

temperatures

higher than 60 °C

or in high humidity.

-This may result in explosion

or re.

• Make sure that the battery is

installed

correctly.

-This may prevent explosion

or re.

• Incorrect battery replacement

may

cause re.

• Batteries: Store the accessories

(battery, etc.) in a safe location

out of the reach of children.

Risk Group 2

CAUTION Possibly hazardous optical radiation

emitted from this product. Do not stare at

operating lamp. May be harmful to the eye.

This label is attached to the

bottom of the product and

language may differ.

ENGLISH

CONTENTS

LICENSES 2

SAFETYPRECAUTIONS 3

PREPARATION 17

Accessories 17

OptionalExtras 19

PartsandComponents 20

UsingtheJoystickButton 23

-Basic Functions 23

-Adjusting the Menu 24

ProjectorStatusIndicators 24

Installation 25

-Installation Precautions 25

-Projection Distance per

Screen Size 26

-How to Install the Projector

On a Tripod 27

-Kensington Security System

REMOTECONTROL 29

USINGTHEPROJECTOR32

UsingTheBattery 32

Batteryusingtimeinformation

 33

WatchingProjector 34

-Turning on the Projector 34

-Focus of the Screen Image

-Watching With the Projector

AdditionalOptions 36

-Adjusting Aspect Ratio 36

-Using the Keystone Function

-Changing Input Device 38

-Blank Function 40

UsingtheQuickMenu 41

ENTERTAINMENT 42

UsingSCREENSHARE 42

SettingUpBluetoothonthe

Projector 43

ENGLISH

-Searching for Bluetooth

Devices and Connecting 44

-Connecting, Disconnecting,

or Deleting Bluetooth

Devices in the List of

registered devices 46

-Adjusting AV Sync. Adjust 47

MYMEDIA 48

BeforeUsing 48

-Connecting a USB Device 48

-Removing a USB Device 48

ToUseMyMedia 50

-Watching the Videos 54

-Viewing the Photos 60

-Listening to Music 64

-Viewing Files 68

CUSTOMIZINGSETTINGS 

 72

SETTINGS 72

PICTURESettings 73

AUDIOSettings 81

TIMESettings 82

WIRELESSSettings 83

OPTION1Settings 86

OPTION2Settings 87

CONNECTINGDEVICES 89

ConnectingtoHDReceiver,

DVDorExternalDevices 90

-HDMI Connection 90

ConnectingaPC 90

-HDMI Connection 90

ConnectingaLaptop 91

-HDMI Connection 91

ConnectingtoHeadphones 92

UsingtheMirroringFunction

ofaMobilePhone 93

-MHL/Slimport Connection 93

MAINTENANCE 94

Cleaning 94

-Cleaning the Lens 94

-Cleaning the Projector Case

SPECIFICATIONS 95

ENGLISH

PREPARATION

The pictures may differ slightly from the actual product.

Accessories

Accessories included with the projector are show below.

Accessories are subject to change without prior notice.

New accessories may be added or old ones removed.



Remote Control

Two AAA Batteries Owner's Manual

AC-DC Adaptor Power cord

ENGLISH

• When connecting an HDMI or USB

cable, or connecting a USB flash drive

to the HDMI or USB port, use a product

that has a width of 18 mm or less and

a height of 10 mm or less. If the USB

cable or USB flash drive does not fit

the USB ports of the projector, use an

extension cable that supports USB 2.0.

• Use a certified cable with the HDMI logo attached.

• If you do not use a certified HDMI cable, the screen may not display or a

connection error may occur. (Recommended HDMI cable types)

-High-Speed HDMI®/™ Cable

-High-Speed HDMI®/™ Cable with Ethernet

ENGLISH

OptionalExtras

To purchase optional accessories, visit an electronics store or online

shopping site or contact the retail store where you purchased the product.

Optional accessories are subject to change without prior notice.

Projection Screen Tripod HDMI Cable

MHL or Slimport cable

ENGLISH

PartsandComponents

This projector is manufactured using high-precision technology. You may,

however, see tiny black dots and/or bright colored dots (red, blue, or

green) that continuously appear on the projector screen. This is a normal

result of the manufacturing process and does not indicate a malfunction.

MainUnit

Lens 2)

Vent1)

Speaker

Focus ring

Joystick button

Vent 1)

1) Due to the high temperature of vent area, do not get close to the vent area.

2) Do not touch the lens when using the projector. The lens may be damaged.

ENGLISH

Side

1

ON/OFFSwitch

-ON: Turns the projector on and the projector goes into Standby

mode.

-OFF: Turns the projector off completely.

Place the switch to OFF when you move the projector or when you

intend not to use the projector for long periods of time.

ENGLISH

Back

21 3 4 5

1

Battery Charge Indicator

-Red: Charging

-Green: Charging complete

2

DCIN Port

3

(USB Port)

4

Port

5

(Headphone Port)

ENGLISH

UsingtheJoystickButton

You can operate the projector by pressing the button or moving the joystick

left, right, up, or down.

BasicFunctions

PowerOn When the projector is turned off, place

your nger on the joystick button,

press it once, and release it.

PowerOff When the projector is turned on, place

your nger on the joystick button,

press it once for a few seconds, and

release it. (However, if the menu

button is on the screen, pressing and

holding the joystick button will let you

exit the menu.)

Volume

Control

Place your nger over the joystick

button and move it left or right. You

can adjust the volume level.

Up/Down/

Left/Right

If you move the joystick up, down, left,

or right, you can move the cursor to

select the menu items.

• Move the joystick button up, down, left, or right. Be careful not to

press the joystick button. If you press the button while moving the

joystick, the volume control may not work, and the cursor may not

move.

NOTE

ENGLISH

AdjustingtheMenu

When the projector is turned on, press the joystick button one time.

You can adjust the menu items ( , , , ) moving the joystick

button left, right, up, or down. Move to the desired menu item, and then

press the joystick button once to select it.

Projectoroff Turns the power off.

InputList Changes the input source.

Clears on-screen displays and

returns to projector viewing.

Settings Displays the Settings menu.

ProjectorStatusIndicators

LEDPowerIndicator

Red Power standby state

Off The projector is operating with the power on.

ENGLISH

Installation

InstallationPrecautions

• Place the projector in a well-

ventilated environment.

-To prevent internal

overheating, install the

projector in a well-ventilated

place. Do not place anything

near the projector that may

block its air vents. If the air

vents are blocked, the internal

temperature of the projector

will increase.

-Do not place the projector

on a carpet or rug. If the

projector's inlet vent is on

the bottom, be careful not to

block the vent and always use

the projector on a solid, level

surface.

-Be sure to prevent foreign

objects such as paper debris

from entering the projector.

-Leave an adequate open area

(30 cm or more) around the

projector.

• Do not place the projector in a

hot, cool, or humid environment.

• Do not place the projector in a

place where it will easily attract

dust.

-This may result in re.

• Never open any cover on the

projector. There is a high risk of

electric shock.

• The projector is manufactured

using high-precision technology.

You may, however, see tiny

black dots and/or bright colored

dots (red, blue or green) that

continuously appear on the

projector screen. This is a normal

result of the manufacturing

process and does not indicate a

malfunction.

• The remote control may not work

in an environment where a lamp

equipped with electronic ballasts

or a three-wavelength fluorescent

lamp is installed. Replace the

lamp with an international

standard lamp for the remote

control to work normally.

ENGLISH

ProjectionDistanceperScreenSize

1 Place the projector on a sturdy, level surface, together with the PC or

audio/video source.

2 Place the projector an appropriate distance away from the screen. The

distance between the projector and the screen determines the actual

size of the image.

3 Position the projector so that the lens is at a right angle to the screen.

If the projector is not at a right angle, the projected image will look

distorted. To correct the distortion, use the keystone function.

(See page 37.)

4 Connect the power cord of the projector and the connected device to

the wall outlet.

Ratioofupwardprojection:100%

X/2 X/2

Projection Distance (D)

Screen Height (X)

Screen

Y/2 Y/2

Projection Distance (D)

Screen Width (Y)

Screen

16:9Ratio

ScreenSize

(mm)

ScreenWidth

(Y)(mm)

ScreenHeight

(X)(mm)

Projection

Distance(D)

(mm)

254 221 124 335

508 443 249 686

762 664 374 1037

1016 885 499 1387

1270 1106 623 1738

1524 1328 748 2089

1778 1549 873 2439

2032 1770 998 2790

2286 1992 1123 3141

2540 2213 1247 3491

ENGLISH

HowtoInstalltheProjectorOnaTripod

• You can install the projector using a camera tripod.

• As shown below, you can mount the projector instead of a camera on

the tripod.

• When stabilizing the tripod, we recommend using a locking bolt of

standard size 4.5 mm or less. The maximum size allowed for the locking

bolt is 5.5 mm. (If it is longer than the maximum allowed size, it may

damage the projector.)

+⇒

Tripod

Bolt used to

attach the

projector

The projector is

connected to this part.

Bottom side of the

projector



• If you are using a tripod, be careful not to apply external force to the

tripod. Doing so may damage the projector.

• Do not place the tripod on an unstable surface.

• Be sure to use a tripod with a maximum load capacity of 3 kg or

more.

• To use the projector safely, position the tripod legs so that they are

as wide and stable as possible and be sure to securely attach the

projector to the tripod.

CAUTION

ENGLISH

KensingtonSecuritySystem

• This projector has a Kensington Security Standard connector as an

anti-theft mechanism. Connect a Kensington Security System cable as

shown below.

• For more information on installation and use of the Kensington Security

System, refer to the user’s guide provided with the Kensington Security

System.

• The Kensington Security System is an optional accessory.

• What is Kensington?

Kensington is a company that provides safety systems for laptops and

other electronic devices. Website: http://www.kensington.com

ENGLISH

REMOTECONTROL

Open the battery cover on the back of the remote

control and insert the batteries which are specied

in the battery room with poles pointing in the

correct direction. The new and same type of batteries

(1.5 V AAA) must be used.

①

②

• Do not mix new batteries with old ones.

CAUTION

(POWER)

Turns the projector on or off.

Accesses USB mode.

Changes the input source.

Playbackcontrolbuttons

Controls playback of MYMEDIA.

Turns the projected image upside

down or ips it horizontally.

Adjusts the Keystone function.

Sets the sleep timer.

Changes the picture mode.

Reduces power consumption by

adjusting peak screen brightness.

Changes the Sound Mode.

ENGLISH

Adjusts the volume level.

Moves to the previous/next page.

Changes the aspect ratio of the screen

per pressing of the button.

Displays a blank screen.

Mutes the sound of the projector.

Displays or closes the Settings menu.

Freezes the moving image.

(Available in any mode other than USB

mode.)

Enters the quick menu.

Up/Down/Left/Rightbuttons

Sets the function or moves the cursor.

Shows the current mode and saves

changes to the settings.

(BACK)

Returns to the previous screen.

Enables the self-diagnosis.

Exits the menu.

Colorbuttons

Sets detailed settings or gesture for each

menu.

ENGLISH

• When using the remote control, the optimal

operation range is 6 meters or less (left/right)

and within a 30 degree arc of the remote control

IR receiver.

• If a cable is connected to the back port, the

optimal operating range is 3 meters or less (left/

right) and within a 30 degree arc of the remote

control IR receiver.

• For seamless operation, do not block the IR

receiver.

• When you carry the remote control in the portable bag, make

sure that the buttons on the remote control are not pressed by the

projector, cables, documents, or any other accessories in the bag.

Otherwise, it may significantly reduce the battery life.

NOTE

30° 30°

ENGLISH

USINGTHEPROJECTOR

UsingTheBattery

The battery is low. Connect a power

supply for charging.

• It is displayed when the battery is low (Energy Saving mode will be

changed to Maximum and will be disabled).

• If the screen shows a low battery message, be sure to charge the

battery.

The device powers off due to insufficient

battery.

• It is displayed when the battery is running out.

• As your battery is running out, the projector will turn off immediately.

• If the battery runs out, the projector can only be turned on after it has

been connected to a power supply.

ENGLISH

Batteryusingtimeinformation

Status Time and Display

Charging About 3 hours (When in standby and charging)

Usage

Hours

Up to 2.5 hours

(Available battery using time up to 2.5 hours when

Energy Saving mode set to Max.)

Battery

Level

Indicator

Step 5Step 4Step 3Step 2Step 1 Full

Step 1 Step 2 Step 3 Step 4 Step 5 Full

• If you do not intend to use the projector for a long time, leave the battery

charged at 40 % to 50 %.

• The battery is automatically recharged when the projector is connected

to a power supply.

• Charge the battery fully when you first use the projector.

• The battery standard usage time given in the manual is based on

measurements taken by LG; the actual time may vary depending upon

usage.

• Battery usage time may vary depending on broadcast type, operating

temperature, period of use, and user preferences.

• As the battery is consumable, its lifetime gradually decreases. When the

battery’s life is reduced by half, replace it with a new battery from an LG

Electronics Customer Support Center.

• Do not charge the battery using any equipment other than that supplied

with the product. This may damage the battery or cause a fire.

• Always use a battery that is approved and certified by LG Electronics,

Inc. Failure to do so may result in an explosion or fire.

• If the battery is leaking or giving off an odor, discontinue its use

immediately and contact LG Electronics Customer Support Center.

• The battery contains lithium-ion, so please handle with care. Failure to

do so may result in an explosion or fire.

ENGLISH

WatchingProjector

TurningontheProjector

The menu screen display in this owner's manual is an example to help

users understand how to operate the product and may look different from

the actual screen.

1 Connect the power cord correctly.

2 Place the ON/OFF switch on the rear port area to ON and press the

(POWER) button on the joystick button or on the remote control. (If

the switch is placed to OFF, the projector will not turn on.)

3 In the Language Selection screen, select a language.

4 In the ModeSetting screen, select the setting mode you want.

Mode Setting

Selecting the environment.

Choose the setting mode you want.

Select [Standard] to use this Projector at home. To use this

Projector at store, select [Store Demo].



Conrm

Previous

Standard Store Demo

Demo Mode

Off

* StoreDemo is used when displaying the product in-store. The picture

mode is automatically reset after a certain period of time. You can

select Standard to use the product at home.

5 Select an input signal by using the button on the remote

control.

ENGLISH

FocusoftheScreenImage

When an image appears on the screen, check if it is in focus and ts the

screen properly.

Adjust the focus of the image by rotating the Focus Ring to the left or right.

Make sure the product does not move when adjusting the focus.

Focus Ring

WatchingWiththeProjector

1 When in standby mode, press the (POWER) button to turn the

projector on.

2 Press the button and select the input signal you want.

3 Control the projector using the following buttons while watching

projector.

Button Description

Adjusts the volume level.

Mutes all sounds.

Accesses the quick menu.

Resizes an image.

Adjusts Keystone.

4 To turn the projector off, press the (POWER) button.

ENGLISH

AdditionalOptions

AdjustingAspectRatio

Resize an image to view at its optimal size by pressing while you

are using the projector.

• Available picture size may differ depending on the input signal.

• You can also use the or button.

NOTE

Menu Description

16:9 Resizes images to the 16:9 ratio.

JustScan

Displays video images in the original size without

removing parts of the edge of the image.

• If you select JustScan, you may see image noise at

the edge or edges of the screen.

SetBy

Program

Displays images in the same aspect ratio as the original

image.

4:3 Resizes images to the previous standard 4:3.

Zoom

Resizes the image to t the screen width. The top and

bottom parts of the image may be cut off.

• Press the or button to zoom in or out of the

image.

• Press the or button to move the image.

Cinema

Zoom1

Formats an image to the cinemascope ratio, 2.35:1.

It ranges from 1 to 16.

• Press the or button to zoom in or out of the

image.

• Press the or button to move the image.

• If you enlarge or reduce an image, the image may be

distorted.

ENGLISH

UsingtheKeystoneFunction

To prevent the screen image from becoming trapezoidal, Keystone

adjusts the top and bottom width of the image if the projector is not set up

at a right angle to the screen.

Because the Keystone function may cause inferior screen image quality,

use this function only when it is not possible to set up the projector at an

optimal angle.

• Keystone 0 ◀

- +

▶

OK

1 Press the Key's

or Key's

button to adjust the picture.

• Keystone can be adjusted from -40 to 40.

2 Press the button when done.

ENGLISH

ChangingInputDevice

Toselectanexternalinput

Selects external input.

The illustration of the menu may differ from the actual screen on the

product.

• Press the button on the remote control to display the input

selection screen.

-Connected inputs are displayed rst. However, SCREENSHARE

input is always activated.

• Select an input signal using the remote control's button to

connect the projector to the desired input.

You can use the or button to switch between all the input modes.



Input List

SCREEN SHARE

USB HDMI

ꔂ Move ꔉ OK

Exit

Input Label

ENGLISH

SelectinganInputLabel

Displays which devices are connected to which input ports.

Input Label

HDMI

1 Press the button on the remote control to display the input

selection screen.

2 Press the Red button.

3 Use the or button to select one of the input labels.

ENGLISH

BlankFunction

UsingtheBlankFunction

This function may be effective when you need to draw attention during a

meeting or training.

1 Press the button, and the screen is covered by the

background color. You can change the background color by referring

to Selecting a Blank Image.

2 Press any button to clear the blank function. To cover the screen

temporarily, press the button on the remote control. Do not

block the lens with any object while the projector is running. It may

become overheated and deformed or even cause a re.

SelectingaBlankImage

1 Press the button.

2 Press the , , , or buttons to select OPTION2 and press

the button.

3 Press the , buttons to select BlankImage and press the

button.

4 Press the or button to move to the setting or option you want

and press the button.

ENGLISH

UsingtheQuickMenu

You can easily customize your frequently used menus.

1 Press the button.

2 Press the or button to select a menu and press button.

Menu Description

AspectRatio Resizes the picture.

PJTMode Turns the projected image upside down or ips it

horizontally.

PictureMode Changes the picture mode.

SoundMode Sets the sound mode.

SleepTimer Sets the projector to be turned off at the specied

time.

ClearVoiceII Makes the voice from the projector crisp and clear.

Energy

Saving

Reduces power consumption by adjusting peak

screen brightness. (If the screen shows a low battery

message, Energy Saving will be changed Maximum

mode and will be disabled)

USBDevice

Allows you to remove a connected USB device in a

safe manner.

(The menu is displayed only when the USB device is

connected.)

3 Press the or button to scroll through the following menus.

ENGLISH

ENTERTAINMENT

UsingSCREENSHARE

1 Set the external input of the projector to SCREENSHARE.

2 Enable related SCREEN SHARE function on the device you wish to

connect.

3 Connect the projector from the search list on the device you wish to

connect. (When you connect the projector to your laptop, input the PIN

code shown on your display. The request for a PIN will be shown only

at the initial connection.)

4 If the desired device accepts the request, SCREEN SHARE will be

started.

• Windows 7 / 8 / 8.1 / 10 are compatible with SCREEN SHARE.

However, other versions of Windows, and some other operating

systems, may not be compatible with SCREEN SHARE.

• Ice Cream Sandwich, Jellybean, KitKat, Lollypop, and Marshmallow

versions of LG’s Android devices are guaranteed to be compatible.

• When connecting via SCREEN SHARE, place the device close to

the projector.

• The response rate and image quality may vary depending upon the

user’s environment.

• For more information on the device you want to connect to, refer to

its owner’s manual.

• Certain Windows 8.1 laptops may have difficulty in reconnecting

when initializing the device information during a wireless connection.

In this case, it is recommended that you remove the registered

device and reconnect.

CAUTION

ENGLISH

SettingUpBluetoothontheProjector

This option is used to output sound from the projector through Bluetooth

audio devices.

• Press the button on the remote control, and then set

Bluetooth to On in the WIRELESS menu.

• The devices that can be connected are as follows: LG BTS1, LG

HBS-700, LG HBS-730, LG HBS-800 (Models available for purchase

may vary by region.)

• Products from other manufacturers may not be compatible.

• You can use the remote control to adjust the volume of the

connected device.

• When connecting devices wirelessly, if the device connection fails,

check that the device is connected to a power supply and also check

that the Bluetooth audio device is operating properly.

• If Bluetooth is turned on, the projector will automatically connect

to the last connected Bluetooth device when the projector powers

on. (Be sure to check that the last connected Bluetooth device is

powered on as well.)

• This projector does not support the LG TV Sound Sync feature. To

use products that support the LG TV Sound Sync feature, use the

general Bluetooth mode instead of the LG TV mode.

• The Bluetooth function is to connect the product to Bluetooth

speakers or Bluetooth headset. You cannot connect the product to a

mobile phone through the Bluetooth function.

NOTE

ENGLISH

SearchingforBluetoothDevicesandConnecting

Go to SETTINGS → WIRELESS → SearchDevice to search for nearby

Bluetooth audio devices and then connect any detected devices to the

projector.

(If the device name is longer than 20 characters, no more than 20 will be

displayed.)

1 Set the Bluetooth device to pairing mode and then select Search

Device.

• Select Stopsearching to view the devices detected so far.

• If the device has not been detected, check that the device is powered

on and in pairing mode.

• The time it takes to search for devices may vary according to the

signal strength and the number of devices.

WIRELESS

ꔂ Move ꔉ OK

•SCREEN SHARE : [PJTR][LG]PH150[0000]

•Group

•Channel

•Bluetooth : On

•Search Device

•List of registered devices

•AV Sync. Adjust

ENGLISH

2 When the search is complete, you can select a Bluetooth device and

connect to it.

• You can stop the connection process immediately by selecting Stop

searching.

• The time it takes to connect to a device may vary according to the

signal strength and the number of devices.

Search Device

Stop searching Close

List

Please wait.

Searching...

Search Device

List

Press OK(ꔉ) to connect the device.

HBS-700

Search complete

Re-search Close

3 When a Bluetooth device is connected, you will hear sound from the

projector through the connected device.

• The connected Bluetooth device will be added automatically to the

Listofregistereddevices. Once registered, Bluetooth devices can

be connected simply by selecting them from theListofregistered

devices without having to search for them.

• Connected devices can only be disconnected from SETTINGS →

WIRELESS → Listofregistereddevices.

ENGLISH

Connecting,Disconnecting,orDeletingBluetooth

DevicesintheListofregistereddevices

In SETTINGS → WIRELESS → Listofregistereddevices, Bluetooth

devices are shown in the order that they were connected, and the same

devices can be reconnected simply by selecting them without having to

search for them again.

List of registered devices

List

HBS-700

Delete All Close

Press OK(ꔉ) to connect the device.

Delete

Connecting

Select a Bluetooth device from the Listofregistereddevices to connect

to it.

• The registered Bluetooth device will attempt to connect automatically

depending on the characteristics of the device. (Refer to the manual for

the Bluetooth device.)

• You can stop the connection process immediately by selecting Stop.

• The time it takes to connect to a device may vary according to the signal

strength and the number of devices.

Disconnecting

Select Disconnect to disconnect the device.

• You can only disconnect a device from the Listofregistereddevices.

ENGLISH

Deleting

Select DeleteMarked or DeleteAll to delete any registered devices.

• DeleteMarked: Press the red button in Listofregistereddevices to

delete the selected device.

• DeleteAll: Select DeleteAll in Listofregistereddevices to delete all

of the registered devices.

AdjustingAVSync.Adjust

When a Bluetooth device is connected, go to SETTINGS → WIRELESS

→ AVSync.Adjust to adjust the synchronization between the video and

the Bluetooth headset sound.

• AV Sync. Adjust 10 ◀ ▶

OK

• This feature is only available when a Bluetooth device is connected.

• Audio sync may vary by manufacturer.

• When playing video from a connected USB drive, AVSync.Adjustcan

also be adjusted using the SetAudio. menu.

ENGLISH

MYMEDIA

BeforeUsing

ConnectingaUSBDevice

Connect a USB device (external

HDD, USB memory) to the USB port

of projector to enjoy the content les

stored in the USB device with your

projector. You cannot write or delete

data in the USB device. Connect a

USB ash drive as shown below.

USB ash

Drive

RemovingaUSBDevice

1 Click the button.

2 Use the or button to move to USBDevice and press the 

button.

3 Select a USB to remove. Wait for conrmation that the USB device has

stopped before removing the USB.



• If detached early, an error may occur on the projector or the USB

storage device.

• Once a USB device has been selected for removal, it can no longer

be read. Remove the USB storage device and then re-connect it.

NOTE

ENGLISH

TipsforusingaUSBdevice

• If the USB storage device has a built-in auto recognition program or uses

its own driver, it may not work.

• Some USB storage devices may not work or may work incorrectly.

• If you use a USB extension cable, the USB device may not be

recognized or may not work properly.

• Use only USB storage devices formatted with the Windows FAT32 or

NTFS file system.

• For external USB HDDs, it is recommended that you use devices with a

rated voltage of less than 5 V and a rated current of less than 500 mA.

• It is recommended to use a Hard Disk Drive with its own power supply.

(If the power being supplied is not sufficient, the USB storage device

may not be detected correctly). Note, a USB Hub is not supported.

• It is recommended that you use USB flash drives of 32 GB or less and

USB HDDs of 2 TB or less.

• If a USB HDD with power-saving function does not work properly, turn

the power off and on. For more information, refer to the user manual of

the USB HDD.

• Data in USB storage device can be damaged so be sure to back

up important files to other devices. Data maintenance is the user's

responsibility and the manufacturer is not responsible for data loss.

ENGLISH

ToUseMyMedia

1 Press the button on the remote control.

2 Select MYMEDIA.

Select desired le from the list. Watch the chosen le.

Sets play related settings by checking option during disk playback.

MyMediasupportingfile

• Maximum data transmission rate: 20 Mbps (Mega bit per second)

• External supported subtitle formats: *.smi, *.srt, *.sub (MicroDVD,

SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX)

• Internal supported subtitle formats: SRT/ASS/SSA (Supports internal

subtitles generated from DivX6)

ENGLISH

VideoSupportedCodec

Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)

Extension Codec

.asf

.wmv

Video VC-1 Advanced Prole, VC-1 Simple and Main

Proles

Audio WMA Standard, WMA 9 Professional

.divx

.avi

Video DivX3.11, DivX4, DivX5, DivX6, XVID,

H.264/AVC

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),

Dolby Digital

.mp4

.m4v

.mov

Video H.264/AVC, MPEG-4 Part 2

Audio AAC

.mkv

Video H.264/AVC

Audio HE-AAC, Dolby Digital

.ts

.trp

.tp

.mts

.m2ts

Video H.264/AVC, MPEG-2, VC-1

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),

Dolby Digital, Dolby Digital Plus, AAC

.vob

Video MPEG-1, MPEG-2

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

.mpg

.mpeg

Video MPEG-1

Audio MPEG-1 Layer I, II

ENGLISH

AudioFile

Filetype Item Info

MP3 Bitrate 32 kbps to 320 kbps

Samplingrate 32 kHz to 48 kHz

AC3 Bitrate 32 kbps to 640 kbps

Samplingrate 32 kHz, 44.1 kHz, 48 kHz

MPEG Bitrate 32 kbps to 448 kbps

Samplingrate 32 kHz to 48 kHz

AAC,

HEAAC

Bitrate 24 kbps to 3844 kbps

Samplingrate 8 kHz to 96 kHz

CDDA Bitrate 1.44 kbps

Samplingrate 44.1 kHz

LPCM

Bitrate 1.41 Mbps to 9.6 Mbps

Samplingrate

Multi-channel : 44.1 kHz, 88.2 kHz /

48 kHz, 96 kHz

Stereo : 176.4 kHz, 192 kHz

ENGLISH

Availablephotofile

Filetype Item Info

2D(jpeg,

jpg,jpe)

Support

File type

SOF0: Baseline, SOF1: Extend Sequential,

SOF2: Progressive


Size

Minimum: 64 x 64

Maximum: Normal Type: 15360 (W) x 8640 (H)

Progressive Type: 1920 (W) x 1440 (H)

BMP Picture

Size

Minimum: 64 x 64

Maximum: 9600 (W) x 6400 (H)

PNG

Support

File type Interlace, Non-Interlace


Size

Minimum: 64 x 64

Maximum:

Interlace

: 1200 (W) x 800 (H)

Non-Interlace

: 9600 (W) x 6400 (H)

* BMP and PNG format les may be slower to display than JPEG.

ENGLISH

WatchingtheVideos

In the MovieList, you can watch movies stored on the connected USB

device.

Controls playback and sets options while viewing videos.

TipsforPlayingVideoFiles

• Some subtitles created by users may not work properly.

• The video and subtitle files should be placed in the same folder. For

subtitles to display correctly, the video and subtitle files must have the

same name.

• We do not support any stream that contains GMC (Global Motion

Compensation) or Qpel (Quarterpel Motion Estimation).

• Only H.264/AVC profile level 4.1 and lower is supported.

• Video files that exceed 50 GB (gigabyte) are not supported for playback.

The file size limit is dependent on the encoding environment.

• DTS audio codec is not supported.

ENGLISH

BrowsingMovieList

Play a video le stored from a connected device.

1 Connect a USB storage device.

2 Press the button.

3 Use the , or button to select MovieList and press the

button.

4 Use the , , , or button to select the le you want and press

the button.

USB STORAGE DEVICE

Page 1/1

Drive1 Drive5Drive3 Drive4

Drive2

PAGE Page Change

Movie List

Butterfly_...

01:34:33

Go to root folder

Go to upper folder

Exit

1 2 4

7 8 9

3 5

6

No. Description

1

Thumbnails

Abnormal le

File not supported

2

File List

3

Moves to the upper level folder.

4

Current page/Total no. of folder pages

5

Displays the remaining battery life.

6

Current page/Total no. of le pages

ENGLISH

No. Description

7

Moves to the top level folder.

8

Moves to the upper level folder.

9

Exit Movie List.

5 Control playback by using the following buttons.



나가기

Q.MENU

Option Hide Exit

Item Description

Shows the current playing position. Use or buttons to

move forward or backward.

Stops playing and returns to Movie List.

Returns to normal playback.

Pauses the media player.

If no button is pressed on the remote control for 10 minutes

after pausing, the playback is restarted.

Displays in slow motion.

Whenever this button is pressed, the playback speed is

changed.: x2, x4, x8, x16, x32

Reduces power consumption by adjusting peak screen

brightness. (If the screen shows a low battery message, the

Energy Saving mode will be changed to Maximum and will be

disabled)

Option A pop-up window will appear.

Hide

Hides the playback bar. Press the



button to make it

appear.

Exit Returns to the Movie List screen.

ENGLISH

OptionsforMovieList

1 Press the button.

2 Use the or button to move to a desired option and press the

button.

3 Use the , , , or button to set up each item.

SetVideoPlay.

Item Description

Picture

Size

Selects the size of a playback screen.

• Full: Files are played in full screen mode according to

the aspect ratio of video.

• Original: Displays the video in the original size.

Audio

Language

Allows you to select the language you want for the le with

multiple audio tracks. This option is not available if the le

has only one audio track.

Subtitle

Language

The subtitle can be turned on or off.

• Language: One of any of the available languages can

be selected.

• CodePage: A character set used for a subtitle can

be selected. By default, the subtitle is displayed in a

language configured in OPTION1 → Language.

-Sync: If a subtitle is not synchronized with its video,

you can adjust its speed at 0.5 seconds unit.

-Position: Moves the location of a subtitle.

-Size: Changes the subtitle font size.

Repeat

Turns the repeat function On or Off.

When it is set to off, the next le can be played

sequentially if the le name is similar.

SetVideo.

You can change video settings. (Refer to PICTURE Settings on page 73.)

SetAudio.

You can change audio settings. (Refer to AUDIO Settings on page 81.)

BLUETOOTH

You can change Bluetooth settings. (Refer to Setting Up Bluetooth on the

Projector on page 43.)

ENGLISH

RegisteringtheDivXcode

Checks DivX Reg. Code for replaying DivX protected videos. Register at

http://vod.divx.com.

Use Reg. Code to rent or purchase movies at www.divx.com/vod.

1 In the Settings menu, move to OPTION1 and press DivX(R)VOD.



Registration

Deregistration

2 Press the or button to move to Registration and press the

button.



You must register your device to

play DivX(R) protected videos.

Registration code: XXXXXXXXXX

3 Check the DivX Registrationcode.



• Rented/purchased DivX files cannot be played if the DivX

Registration Code of a different device is used. Use only the DivX

Registration Code granted to this specific device.

• Converted files not conforming to the DivX Codec Standard may not

play or may produce abnormal sound.

NOTE

ENGLISH

ToderegistertheDivXcode

Use the DivX deregistration code to deactivate the DivX DRM function.

1 In the Settings menu, move to OPTION1 and press DivX(R)VOD.

2 Use the or button to go to Deregistration and press the

button.

Registration

Deregistration

Yes

Your device is already registered.

Are you sure you wish to deregister?

Deregistration code : ********

Deregister at http://vod.divx.com

Continue with registration?

3 Select Yes.



• What is DRM [Digital Rights Management]?

DRM technologies and services protect the interests and rights of

can be played after the license is verified through an online method,

etc.

NOTE

ENGLISH

ViewingthePhotos

You can view photos stored on a connected device.

SupportedPhotoFiles

PHOTO (*.JPEG)

Baseline: 64-pixel (width) x 64-pixel (height) - 15360-pixel (width) x

8640-pixel (height)

Progressive: 64-pixel (width) x 64-pixel (height) - 1920-pixel (width) x

1440-pixel (height)

• Non-supported files are displayed in the form of an icon.

• An error message is displayed for corrupted files or file formats that

cannot be played.

• Corrupted files may not be displayed properly.

• It may take some time to view high-resolution images in full screen.

ENGLISH

BrowsingPhotoList

1 Connect a USB storage device.

2 Press the button.

3 Use the or buttons to select PhotoList and press the

button.

4 Use the , , , or button to select the le you want and press

the button.

USB STORAGE DEVICE

Page 1/1

Drive1 Drive5Drive3 Drive4

Drive2

PAGE Page Change

Photo List

Butterfly_...

06/09/2014

Go to root folder

Go to upper folder

Exit

1 2 4

7 8 9

3 5

6

No. Description

1

Thumbnails

Abnormal le

File not supported

2

File List

3

Moves to the upper level folder.

4

Current page/Total no. of folder pages

5

Displays the remaining battery life.

6

Current page/Total no. of le pages

7

Moves to the top level folder.

8

Moves to the upper level folder.

9

Exits Photo List.

ENGLISH

5 Control playback by using the following buttons.


2008/12/10

1920 x 1080

479 KB

[1/4]

Q.MENU

Slideshow BGM Option Hide Exit

Item Description

Selects the previous or next photo.

Slideshow All photos are displayed during slide show.

• Set SlideSpeed in the Option → SetPhotoView.menu.

BGM You can listen to music while viewing photos in full size.

• Set the BGM in

the

Option → SetPhotoView.menu.

Rotates photos.

• Rotates a photo 90°, 180°, 270°, 360° clockwise.

• Photos cannot be rotated if their width is greater than

the height of the max. supported resolution.

Views the photo in full mode or original mode.

Press the blue button to enlarge the image.

Reduces power consumption by adjusting peak screen

brightness. (If the screen shows a low battery message,

Energy Saving will be changed Maximum mode and will

be disabled)

Option A pop-up window will appear.

Hide

Hides the menu on the full size screen.

• To see the menu, press the button on the

remote control.

Exit Exit from full screen photo view.

ENGLISH

OptionsforPhotoList

1 Press the button.

2 Use the or button to move to a desired option and press the

button.

3 Use the , , , or button to set up each item.

SetPhotoView.

Item Description

Slidespeed Selects a slideshow speed.

BGM

Selects a music folder for the background music.

• You cannot change the music folder while the

background music is playing.

• For background music, only the folder from the same

device can be selected.

-Repeat: Selects repeat play.

-Random: Selects random play.

SetVideo.

You can change video settings. (Refer to PICTURE Settings on page 73.)

SetAudio.

You can change audio settings. (Refer to AUDIO Settings on page 81.)

BLUETOOTH

You can change Bluetooth settings. (Refer to Setting Up Bluetooth on the

Projector on page 43.)

ENGLISH

ListeningtoMusic

You can play audio les stored on the connected device.

SupportedMusicFiles

*.MP3

Bit rate range 32 Kbps to 320 Kbps

• Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz

• Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz

ENGLISH

BrowsingMusicList

1 Connect a USB storage device.

2 Press the button.

3 Use the or button to select MusicListand press the

button.

4 Use the , , , or button to select the le you want and press

the button.

USB STORAGE DEVICE

Page 1/1

Drive1 Drive5Drive3 Drive4

Drive2

PAGE Page Change

Music List

Butterfly_...

03:25

Go to root folder

Go to upper folder

Exit

1 2 4

7 8 9

3 5

6

No. Description

1

Thumbnails

Abnormal le

File not supported

2

File List

3

Moves to the upper level folder.

4

Current page/Total no. of folder pages

5

Displays the remaining battery life.

6

Current page/Total no. of le pages

7

Moves to the top level folder.

8

Moves to the upper level folder.

9

Exits Music List.

ENGLISH

5 Control playback by using the following buttons.

USB STORAGE DEVICE

Page 1/1

Drive1

Q.MENU

002. - B02.mp3

Page 1/1

PAGE Page Change

Option Hide Exit

Butterfly_...

03:25

Music List

Item Description

Changes the playing position.

Stops playing.

Returns to normal playback.

Pauses the media player.

Plays the previous/next le.

Reduces power consumption by adjusting peak screen

brightness. (If the screen shows a low battery message,

Energy Saving will be changed Maximum mode and will

be disabled)

Option Sets up the options of Music List.

Hide

Hides the playback bar.

• Press the button to make the playback bar

appear.

Exit Returns to the Music List screen.

ENGLISH

OptionsforMusicList

1 Press the button.

2 Use the or button to move to a desired option and press the

button.

3 Use the , , , or button to set up each item.

SetAudioPlay.

Item Description

Repeat Selects repeat play.

Random Selects random play.

SetAudio.

You can change audio settings. (Refer to AUDIO Settings on page 81.)

BLUETOOTH

You can change Bluetooth settings. (Refer to Setting Up Bluetooth on the

Projector on page 43.)

ENGLISH

ViewingFiles

You can see document les stored on a connected device.

SupportedFileFormats

XLS, XLSX, DOC, DOCX, PPT, PPTX, TXT, PDF, HWP

Microsoft Ofce: 97/2000/2002/2003/2007 Version

Adobe PDF: 1.0/1.1/1.2/1.3/1.4 Version

Hangul: 97/2000/2002/2005/2007 Version

• File Viewer realigns a document, so it may look different from what is

displayed on a PC.

• For documents that include images, the resolution may look lower during

the realigning process.

• If the document is large or has many pages, it may take longer to load.

• Unsupported fonts may be replaced by other fonts.

• The file viewer may not open for Office documents that contain many

high resolution images. In that case, reduce the image file size, save it

on a USB storage device and run the file viewer again or connect your

PC to the projector and open the file on your PC.

ENGLISH

BrowsingFileList

1 Connect a USB storage device.

2 Press the button.

3 Use the or button to select FileList and press the button.

4 Use the , , , or button to select the le you want and press

the button.

USB STORAGE DEVICE

Page 1/1

Drive1 Drive5Drive3 Drive4

Drive2

PAGE Page Change

File List

DOC

Butterfly_...

06/09/2014

Go to root folder

Go to upper folder

Exit

1 3

6 7 8

2 4

5

No. Description

1

File List

2

Moves to the upper level folder.

3

Current page/Total no. of folder pages

4

Displays the remaining battery life.

5

Current page/Total no. of le pages

6

Moves to the top level folder.

7

Moves to the upper level folder.

8

Exits File List.

ENGLISH

5 Control playback by using the following buttons.

• Click GoPage, then the pop-up window for selecting the number of

page appears. Input the page to move to the page you want.

• Press the button to zoom in or zoom out.

Press the button and then use the Up/Down/Left/Right buttons to

move to GoPage or Zoom.

ꔦQ.MENU

Go Page Zoom Option Hide Exit

Item Description

GoPage

Moves to the page you want.

Use the Up/Down/Left/Right buttons to select a page

and press the button.

Zoom Enlarges or reduces the document.

Option Sets up the options of File Viewer.

Hide Hides the menu.

• Press the button to make it appear.

Exit Returns to the File Viewer screen.

ENGLISH

OptionsforFileList

1 Press the button.

2 Use the , , , or button to set up each item.

SetFileViewerOption

Item Description

SinglePage

On Loads and displays pages one by one. The

initial loading time is short but a content-heavy

page may be displayed slowly.

Off Loads all pages of a le to memory before it

starts to display them. The initial loading time is

long but you can navigate pages quickly after

loading is complete.

If a le is too large, it may fail to load all the

pages.

ImageQuality

You can set the quality of the image included in the

document. The following three options are available

for the image quality: High, Medium, Low. Higher the

image quality, lower the display time.

Document

Align

Selects initial document align method.

File Viewer settings are default, so close the currently opened document to

apply changes to the new document, if any.

ENGLISH

CUSTOMIZINGSETTINGS

SETTINGS

1 Press the button.

2 Use the , , , or button to select the desired item and press

the button.

3 Use the , , , or button to set up the desired item and press

the button.

4 Press the button when completed.

Menu Description

PICTURE Adjusts the image quality for optimal viewing.

AUDIO Adjusts the sound quality and volume level.

TIME Sets time-related settings.

WIRELESS Wireless-related features.

OPTION1 Customizes the general settings.

OPTION2 Customizes the settings related the projector.

INPUT Selects the desired input source.

MYMEDIA Accesses photo, music, movie, and document les.

ENGLISH

PICTURESettings

1 Press the button.

2 Use the , , , or

buttons to select PICTURE

and press the button.

3 Use the , , , or

button to set up the desired

item and press the 

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

•ꕊ Energy Saving : Minimum

•Picture Mode : Standard

•Contrast 100

•Brightness 50

•Sharpness 20

•Color 65

•Tint 0


ꔂ Move ꔉ OK

The available picture settings are described as follows.

Menu Description

Energy

Saving

Reduces power consumption by adjusting peak

screen brightness. (If the screen shows a low battery

message, Energy Saving will be changed Maximum

mode and will be disabled)

Mode

Minimum/

Medium/

Maximum

Applies the pre-set EnergySaving

mode.

ENGLISH

Menu Description

PictureMode

Selects the picture mode optimized for the viewing

environment or the program.

You can also customize advanced options for each

mode.

Mode

Vivid

Maximizes the visual effect of video.

Heightens contrast, brightness, and

sharpness to display vivid images.

Standard Displays images in standard levels of

contrast, brightness, and sharpness.

Cinema Optimizes the image for a movie.

Sport

Optimizes the image for sports by

emphasizing primary colors and

dynamic actions.

Game Optimizes the image for playing games

on fast-moving screens.

Expert1/

Expert2

Menu for adjusting picture quality that

allows experts and amateurs to enjoy

the best projector viewing.

-Expert mode is for picture tuning

professionals to control and ne-tune

using a specic image. For normal

images, the effects may not be

dramatic.

Contrast Adjusts the difference between bright and dark

regions of the screen.

Brightness Adjusts the overall screen brightness.

ENGLISH

Menu Description

Sharpness

Adjusts the sharpness of the borders between bright

and dark. Horizontal and Vertical Sharpness are

available only in Expert1/Expert2.

Color Adjusts the intensity of all colors.

Tint Adjusts the balance between red and green levels.

Advanced

Control Customizes the advanced settings.

PictureOption Sets optional settings.

PictureReset

Resets values customized by the user.

Each picture mode is reset. Select the picture mode

you wish to reset.

AspectRatio Resizes the picture.

ENGLISH

AdvancedControl

Menu Description

Dynamic

Contrast

Adjusts contrast and color to the optimal level according

to the screen’s brightness.

Dynamic

Color Adjusts colors for more natural-looking colors.

Color

Gamut

Selects the range of colors that can be expressed.

• Standard: Displays the original colors of an input

signal regardless of the display features.

• Wide: Makes use of the display's rich colors.

SkinColor Skin color spectrum can be separately set to implement

the skin color as dened by the user.

SkyColor Sky color is set separately.

GrassColor Natural color spectrum (meadows, hills, etc.) can be

separately set.

Gamma Sets the gradation curve according to the output of the

picture signal in relation to the input signal.

* Depending on input signal or other picture settings, the range of detailed

items for adjustment may differ.

ENGLISH

ExpertControl

Menu Description

Dynamic

Contrast

Adjusts contrast and color to the optimal level

according to the screen’s brightness.

ColorGamut

Selects the range of colors that can be expressed.

• Standard: Displays the original colors of an input

signal regardless of the display features.

• Wide: Makes use of the display's rich colors.

Edge

Enhancer

Shows clearer and distinctive yet natural edges of the

video.

ColorFilter Filters a specic color spectrum in RGB colors to ne-

tune color saturation and hue accurately.

ENGLISH

Menu Description

Color

Temperature

In Expert mode, you can customize the options of each

mode.

Gamma: Select 1.9, 2.2,or 2.4.

a. Method:2Points

-Pattern:Inner,Outer

-Points:Low,High

-Red/Green/Blue: The adjustment range for each

color is from -50 to +50.

-Applytoallinputs: The values of the Color

Temperature is applied to all the input modes.

b.Method:20PointIRE

-Pattern:Inner,Outer

-IRE (Institute of Radio Engineers) is the unit

indicating the size of a video signal and can be

set to 5,10,15, ... 100.You can ne-tune for each

setting as shown below.

-Luminance: The adjustment range is 50 to 500.

-Red/Green/Blue: The adjustment range is -50 to

+50.

-Applytoallinputs: The values of the Color

Temperature is applied to all the input modes.

ENGLISH

Menu Description

Color

Management

System

Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors.

Allows an expert to adjust the tint using a test pattern.

Six colors (Red/Green/Blue/Cyan/Magenta/Yellow) can

be selectively adjusted without affecting other colors.

You may not see colors change on a normal picture

even after adjustment.

-SaturationRed/Green/Blue/Cyan/Magenta/

Yellow,

TintRed/Green/Blue/Cyan/Magenta/Yellow,

LuminanceRed/Green/Blue/Cyan/Magenta/

Yellow:

The adjustment range is -30 to +30 each.

* Depending on input signal or other picture settings, the range of detailed

items for adjustment may differ.

ENGLISH

PictureOption

Menu Description

NoiseReduction Reduces screen noise in the video.

MPEGNoise

Reduction

Eliminates noise generated while creating digital

picture signals.

BlackLevel

Adjusts the brightness or darkness of the screen

to suit the black level of the picture input using the

degree of darkness (black level) of the screen.

RealCinema Optimizes the screen for movie viewing.

Color

Temperature

Adjusts the overall color of the screen to suit your

preference.

Select Warm, Natural, Cool, or Medium.

ENGLISH

AUDIOSettings

1 Press the button.

2 Use the , , , or

button to select AUDIO and

press the button.

3 Use the , , , or

button to set up the desired

item and press the

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

AUDIO

•Sound Mode : Standard

•Clear Voice II

•Auto Volume : Off

ꔂ Move ꔉ OK

The available audio settings are described as follows.

Menu Description

Sound

Mode

Sets the sound mode.

Mode

Standard Suitable for all types of video.

News/Music/

Cinema/

Sport/Game

Sets audio optimized for a specic genre.

Clear

VoiceII Makes the voice from the projector crisp and clear.

Auto

Volume Automatically adjusts the volume level.

ENGLISH

TIMESettings

1 Press the button.

2 Use the , , , or

button to select TIME and

press the button.

3 Use the , , , or

button to set up the desired

item and press the

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

TIME

•Sleep Timer : Off

•Auto Off : 60 min.

•Automatic Standby : 4 hours

ꔂ Move ꔉ OK

The available time settings are described as follows.

Menu Description

Sleep

Timer

Turns off the projector after a preset number of minutes.

To cancel the SleepTimer, select Off.

AutoOff If there is no input signal or button press, the projector

automatically turns off after the preset time has elapsed.

Automatic

Standby

Turns off the projector automatically after a set period of

time if there is no button input on the projector.

ENGLISH

WIRELESSSettings

1 Press the button.

2 Use the , , , or

button to select WIRELESS

and press the button.

3 Use the , , , or

button to set up the desired

item and press the

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

WIRELESS

•SCREEN SHARE : [PJTR][LG]PH150[0000]

•Group

•Channel

•Bluetooth : Off

•Search Device

•List of registered devices

•AV Sync. Adjust

ꔂ Move ꔉ OK

The available wireless settings are described as follows.

ENGLISH

Menu Description

SCREEN

The SCREEN SHARE displays the screen of the

connected device.

• You can check the SCREEN SHARE's ID.

Mode

Group

This is the group setting for each device

supporting the SCREEN SHARE feature.

When the wireless connection is weak

or unstable, adjust the group setting to

correct the problem.

Channel

You can change the channel used for

wireless connections.

• SearchChannels: Select channel

searching methods.

-Auto: The projector searches for

available channels and automatically

selects the least used channel.

-Manual: You can select a channel

manually.

• Channel: This is shown when Search

Channels is set to Manual. It allows you

to specify a channel number to use.

ENGLISH

Menu Description

Bluetooth

Sound is output through the Bluetooth headset.

First, set Bluetooth to On.

Item

Search

Device Search for the device to connect to.

Listof

registered

devices

Connected devices are saved in the List

ofregistereddevices. The saved list of

registered devices can be displayed.

AVSync.

Adjust

When the video and the sound are not

synchronized correctly, you can manually

adjust the synchronization.

ENGLISH

OPTION1Settings

1 Press the button.

2 Use the , , , or

button to select OPTION1

and press the button.

3 Use the , , , or

button to set up the desired

item and press the

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

OPTION 1

•Language

•DivX(R) VOD

•Initial Setting

•Mode Setting : Standard

ꔂ Move ꔉ OK

The available option 1 settings are described as follows.

Menu Description

Language Selects a desired Menu Language.

DivX(R)VOD Sets DivX related settings.

InitialSetting Resets all the projector settings to the factory default.

Do not turn off the power during initialization.

ModeSetting

Selects Standard or StoreDemo.

When in use in home, please select Standard.

StoreDemo mode is for store display.

ENGLISH

OPTION2Settings

1 Press the button.

2 Use the , , , or

button to select OPTION2

and press the button.

3 Use the , , , or

button to set up the desired

item and press the

button.

-To return to the previous

menu, press the button.

4 Press the button when

completed.

OPTION 2

•Keystone 0

- +

•Auto Keystone : On

•PJT Mode : Front

•High Altitude : Off

•Blank Image : Blue

•Auto Power : Off

•Self Diagnosis

ꔂ Move ꔉ OK

The settings for option 2 are described as follows.

Menu Description

Keystone

To prevent the screen image from becoming trapezoidal,

Keystone adjusts the top and bottom width of the image if

the projector is not set at a right angle to the screen.

Auto

Keystone

AutoKeystone provides a rectangular screen image by

automatically adjusting the Keystone number when there

is a trapezoidal screen image caused by tilting of the

projector.

Item

On Automatically adjusts the Keystone number.

Off Manually adjusts the Keystone number.

ENGLISH

Menu Description

PJTMode

This function turns the projected image upside down or

ips horizontal.

• Select Rear when projecting from the back of the

transparent screen purchased separately.

• Select FrontCeiling when installing the product on the

ceiling.

High

Altitude

If the projector is used at an altitude higher than 1200

meters, turn this on.

Otherwise, the projector may overheat or its protection

function may be activated. If this happens, turn the

projector off and then on again after waiting for several

minutes.

Blank

Image Selects a background for blank image.

Auto

Power

Makes the projector turn on automatically when the

adaptor plug is inserted.

Item

On When the AC/DC plug is connected to the

projector, it turns on automatically.

Off When the AC/DC plug is connected to the

projector, it goes into standby mode.

Self

Diagnosis

Troubleshoots functional problems that can arise while

using the product.

ENGLISH

CONNECTINGDEVICES

You can connect various external devices to the projector.



Computer/Notebook DVD

DigitalDevice

USB

Headphones

GameConsole

MobilePhone

HDMI - Page 90

USB Device - Page 48

Headphone - Page 92

Mobile Phone (MHL/Slimport) - Page 93

ENGLISH

ConnectingtoHD

Receiver,DVDor

ExternalDevices

Connect an HD receiver, DVD or

External Devices to the projector

and select an appropriate input

mode.

HDMIConnection

With an HDMI cable, you can

enjoy high quality picture and

sound.

Using a HDMI cable, connect the

port of the projector

to the HDMI output port of the

device to connect. Both video and

audio are output at the same time.

Press the button on the

remote control to select HDMI.

* Optional

Extras

+'0,

ConnectingaPC

The projector supports Plug and

Play. Your PC will automatically

detect the projector and requires

no driver installation.

HDMIConnection

Using an HDMI cable, connect the

port of the projector

to the HDMI output port of your

PC. Both video and audio are

output at the same time.

Press the button on the

remote control to select HDMI.

+'0,

* Optional

Extras

ENGLISH

ConnectingaLaptop

You can connect the projector to a

laptop to use various functions.

HDMIConnection

Using an HDMI cable, connect the

port of the projector

to the HDMI output port of your

laptop. Both video and audio are

output at the same time.

Press the button on the

remote control to select HDMI.

* Optional

Extras

+'0,

The table below shows examples

of switching the output. For

more information, refer to the

ExternalOutput, Connectingto

anExternalMonitor, or similar

sections of the owner's manual of

your computer.

Brand Switching

Output

NEC Fn + F3

Panasonic Fn + F3

Toshiba Fn + F5

IBM Fn + F7

Sony Fn + F7

Fujitsu Fn + F10

LG Fn + F7

Samsung Fn + F4

Macintosh Adjust the control

panel to enable

mirroring after

start-up.

ENGLISH

Connectingto

Headphones

You can listen to the audio through

a headphone.

* Not

provided

ENGLISH

UsingtheMirroringFunctionofaMobile

Phone

MHL/SlimportConnection

You must use a HDMI adapter to connect your cell phone to the projector

and to output images and sound from your cell phone to the projector.

The compatible HDMI adapters are different, depending upon your cell

phone type.

Therefore, purchase an appropriate MHL or Slimport adapter.

(To nd out whether your device is MHL/Slimport-certied, please contact

your device manufacturer.)

* Optional Extras

• When you connect a mobile phone to the port, you can

see the mobile phone screen through a projector.

– This only applies to mobile phones that support MHL/Slimport.

– You can use the remote control for some applications.

• Disconnect the MHL/Slimport cable from the projector when:

– The MHL/Slimport function is disabled.

– Your mobile device is fully charged in standby mode.

NOTE

ENGLISH

MAINTENANCE

Clean your projector to keep it in optimal condition.

Cleaning

CleaningtheLens

If there is any dust or staining on the lens surface, you must clean the lens.

Use an air spray or a cleaning cloth to clean the lens.

To remove dust or stains, use an air spray or apply a small amount of

cleaning agent onto a swab or soft cloth to lightly rub the lens.

Please be aware that liquid may ow into the lens if the product is sprayed

directly onto the lens.

CleaningtheProjectorCase

To clean the projector case, rst unplug the power cord.

To remove dust or stains, use only a dry, lint-free, nonabrasive cloth to

polish the lens.

Do not use alcohol, benzene, thinners, or other chemicals, which may

damage the case.

ENGLISH

SPECIFICATIONS

MODEL PH150G(PH150G-GL)

PH150B(PH150B-GL)

Resolution(Pixel) 1280 (Horizontal) × 720 (Vertical)

Aspectratio 16:9 (Horizontal:Vertical)

Panelsize 9.398 mm

Projection

distance(Screen

size)

335 mm to 3491 mm (254 mm to 2540 mm)

Ratioofupward

projection 100 %

Workingrange

oftheremote

control

6 m

Power

consumption 35 W

AC-DCAdaptor

Manufacturer: Honor

Model: ADS-40SG-19-3 19032G

19 V 1.7 A

(Adaptor Input 100-240 V @ 50/60 Hz)

AudioOutput 1 W

Height 44.3 mm (without foot) / 45.2 mm (with foot)

Width 115 mm

Depth 115 mm

Weight 0.46 kg

USBDevice 5 V, 0.5 A (Max.)

Environment

Condition

Temperature

Operation 0 °C to 40 °C

Storage -20 °C to 60 °C

RelativeHumidity

Operation 0 % to 80 %

Storage 0 % to 85 %

* Use only power supplies listed in the user instructions.

* Contents in this manual may be changed without prior notice due to

upgrade of product functions.

ENGLISH

SupportedHDMI(PC)Mode

Resolution HorizontalFrequency

(kHz)

VerticalFrequency

(Hz)

640 x 350 31.468 70.09

720 x 400 31.469 70.08

640 x 480 31.469 59.94

800 x 600 37.879 60.31

1024 x 768 48.363 60.00

1152 x 864 54.348 60.053

1280 x 720 45.00 60

1280 x 1024 63.981 60.02

1440 x 900

55.935 59.888

1400 x 1050

65.317 59.979

1600 x 900

60 60

1680 x 1050

65.29 59.954

1920 x 1080

67.5 60

• If an invalid signal is input into the projector, it will not be displayed

properly on the screen or a message such as NoSignal or Invalid

Format will be displayed.

• The projector supports the DDC1/2B type as the Plug and Play function

(Auto-recognition of PC monitor).

• In PC mode, 1280 x 720 is recommended for the best picture quality.

ENGLISH

SupportedHDMI-DTVMode

Resolution HorizontalFrequency

(kHz)

VerticalFrequency

(Hz)

720 x 480p

31.47

31.50

59.94

720 x 576p 31.25 50

1280 x 720p

45.00

44.96

37.5

60.00

59.94

1920 x 1080i

33.75

33.72

28.125

60.00

59.94

1920 x 1080p

67.500

67.432

27.000

26.97

33.75

33.71

56.25

59.939

24.000

23.976

30.000

29.97

• To provide the best picture quality, a 720p resolution is recommended.

ENGLISH

Opensourcesoftwarenoticeinformation

To obtain the source code under GPL, LGPL, MPL, and other open source

licenses, that is contained in this product,

please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty

disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a

charge covering the cost of performing such distribution (such as the cost

of media, shipping, and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date

on which you purchased the product.

LG PH150B User Manual Owner's ENG

PH150B Owner's Manual ENG; Most comprehensive of product setup and usage. (English)

Navigation menu

Versions of this User Manual:

Views

Navigation
