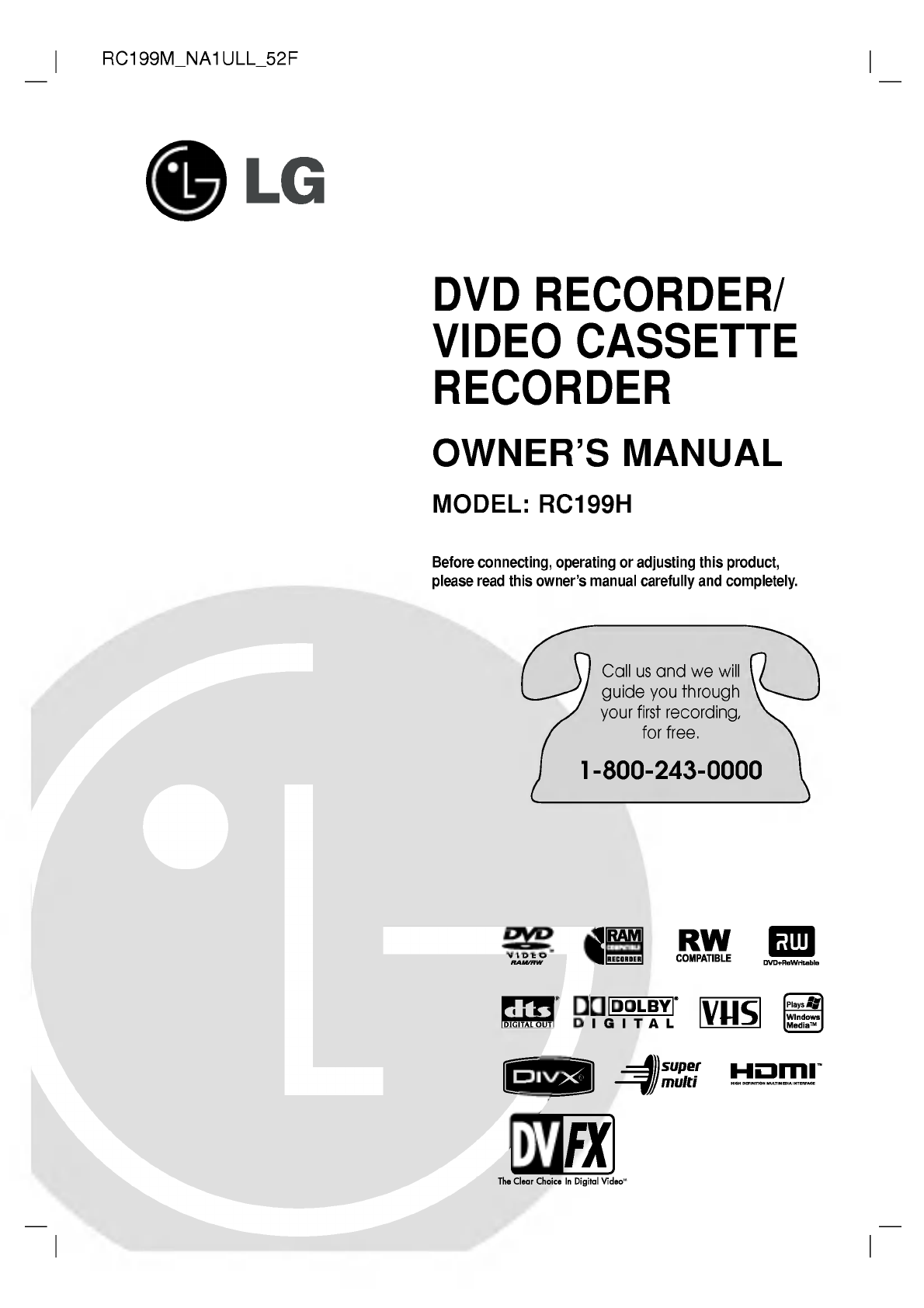

RC199M_NA1ULL_52F

Before

connecting,

operating

or

adjusting

this

product,

please

read

this

owner's

manual

carefully

and

completely.

DVD

RECORDER/

VIDEO

CASSETTE

RECORDER

OWNER'S

MANUAL

MODEL:

RC199H

Call

us

and

we

will

guide

you

through

your

first

recording,

for free.

1-800-243-0000

2

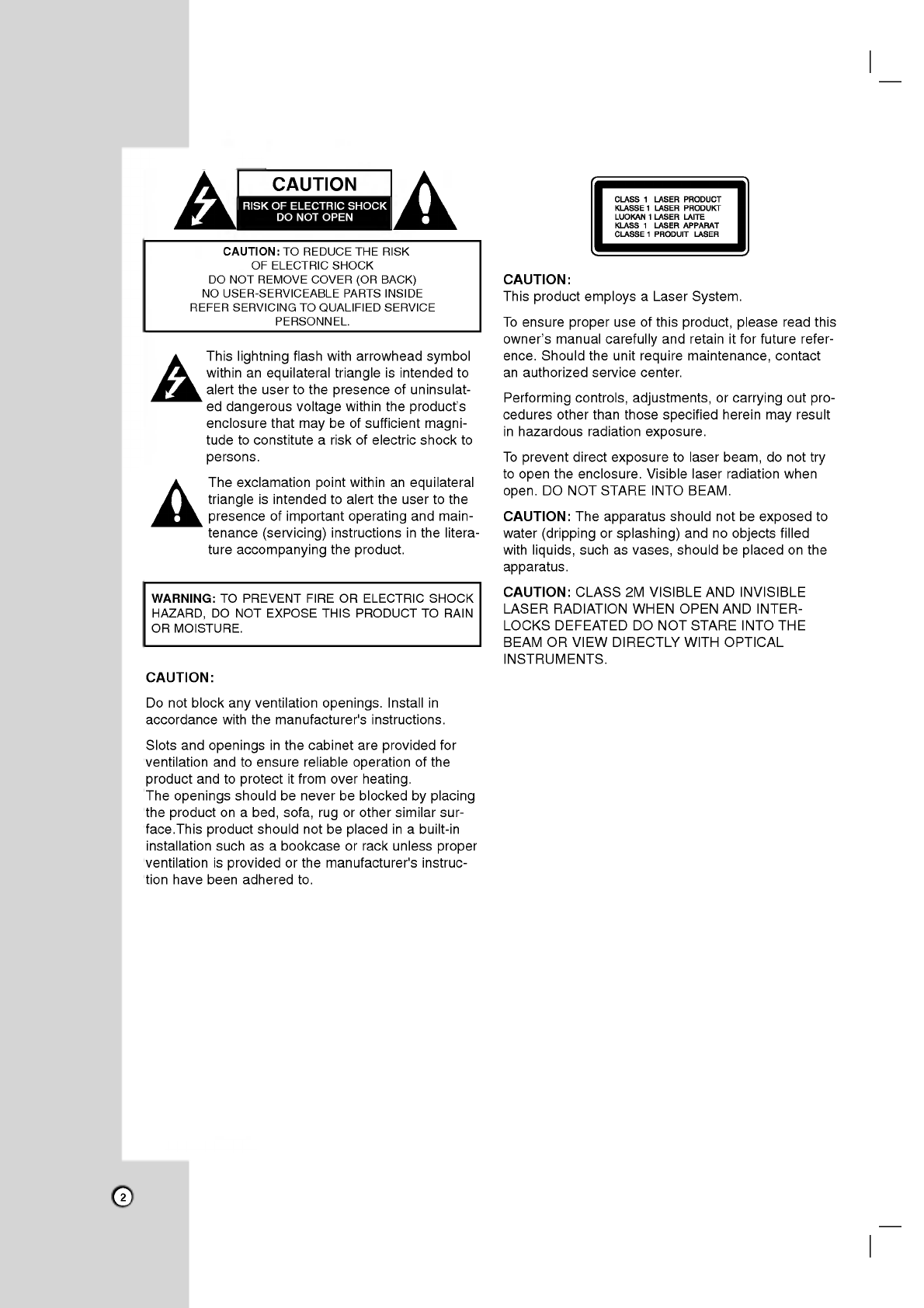

This

lightning

flash

with

arrowhead

symbol

within

an

equilateral

triangle

is

intended

to

alert

the

user

to

the

presence

of

uninsulat-

ed

dangerous

voltage

within

the

product's

enclosure

that

may

be

of

sufficient

magni-

tude

to

constitute

a

risk

of electric

shock

to

persons.

The

exclamation

point

within

an

equilateral

triangle

is

intended

to

alert

the

user

to

the

presence

of

important operating

and

main-

tenance

(servicing)

instructions

in

the

litera-

ture

accompanying

the

product.

CAUTION:

Do

not

block

any

ventilation

openings.

Install

in

accordance

with

the

manufacturer's

instructions.

Slots

and

openings

in

the

cabinet

are

provided

for

ventilation

and

to

ensure

reliable

operation

of

the

product

and

to

protect

it

from

over

heating.

The

openings

should

be

never

be

blocked

by

placing

the

product

on

a

bed,

sofa,

rug

or

other

similar

sur-

face.This

product

should

not

be

placed

in

a

built-in

installation

such

as a

bookcase

or

rack

unless

proper

ventilation

is

provided

or

the

manufacturer's

instruc-

tion

have

been

adhered

to.

CAUTION:

This

product

employs

a

Laser

System.

To

ensure

proper

use

of

this

product,

please

read

this

owner's

manual

carefully

and

retain

it

for

future

refer-

ence.

Should

the

unit

require

maintenance,

contact

an

authorized

service

center.

Performing

controls,

adjustments,

or

carrying

out

pro-

cedures

other

than

those

specified

herein

may

result

in

hazardous

radiation

exposure.

To

prevent

direct

exposure

to

laser

beam,

do

not

try

to

open

the

enclosure.

Visible

laser

radiation

when

open.

DO

NOT

STARE

INTO

BEAM.

CAUTION:

The

apparatus

should

not

be

exposed

to

water

(dripping

or

splashing)

and

no

objects

filled

with

liquids,

such

as

vases,

should

be

placed

on

the

apparatus.

CAUTION:

CLASS

2M

VISIBLE

AND

INVISIBLE

LASER

RADIATION

WHEN

OPEN

AND

INTER-

LOCKS

DEFEATED

DO

NOT

STARE

INTO

THE

BEAM

OR

VIEW

DIRECTLY

WITH

OPTICAL

INSTRUMENTS.

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK

DO

NOT

REMOVE

COVER

(OR

BACK)

NO

USER-SERVICEABLE

PARTS

INSIDE

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL.

WARNING:

TO PREVENT

FIRE

OR

ELECTRIC

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

PRODUCT

TO

RAIN

OR

MOISTURE.

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

3

FCC

WARNING:

This

equipment

may

generate

or

use

radio

frequency

energy.

Changes

or

modifica-

tions

to

this

equipment

may

cause

harmful

interfer-

ence

unless

the

modifications

are

expressly

approved

in

the

instruction

manual.

The

user

could

lose

the

authority

to

operate

this

equipment

if

an

unauthorized

change

or

modification

is

made.

REGULATORY

INFORMATION:

FCC

Part

15

This

equipment

has

been

tested

and

found

to

com-

ply

with

the

limits

for

a

Class

B

digital

device,

pur-

suant

to

Part

15

of

the

FCC

Rules.

These

limits

are

designed

to

provide

reasonable

protection

against

harmful

interference

when

the

product

is

operated

in

a

residential

installation.

This

product

generates,

uses,

and

can

radiate

radio

frequency

energy

and,

if

not

installed

and

used

in

accordance

with

the

instruction

manual,

may

cause

harmful

interference

to

radio

communications.

However,

there

is

no

guar-

antee

that

interference

will

not

occur

in

a

particular

installation.

If

this

product

does

cause

harmful

inter-

ference

to

radio

or

television

reception,

which

can

be

determined

by

turning

the

product

off

and

on,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

the

following

measures:

?

Reorient

or

relocate

the

receiving

antenna.

?

Increase

the

separation

between

the

product

and

receiver.

?

Connect

the

product

into

an

outlet

on

a

circuit

different

from

that

to

which

the

receiver

is

con-

nected.

?

Consult

the

dealer

or

an

experienced

radio/TV

technician

for

help.

FCC

COMPLIANCE:

The

responsible

party

for

this

product's

compliance

is:

LG

Electronics

U.S.A.,

Inc.,1000

Sylvan

Avenue,

Englewood

Cliffs,

NJ.

Phone:

1-201-816-2000.

CAUTION

concerning

the

Power

Cord

Most

appliances

recommend

they

be

placed

upon

a

dedicated

circuit;

That

is,

a

single

outlet

circuit

which

powers

only

that

appliance

and

has

no

additional

outlets

or

branch

cir-

cuits.

Check

the

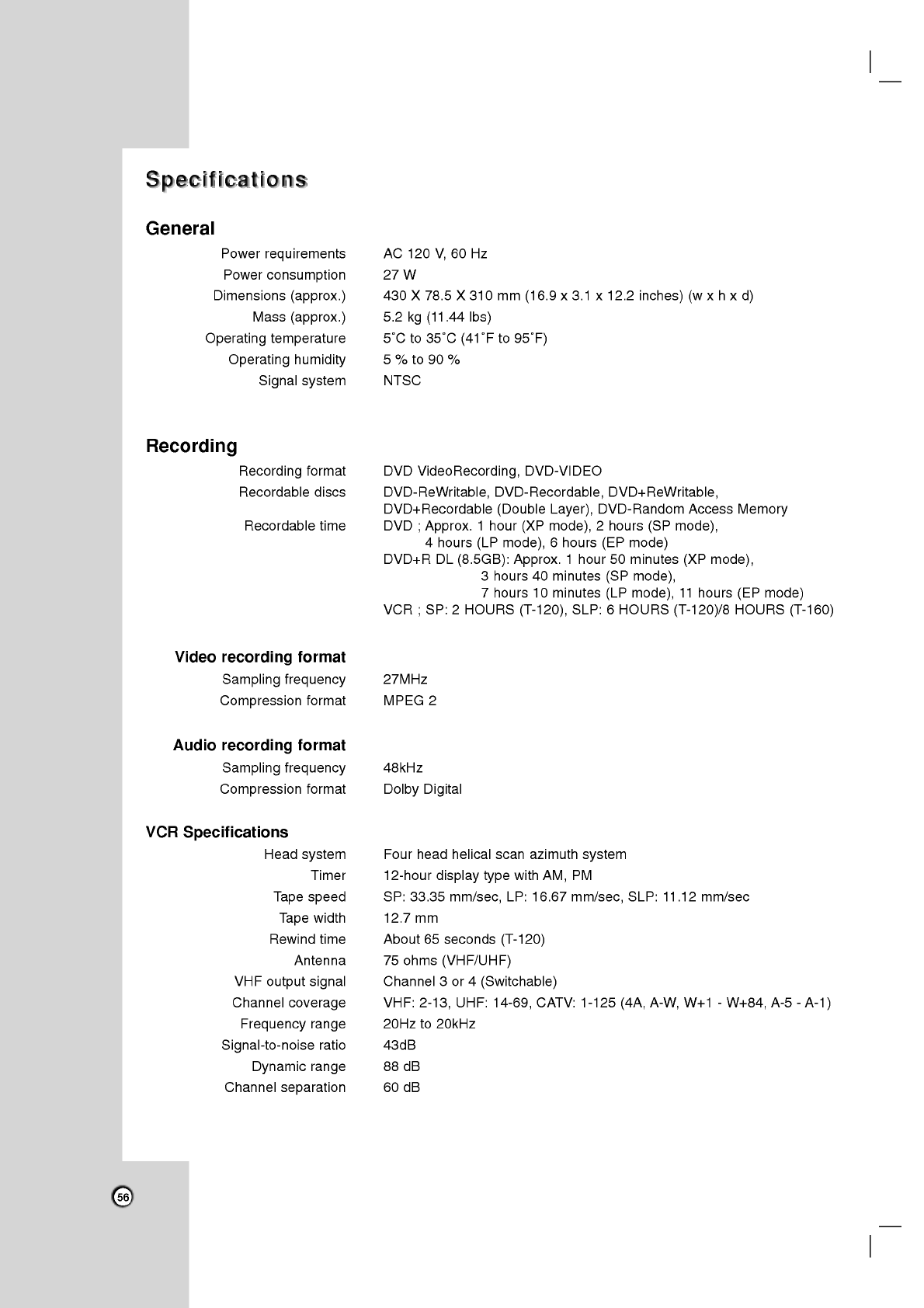

specification

page

of

this

owner's

manual

to

be

certain.

Do

not

overload

wall

outlets.

Overloaded

wall

outlets,

loose

or

damaged

wall

outlets,

extension

cords,

frayed

power

cords,

or

damaged

or

cracked

wire

insulation

are

dangerous.

Any

of

these

conditions

could

result

in

electric

shock

or

fire.

Periodically

examine

the

cord

of

your

appliance,

and

if

its

appear-

ance

indicates

damage

or

deterioration,

unplug

it,

dis-

continue

use

of

the

appliance,

and

have

the

cord

replaced

with

an

exact

replacement

part

by

an

authorized

servicer.

Protect

the

power

cord

from

physical

or

mechanical

abuse,

such

as

being

twisted,

kinked,

pinched,

closed

in

a

door,

or

walked

upon.

Pay

particular

attention

to

plugs,

wall

outlets,

and

the

point

where

the

cord

exits

the

appliance.

To

disconnect

power

from

the

mains,

pull

out

the

mains

cord

plug.

When

installing

the

product,

ensure

that

the

plug

is

easily

accessible.

4

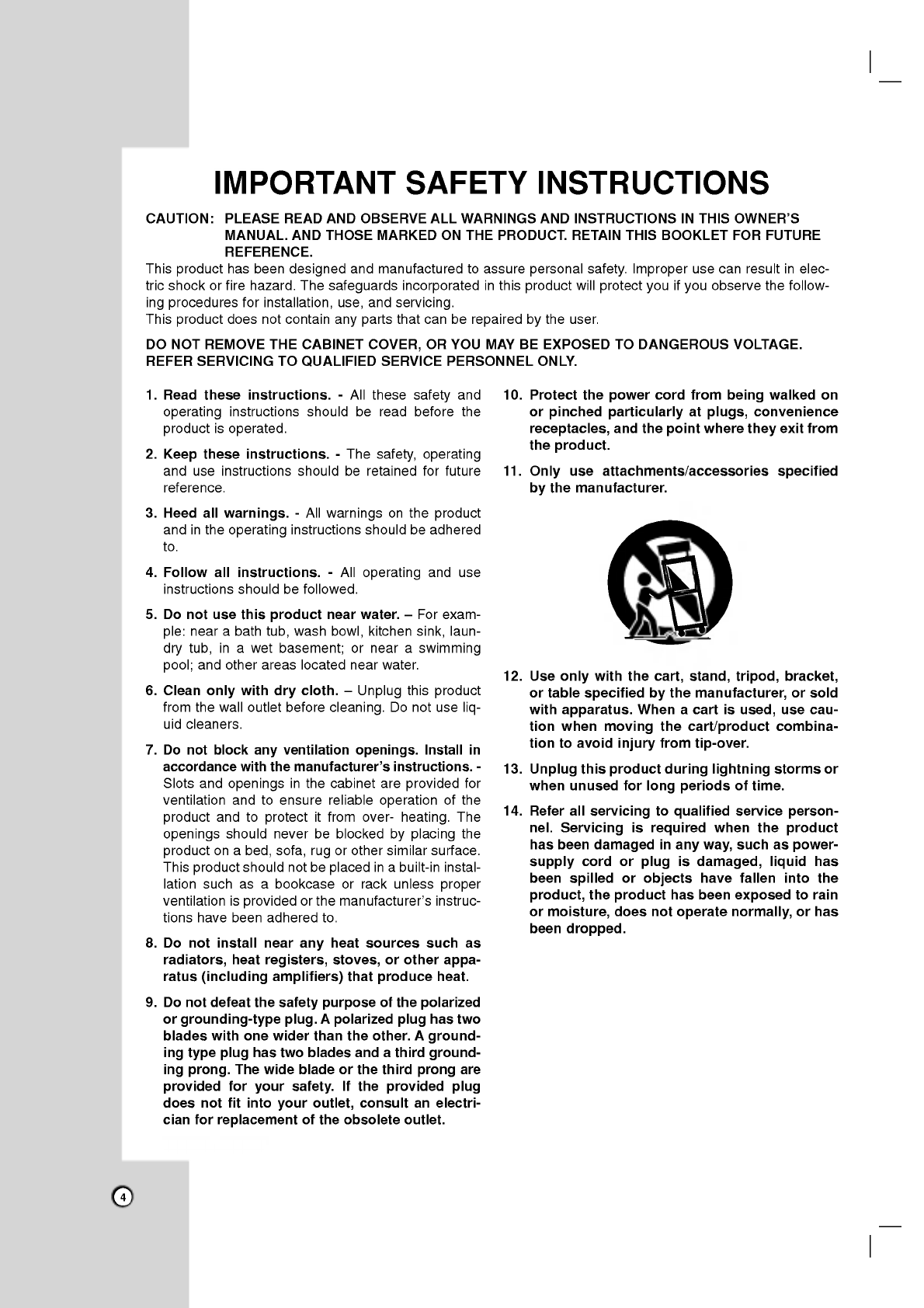

1.

Read

these

instructions.

-

All

these

safety

and

operating

instructions

should

be

read

before

the

product

is

operated.

2.

Keep

these

instructions.

-

The

safety,

operating

and

use

instructions

should

be

retained

for

future

reference.

3.

Heed

all

warnings.

-

All

warnings

on

the

product

and

in

the

operating

instructions

should

be

adhered

to.

4.

Follow

all

instructions.

-

All

operating

and

use

instructions

should

be

followed.

5.

Do

not

use

this

product

near

water.

--

For

exam-

ple:

near a

bath

tub,

wash

bowl,

kitchen

sink,

laun-

dry

tub,

in

a

wet

basement;

or

near a

swimming

pool;

and

other

areas

located

near

water.

6.

Clean

only

with

dry

cloth.

--

Unplug

this

product

from

the

wall

outlet

before

cleaning.

Do

not

use

liq-

uid

cleaners.

7.

Do

not block

any

ventilation

openings.

Install in

accordance

with

the

manufacturer's

instructions.

-

Slots

and

openings

in

the

cabinet

are

provided

for

ventilation

and

to

ensure

reliable

operation

of

the

product

and

to

protect

it

from

over-

heating.

The

openings

should

never

be

blocked

by

placing

the

product

on

a

bed,

sofa,

rug

or

other

similar

surface.

This

product

should

not

be

placed

in

a

built-in

instal-

lation

such

as a

bookcase

or

rack

unless

proper

ventilation

is

provided

or

the

manufacturer's

instruc-

tions

have

been

adhered

to.

8.

Do

not

install

near

any

heat

sources

such

as

radiators,

heat

registers,

stoves,

or

other

appa-

ratus

(including

amplifiers)

that

produce

heat.

9.

Do

not

defeat the

safety

purpose

of

the

polarized

or

grounding-type

plug.

A

polarized

plug

has

two

blades

with

one

wider

than

the

other.

A

ground-

ing

type

plug

has

two

blades

and

a

third

ground-

ing

prong.

The

wide

blade

or

the

third

prong

are

provided

for

your

safety.

If

the

provided

plug

does

not

fit

into

your

outlet,

consult

an

electri-

cian

for

replacement

of

the

obsolete

outlet.

10.

Protect

the

power

cord

from

being

walked

on

or

pinched

particularly

at

plugs,

convenience

receptacles,

and

the

point

where

they

exit

from

the

product.

11

.

Only

use

attachments/accessories

specified

by

the

manufacturer.

12.

Use

only

with

the

cart,

stand,

tripod,

bracket,

or

table

specified

by

the

manufacturer,

or

sold

with

apparatus.

When

a

cart

is

used,

use

cau-

tion

when

moving

the

cart/product

combina-

tion

to

avoid

injury

from

tip-over.

13.

Unplug

this

product

during

lightning

storms

or

when

unused

for

long

periods

of

time.

14.

Refer

all

servicing

to

qualified

service

person-

nel.

Servicing

is

required

when

the

product

has

been

damaged

in

any

way,

such

as

power-

supply

cord

or

plug

is

damaged,

liquid

has

been

spilled

or

objects

have

fallen

into

the

product,

the

product

has

been

exposed

to

rain

or

moisture,

does

not

operate

normally,

or

has

been

dropped.

IMPORTANT

SAFETY

INSTRUCTIONS

CAUTION:

PLEASE

READ

AND

OBSERVE

ALL

WARNINGS

AND

INSTRUCTIONS

IN

THIS

OWNER'S

MANUAL.

AND

THOSE

MARKED

ON

THE

PRODUCT.

RETAIN

THIS

BOOKLET

FOR

FUTURE

REFERENCE.

This

product

has

been

designed

and

manufactured

to

assure

personal

safety.

Improper

use

can

result

in

elec-

tric

shock

or

fire

hazard.

The

safeguards

incorporated

in

this

product

will

protect

you

if

you

observe

the

follow-

ing

procedures

for

installation,

use,

and

servicing.

This

product

does

not

contain

any

parts

that

can

be

repaired

by

the

user.

DO

NOT

REMOVE

THE

CABINET

COVER,

OR

YOU

MAY

BE

EXPOSED

TO

DANGEROUS

VOLTAGE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL

ONLY.

5

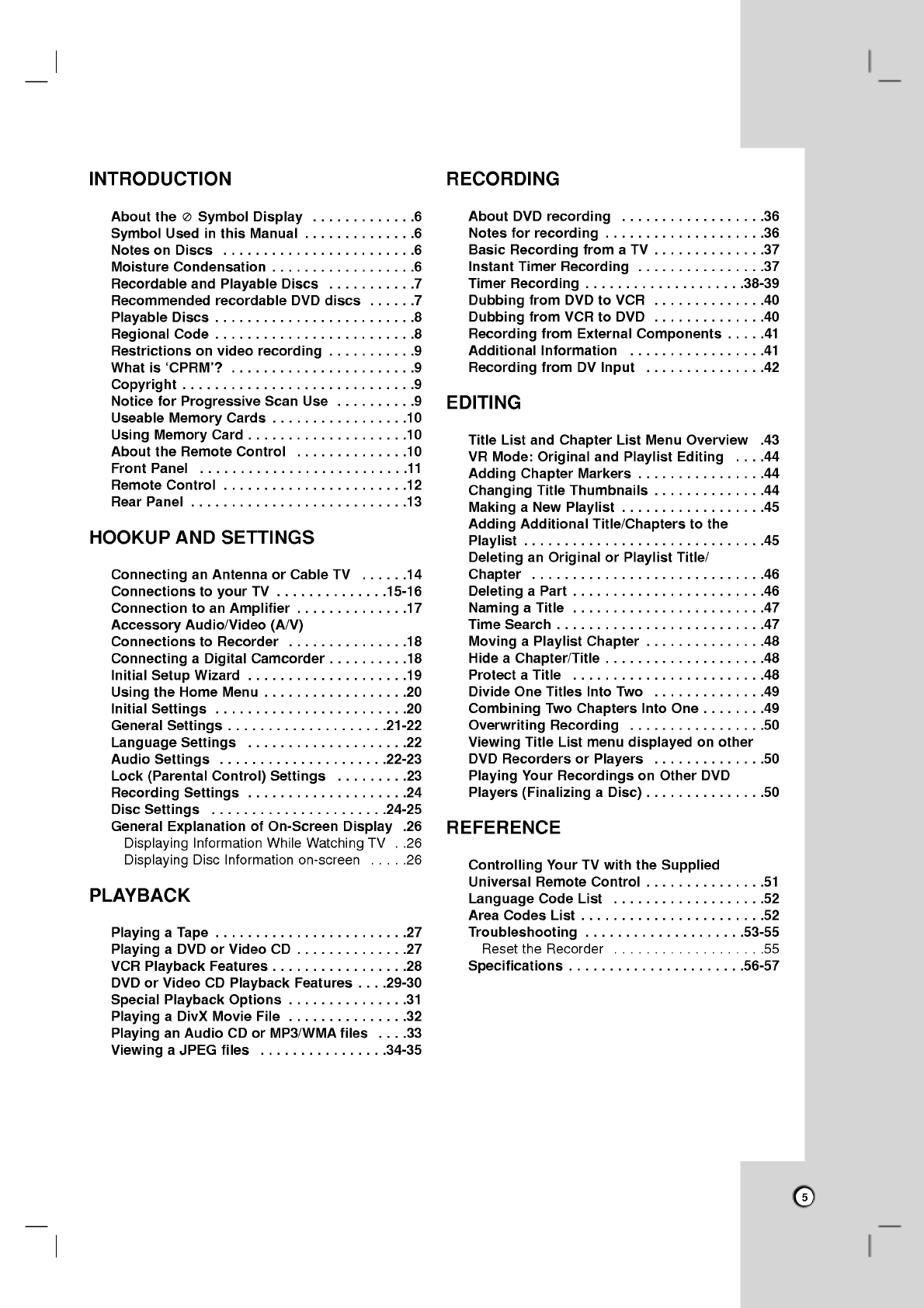

INTRODUCTION

AbouttheSymbolDisplay.............6

SymbolUsedinthisManual..............6

NotesonDiscs........................6

MoistureCondensation..................6

RecordableandPlayableDiscs

..........

.7

Recommended

recordable

DVD

discs

.....

.7

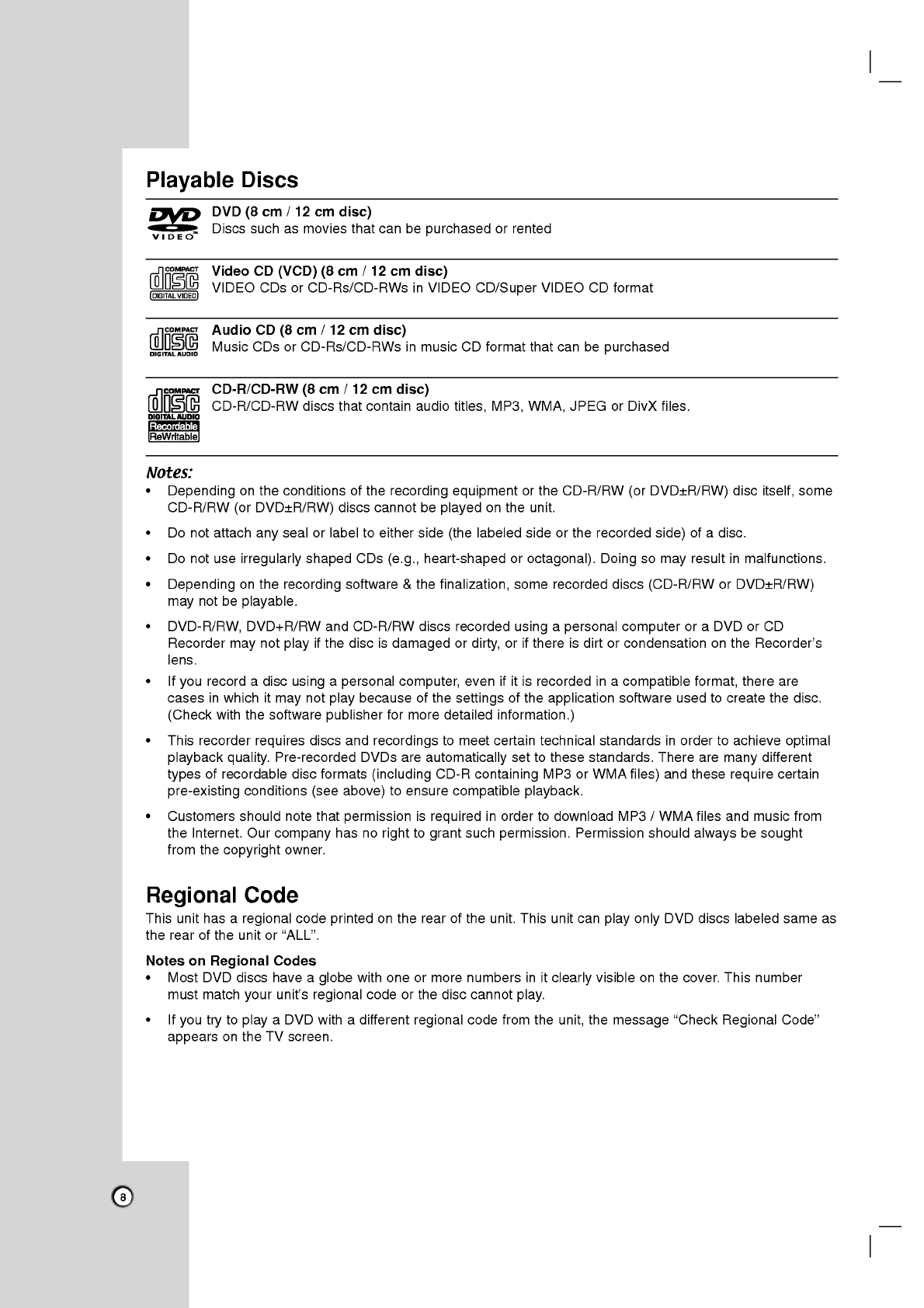

PlayableDiscs.........................8

RegionalCode.........................8

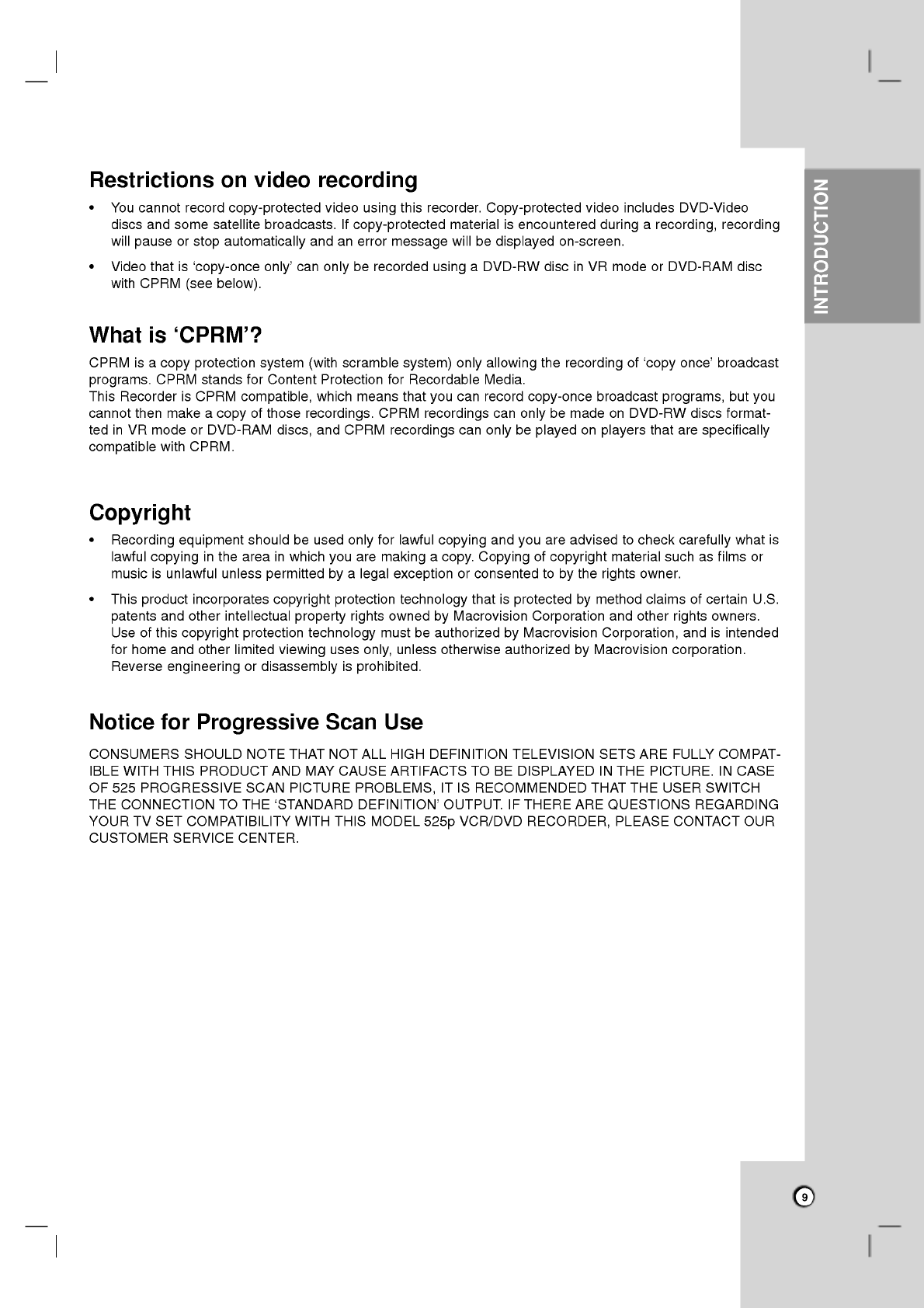

Restrictionsonvideorecording.

.........

.9

Whatis'CPRM'?.......................9

Copyright.............................9

NoticeforProgressiveScanUse

.........

.9

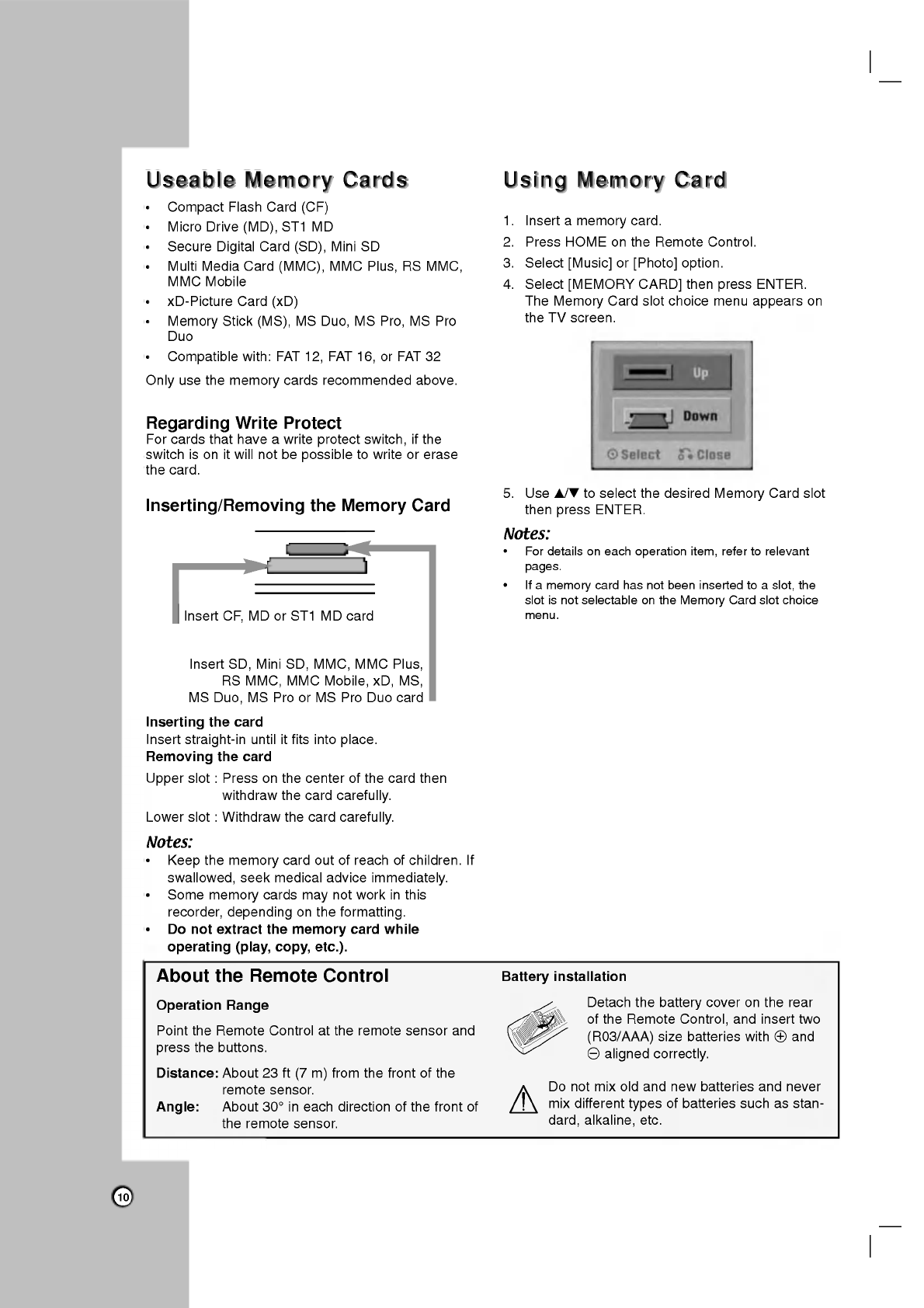

UseableMemoryCards.................10

UsingMemoryCard....................10

AbouttheRemoteControl..............10

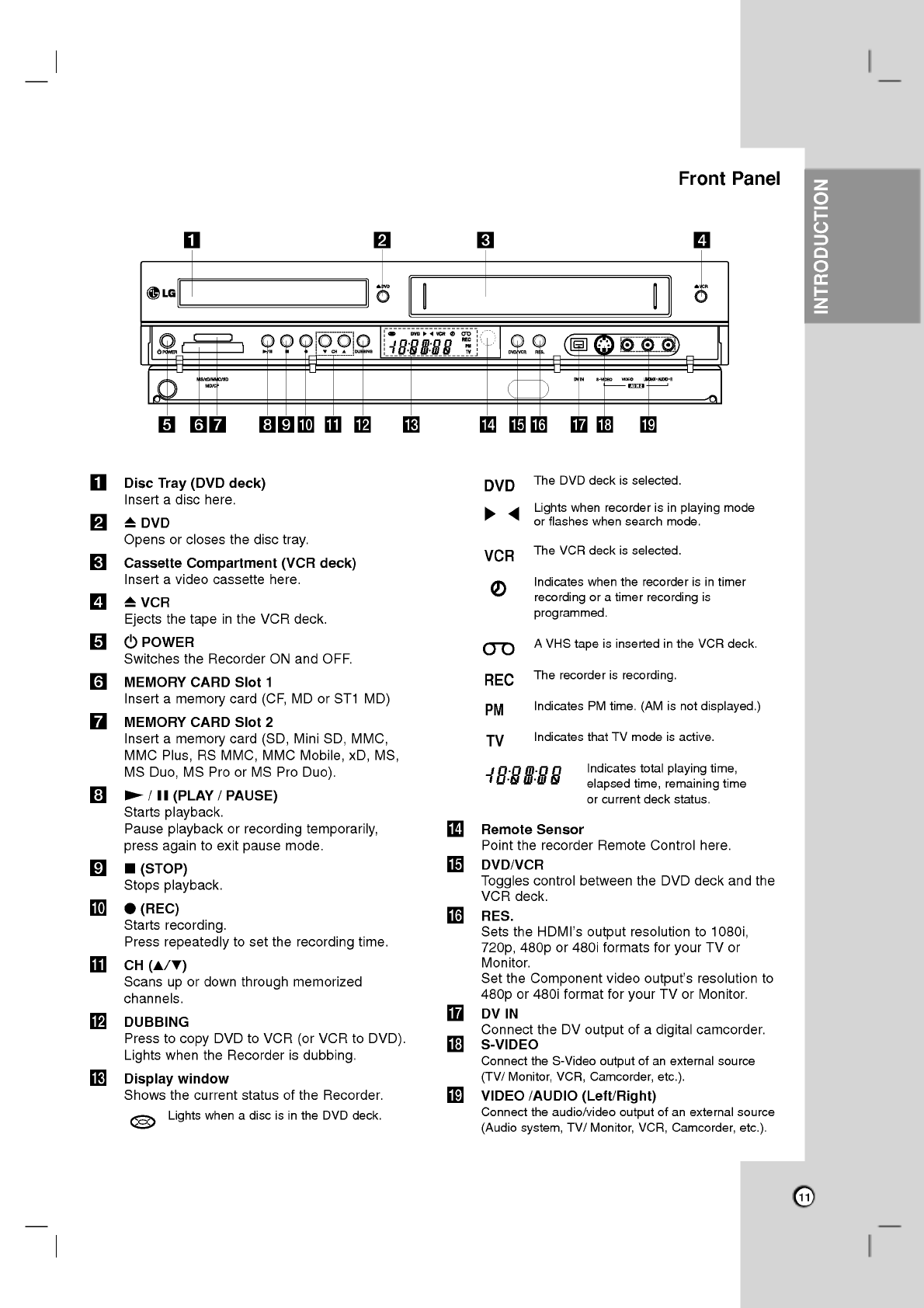

FrontPanel..........................11

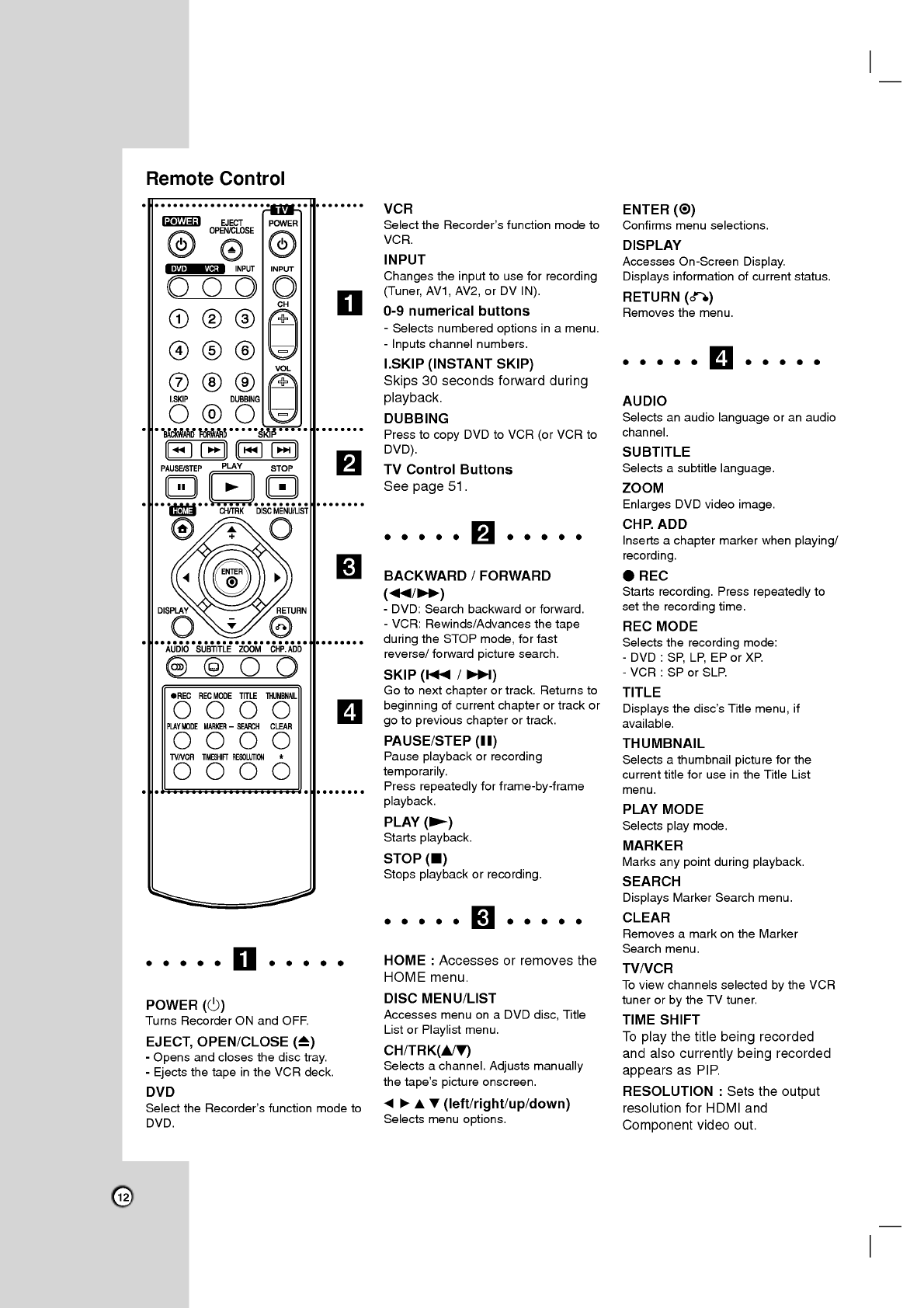

RemoteControl.......................12

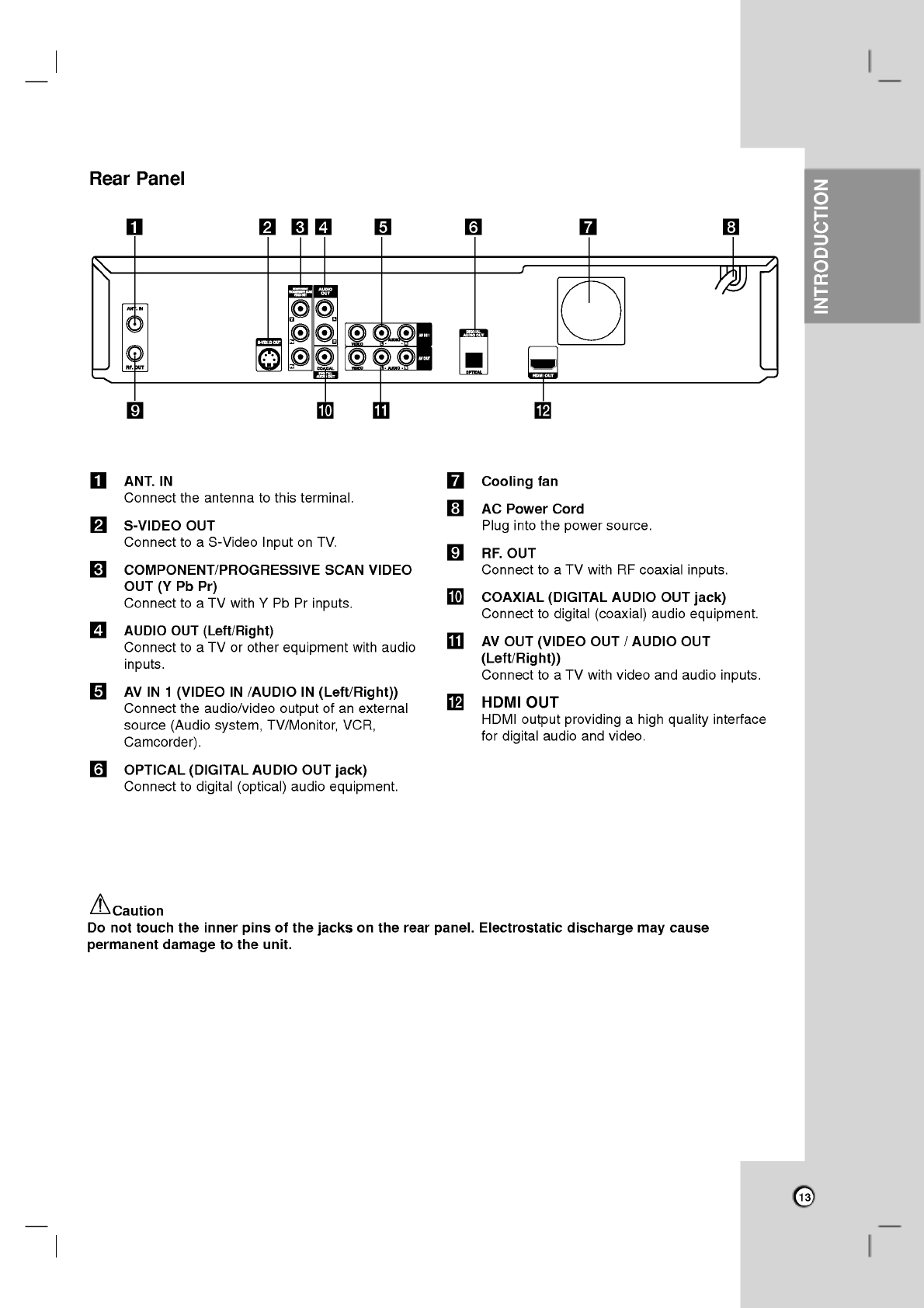

RearPanel...........................13

HOOKUP

AND

SETTINGS

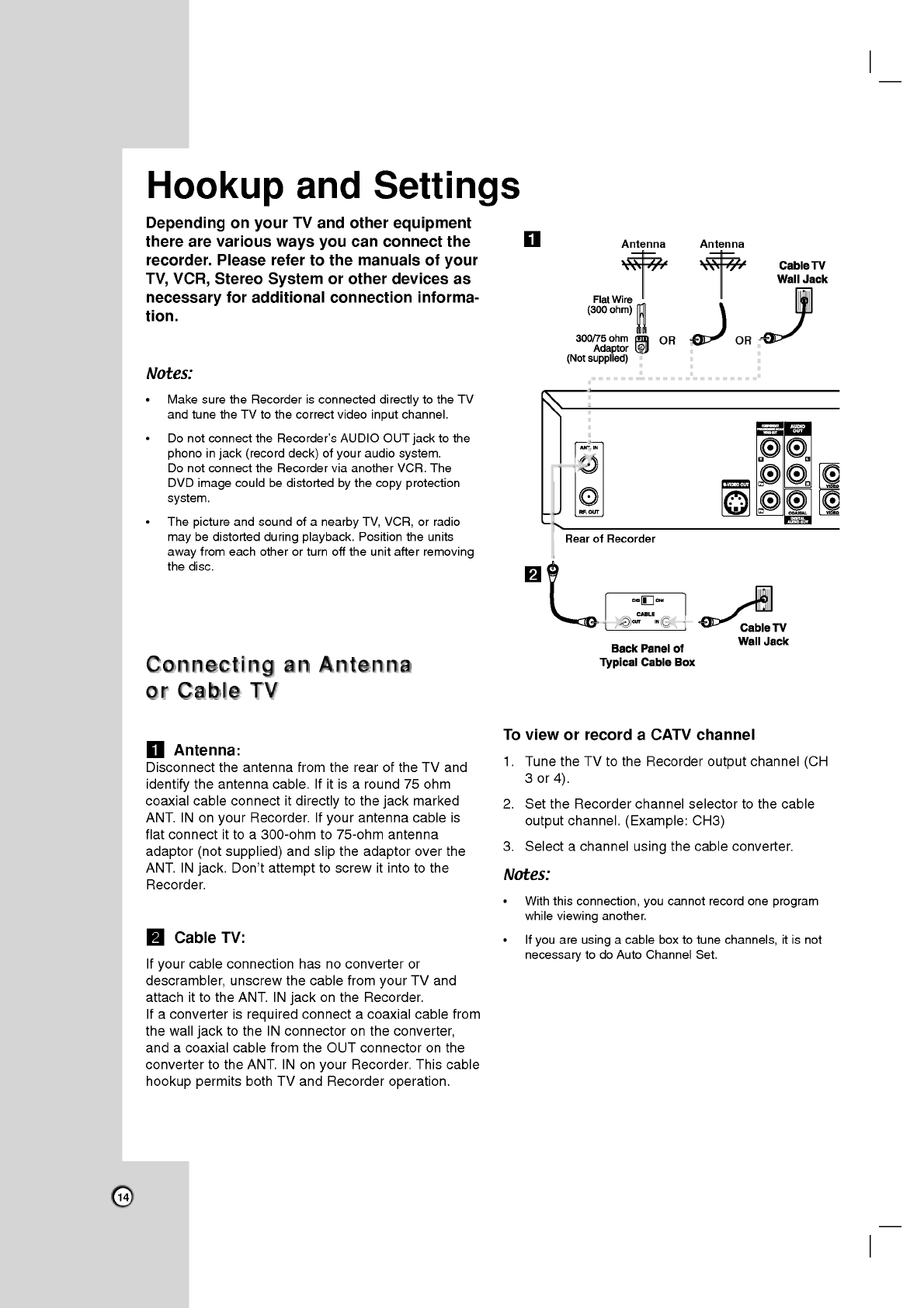

Connecting

an

Antenna

or

Cable

TV

.....

.14

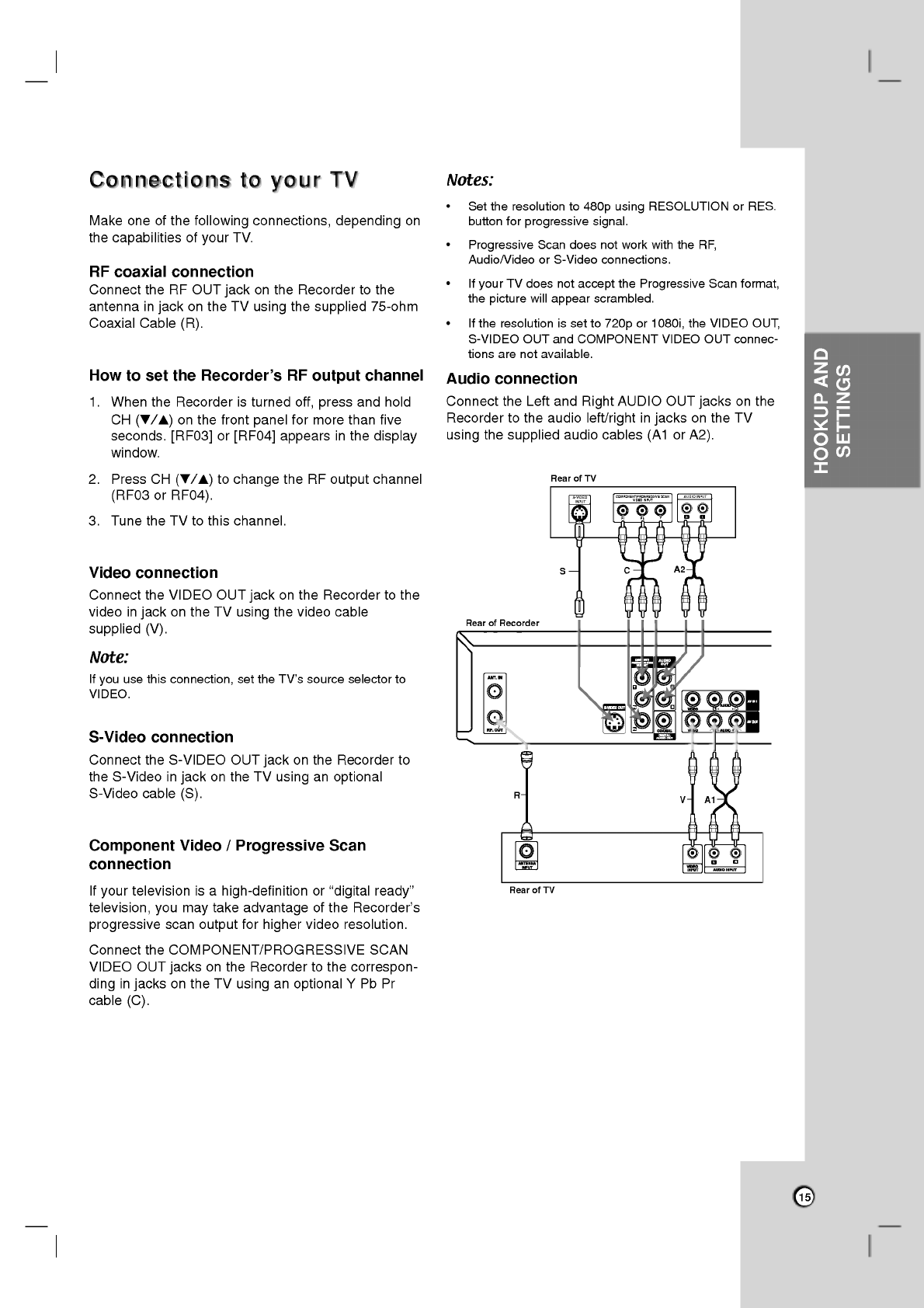

ConnectionstoyourTV..............15-16

ConnectiontoanAmplifier..............17

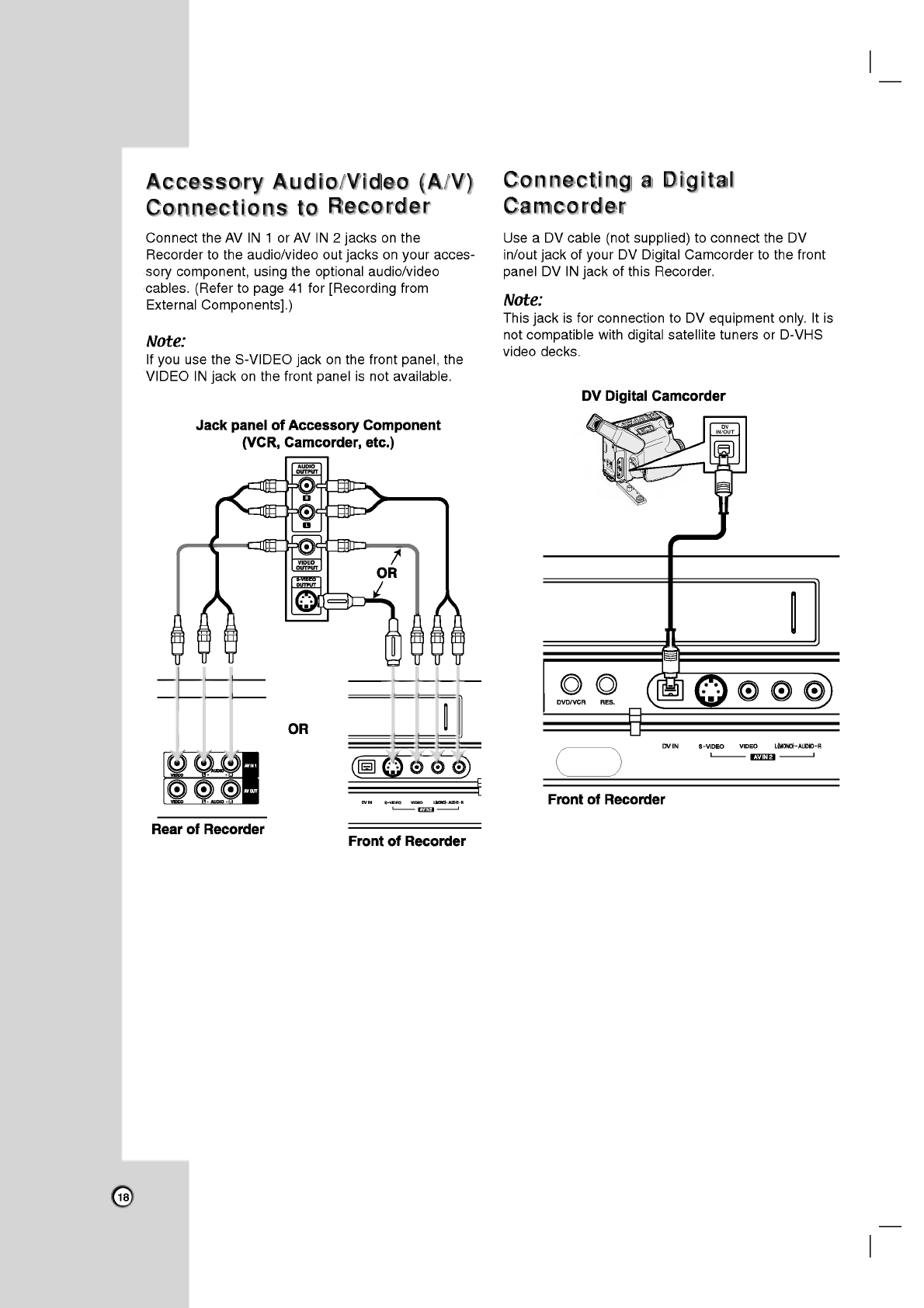

Accessory

Audio/Video

(A/V)

ConnectionstoRecorder...............18

ConnectingaDigitalCamcorder.

........

.18

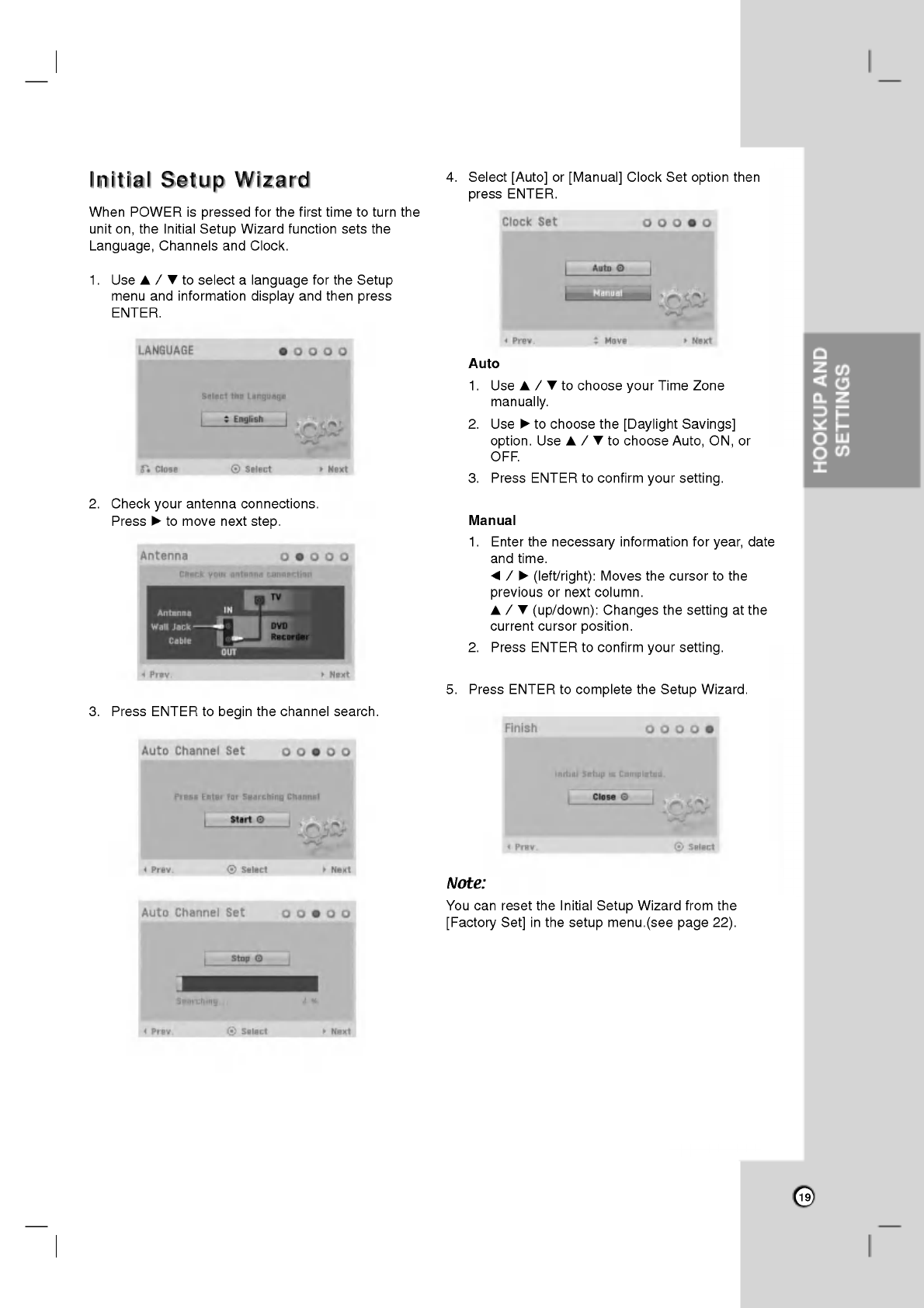

InitialSetupWizard....................19

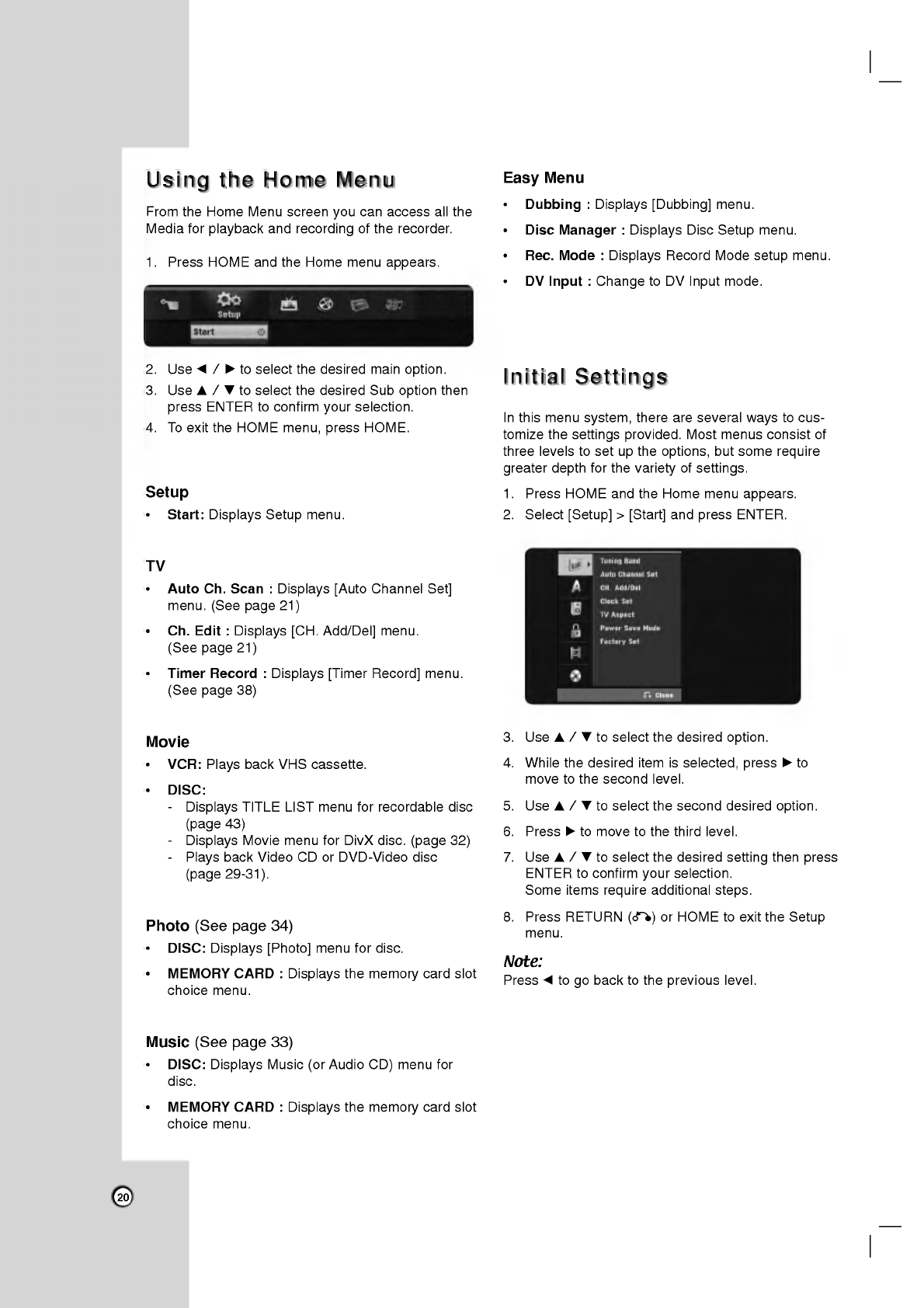

UsingtheHomeMenu..................20

InitialSettings........................20

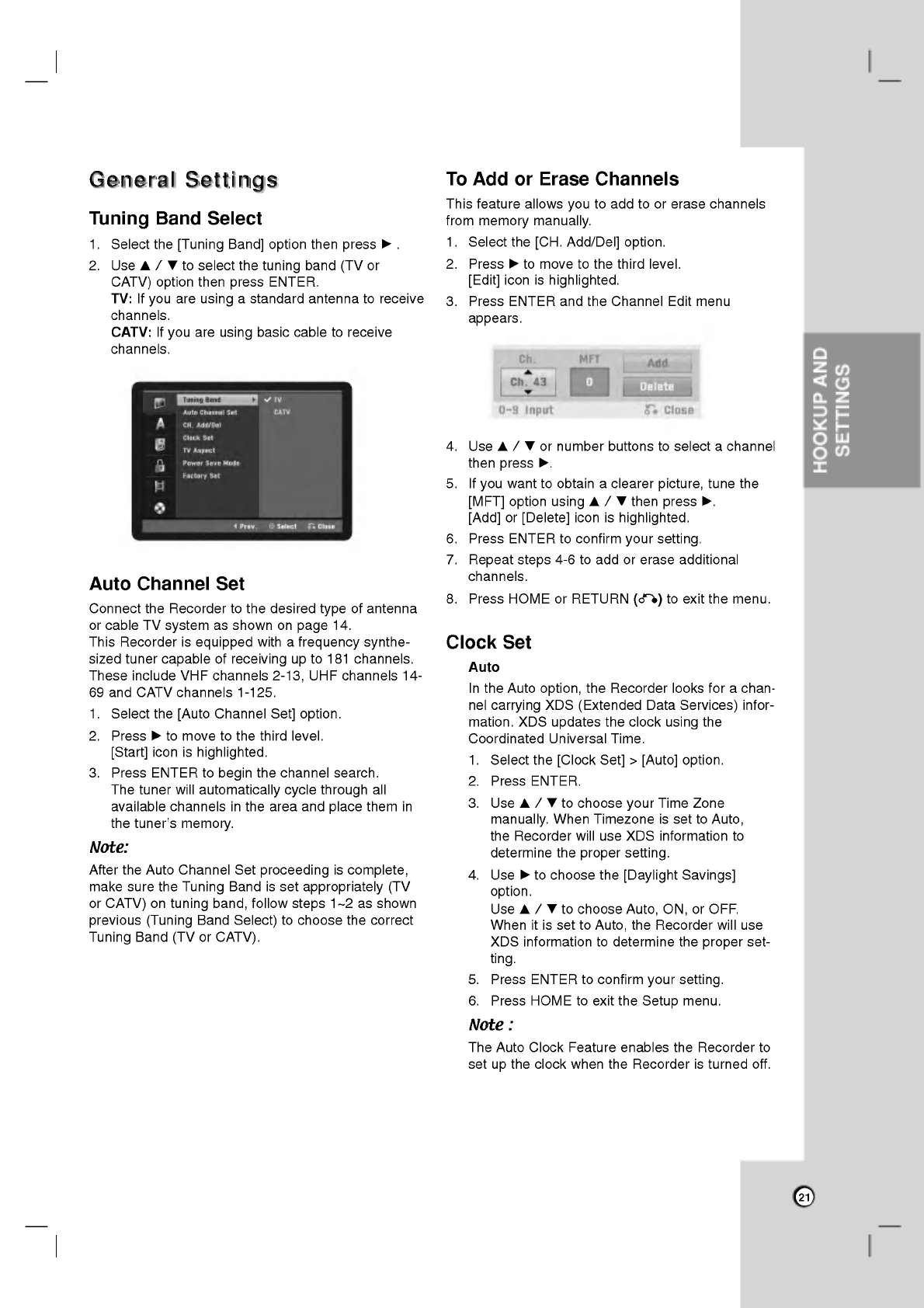

GeneralSettings....................21-22

LanguageSettings....................22

AudioSettings.....................22-23

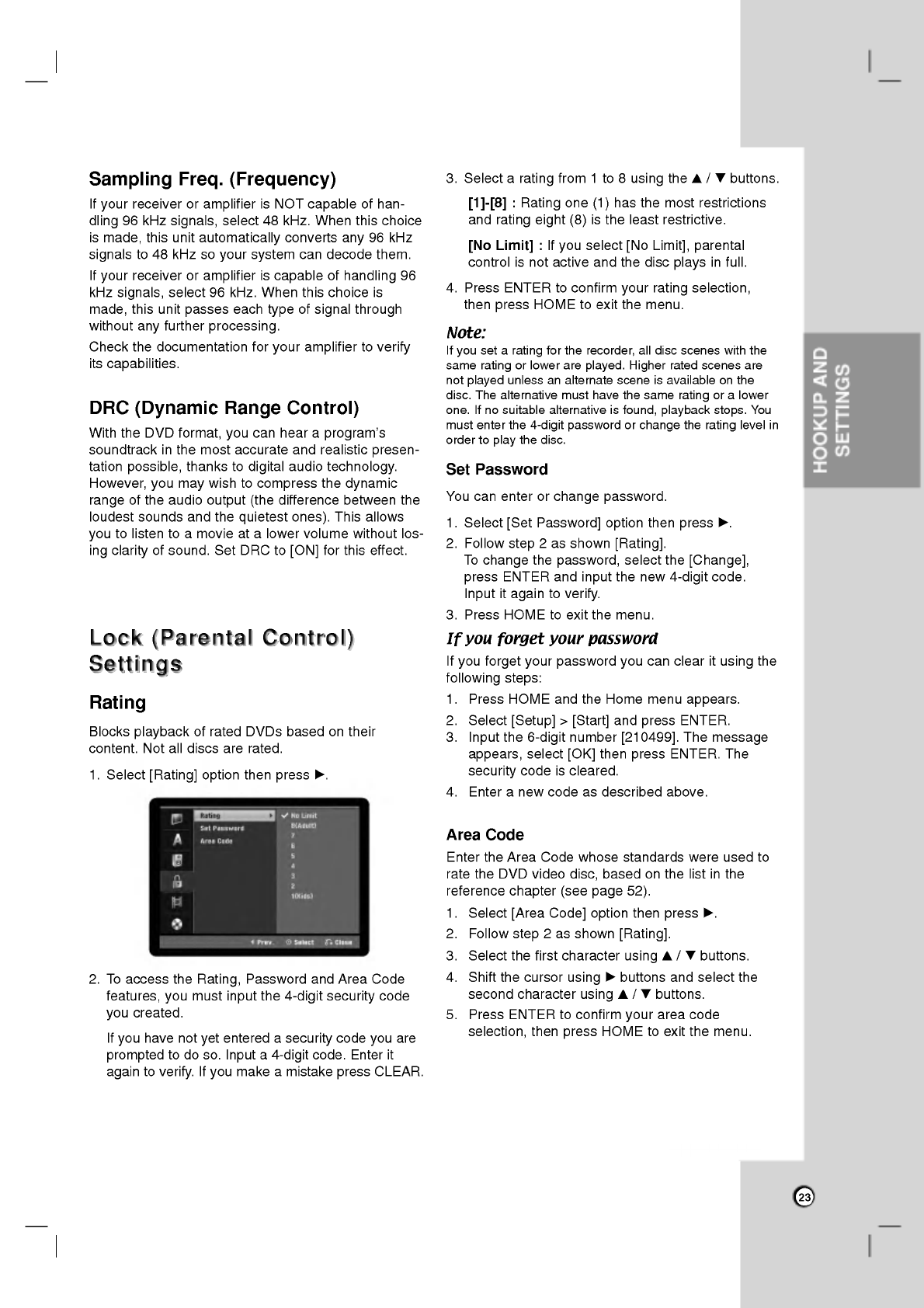

Lock

(Parental

Control)

Settings

........

.23

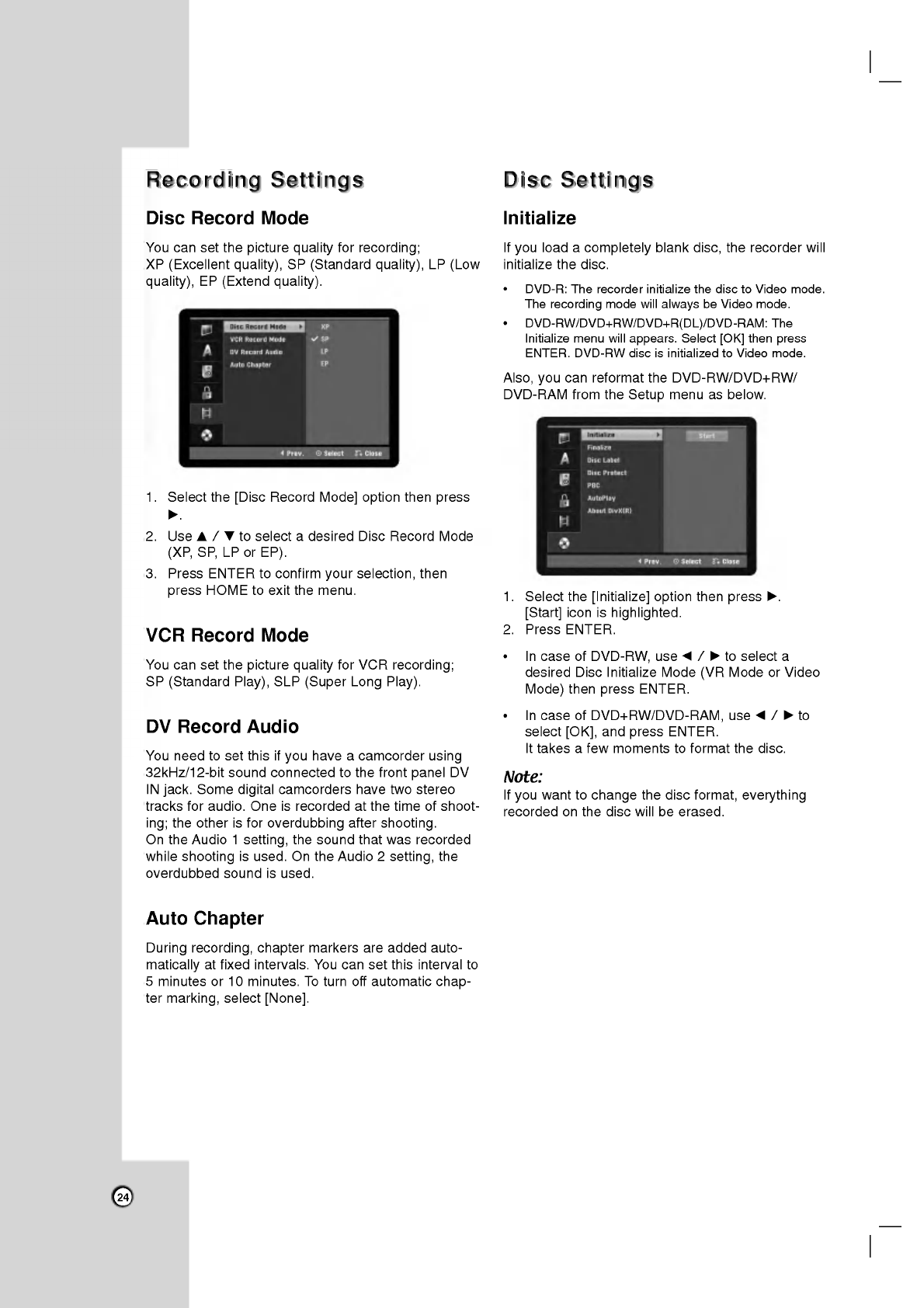

RecordingSettings....................24

DiscSettings......................24-25

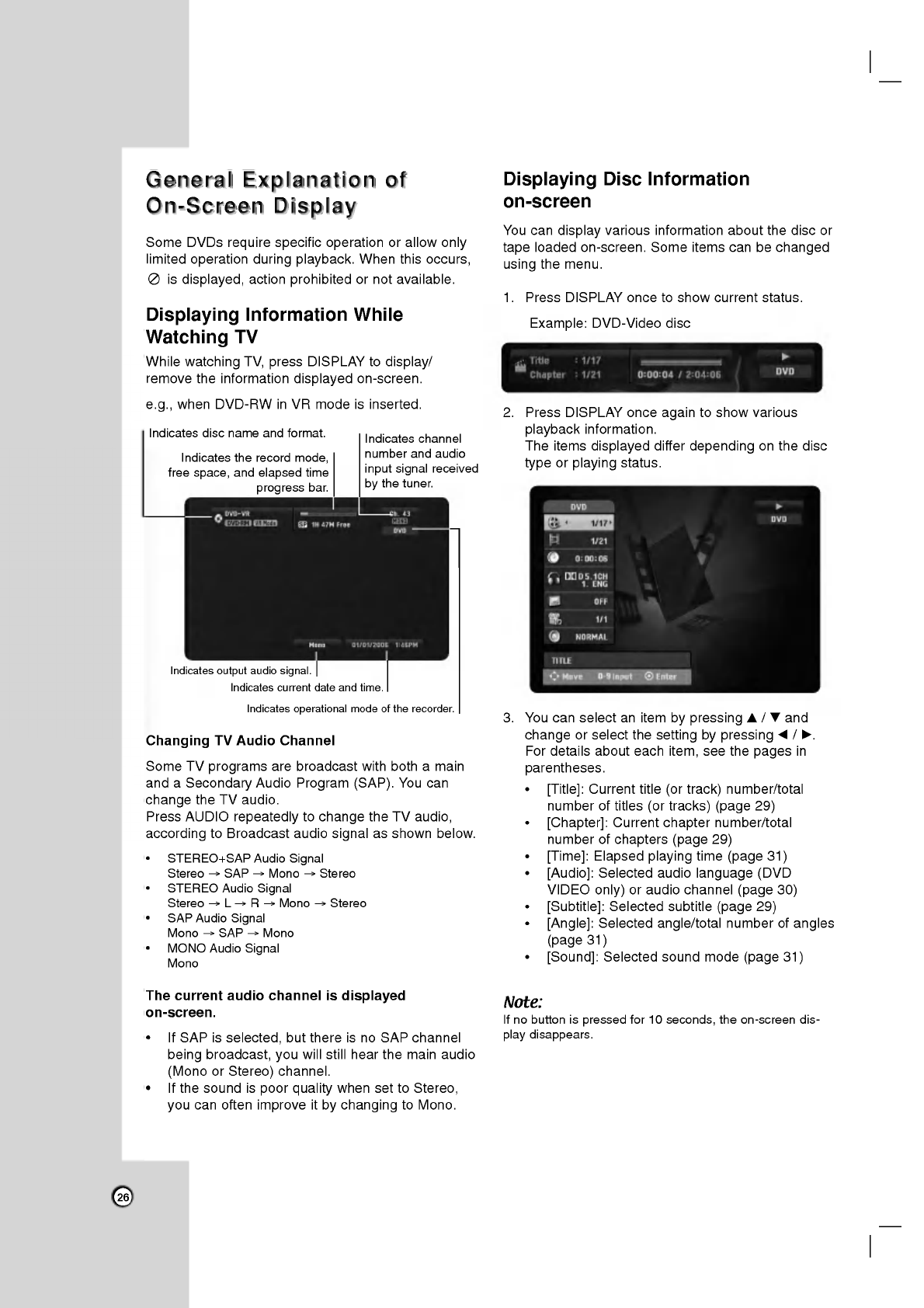

General

Explanation

of

On-Screen

Display

.26

Displaying

Information

While

Watching

TV

.

.26

Displaying

Disc

Information

on-screen

. . . .

.26

PLAYBACK

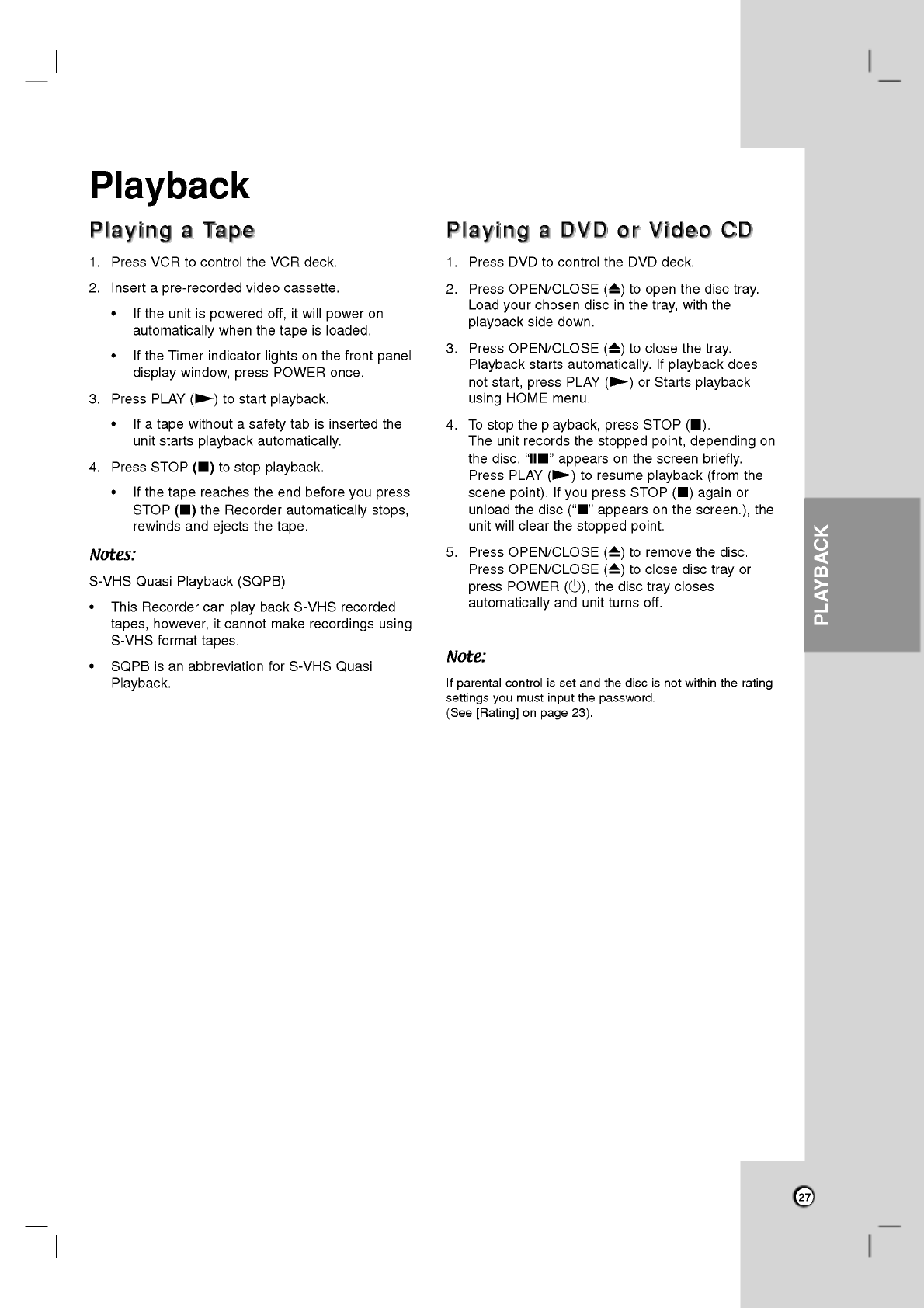

PlayingaTape........................27

PlayingaDVDorVideoCD..............27

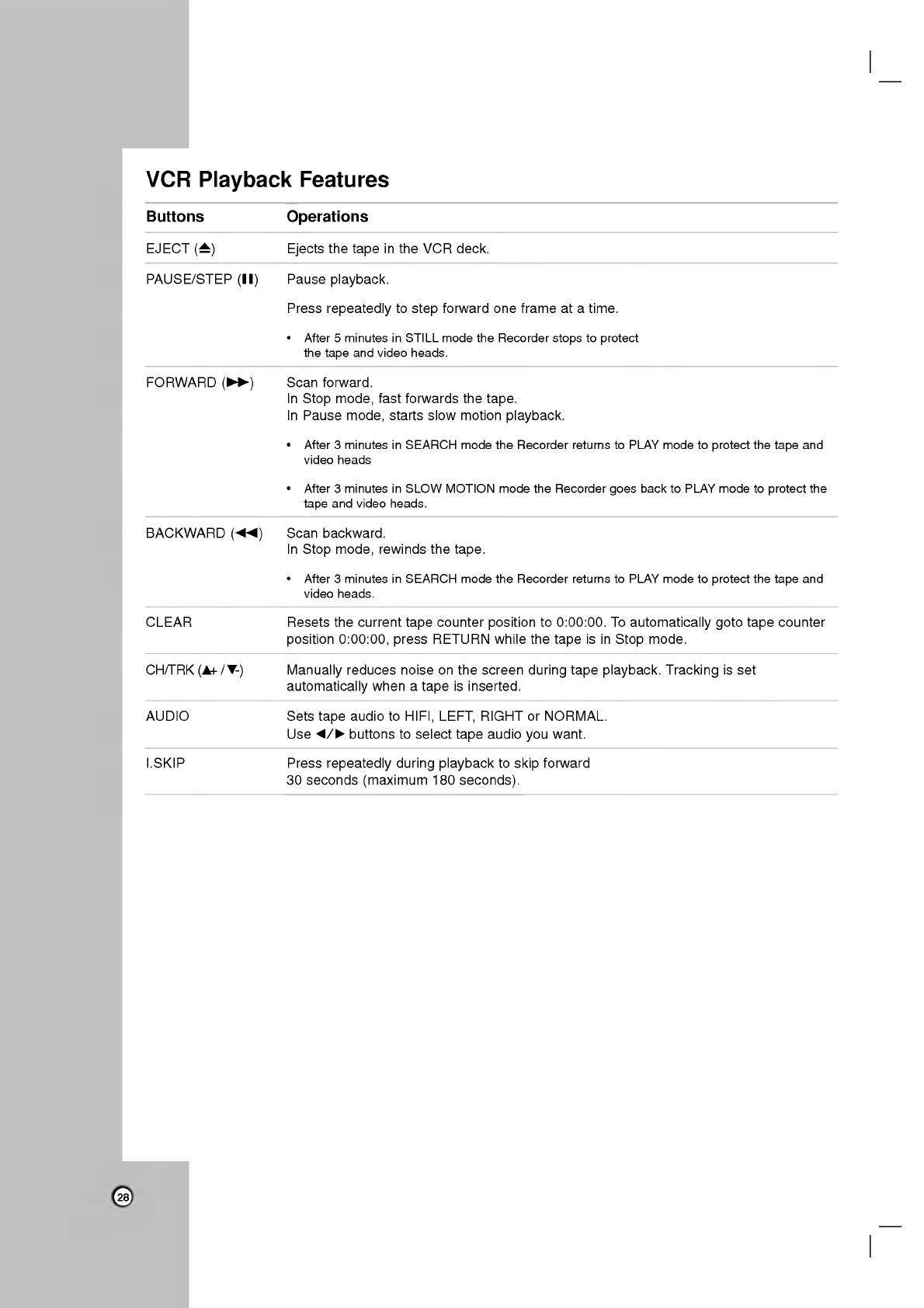

VCRPlaybackFeatures.................28

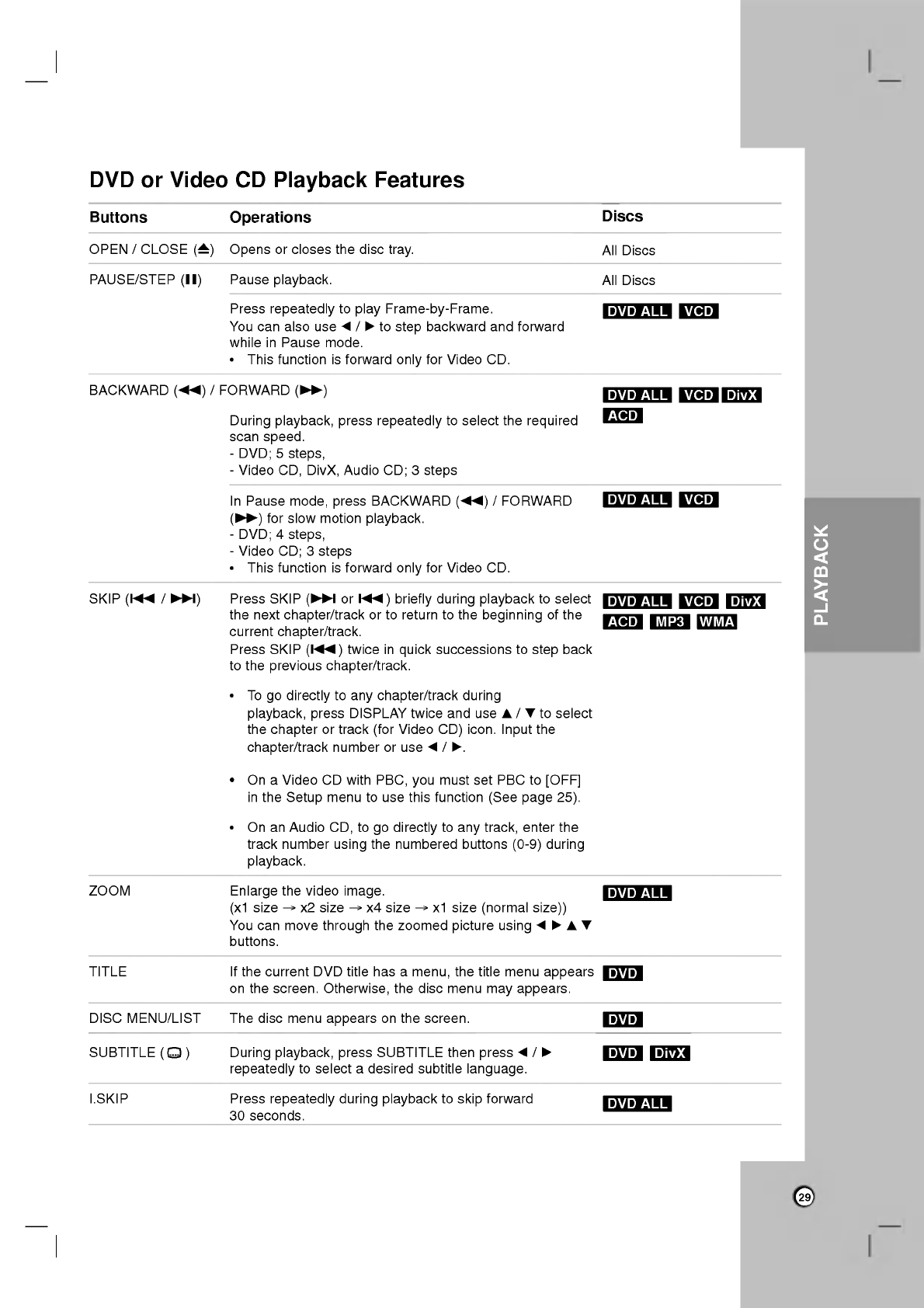

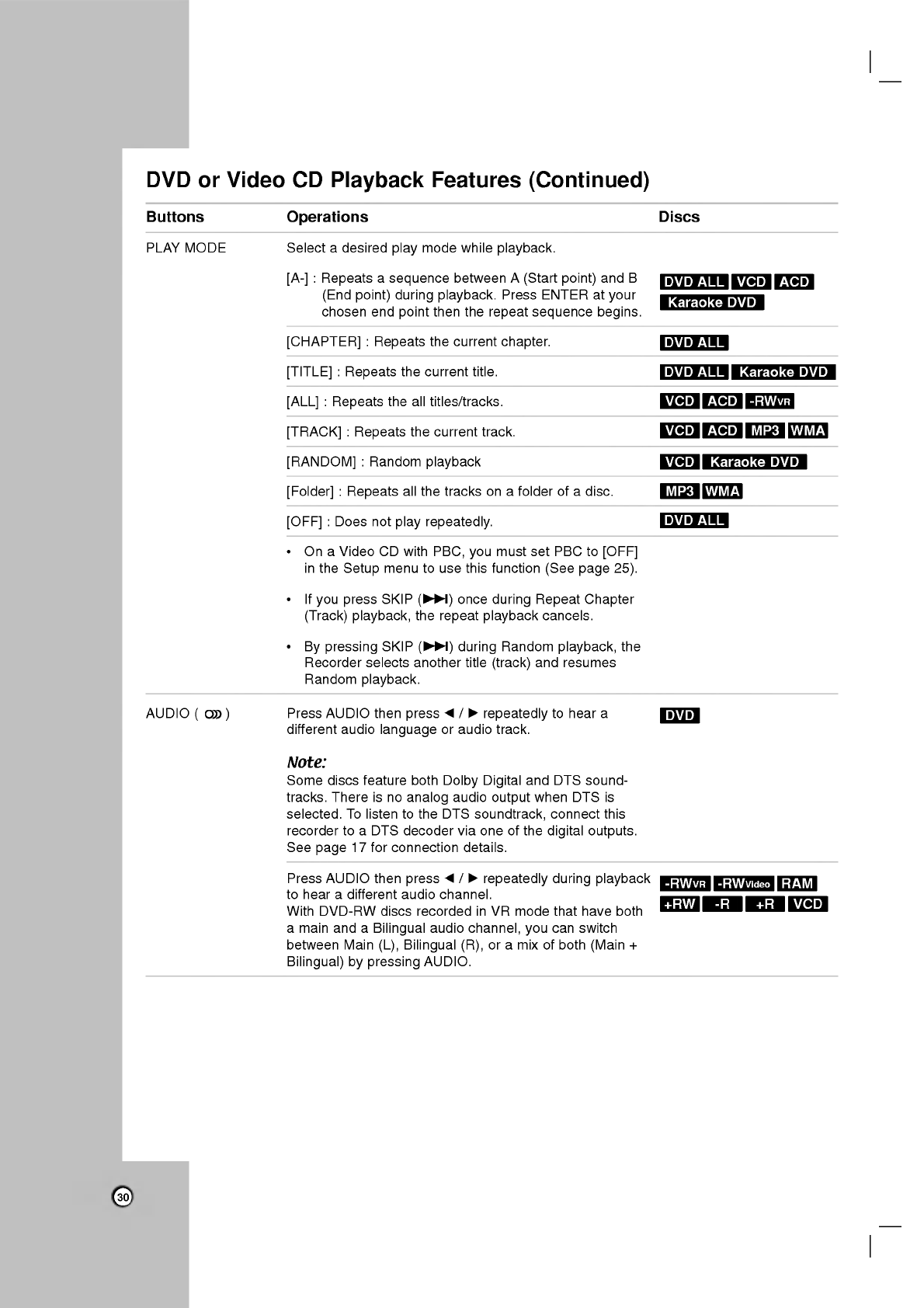

DVD

or

Video

CD

Playback

Features

...

.29-30

SpecialPlaybackOptions...............31

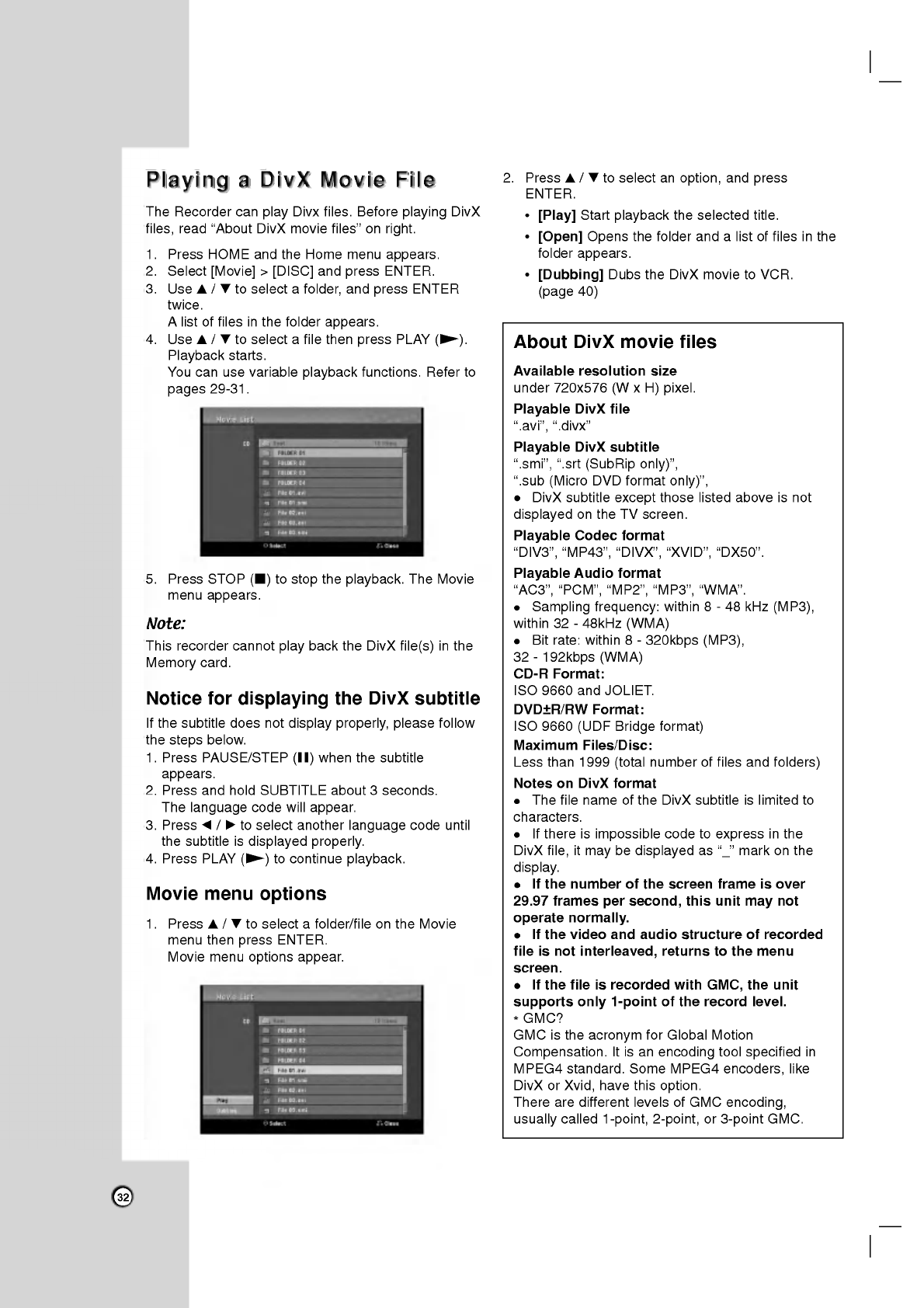

PlayingaDivXMovieFile...............32

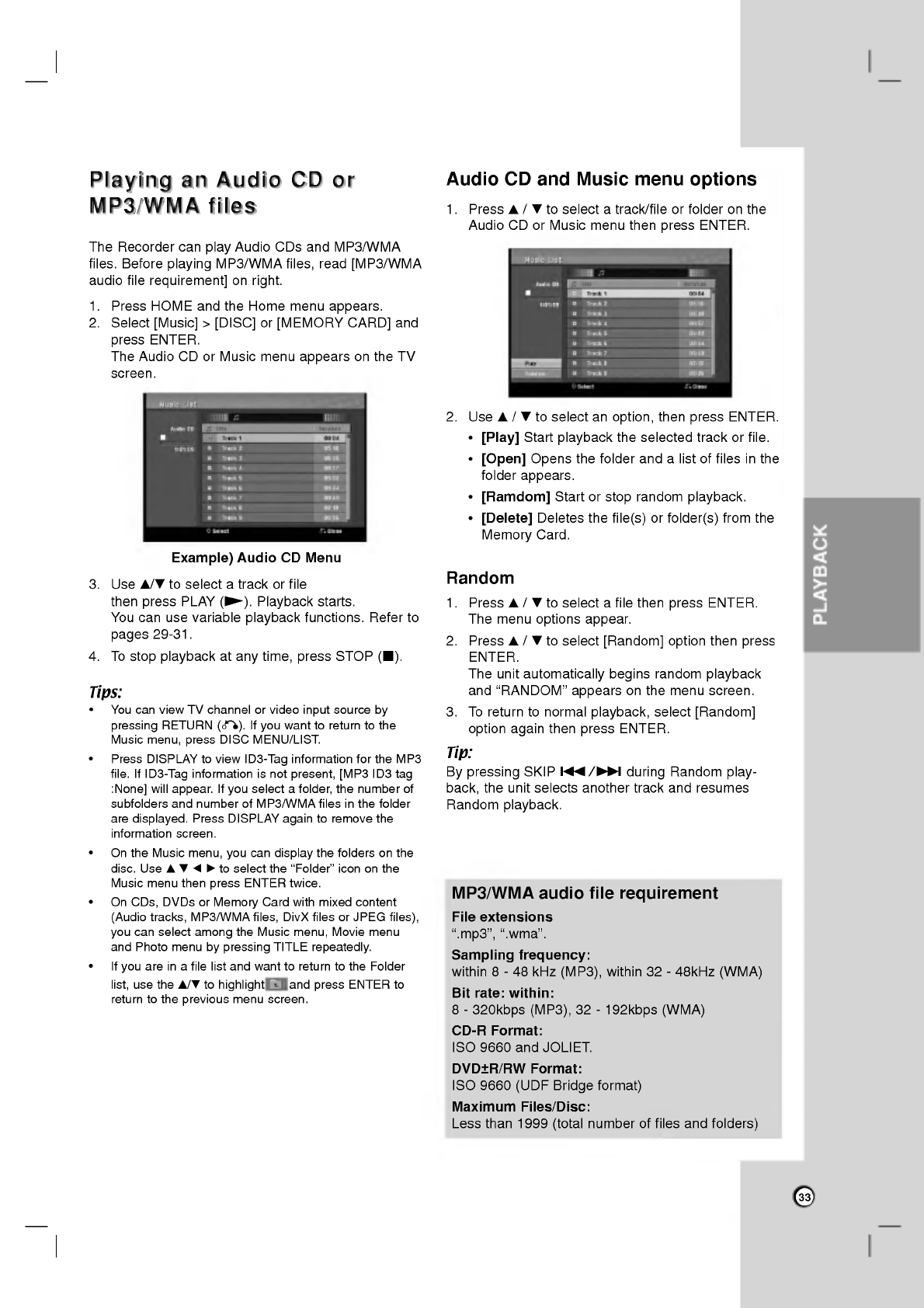

Playing

an

Audio

CD

or

MP3/WMA

files

...

.33

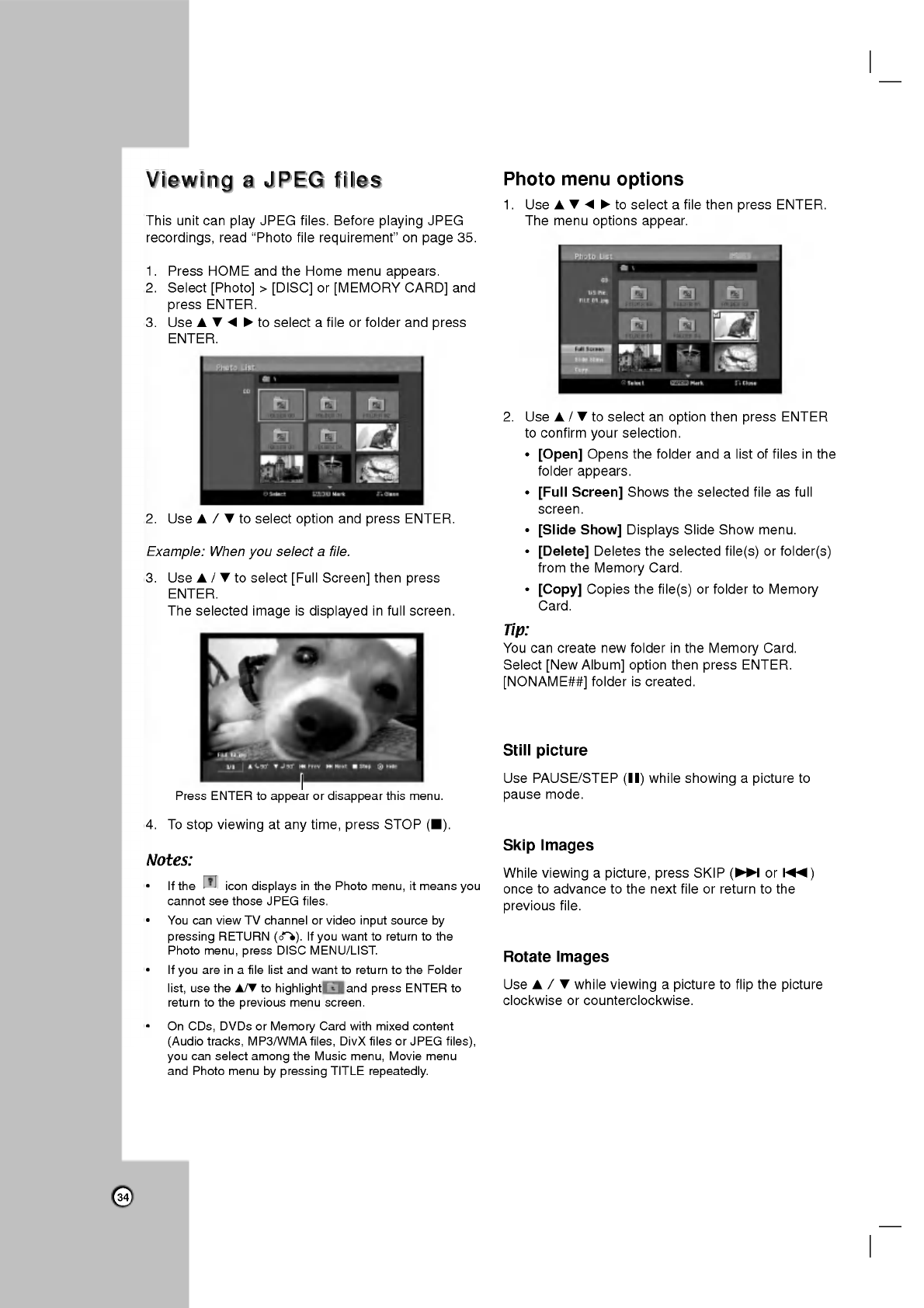

ViewingaJPEGfiles................34-35

RECORDING

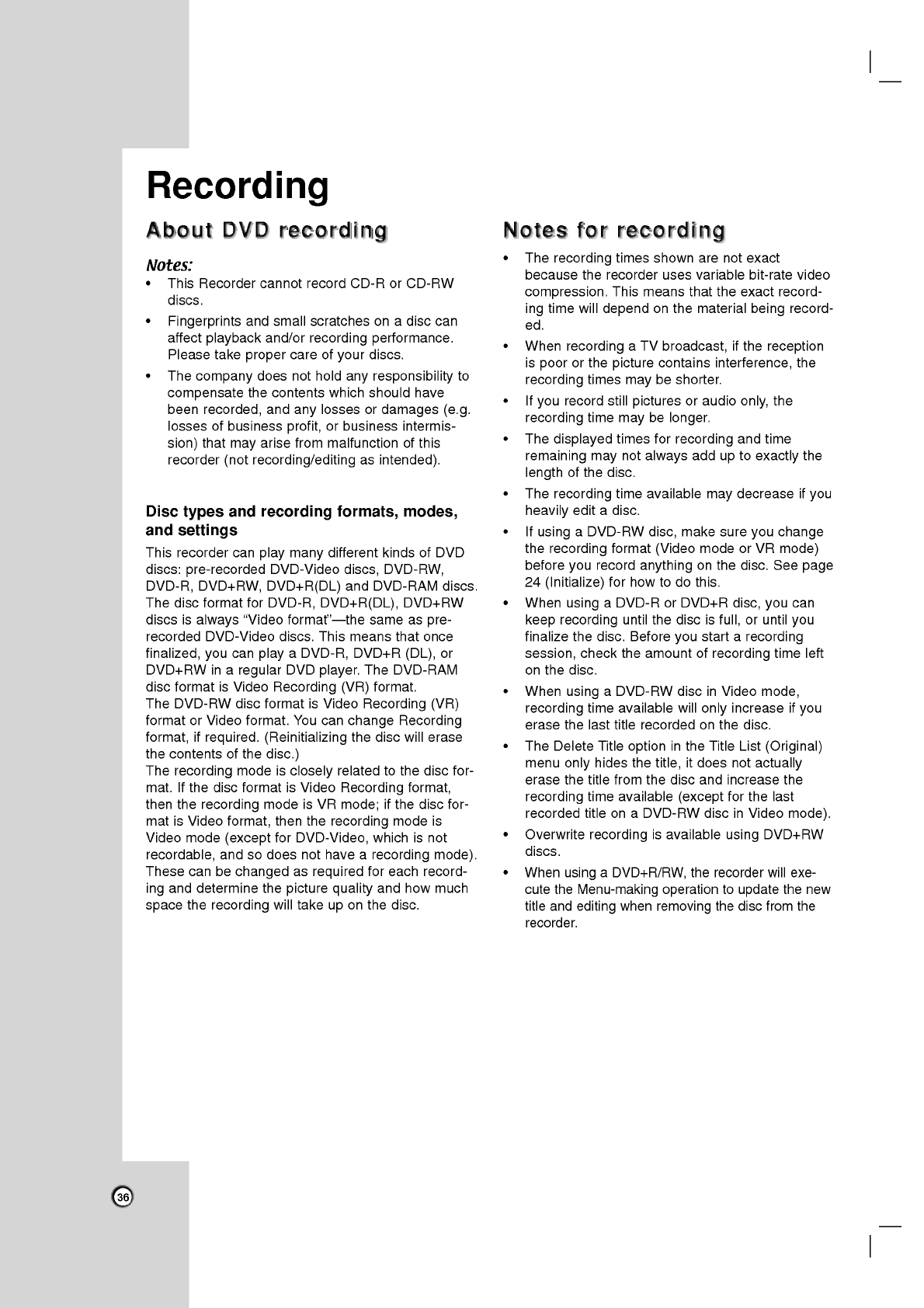

AboutDVDrecording..................36

Notesforrecording....................36

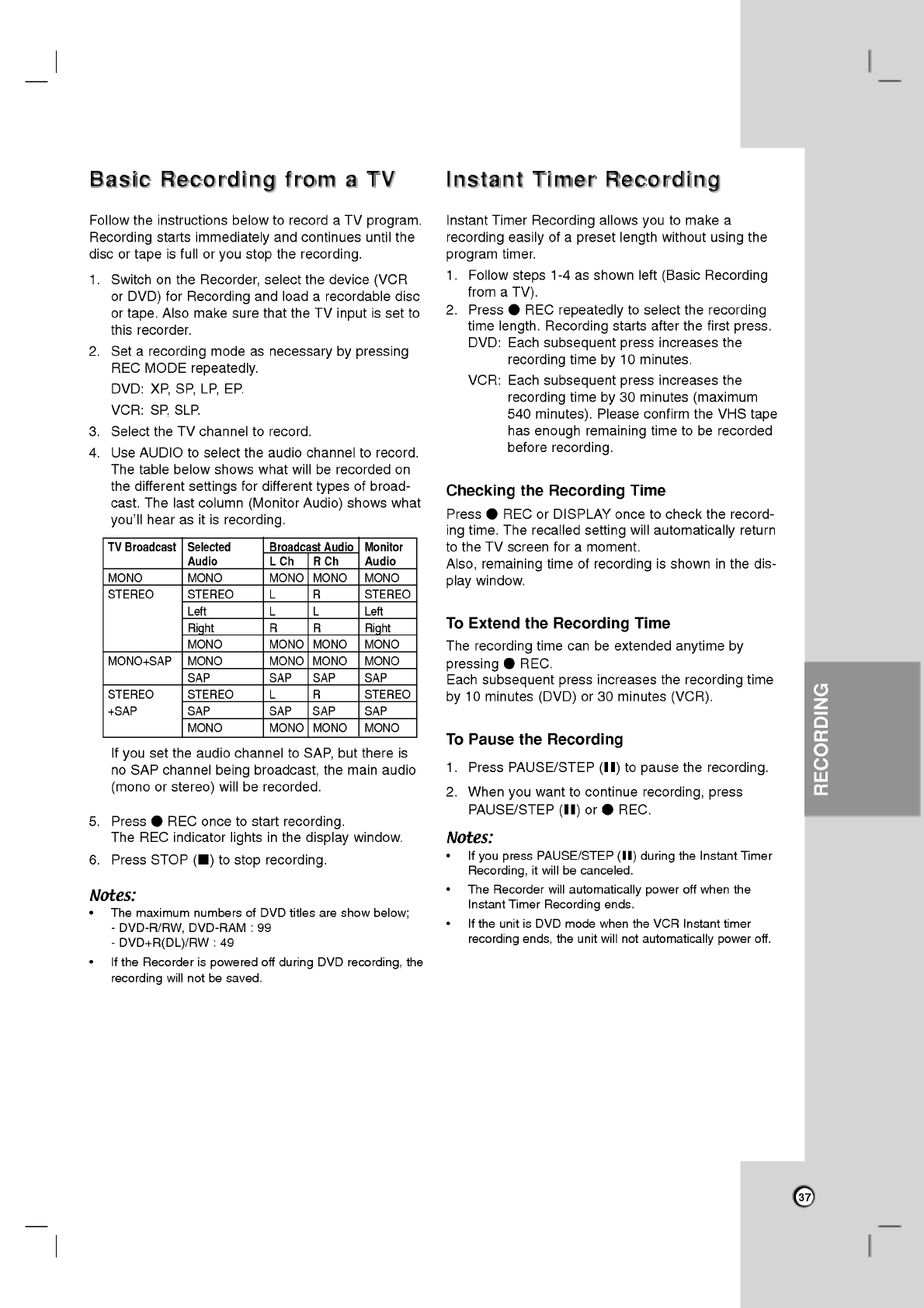

BasicRecordingfromaTV..............37

InstantTimerRecording................37

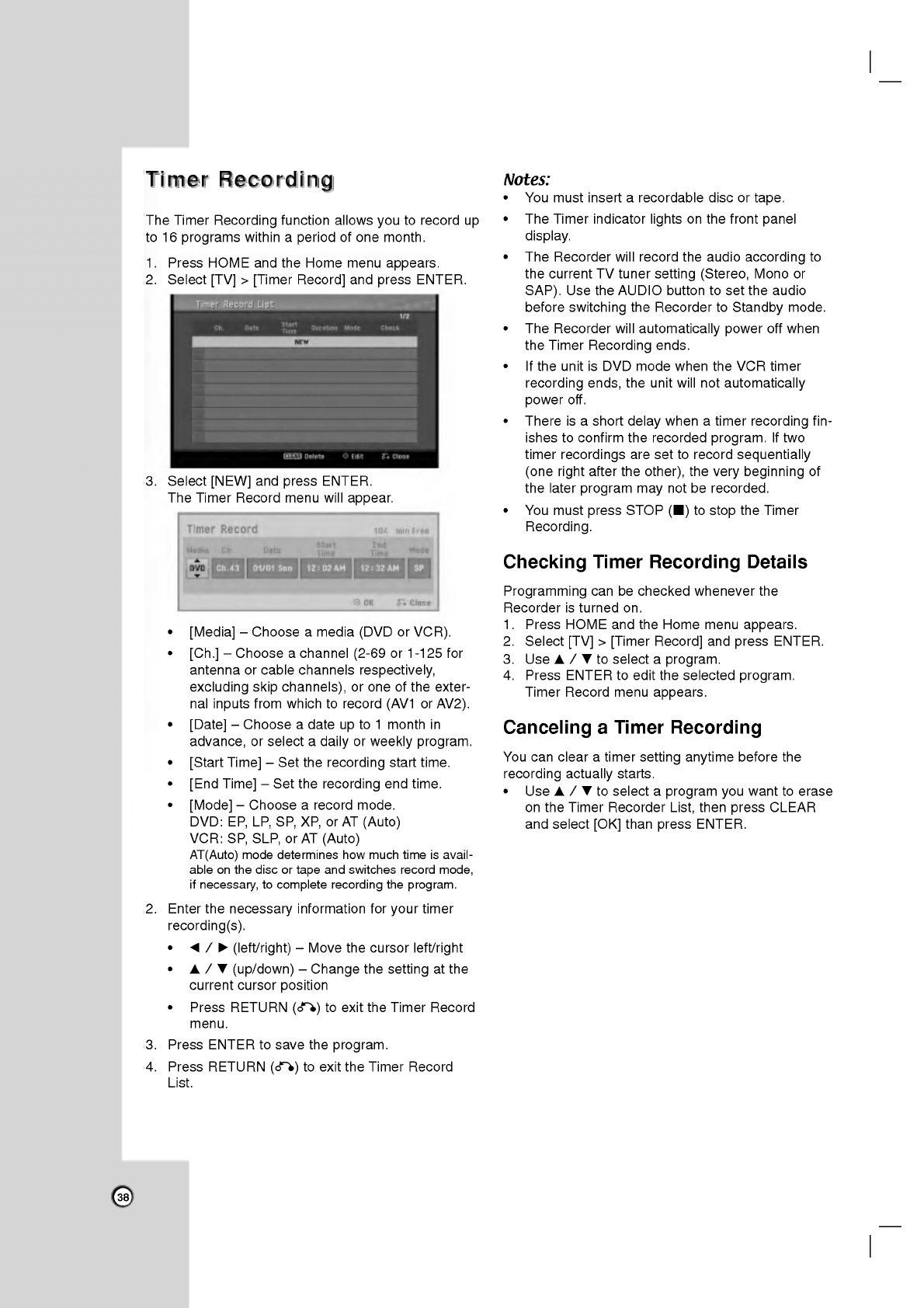

TimerRecording....................38-39

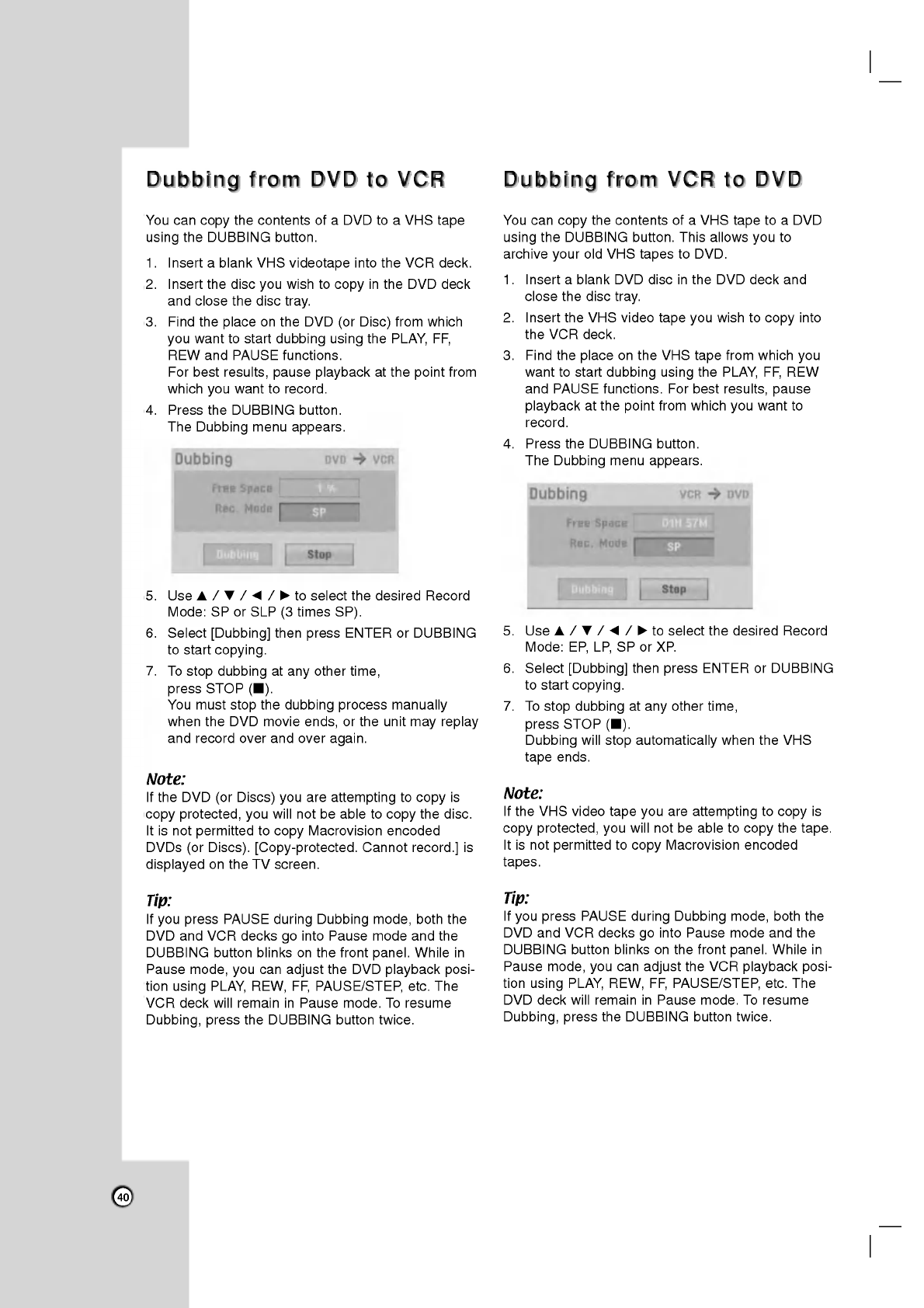

DubbingfromDVDtoVCR..............40

DubbingfromVCRtoDVD..............40

Recording

from

External

Components

. . . .

.41

AdditionalInformation.................41

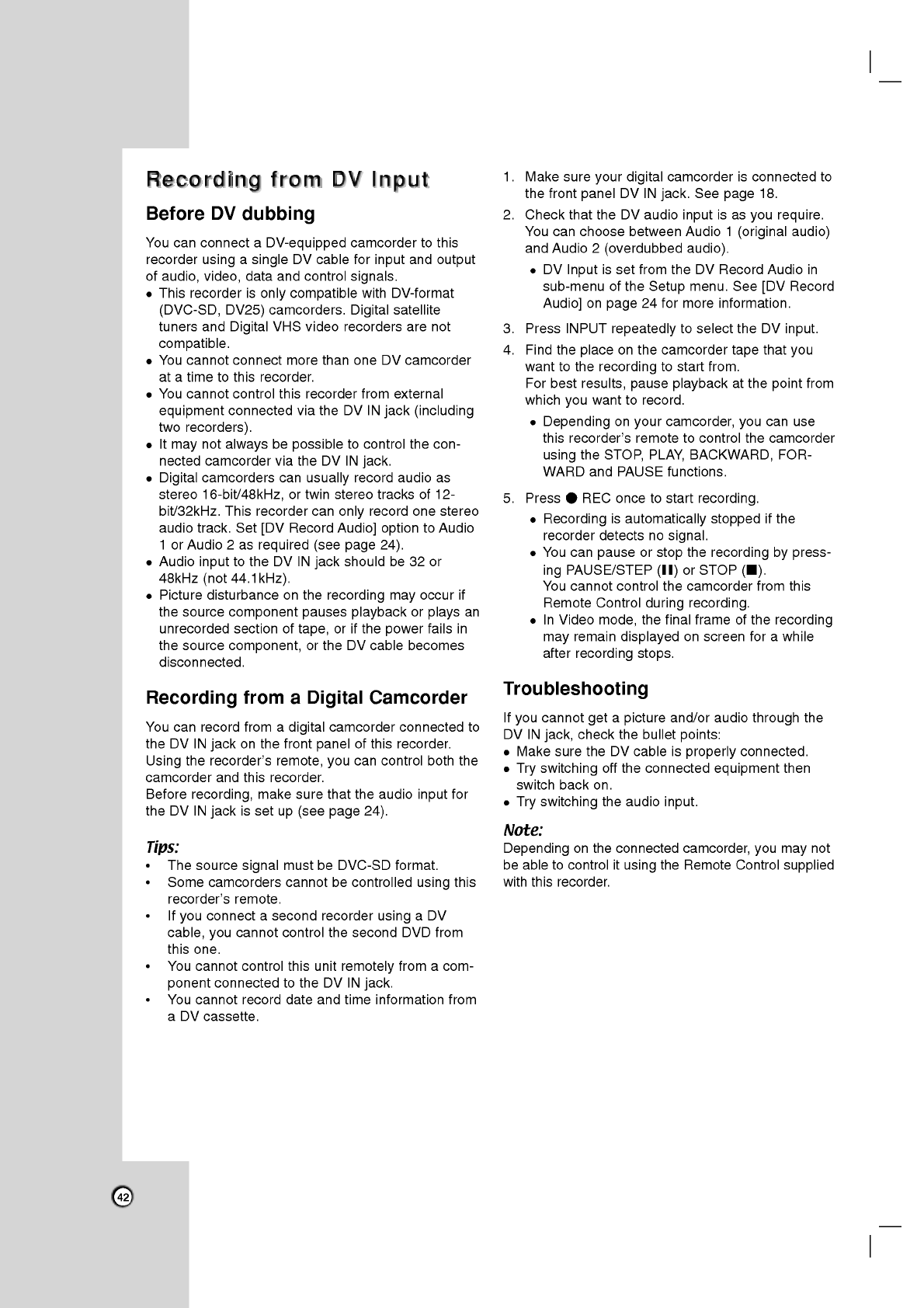

RecordingfromDVInput...............42

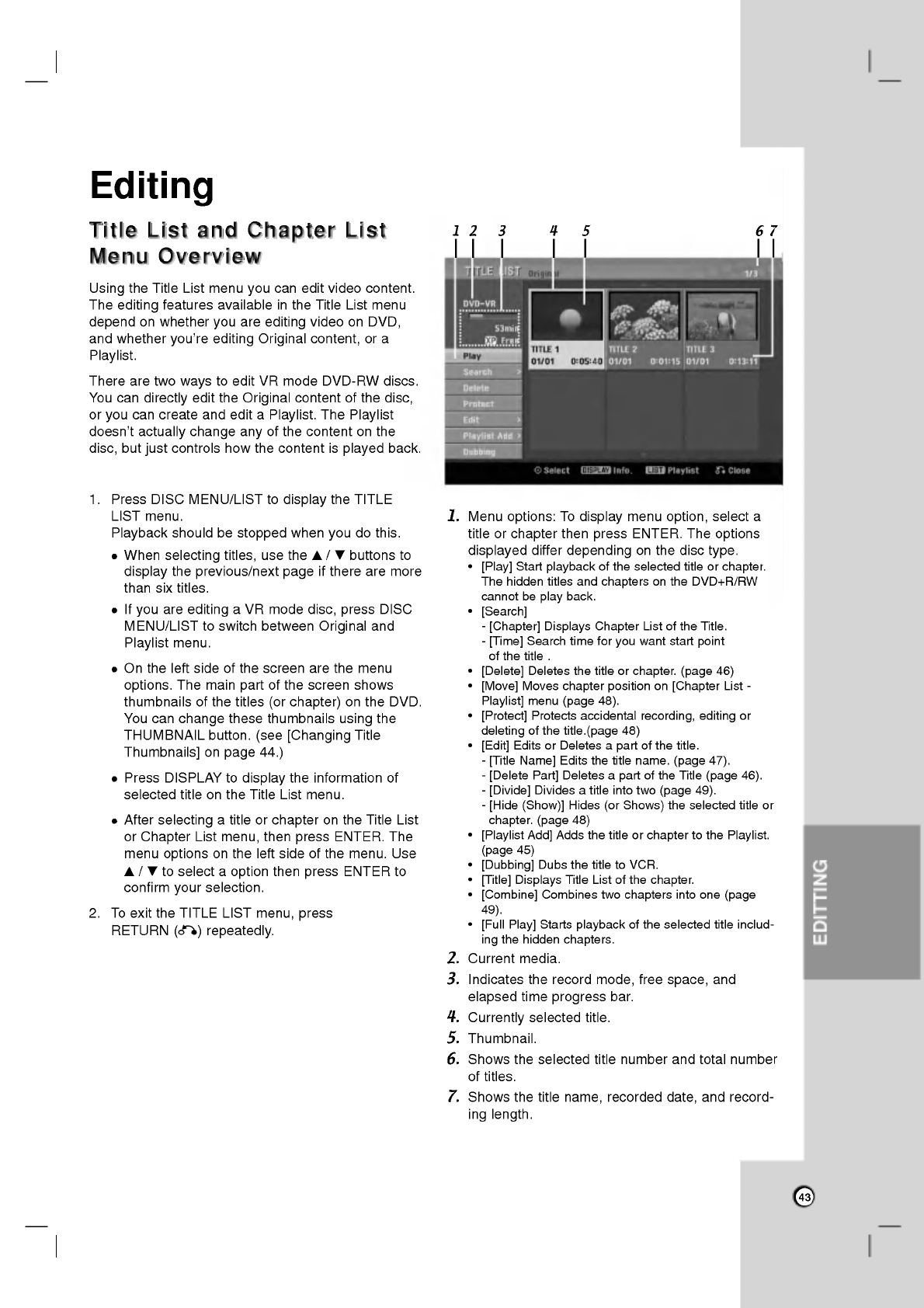

EDITING

Title

List

and

Chapter

List

Menu

Overview

.43

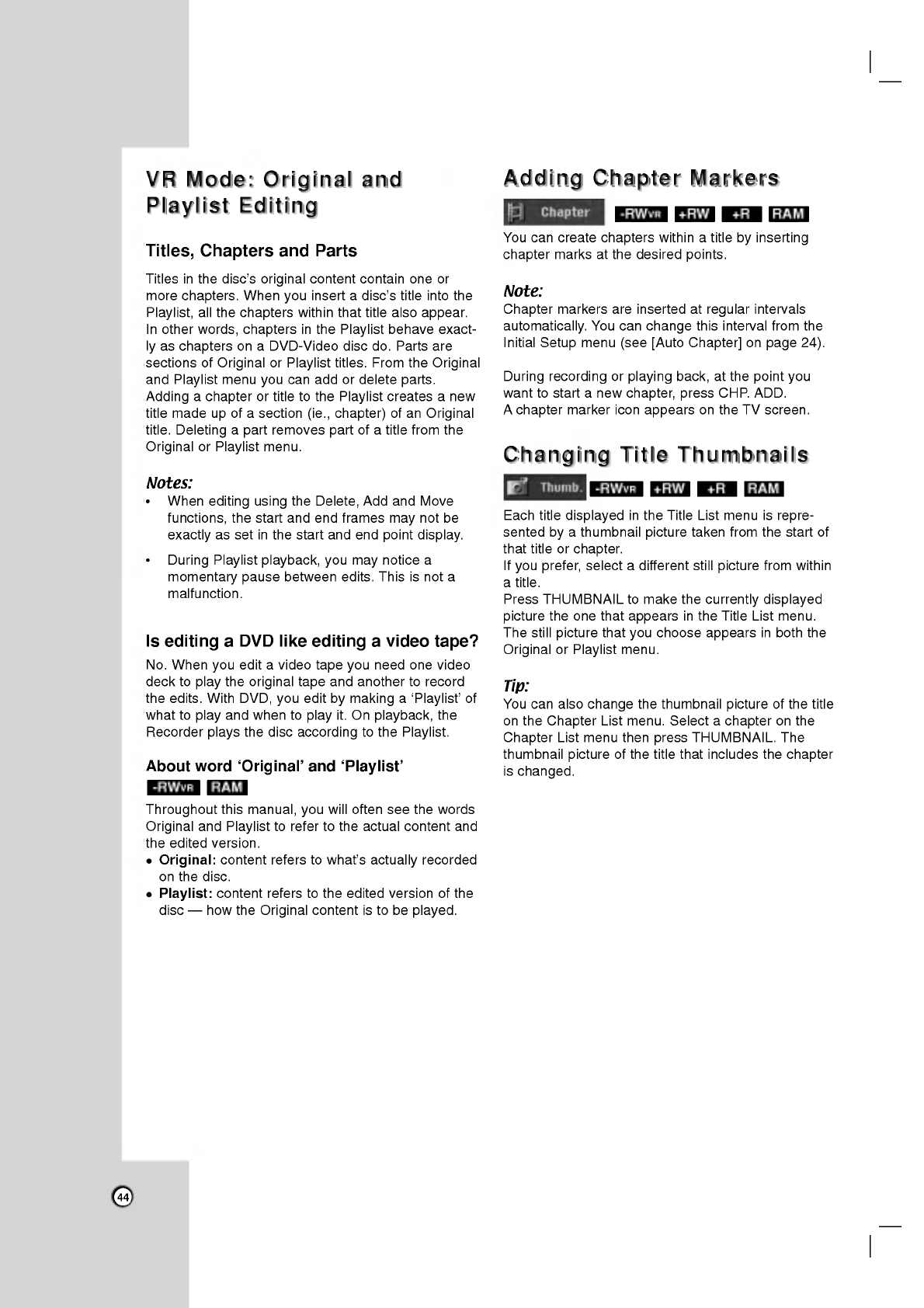

VR

Mode:

Original

and

Playlist

Editing

...

.44

AddingChapterMarkers................44

ChangingTitleThumbnails..............44

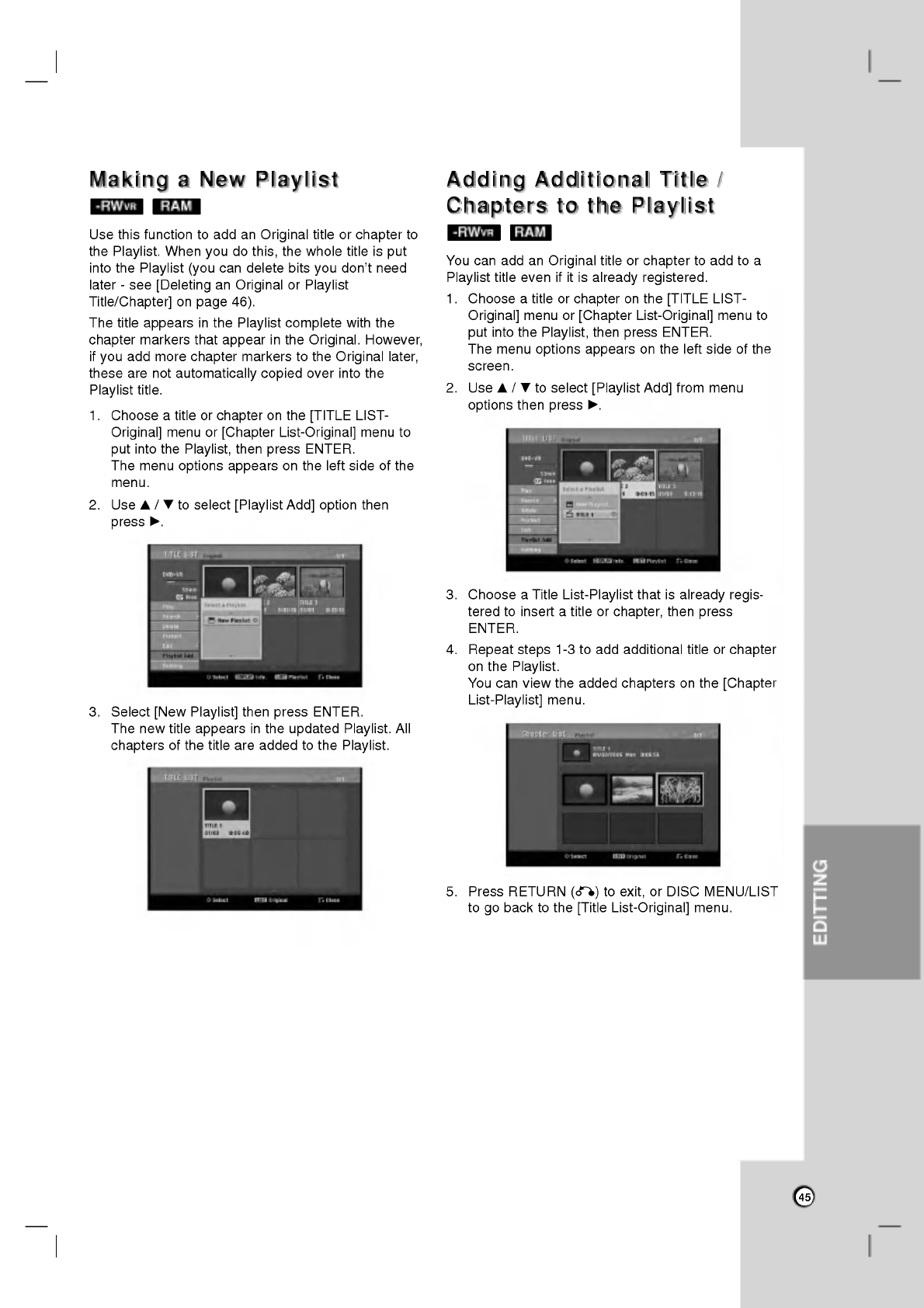

MakingaNewPlaylist..................45

Adding

Additional

Title/Chapters

to

the

Playlist..............................45

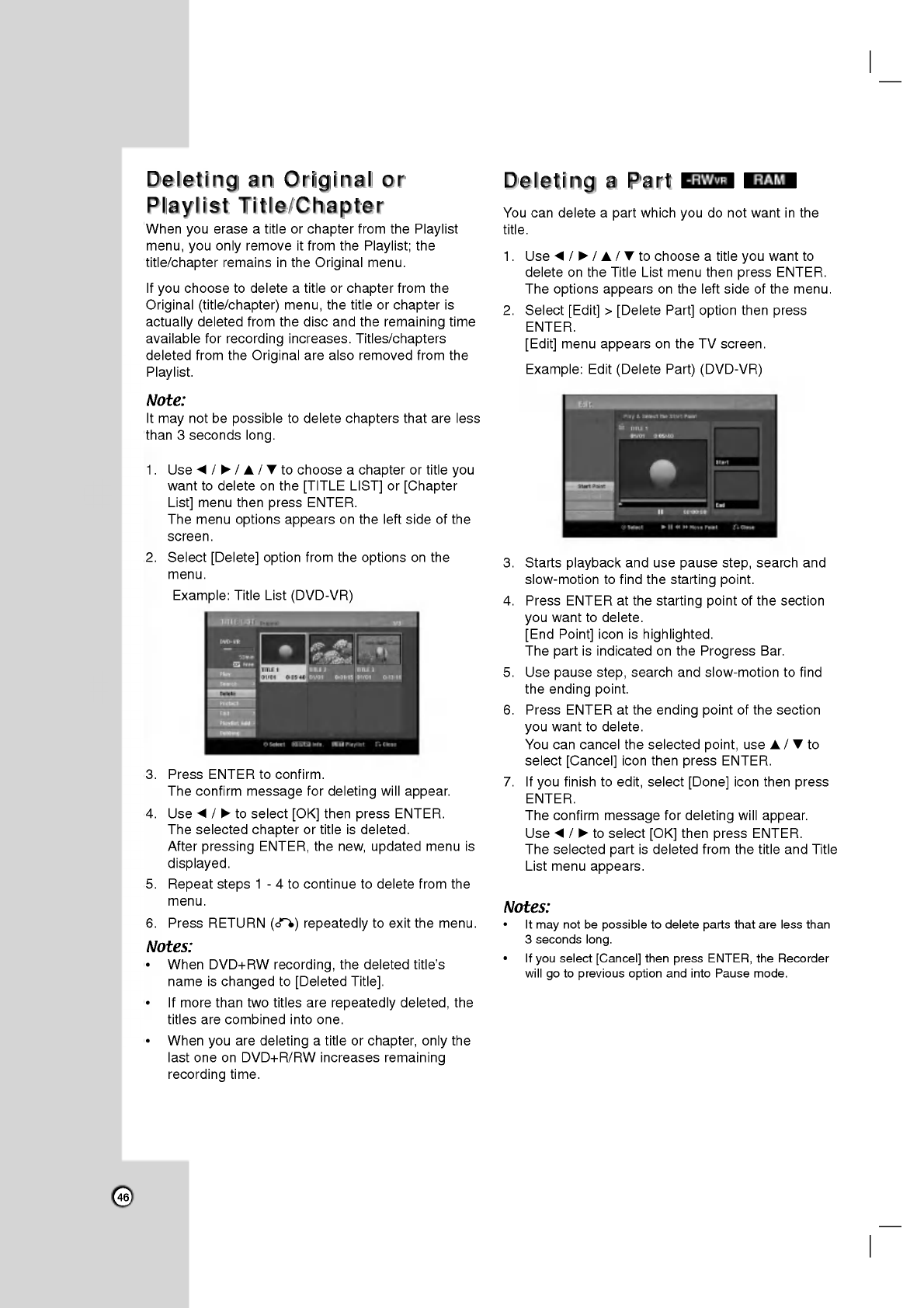

Deleting

an

Original

or

Playlist

Title/

Chapter.............................46

DeletingaPart........................46

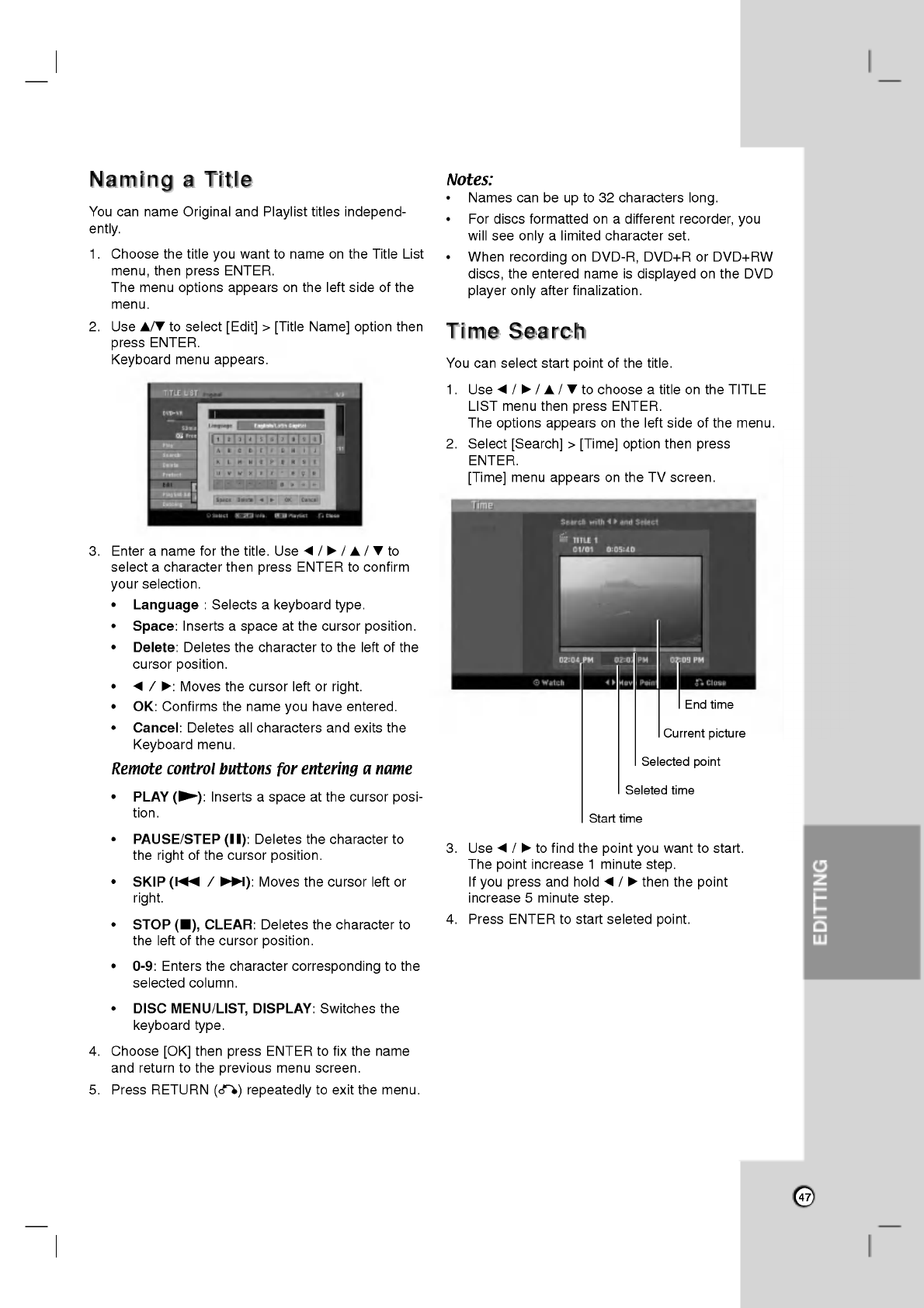

NamingaTitle........................47

TimeSearch..........................47

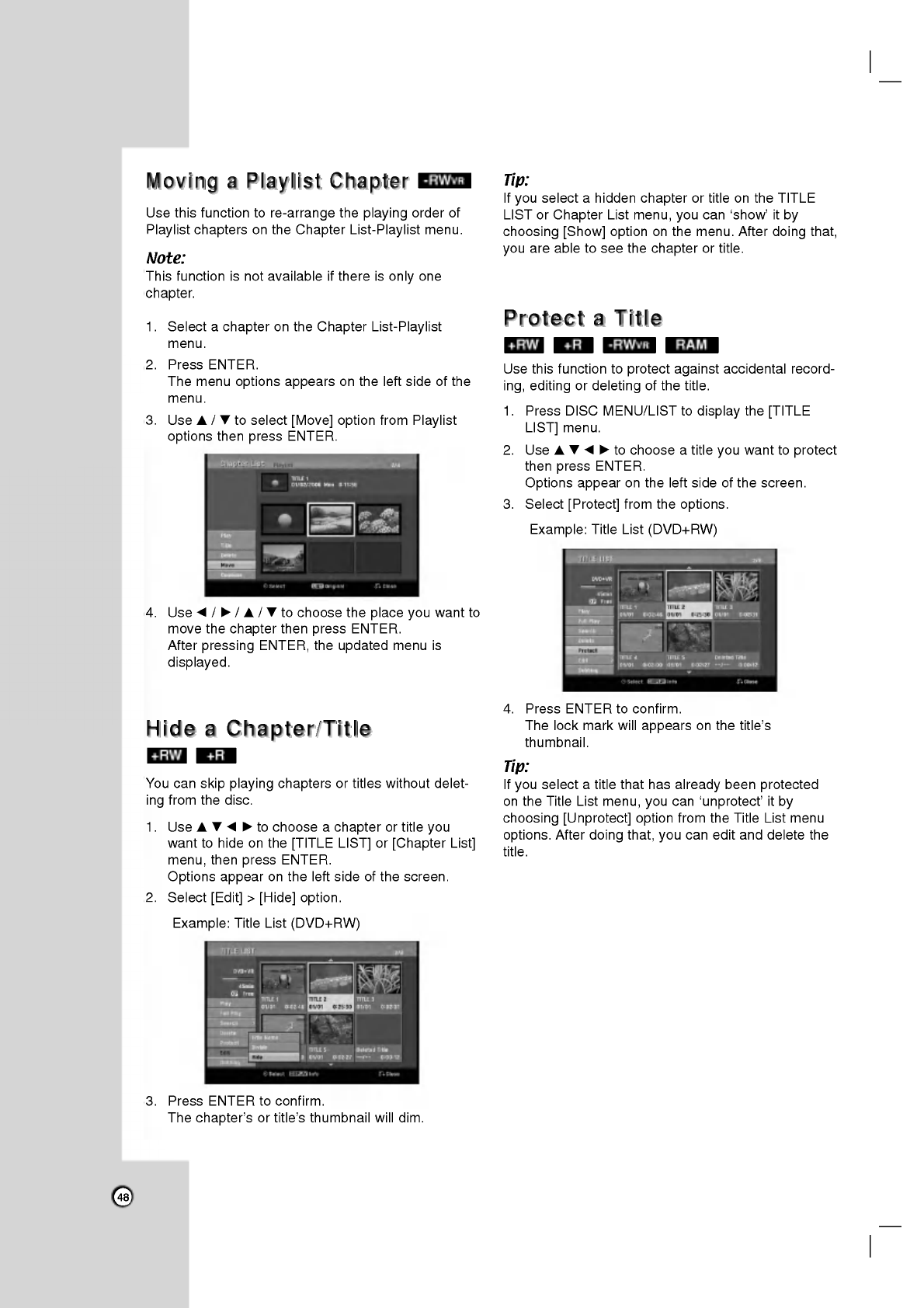

MovingaPlaylistChapter...............48

HideaChapter/Title....................48

ProtectaTitle........................48

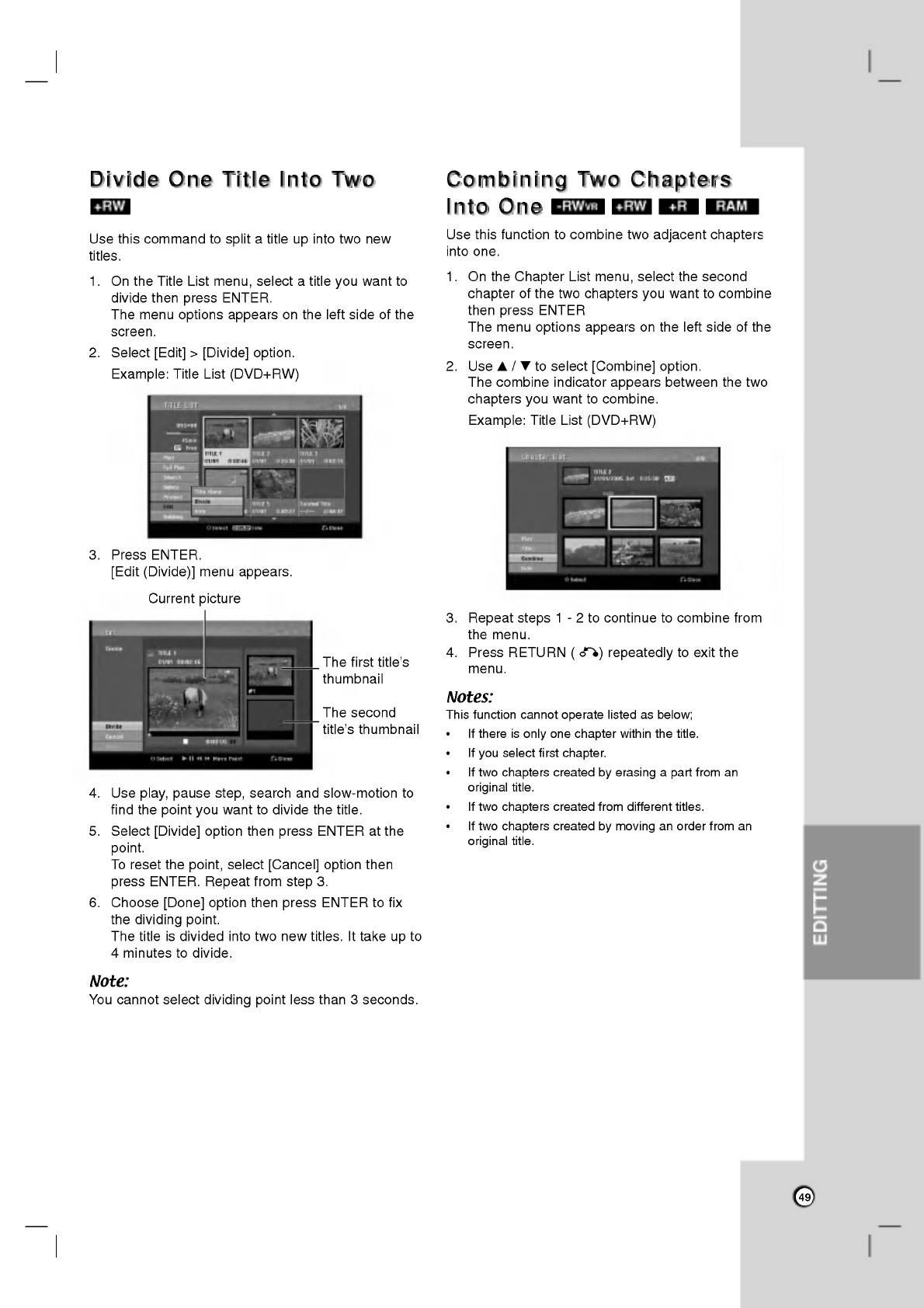

DivideOneTitlesIntoTwo..............49

Combining

Two

Chapters Into

One

.......

.49

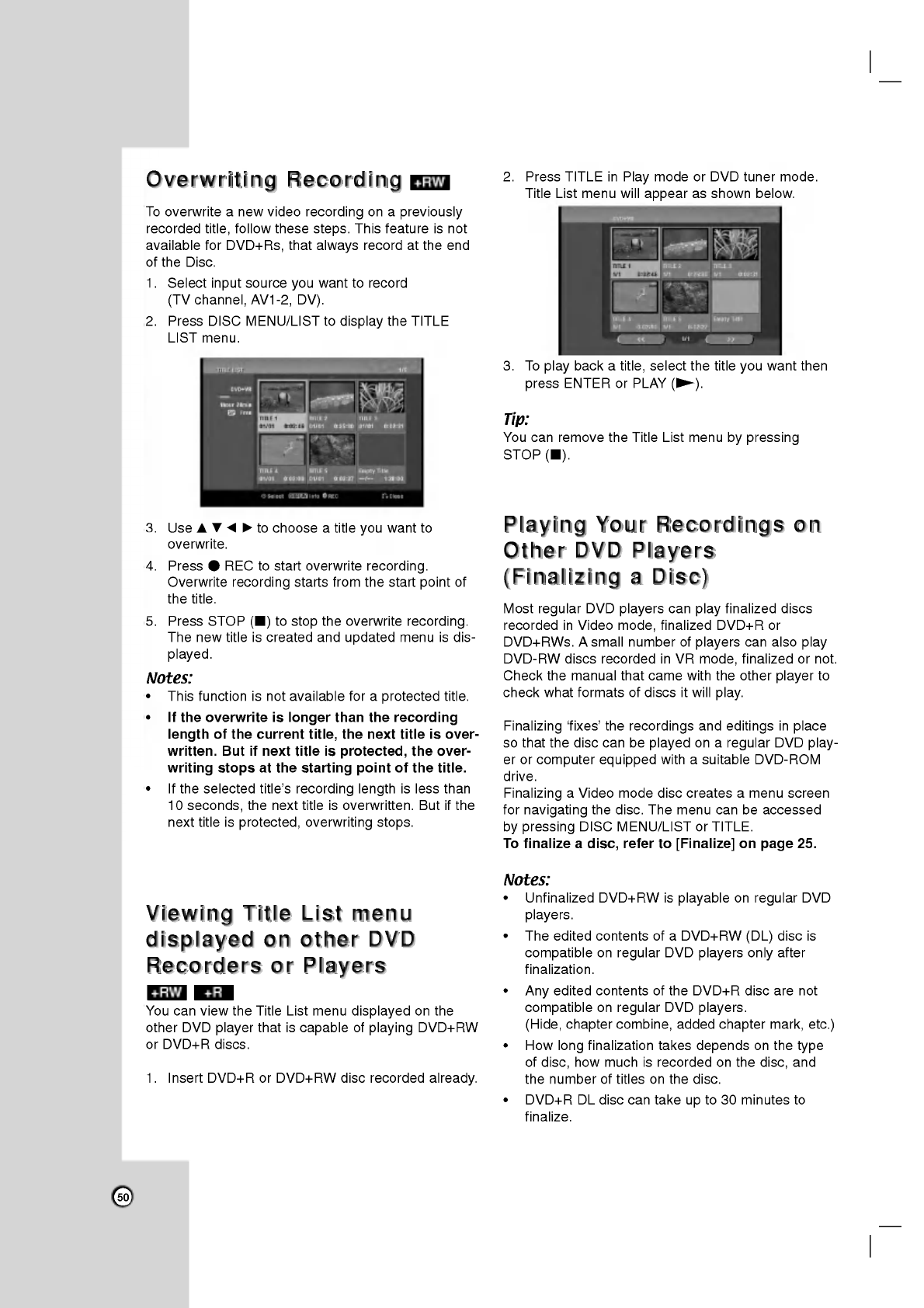

OverwritingRecording.................50

Viewing

Title

List

menu

displayed

on

other

DVDRecordersorPlayers..............50

Playing

Your

Recordings

on

Other

DVD

Players(FinalizingaDisc)...............50

REFERENCE

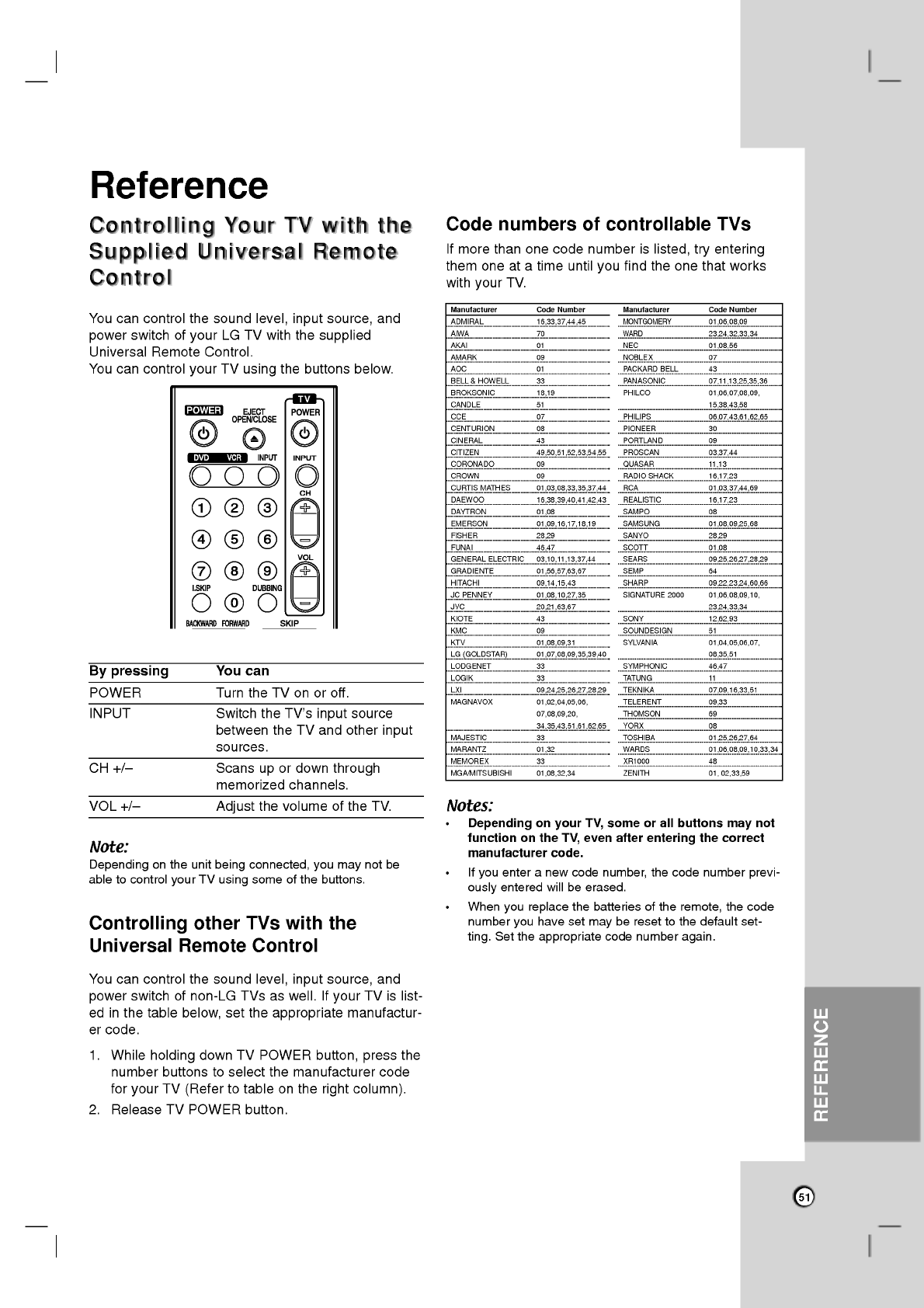

Controlling

Your

TV

with the

Supplied

UniversalRemoteControl...............51

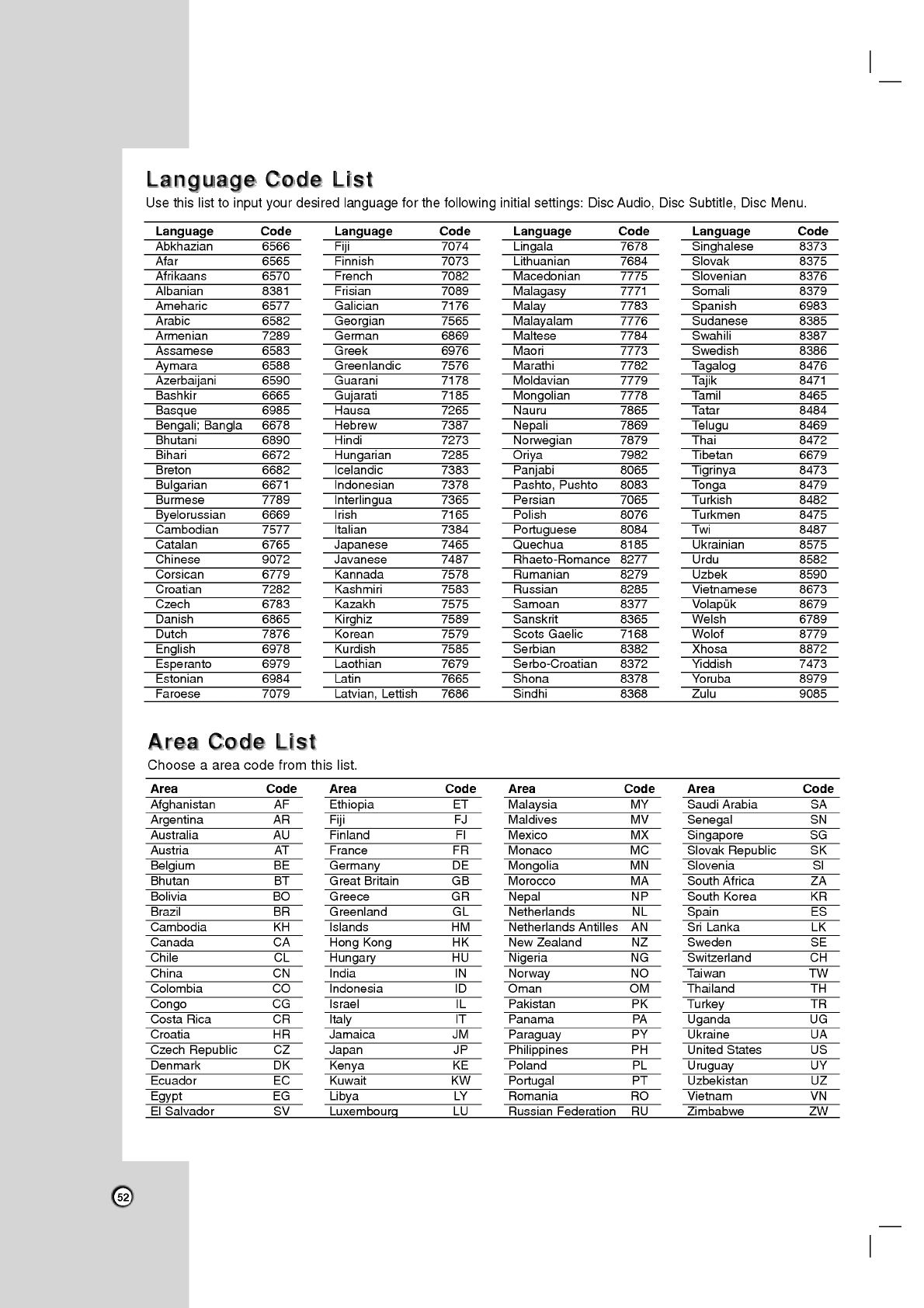

LanguageCodeList...................52

AreaCodesList.......................52

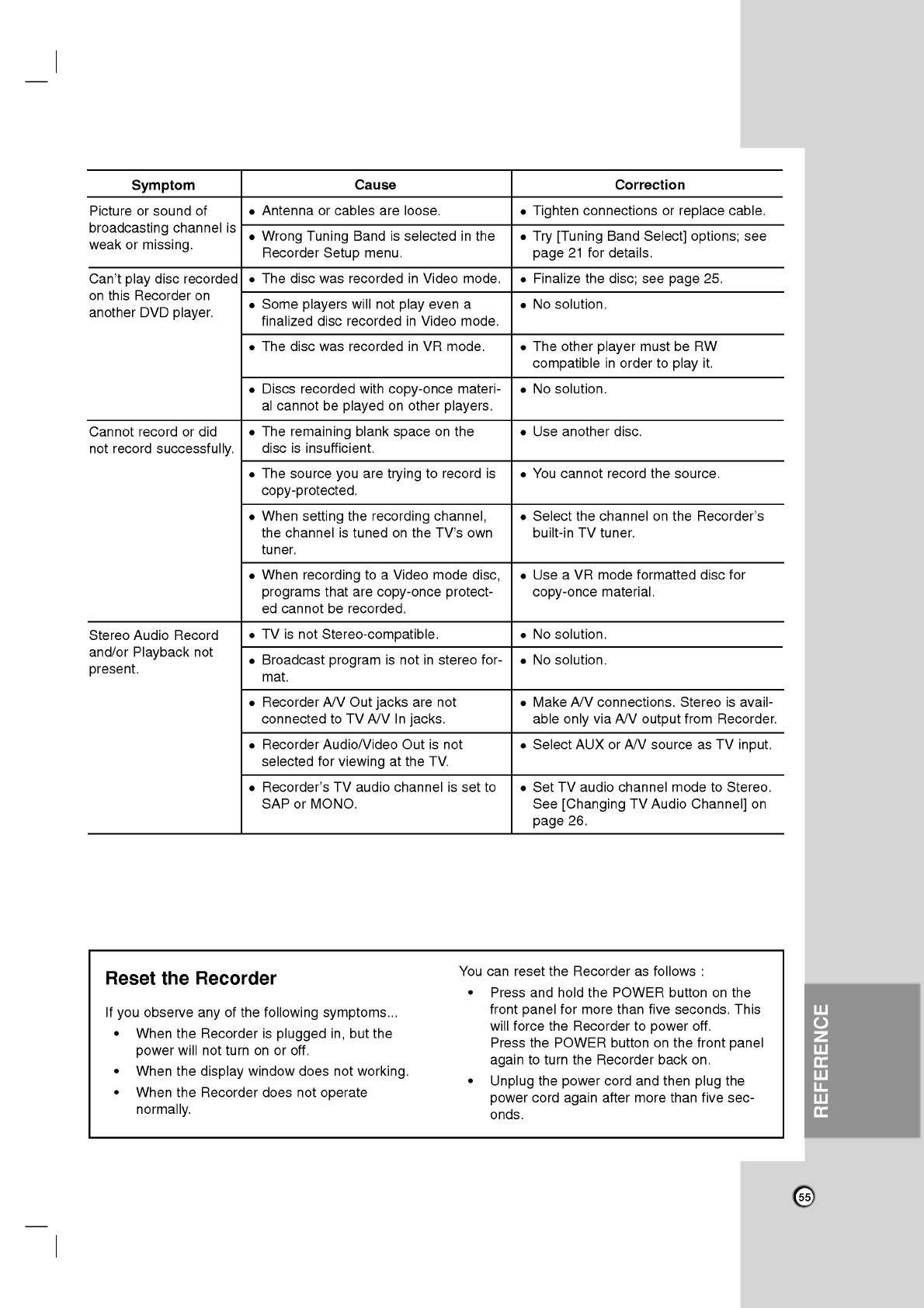

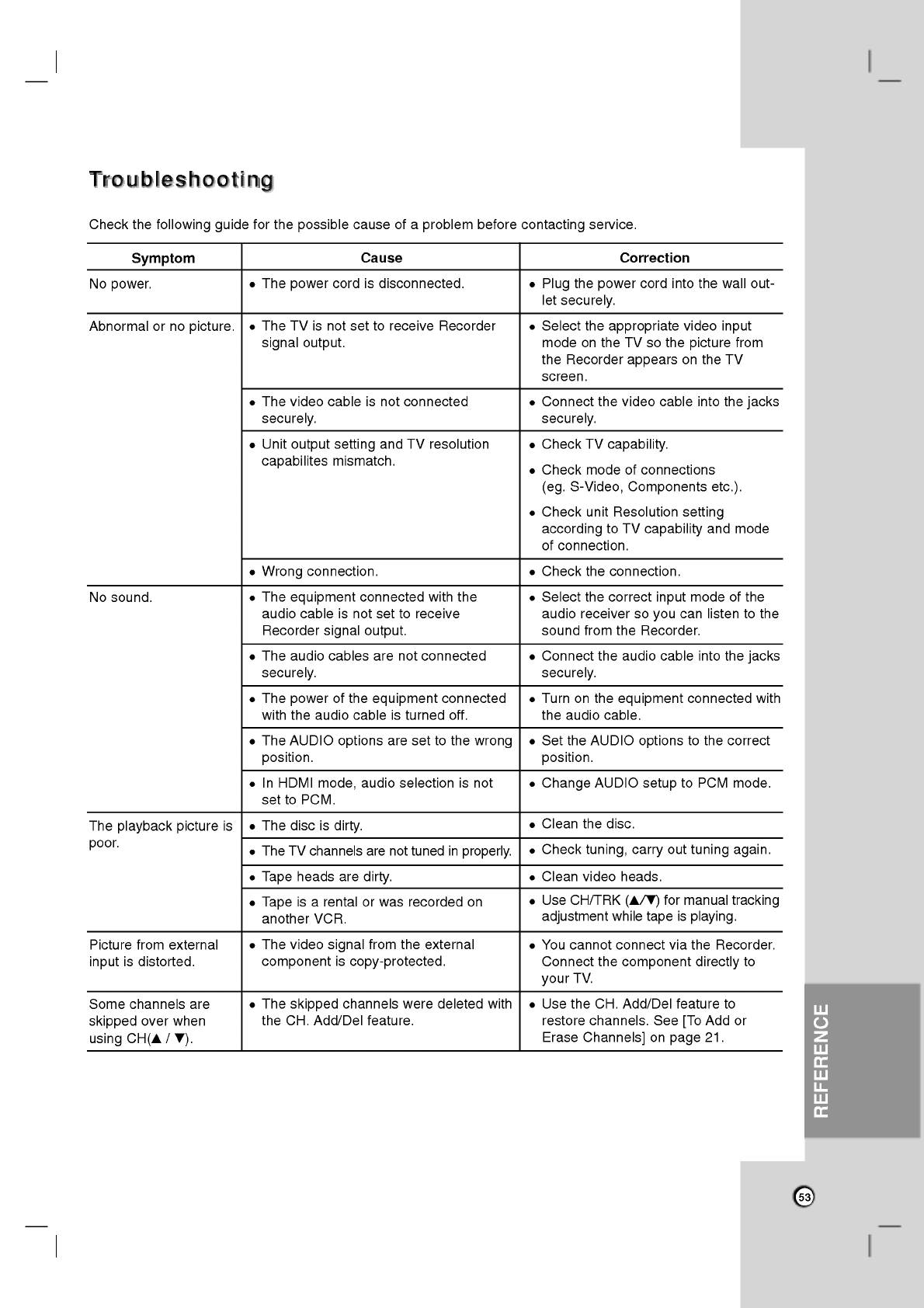

Troubleshooting....................53-55

ResettheRecorder...................55

Specifications......................56-57

6

To

ensure

proper

use

of

this

product,

please

read

this

owner's

manual

carefully

and

retain

for

future

reference.

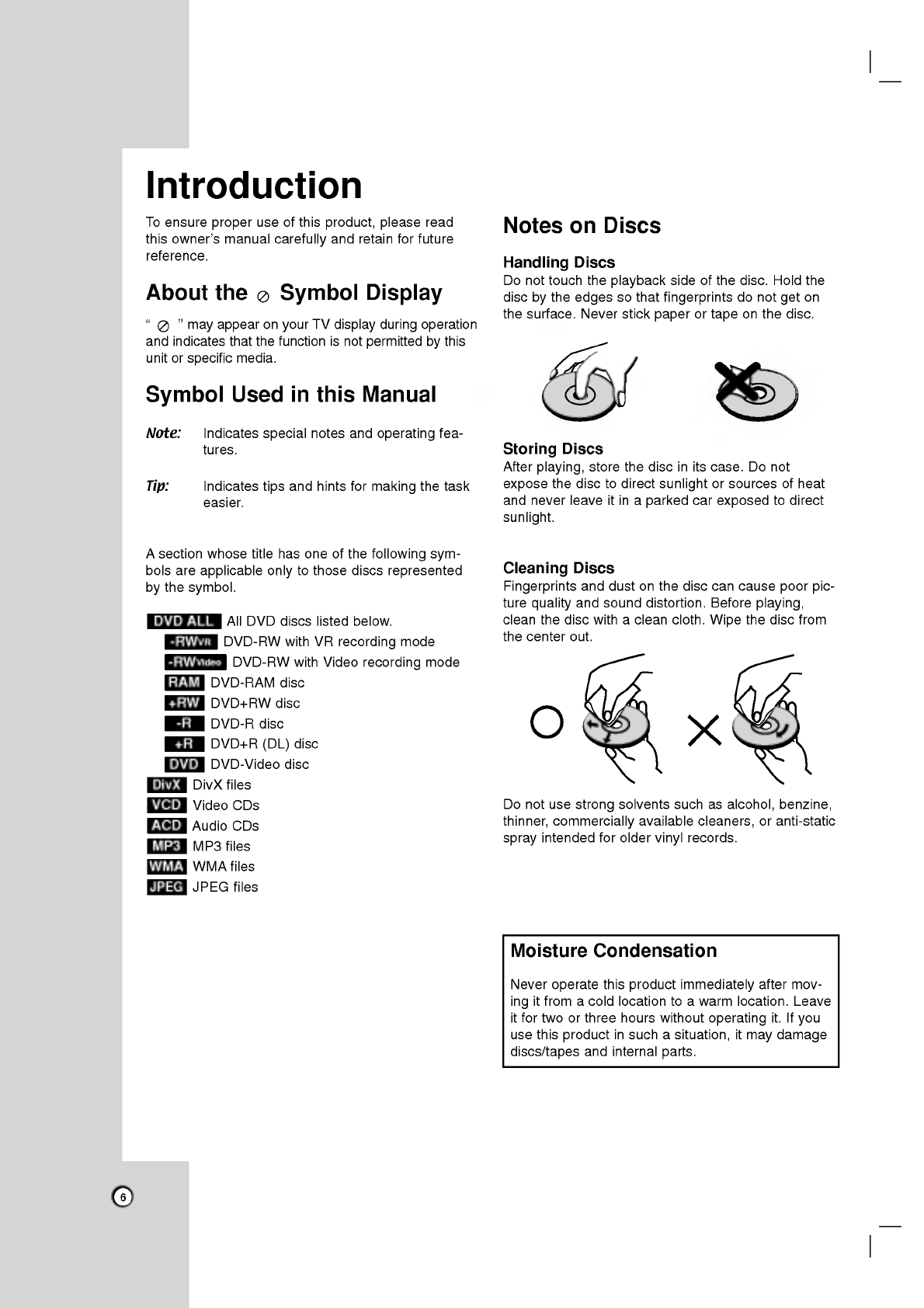

About

the

Symbol

Display

"

"

may

appear

on

your

TV

display

during

operation

and

indicates

that

the

function

is

not

permitted

by

this

unit

or

specific

media.

Symbol

Used

in

this

Manual

Note:

Indicates

special

notes

and

operating

fea-

tures.

Tip:

Indicates

tips

and

hints

for

making

the

task

easier.

A

section

whose

title

has

one

of

the

following

sym-

bols

are

applicable only

to

those

discs

represented

by

the

symbol.

All

DVD

discs

listed

below.

DVD-RW

with

VR

recording

mode

DVD-RW

with

Video

recording

mode

DVD-RAM

disc

DVD+RW

disc

DVD-R

disc

DVD+R

(DL)

disc

DVD-Video

disc

DivX

files

Video

CDs

Audio

CDs

MP3

files

WMA

files

JPEG

files

Notes

on

Discs

Handling

Discs

Do

not

touch

the

playback

side

of

the

disc.

Hold

the

disc

by

the

edges

so

that

fingerprints

do

not

get

on

the

surface.

Never

stick

paper

or

tape

on

the

disc.

Storing

Discs

After

playing,

store

the

disc

in

its

case.

Do

not

expose

the

disc

to

direct

sunlight

or

sources

of

heat

and

never

leave

it

in

a

parked

car

exposed

to

direct

sunlight.

Cleaning

Discs

Fingerprints

and

dust

on

the

disc

can

cause

poor

pic-

ture

quality

and

sound

distortion.

Before

playing,

clean

the

disc

with

a

clean

cloth.

Wipe

the

disc

from

the

center

out.

Do

not

use

strong

solvents

such

as

alcohol,

benzine,

thinner,

commercially

available

cleaners,

or

anti-static

spray

intended

for

older

vinyl

records.

JPEG

WMA

MP3

ACD

VCD

DivX

DVD

+R

-R

+RW

RAM

-RW

Video

-RW

VR

DVD

ALL

Introduction

Moisture

Condensation

Never

operate

this

product

immediately

after

mov-

ing

it

from

a

cold

location

to

a

warm

location.

Leave

it

for

two

or

three

hours

without

operating

it.

If

you

use

this

product

in

such

a

situation,

it

may

damage

discs/tapes

and

internal

parts.

7

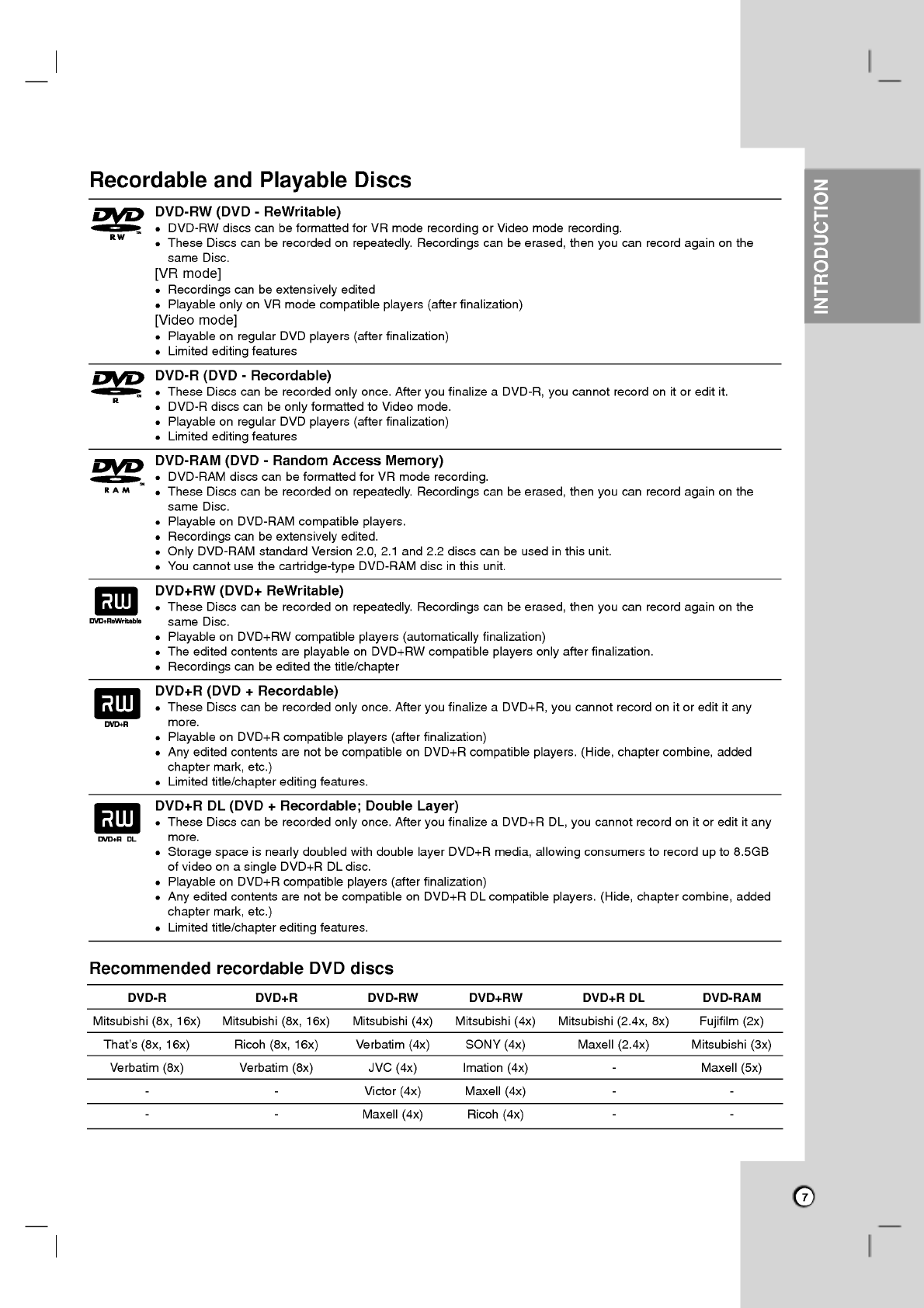

Recordable

and

Playable

Discs

DVD-RW

(DVD

-

ReWritable)

DVD-RW

discs

can

be

formatted

for

VR

mode

recording

or

Video

mode

recording.

These

Discs

can

be

recorded

on

repeatedly.

Recordings

can

be

erased,

then

you

can

record

again

on

the

same

Disc.

[VR

mode]

Recordings

can

be

extensively

edited

Playable

only

on

VR

mode

compatible

players

(after

finalization)

[Video

mode]

Playable

on

regular

DVD

players

(after

finalization)

Limited

editing

features

DVD-R

(DVD

-

Recordable)

These

Discs

can

be

recorded

only

once.

After

you

finalize

a

DVD-R,

you

cannot

record

on

it

or

edit

it.

DVD-R

discs

can

be

only

formatted

to

Video

mode.

Playable

on

regular

DVD

players

(after

finalization)

Limited

editing

features

DVD-RAM

(DVD

-

Random

Access

Memory)

DVD-RAM

discs

can

be

formatted

for

VR

mode

recording.

These

Discs

can

be

recorded

on

repeatedly.

Recordings

can

be

erased,

then

you

can

record

again

on

the

same

Disc.

Playable

on

DVD-RAM

compatible

players.

Recordings

can

be

extensively

edited.

Only

DVD-RAM

standard

Version

2.0,

2.1

and

2.2

discs

can

be

used

in

this

unit.

You

cannot

use

the

cartridge-type

DVD-RAM

disc

in

this

unit.

DVD+RW

(DVD+

ReWritable)

These

Discs

can

be

recorded

on

repeatedly.

Recordings

can

be

erased,

then

you

can

record

again

on

the

same

Disc.

Playable

on

DVD+RW

compatible

players

(automatically

finalization)

The

edited

contents

are

playable

on

DVD+RW

compatible

players

only

after

finalization.

Recordings

can

be

edited

the

title/chapter

DVD+R

(DVD

+

Recordable)

These

Discs

can

be

recorded

only

once.

After

you

finalize

a

DVD+R,

you

cannot

record

on

it

or

edit

it

any

more.

Playable

on

DVD+R

compatible

players

(after

finalization)

Any

edited

contents

are

not

be

compatible

on

DVD+R

compatible

players. (Hide,

chapter

combine,

added

chapter

mark,

etc.)

Limited

title/chapter

editing

features.

DVD+R

DL

(DVD

+

Recordable;

Double

Layer)

These

Discs

can

be

recorded

only

once.

After

you

finalize

a

DVD+R

DL,

you

cannot

record

on

it

or

edit

it

any

more.

Storage

space

is

nearly

doubled

with

double

layer

DVD+R

media,

allowing

consumers

to

record

up

to

8.5GB

of

video

on a

single

DVD+R

DL

disc.

Playable

on

DVD+R

compatible

players

(after

finalization)

Any

edited

contents

are

not

be

compatible

on

DVD+R

DL

compatible

players.

(Hide,

chapter

combine,

added

chapter

mark,

etc.)

Limited

title/chapter

editing

features.

Recommended

recordable

DVD

discs

DVD-R

Mitsubishi

(8x,

16x)

That's

(8x,

16x)

Verbatim

(8x)

-

-

DVD+R

Mitsubishi

(8x,

16x)

Ricoh

(8x,

16x)

Verbatim

(8x)

-

-

DVD-RW

Mitsubishi

(4x)

Verbatim

(4x)

JVC

(4x)

Victor

(4x)

Maxell

(4x)

DVD+RW

Mitsubishi

(4x)

SONY

(4x)

Imation

(4x)

Maxell

(4x)

Ricoh

(4x)

DVD+R

DL

Mitsubishi

(2.4x,

8x)

Maxell

(2.4x)

-

-

-

DVD-RAM

Fujifilm

(2x)

Mitsubishi

(3x)

Maxell

(5x)

-

-

8

Playable

Discs

DVD(8cm/12cmdisc)

Discs

such

as

movies

that

can

be

purchased

or

rented

Video

CD

(VCD)

(8

cm

/

12

cm

disc)

VIDEO

CDs

or

CD-Rs/CD-RWs

in

VIDEO

CD/Super

VIDEO

CD

format

AudioCD(8cm/12cmdisc)

Music

CDs

or

CD-Rs/CD-RWs

in

music

CD

format

that

can

be

purchased

CD-R/CD-RW

(8

cm

/

12

cm

disc)

CD-R/CD-RW

discs

that

contain

audio

titles,

MP3,

WMA,

JPEG

or

DivX

files.

Notes:

?

Depending

on

the

conditions

of

the

recording

equipment

or

the

CD-R/RW

(or

DVD±R/RW)

disc

itself,

some

CD-R/RW

(or

DVD±R/RW)

discs

cannot

be

played

on

the

unit.

?

Do

not

attach

any

seal

or

label

to

either

side

(the

labeled

side

or

the

recorded

side)

of

a

disc.

?

Do

not

use

irregularly

shaped

CDs

(e.g.,

heart-shaped

or

octagonal).

Doing

so

may

result

in

malfunctions.

?

Depending

on

the

recording

software

&

the

finalization,

some

recorded

discs

(CD-R/RW

or

DVD±R/RW)

may

not

be

playable.

?

DVD-R/RW,

DVD+R/RW

and

CD-R/RW

discs

recorded

using

a

personal

computer

or

a

DVD

or

CD

Recorder

may

not

play

if

the

disc

is

damaged

or

dirty,

or

if

there

is

dirt

or

condensation

on

the

Recorder's

lens.

?

If

you

record

a

disc

using

a

personal

computer,

even

if

it

is

recorded

in

a

compatible

format,

there

are

cases

in

which

it

may

not

play

because

of

the

settings

of

the

application

software

used

to

create

the

disc.

(Check

with

the

software

publisher

for

more

detailed

information.)

?

This recorder

requires

discs

and

recordings

to

meet

certain

technical

standards

in

order

to

achieve

optimal

playback

quality.

Pre-recorded

DVDs

are

automatically

set

to

these

standards.

There

are

many

different

types

of

recordable

disc

formats

(including

CD-R

containing

MP3

or

WMA

files)

and

these

require

certain

pre-existing

conditions

(see

above)

to

ensure

compatible

playback.

?

Customers

should

note

that

permission

is

required

in

order

to

download

MP3

/

WMA

files

and

music

from

the

Internet.

Our

company

has

no

right

to

grant

such

permission.

Permission

should

always

be

sought

from

the

copyright

owner.

Regional

Code

This

unit

has

a

regional

code

printed

on

the

rear

of

the

unit.

This

unit

can

play only

DVD

discs

labeled

same

as

the

rear

of

the

unit

or

"ALL".

Notes

on

Regional

Codes

?

Most

DVD

discs

have

a

globe

with

one

or

more

numbers

in

it

clearly

visible

on

the

cover.

This

number

must

match

your

unit's

regional

code

or

the

disc

cannot

play.

?

If

you

try

to

play

a

DVD

with

a

different

regional

code

from

the

unit,

the

message

"Check

Regional

Code"

appears

on

the

TV

screen.

9

Restrictions

on

video

recording

?Y

ou

cannot

record

copy-protected

video

using

this

recorder.

Copy-protected

video

includes

DVD-Video

discs

and

some

satellite

broadcasts.

If

copy-protected

material

is

encountered

during

a

recording,

recording

will

pause

or

stop

automatically

and

an

error

message

will

be

displayed

on-screen.

?V

ideo

that

is

'copy-once

only'

can

only

be

recorded

using

a

DVD-RW

disc

in

VR

mode

or

DVD-RAM

disc

with

CPRM

(see

below).

What

is

'CPRM'?

CPRM

is

a

copy

protection

system

(with

scramble

system)

only allowing

the

recording

of

'copy

once'

broadcast

programs.

CPRM

stands

for

Content

Protection

for

Recordable

Media.

This

Recorder

is

CPRM

compatible,

which

means

that

you

can

record

copy-once

broadcast

programs,

but

you

cannot

then

make

a

copy

of

those

recordings.

CPRM

recordings

can

only

be

made

on

DVD-RW

discs

format-

ted

in

VR

mode

or

DVD-RAM

discs,

and

CPRM

recordings

can

only

be

played

on

players

that

are

specifically

compatible

with

CPRM.

Copyright

?

Recording

equipment

should

be

used

only

for

lawful

copying

and

you

are

advised

to

check

carefully

what

is

lawful

copying

in

the

area

in

which

you

are

making

a

copy.

Copying

of

copyright

material

such

as

films

or

music

is

unlawful

unless

permitted

by

a

legal

exception

or

consented

to

by

the

rights

owner.

?

This

product

incorporates

copyright

protection

technology

that

is

protected

by

method

claims

of

certain

U.S.

patents

and

other

intellectual

property

rights

owned

by

Macrovision

Corporation

and

other

rights

owners.

Use

of

this

copyright

protection

technology

must

be

authorized

by

Macrovision

Corporation,

and

is

intended

for

home

and

other

limited

viewing

uses

only,

unless

otherwise

authorized

by

Macrovision

corporation.

Reverse

engineering

or

disassembly

is

prohibited.

Notice

for

Progressive

Scan

Use

CONSUMERS

SHOULD

NOTE

THAT

NOT

ALL

HIGH

DEFINITION

TELEVISION

SETS

ARE

FULLY

COMPAT-

IBLE

WITH

THIS

PRODUCT

AND

MAY CAUSE

ARTIFACTS

TO

BE

DISPLAYED

IN

THE

PICTURE.

IN

CASE

OF

525

PROGRESSIVE

SCAN


PROBLEMS,

IT

IS

RECOMMENDED

THAT

THE

USER

SWITCH

THE

CONNECTION

TO THE

'STANDARD

DEFINITION'

OUTPUT.

IF

THERE

ARE

QUESTIONS

REGARDING

YOUR

TV

SET

COMPATIBILITY

WITH

THIS

MODEL

525p

VCR/DVD

RECORDER,

PLEASE

CONTACT

OUR

CUSTOMER

SERVICE

CENTER.

10

Useable

Memory

Cards

Useable

Memory

Cards

?

Compact

Flash

Card

(CF)

?

Micro

Drive

(MD),

ST1

MD

?

Secure

Digital

Card

(SD),

Mini

SD

?

Multi

Media

Card

(MMC),

MMC

Plus,

RS

MMC,

MMC

Mobile

?

xD-Picture

Card

(xD)

?

Memory

Stick

(MS),

MS

Duo,

MS

Pro,

MS

Pro

Duo

?

Compatible

with:

FAT

12,

FAT

16,

or

FAT

32

Only

use

the

memory

cards

recommended

above.

Regarding

Write

Protect

For

cards

that

have

a

write

protect

switch,

if

the

switch

is

on

it

will

not

be

possible

to

write

or

erase

the

card.

Inserting/Removing

the

Memory

Card

Inserting

the

card

Insert

straight-in

until

it

fits

into

place.

Removing

the

card

Upper

slot

:

Press

on

the

center

of

the

card

then

withdraw

the

card

carefully.

Lower

slot

:

Withdraw

the

card

carefully.

Notes:

?

Keep

the

memory

card

out

of

reach

of

children.

If

swallowed,

seek

medical

advice

immediately.

?

Some

memory

cards

may

not

work

in

this

recorder,

depending

on

the

formatting.

?

Do

not

extract

the

memory

card

while

operating

(play,

copy,

etc.).

Using

Memory

Card

Using

Memory

Card

1.

Insert

a

memory

card.

2.

Press

HOME

on

the

Remote

Control.

3.

Select

[Music]

or

[Photo]

option.

4.

Select

[MEMORY

CARD]

then

press

ENTER.

The

Memory

Card

slot

choice

menu

appears

on

the

TV

screen.

5.

Use

v/V

to

select

the

desired

Memory

Card

slot

then

press

ENTER.

Notes:

?

For

details

on

each

operation

item,

refer

to

relevant

pages.

?

If

a

memory

card

has

not

been

inserted

to

a

slot,

the

slot

is

not

selectable

on

the

Memory

Card

slot

choice

menu.

Insert

CF,

MD

or

ST1

MD

card

Insert

SD,

Mini

SD,

MMC,

MMC

Plus,

RS

MMC,

MMC

Mobile,

xD,

MS,

MS

Duo,

MS

Pro

or

MS

Pro

Duo

card

About

the

Remote

Control

Operation

Range

Point

the

Remote

Control

at

the

remote

sensor

and

press

the

buttons.

Distance:

About

23

ft

(7

m)

from

the

front

of

the

remote

sensor.

Angle:

About

30°

in

each

direction

of

the

front

of

the

remote

sensor.

Battery

installation

Detach

the

battery

cover

on

the

rear

of

the

Remote

Control,

and

insert

two

(R03/AAA)

size

batteries

with

3

and

#

aligned

correctly.

Do

not

mix

old

and

new

batteries

and

never

mix

different

types

of

batteries

such

as

stan-

dard,

alkaline,

etc.

11

a

Disc

Tray

(DVD

deck)

Insert

a

disc

here.

b

ZDVD

Opens

or

closes

the

disc

tray.

c

Cassette

Compartment

(VCR

deck)

Insert

a

video

cassette

here.

d

ZVCR

Ejects

the

tape

in

the

VCR

deck.

e

1

POWER

Switches

the

Recorder

ON

and

OFF.

f

MEMORY

CARD

Slot

1

Insert

a

memory

card

(CF,

MD

or

ST1

MD)

g

MEMORY

CARD

Slot

2

Insert

a

memory

card

(SD,

Mini

SD,

MMC,

MMC

Plus,

RS

MMC,

MMC

Mobile,

xD,

MS,

MS

Duo,

MS

Pro

or

MS

Pro

Duo).

h

N/X(PLAY/PAUSE)

Starts

playback.

Pause

playback

or

recording

temporarily,

press

again

to

exit

pause

mode.

ix

(STOP)

Stops

playback.

jz

(REC)

Starts

recording.

Press

repeatedly

to

set

the

recording

time.

k

CH

(v/V)

Scans

up

or

down

through

memorized

channels.

l

DUBBING

Press

to

copy

DVD

to

VCR

(or

VCR

to

DVD).

Lights

when

the

Recorder

is

dubbing.

m

Display

window

Shows

the

current

status

of

the

Recorder.

Lights

when

a

disc

is

in

the

DVD

deck.

The

DVD

deck

is

selected.

Lights

when

recorder

is

in

playing

mode

or

flashes

when

search

mode.

The

VCR

deck

is

selected.

Indicates

when

the

recorder

is

in

timer

recording

or

a

timer

recording

is

programmed.

A

VHS

tape

is

inserted

in

the

VCR

deck.

The

recorder

is

recording.

Indicates

PM

time.

(AM

is

not

displayed.)

Indicates

that

TV

mode

is

active.

Indicates

total

playing

time,

elapsed

time,

remaining

time

or

current

deck

status.

n

Remote

Sensor

Point

the

recorder

Remote

Control

here.

o

DVD/VCR

Toggles

control

between

the

DVD

deck

and

the

VCR

deck.

p

RES.

Sets

the

HDMI's

output

resolution

to

1080i,

720p,

480p

or

480i

formats

for

your

TV

or

Monitor.

Set

the

Component

video

output's

resolution

to

480p

or

480i

format

for

your

TV

or

Monitor.

q

DVIN

Connect

the

DV

output

of

a

digital

camcorder.

r

S-VIDEO

Connect

the

S-Video

output

of

an

external

source

(TV/

Monitor,

VCR,

Camcorder,

etc.).

s

VIDEO

/AUDIO

(Left/Right)

Connect

the

audio/video

output

of

an

external

source

(Audio

system,

TV/

Monitor,

VCR,

Camcorder,

etc.).

TV

PM

REC

VCR

DVD

Front

Panel

ab

cd

efg

hijkl

m

nopqrs

12

a

POWER

(1)

Turns

Recorder

ON

and

OFF.

EJECT,

OPEN/CLOSE

(Z)

-

Opens

and

closes

the

disc

tray.

-

Ejects

the

tape

in

the

VCR

deck.

DVD

Select

the

Recorder's

function

mode

to

DVD.

VCR

Select

the

Recorder's

function

mode

to

VCR.

INPUT

Changes

the

input

to

use

for

recording

(Tuner,

AV1,

AV2,

or

DV

IN).

0-9

numerical

buttons

-

Selects

numbered

options

in

a

menu.

-

Inputs

channel

numbers.

I.SKIP

(INSTANT

SKIP)

Skips

30

seconds

forward

during

playback.

DUBBING

Press

to

copy

DVD

to

VCR

(or

VCR

to

DVD).

TV

Control

Buttons

See

page

51.

b

BACKWARD

/

FORWARD

(m/M)

-

DVD:

Search

backward

or

forward.

-

VCR:

Rewinds/Advances

the

tape

during

the

STOP

mode,

for

fast

reverse/

forward


search.

SKIP(./>)

Go

to

next

chapter

or

track.

Returns

to

beginning

of

current

chapter

or

track

or

go

to

previous

chapter

or

track.

PAUSE/STEP

(X)

Pause

playback

or

recording

temporarily.

Press

repeatedly

for

frame-by-frame

playback.

PLAY

(N)

Starts

playback.

STOP

(x)

Stops

playback

or

recording.

c

HOME

:

Accesses

or

removes

the

HOME

menu.

DISC

MENU/LIST

Accesses

menu

on

a

DVD

disc,

Title

List

or

Playlist

menu.

CH/TRK(v/V)

Selects

a

channel.

Adjusts

manually

the

tape's


onscreen.

bBvV(left/right/up/down)

Selects

menu

options.

ENTER

( )

Confirms

menu

selections.

DISPLAY

Accesses

On-Screen

Display.

Displays

information

of

current

status.

RETURN

(O)

Removes

the

menu.

d

AUDIO

Selects

an

audio

language

or

an

audio

channel.

SUBTITLE

Selects

a

subtitle

language.

ZOOM

Enlarges

DVD

video

image.

CHP.

ADD

Inserts

a

chapter

marker

when

playing/

recording.

z

REC

Starts

recording.

Press

repeatedly

to

set

the

recording

time.

REC

MODE

Selects the

recording

mode:

-DVD:SP,LP,EPorXP.

-VCR:SPorSLP.

TITLE

Displays

the

disc's

Title

menu,

if

available.

THUMBNAIL

Selects

a

thumbnail


for

the

current

title

for

use

in

the

Title

List

menu.

PLAY

MODE

Selects

play

mode.

MARKER

Marks

any

point

during playback.

SEARCH

Displays

Marker

Search

menu.

CLEAR

Removes

a

mark

on

the

Marker

Search

menu.

TV/VCR

To

view

channels

selected

by

the

VCR

tuner

or

by

the

TV

tuner.

TIME

SHIFT

To

play

the

title

being

recorded

and

also

currently

being

recorded

appears

as

PIP.

RESOLUTION

:

Sets

the

output

resolution

for

HDMI

and

Component

video

out.

Remote

Control

a

b

c

d

13

a

ANT.

IN

Connect

the

antenna

to

this

terminal.

b

S-VIDEO

OUT

Connect

to

a

S-Video

Input

on

TV.

c

COMPONENT/PROGRESSIVE

SCAN

VIDEO

OUT

(Y

Pb

Pr)

Connect

to

a

TV

with

Y

Pb

Pr

inputs.

d

AUDIO

OUT

(Left/Right)

Connect

to

a

TV

or

other

equipment

with

audio

inputs.

e

AV

IN

1

(VIDEO

IN

/AUDIO

IN

(Left/Right))

Connect

the

audio/video

output

of

an

external

source

(Audio

system,

TV/Monitor,

VCR,

Camcorder).

f

OPTICAL

(DIGITAL

AUDIO

OUT

jack)

Connect

to

digital

(optical)

audio

equipment.

g

Cooling

fan

h

AC

Power

Cord

Plug

into

the

power

source.

i

RF.

OUT

Connect

to

a

TV

with

RF

coaxial

inputs.

j

COAXIAL

(DIGITAL

AUDIO

OUT

jack)

Connect

to

digital

(coaxial)

audio

equipment.

k

AV

OUT

(VIDEO

OUT

/

AUDIO

OUT

(Left/Right))

Connect

to

a

TV

with

video

and

audio

inputs.

l

HDMI

OUT

HDMI

output

providing

a

high

quality

interface

for

digital

audio

and

video.

ab

c d e

f

gh

ij

k l

Rear

Panel

Caution

Do

not

touch

the

inner

pins

of

the

jacks

on

the

rear

panel.

Electrostatic

discharge

may

cause

permanent

damage

to

the

unit.

14

Depending

on

your

TV

and

other

equipment

there

are

various

ways

you

can

connect

the

recorder.

Please

refer

to

the

manuals

of

your

TV,

VCR,

Stereo

System

or

other

devices

as

necessary

for

additional

connection

informa-

tion.

Notes:

?

Make

sure

the

Recorder

is

connected

directly

to

the

TV

and

tune

the

TV

to

the

correct

video

input

channel.

?

Do

not

connect

the

Recorder's

AUDIO

OUT

jack

to

the

phono

in

jack

(record

deck)

of

your

audio

system.

Do

not

connect

the

Recorder

via

another

VCR.

The

DVD


could

be

distorted

by

the

copy

protection

system.

?

The


and

sound

of

a

nearby

TV,

VCR,

or

radio

may

be

distorted

during

playback.

Position

the

units

away

from

each

other

or

turn

off

the

unit

after

removing

the

disc.

Connecting

an

Connecting

an

Antenna

Antenna

or

Cable

TV

or

Cable

TV

a

Antenna:

Disconnect

the

antenna

from

the

rear

of

the

TV

and

identify

the

antenna

cable.

If

it

is

a

round

75

ohm

coaxial

cable

connect

it

directly

to

the

jack

marked

ANT.

IN

on

your

Recorder.

If

your

antenna

cable

is

flat

connect

it

to

a

300-ohm

to

75-ohm

antenna

adaptor

(not

supplied)

and

slip

the

adaptor

over

the

ANT.

IN

jack.

Don't

attempt

to

screw

it

into

to

the

Recorder.

b

Cable

TV:

If

your

cable

connection

has

no

converter

or

descrambler,

unscrew

the

cable

from

your

TV

and

attach

it

to

the

ANT.

IN

jack

on

the

Recorder.

If

a

converter

is

required

connect

a

coaxial

cable

from

the

wall

jack

to

the

IN

connector

on

the

converter,

and

a

coaxial

cable

from

the

OUT

connector

on

the

converter

to

the

ANT.

IN

on

your

Recorder.

This

cable

hookup

permits

both

TV

and

Recorder

operation.

To

view

or

record

a

CATV

channel

1.

Tune

the

TV

to

the

Recorder

output

channel

(CH

3or4).

2.

Set

the

Recorder

channel

selector

to

the

cable

output

channel.

(Example:

CH3)

3.

Select

a

channel

using

the

cable

converter.

Notes:

?

With

this

connection,

you

cannot

record

one

program

while

viewing

another.

?

If

you

are

using

a

cable

box

to

tune

channels,

it

is

not

necessary

to

do

Auto

Channel

Set.

Hookup

and

Settings

Rear

of

Recorder

Antenna Antenna

OR OR

a

b

15

Connections

to

your

TV

Connections

to

your

TV

Make

one

of

the

following

connections,

depending

on

the

capabilities

of

your

TV.

RF

coaxial

connection

Connect

the

RF

OUT

jack

on

the

Recorder

to

the

antenna

in

jack

on

the

TV

using

the

supplied

75-ohm

Coaxial

Cable

(R).

How

to

set

the

Recorder's

RF

output

channel

1.

When

the

Recorder

is

turned

off,

press

and

hold

CH

(V/v)

on

the

front

panel

for

more

than

five

seconds.

[RF03]

or

[RF04]

appears

in

the

display

window.

2.

Press

CH

(V/v)

to

change

the

RF

output

channel

(RF03

or

RF04).

3.

Tune

the

TV

to

this

channel.

Video

connection

Connect

the

VIDEO

OUT

jack

on

the

Recorder

to

the

video

in

jack

on

the

TV

using

the

video

cable

supplied

(V).

Note:

If

you

use

this

connection,

set

the

TV's

source

selector

to

VIDEO.

S-Video

connection

Connect

the

S-VIDEO

OUT

jack

on

the

Recorder

to

the

S-Video

in

jack

on

the

TV

using

an

optional

S-Video

cable

(S).

Component

Video

/

Progressive

Scan

connection

If

your

television

is

a

high-definition

or

"digital

ready"

television,

you

may

take

advantage

of

the

Recorder's

progressive

scan

output

for

higher

video

resolution.

Connect

the

COMPONENT/PROGRESSIVE

SCAN

VIDEO

OUT

jacks

on

the

Recorder

to

the

correspon-

ding

in

jacks

on

the

TV

using

an

optional

Y

Pb

Pr

cable

(C).

Notes:

?

Set

the

resolution

to

480p

using

RESOLUTION

or

RES.

button

for

progressive

signal.

?

Progressive

Scan

does

not

work

with

the

RF,

Audio/Video

or

S-Video

connections.

?

If

your

TV

does

not

accept

the

Progressive

Scan

format,

the


will

appear

scrambled.

?

If

the

resolution

is

set

to

720p

or

1080i,

the

VIDEO

OUT,

S-VIDEO

OUT

and

COMPONENT

VIDEO

OUT

connec-

tions

are

not

available.

Audio

connection

Connect

the

Left

and

Right

AUDIO

OUT

jacks

on

the

Recorder

to

the

audio

left/right

in

jacks

on

the

TV

using

the

supplied

audio

cables

(A1

or

A2).

Rear

of

Recorder

A1

V

R

Rear

of

TV

Rear

of

TV

Y

Pb

Pr

COMPONENT/PROGRESSIVE

SCAN

VIDEO

INPUT

AUDIO

INPUT

S-VIDEO

INPUT

S

A2

C

16

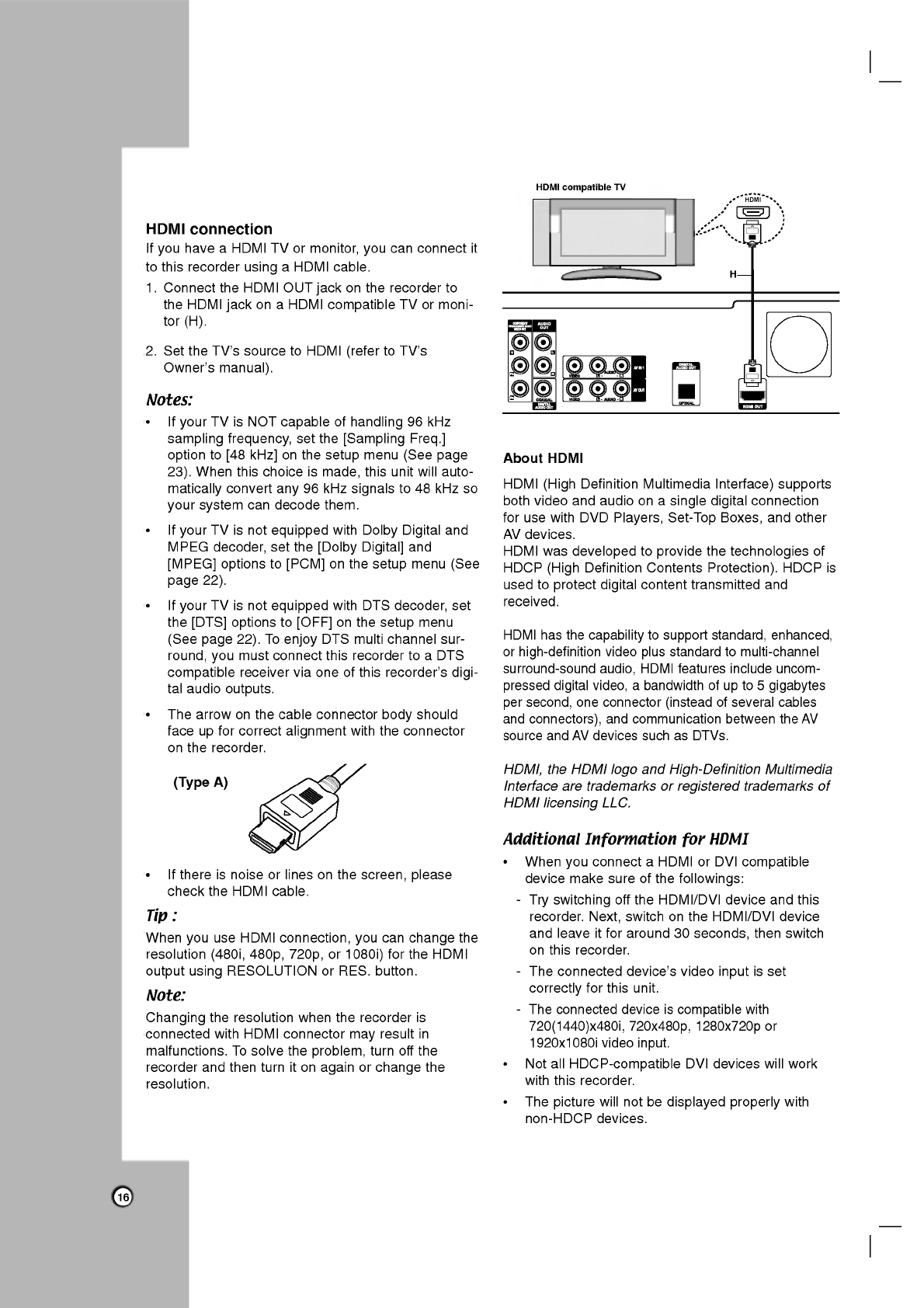

HDMI

connection

If

you

have

a

HDMI

TV

or

monitor,

you

can

connect

it

to

this

recorder

using

a

HDMI

cable.

1.

Connect

the

HDMI

OUT

jack

on

the

recorder

to

the

HDMI

jack

on

a

HDMI

compatible

TV

or

moni-

tor

(H).

2.

Set

the

TV's

source

to

HDMI

(refer

to

TV's

Owner's

manual).

Notes:

?

If

your

TV

is

NOT

capable

of

handling

96

kHz

sampling

frequency,

set

the

[Sampling

Freq.]

option

to

[48

kHz]

on

the

setup

menu

(See

page

23).

When

this

choice

is

made,

this

unit

will

auto-

matically

convert

any

96

kHz

signals

to

48

kHz

so

your

system

can

decode

them.

?

If

your

TV

is

not

equipped

with

Dolby

Digital

and

MPEG

decoder,

set

the

[Dolby

Digital]

and

[MPEG]

options

to

[PCM]

on

the

setup

menu

(See

page

22).

?

If

your

TV

is

not

equipped

with

DTS

decoder,

set

the

[DTS]

options

to

[OFF]

on

the

setup

menu

(See

page

22).

To

enjoy

DTS

multi

channel

sur-

round,

you

must

connect

this

recorder

to

a

DTS

compatible

receiver

via

one

of

this

recorder's

digi-

tal

audio

outputs.

?

The

arrow

on

the

cable

connector

body

should

face

up

for

correct

alignment

with

the

connector

on

the

recorder.

?

If

there

is

noise

or

lines

on

the

screen,

please

check

the

HDMI

cable.

Tip

:

When

you

use

HDMI

connection,

you

can

change

the

resolution

(480i,

480p,

720p,

or

1080i)

for

the

HDMI

output

using

RESOLUTION

or

RES.

button.

Note:

Changing

the

resolution

when

the

recorder

is

connected

with

HDMI

connector

may

result

in

malfunctions.

To

solve

the

problem,

turn

off

the

recorder

and

then

turn

it

on

again

or

change

the

resolution.

About

HDMI

HDMI

(High

Definition

Multimedia

Interface)

supports

both

video

and

audio

on

a

single

digital

connection

for

use

with

DVD

Players,

Set-Top

Boxes,

and

other

AV

devices.

HDMI

was

developed

to

provide

the

technologies

of

HDCP

(High

Definition

Contents

Protection).

HDCP

is

used

to

protect

digital

content

transmitted

and

received.

HDMI

has

the

capability

to

support

standard,

enhanced,

or

high-definition

video

plus

standard

to

multi-channel

surround-sound

audio,

HDMI

features

include

uncom-

pressed

digital

video,

a

bandwidth

of

up

to

5

gigabytes

per

second,

one

connector

(instead

of

several

cables

and

connectors),

and

communication

between

the

AV

source

and

AV

devices

such

as

DTVs.

HDMI,

the

HDMI

logo

and

High-Definition

Multimedia

Interface

are

trademarks

or

registered

trademarks

of

HDMI

licensing

LLC.

Additional

Information

for

HDMI

?

When

you

connect

a

HDMI

or

DVI

compatible

device

make

sure

of

the

followings:

-T

ry

switching

off

the

HDMI/DVI

device

and

this

recorder.

Next,

switch

on

the

HDMI/DVI

device

and

leave

it

for

around

30

seconds,

then

switch

on

this

recorder.

-

The

connected

device's

video

input

is

set

correctly

for

this

unit.

-

The

connected

device

is

compatible

with

720(1440)x480i,

720x480p,

1280x720p

or

1920x1080i

video

input.

?

Not

all

HDCP-compatible

DVI

devices

will

work

with

this

recorder.

?

The


will

not

be

displayed

properly

with

non-HDCP

devices.

HDMI

HDMI

compatible

TV

H

(Type

A)

17

Connection

to

an

Connection

to

an

Amplifier

Amplifier

Connecting

to

an

amplifier

equipped

with

two

channel

analog

stereo

or

Dolby

Pro

Logic

II/Pro

Logic

Connect

the

Left

and

Right

AUDIO

OUT

(or

DVD/VCR

AUDIO

OUT)

jacks

on

the

Recorder

to

the

audio

left

and

right

in

jacks

on

your

amplifier,

receiver,

or

stereo

system

using

the

audio

cables

(A)

supplied.

Connecting

to

an

amplifier

equipped

with

two

channel

digital

stereo

(PCM)

or

to

an

Audio/Video

receiver

equipped

with

a

multi-channel

decoder

(Dolby

DigitalTM,

MPEG

2,

or

DTS)

1.

Connect

one

of

the

Recorder's

DIGITAL

AUDIO

OUT

jacks

(OPTICAL

O,

COAXIAL

X)

to

the

corresponding

in

jack

on

your

amplifier.

Use

an

optional

digital

(OPTICAL

O,

COAXIAL

X)

audio

cable.

2.

You

will

need

to

activate

the

Recorder

's

digital

output.

(See

[Audio

Settings]

on

page

22).

Digital

Multi-channel

sound

A

digital

multi-channel

connection

provides

the

best

sound

quality.

For

this

you

need

a

multi-channel

Audio/Video

receiver

that

supports

one

or

more

of

the

audio

formats

supported

by

your

Recorder

(MPEG

2,

Dolby

Digital

and

DTS).

Check

the

receiver

manual

and

the

logos

on

the

front

of

the

receiver.

Notes:

?

Due

to

the

DTS

Licensing

agreement,

the

digital

output

will

be

in

DTS

digital

out

when

DTS

audio

stream

is

selected.

?

If

the

audio

format

of

the

digital

output

does

not

match

the

capabilities

of

your

receiver,

the

receiver

will

produce

a

strong,

distorted

sound

or

no

sound

at

all.

?

Six

Channel

Digital

Surround

Sound

via

digital

connec-

tion

can

only

be

obtained

if

your

receiver

is

equipped

with

a

Digital

Multi-channel

decoder.

?T

o

see

the

audio

format

of

the

current

DVD

in

the

on-

screen

display,

press

AUDIO.

?

This

Recorder

does

not

perform

internal

(2

channel)

decoding

of

a

DTS

sound

track.

To

enjoy

DTS

multi

channel

surround,

you

must

connect

this

Recorder

to

a

DTS

compatible

receiver

via

one

of

this

Recorder's

digi-

tal

audio

outputs.

HOOKUP AND

SETTINGS

R

L

AUDIO

INPUT

DIGITAL

INPUT

COAXIAL

DIGITAL

INPUT

OPTICAL

Amplifier

(Receiver)

Rear

of

Recorder

A

X

O

Manufactured

under

license

from

Dolby

Laboratories.

"Dolby",

"Pro

Logic",

and

the

double-D

symbol

are

trademarks

of

Dolby

Laboratories.

DTS

and

DTS

Digital

Out

are

trademarks

of

Digital

Theater

Systems,

Inc.

18

Accessory

Accessory

Audio/V

Audio/V

ideo

(A/V)

ideo

(A/V)

Connections

to

Connections

to

Recorder

Recorder

ConnecttheAVIN1orAVIN2jacksonthe

Recorder

to

the

audio/video

out

jacks

on

your

acces-

sory

component,

using

the

optional

audio/video

cables.

(Refer

to

page

41

for

[Recording

from

External

Components].)

Note:

If

you

use

the

S-VIDEO

jack

on

the

front

panel,

the

VIDEO

IN

jack

on

the

front

panel

is

not

available.

Connecting

a

Digital

Connecting

a

Digital

Camcorder

Camcorder

Use

a

DV

cable

(not

supplied)

to

connect

the

DV

in/out

jack

of

your

DV

Digital

Camcorder

to

the

front

panel

DV

IN

jack

of

this

Recorder.

Note:

This

jack

is

for

connection

to

DV

equipment

only.

It

is

not

compatible

with

digital

satellite

tuners

or

D-VHS

video

decks.

DV

IN/OUT

19

Initial

Setup

W

Initial

Setup

W

izard

izard

When

POWER

is

pressed

for

the

first

time

to

turn

the

unit

on,

the

Initial

Setup

Wizard

function

sets

the

Language,

Channels

and

Clock.

1.

Use

v

/

V

to

select

a

language

for

the

Setup

menu

and

information

display

and

then

press

ENTER.

2.

Check

your

antenna

connections.

Press

B

to

move

next

step.

3.

Press

ENTER

to

begin

the

channel

search.

4.

Select

[Auto]

or

[Manual]

Clock

Set

option

then

press

ENTER.

Auto

1.

Use

v

/

V

to

choose

your

Time

Zone

manually.

2.

Use

B

to

choose

the

[Daylight

Savings]

option.

Use

v

/

V

to

choose

Auto,

ON,

or

OFF.

3.

Press

ENTER

to

confirm

your

setting.

Manual

1.

Enter

the

necessary

information

for

year,

date

and

time.

b

/

B

(left/right):

Moves

the

cursor

to

the

previous

or

next

column.

v

/

V

(up/down):

Changes

the

setting

at

the

current

cursor

position.

2.

Press

ENTER

to

confirm

your

setting.

5.

Press

ENTER

to

complete

the

Setup

Wizard.

Note:

You

can

reset

the

Initial

Setup

Wizard

from

the

[Factory

Set]

in

the

setup

menu.(see

page

22).

HOOKUP AND

SETTINGS

20

Using

the

Home

Menu

Using

the

Home

Menu

From

the

Home

Menu

screen

you

can

access

all

the

Media

for

playback

and

recording

of

the

recorder.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Use

b

/

B

to

select

the

desired

main

option.

3.

Use

v

/

V

to

select

the

desired

Sub

option

then

press

ENTER

to

confirm

your

selection.

4.

To

exit

the

HOME

menu,

press

HOME.

Setup

?

Start:

Displays

Setup

menu.

TV

?

Auto

Ch.

Scan

:

Displays

[Auto

Channel

Set]

menu.

(See

page

21)

?

Ch.

Edit

:

Displays

[CH.

Add/Del]

menu.

(See

page

21)

?

Timer

Record

:

Displays

[Timer

Record]

menu.

(See

page

38)

Movie

?

VCR:

Plays

back

VHS

cassette.

?

DISC:

-

Displays

TITLE

LIST

menu

for

recordable

disc

(page

43)

-

Displays

Movie

menu

for

DivX

disc.

(page

32)

-

Plays

back

Video

CD

or

DVD-Video

disc

(page

29-31).


(See

page

34)

?

DISC:

Displays

[Photo]

menu

for

disc.

?

MEMORY

CARD

:

Displays

the

memory

card

slot

choice

menu.

Music

(See

page

33)

?

DISC:

Displays

Music

(or

Audio

CD)

menu

for

disc.

?

MEMORY

CARD

:

Displays

the

memory

card

slot

choice

menu.

Easy

Menu

?

Dubbing

:

Displays

[Dubbing]

menu.

?

Disc

Manager

:

Displays

Disc

Setup

menu.

?

Rec.

Mode

:

Displays

Record

Mode

setup

menu.

?

DV

Input

:

Change

to

DV

Input

mode.

Initial

Settings

Initial

Settings

In

this

menu

system,

there

are

several

ways

to

cus-

tomize

the

settings

provided.

Most

menus

consist

of

three

levels

to

set

up

the

options,

but

some

require

greater

depth

for

the

variety

of

settings.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[Setup]

>

[Start]

and

press

ENTER.

3.

Use

v

/

V

to

select

the

desired

option.

4.

While

the

desired

item

is

selected,

press

B

to

move

to

the

second

level.

5.

Use

v

/

V

to

select

the

second

desired

option.

6.

Press

B

to

move

to

the

third

level.

7.

Use

v

/

V

to

select

the

desired

setting

then

press

ENTER

to

confirm

your

selection.

Some

items

require

additional

steps.

8.

Press

RETURN

(O)

or

HOME

to

exit

the

Setup

menu.

Note:

Press

b

to

go

back

to

the

previous

level.

21

General

Settings

General

Settings

Tuning

Band

Select

1.

Select

the

[Tuning

Band]

option

then

press

B

.

2.

Use

v

/

V

to

select

the

tuning

band

(TV

or

CATV)

option

then

press

ENTER.

TV:

If

you

are

using

a

standard

antenna

to

receive

channels.

CATV:

If

you

are

using

basic

cable

to

receive

channels.

Auto

Channel

Set

Connect

the

Recorder

to

the

desired

type

of

antenna

or

cable

TV

system

as

shown

on

page

14.

This

Recorder

is

equipped

with

a

frequency

synthe-

sized

tuner

capable

of

receiving

up

to

181

channels.

These

include

VHF

channels

2-13,

UHF

channels

14-

69

and

CATV

channels

1-125.

1.

Select

the

[Auto

Channel

Set]

option.

2.

Press

B

to

move

to

the

third

level.

[Start]

icon

is

highlighted.

3.

Press

ENTER

to

begin

the

channel

search.

The

tuner

will

automatically

cycle

through

all

available

channels

in

the

area

and

place

them

in

the

tuner's

memory.

Note:

After

the

Auto

Channel

Set

proceeding

is

complete,

make

sure

the

Tuning

Band

is

set

appropriately

(TV

or

CATV)

on

tuning

band,

follow

steps

1~2

as

shown

previous

(Tuning

Band

Select)

to

choose

the

correct

Tuning

Band

(TV

or

CATV).

To

Add

or

Erase

Channels

This

feature

allows

you

to

add

to

or

erase

channels

from

memory

manually.

1.

Select

the

[CH.

Add/Del]

option.

2.

Press

B

to

move

to

the

third

level.

[Edit]

icon

is

highlighted.

3.

Press

ENTER

and

the

Channel

Edit

menu

appears.

4.

Use

v

/

V

or

number

buttons

to

select

a

channel

then

press

B.

5.

If

you

want

to

obtain

a

clearer

picture,

tune

the

[MFT]

option

using

v

/

V

then

press

B.

[Add]

or

[Delete]

icon

is

highlighted.

6.

Press

ENTER

to

confirm

your

setting.

7.

Repeat

steps

4-6

to

add

or

erase

additional

channels.

8.

Press

HOME

or

RETURN

(O)

to

exit

the

menu.

Clock

Set

Auto

In

the

Auto

option,

the

Recorder

looks

for

a

chan-

nel

carrying

XDS

(Extended

Data

Services)

infor-

mation.

XDS

updates

the

clock

using

the

Coordinated

Universal

Time.

1.

Select

the

[Clock

Set]

>

[Auto]

option.

2.

Press

ENTER.

3.

Use

v

/

V

to

choose

your

Time

Zone

manually.

When

Timezone

is

set

to

Auto,

the

Recorder

will

use

XDS

information

to

determine

the

proper

setting.

4.

Use

B

to

choose

the

[Daylight

Savings]

option.

Use

v

/

V

to

choose

Auto,

ON,

or

OFF.

When

it

is

set

to

Auto,

the

Recorder

will

use

XDS

information

to

determine

the

proper

set-

ting.

5.

Press

ENTER

to

confirm

your

setting.

6.

Press

HOME

to

exit

the

Setup

menu.

Note

:

The

Auto

Clock

Feature

enables

the

Recorder

to

set

up

the

clock

when

the

Recorder

is

turned

off.

HOOKUP AND

SETTINGS

22

Manual

If

your

local

TV

station

does

not

send

date

and

time

information,

or

sends

incorrect

information,

you

can

set

the

clock

manually.

1.

Select

the

[Clock

Set]

>

[Manual]

option.

2.

Press

ENTER.

3.

Enter

the

necessary

information

for

year,

date

and

time.

b

/

B

(left/right):

Moves

the

cursor

to

the

previous

or

next

column.

v

/

V

(up/down):

Changes

the

setting

at

the

current

cursor

position.

4.

Press

ENTER

to

confirm

your

setting.

5.

Press

HOME

to

exit

the

Setup

menu.

TV

Aspect

4:3

Letter

Box:

Select

when

a

standard

4:3

TV

is

connected.

Displays

theatrical

images

with

masking

bars

above

and

below

the

picture.

4:3

Pan

Scan:

Select

when

a

standard

4:3

TV

is

connected.

Displays

pictures

cropped

to

fill

your

TV

screen.

Both

sides

of

the


are

cut

off.

16:9

Wide:

Select

when

a

16:9

wide

TV

is

connected.

Power

Save

Mode

Set

Power

Save

Mode

to

[ON]

to

place

your

Recorder

into

an

economic

power

save

mode.

Factory

Set

You

can

reset

the

Recorder

to

its

original

factory

settings.

1.

Select

the

[Factory

Set]

option.

2.

Press

B

to

select

[SET]

then

press

ENTER.

3.

Select

[OK]

and

press

ENTER.

4.

Follow

the

Initial

Setup

Wizard

on

page

19.

Language

Settings

Language

Settings

Display

Menu

Select

a

language

for

the

Setup

menu

and

information

display.

Disc

Menu

/

Audio

/

Subtitle

[Original]

:

Refers

to

the

original

language

in

which

the

disc

was

recorded.

[Others]

:

To

select

another

language,

press

number

buttons

to

enter

the

corresponding

4-digit

number

according

to

the

language

code

list

in

the

reference

chapter

(see

page

52).

If

you

enter

the

wrong

language

code,

press

CLEAR.

[OFF]

(for

Disc

Subtitle)

:

Turn

off

Subtitle.

Audio

Settings

Audio

Settings

Each

DVD

disc

has

a

variety

of

audio

output

options.

Set

the

Recorder's

Audio

Output

according

to

the

type

of

audio

system

you

use.

Dolby

Digital

/

DTS

/

MPEG

[Bitstream]:

Select

[Bitstream]

if

you

connect

the

DVD+VCR's

DIGITAL

AUDIO

OUT

jack

to

an

amplifier

or

other

equipment

with

a

Dolby

Digital,

DTS

or

MPEG

decoder.

[PCM]

(for

Dolby

Digital

/

MPEG):

Select

when

connected

to

a

two-channel

digital

stereo

amplifi-

er.

DVDs

encoded

in

Dolby

Digital

or

MPEG

will

be

automatically

downmixed

to

two-channel

PCM

audio.

[OFF]

(for

DTS):

If

you

select

[OFF],

the

DTS

signal

is

not

output

through

the

DIGITAL

AUDIO

OUT

jack.

23

Sampling

Freq.

(Frequency)

If

your

receiver

or

amplifier

is

NOT

capable

of

han-

dling

96

kHz

signals,

select

48

kHz.

When

this

choice

is

made,

this

unit

automatically

converts

any

96

kHz

signals

to

48

kHz

so

your

system

can

decode

them.

If

your

receiver

or

amplifier

is

capable

of

handling

96

kHz

signals,

select

96

kHz.

When

this

choice

is

made,

this

unit

passes

each

type

of

signal

through

without

any

further

processing.

Check

the

documentation

for

your

amplifier

to

verify

its

capabilities.

DRC

(Dynamic

Range

Control)

With

the

DVD

format,

you

can

hear

a

program's

soundtrack

in

the

most

accurate

and

realistic

presen-

tation

possible,

thanks

to

digital

audio

technology.

However,

you

may

wish

to

compress

the

dynamic

range

of

the

audio

output

(the

difference

between

the

loudest

sounds and

the

quietest

ones).

This

allows

you

to

listen

to

a

movie

at

a

lower

volume

without

los-

ing

clarity

of

sound. Set

DRC

to

[ON]

for

this

effect.

Lock

(Parental

Control)

Lock

(Parental

Control)

Settings

Settings

Rating

Blocks

playback

of

rated

DVDs

based

on

their

content.

Not

all

discs

are

rated.

1.

Select

[Rating]

option

then

press

B.

2.

To

access

the

Rating,

Password

and

Area

Code

features,

you

must

input

the

4-digit

security

code

you

created.

If

you

have

not

yet

entered

a

security

code

you

are

prompted

to

do

so.

Input

a

4-digit

code.

Enter

it

again

to

verify.

If

you

make

a

mistake

press

CLEAR.

3.

Select

a

rating

from

1

to

8

using

the

v

/

V

buttons.

[1]-[8]

:

Rating

one

(1)

has

the

most

restrictions

and

rating

eight

(8)

is

the

least

restrictive.

[No

Limit]

:

If

you

select

[No

Limit],

parental

control

is

not

active

and

the

disc

plays

in

full.

4.

Press

ENTER

to

confirm

your

rating

selection,

then

press

HOME

to

exit

the

menu.

Note:

If

you

set

a

rating

for

the

recorder,

all

disc

scenes

with

the

same

rating

or

lower

are

played.

Higher

rated

scenes

are

not

played

unless

an

alternate

scene

is

available

on

the

disc.

The

alternative

must

have

the

same

rating

or

a

lower

one.

If

no

suitable

alternative

is

found,

playback

stops.

You

must

enter

the

4-digit

password

or

change

the

rating

level

in

order

to

play

the

disc.

Set

Password

You

can

enter

or

change

password.

1.

Select

[Set

Password]

option

then

press

B.

2.

Follow

step

2

as

shown

[Rating].

To

change

the

password,

select

the

[Change],

press

ENTER

and

input

the

new

4-digit

code.

Input

it

again

to

verify.

3.

Press

HOME

to

exit

the

menu.

If

you

forget

your

password

If

you

forget

your

password

you

can

clear

it

using

the

following

steps:

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[Setup]

>

[Start]

and

press

ENTER.

3.

Input

the

6-digit

number

[210499].

The

message

appears,

select

[OK]

then

press

ENTER.

The

security

code

is

cleared.

4.

Enter

a

new

code

as

described

above.

Area

Code

Enter

the

Area

Code

whose

standards

were

used

to

rate

the

DVD

video

disc,

based

on

the

list

in

the

reference

chapter

(see

page

52).

1.

Select

[Area

Code]

option

then

press

B.

2.

Follow

step

2

as

shown

[Rating].

3.

Select

the

first

character

using

v

/

V

buttons.

4.

Shift

the

cursor

using

B

buttons

and

select

the

second

character

using

v

/

V

buttons.

5.

Press

ENTER

to

confirm

your

area

code

selection,

then

press

HOME

to

exit

the

menu.

HOOKUP AND

SETTINGS

24

Recording

Settings

Recording

Settings

Disc

Record

Mode

You

can

set

the


quality

for

recording;

XP

(Excellent

quality),

SP

(Standard

quality),

LP

(Low

quality),

EP

(Extend

quality).

1.

Select

the

[Disc

Record

Mode]

option

then

press

B.

2.

Use

v

/

V

to

select

a

desired

Disc

Record

Mode

(XP,

SP,

LP

or

EP).

3.

Press

ENTER

to

confirm

your

selection,

then

press

HOME

to

exit

the

menu.

VCR

Record

Mode

You

can

set

the


quality

for

VCR

recording;

SP

(Standard

Play),

SLP

(Super

Long

Play).

DV

Record

Audio

You

need

to

set

this

if

you

have

a

camcorder

using

32kHz/12-bit

sound

connected

to

the

front

panel

DV

IN

jack.

Some

digital

camcorders

have

two

stereo

tracks

for

audio.

One

is

recorded

at

the

time

of

shoot-

ing;

the

other

is

for

overdubbing

after

shooting.

On

the

Audio

1

setting,

the

sound

that

was

recorded

while

shooting

is

used.

On

the

Audio

2

setting,

the

overdubbed

sound

is

used.

Auto

Chapter

During

recording,

chapter

markers

are

added

auto-

matically

at

fixed

intervals.

You

can

set

this

interval

to

5

minutes

or

10

minutes.

To

turn

off

automatic

chap-

ter

marking,

select

[None].

Disc

Settings

Disc

Settings

Initialize

If

you

load

a

completely

blank

disc,

the

recorder

will

initialize

the

disc.

?

DVD-R:

The

recorder

initialize

the

disc

to

Video

mode.

The

recording

mode

will

always

be

Video

mode.

?

DVD-RW/DVD+RW/DVD+R(DL)/DVD-RAM:

The

Initialize

menu

will

appears.

Select

[OK]

then

press

ENTER.

DVD-RW

disc

is

initialized

to

Video

mode.

Also,

you

can

reformat

the

DVD-RW/DVD+RW/

DVD-RAM

from

the

Setup

menu

as

below.

1.

Select

the

[Initialize]

option

then

press

B.

[Start]

icon

is

highlighted.

2.

Press

ENTER.

?

IncaseofDVD-RW,useb/Btoselecta

desired

Disc

Initialize

Mode

(VR

Mode

or

Video

Mode)

then

press

ENTER.

?

In

case

of

DVD+RW/DVD-RAM,

use

b

/

B

to

select

[OK],

and

press

ENTER.

It

takes

a

few

moments

to

format

the

disc.

Note:

If

you

want

to

change

the

disc

format,

everything

recorded

on

the

disc

will

be

erased.

25

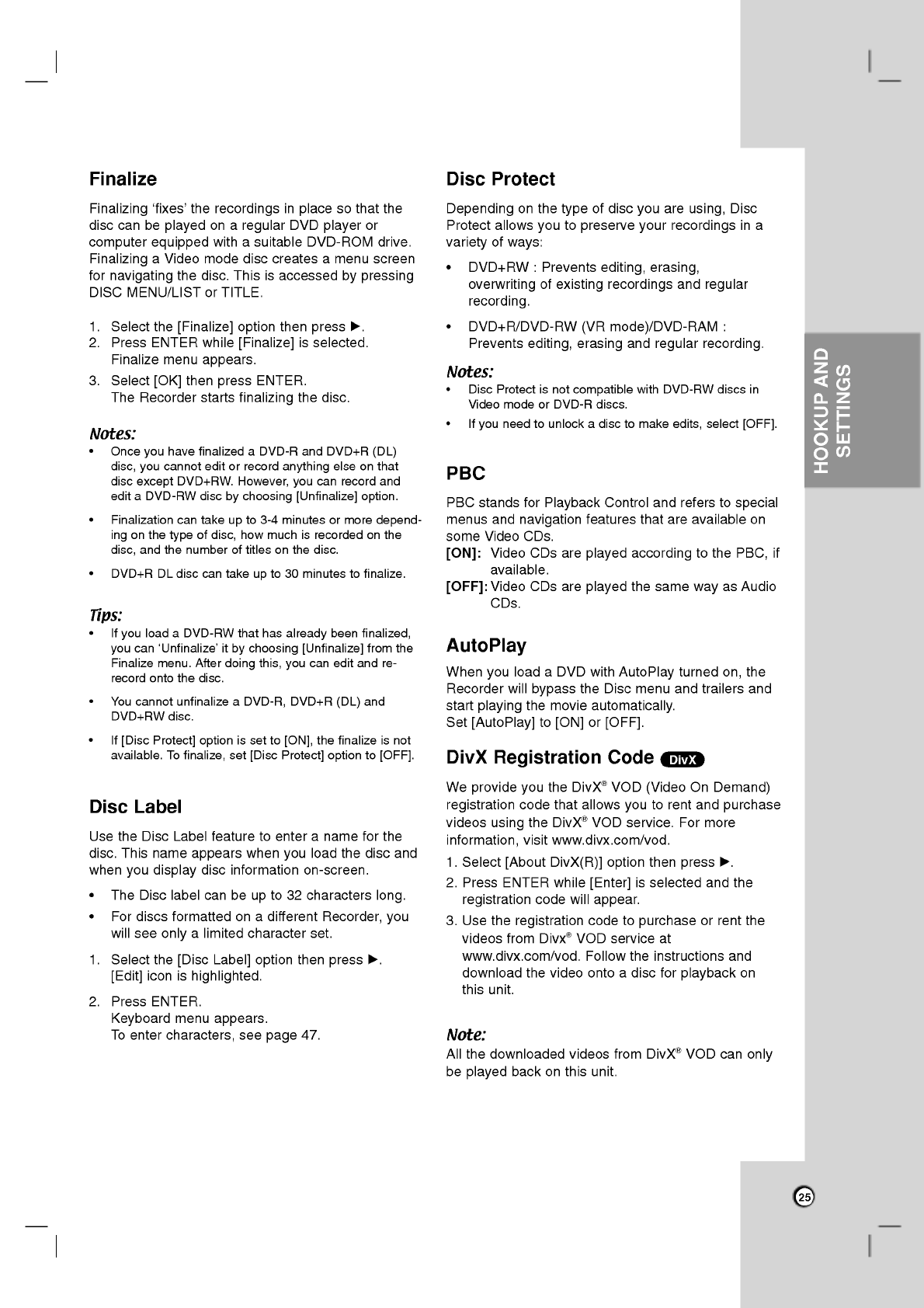

Finalize

Finalizing

'fixes'

the

recordings

in

place

so

that

the

disc

can

be

played

on a

regular

DVD

player

or

computer

equipped

with

a

suitable

DVD-ROM

drive.

Finalizing

a

Video

mode

disc

creates

a

menu

screen

for

navigating

the

disc.

This

is

accessed

by

pressing

DISC

MENU/LIST

or

TITLE.

1.

Select

the

[Finalize]

option

then

press

B.

2.

Press

ENTER

while

[Finalize]

is

selected.

Finalize

menu

appears.

3.

Select

[OK]

then

press

ENTER.

The

Recorder

starts

finalizing

the

disc.

Notes:

?

Once

you

have

finalized

a

DVD-R

and

DVD+R

(DL)

disc,

you

cannot

edit

or

record

anything

else

on

that

disc

except

DVD+RW.

However,

you

can

record

and

edit

a

DVD-RW

disc

by

choosing

[Unfinalize]

option.

?

Finalization

can

take

up

to

3-4

minutes

or

more

depend-

ing

on

the

type

of

disc,

how

much

is

recorded

on

the

disc,

and

the

number

of

titles

on

the

disc.

?

DVD+R

DL

disc

can

take

up

to

30

minutes

to

finalize.

Tips:

?

If

you

load

a

DVD-RW

that

has

already

been

finalized,

you

can

'Unfinalize'

it

by

choosing

[Unfinalize]

from

the

Finalize

menu.

After

doing

this,

you

can

edit

and

re-

record

onto

the

disc.

?Y

ou

cannot

unfinalize

a

DVD-R,

DVD+R

(DL)

and

DVD+RW

disc.

?

If

[Disc

Protect]

option

is

set

to

[ON],

the

finalize

is

not

available.

To

finalize,

set

[Disc

Protect]

option

to

[OFF].

Disc

Label

Use

the

Disc

Label

feature

to

enter

a

name

for

the

disc.

This

name

appears

when

you

load

the

disc

and

when

you

display

disc

information

on-screen.

?

The

Disc

label

can

be

up

to

32

characters

long.

?

For

discs

formatted

on

a

different

Recorder,

you

will

see

only

a

limited

character

set.

1.

Select

the

[Disc Label]

option

then

press

B.

[Edit]

icon

is

highlighted.

2.

Press

ENTER.

Keyboard

menu

appears.

To

enter

characters,

see

page

47.

Disc

Protect

Depending

on

the

type

of

disc

you

are

using,

Disc

Protect

allows

you

to

preserve

your

recordings

in

a

variety

of

ways:

?

DVD+RW

:

Prevents

editing,

erasing,

overwriting

of

existing

recordings

and

regular

recording.

?

DVD+R/DVD-RW

(VR

mode)/DVD-RAM

:

Prevents

editing,

erasing

and

regular

recording.

Notes:

?

Disc

Protect

is

not

compatible

with

DVD-RW

discs

in

Video

mode

or

DVD-R

discs.

?

If

you

need

to

unlock

a

disc

to

make

edits,

select

[OFF].

PBC

PBC

stands

for

Playback

Control

and

refers

to

special

menus

and

navigation

features

that

are

available

on

some

Video

CDs.

[ON]:

Video

CDs

are

played

according

to

the

PBC,

if

available.

[OFF]:

Video

CDs

are

played

the

same

way

as

Audio

CDs.

AutoPlay

When

you

load

a

DVD

with

AutoPlay

turned

on,

the

Recorder

will

bypass

the

Disc

menu

and

trailers

and

start

playing

the

movie

automatically.

Set

[AutoPlay]

to

[ON]

or

[OFF].

DivX

Registration

Code

We

provide

you

the

DivX



VOD

(Video

On

Demand)

registration

code

that

allows

you

to

rent

and

purchase

videos

using

the

DivX



VOD

service.

For

more

information,

visit

www.divx.com/vod.

1.

Select

[About

DivX(R)]

option

then

press

B.

2.

Press

ENTER

while

[Enter]

is

selected

and

the

registration

code

will

appear.

3.

Use

the

registration

code

to

purchase

or

rent

the

videos

from

Divx



VOD

service

at

www.divx.com/vod.

Follow

the

instructions

and

download

the

video

onto

a

disc

for

playback

on

this

unit.

Note:

All

the

downloaded

videos

from

DivX



VOD

can

only

be

played

back

on

this

unit.

26

General

Explanation

of

General

Explanation

of

On-Screen

Display

On-Screen

Display

Some

DVDs

require

specific

operation

or

allow

only

limited

operation

during

playback.

When

this

occurs,

is

displayed,

action

prohibited

or

not

available.

Displaying

Information

While

Watching

TV

While

watching

TV,

press

DISPLAY

to

display/

remove

the

information

displayed

on-screen.

e.g.,

when

DVD-RW

in

VR

mode

is

inserted.

Changing

TV

Audio

Channel

Some TV

programs

are

broadcast

with

both

a

main

and

a

Secondary

Audio

Program

(SAP).

You

can

change

the

TV

audio.

Press

AUDIO

repeatedly

to

change

the

TV

audio,

according

to

Broadcast

audio

signal

as

shown

below.

?

STEREO+SAP

Audio

Signal

Stereo

→

SAP

→

Mono

→

Stereo

?

STEREO

Audio

Signal

Stereo→L→R→Mono→Stereo

?

SAP

Audio

Signal

Mono

→

SAP

→

Mono

?

MONO

Audio

Signal

Mono

The

current

audio

channel

is

displayed

on-screen.

?

If

SAP

is

selected,

but

there

is

no

SAP

channel

being

broadcast,

you

will

still

hear

the

main

audio

(Mono

or

Stereo)

channel.

?

If

the

sound

is

poor

quality

when

set

to

Stereo,

you

can

often

improve

it

by

changing

to

Mono.

Displaying

Disc

Information

on-screen

You

can

display

various

information

about

the

disc

or

tape

loaded

on-screen.

Some

items

can

be

changed

using

the

menu.

1.

Press

DISPLAY

once

to

show

current

status.

Example:

DVD-Video

disc

2.

Press

DISPLAY

once

again

to

show

various

playback

information.

The

items

displayed

differ

depending

on

the

disc

type

or

playing

status.

3.

You

can

select

an

item

by

pressing

v

/

V

and

change

or

select

the

setting

by

pressing

b

/

B.

For

details

about

each

item,

see

the

pages

in

parentheses.

?

[Title]:

Current

title

(or

track)

number/total

number

of

titles

(or

tracks)

(page

29)

?

[Chapter]:

Current

chapter

number/total

number

of

chapters

(page

29)

?

[Time]:

Elapsed

playing

time

(page

31)

?

[Audio]:

Selected

audio

language

(DVD

VIDEO

only)

or

audio

channel

(page

30)

?

[Subtitle]:

Selected

subtitle

(page

29)

?

[Angle]:

Selected

angle/total

number

of

angles

(page

31)

?

[Sound]:

Selected

sound

mode

(page

31)

Note:

If

no

button

is

pressed

for

10

seconds,

the

on-screen

dis-

play

disappears.

Indicates

disc

name

and

format.

Indicates

channel

number

and

audio

input

signal

received

by

the

tuner.

Indicates

the record

mode,

free

space,

and

elapsed

time

progress

bar.

Indicates

current

date

and

time.

Indicates

operational

mode

of

the

recorder.

Indicates

output

audio

signal.

27

Playing

a

T

Playing

a

T

ape

ape

1.

Press

VCR

to

control

the

VCR

deck.

2.

Insert

a

pre-recorded

video

cassette.

?

If

the

unit

is

powered

off,

it

will

power

on

automatically

when

the

tape

is

loaded.

?

If

the

Timer

indicator

lights

on

the

front

panel

display

window,

press

POWER

once.

3.

Press

PLAY

(N)

to

start

playback.

?

If

a

tape

without

a

safety

tab

is

inserted

the

unit

starts

playback

automatically.

4.

Press

STOP

(x)

to

stop

playback.

?

If

the

tape

reaches

the

end

before

you

press

STOP

(x)

the

Recorder

automatically

stops,

rewinds

and

ejects

the

tape.

Notes:

S-VHS

Quasi

Playback

(SQPB)

?

This

Recorder

can

play

back

S-VHS

recorded

tapes,

however,

it

cannot

make

recordings using

S-VHS

format

tapes.

?

SQPB

is

an

abbreviation

for

S-VHS

Quasi

Playback.

Playing

a

DVD

or

V

Playing

a

DVD

or

V

ideo

CD

ideo

CD

1.

Press

DVD

to

control

the

DVD

deck.

2.

Press

OPEN/CLOSE

(Z)

to

open

the

disc

tray.

Load

your

chosen

disc

in

the

tray,

with

the

playback

side

down.

3.

Press

OPEN/CLOSE

(Z)

to

close

the

tray.

Playback

starts

automatically.

If

playback

does

not

start,

press

PLAY

(N)orStarts

playback

using

HOME

menu.

4.

To

stop

the

playback,

press

STOP

(x).

The

unit

records

the

stopped

point,

depending

on

the

disc.

"Xx"

appears

on

the

screen

briefly.

Press

PLAY

(N)

to

resume

playback

(from

the

scene

point).

If

you

press

STOP

(x)

again

or

unload

the

disc

("x"

appears

on

the

screen.),

the

unit

will

clear

the

stopped

point.

5.

Press

OPEN/CLOSE

(Z)

to

remove

the

disc.

Press

OPEN/CLOSE

(Z)

to

close

disc

tray

or

press

POWER

(1),

the

disc

tray

closes

automatically

and

unit

turns

off.

Note:

If

parental

control

is

set

and

the

disc

is

not

within

the

rating

settings

you

must

input

the

password.

(See

[Rating]

on

page

23).

Playback

28

VCR

Playback

Features

Buttons

Operations

EJECT

(Z)

Ejects

the

tape

in

the

VCR

deck.

PAUSE/STEP

(X)

Pause

playback.

Press

repeatedly

to

step

forward

one

frame

at

a

time.

?

After

5

minutes

in

STILL

mode

the

Recorder

stops

to

protect

the

tape

and

video

heads.

FORWARD

(M)

Scan

forward.

In

Stop

mode,

fast

forwards

the

tape.

In

Pause

mode,

starts

slow

motion

playback.

?

After

3

minutes

in

SEARCH

mode

the

Recorder

returns

to

PLAY

mode

to

protect

the

tape

and

video

heads

?

After

3

minutes

in

SLOW

MOTION

mode

the

Recorder

goes

back

to

PLAY

mode

to

protect

the

tape

and

video

heads.

BACKWARD

(m)

Scan

backward.

In

Stop

mode,

rewinds

the

tape.

?

After

3

minutes

in

SEARCH

mode

the

Recorder

returns

to

PLAY

mode

to

protect

the

tape

and

video

heads.

CLEAR

Resets

the

current

tape

counter

position

to

0:00:00.

To

automatically

goto tape

counter

position

0:00:00,

press

RETURN

while

the

tape

is

in

Stop

mode.

CH/TRK

(v+

/

V-)

Manually

reduces

noise

on

the

screen

during

tape

playback.

Tracking

is

set

automatically

when

a

tape

is

inserted.

AUDIO

Sets

tape

audio

to

HIFI,

LEFT,

RIGHT

or

NORMAL.

Use

b/B

buttons

to

select

tape

audio

you

want.

I.SKIP

Press

repeatedly

during

playback

to

skip

forward

30

seconds

(maximum

180

seconds).

29

DVD

or

Video

CD

Playback

Features

Buttons

Operations

OPEN

/

CLOSE

(Z)

Opens

or

closes

the

disc

tray.

PAUSE/STEP

(X)

Pause

playback.

Press

repeatedly

to

play

Frame-by-Frame.

You

can

also

use

b

/

B

to

step

backward

and

forward

while

in

Pause

mode.

?

This

function

is

forward

only

for

Video

CD.

BACKWARD

(m)

/

FORWARD

(M)

During

playback,

press

repeatedly

to

select

the

required

scan

speed.

-

DVD;

5

steps,

-

Video

CD,

DivX,

Audio

CD;

3

steps

In

Pause

mode,

press

BACKWARD

(m)

/

FORWARD

(M)

for

slow

motion

playback.

-

DVD;

4

steps,

-

Video

CD;

3

steps

?

This

function

is

forward

only

for

Video

CD.

SKIP

(.

/

>)

Press

SKIP

(>

or

.)

briefly

during

playback

to

select

the

next

chapter/track

or

to

return

to

the

beginning

of

the

current

chapter/track.

Press

SKIP

(.)

twice

in

quick

successions

to

step

back

to

the

previous

chapter/track.

?

To

go

directly

to

any

chapter/track

during

playback,

press

DISPLAY

twice

and

use

v

/

V

to

select

the

chapter

or

track

(for

Video

CD)

icon.

Input

the

chapter/track

number

or

use

b

/

B.

?

On

a

Video

CD

with

PBC,

you

must

set

PBC

to

[OFF]

in

the

Setup

menu

to

use

this

function

(See

page

25).

?

On

an

Audio

CD,

to

go

directly

to

any

track,

enter

the

track

number

using

the

numbered

buttons

(0-9)

during

playback.

ZOOM

Enlarge

the

video

image.

(x1

size

→

x2

size

→

x4

size

→

x1

size

(normal

size))

You

can

move

through

the

zoomed


using

bBvV

buttons.

TITLE

If

the

current

DVD

title

has

a

menu,

the

title

menu

appears

on

the

screen.

Otherwise,

the

disc

menu

may

appears.

DISC

MENU/LIST

The

disc

menu

appears

on

the

screen.

SUBTITLE

( )

During

playback,

press

SUBTITLE

then

press

b

/

B

repeatedly

to

select

a

desired

subtitle

language.

I.SKIP

Press

repeatedly

during

playback

to

skip

forward

30

seconds.

Discs

All

Discs

All

Discs

30

DVD

or

Video

CD

Playback

Features

(Continued)

Buttons

Operations

PLAY

MODE

Select

a

desired

play

mode

while

playback.

[A-]

:

Repeats

a

sequence

between

A

(Start

point)

and

B

(End

point)

during

playback.

Press

ENTER

at

your

chosen

end

point

then

the

repeat

sequence

begins.

[CHAPTER]

:

Repeats

the

current

chapter.

[TITLE]

:

Repeats

the

current

title.

[ALL]

:

Repeats

the

all

titles/tracks.

[TRACK]

:

Repeats

the

current

track.

[RANDOM]

:

Random

playback

[Folder]

:

Repeats

all

the

tracks

on

a

folder

of

a

disc.

[OFF]

:

Does

not

play

repeatedly.

?

On

a

Video

CD

with

PBC,

you

must

set

PBC

to

[OFF]

in

the

Setup

menu

to

use

this

function

(See

page

25).

?

If

you

press

SKIP

(>)

once

during

Repeat

Chapter

(Track)

playback,

the

repeat

playback

cancels.

?

By

pressing

SKIP

(>)

during

Random

playback,

the

Recorder

selects

another

title

(track)

and

resumes

Random

playback.

AUDIO

( )

Press

AUDIO

then

press

b

/

B

repeatedly

to

hear

a

different

audio

language

or

audio

track.

Note:

Some

discs

feature

both

Dolby

Digital

and

DTS

sound-

tracks.

There

is

no

analog

audio

output

when

DTS

is

selected.

To

listen

to

the

DTS

soundtrack,

connect

this

recorder

to

a

DTS

decoder

via

one

of

the

digital

outputs.

See

page

17

for

connection

details.

Press

AUDIO

then

press

b

/

B

repeatedly

during

playback

to

hear

a

different

audio

channel.

With

DVD-RW

discs

recorded

in

VR

mode

that

have

both

a

main

and

a

Bilingual

audio

channel,

you

can

switch

between

Main

(L),

Bilingual

(R),

or

a

mix

of

both

(Main

+

Bilingual)

by

pressing

AUDIO.

Discs

31

Special

Playback

Options

Special

Playback

Options

If

a

menu

screen

is

displayed

In

some

cases,

the

disc

menu

might

appear

instead.

Use

the

bBvVbuttons

to

select

the

title/chapter

you

want

to

view,

then

press

ENTER

to

start.

Press

TITLE

or

DISC

MENU/LIST

to

return

to

the

menu

screen.

Use

the

number

buttons

to

select

the

track

you

want

to

view

and

press

RETURN

to

return

to

the

menu

screen.

Menu

settings

and

operating

procedures

may

differ.

Follow

the

instructions

on

each

menu

screen.

You

may

also

set

PBC

to

[OFF]

(See

page

25).

Time

Search

To

start

playing

at

any

chosen

time

on

the

disc:

1.

Press

DISPLAY

twice

during

playback.

The

time

search

box

shows

the

elapsed

playing

time.

2.

Press

v

/

V

to

select

the

time

clock

icon

and

[-:--:--]

appears.

3.

Input

the

required

start

time

in

hours,

minutes,

and

seconds

from

left

to

right.

If

you

enter

the

wrong

numbers,

press

b

/

B

to

move

the

under

bar

(_)

to

the

wrong

number.

Then

enter

the

correct

numbers.

4.

Press

ENTER

to

confirm.

Playback

starts

from

the

selected

time.

Marker

Search

To

enter

a

Marker

You

can

start

playback

from

up

to

six

memorized

points.

To

enter

a

marker,

press

MARKER

at

the

desired

point

on

the

disc.

The

Marker

icon

appears

on

the

TV

screen

briefly.

Repeat

to

enter

up

to

six

markers.

To

Recall

or

Clear

a

Marked

Scene

1.

During

disc

playback,

press

SEARCH.

The

marker

search

menu

appears

on

the

screen.

2.

Use

b/B/v/V

to

select

a

marker

scene

that

you

want

to

recall

or

clear.

3.

Press

ENTER

and

playback

starts

from

the

marked

scene.

Or,

Press

CLEAR

and

use

b

/

B

to

select

[OK]

then

press

ENTER

to

delete

marked

scene

from

the

list.

4.

To

remove

the

Marker

Search

menu,

press

RETURN

(O).

Camera

Angle

If

the

disc

contains

scenes

recorded

at

different

camera

angles,

you

can

change

to

a

different

camera

angle

during

playback.

Press

DISPLAY

then

select

the

Angle

icon

during

playback.

Use

b

/

B

to

select

a

desired

angle.

Note

that

the

number

of

the

current

angle

appears

on

the

display.

Tip:

The

Camera

Angle

icon

is

displayed

on

the

TV

screen

when

alternate

angles

are

available.

3D

Surround

This

unit

can

produce

a

3D

Surround

effect,

which

simulates

multi-channel

audio

playback

from

two

conventional

stereo

speakers,

instead

of

the

five

or

more

speakers

normally

required

to

listen

to

multi-

channel

audio

from

a

home

theater

system.

1.

Press

DISPLAY

twice

then

use

v

/

V

to

select

the

sound

icon.

Then,

use

b

/

B

to

select

[3D

SUR.].

2.

To

turn

off

the

3D

Surround

effect,

select

[NORMAL].

Last

Scene

Memory

This

Recorder

memorizes

last

scene

from

the

last

disc

that

is

viewed.

The

last

scene

remains

in

memo-

ry

even

if

you

remove

the

disc

from

the

Recorder

or

switch

off

the

Recorder.

If

you

load

a

disc

that

has

the

scene

memorized,

the

scene

is

automatically

recalled.

Notes:

?

Settings

are

stored

in

memory

for

use

any

time.

?

This

Recorder

does

not

memorize

settings

of

a

disc

if

you

switch

off

the

Recorder

before

commencing

to

play

it.

?

Last

Scene

Memory

function

for

a

previous

DVD

title

is

erased

once

a

different

DVD

title

is

played.

Finding

Locations

on

a

Disc

You

can

directly

access

any

point

on

a

video

CD

using

this

function

within

95%

of

progress

bar

while

playing.

This

function

will

not

work

if

any

bookmarks

have

been

set.

1.

Press

SEARCH

during

playback.

The

progress

bar

appears

on

the

TV

screen.

2.

Use

b

/

B

to

find

the

desired

starting

position

for

playback.

3.

Press

ENTER

to

confirm

the

selected

position.

Playback

starts

from

the

selected

position.

32

Playing

a

DivX

Movie

File

Playing

a

DivX

Movie

File

The

Recorder

can

play

Divx

files.

Before

playing

DivX

files,

read

"About

DivX movie

files"

on

right.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[Movie]

>

[DISC]

and

press

ENTER.

3.

Use

v

/

V

to

select

a

folder,

and

press

ENTER

twice.

A

list

of

files

in

the

folder

appears.

4.

Use

v

/

V

to

select

a

file

then

press

PLAY

(N).

Playback

starts.

You

can

use

variable

playback

functions.

Refer

to

pages

29-31.

5.

Press

STOP

(x)

to

stop

the

playback.

The

Movie

menu

appears.

Note:

This recorder

cannot

play

back

the

DivX

file(s)

in

the

Memory

card.

Notice

for

displaying

the

DivX

subtitle

If

the

subtitle

does

not

display

properly,

please

follow

the

steps

below.

1.

Press

PAUSE/STEP

(X)

when

the

subtitle

appears.

2.

Press

and

hold

SUBTITLE

about

3

seconds.

The

language

code

will

appear.

3.

Press

b

/

B

to

select

another

language

code

until

the

subtitle

is

displayed

properly.

4.

Press

PLAY

(N)

to

continue

playback.

Movie

menu

options

1.

Press

v

/

V

to

select

a

folder/file

on

the

Movie

menu

then

press

ENTER.

Movie

menu

options

appear.

2.

Press

v

/

V

to

select

an

option,

and

press

ENTER.

?

[Play]

Start

playback

the

selected

title.

?

[Open]

Opens

the

folder

and

a

list

of

files

in

the

folder

appears.

?

[Dubbing]

Dubs

the

DivX movie

to

VCR.

(page

40)

About

DivX

movie

files

Available

resolution

size

under

720x576

(W

x

H)

pixel.

Playable

DivX

file

".avi",

".divx"

Playable

DivX

subtitle

".smi",

".srt

(SubRip

only)",

".sub

(Micro

DVD

format

only)",

DivX

subtitle

except

those

listed

above

is

not

displayed

on

the

TV

screen.

Playable

Codec

format

"DIV3",

"MP43",

"DIVX",

"XVID",

"DX50".

Playable

Audio

format

"AC3",

"PCM",

"MP2", "MP3",

"WMA".

Sampling

frequency:

within

8

-

48

kHz

(MP3),

within

32

-

48kHz

(WMA)

Bit

rate:

within

8

-

320kbps

(MP3),

32

-

192kbps

(WMA)

CD-R

Format:

ISO

9660

and

JOLIET.

DVD±R/RW

Format:

ISO

9660

(UDF

Bridge

format)

Maximum

Files/Disc:

Less

than

1999

(total

number

of

files

and

folders)

Notes

on

DivX

format

The

file

name

of

the

DivX

subtitle

is

limited

to

characters.

If

there

is

impossible

code

to

express

in

the

DivX

file,

it

may

be

displayed

as

"_"

mark

on

the

display.

If

the

number

of

the

screen

frame

is

over

29.97

frames

per

second,

this

unit

may

not

operate

normally.

If

the

video

and

audio

structure

of

recorded

file

is

not

interleaved,

returns

to

the

menu

screen.

If

the

file

is

recorded

with

GMC,

the

unit

supports

only

1-point

of

the

record

level.

*

GMC?

GMC

is

the

acronym

for

Global

Motion

Compensation.

It

is

an

encoding

tool

specified

in

MPEG4

standard.

Some

MPEG4

encoders,

like

DivX

or

Xvid,

have

this

option.

There

are

different

levels

of

GMC

encoding,

usually

called

1-point,

2-point,

or

3-point

GMC.

33

Playing

an

Playing

an

Audio

CD

or

Audio

CD

or

MP3/WMA

MP3/WMA

files

files

The

Recorder

can

play

Audio

CDs

and

MP3/WMA

files.

Before

playing

MP3/WMA

files,

read

[MP3/WMA

audio

file

requirement]

on

right.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[Music]

>

[DISC]

or

[MEMORY

CARD]

and

press

ENTER.

The

Audio

CD

or

Music

menu

appears

on

the

TV

screen.

Example)

Audio

CD

Menu

3.

Use

v/V

to

select

a

track

or

file

then

press

PLAY

(N).

Playback

starts.

You

can

use

variable

playback

functions.

Refer

to

pages

29-31.

4.

To

stop

playback

at

any

time,

press

STOP

(x).

Tips:

?Y

ou

can

view

TV

channel

or

video

input

source

by

pressing

RETURN

(O).

If

you

want

to

return

to

the

Music

menu,

press

DISC

MENU/LIST.

?

Press

DISPLAY

to

view

ID3-Tag

information

for

the

MP3

file.

If

ID3-Tag

information

is

not

present,

[MP3

ID3

tag

:None]

will

appear.

If

you

select

a

folder,

the

number

of

subfolders

and

number

of

MP3/WMA

files

in

the

folder

are

displayed.

Press

DISPLAY

again

to

remove

the

information

screen.

?

On

the

Music

menu,

you

can

display

the

folders

on

the

disc.

Use

vVbBto

select

the

"Folder"

icon

on

the

Music

menu

then

press

ENTER

twice.

?

On

CDs,

DVDs

or

Memory

Card

with

mixed

content

(Audio

tracks,

MP3/WMA

files,

DivX

files

or

JPEG

files),

you

can

select

among

the

Music

menu,

Movie

menu

and


menu

by

pressing

TITLE

repeatedly.

?

If

you

are

in

a

file

list

and

want

to

return

to

the

Folder

list,

use

the

v/V

to

highlight

and

press

ENTER

to

return

to

the

previous

menu

screen.

Audio

CD

and

Music

menu

options

1.

Press

v

/

V

to

select

a

track/file

or

folder

on

the

Audio

CD

or

Music

menu

then

press

ENTER.

2.

Use

v

/

V

to

select

an

option,

then

press

ENTER.

?

[Play]

Start

playback

the

selected

track

or

file.

?

[Open]

Opens

the

folder

and

a

list

of

files

in

the

folder

appears.

?

[Ramdom]

Start

or

stop

random

playback.

?

[Delete]

Deletes

the

file(s)

or

folder(s)

from

the

Memory

Card.

Random

1.

Press

v

/

V

to

select

a

file

then

press

ENTER.

The

menu

options

appear.

2.

Press

v

/

V

to

select

[Random]

option

then

press

ENTER.

The

unit

automatically

begins

random

playback

and

"RANDOM"

appears

on

the

menu

screen.

3.

To

return

to

normal

playback,

select

[Random]

option

again

then

press

ENTER.

Tip:

By

pressing

SKIP

./>

during

Random

play-

back,

the

unit

selects

another

track

and

resumes

Random

playback.

PLAYBACK

MP3/WMA

audio

file

requirement

File

extensions

".mp3",

".wma".

Sampling

frequency:

within

8

-

48

kHz

(MP3),

within

32

-

48kHz

(WMA)

Bit

rate:

within:

8

-

320kbps

(MP3),

32

-

192kbps

(WMA)

CD-R

Format:

ISO

9660

and

JOLIET.

DVD±R/RW

Format:

ISO

9660

(UDF

Bridge

format)

Maximum

Files/Disc:

Less

than

1999

(total

number

of

files

and

folders)

34

V

V

iewing

a

JPEG

files

iewing

a

JPEG

files

This

unit

can

play

JPEG

files.

Before

playing

JPEG

recordings,

read

"Photo

file

requirement"

on

page

35.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[Photo]

>

[DISC]

or

[MEMORY

CARD]

and

press

ENTER.

3.

UsevVbBtoselectafileorfolderandpress

ENTER.

2.

Use

v

/

V

to

select

option

and

press

ENTER.

Example:

When

you

select

a

file.

3.

Use

v

/

V

to

select

[Full

Screen]

then

press

ENTER.

The

selected


is

displayed

in

full

screen.

4.

To

stop

viewing

at

any

time,

press

STOP

(x).

Notes:

?

If

the

icon

displays

in

the


menu,

it

means

you

cannot

see

those

JPEG

files.

?Y

ou

can

view

TV

channel

or

video

input

source

by

pressing

RETURN

(O).

If

you

want

to

return

to

the


menu,

press

DISC

MENU/LIST.

?

If

you

are

in

a

file

list

and

want

to

return

to

the

Folder

list,

use

the

v/V

to

highlight

and

press

ENTER

to

return

to

the

previous

menu

screen.

?

On

CDs,

DVDs

or

Memory

Card

with

mixed

content

(Audio

tracks,

MP3/WMA

files,

DivX

files

or

JPEG

files),

you

can

select

among

the

Music

menu,

Movie

menu

and


menu

by

pressing

TITLE

repeatedly.


menu

options

1.

Use

vV

b

B

to

select

a

file

then

press

ENTER.

The

menu

options

appear.

2.

Use

v

/

V

to

select

an

option

then

press

ENTER

to

confirm

your

selection.

?

[Open]

Opens

the

folder

and

a

list

of

files

in

the

folder

appears.

?

[Full

Screen]

Shows

the

selected

file

as

full

screen.

?

[Slide

Show]

Displays

Slide

Show

menu.

?

[Delete]

Deletes

the

selected

file(s)

or

folder(s)

from

the

Memory

Card.

?

[Copy]

Copies

the

file(s)

or

folder

to

Memory

Card.

Tip:

You

can

create

new

folder

in

the

Memory

Card.

Select

[New

Album]

option

then

press

ENTER.

[NONAME##]

folder

is

created.

Still


Use

PAUSE/STEP

(X)

while

showing

a


to

pause

mode.

Skip

Images

While

viewing

a

picture,

press

SKIP

(>

or

.)

once

to

advance

to

the

next

file

or

return

to

the

previous

file.

Rotate

Images

Use

v

/

V

while

viewing

a


to

flip

the


clockwise

or

counterclockwise.

Press

ENTER

to

appear

or

disappear

this

menu.

35

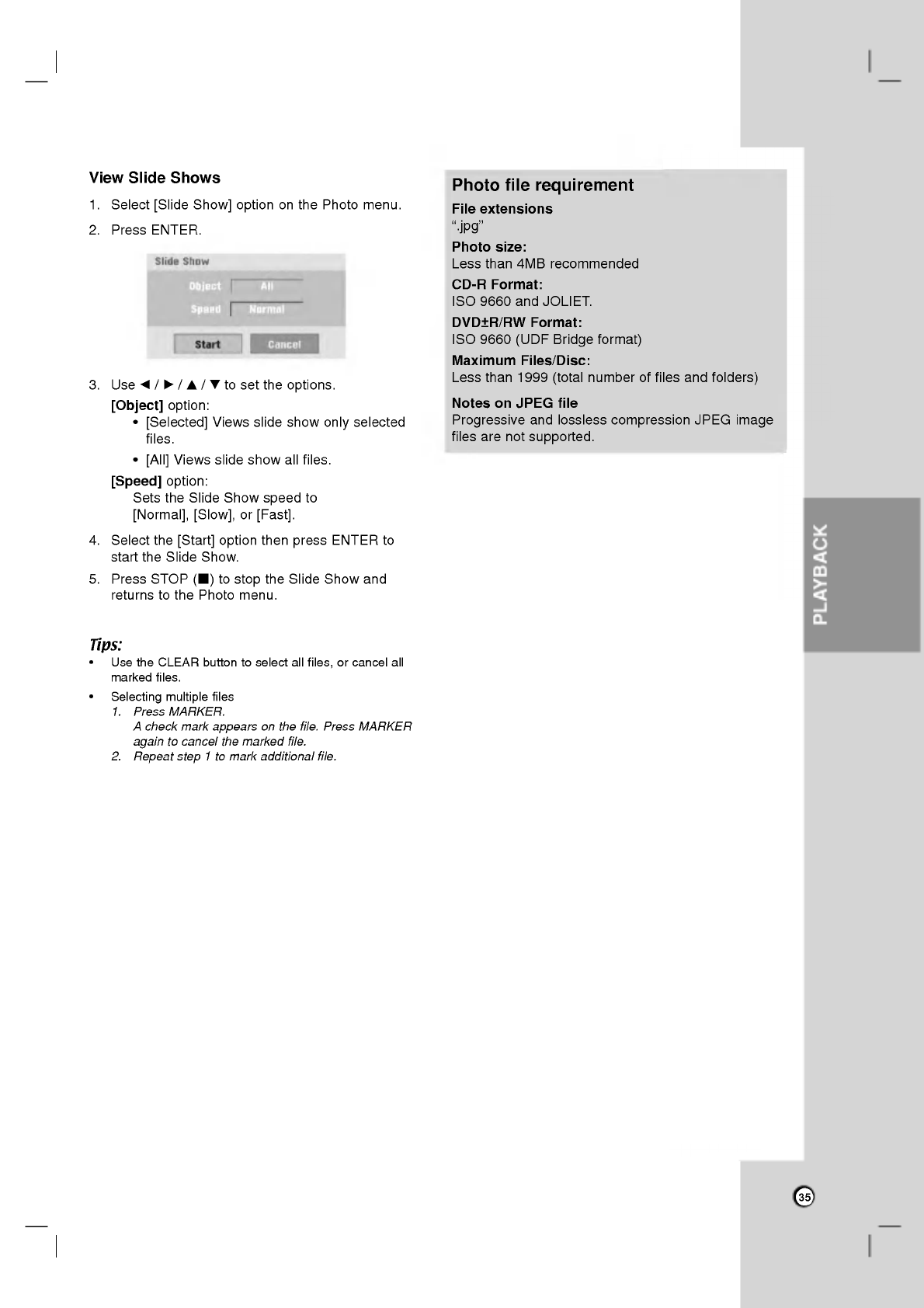

View

Slide

Shows

1.

Select

[Slide

Show]

option

on

the


menu.

2.

Press

ENTER.

3.

Useb/B/v/Vtosettheoptions.

[Object]

option:

?

[Selected]

Views

slide

show

only

selected

files.

?

[All]

Views

slide

show

all

files.

[Speed]

option:

Sets

the

Slide

Show

speed

to

[Normal],

[Slow],

or

[Fast].

4.

Select

the

[Start]

option

then

press

ENTER

to

start

the

Slide

Show.

5.

Press

STOP

(x)

to

stop

the

Slide

Show

and

returns

to

the


menu.

Tips:

?

Use

the

CLEAR

button

to

select

all

files,

or

cancel

all

marked

files.

?

Selecting

multiple

files

1.

Press

MARKER.

A

check

mark

appears

on

the

file.

Press

MARKER

again

to

cancel

the

marked

file.

2.

Repeat

step

1

to

mark

additional

file.

PLAYBACK


file

requirement

File

extensions

".jpg"


size:

Less

than

4MB

recommended

CD-R

Format:

ISO

9660

and

JOLIET.

DVD±R/RW

Format:

ISO

9660

(UDF

Bridge

format)

Maximum

Files/Disc:

Less

than

1999

(total

number

of

files

and

folders)

Notes

on

JPEG

file

Progressive

and

lossless

compression

JPEG


files

are

not

supported.

36

About

DVD

recording

About

DVD

recording

Notes:

?

This

Recorder

cannot

record

CD-R

or

CD-RW

discs.

?

Fingerprints

and

small

scratches

on

a

disc

can

affect

playback

and/or

recording

performance.

Please

take

proper

care

of

your

discs.

?

The

company

does

not

hold

any

responsibility

to

compensate

the

contents

which

should

have

been

recorded,

and

any

losses

or

damages

(e.g.

losses

of

business

profit,

or

business

intermis-

sion)

that

may

arise

from

malfunction

of this

recorder

(not

recording/editing

as

intended).

Disc

types

and

recording

formats,

modes,

and

settings

This recorder

can

play

many

different

kinds

of

DVD

discs:

pre-recorded

DVD-Video

discs,

DVD-RW,

DVD-R,

DVD+RW,

DVD+R(DL)

and

DVD-RAM

discs.

The

disc

format

for

DVD-R,

DVD+R(DL),

DVD+RW

discs

is

always

"Video

format"---the

same

as

pre-

recorded

DVD-Video

discs.

This

means

that

once

finalized,

you

can

play

a

DVD-R,

DVD+R

(DL),

or

DVD+RW

in

a

regular

DVD

player.

The

DVD-RAM

disc

format

is

Video

Recording

(VR)

format.

The

DVD-RW

disc

format

is

Video

Recording

(VR)

format

or

Video

format.

You

can

change

Recording

format,

if

required.

(Reinitializing

the

disc

will

erase

the

contents

of

the

disc.)

The

recording

mode

is

closely

related

to

the

disc

for-

mat.

If

the

disc

format

is

Video

Recording

format,

then

the

recording

mode

is

VR

mode;

if

the

disc

for-

mat

is

Video

format,

then

the

recording

mode

is

Video

mode

(except

for

DVD-Video,

which

is

not

recordable,

and

so

does

not

have

a

recording

mode).

These

can

be

changed

as

required

for

each

record-

ing

and

determine

the


quality

and

how

much

space

the

recording

will

take

up

on

the

disc.

Notes

for

recording

Notes

for

recording

?

The

recording

times

shown

are

not

exact

because

the

recorder

uses

variable

bit-rate

video

compression.

This

means

that

the

exact

record-

ing

time

will

depend

on

the

material

being

record-

ed.

?

When

recording

a

TV

broadcast,

if

the

reception

is

poor

or

the


contains

interference,

the

recording

times

may

be

shorter.

?

If

you

record

still

pictures

or

audio

only,

the

recording

time

may

be

longer.

?

The

displayed

times

for

recording

and

time

remaining

may

not

always

add

up

to

exactly

the

length

of

the

disc.

?

The

recording

time

available

may

decrease

if

you

heavily

edit

a

disc.

?

If

using

a

DVD-RW

disc,

make

sure

you

change

the

recording

format

(Video

mode

or

VR

mode)

before

you

record

anything

on

the

disc.

See

page

24

(Initialize)

for

how

to

do

this.

?

When

using

a

DVD-R

or

DVD+R

disc,

you

can

keep

recording

until

the

disc

is

full,

or

until

you

finalize

the

disc.

Before

you

start

a

recording

session,

check

the

amount

of

recording

time

left

on

the

disc.

?

When

using

a

DVD-RW

disc

in

Video

mode,

recording

time

available

will

only

increase

if

you

erase

the

last

title

recorded

on

the

disc.

?

The

Delete

Title

option

in

the

Title

List

(Original)

menu

only

hides

the

title,

it

does

not

actually

erase

the

title

from

the

disc

and

increase

the

recording

time

available

(except

for

the

last

recorded

title

on a

DVD-RW

disc

in

Video

mode).

?

Overwrite

recording

is

available

using

DVD+RW

discs.

?

When

using

a

DVD+R/RW,

the

recorder

will

exe-

cute

the

Menu-making

operation

to

update

the

new

title

and

editing

when

removing

the

disc

from

the

recorder.

Recording

37

Basic

Recording

from

a

TV

Basic

Recording

from

a

TV

Follow

the

instructions

below

to

record

a

TV

program.

Recording

starts

immediately

and

continues

until

the

disc

or

tape

is

full

or

you

stop

the

recording.

1.

Switch

on

the

Recorder,

select

the

device

(VCR

or

DVD)

for

Recording

and

load

a

recordable

disc

or

tape.

Also

make

sure

that

the

TV

input

is

set

to

this

recorder.

2.

Set

a

recording

mode

as

necessary

by

pressing

REC

MODE

repeatedly.

DVD:

XP,

SP,

LP,

EP.

VCR:

SP,

SLP.

3.

Select

the

TV

channel

to

record.

4.

Use

AUDIO

to

select

the

audio

channel

to

record.

The

table

below

shows

what

will

be

recorded

on

the

different

settings

for

different

types

of

broad-

cast.

The

last

column

(Monitor

Audio)

shows

what

you'll

hear

as

it

is

recording.

If

you

set

the

audio

channel

to

SAP,

but

there

is

no

SAP

channel

being

broadcast,

the

main

audio

(mono

or

stereo)

will

be

recorded.

5.

Press

z

REC

once

to

start

recording.

The

REC

indicator

lights

in

the

display

window.

6.

Press

STOP

(x)

to

stop

recording.

Notes:

?

The

maximum

numbers

of

DVD

titles

are

show

below;

-

DVD-R/RW,

DVD-RAM

:

99

-

DVD+R(DL)/RW

:

49

?

If

the

Recorder

is

powered

off

during

DVD

recording,

the

recording

will

not

be

saved.

Instant

T

Instant

T

imer

Recording

imer

Recording

Instant

Timer

Recording

allows

you

to

make

a

recording

easily

of

a

preset

length

without

using

the

program

timer.

1.

Follow

steps

1-4

as

shown

left

(Basic

Recording

from

a

TV).

2.

Press

z

REC

repeatedly

to

select

the

recording

time

length.

Recording

starts

after

the

first

press.

DVD:

Each

subsequent

press

increases

the

recording

time

by

10

minutes.

VCR:

Each

subsequent

press

increases

the

recording

time

by

30

minutes

(maximum

540

minutes).

Please

confirm

the

VHS

tape

has

enough

remaining

time

to

be

recorded

before

recording.

Checking

the

Recording

Time

Press

z

REC

or

DISPLAY

once

to

check

the

record-

ing

time.

The

recalled

setting

will

automatically

return

to

the

TV

screen

for

a

moment.

Also,

remaining

time

of

recording

is

shown

in

the

dis-

play

window.

To

Extend

the

Recording

Time

The

recording

time

can

be

extended

anytime

by

pressing

z

REC.

Each

subsequent

press

increases

the

recording

time

by

10

minutes

(DVD)

or

30

minutes

(VCR).

To

Pause

the

Recording

1.

Press

PAUSE/STEP

(X)

to

pause

the

recording.

2.

When

you

want

to

continue

recording,

press

PAUSE/STEP

(X)

or

z

REC.

Notes:

?

If

you

press

PAUSE/STEP

(X)

during

the

Instant

Timer

Recording,

it

will

be

canceled.

?

The

Recorder

will

automatically

power

off

when

the

Instant

Timer

Recording

ends.

?

If

the

unit

is

DVD

mode

when

the

VCR

Instant

timer

recording

ends,

the

unit

will

not

automatically

power

off.

TV

Broadcast

Selected

Broadcast

Audio

Monitor

Audio

LChR

Ch

Audio

MONO MONO MONO

MONO

MONO

STEREO STEREO

L

R

STEREO

Left

L L

Left

Right

RR

Right

MONO MONO

MONO

MONO

MONO+SAP

MONO MONO MONO MONO

SAP SAP SAP SAP

STEREO STEREO

L

R

STEREO

+SAP

SAP SAP

SAP

SAP

MONO MONO

MONO

MONO

38

T

T

imer

Recording

imer

Recording

The

Timer

Recording

function

allows

you

to

record

up

to

16

programs

within

a

period

of

one

month.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[TV]

>

[Timer

Record]

and

press

ENTER.

3.

Select

[NEW]

and

press

ENTER.

The

Timer

Record

menu

will

appear.

?

[Media]

--

Choose

a

media

(DVD

or

VCR).

?

[Ch.]

--

Choose

a

channel

(2-69

or

1-125

for

antenna

or

cable

channels

respectively,

excluding

skip

channels),

or

one

of

the

exter-

nal

inputs

from

which

to

record

(AV1

or

AV2).

?

[Date]

--

Choose

a

date

up

to

1

month

in

advance,

or

select

a

daily

or

weekly

program.

?

[Start

Time]

--

Set

the

recording

start

time.

?

[End

Time]

--

Set

the

recording

end

time.

?

[Mode]

--

Choose

a

record

mode.

DVD:

EP,

LP,

SP,

XP,

or

AT

(Auto)

VCR:

SP,

SLP,

or

AT

(Auto)

AT(Auto)

mode

determines

how

much

time

is

avail-

able

on

the

disc

or

tape

and

switches

record

mode,

if

necessary,

to

complete

recording

the

program.

2.

Enter

the

necessary

information

for

your

timer

recording(s).

?

b

/

B

(left/right)

--

Move

the

cursor

left/right

?

v

/

V

(up/down)

--

Change

the

setting

at

the

current

cursor

position

?

Press

RETURN

(O)

to

exit

the

Timer

Record

menu.

3.

Press

ENTER

to

save

the

program.

4.

Press

RETURN

(O)

to

exit

the

Timer

Record

List.

Notes:

?Y

ou

must

insert

a

recordable

disc

or

tape.

?

The

Timer

indicator

lights

on

the

front

panel

display.

?

The

Recorder

will

record

the

audio

according

to

the

current

TV

tuner

setting

(Stereo,

Mono

or

SAP).

Use

the

AUDIO

button

to

set

the

audio

before

switching

the

Recorder

to

Standby

mode.

?

The

Recorder

will

automatically

power

off

when

the

Timer

Recording

ends.

?

If

the

unit

is

DVD

mode

when

the

VCR

timer

recording

ends,

the

unit

will

not

automatically

power

off.

?

There

is

a

short

delay

when

a

timer

recording

fin-

ishes

to

confirm

the

recorded

program.

If

two

timer

recordings

are

set

to

record

sequentially

(one

right

after

the

other),

the

very

beginning

of

the

later

program

may

not

be

recorded.

?Y

ou

must

press

STOP

(x)

to

stop

the

Timer

Recording.

Checking

Timer

Recording

Details

Programming

can

be

checked

whenever

the

Recorder

is

turned

on.

1.

Press

HOME

and

the

Home

menu

appears.

2.

Select

[TV]

>

[Timer

Record]

and

press

ENTER.

3.

Use

v

/

V

to

select

a

program.

4.

Press

ENTER

to

edit

the

selected

program.

Timer

Record

menu

appears.

Canceling

a

Timer

Recording

You

can

clear

a

timer

setting

anytime

before

the

recording

actually

starts.

?

Use

v

/

V

to

select

a

program

you

want

to

erase

on

the

Timer

Recorder

List,

then

press

CLEAR

and

select

[OK]

than

press

ENTER.

39

Timer

Recording

Troubleshooting

Even

though

the timer

is

set,

the

recorder

will

not

record

when:

?

There

is

no

disc

(or

tape)

loaded.

?A

non-recordable

disc

(or

tape)

is

loaded.

?

Disc

Protect

is

set

to

[ON]

in

the

Disc

menu

(see

page

25).

?

There

are

already

99

titles

(DVD-RW,

DVD-R,

DVD-RAM),

49

titles

(DVD+RW,

DVD+R(DL))

recorded

on

the

disc.

You

cannot

enter

a

timer

program

when:

?A

recording

is

already

underway.

?

The

time

you're

trying

to

set

has

already

passed.

?

There

are

already

16

timer

programs

set.

If

two

or

more

timer

programs

overlap:

?

The

earlier

program

takes

priority.

?

When

the

earlier

program

finishes,

the

later

program

starts.

?

If

two

programs

are

set

to

start

at

exactly

the

same

time,

the

program

entered

first

takes

priority.

If

the

disc

is

damaged,

the

recording

may

not

complete

successfully.

In

this

case

even

though

the

Check

field

shows

[Rec.

OK],

it

may

not

be.

To

record

one

TV

program

while

watching

another

1.

Press

TV/VCR

to

select

the

TV

mode

during

recording.

The

TV

indicator

appears.

2.

Using

the

TV,

select

the

channel

to

be

viewed.

Tip

(VCR

mode

only)

Always

use

PAUSE/STEP

(X)

for

best

results

when

making

changes

during recording

.

For

example:

To

change

channels

during

recording,

first

press

PAUSE/STEP

(X)

to

put

the

unit

in

pause mode.

Then

select

the

desired

channel

on

the

Recorder,

and

press

PAUSE/STEP

(X)

again

to

resume

recording.

40

Dubbing

from

DVD

to

VCR

Dubbing

from

DVD

to

VCR

You

can

copy

the

contents

of

a

DVD

to

a

VHS

tape

using

the

DUBBING

button.

1.

Insert

a

blank

VHS

videotape

into

the

VCR

deck.

2.

Insert

the

disc

you

wish

to

copy

in

the

DVD

deck

and

close

the

disc

tray.

3.

Find

the

place

on

the

DVD

(or

Disc)

from

which

you

want

to

start

dubbing

using

the

PLAY,

FF,

REW

and

PAUSE

functions.

For

best

results,

pause

playback

at

the

point

from

which

you

want

to

record.

4.

Press

the

DUBBING

button.

The

Dubbing

menu

appears.

5.

Usev/V/b/BtoselectthedesiredRecord

Mode:

SP

or

SLP

(3

times

SP).

6.

Select

[Dubbing]

then

press

ENTER

or

DUBBING

to

start

copying.

7.

To

stop

dubbing

at

any

other

time,

press

STOP

(x).

You

must

stop

the

dubbing

process

manually

when

the

DVD

movie

ends,

or

the

unit

may

replay

and

record

over

and

over

again.

Note:

If

the

DVD

(or

Discs)

you

are

attempting

to

copy

is

copy

protected,

you

will

not

be

able

to

copy

the

disc.

It

is

not

permitted

to

copy

Macrovision

encoded

DVDs

(or

Discs).

[Copy-protected.

Cannot

record.]

is

displayed

on

the

TV

screen.

Tip:

If

you

press

PAUSE

during

Dubbing

mode,

both

the

DVD

and

VCR

decks

go

into

Pause

mode

and

the

DUBBING

button

blinks

on

the

front

panel.

While

in

Pause

mode,

you

can

adjust

the

DVD

playback

posi-

tion

using

PLAY,

REW,

FF,

PAUSE/STEP,

etc.

The

VCR

deck

will

remain

in

Pause

mode.

To

resume

Dubbing,

press

the

DUBBING

button

twice.

Dubbing

from

VCR

to

DVD

Dubbing

from

VCR

to

DVD

You

can

copy

the

contents

of

a

VHS

tape

to

a

DVD

using

the

DUBBING

button.

This

allows

you

to

archive

your

old

VHS

tapes

to

DVD.

1.

Insert

a

blank

DVD

disc

in

the

DVD

deck

and

close

the

disc

tray.

2.

Insert

the

VHS

video

tape

you

wish

to

copy

into

the

VCR

deck.

3.

Find

the

place

on

the

VHS

tape

from

which

you

want

to

start

dubbing

using

the

PLAY,

FF,

REW

and

PAUSE

functions.

For

best

results,

pause

playback

at

the

point

from

which

you

want

to

record.

4.

Press

the

DUBBING

button.

The

Dubbing

menu

appears.

5.

Usev/V/b/BtoselectthedesiredRecord

Mode:

EP,

LP,

SP

or

XP.

6.

Select

[Dubbing]

then

press

ENTER

or

DUBBING

to

start

copying.

7.

To

stop

dubbing

at

any

other

time,

press

STOP

(x).

Dubbing

will

stop

automatically

when

the

VHS

tape

ends.

Note:

If

the

VHS

video

tape

you

are

attempting

to

copy

is

copy

protected,

you

will

not

be

able

to

copy

the

tape.

It

is

not

permitted

to

copy

Macrovision

encoded

tapes.

Tip:

If

you

press

PAUSE

during

Dubbing

mode,

both

the

DVD

and

VCR

decks

go

into

Pause

mode

and

the

DUBBING

button

blinks

on

the

front

panel.

While

in

Pause

mode,

you

can

adjust

the

VCR

playback

posi-

tion

using

PLAY,

REW,

FF,

PAUSE/STEP,

etc.

The

DVD

deck

will

remain

in

Pause

mode.

To

resume

Dubbing,

press

the

DUBBING

button

twice.

41

Recording

from

External

Recording

from

External

Components

Components

You

can

record

from

an

external

component,

such

as

a

camcorder

or

VCR,

connected

to

any

of

the

Recorder's

external

inputs.

1.

Make

sure

that

the

component

you

want

to

record

from

is

connected

properly

to

the

Recorder.

See

page

18.

2.

Press

INPUT

repeatedly

to

select

the

external

input

to

record

from.

?A

V1:

Audio/Video

Input

mounted

on

back

panel.

?A

V2:

Audio/Video

Input

mounted

on

front

panel.

?D

V:

DV

Input

mounted

on

front

panel.

3.

Load

a

recordable

disc

or

tape.

4.

Set

a

recording

mode

as

necessary

by

pressing

REC

MODE

repeatedly.

DVD:

XP,

SP,

LP

or

EP.

VCR:

SP

or

SLP

5.

Press

z

REC

once

to

start

recording.

The

REC

indicator

lights

in

the

display

window.

6.

Press

STOP

(x)

to

stop

recording.

Notes:

?

Check

that

the

Audio

In

settings

DV

Record

Audio

are

as

you

want

them.

See

page

24.

?

If

your

source

is

copy-protected

using

CopyGuard,

you

will

not

be

able

to

record

it

using

this

recorder.

See

Copyright

on

page

9

for

more

details.

?

Recording

continues

until

you

press

STOP

(x)

or

the

disc

is

full.

?

To

record

for

a

fixed

length

of

time,

see

[Instant

Timer

Recording]

on

page

37.

Additional

Information

Additional

Information

Simultaneous

Play

and

Record

You

can

play

a

DVD

during

the

VCR

playback

or

recording,

press

DVD

to

change

DVD

mode

and

perform

the

DVD

playback.

Notes:

?

You

cannot

play

or

record both

DVD

and

VCR

at

the

same

time.

?

You

can

not

change

VCR

mode

during

the

DVD

recording

mode.

?

If

you

wish

VCR

playback

or

record

during

the

DVD

playback,

press

VCR

to

change

VCR

mode

and

perform

the

VCR

playback

or

recording.

Playing

while

you

are

recording

You

can

start

play

from

the

beginning

of

the

title

while

continuing

to

record

it.

While

recording

(in

DVD

mode)

1.

Press

PLAY

(N).

Start

play

of

the

title

you

are

recording.

2.

Press

STOP

(x)

to

return

to

the

current

recording

screen.

or

1.

Press

TIMESHIFT.

The

PIP(Picture-In-Picture)

window

appears

on

the

screen

as

shown

below.

What

is

currently

being

recorded

appears

as a

PIP

and

you

will

hear

the

playback

audio.

2.

Press

STOP

(x)

to

return

to

the

current

recording

screen.

Notes:

?

Play

cannot

be

started

until

at

least

30

seconds

after

recording

starts.

?

This

function

does

not

work

in

VCR

Recording

mode.

?

This

function

can

operate

the

DVD-RAM

disc

only.

RAM

RECORDING

42

Recording

from

DV

Input

Recording

from

DV

Input

Before

DV

dubbing

You

can

connect

a

DV-equipped

camcorder

to

this

recorder

using

a

single

DV

cable

for

input

and

output

of

audio,

video,

data

and

control

signals.

This recorder

is

only

compatible

with

DV-format

(DVC-SD,

DV25)

camcorders.

Digital

satellite

tuners

and

Digital

VHS

video

recorders

are

not

compatible.

You

cannot

connect

more

than

one

DV

camcorder

at

a

time

to

this

recorder.

You

cannot

control

this

recorder

from

external

equipment

connected

via

the

DV

IN

jack

(including

two

recorders).

It

may

not

always

be

possible

to

control

the

con-

nected

camcorder

via

the

DV

IN

jack.

Digital

camcorders

can

usually

record

audio

as

stereo

16-bit/48kHz,

or

twin

stereo

tracks

of

12-

bit/32kHz.

This

recorder

can

only

record

one

stereo

audio

track.

Set

[DV

Record

Audio]

option

to

Audio

1

or

Audio

2

as

required

(see

page

24).

Audio

input

to

the

DV

IN

jack

should

be

32

or

48kHz

(not

44.1kHz).


disturbance

on

the

recording

may

occur

if

the

source

component

pauses

playback

or

plays

an

unrecorded

section

of

tape,

or

if

the

power

fails

in

the

source

component,

or

the

DV

cable

becomes

disconnected.

Recording

from

a

Digital

Camcorder

You

can

record

from

a

digital

camcorder

connected

to

the

DV

IN

jack

on

the

front

panel

of

this

recorder.

Using

the

recorder's

remote,

you

can

control

both

the

camcorder

and

this

recorder.

Before

recording,

make

sure

that

the

audio

input

for

the

DV

IN

jack

is

set

up

(see

page

24).

Tips:

?

The

source

signal

must

be

DVC-SD

format.

?

Some

camcorders

cannot

be

controlled

using

this

recorder's

remote.

?

If

you

connect

a

second

recorder

using

a

DV

cable,

you

cannot

control

the

second

DVD

from

this

one.

?

You

cannot

control

this

unit

remotely

from

a

com-

ponent

connected

to

the

DV

IN

jack.

?

You

cannot

record

date

and

time

information

from

a

DV

cassette.

1.

Make

sure

your

digital

camcorder

is

connected

to

the

front

panel

DV

IN

jack.

See

page

18.

2.

Check

that

the

DV

audio

input

is

as

you

require.

You

can

choose

between

Audio

1

(original

audio)

and

Audio

2

(overdubbed

audio).

DV

Input

is

set

from

the

DV

Record

Audio

in

sub-menu

of

the

Setup

menu.

See

[DV

Record

Audio]

on

page

24

for

more

information.

3.

Press

INPUT

repeatedly

to

select

the

DV

input.

4.

Find

the

place

on

the

camcorder

tape

that

you

want

to

the

recording

to

start

from.

For

best

results,

pause

playback

at

the

point

from

which

you

want

to

record.

Depending

on

your

camcorder,

you

can

use

this

recorder's

remote

to

control

the

camcorder

using

the

STOP,

PLAY,

BACKWARD,

FOR-

WARD

and

PAUSE

functions.

5.

Press

z

REC

once

to

start

recording.

Recording

is

automatically

stopped

if

the

recorder

detects

no

signal.

You

can

pause

or

stop

the

recording

by

press-

ing

PAUSE/STEP

(X)

or

STOP

(x).

You

cannot

control

the

camcorder

from

this

Remote

Control

during

recording.

In

Video

mode,

the

final

frame

of

the

recording

may

remain

displayed

on

screen

for

a

while

after

recording

stops.

Troubleshooting

If

you

cannot

get

a


and/or

audio

through

the

DV

IN

jack,

check

the

bullet

points:

Make

sure

the

DV

cable

is

properly

connected.

Try

switching

off

the

connected

equipment

then

switch

back

on.

Try

switching

the

audio

input.

Note:

Depending

on

the

connected

camcorder,

you

may

not

be

able

to

control

it

using

the

Remote

Control

supplied

with

this

recorder.

43

T

T

itle

List

and

Chapter

List

itle

List

and

Chapter

List

Menu

Overview

Menu

Overview

Using

the

Title

List

menu

you

can

edit

video

content.

The

editing

features

available

in

the

Title

List

menu

depend

on

whether

you

are

editing

video

on

DVD,

and

whether

you're

editing

Original

content,

or

a

Playlist.

There

are

two

ways

to

edit

VR

mode

DVD-RW

discs.

You

can

directly

edit

the

Original

content

of

the

disc,

or

you

can

create

and

edit

a

Playlist.

The

Playlist

doesn't

actually

change

any

of

the

content

on

the

disc,

but

just

controls

how

the

content

is

played

back.

1.

Press

DISC

MENU/LIST

to

display

the

TITLE

LIST

menu.

Playback

should

be

stopped

when

you

do

this.

When

selecting

titles,

use

the

v

/

V

buttons

to

display

the

previous/next

page

if

there

are

more

than

six

titles.

If

you

are

editing

a

VR

mode

disc,

press

DISC

MENU/LIST

to

switch

between

Original

and

Playlist

menu.

On

the

left

side

of

the

screen

are

the

menu

options.

The

main

part

of

the

screen

shows

thumbnails

of

the

titles

(or

chapter)

on

the

DVD.

You

can

change

these thumbnails

using

the

THUMBNAIL

button.

(see

[Changing

Title

Thumbnails]

on

page

44.)

Press

DISPLAY

to

display

the

information

of

selected

title

on

the

Title

List

menu.

After

selecting

a

title

or

chapter

on

the

Title

List

or

Chapter

List

menu,

then

press

ENTER.

The

menu

options

on

the

left

side

of

the

menu.

Use

v

/

V

to

select

a

option

then

press

ENTER

to

confirm

your

selection.

2.

To

exit

the

TITLE

LIST

menu,

press

RETURN

(O)

repeatedly.

1.

Menu

options:

To

display

menu

option,

select

a

title

or

chapter

then

press

ENTER.

The

options

displayed

differ

depending

on

the

disc

type.

?

[Play]

Start

playback

of

the

selected

title

or

chapter.

The

hidden

titles

and

chapters

on

the

DVD+R/RW

cannot

be

play

back.

?

[Search]

-

[Chapter]

Displays

Chapter

List

of

the

Title.

-

[Time]

Search

time

for

you

want

start

point

of

the

title

.

?

[Delete]

Deletes

the

title

or

chapter.

(page

46)

?

[Move]

Moves

chapter

position

on

[Chapter

List

-

Playlist]

menu

(page

48).

?

[Protect]

Protects

accidental

recording,

editing

or

deleting

of

the

title.(page

48)

?

[Edit]

Edits

or

Deletes

a

part

of

the

title.

-

[Title

Name]

Edits

the

title

name.

(page

47).

-

[Delete

Part]

Deletes

a

part

of

the

Title

(page

46).

-

[Divide]

Divides

a

title

into

two

(page

49).

-

[Hide

(Show)]

Hides

(or

Shows)

the

selected

title

or

chapter.

(page

48)

?

[Playlist

Add]

Adds

the

title

or

chapter

to

the

Playlist.

(page

45)

?

[Dubbing]

Dubs

the

title

to

VCR.

?[T

itle]

Displays

Title

List

of

the

chapter.

?

[Combine]

Combines

two

chapters

into

one

(page

49).

?

[Full

Play]

Starts

playback

of

the

selected

title

includ-

ing

the

hidden

chapters.

2.

Current

media.

3.

Indicates

the

record

mode,

free

space,

and

elapsed

time

progress

bar.

4.

Currently

selected

title.

5.

Thumbnail.

6.

Shows

the

selected

title

number

and

total

number

of

titles.

7.

Shows

the

title

name,

recorded

date,

and

record-

ing

length.

Editing

123

45

67

EDITTING

44

VR

Mode:

Original

and

VR

Mode:

Original

and

Playlist

Editing

Playlist

Editing

Titles,

Chapters

and

Parts

Titles

in

the

disc's

original

content

contain

one

or

more

chapters.

When

you

insert

a

disc's

title

into

the

Playlist,

all

the

chapters

within

that

title

also

appear.

In

other

words,

chapters

in

the

Playlist

behave

exact-

ly

as

chapters

on

a

DVD-Video

disc

do.

Parts

are

sections

of

Original

or

Playlist

titles.

From

the

Original

and

Playlist

menu

you

can

add

or

delete

parts.

Adding

a

chapter

or

title

to

the

Playlist

creates

a

new

title

made

up

of

a

section

(ie.,

chapter)

of

an

Original

title.

Deleting

a

part

removes

part

of

a

title

from

the

Original

or

Playlist

menu.

Notes:

?

When

editing

using

the

Delete,

Add

and

Move

functions,

the

start

and end

frames

may

not

be

exactly

as

set

in

the

start

and end

point

display.

?

During

Playlist

playback,

you

may

notice

a

momentary

pause

between

edits.

This

is

not

a

malfunction.

Is

editing

a

DVD

like

editing

a

video

tape?

No.

When

you

edit

a

video

tape

you

need

one

video

deck

to

play

the

original

tape

and

another

to

record

the

edits.

With

DVD,

you

edit

by

making

a

'Playlist'

of

what

to

play

and

when

to

play

it.

On

playback,

the

Recorder

plays

the

disc

according

to

the

Playlist.

About

word

'Original'

and

'Playlist'

Throughout

this

manual,

you

will

often

see

the

words

Original

and

Playlist

to

refer

to

the

actual

content

and

the

edited

version.

Original:

content

refers

to

what's

actually

recorded

on

the

disc.

Playlist:

content

refers

to

the

edited

version

of

the

disc

---

how

the

Original

content

is

to

be

played.

Adding

Chapter

Markers

Adding

Chapter

Markers

You

can

create

chapters

within

a

title

by

inserting

chapter

marks

at

the

desired

points.

Note:

Chapter

markers

are

inserted

at

regular

intervals

automatically.

You

can

change

this

interval

from

the

Initial

Setup

menu

(see

[Auto

Chapter]

on

page

24).

During

recording

or

playing

back,

at

the

point

you

want

to

start

a

new

chapter,

press

CHP.

ADD.

A

chapter

marker

icon

appears

on

the

TV

screen.

Changing

T

Changing

T

itle

Thumbnails

itle

Thumbnails

Each

title

displayed

in

the

Title

List

menu

is

repre-

sented

by

a

thumbnail


taken

from

the

start

of

that

title

or

chapter.

If

you

prefer,

select

a

different

still


from

within

a

title.

Press

THUMBNAIL

to

make

the

currently

displayed


the

one

that

appears

in

the

Title

List

menu.

The

still


that

you

choose

appears

in

both

the

Original

or

Playlist

menu.

Tip:

You

can

also

change

the

thumbnail


of

the

title

on

the

Chapter

List

menu.

Select

a

chapter

on

the

Chapter

List

menu

then

press

THUMBNAIL.

The

thumbnail


of

the

title

that

includes

the

chapter

is

changed.

RAM

+R

+RW

-RW

VR

RAM

+R

+RW

-RW

VR

RAM

-RW

VR

45

Making

a

New

Playlist

Making

a

New

Playlist

Use

this

function

to

add

an

Original

title

or

chapter

to

the

Playlist.

When

you

do

this,

the

whole

title

is

put

into

the

Playlist

(you

can

delete

bits

you

don't

need

later

-

see

[Deleting

an

Original

or

Playlist

Title/Chapter]

on

page

46).

The

title

appears

in

the

Playlist

complete

with

the

chapter

markers

that

appear

in

the

Original.

However,

if

you

add

more

chapter

markers

to

the

Original

later,

these

are

not

automatically

copied

over

into

the

Playlist

title.

1.

Choose

a

title

or

chapter

on

the

[TITLE

LIST-

Original]

menu

or

[Chapter

List-Original]

menu

to

put

into

the

Playlist,

then

press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

menu.

2.

Use

v

/

V

to

select

[Playlist

Add]

option

then

press

B.

3.

Select

[New

Playlist]

then

press

ENTER.

The

new

title

appears

in

the

updated

Playlist.

All

chapters

of

the

title

are

added

to

the

Playlist.

Adding

Adding

Additional

T

Additional

T

itle

/

itle

/

Chapters

to

the

Playlist

Chapters

to

the

Playlist

You

can

add

an

Original

title

or

chapter

to

add

to

a

Playlist

title

even

if it

is

already

registered.

1.

Choose

a

title

or

chapter

on

the

[TITLE

LIST-

Original]

menu

or

[Chapter

List-Original]

menu

to

put

into

the

Playlist,

then

press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

screen.

2.

Use

v

/

V

to

select

[Playlist

Add]

from

menu

options

then

press

B.

3.

Choose

a

Title

List-Playlist

that

is

already

regis-

tered

to

insert

a

title

or

chapter,

then

press

ENTER.

4.

Repeat

steps

1-3

to

add

additional

title

or

chapter

on

the

Playlist.

You

can

view

the

added

chapters

on

the

[Chapter

List-Playlist]

menu.

5.

Press

RETURN

(O)

to

exit,

or

DISC

MENU/LIST

to

go

back

to

the

[Title

List-Original]

menu.

RAM

-RW

VR

RAM

-RW

VR

EDITTING

46

Deleting

an

Original

or

Deleting

an

Original

or

Playlist

T

Playlist

T

itle/Chapter

itle/Chapter

When

you

erase

a

title

or

chapter

from

the

Playlist

menu,

you

only

remove

it

from

the

Playlist;

the

title/chapter

remains

in

the

Original

menu.

If

you

choose

to

delete

a

title

or

chapter

from

the

Original

(title/chapter)

menu,

the

title

or

chapter

is

actually

deleted

from

the

disc

and

the

remaining

time

available

for

recording

increases.

Titles/chapters

deleted

from

the

Original

are

also

removed

from

the

Playlist.

Note:

It

may

not

be

possible

to

delete

chapters

that

are

less

than

3

seconds

long.

1.

Useb/B/v/Vtochooseachapterortitleyou

want

to

delete

on

the

[TITLE

LIST]

or

[Chapter

List]

menu

then

press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

screen.

2.

Select

[Delete]

option

from

the

options

on

the

menu.

Example:

Title

List

(DVD-VR)

3.

Press

ENTER

to

confirm.

The

confirm

message

for

deleting

will

appear.

4.

Use

b

/

B

to

select

[OK]

then

press

ENTER.

The

selected

chapter

or

title is

deleted.

After

pressing

ENTER,

the

new,

updated

menu

is

displayed.

5.

Repeat

steps

1

-

4

to

continue

to

delete

from

the

menu.

6.

Press

RETURN

(O)

repeatedly

to

exit

the

menu.

Notes:

?

When

DVD+RW

recording,

the

deleted

title's

name

is

changed

to

[Deleted

Title].

?

If

more

than

two

titles

are

repeatedly

deleted,

the

titles

are

combined

into

one.

?

When

you

are

deleting

a

title

or

chapter,

only

the

last

one

on

DVD+R/RW

increases

remaining

recording

time.

Deleting

a

Part

Deleting

a

Part

You

can

delete

a

part

which

you

do

not

want

in

the

title.

1.

Useb/B/v/Vtochooseatitleyouwantto

delete

on

the

Title

List

menu

then

press

ENTER.

The

options

appears

on

the

left

side

of

the

menu.

2.

Select

[Edit]

>

[Delete

Part]

option

then

press

ENTER.

[Edit]

menu

appears

on

the

TV

screen.

Example:

Edit

(Delete

Part)

(DVD-VR)

3.

Starts

playback

and

use

pause

step,

search

and

slow-motion

to

find

the

starting

point.

4.

Press

ENTER

at

the

starting

point

of

the

section

you

want

to

delete.

[End

Point]

icon

is

highlighted.

The

part

is

indicated

on

the

Progress

Bar.

5.

Use

pause

step,

search

and

slow-motion

to

find

the

ending

point.

6.

Press

ENTER

at

the

ending

point

of

the

section

you

want

to

delete.

You

can

cancel

the

selected

point,

use

v

/

V

to

select

[Cancel]

icon

then

press

ENTER.

7.

If

you

finish

to

edit,

select

[Done]

icon

then

press

ENTER.

The

confirm

message

for

deleting

will

appear.

Use

b

/

B

to

select

[OK]

then

press

ENTER.

The

selected

part

is

deleted

from

the

title

and

Title

List

menu

appears.

Notes:

?

It

may

not

be

possible

to

delete

parts

that

are

less

than

3

seconds

long.

?

If

you

select

[Cancel]

then

press

ENTER,

the

Recorder

will

go

to

previous

option

and

into

Pause

mode.

RAM

-RWVR

47

Naming

a

T

Naming

a

T

itle

itle

You

can

name

Original

and

Playlist

titles

independ-

ently.

1.

Choose

the

title

you

want

to

name

on

the

Title

List

menu,

then

press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

menu.

2.

Use

v/V

to

select

[Edit]

>

[Title

Name]

option

then

press

ENTER.

Keyboard

menu

appears.

3.

Enteranameforthetitle.Useb/B/v/Vto

select

a

character

then

press

ENTER

to

confirm

your

selection.

?

Language

:

Selects

a

keyboard

type.

?

Space:

Inserts

a

space

at

the

cursor

position.

?

Delete:

Deletes

the

character

to

the

left

of

the

cursor

position.

?

b

/

B:

Moves

the

cursor

left

or

right.

?

OK:

Confirms

the

name

you

have

entered.

?

Cancel:

Deletes

all

characters

and

exits

the

Keyboard

menu.

Remote

control

buttons

for

entering

a

name

?

PLAY(

N

):

Inserts

a

space

at

the

cursor

posi-

tion.

?

PAUSE/STEP

(X):

Deletes

the

character

to

the

right

of

the

cursor

position.

?

SKIP

(.

/

>):

Moves

the

cursor

left

or

right.

?

STOP

(x),

CLEAR:

Deletes

the

character

to

the

left

of

the

cursor

position.

?

0-9:

Enters

the

character

corresponding

to

the

selected

column.

?

DISC

MENU/LIST,

DISPLAY:

Switches

the

keyboard

type.

4.

Choose

[OK]

then

press

ENTER

to

fix

the

name

and

return

to

the

previous

menu

screen.

5.

Press

RETURN

(O)

repeatedly

to

exit

the

menu.

Notes:

?

Names

can

be

up

to

32

characters

long.

?

For

discs

formatted

on

a

different

recorder,

you

will

see

only

a

limited

character

set.

?

When

recording

on

DVD-R,

DVD+R

or

DVD+RW

discs,

the

entered

name

is

displayed

on

the

DVD

player

only

after

finalization.

T

T

ime

Search

ime

Search

You

can

select

start

point

of

the

title.

1.

Useb/B/v/VtochooseatitleontheTITLE

LIST

menu

then

press

ENTER.

The

options

appears

on

the

left

side

of

the

menu.

2.

Select

[Search]

>

[Time]

option

then

press

ENTER.

[Time]

menu

appears

on

the

TV

screen.

3.

Use

b

/

B

to

find

the

point

you

want

to

start.

The

point

increase

1

minute

step.

If

you

press

and

hold

b

/

B

then

the

point

increase

5

minute

step.

4.

Press

ENTER

to

start

seleted

point.

Current


Seleted

time

Start

time

Selected

point

End

time

EDITTING

48

Moving

a

Playlist

Chapter

Moving

a

Playlist

Chapter

Use

this

function

to

re-arrange

the

playing

order

of

Playlist

chapters

on

the

Chapter

List-Playlist

menu.

Note:

This

function

is

not

available

if

there

is

only

one

chapter.

1.

Select

a

chapter

on

the

Chapter

List-Playlist

menu.

2.

Press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

menu.

3.

Use

v

/

V

to

select

[Move]

option

from

Playlist

options

then

press

ENTER.

4.

Useb/B/v/Vtochoosetheplaceyouwantto

move

the

chapter

then

press

ENTER.

After

pressing

ENTER,

the

updated

menu

is

displayed.

Hide

a

Chapter/T

Hide

a

Chapter/T

itle

itle

You

can

skip

playing

chapters

or

titles

without

delet-

ing

from

the

disc.

1.

Use

vVbBto

choose

a

chapter

or

title

you

want

to

hide

on

the

[TITLE

LIST]

or

[Chapter

List]

menu,

then

press

ENTER.

Options

appear

on

the

left

side

of

the

screen.

2.

Select

[Edit]

>

[Hide]

option.

Example:

Title

List

(DVD+RW)

3.

Press

ENTER

to

confirm.

The

chapter's

or

title's

thumbnail

will

dim.

Tip:

If

you

select

a

hidden

chapter

or

title

on

the

TITLE

LIST

or

Chapter

List

menu,

you

can

'show'

it

by

choosing

[Show]

option

on

the

menu.

After

doing

that,

you

are

able

to

see

the

chapter

or

title.

Protect

a

T

Protect

a

T

itle

itle

Use

this

function

to

protect

against

accidental

record-

ing,

editing

or

deleting

of

the

title.

1.

Press

DISC

MENU/LIST

to

display

the

[TITLE

LIST]

menu.

2.

Use

vVbBto

choose

a

title

you

want

to

protect

then

press

ENTER.

Options

appear

on

the

left

side

of

the

screen.

3.

Select

[Protect]

from

the

options.

Example:

Title

List

(DVD+RW)

4.

Press

ENTER

to

confirm.

The

lock

mark

will

appears

on

the

title's

thumbnail.

Tip:

If

you

select

a

title

that

has

already

been

protected

on

the

Title

List

menu,

you

can

'unprotect'

it

by

choosing

[Unprotect]

option

from

the

Title

List

menu

options.

After

doing

that,

you

can

edit

and

delete the

title.

RAM

-RW

VR

+R

+RW

+R

+RW

-RW

VR

49

Divide

One

T

Divide

One

T

itle

Into

T

itle

Into

T

wo

wo

Use

this

command

to

split

a

title

up

into

two

new

titles.

1.

On

the

Title

List

menu,

select

a

title

you

want

to

divide

then

press

ENTER.

The

menu

options

appears

on

the

left

side

of

the

screen.

2.

Select

[Edit]

>

[Divide]

option.

Example:

Title

List

(DVD+RW)

3.

Press

ENTER.

[Edit

(Divide)]

menu

appears.

4.

Use

play,

pause

step,

search

and

slow-motion

to

find

the

point

you

want

to

divide

the

title.

5.

Select

[Divide]

option

then

press

ENTER

at

the

point.

To

reset

the

point,

select

[Cancel]

option

then

press

ENTER.

Repeat

from

step

3.

6.

Choose

[Done]

option

then

press

ENTER

to

fix

the

dividing

point.

The

title is

divided

into

two

new

titles.

It

take

up

to

4

minutes

to

divide.

Note:

You

cannot

select

dividing

point

less

than

3

seconds.

Combining

T

Combining

T

wo

Chapters

wo

Chapters

Into

One

Into

One

Use

this

function

to

combine

two

adjacent

chapters

into

one.

1.

On

the

Chapter

List

menu,

select

the

second

chapter

of

the

two

chapters

you

want

to

combine

then

press

ENTER

The

menu

options

appears

on

the

left

side

of

the

screen.

2.

Use

v

/

V

to

select

[Combine]

option.

The

combine

indicator

appears

between

the

two

chapters

you

want

to

combine.

Example:

Title

List

(DVD+RW)

3.

Repeat

steps

1

-

2

to

continue

to

combine

from

the

menu.

4.

Press

RETURN

(

O)

repeatedly

to

exit

the

menu.

Notes:

This

function

cannot

operate

listed

as

below;

?

If

there

is

only

one

chapter

within

the

title.

?

If

you

select

first

chapter.

?

If

two

chapters

created

by

erasing

a

part

from

an

original

title.

?

If

two

chapters

created

from

different

titles.

?

If

two

chapters

created

by

moving

an

order

from

an

original

title.

RAM

+R

+RW

-RW

VR

+RW

The

first

title's

thumbnail

Current


The

second

title's

thumbnail

EDITTING

50

Overwriting

Recording

Overwriting

Recording

To

overwrite

a

new

video

recording

on

a

previously

recorded

title,

follow

these

steps.

This

feature

is

not

available

for

DVD+Rs,

that

always

record

at

the

end

of

the

Disc.

1.

Select

input

source

you

want

to

record

(TV

channel,

AV1-2,

DV).

2.

Press

DISC

MENU/LIST

to

display

the

TITLE

LIST

menu.

3.

Use

vVbBto

choose

a

title

you

want

to

overwrite.

4.

Press

z

REC

to

start

overwrite

recording.

Overwrite

recording

starts

from

the

start

point

of

the

title.

5.

Press

STOP

(x)

to

stop

the

overwrite

recording.

The

new

title

is

created

and

updated

menu

is

dis-

played.

Notes:

?

This

function

is

not

available

for

a

protected

title.

?

If

the

overwrite

is

longer

than

the

recording

length

of

the

current

title,

the

next

title

is

over-

written.

But

if

next

title

is

protected,

the

over-

writing

stops

at

the

starting

point

of

the

title.

?

If

the

selected

title's

recording

length

is

less

than

10

seconds,

the

next

title is

overwritten.

But

if

the

next

title

is

protected,

overwriting

stops.

V

V

iewing

T

iewing

T

itle

List

menu

itle

List

menu

displayed

on

other

DVD

displayed

on

other

DVD

Recorders

or

Players

Recorders

or

Players

You

can

view

the

Title

List

menu

displayed

on

the

other

DVD

player

that

is

capable

of

playing

DVD+RW

or

DVD+R

discs.

1.

Insert

DVD+R

or

DVD+RW

disc

recorded

already.

2.

Press

TITLE

in

Play

mode

or

DVD

tuner

mode.

Title

List

menu

will

appear

as

shown

below.

3.

To

play

back

a

title,

select

the

title

you

want

then

press

ENTER

or

PLAY

(N).

Tip:

You

can

remove

the

Title

List

menu

by

pressing

STOP

(x).

Playing

Playing

Y

Y

our

Recordings

on

our

Recordings

on

Other

DVD

Players

Other

DVD

Players

(Finalizing

a

Disc)

(Finalizing

a

Disc)

Most

regular

DVD

players

can

play

finalized

discs

recorded

in

Video

mode,

finalized

DVD+R

or

DVD+RWs.

A

small

number

of

players

can

also

play

DVD-RW

discs

recorded

in

VR

mode,

finalized

or

not.

Check

the

manual

that

came

with

the

other

player

to

check

what

formats

of

discs

it

will

play.

Finalizing

'fixes'

the

recordings

and

editings

in

place

so

that

the

disc

can

be

played

on

a

regular

DVD

play-

er or

computer

equipped

with

a

suitable

DVD-ROM

drive.

Finalizing

a

Video

mode

disc

creates

a

menu

screen

for

navigating

the

disc.

The

menu

can

be

accessed

by

pressing

DISC

MENU/LIST

or

TITLE.

To

finalize

a

disc,

refer

to

[Finalize]

on

page

25.

Notes:

?

Unfinalized

DVD+RW

is

playable

on

regular

DVD

players.

?

The

edited

contents

of

a

DVD+RW

(DL)

disc

is

compatible

on

regular

DVD

players

only

after

finalization.

?

Any

edited

contents

of

the

DVD+R

disc

are

not

compatible

on

regular

DVD

players.

(Hide,

chapter

combine,

added

chapter

mark,

etc.)

?

How

long

finalization

takes

depends

on

the

type

of

disc,

how

much

is

recorded

on

the

disc,

and

the

number

of

titles

on

the

disc.

?

DVD+R

DL

disc

can

take

up

to

30

minutes

to

finalize.

+R

+RW

+RW

51

Controlling

Controlling

Y

Y

our

TV

with

the

our

TV

with

the

Supplied

Universal

Remote

Supplied

Universal

Remote

Control

Control

You

can

control

the

sound

level,

input

source,

and

power

switch

of

your

LG

TV

with

the

supplied

Universal

Remote

Control.

You

can

control

your

TV

using

the

buttons

below.

By

pressing

You

can

POWER

Turn

the

TV

on

or

off.

INPUT

Switch

the

TV's

input

source

between

the

TV

and

other

input

sources.

CH

+/--

Scans

up

or

down

through

memorized

channels.

VOL

+/--

Adjust

the

volume

of

the

TV.

Note:

Depending

on

the

unit

being

connected,

you

may

not

be

able

to

control

your

TV

using

some

of

the

buttons.

Controlling

other

TVs

with

the

Universal

Remote

Control

You

can

control

the

sound

level,

input

source,

and

power

switch

of

non-LG

TVs

as

well.

If

your

TV

is

list-

ed

in

the

table

below,

set

the

appropriate

manufactur-

er

code.

1.

While

holding

down

TV

POWER

button,

press

the

number

buttons

to

select

the

manufacturer

code

for

your

TV

(Refer

to

table

on

the

right

column).

2.

Release

TV

POWER

button.

Code

numbers

of

controllable

TVs

If

more

than

one

code

number

is

listed,

try

entering

them

one

at

a

time

until

you

find

the

one

that

works

with

your

TV.

Notes:

?

Depending

on

your

TV,

some

or

all

buttons

may

not

function

on

the

TV,

even

after

entering

the

correct

manufacturer code.

?

If

you

enter

a

new

code

number,

the

code

number

previ-

ously

entered

will

be

erased.

?

When

you

replace

the

batteries

of

the

remote,

the

code

number

you

have

set

may

be

reset

to

the

default

set-

ting.

Set

the

appropriate

code

number

again.

Manufacturer

Code

Number

ADMIRAL

16,33,37,44,45

AIWA

70

AKAI

01

AMARK

09

AOC

01

BELL

&

HOWELL

33

BROKSONIC

18,19

CANDLE

51

CCE

07

CENTURION

08

CINERAL

43

CITIZEN

49,50,51,52,53,54,55

CORONADO

09

CROWN

09

CURTIS

MATHES

01,03,08,33,35,37,44

DAEWOO

16,38,39,40,41,42,43

DAYTRON

01,08

EMERSON

01,09,16,17,18,19

FISHER

28,29

FUNAI

46,47

GENERAL

ELECTRIC

03,10,11,13,37,44

GRADIENTE

01,56,57,63,67

HITACHI

09,14,15,43

JC

PENNEY

01,08,10,27,35

JVC

20,21,63,67

KIOTE

43

KMC

09

KTV

01,08,09,31

LG

(GOLDSTAR)

01,07,08,09,35,39,40

LODGENET

33

LOGIK

33

LXI

09,24,25,26,27,28,29

MAGNAVOX

01,02,04,05,06,

07,08,09,20,

34,35,43,51,61,62,65

MAJESTIC

33

MARANTZ

01,32

MEMOREX

33

MGA/MITSUBISHI

01,08,32,34

Manufacturer

Code

Number

MONTGOMERY

01,06,08,09

WARD

23,24,32,33,34

NEC

01,08,56

NOBLEX

07

PACKARD

BELL

43

PANASONIC

07,11,13,25,35,36

PHILCO

01,06,07,08,09,

15,38,43,58

PHILIPS

06,07,43,61,62,65

PIONEER

30

PORTLAND

09

PROSCAN

03,37,44

QUASAR

11,13

RADIO

SHACK

16,17,23

RCA

01,03,37,44,69

REALISTIC

16,17,23

SAMPO

08

SAMSUNG

01,08,09,25,68

SANYO

28,29

SCOTT

01,08

SEARS

09,25,26,27,28,29

SEMP

64

SHARP

09,22,23,24,60,66

SIGNATURE

2000

01,06,08,09,10,

23,24,33,34

SONY

12,62,93

SOUNDESIGN

51

SYLVANIA

01,04,05,06,07,

08,35,51

SYMPHONIC

46,47

TATUNG

11

TEKNIKA

07,09,16,33,51

TELERENT

09,33

THOMSON

69

YORX

08

TOSHIBA

01,25,26,27,64

WARDS

01,06,08,09,10,33,34

XR1000

48

ZENITH

01,

02,33,59

Reference

52

Area

Code

Afghanistan

AF

Argentina

AR

Australia

AU

Austria

AT

Belgium

BE

Bhutan

BT

Bolivia

BO

Brazil

BR

Cambodia

KH

Canada

CA

Chile

CL

China

CN

Colombia

CO

Congo

CG

Costa

Rica

CR

Croatia

HR

Czech

Republic

CZ

Denmark

DK

Ecuador

EC

Egypt

EG

El

Salvador

SV

Area

Code

Ethiopia

ET

Fiji

FJ

Finland

FI

France

FR

Germany

DE

Great

Britain

GB

Greece

GR

Greenland

GL

Islands

HM

Hong

Kong

HK

Hungary

HU

India

IN

Indonesia

ID

Israel

IL

Italy

IT

Jamaica

JM

Japan

JP

Kenya

KE

Kuwait

KW

Libya

LY

Luxembourg

LU

Area

Code

Malaysia

MY

Maldives

MV

Mexico

MX

Monaco

MC

Mongolia

MN

Morocco

MA

Nepal

NP

Netherlands

NL

Netherlands

Antilles

AN

New

Zealand

NZ

Nigeria

NG

Norway

NO

Oman

OM

Pakistan

PK

Panama

PA

Paraguay

PY

Philippines

PH

Poland

PL

Portugal

PT

Romania

RO

Russian

Federation

RU

Area

Code

Saudi

Arabia

SA

Senegal

SN

Singapore

SG

Slovak

Republic

SK

Slovenia

SI

South

Africa

ZA

South

Korea

KR

Spain

ES

Sri

Lanka

LK

Sweden

SE

Switzerland

CH

Taiwan

TW

Thailand

TH

Turkey

TR

Uganda

UG

Ukraine

UA

United

States

US

Uruguay

UY

Uzbekistan

UZ

Vietnam

VN

Zimbabwe

ZW

Area

Code

List

Area

Code

List

Choose

a area

code

from

this

list.

Language

Code

Abkhazian

6566

Afar

6565

Afrikaans

6570

Albanian

8381

Ameharic

6577

Arabic

6582

Armenian

7289

Assamese

6583

Aymara

6588

Azerbaijani

6590

Bashkir

6665

Basque

6985

Bengali;

Bangla

6678

Bhutani

6890

Bihari

6672

Breton

6682

Bulgarian

6671

Burmese

7789

Byelorussian

6669

Cambodian

7577

Catalan

6765

Chinese

9072

Corsican

6779

Croatian

7282

Czech

6783

Danish

6865

Dutch

7876

English

6978

Esperanto

6979

Estonian

6984

Faroese

7079

Language

Code

Fiji

7074

Finnish

7073

French

7082

Frisian

7089

Galician

7176

Georgian

7565

German

6869

Greek

6976

Greenlandic

7576

Guarani

7178

Gujarati

7185

Hausa

7265

Hebrew

7387

Hindi

7273

Hungarian

7285

Icelandic

7383

Indonesian

7378

Interlingua

7365

Irish

7165

Italian

7384

Japanese

7465

Javanese

7487

Kannada

7578

Kashmiri

7583

Kazakh

7575

Kirghiz

7589

Korean

7579

Kurdish

7585

Laothian

7679

Latin

7665

Latvian,

Lettish

7686

Language

Code

Lingala

7678

Lithuanian

7684

Macedonian

7775

Malagasy

7771

Malay

7783

Malayalam

7776

Maltese

7784

Maori

7773

Marathi

7782

Moldavian

7779

Mongolian

7778

Nauru

7865

Nepali

7869

Norwegian

7879

Oriya

7982

Panjabi

8065

Pashto,

Pushto

8083

Persian

7065

Polish

8076

Portuguese

8084

Quechua

8185

Rhaeto-Romance

8277

Rumanian

8279

Russian

8285

Samoan

8377

Sanskrit

8365

Scots

Gaelic

7168

Serbian

8382

Serbo-Croatian

8372

Shona

8378

Sindhi

8368

Language

Code

Singhalese

8373

Slovak

8375

Slovenian

8376

Somali

8379

Spanish

6983

Sudanese

8385

Swahili

8387

Swedish

8386

Tagalog

8476

Tajik

8471

Tamil

8465

Tatar

8484

Telugu

8469

Thai

8472

Tibetan

6679

Tigrinya

8473

Tonga

8479

Turkish

8482

Turkmen

8475

Twi

8487

Ukrainian

8575

Urdu

8582

Uzbek

8590

Vietnamese

8673

Volapuk

8679

Welsh

6789

Wolof

8779

Xhosa

8872

Yiddish

7473

Yoruba

8979

Zulu

9085

Language

Code

List

Language

Code

List

Use

this

list

to

input

your

desired

language

for

the

following

initial

settings:

Disc

Audio,

Disc

Subtitle,

Disc

Menu.

53

T

T

roubleshooting

roubleshooting

Symptom

No

power.

Abnormal

or

no

picture.

No

sound.

The

playback


is

poor.


from

external

input

is

distorted.

Some

channels

are

skipped

over

when

using

CH(v

/

V).

Cause

The

power

cord

is

disconnected.

The

TV

is

not

set

to

receive

Recorder

signal

output.

The

video

cable

is

not

connected

securely.

Unit

output

setting

and

TV

resolution

capabilites

mismatch.

Wrong

connection.

The

equipment

connected

with

the

audio

cable

is

not

set

to

receive

Recorder

signal

output.

The

audio

cables

are

not

connected

securely.

The

power

of

the

equipment

connected

with

the

audio

cable

is

turned

off.

The

AUDIO

options

are

set

to

the

wrong

position.

In

HDMI

mode,

audio

selection

is

not

set

to

PCM.

The

disc

is

dirty.

The

TV

channels

are

not

tuned

in

properly.

Tape

heads

are

dirty.

Tape

is

a

rental

or

was

recorded

on

another

VCR.

The

video

signal

from

the

external

component

is

copy-protected.

The

skipped

channels

were

deleted

with

the

CH.

Add/Del

feature.

Correction

Plug

the

power

cord

into

the

wall

out-

let

securely.

Select

the

appropriate

video

input

mode

on

the

TV

so

the


from

the

Recorder

appears

on

the

TV

screen.

Connect

the

video

cable

into

the

jacks

securely.

Check

TV

capability.

Check

mode

of

connections

(eg.

S-Video,

Components

etc.).

Check

unit

Resolution

setting

according

to

TV

capability

and

mode

of

connection.

Check

the

connection.

Select

the

correct

input

mode

of

the

audio

receiver

so

you

can

listen

to

the

sound

from

the

Recorder.

Connect

the

audio

cable

into

the

jacks

securely.

Turn

on

the

equipment

connected

with

the

audio

cable.

Set

the

AUDIO

options

to

the

correct

position.

Change

AUDIO

setup

to

PCM

mode.

Clean

the

disc.

Check

tuning,

carry

out

tuning

again.

Clean

video

heads.

Use

CH/TRK

(v/V)

for

manual

tracking

adjustment

while

tape

is

playing.

You

cannot

connect

via

the

Recorder.

Connect

the

component

directly

to

your

TV.

Use

the

CH.

Add/Del

feature

to

restore

channels.

See

[To

Add

or

Erase

Channels]

on

page

21.

Check

the

following

guide

for

the

possible

cause

of

a

problem

before

contacting

service.

54

Symptom

The

Recorder

does

not

start

playback.

Video

tape

cannot

be

inserted.

The

Remote

Control

does

not

work

properly.

Camcorder


is

not

shown.

Camcorder


via

A/V

input

or

DV

IN

to

Recorder

is

not

shown

on

TV

screen.

Timer

recording

is

not

possible.

Cause

No

disc

is

inserted.

No

tape

is

inserted.

An

unplayable

disc

is

inserted.

The

disc

is

placed

upside

down.

The

disc

is

not

placed

within

the

guide.

The

disc

is

dirty.

The

Rating

level

is

set.

Is

the

cassette

compartment

empty?

There

is

an

obstacle

in

the

path

of

the

Remote

Control

and

this

unit.

The

batteries

in

the

Remote

Control

are

exhausted.

The

Remote

Control

is

not

pointed

at

the

remote

sensor

of

the

Recorder.

The

Remote

Control

is

too

far

from

the

Recorder.

This

Remote

Control

use

the

same

buttons

for

VCR

and

DVD

functions

(ex.PLAY).

Camcorder

is off.

The

recorder's

source

is

incorrect.

Clock

in

record

is

not

set

to

correct

time.

Timer

has

been

programmed

incorrectly.

(TIMER

Record)

indicator

light

does

not

appear

after

programming

timer.

Correction

Insert

a

disc

or

tape.

(Check

that

the

disc

or

tape

indicator

in

the

display

window

is

lit.)

Insert

a

playable

disc.

(Check

the

disc

type

and

Regional

code.)

Place

the

disc

with

the

playback

side

down.

Place

the

disc

on

the

disc

tray

correctly

inside

the

guide.

Clean

the

disc.

Cancel

the

Rating

function

or

change

the

rating

level.

Eject

the

tape

in.

Remove

the

obstacle.

Replace

the

batteries

with

new

ones.

Point

the

Remote

Control

at

the

remote

sensor

of

the

Recorder.

Operate

the

Remote

Control

within

23ft

(7m).

When

using

a

VCR,

first

press

the

VCR

button.

When

using

a

DVD,

first

press

the

DVD

button.

Turn

camcorder

on

and

operate

properly.

Use

INPUT

to

select

input

channel

(AV1,

AV2

or

DV

IN).

Set

clock

to

correct

time.

Reprogram

Timer.

Reprogram

Timer

and

turn

off

the

Recorder

enable

timer.

55

Symptom


or

sound

of

broadcasting

channel

is

weak

or

missing.

Can't

play

disc

recorded

on

this

Recorder

on

another

DVD

player.

Cannot

record

or

did

not

record

successfully.

Stereo

Audio

Record

and/or

Playback

not

present.

Cause

Antenna

or

cables

are

loose.

Wrong

Tuning

Band

is

selected

in

the

Recorder

Setup

menu.

The

disc

was

recorded

in

Video

mode.

Some

players

will

not

play

even

a

finalized

disc

recorded

in

Video

mode.

The

disc

was

recorded

in

VR

mode.

Discs

recorded

with

copy-once

materi-

al

cannot

be

played

on

other

players.

The

remaining

blank

space

on

the

disc

is

insufficient.

The

source

you

are

trying

to

record

is

copy-protected.

When

setting

the

recording

channel,

the

channel

is

tuned

on

the

TV's

own

tuner.

When

recording

to

a

Video

mode

disc,

programs

that

are

copy-once

protect-

ed

cannot

be

recorded.

TV

is

not

Stereo-compatible.

Broadcast

program

is

not

in

stereo

for-

mat.

Recorder

A/V

Out

jacks

are

not

connected

to

TV

A/V

In

jacks.

Recorder

Audio/Video

Out

is

not

selected

for

viewing

at

the

TV.

Recorder's

TV

audio

channel

is

set

to

SAP

or

MONO.

Correction

Tighten

connections

or

replace

cable.

Try

[Tuning

Band

Select]

options;

see

page

21

for

details.

Finalize

the

disc;

see

page

25.

No

solution.

The

other

player

must

be

RW

compatible

in

order

to

play

it.

No

solution.

Use

another

disc.

You

cannot

record

the

source.

Select

the

channel

on

the

Recorder's

built-in

TV

tuner.

Use

a

VR

mode

formatted

disc

for

copy-once

material.

No

solution.

No

solution.

Make

A/V

connections.

Stereo

is

avail-

able

only

via

A/V

output

from

Recorder.

Select

AUX

or

A/V

source

as

TV

input.

Set

TV

audio

channel

mode

to

Stereo.

See

[Changing

TV

Audio

Channel]

on

page

26.

Reset

the

Recorder

If

you

observe

any

of

the

following

symptoms...

?

When

the

Recorder

is

plugged

in,

but the

power

will

not

turn

on

or

off.

?

When

the

display

window

does

not

working.

?

When

the

Recorder

does

not

operate

normally.

You

can

reset

the

Recorder

as

follows

:

?

Press

and

hold

the

POWER

button

on

the

front

panel

for

more

than

five

seconds.

This

will

force

the

Recorder

to

power

off.

Press

the

POWER

button

on

the

front

panel

again

to

turn

the

Recorder

back

on.

?

Unplug

the

power

cord

and

then

plug

the

power

cord

again

after

more

than

five

sec-

onds.

56

General

Power

requirements

AC

120

V,

60

Hz

Power

consumption

27

W

Dimensions

(approx.)

430

X

78.5

X

310

mm

(16.9

x

3.1

x

12.2

inches)

(w

x

h

x

d)

Mass

(approx.)

5.2

kg

(11.44

lbs)

Operating

temperature

5˚C

to

35˚C

(41˚F

to

95˚F)

Operating

humidity

5

%

to

90

%

Signal

system

NTSC

Recording

Recording

format

DVD

VideoRecording,

DVD-VIDEO

Recordable

discs

DVD-ReWritable,

DVD-Recordable,

DVD+ReWritable,

DVD+Recordable

(Double

Layer),

DVD-Random

Access

Memory

Recordable

time

DVD

;

Approx.

1

hour

(XP

mode),

2

hours

(SP

mode),

4

hours

(LP

mode),

6

hours

(EP

mode)

DVD+R

DL

(8.5GB):

Approx.

1

hour

50

minutes

(XP

mode),

3

hours

40

minutes

(SP

mode),

7

hours

10

minutes

(LP

mode),

11

hours

(EP

mode)

VCR

;

SP:

2

HOURS

(T-120),

SLP:

6

HOURS

(T-120)/8

HOURS

(T-160)

Video

recording

format

Sampling

frequency

27MHz

Compression

format

MPEG

2

Audio

recording

format

Sampling

frequency

48kHz

Compression

format

Dolby

Digital

VCR

Specifications

Head

system

Four

head

helical

scan

azimuth

system

Timer

12-hour

display

type

with

AM,

PM

Tape

speed

SP:

33.35

mm/sec,

LP:

16.67

mm/sec,

SLP:

11.12

mm/sec

Tape

width

12.7

mm

Rewind

time

About

65

seconds

(T-120)

Antenna

75

ohms

(VHF/UHF)

VHF

output

signal

Channel

3

or

4

(Switchable)

Channel

coverage

VHF:

2-13,

UHF:

14-69,

CATV:

1-125

(4A,

A-W,

W+1

-

W+84,

A-5

-

A-1)

Frequency

range

20Hz

to

20kHz

Signal-to-noise

ratio

43dB

Dynamic

range

88

dB

Channel

separation

60

dB

Specifications

Specifications

57

DVD

Specifications

Laser

system

Semiconductor

laser,

wavelength

650

nm

Frequency

response

DVD

(PCM

48

kHz):

8

Hz

to

22

kHz,

CD:

8

Hz

to

20

kHz

Signal-to-noise

ratio

More

than

95dB

Harmonic

distortion

Less

than

0.008%

Dynamic

range

More

than

90

dB

Inputs

ANTENNA

IN

Antenna

or

CATV

input,

75

ohms

VIDEO

IN

(AV1,2)

1.0

Vp-p

75

ohms,

sync

negative,

RCA

jack

x

2

AUDIO

IN

(AV1,2)

-6

dBm

more

than

47

kohms,

RCA

jack

(L,

R)

x

2

S-VIDEO

IN

(Y)

1.0

V

(p-p),

75

Ω,

negative

sync,

Mini

DIN

4-pin

x

1

(C)

0.286

V

(p-p)

75

Ω

DV

IN

4

pin

(IEEE

1394

standard)

Outputs

VIDEO

OUT

1.0

Vp-p

75

Ω,

sync

negative,

RCA

jack

x

1

S-VIDEO

OUT

(Y)

1.0

V

(p-p),

75

Ω,

negative

sync,

Mini

DIN

4-pin

x

1

(C)

0.286

V

(p-p)

75

Ω

COMPONENT

VIDEO

OUT

(Y)

1.0

V

(p-p),

75

Ω,

negative

sync,

RCA

jack

x

1

(PROGRESSIVE

SCAN)

(Pb)/(Pr)

0.7

V

(p-p),

75

Ω,

RCA

jack

x

2

HDMI

video/audio

output

19

pin

(HDMI

standard,

Type

A)

Audio

output

(digital

audio)

0.5

V

(p-p),

75

Ω,

RCA

jack

x

1

Audio

output

(optical

audio)

Optical

connector

x

1

Audio

output

(analog

audio)

2.0

Vrms

(1

kHz,

-6

dB),

600

Ω,

RCA

jack

(L,

R)

x

2

RF

OUT

Channel

3

or

4

(Switchable)

Accessory:

Videocable.............................1

Audiocable(L,R)................1

RF75-ohmCoaxialCable.................1

RemoteControl..................1

Batteries...............................2

Design

and

specifications

are

subject

to

change

without

notice.

This

LG

Electronics

product,

will

be

repaired

or

replaced,

at

LG's

option,

if it

proves

to

be

defective

in

material

or

workmanship,

under

normal

use,

during

the

warranty

period

("Warranty

Period")

listed

below,

effective

from

the

date

("Date

of

Purchase")

of

original

consumer

purchase

of

the

product.

This

warranty

is

good

only

to

the

original

pur-

chaser

of

the

product

and

effective

only

when

used

in

the

United

States,

excluding

U.S.

Territories.

THIS

WARRANTY

IS IN

LIEU

OF

ANY OTHER

WARRANTIES,

EXPRESS

OR

IMPLIED,

INCLUDING

WITHOUT

LIMITATION,

ANY

WARRANTY

OF

MERCHANTABILITY

OR

FITNESS

FOR

A

PARTICULAR

PURPOSE.

TO

THE

EXTENT

ANY

IMPLIED

WARRANTY

IS

REQUIRED

BY

LAW,

IT

IS

LIMITED

IN

DURATION

TO

THE

EXPRESS

WARRANTY

PERIOD ABOVE.

LG

ELEC-

TRONICS

WILL

NOT

BE

LIABLE

FOR

ANY

INCIDENTAL,

CONSEQUENTIAL,

INDIRECT,

SPECIAL

OR

PUNITIVE

DAMAGES

OF

ANY

NATURE,

EVEN

IF

ADVISED

OF

THE

POSSIBILITY

OF

SUCH

DAMAGES,

INCLUDING

WITHOUT

LIMITATION,

LOST

REVENUES

OR

PROFITS,

LOST

OR

CORRUPTED

PROGRAMMING

OR

DATA,

OR

ANY

OTHER

DAMAGE

WHETHER

BASED

IN

CONTRACT,

TORT

OR

OTHERWISE.

Some

states

do

not

allow the exclusion

or

limitation

of

incidental

or

consequential

dam-

ages

or

limitation

on

how

long

an

implied

warranty

lasts,

so

the

above

exclusion

or

limitation

may

not

apply

to

you.

This

warranty

gives

you

specific

legal

rights

and

you

may

also

have

other

rights

that

may

vary

from

state

to

state.

THIS

LIMITED

WARRANTY

DOES

NOT

APPLY

TO:

?

Damages

or

operating

problems

that

result

from

shipping,

installation,

adjustment

of

user

controls,

calibration,

maintenance

or

failure

to

maintain,

or

separate

system

components;

and

?

Damages

or

operating

problems

that

result

from

normal

wear

and

tear,

misuse,

abuse,

operation

outside

environmental

specifications

or

contrary

to

the

requirements

or

precautions

in

the

Operating

Guide,

accident,

lightning

strikes

or

other

natural

causes,

unauthorized

modification

or

alteration,

incorrect

electrical

current

or

voltage,

reception

problem

caused

by

inadequate

home

antenna

or

faulty

antenna

connections,

computer

software,

institutional

or

commercial

use,

or

other

causes

not

arising

out

of

defect

in

material

or

workmanship.

Therefore,

the

cost

of

repair

or

replacement

of

such

defective

product

shall

be

borne

by

the

consumer.

CUSTOMER

INTER-ACTIVE

CENTER

NUMBERS:

WARRANTY

PERIOD:

LABOR:

90

days

from

the

Date

of

Purchase.

PARTS:

One

Year

from

the

Date

of

Purchase.

*

Parts

replaced

are

warranted

for

the

remaining

portion

of

the

original

warranty

period.

HOW

SERVICE

IS

HANDLED:

Call

1-800-243-0000

for

instructions

on

getting

the

defective

unit

repaired

or

replaced.

Please

retain

dated

sales

receipt

and

your

box

to

return

the

unit

to

LG

for

repair

or

replacement.

Shipping

both

ways

will

be

paid

by

LG

during

the

Warranty

Period. After

the

Warranty

Period,

you pay

inbound

shipping

charges

and

LG

pays

return

shipping

charges.

Visit

our

website

at:

http://www.lgservice.com

For

nearest

Authorized

Service

Center,

Where

to

buy,

Product

Assistance,

or

Customer

Assistance

Call

1-800-243-0000

(24

hours

a

day,

365

days

per

year)

and

select

appropriate

options

from

the

menu.

Or

visit

our

website

at

http://www.lgservice.com

LG

ELECTRONICS

U.S.A.,

INC.

1000

SYLVAN

AVENUE

ENGLEWOOD

CLIFFS,

NJ

P/N

:

3834RV0052F

Issue

O

Printed

in

Indonesia
