LINAK A S 13EAXBE Remote control for Actuator system User Manual TD3 user ver c eng indd

LINAK A/S Remote control for Actuator system TD3 user ver c eng indd

Contents

User Manual 3

TWINDRIVE®
TD3.2 / TD3.3
To learn more about LINAK please visit:
WWW.LINAK.COM
2
3
Preface ................................................................................................................................................................. 4
Important information ....................................................................................................................................... 5
Safety instructions .............................................................................................................................................. 5
Before installation, reinstallation or troubleshooting ..................................................................................... 5
Before start-up .................................................................................................................................................... 5
During operation ................................................................................................................................................ 6
Repairs ................................................................................................................................................................. 6
Misc. on the TD3 TWINDRIVE® system............................................................................................................... 7
Description of the TWINDRIVE® TD3 system ..................................................................................................... 7
Mounting guidelines for the TWINDRIVE® system ........................................................................................... 8
Functional description ........................................................................................................................................ 9
Handset for massage .......................................................................................................................................... 10
Child lock .............................................................................................................................................................12

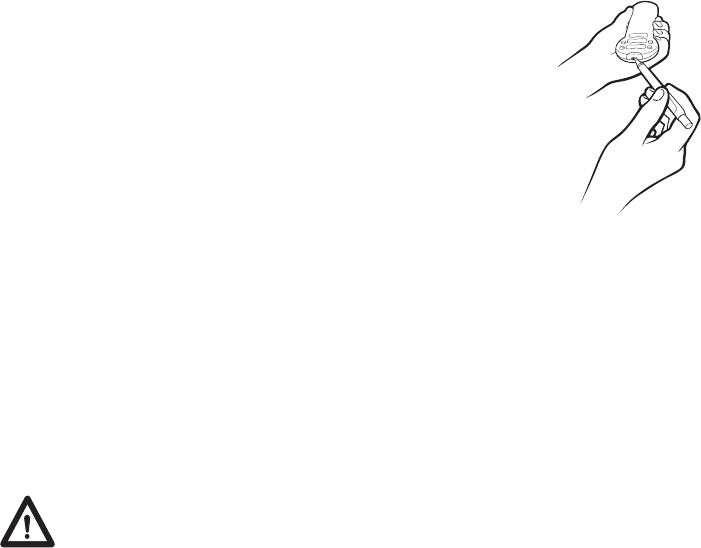

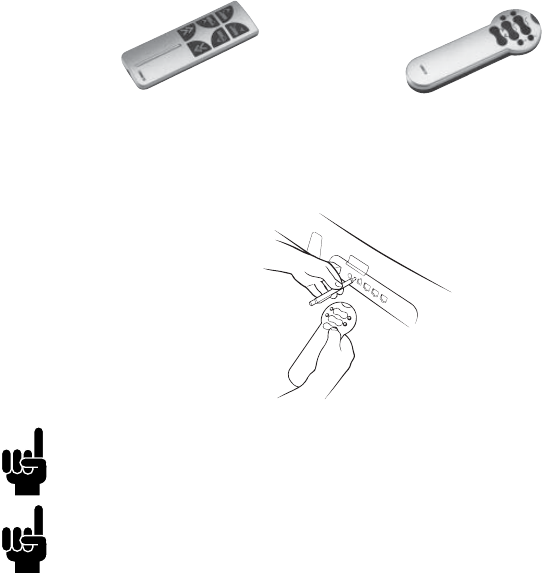

Start-up - How to install RF handset .................................................................................................................13

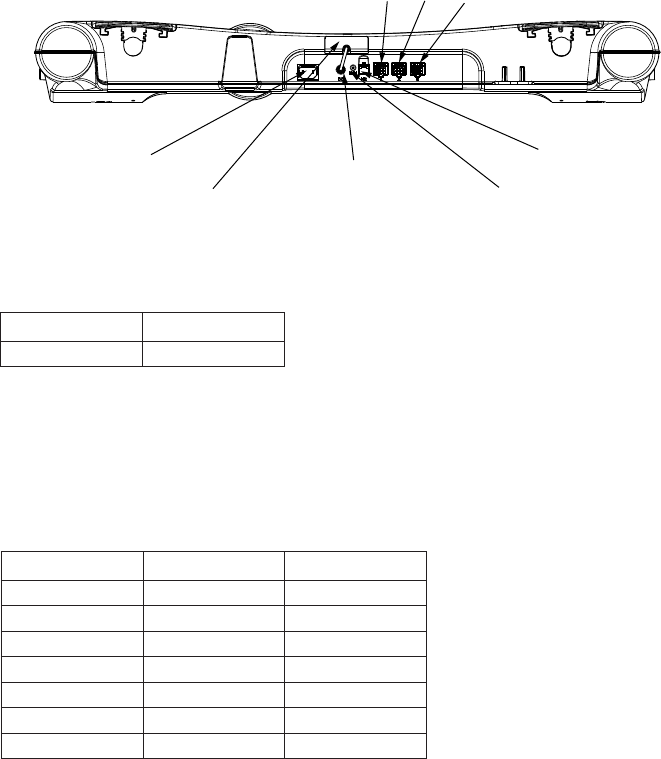

Connections .........................................................................................................................................................14

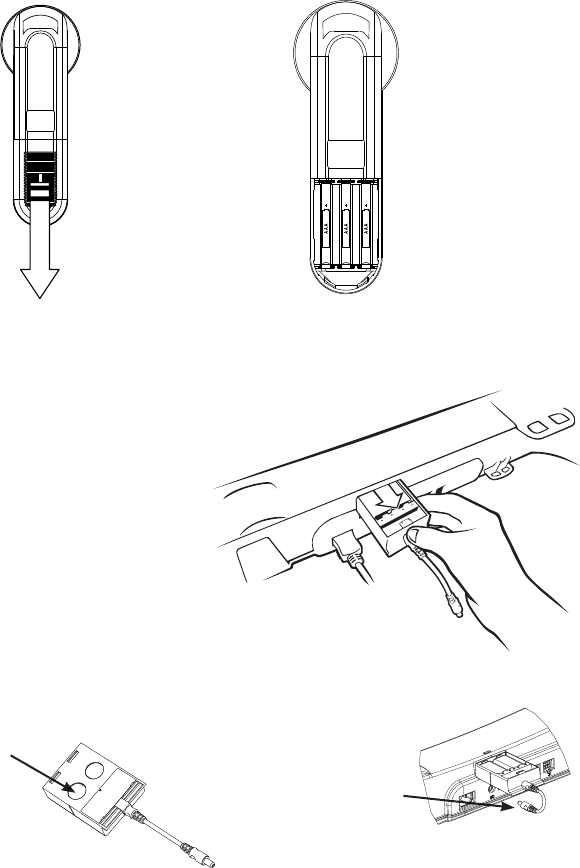

Changing of batteries .........................................................................................................................................13
Disposal of batteries ...........................................................................................................................................16

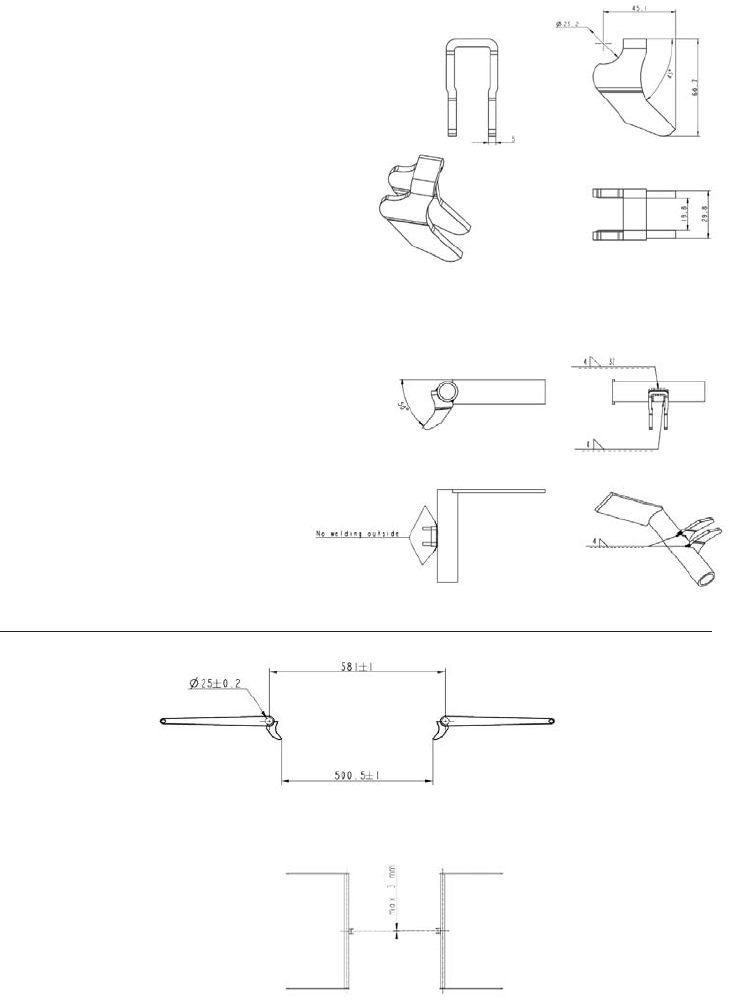

Welding the twist bracket on the frame ..........................................................................................................17

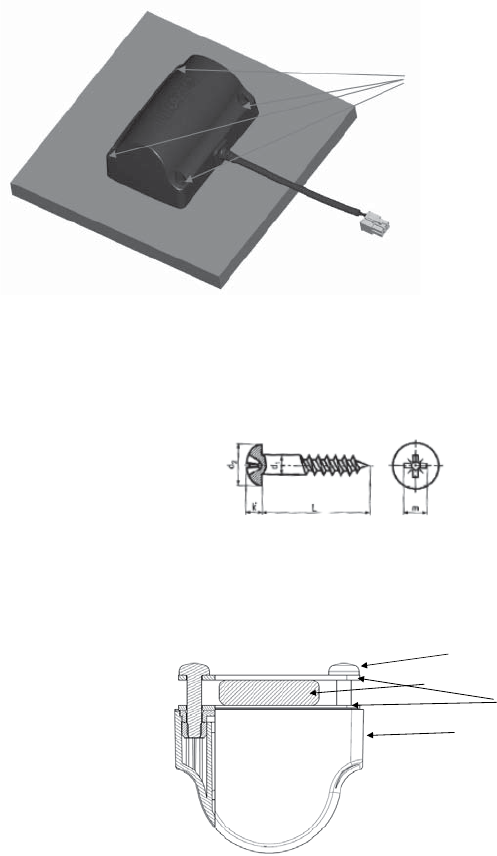

Mounting instructions for the massage motor ...............................................................................................18
Labels .................................................................................................................................................................19
Disposal of LINAK’s products .............................................................................................................................20

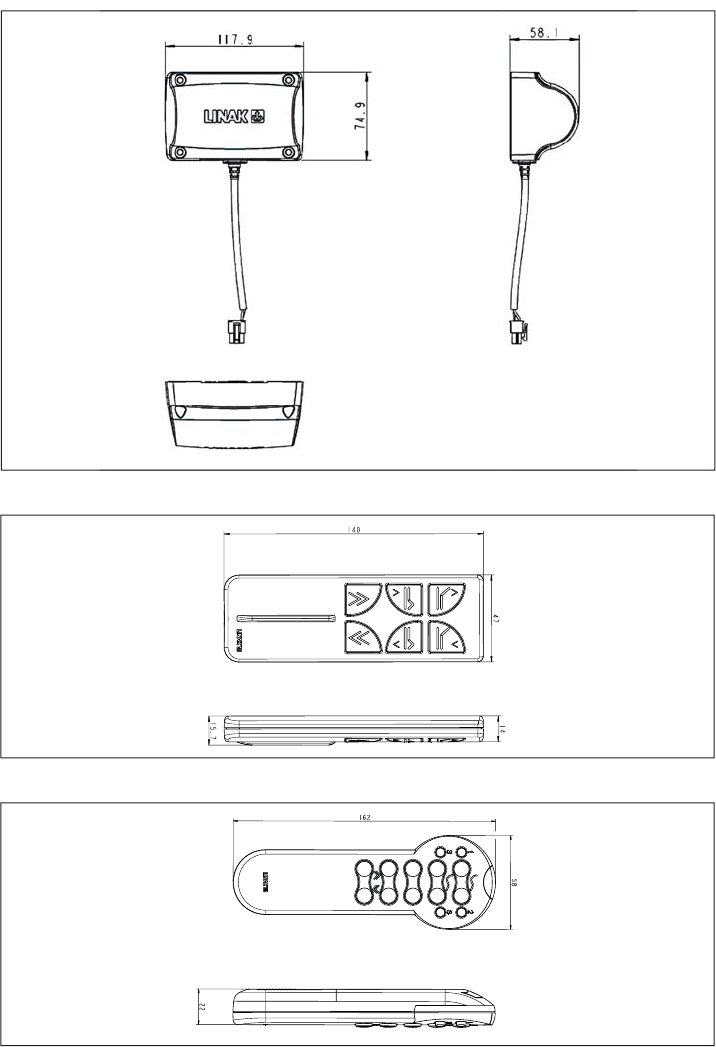

Drawing appendix ..............................................................................................................................................21
Manufacturer’s declaration ................................................................................................................................23
LINAK application policy ....................................................................................................................................23
Addresses ............................................................................................................................................................24
Contents
4
Preface
We are delighted that you have chosen a product from LINAK A/S. LINAK
systems are high-tech products based on many years of experience in the
manufacture and development of actuators, electric control boxes, controls,
and chargers. We are also constantly improving our products to meet
customer requirements.
This User Manual will tell you how to install, use, and maintain your LINAK
TWINDRIVE® products.
We are sure that the TWINDRIVE® products will give you many years of
trouble-free operation. Before our products leave the factory they undergo
a full function and quality test. Should you nevertheless experience
problems with your systems, you are always welcome to contact our service
departments or service centres.
LINAK subsidiaries and distributors all over the world have authorised
service centres, which are always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is
subject to correct use in accordance with the specifi cations, maintenance
being done correctly, and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK systems can affect their operation
and durability. Therefore, changes must only be made according to
agreement with LINAK A/S and changes are made at your own risk.
LINAK A/S
5
Safety instructions
Important information
Important information on LINAK® products can be found under the
following headings:
Warning!
Failure to comply with these instructions may result in accidents
involving serious personal injury.
Failing to follow these instructions can result in the product being
damaged or being ruined.
Safe use of the system is possible only when the operating instructions are
read completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may
result in serious damage to the system or one of its components.
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical or mental abilities must not use the product/products,
unless they are under surveillance or they have been thoroughly instructed
in the use of the apparatus by a person who is responsible for the safety of
these persons.
Moreover, children must be under surveillance to ensure that they do not
play with the product.
It is important for everyone who is to connect, install or use the systems
to have the necessary information and access to this User Manual.
If there is visible damage on the product it must not be installed
Before installation, de-installation or troubleshooting:
• Stop the TD3.
• Switch off the power supply and pull out the mains plug.
• Relieve the TD3 of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User
Manual.
• Make sure that the voltage is correct before the system is connected to
the mains. (See TD3 label on page 10).
• System connection. The individual parts must be connected before
connection to the mains.
6
Repairs
In order to avoid the risk of malfunction, all TWINDRIVE® repairs must only be
carried out by authorised LINAK workshops or repairers, as special tools must
be used and special gaskets must be fi tted. TWINDRIVE under warranty must
also be returned to authorised LINAK workshops.
Warning!
If any of the TWINDRIVE® products are opened, there will be a risk of
subsequent malfunction. Furthermore, the warranty will not cover, when
the product has been opened by unautorised personnel.
Warning!
The TWINDRIVE® systems do not withstand cutting oil.
(continued)
During operation
• Take care that the cables are not damaged or get jammed.
• The products must only be used in an environment, which corresponds to
their IP protection or where no IP protection is required.
• Statement – for all intentional and unintentional radiators:
Changes or modifi cations not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
• Statement for Digital devices for Class B:
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not in-stalled and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
7
Misc. on the TD3 TWINDRIVE® system
This system is a TWINDRIVE system developed for leisure beds and for indoor
use in private homes.
Warranty
There is 36 months’ warranty on the TWINDRIVE® products TD3 and HB20
against manufacturing faults calculated from the production date of the
individual products (see label). LINAK A/S’ warranty is only valid in so far as
the equipment has been used and maintained correctly and has not been
tampered with. Furthermore, the system must not be exposed to violent
treatment. In the event of this, the warranty will be ineffective/invalid. For
further details, please see LINAK A/S’ ordinary conditions of sale.
Maintenance
Clean dust and dirt on the outside of the system, at appropriate intervals and
inspect them for damage and breaks.
Inspect the connections, cables and plugs and check for correct functioning as
well as fi xing points.
Check emergency lowering batteries yearly for their full capacity.
If not, they have to be changed. Type 9V 6F22 or 6LR61.
The cleaners and disinfectants must not be highly alkaline or acidic
(pH value 6-8).
It is not allowed to use solvents for cleaning up.
Max. load running head and foot end motors at the same time in
upward direction is 350 Nm on Head motor, and 200 Nm on Foot end
motor.
If massage motors are running at the same time, the load limit is
reduced.
Description of the TWINDRIVE® TD3 system
Each TWINDRIVE® TD3 unit consists of 2 internal motors and a built-in control,
which makes it a very compact unit. The mains cable is exchangeable. Only
the handset must be paired.
Application of the TWINDRIVE® TD3 system:
Irrespective of the load the Duty cycle: 10% ~ 3 min./ hour or max. 2 min. at
continous use followed by 18 min. not in use.
Do not turn on the system if it is not mounted in a bed.
8

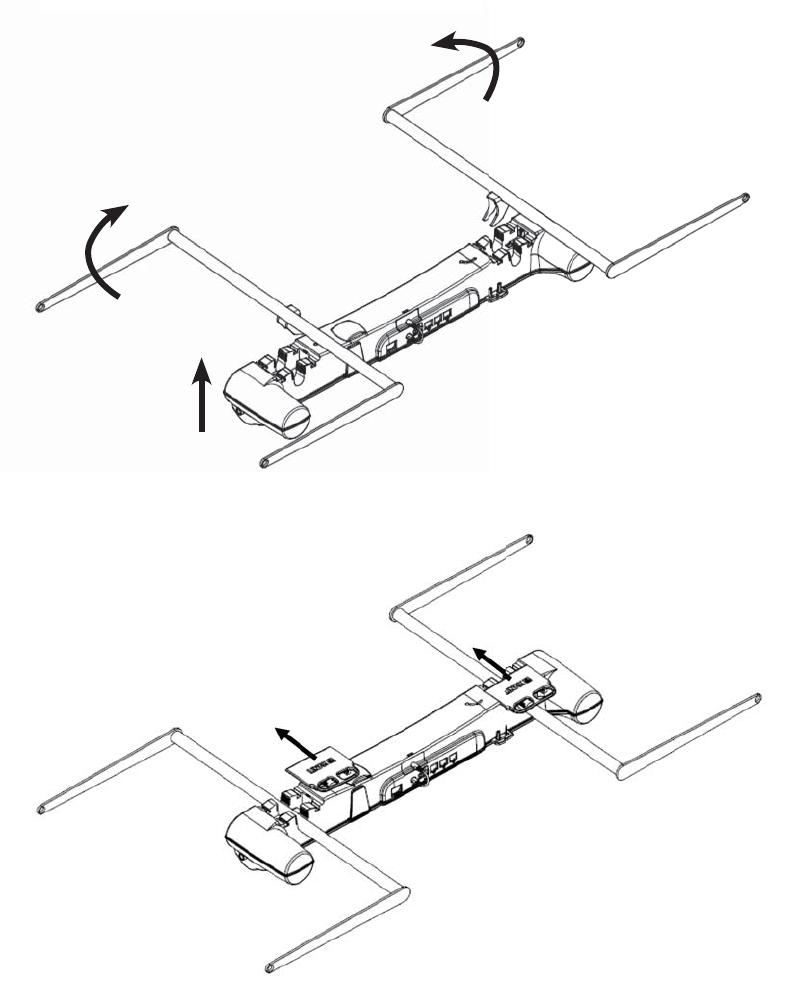

Mounting guidelines for the TWINDRIVE® system
Place the TD3 below the twist brackets/ “arms” of the bed
Mount the TD3 and slide the closing devices over the gaps and make sure
that the closing devices are in place before the TD3 is used.
Mounti
ng
g
uidelines
for
the
TWINDRIVE
s
ys
tem
9
Functional description
Transmitter HB10:
Up – down head motor
Up – down foot motor
Simultaneous up/down
How to store
• Drive to the desired position
• Push “S”
• Immediately afterwards the desired memory position must be pushed
(1, 2 or 3)
• The position is now stored
Drive to stored memory position
Push (1, 2 or 3) keep the button down until the position has been reached
Transmitter HB20:
common operation up/down (option)
Store Button
Memory positions
(3 positions)
3
2
1
S
Up – down head motor
Up – down foot motor
up to 3 extra channels
10

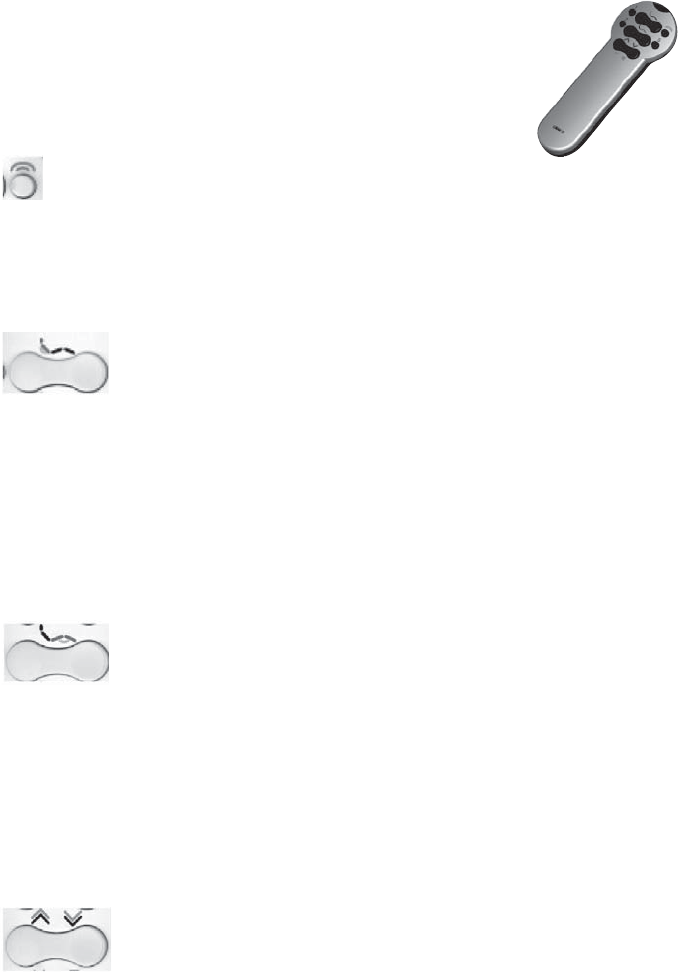

Usage:
Enter/exit massage command mode
Sets the control in massage mode for controlling the massage functions (LED
fl ashing) or returns to normal mode for controlling the bed adjustment (LED off).
Pressing this key has no infl uence on the TWINDRIVE unit except from waking
it up to make its response time to massage commands shorter. If no keys are
pressed in 10 min. the control will automatically go to normal mode (LED off).
Controlling the backrest massage motor
Short key press turns the backrest massage motor on or off (left key on, right
key off).
Turning on a motor, which has been turned off by turning the intensity to off,
starts the motor with lowest confi gured intensity.
Keep key pressed to adjust the intensity up or down (left key up, right key
down). Keeping the down key pressed will turn the motor off when going be-
low minimum intensity. The intensity can be controlled when running in a mas-
sage program, but the massage program will be temporarily halted and both
motors are run with currently chosen intensity until up/down-key is released.
Controlling the legrest massage motor
Short key press turns the legrest massage motor on or off (left key on, right key
off).
Turning on a motor, which has been turned off by turning the intensity to off,
starts the motor with lowest confi gured intensity.
Keep key pressed to adjust the intensity up or down (left key up, right key
down). Keeping the down key pressed will turn the motor off when going be-
low minimal intensity. The intensity can be controlled when running in a mas-
sage program, but the massage program will be temporarily halted and both
motors are run with currently chosen intensity until up/down-key is released.
Controlling the massage program
Short key press on left key turns on a massage program (constant on -
handwave - software - hand pulse - soft pulse) or change to next program if a
program is already activated.
HB220G1+00003 (transmitter)
Handset for massage
Starting a massage program always turns on both motors at current intensity.
Short key press on right key turns off both massage motors no matter if it is
running in a massage program, or separately.
Keep key pressed to adjust the motor change speed up or down (left key
down, right key up.)
Store and recall massage settings.
2 massage settings can be stored.
Adjust the massage to the preferred settings. Pres the “S” key followed by
either key “1” or “2”. To recall a pervious stored setting pres key “1” or “2”.
In general
Massage will turn off automatically 10 min. after the last adjustment of the
settings.
Adjusting the bed will turn off the massage, but massage will automatically start
up again afterwards.
When turning on a single massage motor it will start up with the same intensity
as it was last time it was running as a single motor.
When turning on a massage program it will start up with the same settings
(program, motor change speed, intensity) as it was last time.
Turning on a massage function can also be done by keeping the up key pressed.
Then it will turn on, and after a short delay adjust the intensity up.
Massage functions can only be controlled by the transmitter. The receiver is a
standard hand control.
Pressing any key on the receiver will stop the massage, and adjust the bed
according to the key pressed. After releasing the key, massage will automatically
start up again.
In case of any errors: current-limitation, high temperature or short-circuit, the
massage system will stop both motors, even if only one motor is affected.
Normal operation
In normal mode to adjust the bed position, the hand control is working exactly
as a normal Handset without massage functionality, except there are only 2
memory positions instead of 3.
If there are any extra motors in the system, the keys to control these motors
will, as normal, be placed between the leg rest keys and the “reset and massage
program” keys.
11
Child lock
To enable the function the position of the switch in the front of the
transmitter must be changed.
To unlock the handset press up and down keys of the 2nd row
at the same time for one sec. When the blue LED turns
on the handset is unlocked for 10 sec. after last key press.
Then it automatically locks again. If the up + down key is
pressed more than 2 sec. the handset will lock again.
If the handset is locked and the user tries to operate it,
it will give a short fl ash with the LED to indicate “key is
pressed, but handset is locked”.
Enable/Disable Child lock
To enable the function the position of the switch in the front of the
transmitter must be changed.
N.B The Child lock only locks actuator functions. Therefore, it is disabled
while the HB is in massage command mode.
Unlock of Child lock
Press up and down keys of the 2nd row at the same time for one sec. When
the blue LED turns on the handset is unlocked.
The handset is not unlocked If the key is not are released again
before the blue led turns off.
Automatic lock
The handset is unlocked for 10 sec. after last key press. Then it
automatically locks again.
Signaling of handset is locked
If the handset is locked and the user tries to operate it, it will give a short
fl ash with the LED to indicate “key is pressed, but handset is locked”.
12
13
• After having activated the RF handset keys; the reset key must be released.
• If no RF handset keys are activated during the matching procedure; no
changes are made in the ID memory of the TD3.
Start-up - How to install RF handset:
The TD3 can accept commands from up to 2 RF handsets.
From the factory the TD3 cannot recognize any RF handsets at all and must
be matched to the RF handset(s) by the end-user/bed manufacturer before
these can control the TD3 operation.
Conditions which must be fulfi lled prior to activating the learning mode:
• Both the back and the leg actuators must be in the fully down position;
if one or both actuators are NOT in the fully down position; the matching
procedure cannot be continued as now an ordinary reset down function
is performed instead. Thereafter the reset key must be released and re-
activated.
Activating the learning mode:
• Activate the reset key on the TD3 by using a pen or similar to keep the
button pressed.
• Keeping the reset key activated; the RF handset(s) must be activated one
at a time by pressing a random key on the RF handset. The RF handset ID’s
are stored in the TD3 memory and at the same time, previous RF handset
ID’s are erased.
Disturb of RF signals:
Please be aware that other equipments (as e.g. doorbells) which use
the 433 MHz can disturb the RF signal.
Under some circumstances it isn’t possible to run 2 or more TD3 at the
same time (RF signal gets disturbed).
HB12 HB20
14
Mains inlet
Battery drawer
Battery cable/connection
Reset
(HB connection)
Ch.1 Ch.2 Ch.3
Connections
CH1 CH2
Footrest Headrest
CH1 CH2 CH3
Headrest --
-Headrest -
--Headrest
Footrest Headrest -
Footrest -Headrest
-Footrest Headrest
Footrest Extra function Headrest
Connection of massage motors:
Connection of LA27 actuators:
TD3 will default detect and run LA27 using plug and play rules illustrated in
table below. Idea is Headrest is the fi rst actuator then Footrest then Extra
function. Headrest is always the one nearest Back-end and Footrest always
the one nearest Leg-end.
Start up/initialisation of LA27:
After connection of the LA27 the system has to be initialised. Push on the
buttom down for the LA27 which has to be initialised, when the sound from
the LA27 stops is the system initialised. If more than 1 actuator is connected,
the same has to be done with the other channels.
Removal/fi tting of the 2 x 9 V batteries:
To change the 2 x 9 V batteries for emergency lowering the
fi rst step is to disconnect the cable and then pull out
the drawer of the TD3. On the bottom of
the drawer are 2 holes where to push
with a fi nger or a blunt instrument.
The batteries will be released from
the drawer when pushing. The new
batteries can be placed and the
drawer can be placed in the TD3 as
well as the cable again.
Only use alkaline batteries, and make sure to polarise the
batteries correctly according to the symbols in the drawer.
Lifetime when not used is 5 years.
To pull out the
batteries press
here Remember to
connect the cable
again afterwards
Changing of batteries
1. Remove the battery cover (see Figure 1).
2. Use a blunt instrument to remove the battery.
3. Place 3 new batteries type R03 or LR03 (AAA) in the transmitter. Press a
button for 3 sec. If above procedure not is performed the handset will
function anyway after app. 5 minutes. Direction of how to place the
batteries in the transmitter is shown in Figure 2
Figure 1
Figure 2
15
16
Disposal of batteries.
"Details regarding safe disposal of used and leaking batteries:
Batteries should be disposed in accordance with appropriate federal, state
and local regulations. LINAK recommends that used or leaking batteries
are disposed through the local recycling system. Please do not throw used
or leaking batteries in normal household waste or in nature. This will cause
damage to the enviroment.
How to deal with leaking batteries.
Leaking batteries should be disposed as described above.
If leaking batteries are discovered in the product the batteries must be
removed at once to minimise damage to the product. If leaking batteries
are left in the product it might become defect.
It is recommended to use plastic gloves when handeling leaking batteries.
The contents of a leaking batteries can cause chemical burns and respiratory
irritation.
If exposed to the contents of a leaking battery, please wash with soap and
water. If irritation persists, please seek medical attention. In case of eye
contact, please fl ush eyes thoroughly with water for 15 minutes and seek
medical attention."
17
Tolerance of the parallels:
2) To maintain the correct angle of
rotation of the head rest and the
foot rest it is important that the twist
bracket is welded according to the
below instructions. Non compliance
with the instructions could lead to a
smaller angle of rotation or in
a worst case damage to TD3.
o
f
t
h
e
h
e twist
o
t
he
iance
d
to
a
Welding the twist bracket on the frame
1) For the TD3 it is important that it is not
welded on the outside of the twist
bracket because there is not room for
a welding seam in the motor housing.
Instead weld the bracket on the
whole length of its ends.
e
frame
not
or
g
.
18
Mounting instructions of the massage motor:
Mounting on plate:
Is mounted with 4 screws
The massage unit is mounted with 4 x 4 mm round headed wood screws
with fl at underside. The head must be 8 mm in diameter and in length 19
mm + the thickness of the plate where the massage motor is mounted.
Torque max. 2 Nm + resistance in the plate.
Massage Motor
Slat
Bracket
Screw
Mounting instructions of the massage motor by using brackets:
The massage unit is mounted with 4 x M6 round headed machine screws
with fl at underside. 15 to 20 mm long + the thickness of the bracket. Torque
max. 2-3 Nm. 2 Brackets must be used – one on each side of the slat.
Mounted on three slats:
Mounted on one slat:
The massage motor is mounted
to the slat by using 2 brackets
0761009 and 4 x M6 screws of
good quality. Inside the motor
4 self-locking nuts avoid the
mounting screws to get loose.
19
Label for the TD3 TWINDRIVE® System
Label for the Massage Motor Label for HB12 and HB20
Label for the LA27
20
Disposal of LINAK’s products
As LINAK’s customers often ask us how our products can be disposed of or
scrapped we have prepared this guidance that enables a classifi cation to
different waste fractions for recycling or combustion.
Guidance
We recommend to disassemble our product into as many fractions as
possible at the disposal and try to make it recycable. As examples of main
groups within waste fractions we can mention:
Metal, plastic, cable shoe, combustible waste, and collection for recovery.
Some of these main groups can be subdivided, e.g. metal can be divided
into iron, stainless steel and aluminium, and alloy steel. Plastic can e.g. be
divided into ABS, PA, PE, and PP.
As an example of sorting, please fi nd below a list stating in which recycling
groups the differenct components of LINAK’s products ought to be placed:
Product main
groups
Scrap Cable
scrap
Electronics
scrap
Plastic recycling
or combustin
Comments
LA27 X X X The metals can be sorted
for steel or aluminum
TD3 X X The metals can be sorted
for steel or aluminum
HB10 X X X
HB20 X X X
MD1 X X X
Main groups of disposal
By now almost all our casted plastic parts are supplied with an interior code for
plastic type and fi bre contents, if any.
Product Components Recycling group
Actuator: Spindle and motor Scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
Massage motor: Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
Twindrive: PCB Electronics scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap
Trafo Scrap
Batteries Recovery
Spindle and motor Scrap
Handset/Control: Plasic housing Plastic recycling or combustion
Cable Cable scrap
PCB Electronics scrap
21
DRAWING APPENDIX
TWINDRIVE® TD3 System:
LA27
HB20 Transmitter
HB10 Transmitter
22
Massage motor MD1
motor
MD1
23
LINAK APPLICATION POLICY
The purpose of the application policy is to defi ne areas of responsibilities
in relation to applying a LINAK product defi ned as hardware, software,
technical advice, etc. related to an existing or new customer application.
LINAK products as defi ned above are applicable for a wide range of
applications within the Medical, Furniture, Desk, and Industry areas. Yet,
LINAK cannot know all the conditions under which LINAK products will be
installed, used, and operated, as each individual application is unique.
The suitability and functionality of the LINAK product and its performance
under varying conditions (application, vibration, load, humidity,
temperature, frequency, etc.) can only be verifi ed by testing, and shall
ultimately be the responsibility of the LINAK customer using any LINAK
product.
LINAK shall be responsible solely that the LINAK products comply with the
specifi cations set out by LINAK and it shall be the responsibility of the LINAK
customer to ensure that the specifi c LINAK product can be used for the
application in question.
Manufacturer's declaration
Implementation with regard to the Community
legislation on machinery
Directive 98/37/EC attachment II B:
LINAK A/S, subsidiaries or representatives,
(see back cover)
prohibit that actuators are put into service
until the machinery into which the actuator is to be
incorporated has been declared in conformity with
the provisions of all relevant Directives.
Bent Jensen
LINAK A/S
Copyright© LINAK 2009.04 MA-M9-02-258-C LINAK A/S reserve the right to make technical alterations
The user is responsible for determining the suitability of LINAK
products for a specifi c application.
LINAK A/S takes great care in providing accurate and up-to-
date information on its products. However, due to continuing
developments in order to improve its products, LINAK products
are subject to frequent modifi cations and changes without prior
notice. Therefore, LINAK cannot guarantee the correct and actual
status of said information on its products. While LINAK uses its
best efforts to fulfi l orders, LINAK cannot, for the same reasons
as mentioned above, guarantee the availability of any particular
product. Therefore, LINAK reserves the right to discontinue
the sale of any product displayed on its website or listed in its
catalogues or other written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and Delivery
for LINAK A/S. For a copy hereof, please contact LINAK.
FACTORIES
CHINA
LINAK (Shenzhen) Actuator Systems, Ltd.
Phone: +86 755 8610 6656 . Fax: +86 755 8610 6990
E-mail: sales@linak.cn . www.linak.cn
DENMARK
LINAK A/S . Group Headquarters Guderup
Phone: +45 73 15 15 15 . Fax: +45 74 45 80 48
Fax (Sales): +45 73 15 16 13
E-mail: info@linak.com . www.linak.com
SLOVAKIA
LINAK Slovakia s.r.o.
Phone: +421 517563 414 . Fax: +421 517563 410
E-mail: jp@linak.sk . www.linak.com
USA
LINAK U.S. Inc.
North and South American Headquarters
Phone: +1 502 253 5595 . Fax: +1 502 253 5596
E-mail: info@linak-us.com . www.linak-us.com
SUBSIDIARIES
AUSTRALIA
LINAK Australia Pty. Ltd
Phone: +61 3 8796 9777 . Fax: +61 3 8796 9778
E-mail: sales@linak.com.au . www.linak.com.au
AUSTRIA
LINAK GmbH
Phone: +43 2746 21036 . Fax: +43 2746 21044
www.linak.at
BELGIUM & LUXEMBOURG
LINAK Actuator-Systems NV/SA
Phone: +32 (0)9 230 01 09 . Fax: +32 (0)9 230 88 80
E-mail: info@linak.be . www.linak.be
BRAZIL
LINAK do Brasil Comércio de Atuadores Ltda.
Phone: +55 (11) 6832-7070 . Fax: +55 (11) 6832-7060
E-mail: linakbrasil@ig.com.br . www.linak.com.br
CANADA
LINAK Canada Inc.
Phone: +1 905 821 7727 . Fax: +1 905 821 4281
E-mail: info@linak.ca . www.linak.ca
CZECH REPUBLIC
LINAK C&S S.R.O.
Phone: +420581741814 . Fax: +420581702452
E-mail: ponizil@linak.cz . www.linak.cz
DENMARK
LINAK DANMARK A/S
Phone: +45 86 80 36 11 . Fax: +45 86 82 90 51
E-mail: linak@linak-silkeborg.dk . www.linak.dk
FINLAND
LINAK OY
Phone: +358 10 841 8700 . Fax: +358 10 841 8729
E-mail: linak@linak.fi . www.linak.fi
FRANCE
LINAK FRANCE S.A.R.L
Phone: +33 (0)2 4136 3434 . Fax: +33 (0)2 4136 3500
E-mail: linak@linak.fr . www.linak.fr
GERMANY
LINAK GmbH
Phone: +49 6043 9655 0 . Fax: +49 6043 9655 60
E-mail: info@linak.de . www.linak.de
INDIA
LINAK A/S India Liaison Office
Phone: +91 80 2299 6533 . Fax: +91 80 2224 3863
E-mail: info@linak.in . www.linak.in
IRELAND
LINAK UK Limited
Phone: +44(0)121 544 2211 . Fax: +44(0)121 544 2552
E-mail: stephen@linak.co.uk . www.linak.co.uk
ITALY
LINAK ITALIA S.r.l.
Phone: +39 02 48 46 33 66 . Fax: +39 02 48 46 82 52
E-mail: info@linak.it . www.linak.it
JAPAN
LINAK K.K.
Phone: +81 45 533 0802 . Fax: +81 45 533 0803
E-mail: linak@linak.jp . www.linak.jp
MALAYSIA
LINAK A/S Asian Representative Office
Phone: +60 4 210 6500 . Fax: +60 4 226 8901
E-mail: info@linak-asia.com . www.linak-asia.com
NETHERLANDS
LINAK Actuator-Systems B.V.
Phone: +31 76 5 42 44 40 . Fax: +31 76 5 42 61 10
E-mail: info@linak.nl . www.linak.nl
NEW ZEALAND
LINAK New Zealand Ltd.
Phone: +64 9580 2071 . Fax: +64 9580 2072
E-mail: nzsales@linak.com.au . www.linak.co.nz
NORWAY
LINAK Norge AS
Phone: +47 32 82 90 90 . Fax: +47 32 82 90 98
E-mail: info@linak.no . www.linak.no
POLAND
LINAK Polska
Phone: +48 (22) 500 28 74 . Fax: +48 (22) 500 28 75
E-mail: dkreh@linak.com . www.linak.pl
SPAIN
LINAK Actuadores S.L.
Phone: +34 93 588 27 77 . Fax: +34 93 588 27 85
E-mail: linakact@linak.es . www.linak.es
SWEDEN
LINAK Scandinavia AB
Phone: +46 8 732 20 00 . Fax: +46 8 732 20 50
E-mail: info@linak.se . www.linak.se
SWITZERLAND
LINAK AG
Phone: +41 43 388 31 88 . Fax: +41 43 388 31 87
E-mail: info@linak.ch . www.linak.ch
TAIWAN
LINAK A/S Taiwan Representative Office
Phone: +886 2 250 80296 . Fax: +886 2 2508 3604
E-mail: info@linak.com.tw . www.linak-asia.com
TURKEY
LINAK A/S Turkey Representative Office
Phone: +90 312 4726338-59 . Fax: +90 312 4726635
E-mail: vozen@linak.com.tr . www.linak.com.tr
UNITED KINGDOM
LINAK UK Limited
Phone: +44(0)121 544 2211 . Fax: +44(0)121 544 2552
E-mail: sales@linak.co.uk . www.linak.co.uk
DISTRIBUTORS
ARGENTINA
NOVOTEC ARGENTINA SRL
Phone: +[54] (11) 4303-8900/89 . Fax: +[54] (11) 4032-0184
E-mail: info@novotecargentina.com
www.novotecargentina.com
COLOMBIA
MEM Ltda
Phone: +[57] (1) 334-7666 . Fax: +[57] (1) 282-1684
E-mail: servicioalcliente@memltda.com.co
www.memltda.com.co
INDONESIA
PT. HIMALAYA EVEREST JAYA
Phone: +6 221 544 8956/65 . Fax: +6 221 619 4658/1925
E-mail: hejplastic-div@centrin.net.id
IRAN
Bod Inc.
Phone: +98 21 88527255 . Fax: +98 21 88514037
E-mail: mail@bod.ir . www.bod.ir
MEXICO
ILSA S.A. de C.V.
Phone: +[52] (55) 5388-3960 . Fax: +[52] (55) 5388-3966
E-mail: linak@ilsamexico.com . www.ilsamexico.com
RUSSIAN FEDERATION
000 FAM
Phone: +7 812 3319333 . Fax: +7 812 3271454
E-mail: purchase@fam-drive.ru . www.fam-drive.ru
SINGAPORE
SERVO DYNAMICS PTE. Ltd.
Phone: +65 6844 0288 . Fax: +65 6844 0070
E-mail: servodynamics@servo.com.sg . www.servo.com.sg
SOUTH AFRICA
Industrial Specialised Applications CC
Phone: +27 11 312 2292 or +27 11 2077600
Fax: +27 11 315 6999
www.stabilus.com
SOUTH KOREA
UNITEK ENG.
Phone: +82 2 567 0888 . Fax: +82 2 3453 1177
E-mail: unitekeng@unitekeng.co.kr . www.unitekeng.co.kr
UNITED ARAB EMIRATES
Mechatronics
Phone.: +971 4 267 4311 . Fax: +971 4 267 4312
E-mail: mechtron@emirates.net.ae
www.mechatronics.ae
For contact details on other countries please visit
www.linak.com or contact:
LINAK INTERNATIONAL
Fax: +45 74 45 90 10
E-mail: info@linak.com . www.linak.com

Navigation menu
