Preface
We are delighted that you have chosen a product from LINAK A/S. LINAK systems
are high-tech products based on many years of experience in the manufacture and
development of actuators, electric control boxes, controls, and chargers. We are
also constantly improving our products to meet customer requirements.
This User Manual will tell you how to install, use, and maintain your LINAK
TWINDRIVE® products.
We are sure that the TWINDRIVE® products will give you many years of trouble-free
operation. Before our products leave the factory they undergo a full function and
quality test. Should you nevertheless experience problems with your systems, you
are always welcome to contact our service departments or service centres.
LINAK subsidiaries and distributors all over the world have authorised service
centres, which are always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to
correct use in accordance with the specifi cations, maintenance being done correctly,
and any repairs being carried out at a service centre, which is authorised to repair
LINAK products.
Changes in installation and use of LINAK systems can affect their operation and
durability. Therefore, changes must only be made according to agreement with
LINAK A/S and changes are made at your own risk.
LINAK A/S
5
This device complies with part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept any
interference received,
including interference
that may cause undesired
operation.
6
Safety instructions
Important information
Important information on LINAK® products can be found under the following
headings. Please read and understand these instructions for proper operation.
Be sure to keep this instruction manual handy for future reference.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
Persons who do not have the necessary experience or knowledge of the product/
products must not use the product/products. Besides, persons with reduced
physical or mental abilities must not use the product/products, unless they are
under surveillance or they have been thoroughly instructed in the use of the
apparatus by a person who is responsible for the safety of these persons.
Moreover, children must be under surveillance to ensure that they do not play
with the product.
It is important for everyone who is to connect, install or use the systems to
have the necessary information and access to this User Manual.

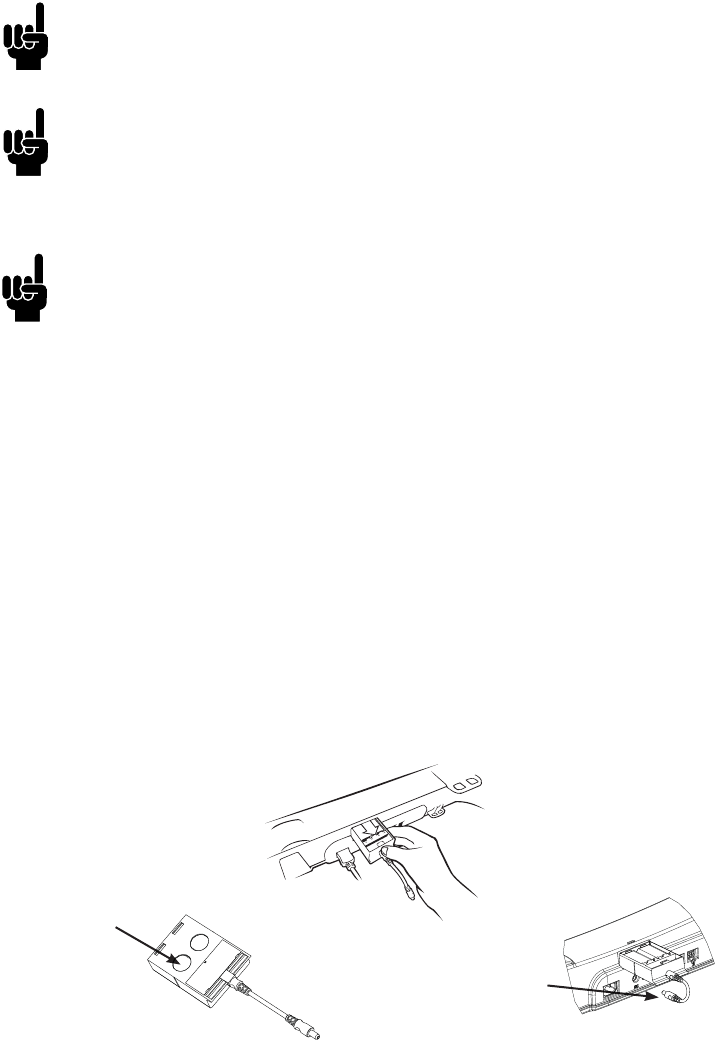

If there is visible damage on the product it must not be installed
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being
damaged or being ruined.
For household / residential use only
Before installation, de-installation or troubleshooting:
• Stop the TD3.
• Switch off the power supply and pull out the mains plug.
• Relieve the TD3 of any loads, which may be released during the work.
Warning!
If any of the TWINDRIVE® products are opened, there will be a risk of
subsequent malfunction. Furthermore, the warranty will not cover, when
the product has been opened by unautorised personnel.
The TWINDRIVE® systems do not withstand cutting oil.
• Statement – for all intentional and unintentional radiators:
Changes or modifi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• Statement for digital devices for Class B:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Repairs
In order to avoid the risk of malfunction, all TWINDRIVE® repairs must only be
carried out by authorised LINAK workshops or repairers, as special tools must be
used and special gaskets must be fi tted. TWINDRIVE under warranty must also be
returned to authorised LINAK workshops.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage is correct before the system is connected to the mains.
(See TD3 label on page 22).
• System connection. The individual parts must be connected before connection to
the mains.
During operation
• Take care that the cables are not damaged or get jammed.
• The products must only be used in an environment, which corresponds to their IP
protection or where no IP protection is required.
7
8
Misc. on the TD3 TWINDRIVE® system
This system is a TWINDRIVE system developed for leisure beds and for indoor use in
private homes.
Warranty
There is 36 months’ warranty on the TWINDRIVE® products against manufacturing
faults calculated from the production date of the individual products (see label).
LINAK A/S’ warranty is only valid in so far as the equipment has been used and main-
tained correctly and has not been tampered with. Furthermore, the system must not
be exposed to violent treatment. In the event of this, the warranty will be ineffective/
invalid. For further details, please see LINAK A/S’ ordinary conditions of sale.
Maintenance
Clean dust and dirt on the outside of the system, at appropriate intervals and
inspect them for damage and breaks.
Inspect the connections, cables and plugs and check for correct functioning as well
as fi xing points.
The cleaners and disinfectants must not be highly alkaline or acidic
(pH value 6-8).
It is not allowed to use solvents for cleaning up.
Max. load running head and foot end motors at the same time in upward
direction is 350 Nm on Head motor, and 200 Nm on Foot end motor.
For customers in the US/Canada:
The mains cable for this product has a polarised plug (one blade is wider
than the other). It will only fi t in a polarised outlet one way. If it does not fi t
fully in the outlet, reverse the plug. If it still does not fi t, contact a qualifi ed
electrician to install a proper outlet. Do not change the plug in any way.
Description of the TWINDRIVE® TD3 system
Each TWINDRIVE® TD3 unit consists of 2 internal motors and a built-in control,
which makes it a very compact unit. The mains cable is exchangeable. Only the
handset must be paired.
Application of the TWINDRIVE® TD3 system:
Irrespective of the load the Duty cycle: 10% ~ 3 min./ hour or max. 2 min. at
continous use followed by 18 min. not in use.
Do not turn on the system if it is not mounted in a bed.
Mounting guidelines for the TWINDRIVE® system

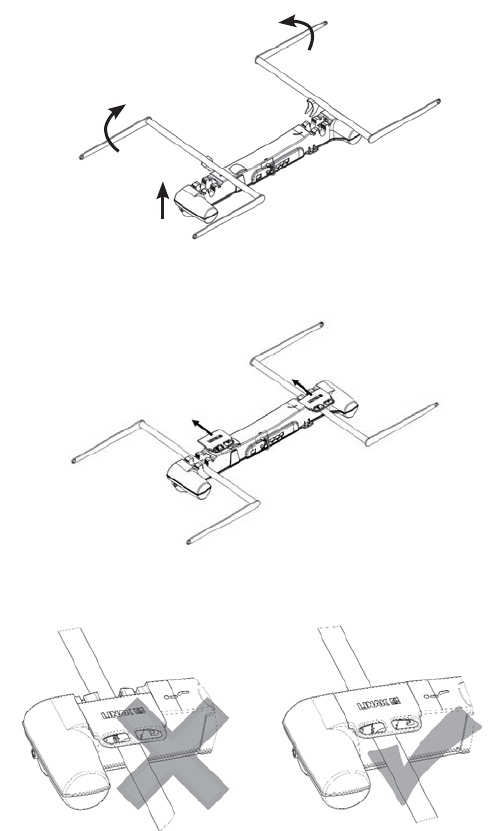

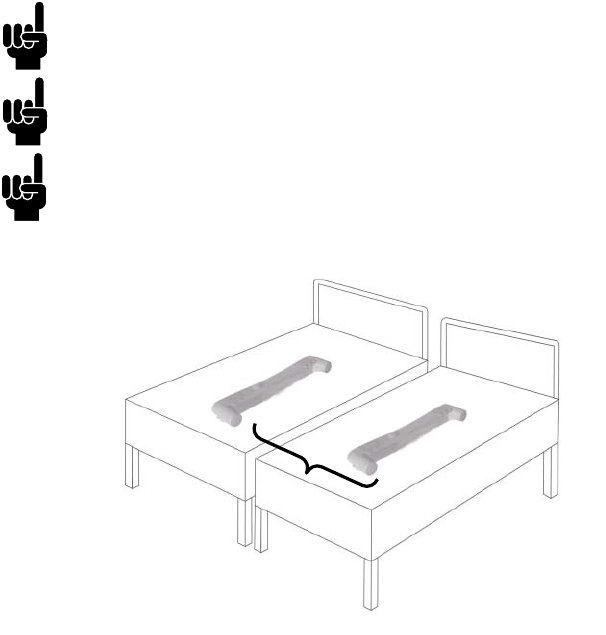

Place the TD3 below the twist brackets/“arms” of the bed
Mount the TD3 and slide the closing devices over the gaps and make sure that the
closing devices are in place before the TD3 is used.
9
10
Functional description

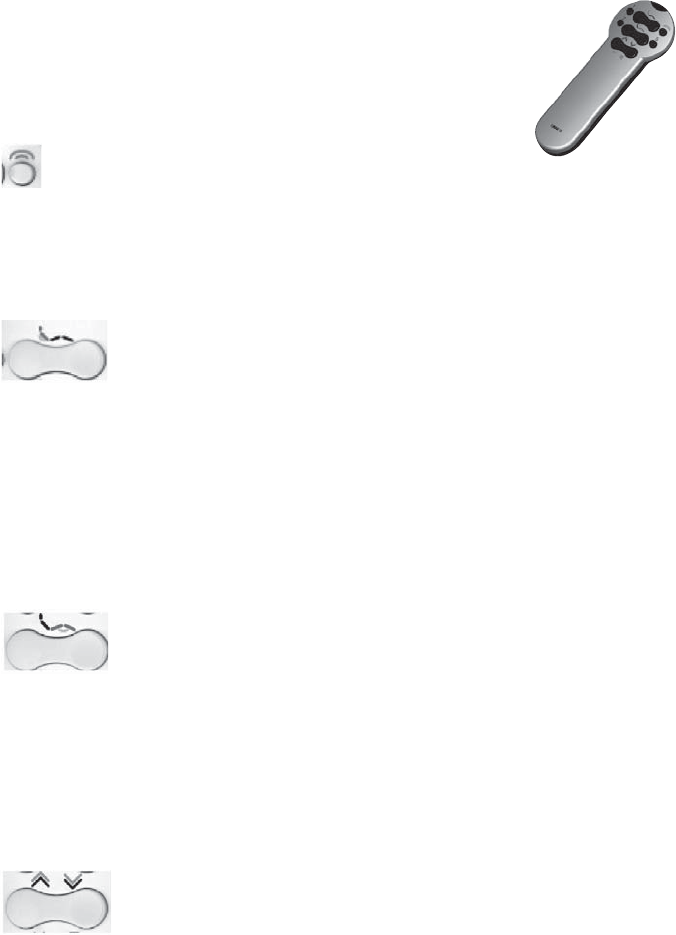

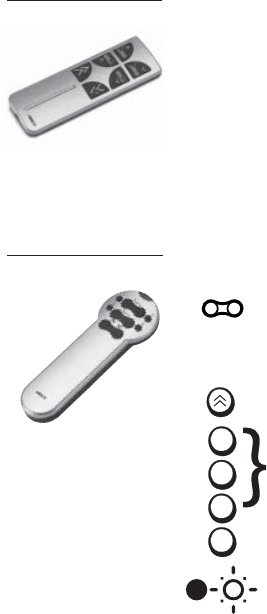

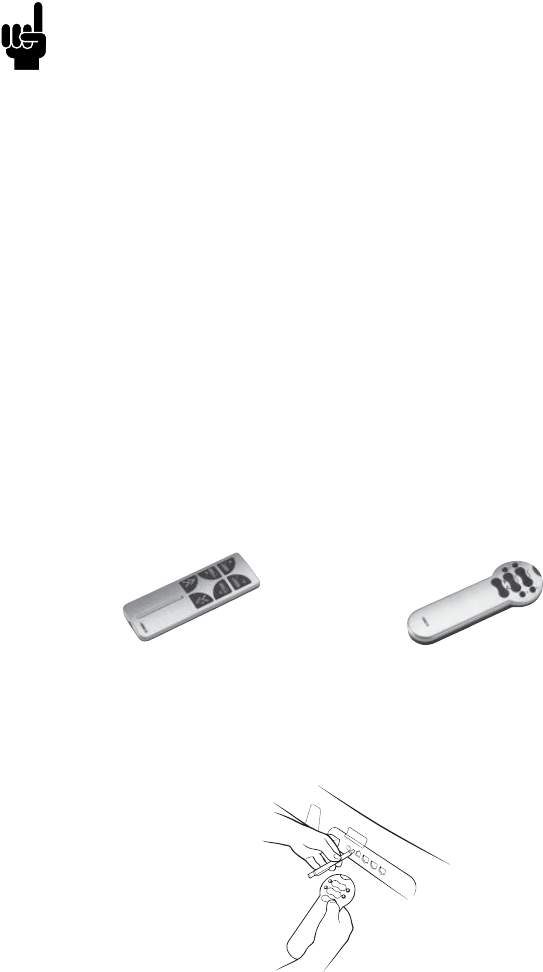

Transmitter HB10:
Up – down head motor
Up – down foot motor
Simultaneous up/down
How to store
• Drive to the desired position
• Push “S”
• Immediately afterwards the desired memory position must be pushed (1, 2 or 3)
• The position is now stored
Drive to stored memory position
Push (1, 2 or 3) keep the button down until the position has been reached.
Transmitter HB20:
common operation up/down (option)
Store Button
Memory positions
(3 positions)
3
2
1
S
Up – down head motor
Up – down foot motor
up to 3 extra channels
Light Button
Usage:
Enter/exit massage command mode
Sets the control in massage mode for controlling the massage functions (LED
fl ashing) or returns to normal mode for controlling the bed adjustment (LED off).
Pressing this key has no infl uence on the TWINDRIVE unit except from waking it up
to make its response time to massage commands shorter. If no keys are pressed for
10 min., the control will automatically go to normal mode (LED off).
Controlling the backrest massage motor
Short key press turns the backrest massage motor on or off (left key on, right key
off).
Turning on a motor, which has been turned off by turning the intensity to off, starts
the motor with lowest confi gured intensity.
Keep key pressed to adjust the intensity up or down (left key up, right key down).
Keeping the down key pressed will turn the motor off when going below minimum
intensity. The intensity can be controlled when running in a massage program,
but the massage program will be temporarily halted and both motors are run with
currently chosen intensity until up/down-key is released.
Controlling the legrest massage motor
Short key press turns the legrest massage motor on or off (left key on, right key off).
Turning on a motor, which has been turned off by turning the intensity to off, starts
the motor with lowest confi gured intensity.
Keep key pressed to adjust the intensity up or down (left key up, right key down).
Keeping the down key pressed will turn the motor off when going below minimal
intensity. The intensity can be controlled when running in a massage program,
but the massage program will be temporarily halted and both motors are run with
currently chosen intensity until up/down-key is released.
Controlling the massage program
Short key press on left key turns on a massage program (constant on - handwave -
software - hand pulse - soft pulse) or change to next program if a program is already
activated.
Starting a massage program always turns on both motors at current intensity.
HB22RF2000
Handset for massage
11
12
Short key press on the right key turns off both massage motors no matter if they
are running in a massage program, or separately.
Keep key pressed to adjust the motor, change speed up or down (left key down,
right key up.)
Store and recall massage settings.
2 massage settings can be stored.
Adjust the massage to the preferred settings. Pres the “S” key followed by either
key “1” or “2”. To recall a pervious stored setting pres key “1” or “2”.
In general
Massage will turn off automatically 10 min. after the last adjustment of the settings.
Adjusting the bed will turn off the massage, but massage will automatically start
up again afterwards.
When turning on a single massage motor it will start up with the same intensity as
it was last time it was running as a single motor.
When turning on a massage program it will start up with the same settings
(program, motor change speed, intensity) as it was last time.
Turning on a massage function can also be done by keeping the up key pressed.
Then it will turn on, and after a short delay adjust the intensity up.
Massage functions can only be controlled by the transmitter. The receiver is a
standard hand control.
Pressing any key on the receiver will stop the massage, and adjust the bed
according to the key pressed. After releasing the key, massage will automatically
start up again.
In case of any errors: current-limitation, high temperature or short-circuit, the
massage system will stop both motors, even if only one motor is affected.
Normal operation
In normal mode to adjust the bed position, the hand control is working exactly as
a normal Handset without massage functionality, except there are only 2 memory
positions instead of 3.
If there are any extra motors in the system, the keys to control these motors will, as
normal, be placed between the leg rest keys and the “reset and massage program”
keys.
Child lock
To enable the function, the position of the switch in the front of the
transmitter must be changed.
To unlock the handset press up and down keys of the 2nd row
at the same time for one sec. When the blue LED turns on
the handset is unlocked for 10 sec. after last key press. Then it
automatically locks again. If the up + down key is pressed for
more than 2 sec. the handset will lock again.
If the handset is locked and the user tries to operate it, it will give a
short fl ash with the LED to indicate “key is pressed, but handset is
locked”.
Enable/Disable Child lock
To enable the function the position of the switch in the front of the transmitter
must be changed.
N.B The Child lock only locks actuator functions. Therefore, it is disabled while the
HB is in massage command mode.
Unlock of Child lock
Press up and down keys of the 2nd row at the same time for one sec. When the
blue LED turns on the handset is unlocked.
The handset is not unlocked If the key is not are released again before the
blue led turns off.
Automatic lock
The handset is unlocked for 10 sec. after last key press. Then it automatically locks
again.
Signaling of handset is locked
If the handset is locked and the user tries to operate it, it will give a short fl ash with
the LED to indicate “key is pressed, but handset is locked”.
13
14
• After having activated the RF handset keys; the reset key must be released.
• If no RF handset keys are activated during the matching procedure; no changes
are made in the ID memory of the TD3.
Start-up - How to install the RF handset:
HB12 HB22
Please be aware that if you use the TD3 for the fi rst time or it has been
disconnected from the mains, the receiver integrated in the TD3 needs approx.
20 sec. before being able to receive a signal.
The TD3 can accept commands from up to 2 RF handsets.
From the factory the TD3 cannot recognise any RF handsets at all and must be
matched to the RF handset(s) by the end-user/bed manufacturer before these can
control the TD3 operation.
Conditions which must be fulfi lled prior to activating the learning mode:
• Both the back and the leg actuators must be in the fully down position;
if one or both actuators are NOT in the fully down position; the matching
procedure cannot be continued as now an ordinary reset down function is
performed instead. Thereafter, the reset key must be released and reactivated.
Activating the learning mode:
• Activate the reset key on the TD3 by using a pen or similar to keep the button
pressed.
• Keeping the reset key activated; the RF handset(s) must be activated one at a
time by pressing a random key on the RF handset. The RF handset ID’s are stored
in the TD3 memory and at the same time, previous RF handset ID’s are erased.
Disturbance of RF signals:
Please be aware that other equipments (as e.g. doorbells), which use the 433
MHz can disturb the RF signal.
Under some circumstances it is not possible to run 2 or more TD3 at the same
time.
Please observe that if you place 2 beds/2 x TD3 at a distance below 0.8 m the
RF signals they may interfere each other and the TD3’s can run irregularly.
The min. distance between
the TD3 must be 0.8 m
15
16
Mains inlet
Battery drawer
Battery cable/connection
Reset
(HB connection)

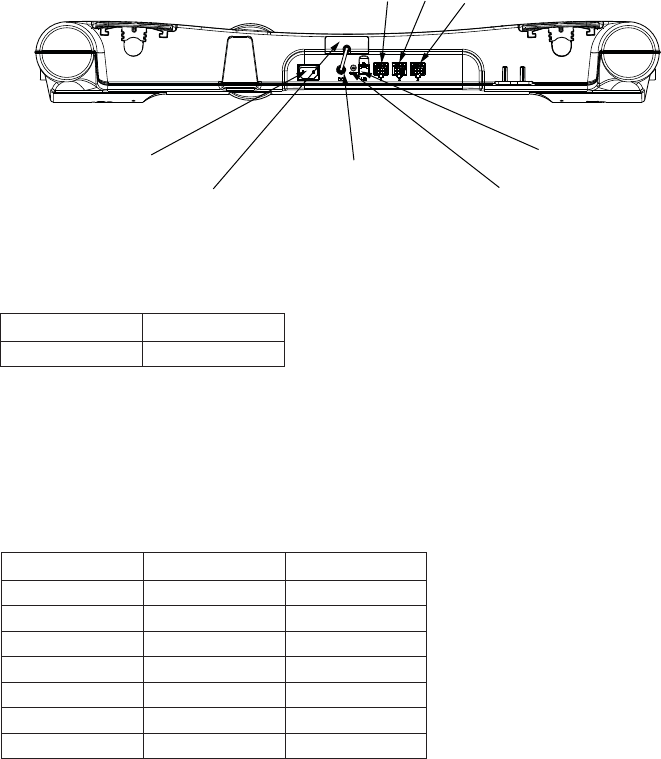

Ch.1 Ch.2 Ch.3
Connections
CH1 CH2
Footrest Headrest
CH1 CH2 CH3
Headrest --
-Headrest -
--Headrest
Footrest Headrest -
Footrest -Headrest
-Footrest Headrest
Footrest Extra function Headrest
Connection of massage motors:
Connection of LA27 actuators:
The TD3 will as default detect and run the LA27 using plug and play rules as
illustrated in the table below. The idea is that the Headrest is the fi rst actuator, the
Footrest second and then Extra function. The Headrest is always the one nearest to
the Backend and the Footrest is always the one nearest to the Leg-end.
Start up/initialisation of LA27:
After connection of the LA27, the system has to be initialised. Push down the
buttom for the LA27, which has to be initialised. When the sound from the LA27
stops the system is initialised. If more than 1 actuator is connected, the same has to
be done with the other channels.
If 2 or 3 x LA27 actuators are connected to the TD3 and one of the LA27 actuators
gets disconnected the function of the HB will change according to above scheme.
Mounting instructions for the massage motor:

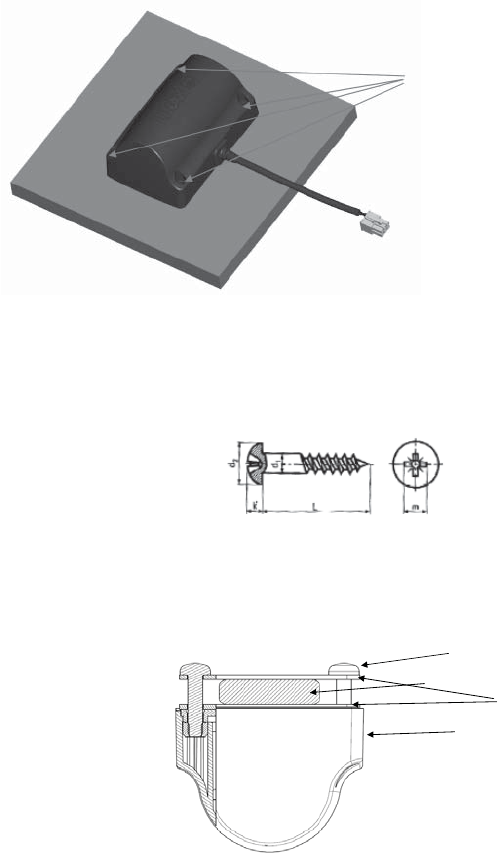

Mounting on plate:
Is mounted with 4 screws
The massage unit is mounted with 4 x 4 mm round-head wood screws with
fl at underside. The head must be 8 mm in diameter and in length 19 mm + the
thickness of the plate on which the massage motor is mounted. Torque max. 2 Nm
+ resistance in the plate.
Massage Motor
Slat
Bracket
Screw
Mounting instructions for the massage motor by using brackets:
The massage unit is mounted with 4 x M6 round-head machine screws with fl at
underside. 15 to 20 mm long + the thickness of the bracket. Torque max. 2-3 Nm.
2 Brackets must be used – one on each side of the slat.
17
18
Mounted on three slats:
Mounted on one slat:

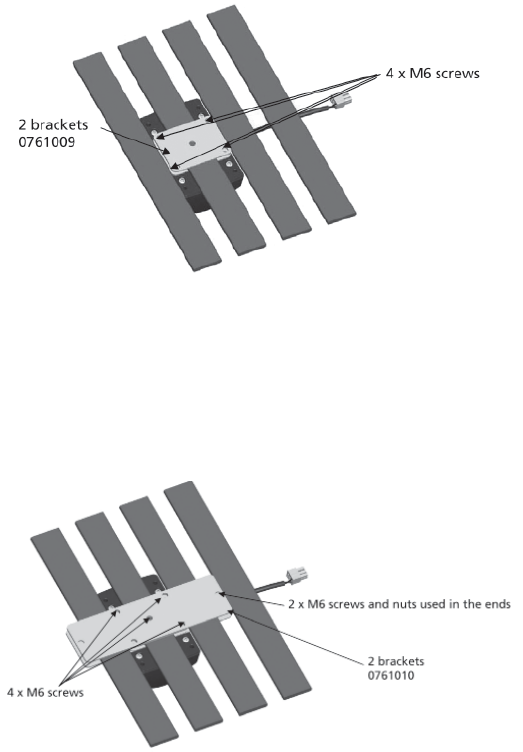

The massage motor is mounted on to the slat by using 2 brackets 0761009 and
4 x M6 screws of good quality. Inside the motor 4 self-locking nuts avoid the
mounting screws to get loose.
Accessories:
The TD3 can handle different kinds of accessories. The 3 main types are:
1. LED Lightbox : A light unit
2. DC Connector: Connection possibilities of units with DC plugs
3. USB Connector: Connection possibilities with units with USB plugs
Cable for connection to the TD3 is a separate unit: 0617101, 205 mm long
1. LED Lightbox

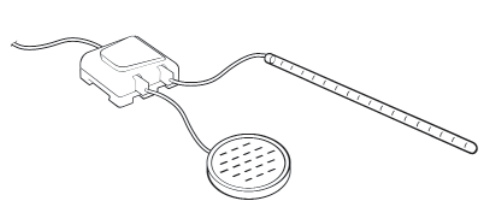

Just connect the LED Lightbox to the TD3 system via the motor cable. The light
can be turned on and off via the handset.
2. DC Connector
Connect the DC Connector to the TD3 system via the motor cable. Before use
the system must be confi gured via the TD3 confi gurator to be able to handle
the mounted DC unit. The TD3 confi guratior is a PC software program. Connect
your DC unit with the DC Connector e.g. a LED light rail and the light can be
turned on and off via the handset. As standard the TD3 can handle DC units
using 12V. Units using other levels must be confi gured.
See system example
19
20
3. USB Connector
Connect the USB Connector to the TD3 system via the motor cable. Before use
the system must be confi gured via the TD3 confi gurator to be able to handle the
mounted USB unit. The TD3 confi gurator is a PC software program.
Via this unit you can connect a range of different accessories and gadgets with
a USB plug, just as long as the device works in accordance with the general USB
charger standard (max. 5V and supply max. 0.5A).

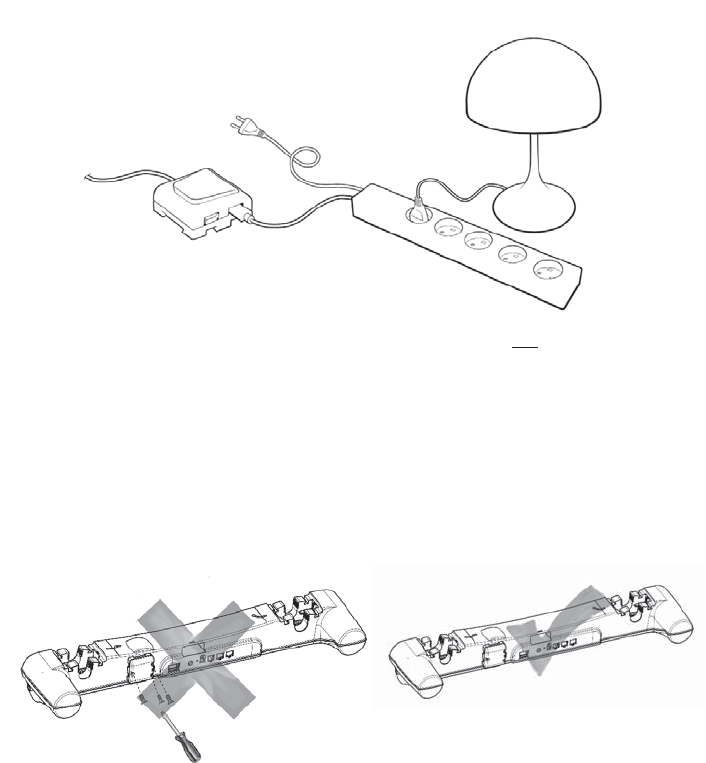

Example of a USB unit could be an energy saving busbar to which a standard
lamp can be connected. The lamp can then be turned on and off via the
handset, see example below.
Mounting of the accessories:
All 3 types can either be mounted on the bed using screws OR simply slide the
unit(s) on the groove on the TD3. The mounting screws must be fastened with a
max. torque of 1 Nm.
For mounting on the bedframe: use wood screws (M4) with a maximum head
diameter of 8 mm, and a suitable length.
If several units are used in a system they can be stacked/mounted on top of each
other, taking up a minimum of space.
20
Changing of batteries
1. Remove the battery cover (see Figure 1).
2. Use a blunt instrument to remove the battery.
3. Place 3 new batteries type R03 or LR03 (AAA) in the transmitter. Press a button
for 3 sec. If above procedure not is performed the handset will function anyway
after app. 5 minutes. Direction of how to place the batteries in the transmitter
is shown in Figure 2
Figure 1
Figure 2
Emergency lowering function: (optional)
Emergency lowering is meant for lowering the bed if a power failure occurs and
the bed needs to be driven down into horizontal position.
The internal motors in the TD3 and all external motors connected can run in a
random order depending on which button is activated on the handset. When the
synchronous drive/reset button on the handset is activated, the system will run in a
sequence running the internal motors fi rst and then the external motor. The default
sequence of the emergency lowering is backrest => leg rest => headrest. If more
external motors are connected, they will not run by activating the synchronous
drive/reset button, but only if the belonging button on the handset is activated. If
the system does not work as described above the setup is not standard.
Please observe that all motors will be driven singularly.
Emergency lowering after 2 hours (disconnection of mains):
If a power failure or a disconnection of the mains continues for more than 2 hours,
the TD3 will go into a hibernation mode. When the TD3 is in hibernation mode,
the bed can only be activated by activating the reset button (see page 15) on the
TD3. Keep the button pressed or use the handset to drive to horizontal position.
21
22
Connection of Emergency lowering:
Please observe that if you order the TD3 with 2 x 9V batteries mounted, the
batteries will not be connected. The customer needs to connect the cable from
the battery drawer to the TD3 when installing the bed and connecting the
mains.
If the batteries are connected and the bed is not connected to the mains,
the batteries will discharge in approx. 2 months and it will not be possible to
perform an emergency lowering.
Lifetime of batteries:
The batteries must be changed after an emergency lowering has been
performed. Batteries that have not been used must be changed after approx.
3 years.
Battery type:
Alkaline 9 V batteries 9F22 or 6LR61.
The correct way to use the functionality:
If the key is released during the lowering, always wait 60 sec before pressing the key
again.
Removal/fi tting of the 2 x 9 V batteries:
To change the 2 x 9 V batteries for emergency lowering the fi rst step is to disconnect
the cable and then pull out the drawer of the TD3. On the bottom of the drawer,
there are 2 holes, which are to be pushed with a fi nger or a blunt instrument. The
batteries will be released from the drawer when pushing. The new batteries can be
placed in the drawer. Afterwards, place the drawer in TD3 and connect the cable
again.
Only use alkaline batteries, and make sure to polarise the batteries correct according
to the symbols in the drawer.
To pull out the batteries
press here
Remember to
connect the cable
again afterwards
Tolerance of the parallels:
2) To maintain the correct angle of rotation
of the headrest and the foot rest it is im-
portant that the twist bracket is welded
according to the below instructions.
Non-compliance with the instructions
could lead to a smaller angle of rotation
or in a worst case damage to TD3.
o
tati
on
t
is im
-
w
elded
n
s.
ons
o
tation
.
Welding the twist bracket on the frame
1) For the TD3 it is important that it is not welded
on the outside of the twist bracket because
there is not room for a welding seam in the
motor housing. Instead weld the bracket on
the whole length of its ends.
e
frame
w
elded
use
the
t
on
23
24

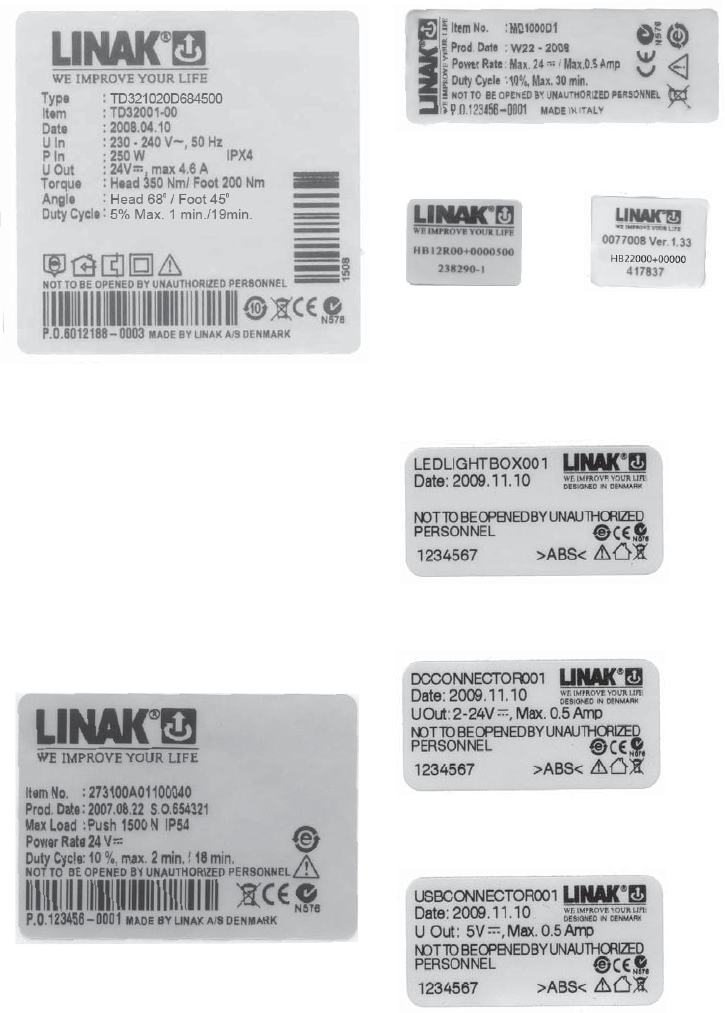

Label for TD3 TWINDRIVE® System Label for Massage Motor
Label for HB12
Label for LA27
Label for DC Connector
Label for LED Lightbox
Label for USB Connector
Label for HB20
The shown TD3 label is an example for
one model part number.
The power ratings for other models are:
For TD3x10xxxxxxx
U in: 230V, 50 Hz
P in: 250W
For TD3x11xxxxxxx
U in: 120V, 60 Hz
P in: 240W
Disposal of LINAK’s products
As LINAK’s customers often ask us how our products can be disposed of or scrapped
we have prepared this guidance that enables a classifi cation to different waste
fractions for recycling or combustion.
Guidance
We recommend to disassemble our product into as many fractions as possible at
the disposal and try to make it recycable. As examples of main groups within waste
fractions we can mention:
Metal, plastic, cable shoe, combustible waste, and collection for recovery.
Some of these main groups can be subdivided, e.g. metal can be divided into iron,
stainless steel and aluminium, and alloy steel. Plastic can e.g. be divided into ABS, PA,
PE, and PP.
As an example of sorting, please fi nd below a list stating in which recycling groups
the differenct components of LINAK’s products ought to be placed:
By now almost all our casted plastic parts are supplied with an interior code for plastic
type and fi bre contents, if any.
Product Components Recycling group
Actuator: Spindle and motor Scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
Massage motor: Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
TWINDRIVE: PCB Electronics scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap
Trafo Scrap
Batteries Recovery
Spindle and motor Scrap
Handset/Control: Plasic housing Plastic recycling or combustion
LED/DC/USB Cable Cable scrap
PCB Electronics scrap
Batteries Recovery
25
26
Product main
groups
Scrap Cable
scrap
Electronics
scrap
Plastic recycling
or combustin
Comments
LA27 X X X X The metals can be sorted
for steel or aluminum
TD3 X X X
HB10 X X X
HB20 X X X
MD1 X X X
LED Lightbox X X X
DC Connector X X X
USB Connector X X X
Main groups of disposal
Disposal of batteries.
Details regarding safe disposal of used and leaking batteries:
Batteries should be disposed in accordance with appropriate federal, state and local
regulations. LINAK recommends that used or leaking batteries are disposed through
the local recycling system. Please do not throw used or leaking batteries in normal
household waste or in nature. This will cause damage to the enviroment.
How to deal with leaking batteries.
Leaking batteries should be disposed as described above.
If leaking batteries are discovered in the product the batteries must be removed at
once to minimise damage to the product. If leaking batteries are left in the product
it might become defect.
It is recommended to use plastic gloves when handeling leaking batteries. The
contents of leaking batteries can cause chemical burns and respiratory irritation.
If exposed to the contents of a leaking battery, please wash with soap and water. If
irritation persists, please seek medical attention. In case of eye contact, please fl ush
eyes thoroughly with water for 15 minutes and seek medical attention.
DRAWING APPENDIX
TWINDRIVE® TD3 System
LA27
27
28

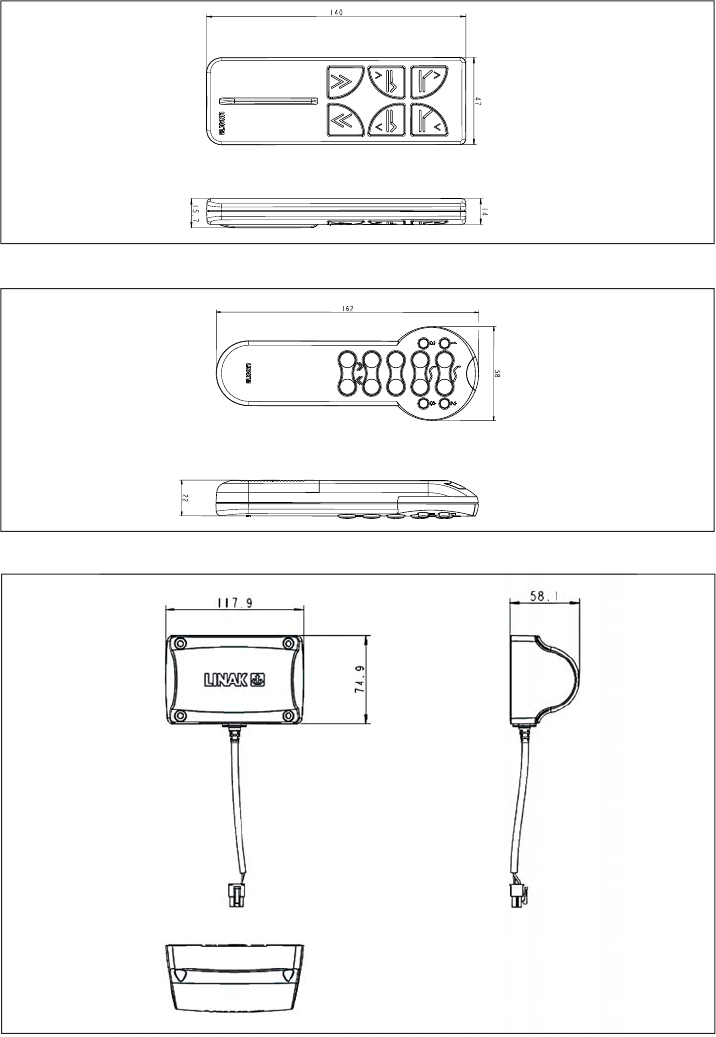

HB20 Transmitter
HB10 Transmitter
Massage motor MD1
otor
MD1
29
63
65
30
52.6
8.1
Ø4
24
62
65
30
52.6
8.1
4

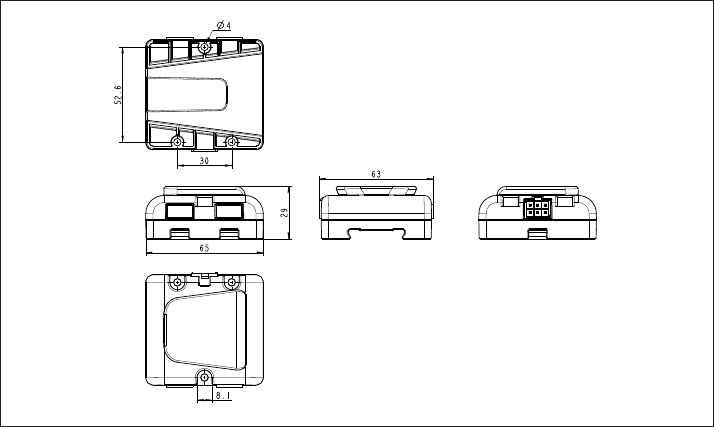

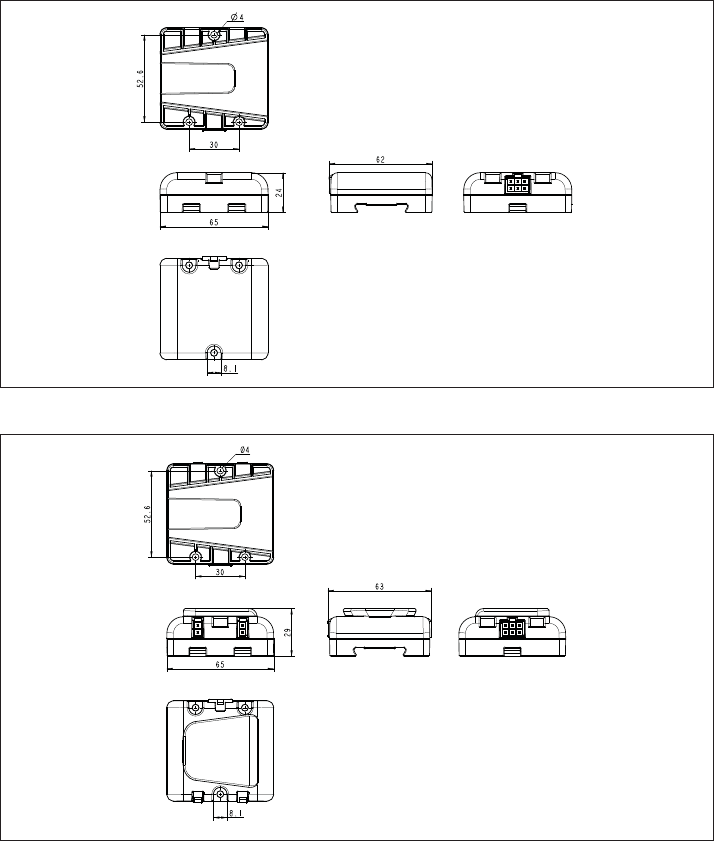

LED Lightbox
DC Connector
29
30
29
65
63
8.1
30
52.6
4
USB Connector
31
LINAK APPLICATION POLICY
The purpose of the application policy is to defi ne areas of responsibilities in relation
to applying a LINAK product defi ned as hardware, software, technical advice, etc.
related to an existing or new customer application.
LINAK products as defi ned above are applicable for a wide range of applications
within the Medical, Furniture, Desk, and Industry areas. Yet, LINAK cannot know all
the conditions under which LINAK products will be installed, used, and operated, as
each individual application is unique.
The suitability and functionality of the LINAK product and its performance under
varying conditions (application, vibration, load, humidity, temperature, frequency,
etc.) can only be verifi ed by testing, and shall ultimately be the responsibility of the
LINAK customer using any LINAK product.
LINAK shall be responsible solely that the LINAK products comply with the
specifi cations set out by LINAK and it shall be the responsibility of the LINAK
customer to ensure that the specifi c LINAK product can be used for the application
in question.
Copyright© LINAK 2011.04 MA-M9-02-258-G LINAK A/S reserve the right to make technical alterations
Terms of use
The user is responsible for determining the suitability of
LINAK products for specifi c application. LINAK takes great
care in providing accurate and up-to-date information on
its products.
However, due to continuous development in order to
improve its products, LINAK products are subject to frequent
modifi cations and changes without prior notice. Therefore,
LINAK cannot guarantee the correct and actual status of said
information on its products.
While LINAK uses its best efforts to fulfi l orders, LINAK
cannot, for the same reasons as mentioned above, guarantee
the availability of any particular product. Therefore, LINAK
reserves the right to discontinue the sale of any product
displayed on its website or listed in its catalogues or other
written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and
Delivery for LINAK. For a copy hereof, please contact LINAK.
FACTORIES
CHINA
LINAK (Shenzhen) Actuator Systems, Ltd.
Phone: +86 755 8610 6656 . Fax: +86 755 8610 6990
E-mail: sales@linak.cn . www.linak.cn
DENMARK
LINAK A/S . Group Headquarters Guderup
Phone: +45 73 15 15 15 . Fax: +45 74 45 80 48
Fax (Sales): +45 73 15 16 13
E-mail: info@linak.com . www.linak.com
SLOVAKIA
LINAK Slovakia s.r.o.
Phone: +421 517563 414 . Fax: +421 517563 410
E-mail: jp@linak.sk . www.linak.com
USA
LINAK U.S. Inc.
North and South American Headquarters
Phone: +1 502 253 5595 . Fax: +1 502 253 5596
E-mail: info@linak-us.com . www.linak-us.com
SUBSIDIARIES
AUSTRALIA
LINAK Australia Pty. Ltd
Phone: +61 3 8796 9777 . Fax: +61 3 8796 9778
E-mail: sales@linak.com.au . www.linak.com.au
AUSTRIA
LINAK GmbH - Austria
Phone: +43 (0) 2746 210 36 . Fax: +43 (0) 2746 210 44
E-mail: sebastian.karl@linak.at . www.linak.at
BELGIUM & LUXEMBOURG
LINAK Actuator-Systems NV/SA
Phone: +32 (0)9 230 01 09 . Fax: +32 (0)9 230 88 80
E-mail: info@linak.be . www.linak.be
BRAZIL
LINAK do Brasil Comércio de Atuadores Ltda.
Phone: +55 (11) 2832-7070 . Fax: +55 (11) 2832-7060
E-mail: info@linak.com.br . www.linak.com.br
CANADA
LINAK Canada Inc.
Phone: +1 905 821 7727 . Fax: +1 905 821 4281
E-mail: info@linak.ca . www.linak.ca
CZECH REPUBLIC
LINAK C&S S.R.O.
Phone: +420581741814 . Fax: +420581702452
E-mail: ponizil@linak.cz . www.linak.cz
DENMARK
LINAK DANMARK A/S
Phone: +45 86 80 36 11 . Fax: +45 86 82 90 51
E-mail: linak@linak-silkeborg.dk . www.linak.dk
FINLAND
LINAK OY
Phone: +358 10 841 8700 . Fax: +358 10 841 8729
E-mail: linak@linak.fi . www.linak.fi
FRANCE
LINAK FRANCE S.A.R.L
Phone: +33 (0)2 4136 3434 . Fax: +33 (0)2 4136 3500
E-mail: linak@linak.fr . www.linak.fr
GERMANY
LINAK GmbH
Phone: +49 6043 9655 0 . Fax: +49 6043 9655 60
E-mail: info@linak.de . www.linak.de
INDIA
LINAK A/S India Liaison Office
Phone: +91 120 4273708 . Fax: +91 80 2224 3863
E-mail: info@linak.in . www.linak.in
IRELAND
LINAK UK Limited
Phone: +44(0)121 544 2211 . Fax: +44(0)121 544 2552
E-mail: sales@linak.co.uk . www.linak.co.uk
ITALY
LINAK ITALIA S.r.l.
Phone: +39 02 48 46 33 66 . Fax: +39 02 48 46 82 52
E-mail: info@linak.it . www.linak.it
JAPAN
LINAK K.K.
Phone: +81 45 533 0802 . Fax: +81 45 533 0803
E-mail: linak@linak.jp . www.linak.jp
MALAYSIA
LINAK A/S Asian Representative Office
Phone: +60 4 210 6500 . Fax: +60 4 226 8901
E-mail: info@linak-asia.com . www.linak-asia.com
NETHERLANDS
LINAK Actuator-Systems B.V.
Phone: +31 76 5 42 44 40 . Fax: +31 76 5 42 61 10
E-mail: info@linak.nl . www.linak.nl
NEW ZEALAND
LINAK New Zealand Ltd.
Phone: +64 9580 2071 . Fax: +64 9580 2072
E-mail: nzsales@linak.com.au . www.linak.co.nz
NORWAY
LINAK Norge AS
Phone: +47 32 82 90 90 . Fax: +47 32 82 90 98
E-mail: info@linak.no . www.linak.no
POLAND
LINAK Polska
Phone: +48 (22) 500 28 74 . Fax: +48 (22) 500 28 75
E-mail: dkreh@linak.dk . www.linak.pl
SPAIN
LINAK Actuadores S.L.
Phone: +34 93 588 27 77 . Fax: +34 93 588 27 85
E-mail: linakact@linak.es . www.linak.es
SWEDEN
LINAK Scandinavia AB
Phone: +46 8 732 20 00 . Fax: +46 8 732 20 50
E-mail: info@linak.se . www.linak.se
SWITZERLAND
LINAK AG
Phone: +41 43 388 31 88 . Fax: +41 43 388 31 87
E-mail: info@linak.ch . www.linak.ch
TAIWAN
LINAK A/S Taiwan Representative Office
Phone: +886 2 250 80296 . Fax: +886 2 2508 3604
E-mail: info@linak.com.tw . www.linak.com.tw
TURKEY
LINAK A/S Turkey Representative Office
Phone: +90 312 4726338-59 . Fax: +90 312 4726635
E-mail: vozen@linak.com.tr . www.linak.com.tr
UNITED KINGDOM
LINAK UK Limited
Phone: +44(0)121 544 2211 . Fax: +44(0)121 544 2552
E-mail: sales@linak.co.uk . www.linak.co.uk
DISTRIBUTORS
ARGENTINA
NOVOTEC ARGENTINA SRL
Phone: +[54] (11) 4303-8900/89 . Fax: +[54] (11) 4032-0184
E-mail: info@novotecargentina.com
www.novotecargentina.com
COLOMBIA
MEM Ltda
Phone: +[57] (1) 334-7666 . Fax: +[57] (1) 282-1684
E-mail: servicioalcliente@memltda.com.co
www.memltda.com.co
INDONESIA
PT. HIMALAYA EVEREST JAYA
Phone: +6 221 544 8956/65 . Fax: +6 221 619 4658/1925
E-mail: hejplastic-div@centrin.net.id
IRAN
Bod Inc.
Phone: +98 21 2203 9435 . Fax: +98 21 2203 9430
E-mail: info@bod.ir . www.bod.ir
MEXICO
ILSA S.A. de C.V.
Phone: +[52] (55) 5388-3960 . Fax: +[52] (55) 5388-3966
E-mail: linak@ilsamexico.com . www.ilsamexico.com
RUSSIAN FEDERATION
000 FAM
Phone: +7 812 3319333 . Fax: +7 812 3271454
E-mail: purchase@fam-drive.ru . www.fam-drive.ru
SINGAPORE
SERVO DYNAMICS PTE. Ltd.
Phone: +65 6844 0288 . Fax: +65 6844 0070
E-mail: servodynamics@servo.com.sg . www.servo.com.sg
SOUTH AFRICA
Industrial Specialised Applications CC
Phone: +27 11 312 2292 or +27 11 2077600
Fax: +27 11 315 6999
E-mail: gartht@isagroup.co.za . www.isaza.co.za
SOUTH KOREA
UNITEK ENG.
Phone: +82 2 567 0888 . Fax: +82 2 3453 1177
E-mail: unitekeng@unitekeng.co.kr . www.unitekeng.co.kr
UNITED ARAB EMIRATES
Mechatronics
Phone.: +971 4 267 4311 . Fax: +971 4 267 4312
E-mail: mechtron@emirates.net.ae
www.mechatronics.ae
For contact details on other countries please visit
www.linak.com or contact:
LINAK INTERNATIONAL
Fax: +45 74 45 90 10
E-mail: info@linak.com . www.linak.com
