LINAK A/S HC05
User manual
Page 1 of 20
USER MANUAL

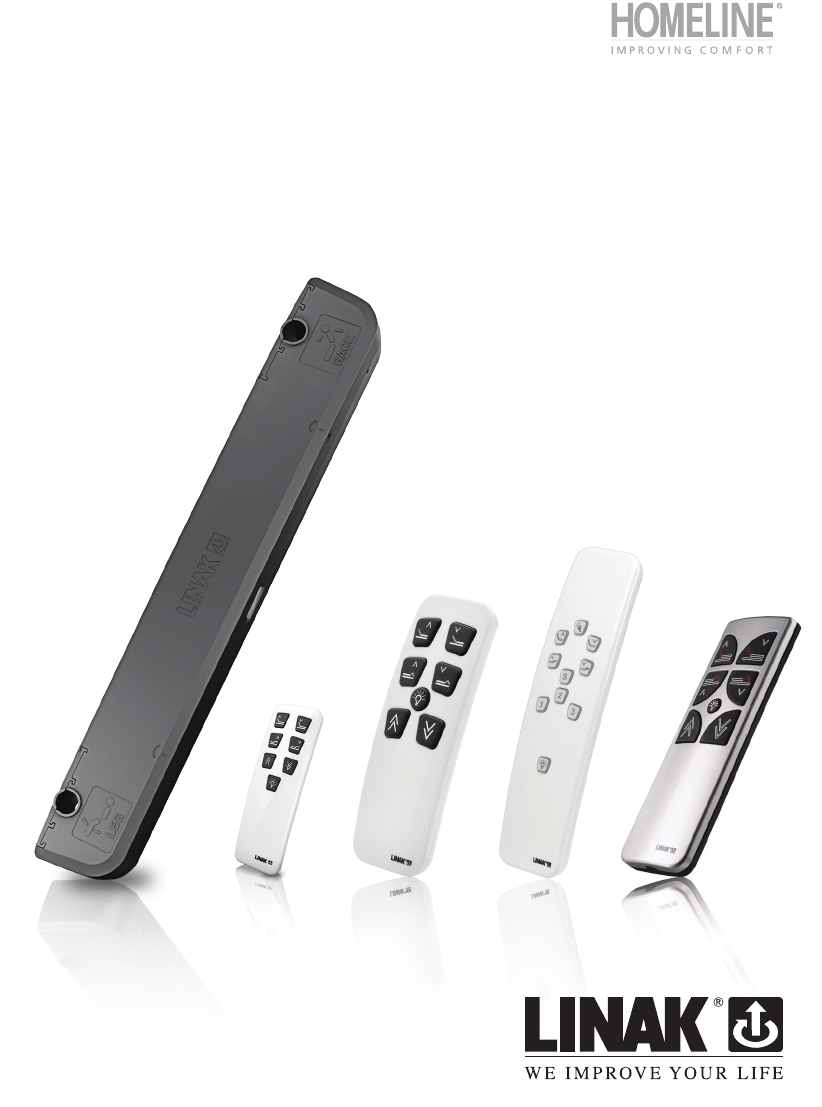

TWINDRIVE®
TD4
To learn more about LINAK, please visit:
www.linak.com
Page 3 of 20
Preface................................................................................................................................................. 4
Important information ...................................................................................................................... 5
Safety instructions ............................................................................................................................. 5
Before installation, reinstallation or troubleshooting ........................................................................ 8
Before start-up ............................................................................................................................... 8
During operation ............................................................................................................................. 8
Misc ............................................................................................................................................... 8
Only for EU markets ........................................................................................................................... 9
Only for Non EU markets .................................................................................................................. 9
Repairs ................................................................................................................................................. 10
Misc. on the TD4 TWINDRIVE® system ............................................................................................. 11
Description of the TD4 TWINDRIVE® system ................................................................................... 11
Start-up (How to pair Bluetooth connection) ................................................................................. 12
Functional description ....................................................................................................................... 13
Labels ................................................................................................................................................. 14
Disposal of LINAK products .............................................................................................................. 15
Main groups of disposal .................................................................................................................... 16
Disposal of batteries ......................................................................................................................... 16

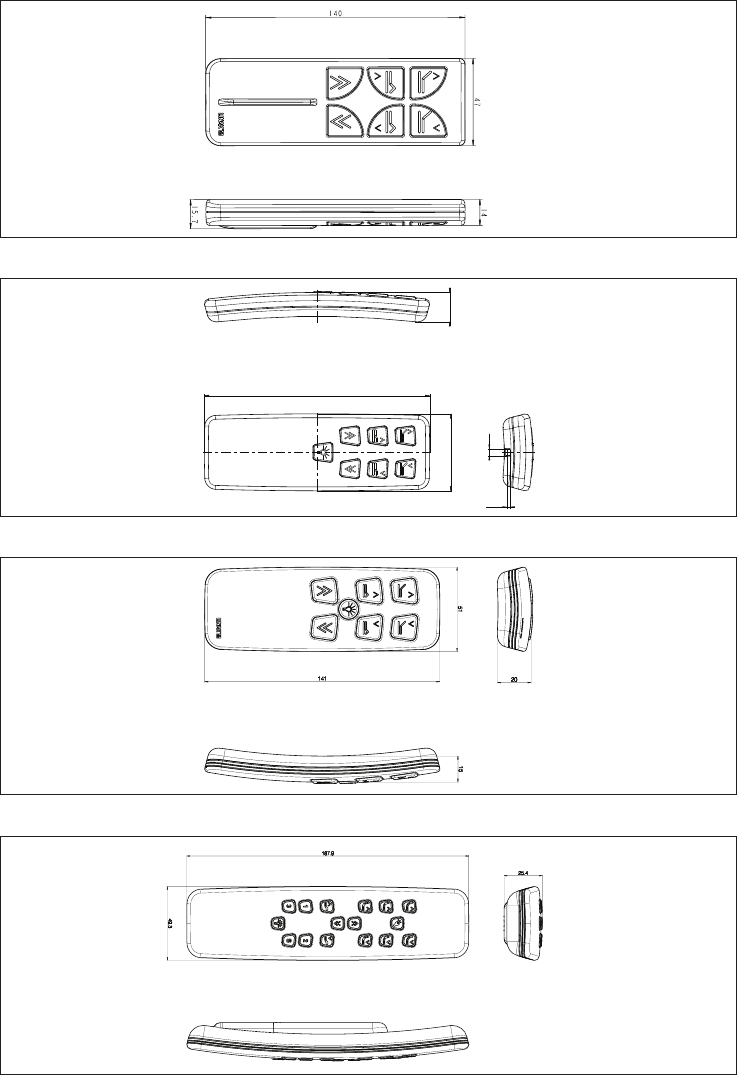

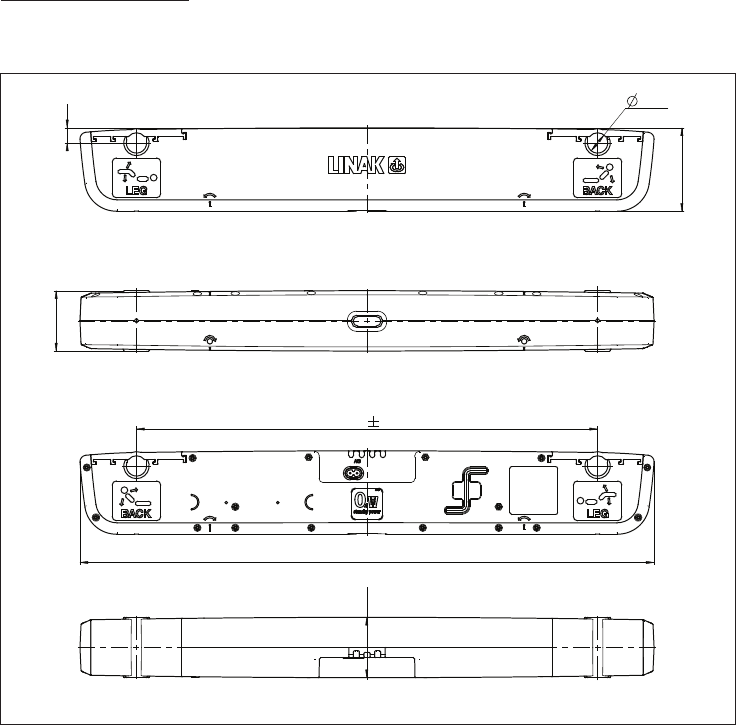

Drawing appendix .............................................................................................................................. 17
LINAK application policy ................................................................................................................... 19
Addresses ............................................................................................................................................ 20
Contents
Page 4 of 20
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development of
actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with
the specifications, maintenance being done correctly and any repairs being carried out at a service centre, which is
authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The products
are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S
Page 5 of 20
Safety instruction
General
Important information
Important information on LINAK® products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator is to be
fitted, there must be no possibility of personal injury, for example squeezing
of fingers or arms.
Assure free space for movement of the application in both direc-tions to avoid
blockade.
Page 6 of 20
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation
• Statement – for all intentional and unintentional radiators:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• Statement for digital devices for Class B:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B diwgital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions it may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Page 7 of 20
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Labeling Requirements:
This Class B digital apparatus complies with Canadian ICES-003.
Page 8 of 20
Before installation, de-installation or troubleshooting:
• Stop the TD4.
• Switch off the power supply and pull out the mains plug.
• Relieve the TD4 of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage is correct before the system is connected to the mains.
(See TD4 label in the appendix).
• System connection. The individual parts must be connected before connecting to
the mains.
During operation
• If the control box makes unusual noise or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• Unplug the mains cable on mobile equipment before it is moved.
• The products must only be used in an environment, that corresponds to their IP
protection.
Misc:
The actuator system has a sound level below 55dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/HOMELINE
Electromagnetic fields (EMF):
This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to
instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
Page 9 of 20
Only for EU markets
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not
play with the product.
It is the operator’s responsibility to ensure that there is free space for the
application to move without risk for the operator or bystanders before
operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the system in environments other than the intended indoor use
Page 10 of 20
Repairs
In order to avoid the risk of malfunction, all TWINDRIVE® repairs must only be carried out by authorised LINAK workshops or
repairers, as special tools must be used and special gaskets must be fitted. TWINDRIVE under warranty must also be returned
to authorised LINAK workshops.
Page 11 of 20
Misc. on the TD4 TWINDRIVE® system
This system is a TWINDRIVE system developed for leisure beds and for indoor use in private homes.
Warranty
There is 36 months’ warranty on the TWINDRIVE® products against manufacturing faults calculated from the production
date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and
maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In
the event of this, the warranty will be ineffective/invalid. For further details, please see standard terms of sale and delivery for
LINAK A/S.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables and plugs and check for correct functioning as well as fixing points.
The cleaners and disinfectants must not be highly alkaline or acidic
(pH value 6-8).
It is not allowed to use solvents for cleaning up.
Max. load running head and foot end motors at the same time in upward direction is
280 Nm on Head motor, and 200 Nm on Foot end motor.
For customers in the US/Canada:
The mains cable for this product has a polarised plug (one blade is wider than the other). It will only fit in a polarised
outlet one way. If it does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician
to install a proper outlet. Do not change the plug in any way.
Description of the TWINDRIVE® TD4 system
Each TWINDRIVE® TD4 unit consists of 2 internal motors and a built-in control, which makes it a very compact unit. The mains
cable is exchangeable. Only the handset must be paired.
Application of the TWINDRIVE® TD4 system:
Irrespective of the load the Duty cycle: 10% ~ 3 min./ hour or max. 2 min. at continous use followed by 18 min.
not in use.
Do not turn on the system if it is not mounted in a bed.
Page 12 of 20

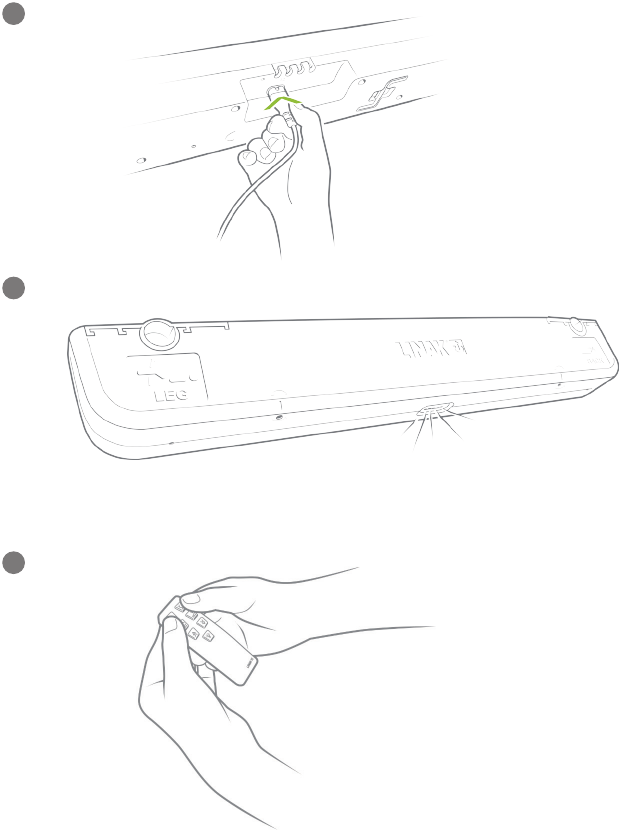

Start-up (How to pair Bluetooth connection)
It is possible to pair multiple devices to the TD4 via Bluetooth SMART. See following instructions:
1. Pairing your control
Connect the TD4 to the mains via the mains cable. Now the TD4 will be in pairing mode in 3 minutes and the Under
Bed Light will blink to indicate this.
Take you hand control and press the “Back” “Up” and “Down” buttons at the same time. Now the control and the
TD4 paired up. The TD4 will stay in pairing mode and it is possible to connect more controls using the same procedure
as above. To get the system out of pairing mode – simply press any button on an already paired device.
1
2
3
Page 13 of 20
Functional description
Hand Control HB10RF: Up – down head motor
Up – down foot motor
Simultaneous up/down
How to store
• Drive to the desired position
• Push “S”
• Immediately afterwards the desired memory position must be pushed (1, 2 or 3)
• The position is now stored
Drive to stored memory position
Push (1, 2 or 3) keep the button down until the position has been reached.
Hand Control HC05:
common operation up/down (option)
Up – down head motor
Up – down foot motor
up to 3 extra channels
Light Button
Hand Control HC20RF:
common operation up/down (option)
Store Button
Memory positions (3 positions)
Up – down head motor
Up – down foot motor
up to 3 extra channels
Light Button
Torch - Light Button
Page 14 of 20
Label for HC10RF Label for HC20RF
Label for HB10RF
Label for HC05 Label for HC10
Label for HC22
Label for HB12
Label for TD4 Advanced Label for TD4 Standard
Page 15 of 20
Disposal of LINAK products
As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that
enables a classification to different waste fractions for recycling or combustion.
Guidance
We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As
examples of main groups within waste fractions we can mention:
Metal, plastic, cable shoe, combustible waste and collection for recovery.
Some of these main groups can be subdivided, e.g. metal can be divided into iron, stainless steel and aluminium and alloy
steel. Plastic can e.g. be divided into ABS, PA, PE and PP.
As an example of sorting, please find below a list stating in which recycling groups the different components of LINAK
products ought to be placed:
By now almost all our casted plastic parts are supplied with an interior code for plastic type and fibre contents, if any.
Product Components Recycling group
Actuator: Spindle and motor Scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
Massage motor: Plastic housing Plastic recycling or combustion
Cable Cable scrap or combustion
TWINDRIVE: PCB Electronics scrap
Plastic housing Plastic recycling or combustion
Cable Cable scrap
Transformer Scrap
Batteries Recovery
Spindle and motor Scrap
Handset/Control: Plasic housing Plastic recycling or combustion
LED/DC/USB Cable Cable scrap
PCB Electronics scrap
Batteries Recovery
Page 16 of 20
Product main
groups
Scrap Cable
scrap
Electronics
scrap
Plastic recycling
or combustin
Comments
TD4 X X X
HB10RF X X X
HC05
HC10RF X X X
HC20RF X X X
Main groups of disposal
Disposal of batteries
Details regarding safe disposal of used and leaking batteries:
Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used
or leaking batteries are disposed through the local recycling system. Please do not throw used or leaking batteries in normal
household waste or in nature. This will cause damage to the enviroment.
How to deal with leaking batteries
Leaking batteries should be disposed as described above.
If leaking batteries are discovered in the product the batteries must be removed at once to minimise damage to the product. If
leaking batteries are left in the product, it may become defective.
It is recommended to use plastic gloves when handling leaking batteries. The contents of leaking batteries can cause chemical
burns and respiratory irritation.
If exposed to the contents of a leaking battery, please wash with soap and water. If irritation persists, please seek medical
attention. In case of eye contact, please flush eyes thoroughly with water for 15 minutes and seek medical attention.
Page 17 of 20
DRAWING APPENDIX
TWINDRIVE® TD4 System
Drawing No.: TD4_STANDARD
581 1
76
105
723
76
19
25.6
Drawing No.: TD4_STANDARD
Page 18 of 20
HC10
HB10BL Hand Control
HC20 Hand Control
HC05 Hand Control
Drawing No.: HC05
13.5 34
100
2.9
1.3
Drawing No.: HC05
Page 19 of 20
LINAK APPLICATION POLICY
The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as
hardware, software, technical advice, etc. related to an existing or a new customer application.
LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk, and
Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products will be installed, used, and operated, as
each individual application is unique.
The suitability and functionality of the LINAK product and its performance under varying conditions (application, vibration,
load, humidity, temperature, frequency, etc.) can only be verified by testing, and shall ultimately be the responsibility of the
LINAK customer using any LINAK product.
LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the
responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
Page 20 of 20
Copyright© LINAK 2015.11 MA-M9-02-620 LINAK A/S reserve the right to make technical alterations
Terms of use
The user is responsible for determining the suitability of LINAK products for specific application. LINAK takes great care in providing
accurate and up-to-date information on its products.
However, due to continuous development in order to improve its products, LINAK products are subject to frequent modifications and
changes without prior notice. Therefore, LINAK cannot guarantee the correct and actual status of said information on its products.
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of
any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its
catalogues or other written material drawn up by LINAK.
All sales are subject to the Standard Terms of Sale and Delivery for LINAK. For a copy hereof, please contact LINAK.
FACTORIES
CHINA
LINAK (Shenzhen) Actuator Systems, Ltd.
Phone: +86 755 8610 6656
Fax: +86 755 8610 6990
E-mail: sales@linak.cn
www.linak.cn
SUBSIDIARIES
AUSTRALIA
LINAK Australia Pty. Ltd
Phone: +61 3 8796 9777
Fax: +61 3 8796 9778
E-mail: sales@linak.com.au
www.linak.com.au
AUSTRIA
LINAK Repräsentanz
Österreich (Wien)
Phone: +43 (1) 890 7446
Fax: +43 (1) 890 744615
E-mail: info@linak.de
www.linak.at
BELGIUM & LUXEMBOURG
LINAK Actuator-Systems NV/SA
Phone: +32 (0)9 230 01 09
Fax: +32 (0)9 230 88 80
E-mail: beinfo@linak.be
www.linak.be
BRAZIL
LINAK Do Brasil Comércio De Atuadores Ltda.
Phone: +55 (11) 2832 – 7070
Fax: +55 (11) 2832 – 7060
E-mail: info@linak.com.br
www.linak.com.br
CANADA
LINAK Canada Inc.
Phone: +1 502 253 5595
Fax: +1 416-255-7720
E-mail: info@linak.ca
www.linak-us.com
CZECH REPUBLIC
LINAK C&S S.R.O.
Phone: +420581741814
Fax: +420581702452
E-mail: ponizil@linak.cz
www.linak.cz
DISTRIBUTORS
ARGENTINA
Novotec Argentina SRL
Phone: 011-4303-8989/8900
Fax: 011-4032-0184
E-mail: info@novotecargentina.com
www.novotecargentina.com
AUSTRALIA
Ballarat Industrial Supplies
www.ballind.com.au
BL Shipways & Co
www.blshipway.com.au
Gas Strut Marine and Industrial
www.gasstrutmarine.com.au
Prime Motion & Control
www.primehyd.com.au
West Vic Industrial Supplies
www.westvicindustrial.com.au
DENMARK
LINAK A/S - Group Headquarters, Guderup
Phone: +45 73 15 15 15
Fax: +45 74 45 80 48
Fax: +45 73 15 16 13 (Sales)
E-mail: info@linak.com
www.linak.com
SLOVAKIA
LINAK Slovakia s.r.o.
Phone: +421 51 75 63 414
Fax: +421 51 75 63 410
E-mail: jp@linak.sk
www.linak.com
USA
LINAK U.S. Inc.
North and South American Headquarters
Phone: +1 502 253 5595
Fax: +1 502 253 5596
E-mail: info@linak-us.com
www.linak-us.com
DENMARK
LINAK Danmark A/S
Phone: +45 86 80 36 11
Fax: +45 86 82 90 51
E-mail: linak@linak-silkeborg.dk
www.linak.dk
FINLAND
LINAK OY
Phone: +358 10 841 8700
Fax: +358 10 841 8729
E-mail: linak@linak.fi
www.linak.fi
FRANCE
LINAK France E.U.R.L
Phone: +33 (0) 2 41 36 34 34
Fax: +33 (0) 2 41 36 35 00
E-mail: linak@linak.fr
www.linak.fr
GERMANY
LINAK GmbH
Phone: +49 6043 9655 0
Fax: +49 6043 9655 60
E-mail: info@linak.de
www.linak.de
INDIA
LINAK A/S India Liaison Office
Phone: +91 120 4734613
Fax: +91 120 4273708
E-mail: info@linak.in
www.linak.in
IRELAND
LINAK UK Limited - Ireland
Phone: +44 (0)121 544 2211
Fax: +44 (0)121 544 2552
+44 (0)796 855 1606 (UK Mobile)
+35 387 634 6554 (Republic Of Ireland Mobile)
E-mail: sales@linak.co.uk
www.linak.co.uk
ITALY
LINAK Italia S.r.l.
Phone: +39 02 48 46 33 66
Fax: +39 02 48 46 82 52
E-mail: info@linak.it
www.linak.it
JAPAN
LINAK K.K.
Phone: 81-45-533-0802
Fax: 81-45-533-0803
E-mail: linak@linak.jp
www.linak.jp
MALAYSIA
LINAK Actuators Sdn. Bhd.
Phone: +60 4 210 6500
Fax: +60 4 226 8901
E-mail: info@linak-asia.com
www.linak.my
NETHERLANDS
LINAK Actuator-Systems B.V.
Phone: +31 76 5 42 44 40
Fax: +31 76 5 42 61 10
E-mail: info@linak.nl
www.linak.nl
NEW ZEALAND
LINAK New Zealand Ltd.
Phone: +64 9580 2071
Fax: +64 9580 2072
E-mail: nzsales@linak.com.au
www.linak.co.nz
NORWAY
LINAK Norge AS
Phone: +47 32 82 90 90
Fax: +47 32 82 90 98
E-mail: info@linak.no
www.linak.no
POLAND
LINAK Polska
Phone: +48 (22) 500 28 74
Fax: +48 (22) 500 28 75
E-mail: dkreh@linak.dk
www.linak.pl
REPUBLIC OF KOREA
LINAK Korea Ltd.
Phone: +82-(0)2-6231-1515
Fax: +82-(0)2-6231-1516
E-mail: scully@linak.kr
www.linak.kr
RUSSIAN FEDERATION
000 LINAK
Phone: +7 495 280 14 26
Fax: +7 495 687 14 26
E-mail: info@linak.ru
www.linak.ru
SPAIN
LINAK Actuadores, S.L.u
Phone: +34 93 588 27 77
Fax: +34 93 588 27 85
E-mail: esma@linak.es
www.linak.es
SWEDEN
LINAK Scandinavia AB
Phone: +46 8 732 20 00
Fax: +46 8 732 20 50
E-mail: info@linak.se
www.linak.se
SWITZERLAND
LINAK AG
Phone: +41 43 388 31 88
Fax: +41 43 388 31 87
E-mail: info@linak.ch
www.linak.ch
TAIWAN
LINAK A/S Taiwan Representative Office
Phone: +886 2 27290068
Fax: +886 2 27290096
Mobile: +886 989292100
E-mail: michael.chen@linak.com.tw
www.linak.com.tw
TURKEY
LINAK İth. İhr. San. ve Tic. A.Ş.
Phone: + 90 312 4726338
Fax: + 90 312 4726635
E-mail: info@linak.com.tr
www.linak.com.tr
UNITED KINGDOM
LINAK UK Limited
Phone: +44 (0)121 544 2211
Fax: +44 (0)121 544 2552
E-mail: sales@linak.co.uk
www.linak.co.uk
COLOMBIA
MEM Ltda
Phone: +[57] (1) 334-7666
Fax: +[57] (1) 282-1684
E-mail: servicioalcliente@memltda.com.co
www.memltda.com.co
INDIA
Mechatronics Control Equipments India
Pvt Ltd
Phone: +91-44-28558484/85,
E-mail: bala@mechatronicscontrol.com
www.mechatronicscontrol.com
INDONESIA
Pt. Himalaya Everest Jaya
Phone: +6 221 544 8956/8965,
Fax: +6 221 619 4658/1925
E-mail: hejplastic-div@centrin.net.id
www.hej.co.id
IRAN
Bod Inc.
Phone: +98 2188998635-6
Fax: +98 2188954481
E-mail: info@bod.ir
www.bod.ir
RUSSIAN FEDERATION
000 FAM
Phone: +7 812 3319333
Fax: +7 812 3271454
E-mail: purchase@fam-drive.ru
www.fam-drive.ru
SINGAPORE
Servo Dynamics Pte. Ltd.
Phone: +65 6844 0288
Fax: +65 6844 0070
E-mail: servodynamics@servo.com.sg
www.servo.com.sg
SOUTH AFRICA
Industrial Specialised Applications CC
Phone: +27 11 312 2292 or +27 11 2077600 (Switch Board)
Fax: +27 11 315 6999
E-mail: gartht@isagroup.co.za
www.isaza.co.za
UNITED ARAB EMIRATES
Mechatronics
Phone: +971 4 267 4311
Fax: +971 4 267 4312
E-mail: mechtron@emirates.net.ae
www.mechatronics.ae
For contact details on other countries please visit www.linak.com or contact:
LINAK INTERNATIONAL
Phone: +45 73 15 15 15
Fax: +45 74 45 90 10
Fax: +45 73 15 16 13 (Sales)
E-mail: info@linak.com
www.linak.com
