User Manuel EA7400V2

User Guide
MAX-STREAM™
AC1750
MU-MIMO
GIGABIT ROUTER
Model EA7400
2
Contents
Product Overview .........................................................................................................3
Top view ............................................................................................................................................................. 3
Back view ........................................................................................................................................................... 4
Setting Up: Basics ........................................................................................................6
Where to find more help ............................................................................................................................... 6
How to install your router ............................................................................................................................ 7
How to Use Linksys Smart Wi-Fi .......................................................................... 10
How to connect to Linksys Smart Wi-Fi............................................................................................... 10
Network Map ................................................................................................................................................. 11
Guest Access ................................................................................................................................................ 11
Parental Controls......................................................................................................................................... 12
Media Prioritization ..................................................................................................................................... 12
Speed Test ..................................................................................................................................................... 13
External Storage.......................................................................................................................................... 13
Connectivity .................................................................................................................................................. 14
Troubleshooting ........................................................................................................................................... 14
Wireless ........................................................................................................................................................... 15
Security ........................................................................................................................................................... 15
Troubleshooting ......................................................................................................... 16
Your router was not successfully set up ............................................................................................. 16
Your Internet cable is not plugged in
message ................................................................................. 17
Cannot access your router
message .................................................................................................... 18
After setup ..................................................................................................................................................... 19
The Internet appears to be unavailable ............................................................................................... 19
Linksys Smart Wi-Fi does not open in your web browser .............................................................. 20
Specifications ............................................................................................................. 21
Linksys EA7400 .......................................................................................................................................... 21
Environmental ............................................................................................................................................... 21
3
Product Overview
Top view
Illuminated Linksys logo—The Linksys logo stays on steadily while connected to the Internet. It flashes
or pulses slowly during startup, self-testing and firmware upgrades. It flashes quickly when indicating
connection errors.
4

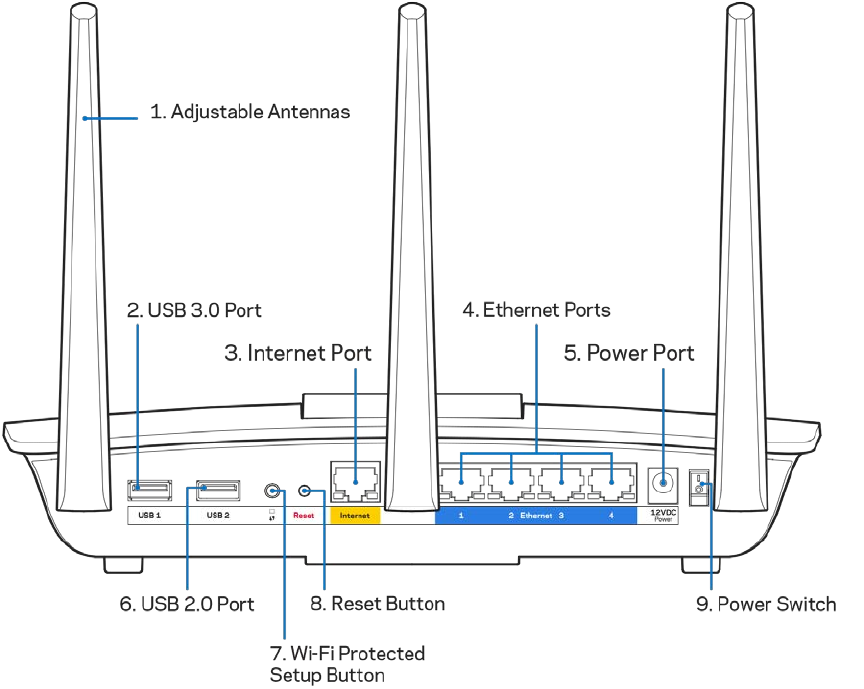

Back view
Adjustable antennas (1)—For best performance, position the antennas vertically as shown in the
drawing.
USB 3.0 port (2)—Connect and share a USB drive or USB printer on your network or on the Internet.
Internet port (3)—Connect an Ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband Internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cables on the Internet ports.
Ethernet ports (4)—Connect Ethernet cables to these blue gigabit (10/100/1000) ports, and to wired
devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Power port (5)—Connect the included AC power adapter.
USB 2.0 port (6)—Connect and share a USB drive or USB printer on your network or on the Internet.
5
Wi-Fi Protected Setup™ button (7)—Press to configure wireless security on Wi-Fi Protected Setup-
enabled network devices.
Reset button (8)—Press and hold for until the power LED starts flashing to reset the router to factory
settings. You can also restore the factory settings using Linksys Smart Wi-Fi on the Internet or mobile
app.
Power switch (9)—Press | (on) to turn on the router.
6
Setting Up: Basics
Where to find more help
In addition to this user guide, you can find help at these locations:
• Linksys.com/support/EA7400 (documents, downloads, FAQs, tech support, live chat, forums)
• Linksys Smart Wi-Fi help (connect to Linksys Smart Wi-Fi, click Help at the top of the screen)
Note—Licenses and notices for third party software used in this product may be viewed on
http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-
us/gplcodecenter for questions or GPL source code requests.
7
How to install your router
1. To complete setup, you will need a computer to visit http://LinksysSmartWiFi.com in a web
browser.
2. Identify your equipment.
If you have a
separate modem and standalone
router, disconnect and remove your old router.
If you have a modem router, leave it
connected.
3. Position the antennas straight up and plug in the router to a power source. Make sure the
power switch is in the | (on) position.
4. Connect your router to your modem or modem router. Plug one end of the included internet
cable to the yellow Internet port on your new router. If you have a modem, plug the other end
into the Ethernet (LAN) port on the modem. If you have a modem router, plug into any available
port.
5. Wait until the illuminated Linksys LED on the top of your router stops blinking and is solid
white.
6. Connect to the Wi-Fi name shown in the Quick Start Guide that came with your router. (You
can change these details later.) If you need help connecting to the network refer to your
device documentation at linksys.com/support/ea7400.
Note—You will not have internet access until router setup is complete.
7. Enter http://LinksysSmartWiFi.com in a web browser. Follow the on-screen instructions to
complete your router setup. You also can type 192.168.1.1 in a browser to start setup.
8
At the end of setup, follow the on-screen instructions to set up your Linksys Smart Wi-Fi account. Use
Linksys Smart Wi-Fi to configure your router from any computer with an Internet connection.
Manage your router’s settings:
• Change your router’s name and password
• Set up guest access
• Configure parental controls
• Connect devices to your network
• Test your Internet connection speed
Note—As part of Linksys Smart Wi-Fi account setup, you will be sent a verification e-mail. From your
home network, click the link in the email to associate your router with the Linksys Smart Wi-Fi
account.
Tip—Print the next page, then record your router and account settings in the table below as a
reference. Store your notes in a safe place.
9
2.4 GHz Network Name
Network Password
5 GHz Network Name
Network Password
Router Password
Guest Network Name
Guest Network
Password
Linksys Smart Wi-Fi
Username
Linksys Smart Wi-Fi
Password
10
How to Use Linksys Smart Wi-Fi

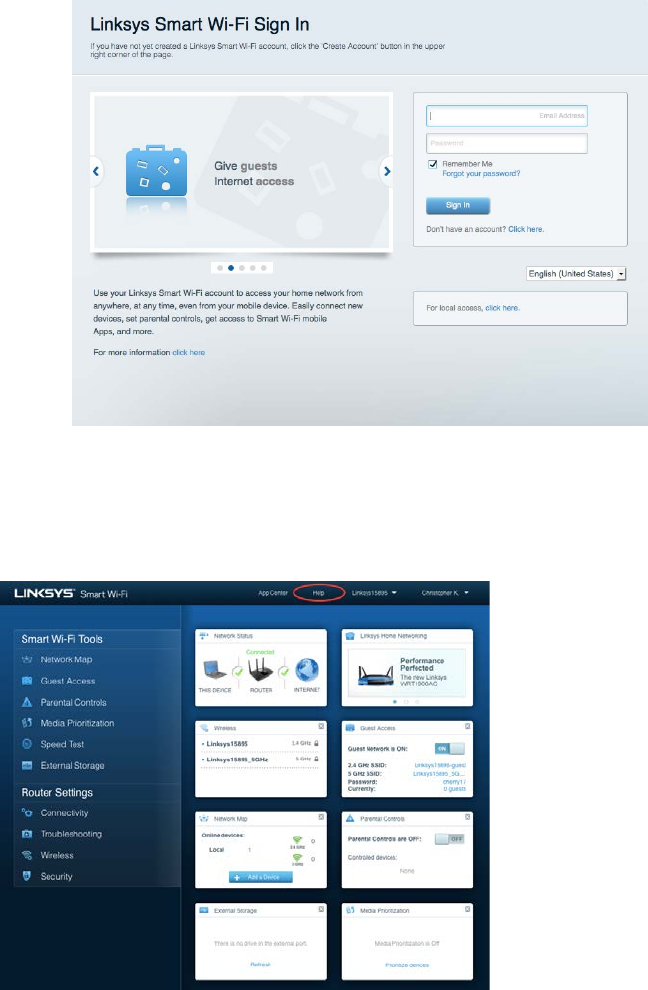

How to connect to Linksys Smart Wi-Fi
To connect to Linksys Smart Wi-Fi:
1. Open your computer’s web browser.
2. Go to www.linksyssmartwifi.com and log in to your account.
If you can’t remember your password, click
Forgot your password?
and follow the on-screen
instructions to recover it.

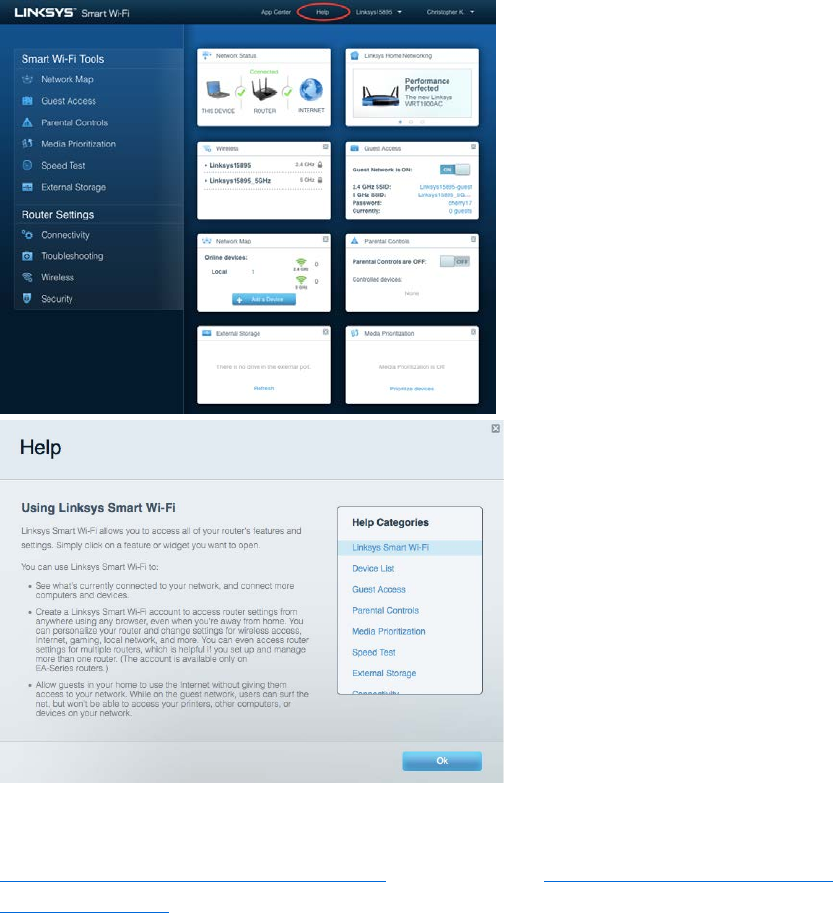

For Linksys Smart Wi-Fi help connect to Linksys Smart Wi-Fi, then click Help at the top of the main
screen.
11
Network Map
Lets you display and manage all network devices connected to your router. You can view devices on
your main network and your guest network, or display information about each device.
Guest Access
Lets you configure and monitor a network that guests can use without accessing all of your network
resources.
12
Parental Controls
Lets you block web sites and set Internet access times.
Media Prioritization
Lets you set which devices and applications have top priority for your network traffic.
13

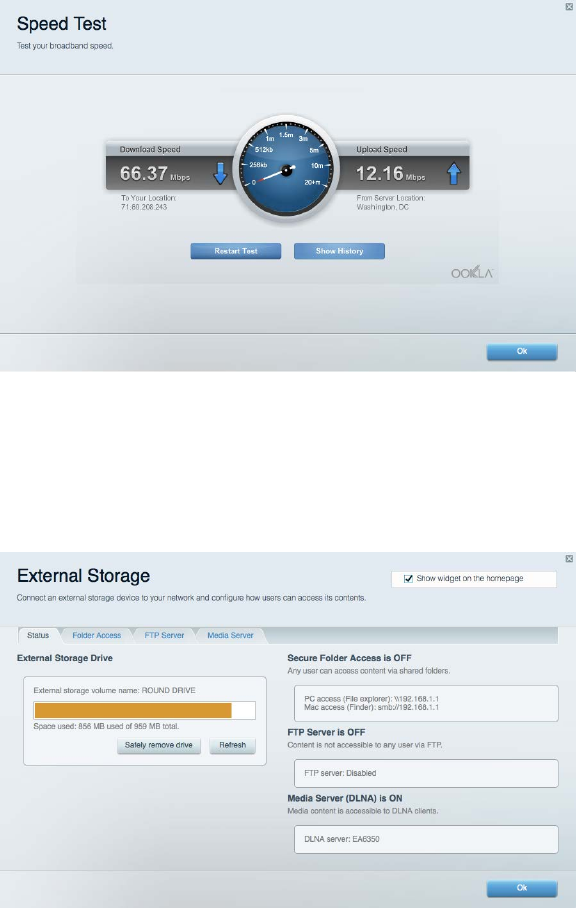

Speed Test
Lets you test your network’s Internet connection speed.
External Storage
Lets you access an attached USB drive (not included) and set up file sharing, a media server, and FTP
access.
14
Connectivity
Lets you configure basic and advanced network settings.
Troubleshooting
Lets you diagnose problems with your router and check the status of the network.
15

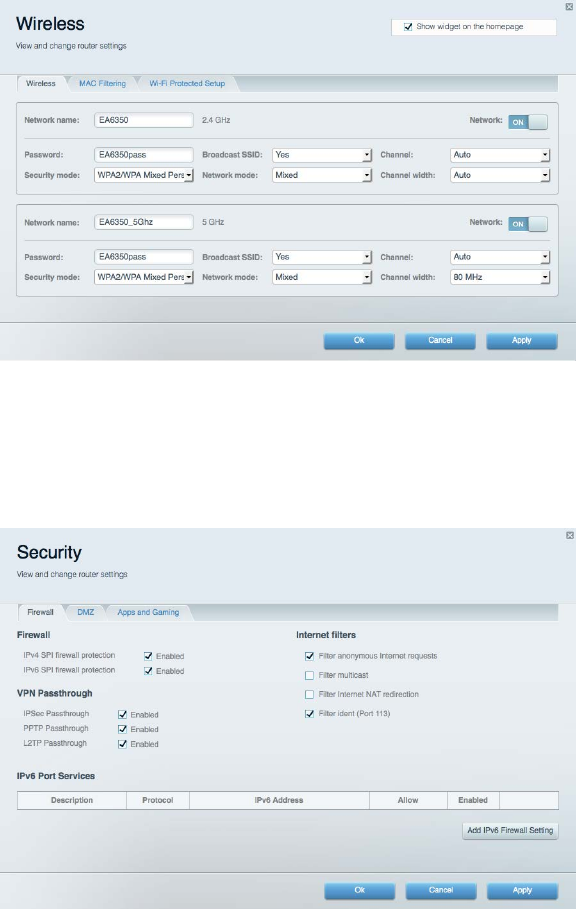

Wireless
Lets you configure your router’s wireless network. You can change the security mode, password,
MAC filtering, and connect devices using Wi-Fi Protected Setup™.
Security
Lets you configure your router’s wireless security. You can set up the firewall, VPN settings, and
make custom settings for applications and games.
16
Troubleshooting
You can find more help from our award-winning customer support at Linksys.com/support/EA7400.
Your router was not successfully set up
If Linksys Smart Wi-Fi did not complete the setup, you can try the following:

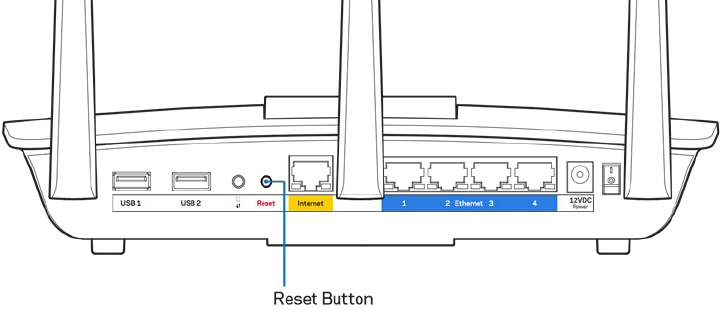

• Press and hold the Reset button on your router with a paperclip or pin until the LED
starts blinking (about 10 seconds). Install the router again.
• Temporarily disable your computer’s firewall (see the security software’s instructions
for help). Install the router again.
• If you have another computer, use that computer to install the router again.
17
Your Internet cable is not plugged in
message

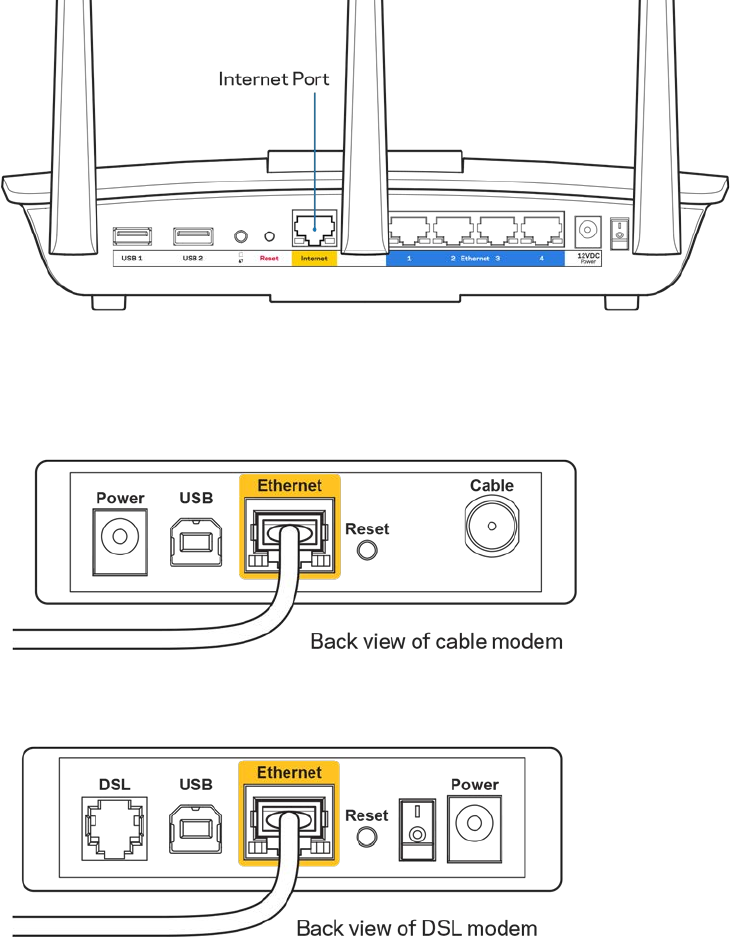

If you get a “Your Internet cable is not plugged in” message when trying to set up your router, follow
these troubleshooting steps.
• Make sure that an Ethernet or Internet cable (or a cable like the one supplied with your router)
is securely connected to the yellow Internet port on the back of the router and to the
appropriate port on your modem. This port on the modem is usually labeled Ethernet, but may
be named Internet or WAN.
• Make sure that your modem is connected to power and is turned on. If it has a power switch,
make sure that it is set to the ON or l (as opposed to O) position.
• If your Internet service is cable, verify that the cable modem’s CABLE port is connected to the
coaxial cable provided by your ISP.
• If your Internet service is DSL, make sure that the DSL phone line is connected to the modem’s
DSL port.
18
• If your computer was previously connected to your modem with a USB cable, disconnect the
USB cable.
• Install the router again.
Cannot access your router
message
To access your router, you must be connected to your own network. If you currently have wireless
Internet access, the problem may be that you have accidentally connected to a different wireless
network.
To fix the problem on Windows computers, do the following*:

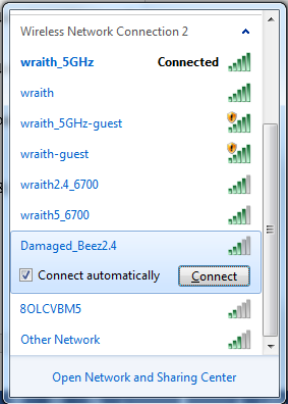

1. On your Windows desktop, click on the wireless icon in the system tray. A list of available
networks will appear.
2. Click your own network name. Click Connect. In the example below, the computer was
connected to another wireless network named wraith_5GHz. The wireless network name of the
Linksys EA7400 router, Damaged_Beez2.4 in this example, is shown selected.
3. If you are prompted to enter a network security key, type your password (security key) into the
network security key field. Click OK.
19
4. Your computer will connect to the network, and you should be able to access the router.
*Depending on your version of Windows, there could be some differences in wording or icons in these
steps.

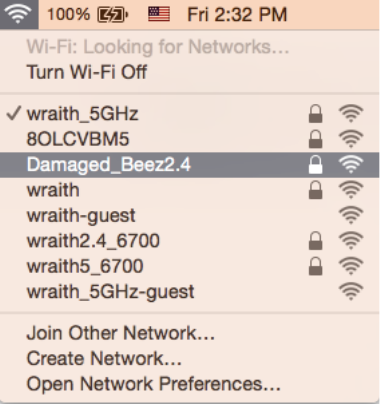

To fix the problem on Mac computers, do the following:
1. In the menu bar across the top of the screen, click the Wi-Fi icon. A list of wireless networks will
appear. Linksys Smart Wi-Fi has automatically assigned your network a name.
2. In the example below, the computer was connected to another wireless network named
wraith_5GHz. The wireless network name of the Linksys EA7400 router, Damaged_Beez2.4 in
this example, is shown selected.
3. Click the wireless network name of your Linksys EA7400 router (Damaged_Beez2.4 in the
example).
4. Type your wireless network password (Security Key) into the Password field. Click OK.
After setup
The Internet appears to be unavailable
If the Internet has difficulty communicating with your router, the problem may appear as a “Cannot find
[Internet address]” message in your Web browser. If you know that the Internet address is correct, and
if you’ve tried several valid Internet addresses with the same result, the message could mean that
there’s a problem with your ISP or modem communicating with your router.
Try the following:
• Make sure that the network and power cables are securely connected.
• Make sure that the power outlet that your router is connected to has power.
20
• Reboot your router.
• Contact your ISP and ask about outages in your area.
The most common method of troubleshooting your router is to turn it off, then back on again. Your
router can then reload its custom settings, and other devices (such as the modem) will be able to
rediscover the router and communicate with it. This process is called rebooting.
To reboot your router using the power cord, do the following:
1. Disconnect the power cord from the router and the modem.
2. Wait 10 seconds, and reconnect the power cord to the modem. Make sure it has power.
3. Wait until the modem’s online indicator has stopped blinking (about two minutes). Reconnect
the power cord to the router.
4. Wait until the power indicator stops blinking. Wait two minutes before trying to connect to the
Internet from a computer.

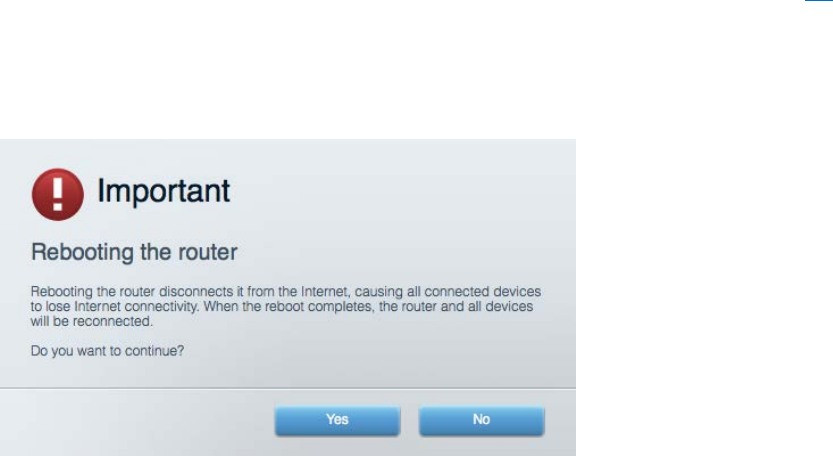

To reboot your router using Linksys Smart Wi-Fi, do the following:
1. Log in to Linksys Smart Wi-Fi. (See “How to connect to Linksys Smart Wi-Fi” on page 10.)
2. Under
Router Settings
, click
Troubleshooting
.
3. Click the
Diagnostics
tab.
4. Under
Reboot
, click Reboot.
5. Click Yes. The router will reboot. While the router is rebooting, all connected devices will lose
their Internet connection, and will automatically reconnect when the router is ready again.
Linksys Smart Wi-Fi does not open in your web browser
The latest versions of Google ChromeTM, Firefox®, Safari® (for Mac® and iPad®), Microsoft Edge, and
Internet Explorer® version 8 and newer work with Linksys Smart Wi-Fi.
21
Specifications
Linksys EA7400
Model Name Linksys Max-Stream AC 1750 MU-MIMO
Gigabit Router
Model Number
EA7400
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Radio Frequency
2.4 GHz and 5 GHz
# of Antennas
3 detachable external adjustable antennas
Ports Power, USB 2.0, USB 3.0, Internet, Ethernet (1-
4), R-SMA antenna (3)
Buttons
Reset, Wi-Fi Protected Setup, Power
LEDs Top panel: illuminated Linksys logo
Back panel: WPS, Internet, Ethernet (1-4)
UPnP
Supported
Security Features
WEP, WPA2, RADIUS
Security Key Bits
Up to 128-bit encryption
Storage File System Support
FAT, FAT32, NTFS, and HFS+
Browser Support Latest versions of Google ChromeTM, Firefox®,
Safari® (for Mac® and iPad®), Microsoft Edge, and
Internet Explorer® version 8 and newer work
with Linksys Smart Wi-Fi
Environmental
Dimensions 10.12” x 7.24” x 2.2” (257 x 184 x 56 mm)
without antennas
Unit Weight 1.27lb (577.53g) without antennas
1.49lb (676.53g) with antennas
Power
12V, 2.5A
Certifications FCC, Wi-Fi a/b/g/n/draft ac, Windows 7,
Windows 8
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Operating Humidity
10% to 80% relative humidity, non-condensing
Storage Humidity
5% to 90% non-condensing
22
Notes:
For regulatory, warranty, and safety information, see the CD that came with your router or go to
Linksys.com/support/ea7400.
Specifications are subject to change without notice.
Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can
vary, including lower wireless network capacity, data throughput rate, range and coverage.
Performance depends on many factors, conditions and variables, including distance from the access
point, volume of network traffic, building materials and construction, operating system used, mix of
wireless products used, interference and other adverse conditions.
BELKIN, LINKSYS and many product names and logos are trademarks of the Belkin group of
companies. Third-party trademarks mentioned are the property of their respective owners. Licenses
and notices for third party software used in this product may be viewed here:
http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-
us/gplcodecenter for questions or GPL source code requests.
© 2016 Belkin International, Inc. and/or its affiliates. All rights reserved.
LNKPG-00394 Rev. A00
Details and Disclosures
FCC Statement
This device complies with Part 5 of the FCC Rules. Operation is subject to the following two conditions: () This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part
5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and devices.
• Connect the equipment to an outlet other than the receiver’s.
• Consult a dealer or an experienced radio/TV technician for assistance.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
Mexico Regulatory Statement
La operación de este equipo está sujeta a las siguientes dos condiciones: () es posible que este equipo o dispositivo
no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 32 cm between the radiator and your body.
This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
Wireless Disclaimer
The maximum performance for wireless is derived from IEEE Standard 802. specifications. Actual performance can
vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on
many factors, conditions and variables, including distance from the access point, volume of network traffic, building
materials and construction, operating system used, mix of wireless products used, interference and other adverse
conditions.
Safety Notices
English
WARNING: Do not use this product near water, for example, in a wet basement or near a
swimming pool.
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric
shock from lightning.
WARNING: This product may contain chemicals, known to the State of California to cause cancer, and birth
defects or other reproductive harm. Wash hands after handling.
WARNING: The power adaptor is the equipment´s disconnection device. The power outlet must be located
nearby the equipment and its access must be easy.
Español
ADVERTENCIA: No use este producto cerca del agua, por ejemplo en un sotano húmedo o cerca de
una piscina.
ADVERTENCIA: Evite usar este producto durante una tormenta eléctrica. Puede existir el riesgo remoto de
que se produzca una descarga eléctrica producida por un rayo.
ADVERTENCIA: El adaptador de alimentación es el dispositivo de desconexión del equipo. La base de toma
de corriente debe estar cerca del equipo y ser fácilmente accessible.
Third-Party Software or Firmware
The use of software or firmware not supported/provided by Linksys products may result that the equipment is no
longer compliant with the regulatory requirements.
Technical Documents on www.linksys.com
Follow these steps to access technical documents:
• Enter www.linksys.com in your web browser.
• Select the country or region in which you live.
• Click the Support tab.
• Type the model number or keyword.
• Select Downloads from the list of tabs.
• Select the version of product.
• Click on the document you want and it will open in PDF format if you have Adobe Reader installed
on your computer.
• WEB: For additional information, please visit http://linksys.com
WARRANTY AND SUPPORT INFORMATION
IMPORTANT!
PLEASE RETAIN PROOF OF PURCHASE AND PRODUCT WARRANTY INFORMATION
LIMITED WARRANTY
(UNITED STATES AND CANADA)
This warranty is provided to you by Belkin International, Inc, or one of its subsidiaries or affiliates (“Belkin”)
IMPORTANT NOTICE REGARDING YOUR CONSUMER RIGHTS
The benefits we give in this manufacturer’s warranty are additional to any rights and remedies that you may have
under local consumer protection laws. Nothing in this warranty limits or affects your legal rights.
This manufacturer’s warranty is governed by the laws of the country in which you purchased your Belkin, Linksys or
WeMo product. In many countries, consumers have rights under local consumer laws. Those consumer rights may
differ between countries, states and provinces, and often cannot be excluded. Your local consumer rights organization
can advise you on your legal rights.
This manufacturer’s warranty is not intended to:
• change or exclude any rights under consumer law that cannot be lawfully changed or excluded; or
limit or exclude any right you have against the person who sold the Belkin, Linksys or WeMo product to you if that
person has breached their sales contract with you.
WHAT DOES THIS WARRANTY COVER?
Belkin warrants that the product hardware and any software media (i.e., media on which the product software is
provided) will be free from defects in materials and workmanship under normal use during the Warranty Period
described below. This means that the product won’t be defective, and that it will look and work as advertised during
the relevant period.
This warranty does not apply to products purchased from a source other than Belkin or a Belkin Authorized Reseller.
How long is the product warranted?
Belkin warrants that the hardware in this Belkin, Linksys or WeMo product, and any associated software media, will be
free from defects in materials and workmanship under normal use during the Warranty Period. The Warranty Period
begins on the date the product was purchased by the original end-user purchaser and lasts for the period set out in the
table below:
Product Type Warranty Period
New products 2 months
Refurbished products 90 days
Repaired or replacement products The longer of the original Warranty Period or 30 days
Software media (if provided with the product) 90 days
8850-003 Rev. A00
A claim under this warranty is only eligible if it is made within the Warranty Period.
What isn’t covered?
Belkin does not give any warranty:
• in relation to software or services, provided by Belkin or any third party, included in or with the product;
• that the product, software or services will always operate uninterrupted or error free;
• that the product, software or services, or any equipment, system or network on which the product,
software or services are used are 00% secure and cannot be hacked; or
• that a third party service the product needs will always be available.
Note: Although Belkin does not make these promises in this warranty, you may have additional rights under consumer
laws.
Will this warranty always apply?
This warranty does not apply if:
• the product has been tampered with or the assembly seal has been removed or damaged;
• the product has been altered or modified by someone other than Belkin;
• the warranty claim was made fraudulently or by misrepresentation;
• the product was not installed, operated, repaired, or maintained in accordance with Belkin’s instructions;
• the product has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident;
• damage to the product is cosmetic, including scratches and dents, or defects caused by normal wear and
tear or normal aging of the product;
• the serial number on the product has been altered, defaced, or removed; or
• the product was supplied or licensed for beta, evaluation, testing or demonstration purposes, and you
didn’t buy or license the product.
Note: Although this warranty doesn’t apply in these situations, you may have additional rights under consumer laws.
How will Belkin make things right?
If you make an eligible claim under this warranty, Belkin will, at its election:
• repair the product with new or refurbished parts, or pay the reasonable costs of repairing the product;
• replace the product with a reasonably available equivalent new or refurbished Belkin, Linksys or WeMo
product; or
• refund you the purchase price of the product, minus any rebates and discounts.
Any repaired or replacement products are warranted for the remainder of the original Warranty Period or 30 days,
whichever is longer. All products and parts that are replaced become the property of Belkin.
Note: The rights and remedies outlined above are the only rights and remedies available under this warranty. However,
you may have additional rights under consumer laws.
GENERAL EXCLUSIONS AND LIMITATIONS OF LIABILITY
IN THOSE JURISDICTIONS WHERE IT CAN LAWFULLY DO SO, AND TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, BELKIN, ITS RESELLERS AND ITS SUPPLIERS HEREBY DISCLAIM AND EXCLUDE
ALL OTHER WARRANTIES, EXPRESS, STATUTORY OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY, ACCEPTABILITY, SATISFACTORY QUALITY, NON-INFRINGEMENT, TITLE,
FITNESS FOR A PARTICULAR PURPOSE, LOSS OF OR DAMAGE TO DATA, LACK OF VIRUSES OR FREE FROM
VIRUS OR MALWARE ATTACK, SECURITY, PERFORMANCE, LACK OF NEGLIGENCE, WORKMANLIKE EFFORT,
QUIET ENJOYMENT, THAT THE FUNCTIONS CONTAINED IN THE PRODUCT WILL MEET YOUR REQUIREMENTS,
OR THAT DEFECTS IN THE PRODUCT WILL BE CORRECTED, OR THAT YOUR USE OF THE PRODUCT WILL
GENERATE ACCURATE, RELIABLE, TIMELY RESULTS, INFORMATION, MATERIAL OR DATA. NO ORAL OR
WRITTEN INFORMATION OR ADVICE GIVEN BY BELKIN, A DEALER, AGENT OR AFFILIATE SHALL CREATE A
WARRANTY. TO THE EXTENT WARRANTIES CANNOT BE DISCLAIMED OR EXCLUDED, THEY ARE LIMITED TO
THE DURATION OF THE RELEVANT EXPRESS WARRANTY PERIOD.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
IN NO EVENT SHALL BELKIN, ITS AFFILIATES, ASSOCIATES, DEALERS, AGENTS OR SUPPLIERS OR THEIR
RESPECTIVE OFFICERS, DIRECTORS, EMPLOYEES, LICENSORS AND ASSIGNS BE LIABLE FOR ANY DIRECT,
INDIRECT, EXEMPLARY, PUNITIVE, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER
(INCLUDING BUT NOT LIMITED TO DAMAGES FOR LOSS OF PROFITS OR REVENUE, FOR BUSINESS
INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR LOSS OF ABILITY TO USE ANY THIRD
PARTY PRODUCTS OR SERVICES, FOR FAILURE TO MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF
REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER),
REGARDLESS OF THE THEORY OF LIABLITY (CONTRACT, TORT OR OTHERWISE) ARISING OUT OF OR IN
ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF BELKIN OR SUCH OTHER
ENTITIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE TOTAL
AGGREGATE LIABILITY OF BELKIN, ITS AFFILIATES, ASSOCIATES, DEALERS, AGENTS OR SUPPLIERS TO YOU
FOR ALL DAMAGES EXCEED THE PRICE YOU PAID FOR THE PRODUCT. THIS LIMITATION IS CUMULATIVE AND
WILL NOT BE INCREASED BY THE EXISTENCE OF MORE THAN ONE INCIDENT OR CLAIM. THE FOREGOING
LIMITATIONS WILL APPLY EVEN IF ANY WARRANTY OR REMEDY PROVIDED FAILS OF ITS ESSENTIAL
PURPOSE. NOTHING IN THIS SECTION SHALL LIMIT THE LIABILITY OF BELKIN IN RELATION TO DEATH OR
BODILY INJURIES.
THE WARRANTIES AND REMEDIES SET OUT IN THIS AGREEMENT ARE EXCLUSIVE, AND, TO THE
EXTENT PERMITTED BY LAW, IN LIEU OF ALL OTHERS ORAL OR WRITTEN, EXPRESS OR IMPLIED. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES OR OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE FOREGOING LIMITATIONS MAY NOT APPLY TO YOU.
If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be
affected or impaired.
BELKIN TECHNICAL AND WARRANTY SUPPORT INFORMATION
HOW DO I GET HELP?
If you have a question about your product or experience a problem with it, please go to http://www.belkin.com/support
or http://support.linksys.com. You will find lots of online support tools and information to help you with your product.
What should I do if my product is defective?
You always have the option to return the product to the original seller if you have a problem. You can make a claim
based on this warranty or any consumer laws that apply to you.
You can also make a claim under this warranty or local consumer laws by contacting Linksys or Belkin Technical
Support. To find out how to contact us, click the “Contact Us” link on the home page of http://Linksys.com or http://
www.belkin.com. If you are located outside the United States, you will need to choose your region/location first:
For Linksys.com:
http://www.linksys.com/us/change-region/
For Belkin.com:
http://www.belkin.com/us/ - Click the “Change Region” link at the bottom of the website and select your location
If I believe my product is defective and covered by this warranty, what do I need to do?
You will need to contact Technical Support for your region at the links above. So that we can help you, you will need to
give us some information when you contact us:
• your product model, hardware revision and serial number;
• the name of your Internet Service Provider (ISP); and
• proof that you purchased the product, with the date of the purchase shown and place where it was
purchased.
WE WILL ALWAYS NEED A DATED PROOF OF ORIGINAL PURCHASE TO PROCESS WARRANTY
CLAIMS.
Sometimes we will need you to send the product back to us so that we can fix or replace it. If we ask you to return your
product to us by post, you will be given a Return Materials Authorization (RMA) number and we’ll tell you where to send
the product. You will need to make sure the product is properly packaged and shipped, and you will be responsible for
the costs of returning your product to us. We need to identify your product when it reaches us, so you’ll need to include
the RMA number AND a copy of your dated proof of original purchase (please keep the original) with the returned
product. We also recommend that you send the package by registered and insured mail or by overnight courier to
protect the package while it is in transit.
What happens when I return my product?
Defective products covered by this warranty will be replaced without charge with the same product or an equivalent
product of equal or greater value, or Belkin will provide you with a refund of the purchase price of the product, minus
any rebates and discounts. The remedy offered will be determined by Belkin in its sole discretion.
We can only ship replacement or repaired products to locations in the country where the original product was
purchased.
Belkin may need to delete all or part of your data to repair or replace your product. Belkin may also install software
updates as part of warranty service. PLEASE MAKE SURE THAT YOU BACK UP ALL OF YOUR DATA ON THE
PRODUCT BEFORE SENDING IT IN FOR REPAIR OR REPLACEMENT. BELKIN IS NOT RESPONSIBLE FOR ANY LOSS
OF DATA OR SOFTWARE DURING WARRANTY SERVICE.
Replacements not covered under warranty or your rights under consumer law may be refused by place of purchase, or
may be subject to charge.
Technical support
This warranty is not a service or support contract. Details on our technical support offerings and policies (including any
applicable fees) can be found at http://www.belkin.com/support or http://support.linksys.com.
Belkin provides many different options to support you. Please click on or go to the appropriate website below for more
details. Please make sure to change to your local country if necessary.
• Belkin and WeMo Products: http://www.belkin.com/support
• Linksys Products: http://support.linksys.com
Along with the Limited Warranty, Belkin provides Complimentary Assisted Technical Support for the Warranty Period to
get your hardware up and running. Complimentary Assisted Technical Support includes technical support (by phone) and
live chat (through your computer). At this time, live chat is only available in certain countries. Please visit our websites
(indicated above) in your local area for details.
For additional support beyond the Complimentary Assisted Technical Support period or for assistance on advanced
features beyond basic support, please contact our Technical Support team to learn more about how we can help you get
the most out of your product. Please note that you may be assessed a fee to speak with our technician if you contact us
outside the Complimentary Assisted Technical Support period.
Additional information on some of our Premium Support Offerings can be found at:
Linksys Networking Products – http://www.linksys.com/us/premium-support/
Belkin and WeMo Networking Products – http://www.belkin.com/us/belkin-premium-support/
Please Note: Some of these offerings may not be offered in your country
Telephone support may not be available where you live and may be subject to charge. MAX-STREAM™ AC
MUMIMO GIGABIT ROUTER
NEXT-GEN AC
Regulatory and Warranty Information
Model# EA7400
Business Unit:
Program Manager:
Packaging Engineer:
Material:
Blank Size (in):
Side Shown:
L x W x D (mm):
DIE LAYOUT
0
Unit:
Flute/Grain:
REV
Intermediate
PRINT SIDE
L x W x D (in):
7
[177.800]
5
[127.000]
15
[381.000]
IN/MM
Drawing Scale 1:1
Retail Outside Dimension (Including Hang Tab)
DO NOT PRINT
DIE LINES, PRINTERS NOTES
PRINT SPECS:
DIE/MATERIAL SPECS:
381 x 492+1/8
15 x 19+3/8
Die Line File:
Pushpak Jain
157g/m^2 Art Paper
IDL_EA7300_8850-00319_REVA00_REGULATORYINSERT
Color Plates: Notes:
Artwork File:
vertical
00
RELEASE DATE: 06/24/2016
Tolerance:+/- 1/32" - 0.8mm
Blank Size (mm):
Finish:
DIELINE:
THIS DOCUMENT & THE INFORMATION
IN IT ARE THE CONFIDENTIAL PROPERTY
OF BELKIN INTERNATIONAL AND MUST
NOT BE COPIED, REPRODUCED OR USED
IN ANY MANNER WITHOUT THE WRITTEN
CONSENT OF BELKIN CORPORATION.
IT MUST BE RETURNED UPON REQUEST
This dieline works for following skus (if any):
Business Unit:
Program Manager:
Packaging Engineer:
Material:
Blank Size (in):
Side Shown:
L x W x D (mm):
DIE LAYOUT
0
Unit:
Flute/Grain:
REV
Intermediate
PRINT SIDE
L x W x D (in):
7
[177.800]
5
[127.000]
15
[381.000]
IN/MM
Drawing Scale 1:1
Retail Outside Dimension (Including Hang Tab)
DO NOT PRINT
DIE LINES, PRINTERS NOTES
PRINT SPECS:
DIE/MATERIAL SPECS:
381 x 492+1/8
15 x 19+3/8
Die Line File:
Pushpak Jain
157g/m^2 Art Paper
IDL_EA7300_8850-00319_REVA00_REGULATORYINSERT
Color Plates: Notes:
Artwork File:
vertical
00
RELEASE DATE: 06/24/2016
Tolerance:+/- 1/32" - 0.8mm
Blank Size (mm):
Finish:
DIELINE:
THIS DOCUMENT & THE INFORMATION
IN IT ARE THE CONFIDENTIAL PROPERTY
OF BELKIN INTERNATIONAL AND MUST
NOT BE COPIED, REPRODUCED OR USED
IN ANY MANNER WITHOUT THE WRITTEN
CONSENT OF BELKIN CORPORATION.
IT MUST BE RETURNED UPON REQUEST
This dieline works for following skus (if any):
ICG PRODUCTION
PR# N/A
FILE NAME INS_EA7400v2_8850-00395_RevA00_RegulatoryInsert
SKU# EA7400v2
P# 8850-00395 REVISION A00
DESIGNER JL
DATE August 30, 2016 4:27 PM VERSION 01

Navigation menu
