User
Gui
d
e
R
E
6300/RE6400
Introduction
This User Guide can help you connect the extender to your network and solve common setup
issues. You can find more help from our award-winning, 24/7 customer support at
Linksys.com/support.
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to install the range extender................ 2
How to access the browser-based utility .......... 5
8VLQJUDQJHH[WHQGHUVHWWLQJV«««««;
Using Wi-Fi Protected Setup..................... 7
How to use Site Survey.......................... 9
Cross-Band
AC Power Pass-Through
Wireless Music Playback
Troubleshooting................................ 10
Specifications.................................. 13
Overview
Front
RE6300
RE6400
The light on the front of the range extender gives you information about power, updating and
signal strength.
Power Light
Status/ description
Blinking Green
x Booting up
x Resetting to factory defaults
x Upgrading firmware
Solid Green
x Ready to use
Solid Orange
x Weak connection with the router
Fix: Unplug the extender, and move
it closer to the router
Blinking Orange
x Not connected to the router
x Other error
Fix: Unplug the extender, plug it back
in, wait two seconds, reconnect to your
network

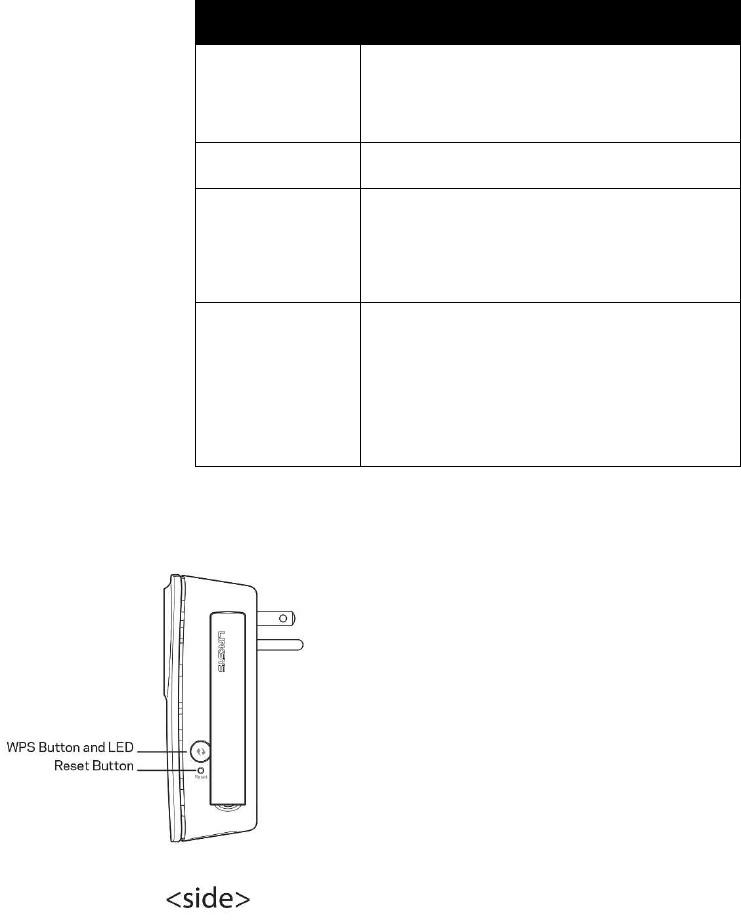

Side
Power Switch European versions only.
Wi-Fi Protected Setup Button and LED Use Wi-Fi Protected Setup to automatically and
securely add compatible wireless devices to your network. Refer to Using Wi-Fi Protected Setup
on page 7.
Reset Press and hold for about five seconds to reset to factory defaults. You can also restore
the defaXOWVIURPWKH$GPLQLVWUDWLRQ!)DFWRU\'HIDXOWVVFUHHQLQWKHH[WHQGHU¶VEURZVHU-based
utility.

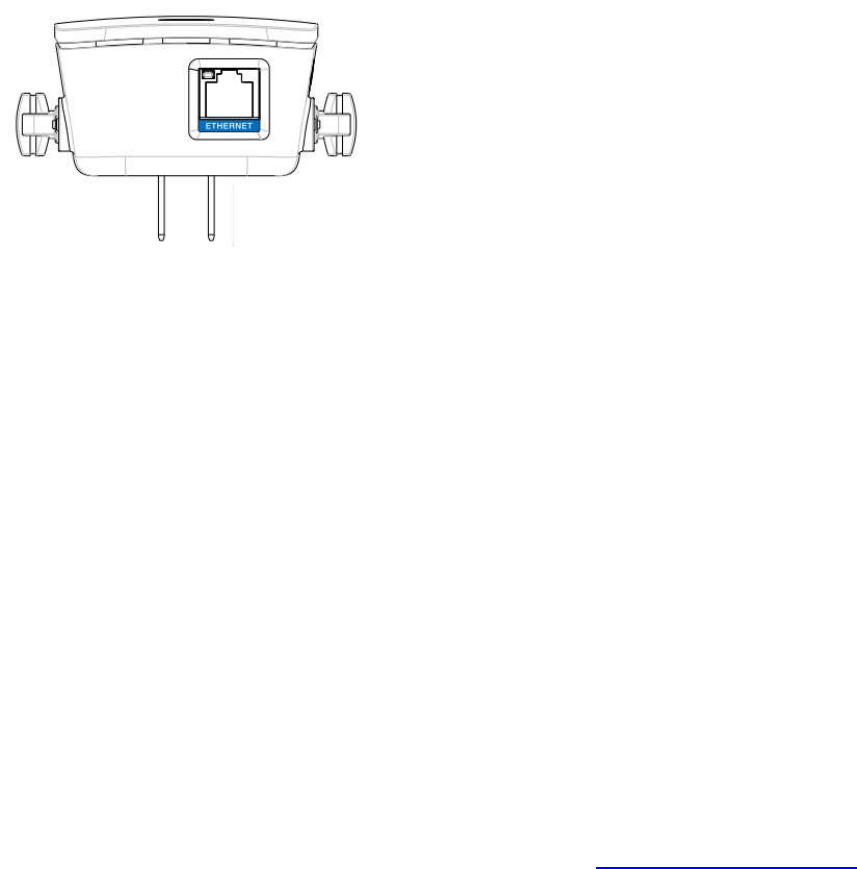

Bottom
Ethernet (blue) Connect wired devices to your wireless network with Ethernet (network) cables.
The green light turns on when an Ethernet device is connected and active on this port. The light
blinks when the extender is sending or receiving data over the Ethernet port.
How to install the range extender
Before setup, unplug or disconnect any range extenders on the network.
1. Plug in the range extender midway between your router and the area without Wi-Fi.
%HVXUH\RXKDYHDWOHDVWRI\RXUURXWHU¶V:L-Fi signal at that point on the device
you will use for setup. The setup software will help you find the best spot if you have
trouble.
<Diagram>
2. Wait for a solid light on the cover of the range extender. It could take up to two minutes.

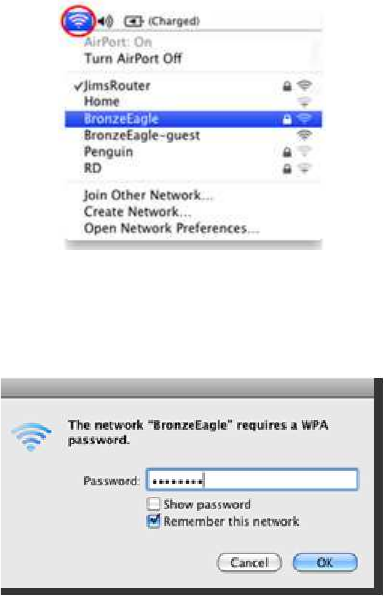

On a computer, phone or tablet, connect to the Wi-)LQHWZRUN³/LQNV\V([WHQGHU6HWXS´
<diagram2>
3. ,IVHWXSGRHVQ¶WVWDUWDXWRPDWLFDOO\RSHQDEURZVHUWRhttp://extender.linksys.com.
/LQNV\V¶V6SRWILQGHUWHFKQRORJ\ will help you find the right location for your range
extender if you have trouble. You will be guided to place the range extender closer or
farther from your router to improve the signal. If you nailed it with your first placement
you will not see Spot finder screens.
<screenshot of Too Far page>

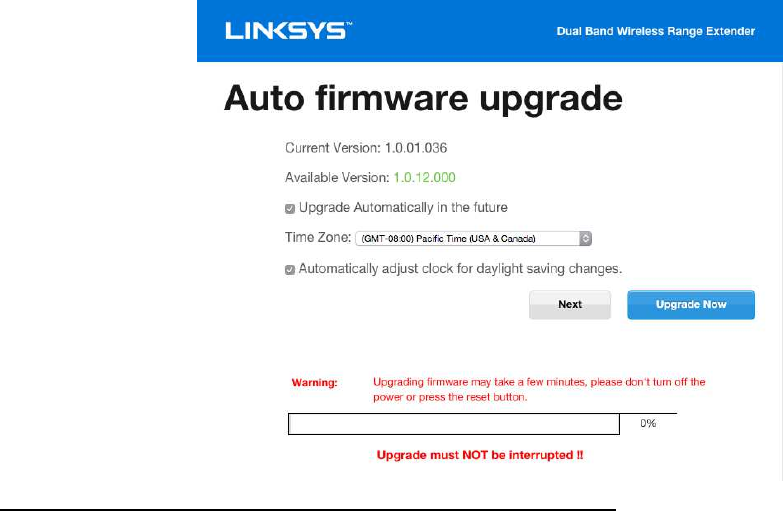

4. During setup you will be asked whether you want the range extender to update itself
automatically. If you allow automatic updates, the range extender will download and install
updates when released by Linksys. Automatic updates will take place overnight so they do not
disrupt your network activity.
You also can decide to manually update your range extender at your convenience.
<screen shot>
Post set-up LED behavior mention here as well and in the QSG
TIP
You can also connect the range extender by using Wi-Fi Protected Setup. For more
LQIRUPDWLRQVHH³8VLQJ:L-)L3URWHFWHG6HWXS´RQSDJH

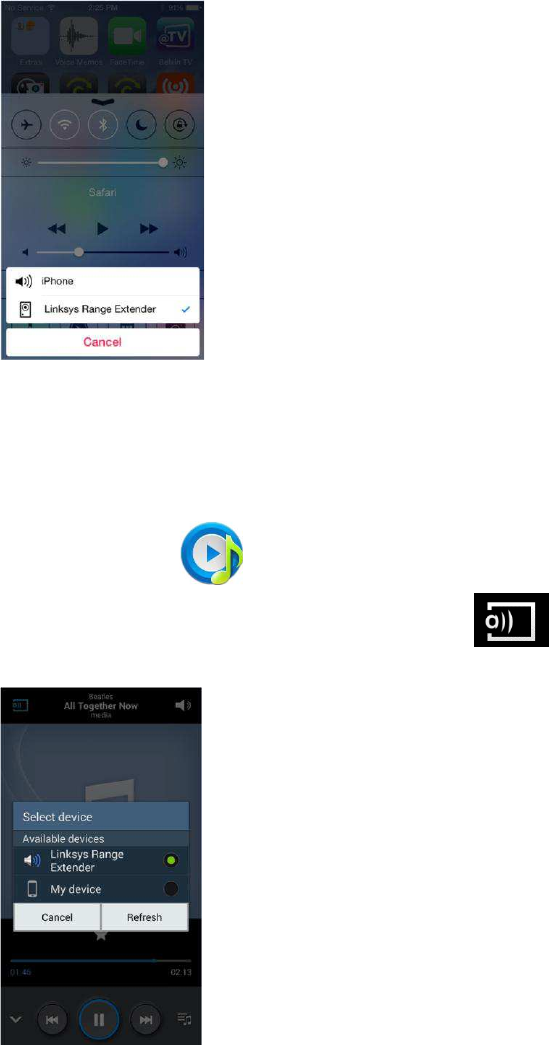

Special Feature - Music Streaming
Wireless Music Playback
Stream music through your AC1200 MAX range extender to connected speakers.
iOS devices:
x Connect iOS device to the same Wi-Fi network as your range extender.
x Swipe up from the bottom of your screen.
x Tap on Linksys Range Extender.
Android devices
For Samsung Galaxy
x Connect Galaxy device to the same Wi-Fi network as your range extender.
x Select Music app
x Choose music file and tap Screen Mirroring icon
x Choose Linksys Range Extender.
Your screen might look different depending on your device model and version of Android.
For other Android devices, stream music with MediaHouse, UPnPlay, Skifita, ArkMC,
BubbleUPnP, Pixel Media, and 2Player 2.0.

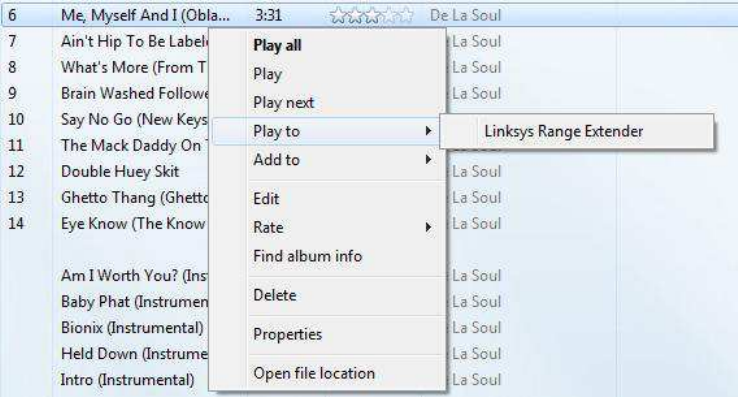

Windows
x Open Windows Media Player
x Right-click on music file and choose Linksys Range Extender.
This list of supported media players is subject to change with the release of new
software or mobile apps.
x Windows users can stream music with Windows Media Player12.
x Mac users can stream music with proprietary software or the SofaPlay app..
x Android users can stream music with MediaHouse, UPnPlay, Skifita, ArkMC,
BubbleUPnP, Pixel Media, and 2Player 2.0.
x IOS devices including iPhone, iPad or iPod can stream music with proprietary
software or other apps such as, , ArkMC, Smartstor Fusion, , Mconnect, and DK
UPnP/DLNA.
x The extender supports MP3, FLAC, WAV, WMA and AAC file formats, as long as
those formats are supported by the device and app doing the streaming.
x The 3.5mm stereo port supports earphones and powered speakers.
How to access the browser-based utility
After setting up WKHH[WHQGHUXVHWKHH[WHQGHU¶VEURZVHU-based utility to change any
settings.
On a computer or device that is connected to your range extender, open any browser
(Internet Explorer, Chrome, Firefox, Safari, etc.), and enter extender.linksys.com in the
address bar.
You will be prompted to enter a user name and password. If you did not change them
during setup, leave the user name blank and HQWHU³DGPLQ´LQWKHSDVVZRUGILHOG,I
you customized the SSID and password, enter those credentials.
If you are connected to your local network, but not to the range extender, you will need
WRHQWHUWKHUDQJHH[WHQGHU¶V,3DGGUHVVLQ\RXUEURZVHUWRDFFHVVWKHH[WHQGHU¶V
settings.
TIP
,I\RXDUHXQDEOHWRDFFHVVWKHUDQJHH[WHQGHU¶VVHWWLQJVGRRQHRIWKHfollowing:
Find the UDQJHH[WHQGHU¶V IP address E\JRLQJWR\RXUURXWHU¶VDGPLQLVWUDWLRQSDJHDQG
looking for the range extender under connected devices.
Or
Windows XP:
1. Enable UPnP:
a) Click Start, Control Panel, Add or Remove Program, then click
Add/Remove Windows Components.
b) Select Network Services, then click Details.
c) Select UPnP User Interface, then click OK.
2. Open Windows Explorer. Click My Network Places on the left panel.
3. Look for the RE6700 icon on the right panel. (You might be required to change the firewall
VHWWLQJVWRDOORZWKHGLVSOD\RIQHWZRUNHGFRPSXWHUV5HIHUWR\RXURSHUDWLQJV\VWHP¶VKHOS
for instructions.)
Windows 8, Windows 7, or Vista:
1. Open Windows Explorer (File Explorer in Windows 8). Click Network. Look for the RE6700
icon on the right panel. (You might be required to change the firewall settings to allow the
GLVSOD\RIQHWZRUNHGFRPSXWHUV5HIHUWR\RXURSHUDWLQJV\VWHP¶VKHOSIRULQVWUXFWLRQV
2. Right-click the RE6700 icon. Click Properties. Click on the address link in Device webpage.
Mac OS X:
1. Open Safari. Be sure that Bonjour is included in the Bookmarks menu and Favorites bar.
a. Go to Safari Preferences > Advanced and be sure each Bonjour box is selected.
2. Find Bonjour in the Bookmarks PHQXRU)DYRULWHVEDUDQGFKRRVH³/LQNV\V5DQJH
([WHQGHU´ If you have changed your network name and password, choose the network
name and enter the password you created.

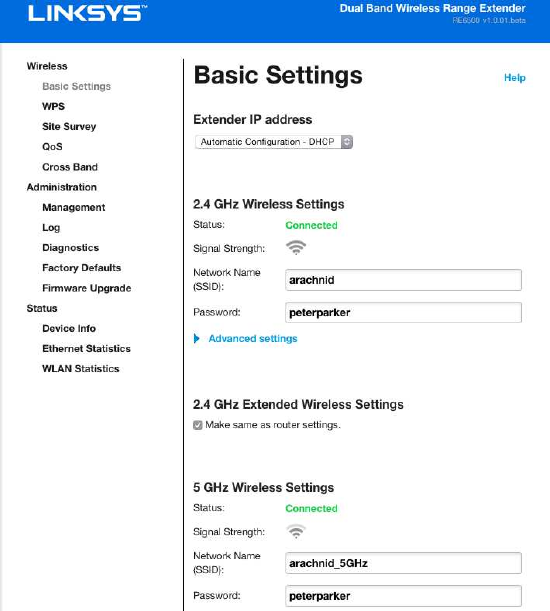

Using range extender settings
Click Help RQWKHULJKWVLGHRIWKHVFUHHQIRUDGGLWLRQDOLQIRUPDWLRQRQWKHVFUHHQ¶V
options.
Changes to settings will not be effective until you click Save at the bottom of the screen.
You also can click Cancel to clear any changes.
Using Wi-Fi Protected Setup
Wi-)L3URWHFWHG6HWXSPDNHVLWHDV\WRFRQQHFW\RXUH[WHQGHUWR\RXUQHWZRUNDQG
connect other devices to your network through the extender.

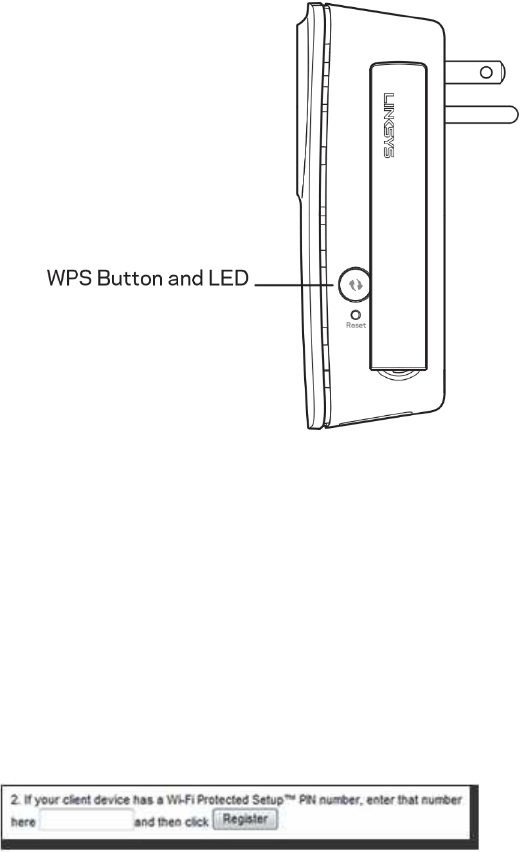

Wi-Fi Protected Setup light activity
<WPSButtonOnly.PNG>
WPS Light
Status/ description
x
Solid (10
seconds)
x WPS connection was
successful
Blinking
slowly (two
minutes)
x WPS connection in process
Blinking
quickly (two
minutes)
x When WPS cannot establish
connection or encounters a
problem
Fix: wait a few seconds after LED
stops blinking and try again
Connecting the extender to an existing access point
If your access point or router supports it, you can use Wi-Fi Protected Setup to connect
the range extender to the access point or router. Log in to the browser-based utility and
click on WPS in the left navigation bar. Choose from the setup methods below to
connect the extender.
NOTE
If you have an access point or a router that does not support Wi-Fi Protected Setup,
note the wireless settings, and then manually configure the extender.
Connecting with the Wi-Fi Protected Setup Button
Use this method if your router or access point has a Wi-Fi Protected Setup button
.
1. Press the Wi-Fi Protected Setup button on the extender. If you have a dual-band
router you will do this again to extend the second network. The 2.4 GHz band will
be extended first.
2. Click the Wi-Fi Protected Setup EXWWRQRQWKHURXWHU¶V:L-Fi Protected Setup
screen (if available), OR press and hold the Wi-Fi Protected Setup button on the
router for one second. When the connection is complete, the Wi-Fi Protected Setup
light on the extender will be solid.
3. ,I\RXXVHGWKHH[WHQGHU¶V:L-Fi Protected Setup screen, click OK in that screen
within two minutes.
TIP
You can also access WPS in the browser-based utility by clicking WPS in the left
navigation bar.
&RQQHFWLQJZLWKWKHUDQJHH[WHQGHU¶V3,1
The Wi-Fi Protected Setup PIN (Personal Identification Number) can be found on the
product label on the back of the H[WHQGHU<RXFDQXVHWKLVPHWKRGRQO\LI\RXUURXWHU¶V
administration utility has a Wi-Fi Protected Setup menu.
1. (QWHUWKHH[WHQGHU¶V3,1LQWRWKHDSSURSULDWHILHOGRQWKHURXWHU¶V:L- Fi Protected
Setup screen. Click Register. When the connection is complete, the Wi-Fi Protected
Setup light on the extender will be solid.
2. Click OK.
Connecting devices to your network through the extender
Choose from the methods below to connect devices that support Wi-Fi Protected Setup
to your network.
Delete the screen below
NOTE
Repeat the instructions for each client device that supports Wi-Fi Protected Setup.
Connecting with the Wi-Fi Protected Setup Button
Use this method if your client device has a Wi-Fi Protected Setup button.
1. Press the Wi-Fi Protected Setup button on the client device.
2. Click the Wi-Fi Protected Setup EXWWRQRQWKHH[WHQGHU¶V:L-Fi Protected Setup
screen, OR press and hold the Wi-Fi Protected Setup button on the side of the
extender for one second. When the connection is complete, the Wi-Fi Protected
Setup light on the extender will be solid.
3. ,IXVLQJWKHH[WHQGHU¶V:L-Fi Protected Setup screen, be sure to click OK within two
minutes or you will have to start over.
Connecting ZLWKWKHFOLHQWGHYLFH¶V3,1
Use this method if your client device has a Wi-Fi Protected Setup PIN (Personal
Identification Number).
1. (QWHUWKH3,1IURPWKHFOLHQWGHYLFHLQWKHILHOGRQWKHH[WHQGHU¶V:L-Fi Protected
Setup screen.
2. Click Register RQWKHH[WHQGHU¶V:L-Fi Protected Setup screen. When the
connection is complete, the Wi-Fi Protected Setup light on the extender will be solid.
3. Click OK RQWKHH[WHQGHU¶V:L-Fi Protected Setup screen within two minutes or you
will have to start over.
ConnHFWLQJZLWKWKHH[WHQGHU¶V3,1
8VHWKLVPHWKRGLI\RXUFOLHQWGHYLFHDVNVIRUWKHH[WHQGHU¶V3,1
1. 2QWKHFOLHQWGHYLFHHQWHUWKH3,1OLVWHGRQWKHH[WHQGHU¶V:L-Fi Protected Setup
screen. (It is also listed on the product label on the back of the extender.) When the
connection is complete, the Wi-Fi Protected Setup light on the extender will be solid.
2. Click OK RQWKHH[WHQGHU¶V:L-Fi Protected Setup screen within two minutes.

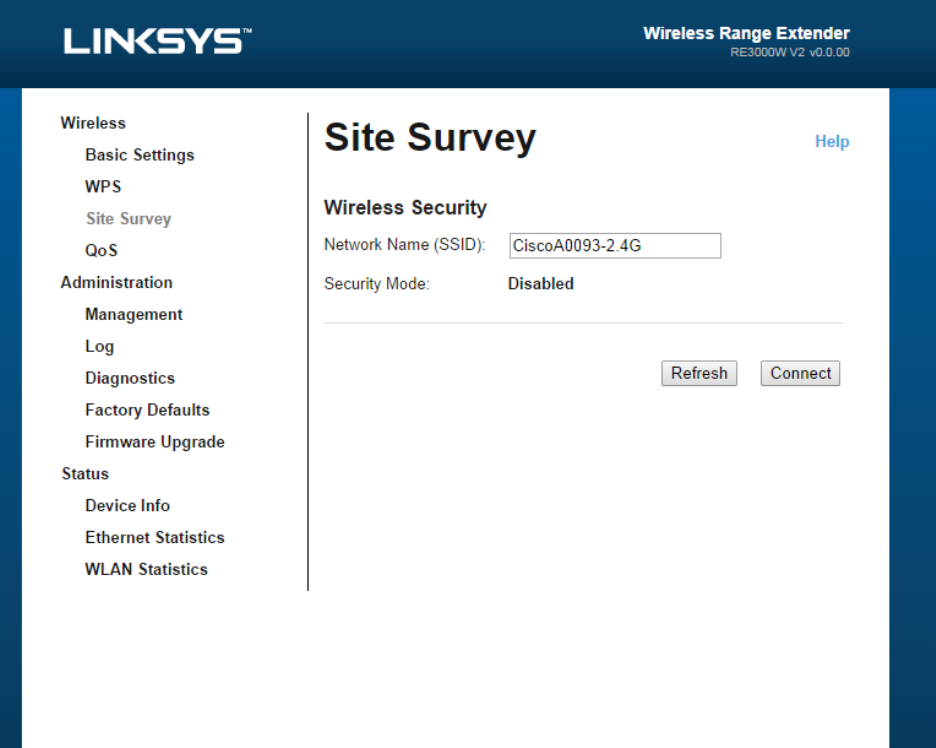

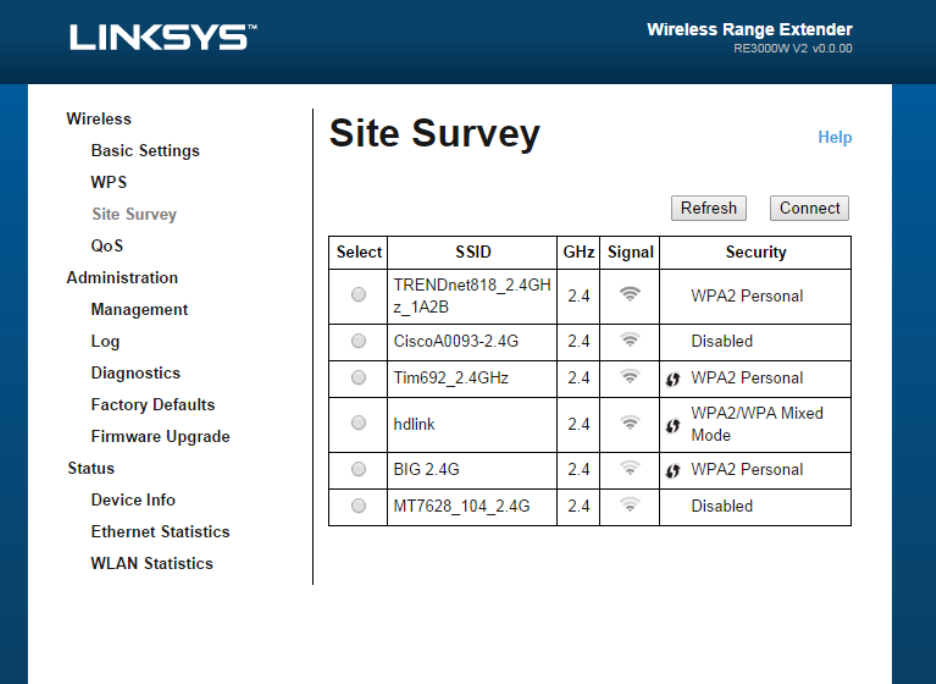

How to use Site Survey
Site Survey gives a snapshot of all neighboring access points and wireless routers
within range of the extender.
To open the Site Survey page:
1. Log in to the browser-EDVHGXWLOLW\VHH³+RZWRDFFHVVWKHEURZVHU- EDVHGXWLOLW\´
on page 5).
2. Click the Wireless tab. Click the Site Survey page.
3. Select²To connect to a wireless network, click the button next to the wireless
network name (SSID) in the Select column, and click Connect.
4. SSID²Displays the name of neighboring wireless networks.
5. GHz²Displays the radio band (in GHz) of the neighboring wireless networks
6. Signal Strength²Displays the relative position of the neighboring access points
by indicating the power of the wireless signal received: dot only = 25%, dot + one
wave = 50%, dot + two waves = 75%, dot + three waves = 100%. If no waves are
displayed, your extender is too far from the upstream access point or the signal is
blocked. Try to keep the signal strength between 60% and 100% for optimum
performance.
7. Security²Displays the mode of security in use by the neighboring APs. If a network
supports Wi-Fi Protected Setup, the Wi-Fi Protected Setup icon is also displayed.
To connect your extender with an access point or router in Site Survey, you will
need to know the password or passphrase of the network on that device.
1. Select the network name (SSID) that you want to repeat with your extender by
clicking the corresponding button in the Select column.
2. Click Connect. When prompted, enter the password or passphrase used to secure
your wireless network. The type of security information required in this screen must
PDWFK\RXUDFFHVVSRLQWRUURXWHU¶VZLUHOHVVVHFXULW\VHWWLQJV
TIP: For dual-band networks, be sure to connect to both bands, 2.4 GHz and 5 GHz.
3. Click Save. Your extender wireless parameters should be configured. The wireless
interface will restart, and the extender will connect to the access point or router you
have chosen.
__
Cross-Band
Cross-Band is the simultaneous use of both bands for high-speed data transfer and
uninterrupted streaming and gaming.
__
Troubleshooting
NOTE Your RE6700 works on 2.4GHz and 5 GHz networks.
You cannot get your extender connected
Check the position of your router and extender
x For first-time setup, you may need to place the extender closer to the router.
$IWHU\RX¶YHVHWXS\RXUH[WHQGHU\RXFDQXQSOXJLWDQGPRYHLWWRWKHILQDO
location.
x To reduce signal obstructions, try alternate locations for the router and extender.
x Avoid placing the router and extender near metal objects, masonry walls,
and reflective surfaces such as glass or mirrors.
x Avoid placing the router and extender near other electronics that may
cause signal interference.
,I\RX¶UHXVLQJ:L-Fi Protected Setup to connect, wait until the Wi-Fi Protected
Setup indicator stops blinking before trying to make the connection again.
You cannot access your range extender
To access your range extender, you must be connected to your own network. If
you currently have wireless Internet access, the problem may be that you have
accidentally connected to a different wireless network.
)RU0DFLQVWUXFWLRQVVHH³7RIL[WKHSUREOHPRQ0DFFRPSXWHUV´RQSDJH 12.
To fix the problem on Windows computers:

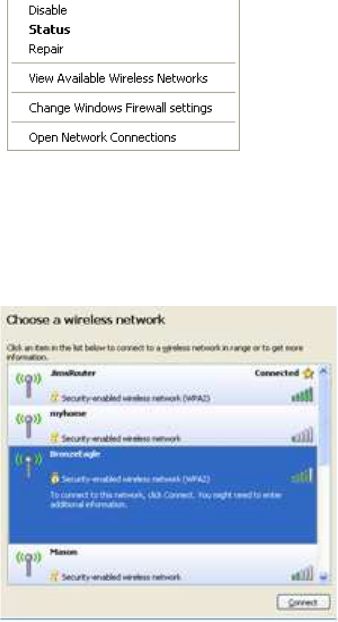

1. On your Windows desktop, right-click the wireless icon in the system tray.
The icon might look different depending on which version of Windows
you are running.
2. Click View Available Wireless Networks.
3. Select your network name. Click Connect. In the example below, the
computer was connected to another wireless network named JimsRouter.
The name of the correct network, BronzeEagle in this example, is
selected.
4. If you are prompted to enter a network key, type your password (Security
Key) into the Network key and Confirm network key fields. Click Connect.
<RXVKRXOGQRZEHDEOHWRDFFHVVWKHUDQJHH[WHQGHU¶VEURZVHU-based
utility.
To fix the problem on Mac computers:
1. In the menu bar across the top of the screen, click the Wi-Fi icon.
Linksys Connect has automatically assigned your network a name.
In the example below, the computer was connected to another wireless
network named JimsRouter. The name of the Linksys E-Series network,
BronzeEagle in this example, is selected.
2. Select the wireless network name of the router you want to connect to.
3. Type your wireless network password (Security Key) into the Password
field. Click OK.
<RXVKRXOGQRZEHDEOHWRDFFHVVWKHUDQJHH[WHQGHU¶VEURZVHU-based utility.
You have intermittent connection problems
Plug in the range extender midway between your router and the area without Wi-Fi. Be
sure you KDYHDWOHDVWRI\RXUURXWHU¶V:L-Fi signal at that point on the device you
used for setup.
Specifications
RE6300/RE6400
Model Name Linksys RE6300/RE6400
Model Description Dual-band Wireless-AC Range Extender
Model Number RE6300/RE6400
Standards IEEE 802.11ac, 802.11a, 802.11n, 802.11g,
802.11b, 802.3u
Ports Gigabit Ethernet, audio
Buttons Reset, Wi-)L3URWHFWHG6HWXS3RZHU
(European model only)
LEDs Power/Wi-Fi Protected Setup, Ethernet (link,
activity)
Antennas 2 external (non-detachable)
Wireless Security Wi-)L3URWHFWHG$FFHVV:3$:L-Fi
3URWHFWHG$FFHVV:3$:(3
Security Key Bits Up to 128-bit encryption
Environmental
Dimensions 2.64´[1.49´[4.13´67 x 38 x 105 mm)
Weight 5.12 oz (145 g)
Power 12VDC/1.0A
Certification FCC, ICES-003, RSS210, CE, Wi-Fi (IEEE
DEJQ:3$:00 Wi-Fi
3URWHFWHG6HWXS
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 10 to 80% noncondensing
Storage Humidity 5 to 90% noncondensing
Specifications are subject to change without notice.
Visit linksys.com/support for award-winning 24/7 technical support
BELKIN, LINKSYS and many product names and logos are trademarks of the Belkin
group of companies. Third-party trademarks mentioned are the property of their
respective owners. Licenses and notices for third party software used in this product may be
viewed here: http://support.linksys.com/en-us/license. Please contact
http://support.linksys.com/en-us/gplcodecenter for questions or GPL source code requests.
© 2015 Belkin International, Inc. and/or its affiliates. All rights reserved.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 22cm between the radiator &
your body.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC
regulation, all WiFi product marketed in US must fixed to US operation channels only.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de
licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible
de provoquer un fonctionnement indésirable.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à
ů͛ŝŶƚĠƌŝĞƵƌĂĨŝŶĚĞƌĠĚƵŝƌĞůĞƐƌŝƐƋƵĞƐĚĞďƌŽƵŝůůĂŐĞƉƌĠũƵĚŝĐŝĂďůĞĂƵdžƐLJƐƚğŵĞƐĚĞƐĂƚĞůůŝƚĞƐŵŽďŝůĞƐƵƚŝůŝƐĂŶƚůĞƐ
mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-Ě͕͘ƋƵ͛ŝůƐŽŶƚůĂƉƌŝŽƌŝƚĠͿƉŽƵƌůĞƐďĂŶĚĞƐϱϮϱϬ-5 350 MHz et 5 650-5 850
MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 27cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 27 cm de distance entre la source de
rayonnement et votre corps.

Navigation menu
